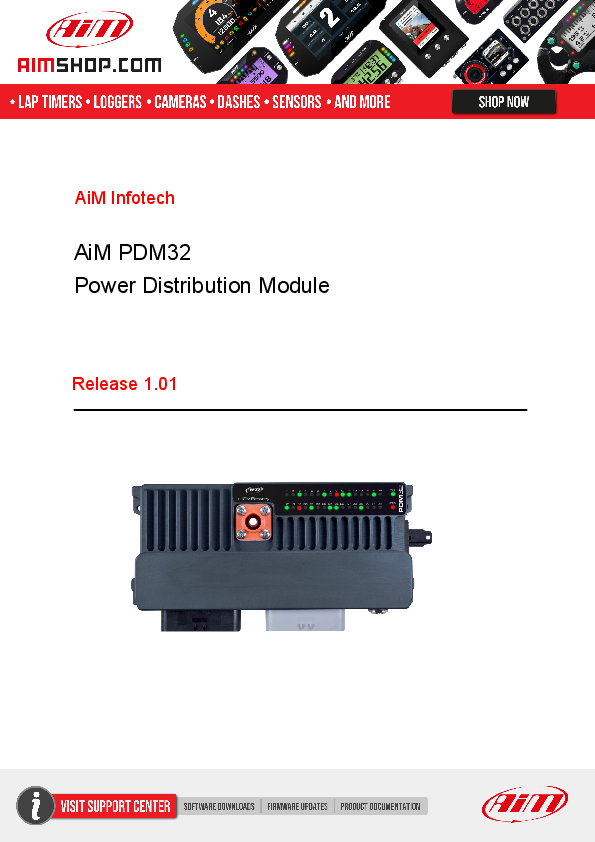

AiM Infotech AiM PDM32 Power Distribution Module Release 1.01 AiM PDM32 Power Distribution Module 94.6 [3.72] 72 [2.83] 5.6 [0.22] +12V Battery 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ON 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 STS 4x0.42 34 [1.34] PDM32 106.5 [4.19] 223 [8.78] 42.6 [1.68] 17.2 [0.68] 11.5 [0.45] 49 [1.93] aimshop.com 1/3 Ver. 1.01 AiM PDM32 Power Distribution Module Technical specifications LEDs Inputs Power outputs Lin bus CAN connections 32 RGB LEDs + 1 PDM ON + 1PDM STS (Status) 14 fully configurable, max 500 Hz each: 8 analog/digital 4 digital inputs of which 2 speed input 4 rated up to 35 A (high power) 12 rated up to 20 A (mid power) 12 rated up to 10 A (low power) 4 rated up to 30 A (half bridge) Protected for: over voltage, under voltage, over current, over temperature Total max current: 120 A 1 3 Inertial platform 3 axis �5G accelerometer + 3axis gyro + 3 axis magnetometer Internal memory 4 GB External modules GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Remote I/O pushbutton module External Analog Camera input Connectors Body 2 2 AMP connectors + 2 Binder connectors + 1 Amphenol Surlok connector + 1 Rosenberger connector Anodized Aluminum Dimensions 234.5 x 94.6 x 49.5 mm Weight 761g Waterproof IP65 aimshop.com 2/3 Ver. 1.01 AiM PDM32 Power Distribution Module Pinout LVDS Link 4 pins Rosemberger 1 male connector (external view) 2 1 - Serial data 4 2 - +V Power 3 - Serial data+ 4 - GND 3 120A Amphenol Surlok panel male connector +9-15Vdc (from battery) 35 pins AMP panel male connector pinout external view (black connector) USB 3 pins Binder 712 female connector (external view) 35 pins AMP panel male connector pinout external view (grey connector) 31 2 Video Input 5 pins Binder 712 female connector (external view) 1 - USB D+ 2 - USB D3 - GND 51 4 2 3 1 - Video input 1 2 - GND 3 - +Vb output CAM 4 - GND 5 - Video input 2 PIN DESCRIPTION PIN 1 High power output 1 19 2 Mid power output 1 20 3 Mid power output 2 21 4 Mid power output 3 22 5 Mid power output 4 23 6 Mid power output 5 24 7 Mid power output 6 25 8 Mid power output 7 26 9 Mid power output 8 27 10 GND 28 11 CAN0 Low 29 12 High power output 2 30 13 High power output 1 31 14 Low power output 1 32 15 Low power output 2 33 16 Low power output 3 34 17 Low power output 4 35 18 Low power output 5 DESCRIPTION Low power output 6 Low power output 7 Low power output 8 CAN0 High High power output 2 High power output 3 High power output 3 Channel input 11 Channel input 12 CAN2 High CAN2 Low CAN1 High/RS232TX CAN1 Low/RS232RX +Vb ext CAN +Vb out CAN High power output 4 High power output 4 PIN DESCRIPTION PIN DESCRIPTION 1 Half bridge power output 1 19 Speed 2 input 2 Half bridge power output 1 20 Speed 1 input 3 Low power output 9 21 Channel input 9 4 Mid power output 9 22 Channel input 10 5 Mid power output 10 23 Ignition 6 Low power output 10 24 Half bridge power output 3 7 Low power output 11 25 Half bridge power output 3 8 Mid power output 11 26 Channel input 1 9 Mid power output 12 27 Channel input 2 10 Low power output 12 28 Channel input 3 11 Half birdge power output 2 29 Channel input 4 12 Half birdge power output 2 30 Channel input 5 13 P GND 31 Channel input 6 14 P GND 32 Channel input 7 15 LIN 33 Channel input 8 16 +5V Analog Vreference 34 Half bridge power output 4 17 +Vb output 35 Half bridge power output 4 18 GND aimshop.com 3/3 Ver. 1.01
