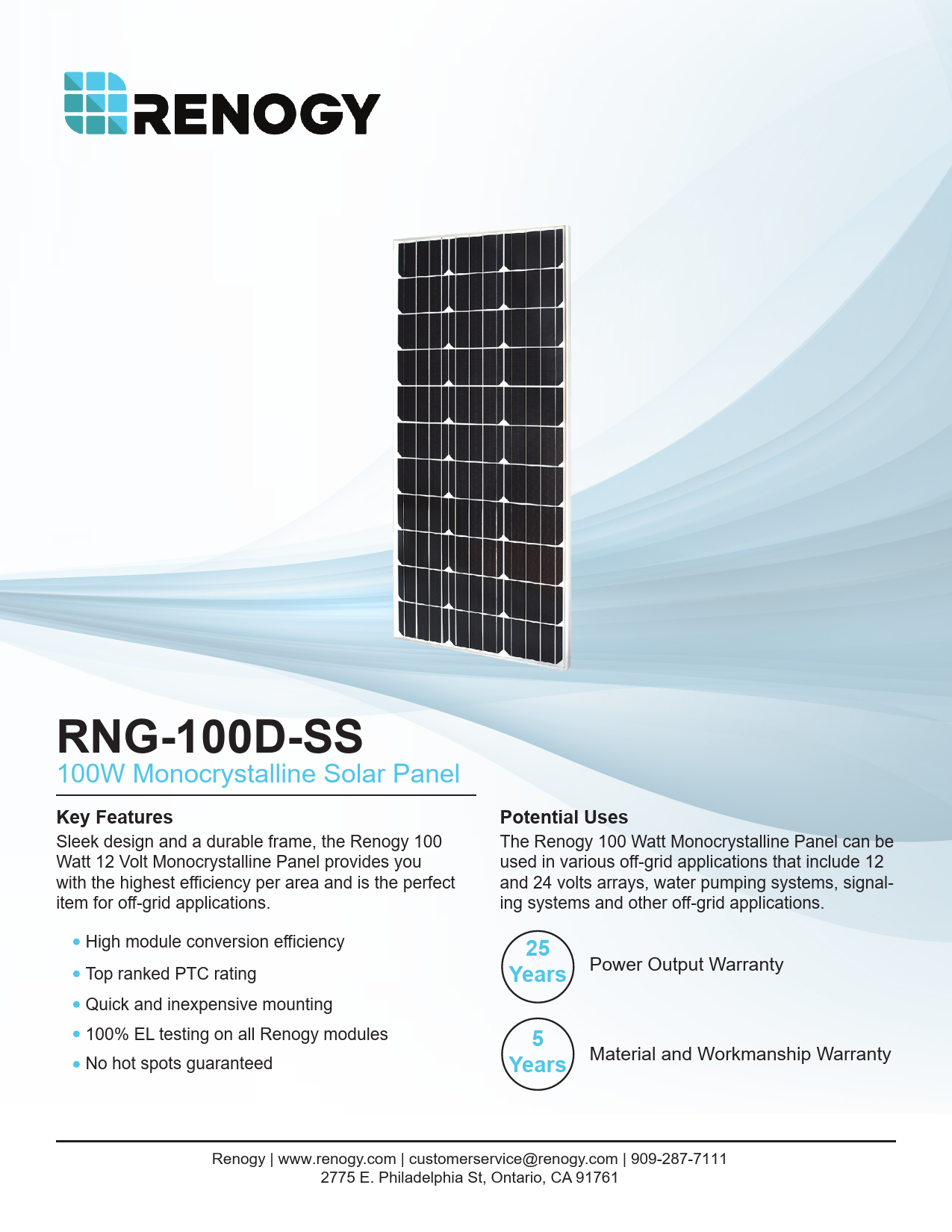

RNG-100D-SS 100W Monocrystalline Solar Panel Key Features Sleek design and a durable frame, the Renogy 100 Watt 12 Volt Monocrystalline Panel provides you with the highest efficiency per area and is the perfect item for off-grid applications. High module conversion efficiency Top ranked PTC rating Quick and inexpensive mounting 100% EL testing on all Renogy modules No hot spots guaranteed Potential Uses The Renogy 100 Watt Monocrystalline Panel can be used in various off-grid applications that include 12 and 24 volts arrays, water pumping systems, signaling systems and other off-grid applications. 25 Years Power Output Warranty 5 Years Material and Workmanship Warranty Renogy | www.renogy.com | customerservice@renogy.com | 909-287-7111 2775 E. Philadelphia St, Ontario, CA 91761 RNG-100D-SS 100W Monocrystalline Solar Panel Electrical Data Maximum Power at STC* Optimum Operating Voltage (V ) mp Optimum Operating Current (I) mp Open Circuit Voltage (V) oc Short Circuit Current)(I sc Cell Efficiency Maximum System Voltage Maximum Series Fuse Rating 100 W 17.9 V 5.72 A 21.6 V 6.24 A 21.0% 600 VDC UL 15 A Mechanical Data Solar Cell Type Monocrystalline (6.1 x 4 in) Number of Cells 33 (3 x 11) Dimensions 42.2 x 19.6 x 1.38in (1074 x 498 x 35mm) Weight 14.3 lbs 6(.5 kg) Front Glass Tempered Glass 0.13 in (3.2 mm) Frame Anodized Aluminium Alloy Connectors MC4 Connectors Fire Rating Class C Thermal Characteristics Operating Module Temperature -40ºC to +80ºC Nominal Operating Cell Temerature (NOCT) 47±2ºC Temperature Coefficient of Pmax -0.44%/ºC Temperature Coefficient of Voc -0.30%/ºC Temperature Coefficient of Isc 0.04%/ºC MC4 Connectors Rated Current Maximum Voltage Maximum AWG Size Range Temperature Range IP Rating 30A 1000VDC 10 AWG -40ºF to 194ºF IP 67 Junction Box IP Rating Diode Type Number of Diodes Output Cables IP 65 HY 10SQ050 1 Diode(s) 12 AWG (2.10 ft long) Certifications Module Diagram IV-Curve RNG-100D-SS Characteristics Versus Voltage Current (A) Power (W) Voltage (V) *All specifications and data described in this data sheet are tested underTesStaCnodnadridtions (STC - Irradiance: 1000W2/m, Temperature: 2º5 C, Air Mass: 1.5) and may deviate marginally from actual values. Renogy and any foifliiattsesafhas reserved the right to make any modifications to the information on this data sheet without notice. It is our goal to supply our customers with the most recent information regarTdhiensge oduartaproducts. sheets can be found in the downloads section of our website.,rewnwowgy.com Renogy | www.renogy.com | customerservice@renogy.com | 909 -287 -7111 2775 E. Philadelphia St, Ontario,91C7A61Adobe Illustrator CC 22.1 (Windows) Adobe PDF library 15.00
