Pow-R-Line Xpert and legacy panelboard renewal parts catalog
File info: application/pdf · 40 pages · 1.77MB
Pow-R-Line Xpert and legacy panelboard renewal parts catalog
This document contains renewal part information for Pow-R-Line Xpert and legacy panelboards.
Effective April 2021 RP01400001E Supersedes December 2020 ...
6 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy EATON www .eaton .com Table 5. 225 A lug assemblies Lug type Panel lug options a Wire size
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

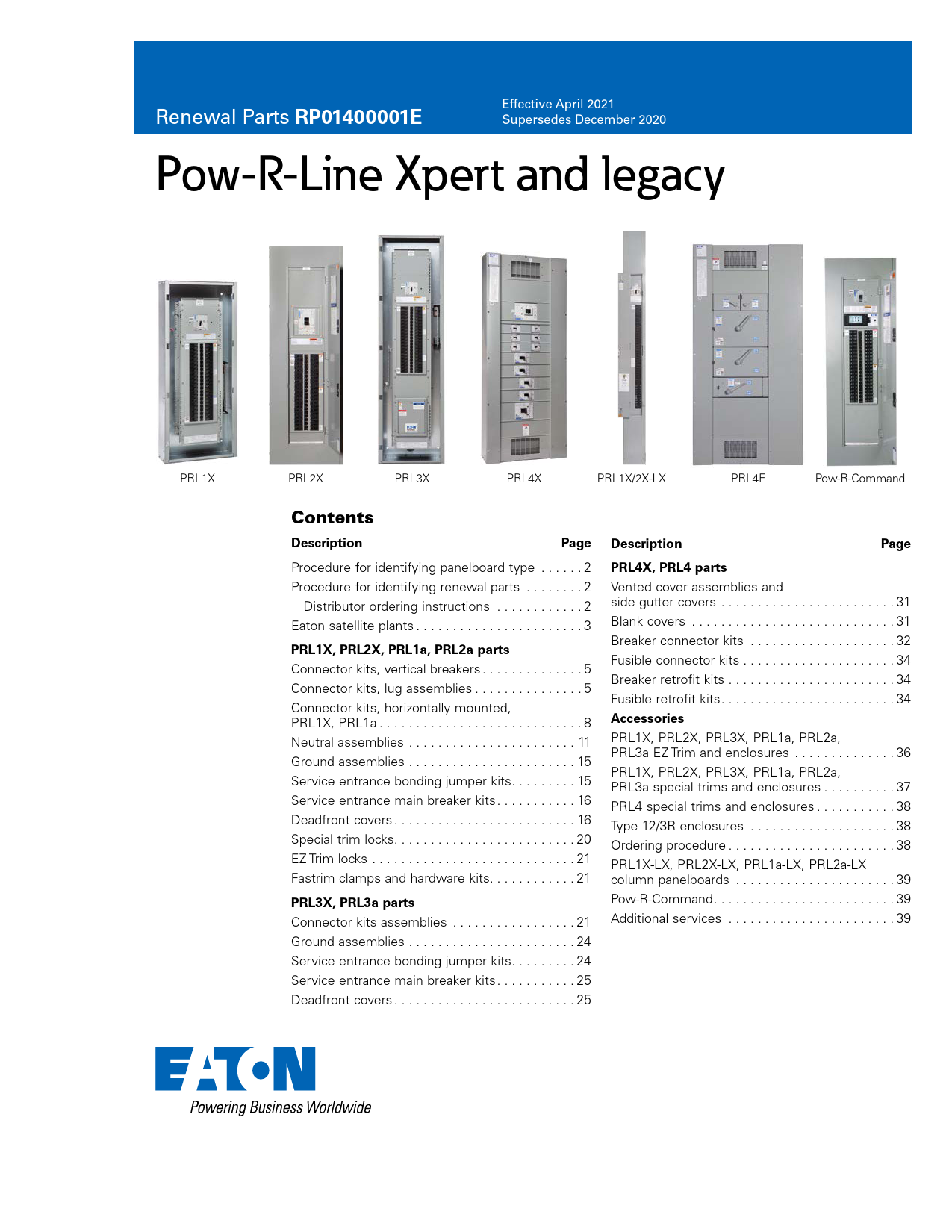

Renewal Parts RP01400001E Effective April 2021 Supersedes December 2020 Pow-R-Line Xpert and legacy PRL1X PRL2X PRL3X PRL4X PRL1X/2X-LX PRL4F Pow-R-Command Contents Description Page Procedure for identifying panelboard type . . . . . . 2 Procedure for identifying renewal parts . . . . . . . . 2 Distributor ordering instructions . . . . . . . . . . . . 2 Eaton satellite plants. . . . . . . . . . . . . . . . . . . . . . . 3 PRL1X, PRL2X, PRL1a, PRL2a parts Connector kits, vertical breakers. . . . . . . . . . . . . . 5 Connector kits, lug assemblies. . . . . . . . . . . . . . . 5 Connector kits, horizontally mounted, PRL1X, PRL1a. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Neutral assemblies. . . . . . . . . . . . . . . . . . . . . . . . 11 Ground assemblies. . . . . . . . . . . . . . . . . . . . . . . 15 Service entrance bonding jumper kits. . . . . . . . . 15 Service entrance main breaker kits. . . . . . . . . . . 16 Deadfront covers. . . . . . . . . . . . . . . . . . . . . . . . . 16 Special trim locks. . . . . . . . . . . . . . . . . . . . . . . . . 20 EZ Trim locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Fastrim clamps and hardware kits. . . . . . . . . . . . 21 PRL3X, PRL3a parts Connector kits assemblies . . . . . . . . . . . . . . . . . 21 Ground assemblies. . . . . . . . . . . . . . . . . . . . . . . 24 Service entrance bonding jumper kits. . . . . . . . . 24 Service entrance main breaker kits. . . . . . . . . . . 25 Deadfront covers. . . . . . . . . . . . . . . . . . . . . . . . . 25 Description Page PRL4X, PRL4 parts Vented cover assemblies and side gutter covers. . . . . . . . . . . . . . . . . . . . . . . . 31 Blank covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Breaker connector kits . . . . . . . . . . . . . . . . . . . . 32 Fusible connector kits. . . . . . . . . . . . . . . . . . . . . 34 Breaker retrofit kits. . . . . . . . . . . . . . . . . . . . . . . 34 Fusible retrofit kits. . . . . . . . . . . . . . . . . . . . . . . . 34 Accessories PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, PRL3a EZ Trim and enclosures . . . . . . . . . . . . . . 36 PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, PRL3a special trims and enclosures. . . . . . . . . . 37 PRL4 special trims and enclosures. . . . . . . . . . . 38 Type 12/3R enclosures . . . . . . . . . . . . . . . . . . . . 38 Ordering procedure. . . . . . . . . . . . . . . . . . . . . . . 38 PRL1X-LX, PRL2X-LX, PRL1a-LX, PRL2a-LX column panelboards . . . . . . . . . . . . . . . . . . . . . . 39 Pow-R-Command. . . . . . . . . . . . . . . . . . . . . . . . . 39 Additional services . . . . . . . . . . . . . . . . . . . . . . . 39 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy Table 1. Product history time line Product 1985 1990 PRL1X, 2X, 3X, 4X PRL1a, 2a PRL3a PRL4B/F PRL1a, 2a-LX Pow-R-CommandE 1995 2019 Present May 2020 Oct. 1996 Mar. 1994 Oct. 1987 Dec. 1997 Mar. 1996 Procedure for identifying panelboard type The current line of Pow-R-Line CE panelboards was introduced in 1993. The current line of Pow-R-Line X panelboards was introduced in 2020. A panelboard is identified by data found on the nameplate. Pow-R-Line C and Pow-R-Line X panelboard nameplates are different in appearance, but all have the same critical information: � Ampere rating of the main � Ampere rating of the neutral � Type of service (phase/wire) � Manufacturing location � Type of panel � General order number In the event the nameplate is missing, it may still be possible to identify the panel type by location of the neutral bar. Figure 1 shows the position of the neutral in the panelboard. N e u t r a l Gutter N Main Gutter N Gutter Pow-R-Line Pow-R-Line Pow-R-Line 1X, 2X, 1a, 2a 3X, 3a 4X, 4B/F Procedure for identifying renewal parts 1. Identify the type of panelboard, i.e., PRL1X, PRL2X, PRL3X, PRL4X, PRL1a, PRL2a, PRL3a, and PRL4 by reading the nameplate. Follow the procedure listed to the left. 2. Refer to the listing below and turn to the proper section in this document to identify standard parts. Description Page PRL1X, PRL2X, PRL1a, and PRL2a. . . . . . . . . . . . . . . . . . . . . . . . 4 Trim locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Trim clamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 PRL3X and PRL3a. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 PRL4X, PRL4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Special trims and enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 PRL1X-LX, PRL2X-LX, PRL1a-LX, and PRL2a-LX (column width). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Pow-R-Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 3. This book identifies those replacement parts most frequently ordered and which are readily available from stock. These parts can be ordered by style or catalog number to speed up processing and delivery. Distributor ordering instructions 1. Specify part by style/part number. 2. Refer to PL01400001E for pricing information. Discount Symbol CE9 applies. 3. Turn to page 3 to locate nearest satellite plant. 4. Enter the order on the satellite plant via mail, fax, or phone. 5. Selling policy 25-000 applies. Figure 1. Position of the neutral in the panelboard a PRL4F panels with vertical-mounted main switch will have the neutral mounted at the opposite end the main. Box width may also help identify the panelboard type. Standard width for PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, and PRL3a is 20.00 inches (508.0 mm). PRL4X and PRL4 standard widths are 24.00, 36.00, and 44.00 inches (609.6, 914.4, and 1117.6 mm). WARNING HAZARDOUS VOLTAGE WILL CAUSE SEVERE INJURY OR DEATH. TURN OFF POWER SUPPLY TO EQUIPMENT BEFORE WORKING ON IT. 2 EATON www.eaton.com Pow-R-Line Xpert and legacy Eaton satellite plants Seattle Renewal Parts RP01400001E Effective April 2021 San Francisco Los Angeles Phoenix Denver Hartford Chicago Cleveland Baltimore St. Louis Nashville Raleigh Westampton Juarez, MX Dallas Houston Sumter Atlanta Figure 2. Satellite plants For an unparalleled commitment to your specific needs, please visit your local Satellite facility. Eaton Pow-R-Line Xpert panelboards and switchboards are built to your requirements at our world-class manufacturing plants in Sumter, SC and Juarez, MX. In addition, Eaton has 16 regional Satellite facilities located across the country to meet your panelboard and switchboard service needs. Atlanta 7000 Highlands Parkway SE Suite 102 Smryna, GA 30082 678.309.4260 Denver 2450 Airport Road Suite C Aurora, CO 80011 303.366.2080 Nashville 1421 Gould Boulevard Suite C La Vergne, TN 37086 615.287.3200 Sumter Main Manufacturing Plant 845 Corporate Circle Sumter, SC 29154 803.481.3131 Baltimore 7451 Coca Cola Drive Suite C Hanover, MD 21076 410.796.7777 Chicago 230 Windy Point Drive Glendale Heights, IL 60139 630.260.6303 Cleveland 12875 Corporate Drive Unit E Parma, OH 44130 216.265.3284 Hartford 40A International Drive Windsor, CT 06095 860.298.1305 Houston 14825 Northwest Freeway Suite 100 Houston, TX 77040 713.744.7530 Juarez Prolongacion Hermanos Escobar #7014, Parque Industrial Omega Adicion Oriental Cd. Juarez, Chichauha Mexico 32648 Phoenix 560 N 54th Street Suite 1 Chandler, AZ 85226 480.449.4222 Raleigh 9400 Globe Center Drive Suite 121 Morrisville, NC 27560 919.544.7074 St. Louis 56 Soccer Park Road Fenton, MO 63026 636.717.3500 San Francisco 20923 Cabot Boulevard Hayward, CA 94545 510.784.8981 Seattle 1604 15th Street SW Suite 114 Auburn, WA 98001 253.833.5021 Westampton 96 Stemmers Lane Westampton, NJ 08060 609.835.4230 Dallas 631 Westport Parkway Suite 100 Grapevine, TX 76051 817.251.6733 Los Angeles�P&S 13201 Dahlia Street Suite 300 Fontana, CA 92337 919.428.8903 EATON www.eaton.com 3 Renewal Parts RP01400001E Effective April 2021 PRL1X, PRL2X, PRL1a, PRL2a parts section Description Page Connector kits, vertical breakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Connector kits, lug assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5�7 Connector kits, horizontally mounted. . . . . . . . . . . . . . . . . . . . . . 8�10 Neutral assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11�14 Ground assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Service entrance bonding jumper kits. . . . . . . . . . . . . . . . . . . . . . . . 15 Service entrance main breaker kits. . . . . . . . . . . . . . . . . . . . . . . . . . 16 Deadfront covers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17�19 Panelboard special trim locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Panelboard EZ Trim locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Panelboard Fastrim clamps and screw-on hardware kits . . . . . . . . . 21 PRL1X, PRL2X, PRL1a, PRL2a connector kits Table 2. PRL1X, PRL2X vertical breaker assemblies Device Type a PDG2 (100 A maximum) PDG2 (225A maximum) PDG3A (400 A) PDG3B (600 A) Device mounting Top fed Bottom fed Top fed Bottom fed Top fed Bottom fed Top fed Bottom fed Three-phase Tin-plated aluminum connector Catalog number KB13A2T KB13A2B KB23A2T KB23A2B KB43A34T KB43A34B N/A N/A a Order main or sub-feed breaker separately when ordering above connector kits. PDG3A = Adjustable PDG3B = ETU (Electronic trip unit) Silver-plated copper connector KB13S2T KB13S2B KB23S2T KB23S2B KB43S34T KB43S34B KB63S36T KB63S36B Pow-R-Line Xpert and legacy Single-phase Tin-plated aluminum connector Silver-plated copper connector KB11A2T KB11A2B KB21A2T KB21A2B KB41A14T KB41A14B N/A N/A KB11S2T KB11S2B KB21S2T KB21S2B KB41S14T KB41S14B KB61S16T KB61S16B KB11AFT 4 EATON www.eaton.com KB13AFT Pow-R-Line Xpert and legacy Table 3. PRL1a, PRL2a vertical breaker assemblies Device type a F-Frame b (100 A maximum) F-Frame c (225 A maximum) J-Frame K-Frame Device mounting Top fed Bottom fed Top fed Bottom fed Top fed Bottom fed Top fed Bottom fed a Order main or sub-feed breaker separately when ordering above connector kits. b EHD, FD, HFD, FDC. c FD, HFD, FDC, ED, EDH, EDC. Renewal Parts RP01400001E Effective April 2021 Three-phase Tin-plated Silver-plated aluminum connector copper connector Catalog number KB13AFT KB13SFT KB13AFB KB13SFB KB23AFT KB23SFT KB23AFB KB23SFB KB43AJT KB43SJT KB43AJB KB43SJB KB43AKT KB43SKT KB43AKB KB43SKB Single-phase Tin-plated Silver-plated aluminum connector copper connector KB11AFT KB11AFB KB21AFT KB21AFB KB41AJT KB41AJB KB41AKT KB41AKB KB11SFT KB11SFB KB21SFT KB21SFB KB41SJT KB41SJB KB41SKT KB41SKB Table 4. 100 A lug assemblies Lug type Aluminum/copper mechanical Crimp Copper mechanical Panel lug options a STD SFL OVS STD SFL OVS STD SFL OVS Wire size range #14�1/0 #14�1/0 #6�300 kcmil #1�1/0 #1�1/0 2/0�300 kcmil #14�1/0 #14�1/0 #6�250 kcmil a STD = Standard lugs. Use for main or through-feed. SFL = Sub-feed lugs. OVS = Oversize lugs. Use for main or through-feed. Quantity per phase 1 2 1 1 2 1 1 2 1 Three-phase Tin-plated aluminum connector Catalog number KL13AMS KL13AMF KL13AMO KL13AVS KL13AVF KL13AVO -- -- -- Silver-plated copper connector KL13SMS KL13SMF KL13SMO KL13SVS KL13SVF KL13SVO KL13SCS KL13SCF KL13SCO Single-phase Tin-plated aluminum connector KL11AMS KL11AMF KL11AMO KL11AVS KL11AVF KL11AVO -- -- -- Silver-plated copper connector KL11SMS KL11SMF KL11SMO KL11SVS KL11SVF KL11SVO KL11SCS KL11SCF KL11SCO KL13AMS KL11AVS EATON www.eaton.com 5 Renewal Parts RP01400001E Effective April 2021 Table 5. 225 A lug assemblies Lug type Aluminum/copper mechanical Crimp Copper mechanical Panel lug options a STD SFL OVS STD SFL OVS STD SFL OVS Wire size range #6�300 kcmil #6�300 kcmil 4/0�500 kcmil 2/0�300 kcmil 2/0�300 kcmil 4/0�500 kcmil #6�250 kcmil #6�250 kcmil 1/0�600 kcmil a STD = Standard lugs. Use for main or through-feed. SFL = Sub-feed lugs. OVS = Oversize lugs. Use for main or through-feed. Pow-R-Line Xpert and legacy Quantity per phase 1 2 1 1 2 1 1 2 1 Three-phase Tin-plated aluminum connector Catalog number KL23AMS KL23AMF KL23AMO KL23AVS KL23AVF KL23AVO -- -- -- Single-phase Silver-plated Tin-plated Silver-plated copper connector aluminum connector copper connector KL23SMS KL23SMF KL23SMO KL23SVS KL23SVF KL23SVO KL23SCS KL23SCF KL23SCO KL21AMS KL21AMF KL21AMO KL21AVS KL21AVF KL21AVO -- -- -- KL21SMS KL21SMF KL21SMO KL21SVS KL21SVF KL21SVO KL21SCS KL21SCF KL21SCO KL23AMS KL21AVS 6 EATON www.eaton.com Pow-R-Line Xpert and legacy Table 6. 400 A lug assemblies Lug type Aluminum/copper mechanical Crimp Copper mechanical Panel lug options a STD SFL OVS STD SFL OVS STD SFL OVS Wire size range 4/0�500 kcmil -- 3/0�750 kcmil 4/0�500 kcmil -- 500�750 kcmil 1/0�600 kcmil -- 1/0�600 kcmil a STD = Standard lugs. Use for main or through-feed. SFL = Sub-feed lugs. OVS = Oversize lugs. Use for main or through-feed. Renewal Parts RP01400001E Effective April 2021 Quantity per phase 2 -- 2 2 -- 2 1 -- 1 Three-phase Tin-plated aluminum connector Catalog number KL43AMS -- KL43AMO KL43AVS -- KL43AVO -- -- -- Single-phase Silver-plated Tin-plated Silver-plated copper connector aluminum connector copper connector KL43SMS -- KL43SMO KL43SVS -- KL43SVO -- -- KL43SCO KL41AMS -- KL41AMO KL41AVS -- KL41AVO -- -- -- KL41SMS -- KL41SMO KL41SVS -- KL41SVO -- -- KL41SCO KL43AMS KL43AVS Table 7. 600 A lug assemblies Lug type Aluminum/ copper mechanical Crimp Copper mechanical Panel lug options a STD SFL OVS STD SFL OVS STD SFL OVS Wire size range 4/0�500 kcmil -- 3/0�750 kcmil 4/0�500 kcmil -- 500�750 kcmil 1/0�600 kcmil -- 1/0�600 kcmil Three-phase connectors Single-phase connectors Tin-plated Bare aluminum copper Quantity per phase Catalog number Silver-plated Tin-plated Tin-plated Bare copper copper aluminum copper Silver-plated Tin-plated copper copper 2 -- KL63CMS KL63SMS KL63TMS -- KL61CMS KL61SMS KL61TMS -- -- -- -- -- -- -- -- -- 2 -- KL63CMO KL63SMO KL63TMO -- KL61CMO KL61SMO KL61TMO 2 -- KL63CVS KL63SVS KL63TVS -- KL61CVS KL61SVS KL61TVS -- -- -- -- -- -- -- -- -- 2 -- KL63CVO KL63SVO KL63TVO -- KL61CVO KL61SVO KL61TVO 1 -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 1 -- -- -- -- -- -- -- -- a STD = Standard lugs. Use for main or through-feed. SFL = Sub-feed lugs. OVS = Oversize lugs. Use for main or through-feed. EATON www.eaton.com 7 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy PRL1X, PRL1a horizontally mounted connector kit assemblies Table 8. Bolt-on QUICKLAGT breaker assemblies Three-phase Breaker frame Drawing number a Branch circuit quantity Tin-plated aluminum connector Item number BA, BAB, QBH, QBGF, 1C96608 12 G01 QBHGF, QBGFEP, QBHGFEP 18 G09 30 G17 42 G25 48 G33 54 G41 72 G49 96 G57 Silver-plated copper connector G03 G11 G19 G27 G35 G43 G51 G59 Single-phase Tin-plated aluminum connector G05 G13 G21 G29 G37 G45 G53 G61 a Order the basic drawing number, along with the equivalent G�number that's needed. Note: When determining branch circuit quantity, remember: 1. QUICKLAG breakers with shunt trips require one additional circuit. 2. ULT listed lighting and appliance (CTL) panelboards cannot exceed 42 electrically connected circuits in a single enclosure. 3. When bare copper is specified, use the silver-plated groups. 4. Order breakers separately with connector kit. Silver-plated copper connector G07 G15 G23 G31 G39 G47 G55 G63 1C96608G01 1C96608G05 8 EATON www.eaton.com Pow-R-Line Xpert and legacy Renewal Parts RP01400001E Effective April 2021 Table 9. Plug-in QUICKLAG breaker assemblies Breaker frame HQP, QPHW, QHPX, QPGF, QPHGF, QPGFEP, QPHGFEP Drawing number a 2C11642 Branch circuit quantity 12 18 30 42 48 54 72 96 Three-phase Tin-plated aluminum connector Item number -- -- -- -- -- -- -- -- Silver-plated copper connector Single-phase Tin-plated aluminum connector G03 -- G11 -- G19 -- G27 -- G35 -- G43 -- G51 -- G59 -- a Order the basic drawing number, along with the equivalent G�number that's needed. Note: When determining branch circuit quantity, remember: 1. QUICKLAG breakers with shunt trips require one additional circuit. 2. UL listed lighting and appliance (CTL) panelboards cannot exceed 42 electrically connected circuits in a single enclosure. 3. When aluminum is specified, use the silver-plated groups. 4. The sum of the horizontally twin-mounted breakers shall not exceed 140 A. 5. Order breakers separately with connector kit. Silver-plated copper connector G07 G15 G23 G31 G39 G47 G55 G63 2C11642G03 2C11642G07 EATON www.eaton.com 9 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy Table 10. GB, GHB, GHQ, GHBS breaker assemblies Three-phase Breaker frame Drawing number a Branch circuit quantity Tin-plated aluminum connector Item number GB, GHB, GHQ, GHBS 1C96609 12 G01 18 G09 30 G17 42 G25 48 G33 54 G41 72 G49 96 G57 Silver-plated copper connector Single-phase Tin-plated aluminum connector G03 G05 G11 G13 G19 G21 G27 G29 G35 G37 G43 G45 G51 G53 G59 G61 a Order the basic drawing number, along with the equivalent G�number that's needed. Note: When determining branch circuit quantity, remember: 1. QUICKLAG breakers with shunt trips require one additional circuit. 2. UL listed lighting and appliance (CTL) panelboards cannot exceed 42 electrically connected circuits in a single enclosure. 3. When bare copper is specified, use the silver-plated groups. 4. Order breakers separately with connector kit. Silver-plated copper connector G07 G15 G23 G31 G39 G47 G55 G63 1C96609G01 10 EATON www.eaton.com Pow-R-Line Xpert and legacy Renewal Parts RP01400001E Effective April 2021 PRL1X, PRL2X, PRL1a, PRL2a neutral assemblies Table 11. 100 A neutral assemblies a Panel main bus ampere rating 100 Neutral rating 100% 200% Lug type Mechanical Crimp Copper Mechanical Crimp Copper Drawing number b 1C96646 42C4050 1C96648 1C96649 42C4051 1C96651 Panel Wire size lug options c range STD #14�1/0 SFL/TFL #14�1/0 OVS #6�300 kcmil STD #1�1/0 SFL/TFL #1�1/0 OVS 2/0�300 kcmil STD #14�1/0 SFL/TFL #14�1/0 OVS #6�250 kcmil STD #6�300 kcmil SFL/TFL #6�300 kcmil OVS 4/0�500 kcmil STD 2/0�300 kcmil SFL/TFL 2/0�300 kcmil OVS 4/0�500 kcmil STD #6�250 kcmil SFL/TFL #6�250 kcmil OVS 1/0�600 kcmil Quantity 1 2 1 1 2 1 1 2 1 1 2 1 1 2 1 1 2 1 Tin-plated aluminum connector Item number G02 G05 G09 G01 G05 G09 -- -- -- G02 G06 G09 G01 G05 G09 -- -- -- Silver-plated copper connector G03 G07 G11 G03 G07 G11 G03 G07 G11 G03 G07 G11 G03 G07 G11 G03 G07 G11 a The assemblies shown on this page are for panelboards that mount in 30.00�90.00-inch (762.0�2286.0 mm) high enclosures only. Reference page 14 for assemblies for panelboards that mount in 21.00�27.00-inch (533.4�685.8 mm) high enclosures. b Order the basic drawing number, along with the equivalent G�number that's needed. c STD = Standard lugs. SFL/TFL = Sub-feed and through-feed lugs. OVS = Oversize lugs. 1C96646G01 EATON www.eaton.com 11 Renewal Parts RP01400001E Effective April 2021 Table 12. 225 A neutral assemblies a Panel main bus ampere rating 225 Neutral rating 100% 200% Lug type Mechanical Crimp Copper Mechanical Crimp Copper Drawing number b 1C96649 42C4051 1C96651 1C96652 42C4052 1C96654 Panel lug options c STD SFL/TFL OVS STD SFL/TFL OVS STD SFL/TFL OVS STD SFL/TFL OVS STD SFL/TFL OVS STD SFL/TFL OVS Wire size range #6�300 kcmil #6�300 kcmil 4/0�500 kcmil 2/0�300 kcmil 2/0�300 kcmil 4/0�500 kcmil #6�250 kcmil #6�250 kcmil 1/0�600 kcmil 4/0�500 kcmil -- 3/0�750 kcmil 4/0�500 kcmil -- 500�750 kcmil 1/0�600 kcmil -- 1/0�600 kcmil Quantity 1 2 1 1 2 1 1 2 1 2 -- 2 2 -- 2 1 -- 1 a The assemblies shown on this page are for panelboards that mount in 30.00�90.00-inch (762.0�2286.0 mm) high enclosures. b Order the basic drawing number, along with the equivalent G�number that's needed. c STD = Standard lugs. SFL/TFL = Sub-feed and through-feed lugs. OVS = Oversize lugs. Pow-R-Line Xpert and legacy Tin-plated aluminum connector Item number G02 G06 G09 G01 G05 G09 -- -- -- G01 G05 G09 G01 G05 G09 -- -- -- Silver-plated copper connector G03 G07 G11 G03 G07 G11 G03 G07 G11 G03 G07 G11 G03 G07 G11 G03 G07 G11 1C96649G01 12 EATON www.eaton.com Pow-R-Line Xpert and legacy Table 13. 400 A neutral assemblies a Panel main bus ampere rating 400 Neutral rating 100% Lug type Mechanical Drawing number b 1C96652 Crimp 42C4052 Copper 1C96654 Panel lug options c STD SFL/TFL OVS STD SFL/TFL OVS STD SFL/TFL OVS Wire size range 4/0�500 kcmil -- 3/0�750 kcmil 4/0�500 kcmil -- 500�750 kcmil 1/0�600 kcmil -- 1/0�600 kcmil Quantity 2 -- 2 2 -- 2 1 -- 1 a The assemblies shown on this page are for panelboards that mount in 30.00�90.00-inch (762.0�2286.0 mm) high enclosures. b Order the basic drawing number, along with the equivalent G�number that's needed. c STD = Standard lugs. SFL/TFL = Sub-feed and through-feed lugs. OVS = Oversize lugs. Renewal Parts RP01400001E Effective April 2021 Tin-plated aluminum connector Item number G01 G05 G09 G01 G05 G09 -- -- -- Silver-plated copper connector G03 G07 G11 G03 G07 G11 G03 G07 G11 1C96652G01 Table 14. 600 A neutral assemblies a Panel main bus ampere rating 600 Neutral rating 100% Lug type Mechanical Drawing number b 1C96652 Anderson -- Burndy 42C4052 Copper -- Circuit quantity 42 or less 42 or less 42 or less 42 or less Greater than 42 Panel lug options c STD TFL OVS OVS W/ TFL STD TFL OVS STD TFL OVS STD TFL OVS STD TFL OVS Tin-plated aluminum connector Bare copper Item number -- G02 -- G06 -- G10 -- G26 -- -- -- -- -- -- -- G02 -- G06 -- G10 -- -- -- -- -- -- -- -- -- -- -- -- a The assemblies shown on this page are for panelboards that mount in 30.00�90.00-inch (762.0�2286.0 mm) high enclosures. b Order the basic drawing number, along with the equivalent G�number that's needed. c STD = Standard lugs. SFL/TFL = Sub-feed and through-feed lugs. OVS = Oversize lugs. Silver-plated Tin-plated copper copper connector connector G03 G04 G07 G08 G11 G12 G27 G28 -- -- -- -- -- -- G03 G04 G07 G08 G11 G12 -- -- -- -- -- -- -- -- -- -- -- -- EATON www.eaton.com 13 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy Table 15. 100 A neutral assemblies for 21.00�27.00-inch (533.4�685.8 mm) high enclosures only a Panel main bus ampere rating 100 Neutral rating 100% Lug type Mechanical Crimp Copper 200% Mechanical Crimp Copper Drawing number b 1C96645 -- -- 1C97022 -- -- Panel lug options c STD SFL/TFL OVS STD SFL/TFL OVS STD SFL/TFL OVS STD SFL/TFL OVS STD SFL/TFL OVS STD SFL/TFL OVS Wire size range #14�1/0 #14�1/0 -- -- -- -- -- -- -- #6�300 kcmil #6�300 kcmil -- -- -- -- -- -- -- Quantity 1 2 -- -- -- -- -- -- -- 1 2 -- -- -- -- -- -- -- Tin-plated aluminum connector Item number G01 G05 -- -- -- -- -- -- -- G01 G05 -- -- -- -- -- -- -- Silver-plated copper connector G03 G07 -- -- -- -- -- -- -- G03 G07 -- -- -- -- -- -- -- a The assemblies shown on this page are for panelboards that mount in 21.00�27.00-inch (533.4�685.8 mm) high enclosures only. Reference page 11 for assemblies for panels that mount in 36.00, 48.00, 60.00, 72.00, and 90.00-inch (914.4, 1219.2, 1524.0, 1828.8, and 2286.0 mm) high enclosures. b Order the basic drawing number, along with the equivalent G�number that's needed. c STD = Standard lugs. SFL/TFL = Sub-feed and through-feed lugs. OVS = Oversize lugs. 1C96645G01 14 EATON www.eaton.com Pow-R-Line Xpert and legacy PRL1X, PRL2X, PRL1a, PRL2a ground assemblies Table 16. Standard ground Drawing number a 5158C05 Enclosure height in inches (mm) 24.00 (609.6) 36.00 (914.4), 48.00 (1219.2), 60.00 (1524.0), 72.00 (1828.8), 90.00 (2286.0) Bar material Aluminum/copper Copper Aluminum/copper Copper Item number G01 G03 G02 G04 a Order the basic drawing number, along with the equivalent G�number that's needed (example: 5158C05G01). 5158C05G01 Renewal Parts RP01400001E Effective April 2021 PRL1X, PRL2X, PRL1a, PRL2a service entrance bonding jumper kits Table 18. PRL1X, PRL2X, PRL1a, PRL2a service entrance bonding jumper kits Panel Drawing ampere number a rating Tin-plated Bare aluminum copper Item number Mechanical main lugs or main breakers 4180B62 100�225 G01 G02 4180B62 400�600 G05 G06 Compression (crimp) main lugs 4180B62 100�225 G09 G10 4180B62 400�600 G13 G14 Copper main lugs 4180B62 100�225 -- G18 4180B62 400�600 -- G22 Silverplated copper G03 G07 G11 G15 G19 G23 Tin-plated copper G04 G08 G12 G16 G20 G24 a Order the basic drawing number, along with the equivalent G�number that's needed (example: 5158C05G01). 5158C05G02 Table 17. Isolated ground Drawing number a 2C11296 Enclosure height in inches (mm) 24.00 (609.6) 36.00 (914.4), 48.00 (1219.2), 60.00 (1524.0), 72.00 (1828.8), 90.00 (2286.0) Bar material Aluminum/copper Copper Aluminum/copper Copper Item number G01 G02 G03 G04 a Order the basic drawing number, along with the equivalent G�number that's needed (example: 5158C05G01). 4180B62G01 EATON www.eaton.com 15 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy PRL1X, PRL2X, PRL1a, PRL2a service entrance main breaker kits Table 19. PRL1X, PRL2X service entrance main breaker kits Description Circuit breaker frame Service entrance barrier for PDG3 PDG3 Service entrance barrier for PDG2 PDG2 Service entrance barrier for GHB GHB Catalog number PRLSEBLGKD PRLSEBFD PRLSEBGHB Table 20. PRL1a, PRL2a service entrance main breaker kits Description Circuit breaker frame Service entrance barrier for LG and KD LG/KD Service entrance barrier for JD JD Service entrance barrier for FD FD Service entrance barrier for GHB GHB Catalog number PRLSEBLGKD PRLSEBJD PRLSEBFD PRLSEBGHB SE barrier kit FD_016 16 EATON www.eaton.com Pow-R-Line Xpert and legacy Renewal Parts RP01400001E Effective April 2021 PRL1X, PRL2X, PRL1a, PRL2a deadfront covers Note: Does not apply to PRL4 sub-chassis. Table 21. Assembly Standard enclosure height in inches (mm) Assembly drawing number a 24.00 (609.6) 36.00 (914.4) 42.00 (1066.8) 1C96638 G01 G02 G07 48.00 (1219.2) G03 a Order the basic drawing number, along with the equivalent G�number that's needed (example: 1C96638G01). 60.00 (1524.0) G04 72.00 (1828.8) G05 90.00 (2286.0) G06 Table 22. PRL1X, PRL2X, PRL1a, PRL2a vertically mounted devices Mounting arrangement Device/frame Vertical 100 A MLO, SFL, TFL or PD2 (100 A maximum) 225 A MLO, SFL, TFL or PD2 (225 A maximum) 400 A MLO, TFL or PDG3 Blank covers in inches (mm) 1.00 (25.4) 2.00 (50.8) 3.00 (76.2) 4.00 (101.6) 5.00 (127.0) 6.00 (152.4) 7.00 (177.8) 8.00 (203.2) 9.00 (228.6) 10.00 (254.0) 11.00 (279.4) 12.00 (304.8) 13.00 (330.2) 14.00 (355.6) 15.00 (381.0) 16.00 (406.4) a Order the basic drawing number, along with the equivalent H�number that's needed (example: 4180B03H01). Drawing number a 42C8072 42C8073 42C7982 4180B08 Mounting position Top Bottom Top Bottom Top Bottom -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- Item number H01 H02 H01 H04 H01 H02 H01 H02 H03 H04 H05 H06 H07 H08 H09 H10 H11 H12 H13 H14 H15 H16 1C96638G01 4180B08H03 4180B03H01 EATON www.eaton.com 17 Renewal Parts RP01400001E Effective April 2021 Table 23. PRL1a, PRL2a vertically mounted devices Mounting arrangement Device/frame Vertical 100 A MLO, SFL, TFL or F-Frame (100 A maximum) Drawing number a 42C8072 225 A MLO, SFL, TFL or F-Frame (225 A maximum) 42C8073 400 A MLO, SFL, TFL or J-Frame 4180B04 400 A MLO, TFL or K-Frame 42C7982 Blank covers in inches (mm) 1.00 (25.4) 2.00 (50.8) 3.00 (76.2) 4.00 (101.6) 5.00 (127.0) 6.00 (152.4) 7.00 (177.8) 8.00 (203.2) 9.00 (228.6) 10.00 (254.0) 11.00 (279.4) 12.00 (304.8) 13.00 (330.2) 14.00 (355.6) 15.00 (381.0) 16.00 (406.4) 4180B08 a Order the basic drawing number, along with the equivalent H�number that's needed (example: 4180B03H01). Pow-R-Line Xpert and legacy Mounting position Top Bottom Top Bottom Top Bottom Top Bottom -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- Item number H01 H02 H01 H04 H01 H02 H01 H02 H01 H02 H03 H04 H05 H06 H07 H08 H09 H10 H11 H12 H13 H14 H15 H16 18 EATON www.eaton.com Pow-R-Line Xpert and legacy Table 24. Horizontally mounted devices Mounting arrangement Device/frame Horizontal BA, BAB, QBH, QBGF, QBHGF, QBGFEP, QBHGFEP Drawing number a 1C96619 GB, GHB, GHQ, GHBS 1C96620 a Order the basic drawing number, along with the equivalent H�number that's needed (example: 1C96619H01). Renewal Parts RP01400001E Effective April 2021 Branch circuit quantity 12 18 30 42 48 54 72 96 12 18 30 42 48 54 72 96 Item number H01 H02 H04 H06 H03 H03 and H04 H05 H07 H01 H02 H04 H06 H03 H03 and H04 H05 H07 Quantity required 1 1 1 1 2 1 each 2 2 1 1 1 1 2 1 each 2 2 1C96619H01 Table 25. Filler covers Device/frame F, J, K a QUICKLAG, GB, GHB b Drawing number 4180B52 5155C62 a Filler covers are required in addition to deadfront cover whenever MLO, SFL or TFL are specified. b Filler covers are required in addition to deadfront cover whenever a branch provision is specified. 1C96620H01 Item number H01 H01 5155C62H01 4180B52H01 EATON www.eaton.com 19 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy Panelboard special trim locks Panelboard trims use different trim locks. See pictures below for styles and part numbers. Contact your nearest satellite for availability on the styles listed below. See page 3 for satellite listings. Table 26. Panelboard special trim locks Description For use on left-handed door (hinged on left side) For use on right-handed door (hinged on right side) T�Handle lock, at one time used on all trims over 48.00 inches (1219.2 mm) in height, also used on outdoor NEMAT 12/3R trims Used on PRL4X and PRL4 lighting and power panels as standard Used on PRL1X, 2X, 3X, PRL1, 2, 3 and PRL1a, 2a, 3a lighting panels as standard; WEM 2 key Catalog number K80522 K80133 K80429 1A32258H03 5155C81G01 K80522 K80133 K80429 5155C81G01 1A32258H03 20 EATON www.eaton.com Pow-R-Line Xpert and legacy Renewal Parts RP01400001E Effective April 2021 Panelboard EZ Trim locks Panelboard EZ TrimE uses different trim locks. See Table 27 and pictures below for styles and part numbers. Contact your nearest satellite for availability. See page 3 for satellite listings. Table 27. Panelboard EZ Trim locks Description Lock Lock and latch Lock and latch Size 24�48 inches 54�60 inches 72�90 inches Catalog number 5155C81G03 5155C81G03/5155C81G05 5155C81G04/5155C81G06 EZ Trim lock with key EZ Trim latch without key Panelboard Fastrim clamps and screw-on hardware kits For panelboard trim clamps, contact your nearest satellite for availability on the styles listed below. See page 3 for satellite listings. Table 28. Panelboard Fastrim clamps and screw-on hardware kits Description Trim clamps--used on PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, PRL3a Fastrims (6 per bag) Trim screws--used on PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, PRL3a, PRL4B standard trim (10 per bag) Chassis mounting hardware bag--PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, PRL3a panels Style number 2C11641G02 5157C83G06 7499A48G04 2C11641G02 5157C83G06 7499A48G04 EATON www.eaton.com 21 Renewal Parts RP01400001E Effective April 2021 PRL3X, PRL3a parts section Description Page Connector kit assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Ground assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Service entrance kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Deadfront covers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25�29 Pow-R-Line Xpert and legacy PRL3X, PRL3a horizontally mounted connector kit assemblies Three-phase kits contain A, B, and C phase connectors. Single-phase kits contain A and C phase connectors, deadfront cover, hardware and instructions to twin-mount breakers across from each other. Maximum amperes connected to any one connector cannot exceed 200 A. Table 29. PRL3X horizontally mounted connector kit assemblies Devices Circuits or poles Three-phase Catalog number BA, BAB, QBGF, QBH, QBHGF, QBGFEP, QBHGFEP 6 KPRL3XBA06 12 KPRL3XBA12 18 KPRL3XBA18 24 KPRL3XBA24 GB, GHB, GHQ, GHBS 6 KPRL3XGB06 12 KPRL3XGB12 18 KPRL3XGB18 24 KPRL3XGB24 Phase A/B/C A/B/C A/B/C A/B/C A/B/C A/B/C A/B/C A/B/C Single-phase Catalog number KPRL3XBA06-1 KPRL3XBA12-1 KPRL3XBA18-1 KPRL3XBA24-1 KPRL3XGB06-1 KPRL3XGB12-1 KPRL3XGB18-1 KPRL3XGB24-1 Phase A/C A/C A/C A/C A/C A/C A/C A/C Notes (2) 100 A devices maximum Table 30. PRL3a horizontally mounted connector kit assemblies Devices Circuits or poles Three-phase Catalog number BA, BAB, QBGF, QBH, QBHGF, QBGFEP, QBHGFEP 6 KPRL3ABA06 12 KPRL3ABA12 18 KPRL3ABA18 24 KPRL3ABA24 GB, GHB, GHQ, GHBS 6 KPRL3AGB06 12 KPRL3AGB12 18 KPRL3AGB18 24 KPRL3AGB24 Phase A/B/C A/B/C A/B/C A/B/C A/B/C A/B/C A/B/C A/B/C Single-phase Catalog number KPRL3ABA06-1 KPRL3ABA12-1 KPRL3ABA18-1 KPRL3ABA24-1 KPRL3AGB06-1 KPRL3AGB12-1 KPRL3AGB18-1 KPRL3XGB24-1 Phase A/C A/C A/C A/C A/C A/C A/C A/C Notes (2) 100 A devices maximum KPRL3ABA06 22 EATON www.eaton.com KPRL3AGB06 Pow-R-Line Xpert and legacy Renewal Parts RP01400001E Effective April 2021 PRL3X, PRL3a, PDG2, F-Frame horizontally mounted connector kit assemblies Connector kits contain phase connectors, deadfront cover, hardware, and instructions to mount breakers. Order breakers separately when ordering connector kit. Table 31. PRL3X, PDG2 Frame horizontally mounted connector kit assemblies Devices PDG2 (175�225 A single mount) a PDG2 (150 A maximum twin mount) Circuits or poles Three-pole breaker Two-pole breaker Three-pole breaker Two-pole breaker Single-pole breaker Three-phase Catalog number KPRL3X23 KPRL3X22 KPRL3X23T KPRL3X22T KPRL3X21T Phase A/B/C A/C A/B/C A/C A/C Single-phase Catalog number -- KPRL3X22 -- KPRL3X22T KPRL3X21T a PDG2 Frame devices rated above 150 A must be single mounted. No twin mounting acceptable. Phase -- A/C -- A/C A/C Notes (1) 225 A maximum single mounted (2) 150 A devices maximum Table 32. PRL3a F-Frame horizontally mounted connector kit assemblies Devices EHD, FD, FDB, HFD, FDC (150 A maximum twin mount) FD, HFD, FDC, ED, EDH, EDC (175�225 A single mount) a Circuits or poles Three-pole breaker Two-pole breaker Single-pole breaker Three-pole breaker Two-pole breaker Three-phase Catalog number KPRL3AFD3 KPRL3AFD2 KPRL3AFD1 KPRL3AED3 KPRL3AED2 Phase A/B/C A/C A/C A/B/C A/C a PDG2-Frame devices rated above 150 A must be single mounted. No twin mounting acceptable. Single-phase Catalog number -- KPRL3AFD2 KPRL3AFD1 -- KPRL3AED2 Phase -- A/C A/C -- A/C Notes (2) 150 A devices maximum (1) 225 A maximum single mounted KPRL3AFD3 EATON www.eaton.com 23 Renewal Parts RP01400001E Effective April 2021 PRL3X, PRL3a ground assemblies Table 33. PRL3X, PRL3a ground assemblies Standard Material Catalog number Aluminum/copper 5158C05G02 Copper only 5158C05G04 Pow-R-Line Xpert and legacy Isolated 2C11296G02 2C11296G04 5158C05G02 PRL3X, PRL3a service entrance bonding jumper kits Table 34. PRL3X, PRL3a service entrance bonding jumper kits Style number a Panel ampere rating Mechanical main lugs or main breakers 5078A98 100 250�600 Crimp main lugs 5078A98 100 250�600 Copper main lugs 5078A98 100 250�600 Tin-plated aluminum Item number G01 G13 G05 G17 G09 G21 a When ordering, use complete style number (example: 100 A tin-plated aluminum 5078A98G01). Bare copper G02 G14 G06 G18 G10 G22 Silver-plated copper Tin-plated copper G03 G04 G15 G16 G07 G08 G19 G20 G11 G12 G23 G24 5078A98G01 24 EATON www.eaton.com Pow-R-Line Xpert and legacy PRL3X, PRL3a service entrance main breaker kits Table 35. PRL3X service entrance main breaker kits Description Circuit breaker frame Service entrance barrier for PDF3/PDG3 PDF3/PDG3 Service entrance barrier for PDG2 PDG2 Service entrance barrier for GHB GHB Table 36. PRL3a service entrance main breaker kits Description Circuit breaker frame Service entrance barrier for LG and KD LG/KD PDF3/PDG3 Service entrance barrier for JD JD Service entrance barrier for FD FD PDG2 Service entrance barrier for GHB GHB Renewal Parts RP01400001E Effective April 2021 Catalog number PRLSEBPD3 PRLSEBPD2 PRLSEBGHB Catalog number PRLSEBLGKD PRLSEBJD PRLSEBFD PRLSEBGHB SE Barrier Kit FD_016 PRL3X, PRL3a deadfront covers Table 37. Assembly a Style number b 6559C59 Chassis height/item number 14X 23X G01 G02 31X G03 40X G04 53X G05 a Assembly groups include the frame only (two rails and two end covers). Reference page 29 for specific device covers. All connector kits ship with a deadfront cover for that device. b When ordering, use complete style number (example: 14X high assembly 6559C59G01). 6559C59G01 EATON www.eaton.com 25 Renewal Parts RP01400001E Effective April 2021 PRL3X, PRL3a vertical devices deadfront covers Table 38. PRL3X vertical devices deadfront covers Device/frame PDG2xF, PDG2xG, PDG2xM, PDG2xP, PDD2xG, PDD2xM, PDD2xP, (top) b PDG2xF, PDG2xG, PDG2xM, PDG2xP, PDD2xG, PDD2xM, PDD2xP, (bottom) b PDG2xG, PDG2xM, PDG2xP, PDD2xG, PDD2xM, (top) c PDG2xG, PDG2xM, PDG2xP, PDD2xG, PDD2xM (bottom) c PDG3 400A (top) PDG3 400 A (bottom) PDG3 600 A (top) PDG3 600 A (bottom) Neutral/blank cover Trip unit type -- -- -- -- Thermal-magnetic PXR Thermal-magnetic PXR -- Style number a 42C8076 42C8076 42C8077 42C8077 42C7980 42C7980 42C8055 42C8055 4176B72 a When ordering covers, order complete style and item numbers (example: 4176B68H01). b 4/0 maximum acceptable terminal size. c 300 kcmil maximum acceptable terminal size. Pow-R-Line Xpert and legacy "X" space required 7X Item number Without lock-offs a H01 With lock-offs a H01 7X H02 H02 10X H01 H01 10X H02 H02 15X H01 H01 15X H02 H02 18X H01 N/A 18X H02 N/A 1X H01 -- 2X H02 -- 3X H03 -- 4X H04 -- 5X H05 -- 6X H06 -- 7X H07 -- 8X H08 -- 9X H09 -- 10X H10 -- 11X H11 -- 12X H12 -- J main 4176B60H04 Neutral blank cover 4176B72H04 26 EATON www.eaton.com Pow-R-Line Xpert and legacy Renewal Parts RP01400001E Effective April 2021 Table 39. PRL3a vertical devices deadfront covers Device/frame EHD, FD, FDB, HFD, FDC, ED, EDH, EDC (top) b EHD, FD, FDB, HFD, FDC, ED, EDH, EDC (bottom) b FD, HFD, FDC, ED, EDH (top) c Trip unit type -- -- -- FD, HFD, FDC, ED, EDH (bottom) c -- J-Frame (bottom) -- J-Frame (top) -- K-Frame (bottom) Thermal-magnetic K-Frame (bottom) K-Frame (top) K-Frame (top) Electronic Thermal-magnetic Electronic L-Frame (bottom) L-Frame (bottom) L-Frame (top) Thermal-magnetic Electronic Thermal-magnetic L-Frame (top) FB-P (top only) LA-P (top only) Electronic -- -- FCL -- LCL (top) -- LCL (bottom) -- Neutral/blank cover -- -- -- -- -- -- -- -- -- -- -- -- J-Frame sub-feed twin bottom -- -- -- J-Frame sub-feed twin top -- -- -- Bolt switch PT363 (switch, pullout, 100 A maximum) (top) -- PT363 (switch, pullout, 100 A maximum) (bottom) -- PT364 (switch, pullout, 200 A maximum) (top) -- PT364 (switch, pullout, 200 A maximum) (bottom) -- a When ordering covers, order complete style and item numbers (example: 4176B68H01). b 4/0 maximum acceptable terminal size. c 300 kcmil maximum acceptable terminal size. Style number a 42C8076 42C8076 42C8077 42C8077 4176B60 4176B60 4176B61 4176B61 4176B61 4176B61 4176B51 4176B51 4176B51 4176B51 4176B70 4176B57 4176B70 4176B56 4176B56 4176B72 4176B72 4176B72 4176B72 4176B72 4176B72 4176B72 4176B72 4176B72 4176B72 4176B72 4176B72 4176B79 4176B79 4176B79 4176B79 4176B79 4176B79 "X" space required 7X 7X 10X 10X 14X 14X 15X 15X 15X 15X 17X 17X 17X 17X 9X 21X 9X 21X 21X 1X 2X 3X 4X 5X 6X 7X 8X 9X 10X 11X 12X 20X 20X 20X 20X 20X 20X Item number Without lock-offs a H01 H02 H01 H02 H01 H03 H01 H03 H05 H07 H01 H03 H05 H07 H02 H01 H01 H01 H03 H01 H02 H03 H04 H05 H06 H07 H08 H09 H10 H11 H12 H01 H01 H01 H05 H05 H05 With lock-offs a H01 H02 H01 H02 H02 H04 H02 H04 H06 H08 H02 H04 H06 H08 H02 H01 H01 H02 H04 -- -- -- -- -- -- -- -- -- -- -- -- H02 (2 L/O) H03 (1 L/O RT) H04 (1 L/O LT) H05 (2 L/O) H07 (1 L/O RT) H08 (1 L/O LT) 4180B79 7X 4180B79 7X 4180B79 9X 4180B79 9X H01 -- H02 -- H03 -- H04 -- EATON www.eaton.com 27 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy PRL3X, PRL3a horizontal devices deadfront covers Table 40. PRL3X horizontal mounting position Device/frame Device poles PDG2 (twin mounted) 1, 2 or 3 PDG2 (twin mounted) 1 or 2 PDG2 (twin mounted) PDG2 (single mounted) PDG2 (single mounted) BA, BAB, BABRP, BABRSP, QBH, QBGF, QBGFEP, QBHGFEP 1 2 3 1, 2 or 3 GB, GHB, GHBS, GHBGFEP, HGHB, GHQ 1, 2 or 3 Pow-R-Command Controller -- Pow-R-Command Expansion -- a When ordering covers, order complete style and item number (example: 4178B08H01). Style number a 42C8078 42C8079 42C8080 42C8081 42C8082 4176B67 4176B69 4180B91 4180B91 Total circuit quantity 6 12 18 24 30 36 42 48 4 8 12 16 20 24 28 32 2 2 3 6 12 18 24 6 12 18 24 -- -- -- "X" space required 3X 6X 9X 12X 15X 18X 21X 24X 2X 4X 6X 8X 10X 12X 14X 16X 1X 2X 3X 3X 5x 8x 10x 3X 5x 8X 10X 5X 7X 16X Item number H01 H02 H03 H04 H05 H06 H07 H08 H01 H02 H03 H04 H05 H06 H07 H08 H01 H01 H01 H01 H02 H03 H04 H01 H02 H03 H04 H01 H02 H03 28 EATON www.eaton.com Pow-R-Line Xpert and legacy Renewal Parts RP01400001E Effective April 2021 Table 41. PRL3a horizontal mounting position Device/frame EHD, FD, FDB, HFD, FDC (twin mounted) EHD, FD, FDB, HFD, FDC (twin mounted) EHD, FD, FDB, HFD, FDC (twin mounted) FD, HFD, FDC, ED, EDH, EDC (single mounted) FD, HFD, FDC, ED, EDH, EDC (single mounted) CA, CAH, HCA CA, CAH, HCA BA, BAB, BABRP, BABRSP, QBH, QBGF, QBGFEP, QBHGFEP GB, GHB, GHBS, GHBGFEP, HGHB, GHQ Pow-R-Command Controller Pow-R-Command Expansion Device poles 1, 2 or 3 1 or 2 1 2 3 3 2 1, 2 or 3 1, 2 or 3 -- -- Style number a 42C8078 42C8079 42C8080 42C8081 42C8082 4176B66 4176B80 4176B67 4176B69 4180B91 4180B91 Total circuit quantity 6 12 18 24 30 36 42 48 4 8 12 16 20 24 28 32 2 2 3 3 2 6 12 18 24 6 12 18 24 -- -- a When ordering covers, order complete style and item number (example: 4178B08H01). "X" space required 3X 6X 9X 12X 15X 18X 21X 24X 2X 4X 6X 8X 10X 12X 14X 16X 1X 2X 3X 3X 2X 3X 5X 8X 10X 3X 5X 8X 10X 5X 7X 16X Item number H01 H02 H03 H04 H05 H06 H07 H08 H01 H02 H03 H04 H05 H06 H07 H08 H01 H01 H01 H01 H01 H01 H02 H03 H04 H01 H02 H03 H04 H01 H02 H03 EATON www.eaton.com 29 Renewal Parts RP01400001E Effective April 2021 PRL3X, PRL3a deadfront cover blank fillers Table 42. PRL3X deadfront cover blank fillers Device/frame Poles PDG2 1, 2 or 3 QUICKLAG, GB, GHB, GHBS 1, 2 or 3 Table 43. PRL3a deadfront cover blank fillers Device/frame Poles F-Frame 1, 2 or 3 C-Frame 2 C-Frame 3 QUICKLAG, GB, GHB, GHBS 1, 2 or 3 Pow-R-Line Xpert and legacy Style number 42C8083H01 5155C62H01 Style number 42C8083H01 6555C40H01 6555C41H01 5155C62H01 BAB Cover 4176B67H01 30 EATON www.eaton.com Pow-R-Line Xpert and legacy PRL4X, PRL4 parts section Description Page Vented cover assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Blank covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Breaker connector kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Fusible connector kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Breaker and fusible switch retrofit kits. . . . . . . . . . . . . . . . . . . . 34�35 PRL4 special trims and enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . 38 PRL4 vented cover assemblies Nameplate Top vented cover Blank cover Side gutter covers Extension wings Device cover Renewal Parts RP01400001E Effective April 2021 Bottom vented cover PRL4X PRL4F Table 44. Vented cover assemblies and side gutter covers--dimensions in inches (mm) NEMA 1 box Height 57.00 (1447.8) 73.00 (1854.2) 90.00 (2286.0) 73.00 (1854.2) 90.00 (2286.0) 73.00 (1854.2) 90.00 (2286.0) Width 24.00 (609.6) 24.00 (609.6) 24.00 (609.6) 36.00 (914.4) 36.00 (914.4) 44.00 (1117.6) 44.00 (1117.6) Depth a 10.40 (264.2) Catalog number BX2457 BX2473 BX2490 BX3673 BX3690 BX4473 BX4490 Vented cover assembly b style number 6574C74G02 6574C74G03 6574C74G04 6574C74G05 6574C74G06 6574C74G05 6574C74G06 Side gutter covers Left Size 5.00 (127.0) x 57.00 (1447.8) 5.00 (127.0) x 73.00 (1854.2) 5.00 (127.0) x 90.00 (2286.0) 6.00 (152.4) x 73.00 (1854.2) 6.00 (152.4) x 90.00 (2286.0) 8.00 (203.2) x 73.00 (1854.2) 8.00 (203.2) x 90.00 (2286.0) Style number 6555C20H01 6555C21H01 6555C25H01 6555C22H01 6555C26H01 6555C23H01 6555C27H01 a Covers add 0.90 inches (22.9 mm) to box depth for overall enclosure depth of 11.30 inches (287.0 mm). b Cover assembly consists of two side rails, top and bottom vented covers. Important: Order individual device covers and blanks separately. Right Size Style number 5.00 (127.0) x 57.00 (1447.8) 6555C20H01 5.00 (127.0) x 73.00 (1854.2) 6555C21H01 5.00 (127.0) x 90.00 (2286.0) 6555C25H01 8.00 (203.2) x 73.00 (1854.2) 6555C23H01 8.00 (203.2) x 90.00 (2286.0) 6555C27H01 14.00 (355.6) x 73.00 (1854.2) 6555C24H01 14.00 (355.6) x 90.00 (2286.0) 6555C28H01 EATON www.eaton.com 31 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy PRL4 blank covers Used to cover blank space on chassis. All PRL4X and PRL4 cover heights are measured in "X" units. 1X equals 1.38 inches (35.1 mm). Table 45. PRL4 blank covers Style number Cover size 24.00-inch (609.6 mm) width box 1X 6554C01H01 2X 6554C01H02 3X 6554C01H03 4X 6554C01H13 5X 6554C01H14 6X 6554C01H04 7X 6554C01H05 9X 6554C01H06 10X 6554C01H07 11X 6554C01H08 12X 6554C01H09 13X 6554C01H10 15X 6554C01H11 20X 6554C01H12 36.00, 44.00-inch (914.4, 1117.6 mm) width box 6554C02H01 6554C02H02 6554C02H03 6554C02H13 6554C02H14 6554C02H04 6554C02H05 6554C02H06 6554C02H07 6554C02H08 6554C02H09 6554C02H10 6554C02H11 6554C02H12 Neutral 1200 A MLO PRL4 breaker connector kits Breaker connector kits Each kit includes copper connectors, mounting brackets, covers, hardware, and instructions for mounting breaker(s) in a PRL4X and PRL4. Breakers are not included. Contact your local satellite plant for availability and application information (see page 3). Connector kit Each kit includes copper connectors mounting brackets, cover, hardware, and instructions. Table 46. PRL4 breaker connector kits Breaker frame PDG2 PDG2 PDG3 (400 A Frame) (single mtg) PDG3 (400 A Frame) (twin mtg) PDG3 (600 A Frame) PDG4 PDG5 Space required Inches (mm) "X" 2.75 (69.9) 2X 4.13 (104.9) 3X 5.50 (139.7) 4X Number of poles 1 a 2 3 3 Connector Mounting kit catalog type number Twin KPRL4X12 Twin KPRL4X22 Twin KPRL4X32 Single KPRL4X334S b 5.50 (139.7) 4X 3 Twin KPRL4X334T c 5.50 (139.7) 4X 3 8.25 (209.6) 6X 3 8.25 (209.6) 6X 3 Single Single Single KPRL4X336 b KPRL4X34 b KPRL4X35 b a Two sets of twin-mounted single-pole breakers. b 36.00-inch (914.4 mm) minimum box width required. c 44.00-inch (1117.6 mm) box width required. Twin-mounted breakers PRL4B Interior Breaker provision Space only 32 EATON www.eaton.com Connector kit Pow-R-Line Xpert and legacy Table 47. PRL4 breaker connector kits Breaker frame EHD/FDB/FD/HFD/FDC EHD/FDB/FD/HFD/FDC/ED/EDH/EDC/EHD/FDB/FD/HFD/FDC/FDB ED/EDH/EDC /FDE/HFDE/FDCE ED/EDH/EDC/EDB/EDS FD current limiter (available in single mounting only) CA/CAH/HCA CA/CAH/HCA JD, JDB, HJD, JDC JD, JDB, HJD, JDC FCL, FB-P, FD/LFD DK, KD, KDB, HKD, KDC DK, KD, KDB, HKD, KDC LC/LCY/HLC/LD/HLD/LDC/LDB [LA] LGE/LGS/LGHLGC/LGU LHH MDS/MC/MCY/HMC [MA/HMA] MDL/HMDL LA-P LCL NB-P NC/NCY/HNC [NB/HNB] ND/HND/NDC/NGS/NGH/NGC NHH 100% rated breakers CKD/CHKD/CKDC CLD/CHLD/CLDC LCC/HLCC MCC/HMCC MDSC CMDL/CHMDL CND/CHND/CNDC/NGS-C/NGH-C/NGC-C a Two sets of twin-mounted single-pole breakers. b 36.00-inch (914.4 mm) minimum box width required. c 44.00-inch (1117.6 mm) box width required. d Requires density rated bus in existing panel chassis. Space required Inches (mm) "X" 2.75 (69.9) 2X 2.75 (69.9) 2X 4.13 (104.9) 3X 4.13 (104.9) 3X 4.13 (104.9) 3X 2.75 (69.9) 2X 4.13 (104.9) 3X 4.13 (104.9) 3X 4.13 (104.9) 3X 4.13 (104.9) 3X 5.50 (139.7) 4X 5.50 (139.7) 4X 8.25 (209.6) 6X 8.25 (209.6) 6X 5.50 (139.7) 4X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X 5.50 (139.7) 4X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X 8.25 (209.6) 6X Renewal Parts RP01400001E Effective April 2021 Number of poles 1 a 2 3 3 3 2 3 2, 3 2, 3 3 2, 3 2, 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 Mounting type Twin Twin Twin Twin Single Twin Twin Single Twin Twin Single Twin Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Connector kit catalog number KPRL4X12 KPRL4X22 KPRL4X32 KPRL4X32 KPRL4FDCL KPRL4CA b KPRL4CA KPRL4JDS KPRL4JDT b KPRL4FBP KPRL4KDS b KPRL4KDT c KPRL4LC b KPRL4X336 b KPRL4LG b KPRL4MC b KPRL4X34 b KPRL4LAP b KPRL4LCL b KPRL4NBP b KPRL4NC b KPRL4X35 b KPRL4ND b KPRL4CKD cd KPRL4LC cd KPRL4LC cd KPRL4MC cd KPRL4MC cd KPRL4MD cd KPRL4CND cd Hardware kit Each kit includes mounting bracket(s) and mounting hardware only. Use the appropriate connector kit catalog number and add an "H" to designate hardware only (example: KPRL4X32-H). Standard ground bus Copper bus with (3) 6�300 kcmil lugs plus a 24-circuit terminal bar with #14�1/0 wire range. Hardware kit 6572C746G01 EATON www.eaton.com 33 Renewal Parts RP01400001E Effective April 2021 PRL4 fusible connector kits Fusible switch connector kits Each kit includes copper connectors, extension wings (when required), hardware, and instructions to mount a fusible switch. Switches are not included. Contact your local satellite plant for availability and application information (see page 3). Table 48. Fusible switch connector kits Switch height "X" Switch Inches space ampere (mm) required rating 5.50 4X (139.7) 30�30 60�60 100�100 6.88 5X (174.8) 100�100 8.25 6X (209.6) 12.38 9X (314.5) 15.13 11X (384.3) 200 200�200 400 600 800 20.63 15X 1200 (524.0) Three-pole switch 240 V 600 V Catalog number FDPWT3211R FDPWT3611R FDPWT3222R FDPWT3622R FDPWT3233R -- -- FDPWT3633R FDPBS324R FDPBT3244R FDPW325R FDPBS364R FDPBT3644R FDPW365R FDPW326R FDPW327 FDPW328 FDPW366R FDPW367 FDPW368 Connector kit -- KPRL44X a -- KPRL45X1 KPRL4B6XS KPRL4B6XT b KPRL4W9X KPRL4W11X KPRL4W11X b KPRL4W15X b a These connector kits will fit the FDP and FDPW switches. b 44.00-inch (1117.6 mm) box width required for both R and J fuse applications. Pow-R-Line Xpert and legacy PRL4 breaker and fusible switch retrofit kits Breaker retrofit kits Each kit includes one breaker, copper connectors, covers, hardware, and instructions to mount in a PRL4X and PRL4. Table 49. PRL4X breaker retrofit kits Breaker frame Frame Trip ampere rating range PG2 100 PG2 150 PG2/PD2 225 PD3/PG3 400 PG3/PF3 600 PG4/PF4 800 PG5/PF5 1200 15�100 110�150 110�225 100�400 300�600 300�800 600�1200 Mounting type Twin Twin Twin Twin/single Single Single Single Table 50. PRL4 breaker retrofit kits Breaker frame Frame Trip ampere rating range EHD 100 15�100 FDB 15�100 FD 15�100 HFD 15�100 FDC 15�100 FCL 15�100 FB-P 15�100 FDB 150 110�150 FD 225 110�225 HFD 110�225 FDC 110�225 ED 100�225 EDH 100�225 EDC 100�225 JD 250 70�250 HJD 70�250 JDC 70�250 DK 400 100�400 KD 100�400 HKD 100�400 KDC 100�400 CKD 100�400 LCL 125�400 LA-P LD 600 CLD HLD CHLD LDC CLDC MDL 800 CMDL HMDL CHMDL 70�400 300�600 300�600 300�600 300�600 300�600 300�600 300�800 300�800 300�800 300�800 ND CND HND CHND 1200 600�1200 600�1200 600�1200 600�1200 NDC CNDC 600�1200 600�1200 Mounting type Twin Twin Twin Twin Twin Twin Twin Twin Twin Twin Twin Twin Twin Twin Twin/single Twin/single Twin/single Twin/single Twin/single Twin/single Twin/single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single 34 EATON www.eaton.com Pow-R-Line Xpert and legacy How to order a breaker retrofit kit by catalog number Use "KPRL4" prefix and add catalog number of breaker as shown below. Use suffix "T" or "S" to denote twin or single mounting. Twin-mounting indicates that one set of connectors is required to mount two breakers (of similar frames) opposite one another. Retrofit kit includes one breaker only, for either single or twinmounted applications. Table 51. Catalog numbering system--breaker retrofit kit KPRL4X PG3 3 400 S Designates PRL4X connector kit Breaker frame PD PG PF 2 3 4 5 Legend P = Power Defense D, G, F = Breaker AIC 2, 3, 4, 5 = Frame type Number of poles 2 = Two-pole 3 = Three-pole Ampere rating T = Twin S = Single Renewal Parts RP01400001E Effective April 2021 Fusible retrofit kits Each kit includes a three-pole switch, copper connectors, extension wings (if required), hardware, and instructions to horizontally mount in a PRL4. Table 52. Fusible retrofit kits Switch ampere rating Switch type 30�30 FDPW 60�60 FDPW 100�100 FDPW 100 FDPW 200 FDPB 200�200 FDPB 400 FDPW 600 FDPW 800 FDPW 1200 FDPW Mounting type Twin Twin Twin Single Single Twin Single Single Single Single How to order a fusible retrofit kit by catalog number Use "KPRL4" prefix and add catalog number of appropriate switch (refer to page 34 for three-pole switch catalog number). Example: The retrofit kit catalog number for a 600 V, 100 A twin FDPW switch is: Table 53. Catalog numbering system--fusible retrofit kit KPRL4 FDPW T 3 6 33 R Designates PRL4 connector Switch type FDPW FDPB T = Twin S = Single 3 = Three-pole Volts 2 = 240 6 = 600 R = R fuse J = J fuse T = T fuse 11 = 30�30 22 = 60�60 33 = 100�100 44 = 200�200 4 = 200 5 = 400 6 = 600 7 = 800 8 = 1200 PRL4 breaker retrofit kits EATON www.eaton.com 35 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy Accessories PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, PRL3a EZ Trim and enclosures EZ Trim PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, and PRL3a EZ Trim and EZ BoxE meet code requirements for both Type 1 standards. Features include a door-in-door standard with no exposed hardware and laser-cut trim with rounded corners. For EZ Box and EZ Trim, refer to page 37. Example: EZT2048 and EZB2048. EZ Trim Table 54. EZ Trim Box Trim Unpainted Painted Unvented surface mounted Unvented flush mounted Vented surface mounted Vented flush mounted Encl. Catalog height number Style number Catalog number Style number Catalog number Style number Catalog number Style number Catalog number Style number Catalog number Style number 24 EZB2024R 42C1999G01 EZBP2024R 42C1999G13 EZT2024S 42C4255G01 EZT2024F 42C4258G01 EZTV2024S 42C4261G01 EZTV2024F 42C4264G01 30 EZB2030R 42C1999G02 EZBP2030R 42C1999G14 EZT2030S 42C4255G02 EZT2030F 42C4258G02 EZTV2030S 42C4261G02 EZTV2030F 42C4264G02 36 EZB2036R 42C1999G03 EZBP2036R 42C1999G15 EZT2036S 42C4255G03 EZT2036F 42C4258G03 EZTV2036S 42C4261G03 EZTV2036F 42C4264G03 42 EZB2042R 42C1999G04 EZBP2042R 42C1999G16 EZT2042S 42C4255G04 EZT2042F 42C4258G04 EZTV2042S 42C4261G04 EZTV2042F 42C4264G04 48 EZB2048R 42C1999G05 EZBP2048R 42C1999G17 EZT2048S 42C4255G05 EZT2048F 42C4258G05 EZTV2048S 42C4261G05 EZTV2048F 42C4264G05 54 EZB2054R 42C1999G06 EZBP2054R 42C1999G18 EZT2054S 42C4255G06 EZT2054F 42C4258G06 EZTV2054S 42C4261G06 EZTV2054F 42C4264G06 60 EZB2060R 42C1999G07 EZBP2060R 42C1999G19 EZT2060S 42C4255G07 EZT2060F 42C4258G07 EZTV2060S 42C4261G07 EZTV2060F 42C4264G07 72 EZB2072R 42C1999G09 EZBP2072R 42C1999G21 EZT2072S 42C4255G09 EZT2072F 42C4258G09 EZTV2072S 42C4261G09 EZTV2072F 42C4264G09 90 EZB2090R 42C1999G12 EZBP2090R 42C1999G24 EZT2090S 42C4255G12 EZT2090F 42C4258G12 EZTV2090S 42C4261G12 EZTV2090F 42C4264G12 36 EATON www.eaton.com Pow-R-Line Xpert and legacy Renewal Parts RP01400001E Effective April 2021 PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, PRL3a special trims and enclosures Fastrim Ventilated trim Used when concealed trim-mounting hardware is required for PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, and PRL3a. Trim clamps are included and shipped with the trim. Order by adding the letter "F" to the standard trim catalog number. Add 20% to standard trim list price. Example: LT2072S becomes LTF2072S. For trim clamps only, refer to page 21. Required on 600 A and above panels only. Order by adding the letter "V" to the standard trim catalog number. Add 10% to standard trim list price. Example: LT2072S becomes LTV2072S. Ventilated trim Fastrim Door-in-door Piano hinge on the right side of the trim provides access to the wiring gutters without requiring removal of the trim. Order by adding the letters "DD" to the standard trim catalog number. Add 20% to standard trim list price. Example: LT2072S becomes LTDD2072S. Type 12/3R enclosures The complete enclosure consists of a box and trim. The enclosure meets code requirements for both Type 12 (dust-tight) and Type 3R (rainproof) standards. Features include a laser-cut trim with rounded corners, concealed hinges, and a T-handle lock. Gasketing is provided around the trim door. The box is gasketed and made from code gauge steel with dripshield and is painted ANSI-61. Table 55. Type 12/3R enclosures for PRL1X, PRL2X, PRL3X, PRL1a, PRL2a, PRL3a Box dimensions in inches (mm) Catalog number Height Width Depth Box Trim 24.00 (609.6) 20.00 (508.0) 6.00 (152.4) VWPB2024 LWPT2024 36.00 (914.4) 20.00 (508.0) 6.00 (152.4) VWPB2036 LWPT2036 48.00 (1219.2) 20.00 (508.0) 6.00 (152.4) VWPB2048 LWPT2048 60.00 (1524.0) 20.00 (508.0) 6.00 (152.4) VWPB2060 LWPT2060 72.00 (1828.8) 20.00 (508.0) 6.00 (152.4) VWPB2072 LWPT2072 90.00 (2286.0) 20.00 (508.0) 6.00 (152.4) VWPB2090 LWPT2090 Door-in-door Type 12/3R enclosures EATON www.eaton.com 37 Renewal Parts RP01400001E Effective April 2021 PRL4 special trims and enclosures Door-in-door trim Pow-R-Line Xpert and legacy Type 12/3R enclosures Type 12, 24.00 inches (609.6 mm) wide Type 3R, 36.00 inches (914.4 mm) wide Door-in-door trim A piano hinge on the right side of the trim provides access to the wiring gutter without requiring the removal of the trim. When used with a standard PRL4 box, a special mounting channel must be used to add extra depth to the enclosure. An extra depth box, not requiring a mounting channel, is another available option. Contact your local satellite for ordering information. Table 56. Special trims and enclosures Mounting Standard box channel style catalog number number Door-in-door trim catalog number Surface Flush BX2457 8708C82G02 LDD2457STW LDD2457FTW BX2473 8708C82G03 LDD2473STW LDD2473FTW BX2490 8708C82G04 LDD2490STW LDD2490FTW BX3673 8708C82G05 LDD3673STW LDD3673FTW BX3690 8708C82G06 LDD3690STW LDD3690FTW BX4473 8708C82G07 LDD4473STW LDD4473FTW BX4490 8708C82G08 LDD4490STW LDD4490FTW PRL4 enclosures are available in both Type 12 (dust-tight) and Type 3R (rainproof) designs. The 24.00-inch (609.6 mm) wide enclosure includes a single hinged door while the 36.00-inch (914.4 mm) wide is provided with double hinged doors. The side gutter covers are an integral part of the box in all styles. Sizes and catalog numbers are shown in Table 57. Table 57. Type 12/3R enclosures Enclosure dimensions in inches (mm) Height Width Depth 57.00 (1447.8) 24.00 (609.6) 13.90 (353.1) 73.00 (1854.2) 24.00 (609.6) 13.90 (353.1) 90.00 (2286.0) 24.00 (609.6) 13.90 (353.1) 73.00 (1854.2) 36.00 (914.4) 13.90 (353.1) 90.00 (2286.0) 36.00 (914.4) 13.90 (353.1) Catalog number Type 3R Type 12 RPCB2457 DPC2457 RPCB2473 DPC2473 RPCB2490 DPC2490 RPCB3673 DPC3673 RPCB3690 DPC3690 Ordering procedure Select the correct part or branch device. When selecting, you need to know the following: � Panelboard type � Amperage � System voltage � Available short-circuit rating � Number of poles available � Size and number of wires per phase � "X" space required 38 EATON www.eaton.com Pow-R-Line Xpert and legacy PRL1X-LX, PRL2X-LX, PRL1a-LX, PRL2a-LX column panelboards Box Trim Renewal Parts RP01400001E Effective April 2021 Pow-R-Command For replacement parts, see PRL3X, PRL3a section, page 21. The following parts are available: � Connector kits � Ground assemblies � Service entrance kits � Deadfront covers � Trim locks Table 58. Type 1 box and trims Catalog number Box height in inches (mm) Box Surface trim standard Incoming location top fed 69.00 (1752.6) YSC969 LTC969S 78.00 (1981.2) YSC978 LTC978S 81.00 (2057.4) YSC981 LTC981S 90.00 (2286.0) YSC990 LTC990S Incoming location bottom fed 69.00 (1752.6) YSC969 LTC969SB 78.00 (1981.2) YSC978 LTC978SB 81.00 (2057.4) YSC981 LTC981SB 90.00 (2286.0) YSC990 LTC990SB Surface trim door-in-door LTCD969S LTCD978S LTCD981S LTCD990S LTCD969SB LTCD978SB LTCD981SB LTCD990SB Pow-R-Command Additional services Because virtually all panelboards are supplied to meet specific customer requirements, other parts not listed in this publication might occasionally be needed. Price and availability for parts not shown here may be obtained by contacting your local satellite plant and providing a complete description of the part along with the data on the panelboard nameplate. Should you experience difficulty in determining what replacement parts are needed, contact your local satellite plant manager who can provide help to: � Identify and recommend replacement parts � Remove damaged parts and instruct you in how to install replacement parts � Verify the correct connector kits that should be ordered for each circuit breaker or fusible switch � Retrofit existing panelboard boxes with new Pow-R-Line interiors � Provide a recommended spare parts list EATON www.eaton.com 39 Renewal Parts RP01400001E Effective April 2021 Pow-R-Line Xpert and legacy Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com � 2021 Eaton All Rights Reserved Printed in USA Publication No. RP01400001E / Z25020 April 2021 Eaton is a registered trademark. All other trademarks are property of their respective owners.
