The Direct Drive Solution for 6x2 and 6x4 Installations
GARDNER DENVER | TRANSPORT SOLUTIONS 6x2 and 6x4 Chassis – The Direct Drive Solution The Gardner Denver TR 20 screw compressor is the latest machine to be developed for efficient
TR20 Brochure - Gardner Denver
The Gardner Denver TR 20 screw compressor is the latest machine to be developed for efficient unloading of dry bulk products from road tankers.
[PDF] The Direct Drive Solution for 6x2 and 6x4 Installations
Extracted Text

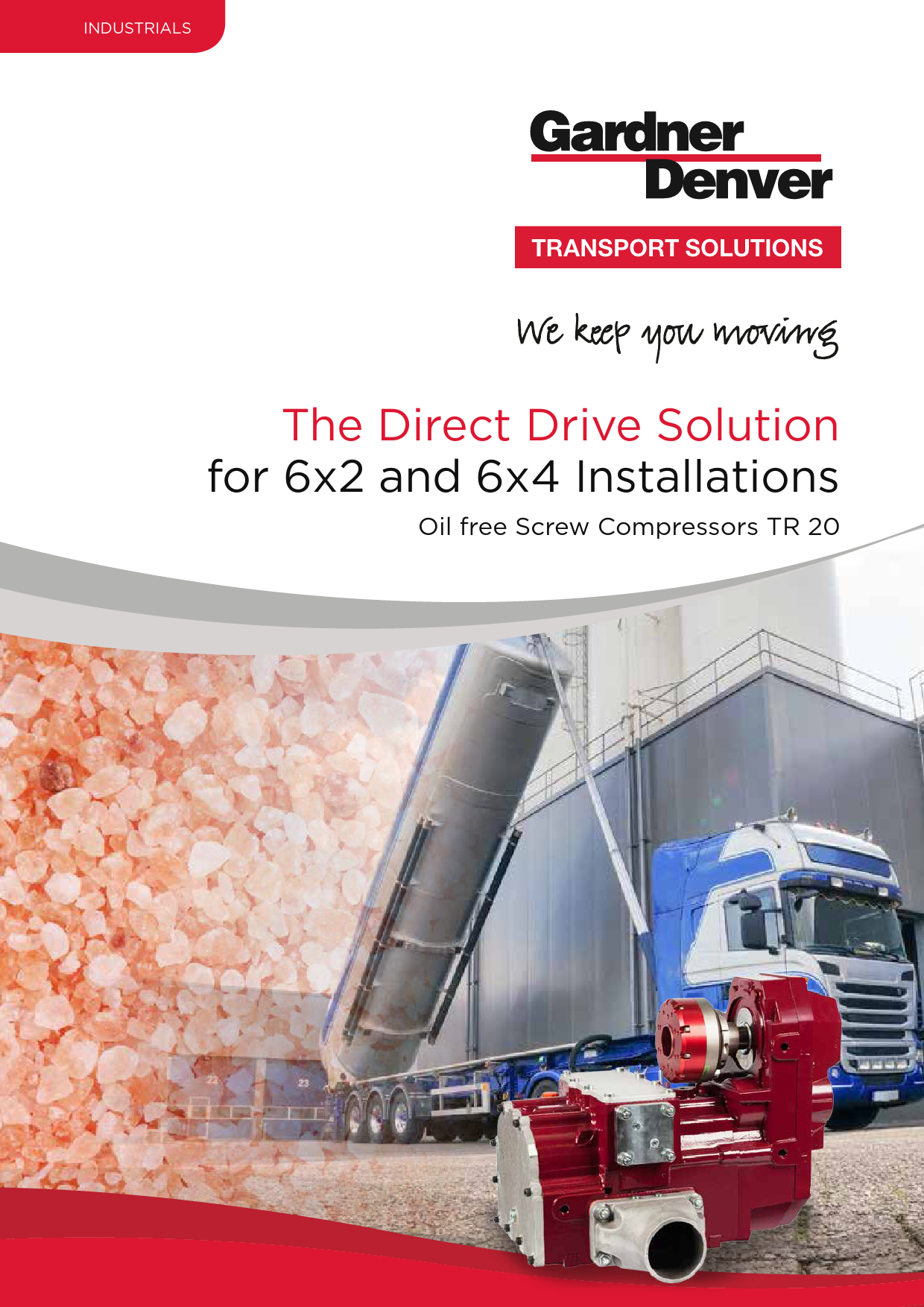

INDUSTRIALS The Direct Drive Solution for 6x2 and 6x4 Installations Oil free Screw Compressors TR 20 GARDNER DENVER | TRANSPORT SOLUTIONS 6x2 and 6x4 Chassis � The Direct Drive Solution The Gardner Denver TR 20 screw compressor is the latest machine to be developed for efficient unloading of dry bulk products from road tankers. TR 20 solves the ever increasing challenge of installing a compressor of sufficient capacity for the discharge of a wide variety of products onto six wheel and short wheel base vehicles, with the restrictions of space that legislation and other factors have imposed. Rotors Coated steel screw rotors allow for maximum strength, performance and corrosion resistance Designed for off-loading dry bulk products in the tank truck markets Drive Shaft Elevated drive shaft position provides maximum flexibility for direct PTO propshaft positioning when on restricted chassis installations Connecting Flange Optional 4 bolt connecting flange allows alternative drives to be used (e.g. hydraulic) Outlet Ports Outlet flanges positioned on both sides of the compressor provide increased mounting flexibility Inlet Flange A low profile inlet flange reduces the installation envelope Pulverants / Powders � Cement � Flour � Lime � Fly Ash Granules Pebble � Sugar � Limestone � Sand � Plastic Pellets � Salt � Rocksalt � P ulverised � Dolomite Limestone Feeds � Corn � Rice � P elletized Feed � Soy Beans � Oats GARDNER DENVER | TRANSPORT SOLUTIONS TR 20 Features & Benefits � Suitable to discharge a wide variety of dry bulk products � Simplified installation onto 6x2 and 6x4 tractor units or where space is limited for PTO direct drive. � Greater operational efficiency through weight saving (extra payload) and a simplified drive method � Oil free, contactless and contaminant free air compressor Peace of Mind � Proven technology � Robust and reliable � Designed exclusively for truck application � Low maintenance Low Noise � Key developments in rotor design, synchronisation and frequency combined with optimised porting has resulted in the production of our quietest screw compressor to date Complete Package � TR 20 is complemented by our range of ancillary equipment and components to suit markets, duties and customer specification; including remote coolers, silencers and filters for general and food grade applications Low Discharge Temperature � Our special rotor configuration results in high performance and efficiency ensuring the lowest outlet temperature of any comparable truck mounted compressor Service & Backup � Installed at Gardner Denver workshops or at our channel partners � Extensive network of Gardner Denver service engineers and service partners throughout the World � Service Programs available throughout Europe Discharge flow rate (m3/h) TR 20 Discharge Flow and Input Power 1200 1650rpm 1000 1500rpm 1300rpm 800 1100rpm 600 900rpm 400 200 0 0 0.5 1.0 1.5 Dimensional Data TR 20 Cooler Discharge Temperature 70 1650rpm 60 1500rpm 50 1300rpm 1100rpm 40 900rpm 30 20 2.2 max 0 2.0 2.5 Power (KW) Discharge Temperature Rise (�C) (above the fan & air inlet temperature) 100 90 80 70 2 bar g 60 50 1 bar g 40 30 20 10 0 400 500 600 700 800 900 1000 346.6 154.5 137 73 454.4 347 292 305.5 440.8 Shaft End Details 36 30 12 13 90� 9 Weight TR 20: 140 kg All dimensions in mm 576.5 54 � 10 N9 Delivery Flange Details 4 holes M10x23 deep equispaced A (1:2) � 70 � 40 H7 120 65 50 2� 121.9 137.71 GARDNER DENVER | TRANSPORT SOLUTIONS Accessories Remote Air Cooler The remote air cooler is a modular assembly designed to combine with our range of compressors to supply cool air for discharging products sensitive to high temperature such as sugars and plastics. Hydrapak The Hydrapak is a compact, low weight design containing the reservoir, return filter, radiator, cooling fan and system relief valve so that it simply needs to be mounted on the vehicle and connected to the hydraulic system. This reduces significantly the complete system installed weight from that of a traditional oil reservoir (tank). Micronic Filters The M329 range of stainless steel discharge filters provide a complete air filtration (5 m) and condition monitoring system to prevent the contamination/ degradation of liquid and dry products (e.g. foods and plastics) in the tanker offloading industry. GARDNER DENVER | WORLDWIDE LOCATIONS Gardner Denver Transport Solutions � the Ultimate Service Capability Customer support and service are key in any business. With Gardner Denver Transport Solutions, you can expect the highest level of care for our quality products and systems throughout their life. Our experienced, qualified staff are committed to providing you with the highest levels of support. That commitment ensures excellence in our customer service which is integral to our business processes � to the design, manufacture, delivery and installation of the products and systems we supply. Should you require advice, maintenance or should an issue become a problem, we provide fast service support with extensive stocked spare parts to get your application and processes back in operation as soon as possible. � Globally stocked genuine spare parts � Reliable, professional maintenance and service � Service and maintenance kits � Service exchange components � Detailed commissioning � Tailored maintenance and service contracts � Complete check and overhaul of your system � Service training of your staff Gardner Denver Transport Solutions � we keep you moving! Gardner Denver Transport Solutions PO Box 178, Springmill Street, Bradford, West Yorkshire, BD57 YH. United Kingdom. transport@gardnerdenver.com www.gardnerdenver.com/transport For additional information please contact Gardner Denver or your local representative. Specifications subject to change without notice. Copyright 2019 Gardner Denver. GX XX.GB.06/19.CI
