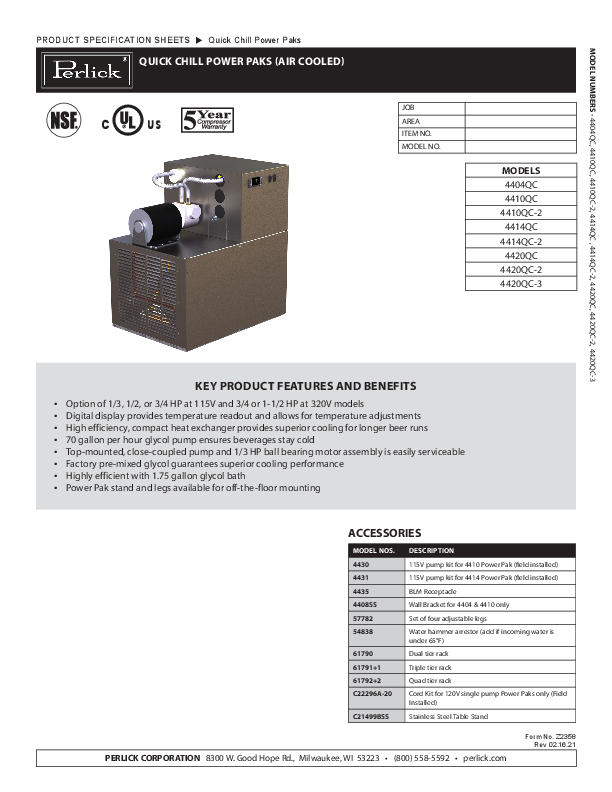

MODEL NUMBERS - 4404QC, 4410QC, 4410QC-2, 4414QC , 4414QC-2, 4420QC, 4420QC-2, 4420QC-3

PRODUCT SPECIFICATION SHEETS  Quick Chill Power Paks
QUICK CHILL POWER PAKS (AIR COOLED)

C

US

JOB AREA ITEM NO. MODEL NO.

MODELS 4404QC 4410QC 4410QC-2 4414QC 4414QC-2 4420QC 4420QC-2 4420QC-3

KEY PRODUCT FEATURES AND BENEFITS
� Option of 1/3, 1/2, or 3/4 HP at 115V and 3/4 or 1-1/2 HP at 320V models � Digital display provides temperature readout and allows for temperature adjustments � High efficiency, compact heat exchanger provides superior cooling for longer beer runs � 70 gallon per hour glycol pump ensures beverages stay cold � Top-mounted, close-coupled pump and 1/3 HP ball bearing motor assembly is easily serviceable � Factory pre-mixed glycol guarantees superior cooling performance � Highly efficient with 1.75 gallon glycol bath � Power Pak stand and legs available for off-the-floor mounting

ACCESSORIES

MODEL NOS. 4430 4431 4435 4408SS 57782 54838
61790 61791+1 61792+2 C22296A-20
C21499BSS

DESCRIPTION 115V pump kit for 4410 Power Pak (field installed) 115V pump kit for 4414 Power Pak (field installed) BLM Receptacle Wall Bracket for 4404 & 4410 only Set of four adjustable legs Water hammer arrestor (add if incoming water is under 65�F) Dual tier rack Triple tier rack Quad tier rack Cord Kit for 120V single pump Power Paks only (Field Installed) Stainless Steel Table Stand

PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 � (800) 558-5592 � perlick.com

Form No. Z2358 Rev 02.16.21

MODEL NUMBERS - 4404QC, 4410QC, 4410QC-2, 4414QC , 4414QC-2, 4420QC, 4420QC-2, 4420QC-3

PRODUCT SPECIFICATION SHEETS  Quick Chill Power Paks
QUICK CHILL POWER PAKS (AIR COOLED)

MODEL NOS.

4404QC

4410QC

4410QC-2

44414QC

4414QC-2

4420QC

4420QC-2 4420QC-3

DIMENSIONS: EXTERIOR (mm)

Length "A" Width "B"

241/4" (616) 171/4" (438)

241/4" (616) 171/4" (438)

263/4" (679) 201/4" (519)

263/4" (679) 201/4" (519)

263/4" (679) 201/4" (519)

Height "C"

251/2" (648)

251/2" (648)

31" (782)

31" (782)

31" (782)

A minimum of six inches of clearance should be allowed around the entire unit for proper performance. Additional clearance should be considered for above the unit and in front of the unit for servicability.

ELECTRICAL

Voltage

120 V

120 V

120 V

120 V

208/230 V***

Frequency

60 Hz

60 Hz

60 Hz

60 Hz

60 Hz

Phase

1 �

1 �

1 �

1 �

1 �

SINGLE PUMP

RLA

9.7

12.7

13.4

16.5

21.9

MCA

17.8

19.9

20.4

22.8

26.4

DUAL PUMPS

RLA

N/A

15.5

16.2

19.3

24.7

(add -2 to model #)

MCA

N/A

22.7

23.2

25.6

29.2

TRIPLE PUMPS

RLA

N/A

N/A

N/A

22.1

27.5

(add -3 to model #)

MCA

N/A

N/A

N/A

28.4

32.0

COMPRESSOR

1/3 HP

1/2 HP

3/4 HP

1-1/2 HP

1-1/2 HP

EVAPORATOR RATING @ 20�F (BTUH)

3420

4080

6870

13,800

12,000

HEAT REJECTION (MAX)

2050

2450

4122

6500

19,200

REFRIGERANT

R-134a

R-134a

R-134a

R-134a

R-134a

SHIPPING WEIGHT LBS (kg)

141 (64)

143 (65)

205 (93)

255 (116)

255 (116)

CABINET

Stainless Steel

CIRCULATING PUMP

100 GPH/130 PSIG

RESERVOIR CAPACITY

1.75 gal

1.75 gal

1.75 gal

1.75 gal

1.75 gal

REFRIGERATION

Constant Pressure Expansion Valve, Condensing Unit with Service Valves

REFRIGERANT CHARGE (grams)

14.5 oz / 410 g 14.5 oz / 410 g

22.0 oz / 623 g

22.0 oz / 623 g

16.0 oz / 453 g

GLYCOL CONCENTRATION

33%

33%

33%

33%

33%

PLUMBING REQUIREMENTS

INLET & OUTLET

All employ 1/2" O.D. Quick Connect Fittings

FLOW RATE (gpm) @ 75�F

0.5

0.6

0.9

1.2

1.2

PRESSURE DROP (psig)

0.1

0.2

0.4

0.5

0.5

MAX SUPPLY PRESSURE

All Models: Incoming Water Pressure not to exceed 150 psig

OPTIONAL ACCESSORIES

4430 115V pump kit for 4410 Power Pak (field installed) 4431 115V pump kit for 4414 Power Pak (field installed) 4435 BLM Receptacle 4408SS Wall Bracket for 4404 & 4410 only 57782 Set of four adjustable legs 54838 Water hammer arrestor (add if incoming water is under 65�F) 61790 Dual tier rack 61791+1 Triple tier rack 61792+2 Quad tier rack C22296A-20 Cord Kit for 120V single pump Power Paks only (Field Installed) C21499BSS Stainless Steel Table Stand

*Note: Allow a minimum of six inches of clearance on the louvered ends of the cabinet for proper air flow. Allow accessibility room on top and front of cabinet for serviceability. Above specifications are subject to change without prior approval.

***Requires four (4) wires (2 hot, 1 neutral, 1 ground)

PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 � (800) 558-5592 � perlick.com

Form No. Z2358 Rev 02.16.21
