Program control Extron Product Control Software (PCS). Extron Simple Instruction Set™ (SIS™).
Video. Routing 4x2 to 8x8 matrix. Maximum data rate 18 Gbps (6 Gbps per color).

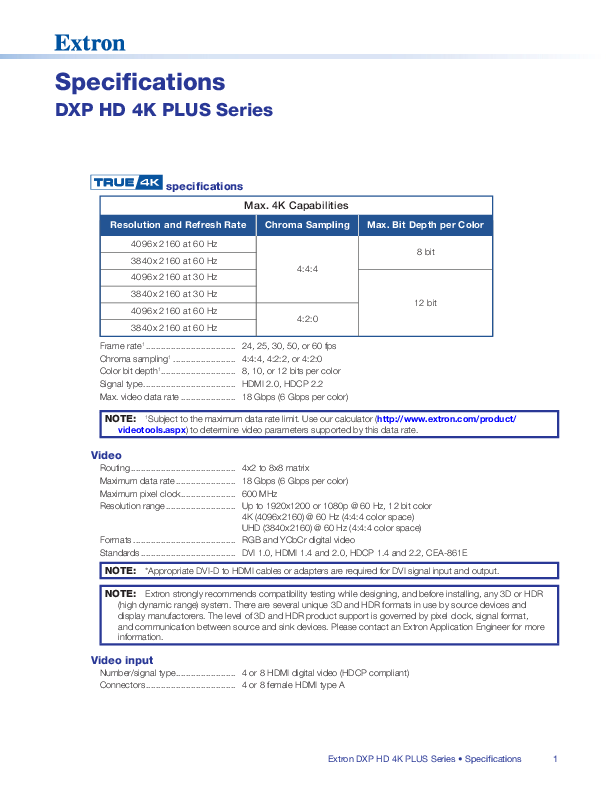

Specifications DXP HD 4K PLUS Series specifications Max. 4K Capabilities Resolution and Refresh Rate Chroma Sampling 4096 x 2160 at 60 Hz 3840 x 2160 at 60 Hz 4096 x 2160 at 30 Hz 3840 x 2160 at 30 Hz 4096 x 2160 at 60 Hz 3840 x 2160 at 60 Hz 4:4:4 4:2:0 Frame rate1 24, 25, 30, 50, or 60 fps Chroma sampling1 4:4:4, 4:2:2, or 4:2:0 Color bit depth1 8, 10, or 12 bits per color Signal type HDMI 2.0, HDCP 2.2 Max. video data rate 18 Gbps (6 Gbps per color) Max. Bit Depth per Color 8 bit 12 bit NOTE: 1Subject to the maximum data rate limit. Use our calculator (http://www.extron.com/product/ videotools.aspx) to determine video parameters supported by this data rate. Video Routing 4x2 to 8x8 matrix Maximum data rate 18 Gbps (6 Gbps per color) Maximum pixel clock 600 MHz Resolution range Up to 1920x1200 or 1080p @ 60 Hz, 12 bit color 4K (4096x2160) @ 60 Hz (4:4:4 color space) UHD (3840x2160) @ 60 Hz (4:4:4 color space) Formats RGB and YCbCr digital video Standards DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.2, CEA-861E NOTE: *Appropriate DVI-D to HDMI cables or adapters are required for DVI signal input and output. NOTE: Extron strongly recommends compatibility testing while designing, and before installing, any 3D or HDR (high dynamic range) system. There are several unique 3D and HDR formats in use by source devices and display manufactorers. The level of 3D and HDR product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Application Engineer for more information. Video input Number/signal type 4 or 8 HDMI digital video (HDCP compliant) Connectors 4 or 8 female HDMI type A Extron DXP HD 4K PLUS Series · Specifications 1 Specification · DXP HD 4K PLUS Series (Continued) Video output Number/signal type 2, 4, or 8 HDMI digital video (HDCP compliant) Connectors 2, 4, or 8 female HDMI type A Power for active cables 4.2 or 8.4 W total power for all HDMI ports 1.1 W per HDMI port, max. Peripheral device power 250 mA per HDMI output Audio -- DXP 42, 44, 84, 88 HD 4K PLUS Supported formats -- Pass through HDMI connectors LPCM up to 7.1/24-bit/96 kHz, Dolby ATMOS, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel Supported formats -- S/PDIF (DXP 44, 84, 88 HD 4K PLUS only) LPCM 2-channel, 16/20/24 bit depths, 32/44.1/48 kHz sampling Dolby Digital (AC-3) 6-channel, 640k mbr, 32/44.1/48 kHz sampling DTS 7-channel, 1536k max bit rate, 44.1/48 kHz sampling Audio -- individual audio groups (HDMI) DXP 44, 84, 88 HD 4K PLUS Series Gain Unbalanced output: 0 dB; balanced output: +6 dB Frequency response 20 Hz to 20 kHz, ± 0.2 dB THD + Noise 0.03% @ 20-20 kHz at nominal level S/N >105 dB at maximum output (unweighted) Crosstalk <-90 dB @ 20 Hz to 20 kHz, fully loaded Stereo channel separation >80 dB @ 20 Hz to 20 kHz DXP 42 HD 4K PLUS Gain Unbalanced output: -6 dB; balanced output: 0 dB Frequency response 20 Hz to 20 kHz, ± 0.5 dB THD + Noise <0.01% @ 20-20 kHz at nominal level S/N >90 dB at maximum output (unweighted) Crosstalk -80 dB @ 1 kHz, fully loaded Stereo channel separation >80 dB @ 1 kHz NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV 2 dBu Audio output Number/signal type 2, 4, or 8 HDMI, embedded 2 stereo, balanced or unbalanced 2 S/PDIF (DXP 44, 84, 88 HD 4K PLUS only) Connectors HDMI 2, 4, or 8 female Stereo (2) 3.5 mm captive screw, 5 pole S/PDIF (DXP 44, 84, 88 HD 4K PLUS only) 2 female RCA Impedance Stereo audio 50 ohms unbalanced, 100 ohms balanced S/PDIF 75 ohms (DXP 44, 84, and 88 HD 4K PLUS only) Gain error ±0.1 dB channel to channel D/A conversion 24-bit, 192 kHz Maximum level (Hi-Z) DXP 44, 84, and 88 HD 4K PLUS >+21 dBu, balanced, or +15 dBu, unbalanced DXP 42 HD 4K PLUS >+12 dBu, balanced, or +6 dBu, unbalanced Extron DXP HD 4K PLUS Series · Specifications 2 Specification · DXP HD 4K PLUS Series (Continued) Output volume range DXP 44, 84, and 88 HD 4K PLUS -100 to 0 dB (control 0 to 100 in 1.3 dB steps) DXP 42 HD 4K PLUS -90 to 0 dB (control 0 to 90 in 1 dB steps) Communications Serial control port 1 bidirectional RS-232 Serial control connector (1) 3.5 mm captive screw, 3 pole (rear panel) Baud rate and protocol 300 to 115200 baud; 7 or 8 data bits; 1 or 2 stop bits; no parity, even, odd, mark, or space parity Defaults: 9600 baud, 8 data bits, 1 stop bit, no parity Serial control pin configuration 1 = Tx, 2 = Rx, 3 = Gnd USB control port 1 front panel female USB mini-B USB standards USB 2.0, low speed Ethernet control port 1 female RJ-45 connector Ethernet data rate 10/100Base-T, half/full duplex with autodetect Ethernet protocol ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP Ethernet default settings Link speed and duplex level: autodetected IP address: 192.168.254.254 Subnet mask: 255.255.0.0 Gateway: 0.0.0.0 DHCP: Off Web server Up to 200 simultaneous sessions 40.0 MB nonvolatile user memory Program control Extron Product Control Software (PCS) Extron Simple Instruction SetTM (SISTM) Microsoft® Edge®, Telnet General Power supply DXP 44, 84, 88 HD 4K PLUS Series Internal Input: 100-240 VAC, 50-60 Hz DXP 42 HD 4K PLUS External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts Power consumption (full load) DXP 42 HD 4K PLUS Device 16 watts Device with power supply 17.5 watts DXP 44 HD 4K PLUS 20.4 watts DXP 88 HD 4K PLUS 30.8 watts Power consumption (power save) 10.8 watts (DXP 44, 84, and 84 HD 4K PLUS Series only) Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing Cooling DXP 44, 84, 88 HD 4K PLUS Fans, air flows from right to left (as viewed from front panel) DXP 42 HD 4K PLUS Convection, vents on top and sides Extron DXP HD 4K PLUS Series · Specifications 3 Specification · DXP HD 4K PLUS Series (Continued) Thermal dissipation (full load) DXP 42 HD 4K PLUS Device 51.2 BTU/hr Device with power supply 56.3 BTU/hr DXP 44 HD 4K PLUS 115 VAC, 60 Hz 64.9 BTU/hr 240 VAC, 50 Hz 65.8 BTU/hr DXP 88 HD 4K PLUS 115 VAC, 60 Hz 96.8 BTU/hr 240 VAC, 50 Hz 97.3 BTU/hr Mounting DXP 42 HD 4K PLUS Rack mount Yes, with optional rack shelf kit Back of the rack mountable with optional back-of-the-rack mounting kit Furniture mount Yes, with optional under-desk mounting kit DXP 44, 84, 88 HD 4K PLUS Series Rack mount Yes, with included brackets Enclosure type Metal Enclosure dimensions DXP 44, 84, 88 HD 4K PLUS Series 1.75" H x 17.5" W x 9.5" D (1U high, full rack wide) (4.4 cm H x 44.5 cm W x 24.1 cm D) (Depth excludes connectors and knobs. Width excludes rack ears.) DXP 42 HD 4K PLUS 11.0" H x 8.75" W x 8.0" D (half rack wide) (44 mm H x 222 mm W x 152 mm D) (Depth excludes connectors.) Product weight DXP 42 HD 4K PLUS 1.5 lbs (0.7 kg) DXP 44 HD 4K PLUS 5.2 lbs (2.3 kg) DXP 84 HD 4K PLUS 5.3 lbs (2.4 kg) DXP 88 HD 4K PLUS 5.5 lbs (2.5 kg) Regulatory compliance CE, C-tick, c-UL, FCC Class A, ICES, PSE, UL, VCCI, RoHs, and WEEE Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE: Specifications are subject to change without notice. NOTE: Shipping weights and dimensions are available at www.extron.com. 4798-D5 © 2020 Extron Electronics, All Rights Reserved. All trademarks mentioned are the property of their respective owners. www.extron.com 4Adobe PDF Library 15.0
