Datasheet

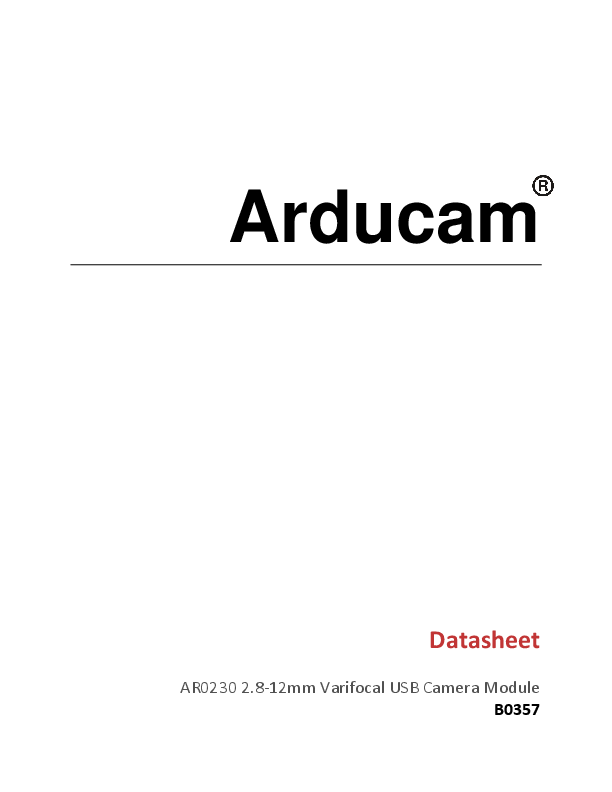

Arducam-2.8-12mm Varifocal Lens Web Camera with 1/2.7″ AR0230 Image Sensor
Arducam - uctronics.com
1 B0357 Datasheet Proprietary to Arducam Website: www.arducam.com | Email: support@arducam.com
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Arducam Datasheet AR0230 2.8-12mm Varifocal USB Camera Module B0357 B0357 Datasheet CONTENT 1. Purpose 2. Effect 3. Technical parameters 4. Overall Dimension Diagram 5. Lens Diagram 6. Imaging 7. Camera Parameters Interface 8. Function Inspection Criteria 9. Visual inspection criteria 10. Reliability Test 11. Packaging requirements 12. Other 1 Proprietary to Arducam Version V1.0 Compile Bin L Auditing Kai Z Authorize Lee J DATE 07.28.2021 Website: www.arducam.com | Email: support@arducam.com B0357 Datasheet 1. Purpose 2 Proprietary to Arducam In order to fully describe the technical specifications referred to in technical cooperation, it usually needs to be expressed by a complete set of documents. As part of this, this datasheet specifies the specific technical specifications that a camera module should meet and is binding on this model. 2. Efficacity This datasheet shall prevail if this it's inconsistent with the specifications in the general technical specifications of such goods. 3. Technical Parameters Items Sensor Maximum Effective Resolution Data Format Pixel Size Dynamic Range Lens IR Sensitivity Frame rate Auto control Input Voltage Working Current Operating Temp. System Compatibility Connector No. Dimension Cable Length 1/2.7" AR0230 Parameters 2MP 1928(H)x1088(V) MJPG/YUY2 3.0 �m x 3.0 �m Up to 96 dB FoV: 75�-35�(H) Focal Length: 2.8-12mm Mount: M12 Integral 650 IR filter, only visible light MJPG 30fps@1920 x 1080/1280 x 720/1280 x 1024/1024 x 768/800 x 600/640 x 480; YUY2 5fps@1920 x 1080/1280 x 720; 30fps@640 x 480 Saturation, Contrast, Acutance, White balance, Exposure. DC 5V MAX 300mA -4�F~158�F (-20�C~+70�C) Windows, Linux, and Mac with UVC ZHR-4 38mm x 38mm x 55mm Default 1M, optional 2M, 3M,5M Website: www.arducam.com | Email: support@arducam.com B0357 Datasheet 4. Camera Board Dimension Diagram Unit: mm 3 Proprietary to Arducam 5. Lens Diagram Unit: mm Website: www.arducam.com | Email: support@arducam.com B0357 Datasheet 6. Imaging 4 Proprietary to Arducam 7. Camera Parameters Interface - Video Proc Amp - Camera Control Website: www.arducam.com | Email: support@arducam.com B0357 Datasheet - Video Capture Pin 5 Proprietary to Arducam 8. Function Inspection Criteria 8.1 Function definition: Camera module electrical performance and image quality. 8.2 Inspection methods Staff: Visual inspection personnel need to be trained and have normal color recognition ability. Their vision should be above 1.0 (or more than 1.0 after correction is acceptable), and their color discrimination ability can pass standard tests. Tool: Connect the computer, inspect images with Amcap software. Distance and Time Observation distance: 30~55cm Observation time for each surface: 3~5seconds Inspection condition: Visual inspection should be performed under unobtrusive fluorescent lamps, and its minimum illumination should be above 100 feet of candlelight, or 60W fluorescent lamps, inspected at 1.5m distance. 8.3 Accept criteria The image has no mess, color screen and discoloration. There is no white spot, black spot, dirt or dark angle in the image. The image is same clear on all corners Website: www.arducam.com | Email: support@arducam.com B0357 Datasheet 9. Visual Inspection Criteria 6 Proprietary to Arducam 9.1 The definition of the appearance Camera module appearance. 9.2 Test methods Staff: Visual inspection personnel need to be trained and have normal color recognition ability. Their vision should be above 1.0 (or more than 1.0 after correction is acceptable), and their color discrimination ability can pass standard tests. Distance and Time Observation distance: 50~75cm, Observation time for each surface: 3~5seconds Inspection condition: Visual inspection should be performed under unobtrusive fluorescent lamps, and its minimum illumination should be above 100 feet of candlelight, or 60W fluorescent lamps, inspected at 1.5m distance. Observation angle: Observation angle between 40�~50�. 9.3 Accept criteria Cleanliness: Parts must be free of stains, dust, grease, and other stains. Smudges due to transportation materials are acceptable if they can be blown away or wiped off. Assembly surface: The parts to be assembled should avoid scratches, gouges, dents, bends, cracks, indentations, abrasions or other defects caused by improper assembly. 10. Reliability Test Items High Temperature Test Low Temperature Test Humidity Test Cable Tensile Strength Test Drop Test Condition Temp.: 80 Time: 96H Temp: -20 Time: 96H Temp: 60 Humidity: 80-85 Time: 24H Loading weight4KG Time: 60s Hight: 60CM Number of times: 10 Specification No abnormal No abnormal No abnormal No abnormal Electric normal Website: www.arducam.com | Email: support@arducam.com B0357 Datasheet Vibration Test USB Connector On the wood Vibration machine vibration frequency to 50Hz Vibration amplitude: 1.5MM Vibration time: 30 Minutes Number of times: 250 7 Proprietary to Arducam Electric normal Electric normal 11. Packing Request Products should be strictly based on product characteristics to develop corresponding packaging standards and follow the implementation to ensure that the product is used within the specified use and storage period, to achieve anti-static, moisture-proof, shock-proof, mildew-proof, anti-barbaric handling and other signs and related warranty requirements. Product packaging should be marked: Supply-side name / logo, Product Model specifications, containing the number, production date / batch number and order number. The product's outer packaging should be marked with: supplier name / sign, product model specification, built-in quantity, production date / batch number and order number. The packing and packing scheme are based on the customer's requirements, and the two parties will negotiate the specific details. The sealed samples shall prevail. 12. Others Changes to this acknowledgement need to be confirmed by both parties, and any modification by either party is invalid. This acknowledgment must be signed and returned within seven working days of receipt by the client, late regarded as the default. Website: www.arducam.com | Email: support@arducam.com
