BIG EYE 28x100 ED - Newcon Optik
File info: application/pdf · 2 pages · 1.48MB

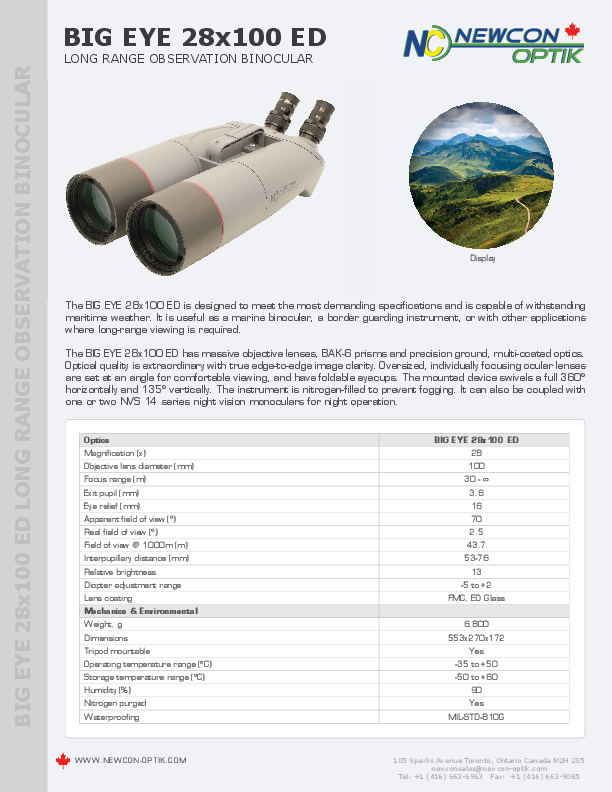

BIG EYE 28x100 ED - Newcon Optik
BIG EYE 28x100 ED
Extracted Text
BIG EYE 28x100 ED LONG RANGE OBSERVATION BINOCULAR BIG EYE 28x100 ED LONG RANGE OBSERVATION BINOCULAR Display The BIG EYE 28x100 ED is designed to meet the most demanding specifications and is capable of withstanding maritime weather. It is useful as a marine binocular, a border guarding instrument, or with other applications where long-range viewing is required. The BIG EYE 28x100 ED has massive objective lenses, BAK-6 prisms and precision ground, multi-coated optics. Optical quality is extraordinary with true edge-to-edge image clarity. Oversized, individually focusing ocular lenses are set at an angle for comfortable viewing, and have foldable eyecups. The mounted device swivels a full 360� horizontally and 135� vertically. The instrument is nitrogen-filled to prevent fogging. It can also be coupled with one or two NVS 14 series night vision monoculars for night operation. Optics Magnification (x) Objective lens diameter (mm) Focus ra2n7ge (m) Exit pupil (mm) Eye relief (mm) Apparent field of view (�) Real field of view (�) Field of view @ 1000m (m) Interpupillary distance (mm) Relative brightness Diopter adjustment range Lens coating Mechanics & Environmental Weight, g Dimensions Tripod mountable Operating temperature range (�C) Storage temperature range (�C) Humidity (%) Nitrogen purged Waterproofing BIG EYE 28x100 ED 28 100 30 - 3.6 16 70 2.5 43.7 53-76 13 -5 to +2 FMC, ED Glass 6,800 553x270x172 Yes -35 to +50 -50 to +60 90 Yes MIL-STD-810G WWW.NEWCON-OPTIK.COM 105 Sparks Avenue Toronto, Ontario Canada M2H 2S5 newconsales@newcon-optik.com Tel: +1 (416) 663-6963 Fax: +1 (416) 663-9065 BIG EYE 28x100 ED LONG RANGE OBSERVATION BINOCULAR BIG EYE 28x100 ED LONG RANGE OBSERVATION BINOCULAR DELIVERY SET Supplied with the following standard accessories: � Lens Cover � Lens Cleaning Cloth OPTIONAL ACCESSORIES � Operation Manual U Coupler Pan-Tilt Mechanism 27 NVS 14-3XT Hard case WWW.NEWCON-OPTIK.CCOCMD Camera ALL SPECIFICATIONS, ACCESSORIES AND INFORMATION ARE SUBJECT TO CHANGE. 105 SpaOrkns TArvipenoude Toronto, Ontario Canada M2H 2S5 newconsales@newcon-optik.com Tel: +1 (416) 663-6963 Fax: +1 (416) 663-9065
