SONOFF ZBMINI Zigbee Smart Switch

This document provides a quick installation guide for the SONOFF ZBMINI, a Zigbee 3.0 two-way smart switch designed for smart home automation.

Product Overview

The SONOFF ZBMINI is a compact Zigbee smart switch that allows for remote control of lights and other appliances. It supports two-way switching and can be controlled via the eWeLink app and compatible Zigbee hubs.

Installation and Wiring

Wiring Instructions

The ZBMINI requires proper wiring to function. Please follow the diagrams carefully:

Diagram 1: Single Pole Wiring
The diagram shows the ZBMINI connected to the main power supply. The Live (L) and Neutral (N) wires from the power source are connected to the corresponding input terminals on the ZBMINI. The wall switch is connected to the SW terminal, and the appliance (load) is connected to the L1 output terminal.
Diagram 2: Two-Way Switch Wiring
This configuration allows two wall switches to control a single appliance. The Live (L) and Neutral (N) wires are connected to the ZBMINI. Both wall switches are wired to the SW terminal of the ZBMINI, enabling control from multiple locations.

Device Pairing

After wiring, the ZBMINI needs to be paired with a Zigbee hub and the eWeLink app.

App Setup: Download and install the eWeLink app from the App Store or Google Play.
Pairing Mode: Press and hold the device's button for approximately 5 seconds until the indicator light flashes rapidly, indicating it has entered pairing mode.
App Pairing: Open the eWeLink app, tap the '+' icon, and follow the on-screen instructions to search for and add the ZBMINI device to your Zigbee network.

Compatibility

The SONOFF ZBMINI is compatible with popular voice assistants such as Amazon Alexa and Google Assistant, allowing for voice control of connected devices.

Support and Troubleshooting

If you encounter any issues during installation or operation, please consult the following resources:

eWeLink App: Access the app for detailed guides, FAQs, and support options.
SONOFF Official Website: Visit the SONOFF website for product information, how-to videos, and customer support.
Social Media: Connect with SONOFF on [Facebook], [Twitter], and [Instagram] for updates and community support.

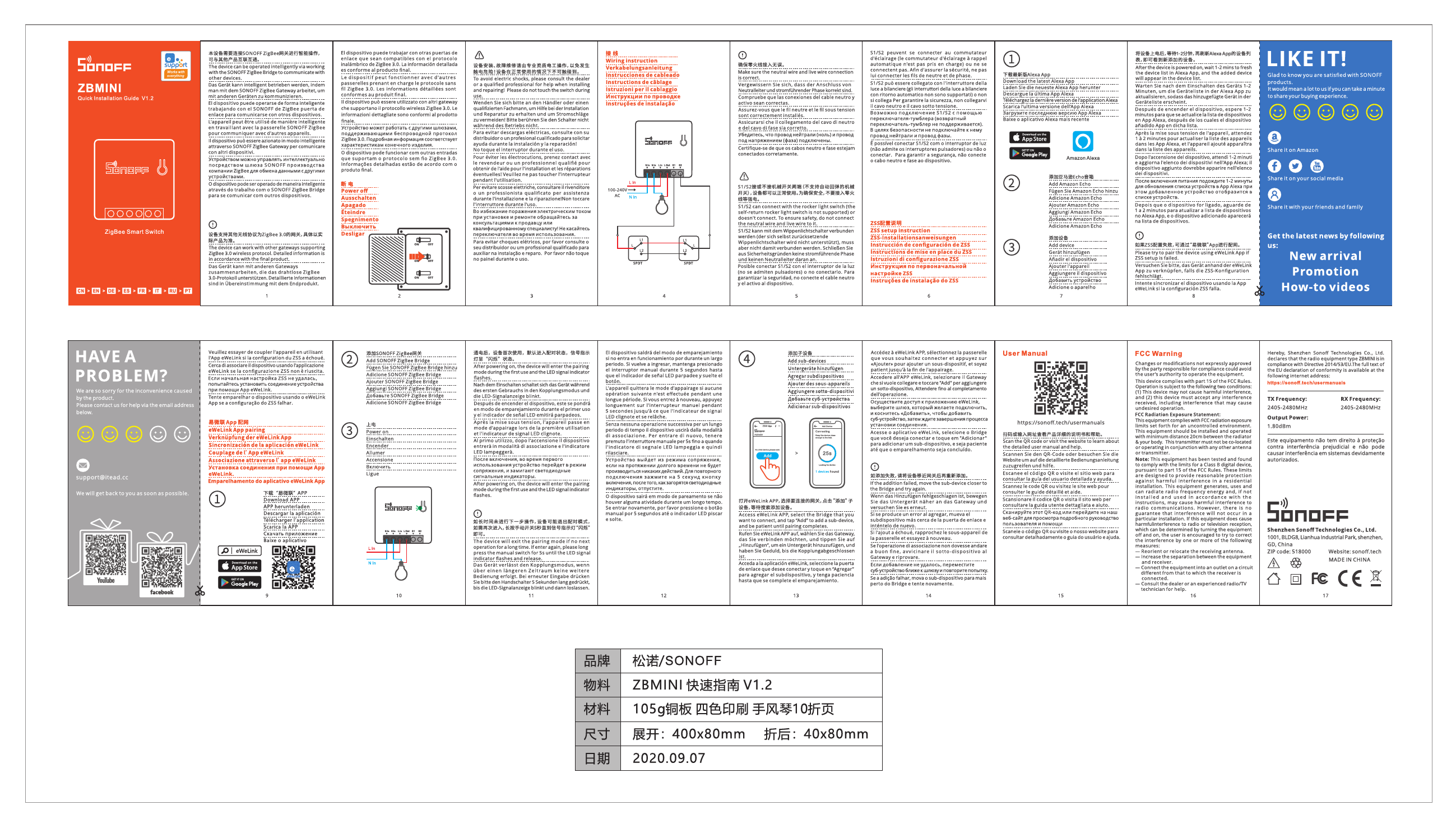

For assistance, you can reach out via the eWeLink app or the SONOFF website. The product specifications include a 105g copper plate paper, four-color printing, accordion 10-fold page format, with dimensions of 400x80mm, folded to 40x80mm. The document was last updated on 2020.03.07.
