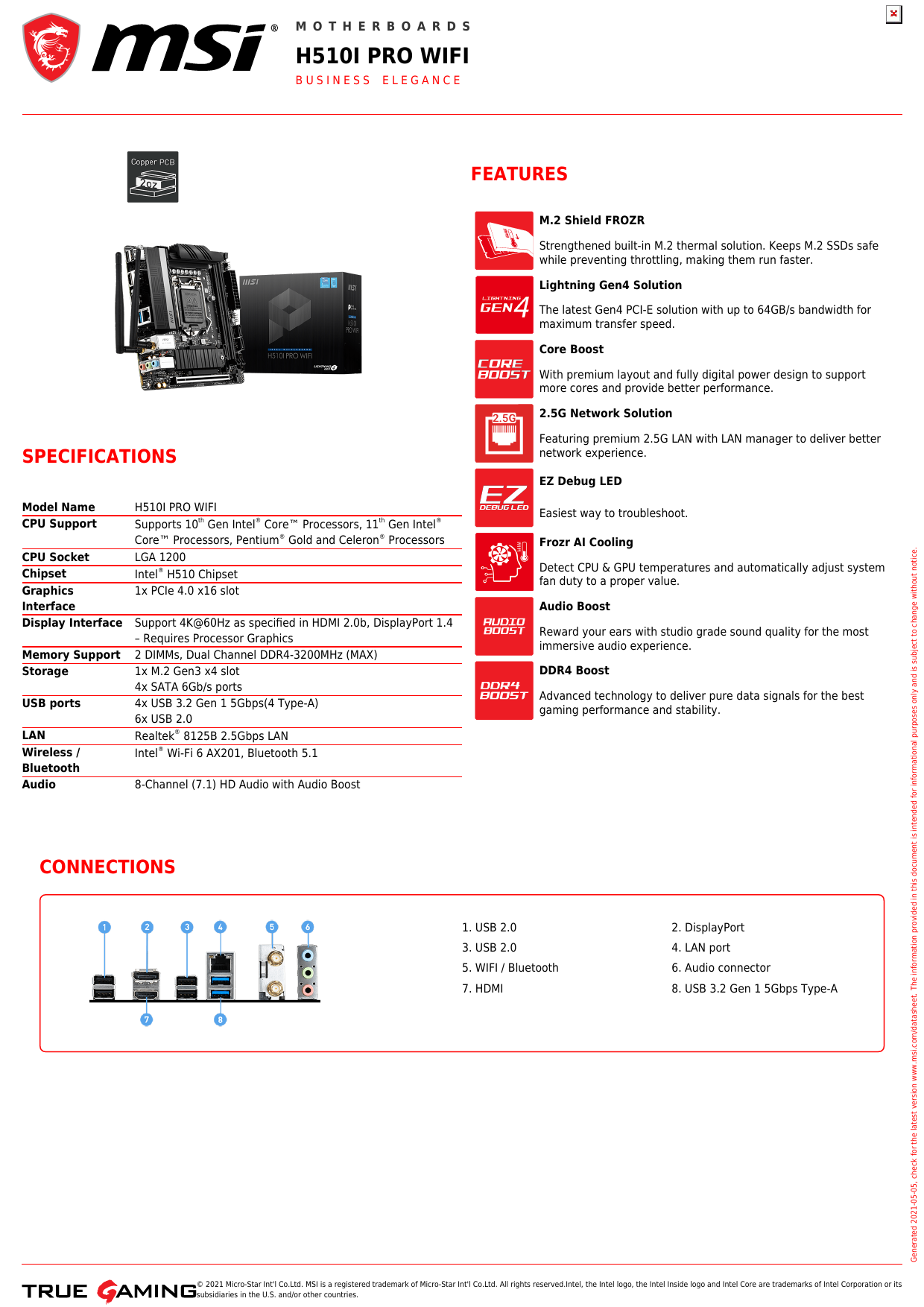

H510I PRO WIFI

H510I PRO WIFI - storage-asset.msi.com

Datasheet

Full PDF Document

If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.

Extracted Text

MOTHERBOARDS
H510I PRO WIFI
BUSINESS ELEGANCE

FEATURES

SPECIFICATIONS

Model Name CPU Support
CPU Socket Chipset Graphics Interface Display Interface
Memory Support Storage
USB ports
LAN Wireless / Bluetooth Audio

H510I PRO WIFI Supports 10th Gen Intel� CoreTM Processors, 11th Gen Intel� CoreTM Processors, Pentium� Gold and Celeron� Processors LGA 1200 Intel� H510 Chipset 1x PCIe 4.0 x16 slot
Support 4K@60Hz as specified in HDMI 2.0b, DisplayPort 1.4 � Requires Processor Graphics 2 DIMMs, Dual Channel DDR4-3200MHz (MAX) 1x M.2 Gen3 x4 slot 4x SATA 6Gb/s ports 4x USB 3.2 Gen 1 5Gbps(4 Type-A) 6x USB 2.0 Realtek� 8125B 2.5Gbps LAN Intel� Wi-Fi 6 AX201, Bluetooth 5.1
8-Channel (7.1) HD Audio with Audio Boost

M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Lightning Gen4 Solution
The latest Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better network experience.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.

CONNECTIONS

1. USB 2.0 3. USB 2.0 5. WIFI / Bluetooth 7. HDMI

2. DisplayPort 4. LAN port 6. Audio connector 8. USB 3.2 Gen 1 5Gbps Type-A

Generated 2021-05-05, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
