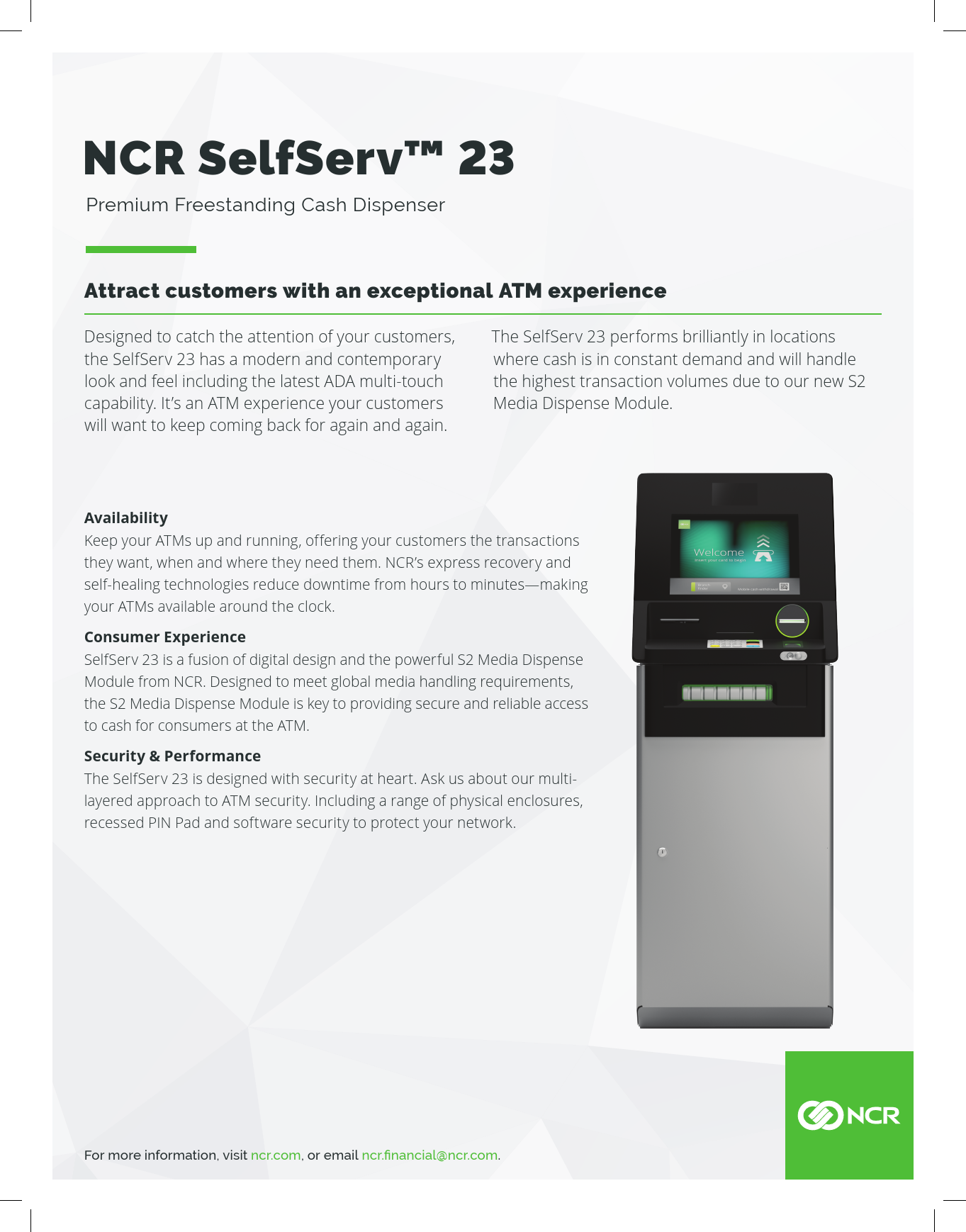

NCR SelfServTM 23
Premium Freestanding Cash Dispenser

Attract customers with an exceptional ATM experience

Designed to catch the attention of your customers, the SelfServ 23 has a modern and contemporary look and feel including the latest ADA multi-touch capability. It's an ATM experience your customers will want to keep coming back for again and again.

The SelfServ 23 performs brilliantly in locations where cash is in constant demand and will handle the highest transaction volumes due to our new S2 Media Dispense Module.

Availability Keep your ATMs up and running, offering your customers the transactions they want, when and where they need them. NCR's express recovery and self-healing technologies reduce downtime from hours to minutes--making your ATMs available around the clock.
Consumer Experience SelfServ 23 is a fusion of digital design and the powerful S2 Media Dispense Module from NCR. Designed to meet global media handling requirements, the S2 Media Dispense Module is key to providing secure and reliable access to cash for consumers at the ATM.
Security & Performance The SelfServ 23 is designed with security at heart. Ask us about our multilayered approach to ATM security. Including a range of physical enclosures, recessed PIN Pad and software security to protect your network.

For more information, visit ncr.com, or email ncr.financial@ncr.com.

Key features

� 15" LCD multi-touch screen or FDK � S2 Media Dispense Module with up to
60 note bunch capacity � Tamper Resistant Card Readers
Technical specifications

� Integrated Skimming Protection Solution (SPS) � A range of Intel� Processors � Microsoft Windows� 7 / Windows� 10 Ready

Product dimensions

Front access

� HEIGHT

52.28"

(1,328mm)

� WIDTH

18.9"

(480mm)

� DEPTH

26.54"

(674mm)

� WEIGHT

CEN I safe

952.4lbs (432kg)

Customer interface

� Display � 15" LCD multi-touch, or FDK, optional privacy filter

� Keyboard � EPP (PCI compliant), polycarbonate or stainless steel

� Tamper Resistant Card Readers � Smart Dip, Track 2 or Track 3

IMCRW with CROPF

� Contactless � Integrated Reader

(via card, smartphone or smartwatch)

� Integrated Media Entry and Exit Indicators (MEEI)

� Audio � Optional high quality public audio and/or sound jack

with volume control

� Barcode Reader (2D) � 2D Barcode supports both

1D and 2D documents

Media Handling 2.0 technology

� Dispense � S2 Media Dispense Module: up to 60 note bunch,

2-4 cassettes 2,500 notes per cassette, vacuum based with

adaptive pick technology (5 high dispenser is available but

only as a single configuration)

� Configurable purge bin capability with retract and single

note divert

� Anti-overfill cassette

Printers

� Receipt Printer � 80mm 203dpi graphics thermal printer

� Options � retract and capture, 2STTM

(two-sided thermal printing), Dual Roll Receipt Printer

� Journal Printer � 80mm 203dpi graphics thermal printer (E-Journal available as default)
Security � USB Protection and Parts Validation � Options: Integrated Skimming Protection Solution (SPS), Solidcore Suite for APTRA, Camera NTSC, PAL or third party, portrait camera (USB), cash slot camera enabled, UL437 Topbox Lock, Uninterrupted Power Supply (UPS) � CEN I, CEN III, CEN III GasEx, CEN IIII, CEN IIII GasEx
Environmental � Standard 50�F to 104�F (10�C to 40�C) with Severe environment 32�F to 104�F (0�C to 40�C) � Humidity � 20% to 80% � Acoustics � 65 dB (A) when idle, 68dB when operating. Maximum 75dB (A) fan
Servicing � Front and rear access
Operating platform � Intel� Celeron, i3 and i5 processor options � 4GB, 8GB or 16GB RAM � Primary or Secondary Hard Disk Drive or Solid State Drive � DVD-RW drive
Software � Microsoft W indows� 7 / Windows� 10 ready � NCR Software Suite
Additional features � Biometric option
*Please note a 5 high dispenser configuration of the SelfServ 23 is available but only as a single configuration (FA CEN 1 safe, with left hand door hinge)

Why NCR?
NCR is a leading global technology company that brings unexpected value to every interaction between customers and businesses. The company behind the world's #1 ATM SelfServ brand and ranked #1 globally for ATM multi-vendor software, we power 5 of the 10 highest-ranked banking apps with digital banking solutions used by 15M+ consumers.

Digital first but not digital only, our software, hardware and services help financial institutions bridge their digital and physical operations. From banking apps to branch transformation, our future-proofing technology runs the entire bank, delivering customized, secure, "anytime, anywhere" experiences that create more value for FIs and their customers.

NCR continually improves products as new technologies and components become available. NCR, therefore, reserves the right to change specifications without prior notice.

All features, functions and operations described herein may not be marketed by NCR in all parts of the world. Consult your NCR representative or NCR office for the latest information.

All brand and product names appearing in this document are trademarks, registered trademarks or service marks of their respective holders.

� 2019 NCR Corporation Patents Pending

040219_PM-FIN_0719 ncr.com
