This specification shall be applied to battery cell supplied by AA Portable Power Corp.

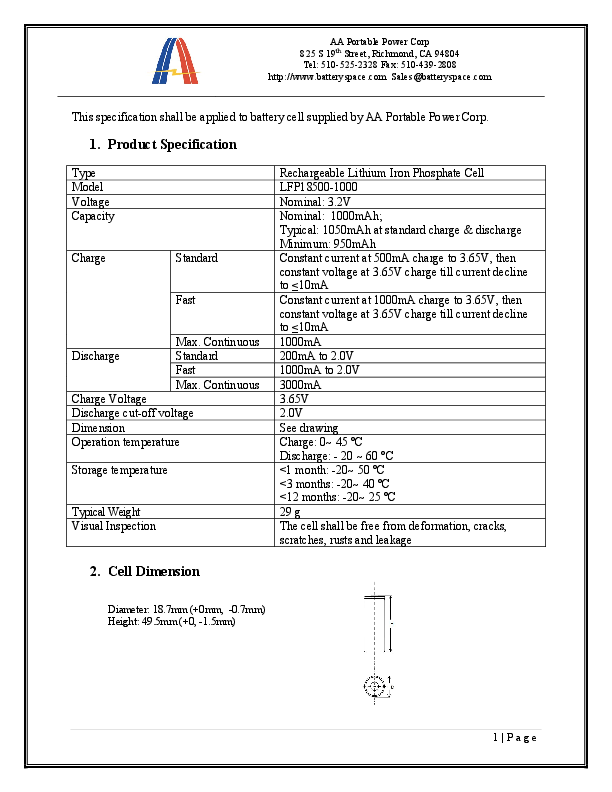

1. Product Specification
Type Model Voltage Capacity
Charge
Standard
Fast
Max. Continuous
Discharge
Standard
Fast
Max. Continuous
Charge Voltage
Discharge cut-off voltage
Dimension
Operation temperature
Storage temperature
Typical Weight Visual Inspection
Rechargeable Lithium Iron Phosphate Cell LFP18500-1000 Nominal: 3.2V Nominal: 1000mAh; Typical: 1050mAh at standard charge & discharge Minimum: 950mAh Constant current at 500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to 10mA Constant current at 1000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to 10mA 1000mA 200mA to 2.0V 1000mA to 2.0V 3000mA 3.65V 2.0V See drawing Charge: 0~ 45 °C Discharge: - 20 ~ 60 °C <1 month: -20~ 50 °C <3 months: -20~ 40 °C <12 months: -20~ 25 °C 29 g The cell shall be free from deformation, cracks, scratches, rusts and leakage
2. Cell Dimension
Diameter: 18.7mm (+0mm, -0.7mm) Height: 49.5mm (+0, -1.5mm)
1|Page
AA Portable Power Corp 825 S 19th Street, Richmond, CA 94804 Tel: 510-525-2328 Fax: 510-439-2808 http://www.batteryspace.com Sales@batteryspace.com
3. Electrical characteristics
Unless otherwise stated, tests should be conducted under the following conditions: Time frame: Within one month after delivery Ambient temperature: 25°C±5°C Relative Humidity: 65% ± 20% Atmospheric Pressure: 86kPa-106kPa
No Items 1 Standard
Charge
2 Open Circuit Voltage
3 Initial Internal Impedance
Test Method Standard capacity is measured with a discharge current of 0.2C and a discharge final voltage of 2.0V within 1 hour after the standard charge. Up to three cycles are permitted for this test.
The open circuit voltage is measured within 1 hour after standard charge. The initial internal impedance is measured at the frequency of 1kHz within 1 hour after standard charge.
4 Fast Discharge The capacity is measured with a discharge current of 1C to
Capacity
a discharge final voltage of 2.0V within 1 hour after the standard charge.
5 Charge Retention
Charge retention is measured with a discharge current of 0.2C and a discharge final voltage of 2.0V after standard charge and storage time of 28 days.
6 Charge Recovery
7 Cycle Life
After charge retention test, the cell shall be done standard charge within 24 hours and stored for 1hour. Charge recovery is measured with a discharge current of 0.2C and a discharge final voltage of 2.0V. During this cycle life test, the ambient temperature should be kept at 23°C ±2°C.The cell shall be charged at CC/CV=0.5C/3.65V, cut off till current decline to 0.05C, stored for 10mins, then discharged at a constant current of 0.5C to a final voltage of 2.0V, after that, stored 10mins prior to next charge/discharge cycle. The cell shall be continuously charged and discharged for 1000 times.
Criteria
Discharge
capacity
minimum
capacity
Open circuit
voltage 3.35V
Initial internal
impedance
70m
Discharge capacity 90% of initial capacity Discharge capacity 85% of initial capacity Discharge capacity 90% of initial capacity Discharge capacity at the 1000th cycle 80% of initial capacity
2|Page
AA Portable Power Corp 825 S 19th Street, Richmond, CA 94804 Tel: 510-525-2328 Fax: 510-439-2808 http://www.batteryspace.com Sales@batteryspace.com
4. Environmental Condition Characteristics
No Items 1 Discharge
Capacity at High Temperature
2 Discharge Capacity at Low Temperature
3 Constant Temperature and Humidity
Test Method
After the standard charge, the cell is stored at an ambient temperature of 55°C ± 2°C for not less than 16h and not more than 24h. The capacity is measured with a discharge current of 0.2C and a discharge final voltage of 2.0V. After the standard charge, the cell is stored at an ambient temperature of -10°C ± 2°C for not less than 16h and not more than 24h. The discharge capacity is measured with a discharge current of 0.2C and a discharge final voltage of 2.0V. After the standard charge, the cell is stored in an ambient temperature of 40°C ± 2°C (90-95%RH) for 48h, then placed in room temperature for 2h. After that, check its appearance, the discharge capacity is measured with a discharge current of 0.2C and a discharge final voltage of 2.0V.
Criteria Discharge capacity 95% of initial capacity
Discharge capacity 50% of initial capacity
No explosion, no fire, no leakage. Discharging capacity 60% of initial capacity
5. Mechanical performance
No Items 1 Vibration
Test
2 Drop Test
Test Method
After standard charge, the cell is installed onto the vibration desk with clamps. The test is to be varied at the rate of 1oct/min between 10 and 55Hz. Repeat vibration for 30min in three mutually perpendicular directions. Equipment parameters of frequency and amplitude are as follows: Vibration frequency: 10-30Hz, amplitude: 0.38mm; 30-55Hz, amplitude: 0.19mm After standard charge, the cell is dropped from a height of 1m to a concrete surface. Each cell is to be dropped once in the positive and negative directions of three mutually perpendicular mounting positions for a total of 6 times, then rest for 1 hrs.
Criteria No scratch, no leakage, no fume, no explosion. Cell voltage 3.2V
No leakage, no fume, no explosion
3|Page
AA Portable Power Corp 825 S 19th Street, Richmond, CA 94804 Tel: 510-525-2328 Fax: 510-439-2808 http://www.batteryspace.com Sales@batteryspace.com
6. Safety Performance
No Items
Test Method
1 Overcharge At standard testing condition, the cell is charged with constant
current 3C to voltage 5.0V, then charged with constant voltage
of 5.0V till current decline to 0.005C. Charge time is no less
than 8hrs.
2 Over-
At standard testing condition, the cell is discharged at 0.2C
discharge current to final voltage of 2.0V, then connect 30 load to discharge for 24 hours.
3 Crush
At standard testing condition, the cell is charged by standard
charge, then placed on the crush flat, the axis is parallel to the
crush flat, it is to be crushed between two flat surfaces.
Crushing force is approximately 13kN and hold for 1 min
4 Short-
At standard testing condition, the cell is charged by standard
circuit
charge, then connect the positive and negative terminals of the cell with a circuit load having a resistance load of
80m±20m. The temperature of the battery case is to be
recorded during the test. Stop the test until the cell surface
temperature lower 10 than the temperature max.
5 Heating At standard testing condition, the cell is charged at standard
charge, put the cells in the oven, the temperature of the oven is
to be raised at 5 ± 2 per minute to a temperature of 130
± 2 and remain for 30 minutes.
6 Impact
At standard testing condition, the cell is charged at standard
charge, then is placed on a flat surface so that the longitudinal
axis of the cell shall be parallel with it. A 7.9mm diameter bar
is to be placed across the center of the sample. A 9.1kg weight
is to be dropped from a height of 610mm on the sample.
7 Low
At standard testing condition, charge the cell at standard
Pressure
charge, then store for 6hrs at absolute pressure of 11.6kPa. After that, rest for 2hrs at 20 ± 5.
Criteria No fire, no explosion
No leakage, no fume, no fire No fire, no explosion
No fire, no explosion
No fire, no explosion
No fire, no explosion
No leakage, no fire, no explosion
7. Shipment
The cell shall be shipped in voltage range of 3.2-3.4V or in accordance with customers' requirement. The remaining capacity before charging shall be changed depending on the storage time and conditions.
8. Precautions and Safety Instructions
The cell/battery subject to abusive conditions can cause damage to the cell/battery and/or personal injury. Please read and observe the standard battery precautions below before using utilization.
4|Page
AA Portable Power Corp 825 S 19th Street, Richmond, CA 94804 Tel: 510-525-2328 Fax: 510-439-2808 http://www.batteryspace.com Sales@batteryspace.com
Note 1: The customer is required to contact AA Portable Power Corp in advance, if and when the customer needs other applications or operating conditions than those described in this document.
