CLiCK 100W 2 Gang Smart Dimming Receiver CSP052 Datasheet
File info: application/pdf · 1 pages · 314.64KB

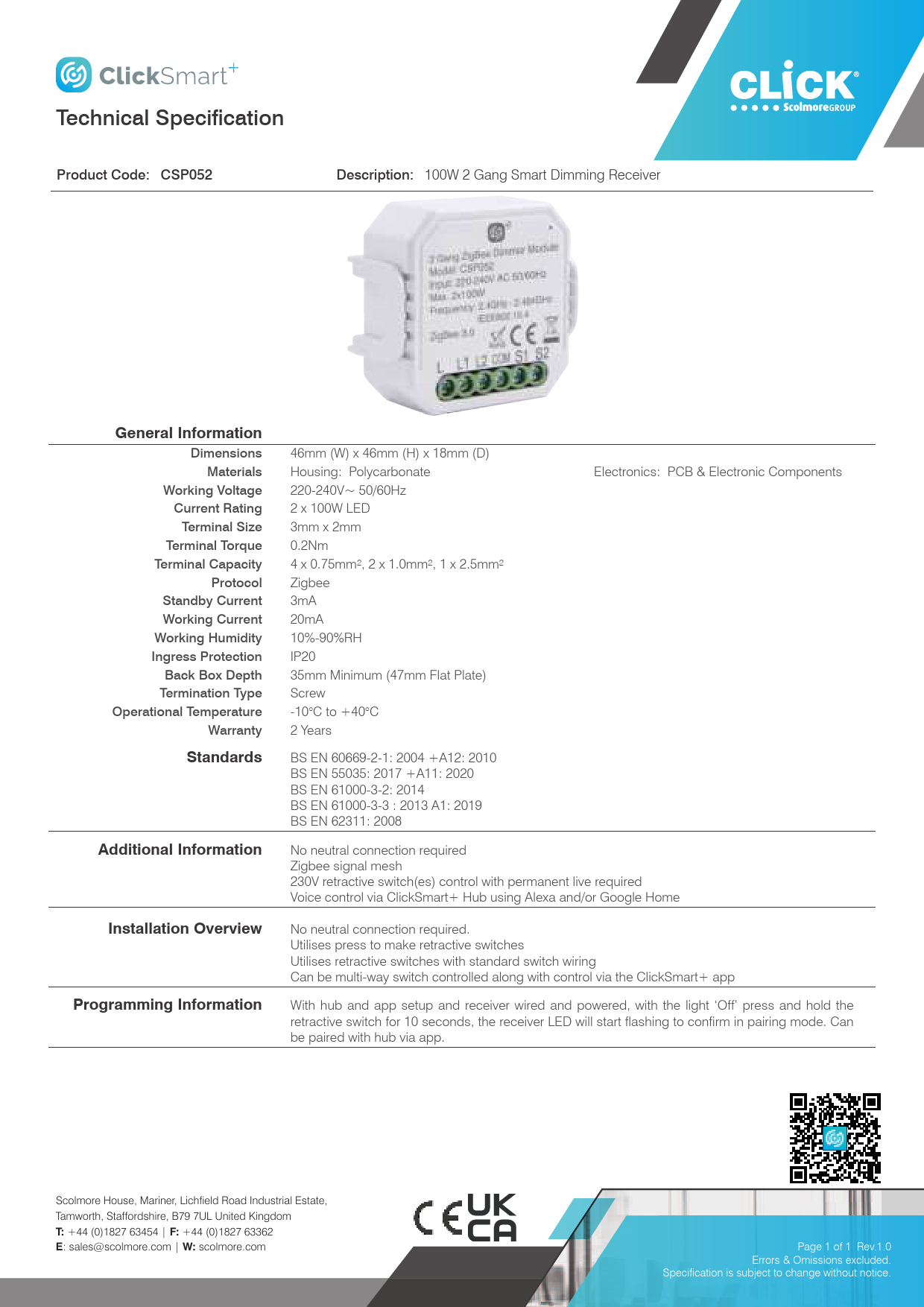

Technical Specification
Scolmore CSP052 Datasheet
Scolmore ClickSmart 2 x 100W 2 Gang Smart Dimming Receiver (CSP052) | CEF
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
Technical Specification Product Code: CSP052 Description: 100W 2 Gang Smart Dimming Receiver General Information Dimensions Materials Working Voltage Current Rating Terminal Size Terminal Torque Terminal Capacity Protocol Standby Current Working Current Working Humidity Ingress Protection Back Box Depth Termination Type Operational Temperature Warranty Standards Additional Information Installation Overview Programming Information 46mm (W) x 46mm (H) x 18mm (D) Housing: Polycarbonate 220-240V~ 50/60Hz 2 x 100W LED 3mm x 2mm 0.2Nm 4 x 0.75mm�, 2 x 1.0mm�, 1 x 2.5mm� Zigbee 3mA 20mA 10%-90%RH IP20 35mm Minimum (47mm Flat Plate) Screw -10�C to +40�C 2 Years Electronics: PCB & Electronic Components BS EN 60669-2-1: 2004 +A12: 2010 BS EN 55035: 2017 +A11: 2020 BS EN 61000-3-2: 2014 BS EN 61000-3-3 : 2013 A1: 2019 BS EN 62311: 2008 No neutral connection required Zigbee signal mesh 230V retractive switch(es) control with permanent live required Voice control via ClickSmart+ Hub using Alexa and/or Google Home No neutral connection required. Utilises press to make retractive switches Utilises retractive switches with standard switch wiring Can be multi-way switch controlled along with control via the ClickSmart+ app With hub and app setup and receiver wired and powered, with the light `Off' press and hold the retractive switch for 10 seconds, the receiver LED will start flashing to confirm in pairing mode. Can be paired with hub via app. Scolmore House, Mariner, Lichfield Road Industrial Estate, Tamworth, Staffordshire, B79 7UL United Kingdom T: +44 (0)1827 63454 | F: +44 (0)1827 63362 E: sales@scolmore.com | W: scolmore.com Page 1 of 1 Rev.1.0 Errors & Omissions excluded. Specification is subject to change without notice.
