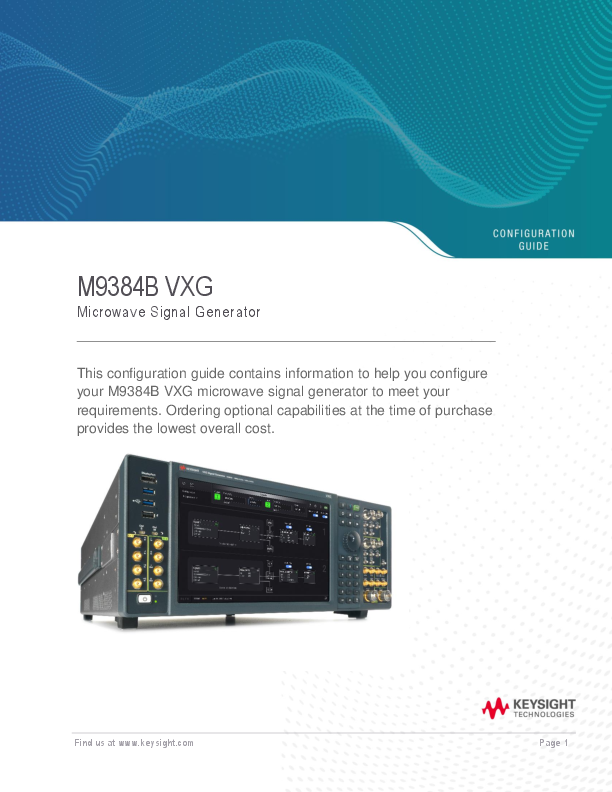

M9384B VXG Microwave Signal Generator This configuration guide contains information to help you configure your M9384B VXG microwave signal generator to meet your requirements. Ordering optional capabilities at the time of purchase provides the lowest overall cost. Find us at www.keysight.com Page 1 Table of Contents Hardware....................................................................................................................................................... 3 Select options for VXG microwave signal generator channel 1................................................................ 3 Select options for VXG microwave signal generator channel 2................................................................ 4 Select accessories .................................................................................................................................... 5 Software ........................................................................................................................................................ 5 Included software ...................................................................................................................................... 5 PathWave software tools .......................................................................................................................... 5 Signal Studio and MATLAB....................................................................................................................... 6 Services......................................................................................................................................................... 7 KeysightCare............................................................................................................................................. 7 Global warranty ......................................................................................................................................... 7 One day Start-up Assistance .................................................................................................................... 8 Related Literature.......................................................................................................................................... 8 Find us at www.keysight.com Page 2 Hardware Select options for VXG microwave signal generator channel 1 Step 1. Add first channel (required) M9384B-001 Add channel 1 Step 2. Select frequency range on channel 1 (required) M9384B-F14 Frequency range, 1 MHz to 14 GHz (APC 3.5 mm male) M9384B-F20 Frequency range, 1 MHz to 20 GHz (APC 3.5 mm male) M9384B-F32 Frequency range, 1 MHz to 31.8 GHz (2.4 mm male) M9384B-F44 Frequency range, 1 MHz to 44 GHz (2.4 mm male) Step 3. Select RF bandwidth on channel 1 (required) M9384B-D05 RF bandwidth, 500 MHz with 256 MSa memory Requires F14 or F20 M9384B-D06 RF bandwidth, 500 MHz with 256 MSa memory Requires F32 or F44 M9384B-D10 RF bandwidth, 1 GHz with 256 MSa memory Requires F14 or F20 M9384B-D11 RF bandwidth, 1 GHz with 256 MSa memory Requires F32 or F44 M9384B-D20 RF bandwidth, 2 GHz with 256 MSa memory Requires F14 or F20 M9384B-D21 RF bandwidth, 2 GHz with 256 MSa memory Requires F32 or F44 M9384B-D2E RF bandwidth, 2 GHz with 256 MSa memory, limited Step 4. Select reference (required) Requires F32 or F44 M9384B-500 High performance reference M9384B-600 Enhanced high performance reference Step 5. Select phase noise performance on channel 1 (required) M9384B-ST5 Low phase noise Requires 500 M9384B-ST6 Enhanced low phase noise Step 6. Add high output power on channel 1 (optional) Requires 600 M9384B-1EB High output power from 20 GHz to 44 GHz Requires F32 or F44 M9384B-1EE High output power from 20 GHz to 43.5 GHz, limited above 43.5 GHz Step 7. Select vector system features on channel 1 (optional) Requires F32 or F44 M9384B-M05 Baseband generator memory upgrade to 512 MSa M9384B-M10 Baseband generator memory upgrade to 1024 MSa M9384B-EXT Wideband differential external IQ inputs M9384B-DIQ Differential IQ outputs M9384B-403 Calibrated AWGN Find us at www.keysight.com Page 3 Step 8. Select analog modulation on channel 1 (optional) M9384B-PMR Pulse modulation M9384B-PME Limited pulse modulation Step 9. Select general performance features on channel 1 (optional) M9384B-PCH Phase coherency for N channels M9384B-1EH Improved harmonics below 2 GHz Select options for VXG microwave signal generator channel 2 Step 1. Add second channel (optional) M9384B-002 Add channel 2 The reference and phase noise options selected on channel 1 will be automatically selected on channel 2. Step 2. Select frequency range on channel 2 (required) M9384B-F14 Frequency range, 1 MHz to 14 GHz (APC 3.5 mm male) M9384B-F20 Frequency range, 1 MHz to 20 GHz (APC 3.5 mm male) M9384B-F32 Frequency range, 1 MHz to 31.8 GHz (2.4 mm male) M9384B-F44 Frequency range, 1 MHz to 44 GHz (2.4 mm male) Step 3. Select RF bandwidth on channel 2 (required) Requires F14 or F20 on channel 1 Requires F20 on channel 1 Requires F32 or F44 on channel 1 Requires F44 on channel 1 M9384B-D05 RF bandwidth, 500 MHz with 256 MSa memory Requires F14 or F20 M9384B-D06 RF bandwidth, 500 MHz with 256 MSa memory Requires F32 or F44 M9384B-D10 RF bandwidth, 1 GHz with 256 MSa memory Requires F14 or F20 M9384B-D11 RF bandwidth, 1 GHz with 256 MSa memory Requires F32 or F44 M9384B-D20 RF bandwidth, 2 GHz with 256 MSa memory Requires F14 or F20 M9384B-D21 RF bandwidth, 2 GHz with 256 MSa memory Requires F32 or F44 M9384B-D2E RF bandwidth, 2 GHz with 256 MSa memory, limited Step 4. Select high output power on channel 2 (optional) Requires F32 or F44 M9384B-1EB High output power from 20 GHz to 44 GHz M9384B-1EE High output power from 20 GHz to 43.5 GHz, limited above 43.5 GHz Step 5. Select vector system features on channel 2 (optional) Requires F32 or F44 Requires F32 or F44 M9384B-M05 Baseband generator memory upgrade to 512 MSa M9384B-M10 Baseband generator memory upgrade to 1024 MSa M9384B-403 Calibrated AWGN Find us at www.keysight.com Page 4 Step 6. Select analog modulation on channel 2 (optional) M9384B-PMR Pulse modulation M9384B-PME Limited pulse modulation Step 7. Select general performance features on channel 2 (optional) M9384B-1EH Improved harmonics below 2 GHz Select accessories Select accessories (optional) Y1164A Y1165A 1 Rack mount kit for M9384B Additional removable solid-state drive Y1260A 11900B 2 11904B 2 83059B 3 Micro GPIB Cable Adapter, 2.4 mm (f) to 2.4 mm (f), DC to 50 GHz Adapter, 2.4 mm (f) to 2.9 mm (f), DC to 40 GHz Coaxial Adapter, 3.5 mm (f) to 3.5 mm (f), DC to 26.5 GHz 83059C Coaxial Adapter, 3.5 mm (m) to 3.5 mm (f), DC to 26.5 GHz Software Included software Step 1. Start with the M9384B VXG base configuration The VXG base configuration includes the following software: � PathWave General Purpose Signal Generation � Keysight IO Libraries Suite including Connection Expert � Sample waveforms and programming examples PathWave software tools Step 2: Add PathWave Software Tools 4, 5 (optional) N7631APPC PathWave Signal Generation for 5G NR N7621APPC PathWave Signal Generation for basic multitone N7642APPC PathWave Signal Generation for IQ based AM, FM, phase modulation N7653APPC PathWave automatic channel response correction and S-parameter de-embedding 1 If PathWave or Signal Studio software will be added to a purchase which also includes an additional removable SSD, it is recommended to select floating, transportable, or USB portable license types. Node-locked licenses enable a single SSD. 2 When options F32 or F44 are ordered, each channel of the M9384B VXG includes one 11900B adapter and one 11904B adapter to help interface with the 2.4 mm (m) RF output. Additional adapters of interest can be found here. 3 When options F14 or F20 are ordered, each channel of the M9384B VXG includes one 83059B. 4 For more information, see PathWave Signal Creation - Brochure, literature number 5989-6448EN. 5 PathWave software tools can be used to create, download, and playback waveforms through the VXG touch -optimized graphical user interface. Find us at www.keysight.com Page 5 Signal Studio and MATLAB Step 3: Add Signal Studio 6 and MATLAB Software (optional) Cellular Communications N7600EMBC Signal Studio for W-CDMA/HSPA+, waveform playback N7601EMBC Signal Studio for cdma2000/1xEV-DO, waveform playback N7602EMBC Signal Studio for GSM/EDGE/Evo, waveform playback N7612EMBC Signal Studio for TD-SCDMA/HSPA, waveform playback N7624EMBC Signal Studio for LTE/LTE-Advanced/LTE-A Pro FDD, waveform playback N7625EMBC Signal Studio for LTE/LTE-Advanced TDD, waveform playback N7630EMBC Signal Studio Pro for Pre-5G, waveform playback N7631EMBC Signal Studio Pro for 5G NR, waveform playback Wireless Connectivity N7606EMBC Signal Studio for Bluetooth, waveform playback N7610EMBC Signal Studio for IoT, waveform playback N7615EMBC Signal Studio for mobile WiMAX, waveform playback N7617EMBC Signal Studio for WLAN 802.11, waveform playback Audio/Video Broadcasting, Public Safety N7611EMBC Signal Studio for broadcast radio, waveform playback N7623EMBC Signal Studio for digital video, waveform playback N7640EMBC Signal Studio for LMR, waveform playback Detection, Positioning, Tracking and Navigation N7609EMBC Signal Studio for Global Navigation Satellite System (GNSS), waveform playback 7 General RF and Microwave N7608EMBC Signal Studio Pro for Custom Modulation, waveform playback N7614EMBC Signal Studio for power amplifier test N6171A MATLAB software 6 Signal Studio licenses can be used to playback exported waveforms offline. 7 Real-time signal generation is not supported. Find us at www.keysight.com Page 6 Services Select KeysightCare, warranty, and start-up assistance (optional) The base configuration includes the following services: � One day of start-up assistance � KeysightCare Assured first year support KeysightCare Upgrades R-55A-001-2 KeysightCare � Extend to 2 years KeysightCare Assured R-55A-001-3 KeysightCare � Extend to 3 years KeysightCare Assured R-55A-001-5 KeysightCare � Extend to 5 years KeysightCare Assured R-55B-001-1 Upgrade to 1-year KeysightCare Enhanced R-55B-001-2 Upgrade to 2 years KeysightCare Enhanced R-55B-001-3 Upgrade to 3 years KeysightCare Enhanced R-55B-001-5 Upgrade to 5 years KeysightCare Enhanced R-55C-001-1 Upgrade to 1-year KeysightCare Performance R-55C-001-2 Upgrade to 2 years KeysightCare Performance R-55C-001-3 Upgrade to 2 years KeysightCare Performance R-55C-001-5 Upgrade to 2 years KeysightCare Performance KeysightCare KeysightCare offers the industry's first cloud-based customer experience with dedicated, proactive support through a single point of contact for instruments, software, and solutions. Get faster response times, faster access to specialized experts and faster time to resolution. Global warranty Keysight provides the peace of mind that today's high-tech industry requires. Your investment is protected by Keysight's global reach in more than 100 countries (either directly or through distributors). The warranty gives you convenient standard coverage for the country in which the product is used, eliminating the need to ship equipment back to the country of purchase. Keysight's warranty service provides: � All parts and labor necessary to return your investment to full specified performance � Recalibration for products supplied originally with a calibration certificate � Return shipment Find us at www.keysight.com Page 7 One day Start-up Assistance To give you the most value from your investment, your Keysight purchase includes Startup Assistance, a service that includes consultation from an expert application engineer. He or she will help you configure the system and offer training on topics most beneficial to you, anything from theory and basic usage to new features and benefits or even more advanced training specific to your application. Startup Assistance provides a customized consultation, getting you to the results you need more quickly. Related Literature For more detailed product and specification information, refer to the following literature and web pages: Description VXG M9384B and VXG-m M9383B - Data Sheet PathWave Signal Creation - Brochure Publication number 5992-4260EN 5989-6448EN Learn more at: www.keysight.com For more information on Keysight Technologies' products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus Find us at www.keysight.com This information is subject to change without notice. � Keysight Technologies, 2018 - 2020, Published in USA, September 3, 2020, 5992-3671EN Page 8
