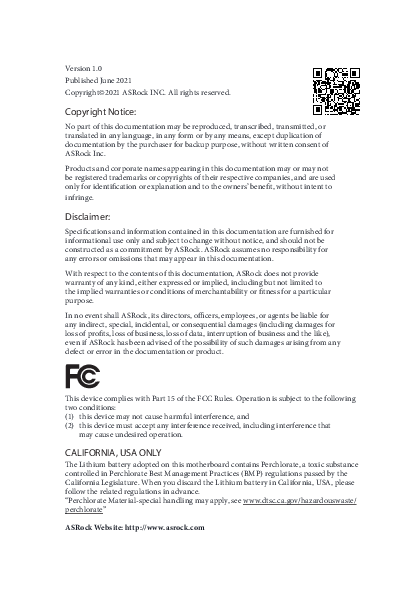

Version 1.0 Published June 2021 Copyright�2021 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. "Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate"
ASRock Website: http://www.asrock.com
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply)
The terms HDMI� and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.
LICENSE. Licensee has a license under Intel's copyrights to reproduce Intel's Software only in its unmodified and binary form, (with the accompanying documentation, the "Software") for Licensee's personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions:
(a) Licensee may not disclose, distribute or transfer any part of the Software, and You agree to prevent unauthorized copying of the Software.
(b) Licensee may not reverse engineer, decompile, or disassemble the Software.
(c) Licensee may not sublicense the Software.
(d) The Software may contain the software and other intellectual property of third party suppliers, some of which may be identified in, and licensed in accordance with, an enclosed license.txt file or other text or file.
(e) Intel has no obligation to provide any support, technical assistance or updates for the Software.
OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Software remains with Intel or its licensors or suppliers. The Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions. Licensee may not remove any copyright notices from the Software. Except as otherwise expressly provided above, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other intellectual property rights. Transfer of the license terminates Licensee's right to use the Software.
DISCLAIMER OF WARRANTY. The Software is provided "AS IS" without warranty of any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS LICENSORS OR SUPPLIERS WILL BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAG-
DAMAGES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate Licensee to provide Intel with comments or suggestions regarding the Software. However, if Licensee provides Intel with comments or suggestions for the modification, correction, improvement or enhancement of (a) the Software or (b) Intel products or processes that work with the Software, Licensee grants to Intel a non-exclusive, worldwide, perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under Licensee's intellectual property rights, to incorporate or otherwise utilize those comments and suggestions.
TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license at any time if Licensee is in breach of any of its terms or conditions. Upon termination, Licensee will immediately destroy or return to Intel all copies of the Software.
THIRD PARTY BENEFICIARY. Intel is an intended beneficiary of the End User License Agreement and has the right to enforce all of its terms.
U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S. Government. Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95054.
EXPORT LAWS. Licensee agrees that neither Licensee nor Licensee's subsidiaries will export/re-export the Software, directly or indirectly, to any country for which the U.S. Department of Commerce or any other agency or department of the U.S. Government or the foreign government from where it is shipping requires an export license, or other governmental approval, without first obtaining any such required license or approval. In the event the Software is exported from the U.S.A. or re-exported from a foreign destination by Licensee, Licensee will ensure that the distribution and export/re-export or import of the Software complies with all laws, regulations, orders, or other restrictions of the U.S. Export Administration Regulations and the appropriate foreign government.
APPLICABLE LAWS. This Agreement and any dispute arising out of or relating to it will be governed by the laws of the U.S.A. and Delaware, without regard to conflict of laws principles. The Parties to this Agreement exclude the application of the United Nations Convention on Contracts for the International Sale of Goods (1980). The state and federal courts sitting in Delaware, U.S.A. will have exclusive jurisdiction over any dispute arising out of or relating to this Agreement. The Parties consent to personal jurisdiction and venue in those courts. A Party that obtains a judgment against the other Party in the courts identified in this section may enforce that judgment in any court that has jurisdiction over the Parties.
Licensee's specific rights may vary from country to country.
Motherboard Layout
Q270 Pro BTC+
English
1
No. Description 1 ATX 12V Power Connector (ATX12V1) 2 CPU Fan Connector (CPU_FAN1) 3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) 4 Power Button (PWRBTN1) 5 Reset Button (RSTBTN1) 6 ATX Power Connector (ATXPWR1) 7 Chassis Fan Connector (CHA_FAN1) 8 SATA3 Connector (SATA3_0) (Upper), SATA3 Connector (SATA3_1) (Lower) 9 SATA3 Connector (SATA3_2) (Upper), SATA3 Connector (SATA3_3) (Lower) 10 System Panel Header (PANEL1) 11 Chassis Intrusion and Speaker Header (SPK_CI1) 12 Clear CMOS Jumper (CLRMOS1) 13 USB 3.2 Gen1 Header (USB3_3_4) 14 USB 2.0 Header (USB_5_6) 15 TPM Header (TPMS1) 16 COM Port Header (COM1) 17 SATA Power Connector (SATA_POW1) 18 PCIe Power Connector (PCIE_PWR2) 19 Front Panel Audio Header (HD_AUDIO1) 20 Chassis Fan Connector (CHA_FAN2) 21 PCIe Power Connector (PCIE_PWR1)
2
English
I/O Panel
1
Q270 Pro BTC+
3
2
4
10
9
8
7
6
5
No. Description 1 PS/2 Mouse Port 2 LAN RJ-45 Port* 3 Line In (Light Blue)** 4 Front Speaker (Lime)** 5 Microphone (Pink)**
No. Description 6 USB 2.0 Ports (USB_3_4) 7 USB 3.2 Gen1 Ports (USB3_1_2) 8 USB 2.0 Ports (USB_1_2) 9 HDMI Port 10 PS/2 Keyboard Port
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED SPEED LED
LAN Port
Activity / Link LED
Status
Description
Off Blinking On
No Link Data Activity Link
Speed LED
Status Off Orange Green
Description
10Mbps connection 100Mbps connection 1Gbps connection
** Function of the Audio Ports in 7.1-channel Configuration:
Port
Light Blue (Rear panel) Lime (Rear panel) Pink (Rear panel) Lime (Front panel)
Function
Rear Speaker Out Front Speaker Out Central /Subwoofer Speaker Out Side Speaker Out
3
English
Chapter 1 Introduction
Thank you for purchasing ASRock Q270 Pro BTC+ motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.
1.1 Package Contents
� ASRock Q270 Pro BTC+ Motherboard (ATX Form Factor) � ASRock Q270 Pro BTC+ Quick Installation Guide � ASRock Q270 Pro BTC+ Support CD � 2 x Serial ATA (SATA) Data Cables (Optional) � 1 x Screw for M.2 Socket (Optional) � 1 x I/O Panel Shield
4
English
Q270 Pro BTC+
1.2 Specifications
Platform
� ATX Form Factor � Solid Capacitor design
CPU
� Supports 7th and 6th Generation Intel� CoreTM i5/i3/Pentium�/ Celeron� Processors (Socket 1151)
� Supports CPU up to 91W � Digi Power design � 6 Power Phase design � Supports Intel� Turbo Boost 2.0 Technology
Chipset
� Intel� Q270 � Supports Intel� vProTM Technology � Supports Intel� Active Management Technology 11.6 * Intel� vProTM Technology and Intel� Active Management Technology 11.6 can be supported only with Intel� CoreTM vProTM processor family
Memory
� Dual Channel DDR4 Memory Technology � 2 x DDR4 DIMM Slots � Supports DDR4 2400/2133 non-ECC, un-buffered memory* * 7th Gen Intel� CPU supports DDR4 up to 2400; 6th Gen Intel�
CPU supports DDR4 up to 2133. � Supports ECC UDIMM memory modules (operate in non-
ECC mode) � Max. capacity of system memory: 32GB � Supports Intel� Extreme Memory Profile (XMP) 2.0 � 15 Gold Contact in DIMM Slots
Expansion Slot
� 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* * Supports NVMe SSD as boot disks � 12 x PCI Express 3.0 x1 Slots
Graphics
� Intel� HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
� Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
5
English
Audio LAN
Rear Panel I/O
Storage RAID Connector
� Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
� Supports HDCP 1.4 with HDMI 1.4 Port � Supports Full HD 1080p Blu-ray (BD) playback with HDMI
1.4 Port
� 7.1 CH HD Audio (Realtek ALC897 Audio Codec) � Supports Surge Protection
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Supports Wake-On-LAN � Supports Lightning/ESD Protection � Supports Energy Efficient Ethernet 802.3az � Supports PXE
� 1 x PS/2 Mouse Port � 1 x PS/2 Keyboard Port � 1 x HDMI Port � 4 x USB 2.0 Ports (Supports ESD Protection) � 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) � 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED) � HD Audio Jacks: Line in / Front Speaker / Microphone
� 4 x SATA3 6.0 Gb/s Connectors � 1 x M.2 Socket (M2_1), supports M Key type 2260/2280 M.2
SATA3 6.0 Gb/s module
� Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
� 1 x System Panel Header � 1 x TPM Header � 1 x COM Port Header � 1 x Chassis Intrusion and Speaker Header
English
6
Q270 Pro BTC+
� 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power. � 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Con-
trol)
* The Chassis Fan Connector supports the chassis fan of maxi-
mum 1A (12W) fan power. � 1 x 24 pin ATX Power Connector � 1 x 8 pin 12V Power Connector � 2 x PCIe Power Connectors � 1 x SATA Power Connector � 1 x Front Panel Audio Connector � 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports
ESD Protection) � 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
(Supports ESD Protection) � 1 x Power Button � 1 x Reset Button
BIOS Feature
� AMI UEFI Legal BIOS with multilingual GUI support � ACPI 6.0 Compliant wake up events � SMBIOS 2.7 Support � CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO Voltage Multi-
adjustment
Hardware Monitor
� CPU/Chassis Fan Tachometer � CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by
CPU temperature) � CPU/Chassis Fan multi-speed control � CASE OPEN detection � Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
� Microsoft� Windows� 10 64-bit (For 7th Gen Intel� CPU)
� Microsoft� Windows� 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-
bit (For 6th Gen Intel� CPU)
* To install Windows� 7 OS, a modified installation disk with
xHCI drivers packed into the ISO file is required. Please refer to
page 28 for more detailed instructions.
* For the updated Windows� 10 driver, please visit ASRock's
website for details: http://www.asrock.com
7
English
Certifications
� FCC, CE � ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
English
8
Q270 Pro BTC+
Chapter 2 Installation
This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings. � Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard components. � In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components. � Hold components by the edges and do not touch the ICs. � Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components. � When placing screws to secure the motherboard to the chassis, please do not overtighten the screws! Doing so may damage the motherboard.
9
English
2.1 Installing the CPU
1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1 A B
2
10
English
Q270 Pro BTC+
3
4
5 11
English
Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.
12
English
2.2 Installing the CPU Fan and Heatsink
Q270 Pro BTC+
1
2
CPU_FAN
English
13
2.3 Installing Memory Modules (DIMM)
This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.
1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
14
English
Q270 Pro BTC+ 1 2
3 15
English
2.4 Expansion Slots ( Express Slots)
There are 13 PCI Express slots on the motherboard.
Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
PCIe slots: PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards. PCIE1_1/PCIE1/PCIE2_1/PCIE3_1/PCIE3/PCIE4_1/PCIE4/PCIE5_1/PCIE5/ PCIE6_1/PCIE6/PCIE7_1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width graphics cards.
1. Please connect the SATA power connector and PCIe power connectors to the power supply when three graphics cards are installed on this motherboard. 2. 12V power supply can only provide 1.2A current in the white PCIe slots.
16
English
Q270 Pro BTC+
2.5 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open".
Clear CMOS Jumper (CLRMOS1) (see p.1, No. 12)
2-pin Jumper
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember toremove the jumper cap after clearing the CMOS.
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.
English
17
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
System Panel Header (9-pin PANEL1) (see p.1, No. 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
PWRBTN (Power Switch): Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.
RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.
English
Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, No. 11)
18
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Please connect the chassis intrusion and the chassis speaker to this header.
Q270 Pro BTC+
Serial ATA3 Connectors Right Angle: (SATA3_0: see p.1, No. 8) (Upper) (SATA3_1: see p.1, No. 8) (Lower) (SATA3_2: see p.1, No. 9) (Upper) (SATA3_3: see p.1, No. 9) (Lower)
SATA Power Connector (SATA_POW1) (see p.1, No. 17)
USB 2.0 Header (9-pin USB_5_6) (see p.1, No. 14)
SATA3_2 SATA3_0 SATA3_3 SATA3_1
These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.
Please connect this connector to the power supply when three graphics cards are installed on this motherboard.
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
There is one header on this motherboard. This USB 2.0 header can support two ports.
USB 3.2 Gen1 Header (19-pin USB3_3_4) (see p.1, No. 13)
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+ IntA_P_SSRXVbus
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
There is one header on this motherboard. This USB 3.2 Gen1 header can support two ports.
English
19
Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 19)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
This header is for connecting audio devices to the front audio panel.
1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel. E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".
Chassis Fan Connectors (4-pin CHA_FAN1) (see p.1, No. 7)
(4-pin CHA_FAN2) (see p.1, No. 20)
1
GND
2
+12V
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
Please connect fan cables to the fan connector and match the black wire to the ground pin.
1 2 3 4
CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
English
20
Q270 Pro BTC+
ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 6)
ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)
PCIe Power Connectors (4-pin PCIE_PWR1) (see p.1, No. 21) (4-pin PCIE_PWR2) (see p.1, No. 18)
Serial Port Header (9-pin COM1) (see p.1, No. 16)
TPM Header (17-pin TPMS1) (see p.1, No. 15)
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
12
24
1
13
This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.
8
5
This motherboard pro-
vides an 8-pin ATX 12V
power connector. To use a
4
1
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
Please connect these connectors to the power supply when three graphics cards are installed on this motherboard. Please refer to page 23 for PCIe Power Connector Installation Guide.
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
This COM1 header supports a serial port module.
GN D
This connector supports Trusted Platform Module (TPM) system, 1 which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
21
English
2.7 Smart Buttons
The motherboard has two smart buttons: Power Button and Reset Button.
Power Button (PWRBTN1) (see p.1, No. 4)
Power Button allows users to quickly turn on/off the system.
Reset Button (RSTBTN1) (see p.1, No. 5)
Reset Button allows users to quickly reset the system.
English
22
Q270 Pro BTC+
2.8 PCIe Power Connector Installation Guide
The two extra 4-pin power connectors on this motherboard offer more power for your graphics cards. They provide stable voltages and greatly reduce the risks of burning your motherboard or graphics cards. When more than three graphics cards are installed, be sure to install the PSU's 4-pin power cables to the 4-pin power connectors (PCIE_PWR) on your motherboard; otherwise, the cards may be damaged. Please MUST install TWO PSU's 4-pin power cables to your MB's TWO 4-pin power connectors. Plug one of the PSU's 4-pin power connector ( 1 ) to the 4-pin power connector closer to the PCIe x16 slot ( A PCIE_PWR1) . Then plug another PSU's 4-pin power connector ( 2 ) to the other 4-pin power connector ( B PCIE_PWR2) .
A 1
B 2
If your PSU only provides ONE, then please MUST install it to the 4-pin power connector (PCIE_ PWR1) closer to the PCIe x16 slot.
Important: Besides the two PCIe power connectors, please connect the SATA power connector as well when you install more then three graphics cards. Make sure all the connected power connectors (4-pin, 24-pin and SATA) are on the same PSU; otherwise, the motherboard may be damaged. *The diagrams shown here are for reference only. Please refer to the user manual that comes with your motherboard for the accurate location of the 4-pin power connectors.
23
English
2.9 M.2_SSD (NGFF) Module Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_1) supports type 2260/2280 M.2 SATA3 6.0 Gb/s module.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.
Step 2 Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.
No. Nut Location PCB Length Module Type
1 A 6cm Type2260
2 B 8cm Type 2280
English
24
B
A
Q270 Pro BTC+
Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location B by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
Step 4 Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.
Step 5 Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
20o
English
B
A
B
NUT2
NUT1
Step 6
Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
25
M.2_SSD (NGFF) Module Support List
Vendor ADATA Crucial EZLINK Intel Kingston Kingston LITEON PLEXTOR PLEXTOR SanDisk SanDisk SanDisk Transcend Transcend V-Color V-Color WD WD
Interface SATA SATA SATA SATA SATA SATA SATA SATA SATA SATA SATA SATA SATA SATA SATA SATA SATA SATA
P/N ADATA - AXNS381E-128GM-B Crucial-CT240M500SSD4-240GB EZLINK P51B-80-120GB INTEL 540S-SSDSCKKW240H6-240GB Kingston-RBU-SNS8400S3 / 180GD Kingston SM2280S3G2/120G - Win8.1 LITEON LJH-256V2G-256GB (2260) PLEXTOR PX-128M7VG-128GB PLEXTOR PX-128M6G-2260-128GB SanDisk-SD6SN1M-128G SanDisk X400-SD8SN8U-128G Sandisk Z400s-SD8SNAT-128G-1122 Transcend TS256GMTS800-256GB Transcend TS64GMTS400-64GB V-Color 120G V-Color 240G WD BLUE WDS100T1B0B-00AS40 WD GREEN WDS240G1G0B-00RC30
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
English
26
Q270 Pro BTC+
2.10 Special Features 2.10.1 Smart PCIe State Detection
This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.
27
English
2.11 Enabling USB Ports for Windows� 7 Installation
Intel� new processors have removed their support for the Enhanced Host Controller Interface (EHCI � USB2.0) and only kept the eXtensible Host Controller Interface (XHCI � USB3.0). Due to that fact that XHCI is not included in the Windows 7 inbox drivers, users may find it difficult to install Windows 7 operating system because the USB ports on their motherboard won't work. In order for the USB ports to function properly, please create a Windows� 7 installation disk with the Intel� USB 3.2 Gen1 eXtensible Host Controller (xHCI) drivers packed into the ISO file.
Requirements
� A Windows� 7 installation disk or USB drive � A Windows� PC � Win7 USB Patcher (included in the ASRock Support CD or downloaded from
website)
Scenarios You have an ODD and PS/2 ports:
If there is an optical disc drive, PS/2 ports and PS/2 Keyboard or mouse on your computer, you can skip the instructions below and go ahead to install Windows� 7 OS.
You've got nothing: If you do not have an optical disc drive, please find another computer and follow the instructions below to create a new ISO file with the "Win7 USB Patcher". Then use the new patched Windows� 7 installation USB drive to install Windows� 7 OS.
28
English
Instructions
Step 1 Insert the Windows� 7 installation disk or USB drive to your system. Step 2 Extract the tool (Win7 USB Patcher) and launch it.
Step 3 Select how you want to install Windows 7 later.
Q270 Pro BTC+
Step 4 Locate your Win7 source folder or your ISO file.
English
29
Step 5 Select the USB storage, compact disk or destination folder for the new Windows 7 installation file.
Step 6 Click "Start" to begin.
Step 7 Now you are able to install Windows� 7 on Intel� new processors with the new burned CD. Or please use the patched ISO image to make an OS USB drive to install the OS.
30
English
Q270 Pro BTC+
1 Einleitung
Vielen Dank, dass Sie sich f�r das Q270 Pro BTC+ von ASRock entschieden haben � ein zuverl�ssiges Motherboard, das konsequent unter der strengen Qualit�tskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualit�t und Best�ndigkeit erf�llt.
Da die technischen Daten des Motherboards sowie die BIOS-Software aktualisiert werden k�nnen, kann der Inhalt dieser Dokumentation ohne Ank�ndigung ge�ndert werden. Falls diese Dokumentation irgendwelchen �nderungen unterliegt, wird die aktualisierte Version ohne weitere Hinweise auf der ASRock-Webseite zur Verf�gung gestellt. Sollten Sie technische Hilfe in Bezug auf dieses Motherboard ben�tigen, erhalten Sie auf unserer Webseite spezifischen Informationen �ber das von Ihnen verwendete Modell. Auch finden Sie eine aktuelle Liste unterst�tzter VGA-Karten und Prozessoren auf der ASRock-Webseite. ASRock-Webseite http://www.asrock.com.
1.1 Lieferumfang
� ASRock Q270 Pro BTC+ � Motherboard (ATX-Formfaktor) � ASRock Q270 Pro BTC+ � Schnellinstallationsanleitung � ASRock Q270 Pro BTC+ � Support-CD � 2 x Serial-ATA- (SATA) Datenkabel (optional) � 1 x Schraube f�r M.2-Sockel (optional) � 1 x E/A-Blendenabschirmung
31
Deutsch
1.2 Technische Daten
Plattform
� ATX-Formfaktor � Feststoffkondensator-Design
Prozessor
� Unterst�tzt Intel�-CoreTM-i5/i3/Pentium�/Celeron�-Prozessoren der
7. und 6. Generation (Socke� 1151) � Unterst�tzt CPU bis 91 W � Digi Power design � 6-Leistungsphasendesign � Unterst�tzt Intel� Turbo Boost 2.0-Technologie
Chipsatz
� Intel� Q270 � Unterst�tzt Intel� vProTM-Technologie � Unterst�tzt Intel� Active Management Technology 11,6 * Intel� vProTM-Technologie und Intel� Active Management Technology 11,6 k�nnen nur mit der Intel� CoreTM vProTM-Prozessorfamilie
unterst�tzt werden
Speicher
� Dualkanal-DDR4-Speichertechnologie � 2 x DDR4-DIMM-Steckpl�tze � Unterst�tzt ungepufferten DDR4-2400/2133-Non-ECC-Speicher*
* Intel�-Prozessor der 7. Generation unterst�tzt DDR4 bis 2400; Intel�-
Prozessor der 6. Generation unterst�tzt DDR4 bis 2133. � Unterst�tzt ECC-UDIMM-Speichermodule (Betrieb im non-ECC-
Modus) � Systemspeicher, max. Kapazit�t: 32 GB � Unterst�tzt Intel� Extreme Memory Profile (XMP) 2.0 � 15--Goldkontakt in DIMM-Steckpl�tze
Erweiterungs- � 1 x PCI-Express 3.0-x16-Steckplatz (PCIE2: x16-Modus)*
steckplatz
* Unterst�tzt NVMe-SSD als Bootplatte
� 12 x PCI-Express-3.0-x1-Steckplatz
Grafikkarte
� Integrierte Intel� HD Graphics-Visualisierung und VGA-Ausg�nge k�nnen nur mit Prozessoren unterst�tzt werden, die GPUintegriert sind.
� Unterst�tzt HDMI 1.4 mit maximaler Aufl�sung von 4K x 2K (4096 x 2160) bei 24 Hz / (3840 x 2160) bei 30 Hz
Deutsch
32
Q270 Pro BTC+
Audio LAN
R�ckblende, E/A
Speicher RAID Anschluss
� Unterst�tzt Auto-Lippensynchronizit�t, hohe Farbtiefe (12 bpc), xvYCC und HBR (Audio mit hoher Bitrate) mit HDMI 1.4-Port (konformer HDMI-Monitor erforderlich)
� Unterst�tzt HDCP 1.4 mit HDMI 1.4-Port � Unterst�tzt Blu-ray- (BD) Wiedergabe (Full HD/1080p) mit
HDMI 1.4-Port
� 7.1-Kanal-HD-Audio (Realtek ALC897-Audiocodec) � Unterst�tzt �berspannungsschutz
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Unterst�tzt Wake-On-LAN � Unterst�tzt Schutz gegen Blitzschlag/elektrostatische Entladung � Unterst�tzt energieeffizientes Ethernet 802.3az � Unterst�tzt PXE
� 1 x PS/2-Mausanschluss � 1 x PS/2-Tastaturanschluss � 1 x HDMI-Port � 4 x USB-2.0-Ports (unterst�tzt Schutz gegen elektrostatische
Entladung) � 2 x USB-3.2-Gen1-Ports (unterst�tzt Schutz gegen elektrostatische
Entladung) � 1 x RJ-45-LAN-Port mit LED (Aktivit�t/Verbindung-LED und
Geschwindigkeit-LED) � HD-Audioanschl�sse: Line-in / Vorderer Lautsprecher / Mikrofon
� 4 x SATA-III-6,0-Gb/s-Anschl�sse � 1 x M.2-Sockel (M2_1), unterst�tzt M-Key-Typ-2260/2280-M.2-
SATA-III-6,0-Gb/s-Modul
� Unterst�tzt RAID 0, RAID 1, RAID 5 und RAID 10 f�r SATASpeicherger�te
� 1 x Systemblendenstiftleiste � 1 x TPM-Stiftleiste � 1 x COM-Anschluss-Stiftleiste � 1 x Geh�useeingriff- und Lautsprecher-Stiftleiste
Deutsch
33
� 1 x CPU-L�fteranschluss (4-polig)
* Der CPU-L�fteranschluss unterst�tzt einen CPU-L�fter mit einer
maximalen L�fterleistung von 1 A (12 W). � 2 x Geh�usel�fteranschl�sse (4-polig) (intelligente
L�ftergeschwindigkeitssteuerung)
* Der Geh�usel�fteranschluss unterst�tzt einen Geh�usel�fter mit einer
maximalen L�fterleistung von 1 A (12 W). � 1 x 24-poliger ATX-Netzanschluss � 1 x 8-poliger 12-V-Netzanschluss � 2 x PCIe-Netzanschl�sse � 1 x SATA-Netzanschluss � 1 x Audioanschluss an Frontblende � 1 x USB 2.0-Stiftleiste (unterst�tzt zwei USB 2.0-Ports) (unterst�tzt
Schutz gegen elektrostatische Entladung) � 1 x USB 3.2 Gen1-Stiftleiste (unterst�tzt zwei USB 3.2 Gen1-Ports)
(unterst�tzt Schutz gegen elektrostatische Entladung) � 1 x Ein-/Austaste � 1 x Reset-Taste
BIOSFunktion
� AMI-UEFI-Legal-BIOS mit Unterst�tzung mehrsprachiger
grafischer Benutzerschnittstellen � ACPI 6.0-konforme Aufweckereignisse � SMBIOS 2.7-Unterst�tzung � CPU, GT_CPU, DRAM, PCH 1,0 V, VCCIO
Mehrfachspannungsanpassung
Hardware�berwachung
� CPU-/Geh�usel�ftertachometer � Lautloser CPU-/Geh�usel�fter (automatische Anpassung der
Geh�usel�ftergeschwindigkeit durch CPU-Temperatur) � CPU-/Geh�usel�fter-Mehrfachgeschwindigkeitssteuerung � Geh�use-offen-Erkennung � Spannungs�berwachung: +12 V, +5 V, +3,3 V, CPU Vcore
Betriebssystem
� Microsoft� Windows� 10, 64 Bit (nur bei Intel�-Prozessor der 7. Generation)
� Microsoft� Windows� 10, 64 Bit / 8.1, 64 Bit / 7, 32 Bit / 7, 64 Bit (nur bei Intel�-Prozessor der 6. Generation)
* Zur Installation des Windows� 7-Betriebssystems wird ein modifiziertes Installationslaufwerk mit xHCI-Treibern in der ISODatei ben�tigt. Detaillierte Anweisungen finden Sie auf Seite 28. * Einzelheiten zum aktualisierten Windows� 10-Treiber entnehmen Sie bitte der ASRock-Webseite: http://www.asrock.com
Deutsch
34
Q270 Pro BTC+
Zertifizierun- � FCC, CE
gen
� ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)
* Detaillierte Produktinformationen finden Sie auf unserer Webseite: http://www.asrock.com
Bitte beachten Sie, dass mit einer �bertaktung, zu der die Anpassung von BIOS-Einstellungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von �bertaktungswerkzeugen von Drittanbietern z�hlen, bestimmte Risiken verbunden sind. Eine �bertaktung kann sich auf die Stabilit�t Ihres Systems auswirken und sogar Komponenten und Ger�te Ihres Systems besch�digen. Sie sollte auf eigene Gefahr und eigene Kosten durchgef�hrt werden. Wir �bernehmen keine Verantwortung f�r m�gliche Sch�den, die durch eine �bertaktung verursacht wurden.
Deutsch
35
1.3 Jumpereinstellung
Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,kurzgeschlossen". Wenn keine Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,offen".
CMOS-l�schen-Jumper (CLRMOS1) (siehe S. 1, Nr. 12)
2-poliger Jumper
CLRMOS1 erm�glicht Ihnen die L�schung der Daten im CMOS. Zum L�schen und R�cksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15 Sekunde, schlie�en Sie dann die Kontakte an CLRMOS1 5 Sekunden lang mit einer Jumper-Kappe kurz. L�schen Sie den CMOS jedoch nicht direkt nach der BIOS-Aktualisierung. Falls Sie den CMOS direkt nach Abschluss der BIOS-Aktualisierung l�schen m�ssen, starten Sie das System zun�chst; fahren Sie es dann vor der CMOS-L�schung herunter. Bitte beachten Sie, dass Kennwort, Datum, Zeit und Benutzerstandardprofil nur gel�scht werden, wenn die CMOS-Batterie entfernt wird. Bitte denken Sie daran, die Jumper-Kappe nach der CMOSL�schung zu entfernen.
Falls Sie den CMOS l�schen, wird m�glicherweise ein Geh�useeingriff erkannt. Bitte passen Sie die BIOS-Option ,,Status l�schen" zur L�schung der Aufzeichnung des vorherigen Geh�useeingriffstatus an.
Deutsch
36
Q270 Pro BTC+
1.4 Integrierte Stiftleisten und Anschl�sse
Integrierte Stiftleisten und Anschl�sse sind KEINE Jumper. Bringen Sie KEINE JumperKappen an diesen Stiftleisten und Anschl�ssen an. Durch Anbringen von Jumper-Kappen an diesen Stiftleisten und Anschl�ssen k�nnen Sie das Motherboard dauerhaft besch�digen.
Systemblende-Stiftleiste (9-polig, PANEL1) (siehe S. 1, Nr. 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Verbinden Sie Netzschalter, Reset-Taste und Systemstatusanzeige am Geh�use entsprechend der nachstehenden Pinbelegung mit dieser Stiftleiste. Beachten Sie vor Anschlie�en der Kabel die positiven und negativen Kontakte.
PWRBTN (Ein-/Austaste): Mit der Ein-/Austaste an der Frontblende des Geh�uses verbinden. Sie k�nnen die Abschaltung Ihres Systems �ber die Ein-/Austaste konfigurieren.
RESET (Reset-Taste): Mit der Reset-Taste an der Frontblende des Geh�uses verbinden. Starten Sie den Computer �ber die Reset-Taste neu, wenn er abst�rzt oder sich nicht normal neu starten l�sst.
PLED (Systembetriebs-LED): Mit der Betriebsstatusanzeige an der Frontblende des Geh�uses verbinden. Die LED leuchtet, wenn das System l�uft. Die LED blinkt, wenn sich das System im S1/S3-Ruhezustand befindet. Die LED ist aus, wenn sich das System im S4-Ruhezustand befindet oder ausgeschaltet ist (S5).
HDLED (Festplattenaktivit�ts-LED): Mit der Festplattenaktivit�ts-LED an der Frontblende des Geh�uses verbinden. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.
Das Design der Frontblende kann je nach Geh�use variieren. Ein Frontblendenmodul besteht haupts�chlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, Festplattenaktivit�t-LED, Lautsprecher etc. Stellen Sie beim Anschlie�en Ihres Frontblendenmoduls an diese Stiftleiste sicher, dass Kabel- und Pinbelegung richtig abgestimmt sind.
Deutsch
Geh�useeingriffs- und Lautsprecher-Stiftleiste (7-polig, SPK_CI1) (siehe S. 1, Nr. 11)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Bitte verbinden Sie Geh�useeingriffsvorrichtung und den Geh�uselautsprecher mit dieser Stiftleiste.
37
Serial-ATA-III-Anschl�sse Winkel rechts: (SATA3_0: siehe S. 1, Nr. 8) (obere) (SATA3_1: siehe S. 1, Nr. 8) (untere) (SATA3_2: siehe S. 1, Nr. 9) (obere) (SATA3_3: siehe S. 1, Nr. 9) (untere)
SATA3_2 SATA3_0 SATA3_3 SATA3_1
Diese vier SATA-III-Anschl�sse unterst�tzen SATA-Datenkabel f�r interne Speicherger�te mit einer Daten�bertragungsgeschwindigkeit bis 6,0 Gb/s.
SATA-Netzanschluss (SATA_POW1) (siehe S. 1, Nr. 17)
Bitte verbinden Sie diesen Anschluss mit dem Netzteil, wenn drei Grafikkarten an diesem Motherboard installiert sind.
USB 2.0-Stiftleiste (9-polig, USB_5_6) (siehe S. 1, Nr. 14)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Es gibt eine Stiftleiste an diesem Motherboard. Diese USB 2.0-Stiftleiste unterst�tzt zwei Ports.
USB 3.2 Gen1-Stiftleiste (19-polig, USB3_3_4) (siehe S. 1, Nr. 13)
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+ IntA_P_SSRXVbus
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
Es gibt eine Stiftleiste an diesem Motherboard. Diese USB-3.2Gen1-Stiftleiste kann zwei Ports unterst�tzen.
Deutsch
38
Q270 Pro BTC+
Audiostiftleiste Frontblende (9-polig, HD_AUDIO1) (siehe S. 1, Nr. 19)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Diese Stiftleiste dient dem Anschlie�en von Audioger�ten an der Frontblende.
1. High Definition Audio unterst�tzt Anschlusserkennung, der Draht am Geh�use muss dazu jedoch HDA unterst�tzt. Bitte befolgen Sie zum Installieren Ihres Systems die Anweisungen in unserer Anleitung und der Anleitung zum Geh�use.
2. Bei Nutzung eines AC'97-Audiopanels dieses bitte anhand folgender Schritte an der Audiostiftleiste der Frontblende installieren: A. Mic_IN (Mikrofon) mit MIC2_L verbinden. B. Audio_R (RIN) mit OUT2_R und Audio_L (LIN) mit OUT2_L verbinden. C. Erde (GND) mit Erde (GND) verbinden. D. MIC_RET und OUT_RET sind nur f�r das HD-Audiopanel vorgesehen. Sie m�ssen sie nicht f�r das AC'97-Audiopanel verbinden. E. Rufen Sie zum Aktivieren des vorderen Mikrofons das ,,FrontMic (Vorderes Mikrofon)"-Register in der Realtek-Systemsteuerung auf und passen ,,Recording Volume (Aufnahmelautst�rke)" an.
Geh�usel�fteranschl�sse (4-polig, CHA_FAN1) (siehe S. 1, Nr. 7)
(4-polig, CHA_FAN2) (siehe S. 1, Nr. 20)
1
GND
2
+12V
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
Bitte verbinden Sie das L�fterkabel mit dem L�fteranschluss; der schwarze Draht geh�rt zum Erdungskontakt.
1 2 3 4
CPU-L�fteranschluss (4-polig, CPU_FAN1) (siehe S. 1, Nr. 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
Dieses Motherboard bietet einen 4-poligen CPU-L�fteranschluss (lautloser L�fter). Falls Sie einen 3-poligen CPU-L�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
Deutsch
39
GN D
Deutsch
ATX-Netzanschluss (24-polig, ATXPWR1) (siehe S. 1, Nr. 6)
ATX-12-V-Netzanschluss (8-polig, ATX12V1) (siehe S. 1, Nr. 1)
PCIe-Netzanschl�sse (4-polig, PCIE_PWR1) (siehe S. 1, Nr. 21) (4-polig, PCIE_PWR2) (siehe S. 1, Nr. 18)
Serieller-Port-Stiftleiste (9-polig, COM1) (siehe S. 1, Nr. 16)
TPM-Stiftleiste (17-polig, TPMS1) (siehe S. 1, Nr. 15)
40
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
12
24
1
13
Dieses Motherboard bietet einen 24-poligen ATX-Netzanschluss. Bitte schlie�en Sie es zur Nutzung eines 20-poligen ATX-Netzteils entlang Kontakt 1 und Kontakt 13 an.
8
5
Dieses Motherboard bietet
einen 8-poligen ATX-12-V-
Netzanschluss. Bitte schlie�en Sie
4
1
es zur Nutzung eines 4-poligen
ATX-Netzteils entlang Kontakt 1
und Kontakt 5 an.
Bitte verbinden Sie diese Anschl�sse mit dem Netzteil, wenn drei Grafikkarten an diesem Motherboard installiert sind. Bitte beachten Sie f�r Installationsanweisungen zum PCIe-Stromanschluss Seite 23.
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Diese COM1-Stiftleiste unterst�tzt ein Modul f�r serielle Ports.
Dieser Anschluss unterst�tzt das Trusted Platform Module- (TPM) 1 System, das Schl�ssel, digitale Zertifikate, Kennw�rter und Daten sicher aufbewahren kann. Ein TPM-System hilft zudem bei der St�rkung der Netzwerksicherheit, sch�tzt digitale Identit�ten und gew�hrleistet die Plattformintegrit�t.
Q270 Pro BTC+
1.5 Intelligente Taste
Das Motherboard hat zwei intelligente Taste: Ein-/Austaste und Reset-Taste.
Ein-/Austaste (PWRBTN1) (siehe S. 1, Nr. 4)
Mit der Ein-/Austaste kann der Benutzer das System schnell ein-/ abschalten.
Reset-Taste (RSTBTN1) (siehe S. 1, Nr. 5)
Der Reset-Taste erm�glicht das schnelle R�cksetzen des Systems.
Deutsch
41
1 Introduction
Nous vous remercions d'avoir achet� cette carte m�re ASRock Q270 Pro BTC+, une carte m�re fiable fabriqu�e conform�ment au contr�le de qualit� rigoureux et constant appliqu� par ASRock. Fid�le � son engagement de qualit� et de durabilit�, ASRock vous garantit une carte m�re de conception robuste aux performances �lev�es.
Les sp�cifications de la carte m�re et du logiciel BIOS pouvant �tre mises � jour, le contenu de ce document est soumis � modification sans pr�avis. En cas de modifications du pr�sent document, la version mise � jour sera disponible sur le site Internet ASRock sans notification pr�alable. Si vous avez besoin d'une assistance technique pour votre carte m�re, veuillez visiter notre site Internet pour plus de d�tails sur le mod�le que vous utilisez. La liste la plus r�cente des cartes VGA et des processeurs pris en charge est �galement disponible sur le site Internet de ASRock. Site Internet ASRock http://www.asrock.com.
1.1 Contenu de l'emballage
� Carte m�re ASRock Q270 Pro BTC+ (facteur de forme ATX) � Guide d'installation rapide ASRock Q270 Pro BTC+ � CD d'assistance ASRock Q270 Pro BTC+ � 2 x c�bles de donn�es Serial ATA (SATA) (Optionnel) � 1 x vis pour socket M.2 (Optionnel) � 1 x panneau de protection E/S
42
Fran�ais
Q270 Pro BTC+
1.2 Sp�cifications
Plateforme Processeur
Chipset
M�moire
Fente d'expansion Graphiques
� Facteur de forme ATX � Conception � condensateurs solides
� Prend en charge les 7�me et 6�me G�n�rations de processeurs Intel� CoreTM i5/i3/Pentium�/Celeron� (Socket 1151)
� Prend en charge les unit�s centrales jusqu'� 91W � Digi Power design � Alimentation � 6 phases � Prend en charge la technologie Intel� Turbo Boost 2.0
� Intel� Q270 � Prend en charge Intel� vProTM Technology � Prend en charge Intel� Active Management Technology 11,6 * Intel� vProTM Technology et Intel� Active Management Technology 11,6 peuvent �tre pris en charge uniquement avec la famille de processeurs Intel� CoreTM vProTM
� Technologie m�moire double canal DDR4 � 2 x fentes DIMM DDR4 � Prend en charge les m�moires sans tampon non ECC DDR4
2400/2133* * La 7�me G�n�ration de CPU Intel� prend en charge DDR4 jusqu'� 2400 ; la 6�me G�n�ration de CPU Intel� prend en charge DDR4 jusqu'� 2133. � Prend en charge les modules m�moire UDIMM ECC (fonctionne
en mode non-ECC) � Capacit� max. de la m�moire syst�me : 32GB � Prend en charge Intel� Extreme Memory Profile (XMP) 2.0 � Contacts dor�s 15 sur fentes DIMM
� 1 x fente PCI Express 3.0 x 16 (PCIE2 : mode x16)* * Prend en charge les SSD NVMe comme disques de d�marrage � 12 x fentes PCI Express 3.0 x1
� La technologie Intel� HD Graphics Built-in Visuals et les sorties VGA sont uniquement prises en charge par les processeurs int�grant un contr�leur graphique.
� Prend en charge la technologie HDMI 1.4 avec r�solution maximale de 4K � 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Fran�ais
43
Audio R�seau
Connectique du panneau arri�re
Stockage RAID Connecteur
� Prend en charge les technologies Auto Lip Sync, Deep Color (12bpc), xvYCC et HBR (High Bit Rate Audio) avec port HDMI 1.4 (un �cran compatible HDMI est requis)
� Prend en charge HDCP 1.4 via port HDMI 1.4 � Prend en charge la lecture Blu-ray (BD) Full HD 1080p via port
HDMI 1.4
� Audio 7.1 CH HD (Codec audio Realtek ALC897) � Prend en charge la protection contre les surtensions
� Gigabit LAN 10/100/1000 Mo/s � Giga PHY Intel� I219V � Prend en charge la fonction Wake-On-LAN � Prend en charge la protection contre la foudre/les d�charges
�lectrostatiques � Prend en charge la fonction d'�conomie d'�nergie Ethernet 802.3az � Prend en charge PXE
� 1 x port souris PS/2 � 1 x port clavier PS/2 � 1 x port HDMI � 4 x ports USB 2.0 (Protection contre les d�charges �lectrostatiques) � 2 x ports USB 3.2 Gen1 (Protection contre les d�charges
�lectrostatiques) � 1 x port RJ-45 LAN avec LED (LED ACT/LIEN et LED VITESSE) � Connecteurs jack audio HD : Entr�e ligne / haut-parleur avant /
microphone
� 4 x connecteur SATA3 6,0 Go/s � 1 x socket M.2 (M2_1), prend en charge les modules M.2 SATA3
6,0 Go/s type 2260/2280 touche M
� Prend en charge RAID 0, RAID 1, RAID 5 et RAID 10 pour les p�riph�riques de stockage SATA
� 1 x embase de panneau syst�me � 1 x embase TPM � 1 x embase pour port COM � 1 x prise LED d'alimentation et emplacement sur ch�ssis
Fran�ais
44
Q270 Pro BTC+
� 1 x connecteur pour ventilateur de CPU (4 broches) * Le connecteur pour ventilateur de CPU prend en charge un
ventilateur de CPU d'une puissance maximale de 1 A (12 W). � 2 x connecteurs pour ventilateur du ch�ssis (4 broches) (contr�le de
vitesse de ventilateur intelligent)
* Le connecteur pour ventilateur de ch�ssis prend en charge un
ventilateur de ch�ssis d'une puissance maximale de 1 A (12 W). � 1 x connecteur d'alimentation ATX 24 broches � 1 x connecteur d'alimentation 12V 8 broches � 2 x connecteurs d'alimentation PCIe � 1 x connecteur d'alimentation SATA � 1 x connecteur audio panneau frontal � 1 x embase USB 2.0 (2 ports USB 2.0 pris en charge) (Protection
contre les d�charges �lectrostatiques) � 1 x embase USB 3.2 Gen1 (2 ports USB 3.2 Gen1 pris en charge)
(Protection contre les d�charges �lectrostatiques) � 1 x bouton d'alimentation � 1 x bouton de r�initialisation
Caract�ristiques du BIOS
� BIOS UEFI AMI avec prise en charge d'interface graphique multilingue
� Compatible ACPI 6.0 Wake Up Events � Compatible SMBIOS 2.7 � R�glage de la tension CPU, GT_CPU, DRAM, PCH 1,0 V, VCCIO
Surveillance du mat�riel
� Tach�om�tre ventilateur processeur/ch�ssis � Ventilateur silencieux processeur/ch�ssis (r�glage automatique
de la vitesse du ventilateur du ch�ssis d'apr�s la temp�rature du
processeur) � Contr�le simultan� des vitesses des ventilateurs processeur/ch�ssis � D�tection CH�SSIS OUVERT � Surveillance de la tension d'alimentation : +12V, +5V, +3,3V, CPU
Vcore
Syst�me d'exploitation
� Microsoft� Windows� 10 64 bits (Pour la 7�me G�n�ration de CPU Intel�)
� Microsoft� Windows� 10 64 bits / 8.1 64 bits / 7 32 bits / 7 64 bits (Pour la 6�me G�n�ration de CPU Intel�)
* Pour installer Windows� 7, un disque d'installation modifi� avec les pilotes xHCI int�gr�s au fichier ISO est requis. Reportez-vous � la page 28 pour des instructions plus d�taill�es. * Pour le pilote mis � jour pour Windows� 10, veuillez visiter le site Web d'ASRock pour plus de d�tails : http://www.asrock.com
45
Fran�ais
Certifications � FCC, CE � ErP/EuP Ready (alimentation ErP/EuP ready requise)
* pour des informations d�taill�es de nos produits, veuillez visiter notre site : http://www.asrock.com Il est important de signaler que l'overclocking pr�sente certains risques, incluant des modifications du BIOS, l'application d'une technologie d'overclocking d�li�e et l'utilisation d'outils d'overclocking d�velopp�s par des tiers. La stabilit� de votre syst�me peut �tre affect�e par ces pratiques, voire provoquer des dommages aux composants et aux p�riph�riques du syst�me. L'overclocking se fait � vos risques et p�rils. Nous ne pourrons en aucun cas �tre tenus pour responsables des dommages �ventuels provoqu�s par l'overclocking.
46
Fran�ais
Q270 Pro BTC+
1.3 Configuration des cavaliers (jumpers)
L'illustration ci-dessous vous renseigne sur la configuration des cavaliers (jumpers). Lorsque le capuchon du cavalier est install� sur les broches, le cavalier est � court-circuit� �. Si le capuchon du cavalier n'est pas install� sur les broches, le cavalier est � ouvert �.
Cavalier Clear CMOS (CLRMOS1) (voir p.1, No. 12)
Cavalier (jumper) � 2 broches
CLRMOS1 vous permet d'effacer les donn�s de la CMOS. Pour effacer les param�tres du syst�me et r�tablir les valeurs par d�faut, veuillez �teindre votre ordinateur et d�brancher son cordon d'alimentation. Patientez 15 secondes, puis utilisez un capuchon de cavalier pour court-circuiter les broches sur CLRMOS1 pendant 5 secondes. Toutefois, n'effacez pas la CMOS imm�diatement apr�s avoir mis � jour le BIOS. Si vous avez besoin d'effacer les donn�es CMOS apr�s une mise � jour du BIOS, vous devez tout d'abord red�marrer le syst�me, puis l'�teindre avant de proc�der � l'effacement de la CMOS. Veuillez noter que les param�tres mot de passe, date, heure et profil de l'utilisateur seront uniquement effac�s en cas de retrait de la pile de la CMOS. N'oubliez pas de retirer le capuchon du cavalier une fois les donn�es CMOS effac�es.
Si vous effacez la CMOS, l'alerte de ch�ssis ouvert peut se d�clencher. Veuillez r�gler l'option du BIOS sur � Effacer � pour supprimer l'historique des intrusions de ch�ssis pr�c�dentes.
Fran�ais
47
1.4 Embases et connecteurs de la carte m�re
Les embases et connecteurs situ�s sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de cavalier sur ces embases ou connecteurs endommagera irr�m�diablement votre carte m�re.
Embase du panneau syst�me (PANNEAU1 � 9 broches) (voir p.1, No. 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Branchez le bouton de mise en marche, le bouton de r�initialisation et le t�moin d'�tat du syst�me pr�sents sur le ch�ssis sur cette embase en respectant la configuration des broches illustr�e ci-dessous. Rep�rez les broches positive et n�gative avant de brancher les c�bles.
PWRBTN (bouton d'alimentation): pour brancher le bouton d'alimentation du panneau frontal du ch�ssis. Vous pouvez configurer la fa�on dont votre syst�me doit s'arr�ter � l'aide du bouton de mise en marche.
RESET (bouton de r�initialisation): pour brancher le bouton de r�initialisation du panneau frontal du ch�ssis. Appuyez sur le bouton de r�initialisation pour red�marrer l'ordinateur en cas de plantage ou de dysfonctionnement au d�marrage.
PLED (LED d'alimentation du syst�me) : pour brancher le t�moin d'�tat de l'alimentation du panneau frontal du ch�ssis. Le LED est allum� lorsque le syst�me fonctionne. Le LED clignote lorsque le syst�me se trouve en mode veille S1/S3. Le LED est �teint lorsque le syst�me se trouve en mode veille S4 ou hors tension (S5).
HDLED (LED d'activit� du disque dur) : pour brancher le t�moin LED d'activit� du disque dur du panneau frontal du ch�ssis. Le LED est allum� lorsque le disque dur lit ou �crit des donn�es.
La conception du panneau frontal peut varier en fonction du ch�ssis. Un module de panneau frontal est principalement compos� d'un bouton de mise en marche, bouton de r�initialisation, LED d'alimentation, LED d'activit� du disque dur, haut-parleur etc. Lorsque vous reliez le module du panneau frontal de votre ch�ssis sur cette embase, veillez � parfaitement faire correspondre les fils et les broches.
Fran�ais
Prise LED d'alimentation et emplacement sur ch�ssis (SPK_CI1 � 7 broches) (voir p.1, No. 11)
48
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Veuillez brancher l'emplacement sur le ch�ssis et le haut-parleur du ch�ssis sur ce connecteur.
Q270 Pro BTC+
Connecteurs Serial ATA3 Angle droit: (SATA3_0: voir p.1, No. 8) (Sup�rieur) (SATA3_1: voir p.1, No. 8) (Inf�rieur) (SATA3_2: voir p.1, No. 9) (Sup�rieur) (SATA3_3: voir p.1, No. 9) (Inf�rieur)
Connecteur SATA (SATA_POW1) (voir p.1, No. 17)
SATA3_2 SATA3_0 SATA3_3 SATA3_1
Ces quatre connecteurs SATA3 sont compatibles avec les c�bles de donn�es SATA pour les appareils de stockage internes avec un taux de transfert maximal de 6,0 Go/s.
Veuillez brancher ce connecteur � l'alimentation �lectrique lorsque trois cartes graphiques sont install�es sur cette carte m�re.
Embase USB 2.0 (USB_5_6 � 9 broches) (voir p.1, No. 14)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Cette carte m�re comprend un connecteur. Cette embase USB 2.0 peut prendre en charge deux ports.
Embase USB 3.2 Gen1 (USB3_3_4 � 19 broches) (voir p.1, No. 13)
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+ IntA_P_SSRXVbus
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
Cette carte m�re comprend un connecteur. Cette embase USB 3.2 Gen1 peut prendre en charge deux ports.
Fran�ais
49
Embase audio du panneau frontal (HD_AUDIO1 � 9 broches) (voir p.1, No. 19)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Cette embase sert au branchement des appareils audio au panneau audio frontal.
1. L'audio haute d�finition prend en charge la technologie Jack Sensing (d�tection de la fiche), mais le panneau grillag� du ch�ssis doit �tre compatible avec la HDA pour fonctionner correctement. Veuillez suivre les instructions figurant dans notre manuel et dans le manuel du ch�ssis pour installer votre syst�me.
2. Si vous utilisez un panneau audio AC'97, veuillez le brancher sur l'embase audio du panneau frontal en proc�dant comme suit : A. branchez Mic_IN (MIC) sur MIC2_L. B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L. C. branchez la mise � terre (GND) sur mise � terre (GND). D. MIC_RET et OUT_RET sont exclusivement r�serv�s au panneau audio HD. Il est inutile de les brancher avec le panneau audio AC'97. E. Pour activer le micro frontal, s�lectionnez l'onglet � FrontMic � du panneau de contr�le Realtek et r�glez le param�tre � Volume d'enregistrement �.
Connecteurs du ventilateur du ch�ssis (CHA_FAN1 � 4 broches) (voir p.1, No. 7)
(CHA_FAN2 � 4 broches) (voir p.1, No. 20)
1
GND
2
+12V
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
Veuillez brancher les c�bles du ventilateur sur le connecteur du ventilateur, puis reliez le fil noir � la broche de mise � terre.
1 2 3 4
Connecteur du ventilateur du processeur (CPU_FAN1 � 4 broches) (voir p.1, No. 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
Cette carte m�re est dot�e d'un connecteur pour ventilateur de processeur (Quiet Fan) � 4 broches. Si vous envisagez de connecter un ventilateur de processeur � 3 broches, veuillez le brancher sur la broche 1-3.
Fran�ais
50
Q270 Pro BTC+
Connecteur d'alimentation ATX (ATXPWR1 � 24 broches) (voir p.1, No. 6)
12
24
1
13
Connecteur d'alimentation
8
5
ATX 12 V
(ATX12V1 � 8 broches) (voir p.1, No. 1)
4
1
Connecteurs d'alimentation PCIe (PCIE_PWR1 � 4 broches) (voir p.1, No. 21) (PCIE_PWR2 � 4 broches) (voir p.1, No. 18)
Embase pour port s�rie (COM1 � 9 broches) (voir p.1, No. 16)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Cette carte m�re est dot�e d'un connecteur d'alimentation ATX � 24 broches. Pour utiliser une alimentation ATX � 20 broches, veuillez effectuer les branchements sur la Broche 1 et la Broche 13.
Cette carte m�re est dot�e d'un connecteur d'alimentation ATX 12V � 8 broches. Pour utiliser une alimentation ATX � 4 broches, veuillez effectuer les branchements sur la Broche 1 et la Broche 5.
Veuillez brancher ces connecteurs � l'alimentation �lectrique lorsque trois cartes graphiques sont install�es sur cette carte m�re. Veuillez consulter le Guide d'installation des connecteurs d'alimentation PCIe en page 23.
Cette embase COM1 prend en charge un module de port s�rie.
Embase TPM (TPMS1 � 17 broches) (voir p.1, No. 15)
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
GN D
Ce connecteur prend en charge un module TPM (Trusted 1 Platform Module � Module de plateforme s�curis�e), qui permet de sauvegarder cl�s, certificats num�riques, mots de passe et donn�es en toute s�curit�. Le syst�me TPM permet �galement de renforcer la s�curit� du r�seau, de prot�ger les identit�s num�riques et de pr�server l'int�grit� de la plateforme.
51
Fran�ais
1.5 Boutons intelligent
La carte m�re dispose de deux boutons intelligents : Bouton d'alimentation et bouton de r�initialisation.
Bouton d'alimentation (PWRBTN1) (voir p.1, No. 4)
Le bouton d'alimentation permet aux utilisateurs d'allumer/�teindre le syst�me rapidement.
Bouton de r�initialisation (RSTBTN1) (voir p.1, No. 5)
Le bouton de r�initialisation permet aux utilisateurs de r�initialiser le syst�me rapidement.
Fran�ais
52
Q270 Pro BTC+
1 Introduzione
Congratulazioni per l'acquisto della scheda madre ASRock Q270 Pro BTC+, una scheda madre affidabile prodotta secondo i severissimi controlli di qualit� ASRock. La scheda madre offre eccellenti prestazioni con un design robusto che si adatta all'impegno di ASRock di offrire sempre qualit� e durata.
Dato che le specifiche della scheda madre e del software BIOS possono essere aggiornate, il contenuto di questa documentazione sar� soggetto a variazioni senza preavviso. Nel caso di eventuali modifiche della presente documentazione, la versione aggiornata sar� disponibile sul sito Web di ASRock senza ulteriore preavviso. Per il supporto tecnico correlato a questa scheda madre, visitare il nostro sito Web per informazioni specifiche relative al modello attualmente in uso. � possibile trovare l'elenco di schede VGA pi� recenti e di supporto di CPU anche sul sito Web di ASRock. Sito Web di ASRock http://www.asrock.com.
1.1 Contenuto della confezione
� Scheda madre ASRock Q270 Pro BTC+ (Form Factor ATX) � Guida all'installazione rapida di ASRock Q270 Pro BTC+ � CD di supporto ASRock Q270 Pro BTC+ � 2 x cavi dati Serial ATA (SATA) (opzionali) � 1 x viti per Socket M.2 (opzionali) � 1 x mascherina metallica posteriore I/O
53
Italiano
1.2 Specifiche
Piattaforma
� Fattore di forma ATX � Design condensatore solido
CPU
� Supporta processori Intel� CoreTM i5/i3/Pentium�/Celeron� di 7a e
6a generazione (Socket 1151)
� Supporto di CPU fino a 91W
� Digi Power design
� Potenza a 6 fasi
� Supporta la tecnologia Intel� Turbo Boost 2.0
Chipset
� Intel� Q270 � Supporta la tecnologia Intel� vProTM � Supporta la tecnologia Intel� Active Management 11,6 * Tecnologia Intel� vProTM e tecnologia Intel� Active Management
11,6 possono essere supportati solo con la famiglia di processori Intel� CoreTM vProTM
Memoria
� Tecnologia memoria DDR4 Dual Channel � 2 x alloggi DIMM DDR4 � Supporto di memoria DDR4 2400/2133 non-ECC, un-buffered* * 7th Gen Intel� CPU supporta DDR4 fino a 2400; 6th Gen Intel� CPU
supporta DDR4 fino a 2133. � Supporta moduli di memoria ECC UDIMM (funziona in modalit�
non ECC) � Capacit� max. della memoria di sistema: 32 GB � Supporto di XMP (Extreme Memory Profile) Intel� 2.0 � Contatti d'oro 15 negli alloggi DIMM
Alloggio d'espansione
� 1 x Alloggio PCI Express 3.0 x16 (PCIE2: modalit� x16)* * Supporto di SSD NVMe come disco d'avvio � 12 x alloggi PCI Express 3.0 x1
Grafica
� La videografica integrata della scheda video HD Intel� e le uscite VGA possono essere supportate soltanto con processori con GPU integrata.
� Supporta HDMI 1.4 con risoluzione massima fino a 4K x 2K (4096x2160) a 24Hz / (3840x2160) a 30Hz
Italiano
54
Q270 Pro BTC+
� Supporto delle funzioni Auto Lip Sync, Deep Color (12bpc), xvYCC e HBR (High Bit Rate Audio) con porta HDMI 1.4 (� necessario un monitor compatibile HDMI)
� Supporta HDCP 1.4 con porta HDMI 1.4 � Supporto di riproduzione Full HD 1080p Blu-ray (BD) con la porta
HDMI 1.4
Audio
� Audio HD 7.1 CH (codec audio Realtek ALC897) � Supporta protezione da sovratensione
LAN
� LAN Gigabit 10/100/1000 Mb/s � Giga PHY Intel� I219V � Supporto WOL (Wake-On-LAN) � Supporta protezione da fulmini/scariche elettrostatiche � Supporto Energy Efficient Ethernet 802.3az � Supporto PXE
I/O pannello posteriore
� 1 x porta mouse PS/2 � 1 x porta tastiera PS/2 � 1 x porta HDMI � 4 x porte USB 2.0 (supporto protezione da scariche elettrostatiche) � 2 x porte USB 3.2 Gen1 (supporto protezione da scariche
elettrostatiche) � 1 x porta LAN RJ-45 con LED (ACT/LINK LED e SPEED LED) � Connettori audio HD: Ingresso linea / altoparlante frontale /
microfono
Archiviazione
� 4 x Connettori SATA3 6,0 Gb/s � 1 x M.2 Socket (M2_1), supporta un modulo M.2 SATA3 6,0 Gb/s
tipo M Key 2260/2280
RAID
� Mendukung RAID 0, RAID 1, RAID 5 dan RAID 10 untuk perangkat penyimpanan SATA
Connettore
� 1 x Connettore pannello frontale � 1 x connettore TPM � 1 x connettore porta COM � 1 x collegamento altoparlante e intrusione telaio
Italiano
55
� 1 x connettore ventola CPU (4-pin) * Il connettore ventola CPU supporta ventole CPU con potenza
massima di 1 A (12 W). � 2 x connettori ventola telaio (4 pin) (Controllo intelligente della
velocit� della ventola)
* Il connettore ventola telaio supporta ventole telaio con potenza
massima di 1 A (12 W). � 1 x connettore alimentazione ATX 24-pin � 1 x connettore alimentazione 12 V 8-pin � 2 x Connettori alimentazione PCIe � 1 x Connettore alimentazione SATA � 1 x connettore audio pannello frontale � 1 x connettore USB 2.0 (supporto di 2 porte USB 2.0) (supporto
protezione da scariche elettrostatiche) � 1 x connettore USB 3.2 Gen1 (supporto di 2 porte USB 3.2 Gen1)
(supporto protezione da scariche elettrostatiche) � 1 x Tasto d'alimentazione � 1 x Tasto Ripristino
Funzionalit� BIOS
� AMI UEFI Legal BIOS con interfaccia di supporto multilingue � Eventi di riattivazione conformi a ACPI 6.0 � Supporto di SMBIOS 2.7 � Regolazione tensione CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO
Hardware Monitor
� Tachimetro ventola CPU/telaio � Ventola silenziosa CPU/telaio (regolazione automatica velocit� in
base alla temperatura della CPU) � Ventola CPU/telaio con controllo di varie velocit� � Rilevamento CASE OPEN � Monitoraggio tensione: +12 V, +5 V, +3,3 V, CPU Vcore
SO
� Microsoft� Windows� 10 64-bit (per 7th Gen Intel� CPU)
� Microsoft� Windows� 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
(per 6th Gen Intel� CPU)
* Per installare Windows� 7, � necessario un disco di installazione
modificato con i driver xHCI integrati nel file ISO. Fare riferimento a
pagina 28 per altre istruzioni dettagliate.
* Per il driver aggiornato di Windows� 10, visitare il sito ASRock
all'indirizzo: http://www.asrock.com
Italiano
56
Q270 Pro BTC+
Certificazioni � FCC, CE � ErP/EuP Ready (� necessaria alimentazione ErP/EuP ready)
* Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com Prestare attenzione al potenziale rischio previsto nella pratica di overclocking, inclusa la regolazione delle impostazioni nel BIOS, l'applicazione di tecnologia di Untied Overclocking o l'utilizzo di strumenti di overclocking di terze parti. L'overclocking pu� influenzare la stabilit� del sistema o perfino provocare danni ai componenti e ai dispositivi del sistema. Occorre eseguirlo a proprio rischio e spese. Non ci riterremo responsabili per possibili danni provocati da overclocking.
57
Italiano
1.3 Impostazione jumper
L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio del jumper � posizionato sui pin, il jumper � "cortocircuitato". Se sui pin non � posizionato alcun cappuccio del jumper, il jumper � "aperto".
Jumper per azzerare la CMOS (CLRMOS1) (vedere pag. 1, n. 12)
Jumper a 2 pin
CLRMOS1 permette si azzerare i dati nella CMOS. Per azzerare e reimpostare i parametri del sistema alla configurazione predefinita, spegnere il computer e scollegare il cavo di alimentazione dalla rete. Attendere 15 secondi, quindi usare un cappuccio jumper per cortocircuitare i di CLRMOS1 per 5 secondi. Tuttavia, non azzerare la CMOS subito dopo aver aggiornato il BIOS. Se � necessario azzerare la CMOS dopo l'aggiornamento del BIOS, � necessario riavviare prima il sistema e in seguito spegnerlo prima di eseguire l'operazione di azzeramento della CMOS. La password, la data, l'ora e il profilo predefinito dell'utente saranno azzerati solo se viene rimossa la batteria della CMOS. Ricordarsi di rimuovere il cappuccio jumper prima di cancellare la CMOS.
Se si azzera la CMOS, pu� essere rilevato il case aperto. Regolare l'opzione del BIOS "Azzerare stato" per azzerare il registro del precedente stato di intrusione nello chassis.
Italiano
58
Q270 Pro BTC+
1.4 Header e connettori su scheda
Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori provocher� danni permanenti alla scheda madre.
Header sul pannello del sistema (PANEL1 a 9 pin) (vedere pag. 1, n. 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Collegare l'interruttore dell'alimentazione, l'interruttore di reset e l'indicatore dello stato del sistema sullo chassis su questo header secondo la seguente assegnazione dei pin. Annotare i pin positivi e negativi prima di collegare i cavi.
PWRBTN (interruttore di alimentazione): collegare all'interruttore dell'alimentazione sul pannello anteriore dello chassis. � possibile configurare il modo in cui spegnere il sistema utilizzando l'interruttore dell'alimentazione.
RESET (interruttore di reset): collegare all'interruttore di reset sul pannello anteriore dello chassis. Premere l'interruttore di reset per riavviare il computer se il computer si blocca e non riesce ad eseguire un normale riavvio.
PLED (LED alimentazione del sistema): collegare all'indicatore di stato dell'alimentazione sul pannello anteriore dello chassis. Il LED � acceso quando il sistema � in funzione. Il LED continua a lampeggiare quando il sistema si trova nello stato di sospensione S1/S3. Il LED � spento quando il sistema si trova nello stato di sospensione S4 o quando � spento (S5).
HDLED (LED di attivit� disco rigido): collegare al LED di attivit� disco rigido sul pannello anteriore dello chassis. Il LED � acceso quando il disco rigido sta leggendo o scrivendo dati.
Il design del pannello anteriore pu� cambiare a seconda dello chassis. Un modulo di pannello anteriore � composto principalmente da interruttore di alimentazione, interruttore di reset, LED di alimentazione, LED di attivit� disco rigido, altoparlante, ecc. Quando si collega il modulo del pannello anteriore dello chassis a questo header, accertarsi che le assegnazioni del filo e le assegnazioni del pin corrispondano correttamente.
Collegamento altoparlante e intrusione telaio (SPK_CI1 a 7 pin) (vedere pag. 1, n. 11)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Collegare l'intrusione telaio e l'altoparlante a questo collegamento.
59
Italiano
Connettori Serial ATA3 Angolo destroy: (SATA3_0: vedere pag. 1, n. 8) (Superiore) (SATA3_1: vedere pag. 1, n. 8) (Inferiore) (SATA3_2: vedere pag. 1, n. 9) (Superiore) (SATA3_3: vedere pag. 1, n. 9) (Inferiore)
Connettore alimentazione SATA (SATA_POW1) (vedere pag. 1, n. 17)
SATA3_2 SATA3_0 SATA3_3 SATA3_1
Questi quattro connettori SATA3 supportano cavi dati SATA per dispositivi di archiviazione interna, con una velocit� di trasferimento dati fino a 6,0 Gb/s.
Collegare questo connettore all'alimentazione quando sulla scheda madre sono installate tre schede grafiche.
Connettore USB 2.0 (USB_5_6 a 9 pin) (vedere pag. 1, n. 14)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Su questa scheda madre c'� un connettore. Questo connettore USB 2.0 pu� supportare due porte.
Header USB 3.2 Gen1 (USB3_3_4 a 19 pin) (vedere pag. 1, n. 13)
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+ IntA_P_SSRXVbus
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
Su questa scheda madre c'� un connettore. Questa basetta USB 3.2 Gen1 pu� supportare due porte.
Italiano
60
Q270 Pro BTC+
Header audio pannello anteriore (HD_AUDIO1 a 9 pin) (vedere pag. 1, n. 19)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Questo header serve a collegare i dispositivi audio al pannello audio anteriore.
1. L'audio ad alta definizione supporta le funzioni Jack sensing, ma il filo del pannello sullo chassis deve supportare HDA per funzionare correttamente. Seguire le istruzioni presenti nel nostro manuale e nel manuale dello chassis per installare il sistema.
2. Se si utilizza un pannello audio AC'97, installarlo sull'header audio del pannello anteriore seguendo le fasi di seguito: A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Collegare Ground (GND) a Ground (GND). D. MIC_RET e OUT_RET servono soltanto per il pannello audio HD. Non � necessario collegarli per il pannello audio AC'97. E. Per attivare il microfono anteriore, andare alla scheda "FrontMic" nel pannello di controllo Realtek e regolare il "Volume di registrazione".
Connettori ventola telaio (CHA_FAN1 a 4 pin) (vedere pag. 1, n. 7)
(CHA_FAN2 a 4 pin) (vedere pag. 1, n. 20)
1
GND
2
+12V
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
Collegare il cavo della ventola al connettore della ventola e far corrispondere il filo nero al pin di terra.
1 2 3 4
Connettore ventola CPU (CPU_FAN1 a 4 pin) (vedere pag. 1, n. 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
Questa scheda madre � dotata di un connettore per la ventola della CPU (Ventola silenziosa) a 4 pin. Se si decide di collegare una ventola della CPU a 3 pin, collegarla al pin 1-3.
Italiano
61
Connettore di alimentazione ATX (ATXPWR1 a 24 pin) (vedere pag. 1, n. 6)
12
24
1
13
Connettore di alimentazione
8
5
ATX da 12 V
(ATX12V1 a 8 pin) (vedere pag. 1, n. 1)
4
1
Connettori alimentazione PCIe (PCIE_PWR1 a 4 pin) (vedere pag. 1, n. 21) (4-pin PCIE_PWR2) (vedere pag. 1, n. 18)
Header porta seriale (COM1 a 9 pin) (vedere pag. 1, n. 16)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Questa scheda madre � dotata di un connettore di alimentazione ATX a 24 pin. Per utilizzare un'alimentazione ATX a 20 pin, collegarla lungo il pin 1 e il pin 13.
Questa scheda madre � dotata di un connettore di alimentazione ATX da 12 V a 8 pin. Per utilizzare un'alimentazione ATX a 4 pin, collegarla lungo il pin 1 e il pin 5.
Collegare questi connettori all'alimentazione quando sulla scheda madre sono installate tre schede grafiche. Fare riferimento a pagina 23 per la guida ll'installazione del connettore d'alimentazione PCIe.
Questo header COM1 supporta un modulo di porta seriale.
GN D
Italiano
Header TPM (TPMS1 a 17 pin) (vedere pag. 1, n. 15)
62
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
Questo connettore supporta il sistema Trusted Platform Module 1 (TPM), che pu� archiviare in modo sicuro chiavi, certificati digitali, password e dati. Un sistema TPM permette anche di potenziare la sicurezza della rete, di proteggere identit� digitali e di garantire l'integrit� della piattaforma.
Q270 Pro BTC+
1.5 Tasto Smart
La scheda madre � dotata di due tasto smart: Tasto di alimentazione e di ripristino.
Tasto d'alimentazione (PWRBTN1) (vedere pag. 1, n. 4)
Il tasto d'alimentazione consente di accendere/spegnere rapidamente il sistema.
Tasto di ripristino (RSTBTN1) (vedere pag. 1, n. 5)
Il tasto di ripristino consente di ripristinare rapidamente il sistema.
Italiano
63
1 Introducci�n
Gracias por comprar la placa base ASRock Q270 Pro BTC+, una placa base fiable fabricada seg�n el riguros�simo control de calidad de ASRock. Ofrece un rendimiento excelente con un dise�o resistente de acuerdo con el compromiso de calidad y resistencia de ASRock.
Ya que las especificaciones de la placa base y el software de la BIOS podr�n ser actualizados, el contenido que aparece en esta documentaci�n estar� sujeto a modificaciones sin previo aviso. Si esta documentaci�n sufre alguna modificaci�n, la versi�n actualizada estar� disponible en el sitio web de ASRock sin previo aviso. Si necesita asistencia t�cnica relacionada con esta placa base, visite nuestro sitio web para obtener informaci�n espec�fica sobre el modelo que est� utilizando. Podr� encontrar las �ltimas tarjetas VGA, as� como la lista de compatibilidad de la CPU, en el sitio web de ASRock. Sitio web de ASRock http://www.asrock.com.
1.1 Contenido del paquete
� Placa base ASRock Q270 Pro BTC+ (factor de forma ATX) � Gu�a de instalaci�n r�pida de ASRock Q270 Pro BTC+ � CD de soporte de ASRock Q270 Pro BTC+ � 2 x Cables de datos Serie ATA (SATA) (Opcional) � 1 x tornillo para socket M.2 (Opcional) � 1 x escudo panel E/S
64
Espa�ol
Q270 Pro BTC+
1.2 Especificaciones
Plataforma
� Factor de forma ATX � Dise�o de condensador s�lido
CPU
� Admite la familia de procesadores Intel� CoreTM i5/i3/Pentium�/
Celeron� (z�calo 1151) de la 7a y 6a generaci�n
� Admite CPU de hasta 91 W.
� Digi Power design
� Dise�o de 6 fases de alimentaci�n
� Admite la tecnolog�a Intel� Turbo Boost 2.0
Conjunto de chips
� Intel� Q270 � Compatible con la tecnolog�a vProTM de Intel� � Compatible con la Tecnolog�a Active Management 11,6 de Intel� * La Tecnolog�a vProTM de Intel� y la Tecnolog�a Active Management
11,6 de Intel� pueden ser compatibles �nicamente con la familia de procesadores vProTM de Intel� CoreTM
Memoria
� Tecnolog�a de memoria DDR4 de doble canal � 2 x ranuras DIMM DDR4 � Admite memoria DDR4 2400/2133 no ECC, sin b�fer* * CPU Intel� de 7a generaci�n compatible con DDR4 de hasta 2400; CPU Intel� de 6a generaci�n compatible con DDR4 de hasta 2133. � Admite m�dulos de memoria UDIMM ECC (funcionamiento en
modo no ECC) � Capacidad m�xima de memoria del sistema: 32GB � Admite Perfil de memoria extremo de Intel� (XMP) 2.0 � Contacto 15 Gold en ranuras DIMM
Ranura de expansi�n
� 1 ranura PCI Express 3.0 x16 (PCIE2: modo x16)* * Admite unidad de estado s�lido de NVMe como disco de arranque � 12 x Ranuras PCI Express 3.0 x1
Gr�ficos
� Intel� HD Graphics Built-in Visuals y las salidas de VGA son compatibles �nicamente con procesadores con GPU integrado.
� Admite la tecnolog�a HDMI 1.4 con una resoluci�n m�xima de 4K x 2K (4096x2160) a 24Hz / (3840x2160) a 30Hz
Espa�ol
65
Audio LAN
E/S en panel posterior
Almacenamiento RAID Conector
� Admite Sincronizaci�n autom�tica entre audio y v�deo, color profundo (12 bpc), xvYCC y HBR (audio de alta tasa de bits) con puerto HDMI 1.4 (se necesita un monitor compatible con HDMI)
� Admite HDCP 1.4 con puerto HDMI 1.4 � Compatible con reproducci�n Blu-ray (BD) Full HD de 1080p con
puerto HDMI 1.4
� 7.1 Audio CH HD (C�dec de audio Realtek ALC897) � Admite protecci�n contra sobretensiones
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Admite la funci�n Reactivaci�n de LAN � Admite protecci�n contra rayos y descargas electrost�ticas (ESD) � Admite Ethernet 802.3az de eficiencia energ�tica � Admite PXE
� 1 x Puerto de rat�n PS/2 � 1 x Puerto de teclado PS/2 � 1 x Puerto HDMI � 4 x Puertos USB 2.0 (admite protecci�n contra descargas
electrost�ticas) � 2 x Puertos USB 3.2 Gen1 (admite protecci�n contra descargas
electrost�ticas) � 1 x Puerto LAN RJ-45 con LED (LED DE ACTIVIDAD/ENLACE
y LED DE VELOCIDAD) � Conector de audio HD: Entrada de l�nea / Altavoz frontal /
Micr�fono
� 4 x Conectores SATA3 de 6,0 Gb/s � 1 x Z�calo M.2 (M2_1), admite el m�dulo SATA3 6,0 Gb/s M.2 de
tipo 2260/2280 con clave M
� Admite RAID 0, RAID 1, RAID 5 y RAID 10 para dispositivos de almacenamiento SATA
� 1 x Base de conexiones en el panel del sistema � 1 x Conector TPM � 1 x Base de conexiones de puerto COM � 1 x Cabezal de intrusi�n de chasis y de altavoces
Espa�ol
66
Q270 Pro BTC+
� 1 x Conector para ventilador de la CPU (4 contactos) * El conector para ventilador de la CPU admite ventilador de la CPU
con una potencia de ventilador de 1 A (12 W) m�xima. � 2 x Conectores (4 contactos) para el ventilador del chasis (control
de velocidad de ventilador inteligente)
* El conector para ventilador del chasis admite el ventilador del chasis
con una potencia de ventilador m�xima de 1 A (12 W). � 1 x Conector de alimentaci�n ATX de 24 contactos � 1 x Conector de alimentaci�n de 12V de 8 contactos � 2 x Conectores de alimentaci�n PCIe � 1 x Conector de alimentaci�n SATA � 1 x Conector de audio en el panel frontal � 1 x Base de conexiones USB 2.0 (admite 2 puertos USB 2.0)
(Admite protecci�n contra descargas electrost�ticas) � 1 x Base de conexiones USB 3.2 Gen1 (Admite 2 puertos USB 3.2
Gen1) (Admite protecci�n contra descargas electrost�ticas) � 1 x Bot�n de alimentaci�n � 1 x Bot�n Restablecer
Funci�n de la BIOS
� BIOS legal UEFI AMI compatible con interfaz gr�fica de usuario multiling�e
� Eventos de reactivaci�n compatibles con ACPI 6.0 � Admite SMBIOS 2.7 � Multi-ajuste de voltaje de CPU, GT_CPU, DRAM, PCH 1,0 V,
VCCIO
Monitor de hardware
� Tac�metro del ventilador de la CPU/Chasis � CPU/Chasis Ventilador silencioso (Ajuste autom�tico de velocidad
del ventilador del chasis por temperatura de la CPU) � Control multivelocidad del ventilador de la CPU/Chasis � Detecci�n de CARCASA ABIERTA � Supervisi�n del voltaje: +12 V, +5 V, +3,3 V, Vcore de CPU
SO
� Microsoft� Windows� 10 64 bits (para CPU Intel� de la 7a)
� Microsoft� Windows� 10 64 bits / 8.1 64 bits / 7 32 bits / 7 64 bits
(para CPU Intel� de la 6a generaci�n)
* Para instalar el sistema operativo Windows� 7, se necesita un disco
de instalaci�n modificado con los controladores xHCI empaquetados
en el archivo ISO. Consulte la p�gina 28 para obtener informaci�n m�s
detallada.
* Para obtener el controlador actualizado para Windows� 10, visite el
sitio Web desde ASRock para obtener detalles: http://www.asrock.com
67
Espa�ol
Certificaciones � FCC y CE � Preparado para ErP/EuP (se necesita una fuente de alimentaci�n preparada para ErP/EuP)
* Para obtener informaci�n detallada del producto, visite nuestro sitio Web: http://www.asrock.com Tenga en cuenta que hay un cierto riesgo impl�cito en las operaciones de overclocking, incluido el ajuste de la BIOS, aplicando la tecnolog�a de overclocking liberada o utilizando las herramientas de overclocking de otros fabricantes. El overclocking puede afectar a la estabilidad del sistema e, incluso, da�ar los componentes y dispositivos del sistema. Esta operaci�n se debe realizar bajo su propia responsabilidad y usted debe asumir los costos. No asumimos ninguna responsabilidad por los posibles da�os causados por el overclocking.
68
Espa�ol
Q270 Pro BTC+
1.3 Instalaci�n de los puentes
La instalaci�n muestra c�mo deben instalarse los puentes. Cuando la tapa de puente se coloca en los contactos, el puente queda "Corto". Si no coloca la tapa de puente en los contactos, el puente queda "Abierto".
Puente de borrado de CMOS (CLRMOS1) (consulte la p�g. 1, n� 12)
Puente de 2 contactos
CLRMOS1 le permite borrar los datos del CMOS. Para borrar y restablecer los par�metros del sistema a los valores predeterminados de instalaci�n, apague el ordenador y desenchufe el cable de alimentaci�n de la toma de alimentaci�n. Despu�s de esperar 15 segundos, utilice una tapa de puente para acortar los contactos en el CLRMOS1 durante 5 segundos. Sin embargo, no borre el CMOS justo despu�s de que haya actualizado la BIOS. Si necesita borrar el CMOS cuando acabe de actualizar la BIOS, deber� arrancar el sistema primero y, a continuaci�n, deber� apagarlo antes de que realice el borrado del CMOS. Tenga en cuenta que la contrase�a, la fecha, la hora y el perfil de usuario predeterminado ser�n eliminados �nicamente si se retira la pila del CMOS. Acu�rdese de retirar la tapa de puente despu�s de borrar el CMOS.
Si borra el CMOS, podr� detectarse la cubierta abierta. Ajuste la opci�n del BIOS "Clear Status" (Borrar estado) para borrar el registro del estado de intrusi�n anterior del chasis.
Espa�ol
69
1.4 Conectores y cabezales incorporados
Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores da�ar� de forma permanente la placa base.
Cabezal del panel del sistema (PANEL1 de 9 contactos) (consulte la p�g. 1, n� 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Conecte el interruptor de alimentaci�n, restablezca el interruptor y el indicador del estado del sistema del chasis a los valores de este cabezal, seg�n los valores asignados a los contactos como se indica a continuaci�n. Cerci�rese de cu�les son los contactos positivos y los negativos antes de conectar los cables.
PWRBTN (Interruptor de alimentaci�n): Con�ctelo al interruptor de alimentaci�n del panel frontal del chasis. Deber� configurar la forma en la que su sistema se apagar� mediante el interruptor de alimentaci�n.
RESET (Interruptor de reseteo): Con�ctelo al interruptor de reseteo del panel frontal del chasis. Pulse el interruptor de reseteo para resetear el ordenador si �ste est� bloqueado y no se puede reiniciar de forma normal.
PLED (Indicador LED de la alimentaci�n del sistema): Con�ctelo al indicador de estado de la alimentaci�n del panel frontal del chasis. El indicador LED permanece encendido cuando el sistema est� funcionando. El indicador LED parpadea cuando el sistema se encuentra en estado de suspensi�n S1/S3. El indicador LED se apaga cuando el sistema se encuentra en estado de suspensi�n S4 o est� apagado (S5).
HDLED (Indicador LED de actividad en el disco duro): Con�ctelo al indicador LED de actividad en el disco duro del panel frontal del chasis. El indicador LED permanece encendido cuando el disco duro est� leyendo o escribiendo datos.
El dise�o del panel frontal puede ser diferente dependiendo del chasis. Un m�dulo de panel frontal consta principalmente de: interruptor de alimentaci�n, interruptor de reseteo, indicador LED de alimentaci�n, indicador LED de actividad en el disco duro, altavoz, etc. Cuando conecte su m�dulo del panel frontal del chasis a este cabezal, aseg�rese de que las asignaciones de los cables y los contactos coinciden correctamente.
Cabezal de intrusi�n de chasis y de altavoces (SPK_CI1 de 7 contactos) (consulte la p�g. 1, n� 11)
70
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Conecte la intrusi�n de chasis y el altavoz del chasis a este cabezal.
Espa�ol
Q270 Pro BTC+
Conectores Serie ATA3 �ngulo recto: (SATA3_0: consulte la p�g.1, n� 8) (Superior) (SATA3_1: consulte la p�g.1, n� 8) (Inferior) (SATA3_2: consulte la p�g.1, n� 9) (Superior) (SATA3_3: consulte la p�g.1, n� 9) (Inferior)
Conector de alimentaci�n SATA (SATA_POW1) (consulte la p�g. 1, n� 17)
SATA3_2 SATA3_0 SATA3_3 SATA3_1
Estos cuatro conectores SATA3 son compatibles con cables de datos SATA para dispositivos de almacenamiento interno con una velocidad de transferencia de datos de hasta 6,0 Gb/s.
Enchufe este conector a la fuente de alimentaci�n cuando haya instaladas tres tarjetas gr�ficas en esta placa base.
Cabezal USB 2.0 (USB_5_6 de 9 contactos) (consulte la p�g. 1, n� 14)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Esta placa base tiene otra base de conexiones. Cada base de conexiones USB 2.0 admite dos puertos.
Cabezal USB 3.2 Gen1 (USB3_3_4 de 19 contactos) (consulte la p�g. 1, n� 13)
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+
IntA_P_SSRXVbus
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
Esta placa base tiene otra base de conexiones. Esta base de conexiones USB 3.2 Gen1 admite dos puertos.
Espa�ol
71
Cabezal de audio del panel frontal (HD_AUDIO1 de 9 contactos) (consulte la p�g. 1, n� 19)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Este cabezal se utiliza para conectar dispositivos de audio al panel de audio frontal.
1. El Audio de Alta Definici�n (HDA, en ingl�s) es compatible con el m�todo de sensor de conectores, sin embargo, el cable del panel del chasis deber� ser compatible con HDA para que pueda funcionar correctamente. Siga las instrucciones que se indican en nuestro manual y en el manual del chasis para instalar su sistema.
2. Si utiliza un panel de audio AC'97, col�quelo en el cabezal de audio del panel frontal siguiendo los pasos que se describen a continuaci�n: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) a OUT2_L. C. Conecte Ground (Conexi�n a tierra) (GND) a Ground (GND). D. MIC_RET y OUT_RET se utilizan �nicamente con el panel de audio HD. No es necesario que los conecte en el panel de audio AC'97. E. Para activar el micr�fono frontal, vaya a la ficha "Micr�fono frontal" en el panel de control de Realtek y ajuste el "Volumen de grabaci�n".
Conectores para el ventilador del chasis (CHA_FAN1 de 4 contactos) (consulte la p�g. 1, n� 7)
(CHA_FAN2 de 4 contactos) (consulte la p�g. 1, n� 20)
1
GND
2
+12V
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
Conecte el cable del ventilador al conector del ventilador y haga coincidir el cable negro con el pin de conexi�n a tierra.
1 2 3 4
Conector del ventilador de la CPU (CPU_FAN1 de 4 contactos) (consulte la p�g. 1, n� 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
Esta placa base contiene un conector de ventilador (ventilador silencioso) de CPU de 4 contactos. Si tiene pensando conectar un ventilador de CPU de 3 contactos, con�ctelo al contacto 1-3.
Espa�ol
72
Q270 Pro BTC+
Conector de alimentaci�n ATX 12
24
(ATXPWR1 de 24 contactos)
(consulte la p�g. 1, n� 6)
Conector de alimentaci�n ATX de 12 V (ATX12V1 de 8 contactos) (consulte la p�g. 1, n� 1)
1
13
8
5
4
1
Conectores de alimentaci�n PCIe (PCIE_PWR1 de 4 contactos) (consulte la p�g. 1, n� 21) (PCIE_PWR2 de 4 contactos) (consulte la p�g. 1, n� 18)
Cabezal de puerto serie (COM1 de 9 contactos) (consulte la p�g. 1, n� 16)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Esta placa base contiene un conector de alimentaci�n ATX de 24 contactos. Para utilizar una toma de alimentaci�n ATX de 20 contactos, con�ctela en los contactos del 1 al 13.
Esta placa base contiene un conector de alimentaci�n ATX de 12V y 8 contactos. Para utilizar una toma de alimentaci�n ATX de 4 contactos, con�ctela en los contactos del 1 al 5.
Enchufe estos conectores a la fuente de alimentaci�n cuando haya instaladas tres tarjetas gr�ficas en esta placa base. Consulte la p�gina 23 para la gu�a de instalaci�n del conector de alimentaci�n PCIe.
Este cabezal COM1 admite un m�dulo de puerto serie.
Cabezal TPM (TPMS1 de 17 contactos) (consulte la p�g. 1, n� 15)
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
GN D
Este conector es compatible con el sistema M�dulo de Plataforma 1 Segura (TPM, en ingl�s), que puede almacenar de forma segura claves, certificados digitales, contrase�as y datos. Un sistema TPM tambi�n ayuda a aumentar la seguridad en la red, protege las identidades digitales y garantiza la integridad de la plataforma.
73
Espa�ol
1.5 Bot�n inteligente
La placa base contiene dos bot�n inteligentes: Bot�n Alimentaci�n y Restablecer.
Bot�n Alimentaci�n (PWRBTN1) (consulte la p�g. 1, n� 4)
El bot�n Alimentaci�n permite a los usuarios encender y apagar r�pidamente el sistema.
Bot�n Restablecer (RSTBTN1) (consulte la p�g. 1, n� 5)
El bot�n Restablecer permite a los usuarios restablecer r�pidamente el sistema.
Espa�ol
74
Q270 Pro BTC+
1
ASRock Q270 Pro BTC+, ASRock. ASRock .
BIOS . - ASRock . , , - . - ASRock VGA- . - ASRock http://www.asrock.com.
1.1
� ASRock Q270 Pro BTC+ (- ATX) � ASRock Q270 Pro BTC+ � ASRock Q270 Pro BTC+ � 2 Serial ATA (SATA) ( ) � 1 x M.2 ( ) � 1 -
75
1.2
� - ATX �
� Intel� CoreTM i5/i3/Pentium�/
Celeron� ( 1151) 7- 6- .
� 91 .
� Digi Power design
� 6
� Intel� Turbo Boost 2.0
� Intel� Q270 � Intel� vProTM � Intel� Active Management 11,6 * Intel� vProTM Intel� Active Management 11,6 Intel� CoreTM vProTM
� DDR4 � 2 x DDR4 DIMM � DDR4
2400/2133 ECC.*
* Intel� 7- DDR4
2400 ; Intel� 6-
DDR4 2133 . � ECC UDIMM ( ,
) � : 32 � Intel� Extreme Memory Profile (XMP) 2.0 � (15 ) DIMM
� 1 PCI Express 3.0 x16 (PCIE2: x16)* * SSD- NVMe � 12 PCI Express 3.0 x1
� Intel� HD Graphics VGA .
� HDMI 1.4 4K x 2K (4096x2160) 24 (3840x2160 30 )
76
Q270 Pro BTC+
� Auto Lip Sync, Deep Color (12 /), xvYCC HBR (High Bit Rate Audio) HDMI 1.4 ( HDMI-)
� HDCP 1.4 HDMI 1.4. � Full HD 1080p Blu-ray (BD)
HDMI 1.4
� 7.1- ( Realtek ALC897)
�
LAN
� Gigabit Ethernet 10/100/1000 / � Giga PHY Intel� I219V � � � Energy Efficient Ethernet 802.3az � PXE
� 1 PS/2 � 1 PS/2 � 1 x HDMI � 4 x USB 2.0 ( ) � 2 x USB 3.2 Gen1 (
) � 1 x RJ-45 (/
) � HD Audio: / /
� 4 SATA3 6,0 / � 1 M.2 (M2_1), M.2 SATA3
2260/2280 M 6,0 /
RAID
� RAID 0, RAID 1, RAID 5 RAID 10 SATA
� 1 � 1 � 1 - � 1
77
BIOS
� 1 x (4-) * 1 (12 ). � 2 (4-)
(- ) * 1 (12 ). � 1 , 24- � 1 12 , 8- � 2 x PCIe � 1 x SATA � 1 � 1 USB 2.0 (2 USB 2.0
) � 1 USB 3.2 Gen1 (2 USB 3.2 Gen1) (
) � 1 � 1
� AMI UEFI Legal BIOS
� ACPI 6.0 � SMBIOS 2.7 � , GT_CPU, DRAM, PCH 1,0B,
VCCIO
� / � /
( ) � / � � : +12 , +5 , +3,3 , Vcore
78
Q270 Pro BTC+
� Microsoft� Windows� 10 64- ( Intel� 7- )
� Microsoft� Windows� 10 64- / 8.1 64-/ 7 32-/ 7 64- ( Intel� 6- )
* Windows� 7 xHCI, ISO. . 28. * Windows� 10 - ASRock:http://www.asrock.com
� FCC, CE � ErP/EuP ( ,
ErP/EuP)
* -: http://www.asrock.com
, , BIOS, Untied Overclocking , . . . , .
79
1.3
. - ��. - , ��.
CMOS (CLRMOS1) (. . 1, 12)
2-
CLRMOS1 CMOS. , . 15 CLRMOS1 5 . CMOS BIOS. CMOS BIOS , CMOS. , , , , CMOS. CMOS .
CMOS . , BIOS.
80
Q270 Pro BTC+
1.4 ,
. -. - .
(9-, PANEL1) (. . 1, 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
, , . .
PWRBTN ( ): , . .
RESET ( ): , . , , .
PLED ( ): , . , . S1/S3, . S4 (S5), .
HDLED ( ): , . , .
. , , , , . . .
(7-, SPK_CI1) (. . 1, 11)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
.
81
Serial ATA3 : (SATA3_0: . . 1, 8) () (SATA3_1: . . 1, 8) () (SATA3_2: . . 1, 9) () (SATA3_3: . . 1, 9) ()
SATA (SATA_POW1) (. . 1, 17)
SATA3_2 SATA3_0 SATA3_3 SATA3_1
SATA3 SATA 6,0 /.
.
USB 2.0 (9-, USB_5_6) (. . 1, 14)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
. USB 2.0 .
USB 3.2 Gen1 (19-, USB3_3_4) (. . 1, 13)
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+
IntA_P_SSRXVbus
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
. USB 3.2 Gen1 .
82
Q270 Pro BTC+
(9-, HD_AUDIO1) (. . 1, 19)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
.
1. , , HDA. . .
2. AC'97 , : A. Mic_IN (MIC) MIC2_L. B. Audio_R (RIN) OUT2_R, Audio_L (LIN) OUT2_L. C. (GND) (GND). D. MIC_RET OUT_RET . AC'97 . E. , FrontMic Realtek .
(4-, CHA_FAN1) (. . 1, 7)
(4-, CHA_FAN2) (. . 1, 20)
1
GND
2
+12V
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
.
1 2 3 4
(4-, CPU_FAN1) (. . 1, 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
4- . 3- , 1-3.
83
(24-, ATXPWR1) (. . 1, 6)
12
24
1
13
12
8
5
(8-, ATX12V1)
(. . 1, 1)
4
1
PCIe (4- PCIE_ PWR1) (. . 1, 21) (4- PCIE_ PWR2) (. . 1, 18)
(9-, COM1) (. . 1, 16)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
24- . 20- ATX, 1 13.
8- 12 . 4- ATX, 1 5.
. PCIe 23.
COM1 .
GN D
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
(17-, TPMS1) (. . 1, 15)
84
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
1 Trusted Platform Module (TPM), , , . , .
Q270 Pro BTC+
1.5 -
-: .
(PWRBTN1) (. . 1, 4)
.
(RSTBTN1) (. . 1, 5)
.
85
Portugu�s
1 Introdu��o
Obrigado por comprar a placa-m�e ASRock Q270 Pro BTC+, uma placa-m�e confi�vel produzida sob o controle de qualidade altamente consistente da ASRock. Esta placa principal oferece um excelente desempenho com um design robusto em conformidade com o compromisso da ASRock em fabricar produtos de qualidade e resistentes.
Como as especifica�es da placa-m�e e do software do BIOS podem ser atualizadas, o conte�do desta documenta��o estar� sujeito a altera�es sem aviso pr�vio. Caso ocorram modifica�es a esta documenta��o, a vers�o atualizada estar� dispon�vel no site da ASRock sem aviso pr�vio. Se precisar de assist�ncia t�cnica relacionada a esta placa principal, visite o nosso site para obter informa�es espec�ficas sobre o modelo que estiver utilizando. Voc� tamb�m poder� encontrar a lista de placas VGA e CPU mais recentes suportadas no site da ASRock. Site da ASRock http://www.asrock.com.
1.1 Conte�do da embalagem
� Placa M�e ASRock Q270 Pro BTC+ (Fator de Forma ATX) � Guia de Instala��o R�pida da ASRock Q270 Pro BTC+ � CD de Suporte do ASRock Q270 Pro BTC+ � 2 x Cabos de dados Serial ATA (SATA) (Opcional) � 1 x Parafuso para Soquete M.2 (Opcional) � 1 x Painel de E/S
86
Q270 Pro BTC+
1.2 Especifica�es
Plataforma CPU
Chipset
Mem�ria
Slot de expans�o Gr�ficos
� Fator de Forma ATX � Design de condensador s�lido
� Suporta Processadores 7ae 6a Gera��o Intel� CoreTM i5/i3/Pentium�/ Celeron� (Soquete 1151)
� Suporta CPU at� 91W � Digi Power design � Design com 6 fases de alimenta��o � Suporta a tecnologia Intel� Turbo Boost 2.0
� Intel� Q270 � Suporta a tecnologia Intel� vProTM � Suporta a tecnologia Intel� Tecnologia de Gest�o Ativa 11,6 * A Tecnologia Intel� vProTM e a Tecnologia de Gest�o Ativa Intel� 11,6 pode ser suportada apenas com a fam�lia de processadores Intel� CoreTM vProTM
� Tecnologia de mem�ria DDR4 de dois canais � 2 x Slots DIMM DDR4 � Suporta mem�ria DDR4 2400/2133, n�o ECC, sem mem�ria
interm�dia* * 7a Ger Intel� CPU suporta DDR4 2400 originalmente; 6a Ger Intel� CPU suporta DDR4 2133 por overclocking. � Suporta m�dulos de mem�ria ECC UDIMM (opera em modo n�o-
ECC) � Capacidade m�xima da mem�ria do sistema: 32GB � Suporta Extreme Memory Profile (XMP) 2.0 da Intel� � Contato em Ouro 15 nos slots DIMM
� 1 x Slot PCI Express 3.0 x16 (PCIE2: modo x16)* * Suporta NVMe SSD nos discos de inicializa��o � 12 x Slots PCI Express 3.0 x1
� Os gr�ficos incorporados Intel� HD e as sa�das VGA s� podem ser suportados com processadores com GPU integrada.
� Suporta HDMI 1.4 com resolu��o m�x. at� 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Portugu�s
87
�udio LAN
E/S do painel posterior
Armazenamento RAID Conector
� Suporta Auto sincroniza��o labial, Deep Color (12bpc), xvYCC e HBR (High Bit Rate Audio) com porta HDMI 1.4 (� necess�rio um monitor compat�vel com HDMI)
� Suporta HDCP 1.4 com Porta HDMI 1.4 � Suporta reprodu��o Full HD 1080p Blu-ray (BD) com Porta
HDMI 1.4
� �udio 7.1 CH HD com prote��o de conte�do (Codec de �udio Realtek ALC897)
� Suporta Prote��o de Sobretens�o
� LAN Gigabit a 10/100/1000 Mb/s � Giga PHY Intel� I219V � Suporta Wake-On-LAN � Oferece Suporte � Prote��o de Rel�mpago/ESD � Suporta Energy Efficient Ethernet 802.3az � Suporta PXE
� 1 x Porta PS/2 para mouse � 1 x Porta PS/2 para Teclado � 1 x Porta HDMI � 4 x Portas USB 2.0 (Suporta Prote��o ESD) � 2 x Portas USB 3.2 Gen1 (Suporta Prote��o ESD) � 1 x Porta LAN RJ-45 com LED (LED ACT/LINK e LED DE
VELOCIDADE) � Fichas de �udio HD: Entrada de Linha / Autofalante Frontal /
Microfone
� 4 x Conectores SATA3 6,0 Gb/s � 1 x soquete M.2 (M2_1), suporta a tecla M tipo 2260/2280 M. 2
SATA3 6.0 Gb/s m�dulo
� Suporta RAID 0, RAID 1, RAID 5 e RAID 10 para dispositivos de armazenagem SATA
� 1 x Cabe�ote do Painel do Sistema � 1 x Plataforma TPM � 1 x Suporte porta COM � 1 x Intrus�o do Chassi e Cabe�ote de Autofalante
Portugu�s
88
Q270 Pro BTC+
Fun�es da BIOS
Monitor de hardware
SO
� 1 x Conector da ventoinha da CPU (4 pinos) * O Conector do Ventilador de CPU suporta o ventilador de CPU de alimenta��o m�xima 1A do ventilador (12W). � 2 x Conectores de Ventoinha de Chassi (4 pinos) (Controle de
Velocidade de Ventoinha Inteligente) * O Conector do Ventilador do Chassi suporta o ventilador do chassi de pot�ncia do ventilador m�xima de 1A (12W). � 1 x Conector alimenta��o ATX 24-pinos � 1 x Conector de energia 8-pinos 12V � 2 x Conectores de energia PCIe � 1 x Conector de energia SATA � 1 x Conector de �udio do painel frontal � 1 x Plataforma USB 2.0 (Suporta 2 portas USB 2.0) (Suporta
Prote��o ESD) � 1 x Plataforma USB 3.2 Gen1 (Suporta 2 portas USB 3.2 Gen1)
(Suporta Prote��o ESD) � 1 x bot�o Liga/Desliga � 1 x Bot�o de Reset
� AMI Legal UEFI BIOS com suporte multilingue GUI � ACPI 6.0 compat�vel com eventos de despertar � Suporte SMBIOS 2.7 � CPU, GT_CPU, DRAM, PCH 1,0V, VCCIO Multi ajuste de tens�o
� Tac�metro da Ventoinha da CPU/Gabinete � Ventoinha silenciosa da CPU/Gabinete (Auto ajusta velocidade da
ventoinha do gabinete pela temperatura da CPU) � Controle de multi velocidade da Ventoinha da CPU/Gabinete � Detec��o de ABERTURA da CAIXA � Monitoramento da tens�o: +12V, +5V, +3,3V, CPU Vcore
� Microsoft� Windows� 10 64-bit (Para 7a Ger Intel� CPU) � Microsoft� Windows� 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
(Para 6a Ger Intel� CPU) *Para instalar o SO Windows 7, um disco de instala��o modificado com condutores xHCI no arquivo ISO � necess�rio. Consulte a p�gina 28 para a opera��o mais detalhada. * Para o driver atualizado do Windows� 10, por favor, visite o website da ASRock para mais detalhes: http://www.asrock.com
Portugu�s
89
Certifica�es
� FCC, CE � Preparada para ErP/EuP (� necess�ria uma fonte de alimenta��o
preparada para ErP/EuP)
* Para obter informa�es detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com
Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das defini�es na BIOS, a aplica��o de tecnologia Untied Overclocking ou a utiliza��o de ferramentas de overclocking de terceiros. O overclocking poder� afetar a estabilidade do sistema ou mesmo causar danos nos componentes e dispositivos do seu sistema. Ele deve ser realizado por sua conta e risco. N�o nos responsabilizamos por poss�veis danos causados pelo overclocking.
Portugu�s
90
Q270 Pro BTC+
1.3 Configura��o dos jumpers
A imagem abaixo mostra como os jumpers s�o configurados. Quando a tampa do jumper � colocada nos pinos, o jumper � "Curto". Se n�o for colocada uma tampa de jumper nos pinos, o jumper � "Aberto".
Apagar o Jumper CMOS (CLRMOS1) (ver p.1, N.� 12)
Jumper de 2 pinos
CLRMOS1 permite que voc� limpe os dados do CMOS. Para apagar e reinicializar os par�metros do sistema nos valores predefinidos, desligue o computador e desplugue a tomada da alimenta��o. Depois de aguardar 15 segundos, use uma capa de jumper para fazer curto dos pinos no CLRMOS1 por 5 segundos. No entanto, n�o apague o CMOS logo ap�s ter realizado a atualiza��o da BIOS. Se voc� precisar apagar o CMOS logo ap�s ter terminado uma atualiza��o da BIOS, dever� primeiro iniciar o sistema e voltar a encerr�lo antes de apagar o CMOS. Por favor, observe que a senha, data, hora e perfil padr�o do usu�rio ser�o apagados s� se a bateria CMOS for removida. Por favor, n�o se esque�a de retirar a tampa do jumper depois de apagar o CMOS.
Se voc� apagar o CMOS, poder� ser detectada a abertura da caixa. Ajuste a op��o do BIOS "Limpar estado" para limpar o registo anterior de estado de intrus�o no chassis.
Portugu�s
91
1.4 Suportes e conectores onboard
Os conectores e suportes onboard N�O s�o jumpers. N�O coloque tampas de jumpers sobre estes terminais e conectores. Colocar tampas de jumpers sobre os terminais e conectores ir� causar danos permanentes � placa-m�e.
Suporte do painel de sistema (PAINEL1 de 9 pinos) (ver p.1, N.� 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Ligue o bot�o de alimenta��o, o bot�o de reinicializa��o e o indicador do estado do sistema no chassi deste suporte, de acordo com a descri��o abaixo. Observe os pinos positivos e negativos antes de conectar os cabos.
PWRBTN (Bot�o de alimenta��o): Conecte o bot�o de alimenta��o no painel frontal do chassi. Voc� pode configurar a forma para desligar o seu sistema atrav�s do bot�o de alimenta��o.
RESET (Bot�o de reinicializa��o): Conecte o bot�o de reinicializa��o no painel frontal do chassi. Pressione o bot�o de reinicializa��o para reiniciar o computador, se ele congela e falha ao realizar um rein�cio normal.
PLED (LED de alimenta��o do sistema): Conecte o indicador do estado da alimenta��o no painel frontal do chassi. O LED ficar� aceso quando o sistema estiver em funcionamento. O LED ficar� piscando quando o sistema estiver nos estados de suspens�o S1/S3. O LED ficar� desligado quando o sistema estiver no estado de suspens�o S4 ou desligado (S5).
HDLED (LED de atividade do disco r�gido): Conecte o LED de atividade do disco r�gido no painel frontal do chassi. O LED ficar� aceso quando o disco r�gido estiver lendo ou registrando dados.
O design do painel frontal poder� variar dependendo do chassi. Um m�dulo de painel frontal consiste principalmente em um bot�o de alimenta��o, um bot�o de reinicializa��o, um LED de alimenta��o, um LED de atividade do disco r�gido, um alto-falante, etc. Ao conectar seu m�dulo de painel frontal do chassi a este conector, certifique-se de que os fios e os pinos correspondem de forma correta.
Portugu�s
Intrus�o do Chassi e Cabe�ote de Autofalante (SPK_CI1 de 7 pinos) (ver p.1, N.� 11)
92
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Conecte a instrus�o do chassi e autofalante do chassi a este cabe�ote.
SATA3_2 SATA3_0 SATA3_3 SATA3_1
Portugu�s
Q270 Pro BTC+
Conectores s�rie ATA3 �ngulo reto: (SATA3_0: ver p.1, N.� 8) (superior) (SATA3_1: ver p.1, N.� 8) (inferior) (SATA3_2: ver p.1, N.� 9) (superior) (SATA3_3: ver p.1, N.� 9) (inferior)
Conector de alimenta��o SATA (SATA_POW1) (ver p.1, N.� 17)
Estes quatro conectores SATA3 suportam cabos de dados SATA para dispositivos de armazenamento interno com uma taxa de transfer�ncia de dados de at� 6,0 Gb/s.
Por favor conecte este conector � fonte de alimenta��o quando tr�s placas s�o instaladas nesta placam�e.
Suporte USB 2.0 (USB_5_6 de 9 pinos) (ver p.1, N.� 14)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
H� um cabe�ote nesta placa-m�e. Cada suporte USB 2.0 pode ter duas portas.
Plataforma USB 3.2 Gen1 (USB3_3_4 de 19 pinos) (ver p.1, N.� 13)
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+
IntA_P_SSRXVbus
H� um cabe�ote nesta placa-m�e. Este suporte USB 3.2 Gen1 pode suportar duas portas.
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
93
Suporte de �udio do painel frontal (HD_AUDIO1 de 9 pinos) (ver p.1, N.� 19)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Este suporte destina-se � conex�o dos dispositivos de �udio no painel de �udio frontal.
1. O �udio de alta defini��o suporta Sensor de Adaptador, mas o fio do painel no chassi dever� suportar HDA para funcionar corretamente. Por favor, siga as instru�es no nosso manual e no manual do chassi para instalar o seu sistema.
2. Se utilizar um painel de �udio AC'97, instale-o no terminal de �udio do painel frontal de acordo com os passos abaixo: A. Ligue Mic_IN (MIC) a MIC2_L. B. Conecte o Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Conecte a liga��o Terra (GND) � Terra (GND). D. MIC_RET e OUT_RET destinam-se apenas ao painel de �udio HD. Voc� n�o precisa lig�-los ao painel de �udio AC'97. E. Para ativar o microfone frontal, v� � guia "Microfone Frontal" no painel de controle Realtek e ajuste o "Volume de grava��o".
Conectores da Ventoinha do Chassi (CHA_FAN1 de 4 pinos) (ver p.1, N.� 7)
(CHA_FAN2 de 4 pinos) (ver p.1, N.� 20)
1
GND
2
+12V
3
CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
Ligue o cabo do ventilador aos conectores do ventilador e corresponda o cabo preto com o pino de liga��o � terra.
1 2 3 4
Conector da Ventoinha da CPU (CPU_FAN1 de 4 pinos) (ver p.1, N.� 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
Esta placa m�e inclui um conector de ventilador da CPU (Ventilador silencioso) de 4 pinos. Se voc� pretende conectar um ventilador da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.
Portugu�s
94
Q270 Pro BTC+
Portugu�s
Conector de alimenta��o ATX (ATXPWR1 de 24 pinos) (ver p.1, N.� 6)
12
24
1
13
Esta placa-m�e inclui um conector de alimenta��o ATX de 24 pinos. Para utilizar uma fonte de alimenta��o ATX de 20 pinos, introduza-a no Pino 1 e Pino 13.
Conector de alimenta��o
8
5
de 12V ATX
(ATX12V1 de 8 pinos) (ver p.1, N.� 1)
4
1
Conectores de Energia PCIe (PCIE_PWR1 de 4-pinos) (ver p.1, N.� 21) (PCIE_PWR2 de 4-pinos) (ver p.1, N.� 18)
Suporte da porta serial (COM1 de 9 pinos) (ver p.1, N.� 16)
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
Esta placa-m�e inclui um conector de alimenta��o de 12V ATX de 8 pinos. Para utilizar uma fonte de alimenta��o ATX de 4 pinos, introduza-a no Pino 1 e Pino 5.
Por favor conecte estes conectores � fonte de alimenta��o quando tr�s placas s�o instaladas nesta placa-m�e. Por favor consulte a p�gina 23 para Guia de Instala��o do Conector de Alimenta��o PCIe.
Este suporte COM1 recebe um m�dulo da porta serial.
Suporte TPM (TPMS1 de 17 pinos) (ver p.1, N.� 15)
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
GN D
Este conector suporta um sistema com M�dulo de Plataforma 1 Confi�vel (TPM), que pode armazenar com seguran�a chaves, certificados digitais, senhas e dados. Um sistema TPM tamb�m ajuda a melhorar a seguran�a de rede, a proteger identidades digitais e a garantir a integridade da plataforma.
95
1.5 Bot�o Inteligente
A placa-m�e tem duas bot�o inteligentes: Bot�o de Energia e Bot�o de Reinicializa��o.
Bot�o de alimenta��o (PWRBTN1) (ver p.1, N.� 4)
O Bot�o de alimenta��o permite aos usu�rios ligar/desligar o sistema rapidamente.
Bot�o Reset (Reiniciar) (RSTBTN1) (ver p.1, N.� 5)
O Bot�o Reset permite aos usu�rios reinicializar o sistema rapidamente.
Portugu�s
96
Polski
Q270 Pro BTC+
1 Wprowadzenie
Dzikujemy za zakupienie plyty gl�wnej ASRock Q270 Pro BTC+, niezawodnej plyty gl�wnej produkowanej z konsekwentnie wykonywan przez firm ASRock, rygorystyczn kontrol jakoci. Plyta ta zapewnia doskonal jako dzialania i solidn konstrukcj, spelniajc zobowizanie firmy ASRock do dostarczania produkt�w o wysokiej jakoci i wytrzymaloci.
Poniewa specyfikacje plyty gl�wnej i oprogramowanie BIOS mog zosta zaktualizowane, zawarto tej dokumentacji moe zosta zmieniona bez powiadomienia. W przypadku jakichkolwiek modyfikacji tej dokumentacji, zaktualizowana wersja bdzie dostpna na stronie internetowej ASRock, bez dalszego powiadomienia. Jeli wymagana jest pomoc techniczna w odniesieniu do tej plyty gl�wnej, naley odwiedzi stron internetow w celu uzyskania specyficznych informacji o uywanym modelu. Na stronie internetowej ASRock, mona take pobra list najnowszych kart VGA i obslugiwanych CPU. Strona internetowa ASRock http://www.asrock.com.
1.1 Zawarto opakowania
� Plyta gl�wna ASRock Q270 Pro BTC+ (Wsp�lczynnik ksztaltu ATX) � Skr�cona instrukcja instalacji ASRock Q270 Pro BTC+ � Pomocnicza plyta CD ASRock Q270 Pro BTC+ � 2 x kable danych Serial ATA (SATA) (Opcjonalne) � 1 x ruba do gniazda M.2 (Opcjonalna) � 1 x oslona panelu Wejcia/Wyjcia
97
1.2 Specyfikacje
Platforma
� Wsp�lczynnik ksztaltu ATX � Konstrukcja kondensatorami stalymi
CPU
� Obsluga procesor�w 7-ej i 6-ej generacji Intel� CoreTM i5/i3/Pentium�/ Celeron� (Socket 1151)
� Obsluga CPU do 91W � Digi Power design � Sekcja zasilania 6 Power Phase Design � Obsluga technologii Intel� Turbo Boost 2.0
Chipset
� Intel� Q270 � Obsluga technologii Intel� vProTM � Obsluguje Intel� Active Management Technology 11,6 * Technologia Intel� vProTM i Intel� Active Management Technology
11,6 mog by obslugiwane jedynie przez rodzin procesor�w Intel� CoreTM vProTM
Pami
� Technologia pamici Dual Channel DDR4 � 2 x gniazda DDR4 DIMM � Obsluga pamici DDR4 2400/2133 non-ECC, pami
niebuforowana*
* 7-ma generacja procesor�w Intel� CPU obsluguje DDR4 do 2400;
6-ta generacja procesor�w Intel� obsluguje DDR4 do 2133. � Obsluga modul�w pamici ECC UDIMM (dzialanie w trybie non-
ECC) � Maks. wielko pamici systemowej: 32GB � Obsluga Intel� Extreme Memory Profile (XMP) 2.0 � 15 pozlacane styki w gniazdach DIMM
Gniazdo rozszerzenia
� 1 x gniazdo PCI Express 3.0 x 16 (tryb PCIE2:x16)* * Obsluga SSD NVMe, jako dysk�w rozruchowych � 12 x gniazda PCI Express 3.0 x1
Grafika
� Wbudowana grafika Intel� HD i wyjcia VGA s obslugiwane wylcznie z procesorami, kt�re maj zintegrowany procesor graficzny.
� Obsluga HDMI 1.4 z maks. rozdzielczoci do 4K x 2K (4096x2160) przy 24Hz / (3840x2160) przy 30Hz
Polski
98
Q270 Pro BTC+
Audio LAN
Tylny panel Wejcia/ Wyjcia
Przechowywanie RAID Zlcze
� Obsluga Auto Lip Sync, Deep Color (12bpc), xvYCC i HBR (High Bit Rate Audio) z portami HDMI 1.4 (Wymagany monitor zgodny z HDMI)
� Obsluga HDCP 1.4 z portem HDMI 1.4 � Obsluga odtwarzania Blu-ray (BD) Full HD 1080p z portem
HDMI 1.4
� Dwik HD 7.1 CH (kodek audio Realtek ALC897) � Obsluga zabezpieczenia przed przepiciami
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Obsluga Wake-On-LAN � Obsluga zabezpieczenia przed wyladowaniami atmosferycznymi/
ESD � Obsluga Energy Efficient Ethernet 802.3az � Obsluga PXE
� 1 x port myszy PS/2 � 1 x port klawiatury PS/2 � 1 x port HDMI � 4 x porty USB 2.0 (Obsluga zabezpieczenia ESD) � 2 x porty USB 3.2 Gen1 (Obsluga zabezpieczenia ESD) � 1 x port LAN RJ-45 z LED (LED ACT/LINK i LED SPEED) � Gniazda audio HD: Wejcie liniowe / Glonik przedni / Mikrofon
� 4 x zlcza SATA3 6,0 Gb/s � 1 x gniazdo M.2 (M2_1), obsluga Key M typu 2260/2280 modulu
M.2 SATA3 6,0 Gb/s
� Obsluga RAID 0, RAID 1, RAID 5 i RAID 10 dla urzdze pamici masowej SATA
� 1 x zlcze gl�wkowe na panelu systemu � 1 x zlcze gl�wkowe TPM � 1 x zlcze gl�wkowe portu COM � 1 x zlcze gl�wkowe naruszenia obudowy i glonika
Polski
99
� 1 x zlcze wentylatora CPU (4-pinowe) * Zlcze wentylatora CPU obsluguje wentylator CPU maksymalnym
prdem zasilania wentylatora 1A (12W). � 2 x zlcza wentylatora obudowy (4-pinowe) (Inteligentne
sterowanie prdkoci obrotow wentylatora)
* Zlcze wentylatora obudowy obsluguje wentylator obudowy
maksymalnym prdem zasilania wentylatora 1 A (12 W). � 1 x 24 pinowe zlcze zasilania ATX � 1 x 8 pinowe zlcze zasilania 12 V � 2 x zlcza zasilania PCIe � 1 x zlcza zasilania SATA � 1 x zlcze audio na panelu przednim � 1 x zlcza gl�wkowe USB 2.0 (obsluguje 2 porty USB 2.0)
(Obsluga zabezpieczenia ESD) � 1 x porty gl�wkowe USB 3.2 Gen1 (obsluga 2 port�w USB 3.2
Gen1) (Obsluga zabezpieczenia ESD) � 1 x Przycisk zasilania � 1 x Przycisk resetowania
Funkcja BIOS
� Obsluga starszych wersji BIOS AMI UEFI z wielojzycznym GUI � Zgodno zdarze wybudzania z ACPI 6.0 � Obsluga SMBIOS 2.7 � Wiele regulacji napicia CPU, GT_CPU, DRAM, PCH 1,0V,
VCCIO
Monitor sprztu
� Tachometr wentylatora procesora/obudowy � Cichy wentylator procesora/obudowy (automatyczna regulacja
prdkoci obrotowej wentylatora obudowy zalenie od temperatury
CPU) � Sterowanie wieloma prdkociami obrotowymi wentylatora
procesora/obudowy � Wykrywanie OTWARCIA OBUDOWY � Monitorowanie napicia: Napicie rdzenia CPU Vcore +12 V, +5 V,
+3,3 V
Polski
100
Q270 Pro BTC+
System operacyjny
Certyfikaty
� Microsoft� Windows� 10 64-bitowy (dla procesor�w 7-ej generacji Intel�)
� Microsoft� Windows� 10 64-bitowy / 8.1 64-bitowy / 7 32-bitowy / 7 64-bitowy (dla procesor�w 6-ej generacji Intel�)
* W celu instalacji systemu operacyjnego Windows� 7 OS, wymagana jest zmodyfikowana plyta instalacyjna ze sterownikami xHCI spakowanymi do pliku ISO. Dalsze instrukcje znajduj si na stronie 28. * Aby uzyska zaktualizowany sterownik Windows� 10, naley odwiedzi portal ASRock: http://www.asrock.com
� FCC, CE � Gotowo do obslugi ErP/EuP (Wymagane zasilanie z gotowoci
obslugi ErP/EuP)
* Dla uzyskania szczeg�lowej informacji o produkcie, naley odwiedzi nasz stron internetow: http://www.asrock.com
Naley pamita, e przetaktowywanie jest zwizane z pewnym ryzykiem, wlcznie z regulacj ustawie w BIOS, zastosowaniem Untied Overclocking Technology lub uywaniem narzdzi przetaktowywania innych firm. Przetaktowywanie moe wplywa na stabilno systemu lub nawet powodowa uszkodzenie komponent�w i urzdze systemu. Powinno to zosta zrobione na wlasne ryzyko i koszt. Nie odpowiadamy za moliwe uszkodzenia spowodowane przetaktowywaniem.
Polski
101
1.3 Ustawienia zworek
Ta ilustracja pokazuje ustawienia zworek. Po umieszczeniu nasadki zworki na pinach, zworka jest "Zwarta". Jeli nasadka zworki nie jest umieszczona na pinach, zworka jest "Otwarta".
Zworka usuwania danych z pamici CMOS (CLRMOS1) (sprawd s.1, Nr 12)
2-pinowa zworka
CLRMOS1 umoliwia usunicie wszystkich danych z pamici CMOS. Aby usun i zresetowa parametry systemu do ustawie domylnych, wylcz komputer i odlcz przew�d zasilajcy od zasilania. Po odczekaniu 15 sekund, uyj nasadk zworki do zwarcia pin�w CLRMOS1 na 5 sekund. Jednak, nie naley usuwa danych z pamici CMOS zaraz po wykonaniu aktualizacji BIOS. Jeli wymagane jest usunicie danych z pamici CMOS po zakoczeniu aktualizacji BIOS, przed rozpoczciem usuwania danych z pamici CMOS naley najpierw uruchomi system, a nastpnie wylczy go. Naley pamita, e haslo, data, czas i domylny profil uytkownika zostan usunite tylko po wyjciu baterii CMOS. Naley pamita, aby po usuniciu danych z pamici CMOS, usun nasadk zworki.
Po usuniciu danych z pamici CMOS, moe by wykrywane otwarcie obudowy. Wyreguluj opcj BIOS "Clear Status (Stan usuwania)", aby usun zapis poprzedniego stanu naruszenia obudowy.
Polski
102
Q270 Pro BTC+
Polski
1.4 Wbudowane zlcza gl�wkowe i inne zlcza
Wbudowane zlcza gl�wkowe i inne zlcza s bezzworkowe. NIE naley umieszcza zworek nad tymi zlczami gl�wkowymi i zlczami. Umieszczanie zworek nad zlczami gl�wkowymi i zlczami spowoduje trwale uszkodzenie plyty gl�wnej.
Zlcze gl�wkowe na panelu systemu (9-pinowe PANEL1) (sprawd s.1, Nr 10)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Podlcz do tego zlcza gl�wkowego przelcznik zasilania, przelcznik resetowania i wskanik stanu systemu na obudowie, zgodnie z pokazanym poniej przydzialem pin�w. Przed podlczeniem kabli naley zapisa pozycj pin�w plus i minus.
PWRBTN (Przelcznik zasilania): Podlcz do przelcznika zasilania na panelu przednim obudowy. Mona skonfigurowa spos�b wylczania systemu z uyciem przelcznika zasilania.
RESET (Przelcznik resetowania): Podlcz do przelcznika resetowania na panelu przednim obudowy. Nacinij przelcznik resetowania w celu ponownego uruchomienia komputera, jeli komputer zawiesi si i nie wykona normalnego ponownego uruchomienia.
PLED (Dioda LED zasilania systemu): Podlczenie do wskanika stanu zasilania na panelu przednim obudowy. Ta dioda LED jest wlczona podczas dzialania systemu. Ta dioda LED miga, gdy system znajduje si w stanie upienia S1/S3. Ta dioda LED jest wylczona, gdy system znajduje si w stanie upienia S4 lub wylczenia zasilania (S5).
HDLED (Dioda LED aktywnoci dysku twardego): Podlczenie do diody LED aktywnoci dysku twardego na panelu przednim obudowy. Dioda LED jest wlczona, podczas odczytu lub zapisu danych przez dysk twardy.
Konstrukcja panelu przedniego zaley od obudowy. Modul panelu przedniego zawiera przede wszystkim przelcznik zasilania, przelcznik resetowania, diod LED zasilania, diod LED aktywnoci dysku twardego, glonik, itd. Po podlczeniu modulu panelu przedniego obudowy do tego zlcza gl�wkowego upewnij si, e jest prawidlowo dopasowany przydzial przewod�w i przydzial pin�w.
Zlcze gl�wkowe naruszenia obudowy i glonika (7-pinowe SPK_CI1) (sprawd s.1, Nr 11)
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
Podlcz to tego zlcza gl�wkowego naruszenie obudowy i glonik obudowy.
103
Zlcza Serial ATA3 Kt prosty: (SATA3_0: sprawd s.1, Nr 8) (G�rny) (SATA3_1: sprawd s.1, Nr 8) (Dolny) (SATA3_2: sprawd s.1, Nr 9) (G�rny) (SATA3_3: sprawd s.1, Nr 9) (Dolny)
Zlcza zasilania SATA (SATA_POW1) (sprawd s.1, Nr 17)
SATA3_2 SATA3_0 SATA3_3 SATA3_1
Te cztery zlcza SATA3 obsluguj kable danych SATA dla wewntrznych urzdze pamici z szybkoci transferu danych do 6,0 Gb/s.
Podlcz te zlcza do zasilania, gdy na tej plycie gl�wnej s zainstalowane trzy karty graficzne.
Zlcza gl�wkowe USB 2.0 (9-pinowe USB_5_6) (sprawd s.1, Nr 14)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Na tej plycie gl�wnej znajduje si jedno zlcze gl�wkowe. Zlcze gl�wkowe USB 2.0 moe obslugiwa dwa porty.
Zlcza gl�wkowe USB 3.2 Gen1 (19-pinowe USB3_3_4) (sprawd s.1, Nr 13)
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+ IntA_P_SSRXVbus
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
Na tej plycie gl�wnej znajduje si jedno zlcze gl�wkowe. To zlcze gl�wkowe USB 3.2 Gen1 moe obslugiwa dwa porty.
Polski
104
Q270 Pro BTC+
Zlcze gl�wkowe audio panelu przedniego (9-pinowe HD_AUDIO1) (sprawd s.1, Nr 19)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
To zlcze gl�wkowe sluy do podlczania urzdze audio do przedniego panelu audio.
1. High Definition Audio obsluguje wykrywanie gniazda, ale aby dziala prawidlowo przew�d panelu na obudowie musi obslugiwa HDA. W celu instalacji systemu naley wykona instrukcje z naszego podrcznika i podrcznika obudowy.
2. Jeli uywany jest panel audio AC'97, naley go zainstalowa w zlczu gl�wkowym audio panelu przedniego, poprzez wykonanie wymienionych poniej czynnoci: A. Podlcz Mic_IN (MIC) do MIC2_L. B. Podlcz Audio_R (RIN) do OUT2_R i Audio_L (LIN) do OUT2_L. C. Podlcz uziemienie (GND) do uziemienia (GND). D. MIC_RET i OUT_RET slu wylcznie dla panelu audio HD. Nie naley ich podlcza dla panelu audio AC'97. E. Aby uaktywni mikrofon przedni, przejd do zakladki "FrontMic" w panelu Realtek Control i wyreguluj "Glono nagrywania".
Zlcza wentylatora obudowy (4-pinowe CHA_FAN1) (sprawd s.1, Nr 7)
(4-pinowe CHA_FAN2) (sprawd s.1, Nr 20)
1
GND
Podlcz przewody wentylatora
2 3
+12V CHA_FAN_SPEED
do zlcza wentylatora i dopasuj
4
FAN_SPEED_CONTROL czarny przew�d do styku masy.
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
Zlcze wentylatora CPU (4-pinowe CPU_FAN1) (sprawd s.1, Nr 2)
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
Ta plyta gl�wna udostpnia 4-pinowe zlcze wentylatora CPU (Cichy wentylator). Jeli planowane jest podlczenie 3-pinowego wentylatora CPU, naley je podlczy do pin�w 1-3.
Polski
105
GN D
Polski
Zlcze zasilania ATX (24-pinowe ATXPWR1) (sprawd s.1, Nr 6)
Zlcze zasilania ATX 12V (8-pinowe ATX12V1) (sprawd s.1, Nr 1)
Zlcza zasilania PCIe (4-pinowe PCIE_PWR1) (sprawd s.1, Nr 21) (4-pinowe PCIE_PWR2) (sprawd s.1, Nr 18)
12
24
1
13
8
5
4
1
Ta plyta gl�wna udostpnia 24-pinowe zlcze zasilania ATX. W celu uycia 20-pinowego zasilacza ATX, naley podlczy je wzdlu pinu 1 i pinu 13.
Ta plyta gl�wna udostpnia 8-pinowe zlcze zasilania ATX 12V. W celu uycia 4-pinowego zasilacza ATX, naley podlczy je wzdlu pinu 1 i pinu 5.
Podlcz te zlcza do zasilania, gdy na tej plycie gl�wnej s zainstalowane trzy karty graficzne. Sprawd na stronie 23 Instrukcj instalacji zlcza zasilania PCIe.
Zlcze gl�wkowe portu szeregowego (9-pinowe COM1) (sprawd s.1, Nr 16)
Zlcze gl�wkowe TPM (17-pinowe TPMS1) (sprawd s.1, Nr 15)
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
To zlcze gl�wkowe COM1 obsluguje modul portu szeregowego.
To zlcze obsluguje system Trusted Platform Module 1 (TPM), kt�ry moe bezpiecznie przechowywa klucze, certyfikaty cyfrowe, hasla i dane. System TPM pomaga take w zwikszeniu zabezpieczenia sieci, ochronie cyfrowych danych osobowych i zapewnieniu integralnoci platformy.
106
Q270 Pro BTC+
1.5 Inteligentny przycisk
Plyta gl�wna ma dwa inteligentny przycisk: przycisk zasilania i przycisk resetowania
Przycisk zasilania (PWRBTN1) (sprawd s.1, Nr 4)
Przycisk zasilania umoliwia uytkownikom szybkie wlczanie/ wylczanie systemu.
Przycisk resetowania (RSTBTN1) (sprawd s.1, Nr 5)
Przycisk resetowania umoliwia uytkownikom szybkie resetowanie systemu.
Polski
107
1
ASRock Q270 Pro BTC+ . ASRock . ASRock .
BIOS , . , ASRock . , . ASRock VGA CPU . ASRock http://www.asrock.com.
1.1
� ASRock Q270 Pro BTC+ (ATX ) � ASRock Q270 Pro BTC+ � ASRock Q270 Pro BTC+ CD � ATA (SATA) 2 ( ) � M.2 1 ( ) � I/O 1
108
Q270 Pro BTC+
1.2
CPU
� ATX �
� 7 6 Intel� CoreTM i5/i3/Pentium�/Celeron� ( 1151)
� 91W CPU � Digi Power design � 6 � Intel� Turbo Boost 2.0
� Intel� Q270 � Intel� vProTM � Intel� Active Management Technology 11.6 * Intel� vProTM Intel� Active Management Technology 11.6 Intel� CoreTM vProTM
� DDR4 � DDR4 DIMM 2 � DDR4 2400/2133 ECC, * * 7 Intel� CPU 2400 DDR4 , 6 Intel� CPU 2133 DDR4 . � ECC UDIMM ( -ECC ) � : 32GB � Intel� Extreme Memory Profile (XMP) 2.0 � DIMM 15 Gold Contact
� PCI Express 3.0 x16 1 (PCIE2: x16 )* * NVMe SSD � PCI Express 3.0 x1 12
� Intel� HD - VGA GPU .
� HDMI 1.4 ( 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz)
� Auto Lip Sync, Deep Color (12bpc), xvYCC HBR (High Bit Rate Audio)(HDMI 1.4 ) (HDMI )
� HDMI 1.4 HDCP 1.4 � HDMI1.4 Full HD 1080p (BD)
109
� 7.1 CH HD (Realtek ALC897 ) �
LAN
� Gigabit LAN 10/100/1000 Mb/s
� Giga PHY Intel� I219V
� Wake-On-LAN
� /ESD
� 802.3az
� PXE
I/O
� PS/2 1 � PS/2 1 � HDMI 1 � USB 2.0 4 (ESD ) � USB 3.2 Gen1 2 (ESD ) � LED RJ-45 LAN 1 (ACT/LINK LED SPEED LED) � HD : / /
� SATA3 6.0 Gb/s 4 � M.2 (M2_1) 1 , M 2260/2280 M.2 SATA3 6.0 Gb/s
RAID
� SATA RAID 0, RAID 1, RAID 5 RAID 10
� 1 � TPM 1 � COM 1 � 1 � CPU (4 ) 1
* CPU 1A(12W) CPU
. � (4 ) 2 ( )
* 1A(12W)
. � 24 ATX 1 � 8 12V 1 � PCIe 2 � SATA 1 � 1 � USB 2.0 1 (USB 2.0 2 ) (ESD ) � USB 3.2 Gen1 1 (USB 3.2 Gen1 2 ) (ESD
)
110
Q270 Pro BTC+
BIOS OS
� 1 � 1
� GUI AMI UEFI BIOS � ACPI 6.0 � SMBIOS 2.7 � CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO
� CPU/ � CPU/ (CPU
) � CPU/ � � : +12V, +5V, +3.3V, CPU Vcore
� Microsoft� Windows� 10 64 (7 Intel� CPU ) � Microsoft� Windows� 10 64 /8.1 64 /7 32 /7
64 (6 Intel� CPU ) * Windows� 7 OS , xHCI ISO . 28 . * Windows� 10 ASRock . http://www.asrock.com
� FCC, CE � ErP/EuP (ErP/EuP )
* : http://www.asrock.com
BIOS Untied Overclocking Technology
. . . .
111
1.3
. � � . � � .
Clear CMOS (CLRMOS1) (1 , 12 )
2
CLRMOS1 CMOS .
. 15 CLRMOS1 5 . BIOS CMOS . BIOS CMOS , CMOS . CMOS , , , . CMOS .
CMOS . BIOS � Clear Status ( )� .
112
Q270 Pro BTC+
1.4
. . .
(9 PANEL1) (1 , 10 )
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
, , . .
PWRBTN( ): . .
RESET( ): . .
PLED( LED): . LED . S1/S3 LED . S4 (S5) LED .
HDLED( LED): LED . LED .
. , , LED, LED, . .
(7 SPK_CI1) (1 , 11 )
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
.
113
ATA3 : (SATA3_0: 1 , 8 ) ( ) (SATA3_1: 1 , 8 ) ( ) (SATA3_2: 1 , 9 ) ( ) (SATA3_3: 1 , 9 ) ( )
SATA (SATA_POW1) (1 , 17 )
SATA3_2 SATA3_0 SATA3_3 SATA3_1
SATA3 6.0 Gb/s SATA .
.
USB 2.0 (9 USB_5_6) (1 , 14 )
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
. USB 2.0 .
USB 3.2 Gen1 (19 USB3_3_4) (1 , 13 )
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+
IntA_P_SSRXVbus
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
. USB 3.2 Gen1 2 .
114
Q270 Pro BTC+
(9 HD_AUDIO1) (1 , 19 )
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
.
1. HDA . .
2. AC'97 : A. Mic_IN (MIC) MIC2_L . B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L . C. (GND) (GND) . D. MIC_RET OUT_RET HD . AC'97 . E. Realtek "FrontMic" " " .
1
(4 CHA_FAN1)
2 3
(1 , 7 ) 4
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
.
GND
(4 CHA_FAN2)
+12V CHA_FAN_SPEED
(1 , 20 )
FAN_SPEED_CONTROL
1 2 3 4
CPU (4 CPU_FAN1) (1 , 2 )
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
4 CPU ( ) . 3 CPU 1-3 .
115
GN D
ATX (24 ATXPWR1) (1 , 6 )
12
24
1
13
24 ATX . 20 ATX 1 13 .
ATX 12V
8
(8 ATX12V1)
(1 , 1 ) 4
5
8
ATX 12V
1
. 4 ATX
1 5 .
PCIe (4 PCIE_PWR1) (1 , 21 ) (4 PCIE_PWR2) (1 , 18 )
. PCIe 23 .
(9 COM1) (1 , 16 )
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
COM1 .
TPM (17 TPMS1) (1 , 15 )
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
, , 1
TPM(Trusted Platform Module) . TPM , .
116
Q270 Pro BTC+
1.5
2 : .
(PWRBTN1) (1 , 4 )
.
(RSTBTN1) (1 , 5 )
.
117
1
ASRock Q270 Pro BTC+ ASRock
BIOS ASRock ASRock VGA CPU ASRock http://www.asrock.com.
1.1
� ASRock Q270 Pro BTC+ ATX � ASRock Q270 Pro BTC+ � ASRock Q270 Pro BTC+ CD � 2 x ATA (SATA) � 1 x M.2 � 1 x I/O
118
Q270 Pro BTC+
1.2
� ATX �
CPU
� 7 6 Intel� CoreTM i5/i3/Pentium�/Celeron�
1151 � 91W CPU � � 6 � Intel� 2.0
� Intel� Q270 � Intel� vProTM � Intel� 11.6 * Intel� vProTM Intel� 11.6 Intel� CoreTM vProTM
� DDR4 � 2 x DDR4 DIMM � DDR4 2400/2133 ECC *
* 7 Intel� CPU 2400 DDR4
6 Intel� CPU 2133 DDR4 � ECC UDIMM non-ECC � 32GB � Intel� (XMP) 2.0 � DIMM 15
� 1 x PCI Express 3.0 x16 PCIE2: x16 *
* NVMe SSD � 12 x PCI Express 3.0 x1
� Intel�HD VGA
GPU � HDMI 1.4 4K x 2K (4096x2160) @ 24Hz /
(3840x2160) @ 30Hz � HDMI 1.4 (12bpc)
xvYCCHBRHDMI
� HDMI 1.4 HDCP 1.4 � HDMI 1.4 Full HD 1080p Blu-ray (BD)
119
� 7.1 CH HD (Realtek ALC897 Audio Codec) �
LAN
� LAN 10/100/1000 Mb/s
� PHY Intel� I219V
� Wake-On-LAN
� / (ESD)
� 802.3az
� PXE
I/O
� 1 x PS/2 � 1 x PS/2 � 1 x HDMI � 4 x USB 2.0 (ESD) � 2 x USB 3.2 Gen1 (ESD) � LED 1 x RJ-45 LAN ACT/LINK LED SPEED LED � HD : / /
� 4 x SATA3 6.0 Gb/s � 1 x M.2 (M2_1)M Key 2260/2280 M.2 SATA3
6.0 Gb/s
RAID
� SATA RAID 0RAID 1RAID 5 RAID 10
� 1 x � 1 x TPM � 1 x COM � 1 x � 1 x CPU 4
* CPU 1A (12W) CPU
� 2 x 4
* 1A (12W)
� 1 x 24 ATX � 1 x 8 12V � 2 x PCIe � 1 x SATA � 1 x
120
Q270 Pro BTC+
BIOS OS
� 1 x USB 2.0 2 USB 2.0 (ESD)
� 1 x USB 3.2 Gen1 2 USB 3.2 Gen1 (ESD)
� 1 x � 1 x
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPUGT_CPUDRAMPCH 1.0VVCCIO
� CPU / � CPU/ CPU
� CPU/ � � : +12V+5V+3.3VCPU Vcore
� Microsoft� Windows� 10 64-bit 7 Intel� CPU � Microsoft� Windows� 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
6 Intel� CPU * Windows� 7 OS xHCI ISO
28 * Windows� 10ASRock : http://www.asrock.com
� FCCCE � ErP/EuP Ready ErP/EuP
* http://www.asrock.com
BIOS
121
1.3
CMOS (CLRMOS1) p.1No. 12
2
CLRMOS1 CMOS 15 CLRMOS1 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
CMOS BIOS
122
Q270 Pro BTC+
1.4
9 PANEL1 p.1No. 10
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN
RESET
PLED LED LED S1/S3 LED S4 (S5) LED
HDLED LED LED LED
LED LED
7 SPK_CI1 p.1No. 11
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
123
ATA3 : SATA3_0: p.1No. 8 SATA3_1: p.1No. 8 SATA3_2: p.1No. 9 SATA3_3: p.1No. 9
SATA (SATA_POW1) p.1No. 17
SATA3_2 SATA3_0 SATA3_3 SATA3_1
4 SATA3 6.0 Gb/s SATA
3
USB 2.0 9 USB_5_6 p.1No. 14
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
1 USB 2.0 2
USB 3.2 Gen1 19 USB3_3_4 p.1No. 13
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+ IntA_P_SSRXVbus
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
1 USB 3.2 Gen1 2
124
Q270 Pro BTC+
9 HD_AUDIO1 p.1No. 19
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
1. HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET HD AC'97 E. Realtek FrontMic
4 CHA_FAN1 p.1No. 7
4 CHA_FAN2 p.1No. 20
1
GND
2 3
+12V CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
CPU 4 CPU_FAN1 p.1No. 2
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
4 CPU 3 CPU 1-3
125
GN D
ATX 24 ATXPWR1 p.1No. 6
ATX 12V 8 ATX12V1 p.1No. 1
PCIe 4 PCIE_PWR1 p.1No. 21 4 PCIE_PWR2 p.1No. 18
9 COM1 p.1No. 16
TPM 17 TPMS1 p.1No. 15
126
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
12
24
1
13
24 ATX 20 ATX 1 13
8
5
4
1
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
8 ATX12V 4 ATX 1 5
3 PCIe 23
COM1
1 (TPM) TPM
Q270 Pro BTC+
1.5
2 :
(PWRBTN1) p.1No. 4
/
(RSTBTN1) p.1No. 5
127
1
Q270 Pro BTC+
BIOS VGA CPU http://www.asrock.com
1.1
� Q270 Pro BTC+ ATX � Q270 Pro BTC+ � Q270 Pro BTC+ � 2 x ATA (SATA) � 1 x M.2 � 1 x I/O
128
Q270 Pro BTC+
1.2
CPU
� ATX �
� 7 6 Intel� CoreTM i5/i3/Pentium�/ Celeron� (Socket 1151)
� 91W CPU � Digi Power design � 6 � Intel� Turbo Boost 2.0
� Intel� Q270 � Intel� vProTM Technology � Intel� Active Management Technology 11.6 * Intel� CoreTM vProTM Intel� vProTM Technology
Intel� Active Management Technology 11.6
� DDR4 � 2 x DDR4 DIMM � DDR4 2400/2133 ECC * * 7 Intel� CPU DDR4 2400 6 Intel� CPU
DDR4 2133 � ECC UDIMM ECC � 32GB � Intel� Extreme Memory Profile (XMP) 2.0 � DIMM 15
� 1 x PCI Express 3.0 x16 PCIE2x16 * * NVMe SSD � 12 x PCI Express 3.0 x1
� GPU Intel� HD Graphics VGA
� HDMI 1.424Hz 4K x 2K (4096x2160)/30Hz (3840x2160)
� HDMI 1.4 HDMI Auto Lip SyncDeep Color (12bpc)xvYCC HBR
� HDMI 1.4 HDCP 1.4 � HDMI 1.4 1080p Blu-ray (BD)
129
LAN
I/O
RAID
� 7.1 CH Realtek ALC897 �
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Wake-On-LAN � /ESD � 802.3az � PXE
� 1 x PS/2 � 1 x PS/2 � 1 x HDMI � 4 x USB 2.0 ESD � 2 x USB 3.2 Gen1 ESD � 1 x RJ-45 LAN LEDACT/LINK LED SPEED
LED � / /
� 4 x SATA3 6.0 Gb/s � 1 x M.2 (M2_1) M Key 2260/2280 M.2 SATA3
6.0 Gb/s
� RAID 0RAID 1RAID 5 RAID 10 SATA
� 1 x � 1 x TPM � 1 x COM � 1 x � 1 x CPU 4 * CPU 1A (12W) CPU � 2 x 4 * 1A (12W) � 1 x 24 ATX � 1 x 8 12V � 2 x PCIe � 1 x SATA � 1 x � 1 x USB 2.0 2 USB 2.0 ESD � 1 x USB 3.2 Gen1 2 USB 3.2 Gen1
ESD
130
Q270 Pro BTC+
BIOS
� 1 x � 1 x
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPUGT_CPUDRAMPCH 1.0VVCCIO
� CPU/ � CPU/ CPU � CPU/ � CASE OPEN � +12V+5V+3.3VCPU Vcore
� Microsoft� Windows� 10 64-bit 7 Intel� CPU � Microsoft� Windows� 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
6 Intel� CPU * Windows� 7 OS xHCI ISO 28 * Windows� 10 http://www.asrock.com
� FCCCE � ErP/EuP ErP/EuP
* http://www.asrock.com
BIOS ""
131
1.3
"" ""
CMOS (CLRMOS1) 1 12
2
CLRMOS1 CMOS 15 CLRMOS1 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
CMOS BIOS ""
132
Q270 Pro BTC+
1.4
9 PANEL1 1 10
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN:
RESET:
PLED LED: LED S1/S3 LED S4 (S5) LED
HDLED LED: LED LED
LED LED
7 SPK_CI1 1 11
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
133
ATA3 SATA3_0: 1 8 SATA3_1: 1 8 SATA3_2: 1 9 SATA3_3: 1 9
SATA SATA_POW1 1 17
SATA3_2 SATA3_0 SATA3_3 SATA3_1
SATA3 6.0 Gb/s SATA
USB 2.0 9 USB_5_6 1 14
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0
USB 3.2 Gen1 19 USB3_3_4 1 13
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+
IntA_P_SSRXVbus
USB 3.2 Gen1
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
134
Q270 Pro BTC+
9 HD_AUDIO1 1 19
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
1. HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET AC'97 E. Realtek "" ""
4 CHA_FAN1 1 7
4 CHA_FAN2 1 20
1
GND
2 3
+12V CHA_FAN_SPEED
4
FAN_SPEED_CONTROL
GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL
1 2 3 4
CPU 4 CPU_FAN1 1 2
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
4 CPU 3 CPU 1-3
135
GN D
ATX 24 ATXPWR1 1 6
12
24
24 ATX 20 ATX 1 13
ATX 12V 8 ATX12V1 1 1
PCIe 4 PCIE_PWR1 1 21 4 PCIE_PWR2 1 18
1
13
8
5
4
1
8 ATX 12V 4 ATX 1 5
PCIe 23
9 COM1 1 16
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
COM1
TPM 17 TPMS1 1 15
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
Trusted Platform ModuleTPM 1 TPM
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
136
Q270 Pro BTC+
1.5
(PWRBTN1) 1 4
/
(RSTBTN1) 1 5
137
SJ/T 11364-2006 10
(Pb) (Cd) (Hg) (Cr(VI)) (PBB) (PBDE)
X
O
O
O
O
O
X
O
O
O
O
O
O: SJ/T 11363-2006 X: SJ/T 11363-2006 2002/95/EC :
138
Q270 Pro BTC+
1
Q270 Pro BTC+
BIOS VGA CPU http://www.asrock.com
1.1
� Q270 Pro BTC+ ATX � Q270 Pro BTC+ � Q270 Pro BTC+ � 2 x Serial ATA (SATA) � 1 x M.2 � 1 x I/O
139
1.2
CPU
� ATX �
� 7 6 Intel� CoreTM i5/i3/Pentium�/ Celeron� 1151
� 91W CPU � Digi Power design � 6 � Intel� Turbo Boost 2.0
� Intel� Q270 � Intel� vProTM � Intel� 11.6 *Intel� vProTM Intel� 11.6 Intel� CoreTM vProTM
� DDR4 � 2 x DDR4 DIMM � DDR4 2400/2133 ECC * * 7 Intel� CPU 2400 DDR4 6 Intel� CPU
2133 DDR4 � ECC UDIMM ECC � 32GB � Intel� Extreme Memory Profile (XMP) 2.0 � 15
� 1 x PCI Express 3.0 x16 PCIE2x16 * * NVMe SSD � 12 x PCI Express 3.0 x1
� GPU Intel� HD Graphics Built-in Visuals VGA
� 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz HDMI 1.4
� HDMI 1.4 HDMI Auto Lip SyncDeep Color (12bpc)xvYCC HBR
� HDMI 1.4 HDCP 1.4 � HDMI 1.4 Full HD 1080p (BD)
140
Q270 Pro BTC+
LAN
I/O
RAID
� 7.1 CH HD Realtek ALC897 �
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � � � 802.3az EEE � PXE
� 1 x PS/2 � 1 x PS/2 � 1 x HDMI � 4 x USB 2.0 � 2 x USB 3.2 Gen1 � 1 x RJ-45 LAN LEDACT/LINK LED SPEED
LED � HD
� 4 x SATA3 6.0 Gb/s � 1 x M.2 (M2_1) M Key 2260/2280 M.2 SATA3
6.0 Gb/s
� SATA RAID 0RAID 1RAID 5 RAID 10
� 1 x � 1 x TPM � 1 x COM � 1 x � 1 x CPU (4-pin) * CPU 1A (12W) CPU � 2 x (4-pin) * 1A (12W) � 1 x 24 pin ATX � 1 x 8 pin 12V � 2 x PCIe � 1 x SATA � 1 x � 1 x USB 2.0 2 USB 2.0
� 1 x USB 3.2 Gen1 2 USB 3.2 Gen1
141
BIOS
� 1 x � 1 x
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPUGT_CPUDRAMPCH 1.0VVCCIO
� CPU � CPU CPU � CPU � � +12V+5V+3.3VCPU Vcore
� Microsoft� Windows� 10 64 ( 7 Intel� CPU) � Microsoft� Windows� 10 64 8.1 64 7 32
7 64 ( 6 Intel� CPU) * Windows� 7 xHCI ISO 28 * Windows� 10 http://www.asrock.com
� FCCCE � ErP/EuP Ready ErP/EuP ready
* http://www.asrock.com
BIOS
142
Q270 Pro BTC+
1.3
CMOS (CLRMOS1) 1 12
2-pin
CLRMOS1 CMOS 15 CLRMOS1 pin 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
CMOS BIOS
143
1.4
(9-pin PANEL1) 1 10
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN
RESET
PLED ( LED LED S1/S3 LED S4 (S5) LED
HDLED LED LEDLED
LED LED
(7-pin SPK_CI1) 1 11
SPEAKER DUMMY DUMMY +5V
1
SIGNAL GND DUMMY
144
SATA3_2 SATA3_0 SATA3_3 SATA3_1
Q270 Pro BTC+
Serial ATA3 SATA3_0: 1 8 SATA3_1: 1 8 SATA3_2: 1 9 SATA3_3: 1 9
SATA (SATA_POW1) 1 17
SATA3 SATA 6.0 Gb/s
USB 2.0 (9-pin USB_5_6) 1 14
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0
USB 3.2 Gen1 (19-pin USB3_3_4) 1 13
IntA_P_D+ IntA_P_DGND IntA_P_SSTX+ IntA_P_SSTXGND IntA_P_SSRX+
IntA_P_SSRXVbus
USB 3.2 Gen1
1
Vbus IntA_P_SSRXIntA_P_SSRX+ GND IntA_P_SSTXIntA_P_SSTX+ GND IntA_P_DIntA_P_D+ ID
145
(9-pin HD_AUDIO1) 1 19
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
1. (Jack Sensing) HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET HD AC'97 E. Realtek FrontMic
1
2
(4-pin CHA_FAN1)
3
1 7 4
GND +12V CHA_FAN_SPEED
FAN_SPEED_CONTROL
GND
(4-pin CHA_FAN2)
+12V CHA_FAN_SPEED
1 20
FAN_SPEED_CONTROL
1 2 3 4
CPU (4-pin CPU_FAN1) 1 2
FAN_SPEED_CONTROL CPU_FAN_SPEED
+12V GND
1 2 3 4
4-Pin CPU 3-Pin CPU Pin 1-3
146
Q270 Pro BTC+
ATX
12
24
(24-pin ATXPWR1)
1 6
1
13
24-pin ATX 20-pin ATX Pin 1 Pin 13
ATX 12V
8
(8-pin ATX12V1)
1 1 4
PCIe (4-pin PCIE_PWR1) 1 21 (4-pin PCIE_PWR2) 1 18
5
8-pin ATX
12V 4-pin
ATX Pin 1
1
Pin 5
PCIe 23
(9-pin COM1) 1 16
RRXD1 DDTR#1 DDSR#1 CCTS#1
1 RRI#1
RRTS#1 GND TTXD1 DDCD#1
COM1
TPM (17-pin TPMS1) 1 15
GN D +3VS B LAD0 +3V LAD3 PCIRST # FRAM E PCICLK
GN D
(TPM) 1 TPM
GND SERIRQ # S_PWRDWN #
GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN
147
1.5
(PWRBTN1) 1 4
(RSTBTN1) 1 5
148
Q270 Pro BTC+
Bahasa Indonesia
Spesifikasi
Platform
� Bentuk dan Ukuran ATX � Desain Kapasitor Solid
CPU
� Mendukung Prosesor Intel� CoreTM i5/i3/Pentium�/Celeron� (Soket
1151) Generasi ke-7 dan ke-6
� Mendukung CPU hingga 91W
� Desain Digi Power
� Desain 6 Fase Daya
� Mendukung Teknologi Intel� Turbo Boost 2.0
Chipset
� Intel� Q270 � Mendukung Intel� vProTM Technology � Mendukung Intel� Active Management Technology 11,6 * Intel� vProTM Technology, dan Intel� Active Management Technology 11,6 dapat didukung hanya dengan kelompok prosesor Intel� CoreTM vProTM
Memori
� Teknologi Memori DDR4 Dua Saluran � 2 x Slot DIMM DDR4 � Mendukung DDR4 2400/2133 non-ECC, memori tanpa buffer* * Generasi ke-7 untuk CPU Intel� mendukung DDR4 hingga 2400;
Generasi ke-6 untuk CPU Intel� CPU mendukung DDR4 hingga 2133. � Mendukung modul memori ECC UDIMM (berjalan dalam mode
non-ECC) � Kapasitas maksimum memori sistem: 32GB � Mendukung Intel� Extreme Memory Profile (XMP) 2.0 � 15 Bidang Kontak Berwarna Emas di Slot DIMM
Slot Ekspansi
� 1 x Slot PCI Express 3.0 x16 (PCIE2: x16 mode)* * Mendukung SSD NVMe sebagai disk boot � 12 x Slot PCI Express 3.0 x1
Grafis
� Intel� HD Graphics Built-in Visuals dan output VGA hanya didukung dengan prosesor yang terintegrasi GPU.
� Mendukung HDMI 1.4 dengan resolusi maksimum hingga 4K x 2K (4096x2160) @ 24Hz/(3840x2160) @ 30Hz
� Mendukung Auto Lip Sync, Kedalaman Warna (12bpc), xvYCC, dan HBR (Audio High Bit Rate) dengan Port HDMI 1.4 (memerlukan monitor yang kompatibel dengan HDMI)
� Mendukung fungsi HDCP 1.4 dengan Port HDMI 1.4
149
� Mendukung pemutaran Blu-ray (BD) 1080p Full HD dengan Port HDMI 1.4
Audio
� Audio HD 7.1 CH (Realtek ALC897 Audio Codec) � Mendukung Perlindungan dari Lonjakan Arus
Bahasa Indonesia
LAN
� Gigabit LAN 10/100/1000 Mb/s
� Giga PHY Intel� I219V
� Mendukung Wake-On-LAN
� Mendukung Perlindungan dari Petir/ESD
� Mendukung Ethernet 802.3az Hemat Energi
� Mendukung PXE
I/O Panel Belakang
� 1 x Port Mouse PS/2 � 1 x Port Keyboard PS/2 � 1 x Port HDMI � 4 x Port USB 2.0 (Mendukung Perlindungan dari ESD) � 2 x Port USB 3.2 Gen1 (Mendukung Perlindungan dari ESD) � 1 x Port LAN RJ-45 dengan LED (LED ACT/LINK dan LED
SPEED) � Soket Audio HD: Saluran Masuk/Speaker Depan/Mikrofon
Penyimpanan
� 4 x Konektor SATA3 6,0 Gb/s � 1 x Soket M.2 (M2_1), mendukung jenis modul 2260/2280 M.2
SATA3 6,0 Gb/s
RAID
� Mendukung RAID 0, RAID 1, RAID 5 dan RAID 10 untuk perangkat penyimpanan SATA
Konektor
� 1 x Header Panel Sistem � 1 x Header TPM � 1 x Header Port COM � 1 x Intrusi Chassis dan Header Speaker � 1 x Konektor Kipas CPU (4-pin) * Konektor Kipas CPU mendukung kipas CPU dengan daya kipas
maksimum 1A (12W). � 2 x Konektor Kipas Sasis (4-pin) (Kontrol Kecepatan Kipas Pintar) * Konektor Kipas Sasis mendukung kipas sasis dengan daya kipas
maksimum 1A (12W). � 1 x Konektor Daya ATX 24 pin � 1 x Konektor Daya 8 pin 12V � 2 x Konektor Daya PCle � 1 x Konektor Daya SATA � 1 x Konektor Audio Panel Depan
150
Bahasa Indonesia
Q270 Pro BTC+
Fitur BIOS
Monitor Perangkat Keras OS
Sertifikasi
� 1 x Header USB 2.0 (Mendukung 2 port USB 2.0) (Mendukung Perlindungan dari ESD)
� 1 x Header USB 3.2 Gen1 (Mendukung 2 port USB 3.2 Gen1) (Mendukung Perlindungan dari ESD)
� 1 x Tombol Daya � 1 x Tombol Atur Ulang
� AMI UEFI Legal BIOS dengan dukungan GUI multibahasa � ACPI 6.0 Kompatibel dengan aktivitas pengaktifan � Dukungan SMBIOS 2.7 � Penyesuaian Multivoltase CPU, GT_CPU, DRAM, PCH 1,0V,
VCCIO
� Takometer Kipas CPU/Chassis � Kipas Hening CPU/Chassis (Penyesuaian otomatis kecepatan kipas
berdasarkan suhu CPU) � Kontrol multikecepatan Kipas CPU/Chassis � Deteksi CASE OPEN � Pemantauan tegangan: +12V, +5V, +3,3V, CPU Vcore
� Microsoft� Windows� 10 64-bit (Untuk Intel� CPU Generasi ke-7) � Microsoft� Windows� 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
(Untuk CPU Intel� Generasi ke-6) * Untuk menginstal OS Windows� 7, diperlukan disk instalan termodifikasi dengan driver xHCI dalam file ISO. Untuk petunjuk lebih rinci, lihat halaman 28. * Untuk info rinci tentang driver Windows� 10 terbaru, kunjungi situs web ASRock: http://www.asrock.com
� FCC, CE � Mendukung ErP/EuP (Memerlukan catu daya untuk ErP/EuP)
* Untuk informasi rinci tentang produk, kunjungi situs web kami: http://www.asrock.com
Perlu diketahui, overclocking memiliki risiko tertentu, termasuk menyesuaikan pengaturan pada BIOS, menerapkan Teknologi Untied Overclocking, atau menggunakan alat bantu overclocking pihak ketiga. Overclocking dapat mempengaruhi stabilitas sistem, atau bahkan mengakibatkan kerusakan komponen dan perangkat sistem. Risiko dan biaya apa pun menjadi tanggungan Anda. Kami tidak bertanggung jawab atas kemungkinan kerusakan karena overclocking.
151
Contact Information
If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp
ASRock Incorporation 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)
ASRock EUROPE B.V. Bijsterhuizen 11-11 6546 AR Nijmegen The Netherlands Phone: +31-24-345-44-33 Fax: +31-24-345-44-38
ASRock America, Inc. 13848 Magnolia Ave, Chino, CA91710 U.S.A. Phone: +1-909-590-8308 Fax: +1-909-590-1026
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: ASRock Incorporation Address: 13848 Magnolia Ave, Chino, CA91710
Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product
Product Name : Motherboard Model Number : Q270 Pro BTC+ Conforms to the following specifications:
FCC Part15, SubpartB,Unintentional Radiators Supplementary Information:
is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) is device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Representative Person's Name: James
Signature : Date : May 12, 2017
EU Declaration of Conformity
For the following equipment: Motherboard (Product Name)
Q270 Pro BTC+ / ASRock (Model Designation / Trade Name)
ASRock Incorporation (Manufacturer Name)
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address)
EMC --Directive 2014/30/EU (from April 20th, 2016)
EN 55022:2010/AC:2011 Class B
EN 55024:2010/A1:2015
EN 55032:2012+AC:2013 Class B
EN 61000-3-3:2013
EN 61000-3-2:2014
LVD --Directive 2014/35/EU (from April 20th, 2016)
EN 60950-1 : 2011+ A2: 2013
EN 60950-1 : 2006/A12: 2011
RoHS -- Directive 2011/65/EU CE marking
(EU conformity marking)
ASRock EUROPE B.V. (Company Name) Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands (Company Address) Person responsible for making this declaration:
(Name, Surname) A.V.P (Position / Title) July 23, 2021 (Date) P/N: 15G062310000AK V1.0
