TOSIBOX 675 High performance Plug & GoTM connectivity device TOSIBOX 675 is a powerful device for high demanding application in demanding industrial environments. With a wide range of connectivity

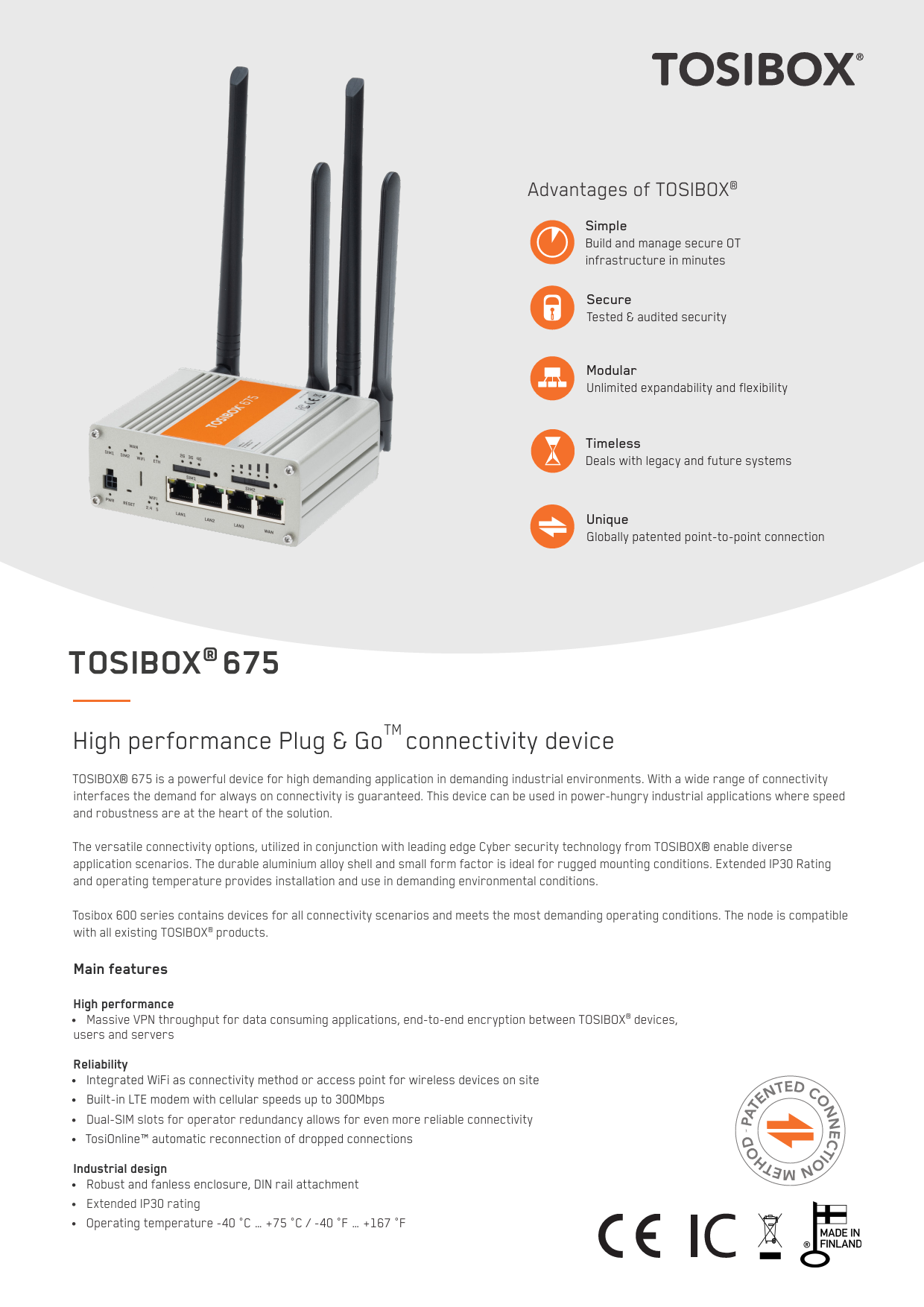

Advantages of TOSIBOX® Simple Build and manage secure OT infrastructure in minutes Secure Tested & audited security Modular Unlimited expandability and flexibility Timeless Deals with legacy and future systems Unique Globally patented point-to-point connection TOSIBOX® 675 High performance Plug & GoTM connectivity device TOSIBOX® 675 is a powerful device for high demanding application in demanding industrial environments. With a wide range of connectivity interfaces the demand for always on connectivity is guaranteed. This device can be used in power-hungry industrial applications where speed and robustness are at the heart of the solution. The versatile connectivity options, utilized in conjunction with leading edge Cyber security technology from TOSIBOX® enable diverse application scenarios. The durable aluminium alloy shell and small form factor is ideal for rugged mounting conditions. Extended IP30 Rating and operating temperature provides installation and use in demanding environmental conditions. Tosibox 600 series contains devices for all connectivity scenarios and meets the most demanding operating conditions. The node is compatible with all existing TOSIBOX® products. Main features High performance · Massive VPN throughput for data consuming applications, end-to-end encryption between TOSIBOX® devices, users and servers Reliability · Integrated WiFi as connectivity method or access point for wireless devices on site · Built-in LTE modem with cellular speeds up to 300Mbps · Dual-SIM slots for operator redundancy allows for even more reliable connectivity · TosiOnlineTM automatic reconnection of dropped connections Industrial design · Robust and fanless enclosure, DIN rail attachment · Extended IP30 rating · Operating temperature -40 °C ... +75 °C / -40 °F ... +167 °F TOSIBOX® 675 Technical Data Product codes: TBL675US, TBL675EU, TBL675UK, TBL675AU Ports · 1 x RJ-45 WAN connection, 10/100/1000 Mb/s, auto-negotiation (MDI / MDI-X) · 3 x RJ-45 LAN connection, 10/100/1000 Mb/s, auto-negotiation (MDI / MDI-X) · 1 x USB 2.0, type A Connections · 4 pin industrial DC power socket · 9-50V DC, reverse polarity protection, voltage surge/transient protection · 2 x RP-SMA for WiFi · 2 x SMA for LTE · 1 x GNSS · DIN rail mounting slot in the back and on both sides · Maximum power consumption 16W WLAN · IEEE 802.11 b/g/n, 2.4 GHz, max. 150 Mbps · Encryptions WEP, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK mixed mode · Frequency 2.412 2.462 GHz, 11 channels · Access point or client mode · Output power 20 dBm max Included accessories · Power supply unit · AC adapter - Input 100 240 V AC, frequency 50/60Hz 0,6A, Output 12.0 V, 1.5 A, max 18 W · 2 x LTE antennas (swivel, SMA male) · 2 x WiFi antennas (swivel, RP-SMA male) · 1 x GNSS antenna (adhesive, SMA male, 3 m cable) · *1 x Bluetooth antenna (*Not supported) · DIN rail mount · Ethernet cable (1.5 m) · SIM Adapter kit Connection features · 4-way WAN priority · Proxy server support · WAN access with static addressing or DHCP · Network Time Protocol (NTP) server · Automatic LAN network discovery · LAN access with mixed static addressing and DHCP server · Static routes · GNSS coordinates display on UI via GPS, GLONASS, BeiDou, Galileo and QZSS · Works in all Internet connections (operator independent) · Firewall friendly · Works with dynamic, static and private IP addresses · Built-in firewall, NAT · Up to 50 concurrent VPN connections · VPN throughput up to 70 Mbit/s · TosiOnlineTM Automatic network recovery that recovers from most mobile operator and modem problems Physical properties · 115 mm x 44.2 mm x 95.1 mm / 4.52" x 1.74" x 3.74" (W x H x L) · Protection class IP30 · Weight 456 g / 1.00 lbs (net weight article) · Operating temperature -40 °C ... +75 °C / -40 °F ... +167 °F 4G Module TBL675US · Region: North America and Mexico · LTE Cat-6 · Up to 300 Mbps DL, 42 Mbps UL · Dual SIM Frequency Bands · LTE FDD: B2, B4, B5, B7, B12, B13, B25, B26, B291,B30, B66 · WCDMA: B2, B4, B5 TBL675EU TBL675UK, TBL675AU · Region: EMEA/APAC/Brazil (excluding Japan) · LTE Cat-6 · Up to 300 Mbps DL, 42 Mbps UL · Dual SIM Frequency Bands · LTE FDD: B1, B3, B5, B7, B8, B20, B28, B32 · LTE TDD: B38, B40, B41 · WCDMA: B1, B3, B5, B8 Finland sales@tosibox.com TosibsoupxpOoryt@tosibox.com sales@tosibox.com Sales, Finland Tel. +358 447090100 support@tosibox.com Sales, International Tel. +358 447090200 Sales, international, tel. +358 44 70 90 200 www.tosibox.com www.tosibox.com Plug & GoTM Connectivity 10/2015 Copyright © 2021 Tosibox. All rights reserved. EN/v1.1Adobe PDF Library 16.0.3 Adobe InDesign 17.0 (Windows)
