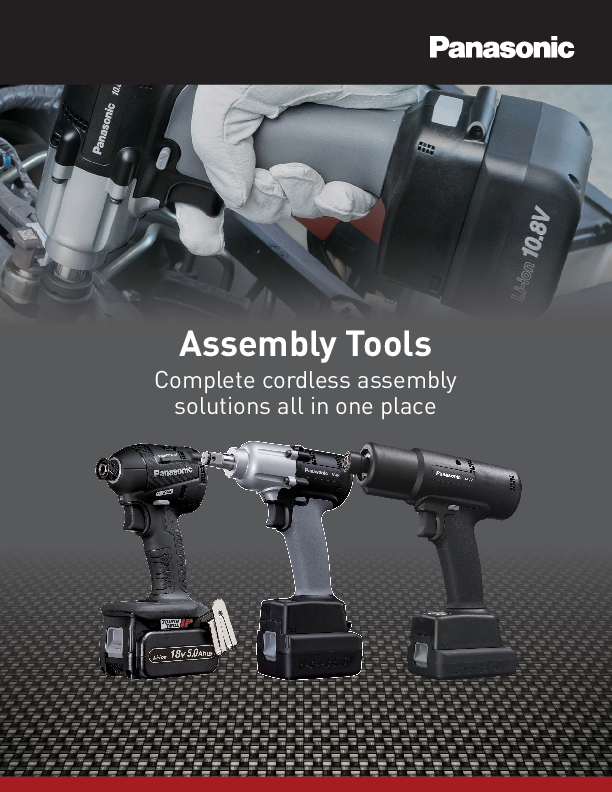

Assembly Tools Complete cordless assembly solutions all in one place Precision Clutch Tools Cordless Precision Assembly Screwdrivers Product Details A compact, lightweight body makes our 7.2V auto shut-off clutch tools ideal for assembly applications where low-torque fastening, repeatable accuracy, and ergonomics are valued. Featuring a 1/4" hex quickchange chuck, the two-speed reversible driver delivers torque range of 2.7-35.4 in-lbs. Cordless batterypower offers freedom of movement and emissions-free operation for demanding lines and technicians. Key Features � Clutch torque range of 2.7-35.4 in-lbs with accuracy +/-5% � 21-stage clutch with auto shut-off � 2-speed variable/reversible with 1/4" hex quick change chuck � Low battery disable & over current protection � Compact and ultra lightweight for ultimate operator friendliness Model Number EYFEA1N EYFEA1N2S (Kit - 2 batteries + 1 Charger) Max Torque 53.1 in. lbs 53.1 in. lbs Min Torque 2.65 in. lbs 2.65 in. lbs RPM 300-900 300-900 Dimensions 5-3/4" x 7-7/8" x 1-5/8" 5-3/4" x 7-7/8" x 1-5/8" Weight 1.38 lbs 1.38 lbs Precision Clutch Tools Cordless Basic Clutch Tools Product Details Our precision 14.4V clutch tools provide repeatable fastening accuracy and ergonomics for assembly lines that want greater quality control and operator efficiency. Featuring a 1/4" hex quick-change chuck and allsteel fast action clutch, these variable speed drivers deliver torque range of 2.5-10Nm with high accuracy �10% @ Cmk1.67. Cordless battery-power and durable brushless motor provides freedom of movement and long-life emissions-free operation. Tool body only. Key Features � 2.5-10Nm torque control range � High accuracy �10% at Cmk1.67 � ISO 5393 3Nm � Fast acting all-steel clutch, brushless motor & hybrid switch for long-life durability � Intelligent auto shut-off ensures greater accuracy � Lightweight with superior ergonomics for improved worker comfort & safety � Basic model is budget friendly while maintaining quality and durability Model Number EYFGB1N EYFGB2N EYFGB3N Max Torque 5.5 Nm 8 Nm 10 Nm Min Torque 2 Nm 5 Nm 5 Nm RPM 0-800 0-750 0-450 Dimensions 7-13/16" x 9-1/8" x 2-15/16" 7-13/16" x 9-1/8" x 2-15/16" 7-13/16" x 9-1/8" x 2-15/16" Weight 2.76 lbs 2.76 lbs 2.86 lbs Precision Clutch Tools Cordless Programmable Clutch Tools High Accuracy 10%�Cmk1.67* (ISO5393) *In 3Nm range OK/NOK both visual and audible indicators. (Buzzer ON/OFF can be selected) Product Details Our programmable 14.4V clutch tools offer repeatable fastening accuracy for assembly lines where quality monitoring and error proofing are essential. Featuring 1/4" hex quick-change chucks and all-steel fast action clutches, these drivers deliver torque range of 2.5Nm-10Nm with high accuracy �10% Cmk better than 1.67 3Nm . Connect a Panasonic qualifier for wireless error proofing. Easily program cross thread/ rehit detection, rundown speeds, and more. Key Features � 2.5-10Nm torque range � Programmable quick-set features improve precision, quality control and efficiency � Intelligent auto shut-off and photo interrupter sensor increases tool accuracy & clutch life � Superior ergonomics for improved worker safety � Brushless motor, all-steel clutch and hybrid switch nearly doubles tool life � Wireless models allow for advanced error proofing Model Number EYFGA1N EYFGA1NR EYFGA2N EYFGA2NR EYFGA3N EYFGA3NR Max Torque 5.5 Nm 5.5 Nm 8 Nm 8 Nm 10 Nm 10 Nm Min Torque 2 Nm 2 Nm 5 Nm 5 Nm 5 Nm 5 Nm RPM 0-800 0-800 0-750 0-750 0-450 0-450 Dimensions 7-13/16" x 9-1/8" x 2-15/16" 7-13/16" x 9-1/8" x 2-15/16" 7-13/16" x 9-1/8" x 2-15/16" 7-13/16" x 9-1/8" x 2-15/16" 7-13/16" x 9-1/8" x 2-15/16" 7-13/16" x 9-1/8" x 2-15/16" Weight 2.76 lbs 2.76 lbs 2.76 lbs 2.76 lbs 2.86 lbs 2.86 lbs Mechanical Pulse Tools AccuPulse - Cordless Mechanical Pulse Tools Product Details AccuPulseTM HR Series equips quality-conscious plants with the most advanced cordless mechanical pulse tools ever made. AccuPulse tools are ergonomically designed with worker safety top of mind. Compact and balanced with virtually no torque reaction to create a healthier, more productive work environment. Offering a full line of tools featuring a torque controlled range of 3-120Nm and a choice of 1/4", 3/8" and 1/2" drives. A modern cordless design allows total freedom of movement for greater production efficiency. Key Features � 3-120Nm torque control range � Available with wireless 2-way communication for advanced error proofing � Can function like a virtual socket tray with wireless version � High resolution encoder ensures precise fastening � Innovative twin-hammer design provides high torque while minimizing vibration on higher torque models � 7 flush point detection levels for increased accuracy on varying joint types � Advanced programmable features for higher worker productivity and plant automation Model Number Drive Max Torque Min Torque Radio Module EYFLA7A EYFLA7AR EYFLA8A 1/4" Hex quick change 22 Nm 3 Nm EYFLA8AR EYFLA8C 3/8" Sq. Drive C-Ring w/ through hole 30 Nm 6 Nm EYFLA8CR EYFLA8P 3/8" Sq. Drive Pin Detent EYFLA8PR EYFLA9C 1/2" Sq. Drive C-Ring w/ through hole EYFLA9CR 60 Nm 20 Nm EYFLA9P 1/2" Sq. Drive Pin Detent EYFLA9PR EYFMA2C 1/2" Sq. Drive C-Ring w/ through hole EYFMA2CR 120 Nm 25 Nm EYFMA2P 1/2" Sq. Drive Pin Detent EYFMA2PR Weight 2.53 lbs. 3.08 lbs. RPM 0-2300 Mechanical Pulse Tools Cordless Mechanical Pulse Tools EYFLA5PR EYFMA1PR Product Details Assure accurate, repeatable fastening on assembly lines where production efficiency and quality control are essential. Featuring torque-controlled range of 3Nm-100Nm and a choice of 1/4", 3/8" and 1/2" drives, our auto shut-off mechanical pulse tools produce superior ergonomics with virtually no torque reaction. Cordless battery-powered design available in 10.8V and 14.4V provides freedom of movement and emissions-free operation for demanding manufacturing plants. Key Features � Virtually no torque reaction � Wireless programmable models for advanced error proofing � Remote control quick-set features deliver increased fastening accuracy & quality control � Auto shut-off prevents over torques � Operator visual pass/fail indicator Model Number EYFLA4A EYFLA4AR EYFLA5A EYFLA5AR EYFLA5P EYFLA5PR EYFLA5Q EYFLA5QR EYFLA6J EYFLA6JR EYFLA6P EYFLA6PR EYFMA1J EYFMA1JR EYFMA1P EYFMA1PR Drive 1/4" Hex quick change 3/8" Sq. Drive Pin Detent 3/8" Sq. Drive w/ through hole 1/2" Sq. Drive w/ through hole 1/2" Sq. Drive Pin Detent 1/2" Sq. Drive w/ through hole 1/2" Sq. Drive Pin Detent Max Torque 22 Nm 30 Nm 53 Nm 100 Nm Min Torque Radio Module 3 Nm 6 Nm 16 Nm 25 Nm Weight 2.53 lbs. 2.68 lbs. 2.83 lbs RPM 0-2300 Mechanical Pulse Tools High Torque Cordless Mechanical Pulse Tools Product Details Deliver accurate, repeatable fastening on assembly lines where high-torque, quality control and efficiency and are not optional. Featuring torque controlled range of 25Nm-650Nm and a choice of 1/2" and 3/4" drives, our high-torque auto shut-off mechanical pulse tools produce superior ergonomics with virtually no torque reaction. Cordless battery-powered design available in 18V and 21.6V provides power, freedom of movement and emissions-free operation for demanding heavy manufacturing plants. Tool body only. Key Features � Virtually no torque reaction up to 650Nm, ideal for high torque applications � M16 Bolt up to 400Nm / M24 Bolt up to 650Nm � Wireless programmable models for advanced error proofing � Remote control quick-set features deliver increased fastening accuracy & quality control � Auto shut-off prevents over torques � Operator visual pass/fail indicator Model Number Drive Max Torque Min Torque Radio Module EYFNA1C 1/2" Sq. Drive C-Ring w/ through hole EYFNA1CRT EYFNA1J EYFNA1JR 1/2" Sq. Drive w/ through hole 200 Nm 70 Nm EYFNA1JRT EYFNA1P 1/2" Sq. Drive Pin Detent EYFNA1PRT EYFPA1J 3/4" Sq. Drive Pin Detent 650 Nm 160 Nm EYFPA1JRT Weight 6.6 lbs. 7.7 lbs. RPM 0-2300 Accessories Assembly Tool Controllers 10m (33 feet) EYFR02B Single Tool Qualifier EYFR02N Two Tool Qualifier EYFR03 Multi-Tool Qualifier EYFR04 Multi-Station Qualifier Utilizes a highly reliable radio system to extend the operating range Product Details Ensure high-level error proofing while improving productivity and quality control on your assembly line. Panasonic Multi-Tool and Single-Tool assembly controllers provide expansion capability so you can program up to 16 power tools, simultaneously or sequentially with 03 and 04 series. Gain the versatility your production process demands. Deliver advanced error-proofing, quality control and increased productivity for any assembly line while eliminate assembly errors for good. Key Features � 1, 2 & 16 Tool versions available � Error proofing with multiple Panasonic wireless programmable tools � Program up to 16 Panasonic tools simultaneously or sequentially with 2-way communication � Multi communication protocols available for data collection: Open Protocol, Ethernet IP, Toolsnet, ProfiBus, ProfiNet, Digital I/O � Operator visual and audio feedback � Secure ZigBee� wireless communication Model Number EYFR02B EYFR02N EYFR03A EYFR03B EYFR04A Description Single Tool Qualifier w/ IO 2 Tool Qualifier w/ Networking & Discrete IO - 2 inputs/4 outputs 16 Tool Qualifier w/Color LCD, Keypad, Discrete I/O, Ext I/O Compatible 16 Tool Qualifier w/Color LCD, Keypad, Ext I/O Compatible 16 Tool Qualifier - Multi Station (16 tools split up into 4 stations in any configuration) Professional Tools Cordless Compact Drill & Drivers Product Details Make easy work of driving screws and drilling holes into wood and metal with our 1/2" variable speed reversible cordless drill and driver. Capable of maximum drill diameters of 1-1/2" in wood and 1/2" in metal, this new-generation tool delivers the versatility to take on big jobs with accuracy and efficiency. A brushless motor and hybrid switch doubles tool life and greatly lower maintenance costs. Uses our 14.4V or 18V lithium-ion battery. Key Features � Compact, lightweight ergonomic design for a faster work pace and greater operator comfort � Features 1/2" heavy duty keyless chuck & electric brake � Hybrid variable speed reversible switch & brushless motor for dependable long life operation � Versatile dual voltage operation accepts 14.4V or 18V Panasonic Li-ion batteries � Low battery indicator, belt hook and LED work light for efficient & safe operation Model Number EY74A2X EY74A2LS2G Max Torque 38.9 in lbs. 38.9 in lbs. Min Torque 4.4 in lbs. 4.4 in lbs. RPM 150 - 1000 150 - 1000 Dimensions 7" x 9-27/32" x 2-11/16" 7" x 9-27/32" x 2-11/16" Weight 3.96 lbs 3.96 lbs Professional Tools Cordless Professional Impact Tools Use 14.4V or 18V power! Dual Voltage Technology Product Details Panasonic cordless impact tools are built with power, ergonomics and extreme conditions in mind. Ensure a safe, productive work environment with extended runtime between charges with virtually no torque reaction. The brushless motor and hybrid switch nearly doubles tool life, substantially reducing maintenance costs. Dual voltage technology enables use of our 14.4V or 18V lithium-ion batteries boasting an IP56 rating protecting against dust and water. Key Features � Ideal in automotive, construction, heavy equipment, and recreational vehicle industries � Hybrid variable speed reversible switch & brushless motor for dependable long life operation � Versatile dual voltage operation accepts 14.4V or 18V Panasonic Li-ion batteries � Tough IPTM technology | certified IP56 rating for harsh condition protection Model Number EY75A4X EY75A4LS2G EY75A5X EY7552X EY75A7X EY75A7LS2G EY75A8X EY75A8LS2G Max Torque 1370 154 Nm 205 Nm 470 Nm 160 Nm 160 Nm 280 Nm 280 Nm RPM 2500 2500 2300 1550 2500 2500 2500 2500 Dimensions 5-5/8" x 9-17/32" x 2-13/16" 5-5/8" x 9-17/32" x 2-13/16" 6-1/8" x 9-17/32" x 2-13/32" 8-7/16" x 9-15/16" x 3-1/16" 4-21/32" x 9-17/32" x 2-19/32" 4-21/32" x 9-17/32" x 2-19/32" 5-5/8" x 9-13/16" x 2-7/8" 5-5/8" x 9-13/16" x 2-7/8" Weight 3.53 lbs. 3.53 lbs. 3.75 lbs 5.7 lbs 3.75 lbs 3.75 lbs 3.96 lbs 3.96 lbs Professional Tools Cordless Professional Screwdrivers Product Details Meet our family of light weight, long running, low torque clutch tools available today. Our cordless drill/ driver and screwdrivers boast ultra-durable auto shutoff clutches that deliver 21 positions and a wide torque range. Deliver versatility to any shop for a variety of assembly applications. Two-speed reversible trigger action and an ultra-ergonomic handle offer high production and ultimate operator comfort. Key Features � Compact, lightweight, multi-position design for easy fastening and enhanced ergonomics � Two-speed reversible motor and 21-stage steel clutch with auto shutoff � Available in 2.4V, 3.6V and 7.2V models � Mega-versatility with 1/4" hex quick change chuck, drill and driver mode, LED light � EY7411 model has built in batch counter Model Number EY6220N EY6220NQ EY7410LA1C EY7410LA2S EY7420LA2J EY7411LA1S Max Torque 26 in. lbs. 26 in. lbs 39 in. lbs 39 in. lbs 51.3 in. lbs 39 in. lbs Min Torque 3.5 in. lbs 3.5 in. lbs 2.7 in. lbs. 2.7 in. lbs 2.7 in. lbs 13.3 in. lbs RPM 200-400 200-400 200-600 200-600 300-900 200-600 Dimensions 9-2/5" x 5" x 1-2/5" 9-2/5" x 5" x 1-2/5" 10-7/8" x 5-9/32" x 1-13/16" 10-7/8" x 5-9/32" x 1-13/16" 5-3/4" x 7-7/8" x 1-5/8" 10-7/8" x 5-9/32" x 1-13/16" Weight 10.68 lbs 20.66 lbs 9.48 lbs 11.24lbs 21.14 lbs 24.69 lbs Accessories Batteries & Chargers EYFB43B EY9L10B EY9L20B EYFB30B EY0L82B Power Supply Kit Product Details Panasonic has been a battery and charger pioneer for more than 90 years. The same Panasonic Li-ion technology that powers the most advanced electric cars also powers our cordless assembly tools. Our Ni-CD and Ni-MH battery packs power lighter duty Panasonic professional screwdrivers. Our innovative Li-ion GuardION system ensures long life and safety with the tool, battery, and charger working together as a single energy efficient eco system. Key Features � Sensors prevent overcharging/discharging to avoid cell damage and extend battery life � Automatic power shut-off prevents overheating, doubling battery life over conventional Li-ion packs � Fast charging times and long run times deliver greater production in any shop or job site � Advanced GuardION system for Li-ion batteries provide long life and safety Model Number EY0L20B EY0L82B EY0110B EY0L11B EY9L10B EY9L20B EYFB30B EYFB32B EYFB41B EYFB43B EYFB50B EYFB51B EYFB60B EYFB61B EY9L45B EY9L51B EY9L54B EY9L82B EY9221B EY9230B EYC941B EYC950B EYC954B Description Charger for Panasonic 7.2V Li-ion Batteries (EY9L20B) Charger for Panasonic Li-ion Batteries 10.8V - 28.8V Charger for Panasonic Ni-MH Batteries 7.2V-24V Charger for Panasonic Li-ion & Ni-MH Batteries 2.4V - 3.6V 3.6V Li-ion "L" 1.5Ah Battery Pack 7.2V 1.5Ah Li-ion Battery pack for EYFEA1N 10.8V 3.0Ah Li-ion Battery Pack for EYFL Tools 10.8V 2.0Ah Li-ion Battery Pack for EYFL Tools 14.4V 2.0Ah Li-ion Battery Pack for EYFM and EYFG Tools (NEW) 14.4V 4.0Ah Li-ion Battery Pack for EYFM and EYFG Tools (Replaces EYFB42B) 18V 5.0Ah Li-ion Battery Pack 18v Battery Pack 3.0 AH 21.6V 4.2Ah Li-ion Battery Pack for EYFP Tools 21.6V 4.0Ah Li-ion Battery Pack for EYFP Tools (Replaces EYFB60B) 14.4V Li-ion "S" 4.2Ah Battery Pack 18V Li-ion "S" 4.2Ah Battery Pack 18V Li-ion "S" 5.0Ah Battery Pack (Replaces EY9L51B) 28.8V 3.0Ah Li-ion Battery Pack 2.4V Ni-MH 2.8Ah Battery Pack 15.6V Ni-MH "N" 2.8Ah Battery Pack 14.4V 4.2Ah Power Supply Kit 2 - 14.4V 4.2Ah Batteries, 1 Charger 18V 4.2Ah Power Supply Kit 2 - 18V 4.2Ah Batteries, 1 Charger 18V 5.0Ah Power Supply Kit2 - 18V 5.0Ah Batteries, 1 Charger (Replaces EYC950B) Accessories Miscellaneous Accessories EYFA32B EYFR03CA EYFA31B EYFA41B Product Details Search for genuine Panasonic accessories including an assortment of tool hangers, i/o cables and expansion boxes, integration boxes, remote controls, clutch adjustment tools, and more. Model Number EYFA31B EYFA32B EYFA40B EYFA41B EYFLM-H EYFRZ01CA EYFRZ02CA EYFR03CA EYFPFCS1 EYFEXP16 EYTOOLBAG-1K EY9X007E EY9HX413E Description Remote Control for all EYFL, EYFM, EYFG Series Tools Clutch Adjustment Tool for EYFG Tools Tool Hanger for EYFG Tools Tool Hanger for EYFP & EYFN Tools Tool Hanger for EYFL & EYFM Tools I/O Cable for EYFRZ01 Assembly Qualifiers - 25 ft I/O Cable for EYFR02 Assembly Qualifier - 25 ft I/O Cable for EYFR03 & EYFR04 Assembly Qualifiers - Discrete I/O - 25 ft Chrysler PFCS integration Box Input/Output Expansion Box - 16 input / 16 output Canvas Tool Bag Clutch Lock Cover - EY7411 and EY7410 only Keyless Chuck Accessories Protectors for Tools & Batteries Product Details Power Tool covers prevent assembly line damange to products. Model Number EYFA01-A EYFA01-G EYFA01-H EYFA01-Y EYFA02-H EYFA03-H EYFA06-H EYFA04-H EYFA05-A EYFA05-Y EYFA05-H EYFA07-A EYFA07-G EYFA07-H EYFA07-Y EYFA08-H EYFA09-A EYFA09-H EYFA09-Y EYFA09-G EYFA10-H EYFA11-H EYFA13-A EYFA13-Y EYFA13-H EYFA13-D EYFA13-G Description Protector for EYFL and EYFM Tool Bodies - Blue Protector for EYFL and EYFM Tool Bodies - Green Protector for EYFL and EYFM Tool Bodies - Gray Protector for EYFL and EYFM Tool Bodies - Yellow Protector for EYFB30B Battery - Gray Protector for EYFB32B Battery - Gray Protector for EYFB41B Battery - Gray Protector for EYFB40B/42B/43B Battery - Gray Protector for EYFG Clutch Tool Bodies - Blue Protector for EYFG ClutchTool Bodies - Yellow Protector for EYFG ClutchTool Bodies - Gray Protector for EYFP Tool Bodies - Blue Protector for EYFP Tool Bodies - Green Protector for EYFP Tool Bodies - Gray Protector for EYFP Tool Bodies - Yellow Protector for EYFB60B/61B Battery - Gray Protector for EYFN Tool Bodies - Blue Protector for EYFN Tool Bodies - Gray Protector for EYFN Tool Bodies - Yellow Protector for EYFN Tool Bodies - Green Protector for EYFB50B Battery - Gray Protector for EYFB51B Battery - Gray Protector for AccuPulse Tool Bodies - Blue Protector for AccuPulse Tool Bodies - Yellow Protector for AccuPulse Tool Bodies - Grey Protector for AccuPulse Tool Bodies - Orange Protector for AccuPulse Tool Bodies - Green Panasonic Life Solutions Company of America Assembly Tools Division 2 Riverfront Plaza Newark, NJ 07102 For more information, visit our website at na.panasonic.com/us/assemblytools or call 1-800-338-0552 Design and specifications subject to change without notice. PT21003CAT
