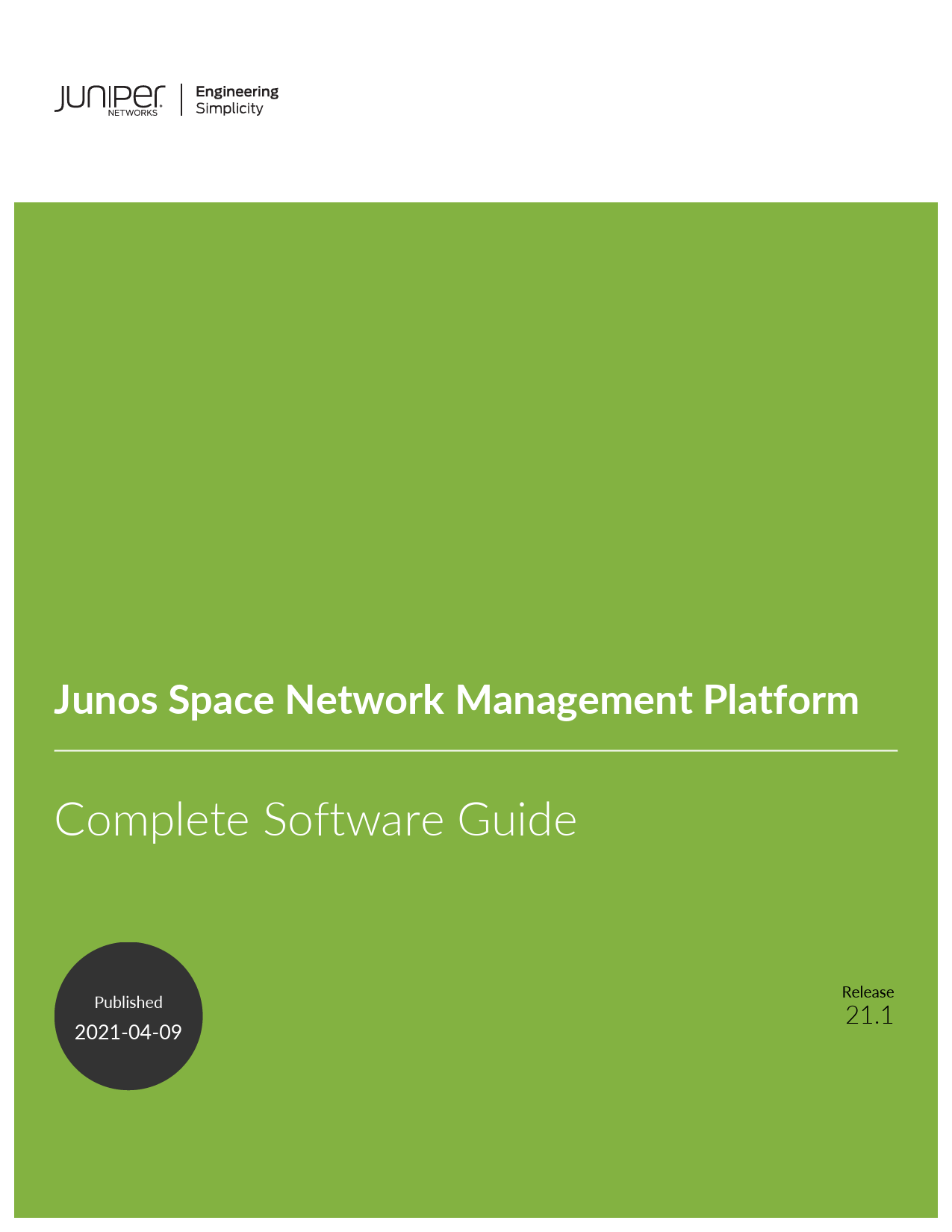

Junos Space Network Management Platform
Complete Software Guide
Published
2021-04-09
Release
21.1
ii
Juniper Networks, Inc. 1133 Innovation Way Sunnyvale, California 94089 USA 408-745-2000 www.juniper.net
Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the property of their respective owners.
Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
Junos Space Network Management Platform Complete Software Guide 21.1 Copyright © 2021 Juniper Networks, Inc. All rights reserved.
The information in this document is current as of the date on the title page.
YEAR 2000 NOTICE
Juniper Networks hardware and software products are Year 2000 compliant. Junos OS has no known time-related limitations through the year 2038. However, the NTP application is known to have some difficulty in the year 2036.
END USER LICENSE AGREEMENT
The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement ("EULA") posted at https://support.juniper.net/support/eula/. By downloading, installing or using such software, you agree to the terms and conditions of that EULA.
iii
Table of Contents
Guide 1 1
2
About the Documentation | xlvii
Documentation and Release Notes | xlvii Supported Platforms | xlvii Documentation Conventions | xlvii Documentation Feedback | l Requesting Technical Support | l
Self-Help Online Tools and Resources | li Creating a Service Request with JTAC | li
Getting Started Guide
Junos Space Fabric Deployment
Junos Space Fabric Architecture | 54
Junos Space Fabric Deployment Overview | 54 Deploying a Junos Space Hardware Appliance | 55 Deploying a Junos Space Virtual Appliance | 56 Basic Requirements for a Fabric Deployment | 56 Configuring Network Connectivity for a Junos Space Fabric | 57 Adding Nodes to a Junos Space Fabric | 59
Junos Space System Administration
Installing and Upgrading Junos Space Software Overview | 61 Installing Junos Space Applications | 61 Upgrading Junos Space Applications | 62 Upgrading Junos Space Network Management Platform | 63 Uninstalling Junos Space Applications | 64
Junos Space Applications Supported on the Junos Space Platform | 65
DMI Schema Overview | 66
Backing Up the Junos Space Platform Database | 67
iv
3
Guide 2 4
Configuring User Access Controls Overview | 68 Authentication and Authorization Mode | 70 CertificateBased and Certificate ParameterBased Authentication | 72 User Roles | 72 Remote Profiles | 73 Domains | 74 User Accounts | 74 Device Partitions | 75
Junos Space Network Management
Device Management in Junos Space Platform | 78 Discovering Devices | 79 Authenticating Devices | 80 Viewing the Device Inventory | 81 Upgrading Device Images | 81
Device Configuration Management in Junos Space Platform | 82 Modifying the Device Configuration by Using the Schema-Based Configuration Editor | 83 Modifying the Device Configuration by Using Device Templates | 84 Viewing Configuration Changes | 84 Backing Up and Restoring Device Configuration Files | 85
User Interface Guide
Overview
Junos Space User Interface Overview | 88 Junos Space Banner | 89 Task Tree | 90 Main Window | 92
Junos Space Home Page Overview | 93
v
5
Working in the Junos Space User Interface
Logging In to Junos Space | 99
Setting and Accessing the Junos Space Home Page | 101 Setting the Junos Space Home Page | 101 Accessing the Junos Space Home Page | 103
Using the Getting Started Assistants on Junos Space | 103
Accessing Help on Junos Space | 105
Understanding GUI Controls | 105 Check Box | 106 Selecting All Objects on a Single Page | 106 Selecting All Objects Across Multiple Pages | 107 Date Picker | 109 Drop-down List | 110 Option Button | 111 Search Field | 111 Spin Box | 112 Slider | 112 Text Box | 113 Identifying the Range of Values | 114 Tree View | 115 Scrolling Controls | 116 Sizing Controls | 117
Understanding Tooltips and Messages | 117 Error Messages | 118 Confirmation Messages | 119 Information Messages | 119 Standard Icons in Messages | 120
Understanding Status Indicators | 122 Progress Bars | 123 Status Indicator Icons | 123
vi
Viewing the Junos Space Platform Dashboard | 125
Workspace Statistics Page Overview | 127 Workspace Statistics | 127
Inventory Landing Page Overview | 128 Organizing Your View | 129 Paging Controls | 130 Sorted-by Indicator | 130 Show or Hide Columns | 131 Filter Submenus | 132 Working with Objects on an Inventory Page | 133 Toolbar Icons | 133 Actions Menu and Shortcut Menu | 133 Exporting Data | 134
Filter Management in Junos Space Platform User Interface | 136 Understanding Filtering Options in Junos Space Platform User Interface | 136 Overview | 137 Benefits | 138 Pages and Columns that Support Filtering | 138 Managing Filtering Options | 149 Creating Filters by Manually Entering the Filter Criteria | 149 Creating Filters by Using the Filter Submenu Options | 152 Saving a Filter | 154 Modifying a Filter | 154 Creating a Public Filter | 155 Applying a Filter | 156 Clearing a Filter | 156 Deleting a Filter | 156 Error Conditions and Error Messages for Filters | 157
Global Search Overview | 163
Using Global Search | 172
vii
Viewing Your Jobs | 174
Guide 3
Changing Your Password on Junos Space | 176 Logging Out of Junos Space | 177
Workspaces User Guide
1
Overview
Introduction | 181
Junos Space Platform Workspaces Overview | 181 Viewing the Junos Space Platform Dashboard | 183
2
Devices
Device Management | 188
Device Management Overview | 188 Managed and Unmanaged Devices | 189 IPv4 and IPv6 Address Support | 190
Confirmed-commit from Junos Space Network Management Platform | 190 Viewing Managed Devices | 193 Juniper Networks Devices Supported by Junos Space Network Management Platform | 199 Uploading Device Tags by Using a CSV File | 210 Filtering Devices by CSV | 212
Systems of Record | 213
Systems of Record in Junos Space Overview | 213 Systems of Record | 213 Implications on device management | 214
Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215 Network as System of Record | 215 Junos Space as System of Record | 217
viii
Device Discovery Profiles | 219
Device Discovery Profiles Overview | 219 Connections Initiated by Junos Space or the Device | 220 Device Information Fetched During Device Discovery | 224
Creating a Device Discovery Profile | 225 Specifying Device Targets | 226 Specifying Probes | 229 Selecting the Authentication Method and Specifying Credentials | 232 (Optional) Specifying SSH Fingerprints | 234 Scheduling Device Discovery | 234
Running Device Discovery Profiles | 237 Modifying a Device Discovery Profile | 238 Cloning a Device Discovery Profile | 240 Viewing a Device Discovery Profile | 242 Deleting Device Discovery Profiles | 243 Exporting the Device Discovery Details As a CSV File | 244
Modeling Devices | 245
Rapid Deployment Overview | 246 Zero Touch Deployment Using Autoinstallation and Junos Space Network Management Platform
on ACX Series and SRX Series Devices | 247 Zero-Touch Deployment Using the Autoinstallation and Model and Activate Devices
Features | 249 Zero-Touch Deployment Using the Autoinstallation Feature and the Configuration Server | 249 Model Devices Overview | 250 Creating a Connection Profile | 251 Creating a Modeled Instance | 256 Activating a Modeled or Cloned Device in Junos Space Network Management Platform | 261 Downloading a Configlet | 265 Viewing and Copying Configlet Data | 267 Activating Devices by Using Configlets | 268 Activating a Device by Using a Plain-text Single Configlet | 269 Activating a Device by Using an AES-encrypted Single Configlet | 269 Activating a Device by Using a Plain-text Bulk Configlet | 270 Activating a Device by Using an AES-encrypted Bulk Configlet | 270
ix
Viewing a Modeled Instance | 271 Adding More Devices to an Existing Modeled Instance | 273 Viewing the Status of Modeled Devices | 274 Deleting Modeled Instances | 275 Viewing a Connection Profile | 275 Cloning a Connection Profile | 277 Modifying a Connection Profile | 277 Deleting Connection Profiles | 278
Device Authentication in Junos Space | 280 Device Authentication in Junos Space Overview | 280
Credentials-Based Device Authentication | 281 Key-Based Device Authentication | 281 SSH Fingerprint-Based Device Authentication | 282 Supported Algorithms for Junos Space SSH | 283 Generating and Uploading Authentication Keys to Devices | 284 Generating Authentication Keys | 285 Uploading Authentication Keys to Multiple Managed Devices for the First Time | 286 Uploading Authentication Keys to Managed Devices With a Key Conflict | 289 Resolving Key Conflicts | 290 Modifying the Authentication Mode on the Devices | 292 Acknowledging SSH Fingerprints from Devices | 294
Viewing Device Inventory | 298 Device Inventory Overview | 298
Inventory for Aggregation and Satellite Devices | 299 Viewing the Physical Inventory | 300 Displaying Service Contract and EOL Data in the Physical Inventory Table | 304 Viewing Physical Interfaces of Devices | 305 Viewing Logical Interfaces | 307 Viewing and Acknowledging Inventory Changes on Devices | 308
Exporting Device Inventory | 311 Exporting the License Inventory | 311 Viewing and Exporting the Software Inventory of Managed Devices | 315
x
Exporting the Physical Inventory of Devices | 317
Configuring Juniper Networks Devices | 320 Modifying the Configuration on the Device | 321 Reviewing and Deploying the Device Configuration | 326
Viewing the Configuration Changes on the Device | 327 Validating the Delta Configuration on the Device | 329 Viewing the Device-Configuration Validation Report | 329 Excluding or Including a Group of Configuration Changes | 330 Deleting a Group of Configuration Changes | 330 Approving the Configuration Changes | 331 Rejecting the Configuration Changes | 332 Deploying the Configuration Changes to a Device | 332 Junos OS Releases Supported in Junos Space Network Management Platform | 333 Configuration Guides Overview | 336 Saving the Configuration Created using the Configuration Guides | 336 Previewing the Configuration Created using the Configuration Guides | 337 Deploying the Configuration Created using the Configuration Guides | 338 Viewing and Assigning Shared Objects | 339 Applying a CLI Configlet to Devices | 341 Applying a CLI Configlet to a Physical Inventory Element | 345 Applying a CLI Configlet to a Physical Interface | 349 Applying a CLI Configlet to a Logical Interface | 353 Executing a Script on the Devices | 357 Executing a Script on a Physical Inventory Component | 362 Executing a Script on a Logical Interface | 364 Executing a Script on the Physical Interfaces | 366
Device Adapter | 370 Worldwide Junos OS Adapter Overview | 370 Installing the Worldwide Junos OS Adapter | 371 Connecting to ww Junos OS Devices | 373
xi
Device Configuration Management | 375 Viewing the Active Configuration | 375 Viewing the Configuration Change Log | 380 Resolving Out of band Changes | 381 Creating a Quick Template from the Device Configuration | 383
Adding and Managing Non Juniper Networks Devices | 385 Adding Unmanaged Devices | 385 Modifying Unmanaged Device Configuration | 388
Accessing Devices | 390 Launching a Device's Web User Interface | 390 Looking Glass Overview | 391 Executing Commands by Using Looking Glass | 392 Exporting Looking Glass Results in Junos Space Network Management Platform | 394 Secure Console Overview | 395 Connecting to a Device by Using Secure Console | 396
Connecting to a Managed Device from the Device Management Page | 397 Connecting to an Unmanaged Device from the Device Management Page | 400 Connecting to a Managed or Unmanaged Device from the Secure Console Page | 402 Configuring SRX Device Clusters in Junos Space using Secure Console | 404 Configuring a Standalone Device from a Single-node Cluster | 404 Configuring a Standalone Device from a Two-Node Cluster | 407 Configuring a Primary Peer in a Cluster from a Standalone Device | 409 Configuring a Secondary Peer in a Cluster from a Standalone Device | 412 Configuring a Cluster with Loopback Interface | 414
Logical Systems (LSYS) | 416 Understanding Logical Systems for SRX Series Services Gateways | 416 Creating a Logical System (LSYS) | 417 Deleting Logical Systems | 418 Viewing Logical Systems for a Physical Device | 419 Viewing the Physical Device for a Logical System | 419
xii
Device Partitions | 421 Creating Device Partitions | 421 Modifying Device Partitions | 422 Deleting Device Partitions | 423
Custom Labels | 425 Adding Custom Labels | 425
Adding Custom Labels for a Device | 426 Adding Custom Labels for Physical Inventory | 427 Adding Custom Labels for a Physical Interface | 428 Adding Custom Labels for a Logical Interface | 428 Importing Custom Labels | 429 Modifying Custom Labels | 431 Deleting Custom Labels | 432
Verifying Template, Image Deployment, Script Execution, and Staged Images on Devices | 433
Viewing the Device-Template Association (Devices) | 433 Viewing Associated Scripts | 436 Viewing Script Execution | 436 Viewing Staged Images on a Device | 437
Device Monitoring | 440 Viewing Alarms from a Managed Device | 440 Viewing the Performance Graphs of a Managed Device | 442
Device Maintenance | 445 Viewing Device Statistics | 445 Viewing Devices and Logical Systems with QuickView | 446 Resynchronizing Managed Devices with the Network | 447 Putting a Device in RMA State and Reactivating Its Replacement | 448
Putting a Device in RMA State | 449 Reactivating a Replacement Device | 450 Modifying the Target IP Address of a Device | 452 Modifying the Serial Number of a Device | 454
xiii
Rebooting Devices | 455 Deleting Staged Images on a Device | 456 Cloning a Device in Junos Space Network Management Platform | 457 Deleting Devices | 458
3
Device Templates
Overview | 461
Device Templates Overview | 461 Template Definition | 463 Device Template States | 466 Device Template Statuses | 466 Device Templates Workflow | 466 Device Template Deployment | 468
Template Definitions | 470
Creating a Template Definition | 470 Finding Configuration Options in a Template Definition | 477 Working with Rules in a Template Definition | 479 Specifying Device-Specific Values in Template Definitions | 481
Creating a CSV file with device-specific values | 481 Using a CSV file to set device-specific values | 482 Managing CSV Files for a Template Definition | 484 Publishing a Template Definition | 485 Viewing a Template Definition | 485 Modifying a Template Definition | 487 Cloning a Template Definition | 488 Importing a Template Definition | 489 Exporting a Template Definition | 490 Unpublishing a Template Definition | 491 Deleting a Template Definition | 492
Configuring Devices using Device Templates | 493 Creating a Device Template | 493 Assigning a Device Template to Devices | 495
xiv
Deploying a Template to the Devices | 497 Modifying a Device Template | 501 Undeploying a Device Template from the Devices | 502 Unassigning a Device Template from the Devices | 503 Auditing a Device Template Configuration | 504
Configuring Devices using Quick Templates | 507 Quick Templates Overview | 507 Creating a Quick Template | 508 Deploying a Quick Template | 514
Device Template Administration | 519
Viewing Template Details | 519 Viewing the Device-Template Association (Device Templates) | 520 Viewing Template Definition Statistics | 523 Viewing Device Template Statistics | 524 Comparing Templates or Template Versions | 524 Comparing a Device Template Configuration with a Device Configuration | 526 Cloning a Template in Junos Space Network Management Platform | 528 Exporting and Importing a Quick Template in Junos Space Network Management Platform | 529
Exporting a Quick Template | 529 Importing a Quick Template | 530 Deleting Device Templates from Junos Space Network Management Platform | 531
4
CLI Configlets
Overview | 533
CLI Configlets Overview | 533 Configlet Variables | 534 Default Variables | 534 User-Defined Variables | 535 Predefined Variables | 535 Velocity Templates | 535 Directives | 535
CLI Configlets Workflow | 536
xv
Configlet Context | 540 Context of an Element | 541 Context filtering | 543
Nesting Parameters | 545
CLI Configlets | 547
Creating a CLI Configlet | 547 Modifying a CLI Configlet | 551 Viewing CLI Configlet Statistics | 551 Viewing a CLI Configlet | 552 Exporting CLI Configlets | 555 CLI Configlet Examples | 556
Example 1: Setting the description of a physical interface | 556 Example 2: Setting the vlan of a logical interface, where the vlan id is chosen from a predefined
set of values | 557 Example 3: Setting a description on all the interfaces of a device | 558 Example 4: Setting a configuration in all the PICs belonging to a device and certain configuration
only on the first PIC of FPC 0 | 560 Example 5: Halting the description of a physical interface | 563 Example 6: Deleting configuration from a physical interface | 564 Deleting CLI configlets | 564 Cloning a CLI Configlet | 565 Importing CLI Configlets | 566 Applying a CLI Configlet to Devices | 572 Comparing CLI Configet Versions | 576 Marking and Unmarking CLI Configlets as Favorite | 577 Marking CLI Configlets as Favorite | 578 Unmarking CLI Configlets Marked as Favorite | 578
Configuration Views | 580
Configuration Views Overview | 580 Configuration View Variables | 581 Configuration View Workflow | 582
xvi
XML Extensions | 584 Creating a Configuration View | 585 Viewing a Configuration View | 587 Modifying a Configuration View | 588 Deleting Configuration Views | 589 Exporting and Importing Configuration Views | 590
Exporting Configuration Views | 591 Importing Configuration Views | 592 Viewing Configuration Views Statistics | 594 Default Configuration Views Examples | 594 Default view | 595 Example XML view | 595 Example Form view | 596 Example Grid view | 597
XPath and Regular Expressions | 599 XPath and Regex Overview | 599 Creating Xpath or Regex | 600 Modifying Xpath and Regex | 600 Deleting Xpath and Regex | 601 XPath and Regular Expression Examples | 602
Example 1 Alphanumeric | 602 Example 2 - Logical Interfaces per Physical Interface | 602 Example 3 Physical Interfaces | 602 Example 4 Devices | 603
Configuration Filters | 604 Creating a Configuration Filter | 604 Modifying a Configuration Filter | 605 Deleting Configuration Filters | 606
xvii
5
Images and Scripts
Overview | 608
Device Images and Scripts Overview | 608 Viewing Statistics for Device Images and Scripts | 609
Managing Device Images | 612
Device Images Overview | 612 Importing Device Images to Junos Space | 614 Viewing Device Images | 615 Modifying Device Image Details | 617 Staging Device Images | 619 Staging Satellite Software Packages on Aggregation Devices | 624 Verifying the Checksum | 629 Viewing and Deleting MD5 Validation Results | 633
Viewing the MD5 Validation Results | 634 Deleting the MD5 Validation Results | 635 Deploying Device Images | 636 Deploying Satellite Software Packages on Aggregation and Satellite Devices | 651 Viewing Device Image Deployment Results | 656 Viewing Device Association of Images | 658 Undeploying JAM Packages from Devices | 660 Removing Device Images from Devices | 665 Deleting Device Images | 670
Managing Scripts | 671
Scripts Overview | 672 Promoting Scripts Overview | 675 Importing Scripts to Junos Space | 675
Importing Scripts from Files | 676 Importing Scripts from a Git Repository | 677 Viewing Script Details | 680 Modifying Scripts | 683 Modifying Script Types | 686 Comparing Script Versions | 687
Staging Scripts on Devices | 688 Verifying the Checksum of Scripts on Devices | 692 Viewing Verification Results | 694 Enabling Scripts on Devices | 695 Executing Scripts on Devices | 699 Executing Scripts on Devices Locally with JUISE | 703 Viewing Execution Results | 707 Exporting Scripts in .tar Format | 708 Viewing Device Association of Scripts | 709 Marking and Unmarking Scripts as Favorite | 710
Marking Scripts as Favorite | 711 Unmarking Scripts Marked as Favorite | 711 Disabling Scripts on Devices | 712 Removing Scripts from Devices | 715 Deleting Scripts | 719 Script Annotations | 720 Script Execution Types | 723 Variable Context | 724 Local Script Execution | 725 Nesting Variables | 726 Script Example | 726
Managing Operations | 729
Operations Overview | 729 Creating an Operation | 730 Importing an Operation | 735 Viewing an Operation | 737 Modifying an Operation | 739 Running an Operation | 739 Viewing Operation Results | 743 Copying an Operation | 744 Exporting an Operation in .tar Format | 745 Deleting an Operation | 747
xviii
xix
Managing Script Bundles | 748
Script Bundles Overview | 748 Creating a Script Bundle | 749 Viewing Script Bundles | 752 Modifying a Script Bundle | 753 Staging Script Bundles on Devices | 754 Enabling Scripts in Script Bundles on Devices | 757 Executing Script Bundles on Devices | 759 Disabling Scripts in Script Bundles on Devices | 762 Viewing Device Associations of Scripts in Script Bundles | 764 Deleting Script Bundles | 764
6
Reports
Reports Overview | 767
Reports Overview | 767 Audit Trail Report Type | 769 Device Inventory Report Type | 769 Device License Inventory Report Type | 770 Device Logical Interface Inventory Report Type | 771 Device Physical Interface Inventory Report Type | 773 Device Physical Inventory Report Type | 774 Device Software Inventory Report Type | 775 Job Inventory Report Type | 776 User Account Report Type | 777
Report Definitions | 779
Creating Report Definitions | 779 Viewing Report Definitions | 782 Modifying Report Definitions | 783 Cloning Report Definitions | 784 Deleting Report Definitions | 785 Viewing Report Definition Statistics | 786
xx
Reports | 787
Generating Reports | 788 Viewing a Report | 792 Viewing and Downloading Generated Reports | 793 Deleting Generated Reports | 794 Viewing Report Statistics | 795
7
Network Monitoring
Overview | 797
Network Monitoring Workspace Overview | 798 Working with the Network Monitoring Home Page | 801
Viewing Nodes with Pending Problems | 801 Viewing Nodes with Outages | 802 Availability Over the Past 24 Hours | 802 Viewing Outstanding Notifications | 803 Viewing Resource Graphs | 803 Viewing KSC Reports | 804 Searching for Nodes by Using Quick Search | 805
Managing Nodes | 808
Viewing the Node List | 808 Managing Surveillance Categories | 810
Modifying Surveillance Categories | 810 Deleting Surveillance Categories | 810 Adding Surveillance Categories | 811 Resynchronizing Nodes in Network Monitoring | 812 Turning SNMP Data Collection Off and On | 813
xxi
Searching for Nodes and Assets | 815 Searching for Nodes or Nodes with Asset Information | 815
Searching for Nodes | 815 Searching for Nodes with Asset Information | 817 Working with Node Assets | 819 Searching for and Viewing Nodes with Asset Information | 819 Viewing and Modifying Node Asset Information | 820
Managing Outages | 822 Viewing and Tracking Outages | 822
Viewing Details about an Outage | 823 Viewing the List of Outages | 824 Configuring Scheduled Outages | 825
Using the Network Monitoring Dashboard | 827 Viewing the Network Monitoring Dashboard | 827
Using the Dashboard Surveillance View | 828
Managing and Configuring Events | 832 Viewing and Managing Events | 832
Viewing the Details of an Event | 833 Searching for Events (Advanced Event Search) | 834 Viewing, Searching for, Sorting, and Filtering Events | 836 Selecting and Sending an Event to the Network Management System | 839 Managing Events Configuration Files | 840 Adding New Events Configuration Files | 840 Deleting Events Configuration Files | 841 Modifying Events Configuration Files | 841
Managing and Configuring Alarms | 843 Viewing and Managing Alarms | 843
Viewing Details of an Alarm and Acting on an Alarm | 845 Viewing Alarms in Summary and Detailed Views | 848 Viewing NCS Alarms | 854
xxii
Searching for Alarms (Advanced Alarms Search) | 855 Alarm Notification Configuration Overview | 856
Basic Filtering | 856 Guidelines for Configuring Alarm Notifications | 857 Advanced Filtering | 858 Configuring Alarm Notification | 859 Configuring a Basic Filter for Alarm Notification | 860 Activating Alarm Notification Configuration Files for Basic Filtering | 862 Reloading a Filter Configuration to Apply Filter Configuration Changes | 862
Managing and Configuring Notifications | 864
Viewing, Configuring, and Searching for Notifications | 864 Notification Escalation | 865
Configuring Event Notifications, Path Outages, and Destination Paths | 866 Configuring Event Notifications | 866 Configure Destination Paths | 868 Configure Path Outages | 870
Managing Reports and Charts | 872
Network Monitoring Reports Overview | 872 Resource Graphs | 872 Key SNMP Customized Performance Reports, Node Reports, and Domain Reports | 873 Database Reports | 873 Statistics Reports | 873
Creating Reports | 873 Creating Key SNMP Customized Performance Reports, Node Reports, and Domain Reports | 874 Creating a New KSC Report from an Existing Report | 874
Viewing Reports | 875 Viewing Resource Graphs | 876 Viewing Key SNMP Customized (KSC) Performance Reports, Node Reports, and Domain Reports | 876 Viewing Database Reports | 877 Sending Database Reports | 877 Viewing Pre-run Database Reports | 879 Viewing Statistics Reports | 879
Generating a Statistics Report for Export | 879 Deleting Reports | 880
Deleting Key SNMP Customized Reports | 881 Deleting Pre-Run Database Reports | 881 Viewing Charts | 882
Network Monitoring Topology | 883
Network Monitoring Topology Overview | 884 Working with Topology | 886
Using the Search Option to View Nodes | 887 Working with Topology Views | 888 Viewing the Events and Alarms Associated with a Node | 889 Viewing Alarms and Node Details | 890 Viewing Nodes with Active Alarms | 892 Managing Alarms Associated with Nodes | 892 Viewing the Topology with Different Layouts | 892 Automatic Refresh of the Topology | 893 Viewing the Status of Node Links | 894 Viewing the Alarm State of Services Links | 894 Pinging a Node | 894 Viewing the Resource Graphs Associated with the Node | 895 Connecting to a Device by Using SSH | 896 Network Monitoring Topology Discovery Methods Supported by Junos Space Network Management Platform | 898
Network Monitoring Administration | 900
Configuring Network Monitoring System Settings | 900 Network Monitoring System Information | 901 Generating a Log File for Troubleshooting | 902 Changing the Notification Status | 902
Updating Network Monitoring After Upgrading the Junos Space Network Management Platform | 903 Overview | 903 Step 1: Monitoring the Software Install Status Window for File Conflicts | 903 Step 2: Identifying Files with Conflicts | 905
xxiii
Step 3: Merging Files with Conflicts | 907 Step 4: Verifying the Manual Merge Status of Configuration Files | 908 Step 5: Final Steps After Upgrading Network Monitoring | 909 Configuring SNMP Community Names by IP | 911 Configuring SNMP Data Collection per Interface | 912 Managing Thresholds | 912 Creating Thresholds | 913 Modifying Thresholds | 915 Deleting Thresholds | 916 Compiling SNMP MIBs | 917 Uploading MIBs | 917 Compiling MIBs | 918 Viewing MIBs | 918 Deleting MIBs | 919 Clearing MIB Console Logs | 919 Generating Event Configuration | 919 Generating a Data Collection Configuration | 921 Managing SNMP Collections | 923 Adding a New SNMP Collection | 923 Modifying an SNMP Collection | 924 Managing SNMPv3 Trap Configuration | 925 Managing Data Collection Groups | 928 Adding New Data Collection Files | 929 Deleting Data Collection Files | 929 Modifying Data Collection Files | 930 Managing and Unmanaging Interfaces and Services | 932 Starting, Stopping, and Restarting Services | 932
xxiv
xxv
8
Configuration Files
Overview | 937
Managing Configuration Files Overview | 937 Viewing Configuration File Statistics | 939
Managing Configuration Files | 941
Backing Up Configuration Files | 942 Viewing Configuration Files | 948 Comparing Configuration Files | 953 Modifying Configuration Files | 955 Restoring Configuration Files | 958 Exporting Configuration Files | 960 Deleting Configuration Files | 962
9
Jobs
Overview | 965
Jobs Overview | 965
Managing Jobs | 968
Viewing Statistics for Jobs | 968 Viewing the Types of Jobs That Are Run | 969 Viewing the State of Jobs That Have Run | 969 Viewing Average Execution Times for Jobs | 970
Viewing Your Jobs | 970 Viewing Jobs | 972 Viewing Objects on Which a Job is Executed | 975 Viewing Job Recurrence | 978 Rescheduling and Modifying the Recurrence Settings of Jobs | 978 Retrying a Job on Failed Devices | 980 Reassigning Jobs | 982 Canceling Jobs | 985
Clearing Your Jobs | 986 Archiving and Purging Jobs | 987
Purging Jobs Without Archiving | 987 Archiving Jobs to a Local Server and Purging the Jobs from the Database | 989 Archiving Jobs to a Remote Server and Purging the Jobs from the Database | 990 Common Error Messages in Device-Related Operations | 992
10
Role-Based Access Control
Overview | 995
Role-Based Access Control Overview | 995 User Authentication | 995 RBAC Enforcement | 996 RBAC Enforcement by Workspace | 996 RBAC Enforcement Not Supported on the Getting Started Page | 996
Roles | 997
Roles Overview | 998 Predefined Roles Overview | 999 Creating a User-Defined Role | 1022 Managing Roles | 1024
Viewing User Role Details | 1024 Managing Predefined and User-Defined Roles | 1025 Modifying User-Defined Roles | 1026 Deleting User-Defined Roles | 1027 Cloning Predefined and User-Defined Roles | 1028 Exporting User-Defined Roles from Junos Space Network Management Platform | 1030 Importing Roles to Junos Space Network Management Platform | 1031
User Accounts | 1033
Configuring Users to Manage Objects in Junos Space Overview | 1033 User-Specific Idle Timeout | 1034
Creating Users in Junos Space Network Management Platform | 1035 Creating a User | 1036
Modifying a User | 1044 Deleting Users | 1050
xxvi
Disabling and Enabling Users | 1051 Unlocking Users | 1053 Viewing Users | 1054
Sorting Columns | 1055 Displaying or Hiding Columns | 1055 Filtering Users | 1056 Viewing User Details | 1057 Performing Actions on Users | 1060 Exporting User Accounts from Junos Space Network Management Platform | 1061 Creating a User Accounts Report Definition | 1062 Generating and Downloading a Report | 1063 Changing Your Password on Junos Space | 1065 Clearing User Local Passwords | 1067 Viewing User Statistics | 1068 Viewing the Number of Users Assigned by Role | 1068
User Groups | 1069
User Groups Overview | 1069 Managing User Groups | 1070
Creating a User Group | 1070 Modifying a User Group | 1072 Deleting a User Group | 1073 Job Management Using User Groups | 1074 Job Visibility for User Assigned to User Group(s) | 1074
Domains | 1077
Domains Overview | 1077 Accessing Objects In and Across Domains | 1078 Device Partitions | 1080 Assignment of Objects to Domains | 1083
Working with Domains | 1085 Adding a Domain | 1085 Modifying a Domain | 1087 Deleting Domains | 1089
xxvii
Switching from One Domain to Another | 1092 Assigning Objects to an Existing Domain | 1092
Assigning Users to an Existing Domain from the Domains Page | 1093 Assigning Devices to an Existing Domain from the Domains Page | 1094 Assigning Remote Profiles to an Existing Domain from the Domains Page | 1095 Assigning Objects to an Existing Domain from the Inventory Landing Pages | 1095 Exporting Domains from Junos Space Network Management Platform | 1096
Remote Profiles | 1098 Creating a Remote Profile | 1098 Modifying a Remote Profile | 1100 Deleting Remote Profiles | 1101
API Access Profiles | 1102 Creating an API Access Profile | 1102 Modifying an API Access Profile | 1104 Deleting API Access Profiles | 1105
User Sessions | 1106
User Sessions Overview | 1106 Limiting User Sessions in Junos Space | 1108 Terminating User Sessions | 1110 Using the Junos Space CLI to View Users Logged In to the Junos Space GUI | 1111
11
Audit Logs
Overview | 1115
Junos Space Audit Logs Overview | 1115
Managing Audit Logs | 1117
Viewing Audit Logs | 1117 Viewing Audit Log Statistics | 1121
Viewing the Dynamic Audit Log Statistical Graph | 1121 Viewing the Top 10 Active Users In 24 Hours Statistics | 1123 Exporting Audit Logs | 1123
xxviii
xxix
Converting the Junos Space Audit Log File Timestamp from UTC to Local Time Using Microsoft Excel | 1125
Archiving and Purging or Only Purging Audit Logs | 1126 Purging Audit Logs Without Archiving | 1127 Purging Audit Logs After Archiving | 1130
12
Administration
Overview | 1136
Junos Space Administrators Overview | 1136 Viewing the Administration Statistics | 1138
Viewing System Health Information | 1139 Viewing the System Health Report | 1139 Viewing System Alert Messages in the Last 30 Days | 1150 Junos Space IPv6 Support Overview | 1152 Maintenance Mode Overview | 1153 Maintenance Mode Access and System Locking | 1154 Maintenance-Mode User Administration | 1155
Managing Nodes in the Junos Space Fabric | 1156
Fabric Management Overview | 1157 Overall System Condition and Fabric Load History Overview | 1159
Overall System Condition | 1159 Fabric Load History | 1160 Active Users History | 1161 Junos Space Nodes and FMPM Nodes in the Junos Space Fabric Overview | 1162 Understanding the Junos Space Node Functions in a Fabric | 1162 Understanding the FMPM Node Functions in a Fabric | 1166 Dedicated Database Nodes in the Junos Space Fabric Overview | 1169 Adding a Node to an Existing Junos Space Fabric | 1172 Adding a Junos Space Node to the Junos Space Fabric | 1173 Adding an FMPM Node to the Junos Space Fabric | 1178 Obtaining Fingerprint of a Junos Space Node | 1179 Viewing Nodes in the Fabric | 1181 Changing Views | 1181 Viewing Fabric Node Details | 1181
xxx
Monitoring Nodes in the Fabric | 1188 Viewing and Modifying the SNMP Configuration for a Fabric Node | 1189 Starting SNMP Monitoring on Fabric Nodes | 1242 Stopping SNMP Monitoring on Fabric Nodes | 1243 Restarting SNMP Monitoring on Fabric Nodes | 1244 Adding a Third-Party SNMP V1 or V2c Manager on a Fabric Node | 1244 Adding a Third-Party SNMP V3 Manager on a Fabric Node | 1245 Deleting a Third-Party SNMP Manager from a Fabric Node | 1247 Installing StorMan RPM for Monitor RAID Functionality | 1247
Viewing Alarms from a Fabric Node | 1248 Shutting Down or Rebooting Nodes in the Junos Space Fabric | 1250 Deleting a Node from the Junos Space Fabric | 1252 Resetting MySQL Replication | 1254 Modifying the Network Settings of a Node in the Junos Space Fabric | 1257
Modifying the Fabric Virtual IP Address | 1259 Modifying the Network Settings of a Node | 1260 Load-Balancing Devices Across Junos Space Nodes | 1264 Replacing a Failed Junos Space Node | 1265 Generating and Uploading Authentication Keys to Devices | 1265 Generating Authentication Keys | 1266 Uploading Authentication Keys to Multiple Managed Devices for the First Time | 1267 Uploading Authentication Keys to Managed Devices With a Key Conflict | 1270 Configuring the ESX or ESXi Server Parameters on a Node in the Junos Space Fabric | 1271 Creating a System Snapshot | 1272 Deleting a System Snapshot | 1274 Restoring the System to a Snapshot | 1275 Creating a Unicast Junos Space Cluster | 1277 Creating a Unicast Junos Space Cluster from a Single Node | 1278 Creating a Unicast Junos Space Cluster from an Existing Multicast Junos Space Cluster | 1279 Changing Unicast Communication to Multicast Communication on a Junos Space Cluster | 1280 NAT Configuration for Junos Space Network Management Platform Overview | 1281 Using eth0 for Device Management Without a Dedicated Network Monitoring Node | 1283 Using eth3 for Device Management Without a Dedicated Network Monitoring Node | 1286 Using eth0 or eth3 for Device Management With a Dedicated Network Monitoring Node | 1289
Configuring the NAT IP Addresses and Ports on Junos Space Platform | 1293 Modifying the NAT IP Addresses and Ports on Junos Space Platform | 1295 Disabling the NAT Configuration on Junos Space Platform | 1296
Backing up and Restoring the Junos Space Platform Database | 1297 Backing Up and Restoring the Database Overview | 1298
Backing Up a Database | 1300 Restoring a Database | 1301 Backing Up the Junos Space Network Management Platform Database | 1301 Restoring the Junos Space Network Management Platform Database | 1307 Restoring the Junos Space Platform Database from a Local Backup File | 1308 Restoring the Junos Space Platform Database from a Remote Backup File | 1309 Deleting Junos Space Network Management Platform Database Backup Files | 1312 Viewing Database Backup Files | 1313 Changing Views | 1314 Viewing Database Details | 1314 Managing Database Commands | 1315
Managing Licenses | 1316 Generating and Uploading the Junos Space License Key File | 1316
Generating the Junos Space License Key File | 1318 Uploading the Junos Space License Key File Contents | 1318 Viewing Junos Space Licenses | 1319
Managing Junos Space Platform and Applications | 1321 Managing Junos Space Applications Overview | 1321 Upgrading Junos Space Network Management Platform Overview | 1323
Before You Begin | 1323 Pre-Upgrade Checks | 1324 How an Upgrade Impacts Previously Installed Junos Space Applications | 1324
xxxi
Performing the Upgrade | 1325 Junos Space Store Overview | 1326
About the Junos Space Store | 1326 Benefits of Junos Space Store | 1326 Configuring and Managing Junos Space Store | 1327 Configuring Junos Space Store in Junos Space Network Management Platform | 1327 Modifying Junos Space Store Settings | 1329 Installing and Upgrading Junos Space Applications from Junos Space Store | 1330 Running Applications in Separate Server Instances | 1332 Adding a Server Group | 1333 Adding a Server to a Server Group | 1333 Starting Servers in a Server Group | 1334 Stopping Servers in a Server Group | 1335 Removing a Server Group | 1335 Moving an Application to a Different Server Group | 1336 Managing Junos Space Applications | 1337 Viewing Detailed Information About Junos Space Platform and Applications | 1337 Performing Actions on Junos Space Platform and Applications | 1338 Modifying Settings of Junos Space Applications | 1339 Modifying Junos Space Network Management Platform Settings | 1340 Managing File Integrity Check | 1361 Configuring File Integrity Check | 1361 Manually Checking File Integrity | 1362 Starting, Stopping, and Restarting Services | 1363 Adding a Junos Space Application | 1366 Uploading the Junos Space Application | 1366 Installing the Uploaded Junos Space Application | 1368 Upgrading a Junos Space Application | 1370 Upgrading Junos Space Network Management Platform | 1372 Synchronizing Time Across Junos Space Nodes | 1378
xxxii
xxxiii
Upgrading to Junos Space Network Management Platform Release 21.1R1 | 1381 Before You Begin | 1382 Disabling Device Communication | 1383 Downloading and Installing the Junos Space Platform 20.3R1 Patch | 1384 Executing the Data Back Up Procedure | 1385 Validating the Backup File | 1389 Installing Junos Space Platform Release 21.1R1 as a Standalone Node or the First Node of the Fabric and Restoring the Backed-Up Data | 1390 Rolling Back to Junos Space Platform Release 20.3R1 if Upgrade Fails | 1392 Installing Junos Space Platform Release 21.1R1 on the Remaining Nodes of the Fabric | 1396 Enabling Device Communication | 1397 Managing Disaster Recovery Configuration after Upgrade to 21.1 | 1398
Uninstalling a Junos Space Application | 1398
Managing Troubleshooting Log Files | 1400
System Status Log File Overview | 1400 System Status Log File | 1400 Customizing Status Log File Content | 1401 Downloading System Log Files for a Junos Space Appliance | 1401 Customizing Log Files to Download | 1402
Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Configuring JBoss and OpenNMS Logs in Junos Space | 1404 Generating JBoss Thread Dump for Junos Space Nodes | 1406 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
Downloading a System Log File by Using a USB Device | 1413 Downloading System Log File by Using SCP | 1415
Managing Certificates | 1418
Certificate Management Overview | 1418 Authentication Modes Workflow | 1419 Custom Junos Space Server Certificates | 1421 Certificate Attributes | 1421
xxxiv
User Certificates | 1423 CA Certificates and CRLs | 1424 Changing the User Authentication Mode | 1424 Certificate Expiry | 1424 Invalid User Certificates | 1425 Changing User Authentication Modes | 1426 Changing the User Authentication Mode from Password-Based to Complete Certificate-Based
from the User Interface | 1427 Changing the User Authentication Mode from Complete Certificate-Based to Certificate
ParameterBased from the User Interface | 1429 Changing the User Authentication Mode from Certificate ParameterBased to Complete
Certificate-Based from the User Interface | 1431 Changing the User Authentication Mode to Password-Based from the User Interface | 1432 Changing the User Authentication Mode to Password-Based from the CLI | 1432 Installing a Custom SSL Certificate on the Junos Space Server | 1433 Installing an X.509 Junos Space Server Certificate | 1433 Installing a Junos Space Server Certificate in the PKCS #12 Format | 1435 Reverting to the Default Junos Space Server SSL Certificate | 1436 Uploading a User Certificate | 1437 Uploading a User Certificate for a New User | 1437 Uploading a User Certificate for an Existing User | 1438 Uploading Your User Certificate | 1439 Uploading a CA Certificate and Certificate Revocation List | 1440 Uploading a CA Certificate | 1440 Uploading a Certification Revocation List | 1441 Deleting CA Certificates or Certificate Revocation Lists | 1441 Deleting a CA Certificate or Certificate Revocation List | 1442 Adding and Activating X.509 Certificate Parameters for X.509 Certificate Parameter Authentication | 1443 Adding X.509 Certificate Parameters for X.509 Certificate Parameter Authentication | 1443 Activating an X.509 Certificate Parameter | 1445 Modifying an X.509 Certificate Parameter | 1446 Deleting X.509 Certificate Parameters | 1447
Configuring Authentication Servers | 1449 Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450
Local Authentication | 1451 Remote Authentication | 1451 Remote-Local Authentication | 1452 Junos Space Login Behavior with Remote Authentication Enabled | 1453 Managing Remote Authentication Servers | 1459 Creating a Remote Authentication Server | 1460 Modifying Authentication Settings | 1463 Configuring a RADIUS Server for Authentication and Authorization | 1465 Configuring a TACACS+ Server for Authentication and Authorization | 1467
Managing SMTP Servers | 1469 Managing SMTP Servers | 1469 Adding an SMTP Server | 1470
Email Listeners | 1473 Email Listeners Overview | 1473 Adding Users to the Email Listeners List | 1474 Modifying Users in the Email Listeners List | 1475 Deleting Users from the Email Listeners List | 1476
Managing Git Repositories | 1477 Git Repositories in Junos Space Overview | 1477 Managing Git Repositories in Junos Space | 1478
Adding Git Repositories to Junos Space | 1479 Modifying Git Repositories in Junos Space | 1480 Deleting Git Repositories from Junos Space | 1480 Setting the Active Git Repository | 1481 Testing the Connection to the Git Repository | 1482 Viewing Git Repositories in Junos Space | 1482
xxxv
Audit Log Forwarding | 1484
Audit Log Forwarding in Junos Space Overview | 1484 Viewing Audit Log Forwarding Criterion | 1485 Adding Audit Log Forwarding Criterion | 1488 Modifying Audit Log Forwarding Criterion | 1489 Deleting Audit Log Forwarding Criterion | 1490 Enabling Audit Log Forwarding Criterion | 1491 Testing the System Log Server Connection for Audit Log Forwarding | 1492
Configuring a Proxy Server | 1494
Configuring Proxy Server Settings | 1494
Managing Tags | 1497
Tags Overview | 1498 My Favorite Private Tag | 1499 Device Tags | 1499
Creating a Tag | 1499 Managing Tags | 1504 Managing Hierarchical Tags | 1505
Using the Tag Hierarchy Pane | 1506 Using the Tag Action Bar | 1507 Using the Shortcut Menu | 1508 Using Drag-and-Drop | 1510 Using the Quick Info Tool Tip | 1511 Browsing Tagged Objects | 1511 Viewing All Tags | 1511 Adding a Child Tag | 1512 Deleting a Tag | 1512 Using Notification | 1512
Using the Tabular View Pane | 1512 Sharing a Tag | 1513 Renaming Tags | 1514 Deleting Tags | 1515 Tagging an Object | 1518
xxxvi
xxxvii
Untagging Objects | 1519 Filtering the Inventory by Using Tags | 1520 Viewing Tagged Objects | 1521 Viewing Tags for a Managed Object | 1524 Exporting Tags from Junos Space Network Management Platform | 1525
Managing DMI Schemas | 1526
DMI Schema Management Overview | 1526 Viewing and Managing DMI Schemas | 1528 Viewing Missing DMI Schemas | 1530 Setting a Default DMI Schema | 1532 Configuring Access to Juniper Networks DMI Schema Repository by Using the Configure Juniper
Repository Action | 1533 Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network
Management Platform | 1535 Adding Missing DMI Schemas by Using the View/Install Missing Schema Action | 1535 Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Get Latest
Action | 1536 Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using REST APIs | 1536 Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update
Schema Menu | 1540 Creating a Compressed TAR File for Updating DMI Schema | 1545
Creating a Compressed Tar File on Linux | 1545 Creating a Compressed Tar File on Microsoft Windows | 1546 Schemas Available in Junos Space Platform | 1548 Viewing and Deleting Unused DMI Schemas | 1549
Managing Hardware Catalog | 1551
Hardware Catalog Overview | 1551 Viewing Information About Hardware Catalog | 1553 Configuring Access to Juniper Networks Subversion Repository for Downloading Hardware
Catalog | 1553 Uploading Hardware Catalog to Junos Space Network Management Platform | 1555
Updating Hardware Catalog in Junos Space Platform by Using the Get Latest Action | 1555 Uploading Hardware Catalog to Junos Space Platform by Using the Import Option | 1556
Managing the Purging Policy | 1558
Junos Space Purging Policy and Purging Categories Overview | 1558 Viewing the Junos Space Purging Policy and Purging Criteria | 1559 Modifying the Purging Policy and Purging Criteria and Setting the Policy Status | 1561
Modifying the Purging Trigger Conditions | 1562 Modifying the Purging Criteria and Enabling or Disabling a Policy | 1564
Guide 4
Disaster Recovery | 1566
Disaster Recovery Overview | 1566 Prerequisites to Configure Disaster Recovery | 1567 Connectivity Requirements to Configure Disaster Recovery | 1568
Validate Peer Site | 1568 Manage Disaster Recovery | 1570
Configuring Disaster Recovery at the Active Site | 1572 Configuring Disaster Recovery at the Standby Site | 1573 Actions common for both Active and Standby Site | 1575 Disaster Recovery Health | 1575
Monitoring and Troubleshooting Guide
13
Overview
Overview | 1579
Monitoring Network Devices and Troubleshooting Software Issues with Junos Space Network Management Platform | 1579 Systems of Record | 1580 System Snapshot | 1580 Backup and Restore | 1581 Maintenance Mode | 1581 Audit Logs | 1581 Jobs | 1582 Secure Console | 1582 Looking Glass | 1582 Reports | 1582
xxxviii
xxxix
Junos Space Debug Utilities | 1583 Overall System Condition and Fabric Load History Overview | 1583
Overall System Condition | 1583 Fabric Load History | 1585 Active Users History | 1585 Junos Space Network Management Platform Widgets | 1586 Devices | 1586 Device Templates | 1587 CLI Configlets | 1587 Images and Scripts | 1587 Reports | 1587 Network Monitoring | 1588 Configuration Files | 1588 Jobs | 1588 Role Based Access Control | 1589 Audit Logs | 1589 Administration | 1589
14
Log Files and Debug Utilities
Troubleshooting Junos Space Network Management Platform Issues by Using Log Files | 1592
System Status Log File Overview | 1592 System Status Log File | 1592 Customizing Status Log File Content | 1593 Downloading System Log Files for a Junos Space Appliance | 1593 Customizing Log Files to Download | 1594
Junos Space Network Management Platform Log Files Overview | 1594 Apache Web Server Log Files | 1595 JBoss Application Server Log Files | 1595 MySQL Database Log Files | 1597 Node Management Agent Log Files | 1597
xl
Troubleshooting Log File Overview | 1598 Downloading the Troubleshooting Log File in Server Mode | 1599 Downloading the Troubleshooting Log File in Maintenance Mode | 1602 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1603
Downloading a System Log File by Using a USB Device | 1603 Downloading System Log File by Using SCP | 1605 Customizing Node System Status Log Checking | 1608 Customizing Node Log Files to Download | 1609
Troubleshooting Network Devices by Using Junos Space Debug Utilties | 1610
Junos Space Debug Utilities Overview | 1610 Device-Connection Debug Scripts | 1611 getDeviceInfo.sh | 1611 DeviceDebugInfoCollector.sh | 1611 getAllDeviceInfo.sh | 1611 cleanupEditChannel.sh | 1612 Device Import Scripts and Java Applications | 1612 cleanupDeviceImportTables.sh | 1612 DB-blob-reader.jar | 1612 Job Management Scripts and Java Applications | 1613 SystemLoadViewer.sh | 1613 getJobThreadSump.sh | 1613 JobInfoCollector.jar | 1613 Usr/nma/bin/collectStuckJobLogFiles.pl | 1613 HornetQ Scripts | 1614 HornetQInfoProvider.sh | 1614 HQMessageViewer.sh | 1614 Compare.py | 1614
Executing Device-Connection Debug Scripts | 1615 Executing the Script to Collect Device-Connection Information | 1615 Executing the Script to Collect Device Debug Information | 1617 Executing the Script to Unlock the Device Configuration | 1622
xli
Executing the Script to Collect Node-Connection Information | 1623 Executing Device Import Detail Script and Java Application | 1629
Executing the Script to Delete Data from Device Import Tables | 1629 Executing the Java Application to View Device XML | 1630 Executing Job Management Scripts and Java Applications | 1632 Executing the Java Application to Collect Job Information | 1632 Executing the Script to View the Stack Trace of a Job | 1636 Executing the Script to View Job Information on Nodes | 1637 Executing HornetQ Scripts | 1643 Executing the HornetQ Script to View all JBoss Queues | 1643 Executing the HornetQ Script to List of Messages in a JBoss Queue | 1645
15
Troubleshooting Junos Space Platform Issues
Troubleshooting LoginRelated Issues | 1649
Troubleshooting the Not Able to Log In from the Junos Space Login Page Issue | 1649
Troubleshooting Device ManagementRelated Issues | 1651 Troubleshooting Device Discovery Failure | 1651 Troubleshooting Device Data Collection Issue | 1652 Troubleshooting Devices Discovered Twice Using the Device Discovery Workflow | 1653
Troubleshooting Network MonitoringRelated Issues | 1654 Troubleshooting the Network Monitoring Page Is Not Available Issue | 1654
Troubleshooting DMI SchemaRelated Issues | 1655 Troubleshooting the Nondisplay of the DMI Schema Tree Issue | 1655
xlii
Guide 5 16
High Availability and Disaster Recovery Guide
High Availability
Overview | 1659 Junos Space High Availability Overview | 1659 High Availability Characteristics of Junos Space Appliances | 1661
Understanding the High Availability Software Architecture | 1662
Junos Space High Availability Software Architecture Overview | 1662 Junos Space Software Architecture | 1663 Load-Balancing Architecture | 1664 Database Architecture | 1664 Inter-Node Communication Among Nodes in a Junos Space Cluster | 1665
Software Components for Junos Space Nodes | 1666
Understanding the Junos Space Cluster (Fabric) Architecture | 1669
Understanding the Logical Clusters Within a Junos Space Cluster | 1669 Apache Load-Balancer Cluster | 1670 JBoss Cluster | 1671 MySQL Cluster | 1672 Cassandra Cluster | 1674
Understanding Virtual IP Availability Within a Junos Space Cluster | 1676 Understanding High Availability Nodes in a Cluster | 1677 Understanding High Availability Management of DMI Connections | 1679 High Availability for Network Monitoring | 1680
High-Availability Fabric without FMPM Nodes | 1680 High-Availability Fabric with FMPM Nodes | 1681 Understanding How Devices Are Configured to Send SNMP Traps to Junos Space | 1682
Configuring High Availability Overview | 1684
Configuring the Junos Space Cluster for High Availability Overview | 1684 Requirements | 1684 Preparation | 1685 Configuring the First Node in the Cluster | 1687 Adding a Second Node to the Cluster | 1688
xliii
Adding Additional Nodes to a Cluster | 1688 Configuring FMPM Nodes | 1689 Removing Nodes from a Cluster | 1689
High Availability Failover Scenarios | 1690
Understanding High-Availability Failover Scenarios | 1690 Active VIP Node Crashes | 1691 Standby VIP Node Crashes | 1691 eth0 on the Active VIP Node Goes Down | 1692 eth0 on the Standby VIP Node Goes Down | 1693 A Non-VIP Node Crashes | 1693 eth0 on a Non-VIP Node Goes Down | 1693 eth3 on a Non-VIP Node Goes Down | 1694 eth3 on the Active VIP Node Goes Down | 1694 JBoss Server on a Node Goes Down | 1695 MySQL Server on the Active VIP Node Goes Down | 1696 MySQL Server on the Standby VIP Node Goes Down | 1696 Primary Database Node Crashes | 1697 Secondary Database Node Crashes | 1697 MySQL Server on the Primary Database Node Goes Down | 1697 MySQL Server on the Secondary Database Node Goes Down | 1698 Apache HTTP Server on the Active VIP Node Goes Down | 1698 Apache HTTP Server on the Standby VIP Node Goes Down | 1699 Dedicated Cassandra Node Crashes | 1699 Cassandra Service on a JBoss Node Goes Down | 1699
17
Disaster Recovery
Disaster Recovery Solution | 1702
Disaster Recovery Overview | 1702 Disaster Recovery Solution | 1703 Prerequisites to Configure Disaster Recovery | 1705 Connectivity Requirements to Configure Disaster Recovery | 1706
xliv
Disaster Recovery Watchdog | 1706 heartbeat | 1707 mysqlMonitor | 1707 pgsqlMonitor | 1707 fileMonitor | 1708 arbiterMonitor | 1708 configMonitor | 1708 serviceMonitor | 1708 notification | 1708
Failure Detection by Using the Device Arbitration Algorithm | 1709 Failure Detection by Using the Custom Failure-Detection Scripts | 1710 Steps to Configure Disaster Recovery | 1721 Disaster Recovery Commands | 1722 Understanding the Normal Operation of Active and Standby Sites | 1726 Understanding Disaster Recovery Failure Scenarios | 1727 Active Site (site1) Goes Down Due to a Disaster or Is Powered Down | 1728
Detection | 1728 Impact | 1728 Recovery | 1728 No Connectivity Between the Active and Standby Sites and Both Sites Lose Connectivity with Arbiter Devices | 1728 Detection | 1728 Impact | 1729 Recovery | 1729 No Connectivity Between the Active and Standby Sites | 1729 Detection | 1729 Impact | 1729 Recovery | 1729 No Connectivity Between the Active and Standby Sites and the Active Site (site1) Loses Connectivity with Arbiter Devices | 1730 Detection | 1730 Impact | 1730 Recovery | 1730
xlv
No Connectivity Between the Active and Standby Sites and the Standby Site (site2) Loses Connectivity With Arbiter Devices | 1730 Detection | 1730 Impact | 1731 Recovery | 1731
Standby Site (site2) Goes Down Due to Disaster or Is Powered Down | 1731 Detection | 1731 Impact | 1731 Recovery | 1731
No Connectivity Between the Active Site (site1) and Arbiter Devices | 1732 Detection | 1732 Impact | 1732 Recovery | 1732
No Connectivity Between the Standby Site (site2) and Arbiter Devices | 1732 Detection | 1732 Impact | 1732 Recovery | 1732
Understanding How the Standby Site Becomes Operational When the Active Site Goes Down | 1733
Configuring the Disaster Recovery Process | 1734
Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Configuring Disaster Recovery at the Active Site | 1735 Configuring Disaster Recovery at the Standby Site | 1740 Starting the Disaster Recovery Process | 1744 Verifying the Status of the Disaster Recovery Process | 1746
Stopping the Disaster Recovery Process on Junos Space Network Management Platform Release 14.1R3 and Earlier | 1746 Stopping the Backup Process at the Active Site | 1746 Stopping Collecting Backups from the Active Site | 1748
Configuring the Disaster Recovery Process in the GUI | 1750
Validate Peer Site | 1750 Manage Disaster Recovery | 1752
Configuring Disaster Recovery at the Active Site | 1753 Configuring Disaster Recovery at the Standby Site | 1755
xlvi
Actions common for both Active and Standby Site | 1756 Disaster Recovery Health | 1757
Managing the Disaster Recovery Solution | 1759 Checking the Status of the Disaster Recovery Configuration | 1759 Viewing the Disaster Recovery Configuration and Status of Watchdog Services | 1764 Modifying the Disaster Recovery Configuration | 1766 Modifying Applications and Nodes on a Disaster Recovery Setup | 1777
Upgrading the Junos Space Network Management Platform Software | 1779 Upgrading to Junos Space Network Management Platform Release 16.1R1 | 1784 Installing a Junos Space Application | 1785 Upgrading a Junos Space Application | 1786 Uninstalling a Junos Space Application | 1787 Adding or Removing a JBoss Node | 1788 Adding or Removing a Dedicated Junos Space Node | 1790 Manually Failing Over the Network Management Services to the Standby Site | 1792 Stopping the Disaster Recovery Process | 1796 Resetting the Disaster Recovery Configuration | 1798
Upgrading Junos Space Network Management Platform with Disaster Recovery Enabled | 1801
Upgrade Procedure | 1801 1. Back up the Current Disaster Recovery Configuration | 1802 2. Reset the Disaster Recovery Configuration | 1802 3. Upgrade the Junos Space Network Management Platform and Application | 1802 4. Configure and Perform Disaster Recovery | 1805
xlvii
About the Documentation
IN THIS SECTION Documentation and Release Notes | xlvii Supported Platforms | xlvii Documentation Conventions | xlvii Documentation Feedback | l Requesting Technical Support | l
Documentation and Release Notes
To obtain the most current version of all Juniper Networks® technical documentation, see the product documentation page on the Juniper Networks website at https://www.juniper.net/documentation/. If the information in the latest release notes differs from the information in the documentation, follow the product Release Notes. Juniper Networks Books publishes books by Juniper Networks engineers and subject matter experts. These books go beyond the technical documentation to explore the nuances of network architecture, deployment, and administration. The current list can be viewed at https://www.juniper.net/books.
Supported Platforms
For the features described in this document, the following platforms are supported:
Documentation Conventions
Table 1 defines notice icons used in this guide.
Table 1: Notice Icons
Icon
Meaning
Informational note
Caution
Warning
xlviii
Description Indicates important features or instructions.
Indicates a situation that might result in loss of data or hardware damage. Alerts you to the risk of personal injury or death.
Laser warning
Alerts you to the risk of personal injury from a laser.
Tip Best practice
Indicates helpful information. Alerts you to a recommended use or implementation.
Table 2 defines the text and syntax conventions used in this guide.
Table 2: Text and Syntax Conventions
Convention
Description
Examples
Bold text like this
Represents text that you type.
To enter configuration mode, type the configure command:
user@host> configure
Fixed-width text like this
Represents output that appears on the terminal screen.
user@host> show chassis alarms No alarms currently active
Italic text like this
· Introduces or emphasizes important new terms.
· Identifies guide names. · Identifies RFC and Internet draft
titles.
· A policy term is a named structure that defines match conditions and actions.
· Junos OS CLI User Guide · RFC 1997, BGP Communities
Attribute
xlix
Table 2: Text and Syntax Conventions (continued)
Convention
Description
Examples
Italic text like this Text like this < > (angle brackets)
Represents variables (options for which you substitute a value) in commands or configuration statements.
Configure the machine's domain name:
[edit] root@# set system domain-name
domain-name
Represents names of configuration statements, commands, files, and directories; configuration hierarchy levels; or labels on routing platform components.
Encloses optional keywords or variables.
· To configure a stub area, include the stub statement at the [edit protocols ospf area area-id] hierarchy level.
· The console port is labeled CONSOLE.
stub <default-metric metric>;
| (pipe symbol)
Indicates a choice between the mutually exclusive keywords or variables on either side of the symbol. The set of choices is often enclosed in parentheses for clarity.
broadcast | multicast (string1 | string2 | string3)
# (pound sign)
Indicates a comment specified on the same line as the configuration statement to which it applies.
rsvp { # Required for dynamic MPLS only
[ ] (square brackets)
Encloses a variable for which you can community name members [
substitute one or more values.
community-ids ]
Indention and braces ( { } ) ; (semicolon)
GUI Conventions
Identifies a level in the configuration hierarchy.
Identifies a leaf statement at a configuration hierarchy level.
[edit] routing-options {
static { route default { nexthop address; retain; }
} }
l
Table 2: Text and Syntax Conventions (continued)
Convention
Description
Examples
Bold text like this > (bold right angle bracket)
Represents graphical user interface (GUI) items you click or select.
Separates levels in a hierarchy of menu selections.
· In the Logical Interfaces box, select All Interfaces.
· To cancel the configuration, click Cancel.
In the configuration editor hierarchy, select Protocols>Ospf.
Documentation Feedback
We encourage you to provide feedback so that we can improve our documentation. You can use either of the following methods: · Online feedback system--Click TechLibrary Feedback, on the lower right of any page on the Juniper
Networks TechLibrary site, and do one of the following:
· Click the thumbs-up icon if the information on the page was helpful to you. · Click the thumbs-down icon if the information on the page was not helpful to you or if you have
suggestions for improvement, and use the pop-up form to provide feedback. · E-mail--Send your comments to techpubs-comments@juniper.net. Include the document or topic name,
URL or page number, and software version (if applicable).
Requesting Technical Support
Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC). If you are a customer with an active Juniper Care or Partner Support Services support contract, or are
li
covered under warranty, and need post-sales technical support, you can access our tools and resources online or open a case with JTAC. · JTAC policies--For a complete understanding of our JTAC procedures and policies, review the JTAC User
Guide located at https://www.juniper.net/us/en/local/pdf/resource-guides/7100059-en.pdf. · Product warranties--For product warranty information, visit https://www.juniper.net/support/warranty/. · JTAC hours of operation--The JTAC centers have resources available 24 hours a day, 7 days a week,
365 days a year.
Self-Help Online Tools and Resources
For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: · Find CSC offerings: https://www.juniper.net/customers/support/ · Search for known bugs: https://prsearch.juniper.net/ · Find product documentation: https://www.juniper.net/documentation/ · Find solutions and answer questions using our Knowledge Base: https://kb.juniper.net/ · Download the latest versions of software and review release notes:
https://www.juniper.net/customers/csc/software/ · Search technical bulletins for relevant hardware and software notifications:
https://kb.juniper.net/InfoCenter/ · Join and participate in the Juniper Networks Community Forum:
https://www.juniper.net/company/communities/ · Create a service request online: https://myjuniper.juniper.net To verify service entitlement by product serial number, use our Serial Number Entitlement (SNE) Tool: https://entitlementsearch.juniper.net/entitlementsearch/
Creating a Service Request with JTAC
You can create a service request with JTAC on the Web or by telephone. · Visit https://myjuniper.juniper.net. · Call 1-888-314-JTAC (1-888-314-5822 toll-free in the USA, Canada, and Mexico). For international or direct-dial options in countries without toll-free numbers, see https://support.juniper.net/support/requesting-support/.
52
Getting Started Guide
1 CHAPTER
Junos Space Fabric Deployment
Junos Space Fabric Architecture | 54 Junos Space Fabric Deployment Overview | 54
54
Junos Space Fabric Architecture
To support the rapid growth in network size, Junos Space is designed to be highly scalable. You can cluster multiple Junos Space appliances to create a single management fabric, which is accessible from a single virtual IP (VIP) address. All graphical user interface (GUI) and northbound interface (NBI) clients use the Junos Space VIP address to connect to the Junos Space fabric. The fabric incorporates a front-end load balancer that distributes client sessions across all the active Junos Space nodes within the fabric. You can increase or decrease the fabric by simply adding or deleting nodes to or from the Junos Space Network Management Platform user interface, and the Junos Space system automatically starts applications and services on the active nodes. Each node in the cluster is fully utilized and all nodes work together to provide automated resource management and service availability. A Junos Space fabric architecture comprising multiple appliances eliminates any single point of failure. When a node in the fabric goes down, all client sessions and device connections currently served by that node are automatically migrated to the active nodes in the fabric without any user-initiated action.
RELATED DOCUMENTATION Junos Space Fabric Deployment Overview | 54
Junos Space Fabric Deployment Overview
You can install and deploy Junos Space Hardware Appliances (JA2500), Junos Space Virtual Appliances, or both to form a fabric. Each appliance in the fabric is called a node. All nodes in the fabric work together as a cluster of Junos Space instances running in active-active configuration (that is, all nodes are active in the cluster). Figure 1 displays how a Junos Space fabric employs a software load balancer to distribute HTTP sessions across the nodes to ensure that the load presented by the Junos Space Network Management Platform user interface and NBI clients is equally distributed within the fabric.
55
Figure 1: Clients Using a Single Virtual IP Address to Access the Junos Space Fabric
A Junos Space fabric of appliances provides scalability and ensures high availability of your management platform. The fabric provides an N+1 redundancy solution where the failure of a single node in the fabric does not affect the functioning of the fabric. When a node in the fabric fails, the sessions of the clients accessing Junos Space from the user interface automatically migrate away from the failed node. Similarly, managed devices that were connected to the failed node are automatically reconnected with another functioning node in the fabric.
Deploying a Junos Space Hardware Appliance
When you power on the Junos Space Hardware Appliance and log in to the CLI console, you can view a menu-driven command-line interface to specify the initial configuration of the appliance. You need to specify the following parameters: · IP address and subnet mask for the "eth0" interface · Virtual IP address (when you configure the first node in the cluster) to access the Junos Space user
interface from Web browsers. The IP address should be in the same subnet as the IP address assigned to the "eth0" interface. · IP address of the default gateway · IP address of the name server · IP address and subnet mask for the "eth3" interface if you choose to manage devices on a different Ethernet interface (see Figure 3). · Whether the appliance will be added to an existing cluster. Choose "n" to add the first node to a new cluster and choose "y" to add subsequent nodes to the cluster. · NTP server settings with which to synchronize the appliance's time · Maintenance mode user ID and password
NOTE: Ensure that you remember the Maintenance mode user ID and password. These details are required when you upgrade software and restore databases.
56
Refer to the JA2500 Junos Space Appliance Quick Start Guide for detailed instructions on how to configure the hardware appliance during initial deployment.
Deploying a Junos Space Virtual Appliance
The Junos Space Virtual Appliance is stored in the open virtual appliance (OVA) format and is packaged as an *.ova file, which is a single folder that contains all the files of the Junos Space Virtual Appliance. OVA is not a bootable format and you must deploy each Junos Space Virtual Appliance to a hosted ESX or ESXi server before you can run the Junos Space Virtual Appliance.
You can deploy a Junos Space Virtual Appliance on a VMware ESX server version 4.0 or later or VMware ESXi server version 4.0 or later. After the Junos Space Virtual Appliance is deployed, you can use the VMware vSphere client that is connected to the VMware ESX (or VMware ESXi) server to configure the Junos Space Virtual Appliance. You can deploy Junos Space Virtual Appliance 14.1R2.0 and later on qemu-kvm Release 0.12.1.2-2/448.el6. You must deploy and configure the Junos Space Virtual Appliance on a KVM server by using the Virtual Machine Manager (VMM) client.
The CPU, RAM, and disk space provided by the VMware ESX server or KVM server must meet or exceed the documented CPU, RAM, and disk space requirements for deploying a Junos Space Virtual Appliance. In addition, we recommend that, for a multinode fabric, you deploy the first and second virtual appliances on separate servers to ensure failover support.
The distributed Junos Space Virtual Appliance files are created with 135 GB of disk space. If you create a multinode cluster, ensure that the first and second nodes that you deploy should contain the same amount of disk space. When the disk resources are used beyond 80% capacity, add sufficient disk space (more than 10 GB) to the disk partitions.
When you log in to the console of the VMware vSphere client or VMM client, you need to specify the same parameters used to deploy a hardware appliance. Refer to the Junos Space Virtual Appliance Deployment and Configuration Guide for detailed instructions on how to configure the virtual appliance during initial deployment.
Basic Requirements for a Fabric Deployment
When you deploy multiple appliances to create a Junos Space fabric, each appliance in the fabric uses the eth0 interface for all internode communication within the fabric. On each appliance, you can choose to use a separate interface (eth3) for all communication between the appliance and managed devices, as shown in Figure 3.
57
The following are required when you deploy a Junos Space fabric:
· You must be able to ping the default gateway IP address, or else the fabric will not form correctly. · The IP addresses assigned to the eth0 interface on the first two appliances in the fabric must be in the
same subnet. · The virtual IP address configured on the first appliance in the fabric must be in the same subnet as the
eth0 interface on the first two appliances. · Multicast packets must be routable among all nodes because JBoss cluster-member discovery uses
multicast routing. · If you are deploying a fabric of virtual appliances, we recommend that the first and second appliances
added to the fabric be hosted on a separate VMware ESX or ESXI server to ensure failover support. · All appliances in the fabric must use the same external NTP source to ensure consistent time setting
across all appliances in the fabric You must specify the NTP source on each appliance before adding the appliance to the fabric. · All nodes in the fabric are running the same version of the software.
Configuring Network Connectivity for a Junos Space Fabric
A Junos Space appliance (hardware or virtual) has four RJ45 10/100/1000 Ethernet interfaces that are named eth0, eth1, eth2, and eth3. When deploying the appliance, you need to ensure that it has IP connectivity with the following:
· Devices in your managed network · Desktops, laptops, and workstations from which Junos Space users access the Junos Space user interface
as well as external systems hosting NBI clients · Other appliances that form a Junos Space fabric along with this appliance Junos Space allows you to use two of the four Ethernet interfaces: eth0 and eth3. The other two Ethernet interfaces are reserved for future use. You can choose one of the following two options for configuring interfaces for IP connectivity:
· Use the eth0 interface for all network connectivity of the appliance, as shown in Figure 2.
58 Figure 2: Using a Single Ethernet Interface for All IP Connectivity
· Use the eth0 interface for network connectivity with Junos Space user interface clients and other appliances in the same fabric, and use the eth3 interface for network connectivity with managed devices, as shown in Figure 3.
Figure 3: Using Two Interfaces for IP Connectivity
59
Adding Nodes to a Junos Space Fabric
You must be assigned the System Administrator user role to be able to add nodes to a Junos Space fabric. You add nodes to a Junos Space fabric from the Add Fabric Node page (Network Management Platform > Administration > Fabric > Add Fabric Node). To add a node to a fabric, you specify the IP address assigned to the eth0 interface of the new node, a name for the new node, and (optionally) a scheduled date and time to add the node to the fabric. Junos Space software automatically handles all necessary configuration changes to add the node to the fabric. After the new node is added to the fabric, you can monitor the status of the node from the Fabric page (Network Management Platform > Administration > Fabric). For complete information about adding nodes to a fabric, see the "Adding a Node to an Existing Junos Space Fabric" on page 1172 topic (in the Junos Space Network Management Platform Workspaces User Guide).
RELATED DOCUMENTATION Junos Space Fabric Architecture | 54 Installing and Upgrading Junos Space Software Overview | 61
2 CHAPTER
Junos Space System Administration
Installing and Upgrading Junos Space Software Overview | 61 Junos Space Applications Supported on the Junos Space Platform | 65 DMI Schema Overview | 66 Backing Up the Junos Space Platform Database | 67 Configuring User Access Controls Overview | 68
61
Installing and Upgrading Junos Space Software Overview
IN THIS SECTION Installing Junos Space Applications | 61 Upgrading Junos Space Applications | 62 Upgrading Junos Space Network Management Platform | 63 Uninstalling Junos Space Applications | 64
The following sections describe the primary software administration tasks for the Junos Space Network Management Platform and Junos Space applications:
CAUTION: Do not modify the filename of the software image that you download from the Juniper Networks support site. If you modify the filename, the installation or upgrade fails.
NOTE: Juniper Networks devices require a license to activate the feature. To understand more about Junos Space Network Management Platform Licenses, see, Licenses for Network Management. Please refer to the Licensing Guide for general information about License Management. Please refer to the product Data Sheets for further details, or contact your Juniper Account Team or Juniper Partner.
Installing Junos Space Applications
Before installing an application, verify that the application is compatible with the Junos Space Network Management Platform. For more information about application compatibility, see the Knowledge Base article KB27572 at https://kb.juniper.net/InfoCenter/index?page=content&id=KB27572.
62
You can upload an application image file to Junos Space from the Add Application page ( Administration > Applications > Add Application). You can upload an application image file by using HTTP (Upload via HTTP) option or Secure Copy Protocol (SCP) (Upload via SCP) option. We recommend that you upload the file by using SCP, which initiates a direct transfer from an SCP server to Junos Space and is performed as a back-end job. If you choose to upload the file using SCP, you must first make the image file available on an SCP server that Junos Space can access. You must also provide the IP address of the SCP server and the login credentials needed to access this SCP server. The main advantage of using SCP is that your user interface is not blocked while the file transfer is in progress, and you can monitor the progress of the file transfer from the Jobs workspace.
NOTE: A Junos Space node can also be used as an SCP server. To do this, copy the application image file (using SCP or SSH FTP [SFTP]) to the /tmp/ directory on the Junos Space node, and in the Upload Software via SCP dialog box specify the credentials (username and password), the IP address of the Junos Space node, the CLI credentials, and the file path for the software image.
After the image file for the application is uploaded successfully, you can view the application from the Add Application page. You can then select the application file and click the Install button to install the application. The application installation process does not cause any downtime for the Junos Space Network Management Platform or any applications installed on Junos Space. Junos Space Network Management Platform ensures that the application is installed on all nodes in the Junos Space fabric and access to the application is load balanced across all nodes in the Junos Space fabric.
For more information about installing Junos Space applications, see the "Managing Junos Space Applications Overview" on page 1321 topic (in the Junos Space Network Management Platform Workspaces User Guide).
Upgrading Junos Space Applications
You can easily upgrade a Junos Space application from the Junos Space Platform UI. You must download the image file for the new version of the application, navigate to the Applications page ( Administration > Applications), right-click the application that you want to upgrade, and select Upgrade Application to upload the image file into Junos Space through HTTP or SCP. We recommend that you use the SCP option, which initiates a direct transfer from an SCP server to Junos Space. After the image file is uploaded, select the uploaded file and click the Upgrade button to start the upgrade process. If you perform the upgrade by using SCP, then the upgrade process is executed as a back-end job by the Junos Space Network Management Platform, and you can monitor the progress of the upgrade from the Jobs workspace. An application upgrade does not cause downtime for the Junos Space Network Management Platform or other applications that are hosted by Junos Space.
For more information about upgrading Junos Space applications, see the "Managing Junos Space Applications Overview" on page 1321 topic (in the Junos Space Network Management Platform Workspaces User Guide).
63
Upgrading Junos Space Network Management Platform
Juniper Networks typically produces two major releases of the Junos Space Network Management Platform per year. In addition, one or more patch releases might accompany each major release. You can upgrade to a newer Junos Space Platform release by performing a few simple steps from the user interface in your current Junos Space Platform.
NOTE: If you are upgrading to Junos Space Platform Release 16.1R1 or 16.1R2, follow the procedure outlined in the topic "Upgrading to Junos Space Network Management Platform Release 21.1R1" on page 1381 in the Workspaces User Guide.
WARNING: Upgrading to a new Junos Space Network Management Platform version might disable functionality and the ability to use the installed Junos Space applications. Before you upgrade the Junos Space Network Management Platform, take inventory of the applications installed. If Junos Space Network Management Platform is upgraded and a compatible application is not available, the installed application is deactivated and cannot be used until a compatible application has been released.
If you are upgrading Junos Space Platform to releases other than Junos Space Platform Release 16.1R1, the workflow for performing the upgrade is similar to that of installing an application. After you download the required image file, (.img extension) from the Juniper Networks software download site, navigate to the Applications page ( Administration > Applications), right-click the image file, and select Upgrade Platform to upload the image file into Junos Space through HTTP or SCP. We recommend that you use the SCP option, which initiates a direct transfer from an SCP server to Junos Space and is performed as a back-end job. If you choose the SCP option, you must first make the image file available on an SCP server that Junos Space can access. After the image file is uploaded, select the uploaded file, and click the Upgrade button to start the upgrade process. The Network Management Platform upgrade forces the system into Maintenance mode, which requires that you enter the Maintenance mode username and password to proceed with the upgrade.
During the Junos Space Network Management Platform upgrade process, all the data in the Junos Space database is migrated to the new schema that is part of the new Junos Space release. The upgrade process also seamlessly upgrades all nodes in the fabric. The upgrade process requires a restart of JBoss application servers on all nodes and might also require a reboot of all the nodes if the OS packages are also upgraded. The time required for the upgrade depends on a number of factors, including the amount of data being migrated, the number of nodes in the fabric, and the number of third-party components upgraded. You should expect an average downtime of 30 to 45 minutes for upgrade of a single-node fabric, and approximately 45 to 60 minutes for upgrade of a two-node fabric.
64
NOTE: You can use this workflow to upgrade to Release 18.1 from Release 17.2 or Release 17.1. If you are upgrading to Release 18.1 from a release earlier than 16.1, you must first upgrade the installation to Release 16.1 and then, upgrade to Release 17.1 or Release 17.2. You must perform multistep upgrades if a direct upgrade is not supported between the version from which you want to upgrade and the version to which you want to upgrade. For detailed information about the releases from which Junos Space Platform can be upgraded, see the Junos Space Network Management Platform Release Notes. Before you upgrade Junos Space Platform to Release 18.1, ensure that the time on all Junos Space nodes is synchronized. For information about synchronizing time on Junos Space nodes, see "Synchronizing Time Across Junos Space Nodes" on page 1378.
For more information about upgrading the Junos Space Network Management Platform, see the "Upgrading Junos Space Network Management Platform Overview" on page 1323 topic in the Junos Space Network Management Platform Workspaces User Guide.
Uninstalling Junos Space Applications
To uninstall a Junos Space application, navigate to the Applications page ( Administration > Applications), right-click the application that you want to uninstall, and select Uninstall Application. You are prompted to confirm the uninstallation process. Upon confirmation, the uninstallation process for the application is executed as a back-end job by Junos Space. You can monitor the progress of the job from the Job Management page (Jobs > Job Management). The uninstallation process does not cause downtime for Junos Space Network Management Platform or other applications hosted by Junos Space Network Management Platform. For more information about uninstalling Junos Space applications, see the "Uninstalling a Junos Space Application" on page 1398 topic in the Junos Space Network Management Platform Workspaces User Guide).
RELATED DOCUMENTATION Junos Space License Installation Overview Junos Space Applications Supported on the Junos Space Platform | 65 Configuring User Access Controls Overview | 68
65
Junos Space Applications Supported on the Junos Space Platform
A number of high-level applications are available for Junos Space Network Management Platform. You can install these applications to simplify network operations, scale services, automate support, and open the network to new business opportunities.
The Junos Space Network Management Platform is a multitenant platform that enables you to install hot-pluggable applications. Junos Space automatically deploys the installed applications across the fabric. You can install, upgrade, and remove applications without disrupting or causing any downtime for the Junos Space Network Management Platform or other hosted applications.
The following applications are currently available for Junos Space Network Management Platform:
· Junos Space Log DirectorEnables log collection across SRX Series Services Gateways and enables log visualization
· Junos Space Network DirectorEnables unified management of Juniper Networks EX Series Ethernet Switches, EX Series Ethernet switches with ELS support, QFX Series switches, QFabric, wireless LAN devices, and VMware vCenter devices in your network
· Junos Space Security Director Allows you to secure your network by creating and publishing firewall policies, IPsec VPNs, network address translation (NAT) policies, intrusion prevention system (IPS) policies, and application firewalls
· Junos Space Services Activation DirectorCollection of the following applications that facilitate automated design and provisioning of Layer 2 VPN and Layer 3 VPN services, configuration of QoS profiles, validation and monitoring of service performance, and management of synchronization: · Network Activate · Junos Space OAM Insight · Junos Space QoS Design · Junos Space Transport Activate · Junos Space Sync Design
· Junos Space Service AutomationEnd-to-end solution designed to streamline operations and enable proactive network management for Junos OS devices. The Service Automation solution consists of the following: · Junos Space Service Now · Junos Space Service Insight
66
· Advanced Insight Scripts (AI-Scripts) · Junos Space Virtual DirectorEnables the provisioning, bootstrapping, monitoring, and lifecycle
management of a variety of Juniper virtual appliances and related virtual security solutions
NOTE: For information about the Junos Space applications supported for a specific version of the Junos Space Network Management Platform, see the Knowledge Base article KB27572 at https://kb.juniper.net/InfoCenter/index?page=content&id=KB27572.
RELATED DOCUMENTATION Installing and Upgrading Junos Space Software Overview | 61
DMI Schema Overview
Each device type is described by a unique data model that contains all the configuration data for that device. The schemas for this data model list all the possible fields and attributes for a type of device. The newer schemas describe the new features associated with recent device releases. Junos Space Network Management Platform provides support for managing devices based on Device Management Interface (DMI) schema. You must load all your device schemas into Junos Space Network Management Platform; otherwise, only a default schema is applied when you try to edit a device configuration using the device configuration edit action in the Devices workspace (as described in "Modifying the Configuration on the Device" on page 321 in the Junos Space Network Management Platform Workspaces User Guide). If the Junos Space Network Management Platform contains exactly the right schema for each of your devices, you can access all the configuration options specific to each device. You can add or update schemas for all Junos Space devices from the Administration workspace (Administration > DMI Schemas) workspace. You can use this workspace to check whether a schema for a device is missing. On the Manage DMI Schemas page, in tabular view, the DMI Schema column displays Need Import if the Junos OS schema for that particular device OS is not bundled with the Junos Space Network Management Platform. Then you need to download the schema from the Juniper Schema Repository. For complete information about managing DMI schema , see the "DMI Schema Management Overview" on page 1526 topic (in the Junos Space Network Management Platform Workspaces User Guide).
67
RELATED DOCUMENTATION
Device Management in Junos Space Platform | 78
Backing Up the Junos Space Platform Database
You must back up the Junos Space database regularly so that you are able to roll back the system data to a previously known point. You can create a backup schedule on the Database Backup and Restore page in the Administration workspace (Network Management Platform > Administration > Database Backup and Restore). You can store the backup file on the local file system of the Junos Space appliance, or on a remote server by using the Secure Copy Protocol (SCP).
NOTE: We recommend that you back up files on a remote server because this ensures that the backup files are available even if an error occurs on the appliance. In addition, if you back up files remotely instead of locally, you ensure optimal use of the disk space on the Junos Space appliance.
To perform remote backups, you must set up a remote server that can be accessed through the SCP and that has its IP address and credentials available. We recommend that you have a separate partition on this server to store Junos Space backups and that you provide the full path of this partition in the Junos Space user interface when you set up the backup schedule. You can also specify the start date and time for the first backup, the recurrence interval required (hourly, daily, weekly, monthly, or yearly), and the date and time of the last backup (if required). In most cases, we recommend that you back up the database daily. You can customize the backup frequency based on the needs of your organization and the amount of change that occurs in the network. In addition, you can schedule backups to run automatically when the system usage is low. Creating a backup schedule ensures that database backups occur at the scheduled time and at the scheduled recurrence intervals. You can also perform database backups on demand from the Database Backup and Restore page, in the Administration workspace (Network Management Platform > Administration > Database Backup and Restore), by clearing the check boxes that control the time of occurrence and recurrence intervals.
Whether scheduled or performed on demand, each successful backup generates an entry that is available on the Database Backup and Restore page. You can select the database backup entry and select the Restore From Remote File action to restore the system data to the selected backup.
68
NOTE: Performing a database restore action causes a downtime in your Junos Space fabric, which goes into Maintenance mode to restore the database from the chosen backup and then waits for the application servers to be restarted.
For complete information about performing backup and restore operations for the Junos Space Network Management Platform, see the "Backing Up and Restoring the Database Overview" on page 1298 and "Backing Up the Junos Space Network Management Platform Database" on page 1301 topics (in the Junos Space Network Management Platform Workspaces User Guide).
RELATED DOCUMENTATION Installing and Upgrading Junos Space Software Overview | 61 Junos Space Applications Supported on the Junos Space Platform | 65
Configuring User Access Controls Overview
IN THIS SECTION Authentication and Authorization Mode | 70 CertificateBased and Certificate ParameterBased Authentication | 72 User Roles | 72 Remote Profiles | 73 Domains | 74 User Accounts | 74 Device Partitions | 75
Junos Space Network Management Platform provides a robust user access control mechanism system that you use to enforce appropriate access policies on the Junos Space system through your Junos Space administrators. In Junos Space, administrators can serve different functional roles. A CLI administrator installs and configures Junos Space appliances. A Maintenance-mode administrator performs system-level tasks, such as troubleshooting and database restoration operations. After the appliances are installed and
69
configured, you can create users and assign roles that allow these users to access the Junos Space Platform workspaces and manage the applications, users, devices, services, customers, and so forth.
Table 3 shows the Junos Space administrators and the tasks that can be performed.
Table 3: Junos Space Administrators
Junos Space Administrator Function
Description
Tasks
CLI administrator
An administrator responsible for setting up and managing system settings for Junos Space appliances from the serial console
· Install and configure basic settings for Junos Space appliances.
· Change network and system settings for appliances, for example:
The CLI administrator name is admin.
The CLI administrator password can be changed from the console system settings menu.
· Change the CLI administrator password.
· Modify routing parameters. · Modify DNS server settings. · Change time zone and NTP
server settings.
· Expand the VM drive size (Junos Space Virtual Appliances only).
· Retrieve log files for troubleshooting.
Maintenance-mode administrator
An administrator responsible for performing system-level maintenance on Junos Space Network Management Platform
The Maintenance-mode administrator name is maintenance.
The Maintenance-mode password is configured from the serial console when you first configure a Junos Space appliance.
· Restore Junos Space Network Management Platform to its previous state by using a database backup file.
· Shut down Junos Space nodes by entering Maintenance mode.
· Retrieve log files for troubleshooting.
· Exit Maintenance mode and explicitly start up the Junos Space system.
Junos Space user interface users
A Junos Space user that is assigned one or more predefined roles. Each role assigned to a user provides specific access and management privileges on the objects (applications, devices, users, jobs, services, and customers) available from a workspace in the Junos Space user interface.
For more information about the predefined roles that can be assigned to a Junos Space user, see "Configuring User Access Controls Overview" on page 68.
70
You can configure user access control by:
· Deciding how users will be authenticated and authorized to access Junos Space Platform · Segregating users based on the system functionality they are allowed to access. You can assign a different
set of roles to different users. Junos Space Network Management Platform includes more than 25 predefined user roles and allows you to create custom roles that are based on the needs of your organization. When a user logs in to Junos Space, the workspaces that the user can access and the tasks that they can perform are determined by the roles that have been assigned to that particular user account. · Segregating users based on the domains that they are allowed to access. You can use the Domains feature in Junos Space to assign users and devices to the global domain and create subdomains, and then assign users to one or more of these domains. A domain is a logical grouping of objects, which can include devices, templates, users, and so on. When a user logs in to Junos Space, the set of objects that they are allowed to see is based on the domains to which that user account has been assigned. You can use multiple domains to separate large, geographically distant systems into smaller, more manageable sections and control administrative access to individual systems. You can assign domain administrators or users to manage devices and objects that are assigned to their domains. You can design the domain hierarchy in such a way that a user assigned to one domain need not necessarily have access to objects in another domain. You can even restrict users assigned to a domain from viewing objects that are in the parent domain (in Junos Space Release 13.3, from viewing the objects in the global domain). For example, a small organization might have only one domain (the global domain) for their entire network, whereas a large, international organization might have several subdomains within the global domain to represent each of its regional office networks across the world.
The following sections describe how to configure a user access control mechanism:
Authentication and Authorization Mode
The first decision to be made is regarding the mode of authentication and authorization that you want. The default mode in Junos Space is local authentication and authorization, which means that you must create user accounts in the Junos Space database with a valid password and assign a set of roles assigned to those accounts. User sessions are authenticated based on this password, and the set of roles assigned to the user account determine the set of tasks the user can perform.
If your organization relies on a set of centralized authentication, authorization, and accounting (AAA) servers, you can configure Junos Space to work with these servers by navigating to the Authentication Servers page in the Administration workspace (Network Management Platform > Administration).
71
NOTE: · You must have Super Administrator or System Administrator privileges to configure Junos
Space to work with these servers.
· You need to know the IP addresses, port numbers, and shared secrets of the remote AAA servers for configuring Junos Space to access them. We recommend that you use the Connection button to test the connection between Junos Space and the AAA server as soon as you add the server in Junos Space. This immediately lets you know whether there is any problem with the configured IP address, port, or credentials.
· You can configure an ordered list of AAA servers. Junos Space contacts them in the order you configured; the second server is contacted only if the first one is unreachable, and so on.
· You can configure RADIUS or TACACS+ servers over Password Authentication Protocol (PAP) or Challenge Handshake Authentication Protocol (CHAP). You are allowed to have a mix of RADIUS and TACACS+ servers in the ordered list of AAA servers that Junos Space maintains.
· There are two modes of remote authentication and authorization: remote-only and remote-local. · remote-only--Authentication and authorization are performed by a set of remote AAA servers (RADIUS or TACACS+).
· remote-local--In this case, when a user is not configured on the remote authentication servers, when the servers are unreachable, or when the remote servers deny the user access, then the local password is used if such a local user exists in the Junos Space database.
If you are using remote-only mode, you do not have to create any local user accounts in Junos Space. Instead, you must create user accounts in the AAA servers that you use and associate a remote profile name to each user account. A remote profile is a collection of roles that define the set of functions that a user is allowed to perform in Junos Space. You create the remote profiles in Junos Space. For more information about remote profiles, see "Remote Profiles" on page 73. Remote profile names can be configured as a vendor-specific attribute (VSA) in RADIUS and as an attribute-value pair (AVP) in TACACS+. When an AAA server successfully authenticates a user session, the remote profile name is included in the response message that is sent back to Junos Space. Junos Space looks up the remote profile based on this remote profile name and determines the set of functions that the user is allowed to perform.
Even in the case of remote-only mode, you might want to create local user accounts in Junos Space in either of the following cases:
· You want to ensure that a user is allowed to log in to Junos Space even if all the AAA servers are down. In this case, if a local user account exists in the Junos Space database, the user session is authenticated and authorized based on the local data. You might choose to do this for a few important user accounts for whom you want to ensure access even in this scenario.
· You want to use device partitions to partition a device into subgroups and assign these subobjects to different users. You use device partitions to share the physical interfaces, logical interfaces, and physical
72
inventory elements across multiple subdomains. Device partitions are supported only on M Series and MX Series routers. For more information, see the "Creating Device Partitions" on page 421 topic in the Junos Space Network Management Platform Workspaces User Guide.
For more information about user authentication, see the "Junos Space Authentication Modes Overview" on page 1450 topic (in the Junos Space Network Management Platform Workspaces User Guide).
CertificateBased and Certificate ParameterBased Authentication
Junos Space Network Management Platform supports certificatebased and certificate parameterbased authentication for a user. Starting from Release 15.2R1, you can also authenticate users in certificate parameterbased authentication mode. With certificatebased and certificate parameterbased authentication, instead of authenticating a user based on the user's credentials, you can authenticate a user based on the user's certificate and certificate parameters. These authentication modes are considered more secure than password-based authentication. With certificate parameterbased authentication, you can define a maximum of four parameters that are authenticated during the log in process. Certificatebased and certificate parameterbased authentication over an SSL connection can be used to authenticate and authorize sessions among various servers and users. These certificates can be stored on a smart card, a USB drive, or a computer's hard drive. The users typically swipe their smart card to log in to the system without entering their username and password.
For more information about certificatebased and certificate parameterbased authentication, see the "Certificate Management Overview" on page 1418 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
User Roles
When configuring Junos Space, you must decide how you want to segregate users based on the system functionality that users are allowed to access. You do this by assigning a different set of roles to different users. A role defines a collection of workspaces that a Junos Space user is allowed to access and a set of actions that the user is allowed to perform within each workspace. To evaluate the predefined user roles that the Junos Space Network Management Platform supports, navigate to the Roles page (Network Management Platform > Role Based Access Control > Roles). In addition, every Junos Space application that is installed on the Junos Space Network Management Platform has its own predefined user roles. The Roles page lists all existing Junos Space application roles, their descriptions, and the tasks that are included in each role.
If the default user roles do not meet your needs, you can configure custom roles by navigating to the Create Role page (Network Management Platform > Role Based Access Control > Roles > Create Role).
73
To create a role, you select the workspaces that a user with this role is allowed to access, and for each workspace, choose the set of tasks that the user can perform from that workspace.
NOTE: You might need to go through several iterations of creating user roles to arrive at the optimal set of user roles that your organization needs.
After the user roles are defined, they can be assigned to various user accounts (in the case of local user accounts created in Junos Space) or assigned to remote profiles to be used for remote authorization. For more information about configuring user roles, see the "Role-Based Access Control Overview" on page 995 topic (in the Junos Space Network Management Platform Workspaces User Guide).
Remote Profiles
Remote profiles are used in the case of remote authorization. A remote profile is a collection of roles defining the set of functions that a user is allowed to perform in Junos Space. There are no remote profiles created by default, and you need to create them by navigating to the Create Remote Profile page (Network Management Platform > Role Based Access Control > Remote Profiles > Create Remote Profile). When creating a remote profile, you need to select one or more roles that belong to it. Then you can configure the name of the remote profile for one or more user accounts in the remote AAA servers. When an AAA server successfully authenticates a user session, the AAA server includes the configured remote profile name for that user in the response message that comes back to Junos Space. Junos Space looks up the remote profile based on this name and determines the set of roles for the user. Junos Space then uses this information to control the set of workspaces the user can access and the tasks the user is allowed to perform.
NOTE: If you decide to use local authorization along with remote authentication, you do not need to configure any remote profiles. In this case, you must create local user accounts and assign roles to these user accounts. The configured AAA servers perform authentication, and for each authenticated session, Junos Space performs the authorization based on the roles configured locally for the user account in the database.
For more information about creating remote profiles, see the "Creating a Remote Profile" on page 1098 topic (in the Junos Space Network Management Platform Workspaces User Guide).
74
Domains
You can add, modify, or delete a domain from the Domains page (Role Based Access Control > Domains). This page is accessible only when you are logged in to the global domain, which means that you can add, modify, or delete a domain only from the global domain. By default, any domain you create is added under the global domain. When you add a domain, you can choose to allow users in this domain to have read-only access to the parent domain. If you choose to do so, then all users in the subdomain can view objects of the parent domain in read-only mode.
NOTE: Only two levels of hierarchy are supported: the global domain and any other domains that you might add under the global domain.
For more information about managing domains, see the "Domains Overview" on page 1077 topic (in the Junos Space Network Management Platform Workspaces User Guide).
User Accounts
You need to create user accounts in Junos Space in the following cases: · To perform local authentication and authorization--You create user accounts in Junos Space. Each user
account must contain a valid password and a set of user roles. To create user accounts, navigate to the Create User page (Network Management Platform > Role Based Access Control> User Accounts > Create User). · To perform remote authentication and local authorization--You create a user account for each user of the system and ensure that a set of roles is assigned to each user account. It is not mandatory to enter a password for the user accounts because authentication is performed remotely. · To perform remote authentication and authorization and allow certain users to be able to access Junos Space even if all AAA servers are down or are not reachable from Junos Space--You create local user accounts for these users with a valid password. The system forces you to configure at least one role for these users. However, authorization is performed based on the remote profile name that the AAA server provides. · To perform remote authentication and authorization but also override remote authentication failures for specified users and allow them to access Junos Space-- A typical scenario would be when you need to create a new Junos Space user but do not have immediate access to configure the user on the remote
75
AAA servers. You must create local user accounts for such users with a valid password and a valid set of roles. · To perform remote authentication and authorization but also segregate devices among users based on domains--Because domains must be assigned to user objects in Junos Space, you must create remote profiles in Junos Space and assign roles and domains to those profiles.
NOTE: If you decide to use local authorization along with remote authentication, you do not need to configure any remote profiles. In this case, you must create local user accounts and assign roles to these user accounts. The configured AAA servers perform authentication, and for each authenticated session, Junos Space performs the authorization based on the roles configured locally for the user account in the database.
NOTE: Junos Space enforces certain rules for valid passwords. You configure these rules as part of the Network Management Platform settings from the Applications page (Network Management Platform > Administration > Applications). Right-click the application and select Modify Application Settings. Then select Password on the left side of the window. On the subsequent page, you can view and modify the current settings.
For more information about creating user accounts, see the "Creating Users in Junos Space Network Management Platform" on page 1035 topic (in the Junos Space Network Management Platform Workspaces User Guide).
Device Partitions
You can partition a device from the Devices page (Network Management Platform > Devices > Device Management). You can partition a device into subgroups and then assign these subobjects to different users by assigning the partitions to different domains. Only one partition of a device can be assigned to a domain.
NOTE: Device partitions are supported only on M Series and MX Series routers.
For more information about device partitions, see the "Creating Device Partitions" on page 421 topic (in the Junos Space Network Management Platform Workspaces User Guide).
76
Release History Table Release
15.2R1
Description
Starting from Release 15.2R1, you can also authenticate users in certificate parameterbased authentication mode.
RELATED DOCUMENTATION
Installing and Upgrading Junos Space Software Overview | 61 Backing Up the Junos Space Platform Database | 67
3 CHAPTER
Junos Space Network Management
Device Management in Junos Space Platform | 78 Device Configuration Management in Junos Space Platform | 82
78
Device Management in Junos Space Platform
IN THIS SECTION
Discovering Devices | 79 Authenticating Devices | 80 Viewing the Device Inventory | 81 Upgrading Device Images | 81
When using Junos Space to manage your network, you must first discover the devices in your network through a device discovery profile, add these devices to the Junos Space Platform database, and allow the devices to be managed by Junos Space Platform. When devices are successfully discovered and managed by Junos Space Platform, the following actions occur: · A dedicated Device Management Interface (DMI) session is established between Junos Space and each
device. This DMI session typically rides on top of an SSHv2 connection with the device. For devices running the export version of Junos OS (ww Junos OS devices), DMI uses a Telnet connection through the wwadapter. The DMI session is maintained till the device is deleted from Junos Space, which means that the session is reestablished in case of transient network problems, device reboots, Junos Space restarts, and so forth. · When the network itself is the system of record (NSOR), Junos Space imports the complete configuration and inventory of the device into its own database. To keep device information current, Junos Space listens to system log events raised by the device that indicate device configuration or inventory changes, and Junos Space automatically resynchronizes its database with the latest information from the device. When the Junos Space Network Management Platform is the system of record (SSOR), Junos Space reflects the changes on the device, but a Junos Space user with appropriate user privileges must resolve out-of-band changes. · By default, Junos Space adds itself as an SNMP trap destination by automatically inserting the appropriate SNMP configuration on the device during device discovery; however, you can disable this behavior from the Network Management Platform > Administration > Applications Network Management Platform > Modify Application Settings page. · Junos Space uses SNMP polling to collect key performance indicators (KPIs) from the devices. To enable SNMP polling on managed devices requires that the Network Monitoring feature be turned on.
NOTE: By default, Junos Space Network Monitoring is turned on for all devices.
79
NOTE: Starting from Release 16.1R1, you can use a NAT server to discover and manage devices that are outside your Junos Space network and which cannot reach Junos Space Platform. When you add a NAT configuration on the Administration > Fabric > NAT Configuration page and forwarding rules on the NAT server, the IP addresses translated through the NAT server are added to the outbound ssh stanza of the external devices.
The following sections list the device management capabilities of Junos Space Platform:
Discovering Devices
Before you can discover devices into Junos Space, ensure the following:
· You know the key details about the devices to discover. You provide this information as input to discover devices:
· Device detailsIP address or hostname of the device or subnet to scan · CredentialsUser ID and password of a user account that has appropriate user privileges on the device · SNMP CredentialsCommunity string with read-only access if you are using SNMPv2c or valid SNMPv3
credentials. SNMP credentials are not required if you do not plan to use Junos Space to monitor faults and performance of managed devices.
· The IP address of the device can be reached from your Junos Space server. · SSHv2 is enabled on the device (set system services ssh protocol protocol-version v2) and any firewalls
along the way allow Junos Space to connect to the SSH port (default TCP/22) on the device. To discover devices running the export version of Junos OS, the wwadapter must be installed on Junos Space and Telnet must be enabled on the device and reachable from Junos Space. · SNMP port (UDP/161) on the device is accessible from Junos Space, which allows Junos Space to perform SNMP polling on the device to collect KPI data for performance monitoring. · SNMP trap port (UDP/162) on Junos Space is accessible from the device, which allows the device to send SNMP traps to Junos Space for fault management. Starting from Release 16.1R1, you can create a device discovery profile (in the Devices workspace) to set preferences for discovering devices. After verifying the prerequisites, you create a device discovery profile from the Network Management Platform > Devices > Device Discovery Profiles page. The device discovery profile contains the preferences to discover devices, such as, device targets, probes, authentication details, SSH credentials, and a schedule at which the profile should be run to discover devices. You can also manually run the device discovery profile from the Network Management Platform > Devices > Device Discovery Profiles page. The time required to complete the discovery process depends on multiple factors
80 such as the number of devices you are discovering, the size of configuration and inventory data on the devices, the network bandwidth available between Junos Space and the devices, and so forth. After your devices are successfully discovered in Junos Space, you can view the devices from the Network Management Platform > Devices > Device Management page. The Connection Status for the discovered devices should display "Up" and the managed status should be "In Sync" as shown in Figure 4, which indicates that the DMI session between Junos Space and the device is up and that the configuration and inventory data in Junos Space is in sync with the data on the device. Figure 4: Device Management Page
For complete information about discovering and managing devices, see the Devices workspace documentation in the Junos Space Network Management Platform Workspaces User Guide.
Authenticating Devices
Starting from Release 16.1R1, new enhancements to device authentication are introduced. Junos Space Network Management Platform can authenticate a device by using credentials (username and password), 2048 bit or 4096 bit keys (which uses public-key cryptographic principles such as RSA, DSS, ECDSA), or the device's SSH fingerprint. You can choose an authentication mode on the basis of the level of security needed for the managed device. The authentication mode is displayed in the Authentication Status column on the Device Management page. You can also change the authentication mode. You need to ensure the following to use these modes of authentication:
81
· Credentials-BasedDevice login credentials with administrative privileges are configured on the device before the device connects to Junos Space Platform.
· Key-Based (keys generated by Junos Space Platform)By default, a Junos Space installation includes an initial public and private key pair. You can generate a new key pair from the Administration workspace and upload the Junos Space's public key to the devices that are to be discovered from the Devices workspace. Junos Space logs in to these devices through SSH and configures the public key on all the devices. You need not specify a password during device discovery; you need to specify only the username.
· Custom key-basedA private key and an optional passphrase. You can upload the private key to Junos Space Platform and use the passphrase to authenticate the private key. You don't need to upload the private key to devices.
For complete information about device authentication, see the Devices workspace documentation in the Junos Space Network Management Platform Workspaces User Guide.
Viewing the Device Inventory
Junos Space Platform maintains up-to-date inventory details of all managed devices in the database. This includes the complete hardware, software, and license inventory of each device as well as details of all physical and logical interfaces on these devices. You can resynchronize a managed device with the Junos Space Platform database to fetch the current configuration and inventory details.
You can view and export hardware, software, and license inventory details, and the physical and logical interfaces of a device from the Junos Space user interface. You can acknowledge the inventory changes on a device from the Junos Space user interface. For complete information about these tasks, see the Devices workspace documentation in the Junos Space Network Management Platform Workspaces User Guide.
Upgrading Device Images
Junos Space Platform can be a central repository for all device OS images and provide workflows to download and install these images on managed devices. You can upload, stage, and verify the checksum of device images, and deploy device images and Junos Continuity software packages to a device or multiple devices of the same device family simultaneously from the Images and Scripts workspace. For complete information about upgrading device images, see the Images and Scripts workspace documentation in the Junos Space Network Management Platform Workspaces User Guide.
82
Release History Table
Release
Description
16.1R1
Starting from Release 16.1R1, you can use a NAT server to discover and manage devices that are outside your Junos Space network and which cannot reach Junos Space Platform.
16.1R1
Starting from Release 16.1R1, you can create a device discovery profile (in the Devices workspace) to set preferences for discovering devices.
16.1R1
Starting from Release 16.1R1, new enhancements to device authentication are introduced.
RELATED DOCUMENTATION DMI Schema Overview | 66
Device Configuration Management in Junos Space Platform
IN THIS SECTION
Modifying the Device Configuration by Using the Schema-Based Configuration Editor | 83 Modifying the Device Configuration by Using Device Templates | 84 Viewing Configuration Changes | 84 Backing Up and Restoring Device Configuration Files | 85
83
Junos Space Platform maintains an up-to-date database copy of the complete configuration of each managed device. You can view and modify the device configurations from the Junos Space user interface. Because a Junos device configuration is described in terms of an XML schema and Junos Space Platform has access to this schema, Junos Space user interface uses this schema to graphically render the device configuration. With an up-to-date schema, you can view and configure all configuration options as you would modify the configuration from the device CLI.
By default, Junos Space Platform operates in the mode where it considers the network as the system of record (NSOR). In this mode, Junos Space Platform listens to all configuration changes on managed devices and automatically resynchronizes its database copy with the modified device configuration to reflect the changes. You can change this to a mode where Junos Space considers itself as the system of record (SSOR). In this mode, Junos Space Platform does not automatically synchronize its copy of the device configuration with the modified device configuration when it receives information about out-of-band configuration changes made on a managed device. Instead, the device is marked as Device Changed and you can view the changes and decide whether to accept the changes. If you accept the changes, the changes are written into the Junos Space Platform database copy of the device configuration. If you reject the changes, Junos Space Platform removes the configuration from the device. For complete information about NSOR and SSOR modes, see the Devices workspace documentation in the Junos Space Network Management Platform Workspaces User Guide.
The following sections list the device configuration management capabilities of Junos Space Platform:
Modifying the Device Configuration by Using the Schema-Based Configuration Editor
You modify the configuration on a single device by using the Schema-based Configuration Editor. To modify a device configuration on a device, right-click the device listed on the Device Management page (in the Devices workspace) and select Modify Configuration. You can view the following details:
· Current configuration on the device · Tree view of the device's configuration hierarchy. Click and expand this tree to locate the configuration
stanzas of interest. For more information about the configuration options on a device, refer to Junos OS technical documentation. · Options to filter the configuration and search for specific configuration options in the tree · Details of a configuration node when you click the node in the tree · Options to create, edit, delete, and order entries on the list when you navigate within a configuration node
84
· Options to view information about individual parameters (blue information icons), add comments about individual parameters (yellow comment icons), and activate or deactivate a configuration option
· Options to preview, validate, and deploy the configuration to the device For complete information about modifying and deploying the configuration by using the Schema-based Configuration Editor, see the Devices workspace documentation in the Junos Space Network Management Platform Workspaces User Guide.
Modifying the Device Configuration by Using Device Templates
You may need to create a common configuration change and push it to multiple devices. You can use the Device Templates feature in Junos Space Platform to create and deploy changes from the Junos Space user interface. You first create a template definition to restrict the scope of a device template to a specific device family and Junos OS version. You then create a device template by using the template definition. You can also create and deploy a configuration by using Quick templates (without using a template definition). You can validate the templates, view the configuration in multiple formats, and deploy (or schedule the deployment of) the configuration to multiple devices. For complete information about creating and deploying a configuration to devices by using device templates, see the Device Templates workspace documentation in the Junos Space Network Management Platform Workspaces User Guide.
Viewing Configuration Changes
Junos Space Platform tracks all the configuration changes (from the Schema-Based Configuration Editor, Device Templates feature, Junos Space applications, or the device CLI) made on managed devices. You can view the list of configuration changes on the device in multiple formats from the Junos Space user interface. To view the list of configuration changes, right-click the device and select View Configuration Change Log. Each configuration change log entry includes details such as the timestamp of change, user who made the change, the configuration change in XML format, whether the change was made from Junos Space or out-of-band, and also the name of the application or feature that was used to change the configuration. If you have set up Junos Space Platform as the system of record, out-of-band configuration changes on a device modify the managed status of the device to Device Changed. You can view and resolve such out-of-band changes by selecting the device and selecting Resolve Out-of-band Changes. You can view a list of all out-of-band changes made on the device. You can accept or reject the changes.
For complete information about viewing configuration changes, see the Device Templates workspace documentation in the Junos Space Network Management Platform Workspaces User Guide.
85
Backing Up and Restoring Device Configuration Files
Junos Space Platform allows you to maintain multiple versions of device configuration files (running, candidate, and backup configuration of managed devices) in the Junos Space Platform database. You can recover device configuration files in case of a system failure and maintain consistent configuration across multiple devices. You can select and back up the configuration from multiple devices from the Configuration Files workspace. A separate configuration file is created in the database for each managed device. For complete information about backing up and restoring device configuration files, see the Configuration Files workspace documentation in the Junos Space Network Management Platform Workspaces User Guide.
RELATED DOCUMENTATION DMI Schema Overview | 66
86
User Interface Guide
4 CHAPTER
Overview
Junos Space User Interface Overview | 88 Junos Space Home Page Overview | 93
88
Junos Space User Interface Overview
IN THIS SECTION Junos Space Banner | 89 Task Tree | 90 Main Window | 92
The Junos Space UI is designed to look and behave in a way that most users are familiar with. The left tree structure facilitates navigation and the right pane displays information about the workspace or task selected in the left pane. Multiple users can access the UI through Web browsers concurrently. All users have access to the same current information in the same system wide database. Access to tasks and objects is controlled by permissions assigned to each user. The Junos Space UI is common to Junos Space Network Management Platform and Junos Space applications. The information displayed on the Junos Space UI changes according to the application you select. The examples shown here are from the Junos Space Platform UI. Other applications may have design variations. When you log in to Junos Space Platform, the previously configured home page is displayed. The Junos Space Platform Dashboard, which is the default home page, is shown in Figure 5.
89 Figure 5: Junos Space Platform Default Home Page
1--Junos Space Banner 2--Global Search Text Box 3--Domain Switcher
4--Global Action Icons 5--Junos Space Dashboard 6--Task Tree
This display contains three main parts: a task tree on the left, which is always available; a main window on the right, whose content changes as you select items from the task tree; and a banner across the top, which offers the date and time, the domain to which you are logged in, global search, and several icon buttons for frequently used actions. These parts are described in the following sections.
Junos Space Banner
The Junos Space banner, as indicated in Figure 5, displays the date and server time in the active time zone, the domain to which you are logged in, global search, and the global actions icons. This banner is always present. For more information about global search and domain features, see "Using Global Search" on page 172 and the "Domains Overview" on page 1077 topic (in the Junos Space Network Management Platform Workspaces User Guide).
90
NOTE: If you access the Junos Space Platform UI in two tabs of the same browser with two different domains selected and access the same page in both tabs, the information displayed on the page is based on the latest domain selected. To view pages that are accessible only in the Global domain, ensure that you are in the Global domain in the most recent tab in which you are accessing the UI.
Table 4 describes the global action icons on the right side of the banner. Table 4: Global Action Icons
Global Action Icon Description
Enables you to access the Junos Space home page or set the Junos Space home page. Refer to the "Setting and Accessing the Junos Space Home Page" on page 101 for details.
Displays the application Help. To access workspace context-sensitive Help, click the Help icon after navigating to that workspace. See "Accessing Help on Junos Space" on page 105.
Displays the My Jobs dialog box from which you can view the progress and status of your current managed jobs. You can view all your completed, in-progress, canceled, and scheduled jobs in Junos Space Platform. See "Viewing Your Jobs" on page 174 in the Junos Space Network Management Platform Workspaces User Guide.
Displays the Change User Settings dialog box from which you can change user preferences, such as the password. See "Changing Your Password on Junos Space" on page 176.
Logs you out of the system. See "Logging Out of Junos Space" on page 177.
Task Tree
The task tree on the left side of the display is always present and facilitates navigation in the Junos Space Platform UI. As shown in Figure 5, when you first log in, the Application Selector list displays Network Management Platform by default. You can drop this list down to see all the Junos Space applications available on your system. (You can install other applications by using the Applications task group, as described in "Managing Junos Space Applications Overview" on page 1321 in the Junos Space Network Management Platform Workspaces User Guide.) You can collapse the task tree to the left by clicking the double left arrow buttons in its header, and reexpand it by clicking the double right arrow buttons.
91
Below the application name is the word Dashboard, selected by default. It indicates that what you see in the right-hand window is the dashboard for the current application--in this case, Junos Space Platform. The dashboard shows several measures of overall system health.
Below the Dashboard item in the tree is a list of the workspaces available in the current application. This list forms the top level of the task tree. If you select a different application from the Applications list, you see the workspace list change. This topic describes the workspaces for Junos Space Platform; for the workspaces in other applications, see the documentation for those applications.
The workspaces in the Junos Space Platform are described at a high level in Table 5.
Table 5: Workspace Names
Workspace Name Function
Devices
Manage devices, including adding, discovering, importing, and updating them. See "Device Management Overview" on page 188 (in the Junos Space Network Management Platform Workspaces User Guide).
Device Templates
Create configuration definitions and templates used to deploy configuration changes on multiple Juniper Networks devices. See "Device Templates Overview" on page 461 (in the Junos Space Network Management Platform Workspaces User Guide).
CLI Configlets
Easily apply a configuration to a device. Configlets are configuration tools provided by Junos OS. See "CLI Configlets Overview" on page 533 (in the Junos Space Network Management Platform Workspaces User Guide).
Images and Scripts
Deploy, verify, enable, disable, remove, and execute scripts deployed to devices. See "Scripts Overview" on page 672 (in the Junos Space Network Management Platform Workspaces User Guide).
Download a device image from the Juniper Networks Software download site to your local file system, upload it into Junos Space, and deploy it on one or more devices simultaneously. See "Device Images Overview" on page 612 (in the Junos Space Network Management Platform Workspaces User Guide).
Reports
Generate customized reports for managing network resources. See "Reports Overview" on page 767 (in the Junos Space Network Management Platform Workspaces User Guide).
Network Monitoring
Assess the performance of your network, not only at a point in time, but also over a period of time. See "Network Monitoring Workspace Overview" on page 798 (in the Junos Space Network Management Platform Workspaces User Guide).
Configuration Files
See "Managing Configuration Files Overview" on page 937 (in the Junos Space Network Management Platform Workspaces User Guide).
92
Table 5: Workspace Names (continued) Workspace Name Function
Jobs
Monitor the progress of ongoing jobs. See "Jobs Overview" on page 965 (in the Junos Space Network Management Platform Workspaces User Guide).
Role Based Access Control
Add, manage, and delete users, custom roles, domains, and remote profiles. From this workspace, you can also manage user sessions. See "Configuring Users to Manage Objects in Junos Space Overview" on page 1033 (in the Junos Space Network Management Platform Workspaces User Guide).
Audit Logs
View and filter system audit logs, including those for user login and logout, tracking device-management tasks, and displaying services that were provisioned on devices. See "Junos Space Audit Logs Overview" on page 1115 (in the Junos Space Network Management Platform Workspaces User Guide).
Administration
Add network nodes, back up your database, manage licenses and applications, or troubleshoot. See "Junos Space Administrators Overview" on page 1136, "Maintenance Mode Overview" on page 1153, and other topics related to the Administration workspace in the (in the Junos Space Network Management Platform Workspaces User Guide).
You can expand any of these workspaces by clicking the expansion symbol (+) to the left of its name. When you do so, the next level of the task tree for that workspace opens. Some items at this second level may also be expandable subgroups.
You can expand as many workspaces or task groups as you like; previously expanded ones remain open until you collapse them. The design of the task tree enables you to jump from area to area within an application with the minimum number of selections.
Main Window
When you log in to Junos Space Platform, the main window shows the application dashboard by default. If you have set another home page, the main window displays that page. See "Setting and Accessing the Junos Space Home Page" on page 101 for more information.
When you select a workspace name (as opposed to expanding it), the main window changes and displays graphical statistics for that workspace. This display is called Workspace Statistics. It is similar in functionality to the overall system dashboard, but it pertains only to that workspace. See "Workspace Statistics Page Overview" on page 127 for more information.
93
Selecting the name of a task group or task within the workspace causes the main window to display an inventory of the objects managed in tabular format. See "Inventory Landing Page Overview" on page 128 for more information.
RELATED DOCUMENTATION
Inventory Landing Page Overview | 128 Workspace Statistics Page Overview | 127 Viewing the Junos Space Platform Dashboard | 125 Using the Getting Started Assistants on Junos Space | 103 Junos Space Home Page Overview | 93
Junos Space Home Page Overview
When you log in to Junos Space Network Management Platform, the default page displayed is the Junos Space Dashboard page. However, you can set a different page as the home page and on subsequent logins to Junos Space Platform, the configured home page is displayed. This is useful because you can configure the home page to the page that you visit frequently or the page that is related to your role; for example, a device administrator might configure the Devices Dashboard page as the home page.
Table 6 displays the list of pages in Junos Space Network Management Platform that you are allowed to set as the home page.
Table 6: Junos Space Platform Pages that Can Be Set as the Home Page
Workspace
Page
None
Junos Space Dashboard
Devices
· (Devices) Dashboard · Device Management · Device Discovery (Dashboard)
· Device Discovery Profiles
· Unmanaged Devices · Model Devices
· Connection Profiles
· Secure Console · Device Adapter
94
Table 6: Junos Space Platform Pages that Can Be Set as the Home Page (continued)
Workspace
Page
Device Templates CLI Configlets Images and Scripts Reports Network Monitoring
Configuration Files
· (Device Templates) Dashboard · Definitions · Templates
· (CLI Configlets) Dashboard · Configlets · Configuration View · Configuration Filter · Xpath and Regex
· (Images and Scripts) Dashboard · Images · Scripts · Operations · Script Bundles
· (Reports) Dashboard · Report Definitions · Generated Reports
· (Networking Monitoring) Dashboard · Node List
· Resync Nodes · Search · Outages · Dashboard · Events · Alarms · Notifications · Assets · Reports · Charts · Topology · Admin
· SNMPv3 Trap Configuration
· (Configuration Files) Dashboard · Config Files Management
95
Table 6: Junos Space Platform Pages that Can Be Set as the Home Page (continued)
Workspace
Page
Jobs Role Based Access Control
Audit Logs Administration
· (Jobs) Dashboard · Job Management
· (Role Based Access Control) Dashboard · User Accounts · Roles · Domains · Remote Profiles · API Access Profiles · User Sessions
· (Audit Logs) Dashboard · Audit Log
· (Administration) Dashboard · Fabric
· Space Node Settings · SNMP Manager · NAT Configuration
· Database Backup and Restore · Licenses · Applications · Space Troubleshooting
· Log Configuration
· Platform Certificate · CA/CRL Certificates · Authentication Servers · SMTP Servers · Email Listeners · Git Repositories · Audit Log Forwarding · Proxy Server · Tags · DMI Schemas · Hardware Catalog · Purging Policy
96
The Junos Space Platform home page is displayed in the following cases: · When you log in to Junos Space · When you the click the Home icon on the Junos Space banner and select Go to homepage · When you switch domains and if the page that was displayed prior to the domain switch is not accessible
in the new domain
NOTE: If the configured home page is not accessible in the new domain, then the Junos Space Dashboard page is loaded.
NOTE: If an installed Junos Space application supports the Junos Space home page, the Home Page icon is displayed when you access the application; otherwise it is hidden.
For more information about how to set and access the Junos Space home page, refer to "Setting and Accessing the Junos Space Home Page" on page 101.
Release History Table Release
Description
17.1R1
SNMPv3 Trap Configuration
17.1R1
Hardware Catalog
16.1R2
Space Troubleshooting
16.1R2
Log Configuration
16.1R2
Audit Log Forwarding
15.2R1
Git Repositories
RELATED DOCUMENTATION Junos Space User Interface Overview | 88
5 CHAPTER
Working in the Junos Space User Interface
Logging In to Junos Space | 99 Setting and Accessing the Junos Space Home Page | 101 Using the Getting Started Assistants on Junos Space | 103 Accessing Help on Junos Space | 105 Understanding GUI Controls | 105 Understanding Tooltips and Messages | 117 Understanding Status Indicators | 122 Viewing the Junos Space Platform Dashboard | 125 Workspace Statistics Page Overview | 127 Inventory Landing Page Overview | 128 Filter Management in Junos Space Platform User Interface | 136 Global Search Overview | 163 Using Global Search | 172
Viewing Your Jobs | 174 Changing Your Password on Junos Space | 176 Logging Out of Junos Space | 177
99
Logging In to Junos Space
You can connect to the Junos® Space UI by using your Web browser. The minimum browser requirements supported by Junos Space Network Management Platform are Internet Explorer version 11, Google Chrome version 22, and Mozilla Firefox version 45. We recommend a screen resolution of 1280 x 1024 pixels or higher.
WARNING: To avoid a Browser Exploit Against SSL/TLS (BEAST) attack, whenever you log in to Junos Space through a browser tab or window, make sure that the tab or window was not previously used to access a non-HTTPS website. Best practice is to close your browser and relaunch it before logging in to Junos Space.
NOTE: · The Network Monitoring Topology feature of Junos Space Platform is not supported on Internet
Explorer. · Before you log in to Junos Space, ensure that the Adobe Flash version 10 or later plug-in is
installed in your browser.
To access and log in to Junos Space: 1. In the address bar of your browser window, enter https://virtual-IP-address/mainui/, where
virtual-IP-address is the previously configured virtual IP (VIP) address that is used for Web access to Junos Space.
2. Press Enter or click Search. The Junos Space login page appears.
3. In the Username text box, enter your username. The default username is super. For information about how to change your username, consult your system administrator.
4. In the Password text box, enter your password. The default password is juniper123. For information about how to change your password, see "Changing Your Password on Junos Space" on page 176.
5. (Optional) If the remote authentication server is configured for Challenge/Response, you are presented with challenge questions. Provide valid responses to the challenge questions to log in successfully. For
100
more information, see "Remote Authentication Overview" on page 1449 in the Junos Space Network Management Platform Workspaces User Guide.
6. Click Log In. The Junos Space home page appears. If the home page is not set, the Junos Space Dashboard page is displayed. If the home page is inaccessible due to role or domain restrictions, a warning message is displayed and the Junos Space Dashboard page is loaded.
NOTE: If you are a user with access to more than one domain, then an informational message about switching domains is displayed in a dialog box. Do one of the following: · To prevent the informational message from appearing again, ensure that the Don't show
again check box is selected and click OK. The Don't show again check box is selected by default. · To allow the informational message to continue appearing, clear the Don't show again check box and click OK.
NOTE: By default, Junos Space Platform authenticates a user's username and password. However, you can also use certificates to authenticate and authorize sessions among various servers and users. To configure certificate-based authentication, see "Certificate Management Overview" on page 1418 (in the Junos Space Network Management Platform Workspaces User Guide).
For more information about the Junos Space Platform UI, see "Junos Space User Interface Overview" on page 88.
RELATED DOCUMENTATION Logging Out of Junos Space | 177
101
Setting and Accessing the Junos Space Home Page
IN THIS SECTION Setting the Junos Space Home Page | 101 Accessing the Junos Space Home Page | 103
By default, the Junos Space Network Management Platform Dashboard page is displayed when you log in to Junos Space. You can, however, set a different page as the home page. You use the Home icon on the Junos Space banner to set and access the Junos Space home page.
NOTE: If you are already on the home page, then the Set as Homepage' and Go to Homepage actions are disabled. When you mouse over the actions, a message is displayed in a tool tip indicating that you are already on the home page.
This topic has the following sections:
Setting the Junos Space Home Page
To set a page as the home page:
NOTE: For more information about which pages can be set as home pages, see "Junos Space Home Page Overview" on page 93.
1. Navigate to the page that you want to set as the Junos Space home page by using the task tree in the left-hand pane of the Junos Space Platform UI.
2. Click the Home icon on the Junos Space banner. A drop-down menu is displayed as shown in Figure 6
102 Figure 6: Home Page Menu
3. Click Set as Homepage. NOTE: The Set as Homepage action is enabled or disabled depending on the page that you are on. If the current page can be set as the home page, the action is enabled; otherwise, the action is disabled and when you mouse over the Set as Homepage action, a message is displayed (in a tooltip) indicating that the page cannot be set as the home page.
A dialog box is displayed indicating the home page is set successfully. 4. Click OK to close the dialog box.
NOTE: When you are not on the home page, click the Home icon on the Junos Space banner and mouse over Go to Homepage to view the name of the current home page.
103
Accessing the Junos Space Home Page
To access the Junos Space home page:
NOTE: The roles that you are assigned and the domains to which you have access determine whether or not you can access the home page. If your role does not allow you access to a specific page or if a page is not accessible in a particular domain, a dialog box is displayed when you click the Go to Homepage action: · If the page from which you try to access the home page is the Junos Space Dashboard page,
a message indicating that you do not have permission to access the home page is displayed. · If the page from which the you try to access the home page is not the Junos Space Dashboard
page, a message indicating that you do not have permission to access the home page is displayed and you can choose whether to load the Junos Space Dashboard page or remain on the current page.
1. Click the Home icon on the Junos Space banner. A drop-down menu is displayed as shown in Figure 6
2. Click Go to Homepage. You are taken to the configured Junos Space home page. On the navigation tree, the node corresponding to the home page is selected and subtasks, if any, are visible.
RELATED DOCUMENTATION Junos Space User Interface Overview | 88
Using the Getting Started Assistants on Junos Space
The Getting Started assistants display steps and help on how to complete common tasks, such as increasing the storage capacity. Getting Started appears in the sidebar when you log in to Junos Space only if the Show Getting Started on Startup check box at the bottom of the sidebar is selected. If the sidebar is not shown, you can display it by selecting the Help icon in the Junos Space banner.
104
The Getting Started topics are context-sensitive per application. Getting Started displays all the steps of a task. From a step in a task, you can jump to that point in the UI and complete the task. Some applications implement the Getting Started assistants; others do not. To use a Getting Started assistant: 1. Select an application from the Applications list above the task tree.
2. In the sidebar, expand Getting Started. A main Getting Started topic link appears on the sidebar. If the sidebar is not displayed, select the Help ( ) icon at the right side of the Junos Space header. The sidebar appears.
3. Select a main topic. For example, if you are in the Network Management Platform UI, click the Increase Space Capacity link. A list of required steps appears in the sidebar. Each step contains a task link and a link to Help.
4. Perform the required task by clicking the task link. You move to a point in the UI from where you can complete the task. The assistant remains visible on the sidebar to aid navigation to subsequent tasks.
5. Access help for a specific step by clicking the Help icon next to that step.
To close the Getting Started sidebar, click the double-arrow button on its top-right corner.
RELATED DOCUMENTATION Accessing Help on Junos Space | 105
105
Accessing Help on Junos Space
Junos Space provides a Help system that is context-sensitive per workspace. The Help system provides information about each element in the system, including workspaces, dashboards, tasks, inventory pages, and actions. Help topics appear as links on the sidebar. To access online Help: 1. Click the workspace with which you want to work. 2. Click the Help icon at the right side of the Junos Space header.
The help icon is represented as . The sidebar appears, if it is not already displayed, with the Help section open listing specific topics for that workspace and tasks. 3. Click a topic link to view its contents. The Help topic appears in a separate window. 4. Click the icon at the top right of the sidebar to hide it. For more information about the Junos Space Platform UI, see the "Junos Space User Interface Overview" on page 88 topic.
RELATED DOCUMENTATION Using the Getting Started Assistants on Junos Space | 103
Understanding GUI Controls
IN THIS SECTION Check Box | 106 Date Picker | 109 Drop-down List | 110
106
Option Button | 111 Search Field | 111 Spin Box | 112 Slider | 112 Text Box | 113 Tree View | 115 Scrolling Controls | 116 Sizing Controls | 117
The following sections describe the various controls that can appear on the Junos Space UI:
Check Box
You can use check boxes to select or deselect an option. For example, to ensure that there is at least one uppercase character when a user creates or modifies a password, an administrator can select the At least one uppercase character check box (as shown in Figure 7) on the Administration > Applications > Network Management Platform > Modify Application Settings (from the Actions menu) > Password > Advanced Settings page. On a page, you can select one or more check boxes. Figure 7: Check Box
Selecting All Objects on a Single Page With Junos Space, you can select all objects on an inventory landing page by selecting the check box that is displayed adjacent to the first column header. For example, you can select the check box (see Figure 8) adjacent to the Name column on the Device Management inventory landing page to select all devices displayed on this page.
107 Figure 8: Check Box Adjacent to the First Column Header
Selecting All Objects Across Multiple Pages For certain tasks, you can select an appropriate check box in the Junos Space UI to select all objects spread across multiple pages. With this feature, you do not need to select each object individually on multiple pages. For example, when you want to assign all devices to a domain, you can select the Select all items across all pages check box on the Domains page at the time of domain creation, which selects all devices (indicated by the check mark next to the devices as shown in Figure 9). However, after all the devices are selected, you can deselect one or more devices, if needed.
108 Figure 9: Check Box to Select All Objects Across Multiple Pages: Domains Page
Though some pages support selection of all objects across multiple pages, you may not be able to deselect any of these objects after the selection. For example, when you select the Select All across Pages check box when backing up the configuration files (on the Configuration Files > Config Files Management > Backup Configuration Files page), you cannot deselect any of the selected devices (see Figure 10). The configuration of all devices are backed up.
109 Figure 10: Check Box to Select All Objects Across Multiple Pages: Backup Configuration Files Page
NOTE: Only certain pages in the Junos Space UI support the selection of objects across multiple pages.
Date Picker
Using a date picker, you can select a date by either typing it into a text box or by using a drop-down Calendar control. In Figure 11, you can specify a date by typing the date in the text box or from the Calendar control by clicking the icon next to the text box. To select today's date, click Today on the Calendar control.
110 Figure 11: Date Picker
Drop-down List
With a drop-down list, you can select from a list of values (see Figure 12). Clicking the arrow next to the list box opens the list. Junos Space also provides an editable drop-down list, which is a combination of a drop-down list and an editable text box (see Figure 13). You can enter the first few letters in the text box to narrow down the list of values. Figure 12: Drop-down List
Figure 13: Editable Drop-down List
111
Option Button
Using an option button, you can make a single choice among a set of mutually exclusive, related options. Only one button at a time can be selected from the available options. The default option is selected (see Figure 14).
Figure 14: Option Button
Search Field
Use the Search text field on the right of the inventory page banner to look for specific objects to display on the inventory landing page. To find objects (within columns) on this page, enter the search criteria in the Search field (see Figure 15). This field supports the same search syntax as the global search field (see "Using Global Search" on page 172). For example, enter "os:junos AND down" to find devices that are down on the Device Management inventory landing page. This feature is more powerful than the column filter because it allows you to use Boolean expressions. Clicking the magnifying glass at the right of the search field displays a list of objects matching the search criteria. If you press the down arrow after entering the search criteria in the search field , a list of search options is displayed. When you select a search option from the list, only those inventory items that are specific to that search option are displayed on the page. You can create tags to categorize objects. For more information about tagging objects to select similar objects, see "Tagging an Object" on page 1518 (in the Junos Space Network Management Platform Workspaces User Guide). To display all the inventory objects on the page again, clear the contents of the Search field and press Enter.
NOTE: You must append "*" if you want to search using partial keywords. Otherwise, the search might return zero matches.
112 Figure 15: Search Field
To search for specific objects across the entire Junos Space Network Management Platform, use the Search field on the banner at the top of the inventory page (see Figure 16). For more information about global search, see "Using Global Search" on page 172. Figure 16: Global Search
Spin Box
A spin box is a text box with up and down arrows that you can click to change the value incrementally (see Figure 17). You can also type a valid value in the box. Figure 17: Spin Box
Slider
Using a slider, you can select a value from a continuos range of values by sliding the indicator along a bar. The indicator shows the current value. In Figure 18, the automatic logout of a user due to inactivity is set to 90 minutes by using the slider control.
113
Figure 18: Slider
Text Box
A text box enables you to: · Enter or edit text (for example, the Login ID or Password fields in Figure 19). · Upload files from your computer to the Junos Space server, such as the Image File or X509 Cert File
fields in Figure 19. · Choose a value from a drop-down list of values when you enter the first few letters in the text box (see
Figure 20). Use the label associated with a text box to identify the purpose of a text box. You can gain additional information about some of the text boxes from the information icons that are associated with the text boxes ( ). For example, the Temporary Password and Password text boxes have information icons associated with them as shown in Figure 19. You must mouse over the information icon for Junos Space to display information about the text box with which the information icon is associated. For example, when you mouse over the information icon associated with the Password text box, the conditions that must be met when you enter a password are displayed.
NOTE: Not all text boxes in Junos Space have information icons associated with them.
114 Figure 19: Text Box
Figure 20: Text Box Displaying a Drop-down List
Identifying the Range of Values Usually, if there is a default value associated with a text box, then it is displayed by default on the text box. However, to determine the range of values that is accepted in a text box, perform the following steps:
115 · To determine the minimum value, enter a negative value (for example, 1) in the text box. An error icon
appears next to the text box. Mouse over this icon to see the minimum value that is accepted in this text box (see Figure 21). Figure 21: Minimum Value in a Text Box
· To determine the maximum value, enter a very high value in the text box. An error icon appears next to the text box. Mouse over this icon to see the maximum value that is accepted in this text box (see Figure 22).
Figure 22: Maximum Value in a Text Box
Tree View
Using the tree view, you can view and interact with a collection of Junos Space objects that are arranged hierarchically. You can select only one object from the objects that are displayed in tree view. You can expand and collapse an object by clicking the plus and minus expander buttons respectively (see Figure 23).
116 Figure 23: Tree View
Scrolling Controls
Junos Space Network Management Platform provides horizontal and vertical scroll bars on inventory landing pages, which you can use to scroll the contents of the page by clicking one of the scroll arrows, clicking an area in the scroll bar, or dragging the scroll bar. For example, to view data that is at the bottom of the Junos Space page, you can drag the vertical scroll bar toward the bottom of the page. Figure 24 shows the horizontal scroll bar that enables you to scroll horizontally through the Junos Space page allowing you to view data that is on the left or right. Figure 24: Horizontal Scroll Bar
117
Sizing Controls
You can use the minimize, maximize, and close buttons of your browser window to hide the Junos Space application window, enlarge the window to fill the whole screen, and close the window, respectively.
NOTE: Minimize the window when you want the Junos Space application window to be temporarily out of the way instead of closing it. Close the window when you have finished working on it and there is no need for you to return.
To resize a window (make it smaller or bigger), point to any of the window's borders or corners. When the mouse pointer changes to a double-headed arrow, drag the border or corner to shrink or enlarge the window. You cannot resize a window that is already maximized. Figure 25 displays the minimize, maximize, and close buttons. Figure 25: Minimize, Maximise, and Close Buttons
RELATED DOCUMENTATION Junos Space User Interface Overview | 88
Understanding Tooltips and Messages
IN THIS SECTION Error Messages | 118 Confirmation Messages | 119 Information Messages | 119 Standard Icons in Messages | 120
118
Junos Space Network Management Platform displays tooltips, which are small pop-up windows that provide information about an unlabeled control, such as the information that is displayed automatically when you mouse over an icon on a toolbar (see Figure 26). Figure 26: Tooltip
Also, Junos Space sometimes displays pop-up messages to report conditions that require your attention. Depending on the severity level, the icons that are displayed in a message differ. To gain an understanding of the various types of messages and the icons that are displayed in the Junos Space UI, see the following sections:
Error Messages
Junos Space displays an error message to alert you about a problem that has already occurred along with a recommendation, if any, to resolve the problem. For example, in Figure 27, the error message alerts you that the Junos Space UI may be out of sync with the Junos Space server and that you need to refresh the browser window (which is likely to resolve the issue). Figure 27: Error Message Dialog Box
119
Confirmation Messages
Junos Space often displays a confirmation dialog box, which is a modal dialog box that asks you whether you want to proceed with the action that you initiated from Junos Space Network Management Platform. A confirmation dialog box typically consists of a question and two or more responses. You have to select a response and based on your choice Junos Space completes or cancels the task that you initiated. For example, when you initiate a database backup operation, you are asked to confirm whether you want to perform the backup operation because this operation may have an impact on Junos Space performance. In Figure 28, clicking OK initiates the database backup operation, whereas clicking Cancel closes the current page. Figure 28: Confirmation Dialog Box
Information Messages
An information message communicates some sort of information to you pertaining to your current activity and appears in a modal dialog box. For example, when you choose to proceed with the database backup operation, Junos Space displays an information message containing a job ID, which you can click to know whether the backup operation is a success or a failure (see Figure 29).
120 Figure 29: Information Dialog Box
Standard Icons in Messages
Icons that are associated with various messages help you assess the situation at a glance and decide what action to take. If the severity level of the message is high, which is usually indicated by the Error icon, revisit the past action and make suitable corrections (for example, enter missing information in a mandatory field) before you proceed to the next step.
NOTE: Not all messages that are displayed in Junos Space are associated with icons.
Table 7: Standard Junos Space Message Icons
Icon
Description
Message with the Icon
Error icon--Indicates that an error or problem has occurred, which should be resolved before you proceed
For example, the following error message is displayed if you try to create a tag without a tag name or a user without a username. Providing appropriate information
in all fields where the this type of error.
icon appears usually resolves
Figure 30: Message with the Error Icon
121
Table 7: Standard Junos Space Message Icons (continued)
Icon
Description
Message with the Icon
·
Warning icon--Indicates a condition that For example, the following error is displayed when you
might cause a problem in the future
try to delete an SMTP server that is active:
·
These icons come in two different sizes:
larger and smaller. A smaller warning icon Figure 31: Message with the Larger Warning Icon
indicates that you might have to think twice
before you proceed with the action. A
larger warning icon indicates that the action
you initiated cannot be performed because
of various constraints.
The following message is a warning that you may not be able to retrieve the tags if you confirm the deletion.
Figure 32: Message with the Smaller Warning Icon
Information icon--Presents you with useful The following message indicates that a backup
information.
operation is triggered:
Figure 33: Message with the Information Icon
122
Table 7: Standard Junos Space Message Icons (continued)
Icon
Description
Message with the Icon
Question mark icon--Normal confirmation message to which you typically respond with a "Yes" or "No"
Depending on your response to the following message, Junos Space performs a suitable action.
Figure 34: Message with the Question Mark Icon
Check mark icon--Indicates that the action The following message indicates that a private tag with
you initiated is a success
the name "test" is successfully created:
Figure 35: Message with the Check Mark Icon
RELATED DOCUMENTATION Junos Space User Interface Overview | 88
Understanding Status Indicators
IN THIS SECTION Progress Bars | 123 Status Indicator Icons | 123
123
Junos Space Network Management Platform status indicators enable you to monitor the status of an action that you initiated from Junos Space. The following status indicators in Junos Space are the most common:
Progress Bars
The progress bar shows you the progress of an action that you initiated from Junos Space. In Junos Space, progress bars are typically displayed when you export files from Junos Space to your computer, add an application to Junos Space, and so on. For example, when you export a configuration file, Junos Space displays the progress of the export action in a dialog box (see Figure 36). When the action is completed, the progress bar displays 100%. Figure 36: Progress Bar
Status Indicator Icons
Status indicator icons on an inventory landing page indicate the status of a Junos Space object, such as whether a user is in the enabled or disabled state. Status indicators are not displayed for all Junos Space objects. Status indicators that are displayed for users are listed in Table 8: Table 8: User Status Indicators
User Status Indicator Description User is in enabled state.
124
Table 8: User Status Indicators (continued) User Status Indicator Description
User is in disabled state. Users in disabled state cannot log in to Junos Space Network Management Platform. For more information about enabling or disabling a user, see "Disabling and Enabling Users" on page 1051 (in the Junos Space Network Management Platform Workspaces User Guide).
Status indicators that are displayed for devices are listed in Table 9:
Table 9: Device Status Indicators
Device Status Indicator
Description
Device is up.
Device is down.
Ensure that the status of the device is up before initiating any action on the device. Actions initiated on devices that are down are likely to fail.
Device is in synchronized state.
Each job has a job status indicator. Table 10 describes these indicators.
Table 10: Job Icon Status Indicators
Job Status Indicator
Description
The job was completed successfully.
The job failed.
The job was canceled by a user.
The job is scheduled.
The job is in progress. You can cancel only those jobs that are in progress from the Actions menu.
125 RELATED DOCUMENTATION
Junos Space User Interface Overview | 88
Viewing the Junos Space Platform Dashboard
When you log in to Junos Space Network Management Platform, the home page is displayed. By default, the home page for Junos Space Platform is the Dashboard page. However, if you previously configured a different page as the home page, then the configured home page is displayed when you log in. The Junos Space Platform dashboard, as shown in Figure 37, displays graphs that provide information about the overall system condition, the fabric load history, the active users history, and the percentage of jobs in different states. The charts are visible to all users and are updated in real time.
NOTE: If you do not have user privileges to view detailed data, you might not be able to view detailed information if you select a gadget.
Figure 37: Junos Space Platform Dashboard Page
To access the Junos Space Dashboard page: 1. On the Junos Space Platform UI, select Dashboard.
The Dashboard page is displayed. 2. (Optional) To view more information related to the overall system condition, click Overall System
Condition or the indicator needle.
126
You are taken to the Fabric page, where you can view detailed information about the nodes in the fabric. For more information, see "Viewing Nodes in the Fabric" on page 1181.
3. (Optional) To view information related to the fabric load, on the Fabric Load History graph: · Mouse over a graph data point to view the average CPU usage percentage. · Click the blue line depicting the CPU usage to view detailed information. You are taken to the Fabric page, where you can view detailed information about the CPU, memory, and disk usage for the nodes in the fabric.
4. (Optional) To view information related to the active users, on the Active Users History graph: · Mouse over a graph data point to view the total number of active users at that point. · Click a data point on the graph to view more information about the active users at that point. You are taken to the User Accounts page, where the active users are displayed. For more information, see "Viewing User Statistics" on page 1068.
5. (Optional) To view information related to the jobs, on the Job Information graph: · Mouse over a segment in the pie chart to view the percentage of jobs with a particular status; for example, cancelled jobs, successful jobs, or failed jobs. · Click a segment of the pie chart to view details of jobs with status corresponding to the segment. You are taken to the Job Management page, where the jobs filtered by the status are displayed. For more information, see "Viewing Jobs" on page 972.
6. (Optional) You can view records about the health and performance of the Junos Space nodes in your Junos Space setup and the processes on these nodes in a system health report. The health and performance data collected from the nodes is displayed in the System Health Report table. For more information, see "Viewing the Administration Statistics" on page 1138.
7. (Optional) You can move any chart displayed on the Dashboard page by clicking inside the title bar and dragging the chart.
8. (Optional) You can resize any chart displayed on the Dashboard page by hovering over an edge and clicking and dragging the edge.
RELATED DOCUMENTATION Junos Space Platform Workspaces Overview | 181 Overall System Condition and Fabric Load History Overview | 1159
127
Workspace Statistics Page Overview
Use the task tree on the left side of the page to navigate application workspaces and perform tasks within a workspace. When you select an application from the Applications list (at the top left of the Junos Space UI), all the workspaces for the selected application are displayed in the task tree. If you know the workspace in which you want to perform an action (task), select the workspace from the task tree on the left side of the page. The right side of the page displays information about the selected workspace and its objects.
Workspace Statistics
When you select the name of a workspace from the task tree, Junos Space Network Management Platform displays high-level statistics representing the status of managed objects in that workspace. The statistics and charts displayed for different workspaces are different. Figure 38 shows the charts displayed on the Devices workspace statistics page. Figure 38: Workspace Statistics Pages
If a chart has more data points than can be viewed clearly simultaneously, a scroll bar appears at the bottom or side of the chart. If you click a bar or pie-chart segment, you navigate to the corresponding inventory page, filtered according to the bar or segment you selected. For example, if you click the MX240 devices bar on the Device Count by Platform bar chart, you navigate to the Devices > Device Management inventory page, which in this
128
case displays all the MX240 devices on the network that are discovered and managed by Junos Space Network Management Platform. You can move the charts and graphs on the page or resize them. You can also print or save the statistics by right-clicking the graphic (bar chart or pie chart) and selecting the appropriate option.
RELATED DOCUMENTATION Junos Space User Interface Overview | 88
Inventory Landing Page Overview
IN THIS SECTION Organizing Your View | 129 Working with Objects on an Inventory Page | 133 Exporting Data | 134
129
In the Junos Space Network Management Platform UI, you navigate to an inventory page by selecting an application, expanding an application workspace, then selecting a management task. For example, to view the Device Management inventory page, select Devices > Device Management. The inventory pages display information related to managed objects for a particular task group or task in tabular format. The fields that are displayed are different for different inventory pages, depending on the task group that you selected. For each managed object, specific data associated with it is stored in the Junos Space Platform database. For example, in the case of devices, device name, interfaces, OS version, platform, IP address, connection, managed status, and so on are stored. Inventory pages enable you to view and manipulate managed objects individually or collectively. Managed objects include devices, logs, users, jobs, clients, software, licenses, and so on. You can organize your view to display only those objects that you want to see, in the way that you want to see them. You can select an object or objects by selecting the check box to the left of each object on the inventory page. You can select one, several, or all objects and perform actions on them using the shortcut menu or the Actions menu. Selecting the check box to the left in the first column of the column header row selects or deselects all items. The objects that you select and on which you perform an action remain selected.
NOTE: The function and implementation of individual inventory pages depends on the Junos Space Platform application design.
Organizing Your View
IN THIS SECTION Paging Controls | 130 Sorted-by Indicator | 130 Show or Hide Columns | 131 Filter Submenus | 132
Before you start working on data that is displayed on various inventory landing pages (ILPs), it would be best to organize your view on the ILP so that Junos Space presents you with only the information that you need. The following sections provide information about how you can organize your view.
130
Paging Controls Figure 39 shows the paging controls that appear at the bottom of the inventory page. You can use these controls to browse the inventory when the inventory is too large to fit on one page. Figure 39: Page Information Bar
The Page box lets you jump to a specific page of the inventory. Type the page number in the Page box and press Enter to jump to that page. The Show box enables you to customize the number of objects displayed per page. Table 11 describes other table controls.
Table 11: Table Paging and Refreshing Controls
Page Control
Operation
Advances to the next page of the table
Returns to the previous page of the table
Displays the last page of the table
Displays the first page of the table
Refreshes the table content
Sorted-by Indicator
The sorted-by indicator is a small arrowhead next to a column name. It displays how the objects are sorted in a column. When you sort a column, the column name is highlighted and the indicator appears.
You can sort inventory data using the Sort Ascending and Sort Descending commands on the column header drop-down menu. Click the down arrow on a table header to view the menu. In Figure 40, the device inventory is sorted by the Name column.
131 Figure 40: Sorting Tables
Some columns do not support sorting. Show or Hide Columns You can show or hide columns on the inventory page by selecting or not selecting the column name on the Columns cascading menu, as shown in Figure 41. All column header drop-down menus have this option. Only the columns that are selected appear in the inventory table.
132 Figure 41: Showing or Hiding Columns in Tables
Filter Submenus For information about filtering options in Junos Space Platform Release 17.2R1 and later, see "Filter Management in Junos Space Platform User Interface" on page 136.
133
Working with Objects on an Inventory Page
IN THIS SECTION Toolbar Icons | 133 Actions Menu and Shortcut Menu | 133
To initiate an action on the objects that are available on an inventory page, you can use: Toolbar Icons Almost all inventory landing pages provide a toolbar containing icons that provide easy access to frequently used tasks. While some icons are common across inventory landing pages such as the Display Quick View icon (which displays a small window summarizing data about the selected object), most icons are specific to an inventory landing page. For example, in Figure 42, the Modify User icon is specific to the User Accounts inventory landing page. Figure 42: Toolbar Icons
Actions Menu and Shortcut Menu You can perform actions on one or more selected items on an inventory page by using the Actions menu, or by right-clicking the items to invoke the shortcut menu. To use the Actions menu, select one or more objects, select an action or subgroup of actions from the Actions menu. (Note that the subgroup has an arrowhead next to its name.) For example, to view the physical interfaces of a device, select that device on the Device Management inventory page, open the Actions menu, expand the Device Inventory subgroup, and select View Physical Inventory. You can also select one or more items on the inventory page, then right-click. The shortcut menu appears and you can select an action or subgroup of actions.
134
NOTE: If you are using Mozilla Firefox earlier versions, the Advanced JavaScript Settings might disable the shortcut menu. To ensure that you can use the shortcut menu: 1. In Mozilla Firefox, select Tools > Options to display the Options dialog box. 2. In the Options dialog box, click the Content tab. 3. Click Advanced to display the Advanced JavaScript Settings dialog box. 4. Select the Disable or replace context menus option. 5. Click OK in the Advanced JavaScript Settings dialog box. 6. Click OK in the Options dialog box. If you are using newer versions of Mozilla Firefox, it may not be necessary to perform the preceding steps. By default, you need not change any of the Firefox settings. But, if you have changed the settings or for some reason the shortcut menus do not appear properly, then you need to perform the following steps in the recent versions: 1. Disable or replace context menus--Deselect this option to prevent webpages from disabling
or changing the Firefox shortcut menu. 2. In about:config(URL): dom.event.contextmenu.enabled, set it to false to block sites. The
default value is true.
Exporting Data
You can export data that is displayed on certain inventory landing pages such as the MD5 Validation Result inventory page (in the Images workspace) as well as export job details pertaining to certain tasks initiated from Junos Space Platform. For example, you can export job details related to device discovery, staging and deployment of device images, and so on.
NOTE: Not all jobs in Junos Space support the export of job details.
135
The data is exported as a comma-separated file (CSV) to your computer, allowing you to process the data offline. For example, you can use this data to identify devices on which staging or deployment of an image failed. To export the data that is displayed on the MD5 Validation Result page as a CSV file: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page displays the list of device images.
2. Select a device image.
3. Select MD5 Validation Result from the Actions menu. The MD5 Validation Result page displays the results of verification tasks.
4. Click Export to CSV from the Actions menu. You are prompted to save the file.
5. Click OK on the File Save dialog box to save the file to your local file system.
6. After you save the file, to return to the MD5 Validation Result page, click the [X] icon on the Exporting Validation Results dialog box to close it.
Navigate to the location where you saved the file and open the file by using an application such as Microsoft Excel. If you are opening this file as an Excel workbook, then filter the data for the Failed status in the Checksum Result column to identify devices in which the images are not staged completely. From the filtered data, see the Device Image Name column to obtain information about the images that are not staged completely. To export the image deployment job details as a CSV file: 1. On the Junos Space Platform UI, select Jobs > Job Management.
2. Double-click the image deployment job whose details you want to export as a CSV file.
3. Click Export as CSV. You are prompted to save the file.
4. Click OK on the File Save dialog box to save the file to your local file system.
5. To return to the Job Management page, click OK on the Exporting Device Image Job dialog box.
136 Use an application such as Microsoft Excel to open the downloaded file from your computer. If you are using Microsoft Excel, you can filter data in the Status column to identify the devices on which the deployment of images failed.
RELATED DOCUMENTATION Junos Space User Interface Overview | 88
Filter Management in Junos Space Platform User Interface
IN THIS SECTION Understanding Filtering Options in Junos Space Platform User Interface | 136 Managing Filtering Options | 149 Error Conditions and Error Messages for Filters | 157
This section contains the following topics:
Understanding Filtering Options in Junos Space Platform User Interface
IN THIS SECTION Overview | 137 Benefits | 138 Pages and Columns that Support Filtering | 138
This topic contains the following sections:
137
Overview
On various Junos Space Platform pages, you can use the Filter menu to show or hide table entries based on the filtering criteria that you specify. Filters enable you to quickly find and evaluate the entries that are relevant to your specific needs.
Many of the columns in Junos Space page tables support filtering. To know whether or not a column supports filtering of data, click the down arrow next to the column name. If the Filter submenu appears, then that column supports filtering of data. The filtering criteria that are available for you depend on the selected column. You can create filters that combine criteria from more than one column.
From Release 17.2R1 onward, Junos Space Platform introduces the following enhancements to filtering options:
· Ability to save, modify, and delete filters · Ability to share saved filters with other users · Ability to mark filters as favorites · Ability to manually enter filter conditions with autocomplete and suggestion support. For a list of pages and columns that support filtering, see "Pages and Columns that Support Filtering" on page 138.
In releases earlier than 17.2R1, Junos Space Platform supports only basic filtering. In those releases, you can specify only one set of filter criteria at a time, and the filter setting is lost when you modify the criteria. From Junos Space Platform Release 17.2R1 onward, you can save multiple filters. You can also mark up to 10 filters as favorites in each of the pages that support enhanced filtering.
The Filter menu that appears when you click the filter icon lists up to 10 filters. The 10 filters that are listed in the Filter menu are arranged in the following order of filter categories: favorite filters, public filters, and private filters. If there are more than 10 filters, those filters are listed under the More Filters submenu.
NOTE: The More Filters submenu is not displayed if you have not saved any filter. However, the More Filters submenu appears even if you have saved only one filter.
If you have Filter Management permissions to create or modify filters, you can also choose to share the saved filters with other users by marking the filters as public.
For more information about creating, saving, modifying, and deleting filters, see "Managing Filtering Options" on page 149.
From Junos Space Platform Release 17.2R1, you can also manually enter filter criteria in the filter text box that appears when you click the Show/ Clear and Hide Filters option from the Filter menu. For more
138
information about manually specifying filter criteria, see "Creating Filters by Manually Entering the Filter Criteria" on page 149. Benefits Filters enable you to quickly find and evaluate the entries that are relevant to your specific needs. Ability to save and share filters enables you to configure multiple filters for a page that can be preserved across sessions and shared with multiple users. Pages and Columns that Support Filtering
IN THIS SECTION Pages and Columns that Support Enhanced Filtering | 139 Pages That Support Basic Filtering | 148
This section contains the following topics:
139
Pages and Columns that Support Enhanced Filtering The following table lists the pages and columns that support enhanced filtering and also the data types for each of the columns:
Page
Column
Data Type
Device Management
Name
String
Device Alias
String
IP Address
Number
Serial Number
String
Connection Status
List
Managed Status
List
Platform
String
OS Version
String
Domain
String
Device Family
String
Configuration State
List
Last Rebooted Time
Date
Vendor
String
Authentication Status
String
Aggregation Device
String
Satellite Devices
String
Device Network
List
140
Page
Column
View Physical Interfaces Physical Interface Name
IP Address
IPv6 Address
MAC Address
Operational Status
Admin Status
Link Level Type
Link Type
Speed
MTU
Description
Domain
View Logical Interfaces Interface Name
IP Address
IPv6 Address
Description
Domain
Device Discovery Profiles Profile Name
Target Type
Target Details
Profile Visibility
Job ID
Data Type String String String String List List String String String String String String String String String String String String List String List Number
141
Page Model Devices Device Adapter
Template Definitions
Templates
Column Name Description Devices Count Name Device Family Version Adapter State Name Domain Description Last Modified By Name Domain Template Type Latest Version Description Last Modified By Deployment Status
Data Type String String Number String String String List String String String String String String List String String String List
142
Page Configlets
Configuration View
Column Name Domain Category Device Family Series Latest Version Git Version Git Branch Execution Type Creation Time Last Updated Time Last Modified By Reference Number Name Domain Title Device Family Series View Type Creation Time Last Updated Time Last Modified By
Data Type String String String List String String String List Date Date String Number String String String List List Date Date String
143
Page Configuration Filter Xpath and Regex
Images
Column Name Domain Device Family Series Name Domain Value Property Type Creation Time Last Updated Time Last Modified By File Name Domain Version Type
Data Type String String List String String String List Date Date String String String String List
144
Page Scripts
Operations Script Bundles
Column Script Name Domain Descriptive Name Type Category Execution Type Format Latest Revision Git Version Git Branch Operation Name Domain Description Creation Time Last Updated Time Script Bundle Name Domain
Data Type String String String List String String List String String String String String String Date Date String String
145
Page
Column
Config Files Management Config File Name
Device Name
Device Alias
Latest ConfigFile Version
Creation Date
Last Updated Date
Job Management
ID
Domain
Name
Percent
State
Job Type
Parameters
Summary
Scheduled Start Time
Actual Start Time
End Time
Owner
Retry Group Id
Previous Retry
Data Type String String String String Date Date Number String String Number List String String String Date Date Date String Number Number
146
Page User Accounts
Roles User Sessions
Column User Name First Name Last Name Email User Type Status GUI/API Access Locked Out Role Title Type Description User Name IP Address Fabric Node Name Session Start Time
Data Type String String String String List List List List String List String String String String Date
147
Page Audit Log
Fabric Audit Log Forwarding
Column ID User Name User IP Domain Application Task Timestamp Result Description Job ID Last Monitored Time Last Boot Time Name Description Server Address Port Protocol Last Updated User Last Updated Time Enabled
Data Type Number String String String String String Date String String Number Date Date String String String Number List String Date List
148
Page
Column
Data Type
Tags
Name
String
Owner
String
Description
String
Access Type
List
Report Definitions
Name
String
Domain
String
Created By
String
Created Time
Date
Description
String
Generated Reports
Name
String
Generated Time
Date
Domain
String
Description
String
Definition Name
String
Generated By
String
Format
String
Job ID
Number
Pages That Support Basic Filtering Junos Space Platform supports basic filtering options on the following pages:
· Role Based Access Control > Domains · Administration > CA/CRL Certificates · Administration > SMTP Servers · Administration > DMI Schemas
149
NOTE: Filtering is supported only for the State and Schema Installed columns.
SEE ALSO Managing Filtering Options | 149 Error Conditions and Error Messages for Filters | 157
Managing Filtering Options
IN THIS SECTION Creating Filters by Manually Entering the Filter Criteria | 149 Creating Filters by Using the Filter Submenu Options | 152 Saving a Filter | 154 Modifying a Filter | 154 Creating a Public Filter | 155 Applying a Filter | 156 Clearing a Filter | 156 Deleting a Filter | 156
From Junos Space Platform 17.2R1 onward, you can save filters, modify the saved filters, and delete the filters. You can also mark the filters as public or favorites or both. The following sections explain the various filter management tasks that you can perform from the Junos Space Platform user interface (UI): Creating Filters by Manually Entering the Filter Criteria From Junos Space Platform Release 17.2R1 onward, you can manually enter the filtering criteria to create the filters that meet your specific requirements.
150
To manually enter filtering criteria: 1. From any of the pages that support Filter Management options, click the Filter icon.
The Filter menu appears.
2. Click Show/ Clear and Hide Filters on the Filter menu. The Filter field appears.
3. Click inside the Filter field. A list showing the names of columns that support filtering and the following two options appears: · An opening parenthesis [ ( ] symbol. The bracket enables you to group conditions. A closing parenthesis [ ) ] symbol appears in the list after you specify a condition if you used an opening parenthesis before specifying the condition. · Not. The Not option enables you to specify conditions based on which you want to filter out entries.
4. From the list, select the columns for which you want to specify the filter conditions and specify the conditions by using any of the operators supported for the specified column. Table 12 lists various operators that you can use for each of the data types supported for filtering. You can specify multiple conditions by using an AND or an OR operator. The Filter field supports autocomplete and provides suggestions for column names, attributes, and operators even as you type inside the field.
NOTE: If the values you enter for any of the parameters contain spaces, enclose such values in single quotation marks. For example, Domain Contains 'test domain'. However, if the single quotation mark is part of the search string, use the backslash escape character (\) before the quotation mark. For example: Domain Contains '\'test domain\''.
Table 12: Data Types and Supported Operators
Data Type
Supported Operators
String (Other than Domain Column)
Starts-with
Ends- with
Contains
=
!=
151
Table 12: Data Types and Supported Operators (continued)
Data Type
Supported Operators
String (Domain Column only)
Contains
Not-contains
Numbers or Date
=
!=
>
<
<=
>=
List
=
!=
The following examples show samples of manually entered filter criteria:
· ID > 2000000 AND 'Job Type' ends-with 'elements' AND Parameters contains '1.1.1.1' OR Parameters = 192.168.27.72 AND Owner = SUPER
This filter on the Job page displays jobs that meet the following criteria: The job ID is a number greater than 2000000, the job type ends with the text elements, the Parameter field contains 1.1.1.1 or 192.168.27.72, and the owner is the superuser.
· ( 'Connection Status' = 'down' ) AND ('Managed Status' = 'In Sync' OR 'Managed Status' = Synchronizing ) AND 'Device Family' starts-with 'junos'
This filter on the Device page displays devices that have the connection status set to down, the managed status set to in sync or synchronizing, and device family name starts with Junos.,
5. After you enter the conditions, you can save or apply the filter. To save the filter, click the Save Filter icon and complete the steps as explained in "Saving a Filter" on page 154. To apply the filter without saving, click the Apply Filter icon. For more information about applying filters, see "Applying a Filter" on page 156.
To clear the filter conditions you entered or the filter that you applied, click the Clear Filter icon. Alternatively, you can click the Clear and and Hide icon to clear the filters and hide the filter bar.
152 For a list of error messages, see "Error Conditions and Error Messages for Filters" on page 157. Creating Filters by Using the Filter Submenu Options Many of the columns in Junos Space user interface tables support filtering. To know whether or not a column supports filtering of data, click the down arrow next to the column name. If the Filter submenu appears, then that column supports filtering of data. The criteria that are available for you to filter on depend on the selected column. You can create filters that combine criteria from more than one column. On Junos Space pages that support enhanced filtering options, the Filter field and the Save Filter, Apply Filter, and Clear Filter icons appear when you select any of the items from the Filter submenu. The selected criteria are displayed in the Filter field. You can choose to apply, save, or clear the filtering criteria by clicking the appropriate icon. On Junos Space pages that do not support enhanced filtering options, when you select any of the items from the Filter submenu, Junos Space Platform displays the filter criteria, including the columns being filtered, above the table. Junos Space Platform displays a red X to the left of the filter criteria above the table. You can clear the filter and restore the table to its original view by clicking the X. Figure 43 shows a typical Filter submenu for a date column. Figure 43: Typical Submenu for a Date Column
The following procedures describe how to use the different types of available filters.
153
To filter entries on the Junos Space pages: 1. On the Junos Space Platform UI, click the down arrow on the column header and select Filters.
The Filters submenu appears, displaying the list of operators or values that you can select, based on the type of values in the column.
2. Based on the submenu that appears, perform one of the following procedures. To specify filters for a date field: a. From the Filter submenu, select Before, After, or On. You can select both Before and After dates and times to filter the entries by a specific time period. You can also select On to view events recorded on a specific date.
b. Click the calendar icon and select the date from the calendar. You can click Today to view the events that occurred today at the specified time.
c. Click the arrow beside the time list and select the time.
To specify filters for a text field: a. In the text box that appears, type the alphanumeric string based on which you want to filter entries.
To specify filters for a field with discrete values such as Success or Failure, or True or False: a. From the list of values that appears, select the check boxes for one or more values based on which
you want to filter entries.
To specify filters for a numeric field: a. Enter values for each operator that you want to specify.
3. Click Go to view the entries filtered based on the criteria that you specified.
4. On pages that support enhanced filtering options, you can choose to save the filter after you specify the required criteria. To save the filter, click the Save Filter icon and complete the steps as explained in "Saving a Filter" on page 154. To apply the filter without saving, click the Apply Filter icon. For more information about applying filters, see "Applying a Filter" on page 156. To clear the filter conditions you entered or the filter that you applied, click the Clear Filter icon.
You can also filter entries based on combined filters with different criteria specified for different columns. For example, you can filter for all events on a certain date whose status was success. When you use multiple filters, the filters are joined using the logical AND operator.
154
To clear only the part of a filter that applies to a any of the columns, click the down arrow on the column header and clear the check box next to Filter.
Saving a Filter You can create a filter either by using the filtering options that are available in the Junos Space Platform UI or by manually entering the filter criteria in the Filter field that appears when you click the Filter icon. After you specify the filtering criteria, you can save the filter. To save a filter: 1. Create a filter as explained in either of the following topics:
· Creating Filters by Manually Entering the Filter Criteria on page 149 · Creating Filters by Using the Filter Submenu Options on page 152 The criteria you specified, either by typing in the Filter field or by using the Filter submenu options in the Junos Space Platform UI, appear in the Filter field.
2. Click the Save Filter icon next to the Filter field. The Save Filter page appears.
3. In the Name field, enter a name for the filter.
4. (Optional) In the Description field, enter a description for the filter.
5. (Optional)To share the filter with other users, select the Make Public check box.
NOTE: You cannot change a public filter to a private filter after you save the changes. However, you can change a private filter to a public filter from the Modify Filters page.
6. (Optional) If you want to mark the filter as a favorite, select the Mark as Favorite check box. Alternatively, you can add a filter to the list of favorites or remove a filter from the list of favorites from the Manage Filters page.
7. Click Save to save the filter. To close the page without saving the filter, click Cancel.
Modifying a Filter From the Manage Filters page. you can modify saved filters.
155
1. From the Junos Space Platform UI, go to the page that contains the filter that you want to modify. For example, the Device Management or View Physical Devices page.
2. Click the Filter icon to view the Filter menu.
3. From the Filter menu, click Manage Filters. The Manage Filters page appears.
4. From the list of filters, click the filter entry that you want to modify. The selected filter entry appears highlighted.
5. Modify the following parameters as required: · NameThe name of the filter. · DescriptionDescription for the filter. · Filter CriteriaFilter criteria to apply for the filter. For information about manually entering the filter criteria, see "Creating Filters by Manually Entering the Filter Criteria" on page 149. · Make PublicSpecify whether the filter is a public filter. Public filters are available for all users. However, note that only users with Filter Management permissions to create or modify filters can create public filters. This check box is disabled if the selected filter is a Public filter. That is, you cannot clear this check box after you select this check box and save the filter.
NOTE: To create a public filter, you must have both Create Filter and Modify Filter roles assigned to your account.
· Mark as FavoriteSpecify whether the filter is a favorite or not. You can select this check box to mark the selected filter as favorite. To remove a filter from the list of favorites, clear this check box. Favorite filters are listed on top of the Filter menu options. If there are favorite filters and filters that are not marked as favorites, the filters that are not marked as favorites appear in the More Filters submenu.
6. Click Modify to save the changes. Click Reset if you want to discard the changes.
For a list of error messages, see "Error Conditions and Error Messages for Filters" on page 157.
Creating a Public Filter
Public filters are filters that are available to all users. To create a public filter, you must have both Create Filter and Modify Filter roles assigned to your account. Junos Space Platform adds the suffix (Public) to the names of filters that are made public.
156
To make a filter public: 1. When you save a filter, select the Make Public check box. For more information about saving filters,
see "Saving a Filter" on page 154.
2. When you modify a filter, select the Make Public check box. For more information about modifying filters, see "Modifying a Filter" on page 154
NOTE: After you make a filter public, you cannot change that to a private filter.
Applying a Filter
Junos Space Platform provides you multiple options to apply a filter. · From pages that support enhanced filtering, you can apply a filter by clicking the name of the filter from
the Filter menu. Alternatively, while creating a filter, you can click the Apply Filter icon (the green tick mark) next to the Filter field. · From pages that do not support enhanced filtering, you can apply a filter by selecting and specifying filter options from the Filter submenu available for columns that support filtering and then clicking Go.
Clearing a Filter
Junos Space Platform provides you the following options to clear a filter that is applied to a page. · On Junos Space pages that support enhanced filtering options, if a filter is applied to the page, the filter
criteria is displayed in the Filter field. You can click the Clear Filter icon to clear the applied filter. Alternatively, you can click the Clear and Hide Filters icon from the Filter bar or the Show/Clear and Hide item in the Filter menu. · On Junos Space pages that do not support enhanced filtering options, when you select any of the items from the Filter submenu, Junos Space Platform displays the filter criteria, including the columns being filtered, above the table. Junos Space Platform displays a red X icon to the left of the filter criteria above the table. You can clear the filter and restore the table to its original view by clicking the X icon.
Deleting a Filter
From the Manage Filters page. you can delete saved filters.
157
To delete a saved filter: 1. From the Junos Space Platform UI, go to the page that contains the filter that you want to delete. For
example, the Device Management or View Physical Devices page. 2. Click the Filter icon to view the Filter menu. 3. From the Filter menu, click Manage Filters.
The Manage Filters page appears. 4. From the list of filters, click the filter entry that you want to delete.
The selected filter entry appears highlighted. 5. Click the Delete icon above the top-left corner of the list of filters.
The Delete Filter page appears. 6. On the Delete Filter page, click OK. Click Cancel if you do not want to delete the selected filter.
SEE ALSO
Understanding Filtering Options in Junos Space Platform User Interface | 136 Error Conditions and Error Messages for Filters | 157
Error Conditions and Error Messages for Filters
The following table lists common error conditions you might encounter while saving or applying filters and the error messages for those conditions:
Table 13: Error Conditions and Error Messages for Filters
Error Condition
Sample Filter Data
Validation Error Message at Apply Filter
Validation Error Message on the Save Filter and Manage Filter Page
Invalid column name.
'namm'
Invalid column name: namm
Invalid filter query
158
Table 13: Error Conditions and Error Messages for Filters (continued)
Error Condition
Sample Filter Data
Validation Error Message at Apply Filter
Validation Error Message on the Save Filter and Manage Filter Page
Incorrect filter query. Comparison missing after column name.
'Name' juniper
'Name' has test OR 'Device Alias' contains test
Incorrect filter query, please provide a comparison after column name (Name)
Invalid filter query
Incorrect filter query. Value after comparison missing.
Name =
Name = juniper OR Name =
Incorrect filter query, please provide a value after comparison (=)
Invalid filter query
Incorrect filter query; ")" missing.
( Name = test
Incorrect filter query, please insert ")" to complete the query (test)
Invalid filter query
Incomplete filter query. Column name or "(" missing.
( Name = juniper ) OR
Incomplete filter query. Please provide a column name or "(" to complete the query after (OR)
Invalid filter query
Incomplete filter query. Column name or "(" missing after (NOT)
( Name = juniper ) OR NOT
Incomplete filter query. Please provide a column name or "(" to complete the query after(NOT)
Invalid filter query
Incorrect filter query; Unexpected token ")"
Name = test )
Incorrect filter query, Unexpected token ")"
Invalid filter query
159
Table 13: Error Conditions and Error Messages for Filters (continued)
Error Condition
Sample Filter Data
Validation Error Message at Apply Filter
Validation Error Message on the Save Filter and Manage Filter Page
Incorrect filter query; Unexpected token ")"
Name = test AND ( Name = test1))
Incorrect filter query, Unexpected token ")"
Invalid filter query
Incorrect filter query; Unexpected token "("
Name = test AND ( Name = test1)(
Incorrect filter query, Unexpected token "("
Invalid filter query
Incorrect filter query; ")" missing.
( Name = test AND ( Name = test1)
Incorrect filter query, please insert ")" to complete the query (test)
Invalid filter query
Invalid filter
)
query. Query
must start with
"(" or NOT or
column name.
Invalid filter query. Query should start with "(" or NOT or column name.
Invalid filter query
Invalid filter query
( Name starts-with ")
Invalid filter query. Query should start with "(" or NOT or column name.
Invalid filter query
The equal condition is not supported for the specified column.
Domain = SUCCESS
Filtering of "Domain" column is not possible with "Equal" condition
The not equal condition is not supported for the specified column.
Domain != SUCCESS
Filtering of "Domain" column is not possible with "Not Equal" condition
160
Table 13: Error Conditions and Error Messages for Filters (continued)
Error Condition
Sample Filter Data
Validation Error Message at Apply Filter
Validation Error Message on the Save Filter and Manage Filter Page
The greater than condition is not supported for the specified column.
Name > Test
Filtering of "Name" column is not possible with "Greater than" condition
Filtering of "Name" column is not possible with "Greater than" condition
The less than condition is not supported for the specified column.
Name < Test
Filtering of "Name" column is not possible with "Less than" condition
Filtering of "Name" column is not possible with "Less than" condition
The "greater than or equal to" condition is not supported for the specified column.
Name >= Test
Filtering of "Name" column is not possible with "Greater than or equal to" condition
Filtering of "Name" column is not possible with "Greater than or equal to" condition
The "Less than or equal to" condition is not supported for the specified column.
Name <= Test
Filtering of "Name" column is not possible with "Less than or equal to" condition
Filtering of "Name" column is not possible with "Less than or equal to" condition
The "contains" condition is not supported for the specified column.
ID contains 123
Filtering of "ID" column is not possible with "contains" condition
Filtering of "ID" column is not possible with "contains" condition
161
Table 13: Error Conditions and Error Messages for Filters (continued)
Error Condition
Sample Filter Data
Validation Error Message at Apply Filter
Validation Error Message on the Save Filter and Manage Filter Page
The "not-contains" condition is not supported for the specified column.
ID not-contains 123
Filtering of "ID" column is not possible with "not-contains" condition
Filtering of "ID" column is not possible with "not-contains" condition
The "starts-with" condition is not supported for the specified column.
ID starts-with 123
Filtering of "ID" column is not possible with "starts-with" condition
Filtering of "ID" column is not possible with "starts-with" condition
The "ends-with" condition is not supported for the specified column.
ID ends-with 123
Filtering of "ID" column is not possible with "ends-with" condition
Filtering of "ID" column is not possible with "ends-with' condition
The specified column supports only numbers for values.
ID = test
"ID" column accepts only Numbers
"ID" column accepts only Numbers
The input value is not supported for the specified column.
'Device Network' = 123
"Device Network" column can not be filtered with the provided filter value "123"
"Device Network" column can not be filtered with the provided filter value "123"
The input date and time value does not match the supported format.
'End Time' = 10pm
"End Time" column accepts only valid date, Example: 11/03/2017 01:14AM
"End Time" column accepts only valid date, Example: 11/03/2017 01:14AM
162
Table 13: Error Conditions and Error Messages for Filters (continued)
Error Condition
Sample Filter Data
Validation Error Message at Apply Filter
Validation Error Message on the Save Filter and Manage Filter Page
The input value is not supported for the specified column.
State = SUCCES
"State" column can not be filtered with the provided filter value "SUCCES"
"State" column can not be filtered with the provided filter value "SUCCES"
The input column name is invalid or is of a column for which filtering is not supported.
State = SUCCESS
Column name "State is invalid or Filtering of that column is not supported.
SEE ALSO
Understanding Filtering Options in Junos Space Platform User Interface | 136 Managing Filtering Options | 149
163
Global Search Overview
The global search field on the Junos Space Network Management Platform UI helps you to quickly locate objects within Junos Space Platform. When you search for an object by using global search, Junos Space Platform performs a full-text search operation for objects within Junos Space Platform, and displays the matches found.
The search results are filtered on the basis of your Role-Based Access Control (RBAC) permissions, such as the tasks that a user is allowed to perform and the domains to which a user is assigned. For example, users are shown results only for tasks for which they have the appropriate permissions or results related to domains to which the users are assigned. For more information about RBAC permissions, see the "Role-Based Access Control Overview" on page 995 topic (in the Junos Space Network Management Platform Workspaces User Guide).
The search is performed and the results are displayed based on how the Junos Space Platform objects are indexed. Table 14 lists the indexed objects on which you can perform a search operation by using the global search feature.
Junos Space Platform monitors its database at regular intervals to identify new objects that need to be indexed. The default interval is set to five seconds.
NOTE: · An administrator can configure the refresh interval from the Administration workspace. For
more information about configuring the refresh interval, see the Index auto update interval in seconds parameter in "Modifying Junos Space Network Management Platform Settings" on page 1340 (in the Junos Space Network Management Platform Workspaces User Guide). · An administrator can also refresh the search index manually from the Administration workspace by navigating to Administration > Applications > Network Management Platform and selecting Refresh Search Index from the Actions menu.
164
Table 14: Searchable Objects
Object Category
Indexed Fields (Category) and Description
Device
Physical interface Logical interface
· name--Name of the device. · deviceFamily--Device family of the device. · platform--Hardware platform. · os--Junos OS version of the device. · ip--Device management IP address. · connectionStatus--Device connection state, which indicates whether the device is
up or down.
· managedStatus--Device management status, such as "In Sync," "Connecting," "Sync Failed," and so on.
· serialNumber--Serial number of the device. · ccState--Candidate configuration state of the device, such as "Created," "Accepted,"
or "Rejected".
· vendor--Name of the device vendor. · authenticationStatus--Indicateshow the device is connected to Junos Space, such
as "Credential Based," "Key based," or "Key Conflict." Credential-based uses username and password for connection; whereas, key-based needs an RSA key for establishing a connection. The UI displays key conflict when the keys on Junos Space and device are not the same.
· connectionType--Connection type of the device.
· name--Name of the physical interface. · ip--Assigned IP address of the physical interface. · mac--MAC address of the physical interface. · operationStatus--Operational status of the physical interface (up or down). · adminStatus--Administrative status of the physical interface (up or down). · linkLevelType--Link level type of the physical interface. · linkType--Link type of the physical interface, such as full-duplex or half-duplex. · speed--Link speed on the physical interface. · mtu--MTU of the physical interface. · description--Description of the physical interface.
· name--Name of the logical interface. · ip--IP address of the logical interface. · encapsulation--Encapsulation on the logical interface, such as VLAN-VPLS. · vlanId--Assigned VLAN number of the logical interface. · description--Description of the logical interface.
165
Table 14: Searchable Objects (continued)
Object Category
Indexed Fields (Category) and Description
Device physical inventory Software inventory Tags
· name--Name of the module. · version--Software release version of the module. · modelNumber--Model number of the module. · model--Device family of the module. · partNumber--Part number of the module. · serialNumber--Serial number of the module. · status--Status of the module. · description--Description of the module
· model--Model of this device. · routingEngine--Routing engine of the device. · name--Name of the installed software package. · version--Version number of the installed software package. · type--Type of the installed software package. Permitted values are operating-system,
internal-package, and extension. · major--Major portion of the version number. For example, in version 13.1R1.14, the
major portion is 13. · minor--Minor portion of the version number. For example, in version 13.1R1.14, the
minor portion is 1. · revisionNumber--Revision number of the package. For example, in version 13.1R1.14,
the revision number is 1.14. · description--Description of the installed software package
name--List of tags assigned to an object
166
Table 14: Searchable Objects (continued)
Object Category
Indexed Fields (Category) and Description
Audit log Job
· userName--Name of the user who performed an action that generated this audit log entry. For example, when userA logs in to Junos Space Network Management Platform, an audit log entry is generated to record the login activity. When you search for userA, this audit log entry is displayed as part of the search results.
· userIpAddr--IP address from which the action was performed. · taskName--Action that was performed by the user, such as Login, Logout, and so
on. · timeStamp--Date and time of action. · executionResult--Result of the action, such as Success, Job Scheduled, and so on. · description--Description of the action, such as Login Succeeded, Logout Succeeded,
and so on. · jobId--Job ID of the action that was performed.
NOTE: Not all actions trigger a job.
· recId--Audit log ID.
· jobId--Job ID. · name--Name of the job. · percent--Percentage of job completed at a given instant,such as 30, 100, and so on. · state--Indicates whether the job is a success, failure, or in progress. · jobType--Type of job. · scheduledStartTime--Date and time at which the job is scheduled to start. · actualStartTime--Date and time at which the job actually started. · endTime--Date and time at which the job was completed. · owner--Name of the user who triggered the job. · retryGroupId--Job ID of the original job. · previousRetry--Job ID of the previous job. · parameter--Objects on which a job is performed or is scheduled to be performed. · summary--Operations executed for the job.
167
Table 14: Searchable Objects (continued)
Object Category
Indexed Fields (Category) and Description
Configlets Configuration View
· configletsName--Name of the configlet. · configletsCategory--Category specified by a user at the time of creation or
modification of a configlet.
· configletsDeviceFamilySeries--Family of the device. · configletsLastestVersion--Latest version of the configlet. · configletsDescription--Description of the configlet specified by a user at the time
of creation or modification of a configlet.
· configletsExecutionType--Type of execution of the configlet--single or grouped. · configletsCreationTime--Time at which the configlet was created. · configletsLastUpdatedTime--Time at which the configlet was last updated. · configletsLastModifiedBy--Name (login ID) of the user who last modified the configlet. · referenceNumber--Reference number of the configlet, which a user has provided
during creation or modification of the configlet.
· configurationViewName--Name of the configuration view · configurationViewTitle--Title of the configuration view · configurationViewDeviceFamilySeries--Family of the device. · configurationViewDescription--Description of the configuration view specified by
a user at the time of creation or modification of a configuration view
· configurationViewOrder--Order in which the configuration view must be applied · configurationViewType--Type of configuration view--Form view, Grid view, XML
view, and CLI view
· configurationViewCreationTime--Time at which the configuration view was created · configurationViewLastUpdatedTime--Time at which the configuration view was last
updated
· configurationViewLastModifiedBy--Name (login ID) of the user who last modified the configuration view
168
Table 14: Searchable Objects (continued)
Object Category
Indexed Fields (Category) and Description
Scripts Templates Template Definition
· scriptName--Name of the script file · scriptDescriptiveName--Descriptive name of the script that is mentioned within the
script · scriptType--Type of script--Commit Script, Op Script, and Event Script · scriptExecutionType--Type of execution--Device (script with this execution type
should be staged on to a device before it can be executed) and Local (script with this execution type can be executed without having to stage it on a device) · scriptFormat--Format of the script file (XSL and SLAX) · scriptLatestRevision--Latest version number of the script · scriptCreationDate--Time at which the script was imported to the Junos Space server · scriptDescription--Description of the script · scriptLastUpdatedTime--Time at which the script was last updated · deviceNameList--Devices with which a script is associated
· name--Name of the device template · currentVersion--Current version of the device template · description--Description of the device template · modifiedBy--Name (login ID) of the user who last modified the device template · modifiedTime--Time at which the template was last updated · state--Device template deployment readiness (Needs Review, Disabled, or Enabled) · deployStat--Deployment status of the template (assigned, created, or deployed) · type--Type of device template (configuration template or quick template) · deviceFamily--Supported device family of this device template"
· name--Name of the template definition. · description--Description of the template definition. · deviceFamily--Supported device family of the template definition. · state--State of the template definition. · schemaVersion--Schema version of the template definition. · modifiedBy--User who last modified user the template definition. · modifiedTime--Time that the template definition was last modified.
169
Table 14: Searchable Objects (continued)
Object Category
Indexed Fields (Category) and Description
Xpath and Regex
Images Report Definitions Generated Reports
· xpathRegexName--Name of the regular expression or XPath · xpathRegexValue--XPath or regex value. For example: [a-zA-Z0-9],
/device/configuration/interfaces/interface/unit, or /device/configuration/interfaces/interface[name="$INTERFACE.get(0)"]/unit/name/text() · xpathRegexPropertyType--Property type--Regular Expression, XPath Context, or XPath Search · xpathRegexCreationTime--Time at which the XPath or regular expression was created · xpathRegexLastUpdatedTime--Time at which the XPath or regular expression was last updated · xpathRegexLastModifiedBy--Name (login ID) of the user who last modified the XPath or regular expression
· imagesFileName--Filename of the device image. For example, jinstall-ex-4200-12.3R4.6-domestic-signed.tgz
· imagesVersion--Version of the device image · imagesSeries--Series supported by the device image · deviceNameList--Devices on which the device image is deployed
· name--Name of the report definition · reportDefintionsCreatedBy--Name (login ID) of the user who created the report
definition · reportDefinitionsCreatedTime--Time at which the report definition was created · reportDefinitionsDecription--Description of the report definition
· name--Name of the generated report · generatedReportsGeneratedTime--Time at which the report was generated · generatedReportsDescription--Description of the generated report · generatedReportsDefinitionName--Name of the report definition using which the
report was generated · generatedReportsGeneratedBy--Name (login ID) of the user who generated the
report · generatedReportsFormat--Format of the generated report · generatedReportsJobId--ID of the job associated with report generation
170
Table 14: Searchable Objects (continued)
Object Category
Indexed Fields (Category) and Description
Configuration Files User Accounts
· name--Name of the configuration file, which is the device serial name with the .conf file extension
· configFileDeviceName--Name of the device whose configuration file is backed up · lastestConfigFileVersion--Latest version number of the backup configuration file · configFileCreationDate--Time when the configuration file was created on the Junos
Space server. It corresponds to the time at which you back up a device configuration for the first time from the Junos Space server.
· configFileLastUpdatedDate--Time at which the device configuration was last modified
· userName--Login ID of the Junos Space user · userFirstName--First name of the Junos Space user · userLastName--Last name of the Junos Space user · userEmail--E-mail ID of the Junos Space user · userType--Type of the user--local, remote, or read only · userStatus--Status of the user--enabled or disabled · passwordStatus--Status of the password--active or expired · lockedOut--Whether the user is locked out or not · roleType--Whether the user has access to the UI, API, or both
NOTE: · If you are searching for entries in Junos Space Platform on the basis of the date or time field,
the correct search results are not returned if the comma (,) or the colon (:) characters are part of the search string.
For example, to search for Nov 10, 2016 6:21:33 AM, enter the following search string: Nov 10 2016 6 21 33 AM. An exact match is returned if found; otherwise, merged results that match any of the parts of the search string are returned. In this example, if an exact match, Nov 10, 2016 6:21:33 AM, is not found, the search results will return all entries that match any of the space-separated parts of the search string, for example, Nov 9, 2016 7:37:21 AM, Jun 10, 2016 6:21:14 PM, and Nov 4, 2015, 2:12:45 PM.
· Date and time search works only if both the Junos Space server and the user executing the search are in the same time zone.
The global search operation also supports query expressions. You can search for phrases and multiple terms. The default operator for multiple terms is the OR operator.
171
NOTE: When you enter a query expression, be aware of the following:
· You must add a back slash "\" if you want to use the following special characters in the search text:
+ && || ! ( ) { } [ ] ^ " ~ * ? : \-_
· Field names are case-sensitive. To search within a specific field, the search syntax is: "<Indexed field or column name>:<search text>"
For example, if you have a few systems running on Junos OS 12.3 Release 4.5, then "os: 12.3R4.5" returns search results, whereas "OS: 12.3R4.5" does not return search results. This is because the field name that is indexed is "os" and not "OS." Another example to search for information pertaining to the Junos EX Series devices is to enter "deviceFamily:junos-ex" in the Search field.
· If you want to search for a term that includes a space, enclose the term within double quotation marks.
For example, to search for all devices that are synchronized (that is, In Sync), enter "In Sync" in the Search field.
· You must append "*" if you want to search using partial keywords. Otherwise, the search returns 0 (zero) matches or hits.
Table 15 provides examples of query expressions that you can enter in the Search field.
Table 15: Query Expressions in the Search Field
Query Expression
Matches Objects That Contain
snmp
snmp
snmp ntp
snmp or ntp
snmp OR ntp
snmp or ntp
snmp AND ntp
snmp and ntp
protocol:snmp
snmp in the protocol field
protocol:snmp AND NOT subject:snmp
snmp in the protocol field but not in the subject field
(snmp OR ntp) AND http
http and the terms--snmp or ntp
172
Table 15: Query Expressions in the Search Field (continued)
Query Expression
Matches Objects That Contain
description:"http server"
Exact phrase "http server" in the description field
description: "http server"~5
http and server within five positions of one another in the description field (that is, http and server need to have no more than 5 words in-between them)
ge-*
Terms that begin with "ge-," such as ge-0/0/1 or ge-0/0/1.4
s??p
Terms such as smtp or snmp
lastmodified:[1/1/2012 TO 12/31/2012]
Last modified field values between the dates January 1, 2012 and December 31, 2012
port:(80 8080 8888)
80, 8080, or 8888 in the port field
IPAddress:10.1.1.1
10.1.1.1 or 10.1.1.0/24 in the IPAddress field
RELATED DOCUMENTATION Junos Space User Interface Overview | 88 Using Global Search | 172
Using Global Search
You can use the global search feature of Junos Space Network Management Platform to find objects within Junos Space Platform.
173
To search for objects using the global search feature: 1. In the Search field, located at the top of the Junos Space Platform UI, type the search criteria and press
Enter. (Alternatively, you can click the magnifying glass icon adjacent to the Search field.) If none of the objects in Junos Space Platform match your search criteria, the following error message is displayed: No matching results were found. Please enter different search criteria. If any of the objects match the search criteria, the results appear on the search results page, which is divided into two areas. The area on the left displays the filters that you can use to refine your search results, and the area on the right displays the search results with a short description about each result. The search criteria that you typed are highlighted in the search results. Each search result may also provide a URL to help you navigate to the corresponding object on the inventory landing page.
NOTE: When the search results are displayed, an informational message about how to hide the search results is displayed in a dialog box. Perform one of the following actions: · To prevent the informational message from appearing again, ensure that the Don't show
again check box is selected and click OK. The Don't show again check box is selected by default. · To allow the informational message to continue appearing, clear the Don't show again check box and click OK.
2. (Optional) Click the URL provided with the search result to navigate to the inventory landing page of the desired object.
3. (Optional) To filter the search results, select the relevant category or subcategories displayed on the left of the search results page.
4. (Optional) To view the previous search results, click View Last Search Results. However, if this is your first search after logging in to Junos Space, then this link is not displayed.
5. To dismiss the search results page or to navigate to the inventory landing page from which you performed the search, click one of the following: · The Hide Search Results button · The left navigation tree or any of the global action icons · The close [X] button on the top-right of the search results panel
174
RELATED DOCUMENTATION Junos Space User Interface Overview | 88 Global Search Overview | 163
Viewing Your Jobs
You can view all your completed, in-progress, canceled, failed, and scheduled jobs in Junos Space Network Management Platform. Your jobs include jobs that were triggered by you as well as jobs that were reassigned to you. The My Jobs icon on the banner of the Junos Space Platform UI, allows you to quickly access summary and detailed information about all your jobs, from any workspace and from any task that you are currently performing. To view your jobs: 1. In the banner of the Junos Space Platform UI, click the My Jobs icon located at the top right.
The My Jobs dialog box appears, displaying your 25 most recent jobs. For each job, the following information is displayed: · Job ID · Job name · Job status · Date and time--The date and time displayed depends on the status of the job:
· For jobs that are in progress, the date and time at which the job started are displayed. · For failed jobs, the date and time when the job failed are displayed. · For successful jobs, the date and time when the job succeeded are displayed. · For jobs that are scheduled for later, the date and time at which the job is scheduled to run are
displayed. · Percentage of the job completed 2. (Optional) To view all your jobs, click Manage My Jobs. The Job Management page appears and displays a list of all your jobs.
3. (Optional) To view the details of a specific job, click the job ID. The Job Management page appears and displays the details of the selected job in a dialog box.
4. Click Close to exit the My Jobs page.
175
For troubleshooting, see the /var/log/jboss/servers/server1/server.log file.
RELATED DOCUMENTATION Viewing Statistics for Jobs | 968 Canceling Jobs | 985 Jobs Overview | 965 Clearing Your Jobs | 986
176
Changing Your Password on Junos Space
After you log in to Junos Space Network Management Platform, you can change your password using the User Settings icon on the Junos Space banner. You do not require any particular Junos Space role to change your password. After a password change, you are logged out of the application. You must login again with the new password. If you use REST API to change the password, you must use Basic Auth to change the password, instead of using session ID or cookies. Starting with Junos Space Platform Release 12.1, Junos Space has implemented a default standard for passwords that is compliant with the industry standard for security.
NOTE: · When you upgrade to Junos Space Platform Release 12.1 or later, the default standard takes
effect immediately. All local users receive password expiration messages the first time they log in to Junos Space after the update. · You need to have set your local password to be able to change it. If you do not have a local password set, you will not be able to set or change it. · You can use the User Settings icon to change only your local password. The change does not affect any passwords that an administrator might have configured for you on a remote authentication server.
To change your local password: 1. On the Junos Space Platform UI, click the User Settings icon on the right side of the Junos Space
banner. The Change User Settings dialog box appears.
2. In the Old Password text box, enter your old password.
NOTE: Mouse over the information icon (small blue i) next to the New Password text box to view the rules for password creation. For more information about the password rules, see "Modifying Junos Space Network Management Platform Settings" on page 1340.
3. In the New Password text box, enter your new password.
4. In the Confirm Password text box, enter your new password again to confirm it.
177
NOTE: The fields on the X.509 Certificate tab are applicable when you want to use certificate-based authentication. If you are using password-based authentication, you can ignore these fields. For more information about certificate-based authentication, see the "Certificate Management Overview" on page 1418 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
5. (Optional) Select the Manage objects from all assigned domains check box on the Object Visibility tab to view and manage objects from all the domains that you are assigned to.
6. Click OK. You are logged out of the system. To log in to Junos Space again, you must use your new password. Other sessions logged in with the same username are unaffected until the next login.
RELATED DOCUMENTATION Logging In to Junos Space | 99 Junos Space User Interface Overview | 88
Logging Out of Junos Space
After you complete your administrative tasks in the Junos Space UI, log out to prevent unauthorized users from accessing Junos Space. · To log out of Junos Space, click the Log Out icon on the Junos Space application banner. The logout page appears. A user who is idle and has not performed any action, such as keystrokes or mouse-clicks, is automatically logged out of Junos Space after a specified amount of time. This setting conserves server resources and protects the system from unauthorized access. The default setting is 5 minutes of inactivity. You can change the setting on the Applications inventory page. Select Administration > Applications > Network Management Platform > Modify Application Settings (from the Actions menu) > User > Automatic logout after inactivity (minutes) to modify the automatic logout setting. To log in to the system again, click the Click here to log in again link on the logout page.
RELATED DOCUMENTATION
178
Logging In to Junos Space | 99 Junos Space User Interface Overview | 88
179
Workspaces User Guide
1 PART
Overview
Introduction | 181
181
CHAPTER 6
Introduction
IN THIS CHAPTER Junos Space Platform Workspaces Overview | 181 Viewing the Junos Space Platform Dashboard | 183
Junos Space Platform Workspaces Overview
In Junos Space Network Management Platform, the different tasks that you can perform are categorized into workspaces. The task tree on the left side of a Junos Space Platform page is expanded by default and displays the different Junos Space Platform workspaces and the tasks that you can perform in each workspace.
NOTE: When you log in to Junos Space, the Applications list displays Network Management Platform by default. You can expand this list to see the installed Junos Space applications.
You can collapse the task tree to the left by clicking the double left arrow (<<) button and expand the task tree by clicking the double right arrow (>>) button. The first item in the task tree is Dashboard, which provides you access to the Junos Space Platform Dashboard page. After this, the list of the workspaces available in Junos Space Platform are displayed; these workspaces are described at a high level in Table 5.
NOTE: If you select a Junos Space application from the Applications list, the task tree for that application is displayed. This topic describes the workspaces for Junos Space Platform; for the tasks in Junos Space applications, refer to the documentation for Junos Space applications.
You can expand any workspace by clicking the expansion symbol (+) to the left of its name. When you do so, the next level of the tasks for that workspace is displayed; some items at the second level might contain further sub-tasks.
182
You can expand as many workspaces or tasks as you like; previously-expanded ones remain open until you collapse them. The design of the task tree enables you to easily navigate across the different Junos Space Platform workspaces and tasks.
Table 16: Junos Space Platform Workspaces
Workspace Name
Description
Devices
Manage devices, including adding, discovering, importing, and updating them. For more information, see "Device Management Overview" on page 188.
Device Templates
Create configuration definitions and templates used to deploy configuration changes on multiple Juniper Networks devices. For more information, see "Device Templates Overview" on page 461.
CLI Configlets
CLI Configlets are configuration tools provided by Junos OS that allow you to apply a configuration to a device easily. For more information, see "CLI Configlets Overview" on page 533.
Images and Scripts
Deploy, verify, enable, disable, remove, and execute scripts deployed to devices. For more information, see "Scripts Overview" on page 672.
Download a device image from the Juniper Networks Software download site to your local file system, upload it into Junos Space, and deploy it on one or more devices simultaneously. For more information, see "Device Images Overview" on page 612.
Reports
Generate customized reports for managing network resources. For more information, see "Reports Overview" on page 767.
Network Monitoring
Perform fault monitoring and performance monitoring of managed devices and fabric nodes. For more information, see "Network Monitoring Workspace Overview" on page 798.
Configuration Files
Maintain backups of device configuration in the Junos Space Platform database. For more information, see "Managing Configuration Files Overview" on page 937.
183
Table 16: Junos Space Platform Workspaces (continued)
Workspace Name
Description
Jobs
Monitor the progress of ongoing jobs. For more information, see "Jobs Overview" on page 965.
Role Based Access Control
Add, manage, and delete users, custom roles, domains, and remote profiles, and manage user sessions. For more information, see "Configuring Users to Manage Objects in Junos Space Overview" on page 1033.
Audit Logs
View and filter system audit logs, including those for user login and logout, tracking device-management tasks, and displaying services that were provisioned on devices. For more information, see "Junos Space Audit Logs Overview" on page 1115.
Administration
Add network nodes, back up your database, manage licenses and applications, or troubleshoot. For more information, see "Junos Space Administrators Overview" on page 1136, "Maintenance Mode Overview" on page 1153, and other topics related to the Administration workspace.
RELATED DOCUMENTATION Viewing the Junos Space Platform Dashboard | 125
Viewing the Junos Space Platform Dashboard
When you log in to Junos Space Network Management Platform, the home page is displayed. By default, the home page for Junos Space Platform is the Dashboard page. However, if you previously configured a different page as the home page, then the configured home page is displayed when you log in. The Junos Space Platform dashboard, as shown in Figure 37, displays graphs that provide information about the overall system condition, the fabric load history, the active users history, and the percentage of jobs in different states. The charts are visible to all users and are updated in real time.
184
NOTE: If you do not have user privileges to view detailed data, you might not be able to view detailed information if you select a gadget.
Figure 44: Junos Space Platform Dashboard Page
To access the Junos Space Dashboard page: 1. On the Junos Space Platform UI, select Dashboard.
The Dashboard page is displayed. 2. (Optional) To view more information related to the overall system condition, click Overall System
Condition or the indicator needle. You are taken to the Fabric page, where you can view detailed information about the nodes in the fabric. For more information, see "Viewing Nodes in the Fabric" on page 1181. 3. (Optional) To view information related to the fabric load, on the Fabric Load History graph: · Mouse over a graph data point to view the average CPU usage percentage. · Click the blue line depicting the CPU usage to view detailed information.
You are taken to the Fabric page, where you can view detailed information about the CPU, memory, and disk usage for the nodes in the fabric. 4. (Optional) To view information related to the active users, on the Active Users History graph: · Mouse over a graph data point to view the total number of active users at that point. · Click a data point on the graph to view more information about the active users at that point. You are taken to the User Accounts page, where the active users are displayed. For more information, see "Viewing User Statistics" on page 1068.
185
5. (Optional) To view information related to the jobs, on the Job Information graph: · Mouse over a segment in the pie chart to view the percentage of jobs with a particular status; for example, cancelled jobs, successful jobs, or failed jobs. · Click a segment of the pie chart to view details of jobs with status corresponding to the segment. You are taken to the Job Management page, where the jobs filtered by the status are displayed. For more information, see "Viewing Jobs" on page 972.
6. (Optional) You can view records about the health and performance of the Junos Space nodes in your Junos Space setup and the processes on these nodes in a system health report. The health and performance data collected from the nodes is displayed in the System Health Report table. For more information, see "Viewing the Administration Statistics" on page 1138.
7. (Optional) You can move any chart displayed on the Dashboard page by clicking inside the title bar and dragging the chart.
8. (Optional) You can resize any chart displayed on the Dashboard page by hovering over an edge and clicking and dragging the edge.
RELATED DOCUMENTATION Junos Space Platform Workspaces Overview | 181 Overall System Condition and Fabric Load History Overview | 1159
2 PART
Devices
Device Management | 188 Systems of Record | 213 Device Discovery Profiles | 219 Modeling Devices | 245 Device Authentication in Junos Space | 280 Viewing Device Inventory | 298 Exporting Device Inventory | 311 Configuring Juniper Networks Devices | 320 Device Adapter | 370 Device Configuration Management | 375 Adding and Managing Non Juniper Networks Devices | 385 Accessing Devices | 390 Logical Systems (LSYS) | 416 Device Partitions | 421 Custom Labels | 425
Verifying Template, Image Deployment, Script Execution, and Staged Images on Devices | 433
Device Monitoring | 440
Device Maintenance | 445
188
CHAPTER 7
Device Management
IN THIS CHAPTER Device Management Overview | 188 Confirmed-commit from Junos Space Network Management Platform | 190 Viewing Managed Devices | 193 Juniper Networks Devices Supported by Junos Space Network Management Platform | 199 Uploading Device Tags by Using a CSV File | 210 Filtering Devices by CSV | 212
Device Management Overview
IN THIS SECTION Managed and Unmanaged Devices | 189 IPv4 and IPv6 Address Support | 190
The Devices workspace in Junos Space Network Management Platform simplifies the management of devices in your network. You use the device discovery profile or model device workflows to add multiple devices to the Junos Space Platform database. Then you can perform the following tasks to manage, configure, and monitor the devices from the Devices workspace: · View the connection status and managed status of the managed devices. · View the operational and administrative status of the physical interfaces of the devices. · View the hardware inventory of a selected device, such as information about power supplies, chassis
cards, fans, Flexible PIC Concentrators (FPCs), and available PIC slots. · Change the mode to authenticate the devices.
189
· View, modify, and deploy the configuration to the devices. For example, deploy a service order to activate a service on your managed devices.
· Execute scripts on and apply CLI Configlets to the devices. · View information about the scripts associated with or executed on the devices and the device images
staged on the devices. · Access the devices from the Junos Space user interface and execute commands on the devices. · If the network is the system of record, resynchronize a managed device with the Junos Space Network
Management Platform database so that both the device and the database contain the same device configuration. (If Junos Space Network Management Platform is the system of record, this capability is not available.) · View statistics about the managed devices in your network, including the number of devices by platform and the number of devices by Junos OS release. · Clone the devices. · Reboot the devices. · Monitor and troubleshoot problems on the devices.
This topic describes the following:
Managed and Unmanaged Devices
With Junos Space Platform, you can add the following types of devices to the Junos Space Platform database:
· Managed devicesManaged devices are Juniper Networks devices running Junos OS. For more information about Juniper Networks devices supported on Junos Space Platform, refer to "Juniper Networks Devices Supported by Junos Space Network Management Platform" on page 199. Juniper Networks devices, such as MX480 and MX960 routers running as aggregation devices, display the number of satellite devices to which the aggregation device is connected and the mode of the aggregation device (that is, single-home or multihome). For more information about inventory and interfaces, see "Device Inventory Overview" on page 298. For more information about aggregation devices, satellite devices, and Junos Fusion technology, refer to the Junos Fusion documentation.
· Unmanaged devicesUnmanaged devices are non-Juniper Networks devices. Junos Space Platform displays the IP addresses and hostnames of unmanaged devices. The managed status of unmanaged devices is Unmanaged. The device status in several columns is displayed as NA. For more information, refer to "Viewing Managed Devices" on page 193. For information about adding unmanaged devices to Junos Space Network Management Platform, see "Adding Unmanaged Devices" on page 385.
190
IPv4 and IPv6 Address Support
Junos Space Platform supports both IPv4 and IPv6 addresses for the following device management tasks: · Discovering devices · Adding unmanaged devices · Creating connection profiles and modeling devices · Connecting to devices through Secure Console · Uploading RSA keys to devices
NOTE: The IP addresses that you input for these tasks either manually or by using a CSV file are validated on the basis of the format of the IP address.
RELATED DOCUMENTATION Device Discovery Profiles Overview | 219 Device Inventory Overview | 298 Systems of Record in Junos Space Overview | 213 DMI Schema Management Overview | 1526 Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215 Junos Space IPv6 Support Overview | 1152
Confirmed-commit from Junos Space Network Management Platform
Junos Space Network Management Platform supports the Junos OS confirmed-commit functionality. By default, Junos Space Platform uses confirmed-commit for all commit operations on all devices that are discovered on Junos Space Platform and that support the confirmed-commit NETCONF capability. The default timeout value for the confirmed-commit operations issued by Junos Space Platform is 10 minutes. Junos Space Platform sends a remote procedure call (RPC) for confirmed-commit immediately after sending the RPC for a commit. The devices stay connected even if the commit operation contains an incorrect configuration edit that may disconnect the device from Junos Space Platform. An EJB callback method is used to verify the change in configuration on the device. A candidate configuration created using the Schema-based Configuration Editor and Configuration Guides support the confirmed-commit functionality. If you are deploying the configuration by using a template,
191
you need to publish these templates to the candidate configuration of the device. When you push the configuration to the devices by using the Schema-based Configuration Editor, templates, or the Configuration Guide, the job triggered for these tasks display the timeout value of confirmed-commit. Job details include the time taken for the EJB callback method to return a value and the time taken to confirm the commit operation or perform a rollback operation.
Table 17 lists the managed status of the device in NSOR and SSOR modes when a candidate configuration is deployed to a device that supports the confirmed-commit NETCONF capability. It also lists the status of the job details when the confirmed-commit operation is a success or failure in these modes.
Table 17: Managed Status in NSOR and SSOR Modes for confirmed-commit
Confirmed-commit and EJB Callback Method Success and Failure Conditions
NSOR Mode
SSOR Mode
Job Result and Details
Junos Space Platform issues a confirmed-commit operation with a timeout value.
In Sync
Space Changed
NA
An EJB callback is sent to the device to NA
NA
NA
verify the change in configuration on the
device.
The EJB callback method does not return any value within the confirmed-commit timeout interval.
In Sync
Space Changed
Failed
The EJB callback method returns True and the commit is confirmed.
Out Of Sync followed by resynchronization by Junos Space Platform
In Sync or Space Changed (if new changes are added to the candidate configuration)
Success
The EJB callback method returns False and the configuration is rolled back.
Out Of Sync followed by resynchronization by Junos Space Platform
Space Changed
Failure with the failed callback error
The EJB callback method returns False and the device is automatically rolled back to the currently active configuration.
Out Of Sync followed by resynchronization by Junos Space Platform
Space Changed, Device Changed (after Junos Space Platform receives the system log about the auto-rollback operation on the device)
Failure with auto-rollback details
192
NOTE: In SSOR mode, if a confirmed-commit is not successful and if the device is automatically rolled back, you need to manually accept the change by using the Resolve Out-of-band Changes workflow to change the managed status of the device to In Sync.
NOTE: If a device is disconnected from Junos Space Platform (that is, Connection Status is down) after Junos Space Platform issues a confirmed-commit and is automatically rolled back before connecting back to Junos Space Platform, you need to manually check the device configuration from the CLI to confirm that the commit operation was successful.
RELATED DOCUMENTATION Viewing the Configuration Change Log | 380 Viewing Managed Devices | 193 Reviewing and Deploying the Device Configuration | 326
193
Viewing Managed Devices
You can view details of all managed devices in your network, such as the operating system, platform, IP address, license, and connection status. Device information is displayed in a table. Unmanaged devices are also shown, but without status and some other information. You can also view devices that are in the managed status from the Network Monitoring workspace, through the Node List (see "Viewing the Node List" on page 808). If the network is the system of record, you can resynchronize your managed devices with the Junos Space Platform database (see "Resynchronizing Managed Devices with the Network" on page 447). Neither manual nor automatic resynchronization occurs when Junos Space Network Management Platform is the system of record. See "Systems of Record in Junos Space Overview" on page 213. To view configuration and runtime information of managed devices: 1. On the Network Management Platform UI, select Devices > Device Management.
The Device Management page is displayed. Figure 45 shows the Device Management page. Figure 45: Device Management Page
Table 18 describes the fields displayed on the inventory page. In the table, an asterisk against a field name indicates that the field is not shown by default.
194
Table 18: Fields in the Device Management Table
Field
Description
Name
Name of the device as stored in the Junos Space Platform database
Device Alias
Value of the Device Alias custom label for the device. By default, this field is not displayed on the page. (This field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label for the device.)
IP Address
IPv4 or IPv6 address of the device
Serial Number
Serial number of the device chassis (This field displays Unknown for an unmanaged device.)
Connection Status
Connection status of the device in Junos Space Platform. Different values are displayed in network as system of record (NSOR) and Junos Space as system of record (SSOR) modes.
· Up--The device is connected to Junos Space Platform. When the connection status is up, in NSOR mode, the managed status is Out Of Sync, Synchronizing, In Sync, or Sync Failed. In SSOR mode, the status is In Sync, Device Changed, Space Changed, Both Changed, or Unknown (which usually means connecting).
· Down--The device is not connected to Junos Space Platform. When the Connection status is down, the managed status is None or Connecting.
NOTE: View Action provides hyperlink to a set of remedies or quick help options to recover the connection.
· NA--The device is unmanaged.
195
Table 18: Fields in the Device Management Table (continued)
Field
Description
Managed Status
Current status of the managed device in Junos Space Platform:
· Connecting--Junos Space Platform has sent a connection remote procedure call (RPC) and is waiting for the first connection from the device.
NOTE: View Action provides a hyperlink to a set of remedies or quick help options to recover the status of the device when it takes longer time than usual to connect.
· In Sync--The synchronization operation has completed successfully; Junos Space Platform and the device are synchronized with each other.
· None--The device is discovered, but Junos Space Platform has not yet sent a connection RPC.
NOTE: View Action provides a hyperlink to a set of remedies or quick help options to recover the status of the device when the connection status of the device is Down.
· Out Of Sync--In NSOR mode, the device has connected to Junos Space Platform, but the synchronization operation has not been initiated, or an out-of-band configuration change on the device was detected and auto-resynchronization is disabled or has not yet started.
· Device Changed--In SSOR mode, there are changes made to the device configuration from the device CLI.
· Space Changed--In SSOR mode, there are changes made to the device configuration from Junos Space Platform.
· Space & Device Changed--In SSOR mode, there are changes made to the device configuration from the device CLI and Junos Space Platform. Neither automatic nor manual resynchronization is available.
· Synchronizing--The synchronization operation has started as a result of device discovery, a manual resynchronization operation, or an automatic resynchronization operation.
· Sync Failed--The synchronization operation failed. NOTE: View Action provides a hyperlink to a set of remedies or quick help options to recover the status of the device when the connection status is Up or Down.
· Reactivate Failed-- The reactivation operation of the device failed. NOTE: View Action provides a hyperlink to a set of remedies or quick help options to recover the status of the device when the reactivation has failed.
· Unmanaged--The device is unmanaged. · Modeled--The device is modeled. · Waiting for deployment--The modeled device is unreachable and needs to be activated.
196
Table 18: Fields in the Device Management Table (continued)
Field
Description
Platform
Model number of the device (For an unmanaged device, the platform details are discovered through SNMP. If the platform details cannot be discovered, the field displays Unknown.)
OS Version
Operating system firmware version running on the device (This field displays Unknown for an unmanaged device.)
Schema Version
DMI schema version that Junos Space Platform uses for this device (This field displays Unknown for an unmanaged device.) See "DMI Schema Management Overview" on page 1526.
Physical Interfaces
Link to the view of physical interfaces for the device (The field displays NA for an unmanaged device.)
Logical Interfaces
Link to the view of logical interfaces for the device (The field displays NA for an unmanaged device.)
Device Family
Device family of the selected device (For an unmanaged device, this is the same as the vendor name you provided. The field displays Unknown if no vendor name was provided and if SNMP is not used or has failed.)
Configuration State Last Rebooted Time
Current state of the device configuration:
· NA No change is made to the configuration. This is the default state. · Created A change is made to the device configuration from Junos Space Platform. · Approved The device configuration is approved. · Rejected The device configuration is rejected.
Date and time when the device was last rebooted manually (that is, the device status changes from Down to Up) or from Junos Space Platform
Vendor
Name of the device vendor (For an unmanaged device, the field displays Unknown if the vendor name was not provided and cannot be discovered through SNMP.)
197
Table 18: Fields in the Device Management Table (continued)
Field
Description
Authentication Status Aggregation Device
· Key Based--The authentication key was successfully uploaded. · Credential Based--A key upload was not attempted; log in to this device with your
credentials.
· Key Based - Unverified--The new fingerprint on the device is not updated in the Junos Space Platform database.
· Key Conflict - Unverified--The key upload was unsuccessful; the new fingerprint on the device is not updated in the Junos Space Platform database.
· Credentials Based - Unverified--The new fingerprint on the device is not updated in the Junos Space Platform database.
· Key Conflict--The device was not available; the key upload was unsuccessful. · Fingerprint Conflict--The fingerprint stored in the Junos Space Platform database
differs from the fingerprint on the device.
· NA--The device is unmanaged.
Mode of the aggregation device: single-home or multihome
Satellite Devices(Number) Number of satellite devices connected to the aggregation device
Connection Type Device Network
· Reachable Device initiated--This is a device-initiated connection from an internal device (without a NAT server to route the connection) and the device is reachable.
· Reachable Device initiatedExternal--This is a device-initiated connection from an external device (NAT server routes the connection) and the device is reachable.
· Junos Space initiated--This is a connection initiated by Junos Space to an internal device (without a NAT server to route the connection).
· Junos Space initiatedExternal--This is a connection initiated by Junos Space to an external device (NAT server routes the connection) and the device is reachable.
· Modeled--This is a device-initiated connection and the device is unreachable.
Whether the device is connected to Junos Space Platform through a NAT server
· Internal--The device is connected to Junos Space Platform directly--that is, without a NAT server
· External--The NAT server routes the connection to Junos Space Platfom
2. (Optional) Sort the table by mousing over the column head for the data that you want to sort and clicking the down arrow. Select Sort Ascending or Sort Descending.
3. (Optional) Show columns not in the default tabular view, or hide columns, as follows: a. Mouse over any column head and click the down arrow.
198
b. Select Columns from the menu.
c. Select the check boxes against the columns that you want to view. Clear the check boxes against the columns that you want to hide.
4. (Optional) View information about devices as follows:
· To restrict the display of devices, enter search criteria of one or more characters in the Search field and press Enter.
All devices that match the search criteria are shown in the main display area.
· To view hardware inventory for a device, select the row against the device and select Device Inventory > View Physical Inventory from the Actions menu. Alternatively, right-click the device name and select Device Inventory > View Physical Inventory.
· To view the physical or logical interfaces of a device, click the View link in the appropriate column and row for the device.
To view the physical or logical interfaces of more than one device, select the required devices, right-click and select Device Inventory > View Logical Interfaces.
The View Logical Interfaces page displays the list of logical interfaces of the selected devices.
Release History Table
Release
Description
16.1R1
Reachable Device initiatedExternal--This is a device-initiated connection from an external device (NAT server routes the connection) and the device is reachable.
16.1R1
Junos Space initiatedExternal--This is a connection initiated by Junos Space to an external device (NAT server routes the connection) and the device is reachable.
RELATED DOCUMENTATION
Viewing the Physical Inventory | 300 Exporting the License Inventory | 311 Viewing Physical Interfaces of Devices | 305 Device Discovery Profiles Overview | 219 Viewing the Node List | 808 Resynchronizing Nodes in Network Monitoring | 812 Systems of Record in Junos Space Overview | 213
199
Juniper Networks Devices Supported by Junos Space Network Management Platform
Table 19 lists all the Juniper Networks product series and devices supported by Junos Space Network Management Platform. The Junos Space Platform release notes lists only the new devices that are supported with that release.
NOTE: Ensure that you install the exact matching or closest matching of Junos OS schema on the Junos Space Platform. For more information, see Table 20.
Table 19: Devices Supported by Junos Space Platform
Product Series
Model
ACX Series
ACX500
ACX710
ACX1000
ACX1100 ACX2000 ACX2100
ACX2200 ACX4000 ACX5048
ACX5096
BX Series
ACX5448 BX7000
Junos Space Release Junos Space Platform 14.1R2 or later Junos Space 20.1R1 hot patch v1or later Junos Space Platform 12.2 or later Junos Space Platform 12.3 or later Junos Space Platform 12.2 or later Junos Space Platform 12.3 or later Junos Space Platform 12.3 or later Junos Space Platform 13.1 or later Junos Space Platform 15.1 or later Junos Space Platform 15.1 or later Junos Space Platform 18.4 or later Junos Space Platform 11.3 or later
200
Table 19: Devices Supported by Junos Space Platform (continued)
Product Series
Model
Junos Space Release
EX Series
EX2200
Junos Space Platform 16.1 or later
EX2300
Junos Space Platform 15.2R2 or later
EX2300-24MP
Junos Space Platform 18.1 or later
EX2300-48MP
Junos Space Platform 17.2 or later
EX3300
Junos Space Platform 11.4 or later
EX3400
Junos Space Platform 15.2R2 or later
EX4300
Junos Space Platform 13.1 or later
EX4300-48MP
Junos Space Platform 18.3R1 or later
EX4500
Junos Space Platform 12.2 or later
EX4550
Junos Space Platform 12.2 or later
EX4550-40G
Junos Space Platform 12.2 or later
EX4600
Junos Space Platform 13.3 or later
EX4650
Junos Space Platform 18.4 or later
EX6200
Junos Space Platform 13.2 or later
EX6210
Junos Space Platform 11.4 or later
EX9200
Junos Space Platform 13.1 or later
EX9204
Junos Space Platform 13.1 or later
EX9208
Junos Space Platform 13.1 or later
EX9214
Junos Space Platform 13.1 or later
EX9251
Junos Space Platform 18.1 or later
EX9253
Junos Space Platform 18.2 or later
201
Table 19: Devices Supported by Junos Space Platform (continued)
Product Series
Model
Junos Space Release
EX Virtual Chassis
EX3300-VC
Junos Space Platform 15.2 or later
EX4200-VC
Junos Space Platform 11.4 or later
EX4300-VC
Junos Space Platform 13.1 or later
EX4550-VC
Junos Space Platform 13.1 or later
EX4600-VC
Junos Space Platform 16.1 or later
EX-XRE
Junos Space Platform 14.1R2 or later
Firefly
vSRX Firefly
Junos Space Platform 15.1 or later
Junos Fusion
Junos Fusion Edge
Junos Space Platform 17.1 or later
LN Series
LN1000
Junos Space Platform 12.3 or later
LN2600
Junos Space Platform 12.3 or later
M Series
M7i M10i M40e M120 M320
Junos Space Platform 16.1 or later
MCG Series
MCG5000
Junos Space Platform 11.3 or later
202
Table 19: Devices Supported by Junos Space Platform (continued)
Product Series
Model
Junos Space Release
MX Series
MX5
Junos Space Platform 12.1 or later
MX10
Junos Space Platform 11.4 or later
MX80
Junos Space Platform 14.1 or later
MX104
Junos Space Platform 13.2 or later
MX204
Junos Space Platform 18.2 or later
MX240
Junos Space Platform 13.1 or later
MX480
Junos Space Platform 13.1 or later
MX960
Junos Space Platform 13.1 or later
MX10003
Junos Space Platform 18.4 or later
MX10008
Junos Space Platform 18.4 or later
MX10016
Junos Space Platform 18.4 or later
MX2008
Junos Space Platform 17.1 or later
MX2010
Junos Space Platform 12.3 or later
MX2020
Junos Space Platform 12.3 or later
MX Series Virtual Chassis
MX-VC
Junos Space Platform 14.1 or later
PTX Series
PTX1000
Junos Space Platform 17.1 or later
PTX3000
Junos Space Platform 13.2 or later
PTX5000
Junos Space Platform 12.3 or later
PTX10008
Junos Space Platform 17.2 or later
PTX10016
Junos Space Platform 17.2 or later
PTX10001-20C
Junos Space Platform 18.3R1 or later
203
Table 19: Devices Supported by Junos Space Platform (continued)
Product Series
Model
Junos Space Release
QFX Series
QFX3000
Junos Space Platform 12.2 or later
QFX3000-G
Junos Space Platform 12.2 or later
QFX3000-M
Junos Space Platform 12.2 or later
QFX3500
Junos Space Platform 12.3 or later
QFX3600
Junos Space Platform 13.1 or later
QFX5100
Junos Space Platform 13.2 or later
QFX5110-32Q
Junos Space Platform 17.1 or later
QFX5110-48S
Junos Space Platform 17.1 or later
QFX5120-32C
Junos Space Platform 19.4 or later
QFX5120
Junos Space Platform 18.4 or later
QFX5210
Junos Space Platform 18.4 or later
QFX5200
Junos Space Platform 15.1R2 or later
QFX5200-48Y
Junos Space Platform 18.1 or later
QFX5210-64C
Junos Space Platform 18.1 or later
QFX10002-36Q
Junos Space Platform 15.1 or later
QFX10002-36Q-DC
Junos Space Platform 15.1 or later
QFX10002-60C
Junos Space Platform 18.1 or later
QFX10002-72Q
Junos Space Platform 15.1 or later
QFX10002-72Q-DC
Junos Space Platform 15.1 or later
QFX10008
Junos Space Platform 15.1R2 or later
QFX10016
Junos Space Platform 15.1R2 or later
204
Table 19: Devices Supported by Junos Space Platform (continued)
Product Series
Model
Junos Space Release
QFX5120-48YM-8C
Junos Space Platform 21.1R1 or later
QFX Series Virtual Chassis
QFX-VC
Junos Space Platform 14.1 or later
205
Table 19: Devices Supported by Junos Space Platform (continued)
Product Series
Model
Junos Space Release
SRX Series
SRX100
Junos Space Platform 11.4 or later
SRX110H-VB
Junos Space Platform 13.1 or later
SRX210
Junos Space Platform 13.1 or later
SRX220
Junos Space Platform 13.1 or later
SRX240
Junos Space Platform 13.1 or later
SRX240H
Junos Space Platform 14.1R1 or later
SRX300
Junos Space Platform 15.1R2 or later
SRX320
Junos Space Platform 15.1R2 or later
SRX320-PoE
Junos Space Platform 15.1R2 or later
SRX340
Junos Space Platform 15.1R2 or later
SRX345
Junos Space Platform 15.1R2 or later
SRX380
Junos Space 20.1R1 hot patch v1or later
SRX550
Junos Space Platform 15.1R2 or later
SRX550-M
Junos Space Platform 15.1R2 or later
SRX650
Junos Space Platform 13.1 or later
SRX1400
Junos Space Platform 16.1 or later
SRX1500
Junos Space Platform 15.1R2 or later
SRX3400
Junos Space Platform 14.1R1 or later
SRX4100
Junos Space Platform 16.1 or later
SRX4200
Junos Space Platform 16.1 or later
SRX4600
Junos Space Platform 17.2 or later
206
Table 19: Devices Supported by Junos Space Platform (continued)
Product Series
Model
Junos Space Release
SRX5400
Junos Space Platform 13.2 or later
SRX5600
Junos Space Platform 18.2 or later
SRX5800
Junos Space Platform 13.3 or later
SRX3600
Junos Space Platform 13.3 or later
Virtual SRX Series
vSRX 3.0
Junos Space Platform 18.2 or later
T Series
T4000
Junos Space Platform 12.2 or later
Virtual MX Series
vMX
Junos Space Platform 15.1 or later
Virtual route reflector (VRR)
VRR
Junos Space Platform 14.1R2 or later
WLC Series
WLC device
Junos Space Platform 14.1 or later
Table 20: Devices Supported by Junos Space Platform with Compatible Junos OS Releases
Product Series
Model
Supported Junos Operating System (Junos OS) Releases
Qualified Schema Version
ACX Series
ACX710
20.2R1
20.2R1
ACX5448
18.3R1 18.4R1.8 or later
18.4R1.8 18.4R1.8
207
Table 20: Devices Supported by Junos Space Platform with Compatible Junos OS Releases (continued)
Product Series
Model
Supported Junos Operating System (Junos OS) Releases
Qualified Schema Version
EX Series
EX2200
12.3R12-S10 14.1X53-D44.3 or later
12.3R12-S10 14.1X53-D44.3
EX2300
18.1R3.3 18.4R1.8 or later
18.1R3.3 18.4R1.8
EX3300
12.3R12-S10 15.1R7.9 or later
12.3R12-S10 15.1R7.9
EX3400
18.1R3.3 18.4R1.8 or later
18.1R3.3 18.4R1.8
EX4300
17.3R3-S1.5 18.4R1.8 or later
17.3R3-S1.5 18.4R1.8
EX4300-48MP
17.3R3-S1.5 18.4R1.8 or later
18.4R1.8
EX4500
15.1R7.9 or later
15.1R7.9
EX4550
15.1R7.9 or later
15.1R7.9
EX4600
17.3R3-S1.5 18.4R1.8 or later
17.3R3-S1.5 18.4R1.8
EX4650
18.4R1.8 or later
18.4R1.8
EX9200
17.3R3-S1.5 18.3R1.9 or later
17.3R3-S1.5 18.3R1.9
EX9204
20.3R1.3 or later
20.3R1.3
EX9208
20.3R1.3 or later
20.3R1.3
208
Table 20: Devices Supported by Junos Space Platform with Compatible Junos OS Releases (continued)
Product Series
Model
Supported Junos Operating System (Junos OS) Releases
Qualified Schema Version
EX9214
20.3R1.3 or later
20.3R1.3
EX Virtual Chassis
EX4200-VC
12.2R1 or later
15.1R7.9
EX3400-VC
20.2R2.8 or later
20.2R2.8
MX Series
MX204
18.4R1 or later
18.4R1.8
MX240
13.2R2.4 or later
17.3R3.9 18.4R1.8
MX480
13.2R2.4 or later
17.3R3-S2.2 17.3R3.9 19.1R1.6
MX10003
18.4R1.8 or later
18.4R1.8
MX10008
18.4R1.8 or later
18.4R1.8
MX10016
18.4R1.8 or later
18.4R1.8
SRX Series
SRX380
20.2R1
20.2R1
209
Table 20: Devices Supported by Junos Space Platform with Compatible Junos OS Releases (continued)
Product Series
Model
Supported Junos Operating System (Junos OS) Releases
Qualified Schema Version
QFX Series
QFX5100
17.3R3 or later
17.3R3-S1.5 18.4R1.8
QFX5110-32Q
17.3R3 or later
17.3R3-S1.5 19.1R1.6
QFX5110-48S
17.3R3-S1.5 19.1R1.6 or later
17.3R3-S1.5 19.1R1.6
QFX5120
18.4R1.8 or later
18.4R1.8
QFX5210
19.1R1.6 or later
19.1R1.6
QFX5200
17.3R3 or later
17.3R3.9 18.4R1.8
QFX10002-36Q
17.3R3 or later
17.3R3-S1.5 19.1R1.6
QFX10002-36Q-DC
17.3R3 or later
17.3R3-S1.5 19.1R1.6
QFX10002-60C
17.3R3 or later
17.3R3-S1.5 19.1R1.6
QFX10002-72Q
17.3R3 or later
17.3R3-S1.5 19.1R1.6
QFX10002-72Q-DC
17.3R3-S1.5 or later
17.3R3-S1.5
QFX10008
17.3R3 or later
17.3R3.9 18.4R1.8
QFX5120-48T-6C
20.2R1.10 or later
20.2R1.10
210
Table 20: Devices Supported by Junos Space Platform with Compatible Junos OS Releases (continued)
Product Series
Model
Supported Junos Operating System (Junos OS) Releases
Qualified Schema Version
QFX5120-48YM-8C
20.4R1.12
20.4R1.12
RELATED DOCUMENTATION Device Management Overview | 188 Viewing Managed Devices | 193 Device Discovery Profiles Overview | 219 Junos OS Releases Supported in Junos Space Network Management Platform | 333
Uploading Device Tags by Using a CSV File
Device tags help you easily identify managed devices when deploying a device template, upgrading a device image, staging scripts, or applying CLI Configlets to devices. Device tags associate the IP address or hostname of a managed device with a tag. Starting with Junos Space Network Management Platform Release 15.2R1, you can upload device tags from the local computer to Junos Space Network Management Platform. You use the Devices workspace to upload device tags by using a CSV file. You can assign the tags created using this task to other Junos Space objects. For more information, refer to "Tagging an Object" on page 1518.
NOTE: You must create a CSV file with the correct IP address or hostname of a device, tag name, and tag type, which could be private or public. If you do not specify whether the tag is private or public, by default a public tag is created. Tag names must not exceed 255 characters. Tag names must not start with a space, and cannot contain a comma, double quotation marks, and parentheses. Also, you cannot name a tag "Untagged" because it is a reserved term. Entries pertaining to incorrect IP addresses or hostnames are not uploaded to Junos Space Platform. You can view incorrect entries in the job results.
211
To upload device tags by using a CSV file: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page that appears displays all devices managed by Junos Space Platform.
2. Click the Tag Devices by CSV icon. The Upload Tags CSV File pop-up window is displayed.
3. (Optional) To view a sample CSV file, click the Sample CSV hyperlink.
4. Click Browse to select the CSV file from the local computer.
5. Click Import. The details of the devices and tags are uploaded to Junos Space Platform. A Job Information dialog box is displayed. a. Click OK. You are redirected to the Device Management page.
To view job details: a. Click the job ID in the Job Information dialog box.
You are redirected to the Job Management page with the filtered view of the job.
When the job is complete, all devices with correct details are assigned the tags you uploaded through the CSV file. To view the tags, go to Administration > Tags.
Release History Table Release
Description
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can upload device tags from the local computer to Junos Space Network Management Platform.
RELATED DOCUMENTATION
Tags Overview | 1498 Deleting Tags | 1515 Exporting Tags from Junos Space Network Management Platform | 1525
212
Filtering Devices by CSV
You can filter the devices on the Device Management page using a CSV file. To filter devices using a CSV file: 1. On the Junos Space Network Management Platform user interface, select Devices >Device Management.
The Device Management page is displayed.
2. Select Filter by CSV from the Actions menu. The Select CSV File pop-up window is displayed.
3. (Optional) To view a sample CSV file, click the Sample CSV hyperlink.
4. Click Browse and select the CSV file from the local computer.
5. Click Import. A progress bar is displayed. Junos Space Network Management Platform validates the values you provided in the CSV file. If the validation fails, a pop-window is displayed. This pop-up window displays the list of devices that were not validated. If the CSV file is imported successfully, the Device Management page is filtered and lists only those devices whose host names were listed in the CSV file.
RELATED DOCUMENTATION Device Management Overview | 188 Uploading Device Tags by Using a CSV File | 210
213
CHAPTER 8
Systems of Record
IN THIS CHAPTER Systems of Record in Junos Space Overview | 213 Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215
Systems of Record in Junos Space Overview
IN THIS SECTION Systems of Record | 213 Implications on device management | 214
Although by default the Junos Space network you are administering is the system of record (SOR)--each device defines its own official state--you may prefer to have the Junos Space Network Management Platform database contain the official state of the network, enabling you to restore that official state if unwanted out-of-band changes are made to a device. This feature enables you to designate Junos Space Network Management Platform as the SOR if you prefer. Systems of Record A network managed by Junos Space Network Management Platform contains two repositories of information about the devices in the network: the devices themselves (each device defines and reports its official state) and the Junos Space Network Management Platform database (which contains information that is reported by the device during device discovery). One of these repositories must have precedence over the other as the accepted desirable state. By default, the network itself is the system of record (NSOR). In NSOR, when a local user commits a change in the configuration of a network device, the commit operation triggers a report via system log to Junos Space Network Management Platform. The values in the Junos
214
Space Network Management Platform database are automatically changed to match the new device values, and the timestamps are synchronized. Thus the devices control the contents of the database.
As of version 12.2, you can designate the Junos Space Network Management Platform database values as having precedence over any values configured locally at a device. In this scenario, Junos Space Network Management Platform (database) is the system of record (SSOR). It contains the configurations that the Junos Space administrator considers best for the network devices. If an out-of-band commit operation is executed on a network device, Junos Space Network Management Platform receives a system log message, but the values in the Junos Space Network Management Platform database are not automatically changed or synchronized. Instead, the administrator can choose whether or not to overwrite the device's local changes by pushing the accepted configuration to the device from the Junos Space Network Management Platform database.
The choice of pushing the Junos Space Network Management Platform configuration is left to the administrator because the local device changes may, for example, be part of a temporary test that the administrator would not want to interrupt. However, if the tester forgets to reset the configuration at the end of the test, the administrator might then push the SSOR configuration to the device.
Implications on device management
The basic difference between NSOR and SSOR lies in whether or not the Junos Space Network Management Platform database is automatically synchronized when changes are made to a network device, and which set of values has precedence.
Setting the Junos Space Network Management Platform database as the system of record does not protect your network from local changes. The device notifies Junos Space Network Management Platform via system log when the changes occur, and it does not resynchronize, so you still have the previous configuration and you can reset the remote device quickly if you need to do so. In an NSOR scenario, Junos Space Network Management Platform is also notified via system log. You can still push a more desirable configuration to the device, but this process is less efficient.
In the NSOR scenario, you can disable automatic resynchronization. When autoresynchronozation is turned off, the server continues to receive notifications and goes into the out-of-sync state; however, autoresynchronozation does not run on the device. You can manually resynchronize a device in such a case.
NSOR with automatic resynchronization disabled is not equivalent to SSOR: manually resynchronizing under NSOR updates the values in the Junos Space Network Management Platform database to reflect those on the device. This never happens under SSOR, where the Junos Space Network Management Platform database values have precedence over the device values, and synchronizing them involves pushing the database values to the device, effectively resetting the device's out-of-band changes.
RELATED DOCUMENTATION
215
Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215
Understanding How Junos Space Automatically Resynchronizes Managed Devices
IN THIS SECTION Network as System of Record | 215 Junos Space as System of Record | 217
When configuration changes are made on a physical device that Junos Space Network Management Platform manages, Junos Space Platform reacts differently depending on whether the network itself is the system of record (NSOR) or Junos Space Platform is the system of record (SSOR). In the NSOR case, Junos Space Platform receives a system log message from the modified device and automatically resynchronizes the configuration values in its database with those of the device. This ensures that the device inventory information in the Junos Space Platform database matches the current configuration information on the device. In the SSOR case, the Junos Space Platform receives a system log message from the modified device. The Managed Status of that device changes from In Sync to Device Changed (if the changes are made from the device CLI), Space Changed (if the changes are made from Junos Space Platform), or Space & Device Changed (if the changes are made both from the device CLI and Junos Space Platform), but no resynchronization occurs. The Junos Space Platform administrator can choose whether or not to reset the device's configuration to match the configuration values in the Junos Space Platform database. This topic covers:
Network as System of Record
After Junos Space Platform discovers and imports a device, if the network is the system of record, Junos Space Platform enables the auto-resynchronization feature on the device by initiating a commit operation. After auto-resynchronization is enabled, any configuration changes made on the device, including out-of-band CLI commits and change-request updates, automatically trigger resynchronization on the device. Figure 46 shows how a commit operation resynchronizes the configuration information in the Junos Space Platform database with that on the device.
216 Figure 46: Resynchronization Process
When a commit operation is performed on a managed device in NSOR mode, Junos Space Platform, by default, schedules a resynchronization job to run 20 seconds after the commit operation is received. However, if Junos Space Platform receives another commit notification within 20 seconds of the previous commit notification, no additional resynchronization jobs are scheduled because Junos Space Platform resynchronizes both commit operations in one job. This damping feature of automatic resynchronization provides a window of time during which multiple commit operations can be executed on the device, but only one or a few resynchronization jobs are required to resynchronize the Junos Space Platform database with the multiple configuration changes executed on the device. You can change the default value of 20 seconds to any other duration by specifying the value in seconds in the Administration > Applications > Network Management Platform > Modify Application Settings > Device > Max auto resync waiting time secs field. For example, if you set the value of this field to 120 seconds, then Junos Space Platform automatically schedules a resynchronization job to run 120 seconds after the first commit operation is received. If Junos Space Platform receives any other commit notification within these 120 seconds, it resynchronizes both commit operations in one job. For information about setting the damper interval to change the resynchronization time delay and information about disabling the auto-resynchronization feature, see "Modifying Settings of Junos Space Applications" on page 1339.
217
When Junos Space Platform receives the device commit notification, the Managed Status is Out of Sync. When the resynchronization job begins on the device, the Managed Status of the device changes to Synchronizing and then In Sync after the resynchronization job has completed, unless a pending device commit operation causes the device to display Out of Sync while it was synchronizing.
When a resynchronization job is scheduled to run but another resynchronization job on the same device is in progress, Junos Space Platform delays the scheduled resynchronization job. The time delay is determined by the damper interval that you can set from the Application workspace. By default, the time delay is 20 seconds. The scheduled job is delayed as long as the other resynchronization job to the same device is in progress. When the currently running job finishes, the scheduled resynchronization job starts.
You can disable the auto-resynchronization feature in the Administration workspace. When auto-resynchronization is turned off, the server continues to receive notifications and goes into the Out of Sync state; however, the auto-resynchronization feature does not run on the device. To resynchronize a device when the auto-resynchronization feature is disabled, use the Resynchronize with Network workflow. The auto-resynchronization jobs are not displayed on the Job Management page. These jobs run in the background and cannot be canceled from the Junos Space user interface. You can view the status of the auto-resynchronization job in the Managed Status column on the Device Management page or from the Device Count by Synchronization State widget on the Devices page. You can collect more information about these jobs from the server.log and autoresync.log files in the /var/log/jboss/servers/server1 directory.
NOTE: You can view the auto-resynchronization jobs that were scheduled to execute before upgrading to Junos Space Platform Release 15.1R1, from the Job Management page.
Junos Space as System of Record
If Junos Space Platform is the system of record, automatic resynchronization of the configuration information between the Junos Space Platform database and the managed device does not occur. When Junos Space Platform receives a system log message from the modified device, the Managed Status of the device goes from In Sync to Device Changed (if the changes are made from the device CLI), Space Changed (if the changes are made from Junos Space Platform), or Space & Device Changed (if the changes are made both from the device CLI and Junos Space Platform) and remains so unless you manually push the system of record configuration from the Junos Space Platform database to the device.
RELATED DOCUMENTATION
Systems of Record in Junos Space Overview | 213 Device Discovery Profiles Overview | 219
218
Device Inventory Overview | 298 Resynchronizing Managed Devices with the Network | 447
219
CHAPTER 9
Device Discovery Profiles
IN THIS CHAPTER Device Discovery Profiles Overview | 219 Creating a Device Discovery Profile | 225 Running Device Discovery Profiles | 237 Modifying a Device Discovery Profile | 238 Cloning a Device Discovery Profile | 240 Viewing a Device Discovery Profile | 242 Deleting Device Discovery Profiles | 243 Exporting the Device Discovery Details As a CSV File | 244
Device Discovery Profiles Overview
IN THIS SECTION Connections Initiated by Junos Space or the Device | 220 Device Information Fetched During Device Discovery | 224
220
You use the device discovery profile to add devices to Junos Space Network Management Platform from the Devices workspace. Discovery is the process of finding a device and then synchronizing the device inventory and configuration with the Junos Space Network Management Platform database. To use device discovery, you must be able to connect Junos Space Network Management Platform to the device.
A device discovery profile contains preferences used to discover devices, such as discovery targets, probes used to discover devices, mode and details for authentication, SSH fingerprints of devices, and the schedule to use this discovery profile. You can start the discovery process using a discovery profile in the following ways: scheduling a discovery after creating a discovery profile, or selecting a discovery profile and clicking Run Now.
Executing or running a discovery profile discovers, authenticates, and manages the device on Junos Space Network Management Platform. With appropriate privileges for discovering devices, you can create multiple discovery profiles with different combinations of targets, probes, and authentication modes on your Junos Space setup. You can clone, modify, and delete the device discovery profiles from Junos Space Network Management Platform. You can also choose whether to share device discovery profiles with other users with device discovery permissions.
To discover network devices using a device discovery profile, Junos Space Network Management Platform uses the SSH, ICMP Ping, and SNMP protocols. When the device is discovered, device authentication is handled through the administrator login SSH v2 credentials and SNMP v1, SNMP v2c, or SNMP v3 settings, keys generated from Junos Space Network Management Platform (RSA, DSS, or ECDSA keys), or custom keys. You can optionally enter the SSH fingerprint for each device and let Junos Space Network Management Platform save the fingerprint in the database during the discovery process and validate the fingerprint when the device connects to Junos Space Network Management Platform. Fingerprint validation is available only for SSH-enabled Juniper Networks devices and not for ww Junos OS devices and modeled devices. For more information about device authentication in Junos Space, see "Device Authentication in Junos Space Overview" on page 280.
For device targets, you can specify a single IP address, a DNS hostname, an IP range, or an IP subnet to discover devices on a network. When a device discovery profile is executed or run (either instantly or based on a schedule), Junos Space Network Management Platform connects to the physical device and retrieves the running configuration and the status information of the device. To connect with and configure devices, Junos Space Network Management Platform uses the Device Management Interface (DMI) of Juniper Networks devices, which is an extension of the NETCONF network configuration protocol.
Connections Initiated by Junos Space or the Device
When a device is discovered , Junos Space Network Management Platform creates an object in the Junos Space Network Management Platform database to represent the physical device and maintains a connection between the object and the physical device so that their information is linked.
Junos Space can manage devices in either of the following ways:
· Junos Space initiates and maintains a connection to the device.
221
· The device initiates and maintains a connection to Junos Space. By default, Junos Space manages devices by initiating and maintaining a connection to the device. When Junos Space initiates the connection to the device, you can discover and manage devices irrespective of whether the management system is behind a Network Address Translation (NAT) server. For ww Junos OS devices, Junos Space uses SSH with an adapter to manage the devices.
For Junos Space-initiated connection, it configures the following Junos OS CLI commands on the device during device discovery:
Standalone SRX Series Devices
set system services ssh max-sessions-per-connection 32 set system syslog file default-log-messages any info set system syslog file default-log-messages match "(requested 'commit' operation)|(copying configuration to juniper.save)|(commit complete)|ifAdminStatus|(FRU power)|(FRU removal)|(FRU insertion)|(link UP)|transitioned|Transferred|transfer-file|(license add)|(license delete)|(package -X update)|(package -X delete)|(FRU Online)|(FRU Offline)|(plugged in)|(unplugged)|GRES|(AIS_DATA_AVAILABLE)" set system syslog file default-log-messages structured-data set snmp trap-group space targets <space-ip-address>
Cluster SRX
set groups node0 system services ssh max-sessions-per-connection 32 set groups node0 system syslog file default-log-messages any info set groups node0 system syslog file default-log-messages match "(requested 'commit' operation)|(copying configuration to juniper.save)|(commit complete)|ifAdminStatus|(FRU power)|(FRU removal)|(FRU insertion)|(link UP)|transitioned|Transferred|transfer-file|(license add)|(license delete)|(package -X update)|(package -X delete)|(FRU Online)|(FRU Offline)|(plugged in)|(unplugged)|GRES|(AIS_DATA_AVAILABLE)" set groups node0 system syslog file default-log-messages structured-data set groups node1 system services ssh max-sessions-per-connection 32 set groups node1 system syslog file default-log-messages any info set groups node1 system syslog file default-log-messages match "(requested 'commit' operation)|(copying configuration to juniper.save)|(commit complete)|ifAdminStatus|(FRU power)|(FRU removal)|(FRU insertion)|(link UP)|transitioned|Transferred|transfer-file|(license add)|(license
222
delete)|(package -X update)|(package -X delete)|(FRU Online)|(FRU Offline)|(plugged in)|(unplugged)|GRES|(AIS_DATA_AVAILABLE)" set groups node1 system syslog file default-log-messages structured-data set snmp trap-group space targets <space-ip-address>
EX Series
set system services ssh max-sessions-per-connection 32 set system syslog file default-log-messages any any set system syslog file default-log-messages match "(requested 'commit' operation)|(copying configuration to juniper.save)|(commit complete)|ifAdminStatus|(FRU power)|(FRU removal)|(FRU insertion)|(link UP)|transitioned|Transferred|transfer-file|(license add)|(license delete)|(package -X update)|(package -X delete)|(FRU Online)|(FRU Offline)|(plugged in)|(unplugged)|cm_device|(Master Unchanged, Members Changed)|(Master Changed, Members Changed)|(Master Detected, Members Changed)|(vc add)|(vc delete)|(Master detected)|(Master changed)|(Backup detected)|(Backup changed)|(interface vcp-)|(AIS_DATA_AVAILABLE)" set system syslog file default-log-messages structured-data set snmp trap-group space targets <space-ip-address>
QFX Series
set system services ssh max-sessions-per-connection 32 set system syslog file default-log-messages any any set system syslog file default-log-messages match "(requested 'commit' operation)|(copying configuration to juniper.save)|(commit complete)|ifAdminStatus|(FRU power)|(FRU removal)|(FRU insertion)|(link UP)|transitioned|Transferred|transfer-file|(license add)|(license delete)|(package -X update)|(package -X delete)|(FRU Online)|(FRU Offline)|(plugged in)|(unplugged)|QF_NODE|QF_SERVER_NODE_GROUP|QF_INTERCONNECT|QF_DIRECTOR|QF_NETWORK_NODE_GROUP|(Master
Unchanged, Members Changed)|(Master Changed, Members Changed)|(Master Detected, Members Changed)|(vc add)|(vc delete)|(Master detected)|(Master changed)|(Backup detected)|(Backup changed)|(interface vcp-)|(AIS_DATA_AVAILABLE)" set system syslog file default-log-messages structured-data
223
set snmp trap-group space targets <space-ip-address>
MX Series
set system services ssh max-sessions-per-connection 32 set system syslog file default-log-messages any info set system syslog file default-log-messages match "(requested 'commit' operation)|(copying configuration to juniper.save)|(commit complete)|ifAdminStatus|(FRU power)|(FRU removal)|(FRU insertion)|(link UP)|transitioned|Transferred|transfer-file|(license add)|(license delete)|(package -X update)|(package -X delete)|(FRU Online)|(FRU Offline)|(plugged in)|(unplugged)|CFMD_CCM_DEFECT| LFMD_3AH | RPD_MPLS_PATH_BFD|(Master Unchanged, Members Changed)|(Master Changed, Members
Changed)|(Master Detected, Members Changed)|(vc add)|(vc delete)|(Master detected)|(Master changed)|(Backup detected)|(Backup changed)|(interface vcp-)|(AIS_DATA_AVAILABLE)" set system syslog file default-log-messages structured-data set snmp trap-group space targets <space-ip-address>
If a device-initiated connection to Junos Space is enabled, the DMI channel and port 7804 are used and the following (sample) configuration is added on the device to establish the connection to Junos Space:
set system services outbound-ssh client 00111DOCEFAC device-id 7CE5FE set system services outbound-ssh client 00111DOCEFAC secret "$ABC123" set system services outbound-ssh client 00111DOCEFAC services netconf set system services outbound-ssh client 00111DOCEFAC 172.22.199.10 port 7804
To discover and manage devices through a device-initiated connection, clear the Junos Space initiated connection to device check box on the Modify Application Settings page in the Administration workspace. For information about configuring connections initiated by Junos Space by a device, see "Modifying Junos Space Network Management Platform Settings" on page 1340. You can configure a NAT server to route connections between the Junos Space setup and managed devices. Both device-initiated connections to a Junos Space setup and connections initiated by Junos Space to managed devices, when the Junos Space setup is behind the NAT server, are supported on Junos Space Network Management Platform. If a NAT server is used, the managed devices connect to Junos Space Network Management Platform through the IP address of Junos Space Network Management Platform translated by NAT. For more information about using a NAT server on a Junos Space setup, see "NAT Configuration for Junos Space Network Management Platform Overview" on page 1281.
224
When configuration changes are made in Junos Space Network Management Platform--for example, when you deploy service orders to activate a service on your network devices--the configuration is pushed to the physical device.
If the network is the system of record (NSOR), when configuration changes are made on the physical device (out-of-band CLI commits and change-request updates), Junos Space Network Management Platform automatically resynchronizes with the device so that the device inventory information in the Junos Space Network Management Platform database matches the current device inventory and configuration information. If Junos Space Network Management Platform is the system of record (SSOR), this resynchronization does not occur and the database is unchanged.
Device Information Fetched During Device Discovery
The following device inventory and configuration data are captured and stored in relational tables in the Junos Space Network Management Platform database:
· Devices--Hostname, IP address, credentials · Physical Inventory--Chassis, FPM board, power entry module (PEM), Routing Engine, Control Board
(CB), Flexible PIC Concentrator (FPC), CPU, PIC, transceiver, fan tray
Junos Space Network Management Platform displays the model number, part number, serial number, and description for each inventory component, when applicable.
· Logical Inventory--Subinterfaces, encapsulation (link-level), type, speed, maximum transmission unit (MTU), VLAN ID
· License information: · License usage summary--License feature name, feature description, licensed count, used count, given count, needed count
· Licensed feature information--Original time allowed, time remaining · License SKU information--Start date, end date, and time remaining
· Loopback interface
Other device configuration data is stored in the Junos Space Network Management Platform database as binary large objects and is available only to northbound interface (NBI) users.
Release History Table Release
Description
16.1R1
You use the device discovery profile to add devices to Junos Space Network Management Platform from the Devices workspace.
225
RELATED DOCUMENTATION Creating a Device Discovery Profile | 225 Running Device Discovery Profiles | 237 Cloning a Device Discovery Profile | 240 Viewing a Device Discovery Profile | 242 Viewing Managed Devices | 193 Systems of Record in Junos Space Overview | 213 Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215 Resynchronizing Managed Devices with the Network | 447 Device Management Overview | 188 Device Inventory Overview | 298 DMI Schema Management Overview | 1526
Creating a Device Discovery Profile
You create a device discovery profile to create a set of preferences for device targets, probes, authentication mode and credentials, SSH fingerprints, and the schedule to discover devices to Junos Space Network Management Platform. In addition to scheduling the discovery, you can manually start the discovery process by running the device discovery profile. For more information, see "Running Device Discovery Profiles" on page 237.
NOTE: To discover a device with dual Routing Engines, always specify the IP address of the current primary Routing Engine. When the current primary IP address is specified, Junos Space Network Management Platform manages the device and the redundancy. If the primary Routing Engine fails, the backup Routing Engine takes over and Junos Space Network Management Platform manages the transition automatically without bringing down the device.
226
NOTE: When you initiate discovery on a device running Junos OS, Junos Space Network Management Platform automatically enables the NETCONF protocol over SSH by pushing the following command to the device:
set system services netconf ssh
To create a device discovery profile, complete the following tasks: 1. Specifying Device Targets | 226 2. Specifying Probes | 229 3. Selecting the Authentication Method and Specifying Credentials | 232 4. (Optional) Specifying SSH Fingerprints | 234 5. Scheduling Device Discovery | 234
Specifying Device Targets Device targets are IP addresses or hostnames of devices that you want Junos Space Network Management Platform to discover. To specify the device targets that you want Junos Space Network Management Platform to discover: 1. On the Junos Space Network Management Platform user interface, select Devices > Device Discovery
> Device Discovery Profiles. The Discover Discovery Profiles page is displayed.
2. Click the Create Device Discovery Profile icon on the toolbar. The Device Discovery Target page is displayed on the left. The list of different tasks that should be completed to create a profile is displayed on the right: Device Discovery Target, Specify Probes, Specify Credentials, Specify Device FingerPrint, and Schedule/Recurrence.
NOTE: At any point in time, you can click the links to the different tasks (on the right of the page) and navigate to those pages.
3. In the Discovery Profile Name field, enter the name of the device discovery profile. The device discovery profile name cannot exceed 255 characters and can contain letters, numbers, spaces, and special characters. The special characters allowed are period (.), hyphen (-), and underscore
227
(_). The device discovery profile name cannot start with letters or numbers and cannot contain leading or trailing spaces.
NOTE: The Make Public check box is selected by default so that the device discovery profile is visible to all users.
4. In the Discovery Parameters field, you can add devices manually by specifying the details on the Device Discovery Target page or by uploading the details of the devices through a CSV file. To add devices manually: a. Click the Add Manually option button.
228
b. In the Target Type area, select how you want to specify the targets: IP addresses or hostnames, IP ranges, or a subnet. · To enter the IP address or hostname of the device: i. Select the IP Address/Hostname option button.
ii. In the Target Details field, enter the IP address or hostname.
NOTE: You can enter the IP address in either IPv4 or IPv6 format. Refer to http://www.iana.org/assignments/ipv4-address-space/ipv4-address-space.xhtml for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space/ipv6-address-space.xhtml for the list of restricted IPv6 addresses.
NOTE: You can enter a combination of the following separated by a comma (,): · IP addresses · Hostnames · IP address range expressions · Subnet expressions For example, 192.168.27.1, example.abc.com, 192.168.27.50-192.168.27.60,192.168.26.0/24
· To enter a range of IP addresses for the devices: i. Select the IP Range option button. The maximum number of IP addresses for an IP range target is 1024.
ii. In the Start IP Address field, enter the first IP address.
iii. In the End IP Address field, enter the last IP address.
· To enter an IP subnet for the devices: i. Select the Subnet option button.
ii. In the IP Subnet/CIDR field, enter the subnet details.
229
The subnet prefix for IPv4 addresses is 132 and for IPv6 addresses is 1128.
To add devices by using a CSV file:
NOTE: Device discovery is supported only for existing public tags in Junos Space Platform. Starting from Junos Space Network Management Platform Release 16.1R1, a Private Key column has been added in the CSV file to support the custom key option for device discovery. Ensure that you use the latest sample CSV file. However, backward compatibility is supported. That is, if you use an existing CSV file (from a previous release), the file is uploaded successfully.
a. Click the Upload CSV option button.
NOTE: The format of the CSV file that you are uploading should exactly match the format of the sample CSV file. You can add hundreds of devices to Junos Space Network Management Platform by using a CSV file. You can specify the hostnames, IP addresses, device login credentials, tags, and SSH fingerprints in the CSV file.
b. (Optional) To view a sample CSV file, click the Sample CSV link. c. Click Browse.
The CSV File Upload dialog box appears. d. Navigate to the desired CSV file, select it, and then click Open.
The name of the CSV file is displayed in the CSV File: field. e. Click Upload to upload the selected CSV file. 5. Click Next to proceed and select probes. The Specify Probes page is displayed.
Specifying Probes Probes are protocols used to find devices on the network--ping, SNMP, or SSH.
230
To specify probes on the Specify Probes page: 1. To use the NAT configuration to discover devices using this profile, select the the Use NAT check box.
The Use NAT check box is available for selection only if NAT is already configured in Junos Space.
2. To discover devices using ping (if SNMP is not configured on the device), select the Use Ping check box. By default, this check box is selected.
3. To discover devices using SNMP (if SNMP is configured on the device), select the Use SNMP check box. By default, this check box is selected.
NOTE: If you clear both the Use Ping and Use SNMP check boxes, SSH is used to discover devices. When both the Use Ping and Use SNMP check boxes are selected (the default), Junos Space Network Management Platform can discover the target device more quickly, but only if the device is pingable and SNMP is enabled on the device.
231
4. You can select an appropriate version of SNMP during discovery: · To use SNMP v1 or v2c: i. Select the SNMP V1/V2C option button.
ii. Specify a community string, which can be public, private, or a predefined string. The default community string is public.
· To use SNMP v3: i. Select the SNMP V3 option button.
ii. In the User Name field, enter the username.
iii. In the Authentication type field, select the authentication type (MD5, SHA1, or None).
iv. In the Authentication password field, enter the authentication password. . This field is available only if you selected MD5 or SHA1 in the Authentication type field. If you selected None as the authentication type, the authentication function is disabled.
v. Select the privacy type (AES128, AES192, AES256, DES, or None).
vi. Enter the privacy password (if AES128, AES192, AES256, or DES). If you specify None for the privacy type, the privacy function is disabled.
NOTE: The SNMPv3 privacy mode supports Advanced Encryption Standard (AES) algorithms with 192-bit and 256-bit encryption from Junos Space Network Management Platform Release 16.1R1 onward.
5. (Optional) Click Back to navigate to the Device Discovery Target page and change the details of the device targets.
6. Click Next to proceed and select the authentication method. The Specify Credentials page is displayed.
232
Selecting the Authentication Method and Specifying Credentials
You can choose the mode of authentication for the devices you are about to discover. For credentials-based authentication, if you already specified the device login credentials in the CSV file, you can skip the Specify Credentials page. With credentials-based authentication, you can specify a common administrator name and password to establish an SSH connection to each target device that you are about to discover. If you are using key-based authentication, you must have generated keys from Junos Space Network Management Platform or must have the private key on your computer. To specify the mode of authentication and credentials on the Specify Credentials page: 1. Select the mode of authentication used to authenticate devices during discovery.
To use credentials-based authentication: a. In the Authentication Type area, select the Credentials-Based Authentication option button.
b. In the Username field, enter the administrator username.
c. In the Password field, enter the administrator password.
d. In the Confirm Password field, reenter the administrator password.
To use key-based authentication: a. In the Authentication Type area, select the Key-Based Authentication option button.
b. In the Username field, enter the administrator username.
233
You can use a key generated from Junos Space Network Management Platform (known as Space Key) or a custom private key uploaded to Junos Space Network Management Platform: · To use a key generated from Junos Space Network Management Platform:
i. Select the Use Space Key option button. From Junos Space Platform Release 18.2 onward, you can upload Space Key for authentication to Junos Space Platform by using the device discovery workflow. Select the Upload Space Key to Device checkbox to upload the Space Key to the device. To upload Space Key: · Enter the username in the Authorized Username field. · Enter the password in the Authorized Password field.
NOTE: The above credentials, Authorized Username and Authorized Password, are used only to upload the Space Key to the device. If the username you specify in the Username field does not exist on the device, a user with this username is created as a super user and the key is uploaded for this user.
· To use a custom private key: i. Select the Use Custom Key option button.
ii. (Optional) In the Passphrase field, enter the passphrase created when you generated the private key.
iii. Next to the Private Key field, click the Browse button to upload the private key for the managed devices.
NOTE: If you modify the discovery profile, the Private Key field displays id_rsa (which is the default filename) instead of the name of the uploaded file.
c. (Optional) Click Back to navigate to the preceding pages and change the probes and device targets.
d. Click Next to proceed and specify device fingerprints.
234
The Specify Device FingerPrint page is displayed.
(Optional) Specifying SSH Fingerprints Optionally, specify or modify (if you specified the fingerprints by using the CSV file) the SSH fingerprints for target devices. If you do not specify the fingerprints, Junos Space Network Management Platform obtains fingerprint details when it connects to the device for the first time. You can specify fingerprints during device discovery only for Juniper Networks devices. If you already specified the SSH fingerprints in the CSV file, you can skip this task. To specify the SSH fingerprints on the Specify Device FingerPrint page: 1. Click the Fingerprint column corresponding to the device and enter the SSH fingerprint of the device.
NOTE: You can specify fingerprints for a maximum of 1024 devices simultaneously using this workflow.
2. (Optional) Repeat step 1 for all devices or devices whose fingerprints you know.
3. (Optional) Click Back to navigate to the preceding pages and change the authentication details, probes, and device targets.
4. Click Next to proceed and schedule discovery by using this profile. The Schedule/Recurrence page is displayed.
Scheduling Device Discovery Schedule the device discovery profile to discover devices to Junos Space Network Management Platform. To schedule the device discovery profile to discover devices: 1. Select the Schedule at a later time check box.
a. Enter the date in the Date field in the MM/DD/YYYY format.
235
b. Enter the time in the Time field in the hh:mm format.
2. Select the Recurrence check box. a. (Optional) Select the periodicity of recurrence from the Repeats list. The options are Minutes, Hourly, Daily, Weekly, Monthly, and Yearly. The default is Weekly.
b. (Optional) Select the interval from the Repeat every list. The default is 1.
c. (Optional) If you select Weekly from the Repeats list, the Repeat by field appears. Select the check boxes for the days of the week that you want the job to recur.
d. (Optional) Click the On option button in the Ends field to specify an end date for the job recurrence. If you select the Never option button, the job recurs endlessly until you cancel the job manually.
e. To specify the date and time when you want to end the job recurrence: i. Enter the date in the Date field in the MM/DD/YYYY format.
ii. Enter the time in the Time field in the hh:mm format.
3. (Optional) Click Back to navigate to the preceding page and change fingerprints, authentication details, probes, and device targets.
4. Click Finish to save the device discovery profile.
A job is created and the Discover Network Elements Information dialog box displays the link to the job ID. Click OK to close the Information dialog box.
Release History Table
Release
Description
18.2
From Junos Space Platform Release 18.2 onward, you can upload Space Key for authentication
to Junos Space Platform by using the device discovery workflow.
16.1R1
Starting from Junos Space Network Management Platform Release 16.1R1, a Private Key column has been added in the CSV file to support the custom key option for device discovery.
16.1R1
The SNMPv3 privacy mode supports Advanced Encryption Standard (AES) algorithms with 192-bit and 256-bit encryption from Junos Space Network Management Platform Release 16.1R1 onward.
236
RELATED DOCUMENTATION Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215 Device Discovery Profiles Overview | 219 Exporting the Device Discovery Details As a CSV File | 244 Viewing Managed Devices | 193 Viewing Jobs | 972 Resynchronizing Managed Devices with the Network | 447 Viewing the Physical Inventory | 300 Viewing Physical Interfaces of Devices | 305 Exporting the License Inventory | 311 DMI Schema Management Overview | 1526 Device Authentication in Junos Space Overview | 280
237
Running Device Discovery Profiles
You run a device discovery profile to automatically discover, synchronize device inventory and interface details, and manage devices running Junos OS to Junos Space Network Management Platform. Device discovery is a four-step process in which you specify target devices, credentials to connect to each device (that is, reuse existing credentials or specify new ones), and, optionally, the probe method (ICMP Ping, SNMP, both ICMP Ping and SNMP, or none), and the SSH fingerprint for each device. You can run multiple device discovery profiles by using this workflow. If you run multiple device discovery profiles, all devices targets specified in the device discovery profiles are discovered.
Before you start discovering devices, ensure that the following conditions are met:
· The device is configured with a management IP address that is reachable from the Junos Space server, or the NAT server if you are using a NAT server on your Junos Space setup.
· A user with the privileges of a Junos Space administrator is created and enabled on the device. · The device is configured to respond to ping requests if you intend to use ping as the probe method to
discover devices. · SNMP is enabled on the device with appropriate read-only v1 or v2c or v3 credentials if you intend to
use SNMP as the probe method to discover devices.
NOTE: To discover and manage a cluster of SRX Series devices, each cluster node must be discovered independently using the management IP address of the respective node.
To run discovery profiles:
1. On the Junos Space Network Management Platform user interface, select Devices >Device Discovery > Device Discovery Profiles. The Discover Discovery Profiles page is displayed.
2. Select the check boxes corresponding to the discovery profiles you want to run and click the Run Now icon on the toolbar. The Discovery Status report appears. This report shows the progress of discovery in real time. Click a bar in the chart to view information about the devices currently managed or discovered, or for which discovery failed. A job is created for every device discovery profile you run. From the Job Details page, you can check whether a device was discovered and added to Junos Space Network Management Platform. If a device is discovered, you can view the device on the Device Management page. To go to the Job Details page, double-click the ID of the device discovery job on the Job Management page. The Description column on this page specifies whether the device was discovered and added to
238
Junos Space Network Management Platform. If the device was not discovered and added to Junos Space Network Management Platform, the column lists the reason for failure. You can also sort all the columns in ascending or descending order to identify the devices that are discovered and devices that are not discovered. To export the device discovery details for all device discovery profiles that are run, from the Job Details page, see "Exporting the Device Discovery Details As a CSV File" on page 244.
Verify the following changes in the Web UI to ensure that the clusters are discovered successfully: · In the Manage Devices Inventory page:
Each peer device displays the other cluster member. The devices are displayed as primary and secondary in the cluster. · In the Physical Inventory page: The chassis information is displayed for each peer device in the cluster.
RELATED DOCUMENTATION Creating a Device Discovery Profile | 225 Device Discovery Profiles Overview | 219 Viewing a Device Discovery Profile | 242 Exporting the Device Discovery Details As a CSV File | 244
Modifying a Device Discovery Profile
You modify a device discovery profile when you want to expand the range of device targets, change device targets when devices were not discovered, change credentials or other details such as fingerprints or the discovery schedule.
NOTE: Ensure that you have no discovery jobs scheduled for a device discovery profile that you want to modify. All discovery jobs scheduled from the original device discovery profile are canceled after you modify the original device discovery profile.
239
To modify a device discovery profile: 1. On the Junos Space Network Management Platform user interface, select Devices > Device Discovery
> Device Discovery Profiles. The Discover Discovery Profiles page is displayed.
2. Select the check box corresponding to the device discovery profile you want to modify and click the Modify Profile icon on the toolbar The Modify Device Discovery Profile page is displayed. The Device Discovery Target page is displayed on the left. The list of different tasks that should be completed to create a device discovery profile is displayed on the right: Device Discovery Target, Specify Probes, Specify Credentials, Specify Device FingerPrint, and Schedule/Recurrence.
NOTE: At any point in time, you can click the links to the different tasks (on the right of the page), navigate to those pages, and modify the details of the device discovery profile.
3. (Optional) Review and modify the details of the device and click Next. The Specify Probes page is displayed.
4. (Optional) Review and modify the probes and click Next. The Specify Credentials page is displayed.
5. (Optional) Review and modify the authentication details and click Next.
NOTE: If you modify the discovery profile, the Private Key field displays id_rsa (which is the default filename) instead of the name of the uploaded file.
The Specify Device FingerPrint page is displayed.
6. (Optional) Review and modify the fingerprint details and click Next. The Schedule/Recurrence page is displayed.
7. Review and modify the schedule and click Finish. The device discovery profile is modified. A job is created and the Discover Network Elements Information dialog box displays the link to the job ID. Click OK to close the Information dialog box.
240
NOTE: If you modify and run a device discovery profile for which an associated device discovery job is already in progress, the existing job is cancelled and a new job is triggered for the modified discovery profile.
RELATED DOCUMENTATION Creating a Device Discovery Profile | 225 Running Device Discovery Profiles | 237 Viewing a Device Discovery Profile | 242 Deleting Device Discovery Profiles | 243
Cloning a Device Discovery Profile
You clone a device discovery profile when you want to reuse the details of an existing device discovery profile and quickly create a new device discovery profile.
NOTE: To use the cloned device discovery profile immediately after cloning, you must not modify the targets and fingerprints, or the discovery schedule. You can also choose not to schedule discovery until you finalize the discovery preferences.
To clone a device discovery profile: 1. On the Junos Space Network Management Platform user interface, select Devices > Device Discovery
> Device Discovery Profiles. The Discover Discovery Profiles page is displayed.
2. Select the check box corresponding to the device discovery profile you want to clone and click Clone Profile from the Actions menu. The Clone Device Discovery Profile page is displayed. The Device Discovery Target page is displayed on the left. The list of different tasks that should be completed to create a device discovery profile is displayed on the right: Device Discovery Target, Specify Probes, Specify Credentials, Specify Device FingerPrint, and Schedule/Recurrence.
241
NOTE: At any point in time, you can click the links to the different tasks (on the right of the page), navigate to those pages, and change the details of the device discovery profile.
3. (Optional) Review and modify the details of the device and click Next. The Specify Probes page is displayed.
4. (Optional) Review and modify the probes and click Next. The Specify Credentials page is displayed.
5. (Optional) Review and modify the authentication details and click Next.
NOTE: If you modify the discovery profile, the Private Key field displays id_rsa (which is the default filename) instead of the name of the uploaded file.
The Specify Device FingerPrint page is displayed. 6. (Optional) Review and modify the fingerprint details and click Next.
The Schedule/Recurrence page is displayed. 7. (Optional) Review and modify the schedule and click Finish.
A new device discovery profile is created. A job is created and the Discover Network Elements Information dialog box displays the link to the job ID. Click OK to close the Information dialog box.
RELATED DOCUMENTATION Creating a Device Discovery Profile | 225 Running Device Discovery Profiles | 237 Modifying a Device Discovery Profile | 238 Viewing a Device Discovery Profile | 242
242
Viewing a Device Discovery Profile
You view a device discovery profile when you want to see the details of the device discovery profile.
To view the details of a device discovery profile:
1. On the Junos Space Network Management Platform user interface, select Devices > Device Discovery Profiles. The Discover Discovery Profiles page is displayed.
2. Select the check box corresponding to the device discovery profile you want to view and click the View Profile on the toolbar. The View Discovery Profile pop-up window is displayed. Table 21 displays the fields in the View Discovery Profile pop-up window. Table 21: View Discovery Profile Pop-up Window
Field
Description
Profile Name
Name of the device discovery profile
Visibility
Whether public or private
Target Type
Whether the discovery target for devices is specified as an IP address, hostname, IP range, or subnet
Target Details
Combination of IP addresses and hostnames, IP range, and IP subnet details of the devices
Credential Type
Type of credentials: key based, credential based, or custom key based
Username
Administrator username used to discover the device
Use Ping
Whether ping is enabled for device discovery
Use SNMP
Whether SNMP is enabled for device discovery
SNMP Version
Version of SNMP used: v1 or v2c, or v3
3. Click Close to close the pop-up window.
243
RELATED DOCUMENTATION Modifying a Device Discovery Profile | 238 Cloning a Device Discovery Profile | 240 Creating a Device Discovery Profile | 225 Running Device Discovery Profiles | 237
Deleting Device Discovery Profiles
You delete device discovery profiles when you no longer want to save them in the Junos Space Network Management Platform database.
NOTE: If you delete a device discovery profile, all discovery jobs scheduled for the device discovery profile are canceled.
To delete device discovery profiles: 1. On the Junos Space Network Management Platform user interface, select Devices > Device Discovery
> Device Discovery Profiles. The Discover Discovery Profiles page is displayed. 2. Select the check boxes corresponding to the device discovery profiles you want to delete and click the Delete Profile icon on the toolbar The Delete Device Discovery Profile pop-up window is displayed. 3. You can either delete or retain the device discovery profiles. · Click Delete in the Delete Device Discovery Profile pop-up window.
The device discovery profiles are deleted. · Click Cancel to retain the device discovery profiles on Junos Space Platform.
RELATED DOCUMENTATION Viewing a Device Discovery Profile | 242
244
Creating a Device Discovery Profile | 225 Running Device Discovery Profiles | 237
Exporting the Device Discovery Details As a CSV File
A job is triggered when you discover one or multiple devices by using a device discovery profile--either manually using the Run Now option or through discovery scheduled when creating the device discovery profile. You can export the results of the device discovery job from the Job Management page as a CSV file. You can view the hostname, IP address, status, and description of the devices listed in the device discovery job in the CSV file. To export the device discovery job details as a CSV file: 1. On the Network Management Platform user interface, select Jobs > Job Management.
2. Double-click the device discovery job whose details you want to export as a CSV file.
3. Click Export as CSV. You are prompted to save the file.
4. Click OK on the File Save dialog box to save the file to your local file system.
5. After you save the file, to return to the Job Management page, click the [X] icon on the Exporting Discovery Job.
RELATED DOCUMENTATION Running Device Discovery Profiles | 237 Device Discovery Profiles Overview | 219 Creating a Device Discovery Profile | 225 Modifying a Device Discovery Profile | 238 Viewing a Device Discovery Profile | 242
245
CHAPTER 10
Modeling Devices
IN THIS CHAPTER Rapid Deployment Overview | 246 Zero Touch Deployment Using Autoinstallation and Junos Space Network Management Platform on ACX Series and SRX Series Devices | 247 Model Devices Overview | 250 Creating a Connection Profile | 251 Creating a Modeled Instance | 256 Activating a Modeled or Cloned Device in Junos Space Network Management Platform | 261 Downloading a Configlet | 265 Viewing and Copying Configlet Data | 267 Activating Devices by Using Configlets | 268 Viewing a Modeled Instance | 271 Adding More Devices to an Existing Modeled Instance | 273 Viewing the Status of Modeled Devices | 274 Deleting Modeled Instances | 275 Viewing a Connection Profile | 275 Cloning a Connection Profile | 277 Modifying a Connection Profile | 277 Deleting Connection Profiles | 278
246
Rapid Deployment Overview
The Junos Space Rapid Deployment solution enables you to model Juniper Networks devices quickly and effectively from Junos Space Network Management Platform. Devices are modeled by using the Model Devices workflow in the Devices workspace. When you add physical devices to your network, you can activate the modeled devices and associate the physical devices to the modeled devices. If you are deploying a ACX Series or SRX Series device, you can use the autoinstallation feature during deployment. For more information, see "Zero Touch Deployment Using Autoinstallation and Junos Space Network Management Platform on ACX Series and SRX Series Devices" on page 247.
Devices are either activated from Junos Space Platform (by using the Activate workflow) or by using the configlets (also known as one-touch deployment) generated from the Create Modeled Instance workflow. By default, configlets contain the minimum initial configuration (connection parameters) for modeled devices to connect to Junos Space Platform. The minimum initial configuration includes the FQDN of Junos Space, SSH secure key to access the device from Junos Space Platform, ID of the device, keep-alive timer, WAN IP configuration: static or DHCP, and default gateway and DNS details.
If you associate the modeled instance with a device template and select to update a device template manually, the configlet contains the configuration in the device template in addition to the minimum initial configuration.
Following are the six steps that outline the Rapid Deployment solution in Junos Space Platform:
1. Create a modeled instance that defines the number of devices that will be added to the Junos Space Platform database. You can assign a hostname, IP address, subnet mask, platform, and serial number on a per-device basis. Refer to "Creating a Modeled Instance" on page 256 for more information.
2. Generate a configlet and Initiate a connection between Junos Space Platform in one of the following ways:
· Copy the contents of the configlet generated by the modeled instance to the CLI console of the device. When this initial configuration is committed on the device, the device connects to Junos Space Platform.
· Connect the USB device containing the configlet to the device and reboot the device. The device then connects to Junos Space Platform. Refer to "Activating Devices by Using Configlets" on page 268 for more information.
· Initiate the workflow to activate the modeled instance that contains the device. Refer to "Activating a Modeled or Cloned Device in Junos Space Network Management Platform" on page 261 for more information.
3. When the device boots up and connects to the WAN link, an IP address is assigned to the device depending on the connection profile you assigned to the modeled instance containing the device.
4. The device connects to Junos Space Platform through an SSH session.
247
5. Junos Space Platform authenticates the device and optionally validates the serial number and hostname of the device. The device is managed in Junos Space Platform only if the validation succeeds. If the validation fails, the device is not managed in Junos Space Platform.
6. Junos Space Platform either upgrades or downgrades the Junos OS version of the device if you select the Image Upgrade/Downgrade check box in the Model Devices workflow. Junos Space Platform also pushes additional configuration settings through device templates if you select the Template Association check box and choose to update the configuration automatically. If you select a manual update of the device configuration, you must load the configlets to the device through a USB device or an FTP server.
RELATED DOCUMENTATION Model Devices Overview | 250 Creating a Modeled Instance | 256 Activating a Modeled or Cloned Device in Junos Space Network Management Platform | 261 Viewing and Copying Configlet Data | 267
Zero Touch Deployment Using Autoinstallation and Junos Space Network Management Platform on ACX Series and SRX Series Devices
IN THIS SECTION Zero-Touch Deployment Using the Autoinstallation and Model and Activate Devices Features | 249 Zero-Touch Deployment Using the Autoinstallation Feature and the Configuration Server | 249
Zero-touch deployment means that you can deploy new Juniper Networks ACX Series and SRX Series devices in your network automatically, without manual intervention. When you physically connect a device to the network and boot it with a default factory configuration, the device attempts to upgrade the Junos OS software automatically and autoinstall a configuration file from the network. Zero-touch deployment of devices that are discovered to Junos Space Platform can be performed by using the built-in autoinstallation feature in case of ACX Series routers or SRX Series devices or by using the Model and Activate devices feature in Junos Space Platform.
248
Zero-touch deployment provides the following benefits:
· The device can be sent from the warehouse to the deployment site without any preconfiguration steps. · The procedure required to deploy the device is simplified, resulting in reduced operational and
administrative costs.
· You can roll out large numbers of these devices in a very short time.
Autoinstallation provides automatic configuration for a new device that you connect to the network and turn on, or for any existing device configured for autoinstallation. This autoinstallation mechanism allows the new device to configure itself out-of-the-box with no manual intervention, using the configuration available on the network, locally through USB storage media, or a combination of both. Autoinstallation takes place automatically when you connect a device to the network and power on the device. The autoinstallation feature enables you to deploy multiple devices from a central location in the network.
The autoinstallation process begins when a device is powered on and cannot locate a valid configuration file in the CompactFlash card. Typically, a configuration file is unavailable when a device is powered on for the first time, or if the configuration file is deleted from the CompactFlash card. For the autoinstallation process to work, you must store one or more host-specific or default configuration files on a configuration server in the network and have a service available--typically, Dynamic Host Configuration Protocol (DHCP)--to assign an IP address to the device. To simplify the process, you can explicitly enable autoinstallation on a device and specify a configuration server, an autoinstallation interface, and a protocol for IP address acquisition.
The autoinstallation process operates in three modes:
· Network Mode--Autoinstallation triggers IP address acquisition mechanism (the device sends out Dynamic Host Configuration Protocol [DHCP] or Reverse Address Resolution Protocol [RARP] requests on each connected interface simultaneously) to obtain an IP address. After the device has an IP address, the device sends a request to the specified configuration server and downloads and installs the configuration.
· USB mode--Autoinstallation obtains the required configuration from the configuration file saved in an external USB storage device plugged into the device. The USB-based autoinstallation process overrides the network-based autoinstallation process. If the device detects a USB storage device containing a valid configuration file during autoinstallation, the device uses the configuration file on the USB storage device instead of fetching the configuration from the network. For more information, refer to USB Autoinstallation on ACX Series Routers.
· Hybrid mode--Autoinstallation obtains partial configuration from an external USB storage device and uses that configuration to obtain the complete configuration file in network mode. This mode is a combination of USB mode and Network mode.
For more information about the prerequisites for the autoinstallation and the autoinstallation process, refer to the following topics:
· ACX Series router autoinstallation overview--ACX Series Autoinstallation Overview · SRX Series device autoinstallation overview--SRX Series Autoinstallation Overview
249
· Prerequisites for autoinstallation on an ACX Series router--Before You Begin Autoinstallation on an ACX Series Router
· Autoinstallation on an SRX Series device--Configuring Autoinstallation on SRX Series Devices
NOTE: To make sure that you have the default factory configuration loaded on the device, issue the request system zeroize command on the device that you want to deploy.
This topic contains the following sections:
Zero-Touch Deployment Using the Autoinstallation and Model and Activate Devices Features
For zero-touch deployment using the autoinstallation and the Model and Activate devices features, you can create connection profiles and configlets from the Junos Space Platform UI. The configlets should be deployed on the devices in the network topology by using a USB storage device. You can modify the configuration of a modeled device by using the Device Templates feature from the Junos Space Platform UI, before deploying the configlets to the device. You can use the Model and Activate devices feature to install Junos OS software on different devices with minimal manual supervision. The Model and Activate Devices feature comprises the following operations: 1. (Optional) Creating connection profiles (see "Creating a Connection Profile" on page 251) 2. Creating modeled instances (see "Creating a Modeled Instance" on page 256) 3. Performing configuration changes on a device (see "Modifying the Configuration on the Device" on
page 321) 4. Activating the model device (see "Activating a Modeled or Cloned Device in Junos Space Network
Management Platform" on page 261)
Zero-Touch Deployment Using the Autoinstallation Feature and the Configuration Server
You can use a configuration server with scripts, configuration files, and the DHCP feature enabled, and the autoinstallation feature for zero-touch deployment. In this case, you need not use Junos Space Platform to update the configuration and Junos OS software on the device. The device uses information that you configure on a configuration server (DHCP server) to locate the necessary Junos OS software image and configuration files on the network. If you do not configure the configuration server to provide this information, the device boots with the preinstalled software and the default factory configuration. Zero-touch deployment using autoinstallation comprises the following operations:
250
1. (Optional) Creating connection profiles (see "Creating a Connection Profile" on page 251) 2. Creating modeled instances (see "Creating a Modeled Instance" on page 256 and "Activating a Modeled
or Cloned Device in Junos Space Network Management Platform" on page 261) 3. Downloading configlets (see "Viewing and Copying Configlet Data" on page 267 and "Downloading a
Configlet" on page 265) 4. Deploying configlets on devices at the network site (see "Activating Devices by Using Configlets" on
page 268)
RELATED DOCUMENTATION
Rapid Deployment Overview | 246 Model Devices Overview | 250 Downloading a Configlet | 265 Viewing and Copying Configlet Data | 267 Activating Devices by Using Configlets | 268
Model Devices Overview
With the Model Devices feature, you can add multiple devices, specify connectivity parameters, upgrade schema-based configuration on the devices, and upgrade or downgrade the Junos OS version on the devices through a single workflow. This workflow creates a modeled instance and adds the devices to Junos Space Network Management Platform. Devices added using this workflow are known as modeled devices. You then activate these devices by initiating a connection from Junos Space or the device, or by manually copying the configlets to the devices and allowing the devices to connect back to Junos Space Platform. When the activation is complete, the devices can be managed from Junos Space Platform. You can also activate the devices when creating the modeled instance, using the Activate Now option. This option is available only for activation using a device initiated connection and the device is assigned the Waiting for deployment state on the Device Management table. If you choose to activate the device later, the device is assigned the Modeled state on the Device Management page.
Using the Model Devices feature, you can create a connection profile to specify a set of connectivity parameters of a device. A connection profile specifies the details of the device interface on which the IP address is configured, the NAT configuration details for Junos Space Platform, and the details of the protocol used to assign IP addresses to the devices. You can create a modeled instance using this connection profile. Devices created using this modeled instance use the common connectivity parameters specified in the connection profile. You can model devices both in the IPv4 and IPv6 formats.
251
A modeled instance is a set of modeled devices that share the same connection profile. A modeled instance defines the device family for which the configlets are applicable, the Junos OS version that the device will be upgraded or downgraded to, if needed, and the device template containing the common configuration that you want to push to the devices when they are discovered in Junos Space Platform. You can activate the modeled devices immediately after they are added to Junos Space Platform. Use a Junos Spaceinitiated connection or deviceinitiated connection to connect to and activate these devices. If you use a deviceinitiated connection, you need to specify the credentials to manage the device in Junos Space Platform after the device connects to Junos Space Platform. If you use a Junos Spaceinitiated connection to activate the device, you need to specify the hostname or IP address details and user credentials for Junos Space Platform to initiate the connection to the device. You can also specify a different set of user credentials to connect to the device than the one used to manage the device on Junos Space Platform. You can choose whether to update the configuration on the device automatically during the activation or manually.
RELATED DOCUMENTATION Rapid Deployment Overview | 246 Creating a Connection Profile | 251 Creating a Modeled Instance | 256
Creating a Connection Profile
You use a connection profile to specify connectivity-related parameters for devices added to Junos Space Network Management Platform using the Modeling devices feature. A connection profile contains device interface details, and the protocol used to assign IP addresses to devices. If you choose to use a NAT server between managed devices and Junos Space Platform, the connection profile uses the NAT configuration configured in the Administration workspace. You create connection profiles from the Connection Profiles page in the Devices workspace. To create a connection profile: 1. On the Network Management Platform user interface, select Devices > Model Devices > Connection
Profiles. The Connection Profiles page is displayed.
2. Click the Create Connection Profile icon on the Actions menu. The Create Connection Profile page is displayed.
252
3. In the Name field, enter a name for the new connection profile. The connection profile name cannot exceed 255 characters and can contain letters, numbers, spaces, and special characters. The special characters allowed are period (.), hyphen (-), and underscore (_). The connection profile name cannot start with letters or numbers and cannot contain leading or trailing spaces.
4. (Optional) In the Description field, enter a description for the new connection profile. The description cannot exceed 256 characters.
5. Select the type of device interface on which you want to configure the IP address: Ethernet, ADSL, or T1. By default, the Ethernet option button is selected.
6. (Optional) In the Interface field, enter the appropriate device interface number. The default Ethernet interface number is ge-0/0/0. The default ADSL interface number is at-1/0/0.
7. Select the format of the IP address for the devices to be modeled using this connection profile. By default, the IPv4 option button is selected. · If you want to model devices by using an IPv6 address, select the IPv6 option button.
NOTE: The contents of the configlet generated differ based on the format of the IP address.
8. (Optional) Select the NAT'd IP Address for Junos Space check box to use the NAT configuration specified in the Administration workspace. By default, this check box is cleared. If you are not using a NAT server or have disabled or not enabled the NAT configuration, this field is dimmed.
NOTE: You need to configure the NAT server with the same format of the IP address that you chose to model devices by using this connection profile. Refer to http://www.iana.org/assignments/ipv4-address-space/ipv4-address-space.xhtml for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space/ipv6-address-space.xhtml for the list of restricted IPv6 addresses.
253
9. (Optional) From the IP Assignment via drop-down list, select how the IP address is assigned to the devices. By default, DHCP is selected. The options presented hereafter depend on the type of device interface on which you configure the IP address and how the IP address is assigned to the devices. You can assign IP addresses by using the following options for Ethernet and T1 interface: · Manually (Static) · Dynamic Host Configuration Protocol (DHCP) · Point-to-Point Protocol over Ethernet (PPPoE) You can assign IP addresses by using the following options for the ADSL interface: · Manually (Static) · Dynamic Host Configuration Protocol (DHCP) · Point-to-Point Protocol over ATM (PPPoA) If you want to assign an IP address to the device manually: · Select Static from the IP Assignment via drop-down list If you select Static, you should enter the IP addresses of the devices manually when you create a modeled instance. If you select DHCP from the drop-down list: a. From the Attempts selector, use the up and down arrows to specify the maximum number of attempts that the DHCP server will make to reconfigure the DHCP clients before the reconfiguration is considered to have failed. The default value is 4 attempts. b. From the Interval selector, use the up and down arrows to specify the initial value in seconds between successive attempts to reconfigure the DHCP clients. The default value is 4 seconds. c. (Optional) Select the DHCP Server Address check box to configure the properties of the DHCP server. d. In the IP Address field, enter the IP address of the DHCP server.
NOTE: You can enter the IP address in either IPv4 or IPv6 format.
e. If you want the DHCP clients to propagate the TCP/IP settings to the DHCP server, select the Update Server check box.
f. Select one of the option buttons in the Lease Time section: Default Value, Lease Never Expires, or Lease time. By default, the Default Value option button is selected.
254
This option specifies the time taken by the DHCP server to negotiate and exchange DHCP messages with the DHCP clients. · If you want the DHCP server to negotiate and exchange DHCP messages with the DHCP clients,
select the Default Value option button. · If you want the DHCP server to assign permanent IP addresses, select the Lease Never Expires
option button. · If you want to specify a time interval after which the lease expires, select the Lease Time option
button and use the up and down arrows in the Interval selector to specify the time interval. The default value is 4 seconds.
If you select PPPoE from the drop-down list:
a. From the Authentication Type drop-down list, select the type of authentication. Junos Space Network Management Platform supports Challenge Handshake Authentication Protocol (CHAP) and Password Authentication Protocol (PAP) for authentication.
b. In the Username field, enter the username for PPPoE authentication using CHAP. c. In the Password field, enter the password for PPPoE authentication using CHAP. d. In the Confirm Password field, reenter the password for PPPoE authentication using CHAP. e. In the Access Profile Username field, enter the username for PPPoE authentication.
This field is not mandatory for PAP authentication. f. In the Access Profile Password field, enter the password for PPPoE authentication.
This field is not mandatory for PAP authentication. g. In the Access Profile Confirm Password field, reenter the password for PPPoE authentication.
This field is not mandatory for PAP authentication. h. (Optional) In the Concentrator Name field, enter the name of the concentrator. i. (Optional) In the Service Name field, enter the name of the service you are using. j. In the Auto Connect time Interval field, use the up and down arrows to specify the time interval in
seconds for connecting automatically. The default value is 1 second. k. In the Ideal time before disconnect field, use the up and down arrows to specify the time interval
in seconds before disconnecting. The default value is 1 second.
255
If you select PPPoA from the drop-down list: a. From the Authentication Type drop-down list, select the type of authentication.
Junos Space Network Management Platform supports Challenge Handshake Authentication Protocol (CHAP) and Password Authentication Protocol (PAP) for authentication. b. In the Username field, enter the username for PPPoE authentication using CHAP. c. In the Password field, enter the password for PPPoE authentication using CHAP. d. In the Confirm Password field, reenter the password for PPPoE authentication using CHAP. e. In the Access Profile Username field, enter the username for PPPoE authentication. This field is not mandatory for PAP authentication. f. In the Access Profile Password field, enter the password for PPPoE authentication. This field is not mandatory for PAP authentication. g. In the Access Profile Confirm Password field, reenter the password for PPPoE authentication. This field is not mandatory for PAP authentication. h. In the VPI field, use the up and down arrows to specify the Virtual Private Identifier (VPI) for the DSL network of your service provider. The range is 1 to 6000. The default value is 1. i. In the VCI field, use the up and down arrows to specify the Virtual Channel Identifier (VCI) for the DSL network of your service provider. The range is 1 to 6000. The default value is 1. j. From the Encapsulation Type drop-down list, select the type of encapsulation: atm-ppp-vc-mux or atm-ppp-llc. atm-ppp-vc-mux provides PPP over ATM AAL5 multiplex encapsulation and atm-ppp-llc provides PPP over AAL5 LLC encapsulation. 10. Click Create. The connection profile is created.
RELATED DOCUMENTATION Modifying a Connection Profile | 277 Deleting Connection Profiles | 278 Creating a Modeled Instance | 256
256
Creating a Modeled Instance
You create a modeled instance when you want to quickly add multiple devices to Junos Space Network Management Platform using a common set of connectivity parameters. You add a modeled instance from the Devices workspace. To create a modeled instance: 1. On the Junos Space Network Management Platform user interface, select Devices > Model Devices.
The Model Devices page is displayed.
2. Click the Create Modeled Instance icon on the toolbar. The Create Modeled Instance page is displayed.
3. From the Device Type drop-down list, select the type of device.
4. In the Name field, enter a name for the modeled instance. The modeled instance name should start and end with letters or numbers and cannot exceed 255 characters. The hyphen (-) and underscore (_) are the only special characters allowed. Leading and trailing spaces are not allowed.
5. In the Description field, enter a description of the modeled instance.
6. In the Tag field, enter a tag for the modeled instance and the modeled devices created in this modeled instance.
7. For Discovery Type, select Add Manually or Upload CSV to provide the details of the devices to be modeled. · If you want to provide the details of the devices manually, select the Add Manually option button. a. In the Number of Devices field, use the up and down arrows to specify the number of devices to be modeled using the modeled instance. The default value is 1. b. From the Platform drop-down list, select the platform for the devices. · If you want to provide the details of the devices through a CSV file, select the Upload CSV option button.
257
a. (Optional) Click the View Sample CSV link to download a sample CSV file. You need to retain the format of the CSV file for the devices to be modeled successfully. You need to enter the name of the devices and the platform of the devices in the CSV file.
NOTE: You need to retain the file format as .csv to successfully upload the details of the devices to Junos Space Network Management Platform.
b. Click the Select a CSV To Upload link to upload a CSV file. The Select CSV File pop-up window is displayed.
c. Click the Browse button to look for the file on your computer. d. Click Upload to upload the CSV file to Junos Space Network Management Platform. 8. Select the the SNMP Settings check box and then, select either V1/V2C or V3 to specify the version of SNMP to gather information from devices. By default, V1/V2C is selected. If you select V1/V2C: · Enter the SNMP community string in the Community field.
By default, the public string is selected.
If you select V3: a. In the User Name field, enter the username.
The username can contain a maximum of 32 alphanumeric characters including spaces and symbols.
b. From the Authentication type drop-down list, select the algorithm used for authentication. The options available are MD5, SHA1, or None.
c. If you selected MD5 or SHA1, enter the password in the Authentication password field. If you select None, this field is disabled. The following fields are displayed only if you choose an authentication algorithm. i. (Optional) From the Privacy Type drop-down list, select the algorithm used for encryption. The options available are AES 128, AES 192, AES 256, DES, or None.
ii. (Optional) If you selected AES 128, AES 192, AES 256, or DES, enter the password in the Privacy password field.
258
If you select None, this field is disabled.
9. (Optional) Push the initial configuration to the devices after the devices are discovered on Junos Space Network Management Platform. a. Select the Template Association check box. b. From the Device Template drop-down list, select the appropriate device template that contains the configuration that you want to send to the devices.
NOTE: The Device Template drop-down list does not list Quick templates with variables.
10. (Optional) Upgrade or downgrade to a common Junos OS version on all devices added using the modeled instance. a. Select the Image Upgrade/Downgrade check box. b. From the Device Image drop-down list, select the device image that contains the Junos OS version to which you want to upgrade or downgrade the devices.
11. Activate the devices immediately or later.
NOTE: Junos Space Platform assigns the Waiting for Deployment state when devices are modeled using the Activate Now option and assigns the Modeled state when devices are modeled without the Activate Now option. You can activate devices using the Activate Now option only by using the deviceinitiated connection process.
· To activate the devices immediately, select the Activate Now check box. This check box is selected by default. Enter the following data related to the activation of these devices: i. In the Username field, enter the username used to manage to the device. The username can contain two through 64 alphanumeric characters. The special characters allowed are hyphen (-) and underscore (_). The username must start with a nonhyphen character.
ii. (Optional) Select the Key Based Authentication check box to use RSA keys for authentication. By default, this check box is not selected.
iii. In the Password field, enter the password used to manage the device. The maximum length is 20 characters, the minimum length is six characters, and all characters are allowed.
259
iv. In the Confirm Password field, reenter the password.
v. (Optional) Select the Serial Number Validation check box to authenticate the device by using the serial number of the device. By default, this check box is not selected.
vi. (Optional) Select the Host Name Validation check box to authenticate the device by using the hostname. By default, this check box is not selected.
vii. (Optional) From the Connection Profile drop-down list, select a connection profile that specifies the connectivity parameters that you want to use for this modeled instance.
viii. (Optional) If you have not created a connection profile or want to create a new connection profile for this modeled instance, click the Create button next to the Connection Profile drop-down list. The Connection Profile pop-up window is displayed. For more information about creating a connection profile, see "Creating a Connection Profile" on page 251.
ix. Select whether you want to automatically push the device template configuration to the device from Junos Space Platform immediately or manually later. The Configuration Update options are Automatic and Manual. These options are disabled by default. They are active only if you have chosen the Template Association option earlier.
· If you choose Automatic, the configuration is deployed to the device when the device is discovered to Junos Space Network Management Platform. This option is enabled by default.
· If you choose Manual, you must load the complete configlet (i.e., you must download the configlet from Device Management ILP), which includes the device template configuration, through a USB device, SFTP server, or FTP server.
To discover the device to Junos Space Network Management Platform, you must download the configlet (with only the connection parameters or the complete configlet with the connection parameters and the device template configuration), copy the configlet to a USB drive, connect the USB drive to the device, and reboot the device. The device connects to Junos Space Network Management Platform and is discovered to the Junos Space Network Management Platform database during the initial discovery process. For more
260
information about activating devices using configlets, see "Activating Devices by Using Configlets" on page 268.
· To activate the devices later, clear the Activate Now check box.
NOTE: If you clear the Activate Now check box and choose to activate the device later, use the Activate Modeled Device workflow from the Device Management page to activate the device.
12. Click Next This page displays the devices that are to be modeled. By default, the devices are given the name you provided for the modeled instance appended with "_#," where # is a number. The devices are numbered from 1 through the value you specified for the number of devices in this modeled instance. If you selected a static connection profile, enter the static IP address and gateway details on a per-device basis.
13. (Optional) Modify the default hostname, platform, IP address, and gateway details on a per-device basis.
14. Click Finish. The modeled instance is created. You are redirected to the Model Devices page. You can view the modeled devices that you created on the Device Management page.
NOTE: To view the details of the modeled instance, select the modeled instance and select View Modeled Instance from the Actions menu.
RELATED DOCUMENTATION Model Devices Overview | 250 Adding More Devices to an Existing Modeled Instance | 273 Downloading a Configlet | 265 Viewing and Copying Configlet Data | 267
261
Activating a Modeled or Cloned Device in Junos Space Network Management Platform
You activate a modeled device to manage the device in Junos Space Network Management Platform. The devices you activate through this workflow are ones that were created without selecting the Activate Now option. You can also use this workflow to activate a cloned device (created using the Clone Device workflow).
NOTE: If you associated a device template to the modeled instance when creating the modeled instance, you must approve the device template configuration on the device by using the Review/Deploy Configuration workflow. The Activate Modeled Device task is disabled if you do not approve the device template configuration. For more information about reviewing and deploying the configuration to a device, see "Reviewing and Deploying the Device Configuration" on page 326.
Ensure that the Enable approval workflow for configuration deployment check box on the Modify Application Settings page is selected to enable you to approve the configuration in the device template to the device. You cannot validate the configuration on a modeled device before deploying the configuration.
You can activate modeled devices by using the following methods:
· Junos Spaceinitiated connection For this method, you need to specify the IP address and credentials of the device to connect to a device. If the Junos Space server can access the device, the device is discovered on Junos Space Platform. If you choose to deploy the configuration in the device template by using the Automatic or Manual option through a Junos Space-initiated connection, the device template is deployed to the device after the device is discovered to Junos Space Platform.
· Device-initiated connection Use this method if the Junos Space server cannot access the device. This method involves copying the configlets from Junos Space Platform to the device. The device stays in the Waiting for Deployment state until the configlets are copied to the device. Then the device connects to and is discovered on Junos Space Platform during the initial discovery process. If you choose to deploy the configuration in the device template by using the Automatic option through a device-initiated connection, you must download the connection configlet from the Download Configlet page, copy the configlet to a USB drive, connect the USB drive to the device, and reboot the device. The device template is deployed to the device after the device is discovered to Junos Space Platform. If you choose to deploy the configuration in the device template by using the Manual option through a device-initiated connection, you must download the complete configlet (with the connection parameters and the device template configuration) from the Download Configlet page, copy the configlet to a USB
262
drive, connect the USB drive to the device, and reboot the device. The device template configuration is committed to the device when the device reboots.
NOTE: The Download Configlet link is not available in the job details of a Junos Spaceinitiated connection.
To activate a modeled or cloned device in Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page that appears displays a list of devices that exist in the Junos Space Platform database.
2. Right-click the modeled or cloned device and select Device Operations > Activate Modeled Device. The Activate Modeled Device page is displayed.
3. Select whether you want to connect the device to Junos Space Platform by using a Junos Spaceinitiated connection or a device-initiated connection. By default, the Space initiated option button is selected. · To connect the device by using a device-initiated connection: a. Select the Device Initiated option button. The fields related to the device-initiated connection are displayed. b. (Optional) From the Connection Profile drop-down list, select a connection profile that specifies the connectivity parameters that you want to use for this device. c. (Optional) If you have not created a connection profile or want to create a new connection profile for this device, click the Create button next to the Connection Profile drop-down list. The Connection Profile pop-up window is displayed. For more information about creating a connection profile, see "Creating a Connection Profile" on page 251. d. In the Username field, enter the username used to manage the device. The username can contain 2 through 64 alphanumeric characters. The special characters allowed are hyphen (-) and underscore (_). The username must start with a nonhyphen character. e. (Optional) Select the Key Based Authentication check box to use RSA keys for authentication. By default, this check box is not selected. f. In the Password field, enter the password.
263
The maximum length is 20 characters, the minimum length is 6 characters, and all characters are allowed. g. In the Confirm Password field, reenter the password used to manage the device. h. (Optional) Select the Serial Number Validation check box to authenticate the device by using the serial number of the device. By default, this check box is not selected. If you select the Serial Number Validation check box, in the Serial Number field, enter the serial number of the device. i. Select whether you want to deploy the initial configuration to the device during the initial connection to Junos Space Platform, or manually after the device is added. The Device Configuration Update options are Automatic and Manual. · If you choose Automatic, the configuration is deployed to the device when the device is
discovered to Junos Space Platform. This option is enabled by default. · If you choose Manual, you must load the complete configlet, which includes the updated device configuration, through a USB device, SFTP server, or FTP server.
· To connect the device to Junos Space Platform by using a Junos Spaceinitiated connection: a. Select the Space Initiated option button. The fields related to Junos Spaceinitiated connection are displayed. b. Select whether you want to specify a hostname or IP address for the device by using the Toggle IP Address/HostName check box. By default, this check box is not selected and you can specify the IP address in the next field. If you select this check box, you can enter the hostname in the next field. c. In the IP Address or Hostname field, enter the IP address or hostname of the device.
NOTE: You can enter the IP address in either IPv4 or IPv6 format. Refer to http://www.iana.org/assignments/ipv4-address-space/ipv4-address-space.xhtml for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space/ipv6-address-space.xhtml for the list of restricted IPv6 addresses.
d. In the Username field, enter the username used to manage the device. The username can contain 2 through 64 alphanumeric characters. The special characters allowed are hyphen (-) and underscore (_). The username must start with a nonhyphen character.
264
e. (Optional) Select the Key Based Authentication check box to use RSA keys for authentication. By default, this check box is not selected.
f. In the Password field, enter the password used to manage the device. The maximum length is 20 characters, the minimum length is 6 characters, and all characters are allowed.
g. In the Confirm Password field, reenter the password. h. To authorize a different user on the device during the activation process, select the Authorize
user on different device check box. By default, this check box is not selected. If you select this check box: · In the Username field, enter the username used to manage the device.
The username can contain 2 through 64 alphanumeric characters. The special characters allowed are hyphen (-) and underscore (_). The username must start with a nonhyphen character. · Select the Key Based Authentication check box to use RSA keys for authentication. By default, this check box is not selected. · In the Password field, enter the password used to manage the device. The maximum length is 20 characters, the minimum length is 6 characters, and all characters are allowed. · In the Confirm Password field, reenter the password.
NOTE: If the user does not exist on the device, a new user is created with these credentials.
i. Select the Serial Number Validation check box if you want to authenticate the device by using the serial number of the device. By default, this check box is not selected. (Optional) The Serial Number field is displayed if you select the Serial Number Validation check box. If you select the Serial Number Validation check box, in the Serial Number field, enter the serial number of the device.
j. Select whether you want to deploy the initial configuration to the device during the initial connection to Junos Space Platform, or manually after the device is added to Junos Space Platform. The Device Configuration Update options are Automatic and Manual. · If you choose Automatic, the configuration is deployed to the device when the device is discovered to Junos Space Platform.
265
This option is enabled by default. · If you choose Manual, you must load the complete configlet, which includes the updated device
configuration, through a USB device, SFTP server, or FTP server.
4. Click Activate. A job is triggered. If you activated the device through a Junos Spaceinitiated connection, the job triggered does not contain the Download Configlet link. If the job succeeds, the device is flagged with either the Out of Sync or In Sync status on the Device Management page. If you activated the device through a device-initiated connection, the job triggered displays the Download Configlet link. The configlet is available on the Job Management page and the contents of the configlet vary depending on whether you selected the Automatic or Manual option to update the device template configuration. If the job succeeds, the device is flagged with the In Sync status on the Device Management page.
RELATED DOCUMENTATION Model Devices Overview | 250 Creating a Modeled Instance | 256
Downloading a Configlet
You download a configlet to save a copy of the configlet on your local computer and connect devices to Junos Space Platform. You can download a configlet in XML, CLI, and curly braces formats. You download a configlet from the Devices workspace. Ensure that you temporarily disable the pop-blocker on your browser to be able to download the configlet file on your local computer. This task is disabled if the modeled device is in the In Sync or Modeled state on the Device Management page.
NOTE: If you created a modeled device without using the Activate Now option when creating the modeled instance, you can download the configlet only from the Device Management page. To download the configlet from the Device Management page, select the modeled device and select Device Operations > View/Download Configlet from the Actions menu.
266
To download a configlet from the Model Devices page: 1. On the Network Management Platform user interface, select Devices > Model Devices.
The Model Devices page is displayed.
2. Select the modeled instance whose configlet you want to download and select Download Configlet from the Actions menu. The Download Configlet page is displayed.
3. From the Configlet Type drop-down list, select the format of the configlet you want to download. You can download the configlet in CLI, XML, and curly braces formats.
4. Select whether you want to encrypt the configlet file by selecting the appropriate option button in the Encryption area. Junos Space Network Management Platform supports encrypting configlets in the AES format. · To use plain-text, select the Plain Text option button. · To use AES encryption, select the AES option button and enter the encryption key in the Encryption Key field. The encryption key must be 16 characters long and can contain letters, numbers, spaces, and special characters.
5. Select how you want to save or copy the configlet file by choosing the appropriate option button in the Save area. · If you select the None option button, the configlet file is saved on your local computer. · If you select the SFTP option button, specify the user ID, password, SFTP server IP address, and the file path where you want to save the configlet file on the SFTP server. · If you select the FTP option button, specify the user ID, password, FTP server IP address, and the file path where you want to save the configlet file on the FTP server.
6. Click Download.
7. Save the Configlets.zip file to your local computer if you want to save it locally.
NOTE: To connect and activate a modeled device from Junos Space Platform, download the configlet in any format, connect a USB device containing the configlet to the device, and reboot the device. The device then connects to Junos Space Platform. For more information, see "Activating Devices by Using Configlets" on page 268.
267
RELATED DOCUMENTATION Model Devices Overview | 250 Creating a Modeled Instance | 256 Adding More Devices to an Existing Modeled Instance | 273 Viewing and Copying Configlet Data | 267
Viewing and Copying Configlet Data
You can view configlet data for the modeled instance that you created. You can also copy the configlet data to a text editor for further modifications. This task is disabled if the modeled device is in the Managed state on the Device Management page or for a modeled device that is activated using a Junos Spaceinitiated connection.
NOTE: If you created a modeled device without using the Activate Now option when creating the modeled instance, you can download the configlet only from the Device Management page. To view the configlet from the Device Management page, select the modeled device and select Device Operations > View/Download Configlet from the Actions menu.
To view and copy configlet data: 1. From the Junos Space Network Management Platform user interface, select Devices > Model Devices.
The Model Devices page is displayed.
2. Select the modeled instance whose configlet data you want to view and copy, and select View Configlet from the Actions menu. The View Configlet page is displayed. You can view the name of the modeled instance, number of devices that are part of this modeled instance, and configlet data.
3. From the Configlet Format drop-down list, select the format in which you want to view the configlet data. The options available are CLI, XML, and curly braces. By default CLI is selected.
NOTE: If you activate a modeled device by using the Activate Now option when creating a modeled instance, you can download the configlet in CLI, XML, and curly brace formats.
268
4. Copy the configlet data from the Configlet Content field to a Notepad or any other text editor. If you select to update the configuration in the device template manually, the Configlet Content area displays the configlet containing the connection parameters and the configuration in the device template. You can modify this configlet as needed and copy the modified data in the configlet to a device's CLI console. The device then connects to Junos Space Platform.
5. Click Close. You are redirected to the Model Devices page.
RELATED DOCUMENTATION Model Devices Overview | 250 Creating a Modeled Instance | 256 Adding More Devices to an Existing Modeled Instance | 273 Downloading a Configlet | 265
Activating Devices by Using Configlets
IN THIS SECTION Activating a Device by Using a Plain-text Single Configlet | 269 Activating a Device by Using an AES-encrypted Single Configlet | 269 Activating a Device by Using a Plain-text Bulk Configlet | 270 Activating a Device by Using an AES-encrypted Bulk Configlet | 270
You can activate a modeled device by connecting a USB device containing the configlet generated from the appropriate modeled instance created in Junos Space Network Management Platform. The device then connects to Junos Space Platform through a device-initiated connection. Refer to"Activating a Modeled or Cloned Device in Junos Space Network Management Platform" on page 261 for more information.
269
You can generate a single configlet (per device) or a bulk configlet (one configlet to activate multiple devices). · Junos Space Platform generates a single configlet if you choose a static connection profile or enable
hostname validation and are using a DHCP connection profile. · Junos Space Platform generates a bulk configlet if you do not select a connection profile or if you select
a DHCP connection profile without hostname validation.
NOTE: If you assigned a device template and selected to deploy the configuration in the device template manually, the configlet contains the connection parameters and the configuration in the device template.
By default, the configlet is downloaded as a .ZIP file in XML, CLI, or curly braces format. You must unzip the .ZIP file and copy the configlet to the USB device before using the configlet to activate devices. The following tasks help you to activate modeled devices by using single or bulk configlets:
Activating a Device by Using a Plain-text Single Configlet A plain text single configlet can be used to activate one device without an encryption key. To activate a device by using a plain-text single configlet: 1. Copy the plain-text configlet to a USB device.
2. Plug the USB device to the USB port on the device.
3. Power on the device or reboot the device if the device was already powered on.
The configuration in the plain-text single configlet is committed on the device. The device then connects to Junos Space Platform.
Activating a Device by Using an AES-encrypted Single Configlet An AES-encrypted single configlet can be used to activate one device with an the encryption key. To activate a device by using an AES-encrypted single configlet: 1. Copy the AES-encrypted configlet to a USB device.
2. Create a text file Key.txt containing a 16-digit encryption key on the USB device.
270
3. Plug the USB device to the USB port on the device. 4. Power on the device or reboot the device if the device was already powered on.
If you did not create the Key.txt file on the USB device, you are prompted to enter the 16-digit encryption key. · Enter the 16-digit encryption key. The configuration in the AES-encrypted single configlet is committed on the device. The device then connects to Junos Space Platform. Activating a Device by Using a Plain-text Bulk Configlet A plain-text bulk configlet can be used to activate multiple devices without an encryption key. To activate devices by using a plain-text bulk configlet: 1. Copy the plain-text bulk configlet to a USB device. 2. Create a text file Hostname.txt containing the hostnames of all devices that should be activated by this configlet, on the USB device. 3. Plug the USB device to the USB port on the device. 4. Power on the device or reboot the device if the device was already powered on. The configuration in the plain-text bulk configlet is committed on the device. The device then connects to Junos Space Platform.
NOTE: Repeat steps 1 through 4 to activate other devices using the same configlet.
Activating a Device by Using an AES-encrypted Bulk Configlet An AES-encrypted bulk configlet can be used to activate multiple devices with an encryption key. To activate devices by using an AES-encrypted bulk configlet: 1. Copy the AES-encrypted bulk configlet to a USB device. 2. Create a text file Key.txt containing a 16-digit encryption key on the USB device.
271
3. Create a text file Hostname.txt containing the hostnames of all devices that should be activated by this configlet, on the USB device.
4. Plug the USB device to the USB port on the device. 5. Power on the device or reboot the device if the device was already powered on.
If you did not create the Key.txt file on the USB device, you are prompted to enter the 16-digit encryption key. · Enter the 16-digit encryption key. The configuration in the AES-encrypted bulk configlet is committed on the device. The device then connects to Junos Space Platform.
NOTE: Repeat steps 1 through 4 to activate other devices by using the same configlet.
RELATED DOCUMENTATION Rapid Deployment Overview | 246 Creating a Modeled Instance | 256 Viewing and Copying Configlet Data | 267
Viewing a Modeled Instance
You view a modeled instance when you need to view the details of a modeled instance. To view a modeled instance: 1. On the Network Management Platform user interface, select Devices > Model Devices.
The Modeled Devices page that appears displays the modeled instances. 2. Select the modeled instance you want to view and select the View Modeled Instance icon from the
Actions bar. The View Modeled Instance dialog box is displayed. Table 22 lists the details of the modeled instance displayed in the View Modeled Instance dialog box.
272
Table 22: View Modeled Instance Dialog Box Details
Field
Description
Displayed In
Name
Name of the modeled instance
Model Devices page View Modeled Instance dialog box
Description
Description of the modeled instance
Model Devices page View Modeled Instance dialog box
Device Family
Device family used for the modeled instance
Model Devices page View Modeled Instance dialog box
Connection Profile Type
Type of connection profile used for the modeled instance
Model Devices page View Modeled Instance dialog box
Device Count
Number of devices in the modeled instance
Model Devices page View Modeled Instance dialog box
Table 23 lists the details of the devices included in the modeled instance. Table 23: Details of Devices Included in the Modeled Instance
Field
Description
Device Name
Name of the modeled device
Platform
Platform of the modeled device
OS version
Junos OS version that is upgraded or downgraded on the modeled device
Serial Number
Serial number of the actual physical device
Static IP
Static IP address used during rapid deployment. A hyphen `-` is displayed if DHCP or PPPoE is used to assign IP addresses.
3. Click Close to close the View Modeled Instance dialog box.
RELATED DOCUMENTATION
273
Adding More Devices to an Existing Modeled Instance | 273 Viewing the Status of Modeled Devices | 274 Creating a Modeled Instance | 256 Deleting Modeled Instances | 275 Model Devices Overview | 250
Adding More Devices to an Existing Modeled Instance
You add more devices to an existing modeled instance if you want to add devices using the existing parameters of the modeled instance. You can perform this task from the Devices workspace. To add more devices to a modeled instance: 1. On the Network Management Platform user interface, select Devices > Model Devices.
The Model Devices page is displayed.
2. Select the modeled instance to which you want to add more devices and select Add More Devices from the Actions menu. The Add More Devices page is displayed. You can view the name of the modeled instance, the device family of the modeled instance, the device template associated with the modeled instance, the device image associated with the modeled instance, and the number of devices that are already part of the modeled instance.
3. (Optional) In the Apply Tag field, enter a tag that you want to assign to this modeled instance.
4. In the Number of Devices to add field, use the up and down arrows to specify the number of devices that you want to add to this modeled instance. The default value is zero. The page is populated with as many rows as the number of devices that you specify in the Number of Devices field. The Hostname, Platform, and OS version columns are populated with default values. You can modify the default hostname, and the platform of the device. If you have selected the Serial Number Validation check box in the modeled instance, you need to enter the serial number of the device. · If you want to modify the hostname for a device, double-click the hostname of the corresponding device and enter the new hostname · If you want to modify the platform for the device, select the appropriate platform for corresponding device from the drop-down list.
274
· Click Update. 5. Click Add.
The devices are added to the modeled instance.
RELATED DOCUMENTATION Model Devices Overview | 250 Creating a Modeled Instance | 256 Downloading a Configlet | 265 Viewing and Copying Configlet Data | 267
Viewing the Status of Modeled Devices
You view the status of the devices you added using a modeled instance to view the connection status and managed status of the devices. You can view the status of the devices you added using a modeled instance, from the Devices workspace. To view the status of the modeled devices added using a modeled instance: 1. On the Network Management Platform user interface, select Devices > Model Devices.
The Model Devices page is displayed.
2. Select the modeled instance and select View Modeled Device Status from the Actions menu. The View Modeled Device Status page is displayed. This page displays the name of the devices, Junos OS version on the devices, device family, platform of the devices, IP address of the devices, whether the device is connected to Junos Space Network Management Platform, the managed status of the devices, and the serial number of the devices.
3. Click Back to return to the Model Devices page.
RELATED DOCUMENTATION Model Devices Overview | 250 Creating a Modeled Instance | 256 Adding More Devices to an Existing Modeled Instance | 273
275
Downloading a Configlet | 265 Viewing and Copying Configlet Data | 267
Deleting Modeled Instances
You delete modeled instances when you no longer need them to add devices to Junos Space Network Management Platform. You can delete modeled instances from the Devices workspace. To delete modeled instances: 1. On the Network Management Platform user interface, select Devices > Model Devices.
The Model Devices page is displayed. 2. Select the modeled instances you want to delete and select Delete Modeled Instances from the Actions
menu. The Delete Modeled Instances pop-up window is displayed. 3. Click Delete. The modeled instances are deleted.
RELATED DOCUMENTATION Model Devices Overview | 250 Creating a Modeled Instance | 256 Adding More Devices to an Existing Modeled Instance | 273 Viewing and Copying Configlet Data | 267
Viewing a Connection Profile
You view a connection profile when you need to view the details of the connection profile. To view a connection profile: 1. On the Network Management Platform user interface, select Devices > Model Devices > Connection
Profiles. The Connection Profiles page that appears displays the connection profiles.
276
2. Select the connection profile you want to view and select the View Connection Profile icon from the Actions bar. The View Connection Profile dialog box is displayed. Table 24 lists the details of the connection profile displayed in the View Connection Profile dialog box. Table 24: View Connection Profile Dialog Box Details
Field or Area
Description
Displayed In
Name
Name of the connection profile
Connection Profiles page View Connection Profile dialog box
Description
Description of the connection profile
Connection Profiles page View Connection Profile dialog box
Interface
Interface of the device on which the IP address will be View Connection Profile dialog box configured
IP Address Type
Format of the IP address: IPv4 or IPv6
View Connection Profile dialog box
NAT area
IP address of the NAT server and the port used for network address translation
View Connection Profile dialog box
Connection Settings area
How the IP address is assigned to the device DHCP, Static, or PPPoE and the fields related to the type of connection used to assign the IP address
View Connection Profile dialog box
For example, a DHCP-based connection profile displays fields such as Retransmission Attempts, Retransmission Interval, Server Address, and so on.
3. Click Close to close the View Connection Profile dialog box.
RELATED DOCUMENTATION
Modifying a Connection Profile | 277 Creating a Connection Profile | 251 Model Devices Overview | 250
277
Cloning a Connection Profile
You clone a connection profile when you want to quickly create a copy of an existing connection profile and modify its parameters including the name of the connection profile. You can clone a connection profile from the Devices workspace. To clone a connection profile: 1. On the Network Management Platform user interface, select Devices > Model Devices > Connection
Profiles. The Connection Profiles page is displayed.
2. Select the connection profile you want to clone and select Clone Connection Profile from the Actions menu. The Clone Connection Profile page is displayed.
3. Modify the parameters of the connection profile. You can modify all the parameters including the name of the connection profile.
4. Click Clone. A new connection profile is created.
RELATED DOCUMENTATION Modifying a Connection Profile | 277 Creating a Connection Profile | 251
Modifying a Connection Profile
You modify a connection profile to change some of the connectivity-related parameters of devices such as device interface details, the NAT configuration details for Junos Space, the protocol used to assign IP addresses to devices. You can modify connection profiles from the Connection Profiles page in the Devices workspace. To modify a connection profile: 1. On the Network Management Platform user interface, select Devices > Model Devices > Connection
Profiles.
278
The Connection Profiles page is displayed. 2. Select the connection profile you want to modify and click the Modify Connection Profile icon on the
Actions menu. The Modify Connection Profile page is displayed. You can modify all the fields on this page except the Name field. 3. Click Modify. The connection profile is modified..
RELATED DOCUMENTATION Deleting Connection Profiles | 278 Creating a Connection Profile | 251
Deleting Connection Profiles
You delete a connection profile when you no longer need it to create modeled instances. You can delete connection profiles from the Devices workspace. To delete connection profiles: 1. On the Network Management Platform user interface, select Devices > Model Devices > Connection
Profiles. The Connection Profiles page is displayed. 2. Select the connection profile you want to delete and click the Delete Connection Profiles icon on the Actions menu. The Delete Connection Profiles pop-up window is displayed. 3. Click Delete. The connection profile is deleted.
RELATED DOCUMENTATION Modifying a Connection Profile | 277
279 Creating a Connection Profile | 251
280
CHAPTER 11
Device Authentication in Junos Space
IN THIS CHAPTER Device Authentication in Junos Space Overview | 280 Generating and Uploading Authentication Keys to Devices | 284 Resolving Key Conflicts | 290 Modifying the Authentication Mode on the Devices | 292 Acknowledging SSH Fingerprints from Devices | 294
Device Authentication in Junos Space Overview
IN THIS SECTION Credentials-Based Device Authentication | 281 Key-Based Device Authentication | 281 SSH Fingerprint-Based Device Authentication | 282 Supported Algorithms for Junos Space SSH | 283
Junos Space Network Management Platform can authenticate a device by using credentials (username and password), keys (which use public-key cryptographic principles), or the devices' SSH fingerprints. You can choose the authentication mode on the basis of the level of security needed for the managed devices. The authentication mode is displayed in the Authentication Status column on the Device Management page. You can also change the authentication mode. The following sections describe the authentication modes in Junos Space Platform:
281
Credentials-Based Device Authentication
To configure credentials-based authentication on your Junos Space setup, you need to ensure that the device login credentials with administrative privileges are configured on the device. If the device is reachable and the credentials are authenticated, these credentials are stored in the Junos Space Platform database. Junos Space Platform connects to the device by using these credentials. If you have configured key-based authentication on your Junos Space setup, you need to enter only the username to access the device.
Key-Based Device Authentication
From Junos Space Network Management Platform Release 16.1R1 onward, Junos Space Platform supports 4096-bit Rivest-Shamir-Adleman (RSA) algorithm, Digital Signature Standard (DSS), and Elliptic Curve Digital Signature Algorithm (ECDSA) public-key cryptographic principles to authenticate devices running Junos OS through key-based authentication. Junos Space Platform continues to support the 2048-bit RSA algorithm. Key-based authentication is more secure than credentials-based authentication because the device credentials need not be stored in the Junos Space Platform database.
RSA is an asymmetric-key or public-key algorithm that uses two keys that are mathematically related. Junos Space Platform includes a default set of public and private key pairs. The public key can be uploaded to the managed devices. The private key is encrypted and stored on the system on which Junos Space Platform is installed. For additional security, we recommend that you generate your own public and private key pair with a passphrase. A passphrase protects the private key on the Junos Space server. Creating long passphrases can be more difficult to break by brute-force attacks than shorter passphrases. A passphrase helps to prevent an attacker from gaining control of your Junos Space setup and trying to log in to your managed network devices. If you generate a new pair of keys, the keys are automatically uploaded to all active devices (that is, devices whose connection status is Up) that use Junos Space key-based authentication.
From Junos Space Network Management Platform Release 16.1R1 onward, you can also upload custom private keys to the Junos Space server and authenticate devices without the need to upload keys to devices from Junos Space Platform. With the custom key-based authentication method, you upload a private key with a passphrase to the Junos Space server. The device is authenticated using the existing set of public keys on the device, the private key uploaded to the Junos Space server, and the appropriate public-key algorithm--that is, RSA, ECDSA, or DSS. This authentication method can be used to authenticate devices during device discovery and later during device management.
If the keys are modified, the devices become unreachable and the authentication status changes to Key Conflict. You can use the Resolve Key Conflicts workflow to manually trigger the process of uploading new keys to these devices. To authenticate the devices, you can choose to upload the new keys generated from Junos Space Platform or use custom keys. If Junos Space key-based or custom key-based authentication fails, credentials-based authentication is automatically triggered.
After key-based or custom key-based authentication is enabled, all further communication to the devices is through Junos Space key-based or custom key-based authentication, without passwords. You can also
282
change the authentication mode from credentials-based to key-based or custom key-based for managed devices. For more information, see "Modifying the Authentication Mode on the Devices" on page 292.
You need to ensure the following to use key-based authentication in Junos Space Platform:
· The authentication keys are generated in the Administration workspace. For more information about generating and uploading keys to the devices, see "Generating and Uploading Authentication Keys to Devices" on page 284. The job result indicates whether the keys were successfully uploaded to the devices. On a multinode setup, the authentication keys are made available on all existing cluster nodes. Authentication keys are also made available on any subsequent nodes added to the setup.
· The device's administrator credentials and the name of the user who connects to the Junos Space Appliance to upload the keys to the device are available.
SSH Fingerprint-Based Device Authentication
To avoid man-in-the-middle attacks or proxy SSH connections between Junos Space Platform and a device, Junos Space Platform can store the SSH fingerprint of the device in the Junos Space Platform database and validate the fingerprint during subsequent connections with the device. A fingerprint is a sequence of 16 hexadecimal octets separated by colons. For example, c1:b1:30:29:d7:b8:de:6c:97:77:10:d7:46:41:63:83. You can specify the fingerprint for Juniper Networks devices during device discovery and validate the fingerprint when the devices connect to Junos Space Platform for the first time. You can specify fingerprints for a maximum of 1024 devices simultaneously in the Device Discovery workflow. If you do not specify the fingerprint, Junos Space Platform obtains the fingerprint details when it connects to the device for the first time. For more information, see "Viewing Managed Devices" on page 193.
Junos Space Platform does not recognize an SSH fingerprint change on a device during an active open connection with the device. SSH fingerprint changes are recognized only when the device reconnects to Junos Space Platform. The Authentication Status column on the Device Management page displays any conflicts or unverified authentication statuses.
Conflicts between SSH fingerprints stored in the Junos Space Platform database and those on the device can be resolved manually from the Junos Space user interface. Alternatively, you can allow Junos Space Platform to automatically update any fingerprint changes. To allow Junos Space Platform to automatically update SSH fingerprints, disable the Manually Resolve Fingerprint Conflict check box on the Modify Application Settings page in the Administration workspace. If you enable this check box, the Authentication Status column displays Fingerprint Conflict if a device's fingerprint changes. You need to manually resolve the fingerprint conflict. For more information, see "Acknowledging SSH Fingerprints from Devices" on page 294.
283
NOTE: Key-based and fingerprint-based authentication modes are not supported in ww Junos OS devices.
Junos Space Platform verifies that the fingerprint on the device matches that in the database when you perform the following tasks:
· Staging a script on a device · Staging a device image on a device · Deploying a device image on a device · Activating a replacement device · Executing a script on a device · Connecting to a device by using SSH
If the fingerprint on the device does not match the fingerprint stored in the Junos Space Platform database, the connection to the device is dropped. The connection status is displayed as Down and the authentication status is displayed as Fingerprint Conflict on the Device Management page.
Supported Algorithms for Junos Space SSH
Table 25 lists the supported algorithms for Junos Space SSH:
Table 25: Supported Algorithms for Junos Space SSH
Algorithm Type
FIPS Devices
Non-FIPS Devices
Key exchange algorithms
ecdh-sha2-nistp256, ecdh-sha2-nistp384, diffie-hellman-group14-sha1
ecdh-sha2-nistp256, ecdh-sha2-nistp384, diffie-hellman-group14-sha1, diffie-hellman-group1-sha1
Host key algorithms
ecdsa-sha2-nistp256, ecdsa-sha2-nistp384
ecdsa-sha2-nistp256, ecdsa-sha2-nistp384, ssh-rsa, ssh-dss
Encryption algorithms(client to server)
aes128-ctr, aes192-ctr, aes256-ctr, aes128-cbc, aes192-cbc, aes256-cbc
aes128-ctr, aes192-ctr, aes256-ctr, aes128-cbc, aes192-cbc, aes256-cbc, 3des-ctr, blowfish-cbc, 3des-cbc
Encryption algorithms(server to client)
aes128-ctr, aes192-ctr, aes256-ctr, aes128-cbc, aes192-cbc, aes256-cbc
aes128-ctr, aes192-ctr, aes256-ctr, aes128-cbc, aes192-cbc, aes256-cbc, 3des-ctr, blowfish-cbc, 3des-cbc
284
Table 25: Supported Algorithms for Junos Space SSH (continued)
Algorithm Type
FIPS Devices
Non-FIPS Devices
MAC algorithm
hmac-sha1-96, hmac-sha2-256, hmac-sha256@ssh.com
hmac-sha1-96, hmac-sha2-256, hmac-sha256@ssh.com, hmac-sha1, hmac-md5, hmac-md5-96, hmac-sha256
Compression algorithm zlib@openssh.com
zlib@openssh.com, none, zlib
Release History Table
Release
Description
16.1R1
From Junos Space Network Management Platform Release 16.1R1 onward, Junos Space Platform supports 4096-bit Rivest-Shamir-Adleman (RSA) algorithm, Digital Signature Standard (DSS), and Elliptic Curve Digital Signature Algorithm (ECDSA) public-key cryptographic principles to authenticate devices running Junos OS through key-based authentication.
16.1R1
From Junos Space Network Management Platform Release 16.1R1 onward, you can also upload custom private keys to the Junos Space server and authenticate devices without the need to upload keys to devices from Junos Space Platform.
RELATED DOCUMENTATION Device Discovery Profiles Overview | 219 Generating and Uploading Authentication Keys to Devices | 284 Resolving Key Conflicts | 290 Modifying the Authentication Mode on the Devices | 292
Generating and Uploading Authentication Keys to Devices
IN THIS SECTION Generating Authentication Keys | 285 Uploading Authentication Keys to Multiple Managed Devices for the First Time | 286 Uploading Authentication Keys to Managed Devices With a Key Conflict | 289
285
Junos Space Network Management Platform can authenticate a device either by using credentials (username and password) or by keys. Junos Space Network Management Platform supports RSA, DSA, and ECDSA public-key cryptographic principles to perform key-based authentication. You can select a key size of 2048 or 4096 bits. Junos Space Platform includes a default set of public-private key pairs; the public key is uploaded to the device and the private key is stored on the Junos Space server.
NOTE: If you generated a new set of keys, you can either upload the new keys to the devices or resolve key conflicts when the device is disconnected from Junos Space Platform. For more information about resolving key conflicts, refer to "Resolving Key Conflicts" on page 290.
The following tasks describe how to the generate keys in Junos Space Platform and upload the public keys to the devices:
Generating Authentication Keys
To generate a public/private key pair for authentication during login to network devices: 1. On the Junos Space Network Management Platform user interface, select Administration > Fabric.
The Fabric page is displayed.
2. Click the Manage SSH Key icon on the Actions bar. The Key Generator pop-up window is displayed.
3. (Optional) In the Passphrase field, enter a passphrase to be used to protect the private key, which remains on the system running Junos Space Network Management Platform and is used during device login. The passphrase must have a minimum of five and a maximum of 40 characters. A long passphrase is harder to break by brute-force guessing. Space, Tab, and Backslash (\) characters are not allowed. Although not mandatory, it is recommended that you set a passphrase to prevent attackers from gaining control of your system and logging in to your managed network devices.
4. (Optional) Select the Show Passphrase check box to view the passphrase you entered.
5. From the Algorithm drop down list, select the key algorithm used to the generate the key. The options are RSA, DSA, and ECDSA. By default, RSA is selected.
6. From the Key Size drop down list, select the length of the key algorithm that is uploaded to the devices. The options are 2048 Bits and 4096 Bits. By default, 2048 Bits is selected.
286
7. (Optional) Schedule the Junos Space Network Management Platform to generate authentication keys at a later time or immediately. · To specify a later start date and time for key generation, select the Schedule at a later time check box. · To initiate key generation as soon as you click Generate, clear the Schedule at a later time check box (the default).
NOTE: The selected time in the scheduler corresponds to the Junos Space server time but uses the local time zone of the client computer.
8. Click Generate. The Manage SSH Key Job Information dialog box appears, displaying a job ID link for key generation. Click the link to determine whether the key is generated successfully.
NOTE: If there are already scheduled report generation or configuration backup tasks when you change the SSH key, ensure that you update the new SSH Key on the SCP server.
Uploading Authentication Keys to Multiple Managed Devices for the First Time To upload authentication keys to multiple managed devices for the first time: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Click the Upload Keys to Devices icon on the Actions bar. The Upload Keys to Devices pop-up window is displayed.
287
3. You can upload the keys to one device or multiple devices: To upload keys to a single device: a. Select the Add Manually option button. The Authentication Details section that appears displays the options related to manually uploading keys to a single device.
b. Select the IP Address or Hostname option button. If you selected the IP Address option, enter the IP address of the device.
NOTE: You can enter the IP address in either IPv4 or IPv6 format.
If you selected the Hostname option, enter the hostname of the device.
c. In the Device Admin field, enter the appropriate username for that device.
d. In the Password field, enter the password for that device.
e. (Optional) To authorize a different user on the target device, select the Authorize different user on device check box and enter the username in the User on Device field. If the username you specify in the User on Device field does not exist on the device, a user with this username is created and the key is uploaded for this user. If the User on Device field is not specified, then the key is uploaded for the device administrator user on the device.
f. Click Next. You are directed to the next page. This page displays the details of the device you entered--IP Address/Hostname, Device Admin, Password, and User on Device.
g. Click Finish to upload keys to the device. The Job Information dialog box appears.
h. (Optional) Click the Job ID in the Job Information dialog box to view job details for the upload of keys to the device.
288
The Job Management page appears. View the job details to know whether this job is successful.
To upload keys to multiple devices: a. Select Import From CSV.
b. (Optional) To see a sample CSV file as a pattern for setting up your own CSV file, select View Sample CSV. A separate window appears, allowing you to open or download a sample CSV file. Refer to the sample CSV file for the format of entering the device name, IP address, device password, and a username on the device. If the username you specify in the User on Device column does not exist on the device, a user with this username is created and the key is uploaded for this user. If the user on device column is not specified, then the key is uploaded for the device administrator user on the device.
c. When you have a CSV file listing the managed devices and their data, select Select a CSV To Upload. The Select CSV File dialog box appears.
d. Click Browse to navigate to where the CSV file is located on the local file system. Make sure that you select a file that has a .csv extension.
e. Click Upload to upload the authentication keys to the device. An Information dialog box displays information about the total number of records that are uploaded and whether this operation is a success. Junos Space Network Management Platform displays the following error if you try to upload non-CSV file formats: Please select a valid CSV file with '.csv' extension.
f. Click OK in the information dialog box that appears. The green check mark adjacent to the Select a CSV To Upload field indicates that the file is successfully uploaded.
g. Click Next. You are directed to the next page. This page displays the details of the device you entered--IP Address/Hostname, Device Admin, Password, and User on Device.
h. Click Finish. The Job Information dialog box appears.
i. (Optional) Click the Job ID to view job details for the upload of keys to the device.
289
The Job Management page appears. View the job details to know whether this job is successful. New keys generated on Junos Space Platform are automatically uploaded to all managed devices.
Uploading Authentication Keys to Managed Devices With a Key Conflict To upload authentication keys to one or several managed devices with a key conflict manually: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed. 2. Select the devices with a key conflict to which you want to upload authentication keys and click the Upload Keys to Devices icon on the Actions bar. The Upload Keys to Devices pop-up window is displayed. The IP address fields of the devices are prepopulated. 3. In the Device Admin field, enter the appropriate username for that device. 4. In the Password field, enter the password for that device. 5. Confirm the password by reentering it in the Re-enter Password field. 6. Select Next to provide details for the next device. 7. Select Upload to upload the authentication keys to the managed devices. The Upload Authentication Key dialog box displays a list of devices with their credentials for your verification.
NOTE: If you do not specify a username in the User Name field, the key is uploaded for the "user admin" user on the device. If the username you specify in the User Name field does not exist on the device, a user with this username is created and the key is uploaded for this user.
RELATED DOCUMENTATION Device Authentication in Junos Space Overview | 280
290
Device Discovery Profiles Overview | 219 Resolving Key Conflicts | 290
Resolving Key Conflicts
Devices that use public key-based authentication (that is keys generated and uploaded from Junos Space Network Management Platform) connect to Junos Space Platform by using RSA, DSS, or ECDSA Key public-key algorithms. If a new public key is generated from the Administration workspace when the device is disconnected or down, the device is unable to reconnect to Junos Space Platform when it comes back up. The Authentication Status column on the Device Management page shows that the device is in the Key Conflict state. You can use the Resolve Key Conflict workflow to resolve the key conflict, then provide the new public key or use a custom private key to authenticate the device. To resolve key conflicts: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select the devices that are in the Key Conflict state.
3. Right-click and select Device Access > Resolve Key Conflict from the Actions menu. The Resolve Key Conflict page that appears displays a list of devices with key conflict.
291
You can either upload the new keys generated from Junos Space Platform or use a custom key to resolve the key conflict. · To upload a custom key to the Junos Space server:
i. Select the Use Custom Key option button. The Resolve Key Conflict page appears.
ii. (Optional) In the Passphrase field, enter the passphrase created when you generated the private key.
iii. Click the Browse button next to the Private Key field to upload the private key for the managed devices.
iv. In the Device Admin column, enter the administrator username for the devices listed in the corresponding cells.
v. Click Resolve. The key conflicts are resolved and the devices are pushed to the Key Based state.
· To upload new keys: i. Select the Use Space Key option button. By default, this option button is selected. The Resolve Key Conflict page appears.
ii. In the Device Admin column, enter the administrator username for the devices listed in the corresponding cells. If the user does not exist on the device, a new user with the username is created.
iii. In the Password column, enter the administrator password in the corresponding cells.
iv. Click Resolve. The key configlets are resolved and the devices are pushed to the Key Based state.
To cancel the workflow, click Cancel.
RELATED DOCUMENTATION
292
Device Authentication in Junos Space Overview | 280 Modifying the Authentication Mode on the Devices | 292 Generating and Uploading Authentication Keys to Devices | 284
Modifying the Authentication Mode on the Devices
Junos Space Network Management Platform supports RSA, DSS, and ECDSA keys for key-based authentication. Junos Space Platform automates the processes for creating and uploading the keys. It also tracks and reports the authentication status of each device in the Devices workspace. You can use this workflow to modify credentials on multiple devices, or change the authentication mechanism from credentials based to Junos Space Platform key based, credentials -based to custom key based or Junos Space Platform key based to custom key-based. To modify the authentication mode on the devices: 1. On the Junos Space Network Management Platform user interface, select Network Management
Platform > Devices > Device Management. The Device Management page appears.
2. Select the devices for which you want to modify the authentication.
3. Select Device Access > Modify Authentication from the Actions menu.
293
The Modify Authentication pop-up window is displayed. · To modify the existing credentials on the selected devices:
i. In the Username field, enter the username of the device. If the user does not exist on the device, the user is automatically created.
ii. In the Password field, enter the password of the device.
iii. In the Confirm Password field, reenter the password.
iv. Select the Change on device check box.
v. Click Modify. A Job is created. You can view the status of this job in the Job Management workspace.
· To modify the authentication mode from Junos Space Platform key-based to custom key-based: i. Select the Key Based option button.
ii. In the Username field, enter the username of the device. If the user does not exist on the device, the user is automatically created.
iii. Select the Use Space Key option button.
iv. Click Modify. A job is created and the public key is uploaded to devices. You can view the status of this job in the Job Management workspace.
· To modify the authentication mode from credentials based or Junos Space Platform key based to custom key based: i. Select the Key Based option button.
ii. In the Username field, enter the username of the device. If the user does not exist on the device, the user is automatically created.
iii. Select the Use Custom Key option button.
iv. (Optional) In the Passphrase field, enter the passphrase created when you generated the private key.
294
v. Click the Browse button next to the Private Key field to upload the private key for the managed devices.
vi. Click Modify. A job is created and the private key is uploaded to the Junos Space server. You can view the status of this job in the Job Management workspace.
Click Cancel to close the Modify Authentication pop-up window. You are redirected to the Device Management page.
RELATED DOCUMENTATION Device Authentication in Junos Space Overview | 280 Generating and Uploading Authentication Keys to Devices | 284
Acknowledging SSH Fingerprints from Devices
You trigger this workflow to acknowledge the SSH fingerprints received from devices or resolve any SSH fingerprint conflicts between the fingerprints stored in the Junos Space Platform database and that on the devices. This workflow is enabled only if the Authentication Status column on the Device Management page displays the following status: Credentials Based Unverified, Key Based Unverified, Key Conflict Unverified, or Fingerprint Conflict. Otherwise, this workflow appears dimmed.
NOTE: To view the SSH fingerprint on the device, run the following command in shell: ssh-keygen -E md5 -lf /etc/ssh/ssh_host_rsa_key.pub.
To acknowledge the SSH fingerprints from the devices: 1. On the Network Management Platform user interface, select Network Management Platform > Devices
> Device Management. The Device Management page is displayed.
2. Select the devices whose fingerprints you want to acknowledge and select Device Access > Acknowledge Device Fingerprint from the Actions menu. The Acknowledge Device Fingerprint page is displayed. Table 26 lists the columns on this page.
295
Table 26: Acknowledge Device Fingerprint Page
Column name
Description
Host Name
Hostname of the device
IP Address
IP address of the device
Authentication Status
Authentication status of the device
Fingerprint
If the Authentication Status column displays Fingerprint Conflict, this column displays the current fingerprint value of the device as stored in the Junos Space Platform database. This column does not display any value if the Authentication Status column displays Key Conflict Unverified, Key Based Unverified, or Credentials Based - Unverified.
New Fingerprint
If the Authentication Status column displays Fingerprint Conflict, this column displays the new fingerprint value received from the device. This column displays the current fingerprint value of the device as stored in the Junos Space Platform database if the Authentication Status column displays Key Conflict Unverified, Key Based Unverified, or Credentials Based - Unverified. You can also edit this column.
296
3. You can accept the fingerprint value received from the devices or modify the values. · To accept the fingerprint values: i. Click Verify. The Acknowledge Device Fingerprint dialog box appears, displaying the job ID of this job.
ii. Click OK. You are redirected to the Device Management page.
· To modify the fingerprint value of a device with the authentication status as Fingerprint Conflict: i. Click the New Fingerprint column corresponding to the device.
ii. Enter the new fingerprint value and click Update.
iii. Click Verify. The Acknowledge Device Fingerprint dialog box appears, displaying the job ID of this job.
iv. Click OK. You are redirected to the Device Management page.
· To modify the fingerprint value of a device with the authentication status displayed as Key ConflictUnverified, Key BasedUnverified, or Credentials BasedUnverified: i. Click the New Fingerprint column corresponding to the device.
ii. Enter the new fingerprint value and click Update. The Confirm Acknowledge dialog box is displayed.
iii. Click OK. The new fingerprint is updated in the Junos Space Platform database. The connection to the device is reset.
iv. Click Verify. The Acknowledge Device Fingerprint dialog box appears, displaying the job ID of this job.
297
NOTE: If you are acknowledging the SSH fingerprint of from a dual Routing Engine, Virtual Chassis, or an SRX Series cluster device, a pop-up window is displayed with the following message: Duplicate fingerprint observed. This is permitted for dual RE, VC and SRX cluster devices. Do you want to continue?. Click OK.
v. Click OK. You are redirected to the Device Management page.
When the job is complete, the authentication status of the device moves from the unverified or conflicted status to the normal status. An audit log entry is generated for this workflow. (Optional) To cancel acknowledging the fingerprints, click Cancel. The devices remain in their original authentication statuses if you cancel the workflow.
RELATED DOCUMENTATION Device Authentication in Junos Space Overview | 280 Device Discovery Profiles Overview | 219
298
CHAPTER 12
Viewing Device Inventory
IN THIS CHAPTER Device Inventory Overview | 298 Viewing the Physical Inventory | 300 Displaying Service Contract and EOL Data in the Physical Inventory Table | 304 Viewing Physical Interfaces of Devices | 305 Viewing Logical Interfaces | 307 Viewing and Acknowledging Inventory Changes on Devices | 308
Device Inventory Overview
IN THIS SECTION Inventory for Aggregation and Satellite Devices | 299
You manage the device inventory from the Devices workspace in Junos Space Network Management Platform. The inventory of a device in the Junos Space Platform database is generated and stored when the device is first discovered and synchronized with the Junos Space Platform database. After the synchronization, the device inventory in the Junos Space Platform database matches the inventory on the device. If either the physical (hardware) or logical (configuration) inventory on the device is changed, then the inventory on the device is no longer synchronized with the inventory of the device in the Junos Space Platform database. However, Junos Space Platform automatically triggers a resynchronization job when a configuration change request commit or out-of-band CLI commit operation occurs on a managed device. You can also manually resynchronize the Junos Space Platform database with the physical device by using the Resynchronize with Network workflow from the Devices workspace on the Junos Space Platform user interface.
299
If Junos Space Platform is the system of record, the database values have precedence over any out-of-band changes to the network device configuration, and neither manual nor automatic resynchronization is available.
You can perform the following tasks related to the device inventory from the Devices workspace:
· List the device inventory to view information about the hardware and software components of each device that Junos Space Platform manages.
· View and acknowledge the inventory changes on the devices. · View information about the service contract or end-of-life status for a part. · View the location and ship-to-address of a device if address groups are configured in Service Now. · View the operational and administrative statuses of the physical interfaces of the devices. · View the software and license inventory on the devices. · Export the physical and software inventory for use in other applications, such as those used for asset
management. · View information about the scripts associated with or executed on the interfaces of devices. · Troubleshoot problems on devices. · If the network is the system of record, resynchronize the network devices managed by Junos Space
Platform with the Junos Space Platform database.
Inventory for Aggregation and Satellite Devices
Starting with Junos Space Network Management Platform Release 15.2R1, you can discover and manage an MX Series router configured as an aggregation device in Junos Space Platform. You can view the physical inventory of both the aggregation and satellite devices, cascade ports on the aggregation device, Flexible PIC Concentrators (FPC) slots to which the satellite devices are mapped, and satellite software packages and software upgrade groups with which the satellite devices are associated. For more information about aggregation devices, satellite devices, and Junos Fusion technology, refer to the Junos Fusion documentation.
A Junos Fusion setup with an MX240 router connected to three satellite devices discovered on Junos Space Platform displays the following details on Junos Space Platform:
· Mode of the aggregation device and the number of satellite devices connected to the aggregation device on the Device Management page. For more information, refer to "Viewing Managed Devices" on page 193.
· Physical inventory on the View Physical Inventory page. View the physical inventory of satellite devices associated with the FPC slots and the satellite alias name of the satellite device. For example, FPC slot 100 is associated with a QFX5100 device and FPC slots 101 and 103 are each associated with two EX4300 switches. Satellite alias name of the QFX5100 device is qfx5100-48s-02 and EX4300 switches are ex4300-48s-02 and ex4300-48s-05.
300
· Cascade ports on the aggregation device and the management IP addresses of the satellite devices on the View Physical Interfaces page. For example, the MX240 router connects to QFX5100 through xe-0/0/2 and EX4300 switches through xe-2/0/0 and xe-0/0/3.
· Satellite software packages and software upgrade groups on the View Software Inventory page. For example, grp_mojito satellite software upgrade group associated with the 15.1-20151224_s4_linux_44.1.0 software package.
Release History Table
Release
Description
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can discover and manage an MX Series router configured as an aggregation device in Junos Space Platform.
RELATED DOCUMENTATION Device Management Overview | 188 Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215 Resynchronizing Managed Devices with the Network | 447 Viewing the Physical Inventory | 300 Exporting the Physical Inventory of Devices | 317 Exporting the License Inventory | 311
Viewing the Physical Inventory
Junos Space Network Management Platform displays the physical inventory of a device containing data retrieved from the device during discovery and resynchronization operations and from the data stored in the hardware catalog. This inventory includes the number of available slots for managed devices, power supplies, chassis cards, fans, part numbers, and so on. Sorting is disabled on the View Physical Inventory page to preserve the natural slot order of the devices.
301
NOTE: · If you select a chassis cluster device, information about both the primary and secondary devices
is displayed.
· If you select a device with dual Routing Engines, the inventory data collected from the primary Routing Engine is displayed.
· If you select an aggregation device, the inventory data from the aggregation device and the satellite devices is displayed.
To view the physical inventory: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page displays the devices managed by Junos Space Platform.
2. Select a device whose physical inventory you want to view.
3. Select Device Inventory > View Physical Inventory from the Actions menu. Alternatively, right-click the device name and select Device Inventory > View Physical Inventory.
The View Physical Inventory page is displayed. You can expand certain categories (for example, the Routing Engine category) to view data for all memory (RAM and disk) installed on the device components.
If you select multiple devices, expand the category next to each device to view the physical inventory of the device.
Table 27 displays the columns on the View Physical Inventory page.
Table 27: View Physical Inventory Page
Column
Description
Module
Type of module on the device
Device Name
Name of the device
Model Number
Model number of the component
Model
Model of the device
Part Number
Part number of the device
Vendor Part Number
Part number of the optical module installed on the device
Vendor Material Number
Material number of the optical module installed on the device
302
Table 27: View Physical Inventory Page (continued)
Column
Description
Revision
Revision number of the device
Serial Number
Serial number of the component
Status
Status of the component: Online or Offline. The status is updated during periodic resynchronization of configuration information and on notification.
Domain
Domain to which the device is assigned
Description
Description of the component
NOTE: The device inventory for a Junos Space Platform installation that contains Service Now and Service Insight includes columns related to service contracts and the end-of-life status. For detailed information, see "Displaying Service Contract and EOL Data in the Physical Inventory Table" on page 304.
The address group subtypes--namely, the location and ship-to-address of a device--are displayed as columns only if Service Now contains an address group and the managed devices are associated with the address group. If no address group is configured in Service Now, these columns are not displayed.
4. (Optional) To view all the physical inventory of a device, click the (minus) icon next to a Flexible PIC Concentrator (FPC). The inventory associated with the FPC collapses to a concise view.
5. (Optional) To view the physical inventory of a satellite device connected to an aggregation device, click the + (plus) icon next to an FPC (range: 100255). The inventory of the satellite device associated with the FPC is displayed.
6. (Optional) To view the physical interfaces of an inventory element, right-click and select View Physical Interfaces. The View Physical Interfaces page is displayed. The Table 28 table describes the information that can be viewed on the View Physical Interfaces page.
303
7. (Optional) To export the physical inventory on the View Physical Inventory page: a. Click the Export icon at the top-left corner of the page. The Export Inventory dialog box is displayed.
b. You can cancel or proceed with the export operation. · To cancel the export operation, click Cancel. · Click Export to export the inventory. The Export Inventory Job Status information dialog box is displayed. When the job is completed, the Export Inventory Job Status report indicates that the job is complete.
c. Click the Download link in the Export Inventory Job Status information dialog box to download the CSV file. The CSV file you have downloaded displays physical inventory such as the name of the device, chassis, name of the module, name of the sub-module, name of the sub-sub-module, name of the sub-sub-sub-module, model number of the device, model of the device, part number of the device, revision number of the device, serial number of the device, vendor part number, vendor material number, and the description provided for the device.
d. Close the Export Inventory Job Status information dialog box to return to the View Physical Inventory page.
NOTE: You can also export the physical inventory of one or multiple devices managed by Junos Space Platform from the Device Management page. For more information, refer to "Exporting the Physical Inventory of Devices" on page 317.
8. Click Back at the top left to return to the Device Management page.
RELATED DOCUMENTATION Displaying Service Contract and EOL Data in the Physical Inventory Table | 304 Exporting the Physical Inventory of Devices | 317 Viewing Managed Devices | 193 Viewing Physical Interfaces of Devices | 305
304
Resynchronizing Managed Devices with the Network | 447 Exporting the License Inventory | 311 Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215
Displaying Service Contract and EOL Data in the Physical Inventory Table
Problem Description: As of Release 11.3 of Junos Space, the Physical Inventory table can include columns related to the part's service contract and end-of-life (EOL) status. The service contract data in this table is populated by the Service Now Devices table. The EOL data in this table is populated by the Service Insight Exposure Analyzer table. If Service Now or Service Insight is not installed, or if the required tables are empty, these columns are not displayed in the Physical Inventory table.
Solution To investigate missing service contract and EOL data:
1. Use the table column display filters to check whether the columns have been hidden. Select the columns you want. If the columns cannot be selected (are not listed), check your Service Now and Service Insight settings.
2. Check the Service Now Devices table for details about the devices managed with Junos Space Network Management Platform, including information about the service contract. If you are unable to view service contract information, check the Service Now settings to ensure the following items have been properly configured:
· Service Now Organization. See Organizations Overview topic in the Service Now documentation. · Service Now Device. See Service Now Devices Overview topic in the Service Now documentation. · Service Now Device Group. See Associating Devices with a Device Group topic in the Service Now
documentation. · Service Now Event Profile. See Event Profiles Overview topic in the Service Now documentation. 3. Check the Service Insight Exposure Analyzer table for details about the devices managed with Junos Space Network Management Platform, including information about EOL announcements.
305
The EOL Status column indicates whether EOL data is available or not. EOL data is available only if there is an EOL bulletin. EOL data is typically unavailable for newer products. If the Exposure Analyzer table does not contain records, there might be a problem with the Service Now configuration. Service Now manages the communication between Junos Space Network Management Platform and the Juniper Networks support organization, which is the originating source of EOL data. If the Service Insight Exposure Analyzer table is empty, check the following Service Now settings: · Service Now Organization. See the Organizations Overview topic in the Service Now documentation. · Service Now Device. See the Service Now Devices Overview topic in the Service Insight
documentation.
RELATED DOCUMENTATION Viewing the Physical Inventory | 300
Viewing Physical Interfaces of Devices
Junos Space Network Management Platform displays physical interfaces by device name, on the basis of the device information in the Junos Space Platform database. You can view the operational status and administrative status of physical interfaces for one or more devices to troubleshoot problems. If the interface status changes on the managed device, the information is not updated in Junos Space Platform until the device is resynchronized with the Junos Space Platform database.
NOTE: You can view the physical interfaces of devices from the Device Management page. To view the physical interfaces of a device from the Device Management page, click the View link in the Physical Interfaces column corresponding to the device. You are redirected to the View Physical Interfaces page.
To view the physical interfaces of devices: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page displays the devices managed by Junos Space Platform.
2. Select the devices for which you want to view the physical interfaces and select Device Inventory > View Physical Interfaces from the Actions menu. Alternatively, right-click the names of the device and select Device Inventory > View Physical Interfaces.
306
The View Physical Interfaces page that appears displays the physical interfaces and the status of the physical interfaces of the device. Table 28 describes the information that is displayed on the View Physical Interfaces page.
Table 28: View Physical Interfaces Page
Column
Description
Device Name
Name of the device as stored in the Junos Space Platform database. This column is displayed by default.
Physical Interface Name
Standard information about the interface, in the type-/fpc/pic/port format, where type is the media type that identifies the network device; for example, ge-0/0/6.
IP Address
IP address of the interface
IPv6 Address
IPv6 address of the interface. The address is displayed only if an IPv6 address is configured on the device.
Logical Interfaces
Link to the table of logical interfaces of the device
MAC Address
MAC address of the device
Operational Status
Operational status of the interface: Up or Down
Admin Status
Administrative status of the interface: Up or Down
Link Level Type
Link level type of the physical interface
Link Type
Physical interface link type: full duplex or half duplex
Speed (Mbps)
Speed at which the interface is running
MTU
Maximum transmission unit size on the physical interface
Description
An optional description for this interface configured on the device. It can be any text string of 512 or fewer characters. Any longer string is truncated to 512 characters. If there is no information, the column is empty.
Domain
Domain to which the device is assigned
3. (Optional) Select the columns displayed on the View Physical Interfaces page by mousing over any column head and clicking Columns on the drop-down list, then selecting the check boxes against the names of the columns that should be displayed.
307 The selected columns are displayed on the View Physical Interfaces page. 4. Click Back on the top-left corner to return to the Device Management page.
RELATED DOCUMENTATION
Viewing Managed Devices | 193 Viewing the Physical Inventory | 300 Exporting the License Inventory | 311 Viewing Logical Interfaces | 307
Viewing Logical Interfaces
You can view logical interfaces on a per-port basis or on a per-device or per-logical system basis. You can view the logical interface configurations for one or more devices or logical systems to troubleshoot problems.
You can access the Logical Interfaces view in either of two ways: from the Manage Devices inventory page, or from within the Physical Interfaces view. These two procedures are described separately below.
To view the logical interfaces configured for a selected device from the Manage Devices inventory page:
1. On the Network Management Platform user interface, select Devices > Device Management. A tabular list of devices appears.
2. Select the devices for which you want to view logical interface information and select Device Inventory > View Logical Interfaces from the Actions menu.
Junos Space Network Management Platform displays the status of the logical interfaces for the selected devices in a table. Its possible fields are described in Table 29. Some columns may be hidden. To expose them, mouse over any column head, click the down arrow that appears, select Columns from the resulting menu, and check the columns you want to see.
Table 29: Logical Interfaces Columns
Column
Description
Device Name
Configuration name of the device. This column is displayed by default.
Interface Name
Standard information about the interface, in the format type-/fpc/pic/port/logical interface, where type is the media type that identifies the network device; for example, ge-0/0/6.135.
308
Table 29: Logical Interfaces Columns (continued)
Column
Description
IP Address
IP address for the logical interface
IPv6 Address
IPv6 address for the interface. The address is displayed only if an IPv6 address is configured on the device.
Encapsulation
Encapsulation type used on the logical interface
Vlan
VLAN ID for the logical interface
Description
An optional description configured for the interface. It can be any text string of 512 or fewer characters. Any longer string is truncated. If there is no information, the column entry is blank.
Domain
Domain to which the device is assigned
3. Select Return to Inventory View at the top left of the display.
RELATED DOCUMENTATION Viewing Physical Interfaces of Devices | 305
Viewing and Acknowledging Inventory Changes on Devices
You can view the list of inventory changes performed on the devices that are managed on Junos Space Network Management Platform. You can also acknowledge the inventory changes on the devices. To view and acknowledge the list of inventory changes on devices: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page that appears displays the list of devices managed on Junos Space Platform.
2. Right-click the devices whose inventory changes you need to view or acknowledge and select Device Inventory > View/Acknowledge Inventory Changes. The View Inventory Changes page is displayed.
309
NOTE: The View/Acknowledge Inventory Changes task is disabled if there are no pending and acknowledged inventory changes.
This page displays two tabs: Inventory Changes and Acknowledged Inventory Changes. By default, the Inventory Changes tab is displayed. Table 30 describes the columns displayed on the Inventory Changes tab. Table 30: Inventory Changes Tab
Column Name
Description
Id
ID of the inventory change
Device Name
Name of the device
Component Name
Name of the component on the device
Path
XPath of the component on the device
Serial Number
Serial number of the device
Part Number
Part number of the device
Operation
Type of inventory change performed: Added or Removed.
Date Time
Time at which the component was removed from or added to the device
3. To view the acknowledged inventory changes, select the Acknowledged Inventory Changes tab. This tab displays the same columns as on the Inventory Changes tab and an additional column User. The User column specifies the username of the user who acknowledged the inventory change.
4. To acknowledge the inventory changes, select the Inventory Changes tab.
5. Select the inventory changes you need to acknowledge and click the Acknowledge icon on the tool bar. The Inventory Changes information dialog box is displayed.
6. Click OK to confirm the inventory changes. The inventory changes are acknowledged.
310
RELATED DOCUMENTATION Viewing the Physical Inventory | 300 Viewing Managed Devices | 193
311
CHAPTER 13
Exporting Device Inventory
IN THIS CHAPTER Exporting the License Inventory | 311 Viewing and Exporting the Software Inventory of Managed Devices | 315 Exporting the Physical Inventory of Devices | 317
Exporting the License Inventory
The Device Licence Inventory feature enables you to display the currently installed license inventory information for all DMI schema-based devices under Junos Space Network Management Platform management. The license inventory is generated when the device is first discovered and synchronized in Junos Space Network Management Platform. The licenses used by all Juniper Networks devices are based on SKUs, which represent lists of features. Each license includes a list of features that the license enables and information about those features. Sometimes the license information also includes the inventory keys of hardware or software elements upon which the license can be installed.
NOTE: To view the license(s) for Junos Space Network Management Platform itself, see "Viewing Junos Space Licenses" on page 1319.
This topic also covers: · Absence of license · Trial information · Count-down information · Date-based information
312
DMI enables each device family to maintain its own license catalog in the DMI Update Repository. The license catalog is a flat list of all the licenses used by a device family. The key for a license element is its SKU name. Each license element in the catalog includes a list of features that the license enables and information about each feature (that is, its name and value). Optionally, the license element can also list the inventory keys of hardware or software elements and where it can be installed.
If the license inventory on the device is changed, the result depends on whether the network is the system of record or Junos Space Network Management Platform is the system of record. See "Systems of Record in Junos Space Overview" on page 213.
If the network is the system of record, Junos Space Network Management Platform automatically synchronizes with the managed device. You can also manually resynchronize the Junos Space Network Management Platform license database with the device by using the Resynchronize with Network action. See "Resynchronizing Managed Devices with the Network" on page 447.
If Junos Space Network Management Platform is the system of record, neither automatic nor manual resynchronization is available.
Viewing device license inventory does not include pushing license keys to devices. You can, however, push licenses with the Configuration Editor to any device that has license keys in its configuration. You can export device license inventory information to a CSV file for use in other applications.
License inventory information shows individually installed licenses as well as a license usage summary, with statistics for various features.
To export the license inventory for a device:
1. On the Network Management Platform user interface, select Devices > Device Management. The Device Management page displays the devices managed in Junos Space Network Management Platform.
2. Select Device Inventory > View License Inventory from the Actions menu. The License Inventory page displays the license information listed in Table 31.
NOTE: Need Counts in red indicate violations. In other words, entries in red indicate that you are using features that you are not licensed to use. You may also encounter the message that you have no licenses installed.
3. (Optional) View the list of licensed features for the selected license by double-clicking a license usage summary or clicking on the forward action icon to the left of a license usage summary. The information displayed is described in Table 32.
313
4. (Optional) Click Return to Inventory View at the top of the inventory page. 5. (Optional) Click Export at the top of the inventory page, to export the license inventory information.
The Export Device License Information dialog box appears, displaying a link: Download license file for selected device (CSV format). 6. (Optional) Click the download link. The Opening Device License-xxxxxxCSV dialog box appears, where xxxxxx represents a number. 7. Open the file with an application of your choice, or download the file by clicking Save. The CSV file contains the fields described in Table 32 and Table 33. These fields are not populated if the information is not available for the selected license.
NOTE: Exporting device license information generates an audit log entry.
Table 31: License Usage Summary Fields
Field
Description
Feature name
Name of the licensed SKU or feature. It can be used to look up the license with Juniper Networks. Not all devices support this.
License count
Number of times an item has been licensed. This value may have contributions from more than one licensed SKU or feature. Alternatively, it may be 1, no matter how many times it has been licensed.
Used count
Number of times the feature is used. For some types of licenses, the license count will be 1, no matter how many times it is used. For capacity-based licensable items, if infringement is supported, the license count may exceed the given count, which has a corresponding effect on the need count.
Need count
Number of times the feature is used without a license. Not all devices can provide this information.
Given count
Number of instances of the feature that are provided by default.
314
Table 32: License Feature or SKU Fields
Field
Description
Feature Name
Name of the licensed SKU or feature. It can be used to look up the license with Juniper Networks. Not all devices support this.
Validity Type
The SKU or feature is considered permanent if it is not trial, count-down, or data-based.
Table 33: Additional Fields in CSV Files
Field
Description
State
Status of the license: valid, invalid, or expired. Only licenses marked as valid are considered when calculating the license count.
Version
Version of the license.
Type
Permanent, trial, and so on.
Start Date
Licensed feature starting date.
End Date
Licensed feature ending date.
Time Remaining
Licensed feature time remaining.
RELATED DOCUMENTATION
Viewing Managed Devices | 193 Resynchronizing Managed Devices with the Network | 447 Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215 Systems of Record in Junos Space Overview | 213
315
Viewing and Exporting the Software Inventory of Managed Devices
Junos Space Network Management Platform displays a list of currently installed software inventory for all DMI schemabased managed devices. The software inventory information is generated when the device is first discovered and synchronized with the Junos Space Platform database. You can also update the software inventory information, if the software inventory on the device is changed by a local user, by synchronizing the device with the Junos Space Platform database. The synchronization with the database depends on whether the network or Junos Space Platform is the system of record.
If the network is the system of record, Junos Space Platform database is automatically synchronized. You can also manually resynchronize the Junos Space Platform software database with the device by using the Resynchronize with Network action. For more information, refer to "Resynchronizing Managed Devices with the Network" on page 447.
If Junos Space Platform is the system of record, neither automatic nor manual resynchronization is available. You can reset the device configuration from the values in the Junos Space Platform database if and when you want to do so. For more information, refer to "Systems of Record in Junos Space Overview" on page 213.
You can export device software inventory to a CSV file, which can be used in other applications.
NOTE: Juniper Networks devices require a license to activate the feature. To understand more about Junos Space Network Management Platform Licenses, see, Licenses for Network Management. Please refer to the Licensing Guide for general information about License Management. Please refer to the product Data Sheets for further details, or contact your Juniper Account Team or Juniper Partner.
To view the software inventory of devices: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page displays the devices managed in Junos Space Platform.
2. Select the devices and select Device Inventory > View Software Inventory from the Actions menu. The View Software Inventory page is displayed with a list of the software on the devices. Table 34 displays the columns on the View Software Inventory page. Table 34: View Software Inventory Page
Field
Description
Device Name
Name of the device as stored in the Junos Space Platform database
316
Table 34: View Software Inventory Page (continued)
Field
Description
Model
Model of this device: J Series, M Series, MX Series, TX Series, SRX Series, EX Series, BXOS Series, and QFX Series
Routing engine
On a device supporting multiple Routing Engines, indicates which Routing Engine is used
Package name
Name of the installed software package
For an aggregation device, this column also displays the satellite software upgrade groups created on the aggregation device. If you installed a satellite software package on the satellite device during the autoconversion procedure (without adding the device to a satellite software upgrade group) and did not upgrade the satellite software package, this column displays the base satellite software package.
Description
Description of the installed software package
Version
Version number of the installed software package
For an aggregation device, this column also displays the satellite software package associated with the corresponding satellite software upgrade group.
Type
Type of the installed software package: Operating System, Internal Package, or Extension
Major
Major portion of the version number. For example, in version 15.1R2, the major portion is 15.
Minor
Minor portion of the version number. For example, in version 15.1R2, the minor portion is 1.
Revision number
Revision number of the package. For example, in version 15.1R2, the revision number is 2.
3. If you selected more than one device, the View Software Inventory page is grouped by device name. To expand or contract the software inventory of a device, click the icon to the left of the device name. The complete software inventory of a device are displayed.
4. (Optional) Sort the columns on the View Software Inventory page either by clicking the arrow in the column head or by mousing over the column head and clicking Sort Ascending or Sort Descending. The columns on the View Software Inventory page are sorted.
317
5. (Optional) Select the columns displayed on the View Software Inventory page by mousing over any column head and selecting Columns from the drop-down list, then selecting the check boxes against the names of the columns that should be displayed. The selected columns are displayed on the View Software Inventory page. The Version column is redundant against the Major, Minor, and Revision columns.
6. (Optional) To export the software inventory information: a. Click the Export icon at the top of the inventory page. The Export Software Inventory dialog box appears, displaying a link: Download software inventory for selected device (CSV format).
b. Click the Download link.
c. Open the file with an application of your choice, or download the file by clicking Save. You can designate a filename and location. The CSV file contains the following fields: Device Name, Product Model, Package Name, Version, Type, and Description, as detailed in Table 34, irrespective of the columns you have chosen to display on the page. These fields are not populated if the information is not available for the selected software.
7. Click Back at the top left of the page to return to the Device Management page.
RELATED DOCUMENTATION Viewing Managed Devices | 193 Resynchronizing Managed Devices with the Network | 447 Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215 Systems of Record in Junos Space Overview | 213 Device Images and Scripts Overview | 608
Exporting the Physical Inventory of Devices
You can export the physical inventory of selected or all devices managed by Junos Space Network Management Platform from the Device Management page as a comma-separated values (CSV) file.
318
NOTE: You can also export the physical inventory of one or multiple devices managed by Junos Space Platform from the View Physical Inventory page. For more information, refer to "Viewing the Physical Inventory" on page 300.
To export the physical inventory of selected or all devices: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page displays the devices managed by Junos Space Network Management Platform.
2. (Optional) To preview the device information before you export the CSV file, select the devices and select Device Inventory > View Physical Inventory from the Actions menu. The View Physical Inventory page appears.
3. Select the devices whose physical inventory you want to export and select Device Inventory > Export Physical Inventory from the Actions menu. The Export Inventory dialog box is displayed.
4. (Optional) Click the plus sign (+) to the left of a device on the list to view more details about the device.
5. Export the physical inventory of the devices. a. You can export the physical inventory details of selected or all devices. · To export the physical inventory details of selected devices, click Export Selected.
· To export the physical inventory details of all devices, click Export All.
· To cancel the export operation, click Cancel. You are returned to the Device Management page.
If you selected to export, the Export Inventory Job Status information dialog box is displayed. When the job is completed, the Export Inventory Job Status report indicates that the job is complete.
b. Click the Download link in the Export Inventory Job Status information dialog box to download the CSV file. The CSV file you downloaded displays physical inventory of selected devices or all devices. The details include name of the device, chassis, name of the module, name of the sub-module, name of the sub-sub-module, name of the sub-sub-sub-module, model number of the device, model of the
319
device, part number of the device, revision number of the device, serial number of the device, vendor part number, vendor material number, and the description provided for the device.
6. Close the Export Inventory Job Status information dialog box to return to the Device Management page.
RELATED DOCUMENTATION Device Inventory Overview | 298 Device Management Overview | 188 Device Discovery Profiles Overview | 219 Viewing the Physical Inventory | 300 Viewing Managed Devices | 193
320
CHAPTER 14
Configuring Juniper Networks Devices
IN THIS CHAPTER Modifying the Configuration on the Device | 321 Reviewing and Deploying the Device Configuration | 326 Junos OS Releases Supported in Junos Space Network Management Platform | 333 Configuration Guides Overview | 336 Saving the Configuration Created using the Configuration Guides | 336 Previewing the Configuration Created using the Configuration Guides | 337 Deploying the Configuration Created using the Configuration Guides | 338 Viewing and Assigning Shared Objects | 339 Applying a CLI Configlet to Devices | 341 Applying a CLI Configlet to a Physical Inventory Element | 345 Applying a CLI Configlet to a Physical Interface | 349 Applying a CLI Configlet to a Logical Interface | 353 Executing a Script on the Devices | 357 Executing a Script on a Physical Inventory Component | 362 Executing a Script on a Logical Interface | 364 Executing a Script on the Physical Interfaces | 366
321
Modifying the Configuration on the Device
You modify the configuration on a device by using the Modify Configuration page. This topic describes the individual operations involved in modifying a device configuration after you have selected your device and the configuration perspective.
NOTE: You can use this workflow to modify the configuration on modeled devices too.
To modify the device configuration: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Right-click the device whose configuration you want to modify and select Device Configuration > Modify Configuration. The Modify Configuration page is displayed.
3. You can use the Schema-based Configuration Editor or Configuration Guides to modify the device configuration. To modify the configuration by using the Schema-based Configuration Editor: a. Click the Schema-based Configuration Editor link to modify the configuration by using the schema-based editor.
b. Select a configuration option from the hierarchy in the left pane. The contents of the right pane change to reflect your selection on the left, and the full name of the configuration option appears on the title bar on the right pane. The parameters of a configuration option that are displayed vary depending on the data type of the option. The data type is shown in a tooltip when you mouse over an option in the hierarchy. It is the data type that determines how the parameter is validated. The data type is in turn determined by the DMI schema . The options displayed in table rows can be manipulated as follows: · Edited by selecting a row and clicking the diagonal pencil icon · Added by clicking the plus icon · Deleted by selecting a row and clicking the minus icon
322
The variety in the data presentation affects only how you arrive at the value you want to change, not the value itself. For more information about the correlation between data types and validation methods, see "Creating a Template Definition" on page 470. A parameter available for configuration is usually displayed as the View/Configure link.
c. Click View/Configure until you arrive at the parameter that you want to change.
d. Make your change. In the hierarchy on the left, the option you have changed is highlighted and the option label is set in bold. This distinguishes it from subsequent options that you simply visit, without making any changes. If you open the hierarchy, you see not only the name of the principal option, but also the name of the particular parameter that you have changed; for example, not only "SNMP," but also "Description."
NOTE: Your edits are saved when you click anywhere else on the Edit Device Configuration page (that is, another configuration option or any of the buttons).
e. (Optional) For information about individual parameters, click the little blue information icons on the right of the configuration settings to display explanations.
f. (Optional) To add comments about individual parameters, click the little yellow comment icons next to the configuration settings and enter your comments.
g. (Optional) To activate or deactivate a configuration option, click the Activate or Deactivate link respectively.
NOTE: You can activate or deactivate a configuration option only if the configuration node exists.
h. (Optional) In the Comments field, enter any remarks that you want to display when the consolidated configuration is reviewed. The remarks appear as a title for the configuration.
323
If you do not enter anything in this field, the label for the configuration is something similar to Generated config change from: created by super at 2012-09-14 01:33:26.564 (1 Item).
To modify the device configuration by using Configuration Guides: a. Click the Basic Setup link.
The Basic Setup pop-up window is displayed.
b. (Optional) In the Hostname field, enter the hostname of the device.
c. (Optional) In the Domain name field, enter the domain name of the device.
d. (Optional) In the Timezone field, enter the time zone of the device.
e. (Optional) Select the Allow FTP file transfers check box if you want to allow FTP file transfers on the device.
f. (Optional) Select the Allow ssh access check box if you want to allow accessing the device through SSH.
g. (Optional) Select the Allow telnet login check box if you want to allow logging in to the device through Telnet.
h. For NTP Server, click the Add NTP Server icon to add an NTP server to the device. The Add pop-up window is displayed. Enter the following details in this pop-up window: i. In the Name field, enter the name of the NTP server.
ii. (Optional) In the Key field, enter a value for the key.
iii. (Optional) From the Version drop-down list, select the appropriate version.
iv. (Optional) Select the Prefer check box.
v. Click Create. Click the Edit NTP Server or Delete NTP Server icon to edit NTP server details or delete the NTP server.
i. For User Management, click the Add User icon to add users for the device.
324
The Add pop-up window is displayed. Enter the following details in this pop-up window: i. In the Name field, enter the name of the user.
ii. (Optional) Select an appropriate user ID from the User ID field. The minimum value for this field is 100.
iii. (Optional) In the Full Name field, enter the full name of the user.
iv. (Optional) In the Password field, enter the password for the user.
v. (Optional) In the Re-enter Password field, re-enter the password for the user.
vi. From the Login Class drop-down list, select the appropriate login class for the user. The available login classes are super-user, operator, read-only, unauthorized, and wheel.
vii. Click Create. Click the Edit User or Delete User icon to edit user details or delete the user.
j. For DNS Server, click the DNS NTP Server icon to add a DNS server to the device. The Add pop-up window is displayed. Enter the following details in this pop-up window: i. In the Name field, enter the name of the DNS server.
ii. Click Create. Click the Edit DNS Server or Delete DNS Server icon to edit the DNS server details or delete the DNS server.
k. For SNMP, enter the following details: i. In the Location field, enter the location for SNMP.
ii. Click the Add SNMP Community icon. The Add pop-up window is displayed. For Community, enter the following details: a. In the Name field, enter the name of the SNMP community.
325
b. (Optional) From the Authorization drop-down list, select the appropriate type of authorization. c. Click Create. Click the Edit SNMP Community or Delete SNMP Community icon to edit the SNMP Community details or delete the SNMP community.
iii. Click the Add Trap Group icon. The Add pop-up window is displayed. For Trap Group, enter the following details: a. In the Name field, enter the name of the trap group. b. (Optional) Select the check box next to the appropriate trap group category. c. Click Create.
l. Click OK.
NOTE: If you have installed the Security Director application on your Junos Space Network Management Platform setup and are modifying the configuration on an SRX Series device, you can use the additional Configuration Guides available on the Modify Configuration page. In this case, the Modify Configuration page lists the Configuration Guides to set up routing and security parameters on an SRX Series device. For more information about using the Configuration Guides related to routing and security parameters on an SRX Series device, see the Junos Space Security Director Application Guide.
4. You can preview, save, or deploy the device configuration. · To preview the configuration before deploying it to the device, click Preview. · To save the configuration, click Save. · To deploy the configuration on the device, click Deploy.
NOTE: You cannot validate or deploy the configuration on a modeled device (that is, a device in the Modeled state).
RELATED DOCUMENTATION
326
Device Management Overview | 188 Reviewing and Deploying the Device Configuration | 326
Reviewing and Deploying the Device Configuration
IN THIS SECTION Viewing the Configuration Changes on the Device | 327 Validating the Delta Configuration on the Device | 329 Viewing the Device-Configuration Validation Report | 329 Excluding or Including a Group of Configuration Changes | 330 Deleting a Group of Configuration Changes | 330 Approving the Configuration Changes | 331 Rejecting the Configuration Changes | 332 Deploying the Configuration Changes to a Device | 332
When you finish modifying a device configuration, you can review and deploy the configuration by using the Review/Deploy Configuration page. You can review and deploy configurations created using the Schema-Based Configuration Editor, CLI Configlets, or Configuration Guides. You can review these configurations in a device-centric view, exclude or include, and approve or reject appropriate configuration changes, and deploy them to one or more devices in a single commit operation. In Junos Space Network Management Platform, different users can create configuration templates for a particular device. A single reviewer can then view all these configurations for one or multiple devices (see "Viewing and Assigning Shared Objects" on page 339) to decide which of them to deploy and in what sequence.
NOTE: It is possible to create a configuration that is not shared, in which case, only its creator can deploy it. For example, configurations scheduled for deployment that were created with the Schema-Based Configuration Editor are not shared and are therefore not visible as a shared object.
327
NOTE: You cannot validate or deploy a configuration on a modeled device that is in the Modeled state.
You can perform the following tasks on the Review/Deploy Configuration page:
Viewing the Configuration Changes on the Device
You can view the configuration changes that you want to deploy on the device, on the Review/Deploy Configuration page. The configuration displayed on the page includes changes from the Schema-Based Configuration Editor, templates, or CLI Configlets. To view the configuration changes: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Right-click the device whose configuration you want to view and select Device Configuration > Review/Deploy Configuration. The Review/Deploy Configuration page is displayed. The Selected Devices area on the left side of this page displays the device on which you are about to deploy the configuration. The right side of this page displays the modified configuration that you are about to deploy on the device, on the Change Summary tab. For more information about the tabs displayed on this page, see Table 36.
NOTE: You can also select multiple devices and view the configuration changes on these devices on the Change Summary tab.
Table 35 shows the columns displayed in the Selected Devices area. Table 35: Columns in the Selected Devices Area
Column Name
Description
Device ID
ID of the device
Device Name
Name of the device
328
Table 35: Columns in the Selected Devices Area (continued)
Column Name
Description
Managed Status
Current status of the managed device in Junos Space Network Management Platform. For more information about states in the Managed Status column, see "Viewing Managed Devices" on page 193.
Validation
Validation results of the configuration on the device
Status
Status of the modified configuration on the device: approved, rejected, or deployed
The right side of the page displays different tabs that you can select to view configuration deltas from the running configuration. A delta is the differential configuration that you are about to deploy on the device. Table 36 lists the tabs.
Table 36: Tabs to View Configuration Deltas
Tab Name
Description
Change Summary
Pending configuration changes for the device
Delta Config (CLI)
Deltas from the running configuration in CLI format
Delta Config (XML)
Deltas from the running configuration in XML format
Additional Info
More configuration details to add to the audit trail
NOTE: The configuration changes from the Schema-Based Configuration Editor or templates are shown in the CLI format, whereas the changes from a CLI Configlet are shown only in the curly-braces format. The Delta Config (CLI) and Delta Config (XML) tabs are disabled if the delta configuration includes configuration changes from CLI Configlets.
3. Click the appropriate tab for the details you want to view. Click Close to return to the Review/Deploy Configuration page.
329
Validating the Delta Configuration on the Device You validate the delta configuration on the device and view the validation results before deploying the configuration changes to the device. The configuration changes created using the Schema-Based Configuration Editor, templates, and CLI Configlets are validated on the device. To validate the delta configuration on the device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Right-click the device whose configuration you want to validate and select Device Configuration > Review/Deploy Configuration. The Review/Deploy Configuration page is displayed.
3. On the Change Summary tab, click the Validate on Device link. A job is created. You can click the Job ID to view the job details.
NOTE: You cannot validate the configuration if you select a device that is in the Modeled state.
Click Close to return to the Review/Deploy Configuration page.
Viewing the Device-Configuration Validation Report After you have validated the configuration on the device, you can view the validation results. To view the validation results: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Right-click the device whose configuration validation report you want to view and select Device Configuration > Review/Deploy Configuration. The Review/Deploy Configuration page is displayed.
3. On the Change Summary tab, click the Device Validation Report link.
330
A dialog box displays the results of the validation.
Click Close to return to the Review/Deploy Configuration page.
Excluding or Including a Group of Configuration Changes
You can exclude or include a specific group of configuration changes created using the Schema-Based Configuration Editor, templates, and CLI Configlets. If you exclude a configuration change, the change is not deployed to the device during the deploy operation. To exclude or include a specific group of configuration changes: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Right-click the device whose specific group of configuration changes you want to exclude or include and select Device Configuration > Review/Deploy Configuration. The Review/Deploy Configuration page is displayed.
3. On the Change Summary tab, click Exclude to exclude changes from the template or the Schema-Based Configuration Editor. Alternatively, on the Change Summary tab, click Include to include any template changes to the configuration that you are deploying to the device.
Click Close to return to the Review/Deploy Configuration page.
Deleting a Group of Configuration Changes
You can delete a specific group of configuration changes created using the Schema-Based Configuration Editor, templates, and CLI Configlets. If you delete the configuration changes, the changes are not deployed to the device during the deploy operation. To delete a specific group of configuration changes: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Right-click the device whose specific group of configuration changes you want to delete and select Device Configuration > Review/Deploy Configuration.
331
The Review/Deploy Configuration page is displayed.
3. On the Change Summary tab, click Delete to delete any changes from the Schema-Based Configuration Editor.
Click Close to return to the Review/Deploy Configuration page.
Approving the Configuration Changes
You approve the configuration changes after you have successfully validated the configuration changes on the device. Approving the configuration is the last step you perform before you deploy the configuration on the device. To approve the configuration changes: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Right-click the device whose configuration changes you want to approve and select Device Configuration > Review/Deploy Configuration. The Review/Deploy Configuration page is displayed.
3. Click Approve to approve the configuration.
4. Click Yes on the confirmation dialog box.
NOTE: If you cannot approve the configuration on the Review/Deploy Configuration page, check whether the Enable approval workflow for configuration deployment check box on the Administration > Applications > Modify Application Settings > Devices page is not selected. By default, this check box is selected.
332
Rejecting the Configuration Changes You can reject the configuration changes you have approved earlier. Rejecting the configuration changes prevents the configuration from being deployed on the device. To reject the configuration changes: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Right-click the device whose configuration changes you want to reject and select Device Configuration > Review/Deploy Configuration. The Review/Deploy Configuration page is displayed.
3. Select an approved configuration change and click Reject.
4. Click Yes in the confirmation dialog box.
NOTE: You can view the rejected configuration on the Change Summary tab.
Deploying the Configuration Changes to a Device You can deploy the configuration changes you have approved earlier to a device. To deploy the configuration changes to a device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Right-click the device whose configuration changes you want to deploy and select Review/Deploy Configuration. The Review/Deploy Configuration page is displayed.
3. Click Deploy. The Deploy Configuration dialog box is displayed.
333
NOTE: If you select a device that is in the Modeled state, the Deploy button appears dimmed.
You can deploy the configuration immediately or later. · To deploy the configuration to the device immediately, select the Deploy Now option button. · To deploy the configuration to the device later, select Deploy Later and specify the date and time. 4. Click OK. A job is triggered. You can view the details of this job on the Job Management page. The job displays the configuration deployed on the device in two areas--from the Schema-Based Configuration Editor and templates, and from CLI Configlets.
NOTE: If you are upgrading to a new version of Junos Space Network Management Platform, you should deploy all consolidated configurations and change requests before the upgrade. The upgrade deletes all consolidated configurations and change requests.
RELATED DOCUMENTATION Device Management Overview | 188 Viewing and Assigning Shared Objects | 339
Junos OS Releases Supported in Junos Space Network Management Platform
The following Junos OS software releases are supported in different Junos Space applications: · Junos OS Release 9.3 · Junos OS Release 9.4 · Junos OS Release 9.5 · Junos OS Release 9.6 · Junos OS Release 10.0 · Junos OS Release 10.1
334
· Junos OS Release 10.2 · Junos OS Release 10.3 · Junos OS Release 10.4 · Junos OS Release 11.1 · Junos OS Release 11.2 · Junos OS Release 11.3 · Junos OS Release 11.4 · Junos OS Release 12.1 · Junos OS Release 12.2 · Junos OS Release 12.3 · Junos OS Release 13.1 · Junos OS Release 13.2 · Junos OS Release 13.3 · Junos OS Release 14.1 · Junos OS Release 14.2 · Junos OS Release 15.1 · Junos OS Release 16.1 · Junos OS Release 20.2 · Junos OS Release 20.3 · Junos OS Release 16.2 · Junos OS Release 17.1 · Junos OS Release 17.2 · Junos OS Release 17.3 · Junos OS Release 17.4 · Junos OS Release 18.1 · Junos OS Release 18.2 · Junos OS Release 18.3 · Junos OS Release 18.4 · Junos OS Release 19.1 · Junos OS Release 19.2 · Junos OS Release 19.3
335
· Junos OS Release 19.4 · Junos OS Release 20.1 · Junos OS Release 20.2 · Junos OS Release 20.3 Release History Table Release 20.3 20.2 20.1 19.4 19.3 19.2 19.1 18.4 18.3 18.2 18.1 17.4 17.3 17.1R1 17.1R1 17.1R1
Description Junos OS Release 20.3 Junos OS Release 20.2 Junos OS Release 20.1 Junos OS Release 19.4 Junos OS Release 19.3 Junos OS Release 19.2 Junos OS Release 19.1 Junos OS Release 18.4 Junos OS Release 18.3 Junos OS Release 18.2 Junos OS Release 18.1 Junos OS Release 17.4 Junos OS Release 17.3 Junos OS Release 16.2 Junos OS Release 17.1 Junos OS Release 17.2
336
RELATED DOCUMENTATION Modifying the Configuration on the Device | 321 Viewing the Active Configuration | 375 Juniper Networks Devices Supported by Junos Space Network Management Platform | 199
Configuration Guides Overview
The Device Management Interface (DMI) schema-based Configuration Editor that is shipped with Junos Space Network Management Platform helps you modify the entire configuration of a device. However, to modify only a part of the configuration of the device, use the custom-built user interface of Configuration Guides. Configuration Guides are deployed as a single application on the Junos Space Network Management Platform. When you install Junos Space Network Management Platform on a device, the Configuration Guides packaged in the application are automatically displayed on the View/Edit Configuration page. All changes to the device configuration you made using the Configuration Guides are collected as a single change request. The configuration changes you make in one Configuration Guide are visible in other Configuration Guides and the Configuration Editor. If you change a parameter using two Configuration Guides, the change made in the last Configuration Guide is accepted. The changes are merged in chronological order. You can preview the combined configuration changes in XML and CLI formats. When you have finished editing the device configuration using the Configuration Guides, you can finalize the changes by previewing and saving the changes, or by deploying the changes on the device. Clicking the Deploy button takes you to the Review/Deploy Configuration page.
RELATED DOCUMENTATION Saving the Configuration Created using the Configuration Guides | 336 Previewing the Configuration Created using the Configuration Guides | 337 Deploying the Configuration Created using the Configuration Guides | 338
Saving the Configuration Created using the Configuration Guides
You can access Configuration Guides from the Devices workspace in Junos Space Network Management Platform. You can save the configuration on Junos Space Network Management Platform.
337
To save the device configuration created using the Configuration Guides: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management.
2. Select the device for which you want to use Configuration Guides.
3. Right-click the device and select Device Configuration > Modify Configuration. The Modify Configuration page is displayed. This page lists the Configuration Guides deployed with the hot-plugged application. You can also open the generic configuration editor by clicking the Schema-based Configuration Editor link.
4. Use the Configuration Guides to modify the device configuration.
5. Click Save.
RELATED DOCUMENTATION Configuration Guides Overview | 336 Previewing the Configuration Created using the Configuration Guides | 337 Deploying the Configuration Created using the Configuration Guides | 338
Previewing the Configuration Created using the Configuration Guides
You can access Configuration Guides from the Devices workspace in Junos Space Network Management Platform. You can preview the configuration before deploying it to the devices To preview the device configuration created using the Configuration Guides: 1. On the Network Management Platform user interface, select Devices > Device Management.
2. Select the device for which you want to use the Configuration Wizard.
3. Right-click the device and select Device Configuration > Modify Configuration. The Modify Configuration page is displayed. This page lists the Configuration Guides deployed with the hot-plugged application. You can also open the generic configuration editor by clicking the Schema-based Configuration Editor link.
338
4. Use the Configuration Guides to modify the device configuration. 5. Click Preview.
The View Configuration Change page is displayed. You can view the configuration changes either in the CLI or XML formats. 6. Click Close.
RELATED DOCUMENTATION Configuration Guides Overview | 336
Deploying the Configuration Created using the Configuration Guides
You can access Configuration Guides from the Devices workspace in Junos Space Network Management Platform. You can deploy the configuration on the devices. To deploy the device configuration using the Configuration Guides: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. 2. Select the device for which you want to use Configuration Guides. 3. Right-click the device and select Device Configuration > View/Edit Configuration.
The View/Edit Configuration page is displayed. This page lists the Configuration Guides deployed with the hot-plugged application. You can also open the generic configuration editor by clicking the Schema-based Configuration Editor link. 4. Use the Configuration Guides to modify the device configuration. 5. Click Deploy. The Deploy Options page is displayed. 6. Select the appropriate deployment schedule from the Date and Time options. 7. Click Deploy.
339
RELATED DOCUMENTATION Configuration Guides Overview | 336 Saving the Configuration Created using the Configuration Guides | 336 Previewing the Configuration Created using the Configuration Guides | 337
Viewing and Assigning Shared Objects
Shared object is a template. You assign a shared object to assign the configuration in the template to devices.
You can view the configurations created using Junos Space applications and Junos Space Platform workspaces that are applicable for each device. You can assign and queue them up before deploying them to devices. You can also accept or reject the pending configurations, and you can change the sequence in which these changes are committed. Accepting a configuration is assigning it, and rejecting it is unassigning it.
All configurations that have been created for the device are assigned and will be candidates for deployment, unless you unassign them.
Viewing assigned shared objects can only be done on a per-device basis.
You can select only one device at a time. To view assigned shared objects:
1. On the Network Management Platform user interface, select Devices > Device Management. The Device Management page is displayed.
2. Select the device whose assigned objects you want to view, and select Device Configuration > View/Assign Shared Objects from the Actions menu
The View/Assign Shared Objects page is displayed. It lists the running configuration and the pending configurations on the right and displays the workspaces where these configuration originated from on the left.
The following Table 37 lists the columns available on this page.
Table 37: View Assigned Shared Objects Table
Column Heading
Content
Name
Name of the template
Assigned Template Version
Version of the template assigned on the device
Deployment Template Version
Version of the template deployed on the device
340
Table 37: View Assigned Shared Objects Table (continued)
Column Heading
Content
Modified By
User who last modified the template
Modify Time
Time when the template was last modified
Description
Description of the template
All of the columns in the table have filtering enabled. Each of the configurations listed can be selected and all of the following can be performed: · Assign Templates · Unassign Templates · Move Up / Move Down 3. If you want to assign a template: a. On the left side of the page, select the workspace where the configuration was created.
The table on the right displays the configurations created in the selected workspace. b. Select the check box for the configuration you want to assign, and click the [+] sign.
The template is assigned. 4. To unassign a template:
a. On the left side of the page, select the workspace where the configuration was created. The table on the right displays the configurations created in the selected workspace.
b. Select the check box for the configuration you want to unassign, and click the [-] sign. A Confirm dialog appears, asking you whether you want to unassign the selected object.
c. Click Yes to dismiss the dialog. The template disappears from the table.
5. To change the sequence of objects, assigned or otherwise: a. Select the check box for the configuration whose position you want to change, and click the up or the down arrow. The object moves up or down in the display as required. b. (Optional) Continue moving objects the same way until you are satisfied.
6. Click Assign.
341
RELATED DOCUMENTATION Modifying the Configuration on the Device | 321 Assigning a Device Template to Devices | 495 Deploying a Template to the Devices | 497
Applying a CLI Configlet to Devices
CLI Configlets are configuration tools provided by Junos OS that enable you to apply a configuration onto a device by reducing configuration complexity. A CLI Configlet is a configuration template that is transformed into a CLI configuration string before being applied to a device. You apply a CLI Configlet to push a configuration to a device.
NOTE: To easily identify the CLI Configlet that you want to apply to the device, apply a filter on the Reference Number column. You cannot validate a CLI Configlet, or apply a CLI Configlet to more than 200 devices if the CLI Configlet requires XPath processing. However you can apply CLI Configlets to more than 200 devices if the CLI Configlets do not require XPath processing. CLI Configlets that do not require XPath processing include CLI Configlets with context /, //, or /device and without device-specific or entity-specific parameters.
To apply a CLI Configlet to a device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select a device and select Device Operations > Apply CLI Configlet from the Actions menu. The Apply CLI Configlet page is displayed. This page displays the list of CLI Configlets categorized by context and device family.
3. (Optional) To view the context: a. Click the View Context link. The Context dialog box is displayed. b. Click OK.
4. You can filter the list of CLI Configlets that you want to apply to the device manually or by using tags.
342
· To filter the CLI Configlets manually, enter the search criteria in the Search field and click the Search icon. The list of CLI Configlets is further filtered by the search criteria.
· To filter the CLI Configlets by using tags: a. Click the Select by tags option button. The Search field disappears. b. From the Select by tags drop-down list, select an appropriate tag. c. Click OK. The list of CLI Configlets is further filtered by the tag you selected.
NOTE: This filtered view is retained even when you navigate to other inventory landing pages.
5. Select a CLI Configlet from the filtered list. The parameters of the CLI Configlet are displayed. From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter values when you need to apply configlets on multiple devices. You can upload the parameter values in the specified format as a CSV file. To download a sample CSV file, click the Download Configlet Parameters link. The SampleParameterCSV file is downloaded with the parameters already present in the editable grid. You can enter or edit the required parameter values in the CSV file easily in addition to manually editing the parameter value field in the grid. To upload the edited CSV file, click the Browse button, select the file, and then click the Upload button. The values of parameters in the CSV file are populated to the editable grid. The parameters of CLI Configlet are listed in the grid with pagination support.
6. (Optional) To enter the values for the parameters of the CLI Configlet, click the appropriate cell in the Value column. · If you enter a value for a parameter that is a Password field, the value is hidden. · If you enter a value for a parameter that is a Confirm Password field, a pop-up window is displayed. Enter the password again and click OK.
7. (Optional) If you want to apply the CLI Configlet later: a. Select the Schedule at a later time check box. b. Enter the date in the Date field in the /YYYY format
343
c. Enter the time in the Time field in the hh:mm format. 8. Click Next.
You can preview the configuration in the CLI Configlet in the Preview area. The top of the Preview area displays the parameters with the values that are applied to devices. The bottom left of the Preview area displays the devices you have selected. The bottom right of the Preview area displays the configuration that will be applied to the device selected on the left. · Click a device to view the configuration that will be applied to the device.
9. Before applying the CLI Configlet, you can validate the configuration in the CLI Configlet on the device. a. (Optional) To validate the CLI Configlet on the device, click Validate. The Validate Results page is displayed. A job is triggered. The Progress column displays the progress of validation against each device. When the validation is complete, the results of the validation are displayed. The Status column indicates the results of the validation. If the validation is unsuccessful, the details of the error are displayed on the page. If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992.
NOTE: You can also view the validation results from the Job Management page. To view the validation results, double-click the job ID and click the View Results link corresponding to the device. The Validate CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Validate Results page.
b. Click Close to return to the Apply CLI Configlet page.
10. (Optional) To select a different CLI Configlet or reschedule the workflow, click Back. You are redirected to the previous page.
11. You can apply the CLI Configlet to the device or submit the configuration changes included in the CLI Configlet to the change requests. · To apply the CLI Configlet to the device, click Apply. · If you selected to apply the CLI Configlet now, the Configlets Results page is displayed. A job is triggered. The Progress column displays the progress of applying the CLI Configlet against each device. When the job is complete, the results of the job are displayed. The Status column indicates the results of the job.
344
NOTE: You can also view the results from the Job Management page. To view the results, double-click the job ID and click the View Results link corresponding to the device. The Apply CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Configlet Results page.
· If you scheduled this task for a later time, the Job Information dialog box displays the schedule information. Click OK.
· To submit the configuration changes to the change requests, click Submit. The configuration changes are included in the list of changes on the Review/Deploy Configuration page in the Devices workspace.
An audit log is generated when you apply or submit the CLI Configlet.
· To cancel this task, click Cancel. You are returned to the Device Management page.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter
values when you need to apply configlets on multiple devices.
RELATED DOCUMENTATION
CLI Configlets Workflow | 536 CLI Configlets Overview | 533 Creating a CLI Configlet | 547
345
Applying a CLI Configlet to a Physical Inventory Element
CLI Configlets are configuration tools provided by Junos OS that enables the user to apply a configuration onto a device by reducing configuration complexity. A CLI Configlet is a configuration template that is transformed into a CLI configuration string before being applied to a device. You apply a CLI Configlet to the physical inventory element of a device to push the configuration from the CLI Configlet to the device. To apply a CLI Configlet to the physical inventory element: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select a device and select Device Inventory > View Physical Inventory. The View Physical Inventory page is displayed.
3. Right-click a physical inventory element for which the CLI Configlet has to be applied and select Apply CLI Configlet. The Apply CLI Configlet page is displayed. This page displays a list of CLI Configlets categorized by context and device family.
4. (Optional) To view the context: a. Click the View Context link. The Context dialog box is displayed. b. Click OK.
5. You can filter the list of CLI Configlets that you want to apply to the physical inventory element manually or by using tags. · To filter the CLI Configlets manually, enter the search criteria in the Search field and click the Search icon. The list of CLI Configlets is further filtered by the search criteria. · To filter the CLI Configlets by using tags: a. Click the Select by tags option button. The Search field disappears. b. From the Select by tags drop-down list, select an appropriate tag. c. Click OK. The list of CLI Configlets is further filtered by the tag you selected.
346
NOTE: This filtered view is retained even when you navigate to other inventory landing pages.
6. Select a CLI Configlet from the filtered list. The parameters of the CLI Configlet are displayed. From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter values when you need to apply configlets on multiple devices. You can upload the parameter values in the specified format as a CSV file. To download a sample CSV file, click the Download Configlet Parameters link. The SampleParameterCSV file is downloaded with the parameters already present in the editable grid. You can enter or edit the required parameter values in the CSV file easily in addition to manually editing the parameter value field in the grid. To upload the edited CSV file, click the Browse button, select the file, and then click the Upload button. The values of parameters in the CSV file are populated to the editable grid. The parameters of CLI Configlet are listed in the grid with pagination support.
7. (Optional) To enter the values for the parameters of the CLI Configlet, click the appropriate cell in the Value column. · If you enter a value for a parameter that is a Password field, the value you enter is hidden. · If you enter a value for a parameter that is a Confirm Password field, a pop-up window is displayed. Enter the password again and click OK.
8. (Optional) If you want to apply the CLI Configlet later: a. Select the Schedule at a later time check box. b. Enter the date in the Date field in the MM/DD/YYYY or MM/DD/YY format. c. Enter the time in the Time field in the hh:mm format.
9. Click Next. You can preview the configuration in the CLI Configlet in the Preview area. The top of the Preview area displays the parameters with the values that are applied to devices. The bottom left of the Preview area displays the devices you have selected. The bottom right of the Preview area displays the configuration that will be applied to the device selected on the left.
347
10. Before applying the CLI Configlet the physical inventory element of the device, you can validate the configuration in the CLI Configlet on the device. a. (Optional) To validate the CLI Configlet on the physical inventory element, click Validate. The Validate Results page is displayed. A job is triggered. The Progress column displays the progress of validation. When the validation is complete, the results of the validation are displayed. The Status column indicates the results of the validation. If the validation is unsuccessful, the details of the error are displayed on the page.
NOTE: You can also view the validation results from the Job Management page. To view the validation results, double-click the job ID and click the View Results link corresponding to the device. The Validate CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Validate Results page.
b. Click Close to return to the Apply CLI Configlet page.
11. (Optional) To select a different CLI Configlet or reschedule the workflow, click Back. You are redirected to the previous page.
12. You can apply the CLI Configlet to the physical inventory element or submit the configuration changes included in the CLI Configlet to the change requests. · To apply the CLI Configlet to the physical inventory element of the device, click Apply. · If you selected to apply the CLI Configlet now, the Configlets Results page is displayed. A job is triggered. The Progress column displays the progress of applying the CLI Configlet. When the job is complete, the results of the job are displayed. The Status column indicates the results of the job.
NOTE: You can also view the results from the Job Management page. To view the results, double-click the job ID and click the View Results link. The Apply CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Configlet Results page.
· If you scheduled to apply this task for later, the Job Information dialog box that appears displays the schedule information. Click OK.
348
· · To submit the configuration changes to the change requests, click Submit. The configuration changes are included in the list of changes on the Review/Deploy Configuration page in the Devices workspace.
An audit log is generated when you apply or submit the CLI Configlet.
· Click Cancel to return to the View Physical Inventory page.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter
values when you need to apply configlets on multiple devices.
RELATED DOCUMENTATION
CLI Configlets Workflow | 536 CLI Configlets Overview | 533 Applying a CLI Configlet to a Physical Interface | 349 Applying a CLI Configlet to a Logical Interface | 353
349
Applying a CLI Configlet to a Physical Interface
CLI Configlets are configuration tools provided by Junos OS that you can use to apply a configuration onto a device more easily. A CLI Configlet is a configuration template that is transformed into a CLI configuration string before being applied to a device. You apply a CLI Configlet to a physical interface of a device to push the configuration from the CLI Configlet to the device.
NOTE: You cannot validate a CLI Configlet or apply a CLI Configlet to more than 200 devices if the CLI Configlet requires XPath processing. However, you can apply CLI Configlets to more than 200 devices if the CLI Configlets do not require XPath processing. CLI Configlets that do not require XPath processing include CLI Configlets with context // and without device- specific or entity-specific parameters.
To apply a CLI Configlet to a physical interface: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select a device and select Device Inventory > View Physical Interfaces from the Actions menu. The View Physical Interfaces page is displayed.
3. Right-click a physical interface for which the CLI Configlet has to be applied and select Apply CLI Configlet. The Apply CLI Configlet page is displayed. This page displays a list of CLI Configlets categorized by context and device family.
4. (Optional) To view the context: a. Click the View Context link. The Context dialog box is displayed. b. Click OK.
5. You can filter the list of CLI Configlets that you want to apply to the physical interface manually or by using tags. · To filter the CLI Configlets manually, enter the search criteria in the Search field and click the Search icon. The list of CLI Configlets is further filtered by the search criteria.
350
· To filter the CLI Configlets by using tags: a. Click the Select by tags option button. The Search field disappears. b. From the Select by tags drop-down list, select an appropriate tag. c. Click OK. The list of CLI Configlets is further filtered by the tag you selected.
NOTE: This filtered view is retained even when you navigate to other inventory landing pages.
6. Select a CLI Configlet from the filtered list. The parameters of the CLI Configlet are displayed. From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter values when you need to apply configlets on multiple devices. You can upload the parameter values in the specified format as a CSV file. To download a sample CSV file, click the Download Configlet Parameters link. The SampleParameterCSV file is downloaded with the parameters already present in the editable grid. You can enter or edit the required parameter values in the CSV file easily in addition to manually editing the parameter value field in the grid. To upload the edited CSV file, click the Browse button, select the file, and then click the Upload button. The values of parameters in the CSV file are populated to the editable grid. The parameters of CLI Configlet are listed in the grid with pagination support.
7. (Optional) To enter the value for the parameters of the CLI Configlet, click the appropriate cell in the Value column. · If you enter a value for a parameter that is a Password field, the value you enter is hidden. · If you enter a value for a parameter that is a Confirm Password field, a pop-up window is displayed. Enter the password again and click OK.
8. (Optional) If you want to apply the CLI Configlet later: a. Select the Schedule at a later time check box. b. Enter the date in the Date field in the MM/DD/YYYY or MM/DD/YY format. c. Enter the time in the Time field in the hh:mm format.
9. Click Next. You can preview the configuration in the CLI Configlet in the Preview area.
351
The top of the Preview area displays the parameters with the values that are applied to devices. The bottom left of the Preview area displays the devices you have selected. The bottom right of the Preview area displays the configuration that will be applied to the device selected on the left.
10. (Optional) Before you apply the CLI Configlet to a physical interface of a device, validate the configuration in the CLI Configlet on the device. a. To validate a CLI Configlet on a physical interface, click Validate. The Validate Results page is displayed. A job is triggered. The Progress column displays the progress of validation. When the validation is complete, the results of the validation are displayed. The Status column indicates the results of the validation. If the validation is unsuccessful, the details of the error are displayed on the page.
NOTE: You can also view the validation results from the Job Management page. To view the validation results, double-click the job ID and click the View Results link. The Validate CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Validate Results page.
11. (Optional) To select a different CLI Configlet or reschedule the workflow, click Back. You are redirected to the previous page.
12. You can apply the CLI Configlet to the physical interface or submit the configuration changes included in the CLI Configlet to the change requests. · To apply the CLI Configlet to the physical interface of the device, click Apply. · If you selected to apply the CLI Configlet now, the Configlets Results page is displayed. A job is triggered. The Progress column displays the progress of applying the CLI Configlet. When the job is complete, the results of the job are displayed. The Status column indicates the results of the job.
NOTE: You can also view the results from the Job Management page. To view the results, double-click the job ID and click the View Results link. The Apply CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Configlet Results page.
· If you scheduled this task for later, the Job Information dialog box that appears displays the schedule information. Click OK.
352
· To submit the configuration changes to the change requests, click Submit. · The configuration changes are included in the list of changes on the Review/Deploy Configuration page in the Devices workspace.
An audit log is generated when you apply or submit the CLI Configlet.
· To cancel this task, click Cancel. You are returned to the View Physical Interfaces page.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter
values when you need to apply configlets on multiple devices.
RELATED DOCUMENTATION
CLI Configlets Workflow | 536 CLI Configlets Overview | 533 Applying a CLI Configlet to a Logical Interface | 353
353
Applying a CLI Configlet to a Logical Interface
CLI Configlets are configuration tools provided by Junos OS to help you configure a device more easily. A CLI Configlet is a configuration template that is transformed into a CLI configuration string before being applied to a device. You apply a CLI Configlet to the logical interface of a device to push the configuration in the CLI Configlet to the device.
NOTE: You cannot validate a CLI Configlet or apply a CLI Configlet to more than 200 devices if the CLI Configlet requires XPath processing. However, you can apply CLI Configlets to more than 200 devices if the CLI Configlets do not require XPath processing. CLI Configlets that do not require XPath processing include CLI Configlets with context // and without device-specific or entity-specific parameters.
To apply a CLI Configlet to logical interfaces: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select the required devices and select Device Inventory > View Logical Interfaces from the Actions menu. The View Logical Interfaces page is displayed with logical interfaces of all the selected devices.
3. Right-click the logical interfaces for which the CLI Configlet must be applied and select Apply CLI Configlet. The Apply CLI Configlet page is displayed. This page displays a list of CLI Configlets that are categorized by context and device family.
4. (Optional) To view the context: a. Click the View Context link. The Context dialog box is displayed. b. Click OK.
5. You can filter the list of CLI Configlets that you want to apply to the logical interface manually or by using tags. · To filter CLI Configlets manually, enter the search criteria in the Search field and click the Search icon. The list of CLI Configlets is further filtered by the search criteria.
354
· To filter the CLI Configlets by using tags: a. Click the Select by tags option button. The Search field disappears. b. From the Select by tags drop-down list, select an appropriate tag. c. Click OK. The list of CLI Configlets is further filtered by the tag you selected.
NOTE: This filtered view is retained even when you navigate to other inventory landing pages.
6. Select a CLI Configlet from the filtered list. The parameters of the CLI Configlet are displayed. From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter values when you need to apply configlets on multiple devices. You can upload the parameter values in the specified format as a CSV file. To download a sample CSV file, click the Download Configlet Parameters link. The SampleParameterCSV file is downloaded with the parameters already present in the editable grid. You can enter or edit the required parameter values in the CSV file easily in addition to manually editing the parameter value field in the grid. To upload the edited CSV file, click the Browse button, select the file, and then click the Upload button. The values of parameters in the CSV file are populated to the editable grid. The parameters of CLI Configlet are listed in the grid with pagination support.
7. (Optional) To enter the values for the parameters of the CLI Configlet, click the appropriate cell in the Value column. · If you enter a value for a parameter that is a Password field, the value you enter is hidden. · If you enter a value for a parameter that is a Confirm Password field, a pop-up window is displayed. Enter the password again and click OK.
8. (Optional) If you want to apply the CLI Configlet later: a. Select the Schedule at a later time check box. b. Enter the date in the Date field in the MM/DD/YYYY or MM/DD/YY format. c. Enter the time in the Time field in the hh:mm format.
9. Click Next. You can preview the configuration in the CLI Configlet in the Preview area.
355
The top of the Preview area displays the parameters with the values that are applied to devices. The bottom left of the Preview area displays the devices you have selected. The bottom right of the Preview area displays the configuration that will be applied to the device selected on the left.
10. Before applying the CLI Configlet to the logical interface of the device, you can validate the configuration in the CLI Configlet on the device. a. (Optional) To validate the CLI Configlet on the logical interface, click Validate. The Validate Results page is displayed. A job is triggered. The Progress column displays the progress of validation. When the validation is complete, the results of the validation are displayed. The Status column indicates the results of the validation. If the validation is unsuccessful, the details of the error are displayed on the page.
NOTE: You can also view the validation results from the Job Management page. To view the validation results, double-click the job ID and click the View Results link. The Validate CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Validate Results page.
b. Click Close to return to the Apply CLI Configlet page.
11. (Optional) To select a different CLI Configlet or reschedule the workflow, click Back. You are redirected to the previous page.
12. You can apply the CLI Configlet to the logical interface of multiple devices or submit the configuration changes included in the CLI Configlet to the change requests. · To apply the CLI Configlet to the logical interface of devices, click Apply. · If you selected to apply the CLI Configlet, the Configlets Results page is displayed. A job is triggered. The Progress column displays the progress of applying the CLI Configlet. When the job is complete, the results of the job are displayed. The Status column indicates the result of the job.
NOTE: You can also view the results from the Job Management page. To view the results, double-click the job ID and click the View Results link. The Apply CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Configlet Results page.
356
· If you scheduled the apply the CLI Configlet task for later, the Job Information dialog box displays the schedule information. Click OK.
· To submit the configuration changes to the change requests, click Submit. The configuration changes are included in the list of changes on the Review/Deploy Configuration page in the Devices workspace.
An audit log is generated when you apply or submit the CLI Configlet.
13. To cancel the task, click Cancel. You are returned to the View Logical Interfaces page.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter
values when you need to apply configlets on multiple devices.
RELATED DOCUMENTATION
CLI Configlets Workflow | 536 CLI Configlets Overview | 533 Applying a CLI Configlet to a Physical Interface | 349
357
Executing a Script on the Devices
You can execute op scripts on one or more devices simultaneously by using the Devices workspace in Junos Space Network Management Platform. Commit and event scripts are automatically activated after they are enabled. Commit scripts are triggered every time a commit is called on the device and event scripts are triggered every time an event occurs on the device or if a time is specified.
NOTE: You can execute scrips on more than 200 devices only if the scripts do not require XPath processing. Scripts that do not require XPath processing include scripts without device-specific or entity-specific parameters and with /, //, or /device as context.
To execute a script on selected devices by using the Devices workspace:
1. On the Junos Space Network Management Platform user interface, select Devices > Device Management. The Device Management page is displayed.
2. Right-click the devices and select Device Operations > Execute Scripts. The Execute Scripts page displays the following scripts: · Scripts that are associated with and enabled (device scripts) on the selected devices · Scripts whose execution type matches your selection. If you selected multiple devices, only scripts whose EXECUTIONTYPE is set to GROUPEDEXECUTION are displayed. If you selected a single device, scripts whose EXECUTIONTYPE is set to SINGLEEXECUTION and GROUPEDEXECUTION are displayed. · Scripts whose context matches the device context
Table 38 lists the columns on the Execute Scripts page and their descriptions. Table 38: Execute Scripts Page in the Devices Workspace
Column
Description
Script Name
Name of the script file
Descriptive Name
Descriptive name of the script
Category
Category of the script
Description
Description of the script
Created Time
Date and time when the script was created
358
Table 38: Execute Scripts Page in the Devices Workspace (continued)
Column
Description
Last Updated Time
Date and time when the script was last updated
3. (Optional) To view the context: a. Click the View Context link. The Context dialog box is displayed. b. Click OK to close the dialog box.
359
4. Select the script that you want to execute on the devices manually or by using tags. · To select the script manually: i. Click the Select Manually option button. This option button is selected by default.
ii. Select the script.
· To select the script by using tags: i. Click the Select by tags option button.
ii. From the Select by tags drop-down list, select an appropriate tag.
iii. Click OK. The list of scripts is further filtered by the tag you selected.
iv. Select the script.
5. (Optional) Click the Value column and enter the values for the parameters of the selected script.
6. Select whether to execute the script now or schedule the execution for a later time:
· To execute the script on the devices now: i. Click Execute. The Script Results page appears. Table 39 lists the columns and their descriptions. Table 39: Script Results Page
Column
Description
Job Id
Job ID of the job triggered for executing the script
Script Name
Name of the script
Device Name
360
Table 39: Script Results Page (continued)
Column
Description
Name of the device as stored in the Junos Space Platform database
If you are executing a device script that contains the EXECUTIONTYPE set to GROUPEDEXECUTION on multiple devices or physical interfaces of multiple devices, the Script Results page displays multiple rows listing the devices in this column.
If you are executing a local script that contains the GROUPBYDEVICE annotation set to TRUE on multiple devices or physical interfaces of multiple devices, the Script Results page displays multiple rows listing the devices in this column.
If you are executing a local script that does not contain the GROUPBYDEVICE annotation or the GROUPBYDEVICE annotation is set to FALSE on multiple devices or physical interfaces of multiple devices, this column displays the Devices hyperlink. Click the hyperlink to view the list of devices on which the script is executed.
Node IP
IP address of the Junos Space node to which the device is connected
Node Name
Name of the Junos Space node to which the device is connected
Progress
Progress of the job
Status
Completion status of the job: SUCCESS or FAILED
The lower area of the Script Results page displays the results of the script execution. If you executed a local script that contains the GROUPBYDEVICE annotation set to TRUE on multiple devices, click the appropriate device in the Device Name column to view the results of the script execution on the device.
ii. (Optional) To view the list of devices on which the script was executed: i. Click the Devices hyperlink in the Device Name column. The Device Name List information dialog box is displayed with the list of devices.
ii. Click Ok to close the information dialog box.
iii. Click Close (at the bottom of the page). You are redirected to the Device Management page.
· To schedule the execution of the script on the devices for a later time: i. Select the Schedule at a later time check box.
361
ii. Enter the date in the Date field in the MM/DD/YYYY format. iii. Enter the time in the Time field in the hh:mm format. iv. Click Execute.
The Job Information dialog box displays a link to the job ID. Click the Job ID link to view the status of this task on the Job Management page. v. Click OK to close the Job Information dialog box. You are redirected to the Device Management page.
RELATED DOCUMENTATION Device Inventory Overview | 298 Device Images and Scripts Overview | 608 Viewing Script Execution | 436 Viewing Associated Scripts | 436
362
Executing a Script on a Physical Inventory Component
You can use Junos Space Network Management Platform to trigger the execution of op scripts on one or more devices simultaneously. Commit and event scripts are automatically activated after they are enabled. Commit scripts are triggered every time a commit is called on the device and event scripts are triggered every time an event occurs on the device or if a time is specified.
NOTE: You can execute scrips on more than 200 devices only if the scripts do not require XPath processing. Scripts that do not require XPath processing include scripts without device-specific or entity-specific parameters and with /, //, or /device as context.
To execute a script on the physical inventory component of a device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select the device and select Device Inventory > View Physical Inventory from the Actions menu.
3. Right-click a physical inventory element for which the script has to be applied and select Execute Scripts. The Execute Scripts page is displayed. This page displays the list of scripts that match the context and are enabled and associated with the devices.
4. Select a script from the list. · You can also filter the list by using tags and then select a script. To filter the list by using tags: a. Click the Select by tags option button. b. From the Select by tags drop-down list, select an appropriate tag. c. Click OK. The list of scripts is filtered by the tag you selected. d. Select a script from the filtered list.
5. (Optional) To enter the values for the parameters of the script, click the appropriate cell in the Value column. · If you enter a value for a parameter that is a Password field, the value is hidden. · If you enter a value for a parameter that is a Confirm Password field, a dialog box is displayed. Enter the password again and click OK.
363
6. You can execute the script now or schedule this task for later: To execute the script later: a. Select the Schedule at a later time check box. b. Enter the date in the Date field in the DD/MM/YYYY format. c. Enter the time in the Time field in the hh:mm format. To execute the script now: · Click Execute.
7. If you selected to apply the script now, the Script Results page is displayed. This page shows the progress and status of the job.
NOTE: If you wait for the job to complete, you can view the job results. Click Close.
If you scheduled this task for later, the Job Information dialog box that appears displays the schedule information. Click OK. Click Cancel to return to the Device Management page.
RELATED DOCUMENTATION Applying a CLI Configlet to a Physical Inventory Element | 345
364
Executing a Script on a Logical Interface
You can use Junos Space Network Management Platform to trigger the execution of op scripts on one or more devices simultaneously. Commit and event scripts are automatically activated after they are enabled. Commit scripts are triggered every time a commit is called on the device and event scripts are triggered every time an event occurs on the device or if a time is specified.
NOTE: You can execute scrips on more than 200 devices only if the scripts do not require XPath processing. Scripts that do not require XPath processing include scripts without device-specific or entity-specific parameters and with /, //, or /device as context.
To execute a script on the logical interface of devices: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select the devices and select Device Inventory > View Logical Interfaces from the Actions menu. The View Logical Interfaces page is displayed.
3. Right-click the logical interfaces for which the script has to be applied and select Execute Scripts. The Execute Scripts page is displayed. This page displays a list of scripts that match the context and are enabled and associated with the devices.
4. Select the script from the list. · You can also filter the list by using tags and then select a script. To filter the list by using tags: a. Click the Select by tags option button. b. From the Select by tags drop-down list, select an appropriate tag. c. Click OK. The list of scripts is filtered by the tag you selected. d. Select a script from the filtered list.
5. (Optional) To enter the values for the parameters of the script, click the appropriate cell in the Value column. · If you enter a value for a parameter that is a Password field, the value you enter is hidden.
365
· If you enter a value for a parameter that is a Confirm Password field, a pop-up window is displayed. Enter the password again and click OK.
6. You can execute the script now or schedule this task for later: To execute the script later: a. Select the Schedule at a later time check box. b. Enter the date in the Date field in the DD/MM/YYYY format. c. Enter the time in the Time field in the hh:mm format. To execute the script now: · Click Execute.
7. If you selected to apply the script now, the Script Results page is displayed. This page shows the progress and status of the job.
NOTE: If you wait for the job to complete, you can view the job results. Click Close.
If you scheduled this task for later, the Job Information dialog box displays the schedule information. Click OK.
8. Click Cancel to return to the Device Management page.
RELATED DOCUMENTATION Executing a Script on the Devices | 357 Executing a Script on the Physical Interfaces | 366
366
Executing a Script on the Physical Interfaces
You can use Junos Space Network Management Platform to trigger the execution of op scripts on one or more devices simultaneously. Commit and event scripts are automatically activated after they are enabled. Commit scripts are triggered every time a commit is called on the device and event scripts are triggered every time an event occurs on the device or if a time is specified. You can execute a script on the physical interfaces of one device or multiple devices.
NOTE: You can execute scrips on more than 200 devices only if the scripts do not require XPath processing. Scripts that do not require XPath processing include scripts without device-specific or entity-specific parameters and with /, //, or /device as context.
To execute a script on the physical interfaces: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select the device (or multiple devices) and select Device Inventory > View Physical Interfaces from the Actions menu. The View Physical Interfaces page is displayed.
3. Right-click the physical interfaces on which the script has to be executed and select Execute Scripts. The Execute Scripts page displays the following scripts: · Scripts that are associated with and enabled (device scripts) on the selected devices · Scripts whose execution type matches your selection. If you selected multiple devices, only scripts whose EXECUTIONTYPE is set to GROUPEDEXECUTION are displayed. If you selected a single device, scripts whose EXECUTIONTYPE is set to SINGLEEXECUTION and GROUPEDEXECUTION are displayed. · Scripts whose context matches the physical interface context The Table 38 table lists the columns on the Execute Scripts page and their descriptions.
367
4. Select the script that you want to execute on the physical interfaces manually or by using tags. · To select the script manually: i. Click the Select Manually option button. This option button is selected by default.
ii. Select the script.
· To select the script by using tags: i. Click the Select by tags option button.
ii. From the Select by tags drop-down list, select an appropriate tag.
iii. Click OK. The list of scripts is further filtered by the tag you selected.
iv. Select the script.
5. (Optional) To enter the values for the parameters of the script, click the appropriate cell in the Value column. · If you enter a value for a parameter that is a Password field, the value you enter is hidden.
368
· If you enter a value for a parameter that is a Confirm Password field, a pop-up window is displayed. Enter the password again and click OK.
6. Select whether to execute the script now or schedule the execution for a later time: · To execute the script on the physical interfaces now: i. Click Execute. The Script Results page appears. The Table 39 table lists the columns and their descriptions. The lower area of the Script Results page displays the results of the script execution. If you executed a local script that contains the GROUPBYDEVICE annotation set to TRUE on the physical interfaces of multiple devices, click the appropriate device in the Device Name column to view the script execution results on the physical interface of the device.
ii. Click Close (at the bottom of the page). You are redirected to the View Physical Interfaces page.
iii. Click Back (at the top-left corner) to return to the Device Management page.
· To schedule the execution of the script on the physical interfaces for a later time: i. Select the Schedule at a later time check box.
ii. Enter the date in the Date field in the MM/DD/YYYY format.
iii. Enter the time in the Time field in the hh:mm format.
iv. Click Execute. The Job Information dialog box displays a link to the job ID. Click the Job ID link to view the status of this task on the Job Management page.
v. Click OK to close the Job Information dialog box. You are redirected to the View Physical Interfaces page.
vi. Click Back (at the top-left corner) to return to the Device Management page.
RELATED DOCUMENTATION Executing a Script on the Devices | 357
369 Executing a Script on a Logical Interface | 364
370
CHAPTER 15
Device Adapter
IN THIS CHAPTER Worldwide Junos OS Adapter Overview | 370 Installing the Worldwide Junos OS Adapter | 371 Connecting to ww Junos OS Devices | 373
Worldwide Junos OS Adapter Overview
The Junos Space wwadapter enables you to manage devices running the worldwide version of Junos OS (ww Junos OS devices) through Junos Space Network Management Platform. ww Junos OS devices use Telnet instead of Secure Shell (SSH2) to communicate with other network elements. Junos Space Network Management Platform uses the failover approach when identifying a ww Junos OS device. It first tries to initiate a connection to the device using SSH2. If it cannot connect to the device, Junos Space Network Management Platform identifies the device as a ww Junos OS device. Since Junos Space Network Management Platform does not support Telnet, it uses an adapter to communicate with ww Junos OS devices. Junos Space Network Management Platform connects to the adapter using SSH2 and the adapter starts a Telnet session with the device.
NOTE: For ww Junos OS devices, Space as a System of Record (SSOR) mode of device management is not supported.
Before you install the wwadapter, complete the following prerequisites: · Download the adapter image from the local client workstation. · Ensure that the Junos Space servers have been deployed and are able to access devices. · Configure Junos Space Network Management Platform to initiate connections with the device.
371
NOTE: Ensure that you allow at least three Telnet connections between the ww Junos OS device and the Junos Space server. Junos Space Network Management Platform needs a minimum of three Telnet connections with the device in order to be able to manage it.
NOTE: For ww Junos OS devices, the Junos Space Service Now application works only on AI-Scripts version 2.5R1 and later. The Secure Console workspace and the option in the right-click context menu in the Manage Devices workspace are disabled for ww Junos OS devices.
RELATED DOCUMENTATION Installing the Worldwide Junos OS Adapter | 371 Connecting to ww Junos OS Devices | 373
Installing the Worldwide Junos OS Adapter
You can install and use the wwadapter to manage devices running on the worldwide version of Junos OS (ww Junos OS devices). Before you install the wwadapter, you must upload the ww Junos OS device wwadapter image file. To upload the wwadapter image file: 1. On the Junos Space Network Management Platform user interface, select Devices > Device Adapter
. The Device Adapter page is displayed. 2. Select the Add Device Adapter icon on the Actions bar. 3. Browse to the wwadapter image file and select the filename so that the full path appears in the Software File field. 4. Click Upload to bring the image into Junos Space Network Management Platform.
372
A status box shows the progress of the image upload. Adding the wwadaptor image file automatically installs the wwadapter. Before you connect to any device, you must verify that the installation was successful. To verify that the installation was successful, look at the device console on the Junos Space server. 1. On the server, change the directories to verify that the wwadapter directory has been created.
cd /home/jmp/wwadapter
2. To verify that the wwadapter is running, enter the following command on the Junos Space server: prompt > service wwadapter status wwadapter running
If the wwadapter is not active, you see the following status: wwadapter stopped
Use the following commands to start or stop the wwadapter: To start the wwadapter:
service wwadapter start To stop the wwadapter:
prompt > ps ef | grep wwadapter promt > kill -9 {wwadapter pid}
To see the wwAdapter logs, change the directories to the wwadapter directory. cd /home/jmp/wwadapter/var/errorLog/DmiAdapter.log
To view the contents of the error log file, open the log file with any standard text editor. To view the contents of the log4j configuration file, change the directories to the wwadapter directory.
cd /home/jmp/wwadapter /wwadapterlog4j.lcf
373
RELATED DOCUMENTATION Worldwide Junos OS Adapter Overview | 370 Connecting to ww Junos OS Devices | 373
Connecting to ww Junos OS Devices
A device running worldwide Junos OS (ww Junos OS device) cannot initiate a connection with Junos Space Network Management Platform. Junos Space Network Management Platform must initiate the connection to the device. To configure this setting: 1. On the Junos Space Network Management Platform user interface, select Administration > Applications.
The Applications page is displayed.
2. Select Network Management Platform and select Modify Application Settings from the Actions menu. The Modify Application Settings page appears.
3. Select Junos Space initiates connection to device.
4. Select Support ww Junos Devices so that Junos Space Network Management Platform can connect to a ww Junos OS device using the wwadapter.
After Junos Space Network Management Platform has discovered the ww Junos OS device through the wwadapter, it manages the device just as it would manage a device that runs the domestic version of Junos OS. For more information about device discovery, refer to "Device Discovery Profiles Overview" on page 219.
NOTE: The SSH to Device option is disabled for ww Junos OS devices.
NOTE: If you are not able to discover the WW Junos OS device , make sure that the NMAP utility returns `telnet' as open for port 23 on the device.
$ nmap p23 < Device IP >
374
RELATED DOCUMENTATION Worldwide Junos OS Adapter Overview | 370 Installing the Worldwide Junos OS Adapter | 371
375
CHAPTER 16
Device Configuration Management
IN THIS CHAPTER Viewing the Active Configuration | 375 Viewing the Configuration Change Log | 380 Resolving Out of band Changes | 381 Creating a Quick Template from the Device Configuration | 383
Viewing the Active Configuration
Before you modify the configuration on a device, you need to view the current active configuration on the device. To view all the configuration options for a device, you need to upload the appropriate DMI schema to Junos Space Network Management Platform. If you have not uploaded the appropriate DMI schema for the device, Junos Space Platform uses the default DMI schema for the device. To view the active configuration on the device: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page is displayed.
2. Right-click the device whose active configuration you want to view and select Device Configuration > View Active Configuration. The View Active Configuration page is displayed. You can view the Junos OS statement hierarchy in the left pane. The right pane displays the CLI view of the active configuration on the device, and custom configuration views configured from the CLI Configlets workspace. You can also apply CLI Configlets that match the context of the device. By default, the right pane displays the Default View tab (active configuration on the device).
3. (Optional) To view multiple configuration options simultaneously in the right pane: a. Click the Custom Settings icon in the left pane. The Modify Custom Settings page is displayed.
376
b. Select the Enable Multiselect check box. c. Click OK.
Multiple configuration options are displayed in the right pane. 4. (Optional) To view the configuration options in alphabetical order:
a. Select the Custom Settings icon in the left pane. The Modify Custom Settings page is displayed.
b. Select the Enable Alphabetic Ordering check box. c. Click OK.
The configuration options are displayed in alphabetical order in the left pane and the right pane.
NOTE: The Enable Alphabetical Ordering feature is enabled only for your user account.
5. (Optional) To add a configuration filter and view a specific set of configuration options, click the Create Filter icon in the left pane. The Add Configuration Filter page is displayed. For more information, see "Creating a Configuration Filter" on page 604.
6. (Optional) Click the Edit filter icon to modify an existing configuration filter.
7. (Optional) Click the Delete filter icon to delete the existing configuration filters.
8. (Optional) To view the configuration on the device by the custom configuration view created from the CLI Configlets workspace, click the tab for that configuration view. For example, a configuration view Example 1 assigned to the Global domain displays a tab named Global/Example1. The right pane displays the configuration of the device as specified by format in the configuration view.
9. (Optional) To view the configuration of the device in CLI format, click the Default View tab in the right pane. The right pane displays the current configuration of the device.
377
10. (Optional) To refresh the CLI view of the device configuration, click the Refresh icon in the right pane.
11. (Optional) To apply a CLI Configlet or submit the changes from a CLI Configlet to the change request of the device, click the Configure tab in the right pane. a. You can filter the list of CLI Configlets that you want to apply to the device manually or by using tags. · To filter the CLI Configlets manually, enter the search criteria in the Search field and click the Search icon. The list of CLI Configlets is further filtered by the search criteria. · To filter the CLI Configlets by using tags: a. Click the Select by tags option button. The Search field disappears. b. From the Select by tags drop-down list, select an appropriate tag. c. Click OK. The list of CLI Configlets is further filtered by the tag you selected.
NOTE: This filtered view is retained even when you navigate to other inventory landing pages.
b. Select a CLI Configlet from the filtered list. The parameters of the CLI Configlet are displayed. From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter values when you need to apply configlets on multiple devices. You can upload the parameter values in the specified format as a CSV file. To download a sample CSV file, click the Download Configlet Parameters link. The SampleParameterCSV file is downloaded with the parameters already present in the editable grid. You can enter or edit the required parameter values in the CSV file easily in addition to manually editing the parameter value field in the grid. To upload the edited CSV file, click the Browse button, select the file, and then click the Upload button. The values of parameters in the CSV file are populated to the editable grid. The parameters of CLI Configlet are listed in the grid with pagination support.
c. (Optional) To enter the values for the parameters of the CLI Configlet, click the appropriate cell in the Value column. · If you enter a value for a parameter that is a Password field, the value is hidden.
378
· If you enter a value for a parameter that is a Confirm Password field, a pop-up window is displayed. Enter the password again and click OK.
d. (Optional) If you want to apply the CLI Configlet later: a. Select the Schedule at a later time check box. b. Enter the date in the Date field in the DD/MM/YYYY format. c. Enter the time in the Time field in the hh:mm format.
e. Click Next. You can preview the configuration in the CLI Configlet in the Preview area. The top of the Preview area displays the parameters with the values that are applied to devices. The bottom left of the Preview area displays the devices you have selected. The bottom right of the Preview area displays the configuration that will be applied to the device selected on the left. · Click a device to view the configuration that will be applied to the device.
f. Before applying the CLI Configlet, you can validate the configuration in the CLI Configlet on the device. i. (Optional) To validate the CLI Configlet on the device, click Validate. The Validate Results page is displayed. A job is triggered. The Progress column displays the progress of validation against each device. When the validation is complete, the results of the validation are displayed. The Status column indicates the results of the validation. If the validation is unsuccessful, the details of the error are displayed on the page.
NOTE: You can also view the validation results from the Job Management page. To view the validation results, double-click the job ID and click the View Results link corresponding to the device. The Validate CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Validate Results page.
ii. Click Close to return to the Apply CLI Configlet page.
g. (Optional) To select a different CLI Configlet or reschedule the workflow, click Back.
379
You are redirected to the previous page.
h. You can apply the CLI Configlet to the device or submit the configuration changes included in the CLI Configlet to the change requests. · · To apply the CLI Configlet to the device, click Apply. If you selected to apply the CLI Configlet now, the Configlets Results page is displayed. A job is triggered. The Progress column displays the progress of applying the CLI Configlet against each device. When the job is complete, the results of the job are displayed. The Status column indicates the results of the job.
NOTE: You can also view the results from the Job Management page. To view the results, double-click the job ID and click the View Results link corresponding to the device. The Apply CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Configlet Results page.
· Click Close, You are returned to the View Active Configuration page.
· If you scheduled this task for a later time, the Job Information dialog box that appears displays the schedule information. Click OK.
· To submit the configuration changes to the change requests, click Submit. The configuration changes are included in the list of changes on the Review/Deploy Configuration page in the Devices workspace.
An audit log is generated when you apply or submit the CLI Configlet.
NOTE: You can select the Enable Alphabetical Ordering check box if you want to view the device configuration by using a configuration filter. The configuration options displayed in the filtered view are sorted in alphabetical order.
Click Back on the top-left corner of the View Active Configuration page to go back to the Device Management page.
380
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter
values when you need to apply configlets on multiple devices.
RELATED DOCUMENTATION Viewing Managed Devices | 193 Modifying the Configuration on the Device | 321
Viewing the Configuration Change Log
When Junos Space Network Management Platform is the system of record, users may make out-of-band configuration changes to network devices by manually using the device's management CLI, but there is no automatic resynchronization with the Junos Space Network Management Platform database. By viewing the configuration change log, you can see the history and details of all device configuration changes, whether initiated from Junos Space Network Management Platform or not. You can investigate details of the changes that were made, and you can decide to accept or reject the changes. If you accept them, the Junos Space Network Management Platform database is updated to reflect the new configuration. If you reject them, the device's out-of-band configuration changes are reverted. Viewing the Configuration Change Log enables you to resolve out of band changes, which are those changes made on the device itself. When the mode in Network Management Platform > Administration > Applications > Modify Application Settings > Device is Space as the System of Record (SSOR), the system tracks both in-band (Space) and out-of-band (non-Space) changes. When the mode in Application Settings is Network as the System of Record (NSOR) (the default), the system tracks only in-band (Space) changes. To view configuration change log: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select the device whose configuration log you want to see.
3. Select Device Configuration > View Configuration Change Log from the Actions menu. The configuration change log is displayed. Table 40 describes its contents.
381
Table 40: Configuration Change Log
Column Name
Description
Timestamp
The date and time at which the configuration change was made.
Author
The user ID of the person who made the change. For an in-band change, this is the Junos Space username; for and out-of-band change, it is the credential used to log into the CLI management interface.
Configuration Changes
A link to a View Configuration Change XML window in which the details of the change for this device are shown as XML.
Change Type
The type of the change: in band or out of band. Out-of-band changes are further denoted as Outstanding, Accepted, or Rejected.
Application Name
The name of the Junos Space application from which the change was requested.
Commit Comments
The commit comments included in the system log entry related to committing this change. These may include notes from the user who made the commit, as well as the timestamp and username.
RELATED DOCUMENTATION Resolving Out of band Changes | 381 Reviewing and Deploying the Device Configuration | 326
Resolving Out of band Changes
You can resolve the Out-of-band changes and either accept or reject the configuration changes. To resolve the out of band changes: 1. On the Junos Space Network Management Platform user interface, select Network Management
Platform > Devices > Device Management. The Device Management page is displayed.
2. Select the device whose out-of-band configuration changes you want to resolve.
3. Select Device Configuration > Resolve Out-of-band Changes from the Actions menu.
382
The Resolve Out-of-band Changes page is displayed. Table 41 describes the columns on this page. Table 41: Resolving Out-of-Band Changes
Column Name
Description
ID
ID of the configuration change entry
changeXML
The list of out-of-band changes in XML format
device ID
ID of the device
Device Name
Name of the device
Timestamp
The date and time at which the configuration change was made
Author
The user ID of the person who made the change. For out-of-band change, this is the credential used to log into the device CLI management interface.
Configuration Change
A link to the out-of-band changes in XML format
Action
Option buttons enabling you to select Accept or Reject
4. (Optional) To view the out-of-band change: a. Click the View link in the appropriate row. The Out-of-band Change XML pop-up window displays the out-of-band changes in XML format.
b. Click OK to close the pop-up window.
5. You can accept or reject individual changes or accept all the out-of-band changes. · To approve or reject individual out-of-band changes: i. Select Accept or Reject in the appropriate row.
ii. Click Submit. The Job Information dialog box is displayed with the job ID.
iii. Click OK. You are redirected to the Device Management page.
383
· To approve all the out-of-band changes: i. Click Accept All.
ii. Click Submit. The Job Information dialog box is displayed with the job ID.
iii. Click OK. You are redirected to the Device Management page.
RELATED DOCUMENTATION Viewing the Configuration Change Log | 380 Reviewing and Deploying the Device Configuration | 326
Creating a Quick Template from the Device Configuration
You create a quick template from a device configuration when you want to push this configuration to multiple devices by deploying the quick template. You create a quick template from a device configuration from the Devices workspace. To create a quick template from the device configuration: 1. On the Junos Space Network Management Platform user interface, select Devices > Device Management
. The Device Management page is displayed.
2. Right-click the device whose configuration you want to migrate to a quick template and select Device Configuration > Create Template from Device Configuration from the contextual menu. You are redirected to the Create Quick Template page in the Device Templates workspace. You can modify the Name field, and add or modify the device configuration using the CLI-based or Form-based editor.
3. Use the Create Quick Template workflow to create a quick template from the device configuration. For more information, see "Creating a Quick Template" on page 508.
384
RELATED DOCUMENTATION Deploying a Quick Template | 514 Quick Templates Overview | 507
385
CHAPTER 17
Adding and Managing Non Juniper Networks Devices
IN THIS CHAPTER Adding Unmanaged Devices | 385 Modifying Unmanaged Device Configuration | 388
Adding Unmanaged Devices
In the Junos Space Network Management Platform context, unmanaged devices are those made by vendors other than Juniper Networks, Inc. You can add such devices to Junos Space Platform manually, or by importing multiple devices simultaneously from a CSV file. To add a non-Juniper device to Junos Space Network Management Platform: 1. On the Junos Space Network Management Platform user interface, select Devices > Unmanaged
Devices. The Add Unmanaged Devices page is displayed. 2. You can add non-Juniper devices either manually or using a CSV file. To add the devices manually, select the Add Manually option button. The Device Details area is displayed on the Add Unmanaged Devices page. 3. Select the IP Address or Hostname option button. If you selected the IP Address option, enter the IP address of the device.
NOTE: You can enter the IP address in either IPv4 or IPv6 format. Refer to http://www.iana.org/assignments/ipv4-address-space/ipv4-address-space.xhtml for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space/ipv6-address-space.xhtml for the list of restricted IPv6 addresses.
If you selected the Hostname option, enter the hostname of the device.
386
4. (Optional) In the Vendor field, enter the name of the device's vendor. The maximum length is 256 characters. Spaces are acceptable.
5. (Optional) Select the Configure Loopback check box if you want to configure the loopback address for the device.
If you do so, the Loopback Settings area appears.
a. In the Loopback Name field, enter the loopback name for the device.
b. In the Loopback Address field, enter the loopback address for the device.
You can specify both IPv4 and IPv6 addresses as loopback addresses. The valid range for IPv4 loopback address is 1.0.0.1223.255.255.254. The valid range for IPv6 loopback address is 1::ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff.
6. Select the Use SNMP check box to use SNMP to gather device information. If you do so, the SNMP Settings area is displayed.
7. Use the option buttons to select either SNMP V1/V2C or SNMP V3. · If you select SNMP V1/V2C, the Community field appears. Enter the appropriate SNMP community string (password) to give access to the device. · If you select SNMP V3, several fields appear, as described in Table 42. Enter values as appropriate. Table 42: SNMP V3 Configuration Parameters
Name
Value
Username
Username previously configured on the device
Authentication type
Algorithm used for authentication: MD5, SHA1, or None. MD5 or SHA1 is used to create a hash of the authentication password. Note that only this password is encrypted, not any other packets transmitted.
Authentication password
Password that authenticates Junos Space Network Management Platform to the device to gain access to it. The password must have at least eight characters and can include alphanumeric and special characters, but not control characters.
Privacy type
Encryption algorithm used to encrypt transmitted packets: AES128, AES192, AES256, DES, or None.
Privacy password
Password that allows reading the transmissions themselves. The password must have at least eight characters.
8. (Optional) To add non-Juniper devices using the CSV file, select the Import From CSV option button on the Add Unmanaged Devices page.
387
9. The Import area appears, displaying the following links: · View Sample CSV · Select a CSV To Upload. Clicking View Sample CSV displays a CSV file in the format shown in Table 43. Table 43: Columns in a Sample CSV File for Importing Unmanaged Devices
Column Heading
Sample Data
Validation
Host Name or IP Address
Sunnyvale_R1
Name: Limit of 256 characters, no spaces. IP address: Dotted decimal notation.
Vendor
ABC
Alphabetic characters only
Device UserName
abcd
No validation from Junos Space Network Management Platform
Device Password
abcd123
No validation from Junos Space Network Management Platform
SNMP Version
SNMP V3
SNMP V3, or SNMP V1 or V2C
Community
N/A (for SNMP V3) Community string (authentication password) for V2; otherwise, N/A
SNMP Username
abcde
Username for SNMP V3; otherwise, N/A
Authentication Type
MD5
MD5, SHA1, or N/A
Authentication Password
abcde123
Must have at least eight characters and can include alphanumeric and special characters, but not control characters
Privacy Type
DES
DES, AES128, AES192, AES256, or N/A
Privacy Password
abcde123
Must have at least eight characters and can include alphanumeric and special characters, but not control characters; can be the same as the authentication password
Loopback Name
lo0
Loopback name for the device
Loopback Address
127.0.0.1
Loopback address for the device. The loopback address should be a valid IP address in the range of 1.0.0.0 to 223.255.255.255
388
NOTE: You should enter a valid loopback address or enter "N/A" in the Loopback Address column. If you enter an invalid loopback address or leave the cell empty, the associated unmanaged device is not added to Junos Space Network Management Platform.
10. When you have a complete CSV file, select Select a CSV To Upload. 11. Click Next.
The Add Unmanaged Devices page displays the list of unmanaged devices with their details. 12. Click Finish.
You are redirected to the Unmanaged Devices page.
RELATED DOCUMENTATION Device Management Overview | 188 Modifying Unmanaged Device Configuration | 388 Viewing Managed Devices | 193
Modifying Unmanaged Device Configuration
In the Junos Space Network Management Platform context, unmanaged devices are those made by vendors other than Juniper Networks, Inc. You can add such devices to Junos Space Network Management Platform manually, or by importing multiple devices simultaneously from a CSV file. To modify the configuration on a non-Juniper device: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page is displayed. This page lists the unmanaged devices added to Junos Space Network Management Platform. 2. Right-click the unmanaged device whose configuration you want to modify and select Device Configuration > Unmanaged Device Configuration. The Modify Unmanaged Device Configuration page is displayed.
389 3. Modify the unmanaged device configuration. 4. Click Save.
RELATED DOCUMENTATION Device Management Overview | 188 Viewing Managed Devices | 193
390
CHAPTER 18
Accessing Devices
IN THIS CHAPTER Launching a Device's Web User Interface | 390 Looking Glass Overview | 391 Executing Commands by Using Looking Glass | 392 Exporting Looking Glass Results in Junos Space Network Management Platform | 394 Secure Console Overview | 395 Connecting to a Device by Using Secure Console | 396 Configuring SRX Device Clusters in Junos Space using Secure Console | 404
Launching a Device's Web User Interface
The Launch Device Web UI action enables you to access the WebUI of a device to manage it directly. The device should have the required Web UI components installed and enabled (for example, J-web). Once launched, the Web UI appears either in a new tab in your browser or in a new window. Ensure you enable pop-ups on your browser for the device for which the Web UI is being launched. To launch a device Web UI: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed. 2. Right-click the device and select Device Access > Launch Device WebUI. 3. Click the https://ipaddress link. Log in and perform the desired operations, following the instructions for your device.
RELATED DOCUMENTATION
391
Viewing Managed Devices | 193 Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215 Managing Configuration Files Overview | 937
Looking Glass Overview
You use the Looking Glass feature to view device configurations by executing basic CLI commands on the Junos Space user interface. You can execute these commands on multiple devices and compare the configurations and runtime information in these devices. You can execute the following types of commands by using Looking Glass: show, ping, test, and traceroute. The commands that are supported and stored in the Junos Space Network Management Platform database are displayed on the Looking Glass page. When you type the first few letters of the command, the suggestion list displays the commands that are supported, stored, and begin with the letters that you typed. If you enter a show command and do not find any suggestions on the suggestion list, enter the complete command and click the Refresh Response button to execute the command.
NOTE: You cannot execute the following types of command by using Looking Glass: request, monitor, op, restart, and clear.
With Looking Glass, you can perform the following tasks: · Select a maximum of ten devices to execute commands. · View the outputs of the commands that you executed on multiple devices in two formats: Format Text
view and Table view. The Format Text view displays the command output in plain-text format. The Table view displays the information in a format that resembles the Device Management page in Junos Space Platform. · Export the results of the executed command in CSV or DOC format. · Configure a timeout interval to stop executing commands on some devices that take a long time to respond with results. The results for the devices that allowed the commands to be executed within the timeout interval are displayed. The default timeout interval is 120 seconds. You can modify the Looking Glass Device response timeout in secs option on the Modify Application Settings page. You must have the privileges to use Looking Glass on a device. Without permissions to manage a device, you cannot use Looking Glass on the device.
392
RELATED DOCUMENTATION Executing Commands by Using Looking Glass | 392 Exporting Looking Glass Results in Junos Space Network Management Platform | 394
Executing Commands by Using Looking Glass
You use Looking Glass to run some commands on a device from the Junos Space user interface. The following types of commands are supported: show, ping, test, and traceroute. If you enter an unsupported command, the following message is displayed: Looking glass supports only the commands without '|','<' and '>' and starting with ping/show/test/traceroute. Before you start executing commands by using Looking Glass, ensure that you have configured the Looking Glass Device response timeout in secs option on the Modify Application Settings page. This setting defines the maximum time that Junos Space Network Management Platform waits to collect the command output. The default timeout interval is 120 seconds. To run a supported command on a device by using Looking Glass: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page that appears lists all the devices that currently exist in the Junos Space Platform database.
2. Select the devices on which you want to run the show command and select Device Operations > Looking Glass from the Actions menu. The Looking Glass page is displayed.
3. (Optional) By default, a green check mark is displayed against all the devices, which indicates that all the devices are selected. To select only a few devices, press the Ctrl key and select the devices by clicking the appropriate device icons. A green check mark is displayed against the selected devices.
4. In the Execute Command field, enter a command or the first few letters of the command. A list of suggestions is displayed. The suggestions include only those commands that are present in the Junos Space Platform database and that can be executed on the devices currently selected. Lengthy commands that do not fit in the Execute Command field are truncated and displayed with periods (.); for example CLI_COMMAND.... Mouse over the truncated view of the command to view the full command.
393
NOTE: If the command that you are running requires your input, replace the part of the command shown as text in angle brackets with your own data. For example, replace <slot> in show chassis routing-engine <slot> with the slot number, as in show chassis routing-engine 1.
You can also select a command from the list of commands in this field.
5. (Optional) If you typed the entire command or selected a command from the list, click Refresh Response or press Enter. The command is executed on the devices. A progress bar indicates that the command is being executed. When the command execution is complete, the results are displayed below the Execute Command field. The command that you entered or selected is displayed beside the Refresh Response button. The output of the command executed on these devices is displayed one below the other. Scroll the results to view the output from these devices.
NOTE: If one of the devices on which you executed the command takes too long to respond with results, the results from this device are omitted and a Request timeout message is displayed in a dialog box. The command output for other devices on which the command is successfully executed is displayed.
6. (Optional) The Format Text view is the default view of the output. To change the view of the output, click the Table view icon.
7. (Optional) To view the output for a subset of devices, press the Ctrl key and select the devices whose output you want to view by clicking the appropriate device icons.
8. Click OK to exit the Looking Glass page. An audit log entry is generated for this task.
RELATED DOCUMENTATION Looking Glass Overview | 391 Exporting Looking Glass Results in Junos Space Network Management Platform | 394
394
Exporting Looking Glass Results in Junos Space Network Management Platform
You export Looking Glass results to save the output of the commands you executed by using Looking Glass. You can export the results in Format Text or Table View to your local computer. The ZIP file contains device-specific CSV or DOC files. If you export the results in Format Text view, device-specific DOC files are downloaded. If you export the results in Table view, device-specific CSV files are downloaded. To export Looking Glass results: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page that appears lists all devices that currently exist in the Junos Space Platform database.
2. Select the devices on which you want to run the show command and select Device Operations > Looking Glass from the Actions menu. The Looking Glass page is displayed.
3. In the Execute Command field, enter a command or the first few letters of the command. A list of suggestions is displayed. The suggestions include only those commands that are present in the Junos Space Platform database and that can be executed on the devices currently selected. You can also select a command from the list of commands in this field.
4. (Optional) If you typed the entire command or selected a command from the list, click Refresh Response or press Enter. The command is executed on the devices. A progress bar indicates that the command is being executed. When the command execution is complete, the results are displayed below the Execute Command field. The output of the command executed on these devices is displayed one below the other. Scroll the results to view the output from these devices.
5. To select the view that you want to export, click the appropriate icon: Format Text view or Table view. By default the results are displayed in the Format Text view.
6. Click the Export Results icon. The Export Results dialog box is displayed.
395
NOTE: The icon appears dimmed if the results are not displayed when you execute the command.
7. Click OK and save the ZIP file to your local computer. The ZIP file contains device-specific CSV or DOC files with the command output. To help you identify the files easily, the files are named after the device.
Click OK to exit the Looking Glass page. An audit log is generated for this task.
RELATED DOCUMENTATION Looking Glass Overview | 391 Executing Commands by Using Looking Glass | 392
Secure Console Overview
The Secure Console feature provides a secure remote access connection to managed and unmanaged devices. Secure Console initiates an SSH session from the Junos Space user interface by using the SSH protocol. An unmanaged device is a device that is not managed by Junos Space Network Management Platform. Secure Console is a terminal window embedded in Junos Space Platform that eliminates the need for a third-party SSH client to connect to devices. Secure Console provides additional security while connecting to your devices. It initiates an SSH session from the Junos Space server rather than from your Web browser. You can access the Secure Console feature either from the Device Management page or the Secure Console page. When using Secure Console for a managed device, you can skip the steps to log in to the device by selecting the Allow users to auto log in to devices using SSH option on the Modify Application settings page. If you select this option, you are automatically logged in to the device. However, for an unmanaged device, you need to provide the device credentials manually.
396
Secure Console provides the following functionalities: · Validate the fingerprint value stored in the Junos Space Platform database with that obtained from the
device. · Establish multiple SSH connections to connect to different devices simultaneously. These multiple
connections are displayed in different terminal windows. · Compare configurations on a device by establishing multiple SSH connections to the same device and
viewing the configurations in different SSH terminal windows. · Resize the terminal windows to a desired size. · Minimize the terminal windows to the taskbar and maximize them. · Paste the CLI commands into the terminal window. · Terminal windows allow the use of the following terminal control characters: CRTL + A, CRTL+ E, ,
and TAB.
NOTE: The SSH session is terminated if: · You are logged out due to inactivity. · Your user account is terminated, disabled, or deleted. · The authentication mode is switched to Certificate mode. · If the Manually Resolve Fingerprint Conflict check box on the Modify Application Settings
page in the Administration workspace is enabled, and Junos Space Platform detects a conflict between the fingerprint stored in the database and that received from the device.
You must have the privileges of a Super Administrator or a Device Manager to use the Secure Console feature and connect to devices.
RELATED DOCUMENTATION Connecting to a Device by Using Secure Console | 396
Connecting to a Device by Using Secure Console
You use Secure Console to establish an SSH connection to a device from the Junos Space user interface. You can establish multiple SSH connections and connect to multiple managed or unmanaged devices. You
397
can also establish multiple SSH sessions to the same device. A new SSH terminal window is opened for every new connection to the device.
CAUTION: Some browser plug-ins may cause undesirable behavior in open SSH windows; disabling such plug-ins may resolve the issue. For example, if the Firebug plug-in is activated within an SSH window opened in Mozilla Firefox, the window cannot be restored, resized, or maximized and the console area remains fixed; disabling the Firebug plug-in resolves this issue.
You can connect to a device through an SSH connection from the Device Management page or the Secure Console page. This topic includes steps to connect to a managed and unmanaged device from the Device Management or Secure Console page.
Connecting to a Managed Device from the Device Management Page | 397 Connecting to an Unmanaged Device from the Device Management Page | 400 Connecting to a Managed or Unmanaged Device from the Secure Console Page | 402
Connecting to a Managed Device from the Device Management Page
Before you open an SSH session to connect to a managed device from the Device Management page, ensure that: · You have the privileges of a Super Administrator or Device Manager in Junos Space Network Management
Platform. · The status of the managed device is "UP." · You have configured the Allow users to auto log in to devices using SSH option on the Modify Applications
page. If you select this option, Junos Space Platform automatically logs in to the device when an SSH connection is initiated to the device. To connect to a logical system, you must always enter the username and password irrespective of whether or not you have selected the Allow users to auto log in to devices using SSH option.
398
To connect to a managed device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select a device to which you want to connect and select Device Access > SSH to Device from the Actions menu. The SSH to Device pop-up window is displayed.
NOTE: If you have cleared the Allow users to auto log in to devices using SSH option on the Modify Applications page, the SSH to Device pop-up window is displayed. The IP address is automatically displayed in the IP address field. Enter the username and password in the User name and Password fields respectively.
3. In the IP Address field, enter a valid IP address of the device.
NOTE: You can enter the IP address in either the IPv4 or IPv6 format. Refer to http://www.iana.org/assignments/ipv4-address-space/ipv4-address-space.xhtml for a list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space/ipv6-address-space.xhtml for a list of restricted IPv6 addresses.
4. In the Username field, enter the username of the device. The username must match the username configured on the device.
5. In the Password field, enter the password to access the device. The password must match the password configured on the device.
6. If you want to change the value, specify a value specified in the SSH port for device connection field on the Modify Application Settings page in the Administration workspace The default value is 22.
NOTE: If you enter a port number other than the one you specified on the Modify Application Settings page, the SSH connection is not established.
399
7. Click Connect. Junos Space Platform validates the fingerprint stored in the database with that on the device. · If you have enabled the Manually Resolve Fingerprint Conflict check box on the Modify Application Settings page in the Administration workspace and the fingerprints do not match, the connection is disconnected and the Device Authenticity error message dialog box is displayed. The authentication status of the device is modified to Fingerprint Conflict. · If you have disabled the Manually Resolve Fingerprint Conflict check box on the Modify Application Settings page in the Administration workspace and the fingerprints do not match, the new fingerprint is updated in the Junos Space Platform database. If the fingerprints on the device match the fingerprints in the database, the SSH terminal window is displayed.
NOTE: You may receive error messages such as Unable to Connect, Authentication Error, or Connection Lost or Terminated, which are displayed as standard text in the terminal window. If you receive an error message, all other functionality in the terminal window is stopped. You should close this terminal window and open a new SSH session.
8. You can perform the following tasks in the terminal window: · (Optional) Enter CLI commands to monitor and troubleshoot the device from this terminal window. Use the following terminal control characters: · Ctrl+a--Moves the cursor to the start of the command line · Ctrl+e--Moves the cursor to the end of the command line · (Up arrow key)--Repeats the previous command · Tab--Completes a partially typed command · (Optional) Minimize or maximize the terminal window by clicking the minimize or maximize button on the top-right corner. · (Optional) Resize the terminal window by dragging the terminal window horizontally or vertically by using the mouse. · (Optional) Terminate a process by using the Ctrl+c key combination. · (Optional) Right-click the terminal window to copy and paste the command from the local computer. · To terminate the SSH session, type exit and press Enter.
Click Close to close the SSH terminal window.
400
Connecting to an Unmanaged Device from the Device Management Page
Before you connect to an unmanaged device by using the Secure Console from the Device Management page, ensure that: · You have the privileges of a Super Administrator or Device Manager in Junos Space Network Management
Platform. · The device is configured with a static management IP address. This IP address should be reachable from
the Junos Space Appliance. · The SSH v2 protocol is enabled on the device.
To enable SSH v2 on a device, enter the set system services ssh protocol-version v2 command at the command prompt. · The status of the device is "UP." · A valid username and password are created on the device. · Clear the Allow users to auto log in to devices using SSH option on the Modify Application Settings page. To connect to an unmanaged device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select the unmanaged device and select Device Access > SSH to Device from the Actions menu. The SSH to Device pop-up window is displayed.
3. In the IP Address field, enter a valid IP address for the device.
NOTE: You can enter the IP address in either the IPv4 or IPv6 format. Refer to http://www.iana.org/assignments/ipv4-address-space/ipv4-address-space.xhtml for a list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space/ipv6-address-space.xhtml for a list of restricted IPv6 addresses.
4. In the Username field, enter the username for the device. The username must match the username configured on the device.
5. In the Password field, enter the password to access the device.
401
The password must match the password configured on the device.
6. In the Port field, enter the port number to use for the SSH connection. The default value is 22. If you want to change the value, specify a value specified in the SSH port for device connection field on the Modify Application Settings page in the Administration workspace.
7. Click Connect. The Device Authenticity dialog box is displayed. This dialog box displays the SSH fingerprint of the unmanaged device.
8. Click Yes. The SSH terminal window is displayed.
NOTE: You may receive error messages such as Unable to Connect, Authentication Error, or Connection Lost or Terminated, which are displayed as standard text in the terminal window. If you receive an error message, all other functionality in the terminal window is stopped. You should close this terminal window and open a new SSH session.
9. You can perform the following tasks in the terminal window: · (Optional) Enter CLI commands to monitor and troubleshoot the device from this terminal window. Use the following terminal control characters: · Ctrl+a --Moves the cursor to the start of the command line · Ctrl+e--Moves the cursor to the end of the command line · (Up arrow key)--Repeats the previous command · Tab--Completes a partially typed command · (Optional) Minimize or maximize the terminal window by clicking the minimize or maximize button on the top-right corner. · (Optional) Resize the terminal window by dragging the terminal window horizontally or vertically by using the mouse. · (Optional) Terminate a process by using the Ctrl+c key combination. · (Optional) Right-click the terminal window to copy and paste the command from the local computer. · To terminate the SSH session, type exit and press Enter.
Click Close to close the SSH terminal window.
402
Connecting to a Managed or Unmanaged Device from the Secure Console Page
Before you connect to a managed or unmanaged device from the Secure Console page, ensure that: · You have the privileges of a Super Administrator or Device Manager in Junos Space Network Management
Platform. · The device is configured with a static management IP address. This IP address should be reachable from
the Junos Space Appliance. · The SSH v2 protocol is enabled on the device.
To enable SSH v2 on a device, enter the set system services ssh protocol-version v2 command at the command prompt. · The status of the device is "UP." · A valid username and password are created on the device. To connect to a managed or unmanaged device from the Secure Console page: 1. On the Junos Space Network Management Platform user interface, select Devices > Secure Console.
The Secure Console page is displayed. This page displays the fields you need to specify to connect using the Secure Console.
2. In the Username field, enter the username of the device. The username must match the username configured on the device.
3. In the Password field, enter the password to access the device. The password must match the password configured on the device.
4. If you want to change the value, specify a value specified in the SSH port for device connection field on the Modify Application Settings page in the Administration workspace. The default value is 22.
5. Click Connect. If you are connecting to a Juniper Networks device, Junos Space Platform validates the fingerprint stored in the database with that on the device. · If you have enabled the Manually Resolve Fingerprint Conflict check box on the Modify Application Settings page in the Administration workspace and the fingerprints do not match, the connection is disconnected and the Device Authenticity error message dialog box is displayed. The authentication status of the device is modified to Fingerprint Conflict.
403
· If you have disabled the Manually Resolve Fingerprint Conflict check box on the Modify Application Settings page in the Administration workspace and the fingerprints do not match, the new fingerprint is updated in the Junos Space Platform database.
If the fingerprints on the device match the fingerprints in the database, the SSH terminal window is displayed. If you are connecting to an unmanaged device, the Device Authenticity error message dialog box is displayed. This dialog box displays the SSH fingerprint of the unmanaged device. a. Click Yes.
The SSH terminal window is displayed.
NOTE: You may receive error messages such as Unable to Connect, Authentication Error, or Connection Lost or Terminated, which are displayed as standard text in the terminal window. If you receive an error message, all other functionality in the terminal window is stopped. You should close this terminal window and open a new SSH session.
6. You can perform the following tasks in the terminal window: · (Optional) Enter CLI commands to monitor and troubleshoot the device from this terminal window. Use the following terminal control characters: · Ctrl+a--Moves the cursor to the start of the command line · Ctrl+e--Moves the cursor to the end of the command line · (up arrow key)--Repeats the previous command · Tab--Completes a partially typed command · (Optional) Minimize or maximize the terminal window by clicking the minimize or maximize button on the top-right corner. · (Optional) Resize the terminal window by dragging the terminal window horizontally or vertically by using the mouse. · (Optional) Terminate a process using the Ctrl+c key combination. · (Optional) Right-click the terminal window to copy and paste the command from the local computer. · To terminate the SSH session, type exit and press Enter.
Click Close to close the SSH terminal window.
404
RELATED DOCUMENTATION Secure Console Overview | 395
Configuring SRX Device Clusters in Junos Space using Secure Console
You can create a cluster of two SRX-series devices that are combined to act as a single system, or create a single-device cluster and then add a second device to the cluster later. You can also configure a standalone device from an existing cluster device. You can do this using the Secure Console feature in the Devices workspace. You can configure an SRX-series cluster in the following modes: · Active/passive clustering · Active/active clustering In the active/passive mode, the transit traffic passes through the primary node, while the backup node is used only in the event of a failure. When failure occurs, the backup device becomes the primary and takes over all the forwarding tasks. In the active/active mode, the transit traffic always passes through both the nodes of the cluster.
NOTE: To discover and manage an SRX device cluster that is already configured, you must perform the device discovery workflow independently for each cluster node. You can add and discover the cluster devices using the Web UI. The discovery process is common for both standalone devices and cluster devices. For more information, see "Running Device Discovery Profiles" on page 237.
This topic includes the following tasks: Configuring a Standalone Device from a Single-node Cluster | 404 Configuring a Standalone Device from a Two-Node Cluster | 407 Configuring a Primary Peer in a Cluster from a Standalone Device | 409 Configuring a Secondary Peer in a Cluster from a Standalone Device | 412 Configuring a Cluster with Loopback Interface | 414
Configuring a Standalone Device from a Single-node Cluster
You can configure a standalone device from device that is currently configured as a single-node cluster.
405
To configure a single-node cluster as a standalone device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management.
2. Select the single-node cluster and select Device Access > SSH to Device from the Actions menu. The SSH to Device pop-up window is displayed.
NOTE: If you have cleared the Allow users to auto log in to devices using SSH option on the Modify Applications page, the SSH to Device pop-up window is displayed. The IP address is automatically displayed in the IP address field. Enter the username and password in the User name and Password fields respectively.
3. In the IP Address field, enter a valid IP address for the device.
4. In the Username field, enter the user name for the device.
5. In the Password field, enter the password to access the device. The name and password must match the name and password configured on the device.
6. In the Port field, enter the port number to use for the SSH connection. The default value is 22. If you want to change the value, specify a value specified in the SSH port for device connection field on the Modify Application Settings page in the Administration workspace.
7. Click Connect. The SSH terminal window is displayed.
NOTE: You may receive error messages such as "Unable to Connect", "Authentication Error", or "Connection Lost or Terminated", which are displayed as standard text in terminal window. If you receive an error message, all other functionality in the terminal window is stopped. You should close this terminal window and open a new SSH session.
8. Enter the set chassis command to remove the cluster configuration: set chassis cluster cluster-id 0 node 0
9. Reboot the device, by entering the command:
406
request system reboot 10. Copy the outbound-ssh configuration from group node to system level, for example:
set system services outbound-ssh client 00089BBC494A device-id 6CFF68 set system services outbound-ssh client 00089BBC494A secret "$ABC123" set system services outbound-ssh client 00089BBC494A services netconf set system services outbound-ssh client 00089BBC494A 10.155.70.252 port 7804 11. Copy the system log configuration from group node to system level: set system syslog file default-log-messages any any set system syslog file default-log-messages structured-data 12. Copy the fxp0 interface setting from group node to system level, for example: set interfaces fxp0 unit 0 family inet address 10.155.70.223/19 13. Delete the outbound-ssh configuration from the group node, for example: delete groups node0 system services outbound-ssh 14. Delete the system log configuration from the group node, for example: delete groups node0 system syslog file default-log-messages any any delete groups node0 system syslog file default-log-messages structured-data 15. Delete the interfaces configuration from the group node, for example: delete groups node0 interfaces fxp0 unit 0 family inet address 10.155.70.223/19 16. Commit the configuration changes on the device: commit In the Junos Space user interface, the device connection status will go down and then up again. After the device connection is back up, you can verify that the device you configured displays as a standalone device.
407
17. To terminate the SSH session, type exit from the terminal window prompt, and press Enter. 18. Click in the top right corner of the terminal window to close the window.
Configuring a Standalone Device from a Two-Node Cluster You can configure a standalone device from the secondary peer device in a cluster.
NOTE: You cannot use the primary peer in a two-node cluster to configure a standalone device.
To configure a secondary peer device in a cluster as a standalone device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. 2. Select the secondary peer device and select Device Access > SSH to Device from the Actions menu.
The SSH to Device pop-up window is displayed. 3. Select the single-node cluster and select Device Access > SSH to Device from the Actions menu.
The SSH to Device pop-up window is displayed.
NOTE: If you have cleared the Allow users to auto log in to devices using SSH option on the Modify Applications page, the SSH to Device pop-up window is displayed. The IP address is automatically displayed in the IP address field. Enter the username and password in the User name and Password fields respectively.
4. In the IP Address field, enter a valid IP address for the device. 5. In the Username field, enter the user name for the device. 6. In the Password field, enter the password to access the device.
The name and password must match the name and password configured on the device. 7. In the Port field, enter the port number to use for the SSH connection.
The default value is 22. If you want to change the value, specify a value specified in the SSH port for device connection field on the Modify Application Settings page in the Administration workspace.
408
8. Click Connect. The SSH terminal window is displayed.
NOTE: You may receive error messages such as "Unable to Connect", "Authentication Error", or "Connection Lost or Terminated", which are displayed as standard text in terminal window. If you receive an error message, all other functionality in the terminal window is stopped. You should close this terminal window and open a new SSH session.
9. Disconnect the HA cable from the device that you want to configure as a standalone device. 10. Enter the set chassis command for the peer device, for example:
set chassis cluster cluster-id 0 node 1 11. Reboot the device, by entering the command:
request system reboot 12. Copy the outbound-ssh configuration from group level to system level, for example:
set system services outbound-ssh client 00089BBC494A device-id 6CFF68 set system services outbound-ssh client 00089BBC494A secret "$ABC123" set system services outbound-ssh client 00089BBC494A services netconf set system services outbound-ssh client 00089BBC494A 10.155.70.252 port 7804 13. Copy the system log configuration from group level to system level: set system syslog file default-log-messages any any set system syslog file default-log-messages structured-data 14. Copy the fxp0 interface setting from group level to system level, for example: set interfaces fxp0 unit 0 family inet address 10.155.70.223/19 15. Delete the outbound-ssh configuration from the group level, for example: delete groups node1 system services outbound-ssh 16. Delete the system log configuration from the group level, for example:
409
delete groups node1 system syslog file default-log-messages any any delete groups node1 system syslog file default-log-messages structured-data 17. Delete the interfaces configuration from the group level, for example: delete groups node1 interfaces fxp0 unit 0 family inet address 10.155.70.223/19 18. Commit the configuration changes on the device: commit In the Junos Space user interface, the device connection status will go down and then up again. After the device connection is back up, you can verify that the device you configured displays as a standalone device. After the device connections are up, verify the following changes in the Manage Devices inventory landing page: · The device you configured now displays as a standalone device. · The cluster that formerly included a primary and secondary peer device now displays the primary
peer device only. 19. To terminate the SSH session, type exit from the terminal window prompt, and press Enter.
20. Click in the top right corner of the terminal window to close the window.
Configuring a Primary Peer in a Cluster from a Standalone Device
You can create a device cluster from two standalone devices. Use the following procedure to configure a standalone device as the primary peer in a cluster. To configure a primary peer in a cluster from a standalone device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management.
2. Select the primary peer in the cluster and select Device Access > SSH to Device from the Actions menu. The SSH to Device pop-up window is displayed.
410
NOTE: If you have cleared the Allow users to auto log in to devices using SSH option on the Modify Applications page, the SSH to Device pop-up window is displayed. The IP address is automatically displayed in the IP address field. Enter the username and password in the User name and Password fields respectively.
3. In the IP Address field, enter a valid IP address for the device. 4. In the Username field, enter the user name for the device. 5. In the Password field, enter the password to access the device.
The name and password must match the name and password configured on the device. 6. In the Port field, enter the port number to use for the SSH connection.
The default value is 22. If you want to change the value, specify a value specified in the SSH port for device connection field on the Modify Application Settings page in the Administration workspace. 7. Click Connect. The SSH terminal window is displayed.
NOTE: You may receive error messages such as "Unable to Connect", "Authentication Error", or "Connection Lost or Terminated", which are displayed as standard text in terminal window. If you receive an error message, all other functionality in the terminal window is stopped. You should close this terminal window and open a new SSH session.
8. For the standalone device, enter the command: set chassis cluster cluster-id 1 node 0
9. Reboot the device, by entering the command: request system reboot
10. Copy the outbound-ssh configuration from the system level to the group level, for example: set groups node0 system services outbound-ssh client 00089BBC494A device-id 6CFF68 set groups node0 system services outbound-ssh client 00089BBC494A secret "$ABC123"
411
set groups node0 system services outbound-ssh client 00089BBC494A services netconf set groups node0 system services outbound-ssh client 00089BBC494A 10.155.70.252 port 7804 11. Copy the fxp0 interface configuration from the system level to the group level, for example: set groups node0 interfaces fxp0 unit 0 family inet address 10.155.70.223/19 12. Copy the system log configuration from system level to group level: set groups node0 system syslog file default-log-messages any any set groups node0 system syslog file default-log-messages structured-data 13. Delete the outbound-ssh configuration from the system level, for example: delete system services outbound-ssh 14. Delete the system log configuration from the system level, for example: delete system syslog file default-log-messages any any delete system syslog file default-log-messages structured-data 15. Delete the interfaces configuration from the system level, for example: delete interfaces fxp0 unit 0 family inet address 10.155.70.223/19 16. Commit the configuration changes on the device again: commit After the device connection is up, verify the following changes: · In the Manage Devices inventory landing page:
· The cluster icon appears for the device. · The new cluster device appears as the primary device. · In the physical inventory landing page, Junos Space Network Management Platform displays chassis information for the primary device cluster. 17. To terminate the SSH session, type exit from the terminal window prompt, and press Enter.
18. Click in the top right corner of the terminal window to close the window.
412
Configuring a Secondary Peer in a Cluster from a Standalone Device
If a device cluster contains only a primary peer, you can configure a standalone device to function as a secondary peer in the cluster. Use the following procedure to ensure that Junos Space Network Management Platform is able to manage both devices. To add a standalone device to a cluster: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management.
2. Select the device and select Device Access > SSH to Device from the Actions menu. The SSH to Device pop-up window is displayed.
NOTE: If you have cleared the Allow users to auto log in to devices using SSH option on the Modify Applications page, the SSH to Device pop-up window is displayed. The IP address is automatically displayed in the IP address field. Enter the username and password in the User name and Password fields respectively.
3. In the IP Address field, enter a valid IP address for the device.
4. In the Username field, enter the user name for the device.
5. In the Password field, enter the password to access the device. The name and password must match the name and password configured on the device.
6. In the Port field, enter the port number to use for the SSH connection. The default value is 22. If you want to change the value, specify a value specified in the SSH port for device connection field on the Modify Application Settings page in the Administration workspace.
7. Click Connect. The SSH terminal window is displayed. From the terminal window prompt, you can enter CLI commands to create a standalone device from the device cluster.
413
NOTE: You may receive error messages such as "Unable to Connect", "Authentication Error", or "Connection Lost or Terminated", which are displayed as standard text in terminal window. If you receive an error message, all other functionality in the terminal window is stopped. You should close this terminal window and open a new SSH session.
8. For the standalone device, enter the command: set chassis cluster cluster-id 1 node 1
9. Enter the command: request system reboot
10. Copy the outbound-ssh configuration from the system level to the group level, for example: set groups node1 system services outbound-ssh client 00089BBC494A device-id 6CFF68 set groups node1 system services outbound-ssh client 00089BBC494A secret "$ABC123" set groups node1 system services outbound-ssh client 00089BBC494A services netconf set groups node1 system services outbound-ssh client 00089BBC494A 10.155.70.252 port 7804
11. Copy the fxp0 interface configuration from the system level to the group level, for example: set groups node1 interfaces fxp0 unit 0 family inet address 10.155.70.223/19
12. Copy the system log configuration from system level to group level: set groups node1 system syslog file default-log-messages any any set groups node1 system syslog file default-log-messages structured-data
13. Delete the outbound-ssh configuration from the system level, for example: delete system services outbound-ssh
14. Delete the system log configuration from the system level, for example: delete system syslog file default-log-messages any any delete system syslog file default-log-messages structured-data
414
15. Delete the interfaces configuration from the system level, for example: delete interfaces fxp0 unit 0 family inet address 10.155.70.223/19
16. Commit the configuration changes on the device again: commit
17. Connect the HA cable to each device in the cluster.
18. Establish an SSH connection to the primary device in the cluster.
19. On the primary device, make some trivial change to the device, for example, add a description, and commit the change: commit After the device connections are up for both devices in the cluster, verify the following changes: · In the Manage Devices inventory landing page: · Each peer device displays the other cluster member. · The cluster icon appears for each member device. · One device appears as the primary device and the other as the secondary device in the cluster. · In the physical inventory landing page, chassis information appears for each peer device in the cluster.
20. To terminate the SSH sessions, type exit from the terminal window prompt, and press Enter.
21. Click in the top right corner of the terminal window to close the window.
Configuring a Cluster with Loopback Interface By default, the SRX devices are configured to be managed through the fxp0 Ethernet management interface. If the device is managed through non-fxp0 interface (loopback address), add the following additional command to the device so that the SRX device is considered as a cluster in Junos Space: Command: set chassis cluster network-management cluster-master
NOTE: All other cluster configuration commands remain the same for both the Active/Active mode, and Active/Passive mode.
415
RELATED DOCUMENTATION Secure Console Overview | 395 Connecting to a Device by Using Secure Console | 396 Example: Configuring an Active/Active Layer 3 Cluster Deployment Example: Configuring an Active/Passive Cluster Deployment
416
CHAPTER 19
Logical Systems (LSYS)
IN THIS CHAPTER Understanding Logical Systems for SRX Series Services Gateways | 416 Creating a Logical System (LSYS) | 417 Deleting Logical Systems | 418 Viewing Logical Systems for a Physical Device | 419 Viewing the Physical Device for a Logical System | 419
Understanding Logical Systems for SRX Series Services Gateways
Logical systems for SRX Series devices enable you to partition a single device into secure contexts. Each logical system has its own discrete administrative domain, logical interfaces, routing instances, security firewall and other security features. By transforming an SRX Series device into a multitenant logical systems device, you can give various departments, organizations, customers, and partnersdepending on your environmentprivate use of portions of its resources and a private view of the device. Using logical systems, you can share system and underlying physical machine resources among discrete user logical systems and the primary logical system. The logical systems feature runs with the Junos operating system (Junos OS) on SRX1400, SRX3400, SRX3600, SRX5600, and SRX5800 devices. For detailed information about understanding and configuring logical systems for SRX series services gateways, see Junos OS Logical Systems Configuration Guide for Security Devices
RELATED DOCUMENTATION Viewing the Physical Device for a Logical System | 419 Viewing Logical Systems for a Physical Device | 419 Creating a Logical System (LSYS) | 417 Deleting Logical Systems | 418
417
Creating a Logical System (LSYS)
Logical systems for SRX Series devices enable you to partition a single device into secure contexts. Each logical system has its own discrete administrative domain, logical interfaces, routing instances, security firewall and other security features.
NOTE: You must create a LSYS profile on the device before creating a logical system. To create a LSYS profile on a device from Junos Space Platform, deploy the configuration to create a LSYS profile by using Junos Space Platform features such as device templates or CLI Configlets. To create a LSYS profile by using the Quick Templates feature, see "Creating a Quick Template" on page 508 and "Deploying a Quick Template" on page 514.
For detailed information about using logical systems on Juniper Networks security devices, see Junos OS Logical Systems Configuration Guide for Security Devices. To create a new logical system on a physical device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Select a device for which you want to create a logical system and then select Device Operations > Create LSYS from the Actions menu. The New Logical System pop-up window is displayed.
3. In the LSYS device name field, enter a user-defined name for the new logical system.
4. From the LSYS profile drop-down list, choose a logical system security profile for the new logical system.
NOTE: If you have not created a LSYS profile on the device, the drop-down list will not display any LSYS profiles.
5. Click Finish to create the new logical system.
RELATED DOCUMENTATION
418
Understanding Logical Systems for SRX Series Services Gateways | 416 Viewing Devices and Logical Systems with QuickView | 446 Viewing the Physical Device for a Logical System | 419 Viewing Logical Systems for a Physical Device | 419 Deleting Logical Systems | 418
Deleting Logical Systems
For detailed information about using logical systems on Juniper Networks security devices, see Junos OS Logical Systems Configuration Guide for Security Devices
NOTE: We recommend that you not delete an SRX root device and an LSYS simultaneously in Junos Space Network Management Platform. Although deleting the SRX root device will delete the root device and the LSYS instances from Junos Space Network Management Platform, it will not remove the LSYS configuration from the device, whereas deleting an LSYS will remove LSYS-related configuration from the device.
To delete logical systems: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select a logical system and select Device Operations > Delete Devices from the Actions menu. The Delete Logical Systems pop-up window is displayed.
3. Click Confirm to proceed with the deletion of the logical systems.
RELATED DOCUMENTATION Understanding Logical Systems for SRX Series Services Gateways | 416 Viewing Devices and Logical Systems with QuickView | 446 Viewing the Physical Device for a Logical System | 419 Viewing Logical Systems for a Physical Device | 419 Creating a Logical System (LSYS) | 417
419
Viewing Logical Systems for a Physical Device
For detailed information about using logical systems on Juniper Networks security devices, see Junos OS Logical Systems Configuration Guide for Security Devices To view the logical systems configured on a selected physical device: 1. Select Devices > Device Management.
2. On the Network Management Platform user interface, select Devices > Device Management. The Device Management page displays the devices managed in Junos Space Network Management Platform.
3. Locate the table row for the physical device. If the device supports logical systems, the device name will be followed by link text indicating how many logical systems are configured on it. If no logical systems are configured on the device, the link text reads "0 LSYS(s)."
4. Click on the link text next to the name of the physical device. Space Platform filters the device inventory list so that it lists the logical systems configured on the selected physical device.
5. To clear the filter and return the inventory list to its original view, click the red X next to the filter criteria above the inventory list.
RELATED DOCUMENTATION Understanding Logical Systems for SRX Series Services Gateways | 416 Viewing Devices and Logical Systems with QuickView | 446 Viewing the Physical Device for a Logical System | 419 Creating a Logical System (LSYS) | 417 Deleting Logical Systems | 418
Viewing the Physical Device for a Logical System
For detailed information about using logical systems on Juniper Networks security devices, see Junos OS Logical Systems Configuration Guide for Security Devices
420
To view the physical device on which a selected logical system is configured: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page displays the devices managed in Junos Space Network Management Platform.
2. In the tabular view, locate the table row for the logical system. The logical system name will be followed by link text indicating the name of the physical device on which the logical system is configured.
3. Click on the link text next to the name of the logical system. Space Platform filters the device inventory list so that it shows only the entry for the physical device on which the logical system is configured.
4. To clear the filter and return the inventory list to its original view, click the red X next to the filter criteria above the inventory list.
RELATED DOCUMENTATION Understanding Logical Systems for SRX Series Services Gateways | 416 Viewing Devices and Logical Systems with QuickView | 446 Viewing Logical Systems for a Physical Device | 419 Creating a Logical System (LSYS) | 417 Deleting Logical Systems | 418
421
CHAPTER 20
Device Partitions
IN THIS CHAPTER Creating Device Partitions | 421 Modifying Device Partitions | 422 Deleting Device Partitions | 423
Creating Device Partitions
Create device partitions when you want to share the physical interfaces, logical interfaces, and physical inventory elements across multiple sub-domains. Device partitions are supported only on M Series and MX Series routers. You can partition a device from the Device Management workspace. You can assign only one partition from a device to a sub-domain; you cannot assign multiple partitions from the same device to a sub-domain. A maximum of one partition can be assigned from multiple devices to a sub-domain. You can partition a device only if the device is currently assigned to the global domain. For more information, see "Working with Domains" on page 1085. To create a device partition: 1. On the Junos Space Network Management Platform user interface, select Device > Device Management.
The Device Management page is displayed.
2. Select the device that you want to partition and select Device Operations > Manage Device Partitions from the Actions menu. The Manage Device Partitions page is displayed.
3. Click the Create Partition icon from the Actions menu. The Create Partition page is displayed. You can view the physical interfaces, logical interfaces, and the physical inventory of the device.
4. In the Partition Name field, enter a name for the partition.
5. Select the Physical Interface tab and select the physical interfaces that you want to add to the partition.
422
You can view the selected physical interfaces in the Selected Sub-object section. 6. Select the Logical Interface tab and select the logical interfaces that you want to add to this partition.
You can view the selected logical interfaces in the Selected Sub-object section. 7. Select the Physical Inventory tab and select the inventory elements that you want to add to this
partition. You can view the selected inventory elements such as FPCs, and Routing Engines in the Selected Sub-object section. 8. Click OK. The new device partition is created.Repeat steps 3 through 8 to add multiple device partitions. You can now assign this partition to a sub-domain.
NOTE: When you create the second device partition, the physical interfaces, logical interfaces, and physical inventory elements that you assigned to the first device partition are not available for selection.
RELATED DOCUMENTATION Modifying Device Partitions | 422
Modifying Device Partitions
You can modify device partitions from the Devices workspace. The device partitions are listed on the Device Management page. To modify device partitions: 1. On the Junos Space Network Management Platform user interface, select Device > Device Management.
The Device Management page is displayed. You can view the devices and the device partitions on this page. 2. Select the device whose device partitions you want to modify and select Device Operations > Manage Device Partitions from the Actions menu.
423
The Manage Device Partitions page is displayed.
3. Select the device partition you want to modify and click the Modify Partition icon on the Actions menu. The Modify Partition page is displayed.
4. Modify the physical interfaces, logical interfaces, and physical inventory elements for this device partition. You cannot modify the name of the partition.
5. Click OK.
6. Repeat steps 3 through 5 to modify any other device partitions. The device partitions are modified.
RELATED DOCUMENTATION Domains Overview | 1077 Creating Device Partitions | 421 Deleting Device Partitions | 423
Deleting Device Partitions
You can delete the device partitions on a device from the Devices workspace. The device partitions are listed on the Device Management page. To delete device partitions: 1. On the Junos Space Network Management Platform user interface, select Device > Device Management.
The Device Management page is displayed. You can view the devices and the device partitions on this page.
2. Select the device whose device partitions you want to delete and select Device Operations > Manage Device Partitions from the Actions menu. The Manage Device Partitions page is displayed.
3. Select the device partitions that you want to delete and click the Delete Partition icon on the Actions menu.
424
The Delete Partition pop-up window is displayed. 4. Click Delete.
The device partitions are deleted.
RELATED DOCUMENTATION Domains Overview | 1077 Creating Device Partitions | 421 Modifying Device Partitions | 422
425
CHAPTER 21
Custom Labels
IN THIS CHAPTER Adding Custom Labels | 425 Importing Custom Labels | 429 Modifying Custom Labels | 431 Deleting Custom Labels | 432
Adding Custom Labels
IN THIS SECTION Adding Custom Labels for a Device | 426 Adding Custom Labels for Physical Inventory | 427 Adding Custom Labels for a Physical Interface | 428 Adding Custom Labels for a Logical Interface | 428
You add custom labels to associate user-specified data to devices, device interfaces, and device inventory. You can specify the name and the value for each custom label that you add. For example, a custom label Location can have a value Building A. Junos Space Network Management Platform provides three predefined custom labels--Device Alias, Manufacturer ID, and Manufacturer Name. The custom labels are stored in the Junos Space Platform database. You can view, modify, and delete custom labels.
NOTE: The Device Alias custom label can be added only to devices and not device interfaces or device inventory. Among the custom labels added to a device, only the Device Alias custom label can be viewed on the Device Management page. You can search, sort and filter devices on the Device Management page on the basis of the value of the Device Alias custom label.
426
The maximum number of characters permitted for both the custom label name and the value is 255. You cannot include any special characters except the underscore (_), the hyphen (-), and the period (.) in the name of a custom label.
Adding Custom Labels for a Device
To add custom labels for a device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears, displaying the list of devices.
2. Right-click the device for which you want to add the custom label and select Manage Customized Attributes. The Manage Customized Attributes page is displayed.
3. Click the Add label icon. The Label Name list and the Value field are displayed. You can either choose a predefined custom label or add a custom label.
4. To choose a predefined label: a. Select the predefined label from the Label Name list. b. In the Value field, enter an appropriate value.
5. To add a custom label: a. In the Label Name list, enter a name for the label, for example, Location. b. In the Value field, enter an appropriate value for the label, for example, Building A.
6. Click Submit.
7. Click Close.
427
Adding Custom Labels for Physical Inventory
To add custom labels for physical inventory: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears, displaying the list of devices.
2. Right-click the device for which you want to add the custom label and select Device Inventory > View Physical Inventory from the shortcut menu. The View Physical Inventory page is displayed.
3. Right-click the physical inventory element of the device for which you want to add the custom label and select Manage Customized Attributes. The Manage Customized Attributes page is displayed.
4. Click the Add label icon. The Label Name list and the Value field are displayed. You can either choose a predefined custom label or add a custom label.
5. To choose a predefined label: a. Select the predefined label from the Label Name list. b. In the Value field, enter an appropriate value.
6. To add a custom label: a. In the Label Name list, enter a name for the label. b. In the Value field, enter an appropriate value for the label.
7. Click Submit.
8. Click Close.
428
Adding Custom Labels for a Physical Interface
To add custom labels for a physical interface: 1. On the Junos Space Network Management Platform UI, select Devices > Device Management.
The Device Management page appears, displaying the list of devices.
2. Right-click the device for which you want to add the custom label and select Device Inventory > View Physical Interfaces . The View Physical Interfaces page appears, displaying the list of physical interfaces for the device.
3. Right-click the physical interface of the device for which you want to add the custom label and select Manage Customized Attributes. The Manage Customized Attributes page is displayed.
4. Click the Add label icon. The Label Name list and the Value field are displayed. You can either choose a predefined custom label or add a new custom label.
5. To choose a predefined label: a. Select the predefined label from the Label Name list. b. In the Value field, enter an appropriate value.
6. To add a custom label: a. In the Label Name list, enter a name for the label. b. In the Value field, enter an appropriate value for the label.
7. Click Submit.
8. Click Close.
Adding Custom Labels for a Logical Interface
To add custom labels for a logical interface: 1. On the Junos Space Network Management Platform UI, select Devices > Device Management.
The Device Management page appears, displaying the list of devices.
2. Right-click the device for which you want to add the custom label and select Device Inventory > View Logical Interfaces.
429
The View Logical Interfaces page is displayed. 3. Right-click the logical interface of the device for which you want to add the custom label and select
Manage Customized Attributes from the shortcut menu. The Manage Customized Attributes page is displayed. 4. Click the Add label icon. The Label Name list and the Value field are displayed. 5. In the Label Name list, enter a name for the label. 6. In the Value field, enter an appropriate value for the label. 7. Click Submit. 8. Click Close.
RELATED DOCUMENTATION Device Management Overview | 188
Importing Custom Labels
From Junos Space Network Management Platform Release 16.1R1 onward, you can import and add custom labels to devices by using the Import Customized Attributes action on the Device Management page of the Junos Space Platform UI. Junos Space Platform enables you to add custom labels and assign values to those labels by importing CSV files containing the labels and their values. The maximum number of characters permitted for both the custom label and the value is 255. To import custom labels for devices by using CSV files: 1. On the Junos Space Network Management Platform UI, select Devices > Device Management.
The Device Management table is displayed. 2. Select Import Customized Attributes from the Actions menu.
The Import Customized Attributes Using CSV dialog box is displayed.
430
3. (Optional) Click the Sample CSV link to view a sample CSV file.
4. Click Browse and navigate to the location on your computer where you have stored the CSV file. The CSV file contains custom labels and the corresponding values for one or more devices.
5. Select the file and click Open. The name of the selected file is displayed in the CSV File text box.
6. Click Import to import the CSV file.
The Job Information dialog box is displayed. You can click the job ID link or navigate to the Job Management page to view the status of the job.
7. Click OK.
You are returned to the Device Management page. You can view the custom labels that you imported to a device on the Manage Customized Attributes page for that device.
To view the custom labels added to the device, select the device on the Device Management page and select Manage Customized Attributes from the Actions menu. The Manage Customized Attributes page appears, displaying all the custom labels assigned to the device.
Among the custom labels added to devices, only the Device Alias custom label and the value assigned to it can be viewed on the Device Management page.
To view the Device Alias column, click the arrow beside any of the column names on the Device Management page, then click the arrow beside Columns to display the columns list, and select the Device Alias check box from the list.
Release History Table
Release
Description
16.1R1
From Junos Space Network Management Platform Release 16.1R1 onward, you can import and add custom labels to devices by using the Import Customized Attributes action on the Device Management page of the Junos Space Platform UI.
RELATED DOCUMENTATION
Device Management Overview | 188 Adding Custom Labels | 425
431
Modifying Custom Labels
You add custom labels to associate additional data to devices, device interfaces, and device inventory. You can modify or delete the custom labels associated with the devices, device interfaces, and device inventory. To modify a custom label: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management table is displayed. 2. Right-click the device for which you want to modify the custom label and select Modify Customized
Attributes from the contextual menu. 3. If you want to modify the custom label associated with a physical interface, logical interface, or the
device inventory, navigate to the appropriate page. 4. Select the custom label you want to modify and change the value or the name of the label. 5. Click Submit. 6. Click Close.
RELATED DOCUMENTATION Adding Custom Labels | 425
432
Deleting Custom Labels
You add custom labels to associate additional data to devices, device interfaces, and device inventory. You can modify or delete the custom labels associated with the devices, device interfaces, and device inventory. To delete a custom label: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management table is displayed. 2. Right-click the device for which you want to delete the custom label and select Modify Customized
Attributes from the contextual menu. 3. If you want to delete the custom label associated with a physical interface, logical interface, or the
device inventory, navigate to the appropriate page. 4. Select the custom label you want to delete and click the Delete label icon. 5. Click Submit. 6. Click Close.
RELATED DOCUMENTATION Adding Custom Labels | 425
433
CHAPTER 22
Verifying Template, Image Deployment, Script Execution, and Staged Images on Devices
IN THIS CHAPTER Viewing the Device-Template Association (Devices) | 433 Viewing Associated Scripts | 436 Viewing Script Execution | 436 Viewing Staged Images on a Device | 437
Viewing the Device-Template Association (Devices)
You view the device-template association from the Devices workspace to determine the templates that are deployed on the device, the version of the templates deployed on the device, and find out whether the device was in sync with the template at the time the last audit was performed, as well as other relevant details. To ensure the information presented to you is current, perform a template configuration audit immediately before viewing template association to check if there are any differences between the template configuration and the configuration on the device since the template was deployed. To view the list of templates deployed on a device: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page that appears lists all the devices in the Junos Space Platform database.
2. Select the device whose template association you want to view and select Device Configuration > View Template Association from the Actions menu. The View Template Association page is displayed. This page lists the templates that are deployed to the device. The details on this page include the name of the device, IP address of the device, version of the template, time when the template was deployed to the device, Junos Space user who deployed the template, job ID for deployment, template audit status, and the time when the template was audited. Table 44 lists the columns on the View Template Association page.
434
Table 44: Viewing Template Association Page
Column Header
Description
Name
Name of the template that is deployed to the device
Domain
Domain to which the template is assigned
Deployed Version
Version of the template currently deployed to the device
Assigned Version
Version of the template currently assigned to the device
Latest Version
Latest version of the template
Deploy Time
Time at which the template was deployed to the device named in this row
Deployed By
Login ID of the person who deployed the template to the device named in this row
Job ID
ID of the job constituted by deployment of this template to the device named in this row
Audit Status
Audit status of the template: Not available, in sync or out of sync.
Audit Time
Time at which the template was deployed to the device named in this row
3. You can perform the following tasks on this page: · To view the details of the template that is deployed to the device: i. Double-click on the template name. The Template Details pop-up window is displayed. You can view the details of the template.
ii. Click Close to close the pop-up window.
· To view the configuration in the template that is deployed to the device: i. Click the number in the Deployed Version column. The Template Change Summary pop-up window is displayed. You can view the configuration that was deployed to the device.
435
ii. Click Close to close the pop-up window.
· To view the configuration in the template that is assigned to the device: i. Click the number in the Assigned Version column. The Template Change Summary pop-up window is displayed. You can view the configuration in the template that is assigned to the device.
ii. Click Close to close the pop-up window.
· To view the status of the template deployment job: i. Click the job ID in the Job Id column. The Job Management page is displayed. You can view the results of the template deployment job.
ii. Close the Job Management page.
iii. Repeat steps 1 and 2 to navigate to the View Template Association page.
· To view the audit status of the template: i. Click the link in the Audit Status column. The Template Audit Result pop-up window is displayed. Under the Audit Status heading, any differences found last time the template was audited are listed. Such differences will be due to someone having altered the device configuration between the two template deployments.
NOTE: To view any differences between a template and the configuration on the devices to which it has been deployed, first ensure an audit has been performed on the template since it was deployed. For more information about auditing a template, see "Auditing a Device Template Configuration" on page 504.
4. To return to the Device Management page from the View Template Association page, click Cancel.
RELATED DOCUMENTATION Deploying a Template to the Devices | 497
436
Viewing Associated Scripts
You can view the scripts deployed on a device to get more information about the script type, version, and activation status. To view the scripts associated with the devices: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page displays the devices managed in Junos Space Network Management Platform.
2. Select the devices for which you want to view the associated scripts.
3. Select Device Inventory > View Associated Scripts from the Actions menu. The View Associated Scripts page is displayed. This page displays all the scripts that are deployed on the devices you have selected. You can view the device name, Device Alias custom label of the device, IP address of the device, platform of the device, operating system firmware version on the device, script name, script type, category of the script, staged version of the script, latest version of the script, and the activation status of the script.
Click Back to return to the Device Management page.
RELATED DOCUMENTATION Device Inventory Overview | 298 Device Images and Scripts Overview | 608 Executing a Script on the Devices | 357 Viewing Script Execution | 436
Viewing Script Execution
You can view the script execution details to get more information about the scripts executed on the devices. To view the script execution on the devices: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page displays the devices managed in Junos Space Network Management Platform.
437
2. Select the devices for which you want to view the script execution.
3. Select Device Inventory > View Script Executions from the Actions menu. The View Script Executions page is displayed. This page displays all the scripts that are executed on the devices you have selected. You can view the script name, category of the script, script version, execution status, execution results, and the start time and end time for script execution. You can also view the name and the Device Alias custom label of the device on which the script is executed.
Click Back to return to the Device Management page.
RELATED DOCUMENTATION
Device Inventory Overview | 298 Device Images and Scripts Overview | 608 Viewing Associated Scripts | 436 Executing a Script on the Devices | 357
Viewing Staged Images on a Device
You can view images staged on a device from the Device Management page. You can also verify the checksum from this page. Currently, you cannot view the images staged on an LSYS type device by using this workflow.
To view the images staged on a device:
1. From the Network Management Platform user interface, select Devices > Device Management. The Device Management page is displayed.
2. Select the device for which you want to view the staged images and select Device Inventory > View Staged Images from the Actions menu. The View Staged Images page is displayed. Table 45 describes the columns displayed on this page. Table 45: View Staged Images Page
Column Name
Description
Device Name
Name of the device
438
Table 45: View Staged Images Page (continued)
Column Name
Description
Device Alias
Value of the Device Alias custom label for the device. By default, this column is not displayed on the page.
The Device Alias field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label of the device.
Image Name
Name of the device image
IP Address
IP address of the device
Platform
Platform to which the device belongs
Checksum Status Last Checksum Time
Whether the device image on the Junos Space server and the device are the same:
· If the status is Valid, the checksum values of the device image on the Junos Space server and the device match.
· If the status is Invalid, the checksum values do not match. · If the status is NA, the selected image is not staged on the device yet. Time when the checksum was last verified
For a device on which the selected image is not staged yet, this column displays NA.
3. After you view the image staged on the device, click Back at the top of the View Staged Images page to return to the Device Management page.
NOTE: You can select multiple devices on the Device Management page to view the images staged on these devices. Click the '+"' symbol next to the device to view the images staged on the device. The View Staged Images page lists only the devices on which the images are staged. If you select a device that does not have staged images, this device is not displayed on the View Staged Images page.
RELATED DOCUMENTATION Device Images Overview | 612 Staging Device Images | 619
439 Deleting Staged Images on a Device | 456
440
CHAPTER 23
Device Monitoring
IN THIS CHAPTER Viewing Alarms from a Managed Device | 440 Viewing the Performance Graphs of a Managed Device | 442
Viewing Alarms from a Managed Device
Starting with Junos Space Network Management Platform Release 15.2R1, you can view information about alarms from a managed device by using the Devices workspace. There are two categories of alarms: acknowledged and outstanding. You must enable the Network Monitoring functionality from the Administration > Applications > Network Management Platform > Manage Services page to view the list of alarms.
NOTE: You must be assigned appropriate privileges to execute this task.
To view information about the alarms from a managed device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Devices page that appears displays all the devices managed by Junos Space Platform. 2. Right-click a device whose alarm information you need to view and select Device Monitoring > View Alarms. The View Alarms page that appears displays the list of outstanding alarms for that device, in a table.
NOTE: The Alarms(s) outstanding search constraint is applied by default and cannot be removed. You can toggle between the Alarm(s) outstanding constraint and the Alarm(s) acknowledged constraint, which displays the list of acknowledged alarms for the selected device, by clicking the minus () icon.
441
To know more about the fields displayed in the table, see the Viewing Details of an Alarm and Acting on an Alarm section of the "Viewing and Managing Alarms" on page 843 topic.
3. (Optional) To view alarms from all Junos Space fabric nodes and managed devices, click the () icon corresponding to the filter in the Search Constraints field. The View Alarms page displays the list of outstanding or acknowledged alarms for all Junos Space fabric nodes and managed devices.
4. (Optional) To view a specified number of alarms per page, select the required number from the list next to the Results field. By default, the number of alarms listed on the View Alarms page is 20. You can select the number of alarms you want to view per page from the Show list. You can choose to view 10, 20, 50, 100, 250, 500, or 1000 alarms.
NOTE: The number of alarms selected is set as user preference and the selected number of alarms are listed beginning from the next login.
5. You can perform the following tasks on the View Alarms page: · Acknowledge, unacknowledge, clear, or escalate one or more alarms, or acknowledge the entire list of outstanding alarms for the selected device. For more information, see the Viewing Details of an Alarm and Acting on an Alarm section of the "Viewing and Managing Alarms" on page 843 topic.
· Toggle between the summary and detailed views of alarms for the selected device. · Click the Long Listing link at the top of the page for a detailed view.
· Click the Short Listing link at the top of the page for a summary view.
· View the severity levels of the alarms. i. Click the Severity Legend link at the top of the page.
For more information about summary and detailed views, and severity levels of the alarms, see the Viewing Alarms in Summary and Detailed Views section of the "Viewing and Managing Alarms" on page 843 topic.
6. Click Back (at the top-left corner) to return to the Device Management page.
442
Release History Table
Release
Description
16.1R1
To view a specified number of alarms per page, select the required number from the list next to the Results field.
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can view information about alarms from a managed device by using the Devices workspace.
RELATED DOCUMENTATION Alarm Notification Configuration Overview | 856 Configuring Alarm Notification | 859 Viewing the Performance Graphs of a Managed Device | 442
Viewing the Performance Graphs of a Managed Device
Starting with Junos Space Network Management Platform Release 15.2R1, you can view the performance graphs of a managed device by using the Devices workspace. Performance graphs display the resources that are used on a managed device and the data collected from the managed device in a graphical format. For more information about network monitoring graphs, charts, and reports available in Junos Space Platform, refer to "Network Monitoring Reports Overview" on page 872.
NOTE: You must be assigned appropriate privileges to execute this task.
To view the performance graphs of a managed device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Devices page that appears displays all the devices managed by Junos Space Platform.
2. Right-click a device whose performance graphs you need to view and select Device Monitoring > View Performance Graphs. The View Performance Graphs page appears. This page displays the categories of data available for the selected device. The categories include SNMP Node Data, SNMP Interface Data, Response Time, BGP Peer, OSPF Area Info, and Response Time.
443
3. (Optional) To select specific categories, interfaces, or resources, click Select All (at the bottom-left corner of the page).
4. (Optional) To clear selected categories, interfaces, or resources, click Clear Selection (at the bottom-left corner of the page). All categories, interfaces, or resources you selected are cleared.
5. To view data for all categories: a. Click Graph All (at the bottom right of the page). The View Performance Graphs page displays graphs for all selected categories. By default, the graphs display the data from the previous day.
b. (Optional) To change the period of time, select the appropriate time period from the Time Period field at the top of the page. The options available are Last day, Last week, Last month, Last Year, and Custom. If you select Custom: i. Enter the start time (month, date, year, and time) in the Start Time field.
ii. Enter the end time (month, date, year, and time) in the End Time field.
iii. Click Apply Custom Time Period. The data is refreshed to reflect the time period specified.
6. To view data for a specific category or interface: a. Select the check box corresponding to the category or interface.
b. Click Graph Selection (at the bottom of the page). The View Performance Graphs page displays graphs for the selected category or interface. By default, the graphs display the data from the previous day.
c. (Optional) To change the period of time, select the appropriate time period from the Time Period field at the top of the page. The options available are Last day, Last week, Last month, Last Year, and Custom. If you select Custom: i. Enter the start time (month, date, year, and time) in the Start Time field.
444
ii. Enter the end time (month, date, year, and time) in the End Time field.
iii. Click Apply Custom Time Period. The data is refreshed to reflect the time period specified.
7. To search and view data for specific resources (categories or interfaces): a. Click Search (at the bottom right of the page). The Search for Node field is displayed.
b. Enter a text string to identify the resources of the device that you want to view and click OK. The View Performance Graphs page that appears displays the filtered view.
c. Select the check box corresponding to the category or interface.
d. Click Graph Selection (at the bottom of the page).
The View Performance Graphs page displays graphs for the selected category or interface. By default, the graphs display the data from the previous day.
8. Click Back (at the top-left of the page) to return to the Device Management page.
Release History Table Release
Description
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can view the performance graphs of a managed device by using the Devices workspace.
RELATED DOCUMENTATION
Alarm Notification Configuration Overview | 856 Configuring Alarm Notification | 859 Viewing Alarms from a Managed Device | 440
445
CHAPTER 24
Device Maintenance
IN THIS CHAPTER Viewing Device Statistics | 445 Viewing Devices and Logical Systems with QuickView | 446 Resynchronizing Managed Devices with the Network | 447 Putting a Device in RMA State and Reactivating Its Replacement | 448 Modifying the Target IP Address of a Device | 452 Modifying the Serial Number of a Device | 454 Rebooting Devices | 455 Deleting Staged Images on a Device | 456 Cloning a Device in Junos Space Network Management Platform | 457 Deleting Devices | 458
Viewing Device Statistics
You can view device statistics when you select the Devices workspace. The charts presented on the Devices page display the connection status of the devices, number of devices per OS, number of devices per platform, and the auto-resynchronization state of the devices. All the charts are interactive. The Devices page displays the following charts: · Device Count by Platform--Number of Juniper Networks devices organized by type · Device Status--Number of devices organized by the connection status on the network · Device Count by OS--Number of devices running a particular Junos OS release · Device Count by Synchronization State--Number of devices organized by auto-resynchronization state To view device statistics: 1. On the Junos Space Network Management Platform user interface, select Devices.
The Devices page is displayed. This page displays the charts related to the devices.
446
2. Click a specific label on a chart. You are redirected to the Device Management page, the contents of which are filtered based on the label you clicked. To save the chart as an image or to print the chart, right-click the chart and select Save or Print respectively.
RELATED DOCUMENTATION Viewing Managed Devices | 193 Viewing the Physical Inventory | 300 Device Discovery Profiles Overview | 219
Viewing Devices and Logical Systems with QuickView
The QuickView feature shows you the type and status of a device or logical system using an icon. To view a device or logical system using Quick View: 1. On the Network Management Platform user interface, select Devices > Device Management. 2. Select the Quick View action button on the menu bar. 3. Alternatively, at the right edge of the Network Management Platform page, find the sidebar open arrow
for the Device Management table.
NOTE: Be careful to find the correct sidebar open arrow. There are two; one on the left that opens the Quick View sidebar, and one on the right that opens the Help panel.
The Quick View sidebar arrow in green. The other arrow, highlighted in red, opens the Help sidebar. 4. Click the Quick View sidebar open arrow.
Platform opens the Quick View sidebar. The Quick View shows the status of the device that is currently selected in the table. You can close the Quick View window in the same way that you opened it.
447
RELATED DOCUMENTATION Understanding Logical Systems for SRX Series Services Gateways | 416 Viewing the Physical Device for a Logical System | 419 Viewing Logical Systems for a Physical Device | 419 Creating a Logical System (LSYS) | 417 Deleting Logical Systems | 418 Junos OS Logical Systems Configuration Guide for Security Devices
Resynchronizing Managed Devices with the Network
If the network is the system of record, you can resynchronize a managed device at any time. For example, when a managed device is updated by a device administrator from the device's native GUI or CLI, you can resynchronize the device configuration in the Junos Space Network Management Platform database with the physical device. (If Junos Space Network Management Platform is the system of record, this capability is not available. See "Systems of Record in Junos Space Overview" on page 213.) To resynchronize a device: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Select the devices you want to resychronize and select Device Operations > Resynchronize with Network from the Actions menu. The Resynchronize Devices pop-up window is displayed.
3. Click Confirm. When a resynchronization job is scheduled to run but another resynchronization job on the same device is in progress, Junos Space Network Management Platform delays the scheduled resynchronization job. The time delay is determined by the damper interval that you set from the application workspace. By default the time delay is 20 seconds. The scheduled job is delayed as long as the other resynchronization job to the same device is in progress. When the job that is currently running finishes, the scheduled resynchronization job starts. See "Modifying Settings of Junos Space Applications" on page 1339.
448
NOTE: You can check whether a managed device was resynchronized with the network, from the Job Details page. To go to the Job Details page, double-click the ID of the resynchronization job on the Job Management page. The Description column on this page specifies whether the managed device was resynchronized with the network. If the managed device was not resynchronized with the network, the column lists the reason for failure. If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992.
RELATED DOCUMENTATION Understanding How Junos Space Automatically Resynchronizes Managed Devices | 215 Systems of Record in Junos Space Overview | 213 Device Inventory Overview | 298 Viewing the Physical Inventory | 300 Viewing Physical Interfaces of Devices | 305 Exporting the License Inventory | 311
Putting a Device in RMA State and Reactivating Its Replacement
IN THIS SECTION Putting a Device in RMA State | 449 Reactivating a Replacement Device | 450
Sometimes, because of hardware failure, a device managed by Junos Space Network Management Platform needs to be returned to the vendor for repair or replacement. In such cases, Junos Space Network Management Platform can keep on record the configuration of the defective device until you can obtain an equivalent replacement device from the vendor. You create this record by putting the defective device in Return Materials Authorization (RMA) state before removing it. In this way, you prevent the configuration from being deleted from the Junos Space Network Management Platform database when the device is removed.
449
Before connecting the replacement device, you must configure it with such basic information as the name, IP address, SSH fingerprint, and login credentials. After the replacement device has been reconnected within your network, you perform the Reactivate from RMA task to cause Junos Space Network Management Platform to read its settings, deploy the preserved configuration onto it, and bring it back under management. Because the two devices are perceived as equivalent, this operation is considered reactivation, even if the replacement device is new. Do not delete or physically disconnect the defective device before performing the Put in RMA State task.
WARNING: Remove any provisioning services associated with a device before putting it in RMA state.
Putting a Device in RMA State If you want to return a device to the vendor under RMA, but you do not want to delete its configuration from the Junos Space Network Management Platform database, put the device in RMA state. To have Junos Space Network Management Platform keep on record the configuration of a defective device so that you can later deploy that configuration to the defective device's replacement: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select the defective device and select Device Operations > Put in RMA State from the Actions menu. The RMA Device window appears.
3. Click Confirm to put the selected device in RMA state.
SEE ALSO Viewing Managed Devices | 193 Deleting Devices Resynchronizing Managed Devices with the Network | 447
450
Reactivating a Replacement Device
Before you begin, you must perform basic configuration on the replacement device, such as the name, IP address, SSH fingerprint, and login credentials. TheIP address must match that of the original device when it was put in RMA state. From Junos Space Network Management Platform Release 18.2 onward, you can reactivate multiple replacement devices at the same time. The maximum number of devices that can be reactivated simultaneously is 100. To reactivate the replacement device: 1. Connect the replacement device to your network in the same way as the defective device was connected.
2. On the Junos Space Network Management Platform user interface, select Devices > Device Management. The Device Management page is displayed.
3. Select the items that formerly represented the defective devices. (It in fact now represents the replacement device, without the need for you to make any changes to it.)
4. Select Device Operations > Reactivate from RMA from the Actions menu. The Reactivate Device from RMA page is displayed listing the selected items representing the replacement devices. The device name and IP address of the device is displayed for each item on this list. By default, the New fingerprint column will be empty for every device. User can manually enter the new device fingerprint or leave it empty.
5. Enter the new fingerprint manually or import fingerprints in the form of a CSV file. To import SSH fingerprint using a CSV files: · Click Browse and select the CSV file to be uploaded from your local file system.
· Click Upload to upload the selected CSV file. Once the file is uploaded, the details of the devices to be reactivated - device name, IP address of the device, and new SSH fingerprint is displayed in the grid.
· (Optional) To download a sample CSV file, click the Sample CSV link.
451
A sample CSV file listing the name, IP address, and new SSH fingerprint of the devices to be reactivated.
6. (Optional) If there is no SSH fingerprint displayed for an device or if you want to associate a new SSH fingerprint with the reactivated device, a fingerprint conflict occurs. To auto-resolve SSH fingerprint conflicts, select the Auto-resolve fingerprint conflict if new fingerprint is not provided check box. If you choose select this check box, the fingerprint conflict resolution settings saved in the Device section of Modify Application Settings page (Administration > Applications) is overridden for device reactivation from RMA.
7. To push the existing device configuration from Junos Space: · (Optional) Select the Push existing device configuration from Junos Space check box to push the configuration saved in Junos Space to the reactivated device.
NOTE: If you choose to push existing device configuration from Junos Space, scripts that were staged on the replaced device is restaged to the reactivated devices. If you choose not to push existing device configuration from Junos Space, all the scripts associated with the device is removed.
· To use commit -confirmed for the reactivated devices, select the Use commit -confirmed check box.
· To use temporary credentials to push device configuration from Junos Space, select the Use temporary device credentials to push configuration check box. Enter the temporary username and password to push the configuration.
NOTE: The temporary username and password will be used only to push the existing configuration from Junos Space on to the reactivated devices.
8. Click Confirm to activate the replacement devices. The Reactivate Devices from RMA Job page appears displaying the job Id for the reactivation job. To view details of the job, click on the job ID. The replacement devices are displayed with the defective devices' configuration in the Device Management page. As activation proceeds, intermediate states such as Reactivating are displayed under
452
Managed Status. The replacement devices are active and under management when Connection Status reports that the device is up, and Managed Status reports In Sync. If Junos Space Platform detects an SSH fingerprint mismatch between that on the device and the fingerprint stored in the Junos Space Platform database, the connection is dropped. The connection status is displayed as Down and the authentication status is displayed as Fingerprint Conflict on the Device Management page.
SEE ALSO Viewing Managed Devices | 193 Deleting Devices Resynchronizing Managed Devices with the Network | 447
Modifying the Target IP Address of a Device
You modify the target IP address of a device when you need to change the IP address that Junos Space Network Management Platform will use to connect to the device. When you modify the IP address, the device connects to Junos Space Platform with the new IP address. You can use this workflow to migrate from IPv4 to IPv6 and from IPv6 to IPv4 addresses. You cannot use this workflow to modify the target IP address of a ww Junos OS device. The IP address modified using this workflow is only stored in the Junos Space Platform database. The modified IP address is not configured on the device. You need to either modify the device configuration and update the new IP address manually or push this IP address configuration to the device by using the Device Templates feature.
NOTE: This workflow is supported only for Junos Space-initiated connections.
To modify the target IP address of a device in Junos Space Platform: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page that appears displays the list of devices managed on Junos Space Platform.
2. Right-click the device you need to modify and select Device Access > Modify Device Target IP. The Modify Device Target IP page is displayed.
453
3. Click the New IP column on the page. An inline editor is displayed.
4. Enter the target IP address of the device.
NOTE: You can enter the IP address in either IPv4 or IPv6 addressing formats.
5. Click Modify. The new target IP address for the device is displayed on the Device Management page.
When you complete this workflow, Junos Space Platform performs the following steps to ensure that the device is reachable with the new IP address: a. Establishes an SSH connection to connect to the device on the new IP address and obtains the serial
number of the device b. Verifies the serial number of the device against the serial number stored in the Junos Space Platform
database. If the serial number returned from the device matches the one in the Junos Space Platform database, the new IP address is updated in the Junos Space Platform database. If the serial number verification fails, the job triggered for this workflow fails. c. Resets the connection to the device and waits for the device to connect back to Junos Space Platform in about five minutes. If the device does not connect to Junos Space Platform in about five minutes, the job triggered for this workflow fails.
NOTE: If the job triggered for this workflow fails, Junos Space Platform does not revert the IP address to the one stored in the Junos Space Platform database.
RELATED DOCUMENTATION Device Management Overview | 188 Viewing Managed Devices | 193 Junos Space IPv6 Support Overview | 1152
454
Modifying the Serial Number of a Device
You modify the serial number of a device that is added to Junos Space Network Management Platform. To modify the serial number of a modeled device: 1. On the Network Management Platform user interface, select Devices > Device Management.
The Device Management page is displayed.
2. Select the modeled device for which you want to modify the serial number and select Device Operations > Modify Serial Number from the Actions menu. The Modify Serial Number page is displayed.
3. Double-click the serial number in the Serial Number column of the device and enter the new serial number.
4. Click Modify. The serial number of the modeled device is modified.
RELATED DOCUMENTATION Model Devices Overview | 250 Creating a Modeled Instance | 256 Adding More Devices to an Existing Modeled Instance | 273 Downloading a Configlet | 265 Viewing and Copying Configlet Data | 267
455
Rebooting Devices
You can reboot devices from Junos Space Network Management Platform. You can also reboot virtual chassis setups, dual Routing Engine (RE) setups, and cluster setups from Junos Space Network Management Platform. You cannot reboot Logical System (LSYS) devices from Junos Space Network Management Platform. To reboot devices: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Select the devices that you want to reboot and select Device Operations > Reboot Devices from the Actions menu. The Reboot Devices pop-up window is displayed. This pop-up window displays the devices that you selected for reboot and some additional options that you can configure before the reboot.
3. (Optional) Select the Options option button. Configure the following options in this section: a. In the Message field, enter a message to indicate the purpose of this reboot operation. b. Select the Power off option button.
4. (Optional) To schedule a time for reboot, select the Schedule at a later time option button and use the lists to specify the date and time.
5. Click Confirm. The devices that you selected will be rebooted. A job will be created. You can view the job results from the Job Management page. If some of the devices fail to reboot, you can use the Retry on Failed Devices action to retry rebooting the devices that failed to reboot. For more information, see "Retrying a Job on Failed Devices" on page 980. When you reboot devices, an audit log entry is automatically generated. You can view the audit logs from the Audit Logs workspace.
NOTE: To reboot a single device, select only one device on the Device Management page and select Device Operations > Reboot Devices from the Actions menu.
RELATED DOCUMENTATION
456
Device Management Overview | 188 Viewing Managed Devices | 193
Deleting Staged Images on a Device
You can delete images staged on a device from the Device Management page. Currently, you cannot delete the images staged on an LSYS type device by using this workflow.. To delete the images staged on a device: 1. From the Network Management Platform user interface, select Devices > Device Management.
The Device Management page is displayed. 2. Select the device from which you want to delete the staged images and select Device Inventory > View
Staged Images from the Actions menu. The View Staged Images page is displayed. 3. Select the staged images that you want to delete from the device. 4. Click the Delete Images icon on the Actions menu. A job is created. You can view the status of the job on the Job Management page. 5. After you delete the staged images on a device, click Back at the top of the View Staged Devices page to return to the Device Management page.
NOTE: You can select multiple devices on the Device Management page to delete the images staged on these devices. Click the "+" symbol next to the each device, select the staged images, and click the Delete Images icon on the Actions menu. The View Staged Images page lists only the devices on which the images are staged. If you select a device that does not have staged images, this device is not displayed on the View Staged Images page.
RELATED DOCUMENTATION Device Images Overview | 612 Staging Device Images | 619
457
Viewing Staged Images on a Device | 437
Cloning a Device in Junos Space Network Management Platform
You clone devices to create copies of managed and modeled devices in Junos Space Network Management Platform. You can clone modeled devices even if they are in the Modeled or Waiting for Deployment state. You cannot clone unmanaged devices in Junos Space Platform. The cloned copy of the device is displayed by default as being in the Modeled state on the Device Management page.
NOTE: You need to activate a cloned device by using the Activate workflow to manage the device in Junos Space Platform.
To clone a device in Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page that appears displays the list of devices that exist in the Junos Space Platform database.
2. Select the device to clone and select Device Operations > Clone Device from the Actions menu. The Clone Device page is displayed. The device family and platform of the device are displayed on this page.
3. In the Clone Device Name field, enter the name of the device. The name of the cloned device should start and end with letters or numbers and cannot exceed 255 characters. The hyphen (-) and underscore (_) are the only special characters allowed. Leading and trailing spaces are not allowed.
4. In the Number of Devices field, use the up and down arrows to specify the number of devices to be cloned using this workflow. The default value is 1.
5. (Optional) Select the Image Upgrade/Downgrade check box to upgrade or downgrade the cloned device to a specific Junos OS version.
458
6. (Optional) From the Device Image drop-down list, select the device image that contains the Junos OS version to which you want to upgrade or downgrade the devices.
7. Click Clone. You are redirected to the Device Management page. When the device is cloned, the device is added to the Device Management page. The managed status of this device is set to Modeled.
NOTE: Devices created using this workflow are given the original name of the device appended with "_#" where # is a number. The devices are numbered from 1 through the value you specified for the number of devices. For example, if you clone a device named "device" and create three devices, they are named "device_1," "device_2," and "device_3."
RELATED DOCUMENTATION Model Devices Overview | 250 Viewing Managed Devices | 193 Activating a Modeled or Cloned Device in Junos Space Network Management Platform | 261
Deleting Devices
You can delete devices from Junos Space Network Management Platform. Deleting a device removes all device configuration and device inventory information from the Junos Space Network Management Platform database. If provisioning services are associated with a device that you want to delete, you must remove the provisioning services before deleting the device. To delete devices: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. Select the devices you want to delete and select Device Operations > Delete Devices from the Actions menu. The Delete Devices pop-up window is displayed.
459
3. Click Confirm. . Junos Space Network Management Platform deletes all device configuration and inventory information for the selected devices from the Junos Space Network Management Platform database.
RELATED DOCUMENTATION Viewing Managed Devices | 193 Viewing the Physical Inventory | 300 Viewing Physical Interfaces of Devices | 305 Device Discovery Profiles Overview | 219
3 PART
Device Templates
Overview | 461 Template Definitions | 470 Configuring Devices using Device Templates | 493 Configuring Devices using Quick Templates | 507 Device Template Administration | 519
461 CHAPTER 25
Overview
IN THIS CHAPTER Device Templates Overview | 461
Device Templates Overview
IN THIS SECTION Template Definition | 463 Device Template States | 466 Device Template Statuses | 466 Device Templates Workflow | 466 Device Template Deployment | 468
462
The Device Templates workspace in Junos Space Network Management Platform provides the tools to create custom device templates and deploy common configuration to multiple devices from the Junos Space user interface. Device templates are schema-driven, so you can access and configure all the configuration parameters for any device supported on Junos Space Platform. For example, with device templates, you can create the build of a new device. You can configure routing protocols, such as BGP, OSPF, IS-IS, and static routes.
You can create two types of device templates in Junos Space Platform:
· Configuration template A configuration template is a template created by using a template definition. You first create a template definition and specify the common configuration that can be deployed to a device. You then create a device template by using the template definition, assign values to the common configuration parameters, and deploy the template to the device.
· Quick template A Quick template is a template created without using a template definition. For more information about Quick templates, see "Quick Templates Overview" on page 507.
The Templates page in the Device Templates workspace lists the device templates created in tabular view. Table 46 lists and describes the columns of the table.
Table 46: Templates Page
Column Name
Description
Name
Name of the device template
Domain
Domain to which the device template is assigned
Template Type
Type of the device template: Quick Template or Config Template
Latest Version
Latest version of the device template
Description
Description of the device template
Last Modified By
Login name of the operator who last modified the device template
Last Update Time
Time when the device template was last updated
State
Deployment readiness of the device template: Needs Review, Disabled, or Enabled
Deployment Status
Deployment status of the template: Created, Assigned, or Deployed
Template definitions are usually created by the Template Design Manager user role. Definition-based templates and Quick templates are created by the Template Manager user role. The following sections describe a template definition, device template, and the workflow to create and deploy templates:
463
Template Definition
A template definition is the building block of the configuration you create by using the device template feature. A template definition restricts the scope of the device template to a specific device family and Junos OS version.
When you create a template definition, you define the following aspects of the configuration options in the template definition:
· Custom validation rules and error messages. For more information, see "Working with Rules in a Template Definition" on page 479.
· Default values or device-specific values. You can also set up CSV files (outside of Junos Space Platform) as a basis for your template definitions. For more information, see "Specifying Device-Specific Values in Template Definitions" on page 481. CSV file values take precedence in case of conflicts with rules-based values.
· Whether the configuration option is editable, read-only, or hidden
The data type of a configuration option is predefined in the DMI schema . You can modify the data type of the configuration option when you create the template definition. The data type of a configuration option determines the configurability of the option in the final definition. You can organize these configuration options across multiple pages.
Table 47 lists the data types for the configuration options and the tabs associated with each type. An * (asterisk) indicates that the tab is available for the corresponding data type. An -- (en dash) indicates that the tab is not available for the corresponding data type. The DMI schema determines the data type, method of validation, and how the parameters are displayed.
To create a useful template definition, the Template Design Manager must determine in advance which parameters or configuration options he or she wants the Template Manager to set, which parameters are to be read-only, and which parameters, if any, are to be hidden from the Template Manager. The data type of an option determines how the data will be displayed and what tabs are available to enter data.
Table 47: Data Types and Tabs
Tabs
Data Types Description
General Description Validation Advanced
Container
The Container data type holds other data *
*
types.
--
--
Table
The Table data type displays a list of records *
*
with identical structures.
*
*
464
Table 47: Data Types and Tabs (continued)
Tabs
Data Types Description
General Description Validation Advanced
String - Key The String - Key column in a Table data type *
*
column in a identifies the uniqueness of the record in the
table
table. If the table has a key specified, only
one record with the given key can exist.
*
*
String
The String data type contains character
*
*
strings.
*
*
Integer
The Integer [Number] data type is used to *
*
[Number]
specify a numeric value without a fractional
component.
*
*
Boolean
The Boolean data type has two possible
*
*
values: true and false. The value is True if
selected and False if not selected.
--
*
Enumeration The Enumeration data type defines a variable *
*
to be a set of predefined constants. The
variable must be equal to one of the values
that has been predefined for it. Use this data
type to create drop-down lists.
--
*
Choice
The Choice data type provides an option *
*
button. Select the option button to use the
configuration option in the template.
--
*
Table 48 lists the validation parameters for the data types that require validation.
Table 48: Data Types and Validation Parameters
Data Type
Validation Parameters
Integer [Number]
Min Value
Max Value
String
Min Length
Max Length
Regular Expression
Table
Min Occurrence
Max Occurrence
String - Key column in a table
Min Length
Max Length
Regular Expression
465
All configuration options of the Table data type have a key column by default.
The Definitions page in the Device Templates workspace lists the template definitions in tabular view. Table 49 lists and describes the columns of the table.
Table 49: Definitions Page
Column Name
Description
Name
Name of the template definition
Domain
Domain to which the template definition is assigned
Description
Description of the template definition
Device Family
Juniper Networks DMI Schema; for example, J Series, M Series, MX Series, T Series, and TX Series
Last Modified By
Login name of the template designer who last modified the template definition
Last Update Time
Time when the template definition was last updated
State
State of the template definition: published or unpublished
Junos Space Network Management Platform assigns different states to the template definitions. These states are listed in the State column of the table on the Definitions page. When a Template Design Manager finishes creating a template definition, that definition is automatically published by default. Template Design Managers can perform a series of operations on the definitions, but to do so, they must first unpublish the definitions. The Template Manager can see only published definitions; they cannot see unpublished definitions.
The Template Design Manager specifies not only which device parameters appear in the definition, but also which parameters can be edited by the Template Manager when he or she creates a template. The Template Design Manager also sets the defaults for the editable parameters.
NOTE: You cannot edit, publish, or delete a template definition if the template definition is being edited by another user. You receive a pop-up message indicating the user who is currently editing the template definition.
466
Device Template States
Junos Space Platform assigns different states to the device templates based on their deployment readiness. Table 50 lists the states and their descriptions.
Table 50: Device Template States
State
Description
Needs Review
The device template cannot be deployed until you review it. This state is triggered by a designer who is modifying the template definition on which the device template is based. That device template is then automatically moved to the Needs Review state.
Disabled
The device template cannot be deployed. This state is triggered by the designer unpublishing the template definition upon which a device template is based. That device template is then automatically disabled.
Enabled
The device template can be deployed. As soon as you finish creating a device template, it is enabled automatically.
Device Template Statuses
Junos Space Platform assigns different deployment statuses to the device templates. Table 51 lists the deployment statuses and their descriptions.
Table 51: Device Template Deployment Statuses
Deployment Status
Description
Created Assigned
The device template displays this status if:
· The device template is not yet assigned or deployed to the device. · The device template is undeployed or unassigned from the device. The device template is assigned to the device.
Deployed
The device template is deployed to the device.
Device Templates Workflow
Device templates can be designed to allow (or prevent) specified tasks to be (or from being) performed by two predefined Junos Space Platform user roles: · Template Design Manager--A designer who understands both:
· The technical details of the device configuration
467
· How to implement this knowledge to solve specific business problems
· Template Manager--An operator who executes the instructions of the Template Design Manager
A Template Design Manager (hereafter referred to as "designer") creates template definitions and publishes them. A Template Manager (hereafter referred to as "operator") selects a template definition and creates the device template from the template definition to configure one or more devices. The operator then tests the device template on the device (without deploying it). If the device template is validated, the operator deploys the device template to the device. With this division of labor, the operator does not need specialist knowledge. Alternatively, if one person is assigned both roles, using device templates radically reduces the volume of work and virtually eliminates operator error.
While creating the definition, the designer can verify what the operator sees when creating a device template from the definition. The operator, however, can gain no insight into what the designer saw when creating the definition. This has important consequences: while the designer can identify configuration options simply through their place in the hierarchy represented as a tree, the operator is entirely dependent on the label of the option. It is by means of the label alone that an operator determines which parameter he or she is configuring.
Designers can choose not only which options to display to the operators, but also whether to display them at all. They can make configuration options editable or read-only, and even provide customized explanations for the operators. Operators can immediately deploy a device template to the devices they select or schedule deployment for a later date.
Ensure that the following requirements are met to use the device template workflows successfully:
· To be available for use by operators, template definitions must be published. Template definitions that are unpublished are not available for the creation of templates.
· Templates based on a definition that was unpublished after the templates were created are automatically disabled.
· Templates based on a definition that was unpublished and then republished are marked as needing review. They cannot be deployed before an operator reviews them.
· Templates based on a definition that has been deleted are permanently disabled. · Templates based on a published definition that has not been unpublished in the meantime are enabled.
NOTE: You cannot edit or delete a device template if the device template is being edited by another user. You receive a pop-up message indicating the user who is currently editing the device template.
468
NOTE: We recommend that you do not navigate to other pages or other Junos Space applications when modifying a device template or a template definition. Save the changes before you navigate to other pages or other Junos Space applications.
Device Template Deployment
You can add and delete configuration details to and from device templates before deploying the template to a device. You can assign, deploy, unassign, and undeploy device templates to and from IPv4-enabled and IPv6-enabled devices manually, by using tags, or by using a CSV file. Assigning a device template to a device allows you to view the consolidated configuration changes to be deployed on the device from the Devices workspace. You can choose to include or exclude the configuration changes in or from the device template when you deploy the consolidated configuration changes by using the Review/Deploy Configuration workflow from the Devices workspace. For more information, see "Reviewing and Deploying the Device Configuration" on page 326. A device template that has been assigned to a device cannot be deployed using the Deploy workflow.
When you deploy a device template to a device, the unconfigured parameters are also committed. This means that if you applied two device templates to a device, only the configuration contained in the last device template is retained. For example, if you set the SNMP location in the first device template that you deployed, but did not do so in the second device template, the SNMP location information is lost as soon as you deploy the second device template. Therefore, to build a complex configuration by applying multiple device templates in stages, you should modify the last deployed definition or device template each time you add a layer of complexity.
With Junos Space Network Management Platform as the System of Record (in SSOR mode), you can deploy a template on a device in two ways: · Assign a template to a device by using the Assign to Device workflow in the Device Templates workspace,
and approve and deploy the template by using the Review/Deploy Configuration workflow in the Devices workspace. · Deploy a template to a device by using the Deploy workflow in the Device Templates workspace. If you assign a template to a device and use the Deploy workflow to deploy that template on the same device, although the template is deployed to the device, Junos Space Platform does not reflect this managed status. The managed status of the device is shown as "Space Changed" on the Device Management page.
RELATED DOCUMENTATION Creating a Template Definition | 470
469
Finding Configuration Options in a Template Definition | 477 Working with Rules in a Template Definition | 479 Creating a Device Template | 493
470
CHAPTER 26
Template Definitions
IN THIS CHAPTER Creating a Template Definition | 470 Finding Configuration Options in a Template Definition | 477 Working with Rules in a Template Definition | 479 Specifying Device-Specific Values in Template Definitions | 481 Managing CSV Files for a Template Definition | 484 Publishing a Template Definition | 485 Viewing a Template Definition | 485 Modifying a Template Definition | 487 Cloning a Template Definition | 488 Importing a Template Definition | 489 Exporting a Template Definition | 490 Unpublishing a Template Definition | 491 Deleting a Template Definition | 492
Creating a Template Definition
You create a template definition to create custom device templates that can be deployed to devices through Junos Space Network Management Platform. To create a template definition: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed.
2. Click the Create Template Definition icon on the Actions menu. The Create Template Definition page is displayed.
471
3. From the Device Family Series section, select the device family to which your template definition will apply. The Junos OS versions and hardware platforms supported by the selected device family appear in the Description section on the right. The OS version that appears on the drop-down list in the OS Version section below the Device Family Series section is the one that is set as default for that device family.
NOTE: It is recommended to include the device family and OS version information in the description of the template definition. Unless you include the information in the definition name or description, the operator will not know which device family this definition applies to.
4. Select the appropriate OS version from the drop-down list in the OS Version section below the Device Family Series section.
NOTE: If you do not use the latest DMI schema , you will not have access to the most recent device configuration options.
5. Click Next.
6. In the Name field, type a user-defined template definition name. A template definition name cannot exceed 128 characters and can contain only letters, numbers, spaces, and some special characters. The special characters allowed are hyphen (-), underscore (_), period (.), at (@), single quotation mark ('), forward slash (/), and ampersand (&).
7. (Optional) In the Description field, type a user-defined description. The description cannot exceed 256 characters. The operators who use the template definition to create templates rely on the description for information about the template definition.
8. From the Available Configuration section on the left, select one of the following from the drop-down list: · View All Configuration -- Provides all configuration options available for the selected device family's default DMI schema · Common Configuration -- Provides the parameters typically configured for the selected device family--for example, for J Series, M Series, MX Series, TSeries, and TX Series devices, the parameters are Interfaces, Routing options, SNMP, and System.
472
· MPLS Pre-staging -- Provides the parameters necessary to configure MPLS for the selected device family--for example, for J Series, M Series, MX Series, T Series, and TX Series devices, the parameters are Interfaces, Protocols, and Routing options.
9. Display the hierarchy of Junos OS configuration options available for the device family by clicking the plus sign to the left of the Configuration node at the top of the tree. The hierarchy appears in the form of a tree. Each item can be expanded by clicking the plus sign.
10. (Optional) Click the configuration option that you want to configure for this template definition. To find configuration options, see "Finding Configuration Options in a Template Definition" on page 477. The Selected Configuration Layout section on the right of the page displays the configuration pages. A default page, Config Page 1, is available to hold your groups of configuration options. You can create additional pages by clicking the Add Configuration Page icon at the top of the Selected Configuration Layout section.
11. (Optional) To rename the configuration page and enter a description: a. Select the configuration page in the left panel of the Selected Configuration Layout section. b. In the Label field, enter a user-defined configuration page name. c. In the Description field, enter a user-defined description.
NOTE: Delete a page by selecting a page from the left panel of the Selected Configuration Layout section and clicking the Delete Selected Page or Option icon.
12. To choose the configurable options, drill down through the hierarchy in the Available Configuration section. Unless you have opened a directory, selecting it and moving it does not transfer the directory's contents into your template definition. You can select multiple options simultaneously by holding down the Ctrl key. You can move an option from the Available Configurations panel to a page in the Selected Configuration Layout panel in three ways:
· Drag one or more options from the Available Configuration panel to the Selected Configuration Layout panel, and drop it directly onto the appropriate page in the Selected Configuration Layout panel.
· First, select the destination page in the Selected Configuration Layout panel, then select the options to be moved. Click the orange arrow between the panels. The option moves from the Available Configuration panel to the Selected Configuration Layout panel.
473
· First, select a page in the Selected Configuration Layout panel, then double-click an option in the Available Configuration panel. The option moves to the selected page. Note that the page does not open automatically. The minus sign to the left of an empty page changes to a plus sign if the move was successful.
Any sequence is permissible, and there is no limit on the number of options a page can hold. You cannot put children of the same parent into different pages. If you drill down and select a parameter deep in the hierarchy, dragging that parameter causes all the other parameters that require configuration to come with it. You can create field labels on the General tab to help the operator enter correct field data. The General tab applies to both the configuration pages and the configuration options you select.
13. To create a field label for configuration options, in the Selected Configuration Layout section, select a configuration option. The General tab displays the default text.
14. (Optional) To rename the selected option, in the Label field, overwrite the default or existing name.
TIP: Because the configuration options lose their context when you move them out of the tree in the Available Configuration section, consider changing the default labels to indicate to operators creating device templates what these parameters are for. The default labels are ambiguous without the context of the tree. For example, there are many options called pool.
The Data Type box displays the selected option's data type, which determines not only the tabs displayed, but also the method of validation.
15. (Optional) If the data type of an option is String, it is possible to provide the template administrator or operator a drop-down list to choose from when creating templates from this definition. To provide a drop-down list of choices, change the data type of the selected option to Enumeration by clicking the Enumeration option button in the Data Type box. Either a box containing ready-made choices appears, or a box to contain the choices you create appears, and next to it, a green plus [+] and a red minus [] icon. · To create each drop-down list choice, click the green plus [+] icon A text field appears, to the right of which is an OK button, a Close button, and a red X. · Enter text in the field (limit 255 alphanumeric characters) and click OK when finished. The newly created choice appears in the box to the left of the text field.
474
TIP: Keep your choices short;, otherwise, they are hard to read when you specify the default values or when the operator tries to select them from the list. You can create up to 23 choices.
· (Optional) To delete a drop-down list choice, select the choice and click the red minus [] icon. The choice disappears from the box.
· To finish adding choices, click Close or the red X to the right of the text field. 16. To save your entries on the General tab, select another tab or another option, or click Next.
You can add descriptive text in the Description tab. This can help the operator enter the correct data. When the operator creates a device template, he or she can view your description or explanation by clicking the little Information icon to the right of the parameter (in the template). A pop-up box appears, displaying the content you entered in the Description field.
17. To change the default description, click the Description tab.
18. In the Description field, enter a user-defined description for the selected configuration option.
19. To save your the description, move to another tab or another option, or click Next. The Validation tab displays the validation criteria for the selected configuration option. Not all options have Validation tabs. The validation criteria are determined by the option's data type: string, integer/number, table, container, choice, or enumeration. When you define fields in which you intend the operator to enter content, you usually restrict or limit that content in order to prevent validation errors during deployment. For example, if you define a field that you label Hostname, you could use a regular expression to prevent the operator from entering anything other than an IP address. Another situation might be when a particular attribute allows values A, B, C, D, or E, but you want templates that allow only values A or C. To view the data type correlated to validation criteria, see "Device Templates Overview" on page 461
NOTE: If values are already displayed on the Validation tab, they provide the range that governs the default values you set for the definition. The operator sees only the validation criteria and their values if you supply them when you create an error message. You do not always need to enter any character on the Validation tab. However, in certain cases, input is mandatory--for example, when a hostname is to be validated.
20. To modify the details on the Validation tab, click the Validation tab.
475
21. Enter the parameters for the option in the appropriate fields. If the fields already display default values and you change them, ensure that your values do not exceed the default values. The Regular Expression Error Message box on the Validation tab appears only if you configure an option of the string data type.
22. (Optional) For a string, in the Regular Expression field, enter a regular expression to further restrict what the operator can enter.
23. (Optional) For a string, compose an error message. This is not a validation parameter but rather a clue to enable the operator to enter correct field data. The text you enter here is displayed when an operator enters invalid content in a template field. An error message is very helpful for ensuring that operators are successful in creating templates. You cannot enter an error message if you have not entered a regular expression.
24. To save your entries, select another tab or another option, or click Next. The settings on the Advanced tab determine whether: · The operator can see the selected option or edit its values. · Device-specific values are used for the selected option. The Device Specific check box appears only for options of these data types: · Integer · String · Boolean · List
25. To modify the details on the Advanced tab, select the Advanced tab.
26. Select Editable, Readonly, or Hidden, depending on whether the operator creating the device template should see this device configuration parameter, or change it. If you hide an option, the operator can see neither the settings for the option nor the option itself.
27. (Optional) To mark this configuration option as device specific, click the Device Specific check box. See"Specifying Device-Specific Values in Template Definitions" on page 481 for further instructions on using CSV files for this purpose. You can use rules instead of or in addition to CSV files to specify device-specific values. See "Working with Rules in a Template Definition" on page 479 for more information about working with rules in a template definition.
28. To save your entries, select another tab or another option, or click Next.
476
29. To specify default values for configuration options, select the configuration option.
30. (Optional) To add comments for individual parameters, click the little yellow comment icons next to the configuration settings and enter your comments.
31. (Optional) To activate or deactivate a configuration option, click the Activate or Deactivate link respectively.
NOTE: You can activate or deactivate a configuration option only if the configuration node exists.
32. To display the fields for the default values, click View/Configure. The layout of the fields on the page varies depending on the data type of the configuration option you selected. For more details, see the "Finding Configuration Options in a Template Definition" on page 477 topic.
33. To add a row to a table, click the plus sign (+). The fields for the options displayed in the previous view appear. Whether the operator can edit the option values depends on the settings you made on the Advanced tab: Editable, Readonly, or Hidden. To remove a row from a table, select the row and click the minus sign (). To edit a table row, select the row and click the pencil icon . As you drill down, successive breadcrumbs appear, with the names of the options you clicked to configure, enabling you to navigate through multiple configuration option levels. The operator also sees these breadcrumbs and uses them to navigate.
34. Enter the data as appropriate.
TIP: To review your settings, click Back at the bottom of the page. Any field that you have marked as editable can remain empty, but do not leave hidden and read-only fields empty.
If you enter an invalid value, a red exclamation mark icon appears. Click the icon to find out what the value should be. The same icon is also visible to the operator when creating a template. Click the blue Information icon on the far right of each setting to view the explanatory or descriptive text for the operator that you entered on the Description tab.
477
35. (Optional) To view what the operator sees, click Operator View.
36. (Optional) Add settings in the Operator View. When you click Designer View, a message appears, asking "Do you want to save this draft before you leave this page?"
37. (Optional) To save the settings you made in the Operator View, click Yes.
38. To complete your definition, return to the designer view by clicking Designer View .
39. Click Finish
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Device Template | 493
Finding Configuration Options in a Template Definition
You can locate configuration options in a template definition in two ways: you can browse the list of configuration options or use the search functionality. To display the top level configuration options, click the plus sign [+] or expansion icon at the top of the tree in the Available Configuration area. Many of the configuration options contain more parameters. To display these, click on the plus sign [+] or expansion icon on the left of the configuration option. To search for a specific configuration option: 1. Click the magnifying glass icon.
The Search field appears.
2. Enter your search term. As soon as you enter the first three letters, the Search field opens downwards, displaying the search results. Search field displays only the first ten matches for your term.
478
TIP: Search results appear while you are typing. You can continue typing or even delete text. The cursor might not be visible in the Search field if the focus is somewhere within the list of search results.
The order of the search results is not dependent on the order of those items in the Available Configuration area. The order is based on the similarity of your search term to the indexed fields.
3. You can select a result in three ways: 1. Using the mouse to click on it. 2. Pressing the Enter key to select the first result in the list. 3. Using the up and down arrow keys on the keyboard to move through the list, pressing the Enter key to select a result. The tree in the Available Configuration area jumps to the location of the match for the result you selected and highlights the configuration option. The list of results disappears.
4. (Optional) To review the results that you did not select, either: · Click the white arrows next to the Search field. Click the arrow to the left to move to the result listed previous to the selected result. Click the arrow to the right to move to the resulted after the selected result. · Use the left and right arrow keys on the keyboard. Press the arrow to the left to move to the result listed previous to the selected result. Press the arrow to the right to move to the resulted after the selected result.
5. To close the Search field, click X in the right corner of the Search field.
RELATED DOCUMENTATION Device Templates Overview | 461 Working with Rules in a Template Definition | 479 Creating a Template Definition | 470
479
Working with Rules in a Template Definition
Device Templates uses rules to supplement the device-specific value capability supplied by CSV files. Specify rules to resolve device specific values at the time of deployment. You can use rules in addition to CSV files, or instead of CSV files. The system resolves device specific values by first checking the CSV file and then the rules. If both the CSV file and the rules return a value, the CSV file takes precedence. If neither the CSV file nor the rules return a value, deployment validation will fail. If a rule cannot provide the requisite value, the operator will be prompted to enter it at deployment. The system resolves device specific values by first checking the CSV file and then the rules. If both the CSV file and the rules return a value, the CSV file takes precedence. If neither the CSV file nor the rules return a value, deployment validation will fail. If a rule cannot provide the requisite value, the operator will be prompted to enter it at deployment. Rules are applied in the order shown. You can change the order as necessary. You can create rules for devices whose names start with a specific word, or rules for devices with a specific tag.
You can add, edit, move, and delete rules. You can only select one rule at a time. To add a rule: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed.
2. Click the Create Template Definition icon on the Actions bar. The Create Template Definition page is displayed.
3. Add the configuration option for which you want to supply device-specific values using a CSV file that you have already created.
4. Click the Advanced tab.
5. Select the Device Specific check box.
6. Click Next.
7. Click Please select a CSV file. The Manage CSV files pop-up window is displayed. Use the Manage CSV files workflow to either select a file already in the system, or to navigate and upload CSV files from the local file system. You can view the content of a CSV file already in the system by selecting it in the left pane. Its content displays in the right pane.
480
8. To use a CSV file already in the system, select it and click OK.
9. Specify the column and the key column in the CSV file.
10. Select the Resolve the value from a CSV file at deploy time check box. You can now add rules.
11. Click the [+] icon. Two options appear: · Rule matching tagged device · Rule matching device name.
12. Select the appropriate option. A rule appears, depending on your selection in the previous step, either of the following: · Set to a specific value for devices tagged with a specific tag · Set to a specific value for devices with name starting with a specific word. In both cases, the phrase "a specific value" is a link, as are "a specific tag" and "a specific word."
13. Click either a specific tag or a specific value. The Set $dsv field appears.
14. Enter the appropriate value. If the value you enter is not valid, an error message appears in the form of a tool tip explaining why the entry is invalid.
15. To save your input, click the OK button. To clear your input, click the [X] button. The rule reappears, this time with your input replacing the link.
16. (Optional) To change the sequence of in which the rules will be applied, select a rule and click either the up arrow icon or the down arrow icon. The selected rule moves to the new position.
17. (Optional) To delete a rule, select the rule and click the [X] button. The selected rule disappears.
18. (Optional) To clone a rule, select the rule and click the last icon on the right, next to the down arrow.
481
A clone of the selected rule appears. 19. (Optional) Refresh the rules display by clicking the Refresh icon in the lower bar of the Rules section
of the Device Specific Value dialog. 20. When you have finished working with rules, close the Device Specific Value dialog box by clicking
Close.
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Template Definition | 470
Specifying Device-Specific Values in Template Definitions
IN THIS SECTION Creating a CSV file with device-specific values | 481 Using a CSV file to set device-specific values | 482
Template designers can use a comma-separated value (CSV) file to provide device-specific values for a template definition. A single CSV file can be used to supply as many values as you wish, because the same file can be used again. Once you have created a CSV file, you import it into Junos Space Network Management Platform , and manage it using the Manage CSV Files task in the Device Templates workspace. Creating a CSV file with device-specific values You create a CSV file to import the device-specific values into a template definition. Use one column for each value to be specified and use one row for each device. To create a CSV file: 1. Open an appropriate program such as Notepad or Microsoft Excel. 2. Create a header row to name your columns.
482
It does not matter what you name your columns - you could call them anything, but each name must be unique, because Junos Space Network Management Platform uses them to identify the values for the template definition. If you wanted the value sac-contact in your definition, you would need to specify the column Contact, while the key column would be Sacramento.
3. If you wanted to specify interfaces and other values, you would simply add a column for each type of value, which specifies two interfaces on a single device, as well as MTU and traps for each.
NOTE: You must correctly identify the column from which the value is to be taken and the key column when you select the CSV file during the template definition creation process. You do not necessarily need to note down this information, because you can view the contents of the CSV file in Junos Space Network Management Platform when you choose column and key column.
4. Save the CSV file on your system.
Using a CSV file to set device-specific values You use the CSV file to set device-specific values in a template definition. To use a CSV file to set device-specific values in a template definition: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed.
2. Click the Create Template Definition icon on the Actions bar. The Create Template Definition page is displayed.
3. Add the configuration option for which you want to supply device-specific values using a CSV file that you have already created.
4. Click the Advanced tab.
5. Select the Device Specific check box.
6. Click Next.
483
7. Click the Device Specific Value link. The Device Specific Value - Authorization pop-up window is displayed.
8. Select the Resolve the value from a CSV file at deploy time checkbox.
9. Click Please select a CSV file. The Manage CSV files pop-up window is displayed. Use the Manage CSV files workflow to either select a file already in the system, or to navigate and upload CSV files from the local file system. You can view the content of a CSV file already in the system by selecting it in the left pane. Its content displays in the right pane.
10. To use a CSV file already in the system, select it and click OK.
11. Specify the column and the key column in the CSV file.
12. Select the Resolve the value from a CSV file at deploy time check box. You can now add rules. See "Working with Rules in a Template Definition" on page 479 to know how to add, delete, and move rules.
13. Click Finish.
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Device Template | 493
484
Managing CSV Files for a Template Definition
Device Templates uses CSV files to specify device-specific values, in addition to rules (see "Working with Rules in a Template Definition" on page 479). The Managing CSV Files task describes how to import this type of CSV file into Junos Space Network Management Platform. For instructions on the procedure for linking the file to a definition and identifying the key column for Device Templates, see "Specifying Device-Specific Values in Template Definitions" on page 481. Although designers can configure the parameter governed by the CSV file as editable, operators can neither view nor change the file when they create templates. The CSV files you use can be any file format (for example, .xls or .txt) as long as they have appropriate columns and key columns. That means one row per device. If you want to reference several interfaces on a single device, then each of the interfaces must have its own column. You can add a record to a CSV file from within Device Templates. However, if you change a CSV file outside Junos Space Network Management Platform, from its native application (for example, Microsoft Excel or Notepad), you must upload it again. You can do this within the device templates workflow. To add the CSV files: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed.
2. Click the Manage CSV Files icon on the Actions bar. The Manage CSV File page is displayed.
3. Click Upload. The CSV File upload pop-up window is displayed.
4. Click Browse. The File Upload pop-up window is displayed.
5. Navigate to the desired CSV file, select it and click Open.
6. Click Upload. The Manage CSV Files page is displayed. The name of the file just imported appears in the left pane.
7. To display the content of a file, select its name in the left pane.
485
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Template Definition | 470
Publishing a Template Definition
You publish a template definition when you want to make it available to create device templates from the template definition. To publish a template definition: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed. 2. Select the template definition you want to publish and select Publish Template Definition from the Actions menu. The Publish Template Definition page is displayed. 3. Click Publish.
RELATED DOCUMENTATION Device Templates Overview | 461 Unpublishing a Template Definition | 491
Viewing a Template Definition
You view a template definition when you need to view the details of the template definition.
486
To view a template definition: 1. On the Network Management Platform user interface, select Device Templates > Definitions.
The Definitions page that appears displays the template definitions.
2. Select the template definition you want to view and select the View Template Definition Details icon from the Actions bar.
The View Template Definition dialog box is displayed.
Table 52 lists the details of the template definition displayed in the View Template Definition dialog box. Table 52: View Template Definition Dialog Box Details
Field or Area
Description
Displayed In
Name
Name of the template definition
Definitions page View Template Definition dialog box
Description
Description of the template definition
Definitions page View Template Definition dialog box
Device Family
Device family to which the template definition belongs
Definitions page View Template Definition dialog box
OS Version
OS version to the template definition
View Template Definition dialog box
Available Configuration area
Configuration options of the device family View Template Definition dialog box chosen for the template definition
Selected Configuration Layout area
Details of the configuration options in the View Template Definition dialog box template definition
3. Click Next. The View Template Definition dialog box displays the default values for the configuration parameters. You can switch between designer and operator views.
4. Click Finish to close the View Template Definition dialog box.
RELATED DOCUMENTATION
487
Modifying a Template Definition | 487 Cloning a Template Definition | 488 Creating a Template Definition | 470 Device Templates Overview | 461
Modifying a Template Definition
You modify a template definition when you want to propagate the configuration changes to the device template. You cannot change the device family, OS version, and schema version when modifying the original template definition. When you modify a template definition, you cannot change any existing configuration pages. You can only add new configuration pages.
NOTE: You cannot modify a template definition if the template definition is published. You should first unpublish the template definition before modifying it. If you try to modify a template definition without unpublishing, an error message will be displayed.
To modify a template definition: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed.
2. Select the template definition you want to modify and click the Modify Template Definition icon on the Actions bar.
3. Modify the parameters you want to modify.
4. Click Finish. After you modify the template definition, republish the associated device templates.
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Template Definition | 470
488
Cloning a Template Definition
You clone a template definition to quickly create a new template definition with a new name but same properties. To modify a template definition without disabling templates based upon that definition, first clone the definition, then modify the clone. Unlike the Modify function, the Clone function does not require that a definition be unpublished. When you clone a template definition, you cannot change the device family or any existing pages. To add additional pages, modify the clone (see "Modifying a Template Definition" on page 487). To clone a template definition: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed.
2. Select the template definition you want to clone and select Clone Template Definition from the Actions menu. The Clone Template Definition pop-up window is displayed.
3. (Optional) In the Please specify a new name for the clone field, enter a user-defined template definition name. If you do not enter a new name for the template definition, Junos Space Network Management Platform creates the new template definition by appending "clone of" to the original template definition name.
4. (Optional) In the Description field, enter a user-defined description.
5. Click Clone.
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Template Definition | 470
489
Importing a Template Definition
You can import template definitions from XML files and export template definitions to XML files. A template definition retains its state when it is exported or imported; published template definitions that are exported also appear as published when they are imported. Therefore, if you import a template definition that was published, but do not want it to be available to operators, you must unpublish it either before you export it or immediately after importing it. You can transfer template definitions from one Junos Space fabric to another.
A template definition is based on a specific OS version, or DMI schema . If the template definition you import is based on a schema that is not found, the template definition is set to the default DMI schema assigned to the device family to which the template definition applies. If you have not set the default schemas for your device families, Junos Space Network Management Platform defaults to the most recent schema for each.
Before you begin, make sure you have access to a template definition file. Although it is an XML file, the system expects to find it packed into a .tgz file, which is the way the system exports XML files (see "Exporting a Template Definition" on page 490).
To import a template definition: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed.
2. Select the Import Template Definition icon on the Actions menu. The Import Template Definition page is displayed.
3. To locate a definition file, click the Browse button. The File Upload dialog box opens.
4. Navigate to the appropriate file, select it, and click Open. The Import Definition dialog box reappears, displaying the name of the selected file in the Definition File box.
490
NOTE: Under some circumstances, when the Import Definition dialog box reappears, it displays a message beginning with the phrase "Confirm name mapping of." This message serves as a warning that the system has changed the name mapping on the CSV file associated with the imported template definition, and the name of the template definition.
5. Click Import.
RELATED DOCUMENTATION Device Templates Overview | 461 Exporting a Template Definition | 490
Exporting a Template Definition
You export a template definition when you want to transfer this template definition to another Junos Space fabric. A template definition retains its state when it is exported. To export a template definition: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed. 2. Select the template definition you want to export and select Export Template Definition from the Actions menu. The Export Template Definition pop-up window is displayed. 3. Click Download file for selected template definitions (tgz format). The Opening xxx.tgz dialog box appears. (XXX is a placeholder for the name of the template definition.) 4. Select Save File and click OK. You may have to toggle between the option buttons to activate the OK button. The Enter name of file to save to ... dialog appears.
491
5. Rename the file if desired and save it to the appropriate location. The Export Template Definition dialog reappears.
6. Click Close. Although the exported definition file is an .XML file, it is saved as a .tgz file, which is the format the system uses to import XML files.
RELATED DOCUMENTATION Device Templates Overview | 461 Importing a Template Definition | 489
Unpublishing a Template Definition
You unpublish a template definition when you do not want to use it to create device templates or when you want to deactivate the device templates that are created based on the template definition. To unpublish a template definition: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed.
2. Select the template definition you want to unpublish and select Unpublish Template Definition from the Actions menu. The Unpublish Template Definitions dialog box is displayed. You can view the device templates that use this template definition.
NOTE: If you unpublish a template definition with which templates are associated, the templates are disabled for deployment and further use until you publish the template definition.
3. Click Unpublish. The template definition is unpublished. You are redirected to the Template Definitions page.
492
RELATED DOCUMENTATION Device Templates Overview | 461 Publishing a Template Definition | 485
Deleting a Template Definition
You delete a template definition when you no longer need the template definition to propagate the configuration changes to the device template. You can delete a template definition only when it is unpublished.
NOTE: When you delete a template definition, all device templates based on that template definition are permanently disabled. You cannot modify or deploy such templates.
To delete a template definition: 1. On the Junos Space Network Management Platform user interface, select Device Templates >
Definitions. The Definitions page is displayed. 2. Select the template definition you want to delete and select the Delete Template Definition icon on the Actions bar. The Delete Template Definitions pop-up window is displayed. 3. Click Delete.
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Template Definition | 470
493
CHAPTER 27
Configuring Devices using Device Templates
IN THIS CHAPTER Creating a Device Template | 493 Assigning a Device Template to Devices | 495 Deploying a Template to the Devices | 497 Modifying a Device Template | 501 Undeploying a Device Template from the Devices | 502 Unassigning a Device Template from the Devices | 503 Auditing a Device Template Configuration | 504
Creating a Device Template
Device templates enable operators to update the Junos OS configuration running on multiple Juniper Networks devices at once. The operators can create and deploy device templates based on template definitions created by designers from the Device Templates workspace. To create a device template: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed. 2. Click the Create Template icon on the Actions bar.
TIP: The Create Template page is displayed. This page lists all the template definitions. The operators can only see published template definitions. If you do not see a template definition that you expect to see, the designer might have unpublished it.
3. Select a template definition and click Next. 4. In the Template Name field, enter a user-define name for the device template.
494
The template name is required. The template name must be unique and limited to 63 characters. 5. (Optional) In the Description field, enter a user-defined template description.
The template description is optional and limited to 255 characters. 6. Select a configuration page.
The breadcrumb of that page is displayed on the right side of the page. The configuration options are displayed in the pane below the breadcrumbs.
TIP: To navigate through the configuration options on any page, click the breadcrumbs. As you drill down, successive breadcrumbs appear, with the names of the options you clicked to configure. You can navigate through multiple configuration option levels. The layout of the configuration settings on the page varies depending on the data type of the configuration option selected.
7. (Optional) For information on the individual parameters, click the little blue information icons to the right of the configuration settings to display the explanations the designer wrote.
8. (Optional) To add comments for individual parameters, click the little yellow comment icons next to the configuration settings and enter your comments.
9. (Optional) To activate or deactivate a configuration option, click the Activate or Deactivate link respectively.
NOTE: You can activate or deactivate a configuration option only if the configuration node exists.
10. (Optional) Add any required configuration specifics. You can change only configuration options that the definition designer made editable.
NOTE: You must click through all the settings to ensure that all necessary values are populated.
11. (Optional) To add a row to a table, click the plus sign (+).
495
To remove a row from a table, select the row and click the minus sign (-). To edit a table row, select the row and click the pencil icon (looks like a diagonal line).
12. Enter the data, as appropriate. If you enter an invalid value, a red exclamation mark icon appears. Click the icon to find out what the value should be.
13. Click Finish.
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Template Definition | 470
Assigning a Device Template to Devices
You assign a device template to devices to set up this device template for deployment. When you assign a template to devices, the device template is placed in the queue to deploy to devices. You can review the accumulated configuration changes that are in the queue to be deployed to the device. A device template that has been assigned to a device cannot be deployed directly. You can use this workflow to assign both configuration templates and quick templates.
NOTE: The chassis cluster devices discovered using the fxp interface are treated as separate units when assigning a device template. It is same for logical systems and virtual chassis configuration setups as well. In such scenarios, select the primary node or the primary node of the setup to deploy the template.
To assign a device template to devices: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed.
2. Select the configuration template or quick template to be assigned, and select Assign to Device from the Actions menu. The Assign to Device page is displayed. You can view the list of compatible devices, that is, those devices that belong to the same device family as the device template.
496
3. From the Selected Template Version drop-down list, select the version of the device template that you want to assign to devices.
4. You can assign the device template to devices manually, using tags, or by providing a CSV file with filter criteria.
· To assign the device template to devices manually, search for compatible devices by entering the search criteria in the search box and clicking the magnifying glass icon.
The list of devices are filtered by the search criteria.
· To filter devices by the device properties, select the check box next to the appropriate device column on the Column Filter drop-down list.
· From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection.
To provide filter criteria using a CSV file, click the CSV Filter icon and upload the CSV file with filter criteria through the Upload a CSV pop-up window.
· To select a device by using tags, select an appropriate tag from the Tag Filter drop-down list. 5. Click Next.
6. From the left section, select the devices to which you want to assign the device template.
7. On the right section, click XML or CLI tabs to view the XML and CLI formats of the configuration in the device template.
8. Click the Validate on Device link to validate the configuration on the device. By validating the configuration, you ensure that the device template is semantically correct. If the validation results fails, change the template parameters appropriately. If the validation succeeds, the Validation Status column in the left section displays a SUCCESS status.
9. Click Assign. The device template is assigned to devices. You are redirected to the Templates page.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to
list all managed devices for selection.
497
RELATED DOCUMENTATION Device Templates Overview | 461 Unassigning a Device Template from the Devices | 503
Deploying a Template to the Devices
You deploy a template to the devices to update the configuration on the devices. Before deploying a template to a device, ensure that you have not already assigned the template to the same device. If you assign a template to a device and use the Deploy workflow to deploy that template on the same device, even if the template is deployed to the device, Junos Space Network Management Platform does not reflect this managed status. The managed status of the device is shown as "Space Changed" on the Device Management page. You can also use this workflow to assign and publish the template to the devices. You assign and publish a template to the devices to set up this template for deployment. When you assign and publish a template to the devices, the template is placed in queue. You can review the accumulated configuration changes that will be deployed to the devices. To deploy or assign a template to the devices: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed.
2. Select the device template that you want to deploy and select Assign/Deploy Template from the Actions menu. The Assign/Deploy Template page is displayed. This page displays the devices on which the template can be deployed.
3. From the Selected Template Version drop-down list, select the version of the device template that you want to deploy or assign to the devices.
4. You can deploy the device template by selecting the devices manually, filtering by device properties, using tags, or providing a CSV file with filter criteria: · To select the devices manually, enter the search criteria in the Search field and click the Search icon. The list of devices are filtered by the search criteria. · To filter devices by device properties, select the check box next to the appropriate device column on the Column Filter drop-down list.
498
· To select a device by using tags, select an appropriate tag from the Tag Filter drop-down list. · From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose
to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection. To provide filter criteria using a CSV file, click the CSV Filter icon and upload the CSV file with the filter criteria through the Upload a CSV pop-up window. 5. Select the devices on which you want to deploy the template and click Next. This page displays the devices you chose on the left and the configuration to be deployed on the device on the right. You can also view details such as device name, managed status, validation status. If you specified device-specific values when creating the template definition, the Variable column is displayed. This column displays the validity of the value of the device-specific variable: PASS or FAIL.
6. (Optional) To validate the configuration on the device before deploying, select the device and click the Validate on Device link. By validating the configuration, you ensure that the device template is semantically correct. If the validation fails, change the template parameters appropriately.
NOTE: If you select modeled devices that are in the Modeled state, the Validate on Device link is disabled.
A job is triggered. You can view the details of the job from the Job Management page. When the job is completed, the job ID is displayed next to the Validate on Device link.
NOTE: If validation fails on all devices you selected, you cannot deploy the template on devices. If validation fails on some devices you selected, you can deploy the template to only those devices that succeeded the validation.
7. (Optional) To view the XML format of the configuration, select the device and click the XML tab.
8. (Optional) To view the CLI format of the configuration, select the device and click the CLI tab.
9. Click Next.
10. Select whether to deploy the device template now or later or whether to only assign and publish it. · To assign and publish the device template, select the Assign and Publish to pending configuration changes option button.
499
· To deploy the device template now, select the Deploy Now option button. · To deploy the device template later:
a. Select the Deploy Later option button. b. Enter the date in the Date field in the DD/MM/YYYY format. c. Enter the time in the Time field in the hh:mm format.
NOTE: If you select modeled devices that are in the Modeled state, the Deploy Now and Deploy Later buttons are disabled.
NOTE: If you publish the template, the configuration in the template is deployed to the device along with the candidate configuration for the device, with the Junos OS confirmed-commit functionality.
11. Click Finish. The Deploy Template Job Information page is displayed. You are redirected to the Templates page.
Click OK to close the page. The device template is deployed to the devices.
NOTE: You can check whether a template is deployed on all devices from the Job Management page. Double-click the row corresponding to the ID of the device template deployment job on the Job Management page. The Job Details page is displayed. The Description column on this page specifies whether the template is deployed on all devices. If the device template is not deployed on all devices, this column lists the reason why the template was not deployed. If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992.
500
NOTE: If you deploy the template when in SSOR mode, Junos Space Network Management Platform automatically assigns the template to the device. To subsequently modify the template, use one of the following workflows:
· Unassign the template from the device, modify the template, and deploy the template by using the Deploy workflow.
· Modify, approve, and deploy the template on the device by using the Review/Deploy Configuration workflow in the Devices workspace.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to
list all managed devices for selection.
RELATED DOCUMENTATION
Device Templates Overview | 461 Viewing the Device-Template Association (Device Templates) | 520 Undeploying a Device Template from the Devices | 502
501
Modifying a Device Template
You modify a device template to propagate the modifications to the device to which the device template is assigned. If you need to modify the device template after deploying the device template, the template designer must check the device template and the template definition to fix any errors. You should redeploy the device template only after the errors are fixed. You can use this workflow to modify both Configuration templates and Quick templates.
NOTE: A new version of the template is created if you modify a template that is in the Assigned or Deployed state.
To modify a device template: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed.
2. Right-click the device template that you want to modify and select Modify Template. The Modify Template page is displayed.
3. Modify the device template name, description, or configuration settings.
4. Click Modify. The template is modified. You are redirected to the Templates page.
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Device Template | 493
502
Undeploying a Device Template from the Devices
You undeploy a device template from the devices to remove the configuration changes pushed to the devices when the device template was deployed. You can use this workflow to undeploy a Configuration template or Quick template from the devices. To undeploy a template from the devices: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed.
2. Select the template that you want to undeploy and select Undeploy Template from the Actions menu. The Undeploy Template page is displayed. This page displays details such as the devices on which the template is currently deployed, the Device Alias custom label of the device, version of the template deployed and assigned to the devices, and IP addresses of the devices.
3. Select the devices from which you want to undeploy the template.
4. Click Next. The Review Changes page is displayed. This page displays the devices on the left of the page. The right of the page displays the configuration changes that result from undeploying the template from a selected device.
5. Select a device from the left of the page.
6. (Optional) To view the summary of the changes when the template is undeployed from the selected device, click the Change Summary tab.
7. (Optional) To view the device's current configuration, click the Deployed tab.
8. (Optional) To view the audit status of the deployment of this template to the device, click the Audit Result tab.
9. Click Next. The Confirm Undeployment page is displayed.
10. Select whether to undeploy the device template now or later. · To undeploy the template now, click Finish. · To undeploy the template later:
503
a. Select the Schedule at a Later Time option button. b. Enter the date in the Date field in the DD/MM/YYYY format. c. Enter the time in the Time field in the hh:mm format. d. Click Finish. The template is undeployed from the devices. You are redirected to the Templates page.
NOTE: View job details if a device template is not undeployed from all the devices even after using the Undeploy workflow. The Description column on the Job Details page specifies why the template was not undeployed from all the devices.
RELATED DOCUMENTATION Device Templates Overview | 461 Deploying a Template to the Devices | 497
Unassigning a Device Template from the Devices
You unassign a template from the devices if you do not want to deploy it to the devices. Then this template is no longer part of the consolidated configuration changes. You can use this workflow to unassign both Configuration templates and Quick templates. To unassign a device template from the devices: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed.
2. Select the devices from which you want to unassign the template and select Unassign from Device from the Actions menu. The Unassign from Device page is displayed. You can view the device names, the Device Alias custom labels of the devices, IP address of the devices, versions of the template assigned to the devices, and versions of the template deployed to the devices.
3. Click Next.
504
The Confirm Unassignment page is displayed.
4. Click Finish. The Template Unassign Confirmation dialog box is displayed. You are redirected to the Templates page.
Click OK on the dialog box. The template is unassigned from the devices.
RELATED DOCUMENTATION Device Templates Overview | 461 Assigning a Device Template to Devices | 495
Auditing a Device Template Configuration
You audit the configuration in the template that is already deployed to the devices. You perform an audit to verify the extent to which the configuration in the template and that on the deployed devices match. You can use this workflow to audit both Configuration templates and Quick templates. To audit a template configuration: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed.
2. Select the template whose deployment you want to audit and select Audit Template Configuration from the Actions menu. The Audit Template Configuration page is displayed. You can view the name of the template, current selected version of the template, Junos OS version of the template, and devices that belong to the same device family. The Include All Managed Devices check box ix selected by default. Clear this selection to list only those devices that are UP and INSYNC states if you select All in the Selected Template Version drop-down list. If you select a specific template version, all devices that have the specified version of the template deployed and are in UP or INSYNC states are listed.
3. (Optional) From the Selected Template Version drop-down list, select the version of the template. The list of devices displayed is filtered according to the version of the template you select in this field. The list is filtered to display only those devices on which the template is currently deployed.
505
4. You can select devices manually, by filtering devices by device properties, by using tags, or by providing a CSV file with filter criteria: · To search for devices manually, enter the search criteria in the Search field and click the Search icon. The list of devices are filtered by the search criteria. · To filter devices by device properties, select the check box next to the appropriate device on the Column Filter drop-down list. · To select devices by using tags, select an appropriate tag from the Tag Filter drop-down list. · From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection. To provide filter criteria through a CSV file, click the CSV Filter icon and upload the CSV file with the filter criteria by using the Upload a CSV pop-up window.
5. Click Next. The devices you selected are listed on the left of the page.
6. Select whether to audit the template configuration against the configuration in devices now or later: · To audit the template configuration against the configuration in devices now, click Finish. · To schedule this task for a later time: a. Select the Schedule at a later time option button. b. Enter the date in the Date field in DD/MM/YYYY format. c. Enter the time in the Time field in hh:mm format.
7. (Optional) Click the Recurrence check box and specify the frequency at which to audit the device template configuration against the configuration in the devices.
8. Click Finish. The Audit Template Job Information page is displayed.
9. Click OK to close the page. You are redirected to the Templates page. To view the results of the job triggered for this auditing, click the job ID on the Audit Template Job Information page. You are redirected to the Job Management page with a filtered view of the job. Double-click the row corresponding to the job to view the detailed status of the job on the Compare Config Job Status page. For devices that are OUTOFSYNC or DOWN, the summary of the job displays a warning message.
506
To export the report of auditing the template configuration, click the Export button. You are prompted to save the file. Click OK on the File Save page to save the file. The details of the auditing job, along with the warning message, are listed in the exported report. After you save the file, to return to the Job Management page, click the [X] icon on the Compare Config Job Status page.
NOTE: Each audit is performed as a job. It might take some time to finish auditing if a large number of devices was selected for auditing.
The possible statuses for a template audit are: · INSYNC-- The configurations in the template and on the device are the same. · OUTOFSYNC-- The configuration in the template is different from that on the device. · NOTAVAIL-- The configuration in the template is not available on the device. This status is displayed
when no audit is performed on a device for a particular template.
You can view these statuses in the Summary column on the Job Management page.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to
list all managed devices for selection.
RELATED DOCUMENTATION
Device Templates Overview | 461 Creating a Device Template | 493 Deploying a Template to the Devices | 497
507
CHAPTER 28
Configuring Devices using Quick Templates
IN THIS CHAPTER Quick Templates Overview | 507 Creating a Quick Template | 508 Deploying a Quick Template | 514
Quick Templates Overview
With the Quick Template feature, you can use a CLI-based template editor or a form-based editor to send configuration details to multiple devices. You can switch between the two editors to specify the configuration that you want to send. A configuration added from the form-based editor appears in the CLI-based template editor in CLI format and a configuration element added from the CLI-based editor appears as a form in the form-based editor. During Quick template creation, you can set default values for variables in the configuration elements and reorder these variables. You use the revised order to display variables when you resolve these variables before deploying them. You can save the variable settings in a CSV file and download it to your local computer. You can deploy Quick templates on devices by manually selecting devices; by filtering devices by their properties such as device name, connection status, managed status, Junos OS version, IP address, and platform, by tags, or by providing a CSV file with filter criteria. Before you deploy the configuration to the devices, resolve the variables in the configuration elements manually, using tags, or by uploading a CSV file that specifies how to resolve the variables. You can choose to deploy the configuration immediately, or at a later time, or only publish the Quick template. You can export and import Quick templates in XML format. You can create a Quick template based on the current configuration on a managed device by using the Create Template from Device Configuration workflow (Devices > Device Management > Device Configuration > Create Template from Device Configuration) from the Devices workspace. You cannot copy the configuration from the CLI-based template editor directly to the CLI console of a device. To successfully copy and commit the configuration, copy the configuration from the CLI-based template editor to a text file before copying the configuration to the CLI console of a device.
508
NOTE: You can erase the configuration from a device by using Quick templates. To do so, replace the SET commands with DELETE commands by using the CLI-based Template editor and deploy the Quick template to the device. Then the configuration is erased from the device. If you undeploy the Quick template from the device, the configuration is reset.
RELATED DOCUMENTATION Creating a Quick Template | 508 Deploying a Quick Template | 514 Exporting and Importing a Quick Template in Junos Space Network Management Platform | 529
Creating a Quick Template
You create a Quick template to push a configuration to the devices. A Quick template is a device template created without a template definition.
NOTE: To create a Quick template based on the current configuration on a managed device by using the Create Template from Device Configuration workflow, click Devices > Device Management > Device Configuration > Create Template from Device Configuration from the Devices workspace. You are directed to the Create Quick Template page.
To create a Quick template: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed. 2. Click the Create Template icon on the toolbar and select Create Quick Template.
The Create Quick Template page is displayed. 3. In the Name field, enter a name for the Quick template.
The Quick template name is required. The Quick template name must be unique and contain at most 63 characters.
509
4. (Optional) In the Description field, enter a description of the Quick template. You can enter at most 255 characters.
5. From the Device Family drop-down list, select an appropriate device family.
6. From the Versions drop-down list, select an appropriate Junos OS version.
7. You can create a Quick template by using the CLI-based template editor or the form-based template editor. To create a Quick template by using the CLI-based template editor: a. Click the CLI-based Template Editor link. The Template Editor dialog box is displayed. To the left of the Template Editor is a text-editing area. You can type or paste Junos OS CLI commands in the text-editing area. A toolbar at the top of the text-editing area provides functionalities such as save, syntax validation, copy, paste, cut, undo, redo, and find. To the right area of the Template Editor configuration options, such as Access profile, Class of service, and Firewall are provided. The device family that you select determines which configuration options are displayed.
NOTE: In Google Chrome and Internet Explorer browsers, the keyboard shortcuts and the tool bar options for cut, copy, and paste may not work at times. If you encounter this issue, use the right-click menu to complete these operations.
b. The selected configuration node is displayed in the text-exiting area. You can edit this configuration node by manually entering text.
c. (Optional) Use the toolbar functionalities to modify the configuration on the CLI-based template editor.
d. (Optional) To include comments in the Template Editor, enter comments in the following format: #(<configuration node related to the comment>)<comment>. For example, # (snmp community
510
a1) comments for node snmp community a1 means that the comment for the snmp community a1 node in the configuration hierarchy is "comments for node snmp community a1".
To create a Quick template by using the form-based template editor: a. Select the Basic Setup link.
The Basic Setup dialog box is displayed.
b. (Optional) In the Hostname field, enter the hostname of the device.
c. (Optional) In the Domain name field, enter the domain name of the device.
d. (Optional) In the Timezone field, enter the time zone of the device.
e. (Optional) Select the Allow FTP file transfers check box if you want to allow FTP file transfers on the device.
f. (Optional) Select the Allow ssh access check box if you want to allow access to the device through SSH.
g. (Optional) Select the Allow telnet login check box if you want to allow access to the device through Telnet.
h. For NTP Server, click the Add NTP Server icon to add an NTP server to the device. The Add dialog box is displayed. Enter the following details in this dialog box: i. In the Name field, enter the name of the NTP server.
ii. (Optional) In the Key field, enter a value for the key.
iii. (Optional) From the Version drop-down list, select the appropriate version.
iv. (Optional) Select the Prefer check box.
v. Click Create.
511
Use the Edit NTP Server and Delete NTP Server icons to edit and delete the NTP server details respectively. i. For User Management, click the Add User icon to add users for the device. The Add dialog box is displayed. Enter the following details in this dialog box: i. In the Name field, enter the name of the user. ii. (Optional) Select an appropriate user ID from the User ID field.
The minimum value for this field is 100. iii. (Optional) In the Full Name field, enter the full name of the user. iv. (Optional) In the Password field, enter the password for the user. v. (Optional) In the Re-enter Password field, reenter the password for the user. vi. From the Login Class drop-down list, select the appropriate login class for the user.
The available login classes are super-user, operator, read-only, unauthorized, and wheel. vii. Click Create. Use the Edit User and Delete User icons to edit and delete the details of the user respectively. j. For DNS Server, click the DNS NTP Server icon to add a DNS server to the device. The Add dialog box is displayed. Enter the following details in this dialog box: i. In the Name field, enter the name of the DNS server. ii. Click Create.
512
Use the Edit DNS Server and Delete DNS Server icons to edit and delete the DNS server details respectively.
k. Enter the following SNMP details: i. In the Location field, enter the location for SNMP.
ii. Click the Add SNMP Community icon. The Add dialog box is displayed. For Community, enter the following details: a. In the Name field, enter the name of the SNMP community. b. (Optional) From the Authorization drop-down list, select the appropriate type of authorization. c. Click Create. Use the Edit SNMP Community and Delete SNMP Community icons to edit and delete the SNMP Community details respectively.
iii. Click the Add Trap Group icon. The Add dialog box is displayed. For Trap Group, enter the following details: a. In the Name field, enter the name of the trap group. b. (Optional) Select the check box next to the appropriate trap group category. c. Click Create. Use the Edit Trap Group and Delete Trap Group icons to edit and delete the trap group details respectively.
l. Click OK.
NOTE: If you have installed the Security Director application on your Junos Space Network Management Platform setup and are creating a Quick template by choosing J Series, SRX Series, or LN Series as the device family, you can use the additional Configuration Guides available on the Create Quick Template page. In this case, the Create Quick Template page lists the Configuration Guides to set up routing and security parameters for the Quick template. For more information about using the Configuration Guides related to routing and security parameters for the Quick template, see the Junos Space Security Director Application Guide.
513
NOTE: The Basic Setup Configuration Guide is available only when ACX Series, J Series, M Series, MX Series, T Series, TX Series, PTX Series, EX9200, EX Series, J Series, SRX Series, LN Series, QF Series, or QFX Series is selected as the device family.
8. When you have configured all configuration options required for the Quick template, click OK.
9. (Optional) Click the Variable Settings button on the lower left to configure the order of the variables and the default value for these variables. The Variable Settings page is displayed. You can view all the variables you want to use in the configuration in the Variables area on the left of the page and view the Variable Settings area on the right of the page. To configure variable settings: a. To reorder variables, use the up and down arrows in the Variables area. b. (Optional) In the Display Name field, enter a user-defined display name. c. (Optional) In the Default Value field, enter the default value of the variable. d. (Optional) In the Valid RegEx field, enter a regular expression. e. (Optional) You can either save these variable settings and revisit them later or download to your computer in CSV format. · To download the variables and their settings in CSV format, click the Generate CSV Format button. · To save the variables and their settings without downloading, click the Save button.
10. (Optional) Preview the configuration before saving it by clicking the Preview button.
11. You can save the Quick template for future modifications or immediately deploy the Quick template to devices. · To save the Quick template, click Save. You are redirected to the Templates page. · To deploy the Quick template, click Save and Assign/Deploy. You are redirected to the Deploy Template page.
514
NOTE: · To erase specific configuration from a device by using a Quick template, replace the SET
commands with DELETE commands by using the CLI-based Template editor and deploy the Quick template to the device. Such templates are also known as negative templates. · If you undeploy a negative template from a device, the configuration that you removed during the deployment is reset. For more information about deploying a Quick template, see "Deploying a Quick Template" on page 514.
RELATED DOCUMENTATION Device Templates Overview | 461 Creating a Device Template | 493
Deploying a Quick Template
You deploy a Quick template to update the configuration on the devices. Before deploying a Quick template to a device, ensure that you have not assigned the template to the same device. If you assign a Quick template to a device and use the Deploy workflow to deploy that Quick template on the same device, although the Quick template is deployed to the device, Junos Space Network Management Platform does not reflect this managed status. The managed status of the device is shown as "Space Changed" on the Device Management page. You can also use this workflow to assign and publish the Quick template to the devices. You assign and publish a template to the devices to set up this template for deployment. When you assign and publish a Quick template to the devices, the Quick template is placed in queue. You can review the accumulated configuration changes that will be deployed to the devices. To deploy or assign a Quick template to the devices: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed.
2. Select the Quick template that you want to deploy and select Assign/Deploy Template from the Actions menu.
515
The Assign/Deploy Template page that appears displays the devices on which the template can be deployed.
3. From the Selected Template Version drop-down list, select the version of the device template that you want to deploy or assign to the devices.
4. You can deploy the Quick template by selecting the devices manually, by filtering devices by the device properties, by using tags, or by providing a CSV file with filter criteria: · To manually deploy a Quick template, enter the search criteria in the Search field and click the Search icon. The list of devices are filtered by the search criteria. · To filter devices by device properties, select the check box next to the appropriate device column on the Column Filter drop-down list. · To select a device by using tags, select an appropriate tag from the Tag Filter drop-down list. · To provide filter criteria through a CSV file, click the CSV Filter icon and upload the CSV file with the filter criteria by using the Upload a CSV pop-up window.
5. Click Next. The Resolve Variables page is displayed. This page displays the devices you selected, their managed status, validation status, and the validity of the variable.
6. (Optional) You can resolve the device-specific values in the Quick template either manually or by using a CSV file that specifies device-specific values. To resolve device-specific values manually: a. From the Resolve Device Specific Value drop-down list, select Manual.
b. Select the devices on which you want to resolve the values from the left of the page.
516
c. Click the Template Parameters tab on the right of the page. · Enter the device-specific value and click the Add icon. If you entered a valid value, the Variable column on the left displays PASS. If you entered an invalid value, the Variable column displays FAIL.
NOTE: You can also enter different values by selecting a device and entering the device-specific value.
d. To view the XML and CLI formats of the configuration that will be deployed, click the Change Summary tab. · Click the XML or CLI tab.
e. Click the Validate on Device link to validate the configuration. By validating the configuration, you ensure that the Quick template is semantically correct. If the validation fails, change the template parameters appropriately.
To resolve device-specific values using a CSV file: a. From the Resolve Device Specific Value drop-down list, select From a CSV.
b. Select the devices on which you want to resolve the values from the left of the page.
c. Click Browse and select the CSV file from the right of the page.
d. Click Upload.
e. (Optional) If you have uploaded a CSV file with filter criteria earlier, select the CSV file from the Select a csv to apply on chosen devices drop-down list.
f. Click Apply CSV.
g. To view the XML and CLI formats of the configuration that will be deployed, click the Change Summary tab. · Click the XML or CLI tab.
h. Click the Validate on Device link to validate the configuration.
517
By validating the configuration, you ensure that the Quick template is semantically correct. If the validation fails, change the template parameters appropriately.
7. (Optional) To go back and select more devices or a different set of devices, click Back. You are directed to the Resolve Variables page.
8. Click Next.
9. Select whether to deploy the Quick template now or later or whether to only assign and publish it. · To assign and publish the Quick template, select the Assign and Publish to pending configuration changes option button. · To deploy the Quick template now, select the Deploy Now option button. · To deploy the Quick template later: a. Select the Deploy Later option button. b. Enter the date in the Date field in the DD/MM/YYYY format. c. Enter the time in the Time field in the hh:mm format.
NOTE: If you publish the Quick template, the configuration in the Quick template is deployed to the device along with the candidate configuration for the device, with the Junos OS confirmed-commit functionality.
10. Click Finish. The Deploy Template Job Information dialog box is displayed. You are redirected to the Templates page.
11. Click OK to close the dialog box. The Quick template is deployed to devices.
NOTE: If you select modeled devices that are in the Modeled state, the Deploy Now and Deploy Later buttons are disabled.
RELATED DOCUMENTATION
518
Device Templates Overview | 461 Creating a Quick Template | 508
519
CHAPTER 29
Device Template Administration
IN THIS CHAPTER Viewing Template Details | 519 Viewing the Device-Template Association (Device Templates) | 520 Viewing Template Definition Statistics | 523 Viewing Device Template Statistics | 524 Comparing Templates or Template Versions | 524 Comparing a Device Template Configuration with a Device Configuration | 526 Cloning a Template in Junos Space Network Management Platform | 528 Exporting and Importing a Quick Template in Junos Space Network Management Platform | 529 Deleting Device Templates from Junos Space Network Management Platform | 531
Viewing Template Details
You view the details of a template to determine the device template configuration. You can view the template configuration in XML and CLI formats.
NOTE: You cannot view device-specific values in the template configuration by using this workflow.
To view the details of a template: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page that appears displays all the device templates that currently exist in the Junos Space Platform database. 2. Select the template for which you want to view details and select View Template Details from the toolbar.
520
The Template Details page is displayed. You can view the name of the template, versions of the template, and Junos OS version used in the template. You can also view the XML and CLI formats of the template configuration.
3. (Optional) To select the version of the template, select the version from the Selected Template Version drop-down list.
4. To select the appropriate view of the configuration: · Click the CLI tab to view the CLI configuration. · Click the XML view to view the XML configuration.
Click Cancel. You are redirected to the Templates page.
RELATED DOCUMENTATION
Creating a Device Template | 493 Modifying a Device Template | 501
Viewing the Device-Template Association (Device Templates)
You view the device-template association to determine the version of the template that is deployed or assigned to devices, and the audit status of the template for each deployment.
To view the device-template association: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page is displayed.
2. Right-click the template and select View Template Association. The View Template Association page is displayed. Table 53 shows the columns on this page. Table 53: View Template Association Page
Column Header
Description
Name
Name of the devices to which the template is deployed
521
Table 53: View Template Association Page (continued)
Column Header
Description
Device Alias
Value of the Device Alias custom label for the device. This field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label for the device.
Domain
Domain to which the template is assigned
IP Address
IP address of the devices to which the template is deployed
Deployed Version
Version of the template that is deployed to the device
Assigned Version
Version of the template that is assigned to the device
Latest Version
Latest version of the template
Deploy Time
Time at which the template was deployed to the device
Deployed By
Username of the user who deployed the template to the device
Job ID
ID of the deployment job
Audit Status
Audit status of the template
Audit Time
Time at which the template was audited
3. You can perform the following tasks on this page: · To view the details of the device to which the template is assigned or deployed: i. Double-click the corresponding device name or IP address column. The Device Details dialog box is displayed. You can view the details of the device.
ii. Click Close to close the pop-up window.
· To view the configuration in the template that is deployed to the device: i. Click the number in the Deployed Version column. The Template Change Summary pop-up window is displayed. You can view the configuration that was deployed to the device.
522
ii. Click Close to close the pop-up window.
· To view the configuration in the template that is assigned to the device: i. Click the number in the Assigned Version column. The Template Change Summary pop-up window is displayed. You can view the configuration in the template that is assigned to the device.
ii. Click Close to close the pop-up window.
· To view the status of the template deployment job: i. Click the job ID in the Job Id column. The Job Management page is displayed. You can view the results of the template deployment job.
ii. Close the Job Management page.
iii. Repeat steps 1 and 2 to navigate to the View Template Association page.
· To view the audit status of the template: i. Click the link in the Audit Status column. The Template Audit Result pop-up window is displayed. Under the Audit Status heading, any differences found last time the template was audited are listed. Such differences will be due to someone having altered the device configuration between the two template deployments.
NOTE: To view any differences between a template and the configuration on the devices to which it has been deployed, first ensure an audit has been performed on the template since it was deployed. For more information about auditing a template, see "Auditing a Device Template Configuration" on page 504.
· To export the results of the audit status: i. Click the Export Audit button.
ii. Click Save to save the results of the audit status in XML format.
4. To return to the Templates page from the View Template Association page, click Cancel.
523
RELATED DOCUMENTATION Device Templates Overview | 461 Auditing a Device Template Configuration | 504
Viewing Template Definition Statistics
You can view the template definition statistics when you select the Device Templates workspace. The Template Definition Status pie chart presented on the Device Templates page display the states of the template definitions. The chart is interactive. The Template Definition Status pie chart shows published and unpublished template definitions (available for template creation and unavailable, respectively). To view the template definition statistics: 1. On the Junos Space Network Management Platform user interface, select Device Templates .
The Device Templates page is displayed. This page displays the charts related to device templates and template definitions.
2. Click a specific label on the Template Definition Status chart, for example, click the Published label. You will be redirected to the Definitions page that is filtered based on the label you clicked. To save the pie chart as an image or to print for presentations or reporting, right-click the pie chart and use the menu to save or print the image.
RELATED DOCUMENTATION Device Templates Overview | 461 Viewing Device Template Statistics | 524
524
Viewing Device Template Statistics
You can view the device template statistics when you select the Device Templates workspace. The charts presented on the Device Templates page display the states of the device templates and the number of device templates per device family. All the charts are interactive. The Device Templates page displays the following charts related to device templates: · Template Status--this pie chart shows the device templates that are enabled, disabled, and needing
review. The device templates based on a template definition that is currently in a published state are enabled. The device templates based on a template definition that is currently unpublished are disabled. The device templates based on a republished template definition are marked as needing review. · Template Count by Device Family--this bar chart shows the number of device templates per device family (each device template can apply to only one device family). To view the device template statistics: 1. On the Junos Space Network Management Platform user interface, select Device Templates .
The Device Templates landing page is displayed. This page displays the charts related to device templates and template definitions.
2. Click a specific label on the Template Status chart for example, click the Needs Review label. You will be redirected to the Templates page that is filtered based on the label you clicked. To save a chart as an image or to print for presentations or reporting, right-click the chart and use the menu to save or print the image.
RELATED DOCUMENTATION Device Templates Overview | 461 Viewing Template Definition Statistics | 523
Comparing Templates or Template Versions
You compare two templates or two versions of the same template to view the differences between the configurations that they push to devices.
525
To compare two templates or two versions of the same template: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Device Templates page that appears displays the list of templates that currently exist in the Junos Space Platform database.
2. Select the templates that you want to compare and select Compare Template Versions from the Actions menu. The Compare Template Versions page that appears displays versions of templates you want to compare.
3. (Optional) To select a pair of templates for comparison: a. From the Source Template drop-down list, select the version of the source template. b. From the Template File Version drop-down list, select the version of the source template. c. From the Target Template drop-down list, select the target template. d. From the Template File Version drop-down list, select the version of the target template.
4. Click Compare. The Compare Template Versions page is displayed. You can view the differences between the configurations that are pushed to the devices by these templates. The configuration from the source template is displayed on the left and the configuration from the target template is displayed on the right.
5. (Optional)To view the differences between the templates one by one, use the Prev Diff and Next Diff buttons on the top-right corner.
Click Close to return to the Compare Template Versions page. Alternatively, click Cancel to return to the Templates page.
RELATED DOCUMENTATION Creating a Device Template | 493 Modifying a Device Template | 501 Comparing a Device Template Configuration with a Device Configuration | 526
526
Comparing a Device Template Configuration with a Device Configuration
You compare the configuration in a device template with the configuration in a device to view the differences between the configurations. To compare the device template configuration with the device configuration, the configurations must belong to the same device family.
To compare a device template configuration with a device configuration: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page that appears displays all the templates that currently exist in the Junos Space Platform database.
2. Select the device template that you want to compare with and select Compare Template Against Device from the Actions menu. The Compare Template Against Device page is displayed. You can view the name of the template, current selected version of the template, Junos OS version of the template, and a list of all managed devices that belong to the same device family. The Include All Managed Devices check box is selected by default. Clear this selection to list only those devices that are UP and in INSYNC states.
3. (Optional) From the Selected Template Version drop-down list, select the version of the template.
4. You can search for devices to compare with manually by using columns that represent the status of the device, by using tags, or by providing a CSV file with filter criteria. · To search for devices manually, enter the search criteria in the Search field and click the Search icon. The list of devices is filtered by the search criteria. · To filter devices by device properties, select the check box next to the appropriate device on the Column Filter drop-down list. · To select devices by using tags, select an appropriate tag from the Tag Filter drop-down list. · From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection. To provide filter criteria through a CSV file, click the CSV Filter icon and upload the CSV file with the filter criteria by using the Upload a CSV pop-up window.
5. Click Next. The devices that you selected are listed on the left of the page.
6. Select whether to compare the template configuration against the configuration in the devices immediately or later:
527
· To compare the template configuration against the configuration in the devices now, click Finish. · To schedule this task for a later time:
a. Select the Schedule at a later time option button. b. Enter the date in the Date field in DD/MM/YYYY format. c. Enter the time in the Time field in hh:mm format.
7. (Optional) Click the Recurrence check box and specify the frequency at which to compare the device template configuration against the device configuration.
8. Click Finish.
The Compare Config Job Information page is displayed. To view details of the comparison job, click the job ID. You are redirected to the Job Management page with a filtered view of the job. Double-click the row corresponding to the job to view the detailed status of the job on the Compare Config Job Status page. For devices that are OUTOFSYNC or DOWN, the summary of the job displays a warning message.
To export the report of comparison, click Export button. You are prompted to save the file. Click OK on the File Save page to save the file.
The details of the comparison job, along with the warning message, is listed in the exported report.
Click OK to close the page.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to
list all managed devices for selection.
RELATED DOCUMENTATION
Creating a Device Template | 493 Modifying a Device Template | 501
528
Cloning a Template in Junos Space Network Management Platform
You clone a template when you want to create a copy of an existing template. You can clone Quick templates and Configuration templates by using this workflow. If you clone a template with multiple versions, only the latest version is cloned. When you clone a template, a new template is added to the Junos Space Network Management Platform database. This template is assigned the Create state and the version number is set to 1. To clone a template in Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page that appears displays the list of templates that currently exist in the Junos Space Platform database.
2. Select the template that you want to clone and select Clone Template from the Actions menu. The Clone Template Confirmation dialog box is displayed.
3. In the Name field, enter the name of the template. A default name for the cloned template is displayed. You can modify this name. The name cannot begin or end with a special character and can contain at most 63 characters.
4. (Optional) In the Description field, enter a description of the template. The description is optional and limited to 255 characters.
5. Click OK. A new template is created. You are redirected to the Templates page.
RELATED DOCUMENTATION Creating a Device Template | 493 Modifying a Device Template | 501 Comparing a Device Template Configuration with a Device Configuration | 526
529
Exporting and Importing a Quick Template in Junos Space Network Management Platform
IN THIS SECTION Exporting a Quick Template | 529 Importing a Quick Template | 530
You export a Quick template to save it to a local machine. You import a Quick template to import it to the Junos Space Network Management Platform database. Quick templates are exported and imported in XML format. Perform the following tasks to export and import Quick templates to and from Junos Space Platform. Exporting a Quick Template To export a Quick template: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page that appears displays a list of templates that currently exist in the Junos Space Platform database. 2. Select the Quick template that you want to export and select Export Quick Template from the Actions menu. The Export Quick Template dialog box is displayed. 3. Click the Download file for the latest version of selected template in XML format link. A dialog box is displayed. 4. Click OK to save the XML file to the local machine. Click Close to return to the Templates page.
530
Importing a Quick Template To import a Quick template: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page that appears displays the list of templates that currently exist in the Junos Space Platform database.
2. Click the Import Quick Template icon on the toolbar. The Import Quick Template dialog box is displayed.
3. Click Browse and select the Quick template XML file.
4. Click Import. A progress bar indicates the progress of the import job. If a Quick template with the same name exists in the Junos Space Platform database, a new page is displayed with an alternative name for the Quick template.
5. (Optional) Double-click the New Mapped Name column on the page and modify the name of the Quick template.
6. Click Import. A progress bar is displayed. If you provided a unique name, the Quick template is imported. You can view this Quick template on the Templates page.
You are redirected to the Templates page.
RELATED DOCUMENTATION Quick Templates Overview | 507 Creating a Quick Template | 508 Deploying a Quick Template | 514
531
Deleting Device Templates from Junos Space Network Management Platform
You delete templates from Junos Space Network Management Platform when you do not want to use these templates to push configurations to the devices. You can delete templates and their associated versions if they are in the Created state.
NOTE: You can delete multiple versions of a template by using this workflow. However, you cannot delete a version of a template if it is assigned or deployed to the devices.
To delete templates from Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select Device Templates > Templates.
The Templates page that appears displays the list of templates that currently exist in the Junos Space Platform database.
2. Select the templates that you want to delete and click the Delete Template icon on the toolbar. The Delete Template pop-up windowis displayed. You can view the details of the templates and their versions. The state of the template and the date when the template was last modified are displayed.
3. Select the versions of the templates that you want to delete and click Delete. The versions of the templates that are either assigned or deployed to the devices are not available for selection. The selected versions of the templates are deleted. You are redirected to the Templates page.
NOTE: If you delete a device template that is scheduled to be deployed or assigned to the devices, the scheduled job fails.
RELATED DOCUMENTATION Creating a Device Template | 493 Modifying a Device Template | 501 Comparing a Device Template Configuration with a Device Configuration | 526
4 PART
CLI Configlets
Overview | 533 CLI Configlets | 547 Configuration Views | 580 XPath and Regular Expressions | 599 Configuration Filters | 604
533
CHAPTER 30
Overview
IN THIS CHAPTER CLI Configlets Overview | 533 CLI Configlets Workflow | 536 Configlet Context | 540 Nesting Parameters | 545
CLI Configlets Overview
IN THIS SECTION Configlet Variables | 534 Velocity Templates | 535 Directives | 535
CLI Configlets are configuration tools provided by Junos OS that enable you to easily apply a configuration to a device. CLI Configlets contain the Junos OS configuration as formatted ASCII text. Junos Space uses the NETCONF protocol to load and commit the configuration on to devices. A CLI Configlet is a configuration template that is transformed into a CLI configuration string before being applied to a device. The dynamic elements (strings) in the configuration template are defined using template variables. These variables act as input to the process of transformation to construct a CLI configuration string. These variables can contain the interface name, device name, description text, or any such dynamic values. The value of these variables are obtained from the user or system or given by the context at the time of execution. Velocity templates (VTL) are used to define CLI Configlets. You can access the CLI Configlets workspace by selecting CLI Configlets from the left pane. From the CLI Configlets workspace, you can perform the following tasks:
534
· View the details and statistics of CLI Configlets in Junos Space Network Management Platform. · Create, modify, clone, or delete a CLI Configlet. · Apply a CLI Configlet to the devices or submit the configuration changes from a CLI Configlet to the
change requests that are deployed using the Review/Deploy Configuration workflow from the Devices workspace. Configuration changes for CLI Configlets created for grouped execution are displayed as change requests for the devices to which the CLI Configlets are submitted. · Mark and unmark CLI Configlets as favorites. · Export CLI Configlets from Junos Space Platform. · Import CLI Configlets from a local computer in the XML format. Starting with Junos Space Network Management Platform Release 15.2R1, you can also import CLI Configlets from a local computer in the TAR (containing XML files) format and from an external Git repository. For more information about Git repository management on Junos Space Platform, see "Git Repositories in Junos Space Overview" on page 1477.
You can also apply CLI Configlets to devices from the Devices workspace. It can be triggered from the actual elements for which the configuration has to be applied. The context of the element for which the CLI Configlet is being applied is called an execution context.
NOTE: CLI Configlets are not supported on SSG Series devices, NetScreen Series devices, TCA Series devices, BXOS Series devices, and Junos Content Encore devices.
Configlet Variables
Variables in CLI Configlets include a leading "$"character. CLI Configlets use three kinds of variables: default, user-defined, and predefined.
Default Variables The value of these variables need not be input by the user; these values are derived from the current execution context. Table 54 lists the default variables.
Table 54: Default Variables
Variable
Value
$DEVICE
Name of the host on which the CLI Configlet is applied
$INTERFACE
Name of the interface for which the CLI Configlet is applied
$UNIT
Unit number of the logical interface for which the CLI Configlet is being applied
535
Table 54: Default Variables (continued)
Variable
Value
$CONTEXT
Context of the element for which the CLI Configlet is applied
User-Defined Variables The values for these variables are entered by the user at execution time. Text fields or selection fields are used to obtain data from the user.
Predefined Variables These are the variables for which the values are predefined when you create the CLI Configlet. These variables are also called invisible parameters because they cannot be modified by the user.
Velocity Templates
Junos Space Network Management Platform enables you to define the device configuration in the form of velocity templates (VTL). These templates are called CLI Configlets. The VTL variable is a reference type, which includes the leading "$" character, followed by a VTL Identifier. CLI Configlets are transformed into a CLI configuration string before they are applied to the device. This transformation is directed by references and directives of VTL.
References are used to embed dynamic contents in the configuration text. Directives allow dynamic manipulation of the contents.
Refer to http://velocity.apache.org/engine/1.7/user-guide.html for detailed information about VTL.
Directives
Directives include an included CLI Configlet's contents and parameters in the base CLI Configlet and import the metadata information related to the parameters of the included CLI Configlet. You can include CLI Configlets in Junos Space Network Management Platform by using two directives: #include_configlet and #mixin directives.
#include_configlet This directive includes an included CLI Configlet's contents and parameters in the base CLI Configlet and imports the metadata information related to the parameters of the included CLI Configlet. If you define a new parameter in the base CLI Configlet by using the #include_configlet directive, the metadata information is fetched and used from the included CLI Configlets. The parameter values updated in the included CLI Configlet after their inclusion into the base CLI Configlet are not updated and available for the base CLI Configlet. If both the base CLI Configlet and included CLI Configlet contain parameters with a common name, the metadata information related to the parameters is ignored.
#mixin This directive differentiates the parameters of the base CLI Configlet from the parameters of the included CLI Configlet on the Junos Space user interface. The parameter values for the included CLI
536
Configlets can be modified even when you apply the CLI Configlet to the device. You cannot include CLI Configlets that have a period (.) or space in its name.
You include these directives in the base CLI Configlet in the following format:
· #include_configlet("<name of the included configlet>") · #mixin("<name of the included configlet>")
Release History Table
Release
Description
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can also import CLI Configlets from a local computer in the TAR (containing XML files) format and from an external Git repository.
RELATED DOCUMENTATION
CLI Configlets Workflow | 536 Creating a CLI Configlet | 547 Modifying a CLI Configlet | 551 Viewing CLI Configlet Statistics | 551
CLI Configlets Workflow
A CLI Configlet can be defined from the CLI Configlets workspace. Table 55 lists the parameters to be defined for a CLI Configlet.
Table 55: Parameters for a CLI Configlet
Parameter
Description
Name
Name of the CLI Configlet. The name cannot exceed 255 characters. Allowable characters include the hyphen (-), underscore (_), letters, and numbers and the period (.). You cannot have two configlets with the same name.
Category
Category of the CLI Configlet. The category cannot exceed 255 characters. Allowable characters include the hyphen (-), underscore (_), letters, and numbers and the period (.).
537
Table 55: Parameters for a CLI Configlet (continued)
Parameter
Description
Device Family Series
Device family series for which the CLI Configlet is applicable.
Context
Context for which the CLI Configlet is applicable. This is an optional field.
Description
Description of the CLI Configlet. The description cannot exceed 2500 characters. This is an optional field.
Preview options
Selecting the Show Parameters option displays the parameters that are present in the CLI Configlet. The Show Configuration option displays the consolidated configuration before the CLI Configlet is applied.
Post-view options
Selecting the Show Parameters option displays the parameters that are present in the CLI Configlet. The Show Configuration option displays the consolidated configuration after the CLI Configlet is applied.
Configlet Content Reference Number
The actual CLI Configlet is defined here. The CLI Configlet can contain multiple pages and follows a tablike structure. The configuration being applied onto the device can be split among multiple pages. When the configuration is applied, all the pages are combined in order of the page numbers and applied onto the device in a single commit operation. You must always validate the CLI Configlet before moving to the next page.
The range of values are from 1 to 216.
NOTE: You cannot move to the next page if the contents of the CLI Configlet are invalid. Validation includes bracket matching.
Parameters are variables defined in the CLI Configlet whose values are either retrieved from the environment or entered by the user during execution. When the user applies CLI Configlets, the user is asked to input values for all variables defined in the CLI Configlet.
To configure a parameter, click the modify icon on the toolbar. The Edit Configlet Parameter page is displayed. Use this page to set the attributes of a parameter.
To add an additional parameter, click the add icon on the toolbar. The Add Configlet Parameter page is displayed. The attributes of a parameter are set from this page.
538
To delete a parameter, click the delete icon on the toolbar. By default, all variables present in the CLI Configlet are listed on the Parameters page. Local variables must be deleted manually or set to the "Invisible" type.
Table 56 lists the attributes of the CLI Configlet parameters.
Table 56: Attributes of CLI Configlet Parameters
CLI Configlet Parameter Attributes
Description
Parameter
Name of the parameter
If displayed with a name space in the <configlet name>.<parameter.name> format, this parameter belongs to the included CLI Configlet.
Display Name
Display name of the parameter
Description
Description of the parameter
Types
The types of parameters supported are:
· Text field You can provide a custom value when executing the CLI Configlet. The default value for this field can be configured with an XPath in the Configured Value Xpath field or with a plain string in the Default Value field. This returns a single value.
· Selection field You can select a value from a set of options when executing this CLI Configlet. The default value for this field can be configured with an XPath in the Configured Value Xpath field or with a plain string in the Default Value field. The options can be configured by an XPath in the Selection Values Xpath field, or by using a CSV string in the Selection Values field. This returns a single value.
NOTE: Though this returns a single value, the return value is of the array type and the selected value can be taken from index 0.
· Invisible field You cannot edit this field. This parameter refers to values defined explicitly as a CSV string in the Default Value field or by an XPath in the Configured Value Xpath field. This field returns an array of values.
· Password field You need to enter a value when you apply a CLI Configlet containing the parameter. This hides sensitive information in the Apply CLI Configlet job results.
· Password Confirm field You need to enter a value twice when you apply a CLI Configlet containing the parameter. This hides sensitive information in the Apply CLI Configlet job results.
539
Table 56: Attributes of CLI Configlet Parameters (continued)
CLI Configlet Parameter Attributes
Description
Configured Value XPath
This field is used to give the XPath of the configured values. The behavior of this field depends on the type of parameter. When the parameter type is a text field or selection field, the corresponding value present in the XPath is taken as the default value. This value can be modified. If the XPath returns multiple values, the first value returned is considered. When the parameter type is an invisible field, the list of values returned by the XPath is taken as the value of the parameter.
Invisible field has configured value XPath and selection value XPath only when the parameter scope is either device specific or entity specific. This is disabled if the scope is global.
NOTE: When using $INTERFACE, $UNIT, Configured Value Xpath field, Invisible field, and Selection field, the variable definition in the Configlet Editor should contain .get(0) in order to fetch the value from the array. For example, $INTERFACE.get(0).
Default Value
Displays the same behavior as the Configured Value Xpath field except that the value is given explicitly. This field is considered only when configured value XPath is not specified or if the XPath does not return any value.
Selection Values XPath
This field is enabled only if the parameter type is a Selection field. This field contains the XPath (with reference to the device XML) to fetch the set of values for the Selection field.
Selection Values
This field is the same as the Selection Values XPath field except that the value is given explicitly. This field is considered only when selection values XPath is not specified or if the XPath does not return any value.
NOTE: Comma-separated values can be used to provide an array of values in the Default Value and Selection Values fields.
NOTE: While defining the XPath, you must directly access the text node with the text () function. Otherwise the complete XML path of the node is returned. For example, /device/interface-information/physical-interface/name/text() to fetch the names of all interfaces.
Order
Order of the parameter. This is the relative order in which the field must be displayed for user input at the time of execution.
540
Table 56: Attributes of CLI Configlet Parameters (continued)
CLI Configlet Parameter Attributes
Description
Regex Value
This field contains regular expression for the parameter that is used to validate the parameter value while you apply the CLI Configlet to the device.
Read-only
Whether the parameter belongs to the base configlet or the included configlet:
· false This parameter belongs to the base configlet. · true This parameter belongs to the included configlet. The
parameter cannot be modified or deleted from this configlet.
RELATED DOCUMENTATION CLI Configlets Overview | 533 Creating a CLI Configlet | 547 Viewing CLI Configlet Statistics | 551
Configlet Context
Execution of scripts and CLI configlets may be required in some case. For example, one might need to restrict the scope of execution of 'disable interface' script to just the interfaces that are enabled. Having a context associated to the script or configlet solves this problem of restricting the scope. Context of an element is basically a unique path which leads to its XML counterpart in the device XML. For all context related computations, we consolidate the XMLs fetched form the device under one node called device. This includes configuration XML, interface-information XML, chassis-inventory XML, and system-information XML. An example of a device XML is as follows:
<device> <interface-information>.....</interface-information> <system-information>.....</system-information> <chassis-inventory>.....</chassis-inventory> <configuration>....</configuration>
541
.... </device>
Table 57 shows the commands to view the XML from the CLI of the device.
Table 57: Commands to View XML from the CLI
XML type
Command
Chassis Inventory
> show chassis hardware | display xml
Interface Information
> show interfaces | display xml
Configuration
> show configuration | display xml
System Information
-
NOTE: The command for system information XML is not available. An instance of the system information XML is as follows:
<system-information> <hardware-model>ex4200-24t</hardware-model> <os-name>junos-ex</os-name> <os-version>11.3R2.4</os-version> <serial-number>ABCDE12345</serial-number> <host-name>ex-device1</host-name> <virtual-chassis/> </system-information>
Context of an Element
There is a need to have the ability to restrict a script or configlet execution to certain elements of interest. For example, one might need to restrict the scope of execution of 'disable interface' script only to the interfaces that are enabled. Having a context associated with the script or configlet solves this scoping problem.
The context of an element is the XPath that maps to the XML node that represents the element in the device XML. Table 58 lists the type of element, XML referred, and the content path.
542
Table 58: Context Path and XML node referred for different element types
Element Type
XML Referred
Context Path
Device
N/A
/device
Physical Inventory element
Chassis Inventory
/device/chassis-inventory/*
Physical Interface
Interface Information
/device/interface-information/*
Logical Interface
Configuration
/device/configuration/*
Table 59 lists some examples for XPaths for different elements. Table 59: XPaths for different elements
Element Context
Description
Device
/device
The context of a device
Chassis /device/chassis-inventory/chassis[name='Chassis']
Context of a chassis
Routing Engine
/device/chassis-inventory/chassis[name='Chassis']/chassis-module[name='Routing The context of a
Engine 0']
routing engine
FPC
/device/chassis-inventory/chassis[name='Chassis']/chassis-module[name='FPC 1'] The context of an
FPC in slot 1
PIC
/device/chassis-inventory/chassis[name='Chassis']/chassis-module[name='FPC
The context of a
1']/chassis-sub-module[name='PIC 4']
PIC in slot 4
under FPC in slot
1
Logical
device/configuration/interfaces/interface[name='ge-0/0/1]/unit[name='0']
Interfaces
The context of logical interface ge-0/0/1.0
Physical /device/interface-information/physical-interface[name='ge-0/1/1] Interfaces
The context of a physical interface ge-0/1/1
543
Context filtering
The context attribute of the script or configlet dictates which elements(inventory component or logical interface or physical interface) it is applicable to.
The rule to check whether the script or configlet is applicable to an element is as follows:
· Evaluate the context XPath associated to a script or configlet on the device XML. This results in a set of XML nodes.
· If the resultant XML node list contains the XML node representing the subject element, then the script/template entity is considered a match.
Given below are few examples of script or configlet contexts with their descriptions:
· /device/chassis-inventory/chassis[name='Chassis']/chassis-module[starts-with(name,'Routing Engine')] - Applicable to all routing engines
· /device/chassis-inventory/chassis[name='Chassis']/chassis-module[starts-with(name,'FPC')] - Applicable to all FPCs
· /device[starts-with(system-information/os-version,"11")]/interface-information/ physical-interface[starts-with(name,"ge")] - Applicable to all interfaces of type 'ge' which has system os-version as 11
· /device/interface-information/physical-interface[admin-status="up"] - Applicable to all physical interfaces with admin status in up state.
· /device/chassis-inventory/chassis[name='Chassis']/chassis-module [starts-with(name,'FPC')]/chassis-sub-module[starts-with(name,'PIC')] | / device/chassis-inventory/chassis[name='Chassis']/chassis-module [starts-with(name,'FPC')]/chassis-sub-module[starts-with(name,'MIC')] /chassis-sub-sub-module[starts-with(name,'PIC')] - Applicable to all PICs
NOTE: If we intend to specify the scope of a script as PICs, then we would have to consider two different XPaths the PIC can take (One with MIC in-between and one without). We have to give an OR combination of both the XPaths.
544
NOTE: · If no context is associated to a script or configlet, then the context of the script is taken as
/device. These scripts or configlets would be listed for execution in devices. · You can execute CLI Configlets on more than 200 devices only if the CLI Configlets do not
require XPath processing. CLI Configlets that do not require XPath processing include CLI Configlets without device-specific or entity-specific parameters and with /, //, or /device as context.
Physical Interface Example
Consider the following device XML
<device> <interface-information> <physical-interface> <name>ge-0/0/0</name> <admin-status>up</admin-status> .... </physical-interface> <physical-interface> <name>ge-0/0/1</name> <admin-status>down</admin-status> .... </physical-interface> ..... </interface-information> .... <!-- ALL THE OTHER NODES --> ....
</device>
Context of an element
Context of physical-interface ge-0/0/0 is /device/interface-information/physical-interface[name='ge-0/0/0']
This XPath maps to the node below. This is the XML counterpart of the interface ge-0/0/0
<physical-interface> <name>ge-0/0/0</name> <admin-status>up</admin-status> ....
545
</physical-interface>
Physical Interface in "up" state: If the user wants to write a configlet to set the admin status of an interface down if its up, the context of the script can be set as /device/interface-information/physical-interface[admin-status='up'] This configlet will be enabled only for interfaces with admin status up. Since in our example, ge-0/0/0 satisfies the above condition, this configlet can be executed on it.
RELATED DOCUMENTATION CLI Configlets Overview | 533 CLI Configlets Workflow | 536 Creating a CLI Configlet | 547
Nesting Parameters
You can use XPath context to define the default option or selectable options of a parameter. This XPath could have dependencies on other parameters. Consider the example below A configlet requires two inputs, a Physical Interface (Input-1) and a Logical Interface (Input-2) that is a part of the selected Physical Interface(Input-1). We define a parameter PHYINT to get the name of the physical interface and a parameter LOGINT to get the name of the logical interface. We define the SELECTIONVALUESXPATH for PHYINT as "/device/interface-information/physical-interface/name/text()". User selects a value from the options listed by the XPath. Since the selection values listed for LOGINT parameter is dependent on the value selected for PHYINT, we can define the SELECTIONVALUESXPATH of LOGINT as "/device/configuration/interfaces/interface[name='$PHYINT']/unit/name/text()". This ensures that, only the logical interfaces of the selected physical interface are listed. A configlet could refer another configlet present in Junos Space Network Management Platform using the following statement:
#include_configlet("<CONFIGLET-NAME>")
Junos Space Network Management Platform would merge the referred configlets inline. Create a configlet named 'SayHello'
546
#set( $person = "Bob" ) Hello $person Create another configlet named 'Greeting' This is a greeting example #include_configlet("SayHello") When the confilget 'Greeting' gets evaluated, it generates the following string. This is a greeting example Hello Bob
RELATED DOCUMENTATION CLI Configlets Overview | 533 Configlet Context | 540 Creating a CLI Configlet | 547
547
CHAPTER 31
CLI Configlets
IN THIS CHAPTER Creating a CLI Configlet | 547 Modifying a CLI Configlet | 551 Viewing CLI Configlet Statistics | 551 Viewing a CLI Configlet | 552 Exporting CLI Configlets | 555 CLI Configlet Examples | 556 Deleting CLI configlets | 564 Cloning a CLI Configlet | 565 Importing CLI Configlets | 566 Applying a CLI Configlet to Devices | 572 Comparing CLI Configet Versions | 576 Marking and Unmarking CLI Configlets as Favorite | 577
Creating a CLI Configlet
You create a CLI Configlet to push a configuration to devices. You can also add parameters to a CLI Configlet. Parameters are the variables defined in the CLI Configlet whose values are either obtained from the environment or given by the user during execution. To create a CLI Configlet: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page is displayed.
2. Click the Create CLI Configlet icon on the toolbar. The Create CLI Configlet page is displayed.
3. In the Name field, enter a name for the CLI Configlet.
548
The name cannot exceed 255 characters. Allowable characters include the hyphen (-), underscore (_), letters, numbers, and the period (.). You cannot have two CLI Configlets with the same name.
4. In the Category field, enter a name for the category of the CLI Configlet. The name of the category cannot exceed 255 characters. Allowable characters include the hyphen (-), underscore (_), letters, numbers, and the period (.).
5. From the Device Family Series drop-down list, select the device family for the CLI Configlet.
6. (Optional) From the Context drop-down list, select the appropriate context for the CLI Configlet.
7. In the Reference Number field, enter a reference number for the CLI Configlet. The range is 1 through 2161.
8. (Optional) In the Description field, enter a description. The description cannot exceed 2500 characters.
9. For Execution Type, select the type of execution. The option buttons available are Single Execution and Grouped Execution. By default, the Single Execution option button is selected. · If you select Single Execution, you can apply the CLI Configlet only to one device at a time. · If you select Grouped Execution, you can apply the CLI Configlet to multiple devices at a time.
10. For Preview options, select the check boxes if you want to view the parameters and the configuration in the CLI Configlet before applying the configuration to devices. The check boxes available are Show Parameters and Show Configuration. By default, both check boxes are selected.
11. For Postview options, select the check boxes if you want to view the parameters and the configuration in the CLI Configlet in the Apply CLI Configlet job results. The check boxes available are Show Parameters and Show Configuration. By default, both check boxes are selected.
12. In the Configlet Editor area, enter the configuration for the CLI Configlet. You can type or manually paste the configuration in the Configlet Editor.
549
NOTE: You cannot create a CLI Configlet if you do not enter the configuration in the Configlet Editor.
NOTE: You can also create a CLI Configlet to erase specific configuration from the devices. To do so, include the delete: statement above the hierarchy level that should be deleted from the devices. When you apply the CLI Configlet to a device, the physical interface of a device, the logical interface of a device, or the physical inventory element of a device, the configuration at the hierarchy level is erased from the device. For more information about the protocol and syntax used for creating, modifying, and deleting the configuration by using CLI Configlets, see the Junos XML Management Protocol Guide.
NOTE: When you define a configuration of the CLI Configlet, you should specify variables that accept special characters as input within double quotation marks.
13. Click Next. You can add the parameters for the CLI Configlet on this page.
14. To add a parameter to the CLI Configlet: a. Click the Add Parameter icon. The Add Configlet Parameter pop-up window is displayed. b. In the Parameter field, enter the name of the parameter. The name of the parameter cannot exceed 255 characters. Allowable characters include the hyphen (-), underscore (_), letters, numbers, and the period (.). c. In the Display Name field, enter a display name for the parameter. The display name cannot exceed 255 characters. Allowable characters include the hyphen (-), underscore (_), letters, numbers, and the period (.). d. In the Description field, enter a description for the parameter. e. From the Parameter Scope drop-down list, select an appropriate scope for the parameter. The options available are Global, Device Specific, and Entity Specific. f. From the Parameter Type drop-down list, select an appropriate type of parameter. The options available are:
550
· Text Field You can enter any value. · Selection Field You can select a value from a set of options. · Invisible Field The field displays a value that is explicitly defined by the user or an XPath. · Password Field Enter a password to apply the CLI Configlet. · Password Confirm Field Enter the password again to confirm the password. g. From the Regex Value drop-down list, select an appropriate regular expression value. This field is enabled if you choose the type of parameter as Text Field, Password Field, or Confirm Password Field. h. From the Configured Value Xpath drop-down list, select an appropriate XPath value. This field is enabled if you choose the type of parameter as Text Field, Selection Field, or Invisible Field. This is the XPath (with reference to the device XML) to fetch the set of values. i. In the Default Value field, enter a default value. This field is enabled if you choose the type of parameter as Text Field, Selection Field, or Invisible Field. This field is considered only when the XPath is not specified. j. From the Selection Values Xpath drop-down list, select an appropriate XPath value. This field is enabled if you choose the type of parameter as Selection Field. This is the XPath (with reference to the device XML) to fetch the set of values. k. In the Selection Values field, enter an appropriate selection value. This field is enabled if you choose the type of parameter as Selection Field. l. In the Order field, enter the order in which the parameters should be listed while applying the CLI Configlet. m. Click Add. 15. (Optional) Add multiple parameters.
16. (Optional) To go back to the previous page, click Back. You are redirected to the previous page.
17. Click Create. The CLI Configlet is created. You are redirected to the Configlets page.
RELATED DOCUMENTATION CLI Configlets Overview | 533
551
Applying a CLI Configlet to Devices | 572 Exporting CLI Configlets | 555 Viewing a CLI Configlet | 552
Modifying a CLI Configlet
You modify a CLI configlet when you want to change the properties of the CLI configlet. To modify a CLI configlet: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page is displayed. 2. Select the CLI configlet you want to modify and select the Modify CLI configlet icon on the Actions
menu. The Modify CLI configlet page is displayed. 3. Modify the CLI configlet properties and click Update. The CLI configlet is modified.
RELATED DOCUMENTATION CLI Configlets Overview | 533 Creating a CLI Configlet | 547 Exporting CLI Configlets | 555 Importing CLI Configlets | 566
Viewing CLI Configlet Statistics
You can view the statistics about the CLI configlets from the CLI Configlets workspace. The CLI Configlets landing page displays the CLI Configlet Count by Device Family bar chart. The bar chart shows the number of CLI Configlets on the y axis and device family series on the x axis. To view the statistics of CLI configlets: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets.
552
The CLI Configlets landing page is displayed. This page displays the charts related to CLI configlets and configuration views.
2. Click a specific label on a chart. You will be redirected to the Configlets page that is filtered based on the label you clicked. To save the bar chart as an image or to print for presentations or reporting, right-click the bar chart and use the menu to save or print the image.
RELATED DOCUMENTATION
CLI Configlets Overview | 533 Creating a CLI Configlet | 547 Exporting CLI Configlets | 555
Viewing a CLI Configlet
CLI Configlets are created to modify the configuration on devices. You can view the details of a CLI Configlet on the Configlets page and when you select a CLI Configlet to view the details of a CLI Configlet.
To view the details of a CLI Configlet: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page is displayed.
2. Right-click a CLI Configlet and select View CLI Configlet Details or double-click a CLI Configlet.
The View CLI Configlet dialog box is displayed. This dialog box displays additional information that is not displayed on the Configlets page.
Table 60 lists the columns displayed on the Configlets page and the fields in the View CLI Configlet dialog box. Table 60: CLI Configlet Details
Field or Column
Description
Location
Name
Name of the CLI Configlet
Configlets page View CLI Configlet dialog box
Domain
Domain to which the CLI Configlet is assigned
Configlets page
553
Table 60: CLI Configlet Details (continued)
Field or Column
Description
Location
Category
Category of the CLI Configlet
Configlets page View CLI Configlet dialog box
Device Family Series
Device family series for which the CLI Configlet is Configlets page
applicable
View CLI Configlet dialog box
Latest Version
Latest version of the CLI Configlet
Configlets page
Git Version
Commit ID of the CLI Configlet in the Git repository when the CLI Configlet was last imported to Junos Space Platform from the Git snapshot.
Configlets page
N/A is displayed if the CLI Configlet was created and modified in Junos Space Platform.
A Warning icon is displayed if the CLI Configlet was modified in Junos Space Platform after being imported from the Git snapshot.
Git Branch
Git branch from which the CLI Configlet was last Configlets page imported
N/A is displayed if the CLI Configlet was created and modified in Junos Space Platform.
Description
Description of the CLI Configlet
Configlets page View CLI Configlet dialog box
Execution Type
Whether the CLI Configlet can be applied to one device or multiple devices: Single or Grouped
Configlets page View CLI Configlet dialog box
Creation Time
Date and time when the CLI Configlet was created Configlets page
Last Updated Time
Date and time when the CLI Configlet was last modified
Configlets page
Displayed as Updated Time in the View CLI Configlet dialog box
554
Table 60: CLI Configlet Details (continued)
Field or Column
Description
Location
Last Modified By
Username of the user who last modified the CLI Configlet
Configlets page
Displayed as Modified By in the View CLI Configlet dialog box
Reference Number
Reference number assigned to the CLI Configlet
Configlets page View CLI Configlet dialog box
Context
Context for which the CLI Configlet is applicable View CLI Configlet dialog box
Preview Show Parameters
Whether to view the parameters of the CLI Configlet before applying the CLI Configlet: Enabled or Disabled
View CLI Configlet dialog box
Preview Show Configuration
Whether to view the configuration in the CLI Configlet before applying the CLI Configlet: Enabled or Disabled
View CLI Configlet dialog box
Postview Show Parameters
Whether to view the parameters of the CLI Configlet after applying the CLI Configlet: Enabled or Disabled
View CLI Configlet dialog box
Postview Show Configuration
Whether to view the configuration in the CLI Configlet after applying the CLI Configlet: Enabled or Disabled
View CLI Configlet dialog box
Configlet Content
Contents of in the CLI Configlet
View CLI Configlet dialog box
3. (Optional) To view the contents of a specific version of a CLI Configlet, select the version from the Configlet Version drop-down list. The contents of the selected version of the CLI Configlet are displayed in the Configlet Content field.
4. Click Close to close the View CLI Configlet dialog box.
RELATED DOCUMENTATION CLI Configlets Overview | 533
555
Creating a CLI Configlet | 547 Applying a CLI Configlet to Devices | 572
Exporting CLI Configlets
You export the CLI configlets when you want to download a copy of the CLI configlets to your local computer. To export CLI configlets: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page is displayed.
2. You can select and export specific CLI configlets or export all configlets on the Configlets page. · To export specific CLI configlets: a. Select the CLI configlets and select Export Selected CLI Configlets from the Actions menu. The Export CLI Configlets pop-up window is displayed. b. Click Export and save the file on your local computer. · To export all CLI configlets: a. Select Export All CLI Configlets from the Actions menu The Export CLI Configlets pop-up window is displayed. b. Click Export and save the file on your local computer. The CLI configlets are exported.
RELATED DOCUMENTATION CLI Configlets Overview | 533 Creating a CLI Configlet | 547
556
CLI Configlet Examples
Default Configlets are added during server start up or data migration. These default configlets are added only on the initial server start up and during data migration. The user can perform all the usual operations on the default Xpath and Regex, including delete operation.
Adding default configlets during migration has the following conditions:
· 13.1 to 13.3: · Default Configlets are added if an entity with the same name does not exist in 13.1. · Default Configlets are over written if an entity with the same name exists in 13.1.
· 13.3 to later releases: · Default Configlets are not added or overwritten, if the default Configlet is modified or deleted by the user in 13.3.
Example 1: Setting the description of a physical interface Context: /device/interface-information/physical-interface This configlet is targeted for physical interface. Configlet
interfaces { $INTERFACE{ description "$DESC"; }
}
Parameters
Parameter
Details
$INTERFACE
This is a default variable and the value would be the name of the interface which the configlet is invoked from. This would be null if the configlet is invoked from CLI Configlets workspace as the execution is not associated to a specific interface.
$DESC
A text field to get the description string. The value is got at the time of execution.
On applying the CLI Configlet, the user needs to input the parameters. For our example, user needs to input a value for $DESC.
557
Consider our example being applied to an interface ge-0/1/3 and the following values are given as input.
Parameter
Value
$DESC
TEST DESC
The generated configuration string would be
interfaces { ge-0/1/3{ description "TEST DESC"; }
}
Example 2: Setting the vlan of a logical interface, where the vlan id is chosen from a predefined set of values
Context: /device/configuration/interfaces/interface/unit This CLI Configlet is targeted for logical interface CLI Configlet
interfaces { $INTERFACE { vlan-tagging; unit $UNIT{ vlan-id $VLANID.get(0); } }
}
##Since VLAN id will be given as a selection field, the value would be a collection and to get the first selected value, use .get(0)
Parameter
Details
$INTERFACE
This is a default variable and the value would be the name of the interface which the CLI Configlet is invoked from. This would be null if the CLI Configlet is invoked from CLI Configlets workspace as the execution is not associated to a specific interface.
$UNIT
This is a default variable and the value would be the unit name of the logical interface which the CLI Configlet is invoked from. This would be null if the CLI Configlet is invoked from CLI Configlets workspace as the execution is not associated to a specific logical interface.
558
Parameter $VLANID
Details This is a selection field and the value would be chosen at the time of execution. Type: Selection Field Selection Values: 0,1,2,3 Default Value: 3
On applying the CLI Configlet, the user needs to input the parameters. For our example, user needs to input a value for $VLANID.
Consider our example being applied to an interface ge-0/1/3.3 and the following values are given as input.
NOTE: Since $VLANID is defined as a selection field, the user has to select one value form a list. The list of options are either specified by Selection Values Xpath or in Selection Values field. The default selection in the list would be 3 as defined in the default value field.
Parameter
$VLANID
The generated configuration string would be
interfaces { ge-0/1/3 { vlan-tagging; unit 3{ vlan-id 2; } }
}
Value 2
Example 3: Setting a description on all the interfaces of a device Context: NULL or /device. Targeted to a device, the context of a device can either be null or /device CLI Configlet
interfaces {
559
#foreach($INTERFACENAME in $INTERFACENAMES) $INTERFACENAME {
description "$DESC"; } #end }
Parameter $INTERFACENAMES
$DESC
Details
An invisible variable with an XPath configured to fetch all the interface names. Configured values XPath: /device/interface-information/physical-interface/name/text()
A text field to get the description string. The value is got at the time of execution.
The following input is given while executing the CLI Configlet
Parameter
Value
$DESC
TEST DESC
The generated configuration string would be (when the device has three physical interfaces, ge-0/0/0, ge-0/0/1 and ge-0/0/2).
interfaces { ge-0/0/0 { description "TEST DESC"; } ge-0/0/1 { description "TEST DESC"; } ge-0/0/2 { description "TEST DESC"; }
}
560
Example 4: Setting a configuration in all the PICs belonging to a device and certain configuration only on the first PIC of FPC 0
Context: NULL or /device. Targeted to a device, the context of a device can either be null or /device
##$ELEMENTS : /device/chassis-inventory/chassis/chassis-module[starts-with(name,"FPC")]
/name/text() | /device/chassis-inventory/chassis/chassis-module
[starts-with(name,"FPC")]/chassis-sub-module[starts-with(name,"PIC")]/name/text()
##this will contain the list of all FPCs and PICs in Depth-first traversal order.
##Hierarchy array is a 2 dimensional array used to store FPC-PIC hierarchy, with each row containing PICs belonging to a single FPC. The first element is the FPC.
CLI Configlet
#set( $HIERARCHY = [] ) #set( $LOCALARRAY = []) #foreach ( $ELEMENT in $ELEMENTS ) #if($ELEMENT.startsWith("FPC")) ## Create a new array for each FPC with the first element as FPC #set( $LOCALARRAY = [$ELEMENT]) #set( $result = $HIERARCHY.add($LOCALARRAY)) #elseif($ELEMENT.startsWith("PIC")) ## Add the PIC in the current Local array., This is the array of the parent FPC #set( $result = $LOCALARRAY.add($ELEMENT)) #end #end
chassis { redundancy { failover on-disk-failure; graceful-switchover; } aggregated-devices { ethernet { device-count 16; } }
#foreach ($HIERARCHYELEMENT in $HIERARCHY ) $HIERARCHYELEMENT.get(0) { #set($HIERARCHYELEMENTSIZE = $HIERARCHYELEMENT.size() - 1) #foreach ($HIERARCHYELEMENTINDEX in [1..$HIERARCHYELEMENTSIZE] ) $HIERARCHYELEMENT.get($HIERARCHYELEMENTINDEX){
561
## Set the tunnel services setting for the first PIC in FPC 0 #if($HIERARCHYELEMENTINDEX == 1 && $HIERARCHYELEMENT.get(0) == "FPC 0") tunnel-services {
bandwidth 1g; } #end traffic-manager {
ingress-shaping-overhead 0; egress-shaping-overhead 0; mode ingress-and-egress; } } #end } #end }
Parameters Parameter $ELEMENTS
Details
This is an invisible field and the value cannot be set by the user at the time of execution. The values are taken form a predefined XPath Type: Invisible field Configured Value XPath: /device/chassis-inventory/chassis/chassis-module[starts-with(name,"FPC")] /name/text()/device/chassis-inventory/chassis/chassis-module[starts-with (name,"FPC")]/chassis-sub-module[starts-with(name,"PIC")]/name/text() This XPath returns the list of FPCs and PIC is Depth First Traversal order.
While executing this CLI Configlet, the XPath of $ELEMENTS param will return the list of FPCs and PIC present in the device. The values for instance would be [FPC 0,PIC 0,PIC 1, FPC 1, PIC 0, PIC 1] This order implies the association
FPC 0
PIC 0
PIC 1
FPC 1
562
PIC 0
PIC 1
When the CLI Configlet is executed, we get the following configuration string
chassis { redundancy { failover on-disk-failure; graceful-switchover; } aggregated-devices { ethernet { device-count 16; } } fpc 1 { pic 0 { tunnel-services { bandwidth 1g; } traffic-manager { ingress-shaping-overhead 0; egress-shaping-overhead 0; mode ingress-and-egress; } } pic 1 { traffic-manager { ingress-shaping-overhead 0; egress-shaping-overhead 0; mode ingress-and-egress; } } } fpc 2 { pic 0 { traffic-manager { ingress-shaping-overhead 0; egress-shaping-overhead 0; mode ingress-and-egress; } } pic 1 { traffic-manager {
563
ingress-shaping-overhead 0; egress-shaping-overhead 0; mode ingress-and-egress; } } } }
Example 5: Halting the description of a physical interface
Context: /device/interface-information/physical-interface This CLI Configlet is targeted for physical interface CLI Configlet
interfaces { #if( $INTERFACENAME == 'ge-0/0/0') #terminate('Should not change description for ge-0/0/0 interfaces.') #{else} $INTERFACENAME { unit 0 { description "Similar desc"; family ethernet-switching; } } #end
}
Parameter $INTERFACENAME
Details
A variable with an XPath configured to fetch all the interface names. Configured Value XPath: //device/interface-information/physical-interface/name/text()
NOTE: When using $INTERFACE, $UNIT, Configured Value Xpath, Invisible Params, Selection fields; the variable definition in the configlet editor should contain .get(0) in orderinorder to fetch the value from the array. Eg: $INTERFACE.get(0)
564
Example 6: Deleting configuration from a physical interface Context: /device/interface-information/physical-interface This CLI Configlet can be used to delete the configuration enabled on the physical interface to support IEEE 802.3ah link fault management. CLI Configlet
protocols { oam { ethernet { link-fault-management { delete: interfaces ge-0/0/0; } } }
}
NOTE: Ensure that you insert the delete: statement at the proper hierarchy level to avoid necessary configuration being deleted from the device.
RELATED DOCUMENTATION CLI Configlets Overview | 533 Creating a CLI Configlet | 547 Modifying a CLI Configlet | 551 Viewing CLI Configlet Statistics | 551
Deleting CLI configlets
You delete CLI configlets when you no longer want to use them to apply configuration to devices. To delete CLI configlets: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page is displayed.
565
2. Select the CLI configlets you want to delete and select the Delete CLI Configlets icon from the Actions menu. The Delete CLI Configlet pop-up window is displayed.
3. Click Confirm. The CLI configlets are deleted.
RELATED DOCUMENTATION CLI Configlets Overview | 533 Creating a CLI Configlet | 547 Exporting CLI Configlets | 555
Cloning a CLI Configlet
You clone a CLI configlet when you want to create a copy of an existing CLI configlet. To clone a CLI configlet: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page is displayed. 2. Select the CLI configlet you want to clone and select Clone CLI Configlet from the Actions menu.
The Clone CLI Configlet page is displayed. You can modify all the fields of the CLI configlet. 3. Modify the Name field. 4. (Optional) Modify the other fields in the CLI configlet and click Next. 5. (Optional) Add, modify, or delete the necessary fields. 6. Click Create.
The new CLI configlet is created.
RELATED DOCUMENTATION
566
CLI Configlets Overview | 533 Creating a CLI Configlet | 547 Exporting CLI Configlets | 555
Importing CLI Configlets
You import CLI Configlets in the XML format to add CLI Configlets from a local computer to the Junos Space Network Management Platform database. You can also import multiple CLI Configlets in a single CLI Configlet XML file. Starting with Junos Space Network Management Platform Release 15.2R1, you can also import CLI Configlets from a Git repository to the Junos Space Network Management Platform database.
NOTE: To select and import multiple CLI Configlet XML files from the local computer: · Use the Mozilla Firefox or Google Chrome Web browser. Currently, Internet Explorer does
not support the selection of multiple files. · Import multiple XML files in the TAR format.
Using a Git repository to import CLI Configlets creates a snapshot of the CLI Configlet Git repository on Junos Space Platform. You can synchronize CLI Configlets from the Git repository with the snapshot on Junos Space Platform and import CLI Configlets from the Git snapshot even if no active connection exists with the Git repository. For more information about Git repository management on Junos Space Platform, see "Git Repositories in Junos Space Overview" on page 1477. Junos Space Platform validates the CLI Configlets for the following during import: · A valid file format. CLI Configlets can be imported in XML format. Starting with Junos Space Network
Management Platform Release 15.2R1, CLI Configlets can also be imported in TAR (containing XML files) format. · A valid and unique name If Junos Space Platform detects a conflict during import and you choose to overwrite the CLI Configlet, the conflicting CLI Configlet is saved with an incremented version number in the domain and all subdomains. To import a CLI Configlet to Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page is displayed.
2. Click the Import CLI Configlet icon on the toolbar.
567 The Import CLI Configlet page is displayed. 3. Import CLI Configlets from a local computer or the Git snapshot of the CLI Configlet Git repository.
568
NOTE: The fields on the Junos Space user interface to import CLI Configlets from a Git repository are displayed only if an active Git repository is configured on Junos Space Platform.
a. To import one or more CLI Configlets from the local computer: i. Click the Import from files option button. The Import CLI Configlet page displays the fields to import a CLI Configlet from the local computer.
ii. From the Import from files expandable area, click Browse and select the CLI Configlet file in the XML or TAR format.
iii. (Optional) To view a sample XML CLI Configlet file, click the View Sample XML hyperlink. A browser pop-up window is displayed. You can download the sample XML file to the local computer.
b. To import one or more CLI Configlets from the Git snapshot: i. Click the Import from git option button. The Import CLI Configlet page displays the fields to import the CLI Configlets from the Git snapshot. The Import from git expandable area displays the URL to the active CLI Configlet Git repository and the time when the Git snapshot on Junos Space Platform was last synchronized with the Git repository.
ii. From the Git Branch drop-down list, select the branch on the Git snapshot from which the CLI Configlets should be imported. By default, the first branch in the Git snapshot is selected.
iii. (Optional) To synchronize the Git snapshot on Junos Space Platform with the active CLI Configlet Git repository, click Sync Now. If the synchronization is successful, the Last Sync field is updated and you can import the latest CLI Configlets. By default, the Git snapshot on Junos Space Platform synchronizes with the active CLI Configlet Git repository every hour.
569
NOTE: If Junos Space Platform cannot connect to the CLI Configlet Git repository, an error message is displayed in a pop-up window. Click OK to close the pop-up window.
iv. (Optional) To view a sample XML CLI Configlet file, click the View Sample XML hyperlink. A browser pop-up window is displayed. You can download the sample XML file to the local computer.
4. Click Next.
The Import Configlets page that appears displays the CLI Configlets from the selected Git branch or the local computer, in a table. Table 61 displays the columns in the table.
If you imported CLI Configlets in the TAR format, Junos Space Platform displays the CLI Configlets in the TAR file on the Import Configlets page. Table 61: Import Configlets page
Column
Description
Configlet
Name of the CLI Configlet
Conflict State Domain
State of the CLI Configlet: NEW, CONFLICT, or NO_CONFLICT
The column displays NEW if the CLI Configlet does not exist in Junos Space Platform.
If you are importing a CLI Configlet from the Git snapshot, the column displays NO_CONFLICT when the CLI Configlet you are importing was earlier imported from the same branch of the Git snapshot.
If you are importing a CLI Configlet from the local computer, the column displays CONFLICT when:
· The CLI Configlet with the same name already exists in Junos Space Platform. If you are importing a CLI Configlet from the Git snapshot, the column displays CONFLICT when:
· The CLI Configlet was created and modified in Junos Space Platform and is currently imported from the Git snapshot.
· The CLI Configlet was earlier imported from the Git snapshot and modified in Junos Space Platform (The Git Version column displays a warning icon).
· The CLI Configlet was earlier imported from a different branch of the Git snapshot. Domain with which the CLI Configlet is associated
The column is empty if the CLI Configlet does not exist in Junos Space Platform.
570
Table 61: Import Configlets page (continued)
Column
Description
Latest Version
Latest version of the identical CLI Configlet that is currently stored in the Junos Space Platform database
The column is empty if the CLI Configlet does not exist in Junos Space Platform.
Git Version Git Branch
Commit ID of the CLI Configlet in the Git repository when the CLI Configlet was last imported to Junos Space Platform from the Git snapshot.
· A Warning icon is displayed if the CLI Configlet was modified in Junos Space Platform after importing the CLI Configlet from the Git snapshot.
· The column is empty if the CLI Configlet does not exist in Junos Space Platform or if the CLI Configlet was never imported from the Git snapshot.
Git branch from which the CLI Configlet was last imported
The column is empty if the CLI Configlet does not exist in Junos Space Platform or if the CLI Configlet was never imported from the Git snapshot.
Last Commit
Commit ID of the last commit operation of the CLI Configlet in the selected branch of the Git repository
The column is empty if the CLI Configlet is imported from a local computer.
5. (Optional) To stop importing CLI Configlets that display a CONFLICT state, select the Exclude conflicting configlets from import check box. All CLI Configlets displaying the Conflict state CONFLICT are removed from the Import Configlets page. The Import Configlets page displays only those CLI Configlets that will be imported to the Junos Space Platform database.
NOTE: If some CLI Configlets cannot be imported, a warning message is displayed in a pop-up window with the list of CLI Configlets that are not selected for import. Click OK to close the pop-up window.
6. Click Finish.
571
NOTE: If you import CLI Configlets displaying the CONFLICT state, a warning message is displayed. Click OK to import the CLI Configlets. These CLI Configlets are imported with an incremented version number.
The Import Configlets Job Information dialog box is displayed. · Click the Job ID link to view the job results.
NOTE: If the fields in the CLI Configlet XML file contains invalid values, the job results display the CLI Configlets that were not imported due to invalid values.
You are directed to the Job Management page with a filtered view of the job.
· To return to the Configlets page, click OK.
When the job is complete, the CLI Configlets are imported to Junos Space Platform.
Release History Table
Release
Description
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can also import CLI Configlets from a Git repository to the Junos Space Network Management Platform database.
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, CLI Configlets can also be imported in TAR (containing XML files) format.
RELATED DOCUMENTATION
CLI Configlets Overview | 533 Applying a CLI Configlet to Devices | 572 Exporting CLI Configlets | 555
572
Applying a CLI Configlet to Devices
You apply a CLI Configlet to devices when you want to push a configuration from the CLI Configlet to the devices. You cannot validate a CLI Configlet or apply a CLI Configlet to more than 200 devices if the CLI Configlet requires XPath processing. However, you can apply CLI Configlets to more than 200 devices if the CLI Configlets do not require XPath processing. CLI Configlets that do not require XPath processing include CLI Configlets with context /, //, or /device and without device-specific or entity-specific parameters.
NOTE: At the time of creating a CLI Configlet: · If you selected the Single execution type, the CLI Configlet can be applied to only one device. · If you selected the Grouped execution type, the CLI Configlet can be applied to multiple devices
simultaneously.
To apply a CLI Configlet to devices: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page is displayed.
2. Select the CLI Configlet that you want to apply to the devices and select Apply CLI Configlet from the Actions menu. The Apply CLI Configlet page is displayed.
3. You can select the devices manually, by using tags, or by providing a CSV file with filter criteria: · To select the devices manually, enter the search criteria in the Search field and click the Search icon. The list of devices are filtered by the search criteria. · To select devices by using tags, select an appropriate tag from the Tag Filter drop-down list. · From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection. To provide filter criteria using a CSV file, click the CSV Filter icon and upload the CSV file with the filter criteria through the Upload a CSV pop-up window. The Apply CLI Configlet page displays parameters. Only text field and selection field type parameters are displayed.
573
From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter values when you need to apply configlets on multiple devices. You can upload the parameter values in the specified format as a CSV file. You can access a sample CSV file by clicking the Download Configlet Parameters link. The SampleParameterCSVfile is downloaded with the parameters already present in an editable grid. Refer to the instructions in the SampleParametersCSV file for entering the parameter values. If needed, you can rename the SampleParameterCSV file. Add or delete parameters present in the SampleParametersCSV file and enter a value for the parameters that you retain in the file. Upload the edited CSV file. To upload the edited CSV file, click the Browse button, select the file, and then click the Upload button. The values of parameters in the CSV file are populated to the editable grid. The parameters of CLI Configlet are listed in the grid with pagination support.
4. Double-click the Value column for each parameter and enter a value. All values are accepted for the text field type parameter. For a selection field type parameter, you should select from one of the values you provided for the parameter. The set of values present and the default value selected were defined when the template was created.
5. (Optional) If you want to apply the CLI Configlet later: a. Select the Schedule at a later time check box. b. Enter the date in the Date field in the MM/DD/YYYY or MM/DD/YY format. c. Enter the time in the Time field in the hh:mm format.
6. Click Next. The parameter value is validated against the regular expression (if given). If the parameter value violates the regular expression, then a validation error is displayed. The Preview area of the Apply CLI Configlet page displays the preview of the CLI Configlet. If you selected to view the parameters and the configuration when previewing the CLI Configlet, the parameters and the configuration are displayed.
574
The top of the Preview area displays the parameters with the values that are applied to devices. The bottom left of the Preview area displays the devices you have selected. The bottom right of the Preview area displays the configuration that will be applied to the device selected on the left. · Click on a device to view the configuration that will be applied to the device.
NOTE: The preview options selected in the CLI Configlet determine the contents of the Preview area.
7. Before applying the CLI Configlet, you can validate the configuration in the CLI Configlet on the devices. · (Optional) To validate the CLI Configlet on the device, click Validate. The Validate Results page is displayed. A job is triggered. The Progress column displays the progress of validation against each device. When the validation is complete, the results of the validation are displayed. The Status column indicates the results of the validation. If the validation is unsuccessful, the details of the error are displayed on the page.
NOTE: You can also view the validation results from the Job Management page. To view the validation results, double-click the row corresponding to the job ID and click the View Results link corresponding to the device. The Validate CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Validate Results page.
· Click Close. You are redirected to the Apply CLI Configlet page.
8. (Optional) To select a different set of devices or reschedule the workflow, click Back.
575
You are redirected to the previous page.
9. You can apply the CLI Configlet to the devices or submit the configuration changes included in the CLI Configlet to the change requests of the selected devices. · i. To apply the CLI Configlet to the device, click Apply. If you selected to apply the CLI Configlet now, the Configlets Results page is displayed. A job is triggered. The Progress column displays the progress of applying the CLI Configlet against each device. When the job is complete, the results of the job are displayed. The Status column indicates the results of the job. If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992.
NOTE: You can also view the results from the Job Management page. To view the results, double-click the row corresponding to the job ID and click the View Results link corresponding to the device. The Apply CLI Configlet Job Remarks pop-up window is displayed. Navigate back to the Configlet Results page.
ii. If you scheduled this task for a later time, the Job Information page that appears displays the schedule information. Click OK.
· i. To submit the configuration changes to the change requests, click Submit. The configuration changes are included in the list of changes on the Review/Deploy Configuration page in the Devices workspace.
An audit log is generated when you apply or submit the CLI Configlet.
· To cancel the task, click Cancel. You are returned to the CLI Configlets page.
Release History Table
Release 17.2
17.2 16.1R1
576
Description
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection.
From Junos Space Platform Release 17.2R1 onward, you can use CSV files to input parameter values when you need to apply configlets on multiple devices.
You can apply the CLI Configlet to the devices or submit the configuration changes included in the CLI Configlet to the change requests of the selected devices.
RELATED DOCUMENTATION CLI Configlets Overview | 533 Creating a CLI Configlet | 547 Exporting CLI Configlets | 555
Comparing CLI Configet Versions
You compare CLI configlets when you want to view the difference in the configuration it contains. You can compare two different CLI configlets or compare two version of the same CLI configlet. To compare CLI configlets: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The CLI Configlets page is displayed.
2. Select the CLI configlet that you want to compare and select Compare CLI Configlet Versions from the Actions menu. The Compare CLI Configlet Versions page is displayed.
3. Use the Source CLI Configlet and Target CLI Configlet lists to select the CLI configlets that you want to compare.
4. Use the Version lists to specify the versions of the source and target CLI configlets that you have selected.
577
5. Click Compare.. The Compare CLI Configlets window is displayed. This window displays differences between the CLI configlets. The differences between the two CLI configlets are represented using three different colors: · Green--The green lines represent the changes that appear only in the source CLI configlet. · Blue--The blue lines represent the changes that appear only in the target CLI configlet. · Purple-- The purple lines represent the changes that are different between the two CLI configlets. After the Next Diff and Prev Diff buttons, the total number of differences, the number of differences in the source CLI configlet, the number of differences in the target CLI configlet, and the number of changes are displayed.
6. Use the Next Diff and Prev Diff buttons to navigate to the next change or the previous change, respectively.
7. Click Close to close the window and return to the Compare CLI Configlet Versions page.
RELATED DOCUMENTATION CLI Configlets Overview | 533 Creating a CLI Configlet | 547 Exporting CLI Configlets | 555
Marking and Unmarking CLI Configlets as Favorite
IN THIS SECTION Marking CLI Configlets as Favorite | 578 Unmarking CLI Configlets Marked as Favorite | 578
To easily identify CLI Configlets that you want to use to push a configuration to a device, mark the CLI Configlets as favorite by using the My Favorite private tag. You can then search for and use the tagged
578
CLI Configlets in all workflows that support selection by tags. You can unmark the CLI Configlets when you no longer need to identify them. This topic describes the following tasks:
Marking CLI Configlets as Favorite
To mark CLI Configlets as favorite: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page that appears displays a list of CLI Configlets in the Junos Space Platform database.
2. Select the CLI Configlets that you want to mark as favorite and select Mark as Favorite from the Actions menu. The Mark as Favorite pop-up window is displayed. The name of the tag is set to My Favorite and the tag is private.
3. (Optional) In the Description field, enter a description.
4. Click Apply Tag. The Mark as Favorite dialog box is displayed.
5. Click OK. The CLI Configlets are tagged. The CLI Configlets that you tagged as favorite are displayed in the Tag view on the CLI Configlets page. You can also view the number of objects that are tagged as My Favorite.
Unmarking CLI Configlets Marked as Favorite
To unmark CLI Configlets marked as favorite: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configlets.
The Configlets page that appears displays a list of CLI Configlets that exist in the Junos Space Platform database.
2. Select the CLI Configlets that you want unmark as favorite and select Unmark as Favorite from the Actions menu. The Unmark as Favorite pop-up window that appears displays that the CLI Configlets are successfully unmarked as favorite.
579
3. Click OK. The CLI Configlets are untagged.
RELATED DOCUMENTATION CLI Configlets Overview | 533 Creating a CLI Configlet | 547
580
CHAPTER 32
Configuration Views
IN THIS CHAPTER Configuration Views Overview | 580 Configuration View Variables | 581 Configuration View Workflow | 582 XML Extensions | 584 Creating a Configuration View | 585 Viewing a Configuration View | 587 Modifying a Configuration View | 588 Deleting Configuration Views | 589 Exporting and Importing Configuration Views | 590 Viewing Configuration Views Statistics | 594 Default Configuration Views Examples | 594
Configuration Views Overview
Configuration Views are configuration tools provided by Junos OS using which the user can customize how the configuration details are displayed: Form View, Grid View, XML View, or CLI View. Form View offers a simple view of the configuration details as key-value pairs. The dynamic fields in Form View are defined using parameters. Grid View is a customizable grid that shows the key (column) and list of values (rows). The dynamic column values in Grid View are defined using parameter definitions. Velocity templates (VTL) are used to define the parameters. XML and CLI views show the configuration of the selected component in XML and CLI formats respectively. To access the tasks related to Configuration Views, select CLI Configlets > Configuration View from the Junos Space user interface. You can perform the following tasks: · Create, modify, or delete Configuration Views. · View the statistics of the Configuration Views present in Junos Space Network Management Platform.
581
· Export and import Configuration Views in XML format. Configuration Views can be generated from the actual elements to which the configuration must be applied. The actual elements are represented in a tree structure of the device configuration in the XML format. The context of the element for which the Configuration View is being created is called the execution context.
RELATED DOCUMENTATION
Creating a Configuration View | 585 Deleting Configuration Views | 589 Default Configuration Views Examples | 594
Configuration View Variables
A parameter name in Configuration View consists of a leading "$". Configuration View uses three kinds of variables. Configuration views can use the following default variables to define a parameter.
Default Variables
The values of the variables are taken from the current execution context. The following are the default variables.
Variable
Value
$DEVICE
The name of the host which the configuration view is being created
$INTERFACE
Name of the interface for which the configuration view is being created
$UNIT
The unit number of the logical interface for which the configuration view is being created
$CONTEXT
The context of the element for which the configuration view is being created
Velocity Templates
Junos Space Network Management Platform enables the user to define the device configuration view parameter's XPath using Velocity Templates. Nested parameters are referred using VTL. Please refer to http://velocity.apache.org/engine/1.7/user-guide.html for detailed documentation of VTL. VTL variable is a type of reference and consists of a leading "$" character followed by a VTL Identifier.
582
RELATED DOCUMENTATION Configuration Views Overview | 580 Creating a Configuration View | 585 Modifying a Configuration View | 588
Configuration View Workflow
A Configuration View can be defined form the CLI Configlets workspace. Table 62 lists the parameters defined for a Configuration View.
Table 62: Parameters defined for a Configuration View
Name
Name of the configuration view. The Name cannot exceed 255 characters. Allowable characters include the dash (-), underscore (_), letters, and numbers and the period (.). You cannot have two configuration views with the same name.
Domain
Domain to which the configuration view is associated
Title
Title of the configuration view. The title cannot exceed 255 characters. Allowable characters
include the dash (-), underscore (_), letters, and numbers and the period (.).
Device Family Series
The device family series which the configuration view will be applicable for.
Context
The context for which the configuration view would be applicable for.
Description
Description of the configuration view. The description cannot exceed 2500 characters. This is an optional field.
Order
Order of the configuration view tab in Device Configuration View. The order can accept values from 1 to 65535.
View Type
View types are Form View, Grid View, XML View, and CLI View..
Parameters are the variables defined in the configuration view whose values are got from the environment. Parameters appear when creating or editing a configuration view, as they are added to configuration view. To configure a parameter, click modify icon on the toolbar, the Edit Form View Parameter appears. The attributes of a parameter are set from this screen. To add additional parameter, clicks add icon on the tool bar, the Add Form View Parameter screen appears. The attributes of a parameter are set from this screen. To delete a parameter, click the delete icon on the toolbar. Table 63 lists the attributes of a parameter.
583
Table 63: Attributes of a parameter
Parameter
Name of the parameter.
Index Parameter
To consider a parameter as an index parameter or not. This is applicable for a grid view only. An index parameter should meet at least one of the following two conditions except when only one parameter is defined in a grid view.
· An index parameter should refer at least one of the other index parameters. · An index parameter should be referred in one of the other parameters. A non index parameter should always refer at least one index parameter.
Display Name
Display name of the parameter.
Configured Value XPATH
This field is used to give the XPath of the configured values. The behavior of this field depends on the type of view. When the view type is form, the corresponding value present in the XPath is taken as the field value. In case XPath returns multiple values, first value returned is considered. In case the XPath returns multiple values, the first value returned is considered. When the view type is grid, the following behavior is followed. If more than one parameters defined then following rules should be met.
· For independent index parameters, a join would be performed between the values returned by the XPath and the existing set of rows.
· For dependent index parameters, join would be performed between the values returned by the XPath and the correspondent row.
For non index parameters, if list of values returned then they are aggregated into comma separated values.
Order
The order of the parameter. The relative order in which the parameter has to be displayed.
RELATED DOCUMENTATION
Configuration Views Overview | 580 Creating a Configuration View | 585 Modifying a Configuration View | 588
584
XML Extensions
In a Configuration View, the querying is not restricted to the Device XML data. Junos Space Platform lets users define parameters that can fetch additional details that are not a part of the device XML itself. Operational Status In the config viewer, realtime status of the component could be queried using the XPath <xpath-of-the-component>/oper-status.
NOTE: For physical interface component, <xpath-of-physical-inteface>/oper-status/text() cannot be used. Its only possible to query with <xpath-of-physical-inteface>>/oper-status. This limitation doesn't apply for chassis components.
Customized Attributes In config viewer, Custom attributes of a component could be queried using the XPath <xpath-of-the-component>/customized-attribute[name='<attribute-name>']. While defining a view with customized attribute, the user has an option to make it editable. Making a customized attribute editable would allow the user to edit the values inline. Changes would be persisted immediately. To make a customized attribute editable, enable the checkboxes `Customized Attribute' and `Editable'. Custom attributes are editable only in Grid View.
NOTE: For custom attributes XPath <xpath-of-the-component>/customized-attribute[name='<attribute-name>'] can be used, but /text() or any other extensions at the end of the XPath cannot be used.
RELATED DOCUMENTATION Configuration Views Overview | 580 Configuration View Variables | 581 Creating a Configuration View | 585 Modifying a Configuration View | 588
585
Creating a Configuration View
You create a configuration view from the Configlets workspace.
To create a configuration view:
1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configuration View. The Configuration View page is displayed.
2. Click the Create Configuration View icon from the Actions menu. The Create Configuration View page is displayed. Table 64 lists the columns displayed on this page. Table 64: Columns on the Configuration Views Page
Field
Description
Name
Name of the configuration view
Domain
Domain to which the configuration view is associated
Title
Title of the configuration view
Device Family
Family of the device
Description
Description of the configuration view
Order
Order in which the view has to be applied and it accepts only values greater than zero
View Type
Type of configuration view - Form view, Grid view, XML view, and CLI view
Creation Time
Date and time when the configuration view was created
Last Updated Time
Latest time when the configuration view was last updated
Last Modified By
Login ID of the user who last modified the configuration view
3. In the Name field, enter the name for the configuration view The Name cannot exceed 255 characters. Allowable characters include the dash (-), underscore (_), letters, and numbers and the period (.). You cannot have two configuration views with the same name.
4. From the View Type drop-down list, select the type of configuration view you want to create.
586
5. In the Title filed, enter a title for the configuration view. The title cannot exceed 255 characters. Allowable characters include the dash (-), underscore (_), letters, and numbers and the period (.).
6. From the Device Family Series drop-down list, select the appropriate device family for which you want to create a configuration filter.
7. From the Context drop-down list, select the appropriate XPath value.
8. (Optional) In the Description field, enter a description. The description cannot exceed 2500 characters.
9. In the Order field, enter an appropriate value.
10. Click the Add Parameter icon to add a parameter. The Add Form View Parameter pop-up window is displayed. Configure the parameter on this page. a. In the Parameter field, enter the name of the parameter. b. In the Display Name field, enter a display name for this parameter. c. Select the Script Dependant check-box if you want to use a script. · If you select the configuration view to depend on a script, select the appropriate local script from the Local Script drop-down list. d. From the Configured Value Xpath drop-down list, select an appropriate XPath value. e. In the Order field, enter an appropriate value. f. Click Add.
11. (Optional) Add multiple parameters.
12. Click Create. The configuration view is created.
NOTE: To assign a configuration view to a domain, select the configuration view and select Assign Configuration View to Domain from the Actions menu.
587
RELATED DOCUMENTATION Configuration Views Overview | 580 Modifying a Configuration View | 588
Viewing a Configuration View
You view a configuration view when you need to view the details of the configuration view. To view a configuration view: 1. On the Network Management Platform user interface, select CLI Configlets > Configuration View.
The Configuration View page that appears displays the configuration views.
2. Select the configuration view you want to view and select the View Configuration View icon from the Actions bar.
The View Configuration View dialog box is displayed.
Table 52 lists the details of the configuration view displayed in the View Configuration View dialog box. Table 65: View Template Definition Dialog Box Details
Field or Area
Description
Displayed In
Name
Name of the configuration view
Configuration View page View Configuration View dialog box
Title
Title of the configuration view
Configuration View page
View Configuration View dialog box
Device Family
Device family to which the configuration view belongs
Configuration View page
OS Version
Context of the configuration view
Configuration View page View Configuration View dialog box
Description
Description of the configuration view
Configuration View page View Configuration View dialog box
588
Table 65: View Template Definition Dialog Box Details (continued)
Field or Area
Description
Displayed In
Order
Order of the configuration view
Configuration View page View Configuration View dialog box
View Type
Type of the configuration view: Form view, Configuration View page
CLI view, Grid view, or XML view
View Configuration View dialog box
Updated Time
Time when the configuration view was last Configuration View page
updated
View Configuration View dialog box
Modified By
Username of the user who modified the configuration view
Configuration View page View Configuration View dialog box
3. Click Close to close the View Configuration View dialog box.
RELATED DOCUMENTATION Modifying a Configuration View | 588 Deleting Configuration Views | 589 Creating a Configuration View | 585 Configuration Views Overview | 580
Modifying a Configuration View
You modify a configuration view when you want to change the properties of the configuration view. To modify a configuration view: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configuration
View. The Configuration View page is displayed.
589
2. Select the configuration view you want to modify and select the Modify Configuration View icon on the Actions menu. The Modify Configuration View page is displayed.
3. Modify the properties of the configuration view and click Update. The configuration view is modified.
RELATED DOCUMENTATION Configuration Views Overview | 580 Creating a Configuration View | 585
Deleting Configuration Views
You delete configurations view when want to remove it from Junos Space Network Management Platform. To delete configuration views: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configuration
View. The Configuration View page is displayed. 2. Select the configurations views you want to delete and select the Delete Configuration View icon from the Actions menu. The Delete Configuration View pop-up window is displayed. 3. Click Delete. The configuration views are deleted.
RELATED DOCUMENTATION Configuration Views Overview | 580 Creating a Configuration View | 585
590
Exporting and Importing Configuration Views
IN THIS SECTION Exporting Configuration Views | 591 Importing Configuration Views | 592
You export Configuration Views from the Junos Space Network Management Platform database to your local computer so that copies of Configuration Views are locally available. Configuration Views are exported in the XML format. You import Configuration Views from your local computer to the Junos Space Platform database so that copies of Configuration Views are stored in the database. Configuration Views are imported in the XML format. You can also overwrite existing Configuration Views in the Junos Space Platform database. An audit log entry is created when you export or import a Configuration View.
NOTE: You cannot export the default Configuration View Default View from the Junos Space Platform database. If you select the Default View, the Export Configuration Views option is unavailable.
When you export multiple Configuration Views from Junos Space Platform, they are exported as a single XML file in the following format: <configuration-views> <configuration-view>configuration-view1</configuration-view> <configuration-view>configuration-view2</configuration-view> <configuration-view>configuration-view3</configuration-view>
591
<configuration-views>
Exporting Configuration Views
You export Configuration Views in the XML format to your local computer. To export Configuration Views: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configuration
View. The Configuration View page that appears displays all the Configuration Views in the Junos Space Platform database.
2. Select the Configuration Views that you want to export and select Export Configuration Views from the Actions menu. The Export Configuration Views dialog box is displayed.
3. You can export only those Configuration Views you selected or all Configuration Views (except Default View) from the Junos Space Platform database.
NOTE: If the Configuration View you selected is script dependent, the local script-name field displays only the name of that local script that is referred to in the Configuration View.
To export selected Configuration Views: a. Click Export Selected in the Export Configuration Views dialog box.
The Export Configuration Views dialog box is displayed. When the job is completed, the Export Configuration Views dialog box indicates that the job is 100% complete.
b. Click the Download link in the dialog box to export the Configuration Views. The Configuration Views are downloaded to the local computer.
To export all Configuration Views: a. Click Export All on the Export Configuration Views dialog box.
The Export Configuration Views dialog box is displayed. When the job is completed, the Export Configuration Views dialog box indicates that the job is 100% complete.
b. Click the Download link in the dialog box to export the Configuration Views.
592
The Configuration Views are downloaded to the local computer.
4. (Optional) Click the progress bar in the Export Configuration Views dialog box to view the details of the job on the Job Management page. You are directed to the Job Management page.
To return to the Configuration View page, click the [X] icon in the Export Configuration Views dialog box.
Importing Configuration Views You cannot import Configuration Views if they contain invalid data such as an invalid script name or an invalid device family. If one of the Configuration Views contain invalid data, the import job fails. To import Configuration Views: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configuration
View. The Configuration View page that appears displays all the Configuration Views in the Junos Space Network Management Platform database.
2. Click the Import Configuration Views icon on the toolbar. The Import Configuration Views page is displayed.
3. (Optional) Click the View Sample Link on this page to view the valid format of the Configuration View XML file.
4. Click Browse and select the Configuration View XML file.
5. Click Import.
593
NOTE: You cannot import Configuration Views if they contain invalid data such as an invalid script name or an invalid device family. If one of the Configuration Views contain invalid data, an error message indicates the reason for the failure of the import job of the Configuration View.
· If the Configuration View you are importing does not exist in the Junos Space Platform database, the Configuration View is imported to the database. When the Configuration View is imported, the Import Configuration Views dialog box is displayed. To accept the import of the Configuration View: i. Click OK. You are redirected to the Configuration Views page.
· If a Configuration View with the same name exists in the Junos Space Platform database, the Configuration View Already Exists dialog box is displayed. You can overwrite the existing Configuration View or cancel the workflow. · To overwrite an existing Configuration View: i. Click OK. The Import Configuration View dialog box is displayed.
ii. Click OK. You are redirected to the Configuration Views page.
· To avoid overwriting and cancel the workflow: i. Click Cancel. The Import Configuration View dialog box is displayed.
ii. Click OK. You are redirected to the Configuration Views page.
RELATED DOCUMENTATION Configuration Views Overview | 580 Creating a Configuration View | 585
594
Modifying a Configuration View | 588
Viewing Configuration Views Statistics
You can view the statistics about the configuration views from the CLI Configlets workspace. The Configuration Views landing page displays the Configuration Viewer Count by Device Family bar chart. The bar chart shows the number of configuration views on the y axis and device family series on the x axis. To view the statistics of configuration views: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets.
The CLI Configlets landing page is displayed. This page displays the charts related to CLI configlets and configuration views.
2. Click a specific label on a chart. You will be redirected to the Configuration Views page that is filtered based on the label you clicked. To save the bar chart as an image or to print for presentations or reporting, right-click the bar chart and use the menu to save or print the image.
RELATED DOCUMENTATION Configuration Views Overview | 580 Creating a Configuration View | 585 Modifying a Configuration View | 588
Default Configuration Views Examples
Default configuration Views are added during server start up or data migration during an upgrade. These default configuration Views are added only on the initial server start up and data migration during an upgrade. Default configuration Views cannot be added every time the server starts. The user can perform all the usual operations with the default configuration Views including delete operation. Adding default configuration Views during migration has the following conditions: · 13.1 to 13.3:
595
· Default configuration Views are added if an entity with the same name does not exist in 13.1. · Default configuration Views are over written if an entity with the same name exists in 13.1. · 13.3 to later releases: · Default configuration Views are not added or overwritten, if the default configuration Views are
modified or deleted by the user in 13.3.
Default view
This view produces the configuration of the selected node in CLI format- curly brace format. Context: // This configuration view is targeted for all the entities. Sample CLI view ## Device: EX4200
interfaces { ge-0/0/4 { description "desc"; unit 0 { description "description for Unit;"; } }
}
Example XML view
This view produces the configuration of the selected node in XML format. Context: ///device/configuration/protocols This configuration view is targeted for protocols. Sample CLI view ## Device: EX4200
<!-- Device: Ex4200 --> <protocols>
<igmp-snooping> <vlan>
596
<name>all</name> </vlan> </igmp-snooping> <rstp> </rstp> <lldp> <interface>
<name>all</name> </interface> </lldp> <lldp-med> <interface>
<name>all</name> </interface> </lldp-med> </protocols>
Example Form view
This form view displays certain important information about device.
Context:/device
Sample Form view Details:
Table 66: Parameters
Display name
Script dependent Parameter
Configured value xpath
Order
Device Name false
Device_Name
/device/system-information/host-name/text()
1
OS Version false
OS_Version
/device/system-information/os-version/text()
2
Serial Number false
Serial_Number
/device/system-information/serial-number/text()
3
Chassis
false
chassis_description /device/chassis-inventory/chassis/description/text() 4
Location
false
snmp_location
/device/configuration/snmp/location/text()
5
Contact
false
snmp_contact
/device/configuration/snmp/contact/text()
6
Sample Form View: Device Name: ACX-34
597
OS Version: 12.3-20130818_att_12q3_x51.0 Serial Number: ABCDE12345 Chassis: ACX1100 Location: location1 Contact: John Doe
Example Grid view
This view displays information about the selected node in Grid format.
Context:/device
Sample Grid View Details
Table 67: Parameters
Parameter
Index parameter
Display name
Script dependent
Customized attribute Editable Order
Device_Name
true
Device Name
false
false
false
1
Physical_Interface_Name true
Physical Interface false Name
false
false
2
IP_Address
false
IP Address
false
false
false
3
MAC_Address
false
MAC Address
false
false
false
4
Operational_Status false
OperationalStatus false
false
false
5
Admin_Status
false
Admin Status
false
false
false
6
Speed
false
Speed
false
false
false
7
Table 68 displays the parameters, configured value Xpaths and the order.
Table 68: Parameters and Configured Value XPath
Parameter
Configured value xpath
Device_Name
/device/system-information/host-name/text()
Order 1
598
Table 68: Parameters and Configured Value XPath (continued)
Parameter
Configured value xpath
Order
Physical_Interface_Name IP_Address MAC_Address Operational_Status Admin_Status Speed
/device[name='$Device_Name']/interface-information/physical-interface 2 [starts-with(name,'xe')or starts-with(name,'ge-')or
starts-with(name,'fe')]/name/ text()
/device[name='$Device_Name']/configuration/interfaces/interface 3 [name='$Physical_Interface_Name']/unit[name='0'] /family/inet/address/name/text()
device[name='$Device_Name']/interface-information/physical-interface 4 [name='$Physical_Interface_Name']/hardware-physical-address
/device[name='$Device_Name']/interface-information/physical-interface 5 [name='$Physical_Interface_Name']/oper-status/text()
/device[name='$Device_Name']/interface-information/physical-interface 6 [name='$Physical_Interface_Name']/admin-status/text()
/device[name='$Device_Name']/interface-information/physical-interface 7 [name='$Physical_Interface_Name']/speed/text()
Sample Grid View
Device Name
Physical interface
IP address MAC address
Operational Admin
status
status
Speed
ACX-34
ge-0/0/0
NA
00:00:5E:00:53:00 down
Up
1000mbps
ACX-34
ge-0/0/1
NA
00:00:5E:00:53:00 down
Up
1000mbps
ACX-34
ge-0/0/2
NA
00:00:5E:00:53:00 down
Up
1000mbps
ACX-34
ge-0/0/3
NA
00:00:5E:00:53:00 down
Up
1000mbps
RELATED DOCUMENTATION
Configuration Views Overview | 580 Creating a Configuration View | 585 Modifying a Configuration View | 588
599
CHAPTER 33
XPath and Regular Expressions
IN THIS CHAPTER XPath and Regex Overview | 599 Creating Xpath or Regex | 600 Modifying Xpath and Regex | 600 Deleting Xpath and Regex | 601 XPath and Regular Expression Examples | 602
XPath and Regex Overview
While developing configlets, XPaths and Regular Expressions would be used intensively. It would be desirable to let the user define frequently used XPaths and Regular expressions in such a way that they can be referred when required. User can define these templates from the Xpath and Regex task group in the CLI Configlets workspace. XPaths and Regular expressions defined here are referred from all the fields that require the defined type as input. The user defined values can be selected from the dropdown provided for the field. This can be edited at the field level.
RELATED DOCUMENTATION Creating Xpath or Regex | 600 Modifying Xpath and Regex | 600
600
Creating Xpath or Regex
You create Xpath and Regex from the CLI configlets workspace. To create an Xpath and Regex: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Xpath and
Regex. The Xpath and Regex page is displayed. 2. Click the Create Xpath and Regex icon on the Actions menu. The Create Xpath/Regex page is displayed. 3. In the Name field, enter the name of the Regex or Xpath. 4. From the Property Type field, select an appropriate value for the Xpath or Regex. 5. In the Value field, enter an appropriate value. 6. Click Create. The Xpath or regular expression is created.
NOTE: To assign the Xpath or regular expression t a domain, select Assign Xpath to Domain from the the Actions menu.
RELATED DOCUMENTATION XPath and Regex Overview | 599 Modifying Xpath and Regex | 600 Deleting Xpath and Regex | 601
Modifying Xpath and Regex
You modify an Xpath and Regex when you want to change the properties of the Xpath or Regex.
601
To modify an Xpath and Regex: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Xpath and
Regex. The Xpath and Regex page is displayed.
2. Select the Xpath and Regex you want to modify and select the Modify Xpath and Regex icon on the Actions menu. The Modify Xpath/Regex page is displayed.
3. Modify the Xpath and Regex properties and click Update. The Xpath and Regex is modified.
RELATED DOCUMENTATION XPath and Regex Overview | 599 Creating Xpath or Regex | 600
Deleting Xpath and Regex
You delete an Xpath and Regex when you no longer want it on Junos Space Network Management Platform. To delete an Xpath and Regex: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Xpath and
Regex. The Xpath and Regex page is displayed.
2. Select the Xpath and Regex you want to delete and select the Delete Xpath and Regex icon on the Actions menu. The Delete Xpath/Regex pop-up window is displayed.
3. Click Delete. The Xpath and Regex is deleted.
602
RELATED DOCUMENTATION XPath and Regex Overview | 599 Creating Xpath or Regex | 600
XPath and Regular Expression Examples
Default Xpath and Regex are added during server start up or data migration performed during an upgrade. These default Xpath and Regex are added only on the initial server start up and during data migration as a result of an upgrade.The User can perform all the usual operations on the default Xpath and Regex, including delete operation. Adding default Xpath and Regex during migration has the following conditions: · 13.1 to 13.3:
· Default Xpath and Regex are added if an entity with the same name does not exist in 13.1. · Default Xpath and Regex are over written if an entity with the same name exists in 13.1. · 13.3 to later releases: · Default Xpath and Regex are not added/overwritten, if the default Xpath and Regex is modified/deleted
by the user in 13.3.
Example 1 Alphanumeric To refer in configlet's Regex Value. It accepts all the alphanumeric characters. Type: Regular Expression Value: [a-zA-Z0-9]*
Example 2 - Logical Interfaces per Physical Interface To fetch the logical interface of selected physical interface Type: Xpath Context Value: /device/configuration/interfaces/interface[name="$INTERFACE.get(0)"]/unit/name/text()
Example 3 Physical Interfaces To fetch the name of the physical interface
603
Type: Xpath Context Value: /device/interface-information/physical-interface/name/text() Example 4 Devices To fetch the name of the selected device Type: Xpath Context Value: /device/name/text()
RELATED DOCUMENTATION XPath and Regex Overview | 599 Creating Xpath or Regex | 600
604
CHAPTER 34
Configuration Filters
IN THIS CHAPTER Creating a Configuration Filter | 604 Modifying a Configuration Filter | 605 Deleting Configuration Filters | 606
Creating a Configuration Filter
Configuration Filters restrict the scope of the configuration nodes and options displayed in the View Device Configuration page in the Devices workspace. You can create configuration filters for a specific device family in the CLI Confglets workspace. These configuration filters are available in the device configuration page when you configure the device. You can choose these configuration filters in the left pane on the device configuration page.
NOTE: You can also create a configuration filter from the View Device Configuration page. To create a filter, click the Create Filter icon on the left of the page.
To create a configuration filter: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configuration
Filter The Configuration Filter page that appears displays all the configuration filters in the Junos Space Platform database. The configuration filter All is displayed by default. 2. Click the Create Configuration Filter icon on the Actions menu. The Create Configuration Filter page is displayed. The Device Configuration Schema area is displayed on the left and the Device Configuration Area is displayed on the right. 3. In the Name textbox, enter a name for the configuration filter.
605
4. Select the appropriate device family from the Device Family drop-down list. 5. Select the configuration nodes in the Device Configuration Area and click Create.
The configuration filter is created. You are redirected to the Configuration Filter page.
RELATED DOCUMENTATION Modifying a Configuration Filter | 605 Deleting Configuration Filters | 606
Modifying a Configuration Filter
You modify a configuration filter when you want to change the properties of the configuration filter. To modify a configuration filter: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configuration
Filter The Configuration Filter page is displayed. 2. Select the configuration filter you want to modify and select the Modify Configuration Filter icon on the Actions menu. The Modify Configuration Filter page is displayed. 3. Modify the properties of the configuration filter and click Update. The configuration filter is modified. You are redirected to the Configuration Filter page.
RELATED DOCUMENTATION Creating a Configuration Filter | 604 Deleting Configuration Filters | 606
606
Deleting Configuration Filters
You delete configuration filters when you want to remove them from Junos Space Network Management Platform. To delete a configuration filter: 1. On the Junos Space Network Management Platform user interface, select CLI Configlets > Configuration
Filter The Configuration Filter page is displayed.
2. Select the configuration filters you want to delete and select the Delete Configuration Filter icon from the Actions menu. The Delete Configuration Filter pop-up window is displayed.
3. Click Confirm on the Delete Configuration Filter pop-up window. The configuration filters are deleted. You are redirected to the Configuration Filter page.
RELATED DOCUMENTATION Creating a Configuration Filter | 604 Modifying a Configuration Filter | 605
5 PART
Images and Scripts
Overview | 608 Managing Device Images | 612 Managing Scripts | 671 Managing Operations | 729 Managing Script Bundles | 748
608
CHAPTER 35
Overview
IN THIS CHAPTER Device Images and Scripts Overview | 608 Viewing Statistics for Device Images and Scripts | 609
Device Images and Scripts Overview
In Junos Space Network Management Platform, a device image is a software installation package that enables you to upgrade to or downgrade from one Junos operating system (Junos OS) release to another. Scripts are configuration and diagnostic automation tools provided by Junos OS. The Images and Scripts workspace in Junos Space Platform enables you to manage these device images and scripts. You can access the Images and Scripts workspace by clicking Images and Scripts on the Junos Space Platform UI. The Images and Scripts workspace enables you to perform the following tasks: · Manage device images.
You can upload device images and Junos Continuity software packages from your local file system and deploy them to a device or multiple devices of the same device family simultaneously. After uploading device images and Junos Continuity software packages, you can stage them on a device, verify the checksum, and deploy them whenever required. You can also schedule the staging, deployment, and validation of device images and Junos Continuity software packages. · Manage scripts. You can import multiple scripts into the Junos Space server and perform various tasks such as modifying the scripts, viewing their details, exporting their content, comparing them, and staging them on multiple devices simultaneously. After you stage scripts onto devices, you can use Junos Space Platform to enable, disable, or execute the scripts on those devices. · Manage operations.
609
You can create, manage, export, import, and execute operations that combine multiple scripts and image tasks, such as upgrading images and staging or executing scripts, into a single operation for efficient use and reuse. · Manage script bundles. You can group multiple scripts into a script bundle. Script bundles can be staged and executed on devices. You can also modify and delete script bundles. Junos Space Platform allows you to access and perform tasks in a workspace only if you are assigned the appropriate role or granted the appropriate permissions required for performing that task. Junos Space Platform has a set of predefined user roles that can be assigned to a user to enable access to the various workspaces. For more information about the predefined roles in Junos Space Platform, see "Predefined Roles Overview" on page 999. A User Administrator can also create and assign roles to users from the Role Based Access Control workspace in Junos Space Platform.
RELATED DOCUMENTATION Device Images Overview | 612 Operations Overview | 729 Scripts Overview | 672 Script Bundles Overview | 748
Viewing Statistics for Device Images and Scripts
In the Images and Scripts workspace, you can view charts that give you an overview of the device images and scripts in Junos Space Network Management Platform. The Images and Scripts statistics page appears when you select Images and Scripts on the task tree of the Junos Space Platform UI. You can view the following bar charts on the Images and Scripts statistics page: · Device Image Count by Platform Group · Device Images Count by Version · Number of Scripts by Type · Number of Jobs per Script Action To view the Device Image Count by Platform Group bar chart: 1. On the Junos Space Platform UI, select Images and Scripts.
The Images and Scripts statistics page appears, displaying the Device Image Count by Platform Group bar chart. The x-axis represents the platform and the y-axis represents the number of device images.
610
Mouse over a platform bar on the Device Image Count by Platform Group chart to view a tooltip showing the number of device images that support the selected platform.
2. (Optional) Click a platform bar on the Device Image Count by Platform Group chart. The Images page appears, displaying the device images in Junos Space Platform that support the selected platform. You can double-click any device image to view its details.
To view the Device Images Count by Version bar chart: 1. On the Junos Space Platform UI, select Images and Scripts.
The Images and Scripts statistics page appears, displaying the Device Images Count by Version bar chart. The x-axis represents the device image version and the y-axis represents the number of device images. Mouse over a version bar on the Device Images Count by Version chart to view a tooltip showing the number of device images of that version in Junos Space Platform.
2. (Optional) Click a version bar on the Device Images Count by Version chart. The Images page appears, displaying the device images of that particular version. You can double-click any device image to view its details.
To view the Number of Scripts by Type bar chart: 1. On the Junos Space Platform UI, select Images and Scripts.
The Images and Scripts statistics page appears, displaying the Number of Scripts by Type bar chart. The x-axis represents the script type and the y-axis represents the number of scripts. Mouse over a script type bar on the Number of Scripts by Type chart to view a tooltip showing the number of scripts of that script type in Junos Space Platform.
2. (Optional) Click a script type bar on the Number of Scripts by Type chart. The Scripts page appears, displaying the scripts of that particular type. You can double-click any script to view its details.
To view the Number of Jobs per Script Action bar chart: 1. On the Junos Space Platform UI, select Images and Scripts.
The Images and Scripts statistics page appears, displaying the Number of Jobs per Script Action bar chart. The x-axis represents the actions performed on scripts and the y-axis represents the number of jobs triggered. Mouse over the green area of a bar on the Number of Jobs per Script Action chart to view a tooltip showing the number of successful jobs for that script action. Mouse over the red area of the bar to view a tooltip showing the number of failed jobs for that script action.
2. (Optional) Click a script action bar on the Number of Jobs per Script Action chart.
611
The Job Management page appears, displaying the jobs triggered by that particular action. You can double-click any job to view its details.
NOTE: When you click the green area of a bar, only successful jobs for that action are listed on the Job Management page. When you click the red area of a bar, only failed jobs for that action are listed on the Job Management page.
RELATED DOCUMENTATION Device Images and Scripts Overview | 608 Device Images Overview | 612 Scripts Overview | 672
612
CHAPTER 36
Managing Device Images
IN THIS CHAPTER Device Images Overview | 612 Importing Device Images to Junos Space | 614 Viewing Device Images | 615 Modifying Device Image Details | 617 Staging Device Images | 619 Staging Satellite Software Packages on Aggregation Devices | 624 Verifying the Checksum | 629 Viewing and Deleting MD5 Validation Results | 633 Deploying Device Images | 636 Deploying Satellite Software Packages on Aggregation and Satellite Devices | 651 Viewing Device Image Deployment Results | 656 Viewing Device Association of Images | 658 Undeploying JAM Packages from Devices | 660 Removing Device Images from Devices | 665 Deleting Device Images | 670
Device Images Overview
In Junos Space, a device image is a software installation package that enables you to upgrade to or downgrade from one Junos operating system (Junos OS) release to another. Junos Space Network Management Platform facilitates the management of device images for devices running Junos OS by enabling you to upload device images from your local file system and deploy them on a device or multiple devices of the same device family simultaneously. You can download device images from https://www.juniper.net/customers/support/ . For more information about downloading device images, see the Junos OS Installation and Upgrade Guide. After you upload a device image, you can stage the device image on a device, verify the checksum, and deploy the staged image whenever required. You can also schedule the staging, deployment, and validation
613
of a device image. You can modify the platforms supported by the device image and the description of the device image.
The Images and Scripts workspace in Junos Space Platform also enables you to manage Junos Continuity software packages (JAM packages) on the MX240, MX480, MX960, MX2010, and MX2020 Series 3D Universal Edge Routers. The filenames for Junos Continuity software packages are prefixed with jam- and are referred to as JAM packages in Junos Space Platform. Junos Continuity software packages are optional software packages that enable the router to support new hardware, such as Modular Port Concentrators (MPCs), without Junos OS being upgraded. You can download and install the Junos Continuity software package that supports the MPCs that you want to deploy, from https://www.juniper.net/support/downloads/?p=continuity#sw. For more information about Junos Continuity software and the platforms and hardware supported, see the Junos Continuity software documentation.
From the Images and Scripts workspace of Junos Space Platform, you can also stage and deploy satellite software packages to Juniper Networks devices functioning as aggregation devices and to the satellite devices connected to those aggregation devices. Satellite software packages have names prefixed with satellite- and must be downloaded and imported to Junos Space Platform before you can stage or deploy them. For more information about aggregation devices, satellite devices, and satellite software, refer to the Junos Fusion documentation.
For more information about aggregation devices and satellite devices in Junos Space Platform, see "Device Inventory Overview" on page 298.
You can perform the following tasks from the Images page:
· Upload device images onto Junos Space Platform. · View details of the image uploaded to Junos Space Platform. · Modify a device image. · Stage a device image on a device. · View the devices that are associated with a staged image. · Verify the checksum. · View and delete MD5 validation results. · Deploy a device image. · View device image deployment results. · Undeploy a JAM package from a device. · Remove a staged device image from a device. · Delete device images from Junos Space Platform. · Assign a device image to a domain. · Tag and untag the images, view the images that are tagged, and delete private tags.
614
On the basis of the roles assigned to your username, Junos Space Platform enables or disables different tasks. For more information about the roles that must be assigned to you so that you can perform tasks on device images, see "Predefined Roles Overview" on page 999.
RELATED DOCUMENTATION Deploying Device Images | 636 Staging Device Images | 619 Modifying Device Image Details | 617 Importing Device Images to Junos Space | 614 Scripts Overview | 672 Script Bundles Overview | 748 Operations Overview | 729
Importing Device Images to Junos Space
Before you can manage a device image using Junos Space Network Management Platform, you must first download the device image from the Juniper Networks Support webpage. You can download device images from https://www.juniper.net/customers/support/. To make the downloaded device image available in Junos Space Platform, save the file to your computer and then import it into Junos Space Platform.
NOTE: You can import satellite software packages and Junos Continuity software packages to Junos Space Platform by following the procedure for importing device images. · The filenames of satellite software packages intended for deployment on Juniper Networks
devices functioning as aggregation devices are prefixed with satellite-. You can download satellite software packages from https://www.juniper.net/support/downloads/?p=fusion#sw. · The filenames of Junos Continuity software packages are prefixed with jam- and are referred to as JAM packages in Junos Space Platform. You can download Junos Continuity software packages from https://www.juniper.net/support/downloads/?p=continuity#sw.
615
To import device images to Junos Space Platform: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page appears.
2. Click the Import Image icon. The Import Images dialog box appears.
3. Click Browse. The File Upload dialog box displays the directories and folders on your local file system.
4. Navigate to the device image file that you want to import and click Open.
5. Click Upload in the Import Images dialog box. A pop up window appears which shows the progress of the job, which is then followed by another pop up window with hyperlink to the Job ID. You can click on the Job ID in the pop window to get more details on the status of the particular job. You can also navigate to Jobs>Job Management to verify the status of the jobs. The Job ID contains details like name, percent, state, job type, summary, scheduled start and so on. The time taken to import the file depends on the size of the device image file and the connection speed between your computer and the Junos Space Platform server. After the file is imported to the Junos Space server, it is listed on the Images page. You can now stage and deploy the device image on one or more devices.
RELATED DOCUMENTATION Staging Device Images | 619 Verifying the Checksum | 629 Deploying Device Images | 636 Device Images Overview | 612
Viewing Device Images
The Images and Scripts workspace enables you to view and manage multiple device images in Junos Space Network Management Platform. You can view information about all the device images that are stored in
616
the Junos Space Platform database from the Images page. To view detailed information about a particular device image, you can use the View Device Image Detail option on the Actions menu.
NOTE: You can view information about satellite software packages and Junos Continuity software packages imported to Junos Space Platform in the same way that you view information about device images.
· The filenames for satellite software packages intended for deployment on Juniper Networks devices functioning as aggregation devices are prefixed with satellite-. The Type field for satellite software images displays the value satellite.
· The filenames for Junos Continuity software packages are prefixed with jam- and are referred to as JAM packages in Junos Space Platform. The Type field for Junos Continuity software packages displays the value jam.
To view device images from the Images page:
1. On the Junos Space Platform UI, select Images and Scripts > Images. The Images page appears, displaying the device images that you imported into Junos Space Platform. Table 69 describes the fields displayed on the Images page. You can use the filter option on the File Name, Domain, and Version drop-down lists to specify the filter criteria. When you apply the filters, the table displays only the device images that match the filter criteria. The Series and Associations fields do not support the filter option.
2. Select an image and click the View Device Image Detail icon, or double-click the image whose details you want to view. The Device Image Details dialog box appears. Table 69 also contains the description of fields in the Device Image Details dialog box.
Table 69: Description of Fields on the Images Page and the Device Image Details Dialog Box
Field
Description
Displayed In
File Name Name of the device image file
For example, jinstall-ex-4200-12.3R4.6-domestic-signed.tgz
Images page Device Image Details dialog box
Domain
Domain to which the device image belongs
By default, the image belongs to the Global domain.
Images page
617
Table 69: Description of Fields on the Images Page and the Device Image Details Dialog Box (continued)
Field
Description
Displayed In
Version
Version number of the device image For example, 12.3R4.6
Images page Device Image Details dialog box
Series
Series supported by the device image For example, EX4200
Images page
Type
Type of file denoted by the prefix of the image filename
For example, jinstall, satellite, and jam
Images page Device Image Details dialog box
Associations Associated devices for a device image displayed Images page when you click View in the Associations column
MD5
32-character hexadecimal number that is computed on the device image file stored on the Junos Space server
Device Image Details dialog box
Platforms Platforms supported by the device image
Device Image Details dialog box
Description Description of the device image
Device Image Details dialog box
RELATED DOCUMENTATION Device Images Overview | 612 Importing Device Images to Junos Space | 614 Device Images and Scripts Overview | 608
Modifying Device Image Details
Junos Space Network Management Platform enables you to add and modify the description of a device image and also to modify the series that the device image supports.
618
NOTE: · You cannot modify the device series for a Junos Continuity software package because Junos
Continuity software packages are supported only on MX240, MX480, MX960, MX2010, and MX2020 Series 3D Universal Edge Routers. Therefore, the Modify Device Image action is not available for Junos Continuity software packages. · You can modify the details of satellite software packages in Junos Space Platform by following the procedure for modifying the details of device images.
To modify the parameters of a device image: 1. On the Junos Space Network Management Platform UI, select Images and Scripts > Images.
The Images page appears.
2. Select the image that you want to modify. The selected image is highlighted.
3. Click the Modify Device Image icon. The Modify Device Image dialog box appears.
4. To modify the series, use the Series list and specify the series that the selected device image supports. The platforms that are part of the selected series are automatically displayed in the Platforms field and cannot be modified.
5. To add or modify the description, you can use a maximum of 256 characters within the Description box.
6. Click Modify. Your changes are saved. These changes can be viewed on the device image detail and summary views.
RELATED DOCUMENTATION Device Images Overview | 612 Deploying Device Images | 636 Deleting Device Images | 670
619
Staging Device Images
Junos Space Network Management Platform enables you to stage an image or a Junos Continuity software package (JAM package) on one device or multiple devices of the same device family simultaneously. Staging an image enables you to hold a device image on a device, ready to be deployed when needed. At any given time, you can stage only a single device image. Staging images repeatedly on a device merely replaces the previously staged device image. While staging device images, you can also delete existing device images from the device. After you stage a device image, you can verify the checksum to ensure that the device image is transferred completely.
NOTE: You can stage Junos Continuity software packages on devices by following the procedure for staging device images.
To stage a device image on devices:
1. On the Junos Space Platform UI, select Images and Scripts > Images. The Images page appears.
2. Select the device image and select Stage Image on Device from the Actions menu. The Stage Image on Devices page appears. The devices that are listed belong to the device family that supports this image. This page displays the following information: · Image name--Filename of the device image that you have selected for staging · MD5 Value--32-character hexadecimal number that is computed on the selected device image file, which is stored on the Junos Space server · Device Name--Name of the discovered device, which is an identifier used for network communication between Junos Space Network Management Platform and the Junos OS device. · Device Alias--Value of the Device Alias custom label for the device. This field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label for the device. · Domain--Domain to which the device is assigned · IP Address--IP address of the discovered device. For example, 10.1.1.1. · Platform--Platform of the discovered device. For example, MX480. · Software Version--Operating system firmware version running on the device. For example, 13.1X49D29.1. · Staged Status--Indicates whether the selected image is staged on the discovered device. This column displays either Staged (if the image is staged) or Not Staged (if the image is not yet staged).
620
· Deployed Status--Indicates whether the selected Junos Continuity software package is deployed on the device. This column appears only when you select a Junos Continuity software package to be staged. The column displays either Deployed (if the Junos Continuity software package is deployed) or Undeployed (if the Junos Continuity software package is not deployed).
· Checksum Status--Indicates whether the device image on the Junos Space server and the device is the same. The status can be one of the following: · Valid when the checksum values of the device image on the Junos Space server and the device match · Invalid when the checksum values do not match · NA when the selected image is not staged on the device yet You can restage an image whose checksum status is "Invalid" to ensure that you stage the image onto the device correctly, thereby making the checksum status "Valid." You can deploy an image only when the checksum status is "Valid."
· Last Checksum Time--Time when the checksum was last verified. For a device on which the selected image is not staged yet, this column displays NA.
NOTE: You can verify the checksum for a device image by selecting the Verify Image on Devices option from the Actions menu. For more information about how to verify the checksum, see "Verifying the Checksum" on page 629.
You can sort the data displayed in the following columns of the Stage Image on Devices page: Device Name, IP Address, Platform, Software Version, Staged Status, Checksum Status, and Last Checksum Time. You can also filter the list of devices based on the data in the following columns: Device Name, IP Address, Platform, and Software Version.
3. Select the device or devices on which you want to stage the device image by using one of the following selection modes--manually, on the basis of tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the complete list of devices is displayed.
To select devices manually: a. Click the Select Device Manually option, if it is not selected previously.
621
b. Select the devices on which you want to stage the device image. The Select Devices status bar shows the total number of devices that you selected. The status bar is dynamically updated as you select the devices.
c. (Optional) To select all devices, select the check box in the column header next to Device Name.
To select devices on the basis of tags: a. Click the Select by Tags option. The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined for devices in Junos Space Platform appears, categorized into two--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You must first tag the devices on the Device Management page before you can use the Select by Tags option.
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed.
622
The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly.
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection.
NOTE: By default, the Include All Managed Devices check box is not selected. Selecting the check box lists all device managed by Junos Space Platform.
To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse and select the file in CSV format containing the list of devices on which you want to stage the device image.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your local system and open it by using an application, such as Microsoft Excel.
c. Click Upload to upload the CSV file.
4. (Optional) To remove existing device images from the device, expand the Staging Options section and select the Delete any existing image before download check box. When you delete a previously staged image, an audit log entry is automatically generated.
5. (Optional) To schedule a time for staging the device image, select the Schedule at a later time check box and use the calendar icon and drop-down list, to specify the date and time respectively.
6. Click Stage Image. The image is staged on the selected device or devices and an alert appears, displaying the job ID. However, if the device on which you are trying to stage the device image does not have sufficient disk space to accommodate the image, then Junos Space displays an error message and the staging job fails.
623
NOTE: The time taken to stage an image depends on the size of the image, network connectivity, and the number of devices on which the image is staged. You can monitor the progress of the staging job by viewing the Percent column of the particular job on the Job Management page. If Junos Space Platform detects an SSH fingerprint mismatch between that on the device and that in the Junos Space Platform database, the connection is dropped. The Connection Status displays Down and Authentication Status displays Fingerprint Conflict on the Device Management page. The View Job Details page displays an error message.
To verify whether the image is staged successfully, click the job ID link or navigate to the Job Management page and view the status of the job. If the job is a failure, you can double-click the row corresponding to the job to view the reason for failure. The Device Image Action Details page appears, which displays the reason for failure in the Description column. If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992. However, if the image is staged successfully, then this column displays a success message. Also, you can export the information on the Device Image Action Details page as a comma-separated values (CSV) file. To export data on the Device Image Action Details page as a CSV file:
a. Click Export as CSV. You are prompted to save the file.
b. Click OK on the File Save page to save the file to your local file system.
c. After you save the file, to return to the Job Management page, click OK on the Exporting Device Image Job page.
Use an application such as Microsoft Excel to open the downloaded file from your local system. If you are using Microsoft Excel, you can filter data in the Status column to identify the devices on which the staging of images failed.
You can verify the checksum of the staged device image to ensure that the image is transferred completely to the device. For more information about how to verify the checksum, see "Verifying the Checksum" on page 629.
624
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to
list all managed devices for selection.
RELATED DOCUMENTATION Device Images Overview | 612 Staging Satellite Software Packages on Aggregation Devices | 624 Deploying Device Images | 636 Verifying the Checksum | 629
Staging Satellite Software Packages on Aggregation Devices
Junos Space Network Management Platform enables you to stage satellite software packages to one or more Juniper Networks devices functioning as aggregation devices. Staging a package enables you to hold the package on a device, ready to be deployed when needed. At any given time, you can stage only a single satellite software package to an aggregation device. After you stage a satellite software package, you can verify the checksum to ensure that the package is transferred completely. For more information about aggregation devices and satellite devices, refer to the Junos Fusion documentation. Satellite software packages have names prefixed with satellite- and must be downloaded and imported to Junos Space Platform before you can stage them. You can download satellite software packages from https://www.juniper.net/support/downloads/?p=fusion#sw. To stage a satellite software package: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page appears, displaying the software images imported to Junos Space Platform.
2. Select the satellite software package that you want to stage by selecting the check box beside the package name and select Stage Image on Satellite Device from the Actions menu.
NOTE: The Stage Image on Satellite Device option is available on the Actions menu only if you select a satellite software package for staging.
625
The Stage Image on Satellite Devices page appears. The aggregation devices that are compatible with the selected package are listed. This page displays the following information: · Image name--Filename of the satellite software package that you have selected for staging · MD5 Value--32-character hexadecimal number that is computed on the selected package, which is
stored on the Junos Space server · Device Name--Name of the discovered aggregation device, which is an identifier used for network
communication between Junos Space Network Management Platform and the Junos OS device. · Domain--Domain to which the aggregation device is assigned · IP Address--IP address of the discovered aggregation device. For example, 10.1.1.1. · Platform--Platform of the discovered aggregation device. For example, MX480. · Software Version--Operating system firmware version running on the aggregation device. For
example, 13.1X49D29.1. · Staged Status--Indicates whether the selected package is staged on the discovered aggregation
device. This column displays either Staged (if the package is staged) or Not Staged (if the package is not yet staged). · Checksum Status--Indicates whether the satellite software package on the Junos Space server and the aggregation device is the same. The status can be one of the following: · Valid when the checksum values of the package on the Junos Space server and the aggregation
device match · Invalid when the checksum values do not match · NA when the selected package is not staged on the aggregation device yet You can restage a package whose checksum status is "Invalid" to ensure that you stage the package onto the aggregation devices correctly, thereby making the checksum status "Valid." You can deploy a package only when the checksum status is "Valid." · Last Checksum Time--Time when the checksum was last verified. For an aggregation device to which the selected package is not staged yet, this column displays NA.
NOTE: You can verify the checksum for a satellite software package by selecting the Verify Image on Devices option from the Actions menu. For more information about how to verify the checksum, see "Verifying the Checksum" on page 629.
You can sort the data displayed in the following columns of the Stage Image on Satellite Devices page: Device Name, IP Address, Platform, Software Version, Staged Status, Checksum Status, and Last Checksum Time.
626
You can also filter the list of devices on the basis of the data in the following columns: Device Name, IP Address, Platform, and Software Version.
3. Select the aggregation device or devices to stage the satellite software package by using one of the following selection modes--manually, on the basis of tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the list of aggregation devices is displayed.
To select devices manually: a. Click the Select Device Manually option, if it is not selected previously.
b. Select the aggregation devices on which you want to stage the satellite software package. The Select Devices status bar shows the total number of aggregation devices that you selected. The status bar is dynamically updated as you select the devices.
c. (Optional) To select all devices, select the check box in the column header next to Device Name.
To select devices on the basis of tags: a. Click the Select by Tags option.
The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined for devices in Junos Space Platform appears, categorized into two--Public and Private.
NOTE: If no tags are displayed, then it means that none of the aggregation devices is associated with any tag. You must first tag the aggregation devices on the Device Management page before you can use the Select by Tags option.
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK.
627
· To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK.
As you select the tags, the total number of aggregation devices associated with the selected tags appears just above the device display table. For example, if there are six aggregation devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly.
To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse and select the file in the CSV format containing the list of aggregation devices to which you want to stage the package.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your local system and open it by using an application, such as Microsoft Excel.
c. Click Upload to upload the CSV file. From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says "Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update.
4. (Optional) To remove existing device images or satellite software packages from the device, expand the Staging Options section and select the Delete any existing image before download check box. When you delete a previously staged image, an audit log entry is automatically generated.
5. (Optional) To schedule a time for staging the satellite software package, select the Schedule at a later time check box and use the calendar icon and drop-down list to specify the date and time respectively.
6. Click Stage Image. The package is staged on the selected aggregation device or devices and a confirmation message appears, displaying the job ID. However, if the device on which you are trying to stage the satellite
628
software package does not have sufficient disk space to accommodate the package, then Junos Space displays an error message and the staging job fails.
NOTE: The time taken to stage a package depends on the size of the package, network connectivity, and the number of devices on which the package is staged. You can monitor the progress of the staging job by viewing the Percent column of the particular job on the Job Management page. If Junos Space Platform detects an SSH fingerprint mismatch between that on the device and that in the Junos Space Platform database, the connection is dropped and the job fails. Connection Status displays Down and Authentication Status displays Fingerprint Conflict on the Device Management page.
To verify whether the package is staged successfully, click the job ID link or navigate to the Job Management page and view the status of the job. If staging fails on any of the devices, the job is a failure. You can double-click the job to view the reason for failure and the devices on which the job failed. The Device Image Action Details page appears, which displays the reason for failure in the Description column. However, if the package is staged successfully, then this column displays a success message. You can export the information on the Device Image Action Details page as a comma-separated values (CSV) file. To export data on the Device Image Action Details page as a CSV file: a. Click Export as CSV.
You are prompted to save the file.
b. Click OK in the File Save dialog box to save the file to your computer.
c. After you save the file, to return to the Job Management page, click OK in the Exporting Device Image Job dialog box.
Use an application such as Microsoft Excel to open the downloaded file from your computer. If you are using Microsoft Excel, you can filter data in the Status column to identify the devices on which the staging of packages failed.
You can verify the checksum of the staged satellite software package to ensure that the package is transferred completely to the device. For more information about how to verify the checksum, see "Verifying the Checksum" on page 629.
629
RELATED DOCUMENTATION Device Images Overview | 612 Importing Device Images to Junos Space | 614 Deploying Satellite Software Packages on Aggregation and Satellite Devices | 651 Staging Device Images | 619
Verifying the Checksum
When you stage an image on a device by using Junos Space Network Management Platform, sometimes the device image is not completely transferred to the device. Verifying the checksum helps validate that the device image is staged properly and is not corrupted or altered in any way from the device image that you staged from the Junos Space server. The checksum value is a 32-character hexadecimal number that is computed for the device image file on the device. The device image file is validated by verifying whether the checksum values stored on the Junos Space server and the device match. If the checksum values match, the device image is considered to be copied correctly.
NOTE: You can verify the checksum of satellite software packages and Junos Continuity software packages by following the procedure for verifying the checksum of device images.
To verify the checksum: 1. On the Junos Space Network Management Platform UI, select Images and Scripts > Images.
The Images page appears.
2. Select the image whose checksum you want to verify.
3. Select Verify Image on Devices from the Actions menu. This option is unavailable if you select multiple images for verifying the checksum. Select only one image and repeat this step. The Verifying checksum of image on device(s) page appears. This page displays the following information: · Image name--Name of the image, which you have selected for verifying the checksum · MD5 Value--32-character hexadecimal number that is computed on the selected device image file, which is stored on the Junos Space server
630
· Host Name--Name of the discovered device, which is an identifier used for network communication between Junos Space Network Management Platform and the Junos OS device
· Device Alias--Value of the Device Alias custom label for the device. This field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label for the device.
· IP Address--IP address of the discovered device · Platform--Platform of the discovered device · Serial Number--Serial number of the device · Software Version--Operating system firmware version running on the device · Staged Status--Indicates whether the selected image is staged on the discovered device. This column
displays either Staged (if the image is staged) or Not Staged (if the image is not yet staged). · Deployed Status--Indicates whether the selected Junos Continuity software package is deployed on
the device. This column appears only when you select a Junos Continuity software package for verifying the checksum. The column displays either Deployed (if the Junos Continuity software package is deployed) or Undeployed (if the Junos Continuity software package is not deployed). · Checksum Status--Indicates whether the device image on the Junos Space server and the device are the same. The status can be one of the following: · Valid when the checksum values of the device image on the Junos Space server and the device
match · Invalid when the checksum values of the device image on the Junos Space server and the device
do not match · NA when the selected image is not staged on the device yet · Last Checksum Time--Time when the checksum was last verified. For a device in which the selected image is not staged yet, this column displays NA. This column is updated when an image is restaged to the device. 4. Select the devices that have the device image staged on them by using one of the following selection modes--manually, on the basis of tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
TIP: Perform a validation on those devices where the Checksum Status column shows Valid but the Last Checksum Time column displays a time that is way past the current time. By performing this action, you ensure that the image on the devices is valid currently.
NOTE: By default, the Select by Device option is selected and the complete list of devices is displayed.
631
To select devices manually: a. Click the Select Device Manually option, if it is not selected previously.
b. Select the devices on which you want to verify the checksum. The Select Devices status bar shows the total number of devices that you selected. The status bar is dynamically updated as you select the devices.
c. To select all devices, select the check box in the column header next to Host Name.
To select devices on the basis of tags: a. Click the Select by Tags option.
The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined on devices in the Junos Space system appears, displaying two categories of tags--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You need to tag the devices on the Device Management page before you can use the Select by Tags option.
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly. The device display table displays the devices associated with the selected tags.
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection.
632
To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse to navigate to the file location in your local system and select the CSV file containing the list of devices on which you want to verify the device image.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your local system and open it by using an application, such as Microsoft Excel.
c. Click Upload to upload the CSV file. From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details. You can click the View inapplicable devices link to review the list of devices that are excluded from the update. The reason for exclusion is listed as an error message against each device.
5. (Optional) To schedule a time for verifying the checksum, select the Schedule at a later time check box and use the calendar icon and drop-down list to specify the date and time respectively.
6. Click Verify. The checksum value of the device image file on the Junos Space server is validated against the checksum value of the device image file stored on the selected devices. An alert appears, displaying the job ID. To verify the devices on which the checksum status is valid, click the job ID link or navigate to the Job Management page and view the status of the job. If the job is a success, then the checksum values match on all devices selected for verification. However, if the job is a failure, double-click the row corresponding to the job to identify the devices on which this job is a failure. The Device Image Action Details displays the reason for failure in the Description column. Validation may fail if the checksum values do not match and for other reasons such as when the image is not staged on the device. Also, you can export information from the Device Image Action Details page as a CSV file to your local system. To export data from the Device Image Action Details page to your local system: a. Click Export as CSV. You are prompted to save the file.
633
b. Click OK in the File Save page to save the file to your local file system.
c. Click OK in the Exporting Device Image Job page, to return to the Job Management page.
Use an application such as Microsoft Excel to open the downloaded file from your local system. If you are using Microsoft Excel, you can filter data in the Status column to identify the devices on which the image verification failed.
When you verify a checksum, an audit log entry is automatically generated.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to
list all managed devices for selection.
RELATED DOCUMENTATION Device Images Overview | 612 Viewing and Deleting MD5 Validation Results | 633 Deploying Device Images | 636
Viewing and Deleting MD5 Validation Results
IN THIS SECTION Viewing the MD5 Validation Results | 634 Deleting the MD5 Validation Results | 635
Using Junos Space Network Management Platform, you can validate the completeness of a device image that is staged on the devices. If the checksum values of a device image file on the Junos Space server and the device match, then there is a high probability that the images are the same. The result of this validation appears on the Validation Results page. From this page, you can view and delete the validation results.
634
For more information about verifying the checksum, see "Verifying the Checksum" on page 629.
Viewing the MD5 Validation Results
The MD5 validation results indicate whether the device image that is staged on a device is completely transferred to the device or not. The result also indicates whether the device image is not present on the selected devices.
NOTE: You can view the MD5 validation results of satellite software packages and Junos Continuity software packages by following the procedure for viewing the MD5 validation results of device images.
To view the MD5 validation results: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page displays the list of device images.
2. Select a device image.
3. Select MD5 Validation Result from the Actions menu. The MD5 Validation Result page displays the results of verification tasks.
Table 70 describes the Validation Results page.
Table 70: Validation Results Page Field Descriptions
Field Name
Description
Device image name
Name of the device image selected for verifying the checksum
Device name
Name of the devices on which the device image is verified
Device Alias
Value of the Device Alias custom label for the device. This field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label for the device.
Action
Name of the action performed
Checksum Result
Result of the verification
Remarks
Observations made during the verification. For example, "Validation Failed."
635
Table 70: Validation Results Page Field Descriptions (continued)
Field Name
Description
Verification Time
Time at which you initiated verification by selecting Verify Image on Devices from the Actions menu
You can export the data from the Validation Results page as a CSV file to your local file system. To export the data from the Validation Results page as a CSV file to your local file system: 1. Click Export to CSV from the Actions menu.
You are prompted to save the file.
2. Click OK in the File Save dialog box to save the file to your local file system.
3. After you save the file, to return to the MD5 Validation Result page, click the [X] icon in the Exporting Validation Results dialog box to close the dialog box.
Navigate to the location where you saved the file and open the file by using an application such as Microsoft Excel. You can filter the data in the file to view the information you are interested in.
Deleting the MD5 Validation Results
NOTE: You can delete the MD5 validation results of satellite software packages and Junos Continuity software packages by following the procedure for deleting the MD5 validation results of device images.
To delete the MD5 validation results: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page appears.
2. Select a device image.
3. Select MD5 Validation Result from the Actions menu. The MD5 Validation Result page displays the results of all verification tasks.
4. Select the results that you want to delete.
636
5. Select Delete Validation Results from the Actions menu. The Delete Validation Results dialog box displays the selected results.
6. Click Delete to confirm. The selected results are removed from Junos Space Platform.
RELATED DOCUMENTATION Device Images Overview | 612 Staging Device Images | 619 Verifying the Checksum | 629
Deploying Device Images
Junos Space Network Management Platform enables you to deploy device images and Junos Continuity software packages (JAM packages) onto a device or multiple devices of the same device family simultaneously. During deployment, a device image is installed on the device. Using an image that is already staged on a device eliminates the time taken to load the device image on a device and directly jumps to the installation process. Junos Space Network Management Platform also enables you to schedule a time when you want the image to be deployed.
NOTE: Junos Space Platform enables you to deploy Junos Continuity software packages (JAM packages) on the MX240, MX480, MX960, MX2010, and MX2020 platforms. The filenames for Junos Continuity software packages are prefixed with jam- and are referred to as JAM packages in Junos Space Platform. From Junos Space Platform Release 18.2R1 onward, you can deploy VM host images on devices.
On dual Routing Engine platforms, you can also perform a unified in-service software upgrade (ISSU) between two different Junos OS software releases with no disruption on the control plane and with minimal disruption of traffic. This provides the following benefits: · Eliminates network downtime during software image upgrades · Reduces operating costs, while delivering higher service levels · Allows fast implementation of new features
637
During the unified ISSU, the backup Routing Engine is rebooted with the new software package and switched over to make it the new primary Routing Engine. The former primary Routing Engine can also be upgraded to the new software and rebooted.
Table 71 describes the devices and software releases that support unified ISSU.
Table 71: Routing Platforms and Software Releases Supporting ISSU
Routing Platform
Software Release
M120 router
Junos 9.2 or later
M320 router
Junos 9.0 or later
MX Series Ethernet Services router
Junos 9.3 or later
NOTE: Unified ISSU for MX Series does not support IEEE 802.1ag OAM, IEEE 802.3ah, and LACP protocols.
SRX Series Gateways
Junos 12.1 or later
T320 router
Junos 9.0 or later
T640 routing node
Junos 9.0 or later
T1600 routing node
Junos 9.1 or later
TX Matrix platform
Junos 9.3 or later
NOTE: EX Series switches do not support unified ISSU.
Additionally, you must note the following in connection with performing a unified ISSU:
· You can upgrade to a software version that supports unified ISSU from a software version that does not support unified ISSU only by means of a conventional upgrade. During the conventional upgrade, all line modules are reloaded, all subscribers are dropped, and traffic forwarding is interrupted until the upgrade is completed.
· The armed (upgrade) release must be capable of being upgraded to from the currently running release. · All applications that are configured on the router must support unified ISSU and stateful SRP switchover.
638
· If one or more applications that do not support unified ISSU are configured, and you proceed with a unified ISSU, the unified ISSU process fails. To deploy the image on the device, you must choose a conventional upgrade on the router.
· To perform unified ISSU on an MX Series device, you must manually configure the device to enable Nonstop Bridging, in addition to GRES and NSR that Junos Space enables on the dual Routing Engine device for unified ISSU.
NOTE: We strongly recommend that you configure the primary-only IP on the dual Routing Engine device. Dual Routing Engine devices without the primary-only configuration are not yet fully supported on Junos Space Platform. If the primary-only IP is not configured, physical inventory does not get listed after upgrading the dual Routing Engine device.
For more details about protocols, features, and PICs supported by unified ISSU, see the Unified ISSU System Requirements sections in the Junos OS High Availability Configuration Guide.
639
You can deploy a device image only onto devices or platforms supported by that device image. When you select an image for deployment, only those devices that are supported by the selected device image are displayed in the list of devices.
NOTE: In Junos Space Platform, an SRX Series cluster is represented as two individual devices with cluster peer information. When you deploy a device image on an SRX Series cluster, the image is installed on both cluster nodes.
NOTE: If you want to select Check compatibility with current configuration from the Conventional Deploy Options for an image on a dual Routing Engine device, make sure that GRES and NSR are disabled on the device.
Devices in an SRX Chassis Cluster can be upgraded by deploying device images from Junos Space Platform with a minimal service disruption of approximately 30 seconds using the In-band Cluster Upgrade (ICU) feature with the no-sync option. The ICU feature allows both devices in an SRX Chassis Cluster to be upgraded from the supported Junos OS versions. ICU is supported on SRX100, SRX110, SRX210, SRX220, SRX240, SRX300, SRX320, SRX340, SRX345, SRX550, and SRX650 Services Gateways if they run on Junos OS Releases 11.2R2 and later.
NOTE: You cannot upgrade the devices in an SRX Chassis Cluster using the ICU feature if Junos Space Platform cannot connect to one of the devices in the SRX Chassis Cluster. To ensure that you upgrade both devices on the SRX Chassis Cluster successfully: · Select the Remove the package after successful installation check box in the Common
Deployment Options, Reboot device after successful installation check box in the Conventional Deployment Options, and the check box next to ISSU Deployment Options during device image deployment.
NOTE: · You can deploy Junos Continuity software packages on devices by following the procedure
for deploying device images. Deployment options that are not relevant to Junos Continuity software do not appear when you select a Junos Continuity software package for deployment. · You must ensure that the Modular Port Concentrators (MPCs) supported by the Junos Continuity software package are offline before you deploy the Junos Continuity software package to the devices from Junos Space Platform.
640
To deploy device images: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page appears.
2. Select the image that you want to deploy. The selected image is highlighted.
3. Select Deploy Device Image from the Actions menu.
The Deploy Image on Devices dialog box appears. The Select Devices table in the Deploy Image on Devices dialog box displays the devices that are supported by the selected device image. For a description of the fields in this table, see Table 72.
Table 72: Select Devices Table Fields
Field
Description
Image name
Name of the device image. (This field is above the devices table.)
MD5 Value
32-character hexadecimal number that is computed on the selected device image file, which is stored on the Junos Space server
Device Name
Identifier used for network communication between Junos Space Platform and the device running Junos OS.
Device Alias
Value of the Device Alias custom label for the device. This field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label for the device.
IP Address
IP address of the device.
Platform
Model number of the device.
Software Version
Operating system firmware version running on the device.
Staged Status
Indicates whether the selected image is staged on the discovered device. This column displays either Staged (if the image is staged) or Not Staged (if the image is not yet staged).
Deployed Status
Indicates whether the Junos Continuity software package is deployed on the device. This field appears only if you have selected a Junos Continuity software package to be deployed. The column displays either Deployed (if the Junos Continuity software package is deployed) or Undeployed (if the Junos Continuity software package is not deployed).
641
Table 72: Select Devices Table Fields (continued)
Field
Description
Checksum Status Last Checksum Time
Indicates whether the device image on the Junos Space server and the device are the same:
· Valid means that the checksum values of the device image on the Junos Space server and the device match.
· Invalid means that the checksum values of the device image on the Junos Space server and the device do not match.
· NA means that the selected image is not staged on the device yet.
Time when the checksum was last verified. For a device in which the selected image is not staged yet, this column displays NA.
Domain
Domain to which the device belongs
4. Select the devices on which you want to deploy the device image by using one of the following selection modes--manually, based on tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
TIP: Some points to consider when you select devices for deploying an image:
· Using a device in which the selected device image is already staged eliminates the time taken to load the device image on a device. However, if you select a device in which the image is not previously staged, then the deployment action stages the image first and then installs the image on the device. Use the Staged and Not Staged statuses on the Staged Status column to identify the devices in which the images are staged and not staged, respectively.
· If the Last Checksum Time value is way past the current time, it is better to verify the checksum before deploying the image so as to ensure that the image is valid. The deployment fails if the checksum values of the device image file on the Junos Space server and the device do not match. For more information about verifying the checksum, see "Verifying the Checksum" on page 629.
642
NOTE: By default the Select Device Manually option is selected and the complete list of devices is displayed.
To select devices manually: a. Click the Select Device Manually option, if it is not selected previously.
b. Select the devices on which you want to deploy the device image. The Select Devices status bar shows the total number of devices that you selected. The status bar is dynamically updated as you select the devices.
c. To select all devices, select the check box in the column header next to Device Name.
To select devices on the basis of tags: a. Click the Select by Tags option. The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined for devices in Junos Space Platform appears, categorized into two--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You must tag the devices on the Device Management page before you can use the Select by Tags option.
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed.
643
The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly.
From Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection. To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse and upload the file in CSV format containing the list of devices on which you want to deploy the device image.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your local system and open it by using an application, such as Microsoft Excel.
From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says "Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update. The reason for exclusion is listed as an error message against each device.
5. (Optional) Select the Show ISSU/ICU capable devices only check box to display only those devices in which you can perform unified ISSU and ICU.
NOTE: If you are deploying a Junos Continuity software package to the devices, the Show ISSU/ICU capable devices only check box is not available for selection.
6. To specify different deployment options, select one or more of the check boxes in the Common Deployment Options, Conventional Deployment Options, ISSU Deployment Options, and Advanced Options sections. See Table 73, Table 74, Table 75, and Table 76 for a description of the deployment options.
644
NOTE: When you perform a conventional upgrade of the device image on dual Routing Engines, the image is first deployed on the backup Routing Engine followed by the primary Routing Engine. If deployment fails on the backup Routing Engine, the device image is not deployed on the primary Routing Engine.
7. (Optional) To specify common deployment options, expand the Common Deployment Options section and select one or more check boxes. See Table 73 for a description of the common deployment options.
NOTE: If you are deploying a Junos Continuity software package to the devices, only the Use image already downloaded to device option is displayed in the Common Deployment Options section for selection.
Table 73: Common Deployment Options Descriptions
Common Deployment Options
Description
Use image already downloaded to device Use the device image that is staged on the device for deployment.
Archive data (Snapshot)
Collect and save device data and executable areas.
NOTE: If you are deploying a VM host image, this option is renamed as Snapshot.
Remove the package after successful installation
Delete the device image from the device after successful installation of the device image.
NOTE: If you are deploying a VM host image, this option is disabled.
Delete any existing image before download Delete all device images with the same filename from the device before deploying the selected device image.
8. (Optional) To specify conventional deployment options, expand the Conventional Deployment Options section and select one or more check boxes. See Table 74 for a description of the conventional deployment options.
NOTE: If you are deploying a Junos Continuity software package to the devices, the Conventional Deployment Options section is not available for selection.
645
Table 74: Conventional Deployment Options Descriptions
Conventional Deployment
Options
Description
Check compatibility with current configuration
Verifies device image compatibility with the current configuration of the device
Upgrade Dual-Root Partition
Ensures that the device image is deployed to both the primary and the backup root partitions of devices with dual-root partitions. This option is available for EX, ACX, and SRX Series (SRX100, SRX110, SRX210, SRX220, SRX240, SRX550, and SRX650 Services Gateway) devices only.
By default, the device image is deployed only to the primary root partition. You must select the check box to deploy the device image to both the primary and the backup root partitions.
The Upgrade Dual-Root Partition is available from Junos Space Network Management Platform Release 16.1R1 onward.
NOTE: If you are deploying a VM host image, this option is disabled.
Load succeeds if at least one Ensures that the device image is loaded successfully even if only one of the selected
statement is valid
deployment options is valid
NOTE: If you are deploying a VM host image, this option is disabled.
Reboot device after successful installation
Reboots the device after deployment is successful. If the device is down, Junos Space Platform waits for the device to come up before initiating the reboot. If the device is not up within 30 minutes, the Image Deployment Job is marked as failed.
After rebooting the device, the status of the device is checked every five minutes to check whether the device is up.
NOTE: This check box is automatically selected when you select the Upgrade Dual-Root Partition option. You must not clear this check box if the Upgrade Dual-Root Partition option is selected.
Force Host Upgrade
Upgrades the host OS and Junos OS of the device.
NOTE: This option is enabled only for ACX, QFX, and EX Series devices and the image being deployed must contain host OS packages.
If you enable this option, the ISSU Deployment Options cannot be enabled.
If you are deploying a VM host image, this option is disabled.
646
Table 74: Conventional Deployment Options Descriptions (continued)
Conventional Deployment
Options
Description
Upgrade Backup Routing Engine only
Deploys the image to only the backup Routing Engine
Dual-Root Partitioning for SRX Supports dual partition for SRX Series devices This check box is disabled for non-SRX Series devices. NOTE: If you are deploying a VM host image, this option is disabled.
9. (Optional) To perform unified ISSU on a dual Routing Engine device, expand the ISSU Deployment Options section and select one or more of the check boxes. The ISSU option is enabled only if the selected device has a dual Routing Engine. For devices with dual Routing Engines the term Dual RE is displayed in the Platform column of the Select Devices table on the Deploy Images on Devices page.
NOTE: If you are deploying a Junos Continuity software package to the devices, the ISSU Deployment Options section is not available for selection.
SeeTable 75 for a description of the unified ISSU deployment options. Table 75: Unified ISSU Deployment Options Descriptions
Unified ISSU Deployment Options Description
Upgrade the former Master with new image
After the backup Routing Engine is rebooted with the new software package and a switchover occurs to make it the new primary Routing Engine; the former primary (new backup) Routing Engine is automatically upgraded. If you do not select this option, the former primary Routing Engine must be manually upgraded.
Reboot the former Master after a successful installation
The former primary (new backup) Routing Engine is rebooted automatically after being upgraded to the new software. If this option is not selected, you must manually reboot the former primary (new backup) Routing Engine.
Save copies of the package files on the Copies of the package files are retained on the device.
device
NOTE: If you are deploying a VM host image, this option is disabled.
647
10. (Optional) To specify advanced deployment options, expand the Advanced Options and select one or more check boxes. See Table 76 for a description of the advanced deployment options. From this section, you can execute script bundles before and after image deployment.
NOTE: If you are assigned a user role that does not have the permissions required for executing script bundles on devices, then all the options in the Advanced Options section are unavailable.
Table 76: Advanced Options Descriptions
Advanced Options
Description
Execute script bundle before image deployment (pre scripts)
Execute the script bundle that you have selected before deploying the device image. This ensures that the scripts in the selected script bundle are executed before the device image is installed on the device.
After selecting a script bundle, you can configure the script parameters of the scripts within the script bundle (for instructions, see the following procedure starting with Step a).
Select same pre script bundle Execute the same script bundle on the device before and after device image
for post script bundle
deployment.
This check box is unavailable if you have not selected a script bundle on the Execute script bundle before image deployment (pre scripts) list.
Execute script bundle after image deployment (post scripts)
Execute the selected script bundle after deploying the device image. This ensures that the scripts in the selected script bundle are executed after the device image is installed on the device.
After selecting a script bundle, you can configure the script parameters of the scripts within the script bundle (for instructions, see the following procedure starting with Step a).
If you selected the Select same pre script bundle for post script bundle check box, then the Execute script bundle after image deployment (postscripts) check box is unavailable because the postscript bundle is the same as the prescript bundle.
648
Table 76: Advanced Options Descriptions (continued)
Advanced Options
Description
Deploy and Enable script bundle before execution
Deploy the selected script bundle, enable the scripts included in the script bundle, and then execute the script bundle on the device.
If you are assigned a user role that does not have permissions for staging or enabling script bundles on devices, this check box is unavailable for selection.
This check box is also unavailable if you have not selected a script bundle on the Execute script bundle before image deployment (pre scripts) list or the Execute script bundle after image deployment (post scripts) list.
Disable scripts after execution
Execute the scripts in the script bundle on the device and then disable the scripts in the script bundle.
You can enable the scripts at a later point of time (for instructions, see "Enabling Scripts on Devices" on page 695).
If you are assigned a user role that does not have permissions for disabling script bundles on devices, this check box is unavailable for selection.
To configure the script parameters of scripts included in the script bundle:
a. Select the prescript or postscript bundle that you want to configure, from the respective lists. If there are no script bundles listed, you can create script bundles using the Scripts workspace (see "Creating a Script Bundle" on page 749) and then select the script bundle during image deployment.
b. Click the Configure Scripts Parameters link.
The Configure Script Bundle Parameters page appears. You can hover over the script parameters to view short descriptions about them.
c. You can edit the value of script parameters by clicking the
icon before deploying the script
bundle on the devices. The changes made to script parameters are saved only on the devices on
which the script bundle is executed. The script parameters in the script bundle in Junos Space
Platform continue to reflect the original values.
d. Click Configure.
649
Your changes are saved and the Deploy Image on Devices page appears.
11. (Optional) To schedule a time for deployment, select the Schedule at a later time check box and use the calendar icon and drop-down list to specify the date and time respectively.
12. Click Deploy. The selected image is deployed on the specified devices with the deployment options that you specified and an alert appears, displaying the job ID.
NOTE: You can monitor the progress of completion from the Percent column of the particular job on the Job Management page. If Junos Space Platform detects an SSH fingerprint mismatch between that on the device and that in the Junos Space Platform database, the connection is dropped. The Connection Status displays Down and Authentication Status displays Fingerprint Conflict on the Device Management page. The View Job Details page displays an error message.
NOTE: After you deploy Junos Continuity software packages from Junos Space Platform to devices, you must ensure that the Modular Port Concentrators (MPCs) supported by the Junos Continuity software package are in the online state.
To verify whether the image is deployed successfully, click the job ID link or navigate to the Job Management page and view the status of the job. If the job is a failure, you can double-click the row corresponding to the job to view the reason for failure. If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992. The Device Image Action Details page displays the reason for failure in the Description column. However, if the image is deployed successfully, then this column displays information that is similar to the following text depending on the image and the device to which the image is deployed: Image [12.3R1.7] to be deployed :jinstall-12.3R1.7-domestic-signed.tgz. Gathered Routing Engine Information. Package installed on backup RE. Backup RE rebooted. Gathered software version information from backup RE. Package installed on master RE. Master RE rebooted. Gathered software version information.
650
NOTE: If you choose to deploy the device image only on the primary root partition of a device with dual-root partitions, the detailed job summary of the corresponding job displays a warning that you must use the request system snapshot slice alternate command on the device to copy the device image to the alternative root partition.
Also, you can export information from the Device Image Action Details page as a comma-separated values (CSV) file to your local file system. To export data from the Device Image Action Details page to your local file system:
a. Click Export as CSV. You are prompted to save the file.
b. Click OK on the File Save dialog box to save the file to your local file system.
c. After you save the file, to return to the Job Management page, click OK on the Exporting Device Image Job dialog box.
Use an application such as Microsoft Excel to open the downloaded file from your local system. If you are using Microsoft Excel, you can filter data in the Status column to identify the devices on which the image deployment failed. See the associated Description column to understand the reasons for failure.
You can also view the result of deployment from the View Deploy Results page. See "Viewing Device Image Deployment Results" on page 656.
Release History Table
Release
Description
18.2
From Junos Space Platform Release 18.2R1 onward, you can deploy VM host images on devices.
17.2
From Release 17.2R1 onward, when you select devices by CSV, you can choose to select all
managed devices. Select the Include All Managed Devices check box to list all managed devices
for selection.
16.1R1
The Upgrade Dual-Root Partition is available from Junos Space Network Management Platform Release 16.1R1 onward.
RELATED DOCUMENTATION
651
Device Images Overview | 612 Importing Device Images to Junos Space | 614 Deploying Satellite Software Packages on Aggregation and Satellite Devices | 651 Script Bundles Overview | 748
Deploying Satellite Software Packages on Aggregation and Satellite Devices
Junos Space Network Management Platform enables you to deploy satellite software packages to one or more Juniper Networks devices functioning as aggregation devices and to the satellite devices connected to these aggregation devices simultaneously. When you deploy a satellite software package, the package is installed on the selected aggregation devices and connected satellite devices. If the satellite software package is already staged on the devices, the time taken to load the package is eliminated and Junos Space Platform directly installs the package. Junos Space Platform also enables you to schedule the deployment of a package at a later time. You can deploy a satellite software package only onto devices or platforms supported by that package. When you select a satellite software package for deployment, only those devices that are supported by the selected package are displayed on the list of aggregation devices. Satellite software packages have names prefixed with satellite- and must be downloaded and imported to Junos Space Platform before you can deploy them. You can download satellite software packages from https://www.juniper.net/support/downloads/?p=fusion#sw.
NOTE: Junos Space deploys satellite package onto a satellite device through an aggregation device by upgrading all software upgrade groups on the aggregation device rather than the corresponding satellite software upgrade group.
To deploy satellite software packages: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page appears, displaying the software images imported to Junos Space Platform.
2. Select the satellite software package that you want to deploy by selecting the check box beside the package name. The selected package is highlighted.
3. Select Deploy Satellite Device Image from the Actions menu.
652
NOTE: The Deploy Satellite Device Image option is available on the Actions menu only if you select a satellite software package for staging.
The Deploy Image on Satellite Devices dialog box appears. The Select Devices table in the Deploy Image on Satellite Devices dialog box displays the aggregation devices that are supported by the selected satellite software package. For a description of the fields in this table, see Table 77.
Table 77: Select Devices Table Fields
Field
Description
Image name
Filename of the satellite software package. (This field is above the devices table.)
MD5 Value
32-character hexadecimal number that is computed on the selected satellite software package, which is stored on the Junos Space server
Device Name
Identifier used for network communication between Junos Space Platform and the device running Junos OS
IP Address
IP address of the aggregation device
Platform
Model number of the aggregation device
Software Version
Operating system firmware version running on the aggregation device
Staged Status
Indicates whether the selected package is staged on the aggregation device. This column displays either Staged (if the package is staged) or Not Staged (if the package is not yet staged).
Checksum Status Last Checksum Time
Indicates whether the satellite software package on the Junos Space server and the aggregation device are the same:
· Valid means that the checksum values of the package on the Junos Space server and the device match.
· Invalid means that the checksum values of the package on the Junos Space server and the device do not match.
· NA means that the selected package is not staged on the device yet.
Time when the checksum was last verified. For a device in which the selected package is not staged yet, this column displays NA.
Domain
Domain to which the aggregation device belongs
653
4. Select the devices on which you want to deploy the satellite software package by using one of the following selection modes--manually, on the basis of tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
TIP: Some points to consider when you select devices for deploying a package: · Using a device on which the selected satellite software package is already staged eliminates
the time taken to load the package on a device. However, if you select a device on which the package is not previously staged, then the deployment action stages the package first and then installs the package on the device. Use the Staged and Not Staged statuses in the Staged Status column to identify the devices on which the packages are staged and not staged, respectively. · If the Last Checksum Time value shows that the checksum is not verified recently, it is better to verify the checksum again before deploying the package so as to ensure that the package is valid. The deployment fails if the checksum values of the satellite software package file on the Junos Space server and the device do not match. For more information about verifying the checksum, see "Verifying the Checksum" on page 629.
NOTE: By default, the Select Device Manually option is selected and the list of aggregation devices is displayed.
To select devices manually: a. Click the Select Device Manually option, if it is not selected previously.
b. Select the devices on which you want to deploy the satellite software package. The Select Devices status bar shows the total number of aggregation devices that you selected. The status bar is dynamically updated as you select the devices.
c. To select all devices, select the check box in the column header next to Device Name.
To select devices on the basis of tags: a. Click the Select by Tags option.
The Select by tags list is activated.
b. Click the arrow on the Select by Tags list.
654
A list of tags defined for devices in Junos Space Platform appears, categorized into two--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You must tag the devices on the Device Management page before you can use the Select by Tags option.
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of aggregation devices associated with the selected tags appears just above the device display table. For example, if there are six aggregation devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly.
To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse and select the file in the CSV format containing the list of aggregation devices on which you want to deploy the satellite software package.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your local system and open it by using an application, such as Microsoft Excel.
c. Click Upload to upload the CSV file. From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says "Few devices are not selected due to
655
precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update.
5. (Optional) To specify common deployment options, expand the Common Deployment Options section and select one or more check boxes. See Table 78 for a description of the common deployment options.
Table 78: Common Deployment Options Descriptions
Common Deployment Options
Description
Use image already downloaded to device
Use the satellite software package that is staged on the devices for deployment.
Archive data (Snapshot)
Collect and save device data and executable areas to the snapshot locations for the device, such as /altroot, /altconfig, /config, and so on.
Remove the package after successful installation
Delete the satellite software package from the devices after the successful installation of the package.
Delete any existing image before download Delete all satellite software packages with the same filename from the device before deploying the selected package.
6. (Optional) To schedule a time for deployment, select the Schedule at a later time check box and use the calendar icon and drop-down list to specify the date and time respectively.
7. Click Deploy. The selected package is deployed on the selected aggregation devices and the connected satellite devices, with the deployment options that you specified, and an alert appears, displaying the job ID.
NOTE: You can monitor the progress of completion from the Percent column of the particular job on the Job Management page. If Junos Space Platform detects an SSH fingerprint mismatch between that on the device and that in the Junos Space Platform database, the connection is dropped and the job fails. Connection Status displays Down and Authentication Status displays Fingerprint Conflict on the Device Management page.
To verify whether the package is deployed successfully, click the job ID link or navigate to the Job Management page and view the status of the job. If the deployment fails on any of the devices, the job is a failure. You can double-click the job to view the reason for failure and the devices on which the job failed. The Device Image Action Details page displays the reason for failure in the Description column. However, if the package is deployed successfully, then this column displays a success message.
656
Also, you can export information from the Device Image Action Details page as a comma-separated values (CSV) file to your local file system. To export data from the Device Image Action Details page to your local file system: a. Click Export as CSV.
You are prompted to save the file.
b. Click OK in the File Save dialog box to save the file to your local file system.
c. After you save the file, to return to the Job Management page, click OK in the Exporting Device Image Job dialog box.
Use an application such as Microsoft Excel to open the downloaded file from your local system. If you are using Microsoft Excel, you can filter data in the Status column to identify the devices on which the package deployment failed. See the associated Description column to understand the reasons for failure.
You can also view the result of deployment from the View Deploy Results page. For more information, see "Viewing Device Image Deployment Results" on page 656.
RELATED DOCUMENTATION Device Images Overview | 612 Importing Device Images to Junos Space | 614 Staging Satellite Software Packages on Aggregation Devices | 624 Deploying Device Images | 636
Viewing Device Image Deployment Results
Junos Space Network Management Platform enables you to view the results of device image deployment. You can also filter the results to display only those instances where deployment failed.
NOTE: You can view the deployment results for satellite software packages and Junos Continuity software packages by following the procedure for viewing deployment results for device images.
657
To view deployment results: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page appears.
2. Click the View Deployed Results icon. The View Deployed Results page appears, displaying the job ID, scheduled start time, name of the image, job description, script bundles executed, actual start time, end time, and the results of the deployment job. The columns on this page can be displayed or hidden as required. To display or hide a column: a. Click the down arrow on any column header.
b. Select Columns. A list with menu options corresponding to all available column headings appears with a check box next to each heading. The check boxes for the headings that are displayed are selected; those that are hidden are not selected.
c. Select or deselect the headings as desired. The tabular view changes to reflect your choices.
3. (Optional) To view only the failures in deployment, select the Show Failures check box. By default, this check box is unselected. If the check box is selected, then the View Deployed Results page displays only the deployment jobs that failed.
4. (Optional) To view more information about the status of a job: a. On the View Deployed Results page, select a job.
b. In the Results column, click the SUCCESS or FAILURE link. The Image Deploy Results page appears, displaying the following information: · Image Name--Deployed image name · Job Id--Deployment job ID · Result--Indicates whether the deployment is a success or failure · Summary--Deployment options that you selected while deploying the image · Hostname--Device to which the image is deployed · Comment--More information about the status of the job
658
Example text, which is displayed when a deployment job is a failure: Image [12.3R3.4] to be deployed: jinstall-ex-3300-12.3R3.4-domestic-signed.tgz Gathered Routing Engine Information. Failed to execute RPC request-package-add in 1024.134 seconds. Error message from Device: null Example text, which is displayed when a deployment job is a success: Image [11.4R7.5] to be deployed: junos-srx1k3k-11.4R7.5-doemstic.tgz Completed copying file to the device. Package installed on device. Device rebooted. Gathered software version information. c. (Optional) To determine whether the scripts that you chose to execute before and after image deployment were successfully executed, click the arrow next to the hostname. Two tables appear, which display a list of prescripts and postscripts and whether they were successfully executed.
d. Click Close on the Image Deploy Results page to return to the View Deployed Results page.
5. Click the Images breadcrumb at the top of the View Deployed Results page to return to the Images page.
RELATED DOCUMENTATION Deploying Device Images | 636 Staging Device Images | 619
Viewing Device Association of Images
You can view the images that are staged to a single device or multiple devices running Junos OS by using Junos Space Network Management Platform. You can view the device associations for one or more images from the Images page. On the Images page, click View in the Associations column of an image entry to view the associated devices for that image.
659
NOTE: You can view the device association of satellite software packages and Junos Continuity software packages by following the procedure for viewing the device association of device images.
To view devices on which an image is staged: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page appears. 2. Select an image.
NOTE: Junos Space does not display images that are staged out-of-band.
3. Select View Associated Devices from the Actions menu or click View in the Associations column. The View Associated Devices page appears with valid imagedevice association details, which include the image name, the device name, device alias custom label, IP address, platform, software version, and staged status of the devices. If you are viewing the device associations of a Junos Continuity software package, the deployed status is also displayed. This page is read-only and hence you cannot perform any actions on this page.
NOTE: The image()device(s) association details are displayed only if you stage an image on to devices in Junos Space Release 13.3R1 or later versions. If you staged an image on to a device by using a version prior to Junos Space Release 13.3R1 and then upgraded to Release 13.3R1 or later versions, then this image()device(s) association is not displayed.
4. Click Back at the top of the View Associated Devices page. You are now returned to the Images page.
RELATED DOCUMENTATION Deploying Device Images | 636 Staging Device Images | 619 Device Images Overview | 612
660
Undeploying JAM Packages from Devices
Junos Space Network Management Platform allows you to undeploy Junos Continuity software packages (JAM packages) that you have earlier deployed to devices. When you undeploy the Junos Continuity software package using the Undeploy JAM Package from Device action, the package is uninstalled from the selected device or devices.
NOTE: You must ensure that the Modular Port Concentrators (MPCs) supported by the Junos Continuity software package are offline before you undeploy the Junos Continuity software package from the devices by using Junos Space Platform.
To undeploy the Junos Continuity software package from devices: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page appears.
2. Select the check box beside the entry for the Junos Continuity software package that you want to undeploy.
3. Select Undeploy JAM Package from Device from the Actions menu.
The Undeploy JAM Package from Device dialog box appears. The Select Devices table in the Undeploy JAM Package from Device dialog box displays the devices that are supported by the selected Junos Continuity software package. For a description of the fields in this table, see Table 79
Table 79: Select Devices Table Fields
Field
Description
JAM Package Name
Name of the Junos Continuity software package (This field is above the devices table.)
MD5 Value
32-character hexadecimal number that is computed on the selected Junos Continuity software package file, which is stored on the Junos Space server
Device Name
Identifier used for network communication between Junos Space Platform and the device running Junos OS
Device Alias
Value of the Device Alias custom label for the device. This field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label for the device.
IP Address
IP address of the device
661
Table 79: Select Devices Table Fields (continued)
Field
Description
Platform
Model number of the device
Software Version
Operating system firmware version running on the device
Staged Status
Indicates whether the selected Junos Continuity software package is staged on the device. This column displays either Staged (if the Junos Continuity software package is staged) or Not Staged (if the Junos Continuity software package is not staged).
Deployed Status
Indicates whether the Junos Continuity software package is deployed on the device. The column displays either Deployed (if the Junos Continuity software package is deployed) or Undeployed (if the Junos Continuity software package is not deployed).
Checksum Status Last Checksum Time
Indicates whether the Junos Continuity software package on the Junos Space server and the device are the same:
· Valid means that the checksum values of the Junos Continuity software package on the Junos Space server and the device match.
· Invalid means that the checksum values of the Junos Continuity software package on the Junos Space server and the device do not match.
· NA means that the selected Junos Continuity software package is not staged on the device yet.
Time when the checksum was last verified. For a device in which the selected Junos Continuity software package is not staged yet, this column displays NA.
Domain
Domain to which the device belongs
4. Select the devices from which you want to undeploy the Junos Continuity software package by using one of the following selection modes--manually, based on tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the list of devices on which the Junos Continuity software package is deployed is displayed.
To select devices manually: a. Click the Select Device Manually option button, if it is not selected previously. b. Select the devices from which you want to undeploy the Junos Continuity software package.
662
The Select Devices status bar shows the total number of devices that you selected. The status bar is dynamically updated as you select devices.
c. To select all devices, select the check box in the column header next to Device Name.
To select devices on the basis of tags: a. Click the Select by Tags option button.
The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined for devices in the Junos Space system appears, categorized into two--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You must first tag the devices on the Device Management page before you can use the Select by Tags option.
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button.If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags, on which the selected Junos Continuity software package is deployed, appears just above the device display table. For example, if there are six devices associated with the selected tags, and two of them have the selected Junos Continuity software package deployed, then 2 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly.
To select devices by using a CSV file: a. Select the Select by CSV option button.
b. Click Browse and upload the file in CSV format containing the list of devices from which you want to undeploy the Junos Continuity software package.
663
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your local system and open it by using an application, such as Microsoft Excel.
From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says "Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update.
5. (Optional) To specify advanced options, expand the Advanced Options and select one or more check boxes. Using the options in this section, you can specify the script bundles to be executed before and after undeploying the Junos Continuity software package. See Table 80 for a description of the advanced options.
NOTE: If you are assigned a user role that does not have the permissions required for executing script bundles on devices, then all the options in the Advanced Options section are unavailable.
Table 80: Advanced Options Description
Advanced Options
Description
Execute script bundle before JAM Package undeployment (pre scripts)
Execute the script bundle that you have selected from the list, before undeploying the Junos Continuity software package. This ensures that the scripts in the selected script bundle are executed before the Junos Continuity software package is uninstalled from the device.
After selecting a script bundle, you can configure the script parameters of the scripts within the script bundle. For instructions, see the following procedure starting with Step a.
Select same pre script bundle Execute the same script bundle on the device before and after the Junos Continuity
for post script bundle
software package is undeployed.
This check box is unavailable if you have not selected a script bundle on the Execute script bundle before JAM Package undeployment (pre scripts) list.
664
Table 80: Advanced Options Description (continued)
Advanced Options
Description
Execute script bundle after JAM Package undeployment (post scripts)
Execute the script bundle that you have selected from the list, after undeploying the Junos Continuity software package. This ensures that the scripts in the selected script bundle are executed after the Junos Continuity software package is uninstalled from the device.
After selecting a script bundle, you can configure the script parameters of the scripts within the script bundle. For instructions, see the following procedure starting with Stepa.
If you select the Select same pre script bundle for post script bundle check box, then the Execute script bundle after JAM Package undeployment (post scripts) check box is unavailable because the postscript bundle is the same as the prescript bundle.
Deploy and Enable script bundle before execution
Deploy the selected script bundle and enable the scripts included in the script bundle before the script bundle is executed on the device.
If you are assigned a user role that does not have permissions for staging or enabling script bundles on devices, this check box is unavailable for selection.
This check box is also unavailable if you have not selected a script bundle on the Execute script bundle before JAM Package undeployment (pre scripts) list or the Execute script bundle after JAM Package undeployment (post scripts) list.
Disable scripts after execution
Disable the scripts in the script bundle after they are executed on the device.
If you are assigned a user role that does not have permissions for disabling script bundles on devices, this check box is unavailable for selection.
You can enable the scripts at a later point of time (for instructions see "Enabling Scripts on Devices" on page 695).
To configure the script parameters of scripts included in the script bundle:
a. Select the prescript or postscript bundle that you want to configure, from the respective lists. If there are no script bundles listed, you can create script bundles using the Scripts workspace (see "Creating a Script Bundle" on page 749) and then select the script bundle during Junos Continuity software package undeployment.
b. Click the Configure Scripts Parameters link.
The Configure Script Bundle Parameters page appears. You can mouse over the script parameters to view short descriptions about them.
665
c. Edit the values of script parameters by clicking the Edit icon. The changes made to script parameters are saved only on the devices on which the script bundle is executed. The script parameters in the script bundle in Junos Space Platform continue to reflect the original values.
d. Click Configure. Your changes are saved and the Undeploy JAM Package from Device dialog box appears.
6. (Optional) To schedule a time for deployment, select the Schedule at a later time check box and use the calendar icon and drop-down list to specify the date and time respectively.
7. Click Undeploy. The Job Information dialog box appears with a message indicating that the undeploy job is successfully scheduled. You can click the job ID link that is displayed in the dialog box if you want to view the job details. You can also navigate to the Job Management page and view the details of the particular job.
8. Click OK. You are returned to the Images page.
When you undeploy a JAM package from a device, an audit log entry is automatically generated. You can view the audit logs from the Audit Logs workspace.
RELATED DOCUMENTATION Device Images Overview | 612 Importing Device Images to Junos Space | 614 Staging Device Images | 619 Deploying Device Images | 636
Removing Device Images from Devices
Before you can delete device images from Junos Space Network Management Platform, you must remove the device images from the devices on which they are staged or deployed. Junos Space Platform does not allow you to remove images that are associated with a device.
666
NOTE: You can remove satellite software packages and Junos Continuity software packages from devices by following the procedure for removing device images.
To remove device images from the devices on which they are staged:
1. On the Junos Space Platform UI, select Images and Scripts > Images. The Images page appears, displaying the device images in Junos Space Platform.
2. Select the images that you want to remove. The selected images are highlighted.
3. Select Remove Staged Image from Device from the Actions menu. If the selected images are not staged on any of the devices, then Junos Space Platform displays the following error message: None of the device(s) have all the selected image(s) staged. If there is at least one device on which the images are staged, then the Remove Image from Staged Devices page appears. Only the devices on which all the selected images are staged are displayed. For example, Image1 is staged on DeviceA and DeviceB, and Image2 is staged on DeviceA. When you select Image1 and Image2 for deletion, the Remove Image from Staged Devices page displays only DeviceA. This is because only DeviceA is common to both Image1 and Image2.
TIP: Before you proceed to delete an image from the devices, ensure that the Device Image name(s) field displays the name of the image that you want to delete. If the name of a different image is displayed, click the Images breadcrumb at the top of the page to return to the Images page and select the correct image.
Table 81 gives the descriptions of fields displayed in the Remove Image from Staged Devices page. Table 81: Remove Image from Staged Devices page Fields
Fields
Description
Device Image name(s)
Name of the image that you want to delete from the devices. If you select multiple images to delete, then the names of all selected images are displayed.
Device Name
Name of the device from which you can delete the image
667
Table 81: Remove Image from Staged Devices page Fields (continued)
Fields
Description
Device Alias
Value of the Device Alias custom label for the device. This field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label for the device.
IP Address
IP address of the device
Platform
Platform of the device, such as MX480, MX320, MX960, and so on
Software Version
Version of software running on the device, such as 12.3R2.5, 11.2R3.3, and so on
4. Select the devices from which you want to delete the image by using one of the following selection modes--manually, based on tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the list of devices on which the image is staged is displayed.
To select devices manually: a. Click the Select Device Manually option, if it is not selected previously.
b. Select the devices from which you want to delete the device image. The Select Devices status bar shows the total number of devices that you selected. The status bar is dynamically updated as you select the devices.
c. To select all devices, select the check box in the column header next to Device Name.
To select devices on the basis of tags: a. Click the Select by Tags option.
The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined for devices in the Junos Space system appears, categorized into two--Public and Private.
668
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. You can select the suggested tag name and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. However, no devices are listed if the image is not staged on the devices that are associated with the selected tags. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can use the [X] icon to clear any tag from the list. The device count decrements accordingly.
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection.
To select devices using a CSV file: a. Select the Select by CSV option.
b. Click Browse and upload the file in CSV format containing the list of devices from which you want to remove the device image.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your local system and open it by using an application such as Microsoft Excel.
From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details. You can click the View inapplicable devices link to review the list of devices that are excluded from the update. The reason for exclusion is listed as an error message against each device.
5. (Optional) Schedule the delete operation by performing one of the following actions. · Select the Schedule at a later time check box and specify a later start date and time for the delete operation.
669
· Clear the Schedule at a later time check box (the default) to initiate the delete operation as soon as you click Remove.
6. Click Remove.
NOTE: · When you delete the jinstall image, the corresponding jbundle image, if any, is also deleted
from the /var/tmp folder on the device. · On devices with dual Routing Engines, the image is deleted from both Routing Engines.
That is, if the image is deleted from the primary Routing Engine, then the image is deleted from the backup Routing Engine as well.
The image is deleted from the selected devices and a message appears, displaying the job ID. To verify whether the image is deleted successfully, click the job ID link or navigate to the Job Management page and view the status of the job. If the job is a failure, you can double-click the row corresponding to the job to view the reason for failure. The Job Details page appears, which displays the reason for failure in the Description column. If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992.
When you delete a device image from a device, an audit log entry is automatically generated.
Release History Table
Release
Description
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to
list all managed devices for selection.
RELATED DOCUMENTATION
Device Images Overview | 612 Deleting Device Images | 670 Viewing Device Association of Images | 658
670
Deleting Device Images
Using Junos Space Network Management Platform, you can delete device images from the Junos Space server.
NOTE: You can delete satellite software packages and Junos Continuity software packages from the Junos Space server by following the procedure for deleting device images.
To delete device images from the Junos Space server: 1. On the Junos Space Platform UI, select Images and Scripts > Images.
The Images page appears.
2. Select the images that you want to delete. The selected images are highlighted.
3. Click the Delete Device Images icon. If any of the selected device images is associated with a device, a warning message is displayed. You must remove the device images from the devices on which they are staged before you can delete them from the Junos Space server. If none of the device images is associated with any device, the Delete Device Image dialog box appears and displays the image filename and the image version number. This dialog box might display a warning in scenarios where the image you are trying to delete is being staged or deployed on to devices.
4. Click Delete to confirm deletion. The selected images are deleted from Junos Space Platform and are no longer visible on the Images page.
RELATED DOCUMENTATION Removing Device Images from Devices | 665 Device Images Overview | 612 Deploying Device Images | 636 Staging Device Images | 619
671
CHAPTER 37
Managing Scripts
IN THIS CHAPTER
Scripts Overview | 672 Promoting Scripts Overview | 675 Importing Scripts to Junos Space | 675 Viewing Script Details | 680 Modifying Scripts | 683 Modifying Script Types | 686 Comparing Script Versions | 687 Staging Scripts on Devices | 688 Verifying the Checksum of Scripts on Devices | 692 Viewing Verification Results | 694 Enabling Scripts on Devices | 695 Executing Scripts on Devices | 699 Executing Scripts on Devices Locally with JUISE | 703 Viewing Execution Results | 707 Exporting Scripts in .tar Format | 708 Viewing Device Association of Scripts | 709 Marking and Unmarking Scripts as Favorite | 710 Disabling Scripts on Devices | 712 Removing Scripts from Devices | 715 Deleting Scripts | 719 Script Annotations | 720 Script Example | 726
672
Scripts Overview
Scripts are configuration and diagnostic automation tools provided by the Junos operating system (Junos OS). They help reduce network downtime and configuration complexity, automate common tasks, and reduce the time required to resolve problems. Junos OS scripts are of three types: commit, op, and event scripts.
· Commit scripts--Commit scripts enforce custom configuration rules and can be used to automate configuration tasks, enforce consistency, prevent common mistakes, and more. Every time a new candidate configuration is committed, the active commit scripts are called to inspect the new candidate configuration. If a configuration violates your custom rules, the script can instruct the Junos OS to perform various actions, including making changes to the configuration and generating custom, warning, and system log messages.
· Operation (Op) scripts--Op scripts enable you to add your own commands to the operational mode CLI. They can automate the troubleshooting of known network problems and correct them.
· Event scripts--Event scripts use event policies to enable you to automate network troubleshooting by diagnosing and fixing issues, monitoring the overall status of the router, and examining errors periodically. Event scripts are similar to op scripts but are triggered by events that occur on the device.
Using Junos Space Network Management Platform, you can import multiple scripts into the Junos Space server. You can then perform tasks such as modifying the scripts, viewing their details, exporting their contents, comparing the contents, viewing their association with devices, and staging them on multiple devices simultaneously. After you stage scripts on devices, you can use Junos Space Platform to enable, disable, or execute the scripts on those devices. You can remove the scripts from the devices as well. To help ensure that the staged scripts are not corrupt, you can verify the checksum of the scripts.
Junos Space Platform also supports task scheduling. You can specify the date and time at which you want a script to be staged, verified, enabled, disabled, removed, or executed.
Junos Space Platform associates scripts with devices when you stage scripts on the devices. As part of this association, Junos Space Platform maintains information pertaining to the current status of the script on the device. Based on this feature, Junos Space Platform supports the following operations:
· Associating scripts with devices and maintaining the association · Displaying the status (version, enabled, or disabled) of scripts on the devices · Displaying the results of script execution on the devices · Upgrading the scripts to the latest version on some or all associated devices · Upgrading the staged script on the associated devices whenever the script is modified from Junos Space
Platform
· Marking and unmarking scripts as favorites · Removing the script-device association
673
NOTE: · You can perform script-related operations on a device (enable, disable, remove, verify, or
execute scripts-- but you cannot stage scripts) only if the scripts are associated with the device. · If you want to delete scripts from Junos Space Platform, first remove the scripts from the device (using the Remove Scripts from Devices action) and then delete all the related associations. · You cannot modify the script type if the script is associated with a device. You need to first remove the scripts from the device and then modify the script type.
Based on the roles assigned to your username, Junos Space Platform enables or disables different tasks. You can enable and disable scripts on devices only if you are a Super Administrator with all permissions or a user who has been given maintenance privileges. For more information about the roles that you need to be assigned to perform any tasks on scripts, see "Predefined Roles Overview" on page 999.
NOTE: The Junos OS management process executes commit scripts with root permissions, not the permission levels of the user who is committing the script. If the user has the permissions required to commit the configuration, then Junos OS performs all actions of the configured commit scripts, regardless of the privileges of the user who is committing the script.
You can perform the following tasks from the Scripts page: · Import scripts. · View script details. · Modify a script. · Delete scripts. · Disable scripts on devices. · Enable scripts on devices. · Execute a script on devices. · Remove scripts from devices. · Stage scripts on devices. · Compare script versions. · Export scripts in .tar format.
674
· Modify the type of script. · View associated devices. · View verification results. · Verify the checksum of scripts on devices. · View execution results. · Assign scripts to domains. · Tag and untag the scripts, view the scripts that are tagged, and delete private tags. To run any of your scripts on devices, see "Executing Scripts on Devices" on page 699 and "Executing Scripts on Devices Locally with JUISE" on page 703.
RELATED DOCUMENTATION Device Images and Scripts Overview | 608 Promoting Scripts Overview | 675 Importing Scripts to Junos Space | 675 Viewing Script Details | 680 Modifying Scripts | 683 Staging Scripts on Devices | 688 Enabling Scripts on Devices | 695 Executing Scripts on Devices | 699 Deleting Scripts | 719
675
Promoting Scripts Overview
The promote script feature of Junos Space Network Management Platform enables you to execute a script as an action from the shortcut menu. This feature is an alternative option to executing Scripts from the Execute Scripts window. You can promote scripts to create actions for devices, physical interfaces, logical interfaces, and physical inventory components. With script promotion, the script execution task is available as a right-click action. You can select the device and execute the script directly. In the absence of the promote scripts feature, to execute a script on a device, you must select the device on the Device Management page and select Device Operations > Execute Scripts from the Actions menu. You must then select the required script from the Execute Scripts window, provide parameters, and then execute the script. To promote scripts, include the @PROMOTE annotation with the value set to yes. /*@PROMOTE="yes"*/ Device scripts that are not staged and enabled appear as disabled in the right-click action menu. In the case of device scripts, if the promoted script is not staged and enabled, it will appear as a disabled action. But for interfaces and physical inventory components, the promoted script does not appear on the menu at all if it is not staged and enabled. Local scripts can also be promoted and are not subject to these restrictions.
NOTE: The promote script feature works only when the option "Advanced Xpath Processing" is enabled. You can enable this option from Administration > Applications > Modify Application Settings > CLIConfiglets. Only operation scripts can be promoted. You can promote up to 25 scripts, but you cannot execute multiple promoted scripts simultaneously.
RELATED DOCUMENTATION Scripts Overview | 672
Importing Scripts to Junos Space
IN THIS SECTION Importing Scripts from Files | 676 Importing Scripts from a Git Repository | 677
676
Using Junos Space Network Management Platform, you can import a single script or multiple scripts at a time to the Junos Space server from the Scripts page of the Images and Scripts workspace. Junos Space Platform enables you to import commit, operation (op), or event scripts in the .slax or .xsl format from your computer or from an external Git repository. Prior to Junos OS 9.0, event scripts and op scripts are saved in the op directory and enabled under the system scripts op hierarchy. However, from Junos OS 9.0 onward, event scripts are saved in the event directory and enabled under the event-options event-script hierarchy.
NOTE: If you want to import multiple scripts at a time, use the Mozilla Firefox or Google Chrome Web browser. Currently, Internet Explorer does not support the selection of multiple files. In addition, note that two scripts with the same name cannot be imported into the Junos Space server.
Junos Space Platform provides the following options to import scripts:
Importing Scripts from Files
You can import scripts in the .slax or .xsl format from your computer by using the Import from files option on the Import Scripts page. Starting with Junos Space Network Management Platform Release 15.2R1, multiple scripts can also be imported to the Junos Space server as .tar files. To import scripts from files: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page appears.
2. Click the Import Script icon. The Import Scripts page appears.
3. Select Import from files, if the option is not already selected.
4. Click Browse. The File Upload dialog box displays the directories and folders on your local file system.
5. Select the file or files that you want to import and click Open. The selected filenames appear in the box beside the Browse button.
6. Click Next.
677
If the selected scripts are valid, they are displayed on the Import Scripts page.
NOTE: · If the selected scripts are not valid, an error message is displayed. Click OK to return to the
Import Scripts page. · If some of the scripts are valid and others are not, a warning message indicating that some
of the scripts are not valid is displayed. Click OK to import the valid scripts. To determine which scripts are imported and which are not, view the job details from the Job Management page. · If you have selected multiple scripts of the same name, an error message indicating the presence of duplicate scripts is displayed and the duplicate scripts are not imported.
Details of the scripts selected for import, such as information about whether the scripts already exist in Junos Space Platform and whether conflicts exist, are displayed in a tabular format. Table 82 describes the fields displayed on the page.
7. (Optional) Select the Exclude Conflicting Scripts From Import check box to select only those scripts for which there are no conflicts with the script versions that exist in Junos Space Platform. The scripts for which conflicts exist are removed from the list of scripts on the Import Scripts page.
8. Click Finish to import the listed scripts or click Cancel to go back to the Scripts page. If you have not selected the Exclude Conflicting Scripts From Import check box and the script files already exist in Junos Space Platform, a warning message indicating that conflicts exist and that the scripts will be overwritten is displayed. Click OK to proceed with the import or click Cancel to return to the Import Scripts page. The scripts are imported to the domain that you are currently logged in to. If a script with the same name already exists in the domain or any of the subdomains, and you choose to override any conflicts that might exist, the script is imported to the domain and subdomains where the script exists, with the version number incremented. This ensures that the script that exists in Junos Space is not overwritten and can be retrieved if required. The imported scripts are displayed on the Scripts page.
Importing Scripts from a Git Repository
You can import scripts in the .slax or .xsl format from external Git repositories. Before you import scripts from a Git repository, the repository must be added to Junos Space and marked as the active Git repository for scripts, from the Git Repositories page. When you import scripts from Git repositories, all scripts in the selected branch of the repository are imported to Junos Space.
678
To import scripts from a Git repository: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page appears.
2. Click the Import Script icon. The Import Scripts page appears.
3. Select Import from Git. This option is displayed only if an active Git repository of the Scripts type exists in Junos Space.
4. Select the branch of the repository from the Git Branch list.
5. (Optional) Click Sync Now to synchronize the Git repository clone on the Junos Space server with the external Git repository. The date and time of the last sync is displayed above the Sync Now button.
6. Click Next. If the scripts in the selected Git repository branch are valid, they are displayed on the Import Scripts page.
NOTE: · If the selected scripts are not valid, an error message is displayed. Click OK to return to the
Import Scripts page. · If some of the scripts are valid and others are not, a warning message indicating that some
of the scripts are not valid is displayed. Click OK to import the valid scripts. To determine which scripts are imported and which are not, view the job details from the Job Management page. · If you have selected multiple scripts of the same name, an error message indicating the presence of duplicate scripts is displayed and the duplicate scripts are not imported.
Details of the scripts selected for import, such as information about whether the scripts already exist in Junos Space Platform and whether conflicts exist, are displayed in a tabular format. Table 82 describes the fields displayed on the page.
7. (Optional) Select the Exclude Conflicting Scripts From Import check box to import only those scripts for which there are no conflicts with the script versions that exist in Junos Space Platform.
679
The scripts for which conflicts exist are removed from the list of scripts on the Import Scripts page.
8. Click Finish to import the listed scripts or click Cancel to go back to the Scripts page.
If you have not selected the Exclude Conflicting Scripts From Import check box and conflicts exist, a warning message indicating that conflicts exist and that the scripts will be overwritten is displayed. Click OK to proceed with the import or click Cancel to return to the Import Scripts page.
The scripts are imported to the domain that you are currently logged in to. If a script with the same name already exists in the domain or any of the subdomains, and you choose to override any conflicts that might exist, the script is imported to the domain and subdomains where the script exists, with the version number incremented. This ensures that the script that exists in Junos Space is not overwritten and can be retrieved if required.
The imported scripts are displayed on the Scripts page.
Table 82: Import Scripts Page Fields
Fields
Description
Script
Name of the script
Conflict State Domain
Whether a conflict exists between the selected script and a script with the same name in Junos Space Platform. Value can be NEW, NO CONFLICT, or CONFLICT.
NOTE: When scripts are imported using the Import from File option, the two possible states are NEW and CONFLICT. If the script does not exist in Junos Space Platform, the state is NEW; if a script of the same name exists in Junos Space Platform, the state is CONFLICT.
Value is NEW when the script is imported to Junos Space Platform for the first time.
Value is NO CONFLICT when there is no conflict between the script selected for import from the Git repository and the scripts that exist in Junos Space Platform.
Value is CONFLICT when:
· You are importing scripts from your computer and a script of the same name exists in Junos Space Platform.
· A script of the same name exists in Junos Space Platform and the script is being imported for the first time from the Git repository.
· The selected script is already imported from the Git repository and is modified in Junos Space Platform.
· The script present in Junos Space Platform is from a different branch of the Git repository.
Domain to which the existing script in Junos Space Platform is assigned
The column is empty if the script does not exist in Junos Space Platform.
680
Table 82: Import Scripts Page Fields (continued)
Fields
Description
Latest Version
Latest version of the script in Junos Space Platform The column is empty if the script does not exist in Junos Space Platform.
Git Version
Commit ID of the script that was previously imported to Junos Space Platform. A warning icon is displayed if the script was later modified in Junos Space Platform.
The column is empty if the script does not exist in Junos Space Platform or if no version of the script in Junos Space Platform is imported from a Git repository.
Git Branch
Git repository branch from which the existing script was last imported
The column is empty if the script does not exist in Junos Space Platform or if no version of the script in Junos Space Platform is imported from a Git repository.
Last Commit
Commit ID of the last commit of the script in the selected branch of the Git repository The column is empty if the script is being imported from your computer.
Release History Table Release
Description
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, multiple scripts can also be imported to the Junos Space server as .tar files.
RELATED DOCUMENTATION Viewing Script Details | 680 Git Repositories in Junos Space Overview | 1477
Viewing Script Details
The Images and Scripts workspace enables you to view and manage multiple scripts in Junos Space Network Management Platform. You can view information about scripts that are stored in the Junos Space Platform database from the Scripts page. To view detailed information about a particular script, you can use the View Script Details option.
681
To view scripts from the Scripts page:
1. On the Junos Space Platform UI, select Images and Scripts > Scripts. The Scripts page appears, displaying the scripts that you imported into Junos Space Platform. Table 83 describes the fields displayed on the Scripts page. You can use the filter option on the Script Name, Domain, Descriptive Name, Type, Category, Execution Type, Format, and Latest Revision drop-down lists to specify the filter criteria. When you apply the filters, the table displays only the scripts that match the filter criteria. The Description, Creation Date, Last Updated Time, and Associations fields do not support the filter option.
2. Select a script and click the View Script Details icon, or double-click the script whose details you want to view.
The Script Details dialog box displays the script name, type, format, creation time, version, script contents, and comments. By default, the latest version of the script is displayed. Use the scroll bar to the right of the page to scroll through the script.
Table 84 describes the fields displayed on the Script Details dialog box.
Table 83: Fields on the Scripts Page
Field
Description
Script Name
Name of the script file
Domain
Domain to which the script belongs
Descriptive Name
Descriptive name of the script
Type Category
Type of script can be one of the following:
· Commit Script · Op Script · Event Script Category of the script
Execution Type
· Device--Scripts of this type need to be staged and enabled on a device before the scripts can be executed.
· Local--Scripts of this type need not be staged or enabled on a device for the scripts to be executed. You must set the @ISLOCAL annotation to true to execute the script locally. For more information about script annotations and a sample script, see "Script Annotations" on page 720 and "Script Example" on page 726.
682
Table 83: Fields on the Scripts Page (continued)
Field
Description
Format Latest Revision
Format of the script file can be one of the following:
· XSL · SLAX Latest revision number of the script in Junos Space Platform
Git Version
Commit ID of the script in the Git repository when it is imported. If the script is modified in Junos Space Platform after import, a Warning icon is displayed alongside. If the script is not imported from a Git repository, the value displayed is N/A.
Git Branch
Git repository branch from which the script is imported. If the script is not imported from a Git repository, the value displayed is N/A.
Creation Date
Date and time when the script was imported to the Junos Space server
Description
Description of the script
Last Updated Time
Time when the script was last updated
Associations
View link to view device associations
Table 84: Script Details Dialog Box Fields
Field
Description
Name
Name of the script file
Type Format Creation Time
Type of script. The values can be one of the following:
· Commit script · Op script · Event script Format of the script file. The values can be one of the following:
· XSL · SLAX Date and time when the script was created
Version
Version number of the script. When you modify a script, the changes are saved as the latest version of the script.
683
Table 84: Script Details Dialog Box Fields (continued)
Field
Description
Script contents
Contents of the script
Comments
Text that describes the script that is entered by the user
RELATED DOCUMENTATION Scripts Overview | 672 Exporting Scripts in .tar Format | 708
Modifying Scripts
You can use Junos Space Network Management Platform to modify the script type, script contents, and the script version. You can also add your comments describing the script. When you modify a script, the script is saved as the latest version by default. Junos Space Platform modifies both associated and unassociated scripts.To modify the script type for multiple scripts, see "Modifying Script Types" on page 686.
You can modify and save a script to the Junos Space Platform database without staging the modified (or the latest) script on the devices. When you do not stage the latest version, the older script continues to exist on the devices on which it was previously staged. To both save and stage the modified script, use the Save & Stage action instead of Save & Exit action while modifying the script.
To modify a script: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page displays the scripts that you imported into Junos Space Platform. 2. Select the script that you want to modify. 3. Select Modify Script from the shortcut menu or click the Modify Script icon.
The Modify Script page displays the details of the script. 4. You can modify the script type, version, script contents, and the comments about the script. You cannot
modify the script type if the script is associated with any device. If you have multiple versions of the script, select the correct version of the script from the Version list to modify the script. By default, the latest version of the script is displayed. The changes that you make are saved as the latest version of the script. 5. Perform one of the following tasks:
684
· Click Cancel if you do not want to make any changes to the script. You are returned to the Scripts page.
· Click Save & Exit to save the changes to the script and exit the Modify Script page. The script is saved as the latest version in the Junos Space database. You are returned to the Scripts page.
· Click Save & Stage to save the changes to the script as the latest version in the Junos Space database and to stage the latest version of the script on devices. The Stage Script on Device(s) page appears, displaying a list of all the associated devices.
TIP: If you do not see any device listed, it means that no previous version of the script is associated with any of the devices. First, stage the script by using the Stage Scripts on Devices task from the Actions menu, and then modify and stage the modified script by using the Modify Script task.
To stage the modified script: 1. On the Stage Scripts on Device(s) page, select the devices on which you want the modified script
to be staged, by using one of the following selection modes--manually or on the basis of tags.These options are mutually exclusive. If you select one, the other is disabled.
NOTE: By default, the Select by Device option is selected and the complete list of devices is displayed. If you have tagged any of the devices and you want only those tagged devices with which the scripts are associated to be displayed, choose the Select by tags option.
· To select devices manually: · Click the Select by Device option and select the devices on which you want to stage the modified script. The Select Devices status bar shows the total number of devices that you have selected; the status bar is dynamically updated as you select the devices. · To select all the devices, select the check box in the column header next to Host Name.
· To select devices on the basis of tags: · Click the Select by Tags option. The Select by tags list is activated. · Click the arrow on the Select by Tags list. A list of tags defined on devices in Junos Space Platform appears, displaying two categories of tags--Public and Private.
685
To select tags, perform one of the following actions :
· Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags
field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. The total number of devices associated with the selected tags appears in the Select Devices status bar above the options. The selected tags appear in the status bar below the option buttons, next to the Tags Selected label. An [X] icon appears after each tag name. You can use the [X] icon to clear any tag from the list. The device count in the Select Devices status bar decrements accordingly. The table below this status bar displays the selected devices.
2. (Optional) To schedule a time for staging the script, select the Schedule at a later time check box and specify the date and time when you want the script to be staged.
3. Click OK on the Stage Script on Device(s) page. You are returned to the Scripts page. If the modification of the script is successful, the Latest Revision column on this page displays the latest and updated script version number.
6. (Optional) To verify the changes made, you can view the details of the script. See "Viewing Script Details" on page 680. The Latest Version column displays the latest version.
7. Click Cancel to withdraw your changes and return to the Scripts page. For troubleshooting, see the following log: /var/log/jboss/server.log. No audit logs are generated for this task.
To verify whether the latest script version is successfully staged on devices:
1. On the Scripts page, select the script (if it is not selected). Typically, the script remains selected on the Scripts page when you are returned to this page after the modification of the script.
2. Select View Associated Devices from the Actions menu. The View Associated Device page appears. If the staging is successful, then the version numbers on the Latest Version and Staged Version columns must match. To return to the Scripts page, click Scripts on the breadcrumb.
686
RELATED DOCUMENTATION Staging Scripts on Devices | 688 Scripts Overview | 672 Modifying Script Types | 686 Comparing Script Versions | 687
Modifying Script Types
Using Junos Space Network Management Platform, you can modify the script type of multiple scripts simultaneously. To modify the script type: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page displays the scripts that you imported into Junos Space Platform.
2. Select the script whose script type you want to modify.
3. Select Modify Scripts Type from the Actions menu. This action is unavailable if the selected script is associated with any device. The Modify Scripts Type dialog box displays the details of the script.
4. Use the Bulk Actions list to select a common script type for all scripts. To modify script types of individual scripts, click the value list in the Script Type column heading to make your changes.
5. Click Apply. Your changes are saved and the Scripts page appears.
6. (Optional) To verify, double-click the script that you modified and view the script type.
RELATED DOCUMENTATION Viewing Script Details | 680 Staging Scripts on Devices | 688
687
Comparing Script Versions
Using Junos Space Network Management Platform, you can compare two scripts and view their differences. This comparison can be done with two different scripts or between different versions of the same script. To compare scripts: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page displays the scripts that you imported into Junos Space Platform.
2. Select the script that you want to compare.
3. Select Compare Script Versions from the Actions menu. The Compare Scripts dialog box appears.
4. Use the Source script and Target script lists to select the scripts that you want to compare.
5. Use the Version lists to specify the versions of the source and target scripts that you want to compare.
6. Click Compare. The differences between the scripts are displayed in the View Diff dialog box. Use the Next Diff and Prev Diff buttons to navigate to the next change or the previous change, respectively. The differences between the two scripts are represented using three different colors: · Green--The green text represents the contents that appear only in the source script. · Blue--The blue text represents the contents that appear only in the target script. · Purple--The purple text represents the contents that are different between the two scripts. Next to the Next Diff and Prev Diff buttons, the total number of differences, the number of differences in the source script, the number of differences in the target script, and the number of changes are displayed.
7. Click Close to close the window and return to the Compare Scripts page.
RELATED DOCUMENTATION Modifying Scripts | 683 Staging Scripts on Devices | 688 Scripts Overview | 672
688
Staging Scripts on Devices
Junos Space Network Management Platform enables you to stage a single script or multiple scripts on one device or multiple devices simultaneously. Staging a script enables you to hold a script on a device, ready to be executed when required. When you select scripts that are previously staged on one or more devices from the Scripts page, then the GUI lists only the devices that are not associated with any of the selected scripts and the devices with older versions of the selected scripts. This listing of the devices allows you to associate scripts with new devices and also upgrade scripts to the latest version on already associated devices.
To stage a script on devices:
1. On the Junos Space Platform UI, select Images and Scripts > Scripts. The Scripts page appears.
2. Select the scripts that you want to stage on one or more devices. The selected scripts are highlighted.
3. Select Stage Scripts on Devices from the Actions menu. The Stage Scripts on Device(s) page appears, displaying: · A list of the selected scripts and the latest versions of the scripts. By default, the latest version of the script is staged on the selected devices. However, to stage a previous version of the script, select the suitable version from the drop-down list below the Version column. · A list of the Junos Space Platform devices that are not associated with any of the selected scripts and also the devices with the older versions of the selected scripts.
4. (Optional) Keep the Enable Scripts on Devices check box selected if you want the scripts to be enabled and ready to be executed when you stage them on devices from Junos Space Platform. Clear this check box if you want the scripts to be disabled on the devices.
5. (Optional) To include the devices on which the selected scripts are already staged , select the Show existing Staged Devices check box. The device list is updated to include devices on which the script is already staged.
6. Select the devices to stage the selected script. You can select devices by using one of the following selection modes--manually, on the basis of tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
689
NOTE: By default, the Select Device Manually option is selected and the list of devices that are not associated with any of the selected scripts and devices with the older versions of the selected scripts is displayed.
· To select devices manually: · Click the Select Device Manually option and select the devices on which you want to stage the script. The Select Devices status bar shows the total number of devices that you selected; the status bar is dynamically updated as you select the devices. · To select all devices, select the check box in the column header next to the Host Name column.
· To select devices on the basis of tags: a. Click the Select by Tags option. The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined on devices in the Junos Space system appears, displaying two categories of tags--Public and Private.
NOTE: No tag is displayed if none of the devices is associated with any tag. You need to tag the devices on the Device Management page before you can use the Select by Tags option.
c. To select tags, perform one of the following actions: · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly. The device display table displays the devices associated with the selected tags.
· From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection.
690
To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse to navigate to the file location on your computer and select the CSV file containing the list of devices on which you want to stage the script.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your computer and open it by using an application such as Microsoft Excel.
c. Click Upload to upload the CSV file. From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details. You can click the View inapplicable devices link to review the list of devices that are excluded from the update. The reason for exclusion is listed as an error message against each device.
· From Junos Space Platform Release 18.2R1 onward, you can select devices based on saved filters To select devices by using a saved filter: a. Select the Select by Filter option.
b. Select the filter from the list of saved filters. The devices associated with the selected filter appears in the grid.
7. (Optional) To schedule a time for staging the script, select the Schedule at a later time check box and use the calendar icon and drop-down list to specify the date and time, respectively, when you want the script to be staged.
8. Click Stage. The script is staged on the selected device or devices. The Stage Scripts Information page displays the job ID.
9. Perform one of the following actions on the Stage Scripts Information page: · To verify the status of this job, click the job ID in this page. The Job Management page appears. Double-click the row corresponding to the staging job. The Script Management Job Status page appears and the Description column on this page displays whether
691
or not the script is staged successfully and reasons for failure (if staging of the script failed). If Junos Space Platform detects an SSH fingerprint mismatch between the one on the device and that in the Junos Space Platform database, the connection is dropped. The Connection Status displays Down and Authentication Status displays Fingerprint Conflict on the Device Management page. The View Job Details page displays an error message. For more information about the error messages and solutions, see "Common Error Messages in Device-Related Operations" on page 992.
· Click OK to go back to the Scripts page.
On the Scripts page, click View in the Associations column of that staged script to view the details of the Script - Device association. For more information about viewing the device associations for scripts, see "Viewing Device Association of Scripts" on page 709.
On the Job Management page, you can export details about staging of a script as a CSV file to your local file system:
1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page appears.
2. Double-click the row corresponding to the staging job. The Script Management Job Status page appears.
3. Click Export as CSV. You are prompted to save the file.
4. Click OK on the File Save page to save the file to your local file system.
5. After you save the file, to return to the Job Management page, click OK on the Exporting Script Job page.
Use an application such as Microsoft Excel to open the downloaded file from your local system.
On the left pane of the UI, select Images and Scripts > Scripts to return to the Scripts page.
Release History Table
Release
Description
18.2
From Junos Space Platform Release 18.2R1 onward, you can select devices based on saved
filters
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to list
all managed devices for selection.
692
RELATED DOCUMENTATION Scripts Overview | 672 Viewing Device Association of Scripts | 709 Verifying the Checksum of Scripts on Devices | 692 Executing Scripts on Devices | 699
Verifying the Checksum of Scripts on Devices
When you stage a script on a device using Junos Space Network Management Platform, it is possible that the script might not be completely transferred to the device. Verifying the checksum helps validate that the script has been staged properly. Junos Space Platform enables you to verify the checksum of multiple scripts that are staged on the devices.
When you verify scripts that have multiple versions, the latest versions of selected scripts are verified with the versions of the scripts that are available on the device. If the version of the script present on the device does not match the version that it is compared with, Junos Space Platform displays an error message. To verify the checksum of a script: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page displays the scripts that you imported into Junos Space Platform. 2. Select the script or scripts whose checksum you want to verify. 3. From the Actions menu, select Verify Scripts on Devices.
The Verify Checksum of Scripts on Device(s) dialog box appears. 4. Select the devices that have the script staged on them, by using one of the following selection
modes--manually, on the basis of tags, or by using the comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select by Device option is selected and the list of devices that can be selected is displayed.
· To select devices manually: · Click the Select by Device option and select the devices that have the script staged on them. The Select Devices status bar shows the total number of devices that you selected; the status bar is dynamically updated as you select the devices. · To select all the devices, select the check box in the column header next to Host Name.
693
· To select devices on the basis of tags: 1. Click the Select by Tags option. The Select by tags list is activated.
2. Click the arrow on the Select by Tags list. A list of tags defined on devices in the Junos Space system appears, displaying two categories of tags--Public and Private.
3. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly. The device display table displays the devices associated with the selected tags.
· To select devices by using a CSV file: 1. Select the Select by CSV option.
2. Click Browse to navigate to the file location on your computer and select the CSV file containing the list of devices on which you want to verify the script.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your computer and open it by using an application such as Microsoft Excel.
3. Click Upload to upload the CSV file. From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says "Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update.
694
5. (Optional) To schedule a time for verification, select the Schedule at a later time check box and use the calendar icon and drop-down list respectively to specify the date and time when you want the script to be verified.
6. Click Verify Checksum. The Verify Scripts Information dialog box appears displaying the message that the verification of the script is successfully scheduled and a job ID link.
7. Perform one of the following actions: · Click the job ID link to view the status of the verification operation on the Job Management page. · Click OK to return to the Scripts page.
For more information about viewing the checksum verification results, see "Viewing Verification Results" on page 694.
RELATED DOCUMENTATION Enabling Scripts on Devices | 695
Viewing Verification Results
You can use Junos Space Network Management Platform to make sure that the scripts staged on devices are not corrupted, by verifying the checksum of the scripts. You can also view the results of the checksum verification task. When a verification failure occurs, the results indicate the reason for the failure. For more information about verifying the checksum of a script, see "Verifying the Checksum of Scripts on Devices" on page 692. To view the verification results: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page displays the scripts that you imported into Junos Space Platform. 2. Select the script whose verification results you want to view. 3. Right-click your selection or use the Actions menu, and select Verification Results.
This Verification Results option is available only when you select a script staged on a device. The option is unavailable if you select a local script. The Script Verification Results page displays the results of the checksum verification. If you have not yet verified the script on the devices, the results page is empty. Table 85 describes the fields on the Script Verification Results page.
695
Table 85: Script Verification Results Page Fields
Field Name
Description
Script Name
Filename of the script that is selected for verifying the checksum
Device Name
Name of the device on which the script is verified
Result Comments
Result of the verification. The values could be one of the following:
· Success · Failed · Scheduled The comment Script verified successfully
4. Click Back to return to the Scripts page.
RELATED DOCUMENTATION
Executing Scripts on Devices | 699
Enabling Scripts on Devices
After you stage scripts on devices, you can use Junos Space Network Management Platform to enable these scripts on one or more devices simultaneously.
When you enable scripts that use Junos Space Platform, depending on the type of script, an appropriate configuration is added on the device. For example, for a file named bgp-active.slax, the configuration added to the device is as follows:
· For a commit script: Example: [edit] user@host# set system scripts commit file bgp-active.slax
· For an op script: Example: [edit] user@host# set system scripts op file bgp-active.slax
· For an event script:
696
Example: [edit] user@host# set system scripts event file bgp-active.slax
CAUTION: If the filename of the selected script matches that of any script present on the device, then the script on the device is enabled regardless of its contents.
To enable scripts on devices: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page displays the scripts that you imported into Junos Space Platform. 2. Select one or more scripts that you want to enable on devices. 3. Select Enable Scripts on Devices from the Actions menu.
The Enable Scripts on Device(s) page appears. If the selected scripts are already enabled on the devices, then instead of the Enable Scripts on Device(s) page, Junos Space displays the following message: Device(s) having all the selected staged script(s) already have them in enabled state.
NOTE: · This action does not list devices that are not associated with scripts. It also does not list
the devices for which the script is in an enabled state already. · If you select multiple scripts, then only those devices that are associated with all the selected
scripts are displayed.
4. Select the devices on which you want the script to be enabled, by using one of the following selection modes--manually, on the basis of tags, or by using the comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the list of devices that can be selected is displayed.
· To select devices manually: · Click the Select Device Manually option and select the devices on which you want to enable the device script. The Select Devices status bar shows the total number of devices that you have selected; the status bar is dynamically updated as you select the devices. · To select all the devices, select the check box in the column header next to the Host Name column.
697
· To select devices on the basis of tags: 1. Click the Select by Tags option. The Select by tags list is activated.
2. Click the arrow on the Select by Tags list. A list of tags defined on devices in the Junos Space system appears, displaying two categories of tags--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You need to tag the devices on the Device Management page before you can use the Select by Tags option.
3. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly. The device display table displays the devices associated with the selected tags.
· To select devices by using a CSV file: 1. Select the Select by CSV option.
2. Click Browse to navigate to the file location on your computer and select the CSV file containing the list of devices on which you want to enable the script.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your computer and open it by using an application such as Microsoft Excel.
3. Click Upload to upload the CSV file. From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes
698
do not apply, a warning message appears which says "Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update.
5. (Optional) To schedule a time for enabling the script, select the Schedule at a later time check box and use the calendar icon and drop-down list respectively to specify the date and time when you want the script to be enabled.
6. Click Enable. The selected scripts are enabled on the devices, and the Enable Scripts Information dialog box displays a link to the job ID. Perform one of the following actions on the Enable Scripts Information dialog box: · Click the job ID link to view the status of this task on the Job Management page. The Job Management page appears. Double-click the job pertaining to the enabling operation. The Script Management Job Status page appears and the Description column on this page displays whether or not the script is enabled successfully on the devices and reasons for failure (if enabling of the script had failed). For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992. · Click OK to return to the Scripts page.
On the Job Management page, you can export details about enabling of a script as a CSV file to your local file system: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page appears.
2. Double-click the job pertaining to the script enabling operation. The Script Management Job Status page appears.
3. Click Export as CSV. You are prompted to save the file.
4. Click OK on the File Save dialog box to save the file to your local file system.
5. After you save the file, to return to the Job Management page, click OK on the Exporting Script Job dialog box. Use an application such as Microsoft Excel to open the downloaded file from your local system.
On the left pane of the UI, select Images and Scripts > Scripts to return to the Scripts page.
699
RELATED DOCUMENTATION Executing Scripts on Devices | 699
Executing Scripts on Devices
You can use Junos Space Network Management Platform to trigger the execution of op scripts on one or more devices simultaneously. Commit and event scripts are automatically activated after they are enabled. Commit scripts are triggered every time a commit is called on the device and event scripts are triggered every time an event occurs on the device or at a specific time, if a time is specified.
NOTE: If a script does not require XPath processing, you can execute such scripts on more than 200 devices at a time. Scripts that do not require XPath processing include scripts without device-specific or entity-specific parameters and with /, //, or /device as context.
CAUTION: If the filename of the selected script matches that of any script present on the device, then the script on the device is executed regardless of its contents.
To execute an op script on devices: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page appears, displaying the scripts that you imported into Junos Space Platform. 2. Select the op script that you want to execute on a device. 3. Select Execute Script on Devices from the Actions menu. This option is enabled only when the script
is staged. The Execute Script on Device(s) page appears. If the selected script is already disabled on the devices, then Junos Space displays the following message instead of the Execute Scripts on Device(s) page: Disabled script cannot be executed. By default, the Execute Script on Device(s) page lists the devices on which the latest version of the script is staged. If no devices are listed, it means that the latest version of the script is not staged yet. If you have staged the previous versions of the script, select one of the staged versions from the Version list. The page displays the list of devices on which this version of the script is staged.
700
NOTE: To find out which version of the script is staged, select the script and click View from the Associations column on the Scripts page. The Staged Version column displays the version of the script that is staged.
4. Select the devices on which you want the script to be executed, by using one of the following selection modes--manually, on the basis of tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the list of devices that can be selected is displayed.
· To select devices manually: · Click the Select Device Manually option and select the device(s) that have the script staged on them. The Select Devices status bar shows the total number of devices that you selected; the status bar is dynamically updated as you select the devices. · To select all the devices, select the check box in the column header next to the Host Name column.
· To select devices on the basis of tags: 1. Click the Select by Tags option. The Select by Tags list is activated.
2. Click the arrow on the Select by Tags list. A list of tags defined on devices in Junos Space Platform appears, displaying two categories of tags--Public and Private.
NOTE: No tag is displayed if none of the devices is associated with any tag. You need to tag the devices on the Device Management page before you can use the Select by Tags option.
3. To select tags, perform one of the following actions: · Select the check boxes next to the names of tags that you want to select and and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. Suggestions appear if there are matches for the string you enter. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed.
701
The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count is updated accordingly. The device display table displays the devices associated with the selected tags.
· From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection. To select devices by using a CSV file: 1. Select the Select by CSV option.
2. Click Browse to navigate to the file location on your computer and select the CSV file containing the list of devices on which you want to execute the script.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your computer and open it by using an application such as Microsoft Excel.
3. Click Upload to upload the CSV file. From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, the following warning message appears: Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details. Click the View inapplicable devices link to review the list of devices that are excluded from the update. The reason for exclusion is listed as an error message against each device.
· From Junos Space Platform Release 18.2R1 onward, you can select devices based on saved filters To select devices by using a saved filter: 1. Select the Select by Filter option.
2. Select the filter from the list of saved filters. The devices associated with the selected filter appears in the grid.
5. (Optional) To specify values for script execution parameters, click Value. 6. (Optional) To schedule a time to execute the script, select the Schedule at a later time check box and
use the calendar icon and drop-down list to specify the date and time, when you want the script to be executed, respectively.
702
7. Click Execute. The selected scripts are executed on the devices, and the Execute Script Information page displays a link to the job ID.
8. Perform one of the following actions on the Execute Scripts Information page: · To verify the status of this job, click the job ID on this page. The Job Management page appears. Double-click the the row corresponding to the script execution job to view the Script Management Job status page. Click the View Results link in the Description column to view the results of script execution. The Script Execution Job Results page allows you to read and understand the script execution results. From Release 17.2R1 onward, the summary of the job of script execution in Junos Space Platform shows the Total requests, Success, and Script Failure counts. The description of possible status for script execution is as follows: · Success--Script successfully executed on devices. · Failure--Unable to execute the script on the device because the device is down or not reachable. · Script Failure--Script executed on the device, but the execution resulted in an error. Click the [X] icon to close this page. · Click OK to go back to the Scripts page.
You can export details about the execution of a script as a comma-separated values (CSV) file to your local file system: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page appears.
2. Double-click the row corresponding to the script execution job. The Script Management Job Status page appears. The status of the job is Success, Script Failure, or Failure. If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992.
3. Click Export as CSV. You are prompted to save the file.
4. Click OK on the File Save page to save the file to your local file system.
5. After you save the file, to return to the Job Management page, click OK on the Exporting Script Job page. Use an application such as Microsoft Excel to open the file from your local system. Typically, you can view the script output in the Description column of this file.
703
You can view details of script execution tasks from the Device Management page (Devices > Device Management) by selecting one or more devices and selecting View Script Executions from the shortcut menu (Devices > Device Management > Select a device > Device Inventory). This option displays only the results of op scripts executed on the device and not the commit or event scripts.
Release History Table
Release
Description
18.2
From Junos Space Platform Release 18.2R1 onward, you can select devices based on saved filters
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to list
all managed devices for selection.
17.2
From Release 17.2R1 onward, the summary of the job of script execution in Junos Space Platform
shows the Total requests, Success, and Script Failure counts.
RELATED DOCUMENTATION Enabling Scripts on Devices | 695 Executing Scripts on Devices Locally with JUISE | 703
Executing Scripts on Devices Locally with JUISE
Junos Space Network Management Platform comes integrated with the Junos OS User Interface Scripting Environment (JUISE)--that is, juise-0.3.10-1 version, which enables you to execute a script on a remote device from the Junos Space server without having to stage the script on the device. To execute a script on a remote device, the following conditions must be met: · The device should be reachable from the Junos Space server. · The @ISLOCAL annotation marked within the script must be set to true. That is, the script must contain
the following text: /* @ISLOCAL = "true" */ When this annotation is set to false, you have to first stage the script on a device and then execute it. For more information about script annotations, see "Script Annotations" on page 720. From the Junos Space UI, you can identify the scripts that can be executed locally by looking at the value in the Execution Type column on the Scripts page. For scripts that can be executed locally without being staged from the Junos Space server, the value is Local.
704
By default, JUISE is installed when you install or upgrade to Junos Space Release 13.1 or later versions.
NOTE: You can execute only SLAX scripts (*.slax) by using JUISE.
To execute scripts on Junos OS devices with JUISE: 1. On the Junos Space Network Management Platform UI, select Images and Scripts > Scripts.
The Scripts page appears, displaying the scripts that you imported into Junos Space Network Management Platform.
2. Select the op script that you want to execute on a device.
TIP: Identify and select only those scripts that have Local displayed in the Execution Type column.
3. Select Execute Script on Devices from the Actions menu. The Execute Script on Device(s) page appears.
4. Select the devices on which you want the script to be executed, by using one of the following selection modes--manually, on the basis of tags, or by using the comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select by Device option is selected and the complete list of devices is displayed.
· To select devices manually: · Click the Select by Device option and select the device(s) that have the script staged on them. The Select Devices status bar shows the total number of devices that you selected; the status bar is dynamically updated as you select the devices. · To select all the devices, select the check box in the column header next to the Host Name column.
· To select devices on the basis of tags: a. Click the Select by Tags option. The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined on devices in the Junos Space system appears, displaying two categories of tags--Public and Private.
705
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You need to tag the devices on the Device Management page before you can use the Select by Tags option.
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly. The device display table displays the devices associated with the selected tags.
· To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse to navigate to the file location on your computer and select the CSV file containing the list of devices on which you want to execute the script.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your computer and open it by using an application such as Microsoft Excel.
c. Click Upload to upload the CSV file.
5. (Optional) To specify values for the parameters for script execution, click Enter Parameter Value for each parameter.
706
6. To schedule a time to execute the script, select the Schedule at a later time check box and use the calendar icon and drop-down list respectively to specify the date and time when you want the script to be executed.
7. Click Execute. The selected scripts are executed on the devices, and the Execute Script Information dialog box displays a link to the job. Perform one of the following actions on the Execute Script Information dialog box: · To verify the status of the job, click the job ID link. The Job Management page appears. Double-click the the row corresponding to the script execution job to view the Script Management Job status page. Click the View Results link in the Description column to view the results of script execution. The Script Execution Job Results page allows you to read and understand the script execution results. From Release 17.2R1 onward, the summary of the job of script execution in Junos Space Platform shows the Total requests, Success, and Script Failure counts. The description of possible status for script execution is as follows: · Success - Script successfully executed on device(s). · Failure Unable to execute the script on the device because device is down or not reachable · Script Failure Script executed on the device, but the execution resulted in an error. Click the [X] icon to close this page. · Click OK to go back to the Scripts page.
To export details about the execution of a script as a comma-separated values (CSV) file to your computer: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page appears.
2. Double-click the row corresponding to the script execution job. The Script Management Job Status page appears. The status of the job is Success, Script Failure, or Failure.
3. Click Export as CSV. You are prompted to save the file.
4. Click OK in the File Save dialog box to save the file to your computer.
5. After you save the file, to return to the Job Management page, click OK in the Exporting Script Job dialog box.
707
Use an application such as Microsoft Excel to open the file from your computer. Typically, you can view the script output in the Description column of this file.
Release History Table
Release
Description
17.2
From Release 17.2R1 onward, the summary of the job of script execution in Junos Space
Platform shows the Total requests, Success, and Script Failure counts.
RELATED DOCUMENTATION
Scripts Overview | 672 Executing Scripts on Devices | 699
Viewing Execution Results
You can use Junos Space Network Management Platform to trigger the execution of op scripts on one or more devices simultaneously. You can also view the execution results of the script.
To view the execution results:
1. On the Junos Space Platform UI, select Images and Scripts > Scripts. The Scripts page appears.
2. Click the View Execution Results icon.
The View Execution Results page appears. This page displays the execution history that includes script version, device name, script name, execution status, job result, execution start time and end time.
The fields Device Name, Script Name, Category, Version, and Status have the drop down list enabled with the filter option that has an input field where you can enter the filter criteria. If you apply the filters, the table contents display only the values that match the filter criteria. The fields Results, Execution Start Time, and Execution End Time do not support the filter option.
Table 86 describes the information that appears on the View Execution Results page.
Table 86: View Execution Results Page Fields
Field
Description
Device Name
Name of the device on which the script is executed
708
Table 86: View Execution Results Page Fields (continued)
Field
Description
Script Name
Name of the script
Category
Category of the script
Version
Executed version of script
Status
Script execution job status
Results
Contains a link to view the script execution results
Execution Start Time
The time at which the execution of the script started
Execution End Time
The time at which the execution of the script ended
3. Click the View link in the Results column to view the detailed execution results. The Script Execution Job Results dialog box appears and displays the results of the script execution. You can read and understand the script execution results. Click the [X] icon to close this dialog box.
You can click Scripts on the breadcrumbs at the top of the page to return to the Scripts page.
RELATED DOCUMENTATION
Executing Scripts on Devices | 699 Scripts Overview | 672
Exporting Scripts in .tar Format
You can use Junos Space Network Management Platform to export the contents of multiple scripts and save them on your computer.
709
To export the contents of scripts in .tar format: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page appears, displaying the scripts that you imported into Junos Space Platform.
2. Select the scripts that you want to export.
3. Select Export Scripts from the Actions menu. The Export Scripts dialog box prompts you for confirmation.
4. Click Export. The File Open dialog box enables you to save the script files in .tar format and the Export Scripts Job Status dialog box displays the status of this task. By default, the latest versions of the scripts are exported.
5. Click OK in the File Open dialog box to save the file to your computer. Alternatively, you can save the .tar file by clicking the Download link in the Export Scripts Job Status dialog box.
6. Perform one of the following actions in the Export Scripts Job Status dialog box: · To view the status of the Export Scripts job on the Job Management page, click the progress bar in this dialog box. · To return to the Scripts page, click the X icon in this dialog box.
Navigate to the folder on your computer and unzip the files to view the contents of the script.
RELATED DOCUMENTATION Scripts Overview | 672
Viewing Device Association of Scripts
Junos Space Network Management Platform enables you to view the details of scripts that are saved on the Junos Space server, as well as those that are staged on devices. You can view the script-device association to understand what scripts are staged or enabled on what devices.
710
To view devices that are associated with scripts: 1. On the Junos Space Network Management Platform UI, select Images and Scripts > Scripts.
The Scripts page appears. 2. Select a script.
NOTE: Make sure that the script is previously staged to the devices using Junos Space Platform.
3. Select View Associated Devices from the Actions menu. You can also click View in the Associations column on the Scripts page to view the associated devices for a single script. The View Associated Devices page appears with valid Script - Device(s) association details, which include script name, script type, category, host name, IP address, platform, software version, correct staged script version, latest script version, domain, and activation status.
4. Click Back to go back to the Scripts page.
RELATED DOCUMENTATION Scripts Overview | 672 Staging Scripts on Devices | 688
Marking and Unmarking Scripts as Favorite
IN THIS SECTION Marking Scripts as Favorite | 711 Unmarking Scripts Marked as Favorite | 711
In Junos Space Network Management Platform you can easily identify and group the scripts that you want to stage to devices by marking them as favorite. You can use the My Favorite private tag to mark these
711
scripts. After tagging the scripts, you can search for and use the tagged scripts in all your tasks that support selection by tags. You can unmark the scripts when you no longer need to identify or group them separately. This topic describes the following tasks:
Marking Scripts as Favorite To mark scripts as favorite: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page appears, displaying scripts that exist in the Junos Space Platform database.
2. Select the scripts that you want to mark as favorite.
3. Select Mark as Favorite from the Actions menu. The Mark as Favorite dialog box appears. The name of the tag is set to My Favorite and, by default, the tag is private.
4. (Optional) In the Description field, enter a description.
5. Click Apply Tag. The Mark as Favorite pop-up window appears, displaying a confirmation message that the selected scripts are successfully marked as favorite.
6. Click OK. The selected scripts are tagged as My Favorite. The scripts that you tagged as favorite are displayed in the Tag view on the Scripts page. You can also view the number of objects that are tagged as My Favorite.
Unmarking Scripts Marked as Favorite To unmark scripts that are marked as favorite: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page that appears displays scripts that exist in the Junos Space Platform database.
2. Select the scripts that you want to unmark as favorite.
3. Select Unmark as Favorite from the Actions menu.
712
The Unmark as Favorite pop-up window appears, displaying a confirmation message that the selected scripts are successfully unmarked as favorite.
4. Click OK. The selected scripts are no longer tagged as My Favorite.
You return to the Scripts page on the Junos Space GUI.
RELATED DOCUMENTATION Scripts Overview | 672 Importing Scripts to Junos Space | 675
Disabling Scripts on Devices
After you deploy scripts on devices, you can use Junos Space Network Management Platform to disable these scripts on one or more devices simultaneously. When you disable scripts using Junos Space Platform, the configuration added on the device is similar to the following: For example, for a file named bgp-active.slax, the configuration added is: user@host# delete system scripts commit file bgp-active.slax
CAUTION: If the filename of the selected script matches that of any script present on the device, then the script on the device is disabled regardless of its contents.
To disable scripts on devices: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page appears, displaying the scripts that you imported into Junos Space Platform. 2. Select one or more scripts that you want to disable on devices. 3. Select Disable Scripts on Devices from the Actions menu.
The Disable Scripts on Device(s) page appears. Only those devices that have the selected scripts enabled on them are listed. If the selected scripts are already disabled on the devices, then Junos Space displays the following message instead of the Disable Scripts on Device(s) page:
713
Device(s) having all the selected staged script(s) already have them in disabled state. 4. Select the devices on which you want the script to be disabled, by using one of the following selection
modes--manually, on the basis of tags, or by using the comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the list of devices that can be selected is displayed.
· To select devices manually: · Click the Select Device Manually option and select the devices on which you want to disable the script. The Select Devices status bar shows the total number of devices that you selected; the status bar is dynamically updated as you select the devices. · To select all devices, select the check box in the column header next to the Host Name column.
· To select devices on the basis of tags: 1. Click the Select by Tags option. The Select by tags list is activated.
2. Click the arrow on the Select by Tags list. A list of tags defined on devices in the Junos Space system appears, displaying two categories of tags--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You need to tag the devices on the Device Management page before you can use the Select by Tags option.
3. To select tags, perform one of the following actions: · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly.
714
The device display table displays the devices associated with the selected tags.
· To select devices by using a CSV file: 1. Select the Select by CSV option.
2. Click Browse to navigate to the file location on your computer and select the CSV file containing the list of devices on which you want to disable the script.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your computer and open it by using an application such as Microsoft Excel.
3. Click Upload to upload the CSV file. From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says "Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update.
5. (Optional) To schedule a time for disabling the script, select the Schedule at a later time check box and use the calendar icon and drop-down list respectively to specify the date and time when you want the script to be disabled.
6. Click Disable. The Disable button is unavailable if you have not selected any devices. Select the devices on which you want to disable the scripts before you click Disable. The selected scripts are disabled on the devices, and the Disable Scripts Information dialog box displays a link to the job ID.
7. Perform one of the following actions on the Disable Scripts Information dialog box: · To verify the status of this job, click the job ID on this dialog box. The Job Management page appears. Double-click the job pertaining to the disabling operation. The Script Management Job Status page appears and the Description column on this page displays whether or not the script is disabled successfully and reasons for failure (if disabling of the script had failed). If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992. · Click OK to go back to the Scripts page.
715
RELATED DOCUMENTATION Scripts Overview | 672
Removing Scripts from Devices
You can use Junos Space Network Management Platform to remove scripts from devices on which they are staged or enabled.
CAUTION: If the filename of the selected script matches that of any script present on the device, then the script on the device is removed regardless of its contents.
To remove scripts from devices: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page appears, displaying the scripts that you imported into Junos Space Platform. 2. Select the script or scripts that you want to remove. 3. Right-click your selection or use the Actions menu, and select Remove Scripts from Devices.
The Remove Scripts from Device(s) page appears and lists the devices the script is associated with.
NOTE: If you select multiple scripts for removal, only those devices that are associated with all the scripts are listed in the Remove Scripts from Device(s) page. If a device is not associated with even one of the selected scripts, it is not listed.
4. Select the devices from which you want the script to be removed, by using one of the following selection modes--manually, on the basis of tags, or by using the comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the list of devices that can be selected is displayed. For multiple selection, only commonly associated devices are listed.
· To select devices manually:
716
· Click the Select Device Manually option and select the device(s) that have the script staged on them. The Select Devices status bar shows the total number of devices that you selected; the status bar is dynamically updated as you select the devices.
· To select all the devices, select the check box in the column header next to the Host Name column. · To select devices on the basis of tags:
1. Click the Select by Tags option. The Select by tags list is activated.
2. Click the arrow on the Select by Tags list. A list of tags defined on devices in the Junos Space system appears, displaying two categories of tags--Public and Private.
NOTE: No tag is displayed if none of the devices is associated with any tag. You need to tag the devices on the Device Management page before you can use the Select by Tags option.
3. To select tags, perform one of the following actions : · Select the check boxes next to the names of tags that you want to select and and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count is updated accordingly. The device display table displays the devices associated with the selected tags.
· From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can choose to select all managed devices. Select the Include All Managed Devices check box to list all managed devices for selection. To select devices by using a CSV file: 1. Select the Select by CSV option.
2. Click Browse to navigate to the file location on your computer and select the CSV file containing the list of devices from which you want to remove the script.
717
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your computer and open it by using an application such as Microsoft Excel.
3. Click Upload to upload the CSV file. From Release 16.1R2 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details. You can click the View inapplicable devices link to review the list of devices that are excluded from the update. The reason for exclusion is listed as an error message against each device.
· From Junos Space Platform Release 18.2R1 onward, you can select devices based on saved filters To select devices by using a saved filter: 1. Select the Select by Filter option.
2. Select the filter from the list of saved filters. The devices associated with the selected filter appears in the grid.
5. Select the Force Remove check box to remove the script-device association from Junos Space Platform even if it is unable to remove the scripts from the devices due to connectivity issues. You need to turn this option on before you remove the scripts. The script-device association is removed regardless of whether this operation fails or not.
6. Click Remove. The script is removed from the selected devices, and the Remove Scripts Information page appears, which displays a job ID link. Perform one of the following actions on the Remove Scripts Information page: · Click the job ID link to view the status of the script removal operation on the Job Management page. The Job Management page appears. Double-click the row corresponding to the job pertaining to the removal operation. The Script Management Job Status page appears and the Description column on this page displays whether or not the script is removed successfully and reasons for failure (if the removal of the script failed). · Click OK to return to the Scripts page.
718
From the Junos Space Platform UI, you can verify the device association details of the scripts removed from the devices. On the Scripts page, click View in the Associations column of the removed script. The View Associated Devices page is displayed, where you can verify that the device associations are removed.
If the script removal task fails, you can identify the reason for failure by viewing the job details from the Job Management page. If there is an error, the View Job Details page displays an error message. For more information about the error messages, see "Common Error Messages in Device-Related Operations" on page 992.
For more information about viewing job details, see "Viewing Jobs" on page 972 .
On the Job Management page, you can export details about the removal of a script as a comma-separated values (CSV) file to your local file system:
1. On the Junos Space Platform UI, select Jobs > Job Management. The Job Management page appears.
2. Double-click the row corresponding to the script removal job. The Script Management Job Status page appears.
3. Click Export as CSV. You are prompted to save the file.
4. Click OK on the File Save page to save the file to your computer.
5. After you save the file, to return to the Job Management page, click OK on the Exporting Script Job page.
Use an application such as Microsoft Excel to open the downloaded file from your computer.
Release History Table
Release
Description
18.2
From Junos Space Platform Release 18.2R1 onward, you can select devices based on saved
filters
17.2
From Junos Space Platform Release 17.2R1 onward, when you select devices by CSV, you can
choose to select all managed devices. Select the Include All Managed Devices check box to list
all managed devices for selection.
RELATED DOCUMENTATION
719
Staging Scripts on Devices | 688 Scripts Overview | 672
Deleting Scripts
You can use Junos Space Network Management Platform to delete the scripts that you import into the Junos Space server. When you delete a script, all versions of that script and the checksum verification results associated with that script are deleted. To delete scripts from the Junos Space server: 1. On the Junos Space Platform UI, select Images and Scripts > Scripts.
The Scripts page appears, displaying the scripts that you imported into Junos Space Platform. 2. Select the scripts that you want to delete.
NOTE: Only the scripts that are not associated with any of the devices can be deleted. You must remove scripts from the device before deleting the scripts from Junos Space Platform. When you delete a script, all versions of that script and the checksum verification results associated with that script are deleted.
3. Click the Delete Scripts icon. If you have not removed scripts from the device before deleting the scripts from Junos Space Platform, you receive an action failure message. The Delete Device Scripts dialog box appears, listing the scripts that you chose for deletion.
4. Click Confirm on the Delete Device Scripts dialog box. The selected scripts are deleted and the Jobs dialog box displays a job ID link. You can click the link to view the status of the delete operation on the Job Management page. If the deletion of the script fails, you can identify the reason for failure by double-clicking the row containing the job on the Job Management page. The Job Details page appears and displays the reason for failure in the Description column. However, if the script is deleted successfully, then the Job Details page displays the following information in this column: Script deleted successfully The Job Details page supports sorting of data in all columns in ascending or descending order.
You can select Images and Scripts > Scripts on the left pane of the Junos Space GUI to return to the Scripts page.
720
RELATED DOCUMENTATION Modifying Scripts | 683
Script Annotations
IN THIS SECTION Script Execution Types | 723 Variable Context | 724 Local Script Execution | 725 Nesting Variables | 726
Script annotations are used to specify the metadata of a script. They are embedded in scripts. They are parsed and stored in the Junos Space Network Management Platform database while scripts are modified or imported. An annotation uses the following syntax:
/* @[ANNOTATION]= "<ANNOTATION CONTENT>" */
An annotation can be provided anywhere in the script.
Annotations are used to specify the name, description, and confirmation text of a script and the context in which the script can be applied. For an example script with an annotation, see "Script Example" on page 726. Table 87 displays the types of script annotations with their descriptions.
Table 87: Types of Script Annotations
Annotation
Description
@CONTEXT
This annotation is used to specify the context in which the script can be applied. When the context is not specified, the default context is taken as /device. Example:
/* @CONTEXT = "/device/chassis-inventory/chassis/chassis-module[starts-with (name,"FPC")]/chassis-sub-module[starts-with(name,"PIC")]"
*/
NOTE: You can execute scripts on more than 200 devices only if the script context is /, //, or /device and no device-specific or entity-specific parameters are specified.
721
Table 87: Types of Script Annotations (continued)
Annotation
Description
@NAME
This annotation is used to specify the descriptive name of the script. Example:
/* @NAME = "Put PIC Offline" */
@CATEGORY
This annotation is used to specify the category to which the script belongs. This annotation enables you to group scripts based on any criteria. The annotation cannot exceed 255 characters. It can contain only letters and numbers and can include hyphen (-), underscore (_), space ( ), or period (.). Example:
/* @CATEGORY = "Interface Configuration" */
@DESCRIPTION
This annotation is used to specify a description of the script. Example:
/* @DESCRIPTION = "Take PIC offline." */
@CONFIRMATION
This annotation is used to specify the confirmation text of the script. That is, the text that must be displayed when an attempt is made to execute the script. When this field is not provided, no confirmation text is shown when the script is executed. This can be used to create warnings for certain scripts. Example:
/* @CONFIRMATION = "Are you sure that you want to take the PIC offline?" */
@EXECUTIONTYPE
This annotation is used to specify the type of execution. The types of execution are GROUPEDEXECUTION and SINGLEEXECUTION. When this annotation is not specified, the default option is SINGLEEXECUTION. Example:
/* @EXECUTIONTYPE = "SINGLEEXECUTION" */
722
Table 87: Types of Script Annotations (continued)
Annotation
Description
@GROUPBYDEVICE
This annotation is used to specify whether the script must be executed simultaneously or sequentially on the selected devices. The annotation works only for scripts for which the execution type is GROUPEDEXECUTION and @ISLOCAL is true. You can add the GROUPBYDEVICE annotation from Junos Space Network Management Platform Release 15.2R1 onward.
If the annotation is set to TRUE, the script is executed on the selected devices at the same time. If set to FALSE or if the annotation is not included in the script, the script is executed sequentially on the selected devices. Example:
/* @EXECUTIONTYPE = "GROUPEDEXECUTION" */ /* @GROUPBYDEVICE="TRUE" */ /* @ISLOCAL = "true" */
@ISLOCAL
This annotation is used to define whether the script is to be executed locally or staged on the device. This could be True or False. Example:
/*@ISLOCAL="true"*/
@VARIABLECONTEXT @PASSSPACEAUTHHEADER
This annotation is used to define the context of a variable. Example:
/*@VARIABLECONTEXT="[{'name':'XPATHVARIABLE1','defaultvalue' :'mydefaultvalue','parameterscope':'devicespecific'},{'name' :'XPATHVARIABLE2','configuredvaluexpath':'/device/interface-information/ physical-interface/name/text()','parameterscope':'entityspecific'},{' name':'XPATHVARIABLE3','selectionvaluesxpath':'/device/ interface-information/physical-interface/name/text()','parameterscope':'global'}]"*/
This annotation is specific to local scripts. If the annotation is set to True, then the $JSESSIONSSO and $JSESSIONID script variables are set. Example:
/*@PASSSPACEAUTHHEADER="true"*/
This annotation also provides the virtual IP address of the cluster in $VIP.
@PASSDEVICECREDENTIALS
This annotation is specific to local scripts. If the annotation is set to true, Junos Space Platform sets the device credentials to $credentials and $deviceipmap variable (that is, $deviceipmap= '{"192.168.0.210":"Device1",...}').. Example:
/*@ PASSDEVICECREDENTIALS ="true"*/
723
Table 87: Types of Script Annotations (continued)
Annotation
Description
@PROMOTE
This annotation is used to define whether the script is available for execution as a right-click action. This only works for scripts with the @EXECUTIONTYPE = "SINGLEEXECUTION" annotation.
@ONCLOSESTRING
This annotation is used when the user wants the script execution result page to be closed automatically after the expected result is received. The @ONCLOSESTRING annotation contains a string. This string is compared with the script execution results. When the specified string appears in the script output, the script execution result page is automatically closed. The @ONCLOSESTRING annotation is useful for script promotion.
For example, if a user has included the @ONCLOSESTRING annotation in the Reboot script containing a string that is displayed on successful execution of the script and executes the promoted Reboot script. The script execution result page closes by itself automatically and the reboot command is sent to the device successfully. If the script is not executed successfully, the reason for failure is displayed in the script execution result window. This further improves user experience by reducing the number of clicks required by the user to complete an action.
@FAILJOBSTRING
This annotation is used to specify an arbitrary string which if present in the script output identifies the script execution as failure. The @FAILJOBSRTING annotation can take an arbitrary string value that does not exceed 255 characters. Because the string comparison is case sensitive, ensure that the string specified for @FAILJOBSTRING and the one in the script output use the same casing.
The value of the @FAILJOBSRTING annotation can also be used as a tag name. If the script output contains the tag, the corresponding job is marked as failure.
/* @FAILJOBSTRING = "Reason for Job Failure" */
/* @FAILJOBSTRING = "Failed while creating vlan" */
Script Execution Types
With the SINGLEEXECUTION script execution type, the script can be executed only on a single element at a time. This is helpful if the script developer wants to ensure that the script execution is not executed for multiple elements simultaneously.
With the GROUPEDEXECUTION script execution type, the script is executed for a group of devices simultaneously. The context of the elements belonging to the group is passed as an expression to the
724
$CONTEXT variable in the script. This way, the script is provided with the elements for which the script should be executed.
For example, for GROUPEDEXECUTION, the context structure could be as follows:
/device[name="EX4200-20"]/interface-information/physical-interface[name="ge-0/0/11"]| /device[name="EX4200-20"]/interface-information/physical-interface[name="ge-0/0/12"], /device[name="EX4200-240"]/interface-information/physical-interface[name="ge-0/0/5"]| /device[name="EX4200-240"]/interface-information/physical-interface[name="ge-0/0/6"].
Variable Context
The variable context defines what input the script is expecting from the user. This context can be used to autopopulate user-input options. This behavior is similar to that of the parameters in CLI Configlets. The variable context is defined using the @VARIABLECONTEXT annotation. The options are given in the following format:
@VARIABLECONTEXT = "[{'name':'<variable-name-1>', '<option-1-1>':'<value-1-1>','<option-1-2>':'<value-1-2>',....,},.....,{'name':'<variable-name-n>', '<option-n-1>':'<value-n-1>','<option-n-2>':'<value-n-2>',....,}]"
Table 88 explains the possible options.
Table 88: Variable Context Options
Option
Description
configuredvaluexpath This specifies the XPath (with reference to the device XML) from which the value of the parameter must be fetched.
defaultvalue
The behavior is the same as that of configured value of XPath except that the value is given explicitly. This is considered only when "configuredvaluexpath" is not specified.
selectionvaluesxpath This contains the XPath (with reference to the device XML) to fetch the set of values for populating the options.
selectionvalues
This is the same as the "selectionvalues" except that the comma-separated values are given explicitly.
parameterscope
This is used to specify the scope of a parameter.
· entityspecific A value is required for each individual entity. · devicespecific A value is required for each individual device. · global Only a single value is required for all entities.
725
Table 88: Variable Context Options (continued)
Option
Description
password
Use this option to allow the user to enter a password before executing the scripts. This obscures or displays the input parameters that you enter when you execute an op script. If you configure an op script with the @VARIABLECONTEXT script annotation for an input parameter with the "password" option, the input parameters that you enter in this field are obscured or displayed depending on the following values:
· no The input parameter entered is not obscured. · yes The input parameter entered in this field is obscured. The configuredvaluexpath,
defaultvalue, selectionvaluesxpath, and selectionvalues options are ignored.
· Confirm You need to enter the same input parameter twice. The input parameter entered is obscured. The configuredvaluexpath, defaultvalue, selectionvaluesxpath, and selectionvalues options are ignored.
Local Script Execution
With Junos Space, you can execute op scripts in one or more devices simultaneously without staging and enabling the scripts. To do this, you use the local script execution feature. This feature enables you to execute the script locally in the Junos Space server. The @ISLOCAL annotation in the script must be set to true to differentiate normal script from the local script:
/*@ISLOCAL="true"*/
Local scripts run directly in the Junos Space server, so you do not need to stage, enable, or disable these scripts. If a script that is already staged is modified using the @ISLOCAL annotation, the update is rejected.
You can execute local scripts on one or more selected devices. For a cluster setup, you need to execute the scripts on a VIP node.
For the GROUPEDEXECUTION execution type, the device IP address list is passed as a parameter. The script opens an internal connection before interacting with the device.
You can execute local scripts with the GROUPEDEXECUTION execution type on multiple devices simultaneously by setting GROUPBYDEVICE to TRUE. If the GROUPBYDEVICE annotation is set to FALSE or if the annotation does not appear in the script, the script is executed sequentially on the selected devices.
NOTE: Local scripts can be executed on devices with Junos Spaceinitiated connection.
726
Nesting Variables
You can use the XPath context to define the default option or the selectable options of a variable that are displayed on the script execution page. This XPath could have dependencies on other variables. Consider the following example:
A script requires two inputs: Physical Interface (Input-1) and a Logical Interface (Input-2) that is part of the selected Physical Interface (Input-1). You first define a variable PHYINT to get the name of the physical interface and a variable LOGINT to get the name of the logical interface. You then define the SELECTIONVALUESXPATH for PHYINT as /device/interface-information/physical-interface/name/text(). Select a value from the options listed by the XPath. Because the selection values listed for the LOGINT variable is dependent on the value selected for PHYINT, you define the SELECTIONVALUESXPATH of LOGINT as /device/configuration/interfaces/interface[name='$PHYINT']/unit/name/text(). This ensures that only the logical interfaces of the selected physical interface are listed.
NOTE: When using the $INTERFACE, $UNIT, Configured Value XPath, Invisible Params, and Selection fields, the variable definition in the CLI Configlet Editor should contain .get(0) to fetch the value from the array. For example, $INTERFACE.get(0).
Release History Table Release
15.2R1
Description
You can add the GROUPBYDEVICE annotation from Junos Space Network Management Platform Release 15.2R1 onward.
RELATED DOCUMENTATION Script Example | 726 Scripts Overview | 672
Script Example
The following is the script to take PIC offline. A script has four associated attributes, @CONTEXT, @NAME, @DESCRIPTION and @CONFIRMATION. These attributes are given within comments (/* */).
727
The @CONTEXT attribute states, what context the script can be executed on.
The @NAME attribute defines the descriptive name of the script and @DESCRIPTION defines the description of the script.
The @CONFIRMATION defines the text that should be shown to the user for confirmation before the script gets executed. This is to prevent accidental execution of scripts.
Version 1.0; import "../import/junos.xsl"; import "cim-lib.slax";
/* Junos Space specific context, name and description */ /* @CONTEXT = "/device/chassis-inventory/chassis/chassis-module [starts-with(name,"FPC")]/chassis-sub-module[starts-with(name,"PIC")]" */ /* @NAME = "Put PIC Offline" */ /* @DESCRIPTION = "Take PIC offline." */ /* @CONFIRMATION = "Are you sure that you want to take the PIC offline?" */ /* @EXECUTIONTYPE = "SINGLEEXECUTION" */ /*@VARIABLECONTEXT="[{'name':'XPATHVARIABLE1','defaultvalue':'mydefaultvalue', 'parameterscope':'devicespecific'}, {'name':'XPATHVARIABLE2','configuredvaluexpath':'/device/interface-information/ physical-interface/name/text()','parameterscope':'entityspecific'}, {'name':'XPATHVARIABLE3','selectionvaluesxpath':'/device/interface-information/ physical-interface/name/text()','parameterscope':'global'}]"*/ /* Global variables */ var $scriptname = "op-pic-offline.slax"; var $results; var $regex; var $result-regex;
var $arguments = { <argument> { <name> "CONTEXT"; <description> "The context associated with this script."; }
} param $CONTEXT;
match / { <op-script-results> { var $regex = "/device/chassis-inventory/chassis\\[name=\"(.*)\"\\]/chassis-module\\[name=\"(.* ([0-9]+))\"\\]/chassis-sub-module\\[name=\"(.* ([0-9]+))\"\\]"; var $result-regex = jcs:regex( $regex , $CONTEXT ); /* Request PIC offline */ var $command = { <command> "request chassis pic offline fpc-slot " _ $result-regex[4] _ " pic-slot " _ $result-regex[6];
728
} var $results = jcs:invoke($command); /* Error check */ call cim:error-check( $results-to-check = $results , $sev = "external.error" , $script = $scriptname , $cmd =
$command , $log = "no" ); <output> {
<HTML> { <HEAD> { <title> "PIC offline"; <style type="text/css"> { expr "body { font-family: Verdana, Georgia, Arial, sans-serif;font-size: 12px;color:#fff;}"; expr "td { font-family: Verdana, Georgia, Arial, sans-serif;font-size: 12px;color:#fff;}"; expr "p { font-family: Verdana, Georgia, Arial, sans-serif;font-size: 12px;color:#fff;}"; } } <BODY bgcolor="transparent"> { <p> { copy-of $results; } }
} } } }
RELATED DOCUMENTATION
Script Annotations | 720 Scripts Overview | 672
729
CHAPTER 38
Managing Operations
IN THIS CHAPTER Operations Overview | 729 Creating an Operation | 730 Importing an Operation | 735 Viewing an Operation | 737 Modifying an Operation | 739 Running an Operation | 739 Viewing Operation Results | 743 Copying an Operation | 744 Exporting an Operation in .tar Format | 745 Deleting an Operation | 747
Operations Overview
In Junos Space Network Management Platform, a device image is a software installation package that enables you to upgrade to or downgrade from one Junos operating system (Junos OS) release to another. Scripts are configuration and diagnostic automation tools provided by Junos OS. Junos Space Network Management Platform enables you to perform tasks related to scripts and device images simultaneously, by allowing you to group tasks, such as staging device images and staging or executing scripts, into a single operation. This facilitates efficient use and reuse of tasks that are frequently performed. Based on the roles assigned to your username, Junos Space Network Management Platform enables or disables different tasks. For more information about the roles that you need to be able to perform any tasks on operations, see "Device Images and Scripts Overview" on page 608. You can perform the following tasks from the Operations page: · Create an operation. · Modify an operation.
730
· Delete operations. · Create a copy of an existing operation. · Execute (or run) an operation. · Export operations. · Import an operation. · Assign an operation to a domain. · View information about operations in four stages of execution (successful, failed, in progress, and
scheduled). · Tag and untag operations, view operations that are tagged, and delete private tags.
RELATED DOCUMENTATION Creating an Operation | 730 Modifying an Operation | 739 Running an Operation | 739 Copying an Operation | 744 Viewing Operation Results | 743 Deleting an Operation | 747 Exporting an Operation in .tar Format | 745 Importing an Operation | 735 Scripts Overview | 672 Device Images Overview | 612 Script Bundles Overview | 748
Creating an Operation
Junos Space Network Management Platform enables you to create operations that combine multiple scripts and image tasks, such as deploying images and staging or executing scripts, into a single operation for efficient use and reuse. An operation can also contain other existing operations, as well as tasks for Junos Continuity software packages (JAM packages).
731
NOTE: An operation can contain any number of scripts and operations, but only one device image.
To create an operation: 1. On the Junos Space Platform UI, select Images and Scripts > Operations.
The Operations page appears.
2. Click the Create Operation icon. The Create Operation dialog box appears.
3. In the Name text box, type a name for the operation. The operation name cannot exceed 32 characters. The name can contain only letters and numbers and can include a hyphen (-), underscore (_), or period (.). The name cannot start with a space.
4. In the Description text box, type a description for the operation. The operation description cannot exceed 256 characters. The description can contain only letters and numbers and can include a hyphen (-), underscore (_), period (.), or comma (,).
5. Select the Mark as important check box to mark this operation as important.
6. Click the Add icon, and select Script, Image, or Operation from the list. The Select Scripts, Select Images, or Select Operations dialog box appears depending on what you selected and displays all the Junos Space Platform scripts, images, and operations, respectively, that you can include in the operation. · To add a script, click the Add icon, and select Script from the list. The Select Scripts page appears. This page displays all the available scripts on the Junos Space Platform. To search for a specific script, you can enter the search criteria in the Search field on the top right of this page. To clear the search results, click the x icon next to the search criteria. To select the scripts: a. Select the scripts and click Add to add your selections to the list. You are returned to the Create Operation dialog box.
b. Click the Edit icon next to the script to specify:
732
· The action that should be performed. The action can be Stage (default), Execute, or Remove.
NOTE: The Remove action is supported only from Junos Space Network Management Platform Release 15.2R1 onward.
· The version of the script to be associated with the operation. If you have opted to stage or execute the script, you can select the version of the script to be staged or executed. By default, the latest version is selected. To change the version, select the required version of the script from the Version list. If you are executing the script as part of the operation, select the version that you have staged; else, Junos Space Platform displays an error message when you run the operation.
· Whether the script must be enabled or not. If you have opted to stage or execute the script, you can choose to keep the script enabled on the device or devices. Keep the Enable Script check box selected if you want the scripts to be enabled and ready to be executed when you stage them from Junos Space Platform. Clear this check box if you want the scripts to be disabled on the devices. However, before you run the operation, make sure that the scripts are enabled; else, Junos Space Platform displays an error message.
· The Script Return Code. If you have opted to execute the script, then you can configure the script return code, which indicates whether the script execution was a success or failure. Junos Space Platform, by default, returns "Success" when it is able to execute a script successfully. However, you may want to consider the script execution to be a success or a failure only if a specific pattern string is present in the script execution results. You can specify this pattern string in the Set value field. This field supports up to a maximum of 255 characters.
For example, consider you are running a script to verify whether all the interfaces on a device are up. Though the script might execute successfully, you may want to show this script execution as a failure if an interface is down. To achieve this, you can search for the string "down" in the script execution results using the following steps:
In the Set Return Code section:
a. Select Failure.
b. In the Set value field, type down.
· Whether the script-device association must be forcibly removed or not. If you have opted to remove the script, you can select the Force Remove check box to make sure that the script-device association is removed from Junos Space Platform, irrespective of whether the script is removed successfully or not.
When you select the Remove option and the script is staged and enabled on the device, Junos Space Platform disables the script on the device, removes the script from the device, and then removes the script-device association. If the script is staged on the device and not enabled,
733
Junos Space Platform removes the script from the device and then removes the script-device association. If Junos Space Platform encounters a problem, such as loss of device connectivity, when the script is being disabled or removed, the script-device association might not be removed. To ensure that the script-device association is removed, you must select the Force Remove check box. c. Click Save to save the configuration changes to the script.
· To add a device image or a Junos Continuity software package, click the Add icon, and select Image from the list. The Select Device Image page appears. This page displays all the images available in Junos Space Platform. To search for a specific image, you can enter the search criteria in the Search field on the top right of this page. To clear the search results, click the x icon next to the search criteria.
NOTE: You can select Junos Continuity software packages by following the procedure for selecting device images.
To select the device images: a. Select the images and click Add to add your selections to the list.
You are returned to the Create Operation dialog box.
b. Click the Edit icon next to the image to specify the action that must be performed. The action can be Stage, Deploy, or Undeploy.
NOTE: · The Undeploy option appears only if you have selected a Junos Continuity software
package to be added. The Undeploy option does not appear in the case of other device images. · The deployment options that are displayed for Junos Continuity software packages and for device images are different. For more information about specifying deployment options, see "Deploying Device Images" on page 636.
· To add an operation, click the Add icon, and select Operation from the list. The Select Operations page appears. This page displays all the available operations on the Junos Space Network Management Platform. To search for a specific operation, you can enter the search criteria in the Search field on the top right of this page. To clear the search results, click the X icon next to the search criteria.
734
To select the operations: a. Select the operations on the Select Operations page.
b. Click Add to add your selections to the list. You are returned to the Create Operation dialog box.
NOTE: You cannot edit the child operation from the Create Operation dialog box.
7. You can modify the list of selected scripts, images, and operations by using the icons described in Table 89. Table 89: Create Operation Dialog Box Icon Descriptions Icon Description Add scripts, image, and operations to the list.
Delete the selected script, image, or operation from the list.
Move the selected script, image, or operation to the row above. Move the selected script, image, or operation to the row below. Make a copy of the selected script, image, or operation, and include it in the operation. Edit the options for deploying or executing the scripts or images in the operation. For scripts, you can edit the action type, script parameters, and their values (success or failure). For images, you can edit the action type and the image staging and deployment options. See "Deploying Device Images" on page 636 for more information. NOTE: You cannot edit a child operation.
8. Click Create to create the operation. You are returned to the Operations page. If the operation is successfully created, then you can view the newly added operation on this page. An operation that is marked important appears with a star next to it indicating that this operation takes priority over others (the star appears in the Priority column on the Operations page). You can verify whether the operation is created with your specifications by double-clicking the operation and viewing its details.
735
Release History Table Release
15.2R1
Description
The Remove action is supported only from Junos Space Network Management Platform Release 15.2R1 onward.
RELATED DOCUMENTATION
Operations Overview | 729 Modifying an Operation | 739 Running an Operation | 739 Copying an Operation | 744 Viewing Operation Results | 743 Deleting an Operation | 747 Exporting an Operation in .tar Format | 745 Importing an Operation | 735
Importing an Operation
You can use Junos Space Network Management Platform to import operations to the Junos Space Platform database from your local file system. The operation that you import must be an XML file (for example, operation-test.xml). Before you import operations, make sure that:
· The files are in .xml format · The objects that are referenced in the operation exist in the Junos Space Platform instance to which
you are importing. Else, Junos Space Platform displays an error message and the operation is not imported. To view the syntax of an operation XML file, you can create and export an operation from Junos Space Platform to your local file system and open the .xml file in an XML editor. For more information about creating and exporting an operation, see "Creating an Operation" on page 730 and "Exporting an Operation in .tar Format" on page 745.
736
NOTE: If you want to import multiple operations at a time, use the Mozilla Firefox or Google Chrome Web browser. Currently, Internet Explorer does not support selection of multiple files. In addition, note that two operations with the same name cannot be imported into the Junos Space server.
To import operations to Junos Space Platform: 1. On the Junos Space Platform UI, select Images and Scripts > Operations.
The Operations page appears.
2. Click the Import Operation icon. The Import Operations page appears.
3. Click the Add Operations (+) icon. The Add Operations page appears.
4. Click Browse and select the operation file from your local file system.
NOTE: Use Mozilla Firefox or Google Chrome to import multiple operations. Currently, using Internet Explorer, you can import only a single file at a time.
5. Click Add Operations. If the selected operation is valid, it is displayed on the Import Operations page. If the selected operation is not valid, you receive a failure notice.
6. Click Import Operation. If the operation of the same name exists in Junos Space Platform, you are asked whether you want to overwrite the existing operation. Click Yes to overwrite; else, click No.
7. If the operations are imported successfully, Junos Space Platform displays a success message. Click OK on this message. However, if the imported operation references an object (script, image, or operation) that is not present in the target Junos Space Platform instance, Junos Space Platform displays an error message and the operation is not imported. Sample error message:
737
No operation file(s) are imported. Referenced operation test-operation-1 in Operation test-operation-nested does not exist!
RELATED DOCUMENTATION Operations Overview | 729 Creating an Operation | 730 Modifying an Operation | 739 Running an Operation | 739 Copying an Operation | 744 Viewing Operation Results | 743 Deleting an Operation | 747 Exporting an Operation in .tar Format | 745
Viewing an Operation
Junos Space Network Management Platform enables you to perform scripts and device images related tasks simultaneously, by allowing you to group tasks, such as staging device images and staging or executing scripts, into a single operation. The Operations page of the Images and Scripts workspace enables you to view and manage these operations in Junos Space Platform. You can view information about all the operations in Junos Space Platform from the Operations page. To view detailed information about a particular operation, you can use the View Operation Details option. To view operations from the Operations page: 1. On the Junos Space Platform UI, select Images and Scripts > Operations.
The Operations page appears, displaying the operations created in or imported to Junos Space Platform. Table 90 describes the fields displayed on the Operations page. You can use the filter option on the drop-down lists of all fields except the Priority field, to specify the filter criteria. When you apply the filters, the page displays only the operations that match the filter criteria.
2. Select an operation and click the View Operation Details icon, or double-click the operation whose details you want to view. The View Operations dialog box appears.
738
Table 90 also contains the description of fields in the View Operations dialog box.
3. (Optional) Click the arrow next to the script, image, or operation name to view details for the script, image, or operation respectively.
Table 90: Description of Fields on the Operations Page and the View Operations dialog box
Field
Description
Displayed In
Priority
Displays a star icon if the operation is marked as Operations page important
Operation Name of the operation Name
Operations page
Domain
Domain to which the operation is assigned
Operations page
Description Description of the operation
Operations page View Operations dialog box
Creation Time
Date and time when the operation was created or Operations page imported
Last Updated Time
Date and time when the operation was last modified
Operations page
Name
Name of the Operation
View Operations dialog box
Mark as important
Values are True or False
View Operations dialog box
· Name · Type · Action · Description
· Name of the device image or script · Image or Script · Action to be performed on the device image or
script
· Description of the device image or script
View Operations dialog box
RELATED DOCUMENTATION
Operations Overview | 729 Creating an Operation | 730
739
Modifying an Operation
With Junos Space Network Management Platform you can modify an existing operation by editing the parameters of the operation. To modify an operation: 1. On the Junos Space Platform UI, select Images and Scripts > Operations.
The Operations page displays all the operations in the Junos Space Platform database.
2. Select the operation that you want to modify.
3. Click the Modify Operation icon.
4. Modify the necessary parameters. See "Creating an Operation" on page 730 for more information.
5. Click Modify to save your changes and return to the Operations page. To verify whether your changes are saved, double-click the operation and view the details.
RELATED DOCUMENTATION Operations Overview | 729 Creating an Operation | 730 Running an Operation | 739 Copying an Operation | 744 Viewing Operation Results | 743 Deleting an Operation | 747 Exporting an Operation in .tar Format | 745 Importing an Operation | 735
Running an Operation
Junos Space Network Management Platform allows you to execute (or run) operations existing in the Junos Space Platform database.
740
To run an operation: 1. On the Junos Space Platform UI, select Images and Scripts > Operations.
The Operations page displays all the operations in the Junos Space Platform database.
2. Select the operation that you want to execute.
3. Select Run Operation from the Actions menu. The Run Operation page appears.
4. Select the device or devices on which you want to execute the operation by using one of the following methods--manually, on the basis of tags, or by using a comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled. · To select devices manually: a. Click the Select Device Manually option, if it is not selected previously.
NOTE: The Select Device Manually option is selected by default and the list of devices associated with the user is displayed.
b. Select the devices on which you want to run the operation. Perform one of the following actions: · Select one or more devices by selecting the check box corresponding to the devices. · Select all devices by selecting the check box in the column header next to the Host Name. · Search for devices, or filter devices based on tags by using the search option provided.
NOTE: The search field is available only for the Select Device Manually. Using the search field, you can search for devices by the device name, Device Alias custom label, or tag and then select devices by clicking the corresponding check boxes.
The total number of devices selected is displayed and dynamically updated as you select or clear the devices.
c. (Optional) You can tag the selected devices so that you can reuse the same group of devices to run a different operation. To tag the devices, enter the name of a tag in the Tag Selected Devices As text box and click Apply Tag.
· To select devices on the basis of tags:
741
a. Click the Select by Tags option. The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of public and private tags associated with the user is displayed.
NOTE: If no tags are displayed, then no devices are associated with the user's private tags or the public tags. You must tag the devices on the Device Management page for devices to be associated with tags.
c. Select the check boxes next to the name of the tag to select one or more tags. Optionally, you can filter the tags by entering the name in the text box and select the tags.
d. Click OK. The devices associated with the selected tags are displayed in the table. When you select devices based on tags, you cannot modify the list of devices displayed.
NOTE: The tags that you selected are displayed next to the Select by Tags field. The number of devices associated with the selected tags is also displayed
e. (Optional) An [X] icon appears after each tag name. You can use the [X] icon to clear any tag from the list. The device count in the Select Devices status bar decrements accordingly.
· To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse and in the subsequent dialog box, select the CSV file containing the list of devices on which you want to execute the operation. The filename is displayed in the field next to the Browse button.
c. Click Upload. The devices listed in the CSV file are displayed in the table. When you import devices using a CSV file, you cannot modify the list of devices displayed.
742
NOTE: If you import an invalid CSV file an import failure error message is displayed. Download the sample CSV file by clicking the View Sample CSV link and ensure that the format of the CSV file that you are uploading is the same as the sample CSV file.
From Release 17.1R1 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says "Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update.
5. (Optional) You can also schedule a time for the operation to run by selecting the Schedule at a later time check box and using the calendar icon and drop-down list respectively to specify the date and time when you want to run the operation.
NOTE: If you select devices based on tags and if you schedule the operation to run later, the devices associated with the tags are resolved at runtime. The operation is run only on those devices that are associated with the tags at the time of running of the operation.
6. Click OK. If you did not specify a later date and time for the operation to be run, the selected operation is executed and a dialog box appears, displaying a link to the job. Perform one of the following actions on the jobs dialog box: · Click the job ID link to view the status of the operation execution, and on the Job Management page, double-click the row corresponding to the job to view the details of the job. · If the operation was executed successfully, you can export the details of the operation as a comma-separated values (CSV) file by clicking the Export as CSV button and saving the file on your PC. · If the execution of the operation failed, the reason for the failure is displayed. · Click OK to return to the Operations page.
RELATED DOCUMENTATION Operations Overview | 729 Creating an Operation | 730
743
Modifying an Operation | 739 Copying an Operation | 744 Viewing Operation Results | 743 Deleting an Operation | 747 Exporting an Operation in .tar Format | 745 Importing an Operation | 735
Viewing Operation Results
Using Junos Space Network Management Platform, you can view information about operations in the following stages of execution: · Operations that were successfully executed · Operations that were not successfully executed · Operations that are currently being executed · Operations that are scheduled to be executed later To view information about an operation: 1. On the Junos Space Platform UI, select Images and Scripts > Operations.
The Operations page appears.
2. Click the View Operation Results icon. The View Operation Results page appears and displays the following information: · Operation name · Date of execution · Summary of the result (such as the number of devices on which the operation was successfully executed) · Execution status (scheduled, in progress, success, or failure) · Job ID All fields, except the Result Summary field, on the View Operation Results page have the filter option enabled. You can click the arrow on the column header of the required field to display the filter option. Select the option and specify the filter criteria. On applying the filters, the table displays only those operation results that match the filter criteria.
744
3. (Optional) Double-click an operation to open the Operation Result Detail page, which displays information about the selected operation according to device name and result (success or failed), along with a summary of the operation. Child operations are automatically expanded in the Operation Result Detail of a device. The detail is a flattened list of script or image entries. You can expand an individual row to view more information about the scripts, images, and child operations (operations within an operation) associated with that device. You can also expand the rows of child operations to see information about all the scripts and images associated with the operation. This way, you are able to monitor the status of each script or image associated with an operation and identify the causes of failed executions (if any). On the Operation Result Detail page, you can perform the following actions: · To view the success or failure details of individual tasks, you can click the required row. · To export the operation results, click Export as CSV. The Export as CSV page appears displaying the results in .csv format. To exit this page, click the X symbol at the top-right corner of the page. You are returned to the Operation Result Detail page. · Click Close on the Operation Result Detail page to go back to the View Operation Results page. You can click Operations in the breadcrumbs at the top of the page to return to the Operations page.
RELATED DOCUMENTATION Operations Overview | 729 Creating an Operation | 730 Modifying an Operation | 739 Running an Operation | 739 Copying an Operation | 744 Deleting an Operation | 747
Copying an Operation
You can use Junos Space Network Management Platform to create copies of operations existing in the Junos Space Network Management Platform database.
745
To create a copy of an operation: 1. On the Junos Space Network Management Platform UI, select Images and Scripts > Operations.
The Operations page appears, displaying the existing operations in Junos Space Network Management Platform.
2. Select the operation that you want to copy.
3. Select Clone Operation from the shortcut menu. The Clone Operation dialog box appears, prompting you to enter a name for the new operation.
4. Enter a name for the new operation in the Destination Name field.
5. Click Clone to create a copy of the operation. You are returned to the Operations page on the Junos Space UI, where you can see the new operation listed.
RELATED DOCUMENTATION Operations Overview | 729 Creating an Operation | 730 Modifying an Operation | 739 Running an Operation | 739 Deleting an Operation | 747 Viewing Operation Results | 743
Exporting an Operation in .tar Format
Junos Space Network Management Platform enables you to export operations from the Junos Space Platform database to your local file system. The export operation enables you to have a local copy of the operations, which you can transfer among multiple Junos Space Platform instances for efficient use and reuse. It also allows you to make configuration changes to the operations, locally (offline). The export operation does not delete the operations that you export from the Junos Space Platform database. The operations are exported in .tar format. The exported file does not include any objects that are referenced within the operations. For example, if an operation includes an action on an image or a script, exporting the operation does not export the referenced image or script.
746
To export an operation: 1. On the Junos Space Platform UI, select Images and Scripts > Operations.
The Operations page appears, displaying the existing operations in Junos Space Platform.
2. Select the operations to export.
3. Select Export Operations from the Actions menu. The Export Operations page appears indicating that the selected operations will be exported in .tar format.
4. Click OK on the Export Operations page. The File Open dialog box appears and enables you to save the operation files in .tar format and the Export Operations Job Status dialog box displays the status of this task.
5. Click OK in the File Open dialog box to save the files to your local file system. Alternatively, you can save the .tar file by clicking the Download link in the Export Operations Job Status dialog box. If you want to view the status of the export job, click the progress bar in the Export Operations Job Status dialog box.
6. Unzip the file to view the contents.
NOTE: When you export a nested operation (that is, an operation containing one or more operations), each operation is exported as a separate XML file. For example, when you export a nested operation A containing operation B and operation C, the extracted folder contains three XML files, one for each operation.
RELATED DOCUMENTATION Operations Overview | 729 Creating an Operation | 730 Modifying an Operation | 739 Running an Operation | 739 Copying an Operation | 744 Viewing Operation Results | 743 Deleting an Operation | 747
747
Importing an Operation | 735
Deleting an Operation
You can use Junos Space Network Management Platform to delete operations from the Junos Space Network Management Platform database. To delete an operation: 1. On the Junos Space Platform UI, select Images and Scripts > Operations.
The Operations page appears, displaying the existing operations in Junos Space Network Management Platform. 2. Select the operations that you want to delete. 3. Click the Delete Operations icon. The Delete Operations dialog box appears, listing the operations that you chose for deletion. 4. Click Delete to delete the operations. The selected operations are deleted and you are returned to the Operations page.
NOTE: When you delete an operation, you do not delete the scripts, images or operations associated with the operation from the Junos Space Network Management Platform database.
RELATED DOCUMENTATION Operations Overview | 729 Creating an Operation | 730 Modifying an Operation | 739 Running an Operation | 739 Copying an Operation | 744 Viewing Operation Results | 743
748
CHAPTER 39
Managing Script Bundles
IN THIS CHAPTER Script Bundles Overview | 748 Creating a Script Bundle | 749 Viewing Script Bundles | 752 Modifying a Script Bundle | 753 Staging Script Bundles on Devices | 754 Enabling Scripts in Script Bundles on Devices | 757 Executing Script Bundles on Devices | 759 Disabling Scripts in Script Bundles on Devices | 762 Viewing Device Associations of Scripts in Script Bundles | 764 Deleting Script Bundles | 764
Script Bundles Overview
Scripts are configuration and diagnostic automation tools provided by the Junos operating system (Junos OS). They help reduce network downtime and configuration complexity, automate common tasks, and reduce the time required to resolve problems. Junos OS scripts are of three types: commit, operation (op), and event scripts. For more information about scripts, see "Scripts Overview" on page 672. Junos Space Network Management Platform allows you to group multiple op and commit scripts into a script bundle. To create a script bundle, you must first import the scripts that you want to include in the script bundle into Junos Space Platform (see "Importing Scripts to Junos Space" on page 675). The script bundles that you create are displayed on the Script Bundles page on the Junos Space UI. Script bundles can be staged and executed on devices. You can also modify and delete script bundles. Based on the roles assigned to your username, Junos Space Platform enables or disables different tasks. For more information about the roles that you need to be assigned to perform tasks on script bundles, see "Device Images and Scripts Overview" on page 608.
749
You can execute the following tasks from the Script Bundles page: · Create a script bundle. · View details about a script bundle. · Modify a script bundle. · Delete script bundles. · Execute script bundles on devices. · Stage a script bundle on devices. · View device association of scripts in script bundles. · Enable scripts in a script bundle on devices. · Disable scripts in a script bundle on devices. · Tag and untag script bundles, view script bundles that are tagged, and delete private tags.
RELATED DOCUMENTATION Creating a Script Bundle | 749 Staging Script Bundles on Devices | 754 Executing Script Bundles on Devices | 759 Modifying a Script Bundle | 753 Deleting Script Bundles | 764 Enabling Scripts in Script Bundles on Devices | 757 Disabling Scripts in Script Bundles on Devices | 762 Viewing Device Associations of Scripts in Script Bundles | 764 Device Images Overview | 612 Scripts Overview | 672 Operations Overview | 729
Creating a Script Bundle
Junos Space Network Management Platform allows you to group multiple op and commit scripts into a script bundle. To create a script bundle, you must first import the scripts that you want to include in the script bundle into Junos Space Network Management Platform (see "Importing Scripts to Junos Space" on page 675).
750
To create a script bundle:
1. On the Junos Space Platform UI, select Images and Scripts > Script Bundles and select the Create Script Bundle icon. The Create Script Bundle page appears.
2. In the Name text box, type the name of the script bundle.
The script bundle name cannot exceed 50 characters. The name can contain only letters and numbers and can include a hyphen (-), underscore (_), or period (.). The name cannot start with a space.
3. In the Description text box, type a description of the script bundle.
The script bundle description cannot exceed 256 characters. The description can contain only letters and numbers and can include a hyphen (-), underscore (_), period (.), or comma (,).
4. Click the Add Scripts (
) icon to add scripts that need to be included in the script bundle.
The Select Scripts page displays all Junos Space Platform scripts that you can include in the script
bundle.
5. Select the scripts that you want to include in the script bundle. The selected scripts are highlighted.
6. (Optional) To mark scripts in the script bundle as My Favorite: a. Right-click the scripts and select Mark as Favorite. The Mark as Favorite pop-up window is displayed. The name of the tag is set to My Favorite and the tag is private. b. (Optional) In the Description field, enter a description. c. Click Apply Tag. The scripts are tagged.
7. (Optional) To unmark scripts in the script bundle that are marked as favorite: a. Right-click the scripts and select Unmark as Favorite. The Unmark as Favorite pop-up window that appears displays the message that the scripts are successfully unmarked as favorite. b. Click OK.
8. Click Add. The selected scripts are included in the Selected Scripts area of the Create Script Bundle page.
751
9. On the Create Script Bundle page, under the Selected Scripts area, you can edit the script parameters, rule, and version.
To edit script parameters:
a. (Optional) To change the version of the script, click the Edit icon next to the version and select a suitable version from the Version drop-down list. By default, the latest version of the script is associated with the script bundle.
b. (Optional) You can set success or failure criteria based on the script output. When you set criteria, the script execution is considered a success or a failure only if the specified criteria are met by the execution results. By default, no specific strings are searched for in the script output and if the script is executed without any errors, then the execution is considered a success.
c. Click Save to save the script parameters, rule, and version details.
10. (Optional) On this page, you can also modify the list of selected scripts by using the icons described in Table 91.
Table 91: Create Script Bundle Page Icon Descriptions
Icon
Description
Add scripts to the script bundle.
Delete the selected script from the script bundle.
Move the selected script to the row above. Move the selected script to the row below. Make a copy of the selected script and include it in the script bundle. Edit the value (success or failure) of script parameters or the script version. This option is disabled when commit scripts are selected.
11. Click Save. The script bundle is created and displayed on the Script Bundles page.
To verify whether the script bundle is created with your specifications, double-click the script bundle and view its details.
752
RELATED DOCUMENTATION Staging Script Bundles on Devices | 754 Modifying a Script Bundle | 753 Scripts Overview | 672
Viewing Script Bundles
Junos Space Network Management Platform allows you to group multiple operation (op) and commit scripts into a script bundle. The script bundles that you create are displayed on the Script Bundles page of the Junos Space Platform UI. You can view information about all the script bundles from the Script Bundles page and you can view detailed information about a particular script bundle by using the View Script Bundle Details option.
To view script bundles from the Script Bundles page:
1. On the Junos Space Platform UI, select Images and Scripts > Script Bundles.
The Script Bundles page appears, displaying the script bundles created in Junos Space Platform.
Table 92 describes the fields displayed on the Script Bundles page.
You can use the filter option on the Script Bundle Name and Domain drop-down lists to specify the filter criteria. When you apply the filters, the page displays only the script bundles that match the filter criteria. The Creation Date and Last Updated Time fields do not support the filter option.
2. Select a script bundle and click the View Script Bundle Details icon, or double-click the script bundle whose details you want to view. The Script Bundle Detail dialog box appears. Table 92 also contains the description of fields in the Script Bundle Detail dialog box.
Table 92: Description of Fields on the Script Bundles Page and the Script Bundle Detail dialog box
Field
Description
Displayed In
Script Bundle Name
Name of the script bundle
Script Bundles page
Domain
Domain to which the script bundle is assigned. Default domain is Global.
Script Bundles page
753
Table 92: Description of Fields on the Script Bundles Page and the Script Bundle Detail dialog box (continued)
Field
Description
Displayed In
Creation Date
Date and time when the script bundle was created Script Bundles page
Last Updated Time
Date and time when the script bundle was modified Script Bundles page
Name
Name of the script bundle
Script Bundle Detail dialog box
Scripts Count
Number of scripts in the script bundle
Script Bundle Detail dialog box
Description Description of the script bundle
Script Bundle Detail dialog box
Sequence Sequence number of the script in the script bundle Script Bundle Detail dialog box
Script Name
Name of the script in the script bundle
Script Bundle Detail dialog box
Descriptive Descriptive name of the script that is specified
Name
using the @NAME annotation
Script Bundle Detail dialog box
Script Version
Version number of the script
Script Bundle Detail dialog box
RELATED DOCUMENTATION Script Bundles Overview | 748 Creating a Script Bundle | 749
Modifying a Script Bundle
Junos Space Network Management Platform allows you to modify a script bundle's description, number of scripts included in the script bundle, and the script parameter value (success or failure) of every script included in the script bundle.
754
To modify script bundles: 1. On the Junos Space Platform UI, select Images and Scripts > Script Bundles.
The Script Bundles page appears, displaying all Junos Space Platform script bundles.
2. Select the script bundle that you want to modify.
3. Click the Modify Script Bundle icon. The Modify Script Bundle page appears.
4. Modify the necessary parameters. For more information, see "Creating a Script Bundle" on page 749.
5. Click Modify. Your modifications are saved and the Script Bundles page appears.
To verify whether your changes are saved, double-click the script bundle and view its details.
RELATED DOCUMENTATION Staging Script Bundles on Devices | 754 Executing Script Bundles on Devices | 759 Scripts Overview | 672
Staging Script Bundles on Devices
Junos Space Network Management Platform allows you to stage script bundles on devices. During script bundle staging, op scripts and commit scripts in the script bundle are copied to the /var/db/scripts/op directory on the device. When you stage script bundles on dual Routing Engines, the script bundles are copied to both Routing Engines, and in case of Virtual Chassis, the script bundles are copied to all the FPCs. To stage script bundles on devices: 1. On the Junos Space Platform UI, select Images and Scripts > Script Bundles.
The Script Bundles page appears, displaying all Junos Space Platform script bundles.
2. Select the script bundles that you want to stage on devices.
755
3. Select Stage Script Bundle on Devices from the Actions menu. The Stage Script Bundle On Device(s) dialog box appears.
4. Keep the Enable Scripts on Devices check box selected if you want the scripts to be enabled and ready to be executed when you stage them from Junos Space Platform. If you want the scripts to be disabled while staging them on the devices, clear this check box. However, before you run the script bundle make sure that the scripts are enabled.
5. Select the Show existing Staged Devices check box to display the devices on which the scripts are staged. When this check box is selected, the Select Devices section displays the devices on which the scripts are staged along with the devices on which the scripts are not staged.
6. Select the devices on which you want to stage the script bundles. You can select devices by using one of the following selection modes--manually, on the basis of tags, or by using the comma-separated values (CSV) file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the list of devices on which the script bundle is not staged is displayed.
· To select devices manually: · Click the Select Device Manually option and select the devices on which you want to stage the script bundle. The Select Devices status bar shows the total number of devices that you have selected; the status bar is dynamically updated as you select the devices. · To select all the devices, select the check box in the column header next to Host Name.
· To select devices on the basis of tags: a. Click the Select by Tags option. The Select by tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined on devices in Junos Space Platform appears, displaying two categories of tags--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You need to tag the devices on the Device Management page before you can use the Select by Tags option.
756
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly. The device display table displays the devices associated with the selected tags.
· To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse to navigate to the file location on your computer and select the CSV file containing the list of devices on which you want to stage the script bundle.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your computer and open it by using an application such as Microsoft Excel.
c. Click Upload to upload the CSV file. From Release 17.1R1 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says "Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update.
7. (Optional) To schedule a time for staging the script bundles, select the Schedule a later time check box and use the calendar icon and drop-down list respectively to specify the date and time when you want the script bundles to be staged.
8. Click Stage. The selected script bundles are staged and a Jobs dialog box appears displaying a job ID link. Perform one of the following actions in the Jobs dialog box:
757
· Click the job ID link to view the status of the staging operation on the Job Management page. If the staging of the script bundles fails, you can identify the reason for failure by double-clicking the job on the Job Management page. The Job Details page appears and displays the reason for failure in the Description column. The Job Details page supports sorting of data in all columns in ascending or descending order.
· Click OK to return to the Script Bundles page. To return to the Script Bundles page from anywhere on the Junos Space Platform UI, select Images and Scripts > Script Bundles on the left pane of the UI.
RELATED DOCUMENTATION Creating a Script Bundle | 749 Modifying a Script Bundle | 753 Deleting Script Bundles | 764 Executing Script Bundles on Devices | 759 Enabling Scripts in Script Bundles on Devices | 757 Disabling Scripts in Script Bundles on Devices | 762 Script Bundles Overview | 748
Enabling Scripts in Script Bundles on Devices
After you stage the script bundle, you can use Junos Space Network Management Platform to enable the scripts within the script bundle on one or more devices simultaneously. To enable the scripts on devices: 1. On the Junos Space Network Management Platform UI, select Images and Scripts > Script Bundles.
The Script Bundles page appears, displaying all Junos Space Network Management Platform script bundles.
2. Select the script bundle containing the scripts that you want to enable on devices.
3. Select Enable Script Bundle on Devices from the Actions menu. If this option is unavailable, it means that one or more of the scripts within the script bundle are not staged on any of the devices. You must first stage the scripts and then enable them.
758
The Enable Script Bundle On Device(s) page appears. However, if all the scripts within the script bundle are enabled on all the associated devices, then Junos Space Network Management Platform displays the following message indicating that there are no scripts that can be enabled. No devices found where all the scripts of the selected bundle are staged and at least one script is disabled
NOTE: The Enable Script Bundle On Device(s) page lists those devices that are associated with all scripts (enabled or disabled) in the script bundle. However, devices are not listed in the following cases: · If the script version in the script bundle does not match the staged version of the script on
the devices · If all scripts in the script bundle are enabled on the devices · If a device-script association does not exist on the device for at least one script (enabled
or disabled) in the script bundle
4. Select the devices on which you want the script bundle to be enabled.
5. Click Enable. The scripts within the script bundle are enabled on the selected devices and a Jobs dialog box displays a job ID link. Perform one of the following actions: · Click the job ID link to view the job status on the Job Management page. If the scripts are not enabled on the selected devices, you can identify the reason for failure by double-clicking this job on the Job Management page. The Job Details page appears and displays the reason for failure in the Description column. · Click OK to return to the Scripts Bundles page.
To return to the Script Bundles page from anywhere on the Junos Space Platform GUI that you may have navigated to, select Images and Scripts > Script Bundles on the left pane of the GUI.
RELATED DOCUMENTATION Disabling Scripts in Script Bundles on Devices | 762 Creating a Script Bundle | 749 Modifying a Script Bundle | 753 Deleting Script Bundles | 764 Staging Script Bundles on Devices | 754
759
Executing Script Bundles on Devices | 759 Script Bundles Overview | 748
Executing Script Bundles on Devices
Junos Space Network Management Platform allows you to execute script bundles on devices. When you execute script bundles, Junos Space Platform triggers the execution of op scripts on the selected devices. Commit scripts are executed on commit when events occur on the device and therefore the result of the script bundle execution for commit scripts is always shown as Success in Junos Space Platform. To execute script bundles on devices: 1. On the Junos Space Platform UI, select Images and Scripts > Script Bundles.
The Script Bundles page appears, displaying all Junos Space Platform script bundles.
2. Select the script bundles that you want to execute on devices.
3. Right-click your selection or use the Actions menu, and select Execute Script Bundle on Devices. The Execute Script Bundle On Device(s) dialog box appears. To restage the scripts before execution, keep the Stage & Enable Scripts before Execution check box selected (the default). If the scripts within the script bundle are previously staged and enabled in all the necessary devices and you do not want to restage these scripts, clear this check box.
4. Select the devices on which you want to execute the scripts. You can select devices by using one of the following selection modes--manually, on the basis of tags, or by using the CSV file. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: By default, the Select Device Manually option is selected and the list of devices on which the scripts in the script bundle are staged and enabled is displayed.
· To select devices manually: · Click the Select Device Manually option and select the devices on which you want to execute the scripts in the script bundle. The Select Devices status bar shows the total number of devices that you have selected; the status bar is dynamically updated as you select the devices. · To select all the devices, select the check box in the column header next to Host Name.
· To select devices on the basis of tags:
760
a. Click the Select by Tags option. The Select by Tags list is activated.
b. Click the arrow on the Select by Tags list. A list of tags defined on devices in Junos Space Platform appears, displaying two categories of tags--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices is associated with any tag. You need to tag the devices on the Device Management page before you can use the Select by Tags option.
c. To select tags, perform one of the following actions : · Select the check boxes next to the tag names to select the desired tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made. Select the suggested match and click OK. As you select the tags, the total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. You can click the [X] icon to clear any tag from the list. The device count decrements accordingly. The device display table displays the devices associated with the selected tags.
· To select devices by using a CSV file: a. Select the Select by CSV option.
b. Click Browse to navigate to the file location on your computer and select the CSV file containing the list of devices on which you want to execute the script bundle.
TIP: For a sample CSV file, click the Sample CSV link. You are prompted to save the file. Save the file to your computer and open it by using an application such as Microsoft Excel.
c. Click Upload to upload the CSV file.
761
From Release 17.1R1 onward, when you upload a CSV file to select devices from, Junos Space Platform verifies the devices in the CSV file. If the CSV file contains devices to which the changes do not apply, a warning message appears which says "Few devices are not selected due to precondition failure. Please click "View inapplicable devices" for more details." You can click the View inapplicable devices link to review the list of devices that are excluded from the update.
5. (Optional) You can modify the script parameters before executing script bundles on devices. The changes made to script parameters are saved only on the devices on which the script bundle is executed. The script parameters in the script bundle in Junos Space Platform continue to reflect the original values. To edit the script parameter values before execution:
1. On the Execute Script Bundle On Device(s) page, click the Update Script Parameters/Rule link. The Configure Script Bundle Parameters dialog box appears.
2. Click set value to edit the script parameters and click Save. You can also set success or failure criteria based on the script output. When you set criteria, the script execution is considered a success or a failure only if the specified criteria (text string) is present in the execution results. By default, no specific strings are searched in the script output and if the script is executed without any errors, then the execution is considered a success.
3. Click Configure. Your changes are saved and the Enable Script Bundle On Device(s) dialog box displays your previous selections.
6. (Optional) To schedule a time for executing the script bundles, select the Schedule a later time check box and use the calendar icon and drop-down list respectively to specify the date and time when you want the script bundles to be executed.
7. Click Execute. The script bundle is enabled and executed on the selected devices and a Jobs dialog box displays a job ID link. Perform one of the following actions in the Jobs dialog box: · Click the job ID link to view the status of execution on the Job Management page. If the execution of the script bundles fails, you can identify the reason for failure by double-clicking this job on the Job Management page. The Job Details page appears and displays the reason for failure in the Description column. The Job Details page supports sorting of data in all columns in ascending or descending order. · Click OK to return to the Script Bundles page.
To return to the Script Bundles page from anywhere on the Junos Space Platform UI, select Images and Scripts > Script Bundles on the left pane of the UI.
RELATED DOCUMENTATION
762
Creating a Script Bundle | 749 Modifying a Script Bundle | 753 Deleting Script Bundles | 764 Staging Script Bundles on Devices | 754 Enabling Scripts in Script Bundles on Devices | 757 Disabling Scripts in Script Bundles on Devices | 762 Script Bundles Overview | 748
Disabling Scripts in Script Bundles on Devices
You can disable the scripts in a script bundle on devices on which they are in the enabled state. You can use Junos Space Network Management Platform to disable the scripts within the script bundle on one or more devices simultaneously. To disable the scripts on devices: 1. On Junos Space Platform, select Images and Scripts > Script Bundles.
The Script Bundles page appears, displaying all Junos Space Platform script bundles.
2. Select the script bundle containing the scripts that you want to disable on devices.
3. Select Disable Script Bundle on Devices from the Actions menu. If this option is unavailable, it means that one or more of the scripts within the script bundle is not staged on a device. The Disable Script Bundle On Device(s) page appears, which displays the devices on which the scripts are staged and enabled. However, if all the scripts within the script bundle are already disabled, then Junos Space Platform displays the following message indicating that there are no scripts that can be disabled. No devices found where all the scripts of the selected bundle are staged and at least one script is enabled
763
NOTE: The Disable Script Bundle On Device(s) page lists the devices that are associated with the same versions of all scripts that are part of the script bundle. The scripts might be in an enabled or disabled state. This page does not list devices: · If the script version in the script bundle does not match the staged version of the script on
the devices. · If all the scripts in the script bundle are in a disabled state on the devices. · If a device-script association does not exist on the device for at least one script (in an
enabled or disabled state) in the script bundle.
4. Select the devices on which you want the scripts to be disabled.
5. Click Disable. The scripts within the script bundle are disabled on the selected devices and a Jobs dialog box displays a job ID link. Perform one of the following actions on the Jobs dialog box: · Click the job ID link to view the job status on the Job Management page. If the scripts are not disabled on the selected devices, you can identify the reason for failure by double-clicking this job on the Job Management page. The Job Details page appears and displays the reason for failure in the Description column. The Job Details page supports sorting of data in all columns in ascending or descending order. · Click OK to return to the Script Bundles page.
To return to the Script Bundles page from anywhere on the Junos Space Platform UI, select Images and Scripts > Script Bundles on the left pane of the UI.
RELATED DOCUMENTATION Enabling Scripts in Script Bundles on Devices | 757 Viewing Device Associations of Scripts in Script Bundles | 764 Modifying a Script Bundle | 753 Deleting Script Bundles | 764 Staging Script Bundles on Devices | 754 Executing Script Bundles on Devices | 759 Script Bundles Overview | 748
764
Viewing Device Associations of Scripts in Script Bundles
You can view the devices on which the scripts from a script bundle are staged by using the View Associated Devices option from the Actions menu in Junos Space Network Management Platform. To view the scripts and their associated devices: 1. On the Junos Space Platform UI, select Images and Scripts > Script Bundles.
The Script Bundles page appears, displaying all Junos Space Platform script bundles.
2. Select the script bundles for which you want to view device associations.
3. Select View Associated Devices from the Actions menu. The View Associated Devices page appears, displaying the scripts (Script Name column) and the devices (Host Name and IP Address columns) with which they are associated along with other details, such as the latest version of the script, script type, staged version of the script, platform of the device, software version running on the device, activation status of the script and the script bundle, and the domain to which they belong.
4. Click Back to go back to the Script Bundles page.
RELATED DOCUMENTATION Enabling Scripts in Script Bundles on Devices | 757 Disabling Scripts in Script Bundles on Devices | 762 Modifying a Script Bundle | 753 Deleting Script Bundles | 764 Staging Script Bundles on Devices | 754 Executing Script Bundles on Devices | 759 Script Bundles Overview | 748
Deleting Script Bundles
Junos Space Network Management Platform enables you to delete multiple script bundles simultaneously.
765
To delete script bundles: 1. On the Junos Space Platform UI, select Images and Scripts > Script Bundles.
The Script Bundles page appears, displaying all Junos Space Platform script bundles.
2. Select the script bundles that you want to delete.
3. Select the Delete Script Bundles icon. The Delete Device Script Bundles dialog box appears and displays the names of the selected script bundles.
4. Click Delete to confirm that you want to delete the selected script bundles. The Jobs dialog box appears, displaying a job ID link. Perform one of the following actions on the Jobs dialog box: · Click the job ID link to view the status of the delete operation on the Job Management page. If the deletion of the script bundles fails, you can identify the reason for failure by double-clicking this job on the Job Management page. The Job Details page appears, displaying the reason for failure in the Description column. The Job Details page supports sorting of data in all columns in ascending or descending order. · Click OK to return to the Scripts Bundles page.
If the script bundles are successfully deleted, then the deleted script bundles are not listed on the Script Bundles page.
RELATED DOCUMENTATION Creating a Script Bundle | 749 Executing Script Bundles on Devices | 759 Scripts Overview | 672
6 PART
Reports
Reports Overview | 767 Report Definitions | 779 Reports | 787
767
CHAPTER 40
Reports Overview
IN THIS CHAPTER Reports Overview | 767
Reports Overview
IN THIS SECTION Audit Trail Report Type | 769 Device Inventory Report Type | 769 Device License Inventory Report Type | 770 Device Logical Interface Inventory Report Type | 771 Device Physical Interface Inventory Report Type | 773 Device Physical Inventory Report Type | 774 Device Software Inventory Report Type | 775 Job Inventory Report Type | 776 User Account Report Type | 777
You can use the Reports workspace to generate customized reports for managing the resources on your network. You can use these reports to gather device inventory details, job execution details, and audit trails. You first create a report definition to specify what information to retrieve from the Junos Space Network Management Platform inventory database. You then use this report definition to generate, export, and print the reports. Junos Space Network Management Platform provides some predefined categories (report types) to create report definitions. You combine multiple report types to create a report definition; you can also create a report definition using one report type. By default, a predefined set of attributes is included in a report type. You can choose
768
to add or remove the attributes in a report type according to what information you want from the final generated report. You can group, sort, or filter data by using specific attributes in each report type.
You can apply multiple filter criteria to columns in a report type to filter data. For example, you can filter a User Accounts report type by roles, user type, and GUI or API access. From Junos Space Network Management Platform Release 16.1R1 onward, you can filter columns by domains also. You can separate the filter criteria with commas. Columns that meet the filter criteria are listed in the report generated from the report definition. The data types that support filtering using multiple filter values are String, Integer, Date, and Enum.
You can use the report definitions to generate reports in CSV, HTML, and PDF formats. The reports display the name and description of the report. You can schedule the delivery of generated reports to a designated SMTP server or an SCP server. You can view, download, or print the generated reports from the Generated Reports page in the Reports workspace. You can also tag the reports and report definitions. For more information, see "Tagging an Object" on page 1518.
NOTE: Reports generated in a parent domain include information from all subdomains. Reports generated in a subdomain include information from only that subdomain. The reports that you generate can contain information from all accessible domains if you set the "Manage objects from all assigned domains" flag as your preference. To set this flag, click the User Settings icon on the Junos Space banner and click the Object Visibility tab.
You need to be assigned the necessary privileges to generate reports for a specific type of report in a report definition. Table 93 displays the mapping between report types and the privileges you need to be able to create, modify, or delete a report definition or view, generate, or delete reports by using the report definition.
Table 93: Privileges Required to Generate Reports for Specific Report Definition Categories
Report Types
Privileges Required to Generate Reports
Audit Trail
View Audit Logs
Device Inventory
Device Management task group
Device Physical Inventory
View Physical Inventory
Device Physical Interface Inventory
View Physical Interfaces
Device Logical Interface Inventory
View Logical Interfaces
Device License Inventory
View License Inventory
769
Table 93: Privileges Required to Generate Reports for Specific Report Definition Categories (continued)
Report Types
Privileges Required to Generate Reports
Device Software Inventory
View Software Inventory
Job Inventory
View Jobs
User Accounts
User Accounts task group
You can include the following type of reports in a report definition:
Audit Trail Report Type
This type of report enables you to view the audit log activities and tasks initiated on Junos Space Platform. Table 94 lists the attributes available with this type of report.
Table 94: Audit Trail Report Attributes
Attribute
Description
User Name
Username of the user who initiated the task
User IP
IP address of the client computer that the user used to initiate the task
Task
Name of the task that triggered the audit log
Timestamp
Time in the UTC time format in the database that is mapped to the local time zone of the client computer
Result
Execution result of the task that triggered the audit log
Job ID
Job ID of the job-based task that is included in the audit log
Description
Description of the audit log logged on Junos Space Network Management Platform
Application
Application from which the audit trail was generated
Device Inventory Report Type
This type of report enables you to view the generic characteristics of all devices managed by Junos Space Network Management Platform. Table 95 lists the attributes available with this type of report.
770
Table 95: Device Inventory Report Attributes
Attribute
Description
Name
Name of the device
Device Alias
Value of the Device Alias custom label for the device
Configuration State
State of the configuration on a device
Vendor
Vendor of the device
IP Address
IP address of the device
Managed Status
Current status of the managed device in Junos Space Network Management Platform
Device Family
Device family of the selected device
OS Version
Operating system firmware version running on the device
Platform
Model number of the device
Connection Status
Connection status of the device: UP or DOWN
Schema Version
Junos OS configuration schema version on the device
Authentication Status
Authentication mode and status of the device connected to Junos Space Network Management Platform: key-based, credentials-based, or key conflict
Serial Number
Serial number of the device
Connection Type
Type of connection between the device and Junos Space Network Management Platform
Domain Name
Domain to which the device is assigned
Device License Inventory Report Type
This type of report enables you to view the generic characteristics of the device license information of devices managed by Junos Space Network Management Platform. Table 96 lists the attributes available with this type of report.
771
Table 96: Device License Inventory Report Attributes
Attribute
Description
Device Name
Name of the device
Device Alias
Value of the Device Alias custom label for the device
Feature Name
Name of the licensed SKU or feature
License Count
Number of times an item has been licensed
Used Count
Number of times the feature is used
Need Count
Number of times the feature is used without a license
Given
Number of instances of the feature that are provided by default
OS Version
Operating system firmware version running on the device
Device Family
Device family of the selected device
Platform
Model number of the device
Serial Number
Serial number of the device
NOTE: Juniper Networks devices require a license to activate the feature. To understand more about Junos Space Network Management Platform Licenses, see, Licenses for Network Management. Please refer to the Licensing Guide for general information about License Management. Please refer to the product Data Sheets for further details, or contact your Juniper Account Team or Juniper Partner.
Device Logical Interface Inventory Report Type
This type of report enables you to view the generic characteristics of the logical interface of devices managed by Junos Space Network Management Platform. Table 97 lists the attributes available with this type of report.
772
Table 97: Device Logical Interface Inventory Report Attributes
Attribute
Description
Device Name
Name of the device
Device Alias
Value of the Device Alias custom label for the device
Physical Interface
Name of the physical interface
Admin Status
Administrative status of the interface: UP or DOWN
Link Type
Type of the physical interface link: full duplex or half duplex
Logical Interface
Name of the logical interface
Logical Interface IP
IP address of the logical interface
Logical Encapsulation
Encapsulation used on the logical interface
VLAN
VLAN ID of the logical interface
OS Version
Operating system firmware version running on the device
Device Family
Device family of the selected device
Platform
Model number of the device
Serial Number
Serial number of the device chassis
Device IP Address
IP address of the device
Physical Interface IP
IP address of the physical interface
MAC Address
MAC address of the physical interface
Operation Status
Operation status of the interface: UP or DOWN
Physical Encapsulation
Encapsulation used on the physical interface
Speed
Speed at which the interface is running (in Mbps)
MTU
Size of the MTU
Description
Description of the logical interface
773
Table 97: Device Logical Interface Inventory Report Attributes (continued)
Attribute
Description
IPv6 address
IPv6 address of the logical interface
Device Physical Interface Inventory Report Type
This type of report enables you to view the generic characteristics of the physical interface of devices managed by Junos Space Network Management Platform. Table 98 lists the attributes available with this type of report.
Table 98: Device Physical Interface Inventory Report Attributes
Attribute
Description
Device Name
Name of the device
Device Alias
Value of the Device Alias custom label for the device
Physical Interface
Name of the physical interface
Admin Status
Administrative status of the interface: UP or DOWN
Link Type
Type of the physical interface link: full duplex or half duplex
Link Level Type
Type of the link level
IP Address
IP address of the physical interface
OS Version
Operating system firmware version running on the device
Device Family
Device family of the selected device
Platform
Model number of the device
Serial Number
Serial number of the device chassis
MAC Address
MAC address of the physical interface
Operation Status
Operation status of the interface: UP or DOWN
Encapsulation
Encapsulation used on the physical interface
Speed
Speed at which the interface is running (in Mbps)
774
Table 98: Device Physical Interface Inventory Report Attributes (continued)
Attribute
Description
MTU
Size of the MTU
Description
Description of the physical interface
IPv6 address
IPv6 address of the physical interface
Device Physical Inventory Report Type
This type of report enables you to view the generic characteristics of the hardware modules of devices managed by Junos Space Network Management Platform. Table 99 lists the attributes available with this type of report.
Table 99: Device Physical Inventory Report Attributes
Attribute
Description
Device Name
Name of the device
Chassis
Chassis component of the device
Module
Components contained in the chassis
Sub Module
Components contained in the submodule
Sub Sub Module
Components contained in the submodule of the submodule
Sub Sub Sub Module
Components contained in the submodule of the submodule of the submodule
Model
Model name of the component
Model Number
Model number of the device component
Part Number
Part number of the chassis component
Revision
Revision number of the component
Part Serial Number
Hardware serial number of the component
Status
Current operation status of the component
775
Table 99: Device Physical Inventory Report Attributes (continued)
Attribute
Description
IP Address
IP address of the physical component
Device Family
Device family of the selected device
Platform
Model number of the device
Serial Number
Serial number of the device chassis
Description
Description of the physical component
OS Version
Operating system firmware version running on the device
NOTE: You can filter the columns in the device physical inventory report by using only tags. You can also sort and group the Device Name column only in the device physical inventory report.
Device Software Inventory Report Type
This type of report enables you to view the generic software package installation information of devices managed by Junos Space Network Management Platform. Table 100 lists the attributes available with this type of report.
Table 100: Device Software Inventory Report Attributes
Attribute
Description
Device Name
Name of the device
Package Name
Name of the software package installed on the device
Version
Version number of the software package installed on the device
Type
Type of the software package installed on the device
OS Version
Operating system firmware version running on the device
Device Family
Device family of the selected device
776
Table 100: Device Software Inventory Report Attributes (continued)
Attribute
Description
Platform
Model number of the device
Serial Number
Serial number of the device chassis
Model
Model name of the device
Routing Engine
Specific Routing Engine on the device supporting multiple Routing Engines
Description
Description of the installed software package
Job Inventory Report Type
This type of report enables you to view the generic execution characteristics of Junos Space Network Management Platform jobs. Table 101 lists the attributes available with this type of report.
Table 101: Job Inventory Report Attributes
Attribute
Description
ID
Numerical ID of the job
Name
Name of the job appended with the job ID
Percent
Percentage of completion of the job
Job Type
Supported job types
State
State of job execution
Summary
Operations executed for the job
Scheduled Start Time
Start time specified for the job
User
Username of the user who scheduled the job
Recurrence
Recurrence of the job
Retry Group ID
Job ID of the retry job
Actual Start Time
Time when the job started to execute
777
Table 101: Job Inventory Report Attributes (continued)
Attribute
Description
End Time
Time the job ended
Previous Retry
Job ID of the previous retry job
Job Parameters
Details of the objects on which the job is executed. For example, IP addresses of the devices that are discovered through a device discovery job.
User Account Report Type
This type of report enables you to view details of the user accounts in Junos Space Platform. Table 102 lists the attributes available with this type of report.
Table 102: User Account Report Attributes
Attribute
Description
User Name
Username of the user
First Name
First name of the user
Last Name
Last name of the user
Email
E-mail address of the user
User Type
Type of user: local or remote
Status
Status of the user
Password Status
Status of the password
GUI/API Access
Type of access: GUI, API, or Both
Locked Out
Whether the user is locked out
Roles
Roles assigned to the user
Domains
Domains to which the user is assigned
778
Release History Table Release
16.1R1
Description
From Junos Space Network Management Platform Release 16.1R1 onward, you can filter columns by domains also.
RELATED DOCUMENTATION
Creating Report Definitions | 779 Generating Reports | 788 Viewing Report Definition Statistics | 786
779
CHAPTER 41
Report Definitions
IN THIS CHAPTER Creating Report Definitions | 779 Viewing Report Definitions | 782 Modifying Report Definitions | 783 Cloning Report Definitions | 784 Deleting Report Definitions | 785 Viewing Report Definition Statistics | 786
Creating Report Definitions
Report definitions specify what information to retrieve from the Junos Space Network Management Platform inventory database and how this information is displayed in the generated reports. You can create report definitions from the Reports workspace. The Report Definitions page in the Reports workspace lists all the report definitions you created. It also lists the name of the report definition, user who created the report definition, time the report definition was created, and description of the report definition.
NOTE: The privileges assigned to you determine which types of report are available to you during this workflow. For example, if you do not have the privileges to view audit logs, the Audit Trail report type is not displayed in the report definition. For information about the mapping of types of report to the privileges you require, see "Reports Overview" on page 767.
To create a report definition: 1. On the Junos Space Network Management Platform user interface, select Reports > Report Definitions.
The Report Definitions page that appears displays all the report definitions in the Junos Space Network Management Platform database.
2. Click the Create Report Definition icon on the toolbar. The Create Report Definition page is displayed.
780
3. In the Report Name field, type a user-defined report definition name. A report definition name cannot exceed 128 characters and can contain only letters, numbers, spaces, and some special characters. The special characters allowed are hyphen (-), underscore (_), period (.), at (@), forward slash (/), and ampersand (&).
NOTE: Single quotation mark (') is not allowed in the report name definition.
4. (Optional) In the Description field, type a user-defined description. The description cannot exceed 512 characters and can contain only letters, numbers, spaces, and some special characters. The special characters allowed are hyphen (-), underscore (_), period (.), at (@), single quotation mark ('), forward slash (/), and ampersand (&).
5. Click the Add icon below the Description field. The Select Report Type window is displayed.
6. Select the check boxes next to the types of report you want to add to the report definition.
7. Click Add. The types of reports you selected are added to the report definition.
781
8. (Optional) You can modify, filter, group, or sort the data in your report definition. To do so: a. Click the Edit Columns/Filter icon in the Filter column corresponding to the type of report in which you want to add the column and filter. The Edit Columns/Filters window is displayed.
b. Select the columns that you want to add to the type of report from the Available column and click the right arrow to move the filters to the Selected column.
c. Select an appropriate option on the Group By drop-down list to group the columns in the type of report in a specific order.
d. Select an appropriate option on the Sort By drop-down list to sort the columns in the type of report in a specific order.
e. Select the appropriate option button next to the Sorting Order section to choose the order of columns in the type of report.
f. (Optional) Click the Add Filter Criteria icon to add filters to the type of report. For example, you can filter a Device Inventory report type by vendor, IP address, connection status, and domain name. i. Select the appropriate column from the drop-down list for which you want to add a filter.
ii. Select the appropriate operand corresponding to the column, from the drop-down list.
iii. Type the criteria to be filtered next to the operand.
NOTE: If you select domain as filter criteria, all domains applicable to the report type are listed. You can select multiple domains by selecting the check boxes next to the domains.
g. To delete the filter criteria, click the Delete icon.
h. Click OK. You are redirected to the Create Report Definition page.
9. (Optional) Repeat step 8 to add filters to all types of reports you selected.
782
10. Click Save. You are redirected to the Report Definitions page. You can use the report definition to generate reports.
NOTE: You can view the reports generated from a report definition by clicking the View link in the Reports column corresponding to the report definition.
RELATED DOCUMENTATION Reports Overview | 767 Modifying Report Definitions | 783 Deleting Report Definitions | 785 Generating Reports | 788
Viewing Report Definitions
You can view details of report definitions on the Report Definitions page. The Report Definitions page lists the name of the report definition, user who created the report definition, time the report definition was created, and description of the report definition. To view details of a report definition: 1. On the Junos Space Network Management Platform user interface, select Reports > Report Definitions. 2. Select the check box next to the report definition whose details you want to view and click the View
Report Definition icon on the toolbar. The View Report Definition window is displayed. You can view the types of report you selected for this report definition, the columns selected in the report type, and the filter criteria you specified. 3. Click OK to close the window.
RELATED DOCUMENTATION Reports Overview | 767
783
Creating Report Definitions | 779
Modifying Report Definitions
You can modify the report definitions from the Report Definitions page. The Report Definitions page lists the name of the report definition, user who created the report definition, time the report definition was created, and description of the report definition.
NOTE: You cannot modify a report definition if the report definition contains a type of report that you do not have access to. The following error message is displayed if you try to modify such a report definition: The selected report definition contains object categories that you cannot access and hence cannot be modified. For information about the mapping of report definition categories to the privileges you require, see "Reports Overview" on page 767.
To modify a report definition: 1. On the Junos Space Network Management Platform user interface, select Reports > Report Definitions.
The Report Definitions page that appears displays all the report definitions in the Junos Space Network Management Platform database.
2. Select the check box next to the report definition you want to modify and click the Modify Report Definition icon on the toolbar. The Modify Report Definition page is displayed. You can change all the parameters of the report definition except the name of the report definition.
3. Modify the necessary fields and click Save. The report definition is modified. You are redirected to the Report Definitions page.
RELATED DOCUMENTATION Reports Overview | 767 Deleting Report Definitions | 785 Cloning Report Definitions | 784 Viewing Report Definitions | 782
784
Cloning Report Definitions
You can clone the report definitions from the Report Definitions page. The Report Definitions page lists the name of the report definition, user who created the report definition, time the report definition was created, and description of the report definition.
NOTE: You cannot clone a report definition if the report definition contains a type of report that you do not have access to. The following error message is displayed if you try to clone such a report definition: The selected report definition contains object categories that you cannot access and hence cannot be modified. For information about the mapping of report definition categories to the privileges you require, see "Reports Overview" on page 767.
To clone a report definition: 1. On the Junos Space Network Management Platform user interface, select Reports > Report Definitions.
2. Right-click the report definition you want to clone and select Clone Report Definition. The Clone Report Definitions page is displayed.
3. In the Report Name field, type a user-defined report definition name. A report definition name cannot exceed 128 characters and can contain only letters, numbers, spaces, and some special characters. The special characters allowed are hyphen (-), underscore (_), period (.), at (@), single quotation mark ('), forward slash (/), and ampersand (&).
4. (Optional) In the Description field, type a user-defined description. The description cannot exceed 512 characters and can contain only letters, numbers, spaces, and some special characters. The special characters allowed are hyphen (-), underscore (_), period (.), at (@), single quotation mark ('), forward slash (/), and ampersand (&).
5. (Optional) Modify the types of reports included in the report definition and the respective filters.
6. Click Clone. You are redirected to the Report Definitions page.
RELATED DOCUMENTATION Reports Overview | 767
785
Creating Report Definitions | 779
Deleting Report Definitions
You can delete the report definitions from the Report Definitions page. The Report Definitions page lists the name of the report definition, user who created the report definition, time the report definition was created, and description of the report definition.
NOTE: You cannot delete a report definition if the report definition contains a type of report that you do not have access to. The following error message is displayed if you try to delete such a report definition: The selected report definition contains object categories that you cannot access and hence cannot be deleted. For information about the mapping of report definition categories to the privileges you require, see "Reports Overview" on page 767.
To delete a report definition: 1. On the Junos Space Network Management Platform user interface, select Reports > Report Definitions.
The Report Definitions page that appears displays all the report definitions in the Junos Space Network Management Platform database.
2. Select the check boxes next to the report definitions you want to delete and click the Delete Report Definition icon on the toolbar. The Delete Report Definition window is displayed.
3. Click Delete. The report definitions are deleted. You are redirected to the Report Definitions page.
RELATED DOCUMENTATION Reports Overview | 767 Creating Report Definitions | 779 Cloning Report Definitions | 784 Viewing Report Definitions | 782
786
Viewing Report Definition Statistics
You can view report definition statistics when you select the Reports workspace. The Report Definition Count by User bar chart presented on the Reports page displays the number of report definitions created per user. The chart is interactive. To view report definition statistics: 1. On the Junos Space Network Management Platform user interface, select Reports.
The Reports page is displayed. This page displays the charts related to reports and report definitions.
2. Click a specific label on the Report Definition Count by User chart. You are redirected to the Report Definitions page whose contents are filtered based on the label you clicked. To save a chart as an image or to print the chart, right-click the chart and select Save or Print respectively.
RELATED DOCUMENTATION Reports Overview | 767 Creating Report Definitions | 779 Deleting Report Definitions | 785
787
CHAPTER 42
Reports
IN THIS CHAPTER Generating Reports | 788 Viewing a Report | 792 Viewing and Downloading Generated Reports | 793 Deleting Generated Reports | 794 Viewing Report Statistics | 795
788
Generating Reports
You can generate reports from the report definitions you created. You can generate the following types of reports: · Audit Trail report · Device Inventory report · Device Licence Inventory report · Device Logical Interface Inventory report · Device Physical Interface Inventory report · Device Physical Inventory report · Device Software Inventory report · Job Inventory report · User Accounts report
NOTE: You cannot generate a report if the report definition you select contains a type of report that you do not have access to. The following error message is displayed if you try to generate such a report: The selected report definition contains object categories that you cannot access and hence cannot be used to generate report. For information about the mapping of report definition categories to the privileges you require, see "Reports Overview" on page 767.
To generate reports: 1. On the Junos Space Network Management Platform user interface, select Reports > Report Definitions.
The Report Definitions page that appears displays all the report definitions in the Junos Space Platform database.
2. Select the check box next to the report definition that you want to use to create a report and click the Generate Report icon on the toolbar. The Generate Reports window is displayed.
3. Select the report formats you want to generate by selecting the appropriate check boxes next to the Report Format field. Junos Space Platform provides reports in CSV, HTML, and PDF formats.
789
4. (Optional) Select the SCP Server check box to configure Junos Space Platform to store the report in a directory on a Secure Copy Protocol (SCP) server. To configure the SCP server: a. In the IP Address field, enter the IP address of the SCP server.
NOTE: · If Junos Space fabric is configured for IPv4 only, you can enter an IPv4 address. If Junos
Space fabric is configured for both IPv4 and IPv6, you can enter either an IPv4 or an IPv6 address. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
b. From the Port spin box, select the appropriate port number. By default, the port number is 22.
c. In the Directory field, enter the name of the directory on the SCP server to which you want to save the reports.
d. In the User Name field, enter the username that you use to access the SCP server.
790
e. You can select the authentication mode for saving reports to SCP server from Junos Space Network Management Platform Release 17.1R1 onward. · To use the password mode, in the Password field, enter the password used to access the SCP server. By default, the Password mode is selected.
· To use a key generated from Junos Space Platform, click Space Key. Click the Download Space Key link to download the key.
NOTE: Alternatively, you can download the Space Key by selecting Administration > Fabric and clicking the Manage Space SSH Key icon. After downloading the Space Key, log in to the SCP server and append the contents of the downloaded key file to the ~/.ssh/authorized_keys file.
· To use a custom private key, click Custom Key. (Optional) In the Passphrase field, enter the passphrase created when you generated the private key. Next to the Private Key field, click the Browse button to upload the private key.
f. (Optional) In the Fingerprint field, enter the fingerprint of the remote server.
5. (Optional) Select the check box next to the SMTP Server label to configure Junos Space Network Management Platform to send the report to the email addresses you specify. To add Email recipients for reports: a. In the Email Address field, enter the e-mail address.
b. Click Add. You can add multiple e-mail addresses if you want the report to be delivered to multiple e-mail addresses.
6. Click the Schedule at a later time check box and specify the date and time to generate the report automatically.
791
NOTE: If a report generation is already scheduled for later using password mode, in order to use Space Key or Custom Key, you must cancel the existing scheduled task and reschedule it using the authentication mode of your choice.
If a report generation is already scheduled for later using Custom Key and if the key has changed, you must cancel the existing scheduled task and reschedule it using the updated key.
7. Click the Recurrence check box and specify the frequency at which to generate the report. You can select any of the following options: minutes, hourly, daily, weekly, monthly and yearly as per your requirement.
NOTE: The monthly option further provides two more options to select either the last day of a month or a particular day in a month .
8. Click Generate.
The Generated Report Job Information dialog box appears, displaying the job ID. Click the job ID to view the job details on the Job Management page.
9. Click OK to close the Generated Report Job Information dialog box.
The reports you generated or scheduled are listed on the Generated Reports page. You can view, download, or print the reports.
Release History Table Release
Description
17.1R1
You can select the authentication mode for saving reports to SCP server from Junos Space Network Management Platform Release 17.1R1 onward.
RELATED DOCUMENTATION
Reports Overview | 767 Creating Report Definitions | 779
792
Viewing a Report
You view a report when you need to view the details of the report. To view the details of a report: 1. On the Network Management Platform user interface, select Reports > Generated Reports.
The Generated Reports page that appears displays the reports.
2. Select the report you want to view and select the View Generated Report Details icon from the Actions bar. The View Report dialog box is displayed. Table 52 lists the details of the report displayed in the View Report dialog box. Table 103: View Report Dialog Box Details
Field or Area
Description
Displayed In
Name
Name of the report
View Generated Report page View Report dialog box
Description
Description of the report
View Generated Report page View Report dialog box
Generated By
Username of the user who generated the View Generated Report page
report
View Report dialog box
Generated Time
Time when the report was generated
View Generated Report page View Report dialog box
Report Definition Name Report definition used to generate the report
View Generated Report page View Report dialog box
Report Format
Formats of report available to view or download: CSV, PDF, and HTML
View Generated Report page View Report dialog box
3. Click Close to close the View Report dialog box.
793
RELATED DOCUMENTATION Generating Reports | 788 Viewing and Downloading Generated Reports | 793 Deleting Generated Reports | 794 Reports Overview | 767
Viewing and Downloading Generated Reports
You can view and download the reports you generated on the Generated Reports page in the Reports workspace. You can view the name of the report, description of the report, name of the report definition, user who generated the report, time the report was generated, formats in which the report is available, link to view and download the report, and job ID for the report generated.
NOTE: You cannot view or download a report if the report contains a type of report that you do not have access to. The following error message is displayed if you try to view or download such a report: The selected report contains object categories that you cannot access and hence cannot be viewed/downloaded. For information about the mapping of report definition categories to the privileges you require, see "Reports Overview" on page 767.
To view and download the reports you generated: 1. On the Junos Space Network Management Platform user interface, select Reports > Generated Reports.
The Generated Reports page that appears displays all the reports in the Junos Space Network Management Platform database.
2. Click the View/Download link corresponding to the report you want to view or download. The Download page is displayed.
3. Select the report formats of the report you want to view or download by clicking the appropriate buttons.
4. (Optional) Save the report to your local computer.
5. Click Close to return to the Generated Reports page.
794
RELATED DOCUMENTATION Reports Overview | 767 Generating Reports | 788
Deleting Generated Reports
You can delete the reports you generated from the Generated Reports page.
NOTE: You cannot delete a report if the report contains a type of report that you do not have access to. The following error message is displayed if you try to delete such a report: The selected report contains object categories that you cannot access and hence cannot be deleted. For information about the mapping of report definition categories to the privileges you require, see "Reports Overview" on page 767.
To delete the reports you generated: 1. On the Junos Space Network Management Platform user interface, select Reports > Generated Reports.
The Generated Reports page that appears displays all the reports in the Junos Space Network Management Platform database.
2. Select the check boxes next to the reports you want to delete and click the Delete Generated Report icon on the toolbar. The Delete Report window is displayed.
3. Click Delete. The reports are deleted. You are redirected to the Generated Reports page.
RELATED DOCUMENTATION Reports Overview | 767 Generating Reports | 788
795
Viewing Report Statistics
You can view report statistics when you select the Reports workspace. The Report Count by User bar chart presented on the Reports page displays the number of reports created per user. The chart is interactive. To view report statistics: 1. On the Junos Space Network Management Platform user interface, select Reports.
The Reports page is displayed. This page displays the charts related to reports and report definitions.
2. Click a specific label on the Report Count by User chart. You are redirected to the Generated Reports page whose contents are filtered based on the label you clicked. To save a chart as an image or to print the chart, right-click the chart and select Save or Print respectively.
RELATED DOCUMENTATION Reports Overview | 767 Generating Reports | 788 Deleting Generated Reports | 794
7 PART
Network Monitoring
Overview | 797 Managing Nodes | 808 Searching for Nodes and Assets | 815 Managing Outages | 822 Using the Network Monitoring Dashboard | 827 Managing and Configuring Events | 832 Managing and Configuring Alarms | 843 Managing and Configuring Notifications | 864 Managing Reports and Charts | 872 Network Monitoring Topology | 883 Network Monitoring Administration | 900
797 CHAPTER 43
Overview
IN THIS CHAPTER Network Monitoring Workspace Overview | 798 Working with the Network Monitoring Home Page | 801
798
Network Monitoring Workspace Overview
The Network Monitoring workspace enables you to assess the performance of your network, not only at a point in time, but also over a period of time. This feature enables you to determine trending and diverse other things; for example, whether service-level agreements (SLAs) have been violated.
NOTE: Junos Space Release 14.1 and later supports SNMP monitoring of devices using SNMPv1, SNMPv2c, and SNMPv3.
CAUTION: Although additional network monitoring functionality can be accessed by customizing its XML files, editing these files can affect the functionality of the Network Monitoring workspace. We recommend that you do not edit these XML files unless you are directed to do so by Juniper Networks.
To grant a Junos Space user full privileges to access and perform tasks from the Network Monitoring workspace, the user must be assigned the FMPM Manager role. To grant a Junos Space user read-only access to the Network Monitoring workspace, the user must be assigned the FMPM Read Only User role. The Network Monitoring workspace supports the following three types of users: · Administrator role: A user assigned the FMPM Manager role and with access to Global domain can view
and administer all devices in the Network monitoring workspace, including all devices that exist in other sub-domains. · Regular user role: A user assigned the FMPM Manager role but without access to global domain can only view and administer devices in their selected domain. This type of user can also acknowledge and clear alarms. · Read only user role: A user assigned the FMPM Read Only User role (or a customized role with FMPM access capability except admin tab) in Junos Space. This type of user can only view devices in the selected domain, but cannot access the Network Monitoring > Admin workspace and cannot acknowledge or clear alarms. When a remote user (with the FMPM manager role) logs in from the Junos Space user interface, Junos Space authenticates the user from the remote authentication server as follows: · If the remote authentication is successful, Junos Space uses the user's login credentials to authenticate with the network monitoring server and either creates or updates the network monitoring local user. · If the remote authentication fails and the user previously existed on the network monitoring server, Junos Space removes the network monitoring local user. To analyze and aggregate device-level performance data, and to detect device faults, the Network
799
Monitoring workspace uses a collection of data from managed elements. Performance data is collected automatically if the SNMP settings are set properly for a discovered device. The following performance data is collected:
· Collection · View historical performance data by using a graphical monitoring tool that allows customization of the parameters to be displayed and the devices to be monitored. · Create graphs and charts. · Create and export reports in PDF and HTML formats. · Define advanced variables that require calculations for historical performance monitoring. · Allow raw data to be rolled up into processed data, allowing data to be processed from a more-specific to a less-specific level (for example, data collected at a quarter hourly interval can be rolled into hourly data, hourly data can be rolled into daily data, daily can be rolled into weekly data, and weekly data can be rolled into yearly data).
· Thresholds · Set thresholds for performance data values--including specifying warning and error levels. · Create threshold graphs. · Generate threshold-crossing alarms that can be displayed or forwarded.
· Faults · Receive SNMP traps directly from devices and other enterprise management systems (EMSs). · Forward traps to other EMSs. · Generate and display events and alarms. · Get basic correlation with alarms; for example, clearing alarms and deduplicating alarms. · Detect device faults based on data collected from devices.
You can perform the following tasks from the Network Monitoring workspace:
· Node List: List all the devices under monitoring (see "Viewing the Node List" on page 808). · Search: Search for devices (see "Searching for Nodes or Nodes with Asset Information" on page 815). · Outages: View unavailable (down) services (see "Viewing and Tracking Outages" on page 822). · Events: View events (see "Viewing and Managing Events" on page 832). · Alarms: View alarms (see "Viewing and Managing Alarms" on page 843). · Notifications: Display notices received by users (see "Viewing, Configuring, and Searching for Notifications"
on page 864). · Assets: Search asset information and assets inventory (see "Working with Node Assets" on page 819).
800
· Reports: View reports (see "Viewing Reports" on page 875). · Charts: View charts (see "Viewing Charts" on page 882). · Topology: View nodes in the network topology and the events and alarms associated with the nodes
(see "Working with Topology" on page 886). · Admin: Perform system administration (see "Configuring Network Monitoring System Settings" on
page 900). The main Network Monitoring landing page is a dashboard, displaying the most important information about your nodes: · Nodes with outages · Availability over the last 24 hours · Notifications (outstanding notices) · On-call schedule · Key SNMP customized (KSC) performance reports (if defined and available) In addition, from this page you can do quick searches on nodes and resource graphs.
NOTE: · During the Network Monitoring upgrade process, the modified configuration files are
automatically merged. However, if the automatic merge fails, you must manually merge the files that could not be merged by following the procedure explained in the "Updating Network Monitoring After Upgrading the Junos Space Network Management Platform" on page 903 topic · When you upgrade from Release 13.1 or Release 13.3 to Release 14.1, the linkd-configuration.xml file is renamed to linkd-configuration.xml.old.bak, and the enlinkd-configuration.xml file is added.
RELATED DOCUMENTATION Network Monitoring Reports Overview | 872 Updating Network Monitoring After Upgrading the Junos Space Network Management Platform | 903
801
Working with the Network Monitoring Home Page
IN THIS SECTION Viewing Nodes with Pending Problems | 801 Viewing Nodes with Outages | 802 Availability Over the Past 24 Hours | 802 Viewing Outstanding Notifications | 803 Viewing Resource Graphs | 803 Viewing KSC Reports | 804 Searching for Nodes by Using Quick Search | 805
The Network Monitoring home page displays information about nodes with pending problems and outages, service availability information, and notifications. In addition, you can search for resource graphs and key SNMP customized (KSC) reports, and nodes based on different search criteria. To access the Network Monitoring home page: 1. On the Junos Space Network Management Platform UI, select Network Monitoring.
The Network Monitoring home page appears displaying following information and fields: · Nodes with Pending Problems · Nodes with Outages · Availability over the past 24 hours · Notifications · Resource Graphs · KSC Reports · Quick Search This topic has the following sections:
Viewing Nodes with Pending Problems
The Nodes with Pending Problems table on the Network Monitoring home page displays the nodes that have unacknowledged alarms (if the number of nodes is 16 or lower) or the All Pending Problems link.
802
The color-coding in the table signifies the alarm severity and the time displayed signifies the amount of time that has elapsed since the last event. For detailed information: · Click the Nodes with Pending Problems or All Pending Problems link to view the list of alarms for all
nodes. The Alarms page appears listing the outstanding alarms for the different nodes. · Click the Node-Name link to view information about the node. The subsequent page displays information about the node. · Click the Number of alarms link for a node to view the outstanding alarms for that node. The subsequent page lists the outstanding alarms for the node. Click Network Monitoring in the task tree to go to the Network Monitoring home page.
Viewing Nodes with Outages
The Nodes with Outages table on the Network Monitoring home page displays the list of nodes that have outages. A maximum of 12 nodes is displayed in the table; if more than 12 nodes have outages, the Number-of more nodes with outages link is displayed. For detailed information: · Click the Nodes with Outages or Number-of more nodes with outages link to view the outages for all
nodes that have outages. The Outages page appears, listing the current outages for all the nodes with outages. · Click the Node-Name link to view the information about the node. The subsequent page displays information about the node. Click Network Monitoring in the task tree to go to the Network Monitoring home page.
Availability Over the Past 24 Hours
The Availability Over the Past 24 Hours table displays the different service-level management (SLM) categories, which are used to determine the service availability of interfaces and services. For each category, the name of the category is displayed along with the corresponding outages and the service-level availability (percentage) for the category. The outages are expressed in the x of y format, where x is the number of managed devices and SNMP agents that have outages at any point and y is the total number of managed devices and SNMP agents that can be reached to determine network connectivity (availability); for example 570 of 1200. The outages and availability are color-coded according to the following legend: green (normal), yellow (warning), and red (critical). For detailed information:
803
· Click the Category-Name link to view the outages and availability information for nodes belonging to that category. The category page for the specific category displays the nodes for the specific category and the outages for the nodes and the 24-hour availability.
· Click Overall Service Availability to view the outages and availability for all the services monitored by Network Monitoring. The subsequent page displays the list of nodes and the outages for the nodes and the 24-hour availability.
Click Network Monitoring in the task tree to go to the Network Monitoring home page.
Viewing Outstanding Notifications
The Notification table displays information about your outstanding notices and all outstanding notices. For detailed information: · Click the Notification link to go to a page where you can run queries on notifications.
The Notifications page appears. For information about how to run queries on notifications, see "Viewing, Configuring, and Searching for Notifications" on page 864. · Click the Check link corresponding to the You field to view the details of the outstanding notices for which you (the logged-in user) were notified. The subsequent page displays your outstanding notices. · Click the Check link corresponding to the All field to view the details of all outstanding notices. The subsequent page displays all outstanding notices. · The On Call Schedule link is currently not supported on Junos Space Platform. Click Network Monitoring in the task tree to go to the Network Monitoring home page.
Viewing Resource Graphs
The Resource Graphs table allows you to view all resource graphs or resource graphs for a specific node; a node might have one more resources associated with it. · To view all resource graphs, click the Resource Graph link.
The subsequent page t displays the different nodes and you can view standard and custom resource performance reports for different resources. · To view resource graphs for a specific node: 1. Enter the full name or a part of the name of the node in the text box.
804
NOTE: If you enter a string of characters, the search results return a list of nodes that contain the characters in the name. For example, entering mx lists all the nodes that contain the characters "mx" within the node name.
2. Click Search. The list of nodes matching the name that you entered is displayed below the text box.
3. Select the node for which want to view the resource graphs. The subsequent page displays the node resources that can be graphed (standard performance graphs).
Click Network Monitoring in the task tree to go to the Network Monitoring home page. Viewing KSC Reports The KSC Reports table allows you to view all KSC reports or KSC reports for a for a specific resource. · To view all KSC reports, click the KSC Reports link.
The subsequent page displays the different resources and you can view standard and custom resource performance reports for different resources. · To view KSC reports for a specific resource: 1. Enter the full name or a part of the name of the resource in the text box.
NOTE: If you enter a string of characters, the search results return a list of nodes that contain the characters in the name. For example, entering mx lists all the nodes that contain the characters "mx" within the node name.
2. Click Search. The list of nodes matching the name that you entered is displayed below the text box.
3. Select the node for which want to view the resource graphs. The subsequent page displays the node resources that can be graphed (standard performance graphs).
Click Network Monitoring in the task tree to go to the Network Monitoring home page.
805
Searching for Nodes by Using Quick Search
You can use the Quick Search feature on the Network Monitoring home page to search for nodes monitored by the Network Monitoring workspace: · To view all nodes, click the Search button corresponding to the Node ID, Node label like, or TCP/IP
Address like fields. The subsequent page displays the nodes and their interfaces. For more information, see "Viewing the Node List" on page 808. · To search for a specific node by using the node ID: 1. Enter the node ID in the Node ID field.
2. Click Search. · If the node ID that you entered matches the node ID of an existing node, the subsequent page displays the details of the node. · If the node ID that you entered does not match the ID of an existing node, the subsequent page displays a message indicating that no nodes match.
3. Click Network Monitoring in the task tree to go to the Network Monitoring home page.
· To search for a specific node using the node label: 1. Enter the full label or a part of label in the Node ID field.
NOTE: If you enter a part of the label, the search results return a list of nodes that contain the characters that you entered. For example, entering 80 lists all the nodes that contain the characters "80" within the node label.
2. Click Search. · If the node label that you entered exactly matches the node label of an existing node, the subsequent page displays the details of the node. · If the node label that you entered matches two or more nodes, the subsequent page displays the nodes and their interfaces are displayed. For more information, see "Viewing the Node List" on page 808. · If the node label that you entered does not match the ID of an existing node, the subsequent page displays a message indicating that no nodes match is displayed.
3. Click Network Monitoring in the task tree to go to the Network Monitoring home page.
806
· To search for a specific node by using the node IP address: 1. Enter the full IP address or a part of IP address in the TCP Address Like field.
NOTE: If you enter a part of the IP address, the search results return a list of nodes that match the IP address that you entered. For example, for IPv4 addresses, entering *.204.*.* lists all the nodes that contain "204" in the second octet. If you want to use a partial search for IPv6 addresses, you must enter a backslash (\) character before the colon (:); for example, *\:204\:*\:*
2. Click Search. · If the IP address that you entered is an exact match to the IP address of an existing node, the subsequent page displays the details of the node. · If the IP address that you entered matches two or more nodes, the subsequent page displays the nodes. For more information, see "Viewing the Node List" on page 808. · If the IP address that you entered does not match the ID of an existing node, the subsequent page displays a message indicating that no nodes match.
3. Click Network Monitoring in the task tree to go to the Network Monitoring home page.
· To view the nodes providing a specific service: 1. Select the service from the Providing service list.
2. Click Search. · If the service that you selected is managed on only one node, the subsequent page displays the details of the node. · If the service that you selected is managed on two or more nodes, the subsequent page displays the nodes and their interfaces are displayed. For more information, see "Viewing the Node List" on page 808. · If the service that you selected is not present on any node, the subsequent page displays a message indicating that no nodes match.
3. Click Network Monitoring in the task tree to go to the Network Monitoring home page.
Click Network Monitoring in the task tree to go to the Network Monitoring home page.
RELATED DOCUMENTATION
807
Viewing the Node List | 808 Viewing and Managing Alarms | 843 Viewing and Tracking Outages | 822 Viewing the Network Monitoring Dashboard | 827
808
CHAPTER 44
Managing Nodes
IN THIS CHAPTER Viewing the Node List | 808 Managing Surveillance Categories | 810 Resynchronizing Nodes in Network Monitoring | 812 Turning SNMP Data Collection Off and On | 813
Viewing the Node List
Junos Space Network Management Platform is monitored by default using the built-in SNMP manager. The Junos Space Network Management Platform node is listed in the node list, and referred to hereafter as the Junos Space Network Management Platform node. Select Network Monitoring > Node List. The Node List page appears. This page displays a list of your nodes and enables you to drill down into each of them. From the Node List page, you can also access the Resync Nodes subtask (see "Resynchronizing Nodes in Network Monitoring" on page 812). The Node List page displays a list of all the nodes in your network. You can also display the interfaces for each node. The top level of the Node List page displays only the hostname of each node. Click the hostname of a node to see the following information: · SNMP Attributes · Information about the protocols enabled; for example, IS-IS Information · Availability · Node Interfaces--IP Interfaces and, if applicable, physical Interfaces
809
NOTE: IPv6 MIBs are supported only on Junos OS Release 13.2 and later. Therefore, if the version of Junos OS running on a device is Release 13.1 or earlier, the following are applicable: · The ifIndex parameter is not displayed for IPv6 interfaces. · Only the IPv6 address used by Junos Space Platform to manage the device is displayed;
other interfaces that are configured with IPv6 addresses are not displayed. · When the device is discovered by using the IPv4 address, the IPv6 interfaces are not
displayed.
· General--Status of the node and detailed information about the node. Click the View Node Link Detailed Info hyperlink to view the following information discovered by the EnhancedLinkd daemon: · Link Layer Discovery Protocol (LLDP) remote table links · IS-IS adjacent table links · OSPF neighbor links
NOTE: If the EnhancedLinkd daemon does not discover links for a protocol, no information is displayed for that protocol.
· Surveillance Category Memberships · Notifications · Recent Events · Recent Outages Each of these items has links that enable you to drill deeper into the corresponding aspect of the node's performance. For each node, you can also view events, alarms, outages and asset information; and rescan, access the admin options, and schedule outages.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798 Viewing Managed Devices | 193 Resynchronizing Nodes in Network Monitoring | 812
810
Viewing and Managing Alarms | 843 Viewing, Configuring, and Searching for Notifications | 864 Working with Node Assets | 819
Managing Surveillance Categories
IN THIS SECTION Modifying Surveillance Categories | 810 Deleting Surveillance Categories | 810 Adding Surveillance Categories | 811
You can specify the devices for which SNMP data collection is controlled in different surveillance categories. Surveillance categories determine whether the data for the device is collected for performance management monitoring. You can modify, delete, and add surveillance categories. Modifying Surveillance Categories To modify a surveillance category: 1. Select Network Monitoring > Admin > Manage Surveillance Categories. 2. Click the icon in the Edit column in the same row as the category.
The Edit Surveillance Category page appears. 3. To add devices to the surveillance category, select the device from the Available nodes list and click
Add. 4. To remove devices from the surveillance category, select the device from the Nodes on category list
and click Remove.
Deleting Surveillance Categories To remove a surveillance category, click the icon in the Delete column in the same row as the category.
811
Adding Surveillance Categories To add a surveillance category: 1. Select Network Monitoring > Admin > Manage Surveillance Categories. 2. Enter the name in the box and click Add New Category.
The name appears on the Surveillance Categories page. 3. Click the name in the Category column, and click Edit category on the Surveillance Category page. 4. To add devices to the surveillance category, select the device from the Available nodes list and click
Add. 5. To remove devices from the surveillance category, select the device from the Nodes on category list
and click Remove.
RELATED DOCUMENTATION Turning SNMP Data Collection Off and On | 813 Network Monitoring Workspace Overview | 798
812
Resynchronizing Nodes in Network Monitoring
You should resynchronize your nodes when the contents of the Node List page in the Network Monitoring workspace do not correspond with the device listed on the Device Management page in the Devices workspace.
In addition, you must resynchronize nodes when you want to update the trap target settings on the devices so that the devices can send traps to Network Monitoring. For more information, see the explanation for the Add SNMP configuration to device for fault monitoring and Disable network monitoring for all devices fields in the "Modifying Junos Space Network Management Platform Settings" on page 1340 topic.
When you trigger node resynchronization, Junos Space Platform synchronizes the devices and their details with Network Monitoring and pushes the SNMP trap target configuration to the devices so that the devices can send SNMP trap targets to Network Monitoring.
The following are applicable when you resynchronize nodes:
· If you are in a specific domain when you resynchronize nodes, only the devices that are part of that domain are resynchronized with Network Monitoring.
· The Resync Nodes job summary displays the information related to synchronization in Network Monitoring and the status of the trap target update.
· When you resynchronize nodes, Junos Space Platform does not set the SNMP trap target on logical systems (LSYS), unmanaged devices, modeled devices, and devices that are down.
· If you attempt to resynchronize nodes in a particular domain when a Resync Nodes job is already running in that domain, Junos Space Platform provides a notification that you cannot run another Resync Nodes job until the previous one is completed.
To resynchronize your nodes:
1. In the Junos Space Network Management Platform UI, select Network Monitoring > Node List > Resync Nodes. You are taken to the Resync Nodes page, where a confirmation dialog box is displayed.
2. Click Confirm. The Resync Nodes Job Information dialog box appears.
3. (Optional) To view details of the resynchronization job, click the hyperlinked job ID displayed in the dialog box. You are taken to the Job Management page where you can view the summary information about the Resync Nodes job. Double-click the job to view detailed information about the job.
4. Click OK in the Resync Nodes Job Information dialog box.
813
You are taken to the Node List page. After the Resync Nodes job is completed successfully, the devices in Junos Space Platform are synchronized with Network Monitoring and, if applicable, the device trap targets are updated. The resynchronized nodes are displayed on the Node List page.
NOTE: The time taken for the resynchronization of devices from Junos Space Platform to Network Monitoring depends on the number of devices being synchronized.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798 Viewing the Node List | 808 Turning SNMP Data Collection Off and On | 813 Viewing Managed Devices | 193
Turning SNMP Data Collection Off and On
Network performance can be adversely affected by the amount of traffic generated by SNMP data collection. For this reason, SNMP service in Junos Space Network Management Platform is not started by default. Junos Space Network Management Platform Network Monitoring is always turned on for all devices by default. The ability to turn on data collection is controlled by the Monitor_SNMP surveillance category. However, turning on data collection increases the amount of SNMP traffic. If the surveillance category is removed from a device, data collection is turned off. To turn SNMP data collection off or on for a device: 1. In the Network Monitoring workspace, display the Node List page and click the node name.
The resulting page displays detailed information about the device. For example, you can select Network Monitoring > Node List or you can select Network Monitoring > Search and click All nodes in the Search for Nodes section of the Search page to display the Node List page.
2. In the Surveillance Category Memberships title bar, click Edit. The Edit surveillance categories on node name page appears.
814
3. Select the Monitor_SNMP category from the Categories On Node list on the right. If this category is not in the list on the right, then SNMP data collection is already turned off.
4. Click Remove between the two lists. The removed category appears in the list of Available Categories on the left.
To turn on data collection for selected devices, reverse the process described here.
NOTE: The Network Monitoring functionality performs SNMP data collection by default only on primary interfaces. If you want to change this, instead of manually selecting the interfaces to be monitored from the GUI, you can set data collection for all interfaces by default by modifying the SNMP collection to set the SNMP Storage Flag to all (see "Managing SNMP Collections" on page 923). For information on the procedure to select other interfaces and the distinction between primary and secondary interfaces, see "Configuring SNMP Data Collection per Interface" on page 912.
RELATED DOCUMENTATION Viewing the Node List | 808 Searching for Nodes or Nodes with Asset Information | 815 Viewing the Network Monitoring Dashboard | 827
815
CHAPTER 45
Searching for Nodes and Assets
IN THIS CHAPTER Searching for Nodes or Nodes with Asset Information | 815 Working with Node Assets | 819
Searching for Nodes or Nodes with Asset Information
IN THIS SECTION Searching for Nodes | 815 Searching for Nodes with Asset Information | 817
You can search for nodes or for nodes with asset information in the Network Monitoring workspace by using different search criteria. To access the Network Monitoring Search page: 1. On the Junos Space Network Management Platform UI, select Network Monitoring > Search.
The Search page, which is divided into the following sections, appears: · Search for Nodes--You can search for nodes by using various fields or view all nodes and interfaces. · Search Asset Information--You can search for node asset information using various criteria or view
all nodes with asset information. · Search Options--This table provides tips about the various search fields on the Search page. This topic has the following sections: Searching for Nodes You can search for nodes by using different parameters, or view all nodes or all nodes and their interfaces:
816
· To search for nodes: 1. You can search for nodes by using one of the following parameters: · To search for a node using the node name, enter the full name or a part of the name in the (non-case-sensitive) Name containing field.
NOTE: · If you enter a part of the name, the search results return a list of nodes that contain
the characters that you entered. For example, entering MX lists all the nodes that contain the characters "MX" within the node name. · Use _ (underscore) to represent a single character wildcard and % to represent a multicharacter wildcard.
· To search using the node or interface IP address, enter the full IP address or a part of IP address in the TCP Address Like field.
NOTE: · If you enter a part of the IP address, the search results return a list of nodes that match
the IP address that you entered. For example, entering *.204.*.* lists all the nodes that contain 204 in the second octet. · You can also use a combination of the following: · A single * (asterisk) as a wildcard for an octet · A hyphen to specify an octet range · A comma to demarcate two or more numbers within an octet For example, 192.168.*.*, 192.*.0,1,2.1-10, and so on · For IPv6 addresses, you must enter the full IP address and not the shortened form; however, * (asterisk) is supported as a wildcard.
· To search for nodes based on the interface alias, name, or description: a. Select the interface parameter on which to search for the node from the list: · Select ifAlias to search using the interface alias. · Select ifName to search using the interface name. · Select ifDescr to search using the interface description. b. Select whether you want to search for interfaces that contain the interface parameter (contains) or are an exact match (equals) to the interface parameter.
817
c. Enter the text that you want to search for in the text box.
NOTE: The wildcard characters are the same as the ones used in the Name containing field.
· To find nodes providing a specific service, select the service from the Providing service field. · To search for nodes based on the interface MAC address, enter the full or partial MAC address
(non-case-sensitive) in the MAC Address like field.
NOTE: · The wildcard characters are the same as the ones used in the Name containing field. · The octet separators in the MAC address (hyphen or colon) are optional.
· You can search for nodes based on whether they are devices managed by Junos Space (space) or nodes in the Junos Space fabric (fabric using the Foreign Source name like field.
2. Click the Search button corresponding to the search parameter that you specified. For example, if you searched for nodes by using the TCP/IP Address like field, click the Search button corresponding to that field. · If the search parameter that you entered exactly matches an existing node, the subsequent page displays the details of the node. · If the search parameter that you entered matches two or more nodes, the subsequent page displays the nodes and their interfaces. · If the search parameter that you entered does not match any node, the subsequent page displays a message indicating that no nodes match.
· To view all nodes, click the All nodes link. The subsequent page displays all nodes.
· To view all nodes and their interfaces, click the All nodes and their interfaces link. The subsequent page displays the nodes and their interfaces.
Searching for Nodes with Asset Information
You can search for nodes based on the node asset information or view all nodes that contain asset information: · To search for nodes based on asset information:
818
1. You can search for nodes by using one of the following parameters: · To search for a nodes belonging to an asset category, select the category from the Category list. · To search for nodes based on a specific asset information field: a. Select the asset information field that you want to search for using the Field list.
b. Enter the text that you want to search for (non-case-sensitive) in the Containing text field.
NOTE: · If you enter a part of the asset information field, the search results return a list of
nodes that contain the characters that you entered. For example, selecting City and entering York lists all the nodes with asset information that contain the characters York in the City field. · Use _ (underscore) to represent a single character wildcard and % to represent a multicharacter wildcard.
2. Click the Search button corresponding to the search parameter that you specified. For example, if you searched for nodes by using the Category field, click the Search button corresponding to that field. · If the search parameter that you entered matches one or more nodes, the subsequent page displays the asset link and the node link for each node. · If the search parameter that you entered does not match any node, the subsequent page displays a message indicating that no nodes match.
· To view all nodes that have asset information associated with them, click the All nodes with asset info link. The subsequent page displays the asset link and the node link for each node with asset information.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798 Viewing the Node List | 808 Viewing Managed Devices | 193 Working with Node Assets | 819
819
Working with Node Assets
IN THIS SECTION Searching for and Viewing Nodes with Asset Information | 819 Viewing and Modifying Node Asset Information | 820
On the Network Monitoring Assets page, you can view the node asset information, search for assets based on asset category, view all nodes with asset information, and modify the asset information for a node. Asset information includes the information about devices, such as device configuration category information, device identification information, device location, and so on. To access the Assets page: 1. On the Junos Space Network Management Platform UI, select Network Monitoring > Assets.
The Assets page, which is divided into the following sections, appears: · Search Asset Information--You can search for assets based on asset categories or view all nodes with
asset information. · Assets with Asset Numbers--This table displays the nodes that contain the information about asset
numbers. Click the node name link to view the details of the asset. · Assets Inventory--This table provides information about how to use assets in Network Monitoring. This topic has the following sections:
Searching for and Viewing Nodes with Asset Information
You can search for nodes based on asset categories or view all nodes that have asset information: · To search for nodes based on asset category:
1. Select the category from the Assets in category list.
2. Click the Search button. · If there are nodes that belong to the specified asset category, the subsequent page displays the asset link and the node link for each node: · Click the Asset Link link to view or modify the asset information for a node. In the subsequent page, you can view or modify the asset information. For details, refer to "Viewing and Modifying Node Asset Information" on page 820
820
· Click the Node Link link to view information about the node. The subsequent page displays information about the node.
· If the asset category that you specified does not match any node, the subsequent page displays a message indicating that no nodes have been found.
· To view all nodes that have asset information, click the All nodes with asset info link. The subsequent page displays the asset link and the node link for each node with asset information. · Click the Asset Link link to view or modify the asset information for a node. In the subsequent page, you can view or modify the asset information. For details, refer to "Viewing and Modifying Node Asset Information" on page 820 · Click the Node Link link to view information about the node. The subsequent page displays information about the node.
Viewing and Modifying Node Asset Information
On the asset modification page, you can view and modify asset information for a node. The asset information for the node (Asset Info of Node Node-ID) is displayed in the following tables: · SNMP Info--Displays system information for the node obtained by using the SNMP agent
NOTE: You cannot modify the fields in this table
· Configuration Categories--Displays different categories that you can use to group devices · Identification--Displays identifying information for the node such as model number, asset number, and
so on · Location--Displays location information for the node · Vendor--Displays information about the vendor providing service for the node · Authentication--Displays authentication information for SSH, Telnet, and remote shell (rsh) · Hardware--Displays hardware information for the node · VMWare--Displays information related to VMware-based devices · Comments--Displays comments To modify the asset information: 1. Click the field that you want to modify and make the changes.
821
NOTE: Network Monitoring performs validation checks on some of the fields. Refer to the legend at the bottom of this page for an explanation of the color-coding.
2. After you have modified the fields: · Click Save to save the changes. The modifications are saved and displayed on the same page. · Click Reset to discard the changes and revert to the last-saved information in the fields.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798 Viewing the Node List | 808 Viewing Managed Devices | 193 Resynchronizing Nodes in Network Monitoring | 812 Searching for Nodes or Nodes with Asset Information | 815
822
CHAPTER 46
Managing Outages
IN THIS CHAPTER Viewing and Tracking Outages | 822 Configuring Scheduled Outages | 825
Viewing and Tracking Outages
IN THIS SECTION Viewing Details about an Outage | 823 Viewing the List of Outages | 824
When you provision services on nodes, Network Monitoring tracks these services by polling them and creating outages if services do not respond to polls. Using the Outages page, you can view the outage information for a single outage, view current outages, or view both current and resolved outages. To view a list of outages and information about outages: 1. On the Junos Space Network Management Platform UI, select Network Monitoring > Outages.
The Outages page appears. 2. (Optional) To view detailed information about an outage:
a. In the Outage ID text box, enter the ID of the outage. b. Click Get Details or press Enter.
· If the outage ID that you entered matches an existing outage, the subsequent page displays information about the outage. For more information, refer to "Viewing Details about an Outage" on page 823.
823
· If the outage ID that you entered does not match an existing outage, the subsequent page displays a message to this effect. You can reenter an outage ID or view a list of the current outages.
3. (Optional) To view the list of the current outages, click the Current Outages link.
The Outages (List) page appears displaying the list of current outages in a table. For more information, refer to "Viewing the List of Outages" on page 824.
4. (Optional) To view the list of all (resolved and current) outages, click the All Outages link.
The Outages (List) page appears displaying the list of all outages in a table. For more information, refer to "Viewing the List of Outages" on page 824.
This topic has the following sections:
Viewing Details about an Outage
In the Outage: outage-id table, the following information, as shown in Table 104, about an outage is displayed.
Table 104: Details of a Service Outage
Field
Description
Node
Name of the node on which the outage occurred You can click the Node link to view details about the node.
Interface
Interface on which the outage occurred You can click the Interface link to view details about the interface.
Service
Service that was affected by the outage You can click the Service link to view details about the service.
Lost Service Time
Date and time when the service outage occurred
Regained Service
Date and time when the service was restored
Lost Service Event
ID of the event that was generated when the service outage occurred You can click the Lost Service Event link to view details of the event.
Regained Service Event
ID of the event that was generated when the service was restored You can click the Regained Service Event link to view details of the event.
824
Viewing the List of Outages
On the Outages (List) page, the list of current outages is displayed in a table, as shown in Table 105. Depending on how you accessed this page, the page might display the current outages or both the current and resolved outages. You can view outages based on the type of outage (current, resolved, or both), and filter and sort the list of outages displayed based on various criteria: 1. (Optional) To view outages of a specific type, from the Outage type list, select whether you want to
view current outages, resolved outages, or both current and resolved outages. The outages are displayed based on your selection.
2. (Optional) To sort the outages displayed: · In descending order, click the column name in the table once. · In ascending order, click the column name in the table twice. The outages are sorted based on the column that you clicked.
3. (Optional) To filter outages based on different constraints: · Based on foreign source, node, or interface, click the plus (+) icon to view outages only for the corresponding parameter or click the minus () icon to exclude outages for the corresponding parameter. · Based on the date and time when the service outage occurred, click the back arrow icon to view outages that occurred after the corresponding date and time or click the forward arrow icon to view outages that began before the corresponding date and time. · Based on the date and time when the service was restored, click the back arrow icon to view outages that were resolved after the corresponding date and time or click the forward arrow icon to view outages that were resolved before the corresponding date and time. The outages in the table are displayed based on the constraints that you applied.
NOTE: When you apply one or more constraints, the applied constraints are displayed in the Search constraints field. You can click the minus () icon to remove a constraint.
NOTE: If the list of outages displayed runs across multiple pages, you can use the navigation links in the Results field near the top of the page to view the outages.
825
Table 105: Fields on the Outages (List) Page
Field
Description
ID
Outage ID
You can click the ID link to view details about the outage.
Foreign Source
External name of the node on which the outage occurred
Node
Name of the node on which the outage occurred You can click the Node link to view details about the node.
Interface
Interface on which the outage occurred You can click the Interface link to view details about the interface.
Service
Service that was affected because of the outage You can click the Interface link to view details about the interface.
Down
Date and time when the service outage occurred
Up
Date and time when the service was restored
NOTE: This field displays DOWN if the service is not yet restored.
RELATED DOCUMENTATION Viewing and Managing Alarms | 843 Viewing, Configuring, and Searching for Notifications | 864 Viewing and Managing Events | 832 Searching for Nodes or Nodes with Asset Information | 815 Viewing the Node List | 808
Configuring Scheduled Outages
You can configure scheduled outages to suspend notifications, polling, thresholding, and data collection (or any combination of these) for any interface or node for any length of time.
826
To create a scheduled outage: 1. Select Network Monitoring > Admin > Scheduled Outages.
2. Specify a name for the scheduled outage.
3. Click Add new outage to create the scheduled outage.
4. Build the rule that determines which nodes are subject to this critical path.
5. Specify appropriate values for the following fields: · Node Labels--From the list, select the node labels to add. · Interfaces--From the list, select the interfaces to add. · Outage type--From the list, select daily, weekly, monthly, or (time) specific. · Time--Specify one or more days and times for the outage.
6. Specify that the outage applies to one or more of the following categories: · Notifications · Status polling · Threshold checking · Data collection
827 CHAPTER 47
Using the Network Monitoring Dashboard
IN THIS CHAPTER Viewing the Network Monitoring Dashboard | 827
Viewing the Network Monitoring Dashboard
IN THIS SECTION Using the Dashboard Surveillance View | 828
The Network Monitoring Dashboard page displays information about nodes based on the surveillance view configured for the user (in the /opt/opennms/etc/surveillance-views.xml file).
828
To access the Network Monitoring Dashboard page: 1. Select Network Monitoring > Dashboard.
The Dashboard page, which has five sections or tables (also known as dashlets), appears:
NOTE: If the Dashboard does not display information about all your nodes, you should resynchronize your nodes in Network Monitoring. For more information, see "Resynchronizing Nodes in Network Monitoring" on page 812.
· Surveillance View--Displays surveillance categories in a table as determined by the configuration in the /opt/opennms/etc/surveillance-views.xml file
· Alarms--Displays alarms on the nodes · Notifications--Displays notifications on the nodes. · Node Status--Displays status of the nodes. · Resource Graphs--Displays the first resource graph for the first node
Using the Dashboard Surveillance View
The Surveillance View:view-name dashlet determines what content is displayed on the other dashlets on the Dashboard page. By default, information about all the nodes that are part of the surveillance view (Show all nodes option) is displayed on the Dashboard page.
NOTE: · The rows and columns (surveillance categories) displayed in the Surveillance View:view-name
table (dashlet) are determined by the configuration in the /opt/opennms/etc/surveillance-views.xml file. · The color-coding in the cells in the table is based on the severity of the event.
You can control the display of information in the other dashlets on this page by one of the following tasks: · Click the first column of a row or column to restrict the information displayed in the rest of the dashlets
to the nodes that belong to that surveillance category. The row or column that you clicked is highlighted. · Click a cell in the table (other than the one in the first row or column) to restrict the information displayed
in the rest of the dashlets to the nodes that belong to the surveillance categories defined by the row and column. The cell that you clicked is highlighted. Depending on the selection in the Surveillance View:view-name dashlet, the Alarms, Notifications, Node Status, and Resource Graphs display information about the nodes that match the surveillance categories.
829
· The Alarms dashlet (table) displays the outstanding alarms for the nodes selected in the Surveillance View dashlet. In the header of the table, the total number of alarms and the current count of the alarms (for example, 6 to 10 of 34) are displayed. The information displayed about each alarm is shown in Table 106. You can click << to view the preceding set of alarms or click >> to view the next set of alarms.
· The Notifications dashlet (table) displays the notifications for the nodes selected in the Surveillance View dashlet. In the header of the table, the total number of notifications and the current count of the notifications (for example, 1 to 5 of 12) are displayed. The information displayed about each notification is shown in Table 107. You can click << to view the preceding set of notifications or click >> to view the next set of notifications.
· The Node Status dashlet (table) displays the status of the nodes selected in the Surveillance View dashlet; a node is displayed in this table only if a service on the node is down. In the header of the table, the total number of nodes and the current count of the nodes are displayed. The information displayed about each node is shown in Table 108. You can click << to view the preceding set of nodes or click >> to view the next set of nodes.
· The Resource Graphs dashlet (table) enables you to view the resource graphs of the nodes selected in the Surveillance View dashlet. The fields displayed in this dashlet is shown in Table 109. You can click << to view the preceding resource graph or click >> to view the next resource graphs. The default period over which the graphs are plotted is one week.
Table 106: Fields Displayed in the Alarms Dashlet (Table)
Field
Description
Node
Name of the node on which the alarm occurred You can click the node name link to view detailed information about the node.
Log Msg
Log message associated with the alarm Mouse over this cell to view the description associated with the alarm.
Count
Number of times that the alarm has occurred
First Time
Date and time when the alarm was first triggered
Last Time
Date and time when the alarm was last triggered
Table 107: Fields Displayed in the Notifications Dashlet (Table)
Column Heading
Content
Node
Name of the node on for which the notification was created You can click the node name link to view detailed information about the node.
830
Table 107: Fields Displayed in the Notifications Dashlet (Table) (continued)
Column Heading
Content
Service
Name of the service for which the notification was sent
Message
Contents of the notification
Sent Time
Date and time when the notification was sent
Responder
User who received the notification
Response Time
Date and time when the response was sent
Table 108: Fields Displayed in the Node Status Dashlet (Table)
Field
Description
Node
Name of the node You can click the node name link to view detailed information about the node.
Current Outages
Number of service outages on the node expressed in the x of y format, where x is the number of current service outages and y is the total number of services on the node; for example 1 of 6.
24 Hour Availability
Percentage of time in the last 24 hours when the node actually was up, expressed as a percentage; for example, 93.391%
Table 109: Fields Displayed in the Resource Graphs Dashlet (Table)
Field
Description
Node name
Name of the nodes
Information options available for the selected node Varies, depending on the category of node selected, for
(at the node or interface level)
example:
For routers: SNMP Node Data, SNMP Interface Data, Response Time, BGP Peer, OSPF Area Info
For switches: Response Time
Filename of the resource graph selected from the Below the filename, the selected graph is displayed list (SNMP OID-based performance data)
831
RELATED DOCUMENTATION Turning SNMP Data Collection Off and On | 813 Resynchronizing Nodes in Network Monitoring | 812 Working with the Network Monitoring Home Page | 801
832
CHAPTER 48
Managing and Configuring Events
IN THIS CHAPTER Viewing and Managing Events | 832 Selecting and Sending an Event to the Network Management System | 839 Managing Events Configuration Files | 840
Viewing and Managing Events
IN THIS SECTION Viewing the Details of an Event | 833 Searching for Events (Advanced Event Search) | 834 Viewing, Searching for, Sorting, and Filtering Events | 836
In the Network Monitoring workspace, events refer to any changes detected in the network. Events can be generated internally by Network Monitoring or through external SNMP traps. You can set various parameters, such as an event description, log message, severity, and so on, when an event is generated by using the eventconf.xml file. In addition, you can specify that event parameters are sent to an external script. To search for and view information about events: 1. On the Junos Space Network Management Platform UI, select Network Monitoring > Events.
The Events page appears. 2. (Optional) To view detailed information about an event:
a. In the Event ID text box (in the Event Queries section), enter the ID of the event.
833
b. Click Get Details or press Enter. · If the event ID that you entered matches an existing event, the subsequent page displays information about the event. For more information, see "Viewing the Details of an Event" on page 833. · If the event ID that you entered does not match an existing event, the subsequent page displays where a message to this effect.
3. (Optional) To view the list of all events, click the All events link (in the Event Queries section). The Events (List) page appears and the list of events is displayed in a table. For more information, see "Viewing, Searching for, Sorting, and Filtering Events" on page 836
4. (Optional) To search for events by specifying one or more search criteria, click the Advanced Search link (in the Event Queries section). The Advanced Event Search page appears. For more information, see "Searching for Events (Advanced Event Search)" on page 834.
5. (Optional) If event filter favorites were previously created, you can perform the following tasks in the Event Filter Favorites section:
NOTE: You can view and delete only the event filters that you created.
· View the constraints that are part of a filter by mousing over the information icon corresponding to a filter. The constraints are displayed in a pop-up window.
· View the events that match a filter by clicking the filter name link. The Events (List) page appears and the list of events is displayed in a table. For more information, see "Viewing, Searching for, Sorting, and Filtering Events" on page 836.
· Delete an event filter favorite by clicking the X link corresponding to the filter. The favorite is deleted and a message indicating that the favorite is deleted is displayed.
This topic has the following sections:
Viewing the Details of an Event
On the Event event-ID page, the information about an event, as shown in Table 110, is displayed.
834
Table 110: Information Displayed About an Event
Field
Description
Severity Node
Severity of the event:
· Critical--Numerous devices are affected; fixing the problem is essential. · Major--The device is completely down or in danger of going down; immediate attention
is required. · Minor--Part of a device (service, interface, power supply, and so forth) has stopped;
attention is required. · Warning--The event might require action; should possibly be logged. · Indeterminate--No severity is associated with the event. · Normal--This is an informational message; no action is required. · Cleared--This indicates that a prior error condition has been corrected and the service is
restored.
Name of the node on which the event occurred
You can click the Node link to view details about the node.
Time
Date and time when the event occurred
Interface
Interface on which the event occurred You can click the Interface link to view details about the interface.
Service
Service that was affected by the event You can click the Service link to view details about the service.
UEI
Unique event identifier (UEI) associated with the event
Each event in Network Monitoring, including those generated by traps, is assigned a UEI.
Log Message
Message that was logged for the event
Description
Detailed description of the event
Operator Instructions Instructions for the operator of the node on which the event occurred
Searching for Events (Advanced Event Search) On the Advanced Event Search page, you can search for events based on one or more fields.
835
To search for events: 1. (Optional) In the Event Text Contains field, enter the text (partial or full) that you want to search for.
The text that you entered is matched against the Description fields. 2. (Optional) In the TCP/IP Address Like field, enter the interface IP address in the *.*.*.* format for IPv4
addresses and *:*:*:*:*:*:*:* for IPv6 addresses. 3. (Optional) In the Node Label Contains field, enter the name of the node (partial or full). 4. (Optional) Specify the severity of the event using the Severity list. 5. (Optional) In the Exact Event UEI field, specify the UEI for the event.
NOTE: You must specify the full UEI if you want to search using this field; partial matches and wildcards are not allowed.
6. (Optional) Select the service that was affected by the event using the Service list. 7. (Optional) To search for events after a specified date and time, specify the date and time in the Events
After field.
NOTE: If you want to search for events within a certain date and time range, you must specify both the Events After and Events Before fields.
8. (Optional) To search for events before a specified date and time, specify the date and time in the Events Before field.
9. (Optional) Specify a sorting order for the search results using the Sort By list. By default, search results are sorted in descending order of event ID.
10. (Optional) Specify the number of events to display per page using the Number of Events Per Page list. 11. Click Search or press Enter when your cursor is inside one of the text boxes.
The Events (List) page appears and displays the events that match your search parameters. For more information, see "Viewing, Searching for, Sorting, and Filtering Events" on page 836
836
Viewing, Searching for, Sorting, and Filtering Events By default, the Events (List) page displays the list of outstanding events in a table. However, depending on whether you used Advanced Search or applied a favorite filter, the list of events displayed might be different. For each event, the information shown in Table 111 is displayed. You can filter and sort the list of events displayed based on various criteria: 1. (Optional) To apply an existing favorite event filter, select the name of the filter from the Filter Name
list. The events are displayed based on the filter that you applied.
2. (Optional) If you applied a favorite event filter, you can remove it by clicking the Remove Filter button. All outstanding events are displayed on the Events (List) page.
3. (Optional) To search for events:
NOTE: You must specify one of the search criteria.
a. Enter the text (non-case-sensitive) in the Event Text field to search for events based on the text in the event log message and description.
b. From the Time list, select the period for which you want to view the events.
c. Click Search. The outstanding events that match the search criteria are displayed. The search criteria is displayed in the Search constraints field.
4. (Optional) To view a specific number of events per page, select the required number from the list next to the Results field. By default, the number of events listed on the View Events page is 20. You can select the number of events you want to view per page from the Show list. You can choose to view 10, 20, 50, 100, 250, 500, or 1000 events.
NOTE: The number of events selected is set as user preference and the selected number of events are listed beginning from the next login.
5. (Optional) To sort the events displayed:
837
· In descending order, click the column name link in the table once. · In ascending order, click the column name link in the table twice. The events are sorted based on the column that you clicked.
6. (Optional) To filter events based on different constraints: · Based on severity, node, interface, or service, click the plus (+) icon to view events only for the corresponding parameter or click the minus () icon to exclude events for the corresponding parameter. · Based on the date and time when the event occurred, click the back arrow icon to view events that occurred after the corresponding date and time or click the forward arrow icon to view events that began before the corresponding date and time. The events in the table are displayed based on the constraints that you applied. In addition, the constraints that you applied are displayed in the Search constraints field.
7. (Optional) You can remove existing search constraints by clicking the minus () icon corresponding to a constraint in the Search Constraints field.
NOTE: The Event(s) outstanding constraint is applied by default and cannot be removed. You can toggle this constraint with the Event(s) acknowledged constraint, which displays the list of acknowledged events, by clicking the minus () icon.
8. (Optional) To save a filter as a favorite:
NOTE: You can save a filter as a favorite only if the filter contains search constraints other than Event(s) outstanding or Event(s) acknowledged.
a. Click the Save Filter button in the Search Constraints field. A window is displayed instructing you to enter the name of the favorite filter.
b. Enter a unique name (up to 30 alphanumeric characters except %, &, or #) for the filter in the text box.
c. Click OK. · If an existing favorite filter has the same name, a warning message is displayed on the Events (List) page. You must re-enter a unique name to save the filter.
838
· If the filter name that you specified is unique, the filter is saved and the Events (List) page appears. The Filter Names list displays the name of the filter.
NOTE: Previously saved event filter favorites are accessible from the Event Filter Favorites section of the Events page.
9. (Optional) To view all outstanding events, click the View all events link at the top of the page. The outstanding events are displayed on the Events (List) page.
10. (Optional) To search for events based on multiple criteria, click the Advanced Search link at the top of the page. The Advanced Event Search page appears. For more information, see "Searching for Events (Advanced Event Search)" on page 834
11. (Optional) To view the event severity levels, their color-coding, and explanation, click the Severity Legend link at the top of the page. The severity levels are displayed in a window. Click the Close (x) button to close the window.
NOTE: If the list of events displayed runs across multiple pages, you can use the navigation links in the Results field near the top of the page to view the events.
Table 111: Information Displayed on the Events (List) Page
Field
Description
ID
Event ID
You can click the ID link to go to the Event Details page.
Severity
Severity of the event Refer to Table 110 for a list of the different severity levels.
Time
Date and time when the event occurred
Node
Name of the node on which the event occurred You can click the Node link to view details about the node.
839
Table 111: Information Displayed on the Events (List) Page (continued)
Field
Description
Interface
Interface on which the event occurred You can click the Interface link to view details about the interface.
Service
Service that was affected by the event You can click the Service link to view details about the service.
None
UEI associated with the event
NOTE: You can edit the notifications for an event by clicking the Edit notifications for an event link. For more information, see "Configuring Event Notifications, Path Outages, and Destination Paths" on page 866.
None
Partial description of the event
None
Message that was logged for the event
RELATED DOCUMENTATION Viewing the Node List | 808 Searching for Nodes or Nodes with Asset Information | 815 Viewing and Managing Alarms | 843
Selecting and Sending an Event to the Network Management System
To select and send an event: 1. Select Network Monitoring > Admin > Send Event.
The Send Event to OpenNMS page appears.
2. From the Events field, select an event from the list.
3. To define the event and the network monitoring destination, specify appropriate values for the following fields:
840
· Node ID field--Select a device node from the list. The Node ID specifies the device in the event sent to the network monitoring system.
· Source Hostname--Specify the hostname of the source from which the event is sent. · Interface field--Select the interface address to which the event is sent. · Service field--Specify the name of the service that will receive the event. · Parameters--Click the Add additional parameters link to specify the name and value of each additional
parameter you want to add. · Description field--Provide a description for the event. · Severity field--Select a severity level for the event. · Operator instructions--Include instructions that the operator might need to respond to the event
notification. 4. Click Send Event to send the event to the system.
Managing Events Configuration Files
IN THIS SECTION Adding New Events Configuration Files | 840 Deleting Events Configuration Files | 841 Modifying Events Configuration Files | 841
Adding New Events Configuration Files To add a new events configuration file: 1. Select Network Monitoring > Admin.
The Admin page is displayed.
2. Select Manage Events Configuration in the Operations section of the Admin page.
3. Click Add New Events File. The New Events Configuration pop-up window is displayed.
841
4. In the Events File Name field, enter a name for the events configuration file.
5. Click Continue to add the events configurations file.
Deleting Events Configuration Files To delete an events configuration file: 1. Select Network Monitoring > Admin.
The Admin page is displayed.
2. Select Manage Events Configuration in the Operations section of the Admin page.
3. From the Select Events Configuration File drop down menu, select the events configuration file you want to remove.
4. Click Remove Selected Events File.
5. Click Yes.
Modifying Events Configuration Files You can edit the events in the events configuration XML file or add new events to this file. 1. Select Network Monitoring > Admin.
The Admin page is displayed.
2. Select Manage Events Configuration in the Operations section of the Admin page.
3. From the Select Events Configuration File drop down menu, select the events configuration file you want to modify.
4. To add new events to this events configuration file: a. Click Add Event. Enter the new event details. b. In the Event UEI field, enter a unique event identifier. c. In the Event Label field, enter a label for the new event. d. In the Description field, enter a description for the new event.
842
e. In the Log Message field, enter a log message for the new event. f. From the Destination drop down menu, select an appropriate option. g. From the Severity drop down menu, select an appropriate option. h. In the Reduction Key field, enter appropriate text. i. In the Clear Key field, enter appropriate text. j. From the Alarm Type drop down menu, select an appropriate option. k. In the Operator Instructions field, enter instructions for the operator if required. l. Click Add next to the Mask Elements table to add new element names and element values. m. Click Add next to the Mask Varbinds table to add new varbind numbers and varbind values. n. Click Add next to the Varbind Decodes table to add new parameter IDs and decode values. o. Click Save. 5. To edit the current events configuration file: a. Select the event you want to edit. b. Scroll down to the bottom of the window and select Edit.
You can now edit all the parameters of this event. 6. After you have added new events or modified the existing events, click Save Events File.
7. Click Yes.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798
843 CHAPTER 49
Managing and Configuring Alarms
IN THIS CHAPTER Viewing and Managing Alarms | 843 Alarm Notification Configuration Overview | 856 Configuring Alarm Notification | 859
Viewing and Managing Alarms
IN THIS SECTION Viewing Details of an Alarm and Acting on an Alarm | 845 Viewing Alarms in Summary and Detailed Views | 848 Viewing NCS Alarms | 854 Searching for Alarms (Advanced Alarms Search) | 855
In the Network Monitoring workspace, events refer to any changes detected in the network. Network Monitoring allows you configure an event as an alarm by adding the <alarm-data> element to the event in the event configuration file. There are two categories of alarms: acknowledged and outstanding.
NOTE: An alarm that is cleared is removed from the Alarms page.
844
To search for and view information about alarms: 1. On the Junos Space Network Management Platform UI, select Network Monitoring > Alarms.
The Alarms page appears.
2. (Optional) To view detailed information about an alarm: a. In the Alarm ID text box (in the Alarm Queries section), enter the ID for the alarm.
b. Click Get Details or press Enter. · If the alarm ID that you entered matches an existing alarm, the subsequent page displays information about the alarm. For more information, see "Viewing Details of an Alarm and Acting on an Alarm" on page 845. · If the alarm ID that you entered does not match an existing alarm, the subsequent page displays a message to this effect.
3. (Optional) To view the list of all outstanding alarms: · Click the All alarms (summary) link (in the Alarm Queries section) to view a summarized list of alarms. The Alarms (List) page displays a summarized list of alarms in a table. For more information, see "Viewing Alarms in Summary and Detailed Views" on page 848. · Click the All alarms (detail) link (in the Alarm Queries section) to view a detailed list of alarms. The Alarms (List) page displays a detailed list of alarms in a table. For more information, see "Viewing Alarms in Summary and Detailed Views" on page 848.
4. (Optional) To search for alarms by specifying one or more search criteria, click the Advanced Search link (in the alarm Queries section). The Advanced Alarm Search page appears. For more information, see "Searching for Alarms (Advanced Alarms Search)" on page 855.
5. (Optional) To view the list of Network Communication Services (NCS) alarms, click the NCS Alarm List link. The Alarms (List) page appears with the search constraint componentType="Service" applied. For more information, see "Viewing NCS Alarms" on page 854.
6. (Optional) If alarm filter favorites were previously created, you can perform the following tasks in the Alarm Filter Favorites section:
NOTE: You can view and delete only the alarm filter favorites that you created.
845
· View the constraints that are part of a filter by mousing over the information icon corresponding to a filter. The constraints are displayed in a window.
· View the alarms that match a filter by clicking the filter name link. The alarms (List) page where the list of alarms is displayed in a table. For more information, see "Viewing Alarms in Summary and Detailed Views" on page 848.
· Delete an alarm filter favorite by clicking the X link corresponding to the filter. The favorite is deleted and a message indicating that the favorite is deleted is displayed.
This topic has the following sections:
Viewing Details of an Alarm and Acting on an Alarm
On the Alarm Alarm-ID page, the details of an alarm, as shown in Table 112, are displayed. You can perform the following tasks on an alarm:
NOTE: The background color for the fields on this page is the same color as the severity level of the alarm.
· Acknowledge the alarm--If an alarm has not been acknowledged, click the Acknowledge button (in the Acknowledgment and Severity Actions section) at the bottom of the page. The alarm is acknowledged and the details of the acknowledgment are displayed, as indicated in Table 112.
· Unacknowledge the alarm--If an alarm has been acknowledged but you want to unacknowledge it, click the Unacknowledge button (in the Acknowledgment and Severity Actions section) at the bottom of the page. The alarm is unacknowledged and the details of the unacknowledgment are displayed, as indicated in Table 112.
· Escalate the severity level of the alarm--Select Escalate this alarm from the list (in the Acknowledgment and Severity Actions section) at the bottom of the page and click Go. The alarm's severity level is escalated and the background color of the fields changes to match the severity level.
· Clear the alarm--Select Clear this alarm from the list (in the Acknowledgment and Severity Actions section) at the bottom of the page and click Go. The alarm's severity level is set to Cleared and the background color of the fields changes to match this severity level. When an alarm is marked to be cleared, the system removes the alarm after some time after which it is no longer available on the Alarms page.
846
Table 112: Details of an Alarm
Field
Description
Severity
Severity level of the alarm For details of the alarm severity levels, click the Severity Legend link on the Alarms (List) page.
Node
Node on which the alarm occurred
You can click the node name link to view details about the node.
Click the (+) icon to view the alarms only for this node on the Alarms page.
Click the () icon to remove the alarms for this node from the Alarms page.
The appropriate search constraint is applied when you click the (+) or () icon. Click the () icon in the Search Constraints field (top-left corner of the page) to remove the search constraint.
Last Event
Date and time of the last event for which the alarm was raised You can click the date and time link to view the details of the event.
Interface
Interface on which the alarm occurred You can click the Interface link to view details about the interface.
First Event
Date and time of the first event for which the alarm was raised
Service
Service for which the alarm was raised You can click the Service link to view details about the service.
Count
Number of times that the alarm was raised
UEI
Unique event identifier (UEI) associated with the alarm
Ticket ID
If configured by the user, the ID of ticket in the third-party ticket-based tracking system
Ticket State
If configured by the user, the state of the ticket in the third-party ticket-based tracking system
Reduction Key
Reduction key for the event
If an alarm was raised for a previous event with the same reduction key, then a new alarm is not generated; only the alarm count is incremented.
Log Message
Message that was logged for the event for which the alarm was raised
847
Table 112: Details of an Alarm (continued)
Field
Description
Acknowledged By
If the alarm was acknowledged or unacknowledged, the username of the user who acknowledged or unacknowledged the alarm is displayed
NOTE: If a remote user has cleared, acknowledged, escalated, or unacknowledged an alarm, the detailed alarm view displays admin instead of the actual remote user in the Acknowledged By field.
Acknowledged Type Indicates whether the alarm was acknowledged or unacknowledged
Time Acknowledged Date and time when the alarm was acknowledged or unacknowledged
Description
Detailed description of the event for which the alarm was raised.
Alarm History Sticky Memo
If the alarm count is greater than 1 and the alarms have the same UEI, the alarm history is displayed in a table with the following information for each alarm:
· Event ID--ID of the event associated with the alarm · Alarm ID--ID of the alarm · Creation Time--Date and time when the alarm was created · Severity--Severity of the alarm · Operation Time--Date and time when the operation occurred · User--Username of the user who performed the operation · Operation--Type of operation performed (Escalate, Acknowledge, or Clear)
If a sticky memo already exists, it is displayed in the text box. Below the text box, the author who created the memo, the date and time when the memo was last updated, and the date and time when the memo was created are displayed.
· To add or modify a sticky memo, enter the note in the text box and click Save. The sticky memo is saved.
· To delete a sticky memo, click Delete. The sticky memo is deleted.
NOTE: A sticky memo is a user-defined note for a specific alarm; deleting an alarm also deletes the sticky memo.
848
Table 112: Details of an Alarm (continued)
Field
Description
Journal Memo
If a journal memo already exists, it is displayed in the text box. Below the text box, the author who created the memo, the date and time when the memo was last updated, and the date and time when the memo was created are displayed.
· To add or modify a journal memo, enter the note in the text box and click Save. The journal memo is saved and applied to all alarms that share the same resolved reduction key as the alarm for which the journal memo was created.
· To delete a journal memo, click Delete. The journal memo is deleted from all alarms that have the same resolved reduction key.
NOTE: A journal memo is a user-defined note that is applicable to alarms that share the same resolved reduction key. Therefore, unlike in the case of a sticky memo, deleting an alarm does not delete the journal memo.
Operator Instructions Instructions for the operator of the node on which the alarm occurred
Viewing Alarms in Summary and Detailed Views
By default, the Alarms (List) page displays the list of outstanding alarms in a table. However, depending on whether you used Advanced Search or applied a favorite filter, the list of alarms displayed might be different. For each alarm, the information shown in Table 113 is displayed. You can filter and sort the list of alarms displayed based on various criteria: 1. (Optional) To apply an existing favorite alarm filter, select the name of the filter from the Filter Name
list. The alarms are displayed based on the filter that you applied.
2. (Optional) If you applied a favorite alarm filter, you can remove it by clicking the Remove Filter button. All outstanding alarms are displayed on the Alarms (List) page.
3. (Optional) To search for alarms:
NOTE: You must specify one of the search criteria.
a. Enter the text (non-case-sensitive) in the Alarm Text field to search for alarms based on the text in the alarm log message.
849
b. From the Time list, select the period for which you want to view the alarms.
c. Click Search. The outstanding alarms that match the search criteria are displayed. The search criteria is displayed in the Search constraints field.
4. (Optional) To view a specified number of alarms per page, select the required number from the list next to the Results field. By default, the number of alarms listed on the View Alarms page is 20. You can select the number of alarms you want to view per page from the Show list. You can choose to view 10, 20, 50, 100, 250, 500, or 1000 alarms.
NOTE: The number of alarms selected is set as user preference and the selected number of alarms are listed beginning from the next login.
5. (Optional) To sort the alarms displayed: · In descending order, click the column name link in the table once. · In ascending order, click the column name link in the table twice. The alarms are sorted based on the column that you clicked.
6. (Optional) To filter alarms based on different constraints: · To filter alarms on the basis of UEI, severity, node, interface, or service, click the plus (+) icon to view alarms only for the corresponding parameter or click the minus () icon to exclude alarms for the corresponding parameter. · To filter alarms on the basis of the date and time when the first event or last event for which the alarm was raised occurred, click the back arrow icon to view alarms that occurred after the corresponding date and time or click the forward arrow icon to view alarms that began before the corresponding date and time. · To filter alarms on the basis of the node from which they are triggered, click the (+) icon in the Node column. The Alarms page is filtered accordingly. Click the () icon to remove the alarms from a node on the Alarms page. The alarms in the table are displayed based on the constraints that you applied. In addition, the constraints that you applied are displayed in the Search constraints field.
7. (Optional) You can remove existing search constraints by clicking the minus () icon corresponding to a constraint in the Search Constraints field.
850
NOTE: The Alarms(s) outstanding constraint is applied by default and cannot be removed. You can toggle this constraint with the Alarm(s) acknowledged constraint, which displays the list of acknowledged alarms, by clicking the minus () icon.
8. (Optional) To save a filter as a favorite:
NOTE: You can save a filter as a favorite only if the filter contains search constraints other than Alarm(s) outstanding or Alarm(s) acknowledged.
a. Click the Save Filter button in the Search Constraints field. A window is displayed instructing you to enter the name of the favorite filter.
b. Enter a unique name (up to 30 alphanumeric characters except %, &, or #) for the filter in the text box.
c. Click OK. · If an existing favorite filter has the same name, a warning message is displayed on the Alarms (List) page. You must enter a unique name to save the filter. · If the filter name that you specified is unique, the filter is saved and the Alarms (List) page appears. The Filter Names list displays the name of the filter.
NOTE: Previously saved alarm filter favorites are accessible from the Alarm Filter Favorites section of the Alarms page.
9. (Optional) To view all outstanding alarms, click the View all alarms link at the top of the page. The Alarms (List) page displays the outstanding alarms.
10. (Optional) To search for alarms based on multiple criteria, click the Advanced Search link at the top of the page. The Advanced Alarm Search page appears. For more information, see "Searching for Alarms (Advanced Alarms Search)" on page 855
11. (Optional) To toggle between the summary and detailed views on the Alarms (List) page: · Click the Long Listing link to view the detailed view.
851
· Click the Short Listing link to view the summary view. 12. (Optional) To view the alarm severity levels, their color-coding, and explanation, click the Severity
Legend link at the top of the page. The severity levels are displayed in a pop-up window. Click the Close (x) button to close the window.
13. (Optional) To acknowledge, unacknowledge, clear, or escalate one or more alarms: a. Select one or more alarms by selecting the check box corresponding to the alarm.
NOTE: You can select all alarms on the page by clicking the Select All button or clear the check boxes by clicking the Reset button; both buttons appear at the bottom of the page.
b. To perform an action on the alarms selected: i. Do one of the following: · To acknowledge alarms, select Acknowledge Alarms from the list at the bottom of the page.
NOTE: This option is visible on the list only if one of the search constraints is Alarm(s) outstanding.
· To unacknowledge alarms, select Unacknowledge Alarms from the list at the bottom of the page.
NOTE: This option is visible on the list only if one of the search constraints is Alarm(s) acknowledged.
· To clear alarms, select Clear Alarms from the list. · To escalate alarms by one severity level, select Escalate Alarms from the list. ii. Click the Go button. The action that you selected is performed.
14. To acknowledge the entire list of outstanding alarms, click the Acknowledge entire search link. The alarms are processed in a batch and the Acknowledged By, Acknowledged Type, Time Acknowledged fields are updated for each alarm.
852 NOTE: This link is displayed only when outstanding alarms are displayed.
NOTE: If the list of alarms displayed runs across multiple pages, you can use the navigation links in the Results field near the top of the page to view the events.
Table 113: Fields Displayed on the Alarms (List) Page
Field
Description
Displayed In
Ack
Check box to select an alarm or clear a previously selected Alarms (List) page (Short Listing)
alarm
Alarms (List) page (Long Listing)
When you select an alarm using the Ack check box, the
possible actions are acknowledging, clearing, or escalating
the alarm.
NOTE: This check box is displayed when outstanding alarms are displayed on the Alarms (List) page.
Unack
Check box to select an alarm or clear a previously selected alarm
When you select an alarm using the Ack check box, the possible actions are acknowledging, clearing, or escalating the alarm.
Alarms (List) page (Short Listing) Alarms (List) page (Long Listing)
NOTE: This check box is displayed when previously acknowledged alarms are displayed on the Alarms (List) page.
ID
Alarm ID
Alarms (List) page (Short Listing)
You can click the ID link to view details of the alarm.
Alarms (List) page (Long Listing)
Severity
Severity level of the alarm
NOTE: The severity level of the alarm is displayed on a colored bar in the row. For information about the color-coding, click the Severity Legend link at the top of the page.
Alarms (List) page (Short Listing) Alarms (List) page (Long Listing)
853
Table 113: Fields Displayed on the Alarms (List) Page (continued)
Field
Description
Displayed In
UEI
NOTE: Only the UEI label is displayed on this page with Alarms (List) page (Long Listing)
options to filter based on the UEI.
Sticky Memo (Icon)
If a sticky memo exists for an alarm, an icon is displayed in the ID column. Mouse over the icon to view the memo.
Alarms (List) page (Short Listing) Alarms (List) page (Long Listing)
Journal Memo (Icon)
If a journal memo exists for an alarm, an icon is displayed in the ID column. Mouse over the icon to view the memo.
Alarms (List) page (Short Listing) Alarms (List) page (Long Listing)
Node
Node on which the alarm occurred
Alarms (List) page (Short Listing)
You can click the node name link to view details about the Alarms (List) page (Long Listing) node.
Interface
Interface on which the alarm occurred
You can click the interface link to view details about the interface.
Alarms (List) page (Long Listing)
Service
Service for which the alarm was raised
You can click the Service link to view details about the service.
Alarms (List) page (Long Listing)
Count
Number of times that the alarm was raised
You can click the count link to view the list of events for which the alarm was raised.
Alarms (List) page (Short Listing) Alarms (List) page (Long Listing)
Last Event Time
Date and time of the last event for which the alarm was raised
Alarms (List) page (Short Listing)
You can click the date and time link to view the details of the event.
First Event Time
Date and time of the first event for which the alarm was raised
Alarms (List) page (Long Listing)
Acknowledged By
If the alarm was acknowledged or unacknowledged, the username of the user who acknowledged or unacknowledged the alarm is displayed.
Alarms (List) page (Long Listing)
854
Table 113: Fields Displayed on the Alarms (List) Page (continued)
Field
Description
Description
Detailed description of the alarm
Log Message Message that was logged for the alarm
Displayed In Alarms (List) page (Short Listing) Alarms (List) page (Long Listing) Alarms (List) page (Short Listing) Alarms (List) page (Long Listing)
Viewing NCS Alarms
The Alarms (List) page with the search constraint componentType="Service" applied displays the list of NCS alarms in a table, as shown in Table 114. For more information about the actions that you can take on this page, see "Viewing Alarms in Summary and Detailed Views" on page 848.
Table 114: Fields in the NCS Alarms (List) Page
Field
Description
Ack
Refer to Table 113 for an explanation of this field.
Unack
Refer to Table 113 for an explanation of this field.
ID
Refer to Table 113 for an explanation of this field.
Severity
Refer to Table 113 for an explanation of this field.
Component Type
Type of component affected by the event (service, service element, or service element component)
Component Name
Name of the service for which the NCS alarm was raised
Related
Related services or component names (for example, VPN or Connectivity Fault Management Maintenance Endpoint [CFM-MEP]) impacted due to the event
Cause
Details of the event for which the NCS alarm was raised
Node
Refer to Table 113 for an explanation of this field
Last Event Time
Refer to Table 113 for an explanation of this field
Log Message
Refer to Table 113 for an explanation of this field
855
Searching for Alarms (Advanced Alarms Search) On the Advanced Alarm Search page, you can search for alarms using several criteria. To search for alarms: 1. (Optional) In the Alarm Text Contains field, enter the text (partial or full) that you want to search for.
The text that you entered is matched against the Log Message field of the alarm.
2. (Optional) In the TCP/IP Address Like field, enter the interface IP address in the *.*.*.* format for IPv4 addresses and *:*:*:*:*:*:*:* for IPv6 addresses.
3. (Optional) In the Node Label Contains field, enter the name of the node (partial or full).
4. (Optional) Specify the severity of the alarm using the Severity list.
5. (Optional) Select the service for which the alarm was raised from the Service list.
6. (Optional) To search for alarms for which the first event occurred after a specified date and time, specify the date and time in the Alarm First Event After field.
NOTE: If you want to search for alarms within a certain date and time range, you can use a combination of the Alarm First Event After, Alarm First Event Before, Alarm Last Event After, and Alarm Last Event Before fields.
7. (Optional) To search for alarms for which the first event occurred before a specified date and time, specify the date and time in the Alarm First Event Before field.
8. (Optional) To search for alarms for which the last event occurred after a specified date and time, specify the date and time in the Alarm Last Event After field.
9. (Optional) To search for alarms for which the last event occurred before a specified date and time, specify the date and time in the Alarm Last Event Before field.
10. (Optional) Specify a sorting order for the search results using the Sort By list. By default, search results are sorted in descending order of alarm ID.
856
11. (Optional) Specify the number of alarms to display per page using the Number of Alarms Per Page list. 12. Click Search or press Enter when your cursor is inside one of the text boxes.
The Alarms (List) page appears displaying the alarms that match your search parameters are displayed. For more information, see "Viewing Alarms in Summary and Detailed Views" on page 848
RELATED DOCUMENTATION Viewing, Configuring, and Searching for Notifications | 864 Viewing and Managing Events | 832 Searching for Nodes or Nodes with Asset Information | 815
Alarm Notification Configuration Overview
IN THIS SECTION Basic Filtering | 856 Guidelines for Configuring Alarm Notifications | 857 Advanced Filtering | 858
By default, the alarms generated by managed devices in the Junos Space platform are sent to the network monitoring functionality. To enable alarm notification for supported Junos Space applications, you can configure the alarmNotificationConf.xml file to specify the alarm notifications that designated Junos Space applications should receive. The applications will receive only those alarms that you configure in the alarmNotificationConf.xml file and that match the specified filter criteria. You can configure basic and advanced filters so that any alarms that match the configured filtering conditions are forwarded to the designated applications. Basic Filtering You configure a basic filter to filter alarms based on the Unique Event Identifier (UEI), device family, and severity. At minimum, you must configure a UEI filter. Filtering by device family, severity, or both, is optional.
857
To configure a basic filter for alarm notification, at minimum, you must configure the following notification tags in the alarmNotificationConf.xml file, which must reside in the /opt/opennms/etc/alarm-notification directory: · Notification name · UEI of the alarm to be notified · The script to be executed for the configured UEI You can also configure the following tags in the alarmNotificationConf.xml file: · Severity--Supported severity values are Indeterminate, Cleared, Normal, Warning, Minor, Major, and
Critical. When configuring an alarm for notification, a notification is sent for the corresponding Clear Alarm. A notification is also sent after clearing an alarm from the user interface. To forward notification for Clear alarms and user interface (UI) , you must configure Severity = Normal, Cleared. · Device Family--Supported device family is present in the devicefamily.properties in the /opt/opennms/etc/alarm-notification.
NOTE: If the Sysoid for the device is unknown, the DevicesWithNoSysoid filter is matched.
Guidelines for Configuring Alarm Notifications
Use the following guidelines when configuring alarm notifications: · To send notification when an alarm is cleared from the UI, you must include event
uei.opennms.org/vacuumd/juniper/alarmCleared in the eventconf.xml file. · The event entry is present in /opt/opennms/etc/examples/alarm-notification/eventconf.xml. This
entry should be added to /opt/opennms/etc/eventconf.xml.
NOTE: Do not copy and paste the entire /opt/opennms/etc/examples/alarm-notification/eventconf.xml file. If the event entry is not already present, append the event entry to the existing eventconf.xml file.
· The tags listed in the /opt/opennms/etc/examples/alarm-notification/vacuumd-configuration.xml file should be added to the /opt/opennms/etc/vacuumd-configuration.xml file, if not already present.
· Alarm notification dampening is performed based on the alarm counter. The notification_threshold attribute is added for this purpose. The default value is 5, which specifies that the first alarm is notified, then the sixth alarm, and so on.
858
Advanced Filtering
To provide more in-depth filtering, you must configure a drool (DRL) file. With advanced filtering, the applications receive only those alarms that match all the advanced filtering conditions. The name of the drool file and notification name mentioned in the alarmNotificationConf.xml file should match, and for each notification, there must be a drool file whose name matches the notification name. Each drool file that you configure must be added to the /opt/opennms/etc/alarm-notification/drools directory. You can view a sample drool file from the /opt/opennms/etc/examples/alarm-notification/drools directory. You can view a sample alarmNotification.xml file from the /opt/opennms/etc/examples/alarm-notification directory.
NOTE: Care should be taken when writing the rule. For each rule that satisfies the condition, a corresponding script is invoked. For better performance, do not configure multiple rules for the same UEI.
You can create advanced filters based on any combination of the following fields:
· alarmacktime · alarmackuser · alarmid · alarmtype · applicationdn · clearkey · counter · description · dpname · eventparms · eventuei · firsteventtime · ifindex · ifname · ipaddr · lasteventtime · logmsg · ossprimarykey
859
· operinstruct · reductionkey · serviced · severity · suppressedtime · suppresseduntil · suppresseduser · tticketid · tticketstate · uiclear · x733Alarmtype · x733Probablecause
RELATED DOCUMENTATION Configuring Alarm Notification | 859
Configuring Alarm Notification
IN THIS SECTION Configuring a Basic Filter for Alarm Notification | 860 Activating Alarm Notification Configuration Files for Basic Filtering | 862 Reloading a Filter Configuration to Apply Filter Configuration Changes | 862
By default, the alarms generated by managed devices in the Junos Space platform are sent to the network monitoring functionality. To enable alarm notification for supported Junos Space applications, you can
860
configure alarm notification files for basic filtering to specify the alarm notifications that designated Junos Space applications should receive.
Configuring a Basic Filter for Alarm Notification The following steps show how to configure a basic filter based on unique event identifier (UEI), severity, and device family. When the alarm criteria specified in the XML file are matched, the alarm XML is passed as an argument to the invoked script. To configure a basic filter for alarm notification: 1. Configure the destination for the notification in the script, for example, Sample_App_Script.sh. The
script specifies how the alarm notifications are sent to the application.
curl -v -u super:juniper123 -X POST -H "Content-Type:application/xml" -d "$xml" "http://localhost:8080/SampleApplication/services/Alarms"
NOTE: In the preceding example, the curl command is used to post the script, but the configuration of the script can vary based on the requirements of the application. You can access sample configuration scripts from the /opt/opennms/etc/examples/alarm-notification/scripts directory. However, all active scripts must be present in the /opt/opennms/etc/alarm-notification/scripts directory.
2. In the alarmNotificationConf.xml configuration file: a. Enable the alarm notification feature:
<notification name="SampleAppNotification" enable="true">
b. Configure the number of seconds to wait for the script to execute before timing out:
<script timeout_in_seconds="45">
861
NOTE: If you do not configure the timeout_in_seconds attribute, the default time out for the script invoked is 60 seconds. In this case, the shell exit status will be '143' and error handling will be considered in the same way as other error exit status. If the script continues to execute after the timeout value for the script, alarm notification will not wait for the script status. During this time, processing of other alarms will not be blocked.
c. Specify the name of the script that will be invoked:
<scriptname>Sample_App_Script.sh</scriptname>
The configured script must be present in the /opt/opennms/etc/alarm-notification/scripts directory.
d. Enable error handling, and configure the number of notification retry attempts and interval (in seconds) between retry attempts, if the initial attempt to send the notification fails:
<errorhandling enable="true"> <retry_interval_inseconds>3</retry_interval_inseconds>
<number_of_retries>2</number_of_retries> </errorhandling>
NOTE: The script exit status should be '0' if there are no errors. For other exit status values, the script will be invoked again if error handling is enabled.
e. Configure the UEI of the alarms which will require notification:
<uies> <uei name="uei.opennms.org/generic/traps/SNMP_Link_Down"
notification_threshold="5" <filter devicefamily="JSeries" severity="Minor,Normal"/>
<filter devicefamily="DevicesWithNoSysoid" severity="Minor,Normal"/> <uei/> </uies>
862
Activating Alarm Notification Configuration Files for Basic Filtering
After configuring the alarm notification files for basic filtering, you must add the files to the Junos Space application to activate the alarm notification configuration: 1. Log in from the Junos Space system console.
The Junos Space Appliance Settings menu displays.
2. From the Junos Space Appliance Settings menu, enter 7 (or enter 8 from the Junos Space Virtual Appliance) to run the shell.
3. (Optional): To view the sample configuration files for alarm notification: · Navigate to the /opt/opennms/etc/examples/alarm-notification directory to view sample files for alarmNotificationConf.xml, eventconf.xml, and vacuumd-configuration.xml.
· Navigate to the /opt/opennms/etc/examples/alarm-notification/scripts directory to view the CBU_App_Script.sh and NA_App_Script.sh sample scripts.
4. To activate configuration files for alarm notification, perform the following steps: a. Add your configured alarmNotificationConf.xml file to the /opt/opennms/etc/alarm-notification directory.
b. Add your configured eventconf.xml and vacuumd-configuration.xml files to the /opt/opennms/etc directory.
c. Add your configured script file to the /opt/opennms/etc/alarm-notification/scripts directory.
Reloading a Filter Configuration to Apply Filter Configuration Changes
After making any changes to a filter, you can reload the configuration by sending a "reloadDaemonConfig" event, for example:
/opt/opennms/bin/send-event.pl -p 'daemonName Alarmd.AlarmNorthbounder' uei.opennms.org/internal/reloadDaemonConfig
You do not need to restart the server to apply the configuration changes listed in previous steps. However, to send the event, go to /opt/opennms/bin ./send-event.pl -p 'daemonName Alarmd.AlarmNorthbounder' uei.opennms.org/internal/reloadDaemonConfig. This event will reload the following files:
863
· alarmNotficationConf.xml · devicefamily.properties · Drool (.drl) files
RELATED DOCUMENTATION Alarm Notification Configuration Overview | 856
864
CHAPTER 50
Managing and Configuring Notifications
IN THIS CHAPTER Viewing, Configuring, and Searching for Notifications | 864 Configuring Event Notifications, Path Outages, and Destination Paths | 866
Viewing, Configuring, and Searching for Notifications
IN THIS SECTION Notification Escalation | 865
When the system detects important events, one or more notices are sent automatically to configured notification information (such as a pager, an e-mail address, or other notification methods). In order to receive notices, users must have their notification information configured in their user profile (see "Configuring Network Monitoring System Settings" on page 900), notices must be switched on, and an important event must be received. Select Network Monitoring > Notifications. From the Notifications page, you can: · Display all unacknowledged notices sent to your user ID by clicking Your outstanding notices. · View all unacknowledged notices for all users by clicking All outstanding notices. · View a summary of all notices sent and acknowledged for all users by clicking All acknowledged notices. · Search for notices associated with a specific user ID by entering that user ID in the User field and clicking
Check notices. · Jump immediately to a page with details specific to a given notice identifier by entering that numeric
identifier in the Notice field and clicking Get details.
865
NOTE: Getting details is particularly useful if you are using a numeric paging service and receive the numeric notice identifier as part of the page.
Notification Escalation
Once a notice is sent, it is considered outstanding until someone acknowledges receipt of the notice using the Notice notice ID section of the Notifications page. Select Network Monitoring > Notifications, enter a notice ID in the Notice field, click Get details, and click Acknowledge. If the event that triggered the notice was related to managed network devices or systems, the Network/Systems group is notified, one by one, with a notice sent to the next member on the list only after 15 minutes has elapsed since the last message was sent. This progression through the list, or escalation, can be stopped at any time by acknowledging the notice. Note that this is not the same as acknowledging the event that triggered the notice. If all members of the group have been notified and the notice has not been acknowledged, the notice is escalated to the Management group, where all members of that group are notified simultaneously (with no 15-minute escalation interval). For details on configuring groups, see "Configuring Network Monitoring System Settings" on page 900.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798 Viewing the Node List | 808 Viewing Managed Devices | 193 Resynchronizing Nodes in Network Monitoring | 812 Searching for Nodes or Nodes with Asset Information | 815
866
Configuring Event Notifications, Path Outages, and Destination Paths
IN THIS SECTION Configuring Event Notifications | 866 Configure Destination Paths | 868 Configure Path Outages | 870
Configuring Event Notifications You can configure an event to send a notification whenever that event is triggered. You can add, edit, and delete event notifications. To add a notification to an event: 1. Select Network Monitoring > Admin > Configure Notifications > Configure Event Notifications. 2. Click Add New Event Notification. 3. Select the event UEI that will trigger the notification. 4. Click Next. 5. Build the rule that determines whether to send a notification for this event, based on the interface and
service information specified in the event. 6. You can validate the rule results or skip the rule results validation:
· To validate the rule results: a. Click Validate rule results and click Next after reviewing the results.. Alternatively, you can skip the validate rule results step and click Skip results validation. The Choose the destination path and enter the information to send via the notification page appears. b. Specify a name for the notification, choose the destination path, and enter the information required to send with the notification. You can include the following values in the text message, short message, and the E-mail subject:
867
· %noticeid% to include the notification ID number. · %nodelabel% to include the node label as an IP address. · %eventid% to include the event ID. · %ifalias% to include the SNMP IF alias of the affected interface. · %time% to indicate the time when the notification was sent. · %interface% to include the IP address of the interface. · %parm[a_parm_name]% to include the name, if any, of the event parameter. · %interfaceresolve% to include the reverse DNS name of the interface IP address. · %severity% to include the severity of the event. · %service% to include the name of the service. · %parm[#N]% to include the value of the event parameter at index N. · %operinstruct% to include the operator instructions from the event definition. c. Click Finish.
To edit an existing event notification: 1. Select Network Monitoring > Admin > Configure Notifications > Configure Event Notifications.
2. Click the Edit button that is located to the left of the event notification you want to modify.
3. Select the event UEI that will trigger the notification.
4. Click Next.
5. Build the rule that determines whether to send a notification for this event, based on the interface and service information specified in the event.
6. (Optional) Click Reset Address and Services if you want to clear the changes that you have entered.
7. You can validate the rule results or skip the rule results validation: · To validate the rule results: a. Click Validate rule results and click Next after reviewing the results.. Alternatively, you can skip the validate rule results step and click Skip results validation. The Choose the destination path and enter the information to send via the notification page appears.
868
b. Specify a name for the notification, choose the destination path, and enter the information required to send with the notification. The Choose the destination path and enter the information to send via the notification page appears. You can include the following values in the text message, short message, and the E-mail subject: · %noticeid% to include the notification ID number. · %nodelabel% to include the node label as an IP address. · %eventid% to include the event ID. · %ifalias% to include the SNMP IF alias of the affected interface. · %time% to indicate the time when the notification was sent. · %interface% to include the IP address of the interface. · %parm[a_parm_name]% to include the name, if any, of the event parameter. · %interfaceresolve% to include the reverse DNS name of the interface IP address. · %severity% to include the severity of the event. · %service% to include the name of the service. · %parm[#N]% to include the value of the event parameter at index N. · %operinstruct% to include the operator instructions from the event definition.
c. Click Finish.
To delete an existing event notification: 1. Select Network Monitoring > Admin > Configure Notifications > Configure Event Notifications.
2. Click the Delete button that is located to the left of the event notification you want to modify.
3. Click Ok in the delete notification confirmation dialog box to delete the notification.
Configure Destination Paths
You can configure a destination path that describes what users or groups will receive notifications, how the notifications will be sent, and who to notify if escalation is needed. A destination path defines a reusable list of contacts that you include in an event configuration.
869
To create a new destination path: 1. Select Network Monitoring > Admin > Configure Notifications > Configure Destination Paths.
2. Click the New Path button.
3. Specify appropriate values for the following fields: · Name--Specify a name for the destination path. · Initial Delay--From the list, select the number of seconds to wait before sending notifications to users or groups. · Initial targets--Select the users and groups to whom the event notification will be sent.
4. Click the Add Escalation button to specify users and groups to whom event notification will be sent.
5. Choose the commands to use (for example, callHomePhone, callMobilePhone, or callMobilePhone) for each user and group.
6. Click Next.
7. Click Finish when you have finished editing the destination path.
To modify an existing destination path: 1. Select Network Monitoring > Admin > Configure Notifications > Configure Destination Paths.
2. Under Existing Paths, select the existing destination path that you want to modify.
3. Click Edit.
4. You can make changes to any of the following fields: · Initial Delay--From the list, select the number of seconds to wait before sending notifications to users or groups. · Initial targets--Add users and groups to whom the event notification should be sent and remove users and groups to whom the event should not be sent.
5. Click the Add Escalation button to specify users and groups to whom event notification will be sent.
6. Choose the commands to use (for example, callHomePhone, callMobilePhone, or callMobilePhone) for each user and group.
870
7. Click Next.
8. Click Finish when you have finished modifying the destination path.
To delete a destination path: 1. Select Network Monitoring > Admin > Configure Notifications > Configure Destination Paths.
2. Under Existing Paths, select the existing destination path that you want to delete.
3. Click Delete.
4. Click Ok to confirm that you want to delete the selected destination path.
Configure Path Outages You can configure a path outage that describes what users or groups will receive notifications, how the notifications will be sent, and who to notify if escalation is needed. A destination path defines a reusable list of contacts that you include in an event configuration. To create a new path outage: 1. Select Network Monitoring > Admin > Configure Notifications > Configure Path Outage.
2. Click the New Path button.
3. Specify appropriate values for the following fields: · Critical Path--Enter the critical path IP address. · Critical Path Service--From the list, select the ICMP protocol. · Initial targets--Select the users and groups to whom the event notification will be sent.
4. Build the rule that determines which nodes are subject to this critical path.
5. Select the Show matching node list check box to show the list of nodes that match.
6. Choose the commands to use (for example, callHomePhone, callMobilePhone, or callMobilePhone) for each user and group.
7. Click Validate rule results to validate the rule.
8. Click Finish when you have finished configuring the path outage.
871
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798
872
CHAPTER 51
Managing Reports and Charts
IN THIS CHAPTER Network Monitoring Reports Overview | 872 Creating Reports | 873 Viewing Reports | 875 Deleting Reports | 880 Viewing Charts | 882
Network Monitoring Reports Overview
IN THIS SECTION Resource Graphs | 872 Key SNMP Customized Performance Reports, Node Reports, and Domain Reports | 873 Database Reports | 873 Statistics Reports | 873
You can generate and view resource graphs, key SNMP customized (KSC) performance reports, KSC node reports, KSC domain reports, database reports, and statistics reports. To access the reports function, select Network Monitoring > Reports. Resource Graphs Resource graphs provide an easy way to represent visually the data collected from managed nodes throughout your network. You can display critical SNMP performance, response time, and so forth. You can narrow your selection of resources by entering a search string in the Name contains box. This invokes a case-insensitive substring match on resource names.
873
Key SNMP Customized Performance Reports, Node Reports, and Domain Reports KSC reports enable you to create and view SNMP performance data using prefabricated graph types. The reports provide a great deal of flexibility in time spans and graph types. You can save KSC report configurations so that you can refer to key reports in the future. Node reports show SNMP data for all SNMP interfaces on a node. Domain reports show SNMP data for all SNMP interfaces in a domain. You can load node reports and domain reports into the customizer and save them as a KSC report. You can narrow your selection of resources by entering a search string in the Name contains box. This invokes a case-insensitive substring match on resource names.
Database Reports Database reports provide a graphical or numeric view of your service-level metrics for the current month-to-date, previous month, and last 12 months by categories.
Statistics Reports Statistics reports provide regularly scheduled statistical reports on collected numerical data (response time, SNMP performance data, and so forth).
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798 Creating Reports | 873 Deleting Reports | 880 Viewing Reports | 875 Viewing the Node List | 808
Creating Reports
IN THIS SECTION Creating Key SNMP Customized Performance Reports, Node Reports, and Domain Reports | 874 Creating a New KSC Report from an Existing Report | 874
874
You can configure key SNMP customized (KSC) performance reports, node reports, and domain reports by selecting Network Monitoring > Reports.
Creating Key SNMP Customized Performance Reports, Node Reports, and Domain Reports To create a new KSC report: 1. Select Network Monitoring > Reports > KSC Performance, Nodes, Domains.
2. From the Node and Domain Interface Reports section, select a resource for the report.
3. Under the Customized Reports section, click Create New > Submit. The Customized Report Configuration page is displayed.
4. In the Title text box, enter a name for the report.
5. (Optional) To add a graph to the report: a. Select Add New Graph. b. Select a resource from the Resources section. c. Select Choose Child Resource to select the resource you want to use in a graph. d. Select the check box for the specific node resources you want to view, or click Select All to select all the displayed node resources.
6. (Optional) To allow global manipulation of the report timespan, select Show Timespan Button.
7. (Optional) To allow global manipulation of report prefabricated graph type, select Show Graphtype Button
8. (Optional) Select the number of graphs to show per line in the report.
9. To save the report, click Save.
Creating a New KSC Report from an Existing Report To create a new KSC report from an existing report: 1. Select Network Monitoring > Reports > KSC Performance, Nodes, Domains.
2. Under the Resources section, select the KSC report that you want to use to create a new report and click Create New from Existing > Submit.
875
The Customized Report Configuration page is displayed.
3. Select a resource.
4. In the Title text box, enter a new name for the report.
5. (Optional) Customize the report by adding graphs and specifying the number of graphs per line.
6. Click Save.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798 Network Monitoring Reports Overview | 872 Viewing Reports | 875 Deleting Reports | 880 Viewing the Node List | 808 Viewing Managed Devices | 193
Viewing Reports
Select Network Monitoring > Reports to view the following types of reports: · Resource graphs that provide SNMP performance data collected from managed nodes on your network · Key SNMP customized (KSC) performance reports, node reports, and domain reports. You can generate
KSC reports to view SNMP performance data using prefabricated graph types. · Database reports that provide graphical or numeric views of service-level metrics. · Statistics reports that provide regularly scheduled reports on response time, SNMP node-level
performance and interface data, and OSPF area data.
876
Viewing Resource Graphs
To view a resource graph: 1. Select Network Monitoring > Reports > Resource Graphs.
2. Select the resource node for which you want to generate a standard performance report or custom performance report. The Node Resources page is displayed.
3. To select the specific node resources data that you want to view, choose one of the following options: · To view data for a subset of node resources: a. Click the Search option. b. Enter a text string to identify the node resources you want to view. c. Click OK. d. Select the check box for the specific node resources you want to view, or click Select All to select all the displayed node resources. · To view data for all listed node resources, click Select All.
4. To display graphical data for the all the selected node resources, click Graph Selection.
5. In the Time Period field, specify the period of time (last day, last week, last month, or custom) that the report should cover. The statistical data is refreshed to reflect the time period specified.
Viewing Key SNMP Customized (KSC) Performance Reports, Node Reports, and Domain Reports
To view a KSC report: 1. Select Network Monitoring > Reports > KSC Performance, Nodes, Domains.
2. Select the resource node for which you want to view a standard performance report or custom performance report. The Custom View Node Report is displayed.
3. (Optional) To customize the Node Report view: · To override the default time span, in the Override Graph Timespan list, select the number of hours, days, or months, or select by quarter, or year.
877
· To override the default graph type, from the Override Graph type list, select the number of hours, days or months, by quarter or by year.
4. Select Update Report View to refresh the report.
5. Select Exit Report Viewer to exit the report view, or select Customize This Report to make additional updates to the report.
Viewing Database Reports To view database reports: 1. Select Network Monitoring > Reports > Database Reports > List reports.
The Local Report Repository page is displayed.
2. Select on a report page number, or select Next or Last to scroll through the available reports to locate the database report you want to view.
3. To execute a report, from the row that lists the report, select the arrow icon from the Action column. The Run Online Report page is displayed.
4. In the Report Format field, select either PDF or comma-separated values (CSV) format for the report from the list.
5. Select run report. For PDF, the report is displayed in the selected format. For CSV, you are prompted to either open or save the file.
Sending Database Reports To send database reports: 1. Select Network Monitoring > Reports > Database Reports > List reports.
The Local Report Repository page is displayed.
2. Select on a report page number, or select Next or Last to scroll through the available reports to locate the database report you want to send.
3. You can send a report to file system or e-mail the report. · To execute a report, in the row that lists the report, select the arrow icon from the Action column.
878
The Run Online Report page is displayed. a. From the Report Format list, select either PDF or comma-separated values (CSV) format for the
report from the list.
b. Select run report. For PDF, the report is displayed in the selected format. For CSV, you are prompted to either open or save the file.
· To send a report to a file system or e-mail the report, select the Deliver report icon from the Action column. The Report Parameters page is displayed. a. From the report category field, select a category (Network Interfaces, Email Servers, Web Servers, Database Servers, and so forth).
b. From the end date field, select the end date and time for the report.
c. Select Proceed. The Report Delivery Options page is displayed.
d. In the name to identify this report field, specify a name for the report.
e. (Optional) To send the report through e-mail, select the e-mail report check box.
f. In the format field, select the format type (HTML, PDF, or SVG).
g. In the recipient field, enter the name of the person to whom the report will be sent.
h. (Optional) To save a copy of the report select the save a copy of this report check box.
i. Select Proceed. The Report Running page is displayed.
j. Select Finished to close the page and return to the Local Report Repository page.
879
Viewing Pre-run Database Reports To view database reports: 1. Select Network Monitoring > Reports > Database Reports > View and manage pre-run reports.
All the pre-run reports are displayed in a table.
2. From the view report column, select the HTML, PDF, or SVG link to specify the format in which you want to view the report. The database report is displayed.
Viewing Statistics Reports To view statistics reports: 1. Select Network Monitoring > Reports > Statistics Reports.
The Statistics Report List page displays a list of all available reports in a table.
2. To search for specific information in statistics reports, enter search text in the blank field directly above a Statistics Report column, and select Filter. All available statistics reports that match the filter text you specified are displayed in the Statistics Report List page.
3. To clear the filtered information and restore the original list of statistics reports, select Clear. All available statistics reports are again displayed in the Statistics Report List page.
4. To view complete information for a specific statistics report, click the Report description link from the Statistics Report List page. The statistics report is displayed and includes Parent resources and resource graphs with SNMP interface data.
Generating a Statistics Report for Export To generate a statistics report as a PDF file or Excel spreadsheet: 1. Select Network Monitoring > Reports > Statistics Reports.
The Statistics Report List page displays a list of all available reports in a table.
2. In the Report Description column, select the report link.
880
The statistics report is displayed and includes all information for that report, including parent resources and resource graphs with SNMP interface data.
3. Choose PDF or Excel as the format for the statistics report: · To generate the statistics report in PDF format, in the top-right corner of the Statistics Report, select the Export PDF icon. The File Download window is displayed. · To generate the statistics report as an Excel spreadsheet, in the top-right corner of the Statistics Report, select the Export Excel icon. The File Download window is displayed.
4. From the File Download window, select Open to view the statistics report or select Save to save the statistics report.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798 Network Monitoring Reports Overview | 872 Creating Reports | 873 Deleting Reports | 880 Viewing the Node List | 808 Viewing Managed Devices | 193 Resynchronizing Nodes in Network Monitoring | 812 Searching for Nodes or Nodes with Asset Information | 815
Deleting Reports
IN THIS SECTION Deleting Key SNMP Customized Reports | 881 Deleting Pre-Run Database Reports | 881
To delete key SNMP customized (KSC) reports and database reports, select Network Monitoring > Reports.
881
Deleting Key SNMP Customized Reports To delete a KSC report: 1. Select Network Monitoring > Reports > KSC Performance, Nodes, Domains.
2. From the Customized Reports section, select the report that you want to delete.
3. Select the Delete radio button.
4. Select Submit. The KSC report is deleted.
Deleting Pre-Run Database Reports To delete a database report: 1. Select Network Monitoring > Reports > View and manage pre-run reports.
All the pre-run reports are displayed in a table.
2. From the select column in the reports table, select the check box for the database report that you want to delete.
3. Select delete checked reports. The database report is deleted.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798 Network Monitoring Reports Overview | 872 Creating Reports | 873 Viewing Reports | 875 Viewing the Node List | 808 Viewing Managed Devices | 193 Resynchronizing Nodes in Network Monitoring | 812 Searching for Nodes or Nodes with Asset Information | 815
882
Viewing Charts
To view charts, select Network Monitoring > Charts. By default, this page displays: · Alarms Severity Chart, showing the counts of both alarms and events, distinguishing between major,
minor, and critical severities. · Last 7 Days Outages, showing the counts of outages per service. · Node Inventory, showing the counts of nodes, interfaces, and services.
883
CHAPTER 52
Network Monitoring Topology
IN THIS CHAPTER Network Monitoring Topology Overview | 884 Working with Topology | 886 Network Monitoring Topology Discovery Methods Supported by Junos Space Network Management Platform | 898
884
Network Monitoring Topology Overview
On the Topology page in the Network Monitoring workspace, you can view Junos Space nodes, Fault Monitoring and Performance Monitoring (FMPM) nodes, and devices that were discovered by Junos Space Network Management Platform, as well as node links and the alarm state of the services links.
NOTE: On the Topology page, the term node refers to Junos Space nodes, FMPM nodes, or devices discovered by Junos Space Network Management Platform. The term node link refers to the link between the nodes.
The EnhancedLinkd network topology discovery daemon is used to discover the network topology. Five physical link discovery methods--Bridge Discovery Protocol, Cisco Discovery Protocol (CDP), IS-IS, Link Layer Discovery Protocol (LLDP), and OSPF--are supported and enabled by default. After the SNMP interface is discovered, the availability of links in the topology depends on the following:
NOTE: Junos Space Platform currently supports only OSPF version 2 for topology discovery.
· The time that the EnhancedLinkd daemon waits after a node has been provisioned; the default is 60 seconds
· The time taken for the EnhancedLinkd deamon to scan the node · The time after which the node links are refreshed automatically; the default is 60 seconds After the topology is discovered by Junos Space Platform, any changes to the topology are automatically detected. This includes changes in logical entities, such as Ethernet services and VPNs, that are discovered by Junos Space Platform. The EnhancedLinkd daemon updates only the topology changes in the database and does not rescan the entire network. This incremental link discovery ensures that data related to topology changes is updated dynamically. In addition, the dynamic update ensures that only the node or the node link that was updated is redrawn and not the entire topology.
885
NOTE: · From Junos Space Network Management Platform Release 14.1R1 onward, the SNMP polling
time for discovering links between devices is set using the rescan_interval parameter in the enlinkd-configuration.xml file. In prior releases, this SNMP polling time for discovering links between devices was set using the snmp_polling parameter in the linkd.xml file. The default value for the rescan_interval parameter is 86,400,000 milliseconds · A sample of the /opt/opennms/etc/enlinkd-configuration.xml is as follows:
<?xml version="1.0" encoding="ISO-8859-1"?> <linkd-configuration threads="5"
initial_sleep_time="60000" rescan_interval="86400000" use-cdp-discovery="true" use-bridge-discovery="true" use-lldp-discovery="true" use-ospf-discovery="true" use-isis-discovery="true" />
For more information about the parameters in the enlinkd-configuration.xml file, see http://www.opennms.org/wiki/Linkd .
The node link status is color-coded--a green link indicates that the link is up and a red link indicates that a link is down. In addition, if an SNMP trap is received indicating that the node link status has changed, then the EnhancedLinkd daemon updates the node link in the topology to indicate the current status of the node link.
The alarm state of services links is also color-coded--a green line indicates that no service-impacted alarms are present and that the service status is up; a red line indicates that at least one service-impacted alarm is present and that the service status is down.
886
NOTE: · The color-coding of the link status is displayed only if the option to display the link status is
selected; this option is not selected by default. · Similarly, the color-coding of the alarm state for services links is displayed only if the option
to display the alarm state for services links and link status are selected; these options are not selected by default. · The node link data and alarm states for services links are automatically refreshed in the network monitoring topology only if the options to automatically refresh the topology is selected; this option is not selected by default.
The links on a node can also be rediscovered on demand manually by requesting for a rescan of a node.
RELATED DOCUMENTATION Working with Topology | 886 Viewing the Node List | 808
Working with Topology
IN THIS SECTION Using the Search Option to View Nodes | 887 Working with Topology Views | 888 Viewing the Events and Alarms Associated with a Node | 889 Viewing Alarms and Node Details | 890 Viewing Nodes with Active Alarms | 892 Managing Alarms Associated with Nodes | 892 Viewing the Topology with Different Layouts | 892 Automatic Refresh of the Topology | 893 Viewing the Status of Node Links | 894 Viewing the Alarm State of Services Links | 894 Pinging a Node | 894
887
Viewing the Resource Graphs Associated with the Node | 895 Connecting to a Device by Using SSH | 896
On the Topology page in the Network Monitoring workspace, you can view nodes and node links, information about nodes and node status, and perform actions on nodes.
NOTE: On the Topology page, the term node refers to Junos Space nodes, FMPM nodes, or devices discovered by Junos Space Network Management Platform. The term node link refers to the link between the nodes.
Clicking a node or a node link highlights the node or node link. You can view the management IP address, name, and status for any node in the topology by hovering over the node, and the type of link, the name, the link bandwidth, and the endpoints by hovering over a node link. When you select a node or node link on the topology, the node or node link is highlighted. You can select multiple nodes by holding down the Ctrl key and selecting the nodes. You can use the zoom slider to zoom in and zoom out of the selected topology view. You can also use the semantic zoom-level functionality on the topology to display nodes one or more hops away from the selected nodes. This topic contains the following sections:
Using the Search Option to View Nodes
You can use the Search option to search for and add nodes that you want to view in the topology. By default, no nodes are displayed in the topology and a warning message is displayed explaining how to add nodes to the topology. Do one or more of the following: · Enter Nodes in the Search field to select nodes from the list of all available nodes in the network topology. · Enter Category in the Search field to select nodes by device category (Routers, Switches, Security
Devices, and so forth).
NOTE: · Categories can be collapsed and expanded. · To display all nodes in the topology, select the Monitor_SNMP category.
888
· Enter the name of a specific device in the Search field to display a specific device.
Working with Topology Views You can use the GUI controls, shown in Figure 47 and described in Table 115 to control the display of the nodes on the Topology page. Figure 47: Topology View GUI Controls
1--Click to go back button 2--Click to go forward button 3--Center on selection button 4--Show entire map button 5--Toggle highlight focus nodes button 6--Zoom in button 7--Zoom out button
8--Zoom slider 9--Pan button 10--Selection button 11--Expand semantic zoom button 12--Collapse semantic zoom button 13--Number of connected hops from the node in focus
889
Table 115: Topology Options Option Click to go back button
Description View the previous topology view history.
Click to go forward button
View the more recent topology view history, after viewing the past history.
Center on selection button
Display the selected nodes in the center of the topology view.
Show entire map button
Display all the (filtered) nodes in the topology view.
Toggle highlight focus nodes button
When you add a node to focus, nodes connected to the focus node might also be displayed. When you click the Toggle highlight focus nodes button, only focus node icons are highlighted, and icons are dimmed for non-focus nodes that are connected to the focus nodes.
Zoom in button
Click to zoom in to the topology
Zoom slider
Move the slider up to zoom in or down to zoom out.
Zoom out button
Click to zoom out to the topology
Pan Tool button
Select on a node to reposition in topology view, or select between nodes (in white space) to pan all nodes in the topology view (up, down, left, or right) as a single image. To disable the Pan Tool function, click the Selection Tool button.
Selection Tool button
Perform operations on individual nodes (add node to focus, ping node, view node information, view events/alarms, and so forth). To disable the Selection Tool function, click the Pan Tool button.
Expand Semantic Zoom Level/Collapse Semantic Zoom Level
Expand or collapse the semantic zoom level by using the Up arrow key to increase the hop count or the Down arrow key to decrease the hop count. For example, select a hop count of 2 to display the network nodes two hops away from the focus nodes.
NOTE: The topology view displays a line to show connections to nodes that are one or more hops away from a focus node.
Viewing the Events and Alarms Associated with a Node In the Topology page, you can view the events and alarms associated with a node. Do the following 1. Select Network Monitoring > Topology.
890
2. Right-click the node whose alarm associations you want to view and select Events/Alarms. Alternatively, you can also select the node and from the Device menu select Events/Alarms to view the events and alarms associated with the node. The events associated with the node are displayed in the Events tab in the Events & Alarms page (popup). For more information, see the "Viewing and Managing Events" on page 832 topic.
3. (Optional) To view the alarms associated with the node, select the Alarms tab in the Events & Alarms page. To view a specified number of events or alarms per page, select the required number from the list next to the Results field. By default, the number of items listed per page is 20. You can select the number of events or alarms you want to view per page from the Show list. You can choose to view 10, 20, 50, 100, 250, 500, or 1000 events or alarms.
NOTE: The number of events or alarms selected is set as user preference and the selected number of events or alarms are listed beginning from the next login.
For more information, see the "Viewing and Managing Alarms" on page 843 topic.
Viewing Alarms and Node Details
To view details for a category of nodes or selected nodes: 1. Select Network Monitoring > Topology.
2. From the topology view, select a category of nodes or click the nodes you want to view. · To view alarm details for a category of nodes or selected nodes, select the Alarms tab towards the bottom of the page. The following alarm details are displayed: · ID--Alarm ID. · Severity--Severity of the alarm (Critical, Major, Minor, Warning, Normal, or Cleared). · Node--Name of the node. · UEI--The Unique Event Identifier (UEI), which is assigned to each event, including those generated by traps. · Count--Shows the number of events that were reduced to a single alarm row.
891
· Last Event Time--The most recent date and time when the alarm occurred. · Log Message--The log message associated with the alarm. · To view node details for the category of nodes or the selected nodes, select the Nodes tab. The following details are displayed for each node: · ID--Unique network monitoring ID associated with the node · Label--Name of the node · Creation Time--Date and time at which the node was added for network monitoring · Last Capabilities Scan--Date and time at which the capability scan was last performed · Primary Interface--Primary interface for the node in network monitoring · sysContact--Contact information, obtained by querying the node · sysDescription--Description of the node, obtained by querying the node · sysLocation--Location of the node · Foreign Source--Indicates that the node is a device managed by Junos Space Platform (Space) or
that the node is a Junos Space or FMPM node (Fabric) · Foreign ID--Indicates the device ID in Junos Space Platform. The node ID from network monitoring
is mapped to the device ID from Junos Space Platform
3. To view in-depth information about a node, right-click on the node and select Node Info. The Node Info page is displayed with the following information about the events and alarms associated with the node: · Availability · General Status · Node interfaces (IP interfaces and physical interfaces) · Surveillance Category Memberships · Notification (Outstanding/Acknowledged) · Recent events · Recent outages
NOTE: The Node Info page provides an option to manually rediscover links on demand. Click the Rescan hyperlink and on the subsequent page click Rescan. You are taken back to the Node Info page; the topology is updated after approximately 1 minute.
892
Viewing Nodes with Active Alarms To view nodes with active alarms: 1. Select Network Monitoring > Topology. 2. Use the Search option to select the nodes you want to check for active alarms.
In the topology view, the color of the node icon indicates the highest severity alarm associated with the node. In addition, the node icon displays a number that indicates the count of outstanding alarms and notices associated with that node.
NOTE: A node with an active alarm of "Major" severity displays a red icon.
Managing Alarms Associated with Nodes To acknowledge, unacknowledge, escalate, or clear the alarms associated with a node: 1. Select Network Monitoring > Topology. 2. From the topology page, select the nodes for which you want to manage alarms. 3. Select the Alarms tab. 4. Select the check box to the left of the alarm ID for each alarm listing you want to manage, or click
Select All to manage all the listed alarms. 5. Select the action (Acknowledge, Unacknowledge, Escalate, or Clear) that you want to perform on the
selected alarms. 6. Select Submit to complete the action.
Viewing the Topology with Different Layouts To view the topology with different layouts: 1. Select Network Monitoring > Topology. 2. Select the View menu and then select the appropriate layout.
By default, the topology is displayed in the FR layout.
893
You can view the topology using the following layouts: · Circle Layout · D3 Layout · FR Layout · Manual Layout · Real Ultimate Layout
Automatic Refresh of the Topology
By default, the topology is not automatically refreshed. To initiate an automatic refresh of the topology: 1. On the View menu of the Topology page (Network Monitoring > Topology), select the Automatic
Refresh check box. The View menu is closed and you are taken back to the Topology page. The topology is automatically refreshed every 60 seconds.
If there are changes to the status of nodes, node links, and logical entities, these changes are displayed in the topology automatically.
894
Viewing the Status of Node Links
By default, the topology does not display the status of the node links. To display the status of the node links in the topology: 1. On the View menu of the Topology page (Network Monitoring > Topology), select the Link Status
check box. The View menu is closed and you are taken back to the Topology page. The topology now displays the status of the node links: · Green indicates that the link is up. · Red indicates that the link is down.
NOTE: If the Link Status check box is not selected, then the links are displayed in gray.
Viewing the Alarm State of Services Links
By default, the topology does not display the current alarm state of the services links within the topology. To display the alarm state of the services links in the topology: 1. On the View menu of the Topology page (Network Monitoring > Topology), select the NCS Link Status
check box. (NCS stands for Network Communication Services.) The View menu is closed and you are taken back to the Topology page. The topology now displays the alarm state of the services links: · Green indicates that the services link is up and that no service-impacted alarm was found. · Red indicates that the service status is down and that a service-impacted alarm is found for that
service.
NOTE: · If the Link Status check box is not selected, then the links are displayed in gray. · If the NCS Link Status check box is cleared, then the link color is not changed automatically
(dynamically) on the Topology page. If the NCS Link Status check box is selected, the color of the link changes automatically and dynamically based on the related alarms. · When you mouse over a link, a tooltip displays the service information including the service status.
895
Pinging a Node To ping a node: 1. Select Network Monitoring > Topology.
2. Right-click the node you want to ping and select Ping from the menu. Alternatively, you can also select the node and from the Device menu select Resource Graphs to view the resource graphs associated with the node. The Ping dialog box is displayed
3. In the Number of Requests field, enter the number of ECHO requests to be sent.
4. In the Time-Out (seconds) field, enter the number of seconds after which the ping request should time out.
5. From the Packet Size drop-down menu, select the size (in bytes) of the ping packet.
6. (Optional) Select the Use Numerical Node Names check box if you want the IP address to be displayed and not the hostname.
7. Click Ping. The node is pinged with the specified values and the results of the ping request is displayed on the lower part of the Ping page.
Viewing the Resource Graphs Associated with the Node On the Topology page, you can view the resource graphs associated with a node. Do the following: 1. Select Network Monitoring > Topology.
2. Right-click the node whose resource graphs you want to view and select Resource Graphs. Alternatively, you can also select the node and from the Device menu select Resource Graphs to view the resource graphs associated with the node. The node resources for which you can view graphs are displayed in the Resource Graphs page.
3. Select the resources for which you want to view the graphs and click Graph Selection.
896
NOTE: You can also use the Select All and Graph All options to view the resource graphs for all node resources.
The resource graphs that you selected are displayed on the subsequent page. For more information, see the Viewing Resource Graphs section in the "Viewing Reports" on page 875 topic.
Connecting to a Device by Using SSH
On the Topology page (Network Monitoring > Topology), you can connect to one or more devices using SSH. You can also connect to the same device one or more times; a new SSH window is created for each connection.
NOTE: The following is applicable irrespective of the type of authentication configured (credential-based or key-based) in Junos Space Platform:
· If the option to allow users to automatically log in is configured, then users can automatically log in without providing a username and password. (You can configure the option to allow users to automatically log in to devices on the Device page (Administration > Applications > Modify Application Settings > Device). For more information, see the "Modifying Junos Space Network Management Platform Settings" on page 1340 topic.)
· If the option to allow users to automatically log in is not configured, then, you are prompted to enter a username and password.
· When you connect to a device by using SSH, Junos Space Platform validates the device fingerprint against the fingerprint stored in the database. If the fingerprints are the same, then Junos Space Platform allows you to connect to the device. If the fingerprints are not the same, then the behavior depends on the state of the Manually Resolve Fingerprint Conflict check box on the Modify Application Settings (Modify Network Management Platform Settings) page in the Administration workspace (Administration > Applications > Network Management Platform > Modify Application Setting). · If the check box is selected, an error message is displayed indicating that there is a device fingerprint mismatch and the connection is dropped. The conflicted fingerprint value is updated in the database and the device's authentication status is marked Fingerprint Conflict. You must resolve the fingerprint conflict manually in order to connect to the device by using SSH. For more information, see "Acknowledging SSH Fingerprints from Devices" on page 294. · If the check box is cleared, Junos Space Platform updates the new fingerprint in the database and allows a connection to the device; the device's authentication status is changed to Credential Based Unverified or Key Based Unverified.
897
To connect to a device by using SSH: 1. Select the device to which you want to connect.
NOTE: You can connect only to devices and not to Junos Space nodes.
2. Right-click the device and select SSH to Device. · If the authentication is successful, the shell (CLI) for the device is displayed on a new page. The shell prompt is in the root@identifier% format, where identifier is a hostname of the node.
CAUTION: Some browser plug-ins can cause undesirable behavior in open SSH windows; disabling such plug-ins might resolve the issue. For example, if the Firebug plug-in is activated within an SSH window opened in Firefox, the window cannot be restored, resized, or maximized and the console area remains fixed; disabling the Firebug plug-in resolves this issue.
· If the authentication is not successful, the shell displays a message that the authentication has failed. 3. (Optional) After you have finished, type exit at the CLI prompt to close the session.
A message is displayed indicating that the session is closed. 4. (Optional) Click the Close button on the browser page or tab to close the page.
NOTE: If you do not disconnect the session, the session is automatically disconnected by Junos Space in the following cases: · When the user logs out · When the user is logged out due to inactivity · When the authentication is changed to certificate mode · When the user is disabled or deleted · When the user's session is terminated
RELATED DOCUMENTATION
898
Network Monitoring Topology Overview | 884 Network Monitoring Workspace Overview | 798 Resynchronizing Nodes in Network Monitoring | 812 Viewing the Node List | 808
Network Monitoring Topology Discovery Methods Supported by Junos Space Network Management Platform
Table 116 lists the topology discovery methods for the Juniper Networks devices supported in Junos Space Network Management Platform. For more information, see "Network Monitoring Topology Overview" on page 884.
Table 116: Topology Discovery Methods Supported for Network Monitoring
Product Series
Topology Discovery Methods
ACX Series
IS-IS, LLDP, OSPF
BX Series
OSPF
EX Series
Bridge Discovery Protocol, IS-IS, LLDP, OSPF
Firefly
IS-IS, LLDP, OSPF
J Series
IS-IS, LLDP, OSPF
LN Series
OSPF
M Series
IS-IS, OSPF
MX Series
IS-IS, LLDP, OSPF
PTX Series
IS-IS, OSPF
QFX Series
Bridge Discovery Protocol, IS-IS, OSPF
SRX Series
IS-IS, LLDP, OSPF
T Series
IS-IS, OSPF
899
RELATED DOCUMENTATION Working with Topology | 886
900
CHAPTER 53
Network Monitoring Administration
IN THIS CHAPTER Configuring Network Monitoring System Settings | 900 Updating Network Monitoring After Upgrading the Junos Space Network Management Platform | 903 Configuring SNMP Community Names by IP | 911 Configuring SNMP Data Collection per Interface | 912 Managing Thresholds | 912 Compiling SNMP MIBs | 917 Managing SNMP Collections | 923 Managing SNMPv3 Trap Configuration | 925 Managing Data Collection Groups | 928 Managing and Unmanaging Interfaces and Services | 932 Starting, Stopping, and Restarting Services | 932
Configuring Network Monitoring System Settings
IN THIS SECTION Network Monitoring System Information | 901 Generating a Log File for Troubleshooting | 902 Changing the Notification Status | 902
You can view the network monitoring configuration and the system configuration on which network monitoring is running and generate network monitoring log reports for troubleshooting purposes. This topic contains the following tasks:
901
Network Monitoring System Information
Select Network Monitoring > Admin > System Information to view the network monitoring configuration and the system configuration on which network monitoring is running. The network monitoring Configuration section of the page lists the following information: · Version · Home Directory · RRD store by Group--true or false · Web-Application Logfiles--location · Reports directory--location · Jetty http host · Jetty http port--usually 8980 · Jetty https host · Jetty https port The System Configuration section of the page lists the following information: · Server Time · Client Time · Java Version · Java Virtual Machine · Operating System · Servlet Container · User Agent
902
Generating a Log File for Troubleshooting To generate a log report for troubleshooting purposes: 1. Select one or more of the following plugins that you want to enable for reporting purposes:
· Java: Java and JVM information · OS: Kernel, OS, and Distribution · Network monitoring: network monitoring core information, version, or basic configuration · TopEvent: Top 20 most reported events · Threads: Java thread dump (full output only) · Top: Output of the 'top' command (full output only) · Isof: Output of the 'Isof' command · Configuration: Append all network monitoring configuration files (full output only) · Logs:network monitoring log files (full output only) 2. Select the report type (text or zip file) to be generated.
3. Select Submit Query
4. You can view or save the file: · To view the report file, click Open from the File Download dialog box. · To save the report, click Save from the File Download dialog box.
Changing the Notification Status Notifications are sent out only if the Notification Status is On. This is a system wide setting. The default setting is Off. After you change the setting, click Update. To change the notification status: 1. In the Notification Status field, select On or Off.
2. Click Update. The notification status is changed and the page is reloaded.
RELATED DOCUMENTATION
903
Network Monitoring Workspace Overview | 798 Viewing the Node List | 808 Viewing Managed Devices | 193 Resynchronizing Nodes in Network Monitoring | 812 Searching for Nodes or Nodes with Asset Information | 815 Viewing, Configuring, and Searching for Notifications | 864
Updating Network Monitoring After Upgrading the Junos Space Network Management Platform
IN THIS SECTION Overview | 903 Step 1: Monitoring the Software Install Status Window for File Conflicts | 903 Step 2: Identifying Files with Conflicts | 905 Step 3: Merging Files with Conflicts | 907 Step 4: Verifying the Manual Merge Status of Configuration Files | 908 Step 5: Final Steps After Upgrading Network Monitoring | 909
Overview
After upgrading the Junos Space Network Management Platform, the Network Monitoring configuration files might not contain the configuration file changes for the latest version. During the Junos Space Network Management upgrade process, the Software Install Status window displays a message if there are any configuration files in conflict. You can also access the /var/log/install.log file to view any files that have conflicts. To manually merge files that contain conflicts, you must perform all of the following steps. When the upgrade process encounters no files in conflict, the files are auto-merged and you do not need to perform the following steps.
Step 1: Monitoring the Software Install Status Window for File Conflicts
Check for the following message in the Software Install Status window during the upgrade of the Junos Space Network Management Platform:
904
WARNING: Conflict observed during OpenNMS git-merge so please merge the changes manually: Please go to folder /opt/opennms/etc, and merge the *.old.bak files to current running files.
When logged in from the Junos Space Network Management Platform command-line interface (CLI), you can also check for file conflicts from the /var/log/install.log file. The following example message from the install.log file shows three files with conflicts that you will need to manually merge to resolve:
opennms-post.pl 62: Error while running git merge opennms-auto-upgrade/pristine: merge -Xpatience -Xignore-space-change -Xignore-all-space -Xrenormalize opennms-auto-upgrade/pristine: command returned error: 1 at /usr/lib/perl5/site_perl/5.8.8/Error.pm line 343.
opennms-post.pl 63: The following files are in conflict:
opennms-post.pl 65: eventconf.xml
opennms-post.pl 65: events/ncs-component.events.xml
opennms-post.pl 65: linkd-configuration.xml
NOTE: If no files with conflicts are found during the upgrade process, the files are automatically merged, and you do not need to perform any additional steps. Otherwise, you must complete each of the following steps.
905
Step 2: Identifying Files with Conflicts If you discovered one or more files with conflicts during the previous step, perform the following steps to identify the files with conflicts: 1. Log in to the virtual IP (VIP) fabric node.
2. Stop the Network Monitoring service from the Junos Space Network Management Platform user interface: a. Select Network Management Platform > Administration > Applications. The Applications page appears.
b. Right-click Network Management Platform and click Manage Services. (Alternatively, you can select Network Management Platform and click Manage Services from the Actions menu.) The Manage Services page is displayed.
c. Select the Network Monitoring service and click the Stop Service icon. The Confirm Stop SNMP Agent dialog box is displayed.
d. Click Yes. A status dialog box with a message indicating that the service has stopped is displayed.
e. Click OK. A dialog box is displayed confirming that the service has successfully stopped.
f. Click OK. You are taken to the Manage Services page.
3. From the Junos Space Network Management Platform CLI, check the status of the Network Monitoring service by executing the following command:
# su - opennms -c '/sbin/service opennms status'
906
Junos Space displays the message opennms is stopped. 4. To re-merge the Network Monitoring configuration files:
a. From the Junos Space CLI, execute the following command: # /opt/opennms/bin/config-tools/conflict-remerge.pl
Junos Space displays output similar to the following:
conflict-remerge.pl 19: Resetting tree to 'opennms-auto-upgrade/tags/runtime/pre-1.13.0-0.20131227.1'
b. Navigate to the /opt/opennms/etc directory and execute the following command:
# git status Most of the files are auto-merged. If any files remain, the status of each file in conflict is displayed under the section "Unmerged paths" and is marked "both modified", as shown in the following example:
Unmerged paths: # (use "git add/rm ..." as appropriate to mark resolution) # both modified: eventconf.xml # both modified: events/ncs-component.events.xml # both modified: linkd-configuration.xml For each remaining conflicted file (listed under Unmerged paths) changes that were made to the file are identified with the opening statement "<<<<<< HEAD" and closing statement ">>>>>>> opennms-auto-upgrade/pristine". For example, in the ncs-component.events.xml file shown above, the file changes are marked as follows:
<<<<<<< HEAD
907
<alarm-data-reduction key="%uei%:%parm[componentType]%:%parm[componentForeignSource]% :%parm[componentForeignId]%" alarm-type="2" clearkey="uei.opennms.org/internal/ncs/componentImpacted:%parm[componentType]% :%parm[componentForeignSource]%:%parm[componentForeignId]%" auto-clean="false"/> ====== <alarm-data-reductionkey="%uei%:%parm[componentType]%:%parm[componentForeignSource]% :%parm[componentForeignId]%:%parm[nodeid]%" alarm-type="2" clearei.opennms.org/internal/ncs/componentImpacted:%parm[componentType]% :%parm[componentForeignSource]%:%parm[componentFo ]%:%parm[nodeid]%" auto-clean="false"/> >>>>>>> opennms-auto-upgrade/pristine
Step 3: Merging Files with Conflicts After identifying the files with conflicts, you must perform the following steps to manually merge each of the files and resolve all conflicts: 1. From a VI editor, open the file with conflicts.
2. Search for the statement "HEAD".
3. Identify the differences between the two configurations which are contained between the lines <<<<< HEAD and >>>>> opennms-auto-upgrade/pristine. a. The configuration for the file before the upgrade is contained between the lines <<<<< HEAD and ========.
908
b. The configuration for the file after the upgrade is contained between the lines ======== and >>>>> opennms-auto-upgrade/pristine.
4. Save the configuration of the file after the upgrade, and then update it with any user-modified values from the configuration file before the upgrade.
5. After manually merging configuration file changes, remove each of the following lines from the file:
<<<<<<< HEAD ============ >>>>>>> opennms-auto-upgrade/pristine
6. Save the configuration file. 7. Repeat steps 2 through 6 for each configuration file with conflicts until all file conflicts in all files are
merged. After all the file conflicts are merged, there should be no occurrence of the following lines:
<<<<<<< HEAD ============ >>>>>>> opennms-auto-upgrade/pristine
Step 4: Verifying the Manual Merge Status of Configuration Files From the Junos Space CLI, execute the following commands to verify that the configuration file changes are merged correctly:
/opt/opennms/bin/config-tools/conflict-resolve.pl git status If the file changes were merged correctly, Junos Space displays the following message:
909
nothing to commit (working directory clean)
Step 5: Final Steps After Upgrading Network Monitoring Perform the following steps after upgrading Network Monitoring: 1. Update permissions of the /opt/opennms directory to 774:
# chmod -R 774 /opt/opennms
2. Run the following command to change the ownership of the /opt/opennms directory to opennms:space:
#chown -R opennms:space /opt/opennms
3. Verify that the opennms.conf file includes the line RUNAS="opennms":
# more opennms.conf START_TIMEOUT=0 ADDITIONAL_MANAGER_OPTIONS="-Djava.io.tmpdir=/opt/opennms/tmp -d64 -XX:MaxPermSize=512m XX:HeapDumpPath=/var/opennms/java_pid <pid>.hprof -XX:+HeapDumpOnOutOfMemoryError -XX:+PrintGCTimeStamps -XX:+PrintGCDetails" JAVA_HEAP_SIZE=2048 RUNAS="opennms" #######Verify that this line exists
4. The password of the user "postgres" in the opennms-datasources.xml file will be empty. Set the password to postgres:
<jdbc-data-source name="opennms-admin"
910
database-name="template1" class-name="org.postgresql.Driver" url="jdbc:postgresql://localhost:5432/template1" user-name="postgres" password="postgres" /> #######Password is set here
5. Start the Network Monitoring service from the Junos Space user interface: a. Select Network Management Platform > Administration > Applications. The Applications page appears. b. Right-click Network Management Platform and select Manage Services or select Network Management Platform and click Manage Services from the Actions menu. The Manage Services page appears. c. Select the Network Monitoring service and click the Start Service icon. The Confirm Start message appears. d. Click YES.
6. If your fabric is running in a multi-node setup, execute the following command to verify that all the modified configuration files are synchronized across the standby node:
# /opt/opennms/contrib/failover/scripts/sync.sh
RELATED DOCUMENTATION Upgrading Junos Space Network Management Platform | 1372 Starting, Stopping, and Restarting Services | 932
911
Configuring SNMP Community Names by IP
This task enables you to configure SNMP community names by IP address. You also need to configure the community string used in SNMP data collection. The network monitoring functionality is shipped with the public community string. If you have set a different read community on your devices, this is where you must enter it. In this procedure, you enter a specific IP address and community string, or a range of IP addresses and a community string, and other SNMP parameters. The network monitoring functionality optimizes this list, so enter the most generic addresses first (that is, the largest range) and the specific IP addresses last, because if a range is added that includes a specific IP address, the community name for the specific address is changed to be that of the range. For devices that have already been discovered and have an event stating that data collection has failed because the community name changed, you might need to update the SNMP information on the interface page for that device (by selecting the Update SNMP link) for these changes to take effect. To configure SNMP using an IP address: 1. Select Network Monitoring > Admin > Configure SNMP Community Names by IP, and enter in the
First IP Address field either a single IP address, or the first address of a range.
2. If you are not entering a range of IP addresses, leave the Last IP Address field blank, otherwise enter the last IP address of the range.
3. In the Community String field, enter the community string you use for your devices. The default is public.
4. (Optional) Enter a timeout in the Timeout field.
5. Select the appropriate version from the Version list.
6. (Optional) Enter the number of retries in the Retries field.
7. (Optional) Enter the port number in the Port field.
8. Click Submit. The system displays a message telling you whether network monitoring needs to be restarted for the configuration to take effect.
RELATED DOCUMENTATION Configuring SNMP Data Collection per Interface | 912
912
Configuring SNMP Data Collection per Interface
For each different SNMP collection scheme, there is a parameter called SNMP Storage Flag. If this value is set to primary, then only values pertaining to the node as a whole or the primary SNMP interface are stored in the system. If this value is set to all, then all interfaces for which values are collected are stored. If this parameter is set to select, then the interfaces for which data is stored can be selected. By default, only information from primary and secondary SNMP interfaces are stored. You can choose other non-IP interfaces on a node if you have set up the SNMP collection. To manage SNMP data collection for each interface: 1. Select Network Monitoring > Admin > Configure SNMP Data Collection per Interface.
The Manage SNMP Data Collection per Interface page appears. 2. Select the node for which you want to manage data collection.
The Choose SNMP Interfaces for Data Collection page appears listing all known interfaces. 3. Select the appropriate value for the interface in the Collect column.
Primary and secondary interfaces are always selected for data collection.
RELATED DOCUMENTATION Managing SNMP Collections | 923
Managing Thresholds
IN THIS SECTION Creating Thresholds | 913 Modifying Thresholds | 915 Deleting Thresholds | 916
Thresholds allow you to define triggers against any data retrieved by the SNMP collector, and generate events, notifications, and alarms from those triggers. You can add, remove, and modify thresholds.
913
Creating Thresholds
To create a threshold: 1. Select Network Monitoring > Admin > Manage Thresholds.
The Threshold Configuration page appears and lists the threshold groups that are configured on the system.
2. To create a new threshold for a threshold group, select Edit next to the threshold group. The Edit group page appears.
3. Select Create New Threshold. The Edit threshold page appears.
4. To configure the threshold, specify appropriate values for the following threshold fields: · Type--Specify high, low, relativeChange, absoluteChange, or rearmingAbsoluteChange. · DatasourceSpecify a name for the datasource. · Datasource type--Specify a datasource type from the list. · Datasource label--Specify a type from the list. · Value--Use depends on the type of threshold. · Re-arm-- Specify the name of a custom UEI to send into the events system when this threshold is re-armed. If left blank, it defaults to the standard thresholds UEIs. · TriggerSpecify the number of times the threshold must be exceeded in a row before the threshold is triggered.
NOTE: A trigger is not used for relativeChange thresholds.
· Description--(Optional) A description used to identify the purpose of the threshold. · Triggered UEI-- A custom UEI to send into the events system when the threshold is triggered. If a
UEI is not specified, it defaults to the standard thresholds UEIs in the format uei.opennms.org/<category>/<name>. · Re-armed UEI--A custom UEI to send into the events system when this threshold is re-armed. If left blank, it defaults to the standard thresholds UEIs.
914
5. Select Save to create the threshold in Junos Space Network Management Platform.
6. (Optional) To configure a resource filter for a threshold: a. Configure a filter operator to define the logical function to apply for the threshold filter to determine whether or not to apply the threshold. An OR operator specifies that if the resource matches any of the filters, the threshold is processed. An AND operator specifies that the threshold is processed only when a resource match all the filters.
b. Specify a field name for the filter operator to define the logical function to apply for the threshold filter to determine whether or not to apply the threshold.
c. Specify the mathematical expression with data source names that is evaluated and compared to the threshold values.
d. Select the Add action to add the filter to a threshold.
To create an expression-based threshold: 1. Select Network Monitoring > Admin > Manage Thresholds.
The Threshold Configuration page appears and lists the threshold groups that are configured on the system.
2. To create a new threshold for a threshold group, select Edit next to the threshold group. The Edit group page appears.
3. Select Create New Expression-based Threshold. The Edit expression threshold page appears.
4. To configure the threshold, specify appropriate values for the following expression threshold fields: · Type--Specify high, low, relativeChange, absoluteChange, or rearmingAbsoluteChange. · ExpressionSpecify a mathematical expression that includes the datasource names which are evaluated and compared to the threshold values. · Datasource type--Specify a datasource type from the list. · Datasource label--Specify a type from the list. · Value--Use depends on the type of threshold. · Re-arm-- Specify the name of a custom UEI to send into the events system when this threshold is re-armed. If left blank, it defaults to the standard thresholds UEIs.
915
· TriggerSpecify the number of times the threshold must be exceeded in a row before the threshold is triggered.
NOTE: A trigger is not used for relativeChange thresholds.
· Description--(Optional) A description used to identify the purpose of the threshold. · Triggered UEI-- A custom UEI to send into the events system when the threshold is triggered. If a
UEI is not specified, it defaults to the standard thresholds UEIs in the format uei.opennms.org/<category>/<name>. · Re-armed UEI--A custom UEI to send into the events system when this threshold is re-armed. If left blank, it defaults to the standard thresholds UEIs. 5. Select Save to create the expression threshold in Junos Space Network Management Platform.
6. (Optional) To configure a resource filter for an expression threshold: a. Configure a filter operator to define the logical function to apply for the expression threshold filter to determine whether or not to apply the expression threshold. An OR operator specifies that if the resource matches any of the filters, the expression threshold is processed. An AND operator specifies that the expression threshold is processed only when a resource match all the filters.
b. Specify a field name for the filter to define the logical function to apply for the threshold filter to determine whether or not to apply the threshold.
c. Specify the mathematical expression with data source names that are evaluated and compared to the threshold values.
d. Select the Add action to add the filter to an expression threshold.
Modifying Thresholds
To modify an existing threshold in a threshold group: 1. Select Network Monitoring > Admin > Manage Thresholds.
The Threshold Configuration page appears and lists the threshold groups that are configured on the system.
2. To create a new threshold for a threshold group, select Edit next to the threshold group. The Edit group page appears.
916
3. To modify an existing threshold, select the Edit option that appears to the right of the threshold you want to update. The Edit Threshold page appears and displays the threshold fields.
4. Modify the threshold fields you want to update.
5. Click Save to update the threshold.
6. (Optional) To add a resource filter for the threshold: a. Specify a filter operator to define the logical function to apply for the threshold filter to determine whether or not to apply the threshold. An OR operator specifies that if the resource matches any of the filters, the threshold is processed. An AND operator specifies that the threshold is processed only when a resource match all the filters.
b. Specify a field name for the filter to define the logical function to apply for the threshold filter to determine whether or not to apply the threshold.
c. Specify the mathematical expression with data source names that are evaluated and compared to the threshold values.
d. Select the Add action to add the filter to the threshold.
Deleting Thresholds To delete a threshold: 1. Select Network Monitoring > Admin > Manage Thresholds.
The Threshold Configuration page appears and lists the threshold groups that are configured on the system.
2. To delete a threshold from a threshold group, select Edit next to the threshold group. The Edit group page appears.
3. To delete an existing threshold, select Delete.
RELATED DOCUMENTATION
917
Network Monitoring Workspace Overview | 798
Compiling SNMP MIBs
IN THIS SECTION Uploading MIBs | 917 Compiling MIBs | 918 Viewing MIBs | 918 Deleting MIBs | 919 Clearing MIB Console Logs | 919 Generating Event Configuration | 919 Generating a Data Collection Configuration | 921
Uploading MIBs To upload a MIB file: 1. Select Network Monitoring > Admin.
The Admin page is displayed. 2. Select SNMP MIB Compiler in the Operations section of the Admin page. 3. Click Upload MIB. 4. Browse and upload the MIB file from the appropriate location where the MIB file is stored.
The MIB file you have uploaded is displayed in the pending node of the MIB tree. You can now view and compile this MIB file.
NOTE: The filename must be the same as the MIB being processed.
918
Compiling MIBs
Before you compile a MIB file, ensure that you have uploaded the MIB file. The MIB file should be displayed in the pending node of the MIB tree for you to be able to compile the MIB file. To compile a MIB file: 1. Select Network Monitoring > Admin.
The Admin page is displayed.
2. Select SNMP MIB Compiler in the Operations section of the Admin page.
3. From the pending node of MIB tree, right-click the MIB file you want to compile and select Compile MIB. You can view the results of the MIB compilation in the MIB Console section of Admin page. If the MIB file is compiled successfully, you will receive a log entry "MIB parsed successfully". If the MIB file cannot be complied, you will receive an error message. If a MIB file is compiled successfully, the MIB file will be moved from the pending node to the compiled node in the MIB tree.
Viewing MIBs
You can view MIB files in the compiled state or in the pending state. To view a MIB file: 1. Select Network Monitoring > Admin.
The Admin page is displayed.
2. Select SNMP MIB Compiler in the Operations section of the Admin page.
3. Right-click the MIB file you want to view and select View MIB. The View MIB pop-up window displays the MIB file. Use the scroll bar to view the contents of the MIB file.
919
Deleting MIBs You can delete MIB files in the compiled state or in the pending state. To delete a MIB file: 1. Select Network Monitoring > Admin.
The Admin page is displayed. 2. Select SNMP MIB Compiler in the Operations section of the Admin page. 3. Right-click the MIB file you want to delete and select Delete MIB. 4. Click Yes.
Clearing MIB Console Logs MIB console displays the logs related to MIB file upload and MIB file compilation. To clear the MIB console logs: 1. Select Network Monitoring > Admin.
The Admin page is displayed. 2. Select SNMP MIB Compiler in the Operations section of the Admin page. 3. Click Clear Log in the MIB console section.
Generating Event Configuration You can generate event configuration from traps after you have compiled the MIB files. To generate an event configuration: 1. Select Network Monitoring > Admin.
The Admin page is displayed. 2. Select SNMP MIB Compiler in the Operations section of the Admin page. 3. From the complied node in the MIB tree, right-click a MIB file and select Generate Events. 4. In the Generate Events pop-up window, click Continue.
920
You can edit the UEI base if needed. The Events window now displays the events that are currently part of the MIB file. You can choose to save this events XML file as is, edit this events XML file, or add new events to this file.
5. To save the events file as is, click Save Events File.
6. To add new events: a. Click Add Event. Enter the new event details. b. In the Event UEI field, enter a unique event identifier. c. In the Event Label field, enter a label for the new event. d. In the Description field, enter a description for the new event. e. In the Log Message field, enter a log message for the new event. f. From the Destination drop down menu, select an appropriate option. g. From the Severity drop down menu, select an appropriate option. h. In the Reduction Key field, enter appropriate text. i. In the Clear Key field, enter appropriate text. j. From the Alarm Type drop down menu, select an appropriate option. k. In the Operator Instructions field, enter instructions for the operator if required. l. Click Add next to the Mask Elements table to add new element names and element values. m. Click Add next to the Mask Varbinds table to add new varbind numbers and varbind values. n. Click Add next to the Varbind Decodes table to add new parameter IDs and decode values. o. Click Save. p. Click Yes.
7. To edit the current events XML file: a. Select the event you want to edit. b. Scroll down to the bottom of the window and select Edit. You can now edit all the parameters of this event.
8. After you have added new events or modified the events, click Save Events File.
921
NOTE: Once an event file is saved, reference is added to eventconf.xml and an event configuration reload operation is performed.
Generating a Data Collection Configuration You can generate a data collection configuration for performance metrics after you have compiled the MIB files. To generate a data collection configuration: 1. Select Network Monitoring > Admin.
The Admin page is displayed.
2. Select SNMP MIB Compiler in the Operations section of the Admin page.
3. From the complied node in the MIB tree, right-click a MIB file and select Generate Data Collection. The Data Collection window is displayed. You can save the data collection XML file as is or add new resource types, MIB groups, and system definitions to this data collection XML. You can also modify the existing resource types, MIB groups, and system definitions before saving the data collection XML.
4. In the Data Collection Group Name field, modify the group name if required.
5. To save the data collection XML as is, click Save Data Collection File.
6. To add a new resource type to the data collection XML: a. Select the Resource Types column in the Data Collection window. b. Click Add Resource Type. Enter the resource type details. c. In the Resource Type Name field, enter a name for the resource. d. In the Resource Type Label field, enter a label for the resource. e. In the Resource Label field, enter appropriate text. f. From the Class Name drop down menu, select the appropriate class name for storage strategy. g. Click Add next to the Storage Strategy table to add new parameters. h. From the Class Name drop down menu, select the appropriate class name for persist selector strategy.
922
i. Click Add next to the Persist Selector Strategy table to add new parameters. j. Click Save. 7. To edit an existing resource type in the data collection XML: a. Select the Resource Types column in the Data Collection window. b. Select the resource type you want to edit. c. Scroll down to the bottom of the window and select Edit.
You can now edit all the parameters of this resource type. 8. To add a new MIB group to the data collection XML:
a. Select the MIB Groups column in the Data Collection window. b. Click Add Group.
Enter the MIB group details. c. In the Group Name field, enter a name for the MIB group. d. From the ifType Filter drop down menu, select the appropriate option. e. Click Add next to the MIB Objects table to add the OID, instance, alias, and type for the MIB objects. f. Click Save. 9. To edit an existing MIB group in the data collection XML: a. Select the MIB Groups column in the Data Collection window. b. Select the MIB group you want to edit. c. Scroll down to the bottom of the window and select Edit.
You can now edit all the parameters of this MIB group. 10. To add a new system definition to the data collection XML:
a. Select the System Definitions column in the Data Collection window. b. Click System Definition.
Enter the system definition details. c. In the Group Name field, enter a name for the system definition. d. Select the appropriate buttons next to the System OID/Mask field. e. Select the MIB group you want to associate this system definition to, and click Add Group.
The MIB group is displayed in the MIB Groups table. f. Click Save. 11. To edit an existing system definition in the data collection XML: a. Select the System Definitions column in the Data Collection window.
923
b. Select the system definition you want to edit. c. Scroll down to the bottom of the window and select Edit.
You can now edit all the parameters of this system definition. NOTE: Update the datacollection-config.xml to include the group created into an SNMP collection when you have generated a data collection.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798
Managing SNMP Collections
IN THIS SECTION Adding a New SNMP Collection | 923 Modifying an SNMP Collection | 924
Adding a New SNMP Collection To add a new SNMP collection: 1. Select Network Monitoring > Admin.
The Admin page is displayed. 2. Select Manage SNMP Collections and Data Collection Groups in the Operations section of the Admin
page. 3. Select the SNMP Collections tab. 4. Click Add SNMP Collection.
924
5. In the SNMP Collection Name field, enter a name for the SNMP collection. 6. From the SNMP Storage Flag drop down menu, select an appropriate value. 7. Click Add next to the RRA list table and add consolidation function, XFF, steps, and rows for RRD. 8. Click Add next to the Include Collections table and add the include types and values. 9. Click Save.
Modifying an SNMP Collection To modify an SNMP collection: 1. Select Network Monitoring > Admin.
The Admin page is displayed. 2. Select Manage SNMP Collections and Data Collection Groups in the Operations section of the Admin
page. 3. Select the SNMP Collections tab. 4. Click Refresh SNMP Collection. 5. Select the appropriate SNMP collection name. 6. Scroll down to the bottom of the window and click Edit.
You can now edit all the parameters of this SNMP collection. 7. Click Save.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798
925
Managing SNMPv3 Trap Configuration
From Junos Space Platform Release 17.1R1 onward, you can modify the SNMPv3 trap configuration from the Junos Space Platform GUI. The Junos Space Network Management Platform stores the SNMPv3 trap configuration in the /opt/opennms/etc/trapd-configuration.xml file. When a device is discovered using SNMPv3, Junos Space Platform sends the latest SNMPv3 trap configuration, which is the first item in the trapd-configuration.xml file, to the newly-discovered device. Modifications to SNMPv3 trap configuration trigger a restart of the OpenNMS and deployment of the latest configuration onto the devices. The SNMPv3 trap configuration includes the username, security level, and authentication and privacy settings. Although you can configure multiple users, only the last modified user configuration is deployed onto the devices. The default username is JunosSpace. The security level for the JunosSpace user is by default set to authPriv.
NOTE: After you upgrade Junos Space Platform to Release 17.1R1 or later, modify the SNMPv3 trap configuration from the Junos Space Platform UI or merge the old and new configuration as explained in "Updating Network Monitoring After Upgrading the Junos Space Network Management Platform" on page 903.
To modify the SNMPv3 trap configuration on the Junos Space Platform: 1. On the Junos Space Platform UI, select Network Monitoring > Admin > SNMPv3 Trap Configuration.
The SNMPv3 Trap Configuration page appears.
2. In the User Name field, enter a unique username.
3. From the Security Level list, select one of the following values: authPriv --Enables both authentication and privacy settings. if you select this, you need to specify both authentication and privacy settings. authNoPriv --Enables authentication without privacy settings. if you select this, you need to specify the authentication settings. The privacy settings remain disabled in the Platform UI. NoAuthNoPriv --Disables both authentication and privacy settings. If you select this, you cannot configure authentication or privacy settings. The authentication and privacy settings remain disabled in the Platform UI.
926
4. If you selected authPriv or authNoPriv from the Security Level list, configure the following authentication settings: Authentication Type --Select MD5 or SHA. Authentication Password --Type the authentication password for the user. Confirm Authentication Password --Retype the authentication password to confirm.
NOTE: These fields remain disabled if you selected NoAuthNoPriv from the Security Level list.
5. If you selected authPriv from the Security Level list, configure the following privacy settings: Privacy Type --Select AES or DES. Privacy Password --Type the privacy password for the user. Confirm Privacy Password --Retype the privacy password to confirm.
NOTE: These fields remain disabled if you selected authNoPriv or NoAuthNoPriv from the Security Level list.
6. To submit the changes, click OK. Alternatively, to discard the changes and close the page, click Cancel. If you click OK, Junos Space Platform displays the following message: Modifying SNMPv3 Trap Configuration. This action will restart OpenNMS and deploy the updated SNMP configuration to the managed devices. To submit the changes, click Yes. After you click Yes, OpenNMS restarts and Junos Space Platform deploys the modified configuration onto the managed devices. If you click Yes, the job ID is displayed. You can click the job ID to view the job details and status.
NOTE: If you click Yes without modifying the SNMPv3 trap configuration, Junos Space Platform displays the following message: No configuration changed. Please Change SNMPv3 Configuration Before Submit.
You can click No to go back to the SNMPv3 Trap Configuration page.
Device-side Configuration for SNMPv3 Traps
927
For Junos Space Platform to be able to manage SNMPv3 traps on the managed devices, you must complete the following device-side configuration:
NOTE: Words in Italics in the following examples indicate variables. You may need to replace that with the corresponding values used in your configuration.
snmp { v3 { usm { local-engine { user "JunosSpace" { authentication-md5 { authentication-key authentication-key } privacy-des { privacy-key privacy-key } } } } target-address TA_SPACE { address ip-address; tag-list TAG_SPACE; target-parameters TP_SPACE; } target-parameters TP_SPACE { parameters { message-processing-model v3; security-model usm; security-level privacy; security-name "JunosSpace"; } notify-filter SPACE_TRAP_FILTER; } notify SPACE_TRAPS { type trap; tag TAG_SPACE; } notify-filter SPACE_TRAP_FILTER { oid .1 include;
928
} } }
The corresponding set commands are:
set snmp v3 usm local-engine user JunosSpace authentication-md5 authentication-key authentication-key set snmp v3 usm local-engine user JunosSpace privacy-des privacy-key privacy-key set snmp v3 target-address TA_SPACE address ip-address set snmp v3 target-address TA_SPACE tag-list TAG_SPACE set snmp v3 target-address TA_SPACE target-parameters TP_SPACE set snmp v3 target-parameters TP_SPACE parameters message-processing-model v3 set snmp v3 target-parameters TP_SPACE parameters security-model usm set snmp v3 target-parameters TP_SPACE parameters security-level privacy set snmp v3 target-parameters TP_SPACE parameters security-name JunosSpace set snmp v3 target-parameters TP_SPACE notify-filter SPACE_TRAP_FILTER set snmp v3 notify SPACE_TRAPS type trap set snmp v3 notify SPACE_TRAPS tag TAG_SPACE set snmp v3 notify-filter SPACE_TRAP_FILTER oid .1 include
Managing Data Collection Groups
IN THIS SECTION Adding New Data Collection Files | 929 Deleting Data Collection Files | 929 Modifying Data Collection Files | 930
929
Adding New Data Collection Files To add a new data collection file: 1. Select Network Monitoring > Admin.
The Admin page is displayed. 2. Select Manage SNMP Collections and Data Collection Groups in the Operations section of the Admin
page. 3. Select the Data Collection Groups tab. 4. Click Add New Data Collection File.
The New Data Collection Group pop-up window is displayed. 5. In the Group Name field, enter a name for data collection group. 6. Click Continue to add and configure the data collection file.
Deleting Data Collection Files To delete a data collection file: 1. Select Network Monitoring > Admin.
The Admin page is displayed. 2. Select Manage SNMP Collections and Data Collection Groups in the Operations section of the Admin
page. 3. Select the Data Collection Groups tab. 4. From the Select Data Collection Group File drop-down menu, select the data collection file you want
to remove. 5. Click Remove Selected Data Collection File. 6. Click Yes.
930
Modifying Data Collection Files
You can edit the resource types, MIB groups, or system definitions in the data collection file or add new resource types, MIB groups, or system definitions to this file. 1. Select Network Monitoring > Admin.
The Admin page is displayed.
2. Select Manage SNMP Collections and Data Collection Groups in the Operations section of the Admin page.
3. Select the Data Collection Groups tab.
4. From the Select Data Collection Group File drop down menu, select the data collection file you want to modify.
5. To add a new resource type to the data collection file: a. Select the Resource Types column in the Data Collection window. b. Click Add Resource Type. Enter the resource type details. c. In the Resource Type Name field, enter a name for the resource. d. In the Resource Type Label field, enter a label for the resource. e. In the Resource Label field, enter appropriate text. f. From the Class Name drop down menu, select the appropriate class name for storage strategy. g. Click Add next to the Storage Strategy table to add new parameters. h. From the Class Name drop-down menu, select the appropriate class name for the persist selector strategy. i. Click Add next to the Persist Selector Strategy table to add new parameters. j. Click Save.
6. To edit an existing resource type in the data collection file: a. Select the Resource Types column in the Data Collection window. b. Select the resource type you want to edit. c. Scroll down to the bottom of the window and select Edit. You can now edit all the parameters of this resource type.
7. To add a new MIB group to the data collection file:
931
a. Select the MIB Groups column in the Data Collection window. b. Click Add Group.
Enter the MIB group details. c. In the Group Name field, enter a name for the MIB group. d. From the ifType Filter drop down menu, select the appropriate option. e. Click Add next to the MIB Objects table to add the OID, instance, alias, and type for the MIB objects. f. Click Save. 8. To edit an existing MIB group in the data collection file: a. Select the MIB Groups column in the Data Collection window. b. Select the MIB group you want to edit. c. Scroll down to the bottom of the window and select Edit.
You can now edit all the parameters of this MIB group. 9. To add a new system definition to the data collection file:
a. Select the System Definitions column in the Data Collection window. b. Click System Definition.
Enter the system definition details. c. In the Group Name field, enter a name for the system definition. d. Select the appropriate radio buttons next to the System OID/Mask field. e. Select the MIB group to which you want to associate this system definition, and click Add Group.
The MIB group is now displayed in the MIB Groups table. f. Click Save. 10. To edit an existing system definition in the data collection file: a. Select the System Definitions column in the Data Collection window. b. Select the system definition you want to edit. c. Scroll down to the bottom of the window and select Edit.
You can now edit all the parameters of this system definition. 11. When you have made the necessary changes, select Save Data Collection File.
RELATED DOCUMENTATION Network Monitoring Workspace Overview | 798
932
Managing and Unmanaging Interfaces and Services
To manage a service, you must manage its interface. The Manage and Unmanage Interfaces and Services page enables you to manage not only interfaces, but also the combination of node, interface, and service. The tables on this page display the latter, with the Status column indicating if the interface or service is managed or not. Managing an interface or service means that the network monitoring functionality performs tests on this interface or service. If you want to explicitly enable or disable testing, you can set that up here. A typical case is if a webserver is listening on both an internal and an external interface. If you manage the service on both interfaces, you will get two notifications if it fails. If you want only one notification, unmanage the service on one of the interfaces. Select Network Monitoring > Admin > Manage and Unmanage Interfaces and Services to manage or unmanage your node, interface, and service combinations. To change the status, you have these choices: Apply Changes, Cancel, Select All, Unselect All, or Reset.
Starting, Stopping, and Restarting Services
This topic describes how to start, stop, and restart Network Monitoring (that is, the network monitoring services). Currently, Network Monitoring is the only service that can be managed this way. Service management operations--start, stop, restart--are applied on all the nodes that run the service. The service management actions generate audit log entries. The Super Administrator and System Administrator predefined roles have the permissions to manage services; the corresponding action is Manage Services. If a user does not have a role that includes this action, the Manage Services option is not available. The following table describes the consequences of performing these three actions:
933
Table 117: Starting, Stopping, and Restarting Network Monitoring
Action
Consequences
Stop
Network Monitoring service is stopped on all nodes.
Even if VIP failover is performed, service remains stopped on all nodes.
The synchronization of network monitoring data is disabled.
Even after adding a new node, the network monitoring service remains stopped.
Rebooting Junos Space Network Management Platform does not restart a service.
Start, Restart
Network Monitoring service starts only on the VIP node.
All the devices displayed on the Devices page are discovered by the network monitoring functionality. The SNMP trap targets are correct.
All the users displayed on the Users page are added to network monitoring.
E-mail and remote server settings are added to network monitoring.
All Junos Space nodes are monitored by the network monitoring functionality.
The service continues to be operational even if Junos Space Network Management Platform is rebooted.
Start, Stop, Restart when no service is selected
An error message is displayed: No service selected.
NOTE: The following firewall ports should be closed on stopping the network monitoring service:
· UDP · 162 · 514 · 5813
· TCP · 5813 · 18980
934
NOTE: Any devices added while the Network Monitoring service is stopped must be manually resynchronized from the Network Monitoring workspace after the service is restarted.
To start, stop, or restart network monitoring services: 1. Select Administration > Applications.
The Applications inventory page appears.
2. Select Network Management Platform and select Manage Services from the Actions menu.
The Manage Services page appears, showing the names of the services that can be managed this way (currently, Network Monitoring is the only item on this list), and the Start, Stop, and Restart buttons, as well as a table displaying the following information:
Column Heading
Content
Service Name
Name of service that can be started, stopped or restarted
Running Version
Version of the service that is currently running
Status
Current status: Enabled or Disabled
3. Select Network Monitoring from the list, and select the relevant button for a currently enabled service: Start Service, Restart Service, or Stop Service. One of four messages appears: · If you select a service that is currently running, then select Stop Service, you will receive this message:
Confirm Stop Service: Do you really want to stop the service? · If you select a service that has been disabled, then select Restart Service, you will receive this message:
Warning: Sorry, cannot proceed with the request, as the Service is not in Enabled state.
· If you select a service that has been disabled, then select Start Service, you will receive this message:
935
Warning: Sorry, Network Monitoring cannot be started once it is stopped. · If you select a service that has been disabled, then select Stop Service, you will receive this message:
Warning: Sorry, cannot proceed with the request, as the Service is already in Disabled state. 4. In all cases, you can click only OK. You first receive a message indicating that the relevant action is being performed. This is followed by a second status message indicating whether the operation you performed was successful or not. 5. Click OK to confirm. The Manage Services page reappears, displaying the changed status of the selected service.
RELATED DOCUMENTATION Managing Junos Space Applications Overview | 1321 Managing and Unmanaging Interfaces and Services | 932 Network Monitoring Workspace Overview | 798 Junos Space Audit Logs Overview | 1115 Role-Based Access Control Overview | 995
8 PART
Configuration Files
Overview | 937 Managing Configuration Files | 941
937
CHAPTER 54
Overview
IN THIS CHAPTER Managing Configuration Files Overview | 937 Viewing Configuration File Statistics | 939
Managing Configuration Files Overview
Configuration files in Junos Space Network Management Platform are created when device configuration data from managed devices are backed up to the Junos Space Platform database for the first time. A separate configuration file is created in the database for each managed device. Each time the configuration of a device changes, a new version of the configuration file is created on the device, which can then be backed up to the Junos Space Platform database or to a remote server at a fixed time, or at a set recurrence interval periodically. Centralized configuration file management enables you to maintain multiple versions of your device configuration files in Junos Space Platform. This helps you recover device configuration files in case of a system failure and maintain consistent configuration across multiple devices.
NOTE: Version management for configuration files in Junos Space Platform is independent of configuration file versioning on devices. Each commit command on a device creates a new version of the configuration file on the device, but no more than 49 versions can be stored on a device. However, Junos Space Platform allows you to store more than 49 versions of a configuration file on the Junos Space server.
The configuration files workspace helps you manage the following configuration files: · Running configuration--The configuration file currently in effect on the device. The running configuration
file is labeled Version 0. · Candidate configuration--The new, not yet committed, configuration file that will become the running
configuration.
938
· Backup configuration--The configuration file for recovery or rollback purposes. When you execute a commit command, a backup configuration file is created and the oldest backup file (Version 49) is deleted from the device. The most recent backup configuration file is labeled Version 1.
The following is a potential workflow for an individual file or device in this workspace: 1. Back up the device configuration file and thus bring the device's running configuration under Junos
Space Platform management. 2. Edit a copy of the backup configuration file to create a candidate configuration file. 3. Verify edits by comparing the initial backup version of the configuration file with the edited version. 4. Restore the candidate configuration file to the device. 5. Export the initial backup version to a zip file. Over a period of time, the number of device configuration files that are backed up in Junos Space Platform database increases. Accumulation of configuration files in the database could increase the overhead to the database and adversely affect the overall performance of the server. You can purge the device configuration files that are older than the latest 2 versions of the configuration files that are backed up. To purge the older device configuration files, use the /var/www/cgi-bin/cleanUpDevConfigBackup.sh script. On the Junos Space Platform UI, you can view stored configuration files on the Configuration Files > Config Files Management page. For information about the roles that you need to be assigned to perform various tasks related to configuration files, see "Predefined Roles Overview" on page 999. On the Config Files Management page, you can perform the following actions: · Backing Up Configuration Files on page 942 · Viewing Configuration Files on page 948 · Restoring Configuration Files on page 958 · Comparing Configuration Files on page 953 · Modifying Configuration Files on page 955 · Exporting Configuration Files on page 960 · Deleting Configuration Files on page 962
RELATED DOCUMENTATION Viewing Configuration File Statistics | 939
939
Viewing Configuration File Statistics
The Configuration Files statistics page displays two bar charts: the Configuration file count by device family bar chart and the Devices with most frequently revised configuration files bar chart. You can use these charts to help manage device configuration files in Junos Space Network Management Platform. The Configuration file count by device family chart helps you view the number of different device configurations in each device family and the Devices with most frequently revised configuration files chart lets you view the number of times a device configuration changed. To view the Configuration file count by device family chart: 1. On the Junos Space Network Management Platform UI, select Configuration Files.
The Configuration Files statistics page appears, displaying the Configuration file count by device family and the Devices with most frequently revised configuration files bar charts. On the Configuration file count by device family chart, the x-axis represents the device family and the y-axis represents the number of configuration files. Mouse over a device family bar on the Configuration file count by device family chart to view a tooltip showing the number of configuration files for the device family.
2. (Optional) Click a device-family bar on the Configuration file count by device family chart. The Config Files Management page appears, displaying the configuration files and devices that are part of the selected device family. You can double-click any configuration file to view its details.
To view the Devices with most frequently revised configuration files chart: 1. On the Junos Space Network Management Platform UI, select Configuration Files.
The Configuration Files statistics page appears, displaying the Configuration file count by device family and the Devices with most frequently revised configuration files bar charts. Mouse over a device bar on the Devices with most frequently revised configuration files chart to view a tooltip showing the number of configuration file versions for the device.
2. (Optional) Click a device bar on the Devices with most frequently revised configuration files chart. The Config Files Management page appears, displaying the configuration file for the selected device. You can double-click the configuration file to view different versions of the file.
You can return to the Configuration Files statistics page by clicking Configuration Files on the left pane of the Junos Space UI or by clicking Configuration Files on the breadcrumbs at the top of the page.
RELATED DOCUMENTATION
940
Backing Up Configuration Files | 942 Managing Configuration Files Overview | 937 Tags Overview | 1498
941
CHAPTER 55
Managing Configuration Files
IN THIS CHAPTER Backing Up Configuration Files | 942 Viewing Configuration Files | 948 Comparing Configuration Files | 953 Modifying Configuration Files | 955 Restoring Configuration Files | 958 Exporting Configuration Files | 960 Deleting Configuration Files | 962
942
Backing Up Configuration Files
Junos Space Network Management Platform enables you to back up device configuration information by importing the configuration file from a device and storing it in Junos Space Platform or on a remote server. You can use this backup file to recover device configuration in case of a system failure and also to maintain consistent configuration across multiple devices. Backing up your device configuration files is therefore a prerequisite for configuration file management.
NOTE: Only devices that have been previously discovered by Junos Space Platform can have their configuration files backed up.
The backup function skips over devices that cannot be accessed by the Junos Space server. On the Job Management page, the state of a configuration file backup job shows up as Failed in the case of skipped over devices. The backup function checks for differences between the configuration file on the device and the configuration backup file stored in Junos Space Platform before creating a new version of the configuration file. If no changes are detected, the device is skipped over. However, the status is shown as Success on the Job Management page for this backup configuration job.
NOTE: The backup function checks for differences between the configuration file on the device and the configuration backup file stored in Junos Space Platform. In case the device configuration has not changed, but you edit its configuration file in Junos Space Platform and then back up the configuration from the device, a new version is created. The first backup file is Version 1, the edited configuration file is Version 2, and the second backup file is Version 3.
When you back up a configuration file, an audit log entry is automatically generated. From the audit log entry, you can identify the user who initiated the backup operation, the IP address from which this task was initiated, and so on.
NOTE: In the case of an SRX Series device with logical system (LSYS), configuration file backup is supported only on the root device.
To back up configuration files from one or more devices to Junos Space Platform: 1. On the Junos Space Platform UI, select Configuration Files > Config Files Management.
The Config Files Management page appears.
943
2. Click the Backup Configuration Files icon. The Backup Configuration Files page appears, displaying the following information for all the devices managed by Junos Space Platform: · Host Name: Name of the device whose configuration file you are backing up · Device Alias: Value of the Device Alias custom label for the device · Domain: Domain to which the device belongs · IP Address: IP address of the device · Platform: Device platform · Serial Number: Serial number of the device · Software Version: Operating system firmware version running on the device Because the table displays one device (record) per row, a single page might not be sufficient to list all your devices. The left side of the status bar at the bottom of the page shows which page is currently displayed and the total number of pages of records. It also provides controls for navigating from page to page and refreshing them. The right side of the status bar indicates the number of records currently displayed and the total number of records.
3. From the table, select the devices whose configurations you want to back up, by using one of the following selection modes--manually, on the basis of tags, or on the basis of domains. These options are mutually exclusive. If you select one, the others are disabled.
NOTE: · By default, the Select by Device option button is selected and the complete list of devices
is displayed.
· If you want to back up the configuration of all devices, select the Select All across Pages check box.
To select devices manually:
a. Click the Select by Device option and select the devices whose configurations you want to back up. The Select Devices status bar shows the total number of devices that you selected, dynamically updating as you select.
944
b. (Optional) To back up all the devices, select the check box in the column header next to the Host Name column.
To select devices on the basis of tags: a. Click the Select by Tags option.
The Select by tags list is activated.
b. Click the arrow on the Select by tags list. A list of tags defined for devices in Junos Space Platform appears, displaying two categories of tags--Public and Private.
NOTE: If no tags are displayed, then it means that none of the devices are associated with any tag. You need to tag the devices first on the Device Management page before you can use the Select by Tags option. For more information about tagging, see "Tagging an Object" on page 1518.
c. To select tags, perform one of the following actions: · Select the check boxes next to the tag names to select the tags and click OK. · To search for a specific tag, enter the first few letters of the tag name in the Select by Tags field to the left of the OK button. If a match is found, a suggestion is made; you can select it and click OK. The total number of devices associated with the selected tags appears just above the device display table. For example, if there are six devices associated with the selected tags, then 6 items selected is displayed. The selected tags appear next to the Tags Selected label. An [X] icon appears after each tag name. Click the [X] icon to clear any tag from the list. The device count decrements accordingly.
To select devices on the basis of domains: a. Click the Select by Domains option.
The Select by domains list is activated.
b. Click the arrow on the Select by domains list. The list of domains appears. Only the domains that you have access to are available for selection.
c. Select the check boxes next to the domain names to select the desired domains and click OK.
945
The total number of devices associated with the selected domains appears just above the device display table. The selected domains appear next to the Domain(s) Selected label. An [X] icon appears after each domain name. Click the [X] icon to clear any domain from the list. The device count decrements accordingly.
4. (Optional) To export the backed-up configuration file to a remote server, select the Export backup to a remote scp server check box and provide the following details: · IP Address: Enter the IP address of the remote server. · Port: Enter the port number. If you do not specify the port number, the default port, 22, is used. · Directory: Enter the directory path for backup. · Username: Enter your username. · You can select the authentication mode for backing up configuration file to SCP server from Junos Space Network Management Release 17.1R1 onward. · To use the password mode, in the Password field, enter the password that you use to access the SCP server. By default, the Password mode is selected.
· To use a key generated from Junos Space Platform, click Space Key. Click the Download Space Key link to download the key.
NOTE: Alternatively, you can download the Space Key by selecting Administration > Fabric and clicking the Manage Space SSH Key icon. After downloading the Space Key, log in to the SCP server and append the contents of the downloaded key file to the ~/.ssh/authorized_keys file.
· To use a custom private key, click Custom Key. (Optional) In the Passphrase field, enter the passphrase created when you generated the private key. Next to the Private Key field, click the Browse button to upload the private key.
· Fingerprint: (Optional) Enter the fingerprint of the remote server. Junos Space Platform uses Secure Copy Protocol to back up the configuration file to the specified folder in the remote server. The name of the file is in the following format: <device_name>_<device_ip>_<version>_<timestamp>.conf.gz
946
Here, device_name is the name of the device, device_ip is the IP address of the device, version is the configuration file version and timestamp is the date and time the configuration file is backed up.
5. (Optional) To schedule a time for backup of configuration files, select the Schedule at a later time check box, and use the calendar icon and the drop-down list, to specify the date and the time respectively. If you do not select the Schedule at a Later Time check box, the configuration files are backed up as soon as you click the Backup button on the Backup Config Files page.
NOTE: If a backup is already scheduled for later using password mode, in order to use Space Key or Custom Key, you must cancel the existing scheduled task and reschedule it using the authentication mode of your choice. If a backup is already scheduled for later using Custom Key and if the key has changed, you must cancel the existing scheduled task and reschedule it using the updated key.
6. (Optional) Schedule configuration files backup recurrence by selecting the Repeat check box. To set the recurrence: a. Specify the backup recurrence by setting the interval and the increment. The default recurrence interval is 1 hour.
b. Select the End Time check box to specify when the recurrence must end. Indicate a date and time by using the date calendar and the time list. If you do not specify an end date and time, the backup operation recurs until you cancel the job manually.
If recurrence is set and the Export backup to a remote scp server check box is selected, the configuration file is copied to the remote server at specified intervals.
NOTE: You can schedule the automatic export of backed-up configuration files to a remote Secure Copy Protocol (SCP) server only from Junos Space Network Management Platform Release 16.1R1 onward.
7. To back up the selected configuration files, select one of the following options: · Immediately
947
· (Optional) Schedule at a Later Time--This selection results in one backup per device. a. Select the check box next to Schedule at a Later Time or click the arrow next to it to display the corresponding fields.
b. Select a date from the field on the left, and select a time from the field on the right. The time zone is displayed to the right of the time field. The time zone is set on and for the Junos Space server.
· (Optional) Repeat--This selection results in scheduled repetition; that is, multiple backups per device. a. Select the check box next to the Repeat label or click the arrow next to the Repeat label to display the corresponding fields.
b. Select Minutes, Hours, Days, Weeks, Months, or Years from the list.
NOTE: The monthly option further provides two more options to select either the last day of a month or a particular day in a month.
c. To set the frequency of the repetition, enter the appropriate whole number in the upper field.
d. (Optional) Set the End Time: Select the check box next to the End Time label or click the arrow next to the End Time label to display the corresponding fields.
e. Select a date from the field on the left, and select a time from the field on the right. The time zone is displayed to the right of the time field. The time zone is set on and for the Junos Space server.
8. Click Backup on the Backup Configuration Files page. The Backup Configuration Files dialog box appears, displaying a message indicating that Junos Space Platform has successfully scheduled the backup of the selected configuration files.
9. Perform one of the following actions: · Click the job ID in the Backup Configuration Files dialog box to view the status of the configuration file backup job from the Job Management page. To return to the Config Files Management page, click Configuration Files > Config Files Management on the task tree. · Click OK in the Backup Configuration Files dialog box. The Config Files Management page reappears, displaying the backup files.
948
For more information about viewing the backup configuration files, see "Viewing Configuration Files" on page 948.
For troubleshooting, see the /var/log/jboss/servers/server1/server.log file.
Release History Table
Release
Description
17.1R1
You can select the authentication mode for backing up configuration file to SCP server from Junos Space Network Management Release 17.1R1 onward.
16.1R1
You can schedule the automatic export of backed-up configuration files to a remote Secure Copy Protocol (SCP) server only from Junos Space Network Management Platform Release 16.1R1 onward.
RELATED DOCUMENTATION Managing Configuration Files Overview | 937 Deleting Configuration Files | 962 Restoring Configuration Files | 958 Comparing Configuration Files | 953 Modifying Configuration Files | 955 Exporting Configuration Files | 960 Tagging an Object | 1518. Viewing Audit Logs | 1117
Viewing Configuration Files
The Configuration Files workspace enables you to manage multiple versions of device configuration files in Junos Space Network Management Platform. You can view information about all configuration files that are backed up in the Junos Space Platform database from the Config Files Management page. To view detailed information about a particular file, you can use the View Configuration File Details option.
949
To view configuration files: 1. On the Junos Space Platform UI, select Configuration Files > Config Files Management.
The Config Files Management page appears, displaying information about configuration files in tabular format. The fields displayed on the Config Files Management page are described in Table 118.
NOTE: If a column is not displayed by default, click the down arrow next to a displayed column and select the column you want to view from the Columns list. You can also filter the records that are displayed, based on the data in all the columns except the Creation Date and Last Updated Date columns.
2. Select a configuration file entry and click the View Configuration File Details icon. You can also double-click a configuration file entry to view the details of that configuration file.
The Config File Details dialog box appears. In addition to the fields displaying information about the configuration file, the Config File Details dialog box also displays the contents of the configuration file. By default, the contents of the latest version of the configuration file are displayed.
The vertical and horizontal scroll bars help you view the configuration file. A configuration file usually has multiple pages. The status bar at the bottom displays the page that you are on and the total number of pages. It also contains paging controls and a Refresh icon. Use the Show items list to manage the number of lines of configuration that is displayed on a single page. By default, 50 lines are displayed. You can choose to display 200, 800, 3200, or 10,000 lines.
This dialog box displays additional fields not displayed on the Config Files Management page. The fields are described in Table 118.
3. (Optional) To view the contents of an earlier version of the configuration file, click the arrow on the version drop-down list and select the version you want to view.
4. Click Close to return to the Config Files Management page.
Table 118: Config Files Management Page and Config File Details Dialog Box Field Descriptions
Field
Description
Location
Config File Name
Name of the configuration file. This is the device serial number with the .conf file extension.
Config Files Management page
Device Name
Name or IP address of the device whose configuration is backed up
Config Files Management page Config File Details dialog box
950
Table 118: Config Files Management Page and Config File Details Dialog Box Field Descriptions (continued)
Field
Description
Location
Device Alias
Value of the Device Alias custom label for the device. This field is empty if the Device Alias custom label is not added or no value is assigned to the Device Alias custom label for the device.
Config Files Management page
Latest ConfigFile Version
Version number of the latest backup Config Files Management page of the configuration file
Creation Date
Date and time when version 1 of the configuration file is created in the Junos Space database. It corresponds to the time at which you back up a device configuration for the first time from the device.
Config Files Management page
When you migrate from a previous release of Junos Space Platform to the current release, the creation date that is displayed for the various versions of the configuration files is the date on which those versions were created in the previous release of Junos Space Platform. For example, if you modified version 1 of the configuration file to version 2 on Dec 15 2012 7:28:46 PM IST in Junos Space Release 13.1 and migrated to Junos Space Release 13.3R1 in 2014, the creation date for version 2 is displayed as Dec 15 2012 7:28:46 PM IST instead of a date in 2014.
951
Table 118: Config Files Management Page and Config File Details Dialog Box Field Descriptions (continued)
Field
Description
Location
Last Updated Date
Date and time when the latest version of the configuration file is created in the Junos Space database.
Config Files Management page
When you modify the device configuration, and back up the configuration file, a newer version of the configuration file is created in the Junos Space database.
Creation Time
Date and time when version 1 of the configuration file selected for viewing is created in the Junos Space database.
Config File Details dialog box
This is the same as the Creation Date field on the Config Files Management page.
Version
Configuration file version selected for detailed viewing
Config File Details dialog box
You can select the configuration file version whose contents you want to view by clicking the arrow to display the version list.
ConfigFile Content
Contents of the configuration file Config File Details dialog box version selected for detailed viewing
952
Table 118: Config Files Management Page and Config File Details Dialog Box Field Descriptions (continued)
Field
Description
Location
Comments
Indicates whether the configuration file version is backed up from the device or is an edited version of a configuration file that was backed up earlier.
Config File Details dialog box
For the initial backup file, the following comment is displayed: This version of the Config file is imported from the device. For an edited configuration file, the following comment is displayed: This is an edited version of the configuration file version: x, where x represents the version of the configuration that you edited.
RELATED DOCUMENTATION
Managing Configuration Files Overview | 937 Backing Up Configuration Files | 942 Exporting Configuration Files | 960
953
Comparing Configuration Files
Junos Space Network Management Platform enables you to compare two device configuration files by using the Compare Configuration File Versions action. You can view entire device configuration files side by side to compare them, see the total number of differences, the date and time of the last commit operation, and the number of changes made. You can compare device configuration files in any of the following ways: · The configuration file of one device with the configuration file of another device. By default, the latest
versions are compared. · Two versions of the same configuration file. By default, the latest version and the previous version are
compared. · An earlier version of the configuration file of one device with a later version of the configuration file of
another device Comparing configuration files does not generate an audit log entry. To compare device configuration files: 1. On the Junos Space Network Management Platform UI, select Configuration Files > Config Files
Management. The Config Files Management page appears, displaying all the configuration files managed by Junos Space Platform.
2. On the Config Files Management page, select the configuration file that you want to compare.
3. Select Compare Configuration File Versions from the Actions menu. The Compare Config Files page appears.
4. For the source, select the source device from the Source Device list and a version of its configuration file from the ConfigFile Version list. The timestamp is displayed adjacent to the version number. It indicates the time at which this version of the configuration was backed up.
5. For the target, select the target device from the Target Device list and a version of its configuration file from the ConfigFile Version list. The timestamp is displayed adjacent to the version number. It indicates the time at which this version of the configuration was backed up.
6. Click Compare.
954
The View Diff page appears and displays the two selected configuration files side by side, with the device names and their versions in a dark gray bar underneath the legend at the top of the page. The legend references the following: · Total diffs--Black text indicates content that is common to both files. · Source--Green text indicates content in the source file on the left that is not contained in the target
file on the right. · Target--Blue text indicates content in the target file on the right that is not contained in the source
file on the left. · Changed--Pink text indicates content that is changed. The status bar shows the current page number and the total number of pages. It also provides controls for moving from page to page and for refreshing the display. The date and time of the last commit operation is shown in pink.
NOTE: When you compare files, each configuration parameter in one file or version is set side by side with the same parameter in the other. Therefore, you might see multiple pages of configuration for a single parameter in one file, whereas the same parameter in the other file might be only a few lines long.
7. (Optional) To locate differences in configuration, click Prev Diff or Next Diff.
8. (Optional) To export differences in the configuration to your local system, click Export Diff. A dialog box appears prompting you to save the zip file. a. Save the zip file to your computer. The filename is of the following format: source-hostname.VersionNumber_target-hostname.VersionNumber.conf.zip
b. (Optional) Extract the zip file and open the extracted file by using a text editor. The file lists the differences in the configuration. The first two lines in the extracted file represent the device name, version number, and timestamp of the configuration files that were compared.
When you export the configuration differences, an audit log entry is automatically generated.
9. Click Close at the bottom of the View Diff page to stop viewing the comparison. You are returned to the Compare Config Files page.
10. Click Cancel to exit the Compare Config Files page.
955
You are returned to the Config Files Management page.
RELATED DOCUMENTATION Backing Up Configuration Files | 942 Managing Configuration Files Overview | 937 Deleting Configuration Files | 962 Restoring Configuration Files | 958 Modifying Configuration Files | 955 Exporting Configuration Files | 960
Modifying Configuration Files
Junos Space Network Management Platform allows you to modify device configuration files from the Configuration Files workspace. The Modify Configuration File action in the Configuration Files workspace enables advanced users to modify device configuration files stored in the Junos Space database.
NOTE: When you edit a configuration file in the Configuration Files workspace, the configuration is not validated and a sanity check is not performed. For more information on validating device configuration, see "Reviewing and Deploying the Device Configuration" on page 326. To ensure that the configuration is validated and a sanity check is performed, use the Devices workspace to modify device configuration. For more information, see "Modifying the Configuration on the Device" on page 321.
When you edit a configuration file, an audit log entry is automatically generated (see "Viewing Audit Logs" on page 1117); however, unlike configuration files edited in the Devices workspace, files edited in the Configuration Files workspace are not saved as change requests; instead, they are saved as versions. The audit log entry records the name of the configuration file that was modified. To edit a configuration file in the Configuration Files workspace: 1. On the Junos Space Platform UI, select Configuration Files > Config Files Management.
The Config Files Management page appears.
2. On the Config Files Management page, select the device whose configuration you want to edit.
956
If no configuration files are displayed on the page, first back up the device configuration file. For more information about backing up device configuration, see "Backing Up Configuration Files" on page 942. You can then select the configuration file from the Config Files Management page.
3. Click the Modify Configuration File icon at the top of the Config Files Management page. The Edit Config File page appears. It displays the name of the device whose configuration you want to edit, the time at which the file was created, the version of the file with the timestamp (that is, when the configuration snapshot was created), and the contents of the file.
4. From the Version list, select a version to use as a baseline. By default, the latest version of the file is displayed. The timestamp is displayed adjacent to the version number. It indicates the time at which this version of the configuration was backed up. A version can be either a configuration backup file or an edited copy of the initial backup file. For more information about versioning, see "Backing Up Configuration Files" on page 942. The selected version appears in the text editor. The vertical and horizontal scroll bars help you view the configuration file. A configuration file usually has multiple pages. The status bar at the bottom displays the page that you are on and the total number of pages. It also contains paging controls and a Refresh icon. Use the Show items list to manage the number of lines of configuration that is displayed on a single page. By default, 50 lines are displayed. You can choose to display 200, 800, 3200, or 10,000 lines.
5. (Optional) To find a specific parameter, go through the file page by page. The browser's Search function does not work in the text editor.
6. Enter your changes.
NOTE: Do not click Modify until you have finished editing. Clicking Modify will create a new version of the configuration file.
7. (Optional) List the changes you have made (or any other information that you want to add) in the Comments field. You cannot add a comment unless you have made changes to the configuration. It is advisable to enter text in this field to distinguish the current version from a backup taken from the device itself.
8. After you have made all changes, click Modify. The Config Files Management page reappears, displaying the edited configuration file that is still selected.
957
NOTE: Junos Space does not create a new version of the configuration file if you have not made any changes to the device configuration. That is, if you click Modify without making any changes to the device configuration, then Junos Space displays the following message: Config file contents are same as the current version. To save as a latest version, please change the contents or select a previous version to be saved as the latest.
Verify your changes by double-clicking the configuration file on the Config Files Management page. The Config File Details dialog box appears, displaying the file in noneditable format. You can select the version from the Version list. By default, the latest edited version appears. The pagination, Comments area, and controls are the same as they are in the text editor you used to make your changes. If you want to view the differences between the recently modified version and a previous version, you can compare versions of the file. For more information about comparing device configuration files, see "Comparing Configuration Files" on page 953. To deploy the edited configuration file on to a device, you must use the Restore Configuration File action. See "Restoring Configuration Files" on page 958 for more information.
RELATED DOCUMENTATION Managing Configuration Files Overview | 937 Deleting Configuration Files | 962 Exporting Configuration Files | 960 Backing Up Configuration Files | 942 Viewing Audit Logs | 1117
958
Restoring Configuration Files
Using Junos Space Network Management Platform, you can save and restore the configuration of managed devices. The Restore Configuration Files action from the Configuration Files workspace enables you to deploy any version of the backup device configuration file to the device. You can also deploy an edited version of the configuration file to the device. Restoring a configuration file involves either merging the contents of the selected configuration file version on Junos Space Platform with the device's running configuration file or overriding the device's running configuration file with the selected version of the configuration backup file from Junos Space Platform.
When you restore a configuration file, an audit log entry is automatically generated.
To restore a device configuration file from Junos Space Platform to a device:
1. On the Junos Space Platform UI, select Configuration Files > Config Files Management. The Config Files Management page appears.
2. On the Config Files Management page, select the configuration file that you want to restore. (To restore all of them, select the check box next to the first column header.)
3. Select Restore Configuration Files from the Actions menu. The Restore Config File(s) dialog box appears, displaying the name of the selected file, the name of the device, the version that is to be restored to the device, and the type of restore. By default, the latest version of the configuration file is merged with the existing configuration on the device. If any of the columns is not displayed by default, click the down arrow next to any of the displayed columns and select the columns that you want to view from the Columns list.
4. Select the required version from the drop-down list that appears when you click next to the version number displayed in the ConfigFile Version column. The date and time at which the version of the configuration was backed up is displayed adjacent to the version number.
5. Select the type of restore from the list that appears when you click the term displayed in the Type column. You can opt to merge the contents of a configuration file on Junos Space Platform with the existing configuration file on the device or override the device's running configuration file with a candidate configuration file (a configuration file edited in the Configuration Files workspace) or a configuration backup file from Junos Space Platform.
6. (Optional) To restore the configuration file at a later time, select the Schedule at a later time check box and use the calendar icon and drop-down list, to specify the date and time respectively.
959
If you do not select the Schedule at a Later Time check box, the configuration file is restored as soon as you click Restore on the Restore Config File(s) dialog box.
7. Click Restore on the Restore Config File(s) dialog box. The Restore Configuration Files dialog box appears. The dialog box displays a message indicating that the restore action was successfully scheduled, and also displays a link to a job ID.
8. Click OK to return to the Config Files Management page or click the job ID link to view details of the restore job. If the restore action was successful, the Status column on the Job Management page shows success. If a device cannot be accessed, it is skipped over and the job status indicates a failure. To identify the reason for the failure of a restore job: a. Double-click the entry for the failed restore job. The Configuration File Management Job Status page appears.
b. From the Status column on the Configuration File Management Job Status page, locate the job that has failed.
c. For the failed job, click View Results in the Description column. The Job Description page appears, displaying the reason for the failure.
d. Click Close. You are returned to the Configuration File Management Job Status page.
e. Click the [X] icon at the top right of the Configuration File Management Job Status page to return to the Job Management page.
To verify that the configuration file is restored on the device, perform another backup operation and then compare versions (see "Comparing Configuration Files" on page 953).
RELATED DOCUMENTATION Managing Configuration Files Overview | 937 Deleting Configuration Files | 962 Comparing Configuration Files | 953 Modifying Configuration Files | 955 Exporting Configuration Files | 960
960
Backing Up Configuration Files | 942 Viewing Audit Logs | 1117
Exporting Configuration Files
With Junos Space Network Management Platform, you can export configuration files from the Junos Space server. The Export action enables you to save and compress one or more configuration files into a zip folder on your local computer. You can later view or compare the downloaded configuration files offline.
NOTE: Your browser security settings must be set to allow downloads. If the browser interrupts the download with a warning and you try to restart the download by refreshing the browser, the export operation is stopped and the zip folder removed.
When you export a configuration file, an audit log entry is automatically generated. To export a configuration file into a zip folder on your local computer: 1. On the Junos Space Network Management Platform UI, select Configuration Files > Config Files
Management. The Config Files Management page appears.
2. On the Config Files Management page, select one or more configuration files.
NOTE: If any of the columns is not displayed by default, click the down arrow next to any of the displayed column headers and select the columns that you want displayed from the Columns list. The selected columns now appear on the Config Files Management page.
3. Select Export Config Files from the Actions menu. The Export Config File(s) dialog box opens, displaying the name of the file, the device name, and the configuration file versions stored. By default, the latest version is selected.
NOTE: If the Config File Name column is not displayed by default, click the down arrow next to any of the displayed columns and select the Config File Name column from the Columns list.
961
4. Select the appropriate version from the list that appears when you click next to the version number displayed in the ConfigFile Version column. The timestamp is displayed adjacent to the version number and indicates the date and time at which this version of the configuration was backed up.
5. Click Export on the Export Config File(s) dialog box. The Generating ZIP Archive dialog box appears, displaying a progress bar showing when the zip file is ready for downloading. The Opening deviceConfigFiles.zip dialog box opens, prompting you to view or save the file.
6. Save the zip file to your computer before closing either of the dialog boxes because the generated zip file is removed from the server immediately after the download is complete or when either of these two dialog boxes is closed. Refreshing or exiting the browser also removes the zip file from the server.
To view the contents of the device configuration file that you have just exported, extract the zip file and open the extracted file by using a text editor, such as Notepad. If you have exported the configuration file of more than one device, the extracted folder contains one configuration file for each device. The filename of the exported configuration file adheres to the following syntax: device-name/IP address_version-number_timestamp in YYYYMMDD-hhmmss format-locale.conf. For example, Device1_3_20131104-082846-IST.conf, where Device1 is the device name, 3 is the version number of the configuration file that was exported, 20131104-082846 is the timestamp when the backup was taken in 24-hour format, and IST represents the time zone.
RELATED DOCUMENTATION
Managing Configuration Files Overview | 937 Deleting Configuration Files | 962 Restoring Configuration Files | 958 Comparing Configuration Files | 953 Modifying Configuration Files | 955 Backing Up Configuration Files | 942 Viewing Audit Logs | 1117
962
Deleting Configuration Files
You can delete device configuration files from Junos Space Network Management Platform if you no longer need them. You may want to delete the device configuration files in the following scenarios: · When you want to use the device for a totally different purpose from what it is currently used for. In
this case, because the configuration may have changed considerably, you cannot use the old backup configuration files to restore the device configuration. · When the backup configuration file contains incorrect configuration information.
CAUTION: Before you proceed with the deletion, be aware that all versions of a backup configuration file are deleted from Junos Space Platform when you initiate a delete operation. This delete operation does not delete the configuration file versions on the device.
To delete a configuration file: 1. On the Junos Space Platform UI, select Configuration Files > Config Files Management.
The Config Files Management page appears, displaying all the configuration files saved in Junos Space Platform.
2. Select the configuration files that you want to delete and click the Delete Configuration Files icon. The Delete Config File(s) dialog box appears, listing the devices whose configuration files you have selected for deletion.
3. Click Delete. The Delete Configuration Files dialog box appears. This dialog box displays a message indicating that the delete action is successfully scheduled, and also displays a link to a job ID. You can click the job ID link to view details of the delete job on the Job Management page.
4. Click OK on the Delete Configuration Files dialog box to close the dialog box. The Config Files Management page reappears, displaying the remaining configuration files in Junos Space Platform.
When you delete a configuration file, an audit log entry is automatically generated. From the audit log entry, you can identify the user who initiated the delete operation, the IP address from which this task was initiated, and other details.
963
RELATED DOCUMENTATION Managing Configuration Files Overview | 937 Restoring Configuration Files | 958 Comparing Configuration Files | 953 Modifying Configuration Files | 955 Exporting Configuration Files | 960
9 PART
Jobs
Overview | 965 Managing Jobs | 968
965
CHAPTER 56
Overview
IN THIS CHAPTER Jobs Overview | 965
Jobs Overview
A job is an action that is performed on any object that is managed by Junos Space, such as a device, service, or user. The Jobs workspace lets you monitor the status of jobs that have run or are scheduled to run, in Junos Space Network Management Platform and all installed Junos Space applications. Jobs can be scheduled to run immediately or in the future. By default, when you log in as a non-administrator, you can view only your own jobs, which include jobs triggered by you as well as jobs reassigned to you. However, at the time of creation or modification of a user account or remote profile, a User Administrator, can explicitly configure the user account or remote profile to view all jobs triggered by all users across all applications. For more information, see the topic "Creating Users in Junos Space Network Management Platform" on page 1035 or "Creating a Remote Profile" on page 1098, as needed. Junos Space Platform also has a set of predefined user roles that can be assigned to a user to enable access to the various workspaces. For more information about the predefined roles in Junos Space Platform, see "Predefined Roles Overview" on page 999.
NOTE: By default, a user with the Super Administrator or Job Administrator role can view all jobs triggered by all users across all applications.
Junos Space Platform maintains a history of job statuses for all jobs. When a job is initiated from a workspace, Junos Space Platform assigns a job ID that serves to identify the job (along with the job type) on the Job Management inventory page. Table 119 lists some of the job types in Junos Space Platform.
966
NOTE: The job types listed in the table do not represent the entire list of job types you can manage in Junos Space Platform. Job types that appear in Junos Space Platform vary depending on what Junos Space applications are installed.
Table 119: Junos Space Platform Job Types
Junos Space Application
Supported Job Types
Network Management Platform
Add Node
Discover Network Elements
Update Device
Delete Device
Resync Network Element
Role Assignment
Audit Log Archive and Purge
From the Job Management page, you can select jobs and perform the following actions on them using the options on the Actions menu:
· View Job Details--View the job details. See "Viewing Jobs" on page 972. · Cancel Job--Cancel scheduled or in-progress jobs. See "Canceling Jobs" on page 985. · Reassign Jobs--Reassign scheduled or recurring jobs of a user to another user. See "Reassigning Jobs"
on page 982.
· Reschedule Job--Reschedule a scheduled job. See "Rescheduling and Modifying the Recurrence Settings of Jobs" on page 978.
· Retry on Failed Devices--Retry a failed job on the devices. See "Retrying a Job on Failed Devices" on page 980.
· Archive/Purge Jobs--Archive and purge jobs from the Junos Space database. See "Archiving and Purging Jobs" on page 987.
· View Recurrence--Display details of recurring jobs, such as job start date and time, recurrence interval, end date and time, and job ID for each occurrence. See "Viewing Job Recurrence" on page 978.
967
· Return to Application--Return to the application page from which the job was initiated (if you have the correct permissions to do so). For example, if you selected a database backup recurrence job, then click Return to Application to go to the Database Backup and Restore page.
· Delete Private Tags--Delete private tags created by you. See "Deleting Tags" on page 1515. · Tag It--Apply a tag to a job to segregate, filter, and categorize jobs. See "Tagging an Object" on page 1518. · View Tags--Display tags applied to a job. See "Viewing Tags for a Managed Object" on page 1524. · UnTag It--Remove tags from jobs. See "Untagging Objects" on page 1519.
NOTE: From Junos Space Network Management Platform Release 15.1R1, device auto-resynchronization jobs are not displayed on the Job Management page. These jobs run in the background and you cannot cancel these jobs from the Junos Space UI. You can view the status of the auto-resynchronization job in the Managed Status column on the Device Management page or from the Device Count by Synchronization State widget on the Devices page. You can collect more information about these jobs from the server.log and autoresync.log files in the /var/log/jboss/servers/server1 directory. You can view the auto-resynchronization jobs that were scheduled to execute before upgrading to Junos Space Platform Release 15.1R1, on the Job Management page. You can archive or purge these jobs by using the Archive and Purge Jobs workflow and selecting Resync Network Elements. For more information, see "Archiving and Purging Jobs" on page 987.
RELATED DOCUMENTATION Viewing Jobs | 972 Viewing Statistics for Jobs | 968 Viewing Objects on Which a Job is Executed | 975 Reassigning Jobs | 982 Canceling Jobs | 985 Viewing Job Recurrence | 978 Archiving and Purging Jobs | 987
968
CHAPTER 57
Managing Jobs
IN THIS CHAPTER Viewing Statistics for Jobs | 968 Viewing Your Jobs | 970 Viewing Jobs | 972 Viewing Objects on Which a Job is Executed | 975 Viewing Job Recurrence | 978 Rescheduling and Modifying the Recurrence Settings of Jobs | 978 Retrying a Job on Failed Devices | 980 Reassigning Jobs | 982 Canceling Jobs | 985 Clearing Your Jobs | 986 Archiving and Purging Jobs | 987 Common Error Messages in Device-Related Operations | 992
Viewing Statistics for Jobs
The Jobs workspace statistics page displays graphs providing an overview of jobs triggered from all installed Junos Space applications. You can view the Jobs statistics page when you select Jobs from the task tree on the Junos Space Network Management Platform UI. The Jobs statistics page displays the following graphs: · Job Types pie chart · State of Jobs Run pie chart
969
· Average Execution Time per Completed Job bar chart This topic includes the following tasks:
Viewing the Types of Jobs That Are Run | 969 Viewing the State of Jobs That Have Run | 969 Viewing Average Execution Times for Jobs | 970
Viewing the Types of Jobs That Are Run
The Job Types pie chart displays the percentages of all Junos Space Platform jobs that are of a particular job type. Each slice of the pie chart represents a job type and the percentage of time that the job type was run. The job type legend that is displayed on the right identifies each job type with a distinct color. Scroll down the list to see all job types. Mouse over a slice of the pie chart to view the job type title and the percentage of jobs that are of the selected job type. To view details of jobs of a specific job type: 1. Click a job type slice on the Job Types pie chart.
A filtered list of jobs of the selected job type is displayed on the Job Management page. For more information about the Job Management page, see "Viewing Jobs" on page 972.
2. Select Jobs from the breadcrumbs at the top of the Job Management page to return to the Jobs page.
Viewing the State of Jobs That Have Run
The State of Jobs Run pie chart displays the percentage of jobs that succeeded, are scheduled, are canceled, are in progress, or failed. Mouse over the pie chart to see the state and percentage of jobs run in each slice. To view details of jobs in a particular state: 1. Click the job state slice on the State of Jobs Run pie chart.
The filtered list of jobs in the selected state is displayed on the Job Management page. For more information about the Job Management page, see "Viewing Jobs" on page 972.
2. Select Jobs from the breadcrumbs at the top of the Job Management page to return to the Jobs page.
970
Viewing Average Execution Times for Jobs Each bar on the Average Execution Time per Completed Job bar chart represents a job type and the average execution time for completed jobs of that job type in seconds. If there is space on the page, the job type appears at the bottom of each bar. To view details of jobs of a specific job type: 1. Click the bar for the required job type, on the Average Execution Time per Completed Job bar chart.
The filtered list of jobs in the selected state is displayed on the Job Management page. For more information about the Job Management page, see "Viewing Jobs" on page 972.
2. Select Jobs from the breadcrumbs at the top of the Job Management page to return to the Jobs page.
RELATED DOCUMENTATION Viewing Jobs | 972 Jobs Overview | 965 Archiving and Purging Jobs | 987
Viewing Your Jobs
You can view all your completed, in-progress, canceled, failed, and scheduled jobs in Junos Space Network Management Platform. Your jobs include jobs that were triggered by you as well as jobs that were reassigned to you. The My Jobs icon on the banner of the Junos Space Platform UI, allows you to quickly access summary and detailed information about all your jobs, from any workspace and from any task that you are currently performing.
971
To view your jobs: 1. In the banner of the Junos Space Platform UI, click the My Jobs icon located at the top right.
The My Jobs dialog box appears, displaying your 25 most recent jobs. For each job, the following information is displayed: · Job ID · Job name · Job status · Date and time--The date and time displayed depends on the status of the job:
· For jobs that are in progress, the date and time at which the job started are displayed. · For failed jobs, the date and time when the job failed are displayed. · For successful jobs, the date and time when the job succeeded are displayed. · For jobs that are scheduled for later, the date and time at which the job is scheduled to run are
displayed. · Percentage of the job completed 2. (Optional) To view all your jobs, click Manage My Jobs. The Job Management page appears and displays a list of all your jobs.
3. (Optional) To view the details of a specific job, click the job ID. The Job Management page appears and displays the details of the selected job in a dialog box.
4. Click Close to exit the My Jobs page.
For troubleshooting, see the /var/log/jboss/servers/server1/server.log file.
RELATED DOCUMENTATION Viewing Statistics for Jobs | 968 Canceling Jobs | 985 Jobs Overview | 965 Clearing Your Jobs | 986
972
Viewing Jobs
The Job Management inventory page displays all jobs that have been scheduled to run or have run from Junos Space Network Management Platform or other Junos Space applications. Scheduled and completed jobs appear in tabular format on the Job Management page. By default, jobs appear sorted by the Scheduled Start Time column. You can also sort by other columns on this page by clicking the appropriate column header. You can search for a particular job by entering the search criteria in the Search field.
For more information about how to manipulate inventory page data, see "Junos Space User Interface Overview" on page 88 in the Junos Space User Interface Guide.
To view jobs:
1. On the Junos Space Platform UI, select Jobs > Job Management. The Job Management page appears, displaying all jobs in tabular format. The fields displayed on the Job Management page are described in Table 120.
2. (Optional) Double-click a job entry to view the details for the selected job. The Job Details page appears. This page displays additional fields not displayed on the Job Management page. The Description column displays a View Details link if the job failed. Click the link to view why the job failed. The fields displayed on the Job Details page vary depending on the job. In the case of a Resync Network Elements job, the Job Details page displays the IP Address and Hostname fields, whereas for a Stage Script job, the Job Details page displays the Script Version and Script Name fields. Table 121 lists some of these fields. Currently, the jobs triggered for the following tasks exhibit this behavior:
· Deleting scripts · Deleting a device · Resynchronizing network elements · Backing up configuration files · Deleting configuration files · Disabling scripts on devices · Enabling scripts on devices · Removing scripts from devices · Staging scripts on devices
973
Table 120: Fields on the Job Management Page
Field
Description
Job Type
The job type
Job types indicate what tasks or operations are performed across Junos Space applications. Each Junos Space application supports certain job types.
ID
ID of the job
Domain
Domain from which the job is initiated
Name
Name of the job. For most jobs, the name is the job type with the job ID appended. However, for some jobs, the job name is supplied by the user as part of the workflow.
Percent
Percentage of the job that is completed
State Parameters
State of job execution:
· Scheduled--The job is scheduled to run in the future. · Success--The job completed successfully. · Failure--The job failed and was terminated. · In Progress--The job is in progress.
NOTE: When you add a Junos Space application or upgrade an existing Junos Space application, a progress bar is displayed.
· Cancelled--The job was canceled by a user.
Objects on which a job is performed or is scheduled to be performed
Scheduled Start Time
Start time that you specified for this job
Owner
Login name of the owner
Summary
Operations executed for the job
Recurrence
Scheduled recurrence
Retry Group ID
Job ID of the original job
Actual Start Time
Time when Junos Space Platform begins to execute the job. In most cases, the actual start time is the same as the scheduled start time.
End Time
Time when the job was completed or terminated if the job execution failed
974
Table 120: Fields on the Job Management Page (continued)
Previous Retry
Job ID of the previous job
Table 121: Fields on the Jobs Details Page
Field
Description
Status
Job status: Success, Failed, In Progress, or Cancelled.
Description
Details about why the job failed or whether it succeeded. This column displays information that is specific to the task that triggered this job.
Each job has a job status indicator. Table 122 defines these indicators.
Table 122: Job Icon Status Indicators
Job Status Indicator
Description
The job was completed successfully.
The job failed.
The job was canceled by a user. The job is scheduled. The job is in progress.
RELATED DOCUMENTATION
Viewing Statistics for Jobs | 968 Jobs Overview | 965 Canceling Jobs | 985
975
Viewing Objects on Which a Job is Executed
A job is an action that is executed on any object that is managed by Junos Space, such as a device, service, or user. From the Job Management inventory page, you can view the objects on which a job was performed or is scheduled to be performed. The Parameters column on this page provides you with this information. However, for jobs that are migrated from releases prior to Junos Space 13.3R1, this column does not display any information.
NOTE: You can schedule certain types of jobs to run on devices that have been selected by using tags. The Parameters column on the Job Management page provides you with information about the target list of devices on which these jobs are scheduled to run. However, when the jobs are run, you may find that the devices on which they are run are different from the devices on which they were scheduled to run. This happens because the devices associated with a tag are resolved dynamically at runtime. If the devices associated with a tag have changed, then these jobs are executed on the devices that are associated with the tag at runtime. The type of jobs where you may see this behavior are: · Staging scripts on devices · Executing scripts on devices · Staging device images · Deploying device images · Staging script bundles on devices · Executing script bundles on devices · Running an operation · Backing up device configuration files
To view objects on which a job is executed: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page displays the jobs in tabular view.
2. Select a job. The Parameters column for the selected job provides information about objects on which the job is performed. For example, when you select a Stage Scripts job, this column displays the device name and the script name associated with this job if you staged a single script on a single device. If you staged multiple
976
scripts on multiple devices, then this column displays the count of the scripts and the number of devices on which these scripts were staged.
3. Click the link in the Parameters column to view information about the objects. The Job Target dialog box appears, displaying the parameter types on separate tabs.
4. Click the tab that you are interested in to view the objects. If you staged multiple scripts on multiple devices, click the Device(s) tab to view the list of devices on which the scripts were staged. Click the Script(s) tab to view the scripts that were staged on these devices.
NOTE: · It is not always necessary that the list of devices be displayed on the Device(s) tab. Script
and image jobs may display the tag names or CSV filenames instead of devices. If you used a CSV file for staging or deploying an image, the filename of the CSV file is displayed instead of the devices on which the image is staged or deployed. This is true in the case of tag names as well. When you use tags to select the devices on which a job should be executed, you can select the Tag(s) tab to view the list of target devices on which the job is expected to be executed at the scheduled time. · For the following jobs, the Options tab displays options that you may have specified while triggering these jobs: · Deploying device images · Staging device images · Removing images from a staged device · Staging scripts on devices · Removing scripts from devices
5. Click OK in the Job Target dialog box to return to the Job Management page.
977
Table 123: Jobs that Support Viewing Objects on Which a Job is Executed
Workspace
Jobs
Device Management Upload keys to devices.
Modify authentication.
Discover devices.
Resynchronize devices.
CLI Configlets
Apply CLI Configlet.
Images and Scripts
Images
· Stage an image on a device. · Verify the checksum. · Deploy a device image.
Scripts:
· Stage a script on devices. · Verify a script on devices. · Disable scripts on devices. · Enable scripts on devices. · Execute a script on devices. · Remove a script from devices.
Operations:
· Run operations.
Script bundles:
· Stage a script bundle on devices. · Execute a script bundle on devices. · Disable a script bundle on devices. · Enable a script bundle on devices.
RELATED DOCUMENTATION Jobs Overview | 965
978
Viewing Job Recurrence
In Junos Space Network Management Platform, you can view the recurrence schedule of jobs that are configured to recur at regular intervals. To view job recurrence information: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page appears.
2. Select the job for which you want to view job recurrence information and select View Recurrence from the Actions menu. The View Job Recurrence dialog box appears, displaying the start date and time, recurrence interval, and end date and time of the selected job.
3. (Optional) Click the Job ID link to view all recurrences of the job.
4. Click OK on the View Job Recurrence dialog box to return to the Job Management page.
RELATED DOCUMENTATION Backing Up the Junos Space Network Management Platform Database | 1301 Viewing Jobs | 972 Viewing Audit Logs | 1117
Rescheduling and Modifying the Recurrence Settings of Jobs
In Junos Space Network Management Platform, jobs are actions performed on managed objects. You can schedule jobs to run in the future, as well as create jobs that run periodically by setting recurrence intervals. From the Job Management page, you can reschedule a job and modify the recurrence settings to change the current schedule of the job. You can reschedule jobs only in the following cases: · Schedule and recurrence settings of a job can be modified if the job supports scheduling and recurrence,
and it is currently in the Scheduled state. · The schedule of a job in the Failed and Success states can be modified only if it is a recurring job.
979
· The recurrence setting of a scheduled job can be modified only if the job was created as a recurring job. This behavior is true for all scheduled jobs except the following: · Backing up configuration files · Backing up the MySQL and PostGreSQL database · Generating reports
To reschedule and modify the recurrence settings of jobs triggered by any user in Junos Space Platform, you must be assigned the privileges of a Job Administrator. As a Job User, you can reschedule or modify the recurrence settings of only those jobs that are scheduled by you. To reschedule and modify the recurrence settings of a scheduled job: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management inventory page is displayed.
2. Select the job you want to reschedule and select Reschedule Job from the Actions menu. The Reschedule Job dialog box is displayed.
3. (Optional) Select the Schedule at a later time check box to reschedule the selected job. To specify the date and time when you want to run the job: a. Click the calendar icon and select the new date.
b. Select the time from the drop-down list.
4. (Optional) Select the Recurrence check box to modify the job recurrence. By default, the job is executed once every week. To specify the new recurrence schedule: a. (Optional) Select the periodicity of recurrence from the Repeats list. The default is Weekly. If you select Weekly from the Repeats list, the Repeat by field appears, where you can select the check boxes for the days of the week that you want the job to recur.
b. (Optional) Select the interval from the Repeat every list. The default is 1.
c. (Optional) Click the On option button in the Ends field to specify an end date for the job recurrence. If you select the Never option button, the job recurs endlessly until you cancel the job manually. To specify the date and time when you want to end the job recurrence: i. Click the calendar icon and select the date.
980
ii. Select the time from the drop-down list.
5. Click Reschedule. The job is rescheduled and you are redirected to the Job Management page.
RELATED DOCUMENTATION Retrying a Job on Failed Devices | 980 Reassigning Jobs | 982
Retrying a Job on Failed Devices
Junos Space Network Management Platform allows you to retry jobs that did not complete successfully on devices on which they were configured to run. You can retry a failed job to ensure that the job succeeds on all target devices. The following jobs can be retried if they fail: · Applying configlets · Backing up or restoring configuration files · Validating or deploying a configuration · Staging or executing a script · Executing an operation · Undeploying a template · Deploying a template · Deploying a device Image · Staging a device image · Verifying a device image · Staging or executing a script bundle · Backing up the database · Resynchronizing the network elements
981
To retry a job that was not successful: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page that appears displays the list of jobs.
2. Select the failed job that you want to retry.
3. From the Actions menu, select Retry on Failed Devices. The Retry Job dialog box appears.
NOTE: · Only devices that belong to the domain to which you are logged in are displayed in this
dialog box. · The fields displayed and the steps that you must follow to retry a job might vary depending
on the job that you selected.
4. You can retry the job on all failed devices or only a few failed devices. Perform one of the following actions: · To retry the job on all devices listed on multiple pages, select Select All Devices Across Pages. If you select this option, the check boxes in the Select Applicable Devices table showing the device listings are unavailable. · If you want to run the job on a specific device, and you know the name of the device, enter the first few letters of the device name in the Search field and select the device from the suggestion list. · To run the job on one or more devices, select the device or devices from the Select Applicable Devices table. The following columns are displayed: · Name--Name of the device · IP Address--IP address of the device · Job Status--Status of the job: Failed/Failure, Success, or Canceled · Description--Description of the nature of the failure
5. (Optional) To view the devices on which the job cannot be retried, click the View Inapplicable Devices link. The View Inapplicable Devices page is displayed. This page shows all the devices on which the job cannot be retried.
982
6. (Optional) To retry the job later, select the Schedule at a later time check box. Select the date and time to run the job, from the date and time drop-down lists that appear.
7. Click Run. An information dialog box appears.
8. Click OK. The Job Management page is displayed. The retry job is listed on this page. If the Status column displays Success, the job you retried was executed successfully on the selected devices.
RELATED DOCUMENTATION Jobs Overview | 965 Viewing Your Jobs | 174
Reassigning Jobs
You can reassign jobs owned by a user to another user within the same domain from the Job Management page by using the Reassign Jobs task. When you reassign jobs, you are transferring the ownership of these jobs from one user to another. For example, if you delete UserA, you might want to reassign the jobs of UserA to UserB to ensure that the scheduled and recurring jobs of UserA are monitored and taken to successful completion by UserB.
NOTE: You can reassign only scheduled and recurring jobs. You cannot reassign jobs that are completed, in progress, or canceled. To reassign the jobs of one user to another user, you must be assigned the privileges of a Job Administrator.
To reassign a job: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management inventory page appears.
2. Select the jobs that you want to reassign.
983
3. Select Reassign Jobs from the Actions menu. The Reassign Jobs dialog box appears, listing the active users who are in the same domain as the user whose jobs you want to reassign. This dialog box does not list user accounts that are disabled.
4. Select the user to whom you want to reassign the jobs. Use the vertical scroll bar to navigate. You can also filter, or sort the users in ascending or descending order, to locate the user to whom you want to reassign the jobs.
5. Click Reassign. Depending on the role restrictions for the user you selected, one of the following can occur: · No jobs are reassigned. · Only some jobs are reassigned. · All jobs are reassigned.
6. Depending on the scenario you encounter, perform one of the following sets of tasks: · If none of the selected jobs can be reassigned to the user because of role restrictions, Junos Space Platform displays a warning dialog box indicating that the user does not have the necessary permissions. This dialog box lists the IDs and the types of the jobs that could not be reassigned. Click Close to exit the warning dialog box and return to the Job Management page. · If some of the selected jobs cannot be reassigned, a warning dialog box appears, indicating the number of jobs (out of the total selected jobs) that cannot be reassigned. This dialog box lists the IDs and the types of the jobs that cannot be reassigned. Perform one of the following actions: · To reassign the jobs that can be reassigned: a. Click Confirm. The jobs are reassigned and a dialog box appears informing you that the jobs have been successfully reassigned.
b. Click OK to return to the Job Management page.
· Click Cancel if you do not want to reassign any job. You return to the Job Management page.
· If all the selected jobs can be reassigned, then a dialog box appears, informing you that all the jobs can be reassigned. Perform one of the following actions: · If you want to reassign the jobs: a. Click Confirm.
984
The jobs are reassigned and a dialog box appears informing you that the jobs have been successfully reassigned. b. Click OK to return to the Job Management page.
· Click Cancel if you do not want to reassign any job. You return to the Job Management page.
If some or all jobs are reassigned, the Owner field on the Job Management page displays the new owner of the reassigned jobs. When you reassign a job, an audit log entry is automatically generated and details about the reassigned job are recorded.
RELATED DOCUMENTATION Jobs Overview | 965
985
Canceling Jobs
Junos Space Network Management Platform allows you to cancel jobs that are scheduled for execution. You can also cancel jobs that are not completed for a long time or jobs that are hindering the execution of other jobs in the queue. You can cancel jobs from the Job Management page by using the Cancel Job task in the Actions menu. Only jobs in the Scheduled or In Progress state can be canceled. If you select jobs in other states, the Cancel Job option is unavailable for selection. If you are a user who is assigned the privileges of a Job Administrator, you can cancel jobs scheduled by any user. If you are a user who is assigned the privileges of a Job User, you can cancel only those jobs that are scheduled by you. If you are assigned a role that does not allow you to cancel any job, you cannot cancel any job in the Jobs workspace.
NOTE: · If Junos Space Platform determines that the job operation cannot be interrupted, the job runs
to completion; otherwise, the job is canceled. · When you cancel jobs that are in-progress, some tasks associated with the job may be
completed, depending on the stage at which you canceled the job. The status of the job on the Job Management page appears as Cancelled. · Junos Space Platform does not clean up canceled jobs.
To cancel a job: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page appears.
2. Click the job or multiple jobs to select the ones you want to cancel.
3. Select Cancel Job from the Actions menu. If any of the jobs you selected is in a state that you cannot cancel, the Cancel Job option is not available for selection. The Cancel Job dialog box appears listing the jobs you selected for cancellation.
4. Click Yes to confirm cancellation of selected jobs. When the Cancel Job task is completed, the Job Management page displays the state of the jobs as Cancelled. The Summary column provides information about the user who canceled the jobs.
986
RELATED DOCUMENTATION Viewing Statistics for Jobs | 968 Jobs Overview | 965 Viewing Jobs | 972 Viewing Your Jobs | 174
Clearing Your Jobs
You can clear or remove jobs from the list of your jobs displayed in the My Jobs dialog box when the jobs are no longer of interest to you. To remove the jobs that you initiated: 1. In the banner of the Junos Space Platform UI, click the My Jobs icon located at the top right.
The My Jobs dialog box appears, displaying your 25 most recent jobs. 2. Perform one of the following actions:
· Click the Clear Job icon that appears to the right of the job to remove that job from the list of jobs displayed.
· Click the Clear All My Jobs icon at the top of the My Jobs dialog box to clear all the jobs displayed.
NOTE: Clearing a job from the My Jobs dialog box does not affect the job itself, it only removes the job from the list of jobs displayed in the My Jobs dialog box.
3. Click Close to exit the My Jobs dialog box.
RELATED DOCUMENTATION Viewing Your Jobs | 174 Jobs Overview | 965
987
Archiving and Purging Jobs
Over a period of time, the number of job records in the Junos Space Platform database increases. Accumulation of job records in the database could adversely affect the server performance. Because many of the jobs have no relevance after a few hours of their creation or execution, you can purge records of such jobs to avoid strain on the system. If you want to retain the job records for future reference, you can archive the records before purging the records from the system. When you archive the records, the records are saved as a CSV file. You can choose to retain the archived records locally or on a remote server. You can purge or archive and purge the jobs (successful or not) completed until a time you specify or until the time you initiate the purging or archiving and purging. You must have Super Administrator or Job Administrator role assigned to your account to perform this task. When you archive jobs locally, the archive files are stored in the default /var/lib/mysql/archive directory on the active Junos Space node. When you archive jobs to a remote server, the archive files are stored in the directory that you specify. The default filename for an archive is JunosSpaceJobArchive_date_time.zip, where date specifies the year, month, and day, in the yyyy-mm-dd format; and time specifies hours, minutes, and seconds, in the hh-mm-ss format. This topic includes the following tasks:
Purging Jobs Without Archiving | 987 Archiving Jobs to a Local Server and Purging the Jobs from the Database | 989 Archiving Jobs to a Remote Server and Purging the Jobs from the Database | 990
Purging Jobs Without Archiving
From Release 17.2R1 onward, Junos Space Platform enables you to purge jobs without archiving the jobs. To purge Junos Space Platform jobs without archiving the jobs: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page appears.
2. Click the Archive/Purge Jobs icon. The Archive/Purge Jobs dialog box appears.
3. Select the job type from the Job Type list. You can select any job type from the list to purge jobs of that job type, or select the All option to purge all jobs from the database.
988
Job types of jobs that are already initiated or completed in Junos Space appear on the Job Type list. In-progress and scheduled jobs are not archived.
4. For the Purge Jobs Before field, select a date and time to specify the time up to which all jobs are to be purged from the Junos Space Platform database. You can specify only a date and time in the past.
NOTE: If you do not specify a date and time in the Purge Jobs Before field, Junos Space Platform purges or archives and purges all jobs up to the time that you initiate the purge or archive and purge operation.
5. To purge jobs from all accessible domains, select the Purge Jobs from all accessible domains check box.
6. Clear the Archive Jobs Before Purging check box. This check box is selected by default.
7. To schedule the purge operation, select the Schedule at a later time check box and specify a later start date and time for the archive-and-purge operation.
NOTE: The date and time that you specify in the Archive/Purge Jobs dialog box is the date and time on the client computer. Junos Space Platform maps the specified date and time to the Junos Space server time and schedules the archive-and-purge task.
If you do not select Schedule at a later time, the specified job is initiated immediately when you click Submit.
8. Click Submit. The Jobs Archive and Purge Job Information page appears.
NOTE: If sufficient space is not available in the default directory, Junos Space displays an error message and the archive-and-purge task fails.
9. Perform one of the following actions: · To view job details for the archive-and-purge operation, click the Job ID link in the Jobs Archive and Purge Job Information dialog box. · Click OK to close the Jobs Archive and Purge Job Information dialog box.
989
Archiving Jobs to a Local Server and Purging the Jobs from the Database
Before you purge jobs, you can archive the jobs to the local server. The local server is the server that functions as the active node in the Junos Space fabric. To archive Junos Space Platform jobs to the local server and then purge the jobs from the database: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page appears.
2. Click the Archive/Purge Jobs icon. The Archive/Purge Jobs dialog box appears.
3. Select the job type from the Job Type list. You can select any job type from the list to archive jobs of that job type, or select the All option to archive all jobs and then purge them from the database. Job types of jobs that are already initiated or completed in Junos Space appear on the Job Type list. In-progress and scheduled jobs are not archived.
4. For the Purge Jobs Before field, select a date and time to specify the date up to which all jobs are to be archived and purged from the Junos Space Platform database. You can specify only a date and time in the past.
NOTE: If you do not specify a date and time in the Archive Jobs Before field, Junos Space Platform archives and purges all jobs up to the time that you initiate the archive and purge operation.
5. To purge jobs from all accessible domains, select the Purge Jobs from all accessible domains check box. If you do not select this check box, Junos Space Platform purges jobs only from the current domain of the user.
6. To archive and purge the jobs, select the Archive Jobs Before Purging check box and complete the following steps: a. For the Archive Mode field, select Local from the list.
7. To schedule the archive-and-purge operation, select the Schedule at a later time check box and specify a later start date and time for the archive-and-purge operation.
990
NOTE: The date and time that you specify in the Archive/Purge Jobs dialog box is the date and time on the client computer. Junos Space Platform maps the specified date and time to the Junos Space server time and schedules the archive-and-purge task.
If you do not select Schedule at a later time, the specified job is initiated immediately when you click Submit.
8. Click Submit. The Jobs Archive and Purge Job Information page appears.
NOTE: If sufficient space is not available in the default directory, Junos Space displays an error message and the archive-and-purge task fails.
9. Perform one of the following actions: · To view job details for the archive-and-purge operation, click the Job ID link in the Jobs Archive and Purge Job Information dialog box. · Click OK to close the Jobs Archive and Purge Job Information dialog box.
Archiving Jobs to a Remote Server and Purging the Jobs from the Database You can also choose to archive jobs to a remote server before purging the jobs from the Junos Space Platform database. Junos Space Platform uses Secure Copy Protocol (SCP) to copy the files in this case. To archive jobs to a remote server and then purge them from the Junos Space Platform database: 1. On the Junos Space Platform UI, select Jobs > Job Management.
The Job Management page appears.
2. Click the Archive/Purge Jobs icon. The Archive/Purge Jobs dialog box appears.
3. Select the job type from the Job Type list. You can select any job type from the list to archive jobs of that job type, or select the All option to archive all jobs and then purge them from the database. Job types of jobs that are already initiated or completed in Junos Space appear on the Job Type list. In-progress and scheduled jobs are not archived.
991
4. For the Purge Jobs Before field, select a date and time to specify the date up to which all jobs are to be archived and purged from the Junos Space Platform database. You can specify only a date and time in the past.
NOTE: If you do not specify a date and time in the Archive Jobs Before field, Junos Space Platform archives and then purges from the database all jobs up to the time that you initiated the operation.
5. To purge jobs from all accessible domains, select the Purge Jobs from all accessible domains check box. If you do not select this check box, Junos Space Platform purges jobs only from the current domain of the user.
6. To archive and purge the jobs, select the Archive Jobs Before Purging check box and complete the following steps: a. For the Archive Mode field, select Local from the list.
b. In the User field, enter a valid username to access the remote host server.
c. In the Password field, enter a valid password to access the remote host server.
d. In the Confirm Password field, reenter the password you entered in the previous step.
e. In the Machine IP field, enter the IP address of the remote host server.
f. In the Directory field, enter a directory path on the remote host server for the archived files.
NOTE: The directory path must already exist on the remote host server. If sufficient space is not available in the specified directory, Junos Space displays an error message and the archive-and-purge task fails.
7. To schedule the archive-and-purge operation, select the Schedule at a later time check box and specify a later start date and time for the archive-and-purge operation.
992
NOTE: The date and time that you specify in the Archive/Purge Jobs dialog box is the date and time on the client computer. Junos Space Platform maps the specified date and time to the Junos Space server time and schedules the archive-and-purge task.
If you do not select Schedule at a later time, the specified job is initiated immediately when you click Submit.
8. Click Submit. The Jobs Archive and Purge dialog box displays the file location and the name of the remote server.
9. Click Continue in the Jobs Archive and Purge dialog box to archive and purge the jobs. Junos Space Platform displays the Jobs Archive and Purge Job Information dialog box.
10. Perform one of the following actions: · To view job details for the archive-and-purge operation, click the Job ID link in the Jobs Archive and Purge Job Information dialog box. · Click OK to close the Jobs Archive and Purge Job Information dialog box.
RELATED DOCUMENTATION Jobs Overview | 965 Viewing Your Jobs | 174 Viewing Jobs | 972 Viewing Job Recurrence | 978
Common Error Messages in Device-Related Operations
From Release 17.2R1 onward, Junos Space Network Management Platform provides descriptive error messages that explain the reasons for common errors in device-related operations. The error message is recorded in the job details of the corresponding job on Job Management page. The error messages and suggested resolutions are listed in Table 124.
993
Table 124: Comon Error Messages in Device-Related Operations
Error Message
Suggested Solution
Unable to establish connection with the device (Device Id: device_id). Device is down, not reachable, or unable to accept requests.
If the device is in UP state, retry the operation. If the device is in DOWN state, wait for the device to be in UP state and retry the operation.
Unable to establish connection with the device
Retry the operation.
(Device Id: device_id) because all channels are busy.
Unable to establish connection with the device (Device Id: device_id). <execution message thrown from J2SSH library>
Retry the operation. If the issue persists, download troubleshooting logs and please contact the Juniper Technical Assistance Center.
Unable to close the channel with the device (Device Id: device_id). Channel might be closed already.
This error can be ignored if it occurs intermittently. If the issue persists, download troubleshooting logs and please contact the Juniper Technical Assistance Center.
Unable to apply configuration changes on the device because the device configuration is being modified by another user and is locked. Commit or rollback the pending configuration changes.
Roll back uncommitted changes from the device.
Unable to get configuration or apply configuration changes on the device because the device returns an unknown error. Error Message from device: <RPC error message from device>
Retry the operation. If the issue persists, download troubleshooting logs and please contact the Juniper Technical Assistance Center.
Unable to apply configuration changes to the device as the configuration being pushed has invalid value. This could be due to an invalid reference to a non-existent key. If the configuration is generated by Junos Space, make sure that the configuration in Junos Space is in sync with that of the device.
If the configuration is generated by Junos Space, resynchronize the device and retry the operation. If the configuration is manually generated, review the configuration for invalid parameters and retry the operation with the corrected configuration.
RELATED DOCUMENTATION Viewing Jobs | 972
10 PART
Role-Based Access Control
Overview | 995 Roles | 997 User Accounts | 1033 User Groups | 1069 Domains | 1077 Remote Profiles | 1098 API Access Profiles | 1102 User Sessions | 1106
995
CHAPTER 58
Overview
IN THIS CHAPTER Role-Based Access Control Overview | 995
Role-Based Access Control Overview
Junos Space Network Management Platform grants access and management privileges only to those users validated by its authentication process and given permissions by its authorization process. A Junos Space Super Administrator or User Administrator creates users and then assigns them one or more roles so that they are able to access and manage tasks and objects within workspaces in Junos Space Platform. The roles determine which workspace or workspaces a user can access and which tasks the user can perform within the workspace or workspaces. As a Junos Space Super Administrator or User Administrator, you can also create and assign API Access Profiles to restrict users from executing remote procedure call (RPC) commands that are potentially unsafe for or harmful to your network. Rules are added to an API Access Profile as XPath expressions that determine whether or not an RPC command is safe to be executed.
User Authentication
Through authentication, Junos Space Network Management Platform validates users on the basis of passwords or certificates. Junos Space Network Management Platform supports both local and remote user authentication. When a user tries to access Junos Space Network Management Platform, the user can be authenticated locally by confirming that the password entered by the user at login matches the password stored in the Junos Space Platform database or remotely through a RADIUS or TACACS+ server. For information about configuring RADIUS and TACACS+ servers for remote authentication and authorization, see "Configuring a RADIUS Server for Authentication and Authorization" on page 1465 and "Configuring a TACACS+ Server for Authentication and Authorization" on page 1467. Junos Space Network Management Platform also supports certificate-based user authentication and X.509 certificate parameterbased user authentication. Instead of authenticating a user on the basis of the user's credentials, you can authenticate a user on the basis of the user's certificate, which is considered more
996
secure. For more information about certificate-based authentication or certificate parameterbased authentication, see "Certificate Management Overview" on page 1418.
RBAC Enforcement
With role-based access control (RBAC) enforcement, a Junos Space Super Administrator or User Administrator defines the workspaces that users can access, the system resources that users can view and manage, and the tasks available to users within a workspace. RBAC is enforced in the Junos Space user interface navigation hierarchy by workspace, task group, and task. A user can access only those portions of the navigation hierarchy that are explicitly granted through access privileges. The following sections describe RBAC enforcement behavior at each level of the user interface navigation hierarchy. RBAC Enforcement by Workspace The Junos Space user interface provides a task-oriented environment in which a collection of related tasks is organized by workspace. For example, the Users workspace defines the group of tasks related to managing users and roles. These tasks include creating, modifying, and deleting users, and assigning roles. Enforcement by workspace ensures that a user can view only those workspaces that contain the tasks that the user has permissions to execute. For example, a user who is assigned the device manager role, which grants access privileges to all tasks in the Devices workspace, can access only the Devices workspace. No other workspaces are visible to this user unless other roles are assigned to this user. If a user is assigned a role that grants access privileges to some tasks in a workspace, the user can view all the tasks in the workspace, but execute only the tasks for which permissions have been granted. RBAC Enforcement Not Supported on the Getting Started Page RBAC enforcement is not enabled for the contents of the Getting Started page. Consequently, a user who does not have certain access privileges can still view the steps displayed on the Getting Started page. For example, a user without privileges to manage devices still sees the Discover Devices step. However, when the user clicks the step, Junos Space Network Management Platform displays an error message to indicate that the user does not have the permission to access the workspace or tasks to which the step is linked.
RELATED DOCUMENTATION
Configuring Users to Manage Objects in Junos Space Overview | 1033 Predefined Roles Overview | 999 Creating Users in Junos Space Network Management Platform | 1035 Creating a Remote Profile | 1098 Creating an API Access Profile | 1102 Viewing User Statistics | 1068 Viewing Users | 1054 Configuring a RADIUS Server for Authentication and Authorization | 1465
997
CHAPTER 59
Roles
IN THIS CHAPTER Roles Overview | 998 Predefined Roles Overview | 999 Creating a User-Defined Role | 1022 Managing Roles | 1024 Modifying User-Defined Roles | 1026 Deleting User-Defined Roles | 1027 Cloning Predefined and User-Defined Roles | 1028 Exporting User-Defined Roles from Junos Space Network Management Platform | 1030 Importing Roles to Junos Space Network Management Platform | 1031
998
Roles Overview
A role is a specific set of tasks that can be assigned to users in Junos Space Network Management Platform. Each user is assigned one or more roles by the Super Administrator or User Administrator depending on the tasks the user is expected to perform. A user represents an individual in a security domain who is authorized to log in to Junos Space Platform and perform application workspace tasks according to assigned roles. The roles can be either predefined or user-defined.
The administrator can create a user account and assign tasks based on read-only predefined roles and read/write user-defined roles. See "Creating Users in Junos Space Network Management Platform" on page 1035 and "Predefined Roles Overview" on page 999. You can create user-defined roles and then create a user account, or create a user account and then modify the account. You can also use an existing user account as a template to assign roles to users with similar job types.
The Role Based Access Control > User Accounts task allows the Super Administrator or User Administrator to manage all roles by performing the following tasks:
· View all predefined and user-defined roles on the Role Based Access Control > Roles inventory page. See "Managing Roles" on page 1024.
· Create user-defined roles from the Role Based Access Control > Roles > Create Role task. See "Creating a User-Defined Role" on page 1022.
· Modify user-defined roles by using Modify Role on the Role Based Access Control > Roles inventory page. See "Modifying User-Defined Roles" on page 1026.
· Delete user-defined roles by using Delete Roles on the Role Based Access Control > Roles inventory page. See "Deleting User-Defined Roles" on page 1027.
· Tag predefined and user-defined roles to group them for performing actions simultaneously. Select Tag It from the Actions menu on the Role Based Access Control > Roles inventory page. See "Tagging an Object" on page 1518.
· View all tags that exist on roles by selecting View Tags from the Actions menu on the Role Based Access Control > Roles inventory page. See "Viewing Tags for a Managed Object" on page 1524.
· Import roles in an XML file to Junos Space Network Management Platform. See "Importing Roles to Junos Space Network Management Platform" on page 1031
RELATED DOCUMENTATION
Role-Based Access Control Overview | 995 Predefined Roles Overview | 999 Creating Users in Junos Space Network Management Platform | 1035 Managing Roles | 1024
999
Creating a User-Defined Role | 1022 Modifying User-Defined Roles | 1026 Deleting User-Defined Roles | 1027 Cloning Predefined and User-Defined Roles | 1028
Predefined Roles Overview
Junos Space Network Management Platform provides predefined roles that you can assign to users to define administrative responsibilities and specify the management tasks that a user can perform within applications and workspaces.
To assign roles to other users in Junos Space Network Management Platform, a user must be a Super Administrator or User Administrator.
Each predefined role defines a set of tasks for a single workspace, except the Super Administrator role, which defines all tasks for all workspaces. By default, Junos Space Network Management Platform provides read privileges on all objects associated with the task groups defined in a predefined role.
Table 125 and Table 126 show the Junos Space Network Management Platform predefined roles (A through Q and R through Z respectively) and corresponding tasks available for installed Junos Space applications.
NOTE: The predefined roles that appear in the Junos Space Network Management Platform release that you are using depend on the Junos Space applications that you have installed. For the latest predefined roles, see Network Management Platform > Role Based Access Control > Roles.
For information about predefined roles for a specific Junos Space application, refer to the documentation for that Junos Space application.
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform
Predefined Role Task Group and Tasks
Application > Workspace
Audit Log Administrator
Audit Log
· Archive/Purge Logs · Export Audit Logs
Network Management Platform > Audit Logs
1000
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
CLI Configlets Manager
CLI Configlets Manager CLI Configlets Operator CLI Configlets Operator
CLI Configlets
· Configlets · Create CLI Configlet · Delete CLI Configlets · Compare CLI Configlet Versions · View CLI Configlet Details · Modify CLI Configlet · Clone CLI Configlet · Apply CLI Configlet · Export Selected CLI Configlets · Export All CLI Configlets · Import CLI Configlet · Assign CLI Template to Domain
Devices
· Device Management · Secure Console · Apply CLI Configlet
CLI Configlets
· Configlets · Apply CLI Configlet
Devices
· Device Management · Secure Console · Apply CLI Configlet
Network Management Platform > CLI Configlets
Network Management Platform > Devices Network Management Platform > CLI Configlets Network Management Platform > Devices
1001
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Configuration File Manager
Configuration Files
· Config Files Management · Backup Configuration Files · Delete Configuration Files · Restore Configuration Files · Compare Configuration File Versions · Export Configuration File · Modify Configuration File
Configuration Filter Manager
CLI Configlets
· Configuration Filter · Create Configuration Filter · Modify Configuration Filter · Delete Configuration Filter · Assign Configuration Filter to Domain
Configuration Filter Manager
Configuration View Manager
Devices
· Device Management · Device Configuration
· Secure Console · Create/Edit/Delete Filter
CLI Configlets
· Configuration View · Create Configuration View · Modify Configuration View · Delete Configuration View · View Configuration View Details · Export Configuration Views · Import Configuration Views
Network Management Platform > Configuration Files
Network Management Platform > CLI Configlets
Network Management Platform > Devices
Network Management Platform > CLI Configlets
1002
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Configuration View Manager
Configuration View Operator Configuration View Operator
Device Image Manager
Device Image Manager
Devices
· Device Management · Device Configuration · View Active Configuration
· Secure Console
· CLI Configlets · Configuration View
· Devices · Device Management · Device Configuration · View Active Configuration
· Secure Console
Devices
· Device Adapter · Add Adapter · Upgrade Adapter · Delete Adapter
Images and Scripts
· Images · Import Images · View Deployed Results · Modify Device Image · Delete Device Images · Stage Image on Device · MD5 Validation Result · Verify Image on Devices · Deploy Device Image · Undeploy JAM Package from Device · Remove Image from Staged Device · View Associated Devices · Assign Image to Domain
Network Management Platform > Devices
Network Management Platform > CLI Configlets Network Management Platform > Devices
Network Management Platform > Devices
Network Management Platform > Images and Scripts
1003
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Device Images Read Only User
Images and Scripts
· Images · View Deployed Results · View Associated Devices
Device Manager CLI Configlets
· View CLI Configlet Details · Apply CLI Configlet
Network Management Platform > Images and Scripts
Network Management Platform > CLI Configlets
1004
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Device Manager
Network Management Platform > Devices
1005
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Devices
· Device Management · Device Configuration · View Active Configuration · Create/Edit/Delete Filter
· Resolve Out-of-band Changes · View/Assign Shared Objects · View Configuration Change Log · View Template Deployment · Modify Unmanaged Device Configuration
· Review/Deploy Configuration · Validate on Device · Approve · Reject · Deploy
· Modify Configuration · Assign Device to Domain · Device Inventory
· Export Physical Inventory · View Associated Scripts · View License Inventory · View Logical Interfaces · View Physical Interfaces · View Physical Inventory · View Script Executions · View/Acknowledge Inventory Changes · View Software Inventory · View Staged Images
· Delete Staged Images · Verify Checksum
· Device Operations · Create LSYS · Manage Device Partition · Create Partition · Modify Partition
1006
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
· Delete Partition · Assign Partition to Domain
· Delete Devices · Looking Glass
· Export Looking Glass Results
· Put in RMA State · Reactivate from RMA · Resynchronize with Network · Execute Scripts · Reboot Devices · Apply CLI Configlet · Clone Device · Activate Modeled Device · View/Download Configlet · Modify Serial Number
· Device Access · Launch Device WebUI · Modify Authentication · Modify Device Target IP · Acknowledge Device Fingerprint · SSH to Device · Resolve Key Conflict
· Manage Customized Attributes · Add Label · Delete Label
· Upload Keys to Devices · Modify Serial Number
· Secure Console · Modify Device Configuration · Device Discovery
· Discover Targets · Specify Probes · Specify Credentials · Specify Fingerprints
1007
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
· Model Devices · Create Modeled Instance · Add More Devices · View Modeled Instance · View Modeled Device Status · View Configlet · Download Configlet · Delete Modeled Instances · Connection Profiles · Create Connection Profile · Modify Connection Profile · View Connection Profile · Delete Connection Profiles · Clone Connection Profile
· Unmanaged Devices · View Alarms · View Performance Graphs · Device Discovery Profiles
· Create Device Discovery Profile · Modify Device Discovery Profile · Clone Device Discovery Profile · Delete Device Discovery Profiles · Run Now Device Discovery Profile
1008
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Device Script Manager
Device Script Operator
Images and Scripts
· Scripts · Compare Script Versions · Import Script · View Execution Results · Modify Script · Modify And Stage Scripts on Device · Delete Scripts · Stage Scripts on Devices · View Associated Devices · Verify Scripts on Devices · Verification Results · Enable Scripts on Devices · Disable Scripts on Devices · Remove Scripts from Devices · Execute Script on Devices · Export Scripts · Modify Scripts Type · Assign Script to Domain
· Script Bundles · Create Script Bundle · Embedded Script · Modify Script Bundle · Delete Script Bundles · Stage Script Bundle on Devices · View Associated Devices · Enable Script Bundle on Devices · Disable Script Bundle on Devices · Execute Script Bundle on Devices
Devices
· Device Management · Secure Console
Network Management Platform > Images and Scripts
Network Management Platform > Devices
1009
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Device Script Operator
Device Script Read Only User
Domain Administrator Domain Administrator
Images and Scripts
· Scripts · Compare Script Versions · Execute Script on Devices
Images and Scripts
· Scripts · Compare Script Versions · View Execution Results · View Associated Devices · Export Scripts
· Script Bundles
Devices
· Device Management · Secure Console
Role Based Access Control
· Domains · Create Domain · Modify Domain · Delete Domain · Export Domain · Assign Devices to Domain · Assign Domain to Users
· User Accounts
Network Management Platform > Images and Scripts
Network Management Platform > Images and Scripts
Network Management Platform > Devices
Network Management Platform > Role Based Access Control
1010
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
FMPM Manager Network Monitoring
· Node List · Resync Nodes
· Search · Outages · Dashboard · Events · Alarms · Notifications · Assets · Reports · Charts · Topology · Admin
FMPM Read Only User
Network Monitoring
· Node List · Resync Nodes
· Search · Outages · Dashboard · Events · Alarms · Notifications · Assets · Reports · Charts · Topology
Network Management Platform > Network Monitoring
Network Management Platform > Network Monitoring
1011
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Job Administrator Jobs
· Job Management · Cancel My Job · Cancel Any Job
· Reassign Jobs · Archive/Purge Jobs · Reschedule Job · View Recurrence
Job User
Jobs
· Job Management · Cancel My Job · Reschedule Job · View Recurrence
Operation Manager
Devices
· Device Adapter · Add Adapter · Upgrade Adapter · Delete Adapter
Network Management Platform > Jobs
Network Management Platform > Jobs
Network Management Platform > Devices
1012
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Operation Manager
Network Management Platform > Images and Scripts
1013
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
Images and Scripts
· Images · Import Images · View Deployed Results · Modify Device Image · Delete Device Images · Stage Image on Device · MD5 Validation Result · Verify Image on Devices · Deploy Device Image · Remove Image from Staged Device · View Associated Devices · Assign Image to Domain
· Scripts · Compare Script Versions · Import Script · View Execution Results · Modify Script · Modify And Stage Scripts on Device · Delete Scripts · Stage Scripts on Devices · View Associated Devices · Verify Scripts on Devices · Verification Results · Enable Scripts on Devices · Disable Scripts on Devices · Remove Scripts from Devices · Execute Script on Devices · Export Scripts · Modify Scripts Type · Assign Script to Domain
· Script Bundles · Create Script Bundle · Embedded Script
1014
Table 125: Predefined Roles (A through Q) for the Junos Space Network Management Platform (continued)
Predefined Role Task Group and Tasks
Application > Workspace
· Modify Script Bundle · View Associated Devices · Enable Script Bundle on Devices · Disable Script Bundle on Devices · Delete Script Bundles · Stage Script Bundle on Devices · Execute Script Bundle on Devices · Assign Script Bundle to Domain
· Operations · Create Operation · Clone Operation · Modify Operation · Delete Operations · Import Operations · Export Operations · Run Operation · View Operation Results · Assign Operation to Domain
Table 126: Predefined Roles (R through Z) for the Junos Space Network Management Platform
Predefined Role
Task Group and Tasks
Application > Workspace
Report Administrator
Reports
· Generated Reports · Delete Generated Report · View Generated Report
Network Management Platform > Reports
1015
Table 126: Predefined Roles (R through Z) for the Junos Space Network Management Platform (continued)
Predefined Role
Task Group and Tasks
Application > Workspace
Report Definition Administrator
Reports
· Report Definitions · Create Report Definition · Modify Report Definition · Delete Report Definition · Clone Report Definition · View Report Definition · Generate Report · Assign Report Definition to Domain
Network Management Platform > Reports
Super Administrator
Manages all Junos Space Network Management Platform task groups and tasks. See Network Management Platform > Users > Roles > Super Administrator > View Detail for a list of tasks that are currently supported.
All Junos Space Network Management Platform workspaces
1016
Table 126: Predefined Roles (R through Z) for the Junos Space Network Management Platform (continued)
Predefined Role
Task Group and Tasks
Application > Workspace
System Administrator
Network Management Platform > Administration
1017
Table 126: Predefined Roles (R through Z) for the Junos Space Network Management Platform (continued)
Predefined Role
Task Group and Tasks
Application > Workspace
Administration
· Fabric · Extended Periods of High CPU · List of HPROF Files · Large Database Tables · Last JBoss Restarted Time · Device Management Sessions · Add Fabric Node · Delete Fabric Node · View Fabric Node Alarms · Device Load Balancing · Shutdown/Reboot Node(s) · Space Node Settings · SNMP Configuration · SNMP Manager · NAT Configuration · Check For File Integrity · Reset MySQL Replication · SNMP Start · SNMP Stop · SNMP Restart · System Snapshot · Generate Key
· Database Backup and Restore · Database Backup · Delete Backup · Restore · Restore From Remote File
· Space Troubleshooting · Log Configuration
· Applications · Junos Space Store · Modify Application Settings
1018
Table 126: Predefined Roles (R through Z) for the Junos Space Network Management Platform (continued)
Predefined Role
Task Group and Tasks
Application > Workspace
· Refresh Search Index · Manage Services · Uninstall Application · Upgrade Application · Add Application · Upgrade Platform
· Licenses · Import License
· Tags · Create Public Tag · Modify Public Tag · Delete Public Tags · Delete Private Tags · Make Tag Public · Mark as Favorite · Unmark as Favorite · Export Tags
· Filter Management · Save Filter · Modify Filter · Delete Filter
· DMI Schemas · Set as Default Schema · View Missing Schemas · View/Delete Unused Schemas · Delete Unused Schemas
· Update Schema
· Authentication Servers · Platform Certificate · CA/CRL Certificates · SMTP Servers
1019
Table 126: Predefined Roles (R through Z) for the Junos Space Network Management Platform (continued)
Predefined Role
Task Group and Tasks
Application > Workspace
· Audit Log Forwarding · Create Audit Log Forwarding Criterion · Modify Audit Log Forwarding Criterion · Delete Audit Log Forwarding Criterion · Enable Audit Log Forwarding Criterion
· Email Listeners · Proxy Server · Purging Policy
· Modify Purging Policy · Edit Purging Policy · Set Policy Status
Tag Administrator
· Tags · Modify Public Tag · Delete Public Tags · Delete Private Tags · Mark as Favorite · Unmark as Favorite · Export Tags · Make Tag Public · Create Public Tag
Template Design Manager
· Device Templates · Definitions · Create Template Definition · Manage CSV Files · Modify Template Definition · Clone Template Definition · Publish Template Definition · Unpublish Template Definition · Delete Template Definition · Export Template Definition · Import Template Definition · Assign Definition to Domain
Network Management Platform > Administration > Tags
Network Management Platform > Device Templates > Definitions
1020
Table 126: Predefined Roles (R through Z) for the Junos Space Network Management Platform (continued)
Predefined Role
Task Group and Tasks
Application > Workspace
Template Manager
· Devices · Create Quick Template
· Device Templates · Templates · Create Quick Template · Create Template from Definition · View Template Details · Modify Quick Template · Modify Template · Delete Template · Audit Template Configuration · Compare Template Against Device · Clone Template · Undeploy Template · View Template Association · Export Quick Template · Import Quick Template · Assign/Deploy Template · Assign Template · Deploy Template
· Assign Template to Domain · Unassign from Device
· Manage CSV Files
Network Management Platform > Devices
Network Management Platform > Device Templates > Templates
1021
Table 126: Predefined Roles (R through Z) for the Junos Space Network Management Platform (continued)
Predefined Role
Task Group and Tasks
Application > Workspace
User Administrator
· Role Based Access Control · User Accounts · Create User · Modify User · Delete Users · Disable Users · Enable Users · Unlock Users · Clear Local Passwords
· User Groups · Create User Group · Modify User Group · Delete User Groups · Assign Group to Users
· Roles · Create Role · Modify Role · Clone Role · Delete Roles · Export Roles · Import Roles
· Remote Profiles · Create Remote Profile · Modify Remote Profile · Delete Remote Profiles
· API Access Profiles · View API Access Profile Detail · Create API Access Profile · Modify API Access Profile · Delete API Access Profiles
· User Sessions · Terminate User Session
Network Management Platform > Role Based Access Control
1022
Table 126: Predefined Roles (R through Z) for the Junos Space Network Management Platform (continued)
Predefined Role
Task Group and Tasks
Application > Workspace
Xpath and Regex Manager
· CLI Configlets · Xpath and Regex · Create Xpath / Regex · Modify Xpath / Regex · Delete Xpath / Regex · Assign XPath / Regex to Domain
Network Management Platform > CLI Configlets
RELATED DOCUMENTATION Role-Based Access Control Overview | 995 Configuring Users to Manage Objects in Junos Space Overview | 1033 Managing Roles | 1024 Creating a User-Defined Role | 1022 Modifying User-Defined Roles | 1026 Deleting User-Defined Roles | 1027 Creating Users in Junos Space Network Management Platform | 1035 Viewing Users | 1054 Viewing User Statistics | 1068
Creating a User-Defined Role
Junos Space Network Management Platform provides read-only predefined roles--that is, Super Administrator or User Administrator--that you can use to create users to perform tasks that their roles permit. You can also create read/write user-defined roles that determine user responsibilities and access privileges for your network. You can modify and delete only user-defined roles that you create. You cannot modify or delete predefined roles.
1023
To create a user-defined role: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Roles. The Roles page appears.
2. Click the Create Role icon on the menu bar. The Create Role page appears, allowing you to select workspaces and associated tasks from all deployed applications.
3. In the Title text box, type a user-defined role name. The role title cannot exceed 32 characters. The title can contain letters and numbers and can include a hyphen (-), underscore (_), or period (.). Also, the title cannot start with a space.
4. In the Description text box, type a user-defined role description. The role description cannot exceed 256 characters. The description can contain letters and numbers and can include a hyphen (-), underscore (_), period (.), or comma (,).
5. Select an application workspace from the application selection ribbon. Mouse over an application workspace icon to view the application and workspace name. You can select one or more workspaces for each user-defined role. An expandable and collapsible tree of associated tasks appears below the selection ribbon.
6. From the task tree, select the specific tasks that you want for the user-defined role. All application workspace tasks are selected by default in the task tree. Only the application workspace node that is currently being edited is expanded in the Task Summary pane; previously selected workspace nodes are collapsed. You can expand other workspace nodes manually. Selecting the top node or workspace selects or deselects the whole task tree. Selecting any task node automatically selects all tasks under the task node. Selecting any task node automatically selects its parent and grandparent. Only the currently active task tree appears in the Task Summary pane.
7. Click Create. The user-defined role is created, is saved, and appears on the Roles inventory page. Scroll or search to view it.
1024
NOTE: You cannot create or save a user-defined role when the workspace tasks are not selected. Junos Space displays the following error message: Task tree selection cannot be empty.
Creation of a role generates an audit log entry.
RELATED DOCUMENTATION Predefined Roles Overview | 999 Managing Roles | 1024 Modifying User-Defined Roles | 1026 Deleting User-Defined Roles | 1027 Creating Users in Junos Space Network Management Platform | 1035
Managing Roles
IN THIS SECTION Viewing User Role Details | 1024 Managing Predefined and User-Defined Roles | 1025
A role is a specific set of tasks that can be assigned to users in Junos Space Network Management Platform. Junos Space Platform provides predefined roles, as well as the provision to create user-defined roles, that can both be assigned to users. A Super Administrator or User Administrator can view all predefined and user-defined roles on the Role Based Access Control > Roles inventory page and create new user-defined roles if required. Viewing User Role Details The Roles inventory page displays all predefined and user-defined roles in tabular format.
1025
Roles are listed in the table in ascending alphabetical order. The columns indicate the role title, type (that is, predefined or custom), description, and tasks assigned. You can show or hide table columns and sort records in ascending or descending order. You can search for roles by typing the first letters of the role title in the search box. Role titles starting with the first letters you type are listed. To view a user role detail summary: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Roles. The Roles page appears.
2. Double-click a role. The Role Detail Summary page that appears displays the workspace and workspace tasks assigned to that role.
3. Click the expander button + adjacent to the workspaces to view subtasks.
4. Click OK on the Role Detail Summary page to exit this page. You are returned to the Roles page.
Managing Predefined and User-Defined Roles
You can manage predefined and user-defined roles by selecting a task from the Actions menu or the shortcut menu that is displayed when you right-click a role, or by clicking the icons at the top of the Roles page. You can perform the Modify Role and Delete Roles actions only on user-defined roles. You cannot manipulate read-only predefined roles. To perform an action, you must first select the role. You can perform one or more of the following actions by using the Roles page: · View Role Details--View details about the selected role. · Modify Role--For selected user-defined roles, modify the description, application workspaces, and tasks
assigned to the role. You cannot modify predefined roles. For more information, see "Modifying User-Defined Roles" on page 1026. · Delete Roles--Delete the selected user-defined roles. You cannot delete predefined roles. For more information, see "Deleting User-Defined Roles" on page 1027. · Clone Roles--Clone the selected user-defined or predefined roles. For more information, see "Cloning Predefined and User-Defined Roles" on page 1028. · Tag It--Tag one or more selected inventory objects. For more information, see "Tagging an Object" on page 1518.
1026
· View Tags--View a list of tags applied to a selected inventory object. For more information, see "Viewing Tags for a Managed Object" on page 1524.
· Untag It--Remove tags that are applied to inventory objects. For more information, see "Untagging Objects" on page 1519.
· Delete Private Tags--Delete tags that you created. · Clear All Selections--Clear all role selections you made on the Roles inventory page. · Display Quick View--View a small window summarizing data about the selected object.
RELATED DOCUMENTATION Role-Based Access Control Overview | 995 Predefined Roles Overview | 999 Creating Users in Junos Space Network Management Platform | 1035 Creating a User-Defined Role | 1022 Modifying User-Defined Roles | 1026 Deleting User-Defined Roles | 1027
Modifying User-Defined Roles
As a Super Administrator or User Administrator, you can modify user-defined roles. You can modify the description, application workspace, and the selected tasks of a user-defined role. You cannot modify the title. If you modify the role assigned to a user when the user is logged in, the change in the role becomes effective only when the user initiates another session. Changes in a role do not impact existing user sessions. This is applicable for both API and GUI user sessions. To modify a user-defined role: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
>Roles. The Roles inventory page appears displaying all existing predefined and user-defined roles.
2. Select the user-defined role you want to modify.
3. Click the Modify Role icon.
4. Modify the part of the user-defined role that you want: description, application workspace, or tasks.
1027
The role description cannot exceed 256 characters. The description can contain letters and numbers and can include a hyphen (-), underscore (_), period (.), or comma (,). 5. Click Modify. The modified user-defined role is updated on the Roles inventory page. Modification of a role generates an audit log entry.
RELATED DOCUMENTATION Predefined Roles Overview | 999 Creating Users in Junos Space Network Management Platform | 1035 Managing Roles | 1024 Roles Overview | 998 Creating a User-Defined Role | 1022 Deleting User-Defined Roles | 1027
Deleting User-Defined Roles
As a Super Administrator or User Administrator, you can delete user-defined roles from the Roles inventory page only if they are not assigned to other users.
NOTE: You cannot delete predefined roles.
To delete a user-defined role: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Roles. The Roles inventory page appears displaying all existing predefined and user-defined roles. 2. Select the user-defined roles that you want to delete. 3. Click the Delete Roles icon.
1028
The Delete Roles dialog box appears asking you for confirmation.
4. Click Delete. The role is deleted from the Roles inventory page.
NOTE: If the role is assigned to other Junos Space Network Management Platform users, you cannot delete the role. Junos Space displays an error message similar to: Role "test-role-1" cannot be deleted because it is referenced by users: test-role-user (test role user).
Deletion of roles generates an audit log entry.
RELATED DOCUMENTATION Predefined Roles Overview | 999 Managing Roles | 1024 Creating a User-Defined Role | 1022 Roles Overview | 998 Modifying User-Defined Roles | 1026 Creating Users in Junos Space Network Management Platform | 1035
Cloning Predefined and User-Defined Roles
As a Super Administrator or User Administrator, you can clone predefined and user-defined (custom) roles from the Roles inventory page. When you clone a role, you are creating a copy of a role, renaming it, and editing it to suit your requirements. This approach is a quick way to create a new role without having to create it from scratch. To create a role that is similar to a predefined role, clone the predefined role and make suitable changes to the clone.
NOTE: Junos Space Network Management Platform does not allow you to modify predefined roles.
1029
The clone is not applied to any users, by default. The Super Administrator, or the User Administrator with permissions to assign roles to a user can assign this role to users and remote profiles. To clone a predefined and user-defined role: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
>Roles. The Roles inventory page appears displaying all existing predefined and user-defined roles.
2. Right-click the predefined or user-defined role that you want to clone and select Clone Role. Alternatively, select a role, then select Clone Role from the Actions menu. The Clone Role page appears with the specifications of the original role.
NOTE: If Clone Role is disabled, ensure that you have the Clone Role permission and that you have not selected more than one role.
3. In the Title text box, enter the name of the clone. The name cannot start with a space or exceed 32 characters; allowable characters include letters, numbers, dash (), underscore (_), and period (.). You cannot have two roles with the same name.
4. (Optional) In the Description field, enter or modify the description of the clone. The description cannot exceed 256 characters. The description can contain letters and numbers and can include a hyphen (-), underscore (_), period (.), or comma (,).
5. (Optional) Select the application workspaces and associated tasks for the cloned role by selecting the check box corresponding to the workspace or task. For more information about selecting workspaces and tasks, see the "Creating a User-Defined Role" on page 1022 topic.
6. Click Clone. A new role is created and displayed on the Roles inventory page. On this page, click the View Detail link to view the tasks assigned to this role.
After a role is cloned, you can perform various actions on this role such as modifying its details, deleting the role, and so on. For more information, see the "Managing Roles" on page 1024 topic.
RELATED DOCUMENTATION
Roles Overview | 998 Managing Roles | 1024
1030
Exporting User-Defined Roles from Junos Space Network Management Platform
You can export user-defined roles from the Junos Space Network Management Platform database and download them to your local computer.
NOTE: You cannot export predefined roles from Junos Space Platform.
To export user-defined roles from Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Roles. The Roles page that appears displays all roles that currently exist in the Junos Space Platform database.
2. Right-click the user-defined roles that you want to export and select Export Roles. The Export Roles dialog box that appears displays the roles that you selected.
NOTE: If you select a predefined role, the Export Roles menu item appears dimmed.
3. Click Export and save the XML file to your local computer. The Export Roles Job Status dialog box displays the status of the export roles job. Close the dialog box to return to the Roles page.
RELATED DOCUMENTATION
Managing Roles | 1024 Modifying User-Defined Roles | 1026 Importing Roles to Junos Space Network Management Platform | 1031
1031
Importing Roles to Junos Space Network Management Platform
Using Junos Space Network Management Platform, you can import user-defined roles to the Junos Space Platform database. Role definitions stored as XML files can be imported into Junos Space Platform from your computer. We recommend that you view the sample XML file by using the link provided in the Roles dialog box before you import roles for the first time. Multiple XML files can be imported one by one.
NOTE: You cannot import a role in the following scenarios: · The name of the role that you entered in the XML file exists in the Junos Space Platform
database. · You did not enter details for mandatory tags in the XML file.
To import roles to Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Roles. The Roles page that appears displays all roles that currently exist in the Junos Space Platform database.
2. Click the Import roles icon on the toolbar. The Import Roles page is displayed.
3. (Optional) To view a sample XML file, click the View Sample XML link. Refer to this file for the details required to import roles to Junos Space Platform.
4. Click Browse and select the XML file from your local computer.
5. Click Import. A progress bar indicates the status of the import roles job. If the roles are imported successfully, the Import Role Information dialog box appears displaying details of the import roles job. If the roles are not imported, an error message is displayed.
Click OK to return to the Roles page.
RELATED DOCUMENTATION Managing Roles | 1024
Modifying User-Defined Roles | 1026
1032
CHAPTER 60
User Accounts
IN THIS CHAPTER Configuring Users to Manage Objects in Junos Space Overview | 1033 Creating Users in Junos Space Network Management Platform | 1035 Modifying a User | 1044 Deleting Users | 1050 Disabling and Enabling Users | 1051 Unlocking Users | 1053 Viewing Users | 1054 Exporting User Accounts from Junos Space Network Management Platform | 1061 Changing Your Password on Junos Space | 1065 Clearing User Local Passwords | 1067 Viewing User Statistics | 1068
1033
Configuring Users to Manage Objects in Junos Space Overview
Junos Space Network Management Platform is shipped with a Super Administrator privilege level that provides full access to the Junos Space system. When you first log in to Junos Space Network Management Platform as default Super Administrator, you can perform all tasks and access all Junos Space system resources. Super Administrator can create users and assign roles to those users to specify which workspaces and system resources the users can access and manage, and which tasks the users can perform within each workspace.
After you first set up Junos Space Network Management Platform, you can disable the default Super Administrator user ID, if necessary. However, before doing so, you should first create another user with Super Administrator privileges.
To access and manage Junos Space system resources, a user must be assigned at least one role. A role defines the tasks (create, modify, delete) that can be performed on the objects (devices, users, roles, configlets, scripts, services, customers) that Junos Space Network Management Platform manages. For more information about roles, see "Roles Overview" on page 998.
1034
Users receive permission to perform tasks only through the roles that they are assigned. In most cases, a single role assignment enables a user to view and to perform tasks on the objects within a workspace. For example, a user assigned the Device Manager role can discover devices, resynchronize devices, view the physical inventory and interfaces for devices, and delete managed devices. A user that is assigned the User Administrator role can create, modify, and delete other users in Junos Space, and assign and remove roles. If you modify a role assigned to a user when the user is logged in, the change becomes effective only when the user initiates another session. Changes in a role do not impact existing user sessions. This is applicable for both API and GUI user sessions. Typically, a role contains one or more task groups. A task group provides a mechanism for grouping a set of related tasks that can be performed on a specific object.
NOTE: You can assign multiple roles to a single user, and multiple users can be assigned the same role.
User-Specific Idle Timeout
From Junos Space Platform Release 17.1R1 onward, you can specify user-specific idle time out -- a period of inactivity after which the user session expires -- values when you create or modify a user account.
NOTE: Only users who have super administrator or user administrator roles, or have permissions to create or modify user accounts can configure user accounts.
You can specify a value in the range of 0 through 480 minutes in the Automatic logout after inactivity (minutes) field of the Create User page or the Modify User page. If you set the idle time out value to 0, the user session never expires. By default, the user-specific idle time out value is set to the Automatic logout after inactivity (minutes) value configured in the User Settings section of the Administration > Application Settings page. If a user has multiple GUI sessions open, only those sessions that exceed the value configured for Automatic logout after inactivity (minutes) expire. If you modify the Automatic logout after inactivity (minutes) setting for a user account (Modify User Page) while the user has GUI sessions open, those sessions continue to use the previously-configured value for the idle time out. The new value applies only to those sessions that the user opens after you modify the idle time out settings.
1035
Release History Table
Release
Description
17.1
From Junos Space Platform Release 17.1R1 onward, you can specify user-specific idle time
out -- a period of inactivity after which the user session expires -- values when you create or
modify a user account.
RELATED DOCUMENTATION Role-Based Access Control Overview | 995 Creating Users in Junos Space Network Management Platform | 1035 Viewing Users | 1054 Viewing User Statistics | 1068
Creating Users in Junos Space Network Management Platform
You create user accounts in Junos Space Network Management Platform, which are stored in the Junos Space Platform database. You can then assign different roles to the users associated with these user accounts, depending on the network management tasks the users are required to perform in your network. When a user attempts to log in to Junos Space Platform, the user is allowed to log in only if authenticated. Junos Space Platform supports credentials-based user authentication and certificate-based user authentication. For more information about user authentication, see "Role-Based Access Control Overview" on page 995. For credentials-based user authentication, each user account must include: · Login ID · Password · First name · Last name · Roles, which determine the tasks that a user can perform within the applications and workspaces · Domains within which the user can operate For certificate-based user authentication, each user account must include: · Login ID · First name
1036
· Last name · X.509 certificate file · Roles, which determine the tasks that a user can perform within the applications and workspaces · Domains within which the user can operate
You can perform various tasks including the following from the User Accounts page of the Role-Based Access Control workspace of Junos Space Platform:
· Generate user accounts with temporary passwords and set an expiry duration of up to 10,000 hours. · Set the number of concurrent UI sessions on a per-user basis. · Determine which users can access Junos Space through the GUI and which through the API. · Assign multiple roles and domains to new users. · Assign roles and domains to existing users. · Manually enable and disable users and unlock users who are locked out.
You can assign specific roles to a user to specify the tasks and objects (devices, users, services, and so forth) that the user can access and manage. You can assign multiple roles to a single user. You can export user accounts from the Reports workspace. To export user accounts, create a User Account report definition in the Reports workspace. Then generate the report from the report definition and download the report. For more information, see "Exporting User Accounts from Junos Space Network Management Platform" on page 1061. You can also limit the number of user login sessions in Junos Space Platform.
Creating a User
As a Super Administrator or User Administrator, you can create users in Junos Space Platform and assign roles to these users. The roles determine the tasks that the users can perform in Junos Space Platform.
As an administrator, you have the option to assign a temporary or permanent password to a new user or an existing user whose password has expired. Consider the points mentioned in Table 127 before assigning a temporary or regular password to a user.
Table 127: Differences Between Temporary and Regular Passwords
Temporary Password
Regular Password
Users must change their temporary passwords at first login.
Users need not change their passwords at first login.
1037
Table 127: Differences Between Temporary and Regular Passwords (continued)
Temporary Password
Regular Password
When temporary passwords expire, users cannot access the Junos Space server.
To access the Junos Space server, users need to use the new passwords that the administrator has generated and shared with them. Users cannot change their passwords on their own.
When regular passwords expire, users can change their passwords on their own after logging in to the Junos Space server.
Password expiry time is configured at the user level. By default, temporary passwords expire after 24 hours.
Password expiry time is configured at the global level from the Administration workspace. This expiry time applies to all users with regular passwords. For more information about configuring parameters related to regular passwords, see "Modifying Junos Space Network Management Platform Settings" on page 1340.
To create a user: 1. On the Junos Space Platform UI, select Role Based Access Control > User Accounts.
The User Accounts page is displayed.
2. Click the Create User icon on the toolbar above the application data to display the Create User page.
The Create User page is displayed. This page displays the General area on the left of the page and the Create User area on the right of the page.
NOTE: We recommend that you mouse over the blue icons on this page to know more about the fields next to which they are displayed.
3. In the Login ID field, enter a login ID for the new Junos Space user.
This can be an e-mail address. If it is, it is not mandatory that the login ID matches the e-mail address entered in the Email field. The login ID cannot exceed 128 characters. Permitted characters include hyphen (-), underscore (_), letters and numbers, as well as @ and period (.). You cannot have two users with the same login ID.
1038
NOTE: You cannot enter admin as the login ID. If you enter admin as the login ID, the following error message is displayed: Username admin is reserved in Space. Please do not create user with username: admin.
4. (Optional) Select the Generate a temporary password check box if you want to generate a temporary password for the user. Generation of temporary passwords is supported only for local authentication mode. It is not supported for remote-local authentication or remote authentication modes. As an administrator, you may want to generate a random password for a new user or when the password expires for an existing user. Users must change their temporary passwords when they log in for the first time. Users with temporary passwords are not allowed to use any of the features in Junos Space Platform unless they replace their temporary passwords with new passwords. When you generate a temporary password for a user, consider configuring the following fields related to the temporary password: · Temporary password will expire after--Specify the duration after which the temporary password expires. The user must log in to Junos Space within this duration and change the temporary password. Otherwise, after the expiry of the password, the user is not allowed to log in. When the temporary password expires, Junos Space displays the following message: Your password has expired. Please contact your administrator. The user must request the administrator for a new password. By default, the temporary passwords expire after 24 hours of their generation. The administrator can enter a value from 1 through 10,000 hours. · Temporary Password--Displays the temporary password generated by the Junos Space server. To generate another password, click Generate next to this field. The new generated password is displayed in this field. · Email password to user--Select this check box to e-mail the generated temporary password to the user. This check box is disabled if the SMTP server is not configured. If the e-mail does not reach the user or the password is lost, the administrator needs to generate a new temporary password. There is no option to resend the old temporary password.
1039
TIP: For the Junos Space server to automatically send the temporary password and expiry date by e-mail to the user, ensure that you configure: · The e-mail ID of the user in the Email field on the Create User page (the page that you
are currently in) · The SMTP server that receives the e-mail from the Junos Space server and routes it to
the intended recipient You must configure the SMTP server on the Administration > SMTP Servers inventory landing page. After configuring the SMTP server, test the connection between the Junos Space server and the SMTP server to ensure that communication between the servers is established. For more information about SMTP server configuration and how to test the configuration, see "Adding an SMTP Server" on page 1470 and "Managing SMTP Servers" on page 1469.
5. In the Password field, enter the password. This field is disabled if you have chosen to generate a temporary password. All passwords in Junos Space Platform are case-sensitive. For information about configuring password rules, see "Modifying Junos Space Network Management Platform Settings" on page 1340. The password strength indicator checks and displays the efficiency of the password that you entered.
NOTE: You cannot proceed to the next step if the password strength indicator shows that the password is weak.
6. In the Confirm Password field, reenter the password to confirm the password. This field is disabled if you have chosen to generate a temporary password.
7. In the First Name field, enter the user's first name. The name cannot exceed 32 alphanumeric characters.
8. In the Last Name field, enter the user's last name. The name cannot exceed 32 alphanumeric characters.
9. (Optional) In the Email field, enter the user's e-mail address.
1040
You must enter an e-mail address in this field if you have opted to e-mail the temporary password to a user by selecting the Email password to user check box. This need not be the same as the login ID if the login ID is an e-mail address. Ensure that the e-mail ID that you enter is valid and uses the format user@domain.
10. (Optional)To set a user-specific limit for the maximum number of concurrent UI sessions that are allowed for the user, clear the Use global settings check box. By default, this check box is selected and the user is allowed five concurrent sessions. This limit is displayed in the Maximum concurrent UI sessions field just below this check box. For more information about configuring concurrent UI sessions limits, see "Limiting User Sessions in Junos Space" on page 1108. In the Maximum concurrent UI sessions field, which becomes active when you clear the Use global settings check box, enter the maximum number of concurrent UI sessions that are allowed for this user. The default value for this field is 5. You can enter a value from 0 through 999.
NOTE: If you enter 0 (zero), there is no restriction on the number of concurrent UI sessions allowed for the user. However, the performance of the Junos Space setup may be affected if you allow many users with an unrestricted number of concurrent UI sessions.
11. (Optional) To set a user-specific value for the Automatic Logout after Inactivity setting, clear the Use global settings check box.
NOTE: You can configure user-specific idle time out from Release 17.1R1 onward.
By default, this check box is selected and the value you configured for the Automatic logout after inactivity (minutes) field under User Settings of the Modify Network Management Platform page (Administration > Applications > Modify Application Settings) is applied to the user. In the Automatic Logout after Inactivity field, which becomes active when you clear the Use global settings check box, enter the idle time out value in minutes. An idle time out value denotes a period of inactivity after which the user session expires. You can enter a value in the range of 0 through 480 minutes. If you set the value to 0, the user session never expires.
12. (Optional) In the Image File field, upload the user's photo ID from your local file system.
1041
13. The fields displayed depend on the mode of authentication chosen for your Junos Space setup. If you enabled complete certificate-based authentication, the X509 Cert File field is displayed. If you enabled password-based authentication or parameter-based authentication, the X.509 Certificate area is displayed with text boxes to enter values for the parameters.
· If you enabled complete certificate-based authentication: i. Click Browse adjacent to the X509 Cert File field to select the X.509 certificate file from your local computer. You can upload certificate file formats with the following extensions: .der, .cer, and .crt. Junos Space Platform uploads and saves the certificate file for the user.
ii. Click Upload. If you upload a certificate, the user is authenticated on the basis of the complete X.509 certificate. For more information about certificate-based user authentication, see "Certificate Management Overview" on page 1418.
· If you enabled password-based authentication or parameter-based authentication: i. In the X.509 Certificate area, enter the values for the parameters. A maximum of four X.509 parameters are displayed. For example, the e-mail address of the user or the serial number of the client certificate. You must enter a unique value for every parameter for every user. The X.509 certificate parameters are authenticated only during parameter-based authentication.
14. (Optional) At this point, you can click Finish to create a user without assigning roles. You can assign roles later.
15. To assign roles, click Next The Role Assignment page that appears displays the Available and Selected list boxes. All predefined roles are displayed in the Available list box by default.
16. (Optional) To assign the roles of an existing user to the new user, select the Use Same Roles Assigned to check box and enter the name of the existing user and click the Search icon. All roles assigned to the existing user are displayed in the Available list box. You can modify the new user's role assignments by adding roles to or removing roles from the Selected list box.
1042
· To select the existing user whose privileges you want to assign to the new user, enter one or more characters of the username of the existing user in the Search field to find and select the username. The roles assigned to the existing user are displayed in the Selected list box. You can modify the new user's role assignments by adding roles to or removing roles from the Selected list box.
17. (Optional) Select the GUI Access or API Access check box depending on the type of access you want to allow for the user. By default, the user can access both the GUI or API. Select at least one access type to successfully create a user.
18. Select whether the user can view all jobs on Junos Space Platform or only those jobs that the user has selected. By default, the View User's Own Job Only option button is selected. If you want the user to view all jobs, select the View All Jobs option button.
NOTE: Users with the Super Administrator or Job Administrator role can view jobs initiated by all users. You cannot modify this privilege in Junos Space Platform. For a new user with the Super Administrator or Job Administrator role, the View All Jobs option button is selected by default and the Job Management View area appears dimmed.
NOTE: If you are upgrading from previous Junos Space Platform releases, the users who are not assigned the Super Administrator or Job Administrator role in the previous release can view only their own jobs on the Job Management page. They cannot view jobs initiated by other users.
19. To associate an API Access Profile to a user to execute RPC commands safely on the device, select the API Access Profile from the Device command Access via API drop-down list. By default, the Disallow all exec RPCs option button is selected. For more information about creating API Access Profiles, see "Creating an API Access Profile" on page 1102.
20. To select and assign predefined roles for the user: a. Select one or more roles from the Available list box and click the right arrow. The selected roles are displayed in the Selected list box. You can also double-click a role to move it between lists.
1043
NOTE: When you install a Junos Space application on Junos Space Platform, the predefined roles for these applications are also available for selection. When you want to restrict a user to a specific Junos Space application, ensure that you assign the role that is related to that application to the user.
NOTE: The minimum role required for configuring a user for IBM Systems Director and Junos Space Launch in Context (LiC) is Device Manager.
b. (Optional) Use the left arrow to move roles from the Selected list box back to the Available list box. c. (Optional) To view the privileges assigned to a role, click the role in the Available or Selected list
boxes. The privileges assigned to these roles are displayed next to the Selected list box. 21. (Optional) At this point, you can click Finish to create a user without assigning domains to the user. You can assign domains later.
22. To assign domains to the user, click Next. The Domain Assignment page is displayed. This page displays the domains in a hierarchal tree structure in the Available Domains area.
23. (Optional) To assign domains that are already assigned to an existing user to the new user, select the Use Same Roles Assigned to check box, enter the name of the existing user, and click the Search icon. All domains assigned to the existing user are displayed in the Available Domains area. · To select the existing user whose domain privileges you want to assign to the new user, enter one or more characters of the username of the existing user in the Search field to find and select the username. The Available Domains area displays only domains assigned to the existing user.
24. Select the domains that you want to assign to the new user. You can select multiple domains at the same hierarchy level.
NOTE: If you do not assign a domain to the user, the Global domain is assigned to the user by default.
25. Click Finish.
1044
The new user is created in the Junos Space Platform database. You are returned to the User Accounts page.
Release History Table Release
Description
17.1R1
You can configure user-specific idle time out from Release 17.1R1 onward.
RELATED DOCUMENTATION Configuring Users to Manage Objects in Junos Space Overview | 1033 Predefined Roles Overview | 999 Changing Your Password on Junos Space | 176 Modifying a User | 1044 Deleting Users | 1050 Viewing Users | 1054
Modifying a User
As a Super Administrator or User Administrator, you can modify any user account in Junos Space Network Management Platform. The only attribute that cannot be modified is the login ID. The Modify User page has three areas--General, Role Assignment, and Domain Assignment--in which user information is grouped accordingly. Each user account can have multiple roles and a role can be associated with multiple users. To modify an existing user account: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts. The User Accounts inventory page appears.
2. From the inventory page, select the user account that you want to modify. For instructions on filtering and sorting, see "Viewing Users" on page 1054. You can modify only one user account at a time.
3. From the menu bar above the table, click the Modify User icon (the pencil icon).
1045
The Modify User page appears, displaying the General area by default, with the existing account information for that user.
4. You can change any of the information in the General area except the login ID.
· To generate a temporary password, select the Generate a temporary password check box. You generate passwords for new users or existing users whose passwords have expired. Generation of temporary passwords is supported only for local authentication mode. It is not supported for remote-local authentication or remote authentication modes.
To generate a temporary password, configure the following fields:
· Temporary password will expire after--Specify the duration after which the temporary password expires. The user must log in to Junos Space within this duration and change the temporary password. Otherwise, after the expiry of the password, the user is not allowed to log in. When the temporary password expires, Junos Space displays the following message: Your password has expired. Please contact your administrator.
The user must request the administrator for a new password.
By default, the temporary passwords expire after 24 hours of its generation. The administrator can enter a value from 1 through 10,000.
· Temporary Password--View the temporary password generated by the Junos Space server. To generate another password, click Generate next to this field. The new generated password is displayed in this field.
· Email password to user--Select this check box to e-mail the generated temporary password to the user. This check box is disabled if the SMTP server is not configured.
If the e-mail does not reach the user or the password is lost, the administrator needs to generate a new temporary password. There is no option to resend the old temporary password.
1046
TIP: For the Junos Space server to automatically send the temporary password and expiry date by e-mail to the user, ensure that you configure: · The e-mail ID of the user in the Email field on the Create user page (the page that you
are currently in) · The SMTP server that receives the e-mail from the Junos Space server and routes it
to the intended recipient You configure the SMTP server on the Administration > SMTP Servers inventory landing page. After configuring the SMTP server, test the connection between the Junos Space server and the SMTP server to ensure that communication between the servers is established. For more information about SMTP server configuration and how to test the configuration, see "Adding an SMTP Server" on page 1470 and "Managing SMTP Servers" on page 1469.
· To view the rules governing password creation, mouse over the information icon, the small blue i to the right of the Password field. To configure the password rules, see "Modifying Junos Space Network Management Platform Settings" on page 1340.
· To change the username, enter a new name in the First Name and Last Name fields. · To change the e-mail account, enter a new e-mail address in the Email field. · To change the maximum number of concurrent UI sessions for the user:
a. If the Use global settings check box is selected, clear it. The Maximum concurrent UI sessions field becomes active.
b. Enter the number of sessions in the Maximum concurrent UI sessions field. You can enter a value from 0 through 999. Entering 0 (zero) means that there is no restriction on the number of concurrent UI sessions allowed for the user. However, the system performance may be degraded if you allow unlimited sessions.
c. If you want to replace a user-specific value with the global value, select the Use global settings check box.
· To change the idle time out -- a period of inactivity after which the user session expires -- setting for the user:
NOTE: You can configure user-specific idle time out from Release 17.1R1 onward.
1047
a. If the Use global settings check box next to Automatic logout after inactivity is selected, clear it. The Automatic logout after inactivity field becomes active.
b. Enter the number of minutes the user session can remain inactive before the session expires because of inactivity. You can enter a value in the range of 0 through 480. If you set the value to 0 (zero), the user session never expires.
c. If you want to replace a user-specific value with the global value, select the Use global settings check box. If you select the Use global settings check box, the value you configured for the Automatic logout after inactivity (minutes) field under User Settings of the Modify Network Management Platform page (Administration > Applications > Modify Application Settings) is applied to the user.
· (Optional) To upload an image file from your local file system: a. Use the Browse button adjacent to the Image File field to locate the new user photo ID file. You can upload BMP, GIF, JPG, and PNG image file formats.
b. Click Upload. Junos Space Network Management Platform updates the photo ID file for the user account.
· (Optional) To upload the user's X.509 certificate file from your local file system: a. Use the Browse button adjacent to the X509 Cert File field to locate the user's X.509 certificate file on your local system. You can upload certificate file formats with the following extensions: .der, .cer, and .crt.
b. Click Upload. Junos Space Network Management Platform uploads and saves the certificate file for the user account. If you upload a certificate, the user is authenticated based on the certificate and not the user credentials (username and password). For more information about certificate-based user authentication, see "Certificate Management Overview" on page 1418.
5. To add or remove role assignments, click Role Assignment on the upper right of the Modify User page or click Next on the bottom right of the Modify User page.
1048
TIP: When you install various applications in Junos Space, predefined roles for each of these applications are made available to you, and you can view these roles from the Role Based Access Control workspace. So when you want to restrict a user to a specific application, make sure that you assign the role specific to that application while creating or modifying the user.
· To add role assignments, select one or more roles from the Available Roles column and click the right arrow to move the roles to the Selected Roles column.
· To remove role assignments, select one or more roles from the Selected Roles column and click the left arrow to move the roles to the Available Roles column.
· Select or clear the GUI Access and API Access check boxes depending on the type of access you want to allow for the user.
· Select View All Jobs or View User's Own Jobs Only to enable users to view jobs triggered by all users or view only their own jobs. By default, a user with the Super Administrator or Job Administrator role can view jobs of all users and you cannot modify this configuration.
6. To add, remove, or change domain assignments, click Domain Assignment on the upper right of the Modify User page, or click Next on the lower right of the Modify User page. · Select the domains to which the new user must be assigned. By default, the user is assigned to the Global domain.
NOTE: The user must be assigned to at least one domain.
7. Click Finish at the bottom of the page to complete the modification. Junos Space Network Management Platform updates the user account with the changes you specified. However, a confirmation message appears if you have removed any role; for example, if you removed the Device Script Manager role from a user, a confirmation pop-up is displayed. Perform one of the following tasks: · Click No to ensure that previously scheduled jobs are not affected. Junos Space Platform automatically adds the necessary role (that you removed) to the user ensuring that the user has the permissions to execute the jobs and that the jobs are not affected. · Click Yes to modify the user role. If you choose this option, scheduled jobs affected by this modification are not executed because this user no longer has access to the workspaces in which the jobs are scheduled. To ensure that the jobs are executed, you must reassign these jobs to another user. For more information, refer to the "Reassigning Jobs" on page 982 topic.
1049
When you remove the role, this user cannot perform any actions on the impacted job on the Job Management page, such as cancel the job, reassign the job, reschedule the job, and so on. The only actions permitted are: the user can tag the job and clear the selection of the job.
NOTE: When a job is executed, Junos Space Platform verifies whether the job owner has the permission to execute the job. If the job owner does not have the necessary permissions, the job is canceled. When you double-click the job, a message indicating that the user does not have the necessary permission to execute the job is displayed.
NOTE: If the Email password to user check box is enabled during user modification, then the "Mail user password" job is triggered and an audit entry is made to record this action.
Release History Table Release
17.1R1
Description You can configure user-specific idle time out from Release 17.1R1 onward.
RELATED DOCUMENTATION
Configuring Users to Manage Objects in Junos Space Overview | 1033 Creating Users in Junos Space Network Management Platform | 1035 Deleting Users | 1050 Viewing Users | 1054
1050
Deleting Users
When a Junos Space Network Management Platform user leaves your organization or no longer needs access to the system, the administrator should delete the existing user account. To delete one or more users: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts. The User Accounts inventory page appears, displaying all user accounts in a table.
2. Select one or more users to delete.
3. From the menu bar above the table, click the Delete Users icon. The Delete Users confirmation dialog box appears displaying only users with no pending jobs.
4. Retain the selection of the Exclude users who have jobs in scheduled or inprogress state check box, if you do not want to delete users who have initiated jobs that are in progress or who have scheduled jobs. That is, when you retain the selection of this check box, you delete only users with no pending jobs.
NOTE: You might notice that some of the users you selected for deletion do not appear in the Delete Users Confirmation dialog box. This is because these local and remote users are assigned to scheduled, in progress, or recurring jobs and are by default excluded from deletion. To delete these users, you need to clear the Exclude users who have jobs in scheduled or inprogress state check box. When this check box is cleared, these users appear in the dialog box and are deleted when you click Delete. The Jobs Scheduled/Inprogress column in the Delete Users Confirmation dialog box displays Yes for users who have scheduled jobs or who have initiated jobs that are in progress. Before you delete users with pending jobs, reassign these jobs to other active users within the same domain so as to ensure that these jobs are monitored and successfully completed. For example, reassign a recurring database backup job owned by UserA to UserB before deleting UserA. For more information about reassigning jobs, see "Reassigning Jobs" on page 982.
5. Verify the list of users that you want to delete and click Delete. This button is disabled if there are no users to delete. All selected user accounts that are displayed in the Delete Users Confirmation dialog box are removed from the Junos Space Network Management Platform database and the User Accounts inventory page.
1051
Deleting users generates an audit log entry. The audit log entry records the users that were deleted. To obtain details from an audit log entry about users who were deleted: 1. On the Junos Space Network Management Platform user interface, select Audit Logs > Audit Log.
The Audit Log inventory page appears, displaying all log entries in a table.
2. Filter data in the Task column by using the Delete Users keyword. After filtering, the Audit Log page displays only the audit log entries that were generated when users were deleted.
3. Double-click an audit-log entry. The Audit Log Detail page appears. On this page, the Affected Objects section displays the list of users who were deleted and the Affected Object Detail section displays details about the deleted user.
4. Click OK on the Audit Log Detail page to exit this page. You are returned to the Audit Log page.
RELATED DOCUMENTATION Creating Users in Junos Space Network Management Platform | 1035 Modifying a User | 1044 Viewing Users | 1054
Disabling and Enabling Users
From Junos Space Network Management Platform, you can disable a user to prevent the user from logging in to the system. By default, all users are enabled.
NOTE: · You cannot disable your own user account. · You cannot disable the super user. However, you can disable a user with the Super
Administrator role.
You can also configure Junos Space Platform to automatically disable users after a specific period of inactivity. On the Administration > Applications page, select Network Management Platform and modify
1052
the settings to specify the number of days after which an inactive user is automatically disabled. For more information, see "Modifying Junos Space Network Management Platform Settings" on page 1340. From the status of the user, which is displayed in the Status column on the User Accounts inventory landing page or in the Status field on the User Detail Summary page, you can determine whether the user account is enabled or disabled. When a user whose account is disabled tries to log in to the system, the user sees the message, This account is disabled. If the user is active at the time the user account is disabled, the system logs off the user and displays a message indicating that the user account is disabled. In both cases, an audit log entry is automatically generated. The following is a sample audit log entry: Login Failed. The user is disabled. To disable or enable one or more users: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts. The User Accounts page appears.
2. Select one or more users to disable or enable.
NOTE: If both the Enable and the Disable actions are unavailable, you have selected a super user.
3. Select Disable Users or Enable Users from the Actions menu. The Disable or Enable Users confirmation dialog box appears, displaying the list of users to whom the selected action will be applied. Users you selected, but who do not appear on the list, will not have the action applied to them. Only those users who are not already in the state to which you want to convert them can be enabled or disabled. If you selected disabled users to disable again, a message appears indicating that the status cannot be changed.
4. Verify the list of users that you want to disable or enable, and click Disable or Enable, respectively. All selected user accounts are disabled or enabled.
When you enable or disable a user, an audit log entry is automatically generated. To view details about users whom you have enabled or disabled from the audit log, double-click the audit log entry. For example, double-click the Disable Users audit log entry in the Task column. The Audit Log Detail page appears, which displays the users that are disabled. Select a user from the Affected Objects section. Details about the user are displayed in the Affected Object Detail section to the right of the page.
RELATED DOCUMENTATION
Creating Users in Junos Space Network Management Platform | 1035 Modifying a User | 1044 Viewing Users | 1054 Junos Space Audit Logs Overview | 1115
1053
Unlocking Users
Junos Space Network Management Platform locks out users who enter more than the permitted number of incorrect passwords. If you try to log in to the Junos Space server when your user account is locked out, then you see the message The account is Locked. You can't Log in. You can try logging in from another system or request the administrator to unlock your account.
By default, a user is locked out after four unsuccessful login attempts. As an administrator, you can decide after how many unsuccessful login attempts a user should be logged out. You can configure this setting from the Administration workspace. For more information about configuring this setting, see the No. of unsuccessful attempts before lockout parameter in "Modifying Junos Space Network Management Platform Settings" on page 1340.
To unlock a user account:
1. On the Junos Space Network Management Platform user interface, select Role Based Access Control > User Accounts. The User Accounts inventory page appears, displaying all user accounts in a table.
2. Select one or more locked users to unlock.
TIP: You can identify the locked-out users by the lock icon in the Locked Out column on the User Accounts inventory page.
3. Select Unlock Users from the Actions menu. A confirmation dialog box appears, displaying the users you have selected to unlock. If Unlock Users is disabled, it means that one or more users that you have selected to unlock is not a locked-out user. Go to step 2 and select only locked-out users to proceed.
4. Click Unlock in the confirmation dialog box to unlock the users. The selected users are unlocked. These users can log in at the next login attempt.
1054
Unlocking users generates an audit log entry with details about users that were unlocked. To obtain details from an audit log entry about users who were unlocked: 1. On the Junos Space Network Management Platform user interface, select Audit Logs > Audit Log.
The Audit Log inventory page appears, displaying all log entries in a table.
2. Filter data in the Task column by using the Unlock Users keyword. Then the Audit Log page displays only the audit log entries that were generated when users were unlocked.
3. Double-click an audit log entry. The Audit Log Detail page appears. On this page, the Affected Objects section displays the list of users who were unlocked and the Affected Object Detail section displays details about the unlocked user.
4. Click OK on the Audit Log Detail page to exit this page. You are returned to the Audit Log page.
RELATED DOCUMENTATION Role-Based Access Control Overview | 995
Viewing Users
The User Accounts inventory page displays all Junos Space Network Management Platform users who have accounts. To add new users, you must have administrator privileges. To add a new user, see "Creating Users in Junos Space Network Management Platform" on page 1035. Users have Junos Space access based on predefined roles (see "Predefined Roles Overview" on page 999). For more information about how to manipulate inventory page data, see the "Junos Space User Interface Overview" on page 88 topic in the Junos Space Network Management Platform User Interface Guide. To view the inventory of users and their details, select Role Based Access Control > User Accounts. The User Accounts page appears. Users are displayed in a table sorted, by default, by username. Each user occupies a row in the User Accounts table. The table's column headings are User Name, First Name, Last Name, Email, User Type, GUI/API Access, Status, Password Status, and Locked Out.
1055
The status bar at the bottom of the page shows the range of objects that are displayed. For example, you might see Displaying 1-30 of 113. In addition, the Show items list enables you to select the number of items to display per page: 10, 20, 40, 60, 80, 100, 200. The following sections describe how you can modify your view to see the user information of interest to you.
Sorting Columns | 1055 Displaying or Hiding Columns | 1055 Filtering Users | 1056 Viewing User Details | 1057 Performing Actions on Users | 1060
Sorting Columns
The columns in the User Accounts table (that is on the User Accounts inventory landing page) can be arranged in the ascending or descending order. To sort the contents of a column: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts. The User Accounts page appears, displaying the users in tabular format.
2. Click the down arrow to the right of any column heading. A list with the following menu options appears: · Sort Ascending: Select to arrange the contents of the column in ascending order · Sort Descending: Select to arrange the contents of the column in descending order · Columns: Select to view the column list from which you can select columns to display · Filters: Select to enter the filter
3. Select Sort Ascending or Sort Descending. The sequence of objects in the column changes to reflect your choice.
Displaying or Hiding Columns
The columns in the User Accounts table (that is on the User Accounts inventory landing page) can be displayed or hidden as required.
1056
To display or hide a column: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts. The User Accounts page appears, displaying the users in tabular format.
2. Click the down arrow to the right of any column heading.
3. Select Columns. A list with menu options corresponding to all the available column headings appears with a check box next to each heading. The check boxes for the headings that are displayed are selected; those that are hidden are not selected.
4. Select or deselect the headings as desired. The table changes to reflect your choice.
Filtering Users
You can filter users based on the contents of the columns on the User Accounts page. To filter users: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts. The User Accounts page appears, displaying the users in tabular format.
2. Click the down arrow to the right of any column heading.
3. Select Filters. The filter field appears, with a Go button to the right of it.
4. Enter or select the filter criteria and click Go. On applying the filters, the table contents shrink to display the values that match the filter applied. The criteria by which the display is filtered and the column heading appear just above the table.
1057
NOTE: Filters applied across multiple columns have an additive effect; that is, each succeeding filter further restricts the display.
5. To remove a filter, click the [X] icon to the right of the filter criteria shown just above the table. For more information about filtering based on the contents of columns, see the "Inventory Landing Page Overview" on page 128 topic in the Junos Space Network Management Platform User Interface Guide.
Viewing User Details
You can view the details of users on the User Accounts inventory page. To view detailed user information: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts. The User Accounts page appears, displaying the users configured in Junos Space Platform in tabular format.
2. Perform one of the following tasks: · Select a user and click the Display Quick View icon on the menu bar. The following information is displayed to the right of the selected user: · Login ID · First Name · Last Name · Email · User Type · Locked Out · Password Status For information about the fields, see Table 128. To hide the quick view, click the Hide Quick View icon on the menu bar. · Double-click a user row in the table. The User Detail Summary page appears, showing the information described in Table 128.
1058
Table 128: User Detail Summary Page
Field Name
Description
Login ID
Login username. This could be an e-mail address, but it need not match the e-mail address that might be provided in the Email field for that username.
First Name
First name of the user
Last Name
Last name of the user
Email
(Optional) User's e-mail account. The e-mail address provided here need not match the login ID, if the login ID is also an e-mail address.
User Type
Whether the user is created manually (Local) or automatically by Junos Space Network Management Platform through remote login (Remote)
For more information about local and remote users, see the flowcharts in "Configuring a RADIUS Server for Authentication and Authorization" on page 1465.
Status
Whether the user is Enabled or Disabled. Users are enabled by default. Disabling a user is not the same as deleting a user.
A user whose account is disabled cannot log in to the Junos Space server.
GUI Access
Whether the user has GUI access
API Access
Whether the user has API access
Use global settings
Whether the global settings must be used to determine the maximum number of concurrent UI sessions permitted for the user
Maximum concurrent UI sessions
Maximum number of concurrent UI sessions permitted for the user If this field is set, then this value overrides the global settings.
Locked Out Status
Whether a user is locked out
A locked-out user cannot log in to the Junos Space server. Such users must request the administrator to unlock their user accounts.
Password Status
Whether a user's password is expired or active The term "Temporary" is displayed for temporary passwords.
View Jobs
Job-related permissions assigned to the user: View All Jobs or View User's Own Job Only
1059
Table 128: User Detail Summary Page (continued)
Field Name
Description
Certificate
E-mail address, common name, organizational unit, organization, location, state, and country of the certificate user
The View Certificate Detail link displays more details about the certificate.
X.509 Certificate Parameters X.509 certificate parameter values of the user
This field is displayed only if the parameters are defined and the certificate parameterbased or password-based mode is enabled.
Assigned Roles Assigned Domains
Role Summary
Predefined user roles assigned to the user
Domains to which the user is assigned Users can access only those objects within the domain to which they are assigned. By default, all users are assigned to the global domain, if the users are not assigned to a specific domain.
Name of the applications to which the roles belongs, and list of permissions attached to the roles
1060
3. · To view the details of the certificate, click the View Certificate Detail link. The X.509 Certificate Detail dialog box is displayed. Table 129 displays the fields in the dialog box. Table 129: X.509 Certificate Detail Page
Field
Description
Subject Name
E-mail address, common name, organizational unit, organization, location, state, and country of the certificate user
Issuer Name
E-mail address, common name, organizational unit, organization, location, state, and country of the certificate issuer
Signature Algorithm Name
Algorithm used by the certificate authority or issuer to sign the certificate.
Serial Number
Serial number of the certificate
Not Before
Date at which the certificate became valid
Not After
Date at which the certificate will become invalid
· Click Close to close the X.509 Certificate Detail dialog box.
4. To close the User Detail Summary page, click OK at the bottom of this page or the [X] icon in the upper-right corner of this page.
Performing Actions on Users
You can perform the following actions from the Users Accounts page: · Modify User--See "Modifying a User" on page 1044. · Delete Users--See "Deleting Users" on page 1050. · Clear Local Passwords--See "Clearing User Local Passwords" on page 1067. · Disable Users and Enable Users--See "Disabling and Enabling Users" on page 1051. · Unlock Users--See "Unlocking Users" on page 1053. · Delete Private Tags--Delete tags that you created. · Tag It--See "Tagging an Object" on page 1518. · UnTag It--See "Untagging Objects" on page 1519.
· View Tags--See "Viewing Tags for a Managed Object" on page 1524. · Clear All Selections--All selected users on the User Accounts inventory page are deselected.
1061
RELATED DOCUMENTATION Configuring Users to Manage Objects in Junos Space Overview | 1033 Creating Users in Junos Space Network Management Platform | 1035 Deleting Users | 1050 Modifying a User | 1044 Viewing User Statistics | 1068 Tagging an Object | 1518 Viewing Tags for a Managed Object | 1524
Exporting User Accounts from Junos Space Network Management Platform
IN THIS SECTION Creating a User Accounts Report Definition | 1062 Generating and Downloading a Report | 1063
You can export user accounts from the Junos Space Network Management Platform database and download them to your local computer in CSV, PDF, and HTML formats.
Perform the following tasks to export user accounts from Junos Space Platform:
1062
Creating a User Accounts Report Definition
You need to create a User Accounts report definition, using which you can create and export a user account report. To create a User Accounts report definition on Junos Space Platform: 1. On the Junos Space Platform user interface, select Reports > Report Definitions.
The Report Definitions page that appears displays all the report definitions that currently exist in the Junos Space Platform database.
2. Click the Create Report Definition icon on the toolbar. The Create Report Definition page is displayed.
3. In the Report Name field, type a report definition name. A report definition name cannot exceed 128 characters and can contain only letters, numbers, spaces, and the following special characters: hyphen (-), underscore (_), period (.), at (@), single quotation mark ('), forward slash (/), and ampersand (&).
4. (Optional) In the Description field, type a description. The description cannot exceed 512 characters.
5. Click the Add icon below the Description field to select the attributes of the report definition. The Select Report Type dialog box is displayed.
6. Select the check box next to the User Accounts report type.
7. Click Add. The User Accounts report type is added to this report definition.
8. (Optional) You can add filters to the report definition to customize the User Accounts report. To add a filter: a. Click the pencil icon in the Filter column. The Edit Columns/Filters dialog box is displayed. Add the filters using this dialog box. For more information about how to add filters, see "Creating Report Definitions" on page 779.
b. Click OK.
1063
The filters you selected are added to the report definition. The reports generated using this report definition display only those items that meet the filter criteria.
9. Click Create. The new report definition is created and you are redirected to the Report Definitions page.
Generating and Downloading a Report
You can generate and download reports by using the User Accounts report definition that you created. To generate and download a report: 1. On the Junos Space Network Management Platform user interface, select Reports > Report Definitions.
The Report Definitions page that appears displays all report definitions that currently exist in the Junos Space Platform database.
2. Right-click the User Accounts report definition that you created and select Generate Report. The Generate Reports dialog box is displayed.
3. (Optional) Next to the Report Format field, select the check boxes adjacent to the report formats that you want to generate. You can generate reports in CSV, HTML, and PDF formats. By default, all three check boxes are selected.
4. (Optional) Select the check box next to the SCP Server label to store the report in a directory on an SCP server. If you selected to store the report in a directory on the SCP server: a. In the IP Address field, enter the IP address of the SCP server.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses
or both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SCP server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
b. From the Port spin box, select the appropriate port number.
1064
By default, 22 is selected. c. In the Directory field, enter the directory on the SCP server where the report must be stored. d. In the User Name field, enter the username used to access the SCP server. e. In the Password field, enter the password used to access the SCP server. 5. (Optional) Select the check box next to the Email label to add e-mail addresses of users who need to receive the report. If you selected to add the e-mail address of a user who needs to receive the report: a. In the Email Address field, enter the e-mail address of the user. b. Click Add.
You can add multiple e-mail addresses if you want the report to be delivered to multiple users. 6. (Optional) Select the Schedule at a later time check box to schedule a date and time at which to generate
the report automatically.
7. (Optional) Select the Recurrence check box and specify the frequency at which to generate the report.
8. Click Generate. The Generated Report Job Information dialog box that appears displays details about the generated report.
9. Click OK. You are redirected to the Reports page.
10. Select Reports > Generated Reports from the task tree. The Generated Reports page that appears displays a list of the generated reports.
11. Click the View/Download link corresponding to the report that you want to view or download. The View Report dialog box that appears displays the details of the report that you generated.
12. Click the button corresponding to the format of the report that you want to view or download to your local computer. You can view and download reports in CSV, PDF, and HTML formats.
13. Save the report to your local computer.
Click Close to return to the Generated Reports page.
RELATED DOCUMENTATION
Reports Overview | 767 Creating Report Definitions | 779 Creating Users in Junos Space Network Management Platform | 1035
1065
Changing Your Password on Junos Space
After you log in to Junos Space Network Management Platform, you can change your password using the User Settings icon on the Junos Space banner. You do not require any particular Junos Space role to change your password. After a password change, you are logged out of the application. You must login again with the new password. If you use REST API to change the password, you must use Basic Auth to change the password, instead of using session ID or cookies.
Starting with Junos Space Platform Release 12.1, Junos Space has implemented a default standard for passwords that is compliant with the industry standard for security.
NOTE: · When you upgrade to Junos Space Platform Release 12.1 or later, the default standard takes
effect immediately. All local users receive password expiration messages the first time they log in to Junos Space after the update. · You need to have set your local password to be able to change it. If you do not have a local password set, you will not be able to set or change it. · You can use the User Settings icon to change only your local password. The change does not affect any passwords that an administrator might have configured for you on a remote authentication server.
To change your local password:
1. On the Junos Space Platform UI, click the User Settings icon on the right side of the Junos Space banner. The Change User Settings dialog box appears.
2. In the Old Password text box, enter your old password.
1066
NOTE: Mouse over the information icon (small blue i) next to the New Password text box to view the rules for password creation. For more information about the password rules, see "Modifying Junos Space Network Management Platform Settings" on page 1340.
3. In the New Password text box, enter your new password. 4. In the Confirm Password text box, enter your new password again to confirm it.
NOTE: The fields on the X.509 Certificate tab are applicable when you want to use certificate-based authentication. If you are using password-based authentication, you can ignore these fields. For more information about certificate-based authentication, see the "Certificate Management Overview" on page 1418 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
5. (Optional) Select the Manage objects from all assigned domains check box on the Object Visibility tab to view and manage objects from all the domains that you are assigned to.
6. Click OK. You are logged out of the system. To log in to Junos Space again, you must use your new password. Other sessions logged in with the same username are unaffected until the next login.
RELATED DOCUMENTATION Logging In to Junos Space | 99 Junos Space User Interface Overview | 88
1067
Clearing User Local Passwords
Junos Space Network Management Platform allows for an emergency password (authentication server down) to be set if in remote authentication mode, or allows the user to be handled locally (remote authentication fails) if in remote-local authentication mode. You can remove the local password you assign to users with remote or remote-local authentication by using the Clear Local Passwords action. To remove one or more user local passwords, you must have User Administrator privileges. To remove a user local password: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts. The User Accounts inventory page appears.
2. Select one or more users for which you want to remove a local password.
3. Select Clear Local Passwords from the Actions menu. This option is disabled (dimmed) if you try to clear the password for a local user. When you mouse over the option, the following tooltip is displayed: The following users are local only, so their passwords cannot be cleared: user1 The Clear Local Passwords dialog box appears.
4. Click Clear Passwords. The local passwords of the selected user accounts are cleared.
RELATED DOCUMENTATION Viewing Users | 1054 Creating Users in Junos Space Network Management Platform | 1035 Modifying a User | 1044 Creating a Remote Authentication Server | 1460
1068
Viewing User Statistics
You can view the percentage and the number of Junos Space Network Management Platform users that have been assigned to a role.
Viewing the Number of Users Assigned by Role | 1068
Viewing the Number of Users Assigned by Role To view the percentage of total users that have been assigned to a role: 1. On the Junos Space Network Management Platform user interface, click Role Based Access Control.
The Role Based Access Control statistics page appears. Junos Space Network Management Platform displays a bar chart showing users by assigned role. The bar chart displays the number of users assigned to each role that has one or more assigned users. · To view the number of users assigned to a specific role, mouse over the role in the chart. · To display an inventory page of users assigned to a specific role, click the segment of the chart that
represents the role.
RELATED DOCUMENTATION Role-Based Access Control Overview | 995 Viewing Users | 1054 Creating Users in Junos Space Network Management Platform | 1035 Deleting Users | 1050
CHAPTER 61
User Groups
IN THIS CHAPTER User Groups Overview | 1069 Managing User Groups | 1070 Job Management Using User Groups | 1074
1069
User Groups Overview
A user group is a collection of users who can view the jobs of all the users assigned to the user group.
Junos Space Management Platform provides an enhanced workflow to manage logical groups or user groups. In this workflow, you can perform the following operations with user groups:
· Create a user group and assign user(s) to it. · Modify an existing user group by assigning more users to it, or removing existing users using the Assign
or Unassign options respectively. · Delete user groups if they are not required anymore. · Search for a particular user in a user group. · Filter users in a user groups as required. · View details of a user group. Once the user(s) are added to a group, then by default, user can view his own jobs and assigned group members job regardless of the user's job visibility permission.
NOTE: · Only a Junos Space Super Administrator, User Administrator, or a user assigned to a custom
role that provides permissions to manage user groups can create and manage user groups. · A Super Administrator cannot be assigned to any user groups.
RELATED DOCUMENTATION
Managing User Groups | 1070 Job Management Using User Groups | 1074
1070
Managing User Groups
The following sections discuss the operations a Super Administrator or a User Administrator can perform with user groups.
Creating a User Group
To create a user group: 1. On the Junos Space Management Platform UI, select Role Based Access Control > User Groups.
The User Groups page appears.
2. Click (+) icon on the toolbar or right-click on Groups and select Create User Group. The User Group Information page appears. This page displays the User Group Information area on the left of the page and the Create User Group area on the right of the page.
3. In the Group Name field, enter the name of the user group. The group name cannot exceed 50 characters and cannot contain commas, double quotation marks, or parentheses, and cannot start with a space.
4. (Optional) In the Description field, add a description for the user group.
5. Click Next at the lower-right corner of the page. The Assign User for <Group Name> page appears. You can assign users to the user group from this page. All users (including remote users) except the super user are listed in a table and available for selection.
6. You can select users from the table, search for users by using keywords, and filter users by using tags or columns. · To select users by using keywords, enter the keyword in the Search field and click the Search icon. The list of users in the table is filtered by the keyword. · To filter users by their properties, select the check box next to the appropriate column on the Column Filter drop-down list.
· To filter users by tags, select an appropriate tag from the Tag Filter drop-down list. · To select all users, select the Select all items across all pages check box. · To select some users from the table, select the check box next to their usernames. · To reset all filters, click Reset All.
NOTE: You can add a maximum of 100 users to a user group.
1071
7. After selecting all the users that you want to assign to the user group, click Finish on the lower-right corner of the page. The new user group is created. The User Groups landing page appears and the new user group is listed under Groups.
8. Click on the user group name to view the details of the user group on the right-side pane. The details of the user group such as the Group Name, Description, Date and Time Created, Assigned Users (number), and the users assigned to the user group is displayed on the pane. You can review the user group information. You can also search for users present in the user group based on keywords, tags, or columns. The Assigned Groups column displays the user groups to which each user is assigned to. If a user is assigned to more than one user group, a hyper-link Multiple Groups appears in the Assigned Groups column for that user. Click Multiple Groups and Groups assigned to the User page appears. This page lists the user groups to which the user is assigned.
9. You can also assign or remove users from the user group from this pane. To assign a user to the user group, click on the Assign (+) icon available on the top-left corner of the table. The Assign Users to Group page appears. Select the users you want to add the user group (you can follow the procedure described in step 6 to select the users) and click Assign. The selected users are assigned to the user group.
10. If you want to remove users from the user group, select the users in the table and click the (-) icon available on the top-left corner of the table. The selected users are removed from the user group.
1072
NOTE: When a user is assigned to a user group, or is a user is removed from a user group, the user's session is automatically terminated. The user will have to re-log in to Junos Space Management Platform for the user group assignment to take effect for the user.
Modifying a User Group
To modify a user group: 1. On the Junos Space Platform UI, select Role Based Access Control > User Groups.
The User Groups page appears. The existing user groups are listed under Groups.
2. To modify the user group name and description, right-click on the user group and select Modify User Group. The Modify User Group page appears. Update the user group name and description as required and click Save.
3. To assign a user to a user group, click on the user group name. The details of the user group appears on the right-side pane.
4. Click the Assign (+) icon available on the top-left corner of the table. The Assign Users to Group page appears. Select the users you want to add the user group and click Assign. You can select users from the table, search for users by using keywords, and filter users by using tags or columns. · To select users by using keywords, enter the keyword in the Search field and click the Search icon. The list of users in the table is filtered by the keyword. · To filter users by their properties, select the check box next to the appropriate column on the Column Filter drop-down list. · To filter users by tags, select an appropriate tag from the Tag Filter drop-down list. · To select all users, select the Select all items across all pages check box. · To select some users from the table, select the check box next to their usernames. · To reset all filters, click Reset All.
1073
The selected users are added to the user group. 5. If you want to remove users from the user group, select the users in the table and click the (-) icon
available on the top-left corner of the table. The selected users are removed from the user group.
NOTE: When a user is assigned to a user group, or is a user is removed from a user group, the user's session is automatically terminated. The user will have to re-log in to Junos Space Management Platform for the user group assignment to take effect for the user.
Deleting a User Group To delete a user group: 1. On the Junos Space Platform UI, select Role Based Access Control > User Groups.
The User Groups page appears. The existing user groups are listed under Groups. 2. To delete the user group, right-click on the user group and select Delete User Group.
A confirmation message appears asking whether you want to delete the user group. 3. Click Yes if you want to delete the user group. Click No if you do not want to continue with this
operation. 4. If you click Yes, the user group is deleted and you will see a success message that the user group is
deleted.
NOTE: When a user group is deleted, all the associated user's session is automatically terminated. The user will have to re-log in to Junos Space Management Platform for the user group assignment to take effect for the user.
RELATED DOCUMENTATION User Groups Overview | 1069 Job Management Using User Groups | 1074
Job Management Using User Groups
IN THIS SECTION Job Visibility for User Assigned to User Group(s) | 1074
1074
A job is an action that is performed on any object that is managed by Junos Space, such as a device, service, or user. The Jobs workspace lets you monitor the status of jobs that have run or are scheduled to run, in Junos Space Network Management Platform and all installed Junos Space applications. Jobs can be scheduled to run immediately or in the future.
By default, when you log in as a non-administrator, you can view only your own jobs, which include jobs triggered by you as well as jobs reassigned to you. However, at the time of creation or modification of a user account or remote profile, a User Administrator, can explicitly configure the user account or remote profile to view all jobs triggered by all users across all applications.
NOTE: By default, a user with the Super Administrator or Job Administrator role can view all jobs triggered by all users across all applications.
Junos Space Network Management Platform supports job visibility in the following two ways:
· View User's Own Jobs Only--Enables the users to view the jobs created by them or assigned to them. · View All Jobs--Enables the user to view all the jobs. For more information on jobs and job management, see "Jobs Overview" on page 965.
The following section discusses various cases of job visibility for users assigned to user groups.
Job Visibility for User Assigned to User Group(s)
Users assigned to a user group can view all the jobs created by, or assigned to all users in the user group. You can view the user groups to which a user is assigned in two ways:
· For Super Administrator or User Administrator--Go to Role Based Access Control > User Groups page and click on a user group name. The details of the user group appears on the right side of the page. In the table on the lower part of the page, the Assigned Groups column in page displays the user groups to which each user is assigned to. If a user is assigned to more than one user group, a hyper-link Multiple Groups appears in the Assigned Groups column for that user. Click Multiple Groups and Groups assigned to the User page appears. This page lists the user groups to which the user is assigned.
1075
· For all users--Go to Jobs > Job Management page. The jobs associated to the user appears on the page. In the table, the Groups column in page displays the user groups to which each user is assigned to. If a user is assigned to more than one user group, the user groups are displayed as a comma separated list.
For example, user group Sample contains two users--user A and user B. In this case, both user A can view the jobs created or assigned to user A and user B. Similarly, User B will also be able to view jobs associated with user A and user B. Consider that user A has View All Jobs permission and user B has View User's Own Jobs Only permission.
When user A and user B are assigned to user group Sample, job visibility behavior is as follows:
NOTE: By default, both user A and user B will be able to view all the jobs associated with user group Sample, regardless of their job visibility permissions.
· Job Visibility for user A (View All Jobs permission)--User A can view only the jobs associated with the user group Sample, despite having View All Jobs permission. That is, being assigned to a user group restricts user A's job visibility to only view the jobs associated with the user group. If user A wants to view all the jobs (not just jobs associated with user group Sample), user A must perform the following steps:
1. On the Junos Space Platform UI, click the User Settings icon on the right side of the Junos Space banner. The Change User Settings dialog box appears.
2. Select the Group Visibility tab. The Group Visibility tab appears. By default, the Enable Group Visibility check box is selected.
3. Clear Enable Group Visibility check box and click OK. User A will now be able to view all the jobs created in the system. · Job Visibility for user B (View User's Own Jobs Only permission)--User B can view all the jobs associated with the user group Sample, despite having View User's Own Jobs Only permission. That is, even though user B's job visibility permission only allows him to view only his jobs, being assigned to a user group allows user B to view all the jobs associated with the user group. If user B wants to view only his own jobs (not jobs associated with user group Sample), user B must perform the following steps:
1. On the Junos Space Platform UI, click the User Settings icon on the right side of the Junos Space banner. The Change User Settings dialog box appears.
2. Select the Group Visibility tab.
The Group Visibility tab appears. By default, the Enable Group Visibility check box is selected. 3. Clear Enable Group Visibility check box and click OK. User B will now be able to view only his own jobs.
1076
RELATED DOCUMENTATION
User Groups Overview | 1069 Managing User Groups | 1070 Jobs Overview | 965
CHAPTER 62
Domains
IN THIS CHAPTER Domains Overview | 1077 Working with Domains | 1085 Assigning Objects to an Existing Domain | 1092 Exporting Domains from Junos Space Network Management Platform | 1096
1077
Domains Overview
IN THIS SECTION Accessing Objects In and Across Domains | 1078 Device Partitions | 1080 Assignment of Objects to Domains | 1083
In Junos Space Network Management Platform, a domain is a logical mapping of objects, such as devices, device templates, and CLI Configlets, to users who access and manage the network by using these objects. Junos Space Platform allows a hierarchal structure for domains. The top-level domain is called the Global domain. You can create a hierarchy of up to five levels of subdomains under the Global domain, with each subdomain associated with only one parent domain. You can use these subdomains to create easily manageable sections of your network. When you assign objects and users to these subdomains, users can manage these objects partially or completely based on the roles assigned to them. Objects created in a domain are assigned to the same domain. Using Junos Space Platform, you can create objects with the same name across domains; however, domains at the same hierarchy level cannot share the same name. The domain association is displayed in fully qualified domain name (FQDN) format in the Domain column of all workspaces. You can create the following objects with the same name across domains:
1078
· Templates and template definitions · CLI Configlets, configuration views, XPath, regular expressions, and configuration filters · Report definitions · Images, script bundles, and operations Users can be assigned to multiple domains. Objects are assigned to the domain to which the user is logged in currently. Junos Space Platform lets you assign multiple objects from the same workspace to a domain simultaneously. The domain to which an object is assigned is displayed in the Domain column on the inventory page of the workspace. This is displayed as an absolute path.
The default Super Administrator "super"' has full permissions to all subdomains. You need not manually assign new subdomains to this Super Administrator. You need to assign the Global domain to all users who are added to the Junos Space Platform database with the Super Administrator role.
You cannot delete the Global domain from Junos Space Platform. Junos Space Platform also does not allow you to delete a domain if subdomains are associated with that domain.
You can view predefined objects in a Junos Space Platform or Junos Space application workspace in addition to the objects that are assigned to the domain in which you are currently operating. To access workspaces on a Junos Space application that is installed on Junos Space Platform, the workspaces must be domain aware. Only domain-aware workspaces of an application can be accessed from the subdomains. When you switch between domains, you could lose access to workspaces if the application is not domain aware.
NOTE: If you access the Junos Space Platform UI in two tabs of the same browser with two different domains selected and access the same page in both tabs, the information displayed on the page is based on the latest domain selected. To view pages that are accessible only in the Global domain, ensure that you are in the Global domain in the most recent tab in which you are accessing the UI.
The following sections explain the rules to access objects across domains and how device partitions are used to manage subdomains:
Accessing Objects In and Across Domains
Junos Space Platform allows you to access objects across domains based on the roles you are assigned and the domains you are assigned to.
The following rules apply while accessing objects across domains in Junos Space Platform:
· Objects can be assigned to only one domain. · Objects can be moved from one domain to another.
1079
· Objects across domains can share the same name. · You can view objects from the parent domain only in read-only mode and only if the parent domain
allows its objects to be viewed by its subdomains.
· You can view and execute tasks on objects in a subdomain if the object is provided with appropriate permissions.
· You cannot modify or delete objects in a parent domain if you have read-only access, even if you have the necessary permissions to modify those objects.
· You can view and perform actions only on the objects assigned to the domain to which you are currently logged in. You can view objects from other accessible domains if the "Manage objects from all assigned domains" flag is set as a user preference. To set this flag, click the User Settings icon on the Junos Space banner.
· If you have read/write privileges to objects in a subdomain, you can perform read/write operations on the objects in the subdomain even if the subdomain is not explicitly assigned to you.
· If you have read-only privileges to objects in a subdomain, you can perform only read operations on the objects in the subdomain.
· If you have read-only access to objects in the parent domain, you cannot perform write operations even if you have read/write privileges on these objects by virtue of the roles assigned to you.
· If you do not have read-only access to objects in the parent domain, the objects in the parent domain are not visible to you in the subdomain.
In addition to the default rules to access objects assigned to domains, you can also use the "Allow users of this domain to have read and execute access to parent domain objects" flag to provide read permissions to all users in the domain when you create a domain. This flag provides both read and execute access to the objects in the parent domain.
If you use this flag, you can access the following objects that have read and execute permissions:
· Device templates and template definitions · CLI Configlets, configuration views, configuration filters, XPath, and regular expressions · Images, scripts, operations, and script bundles · Report definitions
1080
Device Partitions
Use device partitions to share physical interfaces, logical interfaces, and physical inventory of devices among multiple subdomains. Device partitions are supported only on M Series and MX Series routers. Consider the following restrictions when working with device partitions: · You can assign only one partition of a device to a subdomain; you cannot assign multiple partitions of
the same device to a subdomain. · You can assign one partition each from multiple devices to a subdomain. · You can partition a device only if the device is currently assigned to the Global domain. · To assign a partition to a subdomain, the root device should be part of the Global domain. For example, consider device D1 with partitions P1, P2, and P3; device D2 with partitions P1a and P2a; and Global, dom1, and dom2 to be the available domains in Junos Space. The following assignments of partitions are valid: · P1 to dom1 · P1a to dom1 · P2 to dom2 · P2a to dom2 · P3 to Global (default) The following assignments are invalid: P1 and P2 to dom1 or P1a and P2a to dom2. To assign a partition to a subdomain, the root device must be part of the Global domain. Table 130 lists the actions that you can or cannot perform on a device partition:
Table 130: Tasks Supported on Device Partitions
Task Group
Task Name
Device Configuration
Review/Deploy Configuration View/Edit Configuration
View Active Configuration
Device Partition Support
No
No
Yes
Resolve Out-of-band Changes
No
View/Assign Shared Objects
No
View Configuration Change Log
Yes
View Template Deployment
No
View/Edit Unmanaged Device
No
Configuration
Device Inventory Export Physical Inventory
No
View Associated Scripts
Yes
View License Inventory
No
View Logical Interfaces
Yes
View Physical Interfaces
Yes
View Physical Inventories
Yes
View Script Execution
Yes
View Inventory Change
Yes
View Software Inventory
No
Device
Create LSYS
No
Operations
1081
Notes Configuration details are not filtered on the basis of the partitioning. Configuration details are not filtered on the basis of the partitioning.
LSYS should be managed only on the root device.
Table 130: Tasks Supported on Device Partitions (continued)
Task Group
Task Name
Device Partition Support
Delete Devices
No
Looking Glass
No
Put in RMA State
No
Reactivate from RMA
No
Synchronize with Network
No
Execute Script
Yes
Apply CLI Configlet
Yes
Device Access Modify Authentication
No
Launch Device WebUI
No
SSH to Device
No
Resolve Key Conflict
No
Managed
No
Customized
Attribute
Delete Private
No
Tags
Tag It
No
1082
Notes You cannot delete a device partition from the subdomain. This action can be performed only on the root device. This action can be performed only on the root device. This action can be performed only on the root device. This action can be performed only on the root device. This action can be performed only on the root device. This action can be performed only on the root device. This action can be performed only on the root device.
1083
Table 130: Tasks Supported on Device Partitions (continued)
Task Group
Task Name
Device Partition Support
Un Tag It
No
View Tags
No
Filter by CSV
Yes
Clear All
Yes
Selection
Notes
You can assign device partitions to a domain or move the device partition from one domain to another. To assign a device partition to a domain or move a device partition from one domain to another, right-click the device partition and select Assign Partition to Domain.
You can assign devices to a domain. To do so, right-click the device and select the Assign Device to Domain task. You cannot move devices with partitions to a subdomain. If you do so, the Assign Device to Domain job fails.
Assignment of Objects to Domains
Objects in Junos Space Platform workspaces are assigned to at least one of the available domains.
The following rules apply while managing objects in the various workspaces:
· Templates--Templates and template definitions are created in the domain that you are currently operating in. When you create a template, you can select a template definition from the same domain or a parent domain if you have access to the parent domain. You can deploy templates on devices if they are in the same domain or if devices belong to other accessible domains and the "Manage objects from all assigned domains" flag is set as a user preference. To set this flag, click the User Settings icon on the Junos Space banner. Also, you can deploy templates that are inherited from the parent domain to the devices in the accessible domains.
· CLI Configlets--CLI Configlets are assigned to the domain that you are currently operating in. You can apply CLI Configlets to devices if they belong to the same domain or if the devices belong to other accessible domains and the "Manage objects from all assigned domains" flag is set as a user preference. You can assign and deploy CLI Configlets that are inherited from the parent domain to the devices in the current domain.
· Images and Scripts--Images and scripts are assigned to the domain that you are currently operating in. You can stage, deploy, or perform any action on images and scripts for only those devices that belong to the same domain or if the devices belong to other accessible domains and the "Manage objects from
1084
all assigned domains" flag is set as a user preference. You can also inherit images and scripts from the parent domain and perform some actions such as staging on devices in the current domain and other accessible domains. · Configuration Files--Configuration files are created in the domain to which the device is currently assigned. If a device is moved from one domain to another, configuration files are also automatically moved to the respective domain. This workspace does not display objects inherited from the parent domain if the "Manage objects from all assigned domains" flag is set as a user preference. · Jobs--Jobs are associated with the domain from which you initiate jobs. You can view jobs from other domains that are assigned to you if the "Manage objects from all assigned domains" flag is set as a user preference. · Audit Logs--Audit logs are generated in the domain from which the user initiated the actions. You can view audit logs from other domains that are assigned to you if the "Manage objects from all assigned domains" flag is set as a user preference. · Role Based Access Control--The Roles page is not available in the subdomains. You can create users only when you are logged in to the Global domain. You can assign users to a domain when or after you create user accounts. · Administration--You can access the complete Administration workspace only if you are logged in to the Global domain. · Reports--Report definitions are assigned to the domain in which they are created. You can generate reports by using the definition in the inherited domain or the current domain.
NOTE: Global search displays objects that match the search query from the current domain, child domains, and parent domain (if the user has read-only access to the parent domain). If an object in the search results is in a different domain than the one the user is currently in, the hyperlink to the object in the search results is disabled.
RELATED DOCUMENTATION
Working with Domains | 1085 Exporting Domains from Junos Space Network Management Platform | 1096
Working with Domains
IN THIS SECTION Adding a Domain | 1085 Modifying a Domain | 1087 Deleting Domains | 1089 Switching from One Domain to Another | 1092
1085
You add a domain to Junos Space Network Management Platform to assign users, devices, and other objects to that domain. You can add, modify, and delete a domain from the Role Based Access Control workspace only if you have the privileges of a Domain Administrator and are logged in to the Global domain. You cannot create domains if you are logged in or have switched to any other domain.
Adding a Domain
You add a domain when you want to create a logical grouping of objects and users. You add a domain from the Role Based Access Control workspace. Junos Space Platform allows you to add up to five levels of subdomains under the Global domain. When you add a domain, a subdomain is created under the domain that you select.
To add a domain:
1. On the Junos Space Network Management Platform user interface, select Role Based Access Control > Domains. The Domains page is displayed. The Domains area on the left of the page displays the domains that are currently available in tree view. The right of the page displays the details of the domain that is currently selected in the Domains area. By default, the Global domain is selected.
2. In the Domains area, right-click the parent domain under which you want to create a domain and select Create Domain. This page displays two areas: Domain Information on the left and Create Domain on the right. The Create Domain area displays steps to create a domain.
3. In the Domain Name field, enter the name of the domain.
1086
The domain name cannot exceed 255 characters and cannot contain commas, double quotation marks, or parentheses. Also, the name cannot start with a space.
4. (Optional) Select the Allow users of this domain to have read and execute access to parent domain check box if you want to allow users of this domain to have read and execute access to the objects in the parent domain.
5. (Optional) In the Description field, add a description of the domain.
6. Click Next in the lower-left corner. The Assign Users for Domain page is displayed. You can assign users to the domain from this page. All users except the super user are listed in a table and available for selection.
7. You can select users from the table, search for users by using keywords, and filter users by using tags or columns. · To select users by using keywords, enter the keyword in the Search field and click the Search icon. The list of users in the table is filtered by the keyword. · To filter users by their properties, select the check box next to the appropriate column on the Column Filter drop-down list. · To filter users by tags, select an appropriate tag from the Tag Filter drop-down list. · To select all users, select the Select all items across all pages check box. · To select some users from the table, select the check box next to their usernames. · To reset all filters, click Reset All.
NOTE: Filtering columns such as Assigned Domains can help you assign users across domains quickly and effectively.
8. Click Next. The Assign Devices for Domain page is displayed. You can assign devices to the domain from this page. All devices that are discovered to Junos Space Platform are listed in a table on this page.
9. You can select devices from the table, search for devices by using keywords, and filter devices by using tags or columns.
1087
· To select devices by using keywords, enter the keyword in the Search field and click the Search icon. The list of devices in the table is filtered by keyword.
· To filter devices by their properties, on the Column Filter drop-down list, select the check box next to the appropriate column and enter the keyword in the Search field.
· To filter devices by tags, select an appropriate tag from the Tag Filter drop-down list. · To select all devices, select the Select all items across all pages check box. · To select some devices from the table, select the check boxes next to their names.
NOTE: To reset all filters, click Reset All.
10. Click Finish. A message box displays the job ID. · You can click the job ID to see the details of the job. You are redirected to the Job Management page with a filtered view of the job corresponding to the addition of domain. Click the job to view the Assign Device(s) to Domain Report with details of the status of the job.
· Click OK. You are redirected to the Domains page.
NOTE: When the new domain is created, an informational message about switching domains is displayed in a dialog box. Do one of the following: · To prevent the informational message from appearing again, ensure that the Don't show
again check box is selected and click OK. The Don't show again check box is selected by default. · To allow the informational message to continue appearing, clear the Don't show again check box and click OK.
Modifying a Domain
Only a user with the Domain Administrator role can modify a domain.
1088
To modify a domain: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Domains. The Domains page appears.
2. Select the domain that you want to modify from the left pane. The right pane displays details about the selected domain.
3. Click the Modify icon on the left pane. The Modify Domain dialog box appears.
4. Make the necessary changes to the domain by using the Modify Domain dialog box. You can modify the domain name and description and allow or prevent users to have or from having read-only access to objects in the parent domain.
5. Click Save to close the Modify Domain dialog box.
6. On the right pane, assign or unassign users as required. To assign users to this domain: a. Click the (+) icon (Assign Users) on the right pane. The Assign Users page appears, displaying the Junos Space users except the super user and users who are already associated with this domain.
b. Select one or more users to assign to this domain You may want to sort the data in any of the columns on the Assign Users page to quickly identify the users.
c. Click Assign. You are returned to the Domains page, which displays the users that you added to this domain.
To unassign users from this domain: a. Select users whom you no longer want to associate with this domain.
b. Click the () icon (Unassign Users) on the right pane. The selected users are unassigned from this domain.
1089
NOTE: If one of the selected users belong only to this domain and not to any other domain, the delete action fails and the following error message is displayed: User needs to be assigned to atleast one domain
7. Click the Assigned Devices tab to assign devices to this domain. Use the (+) icon to achieve this task.
8. Click the Assigned Remote Profiles tab to add or remove remote profiles to or from this domain. a. Click the (+) icon (Assign Remote Profiles) on the right pane to add remote profiles. b. Click the (-) icon (Unassign Remote Profiles) on the right pane to remove remote profiles.
When you modify a domain, an audit log entry is generated.
Deleting Domains
Only a user with the Domain Administrator role can delete a domain. Before you delete a domain, take the following points into consideration: · All users who are logged in to the domain must be logged out. · The domain is locked and users cannot move or log in to that domain unless the job fails. · No objects must belong to the domain that is being deleted. You need to purge and archive audit logs
and job data as well as move or delete devices and all other objects in that domain to another domain before you proceed with the deletion. You must trigger the deletion of a domain only after you ensure that there are no objects in that domain. If objects exist in the domain, the deletion job fails and a list of objects to be deleted is provided in the job description. · Another administrator cannot create a domain with the same name as the domain that is being deleted until the domain deletion job is complete. · You cannot delete the Global domain. · You cannot delete a domain if the domain contains subdomains. To delete a domain: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Domains. The Domains page appears.
2. Select the domain that you want to delete from the left pane.
1090
3. Click the Delete icon on the left pane. A confirmation dialog box appears.
4. Click Yes on the confirmation dialog box to delete the domain. An information dialog box appears, displaying the job ID of the deletion job. Click the job ID to see whether the deletion of the domain is successful. If the job failed, then double-click the deletion job to determine the reasons for failure.
When the deletion of a domain fails, use the reasons listed in the job description of the domain deletion job to resolve the issue. Refer to the following example to view the reasons for the failure of a domain deletion job.
To view the reasons for the failure of a domain deletion job:
1. On the Junos Space Network Management Platform user interface, select Jobs > Job Management. The Job Management page appears.
2. Double-click the domain deletion job whose details you want to view. The Delete Domain Detail Report page appears. On this page, you see something similar to the following text in the Description column: a. Delete or reassign following users before deleting domain: {test-user-1, test-user-2, } b. 3 Device Object object[s] present in domain. Please remove or assign to another domain before deleting. c. 162 Physical Interface Object object[s] present in domain. Please remove or assign to another domain before deleting. d. 80 Physical Inventory Object object[s] present in domain. Please remove or assign to another domain before deleting. e. 24 Logical Interface Object object[s] present in domain. Please remove or assign to another domain before deleting.
3. Analyze the report and resolve the issue. In this example, resolve point b in the previous step, which is likely to address points c, d, and e because points c, d, and e are related to the devices in point b. You may encounter this error if a device is assigned to the domain being deleted and you are trying to delete that domain. To resolve this error, identify the devices that are assigned to this domain from
1091
the Domains workspace and reassign the devices to another domain. For example, assume that one of the devices assigned to the domain that you are trying to delete is DeviceA. To reassign DeviceA to the Global domain: a. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
b. Select DeviceA.
c. Click Assign to Domain from the Actions menu. The Assign to Domain page appears, displaying all domains on the Junos Space server.
d. Click Global.
e. Click Assign. The selected device is reassigned to the Global domain.
4. Resolve point a, which states: Delete or reassign following users before deleting domain: {test-user-1, test-user-2, } You may encounter this error if a user is attached to only a single domain and you are trying to delete that domain. Identify the users assigned to this domain from the Domains workspace and reassign the users to another domain. In this example, reassign test-user-1 to the Global domain. To reassign test-user-1 to the Global domain: a. On the Junos Space Network Management Platform user interface, select Role Based Access Control > User Accounts. The User Accounts page appears.
b. Select test-user-1.
c. Click the Modify User icon. The Modify User page appears.
d. Click Domain Assignment on the right pane of the Modify User page.
e. Select the Global check box.
f. Click Finish.
1092
The selected user is reassigned to the Global domain. Repeat this procedure for test-user-2. 5. Try deleting the domain now. You should be able to delete the domain because you have resolved the issues that were preventing you from deleting the domain. When you delete a domain, an audit log entry is automatically generated.
NOTE: If you cannot delete a domain because there are jobs and audit logs associated with that domain, switch to the domain that contains the audit logs and jobs and purge them.
Switching from One Domain to Another If you are a user who has access to multiple domains, then you can navigate from one domain to another by using the Domain drop-down list displayed at the top center of the Junos Space user interface.
NOTE: If you access the Junos Space Platform UI in two tabs of the same browser with two different domains selected and access the same page in both tabs, the information displayed on the page is based on the latest domain selected. To view pages that are accessible only in the Global domain, ensure that you are in the Global domain in the most recent tab in which you are accessing the UI.
RELATED DOCUMENTATION Domains Overview | 1077
Assigning Objects to an Existing Domain
IN THIS SECTION Assigning Users to an Existing Domain from the Domains Page | 1093 Assigning Devices to an Existing Domain from the Domains Page | 1094
Assigning Remote Profiles to an Existing Domain from the Domains Page | 1095 Assigning Objects to an Existing Domain from the Inventory Landing Pages | 1095
1093
You assign users, devices, and remote profiles to an existing domain from the Domains page.
To assign users, devices, or remote profiles to an existing domain, navigate to the Domains page in the Role Based Access Control workspace.
The Domains area on the left of the page displays the domains that are currently available. The right of the page displays the details of the domains that you selected in the Domains area. The summary view at the top-right of the Domains page displays details such as the name of the domain, the description of the domain, the date and time the domain was created, the number of users assigned to the domain, the number of devices assigned to the domain, and the number of remote profiles assigned to the domain.
By default, the Global domain is selected. Select the domain to which you want to assign objects and perform any of the following tasks:
Assigning Users to an Existing Domain from the Domains Page
You can assign users to an existing domain from the Assigned Users tab of the Domains page.
To assign users to an existing domain from the Domains page:
1. Click the Assigned Users tab. The users that are currently assigned to the selected domain are displayed in a table. You can use the search field and the column and tag filters to filter users in the table in Assigned Users tab. You can also click any column name to sort users based on the column value. The paging controls enable you to browse through the list of users, and you can specify the number of users to be displayed per page by using the Show box.
2. To assign users, click the Assign Users icon below the tab. The Assign Users dialog box is displayed.
3. Select users: · To select users by using keywords, enter the keyword in the Search field and click the Search icon. The list of users in the table is filtered by keyword. · To filter users by their properties, select the check box next to the appropriate column on the Column Filter list.
1094
· To filter users by tags, select an appropriate tag from the Tag Filter list. · To select all users, select the Select all items across all pages check box. · To select specific users from the table, select the check box next to the usernames.
NOTE: Filtering columns such as Assigned Domains can help you assign users across domains quickly and effectively.
4. Click Assign. The selected users are assigned to the domain.
Assigning Devices to an Existing Domain from the Domains Page
You can assign devices to an existing domain from the Assigned Devices tab of the Domains page. To assign devices to an existing domain from the Domains page: 1. Click the Assigned Devices tab.
The devices that are currently assigned to the selected domain are displayed in a table. You can use the search field and the column and tag filters to filter devices in the table in Assigned Devices tab. You can also click any column name to sort devices based on the column value. The paging controls enable you to browse through the list of devices, and you can specify the number of devices to be displayed per page by using the Show box.
2. To assign devices, click the plus icon below the tab. The Assign Devices dialog box is displayed.
3. Select devices: · To select devices by using keywords, enter the keyword in the Search field and click the Search icon. The list of devices in the table is filtered by keyword. · To filter devices by their properties, select the check box next to the appropriate column on the Column Filter list. · To filter devices by tags, select an appropriate tag from the Tag Filter list. · To select all devices, select the Select all items across all pages check box. · To select specific devices from the table, select the check box next to the names of the devices.
4. Click Assign.
1095
The selected devices are assigned to the domain.
Assigning Remote Profiles to an Existing Domain from the Domains Page
You can assign remote profiles to an existing domain from the Assigned Remote Profiles tab of the Domains page. To assign remote profiles to an existing domain from the Domains page: 1. Click the Assigned Remote Profiles tab.
The remote profiles that are currently assigned to the selected domain are displayed in a table. You can use the search field and the column and tag filters to filter remote profiles in the table in Assigned Remote Profiles tab. You can also click any column name to sort remote profiles based on the column value. The paging controls enable you to browse through the list of remote profiles, and you can specify the number of remote profiles to be displayed per page by using the Show box.
2. To assign remote profiles, click the plus icon below the tab. The Assign Remote Profiles dialog box is displayed. You can view the list of remote profiles in a table.
3. Select the remote profiles to assign to the domain from the table.
4. Click Assign. The selected remote profiles are assigned to the domain.
Assigning Objects to an Existing Domain from the Inventory Landing Pages
You can assign objects such as devices, remote profiles, template definitions, templates, CLI Configlets, configuration views, XPaths, regular expressions, configuration filters, report definitions, images, scripts, operations, and script bundles to a domain from their respective inventory landing pages. To assign objects to an existing domain from the inventory landing pages: 1. Go to the respective inventory landing page. For example, go to the Device Templates > Templates
page. The Templates inventory landing page that appears displays all the templates.
2. Select the templates to assign to the domain and select Assign Template to Domain from the Actions menu. The Assign Template to Domain dialog box is displayed. The domain tree lists all domains available in Junos Space Platform.
1096
3. Select the domain to which you want to assign templates from the domain tree.
4. Click Assign. The selected templates are assigned to the domain.
Release History Table
Release
Description
16.1R1
The summary view at the top-right of the Domains page displays details such as the name of the domain, the description of the domain, the date and time the domain was created, the number of users assigned to the domain, the number of devices assigned to the domain, and the number of remote profiles assigned to the domain.
16.1R1
You can use the search field and the column and tag filters to filter users in the table in Assigned Users tab.
16.1R1
You can use the search field and the column and tag filters to filter devices in the table in Assigned Devices tab.
16.1R1
You can use the search field and the column and tag filters to filter remote profiles in the table in Assigned Remote Profiles tab
RELATED DOCUMENTATION Domains Overview | 1077 Working with Domains | 1085
Exporting Domains from Junos Space Network Management Platform
You can export domains from the Junos Space Network Management Platform database and dowload them to your local computer as a single TAR file. This TAR file contains CSV files with the details of the exported domains. The CSV files contain details of all subdomains of the domain that you selected to export.
NOTE: You cannot export multiple domains that are at the same hierarchy level simultaneously.
1097
To export domains from Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Domains. The Domains page is displayed. You can view the domain hierarchy on the left pane of this page.
2. On the left pane, right-click the domain that you want to export and select Export Domain. The Export Domain Confirmation dialog box that appears prompts you to confirm your selection.
3. Click Yes and save the TAR file to your local computer. The Export Domain Job Information dialog box displays details of the export domain job. Close the dialog box to return to the Domains page.
RELATED DOCUMENTATION Domains Overview | 1077 Working with Domains | 1085
CHAPTER 63
Remote Profiles
IN THIS CHAPTER Creating a Remote Profile | 1098 Modifying a Remote Profile | 1100 Deleting Remote Profiles | 1101
1098
Creating a Remote Profile
Remote profiles are used to assign a specific set of roles to users when remote authentication and authorization are enabled in Junos Space Network Management Platform. A remote profile is a collection of roles defining the set of functions that a user is allowed to perform in Junos Space Network Management Platform. To create a remote profile: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Remote Profiles. The Remote Profiles page is displayed.
2. Click the Create Remote Profile icon on the menu bar. The Create Remote Profile page appears, displaying the Role Assignment area.
3. In the Name field, enter a name for the remote profile. The remote profile name cannot exceed 32 characters. The profile name can contain letters and numbers and can include a hyphen (-), underscore (_), or period (.).
4. In the Description field, enter a description for the remote profile. The remote profile description cannot exceed 256 characters. The description can contain letters and numbers and can include a hyphen (-), underscore (_), period (.), or comma (,).
1099
5. Select the GUI Access and API Access check boxes depending on the type of access you want to allow for the remote profile. By default, the remote profile is able to access both the GUI and API. You should select at least one access type to successfully create a remote profile.
6. In the Job Management View section, retain the selection of View User's Own Jobs Only to enable remote users associated with this remote profile to view only their own jobs on the Job Management page. This option is selected by default, which means that all users can view only their own jobs. To allow a remote user associated with this remote profile to view all jobs triggered by all Junos Space users, select View All Jobs. By default, a user with the Super Administrator or Job Administrator role can view jobs of all users. When you create or modify a user with the Super Administrator or Job Administrator role, the Job Management View section is disabled and you cannot prevent such users from viewing all jobs.
NOTE: After an upgrade to Junos Space Release 14.1 or later, remote users who are not assigned to the Super Administrator or Job Administrator role can view only their own jobs on the Job Management page. They cannot view jobs triggered by other users.
7. Use the double list box to select roles for the remote profile. Select one or more roles from the Available list box. Selected roles appear in the Selected list box. Use the right arrow to move the selected roles to the Selected list box. Use the left arrow to move roles from the Selected list box back to the Available list box. You can also double-click a role to move it from one list to the other. You see the details of selected roles appear in the right pane of the page.
8. Click Next. The Domain Assignment area appears, displaying all available domains.
9. Select domains where the user can operate.
10. Click Finish. A new remote profile is added.
Remote profiles can be modified, deleted, and tagged.
1100
NOTE: A user is not allowed to log in if the remote profile specified in the remote server does not exist in the local database. The message "No roles assigned for this user" is displayed on the login page. This information is logged in the audit log.
RELATED DOCUMENTATION Predefined Roles Overview | 999 Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450 Modifying a Remote Profile | 1100
Modifying a Remote Profile
You modify a remote profile when you want to modify the details of a remote profile. To modify a remote profile: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Remote Profiles. The Remote Profiles page is displayed. 2. Select the remote profile that you want to modify and click the Modify Remote Profile icon on the toolbar. The Modify Remote Profile page is displayed. 3. (Optional) In the Role Assignment area, modify the parameters of the remote profile such as the name of the remote profile, description of the remote profile, and roles assigned to the remote profile. 4. (Optional) To modify the domains associated with the remote profile, click Next. The Domain Assignment area is displayed. 5. (Optional) Modify the domains associated with the remote profile. 6. Click Finish.
The remote profile is modified. You are redirected to the Remote Profiles page. An audit log entry is generated for this task.
1101
RELATED DOCUMENTATION Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450 Creating a Remote Profile | 1098 Deleting Remote Profiles | 1101
Deleting Remote Profiles
You delete remote profiles from Junos Space Network Management Platform when you do not need to retain the remote profiles in the database. To delete remote profiles: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> Remote Profiles. The Remote Profiles page is displayed.
2. Select the remote profiles that you want to delete and click the Delete icon on toolbar. The Delete Remote Profiles pop-up window is displayed.
3. Click Delete. The remote profiles are deleted. You are redirected to the Remote Profiles page. An audit log entry is generated for this task.
RELATED DOCUMENTATION
Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450 Creating a Remote Profile | 1098 Modifying a Remote Profile | 1100
CHAPTER 64
API Access Profiles
IN THIS CHAPTER Creating an API Access Profile | 1102 Modifying an API Access Profile | 1104 Deleting API Access Profiles | 1105
1102
Creating an API Access Profile
An API Access Profile restricts a Junos Space user from executing RPC commands that are potentially unsafe for or harmful to your network. An API Access Profile is a set of rules that are used to validate an RPC command executed using the exec-rpc API. A rule is an XPath expression (XPath 1.0). An audit log entry is generated when you create, modify, or delete an API Access Profile. You can assign an API Access Profile to both local and remote user accounts. You assign an API Access Profile to a user when you create or modify a user account or a remote profile. For more information about creating user accounts, see "Creating Users in Junos Space Network Management Platform" on page 1035.
NOTE: If an API Access Profile is not associated with a user account, the user cannot execute any RPC commands on the device. If the user tries to execute an RPC command, Unauthorized Access Error is displayed.
You create an API Access Profile when you need to execute RPCs by using APIs. To create an API Access Profile: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> API Access Profiles. The API Access Profiles page that appears displays the list of API Access Profiles in the Junos Space Platform database.
2. Click the Create API Access Profile icon.
1103
The Create API Access Profile page is displayed.
3. In the Name field, enter a name for the new API Access Profile. An API Access Profile name cannot exceed 32 characters and can contain only letters, numbers, spaces, and some special characters. The special characters allowed are hyphen (-), underscore (_), and period (.). Leading and trailing spaces are not allowed. The name should start or end only with letters or numbers.
4. (Optional) In the Description field, enter a description for the new API Access Profile. The description cannot exceed 256 characters and can contain letters, numbers, spaces, and special characters.
5. On the RPC Command Rules tab, click the Add Rule icon. The Add/Edit Rule pop-up window is displayed. This pop-up window displays the rules that are associated with other API Access Profiles.
6. In the Rule drop-down list, enter the RPC command rule.
NOTE: You can also select the rules associated with other API Access Profiles from the drop-down list.
7. Click OK. The new RPC command rule is added to the API Access Profile.
NOTE: Repeat steps 5 through 7 to add more RPC command rules. You must add at least one rule to the API Access Profile to be able to save the profile in the Junos Space Platform database.
8. Click Save to save the API Access Profile. You are redirected to the API Access Profiles page.
NOTE: You can view the details of an API Access Profile. To do so, right-click the API Access Profile and select View API Access Profile Detail or double-click the API Access Profile.
RELATED DOCUMENTATION
Modifying an API Access Profile | 1104 Deleting API Access Profiles | 1105 Role-Based Access Control Overview | 995 Modifying a User | 1044
1104
Modifying an API Access Profile
You modify an API Access Profile when you need to modify the RPC command rules in the API Access Profile. To modify an API Access Profile: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> API Access Profiles. The API Access Profiles page that appears displays the list of API Access Profiles in the Junos Space Platform database.
2. Right-click the API Access Profile you need to modify and select Modify API Access Profile. The Modify API Access Profile page is displayed.
NOTE: You can modify all the fields of the API Access Profile except the name of the API Access Profile. For more information about modifying RPC command rules, see "Creating an API Access Profile" on page 1102.
3. Click Save. The API Access Profile is modified.
RELATED DOCUMENTATION
Creating an API Access Profile | 1102 Deleting API Access Profiles | 1105
1105
Deleting API Access Profiles
You delete API Access Profiles when you need to remove them from the Junos Space Network Management Platform database. To delete API Access Profiles: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> API Access Profiles. The API Access Profiles page that appears displays the list of API Access Profiles in the Junos Space Platform database. 2. Right-click the API Access Profiles you need to delete and select Delete API Access Profiles. The Delete API Access Profiles pop-up window is displayed. 3. Click Delete. The API Access Profiles are deleted.
NOTE: You cannot delete an API Access Profile if it is assigned to a user.
RELATED DOCUMENTATION Creating an API Access Profile | 1102 Modifying an API Access Profile | 1104
CHAPTER 65
User Sessions
IN THIS CHAPTER User Sessions Overview | 1106 Limiting User Sessions in Junos Space | 1108 Terminating User Sessions | 1110 Using the Junos Space CLI to View Users Logged In to the Junos Space GUI | 1111
1106
User Sessions Overview
As a Junos Space User Administrator, you can view and terminate user sessions before starting a maintenance cycle to minimize the risk of system inconsistency. You can view the list of users who are logged in along with the IP address of the client from which they are logged in and the duration of their sessions. You can select one or more users to terminate their sessions.
To view the sessions of the users who are currently logged in to Junos Space Platform, on the Junos Space Network Management Platform user interface, select Role Based Access Control > User Sessions.
Table 131 describes the column names on the User Sessions page that lists user sessions that are currently active on Junos Space Platform.
Table 131: User Sessions Page
Column Name
Description
User Name
Name of the user
Current Domain
Domain with which the user is associated
IP Address
IP address of the system from which the user has logged in
Fabric Node Name
Name of the node in the Junos Space fabric that is currently handling the user session
Session Start Time
Date and time at which the user session was initiated
Table 131: User Sessions Page (continued)
Column Name
Description
Session Duration
Duration of the user session
1107
NOTE: If the node on which the user is currently logged in goes down, the name of the currently active node is displayed in the Fabric Node Name column after the switchover to the active node.
RELATED DOCUMENTATION
Terminating User Sessions | 1110 Using the Junos Space CLI to View Users Logged In to the Junos Space GUI | 1111
1108
Limiting User Sessions in Junos Space
Using Junos Space Network Management Platform, you can configure the maximum number of concurrent UI sessions that are allowed for each user, both globally and at the individual user level, which can help you improve system performance.
When this limit is configured, any login attempt from the GUI is validated against this limit and the user is prevented from logging in if the concurrent user sessions limit is reached for that user. The user is notified with the following message: You are not allowed to login since your sessions exceed the configured limit. The audit log entry also includes the reason for login failure: Login Failed. Maximum concurrent user session limit is reached.
In Junos Space Platform, you can configure a global concurrent UI sessions limit that is applicable to all users. However, if you have a user-level configuration limit for a specific user, then this configuration limit takes precedence over the global configuration limit for users. For example, if you set the global limit to 5 and the user-level limit to 10 for user A, then user A is prevented from logging in at the eleventh attempt. However, if the global limit is set to 10 and the user-level limit is set to 5, then the user is rejected at the sixth login attempt.
In instances where you have the same user configured locally as well as remotely (that is, on the TACACS+ or RADIUS server), the concurrent UI sessions limit that is most restrictive takes effect. For example, if you have set the sessions limit to 1 in the TACACS+ server and to 2 in Junos Space Platform for user B, then user B is prevented from logging in at the second attempt. When the sessions limit is set to 2 in the TACACS+ server and to 1 in Junos Space Platform, you can see the same results of the user being rejected at the second attempt.
NOTE: The concurrent user sessions limit does not apply if you are a super user and you are allowed to log in even when you have exceeded this limit.
Consider the following points while setting the concurrent user sessions limit:
· Accessing the Junos Space GUI from two tabs of the same browser is considered a single session. · Accessing the GUI from an incognito tab is considered a separate session. · Accessing the GUI from another browser is considered a separate session. · Configuring Junos Space parameters by using APIs is not considered a session. This topic provides information about how to set the global limit for concurrent UI sessions per user in Junos Space Platform. For more information about setting user-level limits for concurrent UI sessions for new and existing users, see "Creating Users in Junos Space Network Management Platform" on page 1035 and "Modifying a User" on page 1044 respectively.
1109
To set the concurrent user sessions limit globally: 1. On the Junos Space Platform UI, select Administration > Applications.
The Applications page appears.
2. Select Network Management Platform.
3. Select Modify Application Setting from the Actions menu. The Modify Network Management Platform Settings page appears.
4. Click User.
5. In the Maximum concurrent UI sessions per user field, enter the maximum number of concurrent UI sessions that should be allowed per user. By default, a user is allowed up to five concurrent UI sessions. You can enter a value from 0 through 999. A value of 0 (zero) means that there is no restriction on the number of concurrent UI sessions that are allowed per user. However, the system performance may be affected if you allow unlimited sessions.
6. Click Modify to save the global limit for the number of concurrent UI sessions that should be allowed per user.
NOTE: The changes that you make to the concurrent UI sessions limit (either at the global level or at the user level) do not affect existing sessions. That is, this limit is validated against the next user login only.
For troubleshooting, see the /var/log/jboss/servers/server1/server.log file, which captures internal errors. Also, see the audit logs, which capture the following information: · Configuration changes made by the administrator to the global concurrent UI sessions limit · The time at which the global configuration is overridden at the user level · The time at which the concurrent UI sessions limit is reached for a user
RELATED DOCUMENTATION Configuring Users to Manage Objects in Junos Space Overview | 1033 Creating Users in Junos Space Network Management Platform | 1035 Modifying a User | 1044
1110
Terminating User Sessions
When you trigger a session termination, the users whose sessions you have chosen for termination are notified. The notification includes the date and time when the sessions will be terminated. As a user whose session will be terminated, you are automatically logged out at the scheduled date and time and redirected to the login page.
NOTE: You cannot terminate sessions of a user with the username super.
When you delete or disable a user in Junos Space Network Management Platform, the user's sessions is terminated automatically. If a user closes the session before the scheduled time for terminating the session and logs back in, the new session is not considered for session termination. To terminate user sessions: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Sessions. The User Sessions page that appears displays the list of users that are currently logged in to Junos Space.
2. Select one or more users whose sessions you want to terminate.
3. Select Terminate User Session from the Actions menu. The Terminate User Session pop-up window is displayed. This page displays the user sessions that you have selected to terminate and the IP address from which the users are logged in currently.
4. Select the Schedule at a later time check box to terminate the user sessions at a future point in time.
5. Select the appropriate date and time for terminating sessions from the date and time menus, respectively.
6. Click Confirm on the Terminate User Session page.
A job is created to terminate the sessions selected for session termination. When the job is scheduled, the users whose sessions you have selected for terminating receive a pop-up message displaying the date and time you have specified for terminating their sessions. When you terminate a user session, an audit log entry is automatically generated. On the Audit Log page (Audit Logs > Audit Log), you can filter data in the Task column by using the Terminate keyword to determine the number of terminated sessions, the name of the user that initiated this termination (from
1111
the User Name column), the IP address from which the user session is terminated (from the User IP column), the time at which the session is terminated (from the Timestamp column), and so on.
RELATED DOCUMENTATION Creating Users in Junos Space Network Management Platform | 1035 Predefined Roles Overview | 999
Using the Junos Space CLI to View Users Logged In to the Junos Space GUI
Junos Space administrators can execute the jmp_users command in the Junos Space CLI to view users logged in to the Junos Space GUI. The command output contains the following details: · USER NAME: Specifies the user logged in to the Junos Space GUI · IP ADDRESS: Specifies the IP address from which the user has logged in to the Junos Space GUI · LOGIN TIME: Specifies the time when the user logged in to the Junos Space GUI · NODE NAME: Specifies the name of the Junos Space node to which the user has logged in or, in other
words, the Junos Space node that is serving the user To view the users logged in to the Junos Space GUI by using the Junos Space CLI: 1. Log in to the Junos Space CLI.
The Junos Space Settings Menu appears.
2. On the Junos Space Settings Menu, to access shell, type one of the following numbers: · 6, if the Junos Space Appliance is a JA2500 Junos Space hardware appliance · 7, if the Junos Space Appliance is a virtual appliance You are prompted to enter the administrator password.
3. Enter the administrator password.
4. At the command prompt, type one of the following commands: · jmp_users all to view all the users logged in to the Junos Space fabric The following sample shows the output of the jmp_users all command:
1112
+-----------+----------------+---------------------+--------------+
| USER NAME | IP ADDRESS
| LOGIN TIME
| NODE NAME |
+-----------+----------------+---------------------+--------------+
| super
| 192.168.27.10 | 2014-12-18 8:50:02 | Node4
|
| super
| 192.168.28.11 | 2014-12-18 9:00:25 | Node4
|
| usr01
| 192.168.28.19 | 2014-12-18 10:10:10 | Node3
|
| usr02
| 192.168.29.15 | 2014-12-18 11:36:42 | Node3
|
+-----------+----------------+---------------------+--------------+
· jmp_users -node nodename to view the users logged in to the node specified by nodename; the nodename can be the IP address or the host name of the node
The following sample shows the output of the jmp_users -node Node4 command:
+-----------+----------------+---------------------+--------------+
| USER NAME | IP ADDRESS
| LOGIN TIME
| NODE NAME |
+-----------+----------------+---------------------+--------------+
| super
| 192.168.27.10 | 2014-12-18 8:50:02 | Node4
|
| super
| 192.168.28.11 | 2014-12-18 9:00:25 | Node4
|
+-----------+----------------+---------------------+--------------+
· jmp_users currentnode to list the users logged in to the same node as the administrator, or in other words, served by the node to which the administrator has logged in
You can also enter only jmp_users, without any options, (default option) to view the users logged in to the same node as the administrator.
The following sample shows the output of the jmp_users currentnode command, where currentnode is Node3:
+-----------+----------------+---------------------+--------------+
| USER NAME | IP ADDRESS
| LOGIN TIME
| NODE NAME |
+-----------+----------------+---------------------+--------------+
| usr01
| 192.168.28.19 | 2014-12-18 10:10:10 | Node3
|
| usr02
| 192.168.29.15 | 2014-12-18 11:36:42 | Node3
|
+-----------+----------------+---------------------+--------------+
RELATED DOCUMENTATION
User Sessions Overview | 1106
1113
11 PART
Audit Logs
Overview | 1115 Managing Audit Logs | 1117
CHAPTER 66
Overview
IN THIS CHAPTER Junos Space Audit Logs Overview | 1115
1115
Junos Space Audit Logs Overview
The Audit Logs workspace of Junos Space Network Management Platform displays the login history of and tasks initiated by a user. Through this workspace, you can track login history, device management tasks, services that were provisioned on devices, and so on. However, tasks that are not initiated by users, such as device-driven activities (for example, resynchronization of network elements), and changes made from the Junos Space CLI are not recorded in audit logs. Audit logs can be used by administrators to review events; for example, to identify which user accounts are associated with an event, to determine the chronological sequence of events--that is, what happened before and during an event, and so on.
NOTE: Junos Space Platform also tracks all externally-initiated non-READ REST APIs, and login and logout APIs. In addition, if the Record HTTP Get method check box is selected (in the Modify Network Management Platform Settings page), then Junos Space Platform tracks externally-initiated READ APIs.
Administrators can sort and filter audit logs; for example, administrators can use audit log filtering to track the user accounts that were added on a specific date, track configuration changes across a particular type of device, view services that were provisioned on specific devices, monitor user login and logout activities over time, and so on.
NOTE: To use the audit log service to monitor user requests and track changes initiated by users, you must be assigned the Audit Log Administrator role.
Junos Space Platform enables you to manage the volume of audit log data stored by purging log files from the Junos Space Platform database without archiving them or by purging log files after archiving them. When you archive logs before purging them, the archived log files are saved in a single file in compressed
1116
comma-separated values (CSV) format (extension .csv.gz). Audit logs can be archived locally (on the active node in the Junos Space fabric) or to a remote server. When you archive data locally, the archived log files are saved to the /var/lib/mysql/archive directory on the active Junos Space node. You can schedule the purging of audit logs (with or without prior archiving) for a later date and schedule the purging on a recurring basis. Junos Space Platform also enables you to download audit logs in CSV format so that you can view the audit logs in a separate application or save them on another machine for further use, without purging them from the system. You can also forward audit logs to a system log server by using one or more audit log forwarding criteria. Audit log forwarding criteria can be configured and managed from the Audit Log Forwarding page under the Administration workspace. For more information about audit log forwarding, see "Audit Log Forwarding in Junos Space Overview" on page 1484.
RELATED DOCUMENTATION Archiving and Purging or Only Purging Audit Logs | 1126 Viewing Audit Logs | 1117 Exporting Audit Logs | 1123
1117
CHAPTER 67
Managing Audit Logs
IN THIS CHAPTER Viewing Audit Logs | 1117 Viewing Audit Log Statistics | 1121 Exporting Audit Logs | 1123 Converting the Junos Space Audit Log File Timestamp from UTC to Local Time Using Microsoft Excel | 1125 Archiving and Purging or Only Purging Audit Logs | 1126
Viewing Audit Logs
Audit logs are generated for login activity and tasks that are initiated (by users) from the Junos Space Network Management Platform and Services Activation Director, as well as Service Automation.
NOTE: To view audit logs, you must have Audit Log Administrator privileges.
To view audit logs: 1. On the Junos Space Network Management Platform UI, select Audit Logs > Audit Log.
The Audit Log page appears displaying the audit logs in tabular format. The fields displayed on the Audit Log page are described in Table 132. 2. (Optional) Click an audit log entry to view the details for that audit log. The Audit Log Detail dialog box is displayed. This page displays additional fields that are not displayed on the Audit Log page; these fields are described in Table 132. Click OK to close the Audit Log Detail dialog box. 3. (Optional) If the audit log entry includes a link to the job ID, click the link to display information about the job associated with the audit log entry. The Job List page is displayed; the fields displayed in this page are described in Table 133.
Click Back to go to the Audit Log page.
Table 132: Fields on the Audit Log Page and Audit Log Detail Dialog Box
Field
Description
Displayed In
ID
Audit Log ID
Audit Log page
User Name
Username of the user that initiated the task
Audit Log page Audit Log Detail dialog box
User IP
IP address of the client computer from which the user initiated the task
Audit Log page Audit Log Detail dialog box
Domain
Domain from which a user has initiated jobs
Audit Log page
Application
Name of the application from which the user initiated the task
Audit Log page Audit Log Detail dialog box
Workspace
Name of the workspace from which the user initiated the task
Audit Log Detail dialog box
Task
Name of the task that triggered the audit log
Audit Log page Audit Log Detail dialog box
Timestamp
Timestamp for the audit log file that is stored in UTC time in the database but mapped to the local time zone of the client computer.
Audit Log page Audit Log Detail dialog box
Result Job ID
Result of the task that triggered the audit log:
Audit Log page
· Success--Job is completed successfully. · Failure--Job failed and is terminated. · Job Scheduled--Job is scheduled but has not yet started. · Recurring Job Scheduled--Job scheduled with recurrence.
Audit Log Detail dialog box
ID of the job-based task.
Audit Log page
As explained in the procedure, click the job ID to view detailed information about the job.
Audit Log Detail dialog box
1118
Table 132: Fields on the Audit Log Page and Audit Log Detail Dialog Box (continued)
Field
Description
Displayed In
Description
Description of the audit log
Audit Log page
Junos Space provides additional information such as configlet name and the device name in the audit log for the following tasks that are performed via REST API:
Audit Log Detail dialog box
· Apply CLI Configlet · Validate CLI Configlet
For example, Apply CLI Configlet/Validate CLI Configlet operation initiated for the configlet <configlet_name> on the device <device_name>.
Affected Objects Junos Space objects pertaining to the task in the audit log Audit Log Detail dialog box
Affected Object Detail
Details about the affected Junos Space objects; for example, the information related to the Modify Application settings task
Audit Log Detail dialog box
View Configuration Detail
Details of the device configuration changes are displayed in Audit Log Detail dialog box the Configuration Details dialog box.
1119
NOTE: The View Configuration Detail link is visible on the Audit Log Detail dialog box for only the following audit log tasks: modifying device configuration, deploying device configuration, executing scripts, modifying authentication on devices, deploying templates, applying CLI configlet, deploying device image, restoring configuration, and resolving key conflicts.
Table 133: Fields on the Job List Page
Field
Description
Name
Name of the job
Job ID
Numerical ID of the job
Percent
Percentage of job that is completed
1120
Table 133: Fields on the Job List Page (continued)
Field
Description
State Job Type
State of job execution:
· SUCCESS--Job is completed successfully. · FAILURE--Job failed and is terminated. · IN PROGRESS--Job is in progress. · CANCELED--Job is canceled by the user.
Type of job; for example, Discover Network Elements
Summary
Summary of the job
Scheduled Start Time
Date and time at which the job is scheduled (specified by a Junos Space user)
Actual Start Time
Date and time at which the job actually started
End Time
Date and time at which the job ended
Recurrence
Job recurrence interval, start time, and end time
Release History Table
Release
Description
16.1R1
The View Configuration Detail link is visible on the Audit Log Detail dialog box for only the following audit log tasks: modifying device configuration, deploying device configuration, executing scripts, modifying authentication on devices, deploying templates, applying CLI configlet, deploying device image, restoring configuration, and resolving key conflicts.
RELATED DOCUMENTATION
Exporting Audit Logs | 1123 Viewing Audit Log Statistics | 1121 Junos Space Audit Logs Overview | 1115 Archiving and Purging or Only Purging Audit Logs | 1126
Viewing Audit Log Statistics
IN THIS SECTION Viewing the Dynamic Audit Log Statistical Graph | 1121 Viewing the Top 10 Active Users In 24 Hours Statistics | 1123
1121
The Audit Logs workspace statistics page provides two graphs: Audit Log Statistical Graph pie chart and the Top 10 Active Users in 24 Hours graph. The audit log administrator uses these graphs to monitor the Junos Space Network Management Platform tasks.
The Audit Log Statistical Graph pie chart displays all tasks that are performed and logged in all Junos Space applications over a specific period of time. You can view Audit Log statistics by task type, user, workspace, and application.
The Top 10 Active Users in 24 hours graph displays the top ten Junos Space Network Management Platform users who performed the most number of tasks over 24 hours. The x-axis represents activities that are performed by a single user. Each active session for that user is represented by a bubble on the x-axis. The y-axis represents hours. For example, if a single user performed six active sessions during the last 24 hours, the chart displays six bubbles on the x-axis according to the hours displayed on the y-axis.
This topic contains the following sections:
Viewing the Dynamic Audit Log Statistical Graph
With the Audit Log Statistical Graph, the audit log administrator can view audit logs by selecting both category and time frame. The category--task, user, workarea, or application--determines the statistical graph that is displayed. Each slice in the pie represents a task and its usage percentage. The tasks types are listed in a box at the right of the pie chart. Mouse over a slice of the pie to see the number of times that the task is invoked. The time frame specifies the period of time within which to show audit log data.
To use the Audit Log Statistical Graph:
1. On the Junos Space Network Management Platform user interface, select Audit Logs. The Audit Logs page appears, which displays Audit Log Statistical Graph and Top 10 Active Users in 24 Hours graph.
2. On the Audit Log Statistical Graph, select a graph category:
1122
· Task--Displays all tasks that are performed. Click each task slice to go to the next-level chart that displays users who performed the selected task. For example, when you click the "Login" slice, you can view the login activity (or task) of all users for the selected time frame. The graph path indicates where you are located in the GUI. In this example, the GUI displays Overview -> Login as the graph path. Click Overview to go back to the top-level chart. The task name in the path indicates the currently selected path. The graph pertaining to a task is displayed with a username or IP address. · User Names--By default, displays all users who performed the specific task. Click a user to go to the inventory page filtered by task, user, and selected time frame. · IP Addresses--Displays all IP addresses where users performed the specific task. Click an IP address to go to the inventory page filtered by task, IP address, and selected time frame.
· User--Displays all users using the system within the time frame. Ten users are displayed per chart. Click Others to go to the next page. Click the previous page link to go back.
· Workspace--Displays all workspaces accessed in the time frame. Click a workspace slice to go to the inventory page filtered by workspaces.
· Application--Displays all applications used. Click a pie slice to go to the inventory page filtered by application and selected time frame.
3. Select a time frame in days, weeks, or months to display audit log data in the pie chart for that time period. The default is Days. A time selection description is displayed below the time frame area. · Days--Displays seven days prior to the selected date. Select single or multiple days. Select multiple days by dragging the cursor along the displayed timeframe. · Weeks--Displays the past five weeks, from past to most current on the right. Select multiple days by dragging the cursor along the displayed timeframe. · Months--Displays the past 12 months, from past to most current on the right. Select multiple days by dragging the cursor along the displayed timeframe.
The current day, week, or month is highlighted (or selected) by default.
4. Click a slice in the pie chart to view more detailed information. Tasks appear in tabular view by username, user IP address, task, timestamp, results, description, job ID, and level 2 description. See "Junos Space User Interface Overview" on page 88 in the Junos Space User Interface Guide for more information about manipulating the table data.
5. On the inventory page, double-click an audit log to view more detailed information. For a job-related log entry, click the link in the Job ID column to view a new table that shows the corresponding job information.
1123
In the audit log detail view, if there are multiple affected objects for a log entry, the affected object detail always shows the first object detail. Click any object on the list to change the object detail. If no affected object exists for this log entry, the affected object list is hidden and no object detail is displayed.
6. Click Return to Audit Logs to go back to Audit Log View.
Viewing the Top 10 Active Users In 24 Hours Statistics To view the jobs performed by a user in the Top 10 Active Users in 24 Hours graph: 1. In the Top 10 Active Users in 24 Hours graph, double-click a user's bubble for a particular hour. The
View Audit Log page displays the jobs performed by that user. Jobs appear by audit log ID, username, user IP address, domain, application, task, timestamp, results, description, and job ID in tabular view. See "Junos Space User Interface Overview" on page 88 in the Junos Space User Interface Guide for more information about manipulating the table data.
RELATED DOCUMENTATION Viewing Audit Logs | 1117 Junos Space Audit Logs Overview | 1115 Archiving and Purging or Only Purging Audit Logs | 1126 Exporting Audit Logs | 1123
Exporting Audit Logs
You can export audit logs, as a comma-separated values (CSV) file, without purging the logs from the database. To export audit logs: 1. On the Junos Space Network Management Platform UI, select Audit Logs > Audit Log.
The Audit Log page appears.
2. Click the Export Audit Logs icon. The Export Audit Logs page appears.
3. Choose one of the following export actions:
1124
· To export all logs, select Export all audit logs. The Date and Time selectors are disabled when you select this option.
· To export all logs that are currently displayed on the Audit Log page, which is the default option, select Export audit logs currently displayed in View Audit Logs table.
NOTE: On the Audit Log page, you can filter audit logs by using different criteria. The filtering criteria determines which audit log entries are displayed, and only those entries are exported.
· To export logs within a specific duration: a. Select Export audit logs filtered by date range.
b. Specify the date and time from which you want to export the logs in the Start date and time field.
c. Specify the date and time up to which you want to export the logs in the End date and time field.
4. (Optional) Select the Include Affected Object Column check box to include the details of the Junos Space Platform objects that are affected by the tasks logged. These tasks are listed as a column named Affected Objects in the audit log file.
5. Click Export. You are taken to the Audit Log page and the Exporting Audit Logs dialog box appears indicating the status of the export.
6. After the audit log is exported (status bar displays 100%), click OK to close the dialog box. The audit log file is saved to the default downloads folder of the browser.
RELATED DOCUMENTATION Junos Space Audit Logs Overview | 1115 Viewing Audit Log Statistics | 1121 Archiving and Purging or Only Purging Audit Logs | 1126
1125
Converting the Junos Space Audit Log File Timestamp from UTC to Local Time Using Microsoft Excel
You can unzip the compressed comma-separated values (CSV) audit log file (extension .csv.gz) and open the extracted CSV file as a spreadsheet in Microsoft Excel. In Microsoft Excel, you can convert the entries in the Timestamp column from UTC (GMT) to local time. To convert UTC time to local time: 1. Retrieve the audit log file from where you archived it. If you archived the file locally, the file is located
in /var/lib/mysql/archive on the active node.
2. Unzip the audit log file (extension .csv.gz).
3. Open the unzipped audit log file (extension .csv) in Microsoft Excel.
4. To the left of the UTC Time column, insert a new column.
5. Label the column header Local Time.
6. Click the first cell of the new column and insert the following formula =XX/ 86400000 + 25569 - Y/24 in the cell, where XX represents the cell letter and row number where you want to insert the local time-conversion function and Y represents the difference in hours between your local time and the UTC time.
7. Press Enter. The calculated local time appears in the cell.
8. Format the local time by right-clicking the cell and selecting Format Cells. The Format Cells dialog box appears.
9. From the Category list, select Date.
10. From the Type list, select a date format that you want.
11. Click OK. The local time and date are displayed in the specified format.
12. Copy or apply the cell function and formatting to the rest of the rows in the Local Time column. The rest of the local times appear as shown Figure 48.
Figure 48: Formatting the Local Times Column in Microsoft Excel
1126
13. Save the Microsoft Excel file.
RELATED DOCUMENTATION Archiving and Purging or Only Purging Audit Logs | 1126
Archiving and Purging or Only Purging Audit Logs
IN THIS SECTION Purging Audit Logs Without Archiving | 1127 Purging Audit Logs After Archiving | 1130
The Archive/Purge Logs page enables you to purge audit logs without archiving them or to purge audit logs after archiving them. You can purge audit logs before a specified date and time or audit logs that are older than a specified number of days. Audit logs can be archived locally (on any node that is in the UP state) or to a remote server.
NOTE: If more than one Archive/Purge job is scheduled at the same time, then the job that is executed first goes through and the other jobs fail. Scheduled jobs can be rescheduled from the Job Management page.
This topic includes the following sections:
1127
Purging Audit Logs Without Archiving To purge audit logs without archiving them: 1. On the Junos Space Network Management Platform UI, select Audit Logs > Audit Log > Archive/Purge
Logs. You are taken to the Archive/Purge Logs page.
2. Using the Purge Logs field, specify a date and time before which audit logs should be purged or that audit logs that are older than a specified number of days should be purged: · To purge audit logs before a specified date and time: a. Select Before, which is the default.
b. Enter a date in the text box (in DD/MM/YYYY format) or click the calendar icon and select a date; for example, 20/11/2014.
c. Enter a time in the text box (in HH:MM AM/PM format) or click the down arrow icon and select a time; for example: 1:15 AM.
NOTE: You specify the time in the local time zone of the client computer but the audit logs are purged according to the time zone configured on the Junos Space Platform server.
· To purge audit logs older than a specified number of days: a. Select Older than.
b. Specify the number of days (the default is 90 days) such that the audit logs older than the specified number of days will be purged
3. To purge audit logs from all domains to which you have access, select the Purge audit logs from all accessible domains check box.
NOTE: By default, audit logs are purged only from domain that you accessed, so the Purge audit logs from all accessible domains check box is cleared.
4. Clear the Archive Logs Before Purge check box, which is selected by default.
1128
CAUTION: If you choose not to archive the audit logs before purging, the audit logs are deleted from the Junos Space Platform database and cannot be recovered.
5. (Optional) To schedule the purge operation for later, select the Schedule at a later time check box and specify a start date and time for the purge.
NOTE: You specify the time in the local time zone of the client computer but the purge is scheduled according to the time zone configured on the Junos Space Platform server.
6. (Optional) To specify whether the purge should be done on a recurring basis, select the Recurrence check box.
NOTE: This option is enabled only if you choose to purge audit logs older than a specified number of days.
A number of fields allowing you to specify when the purge should recur are displayed. The fields are explained in Table 134.
Table 134: Fields for Specifying Recurring Purges
Field Name
Description
Repeats Repeat every
Specify the periodicity of the recurrence:
· Minutes · Hourly · Daily · Weekly · Monthly · Yearly
Specify the period at which the purge should recur. For example, if you specified a periodicity in hours (Hourly), enter the number of hours after which the purge should recur.
1129
Table 134: Fields for Specifying Recurring Purges (continued)
Field Name
Description
Repeat by
Specify one or more days on which you want the purge to recur.
NOTE: · This field is displayed only when you specify a weekly periodicity (Weekly). · The day on which the purge is scheduled is disabled. For example, if you scheduled a job on
a Wednesday, then Wed is selected by default and disabled. You can select other days by enabling the corresponding check boxes.
Ends
Specify one of the following:
· Select Never to continue (without an end date) the recurring purge operation at the specified recurrence interval.
· Select On and specify a date and time on which to stop the recurring purge operation.
7. Click Submit. Junos Space Platform checks whether a job of this type already exists for that domain: · If a job already exists, then a message is displayed indicating that conflicting jobs exist, and the existing conflicting jobs are displayed in a table. a. Click Yes to create a new job. The Audit Log Archive/Purge confirmation dialog box is displayed with the audit log archive filename and location and a warning indicating that the audit logs will be purged from the database. b. Click No to return to the previous page. You are taken to the previous page.
· If no job exists, then the Audit Log Archive/Purge confirmation dialog box is displayed with the audit log archive filename and location and a warning indicating that the audit logs will be purged from the database.
8. In the Audit Log Archive/Purge dialog box, click Continue to archive and purge the logs. The Job Information dialog box is displayed with the job ID. Click the Job ID to view the details; otherwise, click OK to close the dialog box.
1130
Purging Audit Logs After Archiving
To purge audit logs after archiving them: 1. On the Junos Space Network Management Platform UI, select Audit Logs > Audit Log > Archive/Purge
Logs. You are taken to the Archive/Purge Logs page.
2. Using the Purge Logs field, specify a date and time before which audit logs should be archived and purged or that audit logs that are older than a specified number of days should be archived and purged: · To archive and purge audit logs before a specified date and time: a. Select Before, which is the default.
b. Enter a date in the text box (in DD/MM/YYYY format) or click the calendar icon and select a date; for example, 20/11/2014.
c. Enter a time in the text box (in HH:MM AM/PM format) or click the down arrow icon and select a time; for example: 1:15 AM.
NOTE: You specify the time in the local time zone of the client computer but the audit logs are archived and purged according to the time zone configured on the Junos Space Platform server.
NOTE: In this case, the format of the audit log filename is JunosSpaceAuditLog_purge-date-and-time_date-and-time-in-ms.csv.gz, where purge-date-and-time is the specified purge date (in yyyy-mm-dd format) and time (in hh-mm-ss format), and date-and-time-in-ms is the date and time in milliseconds at which the job was created.
· To archive and purge audit logs older than a specified number of days: a. Select Older than.
b. Specify the number of days (the default is 90 days) such that the audit logs older than the specified number of days will be archived and purged
1131
NOTE: In this case, the format of the audit log filename is JunosSpaceAuditLog_purge-after-days_date-and-time_date-and-time-in-ms.csv.gz, where purge-after-days is the previously specified number of days, date-and-time is the date (in yyyy-mm-dd format) and time (in hh-mm-ss format) before which audit logs will be purged, and date-and-time-in-ms is the date and time in milliseconds at which the job was created.
3. To archive and purge audit logs from all domains to which you have access, select the Purge audit logs from all accessible domains check box.
NOTE: By default, audit logs are archived and purged only from domain that you accessed, so the Purge audit logs from all accessible domains check box is cleared.
4. Select the Archive Logs Before Purge check box. 5. Specify whether you want to archive the files locally or on a remote server:
· To archive the files locally (on the active node), from the Archive Mode list, select local. · To archive the files on a remote server:
a. From the Archive Mode list, select remote. b. In the User field, enter a valid username to access the remote server. c. In the Password field, enter a valid password to access the remote server. d. In the Confirm Password field, reenter the password you entered in the preceding step. e. In the Machine IP field, enter the IP address of the remote server.
1132
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses
or both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the remote server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
f. In the Directory field, enter the directory path on the remote server on which to store the archived log files, ensuring that the directory name ends with /; for example, /home/spaceauditlogs/.
NOTE: The directory must already exist on the remote server.
6. (Optional) To schedule the archive and purge operation for later, select the Schedule at a later time check box and specify a start date and time for the archive and purge operation.
NOTE: You specify the time in the local time zone of the client computer but the archive and purge operation is scheduled according to the time zone configured on the Junos Space Platform server.
7. (Optional) To specify whether the archive and purge should done on a recurring basis, select the Recurrence check box.
NOTE: This option is enabled only if you choose to archive and purge audit logs older than a specified number of days.
A number of fields allowing you to specify when the archive and purge should recur are displayed. The fields are explained in Table 134.
8. Click Submit. Junos Space Platform checks whether a job of this type already exists for that domain:
1133
· If a job already exists, then a message is displayed indicating that conflicting jobs exist, and the existing conflicting jobs are displayed in a table. a. Click Yes to create a new job. The Audit Log Archive/Purge confirmation dialog box is displayed with the audit log archive filename and location and a warning indicating that the audit logs will be purged from the database. b. Click No to return to the previous page. You are taken to the previous page.
· If no job exists, then the Audit Log Archive/Purge confirmation dialog box is displayed with the audit log archive filename and location and a warning indicating that the audit logs will be purged from the database.
9. In the Audit Log Archive/Purge dialog box, click Continue to archive and purge the logs. The Job Information dialog box is displayed with the job ID. Click the Job ID to view the details; otherwise, click OK to close the dialog box.
RELATED DOCUMENTATION Junos Space Audit Logs Overview | 1115 Viewing Audit Logs | 1117 Exporting Audit Logs | 1123
12 PART
Administration
Overview | 1136 Managing Nodes in the Junos Space Fabric | 1156 Backing up and Restoring the Junos Space Platform Database | 1297 Managing Licenses | 1316 Managing Junos Space Platform and Applications | 1321 Managing Troubleshooting Log Files | 1400 Managing Certificates | 1418 Configuring Authentication Servers | 1449 Managing SMTP Servers | 1469 Email Listeners | 1473 Managing Git Repositories | 1477 Audit Log Forwarding | 1484 Configuring a Proxy Server | 1494 Managing Tags | 1497 Managing DMI Schemas | 1526
Managing Hardware Catalog | 1551 Managing the Purging Policy | 1558 Disaster Recovery | 1566
CHAPTER 68
Overview
IN THIS CHAPTER Junos Space Administrators Overview | 1136 Viewing the Administration Statistics | 1138 Junos Space IPv6 Support Overview | 1152 Maintenance Mode Overview | 1153
1136
Junos Space Administrators Overview
Junos Space administrators serve different functional roles. A CLI administrator installs and configures Junos Space Appliances. A maintenance-mode administrator performs system-level tasks, such as troubleshooting and database restore operations. After Junos Space Appliances are installed and configured, users created from the Junos Space user interface perform the roles of accessing workspaces and managing applications, users, devices, services, customers, and so forth. Typically, an administrator performs most of the tasks from the Administration workspace. This entire workspace is available only if you are working in the global domain. You can identify the domain that you are currently in from the banner on the Junos Space Network Management Platform user interface. In subdomains, only the tags task is available under the Administration workspace.
Table 135 describes Junos Space administrators and Junos Space user UI users and the tasks that they perform.
Table 135: Junos Space Administrators and Junos Space UI Users
Junos Space Administrator
Description
Tasks
1137
Table 135: Junos Space Administrators and Junos Space UI Users (continued)
CLI administrator
An administrator responsible for setting up and managing the system settings for Junos Space Appliances from the serial console.
The CLI administrator name is "admin."
The CLI administrator password can be changed from the console system settings menu.
· Install and configure basic settings for Junos Space Appliances.
· Change network and system settings for Junos Space appliances, for example:
· Change the CLI administrator password.
· Change network settings, such as: · Set DNS servers. · Change IP address of the Junos Space node.
· Change static routes.
· Change time options.
· Expand VM drive size (Junos Space Virtual Appliances only).
NOTE: This option is available only if the Junos Space node is running on a virtual machine (VM).
· Retrieve log files for troubleshooting.
· Update the security settings, such as disable firewall or SSH
· Debug
Maintenance-mode administrator
An administrator responsible for performing system-level maintenance on Junos Space Platform.
The maintenance-mode administrator name is "maintenance."
You can configure the maintenance-mode password is through the serial console when you first configure a Junos Space Appliance.
· Restore Junos Space Platform to its previous state by using a database backup file.
· Shut down Junos Space nodes by entering maintenance mode.
· Retrieve log files for troubleshooting.
· Exit maintenance mode and explicitly start up the Junos Space Platform.
1138
Table 135: Junos Space Administrators and Junos Space UI Users (continued)
Junos Space user interface users
A Junos Space user that is assigned one or more predefined roles. Each role assigned to a user provides specific access and management privileges on the objects (applications, devices, users, jobs, services, customers, and so on) available from a workspace on the Junos Space user interface.
For complete information about predefined roles that can be assigned to a Junos Space user, see "Predefined Roles Overview" on page 999.
NOTE: · Junos Space allows only admin user login for Space server CLI access. Its not recommended
to create custom SSH user for Junos Space CLI access.
· Juniper Networks devices require a license to activate the feature. To understand more about Junos Space Network Management Platform Licenses, see, Licenses for Network Management. Please refer to the Licensing Guide for general information about License Management. Please refer to the product Data Sheets for further details, or contact your Juniper Account Team or Juniper Partner.
RELATED DOCUMENTATION Maintenance Mode Overview | 1153 Role-Based Access Control Overview | 995 Configuring Users to Manage Objects in Junos Space Overview | 1033
Viewing the Administration Statistics
IN THIS SECTION Viewing System Health Information | 1139 Viewing the System Health Report | 1139 Viewing System Alert Messages in the Last 30 Days | 1150
1139
The Administration statistics page displays the following information: graphical details about system health; a system health report on the Junos Space fabric, and JBoss and MySQL database processes; and a list of system alert messages that were received in the last 30 days.
To access the Administration statistics page:
1. On the Junos Space Network Management Platform UI, select Administration. The Administration statistics page appears, displaying three boxes titled System Health, System Health Report, and System Alert Messages in Last 30 Days.
This topic contains the following sections:
Viewing System Health Information
The System Health section displays three charts related to system health. For more information about these charts, see "Viewing the Junos Space Platform Dashboard" on page 125.
Viewing the System Health Report
Starting with Junos Space Network Management Platform Release 15.2R1, you can view records about the health and performance of the Junos Space nodes in your Junos Space setup and the processes on these nodes in a system health report. The health and performance data collected from the nodes is displayed in a table. The health and performance data is categorized by parameters related to the Junos Space fabric and the JBoss and MySQL processes.
The Process column in the table displays the process and the Parameter column displays the parameter of the process that is evaluated. The Status column displays the status of the parameter. No is displayed in green if the parameter is within the configured threshold. Yes is displayed in red to indicate that the process has exceeded the threshold and must be corrected by the administrator. The Status column displays Yes in red until the issue is fixed. A user assigned with appropriate privileges can click the Click link corresponding to the process in the More Details column to view more details.
Table 136 lists the processes, parameters, descriptions, and data displayed when you click the links in the More Details column, and the type of nodes from which the parameter collects the system health details.
You can configure appropriate threshold values and time intervals to collect health and performance data and update the System Health Report. These thresholds are applicable to all relevant nodes in the Junos Space fabric. For more information about configuring thresholds and time intervals, see the Health Monitoring section in the "Modifying Junos Space Network Management Platform Settings" on page 1340 topic.
1140
NOTE: You must be assigned the privileges of a Super Administrator, System Administrator, or any role with appropriate privileges to view more details by clicking the link related to the process and parameter. To alert selected users and fix issues when the parameter exceeds the threshold, you can add users to the Email Listeners list to receive notifications. Users receive e-mail alerts when the health and performance of the Junos Space nodes are below the threshold and the Status column displays Yes in red. For more information about adding users, see "Adding Users to the Email Listeners List" on page 1474.
NOTE: The Multi-Master Detected and MySQL in out of sync state parameters display N/A in a single-node Junos Space setup.
NOTE: The Fabric node in the DOWN state detected parameter and the JGroups membership issue detected parameter are displayed only in a Junos Space setup with multiple JBoss nodes.
Table 136: System Health Report: Processes and Parameters
Process Parameter
Name Name
Description
Data Displayed on Clicking the Applicable Node
Links
Types
Fabric
CPU counters are inactive
This parameter detects whether the time interval (specified in the Interval for monitoring CPU counters update in minutes field on the Modify Application Settings page) has elapsed (with system time as the reference) from the time that the overall load on a Junos Space node and CPU resources shared by the processes on the node is calculated.
You are directed to the Administration > Fabric page with a filtered view of the nodes that match the parameter criteria. See Table 137 for the details displayed on the page.
View the Last Update Time column on this page.
JBoss, database, FMPM, and Log collector
The default is two minutes.
1141
Table 136: System Health Report: Processes and Parameters (continued)
Process Parameter
Name Name
Description
Data Displayed on Clicking the Applicable Node
Links
Types
Fabric
Disk utilization is abnormal
This parameter collects information about hard-drive utilization (displayed as a percentage) in the / directory on a Junos Space node in the fabric.
The default is 50%.
You are directed to the Administration > Fabric page with a filtered view of the nodes that match the parameter criteria.
JBoss, database, FMPM, and Log collector
View the %Disk column on this page.
Fabric
High CPU detected in last 3 days
This parameter detects whether the CPU usage on a Junos Space node has exceeded the configured threshold (default: 50%) for a duration called Extended Period (default: 30 minutes). The threshold can be specified in the High CPU Threshold Value in percentage setting and the duration can be specified in the Extended Period for High CPU in minutes field on the Modify Application Settings page.
You are directed to the Administration > Fabric > Extended Periods of High CPU page. See Table 137 for the details displayed on the page.
Click Close to return to the Administration statistics page.
JBoss, database, FMPM, and Log collector
The default is 50%.
Fabric
Processes are running incorrectly
This parameter detects processes such as JBoss, MySQL, Apache Web Proxy, OpenNMS, and PostgreSQL that are in the DOWN status on a Junos Space node.
You are directed to the Administration > Fabric page with a filtered view of the nodes that match the parameter criteria.
Right-click a node and select View Fabric Node Details, or double-click inside a row corresponding to a node and click the Process Detail tab, to view the processes that are running incorrectly.
JBoss, database, FMPM, and Log collector
NOTE: On the FMPM node, only the OpenNMS process is monitored.
1142
Table 136: System Health Report: Processes and Parameters (continued)
Process Parameter
Name Name
Description
Data Displayed on Clicking the Applicable Node
Links
Types
Fabric
Management sessions are mismatched with UI data
This parameter detects a difference between the number of device management SSH sessions calculated on each Junos Space node by the netstat -anlp | awk '{print $5}' | grep ":22" | wc l command and the number of device management SSH sessions as per the Junos Space database.
You are directed to the Administration > Fabric > Device Management Sessions page with a list of nodes that match the parameter criteria. See Table 138 for the details displayed on the page.
Click Close to return to the Administration statistics page.
JBoss
This parameter displays Yes in red only if the difference exceeds the tolerance specified in the Device Management Sessions Monitoring Threshold setting on the Modify Application Settings page.
NOTE: If you configured a different port number for the SSH device connection, the parameter uses the modified SSH port in the netstat command.
The default is 10.
Fabric
MySQL in out of sync state
This parameter detects a MySQL database synchronization issue between nodes running the MySQL database (Database column displays Out-of-Sync).
You are directed to the Administration > Fabric page with a filtered view of the nodes running the MySQL database.
View the Database column on this page.
Database
1143
Table 136: System Health Report: Processes and Parameters (continued)
Process Parameter
Name Name
Description
Data Displayed on Clicking the Applicable Node
Links
Types
Fabric
VIP Bind issue detected in JBoss node(s)
This parameter detects the assignment of the VIP address to multiple JBoss nodes or to no JBoss node in the Junos Space fabric. The status of the node is displayed in the Load Balancer column as UP, DOWN, Standby, Unknown, or N/A.
You are directed to the Administration > Fabric page with a filtered view of the load-balancer nodes.
View the Load Balancer column on this page.
JBoss
NOTE: On detection and on resolution of an issue, a trap is raised and an e-mail is sent to the Email Listeners list.
Fabric
VIP Bind issue detected in DB nodes(s)
This parameter detects the assignment of the VIP address to multiple database nodes or to no database node in the Junos Space fabric. The status of the node is displayed in the Database column as UP, DOWN, Standby, Unknown, or N/A.
You are directed to the Administration > Fabric page with a filtered view of the database nodes.
View the Database column on this page.
Database
NOTE: On detection and on resolution of an issue, a trap is raised and an e-mail is sent to the Email Listeners list.
Fabric
VIP Bind issue detected in FMPM nodes(s)
This parameter detects the assignment of the VIP address to multiple FMPM nodes or to no FMPM node in the Junos Space fabric. The status of the node is displayed in the App Logic column as UP, DOWN, Standby, Unknown, or N/A.
You are directed to the Administration > Fabric page with a filtered view of the FMPM nodes.
View the App Logic column on this page.
FMPM
NOTE: On detection and on resolution of an issue, a trap is raised and an e-mail is sent to the Email Listeners list.
1144
Table 136: System Health Report: Processes and Parameters (continued)
Process Parameter
Name Name
Description
Data Displayed on Clicking the Applicable Node
Links
Types
Fabric
Fabric node in the DOWN state detected
This parameter detects one or more nodes in the Junos Space fabric in the DOWN state.
NOTE: On detection and on resolution of an issue, a trap is raised and an e-mail is sent to the Email Listeners list.
You are directed to Administration > Fabric page with a filtered view of the fabric nodes in the DOWN state.
JBoss, database, FMPM, and Log collector
Fabric
JGroups membership issue detected
This parameter detects the removal of a JBoss node in the cluster.
NOTE: On detection and on resolution of an issue, a trap is raised and an e-mail is sent to the Email Listeners list.
You are directed to Administration > Fabric page with a filtered view of JBoss nodes in the JGroups membership set.
JBoss
Fabric
File Integrity Check Failed
This parameter detects any breach in
You are directed to Administration > Fabric page with a filtered view of the node on which the file integrity check failed.
JBoss, database, and FMPM
JBoss
JBoss restart observed in last 3 days
This parameter logs the time when JBoss was restarted on a node during the last three days.
You are directed to the Administration > Fabric > Last JBoss Restarted Time page. See Table 140 for the details displayed on the page.
JBoss
Click Close to return to the Administration statistics page.
JBoss
Multi-Master detected (App Logic)
This parameter detects and reports the presence of multiple fabric nodes running as the JBoss primary node.
You are directed to the Administration > Fabric page with a filtered view of multiple primary nodes in the Junos Space fabric.
JBoss
View the App Logic column on this page.
1145
Table 136: System Health Report: Processes and Parameters (continued)
Process Parameter
Name Name
Description
Data Displayed on Clicking the Applicable Node
Links
Types
MySQL
Tables exceed the size limit (<10 GB)
This parameter logs the MySQL database tables that exceed 10 GB.
You are directed to the Administration > Fabric > Large Database Tables page. See Table 141 for the details displayed on the page.
Database
Click Close to return to the Administration statistics page.
Fabric
Audit Logs forwarding failed
This parameter detects and reports the system's failure to forward audit logs to the configured system log server.
You are directed to the Audit Logs > Audit Log page with a filtered view of audit logs forwarded to the system log server.
JBoss
NOTE: On detection and on resolution of an issue, a trap is raised and an e-mail is sent to the Email Listeners list.
1146
Table 136: System Health Report: Processes and Parameters (continued)
Process Parameter
Name Name
Description
Data Displayed on Clicking the Applicable Node
Links
Types
JBoss
HPROF availability
This parameter detects and logs the Heap and CPU Profiling Agent (HPROF) files on a Junos Space node. The HPROF files are logged in the /var/cache/jboss folder on every node.
JBoss
1147
Table 136: System Health Report: Processes and Parameters (continued)
Process Parameter
Name Name
Description
Data Displayed on Clicking the Applicable Node
Links
Types
You are directed to the Administration > Fabric > List of HPROF Files page with a list of HPROF files. See Table 139 for the details displayed on the page.
Click Close to return to the Administration statistics page.
NOTE:
· To download HPROF files, select the check boxes corresponding to the HPROF files on the List of HPROF Files page and click the Download icon (top-left corner of the page).
The HPROF files are downloaded to the local computer.
· To delete selected HPROF files from the List of HPROF Files page, select the check boxes corresponding to the HPROF files and click the Delete icon (top-left corner of the page).
The HPROF files are deleted from the List of HPROF Files page.
· To delete all HPROF files from the List of HPROF Files page and start monitoring the HPROF file status, select the check boxes corresponding to all the HPROF files and click the Delete icon (top-left corner of the page).
The Status column displays a
1148
Table 136: System Health Report: Processes and Parameters (continued)
Process Parameter
Name Name
Description
Data Displayed on Clicking the Applicable Node
Links
Types
green No.
Fabric
CLI password expiry warning
The parameter detects when the CLI password is about to expire and sends a warning to the customer prior to seven days of expiry.
A warning sign is displayed in the
You are directed to the Administration > Fabric > CLI Password Status page with the list of nodes and details of their password expiry. See Table 142 for more details on the page.
Database
NOTE: A warning sign gets displayed on the top of the User Interface when the password for any of the nodes in the CLI is about to expire.
Click Close to return to the Administration statistics page.
NOTE: The VIP Bind issue detected in DB nodes(s), VIP Bind issue detected in FMPM nodes(s), Fabric node in the DOWN state detected, JGroups membership issue detected, and Audit Logs forwarding failed parameters are available from Junos Space Network Management Platform Release 16.1R1 onward.
Table 137: Extended Periods of High CPU Page
Field
Description
Node Name
Logical name assigned to the node
Management IP (IPv4)
IPv4 address for the node
Management IP (IPv6)
IPv6 address for the node
From Time
Time from when the node reported high CPU usage
To Time
Time until when the node reported high CPU usage
Duration (Mins)
Total duration of high CPU usage on the node in minutes
1149
Table 137: Extended Periods of High CPU Page (continued)
Field
Description
Average CPU (%)
Average load on the CPU of the node
Table 138: Device Management Sessions Page
Field
Description
Host
Name of the host machine and the Junos Space node where the Junos Space Virtual Appliance is deployed
Management IP (IPv4)
IPv4 address for the node
Management IP (IPv6)
IPv6 address for the node
Time
Time when the count of device management SSH sessions with devices was last calculated
Status
Connection status of the node
Console Count
Number of device management SSH sessions as per the Junos Space database
Number of Devices
Number of devices managed by the Junos Space node
Table 139: List of HPROF Files Page
Field
Description
Node Name
Logical name assigned to the node
Management IP (IPv4)
IPv4 address for the node
Management IP (IPv6)
IPv6 address for the node
File Created Time
Time when the HPROF file was created on the node
File Location
Location of the HPROF file on the node
Table 140: Last JBoss Restarted Time Page
Field
Description
Node Name
Logical name assigned to the node
1150
Table 140: Last JBoss Restarted Time Page (continued)
Field
Description
Management IP (IPv4)
IPv4 address for the node
Management IP (IPv6)
IPv6 address for the node
Last Restart Time
Time when JBoss was last restarted on the node
Table 141: Large Database Tables Page
Field
Description
Database
Type of database: MySQL
Table Name
Name of the table in the database
Time
Time when the size of the database was last updated
Size (GB)
Size of the database in GB
Table 142: CLI Password Status details
Field
Description
Node Name
Displays the name of the nodes.
Management IP (IPv4)
IPv4 address for the node
Management IP (IPv6)
IPv6 address for the node
Status
Shows the password expiry status for a particular node. It provides the date on which the password will expire and also the days left for expiry.
Site
Shows the site for the node, it may be either Active site or Standby site.
Viewing System Alert Messages in the Last 30 Days
When Junos Space Platform or a Junos Space application tries to contact an active SMTP server (configured on Junos Space) and the connection to the server fails, the System Alert Messages in Last 30 Days box displays the details of SMTP server connection failures. The failures are recorded only for the last 30 days. Table 143 summarizes the information displayed for each failed connection.
1151
Table 143: Details of System Alert Messages
Field
Description
Application
Name of the Junos Space application that tried to contact the SMTP server
If Junos Space Platform tried to contact the SMTP server and failed, then Platform is displayed.
Category
Displays SMTP for all error messages
Error
Specifies the type of error that occurred
Last Occurrence
Date and time of the last occurrence of the error
Release History Table
Release
Description
16.1R1
16.1R1
The VIP Bind issue detected in DB nodes(s), VIP Bind issue detected in FMPM nodes(s), Fabric node in the DOWN state detected, JGroups membership issue detected, and Audit Logs forwarding failed parameters are available from Junos Space Network Management Platform Release 16.1R1 onward.
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can view records about the health and performance of the Junos Space nodes in your Junos Space setup and the processes on these nodes in a system health report.
RELATED DOCUMENTATION
Overall System Condition and Fabric Load History Overview | 1159 Modifying Junos Space Network Management Platform Settings | 1340 Managing SMTP Servers | 1469
1152
Junos Space IPv6 Support Overview
Starting from Junos Space Network Management Platform Release 14.1R2, you can discover and manage devices by using IPv6 addresses. Junos Space Platform supports the management of devices configured with only IPv4 addresses, only IPv6 addresses, or both. In addition, Junos Space Platform receives traps for IPv6 devices by using IPv6 addresses. You can also configure IPv6 addresses for the following IP addresses: · Virtual IP (VIP) address of the Junos Space fabric · Node management and device management IP addresses of Junos Space nodes · Administrative interface (eth1) for Junos Space nodes · Default gateway IP address for Junos Space nodes · VIP address of the Fault Monitoring and Performance Monitoring (FMPM) nodes · Node management IP address of FMPM nodes · Default gateway IP address for Junos Space and FMPM nodes
NOTE: If you configure IPv6 addresses for any of the preceding IP addresses, you must also configure an IPv4 address. Junos Space Platform does not allow you to configure only IPv6 addresses for Ethernet interfaces of fabric nodes. Table 144 displays the IP address configurations supported on Junos Space Platform.
Table 144: IP Address Configurations Supported on Junos Space Platform
Type of Addressing
Scheme
eth0
VIP
eth1 (Optional)
IPv4 only (Pure IPv4) IPv4
IPv4
IPv4
IPv4
IPv4
IPv4
IPv4
IPv4
IPv4
IPv4 and IPv6 (Dual Stack)
IPv4 IPv4 and IPv6
IPv4 IPv4 and IPv6
IPv4 IPv4 and IPv6
eth3 (Optional) Not configured IPv4 IPv6 IPv4 and IPv6 IPv4 and IPv6
Devices managed by Junos Space Platform can initiate connections by using an IPv4 or IPv6 address. When Junos Space Platform initiates the connection to a device, the type of connection (IPv4 or IPv6) depends on the type of IP address specified during device discovery.
1153
NOTE: For non-SRX Series devices, device-initiated connections to Junos Space Platform that use IPv6 addresses are supported only on Junos OS Release 15.1 or later; this is because IPv6 addresses are supported in the outbound-SSH configuration only from Junos OS Release 15.1 onward for non-SRX Series devices. For SRX Series devices, device-initiated connections to Junos Space Platform that use IPv6 addresses are supported from Junos OS Release 12.1x47D15 onward.
You can also modify the target IP address of a device (from IPv4 to IPv6, IPv4 to IPv4, IPv6 to IPv4, and IPv6 to IPv6), which Junos Space Platform uses to connect to a device. For more information, see "Modifying the Target IP Address of a Device" on page 452.
NOTE: The following limitations are applicable when you use IPv6 addresses: · IPv6 support for devices depends on the version of Junos OS running on the device; earlier
versions of Junos OS might not support IPv6 configuration. IPv6 support for device-initiated connections is available from Junos OS Release 15.1R1 onward. · All nodes in the Junos Space fabric must have the same type of IP address (or addresses) configured. For example, if a Junos Space node or an FMPM node in a fabric is configured with both IPv4 and IPv6 addresses, then all other Junos Space and FMPM nodes in the fabric must be configured with both IPv4 and IPv6 addresses.
RELATED DOCUMENTATION Modifying the Target IP Address of a Device | 452 Modifying the Network Settings of a Node in the Junos Space Fabric | 1257 Device Management Overview | 188
Maintenance Mode Overview
In Junos Space Network Management Platform, maintenance mode is a special mode that the administrator uses to perform database restore or debugging tasks while all nodes in the fabric are shut down and the Junos Space Platform Web proxy is running. The Junos Space system goes into maintenance mode in the following cases:
1154
· Junos Space Platform goes down. The system goes into maintenance mode when Junos Space Platform is down on all nodes in the fabric. Users attempting to log in when the system is in maintenance mode are redirected to the maintenance mode login page. Users who logged in to Junos Space Platform before the shutdown and attempt to perform an action on the user interface are also redirected to the maintenance mode login page.
· An authorized Junos Space administrator initiates a restore operation from the Database Backup and Restore workspace to restore a database. When a user initiates a restore operation, Junos Space Platform prompts the user to type a username and password to enter maintenance mode. After the user is authenticated, Junos Space Platform initiates the restore operation and the system remains in maintenance mode until the database is restored and the user exits maintenance mode.
· An authorized Junos Space administrator upgrades the Junos Space Platform software. When a user initiates a software upgrade, Junos Space Platform prompts the user to type a username and password to enter maintenance mode. After the user is authenticated, Junos Space Platform initiates the software upgrade and the system remains in maintenance mode until the upgrade is finished and the user exits maintenance mode.
When a user is authenticated to access Junos Space Platform in maintenance mode, the Maintenance Mode Options page displays the tasks that a user can perform in maintenance mode.
When a user exits maintenance mode, Junos Space Platform is restarted. After several minutes, the system returns to normal operational mode, and Junos Space users can log in to the user interface.
NOTE: During startup, the startup page first displays a message indicating that Junos Space Platform is starting up and then displays a progress bar indicating the percentage of startup completed, the estimated time left for the Junos Space Platform to start, and a list of tasks to complete (with an indication of the current task being carried out). When a task is successfully completed, a message is displayed; if a task fails, an error message is displayed indicating why the task failed.
Maintenance Mode Access and System Locking
An authorized Junos Space administrator puts the system into maintenance mode by initiating a Restore operation.
Only one maintenance-mode administrator can access maintenance mode at a time. When an administrator logs in to maintenance mode, Junos Space Platform locks the page. When a second administrator attempts to log in to maintenance mode while the first administrator is logged in, Junos Space Platform displays a message indicating that another administrator is currently logged in to the system and that maintenance
1155
mode is locked. The maintenance mode lock is released when the first administrator logs out or the lock times out. If the logged-in administrator is inactive, the maintenance mode lock is released after five minutes during which another administrator can log in.
Maintenance-Mode User Administration
The username for the maintenance-mode administrator is 'maintenance'. You can set the password for the maintenance-mode administrator through the Junos Space system console during the initial installation and configuration of a Junos Space Appliance or Junos Space Virtual Appliance. A Junos Space administrator connects to a Junos Space Appliance that is already in maintenance mode by using the URL https://ip-address/maintenance, where ip-address is the Web-access IP address of the Junos Space Appliance.
RELATED DOCUMENTATION Restoring the Junos Space Network Management Platform Database | 1307 Backing Up the Junos Space Network Management Platform Database | 1301 Backing Up and Restoring the Database Overview | 1298
CHAPTER 69
Managing Nodes in the Junos Space Fabric
IN THIS CHAPTER
Fabric Management Overview | 1157 Overall System Condition and Fabric Load History Overview | 1159 Junos Space Nodes and FMPM Nodes in the Junos Space Fabric Overview | 1162 Dedicated Database Nodes in the Junos Space Fabric Overview | 1169 Adding a Node to an Existing Junos Space Fabric | 1172 Viewing Nodes in the Fabric | 1181 Monitoring Nodes in the Fabric | 1188 Viewing Alarms from a Fabric Node | 1248 Shutting Down or Rebooting Nodes in the Junos Space Fabric | 1250 Deleting a Node from the Junos Space Fabric | 1252 Resetting MySQL Replication | 1254 Modifying the Network Settings of a Node in the Junos Space Fabric | 1257 Load-Balancing Devices Across Junos Space Nodes | 1264 Replacing a Failed Junos Space Node | 1265 Generating and Uploading Authentication Keys to Devices | 1265 Configuring the ESX or ESXi Server Parameters on a Node in the Junos Space Fabric | 1271 Creating a System Snapshot | 1272 Deleting a System Snapshot | 1274 Restoring the System to a Snapshot | 1275 Creating a Unicast Junos Space Cluster | 1277 NAT Configuration for Junos Space Network Management Platform Overview | 1281 Configuring the NAT IP Addresses and Ports on Junos Space Platform | 1293 Modifying the NAT IP Addresses and Ports on Junos Space Platform | 1295 Disabling the NAT Configuration on Junos Space Platform | 1296
1156
1157
Fabric Management Overview
You can deploy a Junos Space Appliance or a Junos Space Virtual Appliance to create a fabric that provides the scalability and availability that your managed network requires as you add more devices, services, and users. A Junos Space fabric comprises one or more IP-connected nodes. A node is a logical object that represents a single Junos Space Appliance (JA1500 or JA2500) or Junos Space Virtual Appliance, its operating system, and the Junos Space Network Management Platform software that runs on the operating system. Each Junos Space Appliance or Junos Space Virtual Appliance that you install and configure is represented as a single node in the fabric. You can add nodes to an existing fabric without disrupting the services that are running on the fabric. For more information about the Junos Space fabric architecture, refer to the Junos Space Network Management Platform High Availability and Disaster Recovery Guide.
NOTE: Starting from Release 17.1, Junos Space Platform does not support JA1500 devices.
After you add nodes to the fabric, you can manage and monitor the nodes from the Administration workspace of the Junos Space Platform GUI. To add, manage, and monitor nodes in the fabric, a fabric administrator (that is, a user with the System Administrator privileges) connects to the virtual IP address configured for the fabric, as shown in Figure 49.
Figure 49: Fabric Nodes
1158
NOTE: All nodes that are part of a fabric must have the same version of Junos Space Platform installed.
From the Fabric page of the Administration workspace of the Junos Space Platform GUI, you can perform fabric management tasks, such as adding nodes to the fabric, deleting nodes from the fabric, monitoring nodes, modifying network settings of nodes, rebooting nodes, viewing alarms on a fabric node, load-balancing devices across nodes, generating and uploading authentication keys, creating system snapshots, restoring the system to a system snapshot, and so on.
RELATED DOCUMENTATION Junos Space Nodes and FMPM Nodes in the Junos Space Fabric Overview | 1162 Viewing Nodes in the Fabric | 1181 Adding a Node to an Existing Junos Space Fabric | 1172 Monitoring Nodes in the Fabric | 1188 Replacing a Failed Junos Space Node | 1265
Shutting Down or Rebooting Nodes in the Junos Space Fabric | 1250 Viewing Alarms from a Fabric Node | 1248 Load-Balancing Devices Across Junos Space Nodes | 1264 Generating and Uploading Authentication Keys to Devices | 284 Restoring the System to a Snapshot | 1275 Creating a Unicast Junos Space Cluster | 1277
1159
Overall System Condition and Fabric Load History Overview
You can view the overall Junos Space system condition and fabric load from the Junos Space Network Management Platform Dashboard or the Administration statistics page.
Overall System Condition
To calculate the overall Junos Space system condition, Junos Space Platform uses a formula based on cluster health and node-function health:
· Cluster health indicates the percentage of nodes in the fabric that are currently running. For example, if only three nodes are reachable in a four-node fabric, cluster health is 75%.
· Load-balancer health indicates the percentage of nodes (enabled for load balancing) that are running the load-balancing process. For example, if two nodes are enabled for load balancing and the load-balancing process is running on only one node, the load-balancing health is 50%.
· Database health indicates the percentage of nodes (enabled for database requests) that are running the database process. For example, if two nodes are enabled as the database server and the database process is running on only one node, then database health is 50%.
· Application-logic health indicates the percentage of nodes (enabled for application logic (DML and business logic) that are running the application-logic process. For example, if three nodes are enabled for application logic and the application-logic process is running on only two nodes, then application-logic health is 67%.
Junos Space Platform retrieves data on the nodes and the node functions that are running, and then applies the following formula to determine the overall Junos Space system condition: Overall System Condition = [(Number of Nodes Running) / (Number of Nodes in Fabric)] * [(Number of Nodes Running Load_Balancing Process) / (Number of Nodes enabled for Load Balancing)] * [(Number of Nodes Running Database-Server
1160
Process) / (Number of Nodes Enabled As Database Server)] * [(Number of Nodes Running Application-Logic Process) / (Number of Nodes Enabled for Application Logic)] The overall Junos Space system condition is expressed as a percentage. If we use the values in the preceding examples in this formula, then the overall system condition would be calculated as: Overall System Condition = 75% * 50%* 50% * 67% = 12.5%. A value between 0 and 30% indicates that the system health is Poor, a value between 30% and 70% indicates that the system health is average, and a value between 70% and 100% indicates that the system health is good. The Overall System Condition chart displays the system health as shown in Figure 50 Figure 50: Overall System Condition Gauge
The overall system health indicates 0% (Poor) when any one of the following conditions is detected: · No nodes in the fabric are running. · No nodes enabled for load balancing are running the load-balancing process. · No nodes enabled for database requests are running the database process. · No nodes enabled for application logic are running the application-logic process. Fabric Load History The Fabric Load History chart, as shown in Figure 51, displays the average CPU usage across all nodes that are running in the fabric.
Figure 51: Fabric Load History Chart
1161
Junos Space Platform uses the following formula to determine the fabric load: Fabric Load = (Total CPU Usage for All Nodes Running) / (Number of Nodes Running) For example, for a fabric with three nodes running and CPU usage of 80%, 30%, and 10%, respectively, the fabric load is 40%.
Active Users History
The Active Users History chart, as shown in Figure 52, displays the number of active users in the past one minute.
Figure 52: Active Users History Chart
RELATED DOCUMENTATION
Viewing the Junos Space Platform Dashboard | 125 Viewing the Administration Statistics | 1138
1162
Junos Space Nodes and FMPM Nodes in the Junos Space Fabric Overview
IN THIS SECTION Understanding the Junos Space Node Functions in a Fabric | 1162 Understanding the FMPM Node Functions in a Fabric | 1166
When you install and configure the Junos Space Appliance or Junos Space Virtual Appliance as a Junos Space node, Junos Space Network Management Platform automatically creates a fabric with one node. To create a fabric with multiple nodes providing the scalability and availability that your network requires, you must first configure a Junos Space Appliance (JA2500) or a Junos Space Virtual Appliance either as a Junos Space node or a dedicated Fault Monitoring and Performance Monitoring (FMPM) node by using the Junos Space CLI. You can then use the Junos Space Platform GUI to add the node to the fabric. This topic contains the following sections:
Understanding the Junos Space Node Functions in a Fabric
A fabric that consists of a single node provides complete Junos Space Platform management functionality, with the following node functions enabled for the node: · Load balancer--For processing HTTP requests from remote browsers and northbound interface (NBI)
clients · Database--For processing database requests (for create, read, update, and delete operations) · Application logic (JBoss server)--For processing back-end business logic (Junos Space Network
Management Platform service requests) and Device Mediation Layer (DML) workload (that is, any interaction between Junos Space and any device, such as device connectivity, device events, and logging events) Figure 53 shows all functions enabled on a fabric comprising one node.
Figure 53: Fabric with One Node
1163
NOTE: A fabric that comprises a single node provides no workload balancing and no backup if the Junos Space node goes down.
As your network expands with new devices, services, and users, you can add Junos Space nodes to handle the increased workload. For each additional Junos Space node that you configure, you must add the node to the fabric using the Junos Space Platform GUI. Each node that you add to the fabric increases the resource pool for the node functions to meet the scalability and high availability requirements of your network.
The Junos Space Platform node functions distribute the workload across operating nodes according to the following load-distribution rules:
· Load balancer--When a node that functions as the active load-balancer server is down, all HTTP requests are automatically routed to the standby load-balancer server that is running on a separate node.
· Database--When a node that functions as the active database server is down, all database requests (for create, read, update, and delete operations) are routed to the node that functions as the standby database server.
· Application logic (DML and business logic)--Device connections and user requests are distributed among the nodes, and device-related operations are routed to the node to which the device is connected. Junos Space Platform uses the following algorithm to ensure that the number of devices connected to a node does not exceed the threshold limit for each node: Threshold Limit = [(Number of Devices in Database) / (Number of Nodes Running)] + 2
1164 When a second Junos Space node is added to the fabric, the first node functions as the active load-balancer server and active database server, and the second node functions as the standby load-balancer server and standby database server. The load-balancer and application logic node functions provide scalability and high availability. The database node function on the second node provides high availability only. Figure 54 shows the functions enabled on a fabric comprising two nodes. Figure 54: Fabric with Two Nodes
Typically, if the fabric has three or more Junos Space Nodes, only the application logic functionality is enabled from the third node onward. The application logic functionality provides both scalability and high availability. However, high availability for application logic is not available if both the first and second nodes are down. For high availability of application logic, at least one among the first and second nodes should be up. Figure 55 shows the functions enabled on a fabric comprising three nodes.
Figure 55: Fabric with Three Nodes
1165
In addition to the load balancer and JBoss nodes, you can also include dedicated database nodes in the Junos Space fabric. For more information about dedicated database nodes, see "Dedicated Database Nodes in the Junos Space Fabric Overview" on page 1169 and Cassandra Nodes in the Junos Space Fabric Overview respectively.
You can add a Junos Space node to an existing fabric as one of the following types of nodes on the basis of the functions you want the node to perform.
· JBoss, database and load-balancer node:
When you add a node to an existing fabric that has one JBoss, database and load-balancer node, you can choose to add the new node as another JBoss, database and load-balancer node. This node functions as the standby load-balancer server and ensures high availability for the Junos Space fabric. The node also provides database and application logic functionality to the fabric.
· JBoss and load-balancer node:
When you add a node to an existing fabric that has two dedicated database nodes in addition to a JBoss and load-balancer node, the fourth node can be added only as another JBoss and load-balancer node. This node functions as the standby load-balancer server and ensures high availability for the Junos Space fabric. In this case, both the active and standby load-balancer nodes provide load balancing and application logic functionality only and the dedicated database nodes provide the database functionality.
· JBoss node:
1166
When you add a node to an existing fabric that already has two load-balancer nodes, you can choose to add the new node as a JBoss-only node. This node provides only the application logic functionality. · Dedicated database node: When you add a node to an existing fabric, you can choose to add the node as a dedicated database node. If no dedicated database nodes exist in the fabric, you must add two nodes together, one as the primary database node and the other as the secondary database node. If a dedicated database node is already part of the fabric, you can add one node as the secondary database node. You cannot have more than two dedicated database nodes in a fabric. The dedicated database nodes function as the primary and secondary MySQL servers.
Understanding the FMPM Node Functions in a Fabric
Junos Space nodes have network monitoring (fault monitoring and performance monitoring) capabilities enabled by default. For improved performance, you can configure a dedicated Fault Monitoring and Performance Monitoring (FMPM) node that is used exclusively for network monitoring.
After configuring an FMPM node, you must add the FMPM node to an existing Junos Space fabric for Junos Space Platform and other Junos Space applications to use the services provided by this node. The FMPM nodes that are added to the fabric are deployed into a Junos Space cluster in a fashion similar to a Junos Space node.
Figure 56 shows FMPM functions enabled in a fabric comprising five Junos Space nodes and two FMPM nodes.
Figure 56: Fabric with FMPM Nodes
1167
When you add the FMPM node to the fabric, the network monitoring functionality is disabled on the Junos Space nodes and is enabled on the FMPM node. All the devices and nodes now send their traps to the newly added FMPM node. This feature provides you with a high performance network monitoring solution for networks with more than 15,000 small devices or a few devices with thousands of interfaces.
You can have a cluster of FMPM nodes hosting only the network monitoring functionality. An FMPM cluster can consist of a maximum of two FMPM nodes. The network monitoring service present in an FMPM cluster is considered as a part of Junos Space Platform and can be used by one or more applications. Having more than one FMPM node in a cluster provides high availability (HA).
An FMPM team can monitor the nodes that have been added to the Junos Space fabric and also the devices that have been discovered from Junos Space Platform.
1168
NOTE: · You can add up to a maximum of two FMPM nodes to an FMPM cluster. · When the first FMPM node is up, the network monitoring functionality is enabled on this node
and the network monitoring database (PostgreSQL database) runs on this node. · When you add a second FMPM node to the fabric, the first node functions as the primary
node, and the second node functions as the standby. The PostgreSQL database is continuously replicated from the primary FMPM node to the secondary FMPM node. However, the configuration files that are stored outside of the PostgreSQL database are backed up only at midnight. · If the primary FMPM node (first node) is rebooted or if the node is down, the secondary FMPM node automatically takes over the network monitoring functions.
Each node that you add to the fabric increases the resource pool for the node functions to meet the scalability and availability requirements of your network. After an FMPM node is added to the fabric, you can perform most of the actions that are permitted for a Junos Space node, such as monitoring the FMPM node, modifying the network settings of the node, deleting a node and so on.
RELATED DOCUMENTATION Fabric Management Overview | 1157 Adding a Node to an Existing Junos Space Fabric | 1172 Dedicated Database Nodes in the Junos Space Fabric Overview | 1169 Viewing Nodes in the Fabric | 1181 Monitoring Nodes in the Fabric | 1188 Creating a Unicast Junos Space Cluster | 1277
1169
Dedicated Database Nodes in the Junos Space Fabric Overview
Junos Space Network Management Platform enables the load balancer, application logic, and database functions on the first node of the fabric by default. For improved performance of Junos Space Platform and Junos Space applications, you can add two additional Junos Space nodes to run as dedicated database nodes. You can add any two Junos Space nodes as the primary and secondary database nodes. Database high availability (HA) is enabled by default.
Before you add database nodes to the fabric, you must configure a Junos Space Appliance (JA2500) or a Junos Space Virtual Appliance as a Junos Space node to be added to an existing fabric, by using the Junos Space CLI. You can then use the Junos Space Platform UI to add the node as a dedicated database node to the fabric.
When you add database nodes to the Junos Space fabric, the MySQL database is moved to the primary and secondary database nodes and disabled on the Junos Space active and standby nodes, improving the performance of the Junos Space active node.
Junos Space accesses the database through a database VIP address, which is assigned to the primary database node. You specify the database VIP address when you add the database nodes to the fabric. After you add the database nodes to the Junos Space fabric, Junos Space Platform automatically reconfigures the Junos Space server to use the new database VIP address to access the database
Figure 57 shows database nodes in a fabric comprising five nodes.
Figure 57: Fabric with Database Nodes
1170
In case the primary database node goes down or is deleted, the database VIP address is transferred to the secondary node, which becomes the new primary database node, and any other non-load-balancer node in the fabric can be designated the new secondary database node. If the secondary database node goes down or is deleted, the primary database node retains the database VIP address and you can designate any other non-load-balancer node as the new secondary database node. If there is no other non-load-balancer node in the fabric or you choose not to configure a new secondary database node, database high availability is lost.
When you add database nodes to the fabric, node functions are assigned based on the number and type of nodes that already exist in the fabric.
· Adding database nodes to a fabric with one node--By default, the load-balancer, database server, and application logic node functions are enabled on the first node of the fabric. When you add database nodes to a one-node fabric, you must add the second and third nodes together as dedicated database nodes. The database server functions are moved to the dedicated database nodes from the first node, and the first node no longer provides the database server functions.
When you have one node of the fabric functioning as the active load-balancer server, and two nodes functioning as the primary and secondary database nodes, the fourth node that you add to the fabric automatically assumes the functions of the standby load-balancer server. All subsequent nodes can have only the application logic.
· Adding database nodes to a fabric with two nodes--When you have two nodes in a fabric, the first node functions as the active load-balancer server and active database server, and the second node functions
1171
as the standby load-balancer server and standby database server. You can add the third and fourth nodes as database nodes. The database server functions are moved to the primary and secondary database nodes and disabled on the first and second nodes. In this case, after you add the two nodes as database nodes, all additional nodes that you add can have only the application logic. · Adding database nodes to a fabric with more than two nodes--When you have more than two nodes in a fabric, the first node functions as the active load-balancer server and active database server, and the second node functions as the standby load-balancer server and standby database server. The rest of the nodes can have only the application logic. You can add two other nodes as database nodes. The database server functions are moved to the primary and secondary database nodes and disabled on the first and second nodes.
While adding database nodes, you must consider the following points:
· To add a node as a database node, the node must have enough disk space for the MySQL database, and an additional 100 GB of free disk space.
· In the first instance of adding database nodes to the Junos Space fabric, you must configure both the primary and secondary database nodes. You cannot add a primary database node alone. Database high availability is enabled by default.
· If you have already added the primary and secondary database nodes, you cannot add another database node.
· When you configure the primary and secondary database nodes, you must ensure that both the nodes have similar configuration. That is, if one node is a Junos Space Virtual Appliance, then the other node must also be a Junos Space Virtual Appliance with the same configuration for CPU, memory, disk space and so on. Similarly, if one node is a JA2500 Junos Space Appliance, the other node must also be a JA2500 Junos Space Appliance with similar configuration.
· Junos Space Platform does not permit you to delete both the primary and secondary database nodes at the same time. You can delete either the primary database node or the secondary database node, but not both nodes.
· After the MySQL database is moved to the dedicated database nodes, you cannot move it back to the Junos Space active and standby nodes.
RELATED DOCUMENTATION
Junos Space Nodes and FMPM Nodes in the Junos Space Fabric Overview | 1162 Adding a Node to an Existing Junos Space Fabric | 1172 Viewing Nodes in the Fabric | 1181 Monitoring Nodes in the Fabric | 1188
Adding a Node to an Existing Junos Space Fabric
IN THIS SECTION Adding a Junos Space Node to the Junos Space Fabric | 1173 Adding an FMPM Node to the Junos Space Fabric | 1178 Obtaining Fingerprint of a Junos Space Node | 1179
1172
When you configure a JA2500 Junos Space Appliance JA2500) or a Junos Space Virtual Appliance as a Junos Space node by using the Junos Space CLI, Junos Space Network Management Platform automatically adds the first node to the fabric. By default, the Junos Space fabric contains this single node that provides complete Junos Space Platform functionality. For each additional node that you install and configure, you must add the node from the Junos Space Platform UI to represent the node in the fabric.
Before you begin, the following prerequisites must be in place:
· Multicast must be enabled on the switches to which Junos Space nodes are connected.
· IGMP-snooping needs to be disabled on the switches to which Junos Space nodes are connected. By default, IGMP-snooping is enabled on most switches.
· All Junos Space nodes must be interconnected using a high-speed (1-Gbps or 100-Mbps) network with a maximum latency not exceeding 300 milliseconds.
Using the Junos Space CLI, you can configure a Junos Space Appliance or a Junos Space Virtual Appliance either as a Junos Space node or a Fault Monitoring and Performance Monitoring (FMPM) node. If you want to add a node to the fabric as a dedicated database node,it must be configured as a Junos Space node.
For information about how to configure a Junos Space Virtual Appliance as a Junos Space node, see Configuring a Junos Space Virtual Appliance as a Junos Space Node in the Junos Space Virtual Appliance Installation and Configuration Guide and for information about how to configure a JA2500 appliance as a Junos Space node, see Configuring a Junos Space Appliance as a Junos Space Node in the JA2500 Junos Space Appliance Hardware Guide.
For information about how to configure a Junos Space Virtual Appliance as an FMPM node, see Configuring a Junos Space Virtual Appliance as a Standalone or Primary FMPM Node or Configuring a Junos Space Virtual Appliance as a Backup or Secondary FMPM Node for High Availability in the Junos Space Virtual Appliance Installation and Configuration Guide. For information about how to configure a JA2500 appliance as an FMPM node, see Configuring a Junos Space Appliance as a Standalone or Primary FMPM Node or Configuring a Junos Space Appliance as a Backup or Secondary FMPM Node for High Availability in the JA2500 Junos Space Appliance Hardware Guide.
1173
NOTE: If you want to change an existing Junos Space node to an FMPM node or vice versa, you must reimage the appliance and reconfigure it as an FMPM node or a Junos Space node. For more information, refer to the Junos Space Appliance and Junos Space Virtual Appliance documentation.
NOTE: Before you add a node to the Junos Space fabric, verify the following: · The version of Junos Space Platform installed on the node is the same as the version installed
on other nodes in the fabric. · Ensure that no jobs are pending. · If a Junos Space node, a database node, or an FMPM node that is part of an existing fabric is
deleted, then you need to reimage the node before the node can be readded to the fabric. Junos Space displays the following message when you try to add such nodes to an existing fabric: The node you are trying to add was part of another fabric, please re-image the node before adding to this fabric. · Ensure that you are not adding a non-FMPM node as an FMPM node. Junos Space Platform displays the following message when you try to add such a node to the fabric: Node agent is not running on {0}. Please make sure the node being added is not a specialized node.
From the Junos Space Platform UI, you can add a node to the Junos Space fabric by executing one of the following procedures, based on whether you have configured the node as a Junos Space node or as an FMPM node.
Adding a Junos Space Node to the Junos Space Fabric
To add a Junos Space node to the fabric: 1. On the Junos Space Platform UI, select Administration > Fabric.
The Fabric page appears.
2. Click the Add Fabric Node icon. The Add Node to Fabric page appears.
3. Click the appropriate option button in the Node Type field to select the type of node you want to add.
1174
NOTE: The options that are displayed depend on the number and type of nodes that are already part of the fabric.
Table 145 describes the options that you can select while adding Junos Space nodes. Table 145: Number of Existing Nodes and Permitted Node Types
Number of Nodes Existing in the Fabric
Permitted Node Types
Description
One
JBoss and DB When you add the second Junos Space node to the default single-node
Node
Junos Space fabric, you can add the new node as a JBoss and database
DB Node
node (standby load-balancer server), or the second and third nodes together as database nodes.
In the case of database nodes, one node is designated the primary database node, and the other the secondary database node. The database VIP address must also be configured to enable database high availability.
Two
JBoss Node
When you add nodes to a two-node Junos Space fabric, Junos Space
DB Node
Platform allows you to add a JBoss node, or two nodes as database nodes.
In the case of database nodes, one node is designated the primary database
node, and the other the secondary database node. The database VIP
address must also be configured to enable database high availability. If the
Junos Space fabric already has one database node added, then you can
add either a JBoss-only node or one database node as the secondary
database node. The database node already existing in the fabric is the
primary database node.
Three or more--With one or no database node configured
JBoss Node DB Node
When you add nodes to a Junos Space fabric with three or more nodes, with no database nodes added, Junos Space Platform allows you to add a JBoss node,or two nodes as database nodes.
If the Junos Space fabric already has one database node added, then you can add a JBoss node, or one database node as the secondary database node. The database node already existing in the fabric is the primary database node.
Three or more--With two database nodes configured
JBoss Node
When you add nodes to a Junos Space fabric with three or more nodes, with two database nodes already configured, Junos Space Platform allows you to add either a JBoss node. You cannot add more than two database nodes to the fabric.
1175
4. Perform one of the following procedures, based on the type of node you selected: · For the JBoss and DB Node, and JBoss Node options, perform the following steps: a. Enter a name for the node in the Name text box. The name of the fabric node cannot exceed 32 characters and cannot contain spaces. b. Enter the IP address of the node in the IP address field. This is the IP address for the eth0 interface that you specified during the basic configuration of the appliance. c. Enter the username in the User field. d. Enter the password in the Password field.
NOTE: The login credentials that you specify in the User and Password fields must be the same username and password that you specified for SSH access using the Junos Space CLI during the initial installation and configuration of the node. If the credentials do not match, the node is not added.
e. (Optional) Enter the fingerprint for the node in the Fingerprint field.
NOTE: To obtain the fingerprint of a node, see "Obtaining Fingerprint of a Junos Space Node" on page 1179.
· For the DB Node option, perform the following steps: · In the Primary database section:
NOTE: If you already have a database node as part of the fabric, the Primary database section does not appear. The existing database node is the primary database node and you can add only a secondary database node to the fabric.
a. Enter a name for the primary database node in the Name text box. The name of the fabric node cannot exceed 32 characters and cannot contain spaces.
b. Enter the IP address of the primary database node in the IP address field.
1176
This is the IP address for the eth0 interface that you specified during the basic configuration of the appliance.
c. Enter the username in the User field.
d. Enter the password in the Password field.
NOTE: The login credentials that you specify in the User and Password fields must be the same username and password that you specified for SSH access using the Junos Space CLI during the initial installation and configuration of the node. If the credentials do not match, the node is not added.
e. (Optional) Enter the fingerprint for the node in the Fingerprint field..
NOTE: To obtain the fingerprint of a node, see "Obtaining Fingerprint of a Junos Space Node" on page 1179.
f. Enter the VIP address for the database nodes in the VIP field. The VIP address is used for communication between Junos Space nodes and database nodes. This IP address must be in the same subnet as the IP address assigned to the eth0 Ethernet interface, and the database VIP address must be different from the VIP address used to access the Web GUI and the FMPM nodes.
· In the Secondary database section: a. Enter a name for the secondary database node in the Name text box. The name of the fabric node cannot exceed 32 characters and cannot contain spaces.
b. Enter the IP address of the secondary database node in the IP address field. This is the IP address for the eth0 interface that you specified during the basic configuration of the appliance.
c. Enter the username in the User field.
d. Enter the password in the Password field.
1177
NOTE: The login credentials that you specify in the User and Password fields must be the same username and password that you specified for SSH access using the Junos Space CLI during the initial installation and configuration of the node. If the credentials do not match, the node is not added.
e. (Optional) Enter the fingerprint for the node in the Fingerprint field..
NOTE: To obtain the fingerprint of a node, see "Obtaining Fingerprint of a Junos Space Node" on page 1179.
5. (Optional) Select the Schedule at a later time check box to specify a later date and time when you want the node to be added. If you do not specify a date and time for adding the node, the node is added to the fabric when you complete this procedure and you click Add on the Add Node to Fabric page. a. Click the calendar icon and select the date.
b. Click the arrow beside the time list and select the time.
NOTE: The selected time in the scheduler corresponds to the Junos Space server time but is mapped to the local time zone of the client computer.
6. Click Add to add the node to the fabric. The Job Information dialog box appears, with a message indicating that the job to add the node is successfully scheduled. You can click the job ID link that is displayed in the dialog box to view job details. You can also navigate to the Job Management page to view job details.
7. Click OK. You are returned to the Fabric page. The node is added to the fabric and appears on the Fabric page. When you add a node, the node functions are automatically assigned by Junos Space Platform.
Adding an FMPM Node to the Junos Space Fabric To add an FMPM node to the fabric: 1. On the Junos Space Platform UI, select Administration > Fabric.
The Fabric page appears.
2. Click the Add Fabric Node icon. The Add Node to Fabric page appears.
3. Click the Specialized Node option button in the Node Type field to add an FMPM node.
4. Enter a name for the node in the Name text box. The name of the fabric node cannot exceed 32 characters and cannot contain spaces.
5. Enter the IP address of the node in the IP address field.
NOTE: This is the IP address for the eth0 interface that you specified during the basic configuration of the appliance.
1178
6. Enter the SSH username for the FMPM node in the User field.
7. Enter the password in the Password field. The login credentials (SSH username and password) of the FMPM node that you specify in the User and Password fields must be the same username and password that you specified when you initially configured the node from the Junos Space CLI. If the credentials do not matcjh, the node is not added.
8. (Optional) Enter the fingerprint for the node in the Fingerprint field.
NOTE: To obtain the fingerprint of a node, see "Obtaining Fingerprint of a Junos Space Node" on page 1179.
9. (Optional) Select the Schedule at a later time check box to specify a later date and time when you want the node to be added.
1179
If you do not specify a date and time for the node to be added, the node is added to the fabric when you complete this procedure and you click Add on the Add Node to Fabric page. a. Click the calendar icon and select the date.
b. Click the arrow beside the time list and select the time.
NOTE: The selected time in the scheduler corresponds to the Junos Space server time but is mapped to the local time zone of the client computer.
10. Click Add to add the node to the fabric. The Job Information dialog box appears, with a message indicating that the job to add the node is successfully scheduled. You can click the job ID link that is displayed in the dialog box to view job details. You can also navigate to the Job Management page to view job details.
11. Click OK. You are returned to the Fabric page.
The node is added to the fabric and appears on the Fabric page. When you add a node, the node functions are automatically assigned by Junos Space Platform.
Obtaining Fingerprint of a Junos Space Node In a Junos Space cluster, the fingerprint of a node helps in authenticating and authorizing the node. Starting from Junos Space Network Management Platform Release 17.1R1, the Fingerprint field is introduced to authenticate and authorize a node before adding the node to a Junos Space cluster. To obtain the fingerprint of a Junos Space node: 1. Log in to access the command prompt of the node.
The Junos Space Settings menu appears.
2. Type 6 if the node is a JA2500 appliance or type 7 if the node is a Junos Space Virtual Appliance to access the shell. You are prompted to enter the administrator password.
3. Enter the administrator password for the node.. The shell prompt appears.
1180
4. Enter the ssh-keygen -lf /etc/ssh/ssh_host_rsa_key -E md5 command as shown below to obtain the fingerprint of the node: [root@space]# ssh-keygen -lf /etc/ssh/ssh_host_rsa_key -E md5 The node outputs its fingerprint as shown below:
2048 MD5:xx:xx:xx:00:00:00:0x:xx:x0:x0:00:00:x0:xx:00:x0:00 /etc/ssh/ssh_host_rsa_key.pub (RSA)
MD5:xx:xx:xx:00:00:00:0x:xx:x0:x0:00:00:x0:xx:00:x0:00 is the fingerprint in the MD5 format.
NOTE: Do not include MD5: when you enter fingerprint in the Fingerprint field while adding the node to a cluster.
Release History Table
Release
Description
17.1R1
Starting from Junos Space Network Management Platform Release 17.1R1, the Fingerprint field is introduced to authenticate and authorize a node before adding the node to a Junos Space cluster.
RELATED DOCUMENTATION
Fabric Management Overview | 1157 Viewing Nodes in the Fabric | 1181 Dedicated Database Nodes in the Junos Space Fabric Overview | 1169 Overall System Condition and Fabric Load History Overview | 1159
Viewing Nodes in the Fabric
IN THIS SECTION Changing Views | 1181 Viewing Fabric Node Details | 1181
1181
The Fabric Monitoring inventory page allows the administrator to monitor each node in the Junos Space fabric. You can also monitor the status of the database, load balancer, and application logic functions running on each node, identify nodes that are overloaded or down, and view when the node was rebooted. The Fabric inventory page refreshes every 10 seconds, by default.
Changing Views
You can display fabric monitoring in tabular view. The fabric nodes appear in a table sorted by node name. Each fabric is a row in the Fabric Monitoring table. To change views: 1. Select Administration > Fabric. The Fabric page appears.
2. Click a view indicator at the left of the title bar of the Fabric page.
Viewing Fabric Node Details
To view detailed runtime and status information for a node: 1. On the Junos Space Network Management Platform user interface, select Administration > Fabric.
The Fabric page that appears displays all the nodes in the Junos Space Platform fabric.
2. Right-click a node and select View Fabric Node Details or double-click inside a row corresponding to a node. The View Node Detail pop-up window that appears displays three tabs: Node Detail, Reboot Detail, and Process Detail.
3. To view the node details, click the Node Detail tab. Table 146 describes the details of the node.
1182
Table 146: Information on the Node Detail Tab
Information
Description
Node name
Logical name assigned to the node
NOTE: For the first node, Junos Space uses the node name that the user specifies during the initial configuration of the Junos Space Appliance (physical or virtual). For each subsequent node, the user must specify a node name when adding the node to the fabric.
Management IP (IPv4)
IPv4 address for the node
Management IP (IPv6)
IPv6 address for the node
Host Name
Host name of the node
Device Connection IP IPv4 address for connecting to the device (IPv4)
Device Connection IP IPv6 address for connecting to the device (IPv6)
Status % CPU % Memory % SWAP % DISK
Connection status for the node
· UP--Node is connected to the fabric · DOWN--Node is disconnected from the fabric Percentage of CPU resource utilized by the node; from 0 to 100%
· Unknown--Percentage of CPU utilized is unknown, for example, because the node is not connected
Percentage of memory resource utilized by the node; from 0 to 100%
· Unknown--Percentage of memory utilized is unknown, for example, because the node is not connected
Percentage of swap memory used
· Unknown--Percentage of SWAP memory utilized is unknown, for example, because the node is not connected
Percentage of the /var directory utilized by the node; from 0 to 100%
· Unknown--Percentage of the /var directory utilized by the node is unknown, for example, because the node is not connected
1183
Table 146: Information on the Node Detail Tab (continued)
Information
Description
App Logic Database
Application logic function status for the node
· UP--Application logic function is running on the node · DOWN--Application logic function enabled on the node but is not running · Unknown--Status for the application logic function is unknown, for example, because
the node is not connected · NA-- Application logic function is not configured to run on the node · (Primary)--Configured primary Junos Space node in the fabric · FMPM (Primary)--The configured primary Fault Monitoring and Performance
Monitoring (FMPM) node in the fabric · FMPM--The configured secondary FMPM node in the fabric · Deploying--Junos Space Platform and its applications are initializing after a recent
JBoss restart · Parsing Schema--Device schema files are being parsed after a recent JBoss restart
Database function status for the node
· UP(Primary)--Database function is running on the node and the node is the primary database node
· Up--Database function is running on the node In the case of dedicated database nodes, the secondary database node is always UP.
· Down--Database function that is enabled on the node but is not running · Standby--Database function is on standby and could potentially transition to the UP
state on failover · Unknown--Status for the database function is unknown, for example, because the
node is not connected · NA--Database function is not configured to run on the node
NOTE: By default, the database function is enabled on no more than two nodes in the fabric.
· Out of Sync-- Database is out of sync with the node. View Status provides a detailed report of errors with remedies.
1184
Table 146: Information on the Node Detail Tab (continued)
Information
Description
Load balancer Hardware model
Load balancer function for the node
· Up--Load balancer function is running on the node · Down--Load balancer function that is enabled on the node is not running · Standby--Load balancer function is on standby and could potentially transition to
the UP state on failover · Unknown--Status for the Load balancer function is unknown, for example, because
the node might not be connected · NA--Load balancer function is not running because it is not configured to run on the
node
NOTE: By default, the Load balancer function is enabled on no more than two nodes in the fabric.
· (VIP)--Configured virtual IP node in the fabric
Model of the Junos Space Appliance
NOTE: The hardware model, which is applicable only to the hardware appliance, appears when you double-click a table row for a detailed view of the node.
Software version
Junos Space Network Management Platform release version
NOTE: Software version appears when you double-click a table row for a detailed view of the node.
Serial number
The serial number for the Junos Space Appliance
NOTE: Serial number appears when you double-click a table row for a detailed view of the node.
Cluster Member IPs IP addresses of the nodes in the fabric
Is Master Node Is VIP Node Virtual Machine(s)
Indicates whether the node is a primary node:
· TRUE--The node is a primary node · FALSE--The node is not a primary node Indicates whether the node is a virtual IP (VIP) node. The first (active) node and second (standby) node are VIP nodes.
· TRUE--The node is a VIP node. · FALSE--The node is not a VIP node. Lists the virtual machine IPs hosted by the node.
1185
Table 146: Information on the Node Detail Tab (continued)
Information
Description
Host IP
IP address of the hosted virtual machine. This field is not applicable to Junos Space nodes and Fault Monitoring and Performance Monitoring (FMPM) nodes.
4. To view the details of the last reboot performed, select the Reboot Detail tab. Table 147 lists the information related to the last reboot performed on this node. Table 147: Information on the Reboot Detail Tab
Information
Description
Last Boot Time
Time at which the node was rebooted
Last Boot Reason
Reason why the node was rebooted
Last Rebooted By
Username of the user who rebooted the node
NOTE: If the node was rebooted from the CLI, or as a result of an upgrade or a fresh installation, the Last Rebooted By column displays #system.
Table 148 lists the default messages displayed to the user for different types of reboot actions. Table 148: Default Messages for Different Reboot Actions
Reboot Action
Default Message
Rebooting after changing the network settings of the node Reboot after Space Network Settings change from the Junos Space user interface
Upgrading Junos Space Platform
Space reboot after Software Upgrade
Rebooting from the CLI
Reboot from Shell/Other
Starting up Junos Space Platform for the first time
Junos Space startup after Installation/Software Upgrade
5. To view the details of the processes on this node, select the Process Detail tab.
Table 149 lists the columns that specify the details of the following processes: JBoss, Apache Web Proxy, MySQL, OpenNMS, and PostgreSQL.
Table 149: Columns on the Process Detail Tab
Column Name
Description
Process
Name of the process
Status
Status of the process: UP, DOWN, STANDBY, or N/A
%CPU
Percentage of CPU resources used by the process on the node
%MEMORY
Percentage of memory used by the process on the node
Start Time
Time at which the process is initiated
1186
NOTE: The status of the process and the percentage of CPU resources used by the process is queried once every 30 seconds.
Table 150 lists the different statuses of the following processes: JBoss, Apache Web Proxy, MySQL, OpenNMS, PostgresSQL, and Cassandra.
Table 150: Process Status
Process Status
Description
UP
The process is up and active.
DOWN
The process is down and inactive.
STANDBY
The process is in standby mode and could potentially transition to the UP state on failover.
N/A
The process is never expected to be active on the node.
NOTE: If the MySQL database replication between nodes is broken, the MySQL process displays the status OUT OF SYNC. If the secondary database is in the process of receiving data and the primary database is still executing transactions then the status is Syncing. If the MySQL transactions are up-to-date between nodes, the MySQL process displays the status UP.
1187
Table 151 describes the behavior and the expected status of the processes when OpenNMS is running on the Junos Space node.
Table 151: Status of the Processes When OpenNMS Is Running on the Junos Space Node
Process
Junos Space Node with OpenNMS
VIP Node
Secondary Node
Other Nodes
Apache Web Proxy
UP/DOWN
STANDBY
N/A
JBoss
UP/DOWN
UP/DOWN
UP/DOWN
MySQL
UP/DOWN
UP/DOWN
N/A
OpenNMS
UP/DOWN
STANDBY
N/A
PostgresSQL
UP/DOWN
UP/DOWN
N/A
Cassandra
UP/DOWN
UP/DOWN
UP/DOWN
Table 152 describes the behavior and the expected status of the processes when OpenNMS is running on the FMPM node.
Table 152: Status of the Processes When OpenNMS Is Running on the FMPM Node
Process
Junos Space Node
FMPM Node
VIP Node
OpenNMS VIP OpenNMS
Secondary Node Other Nodes Node
Secondary Node
Apache Web
UP/DOWN
STANDBY
N/A
N/A
N/A
Proxy
JBoss
UP/DOWN
UP/DOWN
UP/DOWN
N/A
N/A
MySQL
UP/DOWN
UP/DOWN
N/A
N/A
N/A
OpenNMS
N/A
N/A
N/A
UP/DOWN
STANDBY
PostgresSQL
N/A
N/A
N/A
UP/DOWN
UP/DOWN
Cassandra
UP/DOWN
UP/DOWN
UP/DOWN
N/A
N/A
1188
NOTE: If an unexpected process is running on a node, the status of the process is shown as UP. If a node fails, the status of all processes on the node is shown as UNKNOWN.
For more information about modifying data on the Fabric inventory page, see "Junos Space User Interface Overview" on page 88.
RELATED DOCUMENTATION Overall System Condition and Fabric Load History Overview | 1159 Fabric Management Overview | 1157 Monitoring Nodes in the Fabric | 1188 Load-Balancing Devices Across Junos Space Nodes | 1264 Modifying the Network Settings of a Node in the Junos Space Fabric | 1257
Monitoring Nodes in the Fabric
IN THIS SECTION Viewing and Modifying the SNMP Configuration for a Fabric Node | 1189 Starting SNMP Monitoring on Fabric Nodes | 1242 Stopping SNMP Monitoring on Fabric Nodes | 1243 Restarting SNMP Monitoring on Fabric Nodes | 1244 Adding a Third-Party SNMP V1 or V2c Manager on a Fabric Node | 1244 Adding a Third-Party SNMP V3 Manager on a Fabric Node | 1245 Deleting a Third-Party SNMP Manager from a Fabric Node | 1247 Installing StorMan RPM for Monitor RAID Functionality | 1247
As an administrator or operator, you can use Junos Space to track the status of physical and logical components of deployed nodes in a fabric. Junos Space Network Management Platform supports SNMP Monitoring by an SNMP Manager for SNMP v1, v2c, and v3.
1189
The SNMP manager polls Junos Space to obtain information about the logical components of the nodes using an object identifier (OID) in SNMP v1 and v2, or v3 as a user. The response is provided by the Junos Space SNMP agent and the polled data is displayed in the Network Monitoring workspace. This topic contains the following sections:
Viewing and Modifying the SNMP Configuration for a Fabric Node
To view and edit the Junos Space SNMP configuration for self-monitoring: 1. Select Administration > Fabric.
The Fabric page appears.
2. Select the node whose configuration you want to view or modify, and from the Actions menu, select SNMP Configuration. The SNMP Configuration window appears with the title bar displaying the IP address of the selected node.
3. Set the SNMP configuration parameters as required, using Table 153 to guide you.
NOTE: By default, the system load parameters are set to 4, which means that an alert is indicated only when all CPUs are under 100 percent load.
Table 153: SNMP Configuration
Setting
Explanation
Recommended
Settings
Default Value
Enable SNMP over TCP
Enables SNMP communication over TCP Cleared
NOTE: By default, SNMP communication occurs over UDP.
Cleared
Monitor Web Service
Includes monitoring the performance of Selected the Junos Space GUI
NOTE: This parameter is enabled only for the Junos Space VIP node.
Selected
Monitor All Disks
Includes all disks on the current Junos Cleared Space server
Cleared
1190
Table 153: SNMP Configuration (continued)
Setting
Explanation
Recommended
Settings
Default Value
Monitor RAID
Enables Net-SNMP to monitor the RAID Selected state
When a RAID controller fault is detected, a trap is sent.
NOTE: From Junos Space Platform Release 16.1 onward, if you want to use the Monitor RAID option, you need to install StorMan-7.31-18856.x86_64 .rpm . For installation instructions, see "Installing StorMan RPM for Monitor RAID Functionality" on page 1247.
NOTE: This field is not applicable to and is disabled for Junos Space Virtual Appliances.
Cleared
Disk Usage %
When the percentage of the disk in use 5
5
exceeds the configured disk usage
percentage, an alarm is triggered.
System Load (1 min)
When the average system load (over 1 4
4
minute) exceeds the configured value,
an alarm is triggered.
System Load (5 min)
When the average system load (over 5 4
4
minutes) exceeds the configured value,
an alarm is triggered.
System Load (15 min)
When the average system load (over 15 4
4
minutes) exceeds the configured value,
an alarm is triggered.
System Location
Location of the fabric node
Actual geographical or other location
unknown
System Contact
E-mail address to which the system sends notifications
E-mail address root of actual person <root@localhost>
1191
Table 153: SNMP Configuration (continued)
Setting
Explanation
Recommended
Settings
Default Value
Disk Mount Path
Disk mount path that is to be monitored Actual path, if /
NOTE: This field is disabled if the
available
Monitor All Disks field is selected.
CPU Max Temp (mC)
When the temperature exceeds the
50000
configured value, an alarm is triggered.
NOTE: This field is applicable only to the Junos Space hardware appliances (JA2500).
50000
CPU Min Fan (RPM)
When the CPU fan speed goes below the configured value, an alarm is triggered.
1000
NOTE: This field is applicable only to the Junos Space hardware appliances (JA2500).
1000
CPU Min Voltage (mV)
When the CPU voltage goes below the 1000 configured value, an alarm is triggered.
NOTE: This field is applicable only to the Junos Space hardware appliances (JA2500).
1000
4. Select Confirm to apply the SNMP configuration changes to the node, or select Cancel if you do not want to make any changes to the SNMP configuration.
Table 154 shows the configuration parameters for monitoring disk usage.
Table 154: SNMP Configuration Parameters: Monitoring Disk Usage Monitoring Disk Usage
1192
Table 154: SNMP Configuration Parameters: Monitoring Disk Usage (continued) Monitoring Disk Usage Parameter: Disk Usage (%) Default: 5% When the free disk space is greater than the configured threshold, the trap shown in Figure 58 is generated.
Figure 58: Disk Usage Threshold Is Normal
1193
Figure 59 shows the OID details for the trap generated when disk usage is normal. Figure 59: Trap Details When Disk Usage Normal
When the free disk space is less than the configured threshold, the trap shown in Figure 60 is generated. Figure 60: Disk Usage Threshold Exceeds Configured Threshold
Figure 61 shows the OID details for the trap generated when disk usage exceeds the configured threshold. Figure 61: Trap Details When DIsk Usage Exceeds Configured Threshold
Table 154: SNMP Configuration Parameters: Monitoring Disk Usage (continued) Monitoring Disk Usage
1194
Table 155 shows the configuration parameters for monitoring the CPU load average.
Table 155: SNMP Configuration Parameters: Monitoring the CPU Load Average Monitoring the CPU Load Average (System Load)
1195
1196 Table 155: SNMP Configuration Parameters: Monitoring the CPU Load Average (continued)
Monitoring the CPU Load Average (System Load) Parameter: CPU Load (1 min, 5 min, 15 min) Default Threshold Value: 4 When the CPU Load Average threshold is less than or equal to the configured threshold limit, the trap shown in Figure 62 is generated: Figure 62: CPU Load Average Threshold Is Normal Figure 63 shows the OID details for the trap generated when the CPU load is normal. Figure 63: Trap Details When CPU Load Average Threshold Is Normal
Figure 64 shows the traps generated when the 15 minute, 5 minute, or 1 minute CPU Load Average threshold is exceeded. Figure 64: CPU Load Average Threshold Upper Limit Exceeded
Figure 65 shows the OID details for the trap generated when the CPU load 5 minute average exceeds the threshold. Figure 65: Trap Details When CPU Load 5 Minute Average Exceeds Threshold
Table 155: SNMP Configuration Parameters: Monitoring the CPU Load Average (continued) Monitoring the CPU Load Average (System Load)
1197
Table 156 shows monitoring processes for the Junos Space Network Management Platform.
Table 156: SNMP Configuration Parameters: Monitoring Processes Monitoring Processes
1198
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes Parameter: Node Management Agent (NMA) When the NMA process is up, the trap shown in Figure 66 is generated: Figure 66: NMA Is Up
Figure 67 shows the OID details for the trap generated when the NMA process is up. Figure 67: Trap Details When NMA Is Up
1199
When the NMA process is down, the trap shown in Figure 68 is generated: Figure 68: NMA is Down
Figure 69 shows the OID details for the trap generated when the NMA process is down. Figure 69: Trap Details When NMA is Down
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1200
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1201
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes Parameter: Webproxy When the WebProxy process is up, the trap shown in Figure 70 is generated: Figure 70: WebProxy Is Up
Figure 71 shows the OID details for the trap generated when the WebProxy process is up. Figure 71: Trap Details When WebProxy Is Up
1202
When the WebProxy process is down, the trap shown in Figure 72 is generated: Figure 72: WebProxy Is Down
Figure 73 shows the OID details for the trap generated when the WebProxy is down. Figure 73: Trap Details When WebProxy Is Down
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1203
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1204
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes Parameter: JBoss When the JBoss process is up, the trap shown in Figure 74 is generated: Figure 74: JBoss Is Up
Figure 75 shows the OID details for the trap generated when the JBoss process is up. Figure 75: Trap Details When JBoss Is Up
1205
When the JBoss process is down, the trap shown in Figure 76 is generated: Figure 76: JBoss Is Down
Figure 77 shows the OID details for the trap generated when JBoss is down. Figure 77: Trap Details When JBoss Is Down
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1206
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1207
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes Parameter: Mysql When the Mysql process is up, the trap shown in Figure 78 is generated: Figure 78: Mysql Is Up
Figure 79 shows the OID details for the trap generated when the Mysql process is up. Figure 79: Trap Details When Mysql Is Up
1208
When the Mysql process is down, the trap shown in Figure 80 is generated: Figure 80: Mysql Is Down
Figure 81 shows the OID details for the trap generated when the Mysql process is down. Figure 81: Trap Details When Mysql Is Down
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1209
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1210
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes Parameter: Postgresql When the Postgresql process is up, the trap shown in Figure 82 is generated: Figure 82: Postgresql Is Up
Figure 83 shows the OID details for the trap generated when the Postgresql process is up. Figure 83: Trap Details When Postgresql Is Up
1211
When the Postgresql process is down, the trap shown in Figure 84 is generated: Figure 84: Postgresql Is Down
Figure 85 shows the OID details for the trap generated when the Postgresql process is up. Figure 85: Trap Details When Postgresql Is Down
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1212
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1213
1214 Table 156: SNMP Configuration Parameters: Monitoring Processes (continued)
Monitoring Processes Parameter: Free swap memory When the free swap memory is greater than the upper threshold limit, the trap shown in Figure 86 is generated: Figure 86: Swap Memory Usage Is Normal Figure 87 shows the OID details for the trap generated when swap memory usage is normal. Figure 87: Trap Details When Swap Memory Is Normal
When the free swap memory is less than the upper threshold limit, the trap shown in Figure 88 is generated: Figure 88: Swap Memory Usage Threshold Exceeds Upper Limit Figure 89 shows the OID details for the trap generated when swap memory usage is exceeds upper limit. Figure 89: Trap Details When Swap Memory Usage Exceeds Upper Limit
Table 156: SNMP Configuration Parameters: Monitoring Processes (continued) Monitoring Processes
1215
Table 157 shows the configuration parameters for monitoring Junos Space Network Management Platform hardware.
Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware
Monitoring Linux Hardware
NOTE: LM-SENSORS-MIB is not supported by the Junos Space Virtual Appliance, but only by the Junos Space Appliance. Therefore the threshold settings of CPU Max Temp (mC), CPU Min Fan (RPM) and CPU Min Voltage (mV) will not trigger any traps in the virtual appliance.
Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware (continued) Monitoring Linux Hardware
1216
1217 Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware (continued)
Monitoring Linux Hardware Parameter: CPU min FAN (rpm) Default Threshold Value: 1500 When the CPU fan speed is greater than the configured threshold (minimum fan speed), the trap shown in Figure 90 is generated: Figure 90: CPU Fan Speed Normal Figure 91 shows the OID details for the trap generated when CPU fan speed is normal. Figure 91: Trap Details When CPU Fan Speed Is Normal
When the CPU fan speed is less than the configured threshold (minimum fan speed), the trap shown in Figure 92 is generated: Figure 92: CPU Fan Speed Is Below the Configured Threshold
Figure 93 shows the OID details for the trap generated when CPU fan speed lower than the configured threshold. Figure 93: Trap Details When CPU Fan Speed Is Below the Configured Threshold
Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware (continued) Monitoring Linux Hardware
1218
Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware (continued) Monitoring Linux Hardware
1219
Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware (continued) Monitoring Linux Hardware Parameter: CPU min Voltage (mV) When the CPU voltage is greater than the configured value, the trap shown in Figure 94 is generated: Figure 94: CPU Voltage Normal
Figure 95 shows the OID details for the trap generated when CPU voltage is normal. Figure 95: Trap Details When CPU Voltage Is Normal
1220
Default Threshold Value: 1000 When the CPU voltage is lower than the configured value, the trap shown in Figure 96 is generated: Figure 96: CPU Voltage Is Lower Than Configured Threshold
Figure 97 shows the OID details for the trap generated when CPU voltage is lower than the configured threshold. Figure 97: Trap Details When CPU Voltage Is Lower Than Configured Threshold
Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware (continued) Monitoring Linux Hardware
1221
Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware (continued) Monitoring Linux Hardware
1222
Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware (continued) Monitoring Linux Hardware Parameter: CPU Temperature When the CPU temperature is lower than the configured threshold, the trap shown in Figure 98 is generated:
Figure 98: CPU Temperature Normal
1223
Figure 99 shows the OID details for the trap generated when CPU temperature is normal. Figure 99: Trap Details When CPU Temperature Is Normal
When the CPU temperature exceeds the configured threshold, the trap shown in Figure 100 is generated: Figure 100: CPU Temperature Exceeds The Configured Threshold
Figure 101 shows the OID details for the trap generated when CPU temperature is higher than the configured threshold. Figure 101: Trap Details When CPU Temperature Exceeds The Configured Threshold
Table 157: SNMP Configuration Parameters: Monitoring Linux Hardware (continued) Monitoring Linux Hardware
1224
Table 158 shows the configuration parameters for monitoring fabric health. Table 158: SNMP Configuration Parameters: Monitoring Fabric Health
Monitoring Fabric Health
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued)
1225
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: Junos Space Node When a Junos Space node is up, the trap shown in Figure 102 is generated: Figure 102: Junos Space Node is Up
Figure 103 shows the OID details for the trap generated when a Junos Space node is up. Figure 103: Trap Details When Junos Space Node Is Up
1226
When a Junos Space node is down, the trap shown in Figure 104 is generated: Figure 104: Junos Space Node is Down
Figure 105 shows the OID details for the trap generated when a Junos Space node is down. Figure 105: Trap Details When Junos Space Node is Down
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued)
1227
Parameter: Junos Space Node Removal When a Junos Space node is removed from the fabric, the trap shown in Figure 106 is generated: Figure 106: Junos Space Node Is Removed
Figure 107 shows the OID details for the trap generated when a Junos Space node is removed.. Figure 107: Trap Details When Junos Space Node Is Removed
1228
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: JBoss Multi-Primary Detected When there is more than one JBoss AppLogic primary node detected in the cluster, the trap shown in Figure 108 is generated: Figure 108: JBoss Multi-Primary Detected
Figure 109 shows the OID details for the trap generated when there is more than one JBoss AppLogic primary node detected in the cluster. Figure 109: Trap Details When JBoss Multi-Primary Is Detected
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: VIP Bind Issue Detected in JBoss Node(s) When VIP Bind issue is detected in JBoss node(s), the trap shown in Figure 110 is generated: Figure 110: VIP Bind Issue Detected In JBoss Node(s)
Figure 111 shows the OID details for the trap generated when VIP Bind issue is detected in JBoss node(s). Figure 111: Trap Details When VIP Bind Issue Is Detected In JBoss Node(s)
1229
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: VIP Bind Issue Detected in Database Node(s) When VIP Bind issue is detected in Database node(s), the trap shown in Figure 112 is generated:
Figure 112: VIP Bind Issue Detected In Database Node(s)
1230
Figure 113 shows the OID details for the trap generated when VIP Bind issue is detected in Database node(s). Figure 113: Trap Details When VIP Bind Issue Is Detected In Database Node(s)
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: VIP Bind Issue Detected in FMPM Node(s) When VIP Bind issue is detected in FMPM node(s), the trap shown in Figure 114 is generated:
Figure 114: VIP Bind Issue Detected In FMPM Node(s)
1231
Figure 115 shows the OID details for the trap generated when VIP Bind issue is detected in FMPM node(s). Figure 115: Trap Details When VIP Bind Issue Is Detected In FMPM Node(s)
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: Fabric Monitoring Process Inactive When fabric monitoring process is inactive, the trap shown in Figure 116 is generated: Figure 116: Fabric Monitoring Process Inactive
Figure 117 shows the OID details for the trap generated when fabric monitoring process is inactive. Figure 117: Trap Details When Fabric Monitoring Process Is Inactive
1232
1233
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: Tables Exceed Size Limit When one or more tables in the MySQL database exceed the size limit of 10 GB, the trap shown in Figure 118 is generated: Figure 118: Tables Exceed Size Limit
Figure 119 shows the OID details for the trap generated when one or more tables in the MySQL database exceed the size limit of 10 GB. Figure 119: Trap Details When Tables Exceed Size Limit
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: Device Session Count Exceeds Threshold Limit When the device session count exceeds the threshold limit, the trap shown in Figure 120 is generated:
Figure 120: Device Session Count Exceeds Threshold Limit
1234
Figure 121 shows the OID details for the trap generated when the device session count exceeds the threshold limit. Figure 121: Trap Details When Device Session Count Exceeds Threshold Limit
1235
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: HPROF Availability When Heap and CPU Profiling Agent (HPROF) files are detected on a Junos Space node, the trap shown in Figure 122 is generated: Figure 122: HPROF Availability
Figure 123 shows the OID details for the trap generated when HPROF files are detected on a Junos Space node. Figure 123: Trap Details When HPROF Files Are Available
1236
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: JGroup Membership Issue Detected When the removal of a JBoss node from JGroup is detected in the cluster, the trap shown in Figure 124 is generated: Figure 124: JGroup Membership Issue Detected
Figure 125 shows the OID details for the trap generated when the removal of a JBoss node from JGroup is detected in the cluster. Figure 125: Trap Details When JGroup Membership Issue Detected
1237
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: MySQL In Out Of Sync State When a MySQL database synchronization issue is detected between nodes running the MySQL database, the trap shown in Figure 126 is generated: Figure 126: MySQL In Out Of Sync State
Figure 127 shows the OID details for the trap generated when a MySQL database synchronization issue is detected between nodes running the MySQL database. Figure 127: Trap Details When MySQL Is In Out Of Sync State
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: File Intrusion Detection Monitoring When changes in files or file permissions are detected, the trap shown in Figure 128 is generated.
Figure 128: File Intrusion Detection Monitoring
1238
Figure 129 shows the OID details for the trap generated when file or file permission changes are detected in the system.
Figure 129: Trap Details for File Intrusion Detection Monitoring
1239
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: Audit Logs Forwarding Failed When the system fails to forward audit logs to the configured system log server, the trap shown in Figure 130 is generated: Figure 130: Audit Logs Forwarding Failed
Figure 131 shows the OID details for the trap generated when the system fails to forward audit logs to the configured system log server. Figure 131: Trap Details When Audit Logs Forwarding Fails
1240
Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued) Parameter: One Or More Expected Process Are Inactive Junos Space monitors critical process like JBoss, MySQL, Apache Web Proxy, OpenNMS and PostgreSQL. If any of these expected processes are inactive, the trap shown in Figure 132 is generated: Figure 132: One or More Expected Processes Are Inactive
Figure 133 shows the OID details for the trap generated when one or more expected processes are inactive. Figure 133: Trap Details When One or More Expected Processes Are Inactive
1241 Table 158: SNMP Configuration Parameters: Monitoring Fabric Health (continued)
Parameter: One or More Expected Processes Are Inactive On Dedicated FMPM Nodes When one or more expected processes are inactive on dedicated FMPM nodes, the trap shown in Figure 134 is generated: Figure 134: One or More Expected Processes Are Inactive On Dedicated FMPM Nodes
Figure 135 shows the OID details for the trap generated when one or more expected process are inactive on dedicated FMPM nodes. Figure 135: Trap Details When One or More Expected Processes Are Inactive On Dedicated FMPM Nodes
NOTE: LM-SENSORS-MIB is not supported by the Junos Space virtual appliance, but only by the Junos Space Appliance. Therefore the threshold settings of CPU Max Temp (mC), CPU Min Fan (RPM) and CPU Min Voltage (mV) will not trigger any traps in the virtual appliance.
1242
NOTE: Junos Space supports RAID-related traps on a Junos Space appliance. The following is a sample trap:
40948 Normal [+] [-] 2/4/13 09:54:14 [<] [>] space-node 10.205.56.38 [+] [-] uei.opennms.org/generic/traps/EnterpriseDefault [+] [-] Edit notifications
for event Received unformatted enterprise event (enterprise:.1.3.6.1.4.1.8072.4 generic:6 specific:1001). 1 args: .1.3.6.1.4.1.795.14.1.9000.1="One or more logical devices contain a bad stripe: controller 1."
Starting SNMP Monitoring on Fabric Nodes To start SNMP monitoring on one or more fabric nodes: 1. Select Network Management Platform > Administration > Fabric.
The Fabric page appears. 2. Select the check box for each fabric node on which you want to start SNMP monitoring. 3. From the Actions menu, select SNMP Start.
The Confirm Start SNMP Agent dialog box is displayed. 4. Click Yes.
Junos Space begins SNMP monitoring on the selected fabric nodes.
NOTE: This process might take a while.
5. To view the status of SNMP monitoring on the selected fabric nodes, select Network Monitoring > Node List. The Network Monitoring > Node List page appears.
6. Select the node on which you started the SNMP monitoring. The Junos Space node is represented as space-<number>.
Figure 136 shows a sample view of network monitoring details for the selected fabric node. Figure 136: Network Monitoring Details for the Selected Fabric Node
1243
Under Notification / Recent Events on the right of the Node List page, you see the results of the SNMP monitoring operation.
Stopping SNMP Monitoring on Fabric Nodes To stop SNMP monitoring on one or more fabric nodes: 1. Select Network Management Platform > Administration > Fabric.
The Fabric page appears.
2. Select the check box for each fabric node on which you want to stop SNMP monitoring.
3. From the Actions menu, select SNMP Stop. The Confirm Stop SNMP Agent dialog box is displayed.
4. Click Yes. Junos Space stops SNMP monitoring on the selected fabric nodes.
1244
Restarting SNMP Monitoring on Fabric Nodes To restart SNMP monitoring on one or more fabric nodes: 1. Select Network Management Platform > Administration > Fabric.
The Fabric page appears.
2. Select the check box for each fabric node on which you want to restart SNMP monitoring.
3. From the Actions menu, select SNMP Restart. The Confirm Restart SNMP Agent dialog box is displayed.
4. Click Yes. Junos Space restarts SNMP monitoring on the selected fabric nodes.
Adding a Third-Party SNMP V1 or V2c Manager on a Fabric Node To add a third-party SNMP V1 or V2c manager on a fabric node: 1. Select Network Management Platform > Administration > Fabric > SNMP Manager.
The SNMP Manager page appears.
2. Click the Add SNMP Manager icon. The Add 3rd Party SNMP Manager dialog box is displayed.
3. In the Manager IP field, enter the SNMP manager IP address.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses or
both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SNMP Manager. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
4. In the Version field, select the SNMP version (V1 or V2c) .
1245
5. In the Community field, enter the community string. Any alphanumeric string (up to 254 characters) is acceptable, including spaces and symbols.
6. Click OK. The newly added SNMP v1 or v2c Manager is displayed on the SNMP Manager page.
Adding a Third-Party SNMP V3 Manager on a Fabric Node To add a third-party SNMP V3 manager on a fabric node: 1. Select Platform > Administration > Fabric > SNMP Manager.
The SNMP Manager page appears.
2. Click the Add icon. The Add 3rd Party SNMP Manager dialog box displays.
3. In the Manager IP field, enter the SNMP manager IP address.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses or
both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SNMP Manager. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
4. In the Version field, select V3.
5. In the User Name field, type the user name. The user name can contain a maximum of 32 alphanumeric characters including spaces and symbols.
6. In the Authentication Type field, enter the authentication type (MD5 or SHA).
7. In the Authentication Password field, enter the authentication password. Click the red information icon next to the Authentication Password field for information on the password rules.
1246
8. In the Confirm Authentication password, enter the authentication password again to confirm the password.
9. From the Security Level list, select the security level: · noAuthNoPriv--Do not specify an authentication or privacy password. · authNoPriv--Specify only an authentication password. · authPriv--Specify both authentication and privacy passwords.
10. In the Privacy Type field, enter the privacy type (AES or DES).
11. In the Privacy Password field, enter the privacy password. Click the red information icon next to the Authentication Password field for information on the password rules.
12. In the Confirm Privacy password field, enter the privacy password again to confirm the password.
13. Click OK. The newly added SNMP Manager entry is displayed on the SNMP Manager page.
NOTE: The trap settings for the SNMPv3 manager are not automatically updated in Network Monitoring. Therefore, to ensure that the Network Monitoring receives the traps from Junos Space, you must add the same settings manually in the /opt/opennms/etc/trapd-configuration.xml file. Table 159 displays the mapping between the parameters in the /opt/opennms/etc/trapd-configuration.xml file and the fields in the Add 3rd Party SNMP Manager page. The following is a sample configuration in the /opt/opennms/etc/trapd-configuration.xml file.
<?xml version="1.0"?> <trapd-configuration snmp-trap-port="162" new-suspect-on-trap="false">
<snmpv3-user security-name="JunosSpace" auth-passphrase="auth-password" auth-protocol="MD5"/>
<snmpv3-user security-name="JunosSpace" auth-passphrase="auth-password" auth-protocol="MD5"
privacy-passphrase="privacy-password" privacy-protocol="DES"/> </trapd-configuration>
1247
Table 159: Mapping of SNMP V3 Settings Parameter in trapd-configuration.xml File security-name auth-passphrase privacy-passphrase privacy-protocol
Field in Add 3rd Party SNMP Manager Page User Name Authentication Password Privacy Password Privacy Type
Deleting a Third-Party SNMP Manager from a Fabric Node To delete a third-party SNMP manager configuration from a fabric node: 1. Select Platform > Administration > Fabric > SNMP Manager.
The SNMP Manager page appears.
2. Select the SNMP manager configuration that you want to remove.
3. Click the Delete SNMP Manager icon.
4. To confirm the deletion of the SNMP manager, click Yes. The deleted SNMP manager is removed from the SNMP Manager page.
Installing StorMan RPM for Monitor RAID Functionality Download the StorMan RPM package from https://github.com/Juniper/open-media-flow-controller/blob/ master/mfc/nokeena/src/base_os/linux_el/el6/arch_x86_64/packages/StorMan-7.31-18856.x86_64.rpm. To install StorMan RPM: · From Junos Space Platform CLI, run the following command:
# rpm ivh StorMan-7.31-18856.x86_64.rpm
RELATED DOCUMENTATION Overall System Condition and Fabric Load History Overview | 1159
Fabric Management Overview | 1157 Viewing Nodes in the Fabric | 1181
1248
Viewing Alarms from a Fabric Node
Starting with Junos Space Network Management Platform Release 15.2R1, you can view information about alarms from a fabric node by using the Administration workspace. There are two categories of alarms: acknowledged and outstanding. You must enable the Network Monitoring functionality from the Administration > Applications > Network Management Platform > Manage Services page to view the list of alarms.
NOTE: This task is enabled only for the FMPM node and Junos Space nodes with the SNMP service enabled. You must be assigned appropriate network monitoring privileges to execute this task.
To view information about alarms from a fabric node: 1. On the Junos Space Network Management Platform user interface, select Administration > Fabric.
The Fabric page that appears displays all the nodes in the Junos Space Platform fabric.
2. Right-click a node whose alarm information you need to view and select View Fabric Node Alarms. The View Fabric Node Alarms page that appears displays the list of outstanding alarms for that node, in a table.
NOTE: The Alarms(s) outstanding search constraint is applied by default and cannot be removed. You can toggle between the Alarm(s) outstanding constraint and the Alarm(s) acknowledged constraint, which displays the list of acknowledged alarms for the selected node, by clicking the minus () icon.
To know more about the fields displayed in the table, refer to the Viewing Details of an Alarm and Acting on an Alarm section of the "Viewing and Managing Alarms" on page 843 topic.
3. (Optional) To view alarms on all nodes, click the () icon corresponding to the node filter in the Search Constraints field. The View Fabric Node Alarms page displays the list of outstanding or acknowledged alarms for all nodes.
1249
4. You can perform the following tasks on the View Fabric Node Alarms page:
· Acknowledge, unacknowledge, clear, or escalate one or more alarms, or acknowledge the entire list of outstanding alarms for the selected node. For more information, refer to the Viewing Details of an Alarm and Acting on an Alarm section of the "Viewing and Managing Alarms" on page 843 topic.
· Toggle between the summary and detailed views of alarms for the selected node: · Click the Long Listing link at the top of the page for a detailed view.
· Click the Short Listing link at the top of the page for a summary view.
· View the severity levels for alarms. i. Click the Severity Legend link at the top of the page.
For more information about summary and detailed views, and severity levels, refer to the Viewing Alarms in Summary and Detailed Views section of the "Viewing and Managing Alarms" on page 843 topic.
5. Click Back (at the top-left corner) to return to the Administration > Fabric page.
Release History Table Release
Description
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can view information about alarms from a fabric node by using the Administration workspace.
RELATED DOCUMENTATION
Alarm Notification Configuration Overview | 856 Configuring Alarm Notification | 859 Monitoring Nodes in the Fabric | 1188
1250
Shutting Down or Rebooting Nodes in the Junos Space Fabric
From Junos Space Network Management Platform, the Super Administrator can shut down or reboot fabric nodes when they are moved or when their network settings are reconfigured. You shut down or reboot a fabric node from the Fabric page. Optionally, you can enter a message to display to all users who are logged in to the nodes you choose to shut down or reboot. This message is displayed on the users' CLI consoles and Web browsers. To shut down or reboot one or more nodes in the fabric: 1. On the Junos Space Network Management Platform UI, select Administration > Fabric.
The Fabric page appears.
2. Select the nodes.
3. Select Shutdown/Reboot Node(s) from the Actions menu. The Shutdown Node dialog box appears.
NOTE: If the nodes that you selected for shutdown or reboot include hosted virtual machines, then a warning message that the hosted virtual machines will be shut down or rebooted is displayed.
4. Specify, using the Select action option button, whether you want to shut down or reboot the node: · Select Shutdown (which is the default) to shut down the node. · Select Reboot to reboot the node.
5. (Optional) In the Shutdown or reboot in minutes text box, specify the time (in minutes) after which the selected nodes are shut down or rebooted. The default is 1 minute, and the range is 1 through 10 minutes.
6. (Optional) In the Display message to Console and Browser users text box, enter a message to notify logged-in users about the reboot or shutdown operation so that users can save any changes. The message cannot exceed 500 characters and must contain only letters or numbers. Punctuation marks are not allowed. To this message, Junos Space Platform appends a message specifying whether this action is a reboot or shutdown operation and the number of minutes after which the nodes are rebooted or shut down.
1251
NOTE: If you do not enter a message in the Display message to Console and Browser users text box, the users will view the following message The system will be shutdown in X minutes where X is the value you entered in the Shutdown or reboot in minutes text box. If you chose to reboot, users will view The system will be rebooted in X minutes where X is the value you entered in the Shutdown or reboot in minutes text box.
7. (Optional) In the Reason text box, enter a message to specify the reason for rebooting the node. The message cannot exceed 500 characters and can contain letters, numbers, spaces, and special characters. The special characters allowed are hyphen (-), underscore (_), period (.), at symbol (@), dollar ($), caret (^), equal sign (=), square brackets ([]), curly brackets ({}), colon (:), comma (,), and slash (/). This message is appended to the audit log entry generated for this task.
8. Click Confirm to shut down or reboot the node. · If you reboot or shut down one node, the node is shut down or rebooted after the configured time interval. · If you shut down multiple nodes, the nodes are shut down after the configured time interval. · If you reboot multiple nodes, the nodes are rebooted one by one after the configured time interval in the following sequence with an approximate interval of one minute between the reboot operations: a. Node acting as a load balancer b. Other nodes c. Fault Monitoring and Performance Monitoring (FMPM) node d. Node that initiated the reboot operations
NOTE: If you are shutting down a node after a change of IP address, we recommend that you reboot all nodes for the changes to take effect.
RELATED DOCUMENTATION Fabric Management Overview | 1157 Deleting a Node from the Junos Space Fabric | 1252 Viewing Nodes in the Fabric | 1181
1252
Deleting a Node from the Junos Space Fabric
You can delete a node from the Junos Space fabric directly by selecting the node and selecting Delete Fabric Node from the Actions menu. You must remove the deleted node from the network and reimage it. Then, you can add it to the fabric by selecting Administration > Fabric and the Add Fabric Node icon.
NOTE: · You cannot delete a primary Fault Monitoring and Performance Monitoring (FMPM) node if
a secondary FMPM node exists. Junos Space Network Management Platform displays the following error message: Primary FMPM node cannot be deleted if secondary FMPM node exist. The workaround to delete the primary FMPM node is to perform one of the following actions: · Shut down the primary FMPM node and then delete the node. · Reboot the primary FMPM node and then delete the node. When you reboot this node,
automatic failover takes place and the secondary FMPM node takes over as the primary FMPM node.
· When you delete dedicated database nodes, you cannot delete both the primary and secondary database nodes from the fabric. You can delete either the primary database node or the secondary database node, but not both nodes.
You can delete a node from the fabric under the following conditions:
· In a fabric with two or more nodes, if that node does not disrupt activities of other nodes. · If a node is configured for high availability--with load balancing and as a database server capability--and
another node has the capacity to assume that role. You are prompted to enable that role on another candidate node before deleting that node. If you delete a high-availability node, but no node exists to which you can transfer that role, high availability does not occur. When you delete a fabric node, Junos Space Platform performs the following tasks:
· Removes references to the host name and IP address of that node from the remaining nodes · Stops database replication on both the deleted node and the backup database node · Makes the database backup copy in that node unavailable for the remaining nodes to restore the database
from the backup copy · Copies the database to the new database node · Shuts down all services that interact with other nodes
1253
When an FMPM node is deleted, the FMPM data from the FMPM node is first backed up and restored on the Junos Space node, and then the FMPM node is deleted from the Junos Space fabric. Thereafter, the network monitoring service is enabled on the Junos Space node. You can delete only one node at a time. You must have Super Administrator or System Administrative role access privileges to delete a node. To delete a node: 1. Select Administration > Fabric.
2. Select the node that you want to delete, and click the Delete Fabric Node icon.
3. In the Warning dialog box, confirm that you want to delete the node by clicking Continue. · If a node you want to delete is not configured for high availability or a node is configured for high availability but there is no other node available to assume that role, the Delete Node dialog box appears displaying the node name and management IP address of only the node that you want to delete. · If a node is configured for high availability, the Delete Node dialog box notifies you of that fact and lists all candidate nodes that have the capacity to assume that role.
NOTE: When you delete a database node, only non-load-balancer nodes with the same configuration as the node you are deleting are listed as candidate nodes.
· If a node hosts one or more virtual machines, then the warning message also indicates the IP addresses of the virtual machines that will be deleted.
4. In the Delete dialog box, select the node that you want to delete.
5. Click Delete. Node deletion is scheduled as a job immediately after you click Delete. Deleting a node generates an audit log entry. The Delete Fabric Node Job Information dialog box appears.
6. In the Delete Fabric Node Job Information dialog box, click the Job ID link. The Job Management inventory landing page appears displaying this job. From this page, you can verify and monitor information about the node you are deleting, such as the job type, job ID, percentage of task completion, job state, scheduled start and end times, username, a brief job summary, and so on.
1254
NOTE: · When you delete a node, a UDP communication exception occurs. This behavior is normal. · When you delete a load balancer node, a VIP switch may occur and cause the Junos Space
Platform progress indicator to appear. This behavior is normal.
RELATED DOCUMENTATION Fabric Management Overview | 1157 Viewing Nodes in the Fabric | 1181 Adding a Node to an Existing Junos Space Fabric | 1172 Replacing a Failed Junos Space Node | 1265
Resetting MySQL Replication
From Junos Space Network Management Platform Release 17.2R1 onward, you can reset MySQL replication in runtime. In releases before Junos Space Platform Release 17.2R1, the resetting of MySQL replication is done by backing up and restoring the Junos Space Platform database, which involves backing up the of MySQL database. You can now reset MySQL replication from the Reset MySQL Replication page under the Administration workspace in Junos Space Platform. Resetting the replication of the MySQL database enables continuous and uninterrupted data replication between the VIP and non-VIP MySQL nodes. This uninterrupted data replication ensures that there is no loss of data or network downtime. You are alerted on the break in MySQL replication through e-mail notification, an SNMP trap, the MySQL in out of sync state parameter in the System Health Report, or the Database column on the Administration > Fabric page. To reset MySQL replication in Junos Space Network Management Platform, a user must be a Super Administrator or a System Administrator. To reset the replication of the MySQL database: 1. On the Junos Space Network Management Platform UI, select Administration > Fabric.
The Fabric page is displayed.
2. Click the Reset MySQL Replication button.
1255
The Reset MySQL Replication page is displayed.
3. To reset the database replication, click the Reset MySQL Replication button. The Reset MySQL Replication dialog box appears, displaying the job ID corresponding to the reset action. a. Click the job ID to view the details of the job. You are redirected to the Job Management page with a filtered view of the job corresponding to the reset action. Double-click the row corresponding to the job to view details of the job. The View Job Details page displays the details of the job.
b. Click OK to close the page and return to Reset MySQL Replication page.
Failure of the reset job indicates that the database nodes are still not synchronized. You can retry the procedure to reset the replication.
1256
NOTE: Resetting the MySQL replication resets only the replication between database nodes on the active site. If you have configured disaster recovery, we recommend that you back up and restore MySQL database nodes on the standby site as well. To back up and restore MySQL nodes on the standby site, stop and restart the disaster recovery process on Junos Space Network Management Platform. To stop the backup process at the active site: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0
interface is configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Type jmp-dr stop at the shell prompt and press Enter. The disaster recovery process on both sites is stopped.
5. To restart the disaster recovery process on both sites, type jmp-dr start and press Enter. The disaster recovery process is restarted on both sites.
The MySQL nodes at the standby site are backed up and restored.
RELATED DOCUMENTATION Viewing Nodes in the Fabric | 1181 Dedicated Database Nodes in the Junos Space Fabric Overview | 1169 Shutting Down or Rebooting Nodes in the Junos Space Fabric | 1250
Modifying the Network Settings of a Node in the Junos Space Fabric
IN THIS SECTION Modifying the Fabric Virtual IP Address | 1259 Modifying the Network Settings of a Node | 1260
1257
The Junos Space fabric consists of one or more nodes. Network settings for these nodes enable IP connectivity to external systems as well as internal connectivity between nodes. A Junos Space hardware appliance or a Junos Space virtual appliance is configured as a Junos Space node or a Fault Monitoring and Performance Monitoring (FMPM) node using the Junos Space CLI. You can modify the previously configured settings using the Space Node Settings page.
NOTE: The settings for the hosted virtual machine can also be modified using the Space Node Settings page. For a hosted virtual machine, you can modify the IP address, the subnet mask, and the gateway IP address.
1258
To access the Space Node Settings page, navigate to Administration > Fabric > Space Node Settings. Changing node settings enables you to move the Junos Space fabric from one network location to another location and does not require any reinstallation but only a reboot.
NOTE: Before you modify the network settings, note the following:
· The virtual IP (VIP) address of the Junos Space fabric and the IP address of the Junos Space nodes must be in the same subnet.
· The database VIP address and the node management IP address of the database nodes must be in the same subnet as the VIP address of the fabric.
· The node management IP addresses of all Junos Space nodes in the fabric must be in the same subnet.
· The node management IP addresses of all FMPM nodes in the fabric must be in the same subnet.
· When you modify the device management IP address, all devices that are connected to Junos Space through device-initiated connections must be updated with the new device management IP address by updating the trap target and the outbound-ssh configuration with the new device management IP address.
· After you modify the network settings for a node, the node must be rebooted in order for the settings to take effect. Junos Space asks you to confirm the reboot and, upon confirmation, reboots the node and applies the new settings.
· If you modify the settings of a Junos Space node, then all Junos Space nodes in the fabric are rebooted; the FMPM nodes in the fabric are not rebooted. If you modify the settings of an FMPM node, then only the FMPM nodes in the fabric are rebooted; the Junos Space nodes are not rebooted.
This topic includes the following sections:
Modifying the Fabric Virtual IP Address To modify the virtual IP (VIP) address of the fabric:
NOTE: You can modify the IPv4 VIP address, the IPv6 VIP address, or both.
1259
NOTE: You can modify the database VIP address of dedicated database nodes by selecting the primary database node and modifying the required fields in the Node Management Interface section of the Space Node Settings page. See "Modifying the Network Settings of a Node" on page 1260.
1. On the Junos Space Network Management Platform UI, select Administration > Fabric > Space Node Settings. The Space Node Settings page is displayed.
2. In the Fabric Virtual IP field, modify the IPv4 VIP address of the fabric.
3. In the Fabric Virtual V6 IP field, modify the IPv6 VIP address of the fabric.
4. Click Confirm. The Network Settings Change confirmation dialog box appears.
5. Click Yes to save the changes. The Reboot Node dialog box appears requesting you to enter a reason for the reboot.
NOTE: If you do not want to save the changes, click the No button on the Network Settings Change confirmation dialog box.
6. Enter the reason for the reboot and click OK. The nodes are rebooted and the new settings take effect. You can verify that the settings have changed when the nodes are in the UP state.
Modifying the Network Settings of a Node
1260
NOTE: Before you modify the network settings of a node, ensure the following:
· For Junos Space nodes, the node management IP address and the VIP address must be in the same subnet.
· For FMPM nodes, the node management IP address and the FMPM VIP address must be in the same subnet.
· The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
· All nodes in the Junos Space fabric must have the same type of IP address (or addresses) configured. For example, if a Junos Space node or an FMPM node in a fabric is configured with both IPv4 and IPv6 addresses, then all other Junos Space and FMPM nodes in the fabric must be configured with both IPv4 and IPv6 addresses.
To modify the network settings of a node:
1. On the Junos Space Platform UI, select Network Management Platform > Administration > Fabric > Space Node Settings. The Space Node Settings page is displayed. The nodes that are part of the fabric are displayed in a table.
2. Click the pencil icon corresponding to the node (or double-click the node) for which you want to modify the settings. The network settings for the node are displayed below the row corresponding to the node. The node management interface and device management settings are grouped in the Node Management Interface and Device Management Interface sections of the Space Node Settings page.
NOTE: If you have configured the node with only the IPv4 address, you can use this procedure to modify the IPv4 address as well as add an IPv6 address to the node.
3. To modify the node management interface settings: a. In the IP field, enter the IPv4 address (in dotted-decimal notation) of the node.
b. In the Netmask field, enter the subnet mask (in dotted-decimal notation) for the node.
1261
NOTE: The prefix length range for IPv4 addresses is 1 through 32.
c. In the Gateway field, enter the IPv4 address of the default gateway. d. In the IPv6 field, enter the IPv6 address of the node. e. In the Prefix field, enter the IPv6 prefix of the node.
NOTE: The prefix length range for IPv6 addresses is 1 through 128.
f. In the Gateway field, enter the IPv6 address of the default gateway. 4. To modify the database VIP address:
NOTE: The databaseVIP and databaseV6VIP fields appear only when you select the primary database node for modifying the network settings. a. In the databaseVIP field, enter the IPv4 VIP address of the database.
1262
b. In the databaseV6VIP field, enter the IPv6 VIP address of the database.
5. To modify the device management interface settings: a. To enable or disable a separate device management interface: · Select Enable Device Interface to enable a separate device management interface. NOTE: · On a Junos Space fabric with two or more Junos Space nodes, if you configure the device management interface on one Junos Space node, then you must also configure the device management interface on all the other Junos Space nodes in that fabric. · The device management IP addresses for all Junos Space nodes must be in the same subnet.
· Clear Enable Device Interface to disable a separate device management interface.
NOTE: If no device management interface is defined, Junos Space Platform uses the node management interface to communicate with devices.
b. In the IP field, enter the IPv4 address (in dotted-decimal notation) of the device management interface.
c. In the Netmask field, enter the subnet mask (in dotted-decimal notation) of the device management interface.
NOTE: The prefix length range for IPv4 addresses is 1 through 32.
d. In the Gateway field, enter the IPv4 address of the default gateway for the device management interface.
e. In the IPv6 field, enter the IPv6 address of the device management interface.
NOTE: The prefix length range for IPv6 addresses is 1 through 128.
1263
f. In the Prefix field, enter the IPv6 prefix of the device management interface.
g. In the Gateway field, enter the IPv6 address of the default gateway for the device management interface.
6. Click OK. Junos Space Platform performs a first-level validation of the modified network settings, which might take a couple of minutes: · If there are validation errors, an error message is displayed in a dialog box. Click OK to close the dialog box. You are taken to the Space Node Settings page. Modify the network settings to ensure that there are no validation errors and repeat this step. · If there is no validation error, you are taken to the Space Node Settings page, where the nodes that are part of the fabric are displayed.
7. Click Confirm to confirm the settings. Junos Space Platform performs a second-level validation of the modified network settings, which might take a couple of minutes: · If there are validation errors, an error message is displayed in a dialog box. Click OK to close the dialog box. You are taken to the Space Node Settings page, where you can modify the network settings to ensure that there are no validation errors and repeat the preceding step. · If no validation errors are present, the Network Settings Change confirmation dialog box is displayed. a. Click Yes to continue. The Reboot Node dialog box appears asking you to enter a reason for the reboot.
b. Enter the reason for the reboot and click OK. Junos Space Platform sends a message to logged-in users, applies the changed network settings, and reboots the node. After the node is rebooted and is in the UP state, the modified network settings can be viewed on the Space Node Settings page.
RELATED DOCUMENTATION Shutting Down or Rebooting Nodes in the Junos Space Fabric | 1250 Viewing Nodes in the Fabric | 1181 Junos Space IPv6 Support Overview | 1152
1264
Load-Balancing Devices Across Junos Space Nodes
If the devices being managed by Junos Space Network Management Platform are not distributed evenly across Junos Space nodes in the fabric, you can perform load balancing on the Junos Space nodes so that the devices are evenly distributed across each node in the fabric. To load-balance devices across Junos Space nodes: 1. On the Junos Space Platform user interface, select Administration > Fabric.
The Fabric page is displayed with the different nodes in the fabric.
2. Click the Device Load Balancer icon on the toolbar. The Device Load Balancer dialog box appears with the following information displayed for each Junos Space node: · Host--Name of the node · IP--IP address of the node · Status--Status of the node (up or down) · Number of devices--Number of devices managed by the node
3. Click Confirm to load-balance the devices managed by the Junos Space nodes in the fabric. A dialog box is displayed with the job ID.
4. Perform one of the following tasks: · Click the job ID hyperlink to go to the Job Management page where you can track the progress of the load balancing. · Click OK to close the dialog box and return to the Fabric page.
5. (Optional) After the load balancing is completed, click the Device Load Balancer icon on the toolbar to view the distribution of devices across nodes in the Device Load Balancer dialog box.
RELATED DOCUMENTATION Viewing Nodes in the Fabric | 1181 Monitoring Nodes in the Fabric | 1188
1265
Replacing a Failed Junos Space Node
This topic provides information about how to replace a failed Junos Space node with a new one. Typically, the status of a failed node is shown as DOWN on the Fabric (Administration > Fabric) page. To replace a failed Junos Space node: 1. Delete the failed node on the Fabric page by using the Delete Fabric Node task. For detailed instructions
for deleting a node from a Junos Space cluster, see "Deleting a Node from the Junos Space Fabric" on page 1252. When you delete a node, a job is triggered. To confirm whether the node is deleted successfully, check the status of this job on the Job Management page.
2. Depending on whether you are replacing the deleted node with a virtual appliance or a hardware appliance, you can configure deploy the virtual appliance or image the hardware appliance using a USB drive. For more information, refer to the Junos Space virtual appliance or hardware documentation.
3. On the Junos Space Network Management Platform UI, add the node to the existing Junos Space cluster by using the Administration > Fabric > Add Fabric Node task. For detailed instructions about adding a node to a Junos Space cluster, see "Adding a Node to an Existing Junos Space Fabric" on page 1172. When you add a node, a job is triggered. To confirm whether the node is added successfully to the existing Junos Space cluster, check the status of this job on the Job Management page. If the job is a success, then the newly added Junos Space node appears on the Fabric page.
RELATED DOCUMENTATION Fabric Management Overview | 1157 Overall System Condition and Fabric Load History Overview | 1159
Generating and Uploading Authentication Keys to Devices
IN THIS SECTION Generating Authentication Keys | 1266 Uploading Authentication Keys to Multiple Managed Devices for the First Time | 1267 Uploading Authentication Keys to Managed Devices With a Key Conflict | 1270
1266
Junos Space Network Management Platform can authenticate a device either by using credentials (username and password) or by keys. Junos Space Network Management Platform supports RSA, DSA, and ECDSA public-key cryptographic principles to perform key-based authentication. You can select a key size of 2048 or 4096 bits. Junos Space Platform includes a default set of public-private key pairs; the public key is uploaded to the device and the private key is stored on the Junos Space server.
NOTE: If you generated a new set of keys, you can either upload the new keys to the devices or resolve key conflicts when the device is disconnected from Junos Space Platform. For more information about resolving key conflicts, refer to "Resolving Key Conflicts" on page 290.
The following tasks describe how to the generate keys in Junos Space Platform and upload the public keys to the devices:
Generating Authentication Keys
To generate a public/private key pair for authentication during login to network devices: 1. On the Junos Space Network Management Platform user interface, select Administration > Fabric.
The Fabric page is displayed.
2. Click the Manage SSH Key icon on the Actions bar. The Key Generator pop-up window is displayed.
3. (Optional) In the Passphrase field, enter a passphrase to be used to protect the private key, which remains on the system running Junos Space Network Management Platform and is used during device login. The passphrase must have a minimum of five and a maximum of 40 characters. A long passphrase is harder to break by brute-force guessing. Space, Tab, and Backslash (\) characters are not allowed. Although not mandatory, it is recommended that you set a passphrase to prevent attackers from gaining control of your system and logging in to your managed network devices.
4. (Optional) Select the Show Passphrase check box to view the passphrase you entered.
5. From the Algorithm drop down list, select the key algorithm used to the generate the key. The options are RSA, DSA, and ECDSA. By default, RSA is selected.
6. From the Key Size drop down list, select the length of the key algorithm that is uploaded to the devices. The options are 2048 Bits and 4096 Bits. By default, 2048 Bits is selected.
1267
7. (Optional) Schedule the Junos Space Network Management Platform to generate authentication keys at a later time or immediately. · To specify a later start date and time for key generation, select the Schedule at a later time check box. · To initiate key generation as soon as you click Generate, clear the Schedule at a later time check box (the default).
NOTE: The selected time in the scheduler corresponds to the Junos Space server time but uses the local time zone of the client computer.
8. Click Generate. The Manage SSH Key Job Information dialog box appears, displaying a job ID link for key generation. Click the link to determine whether the key is generated successfully.
NOTE: If there are already scheduled report generation or configuration backup tasks when you change the SSH key, ensure that you update the new SSH Key on the SCP server.
Uploading Authentication Keys to Multiple Managed Devices for the First Time To upload authentication keys to multiple managed devices for the first time: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed.
2. Click the Upload Keys to Devices icon on the Actions bar. The Upload Keys to Devices pop-up window is displayed.
1268
3. You can upload the keys to one device or multiple devices: To upload keys to a single device: a. Select the Add Manually option button. The Authentication Details section that appears displays the options related to manually uploading keys to a single device.
b. Select the IP Address or Hostname option button. If you selected the IP Address option, enter the IP address of the device.
NOTE: You can enter the IP address in either IPv4 or IPv6 format.
If you selected the Hostname option, enter the hostname of the device.
c. In the Device Admin field, enter the appropriate username for that device.
d. In the Password field, enter the password for that device.
e. (Optional) To authorize a different user on the target device, select the Authorize different user on device check box and enter the username in the User on Device field. If the username you specify in the User on Device field does not exist on the device, a user with this username is created and the key is uploaded for this user. If the User on Device field is not specified, then the key is uploaded for the device administrator user on the device.
f. Click Next. You are directed to the next page. This page displays the details of the device you entered--IP Address/Hostname, Device Admin, Password, and User on Device.
g. Click Finish to upload keys to the device. The Job Information dialog box appears.
h. (Optional) Click the Job ID in the Job Information dialog box to view job details for the upload of keys to the device.
1269
The Job Management page appears. View the job details to know whether this job is successful.
To upload keys to multiple devices: a. Select Import From CSV.
b. (Optional) To see a sample CSV file as a pattern for setting up your own CSV file, select View Sample CSV. A separate window appears, allowing you to open or download a sample CSV file. Refer to the sample CSV file for the format of entering the device name, IP address, device password, and a username on the device. If the username you specify in the User on Device column does not exist on the device, a user with this username is created and the key is uploaded for this user. If the user on device column is not specified, then the key is uploaded for the device administrator user on the device.
c. When you have a CSV file listing the managed devices and their data, select Select a CSV To Upload. The Select CSV File dialog box appears.
d. Click Browse to navigate to where the CSV file is located on the local file system. Make sure that you select a file that has a .csv extension.
e. Click Upload to upload the authentication keys to the device. An Information dialog box displays information about the total number of records that are uploaded and whether this operation is a success. Junos Space Network Management Platform displays the following error if you try to upload non-CSV file formats: Please select a valid CSV file with '.csv' extension.
f. Click OK in the information dialog box that appears. The green check mark adjacent to the Select a CSV To Upload field indicates that the file is successfully uploaded.
g. Click Next. You are directed to the next page. This page displays the details of the device you entered--IP Address/Hostname, Device Admin, Password, and User on Device.
h. Click Finish. The Job Information dialog box appears.
i. (Optional) Click the Job ID to view job details for the upload of keys to the device.
1270
The Job Management page appears. View the job details to know whether this job is successful. New keys generated on Junos Space Platform are automatically uploaded to all managed devices.
Uploading Authentication Keys to Managed Devices With a Key Conflict To upload authentication keys to one or several managed devices with a key conflict manually: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page is displayed. 2. Select the devices with a key conflict to which you want to upload authentication keys and click the Upload Keys to Devices icon on the Actions bar. The Upload Keys to Devices pop-up window is displayed. The IP address fields of the devices are prepopulated. 3. In the Device Admin field, enter the appropriate username for that device. 4. In the Password field, enter the password for that device. 5. Confirm the password by reentering it in the Re-enter Password field. 6. Select Next to provide details for the next device. 7. Select Upload to upload the authentication keys to the managed devices. The Upload Authentication Key dialog box displays a list of devices with their credentials for your verification.
NOTE: If you do not specify a username in the User Name field, the key is uploaded for the "user admin" user on the device. If the username you specify in the User Name field does not exist on the device, a user with this username is created and the key is uploaded for this user.
RELATED DOCUMENTATION Device Authentication in Junos Space Overview | 280
Device Discovery Profiles Overview | 219 Resolving Key Conflicts | 290
1271
Configuring the ESX or ESXi Server Parameters on a Node in the Junos Space Fabric
If you want to take a snapshot of a Junos Space server running on a virtual machine within an Elastic Sky X (ESX) or Elastic sky X Integrated (ESXi) server, then it is necessary that you provide the ESX or ESXi server information.
To configure the ESX or ESXi server parameters:
1. Select Administration > Fabric The Fabric page appears.
2. Right-click the node that you want to configure and select ESX Configuration. The ESX Configuration (Node-IP) dialog box is displayed, where Node-IP is the IP address of the node.
3. In the Server IP text box, enter the IP address of the ESX server.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses or
both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the ESX server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
4. In the VM Name text box, enter the name of the node as configured on the ESX server. 5. In the Username text box, enter the username to log in to the ESX server. 6. In the Password field, enter the password to log in to the ESX server.
7. In the Confirm password field, reenter the password to log in to the ESX server.
8. Click Confirm to save the ESX server configuration. The ESX server parameters are saved. You can now proceed with the system snapshot. For more information, see "Creating a System Snapshot" on page 1272.
1272
RELATED DOCUMENTATION Restoring the System to a Snapshot | 1275
Creating a System Snapshot
You can use the System Snapshot feature to create a snapshot of the system state and roll back the system to a predefined state. The snapshot includes all persistent data on the hard disk including data in the database, system and application configuration files, and application and Linux executables. The System Snapshot is a fabricwide operation that maintains consistency across all nodes in the fabric. Typically, you use the System Snapshot feature for rolling back the system when it is in an unrecoverable error-state due to corruption of system files, interruption of critical processes, and so on. You can also roll back the system to an older release if the system exhibits undesirable behaviors after a software version upgrade.
TIP: We recommend using System Snapshot before performing significant actions (for example, adding a node to the Junos Space fabric) that have the potential to precipitate the system into an undesirable state. You can delete the snapshot after you have verified that these actions were performed successfully.
System Snapshot is currently supported on a Junos Space fabric that consists of only Junos Space virtual appliances or only Junos Space appliances. This feature is not supported on a hybrid fabric consisting of both Junos Space virtual appliances and Junos Space appliances. System Snapshot does not impact the performance of a Junos Space virtual appliance. However, if you are using a Junos Space Appliance, performance may be impacted by the number of write operations performed to the snapshot's logical volume. The maximum size that a snapshot can occupy for Junos Space Network Management Platform is 300 GB. The maximum size that a snapshot can occupy for Junos Space Platform migrated from releases prior to 11.3 is 43 GB. On the Junos Space Appliance, the snapshot becomes invalid if it has been kept for a
1273
long time because usage of the snapshot volume disk space increases as write operations continue. When the usage reaches the maximum size of snapshot volume, the snapshot is disabled. Therefore, ensure that you clear enough hard disk space to accommodate the snapshot. After executing these commands, start creating the snapshot. The steps used to create a system snapshot for a Junos Space virtual appliance and a Junos Space appliance are almost identical, but there are two additional preliminary steps for the Junos Space virtual appliance: If you are working with a Junos Space virtual appliance, perform the following steps before taking the system snapshot:
NOTE: The following procedure is valid only on a Junos Space virtual appliance deployed on a VMware Elastic Sky X (ESX) or ESXi server.
1. In the Fabric page (Administration > Fabric), and set the ESX configuration for every node in the fabric. For more information, see "Configuring the ESX or ESXi Server Parameters on a Node in the Junos Space Fabric" on page 1271.
2. Install the VI Toolkit for Perl provided by VMware. For more information, see Installing VI Toolkit for Perl on Junos Space Virtual Appliance.
To create a system snapshot: 1. Select Administration > Fabric
The Fabric page appears.
2. Click the System Snapshot icon. The System Snapshot dialog box appears. You can see a system snapshot if you have taken a snapshot earlier. If you are taking the snapshot for the first time, you will not see any snapshots in this dialog box.
NOTE: If you are creating a system snapshot when a snapshot already exists, the new snapshot will overwrite the older snapshot. Currently, Junos Space Platform can store only one system snapshot.
3. Click Take Snapshot. The System Snapshot Confirmation dialog box appears.
1274
4. Enter the name of the snapshot in the Snapshot Name field. 5. Enter the comments in the Comment field. 6. Click Confirm.
A new job is created and the job ID appears in the System Snapshot Job Information dialog box. 7. Click the job ID to view more information about the job created. This action directs you to the Job
Management workspace. The time taken to complete the snapshot job for a Junos Space virtual appliance is dependent on the number of nodes in the fabric, the disk size of the virtual appliance deployed, the memory size of the virtual appliance, and the performance of the ESX server. The time taken to complete the snapshot job for a Junos Space Appliance is dependent on the disk space used on the appliance.
NOTE: You may not be able to create a snapshot of the system state if any of the following conditions is true: · There is insufficient disk space on the ESX servers. · One of the ESX servers has been incorrectly configured. · One of the nodes is down. · The fabric consists of both Junos Space virtual appliances and Junos Space appliances. · The name specified for the current snapshot is the same as that of the stored snapshot.
RELATED DOCUMENTATION Deleting a System Snapshot | 1274 Restoring the System to a Snapshot | 1275
Deleting a System Snapshot
To delete a system snapshot: 1. Select Administration > Fabric. Click the System Snapshot icon.
1275
2. Click Delete. The System Snapshot Deletion dialog box appears. A new job is created and the job ID appears in the System Snapshot Job Information dialog box.
3. Click the job ID to view more information about the job created. This action directs you to the Job Management workspace.
NOTE: You may not be able to delete a snapshot of the system state if any of the following conditions is true: · One of the ESX servers is incorrectly configured. · The fabric consists of both Junos Space VM and Junos Space Appliance. · The snapshot does not exist.
RELATED DOCUMENTATION Creating a System Snapshot | 1272 Restoring the System to a Snapshot | 1275
Restoring the System to a Snapshot
The process to restore a system to a snapshot differs depending on whether you are using a Junos Space VM or a Junos Space Appliance. To restore a system snapshot when using a Junos Space Virtual Appliance: 1. Select Administration > Fabric. Click the System Snapshot icon. 2. Click Restore. 3. Click OK. 4. Log in to the ESX servers and power on the virtual machine after a few minutes.
1276
NOTE: If the Junos Space GUI is not accessible on a virtual machine, you can restore the fabric by shutting down every node in the fabric and logging in to ESX servers where the virtual machine is located.
To restore a system snapshot when using a Junos Space Appliance: 1. Select Administration > Fabric. Click the System Snapshot icon. 2. Click Restore.
The System Restore Instruction for Appliance dialog box appears. 3. Follow the instructions on this dialog box. 4. Click OK.
NOTE: You may not be able to restore the system to a snapshot if one of the following conditions is true: · One of the nodes is down. · New nodes were added after a snapshot was created. A warning message that prompts you
to delete the new nodes before restoring is shown. · Some nodes were deleted after a snapshot was created. A warning message that prompts you
to restore the nodes before restoring is shown.
RELATED DOCUMENTATION Creating a System Snapshot | 1272 Deleting a System Snapshot | 1274
Creating a Unicast Junos Space Cluster
IN THIS SECTION Creating a Unicast Junos Space Cluster from a Single Node | 1278 Creating a Unicast Junos Space Cluster from an Existing Multicast Junos Space Cluster | 1279 Changing Unicast Communication to Multicast Communication on a Junos Space Cluster | 1280
1277
The nodes of a Junos Space cluster support only multicast traffic. But sometimes, for example, when Internet Group Management Protocol (IGMP) snooping is enabled on switches, unicast communication should be configured on the Junos Space nodes within a subnet so that these nodes can communicate with each other.
Junos Space provides the changeSettings2staticIP.sh script to enable you to toggle between unicast and multicast traffic on the nodes of a Junos Space cluster. This script is located in the /var/www/cgi-bin folder of a Junos Space node.
Script Syntax
sh changeSettings2StaticIP.sh
Options
· backup--Backs up libraries and configuration files from the nodes of the Junos Space cluster
· restore--Restores the libraries and configuration files on the nodes of the Junos Space cluster
· multicast2unicast--Changes multicast communication to unicast communication on the nodes of a Junos Space cluster
· unicast2multicast--Changes unicast communication to multicast communication on the nodes of a Junos Space cluster
When you run the script, the following subsystems in the domain.xml configuration file located at /usr/local/jboss/domain/configuration are modified:
Table 160: domain.xml Subsystem Parameters Affected When Toggling Between Multicast and Unicast Communication on Junos Space Nodes
Subsystem
Multicast Parameters
Unicast Parameters
mod-cluster
advertise=false, proxy-list
advertise=false, proxy-list
messaging
default-stack=udp, protocol (type=MPING) default-stack=tcp, protocol (type=TCPPING)
1278
Table 160: domain.xml Subsystem Parameters Affected When Toggling Between Multicast and Unicast Communication on Junos Space Nodes (continued)
Subsystem
Multicast Parameters
Unicast Parameters
jgroups
cluster-connections (discovery-group-ref) connectors (netty-connector), cluster-connections (static-connectors)
You can create a unicast Junos Space cluster from a single node configured for unicast communication or by changing the multicast communication in an existing cluster to unicast communication.
Creating a Unicast Junos Space Cluster from a Single Node
To create a unicast Junos Space cluster from a single node:
1. Create a standalone Junos Space node. For information about creating a standalone Junos Space node, see Configuring a Junos Space Appliance as a Junos Space Node.
2. Log in to the CLI of the Junos Space node.
3. On the Junos Space Settings Menu, to access the shell interface: · Type 6 if the Junos Space node is a JA2500 Junos Space hardware appliance. · Type 7 if the Junos Space node is a virtual appliance.
4. Enter the administrator password.
5. Take a backup of /usr/local/jboss/domain/configuration/domain.xml.
6. Type cd /var/www/cgi-bin to navigate to the cgi-bin folder.
7. Execute the changeSettings2StaticIP.sh script with the multicast2unicast option.
sh changeSettings2StaticIP.sh multicast2unicast
8. Restart the jboss-dc process.
$/etc/init.d/jboss-dc restart
9. Restart the jboss process.
1279
service jboss restart
10. Add a node to form a cluster. For information about adding a node to a cluster, see the "Adding a Node to an Existing Junos Space Fabric" on page 1172.
11. Restart the jboss-dc and jboss processes on all the nodes.
$/etc/init.d/jboss-dc restart
service jboss restart
Restart the jboss-dc and jboss processes on all the nodes each time you add a node to the cluster. You can add a maximum of six nodes to a unicast cluster.
Creating a Unicast Junos Space Cluster from an Existing Multicast Junos Space Cluster To change multicast communication in an existing cluster to unicast communication, you must stop jbosson all nodes and execute the sh changeSettings2StaticIP.sh script with the multicast2unicast option on the VIP node of the cluster and then restart the jboss-dc and start jboss processes. To change multicast communication to unicast communication: 1. Log in to the CLI of the Junos Space node on which the VIP or the eth0:0 interface is configured. 2. On the Junos Space Settings Menu, to access the shell interface:
· Type 6 if the Junos Space node is a JA2500 Junos Space hardware appliance. · Type 7 if the Junos Space node is a virtual appliance. 3. Enter the administrator password. 4. Take a backup of '/usr/local/jboss/domain/configuration/domain.xml' file. 5. Type cd /var/www/cgi-bin to navigate to the cgi-bin folder. 6. Stop the jboss process on all the nodes.
services jboss stop
7. Execute the changeSettings2StaticIP.sh script with the multicast2unicast option on the VIP node.
1280
sh changeSettings2StaticIP.sh multicast2unicast
8. Restart the jboss-dc process on the Junos Space node on which the VIP address is configured.
$/etc/init.d/jboss-dc restart
9. Start the jboss process on all the nodes.
service jboss start
10. (Optional) To confirm that the communication is changed from multicast to unicast, execute the $diff backup/domain.xml /usr/local/jboss/domain/configuration/domain.xml command on the VIP node to view the differences in the domain.xml file before and after executing the changeSettings2StaticIP.sh script. See Table 160 for the parameters that change when multicast communication is changed to unicast communication.
Changing Unicast Communication to Multicast Communication on a Junos Space Cluster To change unicast communication in an existing cluster to multicast communication, you must execute the sh changeSettings2StaticIP.sh script with the unijcast2multicast option on the VIP node of the cluster and then restart the jboss-dc and jboss processes. To change unicast communication to multicast communication: 1. Log in to the CLI of the Junos Space node on which the VIP or the eth0:0 interface is configured. 2. On the Junos Space Settings Menu, to access the shell interface:
· Type 6 if the Junos Space node is a JA2500 Junos Space hardware appliance. · Type 7 if the Junos Space node is a virtual appliance. 3. Enter the administrator password. 4. Take a backup of '/usr/local/jboss/domain/configuration/domain.xml' file. 5. Type cd /var/www/cgi-bin to navigate to the cgi-bin folder. 6. Execute the changeSettings2StaticIP.sh script with the unicast2multicast option.
sh changeSettings2StaticIP.sh unicast2multicast
1281
7. Restart the jboss-dc process on the node on which the VIP address is configured.
$/etc/init.d/jboss-dc restart
8. Restart the jboss process on all the nodes.
service jboss restart
9. (Optional) To confirm that the communication is changed from unicast to multicast, execute the $diff backup/domain.xml /usr/local/jboss/domain/configuration/domain.xml command to view the differences in the domain.xml file before and after executing the changeSettings2StaticIP.sh script. See Table 160 for the parameters that change when unicast communication is changed to multicast communication.
RELATED DOCUMENTATION Fabric Management Overview | 1157
NAT Configuration for Junos Space Network Management Platform Overview
IN THIS SECTION Using eth0 for Device Management Without a Dedicated Network Monitoring Node | 1283 Using eth3 for Device Management Without a Dedicated Network Monitoring Node | 1286 Using eth0 or eth3 for Device Management With a Dedicated Network Monitoring Node | 1289
To manage devices, Junos Space Network Management Platform supports connections initiated by the devices or Junos Space Platform. If a device is managed through a device-initiated connection, Junos Space Platform pushes the device management IP addresses of Junos Space and configures the outbound SSH stanza on the device when the device is discovered or when the device management IP addresses are modified. During device discovery and reconnection to devices, the devices initiate an outbound SSH connection to Junos Space Platform. If a device is managed through a connection initiated by Junos Space, an SSH connection is initiated to the device from Junos Space Platform.
1282
Enabling NAT on your Junos Space setup allows devices placed outside your Junos Space setup to connect to Junos Space Platform and the Junos Space application. Enabling a NAT server on your Junos Space setup uses IP addresses translated through NAT as outbound SSH configuration to connect devices and trap IP addresses translated through NAT to send traps, rather than the actual device management and trap IP addresses. These translated IP addresses are updated and sent to the devices that are managed using a NAT server, after NAT is configured, or when the NAT configuration is updated.
You configure and enable Network Address Translation (NAT) server on a running Junos Space setup from the Administration workspace. You can also configure and enable NAT by using the Junos Space CLI when you create a Junos Space setup during the initial deployment. If you configure a NAT server, you must set a forwarding rule on the NAT server to enable communication between the Junos Space fabric and the devices managed through the NAT server. For more information about enabling NAT when you are configuring the Junos Space Appliance (JA2500) or the Junos Space Virtual Appliance as a Junos Space node or Fault Monitoring and Performance Monitoring (FMPM) node, see one of the following:
· To configure NAT when you are configuring a Junos Space Virtual Appliance, see the Configuring a Junos Space Virtual Appliance as a Junos Space Node, Configuring a Junos Space Virtual Appliance as a Standalone or Primary FMPM Node, and Changing the Network and System Settings of a Junos Space Virtual Appliance topics in the Junos Space Virtual Appliance Installation and Configuration Guide.
· To configure NAT when you are configuring a JA2500 Junos Space Appliance, see the Configuring a Junos Space Appliance as a Junos Space Node, Configuring a Junos Space Appliance as a Standalone or Primary FMPM Node, and Changing Network and System Settings for a Junos Space Appliance topics in the JA2500 Junos Space Appliance Hardware Guide
You can configure the disaster recovery feature and allow database replication in realtime with NAT configuration enabled on your Junos Space setup.
Enabling NAT on a Junos Space setup has the following impact on discovering and managing devices in Junos Space Platform:
· When you configure NAT for the first time, by default, the devices that are managed on Junos Space Platform are not updated with the IP addresses of the Junos Space fabric that are translated through NAT.
· During device discovery, you can choose whether to use the NAT server to route device-initiated connections to Junos Space Platform and manage them through the NAT server. For more information, see "Device Discovery Profiles Overview" on page 219.
· When adding devices using the Model Devices feature, if you choose to use the NAT configuration, the IP addresses of the Junos Space fabric that are translated through NAT are available in the configlet generated from the modeled instance.
1283
· For managed devices routed through a NAT server, Junos Space Platform features such as SSH access to device, Launch WebUI of the devices, and Reactivate an RMA device from the Junos Space UI use the IP addresses of the Junos Space fabric that are translated through NAT.
· Modifying only the NAT address in the network configuration of a Junos Space fabric from the CLI does not trigger a reboot. Junos Space Platform creates a job to update the NAT configuration on all devices managed through the NAT server. If you simultaneously modify the NAT configuration and other network settings from the CLI, the NAT configuration changes are discarded and adialog box is displayed with the following message: "Changes to NAT will be discarded as the system required reboot."
The following sections describe the NAT configuration updated on devices when different interfaces of a Junos Space node are used to deploy the Junos Space fabric :
Using eth0 for Device Management Without a Dedicated Network Monitoring Node
If you use eth0 interface to communicate to devices, the eth0 IP address of each node in the fabric is configured in the outbound SSH configuration on the devices. The virtual IP address (VIP) of the Junos Space setup is set as the trap target to receive SNMP traps from the devices. Junos Space Platform automatically populates the IP addresses of the Junos Space nodes and the VIP address on the NAT Configuration page. The NAT configuration that is pushed as the outbound SSH connection and the trap target to which the device must send traps are generated as follows: · If the devices are in your internal network:
outbound ssh
<configuration ...> <system>
<services>
<outbound-ssh>
<client>
<name>cluster_CLUSTERNAME</name>
<device-id>9A1E0</device-id>
... <services>netconf</services>
<servers>
<name>$NODE1_ETH0_IP</name>
<port>7804</port>
</servers>
<servers>
<name>$NODE2_ETH0_IP</name>
<port>7804</port>
</servers> ...
</client>
</outbound-ssh>
</services>
</system>
</configuration>
trap target
<configuration> <snmp> <v3> <target-address> <name>TA_SPACE</name> <address>$SPACE_ETH0_VIP</address> </target-address> </v3> </snmp>
</configuration>
· If the devices are in your external (to the NAT server) network:
1284
outbound ssh <configuration ...> <system> <services> <outbound-ssh> <client> <name>cluster_CLUSTERNAME</name> <device-id>E9A1E0</device-id> ... <services>netconf</services> <servers> <name>$NODE1_NAT_SSH_IP</name> <port>$NODE1_NAT_SSH_PORT</port> </servers> <servers> <name>$NODE2_NAT_SSH_IP</name> <port>$NODE2_NAT_SSH_PORT</port> </servers> ... </client> </outbound-ssh> </services> </system> </configuration>
1285
1286
trap target
<configuration> <snmp> <v3> <target-address> <name>TA_SPACE</name> <address>$SPACE_NAT_VIP</address> <port>$SPACE_NAT_TRAP_PORT</port> </target-address> </v3> </snmp>
</configuration
A NAT server should be configured with a rule to forward device-initiated connections destined to $NODEx_NAT_SSH_IP and $NODEx_NAT_SSH_PORT to $NODEx_ETH0_IP:7804. Similarly, traps destined to $SPACE_NAT_VIP and $SPACE_NAT_TRAP_PORT must be forwarded to $SPACE_ETH0_VIP:162.
Using eth3 for Device Management Without a Dedicated Network Monitoring Node
If you use eth3 interface to communicate to devices, the eth3 IP address of each node in the fabric is configured in the outbound SSH configuration on the devices. The eth3 IP address of the active node (that currently works as a Network Monitoring node) is set as the trap target to receive SNMP traps from the devices.
Junos Space Platform automatically populates the IP addresses of the Junos Space nodes and the address of the network monitoring node on the NAT Configuration page. The NAT configuration that is pushed as the outbound SSH connection and the trap target to which the device must send traps are generated as follows:
· If the devices are in your internal network:
outbound ssh
<configuration ...> <system>
<services>
<outbound-ssh>
<client>
<name>cluster_CLUSTERNAME</name> <device-id>9A1E0</device-id> ... <services>netconf</services> <servers>
<name>$NODE1_ETH3_IP</name> <port>7804</port> </servers> <servers> <name>$NODE2_ETH3_IP</name> <port>7804</port> </servers> ... </client> </outbound-ssh> </services> </system> </configuration>
trap target
<configuration>
<snmp>
<v3>
<target-address>
<name>TA_SPACE</name>
<address>$NODE
_ETH3_IP</address>
opennms
</target-address>
</v3>
1287
</snmp> </configuration>
· If the devices are in your external (to the NAT server) network: outbound ssh <configuration ...> <system> <services> <outbound-ssh> <client> <name>cluster_CLUSTERNAME</name> <device-id>E9A1E0</device-id> ... <services>netconf</services> <servers> <name>$NODE1_NAT_SSH_IP</name> <port>$NODE1_NAT_SSH_PORT</port> </servers> <servers> <name>$NODE2_NAT_SSH_IP</name> <port>$NODE2_NAT_SSH_PORT</port> </servers> ... </client> </outbound-ssh> </services>
1288
1289
</system> </configuration>
trap target
<configuration>
<snmp>
<v3>
<target-address>
<name>TA_SPACE</name>
<address>$NODE
_NAT_TRAP_IP</address>
opennms
<port>$NODE
_NAT_TRAP_PORT</port>
opennms
</target-address>
</v3>
</snmp>
</configuration
A NAT server should be configured with a rule to forward device-initiated connections destined to
$NODEx_NAT_SSH_IP and $NODEx_NAT_SSH_PORT, to $NODEx_ETH3_IP:7804. Similarly, traps
destined to $NODE
_NAT_TRAP_IP and $NODE
_NAT_TRAP_PORT must be forwarded to
opennms
opennms
$NODE
_ETH3_IP:162.
opennms
Using eth0 or eth3 for Device Management With a Dedicated Network Monitoring Node
If you use eth3 interface to communicate to devices, the eth3 IP address of each node is configured in the outbound SSH configuration on the devices. Similarly, if you use eth0 interface to communicate to devices, the eth0 IP address of each node is configured in the outbound SSH configuration on the devices. The VIP address of the dedicated Network Monitoring node is configured as the trap target to send SNMP traps from the devices.
Junos Space Platform automatically populates the IP addresses of the Junos Space nodes and the VIP address on the NAT Configuration page. The NAT configuration that is pushed as the outbound SSH connection and the trap target to which the device must send traps are generated as follows:
· If the devices are in your internal network:
outbound ssh
<configuration ...> <system>
<services> <outbound-ssh> <client> <name>cluster_CLUSTERNAME</name> <device-id>9A1E0</device-id>
... <services>netconf</services> <servers> <name>$NODE1_ETH0_IP</name> <port>7804</port> </servers> <servers> <name>$NODE2_ETH0_IP</name> <port>7804</port> </servers> ...
</client> </outbound-ssh> </services> </system> </configuration>
1290
trap target
<configuration> <snmp> <v3> <target-address> <name>TA_SPACE</name> <address>$OPENNMSNODE_ETH0_VIP</address> </target-address> </v3> </snmp>
</configuration>
· If the devices are in your external (to the NAT server) network: outbound ssh
<configuration ...> <system>
<services>
<outbound-ssh>
<client>
<name>cluster_CLUSTERNAME</name>
<device-id>E9A1E0</device-id>
... <services>netconf</services>
<servers>
<name>$NODE1_NAT_SSH_IP</name>
<port>$NODE1_NAT_SSH_PORT</port>
</servers>
<servers>
<name>$NODE2_NAT_SSH_IP</name>
1291
1292
<port>$NODE2_NAT_SSH_PORT</port> </servers> ... </client> </outbound-ssh> </services> </system> </configuration>
trap target
<configuration> <snmp> <v3> <target-address> <name>TA_SPACE</name> <address>$OPENNMSNODE_NAT_VIP</address> <port>$OPENNMSNODE_NAT_TRAP_PORT</port> </target-address> </v3> </snmp>
</configuration
A NAT server should be configured with a rule to forward device-initiated connections destined to $NODEx_NAT_SSH_IP and $NODEx_NAT_SSH_PORT, to $NODEx_ETH0_IP:7804. Similarly, traps destined to $OPENNMSNODE_NAT_VIP and $OPENNMSNODE_NAT_TRAP_PORT must be forwarded to $OPENNMSNODE_ETH0_VIP:162.
Release History Table Release
Description
16.1R1
Enabling NAT on your Junos Space setup allows devices placed outside your Junos Space setup to connect to Junos Space Platform and the Junos Space application.
RELATED DOCUMENTATION
Configuring the NAT IP Addresses and Ports on Junos Space Platform | 1293 Modifying the NAT IP Addresses and Ports on Junos Space Platform | 1295 Disabling the NAT Configuration on Junos Space Platform | 1296
1293
Configuring the NAT IP Addresses and Ports on Junos Space Platform
You configure a NAT server on your Junos Space setup when you want to route connections through a NAT server. Configuring a NAT server updates the device management IP addresses that devices use to connect to Junos Space Platform from Junos Space fabric IP addresses to IP addresses translated through NAT. For more information about the impact of using a NAT server and the IP addresses pushed to the outbound stanza of devices, see "NAT Configuration for Junos Space Network Management Platform Overview" on page 1281.
To configure and enable NAT IP addresses and NAT ports:
1. On the Junos Space Platform UI, select Administration > Fabric > NAT Configuration.
The NAT Configuration page appears.
2. To enable NAT configuration on the Junos Space setup, select the Enable NAT check box.
The fields to enter the NAT IP addresses and ports are displayed. Table 161 displays the columns on the NAT Configuration page. By default, the fields to enter the NAT IP addresses and ports for nodes in the Junos Space fabric are dimmed.
The number of rows displayed in the NAT Configuration page depend on the number of nodes and how you have configured the Junos Space fabric.
Table 161: Columns on the NAT Configuration Page
Column
Description
Node Name
Name of the node as configured in the Junos Space fabric
Node IPV4
IPv4 address of the node
Node IPV6
IPv6 address of the node
Service
Type of service - Outbound-SSH or trap
NAT IPV4
IPv4 address used to route connections to a specific node
NAT IPV6
IPv6 address used to route connections to a specific node
Table 161: Columns on the NAT Configuration Page (continued)
Column
Description
NAT IPV4 Port
Port used to route IPv4 connections to a specific node
NAT IPV6 Port
Port used to route IPv6 connections to a specific node
1294
3. Click the NAT IPV4 column corresponding to the node for which you need to enter the IP address of the NAT server. The corresponding cell in the NATIPV4 column is displayed.
4. Enter the IP address in the cell.
5. Click the NAT PortV4 column corresponding to the node for which you need to enter the port number of the NAT server. The corresponding cell in the NAT PortV4 column is displayed.
6. Enter the port number in the cell.
7. Repeat steps 3 through 6 to enter the IP addresses and port numbers for all nodes in the Junos Space fabric.
8. Click Save to save the NAT configuration. An Information dialog box is displayed with the following message: NAT Configuration updated successfully. but there is no external device to update NAT configuration. Click OK to close the Information dialog box. A job is triggered to update the NAT configuration on all devices that use the NAT server to route connections to Junos Space Platform.
To discard the NAT configuration you entered, click Cancel. You are redirected to the Fabric page.
RELATED DOCUMENTATION NAT Configuration for Junos Space Network Management Platform Overview | 1281 Modifying the NAT IP Addresses and Ports on Junos Space Platform | 1295
Disabling the NAT Configuration on Junos Space Platform | 1296
1295
Modifying the NAT IP Addresses and Ports on Junos Space Platform
You modify the NAT configuration on Junos Space Platform when you need different NAT addresses or ports to route connections to Junos Space Platform. Modifying the NAT configuration updates the IP addresses that devices use to connect to Junos Space Platform to IP addresses of the Junos Space fabric that are translated through NAT. To modify the NAT IP addresses and NAT ports: 1. On the Junos Space Platform UI, select Administration > Fabric > NAT Configuration.
The NAT Configuration page appears.
2. To modify the NAT configuration on the Junos Space setup: a. (Optional) Click the NAT IPV4 column corresponding to the node for which you need to enter the IP address of the NAT server. The corresponding cell in the NATIPV4 column is displayed.
b. (Optional) Enter a different IP address in the cell.
c. (Optional) Click the NAT PortV4 column corresponding to the node for which you need to enter the port number of the NAT server. The corresponding cell in the NAT PortV4 column is displayed.
d. (Optional) Enter a different port number in the cell.
e. Repeat steps 3 through 6 to enter the IP addresses and port numbers for nodes in the Junos Space fabric.
3. Click Save to save the NAT configuration. a. If all the devices currently managed by Junos Space Platform are in the internal network, an Information dialog box is displayed with the following message: NAT Configuration updated successfully. but there is no external device to update NAT configuration Click OK to close the Information dialog box. You are redirected to the Fabric page.
1296
b. If some of the devices are currently managed by Junos Space Platform are outside the internal network, the updated NAT configuration is pushed to the outbound ssh stanza of the these devices.
A job is triggered to update the NAT configuration on all devices that use the NAT server to route connections to Junos Space Platform. To discard the modifications to NAT configuration, click Cancel. You are redirected to the Fabric page.
RELATED DOCUMENTATION NAT Configuration for Junos Space Network Management Platform Overview | 1281 Configuring the NAT IP Addresses and Ports on Junos Space Platform | 1293 Disabling the NAT Configuration on Junos Space Platform | 1296
Disabling the NAT Configuration on Junos Space Platform
You disable the NAT configuration when you no longer have devices outside the Junos Space setup connecting to Junos Space Platform. To disable the NAT configuration: 1. On the Junos Space Platform UI, select Administration > Fabric > NAT Configuration.
The NAT Configuration page appears. 2. To disable NAT configuration on the Junos Space setup, clear the Enable NAT check box. 3. Click Save to save the modifications to NAT configuration and Cancel to discard the modifications..
The NAT configuration is disabled. You are redirected to the Fabric page. To retain the NAT configuration, click Cancel. You are redirected to the Fabric page.
RELATED DOCUMENTATION NAT Configuration for Junos Space Network Management Platform Overview | 1281
1297
CHAPTER 70
Backing up and Restoring the Junos Space Platform Database
IN THIS CHAPTER Backing Up and Restoring the Database Overview | 1298 Backing Up the Junos Space Network Management Platform Database | 1301 Restoring the Junos Space Network Management Platform Database | 1307 Deleting Junos Space Network Management Platform Database Backup Files | 1312 Viewing Database Backup Files | 1313
1298
Backing Up and Restoring the Database Overview
1299
As System Administrator, you can perform Junos Space Network Management Platform database backup, restore, and delete operations. Junos Space Network Management Platform enables you to back up the complete system data, which includes the MySQL database, the Cassandra database, and the network-monitoring database (containing the PostgreSQL data, configuration files, and performance data files). Because of this feature, if a system crashes, you can add a new system (Return Material Authorization (RMA)) and restore the configuration that existed in the crashed system from the backup file.
To perform database backup or restore operations, you must be assigned the System Administrator role. Only a System Administrator can initiate a backup operation from the Administration > Database Backup and Restore workspace.
When you initiate a backup operation, all databases are backed up by default. Because the network-monitoring database could be fairly large in size, you can select whether or not to back up this database from the Junos Space GUI by clearing the Network Monitoring check box from the Database Backup page (Administration > Database Backup and Restore > Database Backup). If sufficient disk space is unavailable, Junos Space Network Management Platform throws an error. Duration of the backup job might vary depending on the database size.
NOTE: Junos Space Network Management Platform allows you to perform backup and restore operations even when the network-monitoring service is turned off.
If you have the Cassandra service running on at least one node in the fabric, the Cassandra database is backed up by default. If you do not want the Cassandra database to be backed up, you can clear the Cassandra check box from the Database Backup page (Administration > Database Backup and Restore > Database Backup).
In Junos Space Release 13.1 and earlier, a local backup operation saves the backup file of the Junos Space database to a specific folder (/var/cache/jboss/backup) on the active node. As an administrator, you may want the backup files to exist on both the primary and secondary nodes so that when one of the nodes crashes you can restore the system from the backup file saved on the other node. In this release, backup is initiated on the secondary node and the backup file is saved to the default location (/var/cache/jboss/backup) on the secondary node. If the backup operation is successful, then the backup file is synchronized with (copied to) the primary node. The following are the advantages:
· The backup file is present on both the primary and secondary nodes due to which you can restore the system if one of the nodes crashes or is corrupted.
· System performance of the primary node is not impacted because the backup operation is initiated on the secondary node.
1300
NOTE: · When dedicated database nodes are present in the Junos Space fabric, database backup files
are always stored in the dedicated database nodes. The database backups created before dedicated database nodes are added remain in the old nodes; the old backups are not moved to the dedicated database nodes. You can restore the system configuration from the old backup files even when later backups are present in the dedicated database nodes. · For disaster recovery, different additional database backup and restoration provisions must be made.
Restore the Junos Space Network Management Platform database if any of the following issues occur:
· Junos Space Network Management Platform data is corrupted and you need to replace it with uncorrupted data.
· The Junos Space Network Management Platform software is corrupted and you reinstalled the Junos Space Network Management Platform software.
· You can restore a Junos Space database from a backup that is taken in the same release version only. For example, you can restore a Junos Space Release xx database only from a backup that is taken in Junos Space Release xx, where xx represents the version number.
In a multinode setup, the same backup file can exist on both the primary and secondary nodes. In such cases, when you choose to restore a system from a local backup file, Junos Space Network Management Platform randomly chooses a backup file from one of the nodes to restore the system.
Backing Up a Database
By default, Junos Space Network Management Platform automatically backs up the database once a week. However, the administrator can schedule a backup to run at anytime and perform either local or remote backup operations. All jobs that are completed before the start of the backup operation are captured in the database backup file.
During a backup operation, Junos Space Network Management Platform archives data files and the logical logs that record database transactions, such as the users, nodes, devices, and added or deleted services in Junos Space Network Management Platform.
The administrator can perform a local or remote database backup operation. When the administrator performs a local backup operation, Junos Space Network Management Platform backs up all database data and log files to a local default directory /var/cache/jboss/backup. You cannot specify a different database backup file location for a local backup. No such restriction exists when backing up to a remote location.
For a remote backup, use only a Linux-based server. You must specify a remote host that is configured to run the Linux Secure Copy Protocol (SCP) command. You must also specify a valid user ID and password
1301
for the remote host. To ensure that you are using a valid directory, check the destination directory before you initiate a database backup operation to the remote system. For instructions on how to back up the Junos Space Network Management Platform database, see "Backing Up the Junos Space Network Management Platform Database" on page 1301.
Restoring a Database
When the System Administrator performs a restore database operation, data from a previous database backup is used to restore the Junos Space Network Management Platform database to its previous state. The administrator can restore the database through the Administration > Database Backup and Restore workspace (see "Restoring the Junos Space Network Management Platform Database" on page 1307). The restore database operation is performed while Junos Space Network Management Platform is in maintenance-mode. The system is therefore down on all nodes in the fabric and only the Web proxy is running. During this time, all Junos Space users, except the maintenance-mode administrator, are locked out of the Junos Space Network Management Platform.
NOTE: After the Junos Space Network Management Platform database is restored, the Security Design database must be manually reindexed. For more information about Security Design, see the Security Design documentation.
RELATED DOCUMENTATION Restoring the Junos Space Network Management Platform Database | 1307 Backing Up the Junos Space Network Management Platform Database | 1301 Maintenance Mode Overview | 1153
Backing Up the Junos Space Network Management Platform Database
A user with the System Administrator or Super Administrator role can back up the Junos Space Platform database and later use the backup file to restore the Junos Space Platform database to a previous state. You can back up all system data, which includes all databases (MySQL, Cassandra, and network monitoring data), DMI schemas, and configuration files, and save the backup file on both the primary and secondary nodes. This fallback system allows you to restore the system even if one of the database nodes crashes. Typically, the database backup file contains configuration data for managed nodes, managed devices, deployed services, scheduled jobs, Junos Space Platform users, network monitoring, and so on.
1302
You can perform local and remote backup and restore operations. A local backup operation copies the backup file to the default directory /var/cache/jboss/backup. A remote backup operation copies the backup file to remote network hosts.
NOTE: When you perform a local backup operation:
· On a fabric with one node, the backup file is saved on the primary node. · On a fabric with multiple nodes, only the primary and secondary nodes are considered database
nodes and therefore contain database backup files. The backup operation is initiated only from the secondary node and the backup file is saved to the /var/cache/jboss/backup location on the secondary node. If the backup operation is successful, then the backup file is synchronized with (copied to) the primary node and both primary and secondary nodes have the same backup file. However, if the backup operation fails on the secondary node (for reasons such as insufficient space), then the backup operation is performed on the primary node. · If dedicated database nodes are present in the fabric, the backup files are always stored in the dedicated database nodes. · In a fabric with dedicated database nodes, the MySQL database backup is initiated on the secondary database node and the backup file is saved to the /var/cache/jboss/backup directory on the secondary database node. If the backup operation is successful, then the backup file is synchronized with (copied to) the primary database node and both the primary and secondary database nodes have the same backup file. · If Cassandra nodes are present in the fabric, the Cassandra database from one of the Cassandra nodes is backed up. · The network monitoring data backup is initiated on the Junos Space node when no FMPM node exists. When FMPM nodes are present in the fabric, the network monitoring data backup is initiated on the FMPM node and then copied to the database nodes and stored.
When you back up the Junos Space Platform database, an audit log entry is automatically generated. From the Audit Log inventory page, you can filter the data by using the Database Backup keyword to view details about the database backup operations that were performed.
To back up the Junos Space Platform database:
1. On the Junos Space Platform user interface, select Administration > Database Backup and Restore. The Database Backup and Restore page appears.
2. Click the Database Backup icon.
1303
The Database Backup page appears. The default behavior is a backup operation that occurs once a week (see 7 for more information).
3. You can back up the database file locally on a fabric node or to a remote location (by using the Secure Copy Protocol [SCP]): · To back up the file locally, retain the selection of local in the Mode field (in the Mode Options section). In the local mode, the Junos Space Platform database backup is stored to the default directory /var/cache/jboss/backup.
NOTE: When the local mode option is selected, the Username, Password, Confirm password, Machine IP, and Directory fields on the Database Backup page are disabled.
· To back up the file remotely, do the following: a. In the Mode field (in the Mode Options section), select remote.
b. In the Username field, enter a username to access the remote host server.
c. In the Password field, enter the corresponding password.
d. In the Confirm password field, reenter the password.
e. In the Machine IP field, enter the remote host server IP address.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses
or both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SCP server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
f. In the Directory field, enter a directory path on the remote host server where you want to store the database backup file.
NOTE: The directory path must already exist on the remote host server.
1304
4. In the Content Options section, do one of the following: · Retain the selection of the Network Monitoring check box for Junos Space Platform to back up network monitoring data, in addition to the Cassandra database (if the option is selected) and the default MySQL data. If you choose to back up network monitoring data, then the following information is backed up: · PostgreSQL network monitoring database · Configuration files in the /opt/opennms/etc directory and its subdirectories · Graph data in the /var/opennms/rrd directory and its subdirectories · Clear the Network Monitoring check box if you do not want to back up network monitoring data. · Retain selection of the Cassandra check box for Junos Space Platform to back up files in the Cassandra database, in addition to the network monitoring data (if the option is selected) and the default MySQL data. · Clear the Cassandra check box if you do not want to back up the Cassandra database. The Cassandra check box is available only if the Cassandra service is running on at least one node in the fabric. The check box is selected by default; you can clear the selection if you do not want to back up the Cassandra database files. · Select the DMI Schemas check box if you want to include the DMI schemas in the backup. This check box is available only from Release 17.2R1 onward.
NOTE: By default, MySQL data is always backed up; the MySQL check box is selected and disabled.
5. (Optional) In the Comment field, add a comment to describe or otherwise identify the backup operation.
6. (Optional) Specify whether the Junos Space Platform database backup operation should occur immediately or be scheduled for later: · Select the Schedule at a later time check box to specify a later start date and time for the database backup operation. · Clear the Schedule at a later time check box (the default) to initiate the database backup operation as soon as you click Backup.
NOTE: The selected time in the scheduler corresponds to the Junos Space server time but uses the local time zone of the client computer.
7. (Optional) Specify whether the database backup should recur or not: · To schedule a recurring backup:
NOTE: The Repeat check box is selected by default and the default behavior is a backup operation that occurs once a week.
1305
a. Specify the database backup recurrence by setting the interval and the increment, as indicated in Table 162. The default recurrence interval is 1 hour.
Table 162: Backup Schedule Units and Increments
Interval
Increment
Minutes
Specify the number of minutes after which the backup should recur.
Hourly
Specify the number of hours after which the backup should recur.
Daily
Specify the number of days after which the backup should recur.
Weekly
Specify the number of weeks after which the backup should recur.
In addition, specify the additional days of the week on which the backup should recur by selecting the appropriate check box. The day on which you specified the recurrence is already selected and disabled.
Monthly Yearly
Specify the day when you want the backup to recur. You can select from the following options:
· last day of the month, or · On-- Specify any particular day of a month.
Specify the number of years after which the backup should recur.
In addition, specify whether the backup should recur on the same date of the year (the default) or the same day of the specific week of the month every year. For example, if you configure the yearly recurrence on July 8 2015, which is the second Wednesday in July, you can specify whether the backup should recur on 8th July or on the second Wednesday of July.
b. Specify when the recurrence should end in the Ends on field.
· To specify that the recurrence does not end (the default), select Never. · To specify a date and time by which the recurrence ends, select the option button and specify
a date and time
1306
· To specify that the database backup does not recur, clear the Repeat check box. 8. Click Backup.
A confirmation dialog box appears, which displays: Warning: Taking database backup may have an impact on system performance. Do you want to continue?
9. Click OK on the confirmation dialog box to back up the Junos Space database. The Backup Job Information dialog box appears. Perform one of the following actions: · Click the Job ID on this dialog box to view the database backup job details on the Job Management page. · If you do not wish to view the job details (that is, whether the database backup job is a success or a failure), click OK on this dialog box. You are returned to the Database Backup and Restore page. If the backup job is successful, the new backup file is displayed on this page. · Click Cancel on this dialog box to cancel the database backup operation.
All the backup files are saved in a single compressed TAR file (extension .tgz) with the filename backup_timestamp.tgz, where timestamp indicates the date and time when the backup was performed. The backup file contains either MySQL, Cassandra, and network monitoring data, MySQL and network monitoring data, MySQL and Cassandra data, or just MySQL data depending on whether you have chosen to back up the Cassandra and network monitoring data or not. For troubleshooting, see the following logs on the Junos Space server: · /var/log/nma.log · /var/log/nma/*.log · /tmp/maintenance.log
RELATED DOCUMENTATION Restoring the Junos Space Network Management Platform Database | 1307 Viewing Database Backup Files | 1313 Deleting Junos Space Network Management Platform Database Backup Files | 1312 Backing Up and Restoring the Database Overview | 1298 Viewing Audit Logs | 1117 Viewing Jobs | 972
1307
Restoring the Junos Space Network Management Platform Database
IN THIS SECTION Restoring the Junos Space Platform Database from a Local Backup File | 1308 Restoring the Junos Space Platform Database from a Remote Backup File | 1309
You can restore any archived Junos Space Network Management Platform database to restore your Junos Space system to a previous state. When you initiate a restore database operation, Junos Space Platform is shut down on all nodes in the fabric and the system goes into maintenance mode, during which time only one maintenance mode administrator can log in to the system at a time. After the restore database operation is completed, Junos Space Platform is restarted and users can access the Junos Space UI. Because you can back up the Junos Space database locally (that is, in the Junos Space server) or remotely (in another system), both the database backup files are displayed in the Junos Space GUI. You can restore the Junos Space database from the local or remote database backup file. To restore a Junos Space Platform database, you must have System Administrator privileges and be a Maintenance Mode administrator.
NOTE: · Before you restore a Junos Space Platform database, wait until all jobs that are currently
running are completed. · Junos Space Platform supports only the standard U.S. English on the remote server and does
not support any other local languages.
To view information about the available database backup files before you select a Junos Space Platform database to restore, see "Viewing Database Backup Files" on page 1313.
1308
CAUTION: The restore operation replaces the existing data with the contents of the backup file. Merging of data does not occur.
Restoring the Junos Space Platform Database from a Local Backup File To restore the Junos Space Platform database to a previous state: 1. Select Administration > Database Backup and Restore.
The Database Backup and Restore page appears, displaying the previous database backups.
2. Select the database backup file you want to restore.
NOTE: In a multinode setup, the selected backup file may exist on both the primary and secondary nodes. The Machine column on the Database Backup and Restore page reflects the IP addresses of these nodes where the backup file is stored. In such cases where the same backup file exists on more than one node, Junos Space selects a backup file from one of the nodes randomly for the restore operation.
3. Select Restore from the Actions menu. The Restore confirmation dialog box appears and displays the following message: Warning: you are about to enter maintenance mode. Space will be shutdown to restore database. All data generated after the selected backup will be lost, and other users will not be able to access the system during the operation. Do you want to continue?
CAUTION: This confirmation dialog box must display the name of the backup file that you selected for the restore operation. If not, wait for a few seconds until the backup filename appears before you proceed to the next step. Otherwise, the restore operation may fail.
4. Click Continue in the Restore confirmation dialog box. Junos Space Platform prompts you to enter a username and password to enter maintenance mode.
5. Enter the maintenance mode username and password.
1309
6. Click OK. Junos Space Platform is shut down and other users will be unable to access the system during the restore database operation. The Restore Database Status dialog box displays the status for the restore database operation.
7. In the Restore Database Status dialog box, click Return to Maintenance Menu. The Maintenance Mode Options page appears.
8. In the Maintenance Mode Actions dialog box, click Log Out and Exit Maintenance Mode. This action exits maintenance mode, starts up Junos Space Platform, and returns to normal operational mode. The process of exiting maintenance mode and restarting Junos Space Platform takes several minutes.
NOTE: During startup, the startup page first displays a message indicating that Junos Space Platform is starting up and then displays a progress bar indicating the percentage of startup completed, the estimated time left for the Junos Space Platform to start, and a list of tasks to complete (with an indication of the current task being carried out). When a task is successfully completed, a message is displayed; if a task fails, an error message is displayed indicating why the task failed.
Depending on the contents of the backup file (which might contain either MySQL, Cassandra, and network monitoring data, MySQL and network monitoring data, MySQL and Cassandra data, or just MySQL data), data is refreshed on the system.
Restoring the Junos Space Platform Database from a Remote Backup File
You need to restore the Junos Space Platform database from a remote file if the Junos Space system to which you are restoring it has been reimaged. The restore operation restores the data based on the contents of the backup file. The backup file can contain both network monitoring and MySQL data, or just MySQL data.
CAUTION: · The database restoration operation is performed while Junos Space Platform is in
maintenance mode. During this time, all Junos Space Platform users, except the maintenance mode administrator, are locked out of the Junos Space system.
To restore a database, you must have System Administrator privileges and be a Maintenance Mode administrator.
1310
To restore the database from a remote file: 1. On the Junos Space Platform user interface, select Administration > Database Backup and Restore.
The Database Backup and Restore page appears.
2. Click the Restore From Remote File icon. The Restore From Remote File page appears.
3. In the Username field, enter a username to access the remote server.
4. In the Password field, enter the corresponding password.
5. In the Confirm password field, reenter the password.
6. In the Machine IP field, enter the IP address of the remote server on which the backup file is located.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses or
both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SCP server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
7. In the File Path field, enter enter the full path of the backup file stored on the remote server.
8. (Optional) In the Comment field, enter a comment to capture any information about this database restore operation.
9. Click Restore to start the restore database operation. The Restore Database confirmation dialog box appears.
WARNING: You must log in to Junos Space Maintenance mode. Junos Space Platform shuts down to restore the database. All data generated after the selected backup will be lost. Junos Space users will not be able to log in to Junos Space Platform during the restore database operation.
1311
10. Click Continue in the Restore Database dialog box. Junos Space Platform prompts you to enter a username and password to log in to the Maintenance mode.
11. Enter the maintenance mode username and password.
12. Click OK. Junos Space Platform is shut down and other users will be unable to access the system during the restore database operation. The Restore Database Status dialog box displays the status of the restore database operation.
13. In the Restore Database Status dialog box, click Return to Maintenance Menu. The Maintenance Mode Options page appears.
14. In the Maintenance Mode Options page, click Log Out and Exit Maintenance Mode. This action exits maintenance mode, starts up Junos Space Platform, and returns to normal operational mode. The process of exiting maintenance mode and restarting Junos Space Platform takes several minutes.
NOTE: During startup, the startup page first displays a message indicating that Junos Space Platform is starting up and then displays a progress bar indicating the percentage of startup completed, the estimated time left for the Junos Space Platform to start, and a list of tasks to complete (with an indication of the current task being carried out). When a task is successfully completed, a message is displayed; if a task fails, an error message is displayed indicating why the task failed.
Depending on the contents of the backup file (which might contain either MySQL, Cassandra, and network monitoring data, MySQL and network monitoring data, MySQL and Cassandra data, or just MySQL data), data is refreshed on the system.
RELATED DOCUMENTATION Backing Up the Junos Space Network Management Platform Database | 1301 Viewing Database Backup Files | 1313 Deleting Junos Space Network Management Platform Database Backup Files | 1312 Maintenance Mode Overview | 1153
1312
Deleting Junos Space Network Management Platform Database Backup Files
The System Administrator can delete archived database backup files that are no longer useful for restore operations.
NOTE: · From Junos Space Network Management Platform Release 15.1R1 onward, Junos Space
Platform provides a built-in purging policy that enables you purge database backup files automatically based on a specified disk usage threshold or at regularly scheduled intervals. For more information, see "Junos Space Purging Policy and Purging Categories Overview" on page 1558. · When you delete a database backup file from the Database Backup and Restore inventory page, the backup file is permanently deleted from Junos Space Platform and cannot be retrieved or restored. · In a multinode setup, the selected backup file may exist on both the primary and secondary nodes. The Machine column on the Database Backup and Restore page reflects the IP addresses of these nodes where the backup file is stored. In such cases where the same backup file exists on more than one node, when you delete a backup file, the backup file is deleted from both the nodes.
To delete a Junos Space Platform database backup file:
1. On the Junos Space Platform UI, select Administration > Database Backup and Restore. The Database Backup and Restore page appears.
2. From the Database Backup and Restore page tabular view, select one or more database backup files that you want to delete.
3. (Optional) View the database backup file detailed information before deleting the file. Detailed database backup file information appears as columns in the table.
4. Click the Delete Backup icon on the toolbar. Junos Space Platform deletes the selected Junos Space Platform database backup files. The deleted backup files are no longer displayed on the inventory page and are deleted from the /var/cache/jboss/backup directory if it is a local backup operation or from the remote location for a remote backup operation.
1313
CAUTION: When you delete a local backup file, if the backup file is present on both the primary and secondary nodes, then this file is deleted from both the nodes.
When you delete a database backup file, an audit log entry is automatically generated and details about the deleted file is recorded. To obtain details about the backup files that were deleted from an audit log entry: 1. On the Junos Space Platform user interface, select Audit Logs > Audit Log.
The Audit Log inventory page appears, displaying all log entries in a table.
2. Filter data in the Task column by using the Delete Backup keyword. The Audit Log page displays only the audit log entries that were generated when the database backup files were deleted.
3. Double-click an audit log entry. The Audit Log Detail page appears. On this page, the Affected Objects section displays the list of database backup files that were deleted and the Affected Object Detail section displays details about each database backup file.
4. Click OK on the Audit Log Detail page to exit this page. You are returned to the Audit Log page.
RELATED DOCUMENTATION Backing Up the Junos Space Network Management Platform Database | 1301 Restoring the Junos Space Network Management Platform Database | 1307 Viewing Database Backup Files | 1313
Viewing Database Backup Files
The Database Backup and Restore inventory page displays information about Junos Space Network Management Platform database backups, including the date and time of the backup operation, the backup file name and location, and the IP address of the Junos Space Appliance that is backed up. From the
1314
Database Backup and Restore inventory page, the administrator can restore a database or delete a database backup.
Changing Views | 1314 Viewing Database Details | 1314 Managing Database Commands | 1315
Changing Views
You can view database backup information in tabular view. Each database backup is represented by a row in the table. To change views: 1. On the Junos Space Network Management Platform user interface, select Administration > Database
Backup and Restore. The Database Backup and Restore page appears.
2. Click the Display Quick View icon on the Database Backup and Restore page title bar.
Viewing Database Details
To view detailed database backup information: 1. On the Junos Space Network Management Platform user interface, select Administration > Database
Backup and Restore. The Database Backup and Restore page appears.
2. Double-click a database in tabular view. The View Backup page appears. Table 163 defines the database backup detailed information. Table 163: Fields in the Manage Databases Table
Field
Description
Name
Name of the database backup file. Junos Space Network Management Platform automatically assigns a name to the backup file.
Backup Date
Date and time of the database backup operation
Comment
Information a Junos Space user optionally provides in the Comments field of the Backup page when scheduling a database backup operation
1315
Table 163: Fields in the Manage Databases Table (continued)
Machine
IP address of the Junos Space Appliance on which the database backup operation is performed. In a multinode setup, the backup operation is initiated on the secondary node. When the backup operation is successfully completed, the backup file is synchronized with (copied to) the primary node. In such scenarios, the backup file exists on both the primary and secondary nodes, and the IP addresses of both the nodes are displayed in the Machine field.
File Path
File path for the database backup.
For a local backup operation, this column displays the default directory location where the backup file is stored, which is: /var/cache/jboss/backup. For a remote backup operation, this column displays the path to the backup file on the remote server.
Managing Database Commands
From the Database Backup and Restore page, you can perform the following actions:
· Delete Database Backup--"Deleting Junos Space Network Management Platform Database Backup Files" on page 1312
· Restore Database--"Restoring the Junos Space Network Management Platform Database" on page 1307 · Tag It--"Tagging an Object" on page 1518 · View Tags--"Tagging an Object" on page 1518 · Clear All Selections--Clears all selections you made on the Database Backup and Restore page.
RELATED DOCUMENTATION
Deleting Junos Space Network Management Platform Database Backup Files | 1312 Restoring the Junos Space Network Management Platform Database | 1307 Backing Up the Junos Space Network Management Platform Database | 1301 Tagging an Object | 1518
CHAPTER 71
Managing Licenses
IN THIS CHAPTER Generating and Uploading the Junos Space License Key File | 1316 Viewing Junos Space Licenses | 1319
Generating and Uploading the Junos Space License Key File
IN THIS SECTION Generating the Junos Space License Key File | 1318 Uploading the Junos Space License Key File Contents | 1318
1316
1317
NOTE: · From Junos Space Network Management Platform Release 13.1R1 onward, the licensing model
of Junos Space does not require license keys for Junos Space applications. Nevertheless, a license file is still needed for the Junos Space Platform functionality because the default Junos Space Platform license file is valid only for 60 days after which the Junos Space Platform functionality is not available. When you purchase a commercial version of Junos Space Platform, Juniper Networks provides you with a license file that does not have any expiry date. After you import this license into Junos Space Platform, you have access to the full Junos Space Platform functionality for an unlimited period. · Since Junos Space applications do not use license keys, the Licenses page (Administration > Licenses) does not display licensing information for any Junos Space applications that you might have purchased and installed. However, if you use Junos Space Platform with only Service Now and Service Insight installed, licensing information for those applications is displayed on the Licenses page. To find out the licensing information about Junos Space applications that you purchased, contact the Juniper Technical Assistance Center.
The Junos Space Platform software provides a default, 60-day trial license. After 60 days, the use of the Junos Space Platform software expires except for the Import License action. The administrator must activate the software with the Juniper Networks license key to regain use of the Junos Space Platform. Two weeks before the license expiration date, a license expiration warning appears when users log in to Junos Space Platform.
Junos Space Platform license management involves a two-step process:
1. Generating the license key file. Juniper Networks uses a license management system (LMS) to manage the deployment of the Junos Space Platform product--appliances, connection points, connections, and applications. When you order Junos Space Platform, the Juniper Networks LMS sends you an e-mail with an authorization code and a software serial number and instructions on how to generate a license key.
2. Import the license key into Junos Space Platform. The system administrator must import the Junos Space license key file from the Licenses page (Administration > Licenses) to use Junos Space Platform beyond the trial period.
This topic includes the following sections:
1318
Generating the Junos Space License Key File
When you order Junos Space Platform, Juniper Networks sends an e-mail containing an authorization code and a software serial number (the serial number that identifies the software installation) along with instructions on how to generate the license key. When you order a Junos Space Appliance, Juniper Networks sends an e-mail containing the serial number for the appliance that is licensed for the appropriate stock-keeping unit (SKU).
Uploading the Junos Space License Key File Contents
To upload the Junos Space license key file, perform the following steps: 1. Open the Juniper Networks Authorization Codes e-mail you received and follow the directions.
2. Open the Junos Space license key text file attached to the e-mail and copy all the contents.
3. In the Junos Space Platform UI, select Administration > Licenses. The Licenses page appears.
4. Click the Import License icon. The Import License page appears.
5. Paste the contents of the Junos Space license key text file in the License data field. Follow the below example of a license key:
Juniper Networks Junos Space License File (v1) For Junos Space Platform Generated on 2013-11-18T17:28:53Z This license file is for the deployment using: Serial Number: 90211111111111 This license file enables the following: Junos Space Network Management Platform per core(Qty: 1) This license file reflects the following SKUs: JS-PLATFORM -----SIGNATURE----PJ6RbY2b92+UzXHwx3jTn7kkojkZxJvbVdHtq5RNDrB1nLuTgKNG42KuAU7RBc3eK40Jb9BZYH1m
aI3SN/9CSPl3+FK1h095RXG7GMMfcu3Q7nlBJUcJytTVZGlWkm6n8o8Wj2ymei58pFLf9TMHYY2J OqTqWHJNAKJ2/tlxacGJ1yFtyJGWz4KbSiXAawiHtk9hfi2v0vzA+3ByyZ8PZSIpsIBk5m3Pqtr+ 2/pxkNGXoCsEnhRAoPticSVibzsoMCo/Myzymp3KaqWHwe/PpPkwL28+I1AB6NA/FUxxTlgjp2k1 YJZt9rSsJATDgH3lcU1zqSVuGn2DNNhX5F3xTw==
1319
NOTE: Paste the license data into the License data field using Ctrl+V or by selecting paste in the browser Edit menu.
6. Click Upload. The license key data is uploaded to the Junos Space Platform database. A message indicating that the Junos Space license is uploaded successfully appears.
7. Click OK. The Junos Space license appears on the Licenses inventory page.
RELATED DOCUMENTATION Viewing Junos Space Licenses | 1319
Viewing Junos Space Licenses
NOTE: From Junos Space Network Management Platform Release 13.1R1 onward, the licensing model of Junos Space does not require license keys for Junos Space applications. However, a license file is still needed for the Junos Space Platform functionality because the default Junos Space Platform license file is valid only for 60 days after which the Junos Space Platform functionality is not available. Since Junos Space applications do not use license keys, the Licenses page (Administration > Licenses) does not display licensing information for any Junos Space applications that you might have purchased and installed. However, if you use Junos Space Platform with only Service Now and Service Insight installed, licensing information for those applications is displayed on the Licenses page. To find out the licensing information about Junos Space applications that you purchased, please contact the Juniper Technical Assistance Center.
The Licenses inventory page displays the Junos Space Platform license that the administrator has uploaded. For more information about obtaining and uploading the Junos Space Platform license, see "Generating and Uploading the Junos Space License Key File" on page 1316.
1320
The Licenses page displays the Junos Space Platform trial license until you upload the one specifically generated for your software installation.
To view the Junos Space license details:
1. In the Junos Space Platform UI, select Administration > Licenses. The Licenses page appears displaying the details of the Junos Space Platform license, as shown in Table 164.
Table 164: License Details
Field
Description
License Type
The Junos Space Platform license can either be a trial license installed (Trial) with the Junos Space Platform software image or a commercial one (Commerical) that you upload into Junos Space Platform.
Sku Model #
The Junos Space Platform license stock-keeping unit (SKU) model number. If the license is a trial license, the SKU displayed is Trial-license. If it is a commercial license, the license SKU is displayed; for example, JS-PLATFORM.
Total License Days
For a trial license, the total number of license days is 60. For a commercial license, the total number of license days is unlimited (Unlimited).
Remaining License Days
For a trial license, the remaining number of days is the countdown of the number of days since you installed Junos Space Platform (for example, 36). For a commercial license, the remaining number of days is unlimited (Unlimited).
RELATED DOCUMENTATION Exporting the License Inventory | 311
1321
CHAPTER 72
Managing Junos Space Platform and Applications
IN THIS CHAPTER Managing Junos Space Applications Overview | 1321 Upgrading Junos Space Network Management Platform Overview | 1323 Junos Space Store Overview | 1326 Configuring and Managing Junos Space Store | 1327 Running Applications in Separate Server Instances | 1332 Managing Junos Space Applications | 1337 Modifying Settings of Junos Space Applications | 1339 Modifying Junos Space Network Management Platform Settings | 1340 Managing File Integrity Check | 1361 Starting, Stopping, and Restarting Services | 1363 Adding a Junos Space Application | 1366 Upgrading a Junos Space Application | 1370 Upgrading Junos Space Network Management Platform | 1372 Synchronizing Time Across Junos Space Nodes | 1378 Upgrading to Junos Space Network Management Platform Release 21.1R1 | 1381 Uninstalling a Junos Space Application | 1398
Managing Junos Space Applications Overview
You can use the Applications page to manage Junos Space Network Management Platform and all other separately packaged applications. In this page you can perform the following tasks: · Install a new Junos Space application by using the Administration > Applications > Add Application task
(see "Adding a Junos Space Application" on page 1366). · Upgrade Junos Space Platform by using the Administration > Applications > Upgrade Platform action
(see "Upgrading Junos Space Network Management Platform" on page 1372). Junos Space Network
1322
Management Platform provides the running environment for all Junos Space applications, so upgrading it interrupts the operation. · Upgrade a Junos Space application while Junos Space Platform is still running by using the Administration > Applications > Upgrade Application action (see "Upgrading a Junos Space Application" on page 1370). · Uninstall a Junos Space application while Junos Space Platform is still running by using the Administration > Applications > Uninstall Application action (see "Uninstalling a Junos Space Application" on page 1398). · Modify application settings by using the Administration > Applications > Modify Application Settings action (see "Modifying Settings of Junos Space Applications" on page 1339). · Start, stop, or restart services by using the Administration > Applications > Manage Services action (see "Starting, Stopping, and Restarting Services" on page 932). · Tag applications to categorize them for filtering and performing Manage Applications actions by using the Administration > Applications > Tag It action (see "Tagging an Object" on page 1518). · View tags that you have already created on a selected application by using the Administration > Applications > View Tags action (see "Viewing Tags for a Managed Object" on page 1524).
NOTE: The Junos Space Platform image file contains only the files pertaining to Junos Space Network Management Platform. Junos Space applications are packaged in separate image files. To install or upgrade an application, the administrator must download the application image file from the Juniper Networks support site (https://www.juniper.net/support/products/space/#sw), upload the application image file to Junos Space Platform, and install or upgrade the application. When the application is installed, you can launch it from Application Chooser. When you upgrade Junos Space Network Management Platform, all applications are disabled; you can upgrade the disabled applications after upgrading Junos Space Platform. Users in the workspace of an upgraded application are directed to Application Chooser.
RELATED DOCUMENTATION
Managing Junos Space Applications | 1337
Upgrading Junos Space Network Management Platform Overview
IN THIS SECTION Before You Begin | 1323 Pre-Upgrade Checks | 1324 How an Upgrade Impacts Previously Installed Junos Space Applications | 1324 Performing the Upgrade | 1325
1323
To upgrade Junos Space Platform, you upload the Junos Space Platform image file to your existing fabric and perform the upgrade using the Junos Space Platform UI. When you perform an upgrade, all nodes in the Junos Space fabric are upgraded to the new software version.
CAUTION: If you are upgrading to Junos Space Platform Release 16.1R1, follow the procedure outlined in Upgrading to Junos Space Network Management Platform Release 16.1R1.
NOTE: For information about the features and updates for a specific Junos Space Platform release, refer to the Junos Space Network Management Platform Release Notes for that release.
This topic has the following sections:
Before You Begin
Before you upgrade Junos Space Platform, ensure that you are aware of the following: · Some Junos Space applications may not support a direct upgrade of Junos Space Platform from Release
16.1R1, Release 16.1R2, or Release 16.1R3 to Release 17.2R1; upgrading to Junos Space Platform Release 17.1R1 may be required before upgrading to Release 17.2R1 for some upgrade scenarios. Therefore, review the release notes for all installed Junos Space applications prior to upgrading Junos Space Platform. · Upgrading Junos Space Platform clears existing user preferences (set using the User Settings global action icon in the Junos Space banner).
1324
· Back up all your Junos Space Platform data before you begin the upgrade process. See "Backing Up the Junos Space Network Management Platform Database" on page 1301 for details to back up data before starting the upgrade process.
· Download the Junos Space Platform Upgrade image from the Junos Space Network Management Platform Download Software page.
CAUTION: Do not modify the filename of the software image that you download from the Juniper Networks support site; if you modify the filename, the upgrade fails.
· You must log in as the default Super Administrator or System Administrator to upgrade Junos Space Platform.
· Before you upgrade Junos Space Platform, ensure that the time on all Junos Space nodes is synchronized. For information about synchronizing time on Junos Space nodes, see "Synchronizing Time Across Junos Space Nodes" on page 1378.
Pre-Upgrade Checks
From Junos Space Platform Release 15.1R1 onward, the system checks for the following before you can upgrade the software:
· Free disk space--If a node or a cluster fails to meet the minimum disk requirement, an error message is displayed. The minimum available disk space required is 10 GB in the / partition. The error message lists the IP address of the node that fails to meet the requirement. If you receive this error message, you cannot continue the upgrade.
· MySQL replication and PostgreSQL replication--If the MySQL replication or PostgreSQL replication processes are turned off on any of the nodes, a warning message is displayed. Junos Space Platform checks the for Mysql, Mysql_Slave_IO, and Mysql_Slave_sql (MySQL) processes and postgres_sender, postgres_receiver, and postgresql (PgSQL) processes to obtain the status of the replication processes. The warning message lists the processes that are down. If you receive only this warning message, you can either continue or stop the upgrade.
If both the preceding checks fail, an error message is displayed that lists all the preceding information. The upgrade process is not initiated.
How an Upgrade Impacts Previously Installed Junos Space Applications
Junos Space Platform provides the running environment for all Junos Space applications. Hence, the operations of the applications are interrupted during the upgrade. Only the applications that are supported on the version of Junos Space Platform to which you are upgrading are enabled. Other applications running
1325
on versions of Junos Space Platform prior to the version to which you are upgrading and that are not supported on that version might be disabled. You must upgrade these disabled applications to the respective compatible version.
NOTE: Do not add disabled Junos Space applications using the Add Application page (Administration > Applications > Add Application).
CAUTION: Refer to the Upgrade Instructions section in the Junos Space Network Management Platform Release Notes for a specific release to find out the versions of Junos Space Platform that are supported for upgrade.
Performing the Upgrade Complete the steps outlined in "Upgrading Junos Space Network Management Platform" on page 1372 to upgrade your current Junos Space Platform software to the latest software version.
NOTE: If you are upgrading to Junos Space Platform Release 16.1R1, follow the procedure outlined in Upgrading to Junos Space Network Management Platform Release 16.1R1.
After Junos Space Platform is upgraded, validate that upgrade was successful by logging in to the Junos Space UI.
NOTE: You can view the version of the installed Junos Space Platform software, click the Help icon on the Junos Space banner and in Help sidebar, click About.
RELATED DOCUMENTATION Managing Junos Space Applications Overview | 1321 Managing Junos Space Applications | 1337
Junos Space Store Overview
IN THIS SECTION About the Junos Space Store | 1326 Benefits of Junos Space Store | 1326
1326
About the Junos Space Store
From Junos Space Network Management Platform Release 18.2 onward, you can install and upgrade Junos Space applications from Junos Space Store. Junos Space Store is a repository that lists the latest and supported versions of Junos Space applications.
Junos Space Store enables easy installation of Junos Space applications (including Junos Space application components) from within Junos Space Platform. When you install an application from Junos Space Store, Junos Space Platform downloads the application and installs it instead of requiring you to download it to the local file system from the Juniper Networks software download site: https://www.juniper.net/support/products/space/#sw. If you try to select an incompatible version of a Junos Space application, a warning message appears, indicating that the application version that you are trying to install or upgrade is not compatible with the installed Junos Space Platform version. For more information, see "Configuring and Managing Junos Space Store" on page 1327.
You can also view the versions for each application that are compatible with the installed version of Junos Space Platform and whether or not different applications can coexist within Junos Space Platform.
Alternatively, you can download the applications from the Juniper Networks software download site, and add it to Junos Space Platform by using the existing workflow. For more information, see "Adding a Junos Space Application" on page 1366.
Benefits of Junos Space Store
· You can access information about Junos Space application versions and verify the supported versions from within Junos Space Store, and thus do not need to refer to external resources.
· As you can install and upgrade applications directly from Junos Space Store, you save the time and effort needed to manually download application images from the Juniper Networks software download site and upload them to Junos Space Platform for installation.
· You can configure application components from within Junos Space Store.
SEE ALSO Configuring and Managing Junos Space Store | 1327 Adding a Junos Space Application | 1366 Upgrading a Junos Space Application | 1370 Uninstalling a Junos Space Application | 1398
Configuring and Managing Junos Space Store
IN THIS SECTION Configuring Junos Space Store in Junos Space Network Management Platform | 1327 Modifying Junos Space Store Settings | 1329 Installing and Upgrading Junos Space Applications from Junos Space Store | 1330
1327
From Junos Space Network Management Platform Release 18.2 onward, you can install and upgrade Junos Space applications from Junos Space Store. Junos Space Store is a repository that lists the latest and supported versions of Junos Space applications. For more information about Junos Space Store, see "Junos Space Store Overview" on page 1326.
Configuring Junos Space Store in Junos Space Network Management Platform
Before you install Junos Space applications from Junos Space Store, you must configure Junos Space Store in Junos Space Platform. To configure Junos Space Store in Junos Space Platform: 1. On the Junos Space Platform UI, select Administration > Applications > Junos Space Store.
The Junos Space Store welcome page appears.
2. Click Next to proceed. The Junos Space Store page appears with the following message: Configure Juniper Networks software download credentials to connect to Junos Space Store.
3. Click Go To Settings.
1328
The settings page for Junos Space Store appears with the following message. Provide Juniper Networks software download credentials to access Junos Space Store repository.
4. Enter your Juniper Networks software download credentials in the appropriate fields.
NOTE: The proxy server is displayed as enabled or disabled based on the settings you configured on the Administration > Proxy Server page.
NOTE: · You can store your credential in Junos Space Platform database for future use by checking
the Remember My Password box. If the box is not checked, the credentials will be stored in Jboss server's cache memory and will be erased automatically on restart of all the Jboss nodes present in the cluster. · In case you have already stored the credentials in the older versions, the box will appear as checked by default. · Click Clear Saved Credentials to clear all the saved credentials from Junos Space Platform database or cluster's cache memory.
5. Click Test Connection to test the connection between Junos Space Platform and the Junos Space Store. If the connection is successful, the Connection Successful page appears. If the test connection fails, an error message is displayed. To proceed, check your proxy server settings and your network connection.
6. Click Submit on the settings page to save the Junos Space Store credentials. The credentials are saved in Junos Space Store.
7. Click Go to Junos Space Store. The Junos Space Store page appears, listing all the active Junos Space applications, along with the latest revision and the release date of the latest revision, on the left of the page. When you click an application, only the compatible versions of the application are listed on the right of the page.
NOTE: Uncheck the Show only compatible version box, if you want to see the list of incompatible applications. It is checked by default.
1329
NOTE: You need to configure Junos Space Store settings only when you access it for the first time. However, you can modify the settings when required by clicking Settings on the Junos Space Store page.
Modifying Junos Space Store Settings To modify Junos Space Store settings in Junos Space Platform: 1. On the Junos Space Platform UI, select Administration > Applications > Junos Space Store.
The Junos Space Store page appears.
2. Click Settings. The settings page for Junos Space Store appears with the following message. Provide Juniper Networks software download credentials to access Junos Space Store repository.
3. Modify the existing credentials.
NOTE: The proxy server is displayed as enabled or disabled based on the settings you configured on the Administration > Proxy Server page.
NOTE: · You can store your credential in Junos Space Platform database for future use by checking
the Remember My Password box. If the box is not checked, the credentials will be stored in Jboss server's cache memory and will be erased automatically on restart of all the Jboss nodes present in the cluster. · In case you have already stored the credentials in the older versions, the box will appear as checked by default. · Click Clear Saved Credentials to clear all the saved credentials from Junos Space Platform database or cluster's cache memory.
4. (Optional) Click Test Connection to test the connection between Junos Space Platform and Junos Space Store. If the connection is successful, the Connection Successful page appears.
1330
If the test connection fails, an error message is displayed. To proceed, check your proxy server settings and your network connection.
5. Click Submit on the settings page to save the modified Junos Space Store credentials. The credentials are modified and saved in Junos Space Store.
Installing and Upgrading Junos Space Applications from Junos Space Store
To install or upgrade a Junos Space application from Junos Space Store, you must be assigned the appropriate privileges to manage Junos Space Store. To install and upgrade Junos Space applications from Junos Space Store: 1. On the Junos Space Platform UI, select Administration > Applications > Junos Space Store.
The Junos Space Store page appears.
2. (Optional) Click Get Latest to refresh the list of applications in Junos space Store. The list of applications in Junos Space Store gets refreshed, displaying the most recently released versions of Junos Space applications.
3. Select the Junos Space application that you want to install or upgrade by clicking its displayed name. The details of the selected application, including the name, description, and release highlights of the application, appear. The version number and release date of the latest versions are also displayed. If the application is already installed in Junos Space Platform, the currently installed version is also displayed. If the selected version is already installed in Junos Space Platform, a warning message is displayed. If the selected version is not compatible with the version of Junos Space Platform, a warning message is displayed. If the selected application cannot coexist with another application that is already installed in Junos Space Platform, an error message is displayed. For example, Network Director and Connectivity Services Director cannot coexist.
4. To view only the versions of the selected application compatible with Junos Space Platform, select the Show only compatible version check box above the version table. The table gets refreshed and then displays only the compatible versions of the selected application.
5. Select the version of the application that you want to install or upgrade from the listed application versions.
6. Click Next to install or upgrade the selected application. The End User License Agreement for the selected application appears.
NOTE: You can configure the components of a Junos Space application from Junos Space Store.
1331
7. Review the license agreement. · Click Accept and Install to install the application. · Click Accept and Upgrade to upgrade the application. The detailed job status appears.
8. Click Go to Junos Space Store to go back to the Junos Space Store page. The installation or upgrade process continues in the background. You can view the progress of the installation or upgrade when you select the application listed in Junos Space Store.
NOTE: You can modify Junos Space Store settings by clicking Settings in Junos Space Store. You can initiate the installation or upgrade of a Junos Space application while another installation or upgrade is still in progress. The newly initiated process will automatically begin after the currently running process is completed.
RELATED DOCUMENTATION
Junos Space Store Overview | 1326 Adding a Junos Space Application | 1366 Upgrading a Junos Space Application | 1370 Uninstalling a Junos Space Application | 1398
Running Applications in Separate Server Instances
IN THIS SECTION Adding a Server Group | 1333 Adding a Server to a Server Group | 1333 Starting Servers in a Server Group | 1334 Stopping Servers in a Server Group | 1335 Removing a Server Group | 1335 Moving an Application to a Different Server Group | 1336
1332
Junos Space enables you to deploy an application to a separate instance within an application server so that you can allocate resources to each application. You can individually shut down an instance without affecting other instances that are running other applications.
Junos Space Release 13.3R1 and later versions run on JBoss EAP 6, which supports the concept of a managed domain. A domain comprises one or more server groups and each server group comprises one or more server instances. A domain is controlled by a domain controller, which ensures that each server is configured according to the management policy of the domain. With this feature, you can deploy each application to a separate server instance, if needed. You can also shut down individual instances without affecting other instances that are running other applications.
Before you install Junos Space Network Management Platform, it is necessary that you set up the infrastructure of server groups and add servers to the server groups so that you can install an application such as Security Director on a specific server instance. After the setup is ready, add the application from the Junos Space UI (see "Adding a Junos Space Application" on page 1366).
NOTE: Service Now and Service Insight should be run in the same server group of a JBoss EAP domain as the Junos Space Network Management Platform. Operating Service Now, Service Insight, and Junos Space Network Management Platform in different server groups is not supported.
Instructions to set up, start, stop, or remove a server instance are in the following topics:
1333
Adding a Server Group
A server group comprises one or more server instances that are managed and configured as one. All servers (server instances) of the same server group perform the same tasks because they share the same profile configuration and deployed content. To add a server group: 1. Launch the management CLI in Linux by typing the following text at the command prompt:
EAP_HOME/bin/jboss-cli.sh
2. Type the following text: $sh jboss-cli.sh --connect --controller=<DOMAIN_CONTROLLER_HOST> "/server-group=<SERVER_GROUP_NAME>:add(profile=full-ha,socket-binding-group=full-ha-sockets)" In this text: · DOMAIN_CONTROLLER_HOST is the hostname of the server that runs Junos Space Network Management Platform. · SERVER_GROUP_NAME is the name of the server group that you want to add.
NOTE: Refer to the JBoss version 6 documentation set for more information about configuring the profile and socket-binding-group parameters. The configuration in this topic provides you with full clustering capabilities because you have used the profile=full-ha parameter at the command prompt.
For the newly added server group to appear in the Junos Space GUI: 1. From the shell console, enter /var/cache/jboss/jmp/payloads/.
2. Navigate to the directory in which you have installed the application. For example, /var/cache/jboss/jmp/payloads/ICEAAA.xxxxx/.
3. Open the swIndex.txt file and add the following text: IsOnlyDeployedWithPlatform=false.
Adding a Server to a Server Group
You should add a new server to a server group so that you can run an application separately on this server. However, when you install Junos Space Network Management Platform, by default a platform server group is created and all the applications are added to this server group automatically.
1334
To add a server to a server group: 1. Launch the management CLI in Linux by typing the following text at the command prompt:
EAP_HOME/bin/jboss-cli.sh
2. Type the following text: $sh jboss-cli.sh --connect --controller=<DOMAIN_CONTROLLER_HOST> "/host=<HOSTNAME>//server-config=<SERVER_NAME>:add(auto-start=true, group=<SERVER_GROUP_NAME>, socket-binding-port-offset=100)" In this text: · DOMAIN_CONTROLLER_HOST is the hostname of the server that run the Junos Space Network Management Platform. · HOSTNAME is defined in host.xml in the /usr/local/jboss/domain/configuration directory. · SERVER_NAME is the name of the server that you want to add. · SERVER_GROUP_NAME is the name of the server group to which you want to add the new server.
NOTE: Refer to the JBoss version 6 documentation set for more information about configuring the auto-start and socket-binding-port-offset parameters.
NOTE: After you have successfully added a server to a server group (for example, consider you have added a server group called as firstServerGrp), log in to the domain controller and perform the following action: /server-group= firstServerGrp/jvm= firstServerGrp/:add(max-heap-size=1024m,max-permgen-size=256m,heap-size=64m)
Starting Servers in a Server Group
You need to start a server in a server group before you deploy an application to this server instance. To start a server in a server group: 1. Launch the management CLI in Linux by typing the following text in a command line:
EAP_HOME/bin/jboss-cli.sh
2. Type the following text:
1335
$sh jboss-cli.sh --connect --controller=<DOMAIN_CONTROLLER_HOST> "/server-group=application/:start-servers". In this text, DOMAIN_CONTROLLER_HOST is the hostname of the server that runs Junos Space Network Management Platform. This command starts all servers in a server group. To start a specific server, use the following command: $sh jboss-cli.sh --connect --controller=<DOMAIN_CONTROLLER_HOST> "/host=<HOSTNAME>server-config=<SERVER_NAME>/:start(server=<SERVER_NAME>,blocking=false)"
Stopping Servers in a Server Group
You may want to stop the servers within a server group when you no longer need them--for example, in situations where no applications are running on these servers. To stop a server in a server group: 1. Launch the management CLI in Linux by typing the following text in a command line:
EAP_HOME/bin/jboss-cli.sh
2. Type the following text: $sh jboss-cli.sh --connect --controller=<DOMAIN_CONTROLLER_HOST> "/server-group=application/:stop-servers" In this text, DOMAIN_CONTROLLER_HOST is the hostname of the server that runs Junos Space Network Management Platform. This command stops all the servers in a server group. To stop a specific server, use the following command: $sh jboss-cli.sh --connect --controller=<DOMAIN_CONTROLLER_HOST> "/host=<HOSTNAME>server-config=<SERVER_NAME>/:stop(server=<SERVER_NAME>,blocking=false)"
Removing a Server Group
You may want to remove a server group when you no longer need it--for example, in situations where no applications are running on these server groups. To remove a server group: 1. Launch the management CLI in Linux by typing the following text in a command line:
EAP_HOME/bin/jboss-cli.sh
2. Type the following text:
1336
$sh jboss-cli.sh --connect --controller=<DOMAIN_CONTROLLER_HOST> "/server-group=<SERVER_GROUP_NAME>:remove" In this text: · DOMAIN_CONTROLLER_HOST is the hostname of the server that runs Junos Space Network
Management Platform. · SERVER_GROUP_NAME is the name of the server group that you want to remove.
Moving an Application to a Different Server Group
You can move an application from the current server group to a different server group, if needed, by using the moveApplication.pl script under the /var/www/cgi-bin directory.
NOTE: Before moving an application to another server group (for example, to secondServerGrp), log in to the domain controller and perform the following action: /server-group= secondServerGrp/jvm= secondServerGrp/:add(max-heap-size=1024m,max-permgen-size=256m,heap-size=64m)
To move an application from the current server group to another server group: 1. From the shell console, enter /var/www/cgi-bin.
2. Type the following text: $perl moveApplication.pl -s <SOURCE_SERVER_GROUP> -d <DESTINATION_SERVER_GROUP> -a <APPLICATION_NAME> · SOURCE_SERVER_GROUP is the name of the server group from which you want to remove the application. · DESTINATION_SERVER_GROUP is the server group that want to move the application to. · APPLICATION_NAME is the name of the application that want to move from the current server group to another server group. For example, to move the ICEAAA application from firstServerGrp to secondServerGrp, type the following text: moveApplication.pl -s firstServerGrp -d secondServerGrp -a ICEAAA
RELATED DOCUMENTATION Uninstalling a Junos Space Application | 1398
Managing Junos Space Applications
IN THIS SECTION Viewing Detailed Information About Junos Space Platform and Applications | 1337 Performing Actions on Junos Space Platform and Applications | 1338
1337
You can manage Junos Space Network Management Platform and Junos Space applications from the Applications page (Administration > Applications). All Junos Space applications that you have uploaded and installed appear on the Applications page. You must have Super Administrator or System Administrator privileges to manage Junos Space Platform and Junos Space applications.
From the Applications page, you can perform actions on Junos Space hot-pluggable applications, such as installation, upgrading, and uninstallation, while Junos Space Platform is still running.
This topic contains the following sections:
Viewing Detailed Information About Junos Space Platform and Applications
Table 165 describes the information displayed in table columns for Junos Space Platform and each Junos Space application on the Applications page.
Table 165: Application Information
Application Information Description
Title
Name of the Junos Space application; for Junos Space Platform, Network Management Platform is displayed.
Version
Version number of Junos Space Platform or Junos Space application
Release Type
Release type of Junos Space Platform or the Junos Space application; for example, R1.
Build
Build number of Junos Space Platform or the Junos Space application
Server Group
Server group to which the application belongs. For more information on server group, see "Running Applications in Separate Server Instances" on page 1332.
By default, all applications belong to the platform server group unless you added an application to another server group. For more information about adding an application to a server group, see "Adding a Junos Space Application" on page 1366.
1338
Performing Actions on Junos Space Platform and Applications
You can perform the following actions on the Junos Space applications from the Actions menu. You must first select an application before you can perform an action on it from the Actions menu. You can also right-click an application to perform these actions. · Modify Application Settings--See "Modifying Settings of Junos Space Applications" on page 1339 and
"Modifying Junos Space Network Management Platform Settings" on page 1340. · Refresh Search Index--Click to refresh the search index to keep it current with the changes made to the
database. By default, the search index is refreshed every five seconds. You can modify this duration from Administration > Applications > Network Management Platform > Modify Application Settings > Search > Index auto update interval in seconds. You are prompted to confirm that you want to refresh the search index. Click OK to confirm. · Manage Services--See "Starting, Stopping, and Restarting Services" on page 932. · Upgrade Platform--See "Upgrading Junos Space Network Management Platform" on page 1372.
NOTE: This action is available for Junos Space Platform only.
· Upgrade Application--See "Upgrading a Junos Space Application" on page 1370. · Uninstall Application--See "Uninstalling a Junos Space Application" on page 1398. · Delete Private Tags--Delete private tags; that is, delete tags that you created. · Tag It--See "Tagging an Object" on page 1518. · Untag It--"Untagging Objects" on page 1519. · View Tags--See "Viewing Tags for a Managed Object" on page 1524.
RELATED DOCUMENTATION Managing Junos Space Applications Overview | 1321 Junos Space Store Overview | 1326 Configuring and Managing Junos Space Store | 1327 Running Applications in Separate Server Instances | 1332 Upgrading Junos Space Network Management Platform Overview | 1323
1339
Modifying Settings of Junos Space Applications
As the Super Administrator or System Administrator, you can modify the settings of installed Junos Space applications.
NOTE: For information on how to modify the settings of Junos Space Network Management Platform, refer to "Modifying Junos Space Network Management Platform Settings" on page 1340.
To modify the settings of a Junos Space application: 1. On the Junos Space Platform UI, select Administration > Applications.
The Applications page is displayed with the list of installed Junos Space applications. 2. Select the Junos Space application whose settings you want to modify.
NOTE: You cannot modify the application settings for Junos Space Service Now and Junos Space Service Insight
3. Select Modify Application Settings from the Actions menu or the shortcut menu. The settings page for the Junos Space application that you selected is displayed. For more information on modifying settings for a Junos Space application, refer to the documentation for that Junos Space application.
NOTE: You cannot modify the application settings if another user is currently modifying the application settings. You receive a pop-up message indicating the user who is currently modifying the application settings.
RELATED DOCUMENTATION Managing Junos Space Applications Overview | 1321 Managing Junos Space Applications | 1337 Uninstalling a Junos Space Application | 1398 Upgrading a Junos Space Application | 1370
1340
Modifying Junos Space Network Management Platform Settings
As the Super Administrator or System Administrator, you can modify the settings of Junos Space Network Management Platform. To modify the settings of Junos Space Platform: 1. On the Junos Space Platform UI, select Administration > Applications.
The Applications page is displayed.
2. Select Network Management Platform.
3. Select Modify Application Settings from the Actions menu or right-click Network Management Platform and select Modify Application Settings. The Modify Application Settings (Modify Network Management Platform Settings) page is displayed and the Device section is selected by default.
NOTE: · You cannot modify the application settings if another user is currently modifying the
application settings. You receive a pop-up message indicating the user who is currently modifying the application settings. · For the Junos Space Platform settings that have numerical values, the label [Default] is displayed to the right of the text box if the value is the system default. · In each section of the Modify Application Settings (Modify Network Management Platform Settings) page, the settings that you modified are automatically saved from Junos Space Network Management Platform Release 17.1R1 onward. The settings are saved only temporarily so that you can change the settings in other sections. To save the settings across sections, you must explicitly click the Modify button; for more information, see 15.
4. (Optional) Modify the settings related to the devices, as shown in Table 166.
1341
Table 166: Device Settings
Field
Description
Add SNMP configuration to device for fault monitoring
This check box is selected by default, which ensures that the SNMP target for the devices that are discovered from Junos Space Platform is set to the Junos Space VIP node. This configuration enables these devices to send their SNMP traps to the Junos Space VIP node.
If you clear the check box, then SNMP trap targets are not set for the devices that are newly added in Junos Space Platform. The devices whose SNMP trap targets are not set do not send their SNMP traps to the Junos Space VIP node.
Allow Best Match Schema This check box enables the discovered devices to be aired with the best matching schema when the exact match for the device is not available.
Allow Device Communication
This check box enables discovered devices to communicate with the Junos Space server. If the check box is cleared, the discovered devices cannot communicate with the Junos Space server.
Allow users to auto log in to devices using SSH
This check box allows users to automatically log in when starting an SSH connection on a device. The default (check box is cleared) indicates that you have to add your credentials to log in to a device using SSH.
Auto resync device
This check box ensures that when the network is the system of record, configuration changes on a connected Juniper Networks device are synchronized with or imported to the application database. By default, this check box is selected.
Configure commit synchronize during device discovery
This check box ensures that for either system of record, configuration changes in Junos Space Platform for a device are pushed, committed, and synchronized during device discovery. By default, this check box is selected.
1342
Table 166: Device Settings (continued)
Field
Description
Disable network monitoring for all devices
This check box determines whether Network Monitoring is used to monitor only Junos Space fabric nodes (check box is cleared) or both Junos Space fabric nodes and devices (check box is selected):
NOTE: This check box is cleared by default.
1. If the Disable network monitoring for all devices check box is selected, then during device discovery Junos Space Platform does not push SNMP trap targets to devices or add devices into Network Monitoring. In addition, if a Resync Nodes job is triggered, Junos Space Platform removes devices that are already present in Network Monitoring and removes the trap target settings that were previously set on the devices. In addition, Junos Space Platform does not synchronize additional devices with the Network Monitoring workspace.
2. If the Disable network monitoring for all devices check box is cleared, Junos Space Platform does the following:
· Pushes the SNMP trap targets to the devices during the discovery of new devices if the Add SNMP configuration to device for fault monitoring check box is selected If the Add SNMP configuration to device for fault monitoring check box is cleared, then the SNMP trap targets are not pushed to the devices.
· Adds the device into Network Monitoring during the discovery of new devices
NOTE: For devices that are added to Junos Space Platform before the Disable network monitoring for all devices check box is cleared, you must initiate a manual device resynchronization to add the devices into Network Monitoring.
3. If the Disable network monitoring for all devices check box was previously cleared and is changed to selected, then you must trigger a manual device resynchronization so that Junos Space Platform removes the devices from Network Monitoring. The rest of the behavior is the same as explained in the first step.
System of Record Settings This setting enables you to specify whether the network is the system of record (NSOR, which is the default) or whether Junos Space Platform is the system of record (SSOR).
NOTE: Resynchronization choices on this page apply only to NSOR.
Enable approval workflow for configuration deployment
This option is for a candidate configuration (previously known as consolidated configuration) and lets a user deploy any configuration changes made from Junos Space Platform on to a device only on approval. By default, this check box is selected. By clearing this check box, you can deploy the configuration directly without approval.
1343
Table 166: Device Settings (continued)
Field
Description
Enable commit confirmed for configuration deployment
Specify that the device waits for a specified time for the configuration to be explicitly committed when a commit configuration request is sent from Junos Space Platform. The default wait time is 10 minutes.
This check box is cleared by default.
Junos Space initiates connection to device
This check box is selected by default, so Junos Space Platform initiates a connection with managed devices. To have managed devices initiate a connection with Junos Space Platform, clear this check box.
Looking Glass Device response timeout in secs
Specify a timeout interval for devices on which the looking glass feature is applied. Junos Space Platform waits until the specified timeout interval for a response has lapsed and if there is no response, the request is timed out.
The minimum timeout interval is 30 seconds, the maximum is 600 seconds, and the default is 120 seconds.
Max auto resync waiting time secs
This field specifies the initial time within which device configuration changes are synchronized with the database. If multiple commit logs are received from devices, Junos Space waits for this time interval to lapse before the resynchronization of the device configuration is initiated.
The default waiting time is 20 seconds. This setting is applicable only when the network is the system of record.
Number of devices to connect per minute for Space Initiated Connection
This parameter enables you to control the number of devices connecting with Junos Space Platform. The default number of devices allowed to connect per minute in connections initiated by Junos Space Platform is 500 devices and the maximum number of devices is 1000. If Junos Space Platform connects to too many devices simultaneously, the performance of the network is weakened.
Polling time period secs
This setting is for specifying the interval at which to poll the configuration of devices that do not support system logging (non-Junos OS devices). Junos Space Platform polls and compares the configuration it has with that of the device at the interval set here. If there is a difference, it is reported. If the network is the system of record, Junos Space Platform synchronizes its configuration with that on the device. The default is 900 seconds.
SSH port for device connection
This field specifies the SSH port on the device. Junos Space Platform uses this port to discover devices. The default value, 22, is the standard SSH server port.
1344
Table 166: Device Settings (continued)
Field
Description
Enable abort rpc call for timed out sessions
Enabling this option calls <abort/> rpc for timed out NETCONF sessions. If this option is not enabled, <close-session/> rpc is used to close all NETCONF sessions. The difference in behavior applies only to timed out or terminated sessions.
Manually Resolve Fingerprint Conflict
When a fingerprint conflict occurs during device reconnection or when a user connects to a device by using the secure console or SSH, Junos Space Platform allows the user to resolve a fingerprint conflict manually or resolves the conflict automatically.
This check box is selected by default, which means that the user must resolve the fingerprint conflict manually. If the check box is cleared, Junos Space Platform resolves the fingerprint conflict automatically by accepting the fingerprint that is presented during authentication.
NOTE: If Junos Space Platform maintains an active connection with a device, the change in the device fingerprint is not recognized by Junos Space Platform. Fingerprint changes on devices are recognized when the devices reconnect with Junos Space.
Support WW Junos Devices
Select this check box to enable support for devices running worldwide Junos OS (ww Junos OS devices) and clear the check box to disable support for ww Junos OS devices.
This check box is cleared by default.
Device Outage Detection Time in seconds
This field specifies the time needed for detecting a device outage. Default value : 180 seconds
Min value: 90 seconds
Max value: 900 seconds
5. (Optional) Click the User hyperlink (on the left of the page) to modify the settings related to users, as shown in Table 167.
1345
Table 167: User Settings
Field
Description
Automatic logout after inactivity (minutes)
Specify the time, in minutes, after which a user who is idle (that is, has not performed any action such as pressing a key or clicking a mouse) is automatically logged out of Junos Space Platform. This setting conserves server resources and protects the system from unauthorized access.
The default value for this setting is five minutes. From Release 17.1R1 onward, you can set a value of up to 480 minutes. If you set the configuration to Never, the idle time out is disabled and the user is never logged out of Junos Space Platform due to inactivity.
NOTE: From Release 17.1R1 onward, you can override this setting by specifying a user-specific value when you create or modify a user account.
Disable inactive user after time period (Days)
Specify the number of days after which a user who is inactive (a user who has not performed any action such as pressing a key or clicking the mouse) is automatically disabled in Junos Space Platform. The Disable inactive user after time period (Days) setting is available from Release 16.1R1 onward. This setting protects the system from unauthorized access. A user who is disabled cannot log in to Junos Space Platform. To enable the user to log in again, use the Enable Users action on the User Accounts page of the Role-Based Access Control workspace.
By default, the time period is set to Never, which means the user is never disabled because of inactivity. You can choose a period of up to 120 days to permit a user to be inactive, after which the user is disabled.
If an SMTP server and the user's e-mail address are configured, an e-mail notification about account disabling is sent to the user 2448 hours before the user account is disabled.
Maximum concurrent Specify the number of concurrent user sessions allowed per user for GUI login at the global UI sessions per user level (that is, for all users).
The default value is 5. You can enter a value from 0 (zero) through 999. Entering 0 (zero) means that there are no restrictions on the number of concurrent UI sessions allowed per user. However, the system performance may be affected if you allow unlimited concurrent UI sessions.
NOTE: · If you are a super user, this concurrent user session limit does not apply and you are allowed
to log in even when you have exceeded this limit. · The changes that you make to the concurrent UI sessions limit (either at the global level
or at the user level) do not affect existing sessions; this limit is validated against the next user login only.
UI auto refresh interval in seconds
Specify the time, in seconds, after which the Junos Space GUI is refreshed automatically. The default value is 3 seconds.
1346
Table 167: User Settings (continued)
Field
Description
Use User Password Auth Mode choices
· Use User Password Auth Mode--Select this option, which is the default, if you want the Junos Space server to authenticate the user on the basis of username and password entered by the user.
· Use X509 Certificate Complete Certificate--Select this option if you want the Junos Space server to authenticate the user on the basis of the certificate of the user.
· Use X509 Certificate Parameters--Select this option if you want the Junos Space server to authenticate the user on the basis of the X.509 certificate parameters.
For more information about changing authentication modes, refer to "Changing User Authentication Modes" on page 1426.
NOTE: If you change the authentication mode from password-based to certificate-based by using the Use X509 Certificate Complete Certificate option without uploading appropriate certificates or from certificate-based to certificate parameterbased by using the Use X509 Certificate Parameters option without adding and activating the parameters, an error message is displayed in a pop-up window. Click OK to close the pop-up window.
6. (Optional) Click the Password hyperlink (on the left of the page) to modify the settings related to password rules, as shown in Table 168.
NOTE: You click the User Settings icon on the Junos Space banner (see "Changing Your Password on Junos Space" on page 176) to change your password, but the constraints that govern the password are set on the Modify Application Settings (Modify Network Management Platform Settings) page.
Table 168: Password Settings
Field
Description
Advanced Settings
To view or configure advanced password settings, click the view/configure hyperlink. You are taken to the Password > Advanced Settings section. Refer to step a for details.
Minimum no. of characters Specify the minimum number of characters that a password must contain. The minimum value for this field is 6 (the default) and the maximum value is 999.
1347
Table 168: Password Settings (continued)
Field
Description
No. of previous passwords cannot be reused
Specify the number of previous passwords that cannot be reused when users change their passwords. For example, if you enter 10, users cannot reuse any of their previous 10 Junos Space Platform passwords.
The range is 0 (zero) through 999 and the default is 6; 0 (zero) indicates that there is no restriction on password reuse.
No. of unsuccessful attempts before lockout
Specify the number of successive attempts after which Junos Space Platform locks out users who enter incorrect passwords. Junos Space Platform identifies users by their IP addresses, so that even if users have exceeded the limit for incorrect passwords on one system they can try to log in again from a different system.
The range is 0 (zero) through 999 and the default is 4; 0 (zero) means that users are not locked out due to login failures.
NOTE: This verification applies only to users who are in the Junos Space Platform database. It does not work with RADIUS and TACACS+ server authentication.
Time interval for lockout in hours
Specify the interval (in hours) for which a user who has entered incorrect passwords more than the number of times specified in No. of unsuccessful attempts before lockout is locked out.
The range is 0 (zero) through 999 and the default is 12 (hours); 0 (zero) means that users are never locked out.
NOTE: You can unlock a locked-out user at any time (see "Disabling and Enabling Users" on page 1051).
Time interval for password Specify the duration (in months) after which passwords of all the locally authenticated
expiry in months
Junos Space Platform users expire.
The range is 0 (zero) through 999 and the default is 3; 0 (zero) means that the passwords never expire.
NOTE: · This configuration does not have any impact on the RADIUS or TACACS+
serverauthenticated users.
· If you upgrade to Junos Space Release 13.1 or later, the password expiry time of the existing local users remain as is until the users modify their passwords or you change the value in this field.
1348
Table 168: Password Settings (continued)
Field
Description
Time interval for password expiry notification in months
Specify the number of months in advance that users are warned that their passwords will expire. For example, if you enter 2, users receive a notification two months before their current passwords expire.
The range is 0 (zero) through 999 and the default is 1 (month). Make sure that the value you enter here is less than or equal to the value in the Time interval for password expiry in months field.
1349
a. (Optional) Modify the fields related to advanced password settings as explained in Table 169. Table 169: Advanced Password Settings
Field
Description
At least one lowercase character Specify whether at least one lowercase letter is required in the password. This check box is selected by default.
At least one number not in the last position
Specify that the password must contain at least one number and that a number cannot be the last character of the password. This check box is selected by default.
When this check box is selected, a password that contains a number as the last character is not allowed.
At least one special character not in the last position
Specify that the password must contain at least one special character (non-alphanumeric character) and that a special character cannot be the last character of the password. This check box is selected by default.
When this check box is selected, a password that contains a special character as the last character is not allowed.
At least one uppercase character Specify whether at least one uppercase letter is required in the password. This check box is disabled by default.
No more than three repetitive characters
Specify that a password should not contain the same character repeated more than three times in succession; for example, Exam333pl3e and E3x3a3m3ple are valid passwords, whereas Exam3333ple is not.
This check box is selected by default.
Not repeat of the user ID
Specify that the username should not be part of the password. This check box is selected by default.
Not reverse of the user ID
Specify that the username in reverse should not be a part of the password. This check box is selected by default.
7. (Optional) Click the Domain hyperlink (on the left of the page) to modify the settings related to domains, as shown in Table 170.
1350
Table 170: Domain Settings Field
Description
Enable users to manage objects from all allowed domains in aggregated view
Specify whether a user can view and manage all objects from all domains to which the user is assigned (check box is selected) or not (check box is cleared, which is the default). For example, when this check box is selected, a user can stage a script belonging to one domain to a device in another domain.
A user can override this configuration by setting the preference from the User Settings configuration section.
Enable option to manage read/execute access to parent domain objects at time of domain creation
Specify whether users with access to a child domain object can access objects belonging to the parent domain (check box is selected) or not (check box is cleared, which is the default).
When this check box is selected, a user with access to child domain objects can perform read and execute actions on parent domain objects. The following objects are accessible:
· Device templates and template definitions · CLI Configlets, Configuration Views, and XPath and regular expressions · Images, scripts, operations, and script bundles · Reports and report definitions
8. (Optional) Click the Audit Log hyperlink (on the left of the page) to modify the settings related to audit logs, as shown in Table 171.
Table 171: Audit Log Settings
Field
Description
Audit log forwarding interval Enter the time interval based on which audit logs will be forwarded according to the
in minutes
audit log forwarding criteria that are configured and enabled.
The default time interval for audit log forwarding is 60 minutes.
Log successful audit log forwarding
Select this check box for successful audit log forwarding to be logged.
NOTE: For more information about forwarding audit logs, see "Audit Log Forwarding in Junos Space Overview" on page 1484.
1351
Table 171: Audit Log Settings (continued)
Field
Description
Record HTTP GET method
Select this check box if you want all API GET calls to be logged in the audit log. By default, this check box is cleared.
NOTE: If this check box is selected, only API GET calls invoked from external scripts are logged; API GET calls originating from the Junos Space Platform user interface or Junos Space applications are never logged.
9. (Optional) Click the Search hyperlink (on the left of the page) to modify the settings related to search, as shown in Table 172.
Table 172: Search Settings
Field
Description
Index auto update interval in seconds
Specify the interval (in seconds) for automatic updates to the index.
The default is five seconds, which means that for every five seconds the system automatically checks whether there are any new changes in the database that need to be indexed.
Index page interval in hours
Specify the index page interval in hours. The default is two hours.
This field determines the interval at which Junos Space Platform reindexes objects in the database. For example, if you specified the index page interval as three hours on 23-Dec-2014 at 4:00 PM (current date and time) and that the last indexing was completed at 1:00 PM on 22-Dec-2014, because the last indexing was performed more than three hours ago, Junos Space Platform indexes objects from 1:00 PM on 22-Dec-2014 to 4:00 PM on 22-Dec-2014 and marks the last index date and time as 22-Dec-2014 4:00 PM. This process is repeated for the specified index page interval--3 hours in this example--until all the objects are indexed.
If there is no last index time present in the database, Junos Space Platform uses the date and time of the database creation as the last index time.
Pause indexing during Specify whether indexing should be paused during device import (check box is selected,
device import
which is the default) or not (check box is cleared).
If you have to discover a large number of devices (for example, in the range of thousands), this setting speeds up the device discovery by approximately 10%.
10. (Optional) Click the CLIConfiglets hyperlink (on the left of the page) to modify the settings related to CLI Configlets, as shown in Table 173.
1352
Table 173: CLI Configlet Settings
Field
Description
Advanced XPath Processing
If this check box is selected, whenever you trigger an action on a device that requires BaseX support, the BaseX database is populated for that device across the Junos Space nodes. Any resynchronization or discovery triggered after the configuration is enabled is handled.
If this check box is cleared (default), then the BaseX database is not used.
Enable Approval Workflow for Configlets
If this check box is selected, the configuration changes through CLI Configlets for devices are displayed in the Change Summary tab on the Review/Deploy Configuration page in the Devices workspace. You can exclude, include, approve, reject, or delete the changes through CLI Configlets (displayed in curly-braces format) before deploying the configuration changes on the device.
If you select this check box, the Apply CLI Configlets workflows in the Devices and CLI Configlets workspace display a Submit button.
If this check box is cleared (default), the Submit button is not displayed in the Apply Configlet workflows (in the Devices and CLI Configlets workspaces) and you cannot submit the configuration changes through CLI Configlets. You must apply the CLI Configlets in the Apply Configlet workflows to deploy the configuration changes through CLI Configlets.
11. (Optional) Click the RESTAPI hyperlink (on the left of the page) to modify the settings related to REST APIs, as shown in Table 174.
Table 174: REST API Settings
Field
Description
Include detailed results in job completion response
This setting affects how detailed job results data is returned by a hornet-q poll API when a Junos Space job or a "'Long Running Request" is completed. The job results data is always returned in the last hornet-q progress-update response message that has the <state> element set to "DONE" and the <percentage> set to "100.0"'.
If this check box is selected, the last progress-update response returns detailed results in the <data> element. If this check box is cleared (default), the last progress-update response returns the detailed results in an href attribute of the <detail-link> element along with the type attribute containing the media-type name of the custom job detail.
NOTE: This setting applies only to those jobs that support "detail-link" reporting (currently, the /api/space/script-management and /api/space/configlet-management jobs).
For other jobs that do not support "detail-link" reporting, the last progress-update response returns detailed results in the <data> element or returns the <data> element as "No Result Data Available". In both cases, the <summary> element contains the summary of job results.
1353
12. (Optional) Click the Security hyperlink (on the left of the page) to modify the settings related to HTTPS access to Junos Space Platform through Web browsers or other HTTP clients, as shown in Table 175.
Table 175: Security Settings
Field
Description
Disable weak algorithms for WEB or API access
1354
1355
Table 175: Security Settings (continued)
Field
Description
This setting affects the type of key exchange, encryption, authentication, and MAC digest algorithms used for HTTPS access to Junos Space Platform through Web browsers and API clients. By default, this check box is not selected.
If this check box is selected, only Transport Layer Security (TLS) version 1.2 protocolcompliant Web or API clients can access Junos Space. The TLS 1.2 algorithm is available from Release 16.1R1 onward. Table 176 lists TLS version 1.2 algorithms that are supported for HTTPS access when weak algorithms are disabled.
One of the following cipher suites is configured on the Apache Web server depending on whether the corresponding check box is selected or cleared:
· ECDHE-RSA-AES256-GCM-SHA384 · ECDHE-ECDSA-AES256-GCM-SHA384 · ECDHE-RSA-AES256-SHA384 · ECDHE-ECDSA-AES256-SHA384 · DHE-DSS-AES256-GCM-SHA384 · DHE-RSA-AES256-GCM-SHA384 · DHE-RSA-AES256-SHA256 · DHE-DSS-AES256-SHA256 · ECDH-RSA-AES256-GCM-SHA384 · ECDH-ECDSA-AES256-GCM-SHA384 · ECDH-RSA-AES256-SHA384 · ECDH-ECDSA-AES256-SHA384 · AES256-GCM-SHA384 · AES256-SHA256 · ECDHE-RSA-AES128-GCM-SHA256 · ECDHE-ECDSA-AES128-GCM-SHA256 · ECDHE-RSA-AES128-SHA256 · ECDHE-ECDSA-AES128-SHA256 · DHE-DSS-AES128-GCM-SHA256 · DHE-RSA-AES128-GCM-SHA256 · DHE-RSA-AES128-SHA256 · DHE-DSS-AES128-SHA256 · ECDH-RSA-AES128-GCM-SHA256 · ECDH-ECDSA-AES128-GCM-SHA256 · ECDH-RSA-AES128-SHA256 · ECDH-ECDSA-AES128-SHA256
1356
Table 175: Security Settings (continued)
Field
Description
· AES128-GCM-SHA256 · AES128-SHA256 If this check box is cleared, only the TLS version 1.1 protocolcompliant Web and API clients can access Junos Space.
NOTE: You can enable or disable weak algorithms only if all load balancers are in the UP state. When you enable or disable weak algorithms, a warning message is sent to all user sessions, the user sessions are stopped, and the users are logged out.
Table 176: Supported TLS Version 1.2 Algorithms for HTTPS Access When Weak Algorithms Are Disabled
Encrypted Connection
Details
MAC
ECDHE-RSA-AES256-GCM-SHA384 TLSv1.2 Kx=ECDH Au=RSA Enc=AESGCM(256)
Mac=AEAD
ECDHE-RSA-AES256-SHA384
TLSv1.2 Kx=ECDH Au=RSA Enc=AES(256)
Mac=SHA384
DHE-RSA-AES256-GCM-SHA384
TLSv1.2 Kx=DH Au=RSA Enc=AESGCM(256)
Mac=AEAD
DHE-RSA-AES256-SHA256
TLSv1.2 Kx=DH Au=RSA Enc=AES(256)
Mac=SHA256
AES256-GCM-SHA384
TLSv1.2 Kx=RSA Au=RSA Enc=AESGCM(256)
Mac=AEAD
AES256-SHA256
TLSv1.2 Kx=RSA Au=RSA Enc=AES(256)
Mac=SHA256
ECDHE-RSA-AES128-GCM-SHA256 TLSv1.2 Kx=ECDH Au=RSA Enc=AESGCM(128)
Mac=AEAD
ECDHE-RSA-AES128-SHA256
TLSv1.2 Kx=ECDH Au=RSA Enc=AES(128)
Mac=SHA256
1357
Table 176: Supported TLS Version 1.2 Algorithms for HTTPS Access When Weak Algorithms Are Disabled (continued)
Encrypted Connection
Details
MAC
DHE-RSA-AES128-GCM-SHA256
TLSv1.2 Kx=DH Au=RSA Enc=AESGCM(128)
Mac=AEAD
AES128-GCM-SHA256
TLSv1.2 Kx=RSA Au=RSA Enc=AESGCM(128)
Mac=AEAD
AES128-SHA256
TLSv1.2 Kx=RSA Au=RSA Enc=AES(128)
Mac=SHA256
13. (Optional) Click the HealthMonitoring hyperlink (on the left of the page) to modify the health monitoring settings related to the System Health Report displayed on the Administration statistics page, as shown in Table 177.
Table 177: Health Monitoring Settings
Field
Description
Enable File System Intrusion Detection Monitoring
Select this check box to enable file integrity check. For more information, see "Managing File Integrity Check" on page 1361.
Interval for monitoring the File Changes in hours
Specify the time interval at which Junos Space Platform should run file integrity check. You can enter a value in hours. By default, this is set to 24 hours. For more information, see "Managing File Integrity Check" on page 1361
Interval for monitoring CPU counters update in minutes
Specify the difference in minutes between the time when the overall load on a Junos Space node and CPU resources shared by processes on the node was last calculated and the system time.
Range: One through 120 minutes
Default: Two minutes
Interval for monitoring device management session in minutes
Specify an interval in minutes to execute the netstat -anlp | awk '{print $5}' | grep ":22" | wc l command to calculate the device management SSH sessions established between a Junos Space node and the managed devices connected to that node.
Range: 10 through 120 minutes
Default: 30 minutes
1358
Table 177: Health Monitoring Settings (continued)
Field
Description
Device Management Sessions Monitoring Threshold
Specify the tolerance level up to which the difference in the number of device management SSH sessions calculated by using the netstat -anlp | awk '{print $5}' | grep ":22" | wc l command (Number of Devices column) and the number of device management SSH sessions as listed in the Junos Space database (Console Count column) is accepted.
When this difference exceeds the specified tolerance level, the Management sessions are mismatched with UI data parameter in the System Health Report displays a red "No".
Range: 0 (zero) through 1000
Default: 10
Disk Utilization Threshold Value in Specify a percentage of hard disk drive free space above which the usage is
percentage
considered to be higher than normal usage.
Range: 30% through 100%
Default: 50%
High CPU Threshold Value in percentage
Specify a percentage of CPU resource usage above which the usage is considered to be higher than normal usage.
Range: 30% through 100%
Default: 50%
Extended Period for High CPU in minutes
Specify an interval in minutes above which a higher-than-average usage of CPU resources must be reported.
Range: 10 through 120 minutes
Default: 30 minutes
Interval for monitoring HPROF file Specify an interval in hours to detect and log the Heap and CPU Profiling Agent
in hour
(HPROF) files on all Junos Space nodes in the Junos Space fabric.
Range: One through 240 hours
Default: One hour
1359
Table 177: Health Monitoring Settings (continued)
Field
Description
Interval for monitoring large database in hour
Specify an interval in hours to detect and log MySQL database tables exceeding 10 GB.
Range: One through 240 hours
Default: One hour
Purge Health Data Older than in Month
Specify an interval in months to purge health-related data such as high CPU usage data in the server.log files.
Range: One through 12 months
Default: One month
14. (Optional) Click the X509-Certificate-Parameters hyperlink (on the left of the page) to add the X.509 certificate parameters that are validated during certificate parameterbased authentication.
The right of the page displays the X.509 certificate parameters, as shown in Table 178.
You can specify the parameters that are validated when a user logs in. The values for these parameters can be specified when you create the user in the Role Based Access Control workspace. For more information, see "Creating Users in Junos Space Network Management Platform" on page 1035.
Table 178: X509 Certificate Parameter (Variable) Details
Column
Description
Comments
Comments about the X.509 certificate parameter Click the view/configure hyperlink to add comments.
Admin Status
Status of the parameter: active or inactive
Certificate Parameter
Name of the X.509 certificate parameter
Parameter Display Name
Description of the X.509 certificate parameter
For more information about adding, deleting, modifying, and reordering the parameters, see "Adding and Activating X.509 Certificate Parameters for X.509 Certificate Parameter Authentication" on page 1443.
15. After you have modified the settings, you can do one of the following: · Save the changes by clicking the Modify button.
1360
The Change Summary pop-up window displays the summary of the settings you modified. It also displays warnings, if any, regarding the changed settings. Click the Confirm button to save the changes. Alternatively, you can click the Cancel button to discard the modifications.
The settings that you modified are saved and you are taken back to the Applications page.
· Discard the changes by clicking the Cancel button. The changes you made are discarded and you are taken back to the Applications page.
For troubleshooting, see the /var/log/jboss/servers/server1/server.log file, which captures any internal errors, and the audit logs.
Release History Table
Release
Description
17.1R1
In each section of the Modify Application Settings (Modify Network Management Platform Settings) page, the settings that you modified are automatically saved from Junos Space Network Management Platform Release 17.1R1 onward.
17.1R1
From Release 17.1R1 onward, you can set a value of up to 480 minutes.
17.1R1
From Release 17.1R1 onward, you can override this setting by specifying a user-specific value when you create or modify a user account.
16.1R1
The Disable inactive user after time period (Days) setting is available from Release 16.1R1 onward.
16.1R1
The TLS 1.2 algorithm is available from Release 16.1R1 onward.
RELATED DOCUMENTATION
Modifying Settings of Junos Space Applications | 1339 Worldwide Junos OS Adapter Overview | 370 Systems of Record in Junos Space Overview | 213 Creating Users in Junos Space Network Management Platform | 1035
Managing File Integrity Check
IN THIS SECTION Configuring File Integrity Check | 1361 Manually Checking File Integrity | 1362
1361
The AIDE (Advanced Intrusion Detection Environment) file and directory integrity checker is supported in Junos Space Platform. AIDE enables you to take snapshots of all the configuration files, binaries, and library statistics and to find out the changes to files or binaries if a security breach occurs. From Release 17.2R1 onward, Junos Space Platform provides you an option to enable AIDE checks from the Junos Space Platform user interface.
When the file integrity check is enabled, Junos Space Platform takes a snapshot of the files in the system and checks the files for any modifications at specified intervals. Administrators are notified of changes to the files through SNMP traps.
When the file integrity check is enabled, Junos Space Platform shows the status of the file integrity check in the System Health Report in the Administration workspace. The File Integrity Check Failed item shows No or Yes values and provides a Click link to see the details. You can also manually do a file integrity check from the Administration > Fabric page by selecting a node and clicking the Check for File Integrity option in the right-click menu.
This topic explains the following tasks:
Configuring File Integrity Check
You can enable file integrity check and specify an interval for the file integrity check from the Junos Space Platform user interface.
To configure file integrity check:
1. From the Junos Space Platform user interface, go to Administration > Applications.
2. Select Network Management Platform and click Modify Application Settings from the Actions menu or the right-click menu. The Modify Network Management Platform Settings page appears.
3. Click Health Monitoring from the left pane.
1362
The Health Monitoring page appears. 4. To enable file integrity check, select the Enable File System Intrusion Detection Monitoring check box.
NOTE: You can edit the AIDE configuration file (/etc/aide.conf) from the Junos Space Platform CLI to modify the list of files or directories to monitor.
5. To specify the time interval at which Junos Space Platform should run file integrity check, enter a value (in hours) for Interval for monitoring the File Changes in hours. By default, Interval for monitoring the File Changes in hours is set to 24 hours.
6. Click Modify to save the settings. To discard the changes, click Cancel.
Manually Checking File Integrity You can manually initiate a file integrity check from the Junos Space Platform user interface. From the AIDE File integrity results dialog box, you can review the changes and acknowledge the changes. To manually initiate a file integrity check: 1. From the Junos Space Platform user interface, click Administration > Fabric. 2. Select the node for which you want to do the file integrity check and select Check For File Integrity
from the Actions menu or the right-click menu. The AIDE File integrity results dialog box displays the file integrity check results including total number of files, added files, removed files, and changed files. 3. If you accept the changes, click Acknowledge. If you do not want to accept the changes, click Close to close the dialog box. Alternatively, click Check Now to rerun the file integrity check.
RELATED DOCUMENTATION Modifying Junos Space Network Management Platform Settings | 1340
1363
Starting, Stopping, and Restarting Services
This topic describes how to start, stop, and restart Network Monitoring (that is, the network monitoring services). Currently, Network Monitoring is the only service that can be managed this way.
Service management operations--start, stop, restart--are applied on all the nodes that run the service.
The service management actions generate audit log entries.
The Super Administrator and System Administrator predefined roles have the permissions to manage services; the corresponding action is Manage Services. If a user does not have a role that includes this action, the Manage Services option is not available.
The following table describes the consequences of performing these three actions:
Table 179: Starting, Stopping, and Restarting Network Monitoring
Action
Consequences
Stop
Network Monitoring service is stopped on all nodes.
Even if VIP failover is performed, service remains stopped on all nodes.
The synchronization of network monitoring data is disabled.
Even after adding a new node, the network monitoring service remains stopped.
Rebooting Junos Space Network Management Platform does not restart a service.
Start, Restart
Network Monitoring service starts only on the VIP node.
All the devices displayed on the Devices page are discovered by the network monitoring functionality. The SNMP trap targets are correct.
All the users displayed on the Users page are added to network monitoring.
E-mail and remote server settings are added to network monitoring.
All Junos Space nodes are monitored by the network monitoring functionality.
The service continues to be operational even if Junos Space Network Management Platform is rebooted.
Start, Stop, Restart when no service is selected
An error message is displayed: No service selected.
1364
NOTE: The following firewall ports should be closed on stopping the network monitoring service:
· UDP · 162 · 514 · 5813
· TCP · 5813 · 18980
NOTE: Any devices added while the Network Monitoring service is stopped must be manually resynchronized from the Network Monitoring workspace after the service is restarted.
To start, stop, or restart network monitoring services: 1. Select Administration > Applications.
The Applications inventory page appears.
2. Select Network Management Platform and select Manage Services from the Actions menu.
The Manage Services page appears, showing the names of the services that can be managed this way (currently, Network Monitoring is the only item on this list), and the Start, Stop, and Restart buttons, as well as a table displaying the following information:
Column Heading
Content
Service Name
Name of service that can be started, stopped or restarted
Running Version
Version of the service that is currently running
Status
Current status: Enabled or Disabled
3. Select Network Monitoring from the list, and select the relevant button for a currently enabled service: Start Service, Restart Service, or Stop Service. One of four messages appears: · If you select a service that is currently running, then select Stop Service, you will receive this message:
1365
Confirm Stop Service: Do you really want to stop the service? · If you select a service that has been disabled, then select Restart Service, you will receive this message:
Warning: Sorry, cannot proceed with the request, as the Service is not in Enabled state. · If you select a service that has been disabled, then select Start Service, you will receive this message:
Warning: Sorry, Network Monitoring cannot be started once it is stopped. · If you select a service that has been disabled, then select Stop Service, you will receive this message:
Warning: Sorry, cannot proceed with the request, as the Service is already in Disabled state. 4. In all cases, you can click only OK. You first receive a message indicating that the relevant action is being performed. This is followed by a second status message indicating whether the operation you performed was successful or not. 5. Click OK to confirm. The Manage Services page reappears, displaying the changed status of the selected service.
RELATED DOCUMENTATION Managing Junos Space Applications Overview | 1321 Managing and Unmanaging Interfaces and Services | 932 Network Monitoring Workspace Overview | 798 Junos Space Audit Logs Overview | 1115 Role-Based Access Control Overview | 995
Adding a Junos Space Application
IN THIS SECTION Uploading the Junos Space Application | 1366 Installing the Uploaded Junos Space Application | 1368
1366
The administrator can add a new Junos Space application while Junos Space Network Management Platform is still running. To upgrade Junos Space applications, see "Upgrading a Junos Space Application" on page 1370. Adding an application to the Junos Space Platform server is a two-step process: 1. Upload the application to the Junos Space Platform server.
2. Install the uploaded application.
Uploading the Junos Space Application
To upload a Junos Space application: 1. Ensure that the Junos Space application you want to add is downloaded from the Juniper Networks
software download site to the local client file system: https://www.juniper.net/support/products/space/#sw
2. Select Administration > Applications and click the Add Application icon. The Add Application page appears. If you have not uploaded any applications, the page is blank.
3. Upload the new application by performing one of the following steps: a. Click Upload via HTTP. The Software File dialog box appears. i. Type the name of the application file or click Browse to navigate to where the new Junos Space application file is located on the local file system.
ii. Click Upload. This action might take a while. Wait until the application is uploaded.
1367
If you are trying to upload an application that is not supported by Junos Space Platform 14.1R2, then Junos Space Platform displays the following error message: Current platform version does not support this software version. The Application Management Job Information dialog box appears. Go to step 4 to confirm whether the application is uploaded successfully.
b. Click Upload via SCP. The Upload Software via SCP dialog box appears. Add the Secure Copy credentials to upload the Junos Space Platform application image from a remote server to Junos Space. i. In the Username field, enter your username.
ii. In the Password field, enter your password.
iii. In the Confirm password field, enter your password again to confirm the password.
iv. In the Machine IP field, enter the host IP address.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses
or both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SCP server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
v. In the Software File Path field, enter the path name of the Junos Space application file. For example, /root/<image-name>.img.
vi. Click Upload. This action might take a while. Wait until the application is uploaded. If you are trying to upload an application that is not supported by Junos Space Platform Release 14.1R2, then Junos Space Platform displays the following error message: Current platform version does not support this software version.
1368
The Application Management Job Information dialog box appears. Go to step 4 to confirm whether the application is uploaded successfully.
4. In the Application Management Job Information dialog box, if you click the Job ID link, you see the Add Application job on the Jobs > Job Management inventory page. Wait until the job is completed and ensure that the job is successful. If the upload is successful, then the new application is displayed by application name, filename, version, release level, and the required Junos Space Platform version on the Add Application page.
Installing the Uploaded Junos Space Application
To install the uploaded application:
NOTE: Starting from Junos Space Network Management Platform Release 20.3R1, Service now and Service insight applications are not supported in Junos Space Platform.
1. Select Administration > Applications and click the Add Application icon. The Add Application page appears.
2. Select the uploaded application.
3. Click Install to install the application or click Cancel to exit the Add Application page. The Application configuration page appears, displaying a list of server groups to which you can deploy the application.
CAUTION: After you select and successfully deploy an application to a server group, it is not possible to move the application from one server group to another from the Junos Space GUI. So choose a server group after careful consideration. To move an application from one server group to another, use the script tool (see the instructions specified in "Running Applications in Separate Server Instances" on page 1332).
4. Select a server group to which you want to deploy the application. The default server group is platform to which Junos Space Platform is deployed. If you do not select any server group, the selected application is automatically deployed to the default platform server group.
1369
5. Click OK to proceed. The Application Management Job Information dialog box appears.
6. In the Application Management Job Information dialog box, if you click the Job ID link, you see the Add Application job on the Job Management page. Wait until the application is fully deployed and ensure that the job is successful. If the installation of the application is a failure, then the Summary column for the installation job displays the reason for failure. However, the display of messages depends also on the type and version of the application being installed.
NOTE: It is important that you install the applications in the right order: from the primary application to the dependent applications.
7. If the installation is successful, without logging out of Junos Space Platform, select the application from the Application Chooser list (located at the top-left) to view and begin using its workspaces and tasks.
RELATED DOCUMENTATION Managing Junos Space Applications Overview | 1321 Managing Junos Space Applications | 1337 Junos Space Store Overview | 1326 Configuring and Managing Junos Space Store | 1327 Modifying Settings of Junos Space Applications | 1339 Uninstalling a Junos Space Application | 1398
1370
Upgrading a Junos Space Application
The Upgrade Application action allows you to upgrade an existing Junos Space application independently while the system is still running. Several hot-pluggable Junos Space applications are available for upgrade to the current release. After the application is upgraded successfully, you can launch it from Application Chooser.
CAUTION: If you are upgrading a Junos Space application on a Junos Space Network Management Platform Release 16.1R1 setup, refer to the Release Notes for the specific Junos Space application release that you are upgrading to before you begin the upgrade process, to find out the specific upgrade instructions for the application release.
To upgrade an existing Junos Space application: 1. Download the application to which you want to upgrade from the Juniper Software download site to
the local client file system. https://www.juniper.net/support/products/space/#sw
CAUTION: Do not modify the filename of the software image that you download from the Juniper Networks support site; if you modify the filename, the upgrade fails.
2. Select Administration > Applications. The Applications inventory page appears.
3. Select the application that you want to upgrade.
4. Select Upgrade Application from the Actions menu. The Upgrade Application dialog box appears displaying all previously uploaded versions of that application.
5. Do one of the following: · If the software file for the application to which you want to upgrade is listed in the Upgrade Application dialog box, select it and click Upgrade. The application upgrade process begins. Go to the next step.
1371
· If the application to which you want to upgrade is not listed in the Upgrade Application dialog box, click Upload. The Software File dialog box appears.
a. Click Browse and navigate to where the software file to which you want to upgrade is located on the local file system.
b. Click Upload. The software file is uploaded into Junos Space Network Management Platform. You see the application in the Upgrade Applications dialog box.
c. Wait until the job is completed. The Upgrade Application Job Information dialog box appears.
d. Click the Job ID link to see the Upgrade Application job in the Manage Jobs inventory page. Review the job to: i. Ensure that the job is successful.
ii. Select Administration > Applications to continue with the upgrade application process. The Upgrade Application dialog box appears.
e. Select the software file to which you want to upgrade, and click Upgrade. The application upgrade process begins.
6. Navigate to the Application Chooser and launch the application you upgraded. When you log into the application after the upgrade, an information dialog box with the following message is displayed: Platform/Application is upgraded, please clear your browser cache and login again. Click OK to close the information dialog box.
NOTE: To install a new Junos Space application, use the Administration > Applications > Add Application action, see "Adding a Junos Space Application" on page 1366.
RELATED DOCUMENTATION Managing Junos Space Applications Overview | 1321 Managing Junos Space Applications | 1337
Adding a Junos Space Application | 1366 Upgrading Junos Space Network Management Platform | 1372 Modifying Settings of Junos Space Applications | 1339 Uninstalling a Junos Space Application | 1398 Tagging an Object | 1518 Viewing Tags for a Managed Object | 1524
1372
Upgrading Junos Space Network Management Platform
Junos Space Network Management Platform provides the running environment for all Junos Space applications, so upgrading causes operation interruption. The Upgrade Network Management Platform action allows the administrator to upgrade the Junos Space Platform independently from one version to another without installing other Junos Space applications.
NOTE: · If you are upgrading to Junos Space Platform Release 16.1R1, you must follow the procedure
outlined in Upgrading to Junos Space Network Management Platform Release 16.1R1. · Refer to the Upgrade Instructions section in the Junos Space Network Management Platform
Release Notes for a specific release to find out the versions of Junos Space Platform that are supported for upgrade.
NOTE: Before you upgrade Junos Space Platform to Release 17.2, ensure that the time on all Junos Space nodes is synchronized. For information about synchronizing time on Junos Space nodes, see "Synchronizing Time Across Junos Space Nodes" on page 1378.
1373
To upgrade Junos Space Network Management Platform: 1. Ensure that the Junos Space Platform Upgrade image to which you want to upgrade is downloaded to
the local client file system from the https://www.juniper.net/support/products/space/#sw website.
CAUTION: Do not modify the filename of the software image that you download from the Juniper Networks support site. If you modify the filename, the upgrade fails.
2. Select Administration > Applications. The Applications page appears.
3. Right-click the Network Management Platform entry in the table and select Upgrade Platform. (Alternatively, select the Network Management Platform entry from the table and from the Actions menu, select Upgrade Platform.) The Upgrade Platform page appears displaying all previously uploaded versions of the Junos Space Platform image.
4. Do one of the following: · If the release to which you want to upgrade is listed on the Upgrade Platform page, select the file, and click Upgrade. The application upgrade process begins. (Go to step 8.) · If the release to which you want to upgrade is not listed on the Upgrade Platform page, you must upload the image file into Junos Space Platform. You can upload an image by using HTTP or Secure Copy Protocol (SCP): · To upload an image by using HTTP: a. Click Upload via HTTP. The Software File dialog box appears.
b. Type the name of the Junos Space Platform image file or click Browse to navigate to where the new Junos Space Platform image file is located on the local file system.
c. Click Upload.
1374
CAUTION: However, if the following error message appears, we recommend that you try uploading the image by using the Upload via SCP option: File size is too big, use scp to upload this file.
· To upload an image by using SCP: a. Click Upload via SCP. The Upload Software via SCP dialog box appears. You must add the following Secure Copy remote machine credentials.
b. In the Username field, enter the username to be used to log in to the SCP server.
c. In the Password field, enter the password to be used for access to the SCP server.
d. In the Confirm Password field, reenter the password entered in the preceding step.
e. In the Machine IP field, enter the IP address of the SCP server.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses
or both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SCP server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
f. In the Software File Path field, enter the full path of the Junos Space Platform image file on the SCP server.
g. Click Upload.
The new Junos Space Platform image file is uploaded into the Junos Space server and displayed by application name, filename, version, release type, and required Junos Space Platform version. When the upload is completed, the Upgrade Platform Job Information dialog box appears. 5. In the Upgrade Platform Job Information dialog box, click the Job ID hyperlink.
1375
You are taken to the Jobs Management page, where you can view the Upgrade Platform job that was triggered. Ensure that the job is successful.
6. Select Administration > Applications to continue with the upgrade process. The Applications page appears.
7. Select the Network Management Platform entry from the table and from the Actions menu (or right-click menu) select Upgrade Platform. The Upgrade Platform page appears displaying the Junos Space Platform image that you uploaded.
8. Select the image file to which you want to upgrade, and click Upgrade Platform.
NOTE: · If you have previously installed other Junos Space applications and if some applications
are incompatible with the version of Junos Space Platform to which you are upgrading, an upgrade warning message appears informing you about the list of applications that might be disabled after the upgrade: a. Make a note of these applications and upgrade them after the Junos Space Platform
upgrade is completed successfully.
b. Click OK to close the dialog box.
· Another upgrade warning message appears asking you whether you want the system to back up the database before the platform upgrade. Click YES or NO depending on whether you want the system to back up the Junos Space Platform database before the upgrade. Backing up the database before the upgrade helps you to recover the data if the platform upgrade fails. However, the upgrade process might be prolonged depending on the database size. When you choose to back up the database before the upgrade, you are directed to the "Database Backup and Restore" workspace. Follow the instructions specified in "Backing Up the Junos Space Network Management Platform Database" on page 1301 to back up the database. After backing up the database, select Administration > Applications > Network Management Platform > Upgrade Platform > Upgrade action to upgrade Junos Space Platform. When prompted for the second time, whether you want the system to back up the database, click NO to proceed with the upgrade.
1376
Junos Space Platform goes into maintenance mode and prompts you to enter a username and password to enter maintenance mode and proceed with the upgrade.
9. In the Username field, enter the username (maintenance).
10. In the Password field, enter the maintenance mode password.
NOTE: The maintenance mode password is one that the administrator created during the initial configuration process.
11. Click OK. The Junos Space Platform upgrade process begins. The Software Install Status dialog box appears and displays status messages using which you can monitor the upgrade status. The Upgrade Status Summary field in the Software Install Status dialog box displays additional information about the upgrade status. In addition, if any error occurs during the upgrade, information about the error or warning that led to the upgrade failure and the location of the log files for troubleshooting is displayed. This process might take a while. Wait until the Go to Maintenance Menu link appears.
12. Click the Go to Maintenance Menu hyperlink. The Maintenance Mode Options dialog box appears.
13. Click Reboot Junos Space. The installation progress dialog box appears and displays the deployment status of JBoss and various other applications as the system goes through a restart after the upgrade.
CAUTION: This process might take a while. Do not reboot the system for a quick recovery. This action leaves the system in a bad state and affects the upgrade operation. Wait until the login window is presented for you to log in.
1377
NOTE: · During startup, the startup page first displays a message indicating that Junos Space Platform
is starting up and then displays a progress bar indicating the percentage of startup completed, the estimated time left for the Junos Space Platform to start, and a list of tasks to complete (with an indication of the current task being carried out). When a task is successfully completed, a message is displayed; if a task fails, an error message is displayed indicating why the task failed. · From Junos Space Network Management Platform Release 15.1R1 onward, a reboot message is broadcast to all the fabric nodes at the same time. All nodes reboot at the same time but the VIP node is the last to finish rebooting. The reboot procedure is significantly quicker than for previous Junos Space Platform releases.
When the upgrade is completed, the Junos Space login prompt appears.
NOTE: · If a blank page appears instead of the login prompt, click Refresh. The login prompt is then
displayed. · We recommend that you clear the Web browser cache before logging in to the upgraded
software. · We recommend that you perform a functional audit on all deployed services after upgrading.
You can now log in to the upgraded Junos Space Platform software. When you log into Junos Space Platform after the upgrade, an information dialog box with the following message is displayed: Platform/Application is upgraded, please clear your browser cache and login again. Click OK to close the information dialog box.
For any troubleshooting, see the following logs: · /var/log/install.log--This file captures information about the Junos Space Platform upgrade and the
installation of applications. · /var/log/jboss/servers/server1/server.log--This file captures information about JBoss.
RELATED DOCUMENTATION Upgrading Junos Space Network Management Platform Overview | 1323
Managing Junos Space Applications Overview | 1321 Managing Junos Space Applications | 1337
1378
Synchronizing Time Across Junos Space Nodes
Before you upgrade Junos Space Network Management Platform to Release 17.2, you must ensure that the time across all Junos Space nodes is synchronized. To synchronize the system time across Junos Space nodes: 1. Log in to the Junos Space CLI.
The Junos Space Settings Menu appears.
2. Type 3 and press Enter to access Change Time Options from the Junos Space Settings menu. The Change Time Options menu appears.
3. To access the NTP options to see whether an NTP server is configured, type 2 and press Enter. The NTP options menu appears. If an external NTP server is configured, the NTP options menu displays the domain name or IP Address of the NTP server along with the host name of other nodes in the cluster. If an external NTP server is not configured, the NTP options menu displays the host name of other nodes in the cluster.
4. Type M to access the Junos Space Settings menu. The Junos Space Settings menu appears.
5. To access the shell from the Junos Space Settings menu, type one of the following options: · 6, if the Junos Space Appliance is a JA2500 Junos Space hardware appliance · 7, if the Junos Space Appliance is a virtual appliance You are prompted to enter the administrator password.
6. Enter the administrator password.
1379
7. Check whether the time is synchronized across nodes. If an external NTP server is configured, check whether the time on all Junos Space nodes is synchronized with the time on the NTP server. a. Check the time on the NTP server by entering the following command: ntpdate -q NTPServerName Here NTPServerName is the domain name or IP address of the NTP server. Press Enter. The time on the NTP server is displayed.
b. Check the time on the Junos Space nodes by entering the following command on each node: date The time on the corresponding Junos Space node is displayed.
If an external NTP server is not configured, check whether the time on all Junos Space nodes is synchronized with that on the VIP node. a. Check the time on the VIP node by entering the following command:
date The time on the VIP node is displayed.
b. Verify the time on non-VIP nodes by entering the following command on each node: date The time on the corresponding Junos Space node is displayed.
8. If the time on Junos Space nodes is not synchronized, execute one of the following procedures: If an external NTP server is configured, synchronize the time on all Junos Space nodes with that on the NTP server. To synchronize the time, execute the following procedure on all Junos Space nodes: a. Stop the NTP process by entering the following command: service ntpd stop The NTP process is stopped.
b. Synchronize the time on the node by entering the following command: ntpdate -b NTPServerName Here NTPServerName is the domain name or IP address of the NTP server. The time on the Junos Space node is synchronized with that on the NTP server.
1380
c. Restart the NTP process by entering the following command: service ntpd start The NTP process is restarted.
If an external NTP server is not configured, synchronize the time on all non-VIP nodes with that on the VIP node. To synchronize the time, execute the following procedure on all non-VIP nodes: a. Stop the NTP process by entering the following command:
service ntpd stop The NTP process is stopped.
b. Synchronize the time on the node by entering the following command: ntpdate -b VIPAddress Here VIPAddress is the Virtual IP (VIP) address of the Junos Space fabric. The time on the Junos Space node is synchronized with that on the VIP node.
c. Restart the NTP process by entering the following command: service ntpd start The NTP process is restarted.
The time on all Junos Space nodes is synchronized.
9. Set the time on the hardware clock to the system time by entering the following command: hwclock --systohc The time on the hardware clock is synchronized with that on the system.
The time across all Junos Space nodes is synchronized. You can now proceed to upgrading to Junos Space Platform Release 17.2.
RELATED DOCUMENTATION Upgrading Junos Space Network Management Platform Overview | 1323 Upgrading Junos Space Network Management Platform | 1372 NTP Time Source for a Junos Space Appliance
1381
Upgrading to Junos Space Network Management Platform Release 21.1R1
IN THIS SECTION
Before You Begin | 1382 Disabling Device Communication | 1383 Downloading and Installing the Junos Space Platform 20.3R1 Patch | 1384 Executing the Data Back Up Procedure | 1385 Validating the Backup File | 1389 Installing Junos Space Platform Release 21.1R1 as a Standalone Node or the First Node of the Fabric and Restoring the Backed-Up Data | 1390 Rolling Back to Junos Space Platform Release 20.3R1 if Upgrade Fails | 1392 Installing Junos Space Platform Release 21.1R1 on the Remaining Nodes of the Fabric | 1396 Enabling Device Communication | 1397 Managing Disaster Recovery Configuration after Upgrade to 21.1 | 1398
In Junos Space Network Management Platform Release 21.1R1, CentOS 7.4 is used as the underlying OS. As a direct upgrade of the OS from CentOS 6.8 (used in Junos Space Platform releases before 21.1R1) to CentOS 7.4 is not supported, a direct upgrade to Junos Space Platform Release 21.1R1 by using the Junos Space Platform UI is also not supported. You must follow a multi-step procedure to upgrade to Junos Space Platform Release 21.1R1. Upgrading to Junos Space Platform Release 21.1R1 involves backing up data from the nodes in the Junos Space Platform setup, installing Junos Space Platform Release 21.1R1 on the nodes, and restoring backed up data to the nodes. After Junos Space Platform is upgraded, you can upgrade previously installed Junos Space applications. You can upgrade to Junos Space Platform Release 21.1R1 only from Junos Space Platform Release 20.3R1. To upgrade to Junos Space Platform Release 21.1R1 from releases earlier than Junos Space Platform Release 20.3R1, you must first upgrade to Junos Space Platform Release 20.3R1 and then follow the procedures specified in this topic.
NOTE: For more information about upgrading to Junos Space Platform Release 20.3R1, see the Junos Space Network Management Platform Release 20.3R1 Release Notes.
1382
To upgrade from Junos Space Platform Release 20.3R1 to Junos Space Platform Release 21.1R1, complete the tasks in the sequence below. The Appendix provides sample data of time taken for backing up and restoring data while upgrading to Junos Space Platform Release 21.1R1.
Before You Begin
NOTE: This particular upgrade procedure is complex and requires switching between the Junos Space Platform GUI and the Junos Space Platform command line. In case of problems, access to the physical appliance or the hypervisor that hosts the Junos Space virtual machine may be needed. If you are not comfortable running Linux commands at the command line, or you do not have access to the physical or virtual platform, the GUI, or the command line, please arrange for that access through the appropriate internal channels, and have the needed personnel available during the entire process.
Table 180 shows various physical and network elements that are needed in order to perform this upgrade procedure.
Table 180: Items needed for upgrade
Item
Purpose
Comments
Access to the Junos Space Platform GUI using the super user's credentials
To establish and confirm proper configuration, device connection, database state, and backup prior to upgrade
Access to the Junos Space Platform command line using the admin user's credentials over SSH (TCP port 22)
To run various scripts and Linux commands during the upgrade
Once authenticated over ssh, select the "(Debug) run shell" option from the menu. On a physical appliance, (Debug) is option 6. On a virtual appliance, (Debug) is option 7.
Access to a network secure copy protocol (SCP) server
To store the following files that are created as part of the backup that is created during this upgrade:
· backupStatus.log · md5.txt · space-backup.tgz · space-readme.txt
SCP connections default to TCP port 22.
Ports other than TCP port 22 can be used for SCP, but the server must already be set to accept the connection on the non-default port.
Not needed if the USB storage device option is used.
1383
Table 180: Items needed for upgrade (continued)
Item
Purpose
A USB storage device with at least 8GB of free space
To store the following files that are created as part of the backup that is created during this upgrade:
· backupStatus.log · md5.txt · space-backup.tgz · space-readme.txt
Physical access to the Junos Space To plug in the USB storage device Platform appliance
Access to the hypervisor that hosts the Junos Space Platform VM
To deploy the 21.1R1 ova file
Comments Not needed if the SCP option is used.
Not needed if the SCP option is used.
Disabling Device Communication
Before taking backup from the Junos Space Network Management Platform Release 20.3R1, disable device communication to ensure that the discovered devices stop communicating with the Junos Space Server. To disable device communication: 1. Select Administration > Applications.
2. Click Network Management Platform and select Modify Application Settings from the Actions menu. You can also right click on Network Management Platform and select Modify Application Settings. The Modify Application Settings (Modify Network Management Platform Settings) page is displayed and the Device section is selected by default.
3. Uncheck the Allow Device Communication option.
4. Select Modify to modify the settings. The discovered devices in Junos Space Network Management Platform stops communicating with the Junos Space Server.
1384
Downloading and Installing the Junos Space Platform 20.3R1 Patch Before you begin upgrading Junos Space Platform Release 20.3R1 to Junos Space Platform Release 21.1R1, download and install the Junos Space Platform Release 20.3R1 patch from the link Junos Space 20.3R1 Backup Patch for Upgrade to 21.1R1 on the Junos Space Network Management Platform Download Software page for Version 21.1R1.
NOTE: Junos Space Platform Release 20.3R1 backup patch is not yet released.
To download and install the patch: 1. Download the 20.3R1 patch to your local computer from the Junos Space 20.3R1 Backup Patch for
Upgrade to 21.1R1 link at the following location: https://www.juniper.net/support/downloads/?p=space#sw
NOTE: For local testing, 20.3R1 patch can be downloaded from the lab machine.
2. Log in to the Junos Space active VIP node as the admin user using SSH. 3. Transfer the patch to the Junos Space node by using Secure Copy Protocol (SCP).
For example, to pull the file from the SCP server to a temporary location, such as /tmp/patch on the Junos Space node, the commands would be: Create the temporary storage location on the Junos Space node:
[root@space-20.3R1-node ~]# mkdir /tmp/patch Pull the file from the SCP server located at IP address 192.0.2.10:
[root@space-20.3R1-node ~]# scp user@192.0.2.10:/home/user/20.3R1-SpaceUpgradeBackup.tgz /tmp/patch
4. Navigate to the location on the Junos Space node where you stored the patch. [root@space-20.3R1-node ~]# cd /tmp/patch
5. (Optional) To verify the checksum for the downloaded file, type the following command: [root@space-20.3R1-node /tmp/patch]# md5sum 20.3R1-SpaceUpgradeBackup.tgz
1385
The md5 hash value is displayed on the screen. Compare this value with the md5sum value available at the download site by clicking the MD5 SHA1 link.
6. Extract the patch by using the following command: [root@space-20.3R1-node /tmp/patch]# tar -xzvf 20.3R1-SpaceUpgradeBackup.tgz Extracting the patch creates a directory named 20.3R1-SpaceUpgradeBackup and puts the individual files in it, including the patch script, patchme.sh.
7. Change directory into the new directory: [root@space-20.3R1-node /tmp/patch]# cd 20.3R1-SpaceUpgradeBackup
8. Type the following command to install the patch: [root@space-20.3R1-node /tmp/patch/20.3R1-SpaceUpgradeBackup]# sh patchme.sh If the patch is successful, the message "Hot Patch installed Successfully" will be displayed. Otherwise, errors will be displayed.
Executing the Data Back Up Procedure
To back up Junos Space Platform and Junos Space Application data from the Junos Space nodes, execute the backup script, backup.sh that is provided by the 20.3R1 patch that you installed. The backup.sh script is stored in the directory /var/cache/space-backup-restore. The backup script backs up the required configuration files, data files, and the database dump files of the MySQL databases from the Junos Space nodes. Data files of the installed Junos Space Applications are also backed up. The backup script generates a compressed tar file containing the backed up data. The following files are copied to a remote server or USB: · space-backup.tgz · space-readme.txt · md5.txt · backupStatus.log
WARNING: In order for the upgrade process to succeed, the backup script must run to completion without errors. Read all warnings and notices generated by the backup script carefully and respond appropriately. Seek assistance for any message that is unclear to you before taking any action in response.
1386
NOTE: · Backup script will not take backup for OpenNMS, PostgreSQL Data Base content, as the
restoration is not supported in Junos Space Network Management Platform 21.1R1 and are disabled by default. Take a regular backup of these contents from the Junos Space Network Management Platform User Interface in case you need it before executing the backup script. · The device image files and Database Backup files will not be backed up from file system as part of the database backup operation. · Connectivity Services Director (CSD) application is not supported from Junos Space Network Management Platform Release 21.1R1. Incase CSD application is installed in Junos Space Network Management Platform Release 20.3R1, the database backup operation will terminated, asking the user to uninstall the CSD application from the Junos Space Network Management Platform GUI.
To run the backup script: 1. If you have not done so, log in to the Junos Space active virtual IP (VIP) node as the admin user and
select "(Debug) run shell" from the menu.
2. Type the following command to navigate to the /var/cache/space-backup-restore directory: [root@space-20.3R1-node ~]# cd /var/cache/space-backup-restore
3. Type the following command to run the backup script: [root@space-20.3R1-node /var/cache/space-backup-restore]# sh backup.sh You are prompted to specify whether you want to clear system-related jobs from the Junos Space database.
4. Perform one of the following actions based on whether you want to clear system-related jobs or not:
NOTE: Throughout the running of the backup.sh script, the responses that you type in the Space Platform command line may not be echoed to the screen. So, when you type 'Y' or 'N', you may not see it displayed.
· Type Y to clear system-related jobs. · Type N if you do not want to clear system-related jobs.
If you choose not to clear system-related jobs, the jobs are not purged and are backed up by the backup script.
1387
You are prompted to specify whether you want to stop the services running on the node.
5. Perform one of the following actions based on whether you want to continue backing up Junos Space data: · Type N to continue running the services on the node and exit the backup process.
CAUTION: If you exit the backup process, the backup file required for restoring data on the Junos Space Platform Release 21.1R1 setup is not generated.
· Type Y to stop services running on the node and to continue the backup procedure. You are prompted to select the location to store the generated backup files.
1.USB 2.Remote SCP server Option to Select :
6. Select one of the following options depending on where you want to store the backup files: · To store the files on a USB storage device:
NOTE: Before you back up to the USB storage device, you must ensure that the USB device is plugged in. The backup script will mount the device to the path /tmp/pendrive.
a. Type 1 and press Enter. You are prompted to specify whether you want to continue.
b. Type Y to continue. Table 180 These files are copied to the USB storage device. If successful, a message indicating that the files are successfully copied is displayed. Any errors and their results are also displayed.
c. After successful copy we suggest that you validate the backup file. See "Validating the Backup File" on page 1389. If validation is successful, you can unmount the USB storage device by typing the following command: [root@space-20.3R1-node /var/cache/space-backup-restore]# umount /tmp/pendrive. After this, you can unplug the USB device. However, if you are upgrading on the same appliance, we recommend leaving the USB storage device mounted and plugged in so that it is available later for the restore process.
1388
· To store the file on a remote SCP server: a. Type 2 and press Enter. You are prompted to specify whether you want to continue. Type Y to continue. b. You are prompted to enter the IP address of the remote SCP server.
Please enter remote machine IP:
Type the IPv4 address of the remote SCP server. c. You are prompted to enter the port number of the remote SCP server.
Please enter remote machine port number:
Type the port number of the remote SCP server and press Enter. NOTE: The IP address and port must be reachable from the Junos Space Platform server. If the IP is not reachable, or the port is not open, the script will get stuck trying to test the connection. If this happens, only quitting the SSH session, logging in again, and killing the running script process will stop the script.
d. You are prompted to enter the username to access the remote SCP server.
Please enter remote machine user:
Type the username and press Enter. e. You are prompted to enter the password of the user.
Please enter remote machine user password:
Type the password and press Enter. f. You are prompted to enter the full path of the directory on the remote SCP server where you
want to store the backup files.
Please enter remote dir path:
Type the full path of the directory and press Enter. For example, /home/user/space_backup/
NOTE: Ensure that there is no space character in the specified directory path. Also, ensure that the specified directory already exists on the remote SCP server. If the directory does not exist, you are prompted to enter a valid directory.
1389
Validating the Backup File
After executing the data backup procedure, we recommend that you validate the checksum for the backup file to ensure that the data from the Junos Space Platform Release 20.3R1 setup is copied to the selected backup location. This ensures that data from the Junos Space nodes is not lost and can be restored on the Junos Space Platform Release 21.1R1 setup when you upgrade. To validate the backup file, complete one of the following procedures: · To validate the backup file stored on a remote SCP server:
1. Log in to the remote SCP server.
2. Navigate to the directory where the backup file is stored.
3. Type the following command and press Enter to generate the MD5 value for the backup file: [user@scp-server]> md5sum space-backup.tgz
NOTE: On some systems, there is no md5sum command. On these systems, the md5 <file name> command should print the md5 hash value.
4. Compare the calculated MD5 value with the value in the md5.txt file stored at the same location as the backup file. You can see the value stored in md5.txt using the following command: [user@scp-server]> cat md5.txt
1390
If the MD5 values are the same, the backup file is copied successfully to the backup location. If the MD5 values do not match, repeat the back up procedure detailed in "Executing the Data Back Up Procedure" on page 1385.
5. You can verify the integrity of the backup tar file to ensure that errors did not result in a corrupt backup file. To do this, type the following command and press Enter to verify the files in the backup tar file: [user@scp-server]> tar -tf space-backup.tgz The list of files contained in the tar file are displayed. If there are errors in the tar file, the error is displayed and the file listing stops.
· To validate the backup file stored on a USB storage device:
NOTE: Ensure that the USB storage device is plugged-in to the Junos Space Appliance and mounted to the path /tmp/pendrive.
1. Type the following command and press Enter to generate the MD5 value for the backup file: [root@space-20.3R1-node ~]# md5sum /tmp/pendrive/space-backup.tgz
2. Compare the calculated MD5 value with the value in the md5.txt file stored at the same location as the backup file. You can see the value stored in md5.txt using the following command: [root@space-20.3R1-node]# cat md5.txt] If the MD5 values are the same, the backup file is copied successfully to the backup location. If the MD5 values do not match, repeat the back up procedure detailed in "Executing the Data Back Up Procedure" on page 1385.
3. Type the following command and press Enter to verify the files in the backup tar file: [root@space-20.3R1-node]# tar -tf /tmp/pendrive/space-20.3R1.4.tgz The list of files contained in the tar file are displayed. If there are errors in the tar file, the error is displayed and the file listing stops.
Installing Junos Space Platform Release 21.1R1 as a Standalone Node or the First Node of the Fabric and Restoring the Backed-Up Data
After you run the backup script and back up data from the Junos Space nodes, install the Junos Space Platform Release 21.1R1 software image, using the following procedure:
1391
CAUTION: · If you are upgrading a standalone node, back up all data on the node to a remote
server before you install the Junos Space Platform Release 21.1R1 software image. You cannot retrieve previously saved data after the Junos Space Platform Release 21.1R1 software image is installed. · When you configure the Junos Space Platform Release 21.1R1 node, ensure that you use the same network configuration (network interfaces and IP adresses) as the Junos Space Platform Release 20.3R1 node. If you configure different network settings, device connectivity and SNMP traps are affected.
1. Power off all the nodes of the fabric.
NOTE: If you are upgrading a Junos Space Platform fabric with only Junos Space Virtual Appliances, ensure that you do not delete the powered off virtual appliances. If data restore on the Junos Space Platform Release 21.1R1 node fails, you can roll back to the Junos Space Platform Release 20.3R1 setup by powering off the Junos Space Platform Release 21.1R1 node and powering on the Junos Space Platform Release 20.3R1 nodes.
2. Complete one of the following procedures: · If the Junos Space Platform fabric has only Junos Space Appliances (JA2500 or JA1500), power on one of the appliances that is part of the fabric and reimage it by following the procedure in 3.
CAUTION: If you are upgrading a Junos Space Platform setup with a single Junos Space Appliance (JA2500 or JA1500), you must validate the backup file before you reimage the appliance with the Junos Space Platform Release 21.1R1 software image. If you do not ensure that the data backup from the Junos Space Platform Release 20.3R1 setup is complete before you reimage the appliance, the data is lost. For information about validating the backup file, see "Validating the Backup File" on page 1389.
· If the Junos Space Platform fabric has Junos Space Virtual Appliances, deploy a new Junos Space Platform Release 16.1R1 virtual appliance instance and configure it as a Junos Space node by following the procedure in 3.
3. Install Junos Space Platform Release 21.1R1 and restore data by using one of the following procedures:
1392
NOTE: To ensure that you upgrade Junos Space Platform and not choose a fresh installation of Junos Space Platform Release 21.1R1, select the option to restore backed-up data when you are prompted during the configuration of the node.
· To deploy and configure the Junos Space Virtual Appliance, see the Deploying the Junos Space Virtual Appliance and Configuring a Junos Space Virtual Appliance as a Junos Space Node topics in the Junos Space Virtual Appliance Installation and Configuration Guide.
· To install and configure the Junos Space Platform Release 21.1R1 software image on a JA2500 Junos Space Appliance, see the Installing a Junos Space Image on a Junos Space Appliance by Using a USB Drive and Configuring a Junos Space Appliance as a Junos Space Node topics in the JA2500 Junos Space Appliance Hardware Guide.
· To install and configure the Junos Space Platform Release 21.1R1 software image on a JA1500 Junos Space Appliance, see the Installing a Junos Space Image on a Junos Space Appliance by Using a USB Drive and Configuring a Junos Space Appliance as a Junos Space Node topics in the JA1500 Junos Space Appliance Hardware Guide.
If the messages displayed on the console indicate that data is restored successfully and JBoss services are started on the node, you can access the Junos Space Platform GUI through a browser by using the virtual IP (VIP) address configured for Web access.
4. (Optional) If the messages displayed on the console indicate that data is not restored successfully, you can roll back to the Junos Space Platform Release 20.3R1 setup.
5. If the Junos Space Platform Release 20.3R1 setup had Junos Space applications installed, after the data is restored successfully and the Junos Space Platform GUI becomes accessible, you must upgrade the applications to releases that are compatible with Junos Space Platform Release 21.1R1 by using the Junos Space Platform GUI.
NOTE: After the upgrade to Junos Space Platform Release 21.1R1, the Junos Space applications that were installed prior to the upgrade, appear disabled. For more information about upgrading an application, refer to the release notes of the Junos Space application that you want to upgrade.
Rolling Back to Junos Space Platform Release 20.3R1 if Upgrade Fails
While upgrading to Junos Space Platform Release 21.1R1, if you are unable to restore the data backed up before you began upgrading Junos Space Platform, you can roll back to Junos Space Platform Release 20.3R1.
1393
If data restore fails, complete one of the following procedures:
· If the Junos Space node is a standalone node: 1. Complete one of the following procedures: · For a Junos Space Appliance (JA2500 or JA1500), reimage the node to install the Junos Space Platform Release 20.3R1 software image, by using one of the following procedures: · To install and configure the Junos Space Platform Release 20.3R1 software image on a JA2500 Junos Space Appliance, see the Installing a Junos Space Image on a Junos Space Appliance by Using a USB Drive and Configuring a Junos Space Appliance as a Junos Space Node topics in the JA2500 Junos Space Appliance Hardware Guide. · To install and configure the Junos Space Platform Release 20.3R1 software image on a JA1500 Junos Space Appliance, see the Installing a Junos Space Image on a Junos Space Appliance by Using a USB Drive and Configuring a Junos Space Appliance as a Junos Space Node topics in the JA1500 Junos Space Appliance Hardware Guide.
· For a Junos Space Virtual Appliance, roll back to the Junos Space Platform Release 20.3R1 setup by powering off the Junos Space Platform Release 21.1R1 node and powering on the Junos Space Platform Release 20.3R1 node. The roll back of the Junos Space Virtual Appliance to Release 20.3R1 is complete.
2. Download and apply the Junos Space Platform Release 20.3R1 patch. See "Downloading and Installing the Junos Space Platform 20.3R1 Patch" on page 1384 to install the patch.
3. Install the same Junos Space applications that were installed on the Junos Space Platform Release 20.3R1setup that you attempted to upgrade.
4. Type the following command to navigate to the /var/cache/space-backup-restore directory: [root@space-20.3R1-node ~]# cd /var/cache/space-backup-restore
5. Type the following command to restore the backup: [root@space-20.3R1-node /var/cache/space-backup-restore]# sh restore-20.3R1.sh You are prompted to specify the location from where you want to restore the backup.
1> Remote Server 2> USB 3> Local
M> Return to Main Menu R> Redraw Menu
1394
Choice [1-3 MR]:
6. Select one of the following options depending on where the backup file is stored: · To restore from a remote Secure Copy Protocol (SCP) server: a. Type 1 and press Enter. You are prompted to confirm whether you want to continue. You have selected [ Remote Server ]. Do you want to Continue? [Y/N] b. Based on whether you want to continue or exit, perform one of the following actions: · Type Y. You are prompted to enter the IPv4 address of the remote SCP server. Please enter Remote Server IP: i. Type the IPv4 address of the remote SCP server and press Enter. You are prompted to enter the port number for the remote server. Please enter port number for Remote Server REMOTE_SERVER_IP: ii. Type the port number of the remote SCP server and press Enter. You are prompted to enter the username to access the remote server. Please enter Remote Server REMOTE_SERVER_IP user: iii. Type the username and press Enter. You are prompted to enter the password of the user. Please enter Remote Server user REMOTE_SERVER_USER password: iv. Type the password and press Enter. You are prompted to enter the full path of the directory where the backup file is stored.
1395
Enter the path of the directory containing backup files:
v. Type the full path of the directory and press Enter.
NOTE: Ensure that the directory path does not contain any space characters.
The messages displayed on the console indicate whether the data is restored successfully to the Junos Space node.
· Type N to exit. · To restore from a USB storage device:
NOTE: · Before you restore from a USB storage device, ensure that the USB device is plugged
in. The restore procedure will try to mount the device to the path /tmp/pendrive. · For data backup and restore, identify the USB storage device using the fdisk -l command
and format the device using the mkfs.ext2 <physical device> command. For example, mkfs.ext2 /dev/sdb. This ensures that the USB device has the correct disk layout for the execution of the backup and restore procedures and prevents loss of data.
a. Type 2 and press Enter to restore the backup from the USB storage device. The messages displayed on the console indicate whether the data is restored successfully to the Junos Space node.
b. Unmount the USB storage device by typing the following command: [root@space-20.3R1-node /var/cache/space-backup-restore]# umount /tmp/pendrive You can unplug the USB storage device after you unmount it.
· To restore data from the backup file stored on the Junos Space node:
NOTE: To restore data from the backup file stored on the Junos Space node, you must first copy the file from the backup location to the Junos Space node.
a. Type 3 and press Enter. You are prompted to enter the full path of the directory where the backup file is stored.
1396
Enter the tar file path to restore from local:
b. Type the full path of the directory and press Enter. The messages displayed on the node indicate whether the data is restored successfully to the Junos Space node.
If the messages displayed on the console indicate that the data is restored successfully and JBoss services are started on the node, you can access the Junos Space Platform UI through a browser by using the VIP address configured for Web access. You can now use this Junos Space Platform Release 20.3R1 installation. If the restore fails, save the troubleshooting log file, /var/log/restoreStatus.log to your computer; power off the node; and contact Juniper Networks support for assistance.
· If the node is a Junos Space Appliance (JA2500 or JA1500) and the first node of a Junos Space fabric, complete the following procedure: 1. Power off the node.
2. Power on the remaining nodes of the cluster, to bring up the cluster with the Junos Space Platform Release 20.3R1 installation.
3. Delete the first node (on which upgrade failed) from the cluster, using the Junos Space Platform GUI. For more information about deleting the node, see "Deleting a Node from the Junos Space Fabric" on page 1252.
4. Power on and reimage the node that you attempted to upgrade, to install the Junos Space Platform Release 20.3R1 software image. To reimage the node, follow one of the procedures listed in 1.
5. Add the node to the fabric by using the Junos Space Platform GUI. For information about adding nodes to the Junos Space fabric, see "Adding a Node to an Existing Junos Space Fabric" on page 1172.
Installing Junos Space Platform Release 21.1R1 on the Remaining Nodes of the Fabric
When you upgrade from Junos Space Platform Release 20.3R1 to Junos Space Platform Release 21.1R1, if you have dedicated database nodes or Fault Monitoring and Performance Monitoring (FMPM) nodes configured for the Junos Space Platform setup that you are upgrading, after the upgrade and data restoration on the first node of the Junos Space fabric is complete, you must add the dedicated database nodes and FMPM nodes to the fabric by using the Junos Space Platform GUI. You can configure the nodes as Junos
1397
Space nodes or Fault Monitoring and Performance Monitoring (FMPM) nodes, by using one of the following procedures:
NOTE: After you configure the nodes from the Junos Space Platform command line, you can add the nodes to the Junos Space fabric as JBoss nodes, dedicated database nodes, FMPM nodes, by using the Junos Space Platform UI. For information about adding nodes to the Junos Space fabric, see "Adding a Node to an Existing Junos Space Fabric" on page 1172.
· To install and configure the Junos Space Platform Release 21.1R1 software image on a Junos Space Virtual Appliance, see the Deploying the Junos Space Virtual Appliance, Configuring a Junos Space Virtual Appliance as a Junos Space Node and Configuring a Junos Space Virtual Appliance as a Standalone or Primary FMPM Node topics in the Junos Space Virtual Appliance Installation and Configuration Guide.
· To install and configure the Junos Space Platform Release 21.1R1 software image on a JA2500 Junos Space Appliance, see the Installing a Junos Space Image on a Junos Space Appliance by Using a USB Drive, Configuring a Junos Space Appliance as a Junos Space Node, and Configuring a Junos Space Appliance as a Standalone or Primary FMPM Node topics in the JA2500 Junos Space Appliance Hardware Guide.
· To install and configure the Junos Space Platform Release 21.1R1 software image on a JA1500 Junos Space Appliance, see the Installing a Junos Space Image on a Junos Space Appliance by Using a USB Drive, Configuring a Junos Space Appliance as a Junos Space Node, and Configuring a Junos Space Appliance as a Standalone or Primary FMPM Node topics in the JA1500 Junos Space Appliance Hardware Guide.
Enabling Device Communication
After you upgrade to the Junos Space Platform Release 21.1R1, you must configure device communication to ensure that discovered devices can communicate with the Junos Space server.
To configure device communication:
1. On the Junos Space Platform GUI, select Administration > Applications. The Applications page is displayed.
2. Click Network Management Platform and select Modify Application Settings from the Actions menu. Alternatively, right-click Network Management Platform and select Modify Application Settings. The Modify Application Settings (Modify Network Management Platform Settings) page is displayed and the Device section is selected by default.
1398
3. Select the Allow Device Communication check box.
4. Click Modify to modify the settings.
Devices discovered in Junos Space Platform can now communicate with the Junos Space server.
Managing Disaster Recovery Configuration after Upgrade to 21.1 If you have disaster recovery configured for the Junos Space Platform Release 20.3R1 setup that you are upgrading, you must upgrade both the active and standby sites to Junos Space Platform Release 21.1R1 as explained in this topic and then reconfigure disaster recovery. For information about configuring disaster recovery, see Configuring the Disaster Recovery Process Between an Active and a Standby Site.
RELATED DOCUMENTATION Upgrading Junos Space Network Management Platform Overview | 1323
Uninstalling a Junos Space Application
The Uninstall application action allows the administrator to remove a Junos Space application independently while the system is still running. Uninstalling an application cleans up all database data and any process the application used. You can uninstall a Junos Space application from the Applications inventory page. To uninstall a Junos Space application: 1. Select Administration > Applications.
The Applications inventory page appears.
2. Select the application you want to uninstall and select Uninstall Application from the Actions menu. The Uninstall Application dialog box appears.
3. Select the application to confirm that you want to uninstall.
4. Click Uninstall. The application uninstall process begins and the Junos Space application is removed from Junos Space Network Management Platform. The association between the uninstalled application and the server group from which it was uninstalled is lost. The server group itself is not removed by the uninstallation
1399
of an application. However, if you want to delete the server group along with the application, use the JBoss Management CLI (see "Running Applications in Separate Server Instances" on page 1332).
NOTE: It is important that you uninstall the applications in the right order: from the dependent applications to the primary application. The uninstallation might fail if there are any dependent applications. For example, if you try to uninstall Network Activate without uninstalling dependent applications, such as Transport Activate or OAM Insight, the following error message is displayed and the uninstallation fails: . Network Activate Uninstall failed! Details: Uninstalling Network Activate is not possible until the dependency apps are uninstalled first Transport Activate, OAM Insight, Sync Design & NWappsAPI The display of such messages depends on the type and version of the application being uninstalled.
RELATED DOCUMENTATION Managing Junos Space Applications Overview | 1321 Modifying Settings of Junos Space Applications | 1339 Upgrading a Junos Space Application | 1370 Upgrading Junos Space Network Management Platform | 1372
CHAPTER 73
Managing Troubleshooting Log Files
IN THIS CHAPTER System Status Log File Overview | 1400 Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Configuring JBoss and OpenNMS Logs in Junos Space | 1404 Generating JBoss Thread Dump for Junos Space Nodes | 1406 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1400
System Status Log File Overview
The system writes a system log file for each fabric node to provide troubleshooting and monitoring information. See "System Status Log File" on page 1400.
The System Administrator can customize the information that is collected in the system log file. See "Customizing Node System Status Log Checking" on page 1402.
The System Administrator can download the latest log files for each fabric node when logged in to a Junos Space Appliance. See "Downloading System Log Files for a Junos Space Appliance" on page 1401.
In each operating mode, the System Administrator can customize the default log files that are downloaded from a Junos Space Appliance. See "Customizing Node Log Files to Download" on page 1404.
System Status Log File
Approximately once a minute, the system checks and writes a status log file SystemStatusLog for each fabric node by default. Each log file consists of system status, such as the disk, CPU, and memory usage information, as shown. Junos Space Network Management Platform writes each system status log file to /var/log/SystemStatusLog
1401
2009-08-10 11:51:48,673 DEBUG [net.juniper.jmp.cmp.nma.NMAResponse] (Thread-110:)
Node IP: 192.0.2.0Filesystem
1K-blocks
Used Available Use% Mounted
on
/dev/mapper/VolGroup00-LogVol00
79162184 15234764 59841252 21% /
Cpu(s): 8.7%us, 1.1%sy, 0.0%ni, 90.0%id, 0.1%wa, 0.0%hi, 0.0%si, 0.0%st
Mem: 3866536k total, 2624680k used, 1241856k free, 35368k buffers
Swap: 2031608k total, 941312k used, 1090296k free, 439704k cached
Customizing Status Log File Content The System Administrator can customize the information that is written in a fabric node system status log file. For more information, see "Customizing Node System Status Log Checking" on page 1402.
Downloading System Log Files for a Junos Space Appliance
The System Administrator can download the latest log files for each fabric node when logged in to a Junos Space Appliance. The system status log file and all other third-party log files are collected and compressed in a troubleshooting file.
Table 181 lists the files included in the troubleshoot file.
Table 181: Log Files included in the troubleshoot File
Description
Location
System status log files
/var/log/SystemStatusLog
JBoss log files
/var/log/jboss/*
Service-provisioning data files
/var/tmp/jboss/debug/*
MySQL error log files
/var/log/mysqld.log
Log files for Apache, Node Management Agent (NMA), and Webproxy
/var/log/httpd/*
Watchdog log files
/var/log/watchdog/*
System messages
/var/log/messages/*
The System Administrator can download log files in each operation mode as follows: · Server mode (See "Downloading the Troubleshooting Log File in Server Mode" on page 1409.) · Maintenance mode (See "Downloading the Troubleshooting Log File in Maintenance Mode" on page 1412.)
1402
· CLI mode (See "Downloading Troubleshooting System Log Files Through the Junos Space CLI" on page 1413.)
Customizing Log Files to Download The System Administrator can also customize the log files to be downloaded for specific fabric nodes. For more information about customizing node log files to download, see "Customizing Node Log Files to Download" on page 1404.
RELATED DOCUMENTATION Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
Customizing Node System Status Log Checking
You customize the system status checking for a fabric node to ensure that all necessary information is written to the /var/log/SystemStatusLog log file. You must have the privileges of a System Administrator to customize the system status checking. You customize the system status checking by modifying the fabric node Perl script in /usr/nma/bin/writeLogCronJob.
1403
To customize system status checking for a fabric node, modify the writeSystemStatusLogFile sub-function in writeLogCronJob as shown:
sub writeSystemStatusLogFile{ my $err = 0;
my $logfile = $_[0]; $err = system("date >> $logfile"); $err = system("df /var >> $logfile"); $err = system("top -n 1 -b | grep Cpu >> $logfile"); $err = system("top -n 1 -b | grep Mem: >> $logfile"); $err = system("top -n 1 -b | grep Swap: >> $logfile");
***<Add additional system command here that you want to print out in the SystemStatusLog file>***
if ($err == 0 ) {
print "write log to $logfile successfully\n";
} else { } return $err; }
print "cannot write log to $logfile\n";
RELATED DOCUMENTATION
System Status Log File Overview | 1400 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1404
Customizing Node Log Files to Download
You customize the log files downloaded for a fabric node to ensure that you download all the necessary log files. You must have the privileges of a System Administrator to customize the log files. You customize the log files you want to download by modifying the Perl script in /var/www/cgi-bin/getLogFiles. Modify the getLogFiles Perl script zip command as shown:
. . . system("zip r $logFileName /var/log/jboss/* /var/tmp/jboss/debug/ /var/log/mysqld.log
/var/log/httpd/* /var/log/watchdog /var/log/messages /var/log/SystemStatusLog > /dev/null"); . . .
RELATED DOCUMENTATION System Status Log File Overview | 1400 Customizing Node System Status Log Checking | 1402 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
Configuring JBoss and OpenNMS Logs in Junos Space
From Junos Space Network Management Platform Release 16.1R1 onward, you can configure log levels for JBoss and OpenNMS logs in Junos Space from the Administration workspace in the Junos Space Platform UI. Junos Space Platform enables you to configure log levels for the JBoss and OpenNMS logs by using the Log Configuration page of the Space Troubleshooting task group. When you configure a particular log level, log messages for the selected severity and all higher severities are recorded. You must be assigned the System Administrator role to configure logs from the Log Configuration page. To configure the JBoss and OpenNMS logs from the Junos Space Platform UI: 1. On the Junos Space Platform UI, select Administration > Space Troubleshooting > Log Configuration.
The Log Configuration page is displayed.
2. Perform one of the following actions to configure the JBoss or OpenNMS logs, respectively:
1405
· Click the JBoss Logs tab. The log handlers configured in JBoss are listed on the page. The corresponding log filenames and log levels are also displayed in a tabular format. The Log Level column displays the existing log level for each log.
· Click the OpenNMS Logs tab. The log handlers configured in OpenNMS are listed on the page. The corresponding log filenames and log levels are also displayed in a tabular format. The Log Level column displays the existing log level for each log.
For more information about log files in Junos Space Platform, see "Junos Space Network Management Platform Log Files Overview" on page 1594.
3. Click the Log Level field of the log file for which you want to configure the log level.
4. Click the down arrow to select the log level from the list.
When you select a particular log level, log messages for the selected severity and all higher severities are recorded. For example, if you select DEBUG as the log level, log messages for severity DEBUG, INFO, WARN, and FATAL are recorded in the log file for which you configured the log level. If you select ALL, all log messages are recorded in the log file. See Table 182 for more information about the log levels that you can select.
5. Click Update to save the change.
Repeat Step 2 through Step 5 to modify log levels for other JBoss and OpenNMS logs listed on the page.
6. (Optional) Select or clear the check box in the Enable/Disable column to enable or disable logging for the corresponding log file. By default, logging for all JBoss and OpenNMS log files is enabled, unless it is disabled from the Junos Space CLI, and the default log level is WARN.
If you select the check box, logging is enabled and the log level is set at the WARN level.
7. Click Save to save all changes after you finish specifying the log levels.
An audit log entry is added when you modify the log level of any log file.
Table 182 lists the various log levels that can be configured for JBoss and OpenNMS logs.
Table 182: Log Levels and their Descriptions
Log Level
Description
OFF
Logging is turned off.
1406
Table 182: Log Levels and their Descriptions (continued)
Log Level
Description
FATAL
Log messages that indicate a critical service failure are recorded.
ERROR
Log messages that indicate a disruption in a request or the ability to service a request and all higher-severity log messages are recorded.
WARN
Log messages that indicate a noncritical service error and all higher-severity log messages are recorded.
INFO
Log messages that indicate service life-cycle events and provide other related crucial information, and all higher-severity log messages are recorded.
DEBUG
Log messages that convey extra information regarding life-cycle events and all higher-severity log messages are recorded.
TRACE
Log messages that are directly associated with any activity that corresponds to requests and all higher-severity log messages are recorded.
ALL
Log messages of all severity levels are recorded.
Release History Table
Release
Description
16.1R1
From Junos Space Network Management Platform Release 16.1R1 onward, you can configure log levels for JBoss and OpenNMS logs in Junos Space from the Administration workspace in the Junos Space Platform UI.
RELATED DOCUMENTATION System Status Log File Overview | 1400
Generating JBoss Thread Dump for Junos Space Nodes
From the Junos Space Network Management Platform UI, you can generate JBoss thread dumps for Junos Space nodes that are part of the Junos Space fabric. The thread dump can be generated for nodes that have the JBoss server running and are in the UP state, and also have the App Logic in the UP state.
1407
NOTE: You cannot generate the JBoss thread dump for dedicated database nodes and dedicated Cassandra nodes.
The generated JBoss thread dump helps you troubleshoot problems with the JBoss server on that particular node. You can generate JBoss thread dumps for one or more JBoss nodes from the Fabric page of the Administration workspace. You must be assigned the System Administrator role to be able to generate the JBoss thread dump for a node. To generate the JBoss thread dump: 1. On the Junos Space Platform UI, select Administration > Fabric.
The Fabric page appears, displaying all the nodes in the Junos Space fabric.
2. Right-click the JBoss node or nodes for which you want to generate the JBoss thread dump and select Generate Thread Dump. Alternatively, select the check boxes next to the node names and select Generate Thread Dump from the Actions menu. The JBoss Thread Dump dialog box appears.
3. Perform one of the following actions on the basis of whether you want to save the JBoss thread dump on the Junos Space node or on a remote server. · Select Local in the Mode field to save the JBoss thread dump on the Junos Space node. The JBoss thread dump is stored in the /var/cache/jboss/thread_dumps/ directory on the Junos Space node. · Select Remote in the Mode field to save the JBoss thread dump on a remote server. All the remaining fields in the JBoss Thread Dump dialog box are enabled. To specify the remote server where you want the JBoss thread dump to be saved: a. In the IP Address field, enter the IP address of the remote server. The IP address can be either an IPv4 address or an IPv6 address.
b. In the Port field, enter the port number. The default port number is 22.
c. In the Directory field, enter the directory on the remote server where you want to save the JBoss thread dump.
1408
NOTE: Before you specify a directory in the Directory field, you must ensure that it exists on the remote server. If the specified directory does not exist on the remote server, the job fails, displaying a message that the directory is invalid.
d. In the User Name field, enter the username.
e. In the Password field, enter the password.
f. In the Confirm Password field, reenter the password.
g. (Optional) In the Fingerprint field, enter the fingerprint of the remote server.
4. Click Generate to generate the JBoss thread dump.
The Generate Thread Dump Information dialog box appears, displaying the job ID link. Click the job ID to view the job on the Job Management page.
If you saved the JBoss thread dump to the Junos Space node, you can download it to your computer from the View Job Details page that appears when you double-click the job on the Job Management page.
The thread dump is saved as a compressed zip file with the filename format threadDump_timestamp, where timestamp represents the date and time when the thread dump is generated.
An audit log entry is added when you generate the JBoss thread dump for a Junos Space node.
Release History Table Release
Description
16.1R1
From the Junos Space Network Management Platform UI, you can generate JBoss thread dumps for Junos Space nodes that are part of the Junos Space fabric.
RELATED DOCUMENTATION
Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1409
Downloading the Troubleshooting Log File in Server Mode
You download the troubleshooting log file in Server mode when you want to view the contents of the troubleshooting log file and fix issues. You need to have the privileges of a System Administrator to download the troubleshooting log file. Before you download the troubleshooting log file in Server mode: · Ensure that you check the available disk space on the Junos Space node. The Lack Of Space error message
is displayed if the disk space is insufficient. · Ensure that a troubleshooting log download job you triggered earlier is not in progress. An error message
is displayed if you trigger another troubleshooting log download job while a previous download job is in progress.
NOTE: On a multinode setup, the troubleshooting log file is stored at the following location on the Junos Space node that completes the job: /var/cache/jboss/space-logs. You cannot download the troubleshooting log file if this node goes down.
To download the troubleshooting log file in Server mode: 1. On the Junos Space Network Management Platform user interface, select Administration > Space
Troubleshooting. The Space Troubleshooting page is displayed.
1410
2. Select whether to download the troubleshooting log file now or later. · To download the troubleshooting log file now: i. Click Download. The Collect Junos Space Logs Job Information dialog box is displayed.
ii. Click OK in the dialog box. You can download the troubleshooting log file from the Job Management page.
iii. Double-click the ID of the troubleshooting log collection job on the Job Management page. The Job Details dialog box is displayed.
iv. Click the Download link to access the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file in your browser. The filename of the troubleshoot zip file includes the server Coordinated Universal Time (UTC) date and time. For example, troubleshoot_2010-04-01_11-25-12.zip. · If you are using Mozilla Firefox: In the Opening troubleshoot zip dialog box, click Save file, then click OK to save the zip file to your computer using the Firefox Downloads dialog box. · If you are using Internet Explorer: From the File Download page, click Save and select a directory on your computer where you want to save the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file.
NOTE: If the download job failed, the Job Details dialog box displays the reason the job failed.
Table 183 lists the files included in the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file. Table 183: Log Files in the Troubleshooting Log File and Their Location
Log File Description
Location
System status log file
/var/log/SystemStatusLog
JBoss log files
/var/log/jboss/*
Service provisioning data files
/var/tmp/jboss/debug/*
MySQL error log file
/var/log/mysqld.log
Apache Web Server, NMA, and Web proxy log files
/var/log/httpd/*
Table 183: Log Files in the Troubleshooting Log File and Their Location (continued)
Watchdog log files
/var/log/watchdog/*
Linux system log messages
/var/log/messages/*
CPU, RAM, or disk statistics (for the past 24 hours)
Heap and CPU Profiling Agent (HPROF) files
/var/log/jboss
1411
· To download the troubleshooting log file later: i. Select the Schedule at a later time option button.
ii. Enter the date in the Date field in the DD/MM/YYYY format.
iii. Enter the time in the Time field in the hh:mm format.
iv. Click Download. The troubleshooting log download job is triggered at the scheduled time. You can view the status of the scheduled job on the Job Management page.
TIP: When you contact Juniper Technical Assistance Center, describe the problem you encountered and provide the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file to the JTAC representative.
3. Click Close to return to the Administration statistics page.
RELATED DOCUMENTATION
System Status Log File Overview | 1400 Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1412
Downloading the Troubleshooting Log File in Maintenance Mode
Maintenance Mode is a special mode that an administrator can use to perform system recovery or debugging tasks while all nodes in the fabric are shut down and the Web proxy is running. The administrator can download the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file from Maintenance Mode. The troubleshoot zip file includes the server Coordinated Universal Time (UTC) date and time. For example, troubleshoot_2010-04-01_11-25-12.zip. To download the troubleshooting log file in maintenance mode, perform the following steps: 1. Connect to a Junos Space Appliance in maintenance mode by using the Junos Space Appliance URL.
For example: https://<ipaddress>/maintenance Where ipaddress is the address of the Junos Space Appliance. The Maintenance Mode page appears.
2. Click the click here to log in link. The login dialog box appears.
3. Log in to maintenance mode by using the authorized login name and password.
4. Click OK. The Maintenance Mode Actions menu appears.
5. Click Download Troubleshooting Data and Logs. The file download dialog box appears.
6. Click Save to download the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file to the connected computer.
7. Click Log Out and Exit from Maintenance Mode.
RELATED DOCUMENTATION Maintenance Mode Overview | 1153 System Status Log File Overview | 1400 Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1413
Downloading Troubleshooting System Log Files Through the Junos Space CLI
IN THIS SECTION Downloading a System Log File by Using a USB Device | 1413 Downloading System Log File by Using SCP | 1415
If a Junos Space node is Up, the administrator can log in to the Junos Space node and download system status logs for each fabric node by using the Secure Copy Protocol (SCP). If the Junos Space node is Down but you can log in to the console of a Junos Space Appliance, you can download system status logs to a USB drive. The Retrieve Logs utility collects all system log files in the /var/log subdirectory and creates a compressed TAR file (extension *.tgz). For more information about the log files that are written, see "System Status Log File Overview" on page 1400. This topic includes the following sections:
Downloading a System Log File by Using a USB Device Using the Retrieve Logs > Save to USB Device command, the administrator can download system status logs to a connected USB device if the Junos Space node is Down and you can log in to the console. Before you begin, ensure that the USB device is connected to the Junos Space Appliance.
1414
1. Log in to the Junos Space Appliance using the administrator username (admin) and password. The Junos Space Settings Menu appears, as shown.
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> (Debug) run shell
Q> Quit R> Redraw Menu
Choice [1-6,QR]:
2. Type 4 at the prompt. The Retrieve Logs submenu appears.
Choice [1-6,AQR]: 4 1> Save to USB Device 2> Send Using SCP
A> Apply changes M> Return to Main Menu R> Redraw Menu
Choice [1-2,AMR]:
3. Type 1. The following message is displayed: This process will retrieve the log files on all cluster members and combine them into a .tar file. Once the file is created, you can copy the files onto a USB drive. Continue? [y/n]
4. Type y to continue. You are prompted to enter the administrator password.
5. Enter the administrator password.
1415
The system downloads the log files from all the nodes in the fabric and combines them into a .tar file. After the file is created, the file is coped to the USB device and a message similar to the following is displayed: Copying 20090827-1511-logs.tar to USB drive.
NOTE: If the USB device is not ready, the following message appears: Log collection complete If USB key is ready, press "Y". To abort, press "N".
6. After the files are copied, unmount the USB and eject it from the Junos Space Appliance.
Downloading System Log File by Using SCP Using the Junos Space CLI Retrieve Logs > SCP command, the administrator can download system status logs to a specific location. To download system status logs by using SCP, perform the following steps: 1. Log in to the Junos Space node using the administrator username (admin) and password.
The Junos Space Settings Menu appears, as shown.
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> (Debug) run shell
Q> Quit R> Redraw Menu
Choice [1-6,QR]:
2. Type 4 at the prompt. The Retrieve Logs submenu appears.
Choice [1-6,AQR]: 4 1> Save to USB Device 2> Send Using SCP
1416
A> Apply changes M> Return to Main Menu R> Redraw Menu
Choice [1-2,AMR]:
3. Type 2. The following confirmation message is displayed: This process will retrieve the log files on all cluster members and combine them into a .tar file. Once the file is created, you will be asked for a remote scp server to transfer the file to. Continue? [y/n]
4. Type y to continue. You are prompted to enter the administrator password.
5. Enter the administrator password. A message indicating that the log files are being collected is displayed. The process retrieves the log files on all cluster members and combines them into a .TAR file. This might take a few minutes to complete. After this is completed, you are prompted to enter the IP address of the remote server.
6. Enter the IP address of the SCP server to which to transfer the file.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses or
both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SCP server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
7. Enter the remote SCP user.
8. Enter the directory on the remote SCP server where the log file should be stored; for example, /root/tmplogs. The remote server information that you entered is displayed. The following is a sample:
1417
Remote scp IP: 192.0.2.0 Remote scp user: root Remote scp path: /root/tmplogs Is this correct? [y/n]
9. If the SCP server information is correct, type y. If you are connecting to the SCP server for the first time, a message is displayed asking you to confirm that you want to continue. The following is a sample message:
The authenticity of host '192.0.2.0 (192.0.2.0)' can't be established. RSA key fingerprint is 01:70:4c:47:9e:1e:84:fc:69:3c:65:99:6d:e6:88:87. Are you sure you want to continue connecting (yes/no)? yes
NOTE: If the SCP server information is incorrect or if you want to modify the SCP server information, type n at the prompt, and modify the SCP server information as explained in the preceding steps.
10. Type y to continue. You are prompted to enter the password.
11. Enter the password for the SCP server. If the credentials are correct, the file is transferred to the SCP server.
RELATED DOCUMENTATION Maintenance Mode Overview | 1153 System Status Log File Overview | 1400 Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412
1418
CHAPTER 74
Managing Certificates
IN THIS CHAPTER Certificate Management Overview | 1418 Changing User Authentication Modes | 1426 Installing a Custom SSL Certificate on the Junos Space Server | 1433 Uploading a User Certificate | 1437 Uploading a CA Certificate and Certificate Revocation List | 1440 Deleting a CA Certificate or Certificate Revocation List | 1442 Adding and Activating X.509 Certificate Parameters for X.509 Certificate Parameter Authentication | 1443 Modifying an X.509 Certificate Parameter | 1446 Deleting X.509 Certificate Parameters | 1447
Certificate Management Overview
IN THIS SECTION Authentication Modes Workflow | 1419 Custom Junos Space Server Certificates | 1421 Certificate Attributes | 1421 User Certificates | 1423 CA Certificates and CRLs | 1424 Changing the User Authentication Mode | 1424 Certificate Expiry | 1424 Invalid User Certificates | 1425
1419
Typically, users gain access to resources from an application or system on the basis of their username and password. You can also use certificates to authenticate and authorize sessions among various servers and users. Certificate-based authentication over a Secure Sockets Layer (SSL) connection is the most secure type of authentication. The certificates can be stored on a smart card, a USB token, or a computer's hard drive. Users typically swipe their smart card to log in to the system without entering their username and password.
Junos Space Network Management Platform is shipped with the default password-based authentication mode. Administrators can use the default credentials to log in to Junos Space Platform. Junos Space Platform allows you to use certificate-based authentication and from Junos Space Network Management Platform Release 15.2R1 onward, X.509 parameter-based authentication as well, to authenticate users. These authentication modes can be configured from the User section on the Modify Application Settings page in the Administration workspace.
By default, Junos Space Platform uses a self-signed SSL certificate. However, if you need to use your own custom certificate, you can upload your custom certificate in the X.509 or PKCS#12 format. With the complete certificate validation mode, the entire X.509 certificate is validated during the login process and you must upload user certificates for all users.
During X.509 parameter-based authentication, you can specify up to four X.509 certificate parameters per user that are validated during the login process. With the X.509 parameter-based authentication, you can avoid uploading certificates for new users to Junos Space Platform. Junos Space Platform extracts the values of the parameters for existing users from the certificates loaded when the users were created. You can define the X.509 certificate parameters in the X509-Certificate-Parameters section on the Modify Application Settings page in the Administration workspace.
NOTE: Only one authentication mode is supported at a time and all users are authenticated using the selected authentication mode.
See the following sections for information about workflow for authentication modes, custom Junos Space server certificates, user certificates, certificate authority (CA) certificates, certificate revocation lists (CRL), and certificate expiry and invalidity conditions on Junos Space Platform.
Authentication Modes Workflow
The steps in establishing an SSL connection for the different modes of authentication are as follows:
· Username and passwordbased authentication: 1. A client requests access to the Junos Space server. 2. The Junos Space server presents its certificate to the client. 3. The client verifies the server's certificate.
1420
4. If the verification of the certificate is successful, then the client sends its username and password to the server.
5. The server verifies the credentials of the client. 6. If the verification is successful, then the server grants access to the protected resource requested
by the client. · Certificate-based authentication:
1. A client requests access to the Junos Space server. 2. The Junos Space server presents its certificate to the client. 3. The client verifies the server's certificate. 4. If the verification of the certificate is successful, then the client sends its certificate to the server. 5. The server verifies the client's certificate. 6. If the verification is successful, then the server grants access to the protected resource requested
by the client. If the verification is unsuccessful, Junos Space Platform displays a login failure page to the user. · X509 certificate parameterbased authentication: 1. A client requests access to the Junos Space server. 2. The Junos Space server presents its X.509 certificate to the client. 3. The client verifies the server's X.509 certificate. 4. If the verification of the certificate is successful, then the client sends its certificate to the server. 5. The server extracts the specified values from the client's X.509 certificate and validates the values with those in the Junos Space Platform database. 6. If the verification is successful, then the server grants access to the protected resource requested by the client. If the verification is unsuccessful, Junos Space Platform displays a login failure page to the user.
NOTE: When using complete certificate-based or certificate parameterbased authentication, the session is terminated if the smart or secure card (containing the certificate and the private key) that is used for logging in is unplugged or removed from the client system.
1421
Custom Junos Space Server Certificates
By default, Junos Space Network Management Platform uses a self-signed SSL certificate. However, if you need to use your own custom certificate, go to Administration > Platform Certificate page and upload your custom X.509 or PKCS#12 certificate on the Platform Certificate page.
X.509 is a widely used standard for defining digital certificates. Typically, in X.509, the certificate and the key are stored separately. The private key can be either encrypted or unencrypted. Although a passphrase is optional, it is required if the private key is encrypted.
The Personal Information Exchange Syntax Standard (PKCS) #12 format is a widely used format for digital certificates in the Windows operating system. This standard specifies a portable format for storing or transporting a user's private keys, certificates, and passphrases in one encryptable file.
For instructions to upload your custom certificate, see "Installing a Custom SSL Certificate on the Junos Space Server" on page 1433.
Certificate Attributes
Table 184 lists the attributes that you commonly see in a certificate.
Table 184: Certificate Attributes
Certificate Attribute
Description
Subject Name: OID.1.2.840.113549.1.9.1=user1@10.205.57.195
"OID.1.2.840.113549.1.9.1" is the ASN.1 object identifier used to identify this signature algorithm. "user1@10.205.57.195" is the e-mail address of the certificate owner.
Subject Name: CN
Common name of the certificate owner
Subject Name: OU
Name of the organizational unit to which the certificate owner belongs
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "Junos Space" for this attribute.
Subject Name: O
Organization to which the certificate owner belongs
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "Juniper Networks, Inc." for this attribute.
1422
Table 184: Certificate Attributes (continued) Certificate Attribute
Description
Subject Name: L
Certificate owner's location
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "Sunnyvale" for this attribute.
Subject Name: ST
Certificate owner's state of residence
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "California" for this attribute.
Subject Name: C
Certificate owner's country of residence
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "US" for this attribute.
Issuer Name: OID.1.2.840.113549.1.9.1=user1@10.205.57.195
"OID.1.2.840.113549.1.9.1" is the ASN.1 object identifier used to identify this signature algorithm. "user1@10.205.57.195" is the e-mail address of issuer.
Issuer Name: CN
Common name of the certificate issuer
It is the IP address of the system. The common name (CN) must match the hostname of the issuer of this certificate. In general, it should be the hostname of issuer.
Issuer Name: OU
Name of the organizational unit to which the certificate issuer belongs
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "Junos Space" for this attribute.
Issuer Name: O
Organization to which the certificate issuer belongs
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "Juniper Networks, Inc." for this attribute.
1423
Table 184: Certificate Attributes (continued) Certificate Attribute
Description
Issuer Name: L
Certificate issuer's location
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "Sunnyvale" for this attribute.
Issuer Name: ST
Certificate issuer's state of residence
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "California" for this attribute.
Issuer Name: C
Certificate issuer's country of residence
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks contains "US" for this attribute.
Signature Algorithm Name
Algorithm used by the Certificate Authority to sign the certificate
For example, the Junos Space Network Management Platform SSL certificate signed by Juniper Networks can contain "SHA1withRSA" for this attribute.
Serial Number
Certificate's serial number
Not Before
Date at which the certificate becomes valid
Not After
Date at which the certificate becomes invalid
User Certificates
If you use certificate-based authentication mode, then for each user you need to upload the corresponding certificate for the Junos Space server to authenticate the user. You can associate a certificate with a user when you create the user or by modifying the user settings. To associate a certificate with an existing user, go to Role Based Access Control > User Accounts > Select a user > Modify User page.
For instructions to upload a user certificate, refer to "Uploading a User Certificate" on page 1437.
1424
CA Certificates and CRLs
A certification authority (CA) certificate or the root certificate is used to verify a user certificate. The private key of the root certificate is used to sign the user certificates, which then inherit the trustworthiness of the root certificate.
A certificate revocation list (CRL), which is maintained by a CA, is a list of certificates that were issued and revoked by that CA before their scheduled expiration date, along with the reasons for revocation. A CA may revoke a certificate for various reasons, such as the user specified in the certificate may no longer have the authority to use the key, the key specified in the certificate might have been compromised, another certificate is replacing the current certificate, and so on.
For instructions to upload CA certificates or CRLs, refer to "Uploading a CA Certificate and Certificate Revocation List" on page 1440.
Changing the User Authentication Mode
You can change the authentication mode from username and password-based to certificate-based or X.509 certificate parameterbased from the Junos Space user interface or from the CLI of the VIP node. You must upload the certification authority (CA) certificates and the personal or user certificates (the Junos Space server certificate is optional) to the Junos Space server before changing the authentication mode. Junos Space Platform verifies all certificates before they are uploaded. Invalid or badly formed certificates are not uploaded.
CAUTION: When the authentication mode is changed, all existing user sessions, except that of the current administrator who is changing the authentication mode, are automatically terminated and the users are forced to log out. You need not restart Junos Space Platform when you switch from one authentication mode to another.
For instructions to change authentication modes, refer to "Changing User Authentication Modes" on page 1426.
Certificate Expiry
When the X.509 Junos Space server certificate is scheduled to expire within 30 days from the current date, Junos Space Platform displays a warning message every time the administrator logs in. For example: Your platform certificate is going to expire on May 24, 2015. Space will automatically use default certificate if your certificate will expire within 1 day. Change platform certificate using "Administration > Platform Certificate" page. Would you like to change it now?
1425
As an administrator, perform one of the following actions: · Upload a new certificate--Select Administration > Platform Certificate and upload the certificate from
the Upload Certificate area. Junos Space Platform deletes the old user certificate and starts using the newly uploaded certificate. · Use the default certificate--Select Administration > Platform Certificate and click Use Default Certificate in the Current Platform Certificate area.
NOTE: When the X.509 Junos Space server certificate is scheduled to expire in a day, Junos Space Platform starts using the default self-signed certificate. The self-signed Junos Space Platform SSL certificate created during installation has a five-year validity.
When a user certificate is scheduled to expire within 30 days from the current date, Junos Space Platform displays a warning message if the user has logged in using the certification-based authentication mode. For more information, refer to "Uploading a User Certificate" on page 1437.
Invalid User Certificates
A user certificate could become invalid for the following reasons:
· Certificate is expired. · Certificate expires within a day. · Certificate will be valid only later. · Certificate does not match the private key. · Certificate or private key file is broken. · Same certificate exists in the Junos Space server. If a user tries to log in with an invalid or expired certificate, Junos Space Platform displays a login failure page with the following error message: No user mapped for this certificate.
Release History Table
Release
Description
15.2R1
Junos Space Platform allows you to use certificate-based authentication and from Junos Space Network Management Platform Release 15.2R1 onward, X.509 parameter-based authentication as well, to authenticate users.
RELATED DOCUMENTATION
Installing a Custom SSL Certificate on the Junos Space Server | 1433 Uploading a CA Certificate and Certificate Revocation List | 1440
1426
Changing User Authentication Modes
IN THIS SECTION
Changing the User Authentication Mode from Password-Based to Complete Certificate-Based from the User Interface | 1427 Changing the User Authentication Mode from Complete Certificate-Based to Certificate ParameterBased from the User Interface | 1429 Changing the User Authentication Mode from Certificate ParameterBased to Complete Certificate-Based from the User Interface | 1431 Changing the User Authentication Mode to Password-Based from the User Interface | 1432 Changing the User Authentication Mode to Password-Based from the CLI | 1432
You change the authentication mode to authenticate users by using credentials (username and password), certificates, or X.509 certificate parameters.
CAUTION: When you change the authentication mode from the user interface or the CLI, all existing user sessions, except that of the current administrator who is changing the authentication mode, are automatically terminated and the users are forced to log out. You need not restart Junos Space Platform when you switch from one authentication mode to another.
NOTE: An audit log entry is generated when you change the authentication mode.
The following topics describe the steps to change user authentication modes.
1427
Changing the User Authentication Mode from Password-Based to Complete Certificate-Based from the User Interface
You change the authentication mode from password-based to complete certificatebased when the users must be authenticated on the basis of their certificates. To change the user authentication mode from password-based to complete certificatebased: 1. (Optional) Load the server certificate to the Junos Space server:
a. Go to Administration > Platform Certificate. The Platform Certificate page appears.
b. Upload the certificate from the Upload Certificate area.
If you do not upload a customized server certificate, then the default Junos Space Network Management Platform certificate is used. For more information about loading the server certificate, refer to "Installing a Custom SSL Certificate on the Junos Space Server" on page 1433.
2. Load the user certificate: · For a new local user, load the user certificate from the Role Based Access Control > User Accounts > Create User page. · For existing local users, load the user certificate from the Role Based Access Control > User Accounts > Modify User page or by clicking the User Settings icon on the Junos Space banner. For more information about loading user certificates, refer to "Uploading a User Certificate" on page 1437.
1428
3. Load the CA certificates and the certificate revocation list to the Junos Space server: a. Go to Administration > CA/CRL Certificates. The CA/CRL Certificates page appears.
b. Upload the CA certificates and the certificate revocation list on the CA/CRL Certificates page.
For more information about loading CAs and CRLs, refer to "Uploading a CA Certificate and Certificate Revocation List" on page 1440.
4. Enable certificatebased authentication mode: a. Navigate to Administration > Applications > Network Management Platform > Modify Application Settings page.
b. Click the User link (on the left of the page).
c. Select the Use X509 Certificate Complete Certificate option button.
d. Click Modify. A confirmation dialog box is displayed.
e. You can change the authentication mode to certificatebased or retain the password-based mode. · To change the authentication mode, click Yes. Jobs are triggered to change the login password and FMPM password and switch the authentication mode to complete certificatebased. You can view the details of the jobs on the Job Management page. An error message is displayed if you have not loaded the required certificates.
· To retain the authentication mode, click No.
The authentication mode is changed to complete certificatebased authentication.
1429
Changing the User Authentication Mode from Complete Certificate-Based to Certificate ParameterBased from the User Interface
You change the authentication mode from complete certificatebased to certificate parameterbased when the users must be authenticated by using certificate parameters. To change the user authentication mode from complete certificatebased to certificate parameterbased: 1. Specify the parameters to be validated:
a. Go to Administration > Applications > Network Management Platform > Modify Application Settings. The Modify Application Settings page appears.
b. Click the X509CertificateParameters link. The X509CertificateParameters page appears.
c. Add the parameters to be validated.
For more information about adding X.509 certificate parameters, refer to "Adding and Activating X.509 Certificate Parameters for X.509 Certificate Parameter Authentication" on page 1443.
2. Specify the values for the parameters: · For a new local user, enter the values from the Role Based Access Control > User Accounts > Create User page. · For existing local users, Junos Space Platform extracts the values for the specified parameters when you change the authentication mode.
1430
3. Enable certificate parameterbased authentication mode: a. Navigate to Administration > Applications > Network Management Platform > Modify Application Settings.
b. Click the User link (on the left of the page).
c. Select the Use X509 Certificate Parameters option button.
d. Click Modify. A confirmation dialog box is displayed.
e. You can change the authentication mode to certificate parameterbased or retain the certificatebased mode. · To change the authentication mode, click Yes. Jobs are triggered to parse the parameters of user certificates, change the login password and FMPM password and switch the authentication mode to certificate parameterbased. You can view the details of the jobs on the Job Management page. An error message is displayed if you have not added and activated the parameters.
· To retain the authentication mode, click No.
The authentication mode is changed to certificate parameterbased authentication.
1431
Changing the User Authentication Mode from Certificate ParameterBased to Complete Certificate-Based from the User Interface
You change the authentication mode from certificate parameterbased to complete certificatebased when the users must be authenticated on the basis of their certificates.
NOTE: You must upload certificates for all new users (added after previously changing the authentication mode to certificate parameterbased) before changing the authentication mode from certificate parameterbased to complete certificatebased.
To change the user authentication mode from certificate parameterbased to complete certificatebased: 1. Enable complete certificate-based authentication mode:
a. Navigate to Administration > Applications > Network Management Platform > Modify Application Settings.
b. Click the User link (on the left of the page).
c. Select the Use X509 Certificate Complete Certificate option button.
d. Click Modify. A confirmation dialog box is displayed.
e. You can change the authentication mode to certificatebased or retain the certificate parameterbased mode. · To change the authentication mode, click Yes. Jobs are triggered to change the login password and FMPM password and switch the authentication mode to complete certificatebased. You can view the details of the jobs on the Job Management page. An error message is displayed if you have not loaded the certificates for new users.
· To retain the authentication mode, click No.
The authentication mode is changed to complete certificatebased authentication.
1432
Changing the User Authentication Mode to Password-Based from the User Interface You change the authentication mode to password-based when the users must be authenticated by using passwords. To change the user authentication mode to password-based authentication from the user interface: 1. Navigate to Administration > Applications > Network Management Platform > Modify Application
Settings.
2. Click the User link (on the left of the page).
3. Select the Use User Password Auth Mode option button.
4. Click Modify. A confirmation dialog box is displayed.
5. You can change the authentication mode to password-based or retain the current authentication mode. · To change the authentication mode, click Yes. Jobs are triggered to send the passwords to users by their e-mail addresses in Junos Space Platform and switch the authentication mode to password-based. You can view the details of the jobs on the Job Management page.
· To retain the authentication mode, click No.
The authentication mode is changed to password-based authentication.
Changing the User Authentication Mode to Password-Based from the CLI You change the authentication mode to password-based from the CLI when users are restricted from logging in by using certificatebased authentication mode. To change the authentication mode to password-based authentication from the CLI: 1. Log in to the CLI of the Junos Space server running as the VIP node, as the root user.
2. Navigate to the following directory: /var/www/cgi-bin.
3. Type the following command from the ./setSpaceAuthMode password-based directory: The authentication mode is changed to password-based and users can login with their username and password.
1433
RELATED DOCUMENTATION Certificate Management Overview | 1418 Installing a Custom SSL Certificate on the Junos Space Server | 1433 Adding and Activating X.509 Certificate Parameters for X.509 Certificate Parameter Authentication | 1443
Installing a Custom SSL Certificate on the Junos Space Server
IN THIS SECTION Installing an X.509 Junos Space Server Certificate | 1433 Installing a Junos Space Server Certificate in the PKCS #12 Format | 1435 Reverting to the Default Junos Space Server SSL Certificate | 1436
By default, Junos Space Network Management Platform uses a self-signed SSL certificate. However, Junos Space Network Management Platform provides an option to associate your own custom SSL certificate with the Junos Space server. You install a custom SSL certificate to use X.509 certificatebased authentication mode. You can upload a certificate in X.509, PKCS#1, or PKCS # 12 format. If you upload the certificate in the PKCS#1 or PKCS#12 format, Junos Space Network Management Platform converts the certificate into two files (public certificate and decrypted private key) in the Privacy-Enhanced Mail (PEM) format.
CAUTION: When the authentication mode is changed, all existing user sessions, except that of the current administrator who is changing the authentication mode, are automatically terminated and the users are forced to log out.
The topics in this section describe how to associate your own custom SSL certificate with the Junos Space server.
Installing an X.509 Junos Space Server Certificate You install an X.509 certificate file on the Junos Space server to enable X.509 certificatebased authentication. Before you upload and install the certificate, ensure that both the certificate and the key are available on your local computer.
1434
To install an X.509 certificate file: 1. Select Network Management Platform > Administration > Platform Certificate.
The Platform Certificate page appears.
2. From the Upload Certificate area, select the X.509 Certificate & Private Key option button to upload the certificate files in the Distinguished Encoding Rules (DER) or Privacy-Enhanced Mail (PEM) format. By default, this option is selected. · DER format certificate files: · The supported extensions are: .der, .cer, and .crt. · They are stored in binary format. · PEM format certificate files: · The supported extensions are: .pem, .cer, and .crt. · They are stored in the Base64-encoded DER format.
3. To navigate to select the X.509 certificate file from your local file system, click Browse adjacent to the Certificate field.
4. To navigate to and select the private key file from your local file system, click Browse adjacent to the Private Key field.
5. (Optional) Enter the passphrase in the Private Key Pass-phrase field. You must enter the passphrase if the private key is encrypted.
6. Click Upload.
1435
Junos Space Platform displays a warning message asking for confirmation to replace the current certificate.
7. You can either install the certificate or cancel the installation process. · To install the certificate, click Yes. Junos Space Platform performs internal validations to verify whether the uploaded files are valid. If any of the files is invalid, Junos Space Platform displays an error message. If the files are valid, then the upload is successful and Junos Space Platform starts using the new certificate. All existing sessions are terminated and the users are forced to log out.
· To cancel the installation, click Cancel. Junos Space Platform continues to use the current certificate.
Installing a Junos Space Server Certificate in the PKCS #12 Format Before you proceed, make sure that the PKCS #12 certificate is available on your local file system. To upload a certificate in PKCS#12 format: 1. Select Network Management Platform > Administration > Platform Certificate.
The Platform Certificate page appears.
2. From the Upload Certificate area, select the PKCS #12 Format Certificate option button to upload the PKCS#12 format certificate file.
3. To navigate to and select the PKCS#12 format certificate file from your local file system, click Browse adjacent to the Certificate & Private Key field.
4. (Optional) Enter the password in the Password field.
5. Click Upload.
1436
Junos Space Platform displays a warning message asking for confirmation to replace the current certificate.
6. You can either install the certificate or cancel the installation process. · To install the certificate, click Yes. Junos Space Platform performs internal validations to verify whether the uploaded files are valid. If any of the files is invalid, Junos Space Platform displays an error message. If the files are valid, then the upload is successful and Junos Space Platform starts using the new certificate. All existing sessions are terminated and the users are forced to log out.
· To cancel the installation, click Cancel. Junos Space Platform continues to use the current certificate.
Reverting to the Default Junos Space Server SSL Certificate
You revert to the default certificate when your current certificate is about to expire. To revert to the default certificate: 1. Select Network Management Platform > Administration > Platform Certificate.
The Platform Certificate page appears. The Current Platform Certificate area of the page displays the certificate that is currently being used by the Junos Space server. To gain an understanding about the attributes of the certificate, see "Certificate Management Overview" on page 1418.
2. To revert to the default SSL certificate, click Use Default Certificate. An information dialog box indicating that the default self-signed Juniper Networks certificate will be used is displayed.
3. You can continue or cancel reverting to the default certificate. · To use the default certificate, click OK. Junos Space Platform uses the default certificate.
· To cancel, click Cancel. Junos Space Platform uses the custom certificate.
1437
RELATED DOCUMENTATION Certificate Management Overview | 1418 Uploading a User Certificate | 1437 Uploading a CA Certificate and Certificate Revocation List | 1440 Changing User Authentication Modes | 1426
Uploading a User Certificate
IN THIS SECTION Uploading a User Certificate for a New User | 1437 Uploading a User Certificate for an Existing User | 1438 Uploading Your User Certificate | 1439
You upload user certificates if you enabled X.509 certificatebased authentication. Before you proceed, make sure that the user certificate is available on your local system. Uploading a User Certificate for a New User You upload user certificates when the new user must be authenticated by using certificate-based authentication.
1438
NOTE: You must be assigned the privileges of a user administrator to upload user certificates.
To upload a certificate for a new user: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts and click the Create User icon. The Create User page appears.
2. Enter values for the mandatory fields on the Create User page. For detailed information about the fields that appear on the Create User page, see "Creating Users in Junos Space Network Management Platform" on page 1035.
3. Click Browse adjacent to the X509 Cert File field to navigate to the location of the X.509 certificate file on your local system.
4. Select the X.509 certificate file and click Upload.
5. Click Finish. The user certificate for the new user is uploaded to Junos Space Platform.
Uploading a User Certificate for an Existing User You upload a user certificate for an existing user before you enable certificate-based authentication or when you switch from parameter-based authentication to certificate based authentication (only for users who were added to Junos Space Platform after switching from certificate-based to parameter-based). To upload a user certificate for an existing user: 1. On the Junos Space Network Management Platform user interface, select Role Based Access Control
> User Accounts. The User Accounts page appears.
2. Select the user and click the Modify User icon. The Modify User page appears.
3. Click Browse adjacent to the X509 Cert File field to navigate to the location of the X.509 certificate file on your local system.
1439
4. Select the X.509 certificate file and click Upload.
5. Click Finish. The user certificate for the existing user is uploaded to Junos Space Platform.
Uploading Your User Certificate You upload your user certificate when you need to add your user certificate or renew the existing user certificate. To upload your user certificate: 1. On the Junos Space Network Management Platform user interface, click the User Settings icon located
at the top-right corner of the Junos Space Platform user interface (next to the Log Out icon). The Change User Settings pop-up window is displayed.
2. Click the X.509 Certificate tab.
3. In the Certificate Subject Name field, enter the string that needs to be secured. For example, it could be a person's e-mail address, a website address, or a system's IP address, and so on.
4. Click Browse adjacent to the X.509 Certificate File field to navigate to the location of the X.509 certificate file on your local system.
5. Select the X.509 certificate file and click Upload.
6. Click OK. Your certificate file is uploaded to Junos Space Platform.
RELATED DOCUMENTATION Certificate Management Overview | 1418 Installing a Custom SSL Certificate on the Junos Space Server | 1433 Uploading a CA Certificate and Certificate Revocation List | 1440
Uploading a CA Certificate and Certificate Revocation List
IN THIS SECTION Uploading a CA Certificate | 1440 Uploading a Certification Revocation List | 1441 Deleting CA Certificates or Certificate Revocation Lists | 1441
1440
You upload a certification authority (CA) certificate or the root certificate to verify user certificates. You upload a certificate revocation list (CRL) to maintain a list of certificates that were issued and revoked by that CA.
Uploading a CA Certificate
Before you proceed, make sure that the CA certificate is available on your local system. To upload a CA certificate: 1. On the Junos Space Network Management Platform user interface, select Administration > CA/CRL
Certificates. The CA/CRL Certificates page appears. This page displays the CA certificates that were previously uploaded to Junos Space Platform.
2. Click the down arrow next to the + icon and select X.509 CA Certificate. The Upload X.509 CA Certificate page appears.
1441
3. · To upload the CA certificate: i. Click Browse adjacent to the X.509 CA Certificate File field to navigate to the location of the X.509 CA certificate file on your local system.
ii. Click Upload. The CA certificate file is uploaded to Junos Space Platform.
· To cancel the upload, click Cancel.
Uploading a Certification Revocation List Before you proceed, make sure that the CRL is available on your local system. To upload a CRL: 1. On the Junos Space Network Management Platform user interface, select Administration > CA/CRL
Certificates. The CA/CRL Certificates page appears. This page displays the CRLs that were previously uploaded to Junos Space Platform.
2. Click the down arrow next to the + icon and select X.509 CRL Certificate. The Upload X.509 CRL Certificate dialog box appears.
3. · To upload the CRL: i. Click Browse adjacent to the X.509 CRL Certificate File field to navigate to the location of the X.509 CRL file on your local system.
ii. Click Upload. The CRL is uploaded to Junos Space Platform.
· To cancel the upload, click Cancel.
Deleting CA Certificates or Certificate Revocation Lists To delete any CA certificates or CRLs: 1. On the Junos Space Network Management Platform user interface, select Administration > CA/CRL
Certificates.
1442
The CA/CRL Certificates page appears. This page displays the CRLs that were previously uploaded to Junos Space Platform.
2. Select the CA certificates or CRLs to delete and click the Delete X509 CA/CRL Certificate icon located at the top-left corner of the CA/CRL Certificates page. A confirmation dialog box is displayed.
3. Click Yes on the confirmation dialog box. The selected CAs or CRLs are deleted from Junos Space Platform.
RELATED DOCUMENTATION Certificate Management Overview | 1418 Installing a Custom SSL Certificate on the Junos Space Server | 1433 Deleting a CA Certificate or Certificate Revocation List | 1442
Deleting a CA Certificate or Certificate Revocation List
You delete a CA certificate when you do not want to trust a certificate authority in Junos Space Platform. You delete a CRL when you do not want to validate whether a certificate has been revoked. To delete CA certificates or CRLs: 1. On the Junos Space Network Management Platform user interface, select Administration > CA/CRL
Certificates. The CA/CRL Certificates page appears. This page displays the CRLs that were previously uploaded to Junos Space Platform.
2. Select the CA certificates or CRLs to delete and click the Delete X509 CA/CRL Certificate icon located at the top-left corner of the CA/CRL Certificates page. A confirmation dialog box is displayed.
3. Click Yes on the confirmation dialog box. The selected CAs or CRLs are deleted from Junos Space Platform.
RELATED DOCUMENTATION
Certificate Management Overview | 1418 Changing User Authentication Modes | 1426 Uploading a CA Certificate and Certificate Revocation List | 1440
1443
Adding and Activating X.509 Certificate Parameters for X.509 Certificate Parameter Authentication
IN THIS SECTION
Adding X.509 Certificate Parameters for X.509 Certificate Parameter Authentication | 1443 Activating an X.509 Certificate Parameter | 1445
Starting with Junos Space Network Management Platform Release 15.2R1, you can add X.509 certificate parameters to authenticate users by using X.509 certificate parameters. You must enable X.509 certificate parameter authentication mode on the Modify Application Settings page to use this authentication mode. You can add up to four parameters to authenticate users in this authentication mode. You can specify X.509 certificate parameters such as CN (common name), OU (organizational unit), O (organization), L (location), ST (state of residence), C (country of residence), EMAILADDRESS (e-mail address), rfc822Name (e-mail address of the user extracted from the subject alternative name), and msUPN (Microsoft User Principal Name). The display names you specified when creating these parameters are displayed on the Create User page when you specify the values for the parameters. For more information, see "Creating Users in Junos Space Network Management Platform" on page 1035.
CAUTION: If you are adding a new parameter with the parameter-based authentication enabled, all users are locked if you activate the parameter without specifying the values of the parameter for all users. This restriction does not apply when you add parameters with the password-based or complete certificate-based authentication mode enabled.
The following topics describe how to add and activate X.509 certificate parameters.
Adding X.509 Certificate Parameters for X.509 Certificate Parameter Authentication
You add X.509 certificate parameters to authenticate users by using X.509 certificate parameters.
1444
To add an X.509 certificate parameter:
1. On the Junos Space Network Management Platform user interface, select Administration > Applications. The Applications page that appears displays Junos Space Platform and the Junos Space applications installed.
2. Right-click Network Management Platform and select Modify Application Settings.
The Modify Application Settings (Modify Network Management Platform Settings) page is displayed and the Device section is selected by default.
3. Click the X509CertificateParameters link (on the left of the page) to add the X.509 certificate parameters that are validated during authentication.
The X509CertificateParameters page that appears displays the X.509 certificate parameters.
Column
Description
Comments
Details about the parameter
Admin Status
Administrative status of the parameter: Activate or Deactivate
Certificate Parameter
Parameter that must be validated during login
Parameter Display Name
Description of the parameter
4. Click the + icon. The X509CertificateParameters [New] page is displayed.
5. In the Certificate Parameter field, enter the parameter that must be validated.
6. In the Parameter Display Name field, enter a description about the X.509 certificate parameter.
7. Click Add.
8. Repeat steps 3 through 7 to add more parameters that are validated during user login.
9. (Optional) To enter additional comments for a parameter, click the view/configure link in the Comments column.
10. (Optional) To deactivate the parameter before enabling authentication using the parameter, click the Deactivate link in the Admin Status column.
1445
This step is applicable only if you enabled authentication using parameters and are adding a new parameter. · To deactivate the parameter, click Yes in the Confirmation dialog box.
The Admin Status column changes to Activate.
· Click No to cancel deactivating the parameter.
11. Click Modify to save the X.509 certificate parameters. You are redirected to the Applications page.
Activating an X.509 Certificate Parameter
If you are authenticating users by using the parameter-based authentication mode and adding a new parameter, you must deactivate the parameter and enter the value of the parameter for all Junos Space Platform users from the Modify User page before activating the parameter for authentication. For more information, refer to "Modifying a User" on page 1044. To activate an X.509 certificate parameter: 1. On the Junos Space Network Management Platform user interface, select Administration > Applications
> Network Management Platform > Modify Application Settings. The Modify Application Settings (Modify Network Management Platform Settings) page is displayed and the Device section is selected by default.
2. Click the X509CertificateParameters link. The X509CertificateParameters page that appears displays the X.509 certificate parameters.
3. Select the row corresponding to the certificate parameter you want to activate and click the Activate link in the Admin Status column. A Confirmation dialog box is displayed.
4. You can activate the parameter or cancel the activation process. · To activate the parameter, click Yes in the Confirmation dialog box. The Admin Status column changes to Deactivate and this parameter is validated during user login.
· Click No to cancel activating the parameter.
5. Click Modify to update the modifications.
1446
You are redirected to the Modify Application Settings page.
Release History Table Release
Description
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can add X.509 certificate parameters to authenticate users by using X.509 certificate parameters.
RELATED DOCUMENTATION Certificate Management Overview | 1418 Installing a Custom SSL Certificate on the Junos Space Server | 1433 Modifying an X.509 Certificate Parameter | 1446 Deleting X.509 Certificate Parameters | 1447
Modifying an X.509 Certificate Parameter
You modify an X.509 certificate parameter to change the parameter used during certificate parameterbased authentication or the display name of the parameter.
CAUTION: If you modify a parameter, you must modify the values of parameters for all users. Users will not be able to log in to Junos Space Platform by using the parameter authentication mode if any of the parameters are modified and their values are not updated for users.
To modify an X.509 certificate parameter: 1. On the Junos Space Network Management Platform user interface, select Administration > Applications
> Network Management Platform > Modify Application Settings. The Modify Application Settings (Modify Network Management Platform Settings) page is displayed and the Device section is selected by default.
2. Click the X509CertificateParameters link. The X509CertificateParameters page that appears displays the X.509 certificate parameters.
3. Modify the description and name of the parameter. 4. Click Update to save the details of the parameter. 5. (Optional) To modify other parameters, click the X509CertificateParameters link.
You are redirected to the X509CertificateParameters page. 6. Repeat steps 2 through 4 to modify the parameters. 7. Click Modify to save the details of the parameter.
You are redirected to the Modify Application Settings page.
1447
RELATED DOCUMENTATION Adding and Activating X.509 Certificate Parameters for X.509 Certificate Parameter Authentication | 1443 Deleting X.509 Certificate Parameters | 1447
Deleting X.509 Certificate Parameters
You delete X.509 certificate parameters to remove them from the list of parameters that are authenticated when a user logs in. To delete X.509 certificate parameters: 1. On the Junos Space Network Management Platform user interface, select Administration > Applications
> Network Management Platform > Modify Application Settings. The Modify Application Settings (Modify Network Management Platform Settings) page is displayed and the Device section is selected by default.
2. Click the X509CertificateParameters link. The X509CertificateParameters page that appears displays the X.509 certificate parameters.
3. Select the rows corresponding to the certificate parameters you want to delete and click the - icon (on the left of the page). A Confirmation dialog box is displayed.
4. You can delete the parameter or retain the parameter in Junos Space Platform. · To delete the parameters, click Yes in the Confirmation dialog box. The selected X.509 certificate parameters are deleted.
· Click No to retain the parameters.
5. Click Modify to save the modifications to the list of parameters. You are redirected to the Modify Application Settings page.
1448
RELATED DOCUMENTATION
Adding and Activating X.509 Certificate Parameters for X.509 Certificate Parameter Authentication | 1443 Modifying an X.509 Certificate Parameter | 1446
CHAPTER 75
Configuring Authentication Servers
IN THIS CHAPTER Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450 Junos Space Login Behavior with Remote Authentication Enabled | 1453 Managing Remote Authentication Servers | 1459 Creating a Remote Authentication Server | 1460 Modifying Authentication Settings | 1463 Configuring a RADIUS Server for Authentication and Authorization | 1465 Configuring a TACACS+ Server for Authentication and Authorization | 1467
1449
Remote Authentication Overview
Junos Space Network Management Platform, by default, authenticates users to log in locally when you configure their accounts by using Role Based Access Control > User Accounts > Create User (icon) task.
On the Administration > Authentication Servers inventory landing page, you can authenticate users to log in exclusively from a centralized location by using one or more RADIUS or TACACS+ remote authentication servers. You can also authenticate users to log in to Junos Space Network Management Platform by using both local and remote authentication.
You can configure the order in which Junos Space Network Management Platform connects to remote authentication servers by preference. Junos Space Network Management Platform authenticates users by using the first reachable remote authentication server on the list.
Junos Space Network Management Platform supports the following RADIUS authentication methods: Password Authentication Protocol (PAP), Challenge Handshake Authentication Protocol (CHAP), and Microsoft Challenge Handshake Authentication Protocol version 2 (MS-CHAP v2). For TACACS+ authentication, Junos Space Platform supports Password Authentication Protocol (PAP) and Challenge Handshake Authentication Protocol (CHAP).
1450
NOTE: If you configure remote authentication using RADIUS or TACACS+, then the most restrictive concurrent session limit between the Junos Space server and the remote authentication server takes effect.
You must have Super Administrator or System Administrator privileges to configure remote authentication server settings, authentication modes, and user passwords and settings. Regular Junos Space Network Management Platform users cannot configure their own passwords if you maintain users solely by using a remote authentication server. You may choose to allow some privileged users to set a local password so they can still log in to Junos Space if the remote authentication server is unreachable.
RELATED DOCUMENTATION Configuring User Access Controls Overview | 68 Junos Space Authentication Modes Overview | 1450 Managing Remote Authentication Servers | 1459 Creating a Remote Authentication Server | 1460 Configuring a RADIUS Server for Authentication and Authorization | 1465 Configuring a TACACS+ Server for Authentication and Authorization | 1467 Modifying Authentication Settings | 1463 Junos Space Login Behavior with Remote Authentication Enabled | 1453
Junos Space Authentication Modes Overview
IN THIS SECTION Local Authentication | 1451 Remote Authentication | 1451 Remote-Local Authentication | 1452
1451
Junos Space Network Management Platform provides three authentication modes: local, remote, and remote-local. The default authentication mode is local.
For each of these modes, authentication and authorization is performed in the following ways:
· Local--Authentication and authorization are performed by Junos Space Platform based on the user account and role information in the Junos Space database. You can create the user account for local authentication from the Role Based Access Control > User Accounts task.
· Remote--Authentication and authorization are performed by a set of remote AAA servers (RADIUS or TACACS+). You can configure remote authentication from the Administration > Authentication Servers task.
· Remote-Local--When a user is not configured on the remote authentication servers or when the servers are unreachable, the local password and role information are used if such a local user exists in the Junos Space database. You can configure remote-local authentication from the Administration > Authentication Servers task.
The following sections describe the authentication modes:
Local Authentication
The user is authenticated and authorized using the local Junos Space Network Management Platform database. By default, Junos Space Platform authenticates users locally. Before you can authenticate a user by using local authentication mode, you must create the user account in Junos Space Platform with a valid password and assign roles to the user. To create a user account in Junos Space Platform, use the Role Based Access Control >User Accounts > Create User (icon) task.
For more information, see the "Configuring Users to Manage Objects in Junos Space Overview" on page 1033, "Creating Users in Junos Space Network Management Platform" on page 1035, and "Creating a User-Defined Role" on page 1022 topics.
Remote Authentication
User authentication information is stored on one or more remote authentication servers. Authorization information can also be configured and stored on the remote authentication server. To configure Junos Space Network Management Platform remote authentication, see "Managing Remote Authentication Servers" on page 1459.
In this mode, if a corresponding local user exists, the local password is used only in the emergency case where the authentication servers are unreachable.
Before you authenticate and authorize users by using remote authentication mode, you must make sure that:
1452
· You create and configure the remote authentication server in Junos Space Platform (see "Creating a Remote Authentication Server" on page 1460).
· You create the remote profiles required for authorizing the users in Junos Space Platform (see "Creating a Remote Profile" on page 1098).
· You configure the RADIUS or TACACS+ server for authentication and authorization of users (see "Configuring a RADIUS Server for Authentication and Authorization" on page 1465 or "Configuring a TACACS+ Server for Authentication and Authorization" on page 1467).
· You create the user accounts by using the Role Based Access Control workspace in Junos Space Platform if you want to permit local authentication and authorization for select users when the remote authentication servers are not reachable (see "Creating Users in Junos Space Network Management Platform" on page 1035).
Remote-Local Authentication
User authentication information is stored on one or more remote authentication servers. Authorization information can also be configured and stored on the remote authentication server. For more information about configuring Junos Space Network Management Platform remote-local authentication, see "Managing Remote Authentication Servers" on page 1459.
In this mode, when a user is not configured on the remote authentication server, when the server is unreachable, or when the remote server denies the user access, then the local password is used if such a local user exists in the Junos Space Network Management Platform database.
Before you authenticate and authorize users by using remote-local authentication mode, you must make sure that:
· You create and configure the remote authentication server in Junos Space Platform (see "Creating a Remote Authentication Server" on page 1460).
· You create the remote profiles required for authorizing the users in Junos Space Platform (see "Creating a Remote Profile" on page 1098).
· You configure the RADIUS or TACACS+ server for authentication and authorization of users (see "Configuring a RADIUS Server for Authentication and Authorization" on page 1465 or "Configuring a TACACS+ Server for Authentication and Authorization" on page 1467).
· You create user accounts by using the Role Based Access Control workspace in Junos Space Platform to permit local authentication and authorization (see "Creating Users in Junos Space Network Management Platform" on page 1035).
RELATED DOCUMENTATION
Configuring User Access Controls Overview | 68 Remote Authentication Overview | 1449 Configuring a RADIUS Server for Authentication and Authorization | 1465 Configuring a TACACS+ Server for Authentication and Authorization | 1467 Managing Remote Authentication Servers | 1459 Creating a Remote Authentication Server | 1460 Modifying Authentication Settings | 1463
1453
Junos Space Login Behavior with Remote Authentication Enabled
This topic describes the Junos Space Network Management Platform login behavior with remote authentication only or remote-local authentication enabled.
WARNING: To avoid a BEAST TLS 1.0 attack, whenever you log in to Junos Space Network Management Platform in a browser tab or window, make sure that tab or window was not previously used to surf a non-HTTPS website. Best practice is to close your browser and relaunch it before logging in to Junos Space Platform.
System behavior differs depending on whether you select remote authentication only or remote-local authentication as the authentication mode for Junos Space Platform. Differences occur when a remote authentication server does not authenticate a user. There are also differences in the source of authorization depending on what answer the remote server returns. Figure 137 shows the decision tree underlying system behavior when either remote authentication only or remote-local authentication is chosen and a remote authentication server accepts the user.
Figure 137: Remote Authentication Server Accepts User
1454
Figure 138 shows the decision tree when a remote authentication server either rejects the user or does not respond at all.
Figure 138: Remote Authentication Server Not Reachable or Rejects User
1455
The following sections describe the login behavior when remote authentication only or remote-local authentication mode is enabled.
NOTE: When remote users log in with usernames that contain an @ symbol or a backslash (\) character, Junos Space Platform ignores the part of the username that follows the @ symbol or the part that precedes the backslash character and authenticates with the rest of the username. For example, if a remote user uses abc@domain, abc@domain.com, or domain\abc as the username, Junos Space Platform uses only abc to authenticate the user. If there is an entry for abc in the database, the corresponding remote profile is applied to the user. If the database does not have an entry that corresponds to the username, abc in the given example, Junos Space Platform creates a read-only user account with the name abc and assigns a remote profile.
Login Behavior with Remote Authentication Only Enabled
1456
Table 185 lists the various scenarios and the authentication and authorization behavior for each scenario when remote authentication only mode is enabled.
Table 185: Login Behavior with Remote Authentication Only Enabled
Scenario
Login Behavior
User logs in with the correct credentials
· If the user's password is on the remote server and there is a corresponding remote profile in Junos Space Platform, the user logs in with the roles assigned by the remote profile.
· If the user's password is on the remote server but there is no equivalent remote profile in Junos Space Platform, the user logs in with roles assigned from the Junos Space database user information if the corresponding user account exists in the Junos Space database. If there is no equivalent remote profile or user account in Junos Space Platform, the user is denied access.
· If the first remote authentication server is present, only that server is contacted and login success or failure solely depends on the password stored there. If the first authentication server is not reachable, the other servers are contacted in the specified order. If no authentication server is reachable, the local password in the Junos Space Platform database is checked. If the emergency password is configured in Junos Space and the credentials match, the user logs in successfully with roles assigned from the Junos Space database user information. Otherwise, the user is denied access.
NOTE: For remote authentication and authorization, most users do not need a local password. The local password in this case is only for emergency purposes, when the remote authentication servers are unreachable.
User logs in with incorrect credentials or the user does not exist on the remote authentication server
· Access to Junos Space Platform is denied.
NOTE: Authentication servers, for security purposes, do not distinguish between these two cases (that is, a user is logging in with incorrect credentials or a user does not exist on the remote authentication server). Therefore, Junos Space Platform must always treat these type of logins as an authentication failure.
· If no authentication servers are reachable, Junos Space Platform tries the local password. If the emergency password is configured in Junos Space and the credentials match, the user logs in successfully with roles assigned from the Junos Space database user information. Otherwise, the user is denied access.
1457
Table 185: Login Behavior with Remote Authentication Only Enabled (continued)
Scenario
Login Behavior
User attempts to log in when the remote authentication server is configured for Challenge/Response
· If the remote authentication server indicates that a challenge is required, it provides the challenge question. Junos Space Platform displays the challenge question to the user on the Junos Space login page and waits for the user's response.
· If the challenge question is answered correctly, it is possible that the authentication server may pose additional challenge questions.
· If the challenge question is answered incorrectly, it is possible that the authentication server may rechallenge the user with the same challenge question, use a different challenge question, or fail the login attempt completely. The remote authentication server configuration determines the behavior.
· If the final challenge question is answered correctly, the user logs in successfully.
Login Behavior with Remote-Local Authentication Enabled
Table 186 lists the various scenarios and the authentication and authorization behavior for each scenario when the remote-local authentication mode is enabled.
Table 186: Login Behavior with Remote-Local Authentication Enabled
Scenario
Login Behavior
User logs in with the correct credentials
· If the user's password is on the remote server and there is a corresponding remote profile in Junos Space Platform, the user logs in with the roles assigned by the remote profile.
· If the user's password is on the remote server, but there is no equivalent remote profile in Junos Space database, then Junos Space Platform checks whether the user account exists in the Junos Space database. If the user account exists, the user logs in successfully with the roles assigned from the Junos Space database user information. Otherwise, the user is denied access.
· If the remote servers are not reachable, Junos Space Platform tries to authenticate the user locally. If a Junos Space Platform user account and local password exist, and the credentials match, the user logs in successfully with the roles assigned from the Junos Space database user information. Otherwise, the user is denied access.
User logs in with incorrect credentials or the user does not exist on the remote authentication server
· Junos Space Platform checks the remote authentication servers first. If authentication fails or if a server is not reachable, Junos Space Platform tries to authenticate the user locally. If a Junos Space Platform user account and local password exist, and the credentials match, the user logs in successfully with the roles assigned from the Junos Space database user information. Otherwise, the user is denied access.
1458
Table 186: Login Behavior with Remote-Local Authentication Enabled (continued)
Scenario
Login Behavior
User attempts to log in when the remote authentication server is configured for Challenge/Response
· If the remote authentication server indicates that a challenge is required, it provides the challenge question. Junos Space Platform displays the challenge question to the user on the Junos Space login page and waits for the user's response.
· If the challenge question is answered correctly, it is possible that the authentication server may pose additional challenge questions.
· If the challenge question is answered incorrectly, it is possible that the authentication server may rechallenge the user with the same challenge question, use a different challenge question, or fail the login attempt completely. The remote authentication server configuration determines the behavior.
· If the final challenge question is answered correctly, the user logs in successfully.
RELATED DOCUMENTATION
Remote Authentication Overview | 1449 Logging In to Junos Space | 99 Junos Space Authentication Modes Overview | 1450 Creating a Remote Authentication Server | 1460 Modifying Authentication Settings | 1463
1459
Managing Remote Authentication Servers
The Administration > Authentication Servers page allows you to configure remote authentication settings to allow users to log in to Junos Space Network Management Platform from a remote authentication server. The Authentication Servers page includes two areas: Authentication Mode Setting and Remote Authentication Servers table. From the Authentication Mode Setting area, you can select and save the Junos Space Network Management Platform authentication mode: local, remote, or remote-local. From the Remote Authentication Servers table area, you can: · Create, modify, and delete remote authentication server connection settings and test the connection. · Specify the remote authentication server connection order. To select the remote authentication mode and manage remote authentication servers: 1. Select Administration > Authentication Servers.
2. In the Authentication Mode Setting area, select the authentication method you want to use. By default, Junos Space Network Management Platform is in local authentication mode and the controls for the Remote Authentication Servers table are disabled. If you select the Use Remote Authentication check box, the Remote Authentication Only and Remote-Local Authentication options are enabled.
3. Click Save to store the remote authentication mode setting you select.
4. In the Remote Authentication Servers table, add a new remote authentication server by clicking the Add auth server (+ ) icon. See "Creating a Remote Authentication Server" on page 1460.
5. Modify an authentication server by doubling clicking that server row in the table. See "Modifying Authentication Settings" on page 1463.
6. Delete an authentication server by selecting a row and clicking the Delete auth server () icon to remove an authentication server.
7. Click a row and select the arrows to move the server up and down the list. Up arrow is disabled if the server is at the top of the list; down arrow is disabled if the server is at the bottom of the list. Sorting for columns are disabled, since there is an explicit sort order as determined by the arrows.
8. On selection of the server, click Test Connection to display a transient result of last connection test.
9. Confirm that you want to test the server connection.
After testing, the Status dialog box appears displaying the test results: success or failure.
10. Click OK. If the connection results fails, ensure that the server settings are correct.
1460
RELATED DOCUMENTATION Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450 Creating a Remote Authentication Server | 1460 Modifying Authentication Settings | 1463 Junos Space Login Behavior with Remote Authentication Enabled | 1453
Creating a Remote Authentication Server
To run Junos Space Network Management Platform remote authentication, you must create one or more remote authentication servers and configure the server settings. To create a remote authentication server: 1. Select Administration > Authentication Servers.
The Authentication Servers page is displayed.
2. (Optional) If you want to use one of the remote authentication modes supported by Junos Space Platform, in the Authentication Mode Setting area, perform the following tasks:
NOTE: Junos Space Platform allows you to add authentication servers even when you are using local authentication. This enables you to configure the authentication server settings before enabling and specifying a remote authentication mode.
a. Select the Use Remote Authentication check box. The option button to specify the remote authentication mode is enabled.
b. Specify the remote authentication mode that you want to use. Do one of the following: · Select Remote Authentication Only to use the remote authentication mode supported by Junos Space Platform.
1461
· Select Remote-Local Authentication to use the remote local authentication mode supported by Junos Space Platform.
c. Click Save to store the remote authentication mode setting you select.
3. To add a remote authentication server: a. Click the + (Add auth server) icon. The Create Auth Server dialog box is displayed.
b. Specify the remote authentication server fields, as explained in Table 187; all the fields are mandatory. Table 187: Remote Authentication Server Parameters
Parameter
Description
Server Type Server Name
Specify the type of the authentication server:
· RADIUS--Authenticate users by using a RADIUS server. · TACACS+--Authenticate users by using a TACACS+ server. Specify the name of the remote authentication server.
The remote authentication server name cannot exceed 128 characters and can contain only letters, numbers, hyphens, underscores, or periods.
Protocol IP Address
Select one of the following authentication protocols supported by the remote server:
· PAP--Password Authentication Protocol · CHAP--Challenge Handshake Authentication Protocol · MS-CHAPv2--(RADIUS only) Microsoft Challenge Handshake Authentication Protocol
version 2 (MS-CHAP v2)
Specify the IP address of the remote authentication server.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses or
both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the remote authentication server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
Port Number
Specify the UDP port number assigned by the remote authentication server.
The default port number is 1812 for RADIUS authentication and 49 for TACACS+ authentication.
1462
Table 187: Remote Authentication Server Parameters (continued)
Parameter
Description
Shared Secret
Specify the password (shared secret) that is used for authentication between the remote authentication server, the proxy authentication server, and Junos Space Platform.
The shared secret that you specify must match the shared secret configured in the RADIUS or TACACS+ server.
Confirm Shared Secret
Reenter the password (shared secret) to confirm.
Number of Tries
Specify the number of retries that a Junos Space Platform attempts to contact the remote authentication server.
After the specified number of tries is exceeded and if you have configured other servers, Junos Space Platform attempts to contact the other authentication servers one by one.
You can enter a value from 1 through 5; the default is 3 tries.
Max Retry Timeout MSecs
Specify the interval (in milliseconds) that the Junos Space Platform waits for a reply from the remote authentication server before it times out.
The minimum value is 1000 milliseconds and the default is 6000 milliseconds.
c. Click OK. The remote authentication server is created and displayed in the table on the Authentication Servers page.
4. (Optional) Click Test Connection to verify the connection from Junos Space Platform to the remote authentication server. · If the test connection result is a success, the remote authentication server is reachable. · If the test connection result is a failure, the remote authentication server is unreachable. · If the test connection result displays the message Mismatched shared secret, then the configured shared secret for that server is incorrect. Ensure that you have entered the correct remote authentication server shared secret details.
RELATED DOCUMENTATION Configuring a RADIUS Server for Authentication and Authorization | 1465
Configuring a TACACS+ Server for Authentication and Authorization | 1467 Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450 Modifying Authentication Settings | 1463 Configuring a RADIUS Server for Authentication and Authorization | 1465
1463
Modifying Authentication Settings
The Authentication Servers page allows you to change Junos Space Network Management Platform authentication mode and remote authentication server connection settings.
To modify remote authentication settings:
1. Select Administration > Authentication Servers. The Authentication Servers page appears.
2. In the Authentication Mode Setting area, change to the authentication method you want to use. By default, Junos Space Network Management Platform is in local authentication mode and the controls for the Remote Authentication Servers table are disabled. If you select the Use Remote Authentication check box, the Remote Authentication Only and Remote-Local Authentication options are enabled.
3. To modify the authentication mode settings, in the Authentication Mode Setting area, perform one of the following tasks: · Clear the Use Remote Authentication check box to use local authentication · Select the Use Remote Authentication check box to use remote authentication. The option button to specify the remote authentication mode is enabled. Perform one of the following tasks: · Select Remote Authentication Only to use the remote authentication mode supported by Junos Space Platform. · Select Remote-Local Authentication to use the remote local authentication mode supported by Junos Space Platform.
· Click Save to store the remote authentication mode setting you select. 4. To modify a previously configured remote authentication server:
a. Select the authentication server that you want to modify. The authentication server that you selected is highlighted.
1464
b. Click the pencil icon corresponding to the authentication server you selected. The previously configured parameters are displayed below the authentication server that you selected. You can modify all the configured parameters except the name of the authentication server. For more details, see the "Creating a Remote Authentication Server" on page 1460 topic.
c. After you have modified the authentication server settings, click OK. The modifications that you made are saved.
5. (Optional) Click Test Connection to verify the connection from Junos Space Platform to the remote authentication server. · If the test connection result is a success, the remote authentication server is reachable. · If the test connection result is a failure, the remote authentication server is unreachable. · If the test connection result displays the message Mismatched shared secret, then the configured shared secret for that server is incorrect. Ensure that you have entered the correct remote authentication server shared secret details.
RELATED DOCUMENTATION Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450 Creating a Remote Authentication Server | 1460 Managing Remote Authentication Servers | 1459 Junos Space Login Behavior with Remote Authentication Enabled | 1453
1465
Configuring a RADIUS Server for Authentication and Authorization
Junos Space Network Management Platform supports authorization of users from a RADIUS server. Using the Authentication Servers page (Administration > Authentication Servers), you can configure a RADIUS server to authenticate and authorize users to log in exclusively from a centralized location using one or more RADIUS remote authentication servers. You can also authenticate and authorize users to log in to Junos Space Platform using both local and remote authentication and authorization.
NOTE: Before you authenticate and authorize users to login to Junos Space Platform by using the RADIUS server, you must make sure that: · You create and configure the RADIUS remote authentication server in Junos Space Platform
(see "Creating a Remote Authentication Server" on page 1460). · You create the remote profiles required for authorizing the users in Junos Space Platform (see
"Creating a Remote Profile" on page 1098). · You create user accounts by using the Role Based Access Control workspace in Junos Space
Platform if you want to permit remote authentication and local authorization (see "Creating Users in Junos Space Network Management Platform" on page 1035).
To understand login behavior with remote authentication enabled, see the "Junos Space Login Behavior with Remote Authentication Enabled" on page 1453 topic. Authorization data in the RADIUS server are stored as vendor-specific attributes (VSAs). Therefore, you must update the Junos dictionary file (juniper.dct) in the RADIUS server with the Junos Space Platform defined VSA (Juniper-Junosspace-Profiles). Users in the RADIUS server database should be assigned the VSA with the value corresponding to the Junos Space remote profile that you want to assign to the user. The user is authorized with roles specified by the remote profile. For a list of relevant Juniper RADIUS VSAs, see Juniper Networks Vendor-Specific RADIUS Attributes. To configure VSAs in Steel-Belted Radius: 1. Add the Junos Space VSA to the Juniper dictionary file (juniper.dct). Locate the dictionary file and add
the following text to the file:
ATTRIBUTE Juniper-Junosspace-Profiles Juniper-VSA(11, string) r
2. Assign a remote profile to the user by using the Juniper-Junosspace-Profiles attribute. For more information about adding the VSA and assigning a Junos Space remote profile to a user in Steel-Belted RADIUS, see the Steel-Belted RADIUS documentation.
1466
To configure VSAs in FreeRADIUS: 1. Add the Junos Space VSA to the Juniper dictionary file (dictionary.juniper). Locate the dictionary file
and add the following text to the file:
ATTRIBUTE Juniper-Junosspace-Profiles 11 String
2. Assign a remote profile to the user by using the Juniper-Junosspace-Profiles attribute. The following example shows how configuration information can be added to FreeRADIUS to assign a remote profile to a user:
"guestuser" Auth-Type:=PAP, User-Password:="<password>" Juniper-Junosspace-Profiles = "guestprofile"
For more information about adding the VSA and assigning a Junos Space remote profile to a user in Free RADIUS, see the FreeRADIUS documentation.
NOTE: The remote profiles created in Junos Space Platform are not automatically synchronized to the RADIUS server for selection. The administrator must manually enter the correct remote profile name.
RELATED DOCUMENTATION Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450 Managing Remote Authentication Servers | 1459 Creating a Remote Authentication Server | 1460 Modifying Authentication Settings | 1463 Configuring a TACACS+ Server for Authentication and Authorization | 1467 Junos Space Login Behavior with Remote Authentication Enabled | 1453
1467
Configuring a TACACS+ Server for Authentication and Authorization
Junos Space Network Management Platform supports authentication and authorization of users from one or more TACACS+ servers. (A combination of TACACS+ and RADIUS servers is also supported.) If you configure multiple servers, they will be tried during authentication in the order listed in the user interface. If the first server accessed is not reachable or there is a shared-secret mismatch, the next one is tried. To understand login behavior with remote authentication enabled, see the "Junos Space Login Behavior with Remote Authentication Enabled" on page 1453 topic.
NOTE: Before you authenticate and authorize users to log into Junos Space Platform by using the TACACS+ server, you must make sure that:
· You create and configure the TACACS+ remote authentication server in Junos Space Platform (see "Creating a Remote Authentication Server" on page 1460).
· You create the remote profiles required for authorizing the users in Junos Space Platform (see "Creating a Remote Profile" on page 1098).
· You create user accounts by using the Role Based Access Control workspace in Junos Space Platform if you want to permit remote authentication and local authorization (see "Creating Users in Junos Space Network Management Platform" on page 1035).
Authorization data in the TACACS+ server are stored as attribute-value pairs (AVPs). The AVP contains the name of the remote profile. Therefore, you must configure users in the TACACS+ server with the AVPs corresponding to the remote profiles created in the Junos Space server to represent the user's roles.
When Junos Space Network Management Platform queries the TACACS+ server for user authorization, the TACACS+ server's junosspace-exec service returns the remote profile name for that user. Junos Space Network Management Platform determines the user's role or roles from this response.
To assign roles to the user using the remote profile name, you can configure the network-management-profiles AVP for the junosspace-exec service on the TACACS+ server.
The following example shows how configuration information can be added to the TACACS+ server to assign a remote profile to a user:
user = guestuser {
pap = cleartext "<password>" service = junosspace-exec {
network-management-profiles = guest_profile
1468
} }
For more information about configuring the AVP and assigning a Junos Space remote profile to a user in the TACACS+ server, see the TACACS+ server documentation.
RELATED DOCUMENTATION Remote Authentication Overview | 1449 Junos Space Authentication Modes Overview | 1450 Managing Remote Authentication Servers | 1459 Creating a Remote Authentication Server | 1460 Modifying Authentication Settings | 1463 Configuring a RADIUS Server for Authentication and Authorization | 1465 Junos Space Login Behavior with Remote Authentication Enabled | 1453
CHAPTER 76
Managing SMTP Servers
IN THIS CHAPTER Managing SMTP Servers | 1469 Adding an SMTP Server | 1470
1469
Managing SMTP Servers
You can configure one or several SMTP servers for use by Junos Space applications that need to transmit e-mail. For example, an application might use e-mail automatically to inform a support organization of an issue and might include logs or reports. To configure and manage SMTP servers: 1. Select Administration > SMTP Servers.
The SMTP Servers page appears listing all the configured servers. Only one server can be the active server at one time. The active server is highlighted.
To add or delete an SMTP server: 1. Click the plus sign (Add SMTP server icon) at the upper left of the page to add a server.
2. Configure and add the server. See "Adding an SMTP Server" on page 1470.
3. To delete a server, click the sign (Delete SMTP server icon) at the upper left of the page.
NOTE: If you try to delete the active SMTP server, an error message is displayed indicating that you cannot delete the server.
1470
To change the active SMTP server: · Click the Set Active SMTP server icon at the upper left of the page to select the server you want to
make active. Click Yes on the confirmation message that appears to set the selected server as the active SMTP server. If there is only one server and it is the active server, clicking No on the confirmation message has no effect.
The Test connection settings option is used to test the SMTP server connection from Junos Space Network Management Platform. This option uses the user-defined (selected), authentication, and security details when it tests the connection between the SMTP server and Junos Space Network Management Platform. To test the connection to the server: · Click the Test Connection button at the upper-right corner of the page.
If the SMTP server supports only the TLS security protocol, the connectivity test succeeds for both the None and TLS security options. This is a known limitation in the connectivity test for testing the connection between the SMTP server and Junos Space Network Management Platform.
RELATED DOCUMENTATION Adding an SMTP Server | 1470
Adding an SMTP Server
You can add an SMTP server to the list of configured servers to which applications can direct e-mail. To add an SMTP server, you must have administration privileges. To add an SMTP server: 1. Select Administration > SMTP Servers.
The SMTP Servers page appears displaying the list of SMTP servers already configured.
2. Click the plus (+) icon (Add SMTP Server) in the upper-left corner. The Create SMTP Server dialog box appears.
3. In the Server Name text box, enter a name for the SMTP server, using alphanumeric values. The SMTP server name cannot exceed 128 characters. The name can contain only letters and numbers and can include a hyphen (-), underscore (_), or period (.).
4. In the Host Address text box, enter the IP address or the hostname of the SMTP server.
1471
The IP address or the hostname that you enter should be valid and should not contain any special characters.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses or
both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SMTP server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
5. Enter the port number in the Port Number text box The default port number is 587.
6. In the From Email Address text box, enter the e-mail address of this server in the format: user@example.com. This address appears as the sender of e-mail message from the applications that are using this server.
7. Select the Set As Active Server check box to set this server as the primary or active SMTP server. All applications then redirect the e-mail message to this SMTP server.
8. (Optional) If you want to use the SMTP Authentication security protocol to check the credentials of the sender, select Use SMTP Authentication. When you select this option, the related User Name, Password, Confirm Password, and Security fields are enabled. Enter the following information related to SMTP authentication: a. In the User Name text box, enter the username that you want to use for authentication.
b. Enter the authentication password in the Password and Confirm Password text boxes.
c. (Optional) If you want to use Transport Layer Security (TLS) or Secure Sockets Layer (SSL) for further protection, select TLS or SSL from the Security list. By default, no security protocol (None) is used.
9. Click Save. The SMTP server that you added is saved and displayed in the STMP Servers page.
RELATED DOCUMENTATION Managing SMTP Servers | 1469
1472
CHAPTER 77
Email Listeners
IN THIS CHAPTER Email Listeners Overview | 1473 Adding Users to the Email Listeners List | 1474 Modifying Users in the Email Listeners List | 1475 Deleting Users from the Email Listeners List | 1476
1473
Email Listeners Overview
The Email Listeners list is a list that contains e-mail addresses of users who receive notifications about the health of the Junos Space system through a System Health Report from Junos Space Network Management Platform. To this list, you can add e-mail addresses of users who are Junos Space users and e-mail addresses that are not added to the Junos Space Platform database. You can edit or delete the details in the Email Listeners list.
Users added as E-mail Listeners receive notifications when an issue occurs (Status column displays a red Yes) and when an issue is fixed (Status column displays a red No) for all parameters in the System Health Report (with the exception of HPROF availability and JBoss restart observed in the preceding three days). For more information about the parameters in the System Health Report, refer to "Viewing the Administration Statistics" on page 1138.
For an Email Listener to receive e-mail notifications, the active SMTP server must be reachable from Junos Space Platform. For more information about configuring an SMTP server, refer to "Adding an SMTP Server" on page 1470. Your role must be assigned the required privileges to add, modify, or delete users from the Email Listeners list.
RELATED DOCUMENTATION
Adding Users to the Email Listeners List | 1474 Deleting Users from the Email Listeners List | 1476 Modifying Users in the Email Listeners List | 1475
1474
Adding Users to the Email Listeners List
You add users to the Email Listeners list if they must receive notifications about the health of the system through a System Health Report from Junos Space Network Management Platform. You can add e-mail addresses of users who are not added to the Junos Space Platform database.
NOTE: For a user to receive e-mail notifications, the active SMTP server must be reachable from Junos Space Platform. Your role must be assigned the required privileges so that you can add users to the Email Listeners list.
To add a user to the Email Listeners list: 1. On the Junos Space Network Management Platform user interface, select Administration > Email
Listeners. The Email Listeners page that appears displays the list of users who receive notifications about the health of the system. 2. Click the Create Email Listener icon (on the right of the page). The Create Email Listener pop-up window is displayed.
NOTE: If you have not configured an active SMTP server, the following error message is displayed: No active SMTP server configured, please go to Administration -> SMTP Servers to configure it.
3. From the Type of Notification drop-down list, select Fabric Health Monitoring. 4. In the Email ID field, enter the e-mail address of the user who should receive notifications. 5. (Optional) In the Description field, add a description about the e-mail listener. 6. Click Save.
The user's e-mail address is added to the Email Listeners list.
RELATED DOCUMENTATION
Modifying Users in the Email Listeners List | 1475 Viewing the Administration Statistics | 1138 Adding an SMTP Server | 1470 Modifying Junos Space Network Management Platform Settings | 1340 Deleting Users from the Email Listeners List | 1476
1475
Modifying Users in the Email Listeners List
If a user's e-mail address has changed, you need to modify the details of the user in the Email Listeners list so that notifications can be sent to the new e-mail address.
NOTE: Your role must be assigned the required privileges so that you can modify the details of users in the Email Listeners list.
To modify the details of a user in the Email Listeners list: 1. On the Junos Space Network Management Platform user interface, select Administration > Email
Listeners. The Email Listeners page that appears displays the list of users who receive notifications about the health of the system.
2. Select the Pencil icon corresponding to the user whose details must be modified.
3. In the Email ID field, modify the e-mail address.
4. In the Description field, modify the description.
5. Click Save to save the changes.
RELATED DOCUMENTATION
Adding Users to the Email Listeners List | 1474 Deleting Users from the Email Listeners List | 1476
1476
Deleting Users from the Email Listeners List
You delete users from the Email Listeners list when they must no longer receive notifications from Junos Space Network Management Platform.
NOTE: Your role must be assigned the required privileges so that you can delete users from the Email Listeners list.
To delete a user from the Email Listeners list: 1. On the Junos Space Network Management Platform user interface, select Administration > Email
Listeners. The Email Listeners page that appears displays the list of users who receive notifications about the health of the system.
2. Select the e-mail address and click the Delete Email Listener icon (on the right of the page). The Confirm dialog box is displayed.
3. You can delete or retain the user from or on the Email Listeners list. · To delete the user, click Yes. The user is deleted from the Email Listeners list.
· To retain the user, Click No. The user is retained on the Email Listeners list.
You are redirected to the Email Listeners page.
RELATED DOCUMENTATION Adding Users to the Email Listeners List | 1474 Viewing the Administration Statistics | 1138 Adding an SMTP Server | 1470 Replacing a Failed Junos Space Node | 1265 Modifying Junos Space Network Management Platform Settings | 1340
CHAPTER 78
Managing Git Repositories
IN THIS CHAPTER Git Repositories in Junos Space Overview | 1477 Managing Git Repositories in Junos Space | 1478 Viewing Git Repositories in Junos Space | 1482
1477
Git Repositories in Junos Space Overview
Junos Space Network Management Platform Release 15.2R1 enables you to import CLI Configlets and scripts to the Junos Space server from external Git repositories that can be accessed through HTTPS connections. You can add multiple Git repositories from the Administration workspace of Junos Space Platform.
When a Git repository is added from the Administration workspace of Junos Space Platform, a clone of the Git repository is stored on the Junos Space server and this is synchronized with the external Git repository every hour. CLI Configlets and scripts are imported from this clone of the Git repository. Before you import CLI Configlets or scripts, you can synchronize the Git repository clone in Junos Space with the external Git repository to retrieve the latest versions of the files.
Separate Git repositories must be added for importing scripts and CLI Configlets respectively. While multiple Git repositories can be added to Junos Space Platform, only one Git repository of each type can be designated the active repository for importing either scripts or CLI Configlets.
From the Git Repositories inventory page of the Administration workspace, you can view the Git repositories that are configured in Junos Space Platform. You can also add new Git repositories, modify the details of existing Git repositories, delete Git repositories from Junos Space Platform, and designate a Git repository as the active repository. To manage Git repositories in Junos Space Platform, you must be assigned the privileges of a System Administrator.
1478
Release History Table
Release
Description
15.2R1
Junos Space Network Management Platform Release 15.2R1 enables you to import CLI Configlets and scripts to the Junos Space server from external Git repositories that can be accessed through HTTPS connections.
RELATED DOCUMENTATION Managing Git Repositories in Junos Space | 1478 Viewing Git Repositories in Junos Space | 1482 CLI Configlets Overview | 533 Scripts Overview | 672
Managing Git Repositories in Junos Space
IN THIS SECTION Adding Git Repositories to Junos Space | 1479 Modifying Git Repositories in Junos Space | 1480 Deleting Git Repositories from Junos Space | 1480 Setting the Active Git Repository | 1481 Testing the Connection to the Git Repository | 1482
In Junos Space Network Management Platform, you can manage Git repository connections from the Git Repositories page of the Administration workspace. External Git repositories are added to Junos Space to enable the import of CLI Configlets and scripts from the repositories to the Junos Space database.
1479
You can perform the following tasks from the Administration > Git Repositories page of Junos Space Platform:
Adding Git Repositories to Junos Space You can add multiple Git repositories for importing CLI Configlets and scripts. While adding a Git repository to Junos Space, you can specify whether the Git repository is a configlets repository or a scripts repository. To add a Git repository to Junos Space: 1. On the Junos Space Platform UI, select Administration > Git Repositories.
The Git Repositories page appears, displaying the Git repositories added to Junos Space.
2. Click the Add Git Repository icon to add a Git repository. The Add Git Repository dialog box is displayed.
3. In the Repository HTTPS URL field, enter the HTTPS URL of the Git repository.
4. (Optional) In the User Name field, enter the username for accessing the Git repository.
NOTE: If the Git repository does not require user credentials for access, you do not need to enter a username and password. If you choose to enter the username and password, you must enter values in both the fields.
5. (Optional) In the Password field, enter the password of the Git user whose username you entered.
6. (Optional) In the Confirm Password field, reenter the password.
7. From the Type list, select the type of Git repository you are adding. You can select either Configlets or Scripts.
8. (Optional) Select the Set as active repository check box to designate the Git repository being added as the active Git repository of that type. When you set the active Git repository, the Git repository that was previously the active repository of that type is deactivated.
9. Click Save to save the information in Junos Space Platform.
1480
The Git Repository Add Information dialog box appears, displaying the job ID link.
10. Perform one of the following actions: · Click the job ID link to view the details of the job on the Job Management page. · Click OK to return to the Git Repositories page. When the job is successfully completed, information about the newly added Git repository is displayed on the Git Repositories page.
Modifying Git Repositories in Junos Space From the Git Repositories page of the Administration workspace, you can modify the details of the Git repositories that you have added to Junos Space. To modify the connection details of a Git repository: 1. On the Junos Space Platform UI, select Administration > Git Repositories.
The Git Repositories page appears, displaying the Git repositories added to Junos Space.
2. Double-click the row or click the Edit icon beside the URL of the Git repository whose details you want to modify.
3. Modify the necessary fields displayed in the inline editor.
NOTE: The Repository HTTPS URL and Type fields cannot be modified. See "Adding Git Repositories to Junos Space" on page 1479 for more information about modifying the fields.
4. Click Save to save your changes.
You are returned to the Git Repositories page where you can see the updated information.
Deleting Git Repositories from Junos Space You can delete the Git repositories that are added to Junos Space from the Git Repositories page. To delete the Git repository: 1. On the Junos Space Platform UI, select Administration > Git Repositories.
The Git Repositories page appears, displaying the Git repositories added to Junos Space.
1481
2. Select the Git repository you want to delete by clicking the respective row, then click the Delete icon at the top of the page. A confirmation dialog box appears.
NOTE: You cannot delete an active Git repository. If you have selected an active Git repository, a warning message is displayed. Click OK to return to the Git Repositories page.
3. Click Yes to confirm.
You are returned to the Git Repositories page. The deleted Git repository is removed from the page.
Setting the Active Git Repository In Junos Space Platform, you can add multiple Git repositories, but you can designate only one configlets repository and one scripts repository as the active Git repositories for CLI Configlets and scripts respectively. CLI Configlets and scripts are imported from the active Git repository of that particular type. When you designate a Git repository as an active repository, the previously active repository of that type is no longer active. To set the active Git repository: 1. On the Junos Space Platform UI, select Administration > Git Repositories.
The Git Repositories page appears, displaying the Git repositories added to Junos Space.
2. Select the Git repository you want to mark as active by clicking the respective row.
3. Click the Set Active Git Repository icon at the top of the page. A confirmation message is displayed.
4. Click Yes to confirm. The selected Git repository becomes the new active Git repository of that type. The previously active Git repository of the same type is no longer designated the active Git repository.
The Active column on the Git Repositories page displays Yes for the active Git repositories.
1482
Testing the Connection to the Git Repository After you add a Git repository to Junos Space, you can test the connection to make sure that the Git repository is accessible and CLI Configlets or scripts can be imported, depending on the type of Git repository that you added. To test the connection to the Git repository: 1. On the Junos Space Platform UI, select Administration > Git Repositories.
The Git Repositories page appears, displaying the Git repositories added to Junos Space.
2. Select the Git repository for which you want to test the connection by clicking the respective row, then click Test Connection at the top right of the page. The Confirm Connection Test dialog box appears, displaying a message indicating that testing the connection may take several minutes. You are prompted to confirm whether you want to continue.
3. Click Yes to confirm. The Status dialog box appears, displaying the status indicating whether the connection test was successful or failed.
4. Click OK. You are returned to the Git Repositories page.
RELATED DOCUMENTATION Git Repositories in Junos Space Overview | 1477 Viewing Git Repositories in Junos Space | 1482
Viewing Git Repositories in Junos Space
In Junos Space Network Management Platform, you can import CLI Configlets and scripts from external Git repositories. Before you import CLI Configlets or scripts from Git repositories, you must add the repositories to Junos Space from the Git Repositories page of the Administration workspace. You can view the details of all the repositories that have been added to Junos Space from the Git Repositories page.
1483
To view Git repositories:
· On the Junos Space Platform UI, select Administration > Git Repositories. The Git Repositories page appears, displaying the Git repositories added to Junos Space. Table 188 lists the fields on the Git Repositories page and their descriptions. You can use the filter option on the drop-down lists of the Repository URL and Git User Name column headings to specify the filter criteria. When you apply the filters, the page displays only the Git repositories that match the filter criteria.
Table 188: Git Repositories Page Fields
Field
Description
Repository URL
HTTPS URL of the Git repository
Type
Type of Git repository. Value can be Configlets or Scripts.
Git User Name
Username for accessing the Git repository
Active
Value can be Yes or No, indicating whether the Git repository is the active repository or not, respectively
RELATED DOCUMENTATION
Git Repositories in Junos Space Overview | 1477 Managing Git Repositories in Junos Space | 1478
CHAPTER 79
Audit Log Forwarding
IN THIS CHAPTER Audit Log Forwarding in Junos Space Overview | 1484 Viewing Audit Log Forwarding Criterion | 1485 Adding Audit Log Forwarding Criterion | 1488 Modifying Audit Log Forwarding Criterion | 1489 Deleting Audit Log Forwarding Criterion | 1490 Enabling Audit Log Forwarding Criterion | 1491 Testing the System Log Server Connection for Audit Log Forwarding | 1492
1484
Audit Log Forwarding in Junos Space Overview
Junos Space Network Management Platform enables you to forward audit logs to a system log server. You can add one or several audit log forwarding criteria to Junos Space Platform to export audit logs from the Junos Space Platform database to a system log server. For example, Criterion1 can be added with HostAddress1 and default port number 514 and default protocol TCP. If Criterion1 is enabled, all audit logs that fulfill Criterion1 are forwarded to HostAddress1.
On the Audit Log Forwarding inventory page of the Administration workspace, you can view the audit log forwarding criteria that are configured in Junos Space Platform. You can also add a new audit log forwarding criterion, enable existing audit log forwarding criteria, modify the details of existing audit log forwarding criteria, and delete audit log forwarding criteria from Junos Space Platform. To manage audit log forwarding in Junos Space Platform, you must be assigned the privileges of a Super Administrator or System Administrator.
Audit logs are forwarded to the system log server at configured time intervals. By default, audit logs are forwarded every sixty minutes. All the audit logs after the previous successful forwarding are exported at the configured time based on an enabled audit log forwarding criterion. You can also enable more than one criteria for audit log forwarding.
The time interval for audit log forwarding can be configured from Administration > Applications. For more information about configuring the time interval for audit log forwarding, see "Modifying Junos Space Network Management Platform Settings" on page 1340.
1485
The audit logs forwarded to the system log server is in Common Event Format (CEF).
The status of audit log forwarding is displayed by the Audit Logs forwarding failed parameter in the system health report on the Administration page.
When audit log forwarding fails:
· The status of the parameter Audit log forwarding failed changes from No to Yes. · Configured e-mail listeners in the Email Listeners list receive e-mail alerts (e-mail alerts are also received
when the issue is resolved).
For more information about the status of audit log forwarding, see "Viewing the Administration Statistics" on page 1138.
You can perform the following tasks from Administration > Audit Log Forwarding page of Junos Space Platform:
· Viewing Audit Log Forwarding Criterion on page 1485 · Adding Audit Log Forwarding Criterion on page 1488 · Modifying Audit Log Forwarding Criterion on page 1489 · Deleting Audit Log Forwarding Criterion on page 1490 · Enabling Audit Log Forwarding Criterion on page 1491 · Testing the System Log Server Connection for Audit Log Forwarding on page 1492
Release History Table Release
Description
16.1R1
Junos Space Network Management Platform enables you to forward audit logs to a system log server.
RELATED DOCUMENTATION Junos Space Audit Logs Overview | 1115
Viewing Audit Log Forwarding Criterion
In Junos Space Network Management Platform, you can manage audit log forwarding on the Audit Log Forwarding page of the Administration workspace. You can view the details of all configured audit log forwarding criteria on the Audit Log Forwarding page.
1486
You can change the way the audit log forwarding criteria configured in Junos Space Platform are displayed.
To change the way the criteria are displayed:
· On the Junos Space Network Management Platform user interface, select Administration > Audit Log Forwarding. The Audit Log Forwarding page appears, displaying all the configured audit log forwarding criteria in a tabular form.
· Click Display Quick View on the Audit Log Forwarding page title bar and click a criterion listed on the page.
The details of the criterion are displayed on the right side of the Audit Log Forwarding page. You can also disable the Quick View option by clicking on the same button again (Hide Quick View).
· Double-click a criterion listed on the Audit Log Forwarding page. The details of the selected criterion are displayed in the View Audit Log Forwarding Criterion Details dialog box.
· Select an audit log forwarding criterion from the Audit Log Forwarding page and click the View Audit Log Forwarding Criterion Details icon on the title bar.
The details of the selected criterion are displayed in the View Audit Log Forwarding Criterion Details dialog box.
Table 189 lists the fields on the Audit Log Forwarding page and their descriptions.
You can use the filter option on the Name, Server Address, Port, Protocol, Last Updated User, Last Updated Time, and Enabled columns to filter the audit log forwarding criteria. When you apply the filters, the page displays only the audit log forwarding criteria that match the filter criteria.
Table 189: Audit Log Forwarding Page Fields
Field
Description
Location
Name
Name of the audit log forwarding criterion
Audit Log Forwarding Page
View Audit Log Forwarding Criterion Details dialog box
Quick View
1487
Table 189: Audit Log Forwarding Page Fields (continued)
Field
Description
Location
Description
Description of the audit log forwarding criterion Audit Log Forwarding Page
View Audit Log Forwarding Criterion Details dialog box
Quick View
Server Address
The address of the system log server to which audit logs are forwarded
Audit Log Forwarding Page
View Audit Log Forwarding Criterion Details dialog box
Quick View
Port
The port number of the system log server to Audit Log Forwarding Page
which audit logs are forwarded
View Audit Log Forwarding Criterion Details
The default port number is 514.
dialog box
Quick View
Protocol
The protocol based on which audit logs are forwarded
The options are UDP, TCP, or TLS v1.2. The default protocol used is TCP.
Audit Log Forwarding Page
View Audit Log Forwarding Criterion Details dialog box
Quick View
Last Updated User
Name of the user who last updated the audit log forwarding criterion
Audit Log Forwarding Page
View Audit Log Forwarding Criterion Details dialog box
Quick View
Last Updated Time
Date and time when the audit log forwarding criterion was last updated
Audit Log Forwarding Page
View Audit Log Forwarding Criterion Details dialog box
Enabled
Status of the audit log forwarding criterion.
Audit Log Forwarding Page
The value is Yes if the criterion is enabled and View Audit Log Forwarding Criterion Details
No if it is disabled.
dialog box
Quick View
1488
Table 189: Audit Log Forwarding Page Fields (continued)
Field
Description
Location
Filter Criteria
Parameters included in the criterion to enable filtering of the audit logs sent to the system log server.
View Audit Log Forwarding Criterion Details dialog box
RELATED DOCUMENTATION Audit Log Forwarding in Junos Space Overview | 1484 Adding Audit Log Forwarding Criterion | 1488 Modifying Audit Log Forwarding Criterion | 1489 Deleting Audit Log Forwarding Criterion | 1490 Enabling Audit Log Forwarding Criterion | 1491 Testing the System Log Server Connection for Audit Log Forwarding | 1492
Adding Audit Log Forwarding Criterion
You can add an audit log forwarding criterion for exporting audit logs to a system log server. To add a criterion, you need Super Administrator or System Administrator privileges. To add an audit log forwarding criterion: 1. On the Junos Space Network Management Platform user interface, select Administration > Audit Log
Forwarding. The Audit Log Forwarding page appears displaying the list of configured audit log forwarding criteria.
2. On the menu bar, click Create Audit Log Forwarding Criterion (the plus icon). The Add Audit Log Forwarding Criterion page appears.
3. Enter the following details. · Name: Enter the name for the audit log forwarding criterion. · (Optional) Description: Enter a short description for the criterion. · Syslog Host Address: Enter the host address of the system log server. It must either be a fully qualified domain name (FQDN) or the IP address of the system log server.
1489
· Port Number: Enter the port number of the system log server. The default port number is 514. · Protocol: Select the protocol from the given list. You can select UDP, TCP, or TLS v1.2. The default
protocol used is TCP. · (Optional) To enable filtering of the audit logs to be sent to the system log server, select the Include
Filters check box. Selecting this check box enables you to filter out audit logs based on the different parameters displayed on the Audit Log page under the Audit Logs workspace.
NOTE: If Include Filters is not selected, all the audit logs generated in Junos Space are forwarded to the configured system log server.
· (Optional) To enable the criterion, select the Enable this forwarding criterion check box. 4. Click Save to save the audit log forwarding criterion.
The new criterion is created and the Add Audit Log Forwarding Criterion dialog is displayed with the corresponding Job ID. (Optional) On clicking the Job ID, you are redirected to the Jobs > Job Management page with a filtered view of the Job corresponding to addition of the new audit log forwarding criterion.
RELATED DOCUMENTATION Audit Log Forwarding in Junos Space Overview | 1484 Viewing Audit Log Forwarding Criterion | 1485 Modifying Audit Log Forwarding Criterion | 1489 Deleting Audit Log Forwarding Criterion | 1490 Enabling Audit Log Forwarding Criterion | 1491 Testing the System Log Server Connection for Audit Log Forwarding | 1492
Modifying Audit Log Forwarding Criterion
In Junos Space Network Management Platform, you can forward audit logs to a system log server. As a Super Administrator or System Administrator, you can modify an existing audit log forwarding criterion.
1490
To modify an existing criterion: 1. On the Junos Space Network Management Platform user interface, select Administration > Audit Log
Forwarding. The Audit Log Forwarding page appears.
2. Select the audit log forwarding criterion to be modified.
3. On the menu bar, click Modify Audit Log Forwarding Criterion (the pencil icon). The Modify Audit Log Forward Criterion page appears.
4. Modify the required fields. You can modify Description, Syslog Host Address, Port Number, and Protocol. You can also check or uncheck the Include Filters check box. You cannot modify the name of the audit log forwarding criterion.
5. Click Save to save the modification. The modification is saved and the Modify Audit Log Forwarding Criterion dialog is displayed with the corresponding Job ID. (Optional) On clicking the Job ID, you are redirected to the Jobs > Job Management page with a filtered view of the Job corresponding to modification of the audit log forwarding criterion.
RELATED DOCUMENTATION Audit Log Forwarding in Junos Space Overview | 1484 Viewing Audit Log Forwarding Criterion | 1485 Adding Audit Log Forwarding Criterion | 1488 Deleting Audit Log Forwarding Criterion | 1490 Enabling Audit Log Forwarding Criterion | 1491 Testing the System Log Server Connection for Audit Log Forwarding | 1492
Deleting Audit Log Forwarding Criterion
You can delete one or several audit log forwarding criteria configured in Junos space Network Management Platform. You must have Super Administrator or System Administrator privileges to delete criteria.
1491
To delete audit log forwarding criteria: 1. On the Junos Space Network Management Platform user interface, select Administration > Audit Log
Forwarding. The Audit Log Forwarding page appears.
2. Select the criteria to be deleted from the list of existing criteria on the Audit Log Forwarding page.
3. On the menu bar, click Delete Audit Log Forwarding Criteria (the minus icon). The Delete Audit Log Forwarding Criteria dialog box is displayed.
4. Click Delete to delete the criterion or Cancel to cancel the action. The Audit Log Forwarding page displays the current list of criteria configured on Junos Space Platform.
RELATED DOCUMENTATION Audit Log Forwarding in Junos Space Overview | 1484 Viewing Audit Log Forwarding Criterion | 1485 Adding Audit Log Forwarding Criterion | 1488 Modifying Audit Log Forwarding Criterion | 1489 Enabling Audit Log Forwarding Criterion | 1491 Testing the System Log Server Connection for Audit Log Forwarding | 1492
Enabling Audit Log Forwarding Criterion
Use the Audit Log Forwarding page under the Administration workspace to enable forwarding of audit logs to a system log server based on one or several criteria configured in Junos Space Network Management Platform. The criteria can be enabled by a user with Super Administrator or System Administrator privileges. To enable an audit log forwarding criterion: 1. On the Junos Space Network Management Platform user interface, select Administration > Audit Log
Forwarding. The Audit Log Forwarding page appears.
2. Select the criterion to be enabled from the list of existing criteria on the Audit Log Forwarding page.
1492
3. On the menu bar, click Enable Audit Log Forwarding Criterion. The Enable Audit Log Forwarding Criterion dialog box is displayed.
4. Click Confirm to enable the criterion or Cancel to cancel the action. If you click Confirm, the Audit Log Forwarding page is displayed with the current list of configured criteria, and the Enabled column of the enabled criteria shows the status Yes.
NOTE: On the menu bar, Enable Audit Log Forwarding Criterion changes to disabled state when an enabled criterion is selected.
RELATED DOCUMENTATION Audit Log Forwarding in Junos Space Overview | 1484 Viewing Audit Log Forwarding Criterion | 1485 Adding Audit Log Forwarding Criterion | 1488 Modifying Audit Log Forwarding Criterion | 1489 Deleting Audit Log Forwarding Criterion | 1490 Testing the System Log Server Connection for Audit Log Forwarding | 1492
Testing the System Log Server Connection for Audit Log Forwarding
After you add an audit log forwarding criterion to Junos Space Network Management Platform, you can test to make sure that the system log server is active and audit logs can be forwarded to it based on the enabled criteria. To test the connection to the system log server: 1. On the Junos Space Network Management Platform user interface, select Administration > Audit Log
Forwarding. The Audit Log Forwarding page appears.
2. Select the criterion to be tested from the list of existing criteria on Audit Log Forwarding page.
3. On the menu bar, click Test Syslog Server Connection.
1493
The Test Syslog Server Connection dialog box is displayed.
4. Click Yes to test the connection or Cancel to cancel the action. If you click Yes, the Syslog Connection Status dialog box is displayed with the status of the connection for the selected criterion as active/inactive.
RELATED DOCUMENTATION Audit Log Forwarding in Junos Space Overview | 1484 Viewing Audit Log Forwarding Criterion | 1485 Adding Audit Log Forwarding Criterion | 1488 Modifying Audit Log Forwarding Criterion | 1489 Deleting Audit Log Forwarding Criterion | 1490 Enabling Audit Log Forwarding Criterion | 1491
1494
CHAPTER 80
Configuring a Proxy Server
IN THIS CHAPTER Configuring Proxy Server Settings | 1494
Configuring Proxy Server Settings
From the Administration workspace, you can configure a proxy server that Junos Space Network Management Platform and its installed applications can use. For example, when you initiate an action to download the DMI schemas from the Subversion repository of Juniper Networks, Junos Space Platform accesses the Subversion repository through the proxy server, if the proxy server is configured. You can configure a proxy server in Junos Space Platform if you are a user who is assigned the privileges of a Super Administrator or System Administrator. If you are a User Administrator creating a custom role, you can assign the privileges of a Super Administrator or System Administrator to the new role so that when you assign this role to a user, the user has the necessary permissions to configure a proxy server. To configure a proxy server: 1. On the Junos Space Platform user interface, select Administration > Proxy Server.
You are taken to the Proxy Server page. If an existing proxy server is configured, the settings are displayed. 2. Click the pencil icon (Add/Edit Proxy server) to add a proxy server or edit an existing proxy server. The fields on the Proxy Server page can now be edited. 3. In the Proxy Address text box, enter the IP address of the proxy server.
1495
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses or
both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the proxy server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
4. In the Port text box, enter the port number of the proxy server. You must enter a port number that must be in the range 0 through 65,535.
5. (Optional) In the User Name text box, enter the username that you want to use for authentication. The maximum number of characters allowed is 255; other restrictions may be imposed by the proxy server depending on its configuration.
6. (Optional) Enter the authentication password in the Password text box. The maximum number of characters allowed is 255; other restrictions may be imposed by the proxy server depending on its configuration.
7. Do one of the following: · Click Save to save the proxy server configuration. The proxy server settings that you entered are saved and the fields on the page are no longer editable. · Click Cancel to cancel the proxy server configuration. The proxy server settings that you entered are discarded and the fields on the page are no longer editable.
NOTE: Optionally, you can click Clear to clear the proxy server settings that you entered, and reenter the proxy server settings.
8. To enable the proxy server configuration, select the Enable Proxy Server check box.
1496
NOTE: You must enable the proxy server configuration for Junos Space Platform to use the configured proxy server.
Junos Space Platform and applications installed on Junos Space Platform can use the configured proxy server.
RELATED DOCUMENTATION Junos Space Administrators Overview | 1136
CHAPTER 81
Managing Tags
IN THIS CHAPTER Tags Overview | 1498 Creating a Tag | 1499 Managing Tags | 1504 Managing Hierarchical Tags | 1505 Sharing a Tag | 1513 Renaming Tags | 1514 Deleting Tags | 1515 Tagging an Object | 1518 Untagging Objects | 1519 Filtering the Inventory by Using Tags | 1520 Viewing Tagged Objects | 1521 Viewing Tags for a Managed Object | 1524 Exporting Tags from Junos Space Network Management Platform | 1525
1497
1498
Tags Overview
You can create user-defined tags on an application workspace inventory page to easily categorize and organize managed objects. Subsequently, you can view and use these tags to easily search for multiple objects to view the status or perform a bulk action on them without having to select each object individually. Tags are classified into two categories: private tags and public tags. Private tags are those that are created by you and can be used only by you because they are not visible to others. Public tags are those that are available to all users for tagging objects that are accessible to them. You need the Tag Administrator role privileges to create, modify, or delete a public tag, manage hierarchical tags, as well as convert a private tag to a public tag. However, any Junos Space user can: · Create, modify, and delete private tags · View public and private tags · Tag and untag objects by using public and private tags · Export public and private tags
NOTE: You cannot view or access private tags created by other users. However, if you are a user with the Tag Administrator role, you can view and access private tags of other users.
Tag names should not start with a space; contain a comma, double quotation marks, or parentheses; and exceed 255 characters. Also, you cannot name a tag "Untagged" because it is a reserved term. To use tags: 1. Create a private or public (shared tag) by using the Administration > Tags > Create Tag user interface
(see "Creating a Tag" on page 1499), or from a Device Management or Job Management inventory landing page (see "Managing Hierarchical Tags" on page 1505).
2. Tag an object on an inventory page. For example, you can tag an object on the Device Management inventory page. After you tag an object, you can view or untag existing tags. See "Tagging an Object" on page 1518 and "Untagging Objects" on page 1519.
3. (Optional) Create hierarchical tags and manage them on the Tag Hierarchy pane in the Tag view on an inventory landing page for taggable objects (such as devices or jobs). See "Managing Hierarchical Tags" on page 1505.
4. Manage tags using the Administration > Tags inventory page, or a Device Management or Job Management inventory landing page. You can view, share, rename, or delete tags, as well as view the list of objects assigned to a tag from this page. See "Viewing Tags for a Managed Object" on page 1524,
1499
"Sharing a Tag" on page 1513, "Renaming Tags" on page 1514, "Deleting Tags" on page 1515, and "Viewing Tagged Objects" on page 1521.
My Favorite Private Tag
When you mark an object as favorite for the first time, a private tag named My Favorite is created automatically. After the My Favorite tag is created, all objects marked using the Mark as Favorite workflow are assigned the My Favorite tag. You can access this tag from any of the inventory landing pages that allow you to select objects by tags. You cannot modify the My Favorite tag to a public tag. Currently, CLI Configlets, scripts, or scripts in a script bundle can be marked as favorites. When you unmark an object as favorite by using the Unmark as Favorite workflow, the object is untagged from the My Favorite tag.
Device Tags
Device tags are tags that are applicable only to devices and associate a tag with the IP address or hostname of a device managed by Junos Space Platform. Device tags are uploaded in the CSV format. You can associate the IP address or hostname with a custom tag and categorize the tag as a public or private tag. These tags can be used to filter devices when deploying a device template, upgrading a device image, staging scripts, or applying CLI Configlets to devices through workflows that enable filtering by tags. For more information about creating and uploading device tags by using a CSV file, see "Uploading Device Tags by Using a CSV File" on page 210.
RELATED DOCUMENTATION Tagging an Object | 1518 Untagging Objects | 1519 Filtering the Inventory by Using Tags | 1520 Viewing Tagged Objects | 1521 Managing Hierarchical Tags | 1505
Creating a Tag
You create tags to label and categorize Junos Space Network Management Platform objects so that you can filter, monitor, or perform batch actions on the tagged devices without having to select each object individually. All users can create their own private tags from the Administration > Tags inventory landing page. Users assigned the Tag Administrator role can create public tags.
1500
You can create tags from the Administration workspace as well as from the Device Management or Job Management inventory landing page. By default, the tags that any user creates are private tags, which means that these tags are visible only to the user who creates them. No other user can access the private tags created by other users. However, if you are a user with the Tag Administrator role, you can make these tags public, thereby allowing all users to associate objects with these tags. To create a tag from the Administration workspace: 1. On the Junos Space Network Management Platform user interface, select Administration > Tags.
The Tags page appears.
2. On the toolbar, click the Create Tag icon. The Create Tag dialog box appears.
3. If necessary, select the Share this Tag check box. When you share a tag, all users can use that tag. Only users with the Tag Administrator role can publish tags to the public domain. For users without this role, the Share this Tag check box is disabled (grayed out).
4. In the Tag Name field, type a tag name. You can enter an alphanumeric string for the tag name. The tag name can also contain underscores, hyphens, and spaces. However, a tag name should not: · Exceed 255 characters · Start with a space · Contain special characters, such as commas, double quotation marks, or parentheses.
NOTE: "Untagged" is a reserved term and hence you cannot create a tag with this name.
5. Click Create. The Create Tag dialog box appears, displaying that the tag is successfully created.
6. Click OK on the Create Tag dialog box. The newly added tag appears on the Tags page. If the tag is shared, it is public; if not, it is private. The Access Type column displays whether the tag is public or private.
In addition to creating tags from the Administration workspace, you can create tags from the following inventory landing pages as well:
1501
· Device Management · Job Management For example, to create a tag from the Device Management inventory landing page:
1. On the Junos Space Network Management Platform user interface, click Devices > Device Management. The Device Management page appears.
2. If the tags are not displayed, click the Display Tag View icon on the toolbar located at the top of this page. On the left side of the page, tags that are relevant to the page and the domain to which you are logged in are displayed.
NOTE: Tags from domains other than the domain to which the user is logged in are not displayed.
In Tags View, the tags are categorized as follows:
· Public--Lists public tags. Public tags are tags that are visible and available to all users and can be used by any user to tag an object in Junos Space. You can perform the following actions on public tags:
· Mouse over a tag to view the number of objects that are associated with the specific tag. · Click a tag to view the devices associated with the selected tag. The number displayed adjacent to
the tag shows the number of devices associated with the specific tag. For example, if you have assigned this tag to two devices, then the number displayed is 2. However, this rule has the following exceptions: · For hierarchical tags, the count on the parent tag does not include the number of objects
associated with its child tags. For example, if a child tag is associated with 10 objects and its parent tag is associated with five objects, then the count displayed for the parent tag is 5 and not 15. · You used the same tag on objects other than devices. For example, if you assigned TagC to UserA and DeviceB, then on the Device Management page, the count shown for TagC is 1. However, when you mouse over TagC, the tooltip displays a count of 2 (which includes the object type as well--in this example, the object types that are displayed are User and Device).
· Private--Lists private tags. Private tags are tags that you created and hence are visible only to you. No other user has access to these tags.
1502
Click a tag to view the devices associated with the selected tag. The number displayed adjacent to the tag shows the number of devices that are associated with the specific tag. For example, if you assigned this tag to two devices, then the number displayed is 2. · Untagged--Displays the number of devices that are not tagged 3. (Optional) To view all tags (that is, tags that are relevant and irrelevant to the inventory landing page to which you are currently logged in), select Show All Tags on the Tags list at the top of the Device Management inventory landing page. By default, Show Relevant Tags is selected and only the tags that are relevant to the current inventory landing page are displayed.
4. To add a tag: a. Click the Add Tag icon.
NOTE: If you use the shortcut menu instead of the Add Tag icon, the new tag that is added is of the same type as that of the parent. For example, right-click Private and select Add Tag to create a private tag.
b. In the Tag Name field, type a tag name. A tag name can be an alphanumeric string that contains underscores, hyphens, and spaces. However, note that a tag name should not: · Exceed 255 characters · Start with a space · Contain special characters, such as commas, double quotation marks, or parentheses.
NOTE: "Untagged" is a reserved term and hence you cannot create a tag with this name.
c. If necessary, select the Make Public check box to create a public tag. If left unselected, a private tag is created. When you make a tag public, all users can use that tag. Only the Tag Administrator can publish tags to the public domain.
NOTE: This check box is disabled if you chose to create a tag by using the shortcut menu. The new tag that is added is of the same type as that of the parent.
1503
d. (Optional) In the Description field, add a description of the tag. e. Click Add Tag.
The tag is added to the relevant tag category and assigned to the domain to which you are currently logged in. For example, if you created a public tag, the newly added tag is placed in the Public category. The count is set to zero (0) because you have not assigned this tag to any object.
NOTE: You cannot add any tags to the Untagged category.
When you add a tag, an audit log entry is automatically generated.
RELATED DOCUMENTATION Tags Overview | 1498 Managing Tags | 1504 Sharing a Tag | 1513 Renaming Tags | 1514 Deleting Tags | 1515
1504
Managing Tags
You can use tags to label and categorize objects in your network, such as subnets, devices, services, users, customers, and so forth so you can filter, monitor, or perform batch actions on them without having to select each object separately. You can also use tags to select devices. The inventory page allows you to manage and manipulate personal tags that you created. You must have the Super Administrator, System Administrator, or Tag Administrator role to manage tags.
The Tags page is empty for a new Junos Space installation until you create public and private tags. However, if you have upgraded from a previous release, then public and private tags from the preupgraded setup are listed on the Tags page. Tags are visible only to you unless the Tag Administrator shares them and makes them public to all users. Tags created by other users are private and visible only to them unless the Tag Administrator shares them and makes them public to all users.
You can manage all tags applied to inventory objects from the Administration > Tags inventory page. You can share, rename, or delete tags. You can view the list of objects assigned to a tag from the Tags page.
Viewing Tags
To view tags on the inventory page:
· All tags appear on the inventory page in tabular view and are listed alphabetically by tag name. You can filter inventory objects by tag name (see "Filtering the Inventory by Using Tags" on page 1520).
Viewing Tag Information
Tag data includes tag name, tag owner, access type, and number of objects tagged by a particular tag. See Table 190.
Table 190: Tag Information
Tag Data
Description
Name
Unique tag name. Tag names cannot start with a space or be longer than 256 characters.
Owner
Owner of a private tag. Public tags do not have a specific owner and hence this column is empty for public tags.
A user with the Super Administrator role can view private tags of all users, whereas a user without this role can view only the private tags created by that user.
Access Type
Tags can be public (shared) or private (visible only to the creator).
Tagged Object Count
Number of objects tagged in all workspace inventory pages by the tag. You can click the link to view the objects that are assigned to a specific tag.
1505
You can sort and hide columns. You can also filter data on the Name, Owner, and Access Type columns. For more information about manipulating tables in tabular view, see "Junos Space User Interface Overview" on page 88 in the Junos Space User Interface Guide. Performing Actions on Tags To perform an action on one or more tags: 1. Select one or more tags in the table.
Click a tag to select it. If you select one tag, you can perform all tag-management actions. If you select two or more tags, you can only delete the tags.
2. Select a command from the Actions menu or the shortcut menu. You can share (see "Sharing a Tag" on page 1513), rename (see "Renaming Tags" on page 1514), delete (see "Deleting Tags" on page 1515, or deselect all selected tags. You can also view the objects that are assigned the selected tag ("Viewing Tagged Objects" on page 1521).
RELATED DOCUMENTATION Tags Overview | 1498 Tagging an Object | 1518 Viewing Tags for a Managed Object | 1524 Untagging Objects | 1519 Creating a Tag | 1499
Managing Hierarchical Tags
Hierarchical tags consist of multiple levels of tags within a single tag. You can use hierarchical tags to classify objects managed by Junos Space Network Management Platform into categories and subcategories. Hierarchical tagging uses other tags to classify a tag. The hierarchy allows you to drill down to the specific objects in Junos Space Network Management Platform very easily. A hierarchical tag contains parent and child tags. For example, if you have an existing tag named West Coast and you create another tag within this tag named California, then the West Coast tag is the parent tag and the California tag is the child tag.
1506
NOTE: Only public tags can be hierarchical. That is, you can create a public tag within another public tag.
You can view, create, update, and delete hierarchical tags on the Devices > Device Management inventory page and Jobs > Job Management inventory page. For more information about creating, modifying, and deleting tags, see "Using the Shortcut Menu" on page 1508. This topic contains information about working with tags on the Device Management page. You can extend this information to the Job Management page. The Devices > Device Management inventory page displays all devices on the network that are accessible to you and that are managed by Junos Space Network Management Platform. To filter devices on the basis of tags:
1. Click the Display Tag View icon on the toolbar. The Tag Hierarchy pane appears, which displays a tree view of all tags (public and private tags) that are relevant to the inventory landing page that you are currently on. You can view, create, update, and delete tags on this pane.
2. Mouse over a tag to view the number of objects assigned to a public or private tag. The Tag Hierarchy pane also displays the Untagged category, which lists the number of devices that are not tagged.
3. Select a public or private tag on the tag hierarchy tree to filter devices that are assigned the selected tag. The devices tagged assigned with this specific tag appear in a tabular view (also called Tabular View Pane). If you click Untagged, the devices that are untagged are displayed.
Using the Tag Hierarchy Pane | 1506 Using the Tabular View Pane | 1512
Using the Tag Hierarchy Pane
IN THIS SECTION Using the Tag Action Bar | 1507 Using the Shortcut Menu | 1508 Using Drag-and-Drop | 1510 Using the Quick Info Tool Tip | 1511
Browsing Tagged Objects | 1511 Viewing All Tags | 1511 Adding a Child Tag | 1512 Deleting a Tag | 1512 Using Notification | 1512
1507
The Tag Hierarchy pane displays all tags organized hierarchically in a tree view. You can view, create, update, and delete tags in this pane. To display the Tag Hierarchy pane, click the Display Tag View icon on the Devices > Devices Management inventory page. Using the Tag Action Bar You can use the Tag Action bar to add a tag or delete an existing tag in the tag hierarchy tree. The Tag Action bar has two buttons--the plus [+] button and the minus [] button. You can click the plus [+] button to add a child tag and the minus [] button to delete a tag in the tag hierarchy tree.
NOTE: Only public tags can be hierarchical. That is, you can create a public tag within another public tag.
To add a public or private tag: 1. Select the Public or Private category depending on the type of tag that you want to add.
2. Click the Add Tag (plus [+] button) on the Tag Action bar. This option is disabled if you do not have the necessary permissions. The Create Tag dialog box appears.
3. Type a new tag name in the Tag Name field. You can enter an alphanumeric string for the tag name. The tag name can also contain underscores, hyphens, and spaces. However, a tag name should not: · Exceed 255 characters · Start with a space · Contain special characters, such as commas, double quotation marks, and parentheses
1508
NOTE: "Untagged" is a reserved term and hence you cannot create a tag with this name.
4. Select the Make Public check box. If you do not select this check box, then a private tag is created.
5. Click the Add Tag button. A new tag is added to the tag hierarchy.
To delete a tag: 1. Select the tag you want to delete from the tag hierarchy tree. 2. Click the Delete Tag (minus [] button) on the Tag Action bar. This option is disabled if you do not have
the necessary permissions. A confirmation dialog box appears.
NOTE: If you are deleting a child tag and you want to remove the child tag completely from Junos Space Network Management Platform, select the Also delete <tag-name> tags check box on the confirmation dialog box. If this check box is not selected and if the selected tag appears in multiple locations, then it is deleted from the current location only.
CAUTION: If you have assigned this tag to any object, then the object-tag association is lost when you click Yes on the confirmation dialog box.
3. Click Yes to delete the tag. NOTE: The tag is deleted and any object-tag association is lost. However, you can click No on the confirmation dialog box to prevent this and the tag is not deleted.
Using the Shortcut Menu When you right-click a tag in the tag hierarchy tree, a shortcut menu appears.
1509
This menu displays the Add Tag, Remove Tag, and Modify Tag options. Use the Add Tag option to add a new child tag in case of a public tag or to add a new private tag. Use Modify Tag and Remove Tag options to modify and delete a tag, respectively.
NOTE: Only public tags can be hierarchical. That is, you can create a public tag within another public tag.
To add a child tag by using the shortcut menu: 1. Right-click a public tag in the tag hierarchy tree for which you want to add a child tag.
The shortcut menu appears.
2. Click the Add Tag option on the shortcut menu. This option is disabled if you do not have the necessary permissions. The Create Tag dialog box appears.
3. Type a new tag name in the field. You can enter an alphanumeric string for the tag name. The tag name can also contain underscores, hyphens, and spaces. However, a tag name should not: · Exceed 255 characters · Start with a space · Contain special characters, such as commas, double quotation marks, and parentheses
NOTE: "Untagged" is a reserved term and hence you cannot create a tag with this name.
4. Click the Add Tag button. A new child tag is added to the tag hierarchy.
To modify a tag by using the shortcut menu: 1. Select the tag you want to modify from the tag hierarchy tree.
2. Click the Modify Tag option on the shortcut menu. This option is disabled if you do not have the necessary permissions. The Edit Tag Name or Description dialog box appears.
3. Edit the tag name or the description, as needed. 4. Click Modify Tag to modify the tag.
NOTE: If you have assigned this tag to any object, then those objects are associated with the modified tag.
1510
To delete a tag by using the shortcut menu: 1. Select the tag you want to delete in the tag hierarchy tree.
2. Click the Delete Tag option on the shortcut menu. This option is disabled if you do not have the necessary permissions. A confirmation dialog box appears.
NOTE: If you are deleting a child tag and you want to remove the child tag completely from Junos Space Network Management Platform, select the Also delete <tag-name> tags check box on the confirmation dialog box. If this check box is not selected and if the selected tag appears in multiple locations, then it is deleted from the current location only.
CAUTION: If you have assigned this tag to any object, then the object-tag association is lost when you click Yes on the confirmation dialog box.
3. Click Yes to delete the tag.
NOTE: The tag is deleted and any object-tag association is lost. However, you can click No on the confirmation dialog box to prevent this and the tag is not deleted.
Using Drag-and-Drop You can drag a public tag from one location and drop it in another location to manipulate the tag hierarchy. When you drag and drop a tag from one location to another, the corresponding tagged objects are not affected. For example, if the tag is associated with five devices, then it remains associated with the same five devices after you drag and drop the tag from one location to another.
1511
When you try to drag a public tag from one location to another, you can either move the tag from the current location to another location or copy the tag. The copy operation is used to make an identical copy of the tag in the new location, whereas the move operation is used to move the tag from the current location to a new location.
NOTE: You can move tags only within the public tags hierarchy. If you do not have permissions to create or delete tags, you cannot move tags.
Using the Quick Info Tool Tip The Quick Info tool tip provides quick and immediate statistics about a tag. You can place the cursor over a tag name or a tag icon in the tag hierarchy tree to see a quick summary of its tagged objects. To view the tool tip for a tag: 1. Select a particular tag in the tag hierarchy tree.
2. Place the cursor over the tag icon or the tag name. Brief statistics about the tagged objects appear.
Browsing Tagged Objects When you browse the tag hierarchy tree and select a tag, the corresponding tagged objects appear in the Tabular View pane. When you select the root node in the tag hierarchy tree, all tagged objects appear in the Tabular View pane without any filtering. You can click the [X] icon in the Tabular View pane to clear tag filtering. When you clear tag filtering, the root node in the tag hierarchy tree is automatically selected and all tagged objects appear in the Tabular View pane. Viewing All Tags By default, the tag hierarchy tree displays tags relevant to the Device Management inventory page only. In this mode, only those tags appear that are either empty or a tag that has at least one object on the inventory page. This is because Show Relevant Tags is selected by default on the Tags list located at the top of the Tag Hierarchy pane. To view all public tags: 1. Navigate to the Tags toolbar at the top of the Tag Hierarchy pane.
2. Select the Show All Tags option from the Tags list. All public tags appear in the Tabular View pane on the right.
1512
Adding a Child Tag You can use either the Tag Action bar or the shortcut menu to add a child tag to the tag hierarchy tree. To add a child tag by using the Tag Action bar, see "Using the Tag Action Bar" on page 1507. To add a child tag by using the shortcut menu, see "Using the Shortcut Menu" on page 1508. Deleting a Tag You can use either the Tag Action bar or the shortcut menu to delete a tag from the tag hierarchy tree. To delete a tag by using the Tag Action bar, see "Using the Tag Action Bar" on page 1507. To delete a tag by using the shortcut menu, see "Using the Shortcut Menu" on page 1508. Using Notification When multiple Junos Space Network Management Platform users view the same tag view on the Device Management inventory page, any change a user makes is immediately updated in the other tag views. Changes include creating, updating, and deleting tags in the Tag View pane, and tagging objects in the Tabular View pane.
Using the Tabular View Pane
The Tabular View pane displays all managed objects as rows in a table. When you select a particular tag in the tag hierarchy tree, its corresponding tagged objects are displayed in this pane. In this view, you can tag objects and also search for objects tagged with a particular tag. Tagging an object by using a hierarchical tag in the Tabular View pane is similar to tagging an object using a nonhierarchical tag on any application workspace manage inventory page. For information about how to tag an object, see "Tagging an Object" on page 1518. To search for specific tagged objects: 1. Navigate to the Device Management page.
2. Select a tag in the search box. The tag hierarchy tree navigates to the selected tag, and the Tabular View pane displays the objects that are tagged with that particular tag only.
RELATED DOCUMENTATION Tags Overview | 1498
1513
Sharing a Tag
User-defined tags are always created as private tags initially. If your tag has public value, you can share it to make it public for all users to tag objects on a workspace inventory page. To share a tag, you must have Tag Administrator privileges. To share a tag. 1. On the Junos Space Network Management Platform user interface, select Administration > Tags.
The Tags inventory page appears.
2. Select one or more private tags on the inventory page. The private keyword in the Access Type column on the Tags page indicates private tags.
3. Select Make Tag Public from the Actions menu or the shortcut menu. The Share Tag status box indicates whether you have shared the tag successfully. You can also share a tag when you add a new tag. (see "Creating a Tag" on page 1499).
4. Click OK on the Share Tag status box. The Access Type of the tag changes on the inventory table from private to public.
NOTE: You cannot revert a public tag to a private tag.
When you share a tag, an audit log entry is automatically generated.
RELATED DOCUMENTATION Tags Overview | 1498 Managing Tags | 1504 Renaming Tags | 1514 Deleting Tags | 1515 Creating a Tag | 1499
1514
Renaming Tags
The Modify Tag command enables you to reorganize or recatagorize managed objects according to your changing needs. To rename a tag: 1. On the Junos Space Network Management user interface, select Administration > Tags.
The Tags inventory page appears.
2. Select the tag that you want to rename.
3. Select Modify Tag from the shortcut menu. The Modify Tag dialog box appears.
4. Type a tag name in the New Name field. A tag name should not start with a space, cannot contain a comma, double quotation marks, and parentheses, or exceed 255 characters. Also, "Untagged" is a reserved term and hence you cannot have a tag with this name.
5. Click Modify. The old tag is renamed and saved in the database. You see the renamed tag on the inventory page. The objects that were associated with the old tag are now associated with the modified tag.
You can rename a tag not only from the Tags workspace but also from other workspaces such as the Device Management inventory landing page or the Job Management inventory landing page. To rename a tag from the Device Management inventory landing page: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. If tags are not displayed, click the Display Tag View icon on the toolbar.
3. Select a tag and click Modify Tag from the shortcut menu.
4. Type a tag name in the Tag Name field.
1515
A tag name should not start with a space, cannot contain a comma, double quotation marks, and parentheses, or exceed 255 characters. Also, "Untagged" is a reserved term and hence you cannot have a tag with this name.
5. Modify the description in the Description field.
6. Click Modify. The old tag is renamed and saved in the database. You see the renamed tag on the inventory page. The objects that were associated with the old tag are now associated with the modified tag.
When you modify a tag, an audit log entry is automatically generated.
RELATED DOCUMENTATION Tags Overview | 1498 Managing Tags | 1504 Sharing a Tag | 1513 Deleting Tags | 1515 Creating a Tag | 1499 Filtering the Inventory by Using Tags | 1520.
Deleting Tags
Use Delete Tags to remove tags that you no longer need.
1516
NOTE: · You can delete a public tag only if you have sufficient permissions. Contact your system
administrator if this need arises. · Private tags created by other users are not visible to you and hence you cannot delete them.
Even a user with the Tag Administrator role is not permitted to delete private tags of other users. You can delete your private tags not only from the Tags inventory page but also from any inventory page where deletion of private tags is permitted. Select Delete Private Tags from the Actions menu on the respective inventory landing page. · You cannot delete the top-level Public, Private, or Untagged categories. You can delete the tags only within the Public and Private categories.
To delete a public or a private tag from the Tags workspace: 1. On the Junos Space Network Management Platform user interface, select Administration > Tags.
The Tags page appears.
2. Select one or more tags that you want to delete.
3. Select Delete Tags from the shortcut menu. This option is disabled if you do not have sufficient permissions to delete the selected tags. This situation may arise when you are trying to delete a public tag for which you do not have the necessary permissions. Contact your system administrator for this task. The Delete Tags dialog box appears to confirm that you want to delete the tag.
4. Click Delete on the confirmation dialog box. The tag is removed from the database and no longer appears on the Tags page.
CAUTION: If you have assigned a tag that you are deleting with any object, no warning message is displayed before the deletion of the tag. When you delete a tag, Junos Space Network Management Platform removes the object-tag association and the tag is no longer associated with any object. The deletion of a tag does not delete any tagged objects.
You can delete a tag not only from the Tags workspace but also from other workspaces such as the Device Management inventory landing page or the Job Management page.
1517
To delete a tag from the Device Management inventory landing page: 1. On the Junos Space Network Management Platform user interface, select Devices > Device
Management. The Device Management page appears.
2. If tags are not displayed, click the Display Tag View icon on the toolbar.
3. Select a tag and click Delete Tag from the shortcut menu. This option is disabled if you do not have sufficient permissions to delete the selected tags. This situation may arise when you are trying to delete a public tag for which you do not have the necessary permissions. Contact your system administrator for this task. A confirmation dialog box appears to confirm whether you want to delete the tag.
4. Click Yes on the confirmation dialog box. The tag is removed from the database and no longer appears on the Tags page.
CAUTION: If you have assigned the tag that you are deleting to any object, no warning message is displayed before the deletion of the tag. When you delete a tag, Junos Space Network Management Platform removes the object-tag association and the tag is no longer associated with any object. The deletion of the tag does not delete any tagged objects.
When you delete a tag, an audit log entry is automatically generated.
RELATED DOCUMENTATION Tags Overview | 1498 Managing Tags | 1504 Sharing a Tag | 1513 Renaming Tags | 1514 Creating a Tag | 1499
1518
Tagging an Object
You can create user-defined tags on an application workspace inventory page to easily categorize and organize managed objects. Subsequently, you can view and use these tags to easily search for multiple objects to view the status or perform a bulk action on them without having to select each object individually. By default, the tags that you create from any workspace are private tags and these private tags are visible only to you. If you want any other user to use the tag that you created, then you have to create a pubic tag instead of a private tag or convert the private tag to a public tag. To tag an object: 1. Navigate to an application workspace manage inventory page. For example, select Devices > Device
Management.
2. Select the inventory objects that you want to tag.
3. Select Tag It from the Actions menu. The Apply Tag dialog box appears.
4. Select or type the tag name in the field. If you have existing tags, start to type a tag name in the name field. Existing tags appear in the selection box. You can also type a new tag name in the field. The new tag is automatically created and applied to the selected objects.
5. (Optional) Select the Make Public check box to mark the new tag created in the previous step as a public tag. If you do not select this check box, the new tag added is classified as a private tag.
NOTE: If you do not have permissions to create a public tag, then the Make Public check box is disabled.
6. (Optional) Add a comment in the Add Description here field.
7. Click Apply Tag. This action tags the object and stores the tag in the database.
RELATED DOCUMENTATION
Tags Overview | 1498 Managing Tags | 1504 Viewing Tags for a Managed Object | 1524 Untagging Objects | 1519 Filtering the Inventory by Using Tags | 1520 Creating a Tag | 1499
1519
Untagging Objects
Starting with Junos Space Network Management Platform Release 15.2R1, you can untag or remove a tag from objects on an inventory page. You can select one or more objects at a time to untag. To untag objects: 1. Navigate to the inventory page. For example, select Devices > Device Management.
2. Select the objects that you want to untag, then select UnTag It from the Actions menu. Alternatively, right-click the objects that you want to untag and select UnTag It. The UnTag Objects dialog box appears.
NOTE: All the tags that are associated with the selected objects are displayed. If there are no tags that are common to all the selected objects, a warning message indicating that no common tags are found is displayed above the list of tags.
3. Select the tags that you want to remove.
4. Click Untag. The Untag dialog box appears, displaying a message indicating that the selected tags have been successfully removed.
5. Click OK. You are returned to the inventory page. In this example, you are returned to the Device Management inventory page.
1520
Release History Table
Release
Description
15.2R1
Starting with Junos Space Network Management Platform Release 15.2R1, you can untag or remove a tag from objects on an inventory page. You can select one or more objects at a time to untag.
RELATED DOCUMENTATION Tags Overview | 1498 Managing Tags | 1504 Tagging an Object | 1518 Viewing Tags for a Managed Object | 1524 Creating a Tag | 1499
Filtering the Inventory by Using Tags
You can use tags to filter objects on a workspace inventory page. Filtering allows you to view only the objects that you want to categorize by tag name. To filter the inventory by using a tag: 1. On the workspace inventory page, click the magnifying glass in the search field at the top-right of the
page. You can also type the first letter of the tag name on the search field. A list appears with object names at the top and tag names at the bottom. (If you typed a letter in the search field, only the tag names starting with that letter appear.)
2. Click a tag name on the list. Only the inventory objects with that tag name appear. You see Filtered By the tag name at the top-left of the page.
3. Click the red X to remove the filtering from the inventory page.
In another aspect of filtering, on some pages, you can preview the tagged objects that you selected. For example, in the Configuration Files workspace, in Configuration Files > Config Files Management > Backup Config Files, you can select devices by tags. This form of filtering enables you to verify that you are performing the current operation on the correct objects.
RELATED DOCUMENTATION
Tags Overview | 1498 Managing Tags | 1504 Tagging an Object | 1518 Viewing Tags for a Managed Object | 1524 Untagging Objects | 1519 Creating a Tag | 1499
1521
Viewing Tagged Objects
The View Tagged Objects page in the Administration workspace displays the list of objects that are associated with a tag.
NOTE: · Users who are logged in to the Global domain can view public tags and private tags that they
created, and tagged objects. However, only users with administration privileges can create or share public tags and view private tags of other users. · Subdomains do not support tag administration tasks.
To view objects that are associated with a tag: 1. On the Junos Space Network Management Platform user interface, select Administration > Tags.
The Tags page appears displaying the existing tags.
2. Select the tag for which you want to view the associated objects, and from the Actions menu, select View Tagged Objects. (Alternatively, right-click a tag and select View Tagged Objects or click the hyperlink corresponding to the Tagged Object Count column.)
The View Tagged Objects page, which is divided into two panes, appears. The left pane displays the category (sorted alphabetically) and the right pane displays information, as shown in Table 191, about the tagged objects. By default, the first category is selected.
Table 191: Tagged Objects
Field
Description
Supported Action
Name
Name of the tagged object
Sorting and filtering
Domain
Domain to which the tagged object belongs
Sorting and filtering
Table 191: Tagged Objects (continued)
Field
Description
Description
Description of the tagged object
Supported Action Sorting
1522
NOTE: · Click the button next to a field to access the menu for sorting, displaying columns, and
filtering.
· The total object count for the selected category is displayed at the top of the page. When the object count is high, use the GUI controls at the bottom of the page to manage the number of objects that are displayed or to navigate to a specific page.
· Only the list of objects supported for tagging, as shown in Table 192, are displayed on the right pane. When you click a category that has tagged unsupported objects, an error message is displayed.
3. (Optional) Select a category on the left pane of the View Tagged Objects page to view the objects that are associated with the selected category.
4. To return to the Tags page, click Back on the upper left of the View Tagged Objects page.
Table 192: List of Supported Objects Category or Workspace Object Type
Object Details
Device Management Device Management Device Templates Device Templates CLI Configlets CLI Configlets
Devices
· Name--Hostname of the device · IP Address--IP address of the device
Deployment instances
· Name--Name of the deployment instance · Description--Description of the deployment instance
Template definitions
· Name--Name of the template definition · Description--Description of the template definition
Templates
· Name--Name of the template · Description--Description of the template
Configlets
· Name--Name of the configlet · Description--Description of the configlet
Configuration View
· Name--Name of the configuration view · Description--Description of the configuration view
1523
Table 192: List of Supported Objects (continued)
Category or Workspace Object Type
Object Details
CLI Configlets
Configuration Filter
CLI Configlets
XPath and Regex
Images and Scripts
Scripts
Images and Scripts
Images
Images and Scripts
Operations
Images and Scripts
Script Bundle
Report Management
Report Definition
Report Management
Generated Reports
Configuration Files
Config Files Management
Job Management
Job Instance
Role Based Access Control User Accounts
Role Based Access Control Roles
Administration
Fabric
Administration
Applications
· Name--Name of the configuration filter · Description--Device family with which the configuration
filter is associated
· Name--Name of the XPath or regular expression · Description--Property type of the XPath or regular
expression
· Name--Name of the script · Description--Description of the script
· Name--Name of the image · Description--Description of the image
· Name--Name of the operation · Description--Description of the operation
· Name--Name of the script bundle · Description--Description of the script bundle
· Name--Name of the report definition · Description--Description of the report definition
· Name--Name of the generated report · Description--Description of the generated report
· Name--Name of the configuration file · Description--Name of the device associated with the
configuration file
· Jobs--Name of the job · Description--Owner and state of the job
· Username--Name of the user · Description--First name and last name of the user
· Name--Name of the role · Description--Description of the role
· Name--Name of the node · Description--IP address and status of the node
· Name--Name of the application · Description--Application version
Table 192: List of Supported Objects (continued)
Category or Workspace Object Type
Object Details
Administration
DMI Schemas
· Name--Name of the device family · Description--Device series and OS version
1524
RELATED DOCUMENTATION
Tagging an Object | 1518 Tags Overview | 1498 Managing Tags | 1504
Viewing Tags for a Managed Object
The View Tags action from application workspace inventory pages allows you to see all tags that you have assigned to a managed object on your network. You must first tag a managed object to see its tags. Use tags to label and categorize objects in your network, such as subnets, devices, services, users, customers, and so forth, so you can filter, monitor, or perform batch actions on them without having to select each object individually. Tags created by you are private and visible only to you unless you have the Tag Administrator share them to the public domain, making them public. Tags created by other users are visible only to them unless the Tag Administrator shares them, then including you can view them. To view tags on an inventory object: 1. Navigate to a workspace inventory page.
2. Select only one inventory object for which you want to view tags.
3. Select View Tags from the Actions menu. You can also right-click an object and select View Tags. The View Tags dialog box appears with a tag list displaying all tags applied to the selected object.
4. Click OK.
RELATED DOCUMENTATION
Managing Tags | 1504 Tagging an Object | 1518 Untagging Objects | 1519
1525
Exporting Tags from Junos Space Network Management Platform
You export tags from the Junos Space Network Management Platform database to access the details of the tags. You can download the tags in CSV format to your local computer. To export tags from Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select Administration > Tags.
The Tags page that appears displays all tags that currently exist in the Junos Space Platform database.
2. Select the check boxes next to the tags that you want to export and click Export Tags on the toolbar. The Export Tags dialog box that appears displays the tags that you selected.
3. Click Export and save the CSV files to your local computer. The Export Tags Job Status dialog box displays the status of the export tags job. Close the dialog box to return to the Tags page.
RELATED DOCUMENTATION
Tags Overview | 1498 Managing Tags | 1504
1526
CHAPTER 82
Managing DMI Schemas
IN THIS CHAPTER DMI Schema Management Overview | 1526 Viewing and Managing DMI Schemas | 1528 Viewing Missing DMI Schemas | 1530 Setting a Default DMI Schema | 1532 Configuring Access to Juniper Networks DMI Schema Repository by Using the Configure Juniper Repository Action | 1533 Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network Management Platform | 1535 Creating a Compressed TAR File for Updating DMI Schema | 1545 Viewing and Deleting Unused DMI Schemas | 1549
DMI Schema Management Overview
Junos Space Network Management Platform interfaces with network devices using an open API called the Device Management Interface (DMI), which is a standard interface used by Juniper Networks devices. The DMI schema for a device describes the complete configuration and operational capabilities of the device OS version. DMI schemas are available at the Juniper Networks DMI schema repository, which you can access by going to https://xml.juniper.net/dmi/repository/trunk/ and logging in using your Juniper Networks support credentials. You must manage the DMI schemas in Junos Space Platform if you want to use the full functionality of configuration management features available. You manage DMI schemas in Junos Space Platform by using the DMI Schemas page (Administration > DMI Schemas). Using the DMI Schemas page, you can view the existing DMI schemas installed, update DMI schemas, view missing schemas, set a schema as the default for a specific device family, and delete unused schemas.
NOTE: Because configuration management in Junos Space Platform is implemented using DMI schema, you can support most new device Junos OS versions by updating just the schema.
1527
Each device type is described by a unique data model (DM) that contains all the configuration data for the device. The DMI schema lists all the possible fields and attributes for a type of device. The newer schemas describe the new features coming out with recent device releases. It is important that you load all your device schemas into Junos Space Platform; otherwise, only a default schema is applied when you try to edit a device configuration by using the device configuration edit action in the Devices workspace (see "Modifying the Configuration on the Device" on page 321). If Junos Space Platform has exactly the right DMI schema for each of your devices, you can access all configuration options specific to each device.
For every device family, one DMI schema is marked as the default schema. By default, the default schema is used when you create device templates. However, you can choose to use another schema when creating a template definition. In addition, when you modify a device configuration by using the Schema-based configuration editor, access to all configuration options for the device are available only if the DMI schema specific to the device is available in Junos Space Platform. If the schema version in use is close to the version of Junos OS running on the device, then most of the configurations options are still available.
NOTE: · You can update schemas directly from the Juniper Networks DMI schema repository or upload
a compressed TAR file containing the DMI schemas into Junos Space Platform.
· It is preferable that you install device schemas pertaining only to the devices that are currently managed from Junos Space Platform. When more devices are managed, you can install the device schemas that are relevant to the newly added devices.
· Starting from Release 17.1R1, Junos Space Platform provides options to automatically download missing schemas or update outdated schemas during device synchronization. For information about downloading device schema automatically from the DMI schema repository, see "Configuring Access to Juniper Networks DMI Schema Repository by Using the Configure SVN Repository Action" on page 1533 and "Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network Management Platform" on page 1535 .
Release History Table
Release
Description
17.1R1
Starting from Release 17.1R1, Junos Space Platform provides options to automatically download missing schemas or update outdated schemas during device synchronization. For information about downloading device schema automatically from the DMI schema repository, see "Configuring Access to Juniper Networks DMI Schema Repository by Using the Configure SVN Repository Action" on page 1533 and "Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network Management Platform" on page 1535
1528
RELATED DOCUMENTATION Setting a Default DMI Schema | 1532 Troubleshooting the Nondisplay of the DMI Schema Tree Issue | 1655 Device Discovery Profiles Overview | 219 Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network Management Platform | 1535
Viewing and Managing DMI Schemas
You use the DMI Schemas page (in the Administration workspace) to view and manage multiple Device Management Interface (DMI) schemas for device families running Junos OS.
To view and manage DMI schemas:
1. On the Junos Space Network Management Platform user interface, select Administration > DMI Schemas.
The DMISchemas page appears displaying the existing DMI schemas. For each schema, the device family, OS version, device series, state, and type are displayed, as shown in Table 193.
You can sort the schemas based on the different fields (by clicking the corresponding column); in addition, you can choose which columns are displayed.
Table 193: Information About DMI Schemas
Field
Description
Location
Device Family
Device family to which the schema belongs; for example, junos, junos-es, or junos-qfx
DMI Schemas page DMISchema Details dialog box
Quick View
OS Version
Version of the device OS
DMI Schemas page DMI Schema Details dialog box Quick View
Device Series
Device series for which the schema is applicable
DMI Schemas page DMI Schema Details dialog box
1529
Table 193: Information About DMI Schemas (continued)
Field
Description
Location
State
Indicates whether the DMI schema is a default DMI Schemas page
for the respective device family
DMI Schema Details dialog box
Quick View
Schema Installed
NOTE: Starting from Junos Space Platform Release 17.1R1, the Type column is changed to Schema Installed on the DMI Schemas page.
Indicates whether the DMI schema for a Junos OS version on a device series is installed in Junos Space Platform
DMI Schema Details page Quick View
Yes indicates that schema is installed in Junos Space Platform
2. (Optional) Double-click a row (or select a row and click the View Schema Details icon or right-click and select View Schema Details) to view additional information about the selected schema. The DMI Schema Details dialog box is displayed. For information about the fields displayed in this dialog box, see Table 193. Click Close to close the dialog box and return to the DMI Schemas page.
NOTE: You can also select a row in the table and click the Quick View icon on the toolbar to toggle the quick view. For information about the fields displayed in the quick view, see Table 193.
3. (Optional) Select a schema and click View Tags from the Actions menu (or the shortcut menu) to view the tags associated with that schema. The View Tags dialog box displays the following information for each tag associated with the schema: · Tag Name--Name of the tag · Access Type--Indicates whether the tag is public or private Click OK to close the dialog box and return to the DMI Schemas page.
You can perform the following actions on the DMI Schemas page:
1530
· Update (Add) a DMI schema--For more information, see ."Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update Schema Menu" on page 1540
· View missing schemas--For more information, see "Viewing Missing DMI Schemas" on page 1530.
· Set a schema as a default--For more information, see "Setting a Default DMI Schema" on page 1532.
· Configure access to Juniper Networks DMI Schema repository--For more information, see "Configuring Access to Juniper Networks DMI Schema Repository by Using the Configure SVN Repository Action" on page 1533.
· Download the latest schema from the Juniper Networks DMI Schema repository--For more information, see "Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network Management Platform" on page 1535.
· Add missing schemas--For more information, see "Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network Management Platform" on page 1535
· View and delete unused schemas--For more information, see "Viewing and Deleting Unused DMI Schemas" on page 1549.
· Tag and untag schemas, and delete private tags--For more information, see "Tags Overview" on page 1498.
Release History Table Release
Description
17.1R1
Starting from Junos Space Platform Release 17.1R1, the Type column is changed to Schema Installed on the DMI Schemas page.
RELATED DOCUMENTATION Creating a Compressed TAR File for Updating DMI Schema | 1545 DMI Schema Management Overview | 1526
Viewing Missing DMI Schemas
In Junos Space Network Management Platform, you can view the list of Device Management Interface (DMI) schemas that are missing. Missing schema versions are the OS versions on devices that Junos Space Platform discovers in your network, but are not installed on Junos Space Platform. When schema versions are missing in Junos Space Platform, we recommend that you install the missing schema versions. However, installing a schema is not critical if the version of the schema already installed in Junos Space Platform is close to the versions of Junos OS running on the devices.
1531
To view missing DMI schemas : 1. On the Junos Space Platform user interface, select Administration > DMI Schemas.
The DMISchemas page appears.
2. From the Actions or the shortcut menu, select View/Install Missing Schemas. The View/Install Missing Schemas dialog box appears displaying a list of schemas that are not installed in Junos Space Platform. For each schema, the device family and OS version are displayed. If there are no missing schemas, then the list is empty.
NOTE: Starting from Junos Space Platform Release 17.1R1, the View Missing Schema action is changed to View/Install Missing Schema.
3. Click Close to close the dialog box. You are taken to the DMI Schemas page.
Release History Table Release
Description
17.1R1
Starting from Junos Space Platform Release 17.1R1, the View Missing Schema action is changed to View/Install Missing Schema.
RELATED DOCUMENTATION
Setting a Default DMI Schema | 1532 Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network Management Platform | 1535 Configuring Access to Juniper Networks DMI Schema Repository by Using the Configure SVN Repository Action | 1533
1532
Setting a Default DMI Schema
In Junos Space Network Management Platform, a device family always has a default DMI schema associated with it. Typically, when you perform a clean installation of Junos Space Platform, a schema (usually the latest one) is automatically set as the default for each device family. When you perform an upgrade of Junos Space Platform, the default schemas stay the same as the ones before the upgrade.
NOTE: · When you create a device template definition, Junos Space Platform uses a default DMI schema
for the device family unless you select a schema. · The schema that Junos Space Platform uses for a device family depends on the schema versions
installed on Junos Space Platform and on the version of the device OS. The criteria that Junos Space Platform uses for picking a schema is as follows: · If an exact matching schema is available, then that schema is used irrespective of whether
it is the default (for the device family) or not. An exact match refers to the case when the schema family and OS version are the same as the device family and the OS version running on the device. · If an exact matching schema is not available, the default schema for the device family is used. This ensures that even if an exact matching schema is not available, the default schema is used for managed devices belonging to a specific device family.
To set a default DMI schema : 1. On the Junos Space Platform user interface, select Administration > DMI Schemas.
The DMI Schemas page appears displaying the available schemas.
2. Select the schema that you want to set as the default, then from the Actions or shortcut menu, select Set Default Schema. The Set Default DMI Schema dialog box appears, displaying the DMI schema name , device family, and OS version.
3. Click Set Default. The schema that you selected is set as the default and you are taken to the DMI Schemas page. The State field for the default schema displays default.
RELATED DOCUMENTATION
DMI Schema Management Overview | 1526 Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update Schema Menu | 1540 Modifying the Configuration on the Device | 321 Troubleshooting the Nondisplay of the DMI Schema Tree Issue | 1655
1533
Configuring Access to Juniper Networks DMI Schema Repository by Using the Configure Juniper Repository Action
Starting from Junos Space Network Management Platform release 17.1R1, you can configure the Juniper Networks DMI schema repository (https://xml.juniper.net/dmi/repository/trunk/) by using the Configure Juniper Repository action. The Auto Install Schema check box on the Juniper Access Configuration dialog box, which when selected, allows Junos Space Platform to automatically download and install or update DMI schemas from the configured DMI Schema repository. To configure access to the Juniper Networks DMI schema repository by using the Configure Juniper Repository action: 1. On the Junos Space Platform user interface, select Administration > DMI Schemas.
The DMI Schemas page appears.
2. From the Actions or the shortcut menu, select Configure Juniper Repository. The Juniper Access Configuration dialog box is displayed.
3. In the URL field, (https://xml.juniper.net/dmi/repository/trunk/) appears by default.
4. In the User Name field, enter the user name to access the Juniper Networks DMI schema repository.
5. In the Password field, enter the password to access the Juniper Networks DMI schema repository.
6. In the Confirm field, reenter the password to access the Juniper Networks DMI schema repository.
7. (Optional) The Proxy Server field displays whether a proxy server is configured or not. If your organization requires that you use a proxy server to connect to the Internet, you must configure and enable the proxy server (under Administration > Proxy Server) before connecting to the Juniper Networks DMI schema repository. For more information, see "Configuring Proxy Server Settings" on page 1494.
1534
8. (Optional) Select the Auto Install Schema check box to automatically install any missing device schema or get the latest version of schema available in the Juniper Networks DMI schema repository during device synchronization.
NOTE: When the Auto Install Schema text box is selected, Junos Space Platform identifies the DMI schemas that are missing or that need update during device synchronization. The missing schemas are installed and outdated schemas in Junos Space Platform are updated when the job, scheduled to run every one hour, fetches the schemas from the DMI repository. If a schema is missing and auto-installation of the schema fails, no attempt to install the schema is made when the job runs the next time.
9. (Optional) Click Test Connection.
A message dialog box appears (after a few seconds or a few minutes depending on the connection) to indicate whether the connection is established successfully or not. Click OK to close the dialog box and return to the Juniper Access Configuration dialog box.
10. Click Save to save the settings that you configured.
Release History Table
Release
Description
17.1R1
Starting from Junos Space Network Management Platform release 17.1R1, you can configure the Juniper Networks DMI schema repository (https://xml.juniper.net/dmi/repository/trunk/) by using the Configure Juniper Repository action. The Auto Install Schema check box on the Juniper Access Configuration dialog box, which when selected, allows Junos Space Platform to automatically download and install or update DMI schemas from the configured DMI Schema repository.
RELATED DOCUMENTATION
DMI Schema Management Overview | 1526 Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network Management Platform | 1535
1535
Adding Missing DMI Schemas or Updating Outdated DMI Schemas in Junos Space Network Management Platform
IN THIS SECTION Adding Missing DMI Schemas by Using the View/Install Missing Schema Action | 1535 Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Get Latest Action | 1536 Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using REST APIs | 1536 Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update Schema Menu | 1540
When a new device is added to your network, you need to add the DMI schema for that device to Junos Space Platform to configure and manage the device. You can view whether the schema for a device series is installed or not on Junos Space Platform from the DMI Schemas page. A value of No in the Schema Installed column indicates that the schema for a Junos OS version on a device series is not present in Junos Space Platform. You can download DMI schema from the configured Juniper Networks DMI schema repository to Junos Space Platform in one of the following ways:
Adding Missing DMI Schemas by Using the View/Install Missing Schema Action Junos Space Platform provides the View/install Missing Schema action to view and install DMI schemas that are missing from Junos Space Platform. To add missing schemas by using the View/Install Missing schemas action: 1. On the Junos Space Platform interface, select Administration > DMI Schemas.
The DMI Schemas page appears.
2. Select Actions > View/Install Missing Schemas. The View/Install Missing Schemas page lists the device family and the OS versions for which schemas are not present in Junos Space Platform.
3. Select the device family and OS versions for which you want to download schemas, and click Install. A job to download the selected schemas is initiated and the Job ID is displayed.
4. (Optional) Click the Job ID link to view the job details.
1536
If the job is successful, the job details displays the number of schemas successfully installed and the number of schemas that could not be installed. The job may fail if connection to the DMI schema repository is broken or if the required schema is not present in the repository.
Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Get Latest Action
The Get Latest action downloads missing schemas and updates outdated schemas in Junos Space Platform. The Get Latest action is enabled only after the DMI schema repository is configured. To add or update schemas by using the Get Latest action: 1. On the Junos Space Platform interface, select Administration > DMI Schemas.
The DMI Schemas page appears displaying the existing DMI schemas.
2. Select one or more DMI schemas
3. Select Actions > Get Latest. A job is created to download the schemas from the DMI schema repository and the job ID is displayed. If a DMI schema is already present in Junos Space Platform and outdated, the schema is overwritten by the latest schema downloaded from the DMI schema repository. If the DMI schema is not present in Junos Space Platform,, the schema is downloaded from the repository and installed in Junos Space Platform.
4. (Optional) Click the job ID to view the job details. The Job Details page displays if the Get Latest action was successful or not.
Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using REST APIs
Junos Space Platform provides an option to download missing schemas or update outdated schemas by using REST APIs for situations where the Junos Space Platform is not connected to the Web. To generate the APIs, Junos Space Platform has the schemaInstall.py script stored in the /var/log/space-debug/debug-utilities/schemaManagement location. When Junos Space Platform is not connected to the Web, download the script to a local system from which you can connect to the Web. The information for using the schemaInstall.py script to manage DMI schemas is documented in this section and is also present in the ReadMe.txt file located at /var/log/space-debug/debug-utilities/schemaManagement.
1537
To run the schemaInstall.py script on a local system, the local system should meet the following requirements: · Python 3.6 (https://www.python.org/ftp/python/3.6.1/python-3.6.1.exe) · SVN client such as Tortoise SVN (https://tortoisesvn.net/downloads.html ) · Python Installation Package (PIP) Version 3.6 installed on the local system
NOTE: You can obtain help for the schemaInstall.py script by using the python schemaInstall.py --help command.
You can run the schemaInstall.py script as follows to add missing schemas or update outdated schemas in Junos Space Platform depending on connectivity of the local system to Junos Space Platform and the DMI schema repository:
NOTE: Before you run the script, copy the script to a local system that is connected to the Web.
The following variables are used by the schemaInstall.py script: · svnurl is the link to DMI Schema repository (https://xml.juniper.net/dmi/repository/trunk/). · spaceuser is the username for logging in to Junos Space Platform. · svnuser is the username for logging in to the DMI Schema repository. · spaceurl is the link to Junos Space Platform. · Situation 1: When your local system is connected to both Junos Space Platform and the DMI schema
repository, you can execute the script to perform the following tasks: · Add missing DMI schemas in Junos Space Platform by executing the following command on the local
system:
python schemaInstall.py -o install-missing-schemas --svnurl="<svnurl>" --spaceuser="<spaceuser>" --svnuser="<svnuser>" --spaceurl="<spaceurl>"
· Add specific schemas on Junos Space platform by executing the following command on the local system:
python schemaInstall.py -o install-schemas --svnurl="<svnurl>" --spaceuser="<spaceuser>" --svnuser="<svnuser>" --spaceurl="<spaceurl>" --file="schema.xml"
Where, schema.xml is the file containing specific schemas that you want to install.
1538
~~ Structure of sample schema.xml file ~~
<dmi-schema-infos uri="/api/space/schema-service/dmi-schemas-with-missing-schemas">
<dmi-schema-info> <os-version>3.0R1</os-version> <dev-family>ive-ic</dev-family>
</dmi-schema-info> <dmi-schema-info>
<os-version>11.3X30.10</os-version> <dev-family>junos-qf</dev-family> </dmi-schema-info> </dmi-schema-infos>
You can obtain the schema.xml file by one of the following means: · Create the schema file manually. · Obtain the list of all schemas present in Junos Space Platform by executing the following command:
python schemaInstall.py -o get-schemas --spaceurl="<spaceurl>" --spaceuser="<spaceuser>" --file="schema.xml"
· Obtain the list of schemas missing in Junos Space Platform by executing the following commands:
python schemaInstall.py -o checkout-missing-schemas --svnurl="<svnurl>" --spaceuser="<spaceuser>" --svnuser="<svnuser>" --spaceurl="<spaceurl>"
The schema.xml file obtained by using the get-schemas and the checkout-missing-schemas methods can be used for installing schemas on Junos Space Platform and checking out schemas on the DMI Schema repository. · Find the schemas missing in Junos Space Platform and obtain those schemas from the DMI schema repository in a *.tgz file by executing the following command:
python schemaInstall.py -o checkout-missing-schemas --svnurl="<svnurl>" --spaceuser="<spaceuser>" --svnuser="<svnuser>" --spaceurl="<spaceurl>"
This command outputs the upload-tgz-schema-file.tgz local file. You can upload the local file later by using the Update Schema menu; see "Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update Schema Menu" on page 1540 for details. · Situation 2: When the local system has connectivity to the DMI schema repository but not to the Junos Space platform, you can execute the script to download specific schemas in local format (*.tgz) from the repository. You can later add the schemas to Junos Space Platform by using the Update Schema menu;
1539
see "Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update Schema Menu" on page 1540 for details.
python schemaInstall.py -o checkout-schemas --svnurl="<svnurl>" --svnuser="<svnuser>" --file="schema.xml"
· Situation 3: When the local system is connected to Junos Space Platform, but not to the DMI Schema repository, you can do the following: · Upload local schema to Junos Space Platform by executing the following command:
script python schemaInstall.py -o install-schemas --spaceuser="<spaceuser>" --spaceurl="<spaceurl>" --archivefile="upload-tgz-schema-file.tgz"
where, upload-tgz-schema-file.tgz is the name of the local schema file uploaded to Junos Space Platform.
NOTE: You can obtain the upload-tgz-schema-file.tgz file by downloading it from the DMI repository and copying it to the local system.
1540
Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update Schema Menu
You can add (update) a Device Management Interface (DMI) schema in the following ways by using the Update Schema menu: · By uploading an existing compressed TAR file (extension .tgz or .tar.gz) containing the DMI schema into
Junos Space Network Management Platform
NOTE: You can create your own compressed TAR file (see "Creating a Compressed TAR File for Updating DMI Schema" on page 1545) or obtain the file by contacting the Juniper Networks Technical Assistance Center (.
· By downloading the DMI schema from the Juniper Networks DMI schema repository containing DMI schemas
NOTE: The Juniper Networks DMI schema repository (https://xml.juniper.net/dmi/repository/trunk) does not currently support IPv6. If you are running Junos Space on an IPv6 network, you can do one of the following: · Configure Junos Space to use both IPv4 and IPv6 addresses and download the DMI schema
by using the Junos Space Network Management Platform Web GUI. · Download the DMI schema by using an IPv4 client and create the compressed TAR file and
update or install the DMI schema by using the Junos Space Web GUI.
To update a DMI schema on Junos Space Network Management Platform: 1. On the Junos Space Network Management Platform user interface, select Administration > DMI
Schemas The DMI Schemas page appears.
2. Click the Update Schema icon on the toolbar. The Update Schema page appears.
NOTE: On the Update Schema page, Junos Space Platform displays the schemas that you already have installed and, based on the discovered devices, suggests new schemas. However, you can pick other available schemas and download them.
1541
3. Perform one of the following actions: · To update the DMI schema from an existing compressed TAR file: a. Select the Local (tgz) option button.
b. Click Browse. The File Upload dialog box appears.
c. Select the compressed TAR file and click Open. The Update Schema page reappears, displaying the compressed TAR file in the Local Schemas File field.
d. Click Upload.
NOTE: Do not navigate away from the Update Schema page while the compressed TAR file is being uploaded to Junos Space Platform. The time taken for the upload process depends on the number of schemas in the file. A progress bar indicates the percentage of the upload that has completed.
· To update the DMI schema directly from the Juniper Networks DMI schema repository: a. Select the Juniper Repository option button. If the access to the Juniper Networks DMI schema repository is already configured, the URL of the repository is displayed in the URL field. If the access is not configured, a note indicating that the access must be configured is displayed. To configure access to the Juniper Networks DMI schema repository: i. Click Configure. The Juniper Access Configuration dialog box appears.
ii. In the Juniper URL field, (https://xml.juniper.net/dmi/repository/trunk/) appears by default.
iii. In the User Name field, enter the user name to access the Juniper Networks DMI schema repository.
iv. In the Password field, enter the password to access the Juniper Networks DMI schema repository.
1542
v. In the Confirm field, reenter the password to access the Juniper Networks DMI schema repository.
vi. (Optional) The Proxy Server field displays whether a proxy server is configured or not. If your organization requires that you use a proxy server to connect to the Internet, you must configure and enable the proxy server (under Administration > Proxy Server) before connecting to the Juniper Networks DMI schema repository. For more information, see "Configuring Proxy Server Settings" on page 1494.
vii. (Optional) Select the Auto Install Schema check box to automatically download any missing device schema or the latest version of any outdated schema from the DMI schema repository during device synchronization.
NOTE: When the Auto Install Schema text box is selected, Junos Space Platform identifies the DMI schemas that are missing or that need update during device synchronization. The missing schemas are installed and outdated schemas in Junos Space Platform are updated when the job, scheduled to run every one hour, fetches the schemas from the DMI repository. If a schema is missing and auto-installation of the schema fails, no attempt to install the schema is made when the job runs the next time.
viii. (Optional) Click Test Connection. A message dialog box appears (after a few seconds or a few minutes depending on the connection) to indicate whether the connection is established successfully or not. Click OK to close the dialog box and return to the Juniper Access Configuration dialog box.
ix. Click Save to save the settings that you configured. You are taken to the Update Schema page and the URL that you configured is displayed in the URL field.
b. (Optional) From the Device Family drop-down list, select the device families that you want to download from the repository.
NOTE: If you do not specify a device family, then available schemas from all families are listed.
c. Click Connect.
1543
Junos Space Platform displays a message asking you to wait while the list of schemas is retrieved. (This process might take anywhere from a few seconds to a few minutes depending on the connection.)
The available DMI schemas are displayed in a table under the Schema Availability label, as shown in Table 194.
You can sort the schemas based on a specific column, choose which fields are displayed, or filter the list of schemas displayed.
Table 194: Information Displayed About Available Schemas
Column
Description
Device Family
Name of the device family to which the DMI schema belongs; for example, junos-ex
Release
Junos OS release version to which the DMI schema corresponds
Date
Date on which the DMI schema was published If you uploaded a compressed TAR file, this field displays Unknown.
Available
Indicates whether the schema is available (in the compressed TAR file or the Juniper Networks DMI schema repository) or not
Installed
Indicates whether the schema is already installed on Junos Space or not
Missing
Indicates whether the schema is a missing schema or not
Missing schema versions are the OS versions on devices that Junos Space Platform discovers in your network, but have not been installed on Junos Space Platform.
4. (Optional) To overwrite a previously existing schema, select the Enable Schema Overwrite check box. By default, the DMI schemas that are previously installed are listed and are disabled. However, when you select this check box, you can select these schemas to be overwritten by the schemas from the repository or from your local system.
5. (Optional) To display only recommended schemas, select the Show recommended schemas only check box.
6. (Optional) To schedule a time for installing the DMI schema, select the Schedule at a later time check box and specify the date and time in the Date and time field.
7. Select the schemas from the list of schemas displayed in the table by clicking the check box corresponding to a schema.
NOTE: If you have chosen to update only schemas for specific device families, then only those schemas belonging to the specific device families are listed.
1544
8. Click Install. The Install DMI Schema Information dialog box appears displaying the job ID.
NOTE: You can verify the status of the job by clicking the hyperlinked job ID in the Install DMI Schema Information dialog box. You are taken to the Job Management page.
9. Click OK. You are taken to the DMI Schemas page. After the DMI schema is installed, this page displays the newly installed schemas.
NOTE: · Updating a schema automatically generates an audit log entry. · You must set at least one schema as the default schema for each device family in your network.
This is done automatically by Junos Space Platform as long as there is at least one schema for the device family. For more information, see "Setting a Default DMI Schema" on page 1532.
RELATED DOCUMENTATION
DMI Schema Management Overview | 1526 Troubleshooting the Nondisplay of the DMI Schema Tree Issue | 1655 Viewing Missing DMI Schemas | 1530
Creating a Compressed TAR File for Updating DMI Schema
IN THIS SECTION Creating a Compressed Tar File on Linux | 1545 Creating a Compressed Tar File on Microsoft Windows | 1546 Schemas Available in Junos Space Platform | 1548
1545
This topic contains instructions for creating a compressed tar file (extension .tgz or .tar.gz) on Linux or Microsoft Windows. You use the compressed tar file to update a DMI schema on Junos Space Network Management Platform (see "Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update Schema Menu" on page 1540). Before you create a compressed tar file, ensure the following: · The internal directory structure of the compressed tar file complies with the following format; that is,
when you extract the compressed tar file, all files must be extracted to a folder structured as follows: dmi/deviceFamily/releases/osVersion/.... · The compressed tar file has the .tgz or .tar.gz extension. · You have the username and password for xml.juniper.net, which are your Juniper Networks support credentials.
NOTE: In this topic, we provide examples that contain only HTTPS URLs. However, both HTTP and HTTPS URLs are supported. If the repository (whose URL is being entered) supports both HTTP and HTTPS access, we recommend that you use an HTTPS URL.
This topic contains the following sections:
Creating a Compressed Tar File on Linux
To create a compressed tar file (for updating DMI schema) on Linux: 1. Install the Subversion (SVN) client on Linux. To install Subversion client on Linux, refer to Installing
Subversion or other relevant documentation.
2. Create a temporary directory.
1546
3. Navigate to the temporary directory created in the preceding step.
4. Check out the files from Subversion by executing the following command:
svn --username=userName --password=userPwd co dmiRepositoryURL
where userName and userPwd are the username and password required to access xml.juniper.net , and dmiRepositoryURL is the URL of the repository folder that you want to checkout. Examples of the DMI respository URLs are shown in Table 195. Table 195: Sample URLs for the Repository
Type
Example URL
For the whole Junos https://xml.juniper.net/dmi/repository/trunk/junos OS family
For a device family https://xml.juniper.net/dmi/repository/trunk/junos-es/
For a selected OS version
https://xml.juniper.net/dmi/repository/trunk/junos-ex/releases/11.2R2.4/
5. Tar the dmi directory by executing the following command from within the directory containing the dmi directory: tar czvf filename dmi where filename is the same of the compressed tar file. You can use any filename as long as the extension of the file is .tgz or .tar.gz
The compressed tar file is now ready for uploading into Junos Space Platform.
Creating a Compressed Tar File on Microsoft Windows
To create a compressed tar file (for updating DMI schema) on Microsoft Windows:
1547
1. Install the Subversion (SVN) client on Microsoft Windows from the following location: https://tortoisesvn.net/ .
NOTE: To install the Subversion client, you can also use any software or tool that is equivalent to TortoiseSVN.
2. Install 7-Zip to generate a compressed tar file on Microsoft Windows by using the following link: http://www.7-zip.org/ .
NOTE: To generate the compressed tar file, you can also use any software or tool that is equivalent to 7-Zip.
3. Create a temporary folder.
NOTE: You can use any name for the temporary folder.
4. Create a folder called dmi within the previously created temporary folder. 5. Right-click the dmi folder and select SVN Checkout:
A dialog box is displayed. 6. In the URL of repository field, enter the full URL of the repository. Refer to Table 195 for examples of
URLs that you can enter. 7. In the Checkout directory field, enter the full path of the checkout directory; for example,
C:\test\dmi\junos-es\.
NOTE: The portion of the path to the right of the dmi folder must be equivalent to the corresponding portion after trunk in the URL of the repository. For example, if the repository URL is https://xml.juniper.net/dmi/repository/trunk/junos-es/ the checkout directory path is C:\test\dmi\junos-es\, and if the repository URL is https://xml.juniper.net/dmi/repository/trunk/junos-es/releases/10.1R3/, the checkout directory path is C:\test\dmi\junos-es\releases\10.1R3\.
1548
8. In the Checkout depth field, enter Fully recursive.
9. Ensure that the Omit externals check box is cleared.
10. Select HEAD revision.
11. Click OK, and if you are prompted to, provide credentials. The files are checked out from the Subversion repository into the specified folder.
12. Create the tar file from the dmi folder using 7-Zip: a. Right-click the dmi folder and select 7-Zip.
b. Click Add to Archive.
c. In the Archive Format field, select tar.
d. Click OK
13. Compress the tar file file using 7-Zip: a. Right-click the dmi.tar file and select 7-Zip. b. Click Add to Archive. c. In the Archive Format field, select gzip. d. Click OK
14. (Optional) Rename the *.tar.gz file to *.tgz
The compressed tar file is now ready for uploading into Junos Space Platform.
Schemas Available in Junos Space Platform
Table 196 displays information about the schemas available for use in Junos Space Network Management Platform.
Table 196: Schema Name Mapping Information
Schema Family
Device Family Series
junos
ACX Series/J Series/M Series/MX Series/T Series/TX Series/PTX Series/EX92xx Series
junos-es
J Series/SRX Series/LN Series
Table 196: Schema Name Mapping Information (continued)
Schema Family
Device Family Series
junos-ex
EX Series
media-flow
Junos Content Encore
junos-qfx
QFX Series
junos-qf
QF
bxos
BXOS
tcaos
TCA Series
1549
RELATED DOCUMENTATION DMI Schema Management Overview | 1526 Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update Schema Menu | 1540 Setting a Default DMI Schema | 1532 Viewing and Deleting Unused DMI Schemas | 1549
Viewing and Deleting Unused DMI Schemas
From the Administration workspace, you can delete any unused Device Management Interface (DMI) schemas that no longer need to be managed by Junos Space Network Management Platform. A schema is considered unused if it meets both of the following conditions: · The schema is not associated with a device, a template, or a template definition. · The schema is not set as the default schema for any device family.
NOTE: · You can delete any unused schema from Junos Space Platform if you are a user who is assigned
the privileges of a Super Administrator or System Administrator. · When you delete a schema, Junos Space Platform automatically generates an audit log entry.
1550
To view and delete unused schemas: 1. On the Junos Space Platform user interface, select Administration > DMI Schemas.
The DMI Schemas page appears.
2. From the Actions menu, select View/Delete Unused Schemas. The View/Delete Unused Schemas dialog box appears displaying a list of unused schemas in a table. For each schema, the device family and OS version are displayed. If there are no unused schemas, then Junos Space Platform displays the message Unused schemas do not exist in Space in a dialog box. Click OK to close the dialog box.
3. Select the schemas that you want to delete.
4. Click Delete to delete the selected schemas. The Delete Unused Schemas dialog box appears and a message that a job to delete the schemas is triggered is displayed along with the hyperlinked job ID. The selected schemas are deleted from the Junos Space Platform database; in addition, the relevant files on the nodes in the fabric are deleted.
NOTE: You can click the hyperlinked job ID to view the status of the job on the Job Management page. On the Job Management page, the Summary column for the job displays the number of schemas that were successfully deleted and the number of schemas that were not deleted from the list of selected schemas. If the schemas were not deleted, you can double-click the job to view the reasons for failure.
5. Click OK. You are taken to the DMI Schemas page. After the schema deletion job is successfully completed, the deleted schemas are no longer visible on this page.
RELATED DOCUMENTATION Viewing and Managing DMI Schemas | 1528 Setting a Default DMI Schema | 1532
1551
CHAPTER 83
Managing Hardware Catalog
IN THIS CHAPTER Hardware Catalog Overview | 1551 Viewing Information About Hardware Catalog | 1553 Configuring Access to Juniper Networks Subversion Repository for Downloading Hardware Catalog | 1553 Uploading Hardware Catalog to Junos Space Network Management Platform | 1555
Hardware Catalog Overview
Starting from Release 17.1R1, Junos Space Network Management Platform provides Hardware Catalog that enable you to manage hardware components of Juniper Networks devices. Hardware catalog saves you from updating Junos Space Platform software every time a new hardware component, for example, a line card, an FPC, or a power supply module, is added to a Juniper Networks device that Junos Space Platform manages. When new components are added, Juniper Networks provides a new hardware catalog that you can import to the Junos Space platform. You can extend Junos Space Platform support to new hardware components on managed devices by uploading the latest hardware catalog distributed in the *.tgz archived format by Juniper Networks or downloaded from the Juniper Networks subversion (SVN) repository to Junos Space Platform. .
NOTE: Hardware catalog does not enable fault and performance monitoring of newly added hardware components on managed devices.
The content of the hardware catalog is derived from the latest DMI schema and always includes the latest hardware components present in the devices running Junos OS. The hardware catalog archive also contains a readme.txt file that includes the revision number and the date and time of publishing the catalog. The following is a sample of the readme.txt file:
1552
Revision:02 Published:Wed Mar 09 1:30:00 IST 2017 Last Updated:Fri Mar 10 2:12:00 IST 2017
You can view and manage hardware catalogs from the Hardware Catalog page of the Junos Space Platform user interface. From the Hardware Catalog page, you can also configure the settings for downloading hardware catalogs from Juniper Networks SVN repository.
The Hardware Catalog page displays the following information:
· revision number of the hardware catalog installed in Junos Space Platform · the date and time the hardware catalog was initially published by Juniper Networks · the date and time the hardware catalog in Junos Space Platform was last updated · the revision number and the date and time since the latest hardware catalog is available in the SVN
repository
You can perform the following tasks on the Hardware Catalog page:
· View details of the hardware catalog ; see "Viewing Information About Hardware Catalog" on page 1553 for details.
· Upload a hardware catalog to the Junos Space Platform; see "Uploading Hardware Catalog to Junos Space Network Management Platform" on page 1555 for deails.
· Configure the SVN repository settings for downloading hardware catalogs; see "Configuring Access to Juniper Networks Subversion Repository for Downloading Hardware Catalog" on page 1553 for details.
Release History Table
Release
Description
17.1R1
Starting from Release 17.1R1, Junos Space Network Management Platform provides Hardware Catalog that enable you to manage hardware components of Juniper Networks devices. Hardware catalog saves you from updating Junos Space Platform software every time a new hardware component, for example, a line card, an FPC, or a power supply module, is added to a Juniper Networks device that Junos Space Platform manages. When new components are added, Juniper Networks provides a new hardware catalog that you can import to the Junos Space platform.
RELATED DOCUMENTATION
Device Inventory Overview | 298 Device Management Overview | 188
1553
Viewing Information About Hardware Catalog
You can view the revision numbers of hardware catalog present in the Juniper Networks Subversion (SVN) repository and Junos Space Platform and on the Hardware Catalog page. To view information about the hardware catalog present in the SVN repository and Junos Space Platform, on the Junos Space Platform user interface, select Administration > Hardware Catalog. The Hardware Catalog page appears. The Hardware Catalog page displays the following information about the hardware catalog currently present in Junos Space Platform under the Current Hardware Catalog section: · Revision--The revision number of the hardware catalog. · Published--The date and time the hardware catalog was initially published. · Last Updated--The date and time the hardware catalog in Junos Space Platform was last updated. Click the Refresh SVN Info button under the Hardware Catalog in SVN section to fetch the revision number of the current hardware catalog in the SVN repository. The Hardware Catalog page displays the following information about the hardware catalog present in the SVN repository under the Hardware Catalog in SVN section: · SVN Revision--The revision number of the hardware catalog about the hardware catalog in the SVN
repository. · Published--The date and time the current revision of the hardware catalog was published
RELATED DOCUMENTATION Hardware Catalog Overview | 1551 Uploading Hardware Catalog to Junos Space Network Management Platform | 1555 Configuring Access to Juniper Networks Subversion Repository for Downloading Hardware Catalog | 1553
Configuring Access to Juniper Networks Subversion Repository for Downloading Hardware Catalog
If you want to download the latest hardware catalog from the Juniper Networks SVN repository, configure the SVN Repository settings from the Hardware Catalog page. To configure the repository to download hardware catalog:
1554
1. On the Junos Space Network Management Platform user interface, select Administration > Hardware Catalog. The Hardware Catalog page appears.
2. Click Configure under the Hardware Catalog in SVN section. The Configure SVN Access dialog box appears.
3. Enter the following details in the Configure SVN Access dialog box: · SVN Url--URL of the SVN server (https://xml.juniper.net/space/repository/trunk/hardware-catalog/) · User Name--Username of a customer's Juniper Networks account · Password--Password of a customer's Juniper Networks account · Confirm--Retype the password
4. (Optional) The Proxy Server field displays whether a proxy server is configured or not. If your organization requires that you use a proxy server to connect to the Internet, you must configure and enable the proxy server (under Administration > Proxy Server) before connecting to the Juniper Networks SVN repository. For more information, see Configuring Proxy Server Settings.
5. (Optional) Click Test Connection to check whether you are able to connect to the SVN server. If the connection is successful, the Connection established message is displayed. If the connection fails, the Cannot establish connection. Please check the proxy setting or your network connection message is displayed. The Refresh SVN Info and the Get Latest buttons are enabled after you are connected to the SVN server.
6. Click Save to save or Cancel to cancel the SVN repository configuration.
RELATED DOCUMENTATION Hardware Catalog Overview | 1551 Viewing Information About Hardware Catalog | 1553 Uploading Hardware Catalog to Junos Space Network Management Platform | 1555
1555
Uploading Hardware Catalog to Junos Space Network Management Platform
IN THIS SECTION Updating Hardware Catalog in Junos Space Platform by Using the Get Latest Action | 1555 Uploading Hardware Catalog to Junos Space Platform by Using the Import Option | 1556
When a new hardware catalog is available, you can obtain the catalog from Juniper Networks subversion (SVN) repository after configuring the SVN repository. Alternatively, you can also upload the hardware catalog manually to Junos Space Platform..
Updating Hardware Catalog in Junos Space Platform by Using the Get Latest Action
Juniper Networks updates the hardware catalog in the Juniper Networks subversion (SVN) repository so that you can configure the SVN repository on Junos Space Platform and download the latest version of the hardware catalog. For information about configuring SVN repository to download hardware catalog, see"Configuring Access to Juniper Networks Subversion Repository for Downloading Hardware Catalog" on page 1553. Ensure that the SVN repository is configured on Junos Space Platform before you perform the Get Latest action. For information about configuring the SVN repository. To update hardware catalog in Junos Space Platform: 1. On the Junos Space Network Management Platform user interface, select Administration > Hardware
Catalog. The Hardware Catalog page appears.
2. Click Get Latest under the Hardware Catalog in SVN section. The Get Latest Hardware Catalog from SVN dialog box appears. A job is initiated to download the latest hardware catalog present in the SVN server and the ID of the job is displayed.
3. (Optional) Click the Job ID to view the job details. The Job Details page displays whether the hardware catalog was uploaded successfully or not.
1556
Uploading Hardware Catalog to Junos Space Platform by Using the Import Option
Junos Space Network Management Platform provides an option to manually upload the hardware catalog when Junos Space is not connected to the Juniper Networks SVN repository . Juniper Networks shares the hardware catalog with customers in the *.tgz format. The hardware catalog files are available in .xml format. Click here to download the required XML files, create a file in *.tgz, and upload it using the Import option. The *.tgz file must have the following structure to upload the hardware catalog successfully. Sample *.tgz File Format
[user@nm-apps-ip27 junos-ex]$ tar -tvf hwctlg.tgz drwxrwxr-x user/user 0 2017-06-21 19:10 hardware-catalog/ -rw-rw-r-- user/user 1637 2017-06-21 19:10 hardware-catalog/EX2200-48P-4G.xml -rw-rw-r-- user/user 1637 2017-06-21 19:10 hardware-catalog/EX2200-24T-4G.xml -rw-rw-r-- user/user 1109 2017-06-21 19:10 hardware-catalog/EX2200-12P-2G.xml -rw-rw-r-- user/user 1637 2017-06-21 19:10 hardware-catalog/EX2200-24P-4G.xml -rw-rw-r-- user/user 1109 2017-06-21 19:10 hardware-catalog/EX2200-12T-2G.xml
Before you begin upload of hardware catalog by using the Import option, save the hardware catalog in the *.tgz format on your local system or on a network drive. You can either download the hardware catalog from the Juniper Networks SVN repository or contact Juniper Networks support to obtain it. To upload hardware catalog to Junos Space Platform by using the Import option: 1. On the Junos Space Platform user interface, select Administration > Hardware Catalog.
The Hardware Catalog page appears.
2. Click Browse to locate the hardware catalog file on your local system.
NOTE: The file to be uploaded should in be in the *.tgz format.
3. Click Import to import the hardware catalog file to Junos Space Platform.
1557
A job is initiated to import the hardware catalog and the ID of the job is displayed. The hardware catalog file is imported to /var/jboss/jmp-tmp/net/juniper/jmp/var/hw-catalog location on the Junos Space server.
4. (Optional) Click the Job ID to view the job details. The Job Details page displays whether the hardware catalog was imported successfully or not.
RELATED DOCUMENTATION Hardware Catalog Overview | 1551 Configuring Access to Juniper Networks Subversion Repository for Downloading Hardware Catalog | 1553 Viewing Information About Hardware Catalog | 1553
CHAPTER 84
Managing the Purging Policy
IN THIS CHAPTER Junos Space Purging Policy and Purging Categories Overview | 1558 Viewing the Junos Space Purging Policy and Purging Criteria | 1559 Modifying the Purging Policy and Purging Criteria and Setting the Policy Status | 1561
1558
Junos Space Purging Policy and Purging Categories Overview
Junos Space Network Management Platform provides a built-in purging policy that enables you to purge backup files, logs, and other resources on the Junos Space server, and free system resources. The purging policy provided by Junos Space Platform is also a framework for purging that Junos Space applications can use to specify files and logs to be purged in application-specific locations. The following categories can be purged: · Configuration files--Backup device configuration files in the /var directory · Reports--Generated reports in the /var directory · Database backup files--Database backup files in the /var directory · Troubleshooting log files--Troubleshooting log files in the /var/cache/jboss/space-logs directory · Other log files--Log files mainly in the /var/log/ directory with the filenames *.log.*, messages.*, or
SystemStatusLog.* A user with System Administrator or Super Administrator privileges (or a custom user with the Purging Policy task assigned) can view and modify purging criteria and trigger conditions for Junos Space Platform and, if configured, for installed applications. In addition, the user can enable or disable purging categories and view detailed information about the purging job on the Job Management page.
NOTE: The Purging Policy task (in the Role Based Access Control workspace) comprises the subtasks Modify Purging Policy, Edit Purging Category, and Set Policy Status.
Purging is triggered when one of the following conditions is met in the following order of priority:
1559
1. When the specified percentage threshold of disk usage is exceeded--Junos Space monitors the /var and /var/log partitions every five minutes by using a cron job and triggers a purging job if the threshold is crossed for any of the purging categories.
NOTE: · When the /var partition exceeds the specified disk threshold percentage, files are purged
in the following decreasing order of priority: Database backup files > Reports and Troubleshooting log files > Configuration files. · In all partitions, the files are purged only until the disk threshold percentage is exceeded; when the disk threshold percentage for a particular partition falls below the specified value, the purging is stopped. · For a purging policy triggered by a cron job: · If the Junos Space fabric is configured with MySQL on one or two dedicated database
nodes, the database backup files and log files (mainly in the /var/log/ directory with the filenames *.log.*, messages.*, or SystemStatusLog.*) are not purged from the dedicated database nodes. · If the Junos Space fabric is configured with one or two FMPM nodes,the log files (mainly in the /var/log/ directory with the filenames *.log.*, messages.*, or SystemStatusLog.*) are not purged from the FMPM nodes.
2. When the scheduled (recurring or nonrecurring) purging job is due.
NOTE: The purging job is applicable only to the purging categories on which the purging policy is enabled.
RELATED DOCUMENTATION Viewing the Junos Space Purging Policy and Purging Criteria | 1559 Modifying the Purging Policy and Purging Criteria and Setting the Policy Status | 1561
Viewing the Junos Space Purging Policy and Purging Criteria
On the Purging Policy page, users with the role Super Administrator or System Administrator (or a custom user with the Purging Policy task assigned) can view the built-in purging policy and view and modify purging
1560
criteria and trigger conditions for Junos Space Network Management Platform and, if configured, for installed applications. In addition, users can enable or disable purging categories and view detailed information about the purging job on the Job Management page.
To view the purging policy, purging criteria, and trigger conditions:
1. On the Junos Space Platform UI, select Administration > Purging Policy. The Purging Policy page is displayed. This page displays the following trigger conditions for purging on the top part of the page (under Trigger conditions for purging): · Disk usage threshold (%)--Percentage of the disk space after which the files are purged · Schedule at a later time--Date and time at which the purging is scheduled · Recurrence--Interval at which the purging recurs The purging categories and criteria, as shown in Table 197, are displayed in a table on the bottom part of the page. You can sort the table by purging category, policy status, or priority.
Table 197: Purging Categories and Criteria
Field
Description
App Name
Junos Space application to which the purging category belongs; for Junos Space Platform, Network Management Platform is displayed.
Purging Category Retention Criteria
Name of the purging category. The following purging categories are supported:
· Config File--Backup device configuration files · Reports--Generated reports · DB Backup--Database backup files · Space Logs--Junos Space log files · Troubleshooting Log--Troubleshooting log files
Retention criteria for the purging category
The period for which the records or files to be retained and the number of records or files to be retained are displayed.
Last Job ID
ID of the last job for the corresponding purging category Click the job ID link to view the details of the job on the Job Management page.
1561
Table 197: Purging Categories and Criteria (continued)
Field
Description
Policy Status Partition
Status of the purging policy for the corresponding purging category:
· Enabled--Indicates that the purging policy is enabled for the category · Disabled--Indicates that the purging policy is disabled for the category
When a purging category is disabled, Junos Space does not purge the files or records for that category.
Disk partition for the purging category from which the files or records are purged
Priority
Priority for the purging category
A purging category with priority High has precedence over a purging category with priority Medium, which in turn has precedence over a category with priority Low.
Description
Description of the purging category
You can modify some of the fields on the Purging Policy page. For more information, refer to "Modifying the Purging Policy and Purging Criteria and Setting the Policy Status" on page 1561.
RELATED DOCUMENTATION Junos Space Purging Policy and Purging Categories Overview | 1558
Modifying the Purging Policy and Purging Criteria and Setting the Policy Status
IN THIS SECTION
Modifying the Purging Trigger Conditions | 1562 Modifying the Purging Criteria and Enabling or Disabling a Policy | 1564
On the Purging Policy page, users with the role Super Administrator or System Administrator (or a custom user with the Purging Policy task assigned) can modify purging criteria and trigger conditions and enable
1562
or disable purging categories for Junos Space Network Management Platform and, if configured, for installed applications. To modify the purging policy and criteria, and set the policy status: 1. On the Junos Space Platform UI, select Administration > Purging Policy.
The Purging Policy page appears displaying the trigger conditions for purging on the top part of the page (under Trigger conditions for purging) and the purging categories and criteria on the bottom part of the page. You can modify the purging trigger conditions and some fields related to the purging criteria and policy status.
This topic has the following sections:
Modifying the Purging Trigger Conditions
On the Purging Policy page, you can modify the trigger conditions for purging. To modify the purging trigger conditions: 1. (Optional) In the Disk usage threshold (%) field, enter the percentage of the disk space that can be used
beyond which the files are purged. When the percentage of the disk space used in the /var or /var/log partition exceeds the configured value, Junos Space triggers an intermediate purging job for the purging categories that are enabled and for which the disk usage threshold exceeds the configured limit. The purging job is executed based on the priority; the highest priority sub-job is executed first and after its completion, Junos Space Platform checks the disk threshold again. If the disk usage threshold is higher than the configured limit, then the purging job is continued in decreasing order of priority. If the disk threshold is lower than the configured limit, the job is stopped. The minimum value is 1 and the maximum is 100; the default is 85 percent.
2. (Optional) To modify the purging schedule: a. Select the Schedule at a later time check box.
NOTE: To trigger a purging job that will run immediately, clear the Schedule at a later time check box.
b. In the Start field, specify the date and time on which you want the purging to start. 3. (Optional) To specify the recurrence interval:
a. Select the Recurrence check box.
NOTE: To remove the recurrence, clear the Recurrence check box.
1563
b. In the Interval field, specify the recurrence interval (in minutes, hours, days, weeks, months, or years) and the frequency of recurrence. The default interval is Monthly. If you specify an interval in weeks, months, or years, you can specify on which days the purging should recur. Additionally, if the interval is in weeks, the day on which you are specifying the recurrence is selected and disabled by default; you can specify additional days on which the purging should recur. The monthly option further provides two more options to select either the last day of a month or a particular day in a month.
c. In the Ends on field, specify a date and time after which the recurrence ends. Alternatively, if you want the purging to recur indefinitely, select Never. By default, the purging recurs indefinitely.
NOTE: Junos Space triggers a purging policy job based on the following: · If both the Schedule at a later time and Recurrence fields are not specified, Junos Space
triggers a job that will run immediately. · If the Schedule at a later time field is specified but the Recurrence field is not specified,
Junos Space triggers a job that will run later at the specified schedule. · If the Recurrence field is specified but the Schedule at a later time field is not specified,
Junos Space triggers a job that will run immediately with the specified recurrence. · If both the Schedule at a later time and Recurrence fields are specified, Junos Space triggers
a job that will run later at the specified schedule and the specified recurrence.
4. After modifying the trigger conditions, you can perform one of the following actions: · Click Save to save the modifications that you made.
1564
· If you modified the trigger conditions and a purging policy job does not exist, a dialog box is displayed warning you that the trigger conditions will be updated and that a purging job will be created. Click Schedule to save the changes and schedule the purging policy job.
· If you modified the trigger conditions and a purging policy job already exists, a dialog box is displayed warning you that the trigger conditions will be updated and that a purging job already exists. Click Reschedule to reschedule the existing purging job. The job is rescheduled and the purging policy page is reloaded.
· Click Discard to discard the modifications that you made. The modifications are discarded and the settings are returned to the previous saved state. The Purging Policy page is reloaded.
Modifying the Purging Criteria and Enabling or Disabling a Policy
On the Purging Policy page, you can modify the purging criteria and enable or disable a purging policy. To modify the purging criteria and enable or disable a purging policy: 1. Select the purging policy by clicking inside the row corresponding to a category.
The selected purging policy is highlighted.
2. (Optional) To enable or disable the purging policy: a. Click the Set Policy Status button (check mark). A confirmation dialog box appears prompting you to confirm that you want to change the policy status.
b. Click Yes to change the policy status. The policy status is changed and the Purging Policy page is reloaded; the Policy Status field displays the new status.
3. (Optional) To modify the purging criteria:
1565
NOTE: You cannot modify the name of a criterion but only its value.
a. Click the Edit Purging Criteria (pencil icon) button. The Edit Purging Criteria page pops up. The name of the criterion and the corresponding value is displayed.
b. Click the pencil icon next to the criterion or double-click the row that you want to modify. The selected row expands and displays the Criteria Name field (disabled) and the Value field.
c. Enter the value for the criterion in the Value field. d. Perform one of the following actions:
· Click Save to save the modification. The modification is saved, the expanded row is closed, and the modified value is displayed.
· Click Cancel to discard the modification. The modification is discarded, the expanded row is closed, and the previously saved value is displayed.
4. (Optional) To modify additional purging criteria, follow the procedure outlined in step 3. 5. Click OK to close the page.
You are taken to the Purging Policy page.
RELATED DOCUMENTATION Junos Space Purging Policy and Purging Categories Overview | 1558
CHAPTER 85
Disaster Recovery
IN THIS CHAPTER Disaster Recovery Overview | 1566 Validate Peer Site | 1568 Manage Disaster Recovery | 1570
1566
Disaster Recovery Overview
IN THIS SECTION Prerequisites to Configure Disaster Recovery | 1567 Connectivity Requirements to Configure Disaster Recovery | 1568
A Junos Space cluster allows you to maintain high availability and scalability in your network management solution. However, because all nodes in a cluster need to be within the same subnet, they are typically deployed in the same data center or within the same campus. But you can easily recover a cluster from a disaster at a location by mirroring the original Junos Space installation on a cluster to another cluster at a geographically different location. So if the main Junos Space site fails due to a disaster such as an earthquake, the other site can take over. Hence, the physical installation of the disaster recovery setup is typically a set of two geographically separate clusters: the active or main site (that is, the local site) and the standby or backup site (that is, the remote site). When the basic connectivity requirements and prerequisites are met (refer to "Prerequisites to Configure Disaster Recovery" on page 1567 and "Connectivity Requirements to Configure Disaster Recovery" on page 1568 ), data from the cluster at the active site is replicated to the cluster at the standby site in near realtime. Figure 139 displays the disaster recovery solution.
Figure 139: Disaster Recovery Solution
1567
Prerequisites to Configure Disaster Recovery
You need to ensure that your Junos Space installation meets the following prerequisites before you configure disaster recovery:
· The Junos Space cluster at the primary or active site (which can be a single node or multiple nodes) and the cluster at the remote or standby site (which can be a single node or multiple nodes) must be set up in exactly the same way, with all the same applications, device adapters, same IP family configurations, and so on.
· Both clusters should be configured with SMTP server information from the Junos Space user interface. For more information, see "Managing SMTP Servers" on page 1469. This configuration enables the clusters at both the active site and the standby site to notify the administrator by e-mail if the replications fail.
NOTE: The number of node(s) in active site and standby site should be the same.
1568
Connectivity Requirements to Configure Disaster Recovery
You need to ensure that the disaster recovery solution meets the following connectivity requirements before you configure disaster recovery: · Layer 3 connectivity between the Junos Space clusters at the active and standby sites. This means:
· Every node in a cluster can successfully ping the VIP address of the other cluster · Every node in a cluster can use SCP to transfer files between the active and standby sites · Database replication across the two clusters is possible through TCP ports 3306 (MySQL database
replication) and 5432 (PostgreSQL database replication) · The bandwidth and latency of the connection between the two clusters are such that real-time database
replication is successful. Although the exact bandwidth required depends on the amount of data transferred, we recommend a minimum of a 100-Mbps bandwidth connection with a latency of fewer than 150 milliseconds. · Independent Layer 3 connectivity between each cluster and managed devices · Independent Layer 3 connectivity between each cluster and GUI or NBI clients To set up the disaster recovery process, see "Manage Disaster Recovery" on page 1570.
RELATED DOCUMENTATION Validate Peer Site | 1568 Manage Disaster Recovery | 1570
Validate Peer Site
Use the Validate Peer Site page to check the reachability of the peer site, before you add it to the Disaster Recovery (DR) environment. Before you configure the DR, ensure that your Junos Space installation meets the following prerequisites: · The Junos Space cluster at the primary or active site ( single node or multiple nodes) and the cluster at
the remote or standby site (single node or multiple nodes) must have the same configuration, with the same applications, device adapters, same IP family configurations, and so on. · Passwords used must be valid.
1569
· Both clusters must be configured with SMTP server information from the Junos Space GUI. For more information, see "Managing SMTP Servers" on page 1469. This configuration enables the clusters at both the active site and the standby site to notify the administrator by e-mail if the replications fail.
· The arbitrary devices used must be reachable. To validate peer site in active and standby site:
1. Select Administration > Disaster Recovery > Validate Peer Site. The Validate Peer Site page appears.
2. Enter the required parameters and select one or more devices from the list that you want to validate. See Table 198 for more details on the Validate Peer Site page.
Table 198: Fields on Validate Peer Site page
Field
Description
Peer Site VIP Address
Enter a valid peer site VIP address.
Load Balancer's CLI Admin Password Enter the correct load balancer password.
Confirm Password
Re-enter the above password.
Arbitrary Devices
Select one or more devices from the list of devices used during the DR auto failover.
You can also search and filter the devices.
Device Name
Displays the name of the device.
Device Alias
Displays the alias for the device.
IP Address
Shows the IP addresses for the devices.
Platform
Displays the platform for the devices.
OS Version
Displays the OS version of devices.
Connection Status
Displays the connection status of the devices.
Validate Peer Site
Select to validate the selections and perform the validation. This is enabled when the mandatory fields are filled.
Cancel
Select to cancel the selections and go back to the landing page of DR.
RELATED DOCUMENTATION Disaster Recovery Overview | 1566 Manage Disaster Recovery | 1570
Manage Disaster Recovery
IN THIS SECTION Configuring Disaster Recovery at the Active Site | 1572 Configuring Disaster Recovery at the Standby Site | 1573 Actions common for both Active and Standby Site | 1575 Disaster Recovery Health | 1575
1570
Configuration of Disaster Recovery (DR) between an active site and a standby site ensures geographical redundancy of network management services.
Before you initiate the DR process between both sites, perform the following tasks:
· Ensure that the connectivity requirements as described in the "Disaster Recovery Overview" on page 1566 topic are met.
· Check whether identical cluster configurations exist on both sites. We recommend that both clusters have the same number of nodes so that, even in the case of a disaster, the standby site can operate with the same capacity as the active site.
· Ensure that the same versions of Junos Space Network Management Platform, high-level Junos Space applications, and device adapters are installed at both sites.
· Shut down the DR process configured on Junos Space Network Management Platform Release 14.1R3 and earlier before upgrading to Junos Space Network Management Platform Release 15.2R1 and configuring the new DR process. For more information, see "Stopping the Disaster Recovery Process on Junos Space Network Management Platform Release 14.1R3 and Earlier" on page 1746.
You cannot configure the new DR process if you do not stop the DR you set up on 14.1R3 and earlier releases. You do not need to perform this step on a clean installation of Junos Space Network Management Platform Release 15.2R1.
· Ensure that the same SMTP server configuration exists on both sites to receive e-mail alerts related to the DR process. You can add SMTP servers from the SMTP Servers task group in the Administration workspace. For more information about adding SMTP servers, see "Adding an SMTP Server" on page 1470.
1571
To configure Disaster Recovery: 1. Select Administration > Disaster Recovery > Manage Disaster Recovery.
The Configure Disaster Recovery Wizard page opens.
2. Enter the required parameters and select one or more devices from the list that you want to validate. See Table 199 for more details on the Configure Disaster Recovery Wizard page.
Table 199: Fields on the Configure Disaster Recovery Wizard Page
Field
Description
Site Role
Select an option for which you want to configure the DR. The available options are Active and Standby Site.
NOTE: Its is mandatory to initiate the DR on the Active Site first followed by Standby Site or else system prompts you to do so.
Peer Site VIP Address
Enter a valid IP address for configuration. NOTE: You cannot edit this information if the DR is not in the Initialized state.
Load Balancer's CLI Admin Enter a valid admin CLI password.
Password
NOTE: If you have more than one password, you can enter both separated by a comma.
You cannot edit this information if the DR is not in the Initialized state.
Confirm Password
Re-enter the previously entered password to configure the DR Wizard.
Arbitrary Devices
Select one or more devices from the list of devices used during DR auto failover. You can also search and filter the devices.
Next
Select Next to configure Disaster Recovery at the Active Site followed by Standby Site. See "Configuring Disaster Recovery at the Active Site" on page 1572 and "Configuring Disaster Recovery at the Standby Site" on page 1573. It is enabled only when all the parameters are fulfilled.
Next, the window to configure Disaster Recovery at the Active Site followed by Standby Site gets displayed. For more details, see "Configuring Disaster Recovery at the Active Site" on page 1572 and "Configuring Disaster Recovery at the Standby Site" on page 1573.
1572
The following sections explains the procedure to configure DR at the Active and Standby Sites and initiate the disaster recovery between both sites.
Configuring Disaster Recovery at the Active Site
To configure the Disaster Recovery at the Active Site: 1. Select Next after you have filled all the parameters in the Configure Disaster Recovery Wizard page.
The Configure Disaster Recovery Wizard for Active Site opens.
2. Enter all the required details for the parameters that are displayed on the page. For more details on the fields, see Table 200.
Table 200: Fields on the Configure Disaster Recovery Wizard page at the Active Site
Field
Description
Peer Site VIP
Displays the IP address entered in the Configure Disaster Recovery Wizard page.
Arbitrary Devices
Displays all the devices that are selected in the Configure Disaster Recovery Wizard page.
SCP Timeout
Displays the timeout value to detect a failure in transferring files from standby to active site through Secure Copy Protocol (SCP). The time is dispayed in seconds.
NOTE: You cannot edit the value if DR is not in the Initialized state.
Maximum number of backup
Displays the numbers of files that you want to retain. NOTE: You cannot edit the value if DR is not in the Initialized state.
Backup Schedule NOTE: You cannot edit the parameters if DR is not in the Initialized state.
Time of the day (in Hrs)
The time of the day when you want to schedule the backup. Time is in 24 hours format.
Days of the week
The days when you want to schedule the backup.
Restore Schedule NOTE: You cannot edit the parameters if DR is not in the Initialized state.
1573
Table 200: Fields on the Configure Disaster Recovery Wizard page at the Active Site (continued)
Field
Description
Time of the day (in Hrs)
The time of the day to copy files from active site to standby site. Time is in 24 hours format.
Days of the week
The days to copy files from active site to standby site.
Watchdog NOTE: You cannot edit the parameters if DR is not in the Initialized state.
Heartbeat retry times
The number of times the active site should send heartbeat messages to the standby site. It ranges from 4 to 15.
Heartbeat message timeout
The timeout value of each heartbeat message in seconds. The maximum and default value is 5.
Heartbeat message interval
Displays the time interval between two consecutive heartbeat messages to the standby site in seconds, ranging from 30 seconds to 120 seconds.
Notification email
The e-mail address of the administrator to whom e-mail messages about disaster recovery service issues must be sent.
Notification interval
The time interval during which the same issues are not reported through e-mail (dampening interval) in seconds. It ranges from 300 to 1800 seconds.
Failure Detection
Failure detection method
Displays the method of failure detection.
NOTE: In Junos Space Network Management Platform 20.3R1, only default option is allowed through GUI.
Failure detection threshold percentage Displays the threshold percentage for failure detection.
When you have entered values for all parameters, disaster recovery is initialized at the active site.
Configuring Disaster Recovery at the Standby Site
To configure the Disaster Recovery at the Standby Site: 1. Select Next after you have filled all the parameters in the Configure Disaster Recovery Wizard page.
The Configure Disaster Recovery Wizard for Standby Site opens.
1574
2. Enter all the required details for the parameters that are displayed on the page. For more details on the fields, see Table 201.
NOTE: Its mandatory to initialize the Active Site before initializing the Standby Site. Arbitrary devices can be selected only in the Active Site.
Table 201: Fields on the Configure Disaster Recovery Wizard page at the Standby Site
Field
Description
Peer Site VIP
Displays the IP address entered in the Configure Disaster Recovery Wizard page.
Arbitrary Devices
Displays all the devices that are selected in the Configure Disaster Recovery Wizard page.
SCP Timeout
Displays the timeout value to detect a failure in transferring files from standby to active site through Secure Copy Protocol (SCP). The time is dispayed in seconds.
NOTE: You cannot edit the value if DR is not in the Initialized state.
Maximum number of backup
Displays the maximum number of backups to retain at the standby site. NOTE: You cannot edit the value if DR is not in the Initialized state.
Backup Schedule NOTE: You cannot edit the parameters if DR is not in the Initialized state.
Time of the day (in Hrs)
The time of the day when you want to schedule the backup. Time is in 24 hours format.
Days of the week
The days when you want to schedule the backup.
Restore Schedule NOTE: You cannot edit the parameters if DR is not in the Initialized state.
Time of the day (in Hrs)
The time of the day to copy files from active site to standby site. Time is in 24 hours format.
Days of the week
The days to copy files from active site to standby site.
1575
When you have entered values for all parameters, disaster recovery is initialized at the standby site.
Actions common for both Active and Standby Site
Table 202 shows the actions common for configuring both Active and Standby Sites.
Table 202: Actions common for both Active and Standby Site configuration
Field
Action
Initialize
Starts the initialization of DR with the given values.
This is enabled only when all the parameters are provided with correct vales on both the sites.
Reset
Resets the DR configuration. This is enabled only when the DR is already initialized or else stopped.
Start
Starts the DR process. This is enabled when the DR is already initialized.
Stop
Allows you to stop the configuration on either of the sites or both the sites.
Manual Failover
This performs manual fail over on the standby site. This parameter is available only when the DR has started or is stopped.
Disaster Recovery Health To check the Disaster Recovery health status: 1. Select Administration > Disaster Recovery.
The landing page opens with a graphical representation of both the Active and Standby Site.
2. Right click on the site you want to check the health status. The options available are Current Configuration, Health and Start.
3. Select Health. The health report status for the selected site is displayed. The report shows the last verified status for a particular site with the date and time of generation of the report.
4. Select Trigger Health Report to check the current health report status for the selected site.
1576 The Health Command starts and after completion, it shows all the relevant messages with their status.
RELATED DOCUMENTATION Disaster Recovery Overview | 1566 Validate Peer Site | 1568
1577
Monitoring and Troubleshooting Guide
13 PART
Overview
Overview | 1579
1579
CHAPTER 86
Overview
IN THIS CHAPTER Monitoring Network Devices and Troubleshooting Software Issues with Junos Space Network Management Platform | 1579 Overall System Condition and Fabric Load History Overview | 1583 Junos Space Network Management Platform Widgets | 1586
Monitoring Network Devices and Troubleshooting Software Issues with Junos Space Network Management Platform
IN THIS SECTION Systems of Record | 1580 System Snapshot | 1580 Backup and Restore | 1581 Maintenance Mode | 1581 Audit Logs | 1581 Jobs | 1582 Secure Console | 1582 Looking Glass | 1582 Reports | 1582 Junos Space Debug Utilities | 1583
1580
Use the following features of Junos Space Network Management Platform to monitor devices and troubleshoot software issues:
Systems of Record
A network managed by Junos Space Platform contains two repositories of information about the devices in the network: the devices themselves (each device defines and reports its official state) and the database (which contains information that is reported by the device during device discovery). This is known as systems of record.
The systems of record operate in the following two modes depending on where the repository of information is stored:
· Network as a system of record (NSOR)--By default, the network is the system of record (NSOR). In this mode, when a user commits a change in the configuration of a network device, the commit operation automatically triggers a report through the system log to Junos Space Platform.
· Junos Space as a system of record (SSOR)--In this mode, when you perform any out-of-band commit operation, Junos Space Platform receives a system log message from the device, but the values in the Junos Space Platform database are not automatically changed or synchronized with the values on the device. Instead, you can choose whether or not to overwrite the device's local changes by pushing the accepted configuration to the device from the Junos Space Platform database. For more information about systems of record in Junos Space Platform, see "Systems of Record in Junos Space Overview" on page 213.
System Snapshot
You can use the System Snapshot feature to create a snapshot of the current state of the Junos Space system. The snapshot includes all persistent data on the hard disk including data in the database, system and application configuration files, and application and Linux executables. You can roll back the Junos Space system to a predefined state or an older release if the system reaches an unrecoverable error state caused by undesirable behavior due to corruption of system files, interruption of critical processes, and so on. The System Snapshot is a fabric-wide operation that maintains consistency of data across all nodes in the fabric.
You can create a snapshot before a significant action is performed--for example, adding or deleting a Junos Space node, installing a Junos Space application, and so on--because the action can precipitate the system into an undesirable state. You can delete the snapshot after you have ascertained that the action was performed successfully. For more information about system snapshots, see "Creating a System Snapshot" on page 1272.
1581
Backup and Restore
You use the Backup and Restore feature to back up (or schedule the backup of) and restore the data in the Junos Space database. You can set up an hourly, daily, or weekly schedule. The database backup can be stored on the local Junos Space system or transferred to a remote system automatically using the Secure Copy mechanism.
You can restore the backup in any of the following circumstances:
· Junos Space data is corrupted and you need to replace the corrupted data with uncorrupted data. · Junos Space software is corrupted and unstable after a reinstallation or an upgrade and you need to
populate the Junos Space database with uncorrupted data. For more information about backup and restore operations, see "Backing Up and Restoring the Database Overview" on page 1298.
Maintenance Mode
Maintenance mode is a mode in which you can perform database restore and debugging tasks while all nodes in the fabric are shut down and the Junos Space Network Management Platform Web proxy is running. You need to be an authorized Junos Space administrator to put the system into maintenance mode. You can put the system into maintenance mode only after you initiate a restore task by using the Backup and Restore feature.
The Junos Space system goes into maintenance mode in the following situations:
· Junos Space Network Management Platform software goes down. · You initiate a restore operation by using the Backup and Restore feature. · You upgrade the Junos Space Network Management Platform software. For more information about maintenance mode, see "Maintenance Mode Overview" on page 1153.
Audit Logs
The Audit Logs workspace of Junos Space Platform displays the login history and tasks initiated by a local or remote user. Through this workspace, you can track login history, view the list of device management tasks, view the list of services that were provisioned on the device, and so on. However, tasks that are not initiated by users, such as device-driven activities (for example, resynchronization of network elements), and changes made from the Junos Space CLI are not recorded in audit logs. Audit logs can be used by administrators to review events--for example, to identify which user accounts are associated with an event, to determine the chronological sequence of events (that is, what happened before and during an event), and so on. For more information about audit logs, see "Junos Space Audit Logs Overview" on page 1115.
1582
Jobs
You use the Jobs workspace of Junos Space Platform to monitor the status of jobs that are run in Junos Space Platform and all Junos Space applications installed on Junos Space Platform. You can view the status of the jobs on the Job Management page. A job is a user-initiated action that is performed on any object that is managed by Junos Space Platform, such as a device, service, or customer. Typical jobs in Junos Space Network Management Platform include discovering devices, deploying services, prestaging devices, and performing functional and configuration audits.
You can trigger jobs immediately or schedule jobs for a later date and time. Junos Space Platform maintains a history of job statuses for all scheduled jobs. When a job is scheduled from a workspace, Junos Space Platform assigns a job ID that serves to identify the job on the Job Management page. For more information about jobs, see "Jobs Overview" on page 965.
Secure Console
The Secure Console feature on the Devices workspace provides a secure remote access connection to managed and unmanaged devices. Secure Console initiates an SSH session from the Junos Space user interface by using the SSH protocol. Secure Console is a terminal window embedded in Junos Space Platform that eliminates the need for a third-party SSH client to connect to devices. Secure Console provides additional security while connecting to your devices by initiating an SSH session from the Junos Space server rather than from your Web browser. You can access the Secure Console feature either from the Device Management page or the Secure Console page. For more information about Secure Console, see "Secure Console Overview" on page 395.
Looking Glass
You use the Looking Glass feature from the Devices workspace to view device configurations by executing basic CLI commands from the Junos Space user interface. You can execute these commands on multiple devices and compare the configurations and runtime information of these devices. You can execute the following types of commands by using Looking Glass: show, ping, test, and traceroute. The commands that are supported and stored in the Junos Space Platform database are displayed on the Looking Glass page. When you type the first few letters of the command, the suggestion list displays the commands that are supported, are stored, and begin with the letters that you typed. For more information about Looking Glass, see "Looking Glass Overview" on page 391.
Reports
With the Reports workspace of Junos Space Platform, you can generate customized reports for managing the resources in your network. You can use these reports to gather device inventory details, job execution details, user accounts, and audit trails. You first create a report definition to specify what information to retrieve from the Junos Space Platform inventory database. You then use this report definition to generate, export, and print the reports. Junos Space Platform provides some predefined categories to create report
1583
definitions. You can combine multiple categories to create a report definition. By default, a predefined set of attributes is included in a report definition. You can choose to add or remove the attributes according to what information you want from the final generated report. You can group, sort, or filter data based on specific attributes available with the report definition. For more information about reports, see "Reports Overview" on page 767.
Junos Space Debug Utilities
Junos Space debug utilities are a collection of scripts and Java applications to fetch details that cannot be viewed on the JBoss CLI or from the Junos Space user interface. These scripts and Java applications are stored at /var/log/space-debug/debug-utilities and categorized under deviceConnection, jobManagement, deviceImport, and HornetQ directories. When you execute these scripts or Java applications, you can view details such as device-connection or node-connection issues, device XMLs fetched from the Junos Space Platform database, and jobs triggered and nodes that execute these jobs. For more information about Junos Space debug utilities, see "Junos Space Debug Utilities Overview" on page 1610.
RELATED DOCUMENTATION Overall System Condition and Fabric Load History Overview | 1159 Junos Space Network Management Platform Widgets | 1586
Overall System Condition and Fabric Load History Overview
You can view the overall Junos Space system condition and fabric load from the Junos Space Network Management Platform Dashboard or the Administration statistics page.
Overall System Condition
To calculate the overall Junos Space system condition, Junos Space Platform uses a formula based on cluster health and node-function health: · Cluster health indicates the percentage of nodes in the fabric that are currently running.
For example, if only three nodes are reachable in a four-node fabric, cluster health is 75%. · Load-balancer health indicates the percentage of nodes (enabled for load balancing) that are running
the load-balancing process. For example, if two nodes are enabled for load balancing and the load-balancing process is running on only one node, the load-balancing health is 50%.
1584
· Database health indicates the percentage of nodes (enabled for database requests) that are running the database process. For example, if two nodes are enabled as the database server and the database process is running on only one node, then database health is 50%.
· Application-logic health indicates the percentage of nodes (enabled for application logic (DML and business logic) that are running the application-logic process. For example, if three nodes are enabled for application logic and the application-logic process is running on only two nodes, then application-logic health is 67%.
Junos Space Platform retrieves data on the nodes and the node functions that are running, and then applies the following formula to determine the overall Junos Space system condition: Overall System Condition = [(Number of Nodes Running) / (Number of Nodes in Fabric)] * [(Number of Nodes Running Load_Balancing Process) / (Number of Nodes enabled for Load Balancing)] * [(Number of Nodes Running Database-Server Process) / (Number of Nodes Enabled As Database Server)] * [(Number of Nodes Running Application-Logic Process) / (Number of Nodes Enabled for Application Logic)] The overall Junos Space system condition is expressed as a percentage. If we use the values in the preceding examples in this formula, then the overall system condition would be calculated as: Overall System Condition = 75% * 50%* 50% * 67% = 12.5%. A value between 0 and 30% indicates that the system health is Poor, a value between 30% and 70% indicates that the system health is average, and a value between 70% and 100% indicates that the system health is good. The Overall System Condition chart displays the system health as shown in Figure 50
Figure 140: Overall System Condition Gauge
The overall system health indicates 0% (Poor) when any one of the following conditions is detected: · No nodes in the fabric are running. · No nodes enabled for load balancing are running the load-balancing process. · No nodes enabled for database requests are running the database process. · No nodes enabled for application logic are running the application-logic process.
1585 Fabric Load History The Fabric Load History chart, as shown in Figure 51, displays the average CPU usage across all nodes that are running in the fabric. Figure 141: Fabric Load History Chart
Junos Space Platform uses the following formula to determine the fabric load: Fabric Load = (Total CPU Usage for All Nodes Running) / (Number of Nodes Running) For example, for a fabric with three nodes running and CPU usage of 80%, 30%, and 10%, respectively, the fabric load is 40%. Active Users History The Active Users History chart, as shown in Figure 52, displays the number of active users in the past one minute. Figure 142: Active Users History Chart
RELATED DOCUMENTATION
Viewing the Junos Space Platform Dashboard | 125 Viewing the Administration Statistics | 1138
Junos Space Network Management Platform Widgets
IN THIS SECTION Devices | 1586 Device Templates | 1587 CLI Configlets | 1587 Images and Scripts | 1587 Reports | 1587 Network Monitoring | 1588 Configuration Files | 1588 Jobs | 1588 Role Based Access Control | 1589 Audit Logs | 1589 Administration | 1589
1586
This topic presents a list of workspaces in Junos Space Network Management Platform and the widgets that they display:
Devices
The Devices workspace displays the following widgets:
· Device Count by Platform--Number of Juniper Networks devices added per device platform · Device Status--Percentage of devices with the UP, Down, or NA connection status · Device Count by OS--Number of devices running a particular Junos OS version · Device Count by Synchronization State--Device discovery targets that were discovered, failed, are
managed For more information about these widgets, refer to the "Viewing Device Statistics" on page 445 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
1587
Device Templates
The Device Templates workspace displays the following widgets: · Template Status--Percentage of device templates with the Enabled and Need Review statuses · Template Definition Status--Percentage of device templates that are Published and Unpublished statuses · Template Count by Device Family--Number of device templates created per device family For more information about these widgets, refer to the "Viewing Device Template Statistics" on page 524 and "Viewing Template Definition Statistics" on page 523 topics in the Junos Space Network Management Platform Workspaces Feature Guide.
CLI Configlets
The CLI Configlets workspace displays the following widgets: · CLI Configlet Count by Device Family--Number of CLI configlets created per device family · Configuration Viewer Count by Device Family--Number of configuration views per device family For more information about these widgets, refer to the "Viewing CLI Configlet Statistics" on page 551 and "Viewing Configuration Views Statistics" on page 594 topics in the Junos Space Network Management Platform Workspaces Feature Guide.
Images and Scripts
The Images and Scripts workspace displays the following widgets: · Device Image Count by Platform Group--Number of device images per platform group · Device Images Count by Version--Number of device images created per Junos OS version · Number of Scripts by Type--Number of scripts created per script type. The script types are : Commit,
Op, and Event · Number of Jobs per Script Action--Number of jobs triggered by different script-related actions For more information about these widgets, refer to the "Viewing Statistics for Device Images and Scripts" on page 609 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
Reports
The Reports workspace displays the following widgets: · Report Definition Count by User--Number of report definitions created per user · Report Count by User--Number of reports created per user
1588
For more information about these widgets, refer to the "Viewing Report Statistics" on page 795 and "Viewing Report Definition Statistics" on page 786 topics in the Junos Space Network Management Platform Workspaces Feature Guide.
Network Monitoring
The Network Monitoring workspace displays the following widgets: · Nodes with Pending Problems--Nodes with outstanding alarms · Nodes with Outages--Nodes that reported outages · Availability Over the Past 24 hours--Number and percentage availability of the network interfaces of
the devices that reported outages · Notification--Check for notifications sent to you, all Junos Space Platform users, and the on-call schedule
to fix outages. · Resource Graphs--Search for resource graphs. Resource graphs display data collected from managed
nodes throughout your network such as critical SNMP performance, response time, and so forth. · KSC Reports--Search for key SNMP customized (KSC) reports. KSC reports enable you to create and
view SNMP performance data using prefabricated graph types. · Quick Search--Search for nodes by node ID, node label, IP address, or the type of service whether ICMP
or SNMP. For more information about these widgets, refer to the "Network Monitoring Reports Overview" on page 872 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
Configuration Files
The Configuration Files workspace displays the following widgets: · Configuration File Count by Device Family--Number of configuration files per device family · Devices with most Frequently Revised Configuration Files--Devices whose configuration files have been
revised most number of times For more information about these widgets, refer to the "Viewing Configuration File Statistics" on page 939 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
Jobs
The Jobs workspace displays the following widgets: · Job Types--Percentage of all jobs of a particular type that are run · State of Jobs Run--Percentages of jobs that succeeded, are canceled, are in progress, or failed
1589
· Average Execution Time per Completed Job-- Each bar in the Average Execution Time per Completed Job bar chart represents a job type and the average execution time in seconds.
For more information about these widgets, refer to the "Viewing Statistics for Jobs" on page 968 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
Role Based Access Control
The Role Based Access Control workspace displays the following widget: · Number of Users Assigned by Role--Percentage and the number of users that are assigned to a role For more information about these widgets, refer to "Viewing User Statistics" on page 1068.
Audit Logs
The Audit Logs workspace displays the following widgets:
· Audit Log Statistical Graph--Tasks that are performed and logged in all Junos Space applications over a specific period of time
· Top 10 Active Users in 24 hours--Top ten users who performed the most number of tasks over 24 hours For more information about these widgets, refer to the "Viewing Audit Log Statistics" on page 1121 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
Administration
The Administration workspace displays the following widgets:
· System Health--Junos Space system condition, load on the fabric, and active users.
· System Alert Messages in the last 30 days--SMTP server alert messages categorized by application, and when the error last occurred.
· System Health Report--Health and performance of the Junos Space nodes in your Junos Space setup and the processes on these nodes. Staring in Release 15.2R1, the Administration workspace displays the System Health Report widget.
For more information about these widgets, refer to the "Viewing the Administration Statistics" on page 1138 topic in the Junos Space Network Management Platform Workspaces Feature Guide.
Release History Table Release
Description
15.1R2
Staring in Release 15.2R1, the Administration workspace displays the System Health Report widget.
RELATED DOCUMENTATION
Overall System Condition and Fabric Load History Overview | 1159 Junos Space Debug Utilities Overview | 1610
1590
14 PART
Log Files and Debug Utilities
Troubleshooting Junos Space Network Management Platform Issues by Using Log Files | 1592 Troubleshooting Network Devices by Using Junos Space Debug Utilties | 1610
1592
CHAPTER 87
Troubleshooting Junos Space Network Management Platform Issues by Using Log Files
IN THIS CHAPTER System Status Log File Overview | 1592 Junos Space Network Management Platform Log Files Overview | 1594 Troubleshooting Log File Overview | 1598 Downloading the Troubleshooting Log File in Server Mode | 1599 Downloading the Troubleshooting Log File in Maintenance Mode | 1602 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1603 Customizing Node System Status Log Checking | 1608 Customizing Node Log Files to Download | 1609
System Status Log File Overview
The system writes a system log file for each fabric node to provide troubleshooting and monitoring information. See "System Status Log File" on page 1400. The System Administrator can customize the information that is collected in the system log file. See "Customizing Node System Status Log Checking" on page 1402. The System Administrator can download the latest log files for each fabric node when logged in to a Junos Space Appliance. See "Downloading System Log Files for a Junos Space Appliance" on page 1401. In each operating mode, the System Administrator can customize the default log files that are downloaded from a Junos Space Appliance. See "Customizing Node Log Files to Download" on page 1404.
System Status Log File Approximately once a minute, the system checks and writes a status log file SystemStatusLog for each fabric node by default. Each log file consists of system status, such as the disk, CPU, and memory usage information, as shown. Junos Space Network Management Platform writes each system status log file to /var/log/SystemStatusLog
1593
2009-08-10 11:51:48,673 DEBUG [net.juniper.jmp.cmp.nma.NMAResponse] (Thread-110:)
Node IP: 192.0.2.0Filesystem
1K-blocks
Used Available Use% Mounted
on
/dev/mapper/VolGroup00-LogVol00
79162184 15234764 59841252 21% /
Cpu(s): 8.7%us, 1.1%sy, 0.0%ni, 90.0%id, 0.1%wa, 0.0%hi, 0.0%si, 0.0%st
Mem: 3866536k total, 2624680k used, 1241856k free, 35368k buffers
Swap: 2031608k total, 941312k used, 1090296k free, 439704k cached
Customizing Status Log File Content The System Administrator can customize the information that is written in a fabric node system status log file. For more information, see "Customizing Node System Status Log Checking" on page 1402.
Downloading System Log Files for a Junos Space Appliance
The System Administrator can download the latest log files for each fabric node when logged in to a Junos Space Appliance. The system status log file and all other third-party log files are collected and compressed in a troubleshooting file.
Table 181 lists the files included in the troubleshoot file.
Table 203: Log Files included in the troubleshoot File
Description
Location
System status log files
/var/log/SystemStatusLog
JBoss log files
/var/log/jboss/*
Service-provisioning data files
/var/tmp/jboss/debug/*
MySQL error log files
/var/log/mysqld.log
Log files for Apache, Node Management Agent (NMA), and Webproxy
/var/log/httpd/*
Watchdog log files
/var/log/watchdog/*
System messages
/var/log/messages/*
The System Administrator can download log files in each operation mode as follows: · Server mode (See "Downloading the Troubleshooting Log File in Server Mode" on page 1409.) · Maintenance mode (See "Downloading the Troubleshooting Log File in Maintenance Mode" on page 1412.)
1594
· CLI mode (See "Downloading Troubleshooting System Log Files Through the Junos Space CLI" on page 1413.)
Customizing Log Files to Download The System Administrator can also customize the log files to be downloaded for specific fabric nodes. For more information about customizing node log files to download, see "Customizing Node Log Files to Download" on page 1404.
RELATED DOCUMENTATION Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
Junos Space Network Management Platform Log Files Overview
IN THIS SECTION Apache Web Server Log Files | 1595 JBoss Application Server Log Files | 1595 MySQL Database Log Files | 1597 Node Management Agent Log Files | 1597
Junos Space Network Management Platform log files contain useful information that help you to identify, analyze, and troubleshoot issues related to Junos Space Network Management Platform. The software components of Junos Space Network Management Platform--JBoss, Apache Web server, MySQL, and CentOS--generate these log files. Table 204 lists log files related to the software components of Junos Space Network Management Platform.
1595
Table 204: Junos Space Network Management Platform Log Files
Software Component
Description of the Log Files
Apache Web server
Log files from the Apache Web server, NMA, and Web proxy
JBoss
Log files from JBoss, Junos Space core, and hosted Junos Space applications
MySQL
Log files from MySQL servers
CentOS
Linux-based system log messages
Node Management Agent
Log files for system statuses and Junos Space and watchdog processes
In addition to the log files related to software components, you can also refer to the /var/log/install.log log file for information about Junos Space Platform upgrades and Junos Space application installations.
Apache Web Server Log Files
You can view the Apache Web server log files to view information related to HTTPS requests, Apache modules, and CGI programs.
Table 205 lists the Apache Web server log files.
Table 205: Apache Web Server Log Files
Log File
Description
/var/log/httpd/access_log
Logs related to incoming HTTPS requests
/var/log/httpd/error_log
Error logs for both Apache Web server modules and CGI programs
/var/log/httpd/ssl_error_log
Error logs related to SSL certificates
JBoss Application Server Log Files
JBoss is used as an application server in Junos Space Network Management Platform. It provides a runtime environment for plug-and-play Junos Space applications and supports standard packaging of pluggable applications based on the .ear file format. It also supports hot plug-and-play deployment of Junos Space applications when the system is fully operational.
JBoss provides three configuration options: minimal, default, and all. Junos Space Network Management Platform specifies all as the default JBoss configuration option.
Table 206 lists the JBoss directories.
1596
Table 206: JBoss Directories Type of JBoss Directory Home directory Log directory Data directory tmp directory
JBoss Directory /usr/local/jboss /var/log/jboss /var/spool/jboss /var/tmp/jboss
Table 207 lists the JBoss log files available in the /var/log/jboss/servers/server1/ directory. You can also refer to the console file available in the /var/log/jboss/ directory for console messages from JBoss.
Table 207: Joss Log Files
Log File Name
Description
boot.log
JBoss boot log file
console.log
Console log file
process-controller.log
Log file that contains records about starting and stopping services in domain mode
host-controller.log
Log file that contains information about the host controller that starts and stops the application server
provisioning.log
Service Provisioning application log file
server.log
JBoss Application server log file
long-jpa-txn.log
EJB transactions log file
Provisioning.log
Network Activate log file
Qos.log
QoS Design log file
SD.log
Security Director log file
The Junos Space Service Provisioning application stores XML data files in the /var/tmp/jboss/debug directory for debugging purposes. Service request deployment, service functional audits, and any reported deployment errors from the devices are captured and stored in these XML data files.
1597
MySQL Database Log Files
You use the MySQL database log files to view information related to the Junos Space Network Management Platform database.
Table 208 lists the MySQL database log files.
Table 208: MySQL Database Log Files
Log File
Description
/var/log/mysqld.log
Primary log file for MySQL-related procedures
var/lib/mysql/log-slow-queries.log
Log file for slow queries
Node Management Agent Log Files
A Node Management Agent (NMA) is a daemon that runs on every Junos Space node. An NMA manages the configuration files for the software components of Junos Space Network Management Platform--JBoss, MySQL, and Apache. An NMA also monitors the usage of system resources, such as CPU, memory, and disk space, and the health of the other server processes.
Table 209 lists the NMA log files.
Table 209: NMA Log Files
Log File
Description
/var/log/nma.log
Logs that contain information about operations executed on the NMA
/var/log/httpd/error_log
Error logs from NMA CGI scripts
/var/log/watchdog
Logs related to starting and stopping processes on Junos Space Network Management Platform
/var/log/SystemStatusLog
Logs related to CPU, memory, and disk space usage by Junos Space Network Management Platform
RELATED DOCUMENTATION Troubleshooting Log File Overview | 1598
1598
Troubleshooting Log File Overview
The troubleshooting log file is a zip or tar package that contains the log files generated by different software components of Junos Space Network Management Platform and service provisioning data files.
You can download the troubleshooting log file from the Junos Space user interface in sever mode, by accessing the Junos Space Appliance URL in maintenance mode, or from the Junos Space Appliance console in CLI mode. The troubleshooting log file is downloaded as a zip package in server mode and maintenance mode, and as a tar package in CLI mode.
· Server mode (See "Downloading the Troubleshooting Log File in Server Mode" on page 1409.) · Maintenance mode (See "Downloading the Troubleshooting Log File in Maintenance Mode" on page 1412.) · CLI mode (See "Downloading Troubleshooting System Log Files Through the Junos Space CLI" on
page 1413.)
You need to be assigned the system administrator role to download the troubleshooting log file in server mode and maintenance mode.
Junos Space Network Management Platform automatically names the troubleshooting zip package in the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip format. The date and time is represented in the Coordinated Universal Time (UTC) format. For example, troubleshoot_2010-04-01_11-25-12.zip.
Table 210 lists the files in this zip package.
Table 210: List of Log Files in the Troubleshooting Log File
Description
Location
JBoss log files
/var/log/jboss/*
Service provisioning data files
/var/tmp/jboss/debug/*
MYSQL error log file
/var/log/mysqld.log
Apache, NMA, and Webproxy log files
/var/log/httpd/*
Watchdog log file
/var/log/watchdog/*
Linux system messages
/var/log/messages/*
CPU, RAM, and disk statistics (during past 24 hours)
/var/log/SystemStatusLog
RELATED DOCUMENTATION
Junos Space Network Management Platform Log Files Overview | 1594 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1599
Downloading the Troubleshooting Log File in Server Mode
You download the troubleshooting log file in Server mode when you want to view the contents of the troubleshooting log file and fix issues. You need to have the privileges of a System Administrator to download the troubleshooting log file. Before you download the troubleshooting log file in Server mode: · Ensure that you check the available disk space on the Junos Space node. The Lack Of Space error message
is displayed if the disk space is insufficient. · Ensure that a troubleshooting log download job you triggered earlier is not in progress. An error message
is displayed if you trigger another troubleshooting log download job while a previous download job is in progress.
NOTE: On a multinode setup, the troubleshooting log file is stored at the following location on the Junos Space node that completes the job: /var/cache/jboss/space-logs. You cannot download the troubleshooting log file if this node goes down.
To download the troubleshooting log file in Server mode: 1. On the Junos Space Network Management Platform user interface, select Administration > Space
Troubleshooting. The Space Troubleshooting page is displayed.
1600
2. Select whether to download the troubleshooting log file now or later. · To download the troubleshooting log file now: i. Click Download. The Collect Junos Space Logs Job Information dialog box is displayed.
ii. Click OK in the dialog box. You can download the troubleshooting log file from the Job Management page.
iii. Double-click the ID of the troubleshooting log collection job on the Job Management page. The Job Details dialog box is displayed.
iv. Click the Download link to access the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file in your browser. The filename of the troubleshoot zip file includes the server Coordinated Universal Time (UTC) date and time. For example, troubleshoot_2010-04-01_11-25-12.zip. · If you are using Mozilla Firefox: In the Opening troubleshoot zip dialog box, click Save file, then click OK to save the zip file to your computer using the Firefox Downloads dialog box. · If you are using Internet Explorer: From the File Download page, click Save and select a directory on your computer where you want to save the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file.
NOTE: If the download job failed, the Job Details dialog box displays the reason the job failed.
Table 183 lists the files included in the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file. Table 211: Log Files in the Troubleshooting Log File and Their Location
Log File Description
Location
System status log file
/var/log/SystemStatusLog
JBoss log files
/var/log/jboss/*
Service provisioning data files
/var/tmp/jboss/debug/*
MySQL error log file
/var/log/mysqld.log
Apache Web Server, NMA, and Web proxy log files
/var/log/httpd/*
Table 211: Log Files in the Troubleshooting Log File and Their Location (continued)
Watchdog log files
/var/log/watchdog/*
Linux system log messages
/var/log/messages/*
CPU, RAM, or disk statistics (for the past 24 hours)
Heap and CPU Profiling Agent (HPROF) files
/var/log/jboss
1601
· To download the troubleshooting log file later: i. Select the Schedule at a later time option button.
ii. Enter the date in the Date field in the DD/MM/YYYY format.
iii. Enter the time in the Time field in the hh:mm format.
iv. Click Download. The troubleshooting log download job is triggered at the scheduled time. You can view the status of the scheduled job on the Job Management page.
TIP: When you contact Juniper Technical Assistance Center, describe the problem you encountered and provide the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file to the JTAC representative.
3. Click Close to return to the Administration statistics page.
RELATED DOCUMENTATION
System Status Log File Overview | 1400 Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1602
Downloading the Troubleshooting Log File in Maintenance Mode
Maintenance Mode is a special mode that an administrator can use to perform system recovery or debugging tasks while all nodes in the fabric are shut down and the Web proxy is running. The administrator can download the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file from Maintenance Mode. The troubleshoot zip file includes the server Coordinated Universal Time (UTC) date and time. For example, troubleshoot_2010-04-01_11-25-12.zip. To download the troubleshooting log file in maintenance mode, perform the following steps: 1. Connect to a Junos Space Appliance in maintenance mode by using the Junos Space Appliance URL.
For example: https://<ipaddress>/maintenance Where ipaddress is the address of the Junos Space Appliance. The Maintenance Mode page appears.
2. Click the click here to log in link. The login dialog box appears.
3. Log in to maintenance mode by using the authorized login name and password.
4. Click OK. The Maintenance Mode Actions menu appears.
5. Click Download Troubleshooting Data and Logs. The file download dialog box appears.
6. Click Save to download the troubleshoot_yyyy-mm-dd_hh-mm-ss.zip file to the connected computer.
7. Click Log Out and Exit from Maintenance Mode.
RELATED DOCUMENTATION Maintenance Mode Overview | 1153 System Status Log File Overview | 1400 Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1603
Downloading Troubleshooting System Log Files Through the Junos Space CLI
IN THIS SECTION Downloading a System Log File by Using a USB Device | 1603 Downloading System Log File by Using SCP | 1605
If a Junos Space node is Up, the administrator can log in to the Junos Space node and download system status logs for each fabric node by using the Secure Copy Protocol (SCP). If the Junos Space node is Down but you can log in to the console of a Junos Space Appliance, you can download system status logs to a USB drive. The Retrieve Logs utility collects all system log files in the /var/log subdirectory and creates a compressed TAR file (extension *.tgz). For more information about the log files that are written, see "System Status Log File Overview" on page 1400. This topic includes the following sections:
Downloading a System Log File by Using a USB Device Using the Retrieve Logs > Save to USB Device command, the administrator can download system status logs to a connected USB device if the Junos Space node is Down and you can log in to the console. Before you begin, ensure that the USB device is connected to the Junos Space Appliance.
1604
1. Log in to the Junos Space Appliance using the administrator username (admin) and password. The Junos Space Settings Menu appears, as shown.
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> (Debug) run shell
Q> Quit R> Redraw Menu
Choice [1-6,QR]:
2. Type 4 at the prompt. The Retrieve Logs submenu appears.
Choice [1-6,AQR]: 4 1> Save to USB Device 2> Send Using SCP
A> Apply changes M> Return to Main Menu R> Redraw Menu
Choice [1-2,AMR]:
3. Type 1. The following message is displayed: This process will retrieve the log files on all cluster members and combine them into a .tar file. Once the file is created, you can copy the files onto a USB drive. Continue? [y/n]
4. Type y to continue. You are prompted to enter the administrator password.
5. Enter the administrator password.
1605
The system downloads the log files from all the nodes in the fabric and combines them into a .tar file. After the file is created, the file is coped to the USB device and a message similar to the following is displayed: Copying 20090827-1511-logs.tar to USB drive.
NOTE: If the USB device is not ready, the following message appears: Log collection complete If USB key is ready, press "Y". To abort, press "N".
6. After the files are copied, unmount the USB and eject it from the Junos Space Appliance.
Downloading System Log File by Using SCP Using the Junos Space CLI Retrieve Logs > SCP command, the administrator can download system status logs to a specific location. To download system status logs by using SCP, perform the following steps: 1. Log in to the Junos Space node using the administrator username (admin) and password.
The Junos Space Settings Menu appears, as shown.
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> (Debug) run shell
Q> Quit R> Redraw Menu
Choice [1-6,QR]:
2. Type 4 at the prompt. The Retrieve Logs submenu appears.
Choice [1-6,AQR]: 4 1> Save to USB Device 2> Send Using SCP
1606
A> Apply changes M> Return to Main Menu R> Redraw Menu
Choice [1-2,AMR]:
3. Type 2. The following confirmation message is displayed: This process will retrieve the log files on all cluster members and combine them into a .tar file. Once the file is created, you will be asked for a remote scp server to transfer the file to. Continue? [y/n]
4. Type y to continue. You are prompted to enter the administrator password.
5. Enter the administrator password. A message indicating that the log files are being collected is displayed. The process retrieves the log files on all cluster members and combines them into a .TAR file. This might take a few minutes to complete. After this is completed, you are prompted to enter the IP address of the remote server.
6. Enter the IP address of the SCP server to which to transfer the file.
NOTE: · Depending on whether the Junos Space fabric is configured with only IPv4 addresses or
both IPv4 and IPv6 addresses, Junos Space Platform allows you to enter an IPv4 address or either an IPv4 or IPv6 address respectively for the SCP server. · The IPv4 and IPv6 addresses that you use must be valid addresses. Refer to http://www.iana.org/assignments/ipv4-address-space for the list of restricted IPv4 addresses and http://www.iana.org/assignments/ipv6-address-space for the list of restricted IPv6 addresses.
7. Enter the remote SCP user.
8. Enter the directory on the remote SCP server where the log file should be stored; for example, /root/tmplogs. The remote server information that you entered is displayed. The following is a sample:
1607
Remote scp IP: 192.0.2.0 Remote scp user: root Remote scp path: /root/tmplogs Is this correct? [y/n]
9. If the SCP server information is correct, type y. If you are connecting to the SCP server for the first time, a message is displayed asking you to confirm that you want to continue. The following is a sample message:
The authenticity of host '192.0.2.0 (192.0.2.0)' can't be established. RSA key fingerprint is 01:70:4c:47:9e:1e:84:fc:69:3c:65:99:6d:e6:88:87. Are you sure you want to continue connecting (yes/no)? yes
NOTE: If the SCP server information is incorrect or if you want to modify the SCP server information, type n at the prompt, and modify the SCP server information as explained in the preceding steps.
10. Type y to continue. You are prompted to enter the password.
11. Enter the password for the SCP server. If the credentials are correct, the file is transferred to the SCP server.
RELATED DOCUMENTATION Maintenance Mode Overview | 1153 System Status Log File Overview | 1400 Customizing Node System Status Log Checking | 1402 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412
1608
Customizing Node System Status Log Checking
You customize the system status checking for a fabric node to ensure that all necessary information is written to the /var/log/SystemStatusLog log file. You must have the privileges of a System Administrator to customize the system status checking. You customize the system status checking by modifying the fabric node Perl script in /usr/nma/bin/writeLogCronJob.
To customize system status checking for a fabric node, modify the writeSystemStatusLogFile sub-function in writeLogCronJob as shown:
sub writeSystemStatusLogFile{ my $err = 0;
my $logfile = $_[0]; $err = system("date >> $logfile"); $err = system("df /var >> $logfile"); $err = system("top -n 1 -b | grep Cpu >> $logfile"); $err = system("top -n 1 -b | grep Mem: >> $logfile"); $err = system("top -n 1 -b | grep Swap: >> $logfile");
***<Add additional system command here that you want to print out in the SystemStatusLog file>***
if ($err == 0 ) {
print "write log to $logfile successfully\n";
} else { } return $err; }
print "cannot write log to $logfile\n";
RELATED DOCUMENTATION
System Status Log File Overview | 1400 Customizing Node Log Files to Download | 1404 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1609
Customizing Node Log Files to Download
You customize the log files downloaded for a fabric node to ensure that you download all the necessary log files. You must have the privileges of a System Administrator to customize the log files. You customize the log files you want to download by modifying the Perl script in /var/www/cgi-bin/getLogFiles. Modify the getLogFiles Perl script zip command as shown:
. . . system("zip r $logFileName /var/log/jboss/* /var/tmp/jboss/debug/ /var/log/mysqld.log
/var/log/httpd/* /var/log/watchdog /var/log/messages /var/log/SystemStatusLog > /dev/null"); . . .
RELATED DOCUMENTATION System Status Log File Overview | 1400 Customizing Node System Status Log Checking | 1402 Downloading the Troubleshooting Log File in Server Mode | 1409 Downloading the Troubleshooting Log File in Maintenance Mode | 1412 Downloading Troubleshooting System Log Files Through the Junos Space CLI | 1413
1610
CHAPTER 88
Troubleshooting Network Devices by Using Junos Space Debug Utilties
IN THIS CHAPTER Junos Space Debug Utilities Overview | 1610 Executing Device-Connection Debug Scripts | 1615 Executing Device Import Detail Script and Java Application | 1629 Executing Job Management Scripts and Java Applications | 1632 Executing HornetQ Scripts | 1643
Junos Space Debug Utilities Overview
IN THIS SECTION Device-Connection Debug Scripts | 1611 Device Import Scripts and Java Applications | 1612 Job Management Scripts and Java Applications | 1613 HornetQ Scripts | 1614 Compare.py | 1614
Junos Space debug utilities allow you to debug issues related to Junos Space nodes and devices managed by Junos Space Network Management Platform and view details about jobs scheduled on Junos Space Network Management Platform. Junos Space debug utilities are a collection of scripts and Java applications stored at /var/log/space-debug/debug-utilities. These scripts and Java applications are organized under the following categories: deviceConnection, jobManagement, deviceImport, and HornetQ. You can save the output of the scripts at a custom location. By default, the output of the scripts is stored at the location where the scripts are stored.
The following scripts and Java applications are available for debugging:
Device-Connection Debug Scripts
IN THIS SECTION getDeviceInfo.sh | 1611 DeviceDebugInfoCollector.sh | 1611 getAllDeviceInfo.sh | 1611 cleanupEditChannel.sh | 1612
1611
The device-connection debug scripts stored at /var/log/space-debug/debug-utilities/deviceConnection/ fetch and display device-connection information from DeviceDataMatrix. DeviceDataMatrix is a memory data structure in the Junos Space Network Management Platform database that stores device-connection information. You can also view this information through JConsole or JMXTerm.
The following are the device-connection debug scripts:
getDeviceInfo.sh
getDeviceInfo.sh is a script to collect device-connection information for a single device. The script output displays the device ID (as stored in the Junos Space Platform database), IP address of the device, IP address of the Junos Space node to which the device is currently connected, status of the edit flag on the device, SSH control channel number, number of channels opened from the device, and details of the open channels.
DeviceDebugInfoCollector.sh
DeviceDebugInfoCollector.sh is a script to execute frequently used Junos OS debug commands on a device. When you execute this script, SSH connections are initiated to the device from the Junos Space node you specified. The script output displays the list of active management daemon (MGD) processes on the device, active SSH daemon (SSHD) processes on the device, active SSH connections to Junos Space Platform from the device, and all active SSH connections from the device. You can also view additional details about each of these processes and SSH connections.
getAllDeviceInfo.sh
getAllDeviceInfo.sh is a script to collect device-connection information about all devices that are connected to a Junos Space node. The script output displays the device ID (as stored in the Junos Space Platform database), IP address of the device, IP address of the Junos Space node to which the device is currently connected, status of the edit flag on the device, SSH control channel number, number of channels opened from the device, and details of the open channels about all devices that are connected to a Junos Space node. On a multinode setup, you can also collect this information for all Junos Space nodes.
1612
cleanupEditChannel.sh cleanupEditChannel.sh is a script to unlock the device configuration on the device. Junos Space Platform sets a lock when you deploy a configuration from Junos Space Platform or Junos Space applications. You use this script to unlock the device configuration if the previous deployments were erroneous and you are currently unable to deploy the configuration from Junos Space Platform. You enter the variable false to unlock the device configuration. For more information about executing device-connection debug scripts, see "Executing Device-Connection Debug Scripts" on page 1615.
Device Import Scripts and Java Applications
IN THIS SECTION
cleanupDeviceImportTables.sh | 1612 DB-blob-reader.jar | 1612
The device import scripts and Java applications stored at /var/log/space-debug/debug-utilities/deviceImport/ clear the device import tables and fetch device inventory information or device configuration in XML format. The following are the device import scripts and Java applications: cleanupDeviceImportTables.sh cleanupDeviceImportTables.sh is a script to clean data from device import tables. You can execute the script to fix data errors during a device resynchronization process. You need to manually resynchronize the device with the Junos Space Platform database from the user interface after you execute the script. DB-blob-reader.jar DB-blob-reader.jar is a Java application to collect the device information XML or interface information XML. When you execute this application, the information from the XML is written to the DB-blob-reader-result.txt file. This information can be useful for debugging device resynchronization issues. You can modify the MySQL query in the DB-blob-reader.properties file and fetch information based on that MySQL query. You can specify the following in the DB-blob-reader.properties file: device ID (as stored in the Junos Space Platform database) and name of the RPC, device configuration, or interface. For more information about executing device import scripts and Java applications, see "Executing Device Import Detail Script and Java Application" on page 1629.
Job Management Scripts and Java Applications
IN THIS SECTION SystemLoadViewer.sh | 1613 getJobThreadSump.sh | 1613 JobInfoCollector.jar | 1613 Usr/nma/bin/collectStuckJobLogFiles.pl | 1613
1613
The job management scripts and Java applications stored at /var/log/space-debug/debug-utilities/jobManagement/ fetch information about jobs executed from the Junos Space nodes. You can also view the output of the scripts through JConsole or JMXTerm.
The following are the job management scripts and Java applications:
SystemLoadViewer.sh SystemLoadViewer.sh is a script to collect information about available memory on all Junos Space nodes and the jobs triggered on these nodes. The script output displays information such as the memory on the nodes, number of root jobs and subjobs on each of the nodes, type of job (root job or subjob), state of the job (running, queued, or stopped), name of the job, queue name of the job, the time the job was created, and the time the job was modified. The script output also displays the top five processes that consume CPU and memory when the script is executed.
getJobThreadSump.sh getJobThreadSump.sh is a script to view the stack trace of a specific job. You can also view the script output through JConsole or JMXTerm.
JobInfoCollector.jar JobInfoCollector.jar is a Java application to execute SQL queries and collect information about jobs. You can construct the SQL query in the JobInfoCollector.properties file. This file contains a default example query. The application can also display the hierarchy of a subjob (input as the parent job ID) and list of jobs that are currently unscheduled. You can also input a SQL query to obtain information about jobs.
For more information about executing job management scripts and Java applications, see "Executing Job Management Scripts and Java Applications" on page 1632.
Usr/nma/bin/collectStuckJobLogFiles.pl Usr/nma/bin/collectStuckJobLogFiles.pl is a script to collect all the troubleshooting logs and threats at the time of a job getting stuck. This Auto Gathering tool monitors and identifies the stuck job once added to crontab as required. Stuck jobs are the ones that are in pending or under progress for more than forty five minutes. Once the tool identifies such jobs, it collects all the logs and thread dump from the server,
1614
saves them in /var/tmp/stuckJobLogFiles_<timestamp>.tgz location, notifies the user via e-mail with details such as file name, file location, node, and so on.
HornetQ Scripts
IN THIS SECTION HornetQInfoProvider.sh | 1614 HQMessageViewer.sh | 1614
The HornetQ scripts stored at /var/log/space-debug/debug-utilities/hornetQ/ display the list of all JBoss queues, of messages in a specific JBoss queue, or of jobs that are to be executed by a specific JBoss queue. You can also view the script output through JConsole or JMXTerm. The following are the HornetQ scripts: HornetQInfoProvider.sh HornetQInfoProvider.sh is a script to collect details about all HornetQ queues. The script output also lists details such as consumer-count, message-count, and scheduled-count. HQMessageViewer.sh HQMessageViewer.sh is a script to view the list of messages in a specific JBoss queue. The script output displays the job ID and job operation name. You can view the jobs that are queued to be executed by a specific JBoss queue. For more information about executing HornetQ scripts, see "Executing HornetQ Scripts" on page 1643.
Compare.py
RELATED DOCUMENTATION Junos Space Network Management Platform Log Files Overview | 1594 Monitoring Network Devices and Troubleshooting Software Issues with Junos Space Network Management Platform | 1579
Executing Device-Connection Debug Scripts
IN THIS SECTION Executing the Script to Collect Device-Connection Information | 1615 Executing the Script to Collect Device Debug Information | 1617 Executing the Script to Unlock the Device Configuration | 1622 Executing the Script to Collect Node-Connection Information | 1623
1615
You execute the device-connection debug scripts to view information about device-connection issues related to Junos Space nodes and devices connected to these nodes. Device-connection scripts are stored at the following location: /var/log/space-debug/debug-utilities/deviceConnection. When you execute these scripts, the output is stored as .txt files at the same location. You can also specify a custom path to store the output. The following sections list the steps to execute the scripts to collect information about device-connection issues.
Executing the Script to Collect Device-Connection Information
You execute the getDeviceInfo.sh script to collect device-connection information of a device. To execute the script to collect device-connection information: 1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter. The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
1616
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/deviceConnection at the shell prompt and press Enter.
6. (Optional) To view the list of debug scripts, type ls and press Enter. The list of device-connection debug scripts is displayed.
7. Type ./getDeviceInfo.sh<device-IP address> and press Enter--for example, ./getDeviceInfo.sh 10.206.33.17. The output of this command is saved to the DeviceInfo-<device-IP address>.txt file in the same directory. The following is a sample output:
-----------------------------------------------------------Time of execution: Wed Jul 15 05:45:26 UTC 2015 -----------------------------------------------------------Device Id: 131153 Device Ip: 10.206.33.17 Node id: 10.206.41.57 Connection state: Connected
1617
Connection changed at: 07/14/2015 17:35:04 EditFlag : false EditChannel num:0 SSH ctrl channel num: 4 Max channels allowed: 32 Number of channels opened: 4 ------------------------------------------------------Channel details: Channel Id: 1 Seq num: 11 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 2 Seq num: 14 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 3 Seq num: 22 Channel state: CHANNEL_STATE_OPEN Channel type: Syslog ------------------------------------------------------Channel Id: 4 Seq num: 24 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf -------------------------------------------------------
8. (Optional) To save node connection information at a custom output location, type ./getDeviceInfo.sh<device-IP address> <output-file-path> and press Enter.
You can use the information from the .txt file to debug device-connection issues.
Executing the Script to Collect Device Debug Information
You execute the DeviceDebugInfoCollector.sh script to collect information about the connections and processes on a device.
To execute the script to collect device debug information:
1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter.
1618
The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password.
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/deviceConnection at the shell prompt and press Enter.
6. (Optional) To view the list of debug scripts, type ls. The list of device-connection debug scripts is displayed.
7. Type ./DeviceDebugInfoCollector.sh<device-IP address><device-username><node-VIP address> and press Enter--for example, ./DeviceDebugInfoCollector.sh 10.206.32.107 user1 10.206.41.57..
8. Enter the device password. The output from this command is saved to the DeviceDebugInfo-<device-IP address>.txt file in the same directory. The following is a sample output:
Time of execution: Wed Jul 15 07:43:43 UTC 2015
========================================================================================================
List of MGD processes on the device : (Command Executed - ps auxwww | sed -n
"1p; /sed -n/d; /mgd/p;")
========================================================================================================
USER
PID %CPU %MEM VSZ RSS TT STAT STARTED
TIME COMMAND
user1
1841 0.0 0.0 41132 236 ?? S Fri12AM 0:10.15 /usr/sbin/mgd
-N
user1
2310 0.0 0.0 41180 220 ?? S Fri12AM 0:06.62 mgd: (mgd)
(user1) (mgd)
user1
2367 0.0 0.0 41180 220 ?? S Fri12AM 0:06.67 mgd: (mgd)
(user1) (mgd)
user1
2424 0.0 0.0 41188 220 ?? S Fri12AM 0:06.54 mgd: (mgd)
(keybased) (mgd)
user1
4243 0.0 0.1 41180 520 ?? S 12:27AM 0:02.90 mgd: (mgd)
(user1) (mgd)
user1
7662 0.0 0.1 41180 520 ?? S
2:29AM 0:02.84 mgd: (mgd)
1619
(user1) (mgd)
user1
8595 0.0 0.2 41192 1664 ?? Is 4:09AM 0:00.07 mgd: (mgd)
(user1)/dev/ttyp2 (mgd)
user1
9065 0.0 0.0 41192 136 ?? Is 4:39AM 0:00.05 mgd: (mgd)
(user1)/dev/ttyp1 (mgd)
user1
10295 0.0 0.1 41180 520 ?? S
6:12AM 0:02.67 mgd: (mgd)
(user1) (mgd)
user1
11557 0.0 0.1 41180 520 ?? S
8:03AM 0:02.66 mgd: (mgd)
(user1) (mgd)
user1
15817 0.0 0.1 41180 520 ?? S
3:26PM 0:02.34 mgd: (mgd)
(user1) (mgd)
user1
18495 0.0 0.1 41180 520 ?? S
8:16PM 0:02.13 mgd: (mgd)
(user1) (mgd)
user1
18549 0.0 0.1 41180 520 ?? S
8:20PM 0:02.13 mgd: (mgd)
(user1) (mgd)
user1
18907 0.0 0.1 41180 520 ?? S
8:22PM 0:02.14 mgd: (mgd)
(user1) (mgd)
user1
19574 0.0 3.3 41180 25220 ?? S
8:38PM 0:02.11 mgd: (mgd)
(user1) (mgd)
user1
20290 0.0 0.6 41172 4876 ?? Is 9:46PM 0:00.10 mgd: (mgd)
(user1)/dev/ttyp0 (mgd)
user1
20794 0.0 3.3 41180 25228 ?? S
9:52PM 0:02.06 mgd: (mgd)
(user1) (mgd)
user1
21861 0.0 0.0 41180 220 ?? S Fri09PM 0:05.93 mgd: (mgd)
(user1) (mgd)
user1
50416 0.0 0.1 41180 520 ?? S Sun08AM 0:04.53 mgd: (mgd)
(user1) (mgd)
user1
63963 0.0 0.1 41180 520 ?? S Sun08PM 0:04.06 mgd: (mgd)
(user1) (mgd)
user1
84282 0.0 0.1 41180 520 ?? S Mon10AM 0:03.55 mgd: (mgd)
(user1) (mgd)
=================================================================================================================
List of active sshd processes on the device : (Command Executed - ps auxwww |
sed -n "1p; /sed -n/d; /sshd/p;")
=================================================================================================================
USER
PID %CPU %MEM VSZ RSS TT STAT STARTED
TIME COMMAND
user1
20972 1.7 0.4 7684 2916 ?? Ss 10:11PM 0:00.15 sshd:
user1@notty (sshd)
user1
1944 0.0 0.1 7784 692 ?? Ss Fri12AM 1:00.95 sshd:
user1@notty (sshd)
user1
2354 0.0 0.1 7816 700 ?? Ss Fri12AM 1:00.21 sshd:
user1@notty (sshd)
user1
2378 0.0 0.1 7820 700 ?? Ss Fri12AM 1:00.39 sshd:
keybased@notty (sshd)
1620
user1
3907 0.0 0.1 7784 772 ?? Ss 12:27AM 0:10.47 sshd:
user1@notty (sshd)
user1
5334 0.0 0.0 7676 320 ?? Is 1:25AM 0:00.30 sshd:
user1@ttyp1 (sshd)
user1
5361 0.0 0.1 7676 476 ?? Is 1:26AM 0:00.25 sshd:
user1@ttyp2 (sshd)
user1
7649 0.0 0.1 7784 776 ?? Ss 2:29AM 0:07.62 sshd:
user1@notty (sshd)
user1
10284 0.0 0.1 7784 468 ?? Ss 6:11AM 0:02.11 sshd:
user1@notty (sshd)
user1
11544 0.0 0.1 7784 776 ?? Ss 8:03AM 0:04.69 sshd:
user1@notty (sshd)
user1
15806 0.0 0.1 7784 788 ?? Ss 3:26PM 0:03.38 sshd:
user1@notty (sshd)
user1
18484 0.0 0.1 7784 792 ?? Ss 8:16PM 0:02.99 sshd:
user1@notty (sshd)
user1
18538 0.0 0.1 7784 776 ?? Ss 8:20PM 0:03.47 sshd:
user1@notty (sshd)
user1
18896 0.0 0.1 7796 784 ?? Ss 8:22PM 0:02.89 sshd:
user1@notty (sshd)
user1
19561 0.0 0.4 7784 2924 ?? Ss 8:38PM 0:02.41 sshd:
user1@notty (sshd)
user1
20272 0.0 0.4 7684 2900 ?? Is 9:46PM 0:00.26 sshd:
user1@ttyp0 (sshd)
user1
20783 0.0 0.4 7796 2932 ?? Ss 9:52PM 0:00.52 sshd:
user1@notty (sshd)
user1
21820 0.0 0.1 7800 696 ?? S Fri09PM 0:47.90 sshd:
user1@notty (sshd)
user1
50401 0.0 0.1 7784 776 ?? Ss Sun08AM 0:36.25 sshd:
user1@notty (sshd)
user1
63919 0.0 0.1 7796 784 ?? Ss Sun08PM 0:34.21 sshd:
user1@notty (sshd)
user1
84233 0.0 0.1 7784 776 ?? Ss Mon10AM 0:20.37 sshd:
user1@notty (sshd)
==============================================================================================================================
List of open SSH connections to 10.206.41.57 from the device : (Command Executed
- netstat -tln | egrep "Pro|\.7804"; netstat -tln | grep "\.22"). Please note
that of the listed connections, one is opened by this debug script to collect
the debug information from the device
==============================================================================================================================
Proto Recv-Q Send-Q Local Address
Foreign
Address
(state)
tcp4
0
0 10.206.32.107.22
10.206.41.57.43098
ESTABLISHED
1621
tcp4
0
0 10.206.32.107.22
10.206.41.57.33080
ESTABLISHED
=================================================================================================================
List of open SSH connections on the device : (Command Executed - netstat -tln
| egrep "Pro|\.7804"; netstat -tln grep "\.22")
=================================================================================================================
Proto Recv-Q Send-Q Local Address
Foreign
Address
(state)
tcp4
0
0 10.206.32.107.58052
10.206.41.46.7804
SYN_SENT
tcp4
0
0 10.206.32.107.53398
10.206.41.192.7804
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.57.43098
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.62.60026
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.155.85.62406
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.143.39926
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.207.70.104.36730
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.171.52993
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.33.45765
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.211.50000
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.57.33080
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.156.49032
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.40.4.38068
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.240.61583
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.240.61569
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.149.60804
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.235.59358
ESTABLISHED
tcp4
0
0 10.206.32.107.22
10.206.41.231.34530
ESTABLISHED
1622
tcp4
0
0
10.206.41.221.48186
tcp4
0
0
10.205.56.82.41163
tcp4
0
0
10.161.11.161.42174
tcp4
0
0
10.206.41.71.47831
10.206.32.107.22 10.206.32.107.22 10.206.32.107.22 10.206.32.107.22
ESTABLISHED ESTABLISHED ESTABLISHED ESTABLISHED
9. (Optional) To save device debug connection information at a custom output location, type ./DeviceDebugInfoCollector.sh<device-IP address> <device-username> <node-VIP address> <output-file-path> and press Enter..
You can use the information from the .txt file to debug issues related to the connections and processes on the device.
Executing the Script to Unlock the Device Configuration
You execute the cleanupEditChannel.sh script to unlock the device configuration. To execute the script to unlock the device configuration: 1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter. The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password.
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/deviceConnection at the shell prompt and press Enter.
6. (Optional) To view the list of debug scripts, type ls and press Enter.
1623
The list of device-connection debug scripts is displayed.
7. Type ./cleanupEditChannel.sh <device-IP address>false and press Enter--for example, ./cleanupEditChannel.sh 10.206.33.17 false. You can modify the configuration on the device from the Junos Space user interface.
Executing the Script to Collect Node-Connection Information You execute the getAllDeviceInfo.sh script to collect information about devices connected to a Junos Space node. You can also execute the script to collect information about devices connected to all the nodes in your Junos Space setup. To execute the script to collect node-connection information: 1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter. The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password.
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/deviceConnection at the shell prompt and press Enter.
6. (Optional) To view the list of debug scripts, type ls and press Enter.
7. Type ./getAllDeviceInfo.sh <node-VIP address> and press Enter--for example, ./getAllDeviceInfo.sh 10.206.41.57. The output from this command is saved to the DeviceInfoOutput.txt file in the same directory. The following is a sample output:
-----------------------------------------------------------Time of execution: Wed Jul 15 05:35:21 UTC 2015
-----------------------------------------------------------Device Id: 131129 Device Ip: 10.206.32.107 Node id: 10.206.41.57 Connection state: Connected Connection changed at: 07/14/2015 17:35:04 EditFlag : false EditChannel num:0 SSH ctrl channel num: 6 Max channels allowed: 32 Number of channels opened: 6 ------------------------------------------------------Channel details: Channel Id: 1 Seq num: 10 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 2 Seq num: 16 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 3 Seq num: 21 Channel state: CHANNEL_STATE_OPEN Channel type: Syslog ------------------------------------------------------Channel Id: 4 Seq num: 23 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 5 Seq num: 110 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 6 Seq num: 112 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------======================================================= Device Id: 131153 Device Ip: 10.206.33.17
1624
Node id: 10.206.41.57 Connection state: Connected Connection changed at: 07/14/2015 17:35:04 EditFlag : false EditChannel num:0 SSH ctrl channel num: 4 Max channels allowed: 32 Number of channels opened: 4 ------------------------------------------------------Channel details: Channel Id: 1 Seq num: 11 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 2 Seq num: 14 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 3 Seq num: 22 Channel state: CHANNEL_STATE_OPEN Channel type: Syslog ------------------------------------------------------Channel Id: 4 Seq num: 24 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------======================================================= Device Id: 131233 Device Ip: 127.0.0.1 Node id: 10.206.41.57 Connection state: Connected Connection changed at: 07/14/2015 17:35:17 EditFlag : false EditChannel num:0 SSH ctrl channel num: 13 Max channels allowed: 32 Number of channels opened: 7 ------------------------------------------------------Channel details: Channel Id: 1 Seq num: 26
1625
Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 2 Seq num: 27 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 3 Seq num: 28 Channel state: CHANNEL_STATE_OPEN Channel type: Syslog ------------------------------------------------------Channel Id: 4 Seq num: 102 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 5 Seq num: 103 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 6 Seq num: 113 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 7 Seq num: 114 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------======================================================= Device Id: 131149 Device Ip: 10.206.40.1 Node id: 10.206.41.57 Connection state: Connected Connection changed at: 07/14/2015 17:35:03 EditFlag : false EditChannel num:0 SSH ctrl channel num: 5 Max channels allowed: 32 Number of channels opened: 5 -------------------------------------------------------
1626
Channel details: Channel Id: 1 Seq num: 9 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 2 Seq num: 15 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 3 Seq num: 20 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 4 Seq num: 25 Channel state: CHANNEL_STATE_OPEN Channel type: Syslog ------------------------------------------------------Channel Id: 5 Seq num: 29 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------======================================================= Device Id: 131121 Device Ip: 10.206.32.186 Node id: 10.206.41.57 Connection state: Connected Connection changed at: 07/14/2015 17:35:03 EditFlag : false EditChannel num:0 SSH ctrl channel num: 3 Max channels allowed: 32 Number of channels opened: 6 ------------------------------------------------------Channel details: Channel Id: 1 Seq num: 8 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 2
1627
1628
Seq num: 17 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 3 Seq num: 18 Channel state: CHANNEL_STATE_OPEN Channel type: Syslog ------------------------------------------------------Channel Id: 4 Seq num: 19 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 5 Seq num: 109 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------Channel Id: 6 Seq num: 111 Channel state: CHANNEL_STATE_UNUSE Channel type: Netconf ------------------------------------------------------=======================================================
8. (Optional) To save node connection information at a custom output location, type ./getAllDeviceInfo.sh <node-VIP address> <output-file-path> and press Enter.
9. (Optional) To view connection information across all nodes, type ./getAllDeviceInfo.sh ALL-NODES and press Enter.
You can use the information from the .txt file to debug issues related to devices connected to a single or multiple Junos Space nodes.
RELATED DOCUMENTATION
Junos Space Debug Utilities Overview | 1610 Monitoring Network Devices and Troubleshooting Software Issues with Junos Space Network Management Platform | 1579
Executing Device Import Detail Script and Java Application
IN THIS SECTION Executing the Script to Delete Data from Device Import Tables | 1629 Executing the Java Application to View Device XML | 1630
1629
You execute the device import script to delete data from device import tables. You execute the DB-blob-reader.jar Java application to view device information in XML format. Device import script and Java application are stored at the following location: /var/log/space-debug/debug-utilities/deviceImport. When you execute the Java application, the output is stored as a .txt file at the same location. The following sections list the steps to execute the script to delete device import details and Java application to view device information.
Executing the Script to Delete Data from Device Import Tables
You execute the cleanupDeviceImportTables.sh script to delete data from device import tables. To execute the script to delete data from device import tables: 1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter. The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
1630
Junos Space Settings Menu 1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell A> Apply changes Q> Quit R> Redraw Menu Choice [1-7,AQR]: 7
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/deviceImport at the shell prompt and press Enter.
6. (Optional) To view the list of device import scripts and Java applications, type ls and press Enter.
7. Type ./cleanupDeviceImportTables.sh <device-name> and press Enter. For example:
./cleanupDeviceImportTables.sh jboss netscreen build_db ABC123 Warning: Using a password on the command line interface can be insecure. Device id from ABC123 is :XXXXX Warning: Using a password on the command line interface can be insecure. Finished cleaning up the import related tables for device ABC123
Executing the Java Application to View Device XML You execute the DB-blob-reader.jar application to view the device XML information. Ensure that you have updated the MySQL query in the DB-blob-reader.properties file before executing the Java application. The file also contains an example configuration.
1631
To execute the Java application and view a device XML: 1. Log in to the CLI of the Junos Space node. 2. Enter the administrator username and password at the Junos Space login prompt and press Enter.
The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed. 3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password. 4. Type the administrator password and press Enter. The shell prompt appears. 5. Type cd /var/log/space-debug/debug-utilities/deviceImport at the shell prompt and press Enter. 6. (Optional) To view the list of device import scripts and Java applications, type ls and press Enter. 7. Type /usr/bin/java -jar DB-blob-reader.jar and press Enter. 8. Enter the database username. 9. Enter the database password. The output from this command is saved to the DB-blob-reader-result.txt file in the same directory. You can view the output of the query you entered in the DB-blob-reader.properties file.
RELATED DOCUMENTATION Junos Space Debug Utilities Overview | 1610 Monitoring Network Devices and Troubleshooting Software Issues with Junos Space Network Management Platform | 1579
Executing Job Management Scripts and Java Applications
IN THIS SECTION Executing the Java Application to Collect Job Information | 1632 Executing the Script to View the Stack Trace of a Job | 1636 Executing the Script to View Job Information on Nodes | 1637
1632
You execute job management scripts and Java applications to view information about jobs triggered from Junos Space nodes. The JobInfoCollector.jar Java application and the job management scripts are stored at the following location: /var/log/space-debug/debug-utilities/jobManagement. When you execute the JobInfoCollector.jar Java application and job management scripts, the output is stored as .txt files at the same location. You can also specify a custom path to store the output. The following sections list the steps to execute the scripts to collect information about jobs.
Executing the Java Application to Collect Job Information
You execute the JobInfoCollector.jar application to collect job information. Ensure that you have updated the MySQL query in the JobInfoCollector.properties file before executing the Java application. The file also contains an example configuration. To execute the Java application to collect job information: 1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter. The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
1633
Welcome to the Junos Space network settings utility. Initializing, please wait
Junos Space Settings Menu 1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell A> Apply changes Q> Quit R> Redraw Menu Choice [1-7,AQR]: 7
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/jobManagement at the shell prompt and press Enter.
6. (Optional) To view the list of job management scripts and Java applications, enter ls and press Enter.
7. Type /usr/bin/java -jar JobInfoCollector.jar and press Enter. The following options will be displayed:
Please select an option from below: 1. Display job parent-children hierarchy 2. Filter from job data 3. Display jobs not yet picked up by Job Dispatcher
8. Type 1, 2, or 3 to select an option.
9. Enter the database username.
1634
10. Enter the database password.
11. The inputs displayed depend on the option you selected. If you selected option 1, you need to enter the parent job ID. · Enter a job ID. The output from this command is saved to the JobHierarchy-<job-ID>.txt file in the same directory. The following is a sample output if you selected 1:
=====Job details for 491529 =====
NODE: 10.206.41.57 STARTTIMESTAMP: 17 Jul 2015 17:51:00 GMT JOBSTATE: Done JOBSTATUS: Success ENDTIMESTAMP: 17 Jul 2015 17:52:15 GMT CHILDCOUNT: 2
Child job details:
ID || NODE || STARTTIMESTAMP || JOBSTATE || JOBSTATUS || ENDTIMESTAMP || CHILDCOUNT ||
491530 | 10.206.41.57 | 17 Jul 2015 17:51:01 GMT | Done | Success | 17 Jul 2015 17:51:13 GMT | 0 |
491531 | 10.206.41.57 | 17 Jul 2015 17:51:01 GMT | Done | Success | 17 Jul 2015 17:51:13 GMT | 0 |
If you selected option 2, you need to enter a MySQL query.
1635
· Enter a MySQL query--for example, mostate='Failure'. This query filters the jobs that failed. The following is a sample output if you selected 2:
ID || NAME || NODE || STARTTIMESTAMP || JOBSTATE || JOBSTATUS || ENDTIMESTAMP || 196608 | Discover Network Elements-196608 | 10.206.41.184 | 10 Aug 2015
10:44:48 GMT | Done | Failure | 10 Aug 2015 10:48:47 GMT | 196624 | Discover Network Elements-196624 | 10.206.41.184 | 10 Aug 2015
10:49:52 GMT | Done | Failure | 10 Aug 2015 10:49:58 GMT | 196643 | Mail User Password-196643 | 10.206.41.184 | 10 Aug 2015 14:11:21
GMT | Done | Failure | 10 Aug 2015 14:11:21 GMT | 196649 | Mail User Password-196649 | 10.206.41.184 | 11 Aug 2015 02:39:18
GMT | Done | Failure | 11 Aug 2015 02:39:18 GMT | 196650 | Mail User Password-196650 | 10.206.41.184 | 11 Aug 2015 02:39:18
GMT | Done | Failure | 11 Aug 2015 02:39:18 GMT | 196660 | Sync Files-196660 | 10.206.41.187 | 11 Aug 2015 11:54:13 GMT | Done | Failure | 11 Aug 2015 11:54:46 GMT | 360448 | Resync Network Elements-360448 | 10.206.41.184 | 11 Aug 2015 18:06:07 GMT | Done | Failure | 11 Aug 2015 18:06:08 GMT | 360449 | Discover Network Elements-360449 | 10.206.41.187 | 11 Aug 2015
18:12:43 GMT | Done | Failure | 11 Aug 2015 18:13:16 GMT |
If you selected option 3, the list of unscheduled jobs is saved to the UnscheduledJobs.txt file in the same directory.
1636
· The following is a sample output if you selected 3:
ID || NAME || JOBSTATE || PARENTJOBID || 393501 | ND Discovery-393501 | Done | 0 | 393858 | Backup Configuration Files-393858 | Done | 0 | 720906 | ND Discovery-720906 | Done | 0 | 721067 | Backup Configuration Files-721067 | Done | 0 | 721884 | Backup Configuration Files-721884 | Done | 0 | 1048659 | Backup Configuration Files-1048659 | Done | 0 | 1182260 | Enable Script-1182260 | InProgress | 0 | 1182413 | Execute Script-1182413 | InProgress | 0 | 1183914 | Backup Configuration Files-1183914 | Done | 0 | 1184310 | Delete Device-1184310 | Done | 0 | 1189992 | Stage Script-1189992 | InProgress | 0 | 1190105 | Update Network Element-1190105 | InProgress | 0 | 1442231 | Backup Configuration Files-1442231 | Done | 0 | 1442232 | -1442232 | InProgress | 1184310 | 1442233 | -1442233 | InProgress | 1184310 | 1442234 | -1442234 | InProgress | 1184310 | 1442235 | -1442235 | InProgress | 1184310 | 1442236 | -1442236 | InProgress | 1184310 | 1442237 | -1442237 | InProgress | 1184310 | 1442238 | -1442238 | InProgress | 1184310 | 1442239 | -1442239 | InProgress | 1184310 | 1442240 | -1442240 | InProgress | 1184310 | 1445400 | Generate SD LR Report-1445400 | Scheduled | 0 | 1445528 | Cloud Infrastructure Event Purge-1445528 | Scheduled | 0 | 1445602 | Policy Hits Collection-1445602 | Scheduled | 0 | 1903749 | useraccounts-1903749 | Done | 0 |
You can view the hierarchy of a subjob (input as the parent job ID), list of jobs that are currently unscheduled, or the output based on the query you entered in the JobInfoCollector.properties file.
Executing the Script to View the Stack Trace of a Job
You execute the getJobThreadDump.sh script to view the stack trace of a job.
To execute the script to view the stack trace of a job:
1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter. The default username is admin and the default password is abc123.
1637
The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password.
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/jobManagement at the shell prompt and press Enter.
6. (Optional) To view the list of job management scripts and Java applications, type ls and press Enter.
7. Type ./getJobThreadDump.sh <job-ID> and press Enter. The output from this command is saved to the JobThreadDump-<job-ID>.txt file in the same directory.
8. (Optional) To save the stack trace of the job at a custom output location, type ./getJobThreadDump.sh <job-ID> <output-file-path> and press Enter.
Executing the Script to View Job Information on Nodes You execute the SystemLoadViewer.sh script to view job information on a node. To execute the script to view job information on a node: 1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter. The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password.
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/jobManagement at the shell prompt and press Enter.
1638
6. (Optional) To view the list of job management scripts and Java applications, type ls and press Enter.
7. Type ./SystemLoadViewer.sh and press Enter. The output from this command is saved to the ./SystemLoadInfo.txt file in the same directory. The following is a sample output from the command:
-----------------------------------------------------------Time of execution: Mon Jul 20 06:54:14 UTC 2015 ------------------------------------------------------------
=====================NODE SUMMARY======================
Node IP: 10.206.41.35
Maximum JVM memory: 2040528896
Estimated memory usage per node: 40465
Reserved memory size: 20000000
(Available Memory = Maximum JVM memor - Estimated memory usage per node - Reserved
memory)
Available Memory:2020488431
Number of first root jobs on this node:1
Number of next root jobs on this node:0
Number of sub jobs on this node:0
-------------------------------------------
===========================================
Node load statistics:
===========================================
Resource Id:autoresync-group:132832:user1@host:0360471000000000008G
Type:autoresync-group
SubType:132832
Context type:FIRST_ROOT_JOB
State:RUNNING
Queue:
Node IP:10.206.41.35
Creation Time:2015-07-20 06:54:13.166
Last modification time:2015-07-20 06:54:13.166
Estimated Memory:40465
===========================================
============================SYSTEM LOAD SUMMARY FOR LOCAL
NODE=============================
Filesystem
1K-blocks
Used Available Use% Mounted on
/dev/mapper/jmpvgnocf-lvvar
52772604 2584204 47373632 6% /var
======Command executed: LINES=20 COLUMNS=120 top -n 2 -b -c | tail -n
+22==================
top - 06:54:18 up 3 days, 19:01, 2 users, load average: 1.24, 0.88, 0.82
1639
Tasks: 271 total, 2 running, 268 sleeping, 0 stopped, 1 zombie Cpu(s): 42.2%us, 23.5%sy, 0.5%ni, 32.7%id, 0.3%wa, 0.1%hi, 0.7%si, 0.0%st Mem: 7937672k total, 7827836k used, 109836k free, 539116k buffers Swap: 8193140k total, 132684k used, 8060456k free, 1246572k cached
PID USER
PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
30383 user1
20 0 83616 24m 2508 S 36.8 0.3 0:02.16 /usr/bin/perl
/var/www/cgi-bin/secure/resourceMonitoring
4204 jboss
20 0 4081m 2.7g 14m S 27.6 36.0 395:59.73
/usr/lib/jvm/java-1.7.0-openjdk-1.7.0.79.x86_64/jre/bin/jav
31240 user1
20 0 124m 15m 2448 S 7.6 0.2 0:00.23 perl -e use
lib("/usr/nma/lib"); use NmaUtil; print NmaUtil
31251 user1
20 0 72016 14m 2384 R 6.9 0.2 0:00.21 perl -e use
lib("/usr/nma/lib"); use NmaDb; print NmaDb::ge
30719 mysql
16 -4 2936m 744m 6628 S 3.6 9.6 62:17.79 /usr/sbin/mysqld
--basedir=/usr --datadir=/var/lib/mysql --
32329 opennms 25 5 3446m 877m 21m S 3.0 11.3 164:35.59
/usr/lib/jvm/jre-1.7.0-openjdk.x86_64/bin/java -Djava.endor
3120 user1
20 0 84612 21m 2460 S 1.0 0.3 13:51.23 /usr/bin/perl
/usr/bin/jmp-sync
30651 user1
20 0 12896 1436 952 R 1.0 0.0 0:00.07 top -n 2 -b -c
13332 user1
20 0 154m 9824 4480 S 0.7 0.1 26:56.92 /usr/sbin/snmpd
-Lsd -Lf /dev/null -p /var/run/snmpd.pid -a
18186 postgres 20 0 268m 12m 9252 S 0.7 0.2 0:00.38 postgres: opennms
opennms 127.0.0.1(55330) idle
2589 jboss
20 0 924m 197m 10m S 0.3 2.5 6:11.24 java -D[Host
Controller] -Dorg.jboss.boot.log.file=/var/log
15335 apache 23 3 141m 4936 3012 S 0.3 0.1 0:00.62 /usr/sbin/httpd
======Command executed: COLUMNS=120 top -n 1 -b -c | egrep
'(mysqld|java|postgres)'========
4204 jboss
20 0 4081m 2.7g 14m S 1.9 36.0 395:59.74
/usr/lib/jvm/java-1.7.0-openjdk-1.7.0.79.x86_64/jre/bin/jav
32329 opennms 25 5 3446m 877m 21m S 1.9 11.3 164:35.60
/usr/lib/jvm/jre-1.7.0-openjdk.x86_64/bin/java -Djava.endor
2556 jboss
20 0 527m 47m 9800 S 0.0 0.6 4:44.43 java -D[Process
Controller] -server -Xms32m -Xmx128m -XX:Ma
2589 jboss
20 0 924m 197m 10m S 0.0 2.5 6:11.24 java -D[Host
Controller] -Dorg.jboss.boot.log.file=/var/log
2886 postgres 20 0 268m 10m 7524 S 0.0 0.1 0:00.10 postgres: opennms
opennms 127.0.0.1(55289) idle
2888 postgres 20 0 268m 10m 7580 S 0.0 0.1 0:00.08 postgres: opennms
opennms 127.0.0.1(55290) idle
2889 postgres 20 0 268m 10m 8040 S 0.0 0.1 0:00.15 postgres: opennms
opennms 127.0.0.1(55291) idle
1640
2891 postgres 20 0 268m 12m 9352 S 0.0 0.2
opennms 127.0.0.1(55292) idle
2893 postgres 20 0 267m 10m 7612 S 0.0 0.1
opennms 127.0.0.1(55293) idle
2895 postgres 20 0 267m 8968 6548 S 0.0 0.1
opennms 127.0.0.1(55294) idle
3507 jboss
20 0 528m 47m 9856 S 0.0 0.6
Controller] -server -Xms32m -Xmx128m -XX:Ma
3561 jboss
20 0 566m 143m 10m S 0.0 1.8
Controller] -Dorg.jboss.boot.log.file=/var/log
5570 postgres 20 0 266m 4680 2784 S 0.0 0.1
opennms 127.0.0.1(36280) idle
5572 postgres 20 0 266m 4688 2792 S 0.0 0.1
opennms 127.0.0.1(36281) idle
5573 postgres 20 0 266m 4676 2780 S 0.0 0.1
opennms 127.0.0.1(36282) idle
5575 postgres 20 0 266m 4684 2788 S 0.0 0.1
opennms 127.0.0.1(36283) idle
5578 postgres 20 0 266m 4696 2800 S 0.0 0.1
opennms 127.0.0.1(36284) idle
5579 postgres 20 0 266m 4688 2792 S 0.0 0.1
opennms 127.0.0.1(36285) idle
5581 postgres 20 0 266m 4680 2784 S 0.0 0.1
opennms 127.0.0.1(36286) idle
5583 postgres 20 0 266m 4676 2780 S 0.0 0.1
opennms 127.0.0.1(36287) idle
5586 postgres 20 0 266m 4680 2784 S 0.0 0.1
opennms 127.0.0.1(36288) idle
5587 postgres 20 0 266m 4676 2780 S 0.0 0.1
opennms 127.0.0.1(36289) idle
5590 postgres 20 0 266m 4692 2796 S 0.0 0.1
opennms 127.0.0.1(36290) idle
5591 postgres 20 0 266m 4692 2796 S 0.0 0.1
opennms 127.0.0.1(36291) idle
5593 postgres 20 0 266m 4696 2800 S 0.0 0.1
opennms 127.0.0.1(36292) idle
5595 postgres 20 0 266m 4680 2784 S 0.0 0.1
opennms 127.0.0.1(36293) idle
5597 postgres 20 0 266m 4676 2780 S 0.0 0.1
opennms 127.0.0.1(36294) idle
5599 postgres 20 0 266m 4684 2788 S 0.0 0.1
opennms 127.0.0.1(36295) idle
5601 postgres 20 0 268m 10m 8172 S 0.0 0.1
opennms 127.0.0.1(36296) idle
0:00.31 postgres: opennms 0:00.09 postgres: opennms 0:00.03 postgres: opennms 4:51.80 java -D[Process 5:43.77 java -D[Host 0:00.01 postgres: opennms 0:00.01 postgres: opennms 0:00.01 postgres: opennms 0:00.01 postgres: opennms 0:00.00 postgres: opennms 0:00.01 postgres: opennms 0:00.00 postgres: opennms 0:00.01 postgres: opennms 0:00.00 postgres: opennms 0:00.01 postgres: opennms 0:00.00 postgres: opennms 0:00.00 postgres: opennms 0:00.00 postgres: opennms 0:00.00 postgres: opennms 0:00.01 postgres: opennms 0:00.00 postgres: opennms 0:00.14 postgres: opennms
1641
5603 postgres 20 0 268m 10m 7376 S 0.0 0.1
opennms 127.0.0.1(36297) idle
5605 postgres 20 0 267m 9.8m 7228 S 0.0 0.1
opennms 127.0.0.1(36298) idle
5607 postgres 20 0 267m 9972 7132 S 0.0 0.1
opennms 127.0.0.1(36299) idle
5609 postgres 20 0 268m 10m 8252 S 0.0 0.1
opennms 127.0.0.1(36300) idle
5611 postgres 20 0 268m 11m 8848 S 0.0 0.2
opennms 127.0.0.1(36301) idle
8123 postgres 20 0 268m 10m 8160 S 0.0 0.1
opennms 127.0.0.1(56849) idle
17000 user1
20 0 2299m 68m 8072 S 0.0 0.9
-Djava.compiler=NONE -cp /usr/StorMan/RaidMa
18186 postgres 20 0 268m 12m 9256 S 0.0 0.2
opennms 127.0.0.1(55330) idle
18187 postgres 20 0 268m 11m 8800 S 0.0 0.2
opennms 127.0.0.1(55331) idle
18188 postgres 20 0 268m 10m 7484 S 0.0 0.1
opennms 127.0.0.1(55332) idle
18190 postgres 20 0 268m 10m 7800 S 0.0 0.1
opennms 127.0.0.1(55333) idle
20287 postgres 20 0 266m 4680 2784 S 0.0 0.1
opennms 127.0.0.1(36339) idle
20289 postgres 20 0 266m 4676 2780 S 0.0 0.1
opennms 127.0.0.1(36340) idle
20291 postgres 20 0 266m 4684 2788 S 0.0 0.1
opennms 127.0.0.1(36341) idle
20297 postgres 20 0 266m 4680 2784 S 0.0 0.1
opennms 127.0.0.1(36342) idle
20298 postgres 20 0 266m 4676 2780 S 0.0 0.1
opennms 127.0.0.1(36343) idle
20301 postgres 20 0 267m 7448 5228 S 0.0 0.1
opennms 127.0.0.1(36344) idle
20306 postgres 20 0 267m 7804 5548 S 0.0 0.1
opennms 127.0.0.1(36345) idle
20308 postgres 20 0 267m 9660 6872 S 0.0 0.1
opennms 127.0.0.1(36346) idle
20311 postgres 20 0 268m 10m 7692 S 0.0 0.1
opennms 127.0.0.1(36347) idle
22848 postgres 20 0 266m 4684 2788 S 0.0 0.1
opennms 127.0.0.1(56892) idle
22850 postgres 20 0 266m 4680 2784 S 0.0 0.1
opennms 127.0.0.1(56893) idle
0:00.07 postgres: opennms 0:00.05 postgres: opennms 0:00.06 postgres: opennms 0:00.20 postgres: opennms 0:00.21 postgres: opennms 0:00.14 postgres: opennms
6:32.60 ./jre/bin/java 0:00.38 postgres: opennms 0:00.18 postgres: opennms 0:00.09 postgres: opennms 0:00.10 postgres: opennms 0:00.00 postgres: opennms 0:00.00 postgres: opennms 0:00.00 postgres: opennms 0:00.00 postgres: opennms 0:00.00 postgres: opennms 0:00.01 postgres: opennms 0:00.01 postgres: opennms 0:00.06 postgres: opennms 0:00.14 postgres: opennms 0:00.00 postgres: opennms 0:00.01 postgres: opennms
1642
22852 postgres 20 0 266m 4676 2780 S 0.0 0.1 0:00.00 postgres: opennms
opennms 127.0.0.1(56894) idle
22858 postgres 20 0 266m 6388 4312 S 0.0 0.1 0:00.01 postgres: opennms
opennms 127.0.0.1(56895) idle
22860 postgres 20 0 268m 10m 7452 S 0.0 0.1 0:00.11 postgres: opennms
opennms 127.0.0.1(56896) idle
22863 postgres 20 0 268m 10m 7968 S 0.0 0.1 0:00.22 postgres: opennms
opennms 127.0.0.1(56897) idle
22864 postgres 20 0 267m 7608 5368 S 0.0 0.1 0:00.02 postgres: opennms
opennms 127.0.0.1(56898) idle
22866 postgres 20 0 268m 10m 7528 S 0.0 0.1 0:00.13 postgres: opennms
opennms 127.0.0.1(56899) idle
29715 user1
16 -4 13052 1068 1064 S 0.0 0.0 0:00.11 /bin/sh
/usr/bin/mysqld_safe --datadir=/var/lib/mysql --pid
30719 mysql
16 -4 2936m 744m 6628 S 0.0 9.6 62:17.79 /usr/sbin/mysqld
--basedir=/usr --datadir=/var/lib/mysql --
31064 postgres 20 0 265m 17m 16m S 0.0 0.2 0:32.35
/usr/pgsql-9.4/bin/postmaster -p 5432 -D /var/lib/pgsql/9.4
31072 postgres 20 0 119m 1728 868 S 0.0 0.0 0:03.28 postgres: logger
process
31074 postgres 20 0 265m 42m 41m S 0.0 0.5 0:39.87 postgres:
checkpointer process
31075 postgres 20 0 265m 7304 6368 S 0.0 0.1 0:05.45 postgres: writer
process
31076 postgres 20 0 265m 6076 5156 S 0.0 0.1 0:53.84 postgres: wal writer
process
31077 postgres 20 0 265m 2688 1496 S 0.0 0.0 0:12.46 postgres: autovacuum
launcher process
31078 postgres 20 0 119m 2056 924 S 0.0 0.0 0:58.40 postgres: stats
collector process
31304 user1
20 0 61220 768 664 S 0.0 0.0 0:00.00 egrep
(mysqld|java|postgres)
8. (Optional) To save job information about a node at a custom output location, enter ./SystemLoadViewer.sh <output-file-path>.
You can view information such as the memory on the nodes, number of root jobs and subjobs on each of the nodes, and so on.
RELATED DOCUMENTATION Junos Space Debug Utilities Overview | 1610
Monitoring Network Devices and Troubleshooting Software Issues with Junos Space Network Management Platform | 1579
Executing HornetQ Scripts
IN THIS SECTION Executing the HornetQ Script to View all JBoss Queues | 1643 Executing the HornetQ Script to List of Messages in a JBoss Queue | 1645
1643
You execute HornetQ scripts to fetch details about all queues from the JBoss CLI or view the list of messages on a specific queue. HornetQ scripts are stored at the following location: /var/log/space-debug/debug-utilities/HornetQ. When you execute these scripts, the output is stored as .txt files at the same location. You can also specify a custom path to store the output. The following sections list the steps to execute the scripts to fetch details about queues from the JBoss CLI.
Executing the HornetQ Script to View all JBoss Queues
You execute the HornetQInfoProvider.sh script to view all the JBoss queues. To execute the script to view all JBoss queues: 1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter. The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter your password. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
1644
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/hornetQ at the shell prompt and press Enter.
6. (Optional) To view the list of HornetQ scripts, type ls and press Enter.
7. Type ./HornetQInfoProvider.sh and press Enter. The output from this command is saved to the HornetQInfo.txt file in the same directory. The following sample output displays one of the JBoss queues:
-----------------------------------------------------------Time of execution: Tue Jul 21 05:58:23 UTC 2015 -----------------------------------------------------------==============================10.206.41.57===============================
{ "outcome" => "success", "result" => [
{
1645
"address" => [ ("subsystem" => "messaging"), ("hornetq-server" => "default"), ("jms-queue" => "timeOutQueue")
], "outcome" => "success", "result" => {
"consumer-count" => 15, "dead-letter-address" => "jms.queue.DLQ", "delivering-count" => 0, "durable" => true, "entries" => ["queue/timeOutQueue"], "expiry-address" => undefined, "message-count" => 0L, "messages-added" => 0L, "paused" => false, "queue-address" => "jms.queue.timeOutQueue", "scheduled-count" => 0L, "selector" => undefined, "temporary" => false } },
8. (Optional) To save the list of all JBoss queues at a custom output location, type ./getDeviceInfo.sh<output-file-path> and press Enter.
You can view all the JBoss queues.
Executing the HornetQ Script to List of Messages in a JBoss Queue
You execute the HornetQInfoProvider.sh script to view the list of messages in a JBoss queue.
To execute the script to view the list of messages in a JBoss queue:
1. Log in to the CLI of the Junos Space node.
2. Enter the administrator username and password at the Junos Space login prompt and press Enter. The default username is admin and the default password is abc123. The Junos Space Settings Menu is displayed.
3. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands.
You are prompted to enter your password. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42 Welcome to the Junos Space network settings utility. Initializing, please wait
1646
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
4. Type the administrator password and press Enter. The shell prompt appears.
5. Type cd /var/log/space-debug/debug-utilities/hornetQ at the shell prompt and press Enter.
6. (Optional) To view the list of HornetQ scripts, type ls and press Enter.
7. Type ./HornetQMessageViewer.sh<queue-name>--for example, ./HornetQMessageViewer.shResyncJobDispatcherQueue. The output from this command is saved to the <queue-name>-messages.txt file in the same directory. The following sample output displays the list of messages in a JBoss queue named ResyncJobDispatcherQueue.
1647
-----------------------------------------------------------Time of execution: Tue Jun 2 16:13:51 PDT 2015 -----------------------------------------------------------[{"consumerName":"ServerConsumer [id=0, filter=null, binding=LocalQueueBinding
[address=jms.queue.ResyncJobDispatcherQueue, queue=QueueImpl[name=jms.queue.ResyncJobDispatcherQueue, postOffice=PostOfficeImpl
[server=HornetQServerImpl::serverUUID=d2f96781-0972-11e5-9e84-69e3a4c4a918]]@3ead3529]]", "elements":[{"timestamp":1433286830611, "userID":"ID:0780c666-097d-11e5-9e84-69e3a4c4a918", "messageID":37172, "JobOperationName":"executeResyncDevices", "expiration":0, "address":"jms.queue.ResyncJobDispatcherQueue", "priority":4, "JobId":196669, "__HQ_CID":"077f8de2-097d-11e5-9e84-69e3a4c4a918", "durable":false,"type":2}]}]
8. (Optional) To save the list of all messages at a custom output location, type ./HornetQMessageViewer.sh<queue-name> <output-file-path> and press Enter.
You can view the list of messages in a specific JBoss queue.
RELATED DOCUMENTATION Junos Space Debug Utilities Overview | 1610 Monitoring Network Devices and Troubleshooting Software Issues with Junos Space Network Management Platform | 1579
15 PART
Troubleshooting Junos Space Platform Issues
Troubleshooting LoginRelated Issues | 1649 Troubleshooting Device ManagementRelated Issues | 1651 Troubleshooting Network MonitoringRelated Issues | 1654 Troubleshooting DMI SchemaRelated Issues | 1655
1649
CHAPTER 89
Troubleshooting LoginRelated Issues
IN THIS CHAPTER Troubleshooting the Not Able to Log In from the Junos Space Login Page Issue | 1649
Troubleshooting the Not Able to Log In from the Junos Space Login Page Issue
Problem Description: You cannot login to Junos Space Network Management Platform from the Junos Space login page. The login page displays a message stating the possible cause of the issue. Cause You may not be able to log in from the Junos Space login page for one of the following reasons: · You entered an incorrect username, password, or both.
The following message is displayed on the login page: The username or password is incorrect · Your account is locked because you exceeded the maximum number of login attempts
The following message is displayed on the login page: The account is Locked. You can't Log in
NOTE: By default, your account is locked out after four unsuccessful login attempts.
Solution · If you have entered incorrect login credentials, verify and enter the correct login credentials. · If your account is locked
1. Try logging in from another system. 2. Contact the administrator to unlock your user account.
NOTE: Your user account is automatically unlocked in 24 hours.
RELATED DOCUMENTATION Troubleshooting Device Discovery Failure | 1651
1650
1651
CHAPTER 90
Troubleshooting Device ManagementRelated Issues
IN THIS CHAPTER Troubleshooting Device Discovery Failure | 1651 Troubleshooting Device Data Collection Issue | 1652 Troubleshooting Devices Discovered Twice Using the Device Discovery Workflow | 1653
Troubleshooting Device Discovery Failure
Problem Description: Devices are not discovered to Junos Space Network Management Platform.
Symptoms: The devices you tried to discover to Junos Space Network Management Platform are not listed on the Device Management page. The device discovery job for devices discovered through a device discovery profile, listed on the Job Management page fails. Cause You cannot discover devices to Junos Space Network Management Platform for one of the following reasons: · You provided an incorrect password to access the device through the Device Discovery Profile workflow. · You provided an incorrect private key or passphrase during the Device Discovery Profile workflow · The device is not reachable. · You provided incorrect SNMP settings for the device in the Device Discovery workflow.
Solution · If you entered an incorrect password, modify the device discovery profile by reentering the password
and rediscover the device by using the Device Discovery Profile workflow. · If you uploaded an incorrect private key or passphrase, modify the device discovery profile by uploading
the correct private key and passphrase and rediscover the device by using the Device Discovery Profile workflow.
1652
· If the device you are trying to discover is not reachable, add the correct route to the device. For more information about adding a route to the device, refer to the appropriate device configuration guide.
· If you entered incorrect SNMP settings for the device, you can do one of the following: · Modify the device discovery profile by clearing the Use SNMP check box on the Network Management Platform > Devices > Device Discovery Profiles > Modify Device Discovery Profile > Specify Probes page and rediscover the device. · Modify the device discovery profile by adding the correct SNMP details on the Network Management Platform > Devices > Device Discovery Profiles > Modify Device Discovery Profile > Specify Probes page and rediscover the device.
NOTE: Ensure that SNMP is enabled on the device. For more information about enabling SNMP on the device, refer to the appropriate device configuration guide.
RELATED DOCUMENTATION Troubleshooting Device Data Collection Issue | 1652
Troubleshooting Device Data Collection Issue
Problem Description: The device on Junos Space Network Management Platform displays the Managed status but the device is not able to collect data. Cause A device cannot collect data even though the status of the device is Managed for one of the following reasons: · You have not updated the SNMP settings of the device. You may have chosen to skip updating the
SNMP details when you discovered the device to Junos Space Network Management Platform. · You have not selected the device interfaces for data collection.
Solution · If you have not updated the SNMP settings of the device, update the SNMP settings on the Network
Management Platform > Network Monitoring > Admin page. · If you have not selected the device interfaces for data collection:
1653
1. Select the device on the Network Management Platform > Network Monitoring > Admin > Configure SNMP Data Collection per Interface page.
2. In the Collect column, select Collect or Default from the drop-down list corresponding to the interfaces.
RELATED DOCUMENTATION Troubleshooting Device Discovery Failure | 1651
Troubleshooting Devices Discovered Twice Using the Device Discovery Workflow
Problem Description: Using the Device Discovery Profile workflow, devices are discovered twice to Junos Space Network Management Platform. Cause You are using the ping-only method to discover devices to Junos Space Network Management Platform. Solution Select the SNMP check box on the Network Management Platform > Devices > Device Discovery Profile > Create Device Discovery Profile > Specify Probes when discovering devices using the Device Discovery Profile workflow. Enabling the SNMP option ensures that Junos Space Network Management Platform checks the serial number of the devices during the discovery process. This prevents the discovery process from adding duplicate instances of the devices to Junos Space Network Management Platform.
RELATED DOCUMENTATION Troubleshooting Device Discovery Failure | 1651
1654
CHAPTER 91
Troubleshooting Network MonitoringRelated Issues
IN THIS CHAPTER Troubleshooting the Network Monitoring Page Is Not Available Issue | 1654
Troubleshooting the Network Monitoring Page Is Not Available Issue
Problem Description: You can navigate to all other workspaces but the Network Monitoring workspace is not accessible. Cause The Network Monitoring service has stopped unexpectedly. Solution Restart the Network Monitoring service. To restart the Network Monitoring service: 1. Navigate to the Network Management .Platform > Administration > Applications page. 2. Right-click Network Management Platform and select Manage Services from the Actions menu. 3. Select Network Monitoring, then select the Restart Service icon.
RELATED DOCUMENTATION Troubleshooting Device Discovery Failure | 1651
1655
CHAPTER 92
Troubleshooting DMI SchemaRelated Issues
IN THIS CHAPTER Troubleshooting the Nondisplay of the DMI Schema Tree Issue | 1655
Troubleshooting the Nondisplay of the DMI Schema Tree Issue
Problem Description: The DMI schema tree is not displayed. Symptoms: On the Create Template Definition page, you cannot navigate the DMI schema tree or the hierarchy of configuration options on the left. Cause The DMI schema is defective or corrupt. If the topmost node (Configuration) cannot be opened to reveal the hierarchy, the schema was corrupted during transition. (Use the grep command to search for SchemaMgr ERROR in the server.log file.)
NOTE: One defective schema does not affect other schemas, which are still available for use.
Solution Use your own compressed TAR file. This does not require you to restart JBoss. Ensure that the Enable Schema Overwrite check box is selected when you update the schema. For instructions to add or update a DMI schema , see "Adding Missing DMI Schemas or Updating Outdated DMI Schemas by Using the Update Schema Menu" on page 1540 in the Junos Space Network Management Platform Workspaces User Guide. For instructions to create your own compressed TAR file, see "Creating a Compressed TAR File for Updating DMI Schema" on page 1545 in the Junos Space Network Management Platform Workspaces User Guide.
RELATED DOCUMENTATION
Monitoring Network Devices and Troubleshooting Software Issues with Junos Space Network Management Platform | 1579
1656
1657
High Availability and Disaster Recovery Guide
16 PART
High Availability
Overview | 1659 Understanding the High Availability Software Architecture | 1662 Understanding the Junos Space Cluster (Fabric) Architecture | 1669 Configuring High Availability Overview | 1684 High Availability Failover Scenarios | 1690
CHAPTER 93
Overview
IN THIS CHAPTER Junos Space High Availability Overview | 1659 High Availability Characteristics of Junos Space Appliances | 1661
1659
Junos Space High Availability Overview
Junos Space is designed as a carrier-grade system that provides a complete fault tolerant solution. The set of topics describing Junos Space high availability (HA) provide an overview of the Junos Space high availability design and implementation, as well as all the steps that are required to deploy a high availability solution, from ordering your appliances and preparing a Junos Space high availability cluster, to final deployment.
In order to gain an understanding of the Junos Space high availability solution, we recommend that you read all the Junos Space high availability topics. However, if you are primarily interested in setting up high availability, including the prerequisite steps, see the "Configuring the Junos Space Cluster for High Availability Overview" on page 1684 topic. If you are interested in high availability for network monitoring, see "High Availability for Network Monitoring" on page 1680. A set of frequently asked questions about Junos Space high availability are also answered in FAQ: Junos Space High Availability.
Junos Space Network Management Platform is available in two form factors:
· JA2500 carrier-grade hardware appliance · Virtual appliance for the VMware ESX server or Kernel-based Virtual Machine (KVM) environment
Both the Junos Space hardware appliance and virtual appliance use the same software build with identical features to provide the complete package including OS, databases, load balancers and JBoss engines. You can cluster multiple appliances together to form a Junos Space cluster, as shown in Figure 143.
Figure 143: Deployment of a Junos Space Cluster
1660
A Junos Space fabric (cluster) can contain only hardware appliances (JA2500), only virtual appliances, or a combination of both hardware and virtual appliances. Each appliance in the cluster is called a node. Junos Space cluster architecture also incorporates load balancing across all nodes in the cluster, which becomes the basis for providing scalability for a Junos Space deployment.
A Junos Space high availability solution comprises the following key components:
· Junos Space cluster architecture allows multiple Junos Space appliances (hardware or virtual) to be connected together to form a single cluster. All services within the cluster are provided through a single virtual IP address that GUI and Northbound Interface (NBI) clients can use. This architecture provides protection against any single point of failure (SPOF) in the cluster. If any node in the cluster fails, all services continue to be available, albeit with reduced capacity. Four logical clusters can be formed within the single physical cluster when Junos Space appliances are connected together. For more information, see "Understanding the Logical Clusters Within a Junos Space Cluster" on page 1669.
· The Junos Space Appliance (JA2500) is a carrier-grade hardware appliance designed to ensure hardware-level reliability and incorporates several fault tolerance features to eliminate single point of failure and minimize its downtime. The Junos Space Appliance contributes significantly to the availability of the overall cluster. For more information, see the "High Availability Characteristics of Junos Space Appliances" on page 1661 topic.
· The Watchdog service provides process-level high availability. In the event of any software services failure on a Junos Space appliance, the watchdog service automatically restarts the service.
RELATED DOCUMENTATION
Junos Space High Availability Software Architecture Overview | 1662
1661
High Availability Characteristics of Junos Space Appliances
Junos Space Appliances (JA2500) incorporate the following fault tolerance features that prevent or minimize their downtime and contribute significantly to the availability of the overall cluster:
· Hot-swappable hard disk drives managed by a RAID controller · The hot-swappable hard drives on Junos Space appliances are externally accessible in field-replaceable trays, providing component high availability. You can remove and replace a hard disk without powering off the appliance or disrupting any functions performed by the appliance.
· The RAID controller manages the hard disk drives and presents them as logical units.
· Option to install a redundant power supply module--Junos Space Appliances are shipped with a single AC power supply. However, you can install an additional power supply module that serves as a redundant power supply if one power supply module fails. If you install a second power supply module, ensure that you plug in each power supply module into a separate power circuit.
When an appliance has an additional redundant, functioning power supply module that is plugged into a separate power circuit, the power supply modules are hot-swappable.
· Two cooling fans--Two externally accessible and hot-swappable cooling fans provide the required airflow and cooling for the appliance.
For detailed information about Junos Space Appliances, refer to the Hardware Documentation section of the Junos Space and Applications page.
RELATED DOCUMENTATION Junos Space High Availability Overview | 1659
1662
CHAPTER 94
Understanding the High Availability Software Architecture
IN THIS CHAPTER Junos Space High Availability Software Architecture Overview | 1662 Software Components for Junos Space Nodes | 1666
Junos Space High Availability Software Architecture Overview
IN THIS SECTION Junos Space Software Architecture | 1663 Load-Balancing Architecture | 1664 Database Architecture | 1664 Inter-Node Communication Among Nodes in a Junos Space Cluster | 1665
The Junos Space platform is designed to ensure five-nines availability with a clustered, multi-tiered, distributed architecture comprising the following features: · Standard browser-based Web 2.0 GUI clients and REST/HTTPS-based NBI clients · Apache Load Balancer as a top-level load balancer · JBoss Application Server based on J2EE technology to provide application framework · MySQL database to manage persistent data · Cassandra distributed file system to store device image files and files from Junos Space applications The following sections describe the Junos Space architecture and identify the basic requirements for communication between nodes in a Junos Space cluster:
1663 Junos Space Software Architecture Figure 144 provides a high-level view of the Junos Space software architecture. Junos Space services are accessible to GUI and NBI clients by means of a single virtual IP address for the cluster. Figure 144: Junos Space Software Architecture
The requests from clients are load-balanced between multiple nodes in the cluster through the Apache HTTP Load Balancer, which is deployed in an active-hot standby configuration on two nodes in the cluster. The load balancer on the node which owns the virtual IP (VIP) address acts as the active instance. If the node which currently owns the VIP address goes down, the other node in the Linux Virtual Server (LVS) cluster will detect this failure and automatically take over the VIP address. The HTTP requests are load-balanced across all active JBoss servers in the cluster using a round-robin algorithm.
1664
Active JBoss servers within the cluster provide the application framework for Junos Space applications, including the following services:
· Hosting the applications and associated business logic · Application-level load balancing within the cluster · Application monitoring and automatic recovery · Cluster node monitoring and automatic recovery · Database services with direct access to MySQL DB through JDBC · Hosting Device Mediation Logic
Load-Balancing Architecture
A Junos Space cluster is presented with two kinds of loads:
· Incoming requests from GUI and NBI clients · Communication with managed devices Junos Space is designed to load-balance incoming requests across all active nodes in the cluster. Requests from GUI and NBI clients arrive as HTTP requests serviced by the active instance of the Apache HTTP load balancer. The load balancer distributes the requests to all active JBoss servers in the cluster using a round-robin algorithm. Sticky sessions are utilized to ensure that all HTTP requests associated with a specific GUI session are served by the same JBoss server during the lifetime of that session. For the purpose of application-level load balancing, JBoss business logic processes complex requests as a set of sub-jobs, which are distributed across multiple nodes in the cluster. For example, a single request to a four-node Space cluster to resynchronize 100 devices is divided into four sub-jobs that are executed on four different nodes, with each node resynchronizing 25 devices. For a detailed overview of load balancing, see the topic "Understanding the Logical Clusters Within a Junos Space Cluster" on page 1669.
To perform device-level load balancing, Junos Space employs logic in the Device Mediation Layer (DML) so that device connections are equally distributed across all active nodes in the cluster. Device-level load balancing is performed during device discovery by comparing the number of device connections served by individual nodes and selecting the least loaded node. If any node goes down, all associated device connections are distributed to the remaining active nodes in the cluster, thus preventing a node outage from affecting device connectivity. For a detailed overview of device connectivity management, see the topic "Understanding High Availability Management of DMI Connections" on page 1679.
Database Architecture
MySQL Enterprise Edition is used to provide database services for managing persistent data for both platform and applications. MySQL DB servers are running on two nodes in the cluster in active-standby configuration. Database transactions are replicated between the two MySQL servers in near real-time.
1665
For information about the MySQL cluster that is formed within each Junos Space cluster, see "Understanding the Logical Clusters Within a Junos Space Cluster" on page 1669.
Junos Space platform also incorporates network monitoring for fault and performance management, which uses the PostgreSQL relational database service for storing fault and performance related data. The PostgreSQL server runs on two nodes in the Space cluster in active-active configuration with real-time replication to ensure that fault and performance data continues to be available even if one of these nodes fail. For more information, see "High Availability for Network Monitoring" on page 1680.
Inter-Node Communication Among Nodes in a Junos Space Cluster
In order to facilitate seamless communication between the nodes in a Space cluster and to achieve optimum performance of the cluster, you need to ensure the following:
· All nodes in a Junos Space cluster are configured with IP addresses inside the same subnet. This is important for the VIP switchover mechanism to work correctly.
· All nodes in a Space cluster are connected by means of a 1-Gbps or 100-Mbps local network with negligible latency.
· JBoss servers within a Junos Space cluster communicate by means of a UDP multicast to form logical clusters.
NOTE: UDP multicast traffic must be allowed within the nodes in the cluster, which also means that you should disable IGMP snooping on the switches that interconnect the cluster or configure them explicitly to allow UDP multicast between the nodes.
Release History Table Release
15.2R2
Description
Cassandra distributed file system to store device image files and files from Junos Space applications
RELATED DOCUMENTATION
Junos Space High Availability Overview | 1659 Software Components for Junos Space Nodes | 1666 Understanding the Logical Clusters Within a Junos Space Cluster | 1669
1666
Software Components for Junos Space Nodes
The Junos Space Appliance (JA2500) and Junos Space virtual appliance both run the same software stack, as shown in Figure 145. Figure 145: Software Stack on a Junos Space Appliance
The Junos Space software architecture is based on a combination of the following mature and proven software components: · CentOS 6.8 distribution is used as the underlying OS of the appliance. CentOS distribution is binary
compatible with Red Hat Enterprise Linux (RHEL). Services that are required for Junos Space are leveraged from this distribution, with all other services removed. Junos Space administrators do not need to directly access the Linux components because all operations, administration, and management (OAM) of the platform is performed from the Junos Space user interface or CLI. At the same time, it is important to note that the underlying operating system is an industry-standard distribution with a strong heritage of reliability and security. · The MySQL Enterprise Edition 5.6 relational database service provides persistent storage for the Junos Space Network Management Platform and all hosted applications. A common database instance stores
1667
all persistent data that the Network Management Platform requires. As shown in the preceding illustration, each pluggable application that is installed on the platform has its own unique database instance. All database instances are contained within a single MySQL server, which runs on two nodes in the cluster to form an active-standby cluster. The remaining nodes in the cluster do not run a MySQL server.
· JBoss 7.1 Application Server is the container that hosts the presentation layer, business logic layer, and data access layer of Junos Space platform as well as the hosted applications. One JBoss server runs on each node in the cluster and they all work together as a single load-sharing cluster.
· Apache HTTP Server (version 2.2.34) is the front-end load balancer for all requests coming from GUI and NBI clients. This server runs on two nodes in the cluster which together form an active-standby cluster.
· Network monitoring services are provided using OpenNMS, which is an award winning, enterprise-grade network monitoring platform developed under the open source model. OpenNMS is integrated into the Junos Space Network Management Platform Network Monitoring workspace and provides fault monitoring and performance monitoring features. Junos Space uses PostgreSQL as the relational database server for persisting fault and performance data.
The following software components or services also play a significant role in the overall management of a Junos Space cluster:
· Distributed Resource Manager (DRM)--DRM is deployed as a service inside the JBoss application server, just like all other services provided by Network Management Platform and the hosted applications. You can think of DRM as the server-side component that you interact with when you navigate to the Network Management Platform > Administration > Fabric workspace in the Junos Space user interface. DRM works together with the Node Management Agent to fulfill the following responsibilities:
· Managing the Junos Space cluster--DRM implements the business logic for adding and removing nodes in the cluster and monitors the overall health of the cluster.
· Managing the logical clusters in the cluster--The logical clusters within the physical cluster formed by the Junos Space nodes include the Apache Load Balancer cluster, JBoss cluster, and Database cluster. DRM implements the business logic to add and remove nodes in these logical clusters and monitors their status. The logical clusters are described in detail in "Understanding the Logical Clusters Within a Junos Space Cluster" on page 1669.
· Node Management Agent (NMA)--NMA runs on each node in the cluster and is deployed as a set of CGI scripts run by an Apache HTTP daemon. NMA has the following responsibilities:
· Monitor system resource usage on the node and the health of various services running on the node. · Start and stop services on the node based on requests from DRM. · Manage the configuration files for various services running on the node. · Manage installation, uninstallation, and upgrades of pluggable applications as well as upgrade of the
Network Management Platform software on the node.
1668
· Watchdog--The watchdog service (jmp-watchdog) runs on each node in the cluster to ensure that required services on the node are running. Every second, the watchdog checks that the required services are running and if the watchdog detects that a service is down, it restarts the service.
RELATED DOCUMENTATION Junos Space High Availability Overview | 1659 Junos Space High Availability Software Architecture Overview | 1662 Understanding the Logical Clusters Within a Junos Space Cluster | 1669
CHAPTER 95
Understanding the Junos Space Cluster (Fabric) Architecture
IN THIS CHAPTER Understanding the Logical Clusters Within a Junos Space Cluster | 1669 Understanding Virtual IP Availability Within a Junos Space Cluster | 1676 Understanding High Availability Nodes in a Cluster | 1677 Understanding High Availability Management of DMI Connections | 1679 High Availability for Network Monitoring | 1680 Understanding How Devices Are Configured to Send SNMP Traps to Junos Space | 1682
1669
Understanding the Logical Clusters Within a Junos Space Cluster
IN THIS SECTION Apache Load-Balancer Cluster | 1670 JBoss Cluster | 1671 MySQL Cluster | 1672 Cassandra Cluster | 1674
You can connect multiple Junos Space appliances (hardware or virtual) together to form a Junos Space cluster. Figure 146 shows the logical clusters (Apache Load Balancer cluster, the JBoss cluster, and MySQL cluster) that are formed within each Junos Space cluster.
Figure 146: Junos Space Logical Clusters
1670
Apache Load-Balancer Cluster
The Apache HTTP server, with the mod_proxy load-balancer module enabled, runs on two nodes in the cluster at any given time. These servers form an active-standby logical cluster. They both listen on the TCP port 443 for HTTP requests from GUI and NBI clients. All clients use the virtual IP (VIP) address of the cluster to access its services. At any time, the VIP address is owned by only one node in the cluster. Hence, the Apache HTTP server on the node that owns the VIP address receives all HTTP requests from GUI and NBI clients and acts as the active load-balancer server, whereas the other server acts as the standby. A round-robin load-balancing algorithm is used to distribute requests to JBoss servers running on all nodes in the cluster. The load-balancer also employs session-stickiness to ensure that all HTTP requests from a user session are sent to the same node in the cluster. To achieve this, the server sets a cookie named JSESSIONID. The value of this cookie identifies the specific node in the cluster that serves requests that belong to this user session. All additional requests contain this cookie and the load-balancer forwards the request to the JBoss server that runs on the node that this cookie identifies.
If the Apache HTTP server on a node goes down, the server is automatically restarted by the watchdog service on that node. If this node owns the VIP address, then the GUI and NBI clients might experience a brief service outage until the Apache HTTP server is restarted. However, this outage lasts only a few seconds (typically, two seconds) and is hardly noticed by the clients. On the other hand, if the Apache HTTP server goes down on the node that does not currently own the VIP address, no side -effects are
1671
noticed by any clients or any other components. The watchdog service restarts the server and the server comes back up in about two seconds.
JBoss Cluster
The JBoss application server runs on all nodes except dedicated database nodes in the Junos Space cluster. The nodes form a single all-active logical cluster and the load-balancer server (described previously) distributes the load across all the nodes. Even if one or more of the JBoss servers in the cluster fails, the application logic still continues to be accessible from the surviving nodes. JBoss servers on all nodes are started with the same configuration and use UDP multicast to detect each other and form a single cluster. JBoss also uses UDP multicast for session replication and caching services across all the nodes.
NOTE: The JBoss server does not run on Fault Monitoring and Performance Monitoring (FMPM) nodes and hosted virtual machines.
When the JBoss server on a node goes down, other nodes in the JBoss cluster detect this change and automatically reconfigure themselves to remove the failed node from the cluster. The time taken by other cluster members to detect a failed JBoss server depends on whether the JBoss server process crashed abnormally or is unresponsive. In the former case, cluster members detect the failure immediately (around two seconds) because their TCP connections to the crashed JBoss server are closed by the operating system. In the latter case, cluster members detect the failure in about 52 seconds. If a JBoss server crashes, the JBoss server is restarted automatically by the watchdog service (jmp-watchdog) running on the node. When the JBoss server comes back up, the JBoss server is automatically discovered by other cluster members and added to the cluster. The JBoss server then synchronizes its cache from the other nodes in the cluster. The typical restart time for the JBoss server is two to five minutes, but it can take more time depending on the number of applications installed, the number of devices being managed, the number of DMI schema versions installed, and so forth.
One JBoss server in the cluster always acts as the primary of the cluster. The main purpose of the primary designation is to host services that are deployed as cluster-wide singletons (HA singletons)--for example, services that must be deployed on only one server in the cluster at any time. Junos Space uses a several services of this type, including the Job Poller service, which provides a single timer for scheduling jobs across the cluster, and the Distributed Resource Manager (DRM) service, which monitors and manages the nodes in the cluster. These services are deployed only on the JBoss server that is designated as the primary.
1672
NOTE: This does not mean that the primary does not host other services. Non-cluster singleton services are also hosted on the primary server. Junos Space is configured such that the first JBoss server that comes up in the cluster becomes the primary. If the primary server goes down, other members in the JBoss cluster detect this and elect a new primary.
MySQL Cluster
The MySQL server runs on two nodes in the Junos Space cluster at any given time. These nodes form a logical active-standby cluster and both nodes listen on TCP port 3306 for database requests from JBoss servers. By default, JBoss servers are configured to use the Virtual IP (VIP) address of the cluster to access database services. At any time, the VIP address is owned by only one node in the cluster. Thus, the MySQL server on the node that owns the VIP address receives all database requests from the JBoss server, which acts as the active database server while the other server acts as the standby.
If you want to improve the performance of Junos Space Network Management Platform and Junos Space applications, you can add two Junos Space nodes to run as dedicated database nodes. When you add any two Junos Space nodes as the primary and secondary database nodes, the MySQL server is moved to the two dedicated database nodes and is disabled on the first two nodes of the Junos Space cluster. This frees system resources on the Junos Space active VIP node, improving the performance of the node.
JBoss servers use a separate database virtual IP (VIP) address to access database services on dedicated database nodes. You specify the VIP address for the database when you add nodes as dedicated database nodes to the Junos Space cluster. This VIP address is owned by the node designated the primary database node. The MySQL server on the primary database node acts as the active database server, and the server on the secondary database node acts as the standby. Figure 147 shows the logical clusters (Apache Load Balancer cluster, the JBoss cluster, and MySQL cluster) that are formed within a Junos Space cluster when you have dedicated database nodes as part of the Junos Space cluster.
Figure 147: Junos Space Logical Clusters with Dedicated Database Nodes
1673
MySQL servers on each of the nodes are configured with unique server IDs. The primary-/backup relationship is also configured symmetrically on the nodes so that the server on the first node is configured with the second node as the primary; and the server on the second node is configured with the first node as the primary. Thus, both nodes are capable of acting as a backup to the other, and the server running on the node that owns the VIP address acts as the primary at any time, which ensures that the primary-backup relationship switches dynamically as the VIP ownership switches from one node to the other. All transactions committed on the active (primary) server are replicated to the standby (backup) server in near real time, by means of the asynchronous replication solution [2] provided by MySQL, which is based on the binary logging mechanism. The MySQL server operating as the primary (the source of the database changes) writes updates and changes as "events" to the binary log. The information in the binary log is stored in different logging formats according to the database changes that are recorded. The backup server is configured to read the binary log from the primary and to execute all the events in the binary log on the backup's local database.
If the MySQL server on a node goes down, the server is restarted automatically by the watchdog service on that node. When restarted, the MySQL server should come up within 20 to 60 seconds. If this node owns the VIP address, JBoss might experience a brief database outage for this 20 to 60 second duration. Any requests that require database access fail during this period. On the other hand, if the MySQL server goes down on the node that does not currently own the VIP address, there are no side- effects noticed by JBoss. The watchdog service restarts the server and the server comes back up in less than one minute.
1674
After the server is back up, it resynchronizes with the primary in the background and the resynchronization time depends on the number of changes that occurred during the outage.
Cassandra Cluster
Starting in Release 15.2R2, Cassandra cluster is an optional logical cluster that you can include within the Junos Space cluster. The Cassandra cluster is formed when there are two or more dedicated Cassandra nodes or two or more JBoss nodes with the Cassandra service running, or a combination of both, within the Junos Space fabric. You can choose to run the Cassandra service on none or all of the nodes in the fabric except dedicated database nodes and FMPM nodes. The Cassandra service running on Junos Space nodes provides a distributed file system to store device images and files from Junos Space applications (such as Juniper Message Bundle [JMB] generated by Service Now and RRD files generated by Network Director). If there are no Cassandra nodes in the fabric, device image files and Junos Space application files are stored in the MySQL database. Figure 148 shows the logical clusters (Apache Load Balancer cluster, JBoss cluster, MySQL cluster, and Cassandra cluster) that are formed within a Junos Space cluster when you have Cassandra nodes as part of the Junos Space cluster.
Figure 148: Junos Space Logical Clusters Including the Cassandra Cluster
1675
The Cassandra service runs on all the Cassandra nodes in an active-active configuration with real-time replication of the Cassandra database. All the files uploaded to the Cassandra database are copied to all the nodes in the Cassandra cluster. JBoss servers send requests to the Cassandra nodes in the Cassandra cluster in a round-robin manner and access the nodes by using the IP address (of the eth0 interface) of the respective Cassandra node.
If any Cassandra node goes down, Junos Space Platform cannot upload files to or delete files from the Cassandra database until the node that is down is deleted from the fabric. If all existing Cassandra nodes are deleted, the files stored in the Cassandra database are lost.
Release History Table Release
Description
15.2R2
Starting in Release 15.2R2, Cassandra cluster is an optional logical cluster that you can include within the Junos Space cluster.
RELATED DOCUMENTATION
Understanding Virtual IP Availability Within a Junos Space Cluster | 1676 Understanding High Availability Nodes in a Cluster | 1677 Configuring the Junos Space Cluster for High Availability Overview | 1684
1676
Understanding Virtual IP Availability Within a Junos Space Cluster
Junos Space must ensure that the virtual IP (VIP) address is always available on one of the nodes in the cluster. This is essential for the HA solution because if the VIP address becomes unavailable, the entire cluster becomes unavailable to all user interface clients and NBI clients. To protect against this scenario, Junos Space uses the heartbeat service (version 2.1.3 to version 3) provided by the Linux-HA project to ensure that the VIP address is always available on one of the nodes in the cluster. For information about the Linux-HA project, see the Linux HA User Guide.
Figure 149 shows the heartbeat service that runs on two nodes in the cluster, which together form a Linux HA cluster.
Figure 149: Heartbeat Service on a Linux High Availability Cluster
The heartbeat service is configured symmetrically on both nodes to send a heartbeat message to the other node at a 1-second interval. Unicast messages to UDP port 694 are used to send the heartbeat messages. If a node misses 10 consecutive heartbeat messages from the other node, it will consider the other node as dead and initiate a failover to take ownership of the protected resource. The protected resource in this case is the VIP address of the cluster. When failover occurs, the virtual IP address is obtained using a method known as IP address takeover (for more information, see IP Address Take Over) whereby the newly activated node configures the VIP address on one of its interfaces (eth0:0 is used in Junos Space for this) and sends gratuitous ARP packets for the VIP address. All hosts on the network should receive
1677
these ARP packets and, from this point forward, send subsequent packets for the VIP address to this node. When the node that currently owns the VIP address crashes, an automatic failover of the VIP address to the other node in the cluster occurs in a little more than 10 seconds. When the crashed node comes back up (for example, in the case of a reboot), it joins the HA cluster and acts as the standby node. In other words, an automatic failback of the VIP address does not happen.
NOTE: The 10 seconds that it takes Junos Space to detect a failed node is applicable when the node crashes or becomes nonresponsive. However, in cases where the node is shut down or rebooted, or if the heartbeat service on the node is stopped by the Junos Space administrator, a message is sent to the heartbeat service on the other node and VIP failover occurs almost instantaneously.
In the case of dedicated database nodes, the database VIP address failover happens in a similar manner to ensure database high availability.
RELATED DOCUMENTATION Understanding the Logical Clusters Within a Junos Space Cluster | 1669 Understanding High Availability Nodes in a Cluster | 1677 Configuring the Junos Space Cluster for High Availability Overview | 1684
Understanding High Availability Nodes in a Cluster
A Junos Space cluster must include at least two nodes to achieve high availability (HA). If the cluster includes more than two nodes, the availability of the cluster does not increase, but the amount of load that the cluster can handle increases with each node added to the cluster. So at any given time, only two nodes in the cluster provide HA to the whole cluster. By default, these two nodes alone (referred to as the HA nodes in the cluster) form the Linux HA cluster, the Apache Load Balancer cluster, and the MySQL cluster. If you have added dedicated database nodes to the cluster, the MySQL cluster is formed by the primary and secondary database nodes. By default, the first two nodes added to the cluster function as the HA nodes. In the topic "Understanding the Logical Clusters Within a Junos Space Cluster" on page 1669, the example shows that the first two nodes (Node-1 and Node-2) are HA nodes. If you were to delete Node-1 or Node-2 from the Network Management Platform > Administration > Fabric workspace, the system checks to see if other nodes in the cluster are available to replace the deleted HA node. The system then displays the list of capable nodes (only Node-3 in the example), which you can select. After you confirm the selected node, the Distributed Resource Manager (DRM) service adds the node to the HA cluster by sending requests to the Node
1678
Management Agent (NMA) running on the newly selected node. The following actions are initiated on the node added to the HA cluster:
· Apache HTTP server with the mod_proxy load balancer is started on the node and the node is configured with all JBoss nodes as members.
· If there are no dedicated database nodes in the cluster, the database from the MySQL server on the other HA node in the cluster is copied and the MySQL server is started on the node. This server is configured as a backup of the other MySQL server in the cluster and it resynchronizes with the primary in the background. The existing MySQL server is also reconfigured to act as a backup of this new server to ensure a symmetric primary/backup configuration on both.
When you add dedicated database nodes to the Junos Space cluster, you add two nodes together as the primary and secondary database nodes to form the MySQL cluster. The database is copied from the active HA node to the two database nodes and is disabled on the HA nodes. If you were to delete one of the database nodes from the cluster, the other database node is designated the primary database node. The system checks whether non-HA nodes in the cluster are available to replace the deleted database node and displays the list of nodes you can select to replace the deleted node.
After you select a node, the Distributed Resource Manager (DRM) service adds the node to the MySQL cluster by sending requests to the Node Management Agent (NMA) running on the newly selected node.
The following actions are initiated on the node added to the MySQL cluster:
· The database from the MySQL server on the primary database node in the cluster is copied and the MySQL server is started on the newly-added secondary database node. This server is configured as a backup of the MySQL server on the primary database node and it resynchronizes with the primary in the background. The existing MySQL server on the primary database node is also reconfigured to act as a backup of this new server on the secondary database node to ensure a symmetric primary/backup configuration on both.
· The JBoss server is stopped on the newly added database node.
In addition to the three default logical clusters, if you have a Cassandra cluster as part of the Junos Space fabric, the files uploaded to Cassandra are copied to all the Cassandra nodes that are part of the Cassandra cluster. Hence, if one Cassandra node fails, the files from the failed node are not lost. However, Junos Space Platform cannot upload files to or delete files in the Cassandra database until the node that failed is deleted.
If the Cassandra service is enabled on an HA node and that node goes down, and if you want to run the Cassandra service on the newly added HA node, you must manually enable and start the Cassandra service on the node. When the last node with the Cassandra service running is deleted, the files stored in the Cassandra database are lost.
RELATED DOCUMENTATION
Understanding the Logical Clusters Within a Junos Space Cluster | 1669 Configuring the Junos Space Cluster for High Availability Overview | 1684
1679
Understanding High Availability Management of DMI Connections
Junos Space maintains a persistent device management interface (DMI) connection with each managed device and supports the following types of DMI connections:
· Space-initiated (default)--A TCP connection from a JBoss server process on a node to the SSH port (22 by default) on the device.
· Device-initiated--A TCP connection from the device to port 7804 on a JBoss server process on a node.
To load balance DMI connections, all connections are distributed across all the nodes in a Junos Space cluster. A device keepalive monitor sends a heartbeat message to devices every 40 seconds. If there is no reply for 15 minutes, the device keepalive monitor marks the connection status of the device as Down.
A device connection monitor scans the connection status of all devices with space-initiated connections. If the monitor detects that the connection status of a device is Down, it attempts to reconnect to the device. If this first attempt fails, a second attempt is made after 30 minutes. Because each reconnect attempt is performed from a node in the cluster that is the least loaded in terms of the number of devices managed, the device might get reconnected from a different node in the cluster after a connection failure.
When devices are discovered using device-initiated connection mode, the device management IP address of all nodes in the Junos Space cluster gets configured in the outbound SSH stanza on the device. The device will keep trying to connect to one of these IP addresses until one succeeds. The device is responsible for detecting any failures on the connection and for reconnecting to another node in the cluster. For more information, see the Junos XML Management Protocol Guide.
If a JBoss server process crashes or is stopped, or if the node running the process is shut down, all the DMI connections that it maintains are migrated to another node in the cluster. When this JBoss server comes up, these DMI connections are not automatically migrated back to the JBoss server because it is available for any new devices that are being discovered. At present, there is no way to migrate DMI connections back to this original JBoss server, which can result in poor load balancing of DMI connections if there are not many new devices to be discovered.
RELATED DOCUMENTATION Understanding High Availability Nodes in a Cluster | 1677
High Availability for Network Monitoring
IN THIS SECTION High-Availability Fabric without FMPM Nodes | 1680 High-Availability Fabric with FMPM Nodes | 1681
1680
The type of Junos Space cluster you create determines how high availability for the network monitoring service functions. A Junos Space fabric without Fault Monitoring and Performance Monitoring (FMPM) nodes uses the two high availability (HA) nodes in the cluster to protect the network monitoring service against node failures. However, when a Junos Space fabric includes one or more FMPM nodes, network monitoring functionality is disabled on the Junos Space nodes and enabled on the FMPM nodes.
This topic includes the following sections:
High-Availability Fabric without FMPM Nodes
When a Junos Space fabric does not include FMPM nodes, the Junos Space cluster employs a hot-standby solution that uses the two high availability (HA) nodes in the cluster to protect the network monitoring service against node failures.
Figure 150 shows how network monitoring runs on two HA nodes in the cluster to protect the service in the event of node failure.
Figure 150: Linux High Availability Cluster
1681
The network monitoring service is automatically installed on all nodes in the cluster. However, at any time, the network monitoring service runs only on the node that currently owns the virtual IP (VIP) address, and the service is responsible for all fault management and performance management functionality for the entire cluster. Network monitoring uses PostgreSQL 9.1 database for its storage needs. As Figure 150 shows, real-time streaming replication with continuous archiving is set up between the two HA nodes (Node-1 and Node-2 in the cluster), which ensures that the network monitoring database on the standby node is continuously in sync with the network monitoring database on the active node. In addition, a cron job runs on the active node once a day at midnight to synchronize the network monitoring file system to the standby node, which ensures that all back-end configuration files that network monitoring uses are also synchronized between the two HA nodes.
When a VIP failover to the standby node occurs, network monitoring is automatically started on the node. The network monitoring service takes approximately 3 to 5 minutes to complete its initialization before it performs all fault monitoring and performance monitoring functionality for the cluster. Consequently, Junos Space users can expect a network monitoring outage to last approximately 3 to 5 minutes.
The watchdog service on the two HA nodes is responsible for ensuring that the network monitoring service is running on the HA node that owns the virtual IP address and is not running on the other (standby) HA node. As already noted, the watchdog service checks the status of all services on the node every second. If the watchdog service detects that the node owns the VIP address but does not run the network monitoring service, the watchdog service starts the network monitoring service and creates the cron job to synchronize fault management and performance management data to the other node. If the watchdog service detects that the node does not own the VIP address but is running the network monitoring service, the watchdog service shuts down the service and removes the cron job entry for data synchronization.
High-Availability Fabric with FMPM Nodes
If you manage a large or complex network, you might want to dedicate all your performance and network monitoring functionality to a special node called the Fault Monitoring and Performance Monitoring (FMPM) node. When you create a Junos Space fabric with one or more FMPM nodes, network monitoring functionality is disabled on all the Junos Space nodes and enabled on the FMPM nodes. When the first FMPM node is added to the fabric, network monitoring functionality is enabled on this node and the PostgreSQL 9.1 database runs on this node.
When you add a second FMPM node to the fabric, the first FMPM node functions as the primary node, and the second FMPM node functions as the standby node. The network monitoring service is automatically installed on both FMPM nodes in the FMPM team. However, at any time, the network monitoring service runs only on the FMPM node that currently owns the VIP address, and the service is responsible for all fault management (FM) and performance management (PM) functionality for the FMPM team. Network monitoring uses PostgreSQL 9.1 database for its storage needs.
Real-time streaming replication with continuous archiving is set up between the two FMPM nodes in the team, which ensures that the network monitoring database on the standby node is continuously in sync with the network monitoring database on the active node. In addition, a cron job runs on the active FMPM
1682
node once a day at midnight to synchronize the network monitoring file system to the standby FMPM node, which ensures that all back-end configuration files that network monitoring uses are also synchronized between the two FMPM nodes. When a VIP failover to the standby FMPM node occurs, network monitoring is automatically started on the second FMPM node. The network monitoring service takes approximately 3 to 5 minutes to complete its initialization before it performs all FM and PM functionality for the FMPM team. Consequently, Junos Space users can expect a network monitoring outage to last approximately 3 to 5 minutes.
The watchdog service on the two nodes is responsible for ensuring that the network monitoring service is running on the FMPM node which owns the virtual IP address and is not running on the other (standby) FMPM node. As already noted, the watchdog service checks the status of all services on the active FMPM node every second. If the watchdog service detects that the FMPM node owns the VIP address but does not run the network monitoring service, the watchdog service starts the network monitoring service and creates the cron job to synchronize fault management and performance management data to the other node. If the watchdog service detects that the FMPM node does not own the VIP address but is running the network monitoring service, the watchdog service shuts down the service and removes the cron job entry for data synchronization.
RELATED DOCUMENTATION
Understanding How Devices Are Configured to Send SNMP Traps to Junos Space | 1682 Understanding High Availability Nodes in a Cluster | 1677 Configuring the Junos Space Cluster for High Availability Overview | 1684
Understanding How Devices Are Configured to Send SNMP Traps to Junos Space
Devices discovered in Junos Space are automatically configured to send SNMP traps to Junos Space.
The trap destination IP address that is configured on devices depends on whether a separate device management interface (eth3) is used on the node on which network monitoring is currently running. If the node uses the eth3 interface for device management, then the discovered devices are configured with the eth3 IP address. Otherwise, the discovered devices are configured with the virtual IP (VIP) address of the Junos Space cluster. If the VIP is configured as the trap destination, you do not need to reconfigure the trap destination on managed devices after a VIP failover because network monitoring will be started automatically on the node that currently owns the VIP and the node will start receiving the traps. However, if the eth3 IP address is configured as the trap destination, you must reconfigure all devices when a VIP failover occurs. This will be done automatically as part of the startup process of network monitoring on
1683
the second HA node. When network monitoring comes up on the new node, the trap destination on all managed devices will be automatically reconfigured to be the eth3 IP address for this node.
NOTE: Automatic reconfiguration is not possible for devices whose connection with Junos Space is down at the time of the network monitoring failover. If there are any such devices, network monitoring stops receiving traps from these devices after the failover, and you will need to manually change the trap destination on these devices to the eth3 IP address of the node where network monitoring is currently running.
RELATED DOCUMENTATION High Availability for Network Monitoring | 1680 Understanding High Availability Nodes in a Cluster | 1677
1684
CHAPTER 96
Configuring High Availability Overview
IN THIS CHAPTER Configuring the Junos Space Cluster for High Availability Overview | 1684
Configuring the Junos Space Cluster for High Availability Overview
IN THIS SECTION Requirements | 1684 Preparation | 1685 Configuring the First Node in the Cluster | 1687 Adding a Second Node to the Cluster | 1688 Adding Additional Nodes to a Cluster | 1688 Configuring FMPM Nodes | 1689 Removing Nodes from a Cluster | 1689
This topic provides an overview of the key steps required to configure a Junos Space cluster as a carrier-grade system with all high-availability capabilities enabled. Requirements You can choose either Junos Space Appliances (JA2500) or Virtual Appliances for setting up a Junos Space cluster.
1685
For a cluster of Virtual Appliances, the following recommendations apply for the underlying virtualization infrastructure on which the appliances are deployed:
· Use VMware ESX server 4.0 or later or VMware ESXi server 4.0, 5.0, 5.1, 5.5, or 6.0 or a kernel-based virtual machine (KVM) server on qemu-kvm (KVM) Release 0.12.1.2-2/448.el6 or later (which is on CentOS Release 6.5) that can support a virtual machine.
· Deploy the two Junos Space Virtual Appliances (JSVA) on two separate servers. · Each server must be able to dedicate 4 vCPUs or 2.66 GHz or more, 32 GB RAM, and sufficient hard
disk for the Junos Space Virtual Appliance that it hosts. · The servers should have similar fault tolerance features as the Junos Space appliance: dual redundant
power supplies connected to two separate power circuits, RAID array of hard disks for storage, and hot-swappable fans.
NOTE: For more information on the requirements for the virtual appliance, refer to the Deploying a Junos Space Virtual Appliance on a VMware ESXi Server and Deploying a Junos Space Virtual Appliance on a KVM Server topics in the Junos Space Virtual Appliance documentation.
If you choose Junos Space appliances, you need to choose two instances of the corresponding SKUs for the appliance that you are using. In addition, order a second power supply module for each appliance in order to provide the redundant power supply module for each appliance.
Preparation
We recommend you use the following guidelines as you prepare a Junos Space cluster for high availability:
· The Junos Space cluster architecture allows you to dedicate one or two nodes solely for fault monitoring and performance monitoring functions. These are known as Fault Monitoring and Performance Monitoring (FMPM) nodes and are recommended when managing complex networks with a large number of devices and interfaces to be monitored. The advantage of this architecture is that fault and performance monitoring functions are localized within the FMPM nodes and the rest of the Junos Space nodes are freed up for other functions. One of the first decisions that you must make is whether to use FMPM nodes in your Junos Space cluster. If you choose to deploy FMPM nodes, we recommended that you have two of them so that the fault monitoring and performance monitoring services also have high availability. Currently, load balancing is not implemented across multiple FMPM nodes, so there is no need to have more than two FMPM nodes in a cluster.
· The Junos Space cluster architecture allows you to dedicate two Junos Space nodes solely for MySQL database functions. Dedicated database nodes can free up system resources such as CPU time and memory utilization on the Junos Space VIP node, thereby improving the performance of the Junos Space VIP node. If you decide to add dedicated database nodes to the Junos Space cluster, in the first
1686
instance you must add two nodes together as the primary and secondary database nodes, enabling database high availability by default.
· Junos Space Platform enables you to run the Cassandra service on dedicated nodes with only the Cassandra service running or on nodes with the JBoss server running. When the Cassandra service is started on any of the nodes, device images and files from Junos Space applications are moved from the MySQL database to the Cassandra database, thereby improving the performance of the MySQL database. If you want to ensure redundancy for files stored in the Cassandra database, you must ensure that the Cassandra service is running on two or more nodes that together form the Cassandra cluster.
· A Junos Space appliance (hardware or virtual) utilizes two Ethernet interfaces: eth0 and eth3. The eth0 interface is used for all inter-node communication within the cluster and also for communication between GUI and NBI clients and the cluster. The eth3 interface can be configured as the device management interface, in which case, all communication between the cluster and the managed devices occur over this interface. If the eth3 interface is not configured, all device communication also takes place over the eth0 interface. So, you must first decide whether or not to use eth3 as the device management interface. If you choose to use eth3, you should use eth3 for all appliances in the same cluster.
· You also must decide on the following networking parameters to be configured on the Junos Space appliances:
· IP address and subnet mask for the interface "eth0", the default gateway address, and the address of one or more name servers in the network.
· IP address and subnet mask for the interface "eth3" if you choose to use a separate device management interface.
· The virtual IP address to use for the cluster, which should be an address in the same subnet as the IP address assigned to the "eth0" interface.
If you decide to add dedicated database nodes, you must choose a separate virtual IP (VIP) address in the same subnet as the VIP address of the Junos Space cluster. This database VIP address must be in the same subnet as the IP address assigned to the eth0 Ethernet interface and must be different from the VIP address of the Junos Space cluster and the FMPM nodes.
If you decide to use an FMPM cluster, you must choose a separate virtual IP address for the FMPM nodes. Please note that the FMPM virtual IP address need not be in the same subnet as the virtual IP address of the Junos Space nodes.
· NTP server settings from which to synchronize the appliance's time. · The IP address that you assign to each Junos Space node in the cluster and the virtual IP address for
the cluster must be in the same subnet. This is required for the IP address takeover mechanism to function correctly.
It is possible to configure the FMPM nodes in a separate subnet.
1687
NOTE: Strictly speaking, you can choose to deploy the non-HA nodes in a different subnet. However, doing so will cause a problem if one of the HA nodes goes down and you want to promote one of the other nodes as an HA node. So, we recommend that you configure eth0 on all nodes in the same subnet.
· Because JBoss servers on all the nodes communicate using UDP multicast to form and manage the JBoss cluster, you must ensure that UDP multicast is enabled in the network where you deploy the cluster nodes. You must also disable IGMP snooping on the switches interconnecting the cluster, or configure them explicitly to allow UDP multicast between the nodes.
NOTE: FMPM nodes and dedicated database nodes do not participate in the JBoss cluster. Therefore, there is no need to enable UDP multicast between these nodes and the Junos Space nodes in the cluster.
Configuring the First Node in the Cluster
After you power on the appliance and connect to its console, Junos Space displays a menu-driven command-line interface (CLI) that you use to specify the initial configuration of the appliance. To complete this initial configuration, you specify the following parameters: · IP address and subnet mask for the interface "eth0" · IP address of the default gateway · IP address of the name server · IP address and subnet mask for the interface "eth3", if you choose to configure a cluster as described
in the topic "Understanding the Logical Clusters Within a Junos Space Cluster" on page 1669. · Whether this appliance being added to an existing cluster. Choose "n" to indicate that this is the first
node in the cluster. · The virtual IP address that the cluster will use. · NTP server settings from which to synchronize the appliance's time. · Maintenance mode user ID and password.
1688
NOTE: Make note of the user ID and password that you specify for maintenance mode, as you will need this ID and password to perform Network Management Platform software upgrades and database restoration.
For detailed step-by-step instructions on configuring the appliance for initial deployment, refer to the Junos Space appliance documentation. After you have completed the initial configuration, all Junos Space services are started on the appliance and you can log in to the Network Management Platform User Interface from the virtual IP address assigned to it. At this stage, you have a single node cluster with no HA, which you can see by navigating to the Network Management Platform > Administration> Fabric workspace.
Adding a Second Node to the Cluster
In order to add a second node to the cluster, you must first configure the second appliance using its console. The process is identical to that of the first appliance except that you need to choose "y" when it you are prompted to specify whether this appliance will be added to an existing cluster. Make sure that the IP address you assign to this node is in the same subnet as the first node. You must also ensure its uniformity in using a separate device management interface (eth3). If you chose to use eth3 for the first node, choose the same for all additional nodes in the cluster.
After you configure the second appliance, you can log in to the Network Management Platform user interface of the first node at its virtual IP address to add the node to the cluster from the Network Management Platform > Administration > Fabric > Add Fabric Node workspace. To add the node to the cluster, specify the IP address assigned to the eth0 interface of the new node, assign a name for the new node, and (optionally) schedule the date and time to add the node. The Distributed Resource Manager (DRM) service running on the first node contacts Node Management Agent (NMA) on the new node to make necessary configuration changes and add it to the cluster. The DRM service also ensures that required services are started on this node. After the new node joins the cluster, you can monitor its status from the Network Management Platform > Administration > Fabric workspace.
For more information about adding nodes to an existing cluster from the Junos Space Platform UI, see "Fabric Management Overview" on page 1157 (in the Junos Space Network Management Platform Workspaces User Guide).
Adding Additional Nodes to a Cluster
The process for adding additional nodes is identical to the process for adding the second node. However, these additional nodes do not participate in any of the HA clusters in the fabric, unless explicitly promoted to that role if another HA node is removed, or if they are added as dedicated database nodes to form the MySQL cluster.
1689
For more information about adding nodes to an existing cluster from the Junos Space Platform UI, see "Fabric Management Overview" on page 1157 (in the Junos Space Network Management Platform Workspaces User Guide).
Configuring FMPM Nodes
You can configure up to 2 FMPM nodes in a cluster. To configure FMPM nodes: · For Junos Space appliances, refer to the following topics in the Hardware Documentation section of the
Junos Space Network Management Platform documentation: · Configuring a Junos Space Appliance as a Standalone or Primary FMPM Node · Configuring a Junos Space Appliance as a Backup or Secondary FMPM Node for High Availability · For Junos Space Virtual Appliances, refer to the following topics in the Junos Space Virtual Appliance documentation: · Configuring a Junos Space Virtual Appliance as a Standalone or Primary FMPM Node · Configuring a Junos Space Virtual Appliance as a Backup or Secondary FMPM Node for High Availability
Removing Nodes from a Cluster
If a node has failed and needs to be replaced, you can easily remove the node from the cluster. Navigate to the Network Management Platform > Administration > Fabric workspace, select the node you want to remove, and choose the Delete Node action. If the node being deleted is an HA node, the system will check if other nodes in the cluster can be elected as the replacement for the HA node being deleted. The system then shows the list of capable nodes (only Node-3 in this example) and allows you to choose from the available nodes. The process is described in "Understanding High Availability Nodes in a Cluster" on page 1677. If the node being deleted is a database node, the system checks whether other nodes in the cluster can replace the database node being deleted. If there are nodes present that are capable of replacing the deleted node, the system displays the list of capable nodes and allows you to choose from the available nodes. For more information about deleting nodes from the cluster, see "Deleting a Node from the Junos Space Fabric" on page 1252 (in the Junos Space Network Management Platform Workspaces User Guide).
RELATED DOCUMENTATION Understanding High-Availability Failover Scenarios | 1690
CHAPTER 97
High Availability Failover Scenarios
IN THIS CHAPTER Understanding High-Availability Failover Scenarios | 1690
Understanding High-Availability Failover Scenarios
IN THIS SECTION Active VIP Node Crashes | 1691 Standby VIP Node Crashes | 1691 eth0 on the Active VIP Node Goes Down | 1692 eth0 on the Standby VIP Node Goes Down | 1693 A Non-VIP Node Crashes | 1693 eth0 on a Non-VIP Node Goes Down | 1693 eth3 on a Non-VIP Node Goes Down | 1694 eth3 on the Active VIP Node Goes Down | 1694 JBoss Server on a Node Goes Down | 1695 MySQL Server on the Active VIP Node Goes Down | 1696 MySQL Server on the Standby VIP Node Goes Down | 1696 Primary Database Node Crashes | 1697 Secondary Database Node Crashes | 1697 MySQL Server on the Primary Database Node Goes Down | 1697 MySQL Server on the Secondary Database Node Goes Down | 1698 Apache HTTP Server on the Active VIP Node Goes Down | 1698 Apache HTTP Server on the Standby VIP Node Goes Down | 1699 Dedicated Cassandra Node Crashes | 1699 Cassandra Service on a JBoss Node Goes Down | 1699
1690
1691
The following sections describe possible high-availability failure scenarios: how a failure is detected, what recovery action to take, and if applicable, the impact on the system caused by the failure.
Active VIP Node Crashes
Detection The heartbeat service running on a standby VIP node detects a crash within 10 seconds of not receiving any heartbeat messages from its peer. The JBoss clustering mechanism enables JBoss servers on other nodes to detect that the JBoss server on the failed node is unresponsive, in about 52 seconds. Recovery The standby node immediately takes over the VIP address. Device connections served by the failed node are migrated to the remaining nodes in the cluster. This process starts in about one minute after the JBoss cluster members detect that the JBoss server on the failed node is down. The time it takes for the process to complete depends on the number of device connections to be migrated, the load on the remaining nodes, and so on. Typically, the process is completed within a few minutes. After the VIP address is taken over by the standby node, a network monitoring service is started on the standby node. It takes around three to five minutes for the network monitoring service to complete its initialization. It might take more time depending on the size of the FM and PM data that is being maintained. Impact The VIP address becomes unavailable for about 10 seconds until it is taken over by the standby node. The GUI or API client access during this period encounters transient errors. In addition, any SNMP traps sent by the devices to the VIP address during this interval are lost. Device connectivity is down for a few minutes for devices whose connections were being served by the JBoss server on the failed node. Any jobs that were in progress on the failed node are marked as failed and the reason is indicated. Users experience an outage of network monitoring functionality for about three to five minutes while the network monitoring service is being initialized on the standby node.
Standby VIP Node Crashes
Detection The JBoss clustering mechanism enables JBoss servers on the other nodes to detect that the JBoss server on the failed node is unresponsive in about 52 seconds. Recovery
1692
Device connections served by the failed node are migrated to the remaining nodes in the cluster. This process starts in about one minute after the JBoss cluster members detect that the JBoss server on the failed node is down. The process completion time depends on the number of device connections to be migrated, the load on the remaining nodes, and so on. Typically, this process is completed within a few minutes.
Impact
Device connectivity is down for a few minutes for devices whose connections were being served by the JBoss server on the failed node.
Any jobs that were in progress on the failed node are marked as failed and the reason is indicated.
eth0 on the Active VIP Node Goes Down
Detection
The heartbeat service running on the standby VIP node detects the crash within 10 seconds of not receiving any heartbeat messages from its peer. The JBoss clustering mechanism enables JBoss servers on the other nodes to detect that the JBoss server on the failed node is unresponsive, in about 52 seconds.
Recovery
The standby node immediately takes over the VIP address.
Device connections served by the failed node are migrated to the remaining nodes in the cluster. This process starts in about one minute after the JBoss cluster members detect that the JBoss server on the failed node is down. The time it takes for the process to complete depend on the number of device connections to be migrated, the load on the remaining nodes, and so on. Typically, the process is completed within a few minutes.
After the VIP address is taken over by the standby node, a network monitoring service is started on the standby node. It takes around three to five minutes for the network monitoring service to complete its initialization. It might take more time depending on the size of FM and PM data that is being maintained.
Impact
The VIP address becomes unavailable for about 10 seconds until it is taken over by the standby node. The GUI or API client access during this period encounters transient errors. In addition, any SNMP traps sent by the devices to the VIP address during this interval are lost.
Device connectivity is down for a few minutes for the devices whose connections were being served by the JBoss server on the failed node.
Any jobs that were in progress on the failed node are marked as failed and the reason is indicated.
Users experience an outage of network monitoring functionality for about three to five minutes while the network monitoring service is being initialized on the standby node.
1693
eth0 on the Standby VIP Node Goes Down
Detection The JBoss clustering mechanism enables JBoss servers on the other nodes to detect that the JBoss server on the failed node is unresponsive in about 52 seconds. Recovery Device connections served by the failed node are migrated to the remaining nodes in the cluster. This process starts in about one minute after the JBoss cluster members detect that the JBoss server on the failed node is down. The process completion time depends on the number of device connections to be migrated, the load on the remaining nodes, and so on. Typically, this process is completed within a few minutes. Impact Device connectivity is down for a few minutes for the devices whose connections were being served by the JBoss server on the failed node. Any jobs that were in progress on the failed node are marked as failed and the reason is indicated.
A Non-VIP Node Crashes
Detection The JBoss clustering mechanism enables JBoss servers on the other nodes to detect that the JBoss server on the failed node is unresponsive in about 52 seconds. Recovery Device connections served by the failed node are migrated to the remaining nodes in the cluster. This process starts in about one minute after the JBoss cluster members detect that the JBoss server on the failed node is down. The time it takes for the process to complete depends on the number of device connections to be migrated, the load on the remaining nodes, and so on. Typically, this process is completed in a few minutes. Impact Device connectivity is down for a few minutes for devices whose connections were served by the JBoss server on the failed node. Any jobs that were in progress on the failed node are marked as failed and the reason is indicated.
eth0 on a Non-VIP Node Goes Down
Detection
1694
The JBoss clustering mechanism enables JBoss servers on the other nodes to detect that the JBoss server on the failed node is unresponsive in about 52 seconds.
Recovery
Device connections served by the failed node are migrated to the remaining nodes in the cluster. This process starts in about 1one minute after the JBoss cluster members detect that the JBoss server on the failed node is down. The process completion time depends on the number of device connections to be migrated, the load on the remaining nodes, and so on. Typically, this process is completed in, a few minutes.
Impact
Device connectivity is down for a few minutes for the devices whose connections were being served by the JBoss server on the failed node.
Any jobs that were in progress on the failed node are marked as failed and the reason is indicated.
eth3 on a Non-VIP Node Goes Down
Detection
The device keepalive monitor detects that all device connections served by this node are down in 15 minutes and marks the connection status of these devices as Down.
Recovery
For connections initiated by Junos Space , Junos Space attempts to reconnect with these devices. Each attempt is made from the cluster node that is determined to be the least loaded in terms of the number of devices it manages. If other nodes in the cluster are significantly less loaded than this node, according to this load-balancing check, reconnection attempts are made from those nodes and they succeed. In this case, connectivity for these devices comes back up in a few minutes. If this node happens to be the least loaded, then all reconnection attempts are made from this node and these attempts continue to fail as long as eth3 remains down.
In the case of device-initiated connections, the device detects a connection failure in about 15 minutes, and then reconnects with another node in the cluster in the next few seconds.
Impact
Device connectivity is down for devices whose connections were being served by this node. Connectivity might be down for 15 minutes (best case) or until eth3 is brought back up (worst case). In addition, the outage time might vary from device to device depending on which node is chosen to attempt a reconnection for that device. In the case of device-initiated connections, the outage lasts for a little more than 15 minutes.
eth3 on the Active VIP Node Goes Down
Detection
1695
The device keepalive monitor detects that all device connections served by this node are down in 15 minutes and marks the connection status of these devices as Down.
Recovery
For Jconnections initiated by Junos Space, Junos Space attempts to reconnect with these devices. Each attempt is made from the cluster node that is determined to be the least loaded in terms of the number of devices it manages. If other nodes in the cluster are significantly less loaded than this node, according to this load-balancing check, reconnection attempts are made from those nodes and they succeed. In this case, connectivity for these devices comes back up in a few minutes. If this node happens to be the least loaded, then all reconnection attempts are made from this node and these attempts continue to fail as long as eth3 remains down.
In the case of device-initiated connections, the device detects a connection failure in about 15 minutes and then reconnects with another node in the cluster in the next few seconds.
Impact
Device connectivity is down for the devices whose connections were being served by this node. Connectivity might be down for 15 minutes (best case) or until eth3 is brought back up (worst case). In addition, the outage time might vary from device to device depending on which node is chosen to attempt a reconnection for that device. In the case of device-initiated connections, the outage lasts for a little more than 15 minutes.
The network monitoring service is also affected because it runs only on the VIP node. The service does not receive any SNMP traps from any managed device because all devices are configured with the eth3 IP address of the VIP node as the trap destination. In addition, all performance and fault monitoring of all managed devices fail until eth3 is brought back up.
JBoss Server on a Node Goes Down
Detection
When the JBoss server on a node goes down, other nodes in the JBoss cluster detect the failure in about two seconds) because their TCP connections to the failed JBoss server are closed by the operating system.
Recovery
Device connections served by the failed JBoss server are migrated to the other nodes in the cluster. This process starts in about one minute after the JBoss cluster members detect that the JBoss server on the failed node is down. The time it takes for the process to complete depends on the number of device connections to be migrated, the load on the remaining nodes, and so on. Typically, the process is completed within a few minutes.
The watchdog service (jmp-watchdog) running on the node detects that the JBoss server is down and restarts it automatically. When the JBoss server comes back up, it is automatically discovered by other cluster members and added to the cluster. It then synchronize its cache from the other nodes in the cluster. The typical restart time for JBoss is two to five minutes. However, it can take more time depending on
1696
the number of applications installed, the number of devices being managed, the number of DMI schema versions installed, and so on. Impact Device connectivity is down for a few minutes for devices whose connections were being served by the JBoss server that went down. Any jobs that were in progress on the crashed JBoss server are marked as failed and the reason is indicated.
MySQL Server on the Active VIP Node Goes Down
Detection If the MySQL server on a node goes down, the watchdog service detects the down MySQL server on that active node in about one to two seconds. Recovery The watchdog service immediately restarts the MySQL server on the node. When restarted, the MySQL server comes up in around 20 to 60 seconds. Impact The MySQL server on the VIP node is the active database servicing all requests from all JBoss servers in the cluster. This effectively means that a brief database outage could be experienced by JBoss on all nodes for this duration (20 to 60 seconds). Any requests that require database access fail during this period. This results in failures encountered by GUI or API clients on their requests, which internally require database access during this period. This also results in failures of jobs that require database access during this period.
MySQL Server on the Standby VIP Node Goes Down
Detection If the MySQL server on a node goes down, the watchdog service detects the down MySQL server on that standby node in about one to two seconds. Recovery The watchdog service immediately restarts the MySQL server on the node. When restarted, it takes around 20 to 60 seconds for the MySQL server to come up. After it is back up, this server resynchronizes with the primary server in the background and the resynchronization time depends on the number of changes that happened during the outage. Impact Since the MySQL server on the standby VIP node is not accessed by JBoss, its downtime does not cause any adverse impact that is noticed by the rest of the system or users of the system.
1697
Primary Database Node Crashes
Detection The heartbeat service running on the secondary database node detects the crash within 10 seconds of not receiving any heartbeat messages from the primary database node. Recovery The database VIP address is transferred to the secondary database node within 10 to 20 seconds. The JBoss servers on other nodes can access the database after the database VIP address is taken over by the secondary database node. Impact The database VIP address becomes unavailable for about 10 to 20 seconds until it is taken over by the secondary database node.The MySQL server on the primary database node is the active database servicing all requests from all JBoss servers in the cluster. This effectively means that a brief database outage could be experienced by JBoss on all nodes for this duration (20 to 60 seconds). Any requests that require database access fail during this period. This results in failures encountered by GUI and API clients on their requests that internally require database access during this period. This also results in failures of jobs that require database access during this period.
Secondary Database Node Crashes
Detection The heartbeat service running on the primary database node detects the crash within 10 seconds of not receiving any heartbeat messages from the secondary database node. Recovery The node can be deleted and a new node can be added to the Junos Space cluster as a secondary database node to maintain database high availability. Impact Because the MySQL server on the secondary database node is not accessed by JBoss, its downtime does not cause any adverse impact that is noticed by the rest of the system or users of the system.
MySQL Server on the Primary Database Node Goes Down
Detection If the MySQL server on a node goes down, the watchdog service detects the down MySQL server on that active node in about one to two seconds.
1698
Recovery The watchdog service immediately restarts the MySQL server on the node. When restarted, the MySQL server comes up in around 20 to 60 seconds. Impact The MySQL server on the primary database node is the active database servicing all requests from all JBoss servers in the cluster. This effectively means that a brief database outage could be experienced by JBoss on all nodes for this duration (20 to 60 seconds). Any requests that require database access fail during this period. This results in failures encountered by GUI and API clients on their requests that internally require database access during this period. This also results in failures of jobs that require database access during this period.
MySQL Server on the Secondary Database Node Goes Down
Detection If the MySQL server on a node goes down, the watchdog service detects the down MySQL server on that standby node in about one to two seconds. Recovery The watchdog service immediately restarts the MySQL server on the node. When restarted, it takes around 20 to 60 seconds for the MySQL server to come up. After it is back up, this server resynchronizes with the primary database node in the background. The resynchronization time depends on the number of changes that happened during the outage. Impact Because the MySQL server on the secondary database node is not accessed by JBoss, its downtime does not cause any adverse impact that is noticed by the rest of the system or users of the system.
Apache HTTP Server on the Active VIP Node Goes Down
Detection If the Apache HTTP server on a node goes down, the watchdog service detects the down HTTP server on that node in about one to two seconds. Recovery The watchdog service immediately restarts the Apache HTTP server on the node and it becomes ready for service in one second. Impact
1699
A brief service outage could be experienced by GUI and NBI clients until the Apache HTTP server is restarted. However, this outage is only for a few seconds (typically, two seconds) and is hardly noticed by the clients.
Apache HTTP Server on the Standby VIP Node Goes Down
Detection If the Apache HTTP server on a node goes down, the watchdog service detects the down HTTP server on that node in about one to two seconds. Recovery The watchdog service immediately restarts the Apache HTTP Server on the node and it becomes ready for service in one second. Impact No impact.
Dedicated Cassandra Node Crashes
Detection If the Cassandra node goes down, the watchdog service detects that the Cassandra service is down on that node in about one to two seconds. Recovery The Cassandra node that is down must be deleted from the fabric. Impact Files cannot be uploaded to or deleted from the Cassandra database until the node that is down is deleted from the fabric.
Cassandra Service on a JBoss Node Goes Down
Detection If the Cassandra service on a JBoss node goes down, the watchdog service detects that the Cassandra service is down on that node in about one to two seconds. Recovery The Cassandra service on the node must be disabled. Impact
1700
Files cannot be uploaded to or deleted from the Cassandra database until the Cassandra service is disabled on the node.
RELATED DOCUMENTATION Configuring the Junos Space Cluster for High Availability Overview | 1684 Disaster Recovery Overview | 1702
17 PART
Disaster Recovery
Disaster Recovery Solution | 1702 Configuring the Disaster Recovery Process | 1734 Configuring the Disaster Recovery Process in the GUI | 1750 Managing the Disaster Recovery Solution | 1759 Upgrading Junos Space Network Management Platform with Disaster Recovery Enabled | 1801
1702
CHAPTER 98
Disaster Recovery Solution
IN THIS CHAPTER Disaster Recovery Overview | 1702 Understanding the Normal Operation of Active and Standby Sites | 1726 Understanding Disaster Recovery Failure Scenarios | 1727 Understanding How the Standby Site Becomes Operational When the Active Site Goes Down | 1733
Disaster Recovery Overview
IN THIS SECTION Disaster Recovery Solution | 1703 Prerequisites to Configure Disaster Recovery | 1705 Connectivity Requirements to Configure Disaster Recovery | 1706 Disaster Recovery Watchdog | 1706 Failure Detection by Using the Device Arbitration Algorithm | 1709 Failure Detection by Using the Custom Failure-Detection Scripts | 1710 Steps to Configure Disaster Recovery | 1721 Disaster Recovery Commands | 1722
A Junos Space cluster allows you to maintain high availability and scalability in your network management solution. However, because all nodes in a cluster need to be within the same subnet, they are typically deployed in the same data center or within the same campus. But you can easily recover a cluster from a disaster at a location by mirroring the original Junos Space installation on a cluster to another cluster at a geographically different location. So if the main Junos Space site fails due to a disaster such as an earthquake, the other site can take over. Hence, the physical installation of the disaster recovery setup is typically a set of two geographically separate clusters: the active or main site (that is, the local site) and the standby or backup site (that is, the remote site).
1703
When the basic connectivity requirements and prerequisites are met (refer to "Prerequisites to Configure Disaster Recovery" on page 1567 and "Connectivity Requirements to Configure Disaster Recovery" on page 1568 ), data from the cluster at the active site is replicated to the cluster at the standby site in near realtime.
The data in the MySQL and PgSQL databases is replicated asynchronously from the active site to the standby site over an SSL connection. MySQL and PgSQL data between the disaster recovery sites is encrypted using self-signed SSL certificates that are generated when disaster recovery is initialized. CA root certificate, CRLs, user certificates, scripts, device images, archived audit logs, and information about scheduled jobs are replicated to the standby site during the real-time data replication to the standby site. The configuration and round-robin database (RRD) files are synchronized periodically by using Secure Copy Protocol (SCP) from the active site to the standby site.
The disaster recovery watchdog, an in-built Junos Space mechanism, monitors the integrity of database replication across sites. All other services (such as JBoss, OpenNMS, Apache, and so on) do not run on the standby site until the active site fails over to the standby site. A failover to the standby site is automatically initiated when the active site is down. A device arbitration algorithm is used to determine which site should be the active site to prevent a split-brain scenario where both sites try to be active. For information about the device arbitration algorithm, see "Failure Detection by Using the Device Arbitration Algorithm" on page 1709.
The following sections describe the connectivity requirements for the disaster recovery process, failure-detection mechanisms, and the disaster recovery commands:
Disaster Recovery Solution
After you configure and initiate the disaster recovery process between an active site and a standby site, asynchronous replication of MySQL and PgSQL database between the sites is initiated. Configuration and RRD files are backed up to the standby site through SCP at defined time intervals.
The disaster recovery process does not perform real-time replication of the Cassandra database to the standby site or monitor the Cassandra service running on the Junos Space nodes.
During the normal operation of the disaster recovery solution, the GUI and API users and the managed devices are connected to the active site for all network management services. The connectivity between the standby site and managed devices is disabled as long as the active site is functional. When the active site becomes unavailable due to a disaster, the standby site becomes operational. At this time, all services on the standby site are started and the connectivity between the standby site and managed devices is established.
Figure 151 displays the disaster recovery solution.
Figure 151: Disaster Recovery Solution
1704
The disaster recovery watchdog process is initiated at the VIP node of both the active and standby sites to monitor the health of the replication process and detect when the remote site goes down. The disaster recovery watchdog at the local site checks whether there are connectivity issues between both sites (by pinging the nodes at the remote site) and whether the sites are connected to arbiter devices (if you use the device arbitration algorithm).
The disaster recovery watchdog at a site performs the following tasks to confirm connectivity with the remote site and arbiter devices:
· Ping the VIP address of the remote site at a regular configurable interval. The default value for the interval is 30 seconds.
For each ping, expect a reply within a configurable timeout interval. The default value for the timeout interval is 5 seconds.
· If the local site fails to receive a reply within the timeout interval, the disaster recovery watchdog retries the ping for a configurable number of times. By default, the number of retries is 4.
· If all the retries fail, the disaster recovery watchdog at the local site concludes that the VIP address of the remote site is not reachable.
However, the disaster recovery watchdog does not conclude that the remote site is down because the remote site may be switching over the VIP address to a standby node due to a local switchover.
1705
· To consider the possibility of a VIP address switchover, the disaster recovery watchdog pings the IP addresses of the other load-balancer nodes at the remote site. If the ping to any of the nodes receives a reply, the disaster recovery watchdog concludes that the remote site is still up. If the ping to the nodes fails, the disaster recovery watchdog does not conclude that the remote site is down. Instead, the disaster recovery watchdog considers the possibility of connectivity issues between the sites. Both sites will try to become active.
· To prevent both sites from trying to become active, the disaster recovery watchdog initiates the device arbitration algorithm and determines whether a failover is required. A failover is initiated only if the percentage of arbiter devices managed by the active site falls below the failover threshold. Then the active site becomes the standby site and the standby site becomes the active site. If the percentage of arbiter devices is above the failover threshold, the standby site remains standby and the active site remains active. The percentage of arbiter devices managed by the active site is configurable and its default value is 50%.
The failover is initiated if the following conditions are met:
· The standby site cannot reach the VIP address of the active site or the node IP addresses of other load-balancer nodes at the active site.
· The percentage of the arbiter devices managed by the active site is below the failover threshold. For more information about the device arbitration algorithm, see "Failure Detection by Using the Device Arbitration Algorithm" on page 1709.
Prerequisites to Configure Disaster Recovery
You need to ensure that your Junos Space installation meets the following prerequisites before you configure disaster recovery:
· The Junos Space cluster at the primary or active site (which can be a single node or multiple nodes) and the cluster at the remote or standby site (which can be a single node or multiple nodes) must be set up in exactly the same way, with all the same applications, device adapters, same IP family configurations, and so on.
· Both clusters should be configured with SMTP server information from the Junos Space user interface. For more information, see "Managing SMTP Servers" on page 1469. This configuration enables the clusters at both the active site and the standby site to notify the administrator by e-mail if the replications fail.
NOTE: The number of node(s) in active site and standby site should be the same.
1706
Connectivity Requirements to Configure Disaster Recovery
You need to ensure that the disaster recovery solution meets the following connectivity requirements before you configure disaster recovery: · Layer 3 connectivity between the Junos Space clusters at the active and standby sites. This means:
· Every node in a cluster can successfully ping the VIP address of the other cluster · Every node in a cluster can use SCP to transfer files between the active and standby sites · Database replication across the two clusters is possible through TCP ports 3306 (MySQL database
replication) and 5432 (PostgreSQL database replication) · The bandwidth and latency of the connection between the two clusters are such that real-time database
replication is successful. Although the exact bandwidth required depends on the amount of data transferred, we recommend a minimum of a 100-Mbps bandwidth connection with a latency of fewer than 150 milliseconds. · Independent Layer 3 connectivity between each cluster and managed devices · Independent Layer 3 connectivity between each cluster and GUI or NBI clients To set up the disaster recovery process, see "Configuring the Disaster Recovery Process Between an Active and a Standby Site" on page 1734.
Disaster Recovery Watchdog
IN THIS SECTION heartbeat | 1707 mysqlMonitor | 1707 pgsqlMonitor | 1707 fileMonitor | 1708 arbiterMonitor | 1708 configMonitor | 1708 serviceMonitor | 1708 notification | 1708
The disaster recovery watchdog, also known as a DR watchdog, is an in-built Junos Space mechanism to monitor the integrity of data replication (MySQL database, PgSQL database, configuration files, and RRD files) across sites. The disaster recovery watchdog also monitors the overall health of the disaster recovery
1707
setup, initiates a failover from the active to the standby site when the active site fails, and enables the standby site to resume network management services with minimal service disruption. An instance of the disaster recovery watchdog is initiated at the VIP node on both sites when you start the disaster recovery process.
The disaster recovery watchdog provides the following services: heartbeat The heartbeat service between the active and standby sites uses ping to check the connectivity between the sites. Both sites send heartbeat messages to each other. The heartbeat service performs the following tasks:
· Detect a failure at the remote site by pinging the remote site at regular intervals. · When the remote site fails to reply, rule out the possibility of a temporary issue due to a local failover
at the remote site. · Enable or disable automatic failover depending on the disaster recovery configuration settings. · Avoid split-brain scenarios by running the device arbitration algorithm (default) or the logic configured
in the custom script. · Verify the disaster recovery configuration after a site is rebooted.
mysqlMonitor The mysqlMonitor service performs the following tasks:
· Monitor the health of MySQL database replication within the site and between the active and standby sites.
· Fix MySQL database replication errors. · Notify the administrator through e-mail if any of the MySQL database replication errors cannot be fixed
automatically.
pgsqlMonitor The pgsqlMonitor service performs the following tasks:
· Monitor the health of PgSQL database replication within the site and between the active and standby sites.
· Fix PgSQL database replication errors. · Notify the administrator through e-mail if any of the PgSQL database replication errors cannot be fixed
automatically.
1708
fileMonitor The fileMonitor service performs the following tasks:
· Monitor the health of the configuration files and RRD files replicated within the sites and between the active and standby sites.
· Fix errors found during the replication of configuration files and RRD files. · Notify the administrator through e-mail if any of the replication errors cannot be fixed automatically.
You can also view the replication errors in the output of the cron job.
arbiterMonitor The arbiterMonitor service periodically checks whether the local site can ping all the arbiter devices. If the percentage of arbiter devices that are reachable falls below a configured warning threshold (70%, by default), an e-mail notification is sent to the administrator. configMonitor The configMonitor service performs the following tasks:
· Monitor the disaster recovery configuration files at all nodes at both sites. · Transfer the configuration files across nodes within a site if the files are not in sync.
serviceMonitor The serviceMonitor service performs the following tasks:
· Monitor the status of selected services (such as jboss, jboss-dc, httpd, and dr-watchdog) within a specific site.
· Start or stop the selected services if they display an incorrect status.
notification The notification service notifies the administrator about error conditions, warnings, or disaster recovery state changes detected by the disaster recovery watchdog through e-mail. Notification e-mails are sent if:
· Automatic failover is disabled due to connectivity issues between a site and arbiter devices. · The percentage of arbiter devices that are reachable is lower than the warning threshold. · A site becomes standby or active. · The standby site cannot back up files from the active site through SCP. · A site cannot establish an SSH connection to the remote site. · The local site cannot fetch the hostname of the MySQL primary node. · A site cannot fix MySQL and PgSQL database replication errors.
1709
The notification service does not send e-mails to report the same errors within a configurable period of time (by default, 3600 seconds).
Failure Detection by Using the Device Arbitration Algorithm
A device arbitration algorithm is used to detect failure at a site. A list of highly reachable devices running Junos OS and managed by Junos Space Platform are selected as arbiter devices. We recommend that you select arbiter devices based on the following criteria:
· You must be able to reach the arbiter devices through Junos Spaceinitiated SSH connections from both sites. Do not select devices that use device-initiated connections to Junos Space Platform.
· You must be able to ping arbiter devices from both disaster recovery sites. · You must choose arbiter devices that stay connected to Junos Space Platform or are less frequently
rebooted or shut down because this may impact the device arbitration algorithm results. If you foresee that certain arbiter devices will be offline during some part of their lives, avoid choosing those devices. · You must choose arbiter devices from different geographical locations to ensure that a problem in the management network at a location does not make all arbiter devices unreachable from your sites. · You cannot select NAT and ww Junos OS devices as arbiter devices. The device arbitration algorithm at the active site uses ping to connect to arbiter devices from the active site. The device arbitration algorithm at the standby site logs in to the arbiter devices through SSH connections by using the login credentials from the Junos Space Platform database. Following are the workflows of the device arbitration algorithm at the active and standby sites.
At the active site:
1. Ping all selected arbiter devices. 2. Compute the percentage of arbiter devices that can be pinged. 3. Check whether the percentage of arbiter devices that can be pinged is above or the same as the
configured value of the failover threshold. · If the percentage of arbiter devices connected is above or the same as the configured value of the
failover threshold (failureDetection.threshold.failover parameter in the watchdog section of the disaster recovery API), failover is not initiated because the active site is managing a majority of the arbiter devices. · If the percentage of arbiter devices is below the configured value of the failover threshold, failover is initiated (if automatic failover is enabled) and the active site becomes standby. If automatic failover is disabled, the active site remains active.
1710
At the standby site:
1. Log in to arbiter devices through SSH connections. 2. Execute a command on each arbiter device to retrieve the list of SSH connections to any node (managed
by the node) at the active site. 3. Calculate the percentage of arbiter devices managed by the active site. 4. Calculate the percentage of arbiter devices that cannot be reached through SSH connections.
· If the percentage of arbiter devices managed by the active site is above or the same as the configured value of the failover threshold, failover is not required because the active site is still managing a majority of the arbiter devices.
· If the percentage of arbiter devices managed by the active site is below the configured value of the failover threshold, the disaster recovery watchdog concludes that a failover may be required.
5. However, because the devices that cannot be reached from the standby site may be connected and managed by the active site, the standby site assumes that all arbiter devices that cannot be reached are being managed by the active site and calculates the new percentage of devices managed by the active site. · If the percentage of devices managed by the active site is below the threshold percentage to adjust managed devices (failureDetection.threshold.adjustManaged parameter in the watchdog section of the disaster recovery API, the default value is 50%), the standby site remains standby. By default, the threshold percentage to adjust managed devices must be below the failover threshold. · If the new percentage calculated by adding the devices managed by the active site and arbiter devices that cannot be reached is below the failover threshold, the disaster recovery watchdog concludes that a failover must be initiated. If automatic failover is enabled, the standby site initiates the process of becoming active. If automatic failover is disabled, no failover happens.
If you disabled automatic failover or the feature was disabled due to connectivity issues, you must execute jmp-dr manualFailover at the standby site to resume network management services from the standby site.
Failure Detection by Using the Custom Failure-Detection Scripts
In addition to using the device arbitration algorithm, you can create custom failure-detection scripts (sh, bash, Perl, or Python) to decide when or whether to fail over to the standby site. Custom failure scripts invoke the jmp-dr api v1 config include command and fetch the disaster recovery configuration and the status of the disaster recovery watchdog services. The disaster recovery configuration and the status of the disaster recovery watchdog services at a site are organized as various sections. Table 212 lists these sections.
Use the -- include <section-name> option to view the details of a section or use the details of the section in the custom failure-detection script.
1711
Table 212: API Sections Section Description
Details Included in the Section
Sample Output
role
Disaster recovery role Roles can be active, standby, or
of the current site
standalone.
failover
Type of failover that happened last
Value can be active_to_standby,
standby_to_active, or empty if failover
has not happened yet.
core
Core disaster
peerVipVIP of the load-balancer at the {
recovery
remote site
"core": {
configuration that includes the remote site node details
adminPassEncrypted administrator passwords of the remote site. Multiple entries are separated by commas.
"peerVip": "10.155.90.210",
"adminPass": "ABCDE12345", "scpTimeout": 120,
scpTimeoutTimeout value used to detect SCP transfer failures between sites
"peerLoadBalancerNodes": "10.155.90.211",
"peerBusinessLogicNodes": "10.155.90.211",
peerLoadBalancerNodesNode IP
"peerDeviceMgtIps":
addresses of the load-balancer nodes "10.155.90.211"}
at the remote site. Multiple entries are }
separated by commas.
peerBusinessLogicNodesNode IP addresses of the JBoss nodes at the remote site. Multiple entries are separated by commas.
peerDeviceMgtIpsDevice management IP addresses of the remote site. Multiple entries are separated by commas.
1712
Table 212: API Sections (continued)
Section Description
Details Included in the Section
Sample Output
mysql
Disaster recovery configuration related to the MySQL database at the remote site
hasDedicatedDbWhether the remote site includes dedicated database nodes
peerVipVIP of the MySQL nodes at the remote site (either normal node or dedicated database node)
peerNodesNode IP addresses of the MySQL nodes at the remote site (either normal node or dedicated DB node). Multiple entries are separated by commas.
{ "mysql": { "hasDedicatedDb": false, "peerVip":
"10.155.90.210", "peerNodes":
"10.155.90.211" }
}
pgsql
Disaster recovery configuration related to the PgSQL database at the remote site
hasFmpmWhether the remote site includes specialized FMPM nodes
peerFmpmVipVIP of the PostgreSQL nodes at the remote site (either normal node or FM/PM specialized node)
peerNodesNode IP addresses of the PostgreSQL nodes at the remote site (either normal node or FM/PM specialized node). Multiple entries are separated by commas.
{ "psql": { "hasFmpm": false, "peerFmpmVip":
"10.155.90.210", "peerNodes":
"10.155.90.211" }
}
file
Configuration and
backup.maxCountMaximum number { "file": {
RRD filesrelated
of backup files to retain
"backup": {
disaster recovery configuration at the remote site
backup.hoursOfDayTimes of the day to back up files
"maxCount": 3, "hoursOfDay": "*", "daysOfWeek": "*" },
backup.daysOfWeekDays of the week to back up files
"restore": { "hoursOfDay": "*",
"daysOfWeek": "*" }
restore.hoursOfDayTimes of the day
}
to poll files from the active site
}
restore.daysOfWeekDays of the week to poll files from the active site
1713
Table 212: API Sections (continued)
Section Description
Details Included in the Section
Sample Output
watchdog
Disaster recovery configuration related to the disaster recovery watchdog at the current site
heartbeat.retriesNumber of times to retry the heartbeat message
heartbeat.timeoutTimeout of each heartbeat message in seconds
heartbeat.intervalHeartbeat message interval between sites in seconds
notification.emailContact e-mail address to report service issues
notification.intervalDampening interval between receiving e-mails about affected services
{ "watchdog": { "heartbeat": {
"retries": 4, "timeout": 5, "interval": 30 },
"notification": { "email":
"abc@example.com", "interval": 3600 },
"failureDetection": { "isCustom": false, "script": "/var/cache/jmp-geo/watchdog/bin/arbitration",
failureDetection.isCustomWhether the remote site uses custom failure detection
failureDetection.scriptPath of the failure-detection script
failureDetection.threshold.failover Threshold percentage to trigger a failover
failureDetection.threshold.adjustManaged Threshold percentage to adjust the percentage of managed devices
failureDetection.threshold.warning Threshold percentage to send a warning to ensure that a disaster recovery site can reach more arbiter devices to improve the accuracy of the device arbitration algorithm
"threshold": { "failover": 0.5, "adjustManaged": 0.5, "warning": 0.7 }, "waitDuration": "8h", "arbiters": [{ "username": "user1", "password": "xxx", "host":
"10.155.69.114", "port": 22, "privateKey": ""
}] }
} }
failureDetection.waitDurationGrace period to allow the original active site to become active again when both sites become standby
failureDetection.arbitersList of arbiter devices
1714
Table 212: API Sections (continued)
Section Description
Details Included in the Section
Sample Output
devcieManagement
Device management IP addresses at the remote site
peerNodesDevice management IP addresses of the remote site. Multiple entries are separated by commas.
nodesDevice management IP addresses at the current site. Multiple entries are separated by commas.
{ "deviceManagement": { "peerNodes":
"10.155.90.211", "nodes": "10.155.90.222",
"ip": "10.155.90.228,eth0" }
}
ipDevice management IP address and interface on this node (node on which the jmp-dr api v1 config --list command is executed)
1715
Table 212: API Sections (continued)
Section Description
Details Included in the Section
states
Runtime information of the disaster recovery watchdog services at the current site. If the disaster recovery watchdog has never run on this site, this section is not available. If the disaster recovery watchdog has stopped, the information in this section is out-of-date.
Sample Output
{ "states": { "arbiterMonitor": { "progress": "idle", "msg": { "service":
"arbiterMonitor", "description": "", "state": true, "force": false, "progress":
"unknown", "payload": { "code": 0 }, "time":
"2015-07-18T22:18:55+00:00" },
"service": {} },
"configMonitor": { "progress": "idle", "msg": { "service":
"configMonitor", "description": "", "state": true, "force": false, "progress":
"unknown", "payload": { "code": 0 }, "time":
"2015-07-18T22:19:15+00:00" },"service": {}
},
1716
Table 212: API Sections (continued)
Section Description
Details Included in the Section
Sample Output
"fileMonitor": { "progress": "idle", "msg": { "service":
"fileMonitor", "description": "", "state": true, "force": false, "progress":
"unknown", "payload": { "code": 0 }, "time":
"2015-07-18T22:18:59+00:00" },
"service": {} },
1717
Table 212: API Sections (continued)
Section Description
Details Included in the Section
Sample Output
"heartbeat": { "progress": "unknown", "msg": { "service":
"heartbeat", "description": "", "state": true, "force": false, "progress":
"unknown", "payload": { "localFailover":
false }, "time":
"2015-07-18T22:17:49+00:00" },
"service": { "booting": false, "bootEndTime": null, "waitTime": null, "automaticFailover":
false,
"automaticFailoverEndTime": "2015-07-18T07:41:41+00:00"
} },
1718
Table 212: API Sections (continued)
Section Description
Details Included in the Section
Sample Output
"mysqlMonitor": { "progress": "idle", "msg": { "service":
"mysqlMonitor", "description": "", "state": true, "force": false, "progress":
"unknown", "payload": { "code": 0 }, "time":
"2015-07-18T22:19:09+00:00" },
"service": {} },
"pgsqlMonitor": { "progress": "unknown", "msg": { "service":
"pgsqlMonitor", "description":
"Master node pgsql in active or standby site maybe
CRASHED. Pgsql replication is in bad status. Please
manually check Postgresql-9.4 status.", "state": false, "force": false, "progress":
"unknown", "payload": { "code": 1098 }, "time":
"2015-07-18T22:18:27+00:00" },"service": {}
},
Table 212: API Sections (continued)
Section Description
Details Included in the Section
Sample Output
1719
"serviceMonitor": { "progress": "running", "msg": { "service":
"serviceMonitor", "description": "", "state": true, "force": false, "progress":
"unknown", "payload": { "code": 0 }, "time":
"2015-07-18T22:19:30+00:00" },
"service": {} }
} }
The output from the custom script informs the disaster recovery watchdog whether a failover to the standby site is required. The disaster recovery watchdog interprets the output from the script in the JSON format. The following is an example:
{ "state": "active", "action": "nothing", "description": "", "payload": { "waitTime": "", "details": { "percentages": { "connected": 1, "arbiters": { "10.155.69.114": "reachable"
1720
} } } } }
Table 213 describes the details of the script output.
Table 213: Details of the Custom Script Output
Property
Description
Data Type
Values or Format
Other Details
state
Current disaster recovery role of this site
String
active standby
Required
An empty string is not allowed.
action
Action that the disaster recovery watchdog must perform
String
beActiveChange role to active.
beStandbyChange role to standby.
Required
An empty string is not allowed.
nothingDo not change role.
waitWait in the current role for the time specified in the payload.waitTime property.
description
Description of the action String field and the message that is sent in the e-mail notification
Required
An empty string is allowed.
payload.waitTime
End time of the grace period when both sites become standby
String (Date)
YYYY-MM-DD, UTC time in HH:MM+00:00 format
Required
An empty string is allowed.
This property is used when you specify the value of action as wait.
1721
Table 213: Details of the Custom Script Output (continued)
Property
Description
Data Type
Values or Format
payload.details
User- customized
information that can be used
to debug the script
JSON object
Other Details
Optional An empty string is not allowed.
Steps to Configure Disaster Recovery
To configure disaster recovery between an active site and a standby site:
1. Stop the disaster recovery process configured during earlier releases before upgrading to Junos Space Network Management Platform Release 15.2R1. For more information on the upgrade process, see the Upgrade Instructions section in the Junos Space Network Management Platform Release Notes 15.2R1. For more information about stopping the disaster recovery process configured during earlier releases, see "Stopping the Disaster Recovery Process on Junos Space Network Management Platform Release 14.1R3 and Earlier" on page 1746. You do not require to perform this step for a clean installation of Junos Space Network Management Platform Release 15.2R1.
2. Set up SMTP servers at both sites from the Junos Space user interface to receive notifications. For more information, see "Managing SMTP Servers" on page 1469 in the Junos Space Network Management Platform Workspaces User Guide.
3. Copy the file with the list of arbiter devices (if you are using the device arbitration algorithm) or the custom failure-detection script to the appropriate location at the active site. Ensure that all arbiter devices are discovered at the active site. For more information, see "Device Discovery Profiles Overview" on page 219 in the Junos Space Network Management Platform Workspaces User Guide.
4. Configure the disaster recovery configuration file at the active site. The disaster recovery configuration includes SCP settings to synchronize configuration and RRD files, heartbeat settings, notifications settings, and the failure-detection mechanism.
5. Configure the disaster recovery configuration file at the standby site. The disaster recovery configuration includes SCP settings to synchronize configuration and RRD files, heartbeat settings, and notification settings.
6. Start the disaster recovery process from the active site.
1722
For more information, see "Configuring the Disaster Recovery Process Between an Active and a Standby Site" on page 1734.
Disaster Recovery Commands
You use the disaster recovery commands listed in Table 214 to configure and manage disaster recovery sites. You must execute these commands at the VIP node of the site. You can use the --help option with these commands to view more information.
Table 214: Disaster Recovery Commands
Command
Description
Options
jmp-dr init
Initialize the disaster recovery configuration -aInitialize the disaster recovery configuration
files at both sites.
file only at the active site.
You need to enter values for the parameters prompted by the command.
-sInitialize the disaster recovery configuration file only at the standby site.
Create MySQL and PgSQL users and passwords required to replicate data and monitor the replication across disaster recovery sites. The following users are created:
· User with a default username repUser and password repPass for MySQL database replication.
· User with a default username repAdmin and password repAdminPass to monitor the MySQL database replication health and failover.
· User with default username replication and password replication for PgSQL replication.
· User with default username postgres and password postgres to monitor PgSQL replication health and failover.
1723
Table 214: Disaster Recovery Commands (continued)
Command
Description
Options
jmp-dr start
Start the disaster recovery process at both sites.
-aStart the disaster recovery process only at the active site.
You must execute this command at the VIP node of the active site. The active site establishes an SSH connection to the standby site and executes the jmp-dr start command at the standby site.
-sStart the disaster recovery process only at the standby site.
When you execute this command, MySQL database and PgSQL database replication and configuration and RRD files backup to the standby site are initiated.
You execute this command:
· To initially start the disaster recovery process
· To restart the disaster recovery process after you stopped the process to upgrade your Junos Space setup.
jmp-dr toolkit config update
When the command is executed without options, the command:
· Displays the modified cluster configuration at a site and updates this at the local site.
· Accepts and updates the modified cluster configuration at the remote site.
Use these options to modify the disaster recovery configuration at a site and update the change at the peer site:
-user-coreModify the VIP address, password, and SCP timeout settings.
You must execute the command in the following order:
-user-file-backupModify configuration and RRD files backup settings.
1. Accept and update the cluster configuration changes at both sites.
2. Update load-balancer changes, and modify and update SCP timeout settings at both sites.
3. Modify and update other disaster recovery configuration parameters.
You must execute this command at the VIP node of the local site to modify the configuration and the VIP node of the remote site to accept the modified configuration.
-user-file-restoreModify configuration and RRD files replication to standby site settings.
-user-watchdog-heartbeatModify disaster recovery watchdog heartbeat settings.
-user-watchdog-notificationModify e-mail notification settings.
-user-watchdog-failureDetectionModify failure-detection settings.
Table 214: Disaster Recovery Commands (continued)
Command
Description
Options
jmp-dr health
Check the status of the disaster recovery
process.
The command checks whether MySQL and PgSQL databases are replicated and configuration and RRD files are backed up, and verifies the status of the disaster recovery watchdog and reports errors.
jmp-dr stop
Stop the disaster recovery process between sites.
When you execute this command, MySQL and PgSQL database replication and configuration and RRD files backup between sites are stopped. The disaster recovery data files are not deleted. The status of services such as JBoss, OpenNMS, Apache remains unchanged.
jmp-dr reset
Stop the disaster recovery process and delete the disaster recovery data files from a site. The site initiates services as a standalone cluster.
You must execute this command at the VIP node of both sites to stop the disaster recovery process completely and delete the disaster recovery data files from both sites.
jmp-dr manualFailover
Manually fail over to the standby site.
When you execute this command, the standby site becomes the new active site and the active site becomes the new standby site.
-aManually change the role of the site to active.
-sManually change the role of the site to standby.
1724
1725
Table 214: Disaster Recovery Commands (continued)
Command
Description
Options
jmp-dr toolkit watchdog status [options]
Enable automatic failover to the standby site or disable automatic failover to the standby site for a specified duration.
NOTE: You can execute this command only if the disaster recovery watchdog is active at the site.
enable-automatic-failoverEnable automatic failover to the standby site.
disable-automatic-failover durationDisable automatic failover to the standby site for a specified time duration. Enter the time duration in hours or minutes. For example, 1h or 30m. If you do not enter "h" or "m" along with the value--for example, 2--the default duration is calculated in hours. If you enter zero, automatic failover is disabled permanently.
jmp-dr api v1 config
View the disaster recovery configuration and runtime information in the JSON format.
--listView specific sections of the disaster recovery configuration and status of the disaster recovery watchdog services. Table 212 lists the section names.
-include<sections>Include specific sections of the disaster recovery configuration and status of the disaster recovery watchdog services in the custom failure-detection script. Separate multiple section names with commas.
When you include this command in a custom failure-detection script, the command fetches the disaster recovery configuration and status of the disaster recovery watchdog services and executes the logic in the script.
RELATED DOCUMENTATION
Understanding High Availability Nodes in a Cluster | 1677 Configuring the Junos Space Cluster for High Availability Overview | 1684 Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Modifying Applications and Nodes on a Disaster Recovery Setup | 1777
1726
Understanding the Normal Operation of Active and Standby Sites
During the normal operation of the active and standby sites, you use the virtual IP (VIP) address of the active site to access its GUI and API for all network management services. On the active site, a cron job is run based on the disaster recovery configuration. MySQL and PgSQL databases at the active site are asynchronously replicated at the standby site. This ensures that if the active site fails due to a disaster, the databases at the standby site contain the most recent data from the active site. Performance monitoring data in the RRD files and certain configuration files are periodically backed up at the active site and transferred to the standby site by using scripts that are configured to run as cron jobs.
To view the cron job to back up files at the active site, execute the crontab -l command at the active site. The following is a sample output:
[user1@host]# crontab -l
*/5 * * * * /usr/bin/purgingPolicy.sh >> /var/log/purgingPolicy.log 2>&1
0 */3 * * * perl /var/www/cgi-bin/mysqlAnalyze.pl >> /var/log/mysqlAnalyze.log 2>&1
0 0 * * *
/opt/opennms/contrib/failover/scripts/sync.sh >>
/opt/opennms/logs/failover.log 2>&1
0 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 * * 0,1,2,3,4,5,6
/var/cache/jmp-geo/backup/script/backupReal.sh >>
/var/cache/jmp-geo/backup/backup.log 2>&1
The output shows the time you scheduled to run backups at the active site.
The backup is archived into a tgz file in the /var/cache/jmp-geo/backup/data directory. Only the most recent three backups (default value) or as configured in the disaster recovery configuration are retained in this directory. The older backups are purged. To view a log of all backups by using the backupReal.sh script, see the backup.log file located at /var/cache/jmp-geo/backup.
To view the cron job to fetch files from the active site, execute the crontab -l command at the standby site. The following is a sample output:
[user1@host]# crontab -l
*/5 * * * * /usr/bin/purgingPolicy.sh >> /var/log/purgingPolicy.log 2>&1
0 */3 * * * perl /var/www/cgi-bin/mysqlAnalyze.pl >> /var/log/mysqlAnalyze.log 2>&1
0 0 * * *
/opt/opennms/contrib/failover/scripts/sync.sh >>
/opt/opennms/logs/failover.log 2>&1
0 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 * * 0,1,2,3,4,5,6
/var/cache/jmp-geo/restore/script/poll.sh >> /var/cache/jmp-geo/restore/restore.log
2>&1
The output shows the time you scheduled to restore the backups from the active site.
1727
The poll.sh script transfers the most recent backup file from the active site using SCP. The backup files are stored in the /var/cache/jmp-geo/restore/data directory. The script ensures that only the most recent three backups (default value) or as configured in the disaster recovery configuration are retained in this directory and older files are purged. To view a log of all backups from the active site by using the poll.sh script, see the restore.log file located at /var/cache/jmp-geo/restore. You cannot discover or manage any devices at the standby site during the normal operation of a disaster recovery setup.
RELATED DOCUMENTATION Disaster Recovery Overview | 1702 Understanding How the Standby Site Becomes Operational When the Active Site Goes Down | 1733 Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734
Understanding Disaster Recovery Failure Scenarios
IN THIS SECTION Active Site (site1) Goes Down Due to a Disaster or Is Powered Down | 1728 No Connectivity Between the Active and Standby Sites and Both Sites Lose Connectivity with Arbiter Devices | 1728 No Connectivity Between the Active and Standby Sites | 1729 No Connectivity Between the Active and Standby Sites and the Active Site (site1) Loses Connectivity with Arbiter Devices | 1730 No Connectivity Between the Active and Standby Sites and the Standby Site (site2) Loses Connectivity With Arbiter Devices | 1730 Standby Site (site2) Goes Down Due to Disaster or Is Powered Down | 1731 No Connectivity Between the Active Site (site1) and Arbiter Devices | 1732 No Connectivity Between the Standby Site (site2) and Arbiter Devices | 1732
The following sections explain failure scenarios such as the active and standby sites (with automatic failover enabled) going down due to a disaster, losing connectivity between sites, and losing connectivity with arbiter devices. The device arbitration algorithm is used for failure detection. For the scenarios, assume that the active site is site1 and standby site is site2.
1728
Active Site (site1) Goes Down Due to a Disaster or Is Powered Down
Detection The disaster recovery watchdog at site2 does not receive replies to successive ping retries to site1. The disaster recovery watchdog at site2 initiates the device arbitration algorithm and finds that arbiter devices (all or most) are not managed by site1. An e-mail is sent to the administrator with this information. Impact MySQL and PgSQL database replication to site2 is stopped. If you configured any file transfers through SCP during downtime, site2 may lose that version of configuration and RRD files. MySQL and PgSQL databases at site2 now contain the latest data that was replicated in real time from site1 before it went down. This includes configuration, inventory, alarm-related data of all managed devices, and data maintained by Junos Space Platform and Junos Space applications. The latest version of configuration and RRD files available at site2 are from the most recent file transfer through SCP. Junos Space users and NBI clients need to wait until site2 becomes active and use the VIP address of site2 to access all network management services. Recovery The disaster recovery watchdog at site2 initiates the process to become active. The complete process may take around 15 to 20 minutes. This can vary depending on the number of devices that are managed on your Junos Space setup. When the failover is complete, site2 establishes connections with all devices and resynchronizes configuration and inventory data if required. site2 starts receiving alarms and performance management data from managed devices.
NOTE: When you rebuild or power on site1, if the disaster recovery configuration is deleted, you must reconfigure disaster recovery between the sites.
No Connectivity Between the Active and Standby Sites and Both Sites Lose Connectivity with Arbiter Devices
Detection The disaster recovery watchdog at both sites do not receive replies to successive ping retries. The disaster recovery watchdog at both sites initiates the device arbitration algorithm. An e-mail is sent to the administrator regarding the failure of MySQL and PgSQL replication and file transfer through SCP between sites.
1729
Impact MySQL and PgSQL database replication to site2 is stopped. If you configured any file transfers through SCP during downtime, site2 may lose that version of configuration and RRD files.
Because both sites cannot connect to arbiter devices (all or most), both sites cannot determine the status of the other site. site1 starts to become standby and site2 remains standby to avoid a split-brain situation.
Even if connectivity between the two sites is restored, both sites remain standby because the sites cannot connect to arbiter devices.
The network management services are stopped at both sites until one of the sites becomes active.
If connectivity to arbiter devices is not restored within the grace period (by default, eight hours), automatic failover functionality is disabled at both sites. An e-mail is sent every hour to the administrator with this information. Recovery If connectivity to arbiter devices is restored within the grace period (by default, eight hours), site1 becomes active again. site2 remains standby.
If both sites are standby, enable disaster recovery by executing the jmp-dr manualFailover a command at the VIP node of site1. To enable automatic failover at the sites, execute the jmp-dr toolkit watchdog status --enable-automatic-failover command at the VIP node of site1 and site2.
Fix connectivity issues between site1 and site2 to resume MySQL and PgSQL replication and file transfer through SCP.
No Connectivity Between the Active and Standby Sites
Detection The disaster recovery watchdog at both sites do not receive replies to successive ping retries. The disaster recovery watchdog at both sites initiates the device arbitration algorithm and finds that arbiter devices (all or most) are managed by site1.
An e-mail is sent to the administrator regarding the failure of MySQL and PgSQL database replication and file transfer through SCP between sites. Impact MySQL and PgSQL database replication to site2 is stopped. If you configured any file transfers through SCP during downtime, site2 may lose that version of configuration and RRD files. Recovery site1 remains active and site2 remains standby. Fix connectivity issues between site1 and site2 to resume MySQL and PgSQL database replication and file transfer through SCP.
1730
No Connectivity Between the Active and Standby Sites and the Active Site (site1) Loses Connectivity with Arbiter Devices
Detection The disaster recovery watchdog at both sites do not receive replies to successive ping retries. The disaster recovery watchdog at both sites initiates the device arbitration algorithm.
An e-mail is sent to the administrator regarding the failure of MySQL and PgSQL database replication and file transfer through SCP between sites. Impact MySQL and PgSQL database replication to site2 is stopped. If you configured any file transfers through SCP during downtime, site2 may lose that version of configuration and RRD files.
Because site1 cannot connect to arbiter devices, site1 starts to become standby. Because site2 finds that arbiter devices (all or most) are not managed by site1, a failover is initiated. As part of becoming standby, all network management services are stopped at site1.
site2 now contains the latest MySQL and PgSQL data that was replicated in real time from site1. The latest version of configuration and RRD files available at site2 are from the most recent file transfer through SCP.
Junos Space users and NBI clients need to wait until site2 becomes active and use the VIP address of site2 to access all network management services. Recovery The disaster recovery watchdog at site2 initiates the process to become active. The complete process may take around 15 to 20 minutes. This can vary depending on the number of devices that are managed on your Junos Space setup.
When the failover is complete, site2 establishes connections with all devices and resynchronizes configuration and inventory data if required. site2 starts receiving alarms and performance management data from managed devices.
Fix connectivity issues between site1 and site2 to resume MySQL and PgSQL database replication and file transfer through SCP.
No Connectivity Between the Active and Standby Sites and the Standby Site (site2) Loses Connectivity With Arbiter Devices
Detection The disaster recovery watchdog at both sites do not receive replies to successive ping retries. The disaster recovery watchdog at site1 initiates the device arbitration algorithm and finds that arbiter devices (all or most) are managed by site1. The disaster recovery watchdog at site2 initiates the device arbitration algorithm.
1731
An e-mail is sent to the administrator regarding the failure of MySQL and PgSQL replication and file transfer through SCP between sites. Impact MySQL and PgSQL database replication to site2 is stopped. If you configured any file transfers through SCP during downtime, site2 may lose that version of configuration and RRD files.
Because site2 cannot connect to arbiter devices (all or most), site2 remains standby.
site2 retries to connect to arbiter devices, but does not become active again even if it can connect to enough arbiter devices within eight hours. During these eight hours, site2 requests disaster recovery runtime information of the remote site to ensure that the remote site is active and not in the process of a failover. If site2 cannot connect to enough arbiter devices within eight hours, site2 disables automatic failover permanently until you manually enable automatic failover. An e-mail is sent every hour to the administrator with this information. Recovery Fix connectivity issues between site1 and site2 to resume MySQL and PgSQL database replication and file transfer through SCP.
To enable automatic failover at the standby site, execute the jmp-dr toolkit watchdog status --enable-automatic-failover command at the VIP node of site2.
Standby Site (site2) Goes Down Due to Disaster or Is Powered Down
Detection The disaster recovery watchdog at site1 does not receive replies to successive ping retries to site2. The disaster recovery watchdog at site1 initiates the device arbitration algorithm and finds that arbiter devices (all or most) are managed by site1.
An e-mail is sent to the administrator regarding the failure of MySQL and PgSQL replication and file transfer through SCP between sites. Impact MySQL and PgSQL database replication to site2 is stopped. If you configured any file transfers through SCP during downtime, site2 may lose that version of configuration and RRD files. Recovery site1 remains active. When you power on site2, site2 becomes standby. If you powered down or if the disaster recovery configuration is not deleted from site2, MySQL and PgSQL database replication and file transfer through SCP are initiated.
1732
NOTE: When you rebuild or power on site2, if the disaster recovery configuration is deleted, you must reconfigure disaster recovery between both sites.
No Connectivity Between the Active Site (site1) and Arbiter Devices Detection The arbiterMonitor service of the disaster recovery watchdog at site1 detects that the percentage of reachable arbiter devices is below the configured warning threshold. An e-mail is sent to the administrator with this information. Impact There is no impact on the disaster recovery solution until the percentage of reachable arbiter devices goes below the failover threshold. Recovery No recovery is required because network management services are available from site1.
No Connectivity Between the Standby Site (site2) and Arbiter Devices Detection The arbiterMonitor service of the disaster recovery watchdog at site2 detects that the percentage of reachable arbiter devices is below the configured warning threshold. An e-mail is sent to the administrator with this information. Impact There is no impact on the disaster recovery solution. Recovery No recovery is required because network management services are available from site1.
RELATED DOCUMENTATION Disaster Recovery Overview | 1702 Modifying Applications and Nodes on a Disaster Recovery Setup | 1777 Manually Failing Over the Network Management Services to the Standby Site | 1792 Understanding High-Availability Failover Scenarios | 1690
1733
Understanding How the Standby Site Becomes Operational When the Active Site Goes Down
When a disaster causes the active site to go down, if automatic failover is enabled and the standby site can exceed the failure threshold, the standby site becomes operational. Otherwise, you may need to execute the jmp-dr manualFailover or jmp-dr manualFailover a command at the standby site to resume network management services.
The disaster recovery watchdog at the standby site performs the following failover operations to become an active site:
· Verify that the VIP address at the active site is not reachable. · Stop database replication and SCP file transfer between the two sites. · Remove the cron job from the standby site for fetching backup files from the active site. · Add a cron job at the standby site to back up configuration and RRD files. · Modify the role of the standby site to active. · Open port 7804 on all nodes at the standby site. · Start all services at the standby site. · Copy system configuration files contained in the backup to appropriate locations. · Configure all devices to send SNMP traps to the VIP address of the standby site. If eth3 is used for
device management at the standby site, the eth3 IP address of the active-VIP node at the standby site is configured as the trap destination, instead of the VIP address. If you are monitoring devices through a dedicated FMPM node, the VIP address of the dedicated node is configured as the trap destination. After the failover is complete, the disaster recovery role of the site is set to Active and the state of the cluster is set to active (1). You can access the GUI and API of the standby site from its VIP to perform all network management tasks. In most cases, the failover should happen within 20 to 30 minutes. When the active site becomes operational again, it becomes the standby site. You can either retain the failed state or choose to revert to the original state.
RELATED DOCUMENTATION
Disaster Recovery Overview | 1702 Understanding the Normal Operation of Active and Standby Sites | 1726 Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Understanding High-Availability Failover Scenarios | 1690
1734
CHAPTER 99
Configuring the Disaster Recovery Process
IN THIS CHAPTER Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Stopping the Disaster Recovery Process on Junos Space Network Management Platform Release 14.1R3 and Earlier | 1746
Configuring the Disaster Recovery Process Between an Active and a Standby Site
IN THIS SECTION Configuring Disaster Recovery at the Active Site | 1735 Configuring Disaster Recovery at the Standby Site | 1740 Starting the Disaster Recovery Process | 1744 Verifying the Status of the Disaster Recovery Process | 1746
You configure disaster recovery between an active site and a standby site to ensure geographical redundancy of network management services. Before you initiate the disaster recovery process between both sites, perform the following tasks: · Ensure that the connectivity requirements as described in the "Disaster Recovery Overview" on page 1702
topic are met. · Check whether identical cluster configurations exist on both sites. We recommend that both clusters
have the same number of nodes so that, even in the case of a disaster, the standby site can operate with the same capacity as the active site. · Ensure that the same versions of Junos Space Network Management Platform, high-level Junos Space applications, and device adapters are installed at both sites.
1735
· Shut down the disaster recovery process configured on Junos Space Network Management Platform Release 14.1R3 and earlier before upgrading to Junos Space Network Management Platform Release 15.2R1 and configuring the new disaster recovery process. For more information, see "Stopping the Disaster Recovery Process on Junos Space Network Management Platform Release 14.1R3 and Earlier" on page 1746. You cannot configure the new disaster recovery process if you do not stop the disaster recovery you set up on 14.1R3 and earlier releases. You do not need to perform this step on a clean installation of Junos Space Network Management Platform Release 15.2R1.
· Ensure that the same SMTP server configuration exists on both sites to receive e-mail alerts related to the disaster recovery process. You can add SMTP servers from the SMTP Servers task group in the Administration workspace. For more information about adding SMTP servers, see "Adding an SMTP Server" on page 1470 in the Junos Space Network Management Platform Workspaces Feature Guide.
· Copy a file with the list of arbitrator devices (one IP address per row) in the CSV format or the custom failure-detection scripts on the VIP node at the active site. You can refer to the sample files at /var/cache/jmp-geo/doc/samples/.
· Decide on the values for the following parameters depending on your network connectivity and disaster recovery requirements: · VIP address and password of both the active and standby sites · Backup, restoration, and Secure Copy Protocol (SCP) synchronization settings · Heartbeat time intervals · E-mail address of the administrator and the dampening interval in seconds to avoid reporting the same errors to avoid an e-mail flood · Failure-detection settings such as the failover threshold and the time during which the standby site stays standby if the arbiter devices are unreachable
The following sections explain how to configure disaster recovery at the active and standby sites and initiate the disaster recovery between both sites.
Configuring Disaster Recovery at the Active Site
You use the jmp-dr init a command to configure disaster recovery at the active site. You need to enter values for the parameters that are displayed. The values you enter here are saved in a configuration file.
1736
To configure disaster recovery at the active site: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Enter jmp-dr init a at the shell prompt. The values you need to input to configure disaster recovery at the active site are displayed. The Load Balancers part of the disaster recovery configuration file is displayed.
1737
5. Enter the values for the parameters displayed: a. Enter the VIP address of the standby site and press Enter.
b. Enter the administrator passwords of the load-balancer nodes at the standby site and press Enter. You can enter multiple passwords separated with commas. If multiple nodes use a common password, you need to enter the password only once.
c. Enter the timeout value to detect a failure in transferring files through SCP from the active site to the standby site, in seconds, and press Enter. The minimum and default value is 120.
d. Enter the maximum number of backups to retain at the active site and press Enter. The minimum and default value is 3.
e. Enter the times of the day to back up files (in hours) at the active site, separated with commas, and press Enter. You can enter any value from 0 through 23. You can also enter * to back up files every hour.
f. Enter the days of the week to back up files at the active site, separated with commas, and press Enter. You can enter any value from 0 through 6, where Sunday equals zero. You can also enter * to back up files every day.
g. Enter the times of the day to copy files (in hours) from the active site to the standby site, separated with commas, and press Enter. You can enter any value from 0 through 23. You can also enter * to poll files every hour.
h. Enter the days of the week to copy files from the active site to the standby site, separated with commas, and press Enter. You can enter any value from 0 through 6, where Sunday equals zero. You can also enter * to poll files every day.
The following is a sample output:
######################### # # Load Balancers
1738
# #########################
What's the vip for load balancers at the standby site? 10.206.41.225 What are the unique admin passwords for load balancer nodes at the standby site
(separated by comma, no space)? $ABC123 What's the scp timeout value (seconds)? 120
# backup for data in file system instead of DB
What's the max number of backup files to keep? 3 What are the times of the day to run file backup (0-23)? 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 What are the days of the week to run file backup (0-6)? 0,1,2,3,4,5,6
# restore for data in file system instead of DB
What are the times of the day to poll files from the active site (0-23)? 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 What are the days of the week to poll files from the active site (0-6)? 0,1,2,3,4,5,6
When you enter the values for all parameters, the DR Watchdog part of the disaster recovery configuration file is displayed.
6. Enter values for the parameters displayed: a. Enter the number of times the active site should send heartbeat messages to the standby site through ping after a heartbeat message times out and press Enter. The minimum and default value is 4.
b. Enter the timeout value of each heartbeat message, in seconds, and press Enter. The minimum and default value is 5.
c. Enter the time interval between two consecutive heartbeat messages to the standby site, in seconds, and press Enter. The minimum and default value is 30.
d. Enter the e-mail address of the administrator to whom e-mail messages about disaster recovery service issues must be sent and press Enter.
1739
e. Enter the time interval during which the same issues are not reported through e-mail (dampening interval), in seconds, and press Enter. The default value is 3,600. The minimum value is 300.
f. Specify the failure-detection mechanism. If you intend to use a custom failure-detection script: · Enter Yes in the failureDetection section and press Enter.
If you intend to use the device arbitration algorithm: i. Enter No in the failureDetection section and press Enter.
ii. Enter the threshold percentage to trigger a failover to the standby site by using the device arbitration algorithm and press Enter. You can enter any value from 0 to 1. The default value is 0.5.
g. Enter the path of the file containing the arbiter devices or the custom failure-detection scripts and press Enter.
The following is a sample output:
######################### # # DR Watchdog # #########################
# heartbeat
What's the number of times to retry heartbeat message? 4 What's the timeout of each heartbeat message (seconds)? 5 What's the heartbeat message interval between sites (seconds)? 30
# notification
What's the contact email address of service issues? user1@example.com What's the dampening interval between emails of affected services (seconds)? 300
# failureDetection
1740
Do you want to use custom failure detection? No What's the threshold percentage to trigger failover? 0.5 What's the arbiters list file (note: please refer to example in /var/cache/jmp-geo/doc/samples/arbiters.list)? /home/admin/user1 Check status of DR remote site: up Prepare /var/cache/jmp-geo/incoming
[ OK ] Configure contact email
[ OK ] Modify firewall for DR remote IPs
[ OK ] Configure NTP
[ OK ] Configure MySQL database
[ OK ] Configure PostgreSQL database
[ OK ] Copy files to DR slave
[ OK ] Command completed.
When you have entered values for all parameters, disaster recovery is initialized at the active site.
Configuring Disaster Recovery at the Standby Site
You use the jmp-dr init s command to configure disaster recovery at the standby site. You need to enter values for the parameters that are displayed. The values you enter here are saved in a configuration file. By default, the standby site uses the failure-detection mechanism you configured at the active site, values you entered for file backup and restoration, heartbeat, and notifications if the standby site becomes an active site.
To configure disaster recovery at the standby site:
1. Log in to the CLI of the Junos Space node at the standby site on which the VIP or the eth0:0 interface is configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter the administrator password.
1741
3. Enter the administrator password.
4. Enter jmp-dr init s at the shell prompt. The values you need to input to configure disaster recovery at the standby site are displayed. The Load Balancers part of the disaster recovery configuration file is displayed.
5. Enter the values for the parameters displayed: a. Enter the VIP address of the active site and press Enter.
b. Enter the administrator passwords of the load-balancer nodes at the active site and press Enter. You can enter multiple passwords separated with commas. If multiple nodes use a common password, you need to enter the password only once.
c. Enter the timeout value to detect a failure in transferring files through SCP from the standby site to the active site, in seconds, and press Enter. The minimum and default value is 120.
d. Enter the maximum number of backups to retain at the standby site and press Enter. The minimum and default value is 3.
e. Enter the times of the day to back up files (in hours) at the standby site, separated with commas, and press Enter. You can enter any value from 0 through 23. You can also enter * to back up files every hour.
f. Enter the days of the week to back up files at the standby site, separated with commas, and press Enter. You can enter any value from 0 through 6, where Sunday equals zero. You can also enter * to back up files every day.
g. Enter the times of the day to copy files (in hours) from the standby site to the active site (when failed over to the standby site), separated with commas, and press Enter. You can enter any value from 0 through 23. You can also enter * to restore files every hour.
h. Enter the days of the week to copy files from the standby site to the active site (when failed over to the standby site), separated with commas, and press Enter. You can enter any value from 0 through 6, where Sunday equals zero. You can also enter * to restore files every day.
1742
The following is a sample output:
######################### # # Load Balancers # #########################
What's the vip for load balancers at the active site? 10.206.41.220 What are the unique admin passwords for load balancer nodes at the active site
(separated by comma, no space)? $ABC123 What's the scp timeout value (seconds)? 120
# backup for data in file system instead of DB
What's the max number of backup files to keep? 3 What are the times of the day to run file backup (0-23)? 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 What are the days of the week to run file backup (0-6)? 0,1,2,3,4,5,6
# restore for data in file system instead of DB
What are the times of the day to poll files from the active site (0-23)? 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 What are the days of the week to poll files from the active site (0-6)? 0,1,2,3,4,5,6
When you enter the values for all parameters, the DR Watchdog part of the disaster recovery configuration file is displayed.
6. Enter the values for the parameters displayed. a. Enter the number of times the standby site should send heartbeat messages to the active site through ping after a heartbeat message times out and press Enter. The minimum and default value is 4.
b. Enter the timeout value for each heartbeat message, in seconds, and press Enter. The minimum and default value is 5.
c. Enter the time interval between two consecutive heartbeat messages to the active site, in seconds, and press Enter. The minimum and default value is 30.
1743
d. Enter the e-mail address of the administrator to whom e-mail messages about disaster recovery service issues must be sent and press Enter.
e. Enter the time during which the same issues are not reported through e-mail (dampening interval), in seconds, and press Enter. The default value is 3,600. The minimum value is 300.
The following is a sample output:
######################### # # DR Watchdog # #########################
# heartbeat
What's the number of times to retry heartbeat message? 4 What's the timeout of each heartbeat message (seconds)? 5 What's the heartbeat message interval between sites (seconds)? 30
# notification
What's the contact email address of service issues? user1@example.com What's the dampening interval between emails of affected services (seconds)? 300 Check status of DR remote site: up Load /var/cache/jmp-geo/incoming/init.properties
[ OK ] Configure contact email
[ OK ] Modify firewall for DR remote IPs
[ OK ] Configure NTP
[ OK ] Sync jmp-geo group
[ OK ] Configure MySQL database
[ OK ] Configure PostgreSQL database
[ OK ] Command completed.
1744
When you have entered values for all parameters, disaster recovery is initialized at the standby site.
Starting the Disaster Recovery Process
You use the jmp-dr start command to start the disaster recovery process at both sites. You can also use the jmp-dr start-a command to start the disaster recovery process on the active site and the jmp-dr start-s command to start the disaster recovery process on the standby site. To start the disaster recovery process: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Enter jmp-dr start at the shell prompt. The disaster recovery process is initiated on both sites. The following is a sample output at the active site:
[user1@host]# jmp-dr start Stop dr-watchdog if it's running
[ OK ] Check status of DR remote site: up Check current DR role: active
INFO: => start DR at current site: active
Add device management IPs of DR remote site to up devices [ OK ]
Setup MySQL replication: master-master [ OK ]
Start MySQL dump [ OK ]
Setup PostgreSQL replication [ OK ]
Start file & RRD replication [ OK ]
Open firewall for device traffic [ OK ]
Start services(jboss,jboss-dc,etc.) [ OK ]
Start dr-watchdog [ OK ]
Copy files to DR slave site [ OK ]
Update DR role of current site: active [ OK ]
INFO: => start DR at DR remote site: standby
Stop dr-watchdog if it's running [ OK ]
Check status of DR remote site: up Check current DR role: standby Load /var/cache/jmp-geo/incoming/start.properties
[ OK ] Stop services(jboss,jboss-dc,etc.)
[ OK ] Block firewall for device traffic
[ OK ] Reset MySQL init script and stop replication
[ OK ] Scp backup file from peer site: /var/cache/jmp-geo/data/db.gz
[ OK ] Start MySQL restore
[ OK ] Setup MySQL replication and start replication
[ OK ] Setup PostgreSQL replication
[ OK ] Start files & RRD replication
[ OK ] Start dr-watchdog
[ OK ] Clean up /var/cache/jmp-geo/incoming
[ OK ] Update DR role of current site: standby
[ OK ] Command completed. Command completed.
1745
1746
The disaster recovery process is initialized on the active site and the standby site.
Verifying the Status of the Disaster Recovery Process We recommend that you execute the jmp-dr health command to verify the status (overall health) of the disaster recovery process at both the active and standby sites when you start the disaster recovery process on both sites. For more information about executing the jmp-dr health command, see "Checking the Status of the Disaster Recovery Configuration" on page 1759.
RELATED DOCUMENTATION Disaster Recovery Overview | 1702 Modifying the Disaster Recovery Configuration | 1766 Modifying Applications and Nodes on a Disaster Recovery Setup | 1777
Stopping the Disaster Recovery Process on Junos Space Network Management Platform Release 14.1R3 and Earlier
IN THIS SECTION Stopping the Backup Process at the Active Site | 1746 Stopping Collecting Backups from the Active Site | 1748
To configure the disaster recovery enhancements added as part of the Junos Space Network Management Platform Release 15.2R1, you must first disable the disaster recovery feature on your current Junos Space setup (Junos Space Network Management Platform Release 14.1R3 and earlier) before upgrading to Junos Space Network Management Platform Release 15.2R1. You must stop backups at the active site and the standby site must stop collecting backups from the active site. The scripts to stop the backup and restoration process configured during earlier releases are stored at /opt/jmp-geo/backup/script/ and /opt/jmp-geo/restore/script/.
Stopping the Backup Process at the Active Site Stopping the backup process at the active site removes the cron job and stops the backup operation from being performed.
1747
To stop the backup process at the active site: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Type /opt/jmp-geo/backup/script/./backup.sh stop at the shell prompt and press Enter. The following is a sample output:
1748
Demoting this cluster from the DR Master Cluster Role ... update cluster state successful Stoping backup cron job... Stopping crond: [ OK ] Starting crond: [ OK ]
The backup process at the active site is stopped.
Stopping Collecting Backups from the Active Site
Stopping the restoration process at the standby site removes the cron job and stops collecting backups from the active site. To stop the restoration process at the standby site: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes
Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Type /opt/jmp-geo/restore/script/./restore.sh stopPoll at the shell prompt and press Enter. The following is a sample output:
Stoping restore cron job... Stopping crond: [ OK ] Starting crond: [ OK ] Demoting this cluster from the DR Slave Cluster Role ... update cluster state successful opening port 7804 on user1@host.... jmp-firewall is stopped. Skip reloading <response> <message </message> <status>SUCCESS</success> </response>
The standby site stops collecting backups from the active site.
RELATED DOCUMENTATION Disaster Recovery Overview | 1702 Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734
1749
1750
CHAPTER 100
Configuring the Disaster Recovery Process in the GUI
IN THIS CHAPTER Validate Peer Site | 1750 Manage Disaster Recovery | 1752
Validate Peer Site
Use the Validate Peer Site page to check the reachability of the peer site, before you add it to the Disaster Recovery (DR) environment. Before you configure the DR, ensure that your Junos Space installation meets the following prerequisites: · The Junos Space cluster at the primary or active site ( single node or multiple nodes) and the cluster at
the remote or standby site (single node or multiple nodes) must have the same configuration, with the same applications, device adapters, same IP family configurations, and so on. · Passwords used must be valid. · Both clusters must be configured with SMTP server information from the Junos Space GUI. For more information, see "Managing SMTP Servers" on page 1469. This configuration enables the clusters at both the active site and the standby site to notify the administrator by e-mail if the replications fail. · The arbitrary devices used must be reachable. To validate peer site in active and standby site: 1. Select Administration > Disaster Recovery > Validate Peer Site.
The Validate Peer Site page appears.
2. Enter the required parameters and select one or more devices from the list that you want to validate. See Table 198 for more details on the Validate Peer Site page.
1751
Table 215: Fields on Validate Peer Site page
Field
Description
Peer Site VIP Address
Enter a valid peer site VIP address.
Load Balancer's CLI Admin Password Enter the correct load balancer password.
Confirm Password
Re-enter the above password.
Arbitrary Devices
Select one or more devices from the list of devices used during the DR auto failover.
You can also search and filter the devices.
Device Name
Displays the name of the device.
Device Alias
Displays the alias for the device.
IP Address
Shows the IP addresses for the devices.
Platform
Displays the platform for the devices.
OS Version
Displays the OS version of devices.
Connection Status
Displays the connection status of the devices.
Validate Peer Site
Select to validate the selections and perform the validation. This is enabled when the mandatory fields are filled.
Cancel
Select to cancel the selections and go back to the landing page of DR.
RELATED DOCUMENTATION
Disaster Recovery Overview | 1566 Manage Disaster Recovery | 1570
Manage Disaster Recovery
IN THIS SECTION Configuring Disaster Recovery at the Active Site | 1753 Configuring Disaster Recovery at the Standby Site | 1755 Actions common for both Active and Standby Site | 1756 Disaster Recovery Health | 1757
1752
Configuration of Disaster Recovery (DR) between an active site and a standby site ensures geographical redundancy of network management services.
Before you initiate the DR process between both sites, perform the following tasks:
· Ensure that the connectivity requirements as described in the "Disaster Recovery Overview" on page 1566 topic are met.
· Check whether identical cluster configurations exist on both sites. We recommend that both clusters have the same number of nodes so that, even in the case of a disaster, the standby site can operate with the same capacity as the active site.
· Ensure that the same versions of Junos Space Network Management Platform, high-level Junos Space applications, and device adapters are installed at both sites.
· Shut down the DR process configured on Junos Space Network Management Platform Release 14.1R3 and earlier before upgrading to Junos Space Network Management Platform Release 15.2R1 and configuring the new DR process. For more information, see "Stopping the Disaster Recovery Process on Junos Space Network Management Platform Release 14.1R3 and Earlier" on page 1746.
You cannot configure the new DR process if you do not stop the DR you set up on 14.1R3 and earlier releases. You do not need to perform this step on a clean installation of Junos Space Network Management Platform Release 15.2R1.
· Ensure that the same SMTP server configuration exists on both sites to receive e-mail alerts related to the DR process. You can add SMTP servers from the SMTP Servers task group in the Administration workspace. For more information about adding SMTP servers, see "Adding an SMTP Server" on page 1470.
To configure Disaster Recovery:
1. Select Administration > Disaster Recovery > Manage Disaster Recovery.
The Configure Disaster Recovery Wizard page opens.
1753
2. Enter the required parameters and select one or more devices from the list that you want to validate. See Table 199 for more details on the Configure Disaster Recovery Wizard page.
Table 216: Fields on the Configure Disaster Recovery Wizard Page
Field
Description
Site Role
Select an option for which you want to configure the DR. The available options are Active and Standby Site.
NOTE: Its is mandatory to initiate the DR on the Active Site first followed by Standby Site or else system prompts you to do so.
Peer Site VIP Address
Enter a valid IP address for configuration. NOTE: You cannot edit this information if the DR is not in the Initialized state.
Load Balancer's CLI Admin Enter a valid admin CLI password.
Password
NOTE: If you have more than one password, you can enter both separated by a comma.
You cannot edit this information if the DR is not in the Initialized state.
Confirm Password
Re-enter the previously entered password to configure the DR Wizard.
Arbitrary Devices
Select one or more devices from the list of devices used during DR auto failover. You can also search and filter the devices.
Next
Select Next to configure Disaster Recovery at the Active Site followed by Standby Site. See "Configuring Disaster Recovery at the Active Site" on page 1572 and "Configuring Disaster Recovery at the Standby Site" on page 1573. It is enabled only when all the parameters are fulfilled.
Next, the window to configure Disaster Recovery at the Active Site followed by Standby Site gets displayed. For more details, see "Configuring Disaster Recovery at the Active Site" on page 1572 and "Configuring Disaster Recovery at the Standby Site" on page 1573.
The following sections explains the procedure to configure DR at the Active and Standby Sites and initiate the disaster recovery between both sites.
Configuring Disaster Recovery at the Active Site To configure the Disaster Recovery at the Active Site: 1. Select Next after you have filled all the parameters in the Configure Disaster Recovery Wizard page.
1754
The Configure Disaster Recovery Wizard for Active Site opens.
2. Enter all the required details for the parameters that are displayed on the page. For more details on the fields, see Table 200.
Table 217: Fields on the Configure Disaster Recovery Wizard page at the Active Site
Field
Description
Peer Site VIP
Displays the IP address entered in the Configure Disaster Recovery Wizard page.
Arbitrary Devices
Displays all the devices that are selected in the Configure Disaster Recovery Wizard page.
SCP Timeout
Displays the timeout value to detect a failure in transferring files from standby to active site through Secure Copy Protocol (SCP). The time is dispayed in seconds.
NOTE: You cannot edit the value if DR is not in the Initialized state.
Maximum number of backup
Displays the numbers of files that you want to retain. NOTE: You cannot edit the value if DR is not in the Initialized state.
Backup Schedule NOTE: You cannot edit the parameters if DR is not in the Initialized state.
Time of the day (in Hrs)
The time of the day when you want to schedule the backup. Time is in 24 hours format.
Days of the week
The days when you want to schedule the backup.
Restore Schedule NOTE: You cannot edit the parameters if DR is not in the Initialized state.
Time of the day (in Hrs)
The time of the day to copy files from active site to standby site. Time is in 24 hours format.
Days of the week
The days to copy files from active site to standby site.
Watchdog NOTE: You cannot edit the parameters if DR is not in the Initialized state.
1755
Table 217: Fields on the Configure Disaster Recovery Wizard page at the Active Site (continued)
Field
Description
Heartbeat retry times
The number of times the active site should send heartbeat messages to the standby site. It ranges from 4 to 15.
Heartbeat message timeout
The timeout value of each heartbeat message in seconds. The maximum and default value is 5.
Heartbeat message interval
Displays the time interval between two consecutive heartbeat messages to the standby site in seconds, ranging from 30 seconds to 120 seconds.
Notification email
The e-mail address of the administrator to whom e-mail messages about disaster recovery service issues must be sent.
Notification interval
The time interval during which the same issues are not reported through e-mail (dampening interval) in seconds. It ranges from 300 to 1800 seconds.
Failure Detection
Failure detection method
Displays the method of failure detection.
NOTE: In Junos Space Network Management Platform 20.3R1, only default option is allowed through GUI.
Failure detection threshold percentage Displays the threshold percentage for failure detection.
When you have entered values for all parameters, disaster recovery is initialized at the active site.
Configuring Disaster Recovery at the Standby Site
To configure the Disaster Recovery at the Standby Site: 1. Select Next after you have filled all the parameters in the Configure Disaster Recovery Wizard page.
The Configure Disaster Recovery Wizard for Standby Site opens.
2. Enter all the required details for the parameters that are displayed on the page. For more details on the fields, see Table 201.
NOTE: Its mandatory to initialize the Active Site before initializing the Standby Site. Arbitrary devices can be selected only in the Active Site.
1756
Table 218: Fields on the Configure Disaster Recovery Wizard page at the Standby Site
Field
Description
Peer Site VIP
Displays the IP address entered in the Configure Disaster Recovery Wizard page.
Arbitrary Devices
Displays all the devices that are selected in the Configure Disaster Recovery Wizard page.
SCP Timeout
Displays the timeout value to detect a failure in transferring files from standby to active site through Secure Copy Protocol (SCP). The time is dispayed in seconds.
NOTE: You cannot edit the value if DR is not in the Initialized state.
Maximum number of backup
Displays the maximum number of backups to retain at the standby site. NOTE: You cannot edit the value if DR is not in the Initialized state.
Backup Schedule NOTE: You cannot edit the parameters if DR is not in the Initialized state.
Time of the day (in Hrs)
The time of the day when you want to schedule the backup. Time is in 24 hours format.
Days of the week
The days when you want to schedule the backup.
Restore Schedule NOTE: You cannot edit the parameters if DR is not in the Initialized state.
Time of the day (in Hrs)
The time of the day to copy files from active site to standby site. Time is in 24 hours format.
Days of the week
The days to copy files from active site to standby site.
When you have entered values for all parameters, disaster recovery is initialized at the standby site.
Actions common for both Active and Standby Site Table 202 shows the actions common for configuring both Active and Standby Sites.
1757
Table 219: Actions common for both Active and Standby Site configuration
Field
Action
Initialize
Starts the initialization of DR with the given values.
This is enabled only when all the parameters are provided with correct vales on both the sites.
Reset
Resets the DR configuration. This is enabled only when the DR is already initialized or else stopped.
Start
Starts the DR process. This is enabled when the DR is already initialized.
Stop
Allows you to stop the configuration on either of the sites or both the sites.
Manual Failover
This performs manual fail over on the standby site. This parameter is available only when the DR has started or is stopped.
Disaster Recovery Health
To check the Disaster Recovery health status: 1. Select Administration > Disaster Recovery.
The landing page opens with a graphical representation of both the Active and Standby Site.
2. Right click on the site you want to check the health status. The options available are Current Configuration, Health and Start.
3. Select Health. The health report status for the selected site is displayed. The report shows the last verified status for a particular site with the date and time of generation of the report.
4. Select Trigger Health Report to check the current health report status for the selected site. The Health Command starts and after completion, it shows all the relevant messages with their status.
RELATED DOCUMENTATION
Disaster Recovery Overview | 1566 Validate Peer Site | 1568
1758
CHAPTER 101
Managing the Disaster Recovery Solution
IN THIS CHAPTER Checking the Status of the Disaster Recovery Configuration | 1759 Viewing the Disaster Recovery Configuration and Status of Watchdog Services | 1764 Modifying the Disaster Recovery Configuration | 1766 Modifying Applications and Nodes on a Disaster Recovery Setup | 1777 Manually Failing Over the Network Management Services to the Standby Site | 1792 Stopping the Disaster Recovery Process | 1796 Resetting the Disaster Recovery Configuration | 1798
1759
Checking the Status of the Disaster Recovery Configuration
You check the status of the disaster recovery configuration:
· After starting the disaster recovery process to ensure that the disaster recovery configuration is accurate, files are being replicated, and the disaster recovery watchdog is monitoring the disaster recovery setup
· After stopping the disaster recovery process, to ensure that file replication and disaster recovery watchdog process have stopped
You execute the jmp-dr health command to check the status of the disaster recovery configuration. This command checks the status of asynchronous data replication, file transfer, and disaster recovery watchdog, and the role of clusters in the disaster recovery setup. Errors found during command execution are listed in the command output.
NOTE: If you have already executed the jmp-dr health command and the execution is in progress, executing another jmp-dr health command can display incorrect output. The output from the jmp-dr health command also lists whether another instance of the command is being executed.
1760
To check the status of the disaster recovery configuration at a site: 1. Log in to the CLI of the Junos Space node at the site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Enter jmp-dr health at the shell prompt. Junos Space Platform checks the status (overall health) of the disaster recovery configuration at the site.
1761
· The following is a sample output of the jmp-dr health command after you start the disaster recovery process and execute the command at the active site:
[user1@host]# jmp-dr health The DR role of this site: active The DR state of this site: started The status of DR watchdog: ready The status of DR remote site: up Check admin password of DR remote site
[ OK ] Check mysql ca and server certificates
[ OK ] Check mysql replication users
[ OK ] Check file replication: backup cron job should be added
[ OK ] Check mysql replication:
node (10.206.41.221, user1@host) and peer node of same site
(10.206.41.222, user2@host) should be master-master [ OK ]
Check pgsql replication:
Pgsql replication betwwen this node (10.206.41.221, user1@host) and peer node of same site
(10.206.41.222, user2@host) should be master-slave. [ OK ]
Services (jboss, jboss-dc, etc.) should be up [ OK ]
DR watchdog should be up [ OK ]
Command completed.
· The following is a sample output of the jmp-dr health command after you start the disaster recovery process and execute the command at the standby site:
[user3@host]# jmp-dr health The DR role of this site: standby The DR state of this site: started The status of DR watchdog: ready The status of DR remote site: up Check admin password of DR remote site
1762
[ OK ] Check mysql ca and server certificates
[ OK ] Check mysql replication users
[ OK ] Check file replication: poll cron job should be added
[ OK ] Check mysql replication:
node (10.206.41.226, user3@host) and peer node of same site
(10.206.41.227, user4@host) should be master-slave,
and node (10.206.41.226, user3@host) and mysql VIP node of remote site
(10.206.41.220) should be slave-master [ OK ]
Check pgsql replication:
Pgsql replication between node (10.206.41.226, user3@host) and peer node of same site
(10.206.41.227, user4@host) should be master-slave,
and replication node (10.206.41.226, user3@host) and pgsql VIP node of remote site
(10.206.41.220) should be slave-master [ OK ]
Services (jboss, jboss-dc, etc.) should be down [ OK ]
DR watchdog should be up [-]
[ OK ] Command completed.
· The following is a sample output of the jmp-dr health command after you stop the disaster recovery process and execute the command at the active site:
[user2@host]# jmp-dr health The DR role of this site: active The DR state of this site: stopped The status of DR watchdog: ready The status of DR remote site: up Check admin password of DR remote site
1763
[ OK ] Check mysql ca and server certificates
[ OK ] Check mysql replication users
[ OK ] Check file replication: cron jobs should be removed
[ OK ] Check mysql replication:
node (10.206.41.222, user2@host) and peer node of same site
(10.206.41.221, user1@host) should be master-master [ OK ]
Services (jboss, jboss-dc, etc.) should be up [ OK ]
DR watchdog should be down [ OK ]
Command completed.
· The following is a sample output of the jmp-dr health command after you stop the disaster recovery process and execute the command at the standby site:
[user3@host]# jmp-dr health The DR role of this site: standby The DR state of this site: stopped The status of DR watchdog: ready The status of DR remote site: up Check admin password of DR remote site
[ OK ] Check mysql ca and server certificates
[ OK ] Check mysql replication users
[ OK ] Check file replication: cron jobs should be removed
[ OK ] Check mysql replication:
node (10.206.41.226, user3@host) and peer node of same site
(10.206.41.227, user4@host) should be master-master [ OK ]
Services (jboss, jboss-dc, etc.) should be down [ OK ]
DR watchdog should be down [ OK ]
Command completed.
1764
RELATED DOCUMENTATION Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Resetting the Disaster Recovery Configuration | 1798 Stopping the Disaster Recovery Process | 1796
Viewing the Disaster Recovery Configuration and Status of Watchdog Services
You execute the jmp-dr api v1 config command to view the disaster recovery configuration and the status of the disaster recovery watchdog services at the local site. You can use this command to create custom failure-detection scripts. For more information about using custom failure-detection scripts, see the Failure Detection by Using Custom Failure-Detection Scripts section in the "Disaster Recovery Overview" on page 1702 topic. You can also refer to the sample scripts located at var/cache/jmp-geo/doc/samples/. To view the disaster recovery configuration and the status of the disaster recovery watchdog services: 1. Log in to the CLI of the Junos Space node at the site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
1765
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Enter jmp-dr api v1 config at the shell prompt. You can view the disaster recovery configuration and the status of all the disaster recovery watchdog services.
5. (Optional) To view the sections of the disaster recovery configuration, enter jmp-dr api v1 config -list at the shell prompt. All available sections of the disaster recovery configuration from the remote site are displayed. The following is a sample output:
[user1@host]# jmp-dr api v1 config --list {
"sections": "role,failover,states,core,mysql,psql,file,watchdog,deviceManagement" }
6. (Optional) To view selected sections of the disaster recovery configuration, enter jmp-dr api v1 config -include <section1>,<section2> at the shell prompt. The following is a sample output of the core and deviceManagement sections:
[user1@host]# jmp-dr api v1 config --include core,deviceManagement {
"core": { "peerVip": "10.206.41.41", "adminPass":
"53616c7465645f5f7370616365313233126c3f3e6fd6257a81cded28f55d465c", "scpTimeout": 120, "peerLoadBalancerNodes": "10.206.41.42,10.206.41.44", "peerBusinessLogicNodes": "10.206.41.42,10.206.41.44,10.206.41.50", "peerDeviceMgtIps": "10.206.41.42,10.206.41.44,10.206.41.50"
}, "deviceManagement": {
"peerNodes": "10.206.41.42,10.206.41.44,10.206.41.50", "nodes": "10.206.41.182,10.206.41.183,10.206.41.184", "ip": "10.206.41.183,eth0" } }
1766
RELATED DOCUMENTATION Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Checking the Status of the Disaster Recovery Configuration | 1759 Stopping the Disaster Recovery Process | 1796
Modifying the Disaster Recovery Configuration
After you have initially configured the disaster recovery setup, you may need to modify the Junos Space cluster at either sites such as addition or removal of nodes from your Junos Space setup, change IP addresses of interfaces, change device management interfaces, load balancer details (VIP address and password), and change VIP address of dedicated services such as FMPM or database. You may also need to modify disaster recovery parameters such as backup and restore settings, heartbeat settings, and failure detection settings. You use the jmp-dr toolkit config update command to: · Reinitiate MySQL or PgSQL replication at a site and to the standby site if you added or removed dedicated
nodes and update these changes at the standby site. · Update the changes in cluster configuration (addition or removal of load balancer nodes), at both sites.
1767
Refer to "Modifying Applications and Nodes on a Disaster Recovery Setup" on page 1777 for more information about modifying nodes. You use the options along with jmp-dr toolkit config update command to modify backup and restore settings, heartbeat settings, failure detection settings, update load balancer details (VIP address and password), and SCP timeout settings, and update these changes at the peer site.
NOTE: You must update the changes to the load balancers at both sites by using the --user-core option before modifying and updating the other sections of disaster recovery such as heartbeat settings, notification settings, failure detection settings, file backup and restore settings.
Table 220 lists the options and the group of disaster recovery configuration parameters included with the option.
Table 220: jmp-dr toolkit config update command options
Configuration Update Option
Description
--user-core
Load balancer VIP and password, and SCP timeout settings
--user-file-backup
Configuration and RRD files backup settings
--user-file-restore
Configuration and RRD files replication to standby site settings
--user-watchdog-heartbeat
Watchdog heartbeat settings
--user-watchdog-notification
Email notification settings
--user-watchdog-failureDetection
Failure detection settings
To modify the disaster recovery configuration:
1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands.
The following is a sample output from a virtual appliance:
1768
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
3. Enter the administrator password.
4. Stop the disaster recovery process on both sites. To do so, type jmp-dr stop at the shell prompt and press Enter.
5. Perform the following steps to modify the disaster recovery configuration at sites.
1769
· Use the jmp-dr toolkit config update command to:
· Update the addition or removal of load balancer nodes. · Reinitiate MySQL or PgSQL replication at a site (after adding or removing dedicated nodes). · Update changes to VIP address of FMPM node or database node of a site, at both sites. · Update the changes to IP address of the nodes of a site, at both sites. · Update the addition or removal of eth3 interface for device management or change in the IP address
of the eth3 interface, at both sites. · Update the change of IP address version for device management (IPv4 to IPv6 or IPv6 to IPv4) of
a site, at both sites. a. Log in to the CLI of the Junos Space VIP node at the site where you made the modifications.
b. Type jmp-dr toolkit config update at the shell prompt and press Enter.
c. Type No and press Enter to view the cluster modifications. The modified cluster configuration is displayed in JSON format.
d. Press Enter to accept the changes. The following is a sample output when the disaster recovery configuration is updated after adding a dedicated MySQL node.
[user1@host]# jmp-dr toolkit config update If admin password of any node belonging to remote site is changed or if a new node with different admin password is added then please use option --user-core. Continue? Yes The modified user configuration in JSON format is as follows: {
"user_mysql_hasDedicatedDb": { "lhs": false, "rhs": true
}, "user_mysql_peerVip": {
"lhs": "10.206.41.225", "rhs": "10.206.41.84" }, "user_mysql_peerNodes": { "lhs": "10.206.41.226,10.206.41.227", "rhs": "10.206.41.85,10.206.41.86" } }
1770
Do you want to apply these changes? Yes Check status of DR remote site: up Stop mysql replication if applicable
[ OK ] Update mysql repUser & repAdmin
[ OK ] Update firewall
[ OK ] Update ntp
[ OK ] Update mysql configuration if applicable
[ OK ] Update services (such as jboss-dc, httpd, etc.)
[ OK ] The configuration change is updated only at current site, please ensure to
update at the remote site accordingly. The `toolkit config` command is done
The disaster recovery configuration file at the local site is updated with the modified configuration of the cluster.
e. Log in to the CLI of the Junos Space VIP node at the peer site to update the modifications made at the local site.
f. Type jmp-dr toolkit config update at the shell prompt and press Enter.
g. Type No and press Enter to view the modified cluster configuration at the remote site. The modified configuration is displayed in JSON format.
h. Press Enter to accept the changes. The disaster recovery configuration file at the peer site is updated with the modified configuration of the cluster at the local site.
· To modify the heartbeat settings at a site: a. Log in to the CLI of the Junos Space VIP node at the site where the heartbeat settings must be modified.
b. Type jmp-dr toolkit config update --user-watchdog-heartbeat at the shell prompt and press Enter.
c. Type No and press Enter to modify the heartbeat settings.
1771
The disaster recovery configuration parameters to modify heartbeat settings are displayed. The following is a sample screen output.
? If admin password of any node belonging to remote site is changed or if a new node with different admin password is added then please use option --user-core. Continue? Yes
######################### # # DR Watchdog # #########################
# heartbeat
? What's the number of times to retry heartbeat message? 4 ? What's the timeout of each heartbeat message (seconds)? 5 ? What's the heartbeat message interval between sites (seconds)? 30
d. Modify the heartbeat settings. The modified heartbeat settings are displayed in JSON format.
e. Press Enter to accept the changes. The heartbeat settings are modified when the command is executed. The following is a sample screen output.
The configuration change is updated only at current site, please ensure to update at the remote site accordingly.
Command completed.
f. Log in to the CLI of the Junos Space VIP node at the peer site to update the modifications made at the local site.
g. Type jmp-dr toolkit config update --user-watchdog-heartbeat at the shell prompt and press Enter.
h. Type No and press Enter to view the modified heartbeat settings at the local site. The modified heartbeat settings are displayed in JSON format.
i. Press Enter to accept the changes.
1772
The heartbeat settings are updated when the command is executed.
· To modify the notification settings at a site: a. Log in to the CLI of the Junos Space VIP node at the site where the notification settings must be modified.
b. Type jmp-dr toolkit config update --user-watchdog-notification at the shell prompt and press Enter.
c. Type No and press Enter to modify the notification settings. The disaster recovery configuration parameters to modify notification settings are displayed.
d. Modify the notification settings. The modified notification settings are displayed in JSON format.
e. Press Enter to accept the changes. The notification settings are modified when the command is executed.
f. Log in to the CLI of the Junos Space VIP node at the peer site to update the modifications made at the local site.
g. Type jmp-dr toolkit config update --user-watchdog-notification at the shell prompt and press Enter.
h. Type No and press Enter to view the modified notification settings at the local site. The modified notification settings are displayed in JSON format.
i. Press Enter to accept the changes. The notification settings are updated when the command is executed.
· To modify the failure detection settings at the active site: a. Log in to the CLI of the Junos Space VIP node at the active site.
b. Type jmp-dr toolkit config update --user-watchdog-failureDetection at the shell prompt and press Enter.
c. Type No and press Enter to modify the failure detection settings. The disaster recovery configuration parameters to modify failure detection settings are displayed.
1773
d. Modify the failure detection settings. The modified failure detection settings are displayed in JSON format.
e. Press Enter to accept the changes. The failure detection settings are modified when the command is executed. The following is a sample screen output.
? If admin password of any node belonging to remote site is changed or if a new node with different admin password is added then please use option --user-core. Continue? Yes
######################### # # DR Watchdog # #########################
# failureDetection
? Do you want to use custom failure detection? No ? What's the threshold percentage to trigger failover? 50 ? What's the arbiters list file (note: please refer to example in /var/cache/jmp-geo/doc/samples/arbiters.list)? /var/cache/jmp-geo/doc/arbiters.list The modified user configuration in JSON format is as follows: {
"user_watchdog_failureDetection_arbiters": { "lhs": "/var/cache/jmp-geo/config/arbiters.list", "rhs": "/var/cache/jmp-geo/doc/arbiters.list"
} }
? Do you want to apply these changes? Yes Check status of DR remote site: up Update MySQL configuration if applicable
[ OK ] Update services (such as jboss-dc, httpd, etc.)
[ OK ] The configuration change is updated only at current site, please ensure to
update at the remote site accordingly. Command completed.
1774
f. Log in to the CLI of the Junos Space VIP node at the peer site to update the modifications made at the active site.
g. Type jmp-dr toolkit config update --user-watchdog-failureDetection at the shell prompt and press Enter.
h. Type No and press Enter to view the modified failure detection settings at the local site. The modified failure detection settings are displayed in JSON format.
i. Press Enter to accept the changes. The failure detection settings are updated when the command is executed.
· To modify the file backup settings at a site: a. Log in to the CLI of the Junos Space VIP node at the site where the file backup settings must be modified.
b. Type jmp-dr toolkit config update --user-file-backup at the shell prompt and press Enter.
c. Type No and press Enter to modify the file backup settings. The disaster recovery configuration parameters to modify file backup settings are displayed.
d. Modify the file backup settings. The modified file backup settings are displayed in JSON format.
e. Press Enter to accept the changes. The file backup settings are modified when the command is executed.
f. Log in to the CLI of the Junos Space VIP node at the peer site to update the modifications made at the local site.
g. Type jmp-dr toolkit config update --user-file-backup at the shell prompt and press Enter.
h. Type No and press Enter to view the modified file backup settings at the local site. The modified file backup settings are displayed in JSON format.
i. Press Enter to accept the changes. The file backup settings are updated when the command is executed.
1775
· To modify the file restore settings at a site: a. Log in to the CLI of the Junos Space VIP node at the site where the file restore settings must be modified.
b. Type jmp-dr toolkit config update --user-file-restore at the shell prompt and press Enter.
c. Type No and press Enter to modify the file restore settings. The disaster recovery configuration parameters to modify file restore settings are displayed.
d. Modify the file restore settings. The modified file restore settings are displayed in JSON format.
e. Press Enter to accept the changes. The file restore settings are modified when the command is executed.
f. Log in to the CLI of the Junos Space VIP node at the peer site to update the modifications made at the local site.
g. Type jmp-dr toolkit config update --user-file-restore at the shell prompt and press Enter.
h. Type No and press Enter to view the modified file restore settings at the local site. The modified file restore settings are displayed in JSON format.
i. Press Enter to accept the changes.
1776
The file restore settings are updated when the command is executed.
· Use the --user-core option to: · Update the modified VIP address of the load balancers of a site at the peer site. · Update the modified password of the load balancers of the standby a site at the active site.
NOTE: You can use the --user-core option to update the modified password of the active site at the standby site.
Refer to "Modifying the Network Settings of a Node in the Junos Space Fabric" on page 1257 in the Junos Space Network Management Platform Workspaces Feature Guide for more information about modifying the VIP address of the load balancers. · Modify the SCP timeout settings at a site. a. Log in to the CLI of the Junos Space VIP node at the site where the load balancer details are
modified or where the SCP timeout settings must be modified.
b. Type jmp-dr toolkit config update --user-core at the shell prompt and press Enter.
c. Press Enter to update the load balancer modifications or modify the SCP timeout settings. The disaster recovery configuration parameters to modify load balancer settings are displayed.
d. Modify the load balancer settings. The modified load balancer settings are displayed in JSON format.
e. Press Enter to apply the changes. The load balancer settings are modified when the command is executed. The following is a sample screen output.
[user1@host]# jmp-dr toolkit config update --user-core
######################### # # Load Balancers # #########################
? What's the vip for load balancers at the standby site? 10.206.41.101
1777
? What are the unique admin passwords for load balancer nodes at the standby site (separated by comma, no space)? $ABC123
? What's the scp timeout value (seconds)? 120 Check status of DR remote site: up Update MySQL configuration if applicable
[ OK ] Update services (such as jboss-dc, httpd, etc.)
[ OK ] The configuration change is updated only at current site, please ensure to
update at the remote site accordingly. Command completed.
f. Log in to the CLI of the Junos Space VIP node at the peer site.
g. Type jmp-dr toolkit config update --user-core at the shell prompt and press Enter. The modified load balancer settings are displayed in JSON format.
h. Press Enter to accept the changes. The load balancer settings are modified when the command is executed.
6. Start the disaster recovery process on both sites from the active site. To do so, type jmp-dr start at the shell prompt and press Enter.
RELATED DOCUMENTATION Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Resetting the Disaster Recovery Configuration | 1798 Stopping the Disaster Recovery Process | 1796
Modifying Applications and Nodes on a Disaster Recovery Setup
IN THIS SECTION Upgrading the Junos Space Network Management Platform Software | 1779 Upgrading to Junos Space Network Management Platform Release 16.1R1 | 1784 Installing a Junos Space Application | 1785
Upgrading a Junos Space Application | 1786 Uninstalling a Junos Space Application | 1787 Adding or Removing a JBoss Node | 1788 Adding or Removing a Dedicated Junos Space Node | 1790
1778
During routine operations of the disaster recovery setup, you may need to make changes to the disaster recovery setup such as upgrading Junos Space Network Management Platform; adding, removing, or upgrading Junos Space applications; adding nodes; and changing disaster recovery settings or disaster recovery procedures when the active site goes down due to a disaster. You need to log in to the Junos Space user interface and initiate Junos Space Platform workflows to modify the applications and nodes.
NOTE: You must stop the disaster recovery process when you make changes to the disaster recovery setup. Missing transactions at the standby site are collected from the active site when you restart the disaster recovery process after modifying the setup.
NOTE: We recommend that you install the same set of applications on both sites to ensure that you can use all the applications from the standby site in case of a failover.
NOTE: When you execute the scripts to install and upgrade Junos Space Platform and Junos Space applications, you must enter only the release version. For example, /var/www/cgi-bin/executeUpgradeOnDr.pl 16.1R1.XX and not /var/www/cgi-bin/executeUpgradeOnDr.pl 16.1R1.XX.img.
When you execute disaster recovery scripts, ensure that you use only the following special characters to create user names and passwords: Table 221: Supported Special Characters
Supported Special Characters
!
#
1779
Table 221: Supported Special Characters (continued) % * _ = + [ { ] } ; , . /
The following sections contain steps to modify the applications or nodes on a disaster recovery setup.
Upgrading the Junos Space Network Management Platform Software You upgrade Junos Space Platform at both the active and standby sites to upgrade the version of Junos Space Platform on your Junos Space deployment. You can upgrade Junos Space Platform on both sites as follows: · Upgrade Junos Space Platform at the standby site before you upgrade Junos Space Platform at the active
site. By upgrading the software image on the standby site first, you can verify the software upgrade process without impacting normal operations at the active site. Although you can upgrade the software on the standby site by using scripts, you must manually failover to the standby site to verify the functionality and features of Junos Space Platform from the user interface. By upgrading the software image on the standby site first, you also ensure that the new software and new database schema are
1780
first made available on the standby site to enable it to receive new backup files from the active site after upgrading the software on the active site and restarting disaster recovery. · Upgrade Junos Space Platform at the active site before you upgrade Junos Space Platform at the standby site. By upgrading and testing Junos Space Platform for a duration that allows no disaster recovery functionality on your Junos Space setup, and using the newer version of Junos Space Platform on the active site first, you ensure that all functionality and features accessible through the user interface work as expected. You can then upgrade the software on the standby site by using scripts or by manually failing over to the standby site and upgrading from the user interface. You execute the ./executeScpImageOnDr.pl and ./executeUpgradeOnDr.pl scripts to upgrade Junos Space Platform Release to later releases. You need to stop the disaster recovery process on both sites before uploading and upgrading the software on both sites, reboot all nodes at both sites, and start the disaster recovery process from the active site.
NOTE: See Table 221 for information about the usage of supported special characters to create user name and passwords, while executing disaster recovery scripts.
To upgrade Junos Space Platform to a later release:
NOTE: If you are upgrading Junos Space Platform to Release 18.1 from a version earlier than Release 16.1, you must first upgrade Junos Space Platform to Release 16.1, and then upgrade Junos Space Platform Release 16.1 to Release 17.1 or Release 17.2. If you are upgrading to Junos Space Platform Release 16.1 from an earlier version, follow the steps listed in the "Upgrading to Junos Space Network Management Platform Release 16.1R1" on page 1784 section.
NOTE: Before you upgrade Junos Space Platform to Release 18.1, ensure that the time on all Junos Space nodes is synchronized. For information about synchronizing time on Junos Space nodes, see Synchronizing Time Across Junos Space Nodes
1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands.
The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42 Welcome to the Junos Space network settings utility. Initializing, please wait
1781
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
You are prompted to enter the administrator password.
3. Enter the administrator password.
4. You can start upgrading the software at the active site or the standby site. To upgrade the active site first: a. Stop the disaster recovery process on both sites. To do so, type jmp-dr stop at the shell prompt of the active site and press Enter.
b. Go to the Junos Space user interface > Administration workspace > Applications page and upload the software image to the active site. The software image file should be listed on the Upgrade Platform page. Refer to "Upgrading Junos Space Network Management Platform" on page 1372 in the Junos Space Network Management Platform Workspaces Feature Guide.
1782
c. Use SCP to copy the software image from the active site to the standby site. To do so, type /var/www/cgi-bin/executeScpImageOnDr.pl software-image-name at the shell prompt at the active site and press Enter. The software image is copied from the /var/cache/jboss/jmp/ directory at the active site to the /var/cache/jboss/jmp/payloads/ directory at the standby site.
d. Go to the Junos Space user interface > Administration workspace > Applications page and upgrade the software at the active site. Refer to "Upgrading Junos Space Network Management Platform" on page 1372 in the Junos Space Network Management Platform Workspaces Feature Guide.
e. When the upgrade is complete and all nodes reboot, check the functionality of Junos Space Platform from the user interface.
f. Upgrade the software on the standby site. To do so, type /var/www/cgi-bin/executeUpgradeOnDr.pl software-image-name at the shell prompt at the active site and press Enter.
g. Verify that the software is upgraded at the standby site as follows: · Verify from the log entry in the install.log file located at /var/log/. · Execute the rpm -qa | grep jmp- command and verify that the following RPMs are upgraded: Jmp-nma, Jmp-cmp, jmp-ems, and other jmp-related RPMs.
h. Reboot all nodes at the standby site from the CLI. To do so, type reboot at the shell prompt of each node and press Enter.
i. Since the standby site cannot be accessed through the user interface, you must manually failover to the standby site to access the user interface. To do so, type jmp-dr manualFailover at the shell prompt of the standby site and press Enter.
j. Verify the functionality of Junos Space Platform on the standby site.
1783
k. Manually failover to the original active site. To do so, type jmp-dr manualFailover at the shell prompt of the current standby site and press Enter.
l. Start the disaster recovery process on both sites from the active site. To do so, type jmp-dr start at the shell prompt and press Enter.
To upgrade the standby site first: a. Since the standby site cannot be accessed through the user interface, you must manually failover
to the standby site to access the user interface on the standby site and upgrade the software. To do so, type jmp-dr manualFailover at the shell prompt of the standby site and press Enter. The standby site is the new active site. From steps b through j the original active site is referred as the standby site and the original standby site is referred as the active site.
b. Stop the disaster recovery process on both sites. To do so, type jmp-dr stop at the shell prompt of the active site and press Enter.
c. Go to the Junos Space user interface > Administration workspace > Applications page and upload the software image to the active site. The software image file should be listed on the Upgrade Platform page. Refer to "Upgrading Junos Space Network Management Platform" on page 1372 in the Junos Space Network Management Platform Workspaces Feature Guide.
d. Use SCP to copy the software image from the active site to the standby site. To do so, type /var/www/cgi-bin/executeScpImageOnDr.pl software-image-name at the shell prompt at the active site and press Enter. The software image is copied from the /var/cache/jboss/jmp/ directory at the active site to the /var/cache/jboss/jmp/payloads/ directory at the standby site.
e. Go to the Junos Space user interface > Administration workspace > Applications page and upgrade the software at the active site. Refer to "Upgrading Junos Space Network Management Platform" on page 1372 in the Junos Space Network Management Platform Workspaces Feature Guide.
f. When the upgrade is complete and all nodes reboot, check the functionality of Junos Space Platform from the user interface.
g. Upgrade the software on the standby site. To do so, type /var/www/cgi-bin/executeUpgradeOnDr.pl software-image-name at the shell prompt at the active site and press Enter.
h. Verify that the software is upgraded at the standby site as follows: · Verify from the log entry in the install.log file located at /var/log/.
1784
· Execute the rpm -qa | grep jmp- command and verify that the following RPMs are upgraded: Jmp-nma, Jmp-cmp, jmp-ems, and other jmp-related RPMs.
i. Reboot all nodes at the standby site from the CLI. To do so, type reboot at the shell prompt of each node and press Enter.
j. Since the standby site cannot be accessed through the user interface, you must manually failover to the standby site (the original active site at the start of the upgrade process) to access the user interface. To do so, type jmp-dr manualFailover at the shell prompt of the original active site and press Enter. The
k. Verify the functionality of Junos Space Platform on the active site.
l. Start the disaster recovery process on both sites from the active site. To do so, type jmp-dr start at the shell prompt and press Enter.
Junos Space Platform is upgraded on the active and standby sites.
NOTE: We recommend that you execute the jmp-dr health command at both sites and verify the output after starting disaster recovery on the upgraded setup.
Upgrading to Junos Space Network Management Platform Release 16.1R1
You can upgrade to Junos Space Network Management Platform Release 16.1R1 only from Junos Space Platform Release 15.2R2. To upgrade to Junos Space Platform Release 16.1R1 from releases prior to Junos Space Platform Release 15.2R2, you must first upgrade Junos Space Platform to Junos Space Platform Release 15.2R2. For more information about upgrading to Junos Space Platform Release 15.2R2, refer to the Junos Space Network Management Platform Release 15.2R2 Release Notes. In Junos Space Platform Release 16.1R1, CentOS 6.8 is used as the underlying OS. A direct upgrade of the OS from CentOS 5.9 to CentOS 6.8 is not recommended, therefore, a direct upgrade to Junos Space Platform Release 16.1R1 by using the Junos Space Platform UI is not supported. You must follow a multi-step procedure to upgrade to Junos Space Platform Release 16.1R1. To upgrade to Junos Space Platform Release 16.1R1 on a setup that has disaster recovery configured, you must upgrade both the active and standby sites by following the procedure outlined in Upgrading to Junos Space Network Management Platform Release 16.1R1 and then reconfigure disaster recovery. For more information about configuring disaster recovery, see "Configuring the Disaster Recovery Process Between an Active and a Standby Site" on page 1734.
1785
Installing a Junos Space Application
You install a Junos Space application on both sites to add the application to your Junos Space deployment. You execute the ./executeScpImageOnDr.pl and ./executeInstallAppOnDr.pl scripts to install an application.
NOTE: See Table 221 for information about the usage of supported special characters to create user name and passwords, while executing disaster recovery scripts.
To install a Junos Space application on both sites: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Stop the disaster recovery process on both sites. To do so, type jmp-dr stop at the shell prompt and press Enter.
5. Go to the Junos Space user interface > Administration workspace > Applications page to upload the application image to the active site. Refer to the Adding a Junos Space Application workflow in the Junos Space Network Management Platform Workspaces Feature Guide.
6. Use SCP to copy the application image to the standby site from the active site. To do so, type /var/www/cgi-bin/./executeScpImageOnDr.pl application-image-name at the shell prompt at the active site and press Enter. The application image is copied from the /var/cache/jboss/jmp/ directory at the active site to the /var/cache/jboss/jmp/payloads/ directory at the standby site.
7. Go to the Junos Space user interface > Administration workspace > Applications page to install the application on the active site. Refer to "Adding a Junos Space Application" on page 1366 in the Junos Space Network Management Platform Workspaces Feature Guide.
8. Go to the Junos Space user interface > Job Management page to verify that the application is installed on the active site.
1786
9. Install the application image on the standby site. To do so, type /var/www/cgi-bin/./executeInstallAppOnDr.pl application-image-name at the shell prompt at the active site and press Enter.
10. Verify the following on the standby site: · RPMs of the application are installed. To verify, execute the following command: rpm -qa | grep <application-rpm-name>. · .ear files of the application are available at /usr/local/jboss/standalone/deployments/.
11. Start the disaster recovery process on both sites from the active site. To do so, type jmp-dr start at the shell prompt of the VIP node at the active site and press Enter.
The Junos Space application is installed on the active and standby sites.
Upgrading a Junos Space Application
You upgrade a Junos Space application on both sites to upgrade the application on your Junos Space deployment. You execute the ./executeScpImageOnDr.pl and ./executeInstallAppOnDr.pl scripts to upgrade a Junos Space application. To upgrade a Junos Space application on both sites: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Stop the disaster recovery process on both sites. To do so, type jmp-dr stop at the shell prompt and press Enter.
5. Go to the Junos Space user interface > Administration workspace > Applications page to upload the application image to the active site. Refer to the Upgrading a Junos Space Application workflow in the Junos Space Network Management Platform Workspaces Feature Guide.
1787
6. Use SCP to copy the application image to the standby site from the active site. To do so, type /var/www/cgi-bin/./executeScpImageOnDr.pl application-image-name at the shell prompt at the active site and press Enter.
7. Go to the Junos Space user interface > Administration workspace > Applications page to upgrade the application on the active site. Refer to "Upgrading a Junos Space Application" on page 1370 in the Junos Space Network Management Platform Workspaces Feature Guide.
8. Go to the Junos Space user interface > Job Management page to verify that the application is upgraded on the active site.
9. Upgrade the application on the standby site. To do so, type /var/www/cgi-bin/./executeInstallAppOnDr.pl application-image-name at the shell prompt of the active site and press Enter.
10. Verify the following on the standby site: · RPMs of the application are installed. To verify, execute the following command: rpm -qa | grep <application-rpm-name>. · .ear files of the application are available at /usr/local/jboss/standalone/deployments/.
11. Start the disaster recovery process on both sites from the active site. To do so, type jmp-dr start at the shell prompt of the VIP node at the active site and press Enter.
The Junos Space application is upgraded on the active and standby sites.
Uninstalling a Junos Space Application
You uninstall a Junos Space application from both sites to remove the application from your Junos Space deployment. You execute the ./executeUninstallAppOnDr.pl script to uninstall an application. To uninstall a Junos Space application from both sites: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter the administrator password.
3. Enter the administrator password.
1788
4. Stop the disaster recovery process on both sites. To do so, type jmp-dr stop at the shell prompt and press Enter.
5. Go to the Junos Space user interface > Administration workspace > Applications page to uninstall the application from the active site. Refer to "Uninstalling a Junos Space Application" on page 1398 in the Junos Space Network Management Platform Workspaces Feature Guide.
6. Go to the Junos Space user interface > Job Management page to verify that the application is completely removed from the active site.
7. Uninstall the application from the standby site. To do so, type /var/www/cgi-bin/./executeUninstallAppOnDr.pl ear-filename at the shell prompt at the standby site and press Enter.
NOTE: You must add the filename without the extension (.ear) as follows: /var/www/cgi-bin/executeUninstallAppOnDr.pl aim
8. Verify the following on the standby site: · All database-related application data is removed. · RPMs of the application are removed. To verify, execute the following command: rpm -qa | grep <application-rpm-name>. · .ear files related to the application under /usr/local/jboss/standalone/deployments/ are removed.
9. Start the disaster recovery process on both sites from the active site. To do so, type jmp-dr start at the shell prompt of the VIP node at the active site and press Enter.
The Junos Space application is uninstalled from the active and standby sites.
Adding or Removing a JBoss Node
We recommend that you meet the prerequisites to add a JBoss node or to know the impact of removing a JBoss node from the Junos Space setup. Refer to the "Adding a Node to an Existing Junos Space Fabric" on page 1172 and "Deleting a Node from the Junos Space Fabric" on page 1252 topics in the Junos Space Network Management Platform Workspaces Feature Guide. We also recommend that the active site and standby site be symmetric to ensure that the performance of the disaster recovery solution is effective and stable. You add a JBoss node to improve the performance of your Junos Space setup. You remove a JBoss node if it is faulty and needs to be replaced. You may need to modify the disaster recovery configuration
1789
depending on why you added or removed the JBoss node to or from the site. You execute the ./addNode.pl or ./deleteNodeDR.pl script to add or remove a JBoss node to or from the standby site. To add or remove a JBoss node to or from both sites: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Stop the disaster recovery process on both sites. To do so, type jmp-dr stop at the shell prompt and press Enter.
5. Go to the Junos Space user interface > Administration workspace > Fabric page to add or remove the JBoss node to or from the active site. · To add a JBoss node to the standby site, type /var/www/cgi-bin/./addNode.pl SpaceNode <name of the node> <node IP addess> <node user name> <node password> at the VIP node of the standby site and press Enter.
· To delete a JBoss node from the standby site, type /var/www/cgi-bin/./deleteNodeDR.pl <node IP addess> at the VIP node of the standby site and press Enter.
6. Update the disaster recovery configuration on the active site. To do so, type jmp-dr toolkit config update at the shell prompt of the VIP node at the standby site and press Enter.
7. Update the disaster recovery configuration on the standby site. To do so, type jmp-dr toolkit config update at the shell prompt of the VIP node at the active site and press Enter.
8. (Optional) If you added a JBoss node with a different administrator password to a site, type jmp-dr toolkit config update --user core at the shell prompt of the VIP node at the peer site and press Enter.
9. Start the disaster recovery process on both sites from the active site. To do so, type jmp-dr start at the shell prompt at the active site and press Enter.
The JBoss node is added to or removed from the active and standby sites.
1790
Adding or Removing a Dedicated Junos Space Node
We recommend that you meet the prerequisites to add a Junos Space node or to know the impact of removing a Junos Space node from a Junos Space setup. Refer to the "Adding a Node to an Existing Junos Space Fabric" on page 1172 and "Deleting a Node from the Junos Space Fabric" on page 1252 topics in the Junos Space Network Management Platform Workspaces Feature Guide. We also recommend that the active site and standby site be symmetric to ensure that the performance of the disaster recovery solution is efficient and stable. You add a dedicated Junos Space node to improve the performance of your Junos Space setup. You remove a dedicated Junos Space node if it is faulty and needs to be replaced. You may need to modify the disaster recovery configuration depending on why you added or removed the dedicated Junos Space node to or from the site. To add or remove a dedicated Junos Space node to or from both sites: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Stop the disaster recovery process on both sites. To do so, type jmp-dr stop at the active site shell prompt and press Enter.
5. Go to the Junos Space user interface > Administration workspace > Fabric page to add or remove the dedicated Junos Space node to or from the active site. Refer to the "Adding a Node to an Existing Junos Space Fabric" on page 1172 and "Deleting a Node from the Junos Space Fabric" on page 1252 topics in the Junos Space Network Management Platform Workspaces Feature Guide.
6. Log in to the CLI of the Junos Space node at the standby site on which the VIP or the eth0:0 interface is configured. The Junos Space Settings Menu is displayed.
7. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. You are prompted to enter the administrator password.
1791
8. Enter the administrator password.
9. Update the disaster recovery configuration on the standby site. To do so, type jmp-dr toolkit config update at the shell prompt of the VIP node at the standby site and press Enter.
10. Configure the current standby site as the active site. To do so, type jmp-dr manualFailover at the shell prompt and press Enter. For more information, see "Manually Failing Over the Network Management Services to the Standby Site" on page 1792.
11. Go to the Junos Space user interface > Administration workspace > Fabric page to add or remove the dedicated Junos Space node to or from the standby site.
12. Update the disaster recovery configuration on the active site. To do so, type jmp-dr toolkit config update at the shell prompt of the VIP node at the active site and press Enter.
13. Configure the original active site back as the active site. To do so, type jmp-dr manualFailover at the shell prompt and press Enter.
14. Start the disaster recovery process on both sites from the active site. To do so, type jmp-dr start at the shell prompt and press Enter.
The dedicated Junos Space node is added to or removed from the active and standby sites.
RELATED DOCUMENTATION Disaster Recovery Overview | 1702 Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Viewing the Disaster Recovery Configuration and Status of Watchdog Services | 1764 Modifying the Disaster Recovery Configuration | 1766
1792
Manually Failing Over the Network Management Services to the Standby Site
You may need to fail over the network management services to the standby site even when the active site is fully operational. You execute the jmp-dr manualFailover command at the standby site to fail over the network management services to the standby site. When the failover is complete, the standby site becomes the new active site.
NOTE: We recommend that you check the status of the disaster recovery configuration before and after executing the jmp-dr manualFailover command. To do so, execute the jmp-dr health command at both sites.
To manually fail over the network management services to the standby site: 1. Log in to the CLI of the Junos Space node at the standby site on which the VIP or the eth0:0 interface
is configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Type jmp-dr manualFailover at the shell prompt and press Enter.
5. Enter Yes. The following is a sample output:
[user1@host]# jmp-dr manualFailover Do you really want to start manual failover: Yes Check DR state of this site: started
INFO: => switchover DR at current site: active
Stop dr-watchdog if it's running [ OK ]
Check status of DR remote site: up Check current DR role: standby Restore configuration files
[ OK ] Setup MySQL replication: master-master
[ OK ] Skip MySQL data backup
[ OK ] Setup PostgreSQL replication
[ OK ] Start file & RRD replication
[ OK ] Open firewall for device traffic
[ OK ] Start services(jboss,jboss-dc,etc.)
[ OK ] Start dr-watchdog
[ OK ] Copy files to DR slave site
1793
[ OK ] Update DR role of current site: active
[ OK ]
INFO: => switchover DR at DR remote site: standby
Check DR state of this site: started Stop dr-watchdog if it's running
[ OK ] Check status of DR remote site: up Check current DR role: active Stop services(jboss,jboss-dc,etc.)
[ OK ] Block firewall for device traffic
[ OK ] Reset MySQL init script and stop replication
[ OK ] Skip MySQL data restore
[ OK ] Setup MySQL replication and start replication
[ OK ] Setup PostgreSQL replication
[ OK ] Start files & RRD replication
[ OK ] Start dr-watchdog
[ OK ] Clean up /var/cache/jmp-geo/incoming
[ OK ] Update DR role of current site: standby
[ OK ] The manualFailover command is done. The manualFailover command is done.
The standby site becomes the new active site.
1794
1795
NOTE: If you have made any NAT-related updates in any of the disaster recovery sites, after a manual failover, run the following commands to ensure that NAT devices work seamlessly with the new active site: 1. Move the backup file from /var/cache/jmp-geo/config/diff.properties_backup to
/var/cache/jmp-geo/config/diff.properties. 2. Run the following command on the VIP node to update the changed standby cluster device
management, NAT, and IP configuration on the current active site: /var/cache/jmp-geo/script/toolkit-config-update.pl
RELATED DOCUMENTATION Disaster Recovery Overview | 1702 Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Stopping the Disaster Recovery Process | 1796
1796
Stopping the Disaster Recovery Process
You stop the disaster recovery process from the active site or the standby site when you need to update the disaster recovery configuration or add nodes or applications to the disaster recovery setup. You use the jmp-dr stop command to stop the disaster recovery process on both sites. Stopping the disaster recovery process does not clean up the disaster recovery configuration from the sites. The jmp-dr stop command does the following: · Stops the disaster recovery watchdog at the sites · Stops the replication of MySQL data, PgSQL data, configuration files, and round-robin database (RRD)
files between sites We recommend that you execute the jmp-dr health command at both sites after you stop the disaster recovery process. This is to ensure that file replication, disaster recovery watchdog services, and other services are stopped. For more information, see "Checking the Status of the Disaster Recovery Configuration" on page 1759. To stop the disaster recovery process at both sites: 1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is
configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security
6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Type jmp-dr stop at the shell prompt and press Enter. The following is a sample output:
[user1@host]# jmp-dr stop Check status of DR remote site: up Check DR stop mode: both Check current DR role: active Stop order: DR remote site and then current
INFO: => stop DR at remote site
Check status of DR remote site: up Check DR stop mode: solo Check current DR role: standby Stop dr-watchdog
[ OK ] Stop mysql replication between sites
[ OK ] Stop pgsql replication between sites
[ OK ] Stop files & RRD replication
[ OK ] The stop command is done.
INFO: => stop DR at current site: active
Stop dr-watchdog [ OK ]
Stop files & RRD replication
1797
[ OK ] The stop command is done.
The disaster recovery process is stopped.
1798
RELATED DOCUMENTATION
Resetting the Disaster Recovery Configuration | 1798 Modifying the Disaster Recovery Configuration | 1766 Modifying Applications and Nodes on a Disaster Recovery Setup | 1777
Resetting the Disaster Recovery Configuration
You reset the disaster recovery configuration on both the active and the standby sites to stop the disaster recovery process and clean up the disaster recovery configuration from both sites. To reset the disaster recovery configuration, you execute the jmp-dr reset command.
The jmp-dr reset command does the following:
· Stops the disaster recovery watchdog at the sites · Stops the replication of MySQL data, PgSQL data, configuration files, and round-robin database (RRD)
files between sites · Starts services such as JBoss, OpenNMS, Apache, and so on at the standby site · Modifies the role of the cluster at the site (from active or standby to standalone) To reset the disaster recovery configuration:
1. Log in to the CLI of the Junos Space node at the active site on which the VIP or the eth0:0 interface is configured. The Junos Space Settings Menu is displayed.
2. Enter 6 (if you are using a hardware appliance) or 7 (if you are using a virtual appliance) at the Junos Space Settings Menu prompt to run shell commands. The following is a sample output from a virtual appliance:
admin@10.206.41.183's password: Last login: Mon Aug 17 06:17:58 2015 from 10.206.41.42
Welcome to the Junos Space network settings utility.
Initializing, please wait
Junos Space Settings Menu
1> Change Password 2> Change Network Settings 3> Change Time Options 4> Retrieve Logs 5> Security 6> Expand VM Drive Size 7> (Debug) run shell
A> Apply changes Q> Quit R> Redraw Menu
Choice [1-7,AQR]: 7
You are prompted to enter the administrator password.
3. Enter the administrator password.
4. Type jmp-dr reset at the shell prompt and press Enter. The following is a sample output:
[user1@host]# jmp-dr reset Check status of DR remote site: up Check current DR role: active Stop DR at both sites if it's running
[ OK ] Clean up DR related tables in DB
[ OK ] Clean up mysql repUser and repAdmin
[ OK ] Clean up NTP
[ OK ]
1799
1800
Remove DR data [ OK ]
Start services in standalone mode [ OK ]
Remove DR configuration [ OK ]
Clean up firewall [ OK ]
Command completed.
5. To reset the disaster recovery configuration at the standby site, repeat steps 1 through 4 at the standby site.
The disaster recovery configuration is reset.
NOTE: We recommend that you execute the jmp-dr health command on both sites after resetting the disaster recovery configuration to check the status of the role, disaster recovery process, services, replication process, and disaster recovery watchdog.
RELATED DOCUMENTATION Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Modifying the Disaster Recovery Configuration | 1766
1801
CHAPTER 102
Upgrading Junos Space Network Management Platform with Disaster Recovery Enabled
IN THIS CHAPTER Upgrade Procedure | 1801
Upgrade Procedure
IN THIS SECTION 1. Back up the Current Disaster Recovery Configuration | 1802 2. Reset the Disaster Recovery Configuration | 1802 3. Upgrade the Junos Space Network Management Platform and Application | 1802 4. Configure and Perform Disaster Recovery | 1805
You must reset the disaster recovery configuration on both the active and the standby sites to stop the disaster recovery process and clean up the disaster recovery configuration from both the sites. You can upgrade the Junos Space Platform software at both the active and the standby sites at the time of deployment. Since the disaster recovery upgrade procedure is time consuming, we recommend you to reset the disaster recovery configuration and upgrade the sites to the required version. The upgrade procedure comprises of the following tasks: 1. Back up the Current Disaster Recovery Configuration 2. Reset the Disaster Recovery Configuration
1802
3. Upgrade the Junos Space Network Management Platform and Application 4. Configure and Perform Disaster Recovery
1. Back up the Current Disaster Recovery Configuration
Backup the current disaster recovery configuration on both the sites to refer the parameters when configuring the disaster recovery again after upgrade. Run the following command to create a backup for current configuration on both sites: $ jmp-dr api v1 config --include role,failover,states,core,deviceManagement,mysql,pgsql,file,watchdog > /home/admin/dr-config.txt
NOTE: Enter the following command in a separate shell prompt on the VIP nodes of both the sites to check log errors: $tailf /var/log/jmp-geo/dr-cli-reset.log
2. Reset the Disaster Recovery Configuration
Reset the current disaster recovery configuration to ensure that both the active and the passive sites refer to the same parameters, when you configure the disaster recovery, post the upgrade. Execute the following command to create a backup for the current configuration. $ jmp-dr api v1 config --include role,failover,states,core,deviceManagement,mysql,pgsql,file,watchdog > /home/admin/dr-config.txt Execute the following commands to reset disaster recovery on both sites running the jmp-dr reset commands on VIP nodes of both sites. $jmp-dr reset
After executing this commands, the sites become standalone sites. Junos Space Platform comes up and you can access the UI from both the sites.
3. Upgrade the Junos Space Network Management Platform and Application
You can upgrade the Junos Space Platform and the application on both the active and the standby sites simultaneously, as both the sites are in standalone mode. To upgrade the Junos Space Network Management Platform:
1803
1. Login to the Junos Space Network Management Platform. The dashboard appears.
2. Upload the software image to the active and standby sites. a. Select Network Management Platform from the Applications drop-down menu.
b. Click Upgrade. The upgrade window appears.
c. Upload the image.
NOTE: The system takes approximately 5 minutes to upload the new image. Enter the following command in a separate shell prompt at each node of current active and standby sites to check the logs for errors. $tailf /var/log/install.log
3. Upgrade the Junos Space software at the active and standby sites. Reboot occurs as part of post upgrade. a. Select Network Management Platform > Administration > Application > Network Management Platform.
b. Click Upgrade. The upgrade window appears.
c. In the Upload Platform menu, select the specific row and click Upgrade. The maintenance mode screen displays the upgrade progress. The reboot screen appears, once the upgrade is completed.
NOTE: Type the following command in the separate shell prompt on each node of current active and standby sites to check the error logs. $tailf /var/log/install.log .
1804
NOTE: Type the following command in a separate shell prompt at each node on the active and standby sites to check the upgrade progress. $tailf /var/jmp_upgrade/slave/log/<oldRelease_newRelease>
d. Click Reboot. The nodes starts to reboot.
NOTE: Execute the following command to check for boot to complete. $tail -f /tmp/systemStartup.log Log Example: 2018/03/07 10:05:51.207 Appmgt is now deploying ... [ 9 of 9 ] 2018/03/07 10:05:57.607 Appmgt
4. Upload the Junos Space application in active and the standby site. a. Select Network Management Platform > Administration > Application ><application-name>> Upgrade > Action. b. Click Upload. The upload window appears. c. Upload the selected Junos Space application.
NOTE: Enter the following command in the separate shell prompt on each node of current active and standby sites to check the logs for errors. $tailf /var/log/install.log
5. Upgrade the Junos Space application in the active and standby site. a. Select Network Management Platform > Administration > Application ><application-name>> Upgrade > Action. b. Click Upgrade.
1805
The Upgrade window appears. c. In the Upgrade Application menu, select the specific row and click Upgrade.
NOTE: Enter the following command in a separate shell prompt on each node of current active and standby sites to check the logs for error. $tailf /var/log/install.log
d. Select Network Management Platform > Administration > Application. The Application window displays the expected upgrade version.
4. Configure and Perform Disaster Recovery
NOTE: This is an optional procedure. If you plan to configure multiple upgrade paths: upgrade the Junos Space Network Management Platform and the application to the required version, before you configure disaster recovery.
To configure and start the disaster recovery process on both the active and the passive sites: 1. Configure the disaster recovery process.
a. Execute the following command in the VIP node of active site to configure disaster recovery. $ jmp-dr init a
b. Execute the following command in the VIP node of standby site to configure disaster recovery. $ jmp-dr init s
1806
NOTE: Ensure that you initialize the disaster recovery process on the standby site, only after the disaster recovery initialization is complete on the active site. For more information about configuring the disaster recovery process, see Configuring the Disaster Recovery Process Between an Active and a Standby Site.
2. Execute the following command to start the disaster recovery process from the active site. jmp-dr start
NOTE: Execute the following command in the separate shell prompt on each of the VIP nodes of the site to check the logs for errors.
$tailf /var/log/jmp-geo/dr-cli-start.log
If the standby node is not updated, stop and the start the disaster recovery process over again. Execute the command again for verify the update. 3. Execute the following command to check the disaster recovery process health:
$jmp-dr health
NOTE: Execute the following command in a separate shell prompt on each site VIP nodes to check the logs for errors:
$tailf /var/log/jmp-geo/dr-cli-health.log
4. Execute the following command to stop the disaster recovery process on both the sites from the active site: $jmp-dr stop
1807
NOTE: Execute the following command in the separate shell prompt on each VIP nodes of the site to check the logs for errors:
$tailf /var/log/jmp-geo/dr-cli-stop.log
5. Execute the following command on the current standby site, to verify the functionality on standby site by manually fail-over from active site: $jmp-dr manualFailover
NOTE: Execute the following command in the separate shell prompt on VIP node of the standby site to check the logs for error:
$tailf /var/log/jmp-geo/dr-cli-manual-failover.log
NOTE: Execute the following command to verify is the application starts normally, by checking the JBoss log:
$tailf /var/log/jboss/server/server1/server.log
The Application page shows the upgrade version. 6. Execute the following command on the current standby site VIP node to apply manual fail-over to the
active site from the standby site: $jmp-dr manualFailover
1808
NOTE: Execute the following command in the separate shell prompt on VIP node of the current standby site to check the logs for errors.
$tailf /var/log/jmp-geo/dr-cli-manual-failover.log
NOTE: Execute the following command to check for the application start by checking the JBoss log:
$tailf /var/log/jboss/server/server1/server.log
7. Execute the following command to check the disaster recovery health on both the sites. $jmp-dr health
NOTE: Execute the following command in the separate shell prompt on each VIP nodes of the site to check the logs for errors.
$tailf /var/log/jmp-geo/dr-cli-health.log
8. Execute the following command to start the disaster recovery process on both the sites from active site. $jmp-dr start
NOTE: Execute the following command in the separate shell prompt on each VIP nodes of the site to check the logs for errors.
$tailf /var/log/jmp-geo/dr-cli-start.log
9. Execute the following command to check the disaster recovery process health on both sites.
1809
$jmp-dr health NOTE: Execute the following command in the separate shell prompt on each VIP nodes of the site to check the logs for errors. $tailf /var/log/jmp-geo/dr-cli-health.log
RELATED DOCUMENTATION Configuring the Disaster Recovery Process Between an Active and a Standby Site | 1734 Modifying the Disaster Recovery Configuration | 1766
