• Ethernet, RS-232 • Communication module option • Two USB ports, one mini USB port • One SD Card • AC or DC –– PanelView Plus 7 Performance 7 in. keypad and touch • 6.5 in. display size • Windows CE 6.0 (Series A) • Windows 10 IoT Core (Series B) • FactoryTalk View ME station • Keypad and touch • Color • Extended ...

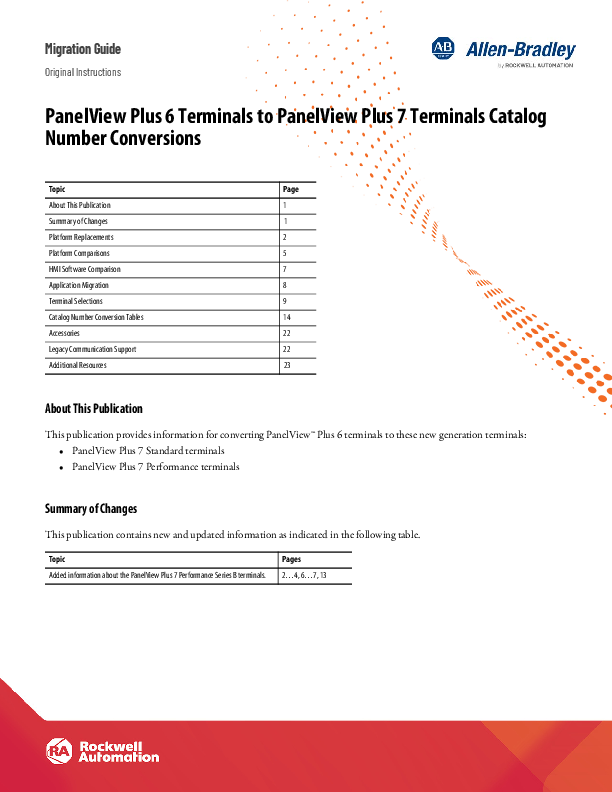

Migration Guide Original Instructions PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Topic Page About This Publication 1 Summary of Changes 1 Platform Replacements 2 Platform Comparisons 5 HMI Software Comparison 7 Application Migration 8 Terminal Selections 9 Catalog Number Conversion Tables 14 Accessories 22 Legacy Communication Support 22 Additional Resources 23 About This Publication This publication provides information for converting PanelViewTM Plus 6 terminals to these new generation terminals: · PanelView Plus 7 Standard terminals · PanelView Plus 7 Performance terminals Summary of Changes This publication contains new and updated information as indicated in the following table. Topic Added information about the PanelView Plus 7 Performance Series B terminals. Pages 2...4, 6...7, 13 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Platform Replacements This section provides a comparison for platform replacement. Table 1 - Platform Replacements PanelView Plus 6 Terminals PanelView Plus 7 Standard Terminals PanelView Plus 6 400 keypad · 3.5 in. display size · Windows® CE 6.0 · FactoryTalk® View ME (Machine Edition) station · Only keypad · Monochrome or color · No extended features · Ethernet, RS-232 · No communication module option · One USB port · One SD Card · AC or DC PanelView Plus 7 Standard 4 in. touch · 4.3 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · No extended features · Ethernet (single or dual), DLR · No communication module option · Two USB ports · One SD Card · Only DC PanelView Plus 6 600 keypad and touch · 5.7 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Keypad and touch · Monochrome or color · Extended features available · Ethernet, RS-232 · No communication module option · One USB port · One SD Card · AC or DC PanelView Plus 7 Standard 6 in. touch · 5.7 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · No extended features · Ethernet (single or dual), DLR · No communication module option · Two USB ports · One SD Card · Only DC PanelView Plus 6 600 touch · 5.7 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Monochrome or color · Extended features available · Ethernet, RS-232 · No communication module option · One USB port · One SD Card · AC or DC PanelView Plus 7 Standard 6 in. touch · 5.7 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · No extended features · Ethernet (single or dual), DLR · No communication module option · Two USB ports · One SD Card · Only DC · 6.5 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Keypad and touch · Color PanelView Plus 6 700 keypad and touch · Extended features available · Ethernet, RS-232 · Communication module option · Two USB ports, one mini USB port · One SD Card · AC or DC PanelView Plus 7 Performance Terminals PanelView Plus 7 Performance 7 in. keypad and touch · 6.5 in. display size · Windows CE 6.0 (Series A) · Windows 10 IoT Core (Series B) · FactoryTalk View ME station · Keypad and touch · Color · Extended features · Dual ethernet, DLR · No communication module option · Two USB ports · One SD Card · AC or DC (Series A) · DC only (Series B) 2 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 1 - Platform Replacements (continued) PanelView Plus 6 Terminals PanelView Plus 7 Standard Terminals PanelView Plus 6 700 touch · 6.5 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · Extended features available · Ethernet, RS-232 · Communication module option · Two USB ports, one mini USB port · One SD Card · AC or DC PanelView Plus 7 Standard 7 in. touch · 6.5 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · No extended features · Ethernet (single or dual), DLR · No communication module option · Two USB ports · One SD Card · Only DC · 10.4 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Keypad and touch · Color PanelView Plus 6 1000 keypad and touch · Extended features available · Ethernet, RS-232 · Communication module option · Two USB ports, one mini USB port · One SD Card · AC or DC PanelView Plus 6 1000 touch · 10.4 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · Extended features available · Ethernet, RS-232 · Communication module option · Two USB ports, one mini USB port · One SD Card · AC or DC PanelView Plus 7 Standard 10 in. touch · 10.4 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · No extended features · Ethernet (single or dual), DLR · No communication module option · Two USB ports · One SD Card · Only DC · 12.1 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Keypad and touch · Color PanelView Plus 6 1200 keypad and touch · Extended features available · Ethernet, RS-232 · Communication module option · Two USB ports, one mini USB port · One SD Card · AC or DC PanelView Plus 7 Performance Terminals PanelView Plus 7 Performance 7 in. touch · 6.5 in. display size · Windows CE 6.0 (Series A) · Windows 10 IoT Core (Series B) · FactoryTalk View ME station · Only touch · Color · Extended features · Dual ethernet, DLR · No communication module option · Two USB ports · One SD Card · AC or DC (Series A) · DC only (Series B) · Conformal coated PanelView Plus 7 Performance 10 in. keypad and touch · 10.4 in. display size · Windows CE 6.0 (Series A) · Windows 10 IoT Core (Series B) · FactoryTalk View ME station · Keypad and touch · Color · Extended features · Dual ethernet, DLR · No communication module option · Two USB ports · One SD Card · AC or DC (Series A) · DC only (Series B) PanelView Plus 7 Performance 10 in. touch · 10.4 in. display size · Windows CE 6.0 (Series A) · Windows 10 IoT Core (Series B) · FactoryTalk View ME station · Only touch · Color · Extended features · Dual ethernet, DLR · No communication module option · Two USB ports · One SD Card · AC or DC (Series A) · DC only (Series B) · Conformal coated PanelView Plus 7 Performance 12 in. keypad and touch · 12.1 in. display size · Windows CE 6.0 (Series A) · Windows 10 IoT Core (Series B) · FactoryTalk View ME station · Keypad and touch · Color · Extended features · Dual ethernet, DLR · No communication module option · Two USB ports · One SD Card · AC or DC (Series A) · DC only (Series B) Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 3 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 1 - Platform Replacements (continued) PanelView Plus 6 Terminals PanelView Plus 7 Standard Terminals PanelView Plus 6 1200 touch · 12.1 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · Extended features available · Ethernet, RS-232 · Communication module option · Two USB ports, one mini USB port · One SD Card · AC or DC PanelView Plus 7 Standard 12 in. touch · 12.1 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · No extended features · Ethernet (single or dual), DLR · No communication module option · Two USB ports · One SD Card · Only DC · 15 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Keypad and touch · Color PanelView Plus 6 1500 keypad and touch · Extended features available · Ethernet, RS-232 · Communication module option · Two USB ports, one mini USB port · One SD Card · AC or DC PanelView Plus 6 1500 touch · 15 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · Extended features available · Ethernet, RS-232 · Communication module option · Two USB port, one mini USB port · One SD Card · AC or DC PanelView Plus 7 Standard 12 in. touch · 12.1 in. display size · Windows CE 6.0 · FactoryTalk View ME station · Only touch · Color · No extended features · Ethernet (single or dual), DLR · No communication module option · Two USB ports · One SD Card · Only DC PanelView Plus 7 Performance Terminals PanelView Plus 7 Performance 12 in. touch · 12.1 in. display size · Windows CE 6.0 (Series A) · Windows 10 IoT Core (Series B) · FactoryTalk View ME station · Only touch · Color · Extended features · Dual ethernet, DLR · No communication module option · Two USB ports · One SD Card · AC or DC (Series A) · DC only (Series B) · Conformal coated PanelView Plus 7 Performance 15 in. keypad and touch · 15 in. display size · Windows CE 6.0 (Series A) · Windows 10 IoT Core (Series B) · FactoryTalk View ME station · Keypad and touch · Color · Extended features · Dual ethernet, DLR · No communication module option · Two USB ports · One SD Card · AC or DC (Series A) · DC only (Series B) · Conformal coated PanelView Plus 7 Performance 15 in. touch · 15 in. display size · Windows CE 6.0 (Series A) · Windows 10 IoT Core (Series B) · FactoryTalk View ME station · Only touch · Color · Extended features · Dual ethernet, DLR · No communication module option · Two USB ports · One SD Card · AC or DC (Series A) · DC only (Series B) · Conformal coated 4 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Platform Comparisons This table compares the differences between the new PanelView Plus 7 Standard and Performance terminals and the PanelView Plus 6 terminals. Table 2 - PanelView Plus 6 and PanelView Plus 7 Standard and Performance Platform Comparison (400 and 600) Feature Platform PanelView Plus 6 Terminals(1) 400 and 600 PanelView Plus 7 Standard Terminals 4 in. and 6 in. Operating system Windows CE 6.0 includes FTP, VNC client server, ActiveX Windows CE 6.0 includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support controls, PDF reader, third-party device support FactoryTalk View ME station (runtime) software Version 6.10 or later Version 8.0 or later FactoryTalk ViewPoint software Yes Version 7.0 or later Application compatibility Supports FactoryTalk View ME applications, version 3.2 or Supports FactoryTalk View ME applications, version 5.1 or later (2) later RAM 256 MB DDR2 (chip onboard) 4264 MiB/s peak 512 MB RAM and 512 MB storage Internal storage 512 MB nonvolatile memory (approx. 73 MB free user memory) 512 MB nonvolatile memory (approx. 80 MB free user memory) Interfaces Secure Digital (SD) Card slot One secure digital high-capacity (SDHC) slot supports 1784-SDx cards One SD card slot to store application files. Cat. Nos. 1784-SD1 (1 GB) and 1784-SD2 (2 GB) USB ports One USB-A, V2.0 high speed One USB-B, V2.0 high-speed, 4-pin One USB-A, V2.0 high speed One USB-B, V2.0 high-speed, 4-pin Keyboard and mouse compatibility Yes Yes Communication Interfaces Ethernet One 10/100 Mbps Auto-MDI/MDI-X Cat. Nos. in 21: One 10/100 Base-T, Auto MDI/MDI-X with IEEE1588 support. Cat. Nos. in 22: Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies. RS-232 One DB9 ControlNet DH+TM DH-485 Remote I/O DeviceNet (1) The PanelView Plus 7 Performance terminals do not have a recommended conversion for the PanelView Plus 6 400 and 600 terminals. (2) PanelView Plus 6 Compact terminals (Cat. No. 2711PC-xxxxxD8) support FactoryTalk View ME applications, version 5.1 or later. Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 5 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 3 - PanelView Plus 6 and PanelView Plus 7 Standard and Performance Platform Comparison (700...1500) Platform Feature PanelView Plus 6 Terminals 700, 1000, 1250, and 1500 PanelView Plus 7 Standard Terminals 7 in., 10 in., 12 in., and 15 in. PanelView Plus 7 Performance Terminals 7 in., 10 in., 12 in., and 15 in. Operating system Windows CE 6.0 includes FTP, VNC client Windows CE 6.0 includes FTP, VNC client server, ActiveX controls, PDF reader, third- server, ActiveX controls, PDF reader, third- party device support party device support · Windows CE 6.0 (Series A) includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support · Windows 10 IoT Core (Series B) FactoryTalk View ME station (runtime) software Version 6.0 or later Version 8.0 or later Version 8.0 or later FactoryTalk ViewPoint software Version 1.2 or later Version 2.6 or later Version 2.6 or later Application compatibility Supports FactoryTalk View ME applications, version 3.2 or later (1) Supports FactoryTalk View ME applications, Supports FactoryTalk View ME version 3.2 or later applications, version 3.2 or later RAM 512 MB DDR2 (chip onboard) 4264 MiB/s peak 512 MB RAM 512 MB RAM (Series A) 4 GB RAM (Series B) Internal storage Conformal coated 512 MB nonvolatile memory (approx. 79 MB free user memory) Yes(2) 512 MB nonvolatile memory (approx. 80 MB free user memory) · 512 MB nonvolatile memory (Series A) (approx. 80 MB free user memory) · 19.87 GB nonvolatile memory (Series B) (approx.3 GB free user memory) Yes(3) Interfaces Secure digital (SD) card slot One Secure Digital high-capacity (SDHC) slot supports 1784-SDx cards One SD card slot to store application files. Cat. Nos. 1784-SD1 (1 GB), 1784-SD2 (2 GB) One SD card slot to store application files. Cat. Nos. 1784-SD1 (1 GB), 1784-SD2 (2 GB) USB ports Two USB-A, 2.0 high speed One USB-A, V2.0 high speed One USB-B, V2.0 high-speed, 4-pin Two USB 2.0 high-speed host ports (type A) support removable flash drives for external storage. On Series B, one USB is upgraded to USB 3.0. One high-speed 2.0 device port (type B) that will be functional in a future release. Keyboard and mouse compatibility Yes Yes Yes Communication Interfaces Ethernet One 10/100 Mbps Auto-MDI/MDI-X Cat. Nos. with 21: One 10/100 Base-T, Auto MDI/MDI-X with IEEE1588 support. Cat. Nos. with 22: Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies. Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies RS-232 One DB9 ControlNet Add-on communication module DH+ Add-on communication module DH-485 Add-on communication module Remote I/O DeviceNet (1) PanelView Plus 6 Compact terminals (2711PC-xxxxxD8) support FactoryTalk View ME applications, version 5.1 or later. (2) Conformal coating is available for the 7 in. and 12 in. models of the PanelView Plus 6 family. (3) Conformal coating is available for the DC power, touch models (and the 15 in. DC power combination keypad/touch model) of the PanelView Plus 7 Performance family. 6 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide HMI Software Comparison The terminals run the Windows CE 6.0 operating system. The terminals run HMI applications and offer desktop access with extended features and file viewers. Table 4 compares the features and extended features of the terminals. Table 4 - Features and Extended Features Features PanelView Plus 6 Terminals 400...1500 (Cat. Nos. 2711P-xxxx8 and 2711P-RP8x) PanelView Plus 6 Terminals 600 (2)...1500 (Cat. Nos. 2711P-xxxx9 and 2711P-RP9x) PanelView Plus 7 Standard Terminals (all Cat. Nos.) Standard Features FTP server Remote Monitoring Server ActiveX controls (1) Yes Yes Yes Third-party device support PDF reader Extended Features Web browser Remote desktop connection Media player Microsoft Office file viewers No Yes No · Excel · Image viewer · PowerPoint · Word WordPad text editor (1) For a complete list of ActiveX controls, go to https://rockwellautomation.custhelp.com/ and search the Knowledgebase for keywords `ActiveX Support for PanelView Plus Terminals'. (2) The remote desktop connection is not currently supported on PanelView Plus 6 (600) terminals with extended features. PanelView Plus 7 Performance Terminals (all Cat. Nos.) Yes Yes Table 5 compares the number of controllers, screens, and alarms functionality for each terminal. Table 5 - Functionality Functionality Controllers Screens Alarms PanelView Plus 6 Compact Terminals 1 25 200 PanelView Plus 7 Standard Terminals 1 100 500 PanelView Plus 6 Terminals PanelView Plus 7 Performance Terminals No limitations. No limitations. Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 7 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Application Migration This section provides application migration information about screen resolution and communication options. Resolution Differences What impact do the different resolutions have when you run a PanelView Plus 6 application on a PanelView Plus 7 terminal? · Except for the 7 in. and 15 in. terminals, all PanelView Plus 7 terminals have greater resolution. · If you do not resize the application, the application runs in the top-left corner of the terminal. This issue is true for Windows CE or FactoryTalk View ME station platforms. · If you resize the application, you can go into each screen and adjust the position and layout of the objects. This is especially important when you convert form a normal screen to a wide screen. If the terminal is set to allow desktop access and the shell type is set to open, these issues occur: · The application does not resize to match the resolution of the screen. · The application does not cover the screen. The Windows CE desktop is exposed and can be activated by touch. If the terminal is set to disallow desktop access and the shell type is set to close, these issues occur: · The application does not resize to match the resolution of the screen. · The application does not cover the screen. The FactoryTalk View ME station is exposed, but cannot be activated by touch. Application Migration for Communication All PanelView Plus 6 terminal applications that are set to serial communication must be changed to ethernet communication for PanelView Plus 7 terminals. 8 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Terminal Selections This section provides a description of the catalog numbers for the terminals. PanelView Plus 6 Compact Terminal Selections Table 6 lists the catalog numbers available for the PanelView Plus 6 Compact 400...1000 terminals. Table 6 - PanelView Plus 6 Compact Terminals Cat. Nos. 2711PC-K4M20D8 2711PC-B4C20D8 2711PC-B4C20D8-LR 2711PC-T6M20D8 2711PC-T6C20D8 2711PC-T10C4D8 Display Size Type Grayscale 3.5 in. Color 5.7 in. 10.4 in. Grayscale Color Color Input Type Keypad Communication Ports Ethernet RS-232 Keypad and Touch Yes Yes Touch Touch USB Ports Host Device Yes Yes Power DC Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 9 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide PanelView Plus 6 400 and 600 Terminal Selections The following table provides catalog number explanations for the new PanelView Plus 6 400 and 600 terminals. Bulletin Input Type Display Size Display Type Communication Power Operating System | | | | | | | 2711P- K = Keypad 4= 3.5 in. C = Color 5 = RS-232, USB A = AC 8 = Windows CE 6.0 B = Keypad and Touch 6 = 5.7 in. M = Grayscale 20 = Ethernet, RS-232, USB D = DC 9 = Windows CE 6.0 with extended features T = Touch Table 7 and Table 8 list the catalog numbers available for the PanelView Plus 6 400 and 600 terminals without extended features and file viewers. Table 7 - PanelView Plus 6 400 Terminals without Extended Features Cat. Nos. Keypad 2711P-K4M5A8 2711P-K4M5D8 2711P-K4M20A8 2711P-K4M20D8 2711P-K4C5A8 2711P-K4C5D8 2711P-K4C20A8 2711P-K4C20D8 Keypad and Touch 2711P-B4C5A8 2711P-B4C5D8 2711P-B4C20A8 2711P-B4C20D8 Display Size Type 3.5 in. Grayscale 3.5 in. Color Communication Ports USB Ports Input RS-232 Ethernet Host Device Power AC DC AC Yes DC Yes Yes Yes AC DC AC Yes DC (1) The terminals support FactoryTalk View Machine Edition software, version 6.10 or later, and the Windows CE 6.0 operating system. Memory (1) RAM Nonvolatile 256 MB 512 MB nonvolatile memory (approx. 73 MB free user memory) Table 8 - PanelView Plus 6 600 Terminals without Extended Features Cat. Nos. Keypad Touch Display Keypad and Touch Size Type Communication Ports USB Ports Input RS-232 Ethernet Host Device Power 2711P-K6M5A8 2711P-T6M5A8 2711P-B6M5A8 2711P-K6M5D8 2711P-K6M20A8 2711P-T6M5D8 2711P-T6M20A8 2711P-B6M5D8 2711P-B6M20A8 5.7 in. Grayscale 2711P-K6M20D8 2711P-T6M20D8 2711P-B6M20D8 2711P-K6C5A8 (1) 2711P-T6C5A8(1) 2711P-B6C5A8(1) Yes 2711P-K6C5D8(1) 2711P-T6C5D8(1) 2711P-B6C5D8(1) 2711P-K6C20A8(1) 2711P-T6C20A8(1) 2711P-B6C20A8(1) 5.7 in. Color 2711P-K6C20D8(1) 2711P-T6C20D8(1) 2711P-B6C20D8(1) AC DC AC Yes DC Yes Yes AC DC AC Yes DC (1) These terminals are available with extended features and file viewers by changing the 8 at the end of the catalog number to a 9; for example, 2711P-T6C5D9. (2) The terminals support FactoryTalk View Machine Edition software, version 6.10 or later, and the Windows CE 6.0 operating system. Memory (2) RAM Nonvolatile 256 MB 512 MB nonvolatile memory (approx. 73 MB free user memory) 10 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide PanelView Plus 6 - 700...1500 Product Selections The following table provides catalog number explanations for the PanelView Plus 6 - 700...1500 terminals. Bulletin Number Input Type Display Size Display Type Communication | | | | 2711P- K = Keypad 7 = 6.5 in. C = Color 4 = Ethernet, RS-232, (2) USB Host B = Keypad and Touch 10 = 10.4 in. M - Grayscale 20 = RS-232, (1) USB Host T = Touch 12 = 12.1 in. 15 = 15 in. Power | A = AC D = DC Operating System | 8 = Windows CE 6.0 operating system 9 = Windows CE 6.0 operating system with extended features and viewers Special Option | K = Conformal coated Table 9 and Table 10 list the catalog numbers available for the PanelView Plus 6 terminals. Table 9 - PanelView Plus 6 700...1500 Terminals without Extended Features Cat. No. Keypad Touch Keypad/Touch Display Size Type Communication RS-232 Ethernet Input Power 700 Model 2711P-K7C4D8 2711P-K7C4A8 1000 Model 2711P-K10C4D8 2711P-K10C4A8 2711P-T7C4D8 2711P-T7C4D8K 2711P-T7C4A8 2711P-T10C4D8 2711P-T10C4A8 2711P-B7C4D8 2711P-B7C4A8 2711P-B10C4D8 2711P-B10C4A8 DC 6.5 in. Color Yes Yes DC AC DC 10.4 in Color Yes Yes AC 1250 Model 2711P-K12C4D8 2711P-K12C4A8 1500 Model 2711P-K15C4D8 2711P-K15C4A8 2711P-T12C4D8 2711P-T12C4D8K 2711P-T12C4A8 2711P-T15C4D8 2711P-T15C4A8 2711P-B12C4D8 2711P-B12C4A8 2711P-B15C4D8 2711P-B15C4A8 DC 12.1 in Color Yes Yes DC AC DC 15 in. Color Yes Yes AC Memory RAM/Nonvolatile Storage 512 MB/512 MB (approximately 79 MB free user memory) 512 MB/512 MB (approximately 79 MB free user memory) 512 MB/512 MB (approximately 79 MB free user memory) 512 MB/512 MB (approximately 79 MB free user memory) Table 10 - PanelView Plus 6 700...1500 Terminals with Extended Features Cat. No. Display Communication Keypad Touch Keypad/Touch Size Type RS-232 Ethernet 700 Model 2711P-K7C4D9 2711P-K7C4A9 2711P-T7C4D9 2711P-T7C4A9 2711P-B7C4D9 2711P-B7C4A9 6.5 in. Color Yes Yes 1000 Model 2711P-K10C4D9 2711P-K10C4A9 2711P-T10C4D9 2711P-T10C4A9 2711P-B10C4D9 2711P-B10C4A9 10.4 in Color Yes Yes 1250 Model 2711P-K12C4D9 2711P-K12C4A9 2711P-T12C4D9 2711P-T12C4A9 2711P-B12C4D9 2711P-B12C4A9 12.1 in Color Yes Yes Input Power DC AC DC AC DC AC Memory RAM/Nonvolatile Storage 512 MB/512 MB (approximately 79 MB free user memory) 512 MB/512 MB (approximately 79 MB free user memory) 512 MB/512 MB (approximately 79 MB free user memory) Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 11 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 10 - PanelView Plus 6 700...1500 Terminals with Extended Features (continued) Cat. No. Display Communication Keypad Touch Keypad/Touch Size Type RS-232 Ethernet 1500 Model 2711P-K15C4D9 2711P-K15C4A9 2711P-T15C4D9 2711P-T15C4A9 2711P-B15C4D9 2711P-B15C4A9 15 in. Color Yes Yes Input Power DC AC Memory RAM/Nonvolatile Storage 512 MB/512 MB (approximately 79 MB free user memory) PanelView Plus 7 Standard Terminals The table shows the catalog number breakdown for the PanelView Plus 7 Standard terminals. Bulletin Input Type Display Size Display Type | | 2711P- T = Touch 4 = 4.3 in. | C = Color Network | 21 = Single Ethernet port Power | D = DC Operating System Model - Option | | | | 8 = Windows CE S = Standard(1) - B = No brand label 6 = 5.7 in. W = Wide aspect-ratio color 22 = Embedded switch/DLR 7 = 6.5 in. 9 = 9.0 in. 10 = 10.4 in. 12 = 12.1 in. 15 = 15.0 in. (1) The standard models support the Windows CE version 6.0 operating system with an FTP server, VNC client server, ActiveX controls, and PDF reader. Table 11 lists the catalog numbers available for the PanelView Plus 7 Standard terminals. Table 11 - PanelView Plus 7 Standard Terminals Product Selections Without Extended Features Cat. No.(1) Touch Screen Size 2711P-T4W21D8S 4.3 in. 2711P-T4W22D8S 2711P-T6C21D8S 5.7 in. 2711P-T6C22D8S Type WQVGA TFT color Display Aspect Ratio 16:9 VGA TFT color 4:3 Pixels (W x H) 480 x 272 640 x 480 Input Power Ethernet Ports Single DLR Yes Yes Yes Yes 2711P-T7C21D8S 2711P-T7C22D8S 2711P-T9W21D8S 2711P-T9W22D8S 2711P-T10C21D8S 2711P-T10C22D8S 2711P-T12W21D8S 2711P-T12W22D8S 6.5 in. 9.0 in. 10.4 in. 12.1 in. VGA TFT color WVGA TFT color SVGA TFT color WXGA TFT color 4:3 640 x 480 5:3 800 x 480 4:3 800 x 600 16:10 1280 x 800 Yes Yes Yes DC Yes Yes Yes Yes Yes 2711P-T15C21D8S 2711P-T15C22D8S 15.0 in. XGA TFT color 4:3 1024 x 768 Yes Yes (1) Add -B to the end of a catalog number to order a terminal without the Allen-Bradley® logo and product identification; for example, 2711P-T9W21D8S-B. Memory RAM Nonvolatile 512 MB 512 MB nonvolatile memory (approx. 80 MB free user memory) 12 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide PanelView Plus 7 Performance Terminals The table shows the catalog number breakdown for the PanelView Plus 7 Performance terminals. Bulletin Input Type | 2711P- T = Touch B = Key and Touch Display Size | 7 = 6.5 in. 9 = 9 in. 10 = 10.4 in. 12 = 12.1 in. 15 = 15 in. 19 = 19 in. Display Type | C = Color W = Wide aspect ratio color Network Power Operating System | | | 9 = Windows CE 6.0 22 = Ethernet DLR ports A = AC (Series A) 9 = Windows 10 IoT Core (Series B) D = DC Model(1) - | | Option | P =Performance - B = No brand identity K = Conformal coated (1) Performance models support Windows operating system with extended features: Web Browser, remote desktop connection, media player, Microsoft office file viewers, Word Pad text editor. Table 12 lists the catalog numbers available for the PanelView Plus 7 Performance terminals. Table 12 - PanelView Plus 7 Performance Terminal Product Selections With Extended Features Cat. No.(1) Display Ethernet Power Touch Key and Touch Size Type DLR 2711P-T7C22D9P 2711P-B7C22D9P 2711P-T7C22D9PK(2) 6.5 in. 2711P-T7C22A9P(3) 2711P-B7C22A9P VGA TFT Color 2711P-T9W22D9P 2711P-T9W22D9PK(2) 2711P-T9W22A9P(3) 9 in. (wide) WVGA TFT Color 2711P-T10C22D9P 2711P-B10C22D9P 2711P-T10C22D9PK(2) 2711P-T10C22A9P(3) 2711P-T12W22D9P 2711P-B10C22A9P 10.4 in. SVGA TFT Color Yes 2711P-T12W22D9PK(2) 2711P-T12W22A9P(3) 12.1 in. (wide) WXGA TFT Color 2711P-T15C22D9P 2711P-B15C22D9P 2711P-T15C22D9PK(2) 2711P-B15C22D9PK(2) 15 in. 2711P-T15C22A9P(3) 2711P-B15C22A9P XGA TFT Color 2711P-T19C22D9P 2711P-T19C22D9PK(2) 2711P-T19C22A9P(3) 19 in. SXGA TFT Color (1) Add -B to the end of a catalog number to order a terminal without the Allen-Bradley logo and product identification, for example, 2711P-T9W22D9P-B. (2) This terminal includes conformal coating. (3) Available on Series A only. AC or DC DC DC AC(3) DC DC AC(3) DC DC AC(3) DC DC AC(3) DC DC AC(3) DC DC AC(3) Memory Storage RAM (Nonvolatile) 512 MB (Series A) 4 GB (Series B) 512 MB (Series A) (approx. 80 MB free user memory) 19.87 GB (Series B) (approx. 3 GB free user memory) Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 13 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Catalog Number Conversion Tables Tables in this section provide a direct catalog number conversion for your PanelView Plus 6 terminal to a compatible PanelView Plus 7 terminal. Table 13 - PanelView Plus 6 Terminals (400) Primary Replacement Options PanelView Plus 6 Terminals Model Cat. No. 2711P-K4M5A8 2711P.-K4M5D8 2711P-K4M20A8 2711P-K4M20D8 2711P-K4CA8 2711P-K4CD8 400 2711P-K4C20A8 2711P-K4C20D8 2711P-B4C5A8 2711P-B4C5D8 2711P-B4C20A8 2711P-B4C20D8 Panel Cutout Dimensions Height Width mm mm (in.) (in.) 123 156 (4.86) (6.15) PanelView Plus 7 Terminals Primary Replacement Options Panel Cutout Dimensions Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. Comm. Notes 320 x 240 2711P- 92 T4W21D8S (3.62) 117 (4.61) 480 x 272 N/A One Ethernet Port The PanelView Plus 7 Standard terminals have the following application limits: · Max. screen count: 100 · Max. alarm messages: 500 · Max. number of controllers: 1 Communication for the PanelView Plus 7 Standard terminal is Ethernet (dual Ethernet ports are available). The PanelView Plus 7 Standard terminal input is only touch. The PanelView Plus 7 Standard terminal power input is only DC. Table 14 - PanelView Plus 6 Terminals (400) Secondary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Secondary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height Width mm mm (in.) (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. Comm. 2711P-K4M5A8 2711P-B7C22A9P 2711P.-K4M5D8 2711P-B7C22D9P 2711P-K4M20A8 2711P-B7C22A9P 2711P-K4M20D8 2711P-B7C22D9P 2711P-K4CA8 2711P-B7C22A9P 2711P-K4CD8 400 2711P-K4C20A8 123 (4.86) 156 (6.15) 320 x 240 2711P-B7C22D9P 142 2711P-B7C22A9P (5.59) 237 (9.33) 640 x 480 N/A Dual Ethernet Ports 2711P-K4C20D8 2711P-B7C22D9P 2711P-B4C5A8 2711P-B7C22A9P 2711P-B4C5D8 2711P-B7C22D9P 2711P-B4C20A8 2711P-B7C22A9P 2711P-B4C20D8 2711P-B7C22D9P Notes PanelView Plus 7 Performance terminals communication is only Ethernet. 14 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 15 - PanelView Plus 6 Terminals (600) Primary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Primary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height mm (in.) Width mm (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Comm. Cat. No. Notes 2711P-K6M5A8 241 2711P-K6M5D8 (9.50) 2711P-T6M5A8 156 2711P-T6M5D8 (6.15) 2711P-B6M5A8 2711P-B6M5D8 241 2711P-K6M20A8 (9.50) 2711P-K6M20D8 2711P-T6M20A8 156 2711P-T6M20D8 142 (6.15) 2711P-B6M20A8 (5.61) 2711P-B6M20D8 2711P-K6C5A8 241 (9.50) 320 x 240 2711P-T6C21D8S 123 (4.84) 156 (6.14) 640 x 480 N/A 2711P-K6C5D8 2711P-T6C5A8 156 2711P-T6C5D8 (6.15) One Ethernet Port The PanelView Plus 7 Standard terminals have the following application limits: · Max. screen count: 100 · Max. alarm messages: 500 · Max. number of controllers: 1 Communication for the PanelView Plus 7 Standard terminal is Ethernet (dual Ethernet ports are available). The PanelView Plus 7 Standard terminal input is only touch. The PanelView Plus 7 Standard terminal power input is only DC. 2711P-B6C5A8 600 (1) 2711P-B6C5D8 2711P-K6C20A8 241 (9.50) 2711P-K6C20D8 2711P-T6C20A8 123 156 2711P-T6C20D8 (4.86) (6.15) 2711P-B6C20A8 2711P-B6C20D8 142 241 2711P-K6C5A9 (5.61) (9.50) 2711P-K6C5D9 2711P-B7C22A9P 237 2711P-B7C22D9P (9.33) 2711P-T6C5A9 2711P-T6C5D9 123 156 (4.86) (6.15) 2711P-T7C22A9P 184 2711P-T7C22D9P (7.24) 2711P-B6C5A9 2711P-B7C22A9P 2711P-B6C5D9 2711P-K6C20A9 142 (5.61) 241 (9.50) 320 x 240 2711P-B7C22D9P 142 2711P-B7C22A9P (5.59) 237 (9.33) 640 x 480 N/A 2711P-K6C20D9 2711P-B7C22D9P Dual Ethernet Ports The PanelView Plus 7 Performance 7-in. terminal is listed as the primary replacement for this terminal due to extended features. The PanelView Plus 7 Performance terminals communication is only Ethernet. 2711P-T6C20A9 123 156 2711P-T6C20D9 (4.86) (6.15) 2711P-T7C22A9P 184 2711P-T7C22D9P (7.24) 2711P-B6C20A9 142 241 2711P-B6C20D9 (5.61) (9.50) 2711P-B7C22A9P 237 2711P-B7C22D9P (9.33) (1) The terminals that are listed in the shaded area have extended features. Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 15 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 16 - PanelView Plus 6 Terminals (600) Secondary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Secondary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height mm (in.) Width mm (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Comm. Notes Cat. No. 2711P-K6M5A8 241 2711P-K6M5D8 (9.50) 2711P-B7C22A9P 237 2711P-B7C22D9P (9.33) 2711P-T6M5A8 156 2711P-T6M5D8 (6.15) 2711P-T7C22A9P 184 2711P-T7C22D9P (7.24) 2711P-B6M5A8 2711P-B7C22A9P 2711P-B6M5D8 241 2711P-K6M20A8 (9.50) 2711P-B7C22D9P 237 2711P-B7C22A9P (9.33) 2711P-K6M20D8 2711P-B7C22D9P 2711P-T6M20A8 156 2711P-T6M20D8 142 (6.15) 2711P-B6M20A8 (5.61) 2711P-T7C22A9P 184 2711P-T7C22D9P (7.24) 2711P-B7C22A9P 2711P-B6M20D8 2711P-K6C5A8 241 (9.50) 320 x 240 2711P-B7C22D9P 2711P-B7C22A9P 142 (5.59) 237 (9.33) 640 x 480 N/A Dual Ethernet Ports PanelView Plus 7 Performance terminals communication is only Ethernet. 2711P-K6C5D8 2711P-B7C22D9P 2711P-T6C5A8 156 2711P-T6C5D8 (6.15) 2711P-T7C22A9P 184 2711P-T7C22D9P (7.24) 2711P-B6C5A8 2711P-B7C22A9P 600 (1) 2711P-B6C5D8 2711P-K6C20A8 241 (9.50) 2711P-B7C22D9P 237 2711P-B7C22A9P (9.33) 2711P-K6C20D8 2711P-B7C22D9P 2711P-T6C20A8 123 156 2711P-T6C20D8 (4.86) (6.15) 2711P-T7C22A9P 184 2711P-T7C22D9P (7.24) 2711P-B6C20A8 2711P-B6C20D8 142 241 2711P-K6C5A9 (5.61) (9.50) 2711P-B7C22A9P 237 2711P-B7C22D9P (9.33) 2711P-K6C5D9 2711P-T6C5A9 2711P-T6C5D9 123 156 (4.86) (6.15) 2711P-B6C5A9 2711P-B6C5D9 142 2711P-K6C20A9 (5.61) 241 (9.50) 320 x 240 2711P-T6C21D8S 123 (4.84) 156 (6.14) 640 x 480 N/A 2711P-K6C20D9 2711P-T6C20A9 123 156 2711P-T6C20D9 (4.86) (6.15) Dual Ethernet Ports The PanelView Plus 7 Standard terminals have the following application limits: · Max. screen count: 100 · Max. alarm messages: 500 · Max. number of controllers: 1 Communication for the PanelView Plus 7 Standard terminal is Ethernet (dual Ethernet ports are available). The PanelView Plus 7 Standard terminal input is only touch. The PanelView Plus 7 Standard terminal power input is only DC. 2711P-B6C20A9 142 241 2711P-B6C20D9 (5.61) (9.50) (1) The terminals that are listed in the shaded area have extended features. The PanelView Plus 7 Standard terminal replacement option does not offer the extended features. 16 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 17 - PanelView Plus 6 Terminals (700) Primary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Primary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height Width mm mm (in.) (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. Comm. Notes 2711P-T7C4D8K(2) 154 (6.08) 220 (8.67) 640 x 480 2711P-T7C22D9PK(2) 184 (7.24) 2711P-RAAT7 2711P-K7C4A8 2711P-K7C4D8 167 264 (6.57) (10.39) 2711P-B7C22A9P 237 2711P-B7C22D9P (9.33) 2711P-RAAK7 700 (1) 2711P-T7C4A8 2711P-T7C4D8 2711P-B7C4A8 2711P-B7C4D8 2711P-K7C4A9 2711P-K7C4D9 154 220 (6.08) (8.67) 167 (6.57) 264 (10.39) 640 x 480 2711P-T7C22A9P 2711P-T7C22D9P 2711P-B7C22A9P 2711P-B7C22D9P 2711P-B7C22A9P 2711P-B7C22D9P 184 (7.24) 142 (5.59) 237 640 x 480 (9.33) 2711P-RAAT7 2711P-RAAK7 Dual Ethernet Ports The PanelView Plus 7 Performance 7 in. terminal is the primary replacement option for all PanelView Plus 6 700 terminals. PanelView Plus 7 Performance terminals communication is only Ethernet. Adapter plates are necessary for drop-in replacement. 2711P-T7C4A9 2711P-T7C4D9 154 220 (6.08) (8.67) 2711P-T7C22A9P 184 2711P-T7C22D9P (7.24) 2711P-RAAT7 2711P-B7C4A9 2711P-B7C4D9 167 264 (6.57) (10.39) 2711P-B7C22A9P 237 2711P-B7C22D9P (9.33) 2711P-RAAK7 (1) The terminals that are listed in the shaded area have extended features. (2) This terminal includes conformal coating. Table 18 - PanelView Plus 6 Terminals (700) Secondary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Secondary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height Width mm mm (in.) (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. Comm. Notes 2711P-K7C4A8 167 2711P-K7C4D8 (6.57) 264 (10.39) 2711P-T7C4A8 154 220 2711P-T7C4D8 (6.08) (8.67) 2711P-B7C4A8 700 (1) 2711P-B7C4D8 2711P-K7C4A9 167 (6.57) 264 (10.39) 640 x 480 2711P-T7C21D8S 142 (5.59) 184 (7.24) 640 x 480 N/A 2711P-K7C4D9 2711P-T7C4A9 154 220 2711P-T7C4D9 (6.08) (8.67) One Ethernet Port The PanelView Plus 7 Standard terminals have the following application limits: · Max. screen count: 100 · Max. alarm messages: 500 · Max. number of controllers: 1 Communication for the PanelView Plus 7 Standard terminal is Ethernet (dual Ethernet ports are available). The PanelView Plus 7 Standard terminal input is only touch. The PanelView Plus 7 Standard terminal power input is only DC. 2711P-B7C4A9 167 2711P-B7C4D9 (6.57) 264 (10.39) (1) The terminals that are listed in the shaded area have extended features. The PanelView Plus 7 Standard terminal replacement option does not offer the extended features. Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 17 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 19 - PanelView Plus 6 Terminals (1000) Primary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Primary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height mm (in.) Width mm (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. 2711P-K10C4A8 2711P-K10C4D8 375 (14.75) 2711P-B10C22A9P 2711P-B10C22D9P 335 (13.19) 2711P-RAAK10 2711P-T10C4A8 2711P-T10C4D8 305 (12.00) 2711P-T10C22A9P 2711P-T10C22D9P 269 (10.59) 2711P-RAAT10 2711P-B10C4A8 2711P-B10C22A9P 2711P-B10C4D8 1000 (1) 2711P-K10C4A9 224 (8.8) 375 (14.75) 640 x 480 2711P-B10C22D9P 224 2711P-B10C22A9P (8.82) 335 (13.19) 800 x 600 2711P-RAAK10 2711P-K10C4D9 2711P-B10C22D9P 2711P-T10C4A9 2711P-T10C4D9 305 (12.00) 2711P-T10C22A9P 2711P-T10C22D9P 269 (10.59) 2711P-RAAT10 2711P-B10C4A9 2711P-B10C4D9 375 (14.75) 2711P-B10C22A9P 2711P-B10C22D9P 335 (13.19) 2711P-RAAK10 (1) The terminals that are listed in the shaded area have extended features. Comm. Notes Dual Ethernet Ports The PanelView Plus 7 Performance 10 in. terminal is the primary replacement option for all PanelView Plus 6 1000 terminals. PanelView Plus 7 Performance terminals communication is only Ethernet. Adapter Plates are necessary for drop-in replacement. Table 20 - PanelView Plus 6 Terminals (1000) Secondary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Secondary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height mm (in.) Width mm (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. Comm. Notes 2711P-K10C4A8 2711P-K10C4D8 375 (14.75) 2711P-T10C4A8 2711P-T10C4D8 305 (12.00) 2711P-B10C4A8 2711P-B10C4D8 1000 (1) 2711P-K10C4A9 224 (8.8) 375 (14.75) 640 x 480 2711P-T10C21D8S 224 (8.82) 269 (10.59) 800 x 600 N/A 2711P-K10C4D9 2711P-T10C4A9 2711P-T10C4D9 305 (12.00) One Ethernet Port The PanelView Plus 7 Standard terminals have the following application limits: · Max. screen count: 100 · Max. alarm messages: 500 · Max. number of controllers: 1 Communication for the PanelView Plus 7 Standard terminal is Ethernet (dual Ethernet ports are available). The PanelView Plus 7 Standard terminal input is only touch. The PanelView Plus 7 Standard terminal power input is only DC. 2711P-B10C4A9 2711P-B10C4D9 375 (14.75) (1) The terminals that are listed in the shaded area have extended features. The PanelView Plus 7 Standard terminal replacement option does not offer the extended features. 18 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 21 - PanelView Plus 6 Terminals (1250) Primary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Primary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height mm (in.) Width mm (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. Comm. Notes 2711P-T12C4D8K(2) 257 (10.11) 338 (13.29) 800 x 600 2711P-T12W22D9PK(2) 2711P-RAAT12 2711P-K12C4A8 2711P-K12C4D8 390 (15.35) 2711P-T12W22A9P 2711P-T12W22D9P 2711P-RAAT12K 1250 (1) 2711P-T12C4A8 2711P-T12C4D8 2711P-B12C4A8 2711P-B12C4D8 2711P-K12C4A9 2711P-K12C4D9 2711P-T12C4A9 2711P-T12C4D9 2711P-B12C4A9 2711P-B12C4D9 338 (13.29) 257 (10.11) 390 (15.35) 800 x 600 338 (13.29) 390 (15.35) 2711P-T12W22A9P 2711P-T12W22D9P 2711P-T12W22A9P 2711P-T12W22D9P 2711P-T12W22A9P 2711P-T12W22D9P 2711P-T12W22A9P 2711P-T12W22D9P 2711P-T12W22A9P 2711P-T12W22D9P 2711P-RAAT12 The PanelView Plus 7 Performance 12 in. terminal is the primary replacement option for all PanelView Plus 6 1250 terminals. 218 (8.58) 312 (12.28) 1280 x 800 2711P-RAAT12K Dual Ethernet Ports The PanelView Plus 7 Performance 12 in. terminal is available only with Touch input. PanelView Plus 7 Performance terminals communication is only Ethernet. Adapter Plates are necessary for drop-in replacement. 2711P-RAAT12 2711P-RAAT12K (1) The terminals that are listed in the shaded area have extended features. (2) This terminal includes conformal coating. Table 22 - PanelView Plus 6 Terminals (1250) Secondary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Secondary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height mm (in.) Width mm (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. Comm. Notes 2711P-K12C4A8 2711P-K12C4D8 390 (15.35) 2711P-B15C22A9P 2711P-B15C22D9P 290 (11.42) 418 (16.46) 1024 x 768 2711P-RAAK15 Dual Ethernet Ports 2711P-T12C4A8 2711P-T12C4D8 338 (13.29) N/A N/A N/A N/A N/A N/A 2711P-B12C4A8 2711P-B12C4D8 1250 (1) 2711P-K12C4A9 2711P-K12C4D9 2711P-T12C4A9 2711P-T12C4D9 2711P-B12C4A9 2711P-B12C4D9 257 (10.11) 390 (15.35) 800 x 600 338 (13.29) 390 (15.35) 2711P-B15C22A9P 2711P-B15C22D9P 2711P-B15C22A9P 2711P-B15C22D9P N/A 2711P-B15C22A9P 2711P-B15C22D9P 290 (11.42) 418 (16.46) 1024 x 768 2711P-RAAK15 Dual Ethernet Ports The PanelView Plus 7 Performance 15 in. terminal is listed as a secondary replacement if you require a keypad. PanelView Plus 7 Performance terminals communication is only Ethernet. N/A N/A N/A N/A N/A 290 (11.42) 418 (16.46) 1024 x 768 2711P-RAAK15 Dual Ethernet Ports (1) The terminals that are listed in the shaded area have extended features. Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 19 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 23 - PanelView Plus 6 Terminals (1500) Primary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Primary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height mm (in.) Width mm (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. Comm. Notes 2711P-K15C4A8 2711P-K15C4D8 419 (16.50) 2711P-B15C22A9P 2711P-B15C22D9P 418 (16.46) 2711P-RAAK15 2711P-T15C4A8 2711P-T15C4D8 391 (15.40) 2711P-T15C22A9P 2711P-T15C22D9P 353 (13.90) 2711P-RAAT15 2711P-B15C4A8 2711P-B15C4D8 1500 (1) 2711P-K15C4A9 2711P-K15C4D9 305 (12.00) 419 (16.50) 1024 x 768 2711P-B15C22A9P 2711P-B15C22D9P 2711P-B15C22A9P 2711P-B15C22D9P 290 (11.42) 418 (16.46) 1024 x 768 2711P-RAAK15 Dual Ethernet Ports The PanelView Plus 7 Performance 15 in. terminal is the primary replacement option for all PanelView Plus 6 1500 terminals. PanelView Plus 7 Performance terminals communication is only Ethernet. Adapter Plates are necessary for drop-in replacement. 2711P-T15C4A9 2711P-T15C4D9 391 (15.40) 2711P-T15C22A9P 2711P-T15C22D9P 353 (13.90) 2711P-RAAT15 2711P-B15C4A9 2711P-B15C4D9 419 (16.50) 2711P-B15C22A9P 2711P-B15C22D9P 418 (16.46) 2711P-RAAK15 (1) The terminals that are listed in the shaded area have extended features. Table 24 - PanelView Plus 6 Terminals (1500) Secondary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Secondary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height mm (in.) Width mm (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Comm. Cat. No. Notes 2711P-K15C4A8 2711P-K15C4D8 419 (16.50) 2711P-T15C4A8 2711P-T15C4D8 2711P-B15C4A8 2711P-B15C4D8 1500 (1) 2711P-K15C4A9 2711P-K15C4D9 2711P-T15C4A9 2711P-T15C4D9 305 (12.00) 391 (15.40) 419 (16.50) 391 (15.40) 1024 x 768 2711P-T15C21D8S 290 (11.42) 353 (13.90) 1024 x 768 N/A One Ethernet Port The PanelView Plus 7 Standard terminals have the following application limits: · Max. screen count: 100 · Max. alarm messages: 500 · Max. number of controllers: 1 Communication for the PanelView Plus 7 Standard terminal is Ethernet (dual Ethernet ports are available). The PanelView Plus 7 Standard terminal input is only touch. The PanelView Plus 7 Standard terminal power input is only DC. 2711P-B15C4A9 2711P-B15C4D9 419 (16.50) (1) The terminals that are listed in the shaded area have extended features. The PanelView Plus 7 Standard terminal replacement option does not offer the extended features. 20 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Table 25 - PanelView Plus 6 Compact Terminals (400, 600, and 1000) Primary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Primary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height mm (in.) Width mm (in.) Display Resolution Cat. No. Height Width mm mm (in.) (in.) Display Resolution Adapter Plate Comm. Cat. No. Notes 2711PC-K4M20D8 400 2711PC-B4C20D8 2711PC-B4C20D8-LR 123 (4.86) 156 (6.15) 320 x 240 2711PC-T6M20D8 600 2711PC-T6C20D8 1000 2711PC-T10C4D8 224 (8.8) 305 (12.00) 640 x 480 2711P-T4W21D8S 92 (3.62) 117 (4.61) 480 x 272 Low-reflective display. There is no primary replacement option. See Table 26 for a secondary replacement option. N/A 2711P-T6C21D8S 123 (4.84) 156 (6.14) 640 x 480 2711P-T10C21D8S 224 (8.82) 269 (10.59) 800 x 600 One Ethernet Port Communication for the PanelView Plus 7 Standard terminal is Ethernet (dual Ethernet ports are available). The PanelView Plus 7 Standard terminals have the same application limitations as the PanelView Plus 6 compact terminals. The PanelView Plus 7 Standard terminals are touch input. Table 26 - PanelView Plus 6 Compact Terminals (400, 600, and 1000) Secondary Replacement Options PanelView Plus 6 Terminals PanelView Plus 7 Terminals Secondary Replacement Options Panel Cutout Dimensions Panel Cutout Dimensions Model Cat. No. Height Width mm mm (in.) (in.) Display Resolution Cat. No. Height mm (in.) Width mm (in.) Display Resolution Adapter Plate Cat. No. Comm. Notes 2711PC-K4M20D8 2711PC-B4C20D8 400 2711PC-B4C20D8-LR 123 (4.86) 156 (6.15) 320 x 240 2711P-T4W21D8S (1) 92 (3.62) 117 (4.61) 480 x 272 N/A One Ethernet Port Low-reflective display is not available for PanelView Plus 7 Standard terminals. 2711PC-T6M20D8 600 2711PC-T6C20D8 1000 2711PC-T10C4D8 224 (8.8) 305 (12.00) 640 x 480 (1) This terminal does not offer a low-reflective display, but can be a replacement if a low-reflective display is not required. Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 21 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Accessories Some accessories and accessory catalog numbers are new or have changed for PanelView Plus 7 Standard and PanelView Plus 7 Performance terminals. See the accessories section in the respective user manuals that are listed in Additional Resources on page 23. Adapter Kit Conversion Table The adapter kit provides hardware for installing a PanelView Plus 7 Performance terminal into the cutout of the existing PanelView Plus 6 terminal. See the Adapter Kit for PanelView 5500 and PanelView Plus 7 Performance Terminals, publication VIEW-IN002. IMPORTANT These adapter kits are for PanelView Plus 7 Performance terminals. Do not install a PanelView Plus 7 Standard terminal with these adapter kits. The bezel of the standard terminal can be damaged, which can reduce the effectiveness of the seal and damage the terminal and components that are installed in the cabinet. Adapter Kit Cat. No. 2711P-RAAT7 2711P-RAAK7 2711P-RAAT10 2711P-RAAK10 2711P-RAAT12 2711P-RAAT12K 2711P-RAAT15 2711P-RAAK15 Replace this Existing PanelView Plus 6 Terminal... 700 touch screen 700 keypad, or keypad with touch screen 1000 touch screen 1000 keypad, or keypad with touch screen 1250 touch screen 1250 keypad, or keypad with touch screen 1500 touch screen 1500 keypad, or keypad with touch screen With this PanelView Plus 7 Performance Terminal 6.5 in. touch screen 6.5 in. keypad with touch screen 10.4 in. touch screen 10.4 in. keypad with touch screen 12.1 in. touch screen 12.1 in. touch screen 15 in. touch screen 15 in. keypad with touch screen Legacy Communication Support PanelView Plus 7 terminals use only Ethernet communication. If you need support for non-Ethernet communication protocols, go to the following EncompassTM Partner websites: · http://www.anybus.com/products/prodindex.shtml · http://www.prosoft-technology.com/Products/Gateways 22 Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 PanelView Plus 6 Terminals to PanelView Plus 7 Terminals Catalog Number Conversions Migration Guide Additional Resources These documents contain additional information concerning related products from Rockwell Automation. Resource PanelView Plus 7 Performance Terminals User Manual, publication 2711P-UM008 PanelView Plus 7 Performance Terminals Technical Data, publication 2711P-TD009 PanelView Plus 7 Standard Terminals User Manual, publication 2711P-UM007 PanelView Plus 7 Standard Terminals Technical Data, publication 2711P-TD008 PanelView Plus 6 Terminals User Manual, publication 2711P-UM006 PanelView Plus 6 Compact Terminals User Manual, publication 2711PC-UM002 PanelView Plus 6 Terminals Technical Data, publication 2711P-TD005 Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1 Product Certifications website, rok.auto/certifications Description Provides information on how to install, operate, configure, and troubleshoot the PanelView Plus 7 Performance terminals. Provides technical specifications, environmental specifications, and certifications for the PanelView Plus 7 Performance terminals. Provides information on how to install, operate, configure, and troubleshoot the PanelView Plus 7 Standard terminals. Provides technical specifications, environmental specifications, and certifications for the PanelView Plus 7 Standard terminals. Provides information on how to install, operate, configure, and troubleshoot the PanelView Plus 6 terminals. Provides information on how to install, operate, configure, and troubleshoot the PanelView Plus 6 Compact terminals. Provides technical specifications, environmental specifications, and certifications for the PanelView Plus 6 and PanelView Plus 6 Compact terminals. Provides general guidelines for installing a Rockwell Automation industrial system. Provides declarations of conformity, certificates, and other certification details. You can view or download publications at http://www.rockwellautomation.com/global/literature-library/overview.page. Rockwell Automation Publication 2711P-AP004F-EN-P - April 2021 23 Rockwell Automation Support Use these resources to access support information. Technical Support Center Knowledgebase Local Technical Support Phone Numbers Literature Library Product Compatibility and Download Center (PCDC) Find help with how-to videos, FAQs, chat, user forums, and product notification updates. rok.auto/support Access Knowledgebase articles. rok.auto/knowledgebase Locate the telephone number for your country. rok.auto/phonesupport Find installation instructions, manuals, brochures, and technical data publications. rok.auto/literature Get help determining how products interact, check features and capabilities, and find associated firmware. rok.auto/pcdc Documentation Feedback Your comments help us serve your documentation needs better. If you have any suggestions on how to improve our content, complete the form at rok.auto/docfeedback. Allen-Bradley, DH+, Encompass, expanding human possibility, FactoryTalk, PanelView, Rockwell Automation, and Rockwell Software are trademarks of Rockwell Automation, Inc., Windows is a trademark of Microsoft Corporation. Trademarks not belonging to Rockwell Automation are property of their respective companies. Rockwell Automation maintains current product environmental information on its website at rok.auto/pec. Rockwell Otomasyon Ticaret A.. Kar Plaza Merkezi E Blok Kat:6 34752, çerenkÖy, stanbul, Tel: +90 (216) 5698400 EEE YÖnetmeliine Uygundur Publication 2711P-AP004F-EN-P - April 2021 Supersedes Publication 2711P-AP004E-EN-P - April 2020 Copyright © 2021 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.Acrobat Distiller 11.0 (Windows)
