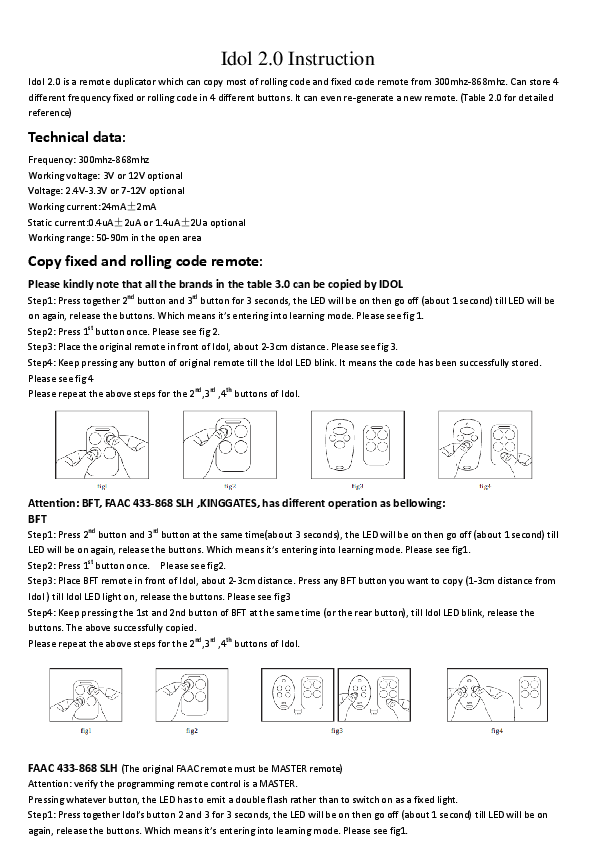

Idol 2.0 Instruction Idol 2.0 is a remote duplicator which can copy most of rolling code and fixed code remote from 300mhz-868mhz. Can store 4 different frequency fixed or rolling code in 4 different buttons. It can even re-generate a new remote. (Table 2.0 for detailed reference) Technical data: Frequency: 300mhz-868mhz Working voltage: 3V or 12V optional Voltage: 2.4V-3.3V or 7-12V optional Working current:24mA±2mA Static current:0.4uA±2uA or 1.4uA±2Ua optional Working range: 50-90m in the open area Copy fixed and rolling code remote: Please kindly note that all the brands in the table 3.0 can be copied by IDOL Step1: Press together 2nd button and 3rd button for 3 seconds, the LED will be on then go off (about 1 second) till LED will be on again, release the buttons. Which means it's entering into learning mode. Please see fig 1. Step2: Press 1st button once. Please see fig 2. Step3: Place the original remote in front of Idol, about 2-3cm distance. Please see fig 3. Step4: Keep pressing any button of original remote till the Idol LED blink. It means the code has been successfully stored. Please see fig 4 Please repeat the above steps for the 2nd,3rd ,4th buttons of Idol. Attention: BFT, FAAC 433-868 SLH ,KINGGATES, has different operation as bellowing: BFT Step1: Press 2nd button and 3rd button at the same time(about 3 seconds), the LED will be on then go off (about 1 second) till LED will be on again, release the buttons. Which means it's entering into learning mode. Please see fig1. Step2: Press 1st button once. Please see fig2. Step3: Place BFT remote in front of Idol, about 2-3cm distance. Press any BFT button you want to copy (1-3cm distance from Idol ) till Idol LED light on, release the buttons. Please see fig3 Step4: Keep pressing the 1st and 2nd button of BFT at the same time (or the rear button), till Idol LED blink, release the buttons. The above successfully copied. Please repeat the above steps for the 2nd,3rd ,4th buttons of Idol. FAAC 433-868 SLH (The original FAAC remote must be MASTER remote) Attention: verify the programming remote control is a MASTER. Pressing whatever button, the LED has to emit a double flash rather than to switch on as a fixed light. Step1: Press together Idol's button 2 and 3 for 3 seconds, the LED will be on then go off (about 1 second) till LED will be on again, release the buttons. Which means it's entering into learning mode. Please see fig1. Step2: Press 1st button once. Please see fig2 Step3: Place FAAC remote in front of Idol, about 2-3cm distance. Press any FAAC button you want to copy till Idol LED light. Please fig 3. Sept4: Press 1st and 2nd button at FAAC for 2 seconds, till FAAC remote flashes, release the buttons. Then press any button at FAAC till Idol's LED blink. It means you copy successfully. Please repeat the above steps for the 2nd, 3rd ,4th buttons of Idol. Notification: For GENIUS remote, the best distance for copying is 4-7cm. Kinggates Step1: Long press 3rd button, then press 2nd button five times. Idol LED will short flashes. Please see fig1. Step2: Place Motroline/Kinggates remote in front of Idol, about 2-3cm distance. Press any original button you want to copy (1-3cm distance from Idol) till Idol LED short flashes, release the buttons. Please see fig2 Step3: Press the IDOL 1st button once time, LED keep on. It's meaning learning code successfully .Please see fig3 Please repeat the above steps for the 2nd,3rd,4th buttons of Idol. Remotely program function: Please kindly note that all the brands in the table 1.0 can be program into original receiver Get close to the receiver and press together Idol buttons 1 and 3 for 3 seconds, the LED will be on then go off (about 1 second) till LED will be on again, release the buttons. Which means it's entering into remotely program mode. Then press any Idol's button that you already copied once, to indicate that remotely program procedure has started. After 8 seconds, wait the activation of the receiver (gate opening, lights starting, etc..) The remote control has been memorized. Attention: If the receiver doesn't work, the "remote program function" maybe disarmed, if so please operate it manually. Please kindly note that fixed code remote after copying, Idol can act as the original remote and do not need to program with receiver. Table 1.0 List 1 List 2 ALLMATIC B.RO OVER, B.RO 2WN, TECH3, MINIPASS, BRO.STAR APRIMATIC TR2/4, TM4 BENINCA TO.GO2 /4 VW, TO.GO2/4 QV, IO, T2/4 VW BFT MITTO 2/4M, MITTO 2/ 4A, MITTO RCB02/04, GHIBLI, KLEIO, TRC2/ 4, RB4 MURALE CARDIN S449 TRQ449100/TRQ449200/ TRQ449300/TRQ449400, TXQ449200/TXQ449300/ TXQ449400, S486:TRQ486200/ TRQ486400, TXQ486200/ TXQ486400 DITEC GOL4, BIXLP2/2 RED, BIXLG4 FAAC XT4 433 RC, TE4433H KING GATES STYLO 4 MHOUSE TX4, TX3, GTX4 NICE SMILO2/4, FLO1/2/4R-S,VERY VR, FLO1R-S,FLO2R-S.FLO4R-S,FLO1RE/FLO2RE/FLO4RE NOVOTECNICA BIXL2 O&O TWIN,TX2/TX4(NEO),T.COM R4-2/T.COMR4-4,T.COM R8-2/T.COM R8-4 TAU 250 SLIM RP,250 T4 RP VDS TRQ, ECO-R V2 FADINI JUBI SMALL, JUBI-2, JUBI-4 GENIUS BRAVO TE4433H, ECHO GIBIDI AU1680 WOOD, GIBIDI AU1610/1680, AU1810/1600, AU01590 AUO3000 DOMINO, DTC 4334 PHOENIX 433-868, TXC, TSC, TRC, HANDY PUJOL VARIO, MARTE ADYX BRAVO, TE4433H, TE4433H BLUE PRASTEL MPSTF2/F4RE, MPSTL-1E/2E/4E, MPSTP2E/2E BLUE, MT4E/2E, BFOR, TRQ4P, TC2E, TRQ2P SOMFY TELIS 1/ 4 RTS Re-generate function: If customers buy an Idol remote, but they lost their original remote, they can re-generate an original remote. Step1: Press together 1st button and 4th button for 3 seconds, the LED will be on then go off (about 1 second) till LED will be on again, release the buttons. Which means it's entering into Re-generate mode. Please see the fig1 Step2: Press buttons to choose the brands as table 2.0. For example, if you choose BFT MITTO brand, press 1st button once, then LED flashes once. Step3: Confirm the brand. Press 3rd and 4th button at the same time. Till LED blink, release the buttons. Now the Idol remote is functioning a new BFT MITTO remote. Please see fig2. Note1. If you are using Idol to regenerate a FAAC 4 buttons remote, then re-generate a BFT 2 buttons remote, the in the Idol remote, 1st and 2nd button is BFT code, 3rd and 4th button is FAAC code. Note2. If you press 1 time, the Idol's LED flashes once; If you press 2 times, the Idol's LED flashes twice and so on. Table 2.0 Remote Press 1 time 1st BFT MITTO button 2nd FAAC XT4 button 433 SLH 3rd SUPERLIFT button 4th button BOSS BHT4 Press 2 times BENINCA cupido CAME TOP-432NA NOVA ATA PTX4 Press 3 times NICE SMILO DITEC DOL4C V2 PHOENIX2 SOMMER 868MHZ 4020 Press 4 times NICEFLOR-S GLIDEROL 315 DOORHAN TRANSMITTER 4 ROGER Press 5 times Motorline SLAVE KINGGATES Press 6 times Merlin 2.0+ Complete copy brands list Table 3.0 BRAND MODLE NO. ADYX BRAVO.TE4433H,TE4433H BLUE ALLMATIC B.RO OVER, B.RO 2WN, TECH3, MINIPASS, BRO.STAR ALUTECH TX02-434-2, TX02-868-2 BLUE, 4025 APERTO (SOMMER) TX02-868-2, 4022 TX02434-2, 4020 TX-03-868-4, 4013 TX03-434-4 APRIMATIC TR2/TR4, TM4 FUNCTION Need to activate the receiver Remotely program function Need to activate the receiver Need to activate the receiver Remotely program function ATA BALLAN BENINCA BFT BOSS CAME CARDIN CHAMBERLAIN/LIFTMAS TER/MOTORLIFT CLEMSA DEA DASPI DITEC DOORHAN ECOSTAR FAAC FAAC FADINI GENIE GENIUS GENIUS GIBIDI GLIDEROL KEY KING GATES LABEL LINEAR PTX4 BLUE/PTX 4 PINK FM404B,4013 TO.GO2 VW/TO.GO4 VW, TO.GO2 QV, TO.GO4 QV, IO, T2 VW/TO.GO4 VW, APPLE, LOT2WCV MITTO 2M/MITTO4M, MITTO 2A/ MITTO 4A, MITTO RCB02/MITTORCB04, GHIBLI, KLEIO, TRC2/ TRC4, RB4 MURALE BHT4 TAM 432 SA, TOP 432 NA/TOP 434 NA, TOP 432 SD, TOP 432 EV/TOP 434 EV S449 TRQ449100/TRQ449200/ TRQ449300/TRQ449400, TXQ449200/TXQ449300/ TXQ449400, S486:TRQ486200 TRQ486400, TXQ486200/ TXQ486400 94335E, 4333E, 4335E, 94334E, 4333EML, 4335EML, 84334EML, 4335EML MUTANCODE.MASTERCODE MV TR2 /4 MIO,GENIE R, TS2/4 MIO 868/ 868 ZERO 2 RC/ZERO4 RC GOL4, BIXLP2/2 RED, BIXLG4 TRANSMITTER 4 RSE,RSC,RSZ XT4 433 RC, TE4433H XT2/XT4 433 SLH, XT2/XT4 868 SLH, XT2/XT4 433 SLH LR, XT2/XT4 868 SLH LR, T2/T4 433 SLH, T2/ T4 868 SLH, TML2/TML4 433 SLH, TML2/TML4 868 SLH, DL2/DL4 868 SLH. JUBI SMALL, JUBI-2, JUBI-4 GITR-3,GIT,GICT390,GIFT390-1,G3T-BX,G1T-B X,GM3T,G1CTD,GIFTD BRAVO TE4433H, ECHO JA332 AMIGO 2 868,JA334 AMIGO 4, AMIGOLD 2/AMIGOLD 4, KILO 2/KILO 4 433 JLC, KILO2/KILO4 868 JLC AU1680 WOOD, GIBIDI AU1610, GIBIDI AU1680, AU1810, AU1600,AU01590 AUO3000 DOMINO, DTC 4334 315MHZ 900TXB - 42R, SUB44, TXB-44R, TXG-44R STYLO 4 SPYCO MCT-11,ACT-21,ACT-22,STINGRAY ACT-31,STING RAY ACT-34B Need to activate the receiver Need to activate the receiver Remotely program function Remotely program function Note! Fixed Match Receiver directly Note! Fixed Match Receiver directly Code Code Remotely program function Need to activate the receiver Note! Fixed Code Match Receiver directly Need to activate the receiver Need to activate the receiver Remotely program function Need to activate the receiver Need to activate the receiver Remotely program function Remotely program function Remotely program function Need to activate the receiver Remotely program function Need to activate the receiver Remotely program function Need to activate the receiver Need to activate the receiver Need to activate the receiver Need to activate the receiver Need to activate the receiver MHOUSE MERLIN + 2.0 MERLIN/PROLIFT MERLIN MOOVO MOTORLINE NICE NICE NOVOFERM NOVOTECNICA NOVA O&O Peccinin PRASTEL PROEM PUJOL PROTECO RIB Rossi SEA SEAV SLAVE SIMINOR SUPERLIFT SOMFY SOMFY SOMMER STAGNOLI TAU TELCOMA VDS V2 TX4, TX3, GTX4 E945M, E943M, E940M, E940M M230T(PROLIFT),M430R(PROLIFT) M842, M832, M844, C945, C940, C943 MT4 ONE:ON1/ON2/ON4/ON9,ONE ERA:ON1E/ON2E/ON4E/ON9E, INTI1, INTI2 SMILO2/SMILO4, FLO1R-S, FLO2RS,FLO4R-S, VERY VR, FLO1RE/ FLO2RE/FLO4RE NOVOTRON 502-504-512MIX43-2,MTR40-2,MCHS43-2,MHS 43(2-4),MSHS433(2-4) BIXL2 TWIN,TX2/TX4(NEO), T.COM R4-2/TCOM R4-4.T.COM R8-2/T.COM R8-4 TX MENBRANA MPSTF2/F4RE, MPSTL-1E/2E/4E, MPSTP2E/2E BLUE, MT4E/2E, BFOR, TRQ4P, TC2E, TRQ2P ER2C4ACS/ER4C4ACS VARIO, MARTE LITHIO HEAD,SMART DUAL ROLL,SMART-3 ROLLING CODE,COCCINELLA ROLL BE-HAPPY-RS1, BE-HAPPY-RS2, BE-HAPPY RS3, BE-SMART RSX, BE-HAPPY RH1, BE-HAPPY RH2, BE-HAPPY RH3 S433-4T/S433.4T SIMINOR 433-NLT2/433-NLT4 TELIS 1/ 4 RTS KEYTIS 2/ 4 NS,KEYGO 4 RTS,SOMFY 433-NLT4 BEIGE, SOMFY 433-NLT2 RTR, SOMFY TX2 433MHZ 4014 TX03-434-2, 4013 TX02-434-4, 4022 TX03-434-2, 4026 TX03-868-2, 4020 TX03-868-4, 4025-TX02868.4011, 4010 AV223 250 SLIM RP,250 T4 RP FM402,FM402 E TRQ,ECO-R PHOENIX 433-868,TXC,TSC,TRC,HANDY Remotely program function Need to activate the receiver Need to activate the receiver Need to activate the receiver Remotely program function Need to activate the receiver Remotely program function Remotely program function Need to activate the receiver Need to activate the receiver Need to activate the receiver Remotely program function Need to activate the receiver Remotely program function Need to activate the receiver Need to activate the receiver Note! Fixed Code Match Receiver directly Note! Fixed Code Match Receiver directly Need to activate the receiver Need to activate the receiver Need to activate the receiver Need to activate the receiver Need to activate the receiver Need to activate the receiver Need to activate the receiver Need to activate the receiver Need to activate the receiver Need to activate the receiver Remotely program function Need to activate the receiver Remotely program function Remotely program functionMicrosoft Office Word 2007 Microsoft Office Word 2007
