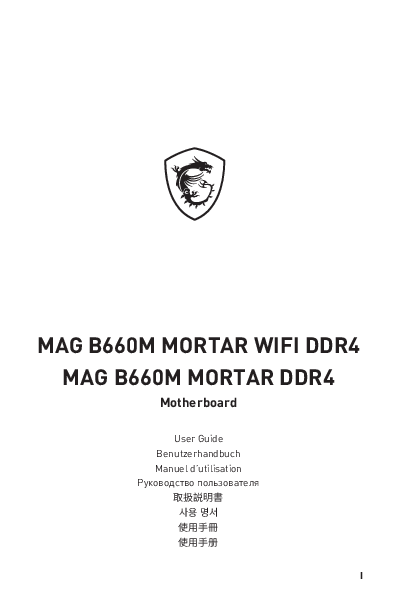

MAG B660M MORTAR WIFI DDR4 MAG B660M MORTAR DDR4
Motherboard
User Guide Benutzerhandbuch Manuel d'utilisation
I
English Deutsch Fran�ais
II
Quick Start
Thank you for purchasing the MSI� motherboard. This Quick Start section provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI� Motherboard gew�hlt haben. Dieser Abschnitt der Kurzanleitung bietet eine Demo zur Installation Ihres Computers. Manche Installationen bieten auch die Videodemonstrationen. Klicken Sie auf die URL, um diese Videoanleitung mit Ihrem Browser auf Ihrem Handy oder Table anzusehen. Oder scannen Sie auch den QR Code mit Ihrem Handy, um die URL zu �ffnen.
Pr�sentation rapide
Merci d'avoir choisi la carte m�re MSI�. Ce manuel fournit une rapide pr�sentation avec des illustrations explicatives qui vous aideront � assembler votre ordinateur. Des tutoriels vid�o sont disponibles pour certaines �tapes. Cliquez sur le lien fourni pour regarder la vid�o sur votre t�l�phone ou votre tablette. Vous pouvez �galement acc�der au lien en scannant le QR code qui lui est associ�.
MSI�. , . . , - . , QR-.
MSI� PC URLQR URL
MSI� . . URL . QR URL .
MSI� URL QR code
MSI� QRURL
III
Installing a Processor/ Installation des Prozessors/ Installer un processeur/ / PU/ / /
Youtube
1
https://youtu.be/KMf9oIDsGes
2
https://v.youku.com/v_show/id_ XNTE5NDQwNDY2NA==.html
3
7
5 4
9
6
8 IV
Installing DDR4 memory/ Installation des DDR4-Speichers/ Installer une m�moire DDR4/ DDR4/ DDR4 / DDR4 / DDR4 / DDR4
Youtube
http://youtu.be/T03aDrJPyQs http://v.youku.com/v_show/id_XNzUyMTI5ODI4.html
DIMMA2
DIMMA2 DIMMB2
DIMMA1 DIMMA2 DIMMB1 DIMMB2
V
Connecting the Front Panel Header/ Anschlie�en der Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ /
/ /
/
Youtube
http://youtu.be/DPELIdVNZUI http://v.youku.com/v_show/id_XNjcyMTczMzM2.html
POPWOEWRELREHLDD-EDDL+ED
RESET SW POWER SW
Power LED Power Switch
-
-+
++
JFP1
2 1
-
+
10
9
Reserved
HDD LED Reset Switch
1
HDD LED +
2
3
HDD LED -
4
5
Reset Switch
6
7
Reset Switch
8
9
Reserved
10
Power LED + Power LED Power Switch Power Switch
No Pin
HDD LED POWER LED
VI
HDD LED RESET SW
JFP1
HDD LED HDD LED + POWER LED POWER LED +
Installing the Motherboard/ Installation des Motherboards/ Installer la carte m�re/ / / / /
Youtube
1
https://youtu.be/wWI6Qt51Wnc
https://v.youku.com/v_show/id_ XNDUwMDUyNTkwOA==.html
Torque:
3 kgf�cm*
2
BAT1
*3 kgf�cm = 0.3 N�m = 2.6 lbf�in
VII
Connecting the Power Connectors/ Stromanschl�sse anschliessen/ Connecter les c�bles du module d'alimentation/
/ / / /
Youtube
http://youtu.be/gkDYyR_83I4 http://v.youku.com/v_show/id_XNDkzODU0MDQw.html
ATX_PWR1
CPU_PWR1
VIII
CPU_PWR2
Installing SATA Drives/ Installation der SATA-Laufwerke/ Installer le disque dur SATA/ SATA/ SATA / SATA / SATA / SATA
Youtube
http://youtu.be/RZsMpqxythc
1
http://v.youku.com/v_show/ id_XNDkzODU5MTky.html
2
3
5 4
IX
Installing a Graphics Card/ Einbau der Grafikkarte/ Installer une carte graphique/ / / / /
Youtube
http://youtu.be/mG0GZpr9w_A
1
http://v.youku.com/v_show/ id_XNDkyOTc3MzQ4.html
3
2
5 X
4 6
Connecting Peripheral Devices/ Peripherieger�te/ Connecter un p�riph�rique anschliessen/ / / / /
(For MAG B660M MORTAR WIFI DDR4)
XI
Power On/ Einschalten/ Mettre sous-tension/ / / / /
1
2
3
4 XII
Contents
Safety Information................................................................................................. 3 Case stand-off notification ..................................................................................... 4 Avoid collision notification...................................................................................... 4
Specifications......................................................................................................... 5 Package contents ................................................................................................ 12 Rear I/O Panel ..................................................................................................... 13
LAN Port LED Status Table .................................................................................. 13 Audio Ports Configuration .................................................................................... 13 Realtek Audio Console ......................................................................................... 14 Overview of Components .................................................................................... 17 CPU Socket ........................................................................................................... 18 DIMM Slots............................................................................................................ 19 PCI_E1~3: PCIe Expansion Slots.......................................................................... 20 JFP1, JFP2: Front Panel Connectors................................................................... 20 M2_1~2: M.2 Slots (Key M) ................................................................................... 21 SATA5~8 & SATA_A~B: SATA 6Gb/s Connectors................................................. 23 JAUD1: Front Audio Connector ............................................................................ 23 JTBT1: Thunderbolt Add-on Card Connector ...................................................... 24 JDASH1 : Tuning Controller connector................................................................ 24 CPU_PWR1~2, ATX_PWR1: Power Connectors ................................................... 25 JCI1: Chassis Intrusion Connector....................................................................... 26 JUSB4: USB 3.2 Gen 2 10Gbps Type-C Connector............................................... 27 JUSB3: USB 3.2 Gen 1 5Gbps Connector ............................................................. 27 JUSB1~2: USB 2.0 Connectors............................................................................. 28 JTPM1: TPM Module Connector........................................................................... 28 CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: Fan Connectors.................................. 29 JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 30 EZ Debug LED....................................................................................................... 30 JRGB1: RGB LED connector................................................................................. 31 JRAINBOW1~2: Addressable RGB LED connectors ............................................ 32 Installing OS, Drivers & MSI Center.................................................................... 33 Installing Windows 10/ Windows 11 ..................................................................... 33 Installing Drivers .................................................................................................. 33 MSI Center ............................................................................................................ 33
Contents 1
UEFI BIOS............................................................................................................. 34 BIOS Setup............................................................................................................ 35 Entering BIOS Setup............................................................................................. 35 BIOS User Guide ................................................................................................... 35 Resetting BIOS...................................................................................................... 36 Updating BIOS....................................................................................................... 36
2 Contents
Safety Information
The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start. Hold the motherboard by the edges to avoid touching sensitive components. It is recommended to wear an electrostatic discharge (ESD) wrist strap when handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is not available, discharge yourself of static electricity by touching another metal object before handling the motherboard. Store the motherboard in an electrostatic shielding container or on an anti-static pad whenever the motherboard is not installed. Before turning on the computer, ensure that there are no loose screws or metal components on the motherboard or anywhere within the computer case. Do not boot the computer before installation is completed. This could cause permanent damage to the components as well as injury to the user. If you need help during any installation step, please consult a certified computer technician. Always turn off the power supply and unplug the power cord from the power outlet before installing or removing any computer component. Keep this user guide for future reference. Keep this motherboard away from humidity. Make sure that your electrical outlet provides the same voltage as is indicated on the PSU, before connecting the PSU to the electrical outlet. Place the power cord such a way that people can not step on it. Do not place anything over the power cord. All cautions and warnings on the motherboard should be noted. If any of the following situations arises, get the motherboard checked by service personnel:
Liquid has penetrated into the computer. The motherboard has been exposed to moisture. The motherboard does not work well or you can not get it work according to user guide. The motherboard has been dropped and damaged. The motherboard has obvious sign of breakage. Do not leave this motherboard in an environment above 60�C (140�F), it may damage the motherboard.
Safety Information 3
Case stand-off notification
To prevent damage to the motherboard, any unnecessary mounting stand-off between the motherboard circuits and the computer case is prohibited. The Case standoff keep out zone signs will be marked on the backside of motherboard (as shown below) to serve as a warning to user.
Avoid collision notification
Protective paint is printed around each screw hole to prevent parts from being scratched.
* The diagrams above are for reference only and may vary by the product you purchased.
4 Safety Information
Specifications
CPU Chipset
Memory
Expansion Slot Multi-GPU Onboard Graphics
Supports 12th Gen Intel� CoreTM, Pentium� Gold and Celeron� Processors* Processor socket LGA1700
* Please go to www.msi.com to get the newest support status as new processors are released.
Intel� B660 Chipset
4x DDR4 memory slots, support up to 128GB* Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel� Extreme Memory Profile (XMP)
*Please go to www.msi.com for more information on compatible memory
2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot
Supports 2-Way AMD� CrossFireTM Technology
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz*/** 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz*/**
*Available only on processors featuring integrated graphics. ** Graphics specifications may vary depending on the CPU installed.
Continued on next page
Specifications 5
Storage
RAID
USB
Audio LAN
6 Specifications
Continued from previous page
4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)* 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M)
M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 Chipset)* Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel� OptaneTM Memory
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
* SATA_A & SATA_B do not support RAID function.
Intel� B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel
USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
Realtek� ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
1x Realtek� 8125BG 2.5Gbps LAN controller
Continued on next page
Continued from previous page
Wireless LAN & Bluetooth� (For MAG B660M MORTAR WIFI DDR4)
Intel� Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth� 5.2
Internal Connectors
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LED Features
4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors
Continued on next page
Specifications 7
Continued from previous page
Back Panel Connectors
I/O Controller Hardware Monitor Form Factor BIOS Features
Software
4x USB 2.0 Type-A ports 1x DisplayPort 1x HDMI port 3x USB 3.2 Gen 2 10Gbps Type-A ports 1x USB 3.2 Gen 2x2 20Gbps Type-C port 1x 2.5G LAN (RJ45) port 2x Wi-Fi Antenna connectors (For MAG B660M MORTAR WIFI DDR4) 5x audio jacks 1x Optical S/PDIF OUT connector
NUVOTON NCT6687D Controller Chip
CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language
Drivers MSI Center Intel Extreme Tuning Utility MSI App Player (BlueStacks) Open Broadcaster Software (OBS) CPU-Z MSI GAMING Google ChromeTM, Google Toolbar, Google Drive NortonTM Internet Security Solution
Continued on next page
8 Specifications
MSI Center Features
Continued from previous page
Gaming Mode Smart Priority Game Highlights LAN Manager Mystic Light Ambient Devices Frozr AI Cooling User Scenario True Color Live Update Hardware Monitoring Super Charger Speed Up Smart Image Finder MSI Companion
Continued on next page
Specifications 9
Special Features
Continued from previous page
Audio Audio Boost
Network 2.5G LAN LAN Manager Intel WiFi (For MAG B660M MORTAR WIFI DDR4)
Cooling Extended Heatsink Design M.2 Shield Frozr 7W/mK MOSFET thermal pad Choke thermal pad Pump Fan Smart Fan Control
LED Mystic Light Extension (RGB) Mystic Light Extension (RAINBOW) Mystic Light SYNC Ambient Devices Support EZ LED Control EZ DEBUG LED
Continued on next page
10 Specifications
Special Features
Continued from previous page
Performance Lightning Gen 4 PCI-E Slot Lightning Gen 4 M.2 Multi GPU-CrossFire Technology Memory Boost Core Boost Game Boost Lightning USB 20G USB 3.2 Gen 2 10G USB with Type A+C Front USB Type-C Dual CPU Power 2oz Copper thickened PCB
Protection PCI-E Steel Armor Pre-installed I/O Shielding
Experience MSI Center EZ M.2 Clip Click BIOS 5 CPU Cooler Tuning Forzr AI Cooling App player Tile (For MAG B660M MORTAR WIFI DDR4)
Specifications 11
Package contents
Please check the contents of your motherboard package. It should contain:
Motherboard
MAG B660M MORTAR WIFI DDR4/ MAG B660M MORTAR DDR4
Documentation Quick installation guide
1
Application
Driver DVD
1
Cables
SATA 6Gb/s cables (2 cables/pack)
1
Accessories
Wi-Fi antenna (For MAG B660M MORTAR WIFI DDR4)
1
Case badge
1
EZ M.2 Clip (1 set/pack)
2
MAG sticker
1
Gifts
Product registration card
1
Small screwdriver set (For MAG B660M MORTAR WIFI DDR4)
1
Important
If any of the above items are damaged or missing, please contact your retailer.
12 Package contents
Rear I/O Panel
DisplayPort
(For MAG B660M MORTAR WIFI DDR4) Wi-Fi Antenna connectors
2.5 Gbps LAN
Audio Jacks
USB 2.0 Type-A
USB 3.2 Gen 2x2 (20Gbps) Type-C
Optical S/PDIF-Out
USB 3.2 Gen 2 (10Gbps) Type-A
LAN Port LED Status Table
Link/ Activity LED
Status
Description
Off Yellow Blinking
No link Linked Data activity
Speed LED
Status
Description
Off Green Orange
10 Mbps connection 100/1000 Mbps connection 2.5 Gbps connection
Audio Ports Configuration
Audio Ports
Channel
2468
Center/ Sub-woofer Out Rear Speaker Out
Line-In/ Side Speaker Out
Line-Out/ Front Speaker Out Mic In
(: connected, Blank: empty)
Rear I/O Panel 13
Realtek Audio Console
After Realtek Audio Console is installed. You can use it to change sound settings to get better sound experience.
Application Enhancement
Device Selection
Main Volume
Connector Settings Jack Status
Device Selection - allows you to select a audio output source to change the related options. The check sign indicates the devices as default. Application Enhancement - the array of options will provide you a complete guidance of anticipated sound effect for both output and input device. Main Volume - controls the volume or balance the right/left side of the speakers that you plugged in front or rear panel by adjust the bar. Jack Status - depicts all render and capture devices currently connected with your computer. Connector Settings - configures the connection settings.
Auto popup dialog When you plug into a device at an audio jack, a dialogue window will pop up asking you which device is current connected.
Each jack corresponds to its default setting as shown on the next page.
Important
The pictures above for reference only and may vary from the product you purchased.
14 Rear I/O Panel
Audio jacks to headphone and microphone diagram
Audio jacks to stereo speakers diagram
AUDIO INPUT
Audio jacks to 7.1-channel speakers diagram
AUDIO INPUT Rear Front Side Center/
Subwoofer
Rear I/O Panel 15
Installing antennas 1. Screw the antennas tight to the antenna connectors as shown below. 2. Orient the antennas.
1
2
16 Rear I/O Panel
Overview of Components
Processor Socket
DIMMA1
CPU_PWR2 CPU_PWR1
JRAINBOW1
DIMMA2 DIMMB1
JSMB1
DIMMB2
CPU_FAN1 PUMP_FAN1
SYS_FAN1
M2_1 PCI_E1
M2_2 PCI_E2 JDASH1 PCI_E3 JAUD1
(optional)
ATX_PWR1
JUSB4 JUSB3
BAT1
JRGB1
JTPM1
SYS_FAN2 JTBT1
SATA7 SATA8
JRAINBOW2
JUSB1
JBAT1 JCI1
JUSB2
SATA A B
SATA 5 6 JFP2 JFP1
Overview of Components 17
CPU Socket
Distance from the center of the CPU to the nearest DIMM slot.
52.55 mm
Introduction to the LGA1700 CPU The surface of the LGA1700 CPU has four notches and a golden triangle to assist in correctly lining up the CPU for motherboard placement. The golden triangle is the Pin 1 indicator.
Important
Always unplug the power cord from the power outlet before installing or removing the CPU. Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket. When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink is necessary to prevent overheating and maintain system stability. Confirm that the CPU heatsink has formed a tight seal with the CPU before booting your system. Overheating can seriously damage the CPU and motherboard. Always make sure the cooling fans work properly to protect the CPU from overheating. Be sure to apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation. Whenever the CPU is not installed, always protect the CPU socket pins by covering the socket with the plastic cap. If you purchased a separate CPU and heatsink/ cooler, Please refer to the documentation in the heatsink/ cooler package for more details about installation. This motherboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommended. MSI� does not guarantee the damages or risks caused by inadequate operation beyond product specifications.
18 Overview of Components
DIMM Slots
DIMMA1
DIMMB1
Channel A
Channel B
DIMMA2
Memory module installation recommendation
DIMMB2
DIMMA2
DIMMA2 DIMMB2
DIMMA1 DIMMA2 DIMMB1 DIMMB2
Important
Always insert memory modules in the DIMMA2 slot first. To ensure system stability for Dual channel mode, memory modules must be of the same type, number and density. Some memory modules may operate at a lower frequency than the marked value when overclocking due to the memory frequency operates dependent on its Serial Presence Detect (SPD). Go to BIOS and find the DRAM Frequency to set the memory frequency if you want to operate the memory at the marked or at a higher frequency. It is recommended to use a more efficient memory cooling system for full DIMMs installation or overclocking. The stability and compatibility of installed memory module depend on installed CPU and devices when overclocking. Please refer to www.msi.com for more information on compatible memory.
Overview of Components 19
PCI_E1~3: PCIe Expansion Slots
PCI_E1: PCIe 4.0 x16 (From CPU)
BAT1
PCI_E2: PCIe 3.0 x1 (From B660 chipset) PCI_E3: PCIe 3.0 x4 (From B660 chipset)
Important
If you install a large and heavy graphics card, you need to use a tool such as MSI Graphics Card Bolster to support its weight to prevent deformation of the slot. For a single PCIe x16 expansion card installation with optimum performance, using the PCI_E1 slot is recommended. When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card's documentation to check for any necessary additional hardware or software changes.
JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
JFP2 1
+
+-
Buzzer Speaker
1
Speaker -
2
3
Buzzer -
4
Buzzer + Speaker +
Power LED Power Switch
-
-+
++
JFP1
2 1
-
+
10
9
Reserved
HDD LED Reset Switch
1
HDD LED +
2
3
HDD LED -
4
5
Reset Switch
6
7
Reset Switch
8
9
Reserved
10
Power LED + Power LED Power Switch Power Switch
No Pin
20 Overview of Components
M2_1~2: M.2 Slots (Key M)
Important
Intel� RST only supports PCIe M.2 SSD with UEFI ROM.
M2_1
M2_2 supports Intel� OptaneTM Memory.
M2_2
Installing M.2 module 1. Loosen the screws of M.2 SHIELD FROZR heatsink. 2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
1
1
M2_1
1
M2_2
2
1
Overview of Components 21
3. Please install the supplied EZ M.2 Clip kit in the M.2 slot according to your SSD length.
Important
Please skip step 3 when installing the 2280 M.2 SSD. 4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle. 5. Rotate the EZ M.2 Clip to fix the M.2 SSD.
4
3
30�
5
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
6
6 6
6
22 Overview of Components
SATA5~8 & SATA_A~B: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device.
SATA8
SATA7
SATA_B SATA_A SATA6 SATA5
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise. SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the motherboard for space saving purposes. SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
JAUD1: Front Audio Connector
This connector allows you to connect audio jacks on the front panel.
2
10
1
9
1
MIC L
2
Ground
3
MIC R
4
NC
5
Head Phone R
6
MIC Detection
7
SENSE_SEND
8
No Pin
9
Head Phone L
10
Head Phone Detection
Overview of Components 23
JTBT1: Thunderbolt Add-on Card Connector
This connector allows you to connect the add-on Thunderbolt I/O card.
2
16
1
15
1
TBT_FORCE_PWR
2
3 TBT_CIO_PLUG_EVENT# 4
5
SLP_S3#_TBT
6
7
SLP_S5#_TBT
8
9
Ground
10
11
DG_PEWAKE#
12
13
TBT_RTD3_PWR_EN
14
15
TBT_CARD_DET_R#
16
TBT_S0IX_ENTRY_REQ TBT_S0IX_ENTRY_ACK TBT_PSON_OVERRIDE_N
No Pin SMBCLK_VSB SMBDATA_VSB
Ground PD_IRQ#
JDASH1 : Tuning Controller connector
This connector is used to connect an optional Tuning Controller module.
26
15
1
No Pin
2
3
MCU_SMB_SCL_M
4
5
VCC5
6
NC MCU_SMB_SDA_M
Ground
24 Overview of Components
CPU_PWR1~2, ATX_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.
8 4
5 1
CPU_PWR1~2
1
Ground
5
2
Ground
6
3
Ground
7
4
Ground
8
+12V +12V +12V +12V
1
+3.3V
13
2
+3.3V
14
3
Ground
15
12
24
4
+5V
16
5
Ground
17
6
+5V
18
ATX_PWR1
7
Ground
19
8
PWR OK
20
1
13
9
5VSB
21
10
+12V
22
11
+12V
23
12
+3.3V
24
+3.3V -12V Ground PS-ON# Ground Ground Ground Res +5V +5V +5V Ground
Important
Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the motherboard.
Overview of Components 25
JCI1: Chassis Intrusion Connector
This connector allows you to connect the chassis intrusion switch cable.
Normal (default)
Trigger the chassis intrusion event
Using chassis intrusion detector 1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. 2. Close the chassis cover. 3. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration. 4. Set Chassis Intrusion to Enabled. 5. Press F10 to save and exit and then press the Enter key to select Yes. 6. Once the chassis cover is opened again, a warning message will be displayed on
screen when the computer is turned on.
Resetting the chassis intrusion warning 1. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration. 2. Set Chassis Intrusion to Reset. 3. Press F10 to save and exit and then press the Enter key to select Yes.
26 Overview of Components
JUSB4: USB 3.2 Gen 2 10Gbps Type-C Connector
This connector allows you to connect USB 3.2 Gen 2 10Gbps Type-C connector on the front panel. The connector possesses a foolproof design. When you connect the cable, be sure to connect it with the corresponding orientation.
JUSB4
USB Type-C Cable
USB Type-C port on the front panel
JUSB3: USB 3.2 Gen 1 5Gbps Connector
This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.
10
11
1
20
1
Power
11
2
USB3_RX_DN
12
3
USB3_RX_DP
13
4
Ground
14
5
USB3_TX_C_DN
15
6
USB3_TX_C_DP
16
7
Ground
17
8
USB2.0-
18
9
USB2.0+
19
10
Ground
20
USB2.0+ USB2.0Ground USB3_TX_C_DP USB3_TX_C_DN Ground USB3_RX_DP USB3_RX_DN Power No Pin
Important
Note that the Power and Ground pins must be connected correctly to avoid possible damage.
Overview of Components 27
JUSB1~2: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
2
10
1
9
1
VCC
2
3
USB0-
4
5
USB0+
6
7
Ground
8
9
No Pin
10
VCC USB1USB1+ Ground
NC
Important
Note that the VCC and Ground pins must be connected correctly to avoid possible damage. In order to recharge your iPad, iPhone and iPod through USB ports, please install MSI� Center utility.
JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages.
2
12
1
11
1
SPI Power
2
3 Master In Slave Out (SPI Data) 4
5
Reserved
6
7
Ground
8
9
Reserved
10
11
Reserved
12
SPI Chip Select Master Out Slave In (SPI Data)
SPI Clock SPI Reset
No Pin Interrupt Request
28 Overview of Components
CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: Fan Connectors
Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. However, you can follow the instruction below to adjust the fan connector to PWM or DC Mode manually.
CPU_FAN1 PUMP_FAN1
Connector
CPU_FAN1 PUMP_FAN1 SYS_FAN1~2
Default fan mode
PWM mode PWM mode DC mode
Max. current
2A 3A 1A
Max. power
24W 36W 12W
SYS_FAN2 SYS_FAN1
Switching fan mode and adjusting fan speed You can switch between PWM mode and DC mode and adjust fan speed in BIOS > HARDWARE MONITOR.
Select PWM mode or DC mode
There are gradient points of the fan speed that allow you to adjust fan speed in relation to CPU temperature.
Important
Make sure fans are working properly after switching the PWM/ DC mode.
Pin definition of fan connectors
1
PWM Mode pin definition
1
Ground
2
+12V
3
Sense
4
Speed Control Signal
1
DC Mode pin definition
1
Ground
2
Voltage Control
3
Sense
4
NC
Overview of Components 29
JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory.
Keep Data (default)
Clear CMOS/ Reset BIOS
Resetting BIOS to default values 1. Power off the computer and unplug the power cord. 2. Use a jumper cap to short JBAT1 for about 5-10 seconds. 3. Remove the jumper cap from JBAT1. 4. Plug the power cord and Power on the computer.
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail. DRAM - indicates DRAM is not detected or fail. VGA - indicates GPU is not detected or fail. BOOT - indicates the booting device is not detected
or fail.
30 Overview of Components
JRGB1: RGB LED connector
The JRGB connector allows you to connect the 5050 RGB LED strips 12V.
1
1
+12V
2
G
3
R
4
B
RGB LED Strip Connection
1
GR B
JRGB connector
JRGB extension cable
RGB LED Fan Connection
JRGB connector
1
5050 RGB LED strips 12V
GR B
1
System Fan connector
RGB LED Fan
Important
The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips (12V/G/R/B) with the maximum power rating of 3A (12V). Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. Please use MSI's software to control the extended LED strip.
Overview of Components 31
JRAINBOW1~2: Addressable RGB LED connectors
These JRAINBOW connectors allow you to connect the WS2812B Individually Addressable RGB LED strips 5V.
1
JRAINBOW1
1
+5V
3
No Pin
1
JRAINBOW2
2
Data
4
Ground
Addressable RGB LED Strip Connection
1
+5V
D
JRAINBOW connector
JRAINBOW extension cable
Addressable RGB LED Fan Connection
JRAINBOW connector
1
WS2812B Individually Addressable RGB LED strips 5V
1
System Fan connector
Addressable RGB LED Fan
CAUTION
Do not connect the wrong type of LED strips. The JRGB connector and the JRAINBOW connector provide different voltages, and connecting the 5V LED strip to the JRGB connector will result in damage to the LED strip.
Important
The JRAINBOW connector supports up to 75 LEDs WS2812B Individually Addressable RGB LED strips (5V/Data/Ground) with the maximum power rating of 3A (5V). In the case of 20% brightness, the connector supports up to 200 LEDs. Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. Please use MSI's software to control the extended LED strip.
32 Overview of Components
Installing OS, Drivers & MSI Center
Please download and update the latest utilities and drivers at msi.com
Installing Windows 10/ Windows 11
1. Power on the computer. 2. Insert the Windows 10/ Windows 11 installation disc/ USB into your computer. 3. Press the Restart button on the computer case. 4. Press F11 key during the computer POST (Power-On Self Test) to get into Boot
Menu. 5. Select the Windows 10/ Windows 11 installation disc/USB from the Boot Menu. 6. Press any key if screen shows Press any key to boot from CD or DVD... message.
If not please skip this step. 7. Follow the instructions on the screen to install Windows 10/ Windows 11.
Installing Drivers
1. Start up your computer in Windows 10/ Windows 11. 2. Insert MSI� DVD Drive disc into your optical drive. 3. Click the Select to choose what happens with this disc pop-up notification, then
select Run DVDSetup.exe to open the installer. If you turn off the AutoPlay feature from the Windows Control Panel, you can still manually execute the DVDSetup.exe from the root path of the MSI USB Drive. 4. The installer will find and list all necessary drivers in the Drivers/Software tab. 5. Click the Install button in the lower-right corner of the window. 6. The drivers installation will then be in progress, after it has finished it will prompt you to restart. 7. Click OK button to finish. 8. Restart your computer.
MSI Center
MSI Center is an application that helps you easily optimize game settings and smoothly use content creation softwares. It also allows you to control and synchronize LED light effects on PCs and other MSI products. With MSI Center, you can customize ideal modes, monitor system performance, and adjust fan speed.
MSI Center User Guide If you would like to know more information about MSI Center, please refer to http://download.msi.com/manual/mb/MSICENTER.pdf or scan the QR code to access.
Important
Functions may vary depending on the product you have.
Installing OS, Drivers & MSI Center 33
UEFI BIOS
MSI UEFI BIOS is compatible with UEFI (Unified Extensible Firmware Interface) architecture. UEFI has many new functions and advantages that traditional BIOS cannot achieve, and it will completely replace BIOS in the future. The MSI UEFI BIOS uses UEFI as the default boot mode to take full advantage of the new chipset's capabilities.
Important
The term BIOS in this user guide refers to UEFI BIOS unless otherwise noted. UEFI advantages Fast booting - UEFI can directly boot the operating system and save the BIOS selftest process. And also eliminates the time to switch to CSM mode during POST. Supports for hard drive partitions larger than 2 TB. Supports more than 4 primary partitions with a GUID Partition Table (GPT). Supports unlimited number of partitions. Supports full capabilities of new devices - new devices may not provide backward compatibility. Supports secure startup - UEFI can check the validity of the operating system to ensure that no malware tampers with the startup process. Incompatible UEFI cases 32-bit Windows operating system - this motherboard supports only Windows 10/ Windows 11 64-bit operating system. Older graphics card - the system will detect your graphics card. When display a warning message There is no GOP (Graphics Output protocol) support detected in this graphics card.
Important
We recommend that you to replace with a GOP/UEFI compatible graphics card or using integrated graphics from CPU for having normal function. How to check the BIOS mode? 1. Power on your computer. 2. Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter
Boot Menu message appears on the screen during the boot process. 3. After entering the BIOS, you can check the BIOS Mode at the top of the screen.
BIOS Mode: UEFI
34 UEFI BIOS
BIOS Setup
The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS.
Important
BIOS items are continuously update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be for reference only. You could also refer to the HELP information panel for BIOS item description. The BIOS screens, options and settings will vary depending on your system.
Entering BIOS Setup
Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process. Function key F1: General Help list F2: Add/ Remove a favorite item F3: Enter Favorites menu F4: Enter CPU Specifications menu F5: Enter Memory-Z menu F6: Load optimized defaults F7: Switch between Advanced mode and EZ mode F8: Load Overclocking Profile F9: Save Overclocking Profile F10: Save Change and Reset* F12: Take a screenshot and save it to USB flash drive (FAT/ FAT32 format only). Ctrl+F: Enter Search page * When you press F10, a confirmation window appears and it provides the modification information. Select between Yes or No to confirm your choice.
BIOS User Guide
If you'd like to know more instructions on setting up the BIOS, please refer to http://download.msi.com/manual/mb/Intel600BIOS.pdf or scan the QR code to access.
UEFI BIOS 35
Resetting BIOS
You might need to restore the default BIOS setting to solve certain problems. There are several ways to reset BIOS: Go to BIOS and press F6 to load optimized defaults. Short the Clear CMOS jumper on the motherboard.
Important
Be sure the computer is off before clearing CMOS data. Please refer to the Clear CMOS jumper section for resetting BIOS.
Updating BIOS
Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: 1. Insert the USB flash drive that contains the update file into the USB port. 2. Please refer the following methods to enter flash mode.
Reboot and press Ctrl + F5 key during POST and click on Yes to reboot the system.
Press <Ctrl+F5> to activate M-Flash for BIOS update. Reboot and press Del key during POST to enter BIOS. Click the M-FLASH button and click on Yes to reboot the system.
3. Select a BIOS file to perform the BIOS update process. 4. When prompted click on Yes to start recovering BIOS. 5. After the flashing process is 100% completed, the system will reboot
automatically.
36 UEFI BIOS
Updating the BIOS with MSI Center Before updating: Make sure the LAN driver is already installed and the internet connection is set properly. Please close all other application software before updating the BIOS. To update BIOS: 1. Install and launch MSI Center and go to Support page. 2. Select Live Update and click on Advance button. 3. Select the BIOS file and click on Install button. 4. The installation reminder will appear, then click the Install button on it. 5. The system will automatically restart to update BIOS. 6. After the flashing process is 100% completed, the system will restart
automatically.
UEFI BIOS 37
NOTE
38 UEFI BIOS
Inhalt
Sicherheitshinweis ...................................................................................... 3 Hinweise zum Geh�useabstandshalter ................................................................. 4 Hinweis zur Schadensvermeidung......................................................................... 4
Spezifikationen............................................................................................ 5 Packungsinhalt.......................................................................................... 12 R�ckseite E/A ............................................................................................ 13
LAN Port LED Zustandstabelle ............................................................................ 13 Konfiguration der Audioanschl�sse..................................................................... 13 Realtek Audio Console ......................................................................................... 14 �bersicht der Komponenten...................................................................... 17 CPU Sockel ........................................................................................................... 18 DIMM Steckpl�tze................................................................................................. 19 PCI_E1~3: PCIe Erweiterungssteckpl�tze ........................................................... 20 JFP1, JFP2: Frontpanel-Anschl�sse ................................................................... 20 M2_1~2: M.2 Steckpl�tze (Key M) ........................................................................ 21 SATA5~8 & SATAA~B: SATA 6Gb/s Anschl�sse................................................... 23 JAUD1: Audioanschluss des Frontpanels............................................................ 23 JTBT1: Anschluss f�r Thunderbolt-Erweiterungskarte ...................................... 24 JDASH1: Tuning Controller-Anschluss................................................................ 24 CPU_PWR1~2, ATX_PWR1: Stromanschl�sse .................................................... 25 JCI1: Geh�usekontaktanschluss.......................................................................... 26 JUSB4: USB 3.2 Gen 2 10Gbit/s Typ-C Anschluss ............................................... 27 JUSB3: USB 3.2 Gen 1 5Gbit/s Anschluss............................................................ 27 JUSB1~2: USB 2.0 Anschl�sse............................................................................. 28 JTPM1: TPM Anschluss ........................................................................................ 28 CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: Stromanschl�sse f�r L�fter .............. 29 JBAT1: Clear CMOS Steckbr�cke (Reset BIOS)................................................... 30 EZ DEBUG LED ..................................................................................................... 30 JRGB1: RGB LED Anschluss ................................................................................ 31 JRAINBOW1~2: Adressierbarer RGB-LED-Streifen Anschl�sse ........................ 32 Installation von OS, Treibern & MSI Center ............................................... 33 Installation von Windows 10/ Windows 11 ........................................................... 33 Installation von Treibern ...................................................................................... 33 MSI Center ............................................................................................................ 34
Inhalt 1
UEFI BIOS .................................................................................................. 35 BIOS Setup............................................................................................................ 36 �ffnen des BIOS Setups........................................................................................ 36 BIOS-Benutzerhandbuch...................................................................................... 36 Reset des BIOS ..................................................................................................... 37 Aktualisierung des BIOS....................................................................................... 37
2 Inhalt
Sicherheitshinweis
Die im Paket enthaltene Komponenten sind der Besch�digung durch elektrostatischen Entladung (ESD). Beachten Sie bitte die folgenden Hinweise, um die erfolgreichen Computermontage sicherzustellen. Stellen Sie sicher, dass alle Komponenten fest angeschlossen sind. Lockere Steckverbindungen k�nnen Probleme verursachen, zum Beispiel: Der Computer erkennt eine Komponente nicht oder startet nicht. Halten Sie das Motherboard nur an den R�ndern fest, und verhindern Sie die Ber�hrung der sensiblen Komponenten. Um eine Besch�digung der Komponenten durch elektrostatische Entladung (ESD) zu vermeiden, sollten Sie eines elektrostatischen Armbands w�hrend der Handhabung des Motherboards tragen. Wenn kein elektrostatischen Handgelenkband vorhanden ist, sollten Sie Ihre statische Elektrizit�t ableiten, indem Sie ein anderes Metallobjekt ber�hren, bevor Sie das Motherboard anfassen. Bewahren Sie das Motherboard in einer elektrostatische Abschirmung oder einem Antistatiktuch auf, wenn das Motherboard nicht installiert ist. �berpr�fen Sie vor dem Einschalten des Computers, dass sich keine losen Schrauben und andere Bauteile auf dem Motherboard oder im Computergeh�use befinden Bitte starten Sie den Computer nicht, bevor die Installation abgeschlossen ist. Dies k�nnte permanente Sch�den an den Komponenten sowie zu das Verletzung des Benutzers verursachen. Sollten Sie Hilfe bei der Installation ben�tigen, wenden Sie sich bitte an einen zertifizierten Computer-Techniker. Schalten Sie die Stromversorgung aus und ziehen Sie das das Stromkabel ab, bevor Sie jegliche Computer-Komponente ein- und ausbauen. Bewahren Sie die Bedienungsanleitung als k�nftige Referenz auf. Halten Sie das Motherboard von Feuchtigkeit fern Bitte stellen Sie sicher, dass Ihre Netzspannung den Hinweisen auf dem Netzteil vor Anschluss des Netzteils an die Steckdose entspricht Verlegen Sie das Netzkabel so, dass niemand versehentlich darauf treten kann. Stellen Sie nichts auf dem Netzkabel ab. Alle Achtungs- und Warnhinweise auf dem Motherboard m�ssen befolgt werden. Falls einer der folgenden Umst�nde eintritt, lassen Sie bitte das Motherboard von Kundendienstpersonal pr�fen:
Fl�ssigkeit ist in dem Computer eingedrungen. Das Motherboard wurde Feuchtigkeit ausgesetzt. Das Motherboard funktioniert nicht richtig oder Sie k�nnen es nicht wie in der Bedienungsanleitung beschrieben bedienen. Das Motherboard ist heruntergefallen und besch�digt. Das Motherboard weist offensichtlich Zeichen eines Schadens auf. Nutzen und lagern Sie das Ger�t nicht an Stellen, an denen Temperaturen von mehr als 60�C herrschen - das Motherboard kann in diesem Fall Schaden nehmen.
Sicherheitshinweis 3
Hinweise zum Geh�useabstandshalter
Um eine Besch�digung des Motherboards zu vermeiden, sind unn�tige Abstandshalter zwischen den Motherboard-Schaltkreisen und dem Computergeh�use verboten.. Die Schilder ,,Case Standoff Keep Out Zone (Geh�useabstandszone freihalten )" auf der R�ckseite des Motherboards (wie unten gezeigt) dienen als entsprechender Hinweis f�r den Anwender.
Hinweis zur Schadensvermeidung
Um jedes Schraubenloch ist eine Schutzfarbe aufgedruckt, um ein Verkratzen der Teile zu verhindern.
* Die obige Bilder stellen lediglich Referenzen dar und k�nnen von dem von Ihnen erworbenen Produkt abweichen
4 Sicherheitshinweis
Spezifikationen
CPU Chipsatz
Speicher
Erweiterunganschl�sse Multi-GPU Onboard-Grafik
Unterst�tzt Intel� CoreTM der 12. Generation Prozessoren, Pentium� Gold und Celeron� Prozessoren* Prozessor Sockel LGA1700
* Bitte besuchen Sie www.msi.com, um den neuesten Support-Status zu erhalten, wenn neue Prozessoren ver�ffentlicht werden.
Intel� B660 Chipsatz
4x DDR4 Speicherpl�tze, aufr�stbar bis 128 GB* Unterst�tzt 1R 2133/ 2666/ 3200 MHz (durch JEDEC & POR) Maximale �bertaktfrequenz:
1DPC 1R max. �bertragungsraten bis zu 4800+ MHz 1DPC 2R max. �bertragungsraten bis zu 4000+ MHz 2DPC 1R max. �bertragungsraten bis zu 4000+ MHz 2DPC 2R max. �bertragungsraten bis zu 3600+ MHz Dual-Kanal-Speicherarchitektur Unterst�tzt non-ECC, ungepufferte Speicher Unterst�tzt Intel� Extreme Memory Profile (XMP)
* Weitere Informationen zu kompatiblen Speichermodulen finden Sie unter: http://www.msi.com.
2x PCIe x16 Steckpl�tze PCI_E1 Steckplatz (von CPU) Unterst�tzt PCIe 4.0 x16 PCI_E3 Steckplatz (von B660 Chipsatz) Unterst�tzt PCIe 3.0 x4
1x PCIe 3.0 x1 Steckpl�tze
Unterst�tzt die 2-Wege NVIDIA� SLITM Technologie
1x HDMI 2.1 mit HDR Anschluss, Unterst�tzung einer maximalen Aufl�sung von 4K 60Hz*/** 1x DisplayPort 1.4 Anschluss mit HBR3, Unterst�tzung einer maximalen Aufl�sung von 4K 60Hz*/**
*Es ist verf�gbar f�r den Prozessor mit integrierter Grafik. ** Die Grafikkarten-Spezifikationen k�nnen abh�ngig von der installierten CPU variieren.
Fortsetzung auf der n�chsten Seite
Spezifikationen 5
Aufbewahrung RAID USB
Fortsetzung der vorherigen Seite
4x SATA 6Gb/s Anschl�sse (SATA5~8 von B660 Chipsatz)* 2x SATA 6Gb/s Anschl�sse (SATA_A & SATA_B, von ASMedia ASM1061) 2x M.2 Steckpl�tze (Key M)
M2_1 Steckplatz (von CPU) Unterst�tzt PCIe 4.0 x4 Unterst�tzt 2242/ 2260/ 2280 Speicherger�te
M2_2 Steckplatz (von B660 Chipsatz) Unterst�tzt PCIe 4.0 x4 Unterst�tzt bis zu SATA 6Gb/s Unterst�tzt 2242/ 2260/ 2280 Speicherger�te M2_2~5 unterst�tzt Intel� OptaneTM Memory
* Der SATA8 Anschluss wird nicht zur Verf�gung stehen, wenn Sie eine M.2 SATA SSD im M2_2 Steckplatz installieren.
Unterst�tzt RAID 0, RAID 1, RAID 5 und RAID 10 f�r SATA Speicherger�te*
* SATA_A & SATA_B unterst�tzen die RAID-Funktion nicht.
Intel� B660 Chipsatz 1x USB 3.2 Gen Gen2x2 20Gbit/s Typ-C Anschluss an der r�ckseitigen Anschlussleiste 1x USB 3.2 Gen 2 10Gbit/s Typ-C Anschluss steht durch die internen Anschl�sse 2x USB 3.2 Gen 1 5Gbit/s Anschl�sse stehen durch die internen Anschl�sse 4x USB 2.0 Anschl�sse an der r�ckseitigen Anschlussleiste
USB 2.0 Hub GL3590 3x USB 3.2 Gen 2 10Gbit/s Typ-A Anschl�sse an der r�ckseitigen Anschlussleiste
USB 2.0 Hub GL850G 4x USB 2.0 Anschl�sse stehen durch die internen Anschl�sse
Fortsetzung auf der n�chsten Seite
6 Spezifikationen
Fortsetzung der vorherigen Seite
Audio LAN
Realtek� ALC1200 Codec 7.1-Kanal-HD-Audio Unterst�tzt den S/PDIF-Ausgang
1x Intel� 8125BG 2,5Gbit/s LAN Controller
Wireless LAN & Bluetooth� (Nur f�r MAG B660M MORTAR WIFI)
Intel� Wi-Fi 6 Das Wireless-Modul ist im M.2 (Key-E) Steckplatz vorinstalliert Unterst�tzt MU-MIMO TX/RX, 2,4GHz/ 5GHz (160MHz) mit Datenraten bis zu 2,4Gbit/s Unterst�tzt 802.11 a/ b/ g/ n/ ac/ ax Unterst�tzt Bluetooth� 5.2
Interne Anschl�sse
1x 24-poliger ATX Stromanschluss 2x 8-polige ATX Stromanschl�sse 6x SATA 6Gb/s Anschl�sse 2x M.2 Steckpl�tze (Key M) 1x USB 3.2 Gen 2 10Gbit/s Typ-C Anschluss 1x USB 3.2 Gen 1 5Gbit/s Anschluss (unterst�tzt zus�tzliche 2 USB 3.2 Gen 1 5Gbit/s Anschl�sse) 2x USB 2.0 Typ-A Anschl�sse (unterst�tzt zus�tzliche 4 USB 2.0 Anschl�sse) 1x 4-poliger CPU-L�fter-Stromanschluss 1x 4-poliger Anschluss f�r die Wasserpumpe 2x 4-polige System-L�fter-Anschl�sse 1x Audioanschluss des Frontpanels 2x System-Panel-Anschl�sse 1x Geh�usekontaktschalter 1x Clear CMOS Steckbr�cke 1x TPM Anschluss 1x TBT Anschluss (Unterst�tzt RTD3) 1x Tuning Controller-Anschluss
Fortsetzung auf der n�chsten Seite
Spezifikationen 7
Fortsetzung der vorherigen Seite
LED Funktionen
4x EZ Debug LED 1x 4-poliger RGB LED Anschluss 2x 3-polige RAINBOW LED Anschl�sse
Hintere Ein-/ und Ausg�nge
E/A Anschluss Hardware Monitor
4x USB 2.0 Typ-A Anschl�sse 1x DisplayPort 1x HDMI Anschluss 3x USB 3.2 Gen 2 10Gbit/s Typ-A Anschl�sse 1x USB 3.2 Gen 2x2 20Gbit/s Typ-C Anschluss 1x 2,5Gbit/s LAN (RJ45) Anschluss 2x Wi-Fi-Antennenanschl�sse (f�r MAG B660M MORTAR WIFI DDR4) 5x Audiobuchsen 1x Optischer S/PDIF-Ausgang Anschluss
NUVOTON NCT6687D Controller Chip
CPU/ System/ Chipsatz Temperaturerfassung CPU/ System/ Pump-L�fter Geschwindigkeitserfassung CPU/ System/ Pump-L�fter Drehzahlregelung
Formfaktor BIOS Funktionen
Micro-ATX Formfaktor 9,6 Zoll x 9,6 Zoll (24,4 cm x 24,4 cm)
1x 256 Mb Flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Mehrsprachenunterst�tzung
Fortsetzung auf der n�chsten Seite
8 Spezifikationen
Software MSI Center Funktionen
Fortsetzung der vorherigen Seite
Treiber MSI Center Intel� Extreme Tuning Utility MSI APP Player (BlueStacks) Open Broadcaster Software (OBS) CPU-Z MSI GAMING Google ChromeTM, Google Toolbar, Google Drive NortonTM Internet Security Solution
Gaming Modus Smart Priority Game Highlights LAN Manager Mystic Light Umgebungsger�te Frozr AI K�hlung Benutzer-Szenario True Color Live Update Hardware Monitor Super Charger Speed Up Smart Image Finder MSI Companion
Fortsetzung auf der n�chsten Seite
Spezifikationen 9
Besondere Funktionen
Fortsetzung der vorherigen Seite
Audio Audio Boost
Netzwerk 2.5G LAN LAN Manager Intel WiFi (F�r MAG B660M MORTAR WIFI DDR4)
K�hlung Erweitertes K�hlk�rperdesign M.2 Shield Frozr 7W/mK MOSFET Thermalpad Choke Thermalpad Pump-L�fter Smart-L�ftersteuerung
LED Mystic Light Extension (RGB) Mystic Light Extension (RAINBOW) Mystic Light SYNC Unterst�tzung f�r Umgebungsger�te EZ LED Steuerung EZ DEBUG LED
Fortsetzung auf der n�chsten Seite
10 Spezifikationen
Besondere Funktionen
Fortsetzung der vorherigen Seite
Leistung Lightning Gen 4 PCI-E Steckplatz Lightning Gen 4 M.2 Multi GPU-CrossFire Technologie Memory Boost Core Boost Game Boost Lightning USB 20G USB 3.2 Gen 2 10G USB Anschluss mit Typ A+C Front USB Typ-C Dual-CPU-Power 2oz Kupfer verdicktes PCB
Schutz PCI-E Steel Armor Vorinstallierte Anschlussblende
Erfahrung MSI Center EZ M.2 Clip Click BIOS 5 CPU Cooler Tuning Frozr AI K�hlung App-Player Tile (F�r MAG B660M MORTAR WIFI DDR4)
Spezifikationen 11
Packungsinhalt
�berpr�fen Sie den Packungsinhalt des Mainboards. Die Packung sollte enthalten:
Motherboard
MAG B660M MORTAR WIFI DDR4/ MAG B660M MORTAR DDR4
Dokumentation Schnellinstallationsanleitung
1
Anwendung
Treiber-DVD
1
Kabel
SATA 6Gb/s Kabel (2 Kabel pro Packung)
1
Wi-Fi -Antenne (F�r MAG B660M MORTAR WIFI DDR4)
1
Geh�use-Aufkleber
1
Zubeh�r
EZ M.2 Clip (1 Kabel pro Packung)
2
MEG-Aufkleber
1
Produktregistrierungskarte
1
Geschenke
Mini-Schraubendreher-Set (F�r MAG B660M MORTAR WIFI DDR4)
1
Wichtig
Falls einer der oben aufgef�hrten Artikel besch�digt ist oder fehlt, wenden Sie sich bitte an Ihren H�ndler.
12 Packungsinhalt
R�ckseite E/A
DisplayPort
(For MAG B660M MORTAR WIFI DDR4) Wi-Fi Antennenanschl�sse
2,5 Gbit/s LAN
Audiobuchsen
USB 2.0 Typ-A
USB 3.2 Gen 2x2 20Gbit/s Typ-C
USB 3.2 Gen 2 (10Gbit/s) Typ-A
Optischer S/PDIFAusgang
LAN Port LED Zustandstabelle
Verbindung/ Aktivit�t LED
Zustand Bezeichnung
Aus Gelb Blinkt
Keine Verbindung Verbindung Datenaktivit�t
Geschwindigkeit LED
Zustand Bezeichnung
Aus Gr�n Orange
10 Mbit/s Verbindung 100/1000 Mbit/s Verbindung 2,5 Gbit/s Verbindung
Konfiguration der Audioanschl�sse
Audioanschl�sse
Kanal
2468
Mitte-/ Subwoofer-Ausgang
Hinterer Lautsprecher
Line-In/ Seitliche Lautsprecher
Line-Out/ Vorderer Lautsprecher
Mic In
(: Verbindet, Blank: Leer)
R�ckseite E/A 13
Realtek Audio Console
Nach der Installation des Realtek Audio Console-Treibers, k�nnen Sie die Audioeinstellungen ver�ndern, um ein optimales Klangerlebnis erzeugen.
Optimierungen
Ger�teauswahl
Lautst�rke
Anschluss
Verbindungsstatus
Ger�teauswahl - Erm�glicht die Auswahl der Audio-Ausgangs Quelle. Das aktuell aktivierte Ger�t ist mit einem Haken gekennzeichnet.
Optimierungen - Die Vielfalt an Optionen bietet eine komplette Anleitung von erwarteten Sound-Effekt f�r beide Ausgangs- und Eingangsvorrichtung.
Lautst�rke - Steuert die Lautst�rke und die Balance-Einstellung der Lautsprecher, die im Front-Panel oder auf der R�ckseite des PCs eingesteckt sind.
Verbindungsstatus - Bildet die angeschlossenen Render- und Capture-Ger�te ab.
Anschl�sse - Konfiguriert die Anschlusseinstellungen.
Auto Popup-Dialog Nach dem Anschluss eines Audio-Klinkensteckers erscheint ein Dialogfenster und fragt nach einer Best�tigung f�r das angeschlossene Ger�t.
Jede Buchse entspricht diesem Wert der Grundeinstellung, wie es auf den n�chsten Seiten gezeigt wird.
Wichtig
Die obige Bilder stellen lediglich Referenzen dar und k�nnen von dem von Ihnen erworbenen Produkt abweichen
14 R�ckseite E/A
Audiobuchsen f�r den Anschluss von einem Kopfh�rer und Mikrofon
Audiobuchsen f�r Stereo-Lautsprecher
AUDIO INPUT
Audiobuchsen f�r 7.1 Kanal Anlage
AUDIO INPUT Rear Front Side Center/
Subwoofer
R�ckseite E/A 15
Antennen installieren 1. Schrauben Sie die Antennen fest an die Antennenanschl�sse, wie gezeigt. 2. Richten Sie die Antennenspitzen aus.
1
2
16 R�ckseite E/A
�bersicht der Komponenten
Prozessor Sockel
DIMMA1
CPU_PWR2 CPU_PWR1
JRAINBOW1
DIMMA2 DIMMB1
JSMB1
DIMMB2
CPU_FAN1 PUMP_FAN1
SYS_FAN1
M2_1 PCI_E1
M2_2 PCI_E2 JDASH1 PCI_E3 JAUD1
(optional)
ATX_PWR1
JUSB4 JUSB3
BAT1
JRGB1
JTPM1
SYS_FAN2 JTBT1
SATA7 SATA8
JRAINBOW2
JUSB1
JBAT1 JCI1
JUSB2
SATA A B
SATA 5 6 JFP2 JFP1
�bersicht der Komponenten 17
CPU Sockel
Abstand zwischen der Mitte der CPU und dem n�chsten DIMMSteckplatz.
52,55 mm
Erkl�rung zur LGA1700 CPU Die Oberseite der LGA 1700 CPU hat vier Justierungen und ein goldenes Dreieck um die korrekte Ausrichtung der CPU auf dem Motherboard zu gew�hrleisten. Das goldene Dreieck des Prozessors definiert die Position des ersten Pins.
Wichtig
Ziehen Sie das Netzkabel ab, bevor Sie die CPU ein- und ausbauen. Bitte bewahren Sie die CPU Schutzkappe nach der Installation des Prozessors auf. MSI wird RMA (Return Merchandise Authorization) Anfragen nur dann behandeln, wenn die Schutzklappe auf dem CPU-Sockel des Motherboards sitzt. Wenn Sie eine CPU einbauen, denken sie bitte daran, einen CPU-K�hler zu installieren. Ein CPU-K�hlk�rper ist notwendig, um eine �berhitzung zu vermeiden und die Systemstabilit�t zu gew�hrleisten. Stellen Sie sicher, dass Ihr K�hlk�rper eine feste Verbindung mit der CPU hergestellt hat, bevor Sie Ihr System starten. �berhitzung besch�digt die CPU und das System nachhaltig. Stellen Sie stets eine korrekte Funktionsweise des CPU K�hlers sicher, um die CPU vor �berhitzung zu sch�tzen. Stellen Sie sicher, dass eine gleichm��ige Schicht thermischer Paste oder thermischen Tapes zwischen der CPU und dem K�hlk�rper vorhanden ist, um die W�rmeableitung zu erh�hen. Sch�tzen Sie den CPU-Sockel immer mit der Plastikabdeckung, wenn keine CPU installiert ist. Verwenden Sie bitte die Installationsanweisung des K�hlk�rpers/K�hlers, falls Sie eine seperate CPU oder einen K�hlk�rper/ K�hler erworben haben. Dieses Motherboard wurde so entworfen, dass es �bertakten unterst�tzt. Stellen Sie jedoch bitte sicher, dass die betroffenen Komponenten mit den abweichenden Einstellungen w�hrend des �bertaktens zurecht kommen. Von jedem Versuch des Betriebes au�erhalb der Produktspezifikationen kann nur abgeraten werden. MSI �bernehmt keinerlei Garantie f�r die Sch�den und Risiken, die aus einem unzul�ssigem Betrieb oder einem Betrieb au�erhalb der Produktspezifikation resultieren.
18 �bersicht der Komponenten
DIMM Steckpl�tze
DIMMA1
DIMMB1
Kanal A
Kanal B
DIMMA2
Speichermodul-Installationsempfehlung
DIMMB2
DIMMA2
DIMMA2 DIMMB2
DIMMA1 DIMMA2 DIMMB1 DIMMB2
Wichtig
Um einen sicheren Systemstart zu gew�hrleisten, best�cken Sie immer DIMMA2 zuerst.
Stellen Sie im Dual-Kanal-Modus bitte sicher, dass Sie Module des gleichen Typs und identischer Speicherdichte in den DIMM Slots unterschiedlicher Kan�le verwenden. Einige Speichermodule k�nnen beim �bertakten auf einer niedrigeren Frequenz arbeiten, als der festgelegte Wert - abh�ngig von dem SPD (Serial Presence Detect). Stellen Sie im BIOS-Setup mit DRAM Frequency die Speicherfrequenz ein, wenn Sie mit der festgelegten oder einer h�heren Speicherfrequenz arbeiten m�chten. Es wird empfohlen, ein effizienteres Speicherk�hlsystem bei einer Vollbest�ckung des DIMMs oder beim �bertakten zu verwenden. Die Stabilit�t und Kompatibilit�t beim �bertakten der installierten Speichermodule sind abh�ngig von der installierten CPU und den installierten Ger�ten. Weitere Informationen zu kompatiblen Speichermodulen finden Sie unter: www.msi.com.
�bersicht der Komponenten 19
PCI_E1~3: PCIe Erweiterungssteckpl�tze
PCI_E1: PCIe 4.0 x16 (von CPU)
BAT1
PCI_E2: PCIe 3.0 x1 (von B660 Chipsatz) PCI_E3: PCIe 3.0 x4 (von B660 Chipsatz)
Wichtig
Wenn Sie eine gro�e und schwere Grafikkarte einbauen, ben�tigen Sie einen Grafikkarten-Stabilisator (Graphics Card Bolster) der das Gewicht tr�gt und eine Verformung des Steckplatzes vermeidet. F�r die Installation einer einzelnen PCIe x16 Erweiterungskarte mit optimaler Leistung, empfehlen wir den PCI_E1 Steckplatz zu verwenden. Achten Sie darauf, dass Sie den Strom abschalten und das Netzkabel aus der Steckdose herausziehen, bevor Sie eine Erweiterungskarte installieren oder entfernen. Lesen Sie bitte auch die Dokumentation der Erweiterungskarte, um notwendige zus�tzliche Hardware oder Software-�nderungen zu �berpr�fen.
JFP1, JFP2: Frontpanel-Anschl�sse
Diese Anschl�sse verbinden die Schalter und LEDs des Frontpanels.
JFP2 1
+
+-
Buzzer Speaker
1
Speaker -
2
3
Buzzer -
4
Buzzer + Speaker +
Power LED Power Switch
-
-+
++
JFP1
2 1
-
+
10
9
Reserved
HDD LED Reset Switch
1
HDD LED +
2
3
HDD LED -
4
5
Reset Switch
6
7
Reset Switch
8
9
Reserved
10
Power LED + Power LED Power Switch Power Switch
No Pin
20 �bersicht der Komponenten
M2_1~2: M.2 Steckpl�tze (Key M)
Wichtig
Intel� RST unterst�tzt nur PCIe M.2 SSD mit UEFI ROM.
M2_1
M2_2 unterst�tzt Intel� OptaneTM Memory
M2_2
Installation eines M.2 Moduls 1. L�sen Sie die Schraube des M.2-SHIELD FROZR-K�hlk�rpers. 2. Entfernen den M.2-SHIELD FROZR und entfernen Sie die Schutzfolie von den
W�rmeleitpads.
2
1
1
M2_1
1
M2_2
2
1
�bersicht der Komponenten 21
3. Wenn kein EZ M.2 Clip installiert ist, installieren Sie bitte das mitgelieferte EZ M.2 Clip-Kit entsprechend Ihrer SSD-L�nge im M.2-Steckplatz.
Wichtig
Bitte �berspringen Sie Schritt 3, wenn Sie die 2280 M.2 SSD installieren. 4. Stecken Sie eine M.2-SSD im 30-Grad-Winkel in den M.2-Steckplatz. 5. Drehen Sie den EZ M.2 Clip, um die M.2 SSD zu befestigen.
4
3
30�
5
6. Setzen Sie den M.2 SHIELD FROZR-K�hlk�rper wieder ein und sichern Sie ihn.
6
6 6
6
22 �bersicht der Komponenten
SATA5~8 & SATAA~B: SATA 6Gb/s Anschl�sse
Dieser Anschluss basiert auf der Hochgeschwindigkeitsschnittstelle SATA 6 Gb/s. Pro Anschluss kann ein SATA Ger�t angeschlossen werden.
SATA8
SATA7
SATA_B SATA_A SATA6 SATA5
Wichtig
Knicken Sie das SATA-Kabel nicht in einem 90� Winkel. Datenverlust k�nnte die Folge sein. SATA-Kabel haben identische Stecker an beiden Enden. Es wird empfohlen den flachen Stecker auf dem Motherboard einstecken. Der SATA8 Anschluss wird nicht zur Verf�gung stehen, wenn Sie eine M.2 SATA SSD im M2_2 Steckplatz installieren.
JAUD1: Audioanschluss des Frontpanels
Dieser Anschluss erm�glicht den Anschluss von Audiobuchsen eines Frontpanels.
2
10
1
9
1
MIC L
2
Ground
3
MIC R
4
NC
5
Head Phone R
6
MIC Detection
7
SENSE_SEND
8
No Pin
9
Head Phone L
10
Head Phone Detection
�bersicht der Komponenten 23
JTBT1: Anschluss f�r Thunderbolt-Erweiterungskarte
Mit diesem Anschluss k�nnen Sie eine Ein-/Ausgang der ThunderboltErweiterungskarte anschlie�en.
2
16
1
15
1
TBT_FORCE_PWR
2
3 TBT_CIO_PLUG_EVENT# 4
5
SLP_S3#_TBT
6
7
SLP_S5#_TBT
8
9
Ground
10
11
DG_PEWAKE#
12
13
TBT_RTD3_PWR_EN
14
15
TBT_CARD_DET_R#
16
TBT_S0IX_ENTRY_REQ TBT_S0IX_ENTRY_ACK TBT_PSON_OVERRIDE_N
No Pin SMBCLK_VSB SMBDATA_VSB
Ground PD_IRQ#
JDASH1: Tuning Controller-Anschluss
An diesem Anschluss wird ein optionales Tuning Controller-Modul angeschlossen.
26
15
1
No Pin
2
3
MCU_SMB_SCL_M
4
5
VCC5
6
NC MCU_SMB_SDA_M
Ground
24 �bersicht der Komponenten
CPU_PWR1~2, ATX_PWR1: Stromanschl�sse
Mit diesen Anschl�ssen verbinden Sie die ATX Stromstecker.
8 4
5 1
CPU_PWR1~2
1
Ground
5
2
Ground
6
3
Ground
7
4
Ground
8
+12V +12V +12V +12V
1
+3,3V
13
2
+3,3V
14
3
Ground
15
12
24
4
+5V
16
5
Ground
17
6
+5V
18
ATX_PWR1
7
Ground
19
1
13
8
PWR OK
20
9
5VSB
21
10
+12V
22
11
+12V
23
12
+3,3V
24
+3,3V -12V Ground PS-ON# Ground Ground Ground Res +5V +5V +5V Ground
Wichtig
Stellen Sie sicher, dass alle Anschl�sse mit den richtigen Anschl�ssen des Netzteils verbunden sind, um einen stabilen Betrieb der Hauptplatine sicherzustellen
�bersicht der Komponenten 25
JCI1: Geh�usekontaktanschluss
Dieser Anschluss wird mit einem Kontaktschalter verbunden
Normal (Standardwert)
L�se den Geh�useeingriff aus
Geh�usekontakt-Detektor verwenden 1. Schlie�en Sie den JCI1 -Anschluss am Geh�usekontakt-Schalter/ Sensor am
Geh�use an. 2. Schlie�en Sie die Geh�useabdeckung. 3. Gehen Sie zu BIOS > SETTINGS > Security > Chassis Intrusion Configuration. 4. Stellen Sie Chassis Intrusion auf Enabled. 5. Dr�cken Sie F10 zum Speichern und Beenden und dr�cken Sie dann die Enter-
Taste, um Ja auszuw�hlen. 6. Bei eingeschaltetem Computer wird eine Warnmeldung auf dem Bildschirm
angezeigt, wenn die Geh�useabdeckung wieder ge�ffnet wird.
Geh�usekontakt-Warnung zur�cksetzen 1. Gehen Sie zu BIOS > SETTINGS > Security > Chassis Intrusion Configuration. 2. Stellen Sie Chassis Intrusion auf Reset. 3. Dr�cken Sie F10 zum Speichern und Beenden und dr�cken Sie dann die Enter-
Taste, um Ja auszuw�hlen.
26 �bersicht der Komponenten
JUSB4: USB 3.2 Gen 2 10Gbit/s Typ-C Anschluss
Mit diesem Anschluss k�nnen Sie den USB 3.2 Gen 2 10 Gbit/s Typ-C Anschluss auf dem Frontpanel verbinden. Der Anschluss verf�gt �ber ein besonders sicheres Design. Wenn Sie das Kabel anschlie�en, m�ssen Sie es in der entsprechenden Ausrichtung verbinden.
JUSB4
USB Typ-C Kabel
USB Typ-C Anschluss auf dem Frontpanel
JUSB3: USB 3.2 Gen 1 5Gbit/s Anschluss
Mit diesem Anschluss k�nnen Sie die USB 3.2 Gen 1 5Gbit/s Anschl�sse auf dem Frontpanel verbinden.
10
11
1
20
1
Power
11
2
USB3_RX_DN
12
3
USB3_RX_DP
13
4
Ground
14
5
USB3_TX_C_DN
15
6
USB3_TX_C_DP
16
7
Ground
17
8
USB2.0-
18
9
USB2.0+
19
10
Ground
20
USB2.0+ USB2.0Ground USB3_TX_C_DP USB3_TX_C_DN Ground USB3_RX_DP USB3_RX_DN Power No Pin
Wichtig
Bitte beachten Sie, dass Sie die mit ,,Stromf�hrende Leitung" und ,,Erdleitung" bezeichneten Pins korrekt verbinden m�ssen, ansonsten kann es zu Sch�den kommen
�bersicht der Komponenten 27
JUSB1~2: USB 2.0 Anschl�sse
Mit diesen Anschl�ssen k�nnen Sie die USB 2.0 Anschl�sse auf dem Frontpanel verbinden.
2
10
1
9
1
VCC
2
VCC
3
USB0-
4
USB1-
5
USB0+
6
USB1+
7
Ground
8
Ground
9
No Pin
10
NC
Wichtig
Bitte beachten Sie, dass Sie die mit VCC (Stromf�hrende Leitung) und Ground (Erdung) bezeichneten Pins korrekt verbinden m�ssen, ansonsten kann es zu Sch�den kommen.
Um ein iPad, iPhone und einen iPod �ber USB-Anschl�sse aufzuladen, installieren Sie bitte die MSI� Center-Dienstprogramm.
JTPM1: TPM Anschluss
Dieser Anschluss wird f�r das TPM Modul (Trusted Platform Module) verwendet. Weitere Informationen �ber den Einsatz des optionalen TPM Modules entnehmen Sie bitte dem TPM Plattform Handbuch.
2
12
1
11
1
SPI Power
2
3 Master In Slave Out (SPI Data) 4
5
Reserved
6
7
Ground
8
9
Reserved
10
11
Reserved
12
SPI Chip Select Master Out Slave In (SPI Data)
SPI Clock SPI Reset
No Pin Interrupt Request
28 �bersicht der Komponenten
CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: Stromanschl�sse f�r L�fter
Diese Anschl�sse k�nnen im PWM (Pulse Width Modulation) Modus oder Spannungsmodus betrieben werden. Im PWM-Modus bieten die L�fteranschl�sse konstante 12V Ausgang und regeln die L�ftergeschwindigkeit per Drehzahlsteuersignal. Im DC-Modus bestimmen die L�fteranschl�sse die L�ftergeschwindigkeit durch �ndern der Spannung. Folgen Sie den folgenden Anweisungen, um den PWM- oder DC-Modus manuell auszuw�hlen.
CPU_FAN1 PUMP_FAN1
SYS_FAN2 SYS_FAN1
Anschluss
Standardl�ftermodus
CPU_FAN1 PUMP_FAN1 SYS_FAN1~2
PWM Modus PWM Modus DC Modus
Max. Strom
2A 3A 1A
Max. Leistung
24W 36W 12W
Umschalten des L�fter-Modus und Anpassung der L�fterdrehzahl Sie k�nnen unter BIOS > HARDWARE MONITOR zwischen dem PWM- und DC-Modus umschalten und die L�fterdrehzahl �ndern.
W�hlen Sie den PWM- oder DC-Modus aus
Die Gradientenpunkte des L�fterverlaufs erlauben die Anpasssung der L�fterdrehzahl in Abh�ngigkeit von der CPUTemperatur.
Wichtig
�berpr�fen Sie die ordnungsgem��e Funktion der L�fter nach dem Umschalten des PWM-/ DC-Modus.
Pin-Belegung der L�fteranschl�sse
1
Pin-Belegung des PWM-Modus
1
Ground
2
+12V
3
Sense
4
Speed Control Signal
1
Pin-Belegung des DC-Modus
1
Ground
2
Voltage Control
3
Sense
4
NC
�bersicht der Komponenten 29
JBAT1: Clear CMOS Steckbr�cke (Reset BIOS)
Der Onboard CMOS Speicher (RAM) wird durch eine externe Spannungsversorgung durch eine Batterie auf dem Motherboard versorgt, um die Daten der Systemkonfiguration zu speichern. Wenn Sie die Systemkonfiguration l�schen wollen, m�ssen Sie die Steckbr�cke f�r kurze Zeit umsetzen.
Daten beibehalten (Standardwert)
CMOS-Daten l�schen/ Reset
des BIOS
R�cksetzen des BIOS auf Standardwerte 1. Schalten Sie den Computer ab und ziehen Sie das Netzkabel ab. 2. Verwenden Sie eine Steckbr�cke, um JBAT1 f�r 5-10 Sekunden kurzzuschlie�en. 3. Entfernen Sie die Steckbr�cke von JBAT1. 4. Stecken Sie das Kabel Ihres Computers in die Steckdose hinein und schalten Sie
den Computer ein.
EZ DEBUG LED
Diese LEDs zeigen den Debug-Status des Motherboards an.
CPU - CPU wird nicht erkannt oder ist fehlerhaft. DRAM - DRAM wird nicht erkannt oder ist fehlerhaft. VGA - GPU wird nicht erkannt oder ist fehlerhaft BOOT - Boot-Ger�t wird nicht erkannt oder ist
fehlerhaft.
30 �bersicht der Komponenten
JRGB1: RGB LED Anschluss
Mit dem JRGB Anschluss k�nnen Sie den 5050 RGB-LED-Streifen (12 V) anschlie�en.
1
1
+12V
2
G
3
R
4
B
RGB-LED-Streifen anschlie�en
1
GR B
JRGB Anschluss
RGB Verl�ngerungskabel
RGB-LED-L�fteranschluss
JRGB Anschluss
1
5050 RGB LED Streifen 12V
GR B
1
System-L�fter -Anschluss
RGB LED L�fter
Wichtig
Der JRGB Anschluss unterst�tzt bis zu 2 Metern 5050 RGB LED-Streifen (12V/G/ R/B) mit der maximalen Leistung von 3 A (12 V)
Schalten Sie die Stromversorgung aus und ziehen Sie das Netzkabel ab, bevor Sie die RGB-LED-Streifen ein- und ausbauen.
Bitte verwenden Sie die MSI-Software zur Steuerung des LED-Leuchtstreifens.
�bersicht der Komponenten 31
JRAINBOW1~2: Adressierbarer RGB-LED-Streifen Anschl�sse
JRAINBOW erm�glicht den Anschluss von WS2812B einzeln adressierbaren RGBLED-Streifen (5 V).
1
JRAINBOW1
1
+5V
3
No Pin
1
JRAINBOW2
2
Data
4
Ground
Adressierbarer RGB-LED-Streifen anschlie�en
1
+5V
D
JRAINBOW Anschluss
JRAINBOW Verl�ngerungskabel
WS2812B einzeln adressierbare RGB-LED-Streifen 5 V
Adressierbarer RGB-LED-Streifen anschlie�en
JRAINBOW Anschluss
1
1
System-L�fter -Anschluss
Adressierbarer RGB-LED-L�fter
ACHTUNG
Schlie�en Sie nur passende LED-Streifen an. Der JRGB- und der JRAINBOWAnschluss verf�gen �ber unterschiedliche Spannungen. Der Anschluss eines 5 V LEDStreifens an den JRGB-Anschluss f�hrt zu einer Besch�digung des LED-Streifens.
Wichtig
Der JRAINBOW Anschluss unterst�tzt bis zu up to 75 LEDs WS2812B einzeln adressierbare RGB-LED-Streifen (5 V/ Daten/ Erdung) mit der maximalen Leistung von 3 A (5 V). Bei einer Helligkeit von 20 Prozent unterst�tzt dieser Anschluss bis zu 200 LEDs.
Schalten Sie die Stromversorgung aus und ziehen Sie das Netzkabel ab, bevor Sie die RGB-LED-Streifen ein- und ausbauen.
Bitte verwenden Sie die MSI-Software zur Steuerung des LED-Leuchtstreifens.
32 �bersicht der Komponenten
Installation von OS, Treibern & MSI Center
Laden Sie die neuesten Treiber und Dienstprogramme von www.msi.com herunter und aktualisieren Sie sie.
Installation von Windows 10/ Windows 11
1. Schalten Sie den Computer ein. 2. Legen Sie die Windows 10/ Windows 11-Installations-Disk oder das USB-
Flashlaufwerk in das optisches Laufwerk. 3. Dr�cken Sie die Taste Restart auf dem Computergeh�use. 4. Dr�cken Sie die F11-Taste w�hrend des POST-Vorgangs (Power-On Self Test), um
das Bootmenu zu �ffnen. 5. W�hlen Sie die Windows 10/ Windows 11-Installations-Disk oder USB aus dem
Bootmenu. 6. Wenn eine entsprechende Meldung Press any key to boot from CD or
DVD...angezeigt wird, dr�cken Sie eine beliebige Taste Wenn diese Nachricht nicht angezeigt wird, �berspringen Sie bitte diesen Schritt. 7. Folgen Sie den Anweisungen auf dem Bildschirm, um das Dienstprogramm ,,Windows 10/ Windows 11" zu installieren.
Installation von Treibern
1. Starten Sie Ihren Computer mit Windows 10/ Windows 11. 2. Legen Sie die MSI� Treiber Disk in das optische Laufwerk. 3. Klicken Sie auf die Pop-up-Meldung W�hlen Sie eine Aktion f�r
Wechseldatentr�ger aus , und w�hlen Sie DVDSetup.exe starten aus, um den Installer zu �ffnen. Wenn Sie die AutoPlay-Funktionen in der WindowsSystemsteuerung ausschalten, k�nnen Sie das Programm DVDSetup.exe im Hauptverzeichnis des MSI USB-Laufwerk auch manuell ausf�hren. 4. Der Installer wird findet eine Liste aller ben�tigten Treiber auf der Treiber/ Software-Registerkarte. 5. Klicken Sie auf Install in der rechten unteren Ecke des Fensters. 6. Die Treiber-Installation l�uft. Wenn die Installation abgeschlossen ist, werden Sie dazu aufgefordet, den Computer neu zu starten. 7. Klicken Sie zum Beenden auf OK. 8. Starten Sie Ihren Computer neu.
Installation von OS, Treibern & MSI Center 33
MSI Center
MSI Center ist eine Anwendung, mit der Sie die Spieleinstellungen einfach optimieren und die Software zur Erstellung von Inhalten einstellen k�nnen. Au�erdem k�nnen Sie LED-Lichteffekte in PCs und anderen MSI-Produkten steuern und synchronisieren. Mit MSI Center k�nnen Sie ideale Modi einstellen, die Systemleistung �berwachen und die L�ftergeschwindigkeit anpassen. MSI Center Benutzerhandbuch
Wenn Sie weitere Informationen zu MSI Center w�nschen, besuchen Sie bitte http://download.msi.com/manual/mb/MSICENTER.pdf oder scannen Sie den QR-Code.
Wichtig
Die Funktionen k�nnen je nach Produkt variieren.
34 Installation von OS, Treibern & MSI Center
UEFI BIOS
Das MSI UEFI-BIOS ist mit der UEFI-Architektur (Unified Extensible Firmware Interface) kompatibel. Das UEFI-BIOS hat viele neue Funktionen und besitzt Vorteile, die das traditionelle BIOS nicht bieten kann. Es wird zuk�nftige PCs und Ger�te, die der UEFI-Firmware-Architektur entsprechen, vollst�ndig unterst�tzen. Das MSI UEFI-BIOS verwendet UEFI als Standard-Startmodus, um die Funktionen des neuen Chipsatzes voll auszunutzen.
Wichtig
Der Begriff ,,BIOS" bezieht sich in diesem Benutzerhandbuch auf das UEFI-BIOS, sofern nicht anders angegeben.
Vorteile von UEFI Schnelles Booten - UEFI kann das Betriebssystem direkt booten und den BIOSSelbsttestprozess speichern. Au�erdem entf�llt die Zeit, um w�hrend des POST in den CSM-Modus zu wechseln. Unterst�tzt Festplattenpartitionen, die gr��er als 2 TB sind. Unterst�tzt mehr als 4 prim�re Partitionen mit einer GUID-Partitionstabelle (GPT). Unterst�tzt eine unbegrenzte Anzahl an Partitionen. Unterst�tzt den vollen Funktionsumfang neuer Ger�te � neue Ger�te bieten m�glicherweise keine Abw�rtskompatibilit�t. Unterst�tzt sicheren Start � UEFI kann die G�ltigkeit des Betriebssystems �berpr�fen, um sicherzustellen, dass keine Malware den Startvorgang beeintr�chtigt.
Inkompatible UEFI-F�lle 32-Bit-Windows-Betriebssystem - Dieses Motherboard unterst�tzt nur das 64-BitWindows 10/ Windows 11-Betriebssystem. �ltere Grafikkarten - Das System erkennt Ihre Grafikkarte. Bei Erkennung einer nicht kompatiblen Grafikkarte wird die Warnmeldung ,,Auf dieser Grafikkarte wurde keine GOP-Unterst�tzung (Graphics Output Protocol) erkannt" angezeigt.
Wichtig
Wir empfehlen Ihnen, eine GOP / UEFI-kompatible Grafikkarte zu nutzen oder eine CPU mit integrierter Grafikeinheit zu verwenden, um eine normale Funktion des Systems zu gew�hrleisten.
Wie �berpr�fe ich den BIOS-Modus? 1. Schalten Sie den Computer ein. 2. W�hrend des BOOT-Vorgangs dr�cken Sie die Taste ENTF, wenn die Meldung
Press DEL key to enter Setup Menu, F11 to enter Boot Menu erscheint. 3. Nach dem Aufrufen des BIOS k�nnen Sie den BIOS-Modus oben auf dem
Bildschirm �berpr�fen.
BIOS Mode: UEFI
UEFI BIOS 35
BIOS Setup
Die Standardeinstellungen bieten die optimale Leistung f�r die Systemstabilit�t unter Normalbedingungen. Sie sollten immer die Standardeinstellungen behalten, um m�gliche Sch�den des Systems oder Boot-Fehler zu vermeiden, au�er Sie besitzen ausreichende BIOS Kenntnisse.
Wichtig
BIOS Funktionen werden f�r eine bessere Systemleistung kontinuierlich aktualisiert. Deswegen k�nnen die Beschreibungen leicht von der letzten Fassung des BIOS abweichen und sollten demnach nur als Anhaltspunkte dienen. F�r eine Beschreibung der BIOS Funktionen rufen Sie die HELP Informationstafel aus. Die BIOS-Bildschirme, -Optionen und -Einstellungen variieren je nach System.
�ffnen des BIOS Setups
W�hrend des BOOT-Vorgangs dr�cken Sie die Taste ENTF, wenn die Meldung Press DEL key to enter Setup Menu, F11 to enter Boot Menu erscheint. Funktionstasten F1: Allgemeine Hilfe F2: Hinzuf�gen/Entfernen eines Favoritenpunkts F3: �ffnen des Favoriten Men�s F4: �ffnen des Men�s CPU-Spezifikationen F5: �ffnen des Memory-Z Men�s F6: Laden der urspr�nglichen Setup-Standardwerte F7: Wechselt zwischen dem Erweiterten-Modus und EZ-Modus F8: OC-Profil wird vom USB-Stick geladen F9: OC-Profil wird auf einem USB-Stick gespeichert F10: Speichern oder Zur�cksetzen der �nderungen* F12: Macht einen Screenshot und speichert auf einen FAT/FAT32-USB-Laufwerk. Strg+F: �ffnet die Suchseite * Beim Dr�cken der F10 Taste wird das Fenster zum Speichern der Einstellungen angezeigt. W�hlen Sie Yes, um die Wahl zu best�tigen, oder No, um die derzeitige Einstellung beizubehalten.
BIOS-Benutzerhandbuch
Wenn Sie weitere Anweisungen zur BIOS-Einrichtung w�nschen, lesen Sie bitte http://download.msi.com/manual/mb/Intel600BIOSde.pdf oder scannen Sie den QR-Code.
36 Installation von OS, Treibern & MSI Center
Reset des BIOS
Sie k�nnen die Werkseinstellung wieder herstellen, um bestimmte Probleme zu l�sen. Es gibt verschiedene M�glichkeiten, um das BIOS zur�ckzusetzen: �ffnen Sie das BIOS und dr�cken Sie F6, um optimierten Einstellungen zu laden. Schlie�en Sie die Clear CMOS Steckbr�cke an das Motherboard an.
Wichtig
Stellen Sie sicher, dass Ihr Computer ausgeschaltet ist, bevor Sie die CMOS-Daten l�schen. Bitte lesen Sie f�r Informationen zum BIOS-Reset im Bereich ,,Clear CMOS Steckbr�cke" nach.
Aktualisierung des BIOS
Aktualisierung des BIOS mit dem M-FLASH-Programm Vorbereitung: Laden Sie bitte die neueste BIOS Version, die dem Motherboard-Modell entspricht, von der offiziellen MSI Website herunter. und speichern Sie die BIOS-Datei auf USBFlash-Laufwerk. BIOS-Aktualisierungsschritte: 1. Schlie�en das USB-Flashlaufwerk mit der BIOS-Datei an den Computer. 2. Bitte folgen Sie den nachfolgenden Schritten, um in den Blitz-Modus zu schalten.
Beim Neustart dr�cken Sie w�hrend des POST-Vorgangs die Taste Ctrl + F5 und klicken Sie auf Yes (Ja), tum das System neu zu starten.
Press <Ctrl+F5> to activate M-Flash for BIOS update. Beim Neustart dr�cken Sie w�hrend des POST-Vorgangs die Taste Del (Entf) w�hrend des POST-Vorgangs die Taste. Klicken Sie die Taste M-FLASH und klicken Sie auf Yes (Ja), um das System neu zu starten.
3. W�hlen Sie die BIOS-Datei zur Durchf�hrung des BIOS-Aktualisierungsprozesses aus.
4. Klicken Sie auf Ja, wenn Sie dazu aufgefordert werden, um die Wiederherstellung des BIOS zu starten.
5. Nachdem das Flashen des BIOS vollst�ndig ist, startet das System automatisch neu.
Installation von OS, Treibern & MSI Center 37
Aktualisierung des BIOS mit MSI Center Vorbereitung: Stellen Sie sicher, dass zuvor die LAN-Treiber installiert wurden und eine Internetverbindung eingerichtet ist. Bitte schlie�en Sie jegliche andere Anwendungssoftware, bevor Sie das BIOS aktualisieren. Schritte zur Aktualisierung des BIOS: 1. Installieren und starten Sie ,,MSI Center" und gehen Sie zur Support-Seite. 2. W�hlen Sie Live Update aus und klicken Sie auf die Schaltfl�che Advance. 3. W�hlen Sie die BIOS-Datei aus und klicken Sie auf das Install-Symbol. 4. Die Installationsanweisung wird angezeigt, klicken Sie daraufhin auf die
Schaltfl�che Install. 5. Das System wird automatisch neu gestartet, um das BIOS zu aktualisieren. 6. Nachdem das Flashen des BIOS vollst�ndig ist, startet das System automatisch
neu.
38 Installation von OS, Treibern & MSI Center
Table des mati�res
Informations de s�curit�....................................................................................... 3 Avertissement pour l'installation des entretoises ................................................ 4 Zone de protection.................................................................................................. 4
Sp�cifications......................................................................................................... 5 Contenu................................................................................................................ 12 Panneau E/S arri�re............................................................................................ 13
Tableau explicatif de l'�tat de la LED du port LAN.............................................. 13 Configuration des ports audio.............................................................................. 13 Realtek Audio Console ......................................................................................... 14 Vue d'ensemble des composants ....................................................................... 17 Socket Processeur ............................................................................................... 18 Slots DIMM............................................................................................................ 19 PCI_E1~3 : Slots d'extension PCIe ....................................................................... 20 JFP1, JFP2 : Connecteurs de panneau avant ...................................................... 20 M2_1~2 : Slots M.2 (Touche M) ............................................................................ 21 SATA5~8 et SATA_A~B : Connecteurs SATA 6 Gb/s ............................................ 23 JAUD1 : Connecteur audio avant.......................................................................... 23 JTBT1 : Connecteur de carte additionnelle Thunderbolt .................................... 24 JDASH1 : Connecteur du contr�leur de r�glages................................................ 24 CPU_PWR1~2, ATX_PWR1 : Connecteurs d'alimentation................................... 25 JCI1 : Connecteur intrusion ch�ssis .................................................................... 26 JUSB4 : Connecteur USB 3.2 Gen 2 10 Gb/s Type-C ........................................... 27 JUSB3 : Connecteur USB 3.2 Gen 1 5 Gb/s.......................................................... 27 JUSB1~2 : Connecteurs USB 2.0.......................................................................... 28 JTPM1 : Connecteur de module TPM................................................................... 28 CPU_FAN1, PUMP_FAN1, SYS_FAN1~2 : Connecteurs de ventilateur .............. 29 JBAT1 : Cavalier Clear CMOS (R�initialiser le BIOS)........................................... 30 EZ Debug LED....................................................................................................... 30 JRGB1 : Connecteur LED RGB ............................................................................. 31 JRAINBOW1~2 : Connecteurs LED RGB adressables ......................................... 32 Installer OS, Pilotes et MSI Center ..................................................................... 33 Installer Windows 10/ Windows 11 ...................................................................... 33 Installer les pilotes............................................................................................... 33 MSI Center ............................................................................................................ 34
Table des mati�res 1
UEFI BIOS............................................................................................................. 35 Configuration du BIOS .......................................................................................... 36 Entrer dans la configuration du BIOS .................................................................. 36 Guide d'utilisation du BIOS................................................................................... 36 R�initialiser le BIOS.............................................................................................. 37 Mettre le BIOS � jour ............................................................................................ 37
2 Table des mati�res
Informations de s�curit�
Les composants dans l'emballage peuvent �tre endommag�s par des d�charges �lectrostatiques (ESD). Pour vous assurer de correctement monter votre ordinateur, veuillez vous r�f�rer aux instructions ci-dessous. Assurez-vous de bien connecter tous les composants. En cas de mauvaise connexion, il se peut que l'ordinateur ne reconnaisse pas le composant et que le d�marrage �choue. Veuillez tenir la carte m�re par les bords pour �viter de toucher les composants sensibles. Il est recommand� de porter un bracelet antistatique lors de la manipulation de la carte m�re pour pr�venir tout dommage. Si vous n'avez pas de bracelet antistatique, touchez un objet m�tallique reli� � la terre avant de manipuler la carte m�re afin de vous d�charger de votre charge statique. Touchez r�guli�rement l'objet m�tallique pendant toute la manipulation. Tant que la carte m�re n'est pas install�e, conservez-la dans un r�cipient prot�g� contre les ondes �lectrostatiques ou sur une couche antistatique. Avant de d�marrer l'ordinateur, v�rifiez si toutes les vis et les composants m�talliques sont bien fix�s sur la carte m�re ou ailleurs dans le bo�tier de l'ordinateur. Ne d�marrez pas l'ordinateur avant d'avoir termin� l'installation. Ceci peut endommager les composants ou vous blesser. Si vous avez besoin d'aide pendant l'installation, veuillez consulter un technicien informatique certifi�. Avant d'installer les composants d'ordinateur, veuillez toujours mettre hors tension et d�brancher le cordon d'alimentation. Gardez ce manuel pour r�f�rences futures. Prot�gez ce manuel contre l'humidit�. Avant de brancher le bloc d'alimentation sur la sortie �lectrique, veuillez vous assurer que la tension de la sortie �lectrique est bien �gale � celle du bloc d'alimentation. Placez le cordon d'alimentation de fa�on � �viter que l'on marche dessus. Ne posez rien sur le cordon d'alimentation. Veuillez pr�ter attention � toutes les alertes et remarques indiqu�es sur la carte m�re. Dans un cas comme ci-dessous, faites appel au service autoris� pour v�rifier votre carte m�re :
Un liquide a p�n�tr� dans l'ordinateur. La carte m�re a �t� expos�e � l'humidit�. La carte m�re ne fonctionne pas comme indiqu� dans les instructions. La carte m�re est tomb�e par terre et a �t� endommag�e. La carte m�re est cass�e. Ne pas mettre la carte m�re dans un environnement dont la temp�rature est sup�rieure � 60 �C (140 �F) sous peine de l'endommager.
Informations de s�curit� 3
Avertissement pour l'installation des entretoises
Pour �viter d'endommager la carte m�re, il est interdit d'installer des entretoises inutiles entre le circuit de la carte m�re et le bo�tier de l'ordinateur. Les signes de zone interdite (Keep Out Zone) sont marqu�s � l'arri�re de la carte m�re (comme indiqu� ci-dessous) pour servir d'avertissement � l'utilisateur.
Zone de protection
Une peinture protectrice est pr�sente autour de chaque trou de vis pour �viter que les pi�ces ne soient ray�es.
* Les images ci-dessus sont donn�es � titre de r�f�rence seulement et peuvent varier selon le produit que vous avez achet�.
4 Informations de s�curit�
Sp�cifications
CPU Chipset
M�moire
Slots d'extension Multi-GPU Sorties vid�o int�gr�es
Support des processeurs Intel� CoreTM de 12�me g�n�ration, Pentium� Gold et Celeron�* Socket LGA1700
* Veuillez vous rendre sur le site www.msi.com pour obtenir la derni�re liste des mod�les support�s � mesure que de nouveaux processeurs sont introduits sur le march�.
Chipset Intel� B660
4 x slots pour m�moire DDR4, support jusqu'� 128 Go* Support 1R 2133/2666/3200 MHz (par JEDEC et POR) Fr�quence d'overclocking maximale :
La fr�quence maximale en mode 1DPC 1R monte jusqu'� 4800+ MHz La fr�quence maximale en mode 1DPC 2R monte jusqu'� 4000+ MHz La fr�quence maximale en mode 2DPC 1R monte jusqu'� 4000+ MHz La fr�quence maximale en mode 2DPC 2R monte jusqu'� 3600+ MHz Support m�moire dual channel
Support non-ECC, m�moire un-buffered Support Intel� Extreme Memory Profile (XMP)
* Veuillez vous rendre sur le site www.msi.com pour plus d'informations sur la m�moire compatible.
2 x slots PCIe x16 Slot PCI_E1 (depuis CPU) Support PCIe 4.0 x16 Slot PCI_E3 (depuis chipset B660) Support PCIe 3.0 x4
1 x slot PCIe 3.0 x1
Support de la technologie AMD� CrossFireTM 2-Way
1 x port HDMI 2.1 avec HDR, supportant une r�solution maximum de 4K 60 Hz*/**
1 x port DisplayPort 1.4 avec HBR3, supportant une r�solution maximum de 4K 60 Hz*/**
* Disponible uniquement pour le processeur avec puce graphique int�gr�e. ** Les caract�ristiques des cartes graphiques peuvent varier en fonction du processeur install�.
Suite du tableau sur la page suivante
Sp�cifications 5
Stockage RAID USB
Suite du tableau sur la page pr�c�dente
4 x ports SATA 6 Gb/s (SATA5~8, depuis chipset B660)* 2 x ports SATA 6 Gb/s (SATA_A et SATA_B, depuis ASMedia ASM1061) 2 x slots M.2 (Touche M)
Slot M2_1 (depuis CPU) Support PCIe 4.0 x4 Support des p�riph�riques de stockage 2242/2260/2280
Slot M2_2 (depuis chipset B660)* Support PCIe 4.0 x4 Support SATA 6 Gb/s Support des p�riph�riques de stockage 2242/2260/2280 Support Intel� OptaneTM Memory
* Le connecteur SATA8 est indisponible lorsqu'un SSD M.2 SATA est install� dans le slot M2_2.
Support RAID 0, RAID 1, RAID 5 et RAID 10 pour les p�riph�riques de stockage SATA*
* SATA_A et SATA_B ne supportent pas la fonction RAID.
Chipset Intel� B660 1 x port USB 3.2 Gen2x2 20 Gb/s Type-C sur le panneau arri�re 1 x port USB 3.2 Gen 2 10 Gb/s Type-C disponible par l'interm�diaire du connecteur interne 2 x ports USB 3.2 Gen 1 5 Gb/s disponibles par l'interm�diaire du connecteur interne 4 x ports USB 2.0 sur le panneau arri�re
USB Hub-GL3590 3 x ports USB 3.2 Gen 2 10 Gb/s Type-A sur le panneau arri�re
USB Hub-GL850G 4 x ports USB 2.0 disponibles par l'interm�diaire des connecteurs internes
Suite du tableau sur la page suivante
6 Sp�cifications
Suite du tableau sur la page pr�c�dente
Audio LAN
Realtek� ALC1200 Codec Audio haute d�finition 7.1 Support sortie S/PDIF
1 x contr�leur Realtek� 8125BG 2,5 Gb/s LAN
Wireless LAN et Bluetooth� (Pour MAG B660M MORTAR WIFI DDR4)
Intel� Wi-Fi 6 Le module sans-fil est pr�-install� dans le slot M.2 (Touche E) Support MU-MIMO TX/RX, 2,4 GHz / 5 GHz (160 MHz) jusqu'� 2,4 Gb/s Support 802.11 a/b/g/n/ac/ax Support Bluetooth� 5.2
Connecteurs internes
1 x connecteur d'alimentation principal ATX � 24 broches 2 x connecteurs d'alimentation ATX 12 V � 8 broches 6 x connecteurs SATA 6 Gb/s 2 x slots M.2 (Touche M) 1 x connecteur USB 3.2 Gen 2 10 Gb/s Type-C 1 x connecteur USB 3.2 Gen 1 5 Gb/s (support de 2 autres ports USB 3.2 Gen 1 5 Gb/s) 2 x connecteurs USB 2.0 Type-A (support de 4 autres ports USB 2.0) 1 x connecteur de ventilateur CPU � 4 broches 1 x connecteur de ventilateur � 4 broches pour la pompe � eau 2 x connecteurs de ventilateur syst�me � 4 broches 1 x connecteur audio avant 2 x connecteurs de panneau syst�me 1 x connecteur intrusion ch�ssis 1 x cavalier Clear CMOS 1 x connecteur de module TPM 1 x connecteur TBT (Support RTD3) 1 x connecteur du contr�leur de r�glages
Suite du tableau sur la page suivante
Sp�cifications 7
Suite du tableau sur la page pr�c�dente
Fonctions LED
4 x EZ Debug LED 1 x connecteur LED RGB � 4 broches 2 x connecteurs LED RAINBOW � 3 broches
Connecteurs sur le panneau arri�re
4 x ports USB 2.0 Type-A 1 x DisplayPort 1 x port HDMI 3 x ports USB 3.2 Gen 2 10 Gb/s Type-A 1 x port USB 3.2 Gen 2x2 20 Gb/s Type-C 1 x port 2,5 G LAN (RJ45) 2 x connecteurs d'antenne Wi-Fi (Pour MAG B660M MORTAR WIFI DDR4) 5 x jacks audio 1 x connecteur sortie S/PDIF optique
Contr�leur E/S
Contr�leur NUVOTON NCT6687D
Moniteur syst�me
D�tection de la temp�rature du CPU, du syst�me et du Chipset D�tection de la vitesse du ventilateur du CPU, du syst�me et de la pompe Contr�le de la vitesse du ventilateur du CPU, du syst�me et de la pompe
Dimensions Fonctions BIOS
Format Micro-ATX 24,4 cm x 24,4 cm (9,6" x 9,6")
1 x flash 256 Mb UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multilingue
Suite du tableau sur la page suivante
8 Sp�cifications
Logiciel Fonctions MSI Center
Suite du tableau sur la page pr�c�dente
Pilotes MSI Center Intel Extreme Tuning Utility MSI App Player (BlueStacks) Open Broadcaster Software (OBS) CPU-Z MSI GAMING Google ChromeTM, Google Toolbar, Google Drive NortonTM Internet Security Solution
Gaming Mode Smart Priority Game Highlights LAN Manager Mystic Light Ambient Devices Frozr AI Cooling User Scenario True Color Live Update Hardware Monitoring Super Charger Speed Up Smart Image Finder MSI Companion
Suite du tableau sur la page suivante
Sp�cifications 9
Suite du tableau sur la page pr�c�dente
Fonctions sp�ciales
Audio Audio Boost
Network 2,5 G LAN LAN Manager Intel WiFi (Pour MAG B660M MORTAR WIFI DDR4)
Cooling Extended Heatsink Design M.2 Shield Frozr 7W/mK MOSFET thermal pad Choke thermal pad Pump Fan Smart Fan Control
LED Mystic Light Extension (RGB) Mystic Light Extension (RAINBOW) Mystic Light SYNC Ambient Devices Support EZ LED Control EZ DEBUG LED
Suite du tableau sur la page suivante
10 Sp�cifications
Suite du tableau sur la page pr�c�dente
Fonctions sp�ciales
Performance Lightning Gen 4 PCI-E Slot Lightning Gen 4 M.2 Technologie Multi GPU-CrossFire Memory Boost Core Boost Game Boost Lightning USB 20 G USB 3.2 Gen 2 10 G USB de Type A+C Front USB Type-C Dual CPU Power 2oz Copper thickened PCB
Protection PCI-E Steel Armor Pre-installed I/O Shielding
Exp�rience MSI Center EZ M.2 Clip Click BIOS 5 CPU Cooler Tuning Forzr AI Cooling App player Tile (Pour MAG B660M MORTAR WIFI DDR4)
Sp�cifications 11
Contenu
V�rifiez tous les articles dans le carton d'emballage de votre carte m�re. L'emballage doit contenir :
Carte m�re Documentation Application C�ble
Accessoires
Cadeaux
MAG B660M MORTAR WIFI DDR4 / MAG B660M MORTAR DDR4
Guide d'installation rapide
1
DVD de pilotes
1
C�ble SATA 6 Gb/s (2 c�bles/paquet)
1
Antenne Wi-Fi (Pour MAG B660M MORTAR WIFI DDR4)
1
Insigne pour ch�ssis
1
Clip EZ M.2 (1 ensemble/paquet)
2
Autocollant MAG
1
Carte d'enregistrement de produit
1
Jeu de petits tournevis (Pour MAG B660M MORTAR WIFI DDR4)
1
Important
Veuillez contacter votre revendeur si un des �l�ments ci-dessus est endommag� ou manquant.
12 Contenu
Panneau E/S arri�re
DisplayPort
(Pour MAG B660M MORTAR WIFI DDR4) Connecteurs d'antenne Wi-Fi
2,5 Gb/s LAN
Prises audio
USB 2.0 Type-A
USB 3.2 Gen 2x2 (20 Gb/s) Type-C
USB 3.2 Gen 2 (10 Gb/s) Type-A
Sortie S/PDIF optique
Tableau explicatif de l'�tat de la LED du port LAN
LED indiquant la connexion et l'activit�
�tat
�teint Jaune Clignote
Description
Pas de connexion Connexion correcte Activit� en cours
LED indiquant la vitesse
�tat
Description
�teint Vert Orange
10 Mb/s 100/1000 Mb/s 2,5 Gb/s
Configuration des ports audio
Ports audio
Canal
2468
Sortie centre/Caisson de basse
Sortie haut-parleur arri�re
Entr�e Ligne/Sortie haut-parleur c�t�
Sortie Ligne/Sortie haut-parleur avant
Entr�e Microphone
( : connect�, Espace : vide)
Panneau E/S arri�re 13
Realtek Audio Console
Apr�s l'installation de Realtek Audio Console, vous pouvez l'utiliser pour modifier les param�tres du son afin d'obtenir une meilleure exp�rience sonore.
Am�lioration d'application
S�lection du p�riph�rique
Volume principal
Param�tres du connecteur �tat des prises Jack
S�lection du p�riph�rique - vous permet de s�lectionner une source de sortie audio pour en modifier les param�tres. Le symbole de coche indique le p�riph�rique s�lectionn� par d�faut. Am�lioration d'application - les diverses options vous fournissent un guide complet des effets acoustiques propos�s pour les p�riph�riques de sortie et d'entr�e. Volume principal - contr�le le volume ou �quilibre le son gauche/droite des hautparleurs branch�s sur le panneau avant ou derri�re en ajustant la barre de volume. �tat des prises Jack - pr�sente tous les p�riph�riques de diffusion et de capture connect�s � votre ordinateur. Param�tres du connecteur - configure les param�tres de connexion.
Auto popup dialog Lorsqu'un p�riph�rique est branch� sur une prise audio, une fen�tre de dialogue appara�t et vous demande de choisir le p�riph�rique connect� que vous souhaitez utiliser.
Chaque jack est r�gl� avec ses param�tres par d�faut comme indiqu� sur la page suivante.
Important
Les photos ci-dessus ne sont donn�es qu'� titre de r�f�rence et peuvent varier selon le produit que vous avez achet�.
14 Panneau E/S arri�re
Illustration de l'utilisation des ports audio d�di�s au casque et au microphone
Illustration de l'utilisation du port audio d�di� aux haut-parleurs
AUDIO INPUT
Illustration de l'utilisation des ports audio d�di�s aux haut-parleurs 7.1
AUDIO INPUT Rear Front Side Center/
Subwoofer
Panneau E/S arri�re 15
Installation des antennes 1. Vissez fermement les antennes aux connecteurs d�di�s, comme illustr� ici. 2. Orientez les antennes.
1
2
16 Panneau E/S arri�re
Vue d'ensemble des composants
Socket processeur
DIMMA1
CPU_PWR2 CPU_PWR1
JRAINBOW1
DIMMA2 DIMMB1
JSMB1
DIMMB2
CPU_FAN1 PUMP_FAN1
SYS_FAN1
M2_1 PCI_E1
M2_2 PCI_E2 JDASH1 PCI_E3 JAUD1
(selon mod�le)
ATX_PWR1
JUSB4 JUSB3
BAT1
JRGB1
JTPM1
SYS_FAN2 JTBT1
SATA7 SATA8
JRAINBOW2
JUSB1
JBAT1 JCI1
JUSB2
SATA A B
SATA 5 6 JFP2 JFP1
Vue d'ensemble des composants 17
Socket Processeur
Distance entre le centre du CPU et le slot DIMM le plus proche.
52,55 mm
Pr�sentation du socket LGA1700 Sur le socket LGA1700, vous remarquerez quatre encoches et un triangle dor� servant d'indicateurs pour placer le processeur dans la bonne position. Le triangle dor� correspond � la broche 1 du processeur.
Important
Avant d'installer ou de retirer le processeur du socket, veillez � toujours d�brancher le c�ble d'alimentation de la prise �lectrique. Veuillez garder le capot de protection du processeur apr�s l'installation du processeur. Selon les exigences de RMA (Return Merchandise Authorization), MSI n'acceptera pas les cartes m�re dont le capot de protection aura �t� retir�. Lors de l'installation d'un processeur, n'oubliez pas d'installer un ventilateur pour processeur. Un ventilateur de processeur est n�cessaire pour prot�ger le processeur contre la surchauffe et maintenir la stabilit� du syst�me. Assurez-vous de l'�tanch�it� entre le ventilateur et le processeur avant de d�marrer votre syst�me. La surchauffe peut facilement endommager le processeur et la carte m�re. Assurez-vous toujours que le syst�me de refroidissement fonctionne correctement pour prot�ger le processeur de la surchauffe. Assurez-vous d'appliquer une couche de p�te thermique (ou adh�sif thermique) entre le processeur et le syst�me de refroidissement afin d'am�liorer la dissipation de la chaleur. Quand le processeur n'est pas install�, prot�gez toujours les broches du socket CPU avec le couvercle d�di�. Si vous avez achetez un processeur ind�pendamment du ventilateur, veuillez vous r�f�rer � la documentation dans le paquet du ventilateur pour plus d'informations concernant l'installation. Cette carte m�re supporte l'overclocking. N�anmoins, veuillez vous assurer que vos composants soient capables de tol�rer l'overclocking. Prenez note que l'utilisation au-del� des sp�cifications du constructeur n'est pas recommand�e. MSI� ne garantit pas les dommages et risques caus�s par les utilisations non pr�vues dans les sp�cifications du produit.
18 Vue d'ensemble des composants
Slots DIMM
DIMMA1
DIMMB1
Canal A
Canal B
DIMMA2
Installation recommand�e de module m�moire
DIMMB2
DIMMA2
DIMMA2 DIMMB2
DIMMA1 DIMMA2 DIMMB1 DIMMB2
Important
Veillez � toujours ins�rer un module de m�moire dans le slot DIMMA2 en premier.
Pour garantir la stabilit� du syst�me au mode de double canal, assurez-vous d'installer les modules de m�moire du m�me type, du m�me nombre et de la m�me densit�. Certaines m�moires peuvent fonctionner � une fr�quence r�duite par rapport � la valeur indiqu�e lors de l'overclocking car la fr�quence d'op�ration de m�moire d�pend du Serial Presence Detect (SPD). Rendez-vous sur le BIOS et choisissez la fonction DRAM Frequency pour r�gler la fr�quence de m�moire si vous voulez faire fonctionner la m�moire � la fr�quence indiqu�e ou � une fr�quence plus �lev�e. Il est recommand� d'utiliser un syst�me de refroidissement qui sera capable de refroidir toutes les barrettes m�moire et d'offrir de bonnes performances lors d'un overclocking. La stabilit� et la compatibilit� du module de m�moire lors de l'overclocking d�pendent du processeur et des p�riph�riques install�s. Veuillez vous r�f�rer au site www.msi.com pour plus d'informations sur la m�moire compatible.
Vue d'ensemble des composants 19
PCI_E1~3 : Slots d'extension PCIe
PCI_E1 : PCIe 4.0 x16 (depuis CPU)
BAT1
PCI_E2 : PCIe 3.0 x1 (depuis chipset B660) PCI_E3 : PCIe 3.0 x4 (depuis chipset B660)
Important
Si vous installez une carte graphique lourde, il vous faut utiliser un outil comme la barre de support MSI pour supporter son poids et pour �viter la d�formation du slot. Si vous choisissez d'installer une seule carte d'extension PCIe x16, nous vous recommandons d'utiliser le slot PCI_E1 pour profiter de performances optimales. Veillez � toujours mettre l'ordinateur hors tension et � d�brancher le cordon d'alimentation avant d'installer les cartes d'extension. R�f�rez-vous � la documentation des cartes pour v�rifier si un composant ou un logiciel doit �tre modifi�.
JFP1, JFP2 : Connecteurs de panneau avant
Ces connecteurs se lient aux interrupteurs et indicateurs LED du panneau avant.
JFP2 1
+
+-
Buzzer Speaker
1
Speaker -
2
3
Buzzer -
4
Buzzer + Speaker +
Power LED Power Switch
-
-+
++
JFP1
2 1
-
+
10
9
Reserved
HDD LED Reset Switch
1
HDD LED +
2
3
HDD LED -
4
5
Reset Switch
6
7
Reset Switch
8
9
Reserved
10
Power LED + Power LED Power Switch Power Switch
No Pin
20 Vue d'ensemble des composants
M2_1~2 : Slots M.2 (Touche M)
Important
La technologie Intel� RST supporte
uniquement un SSD M.2 PCIe avec une
M2_1
m�moire ROM UEFI.
Le slot M2_2 supporte Intel� OptaneTM
M2_2
Memory.
Installation du module M.2 1. Desserrez les vis de la plaque M.2 SHIELD FROZR. 2. Retirez la plaque M.2 SHIELD FROZR et retirez le film de protection du pad
thermique.
2
1
1
M2_1
1
M2_2
2
1
Vue d'ensemble des composants 21
3. Veuillez installer le kit de clips EZ M.2 fourni dans le slot M.2 selon la longueur du SSD.
Important
Veuillez ignorer l'�tape 3 lors de l'installation du SSD M.2 2280. 4. Ins�rez votre SSD M.2 dans le slot M.2 � un angle de 30 degr�s. 5. Faites pivoter le clip EZ M.2 pour fixer le SSD M.2.
4
3
30�
5
6. Remettez la plaque M.2 SHIELD FROZR en place et fixez-la.
6
6 6
6
22 Vue d'ensemble des composants
SATA5~8 et SATA_A~B : Connecteurs SATA 6 Gb/s
Ces connecteurs utilisent une interface SATA 6 Gb/s. Chaque connecteur peut �tre reli� � un appareil SATA.
SATA8
SATA7
SATA_B SATA_A SATA6 SATA5
Important
Veuillez ne pas plier les c�bles SATA � 90� car cela pourrait entra�ner une perte de donn�es pendant la transmission. Les c�bles SATA disposent de prises identiques sur chaque c�t�. N�anmoins, il est recommand� de connecter la prise plate sur la carte m�re pour un gain d'espace. Le connecteur SATA8 est indisponible lorsqu'un SSD M.2 SATA est install� dans le slot M2_2.
JAUD1 : Connecteur audio avant
Ce connecteur se lie aux jacks audio du panneau avant.
2
10
1
9
1
MIC L
2
Ground
3
MIC R
4
NC
5
Head Phone R
6
MIC Detection
7
SENSE_SEND
8
No Pin
9
Head Phone L
10
Head Phone Detection
Vue d'ensemble des composants 23
JTBT1 : Connecteur de carte additionnelle Thunderbolt
Ce connecteur vous permet de relier une carte additionnelle Thunderbolt E/S.
2
16
1
15
1
TBT_FORCE_PWR
2
TBT_S0IX_ENTRY_REQ
3 TBT_CIO_PLUG_EVENT# 4
TBT_S0IX_ENTRY_ACK
5
SLP_S3#_TBT
6 TBT_PSON_OVERRIDE_N
7
SLP_S5#_TBT
8
No Pin
9
Ground
10
SMBCLK_VSB
11
DG_PEWAKE#
12
SMBDATA_VSB
13
TBT_RTD3_PWR_EN
14
Ground
15
TBT_CARD_DET_R#
16
PD_IRQ#
JDASH1 : Connecteur du contr�leur de r�glages
Ce connecteur est utilis� pour connecter un contr�leur de r�glage (selon mod�le).
26
15
1
No Pin
2
3
MCU_SMB_SCL_M
4
5
VCC5
6
NC MCU_SMB_SDA_M
Ground
24 Vue d'ensemble des composants
CPU_PWR1~2, ATX_PWR1 : Connecteurs d'alimentation
Ces connecteurs vous permettent de relier une alimentation ATX.
8 4
5 1
CPU_PWR1~2
1
Ground
5
2
Ground
6
3
Ground
7
4
Ground
8
+12V +12V +12V +12V
1
+3.3V
13
2
+3.3V
14
12
24
3
Ground
15
4
+5V
16
5
Ground
17
ATX_PWR1
6
+5V
18
7
Ground
19
1
13
8
PWR OK
20
9
5VSB
21
10
+12V
22
11
+12V
23
12
+3.3V
24
+3.3V -12V Ground PS-ON# Ground Ground Ground Res +5V +5V +5V Ground
Important
Veuillez vous assurer que tous les c�bles d'alimentation sont branch�s aux connecteurs ad�quats afin de garantir une op�ration stable de la carte m�re.
Vue d'ensemble des composants 25
JCI1 : Connecteur intrusion ch�ssis
Ce connecteur est reli� � un c�ble d'interrupteur intrusion ch�ssis.
Normal (d�faut)
Commencer l'activit� instrusion ch�ssis
Utilisation du d�tecteur d'intrusion ch�ssis 1. Reliez le connecteur JCI1 � l'interrupteur ou au capteur d'intrusion ch�ssis situ�
sur le bo�tier du PC. 2. Fermez le couvercle du bo�tier. 3. Allez dans BIOS > SETTINGS (R�glages) > Security (S�curit�) > Chassis Intrusion
Configuration (Configuration d'intrusion ch�ssis). 4. R�glez Chassis Intrusion (Intrusion ch�ssis) sur Enabled (Activ�). 5. Appuyez sur F10 pour sauvegarder et quitter. Ensuite appuyez sur la touche Enter
(Entr�e) pour choisir Yes (Oui). 6. D�sormais, si le bo�tier du PC est ouvert quand l'ordinateur est allum�, vous
recevrez un message d'avertissement � l'�cran.
R�initialisation de l'avertissement d'intrusion ch�ssis 1. Allez dans BIOS > SETTINGS (R�glages) > Security (S�curit�) > Chassis Intrusion
Configuration (Configuration d'intrusion ch�ssis). 2. R�glez Chassis Intrusion (Intrusion ch�ssis) sur Reset (R�initialiser). 3. Appuyez sur F10 pour sauvegarder et quitter. Ensuite appuyez sur la touche Enter
(Entr�e) pour choisir Yes (Oui).
26 Vue d'ensemble des composants
JUSB4 : Connecteur USB 3.2 Gen 2 10 Gb/s Type-C
Ce connecteur vous permet de relier un connecteur USB 3.2 Gen 2 10 Gb/s Type-C sur le panneau avant. Pour plus de s�curit�, ce connecteur a �t� con�u pour offrir une excellente robustesse. Quand vous connectez le c�ble, assurez-vous de le brancher dans le bon sens.
JUSB4
C�ble USB Type-C
Port USB Type-C sur le panneau avant
JUSB3 : Connecteur USB 3.2 Gen 1 5 Gb/s
Ce connecteur vous permet de relier un port USB 3.2 Gen 1 5 Gb/s sur le panneau avant.
10
11
1
20
1
Power
11
2
USB3_RX_DN
12
3
USB3_RX_DP
13
4
Ground
14
5
USB3_TX_C_DN
15
6
USB3_TX_C_DP
16
7
Ground
17
8
USB2.0-
18
9
USB2.0+
19
10
Ground
20
USB2.0+ USB2.0Ground USB3_TX_C_DP USB3_TX_C_DN Ground USB3_RX_DP USB3_RX_DN Power No Pin
Important
Notez que les c�bles d'alimentation et de terre doivent �tre branch�s correctement afin d'�viter d'endommager la carte.
Vue d'ensemble des composants 27
JUSB1~2 : Connecteurs USB 2.0
Ces connecteurs vous permettent de relier des ports USB 2.0 sur le panneau avant.
2
10
1
9
1
VCC
2
VCC
3
USB0-
4
USB1-
5
USB0+
6
USB1+
7
Ground
8
Ground
9
No Pin
10
NC
Important
Notez que les broches VCC et Terre doivent �tre branch�es correctement afin d'�viter tout dommage sur la carte m�re.
Pour recharger votre iPad, iPhone et iPod par l'interm�diaire d'un port USB, veuillez installer l'utilitaire MSI� Center.
JTPM1 : Connecteur de module TPM
Ce connecteur est reli� � un module TPM (Trusted Platform Module). Veuillez vous r�f�rer au manuel du module TPM pour plus d'informations.
2
12
1
11
1
SPI Power
2
SPI Chip Select
3 Master In Slave Out (SPI Data) 4 Master Out Slave In (SPI Data)
5
Reserved
6
SPI Clock
7
Ground
8
SPI Reset
9
Reserved
10
No Pin
11
Reserved
12
Interrupt Request
28 Vue d'ensemble des composants
CPU_FAN1, PUMP_FAN1, SYS_FAN1~2 : Connecteurs de ventilateur
Les connecteurs de ventilateur peuvent �tre utilis�s en mode PWM (Pulse Width Modulation) et en mode DC. En mode PWM, les connecteurs fournissent une sortie de 12 V constante et ajustent la vitesse du ventilateur avec un signal de contr�le de vitesse. En mode DC, les connecteurs contr�lent la vitesse du ventilateur en modifiant la tension. Cependant, vous pouvez suivre les instructions ci-dessous pour r�gler le connecteur de ventilateur en mode PWM ou mode DC.
CPU_FAN1 PUMP_FAN1
SYS_FAN2 SYS_FAN1
Mode Connecteur ventilateur
par d�faut
CPU_FAN1 PUMP_FAN1 SYS_FAN1~2
Mode PWM Mode PWM Mode DC
Courant maximum
2 A 3 A 1 A
Puissance maximum
24 W 36 W 12 W
Basculer entre les modes de ventilateur et ajuster la vitesse Vous pouvez alterner entre le mode PWM et le mode DC et ajuster la vitesse du ventilateur dans BIOS > HARDWARE MONITOR.
Choisissez le mode PWM ou le mode DC
Important
Il y a des points de gradient de la vitesse du ventilateur qui vous permet d'ajuster la vitesse du ventilateur par rapport � la temp�rature du processeur.
Veuillez vous assurer que les ventilateurs fonctionnent correctement apr�s avoir bascul� entre les modes PWM et DC.
D�finition des broches des connecteurs de ventilateur
1
D�finition des broches en mode PWM
1
Ground
2
+12V
3
Sense
4
Speed Control Signal
1
D�finition des broches en mode DC
1
Ground
2
Voltage Control
3
Sense
4
NC
Vue d'ensemble des composants 29
JBAT1 : Cavalier Clear CMOS (R�initialiser le BIOS)
Une m�moire CMOS est int�gr�e et est aliment�e en externe par une batterie situ�e sur la carte m�re afin de conserver les donn�es de configuration syst�me. Si vous souhaitez nettoyer la configuration du syst�me, r�glez le cavalier pour effacer la m�moire CMOS.
Conserver les donn�es
(d�faut)
Effacer le CMOS/ R�initialiser le BIOS
R�initialiser le BIOS aux valeurs par d�faut 1. �teignez l'ordinateur et d�branchez le c�ble d'alimentation de la prise �lectrique. 2. Utilisez un couvercle de cavalier pour fermer JBAT1 pendant 5 � 10 secondes. 3. Enlevez le couvercle de cavalier du JBAT1. 4. Branchez de nouveau le c�ble d'alimentation � votre ordinateur et allumez-le.
EZ Debug LED
Ces LEDs indiquent l'�tat de d�bogage de la carte m�re.
CPU - indique que le CPU n'est pas d�tect� ou que son initialisation a �chou�.
DRAM - indique que la m�moire DRAM n'est pas d�tect�e ou que son initialisation a �chou�.
VGA - indique que le GPU n'est pas d�tect� ou que son initialisation a �chou�.
BOOT - indique que le p�riph�rique de d�marrage n'est pas d�tect� ou que son initialisation a �chou�.
30 Vue d'ensemble des composants
JRGB1 : Connecteur LED RGB
Le connecteur JRGB vous permet de connecter un ruban LED RGB de type 5050 12 V.
1
1
+12V
2
G
3
R
4
B
GR B
Connexion du ruban LED RGB
1
C�ble d'extension JRGB Connecteur JRGB
Connexion du ventilateur LED RGB
Connecteur JRGB
1
Ruban LED RGB de type 5050, sortie 12 V
GR B
1
Connecteur de ventilateur syst�me
Ventilateur LED RGB
Important
Le connecteur JRGB supporte des rubans LED RGB (12 V/G/R/B) de type 5050 d'une longueur de 2 m�tres maximum avec une puissance nominale maximale de 3 A (12 V). Avant d'installer ou de retirer le ruban LED RGB, veillez � toujours �teindre l'alimentation et � d�brancher le c�ble d'alimentation de la prise �lectrique. Veuillez utiliser un logiciel MSI d�di� pour contr�ler le ruban d'extension LED.
Vue d'ensemble des composants 31
JRAINBOW1~2 : Connecteurs LED RGB adressables
Le connecteur JRAINBOW vous permet de connecter un ruban � LED RGB WS2812B adressable individuellement 5 V.
1
JRAINBOW1
1
+5V
3
No Pin
1
JRAINBOW2
2
Data
4
Ground
Connexion du ruban LED RGB adressable
1
+5V
D
Connecteur JRAINBOW
C�ble d'extension JRAINBOW
Connexion du ventilateur LED RGB adressable
Ruban LED RGB WS2812B adressable individuellement, sortie 5 V
Connecteur JRAINBOW
1
1
Connecteur de ventilateur syst�me
Ventilateur LED RGB adressable
Attention
Faites attention � bien connecter le bon type de ruban LED. Le connecteur JRGB et le connecteur JRAINBOW fournissent des tensions diff�rentes. La connexion d'un ruban LED 5 V au connecteur JRGB peut endommager le ruban.
Important
Le connecteur JRAINBOW supporte jusqu'� des rubans 75 LEDs WS2812B adressables individuellement (5 V/Data/Ground) avec une puissance nominale maximale de 3 A (5 V). Dans le cas d'une luminosit� de 20 %, le connecteur supporte jusqu'� 200 LED. Avant d'installer ou de retirer le ruban LED RGB, veillez � toujours �teindre l'alimentation et � d�brancher le c�ble d'alimentation de la prise �lectrique. Veuillez utiliser un logiciel MSI d�di� pour contr�ler le ruban d'extension LED.
32 Vue d'ensemble des composants
Installer OS, Pilotes et MSI Center
Veuillez vous r�f�rer au site www.msi.com pour t�l�charger et mettre � jour les derniers utilitaires et pilotes.
Installer Windows 10/ Windows 11
1. Allumez l'ordinateur. 2. Ins�rez le disque ou la cl� USB d'installation de Windows 10/ Windows 11 dans
votre ordinateur. 3. Appuyez sur le bouton Red�marrer (Restart) du bo�tier de l'ordinateur. 4. Appuyez sur la touche F11 pendant le POST (Power-On Self Test) du syst�me pour
entrer dans le menu de d�marrage. 5. Choisissez le disque ou la cl� USB d'installation de Windows 10/ Windows 11 dans
le menu de d�marrage. 6. Appuyez sur n'importe quelle touche lorsqu'appara�t le message [Appuyez sur
n'importe quelle touche pour d�marrer du CD ou du DVD] (Press any key to boot from CD or DVD). Sinon, veuillez ignorer cette �tape. 7. Suivez les instructions � l'�cran pour installer Windows 10/ Windows 11.
Installer les pilotes
1. Allumez l'ordinateur sous Windows 10/ Windows 11. 2. Ins�rez le disque MSI� DVD Drive dans le lecteur optique. 3. Cliquez sur la fen�tre popup Choisir quoi faire avec ce disque (Select to choose
what happens with this disc), puis choisissez Run DVDSetup.exe pour ouvrir l'outil d'installation. Si vous d�sactivez la fonction AutoPlay dans le panneau de configuration Windows, vous pouvez quand m�me ex�cuter manuellement DVDSetup.exe � partir du chemin d'acc�s depuis la racine du lecteur USB MSI. 4. L'outil d'installation trouvera et listera tous les pilotes dont vous avez besoin dans l'onglet Pilotes/Logiciels (Drivers/Software). 5. Cliquez sur le bouton Installer (Install) dans le coin inf�rieur droit de la fen�tre. 6. L'installation des pilotes commence. Une fois termin�e, il vous sera demand� de red�marrer. 7. Cliquez sur le bouton OK pour terminer. 8. Red�marrez votre ordinateur.
Installer OS, Pilotes et MSI Center 33
MSI Center
MSI Center est une application qui vous aide � optimiser facilement les param�tres de jeu et � utiliser les logiciels de cr�ation de contenu de mani�re intuitive. Elle vous permet �galement de contr�ler et de synchroniser les effets de lumi�re LED sur les PC et autres produits MSI. Avec MSI Center, vous pouvez personnaliser les modes selon vos envies, surveiller les performances du syst�me et r�gler la vitesse du ventilateur. Guide d'utilisation de MSI Center
Si vous souhaitez en savoir plus sur MSI Center, veuillez vous r�f�rer au fichier http://download.msi.com/manual/mb/MSICENTER.pdf ou scannez le code QR pour y acc�der.
Important
Les fonctions peuvent varier en fonction du produit que vous poss�dez.
34 Installer OS, Pilotes et MSI Center
UEFI BIOS
Le BIOS UEFI de MSI est compatible avec l'architecture UEFI (Unified Extensible Firmware Interface). Le BIOS UEFI pr�sente de nombreuses nouvelles fonctionnalit�s et avantages qui ne sont pas propos�s par le BIOS traditionnel. Le BIOS UEFI est ainsi vou� � totalement remplacer le BIOS traditionnel � l'avenir. Le BIOS UEFI de MSI utilise UEFI comme mode de d�marrage par d�faut pour profiter au maximum des capacit�s du nouveau chipset.
Important
Dans ce guide d'utilisation, le terme BIOS se r�f�re au BIOS UEFI, sauf indication contraire.
Avantages de l'UEFI D�marrage rapide - L'UEFI peut d�marrer directement le syst�me d'exploitation et enregistrer le processus d'autotest du BIOS. Il �limine �galement le temps � attendre pour passer en mode CSM pendant le POST. Prend en charge des partitions de disque dur sup�rieures � 2 To. Prend en charge plus de 4 partitions principales avec une table de partition GUID (GPT). Prend en charge un nombre illimit� de partitions. Prend en charge toutes les capacit�s de nouveaux appareils - les nouveaux appareils peuvent ne pas fournir de compatibilit� descendante. Prend en charge le d�marrage s�curis� - L'UEFI peut v�rifier la validit� du syst�me d'exploitation pour s'assurer qu'aucun malware ne perturbe le processus de d�marrage.
Cas d'incompatibilit� avec l'UEFI Syst�me d'exploitation Windows 32 bits - cette carte m�re supporte uniquement le syst�me d'exploitation Windows 10/Windows 11 64 bits. Carte graphique ancienne - le syst�me d�tectera votre carte graphique. Un message d'avertissement appara�t si aucun support GOP (Graphics Output Protocol) n'est d�tect� sur cette carte graphique.
Important
Nous vous recommandons de remplacer votre carte graphique par un mod�le compatible GOP/UEFI ou d'utiliser la puce graphique int�gr�e � votre processeur pour profiter d'un fonctionnement normal. Comment v�rifier le mode BIOS ? 1. Allumez votre ordinateur. 2. Pendant le d�marrage, lorsqu'appara�t le message Press DEL key to enter Setup
Menu, F11 to enter Boot Menu sur l'�cran, veuillez appuyer sur la touche Suppr. 3. Apr�s �tre entr� dans le BIOS, vous pouvez v�rifier le Mode BIOS en haut de
l'�cran. BIOS Mode: UEFI
UEFI BIOS 35
Configuration du BIOS
Les r�glages par d�faut fournissent une performance optimale pour la stabilit� du syst�me en conditions normales. Veillez � toujours garder les r�glages par d�faut pour �viter d'endommager le syst�me ou tout probl�me au d�marrage, sauf si vous �tes familier avec le BIOS.
Important
Le BIOS est constamment mis � jour afin d'offrir de meilleures performances syst�me. Par cons�quent, la description peut diff�rer selon la version du BIOS utilis�e et n'est donc donn�e qu'� titre de r�f�rence. Vous pouvez aussi vous r�f�rer � l'onglet Help (Aide) pour obtenir la description des fonctions du BIOS. Les �crans, les options et les param�tres du BIOS peuvent varier selon votre syst�me.
Entrer dans la configuration du BIOS
Pendant le d�marrage, lorsqu'appara�t le message Press DEL key to enter Setup Menu, F11 to enter Boot Menu sur l'�cran, veuillez appuyer sur la touche Suppr.
Touches de fonction F1 : Liste d'aide g�n�rale F2 : Ajouter ou supprimer un �l�ment favori F3 : Entrer dans le menu Favoris F4 : Entrer dans le menu caract�ristiques du processeur F5 : Entrer dans le menu Memory-Z F6 : Charger les r�glages par d�faut F7 : Alterner entre le mode avanc� et le mode simplifi� F8 : Charger le profil d'overclocking F9 : Sauvegarder le profil d'overclocking F10 : Sauvegarder les modifications et r�initialiser* F12 : Prendre une capture d'�cran et la conserver dans la cl� USB (au format FAT/
FAT32 uniquement) Ctrl+F : Entrer dans la page de recherche * Lorsque vous appuyez sur F10, une fen�tre de confirmation appara�t et fournit l'information de modification. Choisissez entre Oui et Non pour confirmer.
Guide d'utilisation du BIOS
Si vous souhaitez en savoir plus sur la configuration du BIOS, veuillez vous r�f�rer au fichier http://download.msi.com/manual/mb/Intel600BIOSfr.pdf ou scannez le code QR pour y acc�der.
36 UEFI BIOS
R�initialiser le BIOS
Il se peut que vous ayez besoin de r�cup�rer les r�glages BIOS par d�faut pour r�soudre des probl�mes. Pour r�initialiser les r�glages du BIOS, veuillez suivre l'une des m�thodes suivantes : Allez dans le BIOS et appuyez sur F6 pour charger les r�glages par d�faut. Court-circuitez le cavalier Clear CMOS sur la carte m�re.
Important
Assurez-vous que l'ordinateur est �teint avant d'effacer les donn�es CMOS. Veuillez vous r�f�rer � la section cavalier Clear CMOS pour en savoir plus sur la r�initialisation du BIOS.
Mettre le BIOS � jour
Mettre le BIOS � jour avec M-FLASH Avant la mise � jour : Veuillez t�l�charger la derni�re version du BIOS compatible � votre carte m�re sur le site MSI. Ensuite, veuillez sauvegarder le profil BIOS sur la cl� USB. Mettre le BIOS � jour : 1. Ins�rez la cl� USB contenant le fichier de mise � jour au port USB. 2. Veuillez vous r�f�rer aux m�thodes suivantes pour passer en mode flash.
Red�marrez et appuyez sur la touche Ctrl + F5 pendant le processus de POST et cliquez sur Oui pour red�marrer le syst�me.
Press <Ctrl+F5> to activate M-Flash for BIOS update. Red�marrez et appuyez sur la touche Del pendant le processus de POST pour entrer dans le BIOS. Cliquez sur le bouton M-FLASH et cliquez sur Oui pour red�marrer le syst�me.
3. Choisissez un profil BIOS pour commencer la mise � jour du BIOS. 4. Lorsque vous y �tes invit�, cliquez sur Oui pour lancer la restauration du BIOS. 5. Une fois la mise � jour termin�e, le syst�me red�marrera automatiquement.
UEFI BIOS 37
Mettre le BIOS � jour avec MSI Center Avant la mise � jour : Assurez-vous que le lecteur LAN est bien install� et que l'ordinateur est correctement connect� � internet. Veuillez d�sactiver tous les autres logiciels d'application avant de mettre � jour le BIOS. Mettre le BIOS � jour : 1. Installez et lancez MSI Center et acc�dez � la page Support. 2. Choisissez Live Update et cliquez sur le bouton Avanc�. 3. Choisissez le profil BIOS et cliquez sur le bouton Installer. 4. Le rappel d'installation appara�t. Cliquez ensuite sur le bouton Installer. 5. Le syst�me red�marrera automatiquement pour la mise � jour du BIOS. 6. Une fois la mise � jour termin�e, le syst�me red�marrera automatiquement.
38 UEFI BIOS
............................................................ 3 ............................. 4 .................................................................................................. 4
............................................................................. 5 ............................................................................................ 12 / ............................................................. 13
LAN....................................................... 13 .............................................................................. 13 Realtek Audio Console ......................................................................................... 14 ..................................................................... 17 ........................................................................................... 18 DIMM ......................................................................................................... 19 PCI_E1~3: PCIe ................................................................... 20 JFP1, JFP2: ............................................................ 20 M2_1~2: M.2 ( M) ......................................................................... 21 SATA5~8 & SATA_A~B: SATA 6/..................................................... 23 JAUD1: ............................................................ 23 JTBT1: Thunderbolt....................... 24 JDASH1 : ......................................................... 24 CPU_PWR1~2, ATX_PWR1: ................................................... 25 JCI1: ........................................................... 26 JUSB4: USB 3.2 Gen 2 10/ Type-C .................................................... 27 JUSB3: USB 3.2 Gen 1 5/................................................................... 27 JUSB1~2: USB 2.0 ................................................................................ 28 JTPM1: ............................................................................... 28 CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: .................... 29 JBAT1: CMOS ( BIOS) ..................................... 30 EZ...................................................................................... 30 JRGB1: RGB LED..................................................................................... 31 JRAINBOW1~2: RGB LED.................................................... 32 , MSI Center ............................................................ 33 Windows 10/ Windows 11 ................................................................... 33 .......................................................................................... 33 MSI Center ............................................................................................................ 33
1
UEFI BIOS............................................................................................................. 34 BIOS.................................................................................................... 35 BIOS........................................................................................ 35 BIOS .......................................................................... 35 BIOS ........................................................................................................... 36 BIOS................................................................................................. 36
2
, . , , .
, . , .
.
. , , , .
, , .
, .
, . , .
, , .
.
.
.
, , .
, . .
, .
:
.
.
.
.
.
60�C (140�F), .
3
, . �Case standoff keep out zone� (, ) ( ) .
, .
* .
4
Intel� CoreTM 12- , Pentium� Gold Celeron�
LGA1700
* www.msi.com, .
Intel� B660
4x DDR4 128* 1R 2133/ 2666/ 3200 ( JEDEC POR) :
1DPC 1R . 4800+ 1DPC 2R . 4000+ 2DPC 1R . 4000+ 2DPC 2R . 3600+ non-ECC, Intel� Extreme Memory Profile (XMP)
* , www.msi.com
2x PCIe x16 PCI_E1 ( ) PCIe 4.0 x16 PCI_E3 ( B660) PCIe 3.0 x4
1x PCIe 3.0 x1
MultiGPU
2-Way AMD� CrossFireTM
1x HDMI 2.1 HDR, 4K 60*/**
1x DisplayPort 1.4 HBR3, 4K 60*/**
* . ** .
5
RAID
USB
4x SATA 6/ (SATA5~8, B660)* 2x SATA 6/ (SATA_A & SATA_B, ASMedia ASM1061) 2x M.2 ( M)
M2_1 ( ) PCIe 4.0 x4 2242/ 2260 /2280
M2_2 ( B660)* PCIe 4.0 x4 SATA 6/ 2242/ 2260 /2280 Intel� OptaneTM
* SATA8 M.2 SATA SSD M2_2.
RAID 0, RAID 1, RAID 5 RAID 10 SATA*
* SATA_A SATA_B RAID.
Intel� B660 1x USB 3.2 Gen2x2 20/ Type-C 1x USB 3.2 Gen 2 10/ Type-C 2x USB 3.2 Gen 1 5/ 4x USB 2.0
USB GL3590 3x 3.2 Gen 2 10/ Type-A
USB GL850G 4x USB 2.0
Realtek� ALC1200 Codec 7.1- High Definition Audio S/PDIF-out
6
LAN
1x 2.5- Realtek� 8125BG
WiFi Bluetooth� ( MAG B660M MORTAR WIFI DDR4)
Intel� Wi-Fi 6
M.2 ( E)
MU-MIMO TX/RX, 2.4/ 5 (160) 2.4 /
802.11 a/ b/ g/ n/ ac/ ax
Bluetooth� 5.2
1x 24- ATX 2x 8- ATX 12 6x SATA 6/ 2x M.2 ( M) 1x USB 3.2 Gen 2 10/ Type-C 1x USB 3.2 Gen 1 5/ ( 2- USB 3.2 Gen 1 5/) 2x USB 2.0 Type-A ( 4- USB 2.0) 1x 4- 1x 4- Water Pump 2x 4- 1x 2x 1x 1x CMOS 1x TPM 1x TBT ( RTD3) 1x
4x EZ 1x 4- RGB LED 2x 3- RAINBOW LED
7
4x USB 2.0 Type-A 1x DisplayPort 1x HDMI 3x USB 3.2 Gen 2 10/ Type-A 1x 3.2 Gen 2x2 20/ Type-C 1x LAN 2.5/ (RJ45) 2x Wi-Fi ( MAG B660M MORTAR WIFI DDR4) 5x 1x S/PDIF OUT
NUVOTON NCT6687D
//
/ /Pump fan
/ /Pump fan
-
Micro-ATX - 9.6 x 9.6 (24.4 x 24.4 )
BIOS
1x 256 UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4
8
MSI Center
MSI Center Intel Extreme Tuning Utility MSI App Player (BlueStacks) Open Broadcaster Software (OBS) CPU-Z MSI GAMING Google ChromeTM, Google Toolbar, Google Drive NortonTM Internet Security Solution
Gaming Mode Smart Priority Game Highlights LAN Manager Mystic Light Ambient Devices Frozr AI Cooling User Scenario True Color Live Update Hardware Monitoring Super Charger Speed Up Smart Image Finder MSI Companion
9
Audio Boost
2.5G LAN LAN Manager Intel WiFi ( MAG B660M MORTAR WIFI DDR4)
Extended Heatsink Design M.2 Shield Frozr 7W/mK MOSFET thermal pad Choke thermal pad Pump Fan Smart Fan Control
Mystic Light Extension (RGB) Mystic Light Extension (RAINBOW) Mystic Light SYNC Ambient Devices Support EZ LED Control EZ DEBUG LED
10
Lightning Gen 4 PCI-E Lightning Gen 4 M.2 Multi GPU-CrossFire Technology Memory Boost Core Boost Game Boost Lightning USB 20G USB 3.2 Gen 2 10G USB Type A+C USB Type-C Dual CPU Power 2oz Copper thickened PCB
PCI-E Steel Armor
MSI Center EZ M.2 Clip Click BIOS 5 CPU Cooler Tuning Forzr AI Cooling App player Tile ( MAG B660M MORTAR WIFI DDR4)
11
. :
MAG B660M MORTAR WIFI DDR4/ MAG B660M MORTAR DDR4
1
1
SATA 6/ (2 ./.)
1
Wi-Fi ( MAG B660M MORTAR WIFI DDR4) 1
1
EZ M.2 (1 ./.)
2
MAG
1
1
( MAG B660M MORTAR WIFI DDR4)
1
!
- , , .
12
/
DisplayPort
( MAG B660M MORTAR WIFI DDR4) Wi-Fi
LAN 2.5 /
USB 2.0 Type-A
USB 3.2 Gen 2x2 (20/) Type-C
USB 3.2 Gen 2 (10/) Type-A
S/PDIF-Out
LAN
/
.
.
10 /
100/1000 /
2.5 /
2468
/
/
/
(: , : )
/ 13
Realtek Audio Console
Realtek Audio Console , .
� . .
� .
- � , .
� , .
� .
.
, .
!
.
14 /
()
AUDIO INPUT
7.1
AUDIO INPUT Rear Front Side Center/
Subwoofer
/ 15
1. WiFi, . 2. .
1
2
16 /
DIMMA1
CPU_PWR2 CPU_PWR1
JRAINBOW1
DIMMA2 DIMMB1
JSMB1
DIMMB2
CPU_FAN1 PUMP_FAN1
SYS_FAN1
M2_1 PCI_E1
M2_2 PCI_E2 JDASH1 PCI_E3 JAUD1
()
ATX_PWR1
JUSB4 JUSB3
BAT1
JRGB1
JTPM1
SYS_FAN2 JTBT1
SATA7 SATA8
JRAINBOW2
JUSB1
JBAT1 JCI1
JUSB2
SATA A B
SATA 5 6 JFP2 JFP1
17
DIMM.
52.55
LGA1700 LGA1700 . 1.
!
, . , . , , MSI� , . . , , . . . . ( ) . , . , . . ��. , . , . MSI� .
18
DIMM
DIMMA1
DIMMB1
A
B
DIMMA2
DIMMB2
DIMMA2
DIMMA2 DIMMB2
DIMMA1 DIMMA2 DIMMB1 DIMMB2
!
DIMMA2.
, , .
, , SPD (Serial Presence Detect). BIOS DRAM Frequency, .
, , .
.
, www.msi.com .
19
PCI_E1~3: PCIe
PCI_E1: PCIe 4.0 x16 ( )
BAT1
PCI_E2: PCIe 3.0 x1 ( B660)
PCI_E3: PCIe 3.0 x4 ( B660)
!
, , MSI Graphics Card Bolster . PCIe x16 PCI_E1. , . .
JFP1, JFP2:
, .
JFP2 1
+
+-
Buzzer Speaker
1
Speaker -
2
3
Buzzer -
4
Buzzer + Speaker +
Power LED Power Switch
-
-+
++
JFP1
2 1
-
+
10
9
Reserved
HDD LED Reset Switch
1
HDD LED +
2
3
HDD LED -
4
5
Reset Switch
6
7
Reset Switch
8
9
Reserved
10
Power LED + Power LED Power Switch Power Switch
No Pin
20
M2_1~2: M.2 ( M)
!
Intel� RST PCIe M.2 SSD UEFI ROM.
M2_1
M2_2 Intel� OptaneTM.
M2_2
M.2 1. M.2 SHIELD FROZR. 2. M.2 SHIELD FROZR .
2
1
1
M2_1
1
M2_2
2
1
21
3. EZ M.2 M.2 .
!
3 2280 M.2 SSD. 4. M.2 SSD .2 30 . 5. EZ M.2, M.2 SSD.
4
3
30�
5
6. M.2 SHIELD FROZR .
6
6 6
6
22
SATA5~8 & SATA_A~B: SATA 6/
SATA 6/. SATA.
SATA8
SATA7
SATA_B SATA_A SATA6 SATA5
!
SATA . , .
SATA . , .
SATA8 M.2 SATA SSD M2_2.
JAUD1:
.
2
10
1
9
1
MIC L
2
Ground
3
MIC R
4
NC
5
Head Phone R
6
MIC Detection
7
SENSE_SEND
8
No Pin
9
Head Phone L
10
Head Phone Detection
23
JTBT1: Thunderbolt
Thunderbolt.
2
16
1
15
1
TBT_FORCE_PWR
2
3 TBT_CIO_PLUG_EVENT# 4
5
SLP_S3#_TBT
6
7
SLP_S5#_TBT
8
9
Ground
10
11
DG_PEWAKE#
12
13
TBT_RTD3_PWR_EN
14
15
TBT_CARD_DET_R#
16
TBT_S0IX_ENTRY_REQ TBT_S0IX_ENTRY_ACK TBT_PSON_OVERRIDE_N
No Pin SMBCLK_VSB SMBDATA_VSB
Ground PD_IRQ#
JDASH1 :
().
26
15
1
No Pin
2
3
MCU_SMB_SCL_M
4
5
VCC5
6
NC MCU_SMB_SDA_M
Ground
24
CPU_PWR1~2, ATX_PWR1:
ATX.
8 4
5 1
CPU_PWR1~2
1
Ground
5
2
Ground
6
3
Ground
7
4
Ground
8
+12V +12V +12V +12V
1
+3.3V
13
2
+3.3V
14
3
Ground
15
12
24
4
+5V
16
5
Ground
17
6
+5V
18
ATX_PWR1
7
Ground
19
8
PWR OK
20
1
13
9
5VSB
21
10
+12V
22
11
+12V
23
12
+3.3V
24
+3.3V -12V Ground PS-ON# Ground Ground Ground Res +5V +5V +5V Ground
!
.
25
JCI1:
.
( )
1. JCI1. 2. . 3. BIOS > SETTINGS > Security > Chassis Intrusion Configuration. 4. Chassis Intrusion Enabled. 5. F10, ,
Enter, Yes. 6.
.
1. BIOS > SETTINGS > Security > Chassis Intrusion Configuration. 2. Chassis Intrusion, Reset. 3. F10, ,
Enter, Yes.
26
JUSB4: USB 3.2 Gen 2 10/ Type-C
3.2 Gen 2 10/ Type-C . . , .
JUSB4
USB Type-C
USB Type-C
JUSB3: USB 3.2 Gen 1 5/
USB 3.2 Gen 1 5/ .
10
11
1
20
1
Power
11
2
USB3_RX_DN
12
3
USB3_RX_DP
13
4
Ground
14
5
USB3_TX_C_DN
15
6
USB3_TX_C_DP
16
7
Ground
17
8
USB2.0-
18
9
USB2.0+
19
10
Ground
20
USB2.0+ USB2.0Ground USB3_TX_C_DP USB3_TX_C_DN Ground USB3_RX_DP USB3_RX_DN Power No Pin
!
, , .
27
JUSB1~2: USB 2.0
USB 2.0 .
2
10
1
9
1
VCC
2
3
USB0-
4
5
USB0+
6
7
Ground
8
9
No Pin
10
VCC USB1USB1+ Ground
NC
!
, , VCC .
, iPad, iPhone iPod USB, , MSI� Center.
JTPM1:
(Trusted Platform Module). . .
2
12
1
11
1
SPI Power
2
3 Master In Slave Out (SPI Data) 4
5
Reserved
6
7
Ground
8
9
Reserved
10
11
Reserved
12
SPI Chip Select Master Out Slave In (SPI Data)
SPI Clock SPI Reset
No Pin Interrupt Request
28
CPU_FAN1, PUMP_FAN1, SYS_FAN1~2:
: PWM (Pulse Width Modulation) . PWM 12, . , . (PWM DC), .
CPU_FAN1 PUMP_FAN1
CPU_FAN1 PUMP_FAN1 SYS_FAN1~2
PWM PWM DC
.
2 3 1
.
24 36 12
SYS_FAN2 SYS_FAN1
BIOS > HARDWARE MONITOR : PWM DC, .
PWM DC
.
!
, PWM/ DC.
1 PWM
1
Ground
2
+12V
3
Sense
4
Speed Control Signal
1 DC
1
Ground
2
Voltage Control
3
Sense
4
NC
29
JBAT1: CMOS ( BIOS)
CMOS . ( CMOS ), .
( )
/ BIOS
BIOS 1. . 2. , JBAT1
5-10 . 3. JBAT1. 4. .
EZ
.
CPU - . DRAM - DRAM . VGA - . BOOT -
.
30
JRGB1: RGB LED
JRGB 5050 RGB 12.
1
1
+12V
2
G
3
R
4
B
RGB
1
GR B
JRGB
5050 RGB 12
RGB
JRGB
1
GR B
1
RGB
!
JRGB 5050 RGB (12/G/R/B) 2 3 (12).
RGB, .
MSI .
31
JRAINBOW1~2: RGB LED
JRAINBOW RGB WS2812B (5) .
1
JRAINBOW1
1
+5V
3
No Pin
1
JRAINBOW2
2
Data
4
Ground
RGB
1
+5V
D
JRAINBOW
RGB WS2812B (5)
RGB
JRAINBOW
1
1
RGB
!
. JRGB JRAINBOW , 5 JRGB .
!
JRAINBOW RGB WS2812B (5/Data/Ground) 3 (5), 75. 20%, 200 .
RGB, .
MSI .
32
, MSI Center
: msi.com
Windows 10/ Windows 11
1. . 2. Windows 10/ Windows 11
USB USB -, . 3. Restart . 4. F11 POST (Power-On Self Test) , . 5. / USB - . 6. , Press any key to boot from CD or DVD... , . 7. , Windows 10/ Windows 11.
1. Windows 10/ Windows 11. 2. MSI� DVD Drive disc
. 3. Select to choose what happens with this disc
Run DVDSetup.exe, . Windows , DVDSetup.exe USB - MSI USB Drive. 4. Drivers/Software. 5. Install . 6. . . 7. OK . 8. .
MSI Center
MSI Center . MSI Center MSI, , .
MSI Center
MSI Center,
http://download.msi.com/manual/mb/MSICENTER.pdf
QR- -.
!
.
, MSI Center 33
UEFI BIOS
MSI UEFI BIOS UEFI (Unified Extensible Firmware Interface). UEFI , BIOS. UEFI BIOS . , MSI UEFI BIOS UEFI.
!
BIOS UEFI BIOS, .
UEFI - UEFI BIOS. CSM POST. 2 . 4 GUID (GPT). . - . - UEFI , , .
UEFI 32- Windows - Windows 10/ Windows 11 64- . - �There is no GOP (Graphics Output protocol) support detected in this graphics card�.
!
, GOP/UEFI, .
BIOS? 1. . 2. Delete, Press DEL
key to enter Setup Menu, F11 to enter Boot Menu . 3. BIOS BIOS .
BIOS: UEFI
34 UEFI BIOS
BIOS
. BIOS, . , .
!
, BIOS . BIOS . - BIOS, HELP. , BIOS .
BIOS
Delete, Press DEL key to enter Setup Menu, F11 to enter Boot Menu .
F1: F2: / F3: F4: F5: Memory-Z F6: F7: EZ F8: F9: F10: * F12: USB - ( FAT / FAT32
). Ctrl+F:
* F10 . Yes No, .
BIOS
BIOS, http://download.msi.com/manual/mb/Intel600BIOSru.pdf QR- -.
UEFI BIOS 35
BIOS
BIOS . : BIOS F6 . CMOS .
!
, CMOS. BIOS, CMOS.
BIOS
BIOS M-FLASH : , BIOS MSI, . BIOS USB. BIOS: 1. - USB, USB
. 2. .
Ctrl+F5 POST, Yes .
Press <Ctrl+F5> to activate M-Flash for BIOS update.
Del POST BIOS. M-FLASH Yes .
3. BIOS BIOS. 4. Yes
BIOS. 5. ,
.
36 UEFI BIOS
BIOS MSI Center : , . BIOS . BIOS: 1. MSI Center, Support. 2. Live Update Advance. 3. BIOS Install. 4. , Install. 5. BIOS. 6. , .
UEFI BIOS 37
38 UEFI BIOS
........................................................................................... 3 ................................................................................ 4 ............................................................................................ 4
........................................................................................................................ 5 ................................................................................................. 12 I/O....................................................................................................... 13
LANLED ........................................................................................... 13 ......................................................................................... 13 Realtek ................................................................................ 14 .......................................................................................... 17 CPU........................................................................................................... 18 DIMM........................................................................................................ 19 PCI_E1~3: PCIe................................................................................. 20 JFP1JFP2: .................................................................. 20 M2_1~2: M.2 (Key M)................................................................................ 21 SATA5~8 & SATA_A~B: SATA 6Gb/s ................................................... 23 JAUD1: ................................................................... 23 JTBT1: Thunderbolt ........................................................... 24 JDASH1 : ................................................. 24 CPU_PWR1~2ATX_PWR1: ......................................................... 25 JCI1: ..................................................................... 26 JUSB4: USB 3.2 Gen 2 10Gbps Type-C ............................................... 27 JUSB3: USB 3.2 Gen 1 5Gbps.............................................................. 27 JUSB1~2: USB 2.0 ............................................................................... 28 JTPM1: TPM........................................................................ 28 CPU_FAN1PUMP_FAN1SYS_FAN1~2: ................................. 29 JBAT1: CMOS (BIOS) ........................................................ 30 EZ Debug LED....................................................................................................... 30 JRGB1: RGB LED ................................................................................. 31 JRAINBOW1~2: RGB LED......................................................... 32 OSMSI Center................................................. 33 Windows 10/ Windows 11.............................................................. 33 ....................................................................................... 33 MSI Center ............................................................................................................ 33
1
UEFI BIOS............................................................................................................. 34 BIOS ........................................................................................................... 35 BIOS................................................................................. 35 BIOS........................................................................................... 35 BIOS ...................................................................................................... 36 BIOS........................................................................................ 36
2
(ESD)PC (ESD) ESD PC PC PC PCPC
PC 60OC (140OF)
3
PC Case standoff keep out zone()
*
4
CPU
GPU
12Gen Intel� CoreTMPentium� GoldCeleron� * LGA1700
* www.msi.com
Intel� B660
DDR44128GB* 1R 2133/ 2666/ 3200 MHz (JEDEC & POR) :
1DPC 1R4800+ MHz 1DPC 2R4000+ MHz 2DPC 1R4000+ MHz 2DPC 2R3600+ MHz non-ECCun-buffered Intel� Extreme Memory Profile (XMP)
*www.msi.com
PCIe x16 x2 PCI_E1 (CPU) PCIe 4.0 x16 PCI_E3 (B660) PCIe 3.0 x4
PCIe 3.0 x1 x1
2-Way AMD� CrossFireTM
HDRHDMI 2.1 x14K 60Hz */** HBR3DisplayPort 1.4 x14K 60Hz */**
*GPU ** CPU
5
RAID USB LAN
SATA 6Gb/s x4 (SATA5~8B660)* SATA 6Gb/s x2 (SATA_A & SATA_BASMedia ASM1061) M.2 x2 (Key M)
M2_1 (CPU) PCIe 4.0 x4 2242/ 2260/ 2280
M2_2 (B660)* PCIe 4.0 x4 SATA 6Gb/s 2242/ 2260/ 2280 Intel� OptaneTM
* M.2 SATA SSDM2_2SATA8
SATARAID 0RAID 1RAID 5RAID 10*
* SATA_A & SATA_BRAID
Intel� B660 USB 3.2 Gen2x2 20Gbps Type-C x1 USB 3.2 Gen 2 10Gbps Type-C x1 USB 3.2 Gen 1 5Gbps x2 USB 2.0 x4
USB Hub-GL3590 USB 3.2 Gen 2 10Gbps Type-A x3
USB Hub-GL850G USB 2.0 x4
Realtek� ALC1200 7.1HD S/PDIF
Realtek� 8125BG 2.5Gbps LAN x1
6
Intel� Wi-Fi 6
LAN & Bluetooth�
(MAG B660M MORTAR WIFI DDR4 )
M.2 (Key-E)
MU-MIMO TX/RX2.4GHz/ 5GHz (160MHz) 2.4Gbps
802.11 a/ b/ g/ n/ ac/ ax
Bluetooth� 5.2
LED
24ATX x1 8ATX 12V x2 SATA 6Gb/s x6 M.2 x2 (M-Key) USB 3.2 Gen 2 10Gbps Type-C x1 USB 3.2 Gen 1 5Gbps x1 (2USB 3.2 Gen 1 5Gbps) USB 2.0 Type-A x2 (4USB 2.0 ) 4CPU x1 4 x1 4 x2 x1 x2 x1 CMOS x1 TPM x1 TBT x1 (RTD3) x1
EZ Debug LED x4 4RGB LED x1 3RAINBOW LED x2
7
I/O BIOS
USB 2.0 Type-A x4 DisplayPort x1 HDMI x1 USB 3.2 Gen 2 10Gbps Type-A x3 USB 3.2 Gen 2x2 20Gbps Type-C x1 2.5G LAN (RJ45) x1 Wi-Fi x2 (MAG B660M MORTAR WIFI DDR4) x5 S/PDIF x1
NUVOTON NCT6687D
CPU/ / CPU/ / CPU/ /
Micro-ATX 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
256 Mb x1 UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4
MSI Center Intel Extreme Tuning Utility MSI App Player (BlueStacks) Open Broadcaster Software (OBS) CPU-Z MSI GAMING Google ChromeTM, Google Toolbar, Google Drive NortonTM Internet Security Solution
8
MSI Center
Gaming Mode Smart Priority Game Highlights LAN Manager Mystic Light Ambient Devices Frozr AI Cooling User Scenario True Color Live Update Hardware Monitoring Super Charger Speed Up Smart Image Finder MSI Companion
9
MSI
Audio Boost
2.5G LAN LAN Manager Intel WiFi (MAG B660M MORTAR WIFI DDR4)
M.2 Shield Frozr 7W/mK MOSFET
LED Mystic Light (RGB) Mystic Light (RAINBOW) Mystic Light SYNC Ambient EZ LED EZ DEBUG LED
10
MSI
Lightning Gen 4 PCI-E Lightning Gen 4 M.2 GPU-CrossFire Memory Boost Core Boost Game Boost Lightning USB 20G USB 3.2 Gen 2 10G Type A+CUSB USB Type-C CPU 2PCB
PCI-E Steel Armor I/O
MSI Center EZ M.2 Click BIOS 5 CPU Frozr AI App player Tile(MAG B660M MORTAR WIFI DDR4)
11
MAG B660M MORTAR WIFI DDR4/ MAG B660M MORTAR DDR4
1
DVD
1
SATA 6Gb/s (2/)
1
Wi-Fi (MAG B660M MORTAR WIFI DDR4 )
1
1
EZ M.2 (1/)
2
MAG
1
1
(MAG B660M MORTAR WIFI DDR4)
1
12
I/O
DisplayPort
(MAG B660M MORTAR WIFI DDR4) Wi-Fi
2.5 Gbps LAN
USB 2.0 Type-A
USB 3.2 Gen 2x2 (20Gbps) Type-C
S/PDIF
USB 3.2 Gen 2 (10Gbps) Type-A
LANLED
/ LED
Off
LED
Off
10 Mbps 100/1000 Mbps 2.5 Gbps
2468
/
/
/
(: : )
I/O 13
Realtek
Realtek
-
-
-
- PC
-
14 I/O
AUDIO INPUT
7.1
AUDIO INPUT Rear Front Side Center/
Subwoofer
I/O 15
1. 2.
1
2
16 I/O
DIMMA1
CPU_PWR2 CPU_PWR1
JRAINBOW1
DIMMA2 DIMMB1
JSMB1
DIMMB2
CPU_FAN1 PUMP_FAN1
SYS_FAN1
M2_1 PCI_E1
M2_2 PCI_E2 JDASH1 PCI_E3 JAUD1
()
ATX_PWR1
JUSB4 JUSB3
BAT1
JRGB1
JTPM1
SYS_FAN2 JTBT1
SATA7 SATA8
JRAINBOW2
JUSB1
JBAT1 JCI1
JUSB2
SATA A B
SATA 5 6 JFP2 JFP1
17
CPU
CPUDIMM
52.55 mm
LGA1700 CPU LGA1700 CPU4 1
CPU CPUCPUCPU CPUCPU CPUCPUCPU CPUCPU CPUCPU CPU CPUCPU CPUCPU CPUCPUCPU MSI
18
DIMM
DIMMA1
DIMMB1
A
DIMMA2
B DIMMB2
DIMMA2
DIMMA2 DIMMB2
DIMMA1 DIMMA2 DIMMB1 DIMMB2
DIMMA2
SPD BIOSDRAM Frequency
DIMM
CPU
www.msi.com
19
PCI_E1~3: PCIe
PCI_E1: PCIe 4.0 x16 (CPU)
BAT1
PCI_E2: PCIe 3.0 x1 (B660) PCI_E3: PCIe 3.0 x4 (B660)
MSI Graphics Card Bolster
PCIe x16PCI_E1
JFP1JFP2:
LED
JFP2 1
+
+-
Buzzer Speaker
1
Speaker -
2
3
Buzzer -
4
Buzzer + Speaker +
Power LED Power Switch
-
-+
++
JFP1
2 1
-
+
10
9
Reserved
HDD LED Reset Switch
1
HDD LED +
2
3
HDD LED -
4
5
Reset Switch
6
7
Reset Switch
8
9
Reserved
10
Power LED + Power LED Power Switch Power Switch
No Pin
20
M2_1~2: M.2 (Key M)
Intel� RSTUEFI ROMPCIe M.2 SSD
M2_1
M2_2Intel� OptaneTM
M2_2
M.2 1. M.2 SHIELD FROZR 2. M.2 SHIELD FROZR
2
1
1
M2_1
1
M2_2
2
1
21
3. SSDEZ M.2M.2
2280 M.2 SSD3 4. 30�M.2 SSDM.2 5. EZ M.2M.2 SSD
4
3
30�
5
6. M.2 SHIELD FROZR
6
6 6
6
22
SATA5~8 & SATA_A~B: SATA 6Gb/s
SATA 6Gb/s SATA
SATA8
SATA7
SATA_B SATA_A SATA6 SATA5
SATA90
SATA
M.2 SATA SSDM2_2SATA8
JAUD1:
2
10
1
9
1
MIC L
2
Ground
3
MIC R
4
NC
5
Head Phone R
6
MIC Detection
7
SENSE_SEND
8
No Pin
9
Head Phone L
10
Head Phone Detection
23
JTBT1: Thunderbolt
Thunderbolt I/O
2
16
1
15
1
TBT_FORCE_PWR
2
3 TBT_CIO_PLUG_EVENT# 4
5
SLP_S3#_TBT
6
7
SLP_S5#_TBT
8
9
Ground
10
11
DG_PEWAKE#
12
13
TBT_RTD3_PWR_EN
14
15
TBT_CARD_DET_R#
16
TBT_S0IX_ENTRY_REQ TBT_S0IX_ENTRY_ACK TBT_PSON_OVERRIDE_N
No Pin SMBCLK_VSB SMBDATA_VSB
Ground PD_IRQ#
JDASH1 :
26
15
1
No Pin
2
3
MCU_SMB_SCL_M
4
5
VCC5
6
NC MCU_SMB_SDA_M
Ground
24
CPU_PWR1~2ATX_PWR1:
ATX
8 4
5 1
CPU_PWR1~2
1
Ground
5
2
Ground
6
3
Ground
7
4
Ground
8
+12V +12V +12V +12V
1
+3.3V
13
2
+3.3V
14
3
Ground
15
12
24
4
+5V
16
5
Ground
17
6
+5V
18
ATX_PWR1
7
Ground
19
8
PWR OK
20
1
13
9
5VSB
21
10
+12V
22
11
+12V
23
12
+3.3V
24
+3.3V -12V Ground PS-ON# Ground Ground Ground Res +5V +5V +5V Ground
ATX
25
JCI1:
()
1. JCI1/ 2. 3. BIOS > SETTINGS > Security > Chassis Intrusion Configuration 4. Chassis IntrusionEnabled 5. F10Enter
Yes 6.
1. BIOS > SETTINGS > Security > Chassis Intrusion Configuration 2. Chassis IntrusionReset 3. F10Enter
Yes
26
JUSB4: USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-C
JUSB4
USB Type-C
USB Type-C
JUSB3: USB 3.2 Gen 1 5Gbps
USB 3.2 Gen 1 5Gbps
10
11
1
20
1
Power
11
2
USB3_RX_DN
12
3
USB3_RX_DP
13
4
Ground
14
5
USB3_TX_C_DN
15
6
USB3_TX_C_DP
16
7
Ground
17
8
USB2.0-
18
9
USB2.0+
19
10
Ground
20
USB2.0+ USB2.0Ground USB3_TX_C_DP USB3_TX_C_DN Ground USB3_RX_DP USB3_RX_DN Power No Pin
27
JUSB1~2: USB 2.0
USB 2.0
2
10
1
9
1
VCC
2
3
USB0-
4
5
USB0+
6
7
Ground
8
9
No Pin
10
VCC USB1USB1+ Ground
NC
VCC
USBiPadiPhoneiPodMSI� Center
JTPM1: TPM
TPM (Trusted Platform Module)TPM
2
12
1
11
1
SPI Power
2
3 Master In Slave Out (SPI Data) 4
5
Reserved
6
7
Ground
8
9
Reserved
10
11
Reserved
12
SPI Chip Select Master Out Slave In (SPI Data)
SPI Clock SPI Reset
No Pin Interrupt Request
28
CPU_FAN1PUMP_FAN1SYS_FAN1~2:
PWM ()DCPWM 12V DC PWMDC
CPU_FAN1 PUMP_FAN1
SYS_FAN2 SYS_FAN1
CPU_FAN1 PUMP_FAN1 SYS_FAN1~2
PWM
PWM
DC
2A 3A 1A
24W 36W 12W
BIOS > HARDWARE MONITORPWMDC
PWM/DC
CPU
PWM/ DC
1 PWM
1
Ground
2
+12V
3
Sense
4
Speed Control Signal
1 DC
1
Ground
2
Voltage Control
3
Sense
4
NC
29
JBAT1: CMOS (BIOS)
CMOS CMOS
()
CMOS/ BIOS
BIOS 1. PC 2. JBAT15-10 3. JBAT1 4.
EZ Debug LED
LED
CPU - CPU
DRAM - DRAM
VGA - GPU
BOOT -
30
JRGB1: RGB LED
JRGB5050 RGB LED12V
1
1
+12V
2
G
3
R
4
B
RGB LED
1
GR B
JRGB
JRGB
RGB LED
JRGB
1
5050 RGB LED12V
GR B
1
RGB LED
RGB 2m3A (12V) 5050 RGB LED(12V/G/R/B)
RGB LED
MSI LED
31
JRAINBOW1~2: RGB LED
JRAINBOW WS2812BRGB LED5V
1
JRAINBOW1
1
+5V
3
No Pin
1
JRAINBOW2
2
Data
4
Ground
RGB LED
1
+5V
D
JRAINBOW
JRAINBOW
RGB LED
JRAINBOW
1
WS2812B RGB LED5V
1
RGB LED
LEDJRGBJRAINBOW 5V LEDJRGBLED
RAINBOW3A (5V)75 LEDs WS2812B RGB LED (5V/Data/Ground)20% 200 LED
RGB LED
MSI LED
32
OSMSI Center
www.msi.com
Windows 10/ Windows 11
1. PC 2. Windows 10/ Windows 11 3. PC Restart 4. POST (Power-On Self Test) F11 5. 6. Press any key to boot from CD or DVD...
( Enter ) 7. Windows 10/ Windows 11
1. Windows 10/ Windows 11 2. MSI� DVD 3. Select to choose what happens with this disc
Run DVDSetup.exe Windows MSI USB DVDSetup.exe 4. / 5. Install 6. 7. OK 8. PC
MSI Center
MSI Center PC MSI LED MSI Center
MSI Center MSI Center http://download.msi.com/manual/mb/MSICENTER.pdf QR
OSMSI Center 33
UEFI BIOS
MSI UEFI BIOSUEFI (Unified Extensible Firmware Interface) UEFIBIOS BIOSMSI UEFI BIOS UEFI
BIOSUEFI BIOS
UEFI - UEFIBIOS POSTCSM 2 TB GUID Partition TableGPT4 - - UEFI
UEFI 32Windows - Windows 10/ Windows 11 64 - GOP ( Graphics Output Protocol )
GOP / UEFICPU
BIOS 1. PC 2. Press DEL key to enter Setup Menu, F11 to enter Boot Menu
Delete 3. BIOSBIOS
BIOS Mode: UEFI
34 UEFI BIOS
BIOS
BIOS BIOS
BIOSBIOS BIOS HELP BIOS
BIOS
Press DEL key to enter Setup Menu, F11 to enter Boot Menu Delete
F1: F2: Favorites/ F3: Favorites F4: CPU F5: Memory-Z F6: optimized defaults F7: EZ F8: OC F9: OC F10: * F12: USB (FAT/ FAT32
) Ctrl+F: * F10Yes No
BIOS
BIOS http://download.msi.com/manual/mb/Intel600BIOSjp.pdf QR
UEFI BIOS 35
BIOS
BIOSBIOS BIOS<F6>optimized defaults CMOS
CMOSPCBIOS CMOS
BIOS
M-FLASHBIOS : MSIWEBBIOSUSB BIOS: 1. BIOSUSBUSB
2.
POST<Ctrl + F5>Yes Press <Ctrl+F5> to activate M-Flash for BIOS update.
POST<Delete>BIOSM-FLASH Yes
3. BIOSBIOS 4. Yes BIOS 5.
36 UEFI BIOS
MSI CenterBIOS : LAN BIOS: 1. MSI CENTERSupport 2. Live UpdateAdvanced 3. BIOSInstall 4. Install 5. BIOS 6.
UEFI BIOS 37
NOTE
38 UEFI BIOS
................................................................................................................. 3 ............................................................................................ 4 .......................................................................................................... 4
......................................................................................................................... 5 ........................................................................................................... 12 I/O ......................................................................................................... 13
LAN LED ........................................................................................ 13 ............................................................................................. 13 Realtek ............................................................................................... 14 ............................................................................................................ 17 CPU ............................................................................................................... 18 DIMM ............................................................................................................. 19 PCI_E1~3: PCIe ..................................................................................... 20 JFP1, JFP2: ................................................................................ 20 M2_1~2: M.2 (Key M)..................................................................................... 21 SATA5~8 & SATA_A~B: SATA 6Gb/s ......................................................... 23 JAUD1: .................................................................................... 23 JTBT1: .......................................................................... 24 JDASH1 : .............................................................................. 24 CPU_PWR1~2, ATX_PWR1: ............................................................... 25 JCI1: ........................................................................................... 26 JUSB4: USB 3.2 Gen 2 10Gbps Type-C ..................................................... 27 JUSB3: USB 3.2 Gen 1 5Gbps .................................................................... 27 JUSB1~2: USB 2.0 ..................................................................................... 28 JTPM1: TPM ....................................................................................... 28 CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: ............................................. 29 JBAT1: CMOS (Reset BIOS) ............................................................... 30 EZ LED ....................................................................................................... 30 JRGB1: RGB LED ....................................................................................... 31 JRAINBOW1~2: RGB LED ............................................... 32 OS, & MSI ......................................................................... 33 Windows 10/ Windows 11 ....................................................................... 33 .................................................................................................. 33 MSI ................................................................................................................ 33
1
UEFI BIOS............................................................................................................. 34 BIOS () .............................................................................................. 35 BIOS ............................................................................................................... 35 BIOS ................................................................................................ 35 BIOS ............................................................................................................... 36 BIOS() ........................................................................................ 36
2
(ESD) . . , . . ESD . ESD , . . . . , . . . . . PSU PSU . . . . , .
. . . . . 60 � C(140 � F) . .
3
. ( ) .
.
* .
4
CPU
-GPU
12 � TM , � � * LGA1700
* www.msi.com .
� B660
4x DDR4 , 128GB* 1R 2133/2666/3200 MHz (by JEDEC & POR) :
1DPC 1R 4800+ MHz 1DPC 2R 4000+ MHz 2DPC 1R 4000+ MHz 2DPC 2R 3600+ MHz non-ECC, un-buffered � (XMP)
* www.msi.com .
2x PCIe x16 PCI_E1 (CPU) PCIe 4.0 x16 PCI_E3 (B660 ) PCIe 3.0 x4
1x PCIe 3.0 x1
2-Way AMD� CrossFireTM
1x HDR HDMI 2.1, 4K 60Hz */** 1x HBR3 1.4 , 4K 60Hz */**
* . ** CPU .
5
RAID USB LAN
4x SATA 6Gb/s (SATA5~8, B660 )* 2x SATA 6Gb/s (SATA_A & SATA_B, ASMedia ASM1061) 2x M.2 (Key M)
M2_1 (CPU) PCIe 4.0 x4 2242/ 2260/ 2280
M2_2 (B660 )* PCIe 4.0 x4 SATA 6Gb/s 2242/ 2260/ 2280 � OptaneTM Memory Ready
* M2_2 M.2 SATA SSD SATA8 .
RAID 0, RAID 1, RAID 5 RAID 10 (SATA ) *
* SATA_A SATA_B RAID .
� B660 1x USB 3.2 Gen2x2 20Gbps Type-C 1x USB 3.2 Gen 2 10Gbps Type-C 2x USB 3.2 Gen 1 5Gbps 4x USB 2.0
USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A
USB Hub-GL850G 4x USB 2.0
Realtek� ALC1200 7.1- HD S/PDIF
1x Realtek� 8125BG 2.5Gbps LAN
6
LAN & �
(MAG B660M MORTAR WIFI DDR4 )
� Wi-Fi 6 M.2 (Key-E) .
MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) 2.4Gbps 802.11 a/ b/ g/ n/ ac/ ax � 5.2
1x 24 ATX 2x 8 ATX 12V 6x SATA 6Gb/s 2x M.2 (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C 1x USB 3.2 Gen 1 5Gbps ( 2 USB 3.2 Gen 1 5Gbps ) 2x USB 2.0 Type-A ( 4 USB 2.0 ) 1x 4 CPU 1x 4 2x 4 1x 2x 1x 1x CMOS 1x TPM 1x TBT (RTD3 ) 1x
LED
4x EZ LED 1x 4 RGB LED 2x 3 RAINBOW LED
7
I/O BIOS
4x USB 2.0 Type-A 1x 1x HDMI 3x USB 3.2 Gen 2 10Gbps Type-A 1x USB 3.2 Gen 2x2 20Gbps Type-C 1x 2.5G LAN (RJ45) 2x Wi-Fi (MAG B660M MORTAR WIFI DDR4 ) 5x 1x S/PDIF
NUVOTON NCT6687D
CPU// CPU// CPU//
Micro-ATX 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4
MSI MSI App Player (BlueStacks) Open Broadcaster Software (OBS) CPU-Z MSI : TM, , TM
8
MSI
LAN AI True Color MSI
9
2.5G LAN LAN WiFi (MAG B660M MORTAR WIFI DDR4)
M.2 7W/mK MOSFET Choke
LED (RGB) (RAINBOW) EZ LED EZ LED
10
Gen 4 PCI-E Gen 4 M.2 GPU-CrossFire USB 20G USB 3.2 Gen 2 10G USB Type A+C USB Type-C CPU 2oz Copper thickened PCB
PCI-E I/O
MSI EZ M.2 BIOS 5 CPU AI App player (MAG B660M MORTAR WIFI DDR4)
11
. :
MAG B660M MORTAR WIFI DDR4/ MAG B660M MORTAR DDR4
1
DVD
1
SATA 6Gb/s (2 /)
1
Wi-Fi (MAG B660M MORTAR WIFI DDR4)
1
1
EZ M.2 (1/)
2
MAG
1
1
(MAG B660M MORTAR WIFI DDR4)
1
.
12
I/O
(MAG B660M MORTAR WIFI DDR4) Wi-Fi
2.5 Gbps LAN
USB 2.0 Type-A
USB 3.2 Gen 2x2 (20Gbps) Type-C
USB 3.2 Gen 2 (10Gbps) Type-A
S/PDIF-
LAN LED
/ LED
. LAN . .
LED
10 Mbps .
100/1000 Mbps .
2.5 Gbps .
/ / /
(: , : )
2468
I/O 13
Realtek
Realtek .
- . .
- .
- / .
- .
- .
.
.
.
14 I/O
AUDIO INPUT
7.1-
AUDIO INPUT Rear Front Side Center/
Subwoofer
I/O 15
1. . 2.
1
2
16 I/O
DIMMA1
CPU_PWR2 CPU_PWR1
JRAINBOW1
DIMMA2 DIMMB1
JSMB1
DIMMB2
CPU_FAN1 PUMP_FAN1
SYS_FAN1
M2_1 PCI_E1
M2_2 PCI_E2 JDASH1 PCI_E3 JAUD1
()
ATX_PWR1
JUSB4 JUSB3
BAT1
JRGB1
JTPM1
SYS_FAN2 JTBT1
SATA7 SATA8
JRAINBOW2
JUSB1
JBAT1 JCI1
JUSB2
SATA A B
SATA 5 6 JFP2 JFP1
17
CPU
CPU DIMM
52.55 mm
LGA1700 CPU
LGA1700 CPU 4 1 CPU . 1
CPU .
, CPU . CPU MSI (RMA) .
CPU , CPU . CPU .
CPU .
CPU CPU . CPU ( ) .
CPU , CPU .
CPU / , / .
. . . MSI� .
18
DIMM
()
DIMMA1
DIMMB1
A DIMMA2
B DIMMB2
DIMMA2
DIMMA2 DIMMB2
DIMMA1 DIMMA2 DIMMB1 DIMMB2
DIMMA2 .
.
Serial Presence Detect (SPD) . () BIOS DRAM Frequency .
DIMM .
CPU .
www.msi.com .
19
PCI_E1~3: PCIe
PCI_E1: PCIe 4.0 x16 (CPU)
BAT1
PCI_E2: PCIe 3.0 x1 (B660 ) PCI_E3: PCIe 3.0 x4 (B660 )
, MSI .
PCIe x16 PCI_E1 .
. .
JFP1, JFP2:
LED .
JFP2 1
+
+-
Buzzer Speaker
1
Speaker -
2
3
Buzzer -
4
Buzzer + Speaker +
LED
-
-+
++
JFP1
2 1
-
+
10
9
Reserved
HDD LED
1
HDD LED +
2
3
HDD LED -
4
5
Reset Switch
6
7
Reset Switch
8
9
Reserved
10
Power LED + Power LED Power Switch Power Switch
No Pin
20
M2_1~2: M.2 (Key M)
� RST PCIe M.2 SSD UEFI ROM .
M2_1
M2_2 � OptaneTM Memory .
M2_2
M.2 1. M.2 FROZR . 2. M.2 FROZR .
2 1
M2_1
1
M2_2
1
1 2
21
3. EZ M.2 EZ M.2 SSD M.2 .
2280 M.2 SSD 3 . 4. M.2 SSD 30 M.2 . 5. EZ M.2 M.2 SSD .
4
3
30�
5
6. M.2 FROZR .
6
6 6
6
22
SATA5~8 & SATA_A~B: SATA 6Gb/s
SATA 6Gb/s . SATA .
SATA8
SATA7
SATA_B SATA_A SATA6 SATA5
SATA 90 . , .
SATA . .
M2_2 M.2 SATA SSD SATA8 .
JAUD1:
.
2
10
1
9
1
MIC L
2
Ground
3
MIC R
4
NC
5
Head Phone R
6
MIC Detection
7
SENSE_SEND
8
No Pin
9
Head Phone L
10
Head Phone Detection
23
JTBT1:
I/O .
2
16
1
15
1
TBT_FORCE_PWR
2
3 TBT_CIO_PLUG_EVENT# 4
5
SLP_S3#_TBT
6
7
SLP_S5#_TBT
8
9
Ground
10
11
DG_PEWAKE#
12
13
TBT_RTD3_PWR_EN
14
15
TBT_CARD_DET_R#
16
TBT_S0IX_ENTRY_REQ TBT_S0IX_ENTRY_ACK TBT_PSON_OVERRIDE_N
No Pin SMBCLK_VSB SMBDATA_VSB
Ground PD_IRQ#
JDASH1 :
.
26
15
1
No Pin
2
3
MCU_SMB_SCL_M
4
5
VCC5
6
NC MCU_SMB_SDA_M
Ground
24
CPU_PWR1~2, ATX_PWR1:
ATX .
8 4
5 1
CPU_PWR1~2
1
Ground
5
2
Ground
6
3
Ground
7
4
Ground
8
+12V +12V +12V +12V
1
+3.3V
13
2
+3.3V
14
3
Ground
15
12
24
4
+5V
16
5
Ground
17
6
+5V
18
ATX_PWR1
7
Ground
19
8
PWR OK
20
1
13
9
5VSB
21
10
+12V
22
11
+12V
23
12
+3.3V
24
+3.3V -12V Ground PS-ON# Ground Ground Ground Res +5V +5V +5V Ground
ATX .
25
JCI1:
.
( )
1. JCI1 / . 2. . 3. BIOS > SETTINGS > Security > Chassis Intrusion Configuration( )
. 4. Chassis Intrusion ( ) Enabled( ) . 5. F10 . Enter Yes . 6. .
1. BIOS > SETTINGS > Security > Chassis Intrusion Configuration . 2. Chassis Intrusion ( ) Reset ( ) .
3. F10 . Enter Yes .
26
JUSB4: USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-C . (foolproof ) .
JUSB4
USB Type-C
USB Type-C
JUSB3: USB 3.2 Gen 1 5Gbps
USB 3.2 Gen 1 5Gbps .
10
11
1
20
1
Power
11
2
USB3_RX_DN
12
3
USB3_RX_DP
13
4
Ground
14
5
USB3_TX_C_DN
15
6
USB3_TX_C_DP
16
7
Ground
17
8
USB2.0-
18
9
USB2.0+
19
10
Ground
20
USB2.0+ USB2.0Ground USB3_TX_C_DP USB3_TX_C_DN Ground USB3_RX_DP USB3_RX_DN Power No Pin
.
27
JUSB1~2: USB 2.0
USB 2.0 .
2
10
1
9
1
VCC
2
3
USB0-
4
5
USB0+
6
7
Ground
8
9
No Pin
10
VCC USB1USB1+ Ground
NC
VCC .
USB iPad,iPhone iPod MSI� .
JTPM1: TPM
TPM (Trusted Platform Module) . TPM .
2
12
1
11
1
SPI Power
2
3 Master In Slave Out (SPI Data) 4
5
Reserved
6
7
Ground
8
9
Reserved
10
11
Reserved
12
SPI Chip Select Master Out Slave In (SPI Data)
SPI Clock SPI Reset
No Pin Interrupt Request
28
CPU_FAN1, PUMP_FAN1, SYS_FAN1~2:
PWM (Pulse Width Modulation) DC . PWM 12V . DC . PWM DC .
CPU_FAN1 PUMP_FAN1
CPU_FAN1 PUMP_FAN1 SYS_FAN1~2
PWM PWM DC
2A 3A 1A
24W 36W 12W
SYS_FAN2 SYS_FAN1
PWM DC BIOS > HARDWARE MONITOR( ) .
PWM DC
CPU .
PWM/ DC , .
1 PWM
1
Ground
2
+12V
3
Sense
4
Speed Control Signal
1 DC
1
Ground
2
Voltage Control
3
Sense
4
NC
29
JBAT1: CMOS (Reset BIOS)
CMOS . CMOS .
( )
CMOS / BIOS
BIOS 1. 2. JBAT1 5-10 . 3. JBAT1 . 4. .
EZ LED
LED .
CPU -CPU . DRAM -DRAM
. VGA - GPU . BOOT -
.
30
JRGB1: RGB LED
JRGB 5050 RGB LED .
1
1
+12V
2
G
3
R
4
B
RGB LED
1
GR B
JRGB
JRGB
RGB LED
JRGB
1
5050 RGB LED 12V
GR B
1
RGB LED
JRGB 3A (12V) 2 5050 RGB LED (12V/G/R/B) .
RGB LED .
MSI LED .
31
JRAINBOW1~2: RGB LED
JRAINBOW WS2812B RGB LED 5V .
1
JRAINBOW1
1
+5V
3
No Pin
1
JRAINBOW2
2
Data
4
Ground
RGB LED
1
+5V
D
JRAINBOW
JRAINBOW
RGB LED
JRAINBOW
1
WS2812B RGB LED 5V
1
RGB LED
LED . JRGB JRAINBOW , 5V LED JRGB LED .
JRAINBOW 3A(5V) 75 LED WS2812B RGB LED (5V/Data/Ground) . 20% 200 LED .
RGB LED .
MSI LED .
32
OS, & MSI
www.msi.com .
Windows 10/ Windows 11
1. . 2. Windows 10/ Windows 11 /USB . 3. Restart . 4. POST (Power-On Self Test) F11 . 5. Windows 10/ Windows 11 /USB . 6. Press any key to boot from CD or DVD...
. 7. Windows 10/ Windows 11 .
1. Windows 10/ Windows 11 . 2. MSI� USB USB . 3. Select to choose what happens with this disc , Run
DVDSetup.exe . MSI DVDSetup.exe . 4. Drivers/Software . 5. Install . 6. . . 7. OK . 8. .
MSI
MSI . PC MSI LED . MSI , , .
MSI MSI http://download.msi.com/manual/mb/MSICENTER.pdf
QR .
.
OS, & MSI 33
UEFI BIOS
MSI UEFI BIOS UEFI(Unified Extensible Firmware Interface) .UEFI BIOS BIOS . MSI UEFI BIOS UEFI .
`BIOS' `UEFI BIOS' .
UEFI - UEFI BIOS . POST CSM . 2TB . GUID (GPT) 4 . . . . - UEFI .
UEFI 32 Windows - 64 Windows 10 . - . GOP (Graphics Output Protocol) .
GOP/UEFI CPU .
BIOS ? 1. . 2. DEL , F11
Delete . 3. BIOS , BIOS .
BIOS Mode: UEFI
34 UEFI BIOS
BIOS ( )
. BIOS , .
BIOS . BIOS . BIOS HELP( ) . BIOS , .
BIOS
DEL , F11 Delete .
F1: F2: / F3: F4: CPU F5: Memory-Z( -Z) F6: F7: EZ F8: F9: F10: * F12: USB (FAT/ FAT32 ). Ctrl+F: * F10 . Yes( ) No( ) .
BIOS
BIOS http://download.msi.com/manual/mb/Intel600BIOSkr.pdf QR .
UEFI BIOS 35
BIOS
BIOS . BIOS . BIOS F6 . CMOS .
CMOS . BIOS CMOS .
BIOS()
M-FLASH BIOS : BIOS MSI BIOS USB . BIOS : 1. USB USB . 2. .
POST Ctrl + F5 Yes .
Press <Ctrl+F5> to activate M-Flash for BIOS update. BIOS() POST Del . M-FLASH Yes .
3. BIOS BIOS . 4. Yes BIOS . 5. 100% .
36 UEFI BIOS
MSI BIOS : LAN . BIOS , . BIOS : 1. MSI Support . 2. Live Update Advance . 3. BIOS Install . 4. Install . 5. BIOS . 6. BIOS 100% , .
UEFI BIOS 37
NOTE
38 UEFI BIOS
................................................................................................................. 3 ............................................................................................... 4 ................................................................................................... 4
........................................................................................................................ 5 ............................................................................................................... 12 I/O ................................................................................................................ 13
LED .................................................................................... 13 .................................................................................................... 13 Realtek .............................................................................................. 14 ............................................................................................................... 17 CPU ............................................................................................................... 18 ............................................................................................................ 19 PCI_E1~3: PCIe ..................................................................................... 20 JFP1, JFP2: .................................................................................... 20 M2_1~2: M.2 (M ) ...................................................................................... 21 SATA5~8 & SATA_A~B: SATA 6Gb/s ............................................................ 23 JAUD1: ........................................................................................... 23 JTBT1: Thunderbolt .......................................................................... 24 JDASH1: ..................................................................................... 24 CPU_PWR1~2, ATX_PWR1: .................................................................. 25 JCI1: ............................................................................................... 26 JUSB4: USB 3.2 Gen 2 10Gbps Type-C ........................................................ 27 JUSB3: USB 3.2 Gen 1 5Gbps ....................................................................... 27 JUSB1~2: USB 2.0 ........................................................................................ 28 JTPM1: TPM .......................................................................................... 28 CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: ...................................... 29 JBAT1: CMOS ( BIOS) ............................................................ 30 LED ................................................................................................... 30 JRGB1: RGB LED .......................................................................................... 31 JRAINBOW1~2: RGB LED ................................................................. 32 MSI Center ............................................................... 33 Windows 10/ Windows 11............................................................................. 33 ........................................................................................................ 33 MSI Center ............................................................................................................ 33
1
UEFI BIOS............................................................................................................. 34 BIOS .............................................................................................................. 35 BIOS ...................................................................................................... 35 BIOS ................................................................................................... 35 BIOS .............................................................................................................. 36 BIOS .............................................................................................................. 36
2
(ESD)
60�C (140�F)
3
Case standoff keep out zone ()
*
4
12th Gen Intel� CoreTMPentium� Gold Celeron� * LGA1700
* www.msi.com
Intel� B660
4 DDR4 128GB* 1R 2133/ 2666/ 3200 MHz ( JEDEC & POR)
1DPC 1R 4800+ MHz 1DPC 2R 4000+ MHz 2DPC 1R 4000+ MHz 2DPC 2R 3600+ MHz non-ECC Intel� Extreme Memory Profile (XMP)
* www.msi.com
2 PCIe x16 PCI_E1 ( CPU) PCIe 4.0 x16 PCI_E3 ( B660 ) PCIe 3.0 x4
1 PCIe 3.0 x1
2-Way AMD� CrossFireTM
1 HDR HDMI 2.1 4K 60Hz */** 1 HBR3 DisplayPort 1.4 4K 60Hz*/**
* **
5
RAID USB
4 SATA 6Gb/s ( SATA5~8 B660 )* 2 SATA 6Gb/s (SATA_A & SATA_B ASMedia ASM1061) 2 M.2 (M )
M2_1 ( CPU) PCIe 4.0 x4 2242/ 2260/ 2280
M2_2 ( B660 )* PCIe 4.0 x4 SATA 6Gb/s 2242/ 2260/ 2280 Intel� OptaneTM Memory
* M2_2 M.2 SATA SSD SATA8
SATA RAID 0RAID 1RAID 5 RAID 10*
* SATA_A & SATA_B RAID
Intel� B660 1 USB 3.2 Gen2x2 20Gbps Type-C 1 USB 3.2 Gen 2 10Gbps Type-C ( ) 2 USB 3.2 Gen 1 5Gbps () 4 USB 2.0
USB Hub-GL3590 3 USB 3.2 Gen 2 10Gbps Type-A
USB Hub-GL850G 4 USB 2.0
Realtek� ALC1200 7.1 S/PDIF
1 Realtek� 8125BG 2.5Gbps
6
LAN & Bluetooth� ( MAG B660M MORTAR WIFI DDR4)
LED
Intel� Wi-Fi 6 M.2 (E ) MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) 2.4Gbps 802.11 a/ b/ g/ n/ ac/ ax Bluetooth� 5.2
1 24-pin ATX 2 8-pin ATX 12V 6 SATA 6Gb/s 2 M.2 (M ) 1 USB 3.2 Gen 2 10Gbps Type-C 1 USB 3.2 Gen 1 5Gbps ( 2 USB 3.2 Gen 1 5Gbps ) 2 USB 2.0 Type-A ( 4 USB 2.0 ) 1 4-pin CPU 1 4-pin 2 4-pin 1 2 1 1 CMOS 1 TPM 1 TBT ( RTD3) 1
4 EZ LED 1 4-pin RGB LED 2 3-pin RAINBOW LED
7
I/O BIOS
4 USB 2.0 Type-A 1 DisplayPort 1 HDMI 3 USB 3.2 Gen 2 10Gbps Type-A 1 USB 3.2 Gen 2x2 20Gbps Type-C 1 2.5G (RJ45) 2 Wi-Fi ( MAG B660M MORTAR WIFI DDR4) 5 1 S/PDIF
NUVOTON NCT6687D
CPU// CPU// CPU//
Micro-ATX 9.6 x 9.6 (24.4 x 24.4 )
1 256 Mb flash UEFI AMI BIOS ACPI 6.4SMBIOS 3.4
MSI Center Intel Extreme Tuning Utility MSI App Player (BlueStacks) Open Broadcaster Software (OBS) CPU-Z MSI GAMING Google ChromeTMGoogle Google NortonTM Internet Security Solution
8
MSI Center
Gaming Mode Smart Priority Game Highlights Mystic Light Ambient Devices Frozr AI Cooling User Scenario True Color Live Update Super Charger Speed Up Smart Image Finder MSI Companion
9
2.5G Intel WiFi ( MAG B660M MORTAR WIFI DDR4)
M.2 Shield Frozr 7W/mK MOSFET
LED (RGB) (RAINBOW) Ambient Devices Support EZ LED LED
10
Lightning Gen 4 PCI-E Lightning Gen 4 M.2 -CrossFire Memory Boost Lightning USB 20G USB 3.2 Gen 2 10G USB Type A+C USB Type-C CPU Power 2 PCB
PCI-E I/O
MSI Center M.2 BIOS CPU Cooler Tuning Frozr AI Cooling App player Tile ( MAG B660M MORTAR WIFI DDR4)
11
MAG B660M MORTAR WIFI DDR4/ MAG B660M MORTAR DDR4
1
DVD
1
SATA 6Gb/s (2 /)
1
Wi-Fi ( MAG B660M MORTAR WIFI DDR4)
1
1
M.2 (1 /)
2
MAG
1
1
( MAG B660M MORTAR WIFI DDR4)
1
12
I/O
DisplayPort
( MAG B660M MORTAR WIFI DDR4) Wi-Fi
2.5 Gbps
USB 2.0 Type-A
USB 3.2 Gen 2x2 (20Gbps) Type-C
USB 3.2 Gen 2 (10Gbps )Type-A
S/PDIF-
LED
/
10 Mbps 100/ 1000 Mbps 2.5 Gbps
2468
/
/
/
(: : )
I/O 13
Realtek
Realtek
-
-
-
-
-
14 I/O
AUDIO INPUT
7.1
AUDIO INPUT Rear Front Side Center/
Subwoofer
I/O 15
1. 2.
1
2
16 I/O
CPU_PWR2 CPU_PWR1
DIMMA1
JRAINBOW1
DIMMA2 DIMMB1
JSMB1
DIMMB2
CPU_FAN1 PUMP_FAN1
SYS_FAN1
M2_1 PCI_E1
M2_2 PCI_E2 JDASH1 PCI_E3 JAUD1
()
ATX_PWR1
JUSB4 JUSB3
BAT1
JRGB1
JTPM1
SYS_FAN2 JTBT1
SATA7 SATA8
JRAINBOW2
JUSB1
JBAT1 JCI1
JUSB2
SATA A B
SATA 5 6 JFP2 JFP1
17
CPU
CPU DIMM
52.55 mm
LGA1700 CPU LGA1700 CPU
CPU CPU Return Merchandise Authorization (RMA) CPU CPU CPU CPU CPU CPU CPU CPU / / MSI�
18
DIMMA1
DIMMB1
A DIMMA2
B DIMMB2
DIMMA2
DIMMA2 DIMMB2
DIMMA1 DIMMA2 DIMMB1 DIMMB2
DIMMA2
Serial Presence Detect (SPD) BIOS DRAM Frequency
CPU
www.msi.com
19
PCI_E1~3: PCIe
PCI_E1: PCIe 4.0 x16 ( CPU)
BAT1
PCI_E2: PCIe 3.0 x1 ( B660 ) PCI_E3PCIe 3.0 x4 ( B660 )
MSI PCIe x16 PCI_E1
JFP1, JFP2:
LED
JFP2 1
1
Speaker -
3
Buzzer -
+
+-
Buzzer
Speaker
2
Buzzer +
4
Speaker +
Power LED Power Switch
-
-+
++
JFP1
2 1
-
+
10
9
Reserved
HDD LED Reset Switch
1
HDD LED +
2
3
HDD LED -
4
5
Reset Switch
6
7
Reset Switch
8
9
Reserved
10
Power LED + Power LED Power Switch Power Switch
No Pin
20
M2_1~2: M.2 (M )
Intel� RST PCIe M.2 SSD UEFI ROM
M2_1
M2_2 Intel� OptaneTM Memory
M2_2
M.2 1. M.2 SHIELD FROZR 2. M.2 SHIELD FROZR
2 1
M2_1
1
M2_2
1
1 2
21
3. SSD M.2 M.2
2280 M.2 SSD 3 4. M.2 SSD 30 M.2 5. M.2 M.2 SSD
4
3
30�
5
6. M.2 SHIELD FROZR
6
6 6
6
22
SATA5~8 & SATA_A~B: SATA 6Gb/s
SATA 6Gb/s SATA
SATA8
SATA7
SATA_B SATA_A SATA6 SATA5
SATA 90 SATA M2_2 M.2 SATA SSD SATA8
JAUD1:
2
10
1
9
1
MIC L
2
Ground
3
MIC R
4
NC
5
Head Phone R
6
MIC Detection
7
SENSE_SEND
8
No Pin
9
Head Phone L
10
Head Phone Detection
23
JTBT1: Thunderbolt
Thunderbolt I/O
2
16
1
15
1
TBT_FORCE_PWR
2
3 TBT_CIO_PLUG_EVENT# 4
5
SLP_S3#_TBT
6
7
SLP_S5#_TBT
8
9
Ground
10
11
DG_PEWAKE#
12
13
TBT_RTD3_PWR_EN
14
15
TBT_CARD_DET_R#
16
TBT_S0IX_ENTRY_REQ TBT_S0IX_ENTRY_ACK TBT_PSON_OVERRIDE_N
No Pin SMBCLK_VSB SMBDATA_VSB
Ground PD_IRQ#
JDASH1:
26
15
1
No Pin
2
3
MCU_SMB_SCL_M
4
5
VCC5
6
NC MCU_SMB_SDA_M
Ground
24
CPU_PWR1~2, ATX_PWR1:
ATX
8 4
5 1
CPU_PWR1~2
1
Ground
5
2
Ground
6
3
Ground
7
4
Ground
8
+12V +12V +12V +12V
1
+3.3V
13
2
+3.3V
14
3
Ground
15
12
24
4
+5V
16
5
Ground
17
6
+5V
18
ATX_PWR1
7
Ground
19
8
PWR OK
20
1
13
9
5VSB
21
10
+12V
22
11
+12V
23
12
+3.3V
24
+3.3V -12V Ground PS-ON# Ground Ground Ground Res +5V +5V +5V Ground
ATX
25
JCI1:
()
1. JCI1 2. 3. BIOS > SETTINGS > Security > Chassis Intrusion Configuration 4. Chassis Intrusion Enabled 5. F10 Enter Yes 6.
1. BIOS > SETTINGS > Security > Chassis Intrusion Configuration. 2. Chassis Intrusion Reset 3. F10 Enter Yes
26
JUSB4: USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2 10GbpsType-C
JUSB4
USB Type-C
USB Type-C
JUSB3: USB 3.2 Gen 1 5Gbps
USB 3.2 Gen 1 5Gbps
10
11
1
20
1
Power
11
2
USB3_RX_DN
12
3
USB3_RX_DP
13
4
Ground
14
5
USB3_TX_C_DN
15
6
USB3_TX_C_DP
16
7
Ground
17
8
USB2.0-
18
9
USB2.0+
19
10
Ground
20
USB2.0+ USB2.0Ground USB3_TX_C_DP USB3_TX_C_DN Ground USB3_RX_DP USB3_RX_DN Power No Pin
27
JUSB1~2: USB 2.0
USB 2.0
2
10
1
9
1
VCC
2
3
USB0-
4
5
USB0+
6
7
Ground
8
9
No Pin
10
VCC USB1USB1+ Ground
NC
VCC USB iPadiPhone iPod MSI� Center
JTPM1: TPM
(TPM) TPM
2
12
1
11
1
SPI Power
2
3
Master In Slave Out (SPI Data)
4
5
Reserved
6
7
Ground
8
9
Reserved
10
11
Reserved
12
SPI Chip Select Master Out Slave In
(SPI Data) SPI Clock SPI Reset
No Pin Interrupt Request
28
CPU_FAN1, PUMP_FAN1, SYS_FAN1~2:
(PWM) DC PWM 12V DC PWM DC
CPU_FAN1 PUMP_FAN1
CPU_FAN1 PUMP_FAN1 SYS_FAN1~2
PWM PWM DC
2A 3A 1A
24W 36W 12W
SYS_FAN2 SYS_FAN1
BIOS > HARDWARE MONITOR PWM DC
PWM DC
CPU
PWM/ DC
1 PWM
1
Ground
2
+12V
1
3
Sense
4
Speed Control Signal
3
1
Ground Sense
DC
2
Voltage Control
4
NC
29
JBAT1: CMOS ( BIOS)
CMOS CMOS
()
CMOS/ BIOS
BIOS 1. 2. JBAT1 5-10 3. JBAT1 4.
LED
LED
CPU - CPU DRAM - VGA - BOOT -
30
JRGB1: RGB LED
JRGB 5050 RGB LED (12V)
1
1
+12V
2
G
3
R
4
B
RGB LED
1
GR B
JRGB
JRGB
RGB LED
JRGB
1
5050 RGB LED 12V
GR B
1
RGB LED
JRGB 2 5050 RGB LED (12V/G/R/B) 3A (12V)
RGB LED
MSI LED
31
JRAINBOW1~2: RGB LED
JRAINBOW WS2812B RGB LED 5V
1
JRAINBOW1
1
+5V
3
No Pin
1
JRAINBOW2
2
Data
4
Ground
RGB LED
1
+5V
D
JRAINBOW
JRAINBOW
RGB LED
JRAINBOW
1
WS2812B RGB LED 5V
1
RGB LED
LED JRGB JRAINBOW 5V LED JRGB LED
JRAINBOW 75 LED WS2812B RGB LED (5V/ Data/Ground) 3A (5V) 20% LED 200
RGB LED
MSI LED
32
MSI Center
www.msi.com
Windows 10/ Windows 11
1. 2. Windows 10/ Windows 11 / USB 3. 4. (POST) F11 5. Windows 10/ Windows 11 / USB 6. Press any key to boot from CD or DVD...
7. Windows 10/ Windows 11
1. Windows 10/ Windows 11 2. MSI� 3. DVDSetup.exe
Windows MSI USB DVDSetup.exe 4. / 5. 6. 7. 8.
MSI Center
MSI Center MSI LED MSI Center
MSI Center MSI Center http://download.msi.com/manual/mb/MSICENTERCT.pdf
MSI Center 33
UEFI BIOS
MSI UEFI BIOS UEFI (Unified Extensible Firmware Interface) UEFI BIOS BIOSMSI UEFI BIOS UEFI
BIOS UEFI BIOS UEFI - UEFI BIOS POST CSM 2 TB GUID (GPT) - - UEFI UEFI 32 Windows - 64 Windows 10/ Windows 11 - There is no GOP (Graphics Output protocol) support detected in this graphics card. GOP (Graphics Output protocol)
GOP/UEFI CPU BIOS ? 1. 2. DEL F11
Delete 3. BIOS BIOS
BIOS Mode: UEFI
34 UEFI BIOS
BIOS
BIOS
BIOS BIOS HELP BIOS BIOS
BIOS
DEL F11 Delete F1: F2: / F3: F4: CPU F5: Memory-Z F6: F7: EZ F8: F9: F10: * F12: USB ( FAT/ FAT32 ) Ctrl+F: * F10
BIOS
BIOS http://download.msi.com/manual/mb/Intel600BIOStc.pdf
UEFI BIOS 35
BIOS
BIOS BIOS BIOS F6 CMOS
CMOS CMOS BIOS
BIOS
M-FLASH BIOS MSI BIOS BIOS USB BIOS: 1. USB USB 2.
POST Ctrl + F5 Press <Ctrl+F5> to activate M-Flash for BIOS update.
POST Del BIOS M-FLASH
3. BIOS BIOS 4. Yes BIOS 5. 100%
36 UEFI BIOS
MSI Center BIOS BIOS BIOS 1. MSI Center Support 2. Live Update Advance 3. BIOS Install 4. Install 5. BIOS 6. 100%
UEFI BIOS 37
38 UEFI BIOS
................................................................................................................. 3 ................................................................................................... 4 ................................................................................................... 4
........................................................................................................................ 5 ............................................................................................................... 12 I/O ........................................................................................................ 13
LAN LED ........................................................................................... 13 ........................................................................................................ 13 Realtek .............................................................................................. 14 ............................................................................................................... 17 CPU ............................................................................................................... 18 DIMM ............................................................................................................ 19 PCI_E1~3: PCIe ..................................................................................... 20 JFP1, JFP2: .................................................................................... 20 M2_1~2: M.2 (M ) ...................................................................................... 21 SATA5~8 & SATA_A~B: SATA 6Gb/s ............................................................ 23 JAUD1: ........................................................................................... 23 JTBT1: Thunderbolt .......................................................................... 24 JDASH1 : .................................................................................... 24 CPU_PWR1~2, ATX_PWR1: .................................................................. 25 JCI1: ........................................................................................ 26 JUSB4: USB 3.2 Gen 2 10Gbps Type-C ........................................................ 27 JUSB3: USB 3.2 Gen 1 5Gbps ....................................................................... 27 JUSB1~2: USB 2.0 ........................................................................................ 28 JTPM1: TPM .......................................................................................... 28 CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: ............................................. 29 JBAT1: CMOS ( BIOS) .................................................................... 30 LED ................................................................................................... 30 JRGB1: RGB LED .......................................................................................... 31 JRAINBOW1~2: RGB LED .................................................................... 32 MSI Center ............................................................... 33 Windows 10/ Windows 11............................................................................. 33 ................................................................................................................ 33 MSI Center ............................................................................................................ 33
1
UEFI BIOS............................................................................................................. 34 BIOS .............................................................................................................. 35 BIOS ...................................................................................................... 35 BIOS ....................................................................................................... 35 BIOS .............................................................................................................. 36 BIOS .............................................................................................................. 36
2
(ESD) (ESD) ESD
60 ( 140 )
3
Case standoff keep out zone ()
*
4
CPU
GPU
Intel� CoreTMPentium� Gold Celeron� * LGA1700
* www.msi.com
Intel� B660
4 DDR4 128GB* 1R 2133/ 2666/ 3200 MHz ( JEDEC POR)
1DPC 1R 4800+ MHz 1DPC 2R 4000+ MHz 2DPC 1R 4000+ MHz 2DPC 2R 3600+ MHz -ECC- Intel� (XMP)
* www.msi.com
2 PCIe x16 PCI_E1 ( CPU) PCIe 4.0 x16 PCI_E3 ( B660 ) PCIe 3.0 x4
1 PCIe 3.0 x1
2-Way AMD� CrossFireTM
1 HDR HDMI 2.1 4K 60Hz */** 1 HBR3 DisplayPort 1.4 4K 60Hz*/**
* ** CPU
5
RAID USB LAN
6
4 SATA 6Gb/s (SATA5~8 B660 )* 2 SATA 6Gb/s (SATA_A SATA_B ASMedia ASM1061) 2 M.2 (M )
M2_1 ( CPU) PCIe 4.0 x4 2242/ 2260/ 2280
M2_2 ( B660 )* PCIe 4.0 x4 SATA 6Gb/s 2242/ 2260/ 2280 � (Optane)TM
* M2_2 M.2 SATA SATA8
SATA RAID 0RAID 1RAID 5 RAID 10*
* SATA_A SATA_B RAID
Intel� B660 1 USB 3.2 Gen2x2 20Gbps Type-C 1 USB 3.2 Gen 2 10Gbps Type-C 2 USB 3.2 Gen 1 5Gbps 4 USB 2.0
USB Hub-GL3590 3 USB 3.2 Gen 2 10Gbps Type-A
USB Hub-GL850G 4 USB 2.0
Realtek� ALC1200 7.1- S/PDIF
1 Realtek� 8125BG 2.5Gbps
� ( MAG B660M MORTAR WIFI DDR4)
Intel� Wi-Fi 6 M2 (E-) MU-MIMO TX/RX2.4GHz/ 5GHz (160Mhz) 2.4Gbps 802.11 a/ b/ g/ n/ ac/ ax � 5.2
1 24-pin ATX 2 8-pin ATX 12V 6 SATA 6Gb/s 2 M.2 (M-) 1 USB 3.2 Gen 2 10Gbps Type-C 1 USB 3.2 Gen 1 5Gbps ( 2 USB 3.2 Gen 1 5Gbps ) 2 USB 2.0 Type-A ( 4 USB 2.0 ) 1 4-pin CPU 1 4-pin 2 4-pin 1 2 1 1 CMOS 1 TPM 1 TBT ( RTD3) 1
LED
4 LED 1 4-pin RGB LED 2 3-pin LED
7
I/O BIOS
4 USB 2.0 Type-A 1 DisplayPort 1 HDMI 3 USB 3.2 Gen 2 10Gbps Type-A 1 USB 3.2 Gen 2x2 20Gbps Type-C 1 2.5G LAN (RJ45) 2 Wi-Fi ( MAG B660M MORTAR WIFI DDR4) 5 1 S/PDIF
NUVOTON NCT6687D
CPU/ / CPU/ / CPU/ /
Micro-ATX 9.6 x 9.6 (24.4 x 24.4 )
1 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4
MSI Center MSI App (BlueStacks) (OBS) MSI GAMING CPU-Z Google TMGoogle Google TM
8
MSI Center
Gaming Game RGB LED True Color Live Update MSI Companion
9
2.5G LAN Intel WiFi ( MAG B660M MORTAR WIFI DDR4)
M.2 7W/mK MOSFET
LED (RGB) (RAINBOW) LED LED
10
Lightning Gen 4 PCI-E Lightning Gen 4 M.2 -CrossFire Game Boost Lightning () USB 20G USB 3.2 Gen 2 10G USB Type A+C USB Type-C CPU 2PCB
PCI-E I/O
MSI Center M.2 BIOS CPU App Tile ( MAG B660M MORTAR WIFI DDR4)
11
MAG B660M MORTAR WIFI DDR4/ MAG B660M MORTAR DDR4
1
DVD
1
SATA 6Gb/s (2 /)
1
Wi-Fi ( MAG B660M MORTAR WIFI DDR4)
1
1
M.2 (1 /)
2
MAG
1
1
( MAG B660M MORTAR WIFI DDR4)
1
12
I/O
DisplayPort
( MAG B660M MORTAR WIFI DDR4) Wi-Fi
2.5 Gbps LAN
USB 2.0 Type-A
USB 3.2 Gen 2x2 (20Gbps) Type-C
USB 3.2 Gen 2 (10Gbps) Type-A
S/PDIF
LAN LED
/
10 Mbps 100/1000 Mbps 2.5 Gbps
/ / /
()
2468
I/O 13
Realtek
Realtek
-
-
- /
-
-
14 I/O
AUDIO INPUT
7.1-
AUDIO INPUT Rear Front Side Center/
Subwoofer
I/O 15
1. 2.
1
2
16 I/O
CPU_PWR2 CPU_PWR1
DIMMA1
JRAINBOW1
DIMMA2 DIMMB1
JSMB1
DIMMB2
CPU_FAN1 PUMP_FAN1
SYS_FAN1
M2_1 PCI_E1
M2_2 PCI_E2 JDASH1 PCI_E3 JAUD1
()
ATX_PWR1
JUSB4 JUSB3
BAT1
JRGB1
JTPM1
SYS_FAN2 JTBT1
SATA7 SATA8
JRAINBOW2
JUSB1
JBAT1 JCI1
JUSB2
SATA A B
SATA 5 6 JFP2 JFP1
17
CPU
CPU DIMM
52.55
LGA1700 CPU CPU LGA1700 CPU Pin 1
CPU CPU (RMA) CPU CPU CPU CPU CPU CPU CPU CPU CPU ( ) CPU CPU CPU / / MSI�
18
DIMM
DIMMA1
DIMMB1
A DIMMA2
B DIMMB2
DIMMA2
DIMMA2 DIMMB2
DIMMA1 DIMMA2 DIMMB1 DIMMB2
DIMMA2 (SPD) BIOS DRAM Frequency DIMM CPU www.msi.com
19
PCI_E1~3: PCIe
PCI_E1: PCIe 4.0 x16 ( CPU)
BAT1
PCI_E2: PCIe 3.0 x1 ( B660 ) PCI_E3: PCIe 3.0 x4 ( B660 )
MSI PCIe x16 PCI_E1
JFP1, JFP2:
LED
JFP2 1
1
Speaker -
3
Buzzer -
+
+-
Buzzer
Speaker
2
Buzzer +
4
Speaker +
Power LED Power Switch
-
-+
++
JFP1
2 1
-
+
10
9
Reserved
HDD LED Reset Switch
1
HDD LED +
2
3
HDD LED -
4
5
Reset Switch
6
7
Reset Switch
8
9
Reserved
10
Power LED + Power LED Power Switch Power Switch
No Pin
20
M2_1~2: M.2 (M )
Intel� RST UEFI ROM PCIe M.2
M2_1
M2_2 � (Optane)TM
M2_2
M.2 1. M.2 2. M.2
2 1
M2_1
1
M2_2
1
1 2
21
3. M.2 M.2
2280 M.2 3 4. M.2 30 M.2 5. M.2 M.2
4
3
30�
5
6. M.2
6
6 6
6
22
SATA5~8 & SATA_A~B: SATA 6Gb/s
SATA 6Gb/s SATA
SATA8
SATA7
SATA_B SATA_A SATA6 SATA5
SATA 90 SATA M2_2 M.2 SATA SATA8
JAUD1:
2
10
1
9
1
MIC L
2
Ground
3
MIC R
4
NC
5
Head Phone R
6
MIC Detection
7
SENSE_SEND
8
No Pin
9
Head Phone L
10
Head Phone Detection
23
JTBT1: Thunderbolt
Thunderbolt I/O
2
16
1
15
1
TBT_FORCE_PWR
2
3 TBT_CIO_PLUG_EVENT# 4
5
SLP_S3#_TBT
6
7
SLP_S5#_TBT
8
9
Ground
10
11
DG_PEWAKE#
12
13
TBT_RTD3_PWR_EN
14
15
TBT_CARD_DET_R#
16
TBT_S0IX_ENTRY_REQ TBT_S0IX_ENTRY_ACK TBT_PSON_OVERRIDE_N
No Pin SMBCLK_VSB SMBDATA_VSB
Ground PD_IRQ#
JDASH1 :
26
15
1
No Pin
2
3
MCU_SMB_SCL_M
4
5
VCC5
6
NC MCU_SMB_SDA_M
Ground
24
CPU_PWR1~2, ATX_PWR1:
ATX
8 4
5 1
CPU_PWR1~2
1
Ground
5
2
Ground
6
3
Ground
7
4
Ground
8
+12V +12V +12V +12V
1
+3.3V
13
2
+3.3V
14
3
Ground
15
12
24
4
+5V
16
5
Ground
17
6
+5V
18
ATX_PWR1
7
Ground
19
8
PWR OK
20
1
13
9
5VSB
21
10
+12V
22
11
+12V
23
12
+3.3V
24
+3.3V -12V Ground PS-ON# Ground Ground Ground Res +5V +5V +5V Ground
ATX
25
JCI1:
()
1. JCI1 2. 3. BIOS > SETTINGS > Security > Chassis Intrusion Configuration 4. Chassis Intrusion Enabled 5. F10 Enter Yes 6.
1. BIOS > SETTINGS > Security > Chassis Intrusion Configuration 2. Chassis Intrusion Reset 3. F10 Enter Yes
26
JUSB4: USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-C
JUSB4
USB Type-C
USB Type-C
JUSB3: USB 3.2 Gen 1 5Gbps
USB 3.2 Gen 1 5Gbps
10
11
1
20
1
Power
11
2
USB3_RX_DN
12
3
USB3_RX_DP
13
4
Ground
14
5
USB3_TX_C_DN
15
6
USB3_TX_C_DP
16
7
Ground
17
8
USB2.0-
18
9
USB2.0+
19
10
Ground
20
USB2.0+ USB2.0Ground USB3_TX_C_DP USB3_TX_C_DN Ground USB3_RX_DP USB3_RX_DN Power No Pin
27
JUSB1~2: USB 2.0
USB 2.0
2
10
1
9
1
VCC
2
3
USB0-
4
5
USB0+
6
7
Ground
8
9
No Pin
10
VCC USB1USB1+ Ground
NC
VCC
iPadiPhone iPod USB MSI� Center
JTPM1: TPM
TPM () TPM
2
12
1
11
1
SPI Power
2
3 Master In Slave Out (SPI Data) 4
5
Reserved
6
7
Ground
8
9
Reserved
10
11
Reserved
12
SPI Chip Select Master Out Slave In (SPI Data)
SPI Clock SPI Reset
No Pin Interrupt Request
28
CPU_FAN1, PUMP_FAN1, SYS_FAN1~2:
PWM () DC PWM 12V DC PWM DC
CPU_FAN1 PUMP_FAN1
CPU_FAN1 PUMP_FAN1 SYS_FAN1~2
PWM PWM DC
2A 3A 1A
24W 36W 12W
SYS_FAN2 SYS_FAN1
PWM DC BIOS > HARDWARE MONITOR
PWM DC
CPU
PWM/ DC
1 PWM
1
Ground
2
+12V
1
3
Sense
4
Speed Control Signal
3
1
Ground Sense
DC
2
Voltage Control
4
NC
29
JBAT1: CMOS ( BIOS)
CMOS CMOS
()
CMOS/ BIOS
BIOS 1. 2. JBAT1 5-10 3. JBAT1 4.
LED
LED
CPU - CPU DRAM - DRAM VGA - GPU BOOT -
30
JRGB1: RGB LED
JRGB 5050 RGB LED 12V
1
1
+12V
2
G
3
R
4
B
RGB LED
1
GR B
JRGB
JRGB
RGB LED
JRGB
1
5050 RGB LED 12V
GR B
1
RGB LED
JRGB 2 5050 RGB LED (12V/G/R/B) 3A (12V)
RGB LED
MSI LED
31
JRAINBOW1~2: RGB LED
JRAINBOW WS2812B RGB LED 5V
1
JRAINBOW1
1
+5V
3
No Pin
1
JRAINBOW2
2
Data
4
Ground
RGB LED
1
+5V
D
JRAINBOW
JRAINBOW
RGB LED
JRAINBOW
1
WS2812B RGB LED 5V
1
RGB LED
LED JRGB JRAINBOW 5V LED JRGB LED
JRAINBOW 75 LED WS2812B RGB LED (5V/Data/Ground) 3A (5V) 20% 200 LED
RGB LED
MSI LED
32
MSI Center
msi.com
Windows 10/ Windows 11
1. 2. Windows 10/ Windows 11 / U 3. Restart 4. POST () F11 5. Windows 10/ Windows 11 / U 6. Press any key to boot from CD or DVD...
7. Windows 10/ Windows 11
1. Windows 10/ Windows 11 2. MSI� DVD 3. Select to choose what happens with this disc Run
DVDSetup.exe Windows AutoPlay MSI U DVDSetup.exe 4. Drivers/Software 5. Install 6. 7. OK 8.
MSI Center
MSI Center PC MSI LED MSI Center
MSI Center MSI Center http://download.msi.com/manual/mb/MSICENTERCS.pdf QR
MSI Center 33
UEFI BIOS
MSI UEFI BIOS UEFI (Unified Extensible Firmware Interface) UEFI BIOS BIOSMSI UEFI BIOS UEFI
BIOS UEFI BIOS UEFI - UEFI BIOS POST CSM 2 TB GUID (GPT) 4 - - UEFI UEFI 32 Windows - Windows 10/ Windows 11 64 - There is no GOP (Graphics Output protocol) support detected in this graphics card GOP (Graphics Output protocol)
GOP / UEFI CPU BIOS ? 1. 2. Press DEL key to enter Setup Menu, F11 to enter
Boot Menu Delete 3. BIOS BIOS
BIOS : UEFI
34 UEFI BIOS
BIOS
BIOS
BIOS BIOS BIOS
BIOS
Press DEL key to enter Setup Menu, F11 to enter Boot Menu Delete F1: F2: / F3: Favorites F4: CPU F5: Memory-Z F6: F7: EZ F8: F9: F10: * F12: U (FAT/ FAT32 ) Ctrl+F: * F10 Yes No
BIOS
BIOS http://download.msi.com/manual/mb/Intel600BIOSsc.pdf QR
UEFI BIOS 35
BIOS
BIOS BIOS BIOS F6 CMOS
CMOS CMOS BIOS
BIOS
M-FLASH BIOS MSI BIOS BIOS U BIOS 1. U USB 2. flash
POST Ctrl + F5 Yes Press <Ctrl+F5> to activate M-Flash for BIOS update.
POST Del BIOS M-FLASH Yes
3. BIOS BIOS 4. Yes BIOS 5. 100%
36 UEFI BIOS
MSI Center BIOS LAN BIOS BIOS 1. MSI Center Support 2. Live Update Advanced 3. BIOS Install 4. Install 5. BIOS 6. BIOS 100%
UEFI BIOS 37
NOTE
38 UEFI BIOS
Regulatory Notices
FCC Compliance Statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
y Reorient or relocate the receiving antenna.
y Increase the separation between the equipment and receiver.
y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
y Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Tested to comply with FCC standards FOR HOME OR OFFICE USE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CE Conformity
Products bearing the CE marking comply with one or more of the following EU Directives as may be applicable:
RED 2014/53/EU; Low Voltage Directive 2014/35/EU; EMC Directive 2014/30/EU; RoHS Directive 2011/65/EU.
Compliance with these directives is assessed using applicable European Harmonized Standards.
The point of contact for regulatory matters is MSI, MSI-NL Eindhoven 5706 5692 ER Son.
KC
y MAG B660M MORTAR WIFI DDR4
R-R-MSI-10-7D42
: () : : 10-7D42 : 2021 : MSI/
y MAG B660M MORTAR DDR4
R-R-MSI-B660MM4
: () : : B660MM4 : 2021 : MSI/
B
VCCI-B
C-Tick Compliance
Battery Information
European Union: Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.
Taiwan:
For better environmental protection, waste batteries should be collected separately for recycling or special disposal.
California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.
For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
CAUTION: There is a risk of explosion, if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:
https://storage-asset.msi.com/html/popup/csr/ evmtprtt_pcm.html
Environmental Policy
y The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
y Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.
y Visit the MSI website and locate a nearby distributor for further recycling information.
y Users may also reach us at gpcontdev@msi.com for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products.
Regulatory Notices i
WEEE (Waste Electrical and Electronic Equipment) Statement
ENGLISH To protect the global environment and as an environmentalist, MSI must remind you that...
Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/ EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.
DEUTSCH
Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt
Gem�� der Richtlinie 2002/96/EG �ber Elektro- und Elektronik-Altger�te d�rfen Elektro- und ElektronikAltger�te nicht mehr als kommunale Abf�lle entsorgt werden. MSI hat europaweit verschiedene Sammelund Recyclingunternehmen beauftragt, die in die Europ�ische Union in Verkehr gebrachten Produkte, am Ende seines Lebenszyklus zur�ckzunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen Zeitpunkt ausschliesslich an einer lokalen Altger�tesammelstelle in Ihrer N�he.
FRAN�AIS
En tant qu'�cologiste et afin de prot�ger l'environnement, MSI tient � rappeler ceci...
Au sujet de la directive europ�enne (EU) relative aux d�chets des �quipement �lectriques et �lectroniques, directive 2002/96/EC, prenant effet le 13 ao�t 2005, que les produits �lectriques et �lectroniques ne peuvent �tre d�pos�s dans les d�charges ou tout simplement mis � la poubelle. Les fabricants de ces �quipements seront oblig�s de r�cup�rer certains produits en fin de vie. MSI prendra en compte cette exigence relative au retour des produits en fin de vie au sein de la communaut� europ�enne. Par cons�quent vous pouvez retourner localement ces mat�riels dans les points de collecte.
MSI , , ....
() ( WEEE 2002/96/EC), 13 2005 , , , , . MSI , MSI EC, . .
ESPA�OL
ii Regulatory Notices
MSI como empresa comprometida con la protecci�n del medio ambiente, recomienda:
Bajo la directiva 2002/96/EC de la Uni�n Europea en materia de desechos y/o equipos electr�nicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasificados como "el�ctricos y equipos electr�nicos" no pueden ser depositados en los contenedores habituales de su municipio, los fabricantes de equipos electr�nicos, est�n obligados a hacerse cargo de dichos productos al termino de su per�odo de vida. MSI estar� comprometido con los t�rminos de recogida de sus productos vendidos en la Uni�n Europea al final de su periodo de vida. Usted debe depositar estos productos en el punto limpio establecido por el ayuntamiento de su localidad o entregar a una empresa autorizada para la recogida de estos residuos.
NEDERLANDS
Om het milieu te beschermen, wil MSI u eraan herinneren dat....
De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen geretourneerd worden op lokale inzamelingspunten.
SRPSKI
Da bi zastitili prirodnu sredinu, i kao preduzee koje vodi racuna o okolini i prirodnoj sredini, MSI mora da vas podesti da...
Po Direktivi Evropske unije ("EU") o odbacenoj ekektronskoj i elektricnoj opremi, Direktiva 2002/96/ EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod "elektronsku i elektricnu opremu" ne mogu vise biti odbaceni kao obican otpad i proizvoaci ove opreme bie prinueni da uzmu natrag ove proizvode na kraju njihovog uobicajenog veka trajanja. MSI e postovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode mozete vratiti na lokalnim mestima za prikupljanje.
POLSKI
Aby chroni nasze rodowisko naturalne oraz jako firma dbajca o ekologi, MSI przypomina, e...
Zgodnie z Dyrektyw Unii Europejskiej ("UE") dotyczc odpad�w produkt�w elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), kt�ra wchodzi w ycie 13 sierpnia 2005, tzw. "produkty oraz wyposaenie elektryczne i elektroniczne " nie mog by traktowane jako mieci komunalne, tak wic producenci tych produkt�w bd zobowizani do odbierania ich w momencie gdy produkt jest wycofywany z uycia. MSI wypelni wymagania UE, przyjmujc produkty (sprzedawane na terenie Unii Europejskiej) wycofywane z uycia. Produkty MSI bdzie mona zwraca w wyznaczonych punktach zbiorczych.
T�RK�E
�evreci �zelliiyle bilinen MSI d�nyada �evreyi korumak i�in hatirlatir:
Avrupa Birlii (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atii, 2002/96/EC Kararnamesi altinda 13 Austos 2005 tarihinden itibaren ge�erli olmak �zere, elektrikli ve elektronik malzemeler dier atiklar
gibi �pe atilamayacak ve bu elektonik cihazlarin �reticileri, cihazlarin kullanim s�releri bittikten sonra �r�nleri geri toplamakla y�k�ml� olacaktir. Avrupa Birlii'ne satilan MSI markali �r�nlerin kullanim s�releri bittiinde MSI �r�nlerin geri alinmasi istei ile ibirlii i�erisinde olacaktir. �r�nlerinizi yerel toplama noktalarina birakabilirsiniz.
CESKY
Z�lez� n�m na ochran zivotn�ho prosted� - spolecnost MSI upozoruje...
Podle smrnice Evropsk� unie ("EU") o likvidaci elektrick�ch a elektronick�ch v�robk 2002/96/ EC platn� od 13. srpna 2005 je zak�z�no likvidovat "elektrick� a elektronick� v�robky" v bzn�m komun�ln�m odpadu a v�robci elektronick�ch v�robk, na kter� se tato smrnice vztahuje, budou povinni odeb�rat takov� v�robky zpt po skoncen� jejich zivotnosti. Spolecnost MSI spln� pozadavky na odeb�r�n� v�robk znacky MSI, prod�van�ch v zem�ch EU, po skoncen� jejich zivotnosti. Tyto v�robky mzete odevzdat v m�stn�ch sbrn�ch.
MAGYAR
Annak �rdek�ben, hogy k�rnyezet�nket megv�dj�k, illetve k�rnyezetv�dk�nt fell�pve az MSI eml�kezteti �nt, hogy ...
Az Eur�pai Uni� (,,EU") 2005. augusztus 13-�n hat�lyba l�p, az elektromos �s elektronikus berendez�sek hullad�kair�l sz�l� 2002/96/EK ir�nyelve szerint az elektromos �s elektronikus berendez�sek t�bb� nem kezelhetek lakoss�gi hullad�kk�nt, �s az ilyen elektronikus berendez�sek gy�rt�i k�teless� v�lnak az ilyen term�kek visszav�tel�re azok hasznos �lettartama v�g�n. Az MSI betartja a term�kvisszav�tellel kapcsolatos k�vetelm�nyeket az MSI m�rkan�v alatt az EU-n bel�l �rt�kes�tett term�kek eset�ben, azok �lettartam�nak v�g�n. Az ilyen term�keket a legk�zelebbi gyjthelyre viheti.
ITALIANO
Per proteggere l'ambiente, MSI, da sempre amica della natura, ti ricorda che....
In base alla Direttiva dell'Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti alla categoria dei Materiali Elettrici ed Elettronici non possono pi� essere eliminati come rifiuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguer� a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all'interno dell'Unione Europea alla fine del loro ciclo di vita. � possibile portare i prodotti nel pi� vicino punto di raccolta
JIS C 0950
JIS C 0950200671
https://storage-asset.msi.com/html/popup/csr/ cemm_jp.html
India RoHS
This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
T�rkiye EEE y�netmelii
T�rkiye Cumhuriyeti: EEE Y�netmeliine Uygundur
, 3 2008 1057.
Vit Nam RoHS
K t ng�y 01/12/2012, tt c c�c sn phm do c�ng ty MSI sn xut tu�n th Th�ng t s 30/2011/TT-BCT quy nh tm thi v gii hn h�m lng cho ph�p ca mt s h�a cht c hi c� trong c�c sn phm in, in t"
Wireless Radio Use
This device is restricted to indoor use when operating in the 2.4GHz, 5GHz frequency band.
Cet appareil doit �tre utilis� � l'int�rieur.
.
2.4GHz, 5GHz
NCC
2.4GHz, 5GHz
Products with radio functionality (EMF)
This product incorporates a radio transmitting and receiving device. For computers in normal use, a separation distance of 20 cm ensures that radio frequency exposure levels comply with EU requirements. Products designed to be operated at closer proximities, such as tablet computers, comply with applicable EU requirements in typical operating positions. Products can be operated without maintaining a separation distance unless otherwise indicated in instructions specific to the product.
Restrictions for products with radio functionality
CAUTION: IEEE 802.11x wireless LAN with 5.15�5.35 GHz frequency band is restricted for indoor use only in all European Union member states, EFTA (Iceland, Norway, Liechtenstein), and most other European countries (e.g., Switzerland, Turkey, Republic of Serbia). Using this WLAN application outdoors might lead to interference issues with existing radio services.
Radio frequency bands and maximum power levels
Features
:802.11 a/b/g/n/ac/ax, BT
Frequency Range :2.4GHz, 5GHz
Modulation
:FHSS, DSSS, OFDM
Power Output
:10, 20, 23
Channel Band Width :1, 5, 20 ,40 , 80, 160MHz
Regulatory Notices iii
MS-7D42
*
(Pb)
(Hg)
(Cd)
(Cr(VI))
(PBB)
**
(PBDE)
SJ/T 11364 : GB/T 26572 : GB/T 26572 RoHS * : **
()MS-7D42
(Pb)
(Hg)
(Cd)
(Cr+6)
(PBB)
1. "0.1 wt %" "0.01 wt %" 2. "" 3. ""
(PBDE)
Copyright
Micro-Star Int'l Co.,Ltd.
Copyright � 2021 All rights reserved.
The MSI logo used is a registered trademark of Micro-Star Int'l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice.
Revision History
Version 1.0, 2021/11, First release.
Version 1.1, 2021/12, update list.
Technical Support
If a problem arises with your system and no solution can be obtained from the user guide, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.
y Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com
y Register your product at: http://register.msi.com
iv Regulatory Notices
