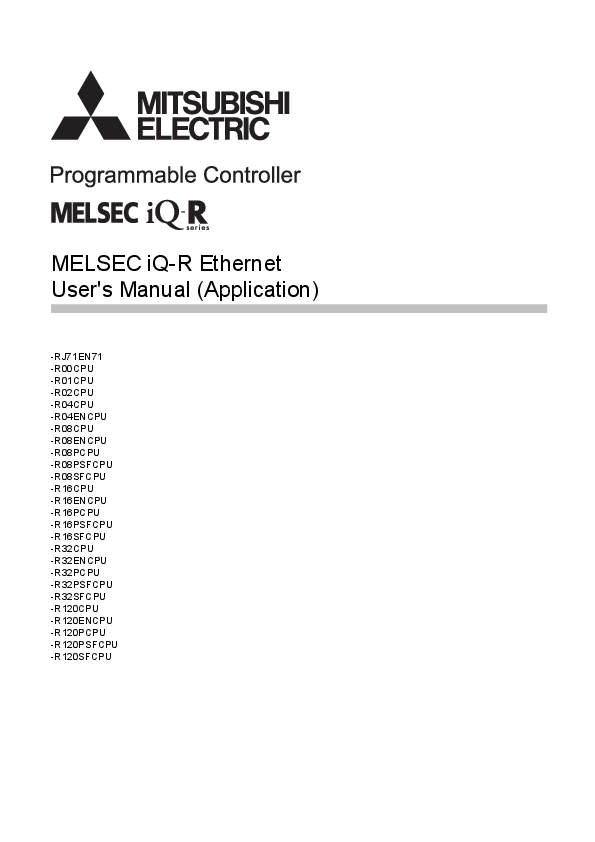

MELSEC iQ-R Ethernet User's Manual (Application)
-RJ71EN71 -R00CPU -R01CPU -R02CPU -R04CPU -R04ENCPU -R08CPU -R08ENCPU -R08PCPU -R08PSFCPU -R08SFCPU -R16CPU -R16ENCPU -R16PCPU -R16PSFCPU -R16SFCPU -R32CPU -R32ENCPU -R32PCPU -R32PSFCPU -R32SFCPU -R120CPU -R120ENCPU -R120PCPU -R120PSFCPU -R120SFCPU
SAFETY PRECAUTIONS
(Read these precautions before using this product.) Before using this product, please read this manual and the relevant manuals carefully and pay full attention to safety to handle the product correctly. The precautions given in this manual are concerned with this product only. For the safety precautions of the programmable controller system, refer to the MELSEC iQ-R Module Configuration Manual. In this manual, the safety precautions are classified into two levels: " WARNING" and " CAUTION".
WARNING Indicates that incorrect handling may cause hazardous conditions, resulting in death or severe injury.
CAUTION
Indicates that incorrect handling may cause hazardous conditions, resulting in minor or moderate injury or property damage.
Under some circumstances, failure to observe the precautions given under " CAUTION" may lead to serious consequences. Observe the precautions of both levels because they are important for personal and system safety. Make sure that the end users read this manual and then keep the manual in a safe place for future reference.
1
[Design Precautions] WARNING
Configure safety circuits external to the programmable controller to ensure that the entire system operates safely even when a fault occurs in the external power supply or the programmable controller. Failure to do so may result in an accident due to an incorrect output or malfunction. (1) Emergency stop circuits, protection circuits, and protective interlock circuits for conflicting operations (such as forward/reverse rotations or upper/lower limit positioning) must be configured external to the programmable controller. (2) When the programmable controller detects an abnormal condition, it stops the operation and all outputs are: · Turned off if the overcurrent or overvoltage protection of the power supply module is activated. · Held or turned off according to the parameter setting if the self-diagnostic function of the CPU module detects an error such as a watchdog timer error. (3) All outputs may be turned on if an error occurs in a part, such as an I/O control part, where the CPU module cannot detect any error. To ensure safety operation in such a case, provide a safety mechanism or a fail-safe circuit external to the programmable controller. For a fail-safe circuit example, refer to "General Safety Requirements" in the MELSEC iQ-R Module Configuration Manual. (4) Outputs may remain on or off due to a failure of a component such as a relay and transistor in an output circuit. Configure an external circuit for monitoring output signals that could cause a serious accident.
In an output circuit, when a load current exceeding the rated current or an overcurrent caused by a load short-circuit flows for a long time, it may cause smoke and fire. To prevent this, configure an external safety circuit, such as a fuse.
Configure a circuit so that the programmable controller is turned on first and then the external power supply. If the external power supply is turned on first, an accident may occur due to an incorrect output or malfunction.
2
[Design Precautions] WARNING
For the operating status of each station after a communication failure, refer to manuals for the network used. For the manuals, please consult your local Mitsubishi representative. Incorrect output or malfunction due to a communication failure may result in an accident.
When connecting an external device with a CPU module or intelligent function module to modify data of a running programmable controller, configure an interlock circuit in the program to ensure that the entire system will always operate safely. For other forms of control (such as program modification, parameter change, forced output, or operating status change) of a running programmable controller, read the relevant manuals carefully and ensure that the operation is safe before proceeding. Improper operation may damage machines or cause accidents.
Especially, when a remote programmable controller is controlled by an external device, immediate action cannot be taken if a problem occurs in the programmable controller due to a communication failure. To prevent this, configure an interlock circuit in the program, and determine corrective actions to be taken between the external device and CPU module in case of a communication failure.
Do not write any data to the "system area" and "write-protect area" of the buffer memory in the module. Also, do not use any "use prohibited" signals as an output signal from the CPU module to each module. Doing so may cause malfunction of the programmable controller system. For the "system area", "write-protect area", and the "use prohibited" signals, refer to the user's manual for the module used. For areas used for safety communications, they are protected from being written by users, and thus safety communications failure caused by data writing does not occur.
If a communication cable is disconnected, the network may be unstable, resulting in a communication failure of multiple stations. Configure an interlock circuit in the program to ensure that the entire system will always operate safely even if communications fail. Failure to do so may result in an accident due to an incorrect output or malfunction. When safety communications are used, an interlock by the safety station interlock function protects the system from an incorrect output or malfunction.
3
[Design Precautions] CAUTION
Do not install the control lines or communication cables together with the main circuit lines or power cables. Doing so may result in malfunction due to electromagnetic interference. Keep a distance of 100mm or more between those cables.
During control of an inductive load such as a lamp, heater, or solenoid valve, a large current (approximately ten times greater than normal) may flow when the output is turned from off to on. Therefore, use a module that has a sufficient current rating.
After the CPU module is powered on or is reset, the time taken to enter the RUN status varies depending on the system configuration, parameter settings, and/or program size. Design circuits so that the entire system will always operate safely, regardless of the time.
Do not power off the programmable controller or reset the CPU module while the settings are being written. Doing so will make the data in the flash ROM undefined. The values need to be set in the buffer memory and written to the flash ROM again. Doing so also may cause malfunction or failure of the module.
When changing the operating status of the CPU module from external devices (such as the remote RUN/STOP functions), select "Do Not Open by Program" for "Opening Method" of "Module Parameter". If "Open by Program" is selected, an execution of the remote STOP function causes the communication line to close. Consequently, the CPU module cannot reopen the line, and external devices cannot execute the remote RUN function.
[Security Precautions] WARNING
To maintain the security (confidentiality, integrity, and availability) of the programmable controller and the system against unauthorized access, denial-of-service (DoS) attacks, computer viruses, and other cyberattacks from external devices via the network, take appropriate measures such as firewalls, virtual private networks (VPNs), and antivirus solutions.
4
[Installation Precautions]
WARNING
Shut off the external power supply (all phases) used in the system before mounting or removing the module. Failure to do so may result in electric shock or cause the module to fail or malfunction.
[Installation Precautions]
CAUTION
Use the programmable controller in an environment that meets the general specifications in the Safety Guidelines included with the base unit. Failure to do so may result in electric shock, fire, malfunction, or damage to or deterioration of the product.
To mount a module, place the concave part(s) located at the bottom onto the guide(s) of the base unit, and push in the module until the hook(s) located at the top snaps into place. Incorrect interconnection may cause malfunction, failure, or drop of the module.
When using the programmable controller in an environment of frequent vibrations, fix the module with a screw.
Tighten the screws within the specified torque range. Undertightening can cause drop of the component or wire, short circuit, or malfunction. Overtightening can damage the screw and/or module, resulting in drop, short circuit, or malfunction.
When using an extension cable, connect it to the extension cable connector of the base unit securely. Check the connection for looseness. Poor contact may cause malfunction.
When using an SD memory card, fully insert it into the SD memory card slot. Check that it is inserted completely. Poor contact may cause malfunction.
Securely insert an extended SRAM cassette or a battery-less option cassette into the cassette connector of the CPU module. After insertion, close the cassette cover and check that the cassette is inserted completely. Poor contact may cause malfunction.
Do not directly touch any conductive parts and electronic components of the module, SD memory card, extended SRAM cassette, battery-less option cassette, or connector. Doing so can cause malfunction or failure of the module.
[Wiring Precautions]
WARNING
Shut off the external power supply (all phases) used in the system before installation and wiring. Failure to do so may result in electric shock or cause the module to fail or malfunction.
After installation and wiring, attach a blank cover module (RG60) to each empty slot and an included extension connector protective cover to the unused extension cable connector before powering on the system for operation. Failure to do so may result in electric shock.
5
[Wiring Precautions]
CAUTION
Individually ground the FG and LG terminals of the programmable controller with a ground resistance of 100 ohms or less. Failure to do so may result in electric shock or malfunction.
Use applicable solderless terminals and tighten them within the specified torque range. If any spade solderless terminal is used, it may be disconnected when the terminal screw comes loose, resulting in failure.
Check the rated voltage and signal layout before wiring to the module, and connect the cables correctly. Connecting a power supply with a different voltage rating or incorrect wiring may cause fire or failure.
Connectors for external devices must be crimped or pressed with the tool specified by the manufacturer, or must be correctly soldered. Incomplete connections may cause short circuit, fire, or malfunction.
Securely connect the connector to the module. Poor contact may cause malfunction. Do not install the control lines or communication cables together with the main circuit lines or power
cables. Doing so may result in malfunction due to noise. Keep a distance of 100mm or more between those cables. Place the cables in a duct or clamp them. If not, dangling cables may swing or inadvertently be pulled, resulting in malfunction or damage to modules or cables. In addition, the weight of the cables may put stress on modules in an environment of strong vibrations and shocks. Do not clamp the extension cables with the jacket stripped. Doing so may change the characteristics of the cables, resulting in malfunction. Check the interface type and correctly connect the cable. Incorrect wiring (connecting the cable to an incorrect interface) may cause failure of the module and external device. Tighten the terminal screws or connector screws within the specified torque range. Undertightening can cause drop of the screw, short circuit, fire, or malfunction. Overtightening can damage the screw and/or module, resulting in drop, short circuit, fire, or malfunction. When disconnecting the cable from the module, do not pull the cable by the cable part. For the cable with connector, hold the connector part of the cable. For the cable connected to the terminal block, loosen the terminal screw. Pulling the cable connected to the module may result in malfunction or damage to the module or cable. Prevent foreign matter such as dust or wire chips from entering the module. Such foreign matter can cause a fire, failure, or malfunction. A protective film is attached to the top of the module to prevent foreign matter, such as wire chips, from entering the module during wiring. Do not remove the film during wiring. Remove it for heat dissipation before system operation. Programmable controllers must be installed in control panels. Connect the main power supply to the power supply module in the control panel through a relay terminal block. Wiring and replacement of a power supply module must be performed by qualified maintenance personnel with knowledge of protection against electric shock. For wiring, refer to the MELSEC iQ-R Module Configuration Manual. For Ethernet cables to be used in the system, select the ones that meet the specifications in the user's manual for the module used. If not, normal data transmission is not guaranteed.
6
[Startup and Maintenance Precautions]
WARNING
Do not touch any terminal while power is on. Doing so will cause electric shock or malfunction. Correctly connect the battery connector. Do not charge, disassemble, heat, short-circuit, solder, or
throw the battery into the fire. Also, do not expose it to liquid or strong shock. Doing so will cause the battery to produce heat, explode, ignite, or leak, resulting in injury and fire. Shut off the external power supply (all phases) used in the system before cleaning the module or retightening the terminal screws, connector screws, or module fixing screws. Failure to do so may result in electric shock.
[Startup and Maintenance Precautions]
CAUTION
When connecting an external device with a CPU module or intelligent function module to modify data of a running programmable controller, configure an interlock circuit in the program to ensure that the entire system will always operate safely. For other forms of control (such as program modification, parameter change, forced output, or operating status change) of a running programmable controller, read the relevant manuals carefully and ensure that the operation is safe before proceeding. Improper operation may damage machines or cause accidents.
Especially, when a remote programmable controller is controlled by an external device, immediate action cannot be taken if a problem occurs in the programmable controller due to a communication failure. To prevent this, configure an interlock circuit in the program, and determine corrective actions to be taken between the external device and CPU module in case of a communication failure.
Do not disassemble or modify the modules. Doing so may cause failure, malfunction, injury, or a fire. Use any radio communication device such as a cellular phone or PHS (Personal Handy-phone
System) more than 25cm away in all directions from the programmable controller. Failure to do so may cause malfunction. Shut off the external power supply (all phases) used in the system before mounting or removing the module. Failure to do so may cause the module to fail or malfunction. Tighten the screws within the specified torque range. Undertightening can cause drop of the component or wire, short circuit, or malfunction. Overtightening can damage the screw and/or module, resulting in drop, short circuit, or malfunction. After the first use of the product, do not perform each of the following operations more than 50 times (IEC 61131-2/JIS B 3502 compliant): Exceeding the limit may cause malfunction.
· Mounting/removing the module to/from the base unit · Inserting/removing the extended SRAM cassette or battery-less option cassette to/from the
CPU module · Mounting/removing the terminal block to/from the module After the first use of the product, do not insert/remove the SD memory card to/from the CPU module more than 500 times. Exceeding the limit may cause malfunction. Do not touch the metal terminals on the back side of the SD memory card. Doing so may cause malfunction or failure of the module. Do not touch the integrated circuits on the circuit board of an extended SRAM cassette or a batteryless option cassette. Doing so may cause malfunction or failure of the module.
7
[Startup and Maintenance Precautions]
CAUTION
Do not drop or apply shock to the battery to be installed in the module. Doing so may damage the battery, causing the battery fluid to leak inside the battery. If the battery is dropped or any shock is applied to it, dispose of it without using.
Startup and maintenance of a control panel must be performed by qualified maintenance personnel with knowledge of protection against electric shock. Lock the control panel so that only qualified maintenance personnel can operate it.
Before handling the module, touch a conducting object such as a grounded metal to discharge the static electricity from the human body. Failure to do so may cause the module to fail or malfunction.
[Operating Precautions]
CAUTION
When changing data and operating status, and modifying program of the running programmable controller from an external device such as a personal computer connected to an intelligent function module, read relevant manuals carefully and ensure the safety before operation. Incorrect change or modification may cause system malfunction, damage to the machines, or accidents.
Do not power off the programmable controller or reset the CPU module while the setting values in the buffer memory are being written to the flash ROM in the module. Doing so will make the data in the flash ROM undefined. The values need to be set in the buffer memory and written to the flash ROM again. Doing so can cause malfunction or failure of the module.
[Disposal Precautions]
CAUTION
When disposing of this product, treat it as industrial waste. When disposing of batteries, separate them from other wastes according to the local regulations. For
details on battery regulations in EU member states, refer to the MELSEC iQ-R Module Configuration Manual.
[Transportation Precautions]
CAUTION
When transporting lithium batteries, follow the transportation regulations. For details on the regulated models, refer to the MELSEC iQ-R Module Configuration Manual.
The halogens (such as fluorine, chlorine, bromine, and iodine), which are contained in a fumigant used for disinfection and pest control of wood packaging materials, may cause failure of the product. Prevent the entry of fumigant residues into the product or consider other methods (such as heat treatment) instead of fumigation. The disinfection and pest control measures must be applied to unprocessed raw wood.
8
CONDITIONS OF USE FOR THE PRODUCT
(1) Mitsubishi programmable controller ("the PRODUCT") shall be used in conditions; i) where any problem, fault or failure occurring in the PRODUCT, if any, shall not lead to any major or serious accident; and ii) where the backup and fail-safe function are systematically or automatically provided outside of the PRODUCT for the case of any problem, fault or failure occurring in the PRODUCT.
(2) The PRODUCT has been designed and manufactured for the purpose of being used in general industries. MITSUBISHI SHALL HAVE NO RESPONSIBILITY OR LIABILITY (INCLUDING, BUT NOT LIMITED TO ANY AND ALL RESPONSIBILITY OR LIABILITY BASED ON CONTRACT, WARRANTY, TORT, PRODUCT LIABILITY) FOR ANY INJURY OR DEATH TO PERSONS OR LOSS OR DAMAGE TO PROPERTY CAUSED BY the PRODUCT THAT ARE OPERATED OR USED IN APPLICATION NOT INTENDED OR EXCLUDED BY INSTRUCTIONS, PRECAUTIONS, OR WARNING CONTAINED IN MITSUBISHI'S USER, INSTRUCTION AND/OR SAFETY MANUALS, TECHNICAL BULLETINS AND GUIDELINES FOR the PRODUCT. ("Prohibited Application") Prohibited Applications include, but not limited to, the use of the PRODUCT in; · Nuclear Power Plants and any other power plants operated by Power companies, and/or any other cases in which the public could be affected if any problem or fault occurs in the PRODUCT. · Railway companies or Public service purposes, and/or any other cases in which establishment of a special quality assurance system is required by the Purchaser or End User. · Aircraft or Aerospace, Medical applications, Train equipment, transport equipment such as Elevator and Escalator, Incineration and Fuel devices, Vehicles, Manned transportation, Equipment for Recreation and Amusement, and Safety devices, handling of Nuclear or Hazardous Materials or Chemicals, Mining and Drilling, and/or other applications where there is a significant risk of injury to the public or property. Notwithstanding the above restrictions, Mitsubishi may in its sole discretion, authorize use of the PRODUCT in one or more of the Prohibited Applications, provided that the usage of the PRODUCT is limited only for the specific applications agreed to by Mitsubishi and provided further that no special quality assurance or fail-safe, redundant or other safety features which exceed the general specifications of the PRODUCTs are required. For details, please contact the Mitsubishi representative in your region.
(3) Mitsubishi shall have no responsibility or liability for any problems involving programmable controller trouble and system trouble caused by DoS attacks, unauthorized access, computer viruses, and other cyberattacks.
9
INTRODUCTION
Thank you for purchasing the Mitsubishi Electric MELSEC iQ-R series programmable controllers. This manual describes the functions, programming, and troubleshooting of the relevant products listed below. Before using this product, please read this manual and the relevant manuals carefully and develop familiarity with the functions and performance of the MELSEC iQ-R series programmable controller to handle the product correctly. When applying the program examples provided in this manual to an actual system, ensure the applicability and confirm that it will not cause system control problems. Please make sure that the end users read this manual.
Relevant products
RJ71EN71, CPU module Unless otherwise specified, the buffer memory addresses in this manual are for when the P1 connecter of the RJ71EN71 or RnENCPU is used. Check the corresponding buffer memory addresses in the list and use the correct addresses when using the following: ( Page 355 Buffer Memory) · CPU module (built-in Ethernet port part) · P2 connector of the RJ71EN71 · RJ71EN71 (network type: Q-compatible Ethernet)
10
CONTENTS
CONTENTS
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 CONDITIONS OF USE FOR THE PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 RELEVANT MANUALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 TERMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 GENERIC TERMS AND ABBREVIATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
CHAPTER 1 FUNCTIONS
19
1.1 Connection with MELSOFT Product and GOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Connection via a hub. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Direct connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1.2 SLMP Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Communication structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Data communication procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 List of valid commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Dedicated instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
1.3 Communications Using the Predefined Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Applicable connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Data communication procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Protocol communication type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Packet elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Execution conditions of predefined protocol communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Example of predefined protocol communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
1.4 Socket Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Setting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Applicable dedicated instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Applicable connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Communication structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Communications using TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Communications using UDP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Broadcast communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
1.5 Communications Using the Fixed Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Differences between the "Procedure Exist" and "No Procedure" control methods . . . . . . . . . . . . . . . . . . . . . . . 69 Setting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Applicable dedicated instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Applicable connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Communication structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Send procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Receive procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Pairing open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Broadcast communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Data format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Example of communications using the fixed buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
1.6 Communications Using the Random Access Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Setting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
11
12
Communication structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Procedure for reading from external device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Procedure for writing from external device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Physical address and logical address of random access buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Data Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Example of communications with random access buffer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 1.7 Communications Using MODBUS/TCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 MODBUS/TCP master function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 MODBUS/TCP slave function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 1.8 Link Dedicated Instruction Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 Data communication procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 1.9 File Transfer Function (FTP server) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 Data communication procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Files that can be transferred with FTP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 FTP command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134 1.10 File Transfer Function (FTP Client) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 Transferable files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138 Procedure for executing the file transfer function (FTP client) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 1.11 Time Setting Function (SNTP Client) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143 1.12 Web Server Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 JavaScript objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 CGI object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 Error message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174 1.13 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 IP filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 Remote password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part)) . . . . . . . . . . . . . . . . . . . . 183 Setting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Checking the simple CPU communication status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 Communication example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part)) . . . . . . . . . . . . . . . . . 216 Setting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 Checking the simple CPU communication status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228 1.16 IP Address Change Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 IP address of the Ethernet-equipped module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231 Usage methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233 Checking the IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236 Checking the operating status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236 1.17 Redundant System Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238 System configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238 System switching request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239 System switching cause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240 Redundant group setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 Communication path bypass function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244 Both systems identical IP address setting function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
CONTENTS
Functions restricted in a redundant system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248 Setting example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253 1.18 Discard received data at CPU STOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
CHAPTER 2 PARAMETER SETTINGS
261
2.1 Setting Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261 2.2 Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Own Node Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262 External Device Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264 2.3 Application Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267 Frame Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270 Communication Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271 FTP Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272 FTP Client Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273 DNS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273 MODBUS/TCP Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274 Simple CPU communication setting (RJ71EN71, RnENCPU (network part)) . . . . . . . . . . . . . . . . . . . . . . . . . . 276 Simple CPU communication setting (CPU module (built-in Ethernet port part)) . . . . . . . . . . . . . . . . . . . . . . . . 278 Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280 Timer Settings for Data Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284 Gateway Parameter Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284 Network/Station No. <-> IP information setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286 Interrupt Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293 IP Packet Transfer Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293 Network Dynamic Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294 Module Operation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294 Redundant System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
CHAPTER 3 TROUBLESHOOTING
298
3.1 Checking with LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298 3.2 Checking the Module Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Module communication test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302 3.3 Checking the Network Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Ethernet diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304 Simple CPU communication diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312 3.4 Troubleshooting by Symptom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314 3.5 List of Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329 3.6 List of Parameter Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347 3.7 Event List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349 3.8 End Codes Returned to an External Device During Data Communications . . . . . . . . . . . . . . . . . . . . . . . 351
APPENDICES
352
Appendix 1 Module Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352 Appendix 2 I/O Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
List of I/O signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353 Appendix 3 Buffer Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
List of buffer memory addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355 Details of buffer memory addresses (RJ71EN71, RnENCPU (network part)). . . . . . . . . . . . . . . . . . . . . . . . . . 372 Details of buffer memory addresses (CPU module (built-in Ethernet port part)) . . . . . . . . . . . . . . . . . . . . . . . . 389
13
Appendix 4 Dedicated Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396 Open/close processing instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396 Instruction for SLMP communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396 Instructions for predefined protocol communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397 Socket communications instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397 Instructions for communications using the fixed buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397 Link dedicated instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398 File transfer function instruction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398 Other dedicated instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399
Appendix 5 TCP/IP Communications, UDP/IP Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 TCP/IP communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 UDP/IP communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
Appendix 6 Communications with Different Networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407 Appendix 7 Processing Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
Performance list of simple CPU communication function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414 Appendix 8 Mounting the Module with a Remote Head Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Restrictions on functions and specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415 Appendix 9 Using the Module in the Redundant System with Redundant Extension Base Unit . . . . . . . . . . . . 416
Restrictions on functions and specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417 Example of communications using the fixed buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418 Appendix 10Port Numbers Used by Ethernet-equipped Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424 Appendix 11 Operation Image and Data Structure of Predefined Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425 Operation image of each communication type of protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425 Verification operation of receive packet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430 Example of packet element data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431 Appendix 12Example of External Device Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434 Appendix 13How to Turn Off ERR LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435 Appendix 14Added and Enhanced Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436 RJ71EN71, RnENCPU (network part). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436 CPU module (built-in Ethernet port part) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
INDEX
439
REVISIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .441 WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .443 TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .444
14
RELEVANT MANUALS
Manual name [manual number]
MELSEC iQ-R Ethernet User's Manual (Application) [SH-081257ENG] (this manual)
MELSEC iQ-R Module Configuration Manual [SH-081262ENG]
MELSEC iQ-R Ethernet/CC-Link IE User's Manual (Startup) [SH-081256ENG]
MELSEC iQ-R CPU Module User's Manual (Startup) [SH-081263ENG]
MELSEC iQ-R CPU Module User's Manual (Application) [SH-081264ENG]
MELSEC iQ-R Programming Manual (CPU Module Instructions, Standard Functions/Function Blocks) [SH-081266ENG] MELSEC iQ-R Programming Manual (Module Dedicated Instructions) [SH-081976ENG] MELSEC iQ-R Ethernet, CC-Link IE, and MELSECNET/H Function Block Reference [BCN-P5999-0381]
GX Works3 Operating Manual [SH-081215ENG] MELSEC iQ-R MODBUS and MODBUS/TCP Reference Manual [BCN-P5999-1060] SLMP Reference Manual [SH-080956ENG]
iQ Sensor Solution Reference Manual [SH-081133ENG]
Description
Functions, parameter settings, programming, troubleshooting, I/O signals, and buffer memory of Ethernet
The combination of the MELSEC iQ-R series modules, common information on the installation/wiring in the system, and specifications of the power supply module, base unit, SD memory card, and battery Specifications, procedures before operation, system configuration, wiring, and communication examples of Ethernet, CC-Link IE Controller Network, and CC-Link IE Field Network Performance specifications, procedures before operation, and troubleshooting of the CPU module
Memory, functions, devices, and parameters of the CPU module
Instructions for the CPU module and standard functions/function blocks
Dedicated instructions for the intelligent function modules
Specifications of the following MELSEC iQ-R series module FBs: Ethernet-equipped module FBs, CC-Link IE TSN module FBs, CC-Link IE Controller Network module FBs, CC-Link IE Field Network module FBs, and MELSECNET/H network module FBs System configuration, parameter settings, and online operations of GX Works3 The protocol used for data reading or writing from an external device to the Ethernet-equipped module The protocol used to access an SLMP-compatible device from an external device (such as a personal computer or HMI (Human Machine Interface)) or an SLMP-compatible module (such as the Ethernetequipped module or modules on CC-Link IE TSN). Operation methods of the online functions for iQ Sensor Solution
Available form Print book e-Manual PDF Print book e-Manual PDF Print book e-Manual PDF Print book e-Manual PDF Print book e-Manual PDF e-Manual PDF
e-Manual PDF
e-Manual PDF
e-Manual PDF e-Manual PDF Print book e-Manual PDF
Print book e-Manual PDF
e-Manual refers to the Mitsubishi Electric FA electronic book manuals that can be browsed using a dedicated tool. e-Manual has the following features: · Required information can be cross-searched in multiple manuals. · Other manuals can be accessed from the links in the manual. · The hardware specifications of each part can be found from the product figures. · Pages that users often browse can be bookmarked. · Sample programs can be copied to an engineering tool.
15
TERMS
Unless otherwise specified, this manual uses the following terms.
Term ARP Buffer memory
Control CPU Control system Control System IP Address CPU module (built-in Ethernet port part) Device Engineering tool Global label
ICMP Intelligent function module iQSS MODBUS/TCP Module label
New control system OPS Predefined protocol support function Process CPU
Process CPU (redundant mode)
Redundant function module Redundant system
Redundant system with redundant extension base unit Relay station RnENCPU (CPU part) RnENCPU (network part) Routing SIL2 Process CPU
SLMP
Description
Address Resolution Protocol. This protocol is used to obtain the MAC address of Ethernet from an IP address.
Memory in an intelligent function module to store data such as setting values and monitor values. For CPU modules, it refers to memory to store data such as setting values and monitor values of the Ethernet function, or data used for data communication of the multiple CPU system function.
A CPU module that controls connected I/O modules and intelligent function modules. The multiple CPU system allows the user to assign the control CPU on a module-by-module basis.
A system that controls a redundant system and performs network communications in a redundant system An IP address common to system A and system B in a redundant system. ( Page 245 Both systems identical IP address setting function)
A built-in Ethernet port part of a CPU module (CPU part for an RnENCPU).
A memory of a CPU module to store data. Devices such as X, Y, M, D, and others are provided depending on the intended use.
A tool used for setting up programmable controllers, programming, debugging, and maintenance
A label that is valid for all the program data when multiple program data are created in the project. There are two types of global label: a module specific label (module label), which is generated automatically by GX Works3, and an optional label, which can be created for any specified device.
Internet Control Message Protocol. This protocol is used to exchange messages of errors in an IP network or other information related to an Ethernet network.
A module that has functions other than an input or output, such as an A/D converter module and D/A converter module
iQ Sensor Solution. Cooperation of sensors, programmable controllers, HMI (Human Machine Interface), and engineering tool to facilitate the start-up or maintenance of sensors. ( iQ Sensor Solution Reference Manual)
A protocol for using MODBUS protocol messages on a TCP/IP network
A label that represents one of memory areas (I/O signals and buffer memory areas) specific to each module in a given character string. For the module used, GX Works3 automatically generates this label, which can be used as a global label.
A system that has switched to control system from standby system after system switching in a redundant system.
An operation station using MELSOFT and EZSocket partner products.
A function of GX Works3. This function sets protocols appropriate to each external device and reads/writes protocol setting data.
A CPU module that performs process control and sequence control. Process control function blocks and the online module change function can be executed. This module is also used with a redundant function module as a pair and configures a redundant system. The Process CPU models include the R08PCPU, R16PCPU, R32PCPU, and R120PCPU.
A Process CPU operating in redundant mode. A redundant system is configured with this CPU module. Process control function blocks and the online module change function can be used even in this mode.
A module to configure a redundant system by using it in combination with a process CPU (redundant mode). The SIL2 function module model name is R6RFM.
A system consisting of two systems that have same configuration (CPU module, power supply module, network module, and other modules). Even after an error occurs in one of the two system, the other system takes over the control of the entire system.
A redundant system that is configured using extension base unit(s)
A station that relays data link to other station with mounting more than one network modules on one programmable controller. A module on the left-hand side of the RnENCPU ( MELSEC iQ-R Ethernet/CC-Link IE User's Manual (Startup)) A module on the right-hand side of the RnENCPU ( MELSEC iQ-R Ethernet/CC-Link IE User's Manual (Startup))
A process of selecting paths for communication with other networks. There are two types of routing: dynamic routing that auto-selects the communication routes, and static routing where communication routes are arbitrarily set.
This module is used with a SIL2 function module as a pair, and performs both standard control and safety control. This module is also used with a redundant function module as a pair and configures a redundant system. The SIL2 Process CPU models include the R08PSFCPU, R16PSFCPU, R32PSFCPU, and R120PSFCPU.
SeamLess Message Protocol. This protocol is used to access an SLMP-compatible device from an external device (such as a personal computer or HMI (Human Machine Interface)) or an SLMP-compatible module (such as the Ethernetequipped module or modules on CC-Link IE TSN).
16
Term Standby system Subnet mask
System A System B Transient transmission group number
Description
A backup system in a redundant system
A number used to logically divide one network into multiple subnetworks and manage them easily. The following Ethernet network systems can be configured: · A small-scale Ethernet network system in which multiple network devices are connected. · A medium- or large-scale network system in which multiple small-scale network systems are connected via routers or
other network communication devices.
A system that is set as system A to distinguish two systems in a redundant system. It is used to distinguish connected two systems (system A and system B).
A system that is set as system B to distinguish two systems in a redundant system. It is used to distinguish connected two systems (system A and system B).
Number that is assigned for transient transmission to any given stations. By specifying a group of stations as transient transmission target, data can be sent to the stations of the same group number.
17
GENERIC TERMS AND ABBREVIATIONS
Unless otherwise specified, this manual uses the following generic terms and abbreviations.
Generic term/abbreviation BUFRCV instruction BUFRCVS instruction BUFSND instruction CLOSE instruction ECPRTCL instruction ERRCLEAR instruction ERRRD instruction Ethernet device
Ethernet-equipped module
MELSECNET/10 MELSECNET/H Network module
OPEN instruction Programmable controller CPU
READ instruction RECV instruction RECVS instruction Remote head module REQ instruction RnENCPU SEND instruction SOCRCV instruction SOCRCVS instruction SOCSND instruction SREAD instruction SWRITE instruction UINI instruction WRITE instruction ZNRD instruction ZNWR instruction
Description A generic term for the dedicated instructions GP.BUFRCV and ZP.BUFRCV A generic term for the dedicated instructions G.BUFRCVS and Z.BUFRCVS A generic term for the dedicated instructions GP.BUFSND and ZP.BUFSND A generic term for the dedicated instructions GP.CLOSE, ZP.CLOSE, GP.CONCLOSE, and SP.SOCCLOSE A generic term for the dedicated instructions GP.ECPRTCL and SP.ECPRTCL A generic term for the dedicated instructions GP.ERRCLEAR and ZP.ERRCLEAR A generic term for the dedicated instructions GP.ERRRD and ZP.ERRRD A generic term for the devices supporting IP communication (such as a personal computer, a vision sensor, and a bar code reader) A generic term for the following modules: · RJ71EN71 (when the Ethernet function is used) · CPU module (when the Ethernet function is used) An abbreviation for the MELSECNET/10 network system An abbreviation for the MELSECNET/H network system A generic term for the following modules: · Ethernet interface module · A module on CC-Link IE TSN (the RJ71GN11-T2 and a module on a remote station) · CC-Link IE Controller Network module · A module on CC-Link IE Field Network (a master/local module, and a module on a remote I/O station, a remote device
station, and an intelligent device station) · MELSECNET/H network module · MELSECNET/10 network module · RnENCPU (network part) A generic term for the dedicated instructions GP.OPEN, ZP.OPEN, GP.CONOPEN, and SP.SOCOPEN A generic term for the R00CPU, R01CPU, R02CPU, R04CPU, R04ENCPU, R08CPU, R08ENCPU, R16CPU, R16ENCPU, R32CPU, R32ENCPU, R120CPU, R120ENCPU A generic term for the dedicated instructions JP.READ and GP.READ A generic term for the dedicated instructions JP.RECV and GP.RECV A generic term for the dedicated instructions G.RECVS and Z.RECVS An abbreviation for the RJ72GF15-T2 CC-Link IE Field Network remote head module A generic term for the dedicated instructions J.REQ, JP.REQ, G.REQ, and GP.REQ A generic term for the R04ENCPU, R08ENCPU, R16ENCPU, R32ENCPU, and R120ENCPU A generic term for the dedicated instructions JP.SEND and GP.SEND A generic term for the dedicated instructions GP.SOCRCV and SP.SOCRCV A generic term for the dedicated instructions G.SOCRCV and S.SOCRCV A generic term for the dedicated instructions GP.SOCSND and SP.SOCSND A generic term for the dedicated instructions JP.SREAD and GP.SREAD A generic term for the dedicated instructions JP.SWRITE and GP.SWRITE A generic term for the dedicated instructions G.UINI, GP.UINI, Z.UINI, and ZP.UINI A generic term for the dedicated instructions JP.WRITE and GP.WRITE A generic term for the dedicated instructions J.ZNRD and JP.ZNRD A generic term for the dedicated instructions J.ZNWR and JP.ZNWR
18
1 FUNCTIONS 1
1.1 Connection with MELSOFT Product and GOT
Programming and monitoring of the programmable controller with the engineering tool, and monitoring and testing of the programmable controller from the GOT can be performed via Ethernet. This function enables remote operations using Ethernet's long-distance connection and high-speed communication. The section describes the methods of connecting the Ethernet-equipped module, MELSOFT product (such as engineering tool and MX Component), and GOT. : Connection available, : Connection not available
Connection method
Connection via a hub (Connection by specifying the IP address)
Connection via a hub (Connection by specifying the network number and station number)
Direct connection (Connection without specifying the IP address, network number, or station number)*1
Purpose
· To connect to an Ethernet-equipped module that has no network number and station number
· To connect multiple MELSOFT products
· To connect by using network number and station number
· To connect multiple MELSOFT products and GOTs
· To connect without hub using one Ethernet cable for one-on-one communication with the external device
· To connect to an Ethernet-equipped module whose IP address in unknown
Availability
MELSOFT products
RJ71EN71, RnENCPU (network part)
CPU module (built-in Ethernet port part)
*2
GOT RJ71EN71, RnENCPU (network part)
CPU module (built-in Ethernet port part)
*2
*1 This connection method is not available when the RJ71EN71 network type is set to "Q Compatible Ethernet". *2 Before the connection, check the firmware version of the CPU module. ( Page 436 Added and Enhanced Functions)
For the procedures to connect the Ethernet-equipped module and GOT, refer to the following. Manual for the GOT used
If multiple RJ71EN71s with the same network number are installed to one base unit (main base unit or extension base unit), the Ethernet-equipped module cannot connect to a MELSOFT product or GOT via an RJ71EN71. When the RJ71EN71 with the same network number as a relay RJ71EN71 is set in a relay network or target network, the Ethernet-equipped module cannot connect to other stations and other networks.
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
19
Connection via a hub
Setting procedure
Setting in the Ethernet-equipped module side
Set the IP address of the Ethernet-equipped module in "Own Node Settings" under "Basic Settings". ( Page 262 Own Node Settings) When connecting by specifying the network number and station number, set the network number and station number in "Own Node Settings" under "Basic Settings". Even if "External Device Configuration" is not set under "Basic Settings", the Ethernet-equipped module can be connected to the MELSOFT product and GOT using the system dedicated connection.*1
*1 When using a TCP/IP connection with the system dedicated connection, up to ((maximum number of connected modules in "External Device Configuration") - (set number) + 1) modules can be connected. When using a UDP/IP connection, up to the maximum number of connectable modules can be connected.
When connecting multiple MELSOFT products with TCP/IP, drag "MELSOFT Connection Module" from the "Module List" to "List of devices" or "Device map area" in "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
20
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
Settings on the engineering tool side
Set in the "Specify Connection Destination Connection" window.
[Online] [Current Connection Destination]
1
1. Set "PC side I/F" to "Ethernet Board". 2. Double-click "Ethernet Board", and open the "PC side I/
F Detailed Setting of Ethernet Board" window.
3. Set the network number, station number, and protocol of
the personal computer. (Set the network number and protocol according to the settings for the Ethernetequipped module. Set the station number so that it is not the same as a station number assigned to other Ethernet devices.)*1
4. Set the "PLC side I/F" to the module to be connected.
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
21
5. Double-click the icon set in step 4, and open the
detailed setting window.
6. Select "Connection via HUB" for the connection method,
and enter the station number and IP address or host name for the Ethernet-equipped module. Select "RJ71EN71" to connect the RnENCPU (network part).
7. Set "Other Station Setting" or "Network Communication
Route" if necessary.
*1 The network number and station number do not need to be set when connecting with the CPU module (built-in Ethernet port part).
22
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
Searching modules on the network
When connecting with a hub, a list of modules that can be searched for will appear by clicking the [Find] button on the detailed
1
setting window.
Search target modules
· The control CPU of the RJ71EN71 or the CPU module connected to the same hub as the engineering tool · The control CPU of the RJ71EN71 or the CPU module connected to cascade-connected hub · The remote head module that controls the RJ71EN71 connected to the same hub as the engineering tool · The remote head module that controls the RJ71EN71 connected to a cascade-connected hub
· By setting "Do Not Respond to CPU Module Search" in "Security" under "Application Settings" to "Do Not Respond", the modules will not be listed even if a search is performed.
· Only the MELSEC iQ-R Series Ethernet-equipped modules are searched. · The RJ71EN71 in which the network type is set to "Q Compatible Ethernet" cannot be searched.
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
23
When module does not appear after search
If a connected Ethernet-equipped module does not appear in the list after searching the modules on the network, check the following items. · Search is not performed if it is disabled with the IP filter. · Modules connected via a router cannot be searched. · If the module is connected via a wireless LAN, packet loss can prevent the Ethernet communication from stabilizing, and
may inhibit the module search. · If there are modules with the same IP address in the list, review the IP address parameter settings for the Ethernet-
equipped module. · If the service processing load of the search-target CPU module is high, it may not be possible to search for the
corresponding module. If the search cannot be performed, increase the response wait time in the search dialog, and perform the search again.
Precautions
Remote operation
If remote STOP or remote PAUSE has been executed from the engineering tool to the CPU module on another station when the CPU module (built-in Ethernet port part) and engineering tool are connected with an Ethernet cable, perform the following before turning the power off or resetting the CPU module. · Remote RUN · Remote RESET
Functions incompatible with connection via a hub
The following functions cannot be used for connection via a hub. To use the following functions, connect the CPU module (built-in Ethernet port part) directly or with a USB cable. · Ethernet Diagnostics · CC-Link IE Field Diagnostics · CC-Link IE Control Diagnostics
24
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
Communications by network number/station number by using the CPU module (built-in
Ethernet port part)
· The UDP/IP protocol is used for the connection and data is always exchanged as binary codes.
1
· When accessing another station, set the network number for the CPU module (built-in Ethernet port part) so that it is unique
among the network numbers of the other network. Also, set the station number that is unique among the station numbers
set for the other modules on the same network.
· When configuring the target station or relay station as a multiple CPU system, ensure that the CPU modules listed below
have the firmware supporting the communications by network number/station number.
· Target station · CPU modules working as the relay path · CPU module that controls the Ethernet module working as the relay path
USB (1)
Ethernet
Ethernet
When communicating with CPU module shown as (1), ensure that all CPU modules have the firmware of the version supporting the communications by network number/station number. Also, set the network number and station number to all CPU modules.
USB
Ethernet module controlled by CPU No.2
(3)
(2)
Ethernet
Ethernet
When communicating with CPU module shown as (2), ensure also that all CPU modules have the firmware of the version supporting the communications by network number/station number. Note, however, that the communication is possible even when the network number and station number are not set to CPU module shown as (3) of the CPU No.2.
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
25
Direct connection
The Ethernet-equipped module and engineering tool can be directly connected with one Ethernet cable without using a hub. When direct connection is made, communication is possible without setting the IP address or host name in the "Specify Connection Destination Connection" window. (Communicate using broadcast communications)
· To prohibit direct connection with the Ethernet, set "Disable" for "Disable Direct Connection with MELSOFT" in "Security" under the "Application Settings".
· A direct connection is not possible when the RJ71EN71 network type is set to "Q Compatible Ethernet".
Set in the "Specify Connection Destination Connection" window. [Online] [Current Connection Destination]
1. Set "PC side I/F" to "Ethernet Board". 2. Double-click "Ethernet Board", and open the "PC side I/
F Detailed Setting of Ethernet Board" window.
3. Set the network number, station number, and protocol of
the personal computer. (Set the network number and protocol according to the settings for the Ethernetequipped module. Set the station number so that it is not the same as a station number assigned to other Ethernet devices.)
4. Set the "PLC side I/F" to the module to be connected.
26
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
5. Double-click the icon set in step 4, and open the
detailed setting window.
6. Select "Ethernet Port Direct Connection" for the
1
connection method.
When connecting directly with the CPU module (built-in Ethernet port part), setting is also possible by clicking the [CPU Module Direct Coupled Setting] button of the "Specify Connection Destination Connection" window.
Precautions
Connection with LAN line
Do not connect with a LAN line and set direct connection. Data will be sent to all external devices on the LAN line, so this setting will cause the line load to increase and will affect communication with other external devices.
Connections that are not direct connections
· Do not use a configuration in which the Ethernet-equipped module and external device are connected with a hub. A direct connection is not established when the devices are connected with a hub.
· When creating a network connection on the personal computer side, communication with a direct connection is not possible if two or more Ethernet ports are set to "Enable". Review the personal computer settings so that only the Ethernet port for the direct connection is set to "Enable", and the other Ethernet ports are set to "Disable".
Settings incompatible with direct connection
When using the RJ71EN71 or the RnENCPU (network part), a direct connection cannot be established if the following setting is made in the "Specify Connection Destination Connection" window of the engineering tool. · When "Other Station (Co-existence Network)" is selected for "Other Station Setting" · When "Other Station (Single Network)" is selected for "Other Station Setting", and "Other station in the same loop or access
to multilevel system" is selected in the "Network Communication Route Detailed Setting of Ethernet" window
Functions incompatible with direct connection
The following functions cannot be used when the RJ71EN71 or the RnENCPU (network part) is directly connected. To use the following functions, connect the CPU module (built-in Ethernet port part) directly or connect the CPU module with a USB cable. · CC-Link IE Field Diagnostics · CC-Link IE Control Diagnostics
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
27
Conditions that cannot communicate with direct connection
Communication with a direct connection may be disabled if the following conditions apply. If connection is not possible, review the settings for the Ethernet-equipped module and personal computer. · When all bits of the IP address for the Ethernet-equipped module that correspond with the 0 section of the subnet mask for
the personal computer are on or off
Ex. IP address for the Ethernet-equipped module: 64.64.255.255 IP address for the personal computer: 64.64.1.1 Subnet mask for the personal computer: 255.255.0.0 · When all bits of the IP address for the Ethernet-equipped module that correspond with the host address of each class in the
IP address for the personal computer are on or off
Ex. IP address for the personal computer: 192.168.0.1 192.x.x.x., class C and the host address is the fourth octet. Subnet mask for the personal computer: 255.0.0.0 IP address for the Ethernet-equipped module: 64.64.255.255 each bit turns on because of the fourth octet is 255
The IP address for each class are as follow. · Class A: 0.x.x.x to 127.x.x.x · Class B: 128.x.x.x to 191.x.x.x · Class C: 192.x.x.x to 223.x.x.x The host address for each class is the 0 section shown below. · Class A: 255.0.0.0 · Class B: 255.255.0.0 · Class C: 255.255.255.0
28
1 FUNCTIONS 1.1 Connection with MELSOFT Product and GOT
1.2 SLMP Communications 1
SLMP communications are available among devices that can receive/send messages with the SLMP control procedure. The Ethernet-equipped module processes and transfers data following instructions (command) from the external device, so the programmable controller only needs the open/close processing and does not require a program for data communication. For SLMP communications, refer to the following. SLMP Reference Manual
Applications
This section describes the applications of SLMP communications.
Data read/write
Data read/write can be executed for the following data. With this, the external device can monitor the operation of the Ethernet-equipped module, analyze data, and control production. · Device or global label of the CPU module connected with the RJ71EN71 (When the Ethernet function of the RJ71EN71 or
the RnENCPU (network part) is used) · Device or global label of the CPU module (When the Ethernet function of the CPU module (CPU part for the RnENCPU) is
used) · Buffer memory of the intelligent function module
File read/write
Files such as parameter files stored in a CPU module can be read/written. Files in a CPU module can be managed on an external device.
Remote control of a CPU module
A CPU module can be remotely controlled from the external device using remote operations.
Remote password lock/unlock
The remote password can be locked and unlocked from the external device.
Access to the programmable controller on another station via other network
In systems with CC-Link IE Controller Network, CC-Link IE Field Network, MELSECNET/H, MELSECNET/10 or Ethernet, the programmable controller on another station can be accessed from the external device via the network. However, when connecting the external device to the CPU module (built-in Ethernet port part), other stations cannot be accessed via network such as CC-Link IE Controller Network and CC-Link IE Field Network.
Accessing to another station via the port 1 and port 2 of the RJ71EN71 is possible for the module with the firmware version of "18" or later.
1 FUNCTIONS 1.2 SLMP Communications
29
Communication structure
When a message is sent from the external device to the Ethernet-equipped module using the SLMP message format, the Ethernet-equipped module executes a processing corresponding to the received message. During communication, the Ethernet-equipped module functions as a server and the external device (terminals such as a personal computer) functions as the client. The server (Ethernet-equipped module) automatically returns a response message suitable for the request message received from the client.
(2) (1)
Ethernet
Header
Request message
Subheader
Access destination
Command
Response message
Header Subheader
Response data
(1) Server side: Ethernet-equipped module (2) Client side: External device
Data communication procedures
This section describes the procedures for communicating with SLMP.
1. After the module parameters are set, the system checks that the initial processing of the Ethernet-equipped module has
ended normally. ('Initial status' (Un\G1900024.0): On)
2. Perform the open processing to establish a connection between the Ethernet-equipped module and external device.
( Page 400 TCP/IP Communications, UDP/IP Communications)
3. After the connection is established, the SLMP messages are sent from the external device. 4. Close the connection when communication is finished.
In the following case, the Ethernet-equipped module performs a remote password check when the external device is accessing the programmable controller. If communication is not possible, unlock the remote password. ( Page 179 Access permit processing (Unlock processing)) · When remote password is set for the CPU module. · When connection for exchanging data with external device is set as a remote password check target.
30
1 FUNCTIONS 1.2 SLMP Communications
Setting procedure
Set "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
1
1. Select "SLMP Connection Module" in "Module List" and drag it to "List of devices" or "Device map area".
2. Set the other items to the connection if required.
Communications using an auto-open UDP port
The auto-open UDP port is used for communication with SLMP. The auto-open UDP port is a UDP/IP port that automatically opens and closes at the following timing. When this port is used, communication is enabled when the initial processing is completed. Communication can be performed without a program regardless of the connection's open status.
Open/close timing
After the Ethernet-equipped module initial processing completes, the port automatically opens according to the registered parameter settings. The port automatically closes when the power for the Ethernet-equipped module station turns off or is reset.
· When the initial processing ends normally, the Ethernet-equipped module enables communications using an automatic open UDP port. The module waits for a communication request to the Ethernet-equipped module on the own station. (Automatic open)
· The Ethernet-equipped module accepts and processes requests from anywhere as long as they are addressed to the Ethernet-equipped module itself.
· If a communication request is received from an external device, the corresponding port number is occupied until that processing ends. Even if another communication request is accepted during this time, the communication processing will be waited.
1 FUNCTIONS 1.2 SLMP Communications
31
List of valid commands
The following table lists the commands that can be executed from the external device to the Ethernet-equipped module. "" in the "Sub-command" field differs according to the specified device. For details on each command, refer to the following. SLMP Reference Manual
Item Type Device
Label Memory Extend Unit
Operation Read
Command Sub command
0401
001 000
003 002
Write
1401
001 000
003 002
Read Random
0403
000
002
Write Random
1402
001
000
003 002
Entry Monitor Device
0801
Execute Monitor Read Block
0802 0406
Write Block
1406
Array Label Read 041A Array Label Write 141A
Read Random Write Random Read Write Read Write
041C 141B 0613 1613 0601 1601
000 002 0000 000 002
000 002
0000 0000
0000 0000 0000 0000 0000 0000
Description
Reads value from the bit devices (consecutive device No.) in one-point units. · Reads values from the bit device (consecutive device No.) in 16-point units. · Reads value from the word devices (consecutive device No.) in one-word units. Reads value from the bit devices (consecutive device No.) in one-point units. · Reads values from the bit device (consecutive device No.) in 16-point units. · Reads value from the word devices (consecutive device No.) in one-word units. Writes value to the bit devices (consecutive device No.) in one-point units. · Writes value to the bit devices (consecutive device No.) in 16-point units. · Writes value to the word devices (consecutive device No.) in one-word units. Writes value to the bit devices (consecutive device No.) in one-point units. · Writes value to the bit devices (consecutive device No.) in 16-point units. · Writes value to the word devices (consecutive device No.) in one-word units. Specifies the device number and reads value from the word devices in one-word units or two-word units. This can be specified with inconsecutive device No. Specifies the device number and reads value from the word devices in one-word units or two-word units. This can be specified with inconsecutive device No. Specifies the device No. to bit device in one-point units and writes value. This can be specified with inconsecutive device No. · Specifies the device No. to bit device in 16-point units and writes value. This can
be specified with inconsecutive device No. · Specifies the device No. to word device in one-word units or two-word units and
writes value. This can be specified with inconsecutive device No. Specifies the device No. to bit device in one-point units and writes value. This can be specified with inconsecutive device No. · Specifies the device No. to bit device in 16-point units and writes value. This can
be specified with inconsecutive device No. · Specifies the device No. to word device in one-word units or two-word units and
writes value. This can be specified with inconsecutive device No. Registers the device to be read by Execute Monitor (command: 0802).
Reads the value of device registered by Entry Monitor Device (command: 0801). Reads data by treating n points of word devices or bit devices (one point is equivalent to 16 bits) as one block and specifying multiple blocks. This can be specified with inconsecutive device No. Writes data by treating n points of word devices or bit devices (one point is equivalent to 16 bits) as one block and specifying multiple blocks. This can be specified with inconsecutive device No. Reads data from array type labels or labels whose structure members are the array. Writes data to array type labels or labels whose and structure members are the array. Specifies labels and reads the data. Specifies labels and writes data. Reads the buffer memory data of own station (SLMP-compatible device). Writes the data in the buffer memory of own station (SLMP-compatible device). Reads the data in the buffer memory of intelligent function module. Writes the data in the buffer memory of intelligent function module.
32
1 FUNCTIONS 1.2 SLMP Communications
Item
Command Sub
Description
Type
Operation
command
Remote Control Remote Run
1001
0000
Executes the remote RUN to the access destination module.
1
Remote Stop
1002
0000
Executes the remote STOP to the access destination module.
Remote Pause 1003
0000
Executes the remote PAUSE to the access destination module.
Remote Latch Clear
1005
0000
Executes the Remote Latch Clear to the access destination module.
Remote Reset
1006
0000
Executes the Remote RESET to the access destination module.
Read Type Name 0101
0000
Reads the model name and model code of the access destination module.
Remote Password
Lock
1631
0000
Specifies the remote password to disable the communication with other devices. (The locked state is activated from the unlocked state.)
Unlock
1630
0000
Specifies the remote password to enable communication with other devices. (The unlocked state is activated from the locked state.)
File
Read Directory/ 1810
0040
Reads file list information.
File
Search Directory/ 1811 File
0040
Reads the presence of the specified file, file No., and file size.
New File
1820
0040
Reserves storage area for the specified file.
Delete File
1822
0040
Deletes a file.
Copy File
1824
0040
Copies the specified file.
Change File State
1825
0040
Changes file attributes.
Change File Date 1826
0040
Changes the file creation date.
Open File
1827
0040
Locks a file so that the content of the file is not changed by other devices.
Read File
1828
0000
Reads the data of a file.
Write File
1829
0000
Writes the contents in a file.
Close File
182A
0000
Cancels the file lock by open processing.
Self Test
0619
0000
Tests whether the communication with external devices is normally executed or not.
Dedicated instructions
SLMP communications can be executed using the dedicated instructions. ( Page 396 Instruction for SLMP communications)
1 FUNCTIONS 1.2 SLMP Communications
33
1.3 Communications Using the Predefined Protocol
Data can be exchanged between the external device (such as measuring instrument and bar code reader) and the CPU module following the protocol of the device. Data that varies according to communication session can be handled by incorporating a device or buffer memory into the communication packet. Sets the protocol required for communication with the external device using the engineering tool. The protocol can be set by selecting from the predefined protocol library, or it can be created and edited.
Ò Setting protocols
Protocols can be set easily using the predefined protocol support function of GX Works3.
Ó Writing protocols Write the set protocols in the Ethernet-equipped module.
GX Works3
Sending
External device
Ethernet-equipped module
Receiving
External device
Ô Executing protocols
Execute protocols by dedicated instructions. Multiple protocols can be executed by one dedicated instruction.
Data can be communicated with protocols appropriate to each external device.
The number of protocols and packets that can be registered is as follow. · Protocols: 128 maximum · Packets: 256 maximum · Packet data area size: 12288 bytes maximum When the number of packets reaches the upper limit, protocols cannot be added even if the number of protocols has not reached the upper limit. If the packet data area size reaches the upper limit, protocols and packets cannot be added even if the number of protocols and packets has not reached the upper limit.
Applicable connections
The connections No.1 to 16 of the P1 connector can be used for the communications using the predefined protocol. Communications using the predefined protocol cannot be used with the P2 connector.
34
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
Data communication procedures
When the predefined protocol support function is used, data can be exchanged with the external device using the following
1
procedure.
1. Select, create or edit the protocol with the predefined protocol support function, and write the protocol setting data. (
Page 35 Creating the protocol setting data)
2. Set the module parameter. ( Page 41 Setting procedure)
3. Write the parameters to the CPU module, and check that initial processing of the Ethernet-equipped module completed
successfully. ('Initial status' (Un\G1900024.0): On)
4. Perform the open processing to establish a connection between the Ethernet-equipped module and external device.
( Page 400 TCP/IP Communications, UDP/IP Communications)
5. Execute the protocol with the ECPRTCL instruction. ( Page 397 Instructions for predefined protocol
communications)
6. Close the connection when communication is finished.
The communication data code is binary code communication regardless of the selected settings.
Creating the protocol setting data
Use the predefined protocol support function to create the protocol setting data.
[Tool] [Predefined Protocol Support Function]
1. Select the module for which to create the protocol
setting data. Select the following items when using the RnENCPU.
· CPU part: "Built-in Ethernet CPU" · Network part: "Ethernet Module"
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
35
Newly creating the protocol setting data
Newly create the protocol setting data.
[File] [New]
Item Protocol No. Manufacturer Model Protocol Name Communication Type
Send/Receive
Packet Name Packet Setting
Description
Displays the protocol number used with the dedicated instruction in the program.
Displays the name of the manufacturer of the device for which the protocol is being set.
Displays the model of the protocol to be set.
Displays the name of the protocol to be set.
Displays the communication type of the protocol to be set. Send only: Sends one send packet once. Receive only: If there is a matching packet up to 16 registered and received packets, it is received. Send & receive: After sending one send packet, if there is a matching packet up to 16 registered and received packets, it is received.
Displays the packet send direction. : For send (1) to (16): For receive, the received packet number is displayed in parentheses.
Displays the packet name.
Displays the validity of variables in the packet elements and the variable setting state. If the variable is not set, there are no elements, or there is an element error, the protocol is not written to the Ethernetequipped module. No Variable: When there is no variable in the elements Variable Set: Only when all variables have been set Variable Unset: When there is even one unset variable Element Unset: When there are no elements in an editable protocol Element error: When elements do not satisfy requirements
36
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
Adding protocol
Add protocol.
[Edit] [Add Protocol]
1
Item Type
Description Select the type of protocol to be added.
Protocol No. Manufacturer*1 Model*1 Protocol Name*1
Select the protocol number to be added. Set the maker of the protocol to be added. Set the type of protocol to be added. Set the name of the protocol to be added.
*1 The name can be set only when "Predefined Protocol Library" is selected for "Type".
Setting range · Predefined Protocol Library · User Protocol Library · Add New 1 to 128
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
37
Protocol Detailed Setting
Set the protocol send/receive parameters.
"Protocol Setting" window Select a protocol [Edit] [Protocol Detailed Setting]
Item
Description
Connected Device Information*1
Manufacturer Type
Set the protocol maker name. Set the protocol device type.
Model
Set the protocol model.
Version
Set the protocol device version.
Explanation
Set a description of the protocol device.
Protocol Setting Information*1
Protocol No. Protocol Name
The protocol number for the selected protocol is displayed. Set the protocol name.
Communication Type
Set the protocol communication type.
Receive Setting
Receive Wait Time
Set the time for wait after the module enters the receive data wait state. If communication with the external device is disabled because of a disconnection and matching packet data is not received within the specified time, the module judges that an error has occurred and cancels the receive data wait state.
Send Setting
Standby Time
Set the time to wait from when the protocol set for the module enters the execution state to when the data is actually sent. The time for the external device to enter the receive enable state can be adjusted with this in respect to the module's send timing.
*1 The setting cannot be changed if the protocol was selected from the predefined protocol library.
Send/receive parameters can be set for multiple protocols by clicking the [Communication Parameter Batch Setting] button and setting the range of the set protocol numbers, receive settings, and send settings.
38
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
Packet setting
Set the configuration of the send/receive packets on the "Packet Setting" window.
"Protocol Setting" window Packet to be set
1
The above window opens when "Predefined Protocol Library" is selected on the "Add Protocol" window. When "Add New" or "User Protocol Library" has been selected, configure the packets with the [Change Type] button and [Add New] button. For details on the packet elements, refer to the following. Page 43 Packet elements
Writing the protocol setting data
Write the protocol setting data to the Ethernet-equipped module.
[Online] [Write to Module]
Select the module and memory into which the protocol data is to be written, and execute write. When writing to a CPU module, the protocol setting data is written into the module extension parameters.
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
39
The following data is not written as the protocol setting data so it will not be displayed even when read. However, when the protocol is selected from the predefined protocol library, the following can be displayed. · Manufacturer · Packet Name · Protocol Detailed Setting Type, Version, Explanation · Packet Setting Configuration Element Name
After writing the protocol setting data, the setting data are enabled at the following timing. · When the system is powered off and on · When the CPU module is reset · When the status of the CPU module changed from STOP to RUN state The predefined protocol settings written in the SD memory card can be transferred to the CPU module memory by using boot operation. For details on boot operation, refer to the following. MELSEC iQ-R CPU Module User's Manual (Application)
When the protocol setting data are written into multiple target memory
When the protocol setting data are written into multiple target memory, the following operation will take place.
: The protocol setting data are written., : The predefined protocol data are not written.
Target memory
CPU module (built-in Ethernet port part)
SD memory card
RJ71EN71, RnENCPU (network part)
Operation
Operation follows settings in "Module Extended Parameter" under "Setting of File/Data Use or Not in Memory Card" of the "Memory Card Parameter" window. As soon as the protocol setting data are enabled, the predefined protocol settings of the RJ71EN71 or the RnENCPU (network part) are overwritten by the predefined protocol settings in the CPU module or SD memory card. Operation follows settings in "Module Extended Parameter" under "Setting of File/Data Use or Not in Memory Card" of the "Memory Card Parameter" window. As soon as the protocol setting data are enabled, the predefined protocol settings of the RJ71EN71 or the RnENCPU (network part) are overwritten by the predefined protocol settings in the CPU module or SD memory card.
By writing the protocol setting data to the CPU built-in memory, the same setting can be used even after module change. When capacity of the CPU built-in memory is insufficient, write data to an SD memory card. Although the protocol setting data can also be written to the intelligent function module, the data must be written again when the module is changed.
40
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
Setting procedure
Set "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
1
1. Select the external device to be connected in "Module List" and drag it to "List of devices" or "Device map area".
External device name
Description
UDP Connection Module
Select to communicate with the external device using UDP/IP.
Active Connection Module
Select to perform the open processing to the external device from the Ethernet-equipped module (Active open) and communicate using TCP/IP.
Unpassive Connection Module
Select to receive the open processing from an unspecified external device (Unpassive open) and communicate using TCP/IP.
Fullpassive Connection Module
Select to receive the open processing from the specified external device (Fullpassive open) and communicate using TCP/IP.
2. Set "Communication Method" for the external device to "Predefined Protocol".
3. Set the other parameters required for communication in the connection.
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
41
Protocol communication type
The packets sent to the external device when a processing is executed and the external device's receive packets are registered in the protocol. The packet elements set with the predefined protocol support function are the data section of the packets that are actually sent and received. This section describes an example of the packet configuration. For details on the packet elements, refer to the following. Page 425 Operation Image and Data Structure of Predefined Protocol
For TCP/IP
Header
Maximum data length: 2046 bytes
Destination Sender's MAC
MAC address: address:
6 bytes
6 bytes
Type: 2 bytes
Ethernet header
IP: 20 bytes
TCP: 20 bytes
TCP/IP header
Data
Precautions for Passive open
· When the CPU module is connected to external device in Passive open state, the IP address of the connected external device or port number of the external device can be obtained with the SP.SOCCINF instruction. ( Page 397 Instructions
for predefined protocol communications)
For UDP/IP
Header
Maximum data length: 2046 bytes
Destination Sender's
MAC address: MAC address:
6 bytes
6 bytes
Type: 2 bytes
Ethernet header
IP: 20 bytes
UDP: 8 bytes
UDP/IP header
Data
With the predefined protocol support function, data is exchanged with the external device with the procedures (communication type) shown below. For details on the communication type operation, refer to the following. Page 425 Operation Image and Data Structure of Predefined Protocol
Communication type Send only Receive only Send & receive
Description The send packet is sent once. If there is a packet that matches within the maximum of 16 registered receive packets, the packet is received. After sending the send packets, if there are packets that match the up to 16 registered receive packets, the packets are received.
Precautions for UDP/IP communications
· Use the SP.SOCCSET instruction to change the external device by the CPU module. ( Page 397 Instructions for predefined protocol communications)
Precautions for broadcast communications
· When the CPU module receives data by receiving the broadcast, the IP address of the external device which send data and port number of the external device can be obtained with the SP.SOCCINF instruction. ( Page 397 Instructions for predefined protocol communications)
42
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
Packet elements
The packet is created with a combination of packet elements.
1
Up to 32 elements can be set in one packet. One packet can have a maximum data length of 2046.
This section describes the details of the packet elements.
For examples of the packet element data, refer to the following.
Page 425 Operation Image and Data Structure of Predefined Protocol
Static data
Use when there are specific codes and character strings, such as commands, in the packet. · When sending: The specified code and character string are sent. · When receiving: The received data is verified. Multiple static data elements can be placed anywhere in the data part. The following table lists the items.
Item Element Name Code Type
Setting Value
Description
Set the element name.
Select a data type of the setting value. ASCII String/ASCII Control Code/HEX
Set data within 1 to 50 bytes. Code type and setting range are as follows: · ASCII String: 20H to 7EH · ASCII Control Code: Control code of 00H to 1FH and 7FH · HEX: Hexadecimal data of 00H to FFH
Remarks
Setting example ASCII string: "ABC" ASCII control code: STX HEX: FFFF
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
43
Length
The length code is used when there is an element that indicates the data length in the packet. · When sending: Automatically calculates the data length in the specified range, and adds it to the packet. · When receiving: From the received data, the data (value) corresponding to the length is verified as the specified range's
data length. Length elements can be placed anywhere in the data part. Multiple length elements can be set placed in one packet. The following table lists the items.
Item Element Name Code Type
Data Length
Data Flow
Calculating Range
Start End
Description
Set the element name.
Select the data length type. ASCII Hexadecimal/HEX
Select the data length on the line. The range is 1 to 4 bytes.
Forward Direction (Upper Byte Lower Byte)
When sending: Sends the calculated length in order from the upper byte. When receiving: Receives the data in order from the upper byte.
Reverse Direction (Lower Byte Upper Byte)
Byte Swap (by Word)*1
When sending: Sends the calculated length in order from the loworder byte. When receiving: Receives the data in order from the low-order byte.
When sending: Interchanges the bytes in word units and sends the calculated length. When receiving: Interchanges the bytes in word units and receives the data.
Select the start packet element number for the range to be calculated. The range is 1 to 32.
Select the end packet element number for the range to be calculated. The range is 1 to 32.
Remarks This cannot be set if the data length is 1 byte.
*1 This can be selected only when the data length is set to 4 bytes.
44
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
· If there are no elements other than length, an element error occurs. (When using length, one or more
elements other than length are required.)
1
· If the calculation result exceeds the number of digits set with "Data Length", the excessive digit value is
discarded (invalidated). For example, if the data length is 2 bytes and the data size calculation results are
"123" bytes, the data length will be "23".
· If there is a non-conversion variable (variable length)/non-verified reception (character length variable) after
the length, and that section is not included in the length calculating range, arrange the static data
immediately after the non-conversion variable/non-verified reception.
· When the code type setting is "ASCII Hexadecimal", a mismatch will occur if a character string other than
"0" to "9", "A" to "F", and "a" to "f" is received.
· Use "0" to "9" or "A" to "F" when converting to ASCII characters during send.
· When arranging multiple length elements, none of the length calculating range may overlap.
· When arranging multiple length elements, the previous length calculating range may not exceed the
arranged length.
· A length element cannot be arranged at the final position of the packet elements.
Non-conversion variable
Use this to send the CPU module device or buffer memory data as part of the send packet, or to store part of the received packet in the CPU module device or buffer memory. Multiple non-conversion variable can be arranged in one packet. The following table lists the items.
Item Element Name Fixed Length/Variable Length
Data Length/Maximum Data Length
Unit of Stored Data
Description
Set the element name.
Fixed Length
The data whose length is fixed is sent and received.
Variable Length
When sending: The data length is specified at the time of the protocol execution and the data is sent. When receiving: The data whose length is variable is received.
Set the data length of the send/receive data. (For a variable length, set the maximum data length that can be specified for the data length storage area.) The range is 1 to 2046.
Lower Byte + Upper Byte
When sending: Each one word (2 bytes) data in the data storage area is sent in the order of the lower byte to the upper byte. When receiving: The receive data is stored to the data storage area in the order of the lower byte to the upper byte.
Lower Bytes Only
When sending: Each lower byte data in the data storage area is sent. The Ethernet-equipped module ignores the upper byte data. When receiving: The receive data is stored to each lower byte in the data storage area. The Ethernetequipped module stores 00H in the upper byte.
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
45
Item
Description
Byte Swap
Disable (Lower Upper)/Enable (Upper Lower)
When sending: When "Enable (Upper Lower)" is selected, data in the upper byte and lower byte are swapped by one word (2 bytes) and sent. When "Unit of Stored Data" is "Lower Byte + Upper Byte" and "Data Length" is an odd number of bytes, the upper byte is sent at transmission of the last byte. When "Unit of Stored Data" is "Lower Bytes Only" and "Data Length" is an odd number of bytes, data without any byte swap is sent at transmission of the last byte. When receiving: When "Enable (Upper Lower)" is selected, data in the upper byte and lower byte are swapped by word and sent. When "Unit of Stored Data" is "Lower Byte + Upper Byte" and "Data Length" is an odd number of bytes, the last byte is stored to the upper byte. When "Unit of Stored Data" is "Lower Bytes Only" and "Data Length" is an odd number of bytes, the last byte is stored without any byte swap.
Data Storage Area Specification
Specify the start device for storing the variable value. The settable devices are listed below. Inner user*1*2 · Input (X) · Output (Y) · Internal relay (M) · Latch relay (L) · Link relay (B) · Data register (D) · Link register (W) File register*2 · File register (R, ZR) Buffer memory · G device (G) ('Send/receive area for predefined protocol support function' (Un\G1902000 to Un\G1904047))*3
*1 Do not set local devices. *2 Set within the device range specified with "Device/Label Memory Area Setting" in "Memory/Device Setting" of "CPU Parameter". *3 This cannot be set if the target module is a CPU module.
46
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
The following figures show the configuration of the data storage area.
When "Fixed Length/Variable Length" is "Fixed Length"
The area after the device number specified on the "Element Setting" window becomes the data storage area.
1
The occupied data storage area differs according to the "Unit of Stored Data".
· When "Lower Byte + Upper Byte" is selected, the same size as the data length is occupied. (However, when the data length
of a send packet is an odd number, the upper byte (lower byte for "Byte Swap") of the end device is not sent. When the data
length of a receive packet is an odd number, the last data is stored with one byte of 00H.)
· When "Lower Bytes Only" is selected, a size double the data length is occupied.
(Word) + 0
Specified device
Send packet
Data storage area
Data storage area
Receive packet
Data storage area
+ n
For send packet: Send data is stored by the program For receive packet: Receive data is stored by the Ethernet-equipped module
When "Fixed Length/Variable Length" is "Variable Length"
The area after the device number specified on the "Element Setting" window + 1 becomes the data storage area. The occupied data storage area differs according to the "Unit of Stored Data". · When "Lower Byte + Upper Byte" is selected, the same size as the data length + one word (length for the data length
storage area) are occupied. (However, when the data length of a send packet is an odd number, the upper byte (lower byte for "Byte Swap") of the end device is not sent. When the data length of a receive packet is an odd number, the last data is stored with one byte of 00H.) · When "Lower Bytes Only" is selected, a size double the data length + one word (for data length storage area) is occupied.
(Word) + 0 + 1
Specified device Data length storage area*1
Send packet
Data storage area
·
Data storage area
Receive packet
+ n
For send packet: Send data is stored by the program For receive packet: Receive data is stored by the Ethernet-equipped module
*1 The data length unit is byte fixed
Data storage area
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
47
When "Fixed Length/Variable Length" is "Variable Length" and the configuration is set as follows, an error occurs: · An element other than static data is placed behind a non-conversion variable element when non-conversion
variable is out of the length calculating range or when there is no length element (except for when nonconversion variable is placed at the end of the packet elements). · Multiple non-conversion variable elements are placed in the length calculating range, while a length element is not placed. · A non-conversion variable element is placed before a length element in the length calculating range.
Non-verified reception
Use this when receive data include unnecessary data. If the receive packet contains non-verified reception, Ethernet-equipped module skims over the specified number of characters. Multiple non-verified reception elements can be set in one packet. The following table lists the items.
Item Element Name Data Length
Description
Set the element name.
0 (Number of characters variable)
1 to 2046 (number of character specification)
Set when the number of characters that are not verified differs between each communication session.
Set the number of characters that are not verified.
Remarks
When "Data Length" is set to 0, an error will occur if the following layout is used. · An element other than static data is placed behind a non-verified reception element when non-verified
reception is out of the length calculating range or when there is no length element (except for when nonverified reception is placed at the end of the packet elements). · Multiple non-verified reception elements are placed in the length calculating range, while a length element is not placed. · A non-verified reception element is placed before a length element in the length calculating range.
48
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
Execution conditions of predefined protocol communications
The predefined protocol communications can be executed when 'Predefined protocol ready' (Un\G1901002.0) is on.
1
This section describes the operation of 'Predefined protocol ready' (Un\G1901002.0).
When the system is powered on or reset
If protocol setting data is written in, the Ethernet-equipped module checks the protocol setting data when the system is powered on or reset. If the protocol setting data is normal, the Ethernet-equipped module turns on 'Predefined protocol ready' (Un\G1901002.0), and enables execution of the protocol. 'Predefined protocol ready' (Un\G1901002.0) is used as the interlock signal for executing the protocol. If the protocol setting data is abnormal, 'Predefined protocol ready' (Un\G1901002.0) stays off, and the details of the error are stored in 'Predefined protocol setting data check area' (Un\G1901020 to Un\G1901047). If protocol setting data is not written in, the protocol setting data is not checked, and 'Predefined protocol ready' (Un\G1901002.0) remains off. Whether the protocol setting data is registered or not can be checked with 'Number of registered predefined protocols' (Un\G1901024) and 'Predefined protocol registration' (Un\G1901032 to Un\G1901047).
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
49
When protocol setting data is normal
Power on/reset
Ethernet-equipped module
Checking the protocol setting data
Normal result
Bit 0 turns on when the check result is normal.
'Predefined protocol ready' (Un\G1901002.0)
'Predefined protocol setting data check area' (Un\G1901020 to Un\G1901047)
When protocol setting data is abnormal
Power on/reset
Ethernet-equipped module
Checking the protocol setting data
The number of registered protocols and information about whether protocols have been registered are stored.
Abnormal result
'Predefined protocol ready' (Un\G1901002.0)
Bit 0 remains off.
'Predefined protocol setting data check area' (Un\G1901020 to Un\G1901047)
The error details are stored.
When executing UINI instruction
When the RJ71EN71 network type is set to "Q Compatible Ethernet" and the UINI instruction is executed, the protocol setting data will not be checked. Predefined protocol ready maintains the state before the UINI instruction was executed.
50
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
Example of predefined protocol communications
This section describes an example of predefined protocol communications using UDP/IP.
1
System configuration
GX Works3
Sending side (192.0.1.100)
Receiving side (192.0.1.101)
Ethernet
Parameter settings
Connect the engineering tool to the CPU module and set the parameters.
Sending side
1. Set the CPU module as follows.
[Project] [New]
2. Click the [Setting Change] button in the following window and set the item to use module labels.
3. Click the [OK] button to add the module labels of the CPU module.
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
51
4. Set the RJ71EN71 as follows.
[Navigation window] [Parameter] [Module Information] Right-click [Add New Module]
5. Click the [OK] button to add the module labels of the RJ71EN71.
6. Set the items in "Basic Settings" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings]
52
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
7. Set the network configuration as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings] [External Device Configuration]
1
8. Start the predefined protocol support function.
[Tool] [Predefined Protocol Support Function]
9. Select "Ethernet Module" for "Module Type" and click the [OK] button.
10. Newly create the protocol setting.
[File] [New]
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
53
11. Set the protocol as follows.
[Edit] [Add Protocol]
12. Set each packet as follows.
"Protocol Setting" window Packet to be set · Request
54
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
· Normal response
1
· Error response
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
55
13. Write the protocol setting data to the CPU module.
[Online] [Write to Module]
14. Write the set parameters to the CPU module. Then reset the CPU module or power off and on the system.
[Online] [Write to PLC] In this example, default values were used for parameters that are not shown above. For the parameter setting, refer to the chapter explaining the parameters in this manual. ( Page 261 PARAMETER SETTINGS)
Receiving side
1. Set the CPU module and add the module labels of the CPU module. The setting method of the CPU module and addition
method of the module label are the same as those of when setting the sending side. ( Page 51 Sending side)
2. Set the RJ71EN71 and add the module labels of the RJ71EN71. The setting method of the RJ71EN71 and addition
method of the module label are the same as those of when setting the sending side. ( Page 51 Sending side)
3. Set the items in "Basic Settings" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings]
56
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
4. Set the network configuration as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings] [External Device Configuration]
1
5. Write the set parameters to the CPU module. Then reset the CPU module or power off and on the system.
[Online] [Write to PLC]
In this example, default values were used for parameters that are not shown above. For the parameter setting, refer to the chapter explaining the parameters in this manual. ( Page 261 PARAMETER SETTINGS)
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
57
Program examples
Classification Module label
Label to be defined
Label name EN71_EE_1.bnCompletion_ConnectionOpen_D[1] EN71_EE_1.uCompletion_EthernetInitialized_D.0 EN71_EE_1.bReady_PredefinedProtocol_D Define global labels as shown below:
Description Open completion signal (connection No.1) Initial status Predefined protocol ready
Device U0\G1900000.0 U0\G1900024.0 U0\G1901002.0
58
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
1
(0) When 'bStart' (M0) is turned on, the protocol is executed by the dedicated instruction GP.ECPRTCL, and D100 to D109 of the receiving side CPU module is read and stored in D14 to D23 of the sending side CPU module. 'bComp_OK' (M10) is turned on when the protocol completed successfully.
D0 to D8 stores the following as a protocol setting data.
Device number D0 D1
D2
D3
D4 D5 to D6 D7 D8
Element name
Serial No. Network No.
Setting value
0H
Station No.
FFH
Requested module I/O No. Monitoring timer Head device No. Device code Number of device points
3FFH
10H 100 A8H 10
Description
The number increases one by one each time the 'bStart' (M0) is turned on. Because the access destination is the connected station (own station), 0H is stored as the request destination network number. Because the access destination is the connected station (own station), FFH is stored as the request destination station number. Because the access destination is the receiving side CPU module (control CPU of the receiving side RJ71EN71), 3FFH is stored. The monitoring timer is set to 4 seconds. (Unit: 250ms) To read D100 to D109, start device number is set to 100. To read D100 to D109, device code is set to A8H. To read 10 points from D100 to D109, number of device points is set to 10.
In this program example, a receiving side program is not required.
1 FUNCTIONS 1.3 Communications Using the Predefined Protocol
59
1.4 Socket Communications
Using dedicated instructions, arbitrary data can be exchanged with an external device connected by Ethernet over TCP/IP or UDP/IP. ( Page 397 Socket communications instructions) Use this for bidirectional communication one-on-one with an external device.
Ethernet
Receive or broadcast receive
External device
Ethernet-equipped module
Send Broadcast send
External device
Broadcast send
External device
For examples of socket communications, refer to the following. MELSEC iQ-R Ethernet/CC-Link IE User's Manual (Startup)
Precautions
Socket communications cannot be used when the RJ71EN71 network type is set to "Q Compatible Ethernet".
Setting procedure
Set "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
1. Select the external device to be connected in "Module List" and drag it to "List of devices" or "Device map area".
External device name UDP Connection Module Active Connection Module
Unpassive Connection Module
Fullpassive Connection Module
Description
Select to communicate with the external device using UDP/IP.
Select to perform the open processing to the external device from the Ethernet-equipped module (Active open) and communicate using TCP/IP.
Select to receive the open processing from an unspecified external device (Unpassive open) and communicate using TCP/IP.
Select to receive the open processing from the specified external device (Fullpassive open) and communicate using TCP/IP.
2. Set "Communication Method" for the external device to "Socket Communication". 3. Set the other parameters required for communication in the connection.
60
1 FUNCTIONS 1.4 Socket Communications
Applicable dedicated instructions
For the dedicated instructions used for socket communications, refer to the following.
1
· Page 396 Open/close processing instructions
· Page 397 Socket communications instructions
Applicable connections
The following connections can be used for data exchange with socket communications.
Module RJ71EN71
RnENCPU (network part) CPU module (built-in Ethernet port part)
P1 connector P2 connector P1 connector
Usable connections Connection No.17 to 64 Connection No.1 to 64 Connection No.17 to 64 Connection No.1 to 16
1 FUNCTIONS 1.4 Socket Communications
61
Communication structure
With socket communications, port numbers that identify the communication are used to enable multiple communication sessions with the external device. These are used for both TCP/IP and UDP/IP. For send: Specify send source Ethernet-equipped module's port number and the send destination external device's port number. For receive: Specify the Ethernet-equipped module's port number, and read the data sent to that port.
Ethernet-equipped module (IP address: xx.xx.xx.xx)
Ethernet
(1)
Port No.A
(2)
Port No.L
External device 1 (IP address: yy.yy.yy.yy)
(3)
Port No.B
(3)
Port No.M
External device 2 (IP address: zz.zz.zz.zz)
(4)
Port No.C
(5)
Port No.N
(1) Sending UDP data from Ethernet-equipped module's port number A to external device 1's port number L (2) Sending UDP data from external device 1's port number L to Ethernet-equipped module's port number A (3) Sending data with TCP/IP connection (4) Sending UDP data from Ethernet-equipped module's port number C to external device 3's port number N (5) Sending UDP data from external device 3's port number N to Ethernet-equipped module's port number C
External device 3 (IP address: ww.ww.ww.ww)
62
1 FUNCTIONS 1.4 Socket Communications
Communications using TCP/IP
TCP/IP protocol establishes a connection between the external device's port number for reliable data exchange.
1
Check the following items before performing socket communications using TCP/IP.
· IP addresses and port numbers on external device side
· IP addresses and port numbers on the Ethernet-equipped module side
· Which side, the external device side or Ethernet-equipped module side, will open a connection (Active open or Passive
open)
TCP/IP connection operation
TCP/IP connection includes Active open and Passive open. First, the side with the TCP/IP connection executes Passive open with the specified port number The side with TCP/IP connection specifies the port number waiting in the Passive open side, and executes Active open. This enables the TCP/IP connection, the connection is established, and data can be exchanged. For details on Active open and Passive open, refer to the following. ( Page 400 TCP/IP communications)
The Active open and Passive open expression may differ according to the external device. · Active open: TCP/IP connection side, client side, connect side, and others · Passive open: TCP/IP connection wait side, server side, listen side, and others
Active open
The following figure shows the flow of data exchange using Active open.
Start
Specify the port number of the external device waiting for TCP connection and open a connection by Active open.
Open processing
Was data transfer completed?
YES (Completed, or disconnected by the external device.)
NO
Send by the SOCSND instruction, or receive by the SOCRCV or SOCRCVS instruction.
Close processing
End
Passive open
The following figure shows the flow of data exchange using Passive open.
Start
Waiting for TCP connection in Passive open state.
NO Send or receive?
YES Send by the SOCSND instruction, or receive by the SOCRCV or SOCRCVS instruction.
1 FUNCTIONS 1.4 Socket Communications
63
Precautions for TCP/IP communications
Conditions for closing
In addition to when close is requested from the external device, the TCP/IP communications processing will be closed in the following cases if 'Open completion signal' (Un\G1900000 to Un\G1900007) turns off. · When alive check function times out · When forced close is received from external device
TCP/IP connection elements
The TCP/IP connection is managed with the following four elements. Only one connection containing the same four elements can be created at one time. To use multiple TCP/IP connections simultaneously, ensure that one of the four elements is different. · IP address of the Ethernet-equipped module side · Port number of the Ethernet-equipped module side · IP address of the external device side · Port number of the external device side
Reconnecting with same connection
After closing the connection during TCP/IP communications, wait at least 500ms before reconnecting to a connection with the same external device (IP address), own station port number, and external device port number. If a wait interval cannot be provided before reconnecting, changing the own station port number on the Active open side and connecting is recommended.
64
1 FUNCTIONS 1.4 Socket Communications
Checking the receive data length
There is no concept of delimiting the communication data during communication with TCP/IP. Thus, the continuously sent
data may be merged on the received side, or the data sent in a group may be split on the receive side. If necessary, the
1
receiving side must check the receive data length and perform the processing.
If the data length is determined when receiving with the Ethernet-equipped module side, using the fixed-length mode is
recommended.
When receiving on the external device side, check the receive data length and perform the processing as shown below.
Receive processing on the external device side
Received message, receive processing
Receive the rest of the message.
NO Is TCP connection open?
YES
Received data within
NO
the time specified by the monitoring
timer value?
YES
Check the received data size.
TCP connection is closed.
NO Sufficient receive data size?
YES Processing for the received message
Was the entire received message
NO
processed?
YES
End
Error handling
Precautions for Active open
Use 'Open completion signal' (Un\G1900000 to Un\G1900007) and 'Open request signal' (Un\G1900008 to Un\G1900015) in the program to create an interlock circuit. The on/off timing for the open completion signal and open request signal is shown below.
'Open completion signal'
ON
(Un\G1900000 to Un\G1900007) OFF
<When disconnected by the Ethernet-equipped module>
TCP disconnection completed upon response from the external device
'Open request signal'
ON
(Un\G1900008 to Un\G1900015) OFF
TCP disconnection request from the Ethernet-equipped module
OPEN instruction
CLOSE instruction
<When disconnected by the external device>
TCP disconnection request from the external device
TCP disconnection completed upon response from the Ethernet-equipped module
CLOSE instruction
1 FUNCTIONS 1.4 Socket Communications
65
Precautions for Passive open
· Use 'Open completion signal' (Un\G1900000 to Un\G1900007) and 'Open request signal' (Un\G1900008 to Un\G1900015) in the program to create an interlock circuit. The on/off timing for the open completion signal and open request signal is shown below.
TCP disconnection completed by the external device
'Open completion signal'
ON
(Un\G1900000 to Un\G1900007) OFF
'Open request signal'
ON
(Un\G1900008 to Un\G1900015) OFF
TCP connection completed by the external device
Always on
· When the CPU module is connected to the external device with Passive open, the connected external device's IP address
or the external device's port number can be retrieved with the SP.SOCCINF instruction.
· With TCP/IP, one external device is connected to with one connection. To connect with multiple external devices with the
same own station port number, provide a connection for each external device. If more external devices than the prepared
number of connections are connected, the connection will be disconnected immediately.
· Connect from the external device after the Ethernet-equipped module enters the open standby state. The TCP/IP
connection request received from the external device between the time from CPU startup completion to open wait state
causes an error, and force close connection is returned to the external device. In this case, wait for the Ethernet-equipped
module to enter the open wait state and then retry from the external device.
· Do not execute the GP.CONCLOSE instruction or SP.SOCCLOSE instruction in the program. If the GP.CONCLOSE
instruction or SP.SOCCLOSE instruction is executed, the open completion signal and open request signal for the
corresponding connection will turn off. The close processing will be executed and send/receive will be disabled. To re-open
a closed connection, execute the GP.CONOPEN instruction or SP.SOCOPEN instruction.
Communications using UDP/IP
Communication with UDP/IP uses a simple protocol without order control or re-send control. Check the following items before performing socket communications using UDP/IP. · IP addresses and port numbers on external device side · IP addresses and port numbers on the Ethernet-equipped module side
Precautions for UDP/IP communications
· Loss of data, data arrival order interchange, and others could be occur. Consider using TCP/IP if there are problems. · Even if the communication line between the CPU module and external device is not connected because of a connected
cable disconnection and others, the data send processing may end normally. Thus, providing a communication procedure and sending/receiving data is recommended. · Use the SP.SOCCSET instruction to change the external device with the CPU module. · 'Open completion signal' (Un\G1900000 to Un\G1900007) and 'Open request signal' (Un\G1900008 to Un\G1900015) for the connection set to UDP/IP is always on. · Do not execute the GP.CONCLOSE instruction or SP.SOCCLOSE instruction in the program. If the GP.CONCLOSE instruction or SP.SOCCLOSE instruction is executed, the open completion signal and open request signal for the corresponding connection will turn off. The close processing will be executed and send/receive will be disabled. To re-open a closed connection, execute the GP.CONOPEN instruction or SP.SOCOPEN instruction. · Even if 'Open completion signal' (Un\G1900000 to Un\G1900007) is turned on, data sending may fail. If data sending fails, send the data again.
66
1 FUNCTIONS 1.4 Socket Communications
Broadcast communications
Broadcast communications is a communication method that does not specify the external device. Data is exchanged between
1
all Ethernet-equipped module stations and external devices on the same Ethernet to which the Ethernet-equipped modules
are connected.
Item
Description
Broadcast sending Broadcast receiving
The same data is sent to all Ethernet devices on the same Ethernet. The data sent with broadcast send is received.
Setting procedure
Set "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
1. Select "UDP Connection Module" in "Module List" and drag it to "List of devices" or "Device map area". 2. Set "Communication Method" for the external device to "Broadcast Send" or "Broadcast Receive". 3. Set the other parameters required for communication in the connection.
Precautions
· Decide the dedicated port number for broadcast communication in the system, and use that number. · Access via a router is not permitted when using broadcast send. · The external device connected on the same Ethernet must carry out a read/discard processing if the message received
with broadcast receiving is not required. · When the CPU module receives the data with broadcast receiving, the IP address of the sending external device and the
external device's port number can be retried with the SP.SOCCINF instruction.
1 FUNCTIONS 1.4 Socket Communications
67
Precautions
This section describes the precautions for exchanging data with socket communications.
Port number
Port numbers 1 to 1023 are typically reserved port numbers (WELL KNOWN PORT NUMBERS) and 61440 to 65534 are used by other communication functions, so 1024 to 4999 or 5010 to 61439 should be used for the own station port numbers. 5000 to 5009 are used by the system and must not be specified. ( Page 424 Port Numbers Used by Ethernet-equipped Module) When using the file transfer function (FTP server), do not specify 20 or 21 for socket communications. When using the time setting function (SNTP client), do not specify 123 for socket communications.
Reading received data
If 'Socket/fixed buffer reception status signal' (Un\G1900016 to Un\G1900023) is on, read the received data. The communication could be affected if large amounts of data are not read out for a while.
Accessing a file during communication
The CPU module prioritizes the file access processing over the Ethernet communication processing. Thus, if the file is accessed with FTP, the engineering tool, and so on, during socket communications, the socket communications processing could be delayed. To access a file while monitoring the response time with the external device with socket communications, add the time required for accessing the file to the monitoring time.
Module FB and dedicated instruction
· When performing the open processing using the module FB or dedicated instruction, start sending and receiving data after the module FB or dedicated instruction is completed.
· Multiple module FBs or dedicated instructions to one connection cannot be simultaneously executed. When multiple module FBs or dedicated instructions are simultaneously executed, no operation is performed for the module FB or dedicated instruction executed later. Execute again after the module FB or dedicated instruction in execution is completed.
68
1 FUNCTIONS 1.4 Socket Communications
1.5 Communications Using the Fixed Buffer 1
Communications using the fixed buffer uses TCP/IP and UDP/IP to send and receive arbitrary data with the external device connected to the Ethernet with dedicated instructions in the same manner as exchanging data with socket communications. Exchanges arbitrary data between the CPU module and external device using the fixed buffer of the RJ71EN71 and the RnENCPU (network part). The following table lists the differences with socket communications are given below.
Item
Differences Socket communications
Communications using the fixed buffer
Connection send/receive
Send/receive is possible with one connection
Specify send or receive for one connection (Two connections are required for send and receive)
Precautions
The CPU module (CPU part for the RnENCPU) cannot exchange data with the fixed buffer.
Differences between the "Procedure Exist" and "No Procedure" control methods
"Procedure Exist" and "No Procedure" control methods can be used for fixed buffer communication. The following table lists the differences between "Procedure Exist" and "No Procedure".
Item
Message format
Response for received data Data Code
Data length specified with dedicated instructions Amount of application data per data exchange session*1
Differences Procedure Exist
Data is sent and received with the predetermined data format.
A response is sent for the received data. Data can be exchanged with binary code or ASCII code. Specify with a number of words.
Maximum 5113 words (binary code) Maximum 2556 words (ASCII code)
No Procedure Data is sent and received according to the external device's message format. No response is sent for the received data. Data is exchanged only with binary codes.
Specify with a number of bytes. Maximum 10238 bytes
*1 The following value is used if the RJ71EN71 network type is set to "Q Compatible Ethernet". Procedure Exist: Maximum 1017 words (binary code), maximum 508 words (ASCII code) No Procedure: Maximum 2046 bytes
Setting procedure
Set "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
1. Select the external device to be connected in "Module List" and drag it to "List of devices" or "Device map area".
External device name UDP Connection Module Active Connection Module
Unpassive Connection Module
Fullpassive Connection Module
Description
Select to communicate with the external device using UDP/IP.
Select to perform the open processing to the external device from the Ethernet-equipped module (Active open) and communicate using TCP/IP.
Select to receive the open processing from an unspecified external device (Unpassive open) and communicate using TCP/IP.
Select to receive the open processing from the specified external device (Fullpassive open) and communicate using TCP/IP.
2. Set "Communication Method" for the external device to "Fixed Buffer (Procedure Exist)" or "Fixed Buffer (No
Procedure)".
3. Set the "Fixed Buffer Send/Receive Setting". 4. Set the other parameters required for communication in the connection.
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
69
Applicable dedicated instructions
For the dedicated instructions used for communications using the fixed buffer, refer to the following. · Page 396 Open/close processing instructions · Page 397 Instructions for communications using the fixed buffer GP.CONOPEN and GP.CONCLOSE of the open/close processing instructions are not available when "Q Compatible Ethernet" is set to network type.
Applicable connections
The connections No.1 to 16 of the P1 connector can be used for the communications using the fixed buffer. Communications using the fixed buffer cannot be used with the P2 connector.
Communication structure
This section describes the mechanism of communication with fixed buffer communication.
Data flow
Dedicated instructions are used to send and receive data in fixed buffer communication ( Page 70 Applicable dedicated instructions) With "Procedure Exist", the CPU module and external device exchange data one-on-one. A handshake is established with the external device when sending data form the CPU module and receiving data from the external device. With "No Procedure", data is sent from the CPU module and received from the external device without a procedure.
CPU module
BUFSND instruction BUFRCV instruction
RJ71EN71 Fixed buffer
No.1 No.2 No.3 No.4
No.16
External device
70
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
External devices capable of data exchange
Data can be exchanged with the following external devices.
1
· Devices in Ethernet to which the RJ71EN71 is connected
· Devices in Ethernet to which the RnENCPU (network part) is connected
· Device connected via router
As the following figure shows, the external device for communication and the working application (for send/receive and
"Procedure Exist"/"No Procedure") are set in "External Device Configuration" under "Basic Settings" using each fixed buffer
(No.1 to No.16) to fix the external device for each buffer.
Fixed buffer No.1 For sending data to the external device 1
Fixed buffer No.2 Fixed buffer No.3
For receiving data from the external device 1 For receiving data from the external device 8
External device 1
External device 8
Fixed buffer No.16 For sending data to the external device 28
External device 28
Pay attention to the following when changing the external device. · During TCP/IP communications, the external device can be changed only when a connection is not established with the
external device (when the open completion signal is off). · During UDP/IP communications, the external device can be changed regardless of the connection status with the external
device. · When changing the external device, do not use the pairing open or alive check function.
Processing during data send/receive
During data send
When the BUFSND instruction is executed, the RJ71EN71 and the RnENCPU (network part) send data from the corresponding fixed buffer to the external device set in the specified connection.
During data reception
If the data is being received from an external device set in the specified connection, the RJ71EN71 and the RnENCPU (network part) process the reception. If data is being received from an external device that is not set in the specified connection, the RJ71EN71 and the RnENCPU (network part) will ignore the received data.
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
71
Send procedure
The following figure shows the processing when sending data from the RJ71EN71 or the RnENCPU (network part) to the external device.
Procedure exists
The following figure shows the send processing for the fixed buffer No.1 area corresponding to the connection No.1.
Initial processing Open processing
Sending data
Receiving a response
'Initial status' (Un\G1900024.0)
Ò
'Open completion signal
Ó
(connection No.1)'
(Un\G1900000.0)
BUFSND instruction
Ô
BUFSND instruction completion device
BUFSND instruction completion device +1
× 1 scan
Sending data
ACK (TCP only)
Response
ACK (TCP only)
Õ
Ö
Normal completion of the initial processing is checked. ('Initial status' (Un\G1900024.0): On)
A connection is established between the external device and the RJ71EN71 or the RnENCPU (network part), and normal completion of the connection No.1
open processing is checked. ( Page 400 TCP/IP Communications, UDP/IP Communications)
The BUFSND instruction is executed. (Sends data)
The data length amount of send data in the fixed buffer No.1 area is sent to the external device.
When the external device receives the data from the RJ71EN71 or the RnENCPU (network part), returns a response to the RJ71EN71 or the RnENCPU
(network part).
When a response is received from the external device, the RJ71EN71 or the RnENCPU (network part) finishes data send. If the response is not returned within the response monitor timer value, a data send error occurs.*1 If the data send completes abnormally, execute the BUFSND instruction again and start
the send processing.
*1 Adjust the monitor timer value with the parameters. ( Page 281 Timer Settings for Data Communication)
· The details of the open setting are enabled at the rising edge of the RJ71EN71 and the RnENCPU (network part) open completion signal.
· Send the next data (command) after the data exchange has been completed for the previous data (command) send.
· When sending or receiving data to multiple external devices, the data can be sent sequentially. However, to avoid communication trouble, it is recommended to switch the external device and send/receive the data. When using a connection opened with UDP/IP, the setting value in the communication address setting area can be changed before sending or receiving to switch the external device.
72
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
No procedure
The following figure shows the send processing for the fixed buffer No.1 area corresponding to the connection No.1.
1
Initial processing
Open processing
Sending data
'Initial status' (Un\G1900024.0)
Ò
'Open completion signal
Ó
(connection No.1)'
(Un\G1900000.0)
BUFSND instruction
BUFSND instruction completion device
BUFSND instruction completion device +1
Ô
Ö 1 scan
Sending data
ACK (TCP only)
Õ Normal completion of the initial processing is checked. ('Initial status' (Un\G1900024.0): On) A connection is established between the external device and the RJ71EN71 or the RnENCPU (network part), and normal completion of the connection No.1
open processing is checked. ( Page 400 TCP/IP Communications, UDP/IP Communications) The BUFSND instruction is executed. (Sends data) The data length amount of send data in the fixed buffer No.1 area is sent to the external device. When a response is received from the external device, the RJ71EN71 or the RnENCPU (network part) finishes data send. If the data send completes
abnormally, execute the BUFSND instruction again and start the send processing.
During UDP/IP communications, if the internal processing of the RJ71EN71 and the RnENCPU (network part) completed normally, the data send processing may end normally even if the communication line between the CPU module and external device is disconnected because of a connection cable disconnection or other causes. Thus, providing a communication procedure and sending/receiving data is recommended.
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
73
Receive procedure
The following figure shows the processing for the RJ71EN71 or the RnENCPU (network part) to receive data from the external device. The following receive methods can be used. · Receiving with main program (BUFRCV instruction) · Receiving with interrupt program (BUFRCVS instruction)
Receiving with main program (procedure exists)
The following figure shows the receive processing for the fixed buffer No.1 area corresponding to the connection No.1.
Initial processing Open processing
Receiving data
Sending a response
Ò 'Initial status' (Un\G1900024.0)
'Open completion signal
Ó
(connection No.1)'
(Un\G1900000.0)
BUFRCV instruction
Õ
BUFRCV instruction completion device
BUFRCV instruction completion device +1
'Socket/fixed buffer reception status signal (connection No.1)' (Un\G1900016.0)
× 1 scan
Receiving data
ACK (TCP only)
Response
ACK (TCP only)
Ô
Ö
Normal completion of the initial processing is checked. ('Initial status' (Un\G1900024.0): On) A connection is established between the external device and the RJ71EN71 or the RnENCPU (network part), and normal completion of the connection No.1
open processing is checked. ( Page 400 TCP/IP Communications, UDP/IP Communications) Data is received from the external device. ('Socket/fixed buffer reception status signal (connection No.1)' (Un\G1900016.0): On) The BUFRCV instruction is executed, and the receive data length and receive data are read from the fixed buffer No.1. ('Socket/fixed buffer reception status
signal (connection No.1)' (Un\G1900016.0): Off) When reading of the receive data length and receive data is completed, a response is returned to the external device. The receive processing ends. If the data reception completes abnormally, execute the BUFRCV instruction again and start the receive processing.
· The details of the open setting are enabled at the rising edge of the RJ71EN71 and the RnENCPU (network part) open completion signal.
· Execute the BUFRCV instruction when the socket/fixed buffer reception status signal changes from OFF to ON.
· The socket/fixed buffer reception status signal does not turn on when abnormal data is received. In addition, data is not stored in the fixed buffer No.1 area.
74
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
Receiving with main program (no procedure)
The following figure shows the receive processing for the fixed buffer No.1 area corresponding to the connection No.1.
1
Initial processing
Open processing
Receiving data
Ò 'Initial status' (Un\G1900024.0)
'Open completion signal
Ó
(connection No.1)'
(Un\G1900000.0)
BUFRCV instruction
BUFRCV instruction completion device
BUFRCV instruction completion device +1
'Socket/fixed buffer reception status signal (connection No.1)' (Un\G1900016.0)
Õ
Ö 1 scan
Receiving data
ACK (TCP only)
Ô
Normal completion of the initial processing is checked. ('Initial status' (Un\G1900024.0): On) A connection is established between the external device and the RJ71EN71 or the RnENCPU (network part), and normal completion of the connection No.1
open processing is checked. ( Page 400 TCP/IP Communications, UDP/IP Communications) Data is received from the external device. ('Socket/fixed buffer reception status signal (connection No.1)' (Un\G1900016.0): On) The BUFRCV instruction is executed, and the receive data length and receive data are read from the fixed buffer No.1. ('Socket/fixed buffer reception status
signal (connection No.1)' (Un\G1900016.0): Off) The receive processing ends. If the data reception completes abnormally, execute the BUFRCV instruction again and start the receive processing.
· The details of the open setting are enabled at the rising edge of the RJ71EN71 and the RnENCPU (network part) open completion signal.
· Execute the BUFRCV instruction when the socket/fixed buffer reception status signal changes from OFF to ON.
· The socket/fixed buffer reception status signal does not turn on when abnormal data is received. In addition, data is not stored in the fixed buffer No.1 area.
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
75
Reception with interrupt program (procedure exists)
Use the BUFRCVS instruction for receiving data with the interrupt program. The interrupt program is started when data is received from the external device. It enables the reading of receive data to the CPU module. The interrupt settings are required to use the interrupt program. ( Page 293 Interrupt Settings) The following figure shows the receive processing for the fixed buffer No.2 area corresponding to the connection No.2.
Initial processing Open processing Receiving data
Sending a response
'Initial status' (Un\G1900024.0)
Ò
'Open completion signal
Ó
(connection No.2)'
(Un\G1900000.1)
BUFRCVS instruction
In interrupt processing
Õ ×
Receiving data Ô
ACK (TCP only)
Response Ö
ACK (TCP only)
Cycle
Cycle
Program
Scan
END processing
Scan
Interrupt processing
Scan
END processing
Normal completion of the initial processing is checked. ('Initial status' (Un\G1900024.0): On) A connection is established between the external device and the RJ71EN71 or the RnENCPU (network part), and normal completion of the connection No.2
open processing is checked. ( Page 400 TCP/IP Communications, UDP/IP Communications) The CPU module is requested to start the interrupt program, and data is received from the external device. ('Socket/fixed buffer reception status signal
(connection No.2)' (Un\G1900016.1): On) The interrupt program starts. The BUFRCVS instruction is executed, and the receive data length and receive data are read from the fixed buffer No.2.
('Socket/fixed buffer reception status signal (connection No.2)' (Un\G1900016.1): Off) When reading of the receive data length and receive data is completed, a response is returned to the external device.*1 Execution of the interrupt program ends, and execution of the main program resumes.
*1 A response is not returned when the execution completes abnormally.
76
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
Reception with interrupt program (no procedure)
Use the BUFRCVS instruction for receiving data with the interrupt program. The interrupt program is started when data is
1
received from the external device. It enables the reading of receive data to the CPU module.
The interrupt settings are required to use the interrupt program. ( Page 293 Interrupt Settings)
The following figure shows the receive processing for the fixed buffer No.2 area corresponding to the connection No.2.
Initial processing Open processing Receiving data
'Initial status' (Un\G1900024.0)
Ò
'Open completion signal
Ó
(connection No.2)'
(Un\G1900000.1)
BUFRCVS instruction
In interrupt processing
Õ Ö
Receiving data
ACK (TCP only)
Ô
Cycle
Cycle
Program
Scan
END processing
Scan
Interrupt processing
Scan
END processing
Normal completion of the initial processing is checked. ('Initial status' (Un\G1900024.0): On) A connection is established between the external device and the RJ71EN71 or the RnENCPU (network part), and normal completion of the connection No.2
open processing is checked. ( Page 400 TCP/IP Communications, UDP/IP Communications) The CPU module is requested to start the interrupt program, and data is received from the external device. ('Socket/fixed buffer reception status signal
(connection No.2)' (Un\G1900016.1): On) The interrupt program starts. The BUFRCVS instruction is executed, and the receive data length and receive data are read from the fixed buffer No.2.
('Socket/fixed buffer reception status signal (connection No.2)' (Un\G1900016.1): Off) Execution of the interrupt program ends, and execution of the main program resumes.
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
77
Pairing open
Pairing open is an opening method that pairs a fixed buffer communication reception connection and send connection, and establishes a connection using one port each from the own station and external device. When pairing open is specified, data can be exchanged with two connections using an open processing for one port.
RJ71EN71 or RnENCPU (network part) Connection No.1 Fixed buffer (for receiving) Connection No.2 Fixed buffer (for sending)
(TCP/IP or UDP/IP communications) Send data
Port
External device
Receive data
Setting procedure
Set "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
1. Select the external device to be connected in "Module List" and drag it to "List of devices" or "Device map area". 2. Set "Communication Method" for the external device. 3. Set the "Fixed Buffer Send/Receive Setting" with the external device to "Pairing (Receive)".*1 4. Set the other parameters required for communication in the connection. 5. Select the same external device as step 1 from the "Module List", and drag to the next connection number of the external
device set in step 1.
6. Set "Communication Method" for the external device to the same as the external device set in step 1. 7. Set the "Fixed Buffer Send/Receive Setting" with the external device to "Pairing (Send)". 8. Set the other parameters to the same values as the external device set in Step (1).
*1 Set "Pairing (Receive)" to connection No.1 to 7, or No.9 to 15.
· Only the external devices in the Ethernet to which the RJ71EN71 or the RnENCPU (network part) is connected and devices connected via a router can communicate data with pairing open.
· The open/close processing for the next connection (send connection) is executed automatically using the open/close processing on the receive connection side set to pairing open.
78
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
Broadcast communications
Broadcast communications is a communication method that does not specify the external device. Data is exchanged between
1
all Ethernet-equipped module stations and external devices on the same Ethernet to which the Ethernet-equipped modules
are connected.
Item
Description
Broadcast sending Broadcast receiving
The same data is sent to all Ethernet devices on the same Ethernet. The data sent with broadcast send is received.
Setting procedure
Set "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
1. Select "UDP Connection Module" in "Module List" and drag it to "List of devices" or "Device map area". 2. Set "Communication Method" for the external device to "Broadcast Send" or "Broadcast Receive". 3. Set the other parameters required for communication in the connection.
Precautions
· Decide the dedicated port number for broadcast communication in the system, and use that number. · Access via a router is not permitted when using broadcast send. · The external device connected on the same Ethernet must carry out a read/discard processing if the message received
with broadcast receiving is not required.
Precautions
This section describes the precautions for communications using the fixed buffer.
Precautions for UDP/IP communications
Even if 'Open completion signal' (Un\G1900000 to Un\G1900007) is turned on, data sending may fail. If data sending fails, send the data again.
Module FB and dedicated instruction
· When performing the open processing using the module FB or dedicated instruction, start sending and receiving data after the module FB or dedicated instruction is completed.
· Multiple module FBs or dedicated instructions to one connection cannot be simultaneously executed. When multiple module FBs or dedicated instructions are simultaneously executed, no operation is performed for the module FB or dedicated instruction executed later. Execute again after the module FB or dedicated instruction in execution is completed.
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
79
Data format
This section describes the data format used during communications using the fixed buffer. The communication data is configured of the header and application data.
Header
The header is for TCP/IP or UDP/IP. The RJ71EN71 or the RnENCPU (network part) automatically adds and deletes the header, the setting is not required. The contents of the header are shown below. · TCP/IP
Ethernet (14 bytes)
· UDP/IP
IP (20 bytes)
TCP (20 bytes)
Ethernet (14 bytes)
IP (20 bytes)
UDP (8 bytes)
Application data
If the communication procedure is "Fixed Buffer (No Procedure)", the application data expresses the following data code with binary codes. Data is exchanged with binary codes regardless of the communication data code setting.
Text (command)
Maximum of 10238 bytes
80
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
With nonprocedural, the subheader and data length added for procedural are not used, so the data is all
handled as valid text. The RJ71EN71 and the RnENCPU (network part) turn on the fixed buffer reception
1
status signal after storing the size of the received message (packet) in the receive data length storage area.
Providing a check procedure including the data length, data type code, and so on, in the message's
application data is recommended so that the application data's byte size and data type can be seen on the
receiving side.
The following figure shows the configuration of the application data when the communication procedure is set to "Fixed Buffer (Procedure Exist)".
Format
· When exchanging data with binary codes
Application data area (command message)
2 bytes
2 bytes
Maximum of 5113 words
Communication request source
Communication request destination
Subheader
L
H
Data length setting
L
H
Text (command)
Subheader
End code
· When exchanging data with ASCII codes
4 bytes
Application data area (command message)
4 bytes
Maximum of 5112 words
Communication request source
Communication request destination
Subheader H--L
Data length setting
H--L
Text (command)
1 byte
1 byte
Application data area (Response)
Subheader
H
L
End code
H
L
2 byte
2 byte
Application data area (Response)
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
81
Subheader
The RJ71EN71 or the RnENCPU (network part) automatically adds and deletes the subheader, the setting is not required.
Data Format Binary code
Command (external device RJ71EN71 or RnENCPU (network part))
b7
b0
0 1 10 0 0 0 0
Response (RJ71EN71 or RnENCPU (network part) external device)
b7
b0
1 1 10 0 0 0 0
ASCII code
60H 00H Subheader
b7 01
"6"
10 6H
00 "0"
b0 00 0H
36H 30H 30H 30H
Subheader
Data length setting
Shows the amount of data in the text (command) section. · When exchanging data with binary codes: Maximum 5113 words · When exchanging data with ASCII codes Maximum 2556 words
E0H Subheader
b7 11
"E"
10 EH
00 "0"
b0 00 0H
45H
30H
Subheader
82
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
Text (command)
Shows the format of the command/response.
· When exchanging data with binary codes
1
Command format
Maximum of 5113 words
60H 00H (L) (H) (L) (H) (L) (H) (L) (H)
Data specifying/
Subheader
storing device for sending/
receiving instructions
n
Data length setting
n+1 (H) (L)
Send/ receive data
n+2 (H) (L) n+3 (H) (L)
(L) (H)
n+setting data length (H) (L) 1 word (2 bytes)
· When exchanging data with ASCII codes
Command format
Maximum of 5112 words
36H 30H 30H 30H (H) (L)
(H) (L)
(H) (L)
Data specifying/ storing device for sending/ receiving instructions
Subheader
n
Data length setting
n+1 (H) (L)
ASCII-binary conversion
Send/ receive data
n+2 (H) (L)
(H) (L)
n+setting data length (H) (L) 1 word (2 bytes)
Maximum of 2556 words
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
83
End code
The error code is stored in the end command added to the response. ( Page 351 End Codes Returned to an External Device During Data Communications) The end code is also stored in the BUFSND instruction and BUFRCV instruction completion status area (inside control data). The following cases may apply if an error code for communications using the SLMP or random access buffer is stored even when executing communications using the fixed buffer.
Description
Remedy method
The data length specified in the application data section of the message sent from the external device to the RJ71EN71 or the RnENCPU (network part) differs from the actual data size in the text section.
The subheader of the message sent from the external device to the RJ71EN71 or the RnENCPU (network part) is incorrect.
Specify the actual data size in the text section as the data length in the application data section. (Refer to the following descriptions.)
Review the subheader specified in the application data section.
The communication data may be split and exchanged due to buffer limitations to the own station or external station. The data that is split and received is restored (reassembled) by the RJ71EN71 or the RnENCPU (network part) and exchanged. (The received data is restored (reassembled) based on the data length in the communication data.) The RJ71EN71 and the RnENCPU (network part) processing that take place when the data in the communication data is incorrect are shown below.
Communication Method
Fixed Buffer (Procedure Exist), Random Access Buffer
Description
When data length specified immediately after subheader < text data volume · The data immediately after the text corresponding to the data length specified immediately after the subheader is handled as the
second message. · The start of each statement becomes the subheader, so the RJ71EN71 and the RnENCPU (network part) execute a processing
corresponding to the subheader code. · If the subheader is not a code supported by the RJ71EN71 and the RnENCPU (network part), an abnormal completion response is
sent to the external device.
Data sent from the external device
Data processed by the RJ71EN71 or the RnENCPU (network part)
(1st data)
(2nd data)
Fixed Buffer (No Procedure)
Subheader
Subheader
This section is processed as a subheader.
In the above case, the code processed as the subheader with the uppermost bit set as 1 is returned as the response. For example, if the command's subheader section is 65H, the response's subheader is E5H.
When data length specified immediately after subheader > text data volume The RJ71EN71 and the RnENCPU (network part) wait to receive the insufficient remaining data. If the remaining data is received within the response monitor timer value, the RJ71EN71 and the RnENCPU (network part) execute a processing corresponding to the subheader code. If the remaining data is not received within the response monitor timer value, the RJ71EN71 and the RnENCPU (network part) execute the following processing. · The ABORT(RST) instruction is sent to the external device, and the line is closed. · The error code is stored in 'Connection status storage area' (Un\G100 to Un\G163).
During nonprocedural, there is no message data length, so the received data is stored as is into the receive buffer area. Providing a check procedure including the data length, data type code, and so on, in the message's application data is recommended so that the application data's byte size and data type can be seen on the receiving side.
84
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
Example of communications using the fixed buffer
This section describes the socket communications examples using Active open of TCP/IP communications.
1
System configuration
GX Works3
Sending side (192.0.1.100)
Receiving side (192.0.1.101)
Ethernet
Parameter settings
Connect the engineering tool to the CPU module and set the parameters.
Sending side
1. Set the CPU module as follows.
[Project] [New]
2. Click the [Setting Change] button in the following window and set the item to use module labels.
3. Click the [OK] button to add the module labels of the CPU module.
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
85
4. Set the RJ71EN71 as follows.
[Navigation window] [Parameter] [Module Information] Right-click [Add New Module]
5. Click the [OK] button to add the module labels of the RJ71EN71.
6. Set the items in "Basic Settings" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings]
86
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
7. Set the network configuration as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings] [External Device Configuration]
1
8. Write the set parameters to the CPU module. Then reset the CPU module or power off and on the system.
[Online] [Write to PLC]
In this example, default values were used for parameters that are not shown above. For the parameter setting, refer to the chapter explaining the parameters in this manual. ( Page 261 PARAMETER SETTINGS)
Receiving side
1. Set the CPU module and add the module labels of the CPU module. The setting method of the CPU module and addition
method of the module label are the same as those of when setting the sending side. ( Page 85 Sending side)
2. Set the RJ71EN71 and add the module labels of the RJ71EN71. The setting method of the RJ71EN71 and addition
method of the module label are the same as those of when setting the sending side. ( Page 85 Sending side)
3. Set the items in "Basic Settings" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings]
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
87
4. Set the network configuration as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings] [External Device Configuration]
5. Write the set parameters to the CPU module. Then reset the CPU module or power off and on the system.
[Online] [Write to PLC] In this example, default values were used for parameters that are not shown above. For the parameter setting, refer to the chapter explaining the parameters in this manual. ( Page 261 PARAMETER SETTINGS)
88
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
Program example (sending side)
Labels
1
Classification Module label
Label to be defined
Label name RCPU.stSM.bAlways_ON EN71_EE_1.stPort1.uStatus_HUB_Connection_D.0 EN71_EE_1.bnCompletion_ConnectionOpen[1] EN71_EE_1.bnStatus_ConnectionOpenExecution[1] EN71_EE_1.uCompletion_EthernetInitialized.0 Define global labels as shown below:
Description Always on Connection status Open completion signal (connection No.1) Open request signal (connection No.1) Initial status
Device SM400 U0\G5192.0 U0\G1900000.0 U0\G1900008.0 U0\G1900024.0
FBs
The following shows FBs to be used in the program example. · M_RJ71EN71_EE_Refresh_Data · M_RJ71EN71_EE_ConnectionOpen · M_RJ71EN71_EE_Send_Socket · M_RJ71EN71_EE_ConnectionClose
Program
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
89
90
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
1
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
91
(0) (56) (252) (341)
The refresh processing of the module label is performed. (The processing is required for when using the module function block.) When the refresh processing is completed, 'bRunRefresh' (M0) is turned on.
When 'bStartOpen' (M1) is turned on, the open processing of connection No.1 is performed. When the open processing is completed successfully, 'bOpen_OK' (M3) is turned on.
When 'bStartSend' (M5) is turned on, the send data is stored and sent to the receiving side. When the data send is completed successfully, 'bSend_OK' (M7) is turned on.
When 'bStartClose' (M13) is turned on, the close processing of connection No.1 is performed. When the close processing is completed successfully, 'bClose_OK' (M15) is turned on.
92
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
Program example (receiving side)
Labels
1
Classification Module label
Label to be defined
Label name RCPU.stSM.bAlways_ON EN71_EE_1.bnCompletion_ConnectionOpen[1] EN71_EE_1.bnCompletion_ReceiveSocket_FixedBuffer[1]
EN71_EE_1.uCompletion_EthernetInitialized.0 Define global labels as shown below:
Description Always on Open completion signal (connection No.1) Socket/fixed buffer reception status signal (connection No.1) Initial status
Device SM400 U0\G1900000.0 U0\G1900016.0
U0\G1900024.0
FBs
The following shows FBs to be used in the program example. · M_RJ71EN71_EE_Refresh_Data · M_RJ71EN71_EE_Recv_Socket
Program
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
93
(0)
The refresh processing of the module label is performed. (The processing is required for when using the module function block.)
When the refresh processing is completed, 'bRunRefresh' (M0) is turned on.
(98) When 'bStartRecv' (M9) is turned on, the data sent from the sending side is received and stored in 'uRecvData' (D2000).
(The device range in which data is stored varies depending on the data length of the received data.)
When the data receive is completed successfully, 'bRecv_OK' (M11) is turned on.
· Secure sufficient device areas according to the maximum length of data sent from the send source to prevent the device areas used for other purposes from being overwritten by the receive data.
· When the data receive is consecutively executed, turn on pbi_bReadTiming (read timing) as shown in the above program.
· To receive data at shorter intervals than the scan time of the CPU module, add the normally closed contact of 'bRecv_OK' (M11) and 'bRecv_NG' (M12) to the execution conditions of FB for receiving as shown in the above program. When there is no normally closed contact of 'bRecv_OK' (M11) and 'bRecv_NG' (M12), 'bStartRecvFB' (M17) is not turned off and on and the FB for receiving may not be executed.
94
1 FUNCTIONS 1.5 Communications Using the Fixed Buffer
1.6 Communications Using the Random Access
Buffer
1
With communications using the random access buffer, data can be freely read and written between any external device (excluding Ethernet-equipped module) and the RJ71EN71 or the RnENCPU (network part). The external device does not need to be fixed. The random access buffer is used as the common buffer area for external devices connected to the Ethernet.
RJ71EN71 or RnENCPU (network part)
External device
Writing
Writing
External device
Reading Writing
Random access buffer
Reading Writing
External device
Reading
Writing
Reading Reading
External device
External device
Precautions
The CPU module (CPU part for the RnENCPU) cannot exchange data with the random access buffer.
Setting procedure
Set "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
1. Select the external device to be connected in "Module List" and drag it to "List of devices" or "Device map area".
External device name UDP Connection Module Active Connection Module
Unpassive Connection Module
Fullpassive Connection Module
Description
Select to communicate with the external device using UDP/IP.
Select to perform the open processing to the external device from the Ethernet-equipped module (Active open) and communicate using TCP/IP.
Select to receive the open processing from an unspecified external device (Unpassive open) and communicate using TCP/IP.
Select to receive the open processing from the specified external device (Fullpassive open) and communicate using TCP/IP.
2. Set "Communication Method" for external device to "Random Access Buffer". 3. Set the IP address of the external device. 4. Set the other parameters required for communication in the connection. ( Page 264 External Device Configuration)
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
95
Communication structure
This section describes the mechanism of communications using the random access buffer.
Data flow
The following figure shows the flow of data communications using the random access buffer. A dedicated packet is used to exchange data between the external device and the RJ71EN71 or the RnENCPU (network part). A program is used to access the random access buffer from the CPU module.
The process is executed asynchronously with the program, so if synchronization is required, use socket communications or communications using the fixed buffer.
External devices capable of data exchange
Data can be exchanged with the following external devices. · Devices in Ethernet to which the RJ71EN71 is connected · Devices in Ethernet to which the RnENCPU (network part) is connected · Device connected via router
Procedure for reading from external device
The following figure shows the processing when sending data from the RJ71EN71 or the RnENCPU (network part) in response to a read request from the external device.
CPU module
RJ71EN71 or RnENCPU (network part)
4 Read request (command)
3 Writing using the TO
instruction
Random access buffer
ACK (TCP only) 5 Response/data read
External device
ACK (TCP only)
After the module parameters are set, check that the initial processing of the RJ71EN71 or the RnENCPU (network part) has completed normally. ('Initial status' (Un\G1900024.0): On)
The open processing is executed to establish a connection between the RJ71EN71 or the RnENCPU (network part) and external device. ( Page 400 TCP/IP Communications, UDP/IP Communications)
The program writes the data into the random access buffer of the RJ71EN71 or the RnENCPU (network part). The read request is sent from the external device to the RJ71EN71 or the RnENCPU (network part) asynchronously from the above processing. (RJ71EN71
or RnENCPU (network part) side: Receives command) When the read request is received from the external device, the RJ71EN71 or the RnENCPU (network part) send the data written into the random access
buffer to the external device. (RJ71EN71 or RnENCPU (network part) side: Sends response) The connection is closed when communication is finished.
96
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
Procedure for writing from external device
The following shows the procedure when writing data from the external device to the random access buffer of the RJ71EN71
1
or the RnENCPU (network part).
1. After the module parameters are set, check that the initial processing of the RJ71EN71 or the RnENCPU (network part)
has completed normally. ('Initial status' (Un\G1900024.0): On)
2. The open processing is executed to establish a connection between the RJ71EN71 or the RnENCPU (network part) and
external device. ( Page 400 TCP/IP Communications, UDP/IP Communications)
3. Data is written from the external device to the random access buffer of the RJ71EN71 or the RnENCPU (network part).
(RJ71EN71 or RnENCPU (network part) side: Receives command)
4. The RJ71EN71 or the RnENCPU (network part) execute the write processing requested by the external device, and
returns the write results to the external device that sent the write request. (RJ71EN71 or RnENCPU (network part) side:
Sends response)
5. The data written in the random access buffer is read asynchronously from the above the processing by the program.
6. Close the connection when communication is finished.
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
97
Physical address and logical address of random access buffer
This section describes the start address of the random access buffer of the RJ71EN71 or the RnENCPU (network part) specified in the command. The address specified for the random access buffer differs from the address specified by the external device and the address specified with the FROM/TO instruction. · Physical address: Address specified with program's FROM/TO instruction · Logical address: Address specified by external device in start address item of command
Physical address 20000
Buffer memory areas
Logical address 0
Random access buffer
26143
6143
Precautions
The following section lists the precautions for communications using the random access buffer.
Precautions for programming
Initial processing and open processing completion
The initial processing and connection open processing must be completed.
Send request from CPU module
Send cannot be requested from the CPU module. Completion of sending to CPU module is not checked. If the data send/ receive must be synchronized between the CPU module and external device, use fixed buffer communication.
Random access buffer address
The address specified by the external device is different from the address specified with the FROM/TO instruction. For details, refer to the following. ( Page 98 Physical address and logical address of random access buffer)
Data Format
The communication data is configured of the header and application data.
Header
The header is for TCP/IP or UDP/IP. The RJ71EN71 or the RnENCPU (network part) automatically adds and deletes the header, the setting is not required.
Details of header section size
The details of the header section data format and size are shown below. · TCP/IP
Ethernet (14 bytes)
· UDP/IP
IP (20 bytes)
TCP (20 bytes)
Ethernet (14 bytes)
IP (20 bytes)
UDP (8 bytes)
98
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
Application data
The application data expresses the following data code as binary code or ASCII code. Switch between the binary code and
1
ASCII code with "Own Node Settings" under "Basic Settings". ( Page 262 Own Node Settings)
Format
· When exchanging data with binary codes
Application data area (command message)
2 bytes
2 bytes
2 bytes
Maximum of 1017 words
Communication request source
Communication request destination
Subheader H 00H
Start address
L
H
Data length setting
L
H
Text (command) (none at read request)
Subheader
End code
Text (response) (none at write request)
· When exchanging data with ASCII codes
Application data area (command message)
4 bytes
4 bytes
4 bytes
Maximum of 1016 words
1 byte
1 byte
Maximum of 1017 words
Application data area (Response)
Communication request source
Communication request destination
Subheader Start address H L 30H 30H H - - L
Data length setting
H--L
Text (command) (none at read request)
Subheader
H
L
End code
H
L
Text (response) (none at write request)
2 byte
2 byte
Maximum of 1016 words
Application data area (Response)
Subheader
The RJ71EN71 or the RnENCPU (network part) automatically adds and deletes the subheader, the setting is not required.
b7 b6 b5 b4 b3 b2 b1 b0
0 1100 00 1
00H
Only for command (not for response)
Command/response type (When communications are performed using the random access buffer, this format is used.)
For data read: 61H For data write: 62H
Command/response flag For command: 0 For response: 1
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
99
· During read
Data format Binary code
ASCII code
Command (external device RJ71EN71 or RnENCPU (network part))
b7
b0
0 1 10 0 0 0 1
Response (RJ71EN71 or RnENCPU (network part) external device)
b7
b0
1 1 10 0 0 0 1
61H 00H Subheader
b7 01
"6"
10 0 0
6H
"1"
b0 01 1H
36H 31H 30H 30H Subheader
E1H Subheader
b7 11
"E"
10 0 0
EH
"1"
b0 01 1H
45H
31H
Subheader
100
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
Start Address
The start address of the random access buffer range where data read/write is executed is expressed as a logical address.
( Page 98 Physical address and logical address of random access buffer)
1
· When exchanging data with binary codes
Specify the head address with a binary value.
L
H
2 bytes
· When exchanging data with ASCII codes Specify the ASCII code for expressing the start address as a hexadecimal.
H
-
-
L
4 bytes
Data length setting
Express the number of read/write data words with the random access buffer range. · When exchanging data with binary codes Specify the number of words as a binary value. (Maximum 1017 words)
L
H
2 bytes
· When exchanging data with ASCII codes Specify the ASCII code when expressing the number of words as a hexadecimal. (Maximum 508 words)
H
-
-
L
4 bytes
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
101
Text
· When exchanging data with binary codes
Data length (maximum of 1017 words)
(L) (H) (L) (H) (L) (H)
(L) (H)
Specified address
Random access buffer
n
(H) (L)
n+1 (H) (L)
n+2 (H) (L)
n + set number of words to be read
(H) (L)
1 word (2 bytes)
· When exchanging data with ASCII codes
Data length × 2 (maximum of 1016 words)
(H) to (L) (H) to (L)
(H) to (L)
Specified address
Random access buffer
n
(H) (L)
n+1 (H) (L)
ASCII-binary conversion
n + set number of words to be read
Ex.
(H) (L)
n
12H 34H
n+1 56H 78H
(H) (L)
(Maximum of 508 words)
31H 32H 33H 34H 35H 36H 37H 38H
(H)
to
(L) (H)
to
(L)
End code
The error code is stored in the end command added to the response. ( Page 351 End Codes Returned to an External
Device During Data Communications)
102
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
Example of command/response format
The following section shows an example of the command and response format.
1
Writing to buffer with write request from external device
· When exchanging data with binary codes
Command format (external device RJ71EN71)
Subheader Start address Data length
Text (10 words)
(L) (H) (L) (H) (L) (H) (L) (H) (L) (H)
62H 00H 00H 00H 0AH 00H 34H 12H 78H 56H BCH 9AH
(L) (H) BCH 9AH
Random access buffer
Physical address (H) (L) Logical address
20000
12H 34H
0
20001
56H 78H
1
20002
9AH BCH
2
20009
9AH BCH
9
(10 words)
26143
6143
Response format (RJ71EN71 external device)
Subheader E2H
End code 00H
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
103
· When exchanging data with ASCII codes Command format (external device RJ71EN71)
Subheader
Start address
Data length
(H) -
- (L) (H) -
- (L)
36H 32H 30H 30H 00H 00H 00H 00H 00H 00H 00H 41H
(H) -
- (L) (H) -
Text (20 words)
- (L) (H) -
- (L)
31H 32H 33H 34H 35H 36H 37H 38H 39H 41H 42H 43H
ASCII-binary conversion
Random access buffer Physical address (H)
(L) Logical address
20000
12H 34H
0
20001
56H 78H
1
20002
9AH BCH
2
(H) -
- (L)
39H 41H 42H 43H
20009
9AH BCH
9
(10 words)
26143
6143
Response format (RJ71EN71 external device)
Subheader End code 45H 32H 30H 30H
104
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
Reading from buffer with read request from external device
· When exchanging data with binary codes
Command format (external device RJ71EN71)
1
Subheader Start address Data length (L) (H) (L) (H)
61H 00H 14H 00H 0AH 00H
Response format (RJ71EN71 external device)
Subheader E1H
End code
Text (10 words)
(L) (H) (L) (H) (L) (H)
00H
34H 12H 78H 56H BCH 9AH
(L) (H) BCH 9AH
Random access buffer
Physical address (H) (L) Logical address
20000
0
20020
12H 34H
20
20021
56H 78H
21
20022
9AH BCH
22
20029
9AH BCH
29
26143
6143
(10 words)
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
105
· When exchanging data with ASCII codes Command format (external device RJ71EN71)
Subheader
Start address
Data length
(H) -
- (L) (H) -
- (L)
36H 31H 30H 30H 00H 00H 31H 34H 00H 00H 00H 41H
Response format (RJ71EN71 external device)
Subheader End code 45H 31H 30H 30H
(H) -
- (L) (H) -
Text (20 words)
- (L) (H) -
- (L)
31 H 32H 33H 34H 35H 36H 37H 38H 39H 41H 42H 43H
ASCII-binary conversion
Random access buffer
Physical address (H) (L) Logical address
20000
0
(H) -
- (L)
39H 41H 42H 43H
20020
12H 34H
20
20021
56H 78H
21
20022
9AH BCH
22
20029
9AH BCH
29
26143
6143
(10 words)
106
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
Example of communications with random access buffer
The following figure shows an example of the write operation from the external device.
1
CPU module
Device memory D10000
RJ71EN71 Random access buffer
21710
External device
Ô Data received
Data received
D10009
Program for receive processing Ó
21719
21720
1
Ó
Ô
1 Ò Receive completion flag
The receive completion flag is set at the end of the received data. The receive completion flag is monitored. When the receive completion flag turns on, the data is transferred from the random access buffer to the CPU module.
1 FUNCTIONS 1.6 Communications Using the Random Access Buffer
107
1.7 Communications Using MODBUS/TCP
MODBUS protocol messages are sent/received via the TCP/IP network. For communications using MODBUS/TCP, refer to the following. MELSEC iQ-R MODBUS and MODBUS/TCP Reference Manual
MODBUS/TCP master function
A module communicates with a MODBUS/TCP slave device as a master station using one of the following functions.
Function Communications using the predefined protocol
Simple CPU communication function
Description
Available module
Reference source
Executes the protocol using the dedicated instructions when a MODBUS/TCP is selected from the predefined protocol library.
· CPU module (built-in Ethernet port part) Page 34 Communications Using the · RJ71EN71, RnENCPU (network part) Predefined Protocol
Issues a request message for reading/ writing to a MODBUS/TCP slave device automatically.
RJ71EN71, RnENCPU (network part)
Page 183 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
(1)
(3)
(2)
(4) Ethernet
(1) CPU module (built-in Ethernet port part), RJ71EN71, RnENCPU (network part) (2) MODBUS/TCP slave device (3) Request message (4) Response message
MODBUS/TCP slave function
A module communicates with a MODBUS/TCP master device as a slave station using the automatic operations described in the following pages. · Page 109 Automatic response to MODBUS/TCP master device · Page 110 Automatic conversion from MODBUS device
(1)
(3)
(2)
(4) Ethernet
(1) MODBUS/TCP master device (2) RJ71EN71 or RnENCPU (network part) (3) Request message (4) Response message
· Before using this function, check the firmware version of the module. ( Page 436 Added and Enhanced Functions)
· This function is not available when the network type is set to "Q Compatible Ethernet" for the RJ71EN71.
108
1 FUNCTIONS 1.7 Communications Using MODBUS/TCP
Automatic response to MODBUS/TCP master device
When receiving a request message from the MODBUS/TCP master device, the RJ71EN71 or RnENCPU (network part)
1
automatically executes a necessary processing depending on the function code and sends a response message to the
MODBUS/TCP master device.
No program is required because the function of automatic conversion from MODBUS device is used. ( Page 110
Automatic conversion from MODBUS device)
CPU module
RJ71EN71
MODBUS/ TCP master device
Ò
Request message (function code)
Ó
Device memory
Ô
Õ
Response message
A request message is received. The function code is checked. The requested processing is executed. The response message is sent.
This section lists the function codes (MODBUS standard functions) that can be executed from the MODBUS/TCP master device to the RJ71EN71 and RnENCPU (network part). ( MELSEC iQ-R MODBUS and MODBUS/TCP Reference
Manual)
Function code (FC) 01H 02H 03H 04H 05H 06H 0FH 10H 14H 15H 16H 17H
Sub-code (SC) 06H 06H
Function name Read coil Read input Read holding register Read input register Write single coil Write single register Write multiple coils Write multiple register Read extended file register Write extended file register Mask-write holding register Read/write multiple register
Setting procedure
Set the automatic response function in "External Device Configuration" under "Basic Settings". ( Page 264 External Device Configuration)
1. Select "MODBUS/TCP Connection Module" in "Module List", and drag it to "List of devices" or "Device map area". 2. Set "Port No." and "Existence Confirmation".
When multiple devices are set in "MODBUS/TCP Connection Module", set the same value to "Port No." of all devices.
3. Select [Close with Reflecting the Setting] to finish the external device configuration settings.
Open/close timing
After the initial processing of the RJ71EN71 and RnENCPU (network part) completes, the port automatically opens according to the parameter settings. The port automatically closes when the station on which the RJ71EN71 and RnENCPU (network part) are mounted is turned off or reset.
1 FUNCTIONS 1.7 Communications Using MODBUS/TCP
109
Precautions
When a dedicated instruction and the automatic communication function are simultaneously used with the QJ71MT91 set as the MODBUS/TCP master device, set two devices to "MODBUS/TCP Connection Module" in "External Device Configuration". For dedicated instructions and the automatic communication function of the QJ71MT91, refer to the following. MODBUS/TCP Interface Module User's Manual
Automatic conversion from MODBUS device
This function automatically converts the access to the MODBUS devices of the RJ71EN71 and RnENCPU (network part) into the access to the devices of the CPU module. Use the MODBUS device assignment parameters to create the association between the MODBUS devices and the device memory areas of the CPU module. This allows the RJ71EN71 and RnENCPU (network part) to convert the access to the MODBUS device specified in the request message from the MODBUS/TCP master device into the access to the corresponding device of the CPU module.
CPU module
RJ71EN71
MODBUS/ TCP master device
Device memory
MODBUS device assignment parameter
Device memory
MODBUS device
D299
400499
D300
1234H
D300
400500
(1)
D301
400501
(2)
(1) Request message (request for reading the value in holding register 400500) (2) Response message (response with the value in holding register 400500 (1234H))
Setting procedure
Set the assignment to the MODBUS devices in "MODBUS/TCP Settings" under "Application Settings". ( Page 274 MODBUS/TCP Settings)
110
1 FUNCTIONS 1.7 Communications Using MODBUS/TCP
MODBUS device assignment parameters
The parameters are used to associate the MODBUS devices with the device memory areas of the CPU module. Using the
parameters enables direct access from a MODBUS/TCP master device to the device memory areas of the CPU module.
1
CPU module device memory
M0 M1201 M4700
Internal relay (M) 3500
M8191 Y0
Output (Y)
8192
MODBUS device
Coil 3500
000001 003500 004000
8192
012191
MODBUS device assignment parameter setting example
Coil assignment 1
Device code Head device number Head coil number Assignment points
M(0090H)
1201 0
3500
Coil assignment 2
Device code Head device number Head coil number Assignment points
Y(009DH)
0 3999 8192
Y1FFF
Latch relay (L)
5
L0
L4
Coil assignment 3
Device code
L(0092H)
Head device number
0
5
Head coil number
64999
065000
Assignment points
5
065004
065536
L8191 SD0
SD2047
D0 D999
Special register (SD) 2048
Data register (D) 1000
D6000 D12287
6288
Holding register 1000
2048
400001 401000 402000
404047
6288
430000 436287
465536
Holding register assignment 1
Device code
SD(00A9H)
Head device number
0
Head holding register number 1999
Assignment points
2048
Holding register assignment 2
Device code
D(00A8H)
Head device number
0
Head holding register number 0
Assignment points
1000
Holding register assignment 3
Device code
D(00A8H)
Head device number
6000
Head holding register number 29999
Assignment points
6288
1 FUNCTIONS 1.7 Communications Using MODBUS/TCP
111
MODBUS devices
The following table lists the MODBUS devices supported by the RJ71EN71 and RnENCPU (network part).
MODBUS device type Unit
Coil Input Input register Holding register Extended file register
Bit Bit Word Word Word
Read/write
Read/write Read Read Read/write Read/write*1
Number of access points 65536 points 65536 points 65536 points 65536 points 10027008 points
MODBUS device No.
1 to 65536 100001 to 165536 300001 to 365536 400001 to 465536 File number: 0 to 1002*2*3 Device number: 600000 to 609999
*1 For the CPU module, read-only memory cannot be set in the file register. *2 The maximum values of the number of access points and the file number for the extended file register depend on the size of the file
register (ZR) set in the CPU module. ( Page 112 MODBUS extended file register assignment) *3 The number of access points for the extended file register is the maximum size that can be set in the CPU module (when the R120CPU
+ NZ2MC-16MBS are mounted).
MODBUS extended file register assignment
The assignment of the MODBUS extended file register to the CPU module is fixed to the file register (ZR).
The following shows the assignment to the file register of the CPU module. (The number of points for the file register shows
the maximum size that can be set in the CPU module (when the R120CPU + NZ2MC-16MBS are mounted)).
ZR0
ZR9999 ZR10000
ZR19999 ZR20000
ZR29999 ZR30000
CPU module file register (ZR)
MODBUS extended file register 10000 File number 0
10000 File number 1
10000 File number 2
600000
609999 600000
609999 600000
609999
ZR10019999 ZR10020000
ZR10027007
7008 File number 1002
600000 607007
The size of the MODBUS extended file register depends on the size of the file register (ZR) set in the CPU module.
For details, refer to the following. MELSEC iQ-R CPU Module User's Manual (Application)
112
1 FUNCTIONS 1.7 Communications Using MODBUS/TCP
Applicable devices
The following table lists the devices of the CPU module that can be set in the MODBUS devices.
Device name
Symbol
MODBUS device (: Can be assigned, : Cannot be assigned)
1
Coil
Input
Input register Holding
Extended file
register
register
Special relay
SM
*1
*1
Special register Input Output Internal relay Latch relay Annunciator Edge relay Link relay
SD
X
*1
*1
Y
*1
*1
M
*1
*1
L
*1
*1
F
*1
*1
V
*1
*1
B
*1
*1
Data register
D
Link register Timer (contact) Timer (coil)
W
TS
*1
*1
TC
*1
*1
Timer (current value) Long timer (current value) Retentive timer (contact) Retentive timer (coil)
TN
LTN
*4
*4
STS
*1
*1
STC
*1
*1
Retentive timer (current value)
STN
Long retentive timer (current value)
LSTN
*4
*4
Counter (contact)
CS
*1
*1
Counter (coil)
CC
*1
*1
Counter (current value) Long counter (contact) Long counter (coil) Long counter (current value) Link special relay
CN
LCS
*1
*1
LCC
*1
*1
LCN
*2
*2
SB
*1
*1
Link special register Step relay*5 Direct input Direct output
SW
S
*1
*1
DX
*1
*1
DY
*1
*1
Index register Long index register
Z
LZ
*2
*2
File register
R
ZR
*3
Refresh data register Buffer memory
RD
H*6
*1 When setting a bit type device to the input register or output register, set it so that the number of assigned points will be a multiple of 16. Otherwise, an error occurs in the engineering tool.
*2 The long counter (current value) and the long index register use two points of MODBUS devices. *3 The assignment of the extended file register is fixed to the file register (ZR). *4 The long timer (current value) and long retentive timer (current value) use four points of MODBUS devices. ( Page 114 Long timer
and long retentive timer) *5 The step relay is read-only. An attempt of writing will cause an error. *6 When the buffer memory is used, use H (hexadecimal constant) as the device symbol and set the address in hexadecimal notation. The
setting range is 1D5000H to 1D6FFFH. ( Page 388 User setting area for MODBUS/TCP function (Un\G1921024 to Un\G1929215))
1 FUNCTIONS 1.7 Communications Using MODBUS/TCP
113
Long timer and long retentive timer
Note that the following items cannot be set for reading the long timer and long retentive timer. · Long timer (contact) · Long timer (coil) · Long retentive timer (contact) · Long retentive timer (coil) When, however, the current value of the long timer or long retentive timer is set in units of four words, the contact and coil will be read simultaneously.
Response data 1st word 2nd word 3rd word
4th word
Description The current value is stored.
· b0: The value of the coil is stored. · b1: The value of the contact is stored. · b2 to b15: Used by the system. Used by the system.
As shown above, the long timer and long retentive timer use the data configuration of four words per device. Consequently, specify the number of device points for a request data in units of four points. Note that the write of long timer and long retentive timer cannot be set.
114
1 FUNCTIONS 1.7 Communications Using MODBUS/TCP
Default assignment parameters
The MODBUS device assignment parameters include default assignment parameters as initial values.
The following diagram shows the MODBUS device assignment using the default assignment parameters.
1
Coil (000001 to 065536)
000001
Y 8192 (0 to 1FFF)
Coil assignment 1 008192 008193
M 8192 (0 to 8191)
Coil assignment 2 016384
2048
(Empty)
SM
020481
(0 to 2047)
Coil assignment 3 022528
022529
8192 L (0 to 8191)
Coil assignment 4 030720 030721
8192
B (0 to 1FFF)
2048 2048 2048
Coil assignment 5 038912
F
038913
(0 to 2047)
Coil assignment 6 040960
SB
040961
(0 to 7FF)
Coil assignment 7 043008
V (0 to 2047)
043009
Coil assignment 8 045056
(Empty)
TC
053249
1024 (0 to 1023)
Coil assignment 10 054272
(Empty)
TS
055297
1024 (0 to 1023)
Coil assignment 11 056320
(Empty)
CC
061441
512 (0 to 511)
Coil assignment 14 061952
(Empty)
CS
063489
512 (0 to 511)
Coil assignment 15 064000
(Empty)
065536
Input (100001 to 165536)
100001
8192
X (0 to 1FFF)
Input assignment 1 108192
(Empty)
165536
Input register (300001 to 365536)
300001
Holding register (400001 to 465536)
400001
12288
D (0
to
12287)
(Empty)
Holding register assignment 1 412288
(Empty)
SD
420481
2048 (0 to 2047)
Holding register assignment 2 422528
4096
RJ71EN71
422529
user free area
H
(1D5000 to 1D5FFF)
Holding register assignment 3 426624
(Empty)
430721
8192
W (0 to 1FFF)
Holding register assignment 4 438912
(Empty)
SW
440961
2048 (0 to 7FF)
Holding register assignment 5 443008
(Empty)
365536
TN
453249
1024 (0 to 1023)
Holding register assignment 6 454272
(Empty)
CN
461441
512 (0 to 511)
Holding register assignment 8 461952
(Empty)
465536
· In the MODBUS device assignment parameters, start MODBUS device number is last five digits of the setting target MODBUS device number - 1.
· The default values set for the MODBUS device assignment parameters cannot be used for creating a project for the engineering tool using the remote head module. Clear the values first before starting the setting.
1 FUNCTIONS 1.7 Communications Using MODBUS/TCP
115
1.8 Link Dedicated Instruction Communication
The RJ71EN71 or the RnENCPU (network part) execute the transient transmission to the programmable controller of the other station on the same Ethernet using the link dedicated instructions. ( Page 398 Link dedicated instructions) A station on a network other than Ethernet can be accessed. ( Page 407 Communications with Different Networks)
Precautions
The CPU module (CPU part for the RnENCPU) cannot exchange data with the link dedicated instruction.
Data communication procedures
This section describes the procedure for communication with link-dedicated instructions.
1. After setting the module parameters, check that the initial processing of the own station, relay stations, and the
RJ71EN71 and RnENCPU (network part) of access stations have completed successfully. ('Initial status' (Un\G1900024.0): On)
2. Data is exchanged with link dedicated instructions. ( Page 398 Link dedicated instructions)
Communication with the link dedicated instructions uses the MELSOFT transmission port (UDP/IP), so the open/close processing is not required.
Setting procedure 1. Set the network number and station number in "Own Node Settings" under "Basic Settings". ( Page 263 Details of
items)
2. Set the send destination station information in "Network/Station number <-> IP Related information setting" under
"Application Settings". ( Page 286 Network/Station No. <-> IP information setting)*1
*1 This setting is not required when the target station is specified with an IP address using control data of the control data of READ instruction, SREAD instruction, WRITE instruction, or SWRITE instruction.
116
1 FUNCTIONS 1.8 Link Dedicated Instruction Communication
1.9 File Transfer Function (FTP server) 1
The server function of FTP (File Transfer Protocol) used to transfer files with the external device is supported. The external device with FTP client function can easily and directly access files in the CPU module. The following operations can be executed on the CPU module files from the external device with FTP client function.
Ethernet-equipped module (FTP server)
External device (FTP client)
Parameters Programs Data
Read Write
Ethernet
· Reading of file from CPU module (download)
· Writing of file to CPU module (upload)
· Browsing of file names in CPU module
Storage files
When using the file transfer function (FTP server) with multi-CPU system configuration, the following CPU module is accessed immediately after logging in. To change the access destination CPU module, execute the cpuchg command. · Control CPU (when the RJ71EN71 is connected) · CPU module connected with Ethernet cable (when CPU module is connected)
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
117
Data communication procedures
The following section describes the settings for FTP communication.
Setting in the Ethernet-equipped module side
To use the file transfer function (FTP server), set "Use" for "FTP Server" in "FTP Server Settings" under "Application Settings". For details on other setting items, refer to the following. Page 272 FTP Server Settings
118
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
Operations on external device (FTP client) side
This section describes the procedures and required processes on the external device side for using the Ethernet-equipped
1
module's file transfer function (FTP server). The FTP commands and input format used for the operation are shown in the
explanation. ("" means to input CR, Enter or the Return key.)
Start
Start the FTP client.
(ftp q)
Login to the Ethernet-equipped module (open "Ethernet-equipped module's IP address" q)
Is the FTP
NO
communication port subject
to remote password
check?
YES
(quote password-unlock Unlock the remote password. "remote password" q)
Is file transfer completed?
NO
YES
Write files to the FTP server?
NO
YES
No file conversion is notified. (binary q)
No file conversion is notified. (binary q)
Check the file list.
NO
Does the read
target file exist?
YES
NO
Is file
password set for the
target file?
YES
Enter a file password.
Read the file.
(dir q or ls q)
NO Enable the high-speed write mode?
YES Enable the high-speed
write mode.
Check the file list.
(quote fastmode onq)
(dir q or ls q)
(quote passwd-rd
NO
"read password" q)
Does the write target file exist?
(get "file name" q)
YES NO
Can it be overwritten?
NO
Is the high-speed
write mode enabled?
YES
NO
Are contents in
the program cache memory
changed?
YES
Transfer files to the program memory.
(quote pm-write q)
NO
Is the FTP
communication port subject
to remote password
check?
YES
Lock the remote password.
(quote password-lock q)
Disconnect from the Ethernet-equipped module.
(bye q)
End
YES
NO
Is file
password set for the
target file?
YES
Enter a file password.
Delete or rename the file.
Write the file.
(quote passwd-wr "write password" q)
(delete "file name" q or rename "current file name" "new file name" q)
(put "file name" q)
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
119
Logging into Ethernet-equipped module
This section describes the steps from starting FTP and logging into the Ethernet-equipped module.
Ex. Start FTP from the Microsoft Windows command prompt.
Ò Ó
Ô Õ
FTP start (FTP ) Connect with FTP server (open Ethernet-equipped module IP address ) Specify login name (login name ) Specify password (password )
Use the login name and password that are set in "FTP Server Settings" under "Application Settings". When the Ethernetequipped module (FTP server) receives the login name and password from the external device (FTP client), it checks that the login name and password are correct. If the login name and password are correct, transfer of the files to the Ethernet-equipped module is permitted. If incorrect, file transfer is not permitted.
Locking and unlocking the remote password
If the FTP communication port is specified as a remote password check target with the remote password setting, unlock the remote password with the following command. (quote password-unlock remote password ) When finished, lock the remote password with the following command. (quote password-lock )
If the FTP communication port is specified as a remote password check target, some commands cannot be used until the remote password is unlocked. For details on the commands that can be used in the locked state, and those that can only be used in the unlock state, refer to the following. ( Page 121 FTP command list)
Inputting the file password
If a file password is set for the target file, the file password must be input with the following command before the file can be accessed. · Write password (quote passwd-wr write password ) · Read password (quote passwd-rd read password )
Files that can be transferred with FTP
For the files that can be transferred (read, write, deleted) with the file transfer function (FTP server), refer to the file operation available which is described in the following manual. MELSEC iQ-R CPU Module User's Manual (Application)
120
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
FTP command
1
FTP command list
The FTP client side commands supported by the Ethernet-equipped module are shown below. : Executable*1, : Not executable*2
Command
binary*5 bye close delete dir get ls mdelete mdir mget mls mput open put pwd quit quote rename user
Function
Notifies that the file will be transferred without conversion. Closes and ends the connection with the FTP server. Closes the connection with the FTP server. Deletes the CPU module file. Displays the CPU module file information. Reads a file from the CPU module. Displays the CPU module file name. Deletes the CPU module file. Stores the CPU module file information in the file. Reads a file from the CPU module. Reads a file from the CPU module. Writes the file to the CPU module. Connects to the FTP server. Writes the file to the CPU module. Displays the current directory of the CPU module. Closes and ends the connection with the FTP server. Sends the FTP server's subcommand.*7 Changes the CPU module file name. Inputs the user name and password for the Ethernet-equipped module.
CPU module status
STOP
RUN Enable*3
*6
*6
Disable*3
Remote password Unlocked*4 Locked*4
*1 The command may not be executed depending on the file type. ( Page 120 Files that can be transferred with FTP) *2 If executed, the process completes abnormally. *3 Shows the "Allow Online Change" setting in "FTP Server Settings" under "Application Settings". If an illegal command is executed while
write is prohibited during RUN, the process completes abnormally. *4 Shows whether the command can be executed when the FTP communication port is specified as a remote password check target port
with the Ethernet-equipped module mounted station's remote password setting. For details on the remote password, refer to the following. ( Page 177 Remote password) *5 The Ethernet-equipped module is set to transfer the file automatically without conversion. (Binary code fixed) Therefore, the file is transferred with binary code regardless of the "Communication Data Code" setting in "Own Node Settings" under "Basic Settings". *6 The parameter file and program file cannot be deleted when the CPU module is in the RUN state. *7 Only the subcommands dedicated for the Ethernet-equipped module can be used. For the subcommands can be used, refer to the following. ( Page 122 Subcommands usable with quote command)
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
121
Subcommands usable with quote command
This section describes the Ethernet-equipped module dedicated commands added to the quote command and used.
When executing this command from the FTP client, input the subcommand after the quote command. ("" means to input CR, Enter or the Return key.)
Ex. Executing the STOP command
Input the following at the command prompt. quote stop The following table lists the subcommands can be used. : Executable, : Not executable*1
Command
change cpuchg*2
fastmode*5
passwd-rd passwd-wr password-lock
password-unlock
path-delimiter*5
path-delimiter off*5 path-delimiter status*5 status run stop pm-write
Function
Shows or changes the CPU module file attributes. Specifies the access destination CPU module when using a multi-CPU system configuration. Enables or disables the high-speed write mode for the CPU module, or displays its status. Sets, shows or clears the file password (read password). Sets, shows, or clears the file password (write password). Changes the remote password from the unlock state to the lock state. Changes the remote password from the lock state to the unlock state. Changes the directory delimiter of the file path of the CPU module from "\" to "/".*6 Turn off file setting changing for the file path name when a file is specified by the path-delimiter.*6 Displays the setting status of the file path name when a file is specified.*6 Displays the CPU module operation information. Sets the CPU module to the RUN state. Sets the CPU module to the STOP state. Writes the program memory.
CPU module status
STOP
RUN
Write enable
*3
Write prohibit
Remote password
Unlocked
Locked
*4
*1 If executed, the process completes abnormally. *2 This subcommand cannot be used when the connection destination is a CPU module. *3 This subcommand is invalid when the RUN/STOP/RESET switch of the CPU module is set to STOP. *4 Even if the subcommand is executed, the remote password remains locked with no error occurred. *5 This subcommand can be used only when the connection destination is a programmable controller CPU. Before using this
subcommand, check the versions of the CPU module used. ( Page 436 Added and Enhanced Functions) *6 For function details, refer to the following.
Page 124 FTP server function file path name switching
122
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
Specifying an FTP command
This section describes the method of specifying the files specified with the FTP command on the FTP client (external device
1
side) supported by the Ethernet-equipped module.
With the CPU module, the drive name and file name are distinguished when specifying the file. When specifying a file with FTP, specify the target file with the following arrangement.*1
Item Specification format Example
Specification details
Description [Drive name:\]Folder name*2\File name.Extension
3:\MAINSEQ1.QDR (other than drive 2) 2:\LOGGING\LOG01\00000001\LOG01_00000001.CSV (drive 2)
Refer to the following. Page 123 Drive name (drive No.),Page 123 Folder name, file name, and extension
*1 The default directory delimiter is "\". To change the directory delimiter to "/", refer to the following. Page 124 FTP server function file path name switching
*2 The file name can be specified only when specifying a file stored in drive 2.
The section enclosed in square brackets [ ] in the specification format can be omitted.
Drive name (drive No.)
Specify the drive name of the target memory for transferring the file. For the correspondence of the target memory and drive names, refer to the following. MELSEC iQ-R CPU Module User's Manual (Application) Omitting the drive name is the same as specifying the program memory (drive 4). If, however, FTP server function file path name switching is enabled, the setting is valid. ( Page 124 FTP server function file path name switching)
Folder name, file name, and extension
· Specify the folder name and file name according to the rules provided in the following. MELSEC iQ-R CPU Module User's Manual (Application) · The name determined for the CPU module is assigned for the extension. · When using an FTP command that can be used for multiple files, specify the file name and extension with the wild card "*"
or "?". (Depending on the FTP client, there may be additional restrictions to the characters that can be used for the file name.)
*: All files with the arbitrary character string (including none) are targeted from the position specified with "*". ?: All files with the arbitrary character string (excluding none) are targeted from the position specified with "?". ("?" can be used multiple times.)
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
123
FTP server function file path name switching
The directory delimiter of the file path specified using the FTP command is changed from "\" to "/" in the CPU module (built-in Ethernet port part). In addition, the omission of the drive number in the file path name can be set.
Change procedure Using the special relay/special register
Using the FTP command
Description
Changing the special relay SM1512 (FTP server function file path name switching setting Enable) changes the directory delimiter. This method is used when FTP clients use only Linux OS and "/" is to be set for the directory delimiter.
Specifying the subcommand (path-delimiter) for the quote command changes the directory delimiter of the file path name of the CPU module. This method is used when FTP clients use Windows OS or Linux OS and the directory delimiter is to be changed every time the server is accessed by the client.
The following table lists how to specify CPU module files after changing the directory delimiter to "/".
Item Specification format Example
Description [Drive name:/]File name.Extension 3:/MAINSEQ1.QDR
· After the directory delimiter is changed to "/", directory delimiter commands including "\" can be received by the CPU module. However, the directory delimiter that is sent from the CPU module is "/".
· When changing the directory delimiter again, the contents set later are valid. · When executing the FTP command to specify a file path name using an FTP client with Linux OS, the same folder
configuration must be used for the CPU module and the personal computer.
Only the programmable controller CPU can be used for the function. Before using this function, check the version of the CPU module used. Page 436 Added and Enhanced Functions
Using the special relay/special register
· Turning the SM1512 (FTP server function file path name switching setting Enable) off and on changes the directory delimiter of the CPU module file path name "/". Storing the setting value in the SD1512 (FTP server function file path name switching setting) enables omission of the drive number in the file path name.
· While the SM1512 is on, the directory delimiter change is valid. Turning off the SM1512 clears the change and returns the directory delimiter from "/" to "\".
· When an improper value is set, the SM1513 (FTP server function file path name switching setting error) is turned on and the error cause is stored in the SD1513 (FTP server function file path name switching setting error cause). When there is no error in the setting value, the SM1513 is turned off.
· The current setting status is stored in the SD1514 (FTP server function file path name switching setting status) When the SM1512 is off, 0 is stored in the SD1514.
Special relay
Name
SM1512 SM1513
FTP server function file path name switching setting Enable FTP server function file path name switching setting error
Special register SD1512 SD1513 SD1514
Name FTP server function file path name switching setting FTP server function file path name switching setting error cause FTP server function file path name switching setting status
For details on the special relay/register, refer to the following. MELSEC iQ-R CPU Module User's Manual (Application)
Do not turn the SM1512 off and on or on and off while the FTP command is executing. Doing so may cause malfunction.
124
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
Using the FTP command
· When executing the quote command with a subcommand of the path-delimiter [mode], the directory delimiter of the CPU
module file path name is changed from "\" to "/". Inputting the setting value to [mode] enables omission of the drive number
1
in the file path.
· Executing the path-delimiter off command clears the setting.
· Executing the path-delimiter status command enables the current settings to be checked.
FTP command (Sub command of the quote command)
Function
path-delimiter
path-delimiter off path-delimiter status
Changes the setting of the file path name when a file is specified. (After executing the command, the SM1512 is turned on and the current setting value is stored in the SD1514.) Turns off file setting changing for the file path name when a file is specified.
Displays the setting status of the file path name when a file is specified.
For details on the quote command, refer to the following. Page 129 Ethernet-equipped module dedicated subcommand
The current settings can be checked using the SM1512 (FTP server function file path name switching setting Enable) and the SD1514 (FTP server function file path name switching setting status).
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
125
Details of FTP command
This section describes the FTP commands on the FTP client side supported by the Ethernet-equipped module, and the methods of using those commands.
· Note that depending on the client side FTP application, some of the FTP commands may not operate as described in this manual. Refer to the manual for the FTP client, and check the functions, operation methods, and so on.
· The specification format and result of the command may differ depending on the FTP client used. · The section enclosed in square brackets [ ] in the specification format can be omitted.
FTP server support command
Command name binary bye close delete dir get
ls
Description Function
Specification format Function Specification format Same function Function Specification format Function Specification format Example
Similar command Function Specification format Example
Similar command Function Specification format Example 1
Example 2
Caution
Function Specification format Example
Similar command Caution
Notifies the FTP server that the file will be transferred without conversion. The return code and kanji codes are also not converted. These settings are automatically applied to the Ethernet-equipped module.
binary (abbreviated: bin)
Closes the connection with the FTP and quits the FTP.
bye
quit
Closes the connection with the FTP server.
close
Deletes files stored in the CPU module.
delete "file path name"
When deleting files stored in the SD memory card delete 2:\MAINSEQ1.PRG
mdelete
Displays the file name, date of creation and volume of files stored in the CPU module.
dir [drive name:\]
When displaying the detailed information of files stored in the data memory dir 4:\
ls
Reads a file from the CPU module.
get "source file path name" [destination file path name]
When reading files stored in the SD memory card and store with same file name get 2:\MAINSEQ1.PRG
When reading files stored in the SD memory card and store with different file name get 2:\SEQ1BAK.PRG SEQ\SEQ10LD.PRG
· If the destination file path name (FTP client side) is not specified, the file is stored in the FTP client side with the same file name as the source file name (CPU module side).
· The transfer destination is in the currently connected directly when FTP is started and connected. · When the command is executed in an FTP client with Linux OS, the drive number in the source file path name
must be omitted. Set the drive number in the file path name to be omitted in advance using the FTP server function file path name switching, and specify as follows. ( Page 124 FTP server function file path name switching) Example: "get /SEQ10LD.PRG"
Displays the names of files stored in the CPU module.
ls [drive name:\]
When displaying the detailed information of files stored in the data memory ls 4:\
dir
When the command is executed in an FTP client with Linux OS, the results are the same as the dir command. (The mls command corresponds to the ls command for an FTP client with Windows OS.)
126
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
Command name Description
mdelete
Function
Deletes files stored in the CPU module.
When deleting multiple files, specify the file name and extension in the file path name with wild cards (*, ?).
1
Specification format mdelete "file path name" (abbreviated: mdel)
Example
When deleting all files with "CSV" extension from files stored in SD memory card mdelete 2:\*.CSV
Caution
When the command is executed in an FTP client with Linux OS, omit the drive number in the file path name and add "/" to the beginning of the file path name. Set the drive number in the file path name to be omitted in advance using the FTP server function file path name switching, and specify as follows. ( Page 124 FTP server function file path name switching) Example: "mdelete /*.csv"
Similar command delete
mdir
Function
Stores the detailed information (file name, date of creation, volume) of the file stored in the CPU module in the FTP client side file as log data.
Specification format mdir "source drive name":\"destination file path name"
Example
When storing the detailed information of file stored in data memory into 20120702.LOG file mdir 4:\20120702.LOG
Caution
· Always specify "\" immediately after the source drive name. · Always specify the source drive name when specifying the destination file path name (FTP client side). · If the destination file path name is not specified, the file is stored with the file name determined by the FTP
client's FTP application. · The transfer destination is in the currently connected directly when FTP is started and connected.
Similar command mls
mget
Function
Reads a file from the CPU module. When reading multiple files, specify the file name and extension in the file path name with wild cards (*, ?). When reading multiple files, receive is confirmed before transferring each file.
Specification format mget "file path name"
Example
When reading all files with "CSV" extension from files stored in SD memory card mget 2:\*.CSV
Caution
· The read file is stored with the same file name in the FTP client side. The storage destination is in the current connection directory when the FTP is started and connected.
· When the command is executed in an FTP client with Linux OS, omit the drive number in the file path name and add "/" to the first of the file path name. Set the drive number in the file path name to be omitted in advance using the FTP server function file path name switching, and specify as follows. ( Page 124 FTP server function file path name switching)
Example: "mget /*.csv"
mls
Function
Stores the file name of the file stored in the CPU module in the FTP client side file as log data.
Specification format mls "source drive name":\"destination file path name"
Example
When storing the file name of file stored in SD memory card into 20120702.LOG file mls 2:\20120702.LOG
Caution
· Always specify "\" immediately after the source drive name. · Always specify the source drive name when specifying the destination file path name (FTP client side). · If the destination file path name is not specified, the file is stored with the file name determined by the FTP
client's FTP application. · The transfer destination is in the currently connected directly when FTP is started and connected.
Similar command mdir
mput
Function
Writes the file to the CPU module. When writing multiple files, specify the file name and extension in the file path name with wild cards (*, ?). When writing multiple files, send is confirmed before transferring each file.
Specification format mput "source file path name"
Example
When writing all files with "PRG" extension mput*.PRG
Caution
· The storage destination file name is the same as the FTP client side. · The transmission destination is the data memory (drive 4 "4:\"). When the file path name is changed using the
FTP server function file path name switching, the setting is valid. ( Page 124 FTP server function file path name switching)
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
127
Command name open
put
pwd quit quote rename
user
Description Function Specification format
Example 1 Example 2 Caution Function Specification format Example 1 Example 2 Caution
Function Specification format Caution Function Specification format Similar command Function Specification format Example Caution Function Specification format Example Caution
Function Specification format
Example 1 Example 2
Specifies the host name or IP address and port number on the FTP server side, and connects with the FTP server.
open "host name" [port number] open "IP address" [port number] · Host name: Host name set with Microsoft Windows hosts file · IP address: IP address of the Ethernet-equipped module side · Port number: Port number to be used (If omitted, port number 21 is used for operation)
When specifying the host name and connecting to the FTP server open HOST
When specifying the IP address and connecting to the FTP server open 192.0.1.254
The IP address can be specified to create a connection when starting the FTP.
Writes the file to the CPU module.
put "source file path name" [destination file path name]
When writing the param.PRM file to the SD memory card with the same file name put param.PRM 2:\param.PRM
When writing the param.PRM file to the SD memory card with a different file name put param.PRM 2:\param1.PRM
· If the directory is not specified with the source file path name (FTP client side), the file in the current connection directory when the FTP server is started and connected is written.
· If the destination file path name (FTP server side) is not specified, the file is transferred to the data memory (drive 4 "4:\").
Displays current directory name of the CPU module.
pwd
"\" is displayed as the pwd command execution results.
Closes the connection with the FTP and quits the FTP.
quit
bye
Sends the FTP server's subcommand (Ethernet-equipped module dedicated subcommand).
quote
quote password-lock
Only the Ethernet-equipped module dedicated subcommand can be specified. Refer to the following. ( Page 129 Ethernet-equipped module dedicated subcommand)
Changes the CPU module file name.
rename "old file path name" "new file path name" (abbreviated: ren)
When changing the name of a file stored in the SD memory card rename 2:\param.PRM 2:\param1.PRM
The following response code appears when the file is successfully renamed. 350 Need more info. 250 Rename successful.
Inputs the user name and password for the connected FTP server.
user "user name" [FTP password] · User name: Login name set with Ethernet-equipped module parameters · FTP password: FTP password set with Ethernet-equipped module parameters
When specifying the user name user RJ71EN71
When specifying the user name and password user RJ71EN71 RJ71EN71
128
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
Ethernet-equipped module dedicated subcommand
This section describes the Ethernet-equipped module dedicated subcommands that are added to the FTP command's quote
command and sent.
1
Command name change
cpuchg
Description Function Specification format 1
Specification format 2
Example 1 Example 2 Function Specification format
Example 1 Example 2 Caution
Shows or changes the attributes of files stored in the CPU module.
When displaying the file attributes quote change file path name One of the following is displayed as the execution results when the process ends normally. · When specified file is read-only: -----R · When specified file is writable and readable: -----W
When changing the file attributes quote change "file path name" "attribute" Specify the attributes with one of the following methods. · When changing to a read-only file: r · When changing to a writable and readable file: w
When displaying the attributes of files stored in the SD memory card quote change 2:\PRG1.PRG
When changing the attributes of files stored in the SD memory card quote change 2:\PRG1.PRG r
Specifies the access destination CPU module when using a multi-CPU system configuration. This may also display the current access destination CPU module.
quote cpuchg [access destination CPU module] Access destination CPU module: Specify the CPU module from which files are to be accessed. Shows the method for specifying the access destination CPU module. · No input: Checks the current access destination CPU module. · controlPLC: Specifies the control CPU as the access destination CPU module. · no1: Specifies the CPU No.1 as the access destination CPU module. · no2: Specifies the CPU No.2 as the access destination CPU module. · no3: Specifies the CPU No.3 as the access destination CPU module. · no4: Specifies the CPU No.4 as the access destination CPU module. The execution results when the access is completed normally are shown in the following manner. · When setting access destination CPU module: 200 Command Okey · When displaying access destination CPU module: 200 Target cpu is "access destination CPU module". The following appears if the specified access destination CPU module is not found. · 557 Cpu not found
When specifying control CPU as access destination CPU module quote cpuchg controlPLC
When displaying the currently set access destination CPU module quote cpuchg
The access destination CPU module after logging into the RJ71EN71 with the open/user command is the RJ71EN71 control CPU.
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
129
Command name fastmode
passwd-rd
Description Function
Specification format
Example 1 Example 2 Example 3 Caution
Function Specification format
Example 1 Example 2 Example 3 Caution
Enables the high-speed write mode. Since both of the following processing are not performed in high-speed write mode, the program (.PRG) and FB file (.PFB) can be transferred to the "$MELPRJ$" folder at high speed. · To create a temporary file (FTP_I***_#.TMP) · To automatically transfer files that have been written in the program cache memory to the program memory.
quote fastmode [mode] Mode: Specify whether to enable or disable the high-speed write mode. · on: Enabled · off: Disabled One of the following is displayed as the execution results when the process ends normally. · When the status of high-speed write mode is switched to on (enabled): 200 Command successful · When the status of high-speed write mode is switched to off (disabled): 200 Command successful · If status is displayed when high-speed write mode is enabled: 200 Fastmode is ON · If status is displayed when high-speed write mode is disabled: 200 Fastmode is OFF
When enabling the high-speed write mode quote fastmode on
When disabling the high-speed write mode quote fastmode off
When displaying status of the high-speed write mode quote fastmode
· The high-speed write mode is disabled when logging into the CPU module. · In high-speed write mode, files are not automatically transferred when contents in the program cache memory
are changed with the file write command (put, mput), file delete command (delete, mdelete), or file rename command (rename). Therefore, execute the file transfer command (to program memory) (quote pm-write) after changing the contents. If the CPU module is reset without executing the file transfer command (to program memory) after the changing, incorrect program files remain in the program memory. In this case, delete the incorrect program files with the file delete command (delete, mdelete) and transfer files again.
Sets the read password (file password) registered as the file transfer target file to the Ethernet-equipped module. Shows/clears the read password set in FTP. Use this command only when a read password is registered for the file transfer target file. The CPU module checks the password when accessing the specified file.
quote passwd-rd [read password] The following appears as the execution results when the command ends normally. · When setting a read password: 200 Command successful · When displaying the read password: 200 Read-password is "read password" · When clearing the read password: 200 Command successful · When displaying the state with a read password not set: 200 Read-password is not set.
When specifying the read password (ABCD1234@efgh) quote passwd-rd ABCD1234@efgh
When displaying the read password currently set in FTP quote passwd-rd
When clearing the read password currently set in FTP quote passwd-rd c, or quote passwd-rd C
· One read password can be set for the FTP of the Ethernet-equipped module. When the file transfer target file changes and when a read password is registered for the change destination file, reset the read password for the target file.
· The read password is initialized (cleared) when logging into the Ethernet-equipped module.
130
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
Command name Description
passwd-wr
Function
Sets the write password (file password) registered in the file transfer target file to the Ethernet-equipped module.
Shows/clears the write password set in FTP. Use this command only when a write password is registered for the file transfer target file. The CPU module
1
checks the password when accessing the specified file.
Specification format
quote passwd-wr [write password] The following appears as the execution results when the command ends normally. · When setting the write password: 200 Command successful · When displaying the write password: 200 Write-password is "Write password" · When clearing the write password: 200 Command successful · When displaying the state with the write password not set: 200 Write-password is not set.
Example 1
When specifying the write password (ABCD1234@efgh) quote passwd-wr ABCD1234@efgh
Example 2
When displaying the write password currently set in the FTP quote passwd-wr
Example 3
When clearing the write password currently set in the FTP quote passwd-wr c, or quote passwd-wr C
Caution
· One write password can be set for the FTP of the Ethernet-equipped module. When the file transfer target file changes and when a write password is registered for the change destination file, reset the write password for the target file.
· The write password is initialized (cleared) when logging into the Ethernet-equipped module.
password-unlock
Function
Specifies the remote password set for the CPU module and unlocks the password. This command is used when FTP communication port is specified as a remote password check target port.
Specification format
quote password-unlock [remote password] · Remote password: Specifies the remote password set in the CPU module parameters. The following appears as the execution results when the command ends normally. 200 Command Okey The following appears when the remote password does not match. 556 Password Error The following appears if another command is requested before the remote password is unlocked. 555 Password Locked
Example
When specifying a remote password (123456) quote password-unlock 123456
Caution
· If the FTP communication port is specified as a remote password check target port when logging in, the password will be locked.
· The CPU module files can be accessed by executing this command and unlocking before starting the various FTP operation.
· If the FTP communication port is not specified as a remote password check target port, the processing will complete normally when the remote password is unlocked.
password-lock
Function
Locks the remote password function set for the CPU module. This command is executed when the FTP communication port is specified as a remote password check target port.
Specification format
quote password-lock The following appears as the execution results when the command ends normally. 200 Command Okey
Example
When locking the remote password quote password-lock
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
131
Command name path-delimiter
Description Function
Specification format
Changes the directory delimiter of the file path name when a file is specified. Also, the drive number can be omitted depending on the mode specification.
quote path-delimiter [mode] Mode: Specify one of the following 4 digit hexadecimal number.
0
0
0/2/3/4
0/2
Example 1 Example 2
path-delimiter off
Function Specification format
path-delimiter status Function Specification format
Caution
run
Function
Specification format
Example 1 Example 2 Example 3 Caution
0000 or blank:"/" is set for the directory delimiter of the file path name. (When the FTP clients use Linux OS and other OS)
0022: When "/" is set for the directory delimiter of the file path name and the file path is specified from the FTP client, the drive number can be omitted. When the drive number is omitted, Drive 2 (SD memory card) is used.
0032: When "/" is set for the directory delimiter of the file path name and the file path is specified from the FTP client, the drive number can be omitted. When the drive number is omitted, Drive 3 (device/label memory) is used.
0042: When "/" is set for the directory delimiter of the file path name and the file path is specified from the FTP client, the drive number can be omitted. When the drive number is omitted, Drive 4 (data memory) is used.
When drive number omission is set and the CPU module receives the command with the specified drive number, the specified drive number in the received command is prioritized. The following appears as the execution results when the command ends normally. 200 path-delimiter is ON [mode] The following appears when the mode setting value is out of range. 504 Parameter not accepted, not implemented. To clear the setting, use the path-delimiter off command.
When "/" is set for the directory delimiter quote path-delimiter 0000
When "/" is set for the directory delimiter and the drive number in the file path name is omitted quote path-delimiter 0022: Drive 2 quote path-delimiter 0032: Drive 3 quote path-delimiter 0042: Drive 4
Clears the setting change of the file path name by the path-delimiter.
quote path-delimiter off The following appears. 200 path-delimiter is OFF
Displays the setting status of the file path name when a file is specified.
quote path-delimiter status The following appears as the execution results when the command ends normally. · When ON is set: 200 path-delimiter is ON (mode) · When OFF is set: 200 path-delimiter is OFF
The 4 digit hexadecimal number is displayed as the setting value for "ON (mode)" when ON is set.
Sets the CPU module to the RUN state (remote RUN). Clearing of the device memory can be specified when entering the RUN state.
quote run [mode [clear mode]] Mode: Specify whether to forcibly execute remote RUN · 0: Normal RUN (default) · 1: Forced RUN Clear mode: Specify to clear (initialize) CPU module device memory at start of operation during remote RUN · 0: Do not clear device (default) · 1: Clear other than latch area · 2: Clear all including latch range The following message appears as the execution results when the process ends normally. 200 Command successful
When executing the remote RUN with normal RUN and do not clear device memory specified quote run
When executing the remote RUN with forced RUN and do not clear device memory specified quote run 1
When executing the remote RUN with forced RUN and clear other than latch area memory specified quote run 11
· Forced RUN is used only when remote RUN of the CPU module is not possible due to trouble in the device that remote STOPPED the CPU module, and the CPU needs to be forcibly remote RUN with another device. With normal RUN, a module that is in the STOP/PAUSE state executed by another device cannot be set to the RUN state.
· Specify clearing of the device memory by the clear mode at the start of operation according to the system specifications. After the specified clear is executed, the CPU module will RUN according to the device's default settings.
132
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
Command name Description
status
Function
Displays the CPU module operation information.
This command is used to check the operation information when transferring files.
1
Specification format quote status
One of the following is displayed as the execution results when the process ends normally.
When CPU module is in RUN state: "RUN"
When CPU module is in STOP state: "STOP"
When CPU module is in PAUSE state: "PAUSE"
stop
Function
Set the CPU module to the STOP state (remote STOP).
Specification format
quote stop The following message appears as the execution results when the process ends normally. 200 Command successful
Caution
Write to the program memory after setting the CPU module to the STOP state with this command.
pm-write
Function
Transfers the files written in the program cache memory to the program memory so that the files are held even at power-off.
Specification format
quote pm-write The following message appears as the execution results when the process ends normally. 200 Command successful
Caution
· The MELSEC iQ-R series CPU module automatically transfers the files to program memory after writing them in the program cache memory. Therefore, the files are held at power-off without using this command. If this command is used in the FTP client program, the program does not need be modified when replacing the MELSEC-Q series.
· Set the CPU module to the STOP state before writing.
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
133
Precautions
Precautions for designing system
Design the system (such as configuration of interlock circuits in the program) so that the entire system always functions properly during file transfer to the operating system and during status control of the programmable controller.
FTP client
· The FTP command specifications may differ from this manual depending on the FTP client. In this case, refer to the manual for the FTP client and check the functions and operation methods.
· FTP operations are not possible from Microsoft Internet Explorer. If attempted, Internet Explorer will issue an error. · Specify the IP address for the FTP command without zero fill. (Do not set "1" as "001".)
Processing on CPU module side
· Only the drive of the CPU module on the own station can access files. · Do not power off or reset it, or insert/eject the SD memory card during file access. The file could be damaged if these are
attempted. · Do not manipulate the files from a peripheral, such as an engineering tool, while accessing the files. (This also applies to
online operations such as writing during RUN as the files are manipulated.) If the file is manipulated from another device during the file transfer function (FTP server) operation, the peripheral may issue an error. If the processing has been halted due to an error, re-execute the processing before quitting the FTP function.
Communication processing
· If a timeout error occurs during file transfer, the TCP/IP connection will be closed. Log into the Ethernet-equipped module with the FTP client again before resuming file transfer.
· The existence of the external device is checked with the FTP connection. · The file transfer processing time will differ according to the Ethernet line's load rate (line congestion), the number of
connections being used simultaneously (other connection's communication processing), and system configuration (distance between FTP server and FTP client, method of accessing CPU module). · Only one external device (FTP client) can log into the Ethernet-equipped module at one time. If a connection is attempted from another FTP client in the login state, an error will occur without establishing the connection. · If another communication function (MELSOFT connection or SLMP) is simultaneously executed with UDP/IP during file transfer with FTP, an error such as timeout may occur. Either communicate after the file is transferred, or communicate with TCP/IP.
134
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
Writing files
· An existing file cannot be overwritten. Delete or rename an existing file with the file delete command (delete, mdelete) or
1
the file rename command (rename) before writing files.
· A read-only file or a file locked by the function except for FTP cannot be written. If attempted, a write error occurs.
· A file cannot be transferred when the SD memory card used is protected. If attempted, a write error occurs.
· A temporary file (FTP_I***_#.TMP) is automatically created at a file writing. (*** is first three digits of start I/O number, and #
is the hardware port number to which FTP client is connected.) The file is renamed the write target file name when a writing
is completed, however, the temporary file may remain if the system is powered off or the CPU module is reset during a file
writing. In this case, delete the temporary file with the file delete command (delete, mdelete).
· In high-speed write mode, a temporary file is not created at a file writing. Therefore, if the system is powered off or the CPU
module is reset during a file writing, a file in the middle of the writing remains. In this case, delete this file with the file delete
command (delete, mdelete) and write a file again.
· When the file register is set as a refresh device, do not perform any writing or deletion to the corresponding drive.
· When writing a large file to the SD memory card, set the CPU module to STOP. If writing is performed in the RUN state, a
communication error may occur.
· The number of files that can be written into the specified drive is maximum [maximum number of files that can be written] -
1 file. For details on the maximum number of files that can be written to the CPU module, refer to the following.
MELSEC iQ-R CPU Module User's Manual (Startup)
Deleting files
· Decide the timing for deleting the files for the entire system including the CPU module and engineering tool. · Files with read-only attributes and files that are locked by a function other than FTP cannot be deleted. An error will occur if
attempted. · The file cannot be deleted if the SD memory card is protected. An error will occur if attempted.
FTP password
The FTP password can be reset with the following procedure when it is lost.
1. Read the parameters from the CPU module with the engineering tool. 2. Click the [Restore the Default Settings] button in "Application Settings" to return all "Application Settings" to the default
values.
3. Set the "FTP Server Settings" and "Application Settings" again. 4. Write the set parameters to the CPU module. 5. Enable the parameters by powering off and on or resetting the CPU module.
When the FTP password is lost, all items set in "Application Settings" must be reset in addition to the "FTP Server Settings".
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
135
Setting a firewall on the FTP client side
If the FTP communication is blocked by a firewall on the FTP client side, data cannot be exchanged from the FTP server. Check the firewall settings, enable FTP communication and then access the FTP server.
Monitoring timer
When operation of files such as program (.PRG) and FB file (.PFB) is performed in a CPU module with a large program capacity, a timeout may occur due to long processing time on the CPU module. If a timeout occurs, increase the response monitoring timer value. ( Page 273 Response Monitoring Timer)
Execution of the file transfer function (FTP server) during execution of another function
For some file transfer functions (FTP server), there are some functions that cannot be simultaneously executed. Check that the function that cannot be simultaneously executed is not being executed and then execute the file transfer function (FTP server).
File transfer function (FTP server)
File transfer function (FTP server) of the RJ71EN71 and RnENCPU (network part)
· Writing a file (put, mput, pm-write) · Deleting a file (delete, mdelete) · Changing a file name (rename) · Changing a file attribute (change)
File transfer function (FTP server) of the CPU module (built-in Ethernet port part)
Functions that cannot be simultaneously executed
· CPU module data backup/restoration function · iQ Sensor Solution data backup/restoration function
136
1 FUNCTIONS 1.9 File Transfer Function (FTP server)
1.10 File Transfer Function (FTP Client) 1
The CPU module becomes an FTP client and can execute file transfer with the FTP server connected to Ethernet using the file transfer function instruction.*1
File transfer function instruction
SP.FTPPUT SP.FTPGET
·
END
CPU module (FTP client)
External device (FTP server)
Retrieving a specified file
SP.FTPGET instruction SP.FTPPUT instruction
Sending a specified file
Ethernet
*1 To execute this function, an FTP server is required. For details on an FTP server, refer to the manual for the server used.
When the data logging function is used, a data logging file can be transferred to the FTP server by using the data logging file transfer function. ( MELSEC iQ-R CPU Module User's Manual (Application))
Before executing the function, check the versions of the CPU module and engineering tool used. ( Page 436 Added and Enhanced Functions)
File transfer specifications
The following table summarizes the file transfer specifications of the file transfer function (FTP client).
Item FTP server whose operation has been checked by Mitsubishi
Number of connectable FTP servers FTP transfer mode
Description
MicrosoftInternet Information Services(IIS) Target OS: · MicrosoftWindows10 · MicrosoftWindows8.1 · MicrosoftWindows8 · MicrosoftWindows7
1
Binary mode
1 FUNCTIONS 1.10 File Transfer Function (FTP Client)
137
Transferable files
The following table lists the files that can be transferred using the file transfer function (FTP client). : Transferable, : Not transferable
File type
Program FB file CPU parameter System parameter Module parameter Module extension parameter
CPU built-in memory
Program memory
Device/label memory
Drive 0
Drive 3
Module-specific backup parameter
Memory card parameter
Device comment
Device initial value
Global label setting file
Initial label value Initial global label
file
value file
Initial local label value file
File register
Event history
*1*2
Device data storage file
General-purpose data
Data logging
Common setting
setting file
file
Individual setting
file
Memory dump setting file
Remote password
Abnormal database check file
System file for backing up CPU
module data
Backup data file for backing up CPU
module data
Device/label data file for backing up
CPU module data
System file for the backup/restoration
function for the iQ Sensor Solution
Backup data file for the backup/
restoration function for the iQ Sensor
Solution
ODBC server setting file
Database path file
Data memory
SD memory card
Drive 4
Drive 2
*2
*3
*3
File name and extension
ANY_STRING.PRG ANY_STRING.PFB CPU.PRM SYSTEM.PRM UNIT.PRM · UEXmmmnn.PRM · UEXmmm00.PPR UBPmmmnn.BPR MEMCARD.PRM ANY_STRING.DCM ANY_STRING.DID GLBLINF.IFG GLBLINF.LID
PROGRAM_NAME.LID
ANY_STRING.QDR · EVENT.LOG · EVEN2.LOG DEVSTORE.QST ANY_STRING.ANY_STRING LOGCOM.LCS
LOGnn.LIS
MEMDUMP.DPS 00000001.SYP ErrorDB.txt $BKUP_CPU_INF.BSC
BKUP_CPU.BKD
BKUP_CPU_DEVLAB.BKD
$BKUP_UNIT_INF.BSI
Depends on a connected device.QBR
netserver.cfg dbmaintainpath.txt
*1 The file can be transferred only from the FTP client to the FTP server. (Only the SP.FTPPUT instruction can be executed.) *2 When the SP.FTPPUT instruction is executed with bit 2 (Transfer completion file delete setting) of (s1)+0 set to 1 (Delete), the file cannot
be transferred. *3 The file that has more than one period cannot be transferred. The file that has one period or no period (only file name) can be
transferred.
138
1 FUNCTIONS 1.10 File Transfer Function (FTP Client)
Procedure for executing the file transfer function (FTP client)
To execute the file transfer function (FTP client), set an FTP client and an FTP server in parameters, and execute a file
1
transfer function instruction.
Follow the procedures described below.
Setting an FTP server 1. Set the login name, password, and home directory for the FTP client to the FTP server. In addition, give users a right to
access (read/write) files. ( Manual for the server used)
Setting an FTP client 1. Set the IP address of the CPU module (built-in Ethernet port part) to be used as an FTP client. ( Page 262 Own
Node Settings)
[Navigation window] [Parameter] Target module [Module Parameter] [Basic Settings] [Own Node Settings] [IP Address] For the Process CPU (redundant mode), set the IP addresses of system A/system B because communications are performed using the IP addresses. Set the IP address of system B by the following procedure. ( Page 295 Redundant System Settings)
[Navigation window] [Parameter] Target module [Module Parameter] [Application Settings] [Redundant System Settings] [System B IP Address]
2. Set "Use" for "To Use or Not to Use FTP Client Settings" in "FTP Client Settings" under "Application Settings".
For details on other setting items in "FTP Client Settings", refer to the following. Page 273 FTP Client Settings
3. Set "Use" for "To Use or Not to Use DNS Server Settings" in "DNS Settings" under "Application Settings" as needed.
For details on other setting items in "DNS Settings", refer to the following. Page 273 DNS Settings
4. Set a timer for the file transfer function (FTP client) in "Timer Settings for Data Communication" under "Application
Settings" as needed. ( Page 281 Timer Settings for Data Communication)
Item
Setting
Timeout period Alive check interval and count
· TCP Resend Timer · TCP ULP Timer
· Destination Alive Check Start Interval Timer · Destination Alive Check Interval Timer · Destination Alive Check Resend Count
1 FUNCTIONS 1.10 File Transfer Function (FTP Client)
139
Executing a file transfer function instruction
Use the dedicated instructions to execute the file transfer function (FTP client). ( Page 398 File transfer function instruction)
Precautions
· To retrieve the file register file from the FTP server, execute the put command of the FTP server function while the CPU module is in a STOP state.
· To send/retrieve files stored in the CPU built-in memory, such as a sequence program file, to/from the FTP server, execute the CPU module data backup/restoration function together with the instruction. ( MELSEC iQ-R CPU Module User's Manual (Application))
File transfer function Sending files to the FTP server
Retrieving files from the FTP server
Procedure
(1) Back up transfer target files stored in memory areas to the SD memory card. (2) Execute the SP.FTPPUT instruction.
(1) Execute the SP.FTPGET instruction. (2) Restore the retrieved files from the SD memory card to memory areas.
Checking the file transfer function (FTP client) status
The status of the function can be checked with "Status of Each Connection" on the "Ethernet Diagnostics" window. ( Page 306 Status of Each Connection)
140
1 FUNCTIONS 1.10 File Transfer Function (FTP Client)
Precautions 1
Connection with the FTP server
If a response to an alive check request is not returned from the FTP server, the CPU module (FTP client) determines that the FTP server is not alive and disconnects the connection. The connection may also be disconnected if the FTP server does not support the TCP KeepAlive function (response to a KeepAlive ACK message).
Communication error when retrieving transfer files
If a large capacity file is retrieved by execution of the SP.FTPGET instruction, a communication error may occur due to an increase of the transfer processing load. When transferring a large capacity file, extend a connection time (timeout period) in parameters for the FTP server so that no communication error occurs.
Execution of the SD memory card forced disable function
If the SD memory card forced disable function is executed, use of the SD memory card is disabled in the middle of the transfer processing, causing an immediate stop of the processing. Check that the transfer processing has been completed, and execute the function.
Execution of a file transfer function instruction during execution of another function
A file transfer function instruction cannot be executed during execution of the following functions. Check that the following function is not being executed, and then execute the instruction. · CPU module data backup/restoration function · iQ Sensor Solution data backup/restoration function
File operation from the external device during file transfer
Do not manipulate the files from an external device, such as an engineering tool, while transferring the files. If the file is manipulated from another device while transferring the files, the external device may issue an error. If the processing has been halted due to an error, re-execute the processing after the file transfer operation.
Communication processing
If another communication function (MELSOFT connection or SLMP) is simultaneously executed with UDP/IP during file transfer with FTP, an error such as timeout may occur. Either communicate after the file is transferred, or communicate with TCP/IP.
Deleting unnecessary files
If a cable is disconnected, system is powered off, or the CPU module is reset during the file transfer, delete unnecessary files (such as a temporary file and undefined files) in the FTP server. Then, transfer files again.
1 FUNCTIONS 1.10 File Transfer Function (FTP Client)
141
When the process CPU (redundant mode) is used
System switching during the file transfer
· When the system switching occurs during the file transfer by an engineering tool, the system switching instructions, or the system switching request from the network module, the system will be switched after completed the processing.
· When the system switching occurs because of power-off, reset, hardware failure, or stop error during the file transfer, the connections between the FTP server and old control system cannot be disconnected properly. In this case, communications may not be performed with the new control system until disconnection of the old control system is recognized due to FTP server timeout. To reconnect with the FTP server, keep an attempt to execute until the connection with the FTP server becomes open. In addition, delete unnecessary files on the FTP server when the files are generated. The files are not remain in the FTP server since the FTP connection are not connected even when the system switching is executed other than during the file transfer.
SP.FTPPUT instruction immediately after system switching
When the SP.FTPPUT instruction is executed immediately after the system switching, execute the instruction with transfer files existing (such as generated files) in the new control system.
142
1 FUNCTIONS 1.10 File Transfer Function (FTP Client)
1.11 Time Setting Function (SNTP Client) 1
Time information is collected from the time information server (SNTP server) connected on the LAN at the specified timing, and the CPU module's time is automatically set.
Time query Ethernet-equipped module
LAN Setting server time in the CPU module
Ethernet
Personal computer
This setting is not available when the RJ71EN71 network type is set to "Q Compatible Ethernet".
An SNTP server (time information server) must be provided on the LAN line to use this function.
Time setting execution timing
Time setting is executed in the following timing. · At powering off and on resetting the CPU module · At each set time (execution at set cycle interval) · At set time (execution at set time) · At programmed arbitrary timing*1
*1 The time is set when 'Time setting function (SNTP client) execution' (Un\G11009.0) is turned on.
When setting the time at the CPU module power on or reset, check the hub or external device connection before setting.
Setting procedure
Set with "Time Setting (SNTP client)" under "Application Settings". ( Page 280 Time Setting)
Confirming the execution results
The time setting execution results can be checked with the following module label. · 'Operation result' (Un\G11000) · 'Execution time' (Un\G11001 to Un\G11007) · 'Required response time' (Un\G11008)
1 FUNCTIONS 1.11 Time Setting Function (SNTP Client)
143
Precautions
Time to be set
The time to be set in the CPU module is the time which is obtained by adjusting the time information (UTC) retrieved from the SNTP server (time information server) based on the time zone set in "Clock Related Setting" under "Operation Related Setting" of "CPU Parameter".
Communication timeout
If a response is not received from the SNTP server (time information sever) 20 seconds after the time setting is executed, the communication times out. An error does not occur when the communication times out. Instead, the timeout occurrence appears in the event history.
Delay by communication time
The time set in the CPU module may be delayed by the time required to communicate with the SNTP server's personal computer. To reduce this delay, specify an SNTP server personal computer on the network that is as close to the Ethernetequipped module as possible.
When using multi-CPU system configuration
Execute the time setting only for the CPU No.1. Even if the time is set for a CPU module other than the CPU No.1, the clock data for the CPU No.1 is set automatically.
Setting the execution time
The execution time can be set in the range of 1980 to 2079.
144
1 FUNCTIONS 1.11 Time Setting Function (SNTP Client)
1.12 Web Server Function 1
The Web server function can read/write device data from/to the CPU module by using a Web browser. The device data can be read/written from/to the CPU module by using a general-purpose Web browser of an Ethernet-connected personal computer and also by using a general-purpose Web browser of a tablet or smartphone via Ethernet. An original Web page can be created by users and displayed as well.
Ethernet
For the specifications, parameter settings, procedures before operation, system configuration, functions, and troubleshooting of the Web server function, refer to the following. MELSEC iQ-R/MELSEC iQ-F Web Server Function Guide Book This manual describes the JavaScript objects and CGI objects that can be used in the user Web page.
Incorporate measures other than this function if the programmable controller system's safety must be maintained against illegal access from an external device. Mitsubishi shall not be held liable for any system problems that may occur from illegal access. The user authentication of the Web server function is one method of preventing illegal access (such as program or data destruction) from an external device. It does not completely prevent illegal access. Examples of measures for illegal access are given below. · Install a firewall · Install a personal computer as a relay station, and control the relay of send/receive data with an application
program · Install an external device for which the access rights can be controlled as a relay station (Contact the
network provider or equipment dealer for details on the external devices for which access rights can be controlled.)
145 1 FUNCTIONS
1.12 Web Server Function
JavaScript objects
JavaScript objects in the library of user Web pages enable device data to be read or written easily on the user Web page. The following table lists the objects in the JavaScript object library for the user Web page (RUserWebLib.js).
Object name (function name)
Data block (WSDatblk)
Level display (WSLevel)
Figure display (WSFigure)
Image display (WSPicture)
Historical graph (WSHstgrp)
Write button (WSWtrBtn)
Logoff button (WSLogoutBtn)
Description
Reference
Displays the specified device data in a table format.
Page 149 Data block (WSDatblk)
Displays what percentage the device value accounts for of the whole (the range between the upper and lower limit values).
Displays the specified figure when the device value reaches the set value.
Page 151 Level display (WSLevel) Page 153 Figure display (WSFigure)
Displays the specified image file when the device value reaches the set value. Page 155 Image display (WSPicture)
Displays the device data in a time-series line graph. Writes the specified value to the specified device.
Page 156 Historical graph display (WSHstgrp)
Page 158 Write button (WSWtrBtn)
Performs the logoff operation.
Page 159 Logoff button (WSLogoutBtn)
Common information on JavaScript objects
Style sheet
Descriptions for the styles such as character size, color, line color, the background color of the user Web page can be omitted. If descriptions are omitted or incorrect, the following default display according to the style sheet (UserWebStyle.css) is applied.
Item Character color Background color Line color Fill color of level display Graph line color Character size Button character color Button background color Button line color
Default Black White Black Blue Blue 20 According to the setting of the Web browser According to the setting of the Web browser According to the setting of the Web browser
The character font differs depending on the terminal used to display the user Web page.
When editing the style sheet in the library of the user Web page, do not change the class names in the style sheet. In addition, do not define the style classes with the same name.
146 1 FUNCTIONS 1.12 Web Server Function
Parameter settings of JavaScript objects
· When an optional parameter setting is omitted, the object will be displayed as default. Also, when the optional parameter
setting is abnormal, the object will be displayed as default.
1
· Set parameters using the specified data formats. A parameter error occurs if a parameter is set in the data format other
than the specified one (for example, when a character string such as '1' is set in the parameter that should be a numeric
value).
· If the X- and Y- coordinates are omitted, the object will be placed at the upper left end (coordinates 0, 0).
· For an RGB value specified for parameters or HTML specifications such as a color name, the range check is not
performed. The operation for an abnormal setting differs depending on the browser.
· When specifying a device name which includes \, such as Un\G and Jn\X, repeat \ as Un\\G and Jn\\X. (\ is an escape
sequence.)
· The following table lists formats and positional notations available for the devices which can be set for JavaScript objects.
: Can be set, : Cannot be set
Classification Type
Device name
16-bit signed 16-bit unsigned
32-bit signed 32-bit unsigned
Single-precision
Bit
real number
Double-precision
real number
User device
Bit
Input (X)
Output (Y)
Internal relay (M)
Latch relay (L)
Link relay (B)
Annunciator (F)
Link special relay (SB)
Edge relay (V)
Step relay (S)
Bit/word
Timer (T)
: Unsigned decimal/
hexadecimal
Retentive timer (ST)
: Unsigned decimal/
hexadecimal
Bit/double word Long timer (LT)
: Unsigned decimal/
hexadecimal
Long retentive timer
: Unsigned decimal/
(LST)
hexadecimal
Bit/word
Counter (C)
: Unsigned decimal/
hexadecimal
Bit/double word Long counter (LC)
: Unsigned decimal/
hexadecimal
Word
Data register (D)
: Decimal/hexadecimal : Decimal/hexadecimal : Decimal
Link register (W)
: Decimal/hexadecimal : Decimal/hexadecimal : Decimal
Link special register
: Decimal/hexadecimal : Decimal/hexadecimal : Decimal
(SW)
Bit
Direct access input (DX)
Direct access output
(DY)
System device Bit
Special relay (SM)
Word
Special register (SD)
: Decimal/hexadecimal : Decimal/hexadecimal : Decimal
Index register
Word
Index register (Z)
: Decimal/hexadecimal : Decimal/hexadecimal : Decimal
Double word
Long index register (LZ)
: Decimal/hexadecimal : Decimal for single- precision real number
File register
Word
File register (R)
: Decimal/hexadecimal : Decimal/hexadecimal : Decimal
File register (ZR)
: Decimal/hexadecimal : Decimal/hexadecimal : Decimal
Refresh data
Word
Refresh data register
: Decimal/hexadecimal : Decimal/hexadecimal : Decimal
register
(RD)
Other devices
SFC block device (BL)
SFC step device (BLn\S)
147 1 FUNCTIONS
1.12 Web Server Function
Refreshing cycle
Set the refreshing cycle of the user Web page to the variable updateInterval in HTML. This refreshing cycle applies to all the objects in the user Web page. When the variable updateInterval is not described in HTML or it is out of range between 5 and 120, 5-second interval (default) applies to the operation.
Ex. When refreshing the user Web page in 10-second interval
<script> var updateInterval = 10; </script>
Message display language
Set the message display language to the variable dspLanguage in HTML. The following table lists the settings of the variable
dspLanguage and message display languages.
dspLanguage No description ja-JP en-US zh-CN Other than the above (out of range)
Message display language English Japanese English Chinese (Simplified) English
Available files
The following files are available in the user Web page.
File HTML
JavaScript CSS GIF image PNG image JPG/JPEG image
Extension .html .htm .js .css .gif .png .jpg(.jpeg)
MIME type text/html text/htm text/javascript text/css image/gif image/png image/jpeg
148 1 FUNCTIONS 1.12 Web Server Function
Data block (WSDatblk)
This object displays the specified device data in a table format. The current values of the devices are displayed as center
1
aligned and updated in the fixed interval.
· direction = 0 (Vertical)
Window
yPos
dev[0] devNamCol
dev[5]
devValCol
xPos
devValHeight
blkSize = 5
devNamHeight
lnCol
dev[4] devNamWidth
· direction = 1 (Horizontal)
devNamBkCol dev[9] devValWidth
devValBkCol
blkSize = 5
Set dev[n] for the devices to be displayed. (n: 0 to 31) : Required, : Optional
Parameter dev[0].dsp dev[0].name dev[0].base
dev[0].format
dev[31].dsp dev[31].name dev[31].base
Item Device display name 1 Device name 1 The positional notation of the device 1
The data format of the device 1
Description
A name to be displayed with the data block
Device type + device number
K: Decimal H: Hexadecimal B: Binary
0: 16-bit signed 1: 16-bit unsigned 2: 32-bit signed 3: 32-bit unsigned 4: Single-precision real number 5: Double-precision real number 6: Bit
Device display name 32
Device name 32 The positional notation of the device 32
A name to be displayed with the data block
Device type + device number
K: Decimal H: Hexadecimal B: Binary
Requirement *1
149 1 FUNCTIONS
1.12 Web Server Function
Parameter
Item
Description
Requirement
dev[31].format
direction blkSize
devNamDisp devNamCol devNamBkCol devNamWidth devNamHeight devValCol
The data format of the device 32
Display direction Block size
Device name display Character color of device name Background color of device name Cell width of device name Cell height of device name Character color of device value
0: 16-bit signed 1: 16-bit unsigned 2: 32-bit signed 3: 32-bit unsigned 4: Single-precision real number 5: Double-precision real number 6: Bit
0: Vertical 1: Horizontal
1 to 32 (The number of lines is displayed when the display direction is set to vertical, and the number of columns is displayed when the display direction is set to horizontal.)
0: Not display 1: Display
The RGB value or color name Example: #FF0000 (RGB value) or red (color name)
Positive real numbers (unit: px) (For the horizontal display direction, the setting value of the cell width of device value takes priority, and for the vertical display direction, the setting value of the cell height of device value does.)
The RGB value or color name
(If omitted, it is 0.)
(If omitted, it is 1.) *1
devValBkCol
Background color of device value
devValWidth
Cell width of device value
Positive real numbers (unit: px)
devValHeight
Cell height of device value
InCol
Line color
The RGB value or color name
xPos yPos
X-coordinate Y-coordinate
The horizontal coordinate of the data block at the upper left end (unit: px)
The vertical coordinate of the data block at the upper left end (unit: px)
*1 When the device name is not displayed (devNamDisp = 0), no error occurs without this setting.
Precautions
· Write all the necessary parameters. If the necessary parameters are not written or the setting value is out of range, an error occurs.
· If the data format is the single-precision real number or double-precision real number, the positional notation will be the decimal.
150 1 FUNCTIONS 1.12 Web Server Function
Level display (WSLevel)
This object displays the current value of the specified device as a level for the range between the upper and lower limit values.
1
The displayed color can be changed when the current value is above or below the specified value. The current values of the
devices are updated in the fixed interval.
· direction = 0 (Vertical)
Window
yPos xPos
levWidth
upperVal upperAlmVal
Current value > upperAlmVal
Current value < lowerAlmVal
upperCol
levLength
bkCol
almLnCol levCol lowerAlmVal
devValHeight
devValWidth
lowerVal devValCol
devValBkCol
· direction = 1 (Horizontal)
levLength
lowerCol
levWidth
devValHeight
devValWidth
: Required, : Optional
Parameter devName direction
Item Device name Level direction
upperVal lowerVal upperAlmVal lowerAlmVal dspAlmLn dspVal valFormat
Upper limit value Lower limit value Upper limit of alarm value Lower limit of alarm value Display of alarm value line Display of current value Data format
levCol
Level display color
Description
Device type + device number
0: Vertical 1: Horizontal
A numeric value (decimal) within the range of the specified data format.
Requirement (If omitted, it is 0.)
0: Not display 1: Display
0: 16-bit signed 1: 16-bit unsigned 2: 32-bit signed 3: 32-bit unsigned 4: Single-precision real number 5: Double-precision real number
The RGB value or color name
(If omitted, it is 1.) (If omitted, it is 0.)
151 1 FUNCTIONS
1.12 Web Server Function
Parameter
Item
Description
Requirement
upperCol lowerCol
Display color when the current value is above the upper limit of alarm value.
Display color when the current value is below the lower limit of alarm value.
The RGB value or color name
(If omitted, it is the same as the level display color.)
bkCol
Background color
The RGB value or color name
almLnCol
Line color of alarm value
levLength
Level length
Positive real numbers (unit: px)
levWidth
Level width
xPos
X-coordinate
The horizontal coordinate of the level display at the upper left end (unit: px)
yPos
Y-coordinate
The vertical coordinate of the level display at the upper left end
(unit: px)
devValWidth
Cell width of current value
Positive real numbers (unit: px)
devValHeight
Cell height of current value
devValCol
Character color of current value The RGB value or color name
devValBkCol
Background color of current value
Precautions
Write all the necessary parameters. If the necessary parameters are not written or the setting value is out of range, an error
occurs.
152 1 FUNCTIONS 1.12 Web Server Function
Figure display (WSFigure)
When the device value is within the specified range, a figure is displayed in the specified color. The device value is monitored
1
in the fixed interval.
· figType = 'Oval' (oval)
Window
yPos
figWidth
defCol
range[n].high Current value range[n].low
xPos
figHeight
· figType = 'Rect' (rectangle)
Window
yPos
figWidth
defCol
range[n].col
xPos
figHeight
· figType = 'Tri' (triangle) When a negative value is set for the figure height (figHeight), the downward triangle is displayed.
Window
yPos
figWidth
defCol
xPos
figHeight
Set range[n] for the range of the display color to be displayed. (n: 0 to 4) : Required, : Optional
Parameter devName devFormat
figType
figHeight figWidth defCol
rangeNum range[0].low range[0].high range[0].col
Item Device name The data format of the device
Figure type
Figure height Figure width Default display color
Number of setting ranges Lower limit of setting range 1 Upper limit of setting range 1 Display color when device value is within setting range 1
Description
Requirement
Device type + device number
0: 16-bit signed
1: 16-bit unsigned
2: 32-bit signed
3: 32-bit unsigned
4: Single-precision real number
5: Double-precision real number
6: Bit
Oval: Oval (When specifying a circle, set the figure height = width.) Rect: Rectangle (When specifying a square, set the figure height = width.) Tri: Triangle
Real numbers (unit: px)
When a negative value is set, the value is treated as an absolute
value.
The RGB value or color name
(This item is displayed when the device value is out of the setting
range.)
1 to 5
A numeric value (decimal) within the range of the specified data format.
The RGB value or color name
153 1 FUNCTIONS
1.12 Web Server Function
Parameter
Item
Description
Requirement
range[1].low range[1].high
Lower limit of setting range 2 Upper limit of setting range 2
A numeric value (decimal) within the range of the specified data format.
range[1].col
Display color when device value The RGB value or color name
is within setting range 2
range[4].low range[4].high
Lower limit of setting range 5 Upper limit of setting range 5
A numeric value (decimal) within the range of the specified data format.
range[4].col
Display color when device value The RGB value or color name
is within setting range 5
xPos
X-coordinate
The horizontal coordinate of the figure display at the upper left end (unit: px)
yPos
Y-coordinate
The vertical coordinate of the figure display at the upper left end (unit: px)
Precautions
· Write all the necessary parameters. If the necessary parameters are not written or the setting value is out of range, an error
occurs.
· If the setting ranges overlap, the figure with the lower number of the setting range is displayed. For example, when the
device value is in both of the setting range 1 and 2, the figure of the setting range 1 is displayed.
154 1 FUNCTIONS 1.12 Web Server Function
Image display (WSPicture)
When the device value is within the specified range, the specified image file can be displayed. The device value is monitored
1
in the fixed interval.
Window
yPos
pictWidth
defPicture
range[n].high Current value range[n].low
xPos
STOP
pictHeight
RUN
range[n].picture
Set range[n] for the range in which the image is to be displayed. (n: 0 to 4) : Required, : Optional
Parameter devName devFormat
pictHeight pictWidth defPicture
rangeNum range[0].low range[0].high range[0].picture
range[1].low range[1].high range[1].picture
range[4].low range[4].high range[4].picture
xPos yPos
Item Device name The data format of the device
Display range height of image file Display range width of image file
Name of image file to be displayed as default
Number of setting ranges Lower limit of setting range 1 Upper limit of setting range 1 Name of image file displayed when device value is within setting range 1 Lower limit of setting range 2 Upper limit of setting range 2 Name of image file displayed when device value is within setting range 2
Description Device type + device number 0: 16-bit signed 1: 16-bit unsigned 2: 32-bit signed 3: 32-bit unsigned 4: Single-precision real number 5: Double-precision real number 6: Bit Real numbers (unit: px) When a negative value is set, the value is treated as an absolute value. Extension: .jpg, .jpeg, .gif, .png (This item is displayed when the device value is out of the setting range.) 1 to 5 A numeric value (decimal) within the range of the specified data format.
Extension: .jpg, .jpeg, .gif, .png
A numeric value (decimal) within the range of the specified data format.
Extension: .jpg, .jpeg, .gif, .png
Requirement
Lower limit of setting range 5 Upper limit of setting range 5 Name of image file displayed when device value is within setting range 5 X-coordinate
Y-coordinate
A numeric value (decimal) within the range of the specified data format.
Extension: .jpg, .jpeg, .gif, .png
The horizontal coordinate of the figure display range at the upper left end (unit: px)
The vertical coordinate of the figure display range at the upper left end (unit: px)
Precautions
· Write all the necessary parameters. If the necessary parameters are not written or the setting value is out of range, an error occurs.
· The total size of the image file on one screen should be 100K bytes or smaller. · If the setting ranges overlap, the image with the lower number of the setting range is displayed. For example, when the
device value is in both of the setting range 1 and 2, the figure of the setting range 1 is displayed.
155 1 FUNCTIONS
1.12 Web Server Function
Historical graph display (WSHstgrp)
This object displays the device value in a time-series line graph. The device value is read in every refreshing cycle. After the number of records is reached, the display shifts to left and old records are deleted.
Window
yPos
xPos
upperMargin
xLine
upper grBkCol grElm[0].lnCol
leftMargin
lowerMargin
grWidth
dispCol
lower rightMargin
(2)
pointNum (1) Refreshing cycle (2) Data in a refreshing cycle is out of the display range.
Set grElm[n] for the devices to be displayed. (n: 0 to 31) : Required, : Optional
Parameter grElmNum devFormat
grElm[0].devName grElm[0].lnCol
grElm[1].devName grElm[1].lnCol grElm[31].devName grElm[31].lnCol grBkCol dspCol pointNum upper lower yLine xLine grHeight grWidth
Item Number of graph elements The data format of the device
Device name Graph line color
Device name Graph line color
Device name Graph line color Graph background color Character color Number of records Upper limit value Lower limit value Vertical axis interval (record) Number of horizontal axes Graph height Graph width
Description 1 to 32 0: 16-bit signed 1: 16-bit unsigned 2: 32-bit signed 3: 32-bit unsigned 4: Single-precision real number 5: Double-precision real number 6: Bit Device type + device number The RGB value or color name Example: #FF0000 (RGB value) or red (color name) Device type + device number The RGB value or color name
Device type + device number The RGB value or color name The RGB value or color name
5 to 100 A numeric value (decimal) within the range of the specified data format.
0 to 99
Positive real numbers (unit: px)
(1)
Requirement
156 1 FUNCTIONS 1.12 Web Server Function
Parameter
Item
Description
Requirement
xPos yPos
X-coordinate
The horizontal coordinate of the historical graph display at the
upper left end (unit: px)
1
Y-coordinate
The vertical coordinate of the historical graph display at the upper
left end (unit: px)
rightMargin leftMargin
Right margin Left margin
Positive real numbers (unit: px)
(If omitted, it is 0.)
upperMargin
Upper margin
lowerMargin
Lower margin
Precautions
· Write all the necessary parameters. If the necessary parameters are not written or the setting value is out of range, an error
occurs.
· The numerical value used in the historical graph is fixed to decimal.
· If the communication load is high for a while, the device value may be lost.
157 1 FUNCTIONS
1.12 Web Server Function
Write button (WSWtrBtn)
This object writes the specified value to the specified device.
Window
yPos
btnWidth
wrBtn
xPos
btnHeight
btnTxt
: Required, : Optional
Parameter devName devBase
Item Device name Positional notation of device
devFormat
The data format of the device
wrVal
wrBtn btnTxt
btnWidth btnHeight wrComfirm language
xPos yPos
Write value
Write button Text displayed on the button
Button width Button height Write confirmation message Message language
X-coordinate Y-coordinate
Description
Device type + device number K: Decimal H: Hexadecimal B: Binary
0: 16-bit signed 1: 16-bit unsigned 2: 32-bit signed 3: 32-bit unsigned 4: Single-precision real number 5: Double-precision real number 6: Bit The setting range depends on the positional notation and data format of the device. Specify a string for the input value. Example: wrVal: '1'
Class element name It is used for the selector of the style sheet. Optional
Positive real numbers (unit: px)
Requirement
(If omitted, it is empty.)
0: Not display 1: Display
0: Japanese 1: English 2: Chinese (Simplified)
The horizontal coordinate of the write button at the upper left end (unit: px)
The vertical coordinate of the write button at the upper left end (unit: px)
(If omitted, it is 0.) (If omitted, it is 1.)
Precautions
· Write all the necessary parameters. If the necessary parameters are not written or the setting value is out of range, an error occurs.
· If no parameter is specified for the write button, the default style specified in UserWebStyle.css is applied.
158 1 FUNCTIONS 1.12 Web Server Function
Logoff button (WSLogoutBtn)
This object places the button to log off. When the logoff button is clicked, the user login page (Log-in_User.html) is displayed.
1
Window
yPos
btnWidth
logOutBtn
xPos
btnHeight
btnTxt
: Required, : Optional
Parameter logOutBtn
Item Logoff button
btnTxt
Text displayed on the button
btnWidth btnHeight xPos
yPos
Button width Button height X-coordinate
Y-coordinate
Description Class element name of button object (It is used for the selector of the style sheet.) Optional
Positive real numbers (unit: px)
Requirement
(If omitted, it is empty.)
The horizontal coordinate of the logoff button at the upper left end (unit: px)
The vertical coordinate of the logoff button at the upper left end
(unit: px)
Precautions
· Write all the necessary parameters. If the necessary parameters are not written or the setting value is out of range, an error occurs.
· When using the logoff button, always store the user login page (Log-in_User.html) in the SD memory card. · If no parameter is specified for the logoff button, the default style specified in UserWebStyle.css is applied.
159 1 FUNCTIONS
1.12 Web Server Function
CGI object
By using the CGI object, a simple and small file size user Web page can be created. For an overview of CGI, refer to reference books on the market. For the user Web page, the following CGI objects dedicated to read/write data from/to devices can be used.
File name RdDevRnd.cgi WrDevRnd.cgi
Item Device read CGI Device write CGI
Description Reads the current value of the specified device. Writes the specified value to the specified device.
Reference Page 162 Device read CGI Page 168 Device write CGI
The data acquisition from the Web server or the operation to the Web server is executed by passing it as the CGI request from the client and returning the execution result as a response to the client.
Data specified for CGI object
The data used in the CGI object are listed below.
Device name
The following table lists the devices that can be accessed with the device read CGI and device write CGI.
Type Bit device Word device
Double-word device
Device X, Y, M, L, B, F, SB, V, DX, DY, SM, Jn\X, Jn\Y, Jn\B, Jn\SB, BL, BLn\S T (Current value), ST (Current value), C (Current value), D, W, SW, SD, Jn\W, Jn\SW, Un\G, U3En\G, U3En\HG, Z, R, ZR, RD LT (Current value), LST (Current value), LC (Current value), LZ
When specifying a device name which includes \, such as Un\G and Jn\X, repeat \ as Un\\G and Jn\\X. (\ is an escape sequence.)
160 1 FUNCTIONS 1.12 Web Server Function
Device size
Applicable device size differs depending on the device.
For the notation of the device number, specify decimal or hexadecimal depending on the device.
1
: Available in both device read CGI and device write CGI, : Not available
Device
Notation
X Y M L B F SB V DX DY SM Jn\X Jn\Y Jn\B Jn\SB BL BLn\S T (current value) ST (current value) C (current value) D W SW SD Jn\W Jn\SW Un\G U3En\G U3En\HG Z R ZR RD LT (current value) LST (current value) LC (current value) LZ
Hexadecimal Hexadecimal Decimal Decimal Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Hexadecimal Decimal Hexadecimal Hexadecimal Hexadecimal Hexadecimal Decimal Decimal Decimal Decimal Decimal Decimal Hexadecimal Hexadecimal Decimal Hexadecimal Hexadecimal Decimal Decimal Decimal Decimal Decimal Decimal Decimal Decimal Decimal
Decimal Decimal
Device size B: Bit
W: Word
D: Word
Q: Quad word
Device read CGI only
Device value
The notation of the device value used in the CGI object should be as follows: · The CGI object treats device values are treated as a string type in the hexadecimal notation. When using the decimal
number or real number in the Web page, convert hexadecimal decimal or real number by using JavaScript. · Do not start with 0x. Do not perform the 0 interpolation. For example, when reading/writing the value 0x012F, set the string
12F as the device value. · The case of the hexadecimal alphanumeric character is ignored. For example, the device value can be expressed either as
12F or 12f to read/write the value 0x012F.
161 1 FUNCTIONS
1.12 Web Server Function
Device read CGI
Reads the current value of the specified device.
Access method and access information
Item Access method Access destination information (URL)
Description POST /cgi/RdDevRnd.cgi
Request specifications
The following table lists the parameters used for the request.
Parameter name
NUM
Data type string
DEV1
string
TYP1
string
DEV(n)
TYP(n)
string string
Description
Setting range
Hexadecimal string of the number of read device points (n: 1 to 20) Device name of the first point
Device size of the first point
Set this parameter so that the total number of device points specified to read/write in one Web page is within 32 points.
Up to 16 alphanumeric characters (This parameter is not case-sensitive. The indirect specification, bit specification, digit specification, or index modification cannot be performed.) Page 160 Device name
B: Bit W: Word D: Double word Q: Quad word Page 161 Device size
Device name of the nth point (n: 1 to 32)
Device size of the nth point
Up to 16 alphanumeric characters (This parameter is not case-sensitive. The indirect specification, bit specification, digit specification, or index modification cannot be performed.)
B: Bit W: Word D: Double word Q: Quad word
The format of the request data is the query string. Specify DEV(n) and TYP(n) with the serial number. Otherwise, an error occurs.
Ex. When reading 10 points of device from D0, M100, , SD0 NUM=A&DEV1=D0&TYP1=D&DEV2=M100& &DEV10=SD0&TYP10=W
162 1 FUNCTIONS 1.12 Web Server Function
Response specifications
The following table lists the parameters used for the response.
Parameter Data type
Description
1
name
RET
string
Execution result (hexadecimal string) 0000: Normal 0001: Not logged on 0005: Incorrect request source (Referer) 4005: Number of points over 4030: Incorrect device type 4031: Out of device range 4041: Error due to the specified buffer memory number + specified number of transfer points out of buffer memory range 4043: Error of when the specified module does not exist 4080: CGI parameter error
DATA
string
Reading value (array) Hexadecimal string
The format of the response data is JSON.
Ex. Response data of the device read CGI
{ "RET" : "0", "DATA" : [ "100", "FABC" ]
}
The above response is transferred in the following format on a message.
{"RET":"0","DATA":["100", ,"FABC"]}
When the execution result is abnormal, only RET is transferred.
{"RET":"4031"}
To display the device value in the real number format on the Web page, specify D: Double word for the device size and execute a request (1). Convert the read data to the real number format by using JavaScript (2).
D0
B36FH
D1
35A5H
(1)
Web page
DATA[0]
"35a5b36f"
(2)
D0
Single-precision real number
1.234568E-06
163 1 FUNCTIONS
1.12 Web Server Function
Application example
An example for reading values by using the device read CGI is shown below.
· Display of HTML
(4)
(1)
(2)
(3)
(1) Set DEV1. (2) Set TYP1. (3) Set VAL1. (4) Click to call the ReadDeviceRandomTbl function of JavaScript. (Set the table ID for the argument.)
· HTML example
<form id="devform" name="readdev" method="post"> <table id="devtbl" class="devtbl" border="1"> <tr> <th>Device Name</th><th>Data Type</th><th>Value</th> </tr> <tbody> <tr> <td><input type="text" id="DEV1" name=" DEV1" class="input"value='D10' /></td> <td><input type="text" id="TYP1" name=" TYP1" class="input"value='32-bit Integer' /></td> <td><input type="text" id="VAL1" name=" VAL1" class="read-input"/></td> </tr> <tr> <td><input type="text" id="DEV2" name="DEV2" class="input" value='SD0'/ ></td> <td><input type="text" id="TYP2" name="TPY2" class="input" value='16-bit Integer'/ ></td> <td><input type="text" id="VAL2" name="VAL2" class="read-input"/></td> </tr> <tr> <td><input type="text" id="DEV3" name="DEV3" class="input"value='M0'/ ></td> <td><input type="text" id="TYP3" name="TYP3" class="input"value='Bit'/ ></td> <td><input type="text" id="VAL3" name="VAL3" class="read-input"/></td> </tr> </tbody> </table> <input type="button" value="Read" class="input" onclick=" ReadDeviceRandomTbl(devtbl)"/> </form>
164 1 FUNCTIONS 1.12 Web Server Function
· JavaScript example
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
1
<!-- charset setting*Set UTF-8 which is set in the Web server setting -->
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge"/>
<!-- Set the title name -->
<title>Sample</title>
<link href="./css/UserWebStyle.css" rel="stylesheet" media="all" />
<!-- Library JavaScript reading (change the path depending on the storage position) -->
<script src="./RUserWebLib.js"></script>
<!-- Write the original JavaScript hereinafter -->
<!-- Write the JavaScript of the user here -->
<script>
// The function for a CGI request
function ReadDeviceRandomTbl(devtblid) {
var devtblitem = document.getElementById(devtblid);
var i, devitem, typitem;
var tblrows = devtblitem.rows.length;
var param;
// Number of device points setting param = "NUM=" + (tblrows - 1) + '&'; for (i = 1; i < tblrows; i++) {
// Parameter setting of the device name devitem = document.getElementById(devtblitem.rows[i].cells[0].childNodes[0].id); param += devitem.name + "=" + devitem.value + '&';
// Parameter setting of the device size typitem = document.getElementById(devtblitem.rows[i].cells[1].childNodes[0].id); if( "Bit" == typitem.value) {
param += typitem.name + "=" + 'B'; } else if("16-bit Integer" == typitem.value) {
param += typitem.name + "=" + 'W'; } else if("32-bit Integer" == typitem.value) {
param += typitem.name + "=" + 'D'; } else {
param += typitem.name + "=" + 'Q'; } if( i < (tblrows - 1)) param += '&'; }
// Request to the CGI xhr = new XMLHttpRequest(); xhr.open('POST', "/cgi/RdDevRnd.cgi", true); xhr.setRequestHeader('Content-Type', 'application/x-www-form-urlencoded'); var FUNC = function() { ReadDeviceRandomTbl_Response(xhr, devtblid); }; // Response analysis function setting xhr.onreadystatechange = FUNC; xhr.send(param); }
165 1 FUNCTIONS
1.12 Web Server Function
// The function for analyzing a response function ReadDeviceRandomTbl_Response(xhr, devtblid) { // XMLHttpRequest Client status check // 0:UNSENT 1:OPENED 2:HEADERS_RECEIVED 3:LOADING 4:DONE if( 4 != xhr.readyState ) { // End the processing if the status 4 is other than DONE (operation complete). return; } // HTTP Response code check if ( 200 != xhr.status ) { // Display the error dialog box if the response code is other than "200 OK". alert("HTTP STATUS ERROR=" + xhr.status ); return; } var i, dataitem; var devtblitem = document.getElementById(devtblid); var tblrows = devtblitem.rows.length; // Obtain the number of the table lines (including the header). var res = JSON.parse( xhr.response ); // Analysis processing of JSON string // Judgment from the CGI if( res.RET != "0000" ) { // Display the error dialog box if the result is abnormal. alert("ERROR=" + res.RET); } else { // Reflect the obtained value to the table if the result is normal. for ( i = 1, m = 0; i < tblrows; i++, m++) { dataitem = document.getElementById(devtblitem.rows[i].cells[2].childNodes[0].id); // Set the read result to the value of the table (convert the hexadecimal string to numerical value). dataitem.value = parseInt(res.DATA[m],16); } alert("read complete"); } } </script>
</head>
166 1 FUNCTIONS 1.12 Web Server Function
<body>
<form>
<table id="devtbl" class="devtbl" border="1">
1
<tr>
<th>Device Name</th>
<th>Data Type</th>
<th>Value</th>
</tr>
<tbody>
<tr>
<td><input type="text" id="DEV1" name="DEV1" class="input" value="D10"/></td>
<td><input type="text" id="TYP1" name="TYP1" class="input" value="16-bit Integer"/></td>
<td><input type="text" id="DATA1" name="DATA1" class="read-input" ></td>
</tr>
<tr>
<td><input type="text" id="DEV2" name="DEV2" class="input" value="D11"/></td>
<td><input type="text" id="TYP2" name="TYP2" class="input" value="32-bit Integer"/></td>
<td><input type="text" id="DATA2" name="DATA2" class="read-input" /></td>
</tr>
<tr>
<td><input type="text" id="DEV3" name="DEV3" class="input" value="M0"/></td>
<td><input type="text" id="TYP3" name="TYP3" class="input" value="Bit"/></td>
<td><input type="text" id="DATA3" name="DATA3" class="read-input" /></td>
</tr>
</tbody>
</table>
<input type="button" value="Read" class="input" onclick="ReadDeviceRandomTbl('devtbl')"/>
</form>
</body>
</html>
(5)
(5) Display the read result.
In the above example, the request parameter is as follows: NUM=3&DEV1=D10&TYP1=D&DEV2=SD0&TPY2=W&DEV3=M0&TYP3=B
167 1 FUNCTIONS
1.12 Web Server Function
Device write CGI
Writes the specified value to the specified device.
Access method and access information
Item Access method Access destination information (URL)
Description POST /cgi/WrDev.cgi
Request specifications
The following table lists the parameters used for the request.
Parameter name
NUM
Data type string
DEV1
string
TYP1
string
DATA1
string
Description
Setting range
Number of write device points (1) Device name Device size
Write value
Set 1. (Set this parameter so that the total number of device points specified to read/write per Web page is within 32 points.)
Up to 16 alphanumeric characters (This parameter is not case-sensitive. The indirect specification, bit specification, digit specification, or index modification cannot be performed.) Page 160 Device name
B: Bit W: Word D: Double word Q: Quad word Page 161 Device size
Hexadecimal string
The format of the request data is the query string.
Ex. Writing FFFFH to D0 NUM=1&DEV1=D0&TYP1=W&DATA1=FFFF
When writing the device value which is input to the Web page in the real number format, the input data needs to be converted to the hexadecimal format by using JavaScript (1). For the device size, D: Double word needs to be specified and performing a request (2) are required as well.
Web page
D0
Single-precision real number
(1)
1.234568E-06
DATA1
D0 D1
"35a5b36f" (2)
B36FH 35A5H
168 1 FUNCTIONS 1.12 Web Server Function
Response specifications
The following table lists the parameters used for the response.
Parameter Data type
Description
1
name
RET
string
Execution result (hexadecimal string) 0000: Normal 0001: Not logged on 0002: No permission (A user without device write permission executed the CGI.) 0005: Incorrect request source (Referer) 4005: Number of points over 4030: Incorrect device type 4031: Out of device range 4041: Specified buffer memory number + specified number in the transfer points is out of buffer memory range error 4043: Error of when the specified module does not exist 4080: CGI parameter error 4032: Device specification error
DATA
string
The read value of the target device (array) Hexadecimal string
The format of the response data is JSON.
Ex. Response data of the device write CGI
{ "RET" : "0", "DATA" : [ "100" ]
}
The above response is transferred in the following format on a message.
{"RET":"0","DATA":["100"]}
When the execution result is abnormal, data is not written and only the RET is transferred.
{"RET":"4031"}
169 1 FUNCTIONS
1.12 Web Server Function
Application example
An example for writing a value by using the device write CGI is shown below.
· Display of HTML
(4)
(1)
(2)
(3)
(1) Set DEV1. (2) Set TYP1. (3) Set VAL1. (4) Click it to call the WriteDeviceBlockTbl function of JavaScript. (Set the table ID, the line number where the write starts, and the number of write points 1 for
the arguments.)
· HTML example
<form id="devform" name="readdev" method="post"> <table id="devtbl" class="devtbl" border="1"> <tr> <th>Device Name</th><th>Data Type</th><th>Value</th> </tr> <tbody> <tr> <td><input type="text" id="DEV1" name=" DEV1" class="input"value='D10'/ ></td> <td><input type="text" id="TYP1" name=" TYP1" class="input"value='32-bit Integer'/ ></td> <td><input type="text" id="DATA1" name=" DATA1" class="input"value='3'/></td> </tbody> </table> <input type="button" value="Write" class="input" onclick=" WriteDeviceBlockTbl(devtbl,1,1)"/>
</form>
170 1 FUNCTIONS 1.12 Web Server Function
· JavaScript example
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
1
<!-- charset setting*Set UTF-8 which is set in the Web server setting -->
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge"/>
<!-- Set the title name -->
<title>Device write CGI sample</title>
<link href="./css/UserWebStyle.css" rel="stylesheet" media="all" />
<!-- Library JavaScript reading (change the path depending on the storage position) -->
<script src="./RUserWebLib.js"></script>
<!-- Write the original JavaScript hereinafter -->
<!-- Write the JavaScript of the user here -->
<script>
function WriteDeviceBlockTbl(devtblid, row) {
var dataitem;
var xhr;
var devtblitem = document.getElementById(devtblid);
// Number of device points setting (fixed to one point)
var param = 'NUM=1&';
// Parameter setting of the device name
var devitem = document.getElementById(devtblitem.rows[row].cells[0].childNodes[0].id);
param += 'DEV1=' + devitem.value + '&';
// Parameter setting of the device size var typitem = document.getElementById(devtblitem.rows[row].cells[1].childNodes[0].id); if( 'Bit' == typitem.value){
param += 'TYP1=' + 'B'; } else if( '16-bit Integer' == typitem.value) {
param += 'TYP1=' + 'W'; } else if( '32-bit Integer' == typitem.value) {
param += 'TYP1=' + 'D'; } else {
param += 'TYP1=' + 'Q'; } param += '&';
// Parameter setting of the data var dataitem = document.getElementById(devtblitem.rows[row].cells[2].childNodes[0].id); param += 'DATA1=' + parseInt(dataitem.value).toString(16)
// Request to the CGI xhr = new XMLHttpRequest(); xhr.open('POST', "/cgi/WrDev.cgi", true); xhr.setRequestHeader('Content-Type', 'application/x-www-form-urlencoded'); var FUNC = function() { WriteDeviceBlockTbl_Response(xhr, typitem, dataitem); }; // Response analysis function setting xhr.onreadystatechange = FUNC; xhr.send(param); }
171 1 FUNCTIONS
1.12 Web Server Function
// The function for analyzing a response function WriteDeviceBlockTbl_Response(xhr, typitem, dataitem) { // XMLHttpRequest Client status check // 0:UNSENT 1:OPENED 2:HEADERS_RECEIVED 3:LOADING 4:DONE if( 4 != xhr.readyState ) { // End the processing if the status 4 is other than DONE (operation complete). return; } // HTTP Response code check if ( 200 != xhr.status ) { // Display the error dialog box if the response code is other than "200 OK". alert("HTTP STATUS ERROR=" + xhr.status ); return; } var value; var res = JSON.parse( xhr.response ); // Analysis processing of JSON string // Judgment from the CGI if( res.RET != "0000" ) { // Display the error dialog box if the result is abnormal. alert("ERROR=" + res.RET); } else { // Reflect the write result value if the result is normal. dataitem.value = parseInt(res.DATA[0],16); alert("write complete"); } }
</script> </head>
172 1 FUNCTIONS 1.12 Web Server Function
<body>
<form>
<table id="devtbl" class="devtbl" border="1">
1
<tr>
<th>Device Name</th>
<th>Data Type</th>
<th>Value</th>
</tr>
<tbody>
<tr>
<td><input type="text" id="DEV1" name="DEV1" class="input" value="D10"/></td>
<td><input type="text" id="TYP1" name="TYP1" class="input" value="16-bit Integer"/></td>
<td><input type="text" id="DATA1" name="DATA1" class="input" value="3"/></td>
<td><input type="button" value=" Write" class="input" onclick="WriteDeviceBlockTbl('devtbl',1)"/></td>
</tr>
<tr>
<td><input type="text" id="DEV2" name="DEV2" class="input" value="D11"/></td>
<td><input type="text" id="TYP2" name="TYP2" class="input" value="32-bit Integer"/></td>
<td><input type="text" id="DATA2" name="DATA2" class="input" value="10"/></td>
<td><input type="button" value=" Write" class="input" onclick="WriteDeviceBlockTbl('devtbl',2)"/></td>
</tr>
<tr>
<td><input type="text" id="DEV3" name="DEV3" class="input" value="M0"/></td>
<td><input type="text" id="TYP3" name="TYP3" class="input" value="Bit"/></td>
<td><input type="text" id="DATA3" name="DATA3" class="input" value="1"/></td>
<td><input type="button" value=" Write" class="input" onclick="WriteDeviceBlockTbl('devtbl',3)"/></td>
</tr>
</tbody>
</table>
</form>
</body>
</html>
In the above example, the request parameter is as follows: NUM=1&DEV1=D10&TYP1=D&DATA1=3
173 1 FUNCTIONS
1.12 Web Server Function
Error message
Display example of error messages
If an object of the user Web page is used incorrectly, a button to notify the user of an error is displayed at the upper left of the object when the user Web page is displayed. The error message related to the common processing which is not limited to the object is displayed at the upper left of the window.
Click the button to display the detailed information of the error.
174 1 FUNCTIONS 1.12 Web Server Function
List of error messages of the user Web page
The following table lists error messages, causes, and action of the user Web page.
Description
Cause
Action
1
A required parameter "XXX" has not been set.
A required parameter has not been set.
Check the contents of the HTML file.
The setting of the parameter "XXX" is incorrect.
Parameters are out of the setting range.
Set values of parameters that should be numeric values are specified with other than numeric values.
The data format of the device "XXX" is incorrect.
Positional notation of the device, data format, device name
The receive data contains errors.
The receive data contains errors.
Check that the CPU module and the client terminal are properly connected and update the Web page.
You were logged off. Log on and try again.
The user has been logged off. (Communications Check that the CPU module and the terminal are
are disconnected.)
properly connected and log on again.
Specified devices are invalid. The following are the possible causes. · A device such as pointer and constant · Unsupported device
Device names are incorrect.
Check parameters of each object to see if any device name is specified incorrectly.
Specified device No. is invalid. The following are the possible causes. · A device over the settable device range of CPU
parameter
Device numbers and buffer memory addresses are out of range or not numeric values. The device range is incorrect.
Check parameters of each object to see if any device number and buffer memory address are specified incorrectly.
Specified modules do not exist. Check the modules.
The module numbers are incorrect. An error has occurred in communications with intelligent function modules.
Check parameters of each object to see if any module number is specified incorrectly. Check that there are no power-offs or errors in extension units.
For details on the other errors, refer to the following. MELSEC iQ-R/MELSEC iQ-F Web Server Function Guide Book MELSEC iQ-R CPU Module User's Manual (Application)
175 1 FUNCTIONS
1.12 Web Server Function
1.13 Security
Security depending on the network environment can be structured by restricting access by each communication path to the CPU module. For the restriction methods for access, refer to the following. · Page 176 IP filter · Page 177 Remote password
IP filter
Identifies the IP address of the access source, and prevents access from an illegal IP address. The IP address of the external device to be allowed or denied is set in the parameters, and access from external devices is restricted. Use of this function is recommended when using in an environment connected to a LAN line.
Ethernet
Access permitted
External device IP address: 192.168.1.2
Ethernet-equipped module
Access permitted
External device IP address: 192.168.1.3
Access prohibited
External device IP address: 192.168.1.5
· This setting is not available when the RJ71EN71 network type is set to "Q Compatible Ethernet". · Access cannot be restricted when the network other than Ethernet is set as the communication path.
The IP filter is one method of preventing illegal access (such as program or data destruction) from an external device. It does not completely prevent illegal access. Incorporate measures other than this function if the programmable controller system's safety must be maintained against illegal access from an external device. Mitsubishi shall not be held liable for any system problems that may occur from illegal access. Examples of measures for illegal access are given below. · Install a firewall · Install a personal computer as a relay station, and control the relay of send/receive data with an application
program · Install an external device for which the access rights can be controlled as a relay station (Contact the
network provider or equipment dealer for details on the external devices for which access rights can be controlled.)
176 1 FUNCTIONS 1.13 Security
Setting procedure
1. Set the IP address to be allowed or denied in "IP Filter Settings" of "Security" under "Application Settings". ( Page
1
284 IP Filter Settings)
2. Write the module parameters to the CPU module.
3. The IP filter is enabled when the CPU module power is turned off and on or reset.
Even if the connection is established as set with the Ethernet-equipped module's "External Device Configuration" under "Basic Settings" or the program, access from the external device is either allowed or denied following "IP Filter Settings" of "Security" under "Application Settings". Therefore, if the IP address set in the Ethernet-equipped module's "External Device Configuration" under "Basic Settings" is set to be denied with "IP Filter Settings" of "Security" under "Application Settings", the IP filter is enabled and communication with the external device is denied.
Precautions
If there is a proxy server in the LAN line, deny the IP address for the proxy server. If the IP address is allowed, it will not be possible to prevent access from personal computers that access the proxy server.
Remote password
Permits or prohibits access from the external device to the CPU module via the Ethernet-equipped module. This function can prevent illegal access of the CPU module from a remote location.
The remote password is one method of preventing illegal access (such as program or data destruction) from an external device. It does not completely prevent illegal access. Incorporate measures other than this function if the programmable controller system's safety must be maintained against illegal access from an external device. Mitsubishi shall not be held liable for any system problems that may occur from illegal access. Examples of measures for illegal access are given below. · Install a firewall · Install a personal computer as a relay station, and control the relay of send/receive data with an application
program · Install an external device for which the access rights can be controlled as a relay station (Contact the
network provider or equipment dealer for details on the external devices for which access rights can be controlled.)
Number of settable modules
Up to eight modules can be set for remote passwords. When using the multiple CPU system configuration, up to eight modules can be set for each CPU module.
177 1 FUNCTIONS 1.13 Security
Setting procedure
Set the remote password as follows. [Navigation window] [Parameter] [Remote Password]
1. Register the remote password on the "Register
Password" window. [Password] button
2. Select the module for which the remote password is to
be applied, and set the start I/O number. Select the following items when using the RnENCPU.
· CPU part: "CPU Module (Built-in Ethernet Function)" · Network part: "CC-Link IE Built-in Ethernet I/F Module"
3. Set the target connection on the "Remote Password
Detail Setting" window. "Detail Setting" for the target module.
178 1 FUNCTIONS 1.13 Security
4. Write the remote password to the CPU module. 5. The remote password is enabled when the CPU
module is powered off and on or reset.
Access permit/prohibit processing operation
This section describes the processing for permitting or prohibiting access of the CPU module with remote password by the
1
external device.
Access permit processing (Unlock processing)
The external device trying to communicate unlocks the remote password set for the connected Ethernet-equipped module. If the password is not unlocked, the Ethernet-equipped module to which the external device is connected prohibits access, so an error occurs in the external device. The unlocking method is shown below. · SLMP dedicated command (Remote Password Unlock) · Dedicated command (password-unlock) for file transfer function (FTP server) · Input password from engineering tool
Access processing
Access to the specified station is possible when the remote password is correctly unlocked. Execute the arbitrary access.
Access prohibit processing (Lock processing)
When access to the specified station ends, lock the remote password from the external device to disable subsequent access. The locking method is shown below. · SLMP dedicated command (Remote Password Lock) · Dedicated command (password-lock) for file transfer function (FTP server) · Lock with engineering tool (executed automatically)
Remote password check operation
Communication that is checked
The Ethernet-equipped module checks the remote password for a communication request made to the own station or other station received from the external device. When checking a remote password for modules with multiple connections, the connection for which the remote password is set.
RJ71EN71
CPU module
Remote password (Own station)
(Another station)
Remote password check
(2)
Path checked using a remote password
Path not checked using
(3)
a remote password
(3) Engineering tool
CPU module
Remote password
Remote password check
(*1)
Engineering tool RJ71EN71
*1 The remote password check is set, so the communication request from the external device is not accepted. If the remote password check is not set, the communication request can be accepted and data can be exchanged from the external device.
179 1 FUNCTIONS 1.13 Security
Accessible station
The station accessible from the external device when a remote password is set for the CPU module and the station that can unlock/lock the remote password are limited to those in the same network number. The following figure shows an example of when the remote password is set for multiple stations in the system.
Ex.
Station A
Station 1-2 (1)
CPU module
RJ71EN71
Network No.1
Ethernet
Station B Engineering tool
Ethernet
Station 1-1 Remote password
CPU module
(1)
Remote password
check
RJ71EN71
(2) RJ71EN71
Network No.2
Station 3-2 Remote password
CPU module
(1)
Remote password
check
RJ71EN71
Network No.3
Ethernet
Station 2-1
(1)
Station 2-2
(1)
(2) Station 3-1
(1)
Station C
CPU
RJ71EN71
module
Remote password
CPU module
Remote password
check
RJ71EN71
RJ71EN71
CPU module
RJ71EN71
*1 The password can be unlocked and locked by the following external devices. 1-1 station (1): A station only 2-2 station (1): C station only 3-2 station (1): D station only
: Station accessible from external device after remote password is unlocked
: Station accessible from external device even if remote password is not unlocked
: Station that cannot be accessed from external device
Station D
External device*2 (Request source)
A station
B station
C station
D station
Target programmable controller (request source) 1-1 station CPU 1-2 station CPU 2-1 station CPU 2-2 station CPU 3-1 station CPU 3-2 station CPU
*2 The A station accesses the station after the remote password for 1-1 station (1) is unlocked and access the station if the communication line is open. The B station accesses the station if the communication line is open. The C station accesses the station after the remote password for 2-2 station (1) is unlocked and access the station if the communication line is open. The D station accesses the station after the remote password for 3-2 station (1) is unlocked and access the station if the communication line is open.
180 1 FUNCTIONS 1.13 Security
Precautions
The following section lists the precautions for using remote password.
1
Set connection
Set the remote password for the connection used to exchange data with an external device that can execute the unlock/lock
processing.
When remote password is set for UDP/IP connection
· Determine the external device to communicate with and exchange the data. (With UDP/IP, after the remote password is unlocked data can be exchanged with devices other than the unlocked external device too. Determine the communication device before starting use.)
· Always lock the remote password after data communication is finished. (If the remote password is not locked, the unlocked state is held until timeout occurs.)
· Set "UDP" for "Existence Confirmation" of the target connection in "External Device Configuration" under "Basic Settings". Set as small a value as possible for the "Destination Alive Check Start Interval Timer" and "Destination Alive Check Interval Timer" in "Timer Settings for Data Communication" under "Application Settings".
TCP/IP close processing
If the TCP/IP is closed before the TCP/IP is locked, the CPU module will automatically start the lock processing.
Remote password valid range
The remote password is valid only for access from the Ethernet-equipped module for which the parameters are set. When using multiple CPU modules in a multi-CPU system, set a remote password for each CPU module for requiring a remote password.
Enable/ Disable
Remote password check
Remote password parameter
A
B
Ethernet
C
D
No remote password parameter
The remote password is checked when accessing with path A or B. The remote password is not checked when accessing with path C or D.
Connection for nonprocedural fixed buffer communication
The remote password is not checked during communication for nonprocedural fixed buffer communication, so do not set the remote password check.
Accessing another station's programmable controller
When the external device is accessing another station's programmable controller via the Ethernet-equipped module, it may not be possible to access the programmable controller if a remote password is set for the CPU module at the relay station or access station.
181 1 FUNCTIONS 1.13 Security
When the CPU module is used as a relay station for the connection between the MELSOFT product and GOT
A remote password is enabled when the following items are set in "System Connection" in "Remote Password Detail Setting".
"PLC side I/F Detailed Setting of PLC Module" of "Current Connection Destination"
Ethernet port direct connection Connection via a hub
"System Connection" of "Remote Password Detail Setting"
MELSOFT direct connection MELSOFT transmission port (UDP/IP)
The following figure shows the availability of the access when a remote password is set for a relay station (CPU module).
Target device
(1) (2)
(3) (4)
(5)
Ethernet
Ethernet
Ethernet
When a remote password is set for (1), the target device becomes accessible after the remote password is unlocked. When remote passwords are set for (2) to (5), the target device is accessible even when the remote passwords are not unlocked.
182 1 FUNCTIONS 1.13 Security
1.14 Simple CPU Communication Function (RJ71EN71,
RnENCPU (Network Part))
1
This function allows data communications between specified devices at the specified timing just by making simple settings of the RJ71EN71 and RnENCPU (network part) from an engineering tool. Send/receive is performed with a specified communication destination on a one-to-one basis.
Ethernet
RJ71EN71
MELSEC iQ-R MELSEC-Q
MELSEC-L
MELSEC iQ-F
MELSEC iQ-L
MELSEC-F SLMP MODBUS/TCP
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
183
Communication destination MELSEC iQ-R series MELSEC-Q series MELSEC-L series MELSEC iQ-F series MELSEC iQ-L series MELSEC-A/AnS series MELSEC-F series Programmable controllers of other companies SLMP-compatible device MODBUS/TCP slave device
Type CPU module, Ethernet module CPU module, Ethernet module CPU module, Ethernet module CPU module CPU module Ethernet module Ethernet block/adapter
QnA-compatible 3E frame
Description Page 186 Module type
Access via routers is also available. For the access, set the subnet mask and default gateway. ( Page 262 Own Node Settings)
Before using the simple CPU communication function, check the versions of the module and engineering tool used. ( Page 215 Restrictions applicable depending on versions)
184
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
Setting procedure
The following section describes the settings for using this function.
1
1. Set "Enable" for "To Use or Not to Use Simple PLC Communication Setting" in "Simple PLC Communication Setting"
under "Application Settings".
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Application Settings] [Simple PLC Communication Setting]
2. Double-click "<Detailed Setting>" of the "Simple PLC Communication Setting" to display the following window. (
Page 276 Simple CPU communication setting (RJ71EN71, RnENCPU (network part)))
3. After setting the items, write the module parameters to the CPU module of the own station, and reset or power off and on
the CPU module to start the simple CPU communication.
When "On Request" is set to the communication setting, refer to the following. Page 201 Operations when the communication setting is "On Request"
Communication Pattern
Select the communication pattern from the following items.
Setting item Read
Write
Description
Read the data of the specified destination device (transmission source) to the specified device of the own station (transmission destination).
Write the data of the specified device of the own station (transmission source) to the specified destination device (transmission destination).
Communication Setting: Execution Interval
Select the communication timing from the following items.
Setting item Fixed Interval
Execution Interval (ms)
Description
Data are communicated between the devices at a specified execution interval. Execution interval is set.
On Request
Data are communicated between the devices upon request only.
Setting range
1ms to 65535ms (in increments of 1ms)
· Actual time of execution interval may be longer than the value of the setting because the time is affected by the specified communication destinations or Ethernet line congestion. For the preventive measures, refer to the following.
Page 325 When the simple CPU communication function is used · If latency time is set, data communication is started after the latency time has passed. ( Page 204
Latency Time)
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
185
Communication Destination (IP Address)
Click "Destination" to open the "Communication Destination Setting" window and specify the communication destination. Up to 64 communication destinations can be registered.
In the engineering tool, up to 512 communication destinations can be set. Note that the settable number is different. Devices having different settings in any of the items below are counted as different communication destination. · Module type · IP address · UDP/TCP · Port No. · Own station port number · Option (hexadecimal)
Module type
Select the module type of the communication destination.
Module type
Communication destination
MELSEC iQ-R (Built-in Ethernet)
RnCPU, RnENCPU*1, RnPCPU, RnSFCPU, RnPSFCPU
MELSEC-Q (Built-in Ethernet)
Built-in Ethernet port QCPU
MELSEC-L (Built-in Ethernet)
Built-in Ethernet port LCPU
MELSEC iQ-F (Built-in Ethernet)
FX5U CPU module, FX5UC CPU module
MELSEC iQ-L (Built-in Ethernet) MELSEC iQ-R (Ethernet Module)
LnHCPU RnENCPU*2, RJ71EN71
MELSEC-Q (Ethernet Module)
QJ71E71-100
MELSEC-L (Ethernet Module)
LJ71E71-100
MELSEC-A/AnS (Ethernet Module)
AJ71E71N3-T, AJ71QE71N3-T, A1SJ71E71N3-T, A1SJ71QE71N3-T
MELSEC-FX3 (Ethernet Block/Adapter) FX3U-ENET-ADP, FX3U-ENET-L
SLMP Corresponding Device (QnA Compatible 3E Frame)
· SLMP-compatible device (No serial number) · MC protocol 3E frame-compatible device
OMRON (CS/CJ series) KEYENCE (KV series)
Panasonic (FP2SH series) Panasonic (FP7 series) YASKAWA MP3000 series YASKAWA MP2000 series Yokogawa FA-M3 series MODBUS/TCP-compatible device SIEMENS S7 series Fuji Electric MICREX-SX series
JTEKT TOYOPUC series
Supported model for SYSMAC CS/CJ series Supported model for KV series
Supported model for FP2 series Supported model for FP7 series Supported model for MP3000 series Supported model for MP2000 series Supported model for FA-M3 series MODBUS/TCP slave device Supported model for S7 series · Supported model for MICREX-SX (CPU module) series · Supported model for MICREX-SX (Ethernet module) series · Supported model for TOYOPUC PC10 (CPU module) series · Supported model for TOYOPUC Plus (CPU module) series · Supported model for TOYOPUC Plus (Ethernet module) series
Communication specification MELSOFT connection (protocol: UDP)
MELSOFT connection (protocol: TCP) MELSOFT connection (protocol: UDP)
MC protocol (A-compatible 1E frame)
SLMP (MC protocol QnA-compatible 3E frame) · Read (0401H) · Write (1401H) FINS SLMP (MC protocol QnA-compatible 3E frame) MEWTOCOL MEWTOCOL7 Extended MEMOBUS
Personal computer link MODBUS/TCP S7 Communication Loader command
Computer link
*1 When the RnENCPU is used for the connection to the Ethernet port of the CPU part *2 When the RnENCPU is used for the connection to the Ethernet port of the network part
186
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
IP address, UDP/TCP, port number
Set the IP address of the communication destination, communication protocol, port number, and own port number.
Module type
Setting range
1
IP address
UDP/TCP
Port No.
Own station port number
MELSEC iQ-R (Built-in Ethernet) MELSEC-Q (Built-in Ethernet)
0.0.0.1 to 223.255.255.254
UDP UDP
Cannot be set.
1 to 4999, 5010 to 65534
MELSEC-L (Built-in Ethernet)
UDP
MELSEC iQ-F (Built-in Ethernet)
TCP
MELSEC iQ-L (Built-in Ethernet)
UDP
MELSEC iQ-R (Ethernet Module)
UDP
MELSEC-Q (Ethernet Module)
UDP
MELSEC-L (Ethernet Module)
UDP
MELSEC-A/AnS (Ethernet Module)
UDP, TCP
256 to 65534
MELSEC-FX3 (Ethernet Block/Adapter)
UDP, TCP
1025 to 5548, 5552 to 65534
SLMP Corresponding Device (QnA Compatible 3E Frame)
UDP, TCP
1 to 65534
OMRON (CS/CJ series)
UDP
KEYENCE (KV series)
UDP, TCP
Panasonic (FP2SH series)
UDP, TCP
Panasonic (FP7 series)
UDP, TCP
YASKAWA MP3000 series
UDP, TCP
YASKAWA MP2000 series
UDP, TCP
Yokogawa FA-M3 series
UDP, TCP
MODBUS/TCP-compatible device
TCP
SIEMENS S7 series
TCP
102
Fuji Electric MICREX-SX series
TCP
251 to 65531
JTEKT TOYOPUC series
TCP
1025 to 65535
· When a multiple CPU system is configured, specify the IP address of the CPU module to which the Ethernet cable is connected.
· Port numbers 1 to 1023 are typically reserved port numbers (WELL KNOWN PORT NUMBERS) and 61440 to 65534 are used by other communication functions, so it is recommended to use 1024 to 4999 or 5010 to 61439 for the own station port numbers.
· If the communication destination is Mitsubishi Electric programmable controllers (except MELSEC-A/AnS and MELSEC-FX3), the number between 61696 and 65534 is dynamically used for the own station port number. Consequently, do not specify the number between 61696 and 65534 for the own station port number in the OPEN instruction and the GP.CONOPEN instruction. Otherwise, the instruction may not be completed properly.
· When specifying the same communication destination in multiple settings, set different own station port numbers.
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
187
Option (hexadecimal)
Set the option setting value of the communication destination.
Module type MELSEC iQ-R (Built-in Ethernet) MELSEC-Q (Built-in Ethernet) MELSEC-L (Built-in Ethernet) MELSEC iQ-F (Built-in Ethernet) MELSEC iQ-L (Built-in Ethernet) MELSEC iQ-R (Ethernet Module) MELSEC-Q (Ethernet Module) MELSEC-L (Ethernet Module) MELSEC-A/AnS (Ethernet Module) MELSEC-FX3 (Ethernet Block/Adapter) SLMP Corresponding Device (QnA Compatible 3E Frame) OMRON (CS/CJ series) KEYENCE (KV series) Panasonic (FP2SH series) Panasonic (FP7 series) YASKAWA MP3000 series YASKAWA MP2000 series Yokogawa FA-M3 series MODBUS/TCP-compatible device
SIEMENS S7 series Fuji Electric MICREX-SX series JTEKT TOYOPUC series
Setting range Cannot be set.
Set the setting value for the module ID of the MODBUS application header. When communicating with a MODBUS/TCP-compatible device 00H or FFH When communicating with a MODBUS RTU/ASC-compatible device via a gateway device · 00H (broadcast) · 01H to F7H (station number of a MODBUS RTU/ASC-compatible device) Cannot be set.
Precautions
The following are the precautions when 00H (broadcast) is set for communication with a MODBUS RTU/ASC-compatible device via a gateway device. · Since the slave station does not response, a timeout error (CFB0H) occurs. Do not specify the read. · Do not specify both a bit device and a word device in one setting value. Specify only one of them. · When setting multiple devices, set a different own station port number. For the communication time-out period, communication retry count, and monitoring time at error, set as follows. When setting the following values, the second communication is executed after Communication Time-out Period, and the communication of a third or later is executed at the cycle of Communication Time-out Period 2. · Communication Retry Count = 0 · Communication Time-out Period = Monitoring Time At Error
188
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
Setting for communication destination
The settings differ depending on the communication destination.
1
Specify the protocol and own station port number for each setting to be the same as those set in the simple CPU
communication settings.
Communication destination
Necessary setting
MELSEC iQ-R (Built-in Ethernet)*1
Since the MELSOFT connection is used for communications, no setting is required.
MELSEC-Q (Built-in Ethernet) MELSEC-L (Built-in Ethernet)
MELSEC iQ-F (Built-in Ethernet)*2
Set the following items (for the number of devices) in the "Open Setting" window. · Protocol: "UDP" · Open System: "MELSOFT Connection"
Since the MELSOFT connection is used for communications, no setting is required.
MELSEC iQ-L (Built-in Ethernet) MELSEC iQ-R (Ethernet Module)*1
MELSEC-Q (Ethernet Module)
Set the network number and station number.
MELSEC-L (Ethernet Module)
MELSEC-A/AnS (Ethernet Module)
Programming tool Create an initial processing program, and set the following items. · IP address and port number
· Communication method (UDP/TCP) · Bit 15 and Bits 0 to 7 of Area for communication instruction during stop (Un\G496) (Turn on the bits corresponding
to the connection numbers to be used.)*3
DIP switch on the front of the module Set the following items. · SW2 (data code setting): Off · SW7 (CPU communication timing setting): On*4
MELSEC-FX3 (Ethernet Block/Adapter)
Set "Communication Data Code" of "Ethernet Port" to "Binary Code". Set the following items (for the number of devices) in the "Open Setting" window. · Protocol: "UDP or "TCP" · Open system: "MC protocol" · IP address, port number: Settings made for the own station (RJ71EN71 or RnENCPU)
SLMP Corresponding Device (QnA Compatible 3E Frame)
Configure the settings so that the SLMP (QnA-compatible 3E frame of the MC protocol) can be used on the SLMPcompatible device side. ( Manual for the device used) Set the communication data code to binary.
OMRON (CS/CJ series)
Refer to the manual for the programmable controller of other manufacturer to be used.
KEYENCE (KV series)
Panasonic (FP2SH series)
Panasonic (FP7 series)
YASKAWA MP3000 series
YASKAWA MP2000 series
Yokogawa FA-M3 series
MODBUS/TCP-compatible device
Set the MODBUS/TCP as a slave station. ( Manual for the device used)
SIEMENS S7 series
Refer to the manual for the programmable controller of other manufacturer to be used.
Fuji Electric MICREX-SX series
JTEKT TOYOPUC series
*1 Up to 64 devices can be connected to each port of the CPU module (built-in Ethernet port part) or the Ethernet module. *2 Up to nine devices can be connected. *3 Set this item to execute this function while the communication destination CPU module is in the STOP state or stop error state. *4 Turn on this switch to execute this function while the communication destination CPU module is in the RUN state.
Target PLC No.
When the communication destination is one of the following modules and a multiple CPU system is used, specify the "Target PLC No." of the communication destination. · MELSEC iQ-R (built-in Ethernet): RnCPU, RnENCPU, RnPCPU, RnSFCPU · MELSEC-Q (built-in Ethernet): QnUDE(H)CPU, QnUDVCPU, QnUDPVCPU ( QCPU User's Manual (Multiple CPU
System)) When the communication destination is Yokogawa FA-M3 series and "Not Specified" is set to "Target PLC No.", the CPU No.1 is automatically regarded as the target. (When the firmware version of the RJ71EN71 and the RnENCPU (network part) is "42" or later)
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
189
Devices that can be specified
The devices that can be specified as transmission source and transmission destination vary depending on the communication destination. Bit device and word device can be set together for each setting number. For devices that can be specified, the size of a device is specified in units of 16 points for a bit device and one point for a word device. Use 0 or multiples of 16 to specify the device number of a bit device.
· The maximum number of points per setting is 1024 words (bit device 8192 points maximum, word device 512 points maximum).
· Set the devices within the device range specified with the parameter of the CPU module.
Devices that can be specified on the own station
The maximum number of points when the NZ2MC-16MBS is connected to the R120CPU. The number of points differs depending on the CPU module used, whether to use or not an extended SRAM cassette, or the type of the extended SRAM cassette.
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 2FFFH
Y
0H to 2FFFH
M
0 to 161882111
L
0 to 32767
B
0H to 9A61FFFH
SB
0H to 9A61FFFH
SM
0 to 4095
D
0 to 10117631
W
0H to 9A61FFH
SW
0H to 9A61FFFH
SD
0 to 4095
R
0 to 32767
ZR
0 to 10027007
RD
0 to 1048575
G
PORT1: 722500 to
788035
PORT2: 2722500 to
2788035
Remarks
A local device cannot be specified.
A local device cannot be specified.
Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
Buffer memory for the RJ71EN71 and RnENCPU (network part). A G device is expressed as Un\G. The search for the device requires the search string to be prefixed by Un\G. When the search for a G device is attempted while the RJ71EN71 and RnENCPU (network part) are not mounted, U0\G is prefixed for the search. (An error for unmounted module is not detected.)
190
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
When the communication destination is the MELSEC iQ-R (built-in Ethernet) or MELSEC iQ-R
(Ethernet module)
The maximum number of points when the NZ2MC-16MBS is connected to the R120CPU. The number of points differs
1
depending on the CPU module used, whether to use or not an extended SRAM cassette, or the type of the extended SRAM
cassette.
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 2FFFH
Y
0H to 2FFFH
M
0 to 161882111
L
0 to 32767
B
0H to 9A61FFFH
SB
0H to 9A61FFFH
SM
0 to 4095
D
0 to 10117631
W
0H to 9A61FFH
SW
0H to 9A61FFH
SD
0 to 4095
R
0 to 32767
ZR
0 to 10027007
RD
0 to 1048575
Remarks A local device cannot be specified. A local device cannot be specified. Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
When the communication destination is the MELSEC-Q (built-in Ethernet) or MELSEC-Q (Ethernet module)
The maximum number of points when the Q4MCA-8MBS is connected to the Q26UDVCPU. The number of points differs
depending on the CPU module used, whether to use or not an extended SRAM cassette, or the type of the extended SRAM
cassette.
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 1FFFH
Y
0H to 1FFFH
M
0 to 61439
L
0 to 32767
B
0H to EFFFH
SB
0H to 7FFFH
SM
0 to 2047
D
0 to 4910079
W
0H to 4AEBFFH
SW
0H to 7FFFH
SD
0 to 2047
R
0 to 32767
ZR
0 to 4849663
Remarks The maximum number of points when D (extended data register) or W (extended link register) is set. The maximum number of points when D (extended data register) or W (extended link register) is set. Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
191
When the communication destination is the MELSEC-L (built-in Ethernet) or MELSEC-L (Ethernet module)
The following table lists the maximum number of points for the L26CPU. The number of points varies depending on the CPU
module used.
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 1FFFH
Y
0H to 1FFFH
M
0 to 61439
L
0 to 32767
B
0H to EFFFH
SB
0H to 7FFFH
SM
0 to 2047
D
0 to 421887
W
0H to 66FFFH
SW
0H to 6FFFH
SD
0 to 2047
R
0 to 32767
ZR
0 to 393215
Remarks The maximum number of points when D (extended data register) or W (extended link register) is set. The maximum number of points when D (extended data register) or W (extended link register) is set. Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
When the communication destination is the MELSEC iQ-F (built-in Ethernet)
Type Bit device
Word device
Applicable device
Symbol Range
X
0 to 1777
Y
0 to 1777
M
0 to 32767
L
0 to 32767
B
0H to 7FFFH
SB
0H to 7FFFH
SM
0 to 9999
D
0 to 7999
W
0H to 7FFFH
SW
0H to 7FFFH
SD
0 to 11999
R
0 to 32767
Remarks Octal notation is used. Octal notation is used. A local device cannot be specified. A local device cannot be specified. Data is read or written following the file register settings of the communication destination.
192
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
When the communication destination is the MELSEC iQ-L (built-in Ethernet)
The maximum number of points when the L16HCPU is connected. The number of points varies depending on the CPU
module used.
1
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 2FFFH
Y
0H to 2FFFH
M
0 to 14065663
L
0 to 32767
B
0H to D69FFFH
SB
0H to D69FFFH
SM
0 to 4095
D
0 to 879103
W
0H to D69FFH
SW
0H to D69FFH
SD
0 to 4095
R
0 to 32767
ZR
0 to 819199
RD
0 to 1048575
Remarks A local device cannot be specified. A local device cannot be specified. Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
When the communication destination is the MELSEC A/AnS (Ethernet module)
The maximum number of points for the A4UCPU. The number of points varies depending on the CPU module used. (
MELSEC Communication Protocol Reference Manual)
Type Bit device
Word device
Applicable device
Symbol Range
Remarks
X
0H to 7FFH
Y
0H to 7FFH
M
0 to 8191, 9000 to 9255 To specify 9000 to 9255 with "Communication Pattern" set to "Write", refer to the manual of
the CPU module used.
To specify 9000 to 9255, use 9000 + a multiple of 16.
B
0H to FFFH
D
0 to 6143, 9000 to 9255 To specify 9000 to 9255 with "Communication Pattern" set to "Write", refer to the manual of
the CPU module used.
W
0H to FFFH
R
0 to 8191
Rn
10000 to 488191
Upper two digits are 1 to 48 (block No.), and lower four digits are 0 to 8191.
The range of 8192 to 9999 must not be specified.
The usable range varies depending on the CPU module used and parameter settings. (
User's manual of the CPU module used)
When the communication destination is the MELSEC-FX3 (Ethernet block/adapter)
Type Bit device
Word device
Applicable device
Symbol Range
Remarks
X
0 to 377
Octal notation is used.
Y
0 to 377
Octal notation is used.
M
0 to 7679, 8000 to 8511 To specify 8000 to 8511 with "Communication Pattern" set to "Write", refer to the manual of
the CPU module used.
D
0 to 8511
To specify 8000 to 8511 with "Communication Pattern" set to "Write", refer to the manual of the CPU module used.
R
0 to 32767
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
193
When the communication destination is an SLMP-compatible device (QnA-compatible 3E frame)
Applicable devices differ depending on the device. For applicable devices, refer to the manual for the device used. The device types that can be set are X, Y, M, L, B, SB, SM, D, W, SW, SD, R, and ZR. The accessible device range of the
communication destination is the range which can be specified with the subcommand (0000) of the SLMP (QnA-compatible
3E frame of the MC protocol).
The following SLMP commands are sent to the external device. · When "Read" is set to "Communication Pattern"
Subheader
Request Request Request
destination destination destination
network station No. module I/O
No.
No.
Request Request destination data length multidrop station No.
50H 00H 00H
FFH FFH 03H 00H 0CH 00H
Monitoring timer
00H 00H
Command 01H 04H
Subcommand Device code
00H 00H
· When "Write" is set to "Communication Pattern"
Start device No.
Number of device points
Subheader
Request Request Request
destination destination destination
network station No. module I/O
No.
No.
Request Request destination data length multidrop station No.
50H 00H 00H
FFH FFH 03H 00H
Monitoring timer
Command
Subcommand Device code
00H 00H 01H 14H 00H 00H
Start device No.
Number of
Write data
device points
When the communication destination is OMRON (CS/CJ series)
Type
Bit device (The device is displayed in units of words. One point corresponds to one word.)
Word device
Applicable device
Symbol Range
..
0 to 6143
AR
0 to 447
AR
448 to 959
HR
0 to 511
WR
0 to 511
DM
0 to 32767
TIM
0 to 4095
CNT
0 to 4095
DR
0 to 15
TK
0 to 31
EM
0 to 32767
EMn_
0 to 32767
Remarks Channel I/O The setting is available only when "Read" is set to "Communication Pattern". The setting is available only when "Read" is set to "Communication Pattern". "n" represents 0H to FH or 10H to 18H. (25 devices in total)
· In the address table on the communication destination side, set the IP address and node address to be assigned to the RJ71EN71 or RnENCPU (network part). (Specify "1" for the node address.)
· When using the RJ71EN71 in a redundant system, set the control system IP address to the "Redundant System Settings" under "Application Settings" on the own station and the communication destination.
194
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
When the communication destination is KEYENCE (KV series)
The format of devices other than B device consists of the last two digits of bit specification and the upper digits of word
specification.
1
Type
Applicable device
Symbol Range
Bit device
R
(The device is
B
displayed in units of
bits. One point
MR
corresponds to one bit.) LR
0 to 199915 0H to 7FFFH 0 to 399915 0 to 99915
CR
0 to 7915
T
0 to 3999
C
0 to 3999
Word device
CM
0 to 5999
DM
0 to 65534
EM
0 to 65534
FM
0 to 32767
ZF
0 to 524287
W
0H to 7FFFH
T
0 to 3999
C
0 to 3999
Remarks Specify 00 in the last two digits for the start. Specify 0 or a multiple of 16 for the start. Specify 00 in the last two digits for the start. Specify 00 in the last two digits for the start. Specify 00 in the last two digits for the start.
When the communication destination is Panasonic (FP2SH series)
Type
Bit device (The device is displayed in units of words. One point corresponds to one word.) Word device
Applicable device
Symbol Range
WX
0 to 511
WY
0 to 511
WR
0 to 886
WL
0 to 639
LD
0 to 8447
DT
0 to 10239
FL
0 to 32764
Remarks The setting is available only when "Read" is set to "Communication Pattern".
Setting item of communication destination: Set the MEWTOCOL station number. At this time, set 1 to the external device side (FP2) and 2 to the own station side.
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
195
When the communication destination is Panasonic (FP7 series)
Type Bit device (The device is displayed in units of words. One point corresponds to one word.)
Word device
Applicable device
Symbol Range
WX
0 to 511
WY
0 to 511
WR
0 to 2047
WL
0 to 1023
_WX
001000000 to 468000511
_WY
001000000 to 468000511
_WR
001000000 to 468002047
_WL
001000000 to 468001023
LD
0 to 16383
DT
0 to 999423
_LD
001000000 to
468016383
_DT
001000000 to
468065534
Remarks
The upper three digits of the device number show the program block number, and the lower six digits show the device number. The upper three digits of the device number show the program block number, and the lower six digits show the device number.
The upper three digits of the device number show the program block number, and the lower six digits show the device number.
The upper three digits of the device number show the program block number, and the lower six digits show the device number.
The upper three digits of the device number show the program block number, and the lower six digits show the device number.
The upper three digits of the device number show the program block number, and the lower six digits show the device number.
When the communication destination is YASKAWA MP3000 series
Type
Bit device (The device is displayed in units of words. One point corresponds to one word.)
Word device
Applicable device
Symbol Range
IB
0H to 21FFFH
OB
0H to 21FFFH
MB
0 to 1048575
GB
0 to 2097151
SB
0 to 65534
IW
0H to 21FFFH
OW
0H to 21FFFH
MW
0 to 1048575
GW
0 to 2097151
SW
0 to 65534
Remarks The setting is available only when "Read" is set to "Communication Pattern". The setting is available only when "Read" is set to "Communication Pattern".
When the communication destination is YASKAWA MP2000 series
Type
Bit device (The device is displayed in units of words. One point corresponds to one word.) Word device
Applicable device
Symbol Range
IB
0H to 7FFFH
MB
0 to 65534
IW
0H to 7FFFH
MW
0 to 65534
Remarks The setting is available only when "Read" is set to "Communication Pattern".
The setting is available only when "Read" is set to "Communication Pattern".
196
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
When the communication destination is Yokogawa FA-M3 series
Type
Bit device (The device is displayed in units of words. One point corresponds to one word.)
Word device
Applicable device
Symbol Range
X
201 to 71664
Y
201 to 71664
I
1 to 165535
E
1 to 4096
L
1 to 78192
M
1 to 9984
D
1 to 65535
R
1 to 4096
V
1 to 256
B
1 to 262144
W
1 to 78192
Z
1 to 1024
TP
1 to 3072
CP
1 to 3072
TS
1 to 3072
CS
1 to 3072
TI
1 to 3072
CI
1 to 3072
Remarks
1
The setting is available only when "Read" is set to "Communication Pattern". The setting range of the last two digits is 01 to 64. (Only 01, 17, 33, or 49 can be set as the start device. Only 16, 32, 48, or 64 can be set as the end device.)
The setting range of the last two digits is 01 to 64. (Only 01, 17, 33, or 49 can be set as the start device. Only 16, 32, 48, or 64 can be set as the end device.)
Use 1 or a multiple of 16 +1 to set the start device.
When the communication destination is a MODBUS/TCP-compatible device
Applicable devices and the number of writable/readable points differ depending on the device. For applicable devices and the number of writable/readable points, refer to the manual for the device used. The device types that can be set are Coil, Input, Input Register, and Holding Register.
Type
Coil Input Input Register Holding Register
Applicable device
Maximum number of write points
Maximum number of read points
1968
2000
2000
125
123
125
Remarks
Setting is possible only when the "Communication Pattern" is "Read". Setting is possible only when the "Communication Pattern" is "Read".
Specify the value obtained by subtracting 1 from the MODBUS device number.
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
197
When the communication destination is SIEMENS S7 series
Type
Bit device (The device is displayed in units of words. One point corresponds to 8 points.) Word device
Applicable device
Symbol Range
I
0 to 255
Q
0 to 255
M
0 to 255
DB
001000 to 255511
Remarks Start digit: An even number must be specified. Last digit: An odd number must be specified.
Upper 3 digits: Block No., Lower 3 digits: Address range An even number must be specified to the start of the lower 3 digits and an odd number must be specified to the last of the lower 3 digits. (The size for 1 point is 1 byte. Two points are required to set for word device.)
Access is executed in units of words. The upper byte and lower byte of reading/writing value may be interchanged depending on the setting in the communication destination.
Fuji Electric MICREX-SX series
Type
Bit device (The device is displayed in units of words. One point corresponds to 16 points.) Word device
Applicable device
Symbol Range
MX1
0000000 to 1703935
MX3
000000 to 262143
MX10
0000 to 1023
MW1 MW3 MW10
0000000 to 1703935 000000 to 262143 0000 to 1023
Remarks
198
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
JTEKT TOYOPUC series
Type
Applicable device Symbol Range
Remarks
1
Bit device
X
(The device is
Y
displayed in units of
words. One point
M
corresponds to 16
K
points.)
L
10000H to 3007FH 10000H to 3007FH 10000H to 3017FH 10000H to 3002FH 10000H to 302FFH
Upper 1 digit: Program No., Lower 4 digits: Address range The following lists the communicable address range of lower 4 digits. · M (internal relay): 0000 to 007FH, 0100 to 017FH · L (link relay): 0000 to 007FH, 0100 to 02FFH · V (special relay): 0000 to 000FH, 0100 to 017FH
V
10000H to 3017FH
EX
00000H to 0007FH
EY
00000H to 0007FH
EM
00000H to 001FFH
EK
00000H to 000FFH
EL
00000H to 001FFH
EV
00000H to 000FFH
GX
00000H to 00FFFH
GY
00000H to 00FFFH
GM
00000H to 00FFFH
Word device
D
10000H to 32FFFH
Upper 1 digit: Program No., Lower 4 digits: Address range
R
10000H to 307FFH
The following lists the communicable address range of lower 4 digits.
· S (special register): 0000 to 03FFH, 1000 to 13FFH
S
10000H to 313FFH
· N (present value register): 0000 to 01FFH, 1000 to 17FFH
N
10000H to 317FFH
U
10000H to 1FFFFH
ES
00000H to 007FFH
EN
00000H to 007FFH
H
00000H to 007FFH
EB
00000H to 3FFFFH
FR
00000H to 1FFFFH
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
199
Operation during the simple CPU communication
Operation of the own station
Since the own station operates without depending on the operating status of the CPU module, the simple CPU communication is performed even when the CPU module is in the STOP state because of stop error. When an initial communication error occurs, communications of the corresponding setting numbers are stopped and ones of the setting numbers, where no error occurs will operate. If the communication destination sends a response, data is transferred to the system area for the simple CPU communication. Data inconsistency will not occur in one setting since processing is executed for each setting.
Operation of the communication destination
The operation differs depending on the communication destination.
Communication destination MELSEC iQ-R (Built-in Ethernet) MELSEC-Q (Built-in Ethernet) MELSEC-L (Built-in Ethernet) MELSEC iQ-F (Built-in Ethernet) MELSEC iQ-L (Built-in Ethernet) MELSEC iQ-R (Ethernet Module) MELSEC-Q (Ethernet Module) MELSEC-L (Ethernet Module)
MELSEC-A/AnS (Ethernet Module)
MELSEC-FX3 (Ethernet Block/Adapter)
SLMP Corresponding Device (QnA Compatible 3E Frame) OMRON (CS/CJ series) KEYENCE (KV series) Panasonic (FP2SH series) Panasonic (FP7 series) YASKAWA MP3000 series YASKAWA MP2000 series Yokogawa FA-M3 series MODBUS/TCP-compatible device SIEMENS S7 series Fuji Electric MICREX-SX series JTEKT TOYOPUC series
Data operation in one setting Since the data in one setting is communicated at the same timing, data inconsistency will not occur.
The data specified with a bit device or a word device in one setting is communicated at the same timing. However, if both a bit device and a word device are set for the same setting number, the data of each device may be communicated at different timing. When the data size in one setting is as follows, data inconsistency will not occur. · Read: Bit device 2048 points or less, word device 256 points or less · Write: Bit device 640 points or less, word device 256 points or less When the data size in one setting is as follows, data inconsistency will not occur. · Read: Bit device 512 points or less, word device 64 points or less · Write: Bit device 160 points or less, word device 64 points or less Depends on the communication destination.
200
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
Operations when the communication setting is "On Request"
How to start communications
1
Power off and on the system or reset the CPU module first. Turn off and on the buffer memory area of Request to start
communication at request, and communications start.
Once the CPU module is reset, the system starts the preparation processing. The preparation processing checks the parameter settings (own station port numbers). If an error occurs, data will not be communicated. In this case, the buffer memory area of Simple CPU communication status stores AH (Communications impossible).
Each status after communications start
The following table lists the buffer memory areas that stores each status of communications from its start to completion.
Status During the latency time*1 After a lapse of the latency time
Request to start communication at request issued
Data communication completed*2
Item
Simple CPU communication status for each setting number
Preparation completion for each setting number
Simple CPU communication status for each setting number
Simple CPU communication status for each setting number
Execution status flag for each setting number
Execution status flag for each setting number
Address
Un\G721936 to Un\G721999 Un\G1247460 to Un\G1247907
Un\G721912 to Un\G721915 Un\G1247412 to Un\G1247439
Un\G721936 to Un\G721999 Un\G1247460 to Un\G1247907
Un\G721936 to Un\G721999 Un\G1247460 to Un\G1247907
Un\G721908 to Un\G721911 Un\G1247384 to Un\G1247411
Un\G721908 to Un\G721911 Un\G1247384 to Un\G1247411
Buffer memory status 1H: Preparing On: Ready 2H: Waiting for the request 3H: Communicating On: Communicating Off: Communication stop
*1 During the latency time, another start request (turning off and on the buffer memory area of Request to start communication at request) is ignored.
*2 After the data communications has been completed, 2H (Waiting for the request) is stored in the buffer memory area of Simple CPU communication status by turning off and on the buffer memory area of Request to start communication at request, and one session completes.
Once a start request of On Request communications is detected, another start request (turning off and on the buffer memory area of Request to start communication at request) from a program is ignored until the buffer memory area of Execution status flag turns off (Communication stop). (This symptom is not treated as an error.)
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
201
Behavior on errors
After data is sent to the communication destination, if no response is received from the communication destination or an error occurs (or an error response is received), the system makes retries until the timeout time. During retries, the buffer memory area of Simple CPU communication status stores 5H (Retry being executed). The system retries the operation for the number of times specified in the parameter plus one additional time.
Behavior when an abnormal state is detected
If an error response is received after the retries, an abnormal state is detected and the buffer memory area of Simple CPU communication error code stores error codes. In an abnormal state, the buffer memory area of Execution status flag turns off (Communication stop). By programmatically turning on and off the buffer memory area of Request to start communication at request, 2H (Waiting for the request) is stored in the buffer memory area of Simple CPU communication status.
· While the communications of one setting number is in an abnormal state, the value in the buffer memory areas of Simple CPU communication status for other setting numbers, in which the same communication destination is set, remains unchanged (2H (Waiting for the request)).
· If no response is received from the communication destination, the buffer memory area of Simple CPU communication error code stores error codes.
· If an error response is received from the communication destination, the buffer memory area of Simple CPU communication error code stores error codes and the buffer memory area of Abnormal response code stores abnormal response codes. (The abnormal response code here indicates any codes received from the destination device.)
202
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
Timing chart
· Operation of on-request communications of setting No.65 (Normal)
Communication
Communication
Communication
Communication
1
request turns on.
request turns off.
Power on or clear reset. Communications Response Communications
request turns on.
request turns off.
Communications Response Communications
start.
receive stop.
start.
receive stop.
Time
Initial processing
Waiting time to start communications
'Request to start communication at request for ON
each setting number' (Un\G1247300.0)
OFF
(1)
(2)
(1)
(2)
'Request to stop fixed interval communication ON
for each setting number' (Un\G1247328.0)
OFF
'Request to restart fixed interval communication
ON OFF
for each setting number' (Un\G1247356.0)
'Execution status flag for each setting number' ON
(Un\G1247384.0)
OFF
(3)
(4)
(3)
(4)
'Preparation completion for each setting
ON
number' (Un\G1247412.0)
OFF
'Simple CPU communication status for each
setting number' (Un\G1247460)
0
1
2
3
2
3
2
'Simple CPU communication error code for each
setting number' (Un\G1247908)
0
'Abnormal response code for each setting
number' (Un\G1248356)
0
'Execution interval (current value) for each
setting number' (Un\G1248804)
0
(1) The buffer memory area is turned on by the program. (2) The buffer memory area is turned off by the program. (3) The buffer memory area is turned on by the system. (4) The buffer memory area is turned off by the system.
· Operation of on-request communications of setting No.65 (Abnormal state)
Power on or clear reset.
Communication
request turns on.
Communications Data
start.
send
1st retry
2nd retry Error detection
Initial processing
Waiting time to start communications
'Request to start communication at request for ON
each setting number' (Un\G1247300.0)
OFF
'Request to stop fixed interval communication ON
for each setting number' (Un\G1247328.0)
OFF
'Request to restart fixed interval communication
ON OFF
for each setting number' (Un\G1247356.0)
'Execution status flag for each setting number' ON
(Un\G1247384.0)
OFF
'Preparation completion for each setting
ON
number' (Un\G1247412.0)
OFF
'Simple CPU communication status for each
setting number' (Un\G1247460)
0
(3)
1
2
Communication Communication Communication timeout time timeout time timeout time
(1)
(2)
(3)
(4)
3
5
Communication
request turns on.
Communications Data
start.
send
Time
(1)
(3)
2
3
'Simple CPU communication error code for each
setting number' (Un\G1247908)
0
Error code
0
'Abnormal response code for each setting number' (Un\G1248356)
0
Abnormal response
0
'Execution interval (current value) for each
setting number' (Un\G1248804)
0
(1) The buffer memory area is turned on by the program. (2) The buffer memory area is turned off by the program. (3) The buffer memory area is turned on by the system. (4) The buffer memory area is turned off by the system.
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
203
Communication Time-out Period/Communication Retry Count/Monitoring Time At Error
When the communication destination does not respond or returns an error response, the communication will be retried (resent) after the time-out period has passed. At this time, after communications are performed for the communication retry count + 1 times, the fixed interval communication is performed during the monitoring time at error. If the communication destination responds after these communications, the communications at the execution interval specified with the parameters are restarted.
Ex. Error detection timing when 2 is set for the communication retry count
Interval
Communication error at the
previous time
Communication error at the
previous time
Communication error at the
previous time
Retry of communication, first time
Retry of communication, second time
Error detection
Communication Communication Communication Communication Communication Communication
Communication Communication Communication Monitoring time Monitoring time
timeout time
timeout time
timeout time
at error
at error
The error is detected if the communication destination does not respond or communications fail by when the following time has passed: (communication retry count + 1) communication time-out period
Latency Time
By setting the latency time, the start timing in the communications can be switched in the following cases. · To prevent an error due to the overlap of the start timing in the communications · To start communications after the communication destination is ready for the communications During the latency time, "Preparing" is indicated in the communication status.
Communications at a specified execution interval (when "Fixed" is set for the communication setting) is ignored during the latency time.
204
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
Checking the simple CPU communication status
The simple CPU communication status can be checked with the buffer memory or diagnostic functions.
1
Checking with the buffer memory
The simple CPU communication status can be checked with the storage status of the corresponding setting number in the following buffer memory areas.
Item Request to start communication at request
Address
Un\G721896 to Un\G721899 Un\G1247300 to Un\G1247327
Request to stop fixed interval communication
Un\G721900 to Un\G721903 Un\G1247328 to Un\G1247355
Request to restart fixed interval communication
Un\G721904 to Un\G721907 Un\G1247356 to Un\G1247383
Execution status flag
Un\G721908 to Un\G721911 Un\G1247384 to Un\G1247411
Ready
Un\G721912 to Un\G721915 Un\G1247412 to Un\G1247439
Simple CPU communication status
0H: Unset 1H: Preparing
2H: Waiting for the request
3H: Communicating
4H: Communication stop
5H: Retry being executed
6H: Monitoring at error
AH: Communications impossible
Simple CPU communication error code
Un\G721936 to Un\G721999 Un\G1247460 to Un\G1247907
Un\G722000 to Un\G722063 Un\G1247908 to Un\G1248355
Abnormal response code
Un\G722064 to Un\G722127 Un\G1248356 to Un\G1248803
Remarks
· Setting No.1: Un\G721896.0
· Setting No.64: Un\G721899.F · Setting No.65: Un\G1247300.0
· Setting No.512: Un\G1247327.F
· Setting No.1: Un\G721900.0
· Setting No.64: Un\G721903.F · Setting No.65: Un\G1247328.0
· Setting No.512: Un\G1247355.F
· Setting No.1: Un\G721904.0
· Setting No.64: Un\G721907.F · Setting No.65: Un\G1247356.0
· Setting No.512: Un\G1247383.F
· Setting No.1: Un\G721908.0
· Setting No.64: Un\G721911.F · Setting No.65: Un\G1247384.0
· Setting No.512: Un\G1247411.F
· Setting No.1: Un\G721912.0
· Setting No.64: Un\G721915.F · Setting No.65: Un\G1247412.0
· Setting No.512: Un\G1247439.F
· Setting No.1: Un\G721936
· Setting No.64: Un\G721999 · Setting No.65: Un\G1247460
· Setting No.512: Un\G1247907
· Setting No.1: Un\G722000
· Setting No.64: Un\G722063 · Setting No.65: Un\G1247908
· Setting No.512: Un\G1248355
· Setting No.1: Un\G722064
· Setting No.64: Un\G722127 · Setting No.65: Un\G1248356
· Setting No.512: Un\G1248803
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
205
Item Execution interval (current value)
Address
Un\G722128 to Un\G722191 Un\G1248804 to Un\G1249251
For details on the values to be stored in the buffer memory, refer to the following. Page 383 Simple CPU communication area
Remarks
· Setting No.1: Un\G722128
· Setting No.64: Un\G722191 · Setting No.65: Un\G1248804
· Setting No.512: Un\G1249251
Communication stop/restart request
When 'Simple CPU communication status for each setting number' (Un\G721936 to Un\G721999, Un\G1247460 to Un\G1247907) stores any of the following values, communications can be stopped by turning off and on 'Request to stop fixed interval communication for each setting number' (Un\G721900 to Un\G721903, Un\G1247328 to Un\G1247355). (If the value is other than the following, the stop request is invalid.) · 3H: Communicating · 5H: Retry being executed · 6H: Monitoring
When 'Request to stop fixed interval communication for each setting number' (Un\G721900 to Un\G721903, Un\G1247328 to Un\G1247355) is turned off and on, the communications will stop at the timing of sending data in the next execution interval. Therefore, if the communication destination does not respond with the stop request accepted, the communications will stop after the communication time-out period has passed. When the retry is being executed, the communications will stop after the communication time-out period has passed without depending on the retry count.
When 'Simple CPU communication status for each setting number' (Un\G721936 to Un\G721999, Un\G1247460 to Un\G1247907) is in the "4H: Communication stop" state, communications can be restarted by turning off and on 'Request to restart fixed interval communication for each setting number' (Un\G721904 to Un\G721907, Un\G1247356 to Un\G1247383). (If the status is other than "4H: Communication stop", the restart request is invalid.) When the communication setting is "On Request" or no setting is configured, no operation is performed by turning off and on 'Request to restart fixed interval communication for each setting number' (Un\G721904 to Un\G721907, Un\G1247356 to Un\G1247383) and 'Request to stop fixed interval communication for each setting number' (Un\G721900 to Un\G721903, Un\G1247328 to Un\G1247355). Therefore, the buffer memory areas will remain on without being turned on and off by the system.
206
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
Ex.
The operation at communication stop/restart request for the setting No.1
Stop request Communication stop
Restart request Communication restart
1
(1)
(2)
'Request to stop fixed interval
communication for each setting number' ON
(Un\G721900.0)
OFF
'Request to restart fixed interval communication for each setting number' (Un\G721904.0)
ON OFF
'Execution status flag for each setting number' (Un\G721908.0)
ON OFF
'Simple CPU communication status for each
setting number' (Un\G721936)
3
(1) 4
(2) 3
'Execution interval (current value) for each setting number' (Un\G722128)
(3)
(1) The buffer memory area is turned on by the program. (2) The buffer memory area is turned off by the system. (3) The current value is stored.
0
(3)
Checking with "simple CPU communication diagnostics"
The communication status of the simple CPU communication function can be checked with "Simple CPU Communication Diagnostics". For details, refer to the following. Page 312 Simple CPU communication diagnostics
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
207
Communication example
In this example, B0 to B1FFF of own station are transferred to M0 to M8191 of the communication destination using the simple CPU communication function. Also, W0 to W1FF of own station are transferred to D0 to D511 of the communication destination.
System configuration
(1)
(2)
Ethernet
(1) Own station (transfer source): RJ71EN71 (IP address: 192.168.3.40) (2) Communication destination (transfer destination): RJ71EN71 (IP address: 192.168.3.50)
Device assignment
The following figure shows the assignment of devices that communicates data in the simple CPU communication.
Own station (transfer source)
Communication destination (transfer destination)
B0 ·
B1FFF
R04CPU
RJ71EN71
RJ71EN71
R04CPU
M0 · M8191
W0 W1FF
D0 D511
Parameter settings
Connect the engineering tool to the CPU module and set the parameters.
Settings for the transfer source
1. Set the CPU module as follows.
[Project] [New]
208
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
2. Click the [Setting Change] button and set to use module labels.
3. Click the [OK] button to add the module labels of the CPU module.
1
4. Set the RJ71EN71 as follows.
[Navigation window] [Parameter] [Module Information] Right-click [Add New Module]
5. Click the [OK] button to add the module labels of the RJ71EN71.
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
209
6. Set the items in "Basic Settings" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71(E+E)] [Port 1 Module Parameter (Ethernet)] [Basic Settings] [Own Node Settings]
7. Set the items in "Application Settings" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71(E+E)] [Port 1 Module Parameter (Ethernet)] [Application Settings] [Simple PLC Communication Setting]
8. Set the items in "Simple PLC Communication Setting" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71(E+E)] [Port 1 Module Parameter (Ethernet)] [Application Settings] [Simple PLC Communication Setting] [Detailed Setting]
9. Write the set parameters to the CPU module. Then reset the CPU module or power off and on the system.
[Online] [Write to PLC]
In this example, default values were used for parameters that are not shown above. For the parameter setting, refer to the chapter explaining the parameters in this manual. ( Page 261 PARAMETER SETTINGS)
210
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
Settings for the transfer destination
1. Set the CPU module and the RJ71EN71. Steps to take are similar to those for the transfer source, except no setting for
module labels is required. ( Page 208 Settings for the transfer source)
1
2. Set the items in "Basic Settings" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71(E+E)] [Port 1 Module Parameter (Ethernet)] [Basic Settings] [Own Node Settings]
3. Write the set parameters to the CPU module. Then reset the CPU module or power off and on the system.
[Online] [Write to PLC]
In this example, default values were used for parameters that are not shown above. For the parameter setting, refer to the chapter explaining the parameters in this manual. ( Page 261 PARAMETER SETTINGS)
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
211
Program examples
Write the following program to the transfer source CPU module. In this example, ABCDH is stored in a bit device and 5555H is stored in a word device, and transfer them.
Classification
Label name
Description
Device
Module label
EN71_EE_1.stPort1.bnSts_Start_Request_D[1]
EN71_EE_1.stPort1.bnSts_Status_Flag_D[1]
EN71_EE_1.stPort1.bnReady_D[1]
EN71_EE_1.stPort1.wnStatus_SimplePLC_D[1]
EN71_EE_1.stPort1.wnErrorCode_SimplePLC_D[1]
Label to be defined Define global labels as shown below:
Request to start communication at request of Simple CPU communication setting No.1
Execution flag of Simple CPU communication setting No.1
Preparation completion flag of Simple CPU communication setting No.1
Communication status storage location of Simple CPU communication setting No.1
Error code storage location of Simple CPU communication setting No.1
Un\G721896.0 Un\G721908.0 Un\G721912.0 Un\G721936 Un\G722000
(0) Turn on 'Request execution device of the simple CPU communication setting No.1' (M0) and store the transfer data ABCDH to 512 points of data from bSendData (K4B0), and the transfer data (5555H) to 512 points of data from wSendData (W0). Turn on 'Request to start communication at request of Simple CPU communication setting No.1' (Un\G721896.0) when 'Communication status storage location of Simple CPU communication setting No.1' (Un\G721936) is 2H.
(23)Start counting 'Number of successful communications' (C0) when communications start successfully. Store an error code in 'Simple CPU communication setting No.1 error code' (D1000) when the abnormal state is detected.
212
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
Precautions
This section provides precautions for the simple CPU communication function.
1
Incomplete data reception and timeout
Because the load of Ethernet communication becomes heavy during the simple CPU communication, if the other communication (MELSOFT connection or SLMP) is simultaneously performed by using UDP, the data reception of UDP may not be completed, resulting in a timeout error. Therefore, to perform other communications during the simple CPU communication, the communication using TCP is recommended.
Execution interval setting
The execution interval of the simple CPU communication function and the period of time until the completion of communications will differ according to the Ethernet line's load rate, operating status of other communications (such as MELSOFT connection, SLMP communication, and socket communication function), scan time of the communication destination, and system configuration. Thus, the set execution interval or time required for completing the communications may be increased.
Cause of increased execution interval of the simple PLC communication
· The scan time of the control CPU module of the RJ71EN71 where the simple CPU communication function is set is long. · The RJ71EN71 where the simple CPU communication function is set is communicating by using a function other than the
simple CPU communication function, and the processing of the communication by using a function other than the simple CPU communication function takes time. · The load on the Ethernet line is high. · The number of settings in "Simple PLC Communication Setting" under "Application Settings" is large. · Response from the communication destination is delayed. · More than one RJ71EN71 where the simple CPU communication function is set is mounted on a base unit (main base unit or extension base unit). To perform communications at the set execution interval, set a sufficient execution interval. If checking the execution interval is required, perform actual communications and check it with the "Simple PLC Communication Diagnostics" window.
Duplication of own station port numbers
The simple CPU communication cannot be performed in the following cases. · The own station port number set in the simple CPU communication and the own station port number of the CPU module set
in the external device configuration are the same. · The own station port number set in the simple CPU communication and the one set in another function such as the socket
communication are the same. ('Simple CPU communication status for each setting number' (Un\G721936 to Un\G721999) is "AH: Communications impossible".) Set a unique own station port number. For the setting numbers other than the one in which a communication error occurs, communications are performed after the preparation processing is completed normally.
IP address and module type of communication destination
Check the IP address and module type of the communication destination before setting the parameters. The simple CPU communication is not performed when the communication destination does not exist (an incorrect IP address is specified) or when the preparation processing is not completed. ('Simple CPU communication status for each setting number' (Un\G721936 to Un\G721999) is AH: Communications impossible.) )
Communication destination device
Check the type and range of the device to be read or written in the communication destination. Especially, when "Write" is set to "Communication Pattern", the control data of the communication destination may be overwritten, resulting in malfunction.
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
213
Security
The simple CPU communication is not performed when a remote password is set for the communication destination. Clear the remote password. If the IP filter has been set in the communication destination, check the setting and correct it if necessary. If any security function specific to the communication destination (programmable controller products manufactured by other companies), clear the function.
When using the file register (R, ZR)
When using the file register (R, ZR) for the device on the own station, always assign the device within the setting range. If the devices are not assigned, an error occurs (error code: 4031), and the simple CPU communication of the setting number which exceeds the setting range cannot be performed.
Setting of the network and station numbers
When the communication destination is the MELSEC iQ-R (Ethernet module), MELSEC-Q (Ethernet module), or MELSEC-L (Ethernet module), the network number and station number should be set in the own node settings of the Ethernet parameters.
Usable connections
Up to 64 connections can be used in the simple CPU communication settings. If, however, connection has been used for other functions, the maximum number of connections is the difference calculated by subtracting the number of connections used for other function from 64.
Measures against errors occurring during communications
When an error occurs during writing communications, data writing may not be completed properly. Check the error details, take appropriate measures, and restart communications.
214
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
Restrictions applicable depending on versions
The simple CPU communication function is available for the RJ71EN71 or RnENCPU (network part) whose firmware version
1
is "35" or later and that uses the engineering tool of software version of 1.050C or later.
The terms of "Fixed Interval" and "On Request" in the list are used for the communication setting in "Simple PLC
Communication Setting" under "Application Settings".
Engineering tool Software version of 1.050C
Software version of 1.052E or later
Setting No. 1 to 64
Setting No. 65 to 512
Software version of 1.060N or later
Setting No. 1 to 64
Setting No. 65 to 512
Software version of 1.065T or later
Setting No. 1 to 64
Setting No. 65 to 512
RJ71EN71 or RnENCPU (network part)
Firmware version of Firmware version of Firmware version of Firmware version of
"35" to "38"
"39" to "41"
"42" to "46"
"47" or later
· Number of settable modules: 1 to 64 · Communication setting: "Fixed Interval" only · Communication destination: MELSEC iQ-R (built-in Ethernet), MELSEC-Q (built-in Ethernet), MELSEC-L (built-
in Ethernet), MELSEC iQ-F (built-in Ethernet), MELSEC iQ-R (Ethernet module), MELSEC-Q (Ethernet module), MELSEC-L (Ethernet module), SLMP-compatible device (QnA-compatible 3E frame), OMRON (CS/CJ series), KEYENCE (KV series), Panasonic (FP2SH series), Panasonic (FP7 series), YASKAWA MP3000 series, YASKAWA MP2000 series, Yokogawa FA-M3 series, MODBUS/TCP-compatible device · Option setting: Cannot be set (The setting value is regarded as 0.)*4
Same as the engineering tool of software version of 1.050C*1*2
(Simple CPU communication impossible)*3
· Number of settable modules: 1 to 512 · Communication setting: "Fixed Interval" or "On Request" · Communication destination: MELSEC-A/AnS (Ethernet module) and MELSEC-FX3
(Ethernet block/adapter) are added to the communication destination that uses the engineering tool of software version of 1.050C. · Option setting: Cannot be set (The setting value is regarded as 0.)*4
Same as the engineering tool of software version of 1.050C*1*2
(Simple CPU communication impossible)*3
Same as the engineering tool of software version of 1.052E or later
· Communication destination: MELSEC iQ-L (built-in Ethernet), SIEMENS S7 series, Fuji Electric MICREXSX series, and JTEKT TOYOPUC series are added to the communication destination that uses the engineering tool of software version of 1.052E.
· Redundant system · Option setting: Cannot be set (The setting value is
regarded as 0.)*4
· Same as the engineering tool of software version of 1.050C*1*2
· The setting value is not reflected even if an option is set. The setting value is regarded as 0.
(Simple CPU communication impossible)*3
· Same as the engineering tool of software version of 1.052E or later
· The setting value is not reflected even if an option is set. The setting value is regarded as 0.
· Communication destination: MELSEC iQ-L (built-in Ethernet), SIEMENS S7 series, Fuji Electric MICREXSX series, and JTEKT TOYOPUC series are added to the communication destination that uses the engineering tool of software version of 1.052E.
· Redundant system · The setting value is not
reflected even if an option is set. The setting value is regarded as 0.
The option setting is available for a MODBUS/ TCP-compatible device.
*1 The simple CPU communication of the setting number with "On Request" set to the communication setting is not executed and a simple CPU communication error (error code: CFBFH) occurs.
*2 When a duplicate port number is set to the own stations, a duplication error of own port number (error code: CFB2H) occurs. The simple CPU communication of the setting number with an unsupported communication destination is not executed, and a simple CPU communication error (CFB0H or CFBFH) occurs.
*3 Setting No.65 to 512 are prohibited to use. Using the numbers can cause malfunction of the module. To use setting No.65 to 512, use RJ71EN71 or RnENCPU (network part) with the firmware version of "39" or later.
*4 Firmware version of "47" or later only
When setting No.65 to 512 is used on the RJ71EN71 or RnENCPU (network part) with the firmware version of "35" to "38", data of G device (buffer memory area) may be overwritten. To use setting No.65 to 512, use RJ71EN71 or RnENCPU (network part) with the firmware version of "39" or later.
1 FUNCTIONS 1.14 Simple CPU Communication Function (RJ71EN71, RnENCPU (Network Part))
215
1.15 Simple CPU Communication Function (CPU
Module (Built-in Ethernet Port Part))
This function allows data communications between specified devices at the specified timing just by making simple settings of the CPU module (built-in Ethernet port part) from an engineering tool. Send/receive is performed with a specified communication destination on a one-to-one basis.
RCPU
Ethernet
MELSEC iQ-R
MELSEC-Q
Hub MELSEC-L
MELSEC iQ-F
MELSEC iQ-L
MELSEC-A/AnS / MELSEC-F
Communication destination MELSEC iQ-R series MELSEC-Q series MELSEC-L series MELSEC iQ-F series MELSEC iQ-L series MELSEC-A/AnS series MELSEC-F series SLMP-compatible device
SLMP
Type CPU module (built-in Ethernet) CPU module (built-in Ethernet), Ethernet module CPU module (built-in Ethernet), Ethernet module CPU module (built-in Ethernet) CPU module (built-in Ethernet) Ethernet module Ethernet block/adapter QnA-compatible 3E frame
Description Page 218 Module type
Access via routers is also available. For the access, set the subnet mask and default gateway. ( Page 262 Own Node Settings)
When using the simple CPU communication function, check the versions of the CPU module and engineering tool used. ( Page 436 Added and Enhanced Functions)
216
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
Setting procedure
The following section describes the settings for using this function.
1
1. Set "Enable" for "To Use or Not to Use Simple PLC Communication Setting" in "Simple PLC Communication Setting"
under "Application Settings".
[Navigation window] [Parameter] Target module [Module Parameter] [Application Settings] [Simple PLC Communication Setting]
2. Double-click "<Detailed Setting>" of the "Simple PLC Communication Setting" to display the following window. (
Page 278 Simple CPU communication setting (CPU module (built-in Ethernet port part)))
3. After setting the items, write the module parameters to the CPU module on the own station, and reset or power off and on
the CPU module to start the simple CPU communication.
Communication Pattern
Select the communication pattern from the following items.
Setting item Read
Write
Description
Read the data of the specified destination device (transmission source) to the specified device of the own station (transmission destination).
Write the data of the specified device of the own station (transmission source) to the specified destination device (transmission destination).
Communication Setting: Execution Interval
Select the communication timing from the following items.
Setting item Fixed interval (Fixed)
Execution Interval (ms)
Description
Data are communicated between the devices at a specified execution interval. Execution interval is set.
Setting range
10ms to 65535ms (in increments of 1ms)
· Actual time of execution interval may be longer than the value of the setting because the time is affected by the specified communication destinations or Ethernet line congestion. For the preventive measures, refer to the following.
Page 325 When the simple CPU communication function is used · If latency time is set, data communication is started after the latency time has passed. ( Page 225
Latency Time)
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
217
Communication Destination (IP Address)
Click "Destination" to open the "Communication Destination Setting" window and specify the communication destination. Up to 64 communication destinations can be registered.
Module type
Select the module type of the communication destination from the following list.
Module type MELSEC iQ-R (Built-in Ethernet) MELSEC-Q (Built-in Ethernet) MELSEC-L (Built-in Ethernet) MELSEC iQ-F (Built-in Ethernet) MELSEC iQ-L (Built-in Ethernet) MELSEC-Q (Ethernet Module) MELSEC-L (Ethernet Module) MELSEC-A/AnS (Ethernet Module) MELSEC-FX3 (Ethernet Block/Adapter) SLMP Corresponding Device (QnA Compatible 3E Frame)
Communication destination RnCPU, RnENCPU*1, RnPCPU, RnSFCPU, RnPSFCPU Built-in Ethernet port QCPU Built-in Ethernet port LCPU FX5U CPU module*2, FX5UC CPU module*2 LnHCPU QJ71E71-100 LJ71E71-100 AJ71E71N3-T, A1SJ71E71N3-T FX3U-ENET-ADP, FX3U-ENET-L · SLMP-compatible device (No serial number) · MC protocol 3E frame-compatible device
Communication specification MELSOFT connection (protocol: UDP)
MC protocol (A-compatible 1E frame) SLMP (MC protocol QnA-compatible 3E frame) Read (0401H) Write (1401H)
*1 When the RnENCPU is used for the connection to the Ethernet port of the CPU part *2 The device can be used when the firmware version of "1.110" or later is used.
IP address, TCP/UDP, port number, and own station port number
Set the IP address of the communication destination, communication protocol, port number, and own port number.
Module type
Setting range IP address
MELSEC iQ-R (Built-in Ethernet) MELSEC iQ-L (Built-in Ethernet) MELSEC iQ-F (Built-in Ethernet) MELSEC-Q (Built-in Ethernet) MELSEC-L (Built-in Ethernet) MELSEC-Q (Ethernet Module) MELSEC-L (Ethernet Module) MELSEC-A/AnS (Ethernet Module) MELSEC-FX3 (Ethernet Block/Adapter)
0.0.0.1 to 223.255.255.254
SLMP Corresponding Device (QnA Compatible 3E Frame)
TCP/UDP UDP
Port No. Cannot be set.
Own station port number
Cannot be set.
256 to 65534 1025 to 5548, 5552 to 65534 1 to 4999, 5010 to 65534
1 to 4999, 5010 to 65534
· When a multiple CPU system is configured, specify the IP address of the CPU module to which the Ethernet cable is connected.
· In communications where the communication destination other than MELSEC-A/AnS, MELSEC-FX3, and SLMP Corresponding Device is set, port numbers 61696 to 65534 are dynamically used for the own station port numbers. Therefore, when using the simple CPU communication function, do not set 61696 to 65534 to the own station port numbers for establishing a connection instruction (SP.SOCOPEN) of the socket communication function. If set, the instruction may not be completed properly.
· Port numbers 1 to 1023 are typically reserved port numbers (WELL KNOWN PORT NUMBERS) and 61440 to 65534 are used by other communication functions, so 1024 to 4999 or 5010 to 61439 should be used for the own station port numbers.
· When specifying the same communication destination in multiple settings, set different own station port numbers.
218
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
Setting for communication destination
The settings differ depending on the communication destination.
1
Communication destination
Necessary setting
MELSEC iQ-R (Built-in Ethernet)
Communication uses the auto-open UDP port, so the setting is not required.
MELSEC-Q (Built-in Ethernet) MELSEC-L (Built-in Ethernet)
Set the following items (for the number of devices) in the "Open Setting" window. · Protocol: "UDP" · Open System: "MELSOFT Connection"
MELSEC iQ-F (Built-in Ethernet)
Communication uses the auto-open UDP port, so the setting is not required.
MELSEC iQ-L (Built-in Ethernet)
MELSEC-Q (Ethernet Module)
Set the network number and station number.
MELSEC-L (Ethernet Module)
MELSEC-A/AnS (Ethernet Module)
Programming tool Create an initial processing program, and set the following items. · IP address and port number · Communication method: "UDP" · Bit 15 and Bits 0 to 7 of Area for communication instruction during stop (Un\G496) (Turn on the bits corresponding
to the connection numbers to be used.)*1 For the initial processing program, refer to the following. For A Ethernet Interface Module User's Manual DIP switch on the front of the module Set the following items. · SW2 (data code setting): Off · SW7 (CPU communication timing setting): On*2
MELSEC-FX3 (Ethernet Block/Adapter)
Set "Communication Data Code" of "Ethernet Port" to "Binary Code". Set the following items (for the number of devices) in the "Open Setting" window. · Protocol: "UDP" · Open system: "MC protocol"
SLMP Corresponding Device (QnA Compatible 3E Frame)
Configure the settings so that the SLMP (QnA-compatible 3E frame of the MC protocol) can be used on the SLMPcompatible device side. ( Manual for the device used) Set the communication data code to binary. Set the protocol to UDP.
*1 Set this item to execute this function while the communication destination CPU module is in the STOP state or stop error state. *2 Turn on this switch to execute this function while the communication destination CPU module is in the RUN state.
Target PLC No.
When the communication destination is one of the following modules and a multiple CPU system is used, specify the "Target PLC No." of the communication destination. · MELSEC iQ-R (built-in Ethernet): RnCPU, RnENCPU, RnPCPU, RnSFCPU · MELSEC-Q (built-in Ethernet): QnUDE(H)CPU, QnUDVCPU, QnUDPVCPU ( QCPU User's Manual (Multiple CPU
System))
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
219
Devices that can be specified
The devices that can be specified as transmission source and transmission destination vary depending on the communication destination. Bit device and word device can be set together for each setting number. For devices that can be specified, the size of a device is specified in units of 16 points for a bit device and one point for a word device. Use 0 or multiples of 16 to specify the device number of a bit device.
· Set the number of device points to the total number of setting No.1 to 64 (8192 words maximum). · The maximum number of points per setting is 512 words (bit device 8192 points maximum, word device 512
points maximum).
Devices that can be specified on the own station
The maximum number of points when the NZ2MC-16MBS is connected to the R120CPU. The number of points differs depending on the CPU module used, whether to use or not an extended SRAM cassette, or the type of the extended SRAM cassette.
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 2FFFH
Y
0H to 2FFFH
M
0 to 161882111
L
0 to 32767
B
0H to 9A61FFFH
SB
0H to 9A61FFFH
SM
0 to 4095
D
0 to 10117631
W
0H to 9A61FFH
SW
0H to 9A61FFFH
SD
0 to 4095
R
0 to 32767
ZR
0 to 10027007
RD
0 to 1048575
Remarks A local device cannot be specified. A local device cannot be specified. Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
When the communication destination is the MELSEC iQ-R (built-in Ethernet)
The maximum number of points when the NZ2MC-16MBS is connected to the R120CPU. The number of points differs depending on the CPU module used, whether to use or not an extended SRAM cassette, or the type of the extended SRAM cassette.
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 2FFFH
Y
0H to 2FFFH
M
0 to 161882111
L
0 to 32767
B
0H to 9A61FFFH
SB
0H to 9A61FFFH
SM
0 to 4095
D
0 to 10117631
W
0H to 9A61FFH
SW
0H to 9A61FFFH
SD
0 to 4095
R
0 to 32767
ZR
0 to 10027007
RD
0 to 1048575
Remarks A local device cannot be specified. A local device cannot be specified. Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
220
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
When the communication destination is the MELSEC-Q (built-in Ethernet) or MELSEC-Q
(Ethernet module)
The maximum number of points when the Q4MCA-8MBS is connected to the Q26UDVCPU. The number of points differs
1
depending on the CPU module used, whether to use or not an extended SRAM cassette, or the type of the extended SRAM
cassette.
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 1FFFH
Y
0H to 1FFFH
M
0 to 61439
L
0 to 32767
B
0H to EFFFH
SB
0H to 7FFFH
SM
0 to 2047
D
0 to 4910079
W
0H to 4AEBFFH
SW
0H to 7FFFH
SD
0 to 2047
R
0 to 32767
ZR
0 to 4849663
Remarks The maximum number of points when D (extended data register) or W (extended link register) is set. The maximum number of points when D (extended data register) or W (extended link register) is set. Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
When the communication destination is the MELSEC-L (built-in Ethernet) or MELSEC-L (Ethernet module)
The following table lists the maximum number of points for the L26CPU. The number of points varies depending on the CPU
module used.
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 1FFFH
Y
0H to 1FFFH
M
0 to 61439
L
0 to 32767
B
0H to EFFFH
SB
0H to 7FFFH
SM
0 to 2047
D
0 to 421887
W
0H to 66FFFH
SW
0H to 6FFFH
SD
0 to 2047
R
0 to 32767
ZR
0 to 393215
Remarks The maximum number of points when D (extended data register) or W (extended link register) is set. The maximum number of points when D (extended data register) or W (extended link register) is set. Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
221
When the communication destination is the MELSEC iQ-F (built-in Ethernet)
Type Bit device
Word device
Applicable device
Symbol Range
X
0 to 1777
Y
0 to 1777
M
0 to 32767
L
0 to 32767
B
0H to 7FFFH
SB
0H to 7FFFH
SM
0 to 9999
D
0 to 7999
W
0H to 7FFFH
SW
0H to 7FFFH
SD
0 to 11999
R
0 to 32767
Remarks Octal notation is used. Octal notation is used. A local device cannot be specified. A local device cannot be specified. Data is read or written following the file register settings of the communication destination.
When the communication destination is the MELSEC iQ-L (built-in Ethernet)
The maximum number of points when the L16HCPU is connected. The number of points varies depending on the CPU
module used.
Type Bit device
Word device
Applicable device
Symbol Range
X
0H to 2FFFH
Y
0H to 2FFFH
M
0 to 14065663
L
0 to 32767
B
0H to D69FFFH
SB
0H to D69FFFH
SM
0 to 4095
D
0 to 879103
W
0H to D69FFH
SW
0H to D69FFH
SD
0 to 4095
R
0 to 32767
ZR
0 to 819199
RD
0 to 1048575
Remarks A local device cannot be specified. A local device cannot be specified. Data is read or written following the file register settings of the communication destination. Data is read or written following the file register settings of the communication destination.
When the communication destination is the MELSEC A/AnS (Ethernet module)
The maximum number of points for the A4UCPU. The number of points varies depending on the CPU module used. (
MELSEC Communication Protocol Reference Manual)
Type Bit device
Word device
Applicable device
Symbol Range
Remarks
X
0 to 7FFh
Y
0 to 7FFh
M
0 to 8191, 9000 to 9255 To specify 9000 to 9255 with "Communication Pattern" set to "Write", refer to the manual of
the CPU module used.
To specify 9000 to 9255, use 9000 + a multiple of 16.
B
0 to FFFh
D
0 to 6143, 9000 to 9255 To specify 9000 to 9255 with "Communication Pattern" set to "Write", refer to the manual of
the CPU module used.
W
0 to FFFh
R
0 to 8191
222
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
When the communication destination is the MELSEC-FX3 (Ethernet block/adapter)
Type Bit device
Word device
Applicable device
Symbol Range
Remarks
1
X
0 to 377
Octal notation is used.
Y
0 to 377
Octal notation is used.
M
0 to 7679, 8000 to 8511 To specify 8000 to 8511 with "Communication Pattern" set to "Write", refer to the manual of
the CPU module used.
D
0 to 8511
To specify 8000 to 8511 with "Communication Pattern" set to "Write", refer to the manual of the CPU module used.
R
0 to 32767
When the communication destination is an SLMP-compatible device (QnA-compatible 3E frame)
Applicable devices differ depending on the device. For applicable devices, refer to the manual for the device used. The device types that can be set are X, Y, M, L, B, SB, SM, D, W, SW, SD, R, and ZR. The accessible device range of the
communication destination is the range which can be specified with the subcommands 001 and 000 of the SLMP (QnA-
compatible 3E frame of the MC protocol).
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
223
Operation during the simple CPU communication
Operation of the own station
Since the own station operates without depending on the operating status of the CPU module, the simple CPU communication is performed even when the CPU module is in the STOP state because of stop error. When an initial communication error occurs, communications of the corresponding setting numbers are stopped and ones of the setting numbers, where no error occurs will operate. If the communication destination responds at the timing of the END processing of the CPU module, data is transferred to the system area for the simple CPU communication. For devices other than the SLMP-compatible device (QnA-compatible 3E frame), data inconsistency will not occur in one setting since processing is executed by one setting unit.
Operation of the communication destination
The operation differs depending on the communication destination.
Communication destination
Data operation in one setting
MELSEC iQ-R (Built-in Ethernet)
Since the data in one setting is communicated at the same timing, data inconsistency will not occur.
MELSEC-Q (Built-in Ethernet)
MELSEC-L (Built-in Ethernet)
MELSEC iQ-F (Built-in Ethernet)
MELSEC iQ-L (Built-in Ethernet)
MELSEC-Q (Ethernet Module) MELSEC-L (Ethernet Module)
The data specified with a bit device or a word device in one setting is communicated at the same timing. However, if both a bit device and a word device are set for the same setting number, the data of each device may be communicated at different timing.
MELSEC-A/AnS (Ethernet Module)
When the data size in one setting is as follows, data inconsistency will not occur. · When "Write" is set to "Communication Pattern": Bit device of 640 points or less, word device of 256 points or less · When "Read" is set to "Communication Pattern": Bit device of 2048 points or less, word device of 256 points or
less
MELSEC-FX3 (Ethernet Block/Adapter)
When the data size in one setting is as follows, data inconsistency will not occur. · When "Write" is set to "Communication Pattern": Bit device of 160 points or less, word device of 64 points or less · When "Read" is set to "Communication Pattern": Bit device of 512 points or less, word device of 64 points or less
SLMP Corresponding Device (QnA Compatible 3E Frame)
The data specified with a bit device or a word device in one setting is communicated at the same timing. However, if both a bit device and a word device are set for the same setting number, the data of each device may be communicated at different timing. The order of a word device and a bit device for read/write is as follows: · When "Write" is set to "Communication Pattern": Word device Bit device · When "Read" is set to "Communication Pattern": Bit device Word device
224
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
Communication Time-out Period/Communication Retry Count/Monitoring Time At Error
When the communication destination does not respond or returns an error response, the communication will be retried
1
(resent) after the time-out period has passed.
At this time, after communications are performed for the communication retry count + 1 times, the fixed interval
communication is performed during the monitoring time at error. If the communication destination responds after these
communications, the communications at the execution interval specified with the parameters are restarted.
Ex. Error detection timing when 2 is set for the communication retry count
Interval
Communication error at the
previous time
Communication error at the
previous time
Communication error at the
previous time
Retry of communication, first time
Retry of communication, second time
Error detection
Communication Communication Communication Communication Communication Communication
Communication Communication Communication Monitoring time Monitoring time
timeout time
timeout time
timeout time
at error
at error
The error is detected if the communication destination does not respond or communications fail by when the following time has passed: (communication retry count + 1) communication time-out period
Latency Time
By setting the latency time, the start timing in the communications can be switched in the following cases. · To prevent an error due to the overlap of the start timing in the communications · To start communications after the communication destination is ready for the communications During the latency time, "Preparing" is indicated in the communication status.
Communications at a specified execution interval (when "Fixed" is set for the communication setting) is ignored during the latency time.
Initial Communication Setting
The operation can be set when the communication destination does not respond (including that the communication destination has the different IP address or is not started) at the initial communication. By using this setting, communications can be started at the timing when the external device is connected or powered on after starting simple CPU communications even if the external device is not connected or powered off at starting the simple CPU communications.
To use the setting, check the versions of the CPU module and engineering tool used. ( Page 436 Added and Enhanced Functions)
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
225
Checking the simple CPU communication status
The simple CPU communication status can be checked with the buffer memory or diagnostic functions.
Checking with the buffer memory
The simple CPU communication status can be checked with the storage status of the corresponding setting number in the following CPU buffer memory areas.
Item
Execution status flag
Ready
Simple CPU communication status
0H: Unset 1H: Preparing
3H: Communicating
4H: Communication stop
5H: Retry being executed
6H: Monitoring
AH: Communications impossible
Simple CPU communication error code
Execution interval (current value)
Abnormal response code
Address U3En\G1102 to 1105 U3En\G1106 to 1109 U3En\G1130 to 1193
U3En\G1194 to 1257 U3En\G1258 to 1321 U3En\G1322 to 1385
Remarks 1102.0: Setting No.1 to 1105.F: Setting No.64 1106.0: Setting No.1 to 1109.F: Setting No.64 1130: Setting No.1 to 1193: Setting No.64
1194: Setting No.1 to 1257: Setting No.64 1258: Setting No.1 to 1321: Setting No.64 1322: Setting No.1 to 1385: Setting No.64
For details on the values to be stored in the CPU buffer memory, refer to the following. Page 363 CPU module (built-in Ethernet port part)
When the "MELSEC-A/AnS (Ethernet Module)" or "MELSEC-FX3 (Ethernet Block/Adapter)" is set to the communication destination, if an error response is received from the communication destination, the buffer memory area of Simple CPU communication error code stores the error code, CFB4H, and the buffer memory area of Abnormal response code stores the codes returned from the external device.
Communication stop/restart request
When the simple CPU communication status of the corresponding setting number in the CPU buffer memory is either of the following, communications can be stopped by turning off and on the stop request of the corresponding setting number. (If the status is other than the following, the stop request is invalid.) · 3H: Communicating · 5H: Retry being executed · 6H: Monitoring
When the stop request is turned off and on, the communications will stop at the timing of sending data in the next execution interval. Therefore, if the communication destination does not respond with the stop request accepted, the communications will stop after the communication time-out period has passed. When the retry is being executed, the communications will stop after the communication time-out period has passed without depending on the retry count.
When the simple CPU communication status of the corresponding setting number in the CPU buffer memory is "4H: Communication stop", communications can be restarted by turning off and on the CPU buffer memory of the corresponding setting number. (If the status is other than "4H: Communication stop", the restart request is invalid.)
226
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
Ex.
The operation at communication stop/restart request for the setting No.1
1
END
0
END
0
Stop
Communication
request stop
Restart request
Communication restart
Regular communication
stop request
ON
(Un\G1094.0)
OFF
On by the program
Regular communication
restart request
ON
(Un\G1098.0)
OFF
Off by the system On by the program
Off by the system
Execution status flag ON
(Un\G1102.0)
OFF
Simple CPU communication status (Un\G1130)
Execution interval (current value) (Un\G1258)
3H (Current value)
4H
3H
0
(Current value)
Checking with "simple CPU communication diagnostics"
The communication status of the simple CPU communication function can be checked with "Simple CPU Communication Diagnostics". For details, refer to the following. Page 312 Simple CPU communication diagnostics
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
227
Precautions
This section provides precautions for the simple CPU communication function.
Incomplete data reception and timeout
Because the load of Ethernet communication becomes heavy during the simple CPU communication, if the other communication (MELSOFT connection or SLMP) is simultaneously performed by using UDP, the data reception of UDP may not be completed, resulting in a timeout error. Therefore, to perform other communications during the simple CPU communication, the communication using TCP is recommended.
Execution interval setting
The execution interval of the simple CPU communication function will differ according to the Ethernet line's load rate, operating status of other communications (such as MELSOFT connection, SLMP communication, socket communication function, CC-Link IE Field Network Basic), scan time of the communication destination, and system configuration. Thus, the set execution interval or time required for completing the communications may be increased. To perform communications at the set execution interval, set a sufficient execution interval. If checking the execution interval is required, perform actual communications and check it with the "Simple PLC Communication Diagnostics" window.
Duplication of own station port numbers
The simple CPU communication cannot be performed in the following cases. · The own station port number set in the simple CPU communication and the own station port number of the CPU module set
in the external device configuration are the same. · The own station port number set in the simple CPU communication and the one set in another function such as the socket
communication are the same. Set different own station port numbers. For the setting numbers other than the one in which a communication error occurs, communications are performed after the preparation processing is completed normally.
Module type and IP address of communication destination
Check the module type and IP address of the communication destination before setting the parameters. The simple CPU communication is not performed when the preparation processing is not completed because the communication destination does not exist or an incorrect module type or IP address is specified.
Communication destination device
Check the type and range of the device to be read or written in the communication destination. Especially, when "Write" is set to "Communication Pattern", the control data of the communication destination may be overwritten, resulting in malfunction.
228
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
Remote password
The simple CPU communication is not performed when a remote password is set for the communication destination. Clear the
1
remote password.
File register (R, ZR)
When using the file register (R, ZR) for the device on the own station, always assign the device within the setting range. The simple CPU communication of the setting number which exceeds the setting range due to a stop error of the own station cannot be performed. When a stop error occurs, communications of the setting number other than the one which exceeds the setting range continue operating.
Special relay (SM) and special register (SD)
Do not write any data to the special relay (SM) and the special register (SD) that are set on the system side. Doing so may cause a system failure or communication failure.
When the communication destination in a redundant system
In this case, use "Control System IP Address" of "Redundant System Settings" for the Process CPU (redundant mode) side, and set the control IP address on the "Communication Destination Setting" window in the simple CPU communication.
1 FUNCTIONS 1.15 Simple CPU Communication Function (CPU Module (Built-in Ethernet Port Part))
229
1.16 IP Address Change Function
This function can change the IP address of the Ethernet-equipped module or other item without changing the parameter settings.
Ex. Case of the CPU module (built-in Ethernet port part)
Ò Store the IP address in the special register (SD) by the device write operation.
GOT
Bus connection
Ô Power off and on or reset the CPU module.
Ó Store the IP address of the special register (SD) to the IP address storage area (system memory) by turning the special relay (SM) on.
Special register (SD) SD1518 Network No. SD1519 Station No.
IP address storage area (system memory)
Network No.
Station No.
SD1520 IP address
SD1521
SD1522 Subnet mask
SD1523 pattern
SD1524 Default gateway
SD1525 IP address
IP address
Write execution (SM1520 ON)
Subnet mask pattern
Default gateway IP address
Õ Operate with the IP address stored in the IP address storage area (system memory).
· When this function is used in the CPU module (built-in Ethernet port part), it can be used also by manipulating the special relay and special register values from the GOT. Refer to the list of special relay and special register in the following manual for details on the special relay and special register.
MELSEC iQ-R CPU Module User's Manual (Application) · When this function is used in the RJ71EN71 or RnENCPU (network part), it can be used also by
manipulating the buffer memory values from the GOT. ( Page 355 Buffer Memory)
· When this function is used in the RJ71EN71 or RnENCPU (network part), check the firmware version of the module. The network number and station number of the CPU module (built-in Ethernet port part) can be changed in the CPU module with the firmware version supporting communications by network number/ station number. ( Page 436 Added and Enhanced Functions)
· The IP address change function is not available when "Q Compatible Ethernet" is selected for the network type in the RJ71EN71.
230 1 FUNCTIONS 1.16 IP Address Change Function
IP address of the Ethernet-equipped module
The value set with the module parameters during initial processing is set as the IP address of the Ethernet-equipped module.
1
When this function is used, the IP address set during initial processing is the value stored in the IP address storage area
instead of the value set in the parameters.
Ex. Case of the CPU module (built-in Ethernet port part)
[When using parameters]
CPU module
IP address Subnet mask pattern Default gateway IP address Network No. Station No.
192.168.3.39 255.255.255.0 192.168.3.254 3 39
The IP address in the parameter file is set.
Parameter file Module parameter IP address Subnet mask pattern Default gateway IP address Network No. Station No.
192.168.3.39 255.255.255.0 192.168.3.254 3 39
[When using the IP address change function]
CPU module
IP address Subnet mask pattern Default gateway IP address Network No. Station No.
192.168.3.40 255.255.255.0 192.168.3.254 5 20
The IP address in the IP address storage area (system memory) is set.
Parameter file Module parameter IP address Subnet mask pattern Default gateway IP address Network No. Station No.
192.168.3.39 255.255.255.0 192.168.3.254 3 39
IP address storage area (system memory)
IP address Subnet mask pattern Default gateway IP address Network No. Station No.
192.168.3.40 255.255.255.0 192.168.3.254 5 20
Writing and clearing the IP address
Case of the CPU module (built-in Ethernet port part)
The IP address value is written into the IP address storage area (system memory). The write and clear operations are performed with the special relay and special register.
Special register
SD1518 SD1519 SD1520 SD1521
Network No. Station No.
IP address
SD1522 SD1523 SD1524 SD1525
Subnet mask pattern
Default gateway IP address
Write execution (SM1520 ON)
IP address storage area (system memory)
Network No. Station No.
IP address
Subnet mask pattern Default gateway IP address
231 1 FUNCTIONS
1.16 IP Address Change Function
Case of the RJ71EN71 or RnENCPU (network part)
The IP address value is written into the IP address storage area (flash ROM). The write and clear operations are performed
with the buffer memory.
Un\G11700 Un\G11701 Un\G11702 Un\G11703 Un\G11704 Un\G11705 Un\G11706 Un\G11707
Un\G11708
Buffer memory IP address
Subnet mask
Default gateway
Network No. Station No. Transient transmission group No.
IP address storage area (flash ROM)
IP address
Subnet mask pattern
Write execution
Default gateway
(Un\G11709.0 ON) IP address
Network No.
Station No.
Transient transmission group No.
232 1 FUNCTIONS 1.16 IP Address Change Function
Usage methods 1
Write operation
Case of the CPU module (built-in Ethernet port part)
Follow the steps below.
1. Store the value to be changed in 'IP address setting' (SD1518 to SD1525). 2. Turn off and on 'IP address storage area write request' (SM1520). 3. Check the write results with the following special relay and special register.
Device
At normal completion
At abnormal completion
'IP address storage area write request' (SM1520) Off
Off
'IP address storage area write error' (SM1521)
Off
On
'IP address storage area writing error cause'
(SD1526)
Stores the cause of the error
4. Power off and on or set the CPU module.
5. If the IP address stored in the IP address storage area (system memory) is a valid value, the stored IP address is set as
the IP address of the CPU module (built-in Ethernet port part). (If the value is invalid or not set, the value set in the module parameters is set as the IP address of the CPU module (built-in Ethernet port part).)
6. Check the IP address with the buffer memory. ( Page 363 CPU module (built-in Ethernet port part))
Case of the RJ71EN71 or RnENCPU (network part)
Follow the steps below.
1. Store the values to be changed in 'IP address setting' (Un\G11700 to Un\G11705) and 'Communications by Network No./
Station No.' (Un\G11706 to Un\G11708).
2. Turn off and on 'IP address storage area write request' (Un\G11709.0). 3. Check the write results with the following buffer memory areas.
Buffer memory
At normal completion
At abnormal completion
'IP address storage area write request' (Un\G11709.0)
Off
Off
'IP address storage area write error' (Un\G11710.0)
Off
On
'IP address storage area writing error cause' (Un\G11711)
Stores the cause of the error
4. Power off and on or set the CPU module.
5. If the IP address stored in the IP address storage area (flash ROM) is a valid value, the stored IP address is set as the IP
address of the RJ71EN71 or the RnENCPU (network part). (If the value is invalid or not set, the value set in the module parameters is set as the IP address of the RJ71EN71 or the RnENCPU (network part).)
6. Check the IP address with the buffer memory. ( Page 355 RJ71EN71, RnENCPU (network part))
233 1 FUNCTIONS
1.16 IP Address Change Function
Operation of the special relay and special register, or of the buffer memory
The following section shows the operation of the special relay and special register or of the buffer memory when writing to the IP address storage area. · Operation at normal completion
Write request ON
(SM1520)
OFF
(Un\G11709.0)
Write start
Write completed
The system is powered off when writing was completed.
Write error
ON
(SM1521)
OFF
(Un\G11710.0)
Write error cause
(SD1526)
0
(Un\G11711)
· Operation at abnormal completion
Write start
Write failed
Write start
Write completed
Write request ON
(SM1520)
OFF
(Un\G11709.0)
Write error
ON
(SM1521)
OFF
(Un\G11710.0)
The system is powered on when writing was failed.
The system is powered off when writing starts.
Write error cause (SD1526) (Un\G11711)
Error cause
0
Cause of error at abnormal completion
· If the data is not written correctly into the IP address storage area (system memory) in the CPU module (built-in Ethernet
port part), the cause of the error is stored in 'IP address storage area writing error cause' (SD1526).
Stored value 100H
200H 300H
400H
Cause of error
The value for 'IP address setting' (SD1518 to SD1525) exceeds the setting range.
An error occurred during write. Writing cannot be performed since the following functions are being executed. · CPU module data backup/restoration function Writing was started during the clear processing.
· If the data is not written correctly into the IP address storage area (flash ROM) in the RJ71EN71 or the RnENCPU (network part), the cause of the error is stored in 'IP address storage area writing error cause' (Un\G11711).
Stored value 100H
101H
102H
103H 104H 105H
106H
107H
200H 400H
Cause of error
The value for 'IP address' (Un\G11700 to Un\G11701) exceeds the setting range.
The value for 'Default gateway' (Un\G11704 to Un\G11705) exceeds the setting range.
The network address of 'Default gateway' (Un\G11704 to Un\G11705) or of the gateway IP address is different from that of the IP address of the own node.
The value for 'Network number' (Un\G11706) exceeds the setting range.
The value for 'Station number' (Un\G11707) exceeds the setting range.
The value for 'Transient transmission group number' (Un\G11708) exceeds the setting range.
The port 1 and port 2 IP addresses written in the IP address storage area are the same.
The port 1 and port 2 network numbers or station numbers written in the IP address storage area are the same.
An error occurred during write.
Writing was started during the clear processing.
234 1 FUNCTIONS 1.16 IP Address Change Function
Clearing operation
Case of the CPU module (built-in Ethernet port part)
1
Execute clearing by turning off and on 'IP address storage area clear request' (SM1522).
1. Turn on 'IP address storage area clear request' (SM1522).
2. Check the write results with the following special relay and special register.
Device
At normal completion
At abnormal completion
'IP address storage area clear request' (SM1522) Off
Off
'IP address storage area clear error' (SM1523)
Off
On
'IP address storage area clear error cause'
(SD1527)
Stores the cause of the error
3. Power off and on or set the CPU module.
4. Check the IP address with the buffer memory. ( Page 363 CPU module (built-in Ethernet port part))
Case of the RJ71EN71 or RnENCPU (network part)
Execute clearing by turning off and on 'IP address storage area clear request' (Un\G11712.0).
1. Turn on 'IP address storage area clear request' (Un\G11712.0). 2. Check the write results with the following buffer memory areas.
Buffer memory
At normal completion
At abnormal completion
'IP address storage area clear request' (Un\G11712.0)
Off
Off
'IP address storage area clear error' (Un\G11713.0)
Off
On
'IP address storage area clear error cause' (Un\G11714)
Stores the cause of the error
3. Power off and on or set the CPU module.
4. Check the IP address with the buffer memory. ( Page 355 RJ71EN71, RnENCPU (network part))
Operation of the special relay and special register, or of the buffer memory
The following section shows the operation of the special relay and special register or of the buffer memory when clearing the IP address storage area. · Operation at normal completion
Clear request ON
(SM1522)
OFF
(Un\G11712.0)
Clear start
Clear completed
The system is powered off when clearing was completed.
Clear error
ON
(SM1523)
OFF
(Un\G11713.0)
Clear error cause
(SD1527)
0
(Un\G11714)
· Operation at abnormal completion
Clear start
Clear failed
Clear start
Clear completed
Clear request ON
(SM1522)
OFF
(Un\G11712.0)
Clear error
ON
(SM1523)
OFF
(Un\G11713.0)
The system is powered on when clearing was failed.
The system is powered off when clearing starts.
Clear error cause (SD1527) (Un\G11714)
Error cause
0
235 1 FUNCTIONS
1.16 IP Address Change Function
Cause of error at abnormal completion
If the IP address storage area is not cleared correctly, the cause of the error is stored as follows:
Module CPU module (built-in Ethernet port part)
RJ71EN71, RnENCPU (network part)
Storage location
'IP address storage area clear error cause' (SD1527)
'IP address storage area clear error cause' (Un\G11714)
Stored value Cause of error
200H
Error occurred during clearing.
400H
Clearing was started during the write processing.
200H
Error occurred during clearing.
400H
Clearing was started during the write processing.
Checking the IP address
Checking with the buffer memory
Check with the following buffer memory areas.
Item Own node IP address Subnet mask Default gateway IP address Own node network number Station number Transient transmission group number
CPU module (built-in Ethernet port part) Un\G50 to Un\G51 Un\G60 to Un\G61 Un\G64 to Un\G65 Un\G77 Un\G78
RJ71EN71, RnENCPU (network part) Un\G4 to Un\G5 Un\G14 to Un\G15 Un\G18 to Un\G19 Un\G31 Un\G32 Un\G33
Checking with module diagnostics
Check by using the [Module Information List] tab of the "Module Diagnostics" window. ( Page 301 Module Information List)
Checking the operating status
For the RJ71EN71 or the RnENCPU (network part), when operation is performed based on the IP address of the IP address storage area, 'IP address change function operating status' (Un\G11715.0) turns on.
Precautions
The following section lists the precautions for using the IP address.
Power off and reset operation
Do not power off or reset when writing to or clearing the IP address storage area. The values may not be applied onto the IP address storage area. Power off or reset after checking the falling edge of the IP address storage area write request or IP address storage area clear request.
Parameter IP address
For the IP address of the Ethernet-equipped module, the value in the IP address storage area has precedence over the parameter value. When using the IP address specified with the parameters, clear the IP address storage area.
236 1 FUNCTIONS 1.16 IP Address Change Function
Write processing and clear processing execution timing
· Executing the write or clear processing to the IP address storage area may not be possible if an operation that turns off and
1
on, or on and off an IP address storage area write request or IP address storage area clear request in a short time is
performed.
· If the IP address storage area write request is turned off and on again while writing to the IP address storage area, the write
processing that was executed first will complete normally, and the following write operation will be ignored. (This also
applies to the clear operation.)
· If the IP address storage area clear request is turned off and on while writing to the IP address storage area, the clear
operation will not be completed. (This applies to the write operation if writing is executed during the clear processing.)
· If both an IP address storage area write request and IP address storage area clear request are turned off and on, the write
operation will be executed as top priority, and the clear operation will not be completed.
· If the write operation and clear operation are performed on the IP address storage area in the RJ71EN71 or the RnENCPU
(network part), communication may be stopped. Execute requests while control is not being performed at P1 or P2.
Communications by network number/station number
· For the network number, station number, and transient transmission group number (RJ71EN71 or RnENCPU (network part) only), the values in the IP address storage area have precedence over the module parameter values. To use the network number, station number, and transient transmission group number specified in the module parameters, clear the IP address storage area.
· When the IP address is stored in the IP address storage area, if the network number, station number, and transient transmission group number (RJ71EN71 or RnENCPU (network part) only) are not stored, communications using the network number and station number become impossible. For communications using the network number and station number, even if not changing the values, store the network number, station number, and transient transmission group number in the IP address storage area.
Execution of the IP address change function during execution of another function
During execution of the CPU module data backup/restoration function, the IP address change function of the CPU module (built-in Ethernet port part) cannot be executed. Check that the CPU module data backup/restoration function is not being executed and then execute the IP address change function.
237 1 FUNCTIONS
1.16 IP Address Change Function
1.17 Redundant System Function
The system with a control system and a standby system is configured using the RJ71EN71. If an error occurs in the control system, the standby system is switched as the new control system to continue communication. Before using function, check the firmware version of the RJ71EN71 and the CPU module used. ( Page 436 Added and Enhanced Functions) When mounting the RJ71EN71 on the extension base unit in the redundant system with redundant extension base unit, refer to the following. Page 416 Using the Module in the Redundant System with Redundant Extension Base Unit
To switch the system when a communication error or cable disconnection on Ethernet is detected, use the RJ71EN71. The system is not switched when a communication error or cable disconnection in the CPU module (built-in Ethernet port part) occurs.
System configuration
The Process CPU, redundant function module, and RJ71EN71 are mounted on the base units of both the system A and system B of a redundant system. A redundant system is configured by connecting the redundant function modules of both systems using tracking cables and connecting the RJ71EN71s in both systems using Ethernet cables.
Set the network type for the RJ71EN71 to either of the following. · "Port 1 Network Type" and "Port 2 Network Type" are set to "Ethernet". · "Port 1 Network Type" is set to "Q Compatible Ethernet".
238 1 FUNCTIONS 1.17 Redundant System Function
System switching request
If an error of system switching cause occurs in the control system, the RJ71EN71 issues a system switching request to the
1
control system CPU module to switch the system.
The CPU module (built-in Ethernet port part) cannot issue a system switching request.
(1)
(2)
1. A system switching request occurs in the control system (1). ( Page 239 System switching request) 2. The RJ71EN71 of control system (1) issues a system switching request to the control system CPU module. 3. The system switches from the control system to the standby system. 4. Standby system (2) starts operating as the new control system to continue network control.
For OPS connection, through establishing a TCP/IP connection with both systems, communication can be smoothly continued simply by changing the communication destination even when system switching occurs.
Precautions
Depending on the operating status of the standby system, system switching is not executed. For details on the operating status of the standby system and whether system switching is executable, refer to the following. MELSEC iQ-R CPU Module User's Manual (Application) In the following cases, system switching is not executed even if the RJ71EN71 issues a system switching request. · When one module in the redundant module group is operating normally ( Page 242 Redundant module group settings) · When another port in the port group is operating normally ( Page 243 Port group setting)
239 1 FUNCTIONS
1.17 Redundant System Function
System switching cause
This section describes causes that make the RJ71EN71 issue a system switching request. Whether to issue a system switching request due to each cause is set in "Redundant System Settings" under "Application Settings". ( Page 295 Redundant System Settings)
For details on system switching causes other than a system switching request from the RJ71EN71, refer to the following. MELSEC iQ-R CPU Module User's Manual (Application)
Moderate/major error and hardware failure
When detecting an error where the module cannot continue the processing, the RJ71EN71 notifies the control system CPU module about the error and issues a system switching request.
Communication error detection
Set connections targeted by communication error detection in "Redundant System Settings" under "Application Settings". ( Page 295 Redundant System Settings) The following connections can be set as targets of communication error monitoring. · User connections · Auto-open UDP port · FTP transmission port (TCP/IP) · MELSOFT transmission port (TCP/IP) · MELSOFT transmission port (UDP/IP) · Simple CPU communication port
Alive check error
When the RJ71EN71 has not communicated with the external device for a certain period of time while the connection is open, this function checks whether the external device is alive. ( Page 266 Existence Confirmation) When no response is returned from the external device, the Ethernet-equipped module closes the relevant connection and issues a system switching request to the control system CPU module.
ULP timeout
When the TCP/IP connection is open and when data is being sent, if no ACK response is returned from the external device for a period exceeding the TCP/ULP timer value set in the "Timer Settings for Data Communication" under "Application Settings", a send error occurs and a system switching request is issued to the control system CPU module. ( Page 281 Timer Settings for Data Communication)
240 1 FUNCTIONS 1.17 Redundant System Function
Precautions
· The auto-open UDP port and MELSOFT transmission port (UDP/IP) will be handled as targets of communication error
monitoring only when the remote password setting is enabled and these ports are unlocked.
1
· Do not set connections with the following settings in module parameters as connections targeted by communication error
detection. Otherwise, when a communication error occurs by cable disconnection detection or due to the power-off of the
external device, system switching may continuously occur in a redundant system.
Setting items
Description
"Own Node Settings" under "Basic Settings" "External Device Configuration" under "Basic Settings"
"Do Not Open by Program" is selected for "Opening Method". "UDP" is selected for "Protocol". "KeepAlive" or "UDP" is set for "Existence Confirmation".
· Do not set connections with "MELSOFT Connection" set for "Communication Method" in "External Device Configuration" under "Basic Settings", as connections targeted by communication error detection. Otherwise, all MELSOFT products connected to the network will be targeted by communication error monitoring and external devices cannot be set.
Disconnection detection
Monitor the connection status of the cable connected to the RJ71EN71 in the control system. When the disconnection state continues even after the disconnection detection monitoring time has elapsed, a system switching request is issued to the control system CPU module. Disconnection detection occurs in any of the following cases. · Disconnection between the RJ71EN71 and the hub · Cable disconnection at the connector on the hub side · Power-off of the hub · Cable disconnection at the connector on the RJ71EN71 side
· Cable connection status monitoring is started after link-up. Disconnection detection is not performed on a port that has never been linked up and a port unconnected to an Ethernet cable.
· Set a value in the range from several seconds to several tens of seconds for the disconnection detection monitoring time. If the disconnection detection monitoring time is set too short, system switching may occur due to such factors as noise.
241 1 FUNCTIONS
1.17 Redundant System Function
Redundant group setting
The redundant group setting is used to ensure that when the Ethernet network is duplicated in a redundant system, system switching is not executed for an error that occurs in one Ethernet network. There are two types of redundant group setting: redundant module group setting and port group setting.
The redundant group setting is not available for the CPU module (built-in Ethernet port part).
Redundant module group settings
Two RJ71EN71s are mounted on each of the control system and standby system, so even if a communication error occurs in one of the RJ71EN71s, when communication is possible using the network of the other RJ71EN71, a system switching request is not issued and communication by the control system continues. The redundant module group can be set only on modules that have adjacent start I/O numbers and are mounted on adjacent slots of the base unit.
When both grouped RJ71EN71s have a communication error, a system switching request is issued.
Setting procedure
[Navigation window] [Parameter] [System Parameter] [I/O Assignment] tab [Redundant Module Group Setting]
If the RJ71EN71s set as a redundant module group are not mounted adjacently to each other on the base unit, an error occurs. Check the mounting positions on the base unit and the start I/O number again.
242 1 FUNCTIONS 1.17 Redundant System Function
Port group setting
A cable is connected to each of the two Ethernet port of RJ71EN71, so even if a communication error occurs in one of the
1
ports, when communication is possible on the other port, a system switching request is not issued and communication by the
control system continues.
This function cannot be used when "Q Compatible Ethernet" is selected in the network type.
Setting procedure
Set the port group in "Redundant System Settings" under "Application Settings". ( Page 295 Redundant System Settings)
· When "Switch Systems When a System Switching Error Occurs in Both of Port 1 and Port 2" is selected for "Port Group Setting", an event at the time of system switching is registered into the event history of the P1 side only.
· Set the same value for the port group setting on the P1 side and P2 side each.
Precautions
· The redundant group setting is enabled when the RJ71EN71 issues a system switching request. When a cause other than a moderate/major error or hardware failure in the RJ71EN71 occurs, or when a system switching request caused by other than the system switching cause from the RJ71EN71 occurs, systems are switched regardless of this setting.
· In "Redundant System Settings" under "Application Settings", set "Enable" for either "System Switching Request Issuing at Disconnection Detection" or "System Switching Request Issue at Communication Error". If "Disable" is set to the both settings, system does not switch because a system switching request is not issued to the CPU module.
243 1 FUNCTIONS
1.17 Redundant System Function
Communication path bypass function
When a communication error occurs between the application and Ethernet-equipped module supporting the following redundant system, the path on which the error occurs is bypassed so that communication can continue without changing the communication path setting. · Applications operating on OPS · GX Works3
The communications path bypass function cannot be used for direct connection. Use for connection via a hub.
Setting procedure
The bypass function is always enabled. The parameter setting is not required.
Precautions
If an Ethernet-equipped module detects a disconnection or communication error, it does not release the relevant connection until the alive check function detects an error. When a disconnection or communication error occurs continually, if the relevant connection has not been released, an Ethernet-equipped module bypasses the communication path by using a new connection. For that reason, if a disconnection or communication error is detected over and over again in a short period of time, available connections run out and an error occurs in GX Works3.
244 1 FUNCTIONS 1.17 Redundant System Function
Both systems identical IP address setting function
When an IP address common to systems A and B (control system IP address) is used, even if system switching occurs,
1
programs can perform communication without changing the connection destination.
Note that even when this setting is used, communication using the individual IP address of systems A and B each is possible.
192.168.1.100
192.168.1.100
This control system IP address cannot be used when the network type for the RJ71EN71 is set to "Q Compatible Ethernet".
Setting procedure
Set the control system IP address in "Redundant System Settings" under "Application Settings". ( Page 295 Redundant System Settings)
Access range
When communicating using the control system IP address, access is only possible from an external device in the same network. Since a network number and station number are used for access from another network, communication using the control system IP address is not possible.
245 1 FUNCTIONS
1.17 Redundant System Function
Availability of control system IP address for each function
The following table lists the availability of control system IP address for each function. : Available, : Restrictions exist, : Not available
Function
Connection with MELSOFT products and a GOT
Availability
SLMP communications
Communications using the predefined
protocol
Socket communications
Communications using the fixed buffer
Communication using the random access buffer
Communications using a link dedicated instruction
File transfer function (FTP server)
Time setting function (SNTP client)
Security function
IP address change function
MODBUS/TCP communications
Simple CPU Communication Function
Precautions
· When accessing from MELSOFT products (excluding GX Works3), the control system IP address can be used. When accessing from GX Works3 and a GOT, use the IP address of system A or B.
· When system switching occurs during file access, file access is interrupted. When accessing files, use the IP address of system A or B.
· When system switching occurs due to a timeout or communication error in TCP/IP communications, the connection needs to be re-opened.
· When the control system IP address is used, neither the write operation nor the control operation can be performed. Use the IP address of system A or B.
· When system switching occurs during file access, file access is interrupted. When accessing files, use the IP address of system A or B.
· When system switching occurs due to a timeout or communication error in TCP/IP communications, the connection needs to be re-opened.
· In TCP/IP communications, the control system IP address can be used only when the Ethernet-equipped module side is set as Passive open. When it is set as Active open, use the IP address of system A or B.
· In UDP/IP communications, the control system IP address can be used only when the Ethernet-equipped module receives data.
· When system switching occurs due to a timeout or communication error in TCP/IP communications, the connection needs to be re-opened.
· When using the protocol used for sending or sending/receiving data, use the IP address of system A or B.
· In TCP/IP communications, the control system IP address can be used only when the Ethernet-equipped module side is set as Passive open. When it is set as Active open, use the IP address of system A or B.
· In UDP/IP communications, the control system IP address can be used only when the Ethernet-equipped module receives data.
· When system switching occurs due to a timeout or communication error in TCP/IP communications, the connection needs to be re-opened.
For details on dedicated instructions, refer to the following. ( Page 246 How to use dedicated instructions)
When system switching occurs during file access, file access is interrupted. When accessing files, use the IP address of system A or B.
When using the remote password, after system switching occurs, the unlock processing needs to be performed again.
The device can be used when the firmware version of "42" or later is used.
The device can be used when the firmware version of "42" or later is used.
How to use dedicated instructions
The following table lists how to use the control system IP address for dedicated instructions specifying an IP address.
Dedicated instruction GP.CONOPEN SP.SOCOPEN OPEN SP.SOCCINF SP.SOCCSET READ SREAD WRITE SWRITE
Usage methods Set the external device IP address in the control data for the control system IP address.
Set the address specification method for the target station in the control data as the IP address, and set the control system IP address to the target station.
246 1 FUNCTIONS 1.17 Redundant System Function
Precautions
· When using the control system IP address, set connections separately for system A and B IP addresses. When the control
1
system IP address and IP addresses of systems A and B are used together for the same connection, loss of data, data
arrival order interchange, and others may be occur.
· Even when the control system IP address is used, the IP address on the programmable controller side shown in "External
Device Configuration" under "Basic Settings" displays the IP address set in "Own Node Settings" under "Basic Settings".
· Do not set the control system IP address to the IP address in "PLC side I/F" of the "Specify Connection Destination
Connection" window. Even when the control system IP address is set, if system switching occurs during connection, the
new control system cannot be tracked.
· In TCP/IP communications, the control system IP address can be used only when the Ethernet-equipped module side is set
as Passive open. When it is set as Active open, use the IP address of system A or B.
· In UDP/IP communications, the control system IP address can be used only when the Ethernet-equipped module receives
data.
· When systems are switched, if communication using the control system IP address cannot be performed normally, perform
the processing to update the ARP table of the external device.
· If the external device does not have a function to update the ARP table when receiving a GARP, it cannot track the new
control system at the time of system switching, and communication becomes impossible until the ARP table of the external
device is updated. The following table lists modules with function to update the ARP table when receiving a GARP.
Applicable module MELSEC iQ-R series
MELSEC-Q series MELSEC-L series
Process CPU (redundant mode) RJ71EN71 QJ71E71-100
LJ71E71-100
Applicable version Firmware version of "04" or later Firmware version of "12" or later Serial number (first five digits) of "12062" or later
For whether an external device not manufactured by Mitsubishi supports a function to update the ARP table when receiving a GARP, check the manual or specifications for the relevant external device.
247 1 FUNCTIONS
1.17 Redundant System Function
Functions restricted in a redundant system
Functions with restrictions when communicating with a redundant system over Ethernet are as follows.
Re-initial processing
When performing the re-initial processing, specify "0H" for the modification specification (S+2) in the control data of the UINI instruction to execute the instruction.
Open/close processing
Communications using TCP/IP
Set the Ethernet-equipped module side as Passive open and perform the open/close processing from the external device side. When Active open is performed from the Ethernet-equipped module side, if system switching occurs before execution of the close processing from the Ethernet-equipped module side, the close processing may become unexecutable.
SLMP communications and communications using the random access buffer
When communicating with the standby system using user connection, set "Do Not Open by Program" for "Opening Method" in "Own Node Settings" under "Basic Settings".
When the network type is "Q Compatible Ethernet"
For the standby system CPU module, the open/close processing by input/output signals cannot be performed.
Direct connection with MELSOFT products and a GOT
When the network type is "Q Compatible Ethernet", execute direct connection with the engineering tool either using the CPU module (built-in Ethernet port part) or after setting "Disable" for "System Switching Request Issuing at Disconnection Detection" in "Redundant System Settings" under "Application Settings". When "Enable" is set for "System Switching Request Issuing at Disconnection Detection", if a cable is disconnected after a direct connection with the engineering tool is made, system switching will occur.
Searching the CPU module on the network
Even with the control system IP address set, when a CPU module search is performed, the control system IP address is not displayed. The IP addresses of systems A and B are displayed.
SLMP communications
Message format
For the request message, set 00H to the request destination network number and FFH to the request destination station number.
Access to the control system, standby system, and systems A and B
For SLMP communications, using the command request destination module I/O number, the control system CPU, standby system CPU, system A CPU, or system B CPU can be specified as the access destination. By specifying the access destination CPU module, even if system switching occurs due to a communication error, access to the specified CPU module is possible using the communications path bypass function. For details on the request destination module I/O number, refer to the following. SLMP Reference Manual
When accessing other stations via a redundant system
When accessing other stations by dynamic routing via a redundant system on the same Ethernet, access via the control system. An error occurs if accessing via the standby system. When accessing other stations via the standby system on the same Ethernet, set "Routing Setting" of "CPU Parameter".
248 1 FUNCTIONS 1.17 Redundant System Function
When the control system IP address is not used
When the control system IP address is not used, access the control system CPU module by using the following procedure.
1. Execute the open processing in the order system A B.
1
2. Read 'Control system judgment flag' (SM1634) and 'Standby system judgment flag' (SM1635) to judge the control
system.
3. Specify the control system CPU module for the request destination module I/O number and send a command message.
4. Check the response message.
To continue the communication, send command messages continuously.
5. Execute the close processing in the order the control system the standby system.
Communications using the predefined protocol
When the control system IP address is not used, establish the connection with the Ethernet-equipped modules of both systems and perform communications. When only sending data from the external device to the Ethernet-equipped module, send the data to the Ethernet-equipped modules of both the control and standby systems because the system switching timing is not able to be ascertained.
Socket communications
Receive processing by the standby system
If data is sent to the standby system Ethernet-equipped module, data reception processing will not be performed because the module reads and discards the received data.
Receive processing with interrupt program
If system switching occurs before execution with the interrupt program, and the control system is switched to the standby system, the interrupt factor will not be transferred to the other system. The interrupt factor will be retained on the own system. Therefore, if system switching occurs again and the own system becomes the control system, the interrupt program will be executed by the retained interrupt factor.
When data is sent from an external device
· When the control system IP address is not used, the system switching timing is not able to be ascertained. Send data to the Ethernet-equipped modules of both the control and standby systems.
· To use the control system IP address, check whether the Ethernet-equipped module is alive from the external device side.
Communications using the fixed buffer
Receive processing by the standby system
If data is sent to the standby system Ethernet-equipped module, data reception processing will not be performed because the module reads and discards the received data.
Receive processing with interrupt program
If system switching occurs before execution with the interrupt program, and the control system is switched to the standby system, the interrupt factor will not be transferred to the other system. The interrupt factor will be retained on the own system. Therefore, if system switching occurs again and the own system becomes the control system, the interrupt program will be executed by the retained interrupt factor.
249 1 FUNCTIONS
1.17 Redundant System Function
When data is sent from an external device
The data sending method will differ according to whether the communication method and the control system IP address are
used.
Communication method
Fixed Buffer (Procedure Exist)
Control system IP address Not Use
Use
Fixed Buffer (No
Procedure)
Send method
When system switching occurs because of a response timeout to the Ethernet-equipped module, send by changing the connection destination to the other system. When system switching occurs because of a response timeout to the Ethernet-equipped module, open a new control system. Also, check whether the Ethernet-equipped module is alive from the external device side. System switching timing cannot be ascertained because of no setting for the response timeout. Send data to the Ethernet-equipped modules of both systems.
When performing the resend processing when system switching occurs, pay attention to the following. · When communicating while synchronizing send and receive, system switching may occur in the middle of
communication, and systems may be switched in a state where send and receive are not synchronized together. When system switching occurs, out of safety considerations, restart communication after initialization of synchronization. · When using dedicated instructions, note that the completion of the execution of a write instruction needs to be executed is difficult to judge, and that the same instruction needs to be executed again. Note, however, that the same instruction may be executed twice.
Communication using the random access buffer
Because tracking is not performed on the buffer memory of the Ethernet-equipped module, when writing data to the random access buffer, write the same data to the control and standby systems.
Communications using a dedicated instruction
System switching during dedicated instruction execution
When systems are switched during execution of a dedicated instruction, the dedicated instruction may not be completed. Execute the dedicated instruction again from the control system CPU module after system switching.
When the control system IP address is used
When using dedicated instructions for the Ethernet-equipped modules of a redundant system, the same IP address can be set for both systems A and B by setting the control system IP address for the external device IP address in the control data. ( Page 245 Both systems identical IP address setting function)
Specification of the target station CPU type in dedicated instructions
For a dedicated instruction in which the target station CPU type is specified as a control data, the control system CPU, standby system CPU, system A CPU, and system B CPU can be accessed by specifying the type. By specifying the access destination CPU module, even if system switching occurs due to a communication error, access to the specified CPU module is possible using the communications path bypass function. ( MELSEC iQ-R Programming Manual (CPU Module Instructions, Standard Functions/Function Blocks), MELSEC iQ-R Programming Manual (Module Dedicated Instructions))
Processing when a dedicated instruction abnormally ends
When the dedicated instruction is executed by specifying the access destination CPU module, it may be completed with an error if systems are switched in the target station. If the dedicated instruction was completed with an error, execute it again.
SEND instruction
· When the target station is in a redundant system, the communication request source station must identify that the target station is the control system to execute the SEND instruction. When the target station is the standby system, the RECV instruction is not executed at the target station after data is sent by the SEND instruction, and the target station storage channel becomes occupied and unable to be used.
· When a redundant system exists in a network where broadcast communications are performed, the RECV instruction is not executed at the standby system, and the storage channel becomes occupied and unable to be used.
250 1 FUNCTIONS 1.17 Redundant System Function
RECV and RECVS instructions
· When the SEND instruction is executed for the control system, if the systems are switched before execution of the RECV
instruction and interrupt program, the control system retains 'RECV instruction execution request' (Un\G5301) and the
1
interrupt program interrupt factor (interrupt pointer). If system switching occurs again, and the standby system is switched
to the control system, the RECV instruction and interrupt program will be executed by the retained 'RECV instruction
execution request' (Un\G5301) and interrupt program interrupt factor.
· When the SEND instruction is executed for the standby system, and the standby system receives data from the sending
station, the standby system retains 'RECV instruction execution request' (Un\G5301) and the interrupt program interrupt
factor (interrupt pointer). Therefore, when the standby system is switched to the control system due to system switching,
the RECV instruction and interrupt program will be executed by the retained 'RECV instruction execution request'
(Un\G5301) and interrupt program interrupt factor.
REQ instruction
When performing remote STOP or remote RUN on a redundant system, do as follows: Perform STOP on the standby system
STOP on the control system RUN on the control system RUN on the standby system.
File transfer function (FTP server)
Perform file writing with the file transfer function (FTP server) as follows.
1. Log into the Ethernet-equipped modules of both systems. 2. Perform remote STOP on the CPU modules of both systems.*1 3. Write the file to the CPU modules of both systems.*2 4. Perform remote RUN on the CPU modules of both systems. 5. Log out from the Ethernet-equipped modules of both systems. 6. Clear the errors from the standby system CPU module.*3
*1 When the status of the control system CPU module is STOP state, a continuation error occurs in the standby system CPU module. *2 When the parameter file has been written, the CPU modules must be reset. *3 When the status of the control system CPU module changed from STOP to RUN state, check the error status of the standby system
CPU module, and if an error has occurred, turn on 'Error reset' (SM50) to clear the error.
Time setting function (SNTP client)
When the time is set by a program, an error may occur if system switching occurs in the timing in which the program is executed. If an error occurs, execute the program after system switching.
IP filter
When using an IP filter, exclude the control system IP address, system A IP address, and system B IP address from the IP filter settings. Otherwise, operation may not be performed normally.
IP address change function
Do not use the IP address change function to change IP addresses in a redundant system. Normal communication is not possible if an IP address has been changed. When the IP address is changed using the IP address change function, clear the IP address storage area.
Communications with Different Networks
Precautions exist for communications with different networks via a redundant system. ( Page 409 When the networks contain a redundant system)
251 1 FUNCTIONS
1.17 Redundant System Function
MODBUS/TCP slave function
When the control system IP address is not used
The processing to determine the present control system on the MODBUS/TCP master device side and to switch the communication destination (system A or system B) is required. Whether the communication destination is the control system or the standby system is determined by reading Control system judgment flag (SM1634) and Standby system judgment flag (SM1635) of the slave station CPU module.
When the control system IP address is used
Once system switching is executed, TCP connection used before is disconnected. Execute the re-connection processing from the MODBUS/TCP master device to restart TCP connection.
When the data is written to the buffer memory (H)
The buffer memory of the Ethernet-equipped module is not tracked. When executing the MODBUS command for write to the MODBUS device assigned in the buffer memory (H), write the same data to the system A and system B.
Simple CPU communications
When system switching is executed
Communications stop temporarily due to execution of system switching, therefore communications may not execute within the "Execution Interval" specified in the "Simple PLC Communication Setting" under "Application Settings".
When User setting area (Un\G722500 to Un\G1246787) is used
The buffer memory of the Ethernet-equipped module is not tracked. When writing the data to User setting area (Un\G722500 to Un\G1246787), write the same data to the system A and system B.
Even if system switching is executed, the data of User setting area (Un\G722500 to Un\G1246787) is held in the system A and system B.
252 1 FUNCTIONS 1.17 Redundant System Function
Setting example
This section describes the setting details for socket communications in a redundant system.
1
System configuration example
Receiving side (redundant system) settings
Connect the engineering tool to the CPU module to be set as the control system and set the parameters. In a redundant system, the same program and parameter are written to both systems. A new project does not need to be created for the standby system.
1. Set the CPU module as follows.
[Project] [New]
2. Click the [OK] button to add the module labels of the CPU module.
253 1 FUNCTIONS
1.17 Redundant System Function
3. In the I/O assignment setting, set the redundant function module for slot No.0.
[Navigation window] [Parameter] [System Parameter] [I/O Assignment] tab [I/O Assignment Setting]
4. Set the RJ71EN71 for slot No.1 5. Click the [OK] button to add the module labels of the RJ71EN71.
254 1 FUNCTIONS 1.17 Redundant System Function
6. Set the items in "Basic Settings" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings]
1
7. Set the network configuration as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings] [External Device Configuration]
255 1 FUNCTIONS
1.17 Redundant System Function
8. Set the redundant settings in the following items.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Application Settings] [Redundant System Settings]
9. Set whether to issue a system switching request for the user connection.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Application Settings] [Redundant System Settings] [System Switching Request Issue at Communication Error] [User Connection]
10. In the "System A/B Setting" window, set the redundant function module of own system to system A, and either reset the
CPU modules of both systems or power off and on both systems. [Online] [Redundant PLC Operation] [System A/B Setting]
256 1 FUNCTIONS 1.17 Redundant System Function
11. Write the set parameters to the system A CPU module.
[Online] [Write to PLC]
12. Click the [Yes] button to write to the CPU modules of both systems.
1
13. Either reset the CPU modules of both systems or power off and on both systems.
In this setting example, default settings are used for the parameters other than those described. For the parameter setting, refer to the chapter explaining the parameters in this manual. ( Page 261 PARAMETER SETTINGS)
Sending side
Connect the engineering tool to the CPU module on the sending side and set the parameters.
1. Set the CPU module as follows.
[Project] [New]
2. Click the [Setting Change] button in the following window and set the item to use module labels.
3. Click the [OK] button to add the module labels of the CPU module.
257 1 FUNCTIONS
1.17 Redundant System Function
4. In the I/O assignment setting, set the RJ71EN71 for slot No.0.
[Navigation window] [Parameter] [System Parameter] [I/O Assignment] tab [I/O Assignment Setting]
5. Click the [OK] button to add the module labels of the RJ71EN71.
6. Set the items in "Basic Settings" as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)] [Basic Settings]
258 1 FUNCTIONS 1.17 Redundant System Function
7. Set the network configuration as follows. The redundant system control system IP address is specified for the send
destination IP address.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Port 1 Module Parameter (Ethernet)]
1
[Basic Settings] [External Device Configuration]
8. Write the set parameters to the CPU module. Then reset the CPU module or power off and on the system.
[Online] [Write to PLC]
In this setting example, default settings are used for the parameters other than those described. For the parameter setting, refer to the chapter explaining the parameters in this manual. ( Page 261 PARAMETER SETTINGS)
259 1 FUNCTIONS
1.17 Redundant System Function
1.18 Discard received data at CPU STOP
The received data from the communication destination is discarded when the status of the CPU module is changed from RUN to STOP (PAUSE). This function is available for below two communication methods: · Communications using the fixed buffer · Socket communications
Setting procedure
This function can be enabled/disabled by directly changing the value in 'Discard received data at CPU STOP setting area' of buffer memory areas with a program.
Discard received data at CPU STOP setting area
RJ71EN71, RnENCPU (network part): Un\G1950032 to Un\G1950039 CPU module (built-in Ethernet port part): Un\G275
260
1 FUNCTIONS 1.18 Discard received data at CPU STOP
2 PARAMETER SETTINGS
This chapter describes the parameter settings required for communications between the Ethernet-equipped module and
external devices.
2.1 Setting Parameters
2
1. Add the RJ71EN71 in the engineering tool.*1
[Navigation window] [Parameter] [Module Information] Right-click [Add New Module]
2. The basic setting and application setting are included in the parameter settings. Select one of the settings from the tree
on the window shown below.
[Navigation window] [Parameter] Target module [Module Parameter]
3. After setting parameters, click the [Apply] button. 4. Write the settings to the CPU module using the engineering tool.
[Online] [Write to PLC]
5. The settings are reflected by resetting the CPU module or powering off and on the system.
*1 Addition of the module is not required when using the Ethernet function of the CPU module (CPU part for the RnENCPU).
2.2 Basic Settings
Set the own node settings and external device configuration of the Ethernet-equipped module.
Setting items Own Node Settings CC-Link IEF Basic Settings*1
External Device Configuration
Description Set the IP address and communication data code of the Ethernet-equipped module. Set the network configuration settings and refresh settings of CC-Link IE Field Network Basic. Set the method and protocol used for communicating with external devices.
*1 This setting is displayed only for modules supporting CC-Link IE Field Network Basic.
Reference
Page 262 Own Node Settings
CC-Link IE Field Network Basic Reference Manual
Page 264 External Device Configuration
261 2 PARAMETER SETTINGS 2.1 Setting Parameters
Own Node Settings
Set the IP address and communication data code of the Ethernet-equipped module.
Item
Description
Setting range
Parameter Setting Method
Set the own station settings by parameters.
Parameter Editor (fixed)
IP Address
IP Address
Set the IP address of the own station. Set the IP address class within the range of classes A, B and C. Ensure that the Ethernet-equipped module on the own station and the external device to be communicated with have the same class and subnet address. Consult with the network manager for the IP address setting. When the parameters are written without the IP address set (blank), the following IP address is set. · P1 connector of RJ71EN71: 192.168.3.40 · P2 connector of RJ71EN71: 192.168.4.40 · RnENCPU (network part): 192.168.3.40 · CPU module (built-in Ethernet port part): 192.168.3.39 When using the IP address in a redundant system, use as the system A IP address.
· Blank · 0.0.0.1 to 223.255.255.254 (Default: Blank)
Subnet Mask
Set the subnet mask pattern of the default gateway when setting the IP address of the default gateway and communicating with an external device on another network via a router. All the devices on a subnetwork must have the same subnet mask. This setting is not required when communicating in single network.
· Blank · 0.0.0.1 to 255.255.255.255 (Default: Blank)
Default Gateway
Set the IP address of the default gateway (the device which the own node passes through to access a device of another network). Set the value that satisfies the following conditions. · The IP address class is any of A, B, and C. · The subnet address of the default gateway is the same as that of the
Ethernet-equipped module on the own station. · The host address bits are not all "0" or all "1".
· Blank · 0.0.0.1 to 223.255.255.254 (Default: Blank)
Communications by Network No./Station No.
Select "Enable" to set the network number, station number, and transient transmission group number*1.
This setting is not required when the following functions are not used.
· Connection with the MELSOFT products and the GOT (when connecting by
specifying the network number and station number)
· Communications using the SLMP (when specifying the target station with its network number and station number)*1
· Communications using a link dedicated instruction*1
· Communications with different networks
· Disable · Enable (Default: Disable)
Setting Method
Select the method for setting the network number and station number. ( Page 263 Setting Method)
· Use IP Address · Not Use IP Address (Default: Use IP Address)
Network Number
Enter the network number of the own station when selecting "Not Use IP Address" in "Setting Method". Set a unique network number.
1 to 239 (Default: 1)
Station No.
Enter the station number of the own station when selecting "Not Use IP Address" 1 to 120
in "Setting Method".
(Default: 1)
Transient
Transmission Group No.*1
Set the transient transmission group number of the own station.
0 to 32 (Default: 0)
Enable/Disable Online Change
Select whether to enable external devices to write data in SLMP communications while the CPU module is in RUN state. ( Page 263 Enable/ Disable Online Change)
· Disable All (SLMP) · Enable All (SLMP) (Default: Disable All (SLMP))
Communication Data Code
Select the communication data code used for communications.
· Binary · ASCII (Default: Binary)
Opening Method
Select how to open a connection when using UDP/IP communications or Passive open of TCP/IP communications. · When "Do Not Open by Program" is selected, a connection is open when the
system received the Active request. Program for open/close processing is not required. · When "Open by Program" is selected, the open/close processing are performed by a program. The module cannot communicate when the CPU module is in STOP state.
· Do Not Open by Program · Open by Program (Default: Do Not Open by Program)
*1 This setting is not available for the CPU module (built-in Ethernet port part).
262 2 PARAMETER SETTINGS 2.2 Basic Settings
Details of items
Setting Method
When "Use IP Address" is selected, network number and station number will be set from the third and fourth octet of the IP
address.
For example, when IP address is set to 192.168.1.10, the network number is set to "1" and the station number is set to "10".
2
When the IP address is used, the value out of the range of the network number and station number cannot be set in the third
octet and fourth octet
When "Not Use IP Address" is selected, set the network number and station number.
When "Port 1 Network Type" and "Port 2 Network Type" are set to "Ethernet" for the RJ71EN71 and the same network number is set for both of P1 and P2, P1 is always used for relay to other networks.
Enable/Disable Online Change
Select whether to enable SLMP data write command received by the Ethernet-equipped module received while the CPU module is in RUN state. This setting is effective for not only the CPU module on the own station but also the ones on the other stations. When "Disable All (SLMP)" is selected, data writing using SLMP is disabled while the CPU module is in RUN state. When "Enable All (SLMP)" is selected, data writing using SLMP is enabled even when the CPU module is in RUN state. To write data to the FTP server when the CPU module is in RUN state, set "Allow Online Change" under "FTP Server Settings" in "Application Settings". ( Page 272 FTP Server Settings)
263 2 PARAMETER SETTINGS 2.2 Basic Settings
External Device Configuration
Set the method and protocol used for communicating with external devices.
Setting procedure
The procedure for setting the external device to be connected is shown below.
1. Select the external device to be connected in "Module List" and drag it to "List of devices" or "Device map area".
2. Set the required items. The required items vary depending on the selected external device. 3. Select [Close with Reflecting the Setting] to finish the external device configuration settings.
[Ethernet Configuration] [Check] [System Configuration] External devices must be set from the connection No.1 To use specific connection number, set "MELSOFT Connection Module" in the connection number not used. · When only the connection No.5 is used.
264 2 PARAMETER SETTINGS 2.2 Basic Settings
Setting items
Item [Detect Now] button
No.
Model Name Communication Method
Protocol Fixed Buffer Send/Receive Setting*2
PLC
IP Address
Port No.
Sensor/Device MAC Address Host Name
IP Address Port No. Subnet Mask Default Gateway
Description
Setting range
Execute the automatic detection of connected devices.
The [Detect Now] button is displayed only when the CPU module (built-
in Ethernet port part) is used. For details, refer to the following.
2
iQ Sensor Solution Reference Manual
Connection number for distinguishing settings for each user connection.
The number is set in the following range starting with 1. · RJ71EN71 and RnENCPU (network
part): 1 to 64*1 · CPU module (built-in Ethernet port
part): 1 to 16
The name of the external device is displayed.
Set the method for communication with the external device. Select the communication protocol for the external device.
· Broadcast Send
· Broadcast Receive · Fixed Buffer (Procedure Exist)*2 · Fixed Buffer (No Procedure)*2 · Random Access Buffer*2
· Predefined Protocol · Socket Communication*3
· MELSOFT Connection
· SLMP
· OPS Connection · MODBUS/TCP*2
· TCP*4 · UDP*4
For communications using the fixed buffer, select whether to use the buffer for sending or for receiving in a connection to the external device.
· Send · Receive · Pairing (Receive) · Pairing (Send)
The IP address of the own node, which is set in "IP Address" under
"Own Node Settings" of "Basic Settings", is displayed.
Or the IP address of the communication destination set in the device
supporting iQSS is displayed when using the automatic detection of
connected devices.
Set the port number for each connection of the Ethernet-equipped module. When "Communication Method" is set to "MODBUS/TCP", set the same value to all port numbers.
1 to 4999, 5010 to 65534 (Default: Blank)*4
The MAC address of the device supporting iQSS is displayed when
using the automatic detection of connected devices.
Set the name for identifying the device supporting iQSS. This setting is available only for the devices supporting iQSS which were detected by automatic detection of connected devices.
63 characters maximum The following one-byte characters can be used. · Number (0 to 9) · Alphabetical character (a to z, A to
Z) · Hyphen (-) · Period (.) · Colon (:) · Underscore (_) (Default: Blank)*4
Set the IP address of the external device.
0.0.0.1 to 223.255.255.254, 255.255.255.255*5 (Default: Blank)*4
Set the port number of the external device. Set "65535" to set all the port numbers as the target of data receive.
1 to 65534, 65535 (Default: Blank)*4
Set the subnet mask of the device supporting iQSS. This setting is available only for the devices supporting iQSS which were detected by automatic detection of connected devices.
192.0.0.0 to 255.255.255.252 (Default: Blank)*4
Set the default gateway of the device supporting iQSS. This setting is available only for the devices supporting iQSS which were detected by automatic detection of connected devices.
0.0.0.1 to 223.255.255.254 (Default: Blank)*4
265 2 PARAMETER SETTINGS 2.2 Basic Settings
Item
Description
Setting range
Existence Confirmation
Select the method of alive check which is performed when the Ethernet-equipped module has not communicated with the external device for a certain period of time. When the module cannot communicate with the external device, the connection will be closed. ( Page 266 Existence Confirmation)
· KeepAlive · UDP · Do not confirm existence
*1 When "Q Compatible Ethernet" is selected in the network type, the setting range is 1 to 16. *2 This setting is not available for the CPU module (built-in Ethernet port part). *3 This setting is not available when the RJ71EN71 network type is set to "Q Compatible Ethernet". *4 When the automatic detection of the connected devices is executed, the values read from the connected devices will be the default. *5 When "Communication Method" is set to "OPS Connection", 255.255.255.255 can be set.
Comment can be set on the "Properties" window displayed by right-clicking the module in "List of devices" or "Device map area" and selecting "Properties". The following can be performed depending on the selected device. · Changing the image · Creating association with a file or application
Existence Confirmation
When the Ethernet-equipped module has not communicated with the external device for a certain period of time while the connection is open, this function checks whether the external device is alive by sending an alive check message to the device and waiting for the response. The following table lists the details on alive check.
Item KeepAlive
Applicable protocol TCP/IP
UDP
UDP/IP
Do not confirm existence TCP/IP, UDP/IP
Description
This method is used for a connection opened using TCP/IP. The Ethernet-equipped module performs an alive check by sending an alive check ACK message to the external device with which communications have not been performed for a certain period of time and waiting to see whether the response is received. The connection will be automatically closed when the open state is not continued.*1
This method is used for a connection opened using UDP/IP. The Ethernet-equipped module performs an alive check by sending the PING command (ICMP echo request/response function) to the external device with which communications have not been performed for a certain period of time and waiting to see whether the response is received.*2
Alive check is not performed.
*1 The connection may be disconnected if the external device does not support the TCP KeepAlive function (response to a KeepAlive ACK message).
*2 The Ethernet-equipped module automatically sends an echo response packet when it receives a PING echo request command. (It sends a response to the received PING command even if the connection used in the data communications with the external device is closed.)
If a response message cannot be received from the external device (or if an error has been detected) using the alive check
function, the following are performed.
· The corresponding connection will be forcibly closed. (The line is disconnected.) Open the connection again using a user
program.
· Open completion signal is turned off, and the error code is stored in the buffer memory areas.
266 2 PARAMETER SETTINGS 2.2 Basic Settings
2.3 Application Settings
Set frame or communication speed of the Ethernet-equipped module.
RJ71EN71, RnENCPU (network part)
2
267 2 PARAMETER SETTINGS 2.3 Application Settings
Setting item
Frame Settings Communication Speed FTP Server Settings MODBUS/TCP Settings*1 Simple PLC Communication Setting*1
Description Set parameters for the Ethernet frame. Set the communication speed between the module and the external device. Set the file transfer function (FTP server). Set MODBUS/TCP. Set the simple CPU communication setting.
Time Setting*1 Timer Settings for Data Communication
Security*1 Gateway Parameter Settings Network/Station No. <-> IP information setting Interrupt Settings IP Packet Transfer Setting*1
Network Dynamic Routing*1 Module Operation Mode Redundant system settings*2
Set the time setting function (SNTP client). Set the timer used for the following communications. · Connection with MELSOFT products and a GOT · Communications using the SLMP · Communications using the predefined protocol · Socket communications/Communications using the fixed buffer · Communication using the random access buffer · File transfer function (FTP server) · File Transfer Function (FTP Client) Set the security measures for access to the Ethernet-equipped module. Set to communicate with an external device on Ethernet via a router and gateway.
Set to communicate with another network module or CPU module by network number and station number. Set to start up an interrupt program. Set the IP packet transfer function. For details on the IP packet transfer function, refer to the following. MELSEC iQ-R CC-Link IE Controller Network User's Manual (Application) MELSEC iQ-R CC-Link IE Field Network User's Manual (Application) Set the dynamic routing.
Set the module operation mode.
Set when using an RJ71EN71 in a redundant system.
*1 This setting is not available when the RJ71EN71 network type is set to "Q Compatible Ethernet". *2 This item is displayed only when the module configuration for a redundant system is used.
Reference Page 270 Frame Settings Page 271 Communication Speed Page 272 FTP Server Settings Page 274 MODBUS/TCP Settings Page 276 Simple CPU communication setting (RJ71EN71, RnENCPU (network part)) Page 280 Time Setting Page 281 Timer Settings for Data Communication
Page 284 Security Page 284 Gateway Parameter Settings Page 286 Network/Station No. <-> IP information setting Page 293 Interrupt Settings Page 293 IP Packet Transfer Setting
Page 294 Network Dynamic Routing Page 294 Module Operation Mode Page 295 Redundant System Settings
268 2 PARAMETER SETTINGS 2.3 Application Settings
CPU module (built-in Ethernet port part)
2
Setting item FTP Server Settings FTP Client Settings DNS Settings Web Server Settings Simple PLC Communication Setting
Time Setting Timer Settings for Data Communication
Security Gateway Parameter Settings Network/Station No. <-> IP information setting IP Packet Transfer Setting
Redundant System Settings
Built-in database access setting
Description Set the file transfer function (FTP server). Set the file transfer function (FTP client). Set the DNS setting. Set the Web server function. ( MELSEC iQ-R/MELSEC iQ-F Web Server Function Guide Book) Set the simple CPU communication setting.
Set the time setting function (SNTP client). Set the timer used for the following communications. · Connection with MELSOFT products and a GOT · Communications using the SLMP · Communications using the predefined protocol · Socket communications/Communications using the fixed buffer · Communication using the random access buffer · File transfer function (FTP server) · File Transfer Function (FTP Client) Set the security measures for access to the Ethernet-equipped module. Set to communicate with an external device on Ethernet via a router and gateway.
Set to communicate with another network module or CPU module by network number and station number. Set the IP packet transfer function. For details on the IP packet transfer function, refer to the following. MELSEC iQ-R CC-Link IE Controller Network User's Manual (Application) MELSEC iQ-R CC-Link IE Field Network User's Manual (Application) Set the redundant system function. Only functions that meet usage conditions with a redundant system can be set. ( Page 238 Redundant System Function) Set the function of CPU module built-in database access from an external device. ( MELSEC iQ-R CPU Module User's Manual (Application))
Reference Page 272 FTP Server Settings Page 273 FTP Client Settings Page 273 DNS Settings
Page 278 Simple CPU communication setting (CPU module (built-in Ethernet port part)) Page 280 Time Setting Page 281 Timer Settings for Data Communication
Page 284 Security Page 284 Gateway Parameter Settings Page 286 Network/Station No. <-> IP information setting Page 293 IP Packet Transfer Setting
Page 295 Redundant System Settings
269 2 PARAMETER SETTINGS 2.3 Application Settings
Frame Settings
Set parameters for the Ethernet frame.
Item Send Frame
Jumbo Frame*1
Description
Set the frame of the Ethernet header for the data link layer to be sent by the RJ71EN71 or the RnENCPU (network part) to the Ethernet (V2.0) frame.
Set the frame size of the data to be sent over Ethernet. Set when the data transmission speed is 1Gbps and communication is not efficient because the frame size is too small.
Setting range
Ethernet (V2.0) Frame (fixed)
· Invalid (MTU 1500 byte) · 2KB (MTU 2034 byte) · 3KB (MTU 3058 byte) · 4KB (MTU 4082 byte) · 5KB (MTU 5106 byte) · 6KB (MTU 6130 byte) · 7KB (MTU 7154 byte) · 8KB (MTU 8178 byte) · 9KB (MTU 9004 byte) (Default: Invalid (MTU 1500 byte))
*1 This setting is not available when the RJ71EN71 network type is set to "Q Compatible Ethernet".
Jumbo Frame
The following describes the precautions for using jumbo frames. · In TCP/IP communications, the setting is enabled when the external device supports jumbo frames. If the external device
does not support jumbo frames, the Ethernet-equipped module sends data in normal frame size even though the "Jumbo Frame" is enabled. · In TCP/IP communications, data sending from the external device may fail when "Jumbo Frame" of the Ethernet-equipped module is set to "Invalid (MTU 1500 byte)" and that of the external device is enabled. When communicating in jumbo frames, enable the jumbo frame setting for both of the Ethernet-equipped module and external device. · In UDP/IP communications, the Ethernet-equipped module sends data in jumbo frames according to the "Jumbo Frame" even though the external device does not support jumbo frames. · When the hub on the communication path does not support jumbo frames, the Ethernet-equipped module cannot communicate with the external device because the hub discards the packets even if the module sends data in jumbo frame. · Data can be sent in jumbo frames only when the transmission speed is 1Gbps. When "Automatic Negotiation" in "Communication Speed" is set to "Jumbo Frame" and the Ethernet-equipped module communicates at a speed less than 1Gbps, the module sends data in the standard frame size. · When the item other than "Automatic Negotiation" or "1Gbps/Full-Duplex" is set in "Communication Speed" of "Application Settings", "Jumbo Frame" cannot be set to other than "Invalid (MTU 1500 byte)".
270 2 PARAMETER SETTINGS 2.3 Application Settings
Communication Speed
Select the communication speed and communication mode from the following. (Default: Automatic Negotiation)
When "Automatic Negotiation" is selected, communication speed will be automatically set to be the same as that of another
device connected to the network.
· Automatic Negotiation
2
· 1Gbps/Full-Duplex*1
· 100Mbps/Half-Duplex
· 100Mbps/Full-Duplex
· 10Mbps/Half-Duplex
· 10Mbps/Full-Duplex
*1 This setting is not available when the RJ71EN71 network type is set to "Q Compatible Ethernet". Select "Automatic Negotiation" to use 1Gbps/full-duplex.
· When the auto-negotiation function is used, there is a time lag before starting communication because it requires the time to determine the communication speed and communication mode by FLP burst.
· It is recommended to set the auto-negotiation also in the communication destination when using the autonegotiation function. If auto-negotiation is not set in ether of the Ethernet-equipped module or partner external device, communication mode cannot be identified and it is automatically set to half-duplex mode, resulting in unstable communication.
· Set the lower communication speed when communication fails due to noise or other causes.
271 2 PARAMETER SETTINGS 2.3 Application Settings
FTP Server Settings
Set the file transfer function (FTP server).
Item FTP Server Login Name
Advanced Settings
Password Setting FTP Timer Settings Allow Online Change
Description Select whether to use the file transfer function (FTP server) of the Ethernet-equipped module.
Set the login name to be used for file transfer request (login) from the external device.
Set the password to be used for file transfer request (login) from the external device to the Ethernet-equipped module. ( Page 272 Password Setting) Set the following timers used for the file transfer function (FTP server). ( Page 272 FTP Timer Settings) · Command Input Monitoring Timer · Response Monitoring Timer Select whether to enable data writing from the external device using the file transfer function (FTP server) while the CPU module is in RUN state.
Setting range · Not Use · Use (Default: Not Use) 12 characters maximum (one-byte alphanumeric character) [Default] · RJ71EN71 and RnENCPU (network
part): RJ71EN71 · CPU module (built-in Ethernet port
part): RCPU
· Disable · Enable (Default: Disable)
Password Setting
Current Password
Enter the current password for login to the Ethernet-equipped module.
Default password (initial setting) is the following.
Module RJ71EN71, RnENCPU (network part) CPU module (built-in Ethernet port part)
Password RJ71EN71 RCPU
Although the default password can be used, it is recommended to change it to another password to prevent unauthorized access.
New Password, Confirm New Password
Enter the new password in "New Password" and "Confirm New Password" when changing the password.
Set a password within 0 to 32 one-byte characters. Number, alphabet, special character (?,!&\%#*) can be used.
FTP Timer Settings
Command Input Monitoring Timer
Set the monitoring time for the Ethernet-equipped module to monitor the command input time from the FTP client It is recommended to use the default value (900s) for this timer value as much as possible. When changing the setting value, determine the command input monitoring timer value upon consulting with the administrator of the external device or system. Set a value within the following range.
Unit s ms*1
Setting range 1 to 16383 100 to 16383000
*1 Set in increments of 100ms.
The FTP connection is disconnected if there is no command input from the FTP client side within the time of the command input monitoring timer value after the FTP client login. When restarting the file transfer, start over from the login operation again.
272 2 PARAMETER SETTINGS 2.3 Application Settings
Response Monitoring Timer
Set the monitoring time for a response from the CPU module after the Ethernet-equipped module receives the request data
from the external device and requests the CPU module for read/write.
It is recommended to use the default value (5s) for this timer value as much as possible.
When changing the setting value, determine the response monitoring timer value upon consulting with the system
administrator.
2
Set a value within the following range.
Unit
Setting range
s
1 to 16383
ms
100 to 16383000 (in increments of 100ms)
FTP Client Settings
Set the file transfer function (FTP client).
Item To Use or Not to Use FTP Client Settings
FTP Server Specification
FTP Server Name FTP Server IP Address Login Name Password Connection Method
Port No.
Description
Setting range
Set whether to use the file transfer function (FTP client) or not.
· Not Use · Use (Default: Not Use)
Set the specification method of the FTP server.
· FTP Server Name · FTP Server IP Address (Default: FTP Server Name)
Set the FTP server name (domain name) of the connection destination. 1 to 256 characters
Set the IP address of the FTP server of the connection destination in the decimal format.
0.0.0.1 to 223.255.255.254
Set the login name for login to the FTP server.
1 to 32 characters
Set the password for login to the FTP server.
0 to 32 characters
Set the connection method of the FTP server.
· PORT Mode · PASV Mode (Default: PORT Mode)
Set the port number for control of the FTP server.
1 to 65535 (Default: 21)
DNS Settings
Set the IP address of the DNS server. Set the IP address in the following cases. · When "FTP Server Specification" in "FTP Client Settings" is set to "FTP Server Name" · When the FTP server is specified with the server name for the data logging file transfer function.
Item
Description
To Use or Not to Use DNS Server Settings Set whether to use the DNS server or not.
DNS Server 1 Address DNS Server 2 Address
Set the IP address of the DNS server 1 in the decimal format. Set the IP address of the DNS server 2 in the decimal format.
Setting range
· Not Use · Use (Default: Not Use)
0.0.0.1 to 223.255.255.254
0.0.0.1 to 223.255.255.254
When "To Use or Not to Use DNS Server Settings" is set to "Use", set either one or both "DNS Server 1 Address" and "DNS Server 2 Address".
273 2 PARAMETER SETTINGS 2.3 Application Settings
MODBUS/TCP Settings
Set MODBUS/TCP.
Item To Use or Not to Use MODBUS/TCP Setting
CPU Response Monitoring Timer
Device Assignment
Description
"Use" is displayed when a MODBUS/TCP connection device is added in "External Device Configuration" under "Basic Settings". ("To Use or Not to Use MODBUS/TCP Setting" cannot be edited.)
Set the time for monitoring the response from the CPU module. ( Page 274 CPU Response Monitoring Timer)
Set the parameters to associate the MODBUS devices with the device memory areas of the CPU module. ( Page 274 Device Assignment)
Setting range · Not Use · Use (Default: Not Use)
CPU Response Monitoring Timer
Set the time for monitoring the response from the CPU module. When the CPU module does not send a response within the set time after the reception of a request message from the MODBUS/TCP master device, the state of waiting for the response from the Ethernet-equipped module is canceled. Set the CPU Response Monitoring Timer within the following range.
Unit
Setting range
s
1 to 16383
ms
100 to 16383000 (in increments of 100ms)
Device Assignment
Set the MODBUS device assignment parameters to use the MODBUS device assignment function. Create the association between the following MODBUS devices and the device memory areas of the CPU module. · Coil · Input · Input register · Holding register
Item Device
Description
Set the devices of the CPU module to be assigned to the MODBUS devices. Use H to specify a buffer memory area. (Example: H1D5000)
274 2 PARAMETER SETTINGS 2.3 Application Settings
Item Start MODBUS Device No.
Allocation Points
Description
Set the start number of the devices of the CPU module to be assigned to the MODBUS devices. The setting value for the start MODBUS device number can be obtained with the following formula. · Start MODBUS device number = Last five digits of the target MODBUS device number - 1
Set the number of device points of the CPU module to be assigned to the MODBUS devices.
2
When "Device" is blank, values set in "Start MODBUS Device No." and "Allocation Points" are ignored. In this case, data written into the programmable controller will not be assigned to the MODBUS devices. (When the written data are read from the programmable controller, "Start MODBUS Device No." and "Allocation Points" are set to 0.)
275 2 PARAMETER SETTINGS 2.3 Application Settings
Simple CPU communication setting (RJ71EN71, RnENCPU (network part))
This setting is used for using the simple CPU communication function with the RJ71EN71 or RnENCPU (network part). Set "Use" to "To Use or Not to Use Simple PLC Communication" before setting other items.
Item To Use or Not to Use Simple PLC Communication CPU Response Monitoring Timer
Simple PLC Communication Setting "Communication Destination Setting" window
Description
Setting range
Select whether to use the simple CPU communication or not.
· Not Use · Use (Default: Not Use)
Set the time for monitoring the response from the CPU module. When the CPU module does not send a response within the set time, the state of waiting for the response from the Ethernet-equipped module is canceled.
· s: 1 to 16383 · ms: 100 to 16383000 (in
increments of 100ms) (Default: 5s)
Set the items to use the simple CPU communication. ( Page 276 Simple PLC communication setting)
Click "Detailed Setting" to display the window. ( Page 277 "Communication Destination Setting" window)
Details of items
Simple PLC communication setting
Set the items to use the simple CPU communication.
Item Latency Time
Setting No. Communication Pattern
Description
Set the time required to start communications after completion of the CPU module startup. This setting is common to all the setting numbers and cannot be changed for each setting number. After system switching in a redundant system, communications are restarted regardless of the latency time.
Setting numbers 1 to 512 are available. Any numbers can be used. (Numbers to use do not have be sequential.)
Set whether to read or write data.
Communication Setting: Execution Interval (ms)
Communication Set the data communication timing. setting
Execution interval
Set the execution interval of communications when "Fixed Interval" is set for the communication setting.
Communication Destination (IP Address)
Source Destination
Target PLC No.
Set the transmission source. When "Write" is set to "Communication Pattern", the own station (IP address of the own station) is displayed.
Set the transmission destination. When "Read" is set to "Communication Pattern", the own station (IP address of the own station) is displayed.
Specify the CPU number of the communication destination. It will be the connected station when "Not Specified" is selected.
Bit Device Word Device
Points Type Start End Points Type Start End
Set the type, start number, and end number of the "Source" bit device and the type and start number of the "Destination" bit device. When these values are input, the number of points will be displayed automatically.
Set the type, start number, and end number of the "Source" word device and the type and start number of the "Destination" word device. When these values are input, the number of points will be displayed automatically.
Setting range 0 to 255s (in increments of 1s) (Default: 0s)
· Read · Write (Default: Blank) · Fixed Interval · On Request (Default: Fixed Interval) 1 to 65535ms (in increments of 1ms) (Default: 100ms) Page 277 "Communication Destination Setting" window
· Not Specified · PLC No.1 · PLC No.2 · PLC No.3 · PLC No.4 (Default: Not Specified) The setting range differs depending on the communication destination. ( Page 190 Devices that can be specified)
276 2 PARAMETER SETTINGS 2.3 Application Settings
Item
Description
Setting range
Communication Time-out Period Set the time period until retries are performed after an error response from the
10 to 65535ms (in increments of
(ms)
communication destination, the time period until the abnormal state is detected,
1ms)
and the time period to wait for a response from the communication destination.
(Default: 1000ms)
Configure the setting so that (communication time-out period) (execution
When the device type of the
interval).
communication destination set to
For details on the communication time-out period, refer to the following. Page 204 Communication Time-out Period/Communication Retry Count/
"SLMP Corresponding Device (QnA Compatible 3E Frame)", the
2
Monitoring Time At Error
value is fixed to 65535ms.
Communication Retry Count
Set the number of communication retry to be performed within the communication time-out period when the communication destination returns an error response or does not respond. For details on the communication retry count, refer to the following. Page 204 Communication Time-out Period/Communication Retry Count/ Monitoring Time At Error
0 to 255 times (Default: 3) When the device type of the communication destination set to "SLMP Corresponding Device (QnA Compatible 3E Frame)", the value is fixed to 0.
Monitoring Time At Error (s)
Set the communication time after a communication error has occurred. For details on the monitoring time at error, refer to the following. Page 204 Communication Time-out Period/Communication Retry Count/ Monitoring Time At Error
1 to 300s (Default: 30s)
Comment
Sets a comment for the setting number, if required.
32 one-byte characters (16 doublebyte characters) maximum (Default: Blank)
"Communication Destination Setting" window
The communication destination of the simple CPU communication is specified on the window.
Item Device Type
UDP/TCP IP Address Port No. Host Station Port No. Option (hexadecimal)
Description Specify the device type of the communication destination.
Set the protocol used for the communication. Enter the IP address of the communication destination. Set the port number of the communication destination. Set the port number of the own station. Set the option setting value.
Setting range
· MELSEC iQ-R (Built-in Ethernet) · MELSEC-Q (Built-in Ethernet) · MELSEC-L (Built-in Ethernet) · MELSEC iQ-F (Built-in Ethernet) · MELSEC iQ-L (Built-in Ethernet) · MELSEC iQ-R (Ethernet Module) · MELSEC-Q (Ethernet Module) · MELSEC-L (Ethernet Module) · MELSEC-A/AnS (Ethernet Module) · MELSEC-FX3 (Ethernet Block/Adapter) · SLMP Corresponding Device (QnA Compatible
3E Frame) · OMRON (CS/CJ series) · KEYENCE (KV series) · Panasonic (FP2SH series) · Panasonic (FP7 series) · YASKAWA MP3000 series · YASKAWA MP2000 series · Yokogawa FA-M3 series · MODBUS/TCP Corresponding Device · SIEMENS S7 series · Fuji Electric MICREX-SX series · JTEKT TOYOPUC series (Default: Blank)
· UDP · TCP (Default: Blank)
0.0.0.1 to 223.255.255.254 (Default: Blank)
1 to 65534 (Default: Blank)
1 to 65534 (Default: Blank)
The value differs depending on the external devices. ( Page 188 Option (hexadecimal))
277 2 PARAMETER SETTINGS 2.3 Application Settings
Simple CPU communication setting (CPU module (built-in Ethernet port part))
Set the following items when using the simple CPU communication function with the CPU module (built-in Ethernet port part).
Item Latency Time
Setting No. Communication Pattern
Description
Set the time required to start communications after completion of the CPU module startup. This setting is common to all the setting numbers and cannot be changed for each setting number.
Displays setting No.1 to 64. An arbitrary setting number can be set. (Numbers to use do not have be sequential.)
Set whether to read or write data.
Communication Setting: Execution Interval (ms)
Communication Sets this item to communicate data periodically. setting
Execution interval
Set the execution interval of communications when "Fixed Interval" is set for the communication setting.
Communication Destination (IP Address)
Source Destination
Target PLC No.
Set the transmission source. When "Write" is set to "Communication Pattern", the own station (IP address of the own station) is displayed.
Set the transmission destination. When "Read" is set to "Communication Pattern", the own station (IP address of the own station) is displayed.
Specify the CPU number of the communication destination. It will be the connected station when "Not Specified" is selected.
Bit Device
Points
Type
Start
End
Word Device
Points
Type
Start
End
Communication Time-out Period (ms)
Communication Retry Count
Set the type, start number, and end number of the "Source" bit device and the type and start number of the "Destination" bit device. When these values are input, the number of points will be displayed automatically.
Set the type, start number, and end number of the "Source" word device and the type and start number of the "Destination" word device. When these values are input, the number of points will be displayed automatically.
Set the time period until the retry is performed, the time period until a communication error occurs, and the time period to wait a response from the communication destination after an error response from the communication destination. Configure the setting so that (communication time-out period) (execution interval). For details on the communication time-out period, refer to the following. Page 225 Communication Time-out Period/Communication Retry Count/ Monitoring Time At Error Set the number of communication retry to be performed within the communication time-out period when the communication destination returns an error response or does not respond. For details on the communication retry count, refer to the following. Page 225 Communication Time-out Period/Communication Retry Count/ Monitoring Time At Error
Monitoring Time At Error (s) Comment
Set the communication time after a communication error has occurred. For details on the monitoring time at error, refer to the following. Page 225 Communication Time-out Period/Communication Retry Count/ Monitoring Time At Error
Sets a comment for the setting number, if required.
Setting range 0 to 255s (in increments of 1s) (Default: 0s)
· Read · Write (Default: Blank) Fixed (Default: Fixed Interval) 10 to 65535ms (in increments of 1ms) (Default: 100ms) Page 279 Communication destination setting
· Not Specified · PLC No.1 · PLC No.2 · PLC No.3 · PLC No.4 (Default: Not Specified) The setting range differs depending on the communication destination. ( Page 220 Devices that can be specified)
10 to 65535ms (in increments of 1ms) (Default: 1000ms) When the communication destination set to "SLMP Corresponding Device (QnA Compatible 3E Frame)", the value is fixed at 65535ms.
0 to 255 times (Default: 3) When the communication destination set to "SLMP Corresponding Device (QnA Compatible 3E Frame)", the value is fixed at 0. 1 to 300s (Default: 30s)
32 one-byte characters (16 doublebyte characters) maximum (Default: Blank)
278 2 PARAMETER SETTINGS 2.3 Application Settings
Communication destination setting
The following table lists the communication destination setting specified for the simple CPU communication.
Item
Description
Setting range
Device Type
Specify the device type of the communication
· MELSEC iQ-R (Built-in Ethernet)
destination.
· MELSEC iQ-L (Built-in Ethernet) · MELSEC iQ-F (Built-in Ethernet)
2
· MELSEC-Q (Built-in Ethernet)
· MELSEC-L (Built-in Ethernet)
· MELSEC-Q (Ethernet Module)
· MELSEC-L (Ethernet Module)
· MELSEC-A/AnS (Ethernet Module)
· MELSEC-FX3 (Ethernet Block/Adapter)
· SLMP Corresponding Device (QnA Compatible 3E Frame)
(Default: Blank)
IP Address
Enter the IP address of the communication destination.
0.0.0.1 to 223.255.255.254 (Default: Blank)
Port No.
Set the port number of the communication destination.
· MELSEC-A/AnS (Ethernet Module): 256 to 65534 · MELSEC-FX3 (Ethernet Block/Adapter): 1025 to 5548, 5552 to 65534 · SLMP Corresponding Device (QnA Compatible 3E Frame): 1 to 4999, 5010
to 65534 · Other than the above: Setting not required (Default: Blank)
Host Station Port No.
Set the port number of the own station.
· MELSEC-A/AnS (Ethernet Module): 1 to 4999, 5010 to 65534 · MELSEC-FX3 (Ethernet Block/Adapter): 1 to 4999, 5010 to 65534 · SLMP Corresponding Device (QnA Compatible 3E Frame): 1 to 4999, 5010
to 65534 · Other than the above: Setting not required (Default: Blank)
279 2 PARAMETER SETTINGS 2.3 Application Settings
Time Setting
Set the time setting function (SNTP client).
Item Time Setting (SNTP Client)
SNTP Server IP Address Timer Setting After Power-on and Reset
Execution Timing
Time Intervals Specified Time (Hour, Minute, Day of Week)
Description Select whether to use the time setting function (SNTP client).
Set the IP address of the SNTP server.
Select whether to execute the time setting function upon power-on or reset.
Select the execution timing of the time setting.
When "Fixed Scan Interval" is selected, set the time interval (minute) of time setting executions. When "Fixed Time" is selected, set the day of the week and the clock time (hour and minute) when the time setting function is executed. ( Page 280 Specified Time (Hour, Minute, Day of Week))
Setting range
· Not Use · Use (Default: Not Use)
0.0.0.1 to 223.255.255.254 (Default: 0.0.0.1)
· Disable · Enable (Default: Disable)
· Fixed Time · Fixed Scan Interval (Default: Fixed Time)
1 to 1440 (Default: 1 Minute)
The SNTP server must be only one in a network. The time to be output is the same even though multiple modules in the same system retrieve time from the same SNTP server.
Execution Timing
Specified Time (Hour, Minute, Day of Week)
Set an execution time value within the following range in "Clock Time (Hour, Minute)".
Item
Setting range
Hour Minute
0 to 23 (Default: 12)
0 to 59 (Default: 0)
To specify the day of the week when time setting is executed, set "Not Set" in the day when time setting is not executed under "Day of Week". (Time setting is set to be executed every day (all the days are set to "Set") by default.) When specifying the day of the week, set at least one day of the week to "Set". An error occurs when all the days are set to "Not Set".
280 2 PARAMETER SETTINGS 2.3 Application Settings
Timer Settings for Data Communication
Set the timer used for the following communications.
· Connection with MELSOFT products and a GOT
· Communications using the SLMP
· Communications using the predefined protocol
2
· Socket communications/Communications using the fixed buffer
· Communication using the random access buffer
· File transfer function (FTP server)
· File Transfer Function (FTP Client)
When changing the timer settings for data communication, refer to the precautions before setting. ( Page 282 Precautions
for settings)
Item Change/Set Timer Value
Description
Select whether to change timer values from the default. The timer operates with its default value when "No" is selected.
TCP Resend Timer
Set the waiting time to resend ACK if it is not returned when a connection is opened or data is sent in TCP/IP. This timer is also used as the minimum set time for arrival monitoring for data link instructions.
Destination Alive Check Start Interval Timer Set the time interval between the reception of the last message from the external device and the start of alive check.
Destination Alive Check Interval Timer
Set the time interval for performing alive check again when no response is returned from the external device of alive check target.
Destination Alive Check Resend Count
Set the number of times to perform alive check when no response is returned from the external device of alive check target.
Advanced Settings
Response Monitoring Timer
Set the following time. · The time to wait for a response after sending command in
communications with a fixed buffer (procedure exists) · The time interval between the first message and last message when
receiving the divided messages.
TCP ULP Timer
Set the time-to-live of the send packet in TCP/IP communications. For example, when the TCP resend timer value is set to 10 seconds and the TCP ULP timer value is set to 30 seconds, data will be resend every 10 seconds if no response is returned from the external device after data sending, and timeout error occurs if no response is returned within 30 seconds.
TCP End Timer
When closing the TCP/IP connection by the own station, set the monitoring time for waiting for a FIN from the external device after the own station sends a FIN and an ACK is returned from the external device. If a FIN is not received from the external device within the time specified by the TCP end timer value, an RST is sent to the external device and the connection is forcibly closed.
TCP Zero Window Timer
The window means the receive buffer on the receive side. If the receive buffer on the receive side has no free space (window size = 0), data sending is waited until the receive side has free receive buffer space. At this time, the sending side sends packets for checking the send window to the receive side according to the TCP zero window timer value to check the receiving status.
IP Assembly Timer
The communication data may be divided at the IP level before being sent due to the buffer limitation of the sending station or the receiving station. Set the waiting time for the divided data in such a case.
Setting range · No · Yes (Default: No) Unit [s]: 1 to 16383 Unit [ms]: 100 to 16383000*1 (Default: 10s)
Unit [s]: 1 to 16383 Unit [ms]: 100 to 16383000*1 (Default: 600s) Unit [s]: 1 to 16383 Unit [ms]: 100 to 16383000*1 (Default: 10s) 1 to 99999 (Default: 3) Unit [s]: 1 to 16383 Unit [ms]: 100 to 16383000*1 (Default: 30s)
Unit [s]: 1 to 16383 Unit [ms]: 100 to 16383000*1 (Default: 30s)
Unit [s]: 1 to 16383 Unit [ms]: 100 to 16383000*1 (Default: 20s)
Unit [s]: 1 to 16383 Unit [ms]: 100 to 16383000*1 (Default: 10s)
Unit [s]: 1 to 16383 Unit [ms]: 100 to 16383000*1 (Default: 5s)
*1 Set in increments of 100ms.
281 2 PARAMETER SETTINGS 2.3 Application Settings
Precautions for settings
Setting value for each timer of the Ethernet-equipped module side.
Set the timer values so that the following formula is met.
Response monitoring timer value
TCP ULP timer value
TCP end timer value
TCP resend timer value
>
IP assembly timer value
TCP resend timer value
=
TCP zero window timer value
When connecting Mitsubishi products to the line, configure the same settings for both modules.
Setting value for each timer of the external device side.
Set the timer values so that the following formula is met. The frequency of a communication error, such as a transmission
timeout, may be higher if the timer values do not meet the formula.
TCP ULP timer
TCP resend timer value
value on the external > on the Ethernet-equipped
device
module
Monitoring timer value of the application software on the external > device
TCP ULP timer value on
the Ethernet-equipped
× n*1
module
*1 "n" is the number of TCP segment transmission and is calculated by the following formula.
Message size sent by the Ethernet-equipped module
n = A value that
is rounded up to the nearest integer
Maximum Segment size
Ex. The number of TCP segment transmission when communications are performed on the same line The Maximum Segment Size is 1460 bytes on the same line (without a router) and the number of TCP segment transmissions is as follows. · n = 1 when the size of the message sent by the Ethernet-equipped module is 1460 bytes or less · n = 2 when the size of the message sent by the Ethernet-equipped module is greater than 1460 bytes
Ex. The number of TCP segment transmission when communications are performed on a different line The Maximum Segment Size is at least 536 bytes on another line (via a dialup router or other communication device) and the number of TCP segment transmissions is as follows. · n = 1 when the size of the message sent by the Ethernet-equipped module is 536 bytes or less · n = 2 when the size of the message sent by the Ethernet-equipped module is greater than 536 bytes and no more than
1072 bytes · n = 3 when the size of the message sent by the Ethernet-equipped module is greater than 1072 bytes and no more than
1608 bytes
282 2 PARAMETER SETTINGS 2.3 Application Settings
Number of retries
When a communication failure occurs due to a problem such as noise, change the value so that the number of retries may increase. The number of retries is obtained using the following formula. (When using the default values, 3 = 30 10) Number of retries = TCP ULP timer value TCP resend timer value
Ex. When the number of retries is three and data sending fails, a data sending error occurs at the timing shown in the figure below
2
(in communications using the fixed buffer).
BUFSND instruction
BUFSND instruction Completion device + 1
Data command
1 scan
RJ71EN71 1st retry
2nd retry
3rd retry
A
A
A
TCP ULP timeout value
A: TCP resend timer value (The time at which data are sent when ACK is not returned after data transmission)
When not performing the above retry process (when setting 0 time), configure the setting so that the following formula is met. TCP ULP timer value = TCP end timer value = TCP resend timer value (Set the same value for the timer values.)
283 2 PARAMETER SETTINGS 2.3 Application Settings
Security
Set the security measures for access to the Ethernet-equipped module.
Item
IP Filter Settings
IP Filter
IP Filter Settings
Disable Direct Connection with MELSOFT
Do Not Respond to CPU Module Search
Description
Setting range
Set whether to enable the IP filter.
· Not Use · Use (Default: Not Use)
Set the IP address to be allowed or denied. ( Page 284 IP Filter
Settings)
Set whether enable or disable direct connection to the engineering tool.
· Disable · Enable (Default: Enable)
Select whether to respond to the CPU module search.
· Do Not Respond · Respond (Default: Respond)
IP Filter Settings
Up to 32 IP addresses can be set as an IP address to be allowed or denied by the IP filter. Range specification and specification of the IP addresses to be excluded from the set range are also possible.
Item Access from IP address below
Range Setting IP Address
IP Address Excluded from Range
Description Select whether to allow or deny the access from the specified IP addresses.
Select this item when specifying the IP addresses by range. Set the IP address to be allowed or denied. When selecting "Range Setting", enter the start IP address (left field) and end IP address (right field) of the range. When selecting "Range Setting", set the IP address to be excluded from the set range. Up to 32 IP addresses can be set.
Setting range · Allow · Deny (Default: Allow) (Default: Clear) 0.0.0.1 to 223.255.255.254 (Default: Blank)
0.0.0.1 to 223.255.255.254 (Default: Blank)
Gateway Parameter Settings
With gateway parameter settings, the Ethernet-equipped module can communicate with external devices on other Ethernet networks via a router and gateway. One default router and up to eight routers can be set.
Item Gateway Other Than Default Gateway
Gateway Information
No.1 to No.8
Description Set to communicate with an external device on the other Ethernet via a router.
Set the information of the gateway other than the default gateway. ( Page 285 Gateway Information)
Setting range
· Use · Not Use (Default: Not Use)
Set the default gateway when communicating via the default gateway. ( Page 262 Own Node Settings)
284 2 PARAMETER SETTINGS 2.3 Application Settings
Gateway Information
Gateway IP Address
When communicating with an external device on another Ethernet network through a gateway other than the default gateway,
set the IP address of the gateway. (Setting range: 0.0.0.1 to 223.255.255.254)
Set a value that satisfies the following conditions.
2
· The IP address class is any of A, B, and C.
· The subnet address of the gateway is the same as that of the Ethernet-equipped module on the own station.
· The host address bits are not all "0" or all "1".
· When the Ethernet-equipped module communicates with an external device on another Ethernet network by Passive open, communication is possible without gateway parameter settings.
· In a system where the Proxy router is used, the gateway parameter settings are not required.
Subnet Address
When communicating with an external device on another Ethernet network through a gateway other than the default gateway, set the network address*1 or subnet address*2 of the external device. (Setting range: 0.0.0.1 to 255.255.255.254) Set a value that satisfies the following conditions. · The IP address class is any of A, B, and C. · The host address bits are all "0".
*1 Set the network address of the external device when its class (network address) is different from that of the Ethernet-equipped module on the own station.
*2 Set the network address of the external device when its class (network address) is the same as that of the Ethernet-equipped module on the own station.
Own station Class B IP address: 81052F01H(129.5.47.1) Subnet mask: FFFFFC00H (255.255.252.0)
Ethernet 4
Ethernet 1
Router 1
Ethernet 2
Router 2
Router 3
Ethernet 3
Setting example 1
External device 1 Class B IP address: 81044001H (129.4.64.1)
Setting example 2
External device device 2 Class A IP address: 71044001H (113.4.64.1)
Setting example 3
External device 3 Class B IP address: 81052902H (129.5.41.2)
Ex. When the network addresses differ between the Ethernet-equipped module on the own station and the external device
Network address
Own station IP address (Class B)
External device 1 IP address (Class B)
81H
05H
2FH
01H
10000001000001010010111100000001
81H
04H
40H
01H
10000001000001000100000000000001
Network address
Set the network address of the external device 1.
81H
04H
00H
00H
Subnet address setting value 1 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
285 2 PARAMETER SETTINGS 2.3 Application Settings
Ex. When the classes differ between the Ethernet-equipped module on the own station and the external device
Own station IP address (Class B)
External device 2 IP address (Class A)
Network address
81H
05H
2FH
01H
10000001000001010010111100000001
71H
04H
40H
01H
01110001000001000100000000000001
Network address
Set the network address of the external device 2.
71H
00H
00H
00H
Subnet address setting value 0 1 1 1 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Ex. When the network address of the Ethernet-equipped module on the own station is the same as that of the external device
Network address
Own station IP address (Class B)
Subnet mask
External device 3 IP address (Class B)
81H
05H
2FH
01H
10000001000001010010111100000001
FFH
FFH
FCH
00H
11111111111111111111110000000000
81H
05H
29H
02H
10000001000001010010100100000010
Subnet address
Set the subnet address of the external device 3.
81H
05H
28H
00H
Subnet address setting value 1 0 0 0 0 0 0 1 0 0 0 0 0 1 0 1 0 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0
Network/Station No. <-> IP information setting
Set to communicate with another network module or CPU module by network number and station number. Communication in Ethernet is performed according to the IP address and UDP port number, and access to another network is performed according to the network number and station number. Therefore, when the Ethernet-equipped module accesses another network, the IP address and UDP port number must be converted into the network number and station number of the network.
Item Setting System
Subnet Mask Pattern Conversion Settings
Description Select the system to obtain the IP address and port number of the external device from its network number and station number. ( Page 287 Setting system)
Set the subnet mask pattern. ( Page 292 Subnet Mask Pattern)
Set the information of the external device. ( Page 293 Conversion Settings)
Setting range
· Automatic Response System · IP Address Calculation System · Table Conversion System · Combination System (Default: Automatic Response System)
· Blank · 0.0.0.1 to 255.255.255.255 (Default: Blank)
286 2 PARAMETER SETTINGS 2.3 Application Settings
· When transferring messages which are sent to other stations specifying network number and station
number, to another network, "Gateway Parameter Settings" in "Application Settings" is required. ( Page
284 Gateway Parameter Settings)
· "Network/Station No. <-> IP information setting" is required when other stations are accessed via other
Ethernet network systems and must be registered in all the Ethernet-equipped module which has the
2
network number and station number.
· The setting can be made in the CPU module (built-in Ethernet port part) if it has the firmware version
supporting communications by network number/station number. ( Page 436 Added and Enhanced
Functions)
Setting system
Select the system to obtain the IP address and port number of the external device from its network number and station number. There are four methods as shown below. The items required to be set ("Subnet Mask Pattern" and "Conversion Settings") differ depending on the method. : Setting is required, : Setting is not required
Setting system Automatic Response System IP Address Calculation System Table Conversion System Combination System
Subnet mask pattern
Conversion settings
· In MELSOFT connection using UDP/IP, if the external device is not registered in the conversion table of table conversion system, the Ethernet-equipped module communicates with the device using the automatic response system. Therefore, even when both of communications with different networks using the link dedicated instruction and MELSOFT connection are performed simultaneously, the Ethernet-equipped module can communicate with the external device in MELSOFT connection regardless of the registered data in the conversion table.
· If the IP address and port number cannot be retrieved when IP address calculation system, table conversion system, or combination system is set, the Ethernet-equipped module will retrieve them using the automatic response system and send a response to the external device.
287 2 PARAMETER SETTINGS 2.3 Application Settings
Automatic Response System
This system differs from the other conversion method in that specification can only be made when the own station is the communication request destination station or communication relay receiving station. Relay communications via other networks can be performed easily because the IP address and port number of the destination station are not required to be set.
Communication request source station
CPU RJ71 module EN71
Communication relay receiving station
Ethernet Communication relay sending station
The automatic response system can be set.
CPU RJ71 RJ71 module EN71 EN71
Ethernet
CPU RJ71 module EN71
Communication request destination station
Communication relay station
Previous station
Communication request message
Communication relay receiving station
Communication relay sending station
Response message
Next station
Conversion processing of the automatic response system is as below. · When receiving the communication request message (command frame), the Ethernet-equipped module internally stores
the send source network number, IP address, and UDP port number in the request message, as the station information. The response message (response) for the communication request message is returned to the destination IP address and UDP port number calculated from the stored network number and station number. Therefore, by receiving the other station access communication request message first, the communication destination stations can be maintained. · The maximum number of station information that can be set is 120. When more than 120 other station access communication request messages are received, the Ethernet-equipped module starts deleting from the oldest data to store the station information in the newly received message communication request message. However, it is ignored if the station information is the same as the station information already stored. (Information from the same station is not stored twice.)
288 2 PARAMETER SETTINGS 2.3 Application Settings
IP Address Calculation System
This system obtains the IP address of the destination station by calculating the network number and station number with the formula described below. The UDP port number predefined for the Ethernet-equipped module is used as the UDP port number of the destination.
IP address of the partner station =
IP address of the own station
Logical product
Net mask pattern for CC-Link IE Controller Network, CC-Link IE Field Network, MELSECNET/H, MELSECNET/10
Logical sum
Network number and station number of the destination
2
routing
Conversion processing of the IP address calculation system is as below. · When a communication request message (command frame) to access other station is received, the IP address is
calculated from the network number and station number of the destination in the communication request message, which are stored in the Ethernet-equipped module, and the communication request message is sent to the next station (relay station or destination station). · The response message (response) for the communication request message is returned based on the return IP address and the stored data above.
Ex. IP address calculation example The logical product and logical sum are calculated differently depending on the class of the own station IP address. An IP address is calculated as follows. (For class A) · When the own station IP address is 79238102H · When the net mask pattern for routing other networks is FF000000H · When the destination network number is 03H, and the station number is 05H
Own station IP Address Net Mask Pattern
Logical product
7
9 .2
3 .8
1.0
2
F
F .0
0 .0
0 .0
0
Logical product value Network No. and station No. Logical sum
7
9 .0
0 .0
0 .0
0
0
3 .0
5
Partner station IP Address
7
9 .0
0 .0
3 .0
5
(For class B) · When the own station IP address is 8438FA0AH · When the net mask pattern for routing other networks is FFFF0000H · When the destination network number is 03H, and the station number is 05H
Own station IP Address Net Mask Pattern
Logical product
8
4 .3
8 .F
A .0
A
F
F .F
F .0
0 .0
0
Logical product value Network No. and station No. Logical sum
8
4 .3
8 .0
0 .0
0
0
3 .0
5
Partner station IP Address
8
4 .3
8 .0
3 .0
5
289 2 PARAMETER SETTINGS 2.3 Application Settings
(For class C) · When the own station IP address is CA65300AH · When the net mask pattern for routing other networks is FFFFFF00H · When the destination station number is 02H (The network number is not used.)
Own station IP Address Net Mask Pattern
Logical product
C
A.6
5 .3
0 .0
A
F
F .F
F .F
F .0
0
Logical product value Network No. and station No. Logical sum
C
A.6
5 .3
0 .0
0
0
2
Partner station IP Address
C
A.6
5 .3
0 .0
2
· IP address configuration of class A
31 30 24 23
16 15
0
Class
Network address
Host address
· IP address configuration of class B
31 30 29
16 15
0
Class
Network address
Host address
· IP address configuration of class C
31 29 28 Class
Network address
87
0
Host address
Table Conversion System
This system uses the network number, station number, IP address set in the conversion table of the Network/Station number <-> IP information. The UDP port number predefined for the Ethernet-equipped module is used as the UDP port number of the destination. If duplicate network and station numbers are set in the conversion table, the data set with the younger registration number is used. If no data is registered in the conversion table, communication may not be performed successfully. Conversion processing of the table conversion system is as below. · When a communication request message (command frame) to access other station is received, the same network number
and station number are searched in the conversion table of the Network/Station No. <-> IP information, and the communication request message is sent to the destination station with the corresponding IP address. · The response message (response) for the communication request message is returned based on the return IP address and the data in the conversion table above.
290 2 PARAMETER SETTINGS 2.3 Application Settings
Ex. Conversion table registration example The following shows the example of conversion table registration based on the network map.
(1) Communication request source station
CPU RJ71 Network No.: 1 module EN71 Station No.: 11
2
IP Address: (192. 0. 1. 11)
Ethernet (Network No.1) (2) Communication relay receiving station (3) Communication relay sending station
Network No.: 1 Station No.: 12 IP Address: (192. 0. 1. 12)
CPU RJ71 RJ71 module EN71 EN71
Network No.: 2 Station No.: 21 IP Address: (192. 0. 2. 21)
Ethernet (Network No.2)
CPU RJ71 module EN71
Network No.: 2 Station No.: 22 IP Address: (192. 0. 2. 22)
(4) Communication request destination station
(a): For communication request message transmission, b): For response message transmission
Item
Setting value (decimal)
Network No., Station No. IP Address
Setting details of each Ethernet-equipped module when accessing from (1) to (2)
(1) Communication (2)
(3)
(4)
request source
station (a)
1, 12
Setting not required
Setting not required
Setting not required
192.0.1.12
Item
Setting value (decimal)
Network No., Station No. IP Address
Setting details of each Ethernet-equipped module when accessing from (1) to (4)
(1) Communication request source station (a)
(2) Communication relay receiving station (b)
(3) Communication relay sending station (a)
(4) Communication request destination station (b)
1, 12
1, 11
2, 22
2, 21
192.0.1.12
192.0.1.11
192.0.2.22
192.0.2.21
Item
Setting value (decimal)
Network No., Station No. IP Address
Setting details of each Ethernet-equipped module when accessing from (2) to (1)
(1)
(2) Communication (3)
(4)
request destination
station (a)
Setting not required
1, 11
Setting not required
Setting not required
192.0.1.11
Item
Setting value (decimal)
Network No., Station No. IP Address
Setting details of each Ethernet-equipped module when accessing from (3) to (4)
(1)
(2)
(3) Communication (4)
relay sending station
(a)
Setting not required
Setting not required
2, 22
Setting not required
192.0.2.22
Item
Setting value (decimal)
Network No., Station No. IP Address
Setting details of each Ethernet-equipped module when accessing from (4) to (1)
(1) Communication request source station (b)
(2) Communication relay sending station (a)
(3) Communication relay receiving station (b)
(4) Communication request destination station (a)
1, 12
1, 11
2, 22
2, 21
192.0.1.12
192.0.1.11
192.0.2.22
192.0.2.21
291 2 PARAMETER SETTINGS 2.3 Application Settings
Item
Setting details of each Ethernet-equipped module when accessing from (4) to (3)
(1)
(2)
(3)
(4) Communication
request destination
station (a)
Setting value (decimal)
Network No., Station No. IP Address
Setting not required
Setting not required
Setting not required
2, 21 192.0.2.21
Combination System
This system combines the IP address calculation system and the table conversion system.
Select this system when accessing other stations with the same network number, accessing other stations in other networks
or Ethernet with different network number, or relaying from other networks to the Ethernet network system.
The set target Ethernet-equipped module can be installed either at a communication request source station, communication
relay station, or communication request destination station.
Conversion processing of the combination system is as below.
· When a communication request message (command frame) to access other station is received, the communication request
message is sent to the next station obtained by the table conversion system at first.
· If the IP address of the external device cannot be retrieved by the table conversion system, the IP address is retrieved by
the IP address calculation system to send the communication request message.
· The response message (response) to the communication request message is returned based on the return IP address and
data in the conversion table, or the stored data.
The relationship between the conversion method and the definition of the Ethernet-equipped module mounted station is as
follows. : Can be set, : Cannot be set
Conversion method
Ethernet-equipped module mounted station definition
Communication request source station
Communication relay station Relay receiving station Relay sending station
Automatic Response System *1
*1
IP Address Calculation
System
Table Conversion System
Combination System
Communication request destination station
*1 For the external device that completed the communication, the station can be a communication request source station or a relay sending station.
Subnet Mask Pattern
Specify the mask value based on the guidelines given below. This pattern is used in a logical sum with the own station IP address when calculating the IP address of the external device using the IP address calculation system. When setting the subnet mask, specify the target settings of the IP address class, network address, and subnet address so that all bits are "1" in the mask pattern. Specify the mask pattern with a decimal/hexadecimal value obtained by dividing the 32-bit mask value into 8-bit segments. When the subnet mask is not specified, the mask pattern setting is not necessary. The following mask value is used as the mask pattern according to the own station IP Address class.
Class
Mask value used
Class A Class B Class C
FF.00.00.00H FF.FF.00.00H FF.FF.FF.00H
292 2 PARAMETER SETTINGS 2.3 Application Settings
Conversion Settings
The conversion setting is required to obtain the IP address from the network number and station number using the table
conversion system.
If the own station is an Ethernet-equipped module and the next station to which the communication request/response
message is passed to access other station is also an Ethernet-equipped module, specify the network number, station number,
2
and IP address of the Ethernet-equipped module of the next station.
Interrupt Settings
Set the parameters required for starting up an interrupt program.
Item Interrupt Occurrence Factor
Description Set the interrupt cause.*2
Channel No./Connection No.
Detection Method Interrupt Pointer Comment
Set the start condition of an interrupt program. When "Interrupt Occurrence Factor" is set to "SEND Instruction Data Reception", set the number of the channel which receives send data. When "Interrupt Occurrence Factor" is set to "Reception Connection", set the number of the connection which receives send data. The detection method for the interrupt condition is displayed when "Interrupt Occurrence Factor" is set. Set an interrupt pointer (device (I)) to be used for a program.
Set a comment for the interrupt pointer used, if required.
Setting range · SEND Instruction Data Reception*3 · Reception Connection (Default: Blank)
· SEND Instruction Data Reception: 1 to 8
· Reception Connection: 1 to 64*1 (Default: Blank)
Edge (Default: Blank)
Device: I0 to I15, I50 to I1023 (Default: Blank)
256 one-byte characters maximum (Default: Blank)
*1 When "Q Compatible Ethernet" is selected in the network type, the setting range is 1 to 16. *2 An interrupt program is started when the receive data is stored in the channel or connection specified in "Channel No./Connection No.". *3 When selecting "SEND Instruction Data Reception", set "Communications by Network No./Station No." under "Own Node Settings" of
"Basic Settings" to "Enable", and set the network number and station number.
Maximum number of interrupt settings can be set to one module (sum of the settings for the P1 connector and the P2 connector) is 16. Setting number of the interrupt settings is shared in P1 connector and P2 connector. For example, when SI00 is set on the P1 connector side, SI00 on the P2 connector side cannot be set.
IP Packet Transfer Setting
Set when using the IP packet transfer function. The IP packet transfer function enables the Ethernet device (such as computers) connected to the Ethernet-equipped module to communicate with the device on other networks that has an IP address via CC-Link IE Field Network or CC-Link IE Controller Network. To use this function, set "IP Packet Transfer Function" to "Not Use". (Default: Not Use) For details on the IP packet transfer function, refer to the following. · MELSEC iQ-R CC-Link IE Controller Network User's Manual (Application) · MELSEC iQ-R CC-Link IE Field Network User's Manual (Application)
If the application timeout of the request source device occurs due to a heavy communication load on the path that an IP packet takes, measure the response time using the PING command from the request source device and adjust the application timeout time. Data size must be within 1460 bytes when the PING command is used.
293 2 PARAMETER SETTINGS 2.3 Application Settings
Network Dynamic Routing
Set when using the dynamic routing. Setting "Network Dynamic Routing" is possible only when values are set in "Network No." and "Station No." under "Own Node Settings" of "Basic Settings". ( Page 263 Details of items) For details, refer to the following. Page 407 Communications with Different Networks
· When the communication path is set in "Routing Setting" of "CPU Parameter", setting of "Routing Setting" has a priority.
· When enabling dynamic routing, do not connect the CPU module (built-in Ethernet port part) and the Ethernet-equipped module on the same Ethernet using a hub or other means.
Module Operation Mode
Set the module operation mode. Set the same operation mode for both of the P1 connector and P2 connector. For a redundant system, select the module operation mode of system A. For details on module communication test mode, refer to the following. Page 302 Module communication test
Item Module Operation Mode
Description
Online · Normal operation mode Offline · Communication with other stations and dedicated instruction cannot
be performed in this mode. Select this mode to debug the program while the network is not yet connected. Module Communication Test · A mode for operating the module communication test. Select this mode to check the operation when the module is in abnormal condition.
Setting range
· Online · Offline · Module Communication Test (Default: Online)
When different operation modes are set for the P1 connector and P2 connector, the Ethernet-equipped module operates with the following operation modes.
Module Operation Mode P1 connector Online
Offline
Module Communication Test
P2 connector Offline Module Communication Test Online Module Communication Test Online Offline
Operation mode of Ethernet-equipped module
Offline Module Communication Test Offline Module Communication Test Module Communication Test
294 2 PARAMETER SETTINGS 2.3 Application Settings
Redundant System Settings
Set when using an Ethernet-equipped module in a redundant system.
Item
Description
Setting range
To Use or Not to Use Redundant Select whether to use the redundant function or not.
· Use
System Settings
Set the same setting for port 1 and port 2.
· Not Use
2
Select "Use" when installing the RJ71EN71 to the main base unit.
(Default: Use)
Select "Not Use" when installing the RJ71EN71 to the extension base unit.
Own Node (System A) IP Address
The IP address set in "Own Node Settings" under "Basic Settings" is displayed. Not displayed when it has not been set.
System B IP Address
Set the IP address of system B. Ensure that this address has the same class and subnet address as "Own Node (System A) IP Address". When the parameters are written without the IP address set (blank), the following IP address is set. · P1 connector of RJ71EN71: 192.168.3.42 · P2 connector of RJ71EN71: 192.168.4.42 · CPU module (built-in Ethernet port part): 192.168.3.41
· Blank · 0.0.0.1 to 223.255.255.254 (Default: Blank)
Own Node (System A) Station Number
System B Station Number*1
The station number set in "Own Node Settings" under "Basic Settings" is displayed. Not displayed when it has not been set.
Set the system B station number. Set when the station number is set in "Own Node Settings" under "Basic Settings".
1 to 120 (Default: 2)
Use of Control System IP Address*2
Control System IP Address*2
Set whether to use the control system IP address or not. · When "Use" is selected, set the control system IP address. When the control
system IP address is used, access using the control IP address is possible even if system switching occurs. · When "Not Use" is selected, access is made using the own node (system A) or system B IP address. When the RJ71EN71 is used, pay attention to the following. · When using port group settings, the setting for "Use of Control System IP Address" should be the same for port 1 and port 2.
Set the control system IP address. Set the address after setting "Use" to "Use of Control System IP Address". Set so that the IP address has the same class and subnet address as the IP addresses used in the system. Consult with the network manager for the IP address setting. Set the IP address not to overlap the one used in the system. Set the IP address class within the range of classes A, B and C. Set the same control system IP address for system A P1 and system B P1, or for system A P2 and system B P2.
· Not Use · Use (Default: Not Use)
· Blank · 0.0.0.1 to 223.255.255.254 (Default: Blank)
Own Node (System A) Module The module operation mode set for "Module Operation Mode" under
Operation Mode
"Application Settings" is displayed.
System B Module Operation Mode*1
Port Group Setting*1*2
Set the module operation mode of system B. For details on the module operation mode, refer to the following. Page 294 Module Operation Mode
Set the port group. Set the same value for port 1 and port 2. If "No Setting" is selected, when a system switching error occurs on either port, performs system switching. This setting is not available when "Q Compatible Ethernet" is set for the RJ71EN71 network type.
· Online · Offline · Module Communication Test (Default: Online)
· No Setting · Switch Systems When a System
Switching Error Occurs in Port 1 · Switch Systems When a System
Switching Error Occurs in Port 2 · Switch Systems When a System
Switching Error Occurs in Both of Port 1 and Port 2 (Default: No Setting)
System Switching Request
Issuing at Disconnection Detection*1
Set whether to issue a system switching request when a cable disconnection is detected.
· Enable · Disable (Default: Enable)
Disconnection Detection Monitoring Time*1
Set the time between cable disconnection detection after communication starts normally and issuance of a system switching request to the control system CPU module.
Unit [s]: 0.0 to 30.0 Unit [ms]: 0 to 30000 (in increments of 100ms) (Default: 2s)
295 2 PARAMETER SETTINGS 2.3 Application Settings
Item
Description
Setting range
System Switching Request Issue at Communication Error*1 User Connection*1
System Connection*1
Set whether to issue a system switching request when a communication error occurs.
· Enable · Disable (Default: Disable)
Set the connection for issuance of a system switching request when a communication error occurs, from the connections set in "External Device Configuration" under "Basic Settings". By setting the comment for the connection device in "External Device Configuration" under "Basic Settings", the connection can be easily identified. ( Page 264 External Device Configuration)
· Not to Issue · Issue (Default: Not to Issue)
Set whether to issue a system switching request when a communication error occurs for each port. Set this item after setting "Enable" to "System Switching Request Issue at Communication Error". Page 296 System connection
*1 This setting is not available for the CPU module (built-in Ethernet port part). *2 This setting is not available when the RJ71EN71 network type is set to "Q Compatible Ethernet".
System connection
Set "Enable" to "System Switching Request Issue at Communication Error" before setting the following items.
Item Auto-open UDP Port
MELSOFT Transmission Port (UDP/IP)
MELSOFT Transmission Port (TCP/IP)
FTP Transmission Port (TCP/IP)
Simple CPU communication port
Description Set whether to issue a system switching request using the auto open UDP port when a communication error occurs. This port is used for SLMP communications. This setting is enabled when the following conditions are met. · The remote password setting is enabled. · The remote password is unlocked. When the above conditions are not met, even if a communication error occurs in the target connection, a system switching request will not be issued. Set whether to issue a system switching request using the MELSOFT transmission port (UDP/ IP) when a communication error occurs. This port is used for UDP/IP communications with MELSOFT products. This setting is enabled when the following conditions are met. · The remote password setting is enabled. · The remote password is unlocked. When the above conditions are not met, even if a communication error occurs in the target connection, a system switching request will not be issued. When "System Switching Request at Communication Error" is selected, a system switching request is issued when a communication error occurs in the following ports. · Port used for communications using a dedicated instruction · Relay transmission port with other networks · MELSOFT direct connection port · Direct connection port with the engineering tool When "No System Switching Request at Communication Error" is selected, even if a communication error occurs in any of the above ports, a system switching request will not be issued. Set whether to issue a system switching request using the MELSOFT transmission port (TCP/ IP) when a communication error occurs. This port is used for TCP/IP communications with MELSOFT products.
Set whether to issue a system switching request using the FTP transmission port (TCP/IP) when a communication error occurs. This port is used for the file transfer function (FTP server).
Set whether to issue a system switching request using the simple CPU communication port when a communication error occurs. This port is used for the simple CPU communication function.
Setting range · No System Switching Request at
Communication Error · System Switching Request at
Communication Error (Default: No System Switching Request at Communication Error)
· No System Switching Request at Communication Error
· System Switching Request at Communication Error
(Default: No System Switching Request at Communication Error)
· No System Switching Request at Communication Error
· System Switching Request at Communication Error
(Default: No System Switching Request at Communication Error) · No System Switching Request at
Communication Error · System Switching Request at
Communication Error (Default: No System Switching Request at Communication Error) · No System Switching Request at
Communication Error · System Switching Request at
Communication Error (Default: No System Switching Request at Communication Error)
296 2 PARAMETER SETTINGS 2.3 Application Settings
Precautions on simple CPU communication
Before using the simple CPU communication in a redundant system, check the following.
Redundant system settings
To execute system switching when a communication error (alive check error and ULP timeout) is detected, set the following
items in "Redundant System Settings" under "Application Settings". ( Page 240 Communication error detection)
2
· "System Switching Request Issue at Communication Error": Enable
· "Simple PLC Communication Port under System connection": System Switching Request at Communication Error (
Page 296 System connection)
System switching is executed only when a communication error occurs. When the following errors occur, system switching is
not executed.
· CFB4H: An abnormal response was received from the external device.
· CFB5H: The frame received from the external device is incorrect.
When the simple CPU communication have never been executed, system switching is not executed even if a communication
error occurs.
Operation during system switching
Depending on "Communication Setting: Execution Interval (ms)" in "Simple PLC Communication Setting" under "Application
Settings", system switching operates in the following manner.
Communication setting
Fixed interval
On Request
Operation
Communications stop temporarily during system switching and restart automatically from the new control system. In the same manner as in the normal operation start, when Request to start communication at request (Un\G721896 to Un\G721899, Un\G1247300 to Un\G1247327) of each setting numbers is turned on under the following status after system switching is completed, communications restart. · Preparation completion (Un\G721912 to Un\G721915, Un\G1247412 to Un\G1247439) for each setting number is turned on: Ready · Simple CPU communication status (Un\G721936 to Un\G721999, Un\G1247460 to Un\G1247907) for each setting number is 2:
Waiting for request
297 2 PARAMETER SETTINGS 2.3 Application Settings
3 TROUBLESHOOTING
This chapter describes troubleshooting of when the Ethernet function is used.
3.1 Checking with LED
This section describes troubleshooting using LED.
Error status can be determined by status of the RUN LED and the ERR LED.
RUN LED
ERR LED
Error status*1 Description
Off
On, flashing
Major error
An error such as hardware failure or memory failure. The module stops operating.
On
Flashing
Moderate error
An error, such as parameter error, which affect module operation. The module stops operating.
On
On
Minor error
An error such as communication failure. The module continues operating.
*1 When multiple errors occur, the error status is displayed in the order of major, moderate, and minor.
For the RJ71EN71 or RnENCPU, whether the error occurs in the P1 or P2 can be checked with P ERR LED.
When the RUN LED or READY LED turns off
When the READY LED of the CPU module turns off after power-on, refer to the troubleshooting of the CPU module. ( MELSEC iQ-R CPU Module User's Manual (Application)) When the RUN LED of the RJ71EN71 or RnENCPU turns off, check the following.
Check item
Action
Is the Ethernet-equipped module mounted correctly?
Securely mount the Ethernet-equipped module on the base unit.
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)
When the ERROR LED or ERR LED turns on or is flashing
When the ERROR LED of the CPU module turns on or is flashing, perform the module diagnostics of the CPU module.
[Diagnostics] [Module Diagnostics (CPU Diagnostics)] When the ERR LED of the RJ71EN71 or RnENCPU turns on or is flashing, identify the error cause using the engineering tool. ( Page 300 Checking the Module Status) If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)
298 3 TROUBLESHOOTING 3.1 Checking with LED
When the SD/RD LED does not turn on at data sending
When the SD/RD LED does not turn on at data sending, check the following items.
Check item Is the ERROR LED or ERR LED on or flashing? Are the cables properly connected?
Is the program correct?
Action
Identify the error cause using the engineering tool. ( Page 300 Checking the Module Status, Page 304 Checking the Network Status).
Correct the cable properly.
Perform the following tests to check for the status of the cable connection and
line. · PING test ( Page 309 PING Test)
3
· Communication status test ( Page 310 Communication Status Test)
Check and correct the send program of the Ethernet-equipped module.
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)*1
*1 The module communication test cannot be performed for the CPU module (built-in Ethernet port part). Perform the troubleshooting of the CPU module and check for hardware failure. ( MELSEC iQ-R CPU Module User's Manual (Startup))
When data cannot be received with the SD/RD LED off
When data cannot be received with the SD/RD LED off, check the following.
Check item Is the ERROR LED or ERR LED on or flashing? Are the cables properly connected?
Are the parameter settings correct?
Is the program correct?
Action
Identify the error cause using the engineering tool. ( Page 300 Checking the Module Status, Page 304 Checking the Network Status).
Correct the cable properly.
Perform the following tests to check for the status of the cable connection and line. · PING test ( Page 309 PING Test) · Communication status test ( Page 310 Communication Status Test)
Check the module parameters of the Ethernet-equipped module. Correct the value for the following setting if it is wrongly set. · "IP Address" under "Own Node Settings" of "Basic Settings" · "Gateway Parameter Settings" of "Application Settings" Page 261 PARAMETER SETTINGS
Check and correct the send program of the external device.
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)*1
*1 The module communication test cannot be performed for the CPU module (built-in Ethernet port part). Perform the troubleshooting of the CPU module and check for hardware failure. ( MELSEC iQ-R CPU Module User's Manual (Startup))
When the L ER LED turns on
When the L ER LED turns on, check the following.
Check item Are the Ethernet cables used normally?
Does the cabling condition (bending radius) meet the specifications? Is the hub used operating normally?
Is there any source of noise near the module or cables?
Action
· Check if the Ethernet cable which conforms the standard is used. ( MELSEC iQ-R Ethernet/CC-Link IE User's Manual (Startup))
· Check if the station-to-station distance is set within range. ( MELSEC iQ-R Ethernet/CC-Link IE User's Manual (Startup))
· Check if the Ethernet cables are not disconnected.
Refer to the manual for the Ethernet cable, and correct the bending radius.
· Check if the hub which conforms the standard is used. ( MELSEC iQ-R Ethernet/CC-Link IE User's Manual (Startup))
· Power off and on the hub.
Change the location of the module or cables.
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)
299 3 TROUBLESHOOTING 3.1 Checking with LED
3.2 Checking the Module Status
The following table lists the functions which can be used in the "Module Diagnostics" window of the Ethernet-equipped module.
Functions Error Information
Module information list Supplementary Function
Ethernet Diagnostics
Applications
Displays the details of the errors currently occurring. Click the [Event History] button to check the history of errors that have occurred on the network, errors detected for each module, and operations that have been executed.
Displays various status information of the Ethernet-equipped module
Enables checking the cause to resolve the problem when an error occurs in the Ethernet system. ( Page 304 Checking the Network Status)
Error Information
Check the details of the error currently occurring and action to remove the error.
Item Status
Detailed Information Cause Corrective Action
Description Major: An error such as hardware failure or memory failure. The module stops operating. Moderate: An error, such as parameter error, which affect module operation. The module stops operating. Minor: An error such as communication failure. The module continues operating. Displays detailed information about each error (maximum of 3 pieces). Displays the detailed error causes. Displays the actions to eliminate the error causes.
300
3 TROUBLESHOOTING 3.2 Checking the Module Status
Module Information List
Switch to the [Module Information List] tab to check various status information of the Ethernet-equipped module. (The displayed items vary depending on the module.)
3
Item
Description
LED information
Displays the LED status of the Ethernet-equipped module.
Individual information (P1: Ethernet)*1
Network Number Station Number
Displays the network number set for the selected module. Displays the station number set for the selected module.
Transient transmission group No.
Displays the transient transmission group number set for the selected module.
Send Frame
Displays the send frame setting set for the selected module.
Jumbo Frame
Displays the jumbo frame setting set for the selected module.
Communication speed setting
Displays the communication mode set for the selected module.
IP address (1st octet) to IP address (4th octet)
Displays the IP address set for the selected module.
Control system IP address (1st octet) to Control system IP address (4th octet)
Displays the control system IP address set for the selected module.
Individual information (P2: Ethernet)*1
MAC address (1st octet) to MAC address (6th octet)
Displays the MAC address of the selected module. (Same as the P1 connector)
*1 This item is displayed when the network type is set to "Ethernet". For when the network type is set to "CC-Link IE Control", refer to the following. MELSEC iQ-R CC-Link IE Controller Network User's Manual (Application) For when the network type is set to "CC-Link IE Field", refer to the following. MELSEC iQ-R CC-Link IE Field Network User's Manual (Application)
3 TROUBLESHOOTING 3.2 Checking the Module Status
301
Module communication test
The module communication test checks the hardware of the RJ71EN71 or the RnENCPU (network part). When the communication using the RJ71EN71 or the RnENCPU (network part) is unstable, whether a hardware failure occurs or not can be checked. The following table lists the tests performed.
Test item Internal self-loopback test External self-loopback test
Description
Checks whether the communication function of the module can be performed normally. Checks whether the communication can be performed normally with the cable connected between two connectors.
Procedure
Systems other than the redundant system
1. Set the module operation mode for P1 and P2 each to module communication test mode in the following item.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Module Parameter] [Application Settings] [Module Operation Mode]
2. Connect the P1 and P2 of the RJ71EN71 or the RnENCPU (network part) with an Ethernet cable. 3. Write the module parameters to the CPU module. 4. Reset or power off and on the CPU module to start the module communication test.
Do not perform a module communication test while connected to another station. The operation of another station may failed.
Redundant system
To perform a module communication test for a redundant system, set the operation mode to separate mode. ( MELSEC iQ-R CPU Module User's Manual (Application)) Before execution, perform system switching in advance so that the module communication test target station operates as the standby system. The following describes a procedure for executing a module communication test for the RJ71EN71 of system B (standby system).
1. Set the module operation mode of system A to online mode in the following item.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Module Parameter] [Application Settings] [Module Operation Mode]
2. Set the module operation mode of system B to module communication test mode in the following item.
[Navigation window] [Parameter] [Module Information] [RJ71EN71] [Module Parameter] [Application Settings] [Redundant System Settings] [System B Module Operation Mode]
3. Connect the P1 and P2 of the RJ71EN71 of system B with an Ethernet cable. 4. Set the system B CPU module to the STOP state. 5. Write the module parameters to the system B CPU module. 6. Reset or power off and on the system B CPU module to start a module communication test.
302
3 TROUBLESHOOTING 3.2 Checking the Module Status
· To perform a module communication test on system A, set the module operation mode of system A to module communication test mode and the module operation mode of system B to online mode.
· When returning the module to a normal operation state after the test, reconnect the Ethernet cable as before the test, and then execute the CPU module memory copy to transfer the parameters of the control system to the standby system. ( MELSEC iQ-R CPU Module User's Manual (Application))
· Do not perform a module communication test while connected to another station. The operation of another station may failed.
3
Check of status and result
The test status and result can be checked with the dot matrix LED of the module.
Test status Test in progress Normal completion Abnormal end
LED display The dot matrix LED displays "UCT". The dot matrix LED displays "OK". The ERR LED turns on and the dot matrix LED indicates "ERR" and error number alternately at intervals of 1 second.
Error number when the test abnormally ended.
The dot matrix LED indicates the error number with the form of "Target Ethernet port Error number". For example, "1 3" is displayed when error No.3 occurs in P1. If the module communication test fails, take the following actions.
Error number 1
2
3
Description
Internal self-loopback test failure External self-loopback test connection error External self-loopback test communication error
Action
Please consult your local Mitsubishi representative.
Check the Ethernet cable connection or replace the Ethernet cable, and perform the test again. If the test fails again, Please consult your local Mitsubishi representative. Replace the Ethernet cable and perform the test again. If the test fails again, Please consult your local Mitsubishi representative.
3 TROUBLESHOOTING 3.2 Checking the Module Status
303
3.3 Checking the Network Status
Ethernet diagnostics
The communication status of the Ethernet-equipped module and external device can be checked with Ethernet diagnostics. [Diagnostics] [Ethernet Diagnostics]
Set the Ethernet-equipped module to be diagnosed in "Target Module Specification".
304
3 TROUBLESHOOTING 3.3 Checking the Network Status
· The Ethernet diagnostics cannot be started when "Other Station (Co-existence Network)" has been
specified in "Other Station Setting" on the "Specify Connection Destination Connection" window and "CC-
Link" or "C24" has been specified in "Co-existence Network Route".
· When starting the Ethernet diagnostics with a setting other than "No Specification" in "Other Station Setting"
on the "Specify Connection Destination Connection" window, use the engineering tool of the version 1.035M
or later.
· When a setting other than "No Specification" has been specified in "Other Station Setting" of "Specify
Connection Destination Connection", specify an Ethernet-equipped module to be diagnosed in "Other
3
Station Setting" of "Specify Connection Destination Connection". If another Ethernet-equipped module is
specified, the Ethernet diagnostics can be started only for the specified Ethernet-equipped module, but not
for the non-specified Ethernet-equipped module even if it is on the same base unit. The Ethernet
diagnostics can be started for stations of up to eight networks ahead (number of relay stations: 7) including
the network to which the station directly connected with the engineering tool belongs.
· In a redundant system, the Ethernet diagnostics cannot be started when system A or system B has been
specified under "Specify Redundant CPU" of "Target system" in the "Specify Connection Destination
Connection" window. Directly connect a station to be diagnosed to the engineering tool and specify the host
CPU module ("Specify Redundant CPU" is set to "Not Specified") to start the Ethernet diagnostics.
· In a redundant system configuration of the remote head module, the Ethernet diagnostics cannot be started
when the engineering tool is connected to the remote head module of the standby system. Connect it to the
remote head module of the control system, and start the diagnostics.
· In a redundant system, the Ethernet diagnostics cannot be started when the system is switched from A/B to
B/A in "Main Base Information" of "System Monitor".
Precautions
If the communication path includes the following items, the Ethernet diagnostics cannot be started. · MELSECNET/H · Multidrop connection with a serial communication module · Interface board for a personal computer · GOT (when the transparent function is used) · MELSEC-Q/L series network module
3 TROUBLESHOOTING 3.3 Checking the Network Status
305
Status of Each Connection
The status of each connection of the Ethernet-equipped module selected.
The following table lists the displayed items in "Status of Each Connection" tab.
Item Connection No./Function Host Station Port No. Communication Destination Communication Method*2 Communication Destination IP Address Communication Destination Port No. Latest Error Code Protocol Open System TCP Status
Pairing Open*1 Existence Confirmation*1 Remote Password Status Consecutive failed unlock attempts Force Deactivation Status
Description Displays the connection number and functions (FTP server, FTP client*3, MELSOFT direct connection). Displays the own station port number used. Displays the communication method.
Displays the IP address of the sensor/device to be connected, which is set in the parameter settings.
Displays the port number of the sensor/device to be connected, which is set in the parameter settings. Displays the error code that indicates the definition of latest error occurred. Displays the protocol (TCP/IP or UDP/IP) Displays the open method (Active, Unpassive, or Fullpassive) when the protocol of the connection is TCP/IP. Displays the status (open status) of connection with the sensor/device when the protocol of the connection status is TCP/IP. Displays the setting status of pairing open when the communication method of the connection is the fixed buffer. Displays the alive check method set in the parameter settings. Displays the remote password setting status. Displays the total number of continuous failure of remote password unlock. Displays the status of forced invalidation specification.
*1 This item is displayed only for the RJ71EN71 and the RnENCPU (network part). *2 This item is displayed only when the network type of the RJ71EN71 is set to "Q Compatible Ethernet" and "MELSOFT Connection
Module" is set as an external device in "External Device Configuration" of "Basic Settings". *3 This item is displayed only for the CPU module (built-in Ethernet port part).
Click the [Clear Latest Error Code] button to clear all the errors displayed in "Latest Error Code" of each connection.
Information about connection No.17 to 64, FTP server, MELSOFT direct connection are not displayed when "Q Compatible Ethernet" is set in the network type of the RJ71EN71.
306
3 TROUBLESHOOTING 3.3 Checking the Network Status
Status of Each Protocol
The total number of packets sent/received by each protocol of the selected Ethernet-equipped module can be checked.
3
The following table lists the displayed items in "Status of Each Protocol" tab.
Item Total Number of Receives Total Number of Sends Total Number of Sum Check Error Cancels Total Number of Echo Request Receives Total Number of Echo Reply Sends Total Number of Echo Request Sends Total Number of Echo Reply Receives
Description Displays the total number of received packets. Displays the total number of sent packets. Displays the number of times the received packet was discarded due to checksum error.
Displays the total number of received ICMP echo request packets.
Displays the total number of sent ICMP echo reply packets. Displays the total number of sent ICMP echo request packets. Displays the total number of received ICMP echo reply packets.
Display range 0 to 4294967295 0 to 4294967295 0 to 4294967295
0 to 4294967295
0 to 4294967295 0 to 4294967295 0 to 4294967295
3 TROUBLESHOOTING 3.3 Checking the Network Status
307
Connection Status
The communication status of the Ethernet-equipped module.
The following table lists the displayed items in "Connection Status" tab.
Item Communication Status
Broadcast
Full Duplex/Half Duplex
Connection Status
Communication Rate
Number of Disconnections
Maximum Size of Detection
Amount of Data per Unit Time (Latest)
Amount of Data per Unit Time (Maximum)
Description Displays whether the line is full-duplex or half-duplex. Displays the cable connection status. Displays the communication speed. Displays the number of times the line entered a state where communication cannot be performed. Displays the maximum size of discarded broadcast messages.
Displays the size (latest value) per second of discarded broadcast messages.
Displays the size (maximum value) per second of discarded broadcast messages.
Display range 0 to 65535
0 to 65535
0 to 4294967295
0 to 4294967295
Click the [Clear Line Status] button to clear all the data in "Broadcast".
Information in "Broadcast" is not displayed when "Q Compatible Ethernet" is selected for the network type of the RJ71EN71.
308
3 TROUBLESHOOTING 3.3 Checking the Network Status
PING Test
The PING test checks existence of an Ethernet device on the same Ethernet network. This test is performed on the network of stations connected to the engineering tool by sending packets for check. If a response returns, the communication can be performed.
"Ethernet Diagnostics" window [PING Test] button
3
Procedure
Set the required items in "Input Item" and click the [Execute] button to execute the PING test. The test results are displayed in the "Result" box.
· When executing the PING test from the RJ71EN71 and the RnENCPU (network part) by connecting the engineering tool and CPU module with a USB cable, network number and station number setting is required to specify the PING executing station.
· When the Ethernet diagnostics are started with a setting other than "No Specification" in "Other Station Setting" on the "Specify Connection Destination Connection" window, the PING test cannot be used.
Action for abnormal end
If the test fails, check the following and perform the test again. · Whether the Ethernet-equipped module is properly mounted on the base unit · Connection to the Ethernet network · Parameter settings written in the CPU module · Operating status of the CPU module (whether or not an error has occurred) · IP addresses set in the engineering tool and the PING test target station · Whether the external device has been reset after the Ethernet-equipped module was replaced
3 TROUBLESHOOTING 3.3 Checking the Network Status
309
Communication Status Test
The communication status test checks whether the communication between the own station and the external device on the same Ethernet is operated normally. The following external devices are the target of communication status test. · RJ71EN71 (when the Ethernet function is used) · RnENCPU (network part) (when the Ethernet function is used) · MELSEC-Q series Ethernet interface module (function version B or later) · MELSEC-L series Ethernet interface module This test is performed on the network of stations connected to the engineering tool, by sending the test messages sequentially to specified network and station number range. If the module that received the message returns a response, communication is normal.
"Ethernet Diagnostics" window [Communication Status Test] button
The communication status test cannot be used in the following cases. · When the Ethernet function of the CPU module (CPU part for the RnENCPU) is used · When the Ethernet diagnostics are started with a setting other than "No Specification" in "Other Station
Setting" on the "Specify Connection Destination Connection" window
Procedure
Set the required items in "Setting Item" and click the [Execute] button to execute the communication status test. The test results are displayed in the "Result" box.
310
3 TROUBLESHOOTING 3.3 Checking the Network Status
Action for abnormal end
If the communication status test fails, "No Response" or an error code is displayed in the "IP Address / Error Code" field in
"Result".
Displayed test result
Status of the external device
Cause
Action
No Response
No error
The initial process for the Ethernet-equipped module Correct the module parameters. has not been completed normally.
There is an error in the line connection to the
· Check the cable.
Ethernet-equipped module. (Cable disconnection, line disconnection, or others)
· Check the hub and gateway.
3
The IP address of the Ethernet-equipped module is incorrect. (The class or subnet address differs from that of the Ethernet-equipped module.)
Correct the module parameters.
The same IP address has been set to multiple Ethernet-equipped modules.
The same network number or station number has been set to multiple Ethernet-equipped modules.
No error/Error exists The Ethernet line is heavily loaded.
Perform the test again when the Ethernet line is not heavily loaded.
Error exists
The routing settings are not configured.
Correct the set value for "Routing Setting" of "CPU Parameter".
Error code
No error
The "MELSOFT Transmission Port (UDP/IP)" for the Ethernet-equipped module is locked with the remote password.
Disable the remote password setting and write the parameters to the CPU module.
The target module does not support the communication status test.
Check the module name and function version.
No error/Error exists The Ethernet line is heavily loaded.
Perform the test again when the Ethernet line is not heavily loaded.
Precautions
· The communication status test cannot be executed when "MELSOFT Transmission Port (UDP/IP)" for the target Ethernetequipped module is locked with the remote password.
· When executing the communication status test, set "Gateway Other Than Default Gateway" under "Gateway Parameter Settings" in "Application Settings" to "Not Use".
3 TROUBLESHOOTING 3.3 Checking the Network Status
311
Simple CPU communication diagnostics
The communication status of the simple CPU communication function can be checked with "Simple CPU Communication Diagnostics".
[Diagnostics] [Simple CPU Communication Diagnostics]
Item Set No. Comm Patn Comm Set Tgt PLC No.
Status
IP Address Port No. Tgt PLC No. Exe Intv [ms] (Prsnt) Exe Intv [ms] (Max) Exe Intv [ms] (Min) Norm Compl Err Compl Retries Latest Err
Err Det... [Clear Latest Error Code] button
(Own station) IP address
Description
Displays the setting number of the simple CPU communication.
Displays the communication pattern (read/write) set with the parameters.
Displays the communication setting (Fixed Interval/On Request) set with the parameters.
Displays the communication destination set with the parameters. The destination is displayed when the simple CPU communication is executed with the RJ71EN71 or RnENCPU (network part).
Displays the communication status ("Not Set", "Prepg", "Rqst Wtng", "Exctng", "Stpng", "Rtryng", "Mntrng", or "Comm Dis"). During system switching in a redundant system, "Prepg" is displayed.
Displays the IP address of the communication destination set with the parameters.
Displays the port number of the communication destination set with the parameters.
Displays the target PLC number set with the parameters.
Displays the current value, the maximum value, and the minimum value of the execution interval in increments of ms. The values will not be updated during retry or monitoring. During communication stop, 0 is displayed on "Exe Intv [ms] (Prsnt)". During system switching in a redundant system, 0 is displayed. Displays "-----" when "On Request" is set to "Comm Set" in "Simple PLC Communication Settings" under "Application Setting".
Displays the accumulated count of communications that have been completed successfully, completed with an error, and retried. · 0 to 4294967295: Accumulated count When the count exceeds 4294967295, counting is continued from 1 again.
Displays the latest error code. When no error has occurred, "No Error" is displayed. The error remains displayed even after the communication status has changed to the state in which the communication can be performed normally. When another error occurs, it will be overwritten with a new one.
Displays the descriptions and corrective actions for the error occurring in the selected setting number.
Clears the error code. This operation also clears the error codes (Un\G1194 to Un\G1257) of the corresponding setting number in the CPU buffer memory.
The IP address set in "Own Node Settings" under "Basic Settings" in the RJ71EN71 or RnENCPU (network part) is displayed. In a redundant system (with control system IP address), the control system IP address is displayed.
312
3 TROUBLESHOOTING 3.3 Checking the Network Status
· Even if system switching is executed, "Norm Compl", "Err Compl", "Retries", "Latest Err", and "Err Det..."
are not tracked and the data is stored in the system A and system B. Therefore, "Norm Compl", "Err Compl",
and "Retries" is accumulated per system and "Latest Err" and "Err Det..." are different between the system
A and system B.
· When the engineering tool version is not the latest version, "-----" is displayed as a diagnostics result. To
diagnose correctly, update the engineering tool version.
· When "Not Specified" is set to "Specify Redundant CPU" on the "Specify Connection Destination
Connection" window in a redundant system, the simple CPU diagnostics does not start. Directly connect a
3
station to be diagnosed to the engineering tool and specify the host CPU module ("Specify Redundant CPU"
is set to "Not Specified") to start the Ethernet diagnostics.
· In a redundant system of the remote head module, the simple CPU diagnostics does not start when the
engineering tool is connected to the remote head module of the standby system. Connect it to the remote
head module of the control system, and start the diagnostics.
· In a redundant system, the simple CPU communication diagnostics cannot be started when the system is
switched between A and B in "Main Base Information" of "System Monitor".
3 TROUBLESHOOTING 3.3 Checking the Network Status
313
3.4 Troubleshooting by Symptom
This section describes troubleshooting method by symptom. If an error has occurred in the Ethernet-equipped module, identify the error cause using the engineering tool. ( Page 300 Checking the Module Status)
Communications cannot be performed with the external device.
The following table lists how to troubleshoot the problem when the Ethernet-equipped module cannot communicate with the external device.
Check item Is the READY LED of the CPU module off?
Is the RUN LED of the RJ71EN71 or the RnENCPU (network part) off?
Is the Ethernet cable securely connected?
Does the external device conform to the Ethernet standard?
Is the external device powered on? Does any error occur in the external device, hub, router, or other devices? Does the protocol (TCP/IP or UDP/IP) match with that of the external device?
Is the access from the external device set to be denied in "IP Filter Settings" under "Security" of "Application Settings"? Was a device on the line (such as an Ethernet-equipped module, external device, hub, and router) replaced with the one with the same IP address?
Is the IP address of the external device specified correctly?
Is "Module Operation Mode" of "Application Settings" set to other mode than "Online"?*4 Has the initial processing been completed normally? (Check 'Initial status' (Un\G1900024.0))*3 Does the communication data code (ASCII or binary) setting match with that of the external device?
Is the target connection in forcibly invalidated state in the "Force Deactivation Status" column in the "Status of Each Connection" tab of the "Ethernet Diagnostics" window? Is the access from the Ethernet-equipped module denied by the security setting of the external device? For the RJ71EN71 or the RnENCPU (network part), is 'IP address change function operating status' (Un\G11715.0) on?
Does a timeout occur when connecting to the engineering tool?
Action
If the READY LED of the CPU module is off, perform the troubleshooting of the CPU module. ( MELSEC iQ-R CPU Module User's Manual (Application))
If the RUN LED of the RJ71EN71 or the RnENCPU (network part) is off, reset the CPU module. If the RUN LED is still off even after resetting the CPU module, the possible cause is a hardware failure. Replace the RJ71EN71 or RnENCPU and restart all the external devices that were performing communications with the own station.*1
If the Ethernet cable is not securely connected, take following actions. · Securely lock the cable. · Check the wiring. ( MELSEC iQ-R Ethernet/CC-Link IE User's Manual
(Startup))
If the device does not conform to the Ethernet standard, replace it with one conforming to the standard. ( MELSEC iQ-R Ethernet/CC-Link IE User's Manual (Startup))
If the external device is not powered on, power it on.
If an error occurs, refer to the manual for each device and take action.
Correct the parameters so that the protocol matches with that of the external device. ( Page 264 External Device Configuration)
If the access from the external device is denied, change the setting so that the access is allowed. ( Page 284 IP Filter Settings)
If a device was replaced, take any of the following actions. · Wait for update of the ARP cache (waiting time varies depending on the
device) · Restart all the devices on the line.*1
Execute a PING test to the IP address of the external device. If the existence of the external device cannot be checked, network configuration is incorrect. Consult with the system or network manager.
Set "Module Operation Mode" of "Application Settings" to "Online". ( Page 294 Module Operation Mode)
If the initial processing has not been completed successfully, correct the module parameters. ( Page 261 PARAMETER SETTINGS)
If the data code settings do not match, data cannot be sent or received because the external device cannot normally decode commands.*2 Set the same data code as that of the external device in "Communication Data Code" under "Own Node Settings" of "Basic Settings". ( Page 262 Own Node Settings)
Turn off the area corresponding to the target connection in 'Forced connection invalidation setting area' (Un\G5646 to Un\G5650) to cancel the forced invalidation.
Correct the security setting (such as firewall) of the external device.
When 'IP address change function operating status' (Un\G11715.0) is on, the module is operating according to the settings of the IP address change function. Either clear the IP address storage area, or correct the settings. ( Page 230 IP Address Change Function)
Increase the value for "Check at Communication Time" and "Retry Times" in the following windows in the "Specify Connection Destination Connection" window and connect again. · "Host Station Detailed Setting" window of "No Specification" · "Other Station Detailed Setting" window of "Other Station (Single Network)"
or "Other Station (Co-existence Network)"
314
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
When the problem cannot be solved with above actions, check the error cause according to the communication processing
and take action.
· Communications using the SLMP ( Page 317 Communications using the SLMP cannot be performed.)
· Communications using the predefined protocol ( Page 318 Communications using the predefined protocol cannot be
performed.)
· Socket communications/Communications using the fixed buffer ( Page 319 Socket communications/communications
using the fixed buffer cannot be performed.)
· Communications using the random access buffer ( Page 320 Communications using the random access buffer cannot
be performed.)
3
· Communications using a link dedicated instruction ( Page 322 Communications using a link dedicated instruction
cannot be performed.)
· File transfer function (FTP server) ( Page 322 Access using the file transfer function (FTP server) cannot be
performed.)
*1 A device on Ethernet has a table of IP addresses and their corresponding MAC address, called "ARP cache". When a device on the line is replaced by the one having the same IP address, the MAC address in the ARP cache is different from that of the replaced device; therefore, communications may not be normally performed. The "ARP cache" is updated by resetting the device or after a while. The time varies depending on the device.
*2 If the communication data code setting is different between the Ethernet-equipped module and the external device, error codes that are not found in the error code list may be returned to the external device. When receiving data with different data codes, the Ethernetequipped module cannot decode commands normally. The Ethernet-equipped module returns an error response according to the communication data code setting.
*3 The buffer memory address is for when the network type of the RJ71EN71 or the RnENCPU (network part) is set to "Ethernet" and the P1 connector is used. When using the P2 connector or the CPU module (built-in Ethernet port part), or setting the network type to "Q Compatible Ethernet", refer to the following. Page 355 Buffer Memory
*4 Check this item only for the modules that have the relevant setting in the module parameters.
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
315
A message sent from the external device cannot be received frequently.
When the Ethernet-equipped module frequently fails to receive a message sent from the external device, check the following items.
Check item Are there many detected errors in 'Simultaneous transmission error detection count (receive buffer full count)' (Un\G5022 to Un\G5023)?*1 Has a system error been stored in 'Latest error code' (Un\G100 to Un\G163 (Connection No.1 to No.64 latest error code))?*1
Has 1H been stored in 'State of receive buffer' (Un\G1900030)?*3
Action
If many errors are detected or a system error is stored, there may be a heavy load on the Ethernet line due to data sending and receiving between connected devices. · Taking action such as separating networks or decreasing the number of
data sending reduces the load on the Ethernet line. · Consult with the network manager and reduce the load on the Ethernet line.
· Taking action such as separating networks or decreasing the number of data sending reduces the load on the Ethernet line.
· When communications using the fixed buffer is used, check whether the BUFRCV instruction is executed. ( Page 74 Receive procedure)
· To receive data at shorter intervals than the scan time of the CPU module using the fixed buffer, add the normally closed contact for the completion device of the BUFRCV instruction to the execution conditions of the BUFRCV instruction. ( Page 93 Labels)
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)*2
*1 The buffer memory address is for when the network type of the RJ71EN71 or the RnENCPU (network part) is set to "Ethernet" and the P1 connector is used. When using the P2 connector or the CPU module (built-in Ethernet port part), or setting the network type to "Q Compatible Ethernet", refer to the following. Page 355 Buffer Memory
*2 The module communication test cannot be performed for the CPU module (built-in Ethernet port part). Perform the troubleshooting of the CPU module and check for hardware failure. ( MELSEC iQ-R CPU Module User's Manual (Startup))
*3 Availability for the buffer memory depends on the firmware version. ( Page 436 Added and Enhanced Functions)
Direct connection to the engineering tool is not possible.
When the direct connection to the engineering tool is not possible, check the following items.
Check item Is the Ethernet-equipped module directly connected to the engineering tool with a single cable? Is "Disable Direct Connection with MELSOFT" under "Security" of "Application Settings" is set to "Disable"? Is the transfer setup setting of the engineering tool correct?
Does a timeout occur when connecting to the engineering tool?
Does the device (personal computer) to be connected support the direct connection?
Action
Directly connect the Ethernet-equipped module to the engineering tool with a single cable.
If "Disable Direct Connection with MELSOFT" is set to "Disable", change the setting to "Enable".
If the setting is incorrect, check the following items. · Check that "Ethernet Board" is selected in "PC side I/F". · Check that "Ethernet Port Direct Connection" is selected in the "PLC side I/
F Detailed Setting of PLC Module" window or "PLC side I/F Detailed Setting of Ethernet Module" window of "PLC side I/F". · When "PLC side I/F" is "Ethernet Module", check that "Other Station (Single Network)" is selected for "Other Station Setting" and "Access to Ethernet module set on PLC side I/F" is selected in the "Network Communication Route Detailed Setting of Ethernet" window of "Network Communication Route".
Increase the value for "Check at Communication Time" and "Retry Times" in the "Other Station Detailed Settings" window of "Other Station Setting" of the "Specify Connection Destination Connection" window and connect again.
If the device does not support the direct connection, connect a hub.
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)*1
*1 The module communication test cannot be performed for the CPU module (built-in Ethernet port part). Perform the troubleshooting of the CPU module and check for hardware failure. ( MELSEC iQ-R CPU Module User's Manual (Startup))
316
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
CPU module search on the network cannot be performed.
When the CPU module search on the network cannot be performed, check the following items.
Check item
Action
Is "Do Not Respond to CPU Module Search" under "Security" of "Application Set "Do Not Respond to CPU Module Search" under "Security" of "Application
Settings" is set to "Do Not Respond"?
Settings" to "Respond".
Is the CPU module cannot be searched connected to a router?
The CPU module connected via a router cannot be searched. Modify the connection to search the CPU module.
Is the CPU module cannot be searched connected with wireless LAN? Is the service processing (such as file read) load of the search target CPU
Perform the search again. (The packet may be lost.) · Increase the response waiting time and perform the search again.
3
module high?
· Reduce the service processing load of the CPU module.
Communications using the SLMP cannot be performed.
When communications using the SLMP cannot be performed, check the following items.
Check item Has the connection with the external device been opened? (Check 'Open completion signal' (Un\G1900000 to Un\G1900007)*1*2
Is the correct command format used for the command type, device, address, and others? Is "Enable/Disable Online Change" under "Own Node Settings" in "Basic Settings" set to "Disable All (SLMP)"? Did the external device send a command?
Was a response returned to the device that had sent the command?
Is the communication method of the connection used for communication with the external device is set to an item other than "SLMP" in the "External Device Configuration" window of "Basic Settings"?
Action
· If the connection with the external device is not opened, perform the open processing.
· If an error occurs, check and eliminate the error cause. Correct the command format. ( SLMP Reference Manual)
If "Enable/Disable Online Change" is set to "Disable All (SLMP)", change the setting to "Enable All (SLMP)". ( Page 262 Own Node Settings)
If the device did not send a command, send a command to the Ethernetequipped module.
· If no response was returned, check if the correct IP address was specified in the command. If not, correct the IP address and send the command again.
· If a response was returned, check the end and error codes to correct the error.
Correct the communication method setting if an item other than "SLMP" is set. ( Page 264 External Device Configuration)
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)*3
*1 The buffer memory address is for when the network type of the RJ71EN71 or the RnENCPU (network part) is set to "Ethernet" and the P1 connector is used. When using the P2 connector or the CPU module (built-in Ethernet port part), or setting the network type to "Q Compatible Ethernet", refer to the following. Page 355 Buffer Memory
*2 If the connection of only the external device is closed due to cable disconnection, personal computer restart, or other reasons, reopen the connection using the same port used before the error occurred. The E71 does not close a connection if it receives an Active open request again from the external device with a different IP address or a port number.
*3 The module communication test cannot be performed for the CPU module (built-in Ethernet port part). Perform the troubleshooting of the CPU module and check for hardware failure. ( MELSEC iQ-R CPU Module User's Manual (Startup))
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
317
Communications using the predefined protocol cannot be performed.
When communications using the predefined protocol cannot be performed, check the following items and take action.
Check item Is the IP address setting of the external device correct? Has the connection with the external device been opened? (Check 'Open completion signal' (Un\G1900000 to Un\G1900007)*1*2
Has the send/receive processing (dedicated instruction) for the communications using the predefined protocol been executed properly?
Is the appropriate protocol used for the external device in the predefined protocol settings and program?
Is the communication method of the connection used for communication with the external device is set to an item other than "Predefined Protocol" in the "External Device Configuration" window of "Basic Settings"? Is 'Predefined protocol ready' (Un\G1901002.0) on?*1
Action
Check and correct the IP address of the external device.
· If the connection with the external device is not opened, perform the open processing.
· If an error occurs, check and eliminate the error cause.
· If the send/receive processing has not been executed, check and correct the execution condition of the send/receive processing.
· If send/receive processing has completed with an error, check the error code in the completion status and eliminate the error cause.
Correct the predefined protocol settings and program If inappropriate protocol is used. For appropriate protocol for the external device, refer to the manual for the device used.
Correct the communication method setting if an item other than "Predefined Protocol" is set. ( Page 264 External Device Configuration)
If 'Predefined protocol ready' (Un\G1901002.0) is off, write the protocol setting data to the module.
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)*3
*1 The buffer memory address is for when the network type of the RJ71EN71 or the RnENCPU (network part) is set to "Ethernet" and the P1 connector is used. When using the P2 connector or the CPU module (built-in Ethernet port part), or setting the network type to "Q Compatible Ethernet", refer to the following. Page 355 Buffer Memory
*2 If the connection of only the external device is closed due to cable disconnection, personal computer restart, or other reasons, reopen the connection using the same port used before the error occurred. The E71 does not close a connection if it receives an Active open request again from the external device with a different IP address or a port number.
*3 The module communication test cannot be performed for the CPU module (built-in Ethernet port part). Perform the troubleshooting of the CPU module and check for hardware failure. ( MELSEC iQ-R CPU Module User's Manual (Startup))
318
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
Socket communications/communications using the fixed buffer cannot be performed.
When socket communications or communications using the fixed buffer cannot be performed, check the following items and take action.
Check item
Action
Has the connection with the external device been opened? (Check 'Open completion signal' (Un\G1900000 to Un\G1900007)*1*2
· If the connection with the external device is not opened, perform the open processing.
· If an error occurs, check and eliminate the error cause.
Has the send/receive processing been executed properly?
· If the send/receive processing has not been executed, check and correct the execution condition of the send/receive processing.
3
· If send/receive processing has completed with an error, check the error
code in the completion status and eliminate the error cause.
Does 'Socket/fixed buffer reception status signal' (Un\G1900016 to Un\G1900023) turn on when receive processing is executed?
· Send data from the external device. · If data has been sent, check that the destination address (IP address and
port number) is correctly set.
Is the communication method of the connection used for communication with the external device is set to an item other than the following in the "External Device Configuration" window of "Basic Settings"? · Socket communications: "Socket Communication" · Communications using the fixed buffer: "Fixed Buffer (Procedure Exist)" or
"Fixed Buffer (No Procedure)"
Correct the communication method setting if an item other than the one described in the left is set. ( Page 264 External Device Configuration)
Is the communication method of the connection used for communication with the external device is set to an item other than "Broadcast Send" or "Broadcast Receive" in the "External Device Configuration" window of "Basic Settings" when broadcast communications is performed?
Correct the communication method setting if an item other than the one described in the left is set. ( Page 264 External Device Configuration)
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)*3
*1 The buffer memory address is for when the network type of the RJ71EN71 or the RnENCPU (network part) is set to "Ethernet" and the P1 connector is used. When using the P2 connector or the CPU module (built-in Ethernet port part), or setting the network type to "Q Compatible Ethernet", refer to the following. Page 355 Buffer Memory
*2 If the connection of only the external device is closed due to cable disconnection, personal computer restart, or other reasons, reopen the connection using the same port used before the error occurred. The E71 does not close a connection if it receives an Active open request again from the external device with a different IP address or a port number.
*3 The module communication test cannot be performed for the CPU module (built-in Ethernet port part). Perform the troubleshooting of the CPU module and check for hardware failure. ( MELSEC iQ-R CPU Module User's Manual (Startup))
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
319
Communications using the random access buffer cannot be performed.
When communications using the random access buffer cannot be performed, check the following items and take action.
Check item Has the connection with the external device been opened? (Check 'Open completion signal' (Un\G1900000 to Un\G1900007)*1*2
Did the external device send a command? Is the correct buffer memory address specified for the command?
Has data been set in the specified address of the random access buffer? Has the write data been set in the external device? Was a response returned to the device that had sent the command?
Is the communication method of the connection used for communication with the external device is set to an item other than "Random Access Buffer" in the "External Device Configuration" window of "Basic Settings"?
Action
· If the connection with the external device is not opened, perform the open processing.
· If an error occurs, check and eliminate the error cause.
Send a command to the Ethernet-equipped module from the external device.
If the specified buffer memory address is incorrect, correct it and send the command again.
If any data has not been set, write the data.
If any write data has not been set, set the data.
· If no response was returned, check if the correct IP address was specified in the command. If not, correct the IP address and send the command again.
· If a response was returned, check the end and error codes to correct the error.
Correct the communication method setting if an item other than "Random Access Buffer" is set. ( Page 264 External Device Configuration)
If the above action does not solve the problem, perform the module communication test to check for hardware failure. (
Page 302 Module communication test)
*1 The buffer memory address is for when the network type of the RJ71EN71 or the RnENCPU (network part) is set to "Ethernet" and the P1 connector is used. When using the P2 connector or setting the network type to "Q Compatible Ethernet", refer to the following. Page 355 Buffer Memory
*2 If the connection of only the external device is closed due to cable disconnection, personal computer restart, or other reasons, reopen the connection using the same port used before the error occurred. The E71 does not close a connection if it receives an Active open request again from the external device with a different IP address or a port number.
320
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
Communications using MODBUS/TCP cannot be performed.
Communication fails at MODBUS/TCP connection.
When communication is not possible at MODBUS/TCP connection, check the following items and take action.
Check item
Action
Does the external device support MODBUS/TCP?
If the device does not support MODBUS/TCP, replace it with the one supporting the MODBUS/TCP standard.
Is the external device a MODBUS/TCP master device?
The external device must be a MODBUS/TCP master device.
Was a new connection attempted when 64 external devices have already been connected?
Reduce the number of external devices connected to the Ethernet-equipped module.
3
If the number of connections with external devices exceeds 64, the connection
is disconnected automatically from the device for which the longest time has
elapsed from the last communication.
Is the Ethernet-equipped module supporting the MODBUS/TCP function used?
Check the firmware version of the Ethernet-equipped module and ensure that the module supports the MODBUS/TCP function. When the Ethernet-equipped module being used does not support the MODBUS/TCP function, replace it with the module that supports the function.
Messages sent from the MODBUS/TCP master device cannot be received.
When messages sent from the MODBUS/TCP master device cannot be received completely or frequently, check the following
items and take action.
Check item
Are there times when 'State of receive buffer' (Un\G1900030) becomes 1 (Receive buffer full)?
Action
The load on the Ethernet line may high due to the data communication between the nodes. Take the following actions. · Reduce the load on the Ethernet line by separating networks, decreasing
the number of data sending, or other method. · Consult with the network manager and reduce the load on the Ethernet line.
A response message cannot be sent to the MODBUS/TCP master device.
When a response message to the request message sent from the MODBUS/TCP master device or a supposed response
message cannot be sent, check the following items and take action.
Check item
Is the registration of the MODBUS device assignment parameters correct?
Was an abnormal response code sent?
Is there any error code stored in 'Error log area for MODBUS/TCP function' (Un\G720896 to Un\G721153)?
Is the request message received from the MODBUS/TCP master device correct?
Is the message length of the application data area of the Ethernet frame six bytes or longer (from communication ID to message length of the MBAP header)?
Does the message length of the MBAP header + 6 bytes match with the message length of the application data area of the Ethernet frame?
Action Check the settings of the MODBUS device assignment parameters. Check the abnormal response code and correct any possible problems. Take an appropriate action in accordance with the stored error code. ( Page 329 List of Error Codes) Correct the request message that the MODBUS/TCP master device sends.
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
321
A dedicated instruction is not completed.
If the dedicated instruction is not completed when using the RJ71EN71 or the RnENCPU (network part), check if an option other than "Online" is set in "Module Operation Mode" under "Application Settings". Set "Online".
Communications using a link dedicated instruction cannot be performed.
When communications using a link dedicated instruction cannot be performed, check the following items and take action.
Check item Are the network number and station number set in the Ethernet-equipped module? Is the number of resends set upon every instruction execution?
Are station numbers unique? Is the network number duplicated on the network? Is a communication path by the dynamic routing function is determined?
Does the relay station to be passed support the dynamic routing function?
Are multiple link dedicated instructions with same channel setting executed simultaneously?
Action Set the network number and station number.
Modify the program to set the number of resends upon every instruction execution. Change the duplicated station number. Correct the parameters so than the network number is not overlapped. · Power on the system and start transient transmission after a while. · When "Dynamic Routing" under "Application Settings" of the station on the
communication path is set to "Disable", change it to "Enable". If the relay station to be passed does not support the dynamic routing function, set all the stations on the communication path in "Routing Setting" of "CPU Parameter". · Set different channel to each instructions. · Shift the execution timing of the link dedicated instructions.
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)
Access using the file transfer function (FTP server) cannot be performed.
When the Ethernet-equipped module cannot be accessed from the external device (FTP client) using the file transfer function (FTP server), check the following items and take action.
Check item
Action
Is the file transfer function (FTP server) for the Ethernet-equipped module enabled? Are the login name and password correct?
Is the IP address entered at login correct?
Is executed command used properly?
In multiple CPU system, is the access destination CPU module correct?
Set "FTP Server" under "FTP Server Settings" of "Application Settings" to "Use". ( Page 272 FTP Server Settings)
Check the login name and password set in the parameters, and log in again. ( Page 272 FTP Server Settings)
Check the IP address of the Ethernet-equipped module set in the parameters, and log in again. ( Page 262 Own Node Settings)
Check the instructions of the command and use the command properly. ( Page 121 FTP command)
Execute the cpuchg command and change the access destination CPU module.
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)*1
*1 The module communication test cannot be performed for the CPU module (built-in Ethernet port part). Perform the troubleshooting of the CPU module and check for hardware failure. ( MELSEC iQ-R CPU Module User's Manual (Startup))
322
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
Access using the file transfer function (FTP client) cannot be performed.
When the CPU module cannot access to the external device (FTP server) during execution of the file transfer function (FTP client), check the following items and take action.
Check item
Action
Is a value other than 0000H stored in (s1)+1 (Completion status) of the SP.FTPPUT or SP.FTPGET instruction?
Take action for the error code stored in (s1)+1 (Completion status), and execute the instruction again. ( Page 329 List of Error Codes)
The time setting function (SNTP client) cannot be performed normally.
3
When the time setting function (SNTP client) cannot be performed normally, check the following items and take action.
Check item
Is the time setting function (SNTP client) is enabled for the Ethernet-equipped module?
Is "SNTP Server IP Address" set correctly?
Action
Set "Time Setting (SNTP Client)" under "Time Setting" of "Application Settings" to "Use". ( Page 280 Time Setting)
Change the "SNTP Server IP Address" under "Time Setting" in "Application Settings" to the correct IP address. ( Page 280 Time Setting)
If the above action does not solve the problem, perform the module communication test to check for hardware failure. ( Page 302 Module communication test)*1
*1 The module communication test cannot be performed for the CPU module (built-in Ethernet port part). Perform the troubleshooting of the CPU module and check for hardware failure. ( MELSEC iQ-R CPU Module User's Manual (Startup))
The access cannot be allowed/denied correctly by the IP filter.
When the access cannot be allowed/denied correctly by the IP filter, check the following items and take action.
Check item Is "Access from IP address below" correctly set in "IP Filter Settings" under "Security" of "Application Settings"? Are the IP addresses set in "IP Address" in "IP Filter Settings" under "Security" of "Application Settings"?
Is the IP address of the proxy server set to be allowed?
Action Correct the setting of "Access from IP address below".
Correct the IP addresses. When the IP addresses are specified by range, check also "IP Address Excluded from Range". Set the IP address of the proxy server to be denied.
Remote password does not work.
When the remote password does not work, check the following items and take action.
Check item
Is the remote password setting of the target connection disabled in the "Remote Password Detail Setting" window?
Action
If the remote password is disabled, change the setting so that it is enabled. ( Page 177 Remote password)
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
323
Communications using the built-in Ethernet port are slow.
When communications using the built-in Ethernet port are slow, check the following items and take action.
Check item
Action
Is the communication request load from the external device high? Is the communication request load from the CPU module high?
Check the buffer memory Un\G100 (receive packet count (current) per unit time (one second)) of the CPU module (built-in Ethernet port part), and if the value is significantly large compared to the normal communications, the following actions may improve the processing speed. · Review the communication request from the engineering tool and GOT. · Review the communication request from the transfer destination (execution
source) of the simple CPU communications. · Review the file transfer function (FTP server). · Review the communications using the SLMP.
Check the buffer memory Un\G102 (send packet count (current) per unit time (one second)) of the CPU module (built-in Ethernet port part), and if the value is significantly large compared to the normal communications, the following actions may improve the processing speed. · Review the execution frequency of the instructions for the built-in Ethernet
function (socket communications instruction/predefined protocol support function instruction/SLMP frame send instruction/file transfer function instruction) · Review the settings (such as the number of points) of CC-Link IE Field Network Basic. · Review the settings (such as the execution interval and the number of points) of the simple CPU communications. · Review the settings (such as automatic detection and backup execution) of iQSS (built-in Ethernet). · Review the settings (such as the number of executions) of data logging file transfer.
324
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
When the simple CPU communication function is used
Communications cannot be performed with the communication destination.
When communications with the external device cannot be performed using the simple CPU communication function, check
the following items and take action.
Check item
Action
Does any error occur in the simple CPU communication diagnostics or simple Eliminate the error cause. When communications can be performed by
CPU communication error code in the buffer memory?
increasing the communication retry count and communication time-out period,
review the communication retry count and communication time-out period, or check the line status of Ethernet communications with the external device,
3
such as a cable, hub, and router, to check if the line is busy.
Is the communication status of the simple CPU communication diagnostics or Check the cable between the Ethernet-equipped module and hub, and check
the simple CPU communication status of the buffer memory "preparing"?
if the hub is operating normally.
Is the module supporting the simple CPU communication function used?
In "Product Information List" of "System Monitor", check the firmware version of the target module, and ensure that the module supports the simple CPU communication. When the module being used does not support the simple CPU communication, replace it with the module that supports the function.
Is the own station port number set in the external device configuration within the range of 61696 to 65534?
When the communication destination of the simple CPU communication is a Mitsubishi Electric programmable controller, the own station port number is dynamically set within the range of 61696 to 65534. When the own station port number is set within the range of 61696 to 65534 in the external device configuration, the port numbers overlap, resulting in a communication failure. Set the own station port number to a number other than 61696 to 65534 in the external device configuration.
If communications cannot be performed despite the check for the above items, the hardware failure may have been occurred. Please consult your local Mitsubishi representative.
Communications with the communication destination are unstable.
When communications with the communication destination using the simple CPU communication is unstable, check the
following items and take action.
Check item
Does any error occur in the simple CPU communication diagnostics or simple CPU communication error code in the CPU buffer memory? Is the retry of communications performed?
Action Eliminate the error cause.
Check the line status of Ethernet communications with the external device, such as a cable, hub, and router, to check if the line is busy.
If communications cannot be performed despite the check for the above items, the hardware failure may have been occurred. Please consult your local Mitsubishi representative.
Communications cannot be performed at the set execution interval.
When communications cannot be performed at the set execution interval in the simple CPU communication function, check
the following items and take action.
Check item Is another Ethernet function executed simultaneously in the CPU module where the simple CPU communication function is set? Is the service processing load of the CPU module of the communication destination high?
Is the Ethernet communication load high? Or, is the communication quality low?
Is the response from the SLMP-compatible device delayed? (When the SLMP-compatible device (QnA-compatible 3E frame) is used)
Action
Review the Ethernet function executed simultaneously in the CPU module where the simple CPU communication function is set.
· When the communication destination is the model for which service processing setting is available, increase the number of times and the time of service processing of the communication destination.
· If the communication destination supports the COM(P) instruction and CCOM instruction, incorporate the COM(P) instruction and CCOM instruction into the sequence program of the communication destination.
· Review the execution interval.
Check the line status of Ethernet communication with the external device, such as a cable, hub, and router, to reduce the load and improve the communication quality. (Check the buffer memory Un\G100/Un\G101 (receive packet count per unit time (one second)) or Un\G102/Un\G103 (send packet count per unit time (one second)) of the CPU module (built-in Ethernet port part) and reduce the load and improve the communication quality.)
· Check the function execution status of the communication destination (SLMP-compatible device).
· Review the execution interval.
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
325
The update by reading and writing the device data is slow.
When the update by reading and writing the device data is slow in the simple CPU communications, check the following items
and take action.
Check item
The scan time of the CPU module where the simple CPU communication function is set is long.
Action
Incorporate the COM(P) instruction and CCOM instruction into the sequence program of the CPU module where the simple CPU communication function is set.
326
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
When the redundant system function is used
Communications cannot be performed with the external device.
When communications with the external device cannot be performed using the redundant system function, check the
following items and take action.
Check item
Action
Are the control system IP address and the IP addresses of systems A and B used together for the same connection?
Set the different connections for the each of control system IP address and IP addresses of systems A and B.
System switching cannot be performed normally.
3
When system switching cannot be performed normally by the redundant system function, check the following items and take
action.
Check item
Action
Is the power supply module, CPU module, or redundant function module of the standby system operating normally?
Perform troubleshooting on the power supply module, CPU module, or redundant function module of the standby system. ( MELSEC iQ-R CPU Module User's Manual (Startup))
Has a system switching request been issued to the CPU module? (Check 'Module number in the system switching request issued from the own system network module' (SD1645) of the control system CPU module.)
Check an error on the Ethernet-equipped module mounted on the control system CPU module, and correct the error.
In "Redundant System Settings" under "Application Settings", is "Enable" selected for "System Switching Request Issue at Communication Error"?
In "Redundant System Settings" under "Application Settings", select "Enable" for "System Switching Request Issue at Communication Error".
For "User Connection" or "System Connection" of "System Switching Request Issue at Communication Error" in "Redundant System Settings" under "Application Settings", is it specified that a system switching request is issued in the target connection?
For "User Connection" or "System Connection" of "System Switching Request Issue at Communication Error" in "Redundant System Settings" under "Application Settings", specify that a system switching request is issued in the target connection.
Do the settings of the engineering tool and the buffer memory details match? Write the set parameters to the CPU module, and reset the CPU module or power off and on the system.
Has a cable disconnection been detected?
Check that there is no error in the external device.
In "Redundant System Settings" under "Application Settings", is "Enable"
In "Redundant System Settings" under "Application Settings", select "Enable"
selected for "System Switching Request Issuing at Disconnection Detection"? for "System Switching Request Issuing at Disconnection Detection".
In "Redundant System Settings" under "Application Settings", is the value set In "Redundant System Settings" under "Application Settings", correct the
for "Disconnection Detection Monitoring Time" correct?
value set for "Disconnection Detection Monitoring Time".
In "Timer Settings for Data Communication" under "Application Settings", is the value set for "TCP ULP Timer" correct?
In "Timer Settings for Data Communication" under "Application Settings", correct the value set for "TCP ULP Timer".
In "External Device Configuration" under "Basic Settings", is "Existence Confirmation" set to "KeepAlive"?
In "External Device Configuration" under "Basic Settings", set "Existence Confirmation" to "KeepAlive".
In "Timer Settings for Data Communication" under "Application Settings", is the value set for "Destination Alive Check Start Interval Timer" correct?
In "Timer Settings for Data Communication" under "Application Settings", correct the value set for "Destination Alive Check Start Interval Timer".
In "Timer Settings for Data Communication" under "Application Settings", is the value set for "Destination Alive Check Interval Timer" correct?
In "Timer Settings for Data Communication" under "Application Settings", correct the value set for "Destination Alive Check Interval Timer".
In "External Device Configuration" under "Basic Settings", is "Communication Method" set to "Broadcast Send"?
In "External Device Configuration" under "Basic Settings", set "Communication Method" to an option other than "Broadcast Send", and set "IP Address" in "Sensor/Device".
Has the connection with the external device been opened? (Check 'Open completion signal' (Un\G1900000 to Un\G1900007)*1*2
· If the connection with the external device is not opened, perform the open processing.
· If an error occurs, check and eliminate the error cause.
For configuration using the redundant module group setting, are settings made for "Redundant Module Group Setting" in the [I/O Assignment] tab of the "System Parameter" window?
Correct the settings for "Redundant Module Group Setting" in the [I/O Assignment] tab of the "System Parameter" window.
For configuration using the port group setting, are settings made for "Port
In "Redundant System Settings" under "Application Settings", correct the
Group Setting" in "Redundant System Settings" under "Application Settings"? settings for "Port Group Setting".
*1 The buffer memory address is for when the network type of the RJ71EN71 is set to "Ethernet" and the P1 connector is used. When using the P2 connector or the CPU module (built-in Ethernet port part), or setting the network type to "Q Compatible Ethernet", refer to the following. Page 355 Buffer Memory
*2 If the connection of only the external device is closed due to cable disconnection, personal computer restart, or other reasons, reopen the connection using the same port used before the error occurred. The E71 does not close a connection if it receives an Active open request again from the external device with a different IP address or a port number.
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
327
Communication fails at OPS connection.
When communication using the redundant system function is not possible at the time of an OPS connection, check the
following items and take action.
Check item
In "External Device Configuration" under "Basic Settings", is "OPS Connection Module" set for the external device?
In "External Device Configuration" under "Basic Settings", is the port number setting correct?
In "External Device Configuration" under "Basic Settings", is the external device IP address setting correct?
Action
Correct the settings for "External Device Configuration" under "Basic Settings".
328
3 TROUBLESHOOTING 3.4 Troubleshooting by Symptom
3.5 List of Error Codes
This section lists the error codes, error details and causes, and action for the errors occur in the processing for data communication between the Ethernet-equipped module and slave stations or caused by processing requests from the CPU module on the own station. Error codes are classified into major error, moderate error, and minor error, and can be checked in the [Error Information] tab in the "Module Diagnostics" window of an Ethernet-equipped module. ( Page 300 Error Information)
Error Error details and causes code
Action
Detailed information
3
1080H The number of writes to the flash ROM has exceeded
Replace the module.
100000.
1120H Clock setting has failed when the system is powered on · Check if the time settings are correctly set in
or the CPU module is reset.
parameter.
· Check if the specified SNTP server is operating
normally and there is no failure on the network
accessing to the SNTP server computer.
1124H
· The default gateway is not set correctly. · The gateway IP address is not set correctly. · The default gateway/gateway IP address (network
address after the subnet mask) is different from that of the IP address of the own node.
· Correct the default gateway IP address. · Set the same network address as that of the IP
address.
Parameter information · Parameter type · I/O No. · Parameter No. · Network No. · Station No.
1128H 1129H 112CH 112DH 112EH
1133H
1134H
The port number is incorrect. The port number of the external device is not set correctly. The request using all stations specification has failed. The data was sent to the external device while the IP address setting of the device set in "External Device Configuration" under "Basic Settings" was incorrect.
A connection could not be established in the open processing.
The response send failed during socket communications or communications using the fixed buffer.
A TCP ULP timeout error has occurred in the TCP/IP communication. (The external device does not send an ACK response.)
Correct the port number.
Correct the port number of the external device.
Try the request using current station specification.
· Correct the IP address of the external device in
"External Device Configuration" under "Basic
Settings".
· Check that the IP address class of the external device
is set to A/B/C in "External Device Configuration"
under "Basic Settings".
· Check the operation of the external device.
· Check if the open processing has been performed in
the external device.
· Correct the port number of the Ethernet-equipped
module, IP address/port number of the external device,
and opening method.
· When the firewall is set in the external device, check if
the access is permitted.
· Check if the Ethernet cable is disconnected.
· Check the operation of the external device or switching hub.
· Since there may be congestion of packets on the line, send data after a certain period of time.
· Check if the connection cable is disconnected. · Check that there is no connection failure with the
switching hub. · Execute the communication status test, and if the test
was completed with an error, take the corrective action. · Execute the module communication test, and check
that there is no failure in the module.
· Check the operation of the external device.
· Correct the TCP ULP timeout value of the Ethernet-
equipped module.
· Since there may be congestion of packets on the line,
send data after a certain period of time.
· Check if the connection cable is disconnected.
1152H
· The IP address is not set correctly. · The same IP address has been set to port 1 and port 2
of the Ethernet-equipped module.
· Correct the IP addresses. · Set different IP addresses for port 1 and port 2.
Parameter information · Parameter type · I/O No. · Parameter No. · Network No. · Station No.
329 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code 1155H 1157H 1158H 1165H
1166H
1167H
1180H
Error details and causes
Action
Detailed information
· The specified connection was already closed in TCP/IP communications.
· Open processing is not performed. · The specified connection was already closed in UDP/
IP communications. · Open processing is not performed. · The receive buffer or send buffer is not sufficient. · The window size of the external device is not sufficient.
Data was not sent correctly with UDP/IP.
Data was not sent correctly with TCP/IP.
Unsent data found, but could not be sent.
· The same IP address has been set as the system A IP address, system B IP address, and/or control system IP address.
· Network addresses of the system A IP address, system B IP address, and control system IP address are different.
· Perform the open processing for the specified connection.
· Check if the open processing has been performed in the external device.
· Perform the open processing for the specified connection.
· Check if the open processing has been performed in the external device.
· Check the operation of the external device or switching hub.
· When communications using a fixed buffer or socket communications is used, increase the execution frequency of the BUFRCV/SOCRCV instruction.
· When the value of 'State of receive buffer' (Un\G1900030) is 0001H, reduce the frequency of data receive from the external device.
· Check the settings for connection with the external device.
· Check the operation of the external device or switching hub.
· Since there may be congestion of packets on the line, send data after a certain period of time.
· Check if the connection cable is disconnected. · Check that there is no connection failure with the
switching hub. · Execute the PING test and communication status test,
and if the test was completed with an error, take the corrective action.
· Check the settings for connection with the external device.
· Check the operation of the external device or switching hub.
· Since there may be congestion of packets on the line, send data after a certain period of time.
· Check if the connection cable is disconnected. · Check that there is no connection failure with the
switching hub. · Execute the PING test and communication status test,
and if the test was completed with an error, take the corrective action. · The close request may have been received from the external device when the data was sent. Check whether "TCP Status" of the corresponding connection number is set to "Disconnected" with the Ethernet diagnostics of the engineering tool.
· Check the settings for connection with the external device.
· Check the operation of the external device or switching hub.
· Since there may be congestion of packets on the line, send data after a certain period of time.
· Check if the connection cable is disconnected. · Check that there is no connection failure with the
switching hub. · Execute the PING test and communication status test,
and if the test was completed with an error, take the corrective action.
· Set different IP addresses for the system A IP address, system B IP address, and control system IP address.
· Set the same network address for the system A IP address, system B IP address, and control system IP address.
Parameter information · Parameter type · I/O No. · Parameter No. · Network No. · Station No.
330 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code
Error details and causes
Action
Detailed information
1801H
IP address of the external device could not be acquired.
· Correct the IP address in "Network/Station No. <-> IP information setting" under "Application Settings".
· Check if the network or station number of the external device is correctly specified by using control data of the dedicated instruction.
Parameter information · Parameter type · I/O No. · Parameter No. · Network No. · Station No.
1811H An error was detected in the CPU module.
Check the error of the CPU module and take action using
the module diagnostics of the engineering tool.
1830H Number of reception requests of transient transmission Lower the transient transmission usage frequency, and
3
(link dedicated instruction) exceeded upper limit of
then perform again.
simultaneously processable requests.
1845H Too many processings of transient transmission (link
Correct the transient transmission execution count.
dedicated instruction) and cannot perform transient
transmission.
20E0H
The module cannot communicate with the CPU module.
The hardware failure of the CPU module may have been occurred. Please consult your local Mitsubishi representative.
2160H Overlapping IP addresses were detected.
Check and correct the IP addresses.
2220H
· A network module having the firmware version not supporting the simple CPU communication function is used.
· The number of simple CPU communication settings is 65 or more.
· The parameter setting is corrupted.
· Use a network module having the firmware version that supports 512 simple CPU communication settings.
· Set the simple CPU communication setting within the range from No.1 to No.64.
· Check the detailed information of the error by executing module diagnostics using the engineering tool, and write the displayed parameter. If the error occurs again even after taking the above, the possible cause is a hardware failure of the module. Please consult your local Mitsubishi representative.
Parameter information · Parameter type
2221H The set value is out of the range.
Check the detailed information (parameter information) of the error by executing module diagnostics using the engineering tool, and correct the parameter setting corresponding to the displayed number (parameter number). If the same error code is displayed again, the possible cause is a hardware failure of the data memory of the CPU module, a memory card, the I/O module, or intelligent function module. Please consult your local Mitsubishi representative.
Parameter information · Parameter type · I/O No. · Parameter No. · Network No. · Station No.
2250H
The protocol setting data stored in the CPU module is not Write the protocol setting data for the Ethernet-equipped Parameter information
for the Ethernet-equipped module.
module to the CPU module.
· Parameter type
24C0H to 24C3H
An error was detected on the system bus.
· Take measures to reduce noise. · Reset the CPU module, and run it again. If the error
occurs again even after taking the above, the possible cause is a hardware failure of the module, base unit, or extension cable. Please consult your local Mitsubishi representative.
System configuration information · I/O No. · Base No. · Slot No. · CPU No.
24C6H An error was detected on the system bus.
· Take measures to reduce noise.
· Reset the CPU module, and run it again. If the error
occurs again even after taking the above, the possible
cause is a hardware failure of the module, base unit, or
extension cable. Please consult your local Mitsubishi
representative.
3008H
In the redundant system with redundant extension base unit, a module name other than "RJ71EN71(E+E)" and "RJ71EN71(Q)" is set on the extension base.
When mounting a module on the extension base unit in the redundant system with redundant extension base unit, select "RJ71EN71(E+E)" or "RJ71EN71(Q)" for the module name in the "Add New Module" window.
Parameter information · Parameter type · I/O No. · Parameter No. · Network No. · Station No.
3019H
· When mounting a module on the main base unit in the redundant system, "Not Use" is set to "To Use or Not to Use Redundant System Settings" under "Application Settings".
· When mounting a module on the extension base unit in the redundant system with redundant extension base unit, "Use" is set to "To Use or Not to Use Redundant System Settings" under "Application Settings".
· When mounting a module on the main base unit in the redundant system, set "Use" to "To Use or Not to Use Redundant System Settings" under "Application Settings".
· When installing a module to the extension base unit in the redundant system with redundant extension base unit, set "Not Use" to "To Use or Not to Use Redundant System Settings" under "Application Settings".
Parameter information · Parameter type
331 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code 301AH
301BH
3020H
3040H
3060H
3C00H to 3C03H 3C0FH to 3C11H 3C13H
3C14H
3C2FH
3E01H
4000H to 4FFFH C001H
C012H C013H
Error details and causes
Action
Detailed information
When mounting a module on the extension base unit in the redundant system with redundant extension base unit, "Enable" is set to "Dynamic Routing" under "Application Settings".
When mounting a module on the extension base unit in the redundant system with redundant extension base unit, Set "Disable" to "Dynamic Routing" under "Application Settings".
When mounting a module on the extension base unit in the redundant system with redundant extension base unit, "Use" is set to "IP Packet Transfer Function" under "Application Settings".
When mounting a module on the extension base unit in the redundant system with redundant extension base unit, set "Not Use" to "IP Packet Transfer Function" under "Application Settings".
A value of the port number is out of range.
· Check the each system port number registered in the buffer memory.
· If the error occurs again even after taking the above, the possible cause is a hardware failure of the error module. Please consult your local Mitsubishi representative.
Response data of the dedicated instruction cannot be created.
· Increase the request interval. · Decrease the number of request nodes. · Wait for a response to the previous request before
sending the next request. · Correct the timeout value.
The send/receive data size exceeds the allowable range.
· Check and change the send data size of the Ethernetequipped module or the external device.
· If the same error code is displayed again, the possible cause is a hardware failure of the error module or CPU module. Please consult your local Mitsubishi representative.
A hardware failure has been detected.
· Take measures to reduce noise. · Reset the CPU module, and run it again. If the same
error code is displayed again, the possible cause is a hardware failure of the error module. Please consult your local Mitsubishi representative.
A hardware failure has been detected.
· Take measures to reduce noise. · Reset the CPU module, and run it again. If the same
error code is displayed again, the possible cause is a hardware failure of the error module. Please consult your local Mitsubishi representative.
A hardware failure has been detected.
Reset the CPU module, and run it again. If the same error code is displayed again, the possible cause is a hardware failure of the error module. Please consult your local Mitsubishi representative.
A hardware failure has been detected.
Reset the CPU module, and run it again. If the same error code is displayed again, the possible cause is a hardware failure of the error module or CPU module. Please consult your local Mitsubishi representative.
An error was detected in the memory.
Reset the CPU module, and run it again. If the same error code is displayed again, the possible cause is a hardware failure of the error module. Please consult your local Mitsubishi representative.
Network type of the own station is unexpected setting.
Rewrite the module parameter using the engineering tool. If the same error code is displayed again, the possible cause is a hardware failure of the error module. Please consult your local Mitsubishi representative.
Errors detected by the CPU module ( MELSEC iQ-R CPU Module User's Manual (Application))
Parameter information · Parameter type Parameter information · Parameter type
· The IP address setting value of the E71 for the initial
· Correct the IP address setting value for the initial
processing is incorrect.
processing.
· The setting value of the subnet mask field for the router · Check if the class of the IP address is set to A/B/C.
relay function is incorrect.
· Correct the subnet mask setting value for the initial
processing.
The port number used in a connection already opened is Correct the port numbers of the Ethernet-equipped
set. (For TCP/IP)
module and the external device.
The port number used in a connection already opened is Correct the port numbers of the Ethernet-equipped
set. (For UDP/IP)
module and the external device.
332 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code
Error details and causes
Action
Detailed information
C015H
· The specified IP address of the external device for the open processing is incorrect.
· The specified IP address of the external device of the dedicated instruction is incorrect.
· Correct the specified IP address of the external device of the CONOPEN/OPEN instruction. Set the class to A/ B/C.
· Execute the dedicated instruction again after correcting the specified IP address of the external device.
C016H The open processing of the connection specified for
· Check that none of the connections targeted for pairing
pairing open has been already completed.
open has been opened.
· Correct the combination of modules set for pairing open.
3
C018H The specified IP address of the external device is incorrect.
Correct the specified IP address of the external device.
C020H The send/receive data length exceeds the allowable range.
· Correct the data length to be sent.
· When the amount of data to be sent exceeds the limit,
divide the data into smaller chunks to send it.
C021H
An abnormal end response was received for communications using the fixed buffer and random access buffer.
· Check the command/response type of the subheader. · Check the data length setting to be sent. · Check if the communication data code setting of the
Ethernet-equipped module meets the binary/ASCII of the message to be sent.
C022H · A response could not be received within the response · Check the operation of the external device.
monitoring timer value.
· Correct the response monitoring timer value of the
· The connection with the external device was closed
Ethernet-equipped module.
while waiting for a response.
· Check the open status of the connection with the
external device.
C024H
· Communications using the fixed buffer or communications using a random access buffer were executed when communication method is set to the "Predefined Protocol" connection.
· Predefined protocol was executed when communication method is set to "Fixed Buffer (Procedure Exist)" or "Fixed Buffer (No Procedure)" connection.
· Check that there is no error in the connection number specification of the dedicated instruction.
· Correct the communication method of the connection with the external device.
C025H
There is an error in the usage setting area when starting the open processing by the CONOPEN/OPEN instruction or I/O signals.
· When starting the open by using the CONOPEN/
OPEN instruction, correct the usage setting area of the
control data.
· When starting the open by I/O signals, correct the
connection usage setting area of the buffer memory.
C026H
An error has occurred when reading/writing/verifying the predefined protocol setting data.
· Check that connection cable with the engineering tool is not disconnected and read/write/verify the predefined protocol setting data again.
· Do not write data simultaneously when writing protocol setting data from multiple engineering tools.
C027H
Message send of the socket communications has failed.
· Check the operation of the external device or switching hub.
· Since there may be congestion of packets on the line, send data after a certain period of time.
· Check if the connection cable is disconnected. · Check that there is no connection failure with the
switching hub. · Execute the communication status test, and if the test
was completed with an error, take the corrective action. · Execute the module communication test, and check
that there is no failure in the module. · Check the IP address specified as the destination.
C028H Message send of the fixed buffer has failed.
· Check the operation of the external device or switching hub.
· Since there may be congestion of packets on the line, send data after a certain period of time.
· Check if the connection cable is disconnected. · Check that there is no connection failure with the
switching hub. · Execute the communication status test, and if the test
was completed with an error, take the corrective action. · Execute the module communication test, and check
that there is no failure in the module. · Check the IP address specified as the destination.
333 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code C029H C035H
C040H
C050H C051H
C052H C053H C054H C055H C056H C057H C058H C059H
C05AH C05BH C05CH
Error details and causes
Action
Detailed information
· Description of control data is not correct. · Open instruction was executed through open settings
parameter even though parameters are not set.
· Correct the descriptions of the control data.
· Set the open settings parameters. Execute the OPEN
instruction through control data.
The existence of the external device could not be checked within the response monitoring timer value.
· Check the operation of the external device.
· Correct the settings in "Timer Settings for Data
Communication" under "Application Settings" of the
Ethernet-equipped module.
· Check if the connection cable is disconnected.
· Not all the data could be received within the response · Correct the data length of the communication data.
monitoring timer value.
· The packets may be crowded in the line, so send the
· Sufficient data for the data length could not be
data again from the external device after a random
received.
time has passed.
· The remaining part of the message divided at the TCP/
IP level could not be received within the response
monitoring timer value.
When "ASCII" has been selected in the communication data code setting of the Ethernet-equipped module, ASCII code data which cannot be converted into binary code data has been received.
Check if ASCII code data which cannot be converted into binary code data has been sent from the external device.
· The number of read/write points from/to the device of SLMP message is out of the allowable range in the CPU module (in units of words).
· The number of write points for the long counter of SLMP message is not in two-word units.
Correct the number of read/write points and send the
SLMP message to the Ethernet-equipped module again.
The number of read/write points from/to the device of
Correct the number of read/write points and send the
SLMP message is out of the allowable range in the CPU SLMP message to the Ethernet-equipped module again.
module (in units of bits).
The number of read/write points from/to the random
Correct the number of read/write points and send the
device of SLMP message is out of the allowable range in SLMP message to the Ethernet-equipped module again.
the CPU module (in units of bits).
The number of read/write points from/to the random
Correct the number of read/write points and send the
device of SLMP message is out of the allowable range in SLMP message to the Ethernet-equipped module again.
the CPU module (in units of words, double words).
The read/write size from/to the file data of SLMP message is out of the allowable range.
Correct the read/write size and send the SLMP message to the Ethernet-equipped module again.
The read/write request exceeds the largest address.
Correct the start address or the number of read/write
points so that the request does not exceed the largest
address and send the data to the Ethernet-equipped
module again.
The request data length of the SLMP message does not Check and correct the text or request data length, and
match with the number of data in the character (a part of send the SLMP message to the Ethernet-equipped
text).
module again.
The request data length of the SLMP message after the Check and correct the text or request data length, and
ASCII/binary conversion does not match with the number send the SLMP message to the Ethernet-equipped
of data in the character (a part of text).
module again.
· The specified command and subcommand of the SLMP message are incorrect
· The function which is not supported by the target device was executed.
· Check that there is no error in the specification of the command and subcommand of the SLMP message.
· Check whether the function executed is supported by the target device.
· Check the version of the target device.
The Ethernet-equipped module cannot read/write data from/to the device specified by the SLMP message.
Correct the specification of the device to be read/written and send the SLMP message to the Ethernet-equipped module again.
The Ethernet-equipped module cannot read/write data from/to the device specified by the SLMP message.
Correct the specification of the device to be read/written and send the SLMP message to the Ethernet-equipped module again.
· The received request data of the SLMP message is incorrect.
· The setting value of the communication setting when the iQSS function is executed is out of range.
· When the iQSS function is executed, the items of communication setting which cannot be set on the target device are set.
· When the iQSS function is executed, the required setting items have not been set to the target device.
· Correct the request data and send the SLMP message to the Ethernet-equipped module again.
· Correct the setting details of when the iQSS function is executed, and retry the operation.
334 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code
Error details and causes
Action
Detailed information
C05DH
The "Monitor Request" command is received before the monitor registration is performed by "Monitor Registration/Clear" command of the SLMP message.
Register the monitoring data using "Monitor Registration/ Clear" command and perform monitoring.
C05EH · The time between received the SLMP message from · Increase the monitoring timer value.
the Ethernet-equipped module and returned response · Check if the access destination is operating normally.
from the access destination exceeded the monitoring · Correct the network number or request destination
timer value set in the SLMP command.
station number.
· An SLMP request message to which a command
· When the access destination is a module with a
without a response message is specified is send to a module with the other network number as an access
different network number, check if "Routing Setting" of "CPU Parameter" is correctly set.
3
destination.
· If the access destination is a module with a different
network number, check if the network number is not in
use.
· If an SLMP request message to which a command
without a response message is specified is send to a
module with the other network number as an access
destination, this error code is responded, which does
not mean failure.
C05FH This request cannot be executed to the access
Correct the access destination.
destination specified by the SLMP message.
C060H
The request details for bit devices of the SLMP message Correct the request details and send the SLMP message
is incorrect.
to the Ethernet-equipped module again.
C061H
· The request data length of the SLMP message does
· Check and correct the text or request data length, and
not match with the number of data in the character (a
send the SLMP message to the Ethernet-equipped
part of text).
module again.
· The write data length specified by the label write
· Add the dummy data for one byte, and specify the
command is not even byte.
length by even byte.
· When the iQSS function is executed, incorrect frame is · Check the operating status and connection status of
received.
the target device of when the iQSS function is
executed.
· Check the connection of an Ethernet cable and a hub
of when the iQSS function is executed.
· Check the line status of Ethernet of when the iQSS
function is executed.
· Reset the CPU module and device to be targets of the
iQSS function, and retry the operation.
For the error occurred when the iQSS function is
executed, contact the manufacturer of the target device if
the above actions do not solve the problem.
C070H The device memory cannot be extended for the access destination specified by the SLMP message.
· Correct the SLMP message to read/write data without the device memory set for extension.
· Specify the extension of the device memory only for an Ethernet-equipped module mounted station and an R/ Q/QnACPU via CC-Link IE Controller Network, MELSECNET/H, or MELSECNET/10.
C071H
The number of device points for data read/write set for Correct the number of read/write points and send the
modules other than an R/Q/QnACPU is out of the range. SLMP message to the Ethernet-equipped module again.
C072H The request details of the SLMP message is incorrect.
· Check if the data can be requested to the access
(For example, a request for data read/write in bit units
destination.
has been issued to a word device.)
· Correct the request details and send the SLMP
message to the Ethernet-equipped module again.
C073H The access destination of the SLMP message cannot
Correct the request details of the SLMP message.
issue this request. (For example, the number of double
word access points cannot be specified for modules other
than an R/Q/QnACPU.)
335 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code C075H
C081H C083H
C084H
C085H C0B2H
C0B3H C0B6H C0BAH C0C4H C0D0H C0D1H C0D3H
Error details and causes
The request data length for the label access is out of range.
The termination processing for the Ethernet-equipped module that is involved with the reinitialization processing is being performed, and arrival of link dedicated instructions cannot be checked. The communication processing was abnormally ended in the link dedicated instruction communications
The communication processing was abnormally ended in the link dedicated instruction communications
The target station's channel specified by the link dedicated instruction SEND is currently in use. There is no sufficient space in the receive buffer or the send buffer of the relay station or external station for the MELSOFT connection, link dedicated instructions, or SLMP. (Send receive buffer full error)
A request that cannot be processed was issued from the CPU module. The channel specified by the dedicated instruction is out of the range. Since the close processing is in execution using the CONCLOSE/CLOSE instruction, a send request cannot be accepted. The UINI instruction has been executed during communications. The specified data length of the link dedicated instruction is incorrect. The number of resends of the link dedicated instruction is incorrect. The number of relay stations to communicate with other networks exceeds the allowable range.
Action
Detailed information
· Correct the number of array points and the number of read/write points, and send the SLMP message to the Ethernet-equipped module again.
· Correct the number of abbreviated label points and send the SLMP message to the Ethernet-equipped module again.
· Correct the label name length and send the SLMP message to the Ethernet-equipped module again.
· Correct the label to shorten the label name and send the SLMP message to the Ethernet-equipped module again.
· Correct the read/write data length and send the SLMP message to the Ethernet-equipped module again.
Finish all the communications to perform the
reinitialization processing of the Ethernet-equipped
module.
· Check if the relay station and external station are
operating normally.
· Check if there is an error with the cable connection
between the own station and the external station.
· If the line is heavily loaded, reduce the load, and retry
the operation.
· Increase the number of resends for the link dedicated
instructions and execute the operation.
· Check if the own station/relay station/external station is operating normally.
· Check if there is an error with the cable connection between the own station and the external station.
· Increase the TCP resend timer value of the Ethernetequipped module.
Correct the target station's channel of the SEND
instruction.
· Increase the request interval (execution interval) and execute the operation.
· Do not access through one station using the MELSOFT connection, link dedicated instruction, or SLMP.
· Wait for a response to the previous request before sending the next request.
· Correct the set value for "Timer Settings for Data Communication" under "Application Settings" of the Ethernet-equipped module.
· Correct the request details.
· Correct the network number or request destination
station number.
Correct the channel to a value within the allowable range of each dedicated instruction.
Do no perform the send processing during the close
processing.
Execute the UINI instruction after closing all connections.
Correct the data length.
Correct the number of resends.
· Check if the specification (network number/station
number) for the communication destination is correct.
· Check that number of relay stations accessing to the
communication destination is 7 or less.
· Correct the settings in the Network station number <->
IP information for the stations between the own station
and the communication destination.
336 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code
Error details and causes
Action
Detailed information
C0D4H The number of relay stations to communicate with other networks exceeds the allowable range.
· Check if the specification (network number/station
number) for the communication destination is correct.
· Check that number of relay stations accessing to the
communication destination is 7 or less.
· Correct the settings in the Network station number <->
IP information for the stations between the own station
and the communication destination.
C0D5H The number of retries of the link dedicated instruction is Correct the number of retries.
incorrect.
3
C0D6H The network number or station number of the link
Check if the specification (network number/station
dedicated instruction is incorrect.
number) for the communication destination is correct.
C0D7H Data were sent without the initial processing completed. After normal completion of the initial processing, perform the communications with the external device.
C0D8H The number of specified blocks exceeded the range.
Correct the number of blocks.
C0D9H The specified subcommand of the SLMP message is
Correct the subcommand.
incorrect.
C0DAH A response to the PING test could not be received within · Correct the IP address and host name of the target
the time of the communication time check.
module where the PING test is executed.
· Check that the initial processing of the Ethernet-
equipped module where the PING test is executed is
completed successfully.
C0DBH The IP address and host name of the target module
Correct the IP address and host name of the target
where the PING test is execute are incorrect.
module where the PING test is executed.
C0DEH Data could not be received within the specified arrival monitoring time.
· Correct the specified arrival monitoring time.
· Correct the channel of the link dedicated instruction.
· Check if the sending station and relay station are
operating normally.
C101H A response could not be received from the DNS server.
· Check the address of the DNS server.
· Check that the data communications with the DNS
server is possible by using the Ping command.
· Check that the own station IP address and the DNS
server IP address are in the same class. (If not, check
the router setting.)
C1A2H
· A response to the request could not be received. · In transient transmission, the number of relay to other
networks exceeded seven.
· Check and correct the response waiting time.
· Change the system configuration so that the number of
relay stations may be seven or less.
· For the RECV instruction, execute again after
correcting the channels used by own station in the
control data.
· For the RECV instruction, check that 'RECV execution
request' (Un\G5301 b0 to b7) are on.
· Check the operation of the external device.
· Check if the external device supports the executed
function.
C1A4H
· Any of the specified command, subcommand, or request destination module I/O number of the SLMP message is incorrect.
· The specified clear function set by the ERRCLEAR instruction is incorrect.
· The specified information to be read set by the ERRRD instruction is incorrect.
· The Ethernet diagnostics, CC-Link IE Field Network diagnostics, or CC-Link IE Controller Network diagnostics was tried to be used when the engineering tool is directly connected to the Ethernet port of the RJ71EN71.
· The function which is not supported by the target device was executed.
· Check that all of the specified command,
subcommand, and request destination module I/O
number of the SLMP message is correct.
· Correct the specified value for the clear function set by
the ERRCLEAR instruction.
· Correct the specified value for the information to be
read set by the ERRRD instruction.
· Connect it directly to the CPU module (built-in Ethernet
port part) or use a USB cable to use the Ethernet
diagnostics, CC-Link IE Field Network diagnostics, or
CC-Link IE Controller Network diagnostics.
C1A5H The specified target station or clear target is incorrect.
Correct the specified the target station or clear target.
C1A6H The specified connection number is incorrect.
Correct the setting value of the connection number.
C1A7H The specified network number is incorrect.
Correct the specified network number.
C1A8H The specified station number is incorrect.
Correct the specified station number.
C1A9H The specified device number is incorrect.
Correct the specified device number.
C1AAH The specified device name is incorrect.
Correct the specified device name.
337 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code C1ACH C1ADH C1AFH C1B0H
C1B1H C1B2H C1B3H C1B4H C1B8H C1B9H C1BAH C1BBH C1BCH
C1BDH
C1BEH
C1BFH
C1C0H
C1C1H
C1C2H
Error details and causes
The specified number of resends is incorrect. The specified data length is incorrect. The specified port number is incorrect. The open processing of the specified connection has been already completed.
The open processing of the specified connection has not been completed. The open or close processing using CONOPEN/ CONCLOSE/OPEN/CLOSE instruction is being executed in the specified connection. Another send or receive instruction is being executed in the specified channel.
The specified arrival monitoring time is incorrect.
The RECV instruction was executed for the channel that had not received data.
The CONOPEN/OPEN instruction cannot be executed for the specified connection. The dedicated instruction was executed with the initialization not completed. The target station CPU type of the link dedicated instruction is incorrect. The target network number of the link dedicated instruction is incorrect.
The target station number of the link dedicated instruction is incorrect.
The command code of the dedicated instruction is incorrect.
The channel used in the dedicated instruction is incorrect.
The transient data is incorrect.
The transient data is incorrect.
When the dedicated instruction was executed, data was received twice.
Action
Correct the number of resends.
Correct the specified data length.
Correct the specified port number
· Do not perform the open processing to a connection already opened.
· When communications with the external device cannot be performed, perform the close processing before the open processing.
After completion of the open processing, perform the communication.
Execute again after the CONOPEN/CONCLOSE/OPEN/ CLOSE instruction is completed.
· Change the channel number. · Execute again after the send or receive instruction is
completed.
Set the arrival monitoring time to a value within the allowable range.
· Correct the execution condition of the RECV instruction for the channel that had received data.
· Correct the specified channel of the RECV instruction.
Correct the specified connection.
Execute the dedicated instruction after the initial processing is completed.
Correct the specified target station CPU type.
· Execute the link dedicated instruction again after correcting the network number.
· When specifying another network station, check if the settings in "Routing Setting" of "CPU Parameter" are made correctly.
· Execute the link dedicated instruction again after correcting the target station number.
· When specifying another network station, check if the settings in "Routing Setting" of "CPU Parameter" are made correctly.
· Execute again after correcting the command code at the request source.
· If the request source is on another network, check if the routing parameters are set correctly, and take action.
· Execute again after correcting the used channel within the allowable range at the request source.
· If the request source is on another network, check if the routing parameters are set correctly, and take action.
· Correct the transient data at the request source, and retry the operation.
· If the error occurs again even after taking the above, please consult your local Mitsubishi representative.
· Correct the transient data at the request source, and retry the operation.
· If the error occurs again even after taking the above, please consult your local Mitsubishi representative.
· Check the network status and take corrective action using the Ethernet diagnostics of the engineering tool.
· Check if the switching hub and the cables at the request source are connected properly.
· If the request source is on another network, check if the routing parameters are set correctly, and take action.
Detailed information
338 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code
Error details and causes
Action
Detailed information
C1C4H The arrival check of the link dedicated instruction was completed with an error.
· Execute link dedicated instruction again after changing the execution type in the control data to "No arrival acknowledgment".
· For the REQ instruction, execute again after correcting request type.
C1C5H A dedicated instruction which the target station does not · Change the target station at the station that executed
support was executed.
the SEND instruction.
· If the error occurs again even after taking the above,
please consult your local Mitsubishi representative.
3
C1C6H The execution or error completion type of the dedicated · Execute again after correcting the execution/error
instruction is incorrect.
completion type in the control data.
· If the problem cannot be resolved with the above
actions, the possible cause is a hardware failure of the
module. Please consult your local Mitsubishi
representative.
C1C7H The request type of the REQ instruction is incorrect.
· Execute again after correcting the request type of the REQ instruction.
· If the problem cannot be resolved with the above actions, the possible cause is a hardware failure of the module. Please consult your local Mitsubishi representative.
C1C8H The channel specified in the dedicated instruction is in use.
Change the channels used by own station or the target station's channel in the control data.
C1C9H
The device specification for the ZNRD/ZNWR instruction is not correct.
· Execute again after correcting the device specification for the ZNRD/ZNWR instruction.
· If the problem cannot be resolved with the above actions, the possible cause is a hardware failure of the module. Please consult your local Mitsubishi representative.
C1CAH The device specification for the ZNRD/ZNWR instruction is not correct.
· Execute again after correcting the device specification for the ZNRD/ZNWR instruction.
· If the problem cannot be resolved with the above actions, the possible cause is a hardware failure of the module. Please consult your local Mitsubishi representative.
C1CBH The transient data is incorrect.
· Correct the transient data at the request source, and retry the operation.
· If the error occurs again even after taking the above, please consult your local Mitsubishi representative.
C1CCH A response of the data length that exceeds the allowable · Execute again after correcting the request data to be
range was received by the SLMPSND instruction.
within the range.
· If the error occurs again even after taking the above,
please consult your local Mitsubishi representative.
C1CDH Message send of the SLMPSND instruction has failed.
· Check the operation of the external device or switching hub.
· Since there may be congestion of packets on the line, send data after a certain period of time.
· Check if the connection cable is disconnected. · Check that there is no connection failure with the
switching hub. · Execute the communication status test, and if the test
was completed with an error, take the corrective action. · Execute the module communication test, and check
that there is no failure in the module. · Check the IP address specified as the destination.
C1D0H The requested module I/O No. of the dedicated instruction is incorrect.
· Execute again after correcting the requested module I/ O No. at the request source of the dedicated instruction.
· If the error occurs again even after taking the above, please consult your local Mitsubishi representative.
C1D2H The target station IP address of the link dedicated
Execute the link dedicated instruction again after
instruction is incorrect.
correcting the IP address.
339 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code C1D3H
C200H C201H C202H C203H C204H C205H C207H C208H C400H
C401H
C402H C403H
C404H C405H C406H C407H
C408H
Error details and causes
Action
Detailed information
The dedicated instruction not supported by the
· Check that the dedicated instruction can be executed
communication method of the connection was executed.
by the specified communication method. Correct the
program when the instruction cannot be executed.
· Check that there is no error in the connection
specification of the dedicated instruction.
The remote password is incorrect.
Correct the remote password, and unlock/lock the remote password again.
The remote password status of the port used for
After unlocking the remote password, perform
communications is in the lock status.
communications.
When another station was accessed, the remote password could not be unlocked.
When accessing another station, do not set the remote password on the relay station or access station, or do not execute the remote password check on them.
An error has occurred by checking the remote password. Correct the remote password, and unlock/lock the remote password again.
The device is different from the one requesting the remote password unlock processing.
Request the lock processing of the remote password
from the external device that requested the unlock
processing of the remote password.
When another station was accessed, the remote password could not be unlocked.
When accessing another station, do not set the remote password on the relay station or access station, or do not execute the remote password check on them.
The file name has too many characters.
Name the file with 255 characters or less.
The password length is out of range.
Set the password within 6 to 32 characters.
The ECPRTCL instruction was executed when Predefined protocol ready is not completed.
· Execute the ECPRTCL instruction after Predefined
protocol ready has turned on.
· Execute the ECPRTCL instruction after rewriting the
protocol setting data to the Ethernet-equipped module.
· If the error occurs again even after taking the above,
the possible cause is a hardware failure of the module.
Please consult your local Mitsubishi representative.
The protocol number specified by the ECPRTCL instruction is not registered in the Ethernet-equipped module.
· Correct the specified protocol number and execute the instruction again.
· Register the protocol specified protocol number to the Ethernet-equipped module.
An error has occurred in the protocol setting data registered in the Ethernet-equipped module and the ECPRTCL instruction cannot be executed.
Correct the protocol setting data and register it again.
Multiple dedicated instructions was executed simultaneously.
· Do not execute the dedicated instructions which do not support simultaneous execution.
· Correct the specified connection number and execute the dedicated instruction again.
The protocol being executed by the ECPRTCL instruction Check the canceled protocol in the control data of the
was canceled.
ECPRTCL instruction (execution count result) and
eliminate the cause of the cancellation.
The protocol number specified by the ECPRTCL
Correct the specified protocol number.
instruction is incorrect.
The continuous protocol execution count of the ECPRTCL instruction is incorrect.
Correct the continuous protocol execution count.
The connection number specified by the ECPRTCL instruction is incorrect.
· Correct the specified connection number and execute the protocol again.
· Correct the specified connection number in "External Device Configuration" under "Basic Settings" of the Ethernet-equipped module and execute the protocol again.
An error has occurred when the send processing of the predefined protocol using the ECPRTCL instruction was performed.
· Check the operation of the external device or switching hub.
· Since there may be congestion of packets on the line, send data after a certain period of time.
· Check if the connection cable is disconnected. · Check that there is no connection failure with the
switching hub. · Execute the communication status test, and if the test
was completed with an error, take the corrective action. · Execute the module communication test, and check
that there is no failure in the module.
340 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code
Error details and causes
Action
Detailed information
C410H Receive waiting time of the ECPRTCL instruction timed · Check if the cable is disconnected.
out.
· Correct the specified connection number in "External
Device Configuration" under "Basic Settings" of the
Ethernet-equipped module and execute the protocol
again.
· Check that there is no error in the external device.
· Check that the sending from the external device is not
interrupted.
· Check that there is no data lost due to a receive error. · Check that there is no error in the data (packet) sent by
3
the external device.
C412H
The data which cannot be converted from ASCII to binary code was received.
· Check that there is no data lost due to a receive error. · Check that there is no error in the data (packet) sent by
the external device.
C413H The number of digits of the received data using the predefined protocol is not sufficient.
· Check that there is no data lost due to a receive error. · Check that there is no error in the data (packet) sent by
the external device.
C414H The number of digits of the received data using the predefined protocol is incorrect.
· Check that there is no data lost due to a receive error. · Check that there is no error in the data (packet) sent by
the external device.
C417H The data length or data quantity of the received data using the predefined protocol is out of range.
· Check the maximum allowable data length and specify the maximum length or less in the data length storage area.
· Check the maximum allowable data quantity, and specify the maximum quantity or less in the data quantity storage area.
C420H Protocol setting data write has failed.
· Write the data again.
· If the error occurs again even after taking the above,
the possible cause is a hardware failure of the
specified module. Please consult your local Mitsubishi
representative.
C421H Writing was requested to the module whose flash ROM Replace the module because the number of writes
write count had exceeded the limit.
exceeded the limit.
C430H Protocol setting data was written during the ECPRTCL Do not write the protocol setting data during the
instruction execution.
ECPRTCL instruction execution.
C431H Close processing of the connection was performed during the ECPRTCL instruction execution.
· Check the operation of the external device.
· Check the connection open status with the external
device.
· Open the connection with the external device again
and execute the instruction.
C440H to C44FH
A communication error has occurred with an engineering tool when executing the Ethernet diagnostics.
· Execute the communication status test, and if the test was completed with an error, take the corrective action.
· Execute the module communication test, and check that there is no failure in the module.
C610H to C613H
The module processing was completed with an error.
· Execute the communication status test, and if the test was completed with an error, take the corrective action.
· Execute the module communication test, and check that there is no failure in the module.
C614H The module processing was completed with an error.
· Correct the setting value of "Response Monitoring
Timer" under "FTP Server Settings" because writing
files may require a longer time.
· Execute the communication status test, and if the test
was completed with an error, take the corrective action.
· Execute the module communication test, and check
that there is no failure in the module.
C615H The module processing was completed with an error.
· Execute the communication status test, and if the test was completed with an error, take the corrective action.
· Execute the module communication test, and check that there is no failure in the module.
341 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code C616H
C617H C618H
C619H
C620H C621H C622H
C623H
C700H C701H C702H C703H
Error details and causes
Action
Detailed information
Connection of the control port to the FTP server failed.
· Correct the IP address setting of the Ethernet-
equipped module.
· Correct the FTP server setting.
· Check connection with the FTP server.
· Disconnect the user session on the FTP server.
· Data communications may not be ready. Wait for a
while and perform the operation again.
· Correct the TCP ULP timeout value because
connecting to the FTP server may require a longer
time.
Disconnection of the control port to the FTP server failed. · Correct the FTP server setting.
· Check connection with the FTP server.
Login to the FTP server failed.
· Correct the FTP server setting (login user name and login password).
· Check the FTP server software settings (login user name and login password).
· Check the data communication history of the FTP server software.
Execution of the FTP command to the FTP server failed. · Correct the FTP server setting (folder path and
connection method).
· Check that the user has a right to access (read/write)
the FTP server or the specified file.
· Check that the specified folder path exists in the FTP
server.
· Check that the specified file exists in the FTP server.
· Correct the FTP server software settings.
· Check the data communication history of the FTP
server software.
· Check that the file access is being performed in the
FTP server.
Connection of the data transfer port to the FTP server failed.
· Check connection with the FTP server.
· Correct the FTP server setting (connection method).
· If a firewall is active or the proxy server is on the
connection path, consult a network administrator about
the settings.
Disconnection of the data transfer port to the FTP server failed.
· Check connection with the FTP server.
· Correct the FTP server setting (connection method).
· If a firewall is active or the proxy server is on the
connection path, consult a network administrator about
the settings.
An error has occurred during file transfer to the FTP server.
· Delete unnecessary files on the FTP server to increase free space.
· Check connection with the FTP server. · The specified file may be used in the other process.
Wait for a while and perform the operation again. · The Ethernet line may be congested. Wait for a while
and perform the operation again.
A response could not be received from the FTP server.
· Check that the FTP server name is registered in the
DNS.
· Change the FTP server name to the IP address, and
check the operation.
· Check that the data communications with the FTP
server is possible by using the Ping command.
The module processing was completed with an error.
· Execute the communication status test, and if the test was completed with an error, take the corrective action.
· Execute the module communication test, and check that there is no failure in the module.
The IP address (network number) setting is incorrect in Check the IP address (network number).
communications using the IP packet transfer function.
The IP address (station number) setting is incorrect in
Check the IP addresses (station number).
communications using the IP packet transfer function.
The destination IP address (upper level) setting is
Check the destination IP address.
incorrect in communications using the IP packet transfer
function.
342 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code
Error details and causes
Action
Detailed information
C704H The destination IP address (lower level) setting is
Check the destination IP address.
incorrect in communications using the IP packet transfer
function.
C705H to C707H
The module processing was completed with an error.
· Execute the communication status test, and if the test was completed with an error, take the corrective action.
· Execute the module communication test, and check that there is no failure in the module.
C708H When communicating with the IP packet transfer
When communicating with the IP packet transfer
function, "IP Packet Transfer Function" is set as "Not
function, set "IP Packet Transfer Function" as "Not Use"
3
Use" in "IP Packet Transfer Setting" under "Application in "IP Packet Transfer Setting" under "Application
Settings" of the Ethernet-equipped module connected
Settings".
with the Ethernet devices.
C709H A communication error has occurred with MELSOFT direct connection.
· Do no execute the specification of the direct
connection when direct connection is not used.
· Do not power off the system or reset the CPU module,
or remove the cable during the communications when
direct connection is used.
C810H Remote password authentication has failed when
Set a correct password and perform password
required.
authentication again.
C811H Remote password authentication has failed when
Set a correct password and perform password
required.
authentication again one minute later.
C812H Remote password authentication has failed when
Set a correct password and perform password
required.
authentication again 5 minutes later.
C813H Remote password authentication has failed when
Set a correct password and perform password
required.
authentication again 15 minutes later.
C814H Remote password authentication has failed when
Set a correct password and perform password
required.
authentication again 60 minutes later.
C815H Remote password authentication has failed when
Set a correct password and perform password
required.
authentication again 60 minutes later.
C816H The security function was activated and remote password authentication cannot be performed.
Set a correct password and perform password
authentication again after a certain period of time.
C840H Number of transient request exceeded the upper limit of simultaneously processable requests.
· Pause the transient transmission temporarily, and retry the operation.
· Lower the transient transmission usage frequency, and then perform again.
C842H The routing setting is not set to reach to the destination network number.
· Execute the link dedicated instruction again after
correcting the target network number and station
number.
· When the dynamic routing is used, check that
communication path to the destination network number
is set.
· When the dynamic routing is not used, or a module of
the series other than MELSEC iQ-R is included, retry
the operation after correcting the settings in "Routing
Setting" of "CPU Parameter".
C843H Link dedicated instruction that cannot be executed on the Check the network type of the Ethernet-equipped
network type were executed.
module.
C844H
Incorrect frame is received. · Unsupported pre-conversion protocol · Unsupported frame type · Application header variable part · Application header HDS · Application header RTP · Read command not requiring response
Correct the request data at the transient request source, and retry the operation.
C860H The CPU response monitoring timer issued a timeout
When the CPU module has an error, eliminate it.
during MODBUS/TCP communications.
C861H A request message containing an unsupported function Check the supported function code, and correct the
code was received during MODBUS/TCP
request message issued on the master side.
communications.
C862H A request message containing an unsupported sub-code Check the supported sub-code and correct the request
was received during MODBUS/TCP communications.
message issued on the master side.
343 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code C863H C864H C865H
C866H
C867H C868H C869H C86AH
C86BH C86CH CEE0H CEE1H
Error details and causes
Action
The MODBUS device assignment parameters have not been set for the MODBUS device specified in the received request message in MODBUS/TCP communications.
Set the MODBUS device assignment parameters for the MODBUS device specified in the request message.
The range of the MODBUS devices specified in the received request message exceeded the setting range of the MODBUS device assignment parameters in MODBUS/TCP communications.
Set the MODBUS device assignment parameters so that they include the range of the MODBUS devices specified in the request message.
The range of the MODBUS devices specified in the received request message exceeded the upper limit for the MODBUS devices in MODBUS/TCP communications. (The upper limit of extended file register is 10000 and the upper limit of the MODBUS device is 65536.)
Check the MODBUS devices specified on the master side that sent the request message.
The start address and the number of access points of the MODBUS device specified in the received request message are incorrect in MODBUS/TCP communications.
· Check if the specified value exceeds the maximum number of access points for the function.
· Ensure that the number of access points is not 0. · When accessing a MODBUS device to which a long
device is assigned in the MODBUS device assignment parameters, check that the start address and the number of access points are specified in units of two points. · When accessing a MODBUS device to which LTN or LSTN is assigned in the MODBUS device assignment parameters, check that the start address and the number of access points are specified in units of four points.
The number of write points specified for the received request message does not match with the specified number of bytes in MODBUS/TCP communications.
Check the number of write points and the number of bytes specified on the master side that issued the request message.
The received write data size does not match with the specified number of bytes in MODBUS/TCP communications.
Check the write data size and the number of bytes specified on the master side that issued the request message.
The value of the reference type specified in the received request message (FC20, FC21) is incorrect in MODBUS/ TCP communications.
Check the reference type specified on the master side that issued the request message.
The content of the data part of the received request message is incorrect in MODBUS/TCP communications. The size of the received request message is smaller than the minimum size required for the function code, or larger than the maximum size required for the function code.
Check the data part of the request message on the master side that issued the message.
The content of MBAP header of the received request
Check the content of the request message on the master
message is incorrect in MODBUS/TCP communications. side that issued it.
The number of received request messages exceeded the number that can be received simultaneously.
Wait for a while and retry sending on the master side that issued it. (The number of request messages that can be received simultaneously is 64 for each of PORT1 and PORT2.)
The devices supporting iQSS which were detected by the other peripheral device, or other iQSS functions were executed while the automatic detection of connected devices is in process.
Execute the other function after the automatic detection of connected devices is completed.
Incorrect frame is received.
· Check the operating status and connection status of the target device.
· Check the connection of an Ethernet cable and a hub. · Check the line status of Ethernet. · Reset the CPU module and target device, and retry the
operation. If the above actions do not solve the problem, contact the manufacturer of the target device.
Detailed information
344 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code
Error details and causes
Action
Detailed information
CEE2H Incorrect frame is received.
· Check the operating status and connection status of the target device.
· Check the connection of an Ethernet cable and a hub. · Check the line status of Ethernet. · Reset the CPU module and target device, and retry the
operation. If the above actions do not solve the problem, contact the manufacturer of the target device.
CF10H Incorrect frame is received.
· Check the operating status and connection status of the target device.
3
· Check the connection of an Ethernet cable and a hub.
· Check the line status of Ethernet.
· Reset the CPU module and target device, and retry the
operation.
If the above actions do not solve the problem, contact the
manufacturer of the target device.
CF20H · The setting value of the communication setting is out of Correct the setting details, and retry the operation.
range.
· The items of communication setting which cannot be
set on the target device are set.
· The required setting items have not been set to the
target device.
CF30H The parameter which is not supported by the target
Check the version of the target device.
device was specified.
CF31H Incorrect frame is received.
· Check the operating status and connection status of the target device.
· Check the connection of an Ethernet cable and a hub. · Check the line status of Ethernet. · Reset the CPU module and target device, and retry the
operation. If the above actions do not solve the problem, contact the manufacturer of the target device.
CF70H An error occurred on the Ethernet communication path. · Check the operation of the target device.
· Check if the connection cable is disconnected.
CF71H A timeout error has occurred.
· Check the operation of the target device. Since there may be congestion of packets on the line, perform the operation after a while.
· Correct the setting details of when the iQSS function is executed, and retry the operation.
· Check the connection of an Ethernet cable and a hub.
CFB0H Sending data failed due to a resend timeout while the simple CPU communication.
· Check the operation of the communication destination. · Check the line status with the communication
destination such as a cable, hub, and router. · Check and correct the latency time. · Correct the IP address and Ethernet address of the
communication destination. · Check if the communication destination has the ARP
function, and communicate with a communication destination that has the ARP function. · When the communication destination is a MODBUS/ TCP-compatible device and "Write" is set to "Communication Pattern", do not specify Input or Input Register for the transmission destination. · The type of the communication destination depends on the firmware version of the network module. Check the firmware version. ( Page 215 Restrictions applicable depending on versions)
345 3 TROUBLESHOOTING 3.5 List of Error Codes
Error code CFB1H
CFB2H
CFB3H CFB4H CFB5H CFBDH CFBEH CFBFH
Error details and causes Communications with the communication destination do not executed while the simple CPU communication. Or the external device is disconnected.
The same specified own station port number is already used for the simple CPU communication.
The request to the CPU module has failed while the simple CPU communication.
An abnormal response was received from the communication destination while the simple CPU communication. The frame received from the communication destination is incorrect while the simple CPU communication. The device specified as the communication destination is out of specification range for the simple CPU communication. A communication error has occurred with an engineering tool during the simple CPU communication diagnostics.
The simple CPU communication cannot be executed.
Action
Detailed information
· Check if the connection cable is disconnected.
· Check the line status with the communication
destination such as a cable, hub, and router.
· Correct the IP address and Ethernet address of the
communication destination.
· Check if the communication destination has the ARP
function, and communicate with a communication
destination that has the ARP function.
· The type of the communication destination depends on
the firmware version of the network module. Check the
firmware version. ( Page 215 Restrictions
applicable depending on versions)
· Correct the specified port number so that it is not
duplicate.
· It depends on the firmware version whether the
network module can make multiple settings for the
same communication destination. Check the firmware
version of the network module.
· Check and correct the monitoring time of the CPU
Response Monitoring Timer.
· Check and correct the device/label access service
processing setting.
Check the abnormal response code in the buffer memory.
· Check the operation of the communication destination. Check the line status with the communication destination such as a cable, hub, and router.
Correct the address of "Type", "Start", "End" of the device specified as the communication destination in "Simple PLC Communication Setting" under "Application settings".
· Execute the communication status test, and if the test was completed with an error, take the corrective action. Execute the module communication test, and check that there is no failure in the module.
· When the communication destination is the MELSEC- Q (Ethernet module) or MELSEC-L (Ethernet module), set the network number and station number in "Own Node Settings" under "Basic Settings".
· Take measures to reduce noise. · It depends on the firmware version of the network
module whether the on-request communications is possible or not. Check the firmware version of the network module. · The type of the communication destination depends on the firmware version of the network module. Check the firmware version. ( Page 215 Restrictions applicable depending on versions) · If the same error code is displayed even after executing the simple CPU communication again, please consult your local Mitsubishi representative.
346 3 TROUBLESHOOTING 3.5 List of Error Codes
3.6 List of Parameter Numbers
This section lists the parameter numbers displayed in the module diagnostics.
System Parameter
Item Redundant Module Group Setting
Basic Settings
Item Own Node Settings
CC-Link IEF Basic Setting External Device Configuration
Parameter Setting Method
IP Address
IP Address
Subnet Mask
Default Gateway
Communications by Network No./Station No. (RJ71EN71 and RnENCPU (network part))
Communications by Network No./Station No. (CPU module (built-in Ethernet port part))
Setting Method
Network Number
Station No.
Transient Transmission Group No.
Enable/Disable Online Change
Communication Data Code
Opening Method
Network Configuration Settings
Refresh Settings
Parameter No. 0400H
3
Parameter No. 7100H A012H A012H A013H 7100H 7A20H 7100H 7100H 7100H A010H A030H A031H A031H 7A00H 7420H A031H
Application Settings
Item
Frame Settings
Communication Speed
FTP Server Settings
FTP Client Settings
DNS Settings
Web Server Settings
MODBUS/TCP Settings
To Use or Not to Use MODBUS/TCP Setting
CPU Response Monitoring Timer
Device Assignment
Simple PLC Communication Setting (RJ71EN71 and RnENCPU (network part))
Simple PLC Communication Setting (CPU Module (built-in Ethernet port part))
Time Setting
Timer Settings for Data Communication
Security
IP Filter Settings
Disable Direct Connection with MELSOFT
Do Not Respond to CPU Module Search
Gateway Parameter Settings
Network/Station No. <-> IP information setting
Interrupt Settings
Interrupt Occurrence Factor
Channel No./Connection No.
Detection Method
Interrupt Pointer
Comment
Parameter No. A036H 7100H A037H A03DH A03EH A035H A0B0H A0B0H A0B2H A0E1H 7A10H A039H A038H A03AH A034H A034H A013H A033H A014H A014H A014H A014H A015H
347 3 TROUBLESHOOTING
3.6 List of Parameter Numbers
Item IP Packet Transfer Setting Network Dynamic Routing Module Operation Mode Redundant System Settings
Built-in database access setting
System B IP Address System B Station Number Use of Control System IP Address Control System IP Address System B Module Operation Mode Port Group Setting System Switching Request Issuing at Disconnection Detection Disconnection Detection Monitoring Time System Switching Request Issue at Communication Error User Connection System Connection
Parameter No. A030H A030H 7100H A03CH 7110H A03CH A03CH 7110H A03CH A03CH A03CH A03CH A03CH A03CH A0E0H
348 3 TROUBLESHOOTING 3.6 List of Parameter Numbers
3.7 Event List
This section lists the events occurs in Ethernet.
Event code
Event type
Description
Cause
00100
System
Link-up
Link-up has occurred when the network cable connected to the external device was connected.
00110 00120
TCP connection communication start/end FTP connection start/stop
Communication using the TCP connection with the external device was
started or ended.
3
FTP connection was started from the external device or disconnected.
00130
Receive frame error
· Receive frame error was detected. · The Ethernet-equipped module was connected to the CC-Link IE
Controller Network or CC-Link IE Field Network.
00140
Time synchronization failure
No response was returned from the time information server (SNTP server) and time synchronization has failed.
00400
Restart by a program
The module was restarted by the program.
00800
Link-down
Link-down has occurred when network cable connected to the external device was disconnected.
00901
Data length error
The send/receive data length exceeds the allowable range.
00902
Initial processing error
Socket communications or communications using the fixed buffer were executed before the initial processing was completed.
00903
Specification IP address error
Broadcast address was specified to the IP address of the external device other than Unpassive.
00904
Socket communications transmission failed
Message send of the socket communications has failed.
00905
Not opened
· The open processing of the external device has not been completed. · The connection with the external device is closed.
00906
Alive check error
The existence of the external device could not be checked within the response monitoring timer value.
00907
Divided messages receive timeout error
· Not all the data could be received within the response monitoring timer value.
· Sufficient data for the data length could not be received. · The remaining part of the message divided at the TCP/IP level could
not be received within the response monitoring timer value.
00908
IP assembly timeout error
An IP assembly timeout error has occurred. (The remaining part of the divided data could not be received and a timeout has occurred.)
00909
TCP specification port number error
The port number used in a connection already opened is set. (For TCP/ IP)
0090A
UDP specification port number error
The port number used in a connection already opened is set. (For UDP/IP)
00A00
System switching request issued
A system switching request occurred.
00C02
Access abnormal response of another station
· Abnormal response was returned from another station when accessing another station.
· Abnormal response was returned to another station when accessed from another station.
00D00
Fixed buffer response send failed
Response send of the communications using the fixed buffer has failed.
00D01
Pairing open error
The open processing of the connection specified for pairing open has been already completed.
00D02
End code error
An abnormal end response was received for communications using the fixed buffer and random access buffer.
00D03
Response monitoring timeout error
· A response could not be received within the response monitoring timer value.
· The connection with the external device was closed while waiting for a response.
00D04
Fixed buffer send failed
Message send of the fixed buffer has failed.
00D05
Random access communication error
The parameter (start address and data word) of the data received by the random access communication is faulty.
349 3 TROUBLESHOOTING 3.7 Event List
Event code 10200 10201 10202 10300 10500 10501 24E00
Event type Security
Operation
Description
Remote password lock Remote password unlock successful Remote password unlock failed Access from IP restricted with IP filter setting Forced invalidation setting Forced invalidation cancel ERR LED off execution
Cause
The lock processing of the remote password was performed. The unlock processing of the remote password was succeeded. The unlock processing of the remote password has failed. Accessed from IP address restricted with the IP filter setting. Forced invalidation setting was executed. Forced invalidation setting was canceled. The ERR LED has turned off using the output signal Y17 of the module.
350 3 TROUBLESHOOTING 3.7 Event List
3.8 End Codes Returned to an External Device During
Data Communications
The following table lists the error codes stored in the end code appended to a response during data communications.
End code
Error details and causes
Action
00H
Normal completion
When each communication is normally completed, the error code
00H is stored.
3
02H
The device range destination of devices to be read/written from/to is incorrect. Check and correct the specified start device and the number of
points.
50H
· Codes for the command/response type of a subheader are not within the
· Check and correct the command/response type set for the
specifications.
external device. (Because the Ethernet-equipped module
· In communications using the fixed buffer, if the data length setting is smaller automatically adds the command/response type, the user
than the actual data amount, the remaining data is processed as the second setting is not required.)
data. In this case, a subheader undefined command type error may occur.
· Check and correct the data length.
51H
In communications using the random access buffer, the start address specified Check and correct the specified start address.
by an external device has been set outside the range from 0 to 6143.
52H
· In communications using the random access buffer, the start address and
· Check and correct the start address and the number of data
the number of data words (depending on the setting when reading data)
words.
specified by an external device exceeds the range from 0 to 6143.
· Correct the number of read/write points.
· Data by the number of words specified (text) cannot be sent in one frame.
(The data length value or the amount of the text sent/received are not in the
allowable range.)
54H
When "ASCII" has been selected for "Communication Data Code" in "Own
Check and correct the data sent from the external device.
Node Settings" under "Basic Settings" of the Ethernet-equipped module, ASCII
code data which cannot be converted into binary code data has been sent from
the external device.
55H
· When "Disable All (SLMP)" has been selected for "Enable/Disable Online
· Set "Enable All (SLMP)" for "Enable/Disable Online Change" in
Change" in "Own Node Settings" under "Basic Settings" of the Ethernet-
"Own Node Settings" under "Basic Settings" of the Ethernet-
equipped module, the external device requested a data write while the CPU
equipped module, and write data. (However, a parameter,
module was running.
program, or microcomputer program cannot be written while the
· While the CPU module was running, the external device requested for
CPU module is running.)
writing a parameter or program.
· Set the switch on the CPU module to STOP and write the data.
56H
The external device specified an incorrect device.
Correct the device specification.
57H
· The number of points for a command specified by an external device
· Correct the specified points or the start address (device number
exceeds the maximum number of processing points (number of processes
and step number).
that can be executed per communication) for each process.
· Check the data length of the command and set the data again.
· Addresses from the start address (start device number and start step
· Register the monitoring data.
number) to the specified number of points exceed the largest addresses
· Data cannot be read from/written to an area with an address
(device number and step number) for each process.
after the last address. Correct the specified address.
· The byte length of a command is not within the range defined by the
· Correct the block number.
specifications.
· In the block number specification of the extension file register,
· When data is written, the set number of write data points is different from the do not specify a block number exceeding the range of the
specified number of points.
corresponding memory cassette size.
· A monitor request was issued even though monitoring data is not registered.
58H
· The start address (start device number and start step number) of a
· Correct the value to the one within the range that can be
command specified by an external device has been set outside the range
specified for each process.
that can be specified.
· Correct the block number.
· For data read/write in a microcomputer program or file register (R), values
· Correct the device specification.
exceeding the CPU module parameter setting range has been specified.
· Correct the command or specified device.
· A block number specified for an extension file register does not exist.
· A file register cannot be specified.
· A word device has been specified for the command for bit devices.
· The start number of bit devices has been specified using a value other than a
multiple of 16 in the command for word devices.
59H
An extension file register cannot be specified.
Correct the device specification.
60H
The communication time between the CPU module and the Ethernet-equipped Increase the response monitoring timer value.
module exceeded the response monitoring timer value.
63H
In communications using the fixed buffer, the remote password of the port for · After unlocking the remote password using the SLMP, perform
the destination Ethernet module is in the lock status.
communications using the fixed buffer.
· Exclude ports used for communications using the fixed buffer
from the targets of the remote password check.
3 TROUBLESHOOTING 3.8 End Codes Returned to an External Device During Data Communications
351
APPENDICES
Appendix 1 Module Label
The I/O signals and buffer memory of the Ethernet-equipped module can be set using module label.
Structure of the module label
The module label name is defined with the following structure. "Instance name"_"Module number"."Port number"."Label name" "Instance name"_"Module number"."Label name" "Instance name"_"Module number"."Port number"."Label name"_D "Instance name"_"Module number"."Label name"_D
Ex. EN71_EE_1.stPort1.wnVal_IP_Address_D[0]
Instance name
The following are the instance names of the RJ71EN71 and the RnENCPU (network part) corresponding to each network type
setting.
Model RJ71EN71 RJ71EN71 (E+E) RJ71EN71 (CCIEC) RJ71EN71 (E+CCIEC) RJ71EN71 (CCIEF) RJ71EN71 (E+CCIEF)
RnENCPU (network part) _RJ71EN71(CCIEC) _RJ71EN71(E+IEC) _RJ71EN71(CCIEF) _RJ71EN71(E+IEF)
Instance name
EN71_EE EN71_C EN71_EC EN71_F EN71_EF
Module number
A sequential number starting with "1" for identifying a module from the one with the same instance name.
Port number
The port number is added to the module labels corresponding the buffer memory areas other than P1/P2 common area.
The following lists the characters corresponding to the port numbers
Port number P1 P2
Added characters stPort1 stPort2
Label name
A label name unique to the module.
_D
This symbol indicates that the module label is for direct access. The label without "_D" is for refresh. The following are the
differences between refresh and direct access.
Type Refresh
Direct access
Description
The values read/written from/to the module labels are reflected to the module at refresh. The execution time of the program can be shortened.
The values read/written from/to the module labels are reflected to the module immediately. Although the execution time of the program is longer than the one at refresh, the responsiveness is improved.
Access timing At refresh
At writing to or reading from the module label
352 APPX Appendix 1 Module Label
Appendix 2 I/O Signals
This section describes the I/O signals of the RJ71EN71 and the RnENCPU (network part) for the CPU module. The I/O signal assignment of when the start I/O number of the RJ71EN71 or the RnENCPU (network part) is "0" is listed below.
List of I/O signals
The following table lists I/O signals. The device X is an input signal from the RJ71EN71 and the RnENCPU (network part) to the CPU module. The device Y is an input signal from the CPU module to the RJ71EN71 and the RnENCPU (network part). The I/O signals differ when the network type is Ethernet, and Q-compatible Ethernet.
When network type is "Ethernet"
Input signals
Device number X0*1
X1 to XE XF
X10 to X1F
Signal name
Module failure (On: Module failure, Off: Module normal)
Use prohibited Module READY (On: Module operation possible, Off: Module operation not possible)
Use prohibited
*1 This signal enabled when the network type for the P2 connector is set to "CC-Link IE Field". For details on operation of the signal, refer to the following. MELSEC iQ-R CC-Link IE Field Network User's Manual (Application)
Output signals
Device number Y0 to Y1F
Signal name Use prohibited
A
· Do not use (turn on) any "use prohibited" signals as an input or output signal to the CPU module. Doing so may cause malfunction of the programmable controller system.
· For the I/O signals of the P2 connector when its network type is set to "CC-Link IE Control", refer to the following.
MELSEC iQ-R CC-Link IE Controller Network User's Manual (Application) · For the I/O signals of the P2 connector when its network type is set to "CC-Link IE Field", refer to the
following. MELSEC iQ-R CC-Link IE Field Network User's Manual (Application)
353 APPX
Appendix 2 I/O Signals
When the network type is "Q Compatible Ethernet"
With the Q-compatible Ethernet, the same I/O signals as the MELSEC-Q series Ethernet interface module can be used except in some cases. The following table lists the differences of the RJ71EN71 and MELSEC-Q series Ethernet interface modules.
Device number X1C
Y17
Y19
RJ71EN71 ERR LED lit confirmation*1 (On: Lit, Off: ) ERR LED off request*2 (On: At off request, Off: )
Use prohibited
QJ71E71-100
COM.ERR. LED lit confirmation (On: Lit, Off: )
COM.ERR. LED off request (On: At off request, Off: )
Initial request signal (On: At request, Off: )
*1 This signal turns on when the ERR LED or the P ERR LED of P1 is on or flashing. *2 The details are listed below.
The ERR LED and the P ERR LED of P1 turn off. An off request continues to be issued while this signal is on. (Does not light while on.) The event is registered in event history when off process is executed. This signal cannot be turned off during major error. If the error occurs again after turning on and off, the ERR LED or P ERR LED will turn on or flash according to the details of the error. Currently occurring error and error history information is not cleared.
For details on the other I/O signals, refer to the following.
Q Corresponding Ethernet Interface Module User's Manual (Basic)
Do not use (turn on) any "use prohibited" signals as an input or output signal to the CPU module. Doing so may cause malfunction of the programmable controller system.
354 APPX Appendix 2 I/O Signals
Appendix 3 Buffer Memory
The buffer memory is used for the following applications.
Module RJ71EN71, RnENCPU (network part) CPU module (built-in Ethernet port part)
Application
Exchanges data with the CPU module. Stores data such as the setting values for the Ethernet function and monitor values, and data used for exchanging data with the multiple CPU function.
Buffer memory values are reset to default when the CPU module is reset or the system is powered off.
List of buffer memory addresses
RJ71EN71, RnENCPU (network part)
The following table lists the buffer memory addresses of the RJ71EN71 and the RnENCPU (network part) when the network type is set to "Ethernet". For the addresses of the RJ71EN71 when the network type is set to "Q Compatible Ethernet", refer to the following. ( Page 366 When using the RJ71EN71 (network type: Q-compatible Ethernet))
P1 address (P2 address*1)
Application
Name
Decimal
Hexadecimal
0 to 3
0H to 3H (1E8480H to
(2000000 to 2000003) 1E8483H)
System area
4 to 5
4H to 5H (1E8484H to
(2000004 to 2000005) 1E8485H)
Own node setting status storage area
Own node IP address
6 to 13
6H to DH (1E8486H to
(2000006 to 2000013) 1E848DH)
System area
14 to 15
EH to FH (1E848EH to
(2000014 to 2000015) 1E848FH)
Subnet mask
16 to 17
10H to 11H (1E8490H to
(2000016 to 2000017) 1E8491H)
System area
A
18 to 19
12H to 13H (1E8492H to
(2000018 to 2000019) 1E8493H)
Default gateway IP address
20 to 27
14H to 1BH (1E8494H to
(2000020 to 2000027) 1E849BH)
System area
28 to 30
1CH to 1EH (1E849CH
(2000028 to 2000030) to 1E849EH)
Own node MAC address
31 (2000031)
1FH (1E849FH)
Own node network number
32 (2000032)
20H (1E84A0H)
Station number
33 (2000033)
21H (1E84A1H)
Transient transmission group number
34 (2000034)
22H (1E84A2H)
Send frame setting
35 (2000035)
23H (1E84A3H)
Jumbo frame setting
36 (2000036)
24H (1E84A4H)
Communication speed setting
37 (2000037)
25H (1E84A5H)
Auto-open UDP port number
38 (2000038)
26H (1E84A6H)
MELSOFT connection TCP port number
39 (2000039)
27H (1E84A7H)
MELSOFT connection UDP port number
40 (2000040)
28H (1E84A8H)
MELSOFT direct connection port number
41 to 99
29H to 63H (1E84A9H to System area
(2000041 to 2000099) 1E84E3H)
355 APPX
Appendix 3 Buffer Memory
P1 address (P2 address*1)
Decimal
Hexadecimal
100 to 163
64H to A3H (1E84E4H
(2000100 to 2000163) to 1E8523H)
164 to 999
A4H to 3E7H (1E8524H
(2000164 to 2000999) to 1E8867H)
1000 (2001000)
3E8H (1E8868H)
1001 (2001001)
3E9H (1E8869H)
1002 to 4999
3EAH to 1387H
(2001002 to 2004999) (1E886AH to 1E9807H)
5000 to 5001
1388H to 1389H
(2005000 to 2005001) (1E9808H to 1E9809H)
5002 to 5003
138AH to 138BH
(2005002 to 2005003) (1E980AH to 1E980BH)
5004 to 5005
138CH to 138DH
(2005004 to 2005005) (1E980CH to 1E980DH)
5006 to 5021
138EH to 139DH
(2005006 to 2005021) (1E980EH to 1E981DH)
5022 to 5023
139EH to 139FH
(2005022 to 2005023) (1E981EH to 1E981FH)
5024 to 5028
13A0H to 13A4H
(2005024 to 2005028) (1E9820H to 1E9824H)
5029 (2005029)
13A5H (1E9825H)
5030 to 5039
13A6H to 13AFH
(2005030 to 2005039) (1E9826H to 1E982FH)
5040 to 5041
13B0H to 13B1H
(2005040 to 2005041) (1E9830H to 1E9831H)
5042 to 5043
13B2H to 13B3H
(2005042 to 2005043) (1E9832H to 1E9833H)
5044 to 5045
13B4H to 13B5H
(2005044 to 2005045) (1E9834H to 1E9835H)
5046 to 5047
13B6H to 13B7H
(2005046 to 2005047) (1E9836H to 1E9837H)
5048 to 5049
13B8H to 13B9H
(2005048 to 2005049) (1E9838H to 1E9839H)
5050 to 5051
13BAH to 13BBH
(2005050 to 2005051) (1E983AH to 1E983BH)
5052 to 5053
13BCH to 13BDH
(2005052 to 2005053) (1E983CH to 1E983DH)
5054 to 5079
13BEH to 13D7H
(2005054 to 2005079) (1E983EH to 1E9857H)
5080 to 5081
13D8H to 13D9H
(2005080 to 2005081) (1E9858H to 1E9859H)
5082 to 5083
13DAH to 13DBH
(2005082 to 2005083) (1E985AH to 1E985BH)
5084 to 5085
13DCH to 13DDH
(2005084 to 2005085) (1E985CH to 1E985DH)
5086 to 5119
13DEH to 13FFH
(2005086 to 2005119) (1E985EH to 1E987FH)
5120 to 5121
1400H to 1401H
(2005120 to 2005121) (1E9880H to 1E9881H)
5122 to 5123
1402H to 1403H
(2005122 to 2005123) (1E9882H to 1E9883H)
5124 to 5125
1404H to 1405H
(2005124 to 2005125) (1E9884H to 1E9885H)
Application
Connection status storage area System area System port latest error code storage area
System area Status for each protocol
Name Connection No.1 latest error code to Connection No.64 latest error code
FTP server latest error code MELSOFT direct connection latest error code
IP packet
System area ICMP packet
System area TCP packet System area UDP packet
Received packet total count Received packet checksum error discard count Sent packet total count System area Simultaneous transmission error detection count (receive buffer full count) System area Receive abort count
Received packet total count Received packet checksum error discard count Sent packet total count Received echo request total count Sent echo reply total count Sent echo request total count Received echo reply total count
Received packet total count Received packet checksum error discard count Sent packet total count
Received packet total count Received packet checksum error discard count Sent packet total count
356 APPX Appendix 3 Buffer Memory
P1 address (P2 address*1)
Application
Name
Decimal
Hexadecimal
5126 to 5159
1406H to 1427H
Status for each protocol
(2005126 to 2005159) (1E9886H to 1E98A7H)
System area
5160 to 5161
1428H to 1429H
(2005160 to 2005161) (1E98A8H to 1E98A9H)
Receiving error
Framing error count
5162 to 5163
142AH to 142BH
(2005162 to 2005163) (1E98AAH to 1E98ABH)
Receive FIFO overflow count
5164 to 5165
142CH to 142DH
(2005164 to 2005165) (1E98ACH to 1E98ADH)
CRC error count
5166 to 5188
142EH to 1444H
(2005166 to 2005188) (1E98AEH to 1E98C4H)
System area
5189 (2005189)
1445H (1E98C5H)
Own node operation status storage area
LED status
5190 (2005190)
1446H (1E98C6H)
System area
5191 (2005191)
1447H (1E98C7H)
Hub connection status area
Communication mode
5192 (2005192)
1448H (1E98C8H)
Connection status
5193 (2005193)
1449H (1E98C9H)
Communication speed
5194 (2005194)
144AH (1E98CAH)
Disconnection count
5195 to 5199
144BH to 144FH
(2005195 to 2005199) (1E98CBH to 1E98CFH)
System area
5200 (2005200)
1450H (1E98D0H)
IP address duplication status storage area
Same IP address detection flag
5201 to 5203
1451H to 1453H
(2005201 to 2005203) (1E98D1H to 1E98D3H)
MAC address of the station already connected to the network
5204 to 5206
1454H to 1456H
(2005204 to 2005206) (1E98D4H to 1E98D6H)
5207 to 5300
1457H to 14B4H
(2005207 to 2005300) (1E98D7H to 1E9934H)
System area
MAC address of the station with the IP
address already used
A
5301 (2005301)
14B5H (1E9935H)
Area for sending/receiving RECV instruction execution request instructions
5302 to 5322
14B6H to 14CAH
(2005302 to 2005322) (1E9936H to 1E994AH)
System area
5323 (2005323)
14CBH (1E994BH)
Link dedicated instruction
ZNRD instruction execution result
5324 (2005324)
14CCH (1E994CH)
System area
5325 (2005325)
14CDH (1E994DH)
ZNWR instruction execution result
5326 to 5625
14CEH to 15F9H
System area
(2005326 to 2005625) (1E994EH to 1E9A79H)
5626 (2005626)
15FAH (1E9A7AH)
Remote password lock status storage area
Remote password lock status (connection No.1 to 16)
5627 (2005627)
15FBH (1E9A7BH)
Remote password lock status (connection No.17 to 32)
5628 (2005628)
15FCH (1E9A7CH)
Remote password lock status (connection No.33 to 48)
5629 (2005629)
15FDH (1E9A7DH)
Remote password lock status (connection No.49 to 64)
5630 (2005630)
15FEH (1E9A7EH)
Remote password lock status system port
5631 to 5645
15FFH to 160DH
System area
(2005631 to 2005645) (1E9A7FH to 1E9A8DH)
357 APPX
Appendix 3 Buffer Memory
P1 address (P2 address*1)
Application
Decimal
Hexadecimal
5646 (2005646)
160EH (1E9A8EH)
Forced connection invalidation setting area
5647 (2005647)
160FH (1E9A8FH)
5648 (2005648)
1610H (1E9A90H)
5649 (2005649)
1611H (1E9A91H)
5650 (2005650)
1612H (1E9A92H)
5651 to 8299
1613H to 206BH
System area
(2005651 to 2008299) (1E9A93H to 1EA4EBH)
8300 (2008300)
8301 (2008301)
206CH (1EA4ECH)
206DH (1EA4EDH)
Predefined protocol support function execution status check area
8302 to 8317
206EH to 207DH
(2008302 to 2008317) (1EA4EEH to 1EA4FDH)
8318 (2008318)
207EH (1EA4FEH)
8319 (2008319)
207FH (1EA4FFH)
8320 to 8335
2080H to 208FH
(2008320 to 2008335) (1EA500H to 1EA50FH)
8336 to 8875
2090H to 22ABH
(2008336 to 2008875) (1EA510H to 1EA72BH)
8876 to 10999
22ACH to 2AF7H
System area
(2008876 to 2010999) (1EA72CH to 1EAF77H)
11000 (2011000)
2AF8H (1EAF78H)
Time setting function (SNTP) area
11001 (2011001)
2AF9H (1EAF79H)
11002 (2011002)
2AFAH (1EAF7AH)
11003 (2011003)
2AFBH (1EAF7BH)
11004 (2011004)
2AFCH (1EAF7CH)
11005 (2011005)
2AFDH (1EAF7DH)
11006 (2011006)
2AFEH (1EAF7EH)
11007 (2011007)
2AFFH (1EAF7FH)
11008 (2011008)
2B00H (1EAF80H)
11009 (2011009)
2B01H (1EAF81H)
11010 to 11049
2B02H to 2B29H
System area
(2011010 to 2011049) (1EAF82H to 1EAFA9H)
11050 to 11051
2B2AH to 2B2BH
IP packet transfer function
(2011050 to 2011051) (1EAFAAH to 1EAFABH) area
11052 to 11053 (2011052 to 2011053)
2B2CH to 2B2DH (1EAFACH to 1EAFADH)
11054 to 11499
2B2EH to 2CEBH
System area
(2011054 to 2011499) (1EAFAEH to 1EB16BH)
11500 to 11514
2CECH to 2CFAH
Dynamic routing function
(2011500 to 2011514) (1EB16CH to 1EB17AH) area
Name Forced connection invalidation (connection No.1 to 16) Forced connection invalidation (connection No.17 to 32) Forced connection invalidation (connection No.33 to 48) Forced connection invalidation (connection No.49 to 64) Forced connection invalidation system port
Connection No.1
Protocol execution status
System area
Received data verification result (receive packet No.1 to 16)
Protocol execution count
Protocol cancellation specification
System area
Connection No.2 to Connection No.16
Time setting function operation result
Time setting function execution time
(Year) (Month)
(Day)
(Hour)
(Minute)
(Second)
(Day of the week)
Time setting function required response time
Time setting function (SNTP client) execution
IP packet transfer latest data volume IP packet transfer maximum data volume
Communication path determination status
358 APPX Appendix 3 Buffer Memory
P1 address (P2 address*1)
Application
Name
Decimal
Hexadecimal
11515 to 11599
2CFBH to 2D4FH
System area
(2011515 to 2011599) (1EB17BH to 1EB1CFH)
11600 to 11663
2D50H to 2D8FH
Remote password function Connection No.1 continuous unlock failure count to Connection No.64
(2011600 to 2011663) (1EB1D0H to 1EB20FH) monitoring area
continuous unlock failure count
11664 (2011664)
2D90H (1EB210H)
Auto-open UDP port continuous unlock failure count
11665 (2011665)
2D91H (1EB211H)
MELSOFT transmission port (UDP/IP) continuous unlock failure count
11666 (2011666)
2D92H (1EB212H)
MELSOFT transmission port (TCP/IP) continuous unlock failure count
11667 (2011667)
2D93H (1EB213H)
FTP transmission port (TCP/IP) continuous unlock failure count
11668 (2011668)
2D94H (1EB214H)
MELSOFT direct connection continuous unlock failure count
11669 (2011669)
2D95H (1EB215H)
System area
11670 to 11671
2D96H to 2D97H
(2011670 to 2011671) (1EB216H to 1EB217H)
Area for both systems identical IP address setting function
Control system IP address
11672 to 11699
2D98H to 2DB3H
System area
(2011672 to 2011699) (1EB218H to 1EB233H)
11700 to 11701
2DB4H to 2DB5H
IP address change
(2011700 to 2011701) (1EB234H to 1EB235H) function area
IP Address
IP address
11702 to 11703
2DB6H to 2DB7H
(2011702 to 2011703) (1EB236H to 1EB237H)
Subnet mask
11704 to 11705
2DB8H to 2DB9H
(2011704 to 2011705) (1EB238H to 1EB239H)
Default Gateway
11706 (2011706)
11707 (2011707)
2DBAH (1EB23AH)
2DBBH (1EB23BH)
Communications by Network
Network number
No./Station No.
Station number
A
11708 (2011708)
2DBCH (1EB23CH)
Transient transmission group number
11709 (2011709)
2DBDH (1EB23DH)
IP address storage area write request
11710 (2011710)
2DBEH (1EB23EH)
IP address storage area write error
11711 (2011711)
2DBFH (1EB23FH)
IP address storage area writing error cause
11712 (2011712)
2DC0H (1EB240H)
IP address storage area clear request
11713 (2011713)
2DC1H (1EB241H)
IP address storage area clear error
11714 (2011714)
2DC2H (1EB242H)
IP address storage area clear error cause
11715 (2011715)
2DC3H (1EB243H)
IP address change function operating status
11716 to 19999
2DC4H to 4E1FH
System area
(2011716 to 2019999) (1EB244H to 1ED29FH)
20000 to 26143
4E20H to 661FH
Random access buffer
(2020000 to 2026143) (1ED2A0H to 1EEA9FH) area
Random access buffer
26144 to 65534
6620H to FFFEH
System area
(2026144 to 2065534) (1EEAA0H to 1F847EH)
65535 (2065535)
FFFFH (1F847FH)
Network type information area
Network type information
359 APPX
Appendix 3 Buffer Memory
P1 address (P2 address*1)
Decimal
Hexadecimal
65536 (2065536)
10000H (1F8480H)
65537 to 70655
10001H to 113FFH
(2065537 to 2070655) (1F8481H to 1F987FH)
70656 to 147455
11400H to 23FFFH
(2070656 to 2147455) (1F9880H to 20C47FH)
147456 to 720895
24000H to AFFFFH
(2147456 to 2720895) (20C480H to 29847FH)
720896 (2720896)
B0000H (298480H)
720897 (2720897)
B0001H (298481H)
720898 (2720898)
B0002H (298482H)
720899 (2720899)
B0003H (298483H)
720900 (2720900)
B0004H (298484H)
720901 (2720901)
B0005H (298485H)
720902 to 720903
B0006H to B0007H
(2720902 to 2720903) (298486H to 298487H)
720904 (2720904)
B0008H (298488H)
720905 (2720905)
B0009H (298489H)
720906 to 721153
B000AH to B0101H
(2720906 to 2721153) (29848AH to 298581H)
721154 to 721895
B0102H to B03E7H
(2721154 to 2721895) (298582H to 298867H)
721896 to 721899
B03E8H to B03EBH
(2721896 to 2721899) (298868H to 29886BH)
721900 to 721903
B03ECH to B03EFH
(2721900 to 2721903) (29886CH to 29886FH)
721904 to 721907
B03F0H to B03F3H
(2721904 to 2721907) (298870H to 298873H)
721908 to 721911
B03F4H to B03F7H
(2721908 to 2721911) (298874H to 298877H)
721912 to 721915
B03F8H to B03FBH
(2721912 to 2721915) (298878H to 29887BH)
721916 to 721935
B03FCH to B040FH
(2721916 to 2721935) (29887CH to 29888FH)
721936 to 721999
B0410H to B044FH
(2721936 to 2721999) (298890H to 2988CFH)
722000 to 722063
B0450H to B048FH
(2722000 to 2722063) (2988D0H to 29890FH)
722064 to 722127
B0490H to B04CFH
(2722064 to 2722127) (298910H to 29894FH)
Application Area for communication using a fixed buffer
System area Error log area for MODBUS/TCP function
System area Simple CPU communication area
Name
Fixed buffer No.1
Data length
Fixed buffer data
Fixed buffer No.2 to Fixed buffer (The bit configuration is the same as
No.16
Fixed buffer No.1)
Number of errors Error log write pointer Error log 1
Error log 2 to Error log 32
Detail error code Abnormal response code Function code Own station port number Destination IP address Destination port number System area (Same as Error log 1)
Request to start communication at request for each setting number Request to stop fixed interval communication for each setting number Request to restart fixed interval communication for each setting number Execution status flag for each setting number Preparation completion for each setting number System area Simple CPU communication status for each setting number Simple CPU communication error code for each setting number Abnormal response code for each setting number
360 APPX Appendix 3 Buffer Memory
P1 address (P2 address*1)
Application
Name
Decimal
Hexadecimal
722128 to 722191
B04D0H to B050FH
(2722128 to 2722191) (298950H to 29898FH)
Simple CPU communication area
Execution interval (current value) for each setting number
722192 to 722499
B0510H to B0643H
(2722192 to 2722499) (298990H to 298AC3H)
System area
722500 to 1246787 B0644H to 130643H (2722500 to 3246787) (298AC4H to 318AC3H)
User setting area
1246788 to 1247299 130644H to 130843H (3246788 to 3247299) (318AC4H to 318CC3H)
System area
1247300 to 1247327 130844H to 130859H (3247300 to 3247327) (318CC4H to 318CDFH)
Request to start communication at request for each setting number
1247328 to 1247355 130860H to 13087BH (3247328 to 3247355) (318CE0H to 318CFBH)
Request to stop fixed interval communication for each setting number
1247356 to 1247383 13087CH to 130897H (3247356 to 3247383) (318CFCH to 318D17H)
Request to restart fixed interval communication for each setting number
1247384 to 1247411 130898H to 1308B3H (3247384 to 3247411) (318D18H to 318D33H)
Execution status flag for each setting number
1247412 to 1247439 1308B4H to 1308CFH (3247412 to 3247439) (318D34H to 318D4FH)
Preparation completion for each setting number
1247440 to 1247459 1308D0H to 1308E3H (3247440 to 3247459) (318D50H to 318D63H)
System area
1247460 to 1247907 1308E4H to 130AA3H (3247460 to 3247907) (318D64H to 318F23H)
Simple CPU communication status for each setting number
1247908 to 1248355 130AA4H to 130C63H (3247908 to 3248355) (318F24H to 3190E3H)
Simple CPU communication error code for each setting number
1248356 to 1248803 130C64H to 130E23H (3248356 to 3248803) (3190E4H to 3192A3H)
Abnormal response code for each setting number
1248804 to 1249251 130E24H to 130FE3H (3248804 to 3249251) (3192A4H to 319463H)
Execution interval (current value) for each setting number
1249252 to 1899999 130FE4H to 1CFFDDFH System area
(3249252 to 3899999) (319464H to 3B825FH)
A
*1 The P2 address cannot be used for the RnENCPU (network part).
361 APPX
Appendix 3 Buffer Memory
P1/P2 common area
Address Decimal 1900000 to 1900007 1900008 to 1900015 1900016 to 1900023 1900024 1900025 1900026 to 1900029 1900030*1 1900031 to 1901001 1901002
1901003 to 1901019 1901020 1901021 1901022 1901023 1901024 1901025 to 1901031 1901032 to 1901047 1901048 to 1901999 1902000 to 1904047
1904048 to 1921023 1921024 to 1929215 1929216 to 1950031 1950032 to 1950039
Hexadecimal 1CFDE0H to 1CFDE7H 1CFDE8H to 1CFDEFH 1CFDF0H to 1CFDF7H 1CFDF8H 1CFDF9H 1CFDFAH to 1CFDFDH 1CFDFEH 1CFDFFH to 1D01C9H 1D01CAH
1D01CBH to 1D01DBH 1D01DCH 1D01DDH 1D01DEH 1D01DFH 1D01E0H 1D01E1H to 1D01E7H 1D01E8H to 1D01F7H 1D01F8H to 1D05AFH 1D05B0H to 1D0DAFH
1D0DB0H to 1D4FFFH 1D5000H to 1D6FFFH 1D7000H to 1DC14FH 1DC150H to 1DC157H
Application
Name
Ethernet PORT1/2 common information Open completion signal
Open request signal
Socket/fixed buffer reception status signal
Initial status
Initial error code
System area
Receive buffer status storage area
State of receive buffer
System area
Predefined protocol support function check area
Predefined protocol ready
System area
Predefined protocol setting data check Predefined protocol setting data
area
error information
Protocol number Setting type
Packet number
Element number
Number of registered predefined protocols
System area
Predefined protocol registration
System area
Send/receive area for predefined protocol support function
Send/receive area for predefined protocol support function
System area
User setting area for MODBUS/TCP function
System area
Discard received data at CPU STOP setting area
1950040 to 1999999 1DC158 to 1E847FH
System area
*1 Availability for the buffer memory depends on the firmware version. ( Page 436 Added and Enhanced Functions)
· Do not write any data to the system area. Doing so may cause malfunction of the programmable controller system.
· If the value in an area of one word in size becomes equal to or higher than 65536, the count stops at 65535 (FFFFH).
362 APPX Appendix 3 Buffer Memory
CPU module (built-in Ethernet port part)
The following table lists the buffer memory addresses related to the Ethernet function of the CPU module (built-in Ethernet port part).
Address Decimal
Application Hexadecimal
Name
50 to 51 60 to 61
32H to 33H 3CH to 3DH
Own node setting status storage area
Own node IP address Subnet mask
64 to 65
40H to 41H
Default gateway IP address
74 to 76
4AH to 4CH
Own node MAC address
77
4DH
Own node network number
78
4EH
Station number
80
50H
Send frame setting
82
52H
Communication speed setting
83
53H
Auto-open UDP port number
84
54H
MELSOFT connection TCP port number
85
55H
MELSOFT connection UDP port number
86
56H
MELSOFT direct connection port number
87
57H
Network number/Station number setting status
100
64H
101
65H
Communication load status of the built-in Ethernet port
Receive packet count per unit time (one second)
Receive packet count (current) per unit time (one second)
Receive packet count (maximum) per unit time (one second)
102
66H
103
67H
Send packet count per unit time (one second)
Send packet count (current) per unit time (one second)
Send packet count (maximum) per unit time (one second)
130 to 145
82H to 91H
Connection status
Connection No.1 latest error code to Connection No.16 latest error code
storage area
146
92H
System port latest error FTP server latest error code
A
147
93H
code storage area
MELSOFT direct connection latest error code
148
94H
FTP client latest error code
150 to 151
96H to 97H
Status for each protocol IP packet
Received packet total count
152 to 153
98H to 99H
Received packet checksum error discard count
154 to 155
9AH to 9BH
Sent packet total count
172 to 173 ACH to ADH
Simultaneous transmission error detection count (Receive buffer full count)
179
B3H
Receive abort count
182 to 183 B6H to B7H
ICMP packet
Received packet total count
184 to 185
B8H to B9H
Received packet checksum error discard count
186 to 187
BAH to BBH
Sent packet total count
188 to 189 BCH to BDH
Received echo request total count
190 to 191
BEH to BFH
Sent echo reply total count
192 to 193
C0H to C1H
Sent echo request total count
194 to 195
C2H to C3H
Received echo reply total count
196 to 197 C4H to C5H
TCP packet
Received packet total count
198 to 199
C6H to C7H
Received packet checksum error discard count
200 to 201
C8H to C9H
Sent packet total count
204 to 205
CCH to CDH
UDP packet
Received packet total count
206 to 207
CEH to CFH
Received packet checksum error discard count
208 to 209
D0H to D1H
Sent packet total count
224 to 225
E0H to E1H
Receiving error
Framing error count
226 to 227
E2H to E3H
Receive FIFO overflow count
228 to 229
E4H to E5H
CRC error count
363 APPX
Appendix 3 Buffer Memory
Address Decimal 242 243 244 245 251 252 to 254
255 to 257
270 271 275
280 281 290 291 292 293 294 295 296 297 298 299 310 to 311 312 to 313 320 to 335
336 337 338 339 340 350 351 352 to 367
368 369 370 to 669 680 681 682
683 684 692
Hexadecimal F2H F3H F4H F5H FBH FCH to FEH
Application
Own node operation status storage area
FFH to 101H
10EH 10FH 113H
118H 119H 122H 123H 124H 125H 126H 127H 128H 129H 12AH 12BH 136H to 137H 138H to 139H 140H to 14FH
150H 151H 152H 153H 154H 15EH 15FH 160H to 16FH
Remote password lock status storage area Discard received data at CPU STOP setting area Forced connection invalidation setting area Time setting function (SNTP) area
IP packet transfer function area Remote password function monitoring area
Predefined protocol support function execution status check area
170H 171H 172H to 29DH 2A8H 2A9H 2AAH
2ABH 2ACH 2B4H
Open completion signal
Open request signal
Socket communications reception status signal
Initial status
Initial error code
Predefined protocol support function check area
Name
Hub connection status area
Communication mode
Connection status
Communication speed
Disconnection count
IP address duplication status storage area
Same IP address detection flag
MAC address of the station already connected to the network
MAC address of the station with the IP address already used
Remote password lock status connection No.1 to 16
Remote password lock status system port
Discard received data connection No.1 to 16
Forced connection invalidation connection No.1 to 16
Forced connection invalidation system port
Time setting function operation result
Time setting function execution time
(Year) (Month)
(Day)
(Hour)
(Minute)
(Second)
(Day of the week)
Time setting function required response time
Time setting function (SNTP client) execution
IP packet transfer latest data volume
IP packet transfer maximum data volume
Connection No.1 continuous unlock failure count to Connection No.16 continuous unlock failure count
Auto-open UDP port continuous unlock failure count
MELSOFT transmission port (UDP/IP) continuous unlock failure count
MELSOFT transmission port (TCP/IP) continuous unlock failure count
FTP transmission port (TCP/IP) continuous unlock failure count
MELSOFT direct connection continuous unlock failure count
Connection No.1
Protocol execution status
System area
Received data verification result (receive packet No.1 to 16)
Protocol execution count
Protocol cancellation specification
Connection No.2 to Connection No.16
Open completion signal
Open request signal
Socket communications reception status signal
Initial status Initial error code Predefined protocol ready
364 APPX Appendix 3 Buffer Memory
Address
Application
Name
Decimal
Hexadecimal
710
2C6H
711
2C7H
Predefined protocol setting data check area
Predefined protocol setting data error information
Protocol number Setting type
712
2C8H
Packet number
713
2C9H
Element number
714
2CAH
Number of registered predefined protocols
722 to 729
2D2H to 2D9H
Predefined protocol registration
740 to 741
2E4H to 2E5H
Area for both systems identical IP address setting function
Control system IP address
770 to 785
302H to 311H
Connection status storage area
Connection No.1 latest error code (communication error) to Connection No.16 latest error code (communication error)
786
312H
FTP server latest error code (communication error)
787
313H
MELSOFT direct connection latest error code (communication error)
788
314H
FTP client latest error code (communication error)
789
315H
Auto-open UDP port latest error code (communication error)
790
316H
MELSOFT connection auto-open UDP port latest error code (communication error)
791
317H
MELSOFT connection auto-open TCP port latest error code (communication error)
792
318H
Insufficient send buffer or memory count
1094 1095 1096
446H 447H 448H
Simple CPU communication function
Request to stop fixed interval communication for each setting number
Stop request setting No.1 to 16 Stop request setting No.17 to 32 Stop request setting No.33 to 48
1097
449H
Stop request setting No.49 to 64
1098 1099 1100
44AH 44BH 44CH
Request to restart fixed interval communication for each setting number
Restart request setting No.1 to 16 Restart request setting No.17 to 32 Restart request setting No.33 to 48
1101 1102 1103
44DH 44EH 44FH
Restart request setting No.49 to 64
Execution status flag for each
Execution status flag setting No.1 to 16
A
setting number
Execution status flag setting No.17 to 32
1104
450H
Execution status flag setting No.33 to 48
1105
451H
Execution status flag setting No.49 to 64
1106 1107
452H 453H
Preparation completion for each setting number
Preparation completion setting No.1 to 16 Preparation completion setting No.17 to 32
1108
454H
Preparation completion setting No.33 to 48
1109
455H
Preparation completion setting No.49 to 64
1130 to 1193 46AH to 4A9H
Simple CPU communication status Simple CPU communication status setting No.1 to
for each setting number
Simple CPU communication status setting No.64
1194 to 1257 4AAH to 4E9H
Simple CPU communication error Simple CPU communication error code setting No.1 to
code for each setting number
Simple CPU communication error code setting No.64
1258 to 1321 4EAH to 529H
Execution interval (current value) for each setting number
Execution interval (current value) setting No.1 to Execution interval (current value) setting No.64
· Do not write any data to the system area. Doing so may cause malfunction of the programmable controller system.
· If the value in an area of one word in size becomes equal to or higher than 65536, the count stops at 65535 (FFFFH).
365 APPX
Appendix 3 Buffer Memory
When using the RJ71EN71 (network type: Q-compatible Ethernet)
With the Q-compatible Ethernet, the same buffer memory addresses as the MELSEC-Q series Ethernet interface module can be used, excluding some addresses.
Buffer memory addresses usable only with RJ71EN71
The following table lists the buffer memory addresses that can be used only with RJ71EN71.
Address Decimal 20700 to 20701
65535
Hexadecimal 50DCH to 50DDH
FFFFH
Application
Name
Forced connection invalidation
Forced connection invalidation specification 20700 (b0 to 15): Connection No.1 to 16 20701 (b0): Auto-open UDP port 20701 (b1): MELSOFT transmission port (UDP/IP) 20701 (b2): MELSOFT transmission port (TCP/IP) 20701 (b3): FTP transmission port
Network type information Network type information
Buffer memory addresses differing from MELSEC-Q series Ethernet interface modules
The following table lists the buffer memory addresses having specifications that differ from the ones of the MELSEC-Q series
Ethernet interface module.
Address Decimal 0 to 1 4 31
40 41 to 42 43 44 to 46 47 to 95 106 to 107 108 to 110
Hexadecimal 0H to 1H 4H 1FH
28H 29H to 2AH 2BH 2CH to 2EH 2FH to 5FH 6AH to 6BH 6CH to 6EH
Name
MELSEC-Q series Ethernet interface module
Own station E71 IP address Initial value: C00001FEH
Special function settings Initial value: 100H
Communication condition setting (Ethernet Operation Setting) area Initial value: 0H Communication data code setting (b1) 0: Communications in a binary code 1: Communications in an ASCII code TCP existence confirmation setting (b4) 0: Use the Ping 1: Use the KeepAlive Send frame setting (b5) 0: Ethernet 1: IEEE 802.3 Setting of write enable/disable at RUN time (b6) 0: Disable 1: Enable Initial timing setting (b8) 0: Do not wait for OPEN (Communications impossible at STOP time) 1: Always wait for OPEN (Communication possible at STOP time) Reinitialization specification (b15) 0: Reinitialization process complete (reset by the system) 1: Reinitialization process request (set by the user)
Communication address setting area Connection No.1
Own station port No. Initial value: 0H
Destination IP address Initial value: 0H
Destination Port No. Initial value: 0H
Destination MAC address Initial value: FFFFFFFFFFFFH
Communication address setting area Connection No.2 to 8 (Same as connection No.1)
Own station IP address Initial value: 0H
Own station MAC address Initial value: 0H
RJ71EN71
Own station IP address Initial value: C0A80328H
Special function settings Initial value: 10H
Communication condition setting area Initial value: 100H Communication data code (b1) 0: Binary 1: ASCII Enable/disable online change (b6) 0: Disable all (SLMP) 1: Enable all (SLMP) Opening method (b8) 0: Open by program 1: Do not open by program Reinitialization specification (b15) 0: Reinitialization process complete (reset by the system) 1: Reinitialization process request (set by the user)
Communication address setting area Connection No.1
Own station port No. Initial value: 0H
Destination IP address Initial value: 0H
Destination Port No. Initial value: 0H
System area
Communication address setting area Connection No.2 to 8 (Same as connection No.1)
Own station IP address Initial value: C0A80328H
Own station MAC address Initial value: MAC address of the RJ71EN71
366 APPX Appendix 3 Buffer Memory
Address
Name
Decimal Hexadecimal MELSEC-Q series Ethernet interface module
RJ71EN71
116
74H
Auto-open UDP port number Initial value: 0H
Auto-open UDP port number Initial value: 1388H
200
C8H
LED status INIT. LED (b0) 0: Off 1: On (initial processing completed) OPEN LED (b1) 0: Off 1: On (connection open processing completed) ERR. LED (b3) 0: Off 1: On (setting error) COM.ERR. LED (b4) 0: Off 1: On (communication error)
LED status P ERR LED (b0) 0: Off 1: On or flashing
201
C9H
Hub connection status area Communication mode (b9) 0: Half-duplex 1: Full-duplex Hub connection status (b10) 0: Hub not connected/disconnected 1: Hub connected Data transmission speed (b15, b14) 00: Operating at 10BASE-T 01: Operating at 100BASE-TX
Hub connection status area Communication mode (b9) 0: Half-duplex 1: Full-duplex Hub connection status (b10) 0: Hub not connected/disconnected 1: Hub connected Data transmission speed (b15, b14) 00: Operating at 10BASE-T 01: Operating at 100BASE-TX 10: Operating at 1000BASE-T
202
CAH
Switch status (Operational mode setting) 0: Online 1: Offline 2: Self-loopback test 3: Hardware test
Module operation mode setting 0: Online mode 1: Offline mode 4: Module communication test mode
203
CBH
Status of settings with a programming tool
Status of settings with a programming tool
Initial value: 0H Communication data code setting (b1)
Initial value: 100H Communication data code setting (b1)
A
0: Communications in a binary code
0: Communications in a binary code
1: Communications in an ASCII code
1: Communications in an ASCII code
Initial/open method setting (b2)
Send frame setting (b5)
0: No parameter setting (startup according to the sequence 0: Ethernet (fixed)
program)
Setting of write enable/disable at RUN time (b6)
1: Parameter setting (startup according to the parameters) 0: Disable
TCP existence confirmation setting (b4)
1: Enable
0: Use the Ping
Opening method (b8)
1: Use the KeepAlive
0: Open by program
Send frame setting (b5)
1: Do not open by program
0: Ethernet
1: IEEE 802.3
Setting of write enable/disable at RUN time (b6)
0: Disable
1: Enable
Initial timing setting (b8)
0: Do not wait for OPEN (Communications impossible at
STOP time)
1: Always wait for OPEN (Communication possible at STOP
time)
398 to 399 18EH to 18FH Simultaneous transmission error detection count
Receive buffer full count
20486
5006H
Remote password status Initial value: 0H
Remote password lock/unlocked status (user connection) Initial value: Depending on the remote password setting
20487
5007H
Remote password status Initial value: 0H
Remote password lock/unlocked status (system connection) Initial value: Depending on the remote password setting
20595
5073H
Connection No.1 Accumulated count of unlock process abnormal end
Connection No.1 Remote password mismatch count
20600
5078H
Connection No.2 Accumulated count of unlock process abnormal end
Connection No.2 Remote password mismatch count
20605
507DH
Connection No.3 Accumulated count of unlock process abnormal end
Connection No.3 Remote password mismatch count
367 APPX
Appendix 3 Buffer Memory
Address Decimal 20610 20615 20620 20625 20630 20635 20640 20645 20650 20655 20660 20665 20670 20675 20680 20685 20690 21056
Name
Hexadecimal MELSEC-Q series Ethernet interface module
5082H
Connection No.4 Accumulated count of unlock process abnormal end
5087H
Connection No.5 Accumulated count of unlock process abnormal end
508CH
Connection No.6 Accumulated count of unlock process abnormal end
5091H
Connection No.7 Accumulated count of unlock process abnormal end
5096H
Connection No.8 Accumulated count of unlock process abnormal end
509BH
Connection No.9 Accumulated count of unlock process abnormal end
50A0H
Connection No.10 Accumulated count of unlock process abnormal end
50A5H
Connection No.11 Accumulated count of unlock process abnormal end
50AAH
Connection No.12 Accumulated count of unlock process abnormal end
50AFH
Connection No.13 Accumulated count of unlock process abnormal end
50B4H
Connection No.14 Accumulated count of unlock process abnormal end
50B9H
Connection No.15 Accumulated count of unlock process abnormal end
50BEH
Connection No.16 Accumulated count of unlock process abnormal end
50C3H
Auto-open UDP port Accumulated count of unlock process abnormal end
50C8H
MELSOFT application transmission port (UDP) Accumulated count of unlock process abnormal end
50CDH
MELSOFT application transmission port (TCP) Accumulated count of unlock process abnormal end
50D2H
FTP transmission port Accumulated count of unlock process abnormal end
5240H
Receive buffer full detection signal
RJ71EN71 Connection No.4 Remote password mismatch count
Connection No.5 Remote password mismatch count
Connection No.6 Remote password mismatch count
Connection No.7 Remote password mismatch count
Connection No.8 Remote password mismatch count
Connection No.9 Remote password mismatch count
Connection No.10 Remote password mismatch count
Connection No.11 Remote password mismatch count
Connection No.12 Remote password mismatch count
Connection No.13 Remote password mismatch count
Connection No.14 Remote password mismatch count
Connection No.15 Remote password mismatch count
Connection No.16 Remote password mismatch count
Auto-open UDP port Remote password mismatch count MELSOFT transmission port (UDP/IP) Remote password mismatch count MELSOFT transmission port (TCP/IP) Remote password mismatch count FTP transmission port Remote password mismatch count State of receive buffer
368 APPX Appendix 3 Buffer Memory
Buffer memory addresses not supported by the RJ71EN71
The following table lists the buffer memory addresses of the MELSEC-Q series Ethernet interface modules that are not
supported by the RJ71EN71.
Address
Application
Name
Decimal
Hexadecimal
228
E4H
Error log area
Error log write pointer
229 to 372
E5H to 174H
Error log block area
944 to 949
3B0H to 3B5H FTP setting area FTP login name
950 to 953
3B6H to 3B9H
Password
20488
5008H
System port information area
System port use prohibited designation area
System port use prohibited designation
20592 20593
5070H 5071H
Monitoring area
Remote password function monitoring area
Remote password mismatch notification accumulated count designation (user connection)
Remote password mismatch notification accumulated count designation (system connection)
20594
5072H
Connection No.1
Accumulated count of unlock process normal completion
20596
5074H
Accumulated count of lock process normal completion
20597
5075H
Accumulated count of lock process abnormal end
20598
5076H
Accumulated count of lock process based on close
20599
5077H
Connection No.2
Accumulated count of unlock process normal completion
20601
5079H
Accumulated count of lock process normal completion
20602
507AH
Accumulated count of lock process abnormal end
20603
507BH
Accumulated count of lock process based on close
20604 20606
507CH 507EH
Connection No.3
Accumulated count of unlock process normal
completion
A
Accumulated count of lock process normal
completion
20607
507FH
Accumulated count of lock process abnormal end
20608
5080H
Accumulated count of lock process based on close
20609
5081H
Connection No.4
Accumulated count of unlock process normal completion
20611
5083H
Accumulated count of lock process normal completion
20612
5084H
Accumulated count of lock process abnormal end
20613
5085H
Accumulated count of lock process based on close
20614
5086H
Connection No.5
Accumulated count of unlock process normal completion
20616
5088H
Accumulated count of lock process normal completion
20617
5089H
Accumulated count of lock process abnormal end
20618
508AH
Accumulated count of lock process based on close
20619
508BH
Connection No.6
Accumulated count of unlock process normal completion
20621
508DH
Accumulated count of lock process normal completion
20622
508EH
Accumulated count of lock process abnormal end
20623
508FH
Accumulated count of lock process based on close
369 APPX
Appendix 3 Buffer Memory
Address Decimal 20624
20626
20627 20628 20629
20631
20632 20633 20634
20636
20637 20638 20639
20641
20642 20643 20644
20646
20647 20648 20649
20651
20652 20653 20654
20656
20657 20658 20659
20661
20662 20663 20664
20666
20667 20668
Hexadecimal 5090H
Application Monitoring area
5092H
5093H 5094H 5095H
5097H
5098H 5099H 509AH
509CH
509DH 509EH 509FH
50A1H
50A2H 50A3H 50A4H
50A6H
50A7H 50A8H 50A9H
50ABH
50ACH 50ADH 50AEH
50B0H
50B1H 50B2H 50B3H
50B5H
50B6H 50B7H 50B8H
50BAH
50BBH 50BCH
Name
Remote password function monitoring area
Connection No.7
Connection No.8
Connection No.9
Connection No.10
Connection No.11
Connection No.12
Connection No.13
Connection No.14
Connection No.15
Accumulated count of unlock process normal completion Accumulated count of lock process normal completion Accumulated count of lock process abnormal end
Accumulated count of lock process based on close Accumulated count of unlock process normal completion Accumulated count of lock process normal completion
Accumulated count of lock process abnormal end Accumulated count of lock process based on close
Accumulated count of unlock process normal completion
Accumulated count of lock process normal completion
Accumulated count of lock process abnormal end Accumulated count of lock process based on close
Accumulated count of unlock process normal completion
Accumulated count of lock process normal completion Accumulated count of lock process abnormal end
Accumulated count of lock process based on close Accumulated count of unlock process normal completion Accumulated count of lock process normal completion Accumulated count of lock process abnormal end
Accumulated count of lock process based on close Accumulated count of unlock process normal completion
Accumulated count of lock process normal completion
Accumulated count of lock process abnormal end Accumulated count of lock process based on close
Accumulated count of unlock process normal completion
Accumulated count of lock process normal completion Accumulated count of lock process abnormal end
Accumulated count of lock process based on close Accumulated count of unlock process normal completion Accumulated count of lock process normal completion Accumulated count of lock process abnormal end
Accumulated count of lock process based on close Accumulated count of unlock process normal completion
Accumulated count of lock process normal completion
Accumulated count of lock process abnormal end Accumulated count of lock process based on close
370 APPX Appendix 3 Buffer Memory
Address
Application
Name
Decimal
Hexadecimal
20669 20671
50BDH 50BFH
Monitoring area
Remote password function monitoring area
Connection No.16
Accumulated count of unlock process normal completion
Accumulated count of lock process normal completion
20672
50C0H
Accumulated count of lock process abnormal end
20673
50C1H
Accumulated count of lock process based on close
20674
50C2H
Auto-open UDP port
Accumulated count of unlock process normal completion
20676
50C4H
Accumulated count of lock process normal completion
20677
50C5H
Accumulated count of lock process abnormal end
20678
50C6H
Accumulated count of lock process based on close
20679 20681
50C7H 50C9H
MELSOFT transmission port (UDP/IP)
Accumulated count of unlock process normal completion
Accumulated count of lock process normal completion
20682
50CAH
Accumulated count of lock process abnormal end
20683
50CBH
Accumulated count of lock process based on close
20684 20686
50CCH 50CEH
MELSOFT transmission port (TCP/IP)
Accumulated count of unlock process normal completion
Accumulated count of lock process normal completion
20687
50CFH
Accumulated count of lock process abnormal end
20688
50D0H
Accumulated count of lock process based on close
20689
50D1H
FTP transmission port Accumulated count of unlock process normal completion
20691 20692
50D3H 50D4H
Accumulated count of lock process normal
completion Accumulated count of lock process abnormal end
A
20693
50D5H
Accumulated count of lock process based on close
20737 to 20855
5101H to 5177H HTTP status storage area
20992 20993
5200H 5201H
"Issue system switching request at disconnection detection" status storage area
"Issue system switching request at disconnection detection" Disconnection detection monitoring time
21008 to 21009
5210H to 5211H "System switching settings when communication error occurs" status storage area
22640 to 24575
5870H to 5FFFH
E-mail status storage area
For details on other buffer memory addresses that can be used in the RJ71EN71, refer to the following. Q Corresponding Ethernet Interface Module User's Manual (Basic)
371 APPX
Appendix 3 Buffer Memory
Details of buffer memory addresses (RJ71EN71, RnENCPU (network part))
This section describes the details of buffer memory addresses of the RJ71EN71 and RnENCPU (network part). The buffer memory addresses are for when the P1 connector is used.
Own node setting status storage area
Own node IP address (Un\G4 to Un\G5)
The IP address set with the module parameter is stored.
Address Un\G4 Un\G5
Description Third octet, fourth octet First octet, second octet
Subnet mask (Un\G14 to Un\G15)
The subnet mask set with the module parameter is stored.
Address Un\G14 Un\G15
Description Third octet, fourth octet First octet, second octet
Default gateway IP address (Un\G18 to Un\G19)
The default gateway IP address set with the module parameter is stored.
Address Un\G18 Un\G19
Description Third octet, fourth octet First octet, second octet
Own node MAC address (Un\G28 to Un\G30)
The MAC address of the Ethernet-equipped module is stored.
Address Un\G28 Un\G29 Un\G30
Description 5th byte, 6th byte of the MAC address 3rd byte, 4th byte of the MAC address 1st byte, 2nd byte of the MAC address
Jumbo frame setting (Un\G35)
Address Un\G35
Description
Stores the jumbo frame set with the module parameter. 0: Disable (MTU 1500 byte) 2: 2KB (MTU 2034 byte) 3: 3KB (MTU 3058 byte) 4: 4KB (MTU 4082 byte) 5: 5KB (MTU 5106 byte) 6: 6KB (MTU 6130 byte) 7: 7KB (MTU 7154 byte) 8: 8KB (MTU 8178 byte) 9: 9KB (MTU 9004 byte)
Communication speed setting (Un\G36)
Address Un\G36
Description
Stores the communication speed set with the module parameter. 0: Automatic negotiation 1: 10Mbps/half-duplex 2: 10Mbps/full-duplex 3: 100Mbps/half-duplex 4: 100Mbps/full-duplex 6: 1Gbps/full-duplex
372 APPX Appendix 3 Buffer Memory
Connection status storage area
Connection No.1 latest error code to connection No.64 latest error code (Un\G100 to Un\G163)
The latest error code for each connection is stored.
Address
Name
Un\G100 Un\G101 Un\G162 Un\G163
Connection No.1 latest error code Connection No.2 latest error code
Connection No.63 latest error code Connection No.64 latest error code
Status for each protocol
IP packet (Un\G5000 to Un\G5029)
The IP status is counted in the range of 0 to 4294967295 (FFFFFFFH). (The number of receive aborts is counted in the range
of 0 to 65535 (FFFFH).)
Address Un\G5000 to Un\G5001 Un\G5002 to Un\G5003 Un\G5004 to Un\G5005 Un\G5022 to Un\G5023 Un\G5029
Name Received packet total count Received packet checksum error discard count Sent packet total count Simultaneous transmission error detection count (receive buffer full count) Receive abort count
ICMP packet (Un\G5040 to Un\G5053)
The ICMP status is counted in the range of 0 to 4294967295 (FFFFFFFH).
Address
Name
Un\G5040 to Un\G5041
Received packet total count
Un\G5042 to Un\G5043
Received packet checksum error discard count
A
Un\G5044 to Un\G5045
Sent packet total count
Un\G5046 to Un\G5047
Received echo request total count
Un\G5048 to Un\G5049
Sent echo reply total count
Un\G5050 to Un\G5051
Sent echo request total count
Un\G5052 to Un\G5053
Received echo reply total count
TCP packet (Un\G5080 to Un\G5085)
The TCP status is counted in the range of 0 to 4294967295 (FFFFFFFH).
Address Un\G5080 to Un\G5081 Un\G5082 to Un\G5083 Un\G5084 to Un\G5085
Name Received packet total count Received packet checksum error discard count Sent packet total count
UDP packet (Un\G5120 to Un\G5125)
The UDP status is counted in the range of 0 to 4294967295 (FFFFFFFH).
Address Un\G5120 to Un\G5121 Un\G5122 to Un\G5123 Un\G5124 to Un\G5125
Name Received packet total count Received packet checksum error discard count Sent packet total count
Receiving error (Un\G5160 to Un\G5165)
The receive error status is counted in the range of 0 to 4294967295 (FFFFFFFH).
Address
Description
Un\G5160 to Un\G5161 Un\G5162 to Un\G5163 Un\G5164 to Un\G5165
Framing error count Receive FIFO overflow count CRC error count
373 APPX
Appendix 3 Buffer Memory
Own node operation status storage area
LED status (Un\G5189)
Address Un\G5189
Description
Stores the on/off status of the P ERR LED. 0: Off 1: On or flashing
Hub connection status area (Un\G5191 to Un\G5194)
The hub connection status of the Ethernet-equipped module is stored.
Address Un\G5191
Name Communication mode
Un\G5192
Connection status
Un\G5193
Communication speed
Un\G5194
Disconnection count
Description
Stores the communication mode. 0: Half-duplex 1: Full-duplex
Stores the connection status. 0: Hub not connected or disconnected 1: Hub connected
Stores the communication speed. 0: Operating at 10BASE-T 1: Operating at 100BASE-TX 2: Operating at 1000BASE-T
Stores the number of times the cable was disconnected.
IP address duplication status storage area (Un\G5200 to Un\G5206)
Information when IP address is duplicated is stored.
Address Un\G5200 Un\G5201 to Un\G5203
Un\G5204 to Un\G5206
Name Same IP address detection flag
MAC address of the station already connected to the network
MAC address of the station with the IP address already used
Description
Stores IP address duplication status. 0: IP address not duplicated 1: IP address duplicated
Stores the MAC address of the station that has been already connected to the network in the station with duplicated IP address. Un\G5201: 5th and 6th byte of the MAC address Un\G5202: 3rd and 4th byte of the MAC address Un\G5203: 1st and 2nd byte of the MAC address "FFFFFFFFFFFFH" is stored in the station that has been already connected to the network.
Stores the MAC address of the station with duplicated IP address in the station that has been already connected to the network. Un\G5204: 5th and 6th byte of the MAC address Un\G5205: 3rd and 4th byte of the MAC address Un\G5206: 1st and 2nd byte of the MAC address "FFFFFFFFFFFFH" is stored in the station with the duplicated IP address.
374 APPX Appendix 3 Buffer Memory
Area for sending/receiving instructions
RECV instruction execution request (Un\G5301)
Address Un\G5301
Description
Stores the RECV instruction execution request status of each channel in b0 to b7 (channel 1 to 8). On: Requesting Off: No request
Link dedicated instruction (Un\G5323 to Un\G5325)
The execution result of the link dedicated instruction is stored.
Address Un\G5323
Un\G5325
Name ZNRD instruction execution result
ZNWR instruction execution result
Description
Stores the execution result of the ZNRD instruction. 0: Completed successfully Other than 0: Completed with an error (An error code is stored.)
Stores the execution result of the ZNWR instruction. 0: Completed successfully Other than 0: Completed with an error (An error code is stored.)
Remote password lock status storage area
The remote password lock status of each connection is stored. · 0: Unlocked or remote password not set · 1: Lock status
Address b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G5626 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G5629 64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
The numbers in the table indicate connection numbers.
A
Remote password lock status system port (Un\G5630)
Address Un\G5630
Description
Stores the remote password lock status of the system port in b0 to b4. 0: Unlocked or remote password not set 1: Lock status The bits corresponding to each system port are shown below. b0: Auto-open UDP port b1: MELSOFT transmission port (UDP/IP) b2: MELSOFT transmission port (TCP/IP) b3: FTP transmission port b4: MELSOFT direct connection
375 APPX
Appendix 3 Buffer Memory
Forced connection invalidation setting area
Set the connection to be forcibly invalidated. · 0: Use allowed · 1: Use prohibited
Address b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G5646 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G5649 64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
The numbers in the table indicate connection numbers.
Forced connection invalidation system port (Un\G5650)
Address Un\G5650
Description
Set the system port to be forcibly invalidated. 0: Use allowed 1: Use prohibited The bits corresponding to each system port are shown below. b0: Auto-open UDP port b1: MELSOFT transmission port (UDP/IP) b2: MELSOFT transmission port (TCP/IP) b3: FTP transmission port b4: MELSOFT direct connection
376 APPX Appendix 3 Buffer Memory
Predefined protocol support function execution status check area
Connection No.1 (Un\G8300 to Un\G8335)
The execution status of the predefined protocol support function is stored.
For addresses corresponding to connections after the connection No.2, refer to the following. Page 355 List of buffer memory addresses
Address
Name
Description
Un\G8300
Protocol execution status
Stores the status of the protocol being executed at connection No.1. 0: Unexecuted 1: Waiting for transmission 2: Sending 3: Waiting for data reception 4: Receiving 5: Execution completed
Un\G8301
System area
Un\G8302
Received data verification result (receive packet No.1)
Stores the verification results of receive packet No.1. · Element No. where the verification result did not match (b0 to b7) 0: Verification matched 1 to 32: Element No. where the verification result did not match FFH: Verification not performed · The cause of mismatch (verification result code) (b8 to b15)*1
Un\G8303 to Un\G8317 Received data verification result (receive packet No.2 to 16) The configuration is the same as receive packet No.1.
Un\G8318
Protocol execution count
Stores the number of protocol executions in Connection No.1. 0: Protocol not executed 1 to 65535: Number of executions (When the number exceeds 65535, the value remains 65535.)
Un\G8319
Protocol cancellation specification
Cancels the protocol executed in Connection No.1. 0: No cancellation instruction 1: Cancellation request (set by user) 2: Cancellation completed (set by system)
Un\G8320 to Un\G8335 System area
*1 The following table lists the verification result codes and causes of verification mismatch.
A
Stored value 00H 01H 10H 11H 12H 30H FFH
Description Normal Insufficient receive data Data not matched ASCII-binary conversion error Data length error Data length size error Verification not performed
Cause The total packet size of receive data is smaller than that set in protocol data. The receive data do not match the value set in protocol data. When the code type setting is "ASCII Hexadecimal", data not in ASCII code are received. The received length value exceeded 2046 bytes. The Length value received from the external device does not match the actual length.
377 APPX
Appendix 3 Buffer Memory
Time setting function (SNTP) area
Time setting function operation result (Un\G11000)
Address Un\G11000
Description
Stores the operation result of the time setting function. 0: Unexecuted 1: Success FFFFH: Failure
Time setting function execution time (Un\G11001 to Un\G11007)
Address Un\G11001 Un\G11002 Un\G11003 Un\G11004 Un\G11005 Un\G11006 Un\G11007
Name Year Month Day Hour Minute Second Day of the week
Description
Stores the year that the time setting function was executed.
Stores the month that the time setting function was executed.
Stores the date that the time setting function was executed.
Stores the time (hour) that the time setting function was executed.
Stores the time (minute) that the time setting function was executed.
Stores the time (second) that the time setting function was executed.
Stores the day of the week that the time setting function was executed. 0: Sunday 1: Monday 2: Tuesday 3: Wednesday 4: Thursday 5: Friday 6: Saturday
Time setting function required response time (Un\G11008)
Address Un\G11008
Description
Stores the time required for the module to set the time after sending to the SNTP server. Range: 0 to FFFEH (Unit: ms)
Time setting function (SNTP client) execution (Un\G11009)
Address Un\G11009
Description
Executes the time setting function when b0 is turned on. The time setting function can be executed at a random time from a program. The function is not executed if b0 is turned on during execution of the time setting function. This is valid only when "Use" is set for "Time Setting (SNTP Client)" under "Time Setting" in "Application Settings".
IP packet transfer function area
IP packet transfer latest data volume (Un\G11050 to Un\G11051)
Address Un\G11050 to Un\G11051
Description
Stores the latest value (byte/s) of the total size (byte) per unit time (one second) of the transferred IP packet. (The low-order 16-bit value is stored in the 1st word, and the high-order 16-bit value is stored in the 2nd word.) Range: 0 to 4294967295 (FFFFFFFFH) The value is 4294967295 (FFFFFFFFH) if the above value is exceeded.
IP packet transfer maximum data volume (Un\G11052 to Un\G11053)
Address Un\G11052 to Un\G11053
Description
Stores the maximum value (byte/s) of the total size (byte) per unit time (one second) of the transferred IP packet. (The low-order 16-bit value is stored in the 1st word, and the high-order 16-bit value is stored in the 2nd word.) Range: 0 to 4294967295 (FFFFFFFFH) The value is 4294967295 (FFFFFFFFH) if the above value is exceeded.
378 APPX Appendix 3 Buffer Memory
Dynamic routing function area
Communication path determination status (Un\G11500 to Un\G11514)
The determination status of the communication path for each network number of the destination station is stored. · 0: Path undetermined · 1: Path determined
Address b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G11500 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G11514 Empty 239 238 237 236 235 234 233 232 231 230 229 228 227 226 225
The numbers in the table indicate network numbers.
Remote password function monitoring area
The number of times each connection and system port remote password unlocking failed continuously is counted in the range of 0 to 65535.
Address
Name
Un\G11600
Connection No.1 continuous unlock failure count
Un\G11601
Connection No.2 continuous unlock failure count
Un\G11662
Connection No.63 continuous unlock failure count
Un\G11663
Connection No.64 continuous unlock failure count
Un\G11664
Auto-open UDP port continuous unlock failure count
Un\G11665
MELSOFT transmission port (UDP/IP) continuous unlock failure count
Un\G11666
MELSOFT transmission port (TCP/IP) continuous unlock failure count
Un\G11667
FTP transmission port (TCP/IP) continuous unlock failure count
Un\G11668
MELSOFT direct connection continuous unlock failure count
A
Area for both systems identical IP address setting function
Control system IP address (Un\G11670 to Un\G11671)
The control system IP address set with the module parameter is stored.
Address Un\G11670 Un\G11671
Description Third octet, fourth octet First octet, second octet
379 APPX
Appendix 3 Buffer Memory
IP address change function area
IP address setting (Un\G11700 to Un\G11705)
Set the IP address, subnet mask, and default gateway to be stored in the IP address storage area (flash ROM).
Address Un\G11700 Un\G11701 Un\G11702 Un\G11703 Un\G11704 Un\G11705
Name IP address
Subnet mask
Default Gateway
Description Third octet, fourth octet First octet, second octet Third octet, fourth octet First octet, second octet Third octet, fourth octet First octet, second octet
Communications by network number/station number (Un\G11706 to Un\G11708)
Set the network number, station number, and transient transmission group number to be stored in the IP address storage area
(flash ROM).
Address
Name
Un\G11706 Un\G11707 Un\G11708
Network number Station number Transient transmission group number
IP address storage area write request (Un\G11709)
Address Un\G11709
Description
· When b0 is turned off and on, writes the values stored in 'IP address setting' (Un\G11700 to Un\G11705) and 'Communications by Network No./Station No.' (Un\G11706 to Un\G11708) to the IP address storage area (flash ROM).
· When the data is completely written to the IP address storage area (flash ROM), b0 turns off regardless of the write results.
IP address storage area write error (Un\G11710)
Address Un\G11710
Description
When writing to the IP address storage area (flash ROM) ends abnormally, b0 turns on. When writing completes successfully, b0 turns off.
IP address storage area writing error cause (Un\G11711)
Address Un\G11711
Description
Stores the cause of the abnormal end of writing to the IP address storage area (flash ROM). 0H: No error 100H:The value for 'IP address' (Un\G11700 to Un\G11701) exceeds the setting range. 101H:The value for 'Default gateway' (Un\G11704 to Un\G11705) exceeds the setting range. 102H:The network address of 'Default gateway' (Un\G11704 to Un\G11705) or of the gateway IP address is different from
that of the IP address of the own node. 103H:The value for 'Network number' (Un\G11706) exceeds the setting range. 104H:The value for 'Station number' (Un\G11707) exceeds the setting range. 105H:The value for 'Transient transmission group number' (Un\G11708) exceeds the setting range. 106H:The port 1 and port 2 IP addresses written in the IP address storage area are the same. 107H:The port 1 and port 2 network numbers or station numbers written in the IP address storage area are the same. 200H:An error occurred during write. 400H:Writing was started during the clear processing.
IP address storage area clear request (Un\G11712)
Address Un\G11712
Description
· When b0 is turned off and on, clears the IP address storage area (flash ROM). · When the IP address storage area (flash ROM) is cleared completely, b0 turns off regardless of the clear results.
IP address storage area clear error (Un\G11713)
Address Un\G11713
Description
When clearing the IP address storage area (flash ROM) ends abnormally, b0 turns on. When clearing completes successfully, b0 turns off.
380 APPX Appendix 3 Buffer Memory
IP address storage area clear error cause (Un\G11714)
Address Un\G11714
Description
Stores the cause of the abnormal end of clearing the IP address storage area (flash ROM). 0H: No error 200H:Error occurred during clearing. 400H:Clearing was started during the write processing.
IP address change function operating status (Un\G11715)
Address Un\G11715
Description
Stores the IP address change function operating status. 0: Operating according to the module parameter settings 1: Operating according to the IP address storage area (flash ROM) settings
Random access buffer area
Random access buffer (Un\G20000 to Un\G26143)
This area is used for reading or writing the data when exchanging data with the random access buffer.
Network type information area
Network type information (Un\G65535)
Address Un\G65535
Description
Stores the network type. 0: Ethernet 1: CC-Link IE Field Network 2: CC-Link IE Controller Network 3: Ethernet (Q series-compatible)
Area for communication using a fixed buffer
Fixed buffer No.1 (Un\G65536 to Un\G70655)
This area is used for sending and receiving data during fixed buffer communication.
A
For addresses corresponding to connections after the connection No.2, refer to the following.
Page 355 List of buffer memory addresses
Address
Name
Description
Un\G65536 Un\G65537 to Un\G70655
Data length Fixed buffer data
Stores the data length of the fixed buffer data. Stores the fixed buffer data.
381 APPX
Appendix 3 Buffer Memory
Error log area for MODBUS/TCP function
Number of errors (Un\G720896)
This area is used for storing the number of errors that occurred during communications using MODBUS/TCP.
Error log write pointer (Un\G720897)
This area is used for storing the error log number at which the latest error log was registered.
Error log 1 (Un\G720898 to Un\G720905)
Address Un\G720898 Un\G720899
Un\G720900 Un\G720901 Un\G720902 to Un\G720903 Un\G720904 Un\G720905
Name Detail error code Abnormal response code
Function code Own station port number Destination IP address Destination port number System area
Description Stores an error code. ( Page 329 List of Error Codes) Stores a MODBUS abnormal response code. ( MELSEC iQ-R MODBUS and MODBUS/TCP Reference Manual) Stores a function code that caused the error. Stores the own station port number when the error occurred. Stores the IP address of the destination station when the error occurred. Stores the port number of the destination station when the error occurred.
Error log 2 to 32 (Un\G720906 to Un\G721153)
These areas are used for storing the information of the 2nd to 32th errors in the same order as Error log 1.
382 APPX Appendix 3 Buffer Memory
Simple CPU communication area
Request to start communication at request for each setting number (Un\G721896 to Un\G721899, Un\G1247300 to Un\G1247327)
This request contact starts the data send when the communication setting is "On Request" and is stored using the following bit
pattern for each setting number.
· Off On: Requested (start request) · On Off: Completed (start completion)
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G721896
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G721899
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1247300 80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
Un\G1247327 512 511 510 509 508 507 506 505 504 503 502 501 500 509 508 507
Request to stop fixed interval communication for each setting number (Un\G721900 to Un\G721903, Un\G1247328 to Un\G1247355)
This request contact stops the data send when the communication setting is "Fixed Interval" and is stored using the following
bit pattern for each setting number.
· Off On: Requested (stop request) · On Off: Completed (stop completion)
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G721900
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G721903
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
A
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1247328 80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
Un\G1247355 512 511 510 509 508 507 506 505 504 503 502 501 500 509 508 507
Request to restart fixed interval communication for each setting number (Un\G721904 to Un\G721907, Un\G1247356 to Un\G1247383)
This request contact restarts the data send when the communication setting is "Fixed Interval" and is stored using the
following bit pattern for each setting number.
· Off On: Requested (restart request)
· On Off: Completed (restart completion)
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G721904
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G721907
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1247356 80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
Un\G1247383 512 511 510 509 508 507 506 505 504 503 502 501 500 509 508 507
383 APPX
Appendix 3 Buffer Memory
Execution status flag for each setting number (Un\G721908 to Un\G721911, Un\G1247384 to Un\G1247411)
The status of data communication is stored using the following bit pattern for each setting number.
· Off: Communication stop (function not used)
· On: Communicating
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G721908
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G721911
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1247384 80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
Un\G1247411 512 511 510 509 508 507 506 505 504 503 502 501 500 509 508 507
Preparation completion for each setting number (Un\G721912 to Un\G721915, Un\G1247412 to Un\G1247439)
The preparation completion status of the simple CPU communication is stored using the following bit pattern for each setting
number.
· Off: Not ready (function not used)
· On: Ready
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G721912
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G721915
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1247412 80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
Un\G1247439 512 511 510 509 508 507 506 505 504 503 502 501 500 509 508 507
Simple CPU communication status for each setting number (Un\G721936 to Un\G721999, Un\G1247460 to Un\G1247907)
Address Un\G721936 Un\G721937 Un\G721998 Un\G721999
Name Simple CPU communication status setting No.1 Simple CPU communication status setting No.2
Simple CPU communication status setting No.63 Simple CPU communication status setting No.64
Description
The simple CPU communication status is stored. 0H: Unset (function not used) 1H: Preparing 2H: Waiting for the request 3H: Communicating 4H: Communication stop 5H: Retry being executed 6H: Monitoring AH: Communications impossible
Address Un\G1247460 Un\G1247461 Un\G1247906 Un\G1247907
Name Simple CPU communication status setting No.65 Simple CPU communication status setting No.66
Simple CPU communication status setting No.511 Simple CPU communication status setting No.512
Description
The simple CPU communication status is stored. 0H: Unset (function not used) 1H: Preparing 2H: Waiting for the request 3H: Communicating 4H: Communication stop 5H: Retry being executed 6H: Monitoring AH: Communications impossible
384 APPX Appendix 3 Buffer Memory
Simple CPU communication error code for each setting number (Un\G722000 to Un\G722063, Un\G1247908 to Un\G1248355)
Address Un\G722000 Un\G722001 Un\G722062 Un\G722063
Name Simple CPU communication error code setting No.1 Simple CPU communication error code setting No.2
Simple CPU communication error code setting No.63 Simple CPU communication error code setting No.64
Description
The cause of the error detected in the simple CPU communication is stored. 0: No error (function not used) Other than 0: Error code ( Page 329 List of Error Codes) The value is cleared to 0 with a clear request from the engineering tool.
Address Un\G1247908 Un\G1247909 Un\G1248354 Un\G1248355
Name Simple CPU communication error code setting No.65 Simple CPU communication error code setting No.66
Simple CPU communication error code setting No.511 Simple CPU communication error code setting No.512
Description
The cause of the error detected in the simple CPU communication is stored. 0: No error (function not used) Other than 0: Error code ( Page 329 List of Error Codes) The value is cleared to 0 with a clear request from the engineering tool.
Abnormal response code for each setting number (Un\G722064 to Un\G722127, Un\G1248356 to Un\G1248803)
Address Un\G722064 Un\G722065 Un\G722126 Un\G722127
Name Abnormal response code setting No.1 Abnormal response code setting No.2
Abnormal response code setting No.63 Abnormal response code setting No.64
Description
The abnormal response code detected in the simple CPU communication is stored. 0: No error (function not used) Other than 0: Abnormal response code For abnormal response codes, refer to the manual for the external device. This function is available when CFB4H is stored in "Simple CPU communication error code for each setting number" (Un\G722000 to Un\G722063).
Address Un\G1248356 Un\G1248357 Un\G1248802 Un\G1248803
Name Abnormal response code setting No.65 Abnormal response code setting No.66
Abnormal response code setting No.511 Abnormal response code setting No.512
Description
The abnormal response code detected in the simple CPU communication is stored.
A
0: No error (function not used)
Other than 0: Abnormal response code
For abnormal response codes, refer to the manual for the
external device.
This function is available when CFB4H is stored in "Simple
CPU communication error code for each setting number"
(Un\G1247908 to Un\G1248355).
Execution interval (current value) for each setting number (Un\G722128 to Un\G722191, Un\G1248804 to Un\G1249251)
Address Un\G722128 Un\G722129 Un\G722190 Un\G722191
Name Execution interval (current value) setting No.1 Execution interval (current value) setting No.2
Execution interval (current value) setting No.63 Execution interval (current value) setting No.64
Description
If "Fixed" is set for communication setting, the current value of the execution interval is stored. 0: Unset (function not used), communications impossible Other than 0: Execution interval (unit: ms)
Address Un\G1248804 Un\G1248805 Un\G1249250 Un\G1249251
Name Execution interval (current value) setting No.65 Execution interval (current value) setting No.66
Execution interval (current value) setting No.511 Execution interval (current value) setting No.512
Description
If "Fixed" is set for communication setting, the current value of the execution interval is stored. 0: Unset (function not used), communications impossible Other than 0: Execution interval (unit: ms)
User setting area (Un\G722500 to Un\G1246787)
This area can be used freely during simple CPU communication.
385 APPX
Appendix 3 Buffer Memory
Ethernet PORT1/2 common information
Open completion signal (Un\G1900000 to Un\G1900007)
The open status of each connection is stored. · 0: Closed or not open · 1: Open completed
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1900000 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G1900007 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113
The numbers in the table indicate connection numbers.
Open request signal (Un\G1900008 to Un\G1900015)
The open processing status of each connection is stored. · 0: No open request · 1: Requesting open
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1900008 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G1900015 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113
The numbers in the table indicate connection numbers.
Socket/fixed buffer reception status signal (Un\G1900016 to Un\G1900023)
The reception status of each connection is stored. · 0: Data not received · 1: Data reception completed
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1900016 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G1900023 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113
The numbers in the table indicate connection numbers.
Initial status (Un\G1900024)
Address Un\G1900024
Description
Stores the status of the initial processing of the RJ71EN71 or the RnENCPU (network part). Initial normal completion status (b0) 0: 1: Initialization normal completion Initial abnormal completion status (b1) 0: 1: Initialization abnormal completion b2 to b15: Use prohibited
Initial error code (Un\G1900025)
Address Un\G1900025
Description
Stores the information when the initial processing of the RJ71EN71 or the RnENCPU (network part) is completed abnormally. 0: In initial processing or initial normal completion Other than 0: Initial processing error code (An error code is stored.)
386 APPX Appendix 3 Buffer Memory
Receive buffer status storage area
State of receive buffer (Un\G1900030)
Address Un\G1900030
Description
Stores the receive buffer status. 0: Receive buffer not full 1: Receive buffer full
Predefined protocol support function check area
Predefined protocol ready (Un\G1901002)
Address Un\G1901002
Description
Stores the ready status of the protocol setting data. 0: 1: Ready
Predefined protocol setting data check area
Predefined protocol setting data error information (Un\G1901020 to Un\G1901023)
Address Un\G1901020
Un\G1901021
Un\G1901022
Name Protocol number
Setting type
Packet number
Un\G1901023
Element number
Description
When a protocol setting data error is detected, stores the protocol number where the error was detected. Protocol is checked in order from smallest protocol number. The protocol number where an error was detected first is stored. 0: No error 1 to 128: Protocol number 65535: Cannot identify*1
0 is stored if an error is detected in the packet setting or element
setting.
1 is stored if an error is detected in the protocol detailed setting.
(Valid when protocol number value is 1 to 128) 0: Packet setting or element setting
A
1: Protocol preferences 65535: Cannot identify*1
When an error is detected in the protocol setting data, stores the packet number that detected the error. The packets are checked in order of send packets and then receive packets (expected packets) from smallest number. The packet number where an error was detected first is stored. (Valid when setting type value is 0) 0: Send packet 1 to 16: Receive packet number 65535: Cannot identify*1
When an error is detected in the protocol setting data, stores the element number where the error was detected. The elements are checked in order of smallest element number. The element number where an error was detected first is stored. (Valid when setting type value is 0) 1 to 32: Element number 65535: Cannot identify*1
*1 The setting value may be unidentifiable (65535) in the following cases. When a setting that cannot be detected by the current Ethernet-equipped module version is written in When protocol setting data is broken (hardware failure)
Number of registered predefined protocols (Un\G1901024)
Address Un\G1901024
Description
Stores the protocol number of the registered protocol setting data. 0 is stored if the protocol setting data check result is abnormal. 0: No registration 1 to 128: Number of registrations
387 APPX
Appendix 3 Buffer Memory
Predefined protocol registration (Un\G1901032 to Un\G1901047)
Whether protocol setting data is registered or not is stored. All bits are set to 0 if the protocol setting data check result is abnormal. · 0: No registration · 1: Registered
Address Un\G1901032 Un\G1901039 Un\G1901040 to Un\G1901047
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 Empty
The numbers in the table indicate protocol numbers.
Send/receive area for predefined protocol support function
Send/receive area for predefined protocol support function (Un\G1902000 to Un\G1904047)
This area is used for sending and receiving data during communication with predefined protocol.
User setting area for MODBUS/TCP function
User setting area for MODBUS/TCP function (Un\G1921024 to Un\G1929215)
This area is used for sending and receiving data during communications using MODBUS/TCP.
Discard received data at CPU STOP setting area
Discard received data at CPU STOP setting area (Un\G1950032 to Un\G1950039)
Stores one of the following bit patterns for each connection number. · 0: Disable (The receive data is not discarded during CPU STOP.) · 1: Enable (The receive data is discarded during CPU STOP.)
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1950032 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G1950039 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113
The numbers in the table indicate connection numbers.
388 APPX Appendix 3 Buffer Memory
Details of buffer memory addresses (CPU module (built-in Ethernet port part))
This section descries the details of buffer memory addresses of the CPU module (built-in Ethernet port part).
Own node setting status storage area
Own node IP address (Un\G50, Un\G51)
The IP address set with the module parameter is stored.
Address
Description
Un\G50 Un\G51
Third octet, fourth octet First octet, second octet
Subnet mask (Un\G60, Un\G61)
The subnet mask set with the module parameter is stored.
Address Un\G60 Un\G61
Description Third octet, fourth octet First octet, second octet
Default gateway IP address (Un\G64, Un\G65)
The default gateway IP address set with the module parameter is stored.
Address Un\G64 Un\G65
Description Third octet, fourth octet First octet, second octet
Own node MAC address (Un\G74 to Un\G76)
The MAC address of the Ethernet-equipped module is stored.
Address Un\G74
Description 5th byte, 6th byte of the MAC address
A
Un\G75
3rd byte, 4th byte of the MAC address
Un\G76
1st byte, 2nd byte of the MAC address
Network number/Station number setting status (Un\G87)
This area is used for storing the setting status of the network number/station number.
Address Un\G87
Name Network number/Station number setting status
Description
Stores the setting status of the network number/station number that has been set with parameters or by the IP address change function. b0: Network number/station number validity flag (0: Disabled, 1: Enabled)
389 APPX
Appendix 3 Buffer Memory
Communication load status
Receive packet count per unit time (one second) (Un\G100, Un\G101)
The number of receive packets per unit time (one second) of the built-in Ethernet port communications is stored.
Address Un\G100
Un\G101
Name Receive packet count (current) per unit time (one second)
Receive packet count (maximum) per unit time (one second)
Description
The number of receive packets per unit time (one second) of the built-in Ethernet port is stored. When the processing speed of the built-in Ethernet communications is slow and if this value is large, the following actions may improve the processing speed. · Review the communication request from the engineering
tool and GOT. · Review the communication request from the transfer
destination (execution source) of the simple CPU communications. · Review the file transfer function (FTP server). · Review the communications using the SLMP.
The maximum value of the number of receive packets per unit time (one second) of the built-in Ethernet port is stored.
Send packet count per unit time (one second) (Un\G102, Un\G103)
The number of send packets per unit time (one second) of the built-in Ethernet port communications is stored.
Address Un\G102
Un\G103
Name
Description
Send packet count (current) per unit time (one second)
The number of send packets per unit time (one second) of the built-in Ethernet port is stored. When the processing speed of the built-in Ethernet communications is slow and if this value is large, the following actions may improve the processing speed. · Review the execution frequency of the instructions for the
built-in Ethernet function (socket communications instruction/predefined protocol support function instruction/ SLMP frame send instruction/file transfer function instruction) · Review the settings (such as the number of points) of CCLink IE Field Network Basic. · Review the settings (such as the execution interval and the number of points) of the simple CPU communications. · Review the settings (such as automatic detection and backup execution) of iQSS (built-in Ethernet). · Review the settings (such as the number of executions) of data logging file transfer.
Send packet count (maximum) per unit time (one second) The maximum value of the number of send packets per unit time (one second) of the built-in Ethernet port is stored.
Connection status storage area
Connection No.1 latest error code to connection No.16 latest error code (Un\G130 to Un\G145)
The latest error code for each connection is stored.
Address
Name
Un\G130 Un\G131 Un\G144 Un\G145
Connection No.1 latest error code Connection No.2 latest error code
Connection No.15 latest error code Connection No.16 latest error code
390 APPX Appendix 3 Buffer Memory
Own node operation status storage area
Hub connection status area (Un\G242 to Un\G245)
The hub connection status of the Ethernet-equipped module is stored.
Address
Name
Un\G242
Communication mode
Un\G243
Connection status
Un\G244
Communication speed
Un\G245
Disconnection count
Description
Stores the communication mode. 0: Half-duplex 1: Full-duplex
Stores the connection status. 0: Hub not connected or disconnected 1: Hub connected
Stores the communication speed. 0: Operating at 10BASE-T 1: Operating at 100BASE-TX 2: Operating at 1000BASE-T
Stores the number of times the cable was disconnected.
IP address duplication status storage area (Un\G251 to Un\G257)
Information when IP address is duplicated is stored.
Address Un\G251 Un\G252 to Un\G254
Un\G255 to Un\G257
Name
Description
Same IP address detection flag
Stores IP address duplication status. 0: IP address not duplicated 1: IP address duplicated
MAC address of the station already connected to the network
Stores the MAC address of the station that has been already connected to the network in the station with duplicated IP address. Un\G252: 5th and 6th byte of the MAC address Un\G253: 3rd and 4th byte of the MAC address Un\G254: 1st and 2nd byte of the MAC address "FFFFFFFFFFFFH" is stored in the station that has been already connected to the network.
MAC address of the station with the IP address already used
Stores the MAC address of the station with duplicated IP address in the station that has been already connected to
A
the network.
Un\G255: 5th and 6th byte of the MAC address
Un\G256: 3rd and 4th byte of the MAC address
Un\G257: 1st and 2nd byte of the MAC address
"FFFFFFFFFFFFH" is stored in the station with the
duplicated IP address.
Remote password lock status storage area
Remote password lock status system port (Un\G270)
The remote password lock status of each connection is stored. · 0: Unlocked or remote password not set · 1: Lock status
Address b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G270 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
The numbers in the table indicate connection numbers.
Remote password lock status system port (Un\G271)
Address Un\G271
Description
Stores the remote password lock status of the system port in b0 to b4. 0: Unlocked or remote password not set 1: Lock status The bits corresponding to each system port are shown below. b0: Auto-open UDP port b1: MELSOFT transmission port (UDP/IP) b2: MELSOFT transmission port (TCP/IP) b3: FTP transmission port b4: MELSOFT direct connection
391 APPX
Appendix 3 Buffer Memory
Discard received data at CPU STOP setting area
Discard received data at CPU STOP setting area (Un\G275)
Stores one of the following bit patterns for each connection number. · 0: Disable (The receive data is not discarded during CPU STOP.) · 1: Enable (The receive data is discarded during CPU STOP.)
Address
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G275
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
The numbers in the table indicate connection numbers.
Forced connection invalidation setting area
Forced connection invalidation setting area (Un\G280)
Set the connection to be forcibly invalidated. · 0: Use allowed · 1: Use prohibited
Address b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G280 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
The numbers in the table indicate connection numbers.
Forced connection invalidation system port (Un\G281)
Address Un\G281
Description
Set the system port to be forcibly invalidated. 0: Use allowed 1: Use prohibited The bits corresponding to each system port are shown below. b0: Auto-open UDP port b1: MELSOFT transmission port (UDP/IP) b2: MELSOFT transmission port (TCP/IP) b3: FTP transmission port b4: MELSOFT direct connection
Time setting function (SNTP) area
Time setting function operation result (Un\G290)
Address Un\G290
Description
Stores the operation result of the time setting function. 0: Unexecuted 1: Success FFFFH: Failure
Time setting function execution time (Un\G291 to Un\G297)
Address Un\G291 Un\G292 Un\G293 Un\G294 Un\G295 Un\G296 Un\G297
Name Year Month Day Hour Minute Second Day of the week
Description
Stores the year that the time setting function was executed.
Stores the month that the time setting function was executed.
Stores the date that the time setting function was executed.
Stores the time (hour) that the time setting function was executed.
Stores the time (minute) that the time setting function was executed.
Stores the time (second) that the time setting function was executed.
Stores the day of the week that the time setting function was executed. 0: Sunday 1: Monday 2: Tuesday 3: Wednesday 4: Thursday 5: Friday 6: Saturday
392 APPX Appendix 3 Buffer Memory
Connection status storage area
Latest error code connection No.1 (communication error) to latest error code connection No.16 (communication error) (Un\G770 to Un\G785)
The latest error code (communication error) for each connection is stored.
Address Un\G770 Un\G771 Un\G784 Un\G785
Name Latest error code connection No.1 (communication error) Latest error code connection No.2 (communication error)
Latest error code connection No.15 (communication error) Latest error code connection No.16 (communication error)
FTP server latest error code (communication error) (Un\G786)
The latest error code (communication error) for the FTP server is stored.
Address
Name
Un\G786
FTP server latest error code (communication error)
MELSOFT direct connection latest error code (communication error) (Un\G787)
The latest error code (communication error) for MELSOFT direct connection is stored.
Address
Name
Un\G787
MELSOFT direct connection latest error code (communication error)
FTP client latest error code (communication error) (Un\G788)
The latest error code (communication error) for the FTP client is stored.
Address
Name
Un\G788
FTP client latest error code (communication error)
Auto-open UDP port latest error code (communication error) (Un\G789)
The latest error code (communication error) for the auto-open UDP port is stored.
A
Address
Name
Un\G789
Auto-open UDP port latest error code (communication error)
MELSOFT connection auto-open UDP port latest error code (communication error) (Un\G790)
The latest error code (communication error) for the MELSOFT connection auto-open UDP port is stored.
Address
Name
Un\G790
MELSOFT connection auto-open UDP port latest error code (communication error)
MELSOFT connection auto-open TCP port latest error code (communication error) (Un\G791)
The latest error code (communication error) for the MELSOFT connection auto-open TCP port is stored.
Address
Name
Un\G791
MELSOFT connection auto-open TCP port latest error code (communication error)
Send buffer memory number of exhaustion (Un\G792)
The insufficient send buffer or memory count is stored.
Address
Name
Un\G792
Send buffer memory number of exhaustion
393 APPX
Appendix 3 Buffer Memory
Simple CPU communication function
Request to stop fixed interval communication for each setting number (Un\G1094 to Un\G1097)
This request contact stops the data send when the communication setting is "Fixed" and is stored using the following bit
pattern for each setting number
· Off On: Requested (stop request) · On Off: Completed (stop completion)
Address b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1094 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G1097 64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
Request to restart fixed interval communication for each setting number (Un\G1098 to Un\G1101)
This request contact restarts the data send when the communication setting is "Fixed" and is stored using the following bit
pattern for each setting number
· Off On: Requested (restart request)
· On Off: Completed (restart completion)
Address b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1098 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G1101 64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
Execution status flag for each setting number (Un\G1102 to Un\G1105)
The status of data communication is stored using the following bit pattern for each setting number. · Off: Communication stop (function not used) · On: Communicating
Address b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1102 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G1105 64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
Preparation completion for each setting number (Un\G1106 to Un\G1109)
The preparation completion status of the simple CPU communication is stored using the following bit pattern for each setting number. · Off: Not ready (function not used) · On: Ready
Address b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Un\G1106 16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Un\G1109 64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
Simple CPU communication status for each setting number (Un\G1130 to Un\G1193)
Address Un\G1130 Un\G1131 Un\G1192 Un\G1193
Name Simple PLC status setting No.1 Simple PLC status setting No.2
Simple PLC status setting No.63 Simple PLC status setting No.64
Description
The simple CPU communication status is stored. 0H: Unset (function not used) 1H: Preparing 3H: Communicating 4H: Communication stop 5H: Retry being executed 6H: Monitoring at error AH: Communications impossible
394 APPX Appendix 3 Buffer Memory
Simple CPU communication error code for each setting number (Un\G1194 to Un\G1257)
Address Un\G1194 Un\G1195 Un\G1256 Un\G1257
Name Simple PLC error code setting No.1 Simple PLC error code setting No.2
Simple PLC error code setting No.63 Simple PLC error code setting No.64
Description
The cause of the error detected in the simple CPU communication is stored. 0: No error (function not used) Other than 0: Error code ( Page 329 List of Error Codes) The value is cleared to 0 with a clear request from the engineering tool.
Execution interval (current value) for each setting number (Un\G1258 to Un\G1321)
Address Un\G1258 Un\G1259 Un\G1320 Un\G1321
Name Execution interval (current value) setting No.1 Execution interval (current value) setting No.2
Execution interval (current value) setting No.63 Execution interval (current value) setting No.64
Description
If "Fixed" is set for communication setting, the current value of the execution interval is stored. 0: Unset (function not used), communications impossible Other than 0: Execution interval (unit: ms)
A
395 APPX
Appendix 3 Buffer Memory
Appendix 4 Dedicated Instruction
This section describes the dedicated instruction that can be used in Ethernet. The following shows the meaning of the marks in the tables of this chapter. : Available, : Not available
For details on dedicated instructions used in the RJ71EN71 and RnENCPU (network part), refer to the following. MELSEC iQ-R Programming Manual (Module Dedicated Instructions) For details on dedicated instructions used in the CPU module (built-in Ethernet port part), refer to the following. MELSEC iQ-R Programming Manual (CPU Module Instructions, Standard Functions/Function Blocks)
Precautions
Data change
Do not change any data specified (such as control data) until execution of the dedicated instruction is completed.
When the dedicated instruction is not completed
Check whether "Module Operation Mode" in "Application Settings" of the RJ71EN71 and the RnENCPU (network part) is "Online". A dedicated instruction cannot be executed when the mode is "Offline" or "Module Communication Test".
Open/close processing instructions
The following table lists the Ethernet instructions to connect or disconnect the connection with the communication destination.
Instruction symbol GP.OPEN ZP.OPEN GP.CONOPEN SP.SOCOPEN GP.CLOSE ZP.CLOSE GP.CONCLOSE SP.SOCCLOSE
Description Establishes a connection.
Closes the connection.
RJ71EN71, RnENCPU (network part)
CPU module (built-in Ethernet port part)
Instruction for SLMP communications
The following table lists the built-in Ethernet instructions used for communications using the SLMP.
Instruction symbol
SP.SLMPSND
Description Sends SLMP message to the SLMP-compatible device.
RJ71EN71, RnENCPU (network part)
CPU module (built-in Ethernet port part)
396 APPX Appendix 4 Dedicated Instruction
Instructions for predefined protocol communications
The following table lists the Ethernet instructions and built-in Ethernet instructions used for communications using the communication protocol.
Instruction symbol
GP.ECPRTCL
SP.ECPRTCL SP.SOCCINF*1 SP.SOCCSET*1
Description
Executes the protocol registered with the engineering tool's communication protocol support function. Reads connection information Changes the communication target
RJ71EN71, RnENCPU (network part)
CPU module (built-in Ethernet port part)
*2 *2
*1 These instructions are the same as the instruction for the socket communications (SP.SOCCINF/SP.SOCCSET). ( MELSEC iQ-R Programming Manual (CPU Module Instructions, Standard Functions/Function Blocks))
*2 Only the following models can be used. The supporting firmware version differs depending on the model. R00CPU, R01CPU, R02CPU: There are no restrictions on the version. Programmable controller CPUs other than the above: "29" or later
Socket communications instructions
The following table lists the Ethernet instructions and built-in Ethernet instructions used for socket communications.
Instruction symbol
Description
RJ71EN71, RnENCPU CPU module (built-in
(network part)
Ethernet port part)
GP.SOCRCV
Reads the receive data from the external device.
SP.SOCRCV
G.SOCRCVS
S.SOCRCVS
GP.SOCSND
Sends data to the external device.
SP.SOCSND
SP.SOCCINF SP.SOCCSET
Reads connection information Changes the communication target
A
SP.SOCRMODE Changes the connection receive mode.
S.SOCRDATA Reads the specified size of data from the socket communication receive data
SP.SOCRDATA area.
If the instruction has a completion device, do not change the various data (such as control data and request data) specified with the executed instruction until execution of the instruction is completed.
Instructions for communications using the fixed buffer
The following table lists the Ethernet instructions used for communications using the fixed buffer.
Instruction symbol GP.BUFRCV ZP.BUFRCV G.BUFRCVS Z.BUFRCVS GP.BUFSND ZP.BUFSND
Description Reads the receive data from the external device. Reads the receive data with an interrupt program. Sends data to the external device.
RJ71EN71, RnENCPU (network part)
CPU module (built-in Ethernet port part)
397 APPX
Appendix 4 Dedicated Instruction
Link dedicated instructions
The following table lists the instructions common to Ethernet and CC-Link IE used for transient transmission with programmable controllers on other stations. A station on a network other than Ethernet can also be accessed. ( Page 407 Communications with Different Networks)
Instruction symbol JP.READ GP.READ JP.SREAD GP.SREAD JP.WRITE GP.WRITE JP.SWRITE GP.SWRITE JP.SEND GP.SEND JP.RECV GP.RECV G.RECVS Z.RECVS J.ZNRD JP.ZNRD J.ZNWR JP.ZNWR J.REQ JP.REQ G.REQ GP.REQ J.REQ JP.REQ G.REQ GP.REQ
Description Reads data from the word device of another station. Reads data from the word device of another station. (with completion device) Writes data in the word device of another station. Writes data in the word device of another station. (with completion device) Sends data to another station. Reads the receive data from another station. (for main program) Reads the receive data from another station. (for interrupt program) Reads data from the word device in another station (ACPU). Writes data in the word device in another station (ACPU). Requests the remote RUN/STOP to the CPU module on another station.
Reads/Writes the clock data from/to the CPU module of other stations.
RJ71EN71, RnENCPU (network part)
CPU module (built-in Ethernet port part)
Precautions
When executing multiple link dedicated instructions simultaneously, check that the channels for the instructions are not duplicated. Link dedicated instructions with the same channel cannot be executed simultaneously. To use the same channel for multiple link dedicated instructions, configure an interlock so that an instruction is executed after completion of another.
File transfer function instruction
The following table lists the built-in Ethernet instructions used for the file transfer function (FTP client).
Instruction symbol SP.FTPPUT
SP.FTPGET
Description
This instruction sends files in the CPU module (FTP client) to the folder path of the specified FTP server. This instruction retrieves files on the FTP server to the folder path of the specified CPU module (FTP client).
RJ71EN71, RnENCPU (network part)
CPU module (built-in Ethernet port part)
398 APPX Appendix 4 Dedicated Instruction
Other dedicated instructions
The following table lists the other Ethernet instructions.
Instruction symbol GP.ERRCLEAR ZP.ERRCLEAR GP.ERRRD ZP.ERRRD G.UINI GP.UINI Z.UINI ZP.UINI
Description Turns off the LED and clears error information.*1 Reads error information. Performs re-initial processing.
RJ71EN71, RnENCPU (network part)
CPU module (built-in Ethernet port part)
*1 Availability for turning off the LED depends on the firmware version of the RJ71EN71. ( Page 436 Added and Enhanced Functions)
A
399 APPX
Appendix 4 Dedicated Instruction
Appendix 5 TCP/IP Communications, UDP/IP
Communications
This chapter describes the communication flow and procedure of TCP/IP communications and UDP/IP communications.
TCP/IP communications
This section describes TCP/IP communications.
Establishing a connection
With TCP/IP communications, a connection must be established between the communicating devices. If the server side device has executed the Passive open processing and is in the standby state, the client side device makes an open request (Active open processing) to the server. When a response is returned, the connection is established. With TCP/IP communications, a connection is established during communication. Since data is exchanged while checking that the data has correctly reached the communication destination, the data reliability can be ensured. Note that the line load is larger than UDP/IP communications.
Ex. When the Ethernet-equipped module is Passive open
Server
Client
Ethernet-equipped module Passive open
Open request Response
Connection
External device Active open
400
APPX Appendix 5 TCP/IP Communications, UDP/IP Communications
Communication flow
This section describes the flow from the establishment of connection to end of communication.
Server
Client
After performing Passive open, the server will wait for an open request from the client.
Ethernet-equipped module Passive open
Connection established
External device
Open request Response
Data sending
Active open
When the client sends an Active open request and the server accepts it, a connection is established between the client and the server.
Connection established
Data sending
The client requests data sending and sends data.
Receive processing Data sending
Response Data sending
Response
The client receives the response to the data.
The client receives data and sends back the response to the data.
Receive processing
A
Close request
Close processing
Close request
Response Close request
Response
The packet to stop communications is exchanged then the connection is disconnected.
Closed
Closed
Wait at least 500ms or more before executing the open processing again after the close request is sent from the external device to the Ethernet-equipped module.
APPX Appendix 5 TCP/IP Communications, UDP/IP Communications
401
Active open procedure
Active open is a connection method that performs an active open processing in respect to an external device (Passive open) that is in a passive open standby state for a connection. The following figure shows the process for the Ethernet-equipped module to Active open. For OPEN/CLOSE instruction, refer to the following. MELSEC iQ-R Programming Manual (Module Dedicated Instructions)
Ex. Open/close processing for connection No.1
Open status
Power-on
Parameter communications completed
Ò
Open enable status (closed)
Closed status
'Initial status' (Un\G1900024.0)
OPEN instruction
OPEN instruction completion device
OPEN instruction completion device +1
CLOSE instruction
CLOSE instruction completion device
CLOSE instruction completion device +1 'Open completion signal (connection No.1)' (Un\G1900000.0) 'Open request signal (connection No.1)' (Un\G1900008.0)
Ó 1 scan
Abnormally ended Ö
1 scan
Abnormally ended
SYN Ô
ACK
SYN + ACK
FIN ×
ACK Ø
FIN + ACK
Õ
After the module parameters are set, check that the initial processing for the Ethernet-equipped module has completed normally. ('Initial status' (Un\G1900024.0): On)
Start the open processing using the OPEN instruction.*3 ('Open request signal (connection No.1)' (Un\G1900008.0): On) The Ethernet-equipped module executes the open processing. (The module sends open request (SYN) to the external device.) Data can be exchanged after the open processing completes normally.*1 Start the close processing using the CLOSE instruction. ('Open request signal (connection No.1)' (Un\G1900008.0): Off) The Ethernet-equipped module executes the close processing. (The module sends close request (FIN) to external device.) Data communication ends when close processing completes normally.*2
*1 If RST is returned from the external device after SYN is sent from the Ethernet-equipped module, open abnormal completion occurs immediately, and the open processing ends.
*2 If ACK or FIN is not returned even after the TCP end timer time, the Ethernet-equipped module forcibly cuts off the connection (sends RST). (Close abnormal completion)
*3 If the open processing target port has not been linked up, the OPEN instruction will complete with an error. Execute the open processing again after link-up, or check that 'Connection status' (Un\G5192) is set to 1 before starting the open processing. If auto-negotiation fails, the open processing will complete with an error. Retry the open processing after a while. If the open processing completes with an error again, check the Ethernet cable connection or the operation of the external device and switching hub.
402
APPX Appendix 5 TCP/IP Communications, UDP/IP Communications
Passive open procedure
The following two types of connection methods can be used to Passive open the Ethernet-equipped module.
Connection Description method
Unpassive Fullpassive
This connection method executes a passive open processing for the connection to all devices connected to the network without restriction to the IP address or port number of the communication destination.
When the IP address and port number of the communication destination are specified, this connection method executes a passive open processing for the connection of the specific external device.
The open/close processing procedure for Passive open follows the setting of "Opening Method" under "Own Node Settings" in "Basic Settings". ( Page 262 Own Node Settings)
When "Do Not Open by Program" is set
The Ethernet-equipped module is constantly in the open standby state, so the connection is established when Active open is initiated by the external device. This eliminates the need for an open/close processing program on the Ethernet-equipped module side.
Ex. Open/close processing for connection No.1
Parameter communications Power-on completed Ò
Open status *1
Open enable status (closed) (Active open acceptance enabled)
Closed status
'Initial status' (Un\G1900024.0)
'Open completion signal (connection No.1)' (Un\G1900000.0)
'Open request signal (connection No.1)' (Un\G1900008.0)
A
Õ
SYN + ACK
Ó SYN
ACK
FIN + ACK
Ô FIN
ACK
After the module parameters are set, check that the initial processing for the Ethernet-equipped module has completed normally. ('Initial status' (Un\G1900024.0): On) When the initial processing completes normally, the connection enters the open enable state, and the module waits for the open request from the external device.
The Ethernet-equipped module executes the open processing when an open request (SYN) is received from the external device. When the open processing ends normally, 'Open completion signal (connection No.1)' (Un\G1900000.0) turns on and data communication is enabled.
The Ethernet-equipped module executes the close processing when the close request (FIN) is received from the external device. When the close processing completes normally, the open completion signal turns off and data communication is disabled.
After the internal processing in the Ethernet-equipped module completes, the connection stands by for the open request again.
*1 The open request (SYN) received between the initial processing normal completion to the open request standby state is handled as an error, and the Ethernet-equipped module sends a connection forced close (RST) (to the external device that sent the open request (SYN)).
When the open/close processing is executed with a dedicated instruction from the Ethernet-equipped module, even if "Do Not Open by Program" is set in "Opening Method" under "Own Node Settings" in "Basic Settings", the connection will not return to the open request standby state after the close processing completes.
APPX Appendix 5 TCP/IP Communications, UDP/IP Communications
403
When "Open by Program" is set
Before the open/close request is received from the external device, the Ethernet-equipped module must execute the OPEN/ CLOSE instruction and enter the open/close standby state. Data can be sent and received after the open processing completes normally. For OPEN/CLOSE instruction, refer to the following. MELSEC iQ-R Programming Manual (Module Dedicated Instructions)
Ex. Open/close processing for connection No.1
Parameter communications Power-on completed
Open status
Open enable status (closed) (Active open acceptance enabled)
Ò *1
Closed status
'Initial status' (Un\G1900024.0)
OPEN instruction
Ó 1 scan
OPEN instruction completion device
OPEN instruction completion device +1
CLOSE instruction
Abnormally ended
Ö
1 scan
CLOSE instruction completion device
CLOSE instruction completion device +1
Abnormally ended
'Open completion signal (connection No.1)' (Un\G1900000.0)
'Open request signal (connection No.1)' (Un\G1900008.0)
SYN + ACK
FIN + ACK
Ô
Õ
SYN
ACK
FIN
ACK
After the module parameters are set, check that the initial processing for the Ethernet-equipped module has completed normally. ('Initial status' (Un\G1900024.0): On)
Start the open processing using the OPEN instruction. ('Open request signal (connection No.1)' (Un\G1900008.0): On) The Ethernet-equipped module executes the open processing when an open request (SYN) is received from the external device. When the open processing
ends normally, 'Open completion signal (connection No.1)' (Un\G1900000.0) turns on and data communication is enabled. The Ethernet-equipped module executes the close processing when the close request (FIN) is received from the external device. When the close
processing completes normally, the open completion signal turns off and data communication is disabled.
*1 The open request (SYN) received between the initial processing normal completion to the open request standby state is handled as an error, and the Ethernet-equipped module sends a connection forced close (RST) (to the external device that sent the open request (SYN)).
· Change the connection setting before executing the OPEN instruction. · After the open processing is executed, the open request cannot be canceled until the open processing
completes. Execute the close processing (CLOSE instruction) after open completes.
404
APPX Appendix 5 TCP/IP Communications, UDP/IP Communications
UDP/IP communications
This section describes the UDP/IP communications. Since UDP/IP communications does not establish a connection during communication and does not check that the communication destination has correctly received the data, the line load is lower. Note that the data reliability is lower than TCP/IP communications.
Communication flow
UDP/IP communications does not require a process to establish a connection with the external device as is required with TCP/IP communications.
Server
Client
Ethernet-equipped module
Open
Data sending
The server requests data reception and reads the received data.
Receive processing (reading)
External device
Open Data sending request
The client opens the port.
The client specifies the destination and sends data to it.
Data sending request
Data sending
A
Receive processing (reading)
Close
Close
The client performs the close processing.
Wait at least 500ms or more before executing the open processing again after the close request is sent from the external device to the Ethernet-equipped module.
Open procedure
The open/close processing procedure is as follows, according to the setting of "Opening Method" under "Own Node Settings" in "Basic Settings". ( Page 262 Own Node Settings)
When "Do Not Open by Program" is set
After the Ethernet-equipped module mounted station starts up, the UDP/IP communications setting connection automatically opens, and data send/receive is enabled. Program for open/close processing is not required.
When the open/close processing is executed with a dedicated instruction from the Ethernet-equipped module, even if "Do Not Open by Program" is set in "Opening Method" under "Own Node Settings" in "Basic Settings", the open/close processing after a connection with the external device is established must be executed by the program.
APPX Appendix 5 TCP/IP Communications, UDP/IP Communications
405
When "Open by Program" is set
Before the open/close request is received from the external device, the Ethernet-equipped module must execute the OPEN/ CLOSE instruction and enter the open/close standby state. Data can be sent and received after the open processing completes normally. For OPEN/CLOSE instruction, refer to the following. MELSEC iQ-R Programming Manual (Module Dedicated Instructions)
Ex. Open/close processing for connection No.1
Open status
Power-on
Parameter communications completed
Ò
Open enable status (closed)
Closed status
'Initial status' (Un\G1900024.0)
OPEN instruction
OPEN instruction completion device
OPEN instruction completion device +1
CLOSE instruction
CLOSE instruction completion device
CLOSE instruction completion device +1
'Open completion signal (connection No.1)' (Un\G1900000.0)
Ó 1 scan
Abnormally ended Ö
1 scan
Abnormally ended
Ô
Õ
Internal processing
×
Ø
Internal processing
After the module parameters are set, check that the initial processing for the Ethernet-equipped module has completed normally. ('Initial status' (Un\G1900024.0): On)
Start the open processing using the OPEN instruction. ('Open request signal (connection No.1)' (Un\G1900008.0): On) The Ethernet-equipped module executes the open processing. (only internal processing) Data can be exchanged after the open processing completes normally. Start the close processing using the CLOSE instruction. ('Open request signal (connection No.1)' (Un\G1900008.0): Off) The Ethernet-equipped module executes the close processing. (only internal processing) Data communication ends when close processing completes normally.
406
APPX Appendix 5 TCP/IP Communications, UDP/IP Communications
Appendix 6 Communications with Different Networks
Different network stations can be accessed with dedicated instructions or the engineering tool, allowing seamless communication.
CC-Link IE Controller Network Network No.1
Engineering tool
(Relay station)
Ethernet
Network No.3
CC-Link IE Field Network Network No.2
The following functions are used to communicate with different networks.
Functions capable of communication Communication request
Reference source
source
Communications using the SLMP
External device
Page 29 SLMP Communications
A
SLMP Reference Manual
Communications using a link dedicated instruction
CPU module on another station
Page 116 Link Dedicated Instruction Communication
Communications with other stations using the Engineering tool engineering tool
GX Works3 Operating Manual
· UDP/IP communications is used to communicate with other networks. Data is always exchanged as binary codes.
· Communications can be made with stations up to eight networks apart (number of relay stations: 7).
APPX Appendix 6 Communications with Different Networks
407
When the networks consist of only MELSEC iQ-R series
Communication paths are automatically set for communication with the following networks of MELSEC iQ-R series. · Ethernet · CC-Link IE Controller Network · CC-Link IE Field Network
Setting procedure
Use the following procedure.
1. Set the network number, station number, and transient transmission group number in the "Own Node Settings" under
"Basic Settings". ( Page 263 Details of items)
2. Set the "Network Dynamic Routing" under "Application Settings" to "Enable".
· Communication paths are automatically set, but they can also be manually set. To set communication paths manually, refer to the following. ( Page 408 When the networks consist of MELSEC iQ-R series and other series)
· The communication path cannot be set automatically for Ethernet-equipped modules connected via a router. Set the communication path manually. ( Page 408 When the networks consist of MELSEC iQ-R series and other series)
When the networks consist of MELSEC iQ-R series and other series
Setting communication paths allows communication with the following networks configured with modules other than MELSEC iQ-R series. · Ethernet · CC-Link IE Controller Network · CC-Link IE Field Network · MELSECNET/H · MELSECNET/10
Setting procedure
Use the following procedure.
1. Set the network number, station number, and transient transmission group number in the "Own Node Settings" under
"Basic Settings". ( Page 263 Details of items)
2. Set the send destination station information in "Network/Station No. <-> IP information setting" under "Application
Settings". ( Page 286 Network/Station No. <-> IP information setting)
3. Set communication paths in "Routing Setting" of "CPU Parameter".
( MELSEC iQ-R CPU Module User's Manual (Application))
408
APPX Appendix 6 Communications with Different Networks
When the networks contain a redundant system
· When setting a communication path automatically, after the time specified by the destination alive check timer (time calculated from destination alive check start interval timer value, destination alive check interval timer value, and destination alive check resend count), the communication path setting will be changed. Set as small a value as possible for the "Destination Alive Check Start Interval Timer", "Destination Alive Check Interval Timer", and "Destination Alive Check Resend Count".
· When the communication paths are automatically set, the paths are updated if system switching occurs in a redundant system on the paths. During update of the communication paths, communications may be interrupted or data may be lost because the paths are temporarily undetermined. If an error occurs in communications, resend data from the request source.
· When the request source is a redundant system and the communication paths are automatically set, perform the communications from the control system. When performing the communications from the standby system, set "Routing Setting" of "CPU Parameter"
· When the request destination is a redundant system and the communication paths are automatically set, specify the control system station as the destination. When specifying the standby system as the request destination, set "Routing Setting" of "CPU Parameter".
· When relaying a redundant system and setting the communication paths manually, set the control system station as a relay station in "Routing Setting" of "CPU Parameter". If system switching occurs, the relay station needs to be changed to a station in the new control system using the RTWRITE instruction. ( MELSEC iQ-R Programming Manual (CPU Module Instructions, Standard Functions/Function Blocks))
A
APPX Appendix 6 Communications with Different Networks
409
Appendix 7 Processing Time
Calculate the minimum processing time for each function with the following formula. Note that the processing time may be even longer due to the network load rate (line congestion), each connected device's window size, number of connections being used simultaneously, and the system configuration. The value calculated with the following formula is a guide for the processing time when communicating with only one connection.
Minimum processing time of fixed buffer communications (between the RJ71EN71s*1)
*1 The processing time will be the same even if the RnENCPU (network part) is mixed.
Procedure exists
Tfs = St + Ke + (Kdf Df) + Sr · Tfs: Time from start to end of send (unit: ms) · St: Sending station scan time · Ke, Kdf: Constant (refer to following table) · Df: Number of send data words · Sr: Receiving station scan time
Item
When communicating with binary code data When communicating with ASCII code data
RJ71EN71, RnENCPU
During TCP/IP communications
Ke
Kdf
6
0.0030
6
0.0100
During UDP/IP communications
Ke
Kdf
3
0.0020
4
0.0015
No procedure
Tfs = St + Ke + (Kdf Df) · Tfs: Time from start to end of send (unit: ms) · St: Sending station scan time · Ke, Kdf: Constant (refer to following table) · Df: Number of send data bytes
Item
When communicating with binary code data
RJ71EN71, RnENCPU
During TCP/IP communications
Ke
Kdf
4
0.0010
During UDP/IP communications
Ke
Kdf
3
0.0007
Minimum processing time of communications using the random access buffer
Trs = Kr + (Kdr Df) + external device ACK processing time (added only during TCP/IP communications) · Trs: Time from reception of personal computer request data to complete of process by RJ71EN71 (unit: ms) · Kr, Kdr: Constant (refer to following table) · Df: Number of request data words · External device ACK process time: Time until external device returns ACK upon completion of random access buffer read/
write
Item
During read During write
When communicating with binary code data When communicating with ASCII code data When communicating with binary code data When communicating with ASCII code data
RJ71EN71, RnENCPU
During TCP/IP communications
Kr
Kdr
2.5
0.0020
2.5
0.0060
2.5
0.0025
2.6
0.0070
During UDP/IP communications
Kr
Kdr
1.8
0.0025
1.9
0.0065
1.8
0.0025
1.9
0.0060
410 APPX Appendix 7 Processing Time
Processing time of communications using MODBUS/TCP
The following shows the time required by the Ethernet-equipped module when it receives a request message from the MODBUS/TCP master device, completes the processing, and sends a response message.
Calculation formula
Tsl = Ks1 + (Ks2 n1) + (St n2) [ms]
Variable Meaning
Processing time, constant
Tsl
Request message processing time (performance of the automatic response
function) (unit: ms)
Ks1
Internal processing time of the automatic response function (unit: ms)
Fixed to 2.5ms
Ks2
Communication time between the Ethernet-equipped module and CPU module Fixed to 4.5ms
(unit: ms)
St
Own station scan time (unit: ms)
n1
Function code for the processing target and setting details of the memory
Function code CPU module device
Buffer memory
assignment
assignment
assignment
01
1
0
02
1
0
03
1
0
04
1
0
05
1
0
06
1
0
15
1
0
16
1
0
20
1
0
21
1
0
22
2
0
23
2
0
n2
Function code for the processing target and setting details of the memory assignment
Function code
CPU module device assignment
Buffer memory assignment
A
Normal
Worst case
01
1
2
0
02
1
2
0
03
1
2
0
04
1
2
0
05
1
2
0
06
1
2
0
15
1
2
0
16
1
2
0
20
1
2
0
21
1
2
0
22
2
4
0
23
2
4
0
411 APPX
Appendix 7 Processing Time
System switching time when a redundant system is used
The following shows the system switching time when the Ethernet-equipped module mounted on the control system in the redundant system detects a communication error or cable disconnection and sends a system switching request to the control system CPU module. System switching time is the time from communication error or cable disconnection detection to when the control system CPU module is switched over.
Calculation formula
The following is the formula to calculate the system switching time.*1
System switching cause Communication error detection (alive check error) Communication error detection (ULP timeout occurrence) Disconnection detection
System switching time [ms] Tsi + (Ti (Tr + 1)) + St + Tsw Ttu + St + Tsw Td + St + Tsw
*1 The meanings of the variables in the equation are as follows.
Variable Tsi Ti Tr St Tsw Ttu Td
Meaning Destination alive check start interval timer [ms] ( Page 281 Timer Settings for Data Communication) Destination alive check interval timer [ms] ( Page 281 Timer Settings for Data Communication) Destination alive check resend count ( Page 281 Timer Settings for Data Communication) 1 scan time [ms] ( MELSEC iQ-R CPU Module User's Manual (Application)) CPU module system switching time [ms] ( MELSEC iQ-R CPU Module User's Manual (Application)) TCP ULP timer value [ms] ( Page 281 Timer Settings for Data Communication) Disconnection detection monitoring time [ms] ( Page 295 Redundant System Settings)
412 APPX Appendix 7 Processing Time
Timing chart
This section describes a timing chart for each system switching cause.
· Communication error detection (alive check error)
RJ71EN71 (system A)
Communications have not been performed with the external device for a fixed period.
(Tr = 2) Operating as a control system
Tsi
Ti Ti Ti
Scan time of the system A CPU
Operating as a standby system
Issuing a system switching request
System A
Control system
System B
Standby system
Scan time of the system B CPU
Standby system Tsw
Control system
RJ71EN71 (system B)
Operating as a standby system System switching time
· Communication error detection (ULP timeout occurrence)
No response from the external device
Operating as a control system
RJ71EN71 (system A)
Operating as a control system Operating as a standby system
Ttu Issuing a system switching request
Scan time of the system A CPU
System A
Control system
Standby system Tsw
System B
Standby system
Control system
A
Scan time of the system B CPU
RJ71EN71 (system B)
Operating as a standby system System switching time
· Disconnection detection
Disconnected
Operating as a control system
RJ71EN71 (system A)
Operating as a control system Operating as a standby system
Td
Issuing a system
switching request
Scan time of the system A CPU
System A
Control system
System B
Standby system
Scan time of the system B CPU
Standby system Tsw
Control system
RJ71EN71 (system B)
Operating as a standby system System switching time
Operating as a control system
413 APPX
Appendix 7 Processing Time
Performance list of simple CPU communication function
The following shows the performance of the execution interval (simple CPU communication function). The execution interval varies depending on the number of settings, the number of communication points, and the scan time of the CPU module. The interval is also affected by the execution conditions of other functions or Ethernet communication condition.
Condition
· Communication setting: "Fixed" · Sequence scan time (own station) =: 1ms (scan time before the execution of simple CPU communication function) · Communication destination: MELSEC iQ-R (built-in Ethernet) · Sequence scan time (communication destination): 1ms (any model) · Device data: Bit device = M, Word device = D · The number of settings is as shown in the table (1, 8, 16, 32, and 64) and all settings are for the different communication
destinations (not for the same destination). · The retry of communication is not performed.
Communication pattern Read
Write
Number of communication points for one setting
32 words for each device*1 (Total 64 words) 64 words for each device*1 (Total 128 words)
256 words for each device*1 (Total 512 words) 32 words for each device*1 (Total 64 words) 64 words for each device*1 (Total 128 words) 256 words for each device*1 (Total 512 words)
Processing time by the number of settings (unit: ms)
1
8*2
16*2
32*2
64*2
10
11
17
34
76
10
11
17
35
77
10
13
20
10
11
18
35
77
10
11
18
35
80
10
13
20
*1 Number of points for each device (bit device and word device) *2 The larger the number of settings for the same communication destination is, the longer the execution interval becomes, and it becomes
up to eight times longer.
414 APPX Appendix 7 Processing Time
Appendix 8 Mounting the Module with a Remote
Head Module
This chapter describes restrictions and precautions for using the RJ71EN71 that is mounted with a remote head module.
Restrictions on functions and specifications
Functions
Function
Restriction
Communications using the SLMP
· The command that can be used differs from that of the CPU module. ( SLMP Reference Manual) · The file that can be operated differs from that of the CPU module. ( MELSEC iQ-R CC-Link IE Field Network
Remote Head Module User's Manual (Application))
Communications using the predefined protocol
This function cannot be used.
Socket communications
This function cannot be used.
Communications using the fixed buffer
This function cannot be used.
Communications using MODBUS/ TCP
· When the network type is "Q Compatible Ethernet", this function cannot be used. · The default values set for the MODBUS device assignment parameters cannot be used for creating a project for the
engineering tool using the remote head module. Clear the values first before starting the setting.
Communications using a link dedicated instruction
Although the own station can be specified as the relay station or target station, the link dedicated instruction cannot be executed from the own station.
File transfer function (FTP server)
· The file that can be operated differs from that of the CPU module. ( MELSEC iQ-R CC-Link IE Field Network Remote Head Module User's Manual (Application))
· The number of files that can be written to the data memory differs from that of the CPU module. ( MELSEC iQ-R CCLink IE Field Network Remote Head Module User's Manual (Startup))
Time setting function (SNTP client)
This function cannot be used.
IP filter function Simple CPU communication
When the network type is "Q Compatible Ethernet", this function cannot be used. When the network type is "Q Compatible Ethernet", this function cannot be used.
A
function
IP address change function
When the network type is "Q Compatible Ethernet", this function cannot be used.
Redundant system function
Although the RJ71EN71 can be connected to a redundant system of a remote head module, redundant system of the RJ71EN71 cannot be configured.
Module parameters
There are differences between when the RJ71EN71 is connected to the CPU module and when the RJ71EN71 is connected to the remote head module. For details, refer to the following. MELSEC iQ-R CC-Link IE Field Network Remote Head Module User's Manual (Application) This manual describes the restrictions specific to the RJ71EN71.
Parameter name
Basic Settings
Own Node Settings
External Device Configuration
Restrictions
Select "Do Not Open by Program" for "Opening Method".
When performing TCP/IP communications, select "Unpassive Connection Module" or "Fullpassive Connection Module" for the external device.
Open/close processing
Perform the open/close processing of the connection from the external device.
APPX Appendix 8 Mounting the Module with a Remote Head Module
415
Appendix 9 Using the Module in the Redundant
System with Redundant Extension Base Unit
This chapter describes restrictions and precautions for using the RJ71EN71 that is mounted on the extension base unit in the redundant system.
Restrictions on functions and specifications
Applicable network combination
Network type
Setting in GX Works3 Restrictions
Ethernet
CC-Link IE Controller Network CC-Link IE Field Network Ethernet + CC-Link IE Controller Network Ethernet + CC-Link IE Field Network Q Compatible Ethernet
RJ71EN71(E+E)
RJ71EN71(CCIEC) RJ71EN71(CCIEF) RJ71EN71(E+CCIEC) RJ71EN71(E+CCIEF) RJ71EN71(Q)
The network can be used for a module with firmware version of "50" or later.*1
This network type cannot be used.
This network type cannot be used.
This network type cannot be used.
This network type cannot be used.
The network can be used for a module with firmware version of "50" or later.*1
*1 When using the network, check the versions of the CPU module compatible with the extension base unit and the engineering tool.
Functions
Function Connection with MELSOFT products and a GOT
Communications using the predefined protocol Socket communications Communications using the fixed buffer
MODBUS/TCP communications Communications using a link dedicated instruction File transfer function (FTP server) IP filter Simple CPU communication function IP address change function
Restriction When "Not Specified" is set, a CPU module of the control system is accessed. When the CPU module in the system A is in the control system, enable communication by specifying "System A", "Control System", or "Not Specified" for "Redundant CPU Setting" in "Specify Connection Destination Connection". When the CPU module in the system A is in the standby system, enable communication by specifying "System A" or "Standby System" for "Redundant CPU Setting" in "Specify Connection Destination Connection". This function cannot be used.
This function cannot be used. When the network type is only "Q Compatible Ethernet", this function can be used. ( Page 418 Example of communications using the fixed buffer) When the network type is "Q Compatible Ethernet", this function cannot be used. Although the own station can be specified as the relay station or target station, the link dedicated instruction cannot be executed from the own station. This function cannot be used. When the network type is "Q Compatible Ethernet", this function cannot be used. When the network type is "Q Compatible Ethernet", this function cannot be used. When the network type is "Q Compatible Ethernet", this function cannot be used.
Dedicated instructions
Any dedicated instructions of the RJ71EN71 cannot be used. When using the dedicated instructions for the RJ71EN71, install it to the main base unit.
When the network type is "Q Compatible Ethernet", the "ERR LED off request" (Y17) can be used instead of the ERRCLEAR instruction. ( Page 354 When the network type is "Q Compatible Ethernet")
Module FBs
Any module FBs of the RJ71EN71 cannot be used.
416
APPX Appendix 9 Using the Module in the Redundant System with Redundant Extension Base Unit
Module parameters
Application Settings
· Set "Not Use" to "To Use or Not to Use Redundant System Settings" in "Redundant System Settings". · Do not specify Interrupt settings. · Set "Disable" to "Dynamic Routing Setting" under "Network Dynamic Routing". · Set "Not Use" to "IP Packet Transfer Function" in "IP Packet Transfer Setting".
Open/close processing
The open/close processing by input/output signals cannot be performed.
Precautions
· When system switching occurs during communications using MELSOFT connection, SLMP communication from other stations, or communications using dedicated instructions of other stations, communication timeout error may occur.
· When system switching occurs during simple CPU communication, a timeout error may occur in the CPU response monitoring timer. If required, try the CPU response monitoring timer again.
· When system switching occurs during MODBUS/TCP communications, a timeout error may occur in the CPU response monitoring timer. If required, try the CPU response monitoring timer again.
· For replacement from the MELSEC-Q series, set "Q Compatible Ethernet" to the RJ71EN71 network type
A
APPX Appendix 9 Using the Module in the Redundant System with Redundant Extension Base Unit
417
Example of communications using the fixed buffer
An example of communications using a fixed buffer when the RJ71EN71 is installed to the extension base unit is shown below.
System configuration
(1)
(2)
(3)
(4)
(1) Control system (R35B, R61P, R08PCPU, R6RFM) (2) Standby system (R35B, R61P, R08PCPU, R6RFM) (3) First level (R68WRB, R63RP, R63RP, RJ71EN71) (4) Communication destination device
Parameter setting
Connect the engineering tool to the CPU module to be set as the control system and set the parameters. In a redundant system, the same program and parameter are written to both systems. A new project does not need to be created for the standby system.
1. Set the CPU module as follows.
[Project] [New]
2. Click the [OK] button to add the module labels of the CPU module.
418
APPX Appendix 9 Using the Module in the Redundant System with Redundant Extension Base Unit
3. Set the base unit information as follows.
[Navigation window] [Parameter] [System Parameter] [Base/Power/Extension Cable Setting]
4. Specify the information for the redundant function module and RJ71EN71 as follows.
[Navigation window] [Parameter] [System Parameter] [I/O Assignment Setting]
5. Set the IP address as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71(Q)] [Basic Settings] [Own Node Settings]
A
APPX Appendix 9 Using the Module in the Redundant System with Redundant Extension Base Unit
419
6. Set the network configuration as follows.
[Navigation window] [Parameter] [Module Information] [RJ71EN71(Q)] [Basic Settings] [External Device Configuration]
7. Set "Not Use" to "To Use or Not to Use Redundant System Settings".
[Navigation window] [Parameter] [Module Information] [RJ71EN71(Q)] [Application Settings] [Redundant System Settings]
8. Write the set parameters to the control system CPU module.
[Online] [Write to PLC]
9. Click the [Yes] button to write to the CPU modules of both systems.
10. Either reset the CPU modules of both systems or power off and on both systems.
· In this setting example, default settings other than above are used for the parameters. For the parameter setting, refer to the chapter explaining the parameters in this manual. ( Page 261 PARAMETER SETTINGS)
· Since PLS instructions and other instructions in the program, check that "Transfer" has been set to "Signal Flow Memory Tracking Setting" in "Tracking Setting" under "Redundant Settings" in "CPU Parameter".
420
APPX Appendix 9 Using the Module in the Redundant System with Redundant Extension Base Unit
Program examples
In this example, connection No.1 is opened and data is sent to an external device. Also, the data from an external device is received using connection No.2.
Classification
Label name
Label to be defined
Define global labels as shown below:
A
APPX Appendix 9 Using the Module in the Redundant System with Redundant Extension Base Unit
421
422
APPX Appendix 9 Using the Module in the Redundant System with Redundant Extension Base Unit
(0) When bOpenInstruction_1 is turned on, open processing of connection No.1 is performed. (66)When bSendInstruction is turned on, data is sent to an external device using connection No.1. (125)When bCloseInstruction_1 is turned on, close processing of connection No.1 is performed. (201)When bRecvInstruction is turned on, data is sent to an external device using connection No.2.
A
APPX Appendix 9 Using the Module in the Redundant System with Redundant Extension Base Unit
423
Appendix 10 Port Numbers Used by Ethernet-
equipped Module
The following port numbers are used by the system and cannot be specified.
Port Number Decimal 5000 5001 5002 5003 5004 5005 5006 5007 5008 5009
Hexadecimal 1388H 1389H 138AH 138BH 138CH 138DH 138EH 138FH 1390H 1391H
Applications CPU module (built-in Ethernet port part) For system MELSOFT transmission port (UDP/IP) For system For system For system Auto-open UDP port (default value) MELSOFT transmission port (UDP/IP) MELSOFT transmission port (TCP/IP) MELSOFT direct connection port For system
RJ71EN71, RnENCPU (network part) Auto-open UDP port (default value)
MELSOFT transmission port (TCP/IP) MELSOFT direct connection port For system For system For system For system For system For system
424
APPX Appendix 10 Port Numbers Used by Ethernet-equipped Module
Appendix 11 Operation Image and Data Structure of
Predefined Protocol
Operation image of each communication type of protocol
With the predefined protocol support function, data is communicated with the external device using the "Send Only", "Receive Only", and "Send & Receive" communication types. This section describes the operation images of each communication type.
For "Send Only" communication type
The specified packet is sent once.
Ethernet-equipped module
Send data Data
Header
External device
The operation image of "Send Only" is shown below.
When the instruction completed successfully
ECPRTCL instruction
Completion device
Completion device + 1
Waiting time to send
A
Ethernet-equipped module
Send packet
External device
Send packet
When the instruction completed with an error at TCP/IP (timeout error)
ECPRTCL instruction
An error has occurred.
Completion device Completion device + 1
Ethernet-equipped module External device
The device turns on upon abnormal end.
Waiting time to send
t: TCP ULP timer
Send packet
The packet cannot be sent or no response is received from the external device.
APPX Appendix 11 Operation Image and Data Structure of Predefined Protocol
425
For details on errors that occur when the communication completed abnormally, refer to the error code stored in the buffer memory. ( Page 329 List of Error Codes)
For "Receive Only" communication type
When data is received from the external device, it is verified with the receive packet (expected packet). If it matches, the receive processing ends. If the verification does not match, the received data is discarded.
Ethernet-equipped module
Receive packet (expected packet)
Data
Sixteen receive packets can be specified.
Not matched Discarded Matched
Receive data 1
Header
Data
Receive data 2
Header
Data
External device
Received
The operation image of "Receive Only" is shown below.
When the instruction completed successfully
ECPRTCL instruction
Completion device Completion device + 1
Ethernet-equipped module External device
Receive data
The receive data matched the receive packet (expected packet).
Receive data
426
APPX Appendix 11 Operation Image and Data Structure of Predefined Protocol
When the instruction completed with an error (timeout error)
ECPRTCL instruction
An error has occurred.
Completion device Completion device + 1
The device turns on upon abnormal end.
Ethernet-equipped module External device
t: waiting time to receive or the time specified by the destination alive check timer*1
The receive data did not match the
receive packet (expected packet).
Receive data
Receive data
*1 When the receive packet (expected packet) verification does not match before the reception wait time, or when other device existence cannot be checked within the destination alive check time (time calculated from destination alive check start interval timer value, destination alive check interval timer value, and destination alive check resend count).
· When variables are included in receive packet (expected packet) elements, variable data are not verified.
· Up to 16 receive packets (expected packets) can be specified.
· When multiple packets are specified, the received data is verified with the registered receive packet
(expected packet) in the order of registration. The receive processing is completed when a matching
receive packet (expected packet) is found, and the subsequent verification is canceled.
· The number of the matching received packet is stored in the control data of the ECPRTCL instruction and
the buffer memory.
A
· For details on errors that occur when the communication completed abnormally, refer to the error code
stored in the buffer memory. ( Page 329 List of Error Codes)
APPX Appendix 11 Operation Image and Data Structure of Predefined Protocol
427
For "Send & Receive" communication type
The packet is sent once. If the send completed successfully, the module shifts to the receiving standby state. When data is received from the external device, it is verified with the receive packet (expected packet). If it matches, the receive processing ends.
Ethernet-equipped module
Send data Data
Header
Receive packet (expected packet)
Data
Sixteen receive packets can be specified.
Not matched Discarded Matched
Receive data 1
Header
Data
Header
Receive data 2 Data
External device
Received
The operation image of "Send & Receive" is shown below.
When the instruction completed successfully
ECPRTCL instruction
Completion device Completion device + 1
Ethernet-equipped module External device
Waiting time to send
Waiting time to receive
Send packet Send packet
Receive data
The receive data matched the receive packet (expected packet).
Receive data
428
APPX Appendix 11 Operation Image and Data Structure of Predefined Protocol
When the instruction completed with an error (timeout error at sending)
ECPRTCL instruction
An error has occurred.
Completion device Completion device + 1
The device turns on upon abnormal end.
Waiting time to send
t: TCP ULP timer
Ethernet-equipped module External device
Send packet
The packet cannot be sent or no response is received from the external device.
Discarded Receive data
When the instruction completed with an error (timeout error of waiting time to receive)
ECPRTCL instruction
An error has occurred.
Completion device Completion device + 1
The device turns on upon abnormal end.
Waiting time
t: waiting time to receive or the time
to send
specified by the destination alive check timer*1
A
Ethernet-equipped module
Send packet
External device
Send packet
Receive data
Receive data
The receive data did not match the receive packet (expected packet).
*1 When the receive packet (expected packet) verification does not match before the reception wait time, or when other device existence cannot be checked within the destination alive check time (time calculated from destination alive check start interval timer value, destination alive check interval timer value, and destination alive check resend count).
For details on errors that occur when the communication completed abnormally, refer to the error code stored in the buffer memory. ( Page 329 List of Error Codes)
APPX Appendix 11 Operation Image and Data Structure of Predefined Protocol
429
Verification operation of receive packet
This section describes the receive packet (expected packet) verification operation for communication with an external device when the protocol communication type contains reception.
When received data are matched with a receive packet (expected packet)
The received data is compared against the receive packet (expected packet), and the receive processing completes when the verification matches.
Receive packet (expected packet)
Matched
Receive data
Received
When multiple receive packets (expected packets) are specified
Up to 16 receive packets (expected packets) can be registered with the predefined protocol support function. When the data are received, the registered receive packet (expected packet) is verified in the order of registration. The receive processing completes as soon as a matching receive packet (expected packet) is found.
Receive packets (expected packets)
No.1
No.2
Not matched
No.3 Matched
No.16
Sixteen receive packets can be registered.
Receive data
Received
When received data does not match with all receive packet (expected packet)
If the received data does not match any of the registered receive packets (expected packets), the received data is discarded.
Receive packets (expected packets)
No.1
No.2
Not matched
No.16
When sixteen receive packets were registered
Not matched
Receive data
Discarded
430
APPX Appendix 11 Operation Image and Data Structure of Predefined Protocol
Example of packet element data
The element processing procedures that can be set for the packets, the actual data examples, and others are shown below.
Length
Process procedure
The Ethernet-equipped module processes the length with the following procedure. [During send]
Length calculating result
Data flow Forward direction
30H 31H 32H 33H
Sending
"3210" 33H 32H 31H 30H
External device "0123"
123H
Reverse direction
Conversion to ASCII
hexadecimal
"0"(30H)
"1"(31H)
33H
32H
"0123"
31H
30H 31H 32H 33H
30H
"3210"
"2"(32H) "3"(33H)
Byte swap 31H
30H
"2301"
"1032"
33H
32H 33H 30H 31H
32H
A
[During receive]
External device "0123"
Sending 33H 32H 31H 30H
Data flow Forward direction
30H 31H 32H 33H
Reverse direction 33H 32H 31H 30H
Length calculation result Conversion from ASCII hexadecimal to binary
"0123"
123H
"3210"
3210H
Byte swap 31H 30H 33H 32H
"1032"
1032H
APPX Appendix 11 Operation Image and Data Structure of Predefined Protocol
431
Data flow
Data flow is used to specify the order of send data and receive data. The data flow can be specified in forward direction (upper byte lower byte), reverse direction (lower byte upper byte), and byte swap (by word). · Forward direction, reverse direction: Available when the data length is 2 bytes or more. · Byte swap: Available only when the data length is 4 bytes.
Calculating range
Examples of specifying the length calculating range are shown below.
Packet element 1 Packet format Static data
Example 1
Packet element 2
Packet element 3
Length
Non-conversion variable
Calculating range for the length
Packet element 30
Packet element 31
Packet element 32
Static data Static data Static data
Example 2
Calculating range for the length
Example 3
Calculating range for the length
Example 1:Calculating range when start of range is set as 3 and end is set as 3 Example 2:Calculating range when start of range is set as 3 and end is set as 30 Example 3:Calculating range when start of range is set as 1 and end is set as 32
Non-conversion Variable
Process procedure
The Ethernet-equipped module processes the non-conversion variable element with the following procedure. When unit of stored data is "Lower Byte + Upper Byte" · When the data length of a send packet is an odd number, the upper byte (lower byte when bytes are swapped) of the end
device is not sent. · When the data length of a receive packet is an odd number, the last data is stored with one byte of 00H.
Ex. When sending data whose length is an odd number
(Word)
Data length storage area + 0
Data storage area
+ 1
+ 2
+ 3
Specified device 0005H 0201H 0403H 0605H
No byte swap Sending
Byte swap
Send data
06H 05H 04H 03H 02H 01H Data are not sent.
05H 06H 03H 04H 01H 02H
External device
432
APPX Appendix 11 Operation Image and Data Structure of Predefined Protocol
Ex. When receiving data whose length is an odd number
(Word)
Data length storage area + 0
Data storage area
+ 1
+ 2
+ 3
Specified device 0005H 0201H 0403H 0005H
No byte swap Receiving
01H 02H
Send data 03H 04H 05H
External device
(Word)
Specified device
Byte swap
Data length storage area + 0
0005H
Data storage area
+ 1
0102H
+ 2
0304H
+ 3
0500H
When unit of stored data is "Lower Byte Only" · A size double the data length is occupied. For the upper data, the Ethernet-equipped module ignores the data at sending
and adds 00H to the data at receiving.
Non-verified reception
The usage examples for a non-verified reception element is shown below.
Ex. Example of a packet format of the external device
Necessary information for users
Variable number of
1 byte
2 bytes Identification
2 bytes Country
5 bytes Manufacturer
5 bytes Product
characters
1 byte
A
STX
code
code
code
code
EXT
Reading data
Non-verified reception is set in the elements.
When the information is unnecessary for users and the data (including the number of characters) are variable
Example of a packet setting
2 bytes Static data
2 bytes
Non-conversion variable
Variable number of characters Non-verified reception (variable number of characters)
1 byte Static data
In the above type of packet format, the following operation can be executed by setting reception without verification. · It is possible to store only the required information in the CPU module's device or buffer memory. · Even if the received packet contains data that changes with each communication, it can be handled with one protocol
(packet).
APPX Appendix 11 Operation Image and Data Structure of Predefined Protocol
433
Appendix 12 Example of External Device Program
An example of the program in the external device connected to the same Ethernet as the Ethernet-equipped module is shown below. Each program is the minimum required program for the communication. Change the IP address or port number according to the system. When including process for errors, add it separately.
External device receiving process
An example of the external device receiving process is shown below.
Communication processing on the external device
Request message/send processing
Response message/receive processing
Is the TCP connection open?
Receive the remaining response messages.
Were the data received within the monitoring
timer value?
The TCP connection is closed. Timeout of the monitoring timer value
The received data size is insufficient.
Check the received data size.
Response message processing
If the response message to the next request has been received
Have all the received messages been processed?
End
Error processing
When communicating with Ethernet, the TCP socket functions (socket functions) are used in the personal computer. There is no concept of boundary with these functions. When the send side calls the send function once and sends data, the receiving side must call the recv function once, twice, or depending on the circumstance more times to read that data. (send and recv do not correspond one-on-one.) Thus, the external device's program process must execute the receiving process as shown above.
434
APPX Appendix 12 Example of External Device Program
Appendix 13 How to Turn Off ERR LED
If an error occurs in communications with the external device, the ERR LED turns on. Even though the error cause is eliminated, the ERR LED does not turn off. This section describes how to turn off the ERR LED.
Method using a dedicated instruction
The ERR LED can be turned off by the ERRCLEAR instruction. Availability for turning off the LED depends on the firmware version of the RJ71EN71. ( Page 436 Added and Enhanced Functions) For details on the ERRCLEAR instruction, refer to the following. MELSEC iQ-R Programming Manual (Module Dedicated Instructions)
Method using I/O signals
When the network type is "Q Compatible Ethernet", the ERR LED can be turned off by the ERR LED off request (Y17). ( Page 354 When the network type is "Q Compatible Ethernet")
A
435 APPX
Appendix 13 How to Turn Off ERR LED
Appendix 14 Added and Enhanced Functions
RJ71EN71, RnENCPU (network part)
The following table lists the added and enhanced functions in the RJ71EN71, RnENCPU (network part). : Available (No version restriction), : Not available
Added and enhanced function
Firmware version RJ71EN71
Turning off the LED with the ERRCLEAR instruction 'State of receive buffer' (Un\G1900030)*1
IP address change function
Redundant system function
Remote head module redundant system
Accessing to another station via the port 1 and port 2 using SLMP communications
Simple CPU communication function
MODBUS/TCP slave function
Simple CPU communication function for MELSEC iQ-F series
Simple CPU communication function · Setting number of up to 512 · On-request communications · MELSEC-A/AnS (Ethernet module) and MELSEC-FX3 (Ethernet block/adapter) as communication
destination
MODBUS/TCP slave function for redundant system
Simple CPU communication function · Redundant system · MELSEC iQ-L series, SIEMENS S7 series, Fuji Electric MICREX-SX series, and JTEKT
TOYOPUC series as communication destination
Discard received data at CPU STOP
Optional function to specify the module ID when using MODBUS/TCP in the simple CPU communication function
Extension base unit in a redundant system with redundant extension base unit
"05" or later "05" or later "10" or later "12" or later "12" or later "18" or later "35" or later "35" or later "35" or later "39" or later
"42" or later "42" or later
"42" or later "47" or later
"50" or later
RnENCPU (network part) "10" or later "35" or later "35" or later "35" or later "39" or later
"42" or later "42" or later
"42" or later "47" or later
*1 'Receive buffer full detection signal' (Un\G21056) can be used when the network type is set to "Q Compatible Ethernet".
436 APPX Appendix 14 Added and Enhanced Functions
CPU module (built-in Ethernet port part)
The following table lists the added and enhanced functions in the CPU module (built-in Ethernet port part). Rn: RnCPU, RnEN: RnENCPU, RnP(P): Process CPU (process mode), RnP(R): Process CPU (redundant mode), RnPSF: SIL2 Process CPU, RnSF: Safety CPU : Available (No version restriction), : Not available
Added and enhanced function
Firmware version
Rn
RnEN
RnP(P) RnP(R) RnPSF RnSF
Redundant system function
"04" or later
File transfer function (FTP client)
"22" or
"22" or later "13" or later "13" or later
later*2
High-speed write mode (File transfer function (FTP server))
"23" or
"23" or later
later*2
Simple CPU communication function
"35" or
"35" or later
later*3
Communications by network number/station number
"40" or
"40" or later
later*4
Simple CPU communication function for MELSEC iQ-F series
"40" or
"40" or later
later*4
CPU module built-in database access function from external device "28" or
"28" or later
later*1
Simple CPU communication function · MELSEC iQ-L series as a communication destination
"46" or
"46" or later
later*5
Discard received data at CPU STOP
"47" or
"47" or later "25" or later "25" or later
later*6
Simple CPU communication function
"49" or
"49" or later
· MELSEC-Q (Ethernet module), MELSEC-L (Ethernet module),
later*7
MELSEC-A/AnS (Ethernet module), and MELSEC-FX3 (Ethernet
block/adapter) as communication destination
iQ Sensor Solution FTP server function file path name switching
iQ Sensor Solution Reference Manual
"51" or
"51" or later
A
later*8
Simple CPU communication function · Initial communication setting
"53" or
"53" or later
later*9
*1 For the R00CPU, R01CPU, and R02CPU, the functions cannot be used. *2 For the R00CPU, R01CPU, and R02CPU, there are no restrictions on the version. *3 For the R00CPU, R01CPU, and R02CPU, the functions can be used with the firmware version of "05" or later. *4 For the R00CPU, R01CPU, and R02CPU, the functions can be used with the firmware version of "08" or later. *5 For the R00CPU, R01CPU, and R02CPU, the functions can be used with the firmware version of "14" or later. *6 For the R00CPU, R01CPU, and R02CPU, the functions can be used with the firmware version of "15" or later. *7 For the R00CPU, R01CPU, and R02CPU, the functions can be used with the firmware version of "17" or later. *8 For the R00CPU, R01CPU, and R02CPU, the functions can be used with the firmware version of "19" or later. *9 For the R00CPU, R01CPU, and R02CPU, the functions can be used with the firmware version of "21" or later.
437 APPX
Appendix 14 Added and Enhanced Functions
MEMO
438 APPX Appendix 14 Added and Enhanced Functions
INDEX
A Active open . . . . . . . . . . . . . . . . . . . . . . . . . . 402 Application data . . . . . . . . . . . . . . . . . . . . . . 80,99 Area for sending/receiving instructions . . . . . . . 375 Automatic negotiation . . . . . . . . . . . . . . . . . . . 271 Automatic response system . . . . . . . . . . . . . . . 288 Auto-open UDP port . . . . . . . . . . . . . . . . . . . . 424
C Combination system . . . . . . . . . . . . . . . . . . . . 292 Command input monitoring timer . . . . . . . . . . . 272 Communication data code . . . . . . . . . . . . . . . . 262 Communication method . . . . . . . . . . . . . . . . . . 265 Communication path determination status . . . . . 379 Communication status test . . . . . . . . . . . . . . . . 310
Communications by network number/station number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262 Connection status . . . . . . . . . . . . . . . . . . . . . . 308 Connection status storage area . . . . . 373,390,393 Creating the protocol setting data . . . . . . . . . . . . 35
D Drive name (drive No.). . . . . . . . . . . . . . . . . . . 123
E Enable/disable online change. . . . . . . . . . . . . . 262 End codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 351 Error information . . . . . . . . . . . . . . . . . . . . . . . 300 Ethernet diagnostics . . . . . . . . . . . . . . . . . . . . 304 Existence confirmation. . . . . . . . . . . . . . . . . . . 266
F Fixed buffer send/receive setting . . . . . . . . . . . 265
Forced connection invalidation setting area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376,392 Fullpassive . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
G Gateway IP address . . . . . . . . . . . . . . . . . . . . 285
H Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80,98
I Initial error code . . . . . . . . . . . . . . . . . . . . . . . 386 Initial status . . . . . . . . . . . . . . . . . . . . . . . . . . 386 IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . 262 IP address calculation system . . . . . . . . . . . . . 289
IP address duplication status storage area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374,391 IP filter function. . . . . . . . . . . . . . . . . . . . . . . . 176 IP filter settings . . . . . . . . . . . . . . . . . . . . . . . . 284
J Jumbo frame . . . . . . . . . . . . . . . . . . . . . . . . . .270
L Lock processing . . . . . . . . . . . . . . . . . . . . . . . .179 Logical address . . . . . . . . . . . . . . . . . . . . . . . . .98 Login name . . . . . . . . . . . . . . . . . . . . . . . . . . .272
M MELSOFT direct connection port . . . . . . . . . . . .424 MELSOFT transmission port (TCP/IP) . . . . . . . .424 MELSOFT transmission port (UDP/IP) . . . . . . . .424 Module communication test . . . . . . . . . . . . 294,302 Module diagnostics . . . . . . . . . . . . . . . . . . . . . .300 Module information list . . . . . . . . . . . . . . . . . . .301
N Network number . . . . . . . . . . . . . . . . . . . . . . . .262 No procedure . . . . . . . . . . . . . . . . . . . . . . . . . . .69 Number of retries . . . . . . . . . . . . . . . . . . . . . . .283
O
Offline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .294
Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .294
Open completion signal . . . . . . . . . . . . . . . . . . .386
Open request signal . . . . . . . . . . . . . . . . . . . . .386
Opening method. . . . . . . . . . . . . . . . . . . . . . . .262
Own node operation status storage area . . . 374,391
Own node setting status storage area . . . . . . . . .372
I
P Pairing open. . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Passive open . . . . . . . . . . . . . . . . . . . . . . . . . .403 Password setting . . . . . . . . . . . . . . . . . . . . . . .272 Physical address . . . . . . . . . . . . . . . . . . . . . . . . 98 PING test. . . . . . . . . . . . . . . . . . . . . . . . . . . . .309 Predefined protocol library . . . . . . . . . . . . . . . . . . 37 Procedure exist . . . . . . . . . . . . . . . . . . . . . . . . .69
R
Remote head module . . . . . . . . . . . . . . . . . . . .415 Remote password check operation . . . . . . . . . . .179 Remote password lock status storage area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375,391 Response monitoring timer . . . . . . . . . . . . . . . .273
S Searching modules on the network . . . . . . . . . . . . 23 Send frame . . . . . . . . . . . . . . . . . . . . . . . . . . .270 SLMP commands . . . . . . . . . . . . . . . . . . . . . . . .32 Socket/fixed buffer reception status signal. . . . . .386 State of receive buffer . . . . . . . . . . . . . . . . . . . .387 Station number. . . . . . . . . . . . . . . . . . . . . . . . .262 Status for each protocol. . . . . . . . . . . . . . . . . . .307
439
Status of each connection . . . . . . . . . . . . . . . . 306 Status of each protocol . . . . . . . . . . . . . . . . . . 373 Structure of the module label . . . . . . . . . . . . . . 352 Subnet address . . . . . . . . . . . . . . . . . . . . . . . 285 Subnet mask pattern . . . . . . . . . . . . . . . . . . . . 292 T Table conversion system . . . . . . . . . . . . . . . . . 290 Transient transmission group number . . . . . . . . 262 U Unlock processing. . . . . . . . . . . . . . . . . . . . . . 179 Unpassive . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
440
REVISIONS
*The manual number is given on the bottom left of the back cover.
Revision date June 2014 July 2014 November 2014 April 2015 August 2015
January 2016 May 2016
October 2016 April 2017 October 2017 April 2018 October 2018
April 2019 August 2019 October 2019
*Manual number SH(NA)-081257ENG-A SH(NA)-081257ENG-B SH(NA)-081257ENG-C SH(NA)-081257ENG-D SH(NA)-081257ENG-E
SH(NA)-081257ENG-F SH(NA)-081257ENG-G
SH(NA)-081257ENG-H SH(NA)-081257ENG-I SH(NA)-081257ENG-J SH(NA)-081257ENG-K SH(NA)-081257ENG-L
SH(NA)-081257ENG-M SH(NA)-081257ENG-N SH(NA)-081257ENG-O
Description
First edition
Error correction
Added or modified parts Section 2.2, 3.1, 3.2, 3.5, 3.7, Appendix 1, 2
Added models R08PCPU, R16PCPU, R32PCPU, R120PCPU Added or modified parts Section 1.3, 1.5, 2.3, 3.5, Appendix 2, 4, 11
Added models R04ENCPU, R08ENCPU, R08SFCPU, R16ENCPU, R16SFCPU, R32ENCPU, R32SFCPU, R120ENCPU, R120SFCPU Added functions Automatic detection of connected device, communication setting reflection, and sensor parameter read/ write of the CPU module Added or modified parts INTRODUCTION, RELEVANT MANUALS, TERMS, Section 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.10, 1.11, 2.1, 2.2, 2.3, 3.1, 3.2, 3.3, 3.4, 3.5, Appendix 1, 2, 3, 4, 7, 8
Added or modified parts RELEVANT MANUALS, TERMS, Section 1.1, 1.3, 1.5, 1.8, 1.10, 3.4, 3.5, Appendix 3, 4, 8, 11
Added functions File transfer function (FTP client), redundant system function Added or modified parts INTRODUCTION, RELEVANT MANUALS, TERMS, Section 1.1, 1.3, 1.5, 1.9, 1.11, 1.12, 1.13, 2.2, 2.3, 3.2, 3.4, 3.5, 3.6, 3.7, Appendix 3, 4, 6, 7, 8, 9, 12
Added function High-speed write mode (File transfer function (FTP server)) Added or modified parts Section 1.8, 2.2
Added function Improvements on Ethernet diagnostics Added or modified parts RELEVANT MANUALS, TERMS, Section 1.2, 1.9, 2.3, 3.3, Appendix 12
Added models R00CPU, R01CPU, R02CPU, R08PSFCPU, R16PSFCPU, R32PSFCPU, R120PSFCPU Added or modified parts SAFETY PRECAUTIONS, TERMS, Section 1.3, 1.9, 2.3, Appendix 4, 12
Added functions Web server function and simple CPU communication function (CPU module (built-in Ethernet port part)) Added or modified parts Section 1.11, 1.13, 2.3, Appendix 3, 12
Added functions MODBUS/TCP slave function, simple CPU communication function (RJ71EN71, RnENCPU (network part)), and connection by specifying the network number and station number (CPU module (built-in Ethernet port part)) Added or modified parts Section 1.1, 1.7, 1.14, 1.15, 1.16, 2.2, 2.3, Appendix 3, 9
Added function Enhancements of the simple CPU communication function (RJ71EN71, RnENCPU (Network Part)) Added or modified parts TERMS, GENERIC TERMS AND ABBREVIATIONS, Section 1.15, 2.3, 3.4, 3.5, Appendix 3, 13
Error correction
Added functions Redundant system supported (RJ71EN71) of the MODBUS/TCP slave function, redundant system supported (RJ71EN71) of the simple CPU communication function and external device enhancement (RJ71EN71, RnENCPU (network part)), discard received data at CPU STOP (RJ71EN71, RnENCPU (network part)) Added or modified parts TERMS, GENERIC TERMS AND ABBREVIATIONS, Section 1.7, 1.14, 1.15, 1.17, 1.18, 2.3, Appendix 13
441
Revision date February 2020
*Manual number SH(NA)-081257ENG-P
May 2020
SH(NA)-081257ENG-Q
July 2020 October 2020
SH(NA)-081257ENG-R SH(NA)-081257ENG-S
Japanese manual number: SH-081253-U
Description
Added function Discard received data at CPU STOP (built-in Ethernet port) Added or modified parts Appendix 3, 13
Added functions Extension of the simple CPU communication function (built-in Ethernet port), optional function for specifying the module ID when using MODBUS/TCP in the simple CPU communication function Added or modified parts Section 1.1, 1.14, 1.15, 2.2, 2.3, Appendix 13
Added or modified parts SAFETY PRECAUTIONS, CONDITIONS OF USE FOR THE PRODUCT
Added functions Directory delimiter switching setting (FTP server), extension base unit in a redundant system with redundant extension base unit Added or modified parts SAFETY PRECAUTIONS, RELEVANT MANUALS, TERMS, Section 1.1, 1.5, 1.9, 1.14, 1.17, 2.3, 3.5, Appendix 9, 13
This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.
2014 MITSUBISHI ELECTRIC CORPORATION
442
WARRANTY
Please confirm the following product warranty details before using this product.
1. Gratis Warranty Term and Gratis Warranty Range
If any faults or defects (hereinafter "Failure") found to be the responsibility of Mitsubishi occurs during use of the product within the gratis warranty term, the product shall be repaired at no cost via the sales representative or Mitsubishi Service Company. However, if repairs are required onsite at domestic or overseas location, expenses to send an engineer will be solely at the customer's discretion. Mitsubishi shall not be held responsible for any re-commissioning, maintenance, or testing on-site that involves replacement of the failed module. [Gratis Warranty Term] The gratis warranty term of the product shall be for one year after the date of purchase or delivery to a designated place. Note that after manufacture and shipment from Mitsubishi, the maximum distribution period shall be six (6) months, and the longest gratis warranty term after manufacturing shall be eighteen (18) months. The gratis warranty term of repair parts shall not exceed the gratis warranty term before repairs. [Gratis Warranty Range] (1) The range shall be limited to normal use within the usage state, usage methods and usage environment, etc., which
follow the conditions and precautions, etc., given in the instruction manual, user's manual and caution labels on the product. (2) Even within the gratis warranty term, repairs shall be charged for in the following cases. 1. Failure occurring from inappropriate storage or handling, carelessness or negligence by the user. Failure caused
by the user's hardware or software design. 2. Failure caused by unapproved modifications, etc., to the product by the user. 3. When the Mitsubishi product is assembled into a user's device, Failure that could have been avoided if functions
or structures, judged as necessary in the legal safety measures the user's device is subject to or as necessary by industry standards, had been provided. 4. Failure that could have been avoided if consumable parts (battery, backlight, fuse, etc.) designated in the instruction manual had been correctly serviced or replaced. 5. Failure caused by external irresistible forces such as fires or abnormal voltages, and Failure caused by force majeure such as earthquakes, lightning, wind and water damage. 6. Failure caused by reasons unpredictable by scientific technology standards at time of shipment from Mitsubishi. 7. Any other failure found not to be the responsibility of Mitsubishi or that admitted not to be so by the user.
2. Onerous repair term after discontinuation of production
(1) Mitsubishi shall accept onerous product repairs for seven (7) years after production of the product is discontinued. Discontinuation of production shall be notified with Mitsubishi Technical Bulletins, etc.
(2) Product supply (including repair parts) is not available after production is discontinued.
3. Overseas service
Overseas, repairs shall be accepted by Mitsubishi's local overseas FA Center. Note that the repair conditions at each FA Center may differ.
4. Exclusion of loss in opportunity and secondary loss from warranty liability
Regardless of the gratis warranty term, Mitsubishi shall not be liable for compensation to: (1) Damages caused by any cause found not to be the responsibility of Mitsubishi. (2) Loss in opportunity, lost profits incurred to the user by Failures of Mitsubishi products. (3) Special damages and secondary damages whether foreseeable or not, compensation for accidents, and
compensation for damages to products other than Mitsubishi products. (4) Replacement by the user, maintenance of on-site equipment, start-up test run and other tasks.
5. Changes in product specifications
The specifications given in the catalogs, manuals or technical documents are subject to change without prior notice.
443
TRADEMARKS
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Oracle and JavaScript are registered trademarks of Oracle and/or its affiliates. The company names, system names and product names mentioned in this manual are either registered trademarks or trademarks of their respective companies. In some cases, trademark symbols such as '' or '' are not specified in this manual.
444
