FS and FD Cast Hub Device Boxes UNILETS™ for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. Size Malleable Iron Aluminum Weight kg (lb) Catalog Number Weight kg (lb) Catalog Number
catalog-fs-fd-cast-hub-device-boxes-csa-appleton ... - Emerson
Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit. • Accurately tapped, tapered threads for tight, rigid ...
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

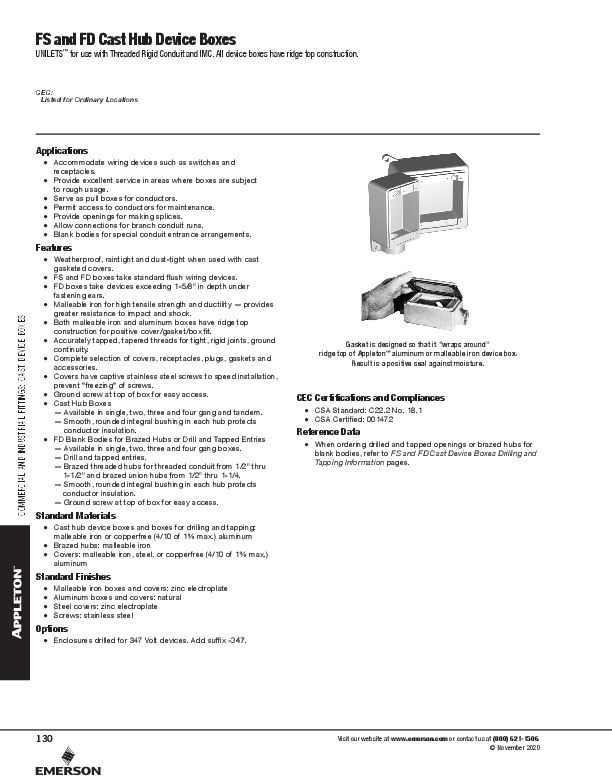

COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES FS and FD Cast Hub Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. CEC: Listed for Ordinary Locations Applications � Accommodate wiring devices such as switches and receptacles. � Provide excellent service in areas where boxes are subject to rough usage. � Serve as pull boxes for conductors. � Permit access to conductors for maintenance. � Provide openings for making splices. � Allow connections for branch conduit runs. � Blank bodies for special conduit entrance arrangements. Features � Weatherproof, raintight and dust-tight when used with cast gasketed covers. � FS and FD boxes take standard flush wiring devices. � FD boxes take devices exceeding 1-5/8" in depth under fastening ears. � Malleable iron for high tensile strength and ductility -- provides greater resistance to impact and shock. � Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit. � Accurately tapped, tapered threads for tight, rigid joints, ground continuity. � Complete selection of covers, receptacles, plugs, gaskets and accessories. � Covers have captive stainless steel screws to speed installation, prevent "freezing" of screws. � Ground screw at top of box for easy access. � Cast Hub Boxes -- Available in single, two, three and four gang and tandem. -- Smooth, rounded integral bushing in each hub protects conductor insulation. � FD Blank Bodies for Brazed Hubs or Drill and Tapped Entries -- Available in single, two, three and four gang boxes. -- Drill and tapped entries. -- Brazed threaded hubs for threaded conduit from 1/2" thru 1-1/2" and brazed union hubs from 1/2" thru 1-1/4. -- Smooth, rounded integral bushing in each hub protects conductor insulation. -- Ground screw at top of box for easy access. Standard Materials � Cast hub device boxes and boxes for drilling and tapping: malleable iron or copperfree (4/10 of 1% max.) aluminum � Brazed hubs: malleable iron � Covers: malleable iron, steel, or copperfree (4/10 of 1% max.) aluminum Standard Finishes � Malleable iron boxes and covers: zinc electroplate � Aluminum boxes and covers: natural � Steel covers: zinc electroplate � Screws: stainless steel Options � Enclosures drilled for 347 Volt devices. Add suffix -347. Gasket is designed so that it "wraps around" ridge top of AppletonTM aluminum or malleable iron device box. Result is a positive seal against moisture. CEC Certifications and Compliances � CSA Standard: C22.2 No. 18.1 � CSA Certified: 001472 Reference Data � When ordering drilled and tapped openings or brazed hubs for blank bodies, refer to FS and FD Cast Device Boxes Drilling and Tapping Information pages. 130 Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES FS and FD Cast Hub Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. CEC: Listed for Ordinary Locations Malleable Iron Aluminum Size Weight kg (lb) Catalog Number Weight kg (lb) Catalog Number 1/2 0.88 (1.94) FS-1 0.29 (0.64) FS-1A 3/4 Shallow 1.02 (2.25) 1 0.88 (1.94) 1/2 1.22 (2.70) FS-2 FS-3 FD-1 Shallow 0.34 (0.75) 0.29 (0.64) 0.41 (0.90) FS-2A FS-3A FD-1A 3/4 Deep 1.18 (2.60) FD-2 1 1.27 (2.80) FD-3 Deep 0.42 (0.92) 0.43 (0.94) FD-2A FD-3A 1/2 0.77 (1.70) Shallow 3/4 0.73 (1.60) FSA-1 FSA-2 Shallow 0.26 (0.57) 0.26 (0.58) FSA-1A FSA-2A 1/2 Deep 3/4 0.95 (2.10) 0.91 (2.00) FDA-1 FDA-2 Deep 0.32 (0.70) 0.30 (0.67) FDA-1A FDA-2A 1/2 0.95 (2.10) 3/4 Shallow 1.09 (2.40) 1 0.93 (2.06) 1/2 1.27 (2.80) 3/4 Deep 1.27 (2.80) 1 1.36 (3.00) FSC-1 FSC-2 FSC-3 FDC-1 FDC-2 FDC-3 Shallow Deep 0.32 (0.70) 0.36 (0.80) 0.32 (0.70) 0.43 (0.94) 0.43 (0.94) 0.45 (1.00) FSC-1A FSC-2A FSC-3A FDC-1A FDC-2A FDC-3A 1/2 0.77 (1.70) Shallow 3/4 0.99 (2.20) 1/2 1.13 (2.50) 3/4 Shallow 1.13 (2.50) 1 1.02 (2.25) 1/2 1.36 (3.00) 3/4 Deep 1.27 (2.80) 1 1.41 (3.10) 1/2 0.99 (2.20) Deep 3/4 1.04 (2.30) FSCC-1 FSCC-21 FSCT-1 FSCT-2 FSCT-3 FDCT-1 FDCT-2 FDCT-3 FDD-1 FDD-2 Shallow Shallow Deep Deep 0.26 (0.57) FSCC-1A 0.34 (0.74) FSCC-21A 0.38 (0.84) 0.38 (0.84) 0.34 (0.75) 0.45 (1.00) 0.43 (0.94) 0.47 (1.03) FSCT-1A FSCT-2A FSCT-3A FDCT-1A FDCT-2A FDCT-3A 0.34 (0.74) FDD-1A 0.35 (0.77) FDD-2A 3/4 Shallow 1.06 (2.34) FSL-2 Shallow 0.35 (0.78) FSL-2A Use FD UniletsTM for wiring devices exceeding 1-5/8" in depth under fastening ears. Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 131 FS and FD Cast Hub Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. CEC: Listed for Ordinary Locations Malleable Iron Size Weight kg (lb) Catalog Number 1/2 0.82 (1.80) FSS-1 Shallow 3/4 0.82 (1.80) FSS-2 Shallow 1/2 1.12 (2.46) FST-1 Shallow 3/4 1.06 (2.33) FST-2 1 Deep 1.45 (3.20) FDT-3 1/2 1.25 (2.75) FSX-1 Shallow 3/4 1.06 (2.34) FSX-2 1/2 1.41 (3.10) FDX-1 3/4 Deep 1.36 (3.00) FDX-2 1 1.59 (3.50) FDX-3 Shallow Deep Shallow Deep Dimensions in Millimeters (Inches) 69.9 (2.75) Aluminum Weight kg (lb) 0.27 (0.60) Catalog Number FSS-1A 0.27 (0.60) 0.37 (0.82) 0.35 (0.78) 0.49 (1.07) 0.41 (0.91) 0.35 (0.78) 0.47 (1.03) 0.48 (1.06) 0.53 (1.17) FSS-2A FST-1A FST-2A FDT-3A FSX-1A FSX-2A FDX-1A FDX-2A FDX-3A COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES 83.3 (3.28) 82.6 109.5 (3.25) (4.31) Hub Size 1/2 3/4 1 132 47.8 (1.88) A 0.3 (0.75) 0.3 (0.75) 0.4 (0.88) FS and FD Single Gang Devices B 0.3 (0.63) 0.3 (0.75) 0.4 (0.88) C 0.6 (1.38) 0.6 (1.38) 0.8 (1.25) FS 0.9 (2.00) 0.9 (2.00) 0.9 (2.00) D FD 1.3 (2.75) 1.3 (2.75) 1.3 (2.75) E 0.6 (1.38) 0.6 (1.38) 0.6 (1.38) Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 FS and FD Cast Hub Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. CEC: Listed for Ordinary Locations Description Single Gang Covers -- Furnished with stainless steel screws less gasket Blank Cover, Steel -- Zinc Electroplate Round Receptacle Cover, Steel -- Zinc Electroplate Hole dia. 1-7/16" Duplex Receptacle Cover, Steel -- Zinc Electroplate Round Receptacle Cover, Steel -- Zinc Electroplate Hole dia. 1-5/8" Tumbler Switch Cover, Steel -- Zinc Electroplate Tumbler Switch Cover, Steel -- Zinc Electroplate For pilot lamp Red Jewel Amber Jewel Green Jewel Opal Jewel Weight Per 100 kg (lb) Catalog Number 5.44 (12.00) FS-4 5.44 (12.00) FS-5 4.54 (10.00) 5.44 (12.00) 5.44 (12.00) FS-6 FS-8 FS-9 9.98 (22.00) FSK-1TS-G 11.34 (25.00) FSK-1J FSK-1JA FSK-1JG FSK-1JO COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES Available in Aluminum: Add suffix -A to Catalog Number. Also for use with multiple gang Unilets with individual cover openings. Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 133 COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES FS and FD Cast Hub Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. NEC/CEC: Listed for Ordinary Locations Description Cast Covers NEMA 3 -- Weatherproof -- Furnished with gasket and stainless steel screws Catalog Number Malleable Iron Ridge Top Aluminum Ridge Top Receptacle cover with spring cover. Hole Diameter -- 1-7/16" FSK-1VR -- Rocker type for square handle tumbler or toggle switches FSK-1V FSK-1V-A For duplex flush receptacle with spring cover FSK-1VDR For external operation of tumbler switches with square handles FSK-1VTS Operating type for square handle tumbler or toggle switches FSK-1VS FSK-1VDR-A FSK-1VTSA FSK-1VS-A Blank Cover and Gasket, Malleable Iron, Zinc Electroplate Gasket -- Replacement Neoprene � for use with weatherproof covers Cast Covers Dry Locations -- Furnished with stainless steel screws less gasket For standard 2 or 3 wire duplex receptacles -- FS-GKR-1N FSK-1DR-C FS-100G FS-GKR-1N -- For round flush receptacles.Hole dia. 1-7/16" FSK-1R-Z -- For square handle toggle switches FSK-1TS-C -- For square handle toggle switches (with protecting guard) FSK-1TSG-C FSK-1TSG-CA 134 Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 FS and FD Cast Hub Device Boxes Weatherproof, Raintight and Dust-tight Covers for Ridge Top Boxes. NEC/CEC: Listed for Ordinary Locations Receptacle Catalog Number Receptacles Malleable Iron Aluminum Plug Pole/Wire Ridge Top Ridge Top Plug Receptacle cover has threaded aluminum cap. Plug has neoprene boot and aluminum fastening ring. Furnished with receptacle, neoprene gasket, stainless steel screws. Non-Locking, "U" Shaped Grounding Type -- Receptacle takes "U" shaped or round grounding contact plugs 15 Amp, 125V NEMA 5-15R NEMA 5-15P 2P, 3W FSK5-15 FSK5-15-A FSWP5-15 20 Amp, 125V NEMA 5-20R NEMA 5-20P 2P, 3W FSK5-20 FSK5-20-A FSWP5-20 15 Amp, 250V NEMA 6-15R Locking Grounding Type 20 Amp, 250V NEMA 6-20R 15 Amp, 125V NEMA 6-15P NEMA 6-20P 2P, 3W FSK6-15 FSK6-15-A FSWP6-15 2P, 3W FSK6-20 FSK6-20-A FSWP6-20 NEMA L5-15R 15 Amp, 250V NEMA L6-15R 15 Amp, 277V NEMA L7-15R NEMA L5-15P NEMA L6-15P NEMA L7-15P 2P, 3W FSKL5-15 2P, 3W FSKL6-15 2P, 3W FSKL7-15 FSWPL5-15 FSWPL6-15 FSWPL7-15 COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES Also takes FSWP5-15 Plugs. Also takes FSWP6-15 Plugs. Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 135 FS and FD Cast Hub Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. CEC: Listed for Ordinary Locations Gray Iron Aluminum Size Weight kg (lb) Catalog Number Weight kg (lb) Catalog Number 1/2 1.22 (2.70) FS-12 Shallow 3/4 1.18 (2.60) FS-22 Shallow 0.41 (0.90) 0.39 (0.87) FS-12A FS-22A 1/2 1.22 (2.70) FD-12 0.41 (0.90) FD-12A Shallow 3/4 Deep 1.22 (2.70) FD-22 0.41 (0.90) FD-22A 1 1.27 (2.80) FD-32 Deep 0.42 (0.93) FD-32A 1/2 1.36 (3.00) FSC-12 0.45 (1.00) FSC-12A Shallow Shallow 3/4 1.36 (3.00) FSC-22 0.45 (1.00) FSC-22A 1/2 1.32 (2.90) FDC-12 0.44 (0.97) FDC-12A 3/4 Deep 1.36 (3.00) FDC-22 Deep 0.48 (1.06) FDC-22A 1 1.41 (3.10) FDC-32 0.47 (1.03) FDC-32A 1/2 - 3/4 Shallow 1.22 (2.70) FSD-212 Shallow 0.41 (0.90) FSD-212A Dimensions in Millimeters (Inches) 117.6 (4.63) 95.3 (3.75) 83.3 (3.28) 109.5 82.6 (4.31) (3.25) COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES Hub Size 1/2 3/4 1 47.8 (1.81) A 19.1 (0.75) 19.1 (0.75) 22.4 (0.88) FS and FD Two-Gang Devices Dimensions in Millimeters (Inches) D B C FS FD 16.0 (0.63) 35.1 (1.38) 50.8 (2.00) 69.9 (2.75) 19.1 (0.75) 35.1 (1.38) 50.8 (2.00) 69.9 (2.75) 22.4 (0.88) 31.8 (1.25) 50.8 (2.00) 69.9 (2.75) E 58.7 (2.31) 58.7 (2.31) 58.7 (2.31) Hubs at top of illustration are 1/2". 136 Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES FS and FD Cast Hub Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. CEC: Listed for Ordinary Locations Two Gang Covers Description Blank Cover, Steel � Zinc Electroplate Round Receptacle Cover, Steel � Zinc Electroplate Hole dia. 1-7/16" Duplex Receptacle Cover, Steel-Zinc Electroplate Weight Per 100 kg (lb) Catalog Number 9.07 (20.00) FS-42 8.16 (18.00) FS-52 6.80 (15.00) FS-62 Tumbler Switch Cover, Steel �Zinc Electroplate 9.07 (20.00) FS-92 Combination Duplex Receptacle and Tumbler Switch Cover, Steel - Zinc Electroplate 6.80 (15.00) Weatherproof Covers Combination Duplex Receptacle and Single Receptacle, Steel - Zinc Electroplate 6.80 (15.00) Blank Cover, Gray Iron 25.40 (56.00) Gasket -- Replacement Neoprene - for use with 2-gang cast covers above -- FS-69 FS-65 FS-200G FS-GKR-2N Available in Aluminum: Add suffix -A to catalog number. Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 137 FS and FD Cast Hub Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. CEC: Listed for Ordinary Locations Three Gang Covers Description Duplex Receptacle Cover, Steel � Zinc Electroplate Weight Per 100 kg (lb) Catalog Number 10.43 (23.00) FS-63 Tumbler Switch, Steel �Zinc Electroplate Weatherproof Covers Blank Cover, Gray Iron 11.34 (25.00) FS-93 54.43 (120.00) FS-300G COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES Available in Aluminum: Add suffix -A to catalog number. 138 Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 FD0 Single and Multiple Gang Cast Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. CEC: Listed for Ordinary Locations Features � Thick wall on all four sides. � Drill and tap anywhere on sidewalls. � Ground screw at top of box for easy access. � Two exterior mounting lugs. � Fits standard sheet metal device covers with four mounting holes. � Weatherproof when used with gasketed cast weatherproof device covers. Standard Materials � Malleable iron or copperfree (4/10 of 1% max.) aluminum Standard Finishes � Malleable iron: zinc electroplate � Aluminum: natural Reference Data � When ordering drilled and tapped openings or brazed hubs for blank bodies, refer to FD0 Cast Device Boxes Drilling and Tapping Information page. Description Catalog Number Gray Iron FD0 Unilets with Lugs: FD depth 2-19/32" -- Maximum hub size 1-1/2" threaded, and 1-1/4" no-thread or union. Aluminum Single-Gang FD0-1 FD0-1A Two-Gang FD0-2 FD0-2A Three-Gang FD0-3 FD0-3A Four-Gang FD0-4 FD0-4A COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 139 FD0 Single and Multiple Gang Cast Device Boxes UNILETSTM for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. CEC: Listed for Ordinary Locations Dimensions in Millimeters (Inches) 4.1 (0.16) 1.5 4.1 (0.06) (0.16) 73.2 (2.88) 61.2 (2.41) 22.6/ 3.3 0.89 (0.13) R 7.1 � 7.9 (0.28) 3.3 (0.31) (0.13) Spacing for Multi-Gang Boxes 46.0 (1.81) 46.0 (1.81) 12.7 (0.50) #10-24 UNC-2B 1 Hole R 6.4 (0.25) R 6.4 (0.25) 3.3 #6-32 UNC-2B (0.13) "F" Holes 3.3 (0.13) 3.3 3.3 (0.13) (0.13) 3.3 (0.13) No. of Gangs 1 2 3 4 A 82.60 (3.25) 130.30 (5.13) 177.80 (7.00) 225.60 (8.88) B 69.90 (2.75) 117.60 (4.63) 165.10 (6.50) 212.90 (8.38) FDO Unilets C 58.67 (2.31) 106.40 (4.19) 154.00 (6.06) 201.70 (7.94) D 47.80 (1.88) 95.30 (3.75) 143.00 (5.63) 190.50 (7.50) E 44.50 (1.75) 68.30 (2.69) 92.20 (3.63) 115.80 (4.56) F 152.40 (6.00) 203.20 (8.00) 254.00 (10.00) 304.80 (12.00) COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES 122.2 (4.81) 109.5 (4.31) 96.8 (3.81) 83.3 (3.28) 73.2 (2.88) 82.6 (3.25) 65.0 (2.56) 140 Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 FD0 Single and Multiple Gang Cast Device Boxes Malleable Iron, Aluminum UNILETSTM for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. CEC: Listed for Ordinary Locations Hub Information Listed below are the various types of brazed hubs which may be used with the FD0 boxes. Threaded, no-thread and union hubs may be brazed at any desired location. It is possible to place more than five hubs on the top and bottom of three and four-gang Unilets. Look at the chart below for the maximum hub diameter and the minimum hub spacing distance. This chart, together with the Unilet dimensions will enable you to figure the maximum number of hubs which may be used. The hubs will be symmetrically placed about the axis of the Unilets unless exact dimensions are specified on the order. Maximum Hub Size Maximum Hub Diameter Maximum Distance Between Conduit Centers Size FS FD 1/2 3/4 1 1-1/4 1-1/2 1/2 3/4 1 1-1/4 1-1/2 Threaded for Rigid Conduit 1 1-1/2 1-1/8 1-3/8 1-9/16 1-15/16 2-3/16 1-1/4 1-1/2 1-3/4 2-1/8 2-3/8 No Thread for Rigid Conduit 3/4 1-1/4 1-1/2 1-25/32 2-1/32 2-25/32 -- 1-9/16 1-27/32 2-3/32 2-29/32 -- No Thread for Electrical Metallic Tubing 3/4 1-1/4 1-1/8 1-3/8 1-9/16 1-15/16 -- 1-1/4 1-1/2 1-3/4 2-1/8 -- Union 3/4 1-1/4 1-1/2 1-25/32 2-1/32 2-25/32 -- 1-9/16 1-27/32 2-3/32 2-29/32 -- COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020 141 FD0 Cast Device Boxes Drilling and Tapping Information Malleable Iron, Aluminum UNILETSTM for use with Threaded Rigid Conduit and IMC. All device boxes have ridge top construction. CEC: Listed for Ordinary Locations COMMERCIAL AND INDUSTRIAL FITTINGS: CAST DEVICE BOXES Ordering Data To determine the customized FD0 box catalog number with drilled and tapped entries or hubs, the following information should be shown: 1. FD0 box catalog number. 2. Sketch number of entry arrangement selected from illustrations below. 3. Entry symbols taken from the table right. Start from the left on the top of the Unilet and continue in rotation clockwise around its body. Where no entry is required, the symbol X should be inserted. The three various divisions of the catalog number should be separated by dashes. Ordering Example: The box selected is a FD04 and the entry arrangement is sketch number 12. Entry A, B and C are to be 1/2" drilled and tapped for rigid conduit; D is to be a 1" hub and there is no entry at location E. The catalog number will be as follows FD04-12-111CX. Symbol Table Hub Size (Inches) Blank 1/2 3/4 1 1-1/4 1-1/2 2 Brazed Threaded Hub Symbol X 1 2 3 4 5 6 Brazed Union Hub Symbol X A B C D E F Single, Two, Three and Four-Gang -- Front view and oriented as mounted A TOP A AB AB C A B CD A B CD E SIDES B C BOTTOM B 1 2 A A A B C C 3 AB 4 AB E D 5 ABC F E 6 A B CD G F 7 A B CD E D B C B D CE DF EG F C 8 A B C 16 ABC 9 A B C 17 A B CD C 10 11 12 A AB AB BF D C H G J C D C 18 A B CD ED 19 A B CD FE 20 A B CDE 13 ABC FED 21 A B CDE 14 ABC H D GF E 22 A B CD E K D J E K EM E L F M FO F N G HGF 23 FE 24 J HGF 25 KJ HG 26 GF 27 L KJ HG 28 ML K J H 29 142 Visit our website at www.emerson.com or contact us at (800) 621-1506. � November 2020
