EX4 User's Manual

Manual

EIZO EX4 Calibration Sensor

Manuals CS2730 | EIZO CORPORATION

Full PDF Document

If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.

Extracted Text

English

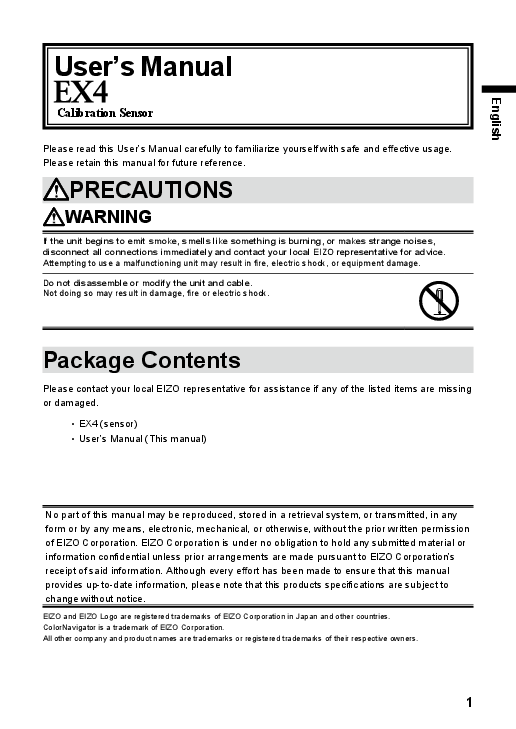

User's Manual
Calibration Sensor
Please read this User's Manual carefully to familiarize yourself with safe and effective usage. Please retain this manual for future reference.
PRECAUTIONS
WARNING
If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all connections immediately and contact your local EIZO representative for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage. Do not disassemble or modify the unit and cable. Not doing so may result in damage, fire or electric shock.
Package Contents
Please contact your local EIZO representative for assistance if any of the listed items are missing or damaged.
� EX4 (sensor) � User's Manual (This manual)
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that this products specifications are subject to change without notice.
EIZO and EIZO Logo are registered trademarks of EIZO Corporation in Japan and other countries. ColorNavigator is a trademark of EIZO Corporation. All other company and product names are trademarks or registered trademarks of their respective owners.
1

Installing the software
This sensor is for the calibration of monitors in the ColorEdge series using color management software "ColorNavigator 7". ColorNavigator 7 software needs to be installed to enable use of EX4. For more information about how to install, see ColorNavigator 7 Installation Guide.
How to attach the EX4
Attention
� Before attaching the EX4, remove the stains or dusts on the surface of the monitor.
1. Connect the monitor and the PC with the USB cable supplied with
your monitor.
For more information about how to connect, see the Setup Guide for the monitor.
2. Remove the cap (counterweight) from the sensor.
Counterweight
Sensor
3. Connect the EX4 to the USB downstream port of either the PC or the
monitor.
2

English

4. Suspend the sensor in its measuring position on the monitor by
carefully adjusting the counterweight's position until both are in balance.
Counterweight
Counterweight
Slide Slowly
3

Specifications

Interface Enviromental Specifications
Power Supply Mass Dimensions Certifications and Standards

Temperature Humidity

USB Operation: 15 �C � 35 �C
Storage: -10 �C � 60 �C Operation: 30 % � 80 % R.H.Non-condensing
Storage: 30 % � 80 % R.H.Non-condensing 5.0 � 2.5 V max.100 mA Approx.148 g 79.1 mm (W) � 75.5 mm (H) � 45.7 mm (D) CE, FCC-A

Attention
� Take care that the sensor does not suffer impact by dropping or other means, or it may affect the accuracy of the measurement. Storing or using the sensor at a temperature of under 30 �C and a humidity of under 70% is recommended (avoid storing or using the sensor where it may be exposed to direct sunlight).

Dimensions
79.1

Unit: mm

75.5

1620

45.7
4

English

FCC Declaration of Conformity
For U.S.A, Canada, etc. Only
WARNING!
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will required to correct the interference at his own expense. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Canadian Notice
This ISM device complies with Canadian ICES-001 (A). Cet appareil ISM est conforme � la norme NMB-001 (A) du Canada.
CE
For Europe, etc. Only
Warning This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Warnung Bey dem ger�t handelt es sich um ein Klasse-A-Produkt. Bei Betrieb des Ger�ts in Wohnumgebungen ist gegebenenfalls durch entsprechende Ma�nahmen daf�r zu sorgen, dass eine St�rung des Radio- und Fernsehempfangs vermieden wird. Avertissement Cet appareil est de classe A. Il est susceptible de cr�er des interf�rences radio dans un environnement domestique, dans ce cas l'utilisateur devra prendre les mesures appropri�es.
5

LIMITED WARRANTY
EIZO Corporation (hereinafter referred to as "EIZO") and distributors authorized by EIZO (hereinafter referred to as the "Distributors") warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the "Warranty"), to the original purchaser (hereinafter referred to as the "Original Purchaser") who purchased the product specified in this document (hereinafter referred to as the "Product") from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty Period (defined below) that the Product malfunctions or is damaged in the course of normal use of the Product in accordance with the description in the instruction manual of the Product (hereinafter referred to as the "User's Manual"). The period of this Warranty is two (2) years from the date of purchase of the Product (hereinafter referred to as the "Warranty Period"). EIZO and Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third parties other than as provided under this Warranty. EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon expiration of five (5) years after the production of the Product is discontinued. In repairing the Product, EIZO and Distributors will use renewal parts which comply with our QC standards. If the unit cannot be repaired due to its condition or the stockout of a relevant part, EIZO and Distributors may offer the replacement by a product with equivalent performance instead of repairing it. The Warranty is valid only in the countries or territories where the Distributors are located. The Warranty does not restrict any legal rights of the Original Purchaser. Notwithstanding any other provision of this Warranty, EIZO and Distributors shall have no obligation under this Warranty whatsoever in any of the cases as set forth below:
(a) Any defect of the Product caused by freight damage, modification, alteration, abuse, misuse, accident, incorrect installation, disaster, adherent dust, faulty maintenance and/or improper repair by third party other than EIZO and Distributors;
(b) Any incompatibility of the Product due to possible technical innovations and/or regulations; (c) Any deterioration of sensor, including measurement value of the sensor; (d) Any defect of the Product caused by external equipments; (e) Any defect of the Product caused by the use under environmental conditions other than EIZO and Distributors'
estimation; (f) Any deterioration of the attachments of the Product (e.g. cables, User's Manual, CD-ROM, etc.); (g) Any deterioration of the consumables, and/or accessories of the Product (e.g. batteries, remote controller, touch
pen, etc.); (h) Any deformation, discoloration, and/or warp of the exterior of the Product; (i) Any defect of the Product caused by placement in a location where it may be affected by strong vibration or shocks; (j) Any deterioration or malfunction of the cooling fan caused by adherent dust. To obtain service under the Warranty, the Original Purchaser must deliver the Product, freight prepaid, in its original package or other adequate package affording an equal degree of protection, assuming the risk of damage and/or loss in transit, to the local Distributor. The Original Purchaser must present proof of purchase of the Product and the date of such purchase when requesting services under the Warranty. The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period. EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR. EIZO AND DISTRIBUTORS MAKE NO FURTHER WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCT AND ITS QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE.
IN NO EVENT SHALL EIZO OR DISTRIBUTORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER DAMAGE WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFIT, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT OR IN ANY CONNECTION WITH THE PRODUCT, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN IF EIZO OR DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
THIS EXCLUSION ALSO INCLUDES ANY LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS AGAINST THE ORIGINAL PURCHASER. THE ESSENCE OF THIS PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF EIZO AND DISTRIBUTORS ARISING OUT OF THIS LIMITED WARRANTY AND/OR SALES.
6

English

Recycling Information
Recycling Information
This product, when disposed of, is supposed to be collected and recycled according to your country's legislation to reduce environmental burden. When you dispose of this product, please contact a distributor or an affiliate in your country. The contact addressees are listed on the EIZO website below. www.eizoglobal.com
For recycling information for customers in Switzerland, please refer to the following website. www.swico.ch
Informationen zum Thema Recycling
Dieses Produkt muss gem�� den Vorschriften Ihres Landes zur Entlastung der Umwelt recyclet werden. Wenden Sie sich bei der Entsorgung dieses Produkts an einen Verteiler oder eine Tochtergesellschaft in Ihrem Land. Die Adressen zur Kontaktaufnahme sind auf der unten angegebenen Website von EIZO aufgef�hrt. www.eizoglobal.com
Kunden in der Schweiz entnehmen Informationen zum Recycling der folgenden Website: www.swico.ch
Informations sur le recyclage
Ce produit doit �tre jet� aux points de collecte pr�vus � cet effet et recycl� conform�ment � la l�gislation de votre pays, afin de r�duire l'impact sur l'environnement. Lorsque vous jetez ce produit, veuillez contacter un distributeur ou une soci�t� affili�e de votre pays. Les adresses des distributeurs sont r�pertori�es sur le site Web EIZO ci-dessous. www.eizoglobal.com
Pour les clients en Suisse, veuillez consulter le site Web suivant afin d'obtenir des informations sur le recyclage. www.swico.ch
Informaci�n sobre reciclaje
Este producto debe desecharse y reciclarse seg�n la legislaci�n del pa�s para reducir el impacto medioambiental. Cuando desee deshacerse de este producto, p�ngase en contacto con un distribuidor o una filial de su pa�s. Encontrar� las direcciones de contacto en el sitio web de EIZO que se indica a continuaci�n. www.eizoglobal.com
Informazioni sul riciclaggio
Per lo smaltimento e il riciclaggio del presente prodotto, attenersi alle normative vigenti nel proprio paese per ridurre l'impatto ambientale. Per lo smaltimento, rivolgersi ad un distributore o un affiliato presenti nel proprio paese. Gli indirizzi sono elencati nel sito Web EIZO riportato di seguito. www.eizoglobal.com
Per informazioni sul riciclaggio per i clienti in Svizzera, consultare il sito Web riportato di seguito. www.swico.ch
�tervinningsinformation
N�r denna produkt kasseras ska den hanteras och �tervinnas enligt landets f�reskrifter f�r att reducera milj�p�verkan. N�r du kasserar produkten ska du kontakta en distribut�r eller representant i ditt land. Kontaktadresserna listas p� EIZO-webbplatsen nedan. www.eizoglobal.com
7

, , . , . web EIZO . www.eizoglobal.com

, . , . - EIZO. www.eizoglobal.com
Informatie over recycling
Wanneer u dit product wilt weggooien, moet het uit milieu-overwegingen worden verzameld en gerecycled volgens de betreffende wetgeving van uw land. Wanneer u dit product wilt weggooien, moet u contact opnemen met een distributeur of een partner in uw land. De contactadressen worden vermeld op de volgende EIZO-website. www.eizoglobal.com
Informa��o sobre reciclagem
Este produto, quando o deitar fora, deve ser recolhido e reciclado de acordo com a legisla��o do seu pa�s para reduzir a polui��o. Quando deitar fora este produto, contacte um distribuidor ou uma filial no seu pa�s. Os endere�os de contacto est�o listados no website do EIZO, abaixo. www.eizoglobal.com
Oplysninger om genbrug
Dette produkt forventes ved bortskaffelse at blive indsamlet og genbrugt i overensstemmelse med lovgivningen i dit land for at reducere belastningen af milj�et. N�r du bortskaffer denne produkt, skal du kontakte en distribut�r eller et tilknyttet selskab i dit land. Adresserne p� kontaktpersonerne er angivet p� EIZO's websted nedenfor. www.eizoglobal.com
Kierr�tyst� koskevia tietoja
Tuote tulee h�vitt�� kierr�tt�m�ll� maan lains��d�nn�n mukaisesti ymp�rist�n kuormittumisen v�hent�miseksi. Kun h�vit�t tuotteen, ota yhteytt� j�lleenmyyj��n tai tyt�ryhti��n maassasi. Yhteystiedot l�ytyv�t EIZOn Internet-sivustolta. www.eizoglobal.com
Wykorzystanie surowc�w wt�rnych
Ten produkt po zuyciu powinien by zbierany i przetwarzany zgodnie z krajowymi przepisami dotyczcymi ochrony rodowiska. Wyrzucajc ten produkt, naley skontaktowa si z lokalnym dystrybutorem lub partnerem. Adresy kontaktowe mona znale we wskazanej poniej witrynie internetowej firmy EIZO. www.eizoglobal.com
8

English

Informace o recyklaci
Pi likvidaci produktu mus� b�t produkt vyzvednut a recyklov�n podle z�kon p�slusn� zem, aby nedoch�zelo k zatzov�n� zivotn�ho prosted�. Zbavujete-li se produktu, kontaktujte distributora nebo pobocku ve sv� zemi. Kontaktn� adresy jsou uvedeny na n�sleduj�c� webov� str�nce spolecnosti EIZO. www.eizoglobal.com
Ringlussev�tu alane teave
Keskkonnakoormuse v�hendamiseks tuleks kasutatud tooted kokku koguda ja v�tta ringlusse vastavalt teie riigi seadustele. Kui k�rvaldate k�esoleva toote, v�tke palun �hendust turustaja v�i filiaaliga oma riigis. Kontaktisikud on toodud EIZO veebilehel j�rgmisel aadressil: www.eizoglobal.com
�jrahasznos�t�si inform�ci�
Jelen term�ket, amikor eldobjuk, az illet orsz�g t�rv�nyei alapj�n kell �sszegyjteni �s �jrahasznos�tani, hogy cs�kkents�k a k�rnyezet terhel�s�t. Amikor ezt a term�ket eldobja, k�rj�k l�pjen kapcsolatba egy orsz�gon bel�li forgalmaz�val vagy t�rsv�llalkoz�ssal. A kapcsolat c�mei az EIZO al�bbi weboldal�n tal�lhat�k felsorolva: www.eizoglobal.com
Podatki o recikliranju
Ob koncu uporabe odsluzen izdelek izrocite na zbirno mesto za recikliranje v skladu z okoljevarstveno zakonodajo vase drzave. Prosimo, da se pri odstranjevanju izdelka obrnete na lokalnega distributerja ali podruznico. Kontaktni naslovi so objavljeni na spodaj navedenih spletnih straneh EIZO: www.eizoglobal.com
Inform�cie o recykl�cii
Pri likvid�cii mus� by tento v�robok recyklovan� v s�lade s legislat�vou vasej krajiny, aby sa zn�zilo zaazenie zivotn�ho prostredia. Ke sa chcete zbavi tohto v�robku, kontaktujte pros�m distrib�tora alebo pobocku vo vasej krajine. Zoznam kontaktn�ch adries je uveden� na nasledovnej webovej str�nke firmy EIZO: www.eizoglobal.com
Prstrdes informcija
Utilizjot so produktu, t savksana un prstrde veicama atbilstosi jsu valsts likumdosanas prasbm attiecb uz slodzes uz vidi samazinsanu. Lai veiktu s produkta utilizciju, sazinieties ar izplattju vai prstvniecbu jsu valst. Kontaktadreses ir nordtas zemk mintaj EIZO tmeka vietn. www.eizoglobal.com
Informacija apie grzinamj perdirbim
Salinant (ismetant) siuos gaminius juos reikia surinkti ir perdirbti grzinamuoju bdu pagal js salies teiss aktus, siekiant sumazinti aplinkos tersim. Kai reikia ismesti s gamin, kreipkits js salyje veikianci gamini pardavimo atstovyb arba jos filial. Kontaktiniai adresatai nurodyti EIZO interneto svetainje. www.eizoglobal.com
9

. , . EIZO: www.eizoglobal.com
Informaie referitoare la reciclare
Acest produs, c�nd debarasat, trebuie colectat i reciclat conform legislaiei rii rspective ca s reducem sarcina mediului. C�nd se debaraseaz de acest produs, v rugm s contactai un distribuitor sau un afiliat al rii respective. Adresele de contact le gsii pe pagina de web al EIZO: www.eizoglobal.com
www.eizoglobal.com www.eizoglobal.com
Geri D�n��m Bilgisi
Bu �r�n�n, atilacai zaman, �lkenizin �evre kirliliinin azaltilmasi konusundaki mevzuatina g�re toplanmasi ve yeniden deerlendirilmesi gerekmektedir. �r�n� atacainiz zaman l�tfen �lkenizdeki bir distrib�t�r veya ilgili kurulula temasa ge�iniz. rtibat adresleri aaidaki EIZO web sitesinde verilmitir. www.eizoglobal.com
10

00N0N164E1 UM-EX4
5th Edition - March, 2021 Printed in Japan.
