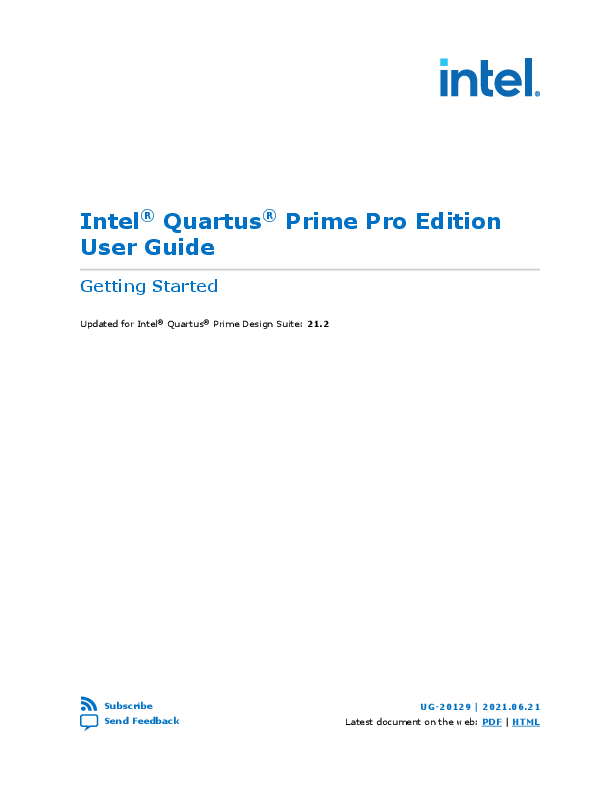

Intel� Quartus� Prime Pro Edition User Guide
Getting Started
Updated for Intel� Quartus� Prime Design Suite: 21.2
Subscribe Send Feedback
UG-20129 | 2021.06.21 Latest document on the web: PDF | HTML
Contents
Contents
1. Introduction to Intel� Quartus� Prime Pro Edition......................................................... 5
1.1. Selecting an Intel Quartus Prime Software Edition...................................................... 6 1.2. Introduction to Intel Quartus Prime Pro Edition Revision History...................................8
2. Managing Intel Quartus Prime Projects........................................................................ 10
2.1. Viewing Basic Project Information.......................................................................... 11 2.1.1. Using the Compilation Dashboard...............................................................12 2.1.2. Viewing Project Reports............................................................................ 13 2.1.3. Viewing Project Messages......................................................................... 14 2.1.4. Automated Problem Reports...................................................................... 17
2.2. Intel Quartus Prime Project Contents...................................................................... 17 2.2.1. Project File Best Practices..........................................................................18
2.3. Managing Project Settings.....................................................................................18 2.3.1. Specifying the Target Device or Board.........................................................19 2.3.2. Optimizing Project Settings....................................................................... 20
2.4. Managing Logic Design Files.................................................................................. 24 2.4.1. Including Design Libraries......................................................................... 25 2.4.2. Creating a Project Copy............................................................................ 25
2.5. Managing Timing Constraints.................................................................................25 2.6. Integrating Other EDA Tools.................................................................................. 26 2.7. Exporting Compilation Results............................................................................... 27
2.7.1. Exporting a Version-Compatible Compilation Database ................................. 28 2.7.2. Importing a Version-Compatible Compilation Database .................................29 2.7.3. Creating a Design Partition........................................................................ 30 2.7.4. Exporting a Design Partition...................................................................... 32 2.7.5. Reusing a Design Partition.........................................................................34 2.7.6. Viewing Quartus Database File Information................................................. 35 2.7.7. Clearing Compilation Results..................................................................... 37 2.8. Migrating Projects Across Operating Systems........................................................... 38 2.8.1. Migrating Design Files and Libraries............................................................ 38 2.8.2. Design Library Migration Guidelines............................................................ 39 2.9. Archiving Projects................................................................................................ 39 2.9.1. Manually Adding Files To Archives.............................................................. 40 2.9.2. Archiving Projects for Service Requests.......................................................40 2.9.3. Archiving Projects for External Revision Control............................................41 2.9.4. Creating Database-Only Archives............................................................... 42 2.10. Command-Line Interface.....................................................................................43 2.10.1. Project Revision Commands.....................................................................44 2.10.2. Project Archive Commands...................................................................... 44 2.10.3. Project Database Commands................................................................... 45 2.11. Managing Projects Revision History.......................................................................46
3. Design Planning............................................................................................................ 49
3.1. Design Planning...................................................................................................49 3.2. Create a Design Specification and Test Plan............................................................. 49 3.3. Plan for the Target Device..................................................................................... 49
3.3.1. Device Migration Planning......................................................................... 51 3.4. Plan for Intellectual Property Cores........................................................................ 51
Intel Quartus Prime Pro Edition User Guide: Getting Started 2
Send Feedback
Contents
3.5. Plan for Standard Interfaces.................................................................................. 52 3.6. Plan for Device Programming.................................................................................52 3.7. Plan for Device Power Consumption........................................................................53 3.8. Plan for Interface I/O Pins.....................................................................................55
3.8.1. Simultaneous Switching Noise Analysis....................................................... 57 3.9. Plan for other EDA Tools....................................................................................... 58
3.9.1. Third-Party Synthesis Tools....................................................................... 58 3.9.2. Third-Party Simulation Tools...................................................................... 58 3.10. Plan for On-Chip Debugging Tools.........................................................................58 3.11. Plan HDL Coding Styles.......................................................................................59 3.11.1. Design Recommendations........................................................................60 3.11.2. Recommended HDL Coding Styles............................................................ 60 3.11.3. Managing Metastability........................................................................... 60 3.12. Plan for Hierarchical and Team-Based Designs........................................................61 3.12.1. Flat Compilation without Design Partitions................................................. 61 3.13. Design Planning Revision History.......................................................................... 61
4. Introduction to Intel FPGA IP Cores..............................................................................65 4.1. IP Catalog and Parameter Editor............................................................................ 66 4.1.1. The Parameter Editor................................................................................67 4.2. Installing and Licensing Intel FPGA IP Cores............................................................ 67 4.2.1. Intel FPGA IP Evaluation Mode................................................................... 68 4.3. IP General Settings.............................................................................................. 71 4.4. Adding IP to IP Catalog.........................................................................................72 4.5. Best Practices for Intel FPGA IP..............................................................................73 4.6. Specifying the IP Core Parameters and Options (Intel Quartus Prime Pro Edition)......... 74 4.6.1. IP Core Generation Output (Intel Quartus Prime Pro Edition)..........................76 4.6.2. Scripting IP Core Generation..................................................................... 78 4.7. Modifying an IP Variation...................................................................................... 78 4.8. Upgrading IP Cores.............................................................................................. 78 4.8.1. Upgrading IP Cores at Command-Line.........................................................81 4.8.2. Migrating IP Cores to a Different Device...................................................... 82 4.8.3. Troubleshooting IP or Platform Designer System Upgrade.............................. 83 4.9. Simulating Intel FPGA IP Cores.............................................................................. 84 4.9.1. Generating IP Simulation Files................................................................... 84 4.9.2. Scripting IP Simulation............................................................................. 85 4.10. Simulating Platform Designer Systems.................................................................. 94 4.11. Synthesizing IP Cores in Other EDA Tools.............................................................. 96 4.12. Instantiating IP Cores in HDL............................................................................... 97 4.12.1. Example Top-Level Verilog HDL Module..................................................... 97 4.12.2. Example Top-Level VHDL Module.............................................................. 97 4.13. Support for the IEEE 1735 Encryption Standard..................................................... 98 4.14. Introduction to Intel FPGA IP Cores Revision History............................................... 99
5. Migrating to Intel Quartus Prime Pro Edition.............................................................. 101 5.1. Keep Pro Edition Project Files Separate................................................................. 101 5.2. Upgrade Project Assignments and Constraints........................................................ 101 5.2.1. Modify Entity Name Assignments..............................................................102 5.2.2. Resolve Timing Constraint Entity Names....................................................102 5.2.3. Verify Generated Node Name Assignments.................................................103 5.2.4. Replace Logic Lock (Standard) Regions..................................................... 103
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 3
Contents
5.2.5. Modify Signal Tap Logic Analyzer Files....................................................... 105 5.2.6. Remove References to .qip Files............................................................... 106 5.2.7. Remove Unsupported Feature Assignments................................................106 5.3. Upgrade IP Cores and Platform Designer Systems.................................................. 107 5.4. Upgrade Non-Compliant Design RTL......................................................................108 5.4.1. Verify Verilog Compilation Unit ................................................................ 108 5.4.2. Update Entity Auto-Discovery.................................................................. 109 5.4.3. Ensure Distinct VHDL Namespace for Each Library...................................... 110 5.4.4. Remove Unsupported Parameter Passing................................................... 110 5.4.5. Remove Unsized Constant from WYSIWYG Instantiation.............................. 110 5.4.6. Remove Non-Standard Pragmas............................................................... 111 5.4.7. Declare Objects Before Initial Values.........................................................111 5.4.8. Confine SystemVerilog Features to SystemVerilog Files................................111 5.4.9. Avoid Assignment Mixing in Always Blocks................................................. 112 5.4.10. Avoid Unconnected, Non-Existent Ports................................................... 112 5.4.11. Avoid Illegal Parameter Ranges.............................................................. 112 5.4.12. Update Verilog HDL and VHDL Type Mapping............................................ 113 5.5. Migrating to Intel Quartus Prime Pro Edition Revision History................................... 113
A. Intel Quartus Prime Pro Edition User Guides.............................................................. 114
7. Document Archives..................................................................................................... 116
Intel Quartus Prime Pro Edition User Guide: Getting Started 4
Send Feedback
UG-20129 | 2021.06.21 Send Feedback
1. Introduction to Intel� Quartus� Prime Pro Edition
Figure 1.
This user guide describes basic concepts and operation of the Intel� Quartus� Prime Pro Edition design software, including GUI and project structure basics, initial design planning, use of Intel FPGA IP, and migration to Intel Quartus Prime Pro Edition. This software provides a complete design environment for the most advanced Intel AgilexTM, Intel Stratix� 10, Intel Arria� 10, and Intel Cyclone� 10 GX FPGA and SoC designs.
The Intel Quartus Prime software GUI supports easy design entry, fast design processing, straightforward device programming, and integration with other industrystandard EDA tools. The user interface makes it easy for you to focus on your design-- not on the design tool. The modular Compiler streamlines the FPGA development process, and ensures the highest performance for the least effort.
Intel Quartus Prime Pro Edition Software GUI
Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
1. Introduction to Intel� Quartus� Prime Pro Edition UG-20129 | 2021.06.21
The Intel Quartus Prime Pro Edition software expands on the capabilities of the Intel Quartus Prime Standard Edition, and provides unique features that support the latest Intel FPGAs. Select the Intel Quartus Prime software edition that provides the device support and features you require, as Selecting an Intel Quartus Prime Software Edition on page 6 describes.
The Intel Quartus Prime Pro Edition software offers flexible design methodologies, advanced synthesis, and supports the latest Intel FPGA architectures and hierarchical design flows. The Compiler provides powerful and customizable design processing to achieve the best possible design implementation in silicon. The following features are unique to the Intel Quartus Prime Pro Edition:
� Hyper-Aware Design Flow--use Hyper-Retiming and Fast Forward compilation to reach the highest performance in Intel Agilex and Intel Stratix 10 devices.
� Intel Quartus Prime Pro Edition synthesis--integrates new, stricter language parser supporting all major IEEE RTL languages, with enhanced algorithms, and parallel synthesis capabilities. Added support for SystemVerilog 2009.
� Hierarchical project structure--preserve individual post-synthesis, post-placement, and post-place and route results for each design instance. Allows optimization without impacting other partition placement or routing.
� Incremental Fitter Optimizations--run and optimize Fitter stages incrementally. Each Fitter stage generates detailed reports.
� Faster, more accurate I/O placement--plan interface I/O in Interface Planner.
� Platform Designer--builds on the system design and custom IP integration capabilities of Platform Designer. Platform Designer in Intel Quartus Prime Pro Edition introduces hierarchical isolation between system interconnect and IP components.
� Partial Reconfiguration--reconfigure a portion of the FPGA, while the remaining FPGA continues to function.
� Block-Based Design Flows--preserve and reuse design blocks at various stages of compilation.
1.1. Selecting an Intel Quartus Prime Software Edition
Depending on your device support and software feature requirements, you can choose either the Intel Quartus Prime Pro Edition or Intel Quartus Prime Standard Edition software for your design. Consider the requirements and timeline of your project in determining whether to select the Intel Quartus Prime Standard Edition or Intel Quartus Prime Pro Edition software:
Intel Quartus Prime Pro Edition User Guide: Getting Started 6
Send Feedback
1. Introduction to Intel� Quartus� Prime Pro Edition UG-20129 | 2021.06.21
Figure 2.
� Select the Intel Quartus Prime Pro Edition if you are beginning a new Intel Arria 10, Intel Cyclone 10 GX, Intel Stratix 10 or Intel Agilex design, or to take advantage of the unique features of Intel Quartus Prime Pro Edition.
Intel Quartus Prime Feature Support Matrix
Software Features
Intel Quartus� Prime Standard Edition
Intel Quartus Prime Pro Edition
New Hybrid Placer & Global Router New Timing Analyzer New Physical Synthesis Platform Designer (formerly Qsys) Intel Stratix� 10 Device Support Intel AgilexTM Device Support Partial Reconfiguration Block-Based (Hierarchical) Design Flows OpenCL support Incremental Fitter Optimization Interface Planner (formerly BluePrint)
� Select the Intel Quartus Prime Standard Edition software if your design must target Arria V, Arria, Intel Cyclone 10 LP, Cyclone IV, Cyclone V, or MAX� series devices, and you do not want to migrate you design to a device that Intel Quartus Prime Pro Edition supports.
� Intel Quartus Prime Pro Edition software does not support the following Intel Quartus Prime Standard Edition features:
-- I/O Timing Analysis
-- NativeLink third party tool integration (other third-party tool integration available)
-- Video and Image Processing Suite IP Cores
-- Talkback features
-- Various register merging and duplication settings
-- Saving a node-level netlist as .vqm
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 7
1. Introduction to Intel� Quartus� Prime Pro Edition UG-20129 | 2021.06.21
Note:
Intel replaces the following Altera tool names in the Intel Quartus Prime software:
Table 1.
Intel Quartus Prime Tool Name Updates
Altera Name
Intel Name
Qsys
Platform Designer
BluePrint
Interface Planner
TimeQuest
Timing Analyzer
EyeQ
Eye Viewer
JNEye
Advanced Link Analyzer
Related Information Migrating to Intel Quartus Prime Pro Edition on page 101
1.2. Introduction to Intel Quartus Prime Pro Edition Revision History
Document Version 2020.09.28 2019.09.30 2018.09.24 2018.05.07 2017.11.06
2017.05.08
2016.10.31
Intel Quartus Prime Version
Changes
20.3
� Updated GUI screenshot in Introduction.
19.3
� Added compilation support for Intel Agilex devices.
18.1
� Added screenshot of Intel Quartus Prime Pro Edition GUI.
18.0
Initial release as separate chapter of Getting Started User Guide. Separated Migrating to Intel Quartus Prime Pro Edition as independent chapter in user guide.
17.1
� Described Intel Quartus Prime tool name updates for Platform Designer (Qsys), Interface Planner (BluePrint), Timing Analyzer (TimeQuest), Eye Viewer (EyeQ), and Advanced Link Analyzer (Advanced Link Analyzer).
� Added Verilog HDL Macro example.
� Updated for latest Intel branding conventions.
17.0
� Removed statement about limitations for safe state machines. The Compiler supports safe state machines. State machine inference is enabled by default.
� Added reference to Block-Based Design Flows.
� Removed procedure on manual dynamic synthesis report generation. The Compiler automatically generates dynamic synthesis reports when enabled.
16.1
� Implemented Intel rebranding. � Added reference to Partial Reconfiguration support. � Added to list of Intel Quartus Prime Standard Edition features
unsupported by Intel Quartus Prime Pro Edition. � Added topic on Safe State Machine encoding.
continued...
Intel Quartus Prime Pro Edition User Guide: Getting Started 8
Send Feedback
1. Introduction to Intel� Quartus� Prime Pro Edition UG-20129 | 2021.06.21
Document Version 2016.05.03 2015.11.02
Intel Quartus Prime Version
Changes
� Described unsupported Intel Quartus Prime Standard Edition physical synthesis options.
� Removed deprecated Per-Stage Compilation (Beta) Compilation Flow.
� Changed title from "Remove Filling Vectors" to "Remove Unsized Constant".
16.0
� Removed software beta status and revised feature set. � Added topic on Safe State Machine encoding. � Added Generating Dynamic Synthesis Reports. � Corrected statement about Verilog Compilation Unit. � Corrected typo in Modify Entity Name Assignments. � Added description of Fitter Plan, Place and Route stages,
reporting, and optimization. � Added Per-Stage Compilation (Beta) Compilation Flow. � Added Platform Designer information. � Added OpenCL and Signal Tap with routing preservation as unique
Pro Edition features. � Clarified limitations for multiple Logic Lock instances in the same
region.
15.1
� First version of document.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 9
UG-20129 | 2021.06.21 Send Feedback
2. Managing Intel Quartus Prime Projects
Figure 3.
The Intel Quartus Prime software organizes and manages the elements of your design within a project. The project encapsulates information about your design files, hierarchy, libraries, constraints, and project settings. This chapter describes the basics of working with Intel Quartus Prime software projects, including initial project setup, viewing project information, adding design files and constraints, and exporting compilation results.
Click File > New Project Wizard to quickly setup and open a new project.
New Project Wizard
After you create or open a project, the GUI displays integrated information and controls for the open project.
Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
2.1. Viewing Basic Project Information
You can view basic information about your project in the Tasks pane, Project Navigator, Compilation Dashboard, Report panel, and Messages window.
Project Tasks Pane The Tasks pane (View Tasks) provides one-click launch of common project tasks, such as creating design files, specifying project settings, running compilation, debug and timing closure, and device programming.
Figure 4. Project Tasks Pane
Create, open, or add design files
Assign device, global settings, I/Os, entity settings
Debug and Timing Closure
Add IP or Systems
Run Compiler and View Reports
Device Programming and Project Archive
The Project Navigator
The Project Navigator (View Project Navigator) displays information about the elements of your project, such as the design files, IP components, and your project hierarchy (after elaboration). You can right-click items in the Project Navigator to locate or perform actions on the elements of your project. The Project Navigator organizes information on the Files, Hierarchy, Design Units, and IP Components tabs.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 11
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Table 2.
Project Navigator Tabs
Project Navigator Tab Files
Hierarchy
Design Units IP Components
Description
Lists all design files in the current project. Right-click design files in this tab to run these commands: � Open the file � Remove the file from project � View file Properties
Provides a visual representation of the project hierarchy, specific resource usage information, and device and device family information. Right-click items in the hierarchy to Locate, Set as Top-Level Entity, or define Logic Lock regions or design partitions.
Displays the design units in the project. Right-click a design unit to Locate in Design File.
Displays the design files that make up the IP instantiated in the project, including Intel FPGA IP, Platform Designer components, and third-party IP. Click Launch IP Upgrade Tool from this tab to upgrade outdated IP components. Right-click any IP component to Edit in Parameter Editor.
Figure 5. Project Navigator Hierarchy, Files, Design Units, and IP Components Tabs
2.1.1. Using the Compilation Dashboard
The Compilation Dashboard provides immediate access to settings, controls, and reporting for each stage of the compilation flow.
The Compilation Dashboard appears by default when you open a project, or you can click Compilation Dashboard in the Tasks window to re-open it.
Intel Quartus Prime Pro Edition User Guide: Getting Started 12
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Figure 6. Compilation Dashboard
Snapshot Reports/Analysis Runs Module(s)
Opens Settings
Full Compilation Modules
Enables Optional Module
� Click the Pencil icon to edit settings for that stage of the compilation flow. � Click any Compiler stage to run one or more Compiler stage.
You can click a Compiler stage to resume an interrupted compilation flow provided no compilation settings have changed from the initial start of the compilation flow. � Click the Report, RTL Viewer, Technology Map Viewer, Timing Analyzer, or Snapshot Viewer icons for analysis of stage results. As the Compiler progresses through the flow, the dashboard updates the status of each module, and enables icons that you can click for reports and analysis. The dashboard is also updated if you run your compilation flow from a command line with the quartus_sh --flow command.
2.1.2. Viewing Project Reports
The Compilation Report panel updates dynamically to display detailed reports during project processing. To access Compilation Reports, click (Processing Compilation Report). Review the detailed information in these the compilation reports to determine correct implementation. Right-click report data to locate and edit the source in project files.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 13
Figure 7. Compilation Report
Selected Report
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Synthesis Reports
2.1.3. Viewing Project Messages
The Messages window (View Messages) displays information, warning, and error messages about Intel Quartus Prime processes. Right-click messages to locate the source or get message help. � Processing tab--displays messages from the most recent process � System tab--displays messages unrelated to design processing � Search--locates specific messages Figure 8. Messages Window
Intel Quartus Prime Pro Edition User Guide: Getting Started 14
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
2.1.3.1. Suppressing Message Display
You can suppress display of unimportant messages from the Messages window, so that you can focus on the messages that are important to you. To suppress one or more messages from displaying in the Messages window, right-click the message, and then click any of the following commands:
� Suppress Message--suppresses all messages that match the exact text you specify.
� Suppress Messages with Matching ID--suppresses all messages that match the message ID number you specify, ignoring variables.
� Suppress Messages with Matching Keyword--suppresses all messages that match the keyword or hierarchy you specify.
� Message Suppression Manager--allows you to create and edit message suppression rules. You can define message suppression rules by message text, message ID number, or keyword.
Figure 9. Message Suppression Manager
Suppressing Messages by Design Entity
You can optionally suppress messages by design entity without modifying HDL. Entitybased message suppression can be helpful to eliminate insignificant warnings for specific IP components or design entities that may be obscuring other more important warnings.
To suppress messages by design entity, add the following line to the project .qsf, or to the .qip file for stand-alone IP components:
set_global_assignment -name MESSAGE_DISABLE -entity <name>
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 15
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Note:
� You cannot suppress error or Intel legal agreement messages. � Suppressing a message also suppresses any submessages. � A root message does not display if you suppress all of the root message's
submessages. � Message suppression is project revision-specific. Derivative project revisions
inherit any suppression. � You cannot edit messages or suppression rules during compilation. � Messages are written to stdout when you use command-line executables.
2.1.3.2. Promoting Critical Warnings to Errors
You can promote critical warnings to errors so that the compilation flow halts on receiving the critical warnings as it does with an errors. All critical warnings are supported.
You can only promote the message IDs on open projects. 1. In the Message dialog box, right-click on the critical warning you want to promote
to an error.
Figure 10. Messages
2. Click Message Promotion Promote Critical Message ID to Error The software now treats the critical warning as an error.
3. To clear all promotions, click Message Promotion Clear All Message Promotions
4. Alternatively, manually promote or demote a critical warning in the .qsf. For example:
set_global_assignment -name PROMOTE_WARNING_TO_ERROR 12677
Intel Quartus Prime Pro Edition User Guide: Getting Started 16
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
2.1.4. Automated Problem Reports
By default, the Problem report feature automatically sends a text based problem report to Intel whenever an internal error occurs in the Intel Quartus Prime software. You can disable Problem report to stop sending problem reports.
To disable or enable automatic sending of problem reports, follow these steps: 1. Click Tools Options. 2. Click the Internet Connectivity tab. 3. Under Problem report, turn on or off Always send report to Intel when
internal error occurs (command-line only).
Figure 11. Problem Report Option
2.2. Intel Quartus Prime Project Contents
The Intel Quartus Prime software organizes your design work within a project. You can create and compare multiple revisions of your project, to experiment with settings that achieve your design goals. When you create a new project in the GUI, the Intel Quartus Prime software automatically creates an Intel Quartus Prime Project File (.qpf) for that project. The .qpf references the Intel Quartus Prime Settings File (.qsf). The .qsf lists the project's design, constraint, and IP files, and stores project-wide and entity-specific settings that you specify in the GUI. You do not need to edit the text-based .qpf or .qsf files directly. The Intel Quartus Prime software creates and updates these files automatically as you make changes in the GUI.
Table 3.
Intel Quartus Prime Project Files
File Type Project file
Settings file
Quartus database Partition database Timing constraints Logic design files Programming files
Contains
Project and revision name
Lists design files, entity settings, target device, synthesis directives, placement constraints
Project compilation results
To Edit File New Project Wizard Assignments Settings
Project Export Design
Partition compilation results
Project Export Design Partition
Clock properties, exceptions, Tools Timing Analyzer setup/hold
RTL and other design source File New files
Device programming image and information
Tools Programmer
Format Intel Quartus Prime Project File (.qpf) Intel Quartus Prime Settings File (.qsf)
Quartus Database File (.qdb) Partition Database File (.qdb) Synopsys Design Constraints File (.sdc) All supported HDL files SRAM Object File (.sof) Programmer Object File (.pof)
continued...
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 17
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
File Type
Contains
IP core files
IP core variation parameterization
Platform
System definition
Designer system
files
EDA tool files
Scripts for third-party EDA tools
Archive files
Complete project as single compressed file
To Edit Tools IP Catalog
Format Intel Quartus Prime IP File (.ip)
Tools Platform Designer
Platform Designer System File (.qsys)
Assignments Settings EDA Tool Settings
Verilog Output File (.vo) VHDL Output File (.vho) Verilog Quartus Mapping File (.vqm)
Project Archive Project Intel Quartus Prime Archive File (.qar)
2.2.1. Project File Best Practices
The Intel Quartus Prime software provides various options for specifying project settings and constraints. The following best practices help ensure automated management and portability of your project files.
� Avoid manually editing Intel Quartus Prime data files, such as the Intel Quartus Prime Project File (.qpf), Intel Quartus Prime Settings File (.qsf), Quartus IP File (.ip), or Platform Designer System File (.qsys). Syntax errors in these files cause errors during compilation. For example, the software may ignore improperly formatted settings and assignments.
� Do not compile multiple projects into the same directory. Instead, use a separate directory for each project.
� By default, the Intel Quartus Prime software saves all project output files, such as Text-Format Report Files (.rpt), in the project directory. If you want to change the location of output files, instead of manually moving project output files, click Assignments Settings Compilation Process Settings, and specify the Save project output files in specified directory option.
2.3. Managing Project Settings
The New Project Wizard guides you to make initial project settings when you setup a new project. You can modify these and other global project settings in the Settings and Device dialog boxes, respectively. The .qsf stores the settings for each project revision. The optimization of these project settings helps the Compiler to generate programming files that meet or exceed your specifications.
Global Project Settings
To access global project settings, click Assignments Settings, or click Settings on the Tasks pane.
Intel Quartus Prime Pro Edition User Guide: Getting Started 18
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Figure 12. Settings Dialog Box for Global Project Settings
The Settings dialog box provides access to settings that control project design files, synthesis, Fitter, and timing constraints, operating conditions, EDA tool file generation, programming file generation, and other project-level settings.
Additionally, the Assignment Editor (Assignments Assignment Editor) provides a spreadsheet-like interface for specifying instance-specific settings and constraints.
Figure 13. Assignment Editor
2.3.1. Specifying the Target Device or Board
Specify the target Intel device or board for your project in the Device dialog box. Click the Device and Pin Options button in the dialog to specify preferences for the device configuration scheme, programming file generation, I/O timing, voltage, and other options.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 19
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
1. Open a project in the Intel Quartus Prime software. 2. Click Assignments Device. Figure 14. Device Dialog Box
3. Specify either a target Intel FPGA board or device for your project. When you specify a board, the Intel Quartus Prime software generates the appropriate pin assignments script for that board automatically.
� To specify an Intel FPGA board or development kit for your project:
a. Click the Board tab.
b. Select the target device Family and a supported Development Kit. Click Yes if prompted to remove existing Location and I/O Standard pin assignments. The Intel Quartus Prime software creates the kit's baseline design and stores the design in <current_project_dir>/devkits/ <design_name>. To retain all your existing pin assignments, click No.
c. Select the desired development kit and click OK.
� To specify a device family for your project:
a. On the Device tab, select the Family and Device name. The list of Available devices reflects your selections.
b. To further refine your selection, specify options for the Package, Pin count, Core speed grade, Name filter, and Show advanced devices filters.
c. From the Available devices, select your target device Name and click OK.
2.3.2. Optimizing Project Settings
Optimize project settings to meet your design goals. The Intel Quartus Prime Design Space Explorer II iteratively compiles your project with various setting combinations to find the optimal settings for your goals. Alternatively, you can create a project revision or project copy to manually compare various project settings and design combinations.
Intel Quartus Prime Pro Edition User Guide: Getting Started 20
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
The Intel Quartus Prime software includes several advisors to help you optimize your design and reduce compilation time. The advisors listed in the Tools Advisors menu can provide recommendations based on your project settings and design constraints.
2.3.2.1. Optimize Settings with Design Space Explorer II
Use Design Space Explorer II (Tools > Launch Design Space Explorer II) to find optimal project settings for resource, performance, or power optimization goals. Design Space Explorer II (DSE II) processes your design using various setting and constraint combinations, and reports the best settings for your design.
DSE II attempts multiple seeds to identify one meeting your requirements. DSE II can run different compilations on multiple computers in parallel to streamline timing closure.
Figure 15. Design Space Explorer II
2.3.2.2. Optimize Settings with Project Revisions
You can save multiple, named project revisions within your Intel Quartus Prime project (Project > Revisions). Each project revision captures a unique set of project settings and constraints, while using the same set of logic design files.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 21
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Use revisions to experiment with different settings while preserving the original. Optimize different revisions for separate applications: � Create a unique revision to optimize a design for different criteria, such as by area
in one revision and by fMAX in another revision. � When you create a new revision the default Intel Quartus Prime settings initially
apply. � Create a revision of a revision to experiment with settings and constraints. The
child revision includes all the assignments and settings of the parent revision.
You create, delete, and edit revisions in the Revisions dialog box. Each time you create a new project revision, the Intel Quartus Prime software creates a new .qsf using the revision name.
To compare each revision's synthesis, fitting, and timing analysis results side-by-side, click Project > Revisions and then click Compare. In addition to viewing the compilation Results of each revision, you can also compare the Assignments for each revision. This comparison reveals how different optimization options affect your design.
Figure 16. Comparing Project Revisions
Related Information Project Revision Commands on page 44
Intel Quartus Prime Pro Edition User Guide: Getting Started 22
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
2.3.2.3. Back-Annotate Optimized Assignments The Compiler maps the elements of your design to specific device resources during fitting. After compilation, you can back-annotate (copy) the Compiler's resource assignments to preserve that same implementation in subsequent compilations. Backannotation can simplify timing closure by allowing you to lock down placement of your optimized results. Locking down placement of large blocks related to Clocks, RAMs, and DSPs can produce higher fMAX with less noise. Large blocks like RAMs and DSPs have heavier connectivity than regular LABs, complicating movement during placement. When a seed produces good results from suitable RAM and DSP placement, you can capture that placement with back-annotation. Subsequent compiles can then benefit from the high quality RAM and DSP placement from the good seed.
Figure 17. Back-Annotate Assignments Dialog Box
Assignment Type to Back-Annotate
Back-Annotate Only Nodes Matching Name Filter Assignment Storage Location
To back-annotate (copy) the device resource assignments from the last compilation to the project .qsf (or to a Tcl file) for use in the next compilation:
1. Run a full compilation, or run the Fitter through at least the Place stage.
2. Click Assignments Back-Annotate Assignments.
3. Under Assignments to back-annotate, specify whether you want to preserve Pin assignments, RAM assignments, DSP assignments, Clock assignments, and Clock Spine assignments in the back-annotation.
4. In Filter, specify a text string (including wildcards) if you want to filter backannotated assignments by entity name.
5. Under Output, specify whether to save the back-annotated assignments to the .qsf or to a Tcl file. A default Tcl file name displays.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 23
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Note:
Alternatively, you can run back-annotation with the following quartus_cdb executable. The Shell command field displays the shell command constructed by the options that you specifying the GUI.
quartus_cdb chiptrip_nf --back_annotate --pin --ram --dsp --clocks \ --spines --file "<file>.tcl"
Check available arguments by running quartus_cdb <project> -back_annotate --help.
2.4. Managing Logic Design Files
The Intel Quartus Prime software helps you create and manage the logic design files in your project. Logic design files contain the logic that implements your design. When you add a logic design file to the project, the Compiler automatically includes that file in the next compilation. The Compiler synthesizes your logic design files to generate programming files for your target device.
The Intel Quartus Prime software includes full-featured schematic and text editors, as well as HDL templates to accelerate your design work. The Intel Quartus Prime software supports VHDL Design Files (.vhd), Verilog HDL Design Files (.v), SystemVerilog (.sv) and schematic Block Design Files (.bdf). In addition, you can combine your logic design files with Intel and third-party IP core design files, including combining components into a Platform Designer system (.qsys).
The New Project Wizard prompts you to identify logic design files. Add or remove project files by clicking Project > Add/Remove Files in Project. View the project's logic design files in the Project Navigator.
Figure 18. Design and IP Files in Project Navigator
Right-click files in the Project Navigator to: � Open and edit the file � Remove File from Project � Set as Top-Level Entity for the project revision � Create a Symbol File for Current File for display in schematic editors � Edit file Properties
Intel Quartus Prime Pro Edition User Guide: Getting Started 24
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
2.4.1. Including Design Libraries
Include design files libraries in your project. Specify libraries for a single project, or for all Intel Quartus Prime projects. The .qsf stores project library information.
The quartus2.ini file stores global library information. 1. Click Assignment > Settings. 2. Click Libraries and specify the Project Library name or Global Library name.
Alternatively, you can specify project libraries with SEARCH_PATH in the .qsf, and global libraries in the quartus2.ini file.
Related Information Design Library Migration Guidelines on page 39
2.4.2. Creating a Project Copy
Click Project > Copy Project to create a separate copy of your project, rather than just a revision within the same project.
The project copy includes separate copies of all design files, any .qsf files, and project revisions. You can use this technique to optimize project copies for different applications that require design file differences. For example, you can optimize one project to interface with a 32-bit data bus, and optimize a project copy to interface with a 64-bit data bus.
2.5. Managing Timing Constraints
Apply appropriate timing constraints to correctly optimize fitting and analyze timing for your design. The Fitter optimizes the placement of logic in the device to meet your specified timing and routing constraints.
Specify timing constraints in the Timing Analyzer (Tools > Timing Analyzer), or in an .sdc file. Specify constraints for clock characteristics, timing exceptions, and external signal setup and hold times before running analysis. The Timing Analyzer reports detailed information about the performance of your design compared with constraints in the Compilation Report panel.
Save the constraints you specify in the GUI in an industry-standard Synopsys Design Constraints File (.sdc). You can subsequently edit the text-based .sdc file directly. If you refer to multiple .sdc files in a parent .sdc file, the Timing Analyzer reads the .sdc files in the order you list.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 25
Figure 19. Timing Analyzer
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
2.6. Integrating Other EDA Tools
You can optionally integrate supported EDA synthesis, netlist partitioning, simulation, and signal integrity verification tools into the Intel Quartus Prime design flow.
The Intel Quartus Prime software supports input netlist files from supported EDA synthesis tools. The Compiler's EDA Netlist Writer module (quartus_eda) can automatically generate output files for processing in other EDA tools. The EDA Netlist Writer runs optionally as part of a full compilation, or you can run EDA Netlist Writer separately from the GUI or at the command line. The following functions are available to simplify EDA tool integration:
Table 4.
EDA Tool Integration Functions
EDA Integration Task
Specify settings for generation of output files for processing in other EDA tools.
EDA Integration Function
Click Assignments Settings EDA Tool Settings to specify options for supported tools.
Generate output files for processing in other EDA tools.
Click Processing Start Start EDA Netlist Writer (or run quartus_eda) to generate files.
Compile RTL and gate-level simulation model libraries for your device, supported EDA simulators, and design language.
Click Tools Launch Simulation Library Compiler to compile simulation libraries easily.
continued...
Intel Quartus Prime Pro Edition User Guide: Getting Started 26
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
EDA Integration Task
Generate EDA tool-specific setup scripts to compile, elaborate, and simulate Intel FPGA IP models and simulation model library files.
Generate files that allow supported EDA tools to perform netlist modifications, such as adding new modules, partitioning the netlist, and changing module connectivity.
Include files generated by other EDA design entry or synthesis tools in your project as synthesized design files.
EDA Integration Function
Specify options for Simulation file output when generating Intel FPGA IP with IP parameter editor.
Use the quartus_eda �resynthesis command to generate a Verilog Quartus Mapping File (.vqm) that contains a node-level (or atom) representation of the netlist in standard structural Verilog RTL.
Click Project Add/Remove Files In Project to add supported Design File files from other EDA tools.
Related Information � Intel Quartus Prime Pro Edition User Guide: Third-party Simulation � Intel Quartus Prime Pro Edition User Guide: Third-party Synthesis � Intel Quartus Prime Pro Edition User Guide: PCB Design Tools
2.7. Exporting Compilation Results
The Intel Quartus Prime Compiler writes the results to a set of database files. You can run a command to export the compilation results database as a single Quartus Database File (.qdb).
After running design compilation, the exported .qdb file contains the data to reproduce similar compilation results in another project, or in a later software version. You can export your project's compilation results database for import to another project or migration to a later Intel Quartus Prime software version.
You can export the .qdb for your entire project or for a design partition that you define in your project. When migrating the database for an entire project, you can export the compilation database in a version-compatible format to ensure compatibility for import to a later software version. Although you cannot directly read the contents of the .qdb file after export, you can view attributes of the database file in the Quartus Database File Viewer.
Table 5.
Exporting Compilation Results
To Export Compilation Results
For
Method
Complete Design
Click Project Export Design
Design Partition
Click Project Export Design Partition
Description
Saves compilation results for the current project revision in a version-compatible Quartus database file (.qdb) that you can import to another project or migrate to a later version of the Intel Quartus Prime software. You can export the results for the synthesized or final compilation snapshot. Note: Not supported for Intel Agilex devices.
Saves compilation results for a design partition as a Partition Database File (.qdb) that you can import to another project using the same version of the Intel Quartus Prime software. You can export the results for the synthesized or final compilation snapshot.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 27
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Related Information Creating Database-Only Archives on page 42
2.7.1. Exporting a Version-Compatible Compilation Database
You can export a project compilation database to a format that ensures versioncompatibility with a later version of the Intel Quartus Prime software. The Intel Quartus Prime Pro Edition software version supports export of version-compatible databases for the following software versions and devices:
Table 6.
Version-Compatible Compilation Database Support
In the following table, the first column indicates the first Intel Quartus Prime version to support export of the version-compatible compilation database for the specified devices using the Export Design command.
Note:
� Import of an exported Intel Quartus Prime Database is supported for two major versions. For example, a database that you export from version 19.3, you can then import using version 19.3, 20.1, and 20.3. However, you cannot import version 19.3 to 21.1 because the gap extends beyond two major versions.
� You can export from any Intel Quartus Prime version that follows a supported version, as long as the version still supports the devices.
First Version with 'Export Intel Stratix 10 and Intel Agilex Devices Intel Arria 10 and Intel Cyclone 10 GX
Design' Support
Devices
18.0
No Support.
Supports all devices.
18.1
� 1SG250L � 1SG280H_S2 � 1SG280L � 1SG280L_S3 � 1SX250L � 1SX280L � 1SX280L_S3
Supports all devices.
19.1
� 1SM16BH � 1SM21BH � 1SM16CH � 1SM21CH � 1SM21KH � 1SM16KH � 1SM21LH � 1SM16LH
Supports all devices.
19.3
� 1SG10MH_U1 � 1SG10MH_U2 � 1ST250E � 1ST280E � 1SM16E � 1SM21E � 1ST165E � 1ST210E � 1SG166H � 1SG211H
Supports all devices. continued...
Intel Quartus Prime Pro Edition User Guide: Getting Started 28
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
First Version with 'Export Intel Stratix 10 and Intel Agilex Devices Intel Arria 10 and Intel Cyclone 10 GX
Design' Support
Devices
20.1
� 1SD280P � 1ST040E � 1ST085E � 1ST110E
Supports all devices.
20.3
� 1SD21BP � 1SG040H � 1SX040H
Supports all devices.
20.4
� 1SN21BH � 1SN21CE
Supports all devices.
1. In the Intel Quartus Prime software, open the project that you want to export. 2. Generate synthesis or final compilation results by running one of the following
commands: � Click Processing Start Start Analysis & Synthesis to generate
synthesized compilation results. � Click Processing Start Compilation to generate final compilation results. 3. Click Project Export Design. Select the synthesized or final Snapshot.
Figure 20. Export Design Dialog Box
4. Specify a name for the Quartus Database File to contain the exported results, and click OK.
5. To include the exported design's settings and constraint files, copy the .qsf and .sdc files to the import project directory.
2.7.2. Importing a Version-Compatible Compilation Database
Follow these steps to import a project compilation database into a newer version of the Intel Quartus Prime software: 1. Export a version-compatible compilation database for a complete design, as
Exporting a Version-Compatible Compilation Database on page 28 describes. 2. In a newer version of the Intel Quartus Prime software, open the original project.
Click Yes if prompted to open a project created with a different software version. 3. Click Project Import Design and specify the Quartus Database File. To
remove previous results, turn on Overwrite existing project's databases
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 29
Figure 21. Import Design Dialog Box
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
4. Click OK.
5. When you compile the imported design, run only Compiler stages that occur after the stage the .qdb preserves, rather than running a full compilation. For example, if you import a version-compatible database that contains the synthesized snapshot, start compilation with the Fitter (Processing Start Start Fitter). If you import a version-compatible database that contains the final snapshot, start compilation with Timing Analysis (Signoff) (Processing Start Start Timing Analysis (Signoff)).
2.7.3. Creating a Design Partition
A design partition is a logical, named, hierarchical boundary that you can assign to an instance in your design. Defining a design partition allows you to optimize and lock down the compilation results for individual blocks. You can then optionally export the compilation results of a design partition for reuse in another context, such as reuse in another project.
Figure 22. Design Partitions in Design Hierarchy
Root Partition
A
B
C
D
E
F
Partition B
Partition F
Follow these steps to create and modify design partitions:
1. In the Intel Quartus Prime software, open the project that you want to partition.
2. Generate synthesis or final compilation results by running one of the following commands:
Intel Quartus Prime Pro Edition User Guide: Getting Started 30
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
� Click Processing Start Start Analysis & Synthesis to generate synthesized compilation results.
� Click Processing Start Compilation to generate final compilation results. 3. In the Project Navigator, right-click an instance in the Hierarchy tab, click Design
Partition Set as Design Partition.
Figure 23. Creating a Design Partition from the Project Hierarchy
4. To view and edit all design partitions in the project, click Assignments Design Partitions Window.
Figure 24. Design Partitions Window
5. Specify the properties of the design partition in the Design Partitions Window. The following settings are available:
Table 7.
Design Partition Settings
Option Partition Name
Description
Specifies the partition name. Each partition name must be unique and consist of only alphanumeric characters. The Intel Quartus Prime software automatically creates a top-level (|) "root_partition" for each project revision.
Hierarchy Path
Specifies the hierarchy path of the entity instance that you assign to the partition. You specify this value in the Create New Partition dialog box. The root partition hierarchy path is |.
Type
Double-click to specify one of the following partition types that control how the Compiler processes and implements the partition:
continued...
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 31
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Option
Preservation Level
Empty Partition Database File Entity Re-binding Color Post Synthesis Export File Post Final Export File
Description
� Default--Identifies a standard partition. The Compiler processes the partition using the associated design source files.
� Reconfigurable--Identifies a reconfigurable partition in a partial reconfiguration flow. Specify the Reconfigurable type to preserve synthesis results, while allowing refit of the partition in the PR flow.
� Reserved Core--Identifies a partition in a block-based design flow that is reserved for core development by a Consumer reusing the device periphery.
Specifies one of the following preservation levels for the partition: � Not Set--specifies no preservation level. The partition compiles from source files. � synthesized--the partition compiles using the synthesized snapshot. � final--the partition compiles using the final snapshot. With Preservation Level of synthesized or final, changes to the source code do not appear in the synthesis.
Specifies an empty partition that the Compiler skips. This setting is incompatible with the Reserved Core and Partition Database File settings for the same partition. The Preservation Level must be Not Set. An empty partition cannot have any child partitions.
Specifies a Partition Database File (.qdb) that the Compiler uses during compilation of the partition. You export the .qdb for the stage of compilation that you want to reuse (synthesized or final). Assign the .qdb to a partition to reuse those results in another context.
� PR Flow--specifies the entity that replaces the default persona in each implementation revision.
� Root Partition Reuse Flow --specifies the entity that replaces the reserved core logic in the consumer project.
Specifies the color-coding of the partition in the Chip Planner and Design Partition Planner displays.
Automatically exports post-synthesis compilation results for the partition to the .qdb that you specify, each time Analysis & Synthesis runs. You can automatically export any design partition that does not have a preserved parent partition, including the root_partition.
Automatically exports post-final compilation results for the partition to the .qdb that you specify, each time the final stage of the Fitter runs. You can automatically export any design partition that does not have a preserved parent partition, including the root_partition.
2.7.4. Exporting a Design Partition
The following steps describe export of design partitions that you create in your project.
When you compile a design containing design partitions, the Compiler can preserve a synthesis or final snapshot of results for each partition. You can export the synthesized or final compilation results for individual design partitions with the Export Design Partition dialog box.
If the partition includes any entity-bound .sdc files, you can include those constraints in the .qdb. In addition, you can automate export of one or more partitions in the Design Partitions Window.
Intel Quartus Prime Pro Edition User Guide: Getting Started 32
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Manual Design Partition Export
Follow these steps to manually export a design partition with the Export Design Partition dialog box: 1. Open a project and create one or more design partitions. Creating a Design
Partition on page 30 describes this process. 2. Run synthesis (Processing Start Start Analysis & Synthesis) or full
compilation (Processing Start Compilation), depending on which compilation results that you want to export. 3. Click Project Export Design Partition, and specify one or more options in the Export Design Partition dialog box:
Figure 25. Export Design Partition Dialog Box
� Select the Partition name and the compilation Snapshot for export.
� To include any entity-bound .sdc files in the exported .qdb, turn on Include entity-bound SDC files for the selected partition.
4. Click OK. The compilation results for the design partition exports to the file that you specify.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 33
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Automated Design Partition Export
Follow these steps to automatically export one or more design partitions following each compilation: 1. Open a project containing one or more design partitions. Creating a Design
Partition on page 30 describes this process. 2. To open the Design Partitions Window, click Assignments Design Partitions
Window. 3. To automatically export a partition with synthesis results after each time you run
synthesis, specify the a .qdb export path and file name for the Post Synthesis Export File option for that partition. If you specify only a file name without path, the file exports to the output_files directory after compilation. 4. To automatically export a partition with final snapshot results each time you run the Fitter, specify a .qdb file name for the Post Final Export File option for that partition. If you specify only a file name without path, the file exports to the output_files directory after compilation.
Figure 26. Specifying Export File in Design Partitions Window
.qsf Equivalent Assignment:
set_instance_assignment -name EXPORT_PARTITION_SNAPSHOT_<FINAL|SYNTHESIZED> \ <hpath> -to <file_name>.qdb
Related Information � Intel Quartus Prime Pro Edition User Guide: Block-Based Design � Intel Quartus Prime Pro Edition User Guide: Partial Reconfiguration
2.7.5. Reusing a Design Partition
You can reuse the compilation results of a design partition exported from another Intel Quartus Prime project. Reuse of a design partition allows you to share a synthesized or final design block with another designer. Refer to Intel Quartus Prime Pro Edition User Guide: Block-Based Design for more information about reuse of design partitions.
Intel Quartus Prime Pro Edition User Guide: Getting Started 34
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
To reuse an exported design partition in another project, you assign the exported partition .qdb to an appropriately configured design partition in the target project via the Design Partition Window: 1. Export a design partition with the appropriate snapshot, as Exporting a Design
Partition on page 32 describes. 2. Open the target Intel Quartus Prime project that you want to reuse the exported
partition. 3. Click Processing Start Start Analysis & Elaboration. 4. Click Assignments Design Partitions Window, and then create an
appropriately sized design partition to contain the logic and compilation results of the exported .qdb. 5. Click the Partition Database File option for the new partition and select the exported .qdb file.
Figure 27. Partition Database File Setting in Design Partitions Window
6. Specify any other properties of the design partition in the Design Partitions Window. The Compiler uses the partition's assigned .qdb as the source.
2.7.6. Viewing Quartus Database File Information Although you cannot directly read a .qdb file, you can view helpful attributes about
the file to quickly identify its contents and suitability for use. The Intel Quartus Prime software automatically stores metadata about the project of origin when you export a Quartus Database File (.qdb). The Intel Quartus Prime software automatically stores metadata about the project of origin and resource utilization when you export a Partition Database File (.qdb) from your project. You can then use the Quartus Database File Viewer to display the attributes any of these .qdb files.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 35
Figure 28. Quartus Database File Viewer
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Follow these steps to view the attributes of a .qdb file:
1. In the Intel Quartus Prime software, click File Open, select Design Files for Files of Type, and select a .qdb file.
2. Click Open. The Quartus Database File Viewer displays project and resource utilization attributes of the .qdb.
Alternatively, run the following command-line equivalent:
quartus_cdb --extract_metadata --file <archive_name.qdb> \ --type quartus --dir <extraction_directory> \ [--overwrite]
2.7.6.1. QDB File Attribute Types
The Quartus Database Viewer can display the following attributes of a .qdb file:
Table 8.
QDB File Attributes
QDB Attribute Types
Attribute
Project Information
Contents
Date
Device
Entity (if Partition)
Family
Partition Name
Example Partition Thu Jan 23 10:56:23 2018 10AX016C3U19E2LG Counter Arria 10 root_partition
continued...
Intel Quartus Prime Pro Edition User Guide: Getting Started 36
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Resource Utilization (exported for partition QDB only)
Revision Name
Top
Revision Type
PR_BASE
Snapshot
synthesized
Version
18.1.0 Pro Edition
Version-Compatible
Yes
For synthesized snapshot partition lists data from the Synthesis Resource Usage Summary report.
Average fan-out.16 Dedicated logic registers:14 Estimate of Logic utilization:1 I/O pins:35 Maximum fan-out:2 Maximum fan-out node:counter[23] Total DSP Blocks:0 Total fan-out:6 ...
For the final snapshot partition, lists data from the Fitter Partition Statistics report.
Average fan-out:.16 Combinational ALUTs: 16 I/O Registers M20Ks ...
2.7.7. Clearing Compilation Results
You can clean the project database if you want to remove prior compilation results for all project revisions or for specific revisions. For example, you must clear previous compilation results before importing a version-compatible database to an existing project.
1. Click Project > Clean Project. 2. Select All revisions to clear the databases for all revisions of the current project,
or specify a Revision name to clear only the revision's database you specify. 3. Click OK. A message indicates when the database is clean.
Figure 29. Clean Project Dialog Box Cleans the Project Database
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 37
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
2.8. Migrating Projects Across Operating Systems
Consider the following cross-platform issues when moving your project from one operating system to another (for example, from Windows* to Linux* ).
2.8.1. Migrating Design Files and Libraries
Consider file naming differences when migrating projects across operating systems.
� Use appropriate case for your platform in file path references. � Use a character set common to both platforms. � Do not change the forward-slash (/) and back-slash (\) path separators in
the .qsf. The Intel Quartus Prime software automatically changes all back-slash (\) path separators to forward-slashes (/ )in the .qsf. � Observe the target platform's file name length limit. � Use underscore instead of spaces in file and directory names. � Change library absolute path references to relative paths in the .qsf. � Ensure that any external project library exists in the new platform's file system. � Specify file and directory paths as relative to the project directory. For example, for a project titled foo_design, specify the source files as: top.v, foo_folder /foo1.v, foo_folder /foo2.v, and foo_folder/ bar_folder/bar1.vhdl. � Ensure that all the subdirectories are in the same hierarchical structure and relative path as in the original platform.
Figure 30. All Inclusive Project Directory Structure
2.8.1.1. Use Relative Paths Express file paths using relative path notation (../).
For example, in the directory structure shown you can specify top.v as ../source/ top.v and foo1.v as ../source/foo_folder/foo1.v.
Intel Quartus Prime Pro Edition User Guide: Getting Started 38
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Figure 31. Intel Quartus Prime Project Directory Separate from Design Files
2.8.2. Design Library Migration Guidelines
The following guidelines apply to library migration across computing platforms:
1. The project directory takes precedence over the project libraries. 2. For Linux, the Intel Quartus Prime software creates the file in the
altera.quartus directory under the <home> directory. 3. All library files are relative to the libraries. For example, if you specify the
user_lib1 directory as a project library and you want to add the /user_lib1/ foo1.v file to the library, you can specify the foo1.v file in the .qsf as foo1.v. The Intel Quartus Prime software includes files in specified libraries. 4. If the directory is outside of the project directory, an absolute path is created by default. Change the absolute path to a relative path before migration. 5. When copying projects that include libraries, you must either copy your project library files along with the project directory or ensure that your project library files exist in the target platform. � On Windows, the Intel Quartus Prime software searches for the
quartus2.ini file in the following directories and order: � USERPROFILE, for example, C:\Documents and Settings\<user name> � Directory specified by the TMP environmental variable � Directory specified by the TEMP environmental variable � Root directory, for example, C:\
2.9. Archiving Projects
You can optionally save the elements of a project in a single, compressed Intel Quartus Prime Archive File (.qar) by clicking Project > Archive Project. The .qar preserves RTL design, project, and settings files required to restore the project.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 39
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Use this technique to share projects between designers, or to transfer your project to a new version of the Intel Quartus Prime software, or to Intel support. Optionally add compilation results, Platform Designer system files, and third-party EDA tool files to the archive.
Related Information
Project Archive Commands on page 44
2.9.1. Manually Adding Files To Archives
Follow these steps to add files to a project archive manually:
Note:
If preserving a custom component as part of an Intel Quartus Prime Archive (.qar), you must first explicitly add the component _hw.tcl file to the project to ensure that the .qar includes the component. Click Project Add/Remove Files in Project to add files to your project.
1. Click Project Archive Project and specify the archive file name. 2. Click Advanced. 3. Select the File set for archive or select Custom. Turn on File subsets for the
archive. 4. Click Add and select Platform Designer system or EDA tool files. Click OK. 5. Click Archive.
2.9.2. Archiving Projects for Service Requests
When archiving projects for a service request, include all needed file types for proper debugging by customer support.
To identify and include appropriate archive files for an Intel service request: 1. Click Project > Archive Project and specify the archive file name. 2. Click Advanced. 3. In File set, select Service request to include files for Intel Support.
� Project source and setting files (.v, .vhd, .vqm, .qsf, .sdc, .qip, .qpf, .cmp)
� Automatically detected source files (various) � Programming output files (.jdi, .sof, .pof) � Report files (.rpt, .pin, .summary, .smsg) 4. Click OK, and then click Archive.
Intel Quartus Prime Pro Edition User Guide: Getting Started 40
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Figure 32. Archiving Project for Service Request
2.9.3. Archiving Projects for External Revision Control
Your project may involve different team members with distributed responsibilities, such as sub-module design, device and system integration, simulation, and timing closure. In such cases, it may be useful to track and protect file revisions in an external revision control system.
While Intel Quartus Prime project revisions preserve various project setting and constraint combinations, external revision control systems can also track and merge RTL source code, simulation testbenches, and build scripts. External revision control supports design file version experimentation through branching and merging different versions of source code from multiple designers. Refer to your external revision control documentation for setup information.
2.9.3.1. Project Files to Include In External Revision Control
When archiving Intel Quartus Prime projects for external source control, The Source control setting in Advanced Archive Settings dialog box is preset to include all appropriate file types for source control automatically.
Figure 33.
Advanced Archive Settings Dialog Box
Source Control File Set Automatically Selects Appropriate Files for Source Control
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 41
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Include the following file types when archiving projects for external revision control:
Table 9.
Project Files to Include In External Revision Control (Included Automatically with' Source Control' Archive Setting)
File Type
Intel Quartus Prime project setting and assignment files
Description
� Intel Quartus Prime Project Files (.qpf) � Intel Quartus Prime Settings Files (.qsf) � Intel Quartus Prime Pin Planner File (.ppf)
Timing constraint files
Synopsys Design Constraint Files (.sdc)
Design files
� Verilog HDL Design Files (.v) � SystemVerilog Design Files (.sv) � VHDL Design Files (.vhd) � Block Diagram/Schematic Design Files (.bdf) � Block Symbol Files (.bsf) � Verilog Quartus Mapping Files (.vqm) � Platform Designer System Files (.qsys) � State Machine Editor Files (.smf) � Tcl Script Design Files (.tcl)
System and IP files
� IP variation file (.ip) � Verilog IP design files (.v) � SystemVerilog IP design files (.sv) � VHDL IP design files (.sv) � VHDL Component Declaration Files (.cmp) � Intel Quartus Prime IP file (.qip) � Intel Quartus Prime Simulation IP File (.sip) � Platform Designer System Files (.qsys) � Platform Designer connection and parameterization files (.sopcinfo) � IP upgrade status files (.csv) � IP synthesis parameters files (.qgsynthc) � IP simulation parameters files (.qgsimc) � Platform Designer system exported as (.tcl).
EDA tool integration files
� Verilog HDL Output Files (.vo) � VHDL Output Files (.vho) � VHDL simulation model files (.vhd) � Verilog HDL simulation model files (.v) � Simulation library files (cds.lib, hdl.var) � Simulation setup scripts (_setup.sh, .tcl, .spd, .txt)
2.9.4. Creating Database-Only Archives
If your project contains sensitive RTL that you do not want to share with Intel support, you can create a database-only archive. A database-only archive contains only the minimum files required to run timing analysis, fitter, assembler, and GUI designinspection tools like Chip Planner.
A database-only archive includes only the project Quartus databases and any additional files required for compilation. It does not include RTL files.
You can review the complete list of files included in the archive in a report generated when you create a database-only archive.
Intel Quartus Prime Pro Edition User Guide: Getting Started 42
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Security Note:
A database-only archive does not guarantee protection for sharing your design without sharing your RTL. The RTL Netlist Viewer, Technology Map Viewer, and other views, along with the EDA Netlist Writer, are still available for projects exported using this feature.
With some effort, the original content can be reverse engineered.
To disable these features, encrypt your design. For details, see Support for the IEEE 1735 Encryption Standard on page 98.
Before creating a database-only archive, your project must have completed one of the following compilation stages: � Synthesis
Archives that are created after running Synthesis can be used to run the fitter and then complete timing analysis, run the assembler, and use GUI-based designinspection tools. � Finalized Archives that are created after completing a full compilation flow for your project can be used to complete timing analysis, run the assembler, and use GUI designinspection tools.
To create a database-only archive, run the following command:
quartus_sh --archive_database -project <project_file> [-use_final_db]
Specify the -use_final_db option to create a database-only archive based on the finalized snapshot of your project. Otherwise, a database-only archive based on the synthesized snapshot is created.
The command generates two files: a .qar file that contains the database-only archive, and a .contents.txt file that lists files that are included in the .qar file.
You can get command syntax details by running the following command:
quartus_sh --help=archive_database
Related Information Support for the IEEE 1735 Encryption Standard on page 98
2.10. Command-Line Interface
You can optionally use command-line executables or scripts to run project commands, rather than using the GUI. This technique can be helpful if you have many settings and wish to track them in a single file or spreadsheet for iterative comparison. The .qsf supports only a limited subset of Tcl commands. Therefore, pass settings and constraints using a Tcl script:
1. Create a text file with the extension .tcl that contains your assignments in Tcl format.
2. Source the Tcl script file by adding the following line to the .qsf: set_global_assignment -name SOURCE_TCL_SCR IPT_FILE <file name>.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 43
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
2.10.1. Project Revision Commands
create_revision Command
create_revision defines the properties of a new project revision.
create_revision <name> -based_on <revision_name> -set_current -new_rev_type \ <rev_type> -root_partition_qdb_file <root qdb>
Table 10. create_revision Command Options
Option
Description
based_on (optional)
Specifies the revision name on which the new revision bases its settings.
set_current (optional)
Sets the new revision as the current revision.
-new_rev_type
Specifies a base or impl (implementation) type for a new revision.
root_partition_qdb_file
Specifies the name of a static region .qdb if already known when creating a revision.
get_project_revisions Command get_project_revisions returns a list of all revisions in the project. get_project_revisions <project_name>
delete_revision Command delete_revision deletes the revision you specify from your project. delete_revision <revision name>
set_current_revision Command set_current_revision sets the revision you specify as the current revision. set_current_revision -force <revision name>
Related Information Optimize Settings with Project Revisions on page 21
2.10.2. Project Archive Commands
project_archive Command project_archive archives your project into a single, compressed .qar file. project_archive <name>.qar
Table 11. project_archive Command Options
-all_revisions
Options
Description Includes all revisions of the current project in the archive.
-common_directory /<name>
Preserves original project directory structure in specified subdirectory.
continued...
Intel Quartus Prime Pro Edition User Guide: Getting Started 44
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Options -include_libraries -include_outputs -use_file_set <file_set> -version_compatible_database
Description Includes libraries in archive. Includes output files in archive. Includes specified fileset in archive. Includes version-compatible database files in archive.
restore_archive Command
Restores an archived project to a destination directory with optional overwriting of current contents.
project_restore <name>.qar -destination <directory name> -overwrite
Related Information Archiving Projects on page 39
2.10.3. Project Database Commands
export_database Command export_design exports the specified project database to the .qdb file you specify. These commands require the quartus_cdb executable. quartus_cdb <revision name> --export_design --file <file name>.qdb \
--snapshot <synthesized/final>
import_database Command import_design imports the specified project database to the .qdb file you specify. quartus_cdb <revision name> --import_design --file <file name>.qdb
export_block Command
export_block exports the specified partition database to the .qdb file you specify.
quartus_cdb -r <project name> -c <revision name> --export_block \ <partition name> --snapshot <name> --file <file name>.qdb
2.10.3.1. quartus_cdb Executables to Manage Version-Compatible Databases
The command-line arguments to the quartus_cdb executable in the Quartus Prime Pro software are export_design and import_design. The exported versioncompatible design files are archived in a file (with a .qdb extension). This differs from the Intel Quartus Prime Standard Edition software, which writes all files to a directory.
In the Intel Quartus Prime Standard Edition software, the flow exports both post-map and post-fit databases. In the Intel Quartus Prime Pro Edition software, the export command requires the snapshot argument to indicate the target snapshot to export. If the specified snapshot has not been compiled, the flow exits with an error. In ACDS 16.0, export is limited to "synthesized" and "final" snapshots.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 45
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
quartus_cdb <project_name> [-c <revision_name>] --export_design --snapshot <snapshot_name> --file <filename>.qdb
The import command takes the exported *.qdb file and the project to which you want to import the design.
quartus_cdb <project_name> [-c <revision_name>] --import_design --file <archive>.qdb [--overwrite] [--timing_analysis_mode]
The --timing_analysis_mode option is only available for Intel Arria 10 designs. The option disables legality checks for certain configuration rules that may have changed from prior versions of the Intel Quartus Prime software. Use this option only if you cannot successfully import your design without it. After you have imported a design in timing analysis mode, you cannot use it to generate programming files.
2.11. Managing Projects Revision History
Document Version 2021.06.21 2021.03.29 2020.09.28 2020.05.01 2019.09.30 2018.09.24
2018.05.07
Intel Quartus Prime Version
21.2 21.1 20.3 20.1 19.3 18.1
18.0.0
Changes
� Added Version-Compatible Compilation Database Support table. � Added "Promoting Critical Warnings to Errors" topic.
� Added "Creating Database-Only Archives" topic. � Added "Promoting Critical Warnings to Errors" topic
� Updated "Back-Annotate Optimized Assignments" for support of pins, clocks, RAMs, and DSPs.
� Added note about .qar file requirements to "Design Guidelines for Component Instances" topic.
� Added "Disabling Automated Problem Reports" topic. � Added "Suppressing Messages" topic.
� Subdivided "Exporting, Archiving, and Migrating Projects" into separate sections.
� Described migration of full chip database in "Exporting a VersionCompatible Compilation Database" topic.
� Described automated .qdb partition export in "Exporting a Design Partition" topic.
� Added "Viewing Quartus Database File Information" topic. � Added "Specifying the Target Device or Board" topic. � Divided "Introduction to Intel FPGA IP Cores" into separate chapter. � Moved "IP Core Best Practices" topic to Introduction to Intel FPGA IP
Cores chapter. � Moved "Factors Affecting Compilation Results" topic to Design
Compilation: Intel Quartus Prime Pro Edition User Guide.
� Initial release as chapter of Getting Started User Guide. � Revised "Exporting a Design Partition" topic to add Include entity-
bound SDC files for the selected partition option, to add prerequisite steps, and to remove import step covered in separate topic. � Changed title of "Managing Team-Based Designs" to "Exporting, Archiving, and Migrating Projects" and updated content. � Changed title of "Migrating Compilation Results Across Software Versions" to "Exporting the Compilation Database" and updated content. � Changed title of "Exporting the Results Database" to "Exporting a Version-Compatible Design Compilation Database" and updated content.
continued...
Intel Quartus Prime Pro Edition User Guide: Getting Started 46
Send Feedback
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Document Version
Intel Quartus Prime Version
Changes
� Changed title of "Importing the Results Database" to "Importing a Version-Compatible Design Compilation Database" and updated content.
� Changed title of "Cleaning the Project Database" to "Cleaning the Project Compilation Database."
� Updated screenshots of IP Catalog and Parameter Editor for latest IP names.
Date 2017.11.06
2017.05.08
2016.10.31 2016.05.03
2016.02.09 2015.11.02
Version 17.1.0
17.0.0
16.1.0 16.0.0
15.1.1 15.1.0
Changes
� Revised product branding for Intel standards. � Revised topics on Intel FPGA IP Evaluation Mode (formerly
OpenCore). � Removed -compatible attribute from export_design command
content. � Updated figure: IP Upgrade Alert in Project Navigator. � Updated IP Core Upgrade Status table with new icons, and added
row for IP Component Outdated status.
� Added Project Tasks pane and update New Project Wizard. � Updated Compilation Dashboard image to show concurrent analysis. � Removed Smart Compilation option from Settings dialog box
screenshot. � Updated IP Catalog screenshots for latest GUIs. � Added topic on Back-Annotate Assignments command. � Added Exporting a Design Partition topic. � Removed mentions to deprecated Incremental Compilation. � Added reference to Block-Level Design Flows.
� Added references to compilation stages and snapshots. � Removed support for comparing revisions. � Added references to .ip file creation during Intel Quartus Prime Pro
Edition stand-alone IP generation. � Updated IP Core Generation Output files list and diagram. � Added Support for IP Core Encryption topic. � Rebranding for Intel
� Removed statements about serial equivalence when using multiple processors.
� Added the "Preserving Compilation Results" section. � Added the "Migrating Results Across Quartus Prime Software"
section and its subsections for information about importing and exporting compilation results between different versions of Quartus Prime. � Added the "Project Database Commands" section and its subsections.
� Clarified instructions for Generating a Combined Simulator Setup Script.
� Clarified location of Save project output files in specified directory option.
� Added Generating Version-Independent IP Simulation Scripts topic. � Added example IP simulation script templates for supported
simulators. � Added Incorporating IP Simulation Scripts in Top-Level Scripts topic. � Added Troubleshooting IP Upgrade topic. � Updated IP Catalog and parameter editor descriptions for GUI
changes.
continued...
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 47
Date
2015.05.04
2014.12.15 2014.08.18
2014.06.30 November 2013 May 2013 June 2012 November 2011 December 2010
2. Managing Intel Quartus Prime Projects UG-20129 | 2021.06.21
Version
15.0.0
14.1.0 14.0a10.0
14.0.0 13.1.0 13.0.0 12.0.0 10.1.1 10.1.0
Changes
� Updated IP upgrade and migration steps for latest GUI changes. � Updated Generating IP Cores process for GUI changes. � Updated Files Generated for IP Cores and Qsys system description. � Removed references to devices and features not supported in
version 15.1. � Changed instances of Quartus II to Intel Quartus Prime.
� Added description of design templates feature. � Updated screenshot for DSE II GUI. � Added qsys_script IP core instantiation information. � Described changes to generating and processing of instance and
entity names. � Added description of upgrading IP cores at the command line. � Updated procedures for upgrading and migrating IP cores. � Gate level timing simulation supported only for Cyclone IV and
Stratix IV devices.
� Updated content for DSE II GUI and optimizations. � Added information about new Assignments Settings IP
Settings that control frequency of synthesis file regeneration and automatic addition of IP files to the project.
� Added information about specifying parameters for IP cores targeting Arria 10 devices.
� Added information about the latest IP output for version 14.0a10 targeting Arria 10 devices.
� Added information about individual migration of IP cores to the latest devices.
� Added information about editing existing IP variations.
� Replaced MegaWizard Plug-In Manager information with IP Catalog. � Added standard information about upgrading IP cores. � Added standard installation and licensing information. � Removed outdated device support level information. IP core device
support is now available in IP Catalog and parameter editor.
� Conversion to DITA format
� Overhaul for improved usability and updated information.
� Removed survey link. � Updated information about VERILOG_INCLUDE_FILE.
Template update.
� Changed to new document template. � Removed Figure 4�1, Figure 4�6, Table 4�2. � Moved "Hiding Messages" to Help. � Removed references about the set_user_option command. � Removed Classic Timing Analyzer references.
Intel Quartus Prime Pro Edition User Guide: Getting Started 48
Send Feedback
UG-20129 | 2021.06.21 Send Feedback
3. Design Planning
3.1. Design Planning
Design planning is an essential step in advanced FPGA design. System architects must consider the target device characteristics in order to plan for interface I/O, integration of IP, on-chip debugging tools, and use of other EDA tools. Designers must consider device power consumption and programming methods when planning the layout. You can solve potential problems early in the design cycle by following the design planning considerations in this chapter.
By default, the Intel Quartus Prime software optimizes designs for the best overall results; however, you can adjust settings to better optimize one aspect of your design, such as performance, routability, area, or power utilization. Consider your own design priorities and trade-offs when reviewing the techniques in this chapter. For example, certain device features, density, and performance requirements can increase system cost. Signal integrity and board issues can impact I/O pin locations. Power, timing performance, and area utilization all affect one another. Compilation time is affected when optimizing these priorities.
Determining your design priorities early on helps you to choose the best device, tools, features, and methodologies for your design.
3.2. Create a Design Specification and Test Plan
Before you create your design logic or complete your system design, it is best practice to create detailed design specifications that define the system, specify the I/O interfaces for the FPGA, identify the different clock domains, and include a block diagram of basic design functions.
In addition, creating a test plan helps you to design for verification and ease of manufacture. For example, your test plan can include validation of interfaces incorporated in your design. To perform any built-in self-test functions to drive interfaces, you can use a UART interface with a Nios� II processor inside the FPGA device.
If more than one designer contributes to the design, consider a common design directory structure or source control system to make design integration easier. Consider whether you want to standardize on an interface protocol for each design block.
3.3. Plan for the Target Device
Intel offers a broad portfolio of FPGA and PLD devices. The Intel device that you select determines factors of performance, density, and board layout. To avoid costly design changes, it is best to carefully consider and determine the target device family early in
Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
3. Design Planning UG-20129 | 2021.06.21
the design cycle. Intel FPGA device families differ in cost, size, density, performance, power consumption, packaging, I/O standards, and other factors. Select the device family that best suits your most critical design requirements.
Device Family Selection Guidelines � Refer to the Product Selector tool on the Intel website to quickly find and compare
the specifications and features of Intel FPGA devices and development kits. � Once you identify the target device family, refer to the device family technical
documentation for detailed device characteristics. Each device family includes complete documentation, including a datasheet and user guide or handbook. You can also view a summary of each device's resources by selecting a device in the Device dialog box (Assignments Device)
Figure 34. Device Dialog Box
� Consider whether the device family meets any requirements you have for highspeed transceivers, global or regional clock networks, and the number of phaselocked loops (PLLs)
� Consider the density requirements of your design. Devices with more logic resources and higher I/O counts can implement larger and more complex designs, but at a higher cost. Smaller devices use lower static power. Select a device larger than what your design requires if you may want to add more logic later in the design cycle, or to reserve logic and memory for on-chip debugging.
� Consider requirements for types of dedicated logic blocks, such as memory blocks of different sizes, or digital signal processing (DSP) blocks to implement certain arithmetic functions.
Related Information
Product Selector Guide Tool To help you choose your device.
Intel Quartus Prime Pro Edition User Guide: Getting Started 50
Send Feedback
3. Design Planning UG-20129 | 2021.06.21
3.3.1. Device Migration Planning
Determine whether you want to migrate your design to another device density to allow flexibility when your design nears completion. You may want to target a smaller (and less expensive) device and then move to a larger device if necessary to meet your design requirements. Other designers may prototype their design in a larger device to reduce optimization time and achieve timing closure more quickly, and then migrate to a smaller device after prototyping. If you want the flexibility to migrate your design, you must specify these migration options in the Intel Quartus Prime software at the beginning of your design cycle. Selecting a migration device impacts pin placement because some pins may serve different functions in different device densities or package sizes. If you make pin assignments in the Intel Quartus Prime software, the Pin Migration View in the Pin Planner highlights pins that change function between your migration devices.
3.4. Plan for Intellectual Property Cores
Intel and third-party intellectual property (IP) partners offer a large selection of standardized IP cores optimized for Intel FPGA devices. The IP you select often affects system design and performance, especially if the FPGA interfaces with other devices in the system. Plan which I/O interfaces or other blocks in the system that you want to implement using IP cores. Whenever possible, plan to incorporate these functions into your design using Intel FPGA IP cores, many of which are available for production use in the Intel Quartus Prime software without additional license.
Figure 35. IP Catalog
Search for IP
Double-Click to Customize IP
Right-Click for IP Info
For IP cores that require additional license for production use, the Intel FPGA IP Evaluation Mode, allows you to program the FPGA to verify the IP in the hardware before you purchase the IP license. Refer to Introduction to Intel FPGA IP Cores on page 65 for general information on using Intel FPGA IP cores.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 51
3. Design Planning UG-20129 | 2021.06.21
Related Information
� Introduction to Intel FPGA IP Cores on page 65
� Intel FPGA IP Portfolio Web Page For descriptions and documentation for all available Intel FPGA and partner IP cores.
3.5. Plan for Standard Interfaces
To reduce design iterations and costly design changes, plan for use of standard interfaces in system design. Using standard interfaces ensures compatibility between design blocks from different design teams or vendors.
You can use the Intel Quartus Prime Interface Planner to help you accurately plan constraints for design implementation. Use Interface Planner to prototype interface implementations and rapidly define a legal device floorplan. Standard interfaces simplify the interface logic to each design block, and enable individual team members to test their individual design blocks against the specification for the interface protocol to ease system integration.
You can use the Intel Quartus Prime Platform Designer system integration tool to use standard interfaces and speed-up system-level integration. Platform Designer components use Avalon� standard interfaces for physical connections, allowing you to connect any logical device (either on-chip or off-chip) that has an Avalon interface. Platform Designer allows you to define system components in a GUI, and then automatically generates the required interconnect logic, along with clock-crossing and width adapters.
The Avalon standard includes two interface types:
� Avalon memory-mapped--allow a component to use an address-mapped read or write protocol that connects master components to slave components.
� Avalon streaming--enables point-to-point connections between streaming components that send and receive data using a high-speed, unidirectional system interconnect between source and sink ports.
Related Information
Creating a System with Platform Designer
3.6. Plan for Device Programming
You must plan for the devices and hardware that you require for programming or configuration of the device. Comprehensive system planning includes determining what companion devices, if any, your system requires. Your programming or configuration method also impacts the board layout planning. For example, some programming options require a JTAG interface connection, requiring a JTAG chain on the board.
You can define a configuration scheme on the Configuration tab of the Device and Pin Options dialog box. The Intel Quartus Prime software uses the settings for the configuration scheme, configuration device, and configuration device voltage to enable the appropriate dual purpose pins as regular I/O pins after you complete configuration. The Intel Quartus Prime software performs voltage compatibility checks of those pins during compilation of your design.
Intel Quartus Prime Pro Edition User Guide: Getting Started 52
Send Feedback
3. Design Planning UG-20129 | 2021.06.21
Figure 36. Intel Quartus Prime Programmer
Enables Program or Configuration
Starts Download of Configuration Data
Adds SOF File Adds RBF to Program PR region
The technical documentation for each device family describes the available configuration options.
3.7. Plan for Device Power Consumption
You can use the Intel Quartus Prime power estimation and analysis tools to estimate power consumption and guide PCB board and system design. You must accurately estimate device power consumption to develop an appropriate power budget and to design the power supplies, voltage regulators, heat sink, and cooling system. You can use the Early Power Estimator (EPE) spreadsheet to estimate power consumption before running a compilation or creating any source code. Then, you can use the Intel Quartus Prime Power Analyzer to perform a more accurate analysis after your design is complete.
Note:
Because power consumption is heavily dependent on actual design and environmental conditions, make sure to verify the actual power consumption during device operation.
Power estimation and analysis helps you ensure that your design satisfies thermal and power supply requirements:
� Thermal--ensure that the cooling solution is sufficient to dissipate the heat generated by the device. The computed junction temperature must fall within normal device specifications.
� Power supply--ensure that the power supplies provide adequate current to support device operation.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 53
3. Design Planning UG-20129 | 2021.06.21
Early Power Estimator (EPE) Spreadsheet The Early Power Estimator (EPE) spreadsheet allows you to estimate power utilization for your design. Estimating power consumption early in the design cycle allows planning of power budgets and avoids unexpected results when designing the PCB. Figure 37. Early Power Estimator (EPE) Spreadsheet
You can manually enter data into the EPE spreadsheet, or use the Intel Quartus Prime software to generate device resource information for your design.
To manually enter data into the EPE spreadsheet, enter the device resources, operating frequency, toggle rates, and other parameters for your design. If you do not have an existing design, estimate the number of device resources used in your design, and then enter the data into the EPE spreadsheet manually.
If you have an existing design or a partially completed design, you can use the Intel Quartus Prime software to generate the Early Power Estimator File (.txt, .csv) to assist you in completing the EPE spreadsheet.
The EPE spreadsheet includes the Import Data macro that parses the information in the EPE File and transfers the information into the spreadsheet. If you do not want to use the macro, you can manually transfer the data into the EPE spreadsheet. For example, after importing the EPE File information into the EPE spreadsheet, you can add device resource information. If the existing Intel Quartus Prime project represents only a portion of your full design, manually enter the additional device resources you use in the final design.
Intel Quartus Prime Pro Edition User Guide: Getting Started 54
Send Feedback
3. Design Planning UG-20129 | 2021.06.21
Intel Quartus Prime Power Analyzer After you complete your design, you can use the Intel Quartus Prime Power Analyzer to perform a complete post-fit power analysis to check the power consumption more accurately. The Power Analyzer provides an accurate estimation of power, ensuring that thermal and supply limitations are met.
Figure 38. Intel Quartus Prime Power Analyzer
Related Information � Intel Quartus Prime Pro Edition User Guide: Power Analysis and Optimization � Early Power Estimator and Power Analyzer Web Page
3.8. Plan for Interface I/O Pins
In many design environments, FPGA designers want to plan the top-level FPGA I/O pins early to help board designers begin the PCB design and layout. The I/O capabilities and board layout guidelines of the FPGA device influence pin locations and other types of assignments. If the board design team specifies an FPGA pin-out, the pin locations must be verified in the FPGA placement and routing software to avoid board design changes.
You can create a preliminary pin-out for an Intel FPGA with the Intel Quartus Prime Pin Planner before you develop the source code, based on standard I/O interfaces (such as memory and bus interfaces) and any other I/O requirements for your system.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 55
Figure 39. Pin Planner
3. Design Planning UG-20129 | 2021.06.21
The Intel Quartus Prime I/O Assignment Analysis checks that the pin locations and assignments are supported in the target FPGA architecture. You can then use I/O Assignment Analysis to validate I/O-related assignments that you create or modify throughout the design process. When you compile your design in the Intel Quartus Prime software, I/O Assignment Analysis runs automatically in the Fitter to validate that the assignments meet all the device requirements and generates error messages.
Early in the design process, before creating the source code, the system architect has information about the standard I/O interfaces (such as memory and bus interfaces), the IP cores in your design, and any other I/O-related assignments defined by system requirements. You can use this information with the Early Pin Planning feature in the Pin Planner to specify details about the design I/O interfaces. You can then create a top-level design file that includes all I/O information.
The Pin Planner interfaces with the IP core parameter editor, which allows you to create or import custom IP cores that use I/O interfaces. You can configure how to connect the functions and cores to each other by specifying matching node names for selected ports. You can create other I/O-related assignments for these interfaces or other design I/O pins in the Pin Planner, as described in this section. The Pin Planner creates virtual pin assignments for internal nodes, so internal nodes are not assigned to device pins during compilation.
You can use the I/O analysis results to change pin assignments or IP parameters even before you create your design, and repeat the checking process until the I/O interface meets your design requirements and passes the pin checks in the Intel Quartus Prime software. When you complete initial pin planning, you can create a revision based on
Intel Quartus Prime Pro Edition User Guide: Getting Started 56
Send Feedback
3. Design Planning UG-20129 | 2021.06.21
the Intel Quartus Prime-generated netlist. You can then use the generated netlist to develop the top-level design file for your design, or disregard the generated netlist and use the generated Intel Quartus Prime Settings File (.qsf) with your design.
During this early pin planning, after you have generated a top-level design file, or when you have developed your design source code, you can assign pin locations and assignments with the Pin Planner.
With the Pin Planner, you can identify I/O banks, voltage reference (VREF) groups, and differential pin pairings to help you through the I/O planning process. If you selected a migration device, the Pin Migration View highlights the pins that have changed functions in the migration device when compared to the currently selected device. Selecting the pins in the Device Migration view cross-probes to the rest of the Pin Planner, so that you can use device migration information when planning your pin assignments. You can also configure board trace models of selected pins for use in "board-aware" signal integrity reports generated with the Enable Advanced I/O Timing option . This option ensures that you get accurate I/O timing analysis. You can use a Microsoft Excel spreadsheet to start the I/O planning process if you normally use a spreadsheet in your design flow, and you can export a Comma-Separated Value File (.csv) containing your I/O assignments for spreadsheet use when you assign all pins.
When you complete your pin planning, you can pass pin location information to PCB designers. The Pin Planner is tightly integrated with certain PCB design EDA tools, and can read pin location changes from these tools to check suggested changes. Your pin assignments must match between the Intel Quartus Prime software and your schematic and board layout tools to ensure the FPGA works correctly on the board, especially if you must make changes to the pin-out. The system architect uses the Intel Quartus Prime software to pass pin information to team members designing individual logic blocks, allowing them to achieve better timing closure when they compile their design.
Start FPGA planning before you complete the HDL for your design to improve the confidence in early board layouts, reduce the chance of error, and improve the overall time to market of the design. When you complete your design, use the Fitter reports for the final sign-off of pin assignments. After compilation, the Intel Quartus Prime software generates the Pin-Out File (.pin), and you can use this file to verify that each pin is correctly connected in board schematics.
Related Information
Intel Quartus Prime Pro Edition User Guide: Design Optimization For more information about I/O assignment and analysis.
3.8.1. Simultaneous Switching Noise Analysis
Simultaneous switching noise (SSN) is a noise voltage inducted onto a victim I/O pin of a device due to the switching behavior of other aggressor I/O pins in the device.
Intel provides tools for SSN analysis and estimation, including SSN characterization reports, an Early SSN Estimator (ESE) spreadsheet tool, and the SSN Analyzer in the Intel Quartus Prime software. SSN often leads to the degradation of signal integrity by causing signal distortion, thereby reducing the noise margin of a system. You must address SSN with estimation early in your system design, to minimize later board design changes. When your design is complete, verify your board design by performing a complete SSN analysis of your FPGA in the Intel Quartus Prime software.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 57
3. Design Planning UG-20129 | 2021.06.21
3.9. Plan for other EDA Tools
Your complete FPGA design flow may include third-party EDA tools in addition to the Intel Quartus Prime software. Determine which tools you want to use with the Intel Quartus Prime software to ensure that they are supported and set up properly, and that you are aware of their capabilities.
3.9.1. Third-Party Synthesis Tools
You can use supported standard third-party EDA synthesis tools to synthesize your Verilog HDL or VHDL design, and then compile the resulting output netlist file in the Intel Quartus Prime software.
Different synthesis tools may give different results for each design. To determine the best tool for your application, you can experiment by synthesizing typical designs for your application and coding style. Perform placement and routing in the Intel Quartus Prime software to get accurate timing analysis and logic utilization results.
The synthesis tool you choose may allow you to create an Intel Quartus Prime project and pass constraints, such as the EDA tool setting, device selection, and timing requirements that you specified in your synthesis project. You can save time when setting up your Intel Quartus Prime project for placement and routing.
Tool vendors frequently add new features, fix tool issues, and enhance performance for Intel devices, you must use the most recent version of third-party synthesis tools.
3.9.2. Third-Party Simulation Tools
Intel provides the Mentor Graphics ModelSim* - Intel FPGA Edition simulator with the Intel Quartus Prime software. You can also purchase the ModelSim - Intel FPGA Edition or a full license of the ModelSim software to support large designs and achieve faster simulation performance. The Intel Quartus Prime software generates both functional and timing netlist files for ModelSim and other supported third-party simulators.
Use the simulator version that your Intel Quartus Prime software version supports for best results. You must also use the model libraries provided with your Intel Quartus Prime software version. Libraries can change between versions, which might cause a mismatch with your simulation netlist.
Related Information "Simulator Support," Intel Quartus Prime Pro Edition User Guide: Third-Party Simulation
3.10. Plan for On-Chip Debugging Tools
Consider whether to include on-chip debugging tools early in the design process. Adding the debugging tools late in the design process can be more time consuming and error prone.
Intel Quartus Prime Pro Edition User Guide: Getting Started 58
Send Feedback
3. Design Planning UG-20129 | 2021.06.21
The Intel Quartus Prime in-system debugging tools offer different advantages and trade-offs, depending on the characteristics of your design. Consider the following debugging requirements when planning your design to support debugging tools:
� JTAG connections--required to perform in-system debugging with JTAG tools. Plan your system and board with JTAG ports that are available for debugging.
� Additional logic resources (ALR)--required to implement JTAG hub logic. If you set up the appropriate tool early in your design cycle, you can include these device resources in your early resource estimations to ensure that you do not overload the device with logic.
� Reserve device memory--required if your tool uses device memory to capture data during system operation. To ensure that you have enough memory resources to take advantage of this debugging technique, consider reserving device memory to use during debugging.
� Reserve I/O pins--required if you use the Logic Analyzer Interface (LAI), which require I/O pins for debugging. If you reserve I/O pins for debugging, you do not have to later change your design or board. The LAI can multiplex signals with design I/O pins if required. Ensure that your board supports a debugging mode, in which debugging signals do not affect system operation.
� Instantiate an IP core in your HDL code--required if your debugging tool uses an Intel FPGA IP core.
� Instantiate the Signal Tap Logic Analyzer IP core--required if you want to manually connect the Signal Tap Logic Analyzer to nodes in your design and ensure that the tapped node names do not change during synthesis.
Table 12.
Factors to Consider When Using Debugging Tools During Design Planning Stages
Design Planning Factor
JTAG connections Additional logic resources Reserve device memory Reserve I/O pins Instantiate IP core in your HDL code
Signal Tap
Logic Analyzer
System Console
Yes
Yes
--
Yes
Yes
Yes
--
--
--
--
InSystem Memory Content Editor
Yes
--
--
--
--
Logic Analyzer Interface
(LAI)
Signal Probe
Yes
--
--
--
--
--
Yes
Yes
--
--
InSystem Sources
and Probes
Yes
--
--
--
Yes
Virtual JTAG IP
Core
Yes Yes -- -- Yes
Related Information Intel Quartus Prime Pro Edition User Guide: Debug Tools
3.11. Plan HDL Coding Styles
When you develop complex FPGA designs, design practices and coding styles have an enormous impact on the timing performance, logic utilization, and system reliability of your device.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 59
3. Design Planning UG-20129 | 2021.06.21
3.11.1. Design Recommendations
Use synchronous design practices to consistently meet your design goals. Problems with asynchronous design techniques include reliance on propagation delays in a device, incomplete timing analysis, and possible glitches.
In a synchronous design, a clock signal triggers all events. When you meet all register timing requirements, a synchronous design behaves in a predictable and reliable manner for all process, voltage, and temperature (PVT) conditions. You can easily target synchronous designs to different device families or speed grades.
Clock signals have a large effect on the timing accuracy, performance, and reliability of your design. Problems with clock signals can cause functional and timing problems in your design. Use dedicated clock pins and clock routing for best results, and if you have PLLs in your target device, use the PLLs for clock inversion, multiplication, and division. For clock multiplexing and gating, use the dedicated clock control block or PLL clock switchover feature instead of combinational logic, if these features are available in your device. If you must use internally-generated clock signals, register the output of any combinational logic used as a clock signal to reduce glitches.
Consider the architecture of the device you choose so that you can use specific features in your design. For example, the control signals should use the dedicated control signals in the device architecture. Sometimes, you might need to limit the number of different control signals used in your design to achieve the best results.
3.11.2. Recommended HDL Coding Styles
HDL coding styles can have a significant effect on the quality of results for programmable logic designs.
If you design memory and DSP functions, you must understand the target architecture of your device so you can use the dedicated logic block sizes and configurations. Follow the coding guidelines for inferring Intel FPGA IP and targeting dedicated device hardware, such as memory and DSP blocks.
Related Information
Intel Quartus Prime Pro Edition User Guide: Design Recommendations
3.11.3. Managing Metastability
Metastability problems can occur in digital design when a signal is transferred between circuitry in unrelated or asynchronous clock domains, because the designer cannot guarantee that the signal meets the setup and hold time requirements during the signal transfer.
Designers commonly use a synchronization chain to minimize the occurrence of metastable events. Ensure that your design accounts for synchronization between any asynchronous clock domains. Consider using a synchronizer chain of more than two registers for high-frequency clocks and frequently-toggling data signals to reduce the chance of a metastability failure.
You can use the Intel Quartus Prime software to analyze the average mean time between failures (MTBF) due to metastability when a design synchronizes asynchronous signals, and optimize your design to improve the metastability MTBF. The MTBF due to metastability is an estimate of the average time between instances
Intel Quartus Prime Pro Edition User Guide: Getting Started 60
Send Feedback
3. Design Planning UG-20129 | 2021.06.21
when metastability could cause a design failure. A high MTBF (such as hundreds or thousands of years between metastability failures) indicates a more robust design. Determine an acceptable target MTBF given the context of your entire system and the fact that MTBF calculations are statistical estimates.
The Intel Quartus Prime software can help you determine whether you have enough synchronization registers in your design to produce a high enough MTBF at your clock and data frequencies.
Related Information
Managing Metastability, Intel Quartus Prime Pro Edition User Guide: Design Recommendations
3.12. Plan for Hierarchical and Team-Based Designs
The Intel Quartus Prime Compiler supports hierarchical design methodologies to reduce design compilation times and preserve performance. In a flat compilation flow, the design hierarchy is flattened without design partitions. In block-based (hierarchical) flows, you can subdivide your design by creating design partitions.
Hierarchical flows allow you to isolate, optimize, and preserve compilation results for specific design blocks, but require more design planning to ensure effective results.
3.12.1. Flat Compilation without Design Partitions
In a flat compilation flow without any design partitions, the Intel Quartus Prime software compiles the entire design in a "flat" netlist.
Although the source code may be hierarchical, the Compiler flattens and synthesizes all the design logic. Whenever you re-compile the project, the Compiler re-performs all available logic and placement optimizations on the entire design.
The flat compilation flow does not require any planning for design partitions. However, because the Intel Quartus Prime software recompiles the entire design whenever you change your design, flat design practices may require more overall compilation time for large designs. Additionally, you may find that the results for one part of the design change when you change a different part of your design. You can run Rapid Recompile to preserve portions of previous placement and routing in subsequent compilations. Rapid Recompile can reduce your compilation time in a flat or partitioned design when you make small changes to your design.
3.13. Design Planning Revision History
Document Version 2018.09.24
Intel Quartus Prime Version
18.1.0
Changes
� Moved information about specifying the target board to "Specifying the Target Device or Board" in Managing Projects chapter.
� Retitled "Creating Design Specifications" to "Create a Design Specification and Test Plan."
� Retitled "Selecting Intellectual Property Cores" to "Plan for Intellectual Property Cores."
� Retitled "Using Standard Interfaces" to "Plan for Standard Interfaces." Corrected references to Platform Designer. continued...
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 61
3. Design Planning UG-20129 | 2021.06.21
Document Version
2018.05.07 Date
2017.11.06 2017.05.08 2016.10.31 2016.05.03 2015.11.02 2015.05.04 2014.06.30 November 2013 November, 2012 June 2012 November 2011 May 2011
December 2010
Intel Quartus Prime Version
18.0
Changes
� Retitled "Device Selection" to "Plan for the Target Device." Updated this content to correct Platform Designer names.
� Moved "Setting Pin Assignments" to Managing Projects chapter as "Generating Pin Assignments for a Target Board."
� Retitled "Estimating Power" to "Plan for Device Power Consumption." Reorganized this topic into sections for EPE and Power Analyzer.
� Added link to "Simulator Support, Third-Party Simulation User Guide
� Retitled "Planning for Device Programming or Configuration" to "Plan for Device Programming"
� Retitled "Selecting Third-Party EDA Tools" to "Plan for other EDA Tools."
� Retitled "Planning for On-Chip Debugging Tools" to "Plan for On-Chip Debugging Tools."
� Retitled Design Planning with the Intel Quartus Prime Software to Design Planning
Initial release as separate chapter of Getting Started User Guide.
Version 17.1.0
17.0.0 16.1.0 16.0.0 15.1.0 15.0.0 14.0.0 13.1.0 12.1.0 12.0.0 11.0.1 11.0.0
10.1.0
Changes
� Changed instances of OpenCore Plus to Intel FPGA IP Evaluation Mode.
� Changed instances of Qsys to Platform Designer (Standard)
� Removed mentions to Integrated Synthesis.
� Implemented Intel rebranding.
Added information about Development Kit selection.
� Added references to Interface Planning chapter. � Changed instances of Quartus II to Intel Quartus Prime.
Remove support for Early Timing Estimate feature.
Updated document format.
Removed HardCopy device information.
Update for changes to early pin planning feature
Editorial update.
Template update.
� Added link to System Design with Qsys in "Creating Design Specifications" on page 1�2
� Updated "Simultaneous Switching Noise Analysis" on page 1� 8
� Updated "Planning for On-Chip Debugging Tools" on page 1� 10
� Removed information from "Planning Design Partitions and Floorplan Location Assignments" on page 1�15
� Changed to new document template � Updated "System Design and Standard Interfaces" on
page 1�3 to include information about the Qsys system integration tool � Added link to the Product Selector in "Device Selection" on page 1�3
continued...
Intel Quartus Prime Pro Edition User Guide: Getting Started 62
Send Feedback
3. Design Planning UG-20129 | 2021.06.21
Date
Version
July 2010
10.0.0
November 2009
9.1.0
Changes
� Converted information into new table (Table 1�1) in "Planning for On-Chip Debugging Options" on page 1�10
� Simplified description of incremental compilation usages in "Incremental Compilation with Design Partitions" on page 1� 14
� Added information about the Rapid Recompile option in "Flat Compilation Flow with No Design Partitions" on page 1�14
� Removed details and linked to Intel Quartus Prime Help in "Fast Synthesis and Early Timing Estimation" on page 1�16
� Added new section "System Design" on page 1�3 � Removed details about debugging tools from "Planning for
On-Chip Debugging Options" on page 1�10 and referred to other handbook chapters for more information � Updated information on recommended design flows in "Incremental Compilation with Design Partitions" on page 1� 14 and removed "Single-Project Versus Multiple-Project Incremental Flows" heading � Merged the "Planning Design Partitions" section with the "Creating a Design Floorplan" section. Changed heading title to "Planning Design Partitions and Floorplan Location Assignments" on page 1�15 � Removed "Creating a Design Floorplan" section � Removed "Referenced Documents" section � Minor updates throughout chapter
� Added details to "Creating Design Specifications" on page 1�2 � Added details to "Intellectual Property Selection" on page 1�2 � Updated information on "Device Selection" on page 1�3 � Added reference to "Device Migration Planning" on page 1�4 � Removed information from "Planning for Device Programming
or Configuration" on page 1�4 � Added details to "Early Power Estimation" on page 1�5 � Updated information on "Early Pin Planning and I/O Analysis"
on page 1�6 � Updated information on "Creating a Top-Level Design File for
I/O Analysis" on page 1�8 � Added new "Simultaneous Switching Noise Analysis" section � Updated information on "Synthesis Tools" on page 1�9 � Updated information on "Simulation Tools" on page 1�9 � Updated information on "Planning for On-Chip Debugging
Options" on page 1�10 � Added new "Managing Metastability" section � Changed heading title "Top-Down Versus Bottom-Up
Incremental Flows" to "Single-Project Versus Multiple-Project Incremental Flows" � Updated information on "Creating a Design Floorplan" on page 1�18 � Removed information from "Fast Synthesis and Early Timing Estimation" on page 1�18
continued...
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 63
3. Design Planning UG-20129 | 2021.06.21
Date March 2009 November 2008 May 2008
9.0.0 8.1.0 8.0.0
Version
Changes
� No change to content
� Changed to 8-1/2 x 11 page size. No change to content.
� Organization changes � Added "Creating Design Specifications" section � Added reference to new details in the In-System Design
Debugging section of volume 3 � Added more details to the "Design Practices and HDL Coding
Styles" section � Added references to the new Best Practices for Incremental
Compilation and Floorplan Assignments chapter � Added reference to the Intel Quartus Prime Language
Templates
Related Information
Documentation Archive For previous versions of the Intel Quartus Prime Handbook, search the documentation archives.
Intel Quartus Prime Pro Edition User Guide: Getting Started 64
Send Feedback
UG-20129 | 2021.06.21 Send Feedback
4. Introduction to Intel FPGA IP Cores
Intel and strategic IP partners offer a broad portfolio of configurable IP cores optimized for Intel FPGA devices.
The Intel Quartus Prime software installation includes the Intel FPGA IP library. Integrate optimized and verified Intel FPGA IP cores into your design to shorten design cycles and maximize performance. The Intel Quartus Prime software also supports integration of IP cores from other sources. Use the IP Catalog (Tools IP Catalog) to efficiently parameterize and generate synthesis and simulation files for your custom IP variation. The Intel FPGA IP library includes the following types of IP cores:
Basic functions Bridges and adapters DSP functions Intel FPGA interconnect
Interface protocols Low power functions Memory interfaces and controllers Processors and peripherals
This document provides basic information about parameterizing, generating, upgrading, and simulating stand-alone IP cores in the Intel Quartus Prime software.
Figure 40. Intel FPGA IP Catalog
Search for IP
Double-Click to Customize IP Right-Click for IP Info
Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
4.1. IP Catalog and Parameter Editor
The IP Catalog displays the IP cores available for your project, including Intel FPGA IP and other IP that you add to the IP Catalog search path. Use the following features of the IP Catalog to locate and customize an IP core:
� Filter IP Catalog to Show IP for active device family or Show IP for all device families. If you have no project open, select the Device Family in IP Catalog.
� Type in the Search field to locate any full or partial IP core name in IP Catalog. � Right-click an IP core name in IP Catalog to display details about supported
devices, to open the IP core's installation folder, and for links to IP documentation. � Click Search for Partner IP to access partner IP information on the web.
The parameter editor prompts you to specify an IP variation name, optional ports, and output file generation options. The parameter editor generates a top-level Intel Quartus Prime IP file (.ip) for an IP variation in Intel Quartus Prime Pro Edition projects. This file represents the IP variation in the project, and stores parameterization information.(1)
Figure 41. Example IP Parameter Editor
Specify IP Parameters
Generate IP Testbench, Template, or Example Design
Parameter Presets for Specific Applications
Generate IP HDL
(1) The parameter editor generates a top-level Quartus IP file (.qip) for an IP variation in Intel Quartus Prime Standard Edition projects.
Intel Quartus Prime Pro Edition User Guide: Getting Started 66
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
4.1.1. The Parameter Editor
The parameter editor helps you to configure IP core ports, parameters, and output file generation options. The basic parameter editor controls include the following:
� Use the Presets window to apply preset parameter values for specific applications (for select cores).
� Use the Details window to view port and parameter descriptions, and click links to documentation.
� Click Generate Generate Testbench System to generate a testbench system (for select cores).
� Click Generate Generate Example Design to generate an example design (for select cores).
� Click Validate System Integrity to validate a system's generic components against companion files. (Platform Designer systems only)
� Click Sync All System Info to validate a system's generic components against companion files. (Platform Designer systems only)
The IP Catalog is also available in Platform Designer (View IP Catalog). The Platform Designer IP Catalog includes exclusive system interconnect, video and image processing, and other system-level IP that are not available in the Intel Quartus Prime IP Catalog. Refer to Creating a System with Platform Designer or Creating a System with Platform Designer for information on use of IP in Platform Designer and Platform Designer, respectively.
Related Information
Creating a System with Platform Designer
4.2. Installing and Licensing Intel FPGA IP Cores
The Intel Quartus Prime software installation includes the Intel FPGA IP library. This library provides many useful IP cores for your production use without the need for an additional license. Some Intel FPGA IP cores require purchase of a separate license for production use. The Intel FPGA IP Evaluation Mode allows you to evaluate these licensed Intel FPGA IP cores in simulation and hardware, before deciding to purchase a full production IP core license. You only need to purchase a full production license for licensed Intel IP cores after you complete hardware testing and are ready to use the IP in production.
The Intel Quartus Prime software installs IP cores in the following locations by default:
Figure 42.
IP Core Installation Path
intelFPGA(_pro) quartus - Contains the Intel Quartus Prime software ip - Contains the Intel FPGA IP library and third-party IP cores altera - Contains the Intel FPGA IP library source code <IP name> - Contains the Intel FPGA IP source files
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 67
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Table 13. IP Core Installation Locations
Location <drive>:\intelFPGA_pro\quartus\ip\altera
Software Intel Quartus Prime Pro Edition
<drive>:\intelFPGA\quartus\ip\altera
Intel Quartus Prime Standard Edition
<home directory>:/intelFPGA_pro/quartus/ip/altera Intel Quartus Prime Pro Edition
<home directory>:/intelFPGA/quartus/ip/altera
Intel Quartus Prime Standard Edition
Platform Windows Windows
Linux Linux
Note:
The Intel Quartus Prime software does not support spaces in the installation path.
4.2.1. Intel FPGA IP Evaluation Mode
The free Intel FPGA IP Evaluation Mode allows you to evaluate licensed Intel FPGA IP cores in simulation and hardware before purchase. Intel FPGA IP Evaluation Mode supports the following evaluations without additional license:
� Simulate the behavior of a licensed Intel FPGA IP core in your system.
� Verify the functionality, size, and speed of the IP core quickly and easily.
� Generate time-limited device programming files for designs that include IP cores.
� Program a device with your IP core and verify your design in hardware.
Intel FPGA IP Evaluation Mode supports the following operation modes:
� Tethered--Allows running the design containing the licensed Intel FPGA IP indefinitely with a connection between your board and the host computer. Tethered mode requires a serial joint test action group (JTAG) cable connected between the JTAG port on your board and the host computer, which is running the Intel Quartus Prime Programmer for the duration of the hardware evaluation period. The Programmer only requires a minimum installation of the Intel Quartus Prime software, and requires no Intel Quartus Prime license. The host computer controls the evaluation time by sending a periodic signal to the device via the JTAG port. If all licensed IP cores in the design support tethered mode, the evaluation time runs until any IP core evaluation expires. If all of the IP cores support unlimited evaluation time, the device does not time-out.
� Untethered--Allows running the design containing the licensed IP for a limited time. The IP core reverts to untethered mode if the device disconnects from the host computer running the Intel Quartus Prime software. The IP core also reverts to untethered mode if any other licensed IP core in the design does not support tethered mode.
When the evaluation time expires for any licensed Intel FPGA IP in the design, the design stops functioning. All IP cores that use the Intel FPGA IP Evaluation Mode time out simultaneously when any IP core in the design times out. When the evaluation time expires, you must reprogram the FPGA device before continuing hardware verification. To extend use of the IP core for production, purchase a full production license for the IP core.
You must purchase the license and generate a full production license key before you can generate an unrestricted device programming file. During Intel FPGA IP Evaluation Mode, the Compiler only generates a time-limited device programming file (<project name>_time_limited.sof) that expires at the time limit.
Intel Quartus Prime Pro Edition User Guide: Getting Started 68
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Figure 43.
Intel FPGA IP Evaluation Mode Flow
Install the Intel Quartus Prime Software with Intel FPGA IP Library
Parameterize and Instantiate a Licensed Intel FPGA IP Core
Verify the IP in a Supported Simulator
Compile the Design in the Intel Quartus Prime Software
Generate a Time-Limited Device Programming File
Program the Intel FPGA Device and Verify Operation on the Board
No IP Ready for Production Use?
Yes
Purchase a Full Production IP License
Include Licensed IP in Commercial Products
Note:
Refer to each IP core's user guide for parameterization steps and implementation details.
Intel licenses IP cores on a per-seat, perpetual basis. The license fee includes firstyear maintenance and support. You must renew the maintenance contract to receive updates, bug fixes, and technical support beyond the first year. You must purchase a full production license for Intel FPGA IP cores that require a production license, before generating programming files that you may use for an unlimited time. During Intel FPGA IP Evaluation Mode, the Compiler only generates a time-limited device programming file (<project name>_time_limited.sof) that expires at the time limit. To obtain your production license keys, visit the Self-Service Licensing Center.
The Intel FPGA Software License Agreements govern the installation and use of licensed IP cores, the Intel Quartus Prime design software, and all unlicensed IP cores.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 69
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Related Information � Intel FPGA Licensing Support Center � Introduction to Intel FPGA Software Installation and Licensing
4.2.1.1. Intel FPGA IP Versioning
Intel FPGA IP versions match the Intel Quartus Prime Design Suite software versions until v19.1. Starting in Intel Quartus Prime Design Suite software version 19.2, Intel FPGA IP has a new versioning scheme.
The Intel FPGA IP version (X.Y.Z) number can change with each Intel Quartus Prime software version. A change in:
� X indicates a major revision of the IP. If you update the Intel Quartus Prime software, you must regenerate the IP.
� Y indicates the IP includes new features. Regenerate your IP to include these new features.
� Z indicates the IP includes minor changes. Regenerate your IP to include these changes.
4.2.1.2. Checking the IP License Status
You can check the license status of all IP in an Intel Quartus Prime project by viewing the Assembler report.
To generate and view the Assembler report in the GUI: 1. Click Assembler on the Compilation Dashboard. 2. When the Assembler (and any prerequisite stages of compilation) complete, click
the Report icon for the Assembler in the Compilation Dashboard.
Figure 44. Assembler Report Icon in Compilation Dashboard
Runs Assembler
3. Click the Encrypted IP Cores Summary report.
Opens Assembler Report
Intel Quartus Prime Pro Edition User Guide: Getting Started 70
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Figure 45. Encrypted IP Cores Summary Report
To generate and view the Assembler report at the command line: 1. Type the following command:
quartus_asm <project name> -c <project revision>
2. View the output report in /output_files/<project_name>.asm.rpt.
+----------------------------------------------------------------------+
; Assembler Encrypted IP Cores Summary
;
+--------+----------------------------------------------+--------------+
; Vendor ; IP Core Name
; License Type ;
+--------+----------------------------------------------+--------------+
; Intel ; PCIe SRIOV with 4-PFs and 2K-VFs (6AF7 00FB) ; Unlicensed ;
; Intel ; Signal Tap (6AF7 BCE1)
; Licensed
;
; Intel ; Signal Tap (6AF7 BCEC)
; Licensed
;
+--------+----------------------------------------------+--------------+
4.3. IP General Settings
The following settings control how the Intel Quartus Prime software manages IP cores in a project:
Table 14. Location of IP Core General Settings in the Intel Quartus Prime Software
Setting
Description
Location
Maximum Platform Designer memory usage size
IP generation HDL preference
IP Regeneration Policy
Increase if you experience slow processing for large systems, or for out of memory errors.
The parameter editor generates the HDL you specify for IP variations.
Controls when synthesis files regenerate for each IP variation. Typically, you Always regenerate synthesis files for IP cores after making changes to an IP variation.
Tools Options IP Settings
Or
Tasks pane Settings IP Settings
Generate IP simulation model when generating IP
Enables automatic generation of simulation models every time you generate the IP.
Use available processors for parallel generation of Quartus project IPs
Directs Platform Designer to generate IPs in parallel, using the number of processors that you specify in the Compilation Process Settings pane of the Intel Quartus Prime project settings.
Additional project and global IP search locations.
The Intel Quartus Prime software searches for IP cores in the project directory, in the Intel Quartus Prime installation directory, and in the IP search path.
Tools Options IP Catalog Search Locations
Or
Tasks pane Settings IP Catalog Search Locations
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 71
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
4.4. Adding IP to IP Catalog
The IP Catalog automatically displays Intel FPGA IP and other IP components that have a corresponding _hw.tcl or .ipx file located in the project directory, in the default Intel Quartus Prime installation directory, or in the IP search path. You can optionally add your own custom or third-party IP component to IP Catalog by adding the component's _hw.tcl or .ipx file to the IP search path. Follow these steps to add custom or third-party IP to the IP Catalog: Figure 46. Specifying IP Search Locations
Add a Global IP Search Path
Add a ProjectSpecific IP Search Path
1. In the Intel Quartus Prime software, click Tools Options IP Search Path) to open the IP Search Path Options dialog box.
2. Click Add or Remove to add/remove a location that contains IP. 3. To refresh the IP Catalog, click Refresh IP Catalog in the Intel Quartus Prime
Platform Designer, or click File Refresh System in Platform Designer.
Intel Quartus Prime Pro Edition User Guide: Getting Started 72
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Figure 47. Refreshing IP Catalog
Click to Display Menu
4.5. Best Practices for Intel FPGA IP
Use the following best practices when working with Intel FPGA IP:
� Do not manually edit or write your own .qsys, .ip, or .qip file. Use the Intel Quartus Prime software tools to create and edit these files.
Note: When generating IP cores, do not generate files into a directory that has a space in the directory name or path. Spaces are not legal characters for IP core paths or names.
� When you generate an IP core using the IP Catalog, the Intel Quartus Prime software generates a .qsys (for Platform Designer-generated IP cores) or a .ip file (for Intel Quartus Prime Pro Edition) or a .qip file. The Intel Quartus Prime Pro Edition software automatically adds the generated .ip to your project. In the Intel Quartus Prime Standard Edition software, add the .qip to your project. Do not add the parameter editor generated file (.v or .vhd) to your design without the .qsys or .qip file. Otherwise, you cannot use the IP upgrade or IP parameter editor feature.
� Plan your directory structure ahead of time. Do not change the relative path between a .qsys file and it's generation output directory. If you must move the .qsys file, ensure that the generation output directory remains with the .qsys file.
� Do not add IP core files directly from the /quartus/libraries/ megafunctions directory in your project. Otherwise, you must update the files for each subsequent software release. Instead, use the IP Catalog and then add the .qip to your project.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 73
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
� Do not use IP files that the Intel Quartus Prime software generates for RAM or FIFO blocks targeting older device families (even though the Intel Quartus Prime software does not issue an error). The RAM blocks that Intel Quartus Prime generates for older device families are not optimized for the latest device families.
� When generating a ROM function, save the resulting .mif or .hex file in the same folder as the corresponding IP core's .qsys or .qip file. For example, moving all of your project's .mif or .hex files to the same directory causes relative path problems after archiving the design.
� Always use the Intel Quartus Prime ip-setup-simulation and ip-makesimscript utilities to generate simulation scripts for each IP core or Platform Designer system in your design. These utilities produce a single simulation script that does not require manual update for upgrades to Intel Quartus Prime software or IP versions, as Simulating Intel FPGA IP Cores on page 84 describes.
4.6. Specifying the IP Core Parameters and Options (Intel Quartus Prime Pro Edition)
Quickly configure Intel FPGA IP cores in the Intel Quartus Prime parameter editor. Double-click any component in the IP Catalog to launch the parameter editor. The parameter editor allows you to define a custom variation of the IP core. The parameter editor generates the IP variation synthesis and optional simulation files, and adds the .ip file representing the variation to your project automatically.
Follow these steps to locate, instantiate, and customize an IP core in the parameter editor:
1. Create or open an Intel Quartus Prime project (.qpf) to contain the instantiated IP variation.
2. In the IP Catalog (Tools IP Catalog), locate and double-click the name of the IP core to customize. To locate a specific component, type some or all of the component's name in the IP Catalog search box. The New IP Variation window appears.
3. Specify a top-level name for your custom IP variation. Do not include spaces in IP variation names or paths. The parameter editor saves the IP variation settings in a file named <your_ip>.ip. Click OK. The parameter editor appears.
Intel Quartus Prime Pro Edition User Guide: Getting Started 74
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Figure 48. IP Parameter Editor (Intel Quartus Prime Pro Edition)
4. Set the parameter values in the parameter editor and view the block diagram for the component. The Parameterization Messages tab at the bottom displays any errors in IP parameters:
� Optionally, select preset parameter values if provided for your IP core. Presets specify initial parameter values for specific applications.
� Specify parameters defining the IP core functionality, port configurations, and device-specific features.
� Specify options for processing the IP core files in other EDA tools.
Note: Refer to your IP core user guide for information about specific IP core parameters.
5. Click Generate HDL. The Generation dialog box appears.
6. Specify output file generation options, and then click Generate. The synthesis and simulation files generate according to your specifications.
7. To generate a simulation testbench, click Generate Generate Testbench System. Specify testbench generation options, and then click Generate.
8. To generate an HDL instantiation template that you can copy and paste into your text editor, click Generate Show Instantiation Template.
9. Click Finish. Click Yes if prompted to add files representing the IP variation to your project.
10. After generating and instantiating your IP variation, make appropriate pin assignments to connect ports.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 75
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Note: Some IP cores generate different HDL implementations according to the IP core parameters. The underlying RTL of these IP cores contains a unique hash code that prevents module name collisions between different variations of the IP core. This unique code remains consistent, given the same IP settings and software version during IP generation. This unique code can change if you edit the IP core's parameters or upgrade the IP core version. To avoid dependency on these unique codes in your simulation environment, refer to Generating a Combined Simulator Setup Script.
4.6.1. IP Core Generation Output (Intel Quartus Prime Pro Edition)
The Intel Quartus Prime software generates the following output file structure for individual IP cores that are not part of a Platform Designer system.
Figure 49.
Individual IP Core Generation Output (Intel Quartus Prime Pro Edition)
<Project Directory> <your_ip>.ip - Top-level IP variation file
<your_ip> - IP core variation files <your_ip>.bsf - Block symbol schematic file <your_ip>.cmp - VHDL component declaration <your_ip>.ppf - XML I/O pin information file <your_ip>.qip - Lists files for IP core synthesis <your_ip>.spd - Simulation startup scripts <your_ip>_bb.v - Verilog HDL black box EDA synthesis file * <your_ip>_generation.rpt - IP generation report <your_ip>_inst.v or .vhd - Lists file for IP core synthesis <your_ip>.qgsimc - Simulation caching file (Platform Designer) <your_ip>.qgsynthc - Synthesis caching file (Platform Designer) sim - IP simulation files <your_ip>.v or vhd - Top-level simulation file
<simulator vendor> - Simulator setup scripts <simulator_setup_scripts>
synth - IP synthesis files <your_ip>.v or .vhd - Top-level IP synthesis file
<IP Submodule>_<version> - IP Submodule Library
sim- IP submodule 1 simulation files
<HDL files> synth - IP submodule 1 synthesis files
<HDL files> <your_ip>_tb - IP testbench system *
<your_testbench>_tb.qsys - testbench system file <your_ip>_tb - IP testbench files
your_testbench> _tb.csv or .spd - testbench file
sim - IP testbench simulation files * If supported and enabled for your IP core variation.
Intel Quartus Prime Pro Edition User Guide: Getting Started 76
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Table 15. Output Files of Intel FPGA IP Generation
File Name <your_ip>.ip
Description
Top-level IP variation file that contains the parameterization of an IP core in your project. If the IP variation is part of a Platform Designer system, the parameter editor also generates a .qsys file.
<your_ip>.cmp <your_ip>_generation.rpt
The VHDL Component Declaration (.cmp) file is a text file that contains local generic and port definitions that you use in VHDL design files.
IP or Platform Designer generation log file. Displays a summary of the messages during IP generation.
<your_ip>.qgsimc (Platform Designer systems only)
Simulation caching file that compares the .qsys and .ip files with the current parameterization of the Platform Designer system and IP core. This comparison determines if Platform Designer can skip regeneration of the HDL.
<your_ip>.qgsynth (Platform Designer systems only)
<your_ip>.csv
Synthesis caching file that compares the .qsys and .ip files with the current parameterization of the Platform Designer system and IP core. This comparison determines if Platform Designer can skip regeneration of the HDL.
Contains information about the upgrade status of the IP component.
<your_ip>.bsf
A symbol representation of the IP variation for use in Block Diagram Files (.bdf).
<your_ip>.spd
Input file that ip-make-simscript requires to generate simulation scripts. The .spd file contains a list of files you generate for simulation, along with information about memories that you initialize.
<your_ip>.ppf
The Pin Planner File (.ppf) stores the port and node assignments for IP components you create for use with the Pin Planner.
<your_ip>_bb.v <your_ip>_inst.v or _inst.vhd <your_ip>.regmap
<your_ip>.svd
<your_ip>.v <your_ip>.vhd
Use the Verilog blackbox (_bb.v) file as an empty module declaration for use as a blackbox.
HDL example instantiation template. Copy and paste the contents of this file into your HDL file to instantiate the IP variation.
If the IP contains register information, the Intel Quartus Prime software generates the .regmap file. The .regmap file describes the register map information of master and slave interfaces. This file complements the .sopcinfo file by providing more detailed register information about the system. This file enables register display views and user customizable statistics in System Console.
Allows HPS System Debug tools to view the register maps of peripherals that connect to HPS within a Platform Designer system. During synthesis, the Intel Quartus Prime software stores the .svd files for slave interface visible to the System Console masters in the .sof file in the debug session. System Console reads this section, which Platform Designer queries for register map information. For system slaves, Platform Designer accesses the registers by name.
HDL files that instantiate each submodule or child IP core for synthesis or simulation.
mentor/
Contains a msim_setup.tcl script to set up and run a ModelSim simulation.
aldec/
Contains a Riviera-PRO* script rivierapro_setup.tcl to setup and run a simulation.
/synopsys/vcs /synopsys/vcsmx
Contains a shell script vcs_setup.sh to set up and run a VCS* simulation.
Contains a shell script vcsmx_setup.sh and synopsys_sim.setup file to set up and run a VCS MX simulation.
/cadence
Contains a shell script ncsim_setup.sh and other setup files to set up and run an NCSim simulation.
continued...
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 77
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
/xcelium
File Name
/submodules <IP submodule>/
Description
Contains an Xcelium* Parallel simulator shell script xcelium_setup.sh and other setup files to set up and run a simulation.
Contains HDL files for the IP core submodule.
Platform Designer generates /synth and /sim sub-directories for each IP submodule directory that Platform Designer generates.
4.6.2. Scripting IP Core Generation
Use the qsys-script and qsys-generate utilities to define and generate an IP core variation outside of the Intel Quartus Prime GUI.
To parameterize and generate an IP core at command-line, follow these steps: 1. Run qsys-script to start a Tcl script that instantiates the IP and sets
parameters:
qsys-script --script=<script_file>.tcl
2. Run qsys-generate to generate the IP core variation:
qsys-generate <IP variation file>.qsys
4.7. Modifying an IP Variation
After generating an IP core variation, use any of the following methods to modify the IP variation in the parameter editor.
Table 16. Modifying an IP Variation
Menu Command File Open
View Project Navigator IP Components
Project Upgrade IP Components
Action
Select the top-level HDL (.v, or .vhd) IP variation file to launch the parameter editor and modify the IP variation. Regenerate the IP variation to implement your changes.
Double-click the IP variation to launch the parameter editor and modify the IP variation. Regenerate the IP variation to implement your changes.
Select the IP variation and click Upgrade in Editor to launch the parameter editor and modify the IP variation. Regenerate the IP variation to implement your changes.
4.8. Upgrading IP Cores
Any Intel FPGA IP variations that you generate from a previous version or different edition of the Intel Quartus Prime software, may require upgrade before compilation in the current software edition or version. The Project Navigator displays a banner indicating the IP upgrade status. Click Launch IP Upgrade Tool or Project Upgrade IP Components to upgrade outdated IP cores.
Intel Quartus Prime Pro Edition User Guide: Getting Started 78
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Figure 50. IP Upgrade Alert in Project Navigator
Icons in the Upgrade IP Components dialog box indicate when IP upgrade is required, optional, or unsupported for an IP variation in the project. Upgrade IP variations that require upgrade before compilation in the current version of the Intel Quartus Prime software.
Note:
Upgrading IP cores may append a unique identifier to the original IP core entity names, without similarly modifying the IP instance name. There is no requirement to update these entity references in any supporting Intel Quartus Prime file, such as the Intel Quartus Prime Settings File (.qsf), Synopsys* Design Constraints File (.sdc),
or Signal Tap File (.stp), if these files contain instance names. The Intel Quartus Prime software reads only the instance name and ignores the entity name in paths that specify both names. Use only instance names in assignments.
Table 17. IP Core Upgrade Status
IP Core Status IP Upgraded
Description Indicates that your IP variation uses the latest version of the Intel FPGA IP core.
IP Component Outdated
Indicates that your IP variation uses an outdated version of the IP core.
IP End of Life
IP Upgrade Mismatch Warning
Indicates that Intel designates the IP core as end-of-life status. You may or may not be able to edit the IP core in the parameter editor. Support for this IP core discontinues in future releases of the Intel Quartus Prime software.
Provides warning of non-critical IP core differences in migrating IP to another device family.
continued...
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 79
IP Core Status
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Description
IP has incompatible subcores Indicates that the current version of the Intel Quartus Prime software does not support compilation of your IP variation, because the IP has incompatible subcores
Compilation of IP Not Supported
Indicates that the current version of the Intel Quartus Prime software does not support compilation of your IP variation. This can occur if another edition of the Intel Quartus Prime software, such as the Intel Quartus Prime Standard Edition, generated this IP. Replace this IP component with a compatible component in the current edition.
Note:
Beginning with the Intel Quartus Prime Pro Edition software version 19.1, IP upgrade supports migration of IP released within one year of the Intel Quartus Prime Pro Edition software version, as the following chart defines:
Figure 51. Intel Quartus Prime Pro Edition IP Version Upgrade Paths
Upgrade IP from Intel Quartus Prime Version
Directly to Version
18.0 18.1
19.1
18.0 18.1 19.1
19.2
18.1 19.1 19.2
19.3
18.1 19.1 19.2 19.3
19.4
19.1 19.2 19.3 19.4
20.1
19.2 19.3 19.4 20.1
20.2
19.3 19.4 20.1 20.2
20.3
Follow these steps to upgrade IP cores:
1. In the latest version of the Intel Quartus Prime software, open the Intel Quartus Prime project containing an outdated IP core variation. The Upgrade IP Components dialog box automatically displays the status of IP cores in your project, along with instructions for upgrading each core. To access this dialog box manually, click Project Upgrade IP Components.
Intel Quartus Prime Pro Edition User Guide: Getting Started 80
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
2. To upgrade one or more IP cores that support automatic upgrade, ensure that you turn on the Auto Upgrade option for the IP cores, and click Auto Upgrade. The Status and Version columns update when upgrade is complete. Example designs that any Intel FPGA IP core provides regenerate automatically whenever you upgrade an IP core.
3. To manually upgrade an individual IP core, select the IP core and click Upgrade in Editor (or simply double-click the IP core name). The parameter editor opens, allowing you to adjust parameters and regenerate the latest version of the IP core.
Figure 52. Upgrading IP Cores (Intel Quartus Prime Pro Edition Example) Opens Parameter Editor for Manual IP Upgrade
Generates/Updates Combined Simulation Setup Script for IP
Runs "Auto Upgrade" on all Outdated Cores
Note: Intel FPGA IP cores older than Intel Quartus Prime software version 12.0 do not support upgrade. Intel verifies that the current version of the Intel Quartus Prime software compiles the previous two versions of each IP core. The Intel FPGA IP Core Release Notes reports any verification exceptions for Intel FPGA IP cores. Intel does not verify compilation for IP cores older than the previous two releases.
Related Information Intel FPGA IP Release Notes
4.8.1. Upgrading IP Cores at Command-Line
Optionally, upgrade an Intel FPGA IP core at the command-line, rather than using the GUI. IP cores that do not support automatic upgrade do not support command-line upgrade.
� To upgrade a single IP core at the command-line, type the following command:
quartus_sh �ip_upgrade �variation_files <my_ip>.<qsys,.v, .vhd> \ <quartus_project>
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 81
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Example: quartus_sh -ip_upgrade -variation_files mega/pll25.qsys hps_testx
� To simultaneously upgrade multiple IP cores at the command-line, type the following command:
quartus_sh �ip_upgrade �variation_files "<my_ip1>.<qsys,.v, .vhd>> \ ; <my_ip_filepath/my_ip2>.<hdl>" <quartus_project>
Example: quartus_sh -ip_upgrade -variation_files "mega/pll_tx2.qsys;mega/ pll3.qsys" hps_testx
4.8.2. Migrating IP Cores to a Different Device
Migrate an Intel FPGA IP variation when you want to target a different (often newer) device. Most Intel FPGA IP cores support automatic migration. Some IP cores require manual IP regeneration for migration. A few IP cores do not support device migration, requiring you to replace them in the project. The Upgrade IP Components dialog box identifies the migration support level for each IP core in the design.
1. To display the IP cores that require migration, click Project Upgrade IP Components. The Description field provides migration instructions and version differences.
2. To migrate one or more IP cores that support automatic upgrade, ensure that the Auto Upgrade option is turned on for the IP cores, and click Perform Automatic Upgrade. The Status and Version columns update when upgrade is complete.
3. To migrate an IP core that does not support automatic upgrade, double-click the IP core name, and click OK. The parameter editor appears. If the parameter editor specifies a Currently selected device family, turn off Match project/default, and then select the new target device family.
4. Click Generate HDL, and confirm the Synthesis and Simulation file options. Verilog HDL is the default output file format. If you specify VHDL as the output format, select VHDL to retain the original output format.
5. Click Finish to complete migration of the IP core. Click OK if the software prompts you to overwrite IP core files. The Device Family column displays the new target device name when migration is complete.
6. To ensure correctness, review the latest parameters in the parameter editor or generated HDL.
Note: IP migration may change ports, parameters, or functionality of the IP variation. These changes may require you to modify your design or to reparameterize your IP variant. During migration, the IP variation's HDL generates into a library that is different from the original output location of the IP core. Update any assignments that reference outdated locations. If a symbol in a supporting Block Design File schematic represents your upgraded IP core, replace the symbol with the newly generated <my_ip>.bsf. Migration of some IP cores requires installed support for the original and migration device families.
Related Information
Intel FPGA IP Release Notes
Intel Quartus Prime Pro Edition User Guide: Getting Started 82
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
4.8.3. Troubleshooting IP or Platform Designer System Upgrade
The Upgrade IP Components dialog box reports the version and status of each Intel FPGA IP core and Platform Designer system following upgrade or migration.
If any upgrade or migration fails, the Upgrade IP Components dialog box provides information to help you resolve any errors.
Note:
Do not use spaces in IP variation names or paths.
During automatic or manual upgrade, the Messages window dynamically displays upgrade information for each IP core or Platform Designer system. Use the following information to resolve upgrade errors:
Table 18. IP Upgrade Error Information
Upgrade IP Components Field
Description
Status
Displays the "Success" or "Failed" status of each upgrade or migration. Click the status of any upgrade that fails to open the IP Upgrade Report.
Version
Dynamically updates the version number when upgrade is successful. The text is red when the IP requires upgrade.
Device Family
Dynamically updates to the new device family when migration is successful. The text is red when the IP core requires upgrade.
Auto Upgrade
Runs automatic upgrade on all IP cores that support auto upgrade. Also, automatically generates a <Project Directory>/ip_upgrade_port_diff_reports report for IP cores or Platform Designer systems that fail upgrade. Review these reports to determine any port differences between the current and previous IP core version.
Use the following techniques to resolve errors if your IP core or Platform Designer system "Failed" to upgrade versions or migrate to another device. Review and implement the instructions in the Description field, including one or more of the following:
� If the current version of the software does not support the IP variant, right-click the component and click Remove IP Component from Project. Replace this IP core or Platform Designer system with the one supported in the current version of the software.
� If the current target device does not support the IP variant, select a supported device family for the project, or replace the IP variant with a suitable replacement that supports your target device.
� If an upgrade or migration fails, click Failed in the Status field to display and review details of the IP Upgrade Report. Click the Release Notes link for the latest known issues about the IP core. Use this information to determine the nature of the upgrade or migration failure and make corrections before upgrade.
� Run Auto Upgrade to automatically generate an IP Ports Diff report for each IP core or Platform Designer system that you upgrade. Review the reports to determine any port differences between the current and previous IP core version. Click Upgrade in Editor to make specific port changes and regenerate your IP core or Platform Designer system.
� If your IP core or Platform Designer system does not support Auto Upgrade, click Upgrade in Editor to resolve errors and regenerate the component in the parameter editor.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 83
Figure 53. IP Port Differences Report
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Report Summary
IP Port Differences
4.9. Simulating Intel FPGA IP Cores
The Intel Quartus Prime software supports IP core RTL simulation in specific EDA simulators. IP generation optionally creates simulation files, including the functional simulation model, any testbench (or example design), and vendor-specific simulator setup scripts for each IP core. You can use the functional simulation model and any testbench or example design for simulation. IP generation output may also include scripts to compile and run any testbench. The scripts list all models or libraries you require to simulate your IP core.
The Intel Quartus Prime software provides integration with many simulators and supports multiple simulation flows, including your own scripted and custom simulation flows. Whichever flow you choose, IP core simulation involves the following steps:
1. Generate IP HDL, testbench (or example design), and simulator setup script files.
2. Set up your simulator environment and any simulation scripts.
3. Compile simulation model libraries.
4. Run your simulator.
4.9.1. Generating IP Simulation Files
The Intel Quartus Prime software optionally generates the functional simulation model, any testbench (or example design), and vendor-specific simulator setup scripts when you generate an IP core from IP Catalog. To specify options for the generation of IP simulation files:
Intel Quartus Prime Pro Edition User Guide: Getting Started 84
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
1. To specify your supported simulator and options for IP simulation file generation, click Assignment Settings EDA Tool Settings Simulation.
2. To parameterize a new IP variation, click Tools IP Catalog. 3. To enable generation of simulation files and generate the IP core synthesis and
simulation files, in the parameter editor, click Generate HDL. The Generation dialog box appears.
Figure 54. Simulation Options in Generation Dialog Box
4. Under Simulation, specify Verilog or VHDL for the Create simulation model option.
5. Turn on or off the ModelSim, VCS-MX, VCS, Riviera-Pro, or Xcelium option to generate simulator setup scripts for the simulation tool. If you turn on no simulator options, the scripts generate for all simulators.
6. Click the Generate button. Platform Designer generates the simulation models and setup scripts for your system or IP component in the (<your_project>/<ip name>sim/<vendor> directory.
4.9.2. Scripting IP Simulation
The Intel Quartus Prime software supports the use of scripts to automate simulation processing in your preferred simulation environment. Use the scripting methodology that you prefer to control simulation.
Use a version-independent, top-level simulation script to control design, testbench, and IP core simulation. Because Intel Quartus Prime-generated simulation file names may change after IP upgrade or regeneration, your top-level simulation script must
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 85
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
"source" the generated setup scripts, rather than using the generated setup scripts directly. Follow these steps to generate or regenerate combined simulator setup scripts:
Figure 55. Incorporating Generated Simulator Setup Scripts into a Top-Level Simulation Script
Top-Level Simulation Script
Specify project-specific settings: TOP_LEVEL_NAME Add optional QSYS_SIMDIR variable Additional compile and elaboration options
Source the Combined IP Setup Simulator Script (e.g., source msim_setup.tcl)
Compile design files: Use generated scripts to compile device libraries and IP files Compile your design and testbench files
Elaborate Simulate
Individual IP Simulation Scripts
Click "Generate Simulator Script for IP"
Combined IP Simulator Script (Includes Templates)
1. Click Project Upgrade IP Components Generate Simulator Script for IP (or run the ip-setup-simulation utility) to generate or regenerate a combined simulator setup script for all IP for each simulator.
2. Use the templates in the generated script to source the combined script in your top-level simulation script. Each simulator's combined script file contains a rudimentary template that you adapt for integration of the setup script into a toplevel simulation script.
This technique eliminates manual update of simulation scripts if you modify or upgrade the IP variation.
4.9.2.1. Generating a Combined Simulator Setup Script (Intel Quartus Prime Pro Edition)
You can run the Generate Simulator Setup Script for IP command to generate a combined simulator setup script.
Note:
This feature is available in the Intel Quartus Prime Pro Edition software for all devices. This feature is available in the Intel Quartus Prime Standard Edition software for only Intel Arria 10 devices.
Source this combined script from a top-level simulation script. Click Tools Generate Simulator Setup Script for IP (or use of the ip-setup-simulation utility at the command-line) to generate or update the combined scripts, after any of the following occur:
� IP core initial generation or regeneration with new parameters
� Intel Quartus Prime software version upgrade
� IP core version upgrade
Intel Quartus Prime Pro Edition User Guide: Getting Started 86
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
To generate a combined simulator setup script for all project IP cores for each simulator:
1. Generate, regenerate, or upgrade one or more IP core. Refer to Generating IP Cores or Upgrading IP Cores.
2. Click Tools Generate Simulator Setup Script for IP (or run the ip-setupsimulation utility). Specify the Output Directory and library compilation options. Click OK to generate the file. By default, the files generate into the / <project directory>/<simulator>/ directory using relative paths.
3. To incorporate the generated simulator setup script into your top-level simulation script, refer to the template section in the generated simulator setup script as a guide to creating a top-level script:
a. Copy the specified template sections from the simulator-specific generated scripts and paste them into a new top-level file.
b. Remove the comments at the beginning of each line from the copied template sections.
c. Specify the customizations you require to match your design simulation requirements, for example:
� Specify the TOP_LEVEL_NAME variable to the design's simulation top-level file. The top-level entity of your simulation is often a testbench that instantiates your design. Then, your design instantiates IP cores or Platform Designer systems. Set the value of TOP_LEVEL_NAME to the toplevel entity.
� If necessary, set the QSYS_SIMDIR variable to point to the location of the generated IP simulation files.
� Compile the top-level HDL file (for example, a test program) and all other files in the design.
� Specify any other changes, such as using the grep command-line utility to search a transcript file for error signatures, or e-mail a report.
4. Re-run Tools Generate Simulator Setup Script for IP (or ip-setupsimulation) after regeneration of an IP variation.
Table 19. Simulation Script Utilities
Utility
Syntax
ip-setup-simulation generates a combined, versionindependent simulation script for all Intel FPGA IP cores in your project. The command also automates regeneration of the script after upgrading software or IP versions. Use the compile-to-work option to compile all simulation files into a single work library if your simulation environment requires. Use the --use-relative-paths option to use relative paths whenever possible.
ip-setup-simulation --quartus-project=<my proj> --output-directory=<my_dir> --use-relative-paths --compile-to-work
--use-relative-paths and --compile-to-work are optional. For command-line help listing all options for these executables, type: <utility name> --help.
ip-make-simscript generates a combined simulation script for all IP cores that you specify on the command line. Specify one or more .spd files and an output directory in the command. Running the script compiles IP simulation models into various simulation libraries.
ip-make-simscript --spd=<ipA.spd,ipB.spd> --output-directory=<directory>
ip-make-simscript generates a combined simulation script for all IP cores and subsystems that you specify on the command line.
ip-make-simscript --system-files=<ipA.ip, ipB.ip> --output-directory=<directory>
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 87
4. Introduction to Intel FPGA IP Cores
UG-20129 | 2021.06.21
4.9.2.1.1. Sourcing Aldec ActiveHDL* or Riviera Pro* Simulator Setup Scripts
Follow these steps to incorporate the generated ActiveHDL* or Riviera Pro* simulation scripts into a top-level project simulation script.
1. The generated simulation script contains the following template lines. Cut and paste these lines into a new file. For example, sim_top.do.
# # Start of template # # If the copied and modified template file is "aldec.do", run it as: # # vsim -c -do aldec.do # # # # Source the generated sim script # source rivierapro_setup.tcl # # Compile eda/sim_lib contents first # dev_com # # Override the top-level name (so that elab is useful) # set TOP_LEVEL_NAME top # # Compile the standalone IP. # com # # Compile the top-level # vlog -sv2k5 ../../top.sv # # Elaborate the design. # elab # # Run the simulation # run # # Report success to the shell # exit -code 0 # # End of template
2. Delete the first two characters of each line (comment and space):
# Start of template # If the copied and modified template file is "aldec.do", run it as: # vsim -c -do aldec.do # # Source the generated sim script # source rivierapro_setup.tcl # Compile eda/sim_lib contents first dev_com # Override the top-level name (so that elab is useful) set TOP_LEVEL_NAME top # Compile the standalone IP. com # Compile the top-level vlog -sv2k5 ../../top.sv # Elaborate the design. elab # Run the simulation run # Report success to the shell exit -code 0 # End of template
3. Modify the TOP_LEVEL_NAME and compilation step appropriately, depending on the simulation's top-level file. For example:
set TOP_LEVEL_NAME sim_top vlog �sv2k5 ../../sim_top.sv
4. If necessary, add the QSYS_SIMDIR variable to point to the location of the generated IP simulation files. Specify any other changes that you require to match your design simulation requirements. The scripts offer variables to set compilation or simulation options. Refer to the generated script for details.
5. Run the new top-level script from the generated simulation directory:
vsim �c �do <path to sim_top>.tcl
Intel Quartus Prime Pro Edition User Guide: Getting Started 88
Send Feedback
4. Introduction to Intel FPGA IP Cores
UG-20129 | 2021.06.21
4.9.2.1.2. Sourcing Cadence Incisive* Simulator Setup Scripts
Follow these steps to incorporate the generated Cadence Incisive* IP simulation scripts into a top-level project simulation script.
1. The generated simulation script contains the following template lines. Cut and paste these lines into a new file. For example, ncsim.sh.
# # Start of template # # If the copied and modified template file is "ncsim.sh", run it as: # # ./ncsim.sh # # # # Do the file copy, dev_com and com steps # source ncsim_setup.sh # SKIP_ELAB=1 # SKIP_SIM=1 # # # Compile the top level module # ncvlog -sv "$QSYS_SIMDIR/../top.sv" # # # Do the elaboration and sim steps # # Override the top-level name # # Override the sim options, so the simulation # # runs forever (until $finish()). # source ncsim_setup.sh # SKIP_FILE_COPY=1 # SKIP_DEV_COM=1 # SKIP_COM=1 # TOP_LEVEL_NAME=top # USER_DEFINED_SIM_OPTIONS="" # # End of template
2. Delete the first two characters of each line (comment and space):
# Start of template # If the copied and modified template file is "ncsim.sh", run it as: # ./ncsim.sh # # Do the file copy, dev_com and com steps source ncsim_setup.sh SKIP_ELAB=1 SKIP_SIM=1 # Compile the top level module ncvlog -sv "$QSYS_SIMDIR/../top.sv" # Do the elaboration and sim steps # Override the top-level name # Override the sim options, so the simulation # runs forever (until $finish()). source ncsim_setup.sh SKIP_FILE_COPY=1 SKIP_DEV_COM=1 SKIP_COM=1 TOP_LEVEL_NAME=top USER_DEFINED_SIM_OPTIONS="" # End of template
3. Modify the TOP_LEVEL_NAME and compilation step appropriately, depending on the simulation's top-level file. For example:
TOP_LEVEL_NAME=sim_top \ ncvlog -sv "$QSYS_SIMDIR/../top.sv"
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 89
4. Introduction to Intel FPGA IP Cores
UG-20129 | 2021.06.21
4. If necessary, add the QSYS_SIMDIR variable to point to the location of the generated IP simulation files. Specify any other changes that you require to match your design simulation requirements. The scripts offer variables to set compilation or simulation options. Refer to the generated script for details.
5. Run the resulting top-level script from the generated simulation directory by specifying the path to ncsim.sh.
4.9.2.1.3. Sourcing Cadence Xcelium Simulator Setup Scripts
1. The generated simulation script contains the following template lines. Cut and paste these lines into a new file. For example, xmsim.sh.
# #Start of template # # Xcelium Simulation Script. # # If the copied and modified template file is "xmsim.sh", run it as: # # ./xmsim.sh # # # # Do the file copy, dev_com and com steps # source <script generation output directory>/xcelium/xcelium_setup.sh \ # SKIP_ELAB=1 \ # SKIP_SIM=1 \ # USER_DEFINED_COMPILE_OPTIONS=<compilation options for your design> \ # USER_DEFINED_VHDL_COMPILE_OPTIONS=<VHDL compilation options for your # design> \ # USER_DEFINED_VERILOG_COMPILE_OPTIONS=<Verilog compilation options for # your design> \ # QSYS_SIMDIR=<script generation output directory> # # # # Compile all design files and testbench files, including the top level. # # (These are all the files required for simulation other than the files # # compiled by the IP script) # # # xmvlog <compilation options> <design and testbench files> # # # # TOP_LEVEL_NAME is used in this script to set the top-level simulation # # or testbench module/entity name. # # # # Run the IP script again to elaborate and simulate the top level: # # - Specify TOP_LEVEL_NAME and USER_DEFINED_ELAB_OPTIONS. # # - Override the default USER_DEFINED_SIM_OPTIONS. For example, to run # # until $finish(), set to an empty string: USER_DEFINED_SIM_OPTIONS="". # # # source <script generation output directory>/xcelium/xcelium_setup.sh \ # SKIP_FILE_COPY=1 \ # SKIP_DEV_COM=1 \ # SKIP_COM=1 \ # TOP_LEVEL_NAME=<simulation top> \ # USER_DEFINED_ELAB_OPTIONS=<elaboration options for your design> \ # USER_DEFINED_SIM_OPTIONS=<simulation options for your design> # # End of template
2. Delete the first two characters of each line (comment and space):
# Start of template # Xcelium Simulation Script (Beta Version). # If the copied and modified template file is "xmsim.sh", run it as: # ./xmsim.sh # # Do the file copy, dev_com and com steps source <script generation output directory>/xcelium/xcelium_setup.sh \ SKIP_ELAB=1 \ SKIP_SIM=1 \ USER_DEFINED_COMPILE_OPTIONS=<compilation options for your design> \ USER_DEFINED_VHDL_COMPILE_OPTIONS=<VHDL compilation options for your design> \
Intel Quartus Prime Pro Edition User Guide: Getting Started 90
Send Feedback
4. Introduction to Intel FPGA IP Cores
UG-20129 | 2021.06.21
USER_DEFINED_VERILOG_COMPILE_OPTIONS=<Verilog compilation options for your design> \ QSYS_SIMDIR=<script generation output directory> # # Compile all design files and testbench files, including the top level. # (These are all the files required for simulation other than the files # compiled by the IP script) # xmvlog <compilation options> <design and testbench files> # # TOP_LEVEL_NAME is used in this script to set the top-level simulation or # testbench module/entity name. # # Run the IP script again to elaborate and simulate the top level: # - Specify TOP_LEVEL_NAME and USER_DEFINED_ELAB_OPTIONS. # - Override the default USER_DEFINED_SIM_OPTIONS. For example, to run # until $finish(), set to an empty string: USER_DEFINED_SIM_OPTIONS="". # source <script generation output directory>/xcelium/xcelium_setup.sh \ SKIP_FILE_COPY=1 \ SKIP_DEV_COM=1 \ SKIP_COM=1 \ TOP_LEVEL_NAME=<simulation top> \ USER_DEFINED_ELAB_OPTIONS=<elaboration options for your design> \ USER_DEFINED_SIM_OPTIONS=<simulation options for your design> # End of template
3. If necessary, add the QSYS_SIMDIR variable to point to the location of the generated IP simulation files. Specify any other changes that you require to match your design simulation requirements. The scripts offer variables to set compilation or simulation options. Refer to the generated script for details.
4. Run the resulting top-level script from the generated simulation directory by specifying the path to xmsim.sh.
4.9.2.1.4. Sourcing Mentor Graphics ModelSim Simulator Setup Scripts
Follow these steps to incorporate the generated ModelSim IP simulation scripts into a top-level project simulation script.
1. The generated simulation script contains the following template lines. Cut and paste these lines into a new file. For example, sim_top.do.
# # Start of template # # If the copied and modified template file is "mentor.do", run it # # as: vsim -c -do mentor.do # # # # Source the generated sim script # source msim_setup.tcl # # Compile eda/sim_lib contents first # dev_com # # Override the top-level name (so that elab is useful) # set TOP_LEVEL_NAME top # # Compile the standalone IP. # com # # Compile the top-level # vlog -sv ../../top.sv # # Elaborate the design. # elab # # Run the simulation # run -a # # Report success to the shell # exit -code 0 # # End of template
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 91
4. Introduction to Intel FPGA IP Cores
UG-20129 | 2021.06.21
2. Delete the first two characters of each line (comment and space):
# Start of template # If the copied and modified template file is "mentor.do", run it # as: vsim -c -do mentor.do # # Source the generated sim script source msim_setup.tcl # Compile eda/sim_lib contents first dev_com # Override the top-level name (so that elab is useful) set TOP_LEVEL_NAME top # Compile the standalone IP. com # Compile the top-level vlog -sv ../../top.sv # Elaborate the design. elab # Run the simulation run -a # Report success to the shell exit -code 0 # End of template
3. Modify the TOP_LEVEL_NAME and compilation step appropriately, depending on the location of the simulation's top-level file. For example:
set TOP_LEVEL_NAME sim_top vlog -sv ../../sim_top.sv
4. If necessary, add the QSYS_SIMDIR variable to point to the location of the generated IP simulation files. Specify any other changes required to match your design simulation requirements. The scripts offer variables to set compilation or simulation options. Refer to the generated script for details.
5. Run the resulting top-level script from the generated simulation directory:
vsim �c �do <path to sim_top>.tcl
4.9.2.1.5. Sourcing Synopsys VCS Simulator Setup Scripts
Follow these steps to incorporate the generated Synopsys VCS simulation scripts into a top-level project simulation script.
1. The generated simulation script contains these template lines. Cut and paste the lines preceding the "helper file" into a new executable file. For example, synopsys_vcs.f.
# # Start of template # # If the copied and modified template file is "vcs_sim.sh", run it # # as: ./vcs_sim.sh # # # # Override the top-level name # # specify a command file containing elaboration options # # (system verilog extension, and compile the top-level). # # Override the sim options, so the simulation # # runs forever (until $finish()). # source vcs_setup.sh # TOP_LEVEL_NAME=top # USER_DEFINED_ELAB_OPTIONS="'-f ../../../synopsys_vcs.f'" # USER_DEFINED_SIM_OPTIONS="" # # # helper file: synopsys_vcs.f # +systemverilogext+.sv # ../../../top.sv # # End of template
Intel Quartus Prime Pro Edition User Guide: Getting Started 92
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
2. Delete the first two characters of each line (comment and space) for the vcs.sh file, as shown below:
# Start of template # If the copied and modified template file is "vcs_sim.sh", run it # as: ./vcs_sim.sh # # Override the top-level name # specify a command file containing elaboration options # (system verilog extension, and compile the top-level). # Override the sim options, so the simulation # runs forever (until $finish()). source vcs_setup.sh TOP_LEVEL_NAME=top USER_DEFINED_ELAB_OPTIONS="'-f ../../../synopsys_vcs.f'" USER_DEFINED_SIM_OPTIONS=""
3. Delete the first two characters of each line (comment and space) for the synopsys_vcs.f file, as shown below:
# helper file: synopsys_vcs.f +systemverilogext+.sv ../../../top.sv
# End of template
4. Modify the TOP_LEVEL_NAME and compilation step appropriately, depending on the simulation's top-level file. For example:
TOP_LEVEL_NAME=sim_top
5. If necessary, add the QSYS_SIMDIR variable to point to the location of the generated IP simulation files. Specify any other changes required to match your design simulation requirements. The scripts offer variables to set compilation or simulation options. Refer to the generated script for details.
6. Run the resulting top-level script from the generated simulation directory by specifying the path to vcs_sim.sh.
4.9.2.1.6. Sourcing Synopsys VCS MX Simulator Setup Scripts
Follow these steps to incorporate the generated Synopsys VCS MX simulation scripts for use in top-level project simulation scripts.
1. The generated simulation script contains these template lines. Cut and paste the lines preceding the "helper file" into a new executable file. For example, vcsmx.sh.
# # Start of template # # If the copied and modified template file is "vcsmx_sim.sh", run # # it as: ./vcsmx_sim.sh # # # # Do the file copy, dev_com and com steps # source vcsmx_setup.sh # SKIP_ELAB=1
# SKIP_SIM=1 # # # Compile the top level module # vlogan +v2k
+systemverilogext+.sv "$QSYS_SIMDIR/../top.sv"
# # Do the elaboration and sim steps # # Override the top-level name # # Override the sim options, so the simulation runs # # forever (until $finish()). # source vcsmx_setup.sh
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 93
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
# SKIP_FILE_COPY=1 # SKIP_DEV_COM=1 # SKIP_COM=1 # TOP_LEVEL_NAME="'-top top'" # USER_DEFINED_SIM_OPTIONS="" # # End of template
2. Delete the first two characters of each line (comment and space), as shown below:
# Start of template # If the copied and modified template file is "vcsmx_sim.sh", run # it as: ./vcsmx_sim.sh # # Do the file copy, dev_com and com steps source vcsmx_setup.sh SKIP_ELAB=1 SKIP_SIM=1
# Compile the top level module vlogan +v2k +systemverilogext+.sv "$QSYS_SIMDIR/../top.sv"
# Do the elaboration and sim steps # Override the top-level name # Override the sim options, so the simulation runs # forever (until $finish()). source vcsmx_setup.sh SKIP_FILE_COPY=1 SKIP_DEV_COM=1 SKIP_COM=1 TOP_LEVEL_NAME="'-top top'" USER_DEFINED_SIM_OPTIONS="" # End of template
3. Modify the TOP_LEVEL_NAME and compilation step appropriately, depending on the simulation's top-level file. For example:
TOP_LEVEL_NAME="'-top sim_top'"
4. Make the appropriate changes to the compilation of your top-level file, for example:
vlogan +v2k +systemverilogext+.sv "$QSYS_SIMDIR/../sim_top.sv"
5. If necessary, add the QSYS_SIMDIR variable to point to the location of the generated IP simulation files. Specify any other changes required to match your design simulation requirements. The scripts offer variables to set compilation or simulation options. Refer to the generated script for details.
6. Run the resulting top-level script from the generated simulation directory by specifying the path to vcsmx_sim.sh.
4.10. Simulating Platform Designer Systems
You can simulate your Platform Designer system in a supported third-party simulator to verify and debug system operation. When you Generate HDL for your system or IP component, Platform Designer can also optionally generate the corresponding simulation models, along with scripts to set up your supported simulator.
Intel Quartus Prime Pro Edition User Guide: Getting Started 94
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
To generate the simulation model and simulator setup scripts for your Platform Designer system or component, follow these steps: 1. In Platform Designer, click Generate Generate HDL. The Generation dialog
box appears. 2. Under Simulation, specify Verilog or VHDL for the Create simulation model
option. 3. Turn on or off the ModelSim, VCS-MX, VCS, Riviera-Pro, or Xcelium option to
generate simulator setup scripts for the simulation tool. If you turn on no simulator options, the scripts generate for all simulators. 4. Click the Generate button. Platform Designer generates the simulation models and setup scripts for your system or IP component in the following directory:
<top-level system name>/<system name>/<sim>/<simulator>
Figure 56. Simulation Options in Generation Dialog Box
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 95
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Figure 57.
Generated Simulation Files Location
<project_directory>
<system_name> sim - IP simulation files <your_system>.v or vhd - Top-level simulation file
<simulator vendor>
<simulator> - Simulator setup scripts common - IP simulation script files
<simulator vendor>_files.tcl
By default, Platform Designer generates the simulation scripts for the currently loaded system and all subsystems. Alternatively, you can open a subsystem to generate a simulation script only for that subsystem.
You can use scripts to compile the required device libraries and system design files in the correct order and elaborate or load the top-level system for simulation.
Table 20.
Simulation Script Variables
The simulation scripts provide variables that allow flexibility in your simulation environment.
Variable
Description
TOP_LEVEL_NAME
If the testbench Platform Designer system is not the top-level instance in your simulation environment because you instantiate the Platform Designer testbench within your own toplevel simulation file, set the TOP_LEVEL_NAME variable to the top-level hierarchy name.
QSYS_SIMDIR
If the simulation files generated by Platform Designer are not in the simulation working directory, use the QSYS_SIMDIR variable to specify the directory location of the Platform Designer simulation files.
QUARTUS_INSTALL_DIR
Points to the Quartus installation directory that contains the device family library.
Example 1. Top-Level Simulation HDL File for a Testbench System
The example below shows the pattern_generator_tb generated for a Platform Designer system called pattern_generator. The top.sv file defines the top-level module that instantiates the pattern_generator_tb simulation model, as well as a custom SystemVerilog test program with BFM transactions, called test_program.
module top(); pattern_generator_tb tb(); test_program pgm();
endmodule
4.11. Synthesizing IP Cores in Other EDA Tools
Optionally, use another supported EDA tool to synthesize a design that includes Intel FPGA IP cores. When you generate the IP core synthesis files for use with third-party EDA synthesis tools, you can create an area and timing estimation netlist. To enable generation, turn on Create timing and resource estimates for third-party EDA synthesis tools when customizing your IP variation.
Intel Quartus Prime Pro Edition User Guide: Getting Started 96
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
The area and timing estimation netlist describes the IP core connectivity and architecture, but does not include details about the true functionality. This information enables certain third-party synthesis tools to better report area and timing estimates. In addition, synthesis tools can use the timing information to achieve timing-driven optimizations and improve the quality of results.
The Intel Quartus Prime software generates the <variant name>_syn.v netlist file in Verilog HDL format, regardless of the output file format you specify. If you use this netlist for synthesis, you must include the IP core wrapper file <variant name>.v or <variant name> .vhd in your Intel Quartus Prime project.
4.12. Instantiating IP Cores in HDL
Instantiate an IP core directly in your HDL code by calling the IP core name and declaring the IP core's parameters. This approach is similar to instantiating any other module, component, or subdesign. When instantiating an IP core in VHDL, you must include the associated libraries.
4.12.1. Example Top-Level Verilog HDL Module
Verilog HDL ALTFP_MULT in Top-Level Module with One Input Connected to Multiplexer.
module MF_top (a, b, sel, datab, clock, result); input [31:0] a, b, datab; input clock, sel; output [31:0] result; wire [31:0] wire_dataa;
assign wire_dataa = (sel)? a : b; altfp_mult inst1 (.dataa(wire_dataa), .datab(datab), .clock(clock), .result(result));
defparam inst1.pipeline = 11, inst1.width_exp = 8, inst1.width_man = 23, inst1.exception_handling = "no";
endmodule
4.12.2. Example Top-Level VHDL Module
VHDL ALTFP_MULT in Top-Level Module with One Input Connected to Multiplexer.
library ieee; use ieee.std_logic_1164.all; library altera_mf; use altera_mf.altera_mf_components.all;
entity MF_top is
port (clock, sel : in std_logic;
a, b, datab : in std_logic_vector(31 downto 0);
result
: out std_logic_vector(31 downto 0));
end entity;
architecture arch_MF_top of MF_top is signal wire_dataa : std_logic_vector(31 downto 0); begin
wire_dataa <= a when (sel = '1') else b;
inst1 : altfp_mult
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 97
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
generic map ( pipeline => 11, width_exp => 8, width_man => 23, exception_handling => "no")
port map ( dataa => wire_dataa, datab => datab, clock => clock, result => result);
end arch_MF_top;
4.13. Support for the IEEE 1735 Encryption Standard
The Intel Quartus Prime Pro Edition software supports the IEEE 1735 v1 encryption standard for IP core file decryption. You can encrypt the Verilog HDL or VHDL IP files with the encrypt_1735 utility, or with a third-party encryption tool that supports the IEEE 1735 standard. You can then use the encrypted files in the Intel Quartus Prime Pro Edition software and simulation tools that support the IEEE 1735 encryption standard.
The encryption key is the same for Verilog HDL and VHDL. You can pass parameters to the instantiation of an encrypted module using the same method as a non-encrypted module.
Type encrypt_1735 --help at the Intel Quartus Prime command line to view syntax and all supported options for the encrypt_1735 utility.
encrypt_1735 [-h | --help[=<option|topic>] | -v] encrypt_1735 <other options>
Options: --------
-? -f <argument file> -h --256_bit[=<value>] --help[=<option|topic>] --language=<verilog | systemverilog| vhdl> --lower_priority --of=<some_file> --quartus --simulation[=<aldec | cadence | mentor | synopsys (comma delimited)>] --tcl_jou_file=<[tcl_jou_filename=]on|off> --tcl_log_file=<[tcl_log_filename=]on|off>
Adding the following Verilog or VHDL pragma to your RTL, along with the public key, enables the Intel Quartus Prime software to use the key to decrypt IP core files.
Verilog/SystemVerilog Encryption Pragma (Third-Party Tools):
`pragma protect key_keyowner="Intel Corporation" `pragma protect data_method="aes128-cbc" `pragma protect key_method="rsa" `pragma protect key_keyname="Intel-FPGA-Quartus-RSA-1" `pragma protect key_public_key <encrypted session key>
`pragma protect begin `pragma protect end
Intel Quartus Prime Pro Edition User Guide: Getting Started 98
Send Feedback
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Note:
VHDL Encryption Pragma (Third-Party Tools):
`protect key_keyowner = "Intel Corporation" `protect data_method="aes128-cbc" `protect key_method = "rsa" `protect key_keyname = "Intel-FPGA-Quartus-RSA-1" `protect key_block <Encrypted session key>
Only file encryption with a third-party tool requires the public encryption key. File encryption with the Intel Quartus Prime Pro Edition software does not require the public encryption key.
Use one of the following methods to obtain the public encryption key: � To obtain the encryption key, login or register for a My-Intel account, and then
submit an Intel Premier Support case requesting the encryption key. � If you are ineligible for Intel Premier Support, you can submit a question regarding
the "IEEE 1735 Encryption Public Key" to the Intel Community Forum for assistance.
The Intel Quartus Prime Standard Edition software does not support IEEE 1735 encryption.
Related Information � My-Intel.com � Intel Community Forum
4.14. Introduction to Intel FPGA IP Cores Revision History
This chapter has the following revision history.
Document Version 2021.03.29 2020.11.09
2019.09.30
Intel Quartus Prime Version 21.1
20.3
19.3
Changes
� Enhanced Simulating Intel FPGA Designs topic with screenshot, links, and additional contextual details.
� Updated supported simulator versions and removed support for Cadence Incisive Enterprise* in Simulator Support topic.
� Revised Generating IP Simulation Files topic for new simulation file output options.
� Revised Using the EDA Netlist Writer wording for clarity.
� Revised "Introduction to Intel FPGA IP Cores" topic to include Bridges and Adapters and Intel FPGA Interconnect categories in IP Catalog.Updated IP Catalog image.
� Revised wording of "Intel FPGA IP Versioning" topic for clarity. � Added screenshot to "Checking the IP License Status" topic. � Added "IP Version Upgrade Paths" diagram to "Upgrading IP
Cores" topic. � Updated IP Port Differences Report image in "Troubleshooting
IP or System Upgrade" topic.
� Added "Checking the IP License Status" topic. � Added details to "Support for the IEEE 1735 Encryption
Standard." � Added Intel FPGA IP Versioning" topic.
continued...
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 99
4. Introduction to Intel FPGA IP Cores UG-20129 | 2021.06.21
Document Version 2019.05.13 2018.10.24 2018.09.24
2018.05.07
2017.11.06 2017.05.08 2016.10.31
2018.05.07
Intel Quartus Prime Version 18.1 18.1 18.1
18.0
17.1 17.0 16.1
18.0
Changes
� Added archives topic. � Updated the keyname and added --help information to
"Support for the IEEE 1735 Encryption Standard."
� Updated information about obtaining IEEE 1735 Encryption key.
� Added statement that the Intel Quartus Prime software installer does not support spaces in the installation path.
� Added "Intel FPGA IP Best Practices" topic. � Divided "Introduction to Intel FPGA IP Cores" into separate
chapter of Getting Started User Guide.
� Updated screenshots of IP Catalog and Parameter Editor for latest IP names.
� Added note about Generate Combined Simulator Setup Scripts command limitations.
� Added information about generation of simulation files for Xcelium*
� Revised product branding for Intel standards. � Revised topics on Intel FPGA IP Evaluation Mode (formerly
OpenCore).
� Added note that IP core encryption is supported only in Intel Quartus Prime Pro Edition.
� Revised product branding for Intel standards.
� Removed references to .qsys file creation during Intel Quartus Prime Pro Edition stand-alone IP generation.
� Added references to .ip file creation during Intel Quartus Prime Pro Edition stand-alone IP generation.
� Updated IP Core Generation Output files list and diagram. � Indicated distinctions between Intel Quartus Prime Pro Edition
and Intel Quartus Prime Standard Edition features. � Added Support for IP Core Encryption topic.
Initial release as separate chapter of Getting Started User Guide.
Intel Quartus Prime Pro Edition User Guide: Getting Started 100
Send Feedback
UG-20129 | 2021.06.21 Send Feedback
5. Migrating to Intel Quartus Prime Pro Edition
Note:
The Intel Quartus Prime Pro Edition software supports migration of Intel Quartus Prime Standard Edition, Quartus Prime Lite Edition, and Quartus II software projects.
The migration steps for Quartus Prime Lite Edition, Intel Quartus Prime Standard Edition, and the Quartus II software are identical. For brevity, this section refers to these design tools collectively as "other Quartus software products."
Migrating to Intel Quartus Prime Pro Edition requires the following changes to other Quartus software product projects: 1. Upgrade project assignments and constraints with equivalent Intel Quartus Prime
Pro Edition assignments. 2. Upgrade all Intel FPGA IP core variations and Platform Designer systems in your
project. 3. Upgrade design RTL to standards-compliant VHDL, Verilog HDL, or SystemVerilog.
This document describes each migration step in detail.
5.1. Keep Pro Edition Project Files Separate
The Intel Quartus Prime Pro Edition software does not support project or constraint files from other Quartus software products. Do not place project files from other Quartus software products in the same directory as Intel Quartus Prime Pro Edition project files. In general, use Intel Quartus Prime Pro Edition project files and directories only for Intel Quartus Prime Pro Edition projects, and use other Quartus software product files only with those software tools.
Intel Quartus Prime Pro Edition projects do not support compilation in other Quartus software products, and vice versa. The Intel Quartus Prime Pro Edition software generates an error if the Compiler detects other Quartus software product's features in project files.
Before migrating other Quartus software product projects, click Project Archive Project to save a copy of your original project before making modifications for migration.
5.2. Upgrade Project Assignments and Constraints
Intel Quartus Prime Pro Edition software introduces changes to handling of project assignments and constraints that the Quartus Settings File (.qsf) stores. Upgrade other Quartus software product project assignments and constraints for migration to the Intel Quartus Prime Pro Edition software. Upgrade other Quartus software product assignments with Assignments Assignment Editor, by editing the .qsf file directly, or by using a Tcl script.
Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
The following sections detail each type project assignment upgrade that migration requires.
Related Information � Modify Entity Name Assignments on page 102 � Resolve Timing Constraint Entity Names on page 102 � Verify Generated Node Name Assignments on page 103 � Replace Logic Lock (Standard) Regions on page 103 � Modify Signal Tap Logic Analyzer Files on page 105 � Remove Unsupported Feature Assignments on page 106
5.2.1. Modify Entity Name Assignments
Intel Quartus Prime Pro Edition software supports assignments that include instance names without a corresponding entity name. � "a_entity:a|b_entity:b|c_entity:c" (includes deprecated entity names)
� "a|b|c" (omits deprecated entity names)
While the current version of the Intel Quartus Prime Pro Edition software still accepts entity names in the .qsf, the Compiler ignores the entity name. The Compiler generates a warning message upon detection of an entity names in the .qsf. Whenever possible, you should remove entity names from assignments, and discontinue reliance on entity-based assignments. Future versions of the Intel Quartus Prime Pro Edition software may eliminate all support for entity-based assignments.
5.2.2. Resolve Timing Constraint Entity Names
The Intel Quartus Prime Pro Edition Timing Analyzer honors entity names in Synopsys Design Constraints (.sdc) files.
Use .sdc files from other Quartus software products without modification. However, any scripts that include custom processing of names that the .sdc command returns, such as get_registers may require modification. Your scripts must reflect that returned strings do not include entity names.
The .sdc commands respect wildcard patterns containing entity names. Review the Timing Analyzer reports to verify application of all constraints. The following example illustrates differences between functioning and non-functioning .sdc scripts:
# Apply a constraint to all registers named "acc" in the entity "counter". # This constraint functions in both SE and PE, because the SDC # command always understands wildcard patterns with entity names in them set_false_path �to [get_registers "counter:*|*acc"]
# This does the same thing, but first it converts all register names to # strings, which includes entity names by default in the SE # but excludes them by default in the PE. The regexp will therefore # fail in PE by default. # # This script would also fail in the SE, and earlier # versions of Quartus II, if entity name display had been disabled # in the QSF. set all_reg_strs [query_collection �list �all [get_registers *]] foreach keeper $all_reg_strs {
if {[regexp {counter:*|:*acc} $keeper]} {
Intel Quartus Prime Pro Edition User Guide: Getting Started 102
Send Feedback
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
set_false_path �to $keeper } }
Removal of the entity name processing from .sdc files may not be possible due to complex processing involving node names. Use standard .sdc whenever possible to replace such processing. Alternatively, add the following code to the top and bottom of your script to temporarily re-enable entity name display in the .sdc file:
# This script requires that entity names be included # due to custom name processing set old_mode [set_project_mode -get_mode_value always_show_entity_name] set_project_mode -always_show_entity_name on
<... the rest of your script goes here ...>
# Restore the project mode set_project_mode -always_show_entity_name $old_mode
5.2.3. Verify Generated Node Name Assignments
Intel Quartus Prime synthesis generates and automatically names internal design nodes during processing. The Intel Quartus Prime Pro Edition uses different conventions than other Quartus software products to generate node names during synthesis. When you synthesize your other Quartus software product project in Intel Quartus Prime Pro Edition, the synthesis-generated node names may change. If any scripts or constraints depend on the synthesis-generated node names, update the scripts or constraints to match the Intel Quartus Prime Pro Edition synthesis node names.
Avoid dependence on synthesis-generated names due to frequent changes in name generation. In addition, verify the names of duplicated registers and PLL clock outputs to ensure compatibility with any script or constraint.
5.2.4. Replace Logic Lock (Standard) Regions
Intel Quartus Prime Pro Edition software introduces more simplified and flexible Logic Lock constraints, compared with previous Logic Lock regions. You must replace all Logic Lock (Standard) assignments with compatible Logic Lock assignments for migration.
To convert Logic Lock (Standard) regions to Logic Lock regions:
1. Edit the .qsf to delete or comment out all of the following Logic Lock assignments:
set_global_assignment -name LL_ENABLED* set_global_assignment -name LL_AUTO_SIZE* set_global_assignment -name LL_STATE FLOATING* set_global_assignment -name LL_RESERVED* set_global_assignment -name LL_CORE_ONLY* set_global_assignment -name LL_SECURITY_ROUTING_INTERFACE* set_global_assignment -name LL_IGNORE_IO_BANK_SECURITY_CONSTRAINT* set_global_assignment -name LL_PR_REGION* set_global_assignment -name LL_ROUTING_REGION_EXPANSION_SIZE* set_global_assignment -name LL_WIDTH* set_global_assignment -name LL_HEIGHT set_global_assignment -name LL_ORIGIN set_instance_assignment -name LL_MEMBER_OF
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 103
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
2. Edit the .qsf or click Tools Chip Planner to define new Logic Lock regions. Logic Lock constraint syntax is simplified, for example:
set_instance_assignment -name PLACE_REGION "1 1 20 20" -to fifo1 set_instance_assignment -name RESERVE_PLACE_REGION OFF -to fifo1 set_instance_assignment -name CORE_ONLY_PLACE_REGION OFF -to fifo1
Compilation fails if synthesis finds other Quartus software product's Logic Lock assignments in an Intel Quartus Prime Pro Edition project. The following table compares other Quartus software product region constraint support with the Intel Quartus Prime Pro Edition software.
Table 21. Region Constraints Per Edition
Constraint Type
Fixed rectangular, nonrectangular or noncontiguous regions
Chip Planner entry
Periphery element assignments
Nested ("hierarchical") regions
Reserved regions
Logic Lock (Standard) Region Support Other Quartus Software Products
Full support.
Full support. Supported in some instances.
Supported but separate hierarchy from the user instance tree. Limited support for nested or nonrectangular reserved regions. Reserved regions typically cannot cross I/O columns; use non-contiguous regions instead.
Routing regions
Floating or autosized regions Region names
Limited support via "routing expansion." No support with hierarchical regions. Full support.
Regions have names.
Multiple instances in the same region
Full support.
Member exclusion
Full support.
Logic Lock Region Support Intel Quartus Prime Pro Edition
Full support.
Full support.
Full support. Use "core-only" regions to exclude the periphery.
Supported in same hierarchy as user instance tree.
Full support for nested and nonrectangular regions. Reserved regions can cross I/O columns without affecting periphery logic if the regions are "core-only".
Full support (including future support for hierarchical regions).
No support.
Regions are identified by the instance name of the constrained logic.
Support for non-reserved regions. Create one region per instance, and then specify the same definition for multiple instances to assign to the same area. Not supported for reserved regions.
No support for arbitrary logic. Use a core-only region to exclude periphery elements. Use non-rectangular regions to include more RAM or DSP columns as needed.
5.2.4.1. Logic Lock Region Assignment Examples
These examples show the syntax of Logic Lock region assignments in the .qsf file. Optionally, enter these assignments in the Assignment Editor, the Logic Lock Regions Window, or the Chip Planner.
Intel Quartus Prime Pro Edition User Guide: Getting Started 104
Send Feedback
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
Example 2. Assign Rectangular Logic Lock Region
Assigns a rectangular Logic Lock region to a lower right corner location of (10,10), and an upper right corner of (20,20) inclusive.
set_instance_assignment �name PLACE_REGION �to a|b|c "X10 Y10 X20 Y20"
Example 3. Assign Non-Rectangular Logic Lock Region
Assigns instance with full hierarchical path "x|y|z" to non-rectangular L-shaped Logic Lock region. The software treats each set of four numbers as a new box.
set_instance_assignment �name PLACE_REGION �to x|y|z "X10 Y10 X20 Y50; X20 Y10 X50 Y20"
Example 4. Assign Subordinate Logic Lock Instances
By default, the Intel Quartus Prime software constrains every child instance to the Logic Lock region of its parent. Any constraint to a child instance intersects with the constraint of its ancestors. For example, in the following example, all logic beneath "a|b|c|d" constrains to box (10,10), (15,15), and not (0,0), (15,15). This result occurs because the child constraint intersects with the parent constraint.
set_instance_assignment �name PLACE_REGION �to a|b|c "X10 Y10 X20 Y20" set_instance_assignment �name PLACE_REGION �to a|b|c|d "X0 Y0 X15 Y15"
Example 5. Assign Multiple Logic Lock Instances
By default, a Logic Lock region constraint allows logic from other instances to share the same region. These assignments place instance c and instance g in the same location. This strategy is useful if instance c and instance g are heavily interacting.
set_instance_assignment �name PLACE_REGION �to a|b|c "X10 Y10 X20 Y20" set_instance_assignment �name PLACE_REGION �to e|f|g "X10 Y10 X20 Y20"
Example 6. Assigned Reserved Logic Lock Regions
Optionally reserve an entire Logic Lock region for one instance and any of its subordinate instances.
set_instance_assignment �name PLACE_REGION �to a|b|c "X10 Y10 X20 Y20" set_instance_assignment �name RESERVE_PLACE_REGION �to a|b|c ON
# The following assignment causes an error. The logic in e|f|g is not # legally placeable anywhere: # set_instance_assignment �name PLACE_REGION �to e|f|g "X10 Y10 X20 Y20"
# The following assignment does *not* cause an error, but is effectively # constrained to the box (20,10), (30,20), since the (10,10),(20,20) box is reserved # for a|b|c set_instance_assignment �name PLACE_REGION �to e|f|g "X10 Y10 X30 Y20"
5.2.5. Modify Signal Tap Logic Analyzer Files
Intel Quartus Prime Pro Edition introduces new methodology for entity names, settings, and assignments. These changes impact the processing of Signal Tap Logic Analyzer Files (.stp).
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 105
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
If you migrate a project that includes .stp files generated by other Quartus software products, you must make the following changes to migrate to the Intel Quartus Prime Pro Edition:
1. Remove entity names from .stp files. The Signal Tap Logic Analyzer allows without error, but ignores, entity names in .stp files. Remove entity names from .stp files for migration to Intel Quartus Prime Pro Edition:
a. Click View Node Finder to locate and remove appropriate nodes. Use Node Finder options to filter on nodes.
b. Click Processing Start Start Analysis & Elaboration to repopulate the database and add valid node names.
2. Remove post-fit nodes. Intel Quartus Prime Pro Edition uses a different post-fit node naming scheme than other Quartus software products.
a. Remove post-fit tap node names originating from other Quartus software products.
b. Click View Node Finder to locate and remove post-fit nodes. Use Node Finder options to filter on nodes.
c. Click Processing Start Compilation to repopulate the database and add valid post-fit nodes.
3. Run an initial compilation in Intel Quartus Prime Pro Edition from the GUI. The Compiler automatically removes Signal Tap assignments originating other Quartus software products. Alternatively, from the command-line, run quartus_stp once on the project to remove outmoded assignments.
Note: quartus_stp introduces no migration impact in the Intel Quartus Prime Pro Edition. Your scripts require no changes to quartus_stp for migration.
4. Modify .sdc constraints for JTAG. Intel Quartus Prime Pro Edition does not support embedded .sdc constraints for JTAG signals. Modify the timing template to suit the design's JTAG driver and board.
5.2.6. Remove References to .qip Files
In Intel Quartus Prime Standard Edition projects, Platform Designer (Standard) generates .qip files. These files describe the parameterized IP cores to the Compiler, and appear as assignments in the project's .qsf file. However, in Intel Quartus Prime Pro Edition projects, the parameterized IP core description occurs in .ip files. Moreover, references to .qip files in a project's .qsf file cause synthesis errors during compilation.
� When migrating a project to Intel Quartus Prime Pro Edition, remove all references to .qip files from the .qsf file.
5.2.7. Remove Unsupported Feature Assignments
The Intel Quartus Prime Pro Edition software does not support some feature assignments that other Quartus software products support. Remove the following unsupported feature assignments from other Quartus software product .qsf files for migration to the Intel Quartus Prime Pro Edition software.
Intel Quartus Prime Pro Edition User Guide: Getting Started 106
Send Feedback
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
� Incremental Compilation (partitions)--The current version of the Intel Quartus Prime Pro Edition software does not support Intel Quartus Prime Standard Edition incremental compilation. Remove all incremental compilation feature assignments from other Quartus software product .qsf files before migration.
� Intel Quartus Prime Standard Edition Physical synthesis assignments. Intel Quartus Prime Pro Edition software does not support Intel Quartus Prime Standard Edition Physical synthesis assignments. Remove any of the following assignments from the .qsf file or design RTL (instance assignments) before migration.
PHYSICAL_SYNTHESIS_COMBO_LOGIC_FOR_AREA PHYSICAL_SYNTHESIS_COMBO_LOGIC PHYSICAL_SYNTHESIS_REGISTER_DUPLICATION PHYSICAL_SYNTHESIS_REGISTER_RETIMING PHYSICAL_SYNTHESIS_ASYNCHRONOUS_SIGNAL_PIPELINING PHYSICAL_SYNTHESIS_MAP_LOGIC_TO_MEMORY_FOR_AREA
5.3. Upgrade IP Cores and Platform Designer Systems
Upgrade all IP cores and Platform Designer systems in your project for migration to the Intel Quartus Prime Pro Edition software. The Intel Quartus Prime Pro Edition software uses standards-compliant methodology for instantiation and generation of IP cores and Platform Designer systems. Most Intel FPGA IP cores and Platform Designer systems upgrade automatically in the Upgrade IP Components dialog box.
Other Quartus software products use a proprietary Verilog configuration scheme within the top level of IP cores and Platform Designer systems for synthesis files. The Intel Quartus Prime Pro Edition does not support this scheme. To upgrade all IP cores and Platform Designer systems in your project, click Project Upgrade IP Components.(2)
Table 22. IP Core and Platform Designer System Differences
Other Quartus Software Products
Intel Quartus Prime Pro Edition
IP and Platform Designer system generation use a proprietary Verilog HDL configuration scheme within the top level of IP cores and Platform Designer systems for synthesis files. This proprietary Verilog HDL configuration scheme prevents RTL entities from ambiguous instantiation errors during synthesis. However, these errors may manifest in simulation. Resolving this issue requires writing a Verilog HDL configuration to disambiguate the instantiation, delete the duplicate entity from the project, or rename one of the conflicting entities. Intel Quartus Prime Pro Edition IP strategy resolves these issues.
IP and Platform Designer system generation does not use proprietary Verilog HDL configurations. The compilation library scheme changes in the following ways:
� Compiles all variants of an IP core into the same compilation library across the entire project. Intel Quartus Prime Pro Edition identically names IP cores with identical functionality and parameterization to avoid ambiguous entity instantiation errors. For example, the files for every Intel Arria 10 PCI Express* IP core variant compile into the altera_pcie_a10_hip_151 compilation library.
� Simulation and synthesis file sets for IP cores and systems instantiate entities in the same manner.
� The generated RTL directory structure now matches the compilation library structure.
Note:
For complete information on upgrading IP cores, refer to Managing Intel Quartus Prime Projects.
Related Information � Introduction to Intel FPGA IP Cores on page 65
(2) For brevity, this section refers to Intel Quartus Prime Standard Edition, Intel Quartus Prime Lite Edition, and the Quartus II software collectively as "other Quartus software products."
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 107
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
� Managing Intel Quartus Prime Projects on page 10
5.4. Upgrade Non-Compliant Design RTL
The Intel Quartus Prime Pro Edition software introduces a new synthesis engine (quartus_syn executable).
The quartus_syn synthesis enforces stricter industry-standard HDL structures and supports the following enhancements in this release: � Support for modules with SystemVerilog Interfaces � Improved support for VHDL2008 � New RAM inference engine infers RAMs from GENERATE statements or array of
integers � Stricter syntax/semantics check for improved compatibility with other EDA tools
Account for these synthesis differences in existing RTL code by ensuring that your design uses standards-compliant VHDL, Verilog HDL, or SystemVerilog. The Compiler generates errors when processing non-compliant RTL. Use the guidelines in this section to modify existing RTL for compatibility with the Intel Quartus Prime Pro Edition synthesis.
Related Information � Verify Verilog Compilation Unit on page 108 � Update Entity Auto-Discovery on page 109 � Ensure Distinct VHDL Namespace for Each Library on page 110 � Remove Unsupported Parameter Passing on page 110 � Remove Unsized Constant from WYSIWYG Instantiation on page 110 � Remove Non-Standard Pragmas on page 111 � Declare Objects Before Initial Values on page 111 � Confine SystemVerilog Features to SystemVerilog Files on page 111 � Avoid Assignment Mixing in Always Blocks on page 112 � Avoid Unconnected, Non-Existent Ports on page 112 � Avoid Illegal Parameter Ranges on page 112 � Update Verilog HDL and VHDL Type Mapping on page 113
5.4.1. Verify Verilog Compilation Unit
Intel Quartus Prime Pro Edition synthesis uses a different method to define the compilation unit. The Verilog LRM defines the concept of compilation unit as "a collection of one or more Verilog source files compiled together" forming the compilation-unit scope. Items visible only in the compilation-unit scope include macros, global declarations, and default net types. The contents of included files become part of the compilation unit of the parent file. Modules, primitives, programs, interfaces, and packages are visible in all compilation units. Ensure that your RTL accommodates these changes.
Intel Quartus Prime Pro Edition User Guide: Getting Started 108
Send Feedback
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
Table 23. Verilog Compilation Unit Differences
Other Quartus Software Products
Synthesis in other Quartus software products follows the Multi-file compilation unit (MFCU) method to select compilation unit files. In MFCU, all files compile in the same compilation unit. Global definitions and directives are visible in all files. However, the default net type is reset at the start of each file.
Intel Quartus Prime Pro Edition
Intel Quartus Prime Pro Edition synthesis follows the Single-file compilation unit (SFCU) method to select compilation unit files. In SFCU, each file is a compilation unit, file order is irrelevant, and the macro is only defined until the end of the file.
Note:
You can optionally change the MFCU mode using the following assignment: set_global_assignment -name VERILOG_CU_MODE MFCU
5.4.1.1. Verilog HDL Configuration Instantiation
Intel Quartus Prime Pro Edition synthesis requires instantiation of the Verilog HDL configuration, and not the module. In other Quartus software products, synthesis automatically finds any Verilog HDL configuration relating to a module that you instantiate. The Verilog HDL configuration then instantiates the design.
If your top-level entity is a Verilog HDL configuration, set the Verilog HDL configuration, rather than the module, as the top-level entity.
Table 24. Verilog HDL Configuration Instantiation
Other Quartus Software Products
From the Example RTL, synthesis automatically finds the mid_config Verilog HDL configuration relating to the instantiated module.
Example RTL:
Intel Quartus Prime Pro Edition
From the Example RTL, synthesis does not find the mid_config Verilog HDL configuration. You must instantiate the Verilog HDL configuration directly.
config mid_config; design good_lib.mid; instance mid.sub_inst use good_lib.sub; endconfig
module test (input a1, output b); mid_config mid_inst ( .a1(a1), .b(b)); // in other Quartus products preceding line would have been: //mid mid_inst ( .a1(a1), .b(b)); endmodule
module mid (input a1, output b); sub sub_inst (.a1(a1), .b(b)); endmodule
5.4.2. Update Entity Auto-Discovery
All editions of the Intel Quartus Prime and Quartus II software search your project directory for undefined entities. For example, if you instantiate entity "sub" in your design without specifying "sub" as a design file in the Quartus Settings File (.qsf), synthesis searches for sub.v, sub.vhd, and so on. However, Intel Quartus Prime Pro Edition performs auto-discovery at a different stage in the flow. Ensure that your RTL code accommodates these auto-discovery changes.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 109
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
Table 25. Entity Auto-Discovery Differences
Other Quartus Software Products
Always automatically searches your project directory and search path for undefined entities.
Intel Quartus Prime Pro Edition
Always automatically searches your project directory and search path for undefined entities. Intel Quartus Prime Pro Edition synthesis performs auto-discovery earlier in the flow than other Quartus software products. This results in discovery of more syntax errors. Optionally disable auto-discovery with the following .qsf assignment: set_global_assignment -name AUTO_DISCOVER_AND_SORT OFF
5.4.3. Ensure Distinct VHDL Namespace for Each Library
Intel Quartus Prime Pro Edition synthesis requires that VHDL namespaces are distinct for each library. The stricter library binding requirement complies with VHDL language specifications and results in deterministic behavior. This benefits team-based projects by avoiding unintentional name collisions. Confirm that your RTL respects this change.
Table 26. VHDL Namespace Differences
Other Quartus Software Products
For the Example RTL, the analyzer searches all libraries in an unspecified order until the analyzer finds package utilities_pack and uses items from that package. If another library, for example projectLib also contains utilities_pack, the analyzer may use this library instead of myLib.utilites_pack if found before the analyzer searches myLib.
Example RTL:
library myLib; use myLib.utilities_pack.all;
Intel Quartus Prime Pro Edition
For the Example RTL, the analyzer uses the specific utilities_pack in myLib. If utilities_pack does not exist in library myLib, the analyzer generates an error.
5.4.4. Remove Unsupported Parameter Passing
Intel Quartus Prime Pro Edition synthesis does not support parameter passing using set_parameter in the .qsf. Synthesis in other Quartus software products supports passing parameters with this method. Except for the top-level of the design where permitted, ensure that your RTL does not depend on this type of parameter passing.
Table 27. SystemVerilog Feature Differences
Other Quartus Software Products
From the Example RTL, synthesis overwrites the value of parameter SIZE in the instance of my_ram instantiated from entity mid-level.
Intel Quartus Prime Pro Edition
From the Example RTL, synthesis generates a syntax error for detection of parameter passing assignments in the .qsf. Specify parameters in the RTL. The following example shows the supported top-level parameter passing format. This example applies only to the top-level and sets a value of 4 to parameter N:
set_parameter -name N 4
Example RTL: set_parameter �entity mid_level �to my_ram �name SIZE 16
5.4.5. Remove Unsized Constant from WYSIWYG Instantiation
Intel Quartus Prime Pro Edition synthesis does not allow use of an unsized constant for WYSIWYG instantiation. Synthesis in other Quartus software products allows use of SystemVerilog (.sv) unsized constants when instantiating a WYSIWYG in a .v file.
Intel Quartus Prime Pro Edition User Guide: Getting Started 110
Send Feedback
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
Intel Quartus Prime Pro Edition synthesis allows use of unsized constants in .sv files for uses other than WYSIWYG instantiation. Ensure that your RTL code does not use unsized constants for WYSIWYG instantiation. For example, specify a sized literal, such as 2'b11, rather than '1.
5.4.6. Remove Non-Standard Pragmas
Intel Quartus Prime Pro Edition synthesis does not support the vhdl(verilog)_input_version pragma or the library pragma. Synthesis in other Quartus software products supports these pragmas. Remove any use of the pragmas from RTL for Intel Quartus Prime Pro Edition migration. Use the following guidelines to implement the pragma functionality in Intel Quartus Prime Pro Edition:
� vhdl(verilog)_input_version Pragma--allows change to the input version in the middle of an input file. For example, to change VHDL 1993 to VHDL 2008. For Intel Quartus Prime Pro Edition migration, specify the input version for each file in the .qsf.
� library Pragma--allows changes to the VHDL library into which files compile. For Intel Quartus Prime Pro Edition migration, specify the compilation library in the .qsf.
5.4.7. Declare Objects Before Initial Values
Intel Quartus Prime Pro Edition synthesis requires declaration of objects before initial value. Ensure that your RTL declares objects before initial value. Other Quartus software products allow declaration of initial value prior to declaration of the object.
Table 28. Object Declaration Differences
Other Quartus Software Products
Intel Quartus Prime Pro Edition
From the Example RTL, synthesis initializes the output p_prog_io1 with the value of p_progio1_reg, even though the register declaration occurs in Line 2.
From the Example RTL, synthesis generates a syntax error when you specify initial values before declaring the register.
Example RTL:
1 output p_prog_io1 = p_prog_io1_reg; 2 reg p_prog_io1_reg;
5.4.8. Confine SystemVerilog Features to SystemVerilog Files
Intel Quartus Prime Pro Edition synthesis does not allow SystemVerilog features in Verilog HDL files. Other Quartus software products allow use of a subset of SystemVerilog (.sv) features in Verilog HDL (.v) design files. To avoid syntax errors in Intel Quartus Prime Pro Edition, allow only SystemVerilog features in Verilog HDL files.
To use SystemVerilog features in your existing Verilog HDL files, rename your Verilog HDL (.v) files as SystemVerilog (.sv) files. Alternatively, you can set the file type in the .qsf, as shown in the following example:
set_global_assignment -name SYSTEMVERILOG_FILE <file>.v
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 111
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
Table 29. SystemVerilog Feature Differences
Other Quartus Software Products
Intel Quartus Prime Pro Edition
From the Example RTL, synthesis interprets $clog2 in a .v file, even though the Verilog LRM does not define the $clog2 feature. Other Quartus software products allow other SystemVerilog features in .v files.
From the Example RTL, synthesis generates a syntax error for detection of any non-Verilog HDL construct in .v files. Intel Quartus Prime Pro Edition synthesis honors SystemVerilog features only in .sv files.
Example RTL:
localparam num_mem_locations = 1050; wire mem_addr [$clog2(num_mem_locations)-1 : 0];
5.4.9. Avoid Assignment Mixing in Always Blocks
Intel Quartus Prime Pro Edition synthesis does not allow mixed use of blocking and non-blocking assignments within ALWAYS blocks. Other Quartus software products allow mixed use of blocking and non-blocking assignments within ALWAYS blocks. To avoid syntax errors, ensure that ALWAYS block assignments are of the same type for Intel Quartus Prime Pro Edition migration.
Table 30. ALWAYS Block Assignment Differences
Other Quartus Software Products
Intel Quartus Prime Pro Edition
Synthesis honors the mixed blocking and non-blocking assignments, although the Verilog Language Specification no longer supports this construct.
Synthesis generates a syntax error for detection of mixed blocking and non-blocking assignments within an ALWAYS block.
5.4.10. Avoid Unconnected, Non-Existent Ports
Intel Quartus Prime Pro Edition synthesis requires that a port exists in the module prior to instantiation and naming. Other Quartus software products allow you to instantiate and name an unconnected port that does not exist in the module. Modify your RTL to match this requirement.
To avoid syntax errors, remove all unconnected and non-existent ports for Intel Quartus Prime Pro Edition migration.
Table 31. Unconnected, Non-Existent Port Differences
Other Quartus Software Products
Intel Quartus Prime Pro Edition
Synthesis allows you to instantiate and name unconnected or non-existent ports that do not exist on the module.
Synthesis generates a syntax error for detection of mixed blocking and non-blocking assignments within an ALWAYS block.
5.4.11. Avoid Illegal Parameter Ranges
Intel Quartus Prime Pro Edition synthesis generates an error for detection of constant numeric (integer or floating point) parameter values that exceed the language specification. Other Quartus software products allow constant numeric (integer or floating point) values for parameters that exceed the language specifications. To avoid syntax errors, ensure that constant numeric (integer or floating point) values for parameters conform to the language specifications.
Intel Quartus Prime Pro Edition User Guide: Getting Started 112
Send Feedback
5. Migrating to Intel Quartus Prime Pro Edition UG-20129 | 2021.06.21
5.4.12. Update Verilog HDL and VHDL Type Mapping
Intel Quartus Prime Pro Edition synthesis requires that you use 0 for "false" and 1 for "true" in Verilog HDL files (.v). Other Quartus software products map "true" and "false" strings in Verilog HDL to TRUE and FALSE Boolean values in VHDL. Intel Quartus Prime Pro Edition synthesis generates an error for detection of non-Verilog HDL constructs in .v files. To avoid syntax errors, ensure that your RTL accommodates these standards.
5.5. Migrating to Intel Quartus Prime Pro Edition Revision History
This chapter has the following revision history.
Document Version 2018.09.24 2018.05.07 2017.11.06 2017.05.08 2016.10.31
2016.05.03
2015.11.02
Intel Quartus Prime Version
18.1.0 18.0.0 17.1.0 17.0.0 16.1.0
16.0.0
15.1.0
Changes
Added information about removing assignments from the qsf file that point to legacy output files.
First release as separate chapter of Getting Started User Guide.
� Added Verilog HDL Macro example. � Updated for latest Intel branding conventions.
� Removed statement about limitations for safe state machines. The Compiler supports safe state machines. State machine inference is enabled by default.
� Implemented Intel rebranding. � Described unsupported Intel Quartus Prime Standard Edition
physical synthesis options. � Changed title from "Remove Filling Vectors" to "Remove Unsized
Constant".
� Added topic on Safe State Machine encoding. � Corrected statement about Verilog Compilation Unit. � Corrected typo in Modify Entity Name Assignments. � Clarified limitations for multiple Logic Lock instances in the same
region.
� First version of document.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 113
UG-20129 | 2021.06.21 Send Feedback
A. Intel Quartus Prime Pro Edition User Guides
Refer to the following user guides for comprehensive information on all phases of the Intel Quartus Prime Pro Edition FPGA design flow.
Related Information
� Intel Quartus Prime Pro Edition User Guide: Getting Started Introduces the basic features, files, and design flow of the Intel Quartus Prime Pro Edition software, including managing Intel Quartus Prime Pro Edition projects and IP, initial design planning considerations, and project migration from previous software versions.
� Intel Quartus Prime Pro Edition User Guide: Platform Designer Describes creating and optimizing systems using Platform Designer, a system integration tool that simplifies integrating customized IP cores in your project. Platform Designer automatically generates interconnect logic to connect intellectual property (IP) functions and subsystems.
� Intel Quartus Prime Pro Edition User Guide: Design Recommendations Describes best design practices for designing FPGAs with the Intel Quartus Prime Pro Edition software. HDL coding styles and synchronous design practices can significantly impact design performance. Following recommended HDL coding styles ensures that Intel Quartus Prime Pro Edition synthesis optimally implements your design in hardware.
� Intel Quartus Prime Pro Edition User Guide: Design Compilation Describes set up, running, and optimization for all stages of the Intel Quartus Prime Pro Edition Compiler. The Compiler synthesizes, places, and routes your design before generating a device programming file.
� Intel Quartus Prime Pro Edition User Guide: Design Optimization Describes Intel Quartus Prime Pro Edition settings, tools, and techniques that you can use to achieve the highest design performance in Intel FPGAs. Techniques include optimizing the design netlist, addressing critical chains that limit retiming and timing closure, optimizing device resource usage, device floorplanning, and implementing engineering change orders (ECOs).
� Intel Quartus Prime Pro Edition User Guide: Programmer Describes operation of the Intel Quartus Prime Pro Edition Programmer, which allows you to configure Intel FPGA devices, and program CPLD and configuration devices, via connection with an Intel FPGA download cable.
� Intel Quartus Prime Pro Edition User Guide: Block-Based Design Describes block-based design flows, also known as modular or hierarchical design flows. These advanced flows enable preservation of design blocks (or logic that comprises a hierarchical design instance) within a project, and reuse of design blocks in other projects.
Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
A. Intel Quartus Prime Pro Edition User Guides
UG-20129 | 2021.06.21
� Intel Quartus Prime Pro Edition User Guide: Partial Reconfiguration Describes Partial Reconfiguration, an advanced design flow that allows you to reconfigure a portion of the FPGA dynamically, while the remaining FPGA design continues to function. Define multiple personas for a particular design region, without impacting operation in other areas.
� Intel Quartus Prime Pro Edition User Guide: Third-party Simulation Describes RTL- and gate-level design simulation support for third-party simulation tools by Aldec*, Cadence*, Mentor Graphics*, and Synopsys that allow you to verify design behavior before device programming. Includes simulator support, simulation flows, and simulating Intel FPGA IP.
� Intel Quartus Prime Pro Edition User Guide: Third-party Synthesis Describes support for optional synthesis of your design in third-party synthesis tools by Mentor Graphics*, and Synopsys. Includes design flow steps, generated file descriptions, and synthesis guidelines.
� Intel Quartus Prime Pro Edition User Guide: Third-party Logic Equivalence Checking Tools Describes support for optional logic equivalence checking (LEC) of your design in third-party LEC tools by OneSpin*.
� Intel Quartus Prime Pro Edition User Guide: Debug Tools Describes a portfolio of Intel Quartus Prime Pro Edition in-system design debugging tools for real-time verification of your design. These tools provide visibility by routing (or "tapping") signals in your design to debugging logic. These tools include System Console, Signal Tap logic analyzer, system debugging toolkits, In-System Memory Content Editor, and In-System Sources and Probes Editor.
� Intel Quartus Prime Pro Edition User Guide: Timing Analyzer Explains basic static timing analysis principals and use of the Intel Quartus Prime Pro Edition Timing Analyzer, a powerful ASIC-style timing analysis tool that validates the timing performance of all logic in your design using an industry-standard constraint, analysis, and reporting methodology.
� Intel Quartus Prime Pro Edition User Guide: Power Analysis and Optimization Describes the Intel Quartus Prime Pro Edition Power Analysis tools that allow accurate estimation of device power consumption. Estimate the power consumption of a device to develop power budgets and design power supplies, voltage regulators, heat sink, and cooling systems.
� Intel Quartus Prime Pro Edition User Guide: Design Constraints Describes timing and logic constraints that influence how the Compiler implements your design, such as pin assignments, device options, logic options, and timing constraints. Use the Interface Planner to prototype interface implementations, plan clocks, and quickly define a legal device floorplan. Use the Pin Planner to visualize, modify, and validate all I/O assignments in a graphical representation of the target device.
� Intel Quartus Prime Pro Edition User Guide: PCB Design Tools Describes support for optional third-party PCB design tools by Mentor Graphics* and Cadence*. Also includes information about signal integrity analysis and simulations with HSPICE and IBIS Models.
� Intel Quartus Prime Pro Edition User Guide: Scripting Describes use of Tcl and command line scripts to control the Intel Quartus Prime Pro Edition software and to perform a wide range of functions, such as managing projects, specifying constraints, running compilation or timing analysis, or generating reports.
Send Feedback
Intel Quartus Prime Pro Edition User Guide: Getting Started 115
UG-20129 | 2021.06.21 Send Feedback
7. Document Archives
If an Intel Quartus Prime version is not listed, the user guide for the previous Intel Quartus Prime version applies.
Intel Quartus Prime Version
User Guide
20.3
Intel Quartus Prime Pro Edition User Guide: Getting Started
19.3
Intel Quartus Prime Pro Edition User Guide: Getting Started
18.1
Intel Quartus Prime Pro Edition User Guide: Getting Started
Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others.
ISO 9001:2015 Registered
