Rack mountable. The AV4 is a secure, high-performance control processor with a powerful 4-Series control engine and an enhanced feature.
24 нояб. 2020 г. —

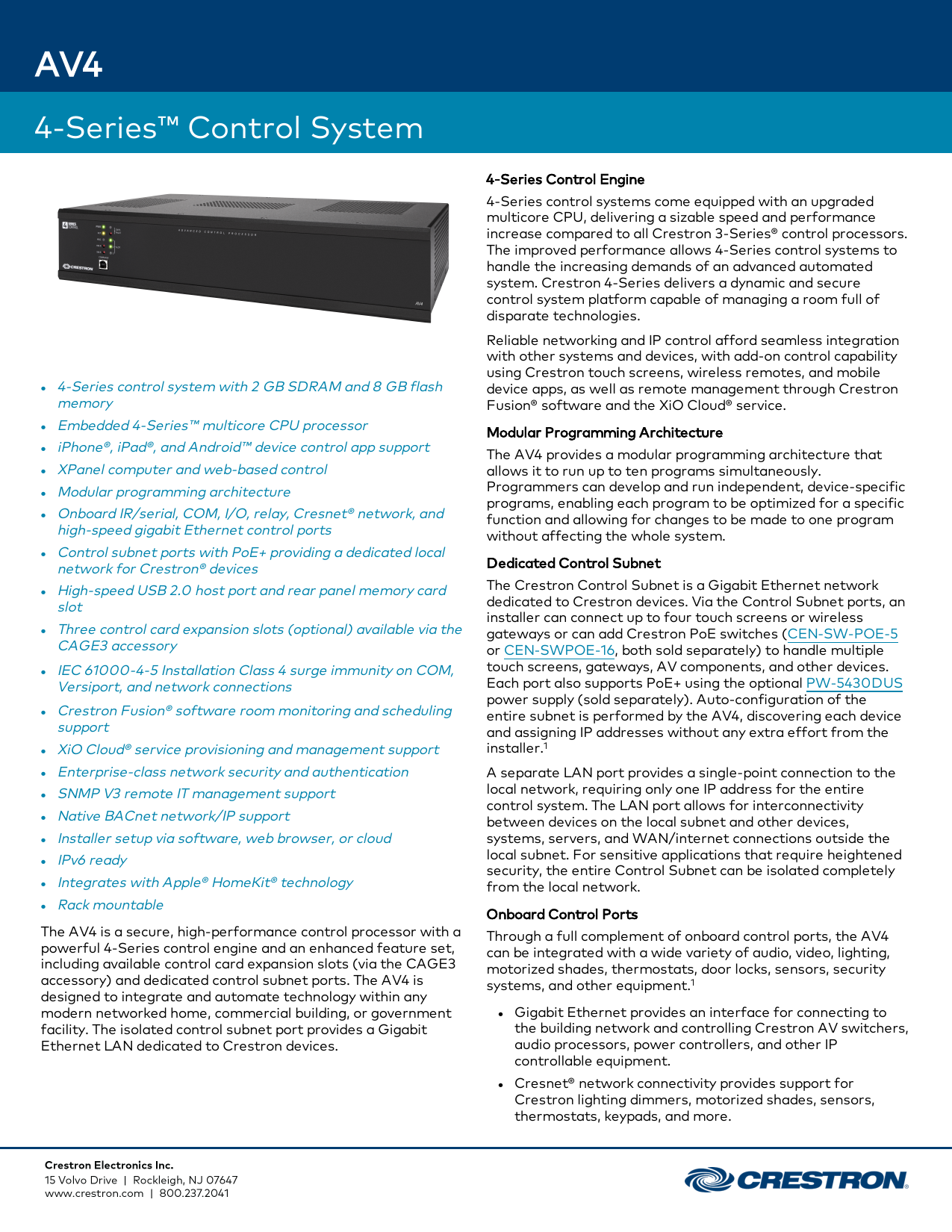

AV4 4-SeriesTM Control System l 4-Series control system with 2 GB SDRAM and 8 GB flash memory l Embedded 4-SeriesTM multicore CPU processor l iPhone®, iPad®, and AndroidTM device control app support l XPanel computer and web-based control l Modular programming architecture l Onboard IR/serial, COM, I/O, relay, Cresnet® network, and high-speed gigabit Ethernet control ports l Control subnet ports with PoE+ providing a dedicated local network for Crestron® devices l High-speed USB 2.0 host port and rear panel memory card slot l Three control card expansion slots (optional) available via the CAGE3 accessory l IEC 61000-4-5 Installation Class 4 surge immunity on COM, Versiport, and network connections l Crestron Fusion® software room monitoring and scheduling support l XiO Cloud® service provisioning and management support l Enterprise-class network security and authentication l SNMP V3 remote IT management support l Native BACnet network/IP support l Installer setup via software, web browser, or cloud l IPv6 ready l Integrates with Apple® HomeKit® technology l Rack mountable The AV4 is a secure, high-performance control processor with a powerful 4-Series control engine and an enhanced feature set, including available control card expansion slots (via the CAGE3 accessory) and dedicated control subnet ports. The AV4 is designed to integrate and automate technology within any modern networked home, commercial building, or government facility. The isolated control subnet port provides a Gigabit Ethernet LAN dedicated to Crestron devices. 4-Series Control Engine 4-Series control systems come equipped with an upgraded multicore CPU, delivering a sizable speed and performance increase compared to all Crestron 3-Series® control processors. The improved performance allows 4-Series control systems to handle the increasing demands of an advanced automated system. Crestron 4-Series delivers a dynamic and secure control system platform capable of managing a room full of disparate technologies. Reliable networking and IP control afford seamless integration with other systems and devices, with add-on control capability using Crestron touch screens, wireless remotes, and mobile device apps, as well as remote management through Crestron Fusion® software and the XiO Cloud® service. Modular Programming Architecture The AV4 provides a modular programming architecture that allows it to run up to ten programs simultaneously. Programmers can develop and run independent, device-specific programs, enabling each program to be optimized for a specific function and allowing for changes to be made to one program without affecting the whole system. Dedicated Control Subnet The Crestron Control Subnet is a Gigabit Ethernet network dedicated to Crestron devices. Via the Control Subnet ports, an installer can connect up to four touch screens or wireless gateways or can add Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-16, both sold separately) to handle multiple touch screens, gateways, AV components, and other devices. Each port also supports PoE+ using the optional PW-5430DUS power supply (sold separately). Auto-configuration of the entire subnet is performed by the AV4, discovering each device and assigning IP addresses without any extra effort from the installer.1 A separate LAN port provides a single-point connection to the local network, requiring only one IP address for the entire control system. The LAN port allows for interconnectivity between devices on the local subnet and other devices, systems, servers, and WAN/internet connections outside the local subnet. For sensitive applications that require heightened security, the entire Control Subnet can be isolated completely from the local network. Onboard Control Ports Through a full complement of onboard control ports, the AV4 can be integrated with a wide variety of audio, video, lighting, motorized shades, thermostats, door locks, sensors, security systems, and other equipment.1 l Gigabit Ethernet provides an interface for connecting to the building network and controlling Crestron AV switchers, audio processors, power controllers, and other IP controllable equipment. l Cresnet® network connectivity provides support for Crestron lighting dimmers, motorized shades, sensors, thermostats, keypads, and more. AV4 4-SeriesTM Control System l Onboard RS-232, IR/serial, relay, and Versiport I/O control ports enable direct integration with all types of third-party equipment. Expanded connectivity can be provided to the AV4 via Crestron control port expansion modules, Ethernet to Cresnet bridges, wired Ethernet I/O modules, wireless network I/O modules, or infiNET EX® network wireless gateways (all sold separately). Crestron Fusion Room Monitoring and Scheduling Crestron Fusion provides an integrated platform for creating smart buildings that save energy and enhance worker productivity. As part of a complete managed network, the AV4 works with Crestron Fusion to enable remote scheduling, monitoring, and control of rooms and technology from a central help desk or mobile app. It also enables organizations to reduce energy consumption by tracking real-time usage and automating control of AV, lighting, shades, and HVAC. For more information about Crestron Fusion, visit www.crestron.com/fusion. XiO Cloud Provisioning and Management 4-Series control systems leverage the power and flexibility of XiO Cloud services, enabling users to remotely provision, monitor, and manage Crestron devices across an enterprise network. XiO Cloud can be used to configure and load programs to the control system before it is received, making the control system fully functional as soon as it is connected to the network. Crestron XiO Cloud is built on the Microsoft® Azure® software platform and utilizes Microsoft's industry leading Azure IoT Hub technology. XiO Cloud enables installers and IT managers to deploy and manage thousands of devices simultaneously. Unlike other virtual machine based cloud solutions, Azure services provide unlimited scalability to suit the ever growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud. Enhanced Enterprise-Grade Security The AV4 is an enterprise-class control processor that can be deployed across hundreds of spaces and set up easily using a web browser, Crestron ToolboxTM software, or XiO Cloud. It employs standard network security protocols, including 802.1X network access control, Active Directory® service authentication, SSH, TLS, and HTTPS to ensure reliability and compliance with your organization's IT policies. The AV4 is configured to meet Crestron's enhanced security standards right out of the box. The AV4 ships with authentication enabled and requires that an administrator account be created before access is granted to device configuration and control interfaces. SNMP V3 Support Built-in SNMP V3 support enables integration with third-party IT management software, allowing network administrators to manage and control Crestron systems on the network in an ITfriendly format. Control Card Expansion Slots Additional control ports can be added to the AV4 using control cards and the CAGE3 control card expansion cage. The CAGE3 accessory installs in the AV4, providing three control card expansion slots on the AV4 rear panel. Adding the CAGE3 option affords great expansion capability without requiring any additional rack space. BACnet Support Native support for the BACnet communication protocol provides a direct interface to third-party building management systems over Ethernet, simplifying integration with HVAC, security, and other systems. Using BACnet, each system runs independently but communicates together on one platform.1 Apple HomeKit Integration The AV4 supports integration with an Apple® HomeKit® technology system. Once the AV4 is paired with a HomeKit system via SIMPL programming, a Crestron TSR-310 can be used to control supported Apple devices. A pairing QR code is affixed to the AV4 that makes it easy to pair the control system directly to the Apple Home app.2 AV4 4-SeriesTM Control System Specifications Control Engine Crestron® 4-SeriesTM; real-time, preemptive multithreaded/multitasking kernel; supports up to 10 simultaneously running programs Communications Ethernet Control Subnet Cresnet® Network USB RS-232/422/485 IR/Serial 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SNTP, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet and IP1, IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, SMTP email client 100/1000 Mbps Ethernet, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP server, DNS server, port forwarding, isolation mode, IEEE 802.3at Type 1 compliant PoE PSE Cresnet master mode Supports USB mass storage class devices via the rear panel USB 2.0 host port, supports computer console via the front panel USB 2.0 device port For 2-way device control and monitoring, COM port supports RS-232 up to 115.2k baud with software handshaking, one port also supports RS-422 or RS-485 and hardware handshaking Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (05V) up to 115.2k baud Memory SDRAM Flash Memory Card External Storage 2 GB 8 GB Supports SD and SDHC cards up to 32 GB Supports USB storage devices up to 1 TB Connectors and Card Slots S1S3 (3) control card expansion slots; Requires CAGE3 accessory (sold separately) COM 12 COM 36 IR - SERIAL OUTPUT 18 RELAY OUTPUT 18 PoE+ INPUT POWER CONTROL SUBNET LAN USB MEMORY I/O 18 (2) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232/422/485 ports; Up to 115.2k baud; hardware and software handshaking support (1) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232 ports; Up to 115.2k baud; software handshaking support (2) 8-pin 3.5 mm detachable terminal blocks; Comprises (8) IR output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (05V) up to 115.2k baud; IRP2 IR emitters sold separately (1) 4-pin 3.5 mm detachable terminal block; Comprises (8) normally open, isolated relays; Rated 1 A, 30VAC/VDC; MOV arc suppression across contacts (1) Combo D-Sub 7w2 connector, male; 54VDC power input for PoE+ power supply; Enables PoE+ power sourcing on the CONTROL SUBNET ports (4) 8-pin RJ-45 connectors, female; 100BASE-TX/1000BASE-T Ethernet port; PoE+ PSE (Power Sourcing Equipment) port; Provides a dedicated local network for Crestron devices (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; (1) USB Type A connector, female; USB 2.0 port for storage devices (1) SD memory card slot; Accepts one SD or SDHC card up to 32 GB for storage of log files (1) 9-pin 3.5 mm detachable terminal block; Comprises (8) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 024VDC, input impedance 20k , logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads; Analog Input: Rated for 010VDC, protected to 24VDC maximum, input impedance 21k with pull-up resistor disabled; Programmable 5V, 2k pull-up resistor per pin AV4 4-SeriesTM Control System NET 100240V~ 2.4A 50/60Hz G COMPUTER (front) (1) 4-pin 3.5 mm detachable terminal block; Cresnet master port; Outputs power to Cresnet devices; Alternately functions as a Cresnet power input to power the unit from a Cresnet power supply; See "Power" section below for additional details (1) IEC 60320 C14 main power inlet; Mates with removable power cord (1) 6-32 screw; Chassis ground lug (1) USB Type B connector, female; USB 2.0 computer console port; For setup only Controls and Indicators PWR NET MSG HW-R SW-R CNPS FAULT SLOT 13 LAN (rear) CONTROL SUBNET (rear) (1) Bicolor Green/Amber LED, indicates operating power is present; Amber indicates that the device is booting and is not yet ready to operate; Green indicates that the device is ready to operate (1) Amber LED, indicates communication with Cresnet devices (1) Red LED, indicates control processor has generated an error message (1) Recessed push button, initiates hardware reset (1) Recessed push button, initiates software reset (1) Red LED and (1) push button; LED indicates an excessive Cresnet load detected at the NET port; Push button resets the fault indication (3) Green LEDs, indicate control cards are inserted in the corresponding slots (1) Bicolor green/amber and (1) Amber LEDs; Green/amber LED indicates Ethernet link status and connection speed; Amber LED indicates Ethernet activity (1) Bicolor green/amber and (1) Amber LEDs; Green/amber LED indicates Ethernet link status and connection speed; Amber LED indicates Ethernet activity Power Main Power Available Cresnet Power 2.4A @ 100-240VAC, 50/60Hz 75W (3.125A @ 24VDC) Power over Ethernet Plus (PoE+) IEEE 802.3at compliant PoE+ PSE (Power Sourcing Equipment); 120W total power; Each CONTROL SUBNET port supplies up to 30W to power one PoE+ (Class 4) PD (Powered Device) Environmental Temperature Humidity Heat Dissipation 41 to 104°F (5 to 40°C) 10% to 90% RH (noncondensing) 43 BTU/hr Enclosure Chassis Faceplate Mounting Metal, black finish, vented top and sides Extruded metal, black finish, polycarbonate label overlay Freestanding or 2 RU 19-in. rack-mountable (adhesive feet and rack ears included) Dimensions Height Width Depth 3.47 in. (89 mm) without feet 17.28 in. (439 mm); 19.00 in. (483 mm) with rack ears 10.11 in. (257 mm) Weight 4.0 lb (1.9 kg) Compliance Regulatory Model: M201903001; BV Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device Models AV4 4-SeriesTM Control System Available Accessories C2N-IO Control Port Expansion Module C2N-HBLOCK Multitype Cresnet® Network Distribution Block C3COM-3 3-Series® Control Card - 3 COM Ports C3IO-16 3-Series® Control Card - 16 Versiport I/O Ports AV4 4-SeriesTM Control System C3IR-8 3-Series® Control Card - 8 IR Ports C3RY-16 3-Series® Control Card - 16 Relay Ports C3RY-8 3-Series® Control Card - 8 Relay Ports CAGE3 Control Card Expansion Cage for AV3 and AV4 CEN-GWEXER infiNET EX® Network and ER Wireless Gateway CENI-GWEXER infiNET EX® Network and ER Wireless Gateway - International CEN-IO-COM-102 Wired Ethernet I/O Extender with 2 COM Ports CEN-IO-DIGIN-104 Wired Ethernet I/O Extender with 4 Digital Inputs CEN-IO-IR-104 Wired Ethernet I/O Extender with 4 IR Ports CEN-IO-RY-104 Wired Ethernet I/O Extender with 4 Relay Ports CEN-IO-COM-202 Wi-Fi® Network I/O Extender with 2 COM ports CEN-IO-DIGIN-204 Wi-Fi® Network I/O Extender with 4 Digital Inputs CEN-IO-IR-204 Wi-Fi® Network I/O Extender with 4 IR Ports CEN-IO-RY-204 Wi-Fi® Network I/O Extender with 4 Relay Ports CEN-SWPOE-16 16-Port Managed PoE Switch CEN-SW-POE-5 5-Port PoE Switch CNSP-XX Custom Serial Interface Cable CNXRMIRD IR Receiver CNTBLOCK Cresnet® Network Distribution Block CRESTRON-APP-ANDROID Crestron® App for Android® OS CRESTRON-GO Crestron Go App for iPhone® and iPod touch® Devices CRESTRON-GO-TABLET Crestron Go App for iPad® Device DIN-CENCN-2 Ethernet to Cresnet® Network Bridge DIN-CENCN-2-POE Ethernet to Cresnet® Network Bridge with PoE IRP2 IR Emitter with Terminal Block Connector PW-5430DUS High-Efficiency Power Pack PWE-4803RU PoE Injector SW-3SERIES-BACNET-50+ BACnetTM Network/IP Support for 3-Series® and 4-Series Control Processors SW-FUSION-C-3 Crestron Fusion® Cloud; 250 rooms; 3-year service, support, and updates SW-FUSION-P-L Crestron Fusion® On-premises; Unlimited rooms; lifetime service, support, and updates SW-XIOC-EM XiO Cloud® Provisioning and Management Service, Endpoint Management License for one room SW-XIOC-S XiO Cloud® Provisioning and Management Service, Support License for one room SW-XIOC-API XiO Cloud® Provisioning and Management Service, REST API License for one room XPANEL XPanel Crestron Control® Interface for Computers Notes: 1. The following connections comply with IEC 61000-4-5 Installation Class 4 surge immunity levels: COM 16, I/O 18, NET, LAN, and CONTROL SUBNET. 2. A BACnet and IP license is required. A free license is available to support up to 50 BACnet objects on a single 4-Series control system. Enabling support for more than 50 BACnet objects requires the purchase of one SW-3SERIES-BACNET-50+ license. The AV4 supports a maximum of 2000 BACnet objects when dedicated for BACnet use only. Actual capabilities are contingent upon the overall program size and complexity. To obtain the license, visit www.crestron.com/bacnetlicense. 3. This feature is only available when using the TSR-310. Other Crestron touch screens, handheld remotes, and keypads are not supported. For these interfaces, traditional IR or CEC control must be used to control supported Apple devices. AV4 4-SeriesTM Control System This product may be purchased from select authorized Crestron dealers and distributors. To find a dealer or distributor, please contact the Crestron sales representative for your area. A list of sales representatives is available online at www.crestron.com/How-To-Buy/Find-a-Representative or by calling 855-263-8754. This product is covered under the Crestron standard limited warranty. Refer to www.crestron.com/warranty for full details. The specific patents that cover Crestron products are listed online at patents.crestron.com. Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource. Crestron, the Crestron logo, 3-Series, 4-Series, Cresnet, Crestron Fusion, Crestron Toolbox, infiNET EX, and XiO Cloud are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Apple, HomeKit, iPad, iPhone, and iPod touch are either trademarks or registered trademarks of Apple, Inc. in the United States and/or other countries. Android is either a trademark or a registered trademark of Google Inc. in the United States and/or other countries. Active Directory, Azure, and Microsoft are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. UL is either a trademark or a registered trademark of Underwriters Laboratories, Inc. in the United States and/or other countries. Wi-Fi is either a trademark or registered trademark of Wi-Fi Alliance in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography. Specifications are subject to change without notice. ©2020 Crestron Electronics, Inc. Rev 11/20/20 AV4 4-SeriesTM Control Systemmadbuild
