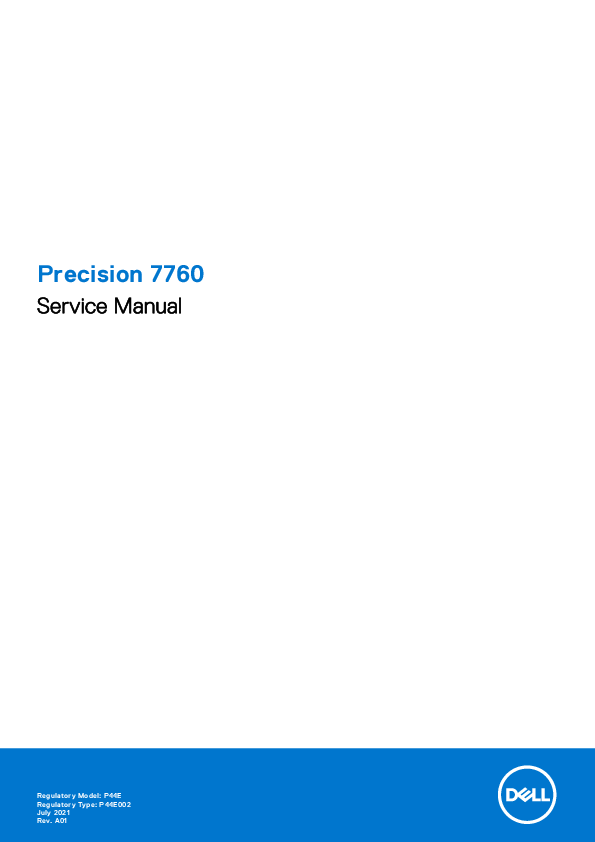

Precision 7760
Service Manual
Regulatory Model: P44E Regulatory Type: P44E002 July 2021 Rev. A01

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
� 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Contents

Chapter 1: Working inside your computer...................................................................................... 7 Safety instructions.............................................................................................................................................................. 7 Before working inside your computer....................................................................................................................... 7 Safety precautions........................................................................................................................................................ 8 Electrostatic discharge--ESD protection............................................................................................................... 8 ESD field service kit ..................................................................................................................................................... 9 Transporting sensitive components.........................................................................................................................10 After working inside your computer........................................................................................................................ 10
Chapter 2: Removing and installing components...........................................................................11 Recommended tools...........................................................................................................................................................11 Screw list..............................................................................................................................................................................12 Major components of Precision 7760........................................................................................................................... 13 SD card................................................................................................................................................................................. 15 Removing SD card....................................................................................................................................................... 15 Installing SD card..........................................................................................................................................................15 Secondary M.2 solid-state drive.................................................................................................................................... 16 Removing the secondary M.2 Solid-state drive....................................................................................................16 Installing the secondary M.2 SSD module..............................................................................................................18 Base cover........................................................................................................................................................................... 21 Removing the base cover...........................................................................................................................................21 Installing the base cover............................................................................................................................................ 24 Battery................................................................................................................................................................................. 26 Lithium-ion battery precautions...............................................................................................................................26 Removing the battery.................................................................................................................................................27 Installing the battery...................................................................................................................................................28 Solid State Drive................................................................................................................................................................30 Removing the primary M.2 Solid-state drive........................................................................................................ 30 Installing the primary M.2 SSD module................................................................................................................... 31 Secondary memory module.............................................................................................................................................33 Removing the secondary memory module............................................................................................................ 33 Installing the secondary memory module...............................................................................................................33 SIM card.............................................................................................................................................................................. 34 Removing the SIM card............................................................................................................................................. 34 Installing the SIM card............................................................................................................................................... 35 WLAN card..........................................................................................................................................................................36 Removing the WLAN card.........................................................................................................................................36 Installing the WLAN card........................................................................................................................................... 37 WWAN card........................................................................................................................................................................ 39 Removing the WWAN card....................................................................................................................................... 39 Installing the WWAN card......................................................................................................................................... 39 Keyboard lattice.................................................................................................................................................................40 Removing the keyboard lattice................................................................................................................................ 40 Installing the keyboard lattice................................................................................................................................... 41

Contents

Keyboard..............................................................................................................................................................................42 Removing the keyboard............................................................................................................................................. 42 Installing the keyboard............................................................................................................................................... 43
Primary memory module.................................................................................................................................................. 45 Removing the primary memory module................................................................................................................. 45 Installing the primary memory module....................................................................................................................46
Inner frame..........................................................................................................................................................................47 Removing the inner frame......................................................................................................................................... 47 Installing the inner frame........................................................................................................................................... 49
Smart-card reader............................................................................................................................................................. 51 Removing the smart-card reader............................................................................................................................. 51 Installing the smart-card reader............................................................................................................................... 51
Touchpad button............................................................................................................................................................... 52 Removing the Touchpad buttons............................................................................................................................ 52 Installing the Touchpad buttons.............................................................................................................................. 53
SD card reader................................................................................................................................................................... 54 Removing SD card reader......................................................................................................................................... 54 Installing SD card reader............................................................................................................................................55
Heat sink ............................................................................................................................................................................ 56 Removing the heat-sink assembly...........................................................................................................................56 Installing the heat-sink assembly.............................................................................................................................58
Power button board......................................................................................................................................................... 59 Removing the power button board......................................................................................................................... 59 Installing the power button board........................................................................................................................... 60
Power button board with fingerprint reader............................................................................................................... 61 Removing the power button board assembly with fingerprint reader............................................................ 61 Installing the power button board assembly with fingerprint reader.............................................................. 62
Power button..................................................................................................................................................................... 63 Removing the power button.....................................................................................................................................63 Installing the power button....................................................................................................................................... 64
Power button assembly with fingerprint reader........................................................................................................ 65 Removing the power button board assembly with fingerprint reader............................................................65 Installing the power button assembly with fingerprint reader..........................................................................66
GPU power cable...............................................................................................................................................................67 Removing the GPU power cable..............................................................................................................................67 Installing the GPU power cable................................................................................................................................68
System board..................................................................................................................................................................... 69 Removing the system board..................................................................................................................................... 69 Installing the system board....................................................................................................................................... 73
Power-adapter port.......................................................................................................................................................... 76 Removing the power-adapter port..........................................................................................................................76 Installing the power-adapter port............................................................................................................................ 77
GPU card............................................................................................................................................................................. 78 Removing the GPU card............................................................................................................................................ 78 Installing the GPU card.............................................................................................................................................. 79
Speaker................................................................................................................................................................................ 80 Removing the speaker................................................................................................................................................80 Installing the speaker...................................................................................................................................................81
Middle cap...........................................................................................................................................................................83 Removing the middle cap.......................................................................................................................................... 83

Contents

Installing the middle cap............................................................................................................................................ 84 Display assembly................................................................................................................................................................86
Removing the display assembly............................................................................................................................... 86 Installing the display assembly..................................................................................................................................88 Palm rest............................................................................................................................................................................. 90 Removing the palmrest.............................................................................................................................................. 90 Installing the palmrest................................................................................................................................................. 91 Display bezel....................................................................................................................................................................... 93 Removing the display bezel (non-touch)...............................................................................................................93 Installing the display bezel (non-touch).................................................................................................................94 Display panel.......................................................................................................................................................................96 Removing the display panel (non-touch).............................................................................................................. 96 Installing the display panel (non-touch).................................................................................................................99 Display hinges................................................................................................................................................................... 102 Removing the display hinge.....................................................................................................................................102 Installing the display hinge (non-touch)...............................................................................................................103 Camera shutter cap........................................................................................................................................................ 104 Removing camera shutter cap................................................................................................................................104 Installing camera shutter cap..................................................................................................................................105 Camera............................................................................................................................................................................... 106 Removing the camera (non-touch).......................................................................................................................106 Installing the camera................................................................................................................................................. 107 P-sensor board.................................................................................................................................................................109 Removing the P-sensor board................................................................................................................................ 109 Installing the P-sensor board................................................................................................................................... 110 Display cable...................................................................................................................................................................... 112 Removing the display cable......................................................................................................................................112 Installing the display cable........................................................................................................................................ 113 Display back cover........................................................................................................................................................... 115 Replacing the display back cover........................................................................................................................... 115
Chapter 3: Drivers and downloads...............................................................................................117
Chapter 4: BIOS setup................................................................................................................118 BIOS overview...................................................................................................................................................................118 Entering BIOS setup program....................................................................................................................................... 118 Navigation keys.................................................................................................................................................................118 Boot Sequence..................................................................................................................................................................119 BIOS setup options.......................................................................................................................................................... 119 Updating the BIOS in Windows ...................................................................................................................................125 Updating BIOS on systems with BitLocker enabled.......................................................................................... 126 Updating your system BIOS using a USB flash drive........................................................................................ 126 Updating the BIOS in Linux and Ubuntu.....................................................................................................................127 One time boot menu........................................................................................................................................................127 Updating the BIOS from the F12 One-Time boot menu......................................................................................... 127 System and setup password......................................................................................................................................... 128 Assigning a system setup password......................................................................................................................128 Deleting or changing an existing system setup password............................................................................... 129 Clearing BIOS (System Setup) and System passwords.........................................................................................129

Contents

Chapter 5: Troubleshooting....................................................................................................... 130 Built-in self-test (BIST)..................................................................................................................................................130 M-BIST......................................................................................................................................................................... 130 M-BIST.......................................................................................................................................................................... 131 LCD Power rail test (L-BIST).................................................................................................................................. 131 LCD Built-in Self Test (BIST).................................................................................................................................. 131 LCD Built-in Self Test (BIST)..................................................................................................................................132 Dell SupportAssist Pre-boot System Performance Check diagnostics.............................................................. 132 Running the SupportAssist Pre-Boot System Performance Check.............................................................. 132 System-diagnostic lights................................................................................................................................................133 Recovering the operating system................................................................................................................................134 Backup media and recovery options........................................................................................................................... 135 Real Time Clock--RTC reset........................................................................................................................................135 WiFi power cycle..............................................................................................................................................................135 Drain residual flea power (perform hard reset)........................................................................................................136
Chapter 6: Getting help and contacting Dell............................................................................... 137

Contents

1
Working inside your computer
Topics:
� Safety instructions
Safety instructions
Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless otherwise noted, each procedure included in this document assumes that you have read the safety information that shipped with your computer.
WARNING: Before working inside your computer, read the safety information that is shipped with your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/ regulatory_compliance. WARNING: Disconnect your computer from all power sources before opening the computer cover or panels. After you finish working inside the computer, replace all covers, panels, and screws before connecting your computer to an electrical outlet.
CAUTION: To avoid damaging the computer, ensure that the work surface is flat, dry, and clean.
CAUTION: To avoid damaging the components and cards, handle them by their edges, and avoid touching the pins and the contacts. CAUTION: You should only perform troubleshooting and repairs as authorized or directed by the Dell technical assistance team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. See the safety instructions that is shipped with the product or at www.dell.com/regulatory_compliance. CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity which could harm internal components. CAUTION: When you disconnect a cable, pull it by its connector or its pull tab, not the cable itself. Some cables have connectors with locking tabs or thumbscrews that you must disengage before disconnecting the cable. When disconnecting cables, keep them evenly aligned to avoid bending the connector pins. When connecting cables, ensure that the ports and the connectors are correctly oriented and aligned.
CAUTION: Press and eject any installed card from the media-card reader.
CAUTION: Exercise caution when handling Lithium-ion batteries in laptops. Swollen batteries should not be used and should be replaced and disposed properly.
NOTE: The color of your computer and certain components may appear differently than shown in this document.
Before working inside your computer
Steps 1. Save and close all open files and exit all open applications. 2. Shut down your computer. Click Start > Power > Shut down.

Working inside your computer

NOTE: If you are using a different operating system, see the documentation of your operating system for shut-down instructions.
3. Disconnect your computer and all attached devices from their electrical outlets. 4. Disconnect all attached network devices and peripherals, such as keyboard, mouse, and monitor from your computer. 5. Remove any media card and optical disc from your computer, if applicable. 6. After the computer is unplugged, press and hold the power button for 5 seconds to ground the system board.
CAUTION: Place the computer on a flat, soft, and clean surface to avoid scratches on the display.
7. Place the computer face down.
Safety precautions
The safety precautions chapter details the primary steps to be taken before performing any disassembly instructions. Observe the following safety precautions before you perform any installation or break/fix procedures involving disassembly or reassembly: Turn off the system and all attached peripherals. Disconnect the system and all attached peripherals from AC power. Disconnect all network cables, telephone, and telecommunications lines from the system. Use an ESD field service kit when working inside any tabletnotebook to avoid electrostatic discharge (ESD) damage. After removing any system component, carefully place the removed component on an anti-static mat. Wear shoes with non-conductive rubber soles to reduce the chance of getting electrocuted.
Standby power
Dell products with standby power must be unplugged before you open the case. Systems that incorporate standby power are essentially powered while turned off. The internal power enables the system to be remotely turned on (wake on LAN) and suspended into a sleep mode and has other advanced power management features. Unplugging, pressing and holding the power button for 15 seconds should discharge residual power in the system board.
Bonding
Bonding is a method for connecting two or more grounding conductors to the same electrical potential. This is done through the use of a field service electrostatic discharge (ESD) kit. When connecting a bonding wire, ensure that it is connected to bare metal and never to a painted or non-metal surface. The wrist strap should be secure and in full contact with your skin, and ensure that you remove all jewelry such as watches, bracelets, or rings prior to bonding yourself and the equipment.
Electrostatic discharge--ESD protection
ESD is a major concern when you handle electronic components, especially sensitive components such as expansion cards, processors, memory DIMMs, and system boards. Very slight charges can damage circuits in ways that may not be obvious, such as intermittent problems or a shortened product life span. As the industry pushes for lower power requirements and increased density, ESD protection is an increasing concern. Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in previous Dell products. For this reason, some previously approved methods of handling parts are no longer applicable. Two recognized types of ESD damage are catastrophic and intermittent failures. Catastrophic � Catastrophic failures represent approximately 20 percent of ESD-related failures. The damage causes
an immediate and complete loss of device functionality. An example of catastrophic failure is a memory DIMM that has received a static shock and immediately generates a "No POST/No Video" symptom with a beep code emitted for missing or nonfunctional memory. Intermittent � Intermittent failures represent approximately 80 percent of ESD-related failures. The high rate of intermittent failures means that most of the time when damage occurs, it is not immediately recognizable. The DIMM receives a static shock, but the tracing is merely weakened and does not immediately produce outward symptoms related to

Working inside your computer

the damage. The weakened trace may take weeks or months to melt, and in the meantime may cause degradation of memory integrity, intermittent memory errors, etc.
The more difficult type of damage to recognize and troubleshoot is the intermittent (also called latent or "walking wounded") failure.
Perform the following steps to prevent ESD damage: Use a wired ESD wrist strap that is properly grounded. The use of wireless anti-static straps is no longer allowed; they do not
provide adequate protection. Touching the chassis before handling parts does not ensure adequate ESD protection on parts with increased sensitivity to ESD damage. Handle all static-sensitive components in a static-safe area. If possible, use anti-static floor pads and workbench pads. When unpacking a static-sensitive component from its shipping carton, do not remove the component from the anti-static packing material until you are ready to install the component. Before unwrapping the anti-static packaging, ensure that you discharge static electricity from your body. Before transporting a static-sensitive component, place it in an anti-static container or packaging.
ESD field service kit
The unmonitored Field Service kit is the most commonly used service kit. Each Field Service kit includes three main components: anti-static mat, wrist strap, and bonding wire.
Components of an ESD field service kit
The components of an ESD field service kit are: Anti-Static Mat � The anti-static mat is dissipative and parts can be placed on it during service procedures. When using an
anti-static mat, your wrist strap should be snug and the bonding wire should be connected to the mat and to any bare metal on the system being worked on. Once deployed properly, service parts can be removed from the ESD bag and placed directly on the mat. ESD-sensitive items are safe in your hand, on the ESD mat, in the system, or inside a bag. Wrist Strap and Bonding Wire � The wrist strap and bonding wire can be either directly connected between your wrist and bare metal on the hardware if the ESD mat is not required, or connected to the anti-static mat to protect hardware that is temporarily placed on the mat. The physical connection of the wrist strap and bonding wire between your skin, the ESD mat, and the hardware is known as bonding. Use only Field Service kits with a wrist strap, mat, and bonding wire. Never use wireless wrist straps. Always be aware that the internal wires of a wrist strap are prone to damage from normal wear and tear, and must be checked regularly with a wrist strap tester in order to avoid accidental ESD hardware damage. It is recommended to test the wrist strap and bonding wire at least once per week. ESD Wrist Strap Tester � The wires inside of an ESD strap are prone to damage over time. When using an unmonitored kit, it is a best practice to regularly test the strap prior to each service call, and at a minimum, test once per week. A wrist strap tester is the best method for doing this test. If you do not have your own wrist strap tester, check with your regional office to find out if they have one. To perform the test, plug the wrist-strap's bonding-wire into the tester while it is strapped to your wrist and push the button to test. A green LED is lit if the test is successful; a red LED is lit and an alarm sounds if the test fails. Insulator Elements � It is critical to keep ESD sensitive devices, such as plastic heat sink casings, away from internal parts that are insulators and often highly charged. Working Environment � Before deploying the ESD Field Service kit, assess the situation at the customer location. For example, deploying the kit for a server environment is different than for a desktop or portable environment. Servers are typically installed in a rack within a data center; desktops or portables are typically placed on office desks or cubicles. Always look for a large open flat work area that is free of clutter and large enough to deploy the ESD kit with additional space to accommodate the type of system that is being repaired. The workspace should also be free of insulators that can cause an ESD event. On the work area, insulators such as Styrofoam and other plastics should always be moved at least 12 inches or 30 centimeters away from sensitive parts before physically handling any hardware components ESD Packaging � All ESD-sensitive devices must be shipped and received in static-safe packaging. Metal, static-shielded bags are preferred. However, you should always return the damaged part using the same ESD bag and packaging that the new part arrived in. The ESD bag should be folded over and taped shut and all the same foam packing material should be used in the original box that the new part arrived in. ESD-sensitive devices should be removed from packaging only at an ESD-protected work surface, and parts should never be placed on top of the ESD bag because only the inside of the bag is shielded. Always place parts in your hand, on the ESD mat, in the system, or inside an anti-static bag. Transporting Sensitive Components � When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe transport.

Working inside your computer

ESD protection summary
It is recommended that all field service technicians use the traditional wired ESD grounding wrist strap and protective anti-static mat at all times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from all insulator parts while performing service and that they use anti-static bags for transporting sensitive components.
Transporting sensitive components
When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe transport.
After working inside your computer
About this task NOTE: Leaving stray or loose screws inside your computer may severely damage your computer.
Steps 1. Replace all screws and ensure that no stray screws remain inside your computer. 2. Connect any external devices, peripherals, or cables you removed before working on your computer. 3. Replace any media cards, discs, or any other parts that you removed before working on your computer. 4. Connect your computer and all attached devices to their electrical outlets. 5. Turn on your computer.

Working inside your computer

2
Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Topics:
� Recommended tools � Screw list � Major components of Precision 7760 � SD card � Secondary M.2 solid-state drive � Base cover � Battery � Solid State Drive � Secondary memory module � SIM card � WLAN card � WWAN card � Keyboard lattice � Keyboard � Primary memory module � Inner frame � Smart-card reader � Touchpad button � SD card reader � Heat sink � Power button board � Power button board with fingerprint reader � Power button � Power button assembly with fingerprint reader � GPU power cable � System board � Power-adapter port � GPU card � Speaker � Middle cap � Display assembly � Palm rest � Display bezel � Display panel � Display hinges � Camera shutter cap � Camera � P-sensor board � Display cable � Display back cover
Recommended tools
The procedures in this document may require the following tools:

Removing and installing components

Phillips screwdriver #0 Phillips screwdriver #1 Plastic scribe

Screw list

NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a component.

NOTE: Screw color may vary with the configuration ordered.

Table 1. Screw list Component Base cover Battery

Screw type Captive screws M2x5

Quantity 8 3

Screw image

M.2 2280 PCIe 4 secondary

M2x3

Solid-state drive (slot 6)

M.2 2230 primary Solid-state M2x3

drive (slot 3, slot 4 and/or slot

M2x2

M.2 2280 primary Solid-state M2x3

drive (slot 3, slot 4 and slot 5)

Keyboard

M2x2

WWAN

M2x3

WLAN Memory shield

Captive screw

M2x3

Power-adapter cable bracket M2x3

Power button board

M2x3

Power button assembly with

M2.5x2.5

fingerprint reader cable bracket

Inner frame

M2x3

Smart card reader

M2x2.5

Touchpad buttons

M2x2.5

SD card reader

M2.5x2.5

Removing and installing components

Table 1. Screw list (continued)

Component

Screw type

Power button

M2x3

Power button assembly with fingerprint reader
Darwin cable bracket

M2x3 M2x3

Display cable bracket

M2x5

System board

M2x5

GPU card

M2x5

Middle cap Hinge screws Display panel

M2x3 M2.5x2.5
M2.5x2.5 M2x2.5

Quantity 2 2 1 1
3
4
3 8
2 2

Screw image

Display hinges

M2.5x2.5

Major components of Precision 7760
The following image shows the major components of Precision 7760.

Removing and installing components

1. Base cover 3. Middle cap 5. System board 7. Palmrest

Removing and installing components

2. Battery 4. Power-adapter port 6. Inner frame 8. Keyboard

9. Keyboard lattice 11. Memory module 13. Coin-cell battery 15. WWAN card 17. GPU card 19. Heat-sink assembly 21. Smart card reader module

10. Display assembly 12. Touchpad button board 14. Power button board 16. WLAN card 18. Power button 20. Speaker module 22. M.2 SSD

NOTE: Dell provides a list of components and their part numbers for the original system configuration purchased. These parts are available according to warranty coverages purchased by the customer. Contact your Dell sales representative for purchase options.

SD card

Removing SD card
Prerequisites 1. Follow the procedure in before working inside your computer.
About this task The figure indicates the location of the SD card and provides a visual representation of the removal procedure.

Steps 1. Press the SD card to release it from the computer. 2. Slide the SD card out of the computer.
Installing SD card
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the base cover and provides a visual representation of the installation procedure.

Removing and installing components

Steps Slide the SD card into the slot on the computer until it clicks into place.
Next steps 1. Follow the procedure in after working inside your computer.
Secondary M.2 solid-state drive
Removing the secondary M.2 Solid-state drive
Prerequisites NOTE: For computers shipped with M.2 2280 PCIe Gen4 SSD installed in slot 6. NOTE: This slot supports only M.2 2280 PCIe Gen4 Solid-state drive and does not support any Optane, SATA, or M.2 2230 Solid-state drive.
1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover.
NOTE: Follow this procedure only if the computer is shipped without SSD door configuration).
About this task The figure indicates the location of the secondary M.2 SSD and provides a visual representation of the removal procedure. For computers with SSD door configuration

Removing and installing components

For computers without SSD door configuration

Removing and installing components

Steps 1. For computers with SSD door configuration:
a. Use a plastic scribe to pry open the SSD door from its recess point. NOTE: The SDD door is attached to the base cover from one side and cannot be detached.
b. Follow the procedure from Step 3 to Step 8. 2. For computers without SSD door configuration:
a. Follow the procedure from Step 3 to Step 8. 3. Remove the (M2x3) screw that secures the SSD module into its slot on the computer. 4. Slide the SSD release latch to unlock the SSD module. 5. Remove the SSD module from the computer. 6. Remove the (M2x3) screw that secures the SSD thermal plate to the SSD carrier. 7. Carefully tilt at an angle and then slide to remove the SSD thermal plate from the SSD module. 8. Remove the M.2 2280 SSD from the SSD carrier.
Installing the secondary M.2 SSD module
Prerequisites
NOTE: For computers shipped with M.2 2280 PCIe Gen4 SSD installed in slot 6.

Removing and installing components

NOTE: This slot supports only M.2 2280 PCIe Gen4 Solid-state drive and does not support any Optane, SATA, or M.2 2230 Solid-state drive. If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the secondary M.2 SSD and provides a visual representation of the installation procedure. For computers with SSD door configuration

For computers without SSD door configuration

Removing and installing components

Steps 1. Place the M.2 2280 SSD onto its slot on the SSD carrier. 2. Align the tabs on the SSD thermal plate with the tab holes on the SSD carrier at an angle. 3. Place the SSD thermal plate above the M.2 SSD module.
NOTE: Carefully align the tab hole on the thermal plate near the screw hole with the tab on the SSD carrier.
4. Replace the (M2x3) screw to secure the SSD thermal plate to the M.2 SSD module. 5. Replace the M.2 SSD module in its slot on the computer. 6. Replace the (M2x3) screw to secure the SSD module in place. 7. Slide the SSD release latch to lock the SSD module in place. 8. For computers shipped with SSD door configuration:
a. Close the SSD door until it clicks into place.
Next steps 1. Install the base cover.
NOTE: Follow this procedure only if the computer is shipped without SSD door configuration). 2. Install the SD card. 3. Follow the procedure in after working inside your computer.

Removing and installing components

Base cover
Removing the base cover
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card.
About this task The figure indicates the location of the base cover and provides a visual representation of the removal procedure.

Removing and installing components

Steps
1. Loosen the eight captive screws that secure the base cover to the computer. 2. For computers shipped without a smart-card reader, pry open the base cover starting from the recess at the bottom edge of
the cover.

Removing and installing components

NOTE: For models shipped with smart-card reader, pry open the base cover from the smart-card reader slot at the bottom right side of the base cover. Use your fingers to pry open the base cover as the use of plastic scribe or any other sharp objects may damage the base cover.
3. Lift the base cover starting from the bottom edge and push it towards the rear to remove it from the computer. NOTE: Do not lift the base cover directly upwards to remove, as this may damage the rear edge of the cover.
4. After removing the base cover, if any of the thermal pads for the M.2 SSD, WWAN card, and/or inner frame are detached, adhere them to their correct slot on the computer.

Removing and installing components

5. Disconnect the battery cable from the connector on the system board.
Installing the base cover
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the base cover and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Connect the battery cable to the connector on the system board. 2. Slide the base cover into its slot until it clicks into place. 3. Tighten the eight captive screws to secure the base cover to the computer.
Next steps 1. Install the SD card. 2. Follow the procedure in after working inside your computer.
Battery
Lithium-ion battery precautions
CAUTION: Exercise caution when handling Lithium-ion batteries. Discharge the battery as much as possible before removing it from the system. This can be done by
disconnecting the AC adapter from the system to allow the battery to drain. Do not crush, drop, mutilate, or penetrate the battery with foreign objects. Do not expose the battery to high temperatures, or disassemble battery packs and cells. Do not apply pressure to the surface of the battery. Do not bend the battery.

Removing and installing components

Do not use tools of any kind to pry on or against the battery. Ensure any screws during the servicing of this product are not lost or misplaced, to prevent accidental
puncture or damage to the battery and other system components. If the battery gets stuck inside your computer as a result of swelling, do not try to release it as puncturing,
bending, or crushing a lithium-ion battery can be dangerous. In such an instance, contact Dell technical support for assistance. See www.dell.com/contactdell. Always purchase genuine batteries from www.dell.com or authorized Dell partners and resellers.
Removing the battery
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover.
About this task The figure indicates the location of the battery and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Remove the three (M2x5) screws that secure the battery to the computer. 2. Slightly lift the battery at an angle and slide the battery out of the computer chassis. 3. Peel the plastic tape to release the battery cable from the battery. 4. Unroute the battery cable from the routing guide in the battery. 5. Disconnect the battery cable from the connector on the battery.
Installing the battery
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the battery and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Route the battery cable through the routing guide on the battery. 2. Connect the battery cable to the connector on the battery. 3. Adhere the plastic tape to secure the battery cable to the battery. 4. Align the tabs on the battery at an angle with the tab holes on the computer chassis. 5. Place the battery onto its slot in the computer. 6. Replace the three (M2x5) screws to secure the battery to the computer.
Next steps 1. Install the base cover. 2. Install the SD card. 3. Follow the procedure in after working inside your computer.
Solid State Drive
Removing the primary M.2 Solid-state drive
Prerequisites NOTE: For computers shipped with M.2 2280 or 2230 Solid-state drive installed in slot 3, slot 4, and/or slot 5.
NOTE: Slot 3, slot 4, and slot 5 supports PCIe Gen3, Optane, and SATA Solid-state drive.
1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover.
About this task The figure indicates the location of the primary M.2 SSD and provides a visual representation of the removal procedure. M.2 2280 SSD

M.2 2230 SSD

Removing and installing components

Steps 1. Remove the (M2x3) screw that secures the SSD thermal plate to the M.2 SSD module. 2. Carefully tilt at an angle and then slide to remove the SSD thermal plate from the slots on the inner frame. 3. For M.2 2280 SSD:
a. Remove the (M2x3) screw that secures the M.2 SSD to the computer. b. Remove the M.2 SSD. 4. For M.2 2230 SSD: a. Remove the (M2x3) screw that secures the SSD module. b. Remove the SSD module from the computer. c. Remove the (M2x2) screw that secures the SSD to SSD holder. d. Remove the SSD from the holder. 5. Repeat the above steps to remove the other SSD modules in the computer.
Installing the primary M.2 SSD module
Prerequisites
NOTE: For computers shipped with M.2 2280 or 2230 Solid-state drive installed in slot 3, slot 4, and/or slot 5.
NOTE: Slot 3, slot 4, and slot 5 supports PCIe Gen3, Optane, and SATA Solid-state drive.
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the primary M.2 SSD and provides a visual representation of the installation procedure. M.2 2280 SSD

Removing and installing components

M.2 2230 SSD

Steps
1. For M.2 2280 SSD: a. Place the M.2 SSD onto its slot on the computer. b. Replace the (M2x3) screw to secure the M.2 SSD to the computer.
2. For M.2 2230 SSD: a. Place the M.2 SSD into the SSD holder. b. Replace the (M2x2) screw to secure the M.2 SSD to the holder. c. Place the M.2 SSD module onto its slot on the computer. d. Replace the (M2x3) screw to secure the M.2 SSD module to the computer.
3. Carefully align and insert the two tabs on the SSD thermal plate into the slots on the inner frame to secure the SSD thermal plate in place.
4. Replace the (M2x3) screw to secure the SSD thermal plate to the M.2 SSD. 5. Repeat the above steps to install the other SSD modules in the computer.

Removing and installing components

Next steps 1. Install the base cover. 2. Install the SD card. 3. Follow the procedure in after working inside your computer.
Secondary memory module
Removing the secondary memory module
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover.
About this task The figure indicates the location of the secondary memory module and provides a visual representation of the removal procedure.

Steps 1. Pry the securing clips from both side of the memory module until the memory module pops up. 2. Remove the memory module from the memory-module slot.
Installing the secondary memory module
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the secondary and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Align the notch on the memory module with the tab on the memory-module slot. 2. Slide the memory module firmly into the slot and press the memory module until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
Next steps 1. Install the base cover. 2. Install the SD card. 3. Follow the procedure in after working inside your computer.
SIM card
Removing the SIM card
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover.
About this task The figure indicates the location of the SIM card and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Gently slide the SIM card cover towards the left side of the SIM card slot to unlock the SIM card cover.
CAUTION: The SIM card cover is fragile and can be easily damaged if it is not properly unlocked before opening.
2. Flip the right edge of the SIM card cover to open it. 3. Remove the SIM card from the SIM card slot.
Installing the SIM card
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the SIM card and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Slide the SIM card into the SIM card slot. 2. Snap the SIM card cover down. 3. Slide the SIM card cover towards the right of the computer to lock the cover.
Next steps 1. Install the base cover. 2. Install the SD card. 3. Follow the procedure in after working inside your computer.
WLAN card
Removing the WLAN card
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover.
About this task The figure indicates the location of the WLAN card and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Loosen the captive screw that secures the WLAN card bracket to the system board. 2. Remove the WLAN card bracket away from the WLAN card. 3. Disconnect the antenna cables from the WLAN card. 4. Slide at an angle and remove the WLAN card from the connector on the system board.
Installing the WLAN card
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the WLAN card and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Connect the antenna cables to the WLAN card.
The following table provides the antenna-cable color scheme for the WLAN card of your computer.

Table 2. Antenna-cable color scheme Connectors on the wireless card Main (white triangle) Auxiliary (black triangle)

Antenna-cable color White Black

2. Align the notch on the WLAN card with the WLAN connector and insert the WLAN card at an angle into the WLAN card slot. 3. Align and place the WLAN card bracket to secure the WLAN antenna cables to the WLAN card. 4. Tighten the captive screw to secure the WLAN card bracket to the system board.

Next steps
1. Install the base cover. 2. Install the SD card. 3. Follow the procedure in after working inside your computer.

Removing and installing components

WWAN card
Removing the WWAN card
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover.
About this task The figure indicates the location of the WWAN card and provides a visual representation of the removal procedure.

Steps 1. Loosen the (M2x3) screw that secures the WWAN card bracket to the system board. 2. Lift the WWAN card bracket from the WWAN card. 3. Disconnect the antenna cables from the connector on the WWAN card. 4. Slide and remove the WWAN card from its slot on the system board.
NOTE: When replacing the system board, the sticker indicating the WWAN antenna cable connections must be relocated to the replacement system board.
Installing the WWAN card
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the WWAN card and provides a visual representation of the installation procedure.

Removing and installing components

Steps
1. Connect the antenna cables to the connectors on the WWAN card. The following table provides the antenna-cable color scheme for the WWAN card of your computer.

Table 3. Antenna-cable color scheme Antenna Cable Color White / Grey

Pin Definition ANT0

Blue

ANT1

Orange

ANT2

Black / Grey

ANT3

The connections are also printed on the WWAN card slot.
2. Align and slide the WWAN card to its slot on the system board. 3. Place the WWAN card bracket above the WWAN card to secure the antenna cables. 4. Tighten the (M2x3) screw to secure the WWAN card bracket to the system board.

Next steps
1. Install the base cover. 2. Install the SD card. 3. Follow the procedure in after working inside your computer.

Keyboard lattice

Removing the keyboard lattice
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover.

Removing and installing components

About this task The figure indicates the location of the keyboard lattice and provides a visual representation of the removal procedure.

Steps 1. Using a plastic scribe, pry the top edge of the keyboard lattice starting from the recess points and working your way around
the sides and bottom edge. 2. Remove the keyboard lattice from the keyboard.
Installing the keyboard lattice
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the keyboard lattice and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Align the keyboard lattice to its position on the keyboard. 2. Press the edges on the keyboard lattice until it clicks into place.
Next steps 1. Install the base cover. 2. Install the SD card. 3. Follow the procedure in after working inside your computer.
Keyboard
Removing the keyboard
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the keyoard lattice.
About this task The figure indicates the location of the keyboard and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Lift the latch and disconnect the keyboard FPC and the keyboard backlight FPC from the connectors on the touchpad
module. 2. Turn-over and open the system at 90� angle. 3. Remove the six (M2x2) screws that secure the keyboard to the palmrest. 4. Pry the bottom edge of the keyboard and then work along the left and the right sides of the keyboard. 5. Carefully unroute the keyboard backlight FPC and the keyboard FPC through the opening on the palmrest. 6. Remove the keyboard from the computer.
Installing the keyboard
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the keyboard and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Route the keyboard FPC and the keyboard backlight FPC through the opening on the palmrest. 2. Align the tabs on the keyboard with the tabs on the computer chassis at an angle. 3. Place the keyboard on the palmrest. 4. Replace the six (M2x2) screws to secure the keyboard to the palmrest. 5. Turn-over the system at 90� angle to access the keyboard FPC and the keyboard backlight FPC. 6. Connect the keyboard backlight FPC and the keyboard FPC to the connectors on the system board.
NOTE: Ensure that you fold the keyboard data cable in perfect alignment.
Next steps 1. Install the keyboard lattice. 2. Install the battery. 3. Install the base cover. 4. Install the SD card. 5. Follow the procedure in after working inside your computer.

Removing and installing components

Primary memory module
Removing the primary memory module
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the keyoard lattice. 6. Remove the keyboard.
About this task The figure indicates the location of the primary memory module and provides a visual representation of the removal procedure.

Steps 1. Remove the (M2x3) screw that secures the memory shield in place. 2. Slide the memory shield towards the right side of the computer and lift the shield from the memory module.

Removing and installing components

3. Pry the securing clips from both side of the memory module until the memory module pops up. 4. Remove the memory module from the memory-module slot.
NOTE: Repeat the above steps if there are other memory installed.
Installing the primary memory module
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the primary memory module and provides a visual representation of the installation procedure.

Steps 1. Align the notch on the memory module with the tab on the memory-module slot. 2. Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.

Removing and installing components

3. Carefully align the two clips on the memory shield with the slots on the computer chassis and insert the clips under the chassis.
4. Place the memory shield and slide it towards the left side of the computer to cover the memory module. 5. Replace the (M2x3) screw to secure the memory shield to the memory module.
Next steps 1. Install the keyboard. 2. Install the keyboard lattice. 3. Install the battery. 4. Install the base cover. 5. Install the SD card. 6. Follow the procedure in after working inside your computer.
Inner frame
Removing the inner frame
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the WLAN card. 6. Remove the WWAN card. 7. Remove the primary M.2 SSD.
About this task The figure indicates the location of the inner frame and provides a visual representation of the removal procedure.

Removing and installing components

Steps
1. For the computers shipped with WWAN card: a. Remove the (M2x3) screw that secures the Darwin bracket in place. b. Remove the Darwin bracket away from the computer. c. Disconnect the two Darwin antenna cables from the connector on the system board.
2. Unroute the WLAN and WWAN antenna cables from the routing guide. 3. Disconnect the keyboard FPC and the keyboard backlight FPC from the connector on the touchpad module. 4. Remove the ten (M2x3) screws that secure the inner frame to the computer chassis. 5. Remove the inner frame from the computer while carefully unthreading the keyboard FPC and keyboard backlight FPC
through the opening on the inner frame.
NOTE: If the thermal pad attached to the bottom side of the inner frame is detached, while removing the inner frame, adhere it back to its correct location.

Removing and installing components

Installing the inner frame
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the inner frame and provides a visual representation of the installation procedure.

Removing and installing components

Steps
1. Carefully route the keyboard FPC and keyboard backlight FPC through the inner frame and place the inner frame on the computer chassis.
2. Replace the ten (M2x3) screws to secure the inner frame in place. 3. Route the WLAN and WWAN antenna cables through the routing guide. 4. For the computers shipped with WWAN card:
a. Connect the two Darwin antenna cables to the connector on the system board. b. Align and place the Darwin bracket to secure the Darwin antenna cables to the system board. c. Replace the (M2x3) screw to secure the Darwin bracket in place.
Next steps
1. Install the WWAN card. 2. Install the WLAN card. 3. Install the primary M.2 SSD. 4. Install the battery. 5. Install the base cover. 6. Install the SD card. 7. Follow the procedure in after working inside your computer.

Removing and installing components

Smart-card reader
Removing the smart-card reader
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the WLAN card. 6. Remove the WWAN card. 7. Remove the primary M.2 SSD. 8. Remove the inner frame.
About this task The figure indicates the location of the smart-card reader and provides a visual representation of the removal procedure.

Steps 1. Disconnect the touchpad buttons FPC from the touchpad. 2. Disconnect the smart-card reader FFC from the connector on the USH daughter board. 3. Peel the smart-card reader FFC from the touchpad. 4. Remove the two (M2x2.5) screws that secure the smart-card reader to the computer. 5. Remove the smart-card reader from the computer.
Installing the smart-card reader
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the smart-card reader and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Align and place the smart-card reader into its slot on the computer. 2. Replace the two (M2x2.5) screws to secure the smart-card reader in place. 3. Adhere the smart-card reader FFC to the touchpad. 4. Connect the smart-card reader FFC to the connector on the USH daughter board. 5. Connect the touchpad button FPC to the connector on the touchpad.
Next steps 1. Install the inner frame. 2. Install the WWAN card. 3. Install the WLAN card. 4. Install the primary M.2 SSD. 5. Install the battery. 6. Install the base cover. 7. Install the SD card. 8. Follow the procedure in after working inside your computer.
Touchpad button
Removing the Touchpad buttons
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the WLAN card. 6. Remove the WWAN card. 7. Remove the primary M.2 SSD. 8. Remove the inner frame.

Removing and installing components

About this task The figure indicates the location of the touchpad buttons and provides a visual representation of the removal procedure.

Steps 1. For models shipped with smart card reader, disconnect the smart card reader FFC from the USH daughter board and peel
the smart card reader FFC from the touchpad. 2. Disconnect the touchpad buttons FPC from the connector on the touchpad. 3. Remove the two (M2x2.5) screws that secure the touchpad buttons to the palmrest. 4. Remove the touchpad buttons from the palmrest.
Installing the Touchpad buttons
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the touchpad buttons and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Place the touchpad buttons into its slot in the palmrest. 2. Replace the two (M2x2.5) screws to secure the touchpad buttons to the palmrest. 3. Connect the touchpad buttons FPC to the connector in the touchpad. 4. For models shipped with smart card reader, connect the smart card reader FFC to the USH daughter board and adhere the
smart card reader FFC on the touchpad.
Next steps 1. Install the inner frame. 2. Install the WWAN card. 3. Install the WLAN card. 4. Install the primary M.2 SSD. 5. Install the battery. 6. Install the base cover. 7. Install the SD card. 8. Follow the procedure in after working inside your computer.
SD card reader
Removing SD card reader
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the WLAN card. 6. Remove the WWAN card. 7. Remove the primary M.2 SSD. 8. Remove the keyboard lattice. 9. Remove the keyboard. 10. Remove the inner frame.

Removing and installing components

About this task The figure indicates the location of the SD card reader and provides a visual representation of the removal procedure.

Steps 1. Disconnect the SD card reader FPC from the connector on the system board. 2. Turn the computer and disconnect the LED board FFC from the SD card reader on the bottom side of the computer. 3. Remove the (M2.5x2.5) screw that secures the SD card reader in place. 4. Slide and remove the SD card reader with its FPC out of the computer.
Installing SD card reader
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the SD card reader and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Align the SD card reader with the FPC into its slot on the palmrest. 2. Place the SD card reader with the FPC on the palmrest and route the SD card reader FPC through the opening in the
palmrest. 3. Replace the (M2.5x2.5) screw to secure the SD card reader to the palmrest. 4. Connect the LED board FPC to the SD card reader. 5. Turn the computer and connect the SD card reader FPC to the connector on the system board.
Next steps 1. Install the inner frame. 2. Install the keyboard. 3. Install the keyboard lattice. 4. Install the WWAN card. 5. Install the WLAN card. 6. Install the primary M.2 SSD. 7. Install the battery. 8. Install the base cover. 9. Install the SD card. 10. Follow the procedure in after working inside your computer.
Heat sink
Removing the heat-sink assembly
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery.

Removing and installing components

About this task The figure indicates the location of the heat-sink assembly and provides a visual representation of the removal procedure.

Steps 1. Disconnect the power-adapter cable and peel the cable from the heat-sink assembly. 2. Disconnect the two fan cables from the connectors on the system board. 3. For the computers shipped with UMA graphics card:
a. Loosen the four captive screws that secure the heat-sink assembly to the system board. NOTE: Loosen the captive screws in the order stamped onto the heat-sink assembly next to the screws [4 > 3 > 2 > 1].
4. For the computers shipped with discrete graphics card: a. Loosen the eight captive screws that secure the heat-sink assembly to the system board. NOTE: Loosen the captive screws in the order stamped onto the heat-sink assembly next to the screws [8 > 7 > 6 > 5 > 4 > 3 > 2 > 1].
5. Carefully lift the heat-sink assembly to remove it from the computer. NOTE: While lifting the heat-sink assembly, the thermal pads attached to the bottom side of the heat sink can stick to the computer and can cause only one side to lift. As the heat sink thermal tube is thin and can bend easily, ensure to evenly lift the heat-sink assembly and not from one side.
NOTE: If any thermal pads attached to the bottom side of the heat-sink assembly are detached while removing the heat-sink assembly, adhere them back to their correct location on the heat sink.

Removing and installing components

NOTE: For the computers shipped with UMA graphics card, the thermal pads will be shown on the left half of the heat-sink assembly.
Installing the heat-sink assembly
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the keyboard and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Align and insert the heat-sink assembly into its slot on the computer. 2. For the computers shipped with UMA graphics card:
a. Tighten the four captive screws to secure the heat-sink assembly to the system board. NOTE: Tighten the captive screws in the order stamped onto the heat sink next to the screws [1 > 2 > 3 > 4].
3. For the computers shipped with discrete graphics card: a. Tighten the eight captive screws to secure the heat-sink assembly to the system board. NOTE: Tighten the captive screws in the order stamped onto the heat sink next to the screws [1 > 2 > 3 > 4 > 5 > 6 > 7 > 8].
4. Connect the two fan cables to the connector on the system board. 5. Adhere the power-adapter cable on the heat-sink assembly. 6. Connect the power-adapter cable to the connector on the system board.
Next steps 1. Install the battery. 2. Install the base cover. 3. Install the SD card. 4. Follow the procedure in after working inside your computer.
Power button board
Removing the power button board
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the heat-sink assembly.
About this task The figure indicates the location of the power button board and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Disconnect the power button board FFC from the connector on the system board. 2. Peel the power button board FFC from the palmrest. 3. Remove the two (M2x3) screws that secure the power button board to the computer. 4. Remove the power button board with the power button board FFC from the computer. 5. Disconnect the power button board FFC from the power button board.
Installing the power button board
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the power button board and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Connect the power button board FFC to the power button board. 2. Align and place the power button board with the power button FFC into its slot on the computer. 3. Replace the two (M2x3) screws to secure the power button board to the computer. 4. Adhere the power button board FFC to the palmrest. 5. Connect the power button board FFC to the connector on the system board.
Next steps 1. Install the heat-sink assembly. 2. Install the battery. 3. Install the base cover. 4. Install the SD card. 5. Follow the procedure in after working inside your computer.
Power button board with fingerprint reader
Removing the power button board assembly with fingerprint reader
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the heat-sink assembly.
About this task The figure indicates the location of the power button board assembly with fingerprint reader and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Remove the (M2x3) screw that secures the power button board assembly with fingerprint reader FPC bracket to the power
button board. 2. Remove the power button board assembly with fingerprint reader FPC bracket from the power button board. 3. Disconnect the power button board assembly with fingerprint reader FPC from the power button board. 4. Disconnect the power button board FFC from the connector on the system board. 5. Peel the power button board FFC from the palmrest. 6. Remove the two (M2x3) screws that secure the power button board to the computer. 7. Remove the power button board with the power button board FFC from the computer. 8. Disconnect the power button board FFC from the power button board.
Installing the power button board assembly with fingerprint reader
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the power button assembly with fingerprint reader and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Connect the power button board FFC to the power button board. 2. Align and place the power button board with power button FFC into its slot on the computer. 3. Replace the two (M2x3) screws to secure the power button board to the computer. 4. Adhere the power button board FFC to the palmrest. 5. Connect the power button board FFC to the connector on the system board. 6. Connect the power button board assembly with fingerprint reader FPC to the power button board. 7. Replace the power button board assembly with fingerprint reader FPC bracket above the power button daughter board. 8. Replace the (M2x3) screw to secure the power button board assembly with fingerprint reader FPC bracket in place.
Next steps 1. Install the heat-sink assembly. 2. Install the battery. 3. Install the base cover. 4. Install the SD card. 5. Follow the procedure in after working inside your computer.
Power button
Removing the power button
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the heat-sink assembly.

Removing and installing components

6. Remove the power button board.
About this task The figure indicates the location of the power button and provides a visual representation of the removal procedure.

Steps 1. Remove the two (M2x3) screws that secure the power button in its slot on the computer. 2. Remove the power button from the computer.
Installing the power button
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the power button and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Place the power button into its slot on the computer. 2. Replace the two (M2x3) screws to secure the power button in place.
Next steps 1. Install the power button board. 2. Install the heat-sink assembly. 3. Install the battery. 4. Install the base cover. 5. Install the SD card. 6. Follow the procedure in after working inside your computer.
Power button assembly with fingerprint reader
Removing the power button board assembly with fingerprint reader
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the heat-sink assembly.
About this task The figure indicates the location of the power button board assembly with fingerprint reader and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Remove the (M2x3) screw that secures the power button board assembly with fingerprint reader FPC bracket to the power
button board. 2. Remove the power button board assembly with fingerprint reader FPC bracket from the power button board. 3. Disconnect the power button board assembly with fingerprint reader FPC from the power button board. 4. Disconnect the power button board FFC from the connector on the system board. 5. Peel the power button board FFC from the palmrest. 6. Remove the two (M2x3) screws that secure the power button board to the computer. 7. Remove the power button board with the power button board FFC from the computer. 8. Disconnect the power button board FFC from the power button board.
Installing the power button assembly with fingerprint reader
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the power button assembly with fingerprint reader and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Place the power button assembly with fingerprint reader into its slot on the computer. 2. Replace the two (M2x3) screws to secure the power button assembly with fingerprint reader in place.
Next steps 1. Install the power button board assembly with fingerprint reader. 2. Install the heat-sink assembly. 3. Install the battery. 4. Install the base cover. 5. Install the SD card. 6. Follow the procedure in after working inside your computer.
GPU power cable
Removing the GPU power cable
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the battery. 5. Remove the keyboard lattice. 6. Remove the keyboard.
About this task The figure indicates the location of the GPU power cable and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Carefully pry the outside end of the GPU power cable connector head to unlock the GPU power cable connector from the
GPU card. 2. Slightly slide the GPU power cable connector outwards to disconnect the GPU power cable from the GPU card. 3. Repeat the above steps to disconnect the GPU power cable from the system board. 4. Peel the GPU power cable from the computer.
Installing the GPU power cable
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the GPU power cable and provides a visual representation of the installation procedure.

Removing and installing components

Steps 1. Adhere the GPU power cable into its slot on the computer. 2. Disconnect the GPU power cable from the connector on the system board. 3. Slide the GPU power cable connector into its slot to connect the GPU power cable to the GPU card. 4. Lock the GPU power cable connector to secure the GPU card.
Next steps 1. Install the keyboard. 2. Install the keyboard lattice. 3. Install the battery. 4. Install the base cover. 5. Install the SD card. 6. Follow the procedure in after working inside your computer.
System board
Removing the system board
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice.

Removing and installing components

12. Remove the keyboard. 13. Remove the primary memory. 14. Remove the heat-sink assembly. 15. Remove the inner frame.
About this task The figure indicates the location of the system board and provides a visual representation of the removal procedure. The following image indicates the connectors on your system board:

1. Power button FFC connector 2. WWAN card connector 3. Darwin antenna cable connector 4. Secondary M.2 SSD connector 5. Fan cable connector 6. FPC beam connector 7. Display cable connector 8. IR camera/Touchscreen cable connector 9. Power-adapter port connector 10. Fan cable connector 11. Battery cable connector 12. Touchpad cable cpnnector 13. Secondary memory module slot 14. USH daughter board cable connector 15. WLAN card connector 16. SIM card slot 17. Primary M.2 SSD slot 3 connector 18. Primary M.2 SSD slot 4 connector 19. Primary M.2 SSD slot 5 connector

Removing and installing components

1. Primary memory module slot 2. GPU power cable connector 3. SD card reader cable 4. Speaker cable connector 5. Coin-cell battery cable connector
NOTE: For models shipped with a discrete GPU card:

Removing and installing components

Steps
1. Carefully pry the outside end of the GPU power cable connector head to unlock the GPU power cable connector from the system board on top side of the system.
2. Slightly slide the GPU power cable connector outwards to disconnect the GPU power cable from the connector on the system board.
3. Disconnect the speaker cable and the SD card reader FPC from the connectors on the system board. 4. Disconnect the touch screen cable (for models shipped with a touch screen) or IR camera cable (for models shipped with an
IR camera), power adapter cable, touchpad FFC, USH daughter board FFC (for models shipped with a USH daughter board), and power button board FFC from the system board. 5. Remove the four (M2x3) screws that secure the two FPC beam connectors to the system board and the GPU card.
NOTE: For computers shipped with a UMA GPU card, remove the two (M2x3) screws that secure the single FPC beam connector to the system board and the GPU card.
6. Remove the FPC beam connectors from the computer. 7. Remove the (M2x5) screw that secures the display cable bracket in place. 8. Remove the display cable bracket from the computer. 9. Disconnect the display cable from the connector on the system board. 10. Remove the four (M2x5) screws that secure the system board to the computer.

Removing and installing components

11. Pry the coin-cell battery, located under the system board, from the palmrest while lifting the system board. NOTE: When replacing the system board, the Type-C bracket on the left side under the system board must be relocated to the replacement system board. NOTE: If the Type-C bracket becomes detached from the system board anytime after the system board is removed from the computer, re-adhere the bracket onto the system board.
12. Remove the system board from the computer.
Installing the system board
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the location of the system board and provides a visual representation of the installation procedure.

Removing and installing components

Steps

NOTE: When replacing the system board, the Type-C bracket on the left side, under the system board must be

relocated to the replacement system board.

Adhere the coin-cell battery to the palmrest and then place the system board on its slot on the palmrest. 2. Replace the four (M2x5) screws to secure the system board to the palmrest. 3. Replace the display cable bracket on the display cable. 4. Replace the (M2x5) screw to secure the display cable bracket to the system board. 5. Connect the FPC beam connectors on the system board.
NOTE: When installing an FPC beam connector, ensure that the end marked "MB" is connected to the system board and that the alignment pins on the connector are inserted into the openings on the boards.

6. Replace the four (M2x3) screws to secure the two FPC beam connectors to the system board and the GPU card. NOTE: For UMA models, replace the two (M2x3) screws to secure the single FPC beam connector to the system board and the GPU card.
NOTE: When installing an FPC beam connector, ensure that the end marked "MB" is connected to the system board and that the alignment pins on the connector are inserted into the openings on the boards.

7. Connect the speaker cable and SD card reader FPC to the connectors on the system board.
8. Connect the display cable, touch screen cable (for models shipped with a touch screen) or IR camera cable (for models shipped with an IR camera), power adapter cable, touchpad FPC, USH daughter board FFC (for models shipped with a USH daughter board), and power button board FFC to the connectors on the system board.
9. Connect the GPU power cable to the connector on the system board on the top side of the computer.
10. Lock the GPU power cable connector on the system board.

Next steps
1. Install the inner frame. 2. Install the heat-sink assembly.

Removing and installing components

3. Install the keyboard. 4. Install the keyboard lattice. 5. Install the SIM card. 6. Install the primary memory. 7. Install the WWAN card. 8. Install the WLAN card. 9. Install the secondary memory. 10. Install the primary M.2 SSD. 11. Install the battery. 12. Install the base cover. 13. Install the secondary M.2 SSD. 14. Install the SD card. 15. Follow the procedure in after working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the base cover. 4. Remove the heat-sink assembly.
About this task The figure indicates the location of the power-adapter port and provides a visual representation of the removal procedure.

Steps
1. Disconnect the power-adapter cable from the connector on the system board. 2. Peel and unroute the display cable from the route to access the power-adapter port slot. 3. Remove the (M2x3) screw that secures power-adapter port bracket. 4. Remove the power-adapter port bracket from the computer.

Removing and installing components

5. Unroute the power-adapter cable from the cut-out on the system board and lift the cable clamp from the computer chassis. 6. Slide the power-adapter port towards the rear side of the computer to remove the power-adapter port from its
compartment on the computer chassis.
Installing the power-adapter port
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the power-adapter port and provides a visual representation of the installation procedure.

Steps
1. Align and place the power-adapter cable on the computer. 2. Place the power-adapter port into its compartment on the computer chassis. 3. Firmly place the cable clam into its compartment on the computer chassis and route the power-adapter cable through the
cut-out on the system board. 4. Place the power-adapter port bracket on the power-adapter port. 5. Replace the (M2x3) screw to secure the power-adapter port bracket to the computer. 6. Connect the power-adapter cable to the connector on the system board. 7. Adhere and route the display cable in place.
Next steps
1. Install the heat-sink assembly. 2. Install the base cover. 3. Install the SD card. 4. Follow the procedure in after working inside your computer.

Removing and installing components

GPU card
Removing the GPU card
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the GPU power cable. 14. Remove the primary memory. 15. Remove the heat-sink assembly. 16. Remove the inner frame.
About this task
The figure indicates the location of the GPU card and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Remove the three (M2x5) screws that secure the GPU card to the palmrest. 2. Remove the GPU card from the computer.
Installing the GPU card
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the GPU card and provides a visual representation of the installation procedure.

Steps 1. Align and place the GPU card into its slot on the palmrest. 2. Replace the three (M2x5) screws to secure the GPU card to the palmrest.
NOTE: When installing an FPC beam connector, ensure that the end marked "MB" is connected to the system board and that the alignment pins on the connector are inserted into the openings on the boards.
Next steps 1. Install the inner frame. 2. Install the heat-sink assembly. 3. Install the GPU power cable. 4. Install the keyboard. 5. Install the keyboard lattice. 6. Install the SIM card. 7. Install the primary memory.

Removing and installing components

8. Install the WWAN card. 9. Install the WLAN card. 10. Install the secondary memory. 11. Install the primary M.2 SSD. 12. Install the battery. 13. Install the base cover. 14. Install the secondary M.2 SSD. 15. Install the SD card. 16. Follow the procedure in after working inside your computer.
Speaker
Removing the speaker
Prerequisites
1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the GPU power cable. 14. Remove the GPU card. 15. Remove the primary memory. 16. Remove the heat-sink assembly. 17. Remove the inner frame. 18. Remove the system board.
About this task
The figure indicates the location of the speaker and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Peel the pieces of adhesive tape that secures the speaker cable to the palmrest. 2. Pry the speaker module from its slot on the top edge of the palmrest. 3. Remove the speaker module from the computer.
Installing the speaker
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the speaker and provides a visual representation of the installation procedure.

Removing and installing components

Steps
1. Align and place the speaker module into its slot on the top edge of the palmrest. 2. Adhere the three piece adhesive tape to secure the speaker cable in place on the palmrest.
Next steps
1. Install the system board. 2. Install the inner frame. 3. Install the heat-sink assembly. 4. Install the GPU card. 5. Install the GPU power cable. 6. Install the keyboard. 7. Install the keyboard lattice. 8. Install the SIM card. 9. Install the primary memory. 10. Install the WWAN card. 11. Install the WLAN card. 12. Install the secondary memory. 13. Install the primary M.2 SSD. 14. Install the battery. 15. Install the base cover. 16. Install the secondary M.2 SSD. 17. Install the SD card.

Removing and installing components

18. Follow the procedure in after working inside your computer.
Middle cap
Removing the middle cap
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the GPU power cable. 14. Remove the GPU card. 15. Remove the primary memory. 16. Remove the heat-sink assembly. 17. Remove the inner frame. 18. Remove the system board.
About this task The figure indicates the location of the speaker and provides a visual representation of the removal procedure.

Steps 1. Remove the four (M2x3) screws that secures the middle cap in place.

Removing and installing components

2. Remove the middle cap from the computer.
Installing the middle cap
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the middle cap and provides a visual representation of the installation procedure.

Steps
1. With the open side of the middle hinge cap facing down, push the cap into the right display hinge cap at an angle while tucking the WWAN antennas into its hollow center.

2. Push the other side of the cap into the left display hinge cap and tuck the display cable into the middle cap hollow center.

Removing and installing components

3. Rotate the hinge cap and tuck the tabs on the middle cap underneath the speaker module.
4. Align and insert the middle cap onto the palmrest. NOTE: Ensure that the openings on the left and right side of the middle cap is secured in place by the two alignment pegs on the palmrest.

5. Replace the four (M2x3) screws to secure the middle cap in place.
Next steps 1. Install the system board. 2. Install the inner frame. 3. Install the heat-sink assembly. 4. Install the GPU card.

Removing and installing components

5. Install the GPU power cable. 6. Install the keyboard. 7. Install the keyboard lattice. 8. Install the SIM card. 9. Install the primary memory. 10. Install the WWAN card. 11. Install the WLAN card. 12. Install the secondary memory. 13. Install the primary M.2 SSD. 14. Install the battery. 15. Install the base cover. 16. Install the secondary M.2 SSD. 17. Install the SD card. 18. Follow the procedure in after working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the primary memory. 14. Remove the heat-sink assembly. 15. Remove the system board. 16. Remove the power-adapter port.
About this task
The figure indicates the location of the display assembly and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Open the display assembly to a 45-degree angle and place the computer at the edge of a flat table so that the display
assembly can extend below the table. NOTE: For computers shipped with IR camera configuration, disconnect the display cable and IR camera cable.
2. Peel and remove the WWAN cables and the Darwin cables from the palmrest. 3. Remove the eight (M2.5x2.5) screws that secure the hinges to the palmrest. 4. Remove the display assembly from the palmrest.
Installing the display assembly
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the location of the display assembly and provides a visual representation of the installation procedure.

Removing and installing components

Steps

NOTE: Before installing the display assembly, ensure that the display hinges are opened to a 140-degree angle against

the display assembly, to fit the display assembly to the palmrest.

Align the screw holes on the hinges on the display assembly to the screw holes on the palmrest. 2. Replace the eight (M2.5x2.5) screws to secure the hinges to the palmrest. 3. Adhere the WWAN cables and Darwin cables to the palmrest.

Removing and installing components

NOTE: For computers shipped with IR camera configuration, connect the display cable and IR camera cable. Carefully route the cables between the hinges and the inside of the middle cap.
Next steps
1. Install the power-adapter port. 2. Install the system board. 3. Install the heat-sink assembly. 4. Install the keyboard. 5. Install the keyboard lattice. 6. Install the SIM card. 7. Install the primary memory. 8. Install the WWAN card. 9. Install the WLAN card. 10. Install the secondary memory. 11. Install the primary M.2 SSD. 12. Install the battery. 13. Install the base cover. 14. Install the secondary M.2 SSD. 15. Install the SD card. 16. Follow the procedure in after working inside your computer.
Palm rest
Removing the palmrest
Prerequisites
1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the power button board or power button board assembly with fingerprint reader. 14. Remove the smart-card reader. 15. Remove the touchpad buttons. 16. Remove the power button or power button assembly with fingerprint reader. 17. Remove the SD card reader. 18. Remove the GPU power cable. 19. Remove the GPU card. 20. Remove the primary memory. 21. Remove the heat-sink assembly. 22. Remove the inner frame. 23. Remove the system board. 24. Remove the power-adapter port. 25. Remove the speakers. 26. Remove the middlecap. 27. Remove the display assembly.

Removing and installing components

About this task The picture below shows the palmrest after performing the pre-removal parts procedures for any palm rest replacement.

Installing the palmrest
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the palmrest and before performing the pre-installation parts procedures for any palmrest installation procedure.

Removing and installing components

Next steps
1. Install the display assembly. 2. Install the middlecap. 3. Install the speakers. 4. Install the power-adapter port. 5. Install the system board. 6. Install the inner frame. 7. Install the heat-sink assembly. 8. Install the GPU card. 9. Install the GPU power cable. 10. Install the SD card reader. 11. Install the power button or power button assembly with fingerprint reader. 12. Install the touchpad button. 13. Install the power button board or power button board assembly with fingerprint reader. 14. Install the smart card reader. 15. Install the keyboard. 16. Install the keyboard lattice. 17. Install the SIM card. 18. Install the primary memory. 19. Install the WWAN card. 20. Install the WLAN card. 21. Install the secondary memory. 22. Install the primary M.2 SSD. 23. Install the battery. 24. Install the base cover. 25. Install the secondary M.2 SSD. 26. Install the SD card. 27. Follow the procedure in after working inside your computer.

Removing and installing components

Display bezel
Removing the display bezel (non-touch)
Prerequisites
1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the GPU power cable. 14. Remove the GPU card. 15. Remove the primary memory. 16. Remove the heat-sink assembly. 17. Remove the inner frame. 18. Remove the system board. 19. Remove the speakers. 20. Remove the middlecap. 21. Remove the display assembly.
About this task
The figure indicates the location of the display bezel and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Using a flat head tool or a plastic scribe, pry open the display bezel from the two recess points on the bottom edge of the
display bezel. 2. Working your way from the bottom edge, pry around the sides and top edge of the display bezel.
NOTE: While prying the display bezel, ensure to pry along the outside edge of the display bezel using your hands-using a screw driver or other sharp objects may damage the display cover.
3. Remove the display bezel from the display assembly.
Installing the display bezel (non-touch)
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the display bezel and provides a visual representation of the installation procedure.

Removing and installing components

Steps
1. Place the display bezel on the display assembly. 2. Press the edges of the display bezel until it clicks onto the display assembly.
Next steps
1. Install the display assembly. 2. Install the middlecap. 3. Install the speakers. 4. Install the system board. 5. Install the inner frame. 6. Install the heat-sink assembly. 7. Install the GPU card. 8. Install the GPU power cable. 9. Install the keyboard. 10. Install the keyboard lattice. 11. Install the SIM card. 12. Install the primary memory. 13. Install the WWAN card. 14. Install the WLAN card. 15. Install the secondary memory. 16. Install the primary M.2 SSD. 17. Install the battery. 18. Install the base cover. 19. Install the secondary M.2 SSD.

Removing and installing components

20. Install the SD card. 21. Follow the procedure in after working inside your computer.
Display panel
Removing the display panel (non-touch)
Prerequisites
1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the SD card reader. 14. Remove the GPU power cable. 15. Remove the GPU card. 16. Remove the primary memory. 17. Remove the heat-sink assembly. 18. Remove the inner frame. 19. Remove the system board. 20. Remove the speakers. 21. Remove the middlecap. 22. Remove the display assembly. 23. Remove the display bezel.
About this task
The figure indicates the location of the display panel and provides a visual representation of the removal procedure.

Removing and installing components

Steps 1. Remove the two (M2.5x2.5) screws and the two (M2x2.5) screws that secure the display panel to the display assembly. 2. Lift the display panel and turn the display panel over to access the display cable. 3. Peel the conductive tape covering the display cable. 4. Peel the adhesive tapes that secure the display cable connector. 5. Peel the adhesive rubber strip covering the display cable connector. 6. Unlock the display cable connector and then disconnect the display cable from the back of the display panel. 7. Remove the display panel form the display assembly. 8. Remove the display panel.
NOTE: The support brackets attached to the display panel are defined as a single service assembly part and cannot be further disassembled.
Installing the display panel (non-touch)
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.
About this task The figure indicates the display panel and provides a visual representation of the installation procedure.

Removing and installing components

100 Removing and installing components

Steps 1. Connect the display cable to the connector on the back of the display panel and lock the display cable connector. 2. Adhere the adhesive rubber strip to cover the display cable connector. 3. Adhere the transparent tape and conductive tape above the rubber strip to cover the display cable connector. 4. Align the display panel with the tabs on the display assembly. 5. Replace the two (M2.5X2.5) and two (M2x2.5) screws to secure the display panel to the display assembly.
Next steps 1. Install the display bezel. 2. Install the display assembly. 3. Install the middlecap. 4. Install the speakers. 5. Install the system board. 6. Install the inner frame. 7. Install the heat-sink assembly. 8. Install the GPU card. 9. Install the GPU power cable. 10. Install the SD card reader. 11. Install the keyboard.
Removing and installing components 101

12. Install the keyboard lattice. 13. Install the SIM card. 14. Install the primary memory. 15. Install the WWAN card. 16. Install the WLAN card. 17. Install the secondary memory. 18. Install the primary M.2 SSD. 19. Install the battery. 20. Install the base cover. 21. Install the secondary M.2 SSD. 22. Install the SD card. 23. Follow the procedure in after working inside your computer.
Display hinges
Removing the display hinge
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the SD card reader. 14. Remove the GPU power cable. 15. Remove the GPU card. 16. Remove the primary memory. 17. Remove the heat-sink assembly. 18. Remove the inner frame. 19. Remove the system board. 20. Remove the speakers. 21. Remove the middlecap. 22. Remove the display assembly. 23. Remove the display bezel. 24. Remove the display panel.
About this task The figure indicates the location of the display hinge and provides a visual representation of the removal procedure.
102 Removing and installing components

Steps 1. Remove the eight (M2.5x2.5) screws that secure the display hinges to the display assembly. 2. Remove the display hinges.
Installing the display hinge (non-touch)
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the display hinge and provides a visual representation of the installation procedure.
Removing and installing components 103

Steps
1. Place the display hinge in its slot on the display assembly. 2. Replace the eight (M2.5x2.5) screws to secure the display hinge to the display assembly.
Next steps
1. Install the display panel. 2. Install the display bezel. 3. Install the display assembly. 4. Install the middlecap. 5. Install the speakers. 6. Install the system board. 7. Install the inner frame. 8. Install the heat-sink assembly. 9. Install the GPU card. 10. Install the GPU power cable. 11. Install the SD card reader. 12. Install the keyboard. 13. Install the keyboard lattice. 14. Install the SIM card. 15. Install the primary memory. 16. Install the WWAN card. 17. Install the WLAN card. 18. Install the secondary memory. 19. Install the primary M.2 SSD. 20. Install the battery. 21. Install the base cover. 22. Install the secondary M.2 SSD. 23. Install the SD card. 24. Follow the procedure in after working inside your computer.
Camera shutter cap
Removing camera shutter cap
Prerequisites
1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the SD card reader. 14. Remove the GPU power cable. 15. Remove the GPU card. 16. Remove the primary memory. 17. Remove the heat-sink assembly. 18. Remove the inner frame.
104 Removing and installing components

19. Remove the system board. 20. Remove the speakers. 21. Remove the display assembly. 22. Remove the display bezel. 23. Remove the display panel. About this task The figure indicates the location of the camera shutter cap and provides a visual representation of the removal procedure.
Steps 1. Pull the camera shutter cap from its slot on the display back cover. 2. Remove the camera shutter cap from the camera module.
Installing camera shutter cap
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the location of the camera shutter cap and provides a visual representation of the installation procedure.
Steps 1. Align the cap with the display back cover so that the red dot on the cap faces up and the opening on the cap aligns with the
aperture on the camera. 2. Place the cap onto the camera module.
Removing and installing components 105

3. Press the cap until it clicks into place to secure the cap into its slot.
Next steps
1. Install the display panel. 2. Install the display bezel. 3. Install the display assembly. 4. Install the speakers. 5. Install the system board. 6. Install the inner frame. 7. Install the heat-sink assembly. 8. Install the GPU card. 9. Install the GPU power cable. 10. Install the SD card reader. 11. Install the keyboard. 12. Install the keyboard lattice. 13. Install the SIM card. 14. Install the primary memory. 15. Install the WWAN card. 16. Install the WLAN card. 17. Install the secondary memory. 18. Install the primary M.2 SSD. 19. Install the battery. 20. Install the base cover. 21. Install the secondary M.2 SSD. 22. Install the SD card. 23. Follow the procedure in after working inside your computer.
Camera
Removing the camera (non-touch)
Prerequisites
1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the SD card reader. 14. Remove the GPU power cable. 15. Remove the GPU card. 16. Remove the primary memory. 17. Remove the heat-sink assembly. 18. Remove the inner frame. 19. Remove the system board. 20. Remove the speakers. 21. Remove the display assembly. 22. Remove the display bezel.
106 Removing and installing components

23. Remove the display panel. 24. Remove the camera shutter cap. About this task The figure indicates the location of the camera and provides a visual representation of the removal procedure.
Steps 1. Peel the adhesive tape that covers the camera module. 2. Disconnect the display cable from the camera module. 3. Gently pry the camera shutter cap from the top edge of the camera shutter and remove it from the display back cover. 4. Gently pry the camera module from the display back cover.
Installing the camera
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the camera and provides a visual representation of the installation procedure.
Removing and installing components 107

Steps 1. Place the camera module in its slot on the display back cover. 2. Place the camera shutter cap on the top edge of the camera shutter. 3. Connect the display cable to the camera module. 4. Adhere the adhesive tape to cover the camera module.
Next steps
1. Install the camera shutter cap. 2. Install the display panel. 3. Install the display bezel. 4. Install the display assembly. 5. Install the speakers. 6. Install the system board. 7. Install the inner frame. 8. Install the heat-sink assembly. 9. Install the GPU card. 10. Install the GPU power cable. 11. Install the SD card reader. 12. Install the keyboard. 13. Install the keyboard lattice. 14. Install the SIM card. 15. Install the primary memory. 16. Install the WWAN card. 17. Install the WLAN card. 18. Install the secondary memory. 19. Install the primary M.2 SSD. 20. Install the battery. 21. Install the base cover. 22. Install the secondary M.2 SSD. 23. Install the SD card. 24. Follow the procedure in after working inside your computer.
108 Removing and installing components

P-sensor board
Removing the P-sensor board
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the SD card reader. 14. Remove the GPU power cable. 15. Remove the GPU card. 16. Remove the primary memory. 17. Remove the heat-sink assembly. 18. Remove the inner frame. 19. Remove the system board. 20. Remove the speakers. 21. Remove the middlecap. 22. Remove the display assembly. 23. Remove the display bezel. 24. Remove the display panel. About this task The figure indicates the location of the P-sensor board and provides a visual representation of the removal procedure.
Removing and installing components 109

Steps 1. Gently pry the P-sensor board from its slot on the display back cover. 2. Flip over the P-sensor board. 3. Disconnect the display cable from the P-sensor board. 4. Remove the P-sensor board.
Installing the P-sensor board
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the P-sensor board and provides a visual representation of the installation procedure.
110 Removing and installing components

Steps
1. Connect the display cable to the P-sensor board. 2. Flip the P-sensor board and place it gently in its slot on the display back cover.
Next steps
1. Install the display panel. 2. Install the display bezel. 3. Install the display assembly. 4. Install the middlecap. 5. Install the speakers. 6. Install the system board. 7. Install the inner frame. 8. Install the heat-sink assembly. 9. Install the GPU card. 10. Install the GPU power cable. 11. Install the SD card reader. 12. Install the keyboard. 13. Install the keyboard lattice. 14. Install the SIM card. 15. Install the primary memory. 16. Install the WWAN card. 17. Install the WLAN card. 18. Install the secondary memory. 19. Install the primary M.2 SSD. 20. Install the battery. 21. Install the base cover. 22. Install the secondary M.2 SSD. 23. Install the SD card. 24. Follow the procedure in after working inside your computer.

Removing and installing components

111

Display cable
Removing the display cable
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the SD card reader. 14. Remove the GPU power cable. 15. Remove the GPU card. 16. Remove the primary memory. 17. Remove the heat-sink assembly. 18. Remove the inner frame. 19. Remove the system board. 20. Remove the speakers. 21. Remove the middlecap. 22. Remove the display assembly. 23. Remove the display bezel. 24. Remove the display panel. 25. Remove the P-sensor. About this task The figure indicates the location of the display cable and provides a visual representation of the removal procedure.
112 Removing and installing components

Steps 1. Peel the adhesive tape covering the camera module. 2. Disconnect the display cable from the camera module. 3. Peel the display cable from the display cover and unroute the cable from the routing channels. 4. Remove the display cable from the display back cover.
Installing the display cable
Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the display cable and provides a visual representation of the installation procedure.
Removing and installing components 113

Steps 1. Route and adhere the display cable on the display back cover. 2. Connect the display cable to the connector on the camera module. 3. Adhere the adhesive tape to cover the camera module.
Next steps
1. Install the P-sensor. 2. Install the display panel. 3. Install the display bezel. 4. Install the display assembly. 5. Install the middlecap. 6. Install the speakers. 7. Install the system board. 8. Install the inner frame. 9. Install the heat-sink assembly. 10. Install the GPU card. 11. Install the GPU power cable. 12. Install the SD card reader. 13. Install the keyboard. 14. Install the keyboard lattice. 15. Install the SIM card. 16. Install the primary memory. 17. Install the WWAN card. 18. Install the WLAN card.
114 Removing and installing components

19. Install the secondary memory. 20. Install the primary M.2 SSD. 21. Install the battery. 22. Install the base cover. 23. Install the secondary M.2 SSD. 24. Install the SD card. 25. Follow the procedure in after working inside your computer.
Display back cover
Replacing the display back cover
Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the SD card. 3. Remove the secondary M.2 SSD. 4. Remove the base cover. 5. Remove the battery. 6. Remove the SIM card. 7. Remove the secondary memory. 8. Remove the WLAN card. 9. Remove the WWAN card. 10. Remove the primary M.2 SSD. 11. Remove the keyboard lattice. 12. Remove the keyboard. 13. Remove the SD card reader. 14. Remove the GPU power cable. 15. Remove the GPU card. 16. Remove the primary memory. 17. Remove the heat-sink assembly. 18. Remove the inner frame. 19. Remove the system board. 20. Remove the speakers. 21. Remove the middlecap. 22. Remove the display assembly. 23. Remove the display bezel. 24. Remove the display panel. 25. Remove the P-sensor. 26. Remove the display hinge. 27. Remove the camera shutter cap. 28. Remove the camera. 29. Remove the display cable.
About this task The picture below shows the display back cover after performing the pre-removal parts procedures for any display back cover replacement.
Removing and installing components 115

For installing the components, place the display back cover on a flat surface.
1. Install the display cable. 2. Install the camera. 3. Install the camera shutter cap. 4. Install the display hinge. 5. Install the P-sensor. 6. Install the display panel. 7. Install the display bezel. 8. Install the display assembly. 9. Install the middlecap. 10. Install the speakers. 11. Install the system board. 12. Install the inner frame. 13. Install the heat-sink assembly. 14. Install the GPU card. 15. Install the GPU power cable. 16. Install the SD card reader. 17. Install the keyboard. 18. Install the keyboard lattice. 19. Install the SIM card. 20. Install the primary memory. 21. Install the WWAN card. 22. Install the WLAN card. 23. Install the secondary memory. 24. Install the primary M.2 SSD. 25. Install the battery. 26. Install the base cover. 27. Install the secondary M.2 SSD. 28. Install the SSD door. 29. Install the SD card. 30. Follow the procedure in after working inside your computer.
116 Removing and installing components

3
Drivers and downloads
When troubleshooting, downloading, or installing drivers, it is recommended that you read the Dell knowledge base article, Drivers and Downloads FAQs .
Drivers and downloads 117

4
BIOS setup
CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can make your computer work incorrectly.
NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not be displayed.
NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program screen information for future reference. Use the BIOS Setup program for the following purposes: Get information about the hardware installed in your computer, such as the amount of RAM and the size of the hard drive. Change the system configuration information. Set or change a user-selectable option, such as the user password, type of hard drive installed, and enabling or disabling base devices.
Topics:
� BIOS overview � Entering BIOS setup program � Navigation keys � Boot Sequence � BIOS setup options � Updating the BIOS in Windows � Updating the BIOS in Linux and Ubuntu � One time boot menu � Updating the BIOS from the F12 One-Time boot menu � System and setup password � Clearing BIOS (System Setup) and System passwords
BIOS overview
The BIOS manages data flow between the computer's operating system and attached devices such as hard disk, video adapter, keyboard, mouse, and printer.
Entering BIOS setup program
Steps 1. Turn on your computer. 2. Press F2 immediately to enter the BIOS setup program.
NOTE: If you wait too long and the operating system logo appears, continue to wait until you see the desktop. Then, turn off your computer and try again.
Navigation keys
NOTE: For most of the System Setup options, changes that you make are recorded but do not take effect until you restart the system.
118 BIOS setup

Table 4. Navigation keys Keys Up arrow Down arrow Enter
Spacebar Tab
Esc

Navigation
Moves to the previous field.
Moves to the next field.
Selects a value in the selected field (if applicable) or follow the link in the field.
Expands or collapses a drop-down list, if applicable.
Moves to the next focus area. NOTE: For the standard graphics browser only.
Moves to the previous page until you view the main screen. Pressing Esc in the main screen displays a message that prompts you to save any unsaved changes and restarts the system.

Boot Sequence
Boot Sequence allows you to bypass the System Setup�defined boot device order and boot directly to a specific device (for example: optical drive or hard drive). During the Power-on Self Test (POST), when the Dell logo appears, you can: Access System Setup by pressing F2 key Bring up the one-time boot menu by pressing F12 key The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options are: Removable Drive (if available) STXXXX Drive (if available)
NOTE: XXX denotes the SATA drive number. Optical Drive (if available) SATA Hard Drive (if available) Diagnostics The boot sequence screen also displays the option to access the System Setup screen.
BIOS setup options

NOTE: Depending on this computer and its installed devices, the items listed in this section may or may not appear.

Table 5. BIOS setup options--System information menu

General-System Information

System Information

BIOS Version

Displays the BIOS version number.

Service Tag

Displays the Service Tag of the computer.

Asset Tag

Displays the Asset Tag of the computer.

Ownership Tag

Displays the ownership tag of the computer.

Manufacturing Date

Displays the manufacture date of the computer.

Ownership Date

Displays the ownership date of the computer.

Express Service Code

Displays the express service code of the computer.

Memory Information

BIOS setup 119

Table 5. BIOS setup options--System information menu (continued)

General-System Information

Memory Installed

Displays the total computer memory installed.

Memory Available

Displays the total computer memory available.

Memory Speed

Displays the memory speed.

Memory Channel Mode

Displays single or dual channel mode.

Memory Technology

Displays the technology used for the memory.

DIMM A Size

Displays the DIMM A memory size.

DIMM B Size

Displays the DIMM B memory size.

DIMM C Size

Displays the DIMM C memory size.

DIMM D Size

Displays the DIMM D memory size.

DIMM A_CPUn

Displays the DIMM A memory size for a multi-socket system

DIMM B_CPUn

Displays the DIMM B memory size for a multi-socket system

DIMM C_CPUn

Displays the DIMM C memory size for a multi-socket system

DIMM D_CPUn

Displays the DIMM D memory size for a multi-socket system

Processor Information

Processor Type

Displays the processor type.

Core Count

Displays the number of cores on the processor.

Processor ID

Displays the processor identification code.

Current Clock Speed

Displays the current processor clock speed.

Minimum Clock Speed

Displays the minimum processor clock speed.

Maximum Clock Speed

Displays the maximum processor clock speed.

Processor L2 Cache

Displays the Processor L2 cache size, unit is KB.

Processor L3 Cache

Displays the Processor L3 cache size, unit is KB.

HT Capable

Displays whether the processor is HyperThreading (HT) capable.

64-Bit Technology

Displays whether 64-bit technology is used.

PCIe Information

SLOT1, SLOT2, SLOT3, SLOTn

Displays the class information of installed PCI/PCIE devices

SLOT1_M.2, SLOT2_M.2, SLOTn_M.2

Displays the class information of installed PCI SSD Device Class/(SATA Installed) devices

Device Information

ATA device information has the following options: SATA-0 SATA-1 SATA-2 SATA-n eSATA-0 M.2 PCIe SSD-0 M.2 PCIe SSD-n

Displays the device size of each port, unit in GB

SAS device info has the following options: Displays the device size of each SAS port, unit in GB SAS-0 SAS-1 SAS-2 SAS-3

120 BIOS setup

Table 5. BIOS setup options--System information menu (continued)

General-System Information

Primary HDD

Displays the primary hard drive information of the computer.

MiniCard SSD Device

Displays the MiniCard SSD device information of the computer.

Modular Bay Device

Displays the Modular Bay device information of the computer.

System eSATA Device

Displays the System eSATA device information of the computer.

ODD Device

Displays the ODD device information of the computer.

Dock eSATA Device

Displays the Dock eSATA device information of the computer.

LOM MAC Address

Displays the LOM MAC address of the computer.

SFP NIC MAC Address

Displays the SFP NIC MAC address of the computer.

Managed LOM MAC Address

Displays the Managed LOM MAC address of the computer.

Video Controller

Displays the video controller type of the computer.

dGPU Video Controller

Displays the discrete graphics information of the computer.

Video BIOS Version

Displays the video BIOS version of the computer.

Video Memory

Displays the video memory information of the computer.

Panel Type

Displays the Panel Type of the computer.

Native Resolution

Displays the native resolution of the computer.

Audio Controller

Displays the audio controller information of the computer.

Wi-Fi Device

Displays the wireless device information of the computer.

WiGig Device

Displays the WiGig device information of the computer

Bluetooth Device

Displays the bluetooth device information of the computer.

Passthrough MAC Address

Displays the unique MAC address information of the computer.

Battery Information

Displays the battery health, charging state and AC adapter information.

Boot Sequence

Displays the boot sequence.

Boot List Option

Displays the available boot options.

Advanced Boot Options

Enable Legacy Option ROMs

Enable or disable the Legacy Option ROMs.

Enable UEFI Network Stack

Enable or disable the integrated NIC.

Enable Attempt Legacy Boot

Enable or disable Legacy Boot. When enabled, if the system fails to boot the UEFI Boot List, the system will immediately attempt to boot the Legacy Boot List. This feature requires Legacy Option ROMS to be enabled and cannot be used with Secure Boot enabled

UEFI Boot Path Security

Enable or disable the system to prompt the user to enter the Admin password when booting a UEFI boot path from the F12 boot menu.

Date/Time

Displays the current date in MM/DD/YY format and current time in HH:MM:SS AM/PM format.

Table 6. System setup options--System Configuration menu

System Configuration

Integrated NIC

Controls the on-board LAN controller.

Enable UEFI Network Stack

Enable or disable UEFI Network Stack.

SATA Operation

Configure operating mode of the integrated SATA hard drive controller.

Drives

Enable or disable various drives on board.

BIOS setup 121

Table 6. System setup options--System Configuration menu (continued)

System Configuration

SMART Reporting

Enable or disable SMART Reporting during system startup.

USB Configuration

Enable USB Boot Support

Enable or disable booting from USB mass storage devices such as external hard drive, optical drive, and USB drive.

Enable External USB Port

Enable or disable booting from USB mass storage devices connected to external USB port.

Thunderbolt Adapter Configuration Enable or disable Thunderbolt technology support.

Audio

Enable or disable the integrated audio controller.

USB PowerShare

Enable or disable the USB PowerShare

Touchscreen

Enable or disable the Touchscreen

Unobtrusive Mode

Enable or disable the Unobtrusive mode

Keyboard Illumination

Enables you to choose the operating mode of the keyboard illumination feature.

Keyboard Backlight Timeout on AC

When the backlight is enabled, this feature defines the timeout value for the keyboard backlight when an AC adapter is plugged into the computer.

Keyboard Backlight Timeout on Battery

When the backlight is enabled, this feature defines the timeout value for the keyboard backlight when the computer is running only on battery power.

Miscellaneous Devices

Enable or disable various onboard devices.

Table 7. System setup options--Video menu

Video

LCD Brightness

Set the panel brightness independently for Battery and AC power.

Switchable Graphics

Allows to switch between the Integrated graphics and the discrete graphics controller.

Primary Video Slot

Allows to set the primary video slot.

Table 8. System setup options--Security menu

Security

Admin Password

Set, change, or delete the administrator password.

System Password

Set, change, or delete the system password.

Internal HDD-0 Password

Set, change, or delete the internal hard-disk drive password.

eSATA Bay HDD password

Set, change, or delete the eSATA internal hard-disk drive password

eSATA Dock Bay HDD Password

Set, change, or delete the eSATA dock bay internal hard-disk drive password

Device Bay HDD password

Set, change, or delete the device bay internal hard-disk drive password

Strong Password

Enable or disable strong passwords.

Password Configuration

Control the minimum and maximum number of characters allowed for Admin and System passwords.

Password Bypass

Bypass the System (Boot) Password and the internal HDD password prompts during a system restart.

Password Change

Enable or disable changes to the System and Hard Disk passwords when an administrator password is set.

Non-Admin Setup Changes

Determines whether changes to the setup option are permitted when an administrator password is set.

TPM 2.0 Security

Enable or disable Trusted Platform Module (TPM) .

UEFI Capsule Firmware Updates

Enable or disable BIOS updates through UEFI capsule update packages.

122 BIOS setup

Table 8. System setup options--Security menu (continued)

Security

PTT Security

Enable or disable Platform Trust Technology (PTT) visibility to the operating system.

Absolute I

This field allows you to Enable, Disable, or Permanently Disable the BIOS module interface of the optional Absolute Persistence Module service from Absolute� Software.

OROM Keyboard Access

Allows you to set an option to enter the Option ROM Configuration screens using hotkeys during boot.

SMM Security Mitigation

Allows you to enable or disable additional UEFI SMM Security Mitigation protection.

HDD Security

Enable or disable the HDD Security.

Computrace(R)

Enable or disable the BIOS module interface of the optional Computrace(R) Service from Absolute Software.

Admin Setup Lockout

Enable to prevent users from entering Setup when an Admin Password is set.

Master Password Lockout

Disables the master password support. Hard Disk passwords need to be cleared before changing the setting.

Table 9. System setup options--Secure Boot menu

Secure Boot

Secure Boot Enable

Enable or disable the secure boot feature.

Secure Boot Mode

Modifies the behavior of Secure Boot to allow evaluation or enforcement of UEFI driver signatures.

Expert Key Management

Enable or disable Expert Key Management.

Custom Mode Key Management

Select the custom values for expert key management.

Table 10. System setup options--Intel Software Guard Extensions menu

Intel Software Guard Extensions

Intel SGX Enable

Enable or disable Intel Software Guard Extensions.

Enclave Memory Size

Set the Intel Software Guard Extensions Enclave Reserve Memory Size.

Performance

Multi Core Support

Enable multiple cores.

Default: Enabled.

Intel SpeedStep

Enable or disable Intel Speedstep Technology. Default: Enabled.
NOTE: If enabled, the processor clock speed and core voltage are adjusted dynamically based on the processor load.

C-States Control

Enable or disable additional processor sleep states. Default: Enabled.

Intel TurboBoost

Enable or disable Intel TurboBoost mode of the processor. Default: Enabled.

HyperThread control

Enable or disable HyperThreading in the processor. Default: Enabled.

Power Management

BIOS setup 123

Table 10. System setup options--Intel Software Guard Extensions menu (continued)

Intel Software Guard Extensions

AC Behavior Enable Intel Speed Shift Technology Auto On Time

Enables the system to turn on automatically, when AC power is supplied.
Enable or disable Intel Speed Shift Technology.
Enable to set the computer to turn on automatically every day or on a preselected date and time. This option can be configured only if the Auto On Time is set to Everyday, Weekdays or Selected Days.
Default: Disabled.

USB Wake Support Block Sleep Peak Shift Advanced Battery Charge Configuration
Primary Battery Charge Configuration

Enable the USB devices to wake the computer from Standby.
Enable or disable Block Sleep
Allows you to use battery power instead of AC current during specified times
Enable Advanced Battery Charge Configuration from the beginning of the day to a specified work period.
Set the primary battery charge settings with a preselected custom charge start and stop. Default: Adaptive.

Intel Speed Shift Technology POST Behavior
Adapter Warnings

Enable or disable Intel Speed Shift Technology
Enable adapter warnings. Default: Enabled.

Numlock Enable Fn Lock Options Fastboot

Enables the NumLock function when computer boots. Enable or disable the Fn lock mode. Enable to set the speed of the boot process. Default: Thorough.

Extend BIOS POST Time Full Screen Logo Warnings and Errors MAC Address Pass-Through Sign of Life Indication

Configure additional pre-boot delay. Enable or disable to display full screen logo. Sets the boot process to pause when Warnings or Errors are detected. Sets the MAC Address Pass. Enable or disable to indicate during POST time that the power button press is acknowledged in a manner the user can either hear of feel.

Table 11. System setup options--Manageability Manageability USB Provision MEBx Hotkey Intel AMT Capability

Enable or disable USB Provision Enable or disable MEBx Hotkey Disable/Enable/Restrict MEBx Access

Table 12. System setup options--Virtualization Support menu

Virtualization Support

Virtualization

Specify whether a Virtual Machine Monitor (VMM) can utilize the additional hardware capabilities provided by Intel Virtualization Technology.

VT for Direct I/O

Specify whether a Virtual Machine Monitor (VMM) can utilize the additional hardware capabilities provided by Intel Virtualization Technology for Direct I/O.

Trusted Execution

Specify whether a Measured Virtual Machine Monitor can utilize the additional hardware capabilities provided by Intel Trusted Execution Technology.

124 BIOS setup

Table 13. System setup options--Wireless menu

Wireless

Wireless Switch

Determine which wireless devices can be controlled by the Wireless Switch.

Wireless Device Enable

Enable or disable internal wireless devices.

Table 14. System setup options--Maintenance menu

Maintenance

Service Tag

Display the system's Service Tag.

Asset Tag

Create a system Asset Tag.

BIOS Downgrade

Control flashing of the system firmware to previous revisions.

Data Wipe

Enable to securely erase data from all internal storage devices.

BIOS Recovery

Enable the user to recover from certain corrupted BIOS conditions from a recovery file on the user primary hard drive or an external USB key.

First Power On Date

Set Ownership Date

Table 15. System setup options--System Logs menu

System Logs

BIOS Events

Display BIOS events.

Thermal Events

Display Thermal events.

Power Events

Display Power events.

Table 16. System setup options--SupportAssist System Resolution menu

SupportAssist System Resolution

Auto OS Recovery Threshold

Control the automatic boot flow for SupportAssist System Resolution Console and for Dell OS Recovery tool.

SupportAssist OS Recovery

Enable or disable the boot flow for SupportAssist OS Recovery tool in the even of certain system errors.

BIOSConnect

Enable or disable BIOSConnect

Updating the BIOS in Windows

Prerequisites It is recommended to update your BIOS (System Setup), when you replace the system board or if an update is available. For laptops, ensure that your computer battery is fully charged and connected to a power outlet.
About this task NOTE: If BitLocker is enabled, it must be suspended before updating the system BIOS, and then re-enabled after the BIOS update is completed.
Steps 1. Restart the computer. 2. Go to www.dell.com/support.
Enter the Service Tag or Express Service Code and click Search. Click Drivers & Downloads. Click Detect Drivers and follow the on-screen instructions. 3. If you are unable to detect or find the Service Tag, click Browse all products. 4. Choose the appropriate category to reach the product page.

BIOS setup 125

5. Select your computer model, followed by its model number. NOTE: The Product Support page of your computer appears.
6. Click Drivers & Downloads. NOTE: The Drivers & Downloads section is displayed.
7. Click Category, and select BIOS from the drop-down list. 8. Click the toggle button Show downloads for only THIS PC XXXXXXX.
NOTE: XXXXXXX denotes the Service Tag. 9. Select the latest BIOS file and click Download. 10. After the download is complete, browse to the folder where you saved the system BIOS executable file. 11. Double-click the system BIOS executable file.
NOTE: Follow the on-screen instructions.
Updating BIOS on systems with BitLocker enabled
CAUTION: If BitLocker is not suspended before updating the BIOS, the next time you reboot the system it will not recognize the BitLocker key. You will then be prompted to enter the recovery key to progress and the system will ask for this on each reboot. If the recovery key is not known this can result in data loss or an unnecessary operating system re-install. For more information on this subject, see Knowledge Article: https:// www.dell.com/support/article/sln153694
Updating your system BIOS using a USB flash drive
About this task If the computer cannot load into Windows but there is still a need to update the BIOS, download the BIOS file using another computer and save it to a bootable USB flash drive.
NOTE: You must use a bootable USB flash drive. For more information, see the knowledge base article SLN143196.
Steps 1. Download the BIOS update .exe file to another computer. 2. Copy the .exe file onto the bootable USB flash drive. 3. Insert the USB flash drive into the computer that requires the BIOS update. 4. Restart the computer and press F12 when the Dell logo appears to display the One Time Boot Menu. 5. Using arrow keys, select USB Storage Device and press Enter. 6. The computer restarts to a Diag C:\> prompt. 7. Run the file by typing the complete filename and press Enter. 8. The BIOS Update Utility is displayed. Follow the on-screen instructions.
126 BIOS setup

Figure 1. DOS BIOS Update Screen
Updating the BIOS in Linux and Ubuntu
To update the system BIOS on a computer that is installed with Linux or Ubuntu, see the knowledge base article 000131486 at www.dell.com/support.
One time boot menu
To enter one time boot menu, turn on your computer, and then press F12 immediately. NOTE: It is recommended to shutdown the computer if it is on.
The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options are: Removable Drive (if available) STXXXX Drive (if available)
NOTE: XXX denotes the SATA drive number. Optical Drive (if available) SATA Hard Drive (if available) Diagnostics The boot sequence screen also displays the option to access the System Setup screen.
Updating the BIOS from the F12 One-Time boot menu
Update your computer BIOS using the BIOS update.exe file that is copied to a FAT32 USB drive and booting from the F12 One-Time boot menu.
About this task BIOS Update You can run the BIOS update file from Windows using a bootable USB drive or you can also update the BIOS from the F12 One-Time boot menu on the computer.
BIOS setup 127

Most of the Dell computers built after 2012 have this capability, and you can confirm by booting your computer to the F12 One-Time Boot Menu to see if BIOS FLASH UPDATE is listed as a boot option for your computer. If the option is listed, then the BIOS supports this BIOS update option.
NOTE: Only computers with BIOS Flash Update option in the F12 One-Time boot menu can use this function.
Updating from the One-Time boot menu
To update your BIOS from the F12 One-Time boot menu, you need the following:
USB drive formatted to the FAT32 file system (key does not have to be bootable) BIOS executable file that you downloaded from the Dell Support website and copied to the root of the USB drive AC power adapter that is connected to the computer Functional computer battery to flash the BIOS
Perform the following steps to perform the BIOS update flash process from the F12 menu:
CAUTION: Do not turn off the computer during the BIOS update process. The computer may not boot if you turn off your computer.

Steps
1. From a turn off state, insert the USB drive where you copied the flash into a USB port of the computer. 2. Turn on the computer and press F12 to access the One-Time Boot Menu, select BIOS Update using the mouse or arrow keys
then press Enter. The flash BIOS menu is displayed. 3. Click Flash from file. 4. Select external USB device. 5. Select the file and double-click the flash target file, and then click Submit. 6. Click Update BIOS. The computer restarts to flash the BIOS. 7. The computer will restart after the BIOS update is completed.

System and setup password

Table 17. System and setup password Password type System password Setup password

Description
Password that you must enter to log in to your system.
Password that you must enter to access and make changes to the BIOS settings of your computer.

You can create a system password and a setup password to secure your computer. CAUTION: The password features provide a basic level of security for the data on your computer.

CAUTION: Anyone can access the data that is stored on your computer if it is not locked and left unattended.

NOTE: System and setup password feature is disabled.

Assigning a system setup password

Prerequisites You can assign a new System or Admin Password only when the status is in Not Set.
About this task To enter the system setup, press F12 immediately after a power-on or reboot.

128 BIOS setup

Steps 1. In the System BIOS or System Setup screen, select Security and press Enter.
The Security screen is displayed. 2. Select System/Admin Password and create a password in the Enter the new password field.
Use the following guidelines to assign the system password: A password can have up to 32 characters. The password can contain the numbers 0 through 9. Only lower case letters are valid, upper case letters are not valid. Only the following special characters are valid: Space, ("), (+), (,), (-), (.), (/), (;), ([), (\), (]), (`). 3. Type the system password that you entered earlier in the Confirm new password field and click OK. 4. Press Esc and a message prompt's you to save the changes. 5. Press Y to save the changes. The computer restarts.
Deleting or changing an existing system setup password
Prerequisites Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and/or Setup password. You cannot delete or change an existing System or Setup password, if the Password Status is Locked.
About this task To enter the System Setup, press F12 immediately after a power-on or reboot.
Steps 1. In the System BIOS or System Setup screen, select System Security and press Enter.
The System Security screen is displayed. 2. In the System Security screen, verify that Password Status is Unlocked. 3. Select System Password, update, or delete the existing system password, and press Enter or Tab. 4. Select Setup Password, update, or delete the existing setup password, and press Enter or Tab.
NOTE: If you change the System and/or Setup password, reenter the new password when prompted. If you delete the System and/or Setup password, confirm the deletion when prompted. 5. Press Esc and a message prompts you to save the changes. 6. Press Y to save the changes and exit from System Setup. The computer restarts.
Clearing BIOS (System Setup) and System passwords
About this task To clear the system or BIOS passwords, contact Dell technical support as described at www.dell.com/contactdell.
NOTE: For information on how to reset Windows or application passwords, refer to the documentation accompanying Windows or your application.
BIOS setup 129

Troubleshooting

Topics:
� Built-in self-test (BIST) � Dell SupportAssist Pre-boot System Performance Check diagnostics � System-diagnostic lights � Recovering the operating system � Backup media and recovery options � Real Time Clock--RTC reset � WiFi power cycle � Drain residual flea power (perform hard reset)
Built-in self-test (BIST)

M-BIST
M-BIST (Built In Self-Test) is the system board's built-in self-test diagnostics tool that improves the diagnostics accuracy of system board embedded controller (EC) failures.
NOTE: M-BIST can be manually initiated before POST (Power On Self Test).

How to run M-BIST

NOTE: M-BIST must be initiated on the system from a power-off state either connected to AC power or with battery only.

1. Press and hold both the M key on the keyboard and the power button to initiate M-BIST. 2. With both the M key and the power button held down, the battery indicator LED may exhibit two states:
a. OFF: No fault detected with the system board b. AMBER: Indicates a problem with the system board 3. If there is a failure with the system board, the battery status LED will flash one of the following error codes for 30 seconds:

Table 18. LED error codes

Blinking Pattern

Possible Problem

Amber

White

CPU Failure

LCD Power Rail Failure

TPM Detection Failure

Unrecoverable SPI Failure

4. If there is no failure with the system board, the LCD will cycle through the solid color screens described in the LCD-BIST section for 30 seconds and then power off.

130 Troubleshooting

M-BIST
M-BIST (Built In Self-Test) diagnostics tool, featuring improved accuracy in system board failures.
NOTE: M-BIST can be manually initiated before POST (Power On Self Test).
How to run M-BIST
NOTE: M-BIST must be initiated on the system from a power-off state either connected to AC power or with battery only.
1. Press and hold both the M key on the keyboard and the power button to initiate M-BIST. 2. With both the M key and the power button held down, the battery indicator LED may exhibit two states:
a. OFF: No fault detected with the system board b. AMBER: Indicates a problem with the system board
LCD Power rail test (L-BIST)
L-BIST is an enhancement to the single LED error code diagnostics and is automatically initiated during POST. L-BIST will check the LCD power rail. If there is no power being supplied to the LCD (i.e., the L-BIST circuit fails), the battery status LED will flash either an error code [2,8] or an error code [2,7].
NOTE: If L-BIST fails, LCD-BIST cannot function as no power will be supplied to the LCD.
How to invoke L-BIST Test:
1. Press the power button to start the system. 2. If the system does not start up normally, look at the battery status LED:
If the battery status LED flashes an error code [2,7], the display cable may not be connected properly. If the battery status LED flashes an error code [2,8], there is a failure on the LCD power rail of the system board, hence
there is no power supplied to the LCD. 3. For cases, when a [2,7] error code is shown, check to see if the display cable is properly connected. 4. For cases when a [2,8] error code is shown, replace the system board.
LCD Built-in Self Test (BIST)
Dell laptops have a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with the LCD (screen) of the Dell laptop or with the video card (GPU) and PC settings. When you notice screen abnormalities like flickering, distortion, clarity issues, fuzzy or blurry image, horizontal or vertical lines, color fade etc., it is always a good practice to isolate the LCD (screen) by running the Built-In Self Test (BIST).
How to invoke LCD BIST Test
1. Power off the Dell laptop. 2. Disconnect any peripherals that are connected to the laptop. Connect only the AC adapter (charger) to the laptop. 3. Ensure that the LCD (screen) is clean (no dust particles on the surface of the screen). 4. Press and hold D key and Power on the laptop to enter LCD built-in self test (BIST) mode. Continue to hold the D key, until
the system boots up. 5. The screen will display solid colors and change colors on the entire screen to white, black, red, green, and blue twice. 6. Then it will display the colors white, black and red. 7. Carefully inspect the screen for abnormalities (any lines, fuzzy color or distortion on the screen). 8. At the end of the last solid color (red), the system will shut down.
NOTE: Dell SupportAssist Pre-boot diagnostics upon launch, initiates an LCD BIST first, expecting a user intervention confirm functionality of the LCD.
Troubleshooting 131

LCD Built-in Self Test (BIST)
Dell laptops have a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with the LCD (screen) of the Dell laptop or with the video card (GPU) and PC settings. When you notice screen abnormalities like flickering, distortion, clarity issues, fuzzy or blurry image, horizontal or vertical lines, color fade etc., it is always a good practice to isolate the LCD (screen) by running the Built-In Self Test (BIST).
How to invoke LCD BIST Test
1. Power off the Dell laptop. 2. Disconnect any peripherals that are connected to the laptop. Connect only the AC adapter (charger) to the laptop. 3. Ensure that the LCD (screen) is clean (no dust particles on the surface of the screen). 4. Press and hold D key and Power on the laptop to enter LCD built-in self test (BIST) mode. Continue to hold the D key, until
you see color bars on the LCD (screen). 5. The screen will display multiple color bars and change colors on the entire screen to red, green, and blue. 6. Carefully inspect the screen for abnormalities. 7. Press Esc key to exit.
NOTE: Dell SupportAssist Pre-boot diagnostics upon launch, initiates an LCD BIST first, expecting a user intervention confirm functionality of the LCD.
Dell SupportAssist Pre-boot System Performance Check diagnostics
About this task SupportAssist diagnostics (also known as system diagnostics) performs a complete check of your hardware. The Dell SupportAssist Pre-boot System Performance Check diagnostics is embedded with the BIOS and is launched by the BIOS internally. The embedded system diagnostics provides a set of options for particular devices or device groups allowing you to: Run tests automatically or in an interactive mode Repeat tests Display or save test results Run thorough tests to introduce additional test options to provide extra information about the failed device(s) View status messages that inform you if tests are completed successfully View error messages that inform you of problems encountered during testing
NOTE: Some tests for specific devices require user interaction. Always ensure that you are present at the computer terminal when the diagnostic tests are performed.
For more information, see https://www.dell.com/support/kbdoc/000180971.
Running the SupportAssist Pre-Boot System Performance Check
Steps 1. Turn on your computer. 2. As the computer boots, press the F12 key as the Dell logo appears. 3. On the boot menu screen, select the Diagnostics option. 4. Click the arrow at the bottom left corner.
Diagnostics front page is displayed. 5. Click the arrow in the lower-right corner to go to the page listing.
The items detected are listed. 6. To run a diagnostic test on a specific device, press Esc and click Yes to stop the diagnostic test. 7. Select the device from the left pane and click Run Tests. 8. If there are any issues, error codes are displayed.
Note the error code and validation number and contact Dell.
132 Troubleshooting

System-diagnostic lights

Table 19. System-diagnostic lights Blinking pattern
Amber 1

White 1

Problem description TPM detection failure

Suggested resolution Replace the system board.

Unrecoverable SPI Flash Failure
Short in hinge cable tripped OCP1
Short in hinge cable tripped OCP2
EC unable to program i-Fuse

Replace the system board. Replace the system board.

Generic catch-all for ungraceful EC code flow
errors

Disconnect all power source (AC, battery, coin cell) and drain flea power by pressing
and holding down power button for 3~5 seconds.

CPU failure

Run the Dell Support Assist/Dell Diagnostics tool.

If problem persists,

replace the system board.

System board failure (included BIOS corruption or ROM error)

Flash latest BIOS version
If problem persists, replace the system board.

No memory/RAM detected Confirm that the memory

module is installed

properly.

If problem persists,

replace the memory

module.

Memory/RAM failure

Reset and swap memory

modules among the slots.

If problem persists,

replace the memory

module.

Invalid memory installed

Reset and swap memory modules among the slots.

If problem persists,

replace the memory

module.

System board/Chipset Error Replace the system board.

LCD failure (SBIOS message) Replace the LCD module.

LCD failure (EC detection of power rail failure)

Replace the system board.

CMOS battery failure

Reset the main battery connection.

Troubleshooting 133

Table 19. System-diagnostic lights (continued)

Blinking pattern

Amber

White

Problem description

Suggested resolution

If problem persists,

replace the main battery.

PCI or Video card/chip failure Replace the system board.

BIOS Recovery image found but invalid
Power rail failure

Flash latest BIOS version

If problem persists,

replace the system board.

Replace the system board.

Flash corruption detected by Press power button for

SBIOS.

over 25 seconds to do

RTC reset. If problem

persists, replace the

system board.

Disconnect all power source (AC, battery, coin cell) and drain flea power by pressing and holding down power button 3~5 seconds to ensure all power are drained.

Run "BIOS recovery from

USB", and the instructions

are in the website Dell

support.

If problem persists,

replace the system board.

Timeout waiting on ME to reply to HECI message.

Replace the system board

Memory DIMM power rail failure

Reset and swap memory modules among the slots.

If problem persists,

replace the memory

module.

CPU Power Cable connection

issue

Run the PSU BIST.
If problem persists, replace the system board, power supply or cabling.

NOTE: Blinking 3-3-3 LEDs on Lock LED (Caps-Lock or Nums-Lock), Power button LED (without Fingerprint reader), and Diagnostic LED indicates failure to provide input during LCD panel test on Dell SupportAssist Pre-boot System Performance Check diagnostics.

Recovering the operating system

When your computer is unable to boot to the operating system even after repeated attempts, it automatically starts Dell SupportAssist OS Recovery.
Dell SupportAssist OS Recovery is a standalone tool that is preinstalled in all Dell computers installed with Windows operating system. It consists of tools to diagnose and troubleshoot issues that may occur before your computer boots to the operating system. It enables you to diagnose hardware issues, repair your computer, back up your files, or restore your computer to its factory state.

134 Troubleshooting

You can also download it from the Dell Support website to troubleshoot and fix your computer when it fails to boot into their primary operating system due to software or hardware failures. For more information about the Dell SupportAssist OS Recovery, see Dell SupportAssist OS Recovery User's Guide at www.dell.com/serviceabilitytools. Click SupportAssist and then, click SupportAssist OS Recovery.
Backup media and recovery options
It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows. Dell proposes multiple options for recovering Windows operating system on your Dell PC. For more information. see Dell Windows Backup Media and Recovery Options.
Real Time Clock--RTC reset
The Real Time Clock (RTC) reset function allows you or the service technician to recover the recently launched model systems from No POST/No Boot/No Power situations. You can initiate the RTC reset on the system from a power-off state only if it is connected to AC power. Press and hold the power button for 30 seconds. The system RTC reset occurs after you release the power button.
NOTE: If AC power is disconnected from the system during the process or the power button is held longer than 40 seconds, the RTC reset process gets aborted.
The RTC reset will reset the BIOS to defaults, un-provision Intel vPro and reset the system date and time. The following items are unaffected by the RTC reset: Service Tag Asset Tag Ownership Tag Admin Password System Password HDD Password Key Databases System Logs TPM on and TPM Enabled settings are unaffected by RTC Reset and should not cause BitLocker issues
NOTE: The IT administrator's vPro account and password on the system will be un-provisioned. The system needs to go through the setup and configuration process again to reconnect it to the vPro server.
The below items may or may not reset based on your custom BIOS setting selections: Boot List Enable Legacy Option ROMs Secure Boot Enable -- Allow BIOS Downgrade
WiFi power cycle
About this task If your computer is unable to access the internet due to WiFi connectivity issues a WiFi power cycle procedure may be performed. The following procedure provides the instructions on how to conduct a WiFi power cycle:
NOTE: Some ISPs (Internet Service Providers) provide a modem/router combo device.
Steps 1. Turn off your computer. 2. Turn off the modem. 3. Turn off the wireless router. 4. Wait for 30 seconds. 5. Turn on the wireless router.
Troubleshooting 135

6. Turn on the modem. 7. Turn on your computer.
Drain residual flea power (perform hard reset)
About this task Flea power is the residual static electricity that remains in the computer even after it has been powered off and the battery is removed. For your safety, and to protect the sensitive electronic components in your computer, you are requested to drain residual flea power before removing or replacing any components in your computer. Draining residual flea power, also known as a performing a "hard reset", is also a common troubleshooting step if your computer does not power on or boot into the operating system. To drain residual flea power (perform a hard reset) Steps 1. Turn off your computer. 2. Disconnect the power adapter from your computer. 3. Remove the base cover. 4. Remove the battery. 5. Press and hold the power button for 20 seconds to drain the flea power. 6. Install the battery. 7. Install the base cover. 8. Connect the power adapter to your computer. 9. Turn on your computer.
NOTE: For more information about performing a hard reset, see the knowledge base article SLN85632 at www.dell.com/support.
136 Troubleshooting

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 20. Self-help resources

Self-help resources

Resource location

Information about Dell products and services

www.dell.com

My Dell app

Tips

Contact Support
Online help for operating system Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.

In Windows search, type Contact Support, and press Enter.
www.dell.com/support/windows
Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support.
For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.

Dell knowledge base articles for a variety of computer concerns

1. Go to www.dell.com/support.
2. On the menu bar at the top of the Support page, select Support > Knowledge Base.
3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell. NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

Getting help and contacting Dell 137
