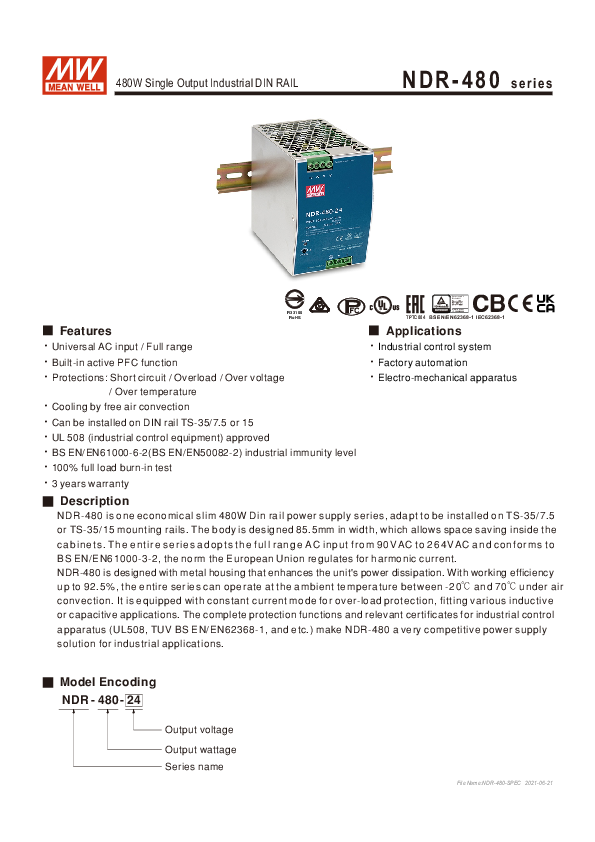

480W Single Output Industrial DIN RAIL NDR-480 series File Name:NDR-480-SPEC 2021-06-21 Bauar Sicherheit egelm a ge tgepruft od be www. ID2000000000 tuv.com wac g os
96PSD-A480W48-MN - DIN Rail Power Supply AC to DC 100-240V 480W 48V - Advantech
480W Single Output Industrial DIN RAIL
NDR-480 series
Bauar t gepruft Sicherheit
egelma ge od o s be wac g
www.tuv.com ID 2000000000
TPTC004 BS EN/EN62368-1 IEC62368-1
File Name:NDR-480-SPEC 2021-06-21
480W Single Output Industrial DIN RAIL
NDR-480 series
SPECIFICATION
MODEL
NDR-480-24
NDR-480-48
DC VOLTAGE
24V
48V
RATED CURRENT
20A
10A
CURRENT RANGE
0 ~ 20A
0 ~ 10A
RATED POWER
480W
480W
RIPPLE & NOISE (max.) Note.2 150mVp-p
150mVp-p
OUTPUT VOLTAGE ADJ. RANGE
24 ~ 28V
48 ~ 55V
VOLTAGE TOLERANCE Note.3 ±1.0%
±1.0%
LINE REGULATION
±0.5%
±0.5%
LOAD REGULATION
±1.0%
±1.0%
SETUP, RISE TIME
1500ms, 100ms/230VAC 3000ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load
VOLTAGE RANGE Note.4 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.94/230VAC at full load
INPUT
EFFICIENCY (Typ.) AC CURRENT (Typ.) INRUSH CURRENT (Typ.)
92.5% 4.8A/115VAC 20A/115VAC
2.4A/230VAC 35A/230VAC
92.5%
LEAKAGE CURRENT
<2mA / 240VAC
OVERLOAD
105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec., re-power on to recover
PROTECTION OVER VOLTAGE
29 ~ 33V
56 ~ 65V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down
WORKING TEMP.
-20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
ENVIRONMENT STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/ (0 ~ 50)
VIBRATION SAFETY STANDARDS
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 UL508, TUV BS EN/EN62368-1, EAC TP TC 004 ,BSMI CNS14336-1 approved;(meet BS EN/EN60204-1)
SAFETY & WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC (Note 4)
ISOLATION RESISTANCE EMC EMISSION
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25/ 70% RH Compliance to BS EN/EN55032 (CISPR32),BS EN/EN61204-3 Class B,BS EN/EN61000-3-2,-3,EAC TP TC 020,CNS13438 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020
OTHERS NOTE
MTBF
146.8K hrs min. MIL-HDBK-217F (25)
DIMENSION
85.5*125.2*128.5mm (W*H*D)
PACKING
1.5Kg; 8pcs/13Kg/0.9CUFT
For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies."
(as available on http://www.meanwell.com)
https://www.meanwell.com/serviceDisclaimer.aspx
File Name:NDR-480-SPEC 2021-06-21
480W Single Output Industrial DIN RAIL
NDR-480 series
Block Diagram
EMI FILTER
I/P
&
RECTIFIERS
PFC CIRCUIT
POWER SWITCHING
UVP
O.L.P.
FG
PFC
PWM
CONTROL
CONTROL
O.T.P.
RECTIFIERS &
FILTER
PFC fosc : 85KHz PWM fosc : 65KHz
+V -V O.C.P.
DETECTION CIRCUIT
O.V.P.
Derating Curve
Output derating VS input voltage
100
80
60 50 40
20
-20
0
10
20
30
40
50
60
70 (VERTICAL)
AMBIENT TEMPERATURE ()
100 90 80 70 60 50 40
90 100 125 135 145 155 165 175 180 200 230 264
INPUT VOLTAGE (V) 60Hz
LOAD (%) LOAD (%)
File Name:NDR-480-SPEC 2021-06-21
480W Single Output Industrial DIN RAIL
Mechanical Specification
NDR-480 series
Case No.984D Unit:mm
128.5
Top View 85.5
1234
TB2
36 125.2
Side View
Installation Instruction
DC OK + +V ADJ
TB1 123 Front View
Bottom View
Side View
Terminal Pin No. Assignment (TB1) Pin No. Assignment 1 FG 2 AC/N or DC 3 AC/L or DC +
Terminal Pin No. Assignment (TB2) Pin No. Assignment 1,2 DC OUTPUT +V 3,4 DC OUTPUT-V
35
This series fits DIN rail TS35/7.5 or TS35/15. For installation details, please refer to the Instruction manual.
ADMISSIBLE DIN-RAIL:TS35/7.5 OR TS35/15
(For reference only. Not included with unit.)
Back View
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
