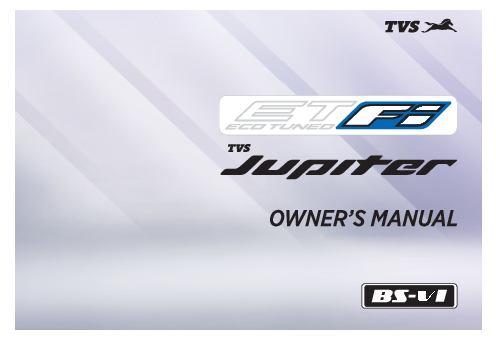

TVS ETFI Eco Tuned Jupiter Scooter Owner's Manual

File info: application/pdf · 95 pages · 15.91MB

PDF Contact for support

11. CONTACT AT OUR AREA OFFICES. TAMILNADU-1, 3 & 4 1. TVS Motor Company Limited V Floor, Gee Gee Universal, No. 2, MC Nichols Road, Chetpet, Chennai - 600 031.

TVS Jupiter - intelliGO

TVS Motor User Manuals - Motorcycles, Scooters, Moped

Full PDF Document

If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.

Extracted Text

CONTENTS

CONTACT(S) FOR SUPPORT

INTRODUCTION

UNIQUE FEATURES OF TVS JUPITER

ACCESSORIES

FOREWORD

NOTICE

SAFETY INFORMATION

RUNNING-IN INFORMATION

SAFE RIDING TIPS

KNOW YOUR TVS JUPITER

RIDING YOUR TVS JUPITER

MAINTENANCE

EXPRESS SERVICE

EXPERT ON WHEELS

PICKUP AND DROP

WARRANTY AND SERVICES

TECHNICAL SPECIFICATIONS

GENERAL INFORMATION

CONTACT(S) FOR SUPPORT
Incase you need any Clarification please contact TVS Motor Company Authorised Main Dealer / Authorised Dealer
Or TVS Motor Company's Area Offices (flip over for addresses)
Or Toll Free Number : 1800-258-7111 Email : customercare@tvsmotor.com
Disclaimer : TVS Motor Company or any of its officials / Authorized Main dealer / Authorized Dealer do not ask customers for bank / card / wallet details / authentication. In case you face any such claim, please report to the relevant local authorities immediately.
11

CONTACT AT OUR AREA OFFICES

TAMILNADU-1, 3 & 4 1. TVS Motor Company Limited
V Floor, Gee Gee Universal, No. 2, MC Nichols Road, Chetpet, Chennai - 600 031. Phone : 044-28361651/28361654 Email : AO.Chennai@tvsmotor.com
AO.Madurai@tvsmotor.com
TAMILNADU-2 2. TVS Motor Company Limited
No. 10, 2nd floor, Shree Shanmugapriya Towers, Kannuswamy Street, Behind Hotel Annapoorna, R S Puram, Coimbatore - 641 002. Phone : 0422-4350060/2541035 Email : AO.Coimbatore@tvsmotor.com
KERALA 3. TVS Motor Company Limited
Ambady Towers, Second Floor, Door No. 27/631, A6, Edappally-Pookkattupady Road, Edappally PO., Cochin - 682 024. Phone : 0484-2544578/2556938 Email : AO.Cochin@tvsmotor.com

KARNATAKA-1, 2 & GOA 4. TVS Motor Company Limited
No. 600, Anand Surya, 2nd Floor, 15th Cross, 6th Phase, JP Nagar, Opp. BMTC Bus Stop, Bangalore - 560 078. Phone : 080-26653433 Email : AO.Bangalore@tvsmotor.com
AO.Hubli@tvsmotor.com
ANDHRAPRADESH -1 & 2 5. TVS Motor Company Limited
Rukumani Towers, First Floor, No. 3-11-30, Plot No. 11, Paigha Colony, Behind Anand Theater, Secunderabad - 500 003. Phone : 040-27840590/27844419 Email : AO.Hyderabad@tvsmotor.com
AO.Vijayawada@tvsmotor.com
MAHARASHTRA-1 & 2 6. TVS Motor Company Limited
No. 401, 4th Floor, The Chambers, Plot No. 4/12/3, Near Ganapati Chowk, Viman Nagar, Pune - 411 014. Phone : 020-26632111/26632110 Email : Service.pune@tvsmotor.com

MAHARASHTRA-3 & CHATTISGARH 7. TVS Motor Company Limited
No. 502B, 6th Floor, B Wing, Shriram Shyam Towers, Near LIC Square, Sardar, Nagpur - 440 001. Phone : 0712-2569932 Email : Service.Nagpur@tvsmotor.com
AO.Raipur@tvsmotor.com
GUJARATH 8. TVS Motor Company Limited
109, Ayna Complex, Opp. Suvarna Villa Bungalows, 100 ft Thaltej Hebbatpur Road, Off : S.G. Highway, Thaltej, Ahmedabad - 380 054. Phone : 079-65443748 Email : AO.Ahmedabad@tvsmotor.com

MADHYA PRADESH-1 & 2 9. TVS Motor Company Limited
No. 211-212, 2nd Floor, Chinar Incube Business Centre, Chinar Fortune City, Near Brindhavan Dhaba, Hosangabad Road, Bhopal - 462 026. Phone : 0755-2499406/2499306 Email : AO.Bhopal@tvsmotor.com
AO.Indore@tvsmotor.com
RAJASTHAN-1 & 2 10. TVS Motor Company Limited
Plot No. 17-18, 2nd Floor of National Motors Building, Jhotwara Industrial Area, Jaipur - 302 012. Phone : 0141-5150901/5150902 Email : AO.Jaipur@tvsmotor.com
AO.Udaipur@tvsmotor.com
DELHI & HARYANA 11. TVS Motor Company Limited
D-3 & D-4, 2nd Floor, Sector - 10, Noida, Uttar Pradesh - 201 301. Phone : 011-29834640/29834773 Email : AO.Delhi@tvsmotor.com
AO.Haryana@tvsmotor.com

PUNJAB & CHANDIGARH 12. TVS Motor Company Limited
4th Floor, Royal Business Park, Chandigarh Ambala Highway, Zirkapur - 140 603. Phone : 01762-464777/465777 Email : AO.Chandigarh@tvsmotor.com
UTTAR PRADESH WEST 13. TVS Motor Company Limited
D-3 & D-4, 2nd Floor, Sector - 10, Noida, Uttar Pradesh - 201 301. Phone : 011-29834640/29834773 Email : AO.Upw@tvsmotor.com
UTTAR PRADESH CENTRAL & EAST 14. TVS Motor Company Limited
1st Floor, Cyber Tower, TC-34/V-2, Vibhuti Khand, Gomti Nagar, Lucknow - 226 010. Phone : 0522-4918300/4918301 Email : AO.Upe@tvsmotor.com
AO.Upc@tvsmotor.com

WEST BENGAL 15. TVS Motor Company Limited
Ground Floor & First Floor, 133 A. S. P. Mukherjee Road, Opp. Tollygunge Police Station, Kolkatta - 700 026. Phone : 033-24617096/24617092 Email : AO.Kolkatta@tvsmotor.com
BIHAR 16. TVS Motor Company Limited
N-Plaza, Jamal Road, P.S. Kotwali, Patna - 800 001. Phone : 0612-2200068/2200069 Email : AO.BNJ@tvsmotor.com

ORISSA & JHARKHAND 17. TVS Motor Company Limited
No. 303, 3rd Floor, Creative Plaza, Rasulgarh, Bhubaneshwar - 751 010. Phone : 0674-2580019 Email : AO.Bhubaneshwar@tvsmotor.com NORTH EAST STATES 18. TVS Motor Company Limited 147, Udayan, Ganesh Guri, Opp. Punjab National Bank, R G B. Road, Guwahati - 781 005. Phone : 0361-2202030/2202031 Email : AO.Guwahati@tvsmotor.com
4

INTRODUCTION INTRODUCING THE EXTREMELY NEW TVS JUPITER ZX Since its inception, TVS Jupiter has represented novelty. With its sweeping silhouette, unrivalled comfort and classleading features, it truly exhibits our philosophy of `Zyada Ka Fayda`. Our ability to develop tailor-made scooters for you is the inspiration behind the creation of TVS Jupiter ZX. Meticulously designed and lovingly crafted, TVS Jupiter ZX`s captivating exterior is pure indulgence. It is the scooter that adapts to your needs and can be uniquely suited to match your style, status and personality. It is the extremely new TVS Jupiter ZX.
55

UNIQUE FEATURES OF TVS JUPITER
SEMI DIGITAL SPEEDOMETER TVS Jupiter ZX has been upgraded with semi digital speedometer which has been equipped with innovative features like Digital fuel indicator, Time indication, Digital odometer, Trip Meter A, B & F, Service Reminder, Helmet indication, Economy percentage and more. TRIP F: Trip F is a unique feature in your vehicles which would indicate number of kilometers driven in reserve condition. This would be a critical information to prevent fuel shortage during ride.
ECONOMETER� Your scooter's speedometer has ECONOMETER� which indicates whether you are riding in Economy Mode or Power mode. This is unique feature of your scooter which guides you to ride your scooter fuel efficiently. Refer page No. 26 for details.
6

INTEGRATED

STARTER

GENERATOR (ISG)*

`Integrated Starter Generator'

(ISG) system has delivers a

noiseless start of the vehicle.

'TVS intelliGO'* An intelligent start/stop system that further enhances fuel efficiency. Easy on your pocket and kinder to the environment. Refer page No. 27 for details.

LOW FUEL INDICATOR
`Low Fuel Indicator' is yet another unique feature of your scooter which indicates you to refill the fuel, when the fuel in the tank goes below minimum safe level. Refer page No. 27 for details.

* Applicable only for Disc Brake version

ALL IN ONE LOCK Your scooter has all in one lock that unlocks the seat and fuel tank cap at the ignition lock itself. Refer page No. 24 for details.
UNIQUE PASS-BY SWITCH (First Time in Scooters) Pass-by Switch is a feature first time introduced in scooters ever. It allows you to easily switch between high & low beam of the head lamp with easy press and auto release. It is helpful especially while overtaking. Refer page No. 34 for details.
'TVS intelliGO' SWITCH* An exclusive intelliGO switch is provided to switch OFF and ON the intelliGo system as and when required. Refer page No. 35 for details.

EXTERNAL FUEL FILL You can get petrol filled without even getting out of your seat.
RETRACTABLE BAG HOOKS Your scooter has two retractable Bag Hooks to carry light luggage like carry bags weighing upto 3 kg. One hook is located below the handle bar on the rear panel and the other one is located on the cover front below the front end of seat.
TELESCOPIC FRONT FORK Your Scooter has Motorcycle-like `Telescopic Front Suspension' for extreme comfort for excellent riding comfort even on bad roads.
* Applicable only for Disc Brake version
77

ADJUSTABLE REAR SHOCK ABSORBER Your Scooter comes with Adjustable Shock Absorber, a first-in-the-industry feature. This allows you to adjust the required level of hardness / softness as per the usage requirement at just the push of a lever.

TUBELESS TYRES

TUBELESS

Another important unique feature

in your scooter is `Tubeless Tyres'.

Tubeless tyres reduce the chances

of getting punctured. Even if there

is a puncture, sudden leakage of

air is avoided, thereby provide

better safety and convenience.

It is also very easy to repair the

punctured tyres.

LED HEAD LAMP Your Scooter comes in with a premium LED head lamp. Efficient and bright, this gives TVS Jupiter ZX a totally upgraded Look and Style with better visibility for night rides.
PATENTED E-Z CENTRE STAND E-Z Centre Stand of your scooter reduces the effort required to place the scooter on stand. Refer page No. 37 for operating procedure.
ALL BLACK LARGER ALLOY WHEELS All `Black Larger Alloy Wheels' with high mechanical advantage gives progressive braking of your scooter, results in best-in-class `shortest distance' braking. It also provide superior comfort in bad road conditions.

PARKING BRAKE (REAR BRAKE LOCK) `Parking Brake' is another unique safety feature which protects your scooter from falling due to wheel rotation when it is parked with the side stand on a slope. Refer page No. 34 for details.

DISC SYNCHRONISED BRAKE TECHNOLOGY (SBT) Taking technological innovation to next level, your scooter comes with `Synchronised Brake Technology (SBT)'. This feature enhances the safety by avoiding skidding during sudden braking.

UNDER-SEAT

STORAGE

(UTILITY BOX)

Your scooter has a 21 litre under-

seat storage space to carry your

luggage belongings, full face

helmet etc., refer page No. 40

for details.

HELMET HOOKS Your scooter has two helmet hooks under the seat assembly at the front end of utility box to secure your helmet. Refer page No. 41 for details. UTILITY BOX LIGHT TVS Jupiter ZX has a `Utility Box Light` which lights up the utility box automatically whenever the seat is open.
99

ACCESSORIES
ACCESSORIES SCOOTER

FOR

YOUR

SMART PHONE CHARGER** Your TVS Jupiter ZX is provided with a socket for charging your smart phone even while you are traveling and it is located below the left side of the handle bar. Refer page No. 43 for usage details.

FRONT GLOVE BOX** TVS Jupiter ZX is provided with glove box front. Which has 1 litre storage capacity and used to hold your mobiles while charging or hold a small bottle.

INDICATOR BEEPER** Your scooter has an electronic beeper which alerts you that the turn signal indicators are `ON'. This beeper comes as a mandatory accessory.

** Mandatory and optional accessory will be charged extra

FOREWORD Dear TVS Jupiter ZX Owner, Thank you for choosing TVS Jupiter ZX, a stylish scooter with an all-new CVT-i engine and many class-leading features. As the proud owner of a TVS Jupiter ZX, you are now a part of the family of millions of satisfied TVS customers. TVS Jupiter ZX comes equipped with ETFI (Eco Tuned Fuel Injection) BSVI technology, giving you a smoother and enjoyable riding experience. With TVS Jupiter ZX, riding comfort enters a new dimension. This innovative mobility embodies a combination of class-leading features and style unprecedented in the two-wheeler segment. Its unique vehicle design and superior ergonomics make it a scooter which gives you more in every aspect. This manual explains the features and operations of your TVS Jupiter ZX. Kindly read it carefully and follow the instructions to enjoy years of safe riding. To ensure reliable performance, we urge you to get your TVS Jupiter ZX serviced only at TVS Motor Company Authorised Main Dealer / Authorised Dealer at specified regular periodic intervals. We welcome you once more to a world of comfortable and easy riding!
TVS MOTOR COMPANY LIMITED
111

NOTICE
Take time to familiarize yourself with your TVS Jupiter ZX and its performance characteristics. This Owner`s Manual contains a host of useful information. Please take the time to read this manual before you ride your new TVS Jupiter ZX. Get familiarised with the operation of your scooter for maximum safety and pleasure. The better you know your vehicle, the more pleasure you will experience riding your new vehicle. Ensure that anyone else riding your TVS Jupiter ZX does the same. All information, illustrations, photographs and specifications contained in this owner's manual are based on the latest product information available at the time of this publication. TVS Motor Company Limited may, however, incorporate modifications or improvements on its vehicles at any time without notice, and therefore, in such events it is possible that the relevant part of the owner`s manual does not apply to your vehicle. Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this owner's manual.
Note
Accessories shown in the picture may not be part of the standard equipment.
Pictures shown in this manual are of TVS Jupiter ZX disc model unless specified.
Your scooter is provided with always glowing head lamp (AHO).The head lamp glows automatically once the engine is started.
TVS Jupiter ZX disc model is fitted with 'TVS intelliGO' which is an intelligent start/stop system that switches 'OFF / ON' the scooter automatically (Refer page No. 27 for further details).
Since your vehicle is fitted with side stand cut-off system ensure to retract the side stand before starting the vehicle.
Revision 5, Dec 2021
12

SAFETY INFORMATION Operating this vehicle safely is an important responsibility of the rider. To help you make decisions on safety, we have provided necessary operating procedure and other information in this manual. This information alerts you on potential hazards that could hurt you or others. Since it is not possible to warn you about all the hazards associated with operating or maintaining the vehicle, you must use your own judgment. You will find important safety information in following form in this manual.These words carry the following connotations:
Warning
Disregarding this message might result in injury to the rider or deadly accidents.
Caution
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
Note
This message provides further clarification for clear understanding of any particular information.
1133

RUNNING-IN INFORMATION The first 1000 km is a crucial part of your scooter. Proper running-in operation during this period helps in ensuring a maximum life and smooth performance of your scooter. The reliability and performance of your scooter depends on the special care and restrain exercised during the runningin period. It is especially important that you avoid operating the engine in high speed (RPM), which could expose the engine parts to excessive stress. Recommended speed during the running-in is: Maximum 50 km/h speed upto 1000 km (vary the engine speed for better mating of parts). The first free service at 500 ~ 750 km is most important. During running-in period all the engine components and other parts will have set in. All adjustments to be restored, all fasteners to be tightened. Engine and Transmission oil to be replaced. Timely performance of the first free service will ensure optimum service life and performance from the engine.
Caution
Replacing the engine and transmission oil during first service is most important for better life of engine. Always use TVS TRU4 SKUUTA (SAE 10W30 API-SL, JASO MB) oil for better performance and life.
14

SAFE RIDING TIPS
SAFE RIDING RECOMMENDATIONS Any two wheeler riding requires some precautions to be taken to ensure the safety of the rider, pillion rider and other road users. These precautions are: Familiarise yourself with new TVS Jupiter ZX Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to practice riding TVS Jupiter ZX in a low-traffic condition until you are thoroughly familiar with your vehicle and its controls. Remember practice makes you perfect. Riding apparel Loose, fancy clothing can be uncomfortable and unsafe when riding a two-wheeler. Choose good quality two wheeler riding apparel. Know your limits Ride within the boundaries of your own skill at all times. Knowing these limits and staying within them will help you avoid accidents.
Warning
Two wheeler safety starts with wearing a good quality helmet. One of the most serious injuries that can happen is a head injury. Always wear an ISI approved helmet that should fit your head comfortably and securely. You should also have good quality goggles to protect your eyes and help your vision. To prevent or minimize accident, never consume alcohol or drugs before or during the operation of your vehicle. Even minimal consumption of these will affect the rider's ability to control the vehicle.
1155

Posture Proper vehicle riding starts with proper posture. 1. Keep your elbows relaxed and flexible. 2. Sit and adjust yourself on seat so that arms and
shoulders are relaxed. 3. Look widely instead of gazing at one point.
Warning
One-hand riding is dangerous. Keep both hands firmly on the handle bar and both feet securely on the floor board. Under no circumstances should both the hands be removed from the handle bar, as it is very dangerous. Avoid use of mobile phones while riding as it could lead to fatal accident. Slow down to a safe speed before negotiating a corner. If this is the first time that you are riding a vehicle of this type, we suggest that you practice on a safe, open area to become thoroughly familiar with the operation of the vehicle.
16

Cornering
When cornering, centrifugal force works in a direction perpendicular to the direction in which the vehicle is moving. Centrifugal force increases in proportion with speed and the radius of the corner.
During cornering, reduce speed so as to lessen the effects of centrifugal force. By all means, avoid abrupt application of brake or sudden steering.
Braking
For safe riding, it is very important to master the braking techniques.
1. Close / release the throttle.
2. Hold the vehicle upright as you apply the brake.
3. Progressive application of brake is safer.
4. Apply both the brakes. `SBT' provides additional braking even when `only rear brake' is applied, But applying `both the brakes' helps you to use the full potential of the brakes.
5. Riding down hills, while cornering and wet roads, close throttle and come to a slower speed to avoid the loss of control over the vehicle due to skidding.

Causes for poor braking
1. If the brake shoes / pads or drum / disc are worn out or if there is water or oil on them, sufficient friction does not develop and brakes do not work well.
2. Even when the brake works normally, if the road surface is wet or the tyre surface is worn-out, tyres do not take a firm hold on the surface, increasing the stopping distance.
3. Approximately 60% braking effect is from front brake. Non-usage of front brake causes poor braking.
Warning
As the vehicle speed increases, the stopping distance also increases progressively. Be sure that, you have sufficient distance between you and the vehicle or obstruction ahead of you.
Using only the front or rear brake is dangerous and can cause skidding and loss of control. Apply both the brakes together and with great care on a wet road or other slippery surfaces. Any abrupt braking on slippery or irregular roads can cause loss of rider control.

ACCESSORY INSTALLATION AND SAFETY TIPS Use extreme caution while selecting and installing the accessories for your scooter. The addition of unsuitable accessories can lead to unsafe operating conditions. Your friendly Dealer will assist you in selecting quality accessories and installing them correctly. While selecting the accessories, make sure that the accessories should not obstruct lighting, steering, suspension level and ground clearance. Additional electrical equipments is not acceptable as it will void warranty terms of the vehicle.
1177

EMISSION CONTROL
All the TVS vehicles are tested in the factory for optimum fuel efficiency and CO levels. If the vehicle needs any adjustments, please consult nearest TVS Motor Company Authorised Main Dealer or Authorised Dealer.
While adequate care is exercised at the factory to ensure that the emissions are within the limits, it is essential for the owner to always maintain the scooter in good condition by getting it periodically checked and serviced by TVS Motor Company Authorised Main Dealer / Authorised Dealer so that the emission and fuel consumption levels are maintained as per norms. Crankcase emission control system The engine of new TVS Jupiter ZX is equipped with a closed crankcase system to prevent discharging crankcase emissions into the atmosphere. Blow-by gas is returned to the combustion chamber through the air cleaner and the fuel system. Evaporative emission control system
TVS Jupiter ZX is equipped with an evaporative emission control system which consists of a canister and associated piping. This system prevents the escape of fuel vapors from the fuel tank.
18

Warning
If there is any abnormal jerk, startability issue are felt in the vehicle or noise due to sudden escape of gas during opening of fuel tank cap, immediately report to the TVS Motor Company Authorised Main Dealer / Authorised Dealer.
Note
Your vehicle is tested and certified for emission which meets BS VI emission norms and is valid for initial 12 months from the date of purchase. Get your vehicle certified by the Government authorised emission testing station after initial 12 months of usage. And ensure to get the vehicle certified on expiry of the certificate obtained.

KNOW YOUR TVS JUPITER
VEHICLE IDENTIFICATION NUMBER The frame and engine serial numbers are the only means of identifying your vehicle from others of the same model and type. They are also required to assist your Dealer for ordering parts or referring to special information.

The frame serial number is stamped on the frame, at the rear end below the seat assembly. Open the seat assembly to read the frame number.

The engine serial number is stamped on the left side of the engine, at the bottom, near center stand mounting. See bottom to read serial number.

1199

LOCATION OF PARTS - HANDLE BAR

14 13
12 11 10 9

2
3 4 5 6 7 8

1. Speedometer assembly 2. Rear view mirror R 3. Right hand brake lever 4. Throttle grip 5. 'TVS intelliGO' switch* 6. Electric starter switch 7. All in one lock 8. Bag hook (front) 9. Glove box** 10. Smart phone charger** 11. Horn switch 12. Turn signal lamp switch 13. Left hand brake lever 14. Parking brake (rear brake lock) 15. Rear view mirror L 16. High / low beam cum pass-by
switch

* Applicable only for Disc Brake version ** Mandatory and optional accessory will be charged extra

LOCATION OF PARTS - VEHICLE LEFT SIDE

1. Rear brake adjusting nut

2. Kickstarter lever

3. Effortless easy center stand

4. Side stand

5. Pillion foot rest L

6. Caliper assembly front

7. Disc plate front

8. Pillion handle

543

2211

LOCATION OF PARTS - VEHICLE RIGHT SIDE 8

1. Front wheel axle nut 2. Bag hook (rear) 3. Cover front 4. Pillion foot rest R 5. Gauge oil level 6. Muffler assembly 7. Rear fender 8. Seat assembly

LOCATION OF PARTS - VEHICLE FRONT & REAR

FRONT 1. LED Head lamp 2. Head lamp focus adjuster 3. Turn signal lamp front LH 4. Turn signal lamp front RH 5. Throttle cable adjuster

REAR

1. Fuel tank cap

2. Turn signal lamp rear RH

3. Tail / brake lamp

4. Transmission oil level screw

5. Reflex reflector

6. Turn signal lamp rear LH

** License plates are mandatory accessory will be charged extra
2233

ALL IN ONE LOCK TVS Jupiter ZX comes with an `all in one lock'. It has five positions and they are: 1. `OFF' position All the electrical circuits are turned `OFF` in this position. Engine will not start. Key can be taken out. 2. `ON' position In this position, all the electrical circuits are turned `ON' and the engine can be started now. Key cannot be removed in this position. 3. `LOCK' position TVS Jupiter ZX disc steering can be locked in both `left' and `right' directions.
24

To lock the steering, turn the handle bar all the way to the `left' or `right'. Push the key `IN', turn it to the `LOCK' position and take out. All the electrical circuits are turned `OFF' in this position. Insert the key into the lock and turn it to `OFF' or `ON' position to unlock the steering.
Note
When you switch on ignition key, the pump priming noise may be heard, which is normal. Avoid frequent 'SWITCH -OFF & ON' of ignition key, to avoid unnecessary run of fuel pump. The speedometer back illumination, tail lamp and license plate lamp glow automatically once the ignition key is turned `ON' without activating any other switches.
Caution
Leaving the ignition cum steering lock in `ON' position will drain the battery when the vehicle is not in use. "Switch Off" and take the key out when the vehicle is not in use. For safety always lock the steering.
Warning
Never attempt to move the vehicle when the steering is locked, you may lose balance.

4. `Seat unlock' position Seat lock is inbuilt in `all in one lock' of TVS Jupiter ZX. To open the seat, keep the key in `OFF' position and turn it to anticlockwise direction without pushing the key `IN'. To lock the seat again, press the seat at the rear end to its position. Ensure the locking of seat by hearing `Click' sound.
SEAT LO

5. 'Fuel tank cap unlock' position Fuel tank cap lock is inbuilt in `all in one lock' of TVS Jupiter ZX. To open the fuel tank cap, keep the key in `OFF' position, push the key `IN' and turn it to clockwise direction.The tank cap opens automatically. To close the fuel tank cap, press the cap at the front end to its position until a `Click' sound is heard.
FUEL TANK CA

P LOCK CK

PUSH

2255

SPEEDOMETER ASSEMBLY - SEMI DIGITAL

10 11

1. Turn signal indicator lamp left ( ) Flashes when the left side turn signal indication is activated. 2. ISG malfunction indicator ( )* ISG malfunction indicator will be turned 'ON' when the ISG detects a fault in the system. If the ISG malfunction indicator is glowing continually after the self check of the speedometer, immediately contact the nearest TVS Motor Company Authorised Dealer or Authorised Dealer.
* Applicable only for Disc Brake version
26

3. Malfunction indicator lamp - MIL ( )

MIL is turned ON when the ECU detects a fault in

the system.

If the malfunction indicator lamp `

` is

glowing continually when the engine is started,

immediately contact the nearest TVS Motor

Company Authorised Main Dealer or Authorised

Dealer.

4. Economy and power indicators

Eco indicator (green lamp) indicates that the vehicle

is running in economy mode which gives better fuel

economy.

Power indicator (amber lamp) indicates that the

vehicle is running in power mode which results in

reduced fuel economy.

Note
Always ride the vehicle in `economy mode' for better fuel efficiency.
If the battery voltage is very low, power mode lamp will glow once you switch `ON' the ignition key till you start the vehicle. Electric starter will not work in this condition. Use kick starter only. Contact TVS Motor Company Authorised Main Dealer or Authorised Dealer.

5. Speedometer Indicates vehicle speed in kilometers per hour. 6. High beam indicator lamp Glows either when the head lamp high beam or the pass-by is activated. 7. Low fuel warning indicator lamp** `Low Fuel Warning Indicator (LFI)' is a safety indicator to caution you to fill the petrol as soon as possible. Minimum 1.5 litre (approx.) petrol will be available in the tank when this indication comes `ON'.
Caution
Minimum 1.5 liter of fuel should be maintained in the fuel tank to avoid engine switch OFF / damage to fuel pump which leads to replacement of pump without warranty.
** `LFI' is not a mileage calculating medium and it should not be used for measurement of fuel consumption
* Applicable only for Disc Brake version

8. 'TVS intelliGO' indicator* Fuel is consumed unnecessarily when the engine is in idling (e.g. In traffic signals) as there is no useful output to the wheel. It contributes to emission and decreases mileage of the vehicle considerably. To overcome this issue `TVS intelliGO' system is introduced in TVS Jupiter ZX* to automatically shut down the engine when it is kept idling for long and restart from stop condition by simply pressing the Brake and giving Throttle. The vehicle also can be restarted using `Electric start' or `Kick start' if required. Use of this `TVS intelliGO' system improves the fuel economy and reduces emission. Activation of 'TVS intelliGO' system: `TVS intelliGO' system gets activated when the following requirements are satisfied,
1. `TVS intelliGO' switch is in ` ' position 2. Engine warm up and 3. When the vehicle speed is more than 5 kmph When the vehicle has met the above conditions, the `TVS intelliGO' system gets enabled and the intelliGO indicator ` ' in the speedometer glows and informs you that the vehicle has entered intelliGO loop and the engine will stop automatically at upcoming vehicle idling condition.
2277

Once the vehicle enters the idling condition, the intelliGO indicator starts blinking instead of glowing and engine stops after predetermined time. The intelliGO indicator starts glowing during the engine stop to indicate you that the vehicle has stopped due to `intelliGO' system. The head lamp brightness will be reduced to 50% after 30 seconds from when the engine is stopped by `intelliGO' system to improve the battery life and to avoid battery drain. All other DC system will work normally. After 4 mins of vehicle stop, the head lamp will get `OFF' completely. This is an indication that the restart of vehicle from stop condition by applying Brake and Throttle is about to be deactivated. The vehicle stopped by `TVS intelliGO' system can be restarted at any time within 5 mins from the stop of the vehicle by intelliGO feature in a simple way of applying Brake and Throttle. Deactivation of `intelliGO' system: `Idle start stop' system will be deactivated if the intelliGO switch is positioned at ` ' position. If the ISG malfunction indicator or MIL indicator is `ON' then the intelliGO system will not work not get activated.
28

If there is 5 unsuccessful start of the vehicle either by electric start or by intelliGO restart method in one ignition key `ON' cycle then the intelliGO will not get activated. If vehicle is not restarted within 5 mins from idle stop, then intelliGO will be deactivated. Prolonged idling: When vehicle is in idling with the engine temperature high enough to maintain stable engine idling rpm and the intelliGO switch is in ` ' position, then the intelliGO will be activated. When `TVS intelliGO' is enabled, the intelliGO lamp glows for 5 seconds and then blinks for predetermined time and then the engine stops. intelliGO lamp will glow after vehicle has stopped due to this feature. By applying Brake and Throttle the engine can be restarted again.
Note
Ensure that the brake free play is adjusted and it is within the limit for the proper working of `TVS intelliGO'.
Vehicle can be started at any point of time using `electric start' or `kick start' when the engine is stall condition and the ignition key in `ON' condition.

Note
`TVS intelliGO' switch can be activated / deactivated at any point of time. If vehicle is stopped by `TVS intelliGO' system, and the `TVS intelliGO' switch is toggled from `ON' to `OFF` and back to `ON', the intelliGO system will be deactivated and the vehicle can be restarted only by the `electric start` or `kick start'.
9. Turn signal indicator lamp right ( ) Flashes when the right side turn signal indication is activated. 10. Mode switch A 'Mode' switch is provided to change the display to different modes like `ODO', `TRIP A', `TRIP B' etc. 11. Multi function display
!

11a. Odometer Odometer registers and displays the total distance covered by the vehicle in kilometers. Set the display in `ODO' mode to know the reading. 11b. Trip meter In ODO mode, press `Mode' switch once or twice to enter `TRIP A' or `TRIP B' meters respectively.
Trip meter registers and displays the partial distance covered in kilometers. The digit after the dot mark denotes one tenth of a kilometer. Set the display in `TRIP A' or `TRIP B' mode to know the reading. Provision to measure two different distance `TRIP A' or `TRIP B' is provided for the users to use as per their convenience. Trip F
This function shows the distance traveled after the low fuel indication symbol ( ) is `ON' and the last segment of the fuel display starts blinking.
2299

The display switches automatically to `TRIP F' once the low fuel indication is `ON' and starts counting from 0.0 km. If the fuel level remains in minimum safe (reserve) level, the reading will be saved even after the ignition `OFF'. The `TRIP F' meter stops counting and the display is deactivated automatically once the fuel is filled above minimum safe (reserve) level which is indicated by atleast 2 bars in the fuel gauge. ODO / TRIP A / TRIP B display switches `ON' automatically. Please remember that the `TRIP F' meter cannot be activated or deactivated manually and can't be reset. On every ignition `ON', `TRIP F' meter will get enabled automatically until fuel level raises above minimum safe level. `ODO', `TRIP A' and `TRIP B' still can be accessed by short pressing the `Mode' switch but the display will automatically enter `TRIP F' after 5 seconds. 11c. Low battery indicator An icon with battery symbol ' ` glows when the battery charges is too low. Contact your nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.
30

Caution
Start ability of vehicle using electric start will be difficult when the low battery indication is ON. intelliGO feature will be disabled.
11d. Service reminder If the service is due, whenever the ignition switch is turned `ON', an icon with spanner symbol ` ' blinks for 10 seconds after the self-test cycle of speedometer and continues to glow till the vehicle is serviced and reset. Get the vehicle serviced at TVS Motor Company Authorised Main Dealer / Authorised Dealer. 11e. Helmet icon With every ignition `ON', Helmet icon ' ` blinks for 10 seconds on the left side of the multi function display.
Note
Service reminder indicator lamp works only based on the distance (km) covered by the vehicle. This is only a reminder indicator. Customers are advised to keep track and follow the service schedule.

11f. Side stand indicator ( ) The side stand warning indicator turns `ON' to alert you whenever the vehicle`s side stand is deployed (vehicle parked condition) and continuous beep sound will be released from the vehicle to alert the rider to retract side stand before starting the vehicle.
Note
If the side stand is deployed the vehicle will not start. Retract the side stand to start the vehicle.
When there is a failure in the side stand sensor, in stand deployed condition the vehicle will not stop. As a safety measure it is recommended to visit the nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer to get it rectified.
11g. Fuel gauge Digital bars indicates the approximate fuel quantity available in fuel tank. There are six bars to indicate the fuel quantity available in the tank. All the six bars will be displayed when the fuel in the tank reaches above 5.3 liters approx.

When the fuel reaches half tank (3.5 liters approx.) the fuel gauge displays only three bars as shown.
When The fuel reaches minimum safe level (1.5 liter approx.), the last bar of the fuel gauge starts blinking, low fuel indicator ( ) starts glowing and `TRIP F' meter starts counting from 0.0 km as explained in the previous page.
If the fuel level goes below minimum safe level (1.35 liter), no bar will be displayed. 11h. Economy drive indication This function shows the percentage of distance that the vehicle has been driven in economy mode with respect to the odometer reading. To view the meter in `ECO %' mode press the `Mode' button thrice from `ODO' mode.

3311

Note
Please note that, the fuel gauge is not a mileage calculating medium and it should not be used for calculating the mileage.
11i. Digital clock Indicates the time in 12 hour time format.

MODE SWITCH

`Mode' switch is provided to change the mode between `ODO', `TRIP A', `TRIP B', `TRIP F'*, `ECO %' and `CLOCK'.

Sequence of Mode switch are as follows:

1. ODO

2. Trip A

3. Trip B

4. Trip F*

5. ECO % 6. Clock

Resetting Trip A and B

Press the `Mode' switch once or twice to change the display to `TRIP A' or `TRIP B' mode which needs to be reset. Now press the `Mode' switch again for 5 seconds to reset the respective trip data.

* `TRIP F' can be accessed incase of low fuel only. 32

Resetting economy drive indication
In `Eco drive %' mode press the `Mode' switch for 5 seconds to reset `Eco drive %' data to 0.0. Digital clock setting
� Change the meter to `CLOCK SETTING MODE' mode by long pressing `Mode' switch when the display is in `ODO' mode.
� Press the `Mode' switch till the hour digits of the clock starts blinking.
� Once the hour digits started blinking, short press the `Mode' switch again to increase the hours.
� Press the `Mode' switch till the minute digits of the clock starts blinking.
� Once the minute digits started blinking, short press the `Mode' switch again to increase the minutes.
� Long press of the `Mode' switch again to exit the clock setting.
� Press the `Mode' switch till the AM/PM digit starts blinking.
� Once the `AM/PM' digit started blinking, short press the `Mode' switch again to swap between `AM' and 'PM'. Long press the `Mode' switch again to exit the clock setting.

LED HEAD LAMP
TVS Jupiter ZX comes with a LED head lamp which glows automatically once the engine is started. The head lamp beam (high / low) can be controlled by pressing the `high / low beam` switch.

HANDLE BAR LEFT SIDE 1. Horn switch Press the switch ` ' to operate the horn. 2. Turn signal lamp switch Slide the turn signal lamp switch to left ` ' or right side ` ' to operate respective turn signal lamps (LH / RH). Press the switch to turn `OFF'.

21
Warning
Always use the appropriate turn signal lamps when you intend to change lanes or take turns. Be sure to switch `OFF' it after negotiating the lanes or turns.
333

3. Left hand brake lever (SBT brake lever) Synchronised Braking Technology (SBT) can be operated by pressing the left hand brake lever gently towards the handle grip. SBT technology helps to operate both front and rear brakes by distributing the force optimally between the two braking system. 4. Parking brake (rear brake lock lever) Brake lock protects your scooter from rolling-off, when parked on side stand (or) helps you relax while waiting in a long traffic signal (or) a slope. To activate brake lock, press the brake lever almost half towards the grip and hold, then press the parking brake lever to maximum and release the brake lever slowly. Ensure the brake is locked properly. Pressing the brake lever further releases the brake lock automatically.
Warning
Since your vehicle is fitted with SBT brake system it is essential to maintain the brake system in good condition. Adjust the brakes system at regular intervals for the proper working of SBT.
Ensure release the brake lock before riding the vehicle.
34

5. High/low beam cum pass-by switch The head lamp glows automatically once the engine is started. Only the head lamp beam (high / low) can be controlled by pressing the `high / low beam` switch. Press the switch towards ` ' to operate head lamp high beam or press it towards ` ' to operate head lamp low beam. TVS Jupiter ZX has a combined switch for head lamp `high / low beam' and 'pass-by' operation. To operate the `pass-by', keep the switch in `low beam' position, press gently and release. This makes the head lamp high beam to flash and signal the approaching vehicle. The pass-by signal can be used while overtaking during day time.
Warning
Use appropriate head lamp beam `high / low' as per the traffic and road conditions for your safety and to avoid inconvenience to other riders. It is strongly recommended to ride the vehicle in `low beam' during day.

HANDLE BAR RIGHT SIDE

4
1. `TVS intelliGO' switch* To activate the `TVS intelliGO' system, set the intelliGo switch to ` ' position. The intelliGo indicator ' ' of the speedometer glows for 2 seconds. To deactivate `TVS intelliGO' system, set the intelliGo switch to ` ' position.
Note
Refer page No. 27 for intelliGo feature details.

2. Right hand brake lever Front brake system can be operated by pressing the right hand brake lever gently towards the throttle grip. The brake lamp glows on application of either right hand or left hand brake lever. 3. Throttle grip Engine speed is controlled by the rotation of the throttle grip. Twist it towards you to increase the engine speed and twist it away from you or release it to decrease the engine speed. 4. Electric starter switch Retract the side stand and press the starter switch ` ' to start the engine electrically along with the application of either front or rear brake.
Caution
It is not recommended to add any additional throttle grip (cover).
Note
Before starting, ensure to turn `ON' the engine kill switch and retract the side stand.
* Applicable only for Disc Brake version
3355

FUEL TANK* CAP
Fuel tank is located at the rear end of the vehicle below the pillion holder.
To open the fuel tank cap, follow the procedure given in the page No. 25. To close the cap, gently press the cap in its position and ensure locking by hearing `Click' sound.

Caution
Ensure that the fuel gun is inserted fully into the tank neck while refueling. Whenever refueling, fill upto the bottom of the neck portion (insert level) of the fuel tank. Filling above the neck may result in improper breathing of fuel tank and seepage of fuel. While refueling, avoid spillage of petrol on the tyre. If fuel spills on tyre, the tyre will loose its grip on the road. Ensure to close fuel tank cap without fail to avoid fuel spillage.
Warning
Never refill fuel near open flame. Do not smoke while refueling. Do not use cell phones while refueling.

* The fuel tank is not a measuring instrument and the capacity of the fuel tank may slightly vary from the indicated capacity.
36

KICKSTARTER LEVER
The kickstarter lever is located on the left side of the vehicle. To start the vehicle, keep the ignition in `ON' condition and apply the rear brake as a safety precaution to prevent the rear wheel rotation.
Keep your foot on the lever extension as shown in the figure. Kick the lever from top and stroke to bottom with rapid motion.

EFFORTLESS E-Z CENTRE STAND
TVS Jupiter ZX is equipped with a effortless centre stand. The centre stand (1) has a pivoted flexible spring loaded lever arm (stand extension) (2) to increase the lever ratio, which enables parking on centre stand effortlessly and very conveniently.
To place the vehicle on centre stand, hold the handle bar left grip with left hand. Place your foot firmly on the centre stand extension (2) and press.

2 1
3377

SIDE STAND Side stand can be operated by sitting on vehicle with your left foot by pushing it away from the vehicle till it stops.
Warning
Always retract the side stand to its full up position before starting the vehicle. Else, the vehicle will not get start.
Caution
Never sit on vehicle when it is supported by stands. Always park the vehicle on a flat, firm surface.
38

TOOL KIT AND FIRST AID KIT
To assist you in performing certain aspects of periodic maintenance and emergency repairs, a tool kit is supplied along with the vehicle and it is located below the seat base. To access the tool kit, seat need to be opened. Follow the procedure given in the page No. 25 for the seat opening procedure.

The tool kit consists one number each of the following. Ensure the contents of the tool kit. 1. 10x12 mm spanner 2. Combination screw driver bit 3. Screw driver handle 4. Tool bag

Caution
It is recommended to use the tool kit in case of any emergency only. It is always advisable to take your vehicle to TVS Motor Company Authorised Main Dealer / Authorised Dealer.
3399

UTILITY BOX
Utility box is located below the seat. Lift the seat by unlocking the seat lock as explained in the page No. 25 to access the utility box.

Caution
Utility box can be used to carry a load of 10 kg maximum.
Do not carry perishable items inside the utility box. It is not fully sealed. Do not allow / spray water to get inside the utility box. Take care not to spill petrol or oil into the utility box.
Do not keep heat-sensitive items inside as it may get hot on long rides. Do not keep valuable items inside the utility box when leaving the vehicle unattended.

Warning
Operating the TVS Jupiter ZX overloaded will hamper the riding stability and may lead to loss of control. Hence, it is advisable to carry the recommended amount of load only.
40

GLOVE BOX FRONT**
TVS Jupiter ZX is provided with glove box front. Which has 1 liter storage capacity and used to hold your mobiles while charging or hold a small bottle.

HELMET HOOKS
Two helmet hooks are provided under the seat assembly at front end near the seat hinge to secure your helmet. Open the seat assembly as explained in the page No. 25 to access the helmet hooks.
Hook the helmet strap in the helmet hook properly and close the seat assembly.

Warning
Ensure that your mobile or any material stored is safely held with in the glove box front while riding your TVS Jupiter.
** Mandatory and optional accessory will be charged extra
4411

BAG HOOKS
There are two bag hooks provided with your scooter to carry light luggage like carry bags weighing upto 3 kg. One hook is located below handle bar on the rear panel.
Just pull out the hook from the top (A) to hang your luggage. Push back the hook once it is free.
Similarly, the other one is located on the cover front below front end of the seat assembly. Pull out the hook from its position. Open the top lid and hang your cargos. Lid will get close automatically. Push back the hook to its original position once it is free.

Caution
Care should be taken not to attach the luggage which hangs out of your scooter. Please note that the luggage attached to your scooter should not interfere your feet movement.

SMART PHONE CHARGER** This smart phone charging socket enables you to charge your smart phone when you are traveling. This socket is located below left side of handle bar. Please go through the operating manual of the mobile phone and use a suitable adaptor for the battery operation recommended by the mobile phone manufacturer for that particular model. Please follow the guidelines provided for the proper usage of the socket: DO`s 1. Ensure that no water enters into the socket by
closing the USB flap properly. 2. Use only mobile phone company`s authorized
USB cable for mobile charging. 3. Do make sure the flap is not damaged while
opening / inserting the USB cable. DON`Ts 1. Do not leave the USB charging flap open / partially
closed. 2. Do not attempt to use / charge any other device,
other than one mobile phone at a given time. 3. Do not try to force the USB connector in, check
if it is inserted in the appropriate direction, to prevent damage.

4. Do not charge your mobile when the engine is in OFF condition.
5. Do not use other device, this port is for charging mobile phones only.
Caution
Secure your mobile phone properly during charging and protect it from any liquid, dust etc.
** Mandatory and optional accessory will be charged extra
4433

RIDING YOUR TVS JUPITER

PRE RIDE INSPECTION Check the following items before riding

ITEM

WHAT TO CHECK FOR

Engine oil

Availability of oil upto the level (page No. 60)

Transmission oil

Availability of oil upto the level (page No. 61)

Fuel

Enough fuel for the planned distance of running

Tyres

Correct pressure (page No. 68)

Adequate tread depth / No cracks or cuts.

Battery

Proper working of electric starter, horn, fuel gauge, pass-by, brake lamp, tail lamp, speedoback illumination, license plate lamp and turn signal lamps.

Lighting

Proper working of head lamp high / low beam and high beam indicator

Steering

Smooth movement / No play or looseness

Throttle

Correct free play of cable / Smooth operation

Brakes

Correct front and rear brake lever play (page No. 62 & 65)

Availability of brake fluid upto the level (only in Disc Brake version) (page No. 64)

Wheels

Free rotation

Malfunction indicator

Turned OFF after the engine is started (page No. 26)

ISG malfunction indicator Turned OFF after the Ignition `ON' and engine is started (page No. 26)

Caution
Do not switch `ON' the ignition without minimum level fuel in tank. It will cause damage to the fuel pump.

STARTING THE ENGINE
Ensure availability of fuel in the fuel tank. Insert the control key into the ignition cum steering lock and turn it to the `ON' position. In side stand retracted condition, apply any one of the brake and press the electric starter switch to start electrically or kick start.
Press the start button (one touch noiseless start) without applying the throttle. As soon as the engine starts, release the start button. The engine will not start if the throttle is opened full. Setting the vehicle in motion
1. Twist the throttle grip slowly towards you and simultaneously release the brake lever gently and smoothly. The vehicle will start moving forward.
2. As the vehicle picks up speed, increase the throttle slowly.
Stopping and parking
1. Close the throttle completely and apply both the brakes simultaneously.
2. Turn the ignition `OFF'.
3. Park the vehicle on a firm, flat surface.
4. Lock the steering and take out the control key. Finally close the safety key shutter lock.

Warning
Do not raise the throttle rapidly so the vehicle will move forward suddenly and lead to loss of control. Reduce speed to a safe limit before turning / cornering. Do not apply brake while turning / cornering.
Caution
Do not keep the engine in idling rpm for long and do not open excessive throttle when the vehicle is parked. It leads to overheating of engine and damage to the internal components.
4455

FUEL RECOMMENDATION Use only BS VI petrol with minimum RON 91. BS VI petrol containing upto 10% of ethanol by volume can be used. Higher ethanol content in petrol can
� degrade plastic and rubber components of fuel system and vehicle parts
� cause corrosion damage to metal parts like fuel tank, etc
� result in startability & drivability issues � decrease fuel economy Ethanol absorbs water very easily, resulting fuel separation. Extra care shall be taken to prevent moisture entry into fuel tank while filling ethanol blended petrol and water washing of vehicle. Painted parts (viz. panels, covers) shall not come in contact with ethanol blended fuels. Manufacturer is not responsible for any warranty issues that results from using ethanol blend in excess of 10% by volume. In case of any abnormalities observed due to use of ethanol blended fuels, customers are advised to use a different fuel station/brand for standard E10 fuel or contact authorised service centres.
46

Caution
Never mix oil in petrol in the fuel tank. Always fill fuel from the reputed and reliable fuel stations.
CHECKS AND TIPS FOR IMPROVING FUEL ECONOMY Regular checks Carry out the periodic maintenance checks as specified in this manual (page No. 50). Regular maintenance checks will save fuel and ensure trouble-free, enjoyable and safe riding besides keeping environment clean. Spark plug A dirty or defective spark plug leads to wastage of fuel due to incomplete combustion. Clean and adjust the spark plug only if necessary. Replace the spark plug every 12000 kms (1 year). Always use recommended spark plug only. Air cleaner element A dirty air cleaner element restricts airflow and increases fuel consumption. Replace the element every 12000 kms. Since paper filter is used in your scooter it is not recommended to clean the filter. Replace the filter incase of any abnormalities.

Engine oil and Transmission oil Dirty or less engine oil increases friction between various parts of the engine and reduces the engine life, thereby increases the fuel consumption. Running with low transmission oil will cause damage to the gears and bearings. Regularly inspect the engine oil and the transmission oil for correct level and top-up if necessary. Get it replaced at regular intervals as per the maintenance schedule. Fuel leak Inspect and arrest fuel leaks if any from tank and fuel lines. Loss of fuel due to leak may drain the fuel tank completely. Evaporation Vehicle parked in the hot sun leads to wastage of fuel through evaporation. Also, lower fuel levels in the tank will have increased evaporation and condensation of moisture inside. Ensure to close fuel tank cap after every filling. If the fuel tank cap kept open for long time, it leads to safety and fuel loss.

Tyres Low tyre pressure has adverse effect on the vehicle. The drag on the vehicle increases resulting in decreased fuel economy. Further more, handling may be adversely affected. Inspect the tyre pressure regularly (weekly) and inflate it to the recommended pressure (refer page No. 68). Never use tyres which are worn beyond the permissible limit. Wheel freeness Inspect and ensure the wheel freeness by rotating the wheel at least once in a week to avoid wastage of fuel. Avoid unnecessary idling While waiting for someone or stopping in signals for long time, if the engine is kept running at idle speed, it causes unnecessary wastage of fuel. Avoid frequent braking Anticipate corners and slopes as well as the traffic conditions. Unnecessary and frequent braking will reduce the fuel economy. Never accelerate and apply brake simultaneously. It leads clutch shoes wear and wastage of fuel.
4477

Note
The on-road mileage of TVS Jupiter ZX is dependent on several factors like road condition, quality of fuel, riding speed, operation of clutch and brake, tyre inflation, maintenance / timely servicing of vehicle, load etc. and hence will differ from the mileage given under standard test conditions such as made in recognised institutes.
48

MAINTENANCE MAINTENANCE SCHEDULE The maintenance schedule indicates the intervals between periodic services. At the end of each interval, be sure to inspect, check, replace, adjust, lubricate and service as instructed. If the maintenance is not done periodically, it will result in rapid wear and severe damage to the vehicle. If the vehicle is used under high stress conditions such as continuous full throttle operation or if used / operated in dusty climate, certain jobs should be performed more often to ensure reliability of the vehicle. Cylinder head, steering components, suspension and wheel components etc., are key items and require very special and careful servicing. TVS Motor Company Limited strongly recommends that the jobs as per the maintenance schedule be performed by your TVS Motor Company Authorised Main Dealer / Authorised Dealer. Periodic inspections may reveal one or more parts that may need replacement. Whenever replacing parts on TVS Jupiter ZX, it is recommended that you use only the TVS Motor Company Genuine parts.
Caution
Proper running-in and maintenance are mandatory for making certain that your vehicle is reliable and gives optimum performance at all times. Make sure that the periodic maintenance is performed thoroughly in accordance with the instructions given in this owner's manual. In more dusty areas, the air filter element required early replacement than the mentioned kilometers to avoid costly damages to the engine.
4499

PERIODIC MAINTENANCE SCHEDULE (months or km whichever occurs earlier)

Item

In free service

After free service

Service 1st

2nd

3rd

4th

Every Every

km 500 - 750 2500 - 3000 5000 - 6000 8500 - 9000 3000 km 6000 km

Period from the date of sale 2 months 4 months 8 months 12 months 4 months 8 months

Engine oil

I &T

Oil filter (strainer)

�

Transmission oil

I &T

Spark plug

�

Air cleaner element

Air cleaner oil collection tubes

�

CVT filter element1

�

� I & DR
�

� I & DR I & C

� I & DR
�

� � I & C

Tappet clearance

�

I & A

�

I & A

Drive belt and CVT rollers

�

Cover variator2

�

Clutch shoe

�

Hose fuel

�

Front and rear suspension

�

I, C & L

�

I, C & L

�

Remarks
Inspect, Clean and adjust if required, Replace every 12000 km
Replace every 12000 km Drain oil if necessary
Replace every 12000 km Inspect for any noise / starting trouble and adjust if required
Replace every 24000 km
Replace every 24000 km Replace every 3 years
Inspect for proper functioning

R - Replace; I - Inspect; T - Top up; C - Clean; A - Adjust; DR - Drain; L - Lubricate; TI - Tighten; S - Set

1 Inspect for damage 2 Clean the cover with air. Lubricate kick starter with Bechem grease

contd...
50

Item

In free service

After free service

Service 1st

2nd

3rd

4th

Every Every

km 500 - 750 2500 - 3000 5000 - 6000 8500 - 9000 3000 km 6000 km

Period from the date of sale 2 months 4 months 8 months 12 months 4 months 8 months

All control cables3

I, A & L I, A & L

I, A & L

I, A & L I, A & L

�

Throttle grip

�

Steering smooth operation / play

I & A

�

Speedo hub drive / cable

�

Front fork oil

�

All fasteners

I & TI

�

All bulbs, horn and switches

�

Head lamp beam

I & A

�

Battery voltage4

�

Brake effectiveness / play

I & A

�

Brake shoe / pad wear* Brake fluid* Brake hose* Master cylinder cups*

I &T

�

I I &T
I �

�

I &T

�

Remarks
Lubricate using grease C, L & A with fresh grease
every 12000 km Lubricate using grease Replace every 24000 km
Inspect for proper functioning
Refer page No. 58 & 61 for details
Replace if necessary Replace every 21000 km Replace every three years Replace every 21000 km

R - Replace; I - Inspect; T - Top up; C - Clean; A - Adjust; DR - Drain; L - Lubricate; TI - Tighten; S - Set

3 Inspect for proper operation and adjust play. Lubricate ends using grease 4 Recharge if necessary

contd...

* Applicable only for Disc Brake version

5511

Item

In free service

After free service

Service 1st

2nd

3rd

4th

Every Every

km 500 - 750 2500 - 3000 5000 - 6000 8500 - 9000 3000 km 6000 km

Period from the date of sale 2 months 4 months 8 months 12 months 4 months 8 months

Remarks

Wheel freeness

�

Front wheel bearing

�

Lubricate using grease every 12000 km

Tyre pressure at cold condition I & S

I & S

�

Check and resolve the errors

Malfunction indicator lamp

�

using diagnostic tool if the lamp is ON even after starting the

engine

Evaporative emission control system

�

Check for intactness of hoses and canister

Fuel tank assembly**

I & C

�

Centre / side stand pivot

�

Lubricate using TRU4 oil

Kick starter pedal pivot

�

Lubricate using TRU4 oil

R - Replace; I - Inspect; T - Top up; C - Clean; A - Adjust; DR - Drain; L - Lubricate; TI - Tighten; S - Set
** Check for abnormal vehicle jerk / noise while opening the cap / leak. If found any, contact TVS Motor Company Authorised Main Dealer or Authorised Dealer.

RECOMMENDED LUBRICANTS

APPLICATION Engine oil
Transmission oil
Front fork oil Disc brake fluid* Grease

QTY 750 ~ 800 ml (during regular service)
800 ml (incase of disassembly) 100 ml (during regular service) 120 ml (incase of disassembly)
84 � 1 ml / leg � �

�

MANUFACTURER TVS Motor Company
-doIOC TVS Girling Bharat petroleum IOC Bechem Kluber Lubrication

BRAND TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)
-do-
Gabriel Premium front fork oil DOT 3 / DOT 4
MP Grease No. 3 Servo Gem No. 3 Bechem premium grade 3 Kluber Centoplex 2

* Applicable only for Disc Brake version
5533

SELF - MAINTENANCE PROCEDURES MAINTENANCE FREE (MF) Battery Battery is located at the front of vehicle inside the front panel. This panel must be removed to access the battery. 1. Follow the procedure for front panel removal: 2. Remove the front panel mounting screws shown
in the figure (4 Nos.). 3. Remove the license plate front mounting screws
(A) (2 Nos.) and take out the license plate front. 4. Remove the bracket license plate mounting
hexagonal bolts (B) (2 Nos.) and take out the bracket license plate.
54

5. Gently pull out the front panel by dislocating its lugs.
6. During reassembly reverse the removal procedure.
Since the maintenance free battery is fitted in your vehicle it is not necessary to top-up with the distilled water. But to ensure the battery performance and long life, follow the steps given below:
1. Check the battery voltage as per the schedule. If the voltage is less than 12.4 volts, charge the battery using recommended MF battery charger at TVS Motor Company Authorised Main Dealer / Authorised Dealer.

Caution
Never check the battery charge by shorting the terminals. Always connect the positive terminal first (red wire) and then negative (black wire) to avoid sparking. The inversion of the battery wires can damage the battery and the recharging system. Always connect the positive then negative to avoid sparking.
2. Do not add any additional electrical accessories. 3. While connecting the terminals, observe the
correct polarity. Connect the red wire to the `+' terminal and black wire to the `-' terminal of the battery. 4. Petroleum jelly must be applied at terminals to prevent it from corrosion. 5. lncase of any abnormality or for removal of battery from the vehicle, contact TVS Motor Company Authorised Main Dealer / Authorised Dealer.
555

Recommendations to maintain battery health during prolonged parking conditions
While your vehicle is parked for prolonged duration, battery continues to discharge and if left unattended can get completely discharged. It is recommended to ride the vehicle for minimum 60 km every week to keep the battery in healthy condition This could be at a stretch in one ride or several rides during the week.
The vehicle speed will vary during the ride but an average speed of minimum 30 kmph will be helpful to ensure proper battery charging. Use kick-starting, if available, to conserve battery charge during such period. This is only a recommendation to maintain battery charge and regular service schedules must be followed to maintain your vehicle in good running condition.
The following is recommendations to users regarding battery maintenance before, during and after long storage of battery: 1. Before Storage
a. Store the battery only after fully charging it
b. Battery fuse to be disconnected and stored safely. This will reduce the sleep mode current and hence enhance storage life of battery.*
56

c. Alternatively, battery connecting wires (positive and negative wires) can be disconnected and fasteners can be secured with battery terminals.*
2. During Storage a. Store it at room temperature or lower. b. Store the vehicle in the shade and protected from rain and cover the vehicle to prevent rodents from entering and damaging the wires.
3. After Storage a. Connect the wires and fuse, if disconnected earlier, with ignition switch in OFF position* b. Start the vehicle by kick starting.
(Above recommendations do not consider storage effects on other systems such as induction and fuel systems and wheels)
* To be done by skilled personnel

Periodic Maintenance of Batteries:
� Keep top of battery clean
� Check cables, clamps, and case for obvious damage or loose connections
� Clean terminals and connectors as necessary
� Recharge battery if voltage is below 12.4V.
� Valve Regulate Lead Acid (VRLA) / Lead Acid batteries are prone to water damage. Any water entry, through vents or otherwise; will result in irreparable damage to the battery or the vehicle.
Warning
Battery develop explosive gases. Keep it away from heat sources. If charging is required the battery must be charged in well ventilated area. Unusable battery must be disposed in environment friendly manner. Do not discard it with household thrash. Handover the battery to the battery dealers or to a recycle center that accept used battery.

Caution
Never operate the vehicle with discharged battery as it may damage electrical components. Do not push start the vehicle, use a good battery to start the vehicle.

5577

FUSE
Non-working of electrical systems may be due to safety fuse failure. Short circuit or overload in the electrical system are the main causes for fuse failure. There are two fuse cases containing three blade type fuses (15A x 1 and 10A x 2) located near the battery. Follow the procedure given below for inspecting and replacing the fuse.
1. Turn `OFF' the ignition.
2. Remove the front panel as explained earlier.
3. Take out the fuse cases located near from the battery one by one.
4. Open the fuse cases and take out the fuses.

5. Inspect the fuse for failure. If found defective, replace the fuse with a new (extra fuse provided in the wiring harness itself in a pouch or provided inside the fuse case itself).

6. Close the fuse case and re-fix it into the battery box.

7. Turn `ON' the ignition switch and check for proper functioning of electrical systems. Incase the fuse fails again, consult the nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.

Good Fuse

Blown Fuse

Caution
Do not use the vehicle by shorting the wires without fuse. This may result in overheating of electrical items / wiring and may result in fire. Do not use fuse of higher amperage than specified for the safety of electrical system.
58

SPARK PLUG
To access the spark plug, the cover front has to be removed. Follow the procedure to remove the cover front.
1. Open the seat and remove the top mounting screws (A) from both the sides of cover front.
2. Remove the bottom mounting bolt (B) of cover front.
3. Gently pull out the cover front by dislocating its lugs.
4. Clean the dust and mud around the spark plug mounting to avoid falling inside the cylinder.

5. Pull out the suppressor cap from spark plug. Using the spark plug spanner, remove the spark plug.
A spark plug with heavy carbon deposits will not produce strong sparks. Hence, only if necessary, clean the carbon deposits from the spark plug with a small wire brush or spark plug cleaning tool.
Inspect the spark plug electrodes (A) and (B) for any corrosion. If found any, replace the spark plug with a new. Inspect the spark plug gap with a wire gauge / feeler gauge. Readjust the spark plug gap to 1.0 ~ 1.1 mm if required.

1.0 ~ 1.1 mm

5599

After cleaning and adjusting the gap, reinstall the spark plug and tighten by hand to avoid cross threading. Finally tighten using spark plug spanner.
Caution
Always use only recommended make and type of spark plug. Replace spark plug every 12000 km. Don't remove the spark plug when the engine is hot. Cover the spark plug hole with cloth when the plug is removed, to prevent dust / water entry. It is advisable to tighten the new spark plug by hand till the end, using plug spanner tighten by 1/4 turn. Then loosen the plug by 1/8 turn and re-tighten using plug spanner.

ENGINE OIL LEVEL Check the engine oil level periodically. 1. Place the vehicle on centre stand on a flat surface.
Wipe-off the surroundings of gauge oil level. 2. Remove the gauge and wipe it clean. 3. Fix the gauge back to its mounting hole. Do not
thread in. 4. Take out the gauge and check the oil level. The
level should be between minimum and maximum level marks of the gauge (shown in the figure). 5. If the oil is less than the minimum level, add `TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)' upto the maximum level mark.
Maximum

Minimum 60

6. Wipe out the oil traces with a clean cloth to prevent dust accumulation.
7. Assemble back the gauge oil level. TRANSMISSION OIL - LEVEL Check the transmission oil level periodically. To check the transmission oil level follow the procedure given below:
1. Place the vehicle on centre stand on a flat surface.
2. Wipe-off the surroundings of oil level screw.
3. Remove the transmission oil level screw along with a gasket from the rear end of crankcase L.

4. Check for the flow of oil from oil level hole. If the level is less (if there is no oil flow), top-up with `TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)' till the oil just starts to flow out from the oil level hole.
5. Wipe out the oil traces with a clean cloth to prevent dust accumulation.
6. Replace the fiber washer while reassembling the oil level screw.
Caution
If the vehicle is driven with less engine and transmission oil, the engine components will be severely damaged.
Check the oil level as per the schedule to avoid costly damage. Do not fill excess oil may cause oil leak. Always use `TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)' only.

6611

BRAKES Front brake - SBT drum type 1. Measure the free play of the front brake lever at
the lever end as shown in the figure. 2. The free play of the brake lever before the
engagement of brake should be between 15 ~ 20 mm. 3. Turn the adjuster nut at the bottom side (1) in the slot marked as `I' in clockwise direction for reducing the free play or in anti-clockwise direction for increasing the free play.
15 ~ 20 mm
62

4. After obtaining the necessary free play, inspect for the clearance between the bullet (3) and slot end (4) marked as "S" as shown in the figure.
Clearance

I
1 34

5. If any clearance is found, turn the adjuster nut (2) at the top side in the slot marked as `S' in clockwise direction until there is no clearance between the bullet top (3) and the slot top (4).

Clearance

I
1

6. After adjusting the adjuster nut top, If any clearance is observed in between the bullet bottom (5) and the slot bottom (6) marked as `I' as shown, then turn the adjuster nut (2) in anticlockwise until there is no clearance.
7. Once again check and confirm the brake play at the lever end.

Warning
Since the vehicle is fitted with Synchronised Braking Technology (SBT) adjust the brakes with additional care. If not it may result in brakes not working properly. Please contact TVS Motor Company Authorised Main Dealer or Authorised Dealer for further assistance.
Brake shoe wear indicator - Front When the brake is applied, wear limit index mark (1) on the front brake cam should be within the wear limit indicator (2) on the front brake panel.
2
1
6633

Incase the wear limit index mark (1) is going beyond wear limit indicator (2), index the lever to next slot with the help of the Dealer to extend the shoe life.
Caution
Replace the brake shoes as a set, if the wear limit indicator shows beyond the wear limit even after indexing the lever.
Front brake - SBT Disc type 1. You can observe a master cylinder (1) right side
of the handle bar under the head lamp housing.

1 64

4
2 3

2. A caliper assembly (2) fitted to the fork leg L, a disc (3) on the front wheel and a high pressure hose (4) connecting the master cylinder and the caliper assembly.
3. Check the master cylinder brake fluid level through the view piece glass (A).
B
Warning
In case of vehicle fitted disc brake SBS version, if there is any abnormality in brake performance, contact TVS Motor Company Authorised Main Dealer / Authorised Dealer.

4. The brake fluid level always should be above the `MIN' mark (B) provided on the view piece glass of the master cylinder when the cylinder is parallel to ground.
5. If the brake fluid level is below the `MIN' mark or while applying brake if you feel the brake is more spongy or ineffective due to air entry and if any rattling play is observed in both the brake levers, contact TVS Motor Company Authorised Main Dealer or Authorised Dealer for topping-up the brake fluid, air bleeding and other brake related inspections.
Brake pad wear indicator (Disc brake)

Check for the wear of brake pads visually. If the brake pads wear is found beyond the wear indicator groove as shown in the figure, replace the brake pads as a set with a new one. Rear brake 1. Measure the free play of the rear brake lever at
the lever end as shown in the figure.
10 ~ 15 mm

Wear Limit

Note
Please remember that the rear brake lever free play adjustment to be done only after adjusting the front brake lever play.
6655

Brake shoe wear indicator - Rear
When brake is applied, the wear limit indication pointer (1) on the rear brake cam lever should be within the wear limit indicator (2) on the crankcase LH.
In case the wear limit indication pointer (1) is going beyond wear limit indicator (2), index the lever to next slot with the help of Dealers to extend shoe life.

2. Free play of brake lever before the engagement of brake should be between 10 ~ 15 mm.
3. If the measured distance is more than the limit, adjust the nut provided at the rear wheel end to obtain the correct play.
4. Turn the adjuster nut in clockwise direction for reducing free play or in anti-clockwise direction for increasing the free play.
Warning
Check front brake (drum brake type) and rear brake play periodically. However the brake play needs to be adjusted more frequently depending upon the usage.
66

12
Caution
Replace the brake shoes as a set, if the wear limit indicator shows beyond the wear limit even after indexing the lever.

REAR SHOCK ABSORBERS
TVS Jupiter ZX is provided with 3 step adjustable rear shock absorbers to meet different road and load. There are 3 notches for adjusting spring load.
If the spring is adjusted to the minimum notch, then the shock absorber will be softer which is good for light loads. If the spring is adjusted to maximum notch, then it will be stiffer which is good for heavy loads.

HARD

SOFT

Adjust the spring pre-load by shifting the adjuster to the required notch according to the different load conditions. The more you compress the spring, the suspension becomes more stiff.
6677

TYRES Tyre pressure
Check the tyre pressure atleast once in a week if not more frequently. Insufficient air pressure in the tyres not only hasten the tyre wear, but also seriously affects the stability of the vehicle.
Under inflated tyres make smooth cornering difficult and over inflated tyres decreases the tyre contact with the ground which can lead to skidding and loss of control.
Be sure that the tyre pressure is within the specified limit at all times.
Tyre pressure in cold condition:

Solo

Dual

Front 1.70 kg/cm� (24 PSI) 1.70 kg/cm� (24 PSI)

Rear 2.00 kg/cm� (28 PSI) 2.25 kg/cm� (32 PSI)

Tyre tread condition
Operating the vehicle with excessively worn tyres will decrease riding stability and can lead to loss of control. It is recommended to replace the tyre when the tyre wears off to the tyre wear indicator level (indicated by TWI (A) on the tyre).

A
Tyre rotation direction While reassembling the tyres, after removing from the wheel rim, ensure that the arrow mark facing the direction of wheel rotation while fixing the tyre on the wheel rim. Tyre puncture Your scooter is fitted with a tubeless tyre on both front and rear wheel. Incase of any puncture / tyre damage, it is advised to visit the nearest tyre manufacturer Dealer or the tyre repair shops who knows the repairing method of tubeless tyre. It is not necessary to remove the tyre from wheel rim always to attend a puncture.

TWI

Even though, if there is need of tyre removal, it is strongly recommended to use a tyre removal / fitment machine. If at all, tyre levers needs to be used, the levers should be free from sharp edges. Care should be taken not to damage the tyres and rims.
Warning
The tyre inflation pressure in cold condition and the tyre tread condition are extremely important for the performance and safety of the rider. Check the tyres frequently for inflation pressure as well as the wear pattern on it. Use of a tyre other than the standard may cause instability.
Caution
The side walls of the tubeless tyre which in contact with the wheel rim are only seals the air inside the wheel assembly. Hence care should be taken not to damage the side walls of the tyres during removal / reassembly.
6699

Tyre Maintenance Tips
R

Inflation Pressure Check - Condition

Within 1 km

Within 5 km

Note
If vehicle is in hold condition for long time � Need movement of vehicle to avoid particular spot of tyre not to touch the ground for more than week time. � Inflation pressure should check on cold condition maximum travel time should not exceed more than 1 km. � Weekly basis inflation pressure check helps to improve 10% of tread life & fuel efficiency.

FRONT WHEEL REMOVAL AND REASSEMBLY Drum brake 1. Remove the axle nut (1) along with a washer. 2. Pull out the axle (2) along with a washer and take
out a spacer from the left side of the wheel. 3. Place a support below the foot board to prevent
the vehicle from falling and lift the vehicle up. 4. Dislocate the wheel assembly along with brake
the panel from front fork. Separate the brake panel from the wheel and take out the wheel. 5. Reverse the procedure for reassembling. While reassembling ensure to locate the lug on fork leg L to the slot in the brake panel.
2 1

Disc brake 1. Remove the axle nut (1) along with a washer. 2. Pull out the axle (2) along with a washer and take
out a spacer from the right side of the wheel. 3. Place a support below the foot board to prevent
the vehicle from falling and lift the vehicle up. 4. Dislocate the wheel disc from caliper assembly
and take out the wheel along with hub drive. 5. Reverse the procedure for reassembling. Ensure
the proper seating of wheel disc in the caliper assembly and lug on fork leg R to the slot in the hub drive while reassembling.
2 1

7711

REAR WHEEL REMOVAL AND REASSEMBLY 1. Place the vehicle on the centre stand. 2. Hold the rear brake firmly and remove the wheel
mounting nut (A) along with a washer. 3. Slightly tilt the vehicle and take out the wheel
from the rear axle. 4. Reassemble the wheel in the reverse order of
removal.
A
Warning
Always make sure, whenever the wheel is removed, the axle nuts are tightened properly to the specified torque.
72

STORAGE PROCEDURES For storage of your scooter for longer period of over a month and above, we recommend to carry out the following steps: 1. Clean the vehicle thoroughly. Park the vehicle on
centre stand. 2. Warm up the engine and drain engine oil and
transmission oil. Store the oil, if new, in a dust free container. 3. Empty the fuel tank. 4. Remove the spark plug and feed in several drops of engine oil through spark plug hole. Crank the engine few times and reinstall the spark plug. 5. Remove the battery, store it away from direct sunlight and freezing temperatures.
Caution
Do not park the vehicle on a slope or soft ground or else it may fall down. The exhaust system becomes hot after a run. Park the vehicle in a place where pedestrians or children are not likely to touch the vehicle. During storage, the battery must be recharged at recommended charger if stored more than a month.

6. Place a suitable support at the bottom of the foot board so that both the tyres are off the ground. This will ensure better tyre life.
7. Cover up the vehicle completely with a clean tarpaulin or any other suitable cover. Store the vehicle inside a garage or similar area to avoid damage due to dust and rain. Make sure that the storage area is well ventilated and free from any source of flame or spark.

TAKING THE VEHICLE OUT OF STORAGE FOR REGULAR USE 1. Take the vehicle out of garage and clean it
thoroughly. 2. Remount the battery after bench charging if
required. 3. Fill the engine oil (TVS TRU4 SKUUTA - SAE
10W30 API-SL, JASO MB oil) and check the oil level using gauge oil level. 4. Fill the transmission oil (TVS TRU4 SKUUTA - SAE 10W30 API-SL, JASO MB oil) and check the oil level at the oil level screw. 5. Lubricate the parts as instructed in the periodic maintenance schedule. 6. Fill up fresh petrol in the fuel tank. 7. Check and inflate the tyres to the specified tyre pressure. 8. Check and correct the points mentioned in page No. 44. 9. Turn the ignition switch to `ON' position. Retract the side stand if the vehicle is parked on side stand. Start the engine and ride out.
7733

Caution
Avoid using alkaline solution like detergent soaps for washing. This may damage head lamp and other lamp assemblies.
RECOMMENDED TIPS WHEN TAKING A LONG TRIP OF MORE THAN 500 KM: A) Please keep the following items for use in case of
emergency: 1. Tool kit complete. 2. Recommended spark plug one number. 3. Turn signal lamp bulb one number. 4. Throttle, front and rear brake cable each one. 5. First aid kit. B) Precautions to be taken for the journey: 1. Ensure engine oil and transmission oil are up
to the level. 2. Adequate fuel in the fuel tank. C) Check your scooter for the following: 1. Tightness of all bolts and nuts with correct
torque value. 2. Fitness of tyres / tyre pressure / tread depth. 3. All bulbs, indicators and horn functioning.
74

4. Smooth functioning of all cables and their free play.
5. Smoothness of steering operation. 6. Front / rear brake function and rear brake
lamp working. 7. Front fork for any abnormality. 8. Spark plug gap and condition of spark plug. 9. Air filter element cleanliness. 10. Correct idling speed. 11. Lubrication of all items mentioned in the
periodic maintenance schedule. 12. Any other job as necessary. 13. Have your vehicle checked at any TVS
Motor Company Authorised Main Dealer or Authorised Dealer.
Caution
Long journey are to be taken only after the running-in period of 1000 km.

EXPRESS SERVICE
Get your vehicle serviced in 1 hour at no additional cost. Contact your nearest Dealership for details.
Facility available at selected Dealerships only. Terms and conditions apply
7755

EXPERT ON WHEELS
Busy Life? Easy Servicing!
Now, service your bike anywhere, anytime.
Service the vehicle at your door step. Available for regular maintenance or breakdown service only. Offered at nominal convenience charges. Contact your nearest Dealership for details.
Facility available at selected Dealerships only. Terms and conditions apply
76

PICKUP AND DROP
Busy Life? Easy Servicing!
Now, service your bike anywhere, anytime.
Service the vehicle at your door step. Available for regular maintenance or breakdown service only. Offered at nominal convenience charges. Contact your nearest Dealership for details.
Facility available at selected Dealerships only. Terms and conditions apply
777

WARRANTY AND SERVICES
TVS Motor Company Limited (`the Company') give this warranty with respect to theTVS Jupiter /TVS Jupiter Classic / TVS Jupiter ZX manufactured by the Company. While the Company has taken every care to maintain quality in the manufacture of the TVS Jupiter / TVS Jupiter Classic / TVS Jupiter ZX, the above said warranty is subject to other terms of warranty: During 5 Years from the date of purchase or during the first 50,000 km of run for the vehicle in the hands of original retail purchaser, whichever is earlier, the parts of the vehicle covered under warranty which prove to the satisfaction of the Company to have a manufacturing defect will be repaired or replaced free of cost. The Company's obligation under this warranty is limited to repairing or replacing, free of cost, those parts of the vehicle which upon examination by the Company may prove to the Company's satisfaction to have a manufacturing defect, and in such cases the Company's decision either to repair or replace the affected parts will be final. In the event of replacement of parts, the Company also reserves the right to use parts of the same brand as the affected parts or any other brand which is used by the Company in the course of manufacture. All parts replaced under this warranty will become the property of the Company and must be returned to the company. Limitations of Warranty: This warranty shall not apply to following condition:
1. Any natural wear and tear, including without limitation, aging. 2. Warranty claims on proprietary items such as tyres, tubes and batteries etc,. should be preferred by the user
directly on the respective manufacturer, as per their warranty terms and the Company shall not be liable in any manner in respect to the same. 3. Parts repaired or replaced under this warranty are warranted only throughout the remainder of the original warranty period. 4. The Company is not liable for any delay in servicing due to reasons beyond the control of the Company or any of its Authorised Main Dealers / Authorised Dealers. 5. In any event, the Company is not liable for indirect, remote, incidental or consequential damages.
78

6. The Company may make any modification or improvement to vehicles in future production at any time without prior notice and without any obligation to install the same on vehicles previously dispatched for sale.
7. Any claim under this warranty will lie only when the customer:
� takes his vehicle to an Authorised Main Dealer / Authorised Dealer of the Company and reports the problem he / she felt in the vehicle to enable the Authorised Main Dealer / Authorised Dealer to inspect the same and assess the cause for the reported problems.
� produces to such Authorised Main Dealer / Authorised Dealer the owner's manual for the concerned vehicle for verification of relevant details.
8. This is the only warranty given by the Company for the TVS Jupiter ZX. No employee, Dealer or other person is authorised to extend or enlarge this warranty.

Warning
Modifications to this vehicle not approved by the TVS Motor Company may cause loss of performance and render it unsafe for use and disqualifies for warranty coverage also.

Following Toll Free numbers can be contacted for battery related queries if any.

Incase of EXIDE battery, call :- 1800 103 5454

Incase of AMCO battery, call :- 1800 425 0096

Incase of TATA GREEN battery, call :- 1800 419 8888

Incase of AMARON battery, call :- 1800 425 5858

Following Toll Free numbers can be contacted for Tyre related queries if any.

Incase of TVS Srichakra, call :- 04522443300

Incase of JK tyre, call :- 18002581100

Incase of Maxxis tyre, call :- 1800 532 2888

7799

List of parts not covered under warranty

ITEM Normal Maintenance operations
Wear & tear items Electrical Service Maintenance Parts Rubber, rexine & plastic items Proprietary Items
Others Factors

WHAT TO CHECK FOR
Engine tune-up, decarbonizing, fuel system cleaning, oil changes, head light focusing, fastener retightening, ignition timing, clutch and brakes as well as other normal adjustments.
Chain, sprockets, clutch and brake linings, fasteners, shims, washers, oil seals, gaskets, O' rings and spokes etc.
Bulbs, fuse etc.
Oil filters, spark plug, air filter, SAI filter, oil and brake fluid
All hoses, pipes and plastic aesthetics
Battery, tyres and tubes (the warranty terms are subject to our agreement with proprietary OEM)
Parts of the vehicle getting affected due to atmospheric effect / environmental factors (rusting, paint peel off etc.). However, depending on the vehicle usage condition, warranty would be accepted up to 2 years from the date of purchase.
Parts of the vehicle which have been tampered with, altered, repaired or replaced by persons not authorised by the Company and which in the sole judgement of the Company affect the performance of the vehicle.
Parts which are used in conjunction with parts not made or recommended by the Company.

List of parts not covered under warranty

ITEM Others Factors

WHAT TO CHECK FOR
Parts suffering damage or resultant damage by accident, misuse, negligent treatment, use of bad quality lubricants or impure fuel or by omission to follow the guidance and instructions contained in this owner's manual.
Vehicles on which engine number or chassis number is deleted, defaced or altered.
Vehicles on which any warranty service including scheduled paid service is not availed when it falls due (at TVS Motor Company Authorised Main Dealer / Authorised Dealer).
Vehicles sold or transferred by original retail purchaser.
Vehicles used for racing or any competition or used otherwise than for ordinary personal transportation.
Vehicles attached with side cars etc.
Vehicles which have been taken out of India.
Vehicles affected by natural calamities like flood, earthquake, tsunami, storm etc,.
If the vehicle has been used for commercial purpose like taxi or used for rental or hiring or any other purpose other than regular personal transportation.

8811

SERVICE INFORMATION There are seventeen services for TVS Jupiter ZX during warranty period. Of these, first four services are free services for which labour charges are free. In addition to these four free services, we have a scheme of thirteen pay services. For keeping the maintenance track of your vehicle, free and pay service record sheets are attached in the Service Handbook given to you during the time of your vehicle purchase. Please have the relevant record sheet filled by the Dealer who is carrying out the maintenance service. For availing any of the seventeen warranty services, please take your vehicle and your Service Handbook to any of our Authorised Main Dealers or any of our Authorised Dealer. After effecting the service the Authorised Main Dealer or the Authorised Dealer will affix their stamp on the last column of free or pay service record sheet of Service Handbook for your record and reference. An OTP would be sent to customer's registered mobile number. The same to be shared with the servicing Dealer on or before vehicle delivery. Periodic maintenance always helps good performance of an automobile and our services are planned to keep your TVS Jupiter ZX performing good. Please note that carrying out the service for your vehicle at scheduled intervals at any of the TVS Motor Company Authorised Main Dealer / Authorised Dealer is necessary for availing of warranty. And please also remember that, after the services are over, periodic servicing of your vehicle at appropriate intervals, depending upon its extent of use, will keep your vehicle at its best level of performance. In case you need any clarification or assistance, please feel free to write to us mentioning the frame number, engine number and date of purchase of your vehicle also the name and place of the Authorised Main Dealer / Authorised Dealer from whom you bought the vehicle and getting it serviced.
Service Department TVS MOTOR COMPANY LIMITED P.O. Box No. 4, Harita, Hosur - 635 109, TAMILNADU, INDIA. Toll free no:- 1800-258-7111
82

Planned Service Schedule (kms or month whichever of the two occurs early)*

Sl.No. 1

Service 1st Service

Type

Kms 500 ~ 750

2nd Service

2500 ~ 3000

Free

3rd Service

5000 ~ 6000

4th Service

8500 ~ 9000

5th Service

11500 ~ 12000

6th Service

14500 ~ 15000

7th Service

17500 ~ 18000

8th Service

Pay

20500 ~ 21000

9th Service

23500 ~ 24000

10th Service

26500 ~ 27000

11th Service

29500 ~ 30000

Months 2 4 8 12 16 20 24 28 32 36 40
8833

Sl.No. 12 13 14 15 16 17

Service 12th Service 13th Service 14th Service 15th Service 16th Service 17th Service

Type Pay

Kms 32500 ~ 33000 35500 ~ 36000 38500 ~ 39000 41500 ~ 42000 44500 ~ 45000 47500 ~ 48000

Months 44 48 51 54 57 60

Note
Free service enables the customer to avail the service at free of labour charges. Charges for the pay service should be borne by the customer. Cost of engine oil, periodic maintenance parts, filter, brake fluids, all types of greases, petroleum jelly, distilled water, chain cleaner, lubricants, coolants, cleaning cloths for both free and paid services are chargeable to the customer.

* Please remember that, after the above schedule, periodic servicing of your vehicle at appropriate intervals, depending upon its extent of use, will keep your vehicle at its best level of performance.
84

TECHNICAL SPECIFICATIONS
DESCRIPTION
MANUFACTURER
ENGINE Type Cylinder bore Stroke Piston displacement Compression ratio Air filter Oil filter Lubrication system Maximum power in kW Maximum torque in Nm Maximum speed Engine idling rpm Starting system Emission norms

TVS Jupiter ZX TVS Motor Company Limited P. B. No. 4, Harita,Hosur - 635 109, India
TVS Motor Company Limited Village Bhatian, Bharatgarh Road,
Teh Nalagarh, Dist. Solan. Himachal pradesh - 174 101, India
Single cylinder, 4 stroke, fuel injection, air cooled, spark ignition engine 53.5 mm 48.8 mm 109.7 cc
10 � 0.5 : 1 Dry paper filter element with dry foam
Wire mesh Forced wet sump 5.8 @ 7500 rpm 8.8 @ 5500 rpm
78 km/h 1450 � 100 rpm (under warm condition)
Kick starter / Electric starter BS VI
8855

DESCRIPTION TRANSMISSION Clutch Primary transmission Primary reduction Secondary reduction CHASSIS Overall length Overall width Overall height Seat length Ground clearance (unladen) Wheel base Kerb weight (with toolkit and 90% of fuel) Pay load Maximum laden weight Steering angle Caster angle Frame Front suspension Rear suspension Trail length
86

TVS Jupiter ZX
Dry - Centrifugal clutch CVT (Continuously Variable Transmission)
2.65 to 0.8 10.47
1834 mm 650 mm 1115 mm 705 mm 163 mm 1275 mm 107 kg 130 kg 237 kg
90� 25� High rigidity underbone type Telescopic hydraulic Toggle link, gas filled hydraulic damper 93 mm

DESCRIPTION BRAKES Front (Disc)* Front (Drum) Rear (Drum) TYRE Front tyre Rear tyre Front tyre pressure** Rear tyre pressure - Solo** Rear tyre pressure - Dual** ELECTRICAL Ignition system Spark plug Spark plug gap Battery type Generator (flywheel magneto) Head lamp Tail / brake lamp
* Applicable only for Disc Brake version

TVS Jupiter ZX
220 mm dia (hand operated) 130 mm dia (hand operated) 130 mm dia (hand operated)
90/90 - 12 54J (tubeless) 90/90 - 12 54J (tubeless)
1.70 kg/cm� (24 PSI) 2.25 kg/cm� (32 PSI) 2.53 kg/cm� (36 PSI)
ECU controlled ignition BOSCH UR5KCU / CHAMPION RG8MC5
1.0 ~ 1.1 mm 12V, 4Ah MF battery
12V, 130 W 9V, 9.5W High beam LED / 6V, 5W Low beam LED
12V, 10/5 W
** In cold condition
8877

DESCRIPTION ELECTRICAL Turn signal lamps bulb Number plate lamp bulb Speedometer lamp bulb Turn signal indicator lamp bulb Instrument cluster High beam indicator lamp Low fuel warning lamp Economy and power mode indicator lamp Malfunction indicator lamp ISG malfunction indicator lamp Horn Fuse

TVS Jupiter ZX
12V, 10W x 4 12V, 4W x 1 12V, 1.7W x 2 12V, 1.7W x 2 LCD / LED indicators
12V, LED 12V, LED 12V, LED 12V, LED 12V, LED 12V, DC 12V, 15A x 1 (Blade type) and 12V, 10A x 2 (Blade type)

Caution
Using the bulb other than the specified rating can result in overloading of the electrical system or premature failure of the bulb.

DESCRIPTION CAPACITIES Fuel tank capacity Fuel Engine / transmission oil grade Engine oil capacity
Transmission oil capacity Front fork oil grade Front fork oil capacity Disc brake fluid*
Note
Specifications are subject to change without notice.

TVS Jupiter ZX
5.8 l BS VI petrol with minimum RON 91 (containing upto 10% of ethanol by volume) TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB) 750 ~ 800 ml (during regular service)
800 ml (incase of disassembly) 100 ml (during regular service) 120 ml (incase of disassembly) Gabriel Premium front fork oil
84 � 1 ml per leg TVS Girling DOT 3 / DOT 4

The fuel tank is not a measuring instrument and the capacity of the fuel tank may vary from the indicated capacity * Applicable only for Disc Brake version
8899

GENERAL INFORMATION Dear Customer, It is mandatory under the Motor Vehicles Act to insure all motor vehicles. No motor vehicle can be used in a public place without a valid policy of insurance issued by an authorised insurer. Driving a motor vehicle without any such insurance is an offense under Motor Vehicles Act. To assist our Customers on their insurance requirements such as the prompt issue and renewal of policies as well as expeditious settlement of claims if any, our preferred insurers are:
90
