ENPHASE 10T All-In-One Solar Battery Datasheet
File info: application/pdf · 2 pages · 256.01KB
Enphase
The Enphase IQ Battery 10T all-in-one AC-coupled storage system is reliable, smart, simple, and safe. It is comprised of three base IQ Battery 3T storage units, has
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

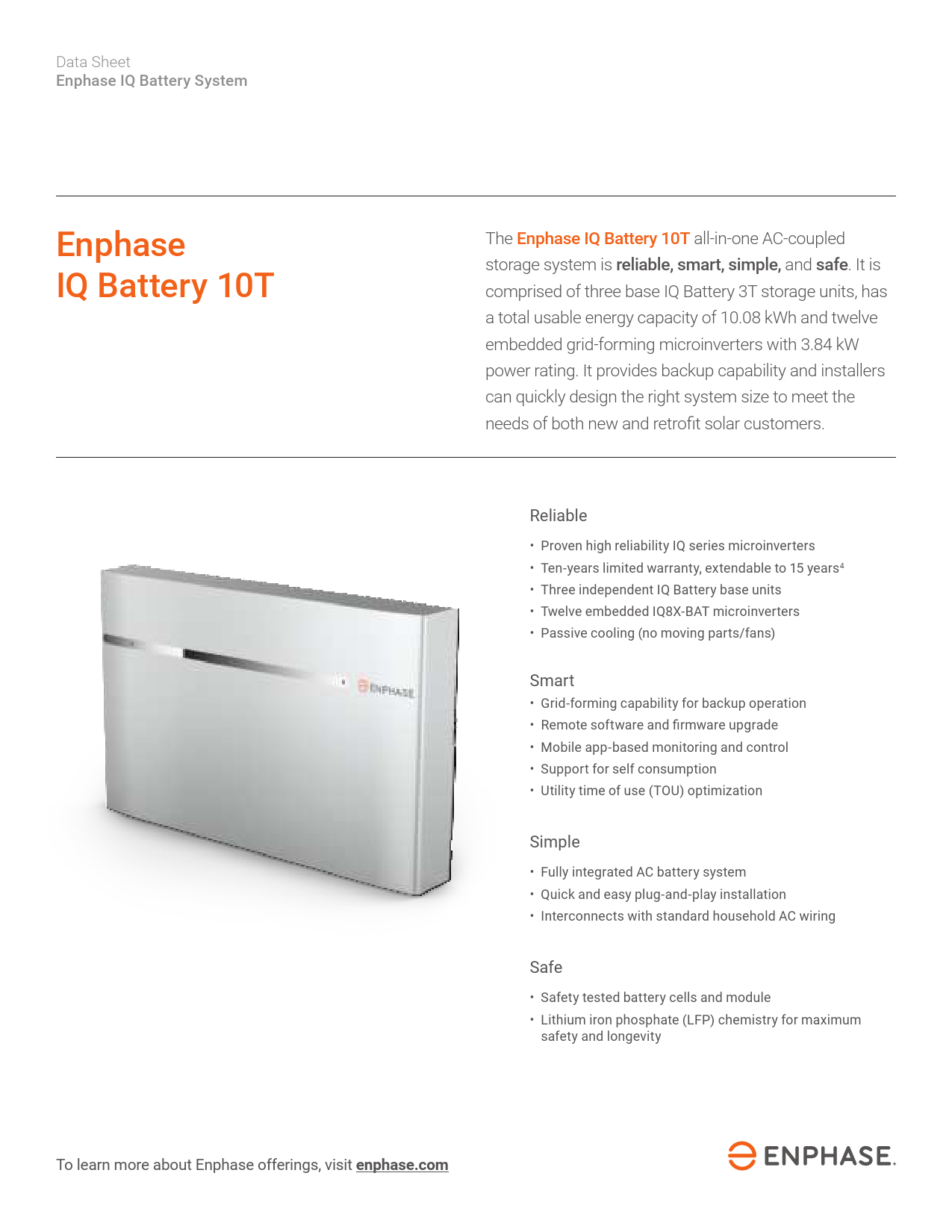

Data Sheet Enphase IQ Battery System Enphase IQ Battery 10T The Enphase IQ Battery 10T all-in-one AC-coupled storage system is reliable, smart, simple, and safe. It is comprised of three base IQ Battery 3T storage units, has a total usable energy capacity of 10.08 kWh and twelve embedded grid-forming microinverters with 3.84 kW power rating. It provides backup capability and installers can quickly design the right system size to meet the needs of both new and retrofit solar customers. Reliable � Proven high reliability IQ series microinverters � Ten-years limited warranty, extendable to 15 years4 � Three independent IQ Battery base units � Twelve embedded IQ8X-BAT microinverters � Passive cooling (no moving parts/fans) Smart � Grid-forming capability for backup operation � Remote software and firmware upgrade � Mobile app-based monitoring and control � Support for self consumption � Utility time of use (TOU) optimization Simple � Fully integrated AC battery system � Quick and easy plug-and-play installation � Interconnects with standard household AC wiring Safe � Safety tested battery cells and module � Lithium iron phosphate (LFP) chemistry for maximum safety and longevity To learn more about Enphase offerings, visit enphase.com Enphase IQ Battery 10T MODEL NUMBER ENCHARGE-10T-1P-NA IQ Battery 10T battery storage system with integrated Enphase IQ series microinverters and battery management unit (BMU). Includes: - Three IQ Battery 3T base units (B03-T01-US00-1-3) - One IQ Battery 10T cover kit with cover, wall mounting bracket, and interconnect cable for wiring between batteries (B10T-C-1290-O) OUTPUT (AC) @ 240 VAC� Rated (continuous) output power 3.84 kVA Peak output power 5.76 kVA (10 seconds) Nominal voltage / range 240 / 211 -- 264 VAC Nominal frequency / range 60 / 57 -- 63 Hz Rated output current 16 A Peak output current 24.6A (10 seconds) Power factor (adjustable) 0.85 leading ... 0.85 lagging Maximum units per 20 A branch circuit 1 unit (single phase) Interconnection Single-phase Maximum AC short circuit fault current over 3 cycles 69.6 Arms Round trip efficiency� 89% B AT T E R Y Total capacity 10.5 kWh Usable capacity 10.08 kWh Round trip efficiency 96% Nominal DC voltage 67.2 V Maximum DC voltage 75.6 V Ambient operating temperature range -15� C to 55� C (5� F to 131� F) non-condensing Optimum operating temperature range 0� C to 30� C (32� F to 86� F) Chemistry Lithium iron phosphate (LFP) MECHANICAL DATA Dimensions (WxHxD) 1283 x 775 x 188 mm (50.5 x 30.5 x 7.4 in) Weight Enclosure Three individual 40.5 kg (89.3 lbs) base units plus 22.1 kg (48.7 lbs) cover and mounting bracket; total 143.6 kg (316.5 lbs) Outdoor � NEMA type 3R IQ8X-BAT microinverter enclosure NEMA type 6 Cooling Natural convection � No fans Altitude Up to 2500 meters (8200 feet) Mounting Wall mount FEATURES AND COMPLIANCE Compatibility Compatible with grid-tied PV systems. Compatible with Enphase M215/M250 and IQ Series Micros, Enphase IQ System Controller, and Enphase IQ Gateway for backup operation. Communication Wireless 2.4 GHz Services Backup, self-consumption, TOU, Demand Charge, NEM Integrity Monitoring Enphase Installer Platform monitoring options; API integration Compliance UL 9540, UN 38.3, UL 1998, UL 991, NEMA Type 3R, AC156 EMI: 47 CFR, Part 15, Class B, ICES 003 Cell Module: UL 1973, UN 38.3 Inverters: UL 62109-1, IEC 62109-2, UL 1741SA, CAN/CSA C22.2 No. 107.1-16, and IEEE 1547 LIMITED WARRANTY Limited Warranty >70% capacity, up to 10 years or 4000 cycles3, extendable to 15 years4 1. Supported in both grid-connected and backup operation. 2. AC to Battery to AC at 50% power rating. 3. Whichever occurs first. Restrictions apply. 4. Terms and conditions apply. To learn more about Enphase offerings, visit enphase.com � 2021 Enphase Energy. All rights reserved. Enphase, the Enphase logo, IQ Battery 10T, and other names are the trademarks of Enphase Energy, Inc. Data subject to change.10-19-2021
