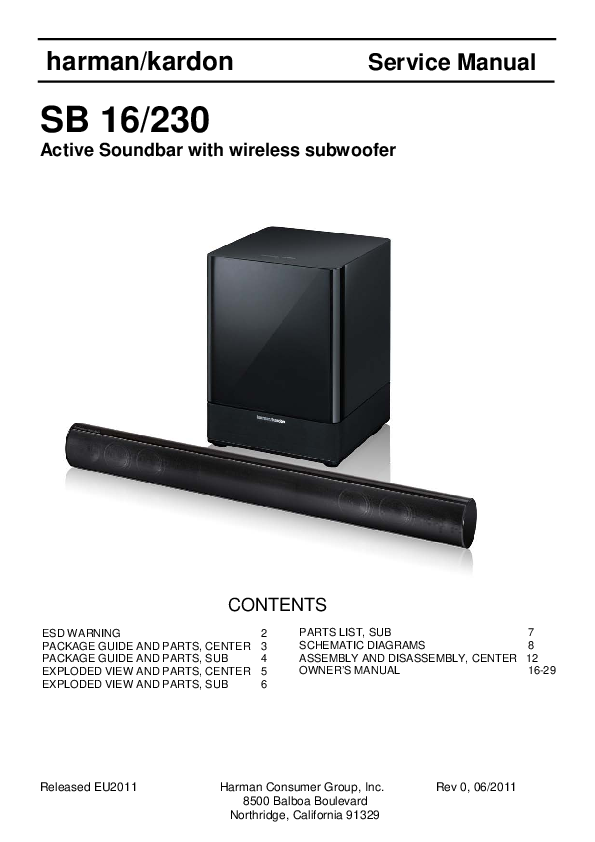

harman/kardon. Service Manual. SB 16/230. Active Soundbar with wireless subwoofer. Released EU2011. Harman Consumer Group, Inc. Rev 0, 06/2011.
harman/kardon Service Manual SB 16/230 Active Soundbar with wireless subwoofer CONTENTS ESD WARNING 2 PACKAGE GUIDE AND PARTS, CENTER 3 PACKAGE GUIDE AND PARTS, SUB 4 EXPLODED VIEW AND PARTS, CENTER 5 EXPLODED VIEW AND PARTS, SUB 6 PARTS LIST, SUB 7 SCHEMATIC DIAGRAMS 8 ASSEMBLY AND DISASSEMBLY, CENTER 12 OWNER'S MANUAL 16-29 Released EU2011 Harman Consumer Group, Inc. 8500 Balboa Boulevard Northridge, California 91329 Rev 0, 06/2011 harman/kardon SB 16/230 Service Manual Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge build-up or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.) 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION : Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices. Each precaution in this manual should be followed during servicing. Components identified with the IEC symbol in the parts list are special significance to safety. When replacing a component identified with , use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably insulated from the supply circuit before retuming the product to the customer. Page 2 of 29 harman/kardon SB 16/230 Service Manual Page 3 of 29 harman/kardon SB 16/230 Service Manual Page 4 of 29 harman/kardon SB 16/230 Service Manual Page 5 of 29 harman/kardon 2009/12/03 0 1 : : SB 16/230 Service Manual Harman/Kardon SB 16/230 subwoofer, Exploded View 1 2 3 4 5 6 7 8 :1.( 316-AL-00553-E)3188 2.(316-AL-00553-E): LED 60mm, 1 2 3 4 5 6 7 8 Screw for amplifier 352-AM04020D210-E 10 Amplifier 010-7610-05246-E 1 Wood Cabinet 241-100-00613-2BCE 1 Logo 316-AG-00557-E 1 Logo fot grille 316-AL-00553-E 1 Woofer 25PF12DZB-FW01-E 1 Screw for woofer 352-FM04020D605-E 5 Rubber Foot 320-RUB-00057-0BAE 4 3 2 1 0 ISSUE REVISIONS DATE NAME : 2009/12/03 Page 6 of 29 harman/kardon SB 16/230 Service Manual Harman/Kardon SB15 wireless subwoofer. System Parts list. The sub is used in the SB 16/230 soundbar system. SB15 Sub Part Number 352-AM04020D210-E 010-7610-05246-E 241-100-00613-2BCE 316-AG-00557-E 316-AL-00553-E 25PF12DZB-FW01-E 352-FM04020D605-E 320-RUB-00057-0BAE 051-A05264D-E 051-A05264C-E 051-A05264B-E 051-A05264A-E 302-FE-05275-0BAE 150-E0764201-E 152-V60202603-E 154-V09006T0-E 155-520020-E 162-50652003-E 180-P3024DB-E 306-ABS-05082-0BAE 323-AL-05184-0LAE 335-NYL-00002-0BAE 311-ABS-00028-0BAE Part Description Screw for Subwoofer Amplifier SB15/230 SUB Wood Cabinet Harman Kardon Logo for the Sub top board Logo for grille 10" Subwoofer Screw for woofer to wood cabinet Rubber pad for subwoofer cabinet POWER AMP PCB ASSY SB15 SUB PCB WIRELESS BCB ASSY SB15 SUB PRE AMP PCB ASSY SB15 SUB STANDBY PCB ASSY SB15 SUB Subwoofer Amplifier panel Transformer Power Cord Fuse Fuse holder Speaker Wire Power Rock Switch Rear Enclosure Aluminum heat sink Power Cord Strain Relief Knob Page 7 of 29 harman/kardon 1 2 C06 SB 16/230 Service Manual 3 4 100n VCC VCC VCC R12 VR1 R11 4 A 12.1K 4 R02 9 A50k 12.1K C08 8 A 13 12 D 14 U1D R04 15.4k VR2B VR*2 VR2A VR*2 17.8k C04 10 C 8 R05 24.9K 11 U1C TL074CD 100n C03 100p 2 3 1 1 mout U2A 4 11 C30 R16 TL074CD 33n C15 R15 TL072CN 100n 82.5k VSS VCC R09 100n 82.5k VSS 220k VSS CON2 C09 100n SGND VCC SGND 8 6 52 7 VCC 1 SGND OUT 2 3 4 VSS 5 B VCC CON1 R01 5 22K 4 3 2 1 R08 Header 5 22K VSS C01 C02 10u 220P VCC R06 18.7k 6 5 SGND 11 B 7 U1B TL074CD VSS 4 SGND 4 U2B TL072CN VSS Header 5 SGND B +12VC U5 MC78L12CP 1 OUT IN GND VCC 3 C11 C12 100u 100n 2 C13 100n 4 2 3A 1 R03 C16 10K 3 sw1 6 10u 1 4 Netsw1_3 R17 SGND C 11 U1A TL074CD VSS mout R10 10K C05 VCC 220p 2 5 SW2-2 6.8k R18 R07 3.3k 10k C18 220n C27 U4 8 INb OUTb 9 3 INa OUTa 2 8 22n 4 INT SW 7 VCC C21 C23 C22 C26 C25 100u 4.7u 4.7u 4.7u 100n 6 52 7 4 U3B TL072CN R21 8.25k C38 220n 6 SENCE V+ 1 5 Vref GND 10 NJM2761-10 SGND C32 C34 C37 C36 C35 100u 4.7u 4.7u 4.7u 100n SGND VSS SGND SGND C17 R19 R20 10u 24.9k 14.3k C C28 C29 VCC 4.7u 220p 8 R22 R23 22k 47k 2 31 1 OUT SGND 4 U3A TL072CN SGND VSS VSS D 1 CUSTOMER:JBL APPROVED CHECKED CHECKED PREPARED REV MODEL:SB 15SUB/230 1.0 D BOARD: PERAMP DETA:SEP.01.2009 PAGE 2/5 2 3 4 Page 8 of 29 1 harman/kardon CON2 3 2 1 link1 BD1 2 1 BD A Header 3 GND B VCC1 R25 33R C18 C17 470u/16V 100n AGND 1 C CON3 1 2 3 4 5 Header 5 R37 33R AGND VSS 7 C33 C24 470u/16V 100n D AGND AGND 1 VCC C13 C14 470u/16V 100n GND VCC R07 20K R09 20K R11 20K R14 20K R16 20K R18 20K R20 20K R22 20K SW1 5 4 3 2 1 SEL GND U05A NJM4560 2 C19 150p R35 3.9k 3 AGND VSS 8 4 8 VCC1 U05B NJM4560 6 5 C27 150p R41 3.9k 4 AGND VSS GND C22 0.22u 1 Vss Vcc 3 1 2 3 4 5 6 7 8 2 VCC R03 47k nRESET 2 rest U02 STM809 CON1 Header 8 VCC C01 100n D01 SCD14 GND 3 R01 4.7R C07 1000u/10V R04 4.7R C02 1000u/10V GND C03 C04 100n 10n C05 C06 100n 10n GND R24 10K GND 8 GND 6 5 4 3 14 13 12 11 10 H G F E D C B A SI QH QH 2 15 1 CLK CLK INH S/L VCC R08 VCC R10 U03 R12 R15 7 R17 R19 R21 9 R23 GND VCC 16 20KGND 20K 20K 10K 20K 20K 20K 20K 8 GND 6 5 4 3 14 13 12 11 10 H G F E D C B A SI U04 QH 7 QH 9 R13 100R 2 15 1 CLK CLK INH S/L VCC VCC 16 R45 100R R44 100R 4 SB 16/230 Service Manual MD1 RX M1087 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 RFVcc RFGND GND Vcc /RST PB1(CS0) MSIO0 MOSI0 SCK0 PF0(ID_DATA) PF1(ID_CLK) PC0(ID_LATCH) /PC1(MUTE_LED) /PC4(BOND_LED) PC5 MCLK PC7(I2C_SDA) PI0(I2C_SCL) LRCK PI2 AGND1 SDOUT SCK AGND2 AVdd A B SN74HC165D C15 SN74HC165D C16 100n 100n Rx M1087 GND C40 GND open GND GND GND C41 GND R27 open 20k VCC 1 BD2 2 R51 R31 R32 link1 47k C23 BD R36 C39 C38 100R 100R C21 R33 open open R49 VCC R50 1n 33R 100n 4.7K 20k 47k R29 R30 R28 C20 GND 100R100R R48 10k 1000u/10V 510 AGND U06 Q04 C AGND C26 R39 10u 20k R40 10k C25 10u C28 link1 16 15 14 13 12 11 10 9 MUTEC /RST AOUTL SDATA AV SCLK/DEM1 AGND LRCK AOUTR MCLK REF_GND DIF1 VQ DIF0 FILT+ DEM0 1 2 3 4 5 6 7 8 rest CON4 2 1 Q02 8050S Header 2 Q03 8550S R47 510 R42 R43 10u CS4340 8050S 10k 10k C29 R52 Q01 100n 47k 8050S C34 C35 C36 C37 C31 C32 C30 AGND open open open open 1n 100n 10u GND GND AGND AGND AGND CUSTOMER:JBL APPROVED CHECKED MODEL:SB 15SUB/230 BOARD: WIRLESS DETA:SEP.01.2009 PAGE 3/5 2 3 CHECKED PREPARED REV 1.0 D Page 9 of 29 4 harman/kardon SB 16/230 Service Manual 1 2 3 4 5 6 7 8 CON1 std 1 A 2 3 +3.6V 4 5 6 Header 6 VCC R03 24k +15v SUB -15v SGND CON2 1 2 3 4 5 Header 5 D02 1N4148 R04 C10 R05 10K 2.2u 30.1k Q06 8550S MODE DZ1 5.6V C09 220u/25V R10 C20 5.6k 1u SUB C23 1n C26 1u R14 5.6k B D01 1N4148 C C42 22n CON4 3 2 1 3 2 1 C65 2.2n C66 2.2n C38 22n C24 6800u/35v C34 100n BR1 Bridge1 C43 6800u/35v VCC R08 100/2W R11 C21 4.7K 100n R12 Q02 D882 C22 1n 680R Q03 8050S C35 100n C36 22u/35v +15v R09 15K C30 220u/25v R15 1.3K C48 C40 22u/35v C41 100n DZ2 100n R18 680R R20 4.7K R16 15K C44 220u/25v VCC +15v C31 100n R21 0R C01 470u/35v VCC C54 100n SGND 3 VDDA2 1 VSSA2 13 PROT 19 N.C. 24 VSSD 18 STABI 23 VDDP2 20 VSSP2 VDDA2 VSSA2 C12 100n C17 100n VSSA2 R06 C16 30.1K 100n OSC 7 VDDA1 10 VSSA1 12 U1 9 IN1- C25 1n 8 11 IN1+ SGND1 2 SGND2 4 IN2- 5 IN2+ C50 100n C57 100n TDA892XBTH C53 220p MODE 6 MODE VDDP VSSP C11 VDDP VSSP 47u/100v C15 100n C18 C19 C14 C13 470p 470p VDDP1 14 100n 100n R07 10R VSSP1 17 OUT1 16 BOOT1 15 L01 33uH C27 C28 15n 120n/63V C39 BOOT2 22 15n OUT2 21 L02 33uH R19 C45 C51 C52 10R 120n/63V C56 100n 100n 100n C58 100n C59 C60 470p 470p A 2 BD4 1 SUBOUT+ BD C29 470n/63V C32 330p R13 22R C33 100n 2R2 R24 C63 330p 2 BD6 1 SUBOUT- BD C49 470n/63V C46 330p 22R R17 C55 100n 2R2 R23 C64 330p C62 B 6.8n CON3 1 2 CON2 C61 6.8n C VDDA2 VSSA2 C02 2 BD1 1 VDDP 470u R01 C04 BD 100n C05 10R 100n VDDA2 VSSP VDDP VSSP VDDP VSSP C03 VSS 470u/35v 2 BD2 1 C06 BD 100n VSSP C07 100n R02 C08 10R 470u/35v VSSA2 D 1 R22 100/2W Q04 B772 -15v VSS -15v VSS 2 3 4 CUSTOMER:JBL MODEL:SB 15SUB/230 BOARD: POWER AMP DETA:SEP.01.2009 PAGE 4/5 5 APPROVED 6 CHECKED CHECKED PREPARED REV D 1.0 7 8 Page 10 of 29 harman/kardon SB 16/230 Service Manual 1 2 3 4 C01 R01 R02 D01 15uf/400V 300k 300k D09 A 1N4007 HI VOL TR1 UF302 R19 68 ohm A 1 8 +12VA +12VB D03 R03 1N4007 1.1meg C08 W1 470PF/1k C06 C10 D04 2 100u/25V 0.1u 4 2 1N4007 6 R04 D05 W2 GND L02 1.1meg UF1010 7 +3.6VA L1 +3.6V 8mH D06 1N4007 3 ICSP 4 D02 Inductor 22uH C11 0.1u D07 SF16 W3 W4 UF302 C09 0.1u U02 5 6 C12 0.1u/25V 1 OB OC 8 S1 S2 C04 C05 470u/16V 470u/16V 3 1 R20 B open R22 C13 47uF/16V 2 VCC OC 7 3 GND IS 6 TR C03 330pF GND GND B open C07 4 CT FB 5 THX203H R21 TRANSFORMER R07 R06 0R 510 10k +3.6VA A 0.22u C15 680P op1 4 1 R08 4.42K RV1 14D471K C19 K1 Relay-SPST +12VB C17 3 2 0.1u LED1 K 1000p C20 R05 Q01 100K C18 R11 R12 22n 2R 2R PC817C R09 3 10k 1 1000p 8050S C16 U01 R14 R17 2 GND 10n D08 CON1 ST TL431 10k 680R 1N4148 Header 3 R16 std 1 L_OUT L_IN N_IN C 0R Q03 8050S GND +3.6V 2 3 GND GND C R13 R10 std 2 1 1 2 4.7k 100k CON2 Header 2B CON3 Header 2B Q02 8050S R15 R18 R23 0R 0R 100k HI OPERATIVE OPEN:R05,Q01,R13,R18 LOW OPERATIVE OPEN:R15,R16 GND GND GND D 1 CUSTOMER:JBL APPROVED CHECKED CHECKED PREPARED REV MODEL:SB 15SUB/230 1.0 D BOARD: STANDBY POWER DETA:SEP.01.2009 PAGE 5/5 2 3 4 Page 11 of 29 harman/kardon ASSEMBLY AND DISASSEMBLY, SB 16 SOUNDBAR. Because the design itself, once disassembling the system, the top bottom trim panels snap points will break and new trim panel has to be replaced 1 Check the cabinet Check the baffle Attach protective film on the rear cabinet SB 16/230 Service Manual 2 Attach EVA foam gasket attach EVA foam gasket 3 load woofer ( screw PN 352-AM04008C1334-E X 16 pcs ) 4 load tweeter add adhesives attach tweeter bar and screw down screw pn 352-AM03008C1086-E 5 left chan Xover (P/N 013-7600-05766-E) right chan xover (P/N 013-7600-05766-1E) Screw PN 352-AM03008C1086-E Page 12 of 29 harman/kardon SB 16/230 Service Manual black/red cables on crossovers to be pulled inward the amplifier 6 Plug green/black cables to the woofer, green cable for + polarity, and black for - polarity plug blue cable to tweeter +, and black to tweeter - 7 Apply adhesives Assemble knobs/LEDs Screw PN 352-AM03008C1086-E X 1 pcs 8 Assemble Amp Screw down amp ( Screw X 9 pcs PN: 352-AM03008C1086-E ) Page 13 of 29 harman/kardon 9 load in insulation X 2 pcs SB 16/230 Service Manual 1 10 plug in xover harness to the amp plug in button.key harness left channel crossover right channel crossover 11 attach baffle to rear enclosure scrw PN 352-AM03510D112-E X 20 pcs Page 14 of 29 harman/kardon SB 16/230 Service Manual 12 apply adhesives press in the grille 13 Snap in the top gloss trim panel snap in the bottom gloss trim panel 14 attach the side end cap ( peel off adhesive ) and add super glue attach the end cap to the cabinet Page 15 of 29 harman/kardon SB 16/230 Active speaker soundbar SB 16/230 Service Manual Owner's Manual Page 16 of 29 harman/kardon SB 16/230 SB 16/230 Service Manual Table of Contents Introduction 3 Description and Features 3 Included Items 3 Soundbar Top-Panel Controls 4 Soundbar Rear-Panel Controls and Connections 4 Subwoofer Rear-Panel Controls 5 Speaker Placement 6 Placing the Soundbar on a Table 6 Wall-Mounting the Soundbar 6 Placing the Subwoofer 6 Connections 7 Source Connections 7 Power Connections 8 Operation 9 Turning the Soundbar On and Off 9 Turning the Subwoofer On and Off 9 Adjusting the System's Volume 9 Muting the System 9 Soundbar Surround Mode Button 9 Soundbar src (source) button 9 Subwoofer Volume Knob 10 Soundbar Trim Switch 10 Wireless Code Switches 10 Subwoofer Crossover Knob 10 Subwoofer Phase Switch 10 Programming the Soundbar to Respond to Your TV Remote 11 Troubleshooting 12 Specifications 13 2 Page 17 of 29 ENGLISH harman/kardon SB 16/230 SB 16/230 Service Manual Introduction, Description and Features, Included Items Introduction Included Items One SB 16 CTR soundbar speaker Please register your product on our Web site at www.harmankardon.com. Note: You'll need the product's serial number. At the same time, you can choose to be notified about our new products and/or special promotions. Thank you for purchasing the harman kardon® SB 16/230 speaker system, with which you're about to begin many years of listening enjoyment. The SB 16/230 has been custom-designed to provide the excitement and power of the cinema experience in your own living room. While sophisticated electronics and state-of-the-art speaker components are hard at work within the SB 16/230, hookup and operation are simple. To obtain maximum enjoyment from your new soundbar speaker system, we urge you to take a few minutes to read through this manual. This will help ensure that the connections you make are correct. In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power and refinement the SB 16/230 is able to deliver. If you have any questions about this product, its installation or its operation, please contact your retailer or custom installer, or visit our Web site at www.harmankardon.com. Description and Features The SB 16/230 is a complete home theater speaker system that includes: ··A video-shielded stereo soundbar speaker (the SB 16 CTR) with two-way dualdriver left and right speakers and built-in 25-watt x 2 stereo amplifier ··A 10-inch (250mm), 100-watt wireless powered subwoofer (the SB 15/230 SUB) ··Wall-mount brackets for the soundbar ··A 6.5-foot (2m) stereo audio cable for connecting the system directly to your TV's audio output. The SB 16 CTR soundbar contains the system's left and right speakers and stereo amplifiers, and features digital signal processing with virtual 3D surround circuitry that creates a complete surround-sound experience without any extra speakers or wires. You can set the soundbar on a table in front of your TV; also, the system includes hardware that makes it easy to mount the soundbar on the wall along with your flat-panel TV. You can program the soundbar to respond to your TV remote's volume, power and source commands. The SB 15/230 SUB subwoofer receives its signal from the SB 16 CTR soundbar via wireless technology, so you can place it anywhere in your room without having to run any wires. Its 10-inch (250mm) woofer and built-in 100-watt amplifier deliver a movie's impact and excitement. Other conveniences include a volume control, a phase switch for fine-tuning bass performance to suit your listening environment, and an efficient switching system that senses the presence of an audio signal and automatically switches the subwoofer on. harman kardon invented the high-fidelity receiver more than 50 years ago. With state-ofthe-art features and time-honored circuit designs, the SB 16/230 system will turn your flat-screen TV into a fun and exciting home theater. One SB 15/230 SUB 10-inch (250mm) 100-watt wireless subwoofer Two sets of wall-mount brackets for the soundbar one shallow and one extended (for when the optical digital audio input is being used) Two rubber feet One 24V DC power supply and one AC power cord for the SB 16CTR speaker One 1.5m (5-ft) optical digital audio cable One 2m (6.5-ft) stereo audio cable Important: If anything is missing, or if any part of your SB 16/230 system fails to operate properly, contact your dealer immediately. 3 Page 18 of 29 harman/kardon SB 16/230 SB 16/230 Service Manual Soundbar Top-Panel Controls and Soundbar Rear-Panel Controls and Connections Soundbar Top-Panel Controls Soundbar Rear-Panel Controls and Connections Power Button Surround Mode Button Volume Up/Down Buttons Source Selector Button Power Surround Indicator Mode Indicator Source Indicator Power Button: When the soundbar is in the Standby mode (the Power Indicator is amber), press this button to turn the SB 16/230 system on (the Power Indicator turns blue.) NOTE: When the soundbar is in the Standby mode, it will automatically turn on whenever it detects an audio signal at the Source 1 (analog) inputs. When the SB 16/230 system is on: · Momentarily press the Power button to mute the SB 16/230 system. (The Power Indicator flashes blue.) · Hold down the Power button for three seconds to put the soundbar in the Standby mode. (The Power Indicator turns amber.) NOTE: The subwoofer will remain on for approximately 15 minutes after the audio signal ceases and then will automatically go into the Standby mode. Surround Mode Button: This button turns the SB 16/230 system's 3D Surround processing On and Off. The Surround Mode Indicator turns blue when 3D Surround is active and turns white when 3D Surround is not active (normal stereo sound). See Soundbar Surround Mode Button, on page 9, for more information. Volume Up/Down Buttons: Press the ( ) button to reduce the volume; press the ( + ) button to increase the volume. Source Selector Button: This button switches between the sources connected to the Source 1 (analog) and Source 2 (digital) inputs. When Source 1 is active, the Source Indicator turns white; when Source 2 is active, the Source Indicator turns blue. Wireless Code Switch: Selects between four different channels for the wireless subwoofer signal. IMPORTANT: Be sure to set the subwoofer's Wireless Code switch to the same channel that you set the soundbar's Wireless Code switch. See Wireless Code Switches, on page 10, for more information. EQ Switch: This switch adjusts the soundbar's bass for either wall or table mounting. If you're mounting the soundbar on a wall with the included wall-mount brackets, set this switch to the Wall position for the most natural-sounding bass performance. If you are placing the soundbar on a table, set the EQ switch to the Table position for the most natural-sounding bass performance. Trim Switch: This switch adjusts the soundbar's input sensitivity so it will work with TVs that have different audio signal output levels. See Soundbar Trim Switch, on page 10, for more information. Source 1 Connection (analog): Use the included stereo audio cable to connect the stereo analog outputs of your TV, DVD player or cable/satellite tuner here. Source 2 Connection (digital): If your TV, DVD player or cable/satellite tuner has a coaxial digital output, you can connect it here. NOTE: If you connect your TV or another component to the soundbar's Source 1 connection, you can connect a different component to the Source 2 connection. Power Connection: Connect the included DC power supply here. See Power Connections, on page 8, for more information. IMPORTANT: Do not connect the power supply's AC cord to an AC outlet until you have made and verified all connections. Power Switch: Set this switch to the On position (press the switch's white dot) to activate the soundbar. In normal operation, this switch will be left in the On position. See Turning the Soundbar On and Off, on page 9, for more information. EQ Switch Trim Switch Source 2 (Coaxial Digital) Input Power Switch Wireless Code Switch 4 Source 1 (Analog) Input Source 2 (Optical Digital) Input Power Input Page 19 of 29 ENGLISH harman/kardon SB 16/230 Subwoofer Rear-Panel Controls SB 16/230 Service Manual Subwoofer Rear-Panel Connections Crossover Knob Volume Knob Phase Switch Wireless Code Switch AC Fuse Power Cord Power Switch Crossover Knob: This knob adjusts the subwoofer's crossover between 50Hz and 150Hz. The higher you set the Crossover knob, the higher in frequency the subwoofer will operate and the more its bass will "overlap" that of the soundbar. This adjustment helps achieve a smooth transition of bass frequencies between the subwoofer and the soundbar for a variety of different rooms and subwoofer locations. See Subwoofer Crossover Knob, on page 10, for more information. Volume Knob: Use this control to balance the subwoofer's volume with that of the soundbar. Turn the knob clockwise to increase the subwoofer's volume; turn it counterclockwise to decrease the subwoofer's volume. Phase Switch: This switch determines whether the subwoofer driver's piston-like action moves in and out in phase with the speakers in the soundbar. If the subwoofer were to play out of phase with the soundbar speakers, the sound waves from the soundbar could cancel out some of the sound waves from the subwoofers, reducing bass performance and sonic impact. This phenomenon depends in part on the placement of the subwoofer and soundbar relative to each other in the room. See Subwoofer Phase Switch, on page 10, for more information. Wireless Code Switch: Selects between four different channels for the wireless subwoofer signal. IMPORTANT: Be sure to set the soundbar's Wireless Code switch to the same channel as you set the subwoofer's Wireless Code switch. See Wireless Code Switches, on page 10, for more information. AC Fuse: The SB 15/230 SUB is factory-equipped with a T1AL/250V 1A 250V AC fuse. If the fuse ever blows: 1. Unplug the power cord from the wall. 2. Use a screwdriver to remove the blown fuse. 3. Replace the fuse with an identical T1AL/250V 1A 250V AC fuse. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE, REPLACE THE FUSE ONLY WITH THE SAME TYPE AND RATING. Power Cord: Plug this cord into an active, unswitched AC outlet. See Power Connections, on page 8, for more information. Power Switch: Set this switch to the On position to activate the subwoofer. In normal operation, this switch will be left in the On position. See Turning the Subwoofer On and Off, on page 9, for more information. Status Indicator (on top of unit, not shown): Turns blue when the subwoofer's power switch is in the On position; turns amber when the subwoofer is in Standby; turns off when the subwoofer's Power switch is in the Off position. 5 Page 20 of 29 harman/kardon SB 16/230 SB 16/230 Service Manual Speaker Placement Speaker Placement Placing the Soundbar on a Table If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen. Attach the supplied rubber feet to the soundbar as shown in the illustration. 4. Attach the two wall-mount brackets to the wall at the locations you marked, using hardware that is appropriate for the wall's construction and materials. Note that the soundbar weighs 3.6kg (8 lb). Be sure to use hardware that can support this weight. 5. After making all of the connections described in the Connections section, on page 7, attach the soundbar to the brackets by sliding the slots in its feet onto the brackets' vertical tabs. As long as the table's surface is flat, the soundbar will rest on the rubber feet. Wall-Mounting the Soundbar If your TV is attached to a wall, you can use the included wall-mount brackets to mount the soundbar on the wall directly below the TV screen. 1. Determine the location for the soundbar on the wall. Make sure that the top of the soundbar will not block your view of the TV screen when it is mounted on the wall. 2. Mark the locations of the soundbar wall-mount bracket holes on the wall. The holes for the left and right brackets are spaced 600mm apart and are designed to accept #8 screws. The top and bottom holes for each bracket are spaced 25mm apart. See the illustration below. 600mm 25mm NOTE: To ensure that the soundbar will be level, use a carpenter's level, laser sight or other device to ensure that the two sets of holes are at exactly the same height. 3. If you are using the soundbar's optical digital audio input, select the extended wall-mount brackets. Otherwise, select the shallow wall-mount brackets. Slide Slots in Soundbar Feet onto Tabs on Brackets Placing the Subwoofer Since our ears do not hear directional sound at the low frequencies where the subwoofer operates, it will perform well from just about any location in your room. However, the strongest bass reproduction is likely to be heard when the subwoofer is placed in a corner along the same wall as the soundbar. IMPORTANT: Make sure that the subwoofer's rear panel is at least 150mm (6") from the wall to allow proper operation of its port tube opening. SB 16 CTR Soundbar Subwoofer Subwoofer Rear Panel at Least 150mm from Wall When Optical Digital Input is Used When Optical Digital Input is Not Used You can experiment with subwoofer placement by temporarily placing the subwoofer in the listening position and playing music with strong bass content. Move around to various locations in the room while the system is playing and listen until you find the location where the bass performance is best. Place the subwoofer in that location. IMPORTANT: The maximum wireless operating distance between the soundbar and subwoofer is approximately 15.3m (50 feet). 6 Page 21 of 29 ENGLISH harman/kardon SB 16/230 Connections Source Connections Analog: Use the supplied stereo audio cable to connect the soundbar's Source 1 (analog) input to your TV's stereo audio output. If your TV has two sets of audio output jacks, use the set that has a fixed (not variable) output level. This will let you turn your TV's speakers all the way off while the TV still supplies a constant audio signal to the soundbar. Digital: If your DVD player, cable tuner or satellite tuner have coaxial or optical digital outputs, you can use the supplied optical digital audio cable and a coaxial digital audio cable (not supplied) to connect them to the soundbar's Optical and Coaxial digital inputs. NOTE: If your DVD player, cable tuner or satellite tuner does not have a coaxial digital output, you can connect its analog audio output to your TV. The TV will send its audio signal to the soundbar through the analog connection described above. AUDIO OUT TV Stereo Audio Cable (supplied) SB 16/230 Service Manual Connections SB 16 CTR Soundbar Satellite Tuner OPTICAL DIGITAL OUT Optical Digital Audio Cable (supplied) Coaxial Digital Audio Cable (not supplied) DVD Player COAXIAL DIGITAL OUT 7 Page 22 of 29 harman/kardon SB 16/230 Power Connections After you have made and verified all of the source connections above: 1. Connect the DC power supply to the soundbar's power connection. Then plug the supplied AC cord into the DC power supply and into an active, unswitched AC outlet. DO NOT plug this cord into the accessory outlets found on some audio components. 2. Plug the subwoofer's power cord into an active, unswitched AC outlet. DO NOT plug this cord into the accessory outlets found on some audio components. SB 16/230 Service Manual Connections SB 16 CTR Rear Panel Power Connection Power Supply AC Power Cord AC Outlet 8 Page 23 of 29 ENGLISH harman/kardon SB 16/230 SB 16/230 Service Manual Operation Operation Set the soundbar's and subwoofer's Power switches in their On positions. On Position Adjusting the System's Volume Press the soundbar's Volume Up and Down buttons to raise and lower the system's volume one step at a time. Hold down the buttons to raise or lower the volume continuously. NOTE: The lowest setting of the Volume Down button will mute the system. Volume Buttons Power Switch Power Switch Standby Position Turning the Soundbar On and Off Manually: To turn the soundbar on manually, momentarily press the soundbar's Power button. Power Button If the system will not play loud enough or quiet enough, adjust the Trim Switch (see Soundbar Trim Switch, on page 10). For the best sound, we recommend turning your TV's built-in speakers off. Consult your TV's owner's manual to find out how to do this. If there is no way to turn your TV's speakers off, you can adjust the TV's volume so that your SB 16/230 system will always supply most of the sound: 1. Using the volume buttons on your TV, turn its volume all the way down. 2. Then use the soundbar's Volume Up/Down buttons to set the sound to a comfortable listening level. This way, your SB 16/230 system should always be louder than your TV's speakers. NOTE: This may reduce the volume of your TV's output connection, so you may have to set the soundbar's Trim Switch to position 3 to compensate. See Soundbar Trim Switch, on page 10. To put the soundbar into Standby manually, hold the Power button for at least three seconds. NOTE: If you put the soundbar into Standby manually, you can turn it back on only by manually pressing the Power button again. Auto turn-on: The soundbar has a signal detector that will automatically turn the unit on when it senses an audio signal at any of its inputs. To minimize power consumption, the signal detector is not activated unless the soundbar first senses any kind of IR remote signal. This does not have to be a remote code that has been learned by the soundbar (see Programming the Soundbar to Respond to Your TV Remote, on page 11) turning your TV on or changing its volume via its remote will be enough. Once the soundbar's signal detector has been activated, the unit will automatically turn from Standby to On as soon as it detects an input signal at any of its Source input connections. Auto turn-off: The soundbar will automatically enter the Standby mode if no audio signal is detected at any of its Source input connections for approximately 15 minutes. If you have programmed the soundbar to respond to your TV remote's on and off commands, you can manually put the soundbar into the Standby mode without having to hold its Power button for three seconds. See Programming the Soundbar to Respond to Your TV Remote, on page 11. If you will be away from home for an extended period of time, or if you will not be using the system for an extended period, set the soundbar's Power switch to Off. Turning the Subwoofer On and Off The subwoofer will automatically turn itself on when it receives an audio signal, and it will return to the Standby mode when it has received no audio signal for 15 minutes. The subwoofer's LED will turn blue when the subwoofer is on, and will turn amber when the subwoofer is in Standby. If you will be away from home for an extended period of time, or if you will not be using the system for an extended period, set the subwoofer's Power switch to the Off position. Muting the System Momentarily press the soundbar's Power button to mute the system. (The Power Indicator flashes blue.) Momentarily press the Power button again to un-mute the system. (The Power Indicator turns to a steady blue.) Power Button Soundbar Surround Mode Button This button switches the sound between normal stereo (the Surround Mode Indicator turns white) and 3D Surround (the Surround Mode Indicator turns blue). The 3D Surround setting will produce a complete surround-sound experience for anyone sitting in front of and several feet away from the soundbar. Although it is particularly effective when watching movies, you can also try the 3D Surround setting for music. Surround Mode Button Soundbar SRC (Source) Button Each press of this button switches the soundbar's audio source between the optical digital connection, the coaxial digital connection and the analog connections. Source Button 9 Page 24 of 29 harman/kardon SB 16/230 SB 16/230 Service Manual Operation Subwoofer Volume Knob Use the subwoofer's Volume knob to balance the bass with the rest of the sound. Play music or movies that you are familiar with and adjust the subwoofer's Volume knob so the bass sounds balanced on both music and films. Listen to several different music recordings and film soundtracks that contain strong bass passages, and find a setting for the Volume knob that doesn't over-emphasize the bass or make it sound weak. Subwoofer Crossover Knob The subwoofer's Crossover knob adjusts the subwoofer's crossover between 50Hz and 150Hz. The higher you set the Crossover knob, the higher in frequency the subwoofer will operate and the more its bass will "overlap" that of the soundbar. This adjustment helps achieve a smooth transition of bass frequencies between the subwoofer and the soundbar for a variety of different rooms and subwoofer locations. Volume Knob Crossover Knob Once you find a setting for the subwoofer's Volume knob that balances the bass with the rest of the sound, you shouldn't have to change it. Soundbar Trim Switch This switch adjusts the soundbar's audio input sensitivity so it will work with TVs that have different audio signal output levels. If your TV's audio signal output is low, the soundbar may not play loud enough. In this case, set the Trim switch to position 3 so the soundbar will play louder. If your TV's audio signal output is high, you may hear distortion in the soundbar at normal listening volumes. In this case, set the Trim Switch to position 1 to reduce the distortion and improve the sound. To set the Crossover knob, listen for the smoothness of the bass. If the bass seems too strong at certain frequencies, try a lower Crossover knob setting. If the bass seems too weak at certain frequencies, try a higher Crossover knob setting. Subwoofer Phase Switch This switch determines whether the subwoofer's piston-like action moves in and out in phase with the speakers in the soundbar. If the subwoofer were to play out of phase with the soundbar speakers, some of the sound waves produced by the soundbar and subwoofer could be canceled out at some frequencies, reducing bass performance and sonic impact. This phenomenon depends in part on the relative placement of all the speakers in the room. Phase Knob Trim Switch Wireless Code Switches In the unlikely event that you encounter interference when operating the system, or if you have more than one SB 16/230 system in operation, you may change the wireless channel at which the system operates. There are four-position Wireless Code switches on both the soundbar and subwoofer. To change the wireless channel, simply set each of the switches to one of the other three positions. IMPORTANT: The switches on the soundbar and the subwoofer must be set to the same position for the wireless system to work properly. Although there is no absolutely correct setting for the Phase switch, in most cases it should be left in the 0° position. When the subwoofer is properly in phase with the soundbar speakers, the sound will be clearer and have more impact. This will make percussive sounds like drums, piano and plucked strings sound more lifelike. The best way to set the Phase switch is to listen to music that you are familiar with and adjust the switch so that drums and other percussive sounds have maximum impact. Wireless Code Switch Soundbar Wireless Code Switch Subwoofer NOTE: The maximum wireless operating distance between the soundbar and subwoofer is approximately 50 feet (15.3m). 10 Page 25 of 29 ENGLISH harman/kardon SB 16/230 SB 16/230 Service Manual Programming the Soundbar to Respond to Your TV Remote Programming the Soundbar to Respond to Your TV Remote You can program the soundbar so it will respond to your TV remote's power off, mute, volume up, volume down and source commands. This programming lets you control your whole home theater system with a single remote. Before beginning to program the soundbar, have your TV remote in hand. We recommend sitting down in front of the soundbar. NOTE: Some steps will time out, so read through this entire procedure before you begin. Have the remote handy. When you start the remote programming after step 4, be ready to aim the TV remote at the front of the soundbar from about 300mm 900mm (about 12 36 inches) away. To program the Mute command: Repeat steps 1 and 2. At step 3, press and hold the soundbar's Power button until the Surround and Source buttons switch to constant illumination. Then proceed to step 4. To erase all remote programming: Ensure that the soundbar is on, then simultaneously press and hold the soundbar's Surround Mode and Volume Up buttons until the lights in all the buttons flash. 300mm (12") TV Remote NOTE: If at any time the Surround and Source buttons both stop flashing, and the soundbar returns to the power-on state, the programming operation has failed. In this case, restart at step 2. To program the power off, surround, volume down, volume up or source command: 1. Ensure that the soundbar is on. 2. Simultaneously press and hold the soundbar's Power and Source buttons until the visible Surround button flashes blue (the Power and Source buttons also flash but are covered by your fingers). If the buttons do not flash after three seconds, release the buttons and try again. Hold down both buttons until the Power, Surround and Source buttons indicators flash 3. You now have 20 seconds to momentarily press the soundbar button that you want to program (Power, Surround, Volume Down, Volume Up, Source), or the programming operation will fail and you must restart at step 2. When you are successful, the soundbar Power button light will turn off. Momentarily press the button you want to program 4. You now have 5 seconds to aim the TV remote at the front of the soundbar and slowly and repeatedly press and release the corresponding button on the remote until the Surround and Source buttons on the soundbar flash and then, after a few seconds, return to constant illumination. This indicates that the programming operation has been successful. Otherwise you must restart at step 2. 11 Page 26 of 29 harman/kardon SB 16/230 SB 16/230 Service Manual Troubleshooting Troubleshooting If your SB 16/230 system isn't performing the way you think it should, check to see if the problem is covered in this section before calling your dealer or contacting a harman kardon representative. Problem Solution If the soundbar does not turn on: ·· Check that the soundbar power supply's AC cord is plugged into a working AC outlet and that the power supply is plugged into the soundbar. ·· Check that the soundbar's Power switch is in the On position. If the subwoofer does not turn on: ·· Check that the subwoofer's power cord is plugged into a working AC outlet. ·· Check that the subwoofer's Power switch is in the On position. ·· Check if the subwoofer's AC fuse has blown. See Subwoofer Rear-Panel Controls: AC Fuse, on page 5, for instructions on checking and changing the fuse. If there is no sound coming from both the soundbar and the subwoofer: ·· Check that the soundbar is on (the Power Indicator is blue). ·· Check that the cable connecting the TV or other source component to the soundbar is properly connected at both ends. ·· Check that the soundbar's Source Selector is set to the correct source (the Source Indicator turns white for Source 1 analog and turns blue for Source 2 digital) and that the source is playing an audio signal. ·· Check that the system is not muted (when the system is muted, the soundbar's Power Indicator flashes blue). If the system is muted, momentarily press the Power button to un-mute the system. ·· Check that the soundbar's volume is not turned all the way down (the lowest setting of the Volume Down button will mute the system). If there is no sound coming from just the subwoofer: ·· Check that the Subwoofer Volume Control is not turned all the way down (fully counterclockwise). ·· Check that the Wireless Code switches on the subwoofer and soundbar are both set to the same setting number. ·· Move the subwoofer closer to the soundbar. The maximum wireless operation distance is 50 feet (15.3m). If the soundbar's sound is distorted: ·· Set the soundbar's Trim switch to a lower setting. ·· Check the source component to see if the distortion is coming from it, and not from the soundbar. If the system's sound is too quiet, even when the soundbar's volume is turned all the way up: ·· Set the soundbar's Trim switch to a higher setting. ·· If the TV or source component is connected via a variable output, check its instructions to be sure that the output is not turned down too low. If the bass output is not loud enough: ·· Turn up the subwoofer's Volume knob. ·· Move the subwoofer into a corner of the room. ·· Move the subwoofer closer to the seating location. If the soundbar won't learn your TV remote's commands: ·· Carefully follow steps 1 4 of Programming the Soundbar to Respond to Your TV Remote, on page 11. ·· Hold the TV remote 12 inches (300mm) in front of the soundbar during the learning procedure. ·· Although the soundbar will learn commands from most TV remotes, there may be some IR codes that it cannot learn. If you press your TV remote's Power button and the soundbar turns off when the ·· Press the Power button on either the soundbar or the TV (but not both) one time. TV turns on (or vice versa): This will put them back in sync so they will turn on and off together when you press the TV remote's Power button. You can find additional troubleshooting information in the FAQs link on the Support page at www.harmankardon.com. 12 Page 27 of 29 ENGLISH harman/kardon SB 16/230 Specifications SB 16/230 System Frequency response SB 16 CTR Soundbar Midrange transducers High-frequency transducer Amplifier power Power requirement Dimensions (H x W x D) Weight SB 15/230 Subwoofer Woofer Enclosure type Power requirement Dimensions (H x W x D) Weight SB 16/230 Service Manual Specifications 50Hz 20kHz Two x 3" (75mm) cones per channel, video-shielded One x 3/4" dome per channel, video-shielded 25 watts x 2 24V DC, 2.5A 2.7A 110mm x 920mm x 89mm (4-5/16" x 36-1/4" x 3-1/2") 3.6kg (8 lb) 10" (254mm) cone Ported 230V AC, 50Hz/60Hz, 100W 480mm x 380mm x 380mm (18-7/8" x 13-3/8" x 13-3/8") 15.4kg (34 lb) 13 Page 28 of 29 harman/kardon SB 16/230 Service Manual HARMAN Consumer, Inc. 8500 Balboa Boulevard, Northridge, CA 91329 USA 516.255.4545 (USA only) Made in P.R.C. © 2010 HARMAN International Industries, Incorporated. All rights reserved. harman kardon is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice. Part No. 406-000-06266-E www.harmankardon.com Page 29 of 29Adobe Acrobat Pro 9.4.5
