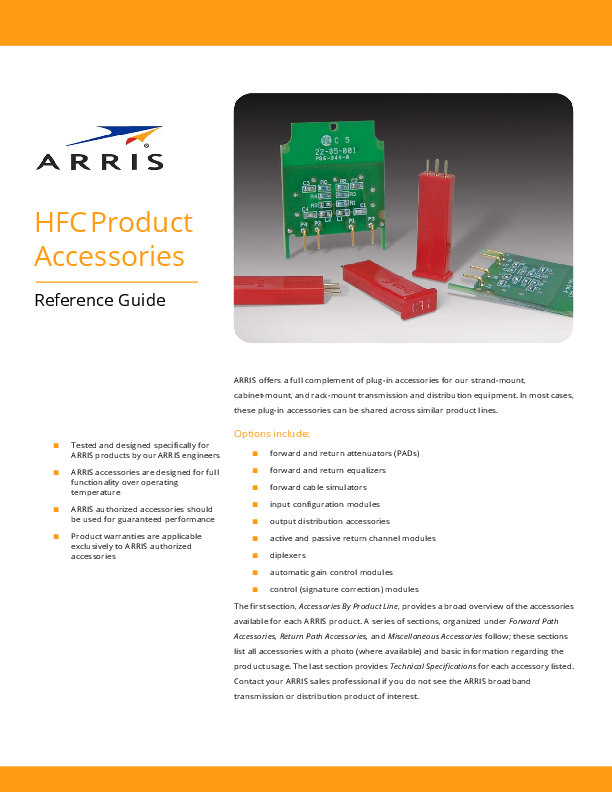

HFC Product Accessories
Reference Guide
ARRIS offers a full complement of plug-in accessories for our strand-mount, cabinet-mount, and rack-mount transmission and distribution equipment. In most cases, these plug-in accessories can be shared across similar product lines.
Options include:
Tested and designed specifically for ARRIS products by our ARRIS engineers
forward and return attenuators (PADs)
ARRIS accessories are designed for full functionality over operating temperature
ARRIS authorized accessories should be used for guaranteed performance
forward and return equalizers forward cable simulators input configuration modules output distribution accessories
Product warranties are applicable exclusively to ARRIS authorized accessories
active and passive return channel modules diplexers
automatic gain control modules
control (signature correction) modules
The first section, Accessories By Product Line, provides a broad overview of the accessories available for each ARRIS product. A series of sections, organized under Forward Path Accessories, Return Path Accessories, and Miscellaneous Accessories follow; these sections list all accessories with a photo (where available) and basic information regarding the product usage. The last section provides Technical Specifications for each accessory listed. Contact your ARRIS sales professional if you do not see the ARRIS broadband transmission or distribution product of interest.
ACCESSORIES BY PRODUCT LINE
Table 1 ARRIS Starline 1.2 GHz RF Amplifiers
Model
MB120 MiniBridger BLE120 Line Extender
PN Prefix
Forward PADs
Forward Equalizers
MB120 BLE120
JXP-*B NPB-* JXP-*B NPB-*
CE-120-* CE-120-*
Cable Simulators CS-120-* CS-120-*
Return PADs
JXP-*B NPB-* JXP-*B NPB-*
Return Equalizers SRE-*-* SRE-*-*
Output Distribution Accessories
SP120 DC120/* N/A
Automatic Gain Control
ADU QADU ADU QADU
Table 2 ARRIS Flex Max� 1 GHz RF Amplifiers
Model
P/N Prefix
FM901e-T1 FMTEG Trunk
FM901e-B1 FMBEG Bridger
FM601e-T Trunk1
FM6T
FM601e-B Bridger1
FM6B
FM601e-LE Line Extender1
FM6E
FM331-LE Line Extender1
FML1G
FM321e-LE Line Extender1
FM321G
Key N/A: not applicable
W/O:without covers WC: with covers
Forward PADs NPB
NPB 10-A-WC 10-A-WC
THRM 10-A-WC
THRM NPB Amini (interstage) 10-A-WC THRM
Forward Equalizers
SEQ-1G SEQ-862 SEQ-750 GEQC-1G (O/P) GEQC-870 (O/P) GEQL-1G (O/P) SEQ-1G SEQ862 SEQ750 PEQ-1G 7-2E862-WC 7-2E750-WC PEQ-1G 7-2E862-WC 7-2E750-WC PEQ-1G 7-2E862-WC 7-2E750-WC SEQ-1G SEQ-862 W/O SEQ-750 W/O PEQ-1G 7-2E862-WC 7-2E750-WC
Cable Simulators
SCS-1G
SCS-1G PCS-1G PCS-1G PCS-1G SCS-1G PCS-1G
Return PADs NPB2
Return Equalizers MEQ-42, 55, 65,
85 MEQT-42, 85
NPB2 10-A-WC 10-A-WC2 10-A-WC2
MEQ-42, 55, 65, 85
MEQT-42, 85 7-REF42/x-WC 7-REF55/x-WC 7-REF65/x-WC 7-REF42/x-WC 7-REF55/x-WC 7-REF65/x-WC 7-REF42/x-WC
NPB 10-A-WC
MEQ-42, 55, 65, 85
MEQT-42, 85 9-A/*-WC 10-A/*-WC
Output Distribution Accessories
S-Series
S-Series 7-DC-Series 7-DC-Series
N/A N/A N/A
1. Signature Correction Modules are available for all ARRIS Flex Max RF amplifiers. 2. Noise Filter may be used in the Return PAD location. FM901e-T/B require a standard height noise filter be used in combination with
an adaptor in the Return PAD location. For FM401, the taller (1.4 inch) noise filter is recommended for ease of installation and removal.
2
HFC Product Accessories Reference Guide
1513173 Rev C
Table 3 ARRIS Starline 1 GHz RF Amplifiers
Model BT100 Amplifier MBV3 MiniBridger MB100 MiniBridger BLE100 Line Extender
PN Prefix
Forward PADs
Forward Equalizers
BT100
JXP-*B
SFE-100-*-R
MBV3
JXP-*B
SFE-100-*-R
MB100
JXP-*B
SFE-100-*-R
BLE100
JXP-*B
SFE-100-*-R
Cable Simulators SCS-* SCS-* SCS-* SCS-*
Return PADs JXP-*B JXP-*B JXP-*B JXP-*B
Return Equalizers SRE SRE SRE SRE
Output Distribution Accessories N/A
N/A
SP120 DC120/* N/A
Automatic Gain Control
TDU ADU QADU TDU/V ADU/V QADU/V TDU ADU QADU TDU ADU QADU
Table 4 ARRIS Optical Products
Model CHP Dual TX CHP Single TX Opti Max OM4120 Opti Max OM6000
Opti Max OM4100 Trans Max TM4100 Opti Max OM27411
Opti Max OM1111 NC2000 1.2 GHz Series NC4000 1.2 GHz Series SG4000
P/N Prefix
Forward PADs
Forward Equalizers
Cable Simulators
Return PADs
Amini Short CHP Plug-in EQ
N/A
CHP PAD
N/A
N/A
OM412
NPB
EQL-1.2GHZ
N/A
GEQL-1GHZ
GEQL-870
OM6
NPB
EQL-1.2GHZ
N/A
GEQL-1GHZ
GEQL-870
N/A N/A NPB
NPB
Output Distribution Accessories
N/A N/A N/A
N/A
OM41 TM41 OM27
OM11G NC2 NC4 SG4
NPB N/A
GEQL-1GHZ GEQL-870
N/A
NPB
GEQL-1GHZ GEQL-870 GEQC-1GHZ GEQC-870
SEQ-1G SEQ-870 SEQ-750
10-A-WC1 GEQL-1GHZ-xxx-1 GEQL-870-xxx-1
AP-4100x-L EQ21xxE-1.2GHZ EQ21xxG-1GHZ EQ21xx-870MHZ
AP-4100x-L EQ21xxE-1.2GHZ EQ21xxG-1GHZ EQ21xx-870MHZ
JXP-B*
LME-87-* LME-100-*
N/A N/A SCS-1G
N/A N/A N/A N/A
NPB NPB (analog only) NPB
10-A-WC AP-4100x-L AP-4100x-L
JXP-B*
N/A N/A S-Series
N/A N/A N/A N/A
VTN244
JXP-B*
FLEQ
N/A
JXP-B*
N/A
Key
N/A: not applicable
W/O:without covers; WC:with covers
Freq. Split Accessories N/A N/A RPLPF Roll-off Compensation Board Diplex Filter RPLPF Roll-off Compensation Board Diplex Filter
RPLPF Roll-off Compensation Board Diplex Filter
1513173 Rev C
HFC Product Accessories Reference Guide
3
Model
12000-L-PBT 1.2GHz Taps BTTF*-*Q 1.2GHz Taps FFE-*-120*/RP Equalizers FFT*-*Q 1.2GHz Taps RMT2120 1.2 GHz Taps
Table 5 ARRIS Taps and Equalizers
Cable Equalizers T-EQ-*-Q T-EQ-*-Q
N/A T-EQ-*-Q T-EQ-*-Q
Cable Simulators T-CS-*-Q T-CS-*-Q
N/A T-CS-*-Q T-CS-*-Q
Return Attenuators T-RPA/K-*-Q
T-RPA/S-* N/A
T-RPA/K-*-Q T-RPA/K-*-Q
Plug-in Equalizer Board
N/A N/A G120-* N/A N/A
4
HFC Product Accessories Reference Guide
1513173 Rev C
Accessories by Product Line--Discontinued Legacy ARRIS Products
Legacy products listed below have been discontinued by ARRIS. Please consult your authorized ARRIS sales representative for upgrade options.
The following tables list available accessories that support the installed legacy products.
Table 6 Legacy Flex Max� RF Amplifiers
Model
P/N Prefix
Flex Max901 Trunk/Bridger Flex Max900 Trunk/Bridger Flex Max601 Bridger Flex Max601 Line Extender FM4011, 2
FMT1G FMB1G FNT9 FNB9 FM6B
FM6L
FM401
Forward PADs NPB SPB
10-A-WC 10-A-WC
NPB
Flex Max340
Flex Max330 Flex Max321
NL1x NL2x FM330 FM321G
SPB
NPB 10-A-WC
Flex Max320
AMP008x
10-A-WC THRM
Flex Max222 Flex Max220P Flex Max220B Key
FM222
NPB Amini
FM220-P
NPB Amini
FM220-B
NPB Amini
N/A: not applicable
W/O:without covers
Forward Equalizers
SEQ-1G SEQ-862 W/O SEQ-750 W/O
SEQ-862 SEQ-750 SEQPB PEQ-1G 7-2E862-WC 7-2E750-WC PEQ-1G 7-2E862-WC 7-2E750-WC FEQC-1G FEQC-870 FEQC-750 SEQ-862 SEQ-750
SEQ-862 W/O SEQ-750 W/O
PEQ-1G 7-2E862-WC 7-2E750-WC 7-2E862-WC 7-2E750-WC
Amini
E862/xx E606/xx
Amini
WC:with covers
Cable Simulators
SCS-1G SCS-862 PCS-1G PCS-1G CBSM-1G SCS-862 SCS-862 W/O PCS-1G PCS-1G
N/A CE862/x
N/A
Return PADs
Return Equalizers
NPB
MEQ-42 MEQT-42
SPB 10-A-WC1
MEQ-42, 55, 65, 85
MEQT-42, 85 7-REF42/x-WC
10-A-WC1
7-REF42/x-WC
NPB2 SPB NPB 10-A-WC
REQC-42 REQC-65 REQC-85 MEQ-42, 55, 65,
85 MEQT-42, 85
MEQ-42 MEQT-42 7-REF42/x-WC
10-A-WC
Amini1 Amini1 Amini1
7-REF42/x-WC 7-REF55/x-WC 7-REF65/x-WC
Amini
Amini
Amini
Output Distribution Accessories
S-Series S-Series 7-DC-Series
N/A 7-DC-Series3
N/A N/A N/A N/A 7-DC-Series N/A N/A
1. Noise Filter may be used in the Return PAD location. 2. D30/47, D42/54, and D55/70 plug-in diplex filters are available. The original diplex filters were qualified for use in 870 MHz systems.
The new diplex filters are qualified for use in 1 GHz systems. The new diplex filters have the same model numbers as the original diplex filters. 3. 7-DC-Series accessories may also be used in the Input Splitter location.
1513173 Rev C
HFC Product Accessories Reference Guide
5
Model
PN Prefix
Table 7 Legacy Motorola Starline RF Amplifiers
Forward PADs
Forward Equalizers
Cable Simulators
Return PADs
Return Equalizers
Output Distribution Accessories
Automatic Gain Control
SLE100 Line Extender SLE100
JXP-*B
SFE-100-*-R SCS-*
JXP-*B SRE
SP100 DC100
SLE-ADU
Model FlexNet800 FlexNet700 E900
P/N Prefix
FNT8 FNB8
E8 FNT7 FNB7
E9
E700
E7
Diamond Line I
T3A
& II
Diamond Line
G3A
III
GNA/TNA
Table 8 Legacy C-COR & Philips RF Amplifiers
Forward PADs
Forward Equalizers
Cable Simulators
Return PADs
SPB
SEQ-862
SCS-862
SPB
SEQ-750
RPB
SEQPB
SPB
SEQ-750
SCS-862
SPB
SEQPB
RPB
SPB
SEQ-862
SCS-862
SPB
SEQ-750
RPB
SPB 10-A-WC
SEQ-862 SEQ-750 SEQPB 7-2E862-WC 7-2E750-WC
SCS-862 7-2E862C-WC
SPB RPB 10-A-WC
10-A-WC 10-A-L
7-2E862-WC 7-2E750-WC 7-2E750 W/O
7-2E862C-WC 7-2E862C-W/O
10-A-WC 10-A-L
Key
Model Opti Max OM3101 Opti Max OM3100 Opti Max OM27411
Opti Max OM2100 Opti Max OM4000
N/A: not applicable W/O:without covers
P/N Prefix
Forward PADs
WC:with covers
Table 9 Legacy Optical Products
Forward Equalizers
Cable Simulators
Return PADs
OM31C OM31G OM27
OM21G OM41G
10-A-WC1 10-A-WC 9-A-S (RX
only) NPB
NPB Amini NPB
GEQL-1GHZ-xxx-1 GEQL-870-xxx-1 GEQL-1GHZ-xxx-1 GEQL-870-xxx-1
GEQL-1GHZ GEQL-870 GEQC-1GHZ GEQC-870
SEQ-1G SEQ-870 SEQ-750 GEQL-1GHZ GEQL-870 NEQL-870
N/A N/A SCS-1G
N/A N/A
10-A-WC 10-A-WC
NPB
NPB Amini NPB2
Return Equalizers MEQ-42, 55, 65,
85 MEQT-42, 85 MEQ-42, 55, 65,
85 MEQT-42, 85 MEQ-42, 55, 65,
85 MEQT-42, 85 MEQ-42, 55, 65,
85 MEQT-42, 85 7-REF42/x-WC 7-REF55/x-WC 7-REF65/x-WC 7-REF42/x-WC 7-REF55/x-WC 7-REF65/x-WC 7-REF42/x-WC 7-REF55/x-WC 7-REF65/x-WC
Return Equalizers 7-DC-Series
N/A
S-Series
NPB/Amini 7-DC-Series
N/A
Output Distribution Accessories
S-Series S-Series
N/A N/A 7-DC-Series N/A 7-DC-Series
Output Distribution Accessories
N/A N/A N/A
N/A N/A
6
HFC Product Accessories Reference Guide
1513173 Rev C
Table 9 Legacy Optical Products (cont'd)
Model
Opti Max OM3000
Opti Max OM20003 Opti Max OM1220 Opti Max OM1000 Optiworx ISX3040 Optiworx ISX3025 Optiworx ISX3030 LN-SM3x LN-SM7x
P/N Prefix OM3
OM2 OM12 OM1
N/A
N/A N/A N/A
Forward PADs
10-A-WC 9-A-S (RX
only) Amini Amini 10-A-WC IPADxxx
TPADxxx IPB SPB
Forward Equalizers 7-TG862-WC
Amini N/A 7-2E862/x-WC ISX750EQyy ISX870EQyy IX7EQyy IX8EQyy ISX750EQyy N/A SEQ-750
Cable Simulators
N/A
N/A N/A 7-2E862C-WC N/A
N/A N/A SCS-862
Return PADs 10-A-WC1
Amini Amini 10-A-WC1 IPADxxx
TPADxxx N/A SPB
BTN2000
N/A
MBN100
N/A
MPN100
N/A
JXP-B*
LME-100-*
N/A
VSN200
N/A
SG1000
SG1
SG2000
SG2
JXP-*A
SG2-FE-*/750
N/A
SG2-FE-*/870
Harmonic HLN3142E
HLN
Harmonic
HLN
HLN3142 PWRBlazer II
NPD38xx
NLE31xx
N/A
Harmonic PWRBlazer HLN 3144
HLN
NC2000 1GHz
NC2
AP40xx
EQ21xx (RF
N/A
Series
module)
EQ41xx (analog
receivers)
Key
N/A: not applicable
W/O:without covers
WC:with covers
JXP-B* JXP-*A
NPD38xx AP40xx
Return Equalizers
N/A Amini N/A N/A ISX750EQyy ISX870EQyy IX7EQyy IX8EQyy ISX750EQyy N/A SM-MEQF42 MEQ-42 MEQT-42
N/A
N/A
NLE31xx
N/A
Output Distribution Accessories
N/A N/A 7-DC-Series N/A N/A
N/A S-Series S-Series
N/A N/A
N/A
N/A
1. D30/47, D42/54, and D55/70 plug-in diplex filters are available. The original diplex filters were qualified for use in 870 MHz systems. The new diplex filters are qualified for use in 1 GHz systems. The new diplex filters have the same model numbers as the original diplex filters.
2. Noise Filter may be used in the Return PAD location. 3. Legacy D30/47, D42/54, and D55/70 plug-in diplex filters are available.
Table 10 Legacy Motorola Taps
Model
BTTF*-*P 1GHz Taps FFT*-*P 1GHz Taps
Cable Equalizers
T-EQ-* T-EQ-*
Cable Simulators
T-CS-* T-CS-*
Return Attenuators
T-RPA/S-* T-RPA/S-*
Plug-in Equalizer Board
N/A N/A
1513173 Rev C
HFC Product Accessories Reference Guide
7
Table 11 Legacy Accessories
The following accessories are no longer available from ARRIS:
9A
9-A-S series attenuators have replaced the 9-A series attenuators.
9-A-WC
10-A-WC series attenuators have replaced the 9-A-WC series attenuators.
6-2E862 6-2E750
7-2E750C
7-2E862 forward equalizers may be used in place of 6-2E862 and 6-2E750 forward equalizers. The plastic cover must be removed from 7-series accessories to enable them to fit into equalizer locations designed for the 6-series accessories. PCS-1G and 7-2E862C forward cable simulators may be used in place of the 7-2E750C forward cable simulators.
A862
Fixed attenuator for legacy FM220 Plus/FM500. No replacement.
CE862
Cable simulator/equivalent for FM220 Plus/FM400/FM500. No replacement.
CM862
Control module/system equalizer for FM400/FM500/OM2000. No replacement.
D65/85
65/85MHz Diplex filter for FM220Plus/FM400/FM500/ OM1220/OM2000. No replacement.
E606
Plug-in equalizer for FM400/FM500. No replacement.
E862
Plug-in equalizer for FM220Plus/FM400/FM500. No replacement.
IPB
Amini PADs replace IPB style PADs (AT0xxx).
SCS-750 SCS-862 forward cable simulators may be used in place of the SCS-750 forward cable simulators.
FORWARD PATH ACCESSORIES
Forward Path Attenuator Pads
9-A-S Forward/Return Attenuators
Product Usage: Opti Max OM3100 (RX only), CHP Max5000 Single TX Legacy Product Usage: Opti Max3000 (RX only) Notes: 1. Height is 0.6", pin spacing is 0.125" 2. Molded blue plastic 3. Same footprint as Amini Short PADs but may be limited by height constraints
Zero value is possible exception due to performance
10-A-L and 10-A-WC Forward/Return Attenuators
Product Usage: 10-A-WC: Flex Max FM601e T/B/LE, Flex Max FM321e-LE, OptiMax OM3101, OptiMax OM3100, OptiMax OM1111 Legacy Product Usage: 10-A-L: GNA/TNA; 10-A-WC: Flex Max601 Bridger & Line Extender, Flex Max321, Flex Max320, Diamond Line I, II, & III, Opti Max3000, Opti Max1000 Notes: 1. Height is 1.15", pin spacing is 0.125" 2. 10-A-L: molded blue plastic without guide pins; 10-A-WC: molded blue plastic with guide pins 3. 10-A-WC cannot be plugged into products using NPB or Amini PADs because of guide pins 4. Same footprint as NPB and Amini PADs but may be limited by height constraints
Zero value is possible exception due to performance
Amini Attenuators
Product Usage: Flex Max FM331-LE (interstage),Opti Max OM2100 Legacy Product Usage: Flex Max222, Flex Max220 Plus, Flex Max220 Basic, Flex Max500, Flex Max400, Opti Max2000, Opti Max1220 Notes: 1. Height is 1.0", pin spacing is 0.125". 2. Molded orange plastic 3. Can be plugged into Legacy Philips products using 10-A-WC attenuators, but no guiding mechanism 4. Same footprint as NPB and 10-A attenuators but may be limited by height constraints
8
HFC Product Accessories Reference Guide
1513173 Rev C
Amini Short Attenuators
Product Usage: CHP Dual Transmitter Notes: 1. Height is 0.5", pin spacing is 0.125" 2. Molded orange plastic 3. Same footprint as 9-A-S attenuators but may be limited by height constraints and lip around top of accessory
AP-40xx-L Series Forward/Return Path Attenuators
Product Usage: NC2000, NC4000 Notes: 1. Height is 1.0" 2. Molded orange plastic; orange color denotes 1200 MHz rating
JXP Forward/Return Path Attenuators
Product Usage: BLE100, MB100, MBV3, BT100, SLE100, SG4000, VSN Note: 1. Height is 1.375", pin spacing is 0.125" 2. Molded blue plastic
NPB Forward/Return Path Attenuators
Product Usage: Flex Max FM901e-T/B, Flex Max FM401, Flex Max FM331-LE, Opti Max OM4100, Trans Max TM4100, Opti Max OM2700, Opti Max OM2100 Legacy Product Usage: Flex Max901, Flex Max330, Flex Max222, Flex Max220 Plus, Flex Max220 Basic, Opti Max4000 Notes: 1. Height is 1.4", pin spacing is 0.125" 2. Molded green plastic 3. Same footprint as 10-A and Amini PADs but may be limited by height constraints
NPD38xx Forward/Return Path Attenuators
Legacy Product Usage: HLN3142, HLN3142E, HLN3144 Note: 1. 0.75 in. long 2. Molded yellow plastic.
SEQPB-xx EQ Form Factor Attenuators
Legacy Product Usage: Flex Max900, FlexNet 800, FlexNet 700, E700 Note: 1. Plugs into the equalizer location to add flat attenuation across the passband
SPB-xxx Forward/Return Attenuators
Legacy Product Usage: Flex Max900, Flex Max340, FlexNet 800, FlexNet 700, E900, E700, LN-SM7x Notes: 1. Height is 1.10", pin spacing is 0.20" 2. Molded green plastic 3. SPB-0 can be used as a jumper in the distribution accessory location for a single output
THRM Thermal Attenuators
Product Usage: Flex Max FM321e-LE, FM601e-B Legacy Product Usage: Flex Max320 Notes: 1. Blue plastic cover to protect components
THRM Thermal Attenuators
Product Usage: Flex Max FM601e-LE Notes: 1. No blue plastic cover.
1513173 Rev C
HFC Product Accessories Reference Guide
9
Cable Simulators
7-2E862/Cx-WC Forward Path Cable Simulators
Legacy Product Usage: Opti Max1000, Diamond Line I, II & III, GNA/TNA Notes: 1. Legacy Philips 2. Blue plastic cover to protect components 3. Can be used in GNA/TNA products with the cover removed.
CBSM-1G Series Cable Simulators
Legacy Product Usage: Flex Max FM401 Notes: 1. Height is 1.4" 2. Molded white plastic
CE862/xx Cable Simulators (Equivalents) Legacy Product Usage: Flex Max FM220 Plus
Note: 1. Blue plastic cover to protect components
CS-120-* Cable Simulators
Product Usage: BLE120, MB120 Notes: 1. Blue plastic cover to protect components 2. 1218 MHz upper bandwidth 3. Height is 1.2"
PCS-1G-xx Cable Simulators
Product Usage: Flex Max FM601e-T/B/LE, Flex Max FM321e-LE Legacy Product Usage: Flex Max FM601 Bridger & Line Extender, Flex Max FM321, Flex Max FM320 Note: 1. Blue plastic cover to protect components
SCS Forward Cable Simulator
Product Usage: BLE100, MB100, MBV3, BT100, SLE100 Notes: 1. STARLINE amplifiers 2. Blue plastic cover to protect components
SCS-1G-xx Cable Simulators
Product Usage: Flex Max FM901e-T/B, , Flex Max FM331-LE Legacy Product Usage: Flex Max FM901, Opti Max OM2700 Note: 1. Cannot be plugged into FM330 or Legacy C-COR Amps due to guide pins
SCS862-xx Cable Simulators
Legacy Product Usage: Flex Max FM900, Flex Max FM340, Flex Max FM330, FlexNet 800, FlexNet 700, E900, E700 Notes: 1. Legacy C-COR, produced with and without a white plastic cover to protect components 2. Fits in the Flex Max330 with the cover removed
10
HFC Product Accessories Reference Guide
1513173 Rev C
T-CS-*-Q Series Forward Cable Simulator
Product Usage: 12000-L-PBT, BTTF-*-*Q, FFT*-*Q Notes: 1. 1.2 GHz Taps 2. Blue plastic cover to protect components
Forward Path Equalizers
7-2E862/x-WC, 7-2E750/x-WC Forward Path Cable Equalizers
Product Usage: Flex Max FM601e-T/B/LE, Flex Max FM321e-LE Legacy Product Usage: Flex Max FM601 Bridger & Line Extender, Flex Max FM321, Flex Max FM320, Diamond Line I & II, Opti Max OM1000 Notes: 1. Legacy Philips 2. Blue plastic cover to protect components
7-REF65/x-WC, 7-REF55/x-WC, 7-REF42/x-WC Cable Equalizers
Product Usage: Flex Max FM601e-T/B/LE, Flex Max FM321e-LE Legacy Product Usage: Flex Max FM601 Bridger & Line Extender, Flex Max FM321, Flex Max FM320, Diamond Line I, II, & III, GNA/TNA, Opti Max OM1000 Notes: 1. Legacy Philips 2. Blue plastic cover to protect components
7-TG862-WC Linear Equalizers
Legacy Product Usage: Opti Max OM3000 Notes: 1. Legacy Philips 2. Blue plastic cover to protect components
CE-120-* Forward Cable Equalizers
Product Usage: BLE120, MB120 Notes: 1. Grey plastic cover to protect components 2. 1218 MHz upper bandwidth 3. Height is 1.2"
CHP Plug-In Equalizers
Product Usage: CHP Dual TX Notes: 1. Height is 0.6" 2. Molded white plastic
E606/xx Series Equalizers
Legacy Product Usage: Flex Max FM400, FM500 Notes: 1. Height is 1.4"
E862xx Series Equalizers
Legacy Product Usage: Flex Max FM220Plus, FM400, FM500 Notes: 1. Height is 1.4"
Picture N/A
Picture N/A
11
HFC Product Accessories Reference Guide
1513173 Rev C
EQ21xx Series 870 MHz Linear Equalizers
Product Usage: NC2000, NC4000 Notes: 1. Height is 1.0" 2. Molded purple plastic
EQ21xxE Series 1.2 GHz Linear Equalizers
Product Usage: NC2000, NC4000 Notes: 1. Height is 1.0" 2. Molded pink plastic
EQ21xxG Series 1 GHz Linear Equalizers
Product Usage: NC2000, NC4000 Notes: 1. Height is 1.4" 2. Molded red plastic.
EQ41xx Series Equalizers
Legacy Product Usage: NC2000 1 GHz Series Notes: 1. 0.834" x 0.703" 2. 45 to 870 MHz passband
EQ41xxG Series Equalizers
Legacy Product Usage: NC2000 1 GHz Series Notes: 1. 0.834" x 0.703" 2. 45 to 1002 MHz passband
EQL-1220MHz-xx Series 1.2 GHz Linear Equalizers
Product Usage: OM4120, OM6000 Notes: 1. Height is 1.4" 2. Molded gray plastic
FEQC-750-xx Series Cable Equalizers
Legacy Product Usage: Flex Max FM401 Notes: 1. Height is 1.4" 2. Molded seagull green plastic
FEQC-870-xx Series Cable Equalizers
Legacy Product Usage: Flex Max FM401 Notes: 1. Height is 1.4" 2. Molded banana yellow plastic
FEQC-1G-xx Series Cable Equalizers
Legacy Product Usage: Flex Max FM401 Notes: 1. Height is 1.4" 2. Molded royal blue plastic
FLEQ Equalizers
Product Usage: VTN244 Notes: 1. Height is 1.3" 2. Molded navy blue plastic
12
HFC Product Accessories Reference Guide
1513173 Rev C
GEQC-870-xxx Cable Equalizers
Product Usage: Flex Max FM901e-T (trunk only), Legacy Product Usage: Opti Max OM2700 Notes: 1. Needed to configure for an 870MHz system in the Flex Max FM901e-T trunk amplifier 2. Height is 1.4" 3. Molded blue plastic
GEQC-1GHZ-xxx Cable Equalizers
Product Usage: Flex Max FM901e-T (trunk only), Opti Max OM2700 Legacy Product Usage: Opti Max OM2700 Notes: 1. Needed to configure for a 1 GHz system in the Flex Max FM901e-T trunk amplifier 2. Height is 1.4" 3. Molded brown plastic
GEQL-870-xxx Linear Equalizers
Product Usage: Opti Max OM4100, Opti Max OM2700, Opti Max OM2100, Opti Max OM4120, Opti Max OM6000 Notes: 1. Height is 1.4", symmetrical pin spacing 2. Molded purple plastic 3. Can be plugged into NPB or 10-A style sockets
GEQL-870-xxx-1 Linear Equalizers
Product Usage: Opti Max OM3101, Opti Max OM3100, Opti Max OM1111 Notes: 1. Height is 1.0", symmetrical pin spacing 2. Molded purple plastic 3. Can be plugged into NPB or 10-A style sockets
GEQL-1GHZ-xxx Linear Equalizers
Product Usage: Flex Max FM901e -T Trunk (O/P only), Opti Max OM4100, Opti Max OM2700, Opti Max OM2100, Opti Max OM4120, Opti Max OM6000 Notes: 1. Height is 1.4", symmetrical pin spacing 2. Molded red plastic 3. Can be plugged into NPB or 10-A style sockets 4. 1 GHz "red" EQs can be used for 870 MHz bandwidth if the losses are acceptable
GEQL-1GHZ-xxx-1 Linear Equalizers
Product Usage: Opti Max OM3101, Opti Max OM3100, Opti Max OM1111 Notes: 1. Height is 1.0", symmetrical pin spacing 2. Molded red plastic 3. Can be plugged into NPB or 10-A style sockets 4. 1 GHz "red" EQs can be used for 870 MHz bandwidth if the losses are acceptable
Ix7EQxx, Ix8EQxx Equalizers
Product Usage: Optiworx ISX3025, ISX3040 Notes: 1.
LME-87-* Linear Equalizers
Product Usage: SG4000 Legacy Product Usage: BTN2000, MBN100, MPN100, VSN200, SG1000 Notes: 1.
LME-100-* Linear Equalizers
Product Usage: SG4000 Legacy Product Usage: BTN2000, MBN100, MPN100, VSN200, SG1000 Notes: 1.
13
HFC Product Accessories Reference Guide
Picture N/A
Picture N/A
1513173 Rev C
NEQL-870-xx Linear Equalizers
Legacy Product Usage: Opti Max OM4000 Notes: 1. Height is 1.4", non-symmetrical pin spacing 2. Molded yellow plastic
NLE31xx Equalizers
Legacy Product Usage: HLN3142, HLN3142E, HLN3144 Notes: 1. 0.9" x 0.8" x 0.9"
PEQ-1G-xx Cable Equalizers
Product Usage: Flex Max FM601e-T/B/LE, Flex Max FM321e-LE Legacy Product Usage: Flex Max601 Bridger & Line Extender, Flex Max321 Note: 1. Blue plastic cover to protect components
SEQ750-xx Cable Equalizers
Product Usage: Flex Max FM901e-T/B, Flex Max FM331-LE, Opti Max OM2700 Legacy Product Usage: Flex Max901, Flex Max900, Flex Max340, Flex Max330, Flex Net800, Flex Net 700, E900, E700, LNSM7x Notes: 1. Legacy C-COR, produced with and without a white plastic cover to protect components 2. Fits in the Flex Max FM331-LE, Flex Max901, and Flex Max330 with the cover removed
SEQ862-xx Cable Equalizers
Product Usage: Flex Max FM901e-T/B, Flex Max FM331-LE, Opti Max OM2700 Legacy Product Usage: Flex Max901, Flex Max900, Flex Max340, Flex Max330, Flex Net800, E900, E700 Notes: 1. Legacy C-COR, produced with and without a white plastic cover to protect components 2. Fits in the Flex Max FM331-LE, Flex Max901, and Flex Max330 with the cover removed
SEQ-1GHz-xx Cable Equalizers
Product Usage: Flex Max FM901e-T/B, Flex Max FM331-LE, Opti Max OM2700 Legacy Product Usage: Flex Max901 Note: 1. Cannot be plugged into Flex Max 900, Flex Max340, FlexMax330 or Legacy C-COR amps due to guide pins
SFE-100 Forward Cable Equalizers
Product Usage: BLE100, MB100, MBV3, BT100, SLE100 Note: 1. STARLINE amplifiers and FFE Series Equalizers 2. Blue plastic cover to protect components
SG2-FE-*/750, SG2-FE-*/870 Forward Cable Equalizers
Legacy Product Usage: SG2000 Note: 1. 2. Blue plastic cover to protect components
T-EQ-*-Q Series Forward Cable Equalizer
Product Usage: 12000-L-PBT, BTTF*-*Q, FFT*-*Q Note: 1. 1.2 GHz Taps 2. Blue plastic cover to protect components
Picture N/A
Picture N/A
1513173 Rev C
HFC Product Accessories Reference Guide
14
Forward Path Frequency Split Upgrade Plug-ins
42/54 MHz Diplex Filter (p/n 1504997)
Product Usage: Opti Max OM2741 Legacy Product Usage: Opti Max OM2700 Notes: 1. Included in OM27-42/54-DF-UPG-KIT upgrade kit (p/n 1510549-002)
85/102 MHz Diplex Filter (p/n 1508618)
Product Usage: Opti Max OM2741 Legacy Product Usage: Opti Max OM2700 Notes: 1. Included in OM27-85/102-DF-UPG-KIT upgrade kit (p/n 1510549-001)
1508883 Series Diplex Filters
Product Usage: Opti Max OM4120, OptiMax OM6000, STARLINE BLE120, STARLINE MB120 Notes: 1. Available for 42/54, 65/85, 85/102, and 204/258 MHz splits 2. Included in 1510253 series (for OM4120/OM6000 nodes), 1513727 series (for BLE120 amps), and 1513728 series
(for MB120 amps) frequency split upgrade kits
531355 Series Diplex Filters
Product Usage: SG4000, BT100, BLE100, SLE100, MB100, MBV3 Notes: 1. Available for 42/54, 65/85, and 85/102 MHz splits 2. SG4000 only: order with 555690-001, 555692-001, or 555694-001Return Path Low-Pass Filters
54 MHz Forward Path Roll-Off Compensation Board (p/n 1508229-001)
Product Usage: Opti Max OM2741 Legacy Product Usage: Opti Max OM2700 Notes: 1. Included in OM27-85/102-DF-UPG-KIT upgrade kit (p/n 1510549-001)
102 MHz Forward Path Roll-Off Compensation Board (p/n 1508229-003)
Product Usage: Opti Max OM2741 Legacy Product Usage: Opti Max OM2700 Notes: 1. Included in OM27-85/102-DF-UPG-KIT upgrade kit (p/n 1510549-001)
530653 Series FSB Roll Off Compensation Board
Product Usage: SG4000 Notes: 1. For aligning the forward band when updating frequency splits
597696 Series Roll Off Compensation Board
Product Usage: Opti Max OM4120, Opti Max OM6000 Notes: 1. For aligning the forward band when updating frequency splits 2. Included in 1510253 series frequency split upgrade kits
1513173 Rev C
HFC Product Accessories Reference Guide
15
RETURN PATH ACCESSORIES
Return Path Attenuator Pads
10-A-L and 10-A-WC Forward/Return Attenuators
Product Usage: 10-A-WC: Flex Max FM601e T/B/LE, Flex Max FM321e-LE, , OptiMax OM1111 Legacy Product Usage: 10-A-L: GNA/TNA; 10-A-WC: Flex Max FM601 Bridger & Line Extender, Flex Max FM321, Flex Max FM320, Diamond Line I, II, & III, Opti Max OM3000, Opti Max OM1000, OptiMax OM3101, OptiMax OM3100 Notes: 1. Height is 1.15", pin spacing is 0.125" 2. 10-A-L: molded blue plastic without guide pins; 10-A-WC: molded blue plastic with guide pins 3. 10-A-WC cannot be plugged into products using NPB or Amini PADs because of guide pins 4. Same footprint as NPB and Amini PADs but may be limited by height constraints
Zero value is possible exception due to performance
9-A-S Forward/Return Attenuators
Product Usage: CHP Max5000 Single TX Legacy Product Usage: Opti Max3000 (RX only), Opti Max OM3100 (RX only) Notes: 1. Height is 0.6", pin spacing is 0.125" 2. Molded blue plastic 3. Same footprint as Amini Short PADs but may be limited by height constraints
Zero value is possible exception due to performance
Amini Attenuators
Product Usage: Flex Max FM331-LE (interstage), Legacy Product Usage: Flex Max FM222, Flex Max FM220 Plus, Flex Max FM220 Basic, Flex Max FM500, Flex Max FM400, Opti Max OM2000, Opti Max OM1220, Opti Max OM2100 Notes: 1. Height is 1.0", pin spacing is 0.125". 2. Molded orange plastic 3. Can be plugged into Legacy Philips products using 10-A-WC attenuators, but no guiding mechanism 4. Same footprint as NPB and 10-A attenuators but may be limited by height constraints
AP-40xx-L Series Forward/Return Path Attenuators
Product Usage: NC2000, NC4000 Notes: 1. Height is 1.0" 2. Molded orange plastic
JXP Forward/Return Path Attenuators
Product Usage: BLE100, MB100, MBV3, BT100, SLE100, SG4000, VSN Note: 1. Height is 1.375", pin spacing is 0.125" 2. Molded blue plastic
IPADxxx Return Path Attenuators
Legacy Product Usage: Optiworx ISX3025, ISX3040
NPB Forward/Return Path Attenuators
Product Usage: Flex Max FM901e-T/B, Flex Max FM331-LE, Opti Max OM4100, Trans Max TM4100
Legacy Product Usage: Flex Max FM901, Flex Max FM330, Flex Max FM222, Flex Max FM401, Flex Max FM220 Plus, Flex Max FM220 Basic, Opti Max OM2700, Opti Max OM2100, Opti Max OM4000
Notes: 1. Height is 1.4", pin spacing is 0.125" 2. Molded green plastic 3. Same footprint as 10-A and Amini PADs but may be limited by height constraints
16
HFC Product Accessories Reference Guide
Picture N/A
1513173 Rev C
NPD38xx Forward/Return Path Attenuators
Legacy Product Usage: HLN3142, HLN3142E, HLN3144 Note: 1. 0.75 in. long 2. Molded yellow plastic.
RPB-xxx Return Attenuators
Legacy Product Usage: FlexNet 800, FlexNet 700, E900, E700 Notes: 1. Height is 1.10", pin spacing is 0.20" 2. Molded red plastic
SPB-xxx Forward/Return Attenuators
Legacy Product Usage: Flex Max900, Flex Max340, FlexNet 800, FlexNet 700, E900, E700, LN-SM7x Notes: 1. Height is 1.10", pin spacing is 0.20" 2. Molded green plastic 3. SPB-0 can be used as a jumper in the distribution accessory location for a single output
T-RPA/*-* Series Return Path Attenuator Plug-in Modules
Product Usage: 12000-L-PBT, BTTF*-*Q, FFT*-*Q Notes: 1. Height is 1.10", pin spacing is 0.20" 2. Molded green plastic 3. SPB-0 can be used as a jumper in the distribution accessory location for a single output
Return Path Equalizers
7-REF65/x-WC, 7-REF55/x-WC, 7-REF42/x-WC Cable Equalizers
Product Usage: Flex Max FM601e-T/B/LE, Flex Max FM321e-LE Legacy Product Usage: Flex Max601 Bridger & Line Extender, Flex Max321, Flex Max320, Diamond Line I, II, & III, GNA/TNA, Opti Max1000 Notes: 1. Legacy Philips 2. Blue plastic cover to protect components
MEQ-42/MEQT-42, MEQ-55, MEQ-65, MEQ-85/MEQT-85 Cable Equalizers
Product Usage: Flex Max FM901e-T/B Legacy Product Usage: Flex Max901 Trunk & Bridger, Flex Max900, Flex Max331, Flex Max340, Flex Net800, Flex Net700, E900, E700 Note: 1. White plastic cover to protect components
ES-NLE31xx Series 1 GHz Equalizer
Legacy Product Usage: HLN3842, HLN3844
1513173 Rev C
HFC Product Accessories Reference Guide
17
REQC-42, REQC-65, REQC-85 Return Cable Equalizers
Legacy Product Usage: Flex Max FM401 Notes: 1. Height is 1.4" 2. Molded light grey plastic
SRE Return Cable Equalizers
Product Usage: BLE100, MB100, MBV3, BT100, SLE100 Notes: 1. STARLINE amplifiers 2. Blue plastic cover to protect components
Return Path Frequency Split Upgrade Plug-ins
42/54 MHz Diplex Filter (p/n 1504997)
Product Usage: Opti Max OM2741 Legacy Product Usage: Opti Max OM2700 Notes: 1. Included in OM27-42/54-DF-UPG-KIT upgrade kit (p/n 1510549-002)
85/102 MHz Diplex Filter (p/n 1508618)
Product Usage: Opti Max OM2741 Legacy Product Usage: Opti Max OM2700 Notes: 1. Included in OM27-85/102-DF-UPG-KIT upgrade kit (p/n 1510549-001)
1508883 Series Diplex Filters
Product Usage: Opti Max OM4120, OptiMax OM6000 Notes: 1. Available for 42/54, 65/85, 85/102, and 204/258 MHz splits 2. Included in 1510253 series frequency split upgrade kits
531355 Series Diplex Filters
Product Usage: SG4000, BT100, BLE100, SLE100, MB100, MBV3 Notes: 1. Available for 42/54, 65/85, and 85/102 MHz splits 2. SG4000 only: order with 555690-001, 555692-001, or 555694-001Return Path Low-Pass Filters
54 MHz Return Path Roll-Off Compensation Board (p/n 1506569-002)
Product Usage: Opti Max OM2741 Legacy Product Usage: Opti Max OM2700 Notes: 1. Included in OM27-42/54-DF-UPG-KIT upgrade kit (p/n 1510549-001)
102 MHz Return Path Roll-Off Compensation Board (p/n 1506569-004)
Product Usage: Opti Max OM2741 Legacy Product Usage: Opti Max OM2700 Notes: 1. Included in OM27-85/102-DF-UPG-KIT upgrade kit (p/n 1510549-001)
18
HFC Product Accessories Reference Guide
1513173 Rev C
555690-001, 555692-001, 555694-001 Series Return Path Low Pass Filter
Product Usage: SG4000 Notes: 1. Available for 42/54, 65/85, and 85/102 MHz splits 2. Order with 531355 Series Diplex Filters
596605 Series Return Path Low Pass Filter (RPLPF)
Product Usage: Opti Max OM4120, Opti Max OM6000 Notes: 1. Included in 1510253 series frequency split upgrade kits
MISCELLANEOUS ACCESSORIES
7-DC-x-5-1000-WC Splitters and Directional Couplers (TAPs)
Product Usage: Flex Max FM601e-T/B Legacy Product Usage: Flex Max FM601 Bridger, Flex Max FM222, Flex Max FM401, Diamond Line I & II, GNA/TNA, Opti Max OM1220, Opti Max OM2100, Opti Max OM3101 Note: 1. Blue cover to protect components and insertion guides
CM862/xx System Equalizer
Legacy Product Usage: Opti Max2000
D30/47, D42/54, D55/70, D65/85 Diplex Filters
Legacy Product Usage: Flex Max FM500, Flex Max FM400, Flex Max FM220 Plus, Opti Max OM2100, Opti Max OM2000, Opti Max OM1220, Note: 1. Blue plastic cover to protect components
G120-* Series Plug-In Equalizer Board
Product Usage: FFE-*-120*/RP Note: 1. STARLINE amplifiers 2. Directional Coupler and Splitter Plugin 3. Blue plastic cover to protect components
Ingress Noise Filter
Product Usage: Flex Max FM901e-T/B, Flex Max FM601e-T/B/LE Legacy Product Usage: Flex Max901, Flex Max900, Flex Max601 Bridger & Line Extender, Flex Max222 , Flex Max220 Basic, Flex Max220 Plus, FlexNet 800, FlexNet 700, Flex Max500, Flex Max400, Opti Max4000, Opti Max3000, Opti Max1000 Notes: 1. Height is 1.182", pin spacing is 0.125" 2. Accessory for return attenuator (PAD) plug-in locations 3. In some cases, the ingress filter may have to be inserted or removed with needlenose pliers
1513173 Rev C
HFC Product Accessories Reference Guide
19
SP-120, DC-120/* Distribution Accessories
Product Usage: MB100, MB120 Notes: 1. Supports 1 GHz and 1.2 GHz operation 2. Directional Coupler and Splitter Plugin 3. Blue plastic cover to protect components
SS/SDC-1000-xx Distribution Accessories
Product Usage: Flex Max FM901e-T/B, Legacy Product Usage: Flex Max901, Flex Max 900, , FlexNet 700, FlexNet800, LN-SM3x, LN-SM7x, Opti Max OM2700 Notes: 1. Legacy C-COR 2. White plastic cover to protect components
PADS (ATTENUATORS) SPECIFICATIONS
PADs provide flat loss attenuation of RF signal across the entire passband. They are used in conjunction with equalizers to achieve proper amplifier forward output levels and return input levels. These PADs also have a fixed insertion loss regardless of frequency. SEQPB series PADs are PADs on an equalizer footprint and only work in the forward path. Amini series attenuators can be used in cabinet-mount equipment as both an attenuator and an equalizer depending upon the plug-in location.
Table 12 9-A-S Series Forward/Return PAD Attenuators Specifications
Model
P/N
5�1002 MHz Flat Loss (dB)
9-A0-S
752501
0.0
9-A1-S
752509
1.0
9-A2-S
752515
2.0
9-A3-S
752520
3.0
9-A4-S
752523
4.0
9-A5-S
752526
5.0
9-A6-S
752529
6.0
9-A7-S
752533
7.0
9-A8-S
752537
8.0
9-A9-S
752541
9.0
9-A10-S
752545
10.0
Return Loss I/O @ 1000MHz: 20/20dB min.
Passband Flatness (dB)
� 0.5 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2
Model
9-A11-S 9-A12-S 9-A13-S 9-A14-S 9-A15-S 9-A16-S 9-A17-S 9-A18-S 9-A19-S 9-A-TERM-S
P/N
752548 752550 752554 752558 752561 752564 752566 752568 752571 752587
5�1002 MHz Flat Loss (dB)
11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 terminator
Passband Flatness (dB)
� 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2
--
Specification Document Number 871371
20
HFC Product Accessories Reference Guide
1513173 Rev C
Table 13 10-A-L/10-A-WC Series Forward/Return PAD Attenuators Specifications
Model
P/N
10-A0.0-L 10-A1.0-L 10-A2.0-L 10-A3.0-L 10-A4.0-L 10-A5.0-L 10-A6.0-L 10-A7.0-L 10-A8.0-L 10-A9.0-L 10-A10.0-L 10-A11.0-L 10-A12.0-L 10-A13.0-L 10-A14.0-L 10-A15.0-L 10-A16.0-L 10-A17.0-L 10-A18.0-L 10-A19.0-L 10-A20.0-L 10-A21.0-L 10-A22.0-L 10-A23.0-L 10-A24.0-L 10-A25.0-L 10-A26.0-L
725816 726034 725852 725897 725832 725864 725964 725975 725880 725939 725901 725900 725881 725881 726036 726037 726038 726039 726040 726041 725436 725321 725490 725755 726042 725328 725644
5�1002 MHz Flat Loss (dB)
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 24.0 25.0 26.0
Passband Flatness (dB)
� 0.5 � 0.1 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2 � 0.2
Return Loss I/O @ 1000MHz: 20/20 dB min.
Model
P/N
10-A0.0-WC 10-A1.0-WC 10-A2.0-WC 10-A3.0-WC 10-A4.0-WC 10-A5.0-WC 10-A6.0-WC 10-A7.0-WC 10-A8.0-WC 10-A9.0-WC 10-A10.0-WC 10-A11.0-WC 10-A12.0-WC 10-A13.0-WC 10-A14.0-WC 10-A15.0-WC 10-A16.0-WC 10-A17.0-WC 10-A18.0-WC 10-A19.0-WC 10-A20.0-WC 10-A21.0-WC 10-A22.0-WC 10-A23.0-WC 10-A24.0-WC 10-A25.0-WC 10-A26.0-WC 10-A-TERM-WC
725464 725467 725463 725465 725468 725469 725466 725470 725667 725657 726033 725658 725659 725660 725661 725662 725663 725664 725665 725666 725461 725825 725962 725860 725830 726043 726044
5�1002 MHz Flat Loss (dB)
Passband Flatness (dB)
0.0
� 0.5
1.0
� 0.1
2.0
� 0.2
3.0
� 0.2
4.0
� 0.2
5.0
� 0.2
6.0
� 0.2
7.0
� 0.2
8.0
� 0.2
9.0
� 0.2
10.0
� 0.2
11.0
� 0.2
12.0
� 0.2
13.0
� 0.2
14.0
� 0.2
15.0
� 0.2
16.0
� 0.2
17.0
� 0.2
18.0
� 0.2
19.0
� 0.2
20.0
� 0.2
21.0
� 0.2
22.0
� 0.2
23.0
� 0.2
24.0
� 0.2
25.0
� 0.2
26.0
� 0.2
terminator
--
Specification Document Number 871371
1513173 Rev C
HFC Product Accessories Reference Guide
21
Table 14 Amini PAD Attenuators Specifications
Model
P/N
Atten. 5�862MHz Flat Loss in dB
Forward Path EQ, 65/85MHz Insertion Loss in dB at Frequency (MHz)
EQ Value in dB
Return Path EQ, 65/85 MHz Insertion Loss in dB at Frequency (MHz)
85
862
5
65
Amini-0
724428
0.0
0.0
0.0
0.0
0.0
0.0
Amini-1
724423
1.0
.98
.23
.75
.99
.03
Amini-2 Amini-3
724558 724601
2.0
1.92
.40
1.52
1.97
.04
3.0
2.87
.51
2.36
2.94
.06
Amini-4
724632
4.0
4.06
.56
3.50
4.16
.08
Amini-5 Amini-6
724680 724627
5.0
4.81
.59
4.22
4.90
.09
6.0
5.82
.62
5.20
5.95
.10
Amini-7
724697
7.0
6.67
.62
6.05
6.84
.11
Amini-8 Amini-9 Amini-10
724689 724766 724769
8.0 9.0 10.0
7.67 8.58 9.49
.62
7.05
7.83
.12
.60
7.98
8.80
.13
.59
8.90
9.73
.14
Amini-11 Amini-12 Amini-13
724841 724800 724925
11.0 12.0 13.0
10.40 11.34 12.26
.60
9.80
10.68
.14
.58
10.76
11.61
.15
.56
11.70
12.57
.15
Amini-14 Amini-15 Amini-16
724865 724889 724906
14.0 15.0 16.0
13.11 13.99 14.88
.55
12.56
13.42
.16
.55
13.44
14.30
.16
.61
14.27
15.18
.17
Amini-17 Amini-18 Amini-19
725037 724943 724996
17.0
--
--
--
--
--
18.0
--
--
--
--
--
19.0
--
--
--
--
--
Amini-20 724957
20.0
--
--
--
--
--
Amini plug-ins can be used as both PADs and EQs in the Forward Path in the FM220 Basic and FM222 Amplifiers.
All in orange plastic.
EQ Value in dB
0.0 .96 1.93 2.88 4.08 4.81 5.85 6.73 7.71 8.67 9.59 10.54 11.46 12.42 13.26 14.14 15.01 -- -- -- --
Table 15 Amini Short PAD Attenuators Specifications
P/N
PAD Value
P/N
PAD Value
P/N
PAD Value
P/N
725258
0.0
725455
6.0
724672
12.0
725919
725982
0.5
725972
6.5
726150
12.5
725857
725983
1.0
725990
7.0
724734
13.0
725976
725828
1.5
725991
7.5
725940
13.5
725804
725984
2.0
725020
8.0
724760
14.0
725956
725826
2.5
725992
8.5
725923
14.5
725859
725985
3.0
724802
9.0
724693
15.0
725902
725986
3.5
725936
9.5
725840
15.5
725935
725987
4.0
724615
10.0
725906
16.0
725915
725931
4.5
725993
10.5
725961
16.5
725916
725988
5.0
724678
11.0
725812
17.0
725894
725989
5.5
725783
11.5
725819
17.5
Amini Shorts are used in the CHP Max5000 Dual Input Transmitter and should be inserted with needle-nose pliers.
All in orange plastic.
PAD Value
18.0 18.5 19.0 19.5 20.0 20.5 21.0 21.5 22.0 22.5 23.0
22
HFC Product Accessories Reference Guide
1513173 Rev C
Table 16 AP40xx Series Forward/Return Path PAD Attenuators Specifications
Model/ Part Number
AP4000-L AP4001-L AP4002-L AP4003-L AP4004-L AP4005-L AP4006-L AP4007-L AP4008-L AP4009-L AP4010-L Frequency Range: 5 to 1200 MHz Impedance: 75 ohm Return Loss: 20 dB (min.) All in orange plastic.
dB Value (�0.3 dB)
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0
Model
AP4011-L AP4012-L AP4013-L AP4014-L AP4015-L AP4016-L AP4017-L AP4018-L AP-4075
dB Value (�0.3 dB)
11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 75 ohm termination
Table 17 Bridge and A862 Attenuators Specifications
Model
P/N
PAD Value
Bridge (A862/0)
724739
0
A862/02
725444
2
A862/04
725672
4
A862/05
778925
5
A862/06
725218
6
A862/08
725641
8
A862/10
725868
10
Dimensions, L x H: 30 x 37.7mm. All in blue plastic.
Flatloss 5�862MHz
0 2 4 5 6 8 10
Passband Flatness
� 0.15 dB � 0.15 dB � 0.15 dB � 0.15 dB � 0.15 dB � 0.15 dB � 0.15 dB
Model
JXP-0B-R JXP-1B-R JXP-2B-R JXP-3B-R JXP-4B-R
Table 18 JXP Series Forward/Return PAD Attenuators Specifications
Part Number
531186-001-00 531186-002-00 531186-003-00 531186-004-00 531186-005-00
5-1000 MHz Flat Loss 0 1 2 3 4
Passband Flatness �0.5dB �0.5dB �0.5dB �0.5dB �0.5dB
Model
Part Number
JXP-14B-R JXP-15B-R JXP-16B-R JXP-17B-R JXP-18B-R
531186-015-00 531186-016-00 531186-017-00 531186-018-00 531186-019-00
5-1000 MHz Flat Loss 14 15 16 17 18
Passband Flatness
�0.5dB �0.5dB �0.5dB �0.5dB �0.5dB
1513173 Rev C
HFC Product Accessories Reference Guide
23
Model
JXP-5B-R JXP-6B-R JXP-7B-R JXP-8B-R JXP-9B-R JXP-10B-R JXP-11B-R JXP-12B-R JXP-13B-R
Table 18 JXP Series Forward/Return PAD Attenuators Specifications
Part Number
531186-006-00 531186-007-00 531186-008-00 531186-009-00 531186-010-00 531186-011-00 531186-012-00 531186-013-00 531186-014-00
5-1000 MHz Flat Loss 5 6 7 8 9 10 11 12 13
Passband Flatness �0.5dB �0.5dB �0.5dB �0.5dB �0.5dB �0.5dB �0.5dB �0.5dB �0.5dB
Model
Part Number
JXP-19B-R JXP-20B-R JXP-21B-R JXP-22B-R JXP-23B-R JXP-24B-R JXP-25B-R JXP-26B-R
531186-020-00 531186-021-00 531186-022-00 531186-023-00 531186-024-00 531186-025-00 531186-026-00 531186-027-00
(cont'd)
5-1000 MHz Flat Loss 19 20 21 22 23 24 25 26
Passband Flatness
�0.5dB �0.5dB �0.5dB �0.5dB �0.5dB �0.5dB �0.5dB �0.5dB
Table 19 NPB Series Forward/Return Path PAD Attenuators Specifications
Model/Part Number
NPB-000 NPB-005 NPB-010 NPB-015 NPB-020 NPB-025 NPB-030 NPB-035 NPB-040 NPB-045 NPB-050 NPB-060 NPB-070 NPB-080 NPB-090 NPB-100 NPB-110 NPB-120 NPB-130 NPB-140 NPB-150 NPB-160 NPB-170 NPB-180 NPB-190 NPB-200 NPB-750
5�1200 MHz Flat Loss (dB)
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 terminator
24
HFC Product Accessories Reference Guide
Passband Flatness (dB)
� 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 � 0.15 N/A
1513173 Rev C
Table 19 NPB Series Forward/Return Path PAD Attenuators Specifications
Model/Part Number
5�1200 MHz Flat Loss (dB)
Flatness measured relative to a straight line at the listed dB value. Return Loss: 20 dB (5�1003 MHz); 25 dB (5�1250 MHz) Impedance: 75 ohm Temperature Range: �40�C to 85�C (�40�F to 185�F) All in green plastic.
(cont'd) Passband Flatness (dB)
Table 20 NPD38xx Series Forward/Return Path PAD Attenuators Specifications
Model/Part Number
NPD3806 NPD3807 NPD3808 NPD3809 NPD3810 NPD3811 NPD3812 NPD3813
5�1002 MHz Flat Loss (dB)
6 7 8 9 10 11 12 13
Model/Part Number
NPD3814 NPD3815 NPD3816 NPD3817 NPD3818 NPD3819 NPD3820 NPD3875
5�1002 MHz Flat Loss (dB)
14 15 16 17 18 19 20 Terminator
Table 21 RPB Series Return PAD Attenuators (reverse SPB-style PAD) Specifications
Model
P/N
RPB-21 RPB-22 RPB-23
726092 762235 762236
Passband Flatness: �0.3dB Return Loss I/O: 25/25dB min. All in red plastic.
5�200MHz Flat Loss (dB)
21.0 22.0 23.0'
Model
RPB-24 RPB-25
P/N
762237 762238
5�200MHz Flat Loss (dB)
24.0 25.0
Specification Document Number 600701
1513173 Rev C
HFC Product Accessories Reference Guide
25
Table 22 SEQPB Series EQ Form Factor PAD Attenuators Specifications
Model
P/N
5�1002MHz Flat Loss (dB)
SEQPB-1000-01 725614
1.0
SEQPB-1000-02 762134
2.0
SEQPB-1000-03 762135
3.0
SEQPB-1000-04 762136
4.0
SEQPB-1000-05 726083
5.0
Passband Flatness: �0.3dB Return Loss I/O:
19/19dB min. (SEQPB-01 to 06) 18.5/18.5dB min. (SEQPB-07 to 010) Slope: �0.2 to �0.7dB
Model
SEQPB-1000-06 SEQPB-1000-07 SEQPB-1000-08 SEQPB-1000-09 SEQPB-1000-10
P/N
5�1002MHz Flat Loss (dB)
762137
6.0
762138
7.0
726084
8.0
726085
9.0
762139
10.0
Specification Document Number 600668
Table 23 SPB Series Forward/Return PAD Attenuators Specifications
Model P/N
5�1002 MHz Flat Loss (dB)
SPB-0 162260-00
0.0
SPB-0.5 162260-005
0.5
SPB-1 162260-01
1.0
SPB-1.5 162260-015
1.5
SPB-2 162260-02
2.0
SPB-2.5 162260-025
2.5
SPB-3 162260-03
3.0
SPB-3.5 162260-035
3.5
SPB-4 162260-04
4.0
SPB-4.5 162260-045
4.5
SPB-5 162260-05
5.0
SPB-5.5 162260-055
5.5
SPB-6 162260-06
6.0
SPB-6.5 162260-065
6.5
Passband Flatness: �0.3dB Return Loss I/O: 19/19dB min. All in green plastic.
Model
SPB-7 SPB-7.5 SPB-8 SPB-8.5 SPB-9 SPB-9.5 SPB-10 SPB-10.5 SPB-11 SPB-11.5 SPB-12 SPB-12.5 SPB-13 SPB-13.5
P/N
162260-07 162260-075 162260-08 162260-085 162260-09 162260-095 162260-10 162260-105 162260-11 162260-115 162260-12 162260-125 162260-13 162260-135
5�1002 MHz Flat Loss (dB)
7.0 7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5 12.0 12.5 13.0 13.5
Model
P/N
SPB-14 SPB-14.5 SPB-15 SPB-15.5 SPB-16 SPB-16.5 SPB-17 SPB-17.5 SPB-18 SPB-18.5 SPB-19 SPB-19.5 SPB-20
162260-14 162260-145 162260-15 162260-155 162260-16 162260-165 162260-17 162260-175 162260-18 162260-185 162260-19 162260-195 162260-20
5�1000 MHz Flat Loss (dB)
14.0 14.5 15.0 15.5 16.0 16.5 17.0 17.5 18.0 18.5 19.0 19.5 20.0
Specification Document Number 600437
L
Table 24 Thermal PAD Attenuators Specifications
P/N
PAD Value
753116
3 dB
Passband Flatness: �0.25dB Return Loss I/O: 17/17dB min. Insertion Loss@1002 MHz: �3.20 �0.25 dB Covers are all in blue plastic.
P/N 797584 (w/o cover)
PAD Value 3 dB
Specification Document Number 1503649
26
HFC Product Accessories Reference Guide
1513173 Rev C
Table 25 T-RPA/*-* Series Return Path Attenuator Plug-in Modules Specifications
Specification
Freq T-RPA/42-2 T-RPA/42-4 T-RPA/42-6 T-RPA/42-8 T-RPA/42-10 T-RPA/42-12 T-RPA/42-14 T-RPA/42-16 T-RPA/42-18 (MHz)
Return
5�42
2.5
4.5
6.5
8.5
10.5
12.5
14.5
16.5
18.5
Attenuation
(dB nominal)
Tolerance
5�30
1.0
1.0
1.0
1.0
1.0
1.4
1.6
1.6
2.1
(� dB max.)
31�42
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.5
2.5
Drop Insertion
54
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
Loss1
100
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
(dB max.)
300
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
550
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
750
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
870
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
1000
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
1218
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
1The insertion loss specifications shown are in addition to the nominal tap value loss.
Specification
Freq T-RPA/85-2 T-RPA/852-4 T-RPA/85-6 T-RPA/85-8 T-RPA/85-10 T-RPA/85-12 T-RPA/85-14 T-RPA/85-16 T-RPA/85-18 (MHz)
Return
5�85
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
Attenuation
(dB nominal)
Tolerance
5�50
1.5
1.5
1.5
1.5
1.5
1.5
1.8
2.0
2.0
(� dB max.)
51�80
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
Drop Insertion
104
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
Loss1
106
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
(dB max.)
300
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
550
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
750
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
870
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
1000
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1218
1.0
1.0
1.0
1.0
1.0
1.2
1.2
1.2
1.2
1The insertion loss specifications shown are in addition to the nominal tap value loss.
1513173 Rev C
HFC Product Accessories Reference Guide
27
NOISE FILTER SPECIFICATIONS
The Return Ingress Noise Filter is an ARRIS RF accessory for return attenuator (PAD) plug-in locations. This accessory not only suppresses signals below 10 MHz with at least 30 dB of attenuation but also passes signals above 15 MHz with minimal insertion loss. Ingress noise represents one of the major disturbances that affect upstream data transmission in broadband networks. This high pass filter prevents narrowband AM modulation carriers, such as short-wave radio signals, and any other interference from being introduced into the return path via an external source. Managing ingress noise in the return plant is crucial for data carrier performance, especially in broadband networks in which the return path is increasingly used for advanced services including video on demand and voice over IP. The ARRIS Return Ingress Noise Filter is a small, simple, yet vital component for implementing these services.
Table 26 Return Ingress Noise Filter 15 MHz (P/N 724577) Specifications
Characteristic
RF impedance, Bandwidth, MHz Insertion Loss, dB
15�20 MHz 20�200 MHz Return Loss, dB min. Stop Band Bandwidth, MHz Attenuation, dB Physical and Environmental Characteristics Dimensions (w x h x d), mm Connector Temperature, �C Humidity, % Relative Humidity In some cases, the ingress filter may have to be inserted or removed with needlenose pliers.
Specification 75 15�200
< 1.50 < 1.00 -18
5�10 30
11 x 30 x 5 3 pin plug-in �40 to 85 5�95
Specification Document Number KR012940
Table 27 FM401 Return Ingress Noise Filter 15 MHz (P/N 789307) Specifications
Characteristic
RF impedance, Bandwidth, MHz Insertion Loss, dB
15�20 MHz 20�200 MHz Return Loss, dB min. Stop Band Bandwidth, MHz Attenuation, dB In some cases, the ingress filter may have to be inserted or removed with needlenose pliers.
Specification 75 15�200
< 1.50 < 1.00 -18
5�10 30
Specification Document Number 1505819
28
HFC Product Accessories Reference Guide
1513173 Rev C
PLUG-IN EQUALIZERS SPECIFICATIONS
Plug-in equalizers are available as either linear equalizers or cable equalizers, both of which provide attenuation of RF signals with the greatest attenuation occurring at the lowest rated frequency. Linear equalizers provide linear attenuation, while cable equalizers provide sloped attenuation. EQLs, EQ21xxEs, GEQLS, EQ21xxGs, EQ21xxs, NEQLs, and 7-TG862-WCs are linear equalizers. SEQs, 7-2E862/x-WCs, MEQs, MEQTs, and T-EQ-*s are cable equalizers. Equalizers are available as both fixed (GEQL, NEQL, SEQ, 7-TG-862-WC, and 7-2E862/x-WC, and MEQ series) or thermal (MEQT series). All except the MEQ and MEQT series provide equalization in the forward path. Thermal equalizers provide level control in addition to equalization by slope-compensated insertion loss that changes with temperature for the amount of cable equalized.
Model
1300847 861020 861022 861024 1500944
Table 28 1GHz Equalizer for CHP MaxTM Headend Optics Platform Specifications
P/N
758805 725106 725107 725000 725291
Value
0 0.5 1.0 1.5 3.0
Table 29 7-2E862/x-WC Forward Path Cable Equalizers Specifications
Model
7-2E862/1-WC 7-2E862/2-WC 7-2E862/3-WC 7-2E862/4-WC 7-2E862/5-WC 7-2E862/6-WC 7-2E862/7-WC 7-2E862/8-WC 7-2E862/9-WC 7-2E862/10-WC 7-2E862/11-WC 7-2E862/12-WC 7-2E862/13-WC 7-2E862/14-WC 7-2E862/15-WC 7-2E862/16-WC 7-2E862/17-WC 7-2E862/18-WC 7-2E862/19-WC 7-2E862/20-WC 7-2E862/21-WC 7-2E862/22-WC
P/N
2500808 2500809 2500810 2500811 2500812 2500813 2500814 2500815 2500816 2500817 2500818 2500819 2500820 2500821 2500822 2500823 2500824 2500825 2500981 2500978 2500982 2500983
Insertion Loss in dB at Frequency (MHz)
54
70
85
450
550
650
750
870
1.3
1.2
1.2
0.8
0.7
0.6
0.6
0.5
2.0
2.0
1.9
1.1
0.9
0.8
0.7
0.5
2.8
2.7
2.6
1.4
1.2
0.9
0.7
0.5
3.6
3.5
3.4
1.7
1.4
1.1
0.8
0.5
4.4
4.2
4.1
2.0
1.6
1.2
0.9
0.5
5.1
5.0
4.8
2.3
1.8
1.4
1.0
0.5
5.9
5.7
5.5
2.6
2.1
1.5
1.0
0.5
6.7
6.4
6.2
2.9
2.3
1.7
1.1
0.5
7.4
7.2
6.9
3.2
2.5
1.8
1.2
0.5
8.2
7.9
7.6
3.5
2.7
2.0
1.3
0.4
9.0
8.7
8.4
3.8
2.9
2.1
1.3
0.4
9.8
9.4
9.1
4.1
3.2
2.3
1.4
0.4
10.5
10.1
9.8
4.4
3.4
2.4
1.5
0.4
11.3
10.9
10.5
4.8
3.6
2.6
1.6
0.4
12.1
11.6
11.2
5.1
3.8
2.7
1.6
0.4
13.1
12.6
12.2
5.6
4.3
3.1
2.0
0.7
13.9
13.4
12.9
5.9
4.5
3.2
2.0
0.7
14.6
14.1
13.6
6.2
4.8
3.4
2.1
0.7
15.4
14.8
14.3
6.5
5.0
3.5
2.2
0.7
16.2
15.6
15.0
6.8
5.2
3.7
2.3
0.6
17.0
16.3
15.7
7.1
5.4
3.8
2.3
0.6
17.7
17.1
16.5
7.4
5.6
4.0
2.4
0.6
1513173 Rev C
HFC Product Accessories Reference Guide
29
Table 29 7-2E862/x-WC Forward Path Cable Equalizers Specifications
Model
7-2E862/23-WC 7-2E862/24-WC 7-2E862/25-WC 7-2E862/26-WC
P/N
2500979 2500984 2500985 2500980
54
18.5 19.3 20.1 20.8
70
17.8 18.6 19.3 20.0
Insertion Loss in dB at Frequency (MHz)
85
450
550
650
17.2
7.7
5.9
4.1
17.9
8.0
6.1
4.3
18.6
8.3
6.3
4.4
19.3
8.6
6.5
4.6
(cont'd)
750
870
2.5
0.6
2.6
0.6
2.6
0.6
2.7
0.6
Table 30 7-REF42/x-WC Return Cable Equalizers Specifications
Model
P/N
PAD Value
Insertion Loss in dB at Frequency (MHz)
7-REF42/1-WC 724826 7-REF42/2-WC 724727 7-REF42/3-WC 724897 7-REF42/4-WC 724819 7-REF42/5-WC 724951 7-REF42/6-WC 724872 7-REF42/7-WC 724866 7-REF42/8-WC 724881 7-REF42/9-WC 725029 All in blue plastic.
5
7
13
19
25
33
42
1
1.4
1.3
1.1
1.0
0.9
0.8
0.7
2
1.8
1.7
1.4
1.1
1.0
0.8
0.7
3
2.6
2.4
2.0
1.6
1.4
1.0
0.7
4
3.4
3.1
2.6
2.2
1.7
1.2
0.7
5
4.1
3.7
3.1
2.5
2.0
1.4
0.7
6
4.6
4.1
3.4
2.7
2.2
1.3
0.7
7
5.3
5.0
4.0
3.2
2.4
1.5
0.7
8
6.0
5.4
4.2
3.5
2.6
1.6
0.7
9
6.6
5.8
4.7
3.7
2.7
1.7
0.7
Table 31 7-REF55/x-WC Return Cable Equalizers Specifications
Model
P/N
PAD Value
Insertion Loss in dB at Frequency (MHz)
5
7
13
19
25
33
42
49
55
7-REF55/1-WC 762590
1
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
7-REF55/2-WC 762591
2
1.8
1.7
1.5
1.3
0.9
0.7
0.6
0.5
0.4
7-REF55/3-WC 762592
3
2.3
2.2
1.8
1.5
1.3
0.9
0.6
0.3
0.4
7-REF55/4-WC 762593
4
3.3
3.0
2.6
2.2
1.8
1.4
1.0
0.8
0.5
7-REF55/5-WC 762594
5
4.1
3.8
3.2
2.7
2.2
1.7
1.2
0.9
0.5
7-REF55/6-WC 762595
6
4.8
4.4
3.7
3.0
2.5
2.0
1.3
0.9
0.5
7-REF55/7-WC 762596
7
5.2
4.8
3.9
3.2
2.7
2.1
1.4
1.0
0.5
7-REF55/8-WC 762597
8
6.2
5.7
4.7
4.0
3.2
2.4
1.6
1.0
0.6
7-REF55/9-WC 762598
9
6.9
6.3
5.3
4.4
3.5
2.7
1.8
1.3
0.6
7-REF55/10-WC 762599
10
7.6
7.0
5.7
4.8
3.7
2.9
1.9
1.3
0.6
All in blue plastic.
30
HFC Product Accessories Reference Guide
1513173 Rev C
Table 32 7-REF65/x-WC Return Cable Equalizers Specifications
Model
P/N
PAD Value
Insertion Loss in dB at Frequency (MHz)
7-REF65/1-WC 725750
1
7-REF65/2-WC 725785
2
7-REF65/3-WC 726028
3
7-REF65/4-WC 725677
4
7-REF65/5-WC 762600
5
7-REF65/6-WC 726029
6
7-REF65/7-WC 726030
7
7-REF65/8-WC 726031
8
7-REF65/9-WC 762601
9
7-REF65/10-WC 762602
10
7-REF65/11-WC 762603
11
All in blue plastic.
5
8
20
29
36
42
56
63
65
1.3
1.2
1.0
0.9
0.8
0.7
0.6
0.6
0.6
2.1
1.9
1.5
1.3
1.2
1.0
0.7
0.7
0.6
2.7
2.5
2.2
1.9
1.5
1.1
0.7
0.7
0.6
3.5
3.2
2.7
2.4
1.9
1.3
0.8
0.7
0.6
4.2
3.8
3.2
2.5
2.1
1.5
0.9
0.7
0.6
4.8
4.1
3.2
2.8
2.2
1.6
1.1
0.7
0.6
5.8
5.3
3.9
3.0
2.5
2.1
1.3
0.9
0.6
6.5
5.8
4.2
3.6
2.7
2.2
1.3
1.0
0.6
6.9
6.2
5.0
3.8
3.0
2.2
1.4
1.0
0.6
8.0
7.1
5.2
1.0
3.2
2.7
1.5
1.0
0.6
8.6
7.9
5.6
4.4
3.4
2.8
1.5
1.0
0.6
Table 33 7-REF85/x-WC Return Cable Equalizers Specifications
Model
P/N
PAD Value
Insertion Loss in dB at Frequency (MHz)
5
8
20
29
36
42
56
63
65
7-REF85/1-WC 787588
1
1.3
1.2
1.0
0.9
0.8
0.7
0.6
0.6
0.6
7-REF85/2-WC 787589
2
2.1
1.9
1.5
1.3
1.2
1.0
0.7
0.7
0.6
7-REF85/3-WC 787590
3
2.7
2.5
2.2
1.9
1.5
1.1
0.7
0.7
0.6
7-REF85/4-WC 787591
4
3.5
3.2
2.7
2.4
1.9
1.3
0.8
0.7
0.6
7-REF85/5-WC 787592
5
4.2
3.8
3.2
2.5
2.1
1.5
0.9
0.7
0.6
7-REF85/6-WC 787593
6
4.8
4.1
3.2
2.8
2.2
1.6
1.1
0.7
0.6
7-REF85/7-WC 787594
7
5.8
5.3
3.9
3.0
2.5
2.1
1.3
0.9
0.6
7-REF85/8-WC 787595
8
6.5
5.8
4.2
3.6
2.7
2.2
1.3
1.0
0.6
All in blue plastic.
Model
7-TG862/5-WC 7-TG862/6-WC 7-TG862/7-WC 7-TG862/8-WC 7-TG862/9-WC 7-TG862/10-WC
Table 34 7-TG862-WC Series Linear Equalizers Specifications
P/N
724909 725727 725457 725410 725575 725575
Insertion Loss in dB at Frequency (MHz)
50
862
5.0
1.0
6.0
1.0
7.0
1.0
8.0
1.0
9.0
1.0
10.0
1.0
Tilt in dB
45 to 890MHz
5.20 6.24 7.28 8.33 9.37 10.41
1513173 Rev C
HFC Product Accessories Reference Guide
31
Table 34 7-TG862-WC Series Linear Equalizers Specifications
(cont'd)
Model
P/N
7-TG862/11-WC
725605
7-TG862/12-WC
725515
7-TG862/13-WC
725476
7-TG862/14-WC
725737
7-TG862/15-WC
725820
Passband Flatness: �0.2dB
Return loss I/O: 18/18dB min.
Insertion Loss in dB at Frequency (MHz)
50
862
11.0
1.0
12.0
1.0
11.0
1.0
12.0
1.0
11.0
1.0
Tilt in dB
45 to 890MHz 11.45 12.49 13.52 14.57 15.61
Specification Document Number 871539
Table 35 CBSM-1GHz Series Cable Equalizers Specifications
Picture N/A
Model
P/N
CBSM-1G-03 728226 CBSM-1G-05 728227 CBSM-1G-07 728228 CBSM-1G-09 728229 Return Loss I/O: 22/22dB min. Tolerance: �0.3dB
Insertion Loss in dB at Frequency (MHz)
47
100
200
300
400
500
600
700
800
900 1000
0.80 1.04 1.36 1.61 1.83 3.02 2.19 2.36 2.51 2.66 2.80 0.80 1.28 1.92 2.42 2.85 3.24 3.59 3.92 4.22 4.52 4.80 0.80 1.51 2.48 3.23 3.88 4.45 4.98 5.47 5.94 6.37 6.80 0.80 1.75 3.03 4.04 4.90 5.67 6.38 7.03 7.65 8.23 8.80
Specification Document Number 1505004
Part Number
CE-120-1 CE-120-2 CE-120-3 CE-120-4 CE-120-5 CE-120-6 CE-120-7 CE-120-8 CE-120-9 CE-120-10 CE-120-11
Table 36 CE-120-* 1.2 GHz Forward Cable Equalizer Specifications
Insertion Loss Over Frequency
Frequency (dB)
54 MHz
70 MHz
86 MHz
105 MHz
1
�1.7 �1.7 �1.6 �1.6
2
�2.7 �2.6 �2.6 �2.5
3
�3.7 �3.6 �3.5 �3.4
4
�4.7 �4.6 �4.5 �4.3
5
�5.7 �5.5 �5.2 �5.2
6
�6.7 �6.5 �6.3 �6.1
7
�7.7 �7.5 �7.3 �7.0
8
�8.7 �8.4 �8.2 �8.0
9
�9.7 �9.4 �9.2 �8.9
10
�10.7 �10.4 �10.1 �9.8
11
�11.7 �11.3 �11.0 �10.7
204 MHz
�1.5 �2.2 �3.0 �3.8 �4.6 �5.3 �6.1 �6.9 �7.7 �8.4 �9.2
258 MHz
�1.4 �2.1 �2.8 �3.6 �4.3 �5.0 �5.7 �6.4 �7.1 �7.8 �8.5
550 MHz
�1.1 �1.6 �2.0 �2.5 �2.9 �3.4 �3.8 �4.3 �4.7 �5.2 �5.6
600 MHz
�1.1 �1.5 �1.9 �2.3 �2.7 �3.2 �3.6 �4.0 �4.4 �4.8 �5.2
650 MHz
�1.1 �1.4 �1.8 �2.2 �2.6 �2.9 �3.3 �3.7 �4.0 �4.4 �4.8
750 MHz
�1.0 �1.3 �1.6 �1.9 �2.2 �2.5 �2.8 �3.1 �3.4 �3.7 �4.0
870 MHz
�0.9 �1.1 �1.4 �1.6 �1.8 �2.0 �2.2 �2.4 �2.7 �2.9 �3.1
1002 MHz
�0.8 �1.0 �1.1 �1.2 �1.4 �1.5 �1.6 �1.8 �1.9 �2.0 �2.1
1100 MHz
�0.8 �0.8 �0.9 �1.0 �1.1 �1.1 �1.2 �1.3 �1.3 �1.4 �1.5
1218 MHz
�0.7 �0.7 �0.7 �0.7 �0.7 �0.7 �0.7 �0.7 �0.7 �0.7 �0.7
32
HFC Product Accessories Reference Guide
1513173 Rev C
Part Number
CE-120-12 CE-120-13 CE-120-14 CE-120-15 CE-120-16 CE-120-17 CE-120-18 CE-120-19 CE-120-20
Table 36 CE-120-* 1.2 GHz Forward Cable Equalizer Specifications
Insertion Loss Over Frequency
Frequency (dB)
54 MHz
70 MHz
86 MHz
105 MHz
204 MHz
258 MHz
12
�12.7 �12.3 �12.0 �11.6 �10.0 �9.3
13
�13.7 �13.3 �12.9 �12.5 �10.8 �10.0
14
�14.7 �14.3 �13.8 �13.4 �11.5 �10.7
15
�15.7 �15.2 �14.8 �14.3 �12.3 �11.4
16
�16.7 �16.2 �15.7 �15.2 �13.1 �12.1
17
�17.7 �17.2 �16.7 �16.1 �13.8 �12.8
18
�18.7 �18.1 �17.6 �17.0 �14.6 �13.5
19
�19.7 �19.1 �18.5 �17.9 �15.4 �14.2
20
�20.7 �20.1 �19.5 �18.8 �16.2 �15.0
550 MHz
�6.1 �6.5 �7.0 �7.4 �7.9 �8.3 �8.8 �9.2 �9.7
600 MHz
�5.6 �6.0 6.4 �6.8 �7.2 �7.7 �8.1 �8.5 �8.9
650 MHz
�5.2 �5.5 �5.9 �6.3 �6.6 �7.0 �7.4 �7.8 �8.1
750 MHz
�4.3 �4.6 �4.9 �5.2 �5.5 �5.8 �6.1 �6.4 �6.7
(cont'd)
870 MHz
�3.3 �3.5 �3.7 �4.0 �4.2 �4.4 �4.6 �4.8 �5.0
1002 MHz
�2.3 �2.4 �2.5 �2.7 �2.8 �2.9 �3.1 �3.2 �3.3
1100 MHz
�1.5 �1.6 �1.7 �1.8 �1.8 �1.9 �2.0 �2.0 �2.1
1218 MHz
�0.7 �0.7 �0.7 �0.7 �0.7 �0.7 �0.7 �0.7 �0.7
Part Number CS-120-1 CS-120-2 CS-120-3 CS-120-4 CS-120-5 CS-120-6 CS-120-7 CS-120-8 CS-120-9 CS-120-10
Table 37 CS-120-* 1.2 GHz Cable Simulator Specifications
Insertion Loss Over Frequency
Frequency (dB) 1 2 3 4 5 6 7 8 9 10
54
70
86 105 204 258 550
MHz MHz MHz MHz MHz MHz MHz
�0.7 �0.7 �0.8 �0.8 �0.9 �1.0 �1.3 �0.7 �0.8 �0.8 �0.9 �1.2 �1.3 �1.8 �0.7 �0.8 �0.9 �1.0 �1.4 �1.6 �2.4 �0.7 �0.8 �0.9 �1.1 �1.6 �1.9 �2.9 �0.7 �0.9 �1.0 �1.2 �1.8 �2.1 �3.5
�0.7 �0.9 �1.1 �1.3 �2.1 �2.4 �4.0
�0.7 �0.9 �1.1 �1.3 �2.3 �2.7 �4.6
�0.7 �1.0 �1.2 �1.4 �2.5 �3.0 �5.1 �0.7 �1.0 �1.3 �1.5 �2.7 �3.3 �5.7 �0.7 �1.0 �1.3 �1.6 �3.0 �3.6 �6.2
600 MHz �1.3 �1.9 �2.5 �3.1 �3.7 �4.2 �4.8 �5.4 �6.0 �6.6
650 MHz �1.3 �2.0 �2.6 �3.2 �3.8 �4.5 �5.1 �5.7 �6.4 �7.0
750 MHz �1.4 �2.1 �2.8 �3.5 �4.2 �4.9 �5.6 �6.3 �7.0 �7.7
870 MHz �1.5 �2.3 �3.0 �3.8 �4.6 �5.4 �6.2 �7.0 �7.7 �8.5
1002 MHz �1.6 �2.4 �3.3 �4.2 �5.0 �5.9 �6.8 �7.6 �8.5 �9.4
1100 1218 MHz MHz
�1.6 �1.7 �2.6 �2.7 �3.5 �3.7 �4.4 �4.7 �5.3 �5.7
�6.3 �6.7
�7.2 �7.7
�8.1 �9.1 �10.0
�8.7 �9.7 �10.7
1513173 Rev C
HFC Product Accessories Reference Guide
33
Table 38 E606 Series Cable Equalizer Specifications
Picture N/A
Model
P/N
PH0.42171
725829
PH0.42161
725912
PH0.42151
725836
PH0.41052
725898
PH0.41062
725872
PH0.41072
725945
PH0.41082
725834
PH0.41092
725879
Passband Flatness: �0.2dB
Return Loss: <20dB (47MHz)�1.5dB/oct.
Dimensions in L x H: 30 x 37.7mm
All in blue plastic.
PAD Value
2 4 6 8 10 12 14 16
Insertion Loss in dB at Frequency (MHz)
47
606
2
1
4
1
6
1
8
1
10
1
12
1
14
1
16
1
Table 39 E862 Series Cable Equalizers Specifications
Model
P/N
E862/02
724767
E862/04
724862
E862/06
724718
E862/08
724580
E862/10
724993
E862/12
725063
E862/14
725122
E862/16
725227
Passband Flatness: �0.2dB Return Loss: <20dB (47MHz)�1.5dB/oct.
Insertion Loss in dB at Frequency (MHz)
47
862
2
1
4
1
6
1
8
1
10
1
12
1
14
1
16
1
Model
EQ2100 EQ2102 EQ2103 EQ2104 EQ2105 EQ2106 EQ2107
Table 40 EQ21xx Series Linear Equalizers Specifications
Insertion Loss in dB at Frequency (MHz)
45
70
80
100
300
400
500
600
700
800
870
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
2.0
2.0
2.0
1.9
1.7
1.6
1.4
1.3
1.2
1.1
1.0
3.0
2.9
2.9
2.9
2.4
2.1
1.9
1.7
1.4
1.2
1.0
4.0
3.9
3.9
3.8
3.1
2.7
2.3
2.0
1.6
1.3
1.0
5.0
4.9
4.8
4.7
3.8
3.3
2.8
2.3
1.8
1.3
1.0
6.0
5.8
5.8
5.7
4.5
3.8
3.2
2.6
2.0
1.4
1.0
7.0
6.8
6.7
6.6
5.1
4.4
3.7
3.0
2.2
1.5
1.0
34
HFC Product Accessories Reference Guide
1513173 Rev C
Table 40 EQ21xx Series Linear Equalizers Specifications
(cont'd)
Model
Insertion Loss in dB at Frequency (MHz)
45
70
80
100
300
400
500
600
EQ2108
8.0
7.8
7.7
7.5
5.8
5.0
4.1
3.3
EQ2109
9.0
8.8
8.7
8.5
6.5
5.6
4.6
3.6
EQ2110 EQ2111 EQ2112
10.0
9.7
9.6
9.4
7.2
6.1
5.0
3.9
11.0
10.7
10.6
10.3
7.9
6.7
5.5
4.3
12.0
11.7
11.5
11.3
8.6
7.3
5.9
4.6
EQ2113 EQ2114 EQ2115
13.0
12.6
12.5
12.2
9.3
7.8
6.4
4.9
14.0
13.6
13.4
13.1
10.0
8.4
6.8
5.3
15.0
14.6
14.4
14.1
10.7
9.0
7.3
5.6
EQ2116 EQ2117 EQ2118
16.0
15.5
15.4
15.0
11.4
9.5
7.7
5.9
17.0
16.5
16.3
15.9
12.1
10.1
8.2
6.2
18.0
17.5
17.3
16.9
12.7
10.7
8.6
6.6
EQ2119 EQ2120 EQ2121
19.0
18.5
18.2
17.8
13.4
11.3
9.1
6.9
20.0
19.4
19.2
18.7
14.1
11.8
9.5
7.2
21.0
20.4
20.2
19.7
14.8
12.4
10.0
7.5
Passband Flatness: �0.3dB Insertion Loss: 1 dB Impedance: 75 ohms Flatness measured with respect to slope. Return Loss I/O: 18/18 dB min. All in purple plastic.
700
800
870
2.4
1.6
1.0
2.6
1.7
1.0
2.9
1.8
1.0
3.1
1.8
1.0
3.3
1.9
1.0
3.5
2.0
1.0
3.7
2.1
1.0
3.9
2.2
1.0
4.1
2.3
1.0
4.3
2.4
1.0
4.5
2.4
1.0
4.7
2.5
1.0
4.9
2.6
1.0
5.1
2.7
1.0
Table 41 EQ21xxE Series Linear Equalizers Specifications
Model
EQ2102E EQ2103E EQ2104E EQ2105E EQ2106E EQ2107E EQ2108E EQ2109E EQ2110E EQ2111E EQ2112E Passband Flatness: 0.3 Flatness measured with respect to slope. Return Loss I/O: �20 dB min./�22 dB max. All in pink plastic.
Insertion Loss in dB at Frequency (MHz)
45
2.6 3.6 4.6 5.6 6.6 7.6 8.6 9.6 10.6 11.6 12.6
1220
0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6
1513173 Rev C
HFC Product Accessories Reference Guide
35
Table 42 EQ21xxG Series Linear Equalizers Specifications
Model
Insertion Loss in dB at Frequency (MHz)
45
70
100
300
400
500
600
700
800
900 1000
EQ2100G
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
EQ2102G
2.0
2.0
1.9
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
EQ2103G EQ2104G
3.0
2.9
2.9
2.5
2.3
2.0
1.8
1.6
1.4
1.2
1.0
4.0
3.9
3.8
3.2
2.9
2.6
2.3
1.9
1.6
1.3
1.0
EQ2105G
5.0
4.9
4.8
3.9
3.5
3.1
2.7
2.3
1.8
1.4
1.0
EQ2106G EQ2107G
6.0
5.9
5.7
4.7
4.1
3.6
3.1
2.6
2.0
1.5
1.0
7.0
6.8
6.7
5.4
4.8
4.1
3.5
2.9
2.3
1.6
1.0
EQ2108G
8.0
7.8
7.6
6.1
5.4
4.7
3.9
3.2
2.5
1.7
1.0
EQ2109G EQ2110G
9.0
8.8
8.5
6.9
6.0
5.2
4.4
3.5
2.7
1.8
1.0
10.0
9.8
9.5
7.6
6.7
5.7
4.8
3.8
2.9
1.9
1.0
EQ2111G
11.0
10.7
10.4
8.3
7.3
6.2
5.2
4.1
3.1
2.0
1.0
EQ2112G EQ2113G
12.0
11.7
11.4
9.1
7.9
6.8
5.6
4.5
3.3
2.2
1.0
13.0
12.7
12.3
9.8
8.5
7.3
6.0
4.8
3.5
2.3
1.0
EQ2114G
14.0
13.7
13.3
10.5
9.2
7.8
6.4
5.1
3.7
2.4
1.0
EQ2115G EQ2116G
15.0
14.6
14.2
11.3
9.8
8.3
6.9
5.4
3.9
2.5
1.0
16.0
15.6
15.1
12.0
10.4
8.9
7.3
5.7
4.1
2.6
1.0
EQ2117G
17.0
16.6
16.1
12.7
11.1
9.4
7.7
6.0
4.4
2.7
1.0
EQ2118G EQ2119G
18.0
17.6
17.0
13.5
11.7
9.9
8.1
6.3
4.6
2.8
1.0
19.0
18.5
18.0
14.2
12.3
10.4
8.5
6.7
4.8
2.9
1.0
EQ2120G
20.0
19.5
18.9
14.9
12.9
10.9
9.0
7.0
5.0
3.0
1.0
Passband Flatness: �0.3dB Insertion Loss: 1 dB Impedence: 75 ohms Flatness measured with respect to slope. Return Loss I/O: 18/18 dB min. All in red plastic.
Model
EQ4100 EQ4101 EQ4102 EQ4103 EQ4104 EQ4105 EQ4106 EQ4107 EQ4108 EQ4109 EQ4110 EQ4111
Table 43 EQ41xx Series Linear Equalizers Specifications
Insertion Loss in dB at Frequency (MHz)
54
550
0.1
0.1
1.2
0.8
2.0
1.0
3.4
1.8
4.6
2.4
5.6
2.8
6.7
3.2
7.8
3.7
9.0
4.1
10.1
4.6
11.3
5.0
12.5
5.3
36
HFC Product Accessories Reference Guide
870 0.1 0.5 0.5 0.5 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
1513173 Rev C
Table 43 EQ41xx Series Linear Equalizers Specifications
(cont'd)
Model
EQ4112 Insertion Loss: 1 dB Frequency Response: �0.3 dB, max. Return Loss I/O: 18 dB min.
Insertion Loss in dB at Frequency (MHz)
54
550
870
13.4
5.7
1.0
Table 44 EQ41xxG Series Linear Equalizers Specifications
Model
EQ4100G EQ4101G EQ4102G EQ4103G EQ4104G EQ4105G EQ4106G EQ4107G EQ4108G EQ4109G EQ4110G EQ4111G EQ4112G EQ4113G Insertion Loss: 1 dB Frequency Response: �0.3 dB, max. Return Loss I/O: 18 dB min.
Insertion Loss in dB at Frequency (MHz)
54
550
870
0.1
0.1
0.1
1.2
0.8
0.5
2.0
1.0
0.5
3.4
1.8
0.7
4.6
2.4
1.0
5.6
2.8
1.0
6.7
3.3
1.0
7.8
3.9
1.4
9.0
4.4
1.5
10.1
5.0
1.8
11.3
5.5
1.9
12.5
6.0
2.0
13.5
6.5
2.2
14.5
6.6
2.0
1003
0.1 0.3 0.3 0.5 0.5 0.5 0.5 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Table 45 EQL-1220MHz-xx Series Linear Equalizers Specifications
Model
EQL-1220MHz-01 EQL-1220MHz-02 EQL-1220MHz-03 EQL-1220MHz-04 EQL-1220MHz-05 EQL-1220MHz-06 EQL-1220MHz-07 EQL-1220MHz-08 EQL-1220MHz-09
P/N
1510053-001 1510053-002 1510053-003 1510053-004 1510053-005 1510053-006 1510053-007 1510053-008 1510053-009
Insertion Loss in dB at Frequency (MHz)
45
1100
1.6
0.6
2.6
0.6
3.6
0.6
4.6
0.6
5.6
0.6
6.6
0.6
7.6
0.6
8.6
0.6
9.6
0.6
1513173 Rev C
HFC Product Accessories Reference Guide
37
Model
Table 45 EQL-1220MHz-xx Series Linear Equalizers Specifications
P/N
EQL-1220MHz-10
EQL-1220MHz-11
EQL-1220MHz-12
Passband Flatness: �0.3dB Flatness measured with respect to slope. Return Loss: �20 dB min., �22 dB max. All in gray plastic.
1510053-010 1510053-011 1510053-012
(cont'd)
Insertion Loss in dB at Frequency (MHz)
45
10.6 11.6 12.6
1100
0.6 0.6 0.6
Table 46 FEQC-1GHz Series Cable Equalizers Specifications
Model
P/N
47
100
FEQC-1G-02 727900 FEQC-1G-03 727901
1.8
1.7
2.8
2.6
FEQC-1G-04 FEQC-1G-05 FEQC-1G-06
727902 727903 727904
3.8
3.4
4.8
4.3
5.8
5.2
FEQC-1G-07 FEQC-1G-08 FEQC-1G-09
727905 727906 727907
6.8
6.1
7.8
7.0
8.8
7.8
FEQC-1G-10 FEQC-1G-11 FEQC-1G-12
727908 727909 727910
9.8
8.7
11.0
9.8
12.0 10.7
FEQC-1G-13 FEQC-1G-14 FEQC-1G-15
727911 727912 727913
13.0 11.6 14.0 12.5 15.0 13.3
FEQC-1G-16 FEQC-1G-17 FEQC-1G-18
727914 727915 728060
16.0 17.0 18.0
14.2 15.1 16.0
FEQC-1G-19 727917
19.0 16.9
FEQC-1G-20 727918 FEQC-1G-21 727919
20.0 17.7 21.0 18.6
FEQC-1G-22 FEQC-1G-23 FEQC-1G-24
727920 727921 728061
22.0 19.5 23.0 20.4 24.0 21.3
Return Loss I/O: 22/22 dB min. (FEQC-1G-02 to 20) 20/20 dB min. (FEQC-1G-21 to 24)
Tolerance: �0.3dB (FEQC-1G-02 to 20) �0.5dB (FEQC-1G-21 to 24)
200
1.5 2.2 3.0 3.7 4.4 5.1 5.8 6.6 7.3 8.2 8.9 9.6 10.4 11.1 11.8 12.5 13.3 14.0 14.7 15.4 16.1 16.9 17.6
Insertion Loss in dB at Frequency (MHz)
300
1.4 2.0 2.6 3.2 3.8 4.4 5.0 5.6 6.2 7.0 7.5 8.1 8.7 9.3 9.9 10.5 11.1 11.7 12.3 12.9 13.5 14.1 14.7
400
1.3 1.8 2.3 2.8 3.2 3.7 4.2 4.7 5.2 5.9 6.4 6.8 7.3 7.8 8.3 8.8 9.3 9.8 10.3 10.7 11.2 11.7 12.2
500
1.2 1.6 2.0 2.4 2.8 3.1 3.5 3.9 4.3 4.9 5.3 5.7 6.1 6.5 6.9 7.3 7.7 8.0 8.4 8.8 9.2 9.6 10.0
600
700
800
900
1000
1.1
1.0
0.9
0.9
0.8
1.4
1.2
1.1
0.9
0.8
1.7
1.5
1.2
1.0
0.8
2.0
1.7
1.4
1.1
0.8
2.3
1.9
1.5
1.2
0.8
2.6
2.1
1.7
1.2
0.8
2.9
2.3
1.8
1.3
0.8
3.2
2.6
2.0
1.4
0.8
3.5
2.8
2.1
1.4
0.8
4.0
3.2
2.4
1.7
1.0
4.3
3.4
2.6
1.8
1.0
4.6
3.7
2.7
1.9
1.0
4.9
3.9
2.9
1.9
1.0
5.2
4.1
3.0
2.0
1.0
5.5
4.3
3.2
2.1
1.0
5.9
4.5
3.3
2.1
1.0
6.2
4.8
3.5
2.2
1.0
6.5
5.0
3.6
2.3
1.0
6.8
5.2
3.7
2.4
1.0
7.1
5.4
3.9
2.4
1.0
7.4
5.6
4.0
2.5
1.0
7.7
5.9
4.2.
2.6
1.0
8.0
6.1
4.3
2.6
1.0
Specification Document Number 1504826
38
HFC Product Accessories Reference Guide
1513173 Rev C
Table 47 FEQC-750MHz Series Cable Equalizers Specifications
Model
P/N
FEQC-750-02 787652 FEQC-750-04 787654 FEQC-750-06 787656 FEQC-750-08 787658 FEQC-750-10 787660 FEQC-750-12 787662 FEQC-750-14 787665 Return Loss I/O: 22/22dB min. Tolerance: �0.3dB
47
1.8 3.8 5.8 7.8 9.8 12.0 14.0
100
1.7 3.4 5.1 6.8 8.5 10.4 12.1
Insertion Loss in dB at Frequency (MHz)
200
300
400
500
600
700
750
1.5
1.3
1.2
1.1
0.95
0.85
0.8
2.8
2.3
1.9
1.6
1.25
0.95
0.8
4.1
3.3
2.7
2.1
1.5
1.0
0.8
5.4
4.3
3.4
2.6
1.8
1.1
0.8
6.7
5.3
4.2
3.1
2.1
1.2
0.8
8.2
6.6
5.1
3.8
2.6
1.5
1.0
9.6
7.6
5.9
4.3
2.9
1.6
1.0
Specification Document Number 1505649
Table 48 FEQC-870MHz Series Cable Equalizers Specifications
Model
P/N
47
100
FEQC-870-02 787638
2.2
2.0
FEQC-870-03 787639
3.0
2.7
FEQC-870-04 787640
3.8
3.4
FEQC-870-05 787641
4.6
4.1
FEQC-870-06 787642
5.4
4.8
FEQC-870-07 787643
7.0
6.2
FEQC-870-08 787644
7.8
6.9
FEQC-870-09 787645
8.7
7.7
FEQC-870-10 787646
10.3
9.1
FEQC-870-11 787647
11.1
9.8
FEQC-870-12 787648
11.9
10.5
FEQC-870-13 787649
12.8
11.2
FEQC-870-14 787650
14.0
12.3
Return Loss I/O: 22/22dB min. (FEQC-870-02 to -08) 20/20dB min. (FEQC-870-09 to 12 and 14) 18/18dB min. (FEQC-870-13)
Tolerance: �0.3dB
200
1.75 2.3 2.85 3.4 4.0 5.1 5.6 6.3 7.4 8.0 8.6 9.1 10.0
Insertion Loss in dB at Frequency (MHz)
300
1.5 2.0 2.4 2.9 3.3 4.2 4.65 5.25 6.1 6.6 7.0 7.5 8.2
400
1.35 1.7 2.0 2.4 2.75 3.45 3.8 4.3 5.0 5.35 5.7 6.1 6.7
500
1.2 1.45 1.7 2.0 2.25 2.8 3.0 3.5 4.0 4.25 4.6 4.8 5.3
600
700
800
870
1.0
0.9
0.75
0.65
1.2
1.0
0.8
0.65
1.4
1.1
0.8
0.65
1.6
1.2
0.9
0.65
1.8
1.3
0.9
0.65
2.15
1.6
1.0
0.65
2.3
1.7
1.1
0.65
2.7
1.95
1.3
0.80
3.05
2.2
1.35
0.80
3.25
2.3
1.4
0.80
3.5
2.5
1.6
1.00
3.7
2.6
1.6
0.90
4.0
2.8
1.7
1.0
Specification Document Number 1505648
1513173 Rev C
HFC Product Accessories Reference Guide
39
Table 49 GEQC-1GHz Cable Equalizers Specifications
Model
P/N
Insertion Loss in dB at Frequency (MHz)
45
54
70
80
222
400
500
600
700
800
870 1000
GEQC-1GHz-050 771000 4.7 4.6
4.5
4.4
3.5
2.7
2.3
2.0
1.7
1.4
1.2
0.7
GEQC-1GHz-070 771001 6.4 6.2
6.0
5.9
4.6
3.5
3.0
2.5
2.0
1.6
1.4
0.7
GEQC-1GHz-090 725168 7.8 7.6
7.5
7.3
5.7
4.2
3.5
2.8
2.1
1.6
1.3
0.8
Passband Flatness: � 0.3 dB Return Loss I/O: 22/22 dB min.
Specification Document Number 1502429
Table 50 GEQC-870 Cable Equalizers Specifications
Model
P/N
Insertion Loss in dB at Frequency (MHz)
45
54
70
80
222
400
500
600
700
800
870
GEQC-870-080 725512
6.9
6.8
6.6
6.5
4.9
3.5
2.9
2.2
1.5
1.0
0.7
Passband Flatness: � 0.3 dB Return Loss I/O: 22/22 dB min.
Specification Document Number 1501842
Table 51 GEQL-1GHZ-xxx and GEQL-1GHZ-xxx-1 Series Linear Equalizers Specifications
Model
P/N
Model
P/N
Insertion Loss in dB at Frequency (MHz)
45 70 100 300 400 500 600 700 800 900 1002
GEQL-1GHZ-000 724574
--
--
0.0 0.0 0.0 0.0
GEQL-1GHZ-020 724481 GEQL-1GHZ-020-1 725261 2.0 2.0 1.9 1.7
GEQL-1GHZ-030 724496 GEQL-1GHZ-030-1 725271 3.0 2.9 2.9 2.5
GEQL-1GHZ-040 724495 GEQL-1GHZ-040-1 725260 4.0 3.9 3.8 3.2
GEQL-1GHZ-050 724404 GEQL-1GHZ-050-1 725272 5.0 4.9 4.8 3.9
GEQL-1GHZ-060 724355 GEQL-1GHZ-060-1 725243 6.0 5.9 5.7 4.7
GEQL-1GHZ-070 724320 GEQL-1GHZ-070-1 725247 7.0 6.8 6.7 5.4
GEQL-1GHZ-080 724272 GEQL-1GHZ-080-1 725199 8.0 7.8 7.6 6.1
GEQL-1GHZ-090 724279 GEQL-1GHZ-090-1 725064 9.0 8.8 8.5 6.9
GEQL-1GHZ-100 724294 GEQL-1GHZ-100-1 725080 10.0 9.8 9.5 7.6
GEQL-1GHZ-110 724275 GEQL-1GHZ-110-1 725180 11.0 10.7 10.4 8.3
GEQL-1GHZ-120 724255 GEQL-1GHZ-120-1 725076 12.0 11.7 11.4 9.1
GEQL-1GHZ-130 724475 GEQL-1GHZ-130-1 725209 13.0 12.8 12.4 9.9
Passband Flatness: �0.15dB (GEQL-1GHZ-000) �0.3dB (GEQL-1GHZ-020 to 130)
Flatness measured with respect to slope. Return Loss I/O: 18/18 dB min. All in red plastic.
0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.6 1.5 1.4 1.3 1.2 1.1 1.0 2.3 2.0 1.8 1.6 1.4 1.2 1.0 2.9 2.6 2.3 2.0 1.6 1.3 1.0 3.5 3.1 2.7 2.3 1.8 1.4 1.0 4.1 3.6 3.1 2.6 2.0 1.5 1.0 4.8 4.1 3.5 2.9 2.3 1.6 1.0 5.4 4.7 3.9 3.2 2.5 1.7 1.0 6.0 5.2 4.4 3.5 2.7 1.8 1.0 6.7 5.7 4.8 3.8 2.9 1.9 1.0 7.3 6.2 5.2 4.1 3.1 2.0 1.0 7.9 6.8 5.6 4.5 3.3 2.2 1.0 8.6 7.3 6.1 4.8 3.5 2.3 1.0
Specification Document Number 1500202 Specification Document Number 1502283
40
HFC Product Accessories Reference Guide
1513173 Rev C
Table 52 GEQL-87-xxx and GEQL-870-xxx-1 Series Linear Equalizers Specifications
Model
P/N
Model
P/N
GEQL-870-020 725405 GEQL-870-020-1 GEQL-870-030 725406 GEQL-870-030-1 GEQL-870-040 725400 GEQL-870-040-1 GEQL-870-050 725386 GEQL-870-050-1 GEQL-870-060 725114 GEQL-870-060-1 GEQL-870-070 725401 GEQL-870-070-1 GEQL-870-080 725402 GEQL-870-080-1 GEQL-870-090 725403 GEQL-870-090-1 GEQL-870-100 725407 GEQL-870-100-1 GEQL-870-110 725358 GEQL-870-110-1 GEQL-870-120 725408 GEQL-870-120-1 GEQL-870-130 725404 GEQL-870-130-1 Passband Flatness: �0.3dB Return Loss I/O: 18/18dB min. Flatness measured with respect to slope. All in purple plastic.
725729 725711 725745 725730 725582 725708 725573 725651 725701 725766 725577 725618
54
2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0
70
2.0 3.0 3.9 4.9 5.8 6.8 7.8 8.8 9.7 10.7 11.7 12.6
Insertion Loss in dB at Frequency (MHz)
80 100 300 400 500 600 700 800 870
2.0 1.9 1.7 1.6 1.5 1.3 1.2 1.1 1.0 2.9 2.9 2.4 2.2 1.9 1.7 1.4 1.2 1.0 3.9 3.8 3.1 2.7 2.4 2.0 1.6 1.3 1.0
4.8 4.7 3.8 3.3 2.8 2.3 1.8 1.3 1.0
5.8 5.7 4.5 3.8 3.2 2.6 2.0 1.4 1.0 6.7 6.6 5.1 4.4 3.7 3.0 2.2 1.5 1.0
7.7 7.5 5.8
5
4.1 3.3 2.4 1.6 1.0
8.7 8.5 6.5 5.6 4.6 3.6 2.6 1.7 1.0 9.6 9.4 7.2 6.1 5.0 3.9 2.9 1.8 1.0
10.6 10.3 7.9 6.7 5.5 4.3 3.1 1.8 1.0
11.5 11.3 8.6 7.3 5.9 4.6 3.3 1.9 1.0 12.5 12.2 9.3 7.8 6.4 4.9 3.5 2.0 1.0
Specification Document Number 1500774 Specification Document Number 1502284
Table 53 MEQ-42 and MEQT-42 Series Return Cable Equalizers Specifications
Model
P/N
MEQ-42-2
724154
MEQ-42-3
724230
MEQ-42-4
724435
MEQ-42-5
724557
MEQ-42-6
724614
MEQ-42-7
724518
MEQT-42-2
724351
MEQT-42-3
724542
MEQT-42-4
724669
MEQT-42-5
724742
MEQT-42-6
724778
MEQT-42-7
724644
Passband Flatness: �0.2dB (MEQ-42-x) �0.3dB (MEQT-42-x)
Return Loss I/O: 18/16dB min.
Insertion Loss in dB at Frequency (MHz)
5
42
3.0
1.0
4.0
1.0
5.0
1.0
6.0
1.0
7.0
1.0
8.0
1.0
3.6
2.5
5.6
2.5
6.8
2.5
8.4
2.5
8.7
2.5
10.1
2.5
42
3.0 4.6 6.1 7.6 9.1 10.6 3.2 4.7 6.5 9.0 9.4 11.5
dB of Cable Equalized at Frequency (MHz)
300
400
450
550
750
8.0
9.4
10.2
11.3
13.4
12.6
15.0
15.8
17.7
21.0
16.7
19.4
20.7
23.0
27.0
20.4
23.8
25.4
28.3
33.0
24.6
29.0
30.4
34.0
39.6
27.0
31.5
33.0
36.4
45.5
9.0
10.5
11.2
12.5
14.9
13.0
15.2
16.2
18.1
21.5
18.0
21.0
22.4
25.0
29.8
25.0
29.2
31.1
34.7
41.4
26.0
30.4
32.4
36.1
43.1
32.0
37.4
39.8
44.5
53.0
MEQ-42 Specification Document Number 600540 MEQT-42 Specification Document Number 600595
1513173 Rev C
HFC Product Accessories Reference Guide
41
Table 54 MEQ-55 Series Return Cable Equalizers Specifications
Model
P/N
MEQ-55-2
726090
MEQ-55-3
726091
MEQ-55-4
762225
MEQ-55-5
762227
MEQ-55-6
726299
MEQ-55-7
762230
Passband Flatness: �0.2dB Return Loss I/O: 18/16dB min.
Insertion Loss in dB at Frequency (MHz)
5
55
1.9
1.0
2.7
1.0
3.6
1.0
4.5
1.0
5.6
1.0
6.8
1.0
dB of cable equalized at Frequency (MHz)
55
300
400
450
550
750
1.2
3.0
3.5
3.7
4.2
5.0
2.5
6.0
7.0
7.5
8.3
9.9
3.7
9.0
10.5
11.2
12.5
14.9
4.9
12.0
14.0
14.9
16.7
19.9
6.6
16.0
18.7
19.9
22.2
26.5
8.2
20.0
23.4
24.9
27.8
33.1
Specification Document Number 600695
Table 55 MEQ-65 Series Return Cable Equalizers Specifications
Model
P/N
MEQ-65-02
724846
MEQ-65-03
724852
MEQ-65-04
724696
MEQ-65-05
724818
MEQ-65-06
724910
MEQ-65-07
724973
Passband Flatness: �0.1dB Return Loss I/O: 18/16dB min.
Insertion Loss in dB at Frequency (MHz)
5
65
2.0
1.0
2.9
1.0
3.9
1.0
5.2
1.0
6.2
1.0
7.1
1.0
dB of Cable Equalized at Frequency (MHz)
65
300
400
450
550
750
1.3
3.0
3.5
3.7
4.2
5.0
2.7
6.0
7.0
7.5
8.3
9.9
4.0
9.0
10.5
11.2
12.5
14.9
5.8
13.0
15.2
16.2
18.1
21.5
7.1
16.0
18.7
19.9
22.2
26.5
8.5
19.0
22.2
23.6
26.4
31.5
Specification Document Number 600615
1513173 Rev C
HFC Product Accessories Reference Guide
42
Table 56 MEQ-85 and MEQT-85 Series Return Cable Equalizers Specifications
Model
P/N
Insertion Loss @ 23C in dB at Frequency (MHz)
5
85
MEQ-85-2 775422
1.98
1.00
MEQ-85-3 775423
2.97
1.00
MEQ-85-4 775424
4.03
1.00
MEQ-85-5 775425
5.01
1.00
MEQ-85-6 775426
6.00
1.00
MEQ-85-7 775427
7.06
1.00
MEQT-85-2 775428
3.48
2.50
MEQT-85-3 775429
4.47
2.50
MEQT-85-4 775430
5.43
2.50
MEQT-85-5 775431
6.51
2.50
MEQT-85-6 775432
7.50
2.50
MEQT-85-7 775433
8.56
2.50
Passband Flatness: �0.2dB (MEQ-85, MEQT-85-2 to 4) �0.3dB (MEQT-85-5 to 7)
Return Loss I/O: 18/16dB min.
Cable Loss @ 23C
85
1.30 2.60 4.00 5.30 6.60 8.00 1.30 2.60 4.00 5.30 6.60 8.00
Insertion Loss @ -20C in dB at Frequency (MHz)
Insertion Loss @ 80C in dB at Frequency (MHz)
5
85
550
750
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
4.01
3.14
2.96
1.91
5.04
3.28
3.92
1.81
6.13
3.43
4.96
1.71
7.15
3.57
6.02
1.72
8.17
3.71
7.08
1.72
9.27
3.86
8.02
1.62
MEQ-85 Specification Document Number 1504358 MEQT-85 Specification Document Number 1504359
Table 57 NEQL-870 Series Linear Equalizers Specifications
Model
P/N
54
70
NEQL-870-050 725236 5.0
4.9
NEQL-870-060 725220 6.0
5.8
NEQL-870-050 725236 5.0
4.9
NEQL-870-060 725220 6.0
5.8
NEQL-870-070 725388 7.0
6.8
NEQL-870-080 725170 8.0
7.8
NEQL-870-090 725102 9.0
8.8
NEQL-870-100 725135 10.0
9.7
NEQL-870-110 725217 11.0
10.7
NEQL-870-120 725229 12.0
11.7
NEQL-870-130 726401 13.0
12.6
NEQL-870-140 726402 14.1
13.8
NEQL-870-150 776407 15.0
14.8
Passband Flatness: �0.3dB Return Loss I/O: 18/18dB min. Flatness measured with respect to slope. All in yellow plastic.
80
4.8 5.8 4.8 5.8 6.7 7.7 8.7 9.6 10.6 11.5 12.5 13.6 14.6
Insertion Loss in dB at Frequency (MHz)
100
300
400
500
600
700
800
870
4.7
3.8
3.3
2.8
2.3
1.8
1.3
1.0
5.7
4.5
3.8
3.2
2.6
2.0
1.4
1.0
4.7
3.8
3.3
2.8
2.3
1.8
1.3
1.0
5.7
4.5
3.8
3.2
2.6
2.0
1.4
1.0
6.6
5.1
4.4
3.7
3.0
2.2
1.5
1.0
7.5
5.8
5.0
4.1
3.3
2.4
1.6
1.0
8.5
6.5
5.6
4.6
3.6
2.6
1.7
1.0
9.4
7.2
6.1
5.0
3.9
2.9
1.8
1.0
10.3
7.9
6.7
5.5
4.3
3.1
1.8
1.0
11.3
8.6
7.3
5.9
4.6
3.3
1.9
1.0
12.2
9.3
7.8
6.4
4.9
3.5
2.0
1.0
13.3
10.2
8.6
7.0
5.5
3.9
2.3
1.2
14.3
10.9
9.2
7.5
5.8
4.1
2.4
1.2
Specification Document Number 601264
1513173 Rev C
HFC Product Accessories Reference Guide
43
Table 58 PEQ-1G Cable Equalizers Specifications
Model
P/N
54
85
PEQ-1G-02 PEQ-1G-03 PEQ-1G-04
725369 725370 725371
2.0 1.9 2.9 2.8 4.0 3.8
PEQ-1G-05 PEQ-1G-06 PEQ-1G-07
725372 725373 725374
5.0 4.7 6.0 5.7 7.0 6.6
PEQ-1G-08 PEQ-1G-09 PEQ-1G-10
725375 725376 725376
8.0 7.4 9.0 8.5 10.0 9.3
PEQ-1G-11 PEQ-1G-12 PEQ-1G-13
725378 725379 725380
11.0 12.0 13.0
10.4 11.1 12.2
PEQ-1G-14 778087 PEQ-1G-15 725381
14.0 14.9
13.0 13.9
PEQ-1G-16 725382
16.0 14.9
PEQ-1G-17 725383 PEQ-1G-18 725384
17.0 18.0
15.6 16.9
PEQ-1G-19 725385
19.0 17.7
PEQ-1G-20 778088
20.0 18.5
Passband Flatness:
�0.3dB (PEQ-1G-02 to 18) �0.4dB (PEQ-1G-19 and 20)
Return Loss I/O:
18/18dB min. (PEQ-1G-02 to 18) 16/16dB min. (PEQ-1G-19 and 20)
105
1.8 2.6 3.6 4.6 5.5 6.4 7.1 8.2 9.0 10.0 10.8 11.8 12.4 13.3 14.3 15.0 16.2 16.9 17.7
Insertion Loss (dB) @ Frequency (MHz)
222 350 450 550 650
1.5
1.4
1.3
1.2
1.0
2.3
2.1
1.9
1.7
1.4
3.1
2.6
2.3
2.1
1.9
3.8
3.1
2.7
2.4
2.0
4.6
3.8
3.3
2.8
2.4
5.4
4.4
3.8
3.1
2.6
5.8
4.7
4.0
3.4
2.8
6.8
5.4
4.5
3.8
3.1
7.3
5.7
4.8
4.0
3.2
8.1
6.4
5.4
4.5
3.7
8.8
7.0
5.9
4.9
3.9
9.5
7.6
6.3
5.1
4.1
10.2 8.2
6.9
5.7
4.6
10.8 8.6
7.1
5.8
4.6
11.5 9.2
7.6
6.3
5.0
12.2 9.7
8.0
6.5
5.2
13.2 10.5 8.7
7.0
5.6
13.7 10.8 9.0
7.3
5.7
14.2 11.2 9.3
7.6
6.0
Cable Loss
750
870 1002
@ 1002 MHz
0.8 0.7 0.7
1.55
1.1 0.9 0.8
2.80
1.6 1.4 1.0
3.70
1.7 1.4 1.0
5.10
2.0 1.6 1.0
6.35
2.0 1.6 1.0
7.75
2.2 1.6 1.0
8.90
2.5 1.9 1.0
10.20
2.5 1.9 1.0
11.45
2.9 2.1 1.0
12.70
3.0 2.1 1.0
14.00
3.2 2.2 1.0
15.25
3.5 2.3 1.0
16.50
3.5 2.3 1.0
17.80
3.7 2.4 1.0
19.05
3.9 2.4 1.0
20.30
4.0
2.4
0.8
21.80
4.1
2.4
0.8
23.05
4.4
2.6
0.8
24.05
Specification Document Number 1503587
Table 59 REQC-42MHz Series Cable Equalizers Specifications
Model
P/N
REQC-42-2
788504
REQC-42-3
788505
REQC-42-4
788506
REQC-42-5
788507
REQC-42-6
788508
REQC-42-7
788509
REQC-42-8
788510
REQC-42-9
788511
Return Loss I/O: 22/22dB min. Tolerance: �0.3dB
5
2.0 2.8 3.3 4.6 5.95 7.40 7.80 8.75
Insertion Loss in dB at Frequency (MHz)
10
20
30
40
42
1.7
1.3
1.0
0.70
0.65
2.4
1.75
1.3
0.90
0.8
2.7
1.9
1.3
075
0.65
3.8
2.55
1.6
0.8
0.65
4.8
3.2
1.9
0.85
0.65
6.0
4.0
2.4
1.05
0.80
6.3
4.1
2.5
1.1
0.80
7.0
4.60
2.7
1.1
0.8
Specification Document Number 1505737
1513173 Rev C
HFC Product Accessories Reference Guide
44
Table 59 REQC-42MHz Series Cable Equalizers Specifications
(cont'd)
Model
P/N
REQC-42-10
788512
REQC-42-11
788513
Return Loss I/O: 22/22dB min.
Tolerance: �0.3dB
Insertion Loss in dB at Frequency (MHz)
5
10
20
30
40
42
10
8.1
5.3
3.2
1.3
1.0
11
8.8
5.8
3.4
1.4
1.0
Specification Document Number 1505737
Table 60 REQC-65MHz Series Cable Equalizers Specifications
Model
P/N
5
10
REQC-65-2
727923
1.8
1.7
REQC-65-3 REQC-65-4
727924 727925
2.8
2.6
3.8
3.4
REQC-65-5
727926
4.8
4.3
REQC-65-6 REQC-65-7
727927 727928
5.8
5.3
6.8
6.1
REQC-65-8
727929
7.8
7.0
REQC-65-9 REQC-65-10
727930 727931
8.8
7.9
10.0
8.9
REQC-65-11 727932
11.0
9.7
Return Loss I/O: 22/22dB min. Tolerance: �0.3dB
Insertion Loss in dB at Frequency (MHz)
20
30
40
50
60
65
1.5
1.3
1.1
1.0
0.9
0.8
2.1
1.7
1.4
1.2
0.9
0.8
2.7
2.2
1.7
1.3
0.9
0.8
3.4
2.7
2.0
1.5
1.0
0.8
4.1
3.2
2.4
1.7
1.1
0.8
4.7
3.6
2.7
1.9
1.1
0.8
5.4
4.1
3.0
2.1
1.2
0.8
6.1
4.6
3.4
2.3
1.3
0.8
6.8
5.2
3.8
2.6
1.5
1.0
7.4
5.6
4.1
2.8
1.6
1.0
Specification Document Number 1504827
Table 61 REQC-85MHz Series Cable Equalizers Specifications
Model
P/N
REQC-85-2
791130
REQC-85-3
791131
REQC-85-4
791132
REQC-85-5
791133
REQC-85-6
791134
REQC-85-7
791135
REQC-85-8
791136
REQC-85-9
791137
REQC-85-10 791138
REQC-85-11 791139
Return Loss I/O: 22/22dB min.
Tolerance: �0.3dB
5
2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0
10
1.9 2.7 3.6 4.5 5.35 6.2 7.1 7.95 8.8 9.7
20
1.7 2.4 3.05 3.7 4.4 5.1 5.8 6.5 7.2 7.8
Insertion Loss in dB at Frequency (MHz)
30
40
50
60
70
80
85
1.5
1.4
1.3
1.2
1.1
1.05
1.0
2.1
1.8
1.6
1.4
1.2
1.1
1.0
2.6
2.2
1.9
1.65
1.4
1.1
1.0
3.2
2.7
2.2
1.85
1.5
1.15
1.0
3.7
3.1
2.6
2.1
1.6
1.2
1.0
4.2
3.5
2.9
2.3
1.75
1.25
1.0
4.8
3.9
3.2
2.5
1.9
1.3
1.0
5.3
4.35
3.5
2.7
2.0
1.3
1.0
5.9
4.8
3.8
2.9
2.1
1.35
1.0
6.4
5.2
4.1
3.15
2.25
1.4
1.0
Specification Document Number 1506125
1513173 Rev C
HFC Product Accessories Reference Guide
45
Table 62 SEQ-1G Series Cable Equalizers Specifications
Model
P/N
54
85
SEQ-1G-0 724297 0.0
0.0
SEQ-1G-02 724252 2.0
1.9
SEQ-1G-03 724323 2.9
2.8
SEQ-1G-04 724313 4.0
3.8
SEQ-1G-05 724319 5.0
4.7
SEQ-1G-06 724248 6.0
5.7
SEQ-1G-07 724253 7.0
6.6
SEQ-1G-08 724261 8.0
7.4
SEQ-1G-09 724274 9.0
8.5
SEQ-1G-10 724280 10.0
9.3
SEQ-1G-11 724317 11.0 10.4
SEQ-1G-12 724300 12.0 11.1 SEQ-1G-13 724330 13.0 12.2
SEQ-1G-14 724345 14.0 13.0
SEQ-1G-15 724359 14.9 13.9 SEQ-1G-16 724368 16.0 14.9
SEQ-1G-17 724427 17.0 15.6
SEQ-1G-18 724425 18.0 16.9 SEQ-1G-19 724519 19.0 17.7
SEQ-1G-20 724502 20.0 18.2
Passband Flatness: �0.3 dB (SEQ-1G-02 to 18) �0.4 dB (SEQ-1G-19 and 20)
Return Loss I/O: 18/18dB min. (SEQ-1G-02 to 18) 16/16dB min. (SEQ-1G-19 and 20)
105
0.0 1.8 2.6 3.6 4.6 5.5 6.4 7.1 8.2 9.0 10.0 10.8 11.8 12.4 13.3 14.3 15.0 16.2 16.9 17.7
Insertion Loss in dB at Frequency (MHz)
222
350
450
550
650
750
870
1002
*
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
1.5
1.4
1.3
1.2
1.0
0.8
0.7
0.7
1.55
2.3
2.1
1.9
1.7
1.4
1.1
0.9
0.8
2.80
3.1
2.6
2.3
2.1
1.9
1.6
1.4
1.0
3.70
3.8
3.1
2.7
2.4
2.0
1.7
1.4
1.0
5.10
4.6
3.8
3.3
2.8
2.4
2.0
1.6
1.0
6.35
5.4
4.4
3.8
3.1
2.6
2.0
1.6
1.0
7.75
5.8
4.7
4.0
3.4
2.8
2.2
1.6
1.0
8.90
6.8
5.4
4.5
3.8
3.1
2.5
1.9
1.0
10.20
7.3
5.7
4.8
4.0
3.2
2.5
1.9
1.0
11.45
8.1
6.4
5.4
4.5
3.7
2.9
2.1
1.0
12.70
8.8
7.0
5.9
4.9
3.9
3.0
2.1
1.0
14.0
9.5
7.6
6.3
5.1
4.1
3.2
2.2
1.0
15.25
10.2
8.2
6.9
5.7
4.6
3.5
2.3
1.0
16.5
10.8
8.6
7.1
5.8
4.6
3.5
2.3
1.0
17.8
11.5
9.2
7.6
6.3
5.0
3.7
2.4
1.0
19.05
12.2
9.7
8.0
6.5
5.2
3.9
2.4
1.0
20.3
13.2 10.5
8.7
7.0
5.6
4.0
2.4
0.8
21.8
13.7 10/8
9.0
7.3
5.7
4.1
2.4
0.8
23.05
14.2 11.2
9.3
7.6
6.0
4.4
2.6
0.8
24.05
*dB of cable equalized at 1002MHz Specification Document Number 1500769
46
HFC Product Accessories Reference Guide
1513173 Rev C
Table 63 SEQ-750 Series Cable Equalizers Specifications
Model
P/N
54
SEQ-0
724376
0.0
SEQ-750-02 724907
2.0
SEQ-750-03 724920
3.0
SEQ-750-04 724955
3.9
SEQ-750-05 724911
4.9
SEQ-750-06 724861
5.9
SEQ-750-07 724885
7.0
SEQ-750-08 725006
8.0
SEQ-750-09 725070
9.0
SEQ-750-10 725025
9.8
SEQ-750-11 725004
11.0
SEQ-750-12 725208
11.8
SEQ-750-13 725257
12.9
SEQ-750-14 725205
14.0
SEQ-750-15 725139
14.9
SEQ-750-16 724859
15.8
SEQ-750-17 725058
16.8
SEQ-750-18 725120
17.9
SEQ-750-19 725119
18.8
SEQ-750-20 725160
19.8
SEQ-750-21 725273
20.8
SEQ-750-2-2 762194
2.8
SEQ-750-4-2 762239
4.5
SEQ-750-4-3 762241
5.5
SEQ-750-5-5 725184
8.9
Passband Flatness: �0.3dB Return Loss I/O: 18/16dB min.
70
0.0 2.0 2.8 3.9 4.6 5.7 6.8 7.9 8.8 9.4 10.5 11.3 12.4 13.5 14.3 14.9 16.0 17.1 17.8 19.0 19.8 2.8 4.4 5.4 8.6
Insertion Loss in dB at Frequency (MHz)
80
222
350
450
550
0.0
0.0
0.0
0.0
0.0
2.0
1.8
1.4
1.3
1.3
2.7
2.4
1.9
1.7
1.5
3.8
3.1
2.4
2.0
1.7
4.5
3.5
2.9
2.3
1.8
5.6
4.2
3.3
2.7
2.0
6.6
5.0
3.6
2.8
2.0
7.6
5.5
4.2
3.3
2.5
8.6
6.3
4.8
3.8
2.7
9.2
6.7
5.0
3.8
2.8
10.2
7.5
5.5
4.2
3.0
11.0
8.1
6.0
4.6
3.3
12.2
8.9
6.6
5.1
3.7
13.2
9.7
6.9
5.3
3.8
13.9
10.1
7.5
5.8
4.3
14.5
10.5
8.0
6.1
4.4
15.6
11.3
8.2
6.2
4.4
16.6
11.9
8.6
6.6
4.6
17.4
12.3
9.1
6.9
4.8
18.5
13.2
9.5
7.2
5.0
19.3
13.4
10.0
7.5
5.2
2.8
2.5
2.3
2.2
2.1
4.3
3.6
3.1
2.8
2.5
5.3
4.7
4.1
3.8
3.5
8.6
7.6
6.9
6.3
5.8
dB of cable
650
750
equalized at highest frequency
0.0
0.0
0.0
1.2
1.0
1.5
1.3
1.0
2.5
1.4
1.0
4.0
1.4
1.0
5.0
1.5
1.0
6.5
1.6
1.0
8.0
1.8
1.0
9.0
2.0
1.0
10.5
2.0
1.0
12.0
2.0
1.0
13.5
2.2
1.0
14.5
2.5
1.0
16.0
2.5
1.0
17.0
2.6
1.0
18.5
2.7
1.0
20.0
2.6
1.0
21.0
2.6
1.0
22.4
2.7
1.0
23.7
2.8
1.0
25.0
2.9
1.0
26.3
2.1
2.0
1.1
2.2
2.0
3.3
3.2
3.0
3.3
5.4
5.0
5.0
Specification Document Number 600563
1513173 Rev C
HFC Product Accessories Reference Guide
47
Table 64 SEQ-862 Series Cable Equalizers Specifications
Model
P/N
54
SEQ-0
724376 0.0
SEQ-862-02 724596 1.9
SEQ-862-03 724531 2.9
SEQ-862-04 724535 4.0
SEQ-862-05 724464 4.8
SEQ-862-06 724473 5.9
SEQ-862-07 724521 6.9
SEQ-862-08 724515 7.8
SEQ-862-09 724568 8.8
SEQ-862-10 724616 9.6
SEQ-862-11 724583 10.8
SEQ-862-12 724545 11.6
SEQ-862-13 724620 12.8
SEQ-862-14 724646 13.6
SEQ-862-15 724658 14.5
SEQ-862-16 724609 15.3
SEQ-862-17 724674 17.5
SEQ-862-18 724679 18.4
SEQ-862-19 724795 19.5
SEQ-862-20 724790 20.3
Passband Flatness: �0.3dB
Return Loss I/O: 20/18dB min.
70
0.0 1.9 2.8 4.0 4.6 5.6 6.6 7.5 8.4 9.1 10.3 11.1 12.4 12.9 13.9 14.7 16.8 17.5 18.6 19.4
Insertion Loss in dB at Frequency (MHz)
80
222
500
600
700
0.0
0.0
0.0
0.0
0.0
1.9
1.8
1.4
1.3
1.2
2.8
2.4
1.6
1.5
1.4
4.0
3.2
1.9
1.6
1.4
4.5
3.4
2.1
1.7
1.4
5.6
4.2
2.6
2.1
1.6
6.6
5.4
3.1
2.5
1.9
7.4
5.6
3.4
2.7
2.1
8.3
6.3
3.6
2.8
2.0
8.9
6.9
3.8
2.9
2.1
10.2
7.6
4.4
3.5
2.5
10.8
8.2
4.7
3.7
2.7
12.0
8.8
5.0
3.9
2.8
12.7
9.6
5.2
4.0
2.9
13.5
10.4
5.6
4.2
3.0
14.3
10.8
6.1
4.7
3.3
16.4
12.2
6.5
5.1
3.5
17.2
12.7
6.8
5.2
3.6
18.2
13.6
7.2
5.7
3.8
19.0
14.2
7.6
5.8
3.9
dB of cable
800
862
equalized at highest frequency
0.0
0.0
0.0
1.1
1.0
1.0
1.2
1.0
2.0
1.2
1.0
4.0
1.2
1.0
5.0
1.2
1.0
6.5
1.4
1.0
7.8
1.4
1.0
8.7
1.4
1.0
10.5
1.4
1.0
11.0
1.6
1.0
13.0
1.7
1.0
14.5
1.7
1.0
15.5
1.8
1.0
16.5
1.8
1.0
17.5
2.0
1.0
19.0
2.0
1.0
21.3
2.0
1.0
22.4
2.0
1.0
23.9
2.0
1.0
24.9
Specification Document Number 600438 Rev J
1513173 Rev C
HFC Product Accessories Reference Guide
48
Model SFE-100-0-R SFE-100-1-R SFE-100-2-R SFE-100-3-R SFE-100-4-R SFE-100-5-R SFE-100-6-R SFE-100-7-R SFE-100-8-R SFE-100-9-R SFE-100-10-R SFE-100-11-R SFE-100-12-R SFE-100-13-R SFE-100-14-R SFE-100-15-R SFE-100-16-R SFE-100-17-R SFE-100-18-R SFE-100-19-R SFE-100-20-R SFE-100-21-R SFE-100-22-R SFE-100-23-R SFE-100-24-R
Table 65 SFE Series Forward Cable Equalizers Specifications
Part Number 535723-001-00 531124-001-00 531124-002-00 531124-003-00 531124-004-00 531124-005-00 531124-006-00 531124-007-00 531124-008-00 531124-009-00 531124-010-00 531124-011-00 531124-012-00 531124-013-00 531124-014-00 531124-015-00 531124-016-00 531124-017-00 531124-018-00 531124-019-00 531124-020-00 531124-021-00 531124-022-00 531124-023-00 531124-024-00
Insertion Loss in dB at Frequency (MHz)
50
65
85
200 300 450 550 650 750 870 1003
-1.0
-1.0
-1.0 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0
-1.8
-1.8
-1.7 -1.6 -1.5 -1.3 -1.3 -1.2 -1.1 -1.1 -1.0
-2.6
-2.5
-2.5 -2.1 -1.9 -1.7 -1.5 -1.4 -1.3 -1.1 -1.0
-3.3
-3.2
-3.1 -2.7 -2.4 -2.0 -1.8 -1.6 -1.4 -1.2 -1.0
-4.1
-4.0
-3.9 -3.2 -2.8 -2.3 -2.0 -1.8 -1.5 -1.3 -1.0
-4.9
-4.7
-4.6 -3.8 -3.3 -2.7 -2.3 -2.0 -1.7 -1.3 -1.0
-5.7
-5.5
-5.3 -4.3 -3.7 -3.0 -2.6 -2.2 -1.8 -1.4 -1.0
-6.4
-6.3
-6.0 -4.9 -4.2 -3.3 -2.8 -2.4 -1.9 -1.5 -1.0
-7.2
-7.0
-6.8 -5.4 -4.6 -3.6 -3.1 -2.6 -2.1 -1.5 -1.0
-8.0
-7.8
-7.5 -6.0 -5.1 -4.0 -3.3 -2.8 -2.2 -1.6 -1.0
-8.8
-8.6
-8.2 -6.5 -5.5 -4.3 -3.6 -2.9 -2.4 -1.7 -1.0
-9.5
-9.2
-8.9 -7.1 -6.0 -4.6 -3.9 -3.1 -2.5 -1.8 -1.0
-10.3 -10.0 -9.6 -7.6 -6.4 -5.0 -4.1 -3.3 -2.6 -1.8 -1.0
-11.1 -10.8 -10.4 -8.2 -6.9 -5.3 -4.4 -3.5 -2.8 -1.9 -1.0
-11.9 -11.6 -11.1 -8.7 -7.3 -5.6 -4.6 -3.7 -2.9 -2.0 -1.0
-12.7 -12.4 -11.9 -9.3 -7.8 -6.0 -4.9 -3.9 -3.0 -2.0 -1.0
-13.4 -13.0 -12.5 -9.9 -8.2 -6.3 -5.2 -4.1 -3.2 -2.1 -1.0
-14.2 -13.8 -13.3 -10.4 -8.7 -6.6 -5.4 -4.3 -3.3 -2.2 -1.0
-15.0 -14.6 -14.0 -11.0 -9.2 -6.9 -5.7 -4.5 -3.4 -2.2 -1.0
-15.8 -15.3 -14.8 -11.5 -9.6 -7.3 -5.9 -4.7 -3.6 -2.3 -1.0
-16.5 -16.0 -15.4 -12.1 -10.1 -7.6 -6.2 -4.9 -3.7 -2.4 -1.0
-17.3 -16.8 -16.2 -12.6 -10.5 -7.9 -6.4 -5.1 -3.8 -2.4 -1.0
-18.1 -17.6 -16.9 -13.2 -11.0 -8.3 -6.7 -5.3 -4.0 -2.5 -1.0
-18.9 -18.3 -17.7 -13.7 -11.8 -8.6 -7.0 -5.5 -4.1 -2.6 -1.0
-19.6 -19.1 -18.3 -14.3 -11.9 -8.9 -7.2 -5.7 -4.2 -2.6 -1.0
1513173 Rev C
HFC Product Accessories Reference Guide
49
Table 66 T-EQ-*-Q Series Cable Equalizers Specifications
Specification EQ Value
(dB nominal) Drop Insertion Loss* (dB max.)
Forward Response Flatness (dB max.)
Frequency T-EQ-2-Q T-EQ-4-Q T-EQ-6-Q T-EQ-8-Q T-EQ-10-Q T-EQ-12-Q T-EQ-14-Q T-EQ-16-Q T-EQ-18-Q T-EQ-20-Q T-EQ-22-Q (MHz)
1003
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
5 50 85 104 300 450 550 750 870 1000 1218 --
2.9 2.9 2.9 2.8 2.4 2.1 1.9 1.5 1.2 1.0 1.0 � 0.5
4.1 4.1 4.1 4.1 3.6 3.0 2.5 1.5 1.2 1.0 1.0 � 0.5
6.2 6.1 6.0 5.9 4.7 3.7 3.1 2.1 1.5 0.9 0.9 � 0.5
7.8 7.6 7.6 7.6 5.9 4.6 3.8 2.2 1.5 1.1 1.1 � 0.7
9.2 9.1 8.9 8.9 7.2 5.6 4.5 2.4 1.6 1.1 1.1 � 0.7
11.1 11.0 10.8 10.8 8.6 6.6 5.4 3.1 2.1 1.2 1.1 � 0.7
12.9 12.5 12.5 11.3 9.4 7.0 5.6 3.2 2.2 1.2 1.1 � 0.8
14.8 14.5 14.0 14.0 10.9 8.3 6.8 4.2 2.9 1.8 1.2 � 0.9
18.1 18.1 17.6 17.0 12.1 8.9 7.1 4.2 2.9 1.8 1.5 �1.2
20.0 20.0 18.6 18.0 12.4 8.9 7.1 4.2 2.9 1.8 1.5 �1.2
22.0 22.0 20.0 19.2 12.4 8.9 7.1 4.2 2.9 1.8 1.5 �1.2
Cable Simulators and Cable Equivalents
Cable simulators provide sloped attenuation of RF signals with the greatest attenuation occurring at the highest frequency. They are plug-in fixed units, which are used in place of equalizers in the forward path in those cases where the cable spacing is less than the amount of equalization built into the amplifier.
Table 67 7-2E862Cx-WC Cable Simulators Specifications
Model
P/N
Insertion Loss in dB at Frequency (MHz)
45
54
70
85
450
550
650
750
870
7-2E862C1-WC
725326
0.2
0.2
0.3
0.3
0.7
0.8
0.8
0.9
1.0
7-2E862C2-WC
725318
0.2
0.2
0.3
0.4
1.2
1.3
1.5
1.6
1.8
7-2E862C3-WC 7-2E862C4-WC
725356 725314
0.2
0.3
0.4
0.4
1.7
1.9
2.1
2.4
2.6
0.2
0.3
0.4
0.5
2.2
2.5
2.8
3.1
3.4
7-2E862C5-WC
725280
0.3
0.5
0.6
0.7
2.8
3.2
3.6
3.9
4.3
7-2E862C6-WC 7-2E862C7-WC
725452 725392
0.6
0.8
1.0
1.1
3.6
4.1
4.5
5.0
5.4
0.7
0.9
1.1
1.3
4.2
4.8
5.3
5.8
6.3
7-2E862C8-WC
725499
0.9
1.1
1.3
1.5
4.8
5.5
6.1
6.6
7.3
7-2E862C9-WC 7-2E862C10-WC
725175 725668
1.1
1.3
1.6
1.8
5.5
6.2
6.9
7.6
8.3
1.3
1.5
1.8
2.1
6.2
7.0
7.8
8.5
9.3
7-2E862C11-WC 725754
1.5
1.7
2.1
2.4
6.9
7.8
8.6
9.4
10.3
7-2E862C12-WC 725682
1.7
2.0
2.3
2.7
7.6
8.6
9.5
10.3
11.3
Passband Flatness: �0.4dB Return Loss I/O:
Specification Document Number 871541
16/16dB (7-2E862C1 to C6)
15/15 dB (7-2E862C7 to C12)
1513173 Rev C
HFC Product Accessories Reference Guide
50
Table 68 CE862 Cable Equivalent Specifications
Model
CE862/2 CE862/4 CE862/6 CE862/8
P/N
725713 725182 725177 726308
47 MHz
1 1 1 1
Insertion Loss
862 MHz
2 4 6 8
Table 69 PCS-1G Series Cable Simulators Specifications
Model
P/N
Insertion Loss in dB at Frequency (MHz)
50 70 80 550 750 806 862 1002
PCS-1G-02 725360
1.0 1.0 1.1 1.6 1.8 1.9 1.9 2.0
PCS-1G-03 725361
1.0 1.1 1.1 2.3 2.6 2.7 2.8 3.0
PCS-1G-04 725362
1.0 1.1 1.2 2.9 3.4 3.6 3.7 4.0
PCS-1G-05 725363
1.0 1.2 1.3 3.6 4.3 4.4 4.6 5.0
PCS-1G-06 725364
1.0 1.2 1.3 4.2 5.1 5.3 5.5 6.0
PCS-1G-07 725365
1.0 1.3 1.4 4.9 5.9 6.2 6.4 7.0
PCS-1G-08 725366
1.0 1.3 1.5 5.5 6.7 7.0 7.3 8.0
PCS-1G-09 725367
1.0 1.4 1.5 6.1 7.5 7.9 8.2 9.0
PCS-1G-10 725368
1.0 1.4 1.6 6.8 8.3 8.7 9.1 10.0
PCS-1G-11 778084
1.0 1.5 1.7 7.4 9.2 9.6 10.0 11.0
PCS-1G-12 778085
1.0 1.5 1.7 8.1 10.0 10.5 10.9 12.0
Passband Flatness: �0.4dB Return Loss I/O: 16/16dB min.
dB of cable simulated at Frequency (MHz)
350 450 550 650 750 806 862 1002
0.7 0.8 0.9 1.0 1.1 1.1 1.2 1.3 1.4 1.6 1.8 2.0 2.2 2.2 2.3 2.5 2.1 2.4 2.7 3.0 3.2 3.3 3.5 3.8 2.8 3.2 3.6 3.9 4.3 4.5 4.6 5.0 3.5 4.0 4.5 4.9 5.3 5.6 5.8 6.3 4.2 4.8 5.4 5.9 6.4 6.7 6.9 7.5 4.9 5.6 6.3 6.9 7.5 7.8 8.1 8.8 5.6 6.4 7.2 7.9 8.6 8.9 9.2 10.0 6.3 7.2 8.1 8.9 9.6 10.0 10.4 11.3 7.0 8.0 9.0 9.9 10.7 11.1 11.5 12.5 7.7 8.8 9.9 10.8 11.8 12.2 12.7 13.8
Specification 1503588
1513173 Rev C
HFC Product Accessories Reference Guide
51
Table 70 SCS-1G Series Cable Simulators Specifications
Model
P/N
Insertion Loss in dB at Frequency (MHz)
dB of Cable Simulated at Frequency (MHz)
50 70
SCS-1G-02 724347 1.0 1.0 SCS-1G-03 724380 1.0 1.1 SCS-1G-04 724391 1.0 1.1 SCS-1G-05 724389 1.0 1.2 SCS-1G-06 724331 1.0 1.2 SCS-1G-07 724361 1.0 1.3 SCS-1G-08 724367 1.0 1.3 SCS-1G-09 724372 1.0 1.4 SCS-1G-10 724369 1.0 1.4 SCS-1G-11 724402 1.0 1.5 SCS-1G-12 724393 1.0 1.5 SCS-1G-13 724453 1.0 1.6 SCS-1G-14 724462 1.0 1.6 SCS-1G-15 724449 1.0 1.7 Passband Flatness: �0.4dB Return Loss I/O: 18/16dB min.
80 550 750 806 862 1002 350
1.1 1.6 1.8 1.9 1.9 2.0 0.7 1.1 2.3 2.6 2.7 2.8 3.0 1.4 1.2 2.9 3.4 3.6 3.7 4.0 2.1 1.3 3.6 4.3 4.4 4.6 5.0 2.8 1.3 4.2 5.1 5.3 5.5 6.0 3.5 1.4 4.9 5.9 6.2 6.4 7.0 4.2 1.5 5.5 6.7 7.0 7.3 8.0 4.9 1.5 6.1 7.5 7.9 8.2 9.0 5.6 1.6 6.8 8.3 8.7 9.1 10.0 6.3 1.7 7.4 9.2 9.6 10.0 11.0 7.0 1.7 8.1 10.0 10.5 10.9 12.0 7.7 1.8 8.7 10.8 11.3 11.8 13.0 8.4 1.9 9.4 11.6 12.2 12.7 14.0 9.1 2.0 10.0 12.4 13.0 13.6 15.0 9.8
450 550 650
0.8 0.9 1.0 1.6 1.8 2.0 2.4 2.7 3.0 3.2 3.6 3.9 4.0 4.5 4.9 4.8 5.4 5.9 5.6 6.3 6.9 6.4 7.2 7.9 7.2 8.1 8.9 8.0 9.0 9.9 8.8 9.9 10.8 9.6 10.8 11.8 10.4 11.6 12.8 11.2 12.5 13.8
750 806 862 1002
1.1 1.1 1.2 1.3 2.2 2.2 2.3 2.5 3.2 3.3 3.5 3.8 4.3 4.5 4.6 5.0 5.3 5.6 5.8 6.3 6.4 6.7 6.9 7.5 7.5 7.8 8.1 8.8 8.6 8.9 9.2 10.0 9.6 10.0 10.4 11.3 10.7 11.1 11.5 12.5 11.8 12.2 12.7 13.8 12.8 13.4 13.9 15.0 13.9 14.5 15.0 16.3 15.0 15.6 16.2 17.5
Specification 1500883
Table 71 SCS-862 Series Cable Simulators Specifications
Model
P/N
54
SCS-862-02 724785
1.0
SCS-862-03 724905
1.0
SCS-862-04 724825
1.0
SCS-862-05 724730
1.0
SCS-862-06 724887
1.0
SCS-862-07 724912
1.0
SCS-862-08 724938
1.0
SCS-862-09 724903
1.0
SCS-862-10 724902
1.0
SCS-862-11 725011
1.0
SCS-862-12 724971
1.0
SCS-862-13 724959
1.0
SCS-862-14 725023
1.0
SCS-862-15 724967
1.0
Passband Flatness: �0.4dB (SCS-862-02 to 13) �0.6 dB (SCS-862-14 and 15)
Return Loss I/O: 8/16dB (SCS-862-02 to 13) 16/16 dB (SCS-862-14 and 15)
Insertion Loss in dB at Frequency (MHz)
70 80 222 550 750 806 862
1.0 1.0 1.3 1.7 1.9 2.0 2.0 1.0 1.0 1.6 2.4 2.8 2.9 3.0 1.1 1.2 1.9 3.2 3.8 3.9 4.0 1.0 1.1 2.3 3.9 4.7 4.9 5.0 1.0 1.2 2.6 4.6 5.5 5.8 6.0 1.2 1.4 3.1 5.2 6.3 6.6 7.0 1.3 1.4 3.3 6.0 7.3 7.6 8.0 1.3 1.6 3.7 6.6 8.1 8.5 9.0 1.4 1.6 3.9 7.3 9.0 9.4 10.0 1.5 1.7 4.4 8.0 10.0 10.3 11.0 1.5 1.7 4.8 8.7 10.9 11.4 12.0 1.5 1.8 5 9.5 11.9 12.4 13.0 1.6 1.9 5.5 10.0 12.9 13.4 14.0 1.7 2.0 5.9 10.6 13.7 14.3 15.0
dB of Cable Simulated at Frequency (MHz)
300 450 550 750 806 862
0.7 0.8 1.0 1.2 1.2 1.3 1.3 1.7 1.9 2.3 2.5 2.6 2.0 2.6 2.9 3.5 3.8 3.9 2.7 3.4 3.9 4.7 5.0 5.2 3.3 4.2 4.8 5.7 6.2 6.4 4.3 5.4 6.0 7.1 7.4 7.7 5.0 6.2 6.9 8.2 8.6 8.9 5.7 7.1 7.9 9.4 9.8 10.2 6.4 8.0 8.9 10.6 11.1 11.5 7.1 8.9 9.9 11.8 12.3 12.8 7.9 9.8 11.0 13.1 13.6 14.1 8.6 10.7 12.0 14.3 14.8 15.4 9.3 11.5 12.9 15.4 16.0 16.6 10.0 12.4 13.9 16.6 17.3 17.9
Specification Document Number 600662
1513173 Rev C
HFC Product Accessories Reference Guide
52
Table 72 SCS-*-R Series Forward Cable Simulators Specifications
Insertion Loss in dB at Frequency (MHz)
Model
Part Number
40
SCS-1-R 531161-001-00 -1
45 50 72 108 150 211 250 300 350 400 450 550 750 870 1003
-1
-1 -1.1 -1.1 -1.2 -1.3 -1.4 -1.5 -1.6 -1.6 -1.7 -1.8 -2
-2.1
-2.2
SCS-2-R 531161-002-00 -0.9 -1
-1 -1.2 -1.3 -1.5 -1.7 -1.8 -2 -2.1 -2.2 -2.4 -2.6 -3
-3.2
-3.5
SCS-3-R 531161-003-00 -0.9 -0.9 -1 -1.2 -1.4 -1.7 -2 -2.2 -2.5 -2.7 -2.8 -3 -3.4 -4
-4.3
-4.7
SCS-4-R 531161-004-00 -0.9 -0.9 -1 -1.3 -1.5 -1.9 -2.4 -2.7 -2.9 -3.2 -3.5 -3.7 -4.2 -5
-5.4
-5.9
SCS-5-R 531161-005-00 -0.8 -0.9 -1 -1.4 -1.6 -2.2 -2.7 -3.1 -3.4 -3.8 -4.1 -4.4 -5
-6
-6.5 -7.2
SCS-6-R 531161-006-00 -0.8 -0.9 -1 -1.4 -1.8 -2.4 -3.1 -3.5 -3.9 -4.3 -4.7 -5.1 -5.8 -7
-7.7
-8.4
SCS-7-R 531161-007-00 -0.7 -0.9 -1 -1.5 -1.9 -2.6 -3.4 -3.9 -4.4 -4.9 -5.3 -5.7 -6.5 -8
-8.8
-9.7
SCS-8-R 531161-008-00 -0.7 -0.9 -1 -1.6 -2 -2.9 -3.8 -4.3 -4.9 -5.4 -5.9 -6.4 -7.3 -9
-9.9 -10.9
SCS-9-R 531161-009-00 -0.7 -0.8 -1 -1.7 -2.2 -3.1 -4.1 -4.7 -5.4 -6 -6.5 -7.1 -8.1 -10 -11 -12.1
SCS-10-R 531161-010-00 -0.6 -0.8 -1 -1.7 -2.3 -3.3 -4.5 -5.1 -5.9 -6.5 -7.2 -7.8 -8.9 -11 -12.1 -13.4
Table 73 T-CS-*-Q Series Cable Simulators Specifications
Specification
Frequency T-CS-2-Q T-CS-4-Q T-CS-6-Q T-CS-8-Q T-CS-10-Q (MHz)
Cable Simulator
1218
2.0
4.0
6.0
8.0
10.0
Value
(dB nominal)
Drop Insertion
5
0.1
0.1
0.1
0.1
0.1
Loss* (dB max.)
50
0.1
0.1
0.2
0.2
0.3
85
0.2
0.2
0.3
0.3
0.5
104
0.2
0.3
0.5
0.5
0.7
300
0.6
1.4
1.9
2.2
3.1
450
1.0
2.2
3.0
3.7
5.1
550
1.3
2.7
3.7
4.7
6.3
750
1.7
3.4
4.9
6.5
8.4
870
1.9
3.8
5.5
7.5
9.3
1000
2.1
4.1
6.1
8.3
10.2
1218
2.3
4.4
6.7
9.3
11.0
Forward Response
--
Flatness
(dB max.)
� 0.5
� 0.5
� 0.5
� 0.5
� 0.7
*The insertion loss specifications shown are in addition to the tap value loss.
T-CS-12-Q 12.0
0.1 0.3 0.6 0.8 3.3 5.4 6.8 9.2 10.5 11.7 12.7 � 0.7
T-CS-15-Q 15.0
0.1 0.3 0.6 1.0 3.9 6.5 8.1 11.3 13.3 1.2 1.1 � 0.7
T-CS-18-Q 18.0
0.1 0.3 0.7 1.1 4.5 7.4 9.4 13.2 15.7 18.2 19.0 � 0.8
T-CS-21-Q 21.0
0.1 0.4 0.9 1.3 5.3 8.6 11.0 16.0 18.8 21.0 21.5 � 0.8
1513173 Rev C
HFC Product Accessories Reference Guide
53
INPUT CONFIGURATION MODULES AND OUTPUT DISTRIBUTION ACCESSORIES SPECIFICATIONS
Directional couplers, also known as TAPs, split the RF signal into unequal portions, routing the low loss and high loss signals to different legs of the plug-in location. By rotating SDC8, SDC12, 7-DC-8, and 7-DC-12 180�, the signal flow is reversed. Splitters deliver half the RF signal to each leg of the plug-in location. The SPB-0 and NPB-0 are throughput plug-ins that do not effect the signal.
Table 74 D-Series Splitters and Directional Couplers (TAPs) Specifications
Model
7-DC-4-5-1000-WC 7-DC-8-5-1000-WC 7-DC-12-5-1000-WC
P/N
724247 724754 724771
Description
Splitter Directional coupler (TAP) Directional coupler (TAP)
Insertion Loss
4/4 dB 8/2.6dB (�0.5dB) 11.9/1.8 dB (�0.5dB)
Table 75 S-Series Distribution Accessories Specifications
Model
P/N
Description
Insertion Loss in dB at Frequency (MHz)
5
40
54
70
80
222
550
750
862 1002
NPB-0
NPB-xxx
jumper
0
0
0
0
0
0
0
0
0
0
SPB-0
162260-00
jumper
0
0
0
0
0
0
0
0
0
0
SS-1000-2 723993
splitter
3.5
3.3
3.3
3.3
3.3
3.5
3.7
3.8
4.0
4.2
SDC-1000-8 724186
directional 1.7
1.4
1.4
1.4
1.5
1.6
1.8
2.0
2.6
2.7
coupler
8.2
8.1
8.1
8.1
8.1
8.2
8.2
8.2
8.5
8.6
SDC-1000-12 724268
directional 0.9
0.7
0.7
0.7
0.7
0.8
1.0
1.3
1.7
1.8
coupler
12.3 12.3 12.3 12.3 12.3 12.3 12.3 12.3 12.4 12.5
Passband Flatness: 0.5dB, P�V The recessed groove indicates the high loss leg. These accessories are reversible.
Specification Document Number 600613
Model
Part Number
SP120 531230-001-00
Table 76 SP/DC-120 Distribution Accessories Specifications
Description Splitter
Port Common Through
Passband (MHz)
Return Loss (dB)
Insertion Loss Max. (dB)
5-1218 5-1218
20@5�200 MHz 16@201�400 MHz 12@401�1218 MHz
20@5�400 MHz 16@401�600 MHz 12@601�1000 MHz 10@1001�1218 MHz
4.7@1000 MHz 5@1218 MHz 4.7@1000 MHz 5@1218 MHz
Flatness P-V (dB)
5�1218 MHz 0.3
0.3
Isolation (dB)
5�1218 MHz 17
17
Tilt (dB) 5�1218 MHz 1.5
1.5
54
HFC Product Accessories Reference Guide
1513173 Rev C
Table 76 SP/DC-120 Distribution Accessories Specifications
(cont'd)
Model
Part Number
Description
Port
Passband
(MHz)
DC120/8 531230-002-00 8dB Directional Coupler Input
Output Coupled
5-1218
5-1218 5-1218
DC120/10 531230-003-00 10dB Directional Coupler Input
Output Coupled
5-1218
5-1218 5-1218
DC100/12 531230-004-00 12dB Directional Coupler Input
Ouptut Coupled
5-1218
5-1218 5-1218
Return Loss (dB)
12 17 16
14 14 14
14 17 16
Insertion Loss Max. (dB)
Flatness P-V (dB)
5�1218 MHz
3.3 (Input to Output, 1000MHz, 1218 MHz)
--
8.5 (Input to Coupled, 1000 MHz)
9.0 (Input to Coupled, 1218 MHz)
3.3 (Input to Output, 1000MHz, 1218 MHz)
--
10.5 (Input to Coupled, 1000MHz,
1218 MHz) 2.2 (Input to Output, 1000MHz, 1218 MHz)
--
12.5 (Input to Coupled, 1000MHz,
1218 MHz)
0.5 (Input to Output) --
1.3 (Input to Coupled)
0.5 (Input to Output) --
1.4 (Input to Coupled)
0.5 (Input to Output) --
1.6 (Input to Coupled)
Isolation (dB)
5�1218 MHz 17
17 17
Tilt (dB) 5�1218 MHz 1.5 (Input to Output) --
2.0 (Input to Coupled
19
1.5 (Input
to Output)
19
--
19
2.5 (Input
to Coupled
18
1.5 (Input
to Output)
18
--
18
3.0 (Input
to Coupled
Table 77 Splitter Specifications
Model
P/N
S3.5/3.5
724486
Bandwidth: 5-862MHz
Insertion Loss: 2 x 3.8dB (max., 862MHz)
Flatness: �0.25dB
Return Loss: >20dB (47MHz) to 1.5dB/oct. (>20dB (<47MHz))
Isolation (out 1�out 2): >20dB
Dimensions L x H: 30 x 37.7mm
Model TAP10/1 TAP1/10 TAP8/1.5
1513173 Rev C
P/N
724717 725693 724779
Table 78 TAPs Specifications
Insertion Loss: Out 1/Out 2, dB 10.5/1.5 1.5/10.5 2/8.5
HFC Product Accessories Reference Guide
55
Table 78 TAPs Specifications
Model
P/N
Insertion Loss: Out 1/Out 2, dB
TAP16/1
724829
16.5/1
TAP1/16
725858
1/16.5
Bandwidth: 5-862MHz
Flatness: �0.25dB
Return Loss: >20dB (47MHz) to 1.5dB/oct. (>20dB (<47MHz))
Isolation (out 1�out 2): >20dB
Dimensions L x H: 30 x 37.7mm
DIPLEX FILTERS SPECIFICATIONS
Diplex filters split the RF frequency, routing the low frequency to the return path and the high frequency to the forward path, with minimal signal loss. Select the diplex filter with the same frequency split as your network.
Table 79 42/54 MHz Diplex Filters (p/n 1504997) Specifications
Specification Insertion Loss, dB (typical)
Return Loss, dB (typical) Isolation, dB (typical)
Forward 1.17@54 MHz 0.41@750 MHz 0.41@862 MHz 0.74@1002 MHz 25.6@54�850 MHz 23.5@850�1002 MHz 40.2@42�54 MHz 55.1@54�250 MHz 47.2@250�555 MHz 37.7@555�750 MHz 32.6@750�1002 MHz
Return 1.3@42 MHz
26.6@5�42 MHz 49.8@5�42 MHz
Table 80 85/102 MHz Diplex Filters (p/n 1508618) Specifications
Specification Insertion Loss, dB (typical)
Return Loss, dB (typical) Isolation, dB (typical)
Forward 1.3@102 MHz 0.3@770 MHz 0.4@862 MHz 0.5@1002 MHz 23@102�140 MHz 140�1002 MHz 31.5@85�105 MHz 52@102�195 MHz 48@195�600 MHz 41@600�770 MHz 36@770�1002 MHz
Value 1.2@85 MHz
22@5�50 MHz 18@50�85 MHz 53@5�85 MHz
Specification
1508883-001, 42/54 MHz Filter Bandwidth, MHz Insertion Loss @ cut off, dB
Table 81 1508883 Series Diplex Filters Specifications
Forward
54�1218 1.1 max.
Return
5�42 1.1 max.
56
HFC Product Accessories Reference Guide
1513173 Rev C
Table 81 1508883 Series Diplex Filters Specifications (cont'd)
Specification Insertion Loss@1.2 GHz, dB Flatness, dB Roll-off, Low, dB Roll-off, High, dB Return Loss, dB
Floor Isolation, dB
Crossover Isolation, dB Group Delay, nSec
1508883-002, 65/85 MHz Filter Bandwidth, MHz Insertion Loss @ cut off, dB Insertion Loss@1.2 GHz, dB Flatness, dB Roll-off, Low, dB Roll-off, High, dB Return Loss, dB
Floor Isolation, dB
Crossover Isolation, dB Group Delay, nSec
1508883-003, 85/102 MHz Filter Bandwidth, MHz Insertion Loss @ cut off, dB Insertion Loss@1.2 GHz, dB Flatness, dB Roll-off, Low, dB Roll-off, High, dB Return Loss, dB
Floor Isolation, dB
Crossover Isolation, dB Group Delay, nSec
1508883-004, 204/258 MHz Filter Bandwidth, MHz Insertion Loss @ cut off, dB Insertion Loss@1.2 GHz, dB Flatness, dB Roll-off, Low, dB Roll-off, High, dB
Forward 0.95 max. 0.8@54�1218 MHz 0.8@54�85 MHz 0.35@1002�1218 MHz �22@54�750 MHz �20@750�1218 MHz 50@54�600 MHz (min.) 45@600�1002 MHz (min.) 40@1002�1218 MHz (min.) 37@42�54 MHz (min.) 18@55.25�58.83 MHz (max.)
85�1218 1.0 max. 0.95 max. 0.7@85�1218 MHz 0.7@85�115 MHz 0.35@1002�1218 MHz �22@85�750 MHz �19@750�1218 MHz 50@85�600 MHz (min.) 45@600�1002 MHz (min.) 40@1002�1218 MHz (min.) 37@65�85 MHz (min.) 9@62�63.5 14@63.5�65
102�1218 1.2 max. 0.9 max. 0.9@102�1218 MHz 0.9@102�200 MHz 0.3@1002�1218 MHz �22@102�750 MHz �19@750�1218 MHz 50@102�600 MHz (min.) 45@600�1002 MHz (min.) 40@1002�1218 MHz (min.) 37@65�85 MHz (min.) 14.5@103.25�106.85 5.5@112.25�116.68
258�1218 1.0 max. 0.9 max. 0.7@258�1218 MHz 0.8@258�285 MHz 0.3@1002�1218 MHz
Return --
0.6@5�42 MHz 0.85@27�42 MHz
-- �22@5�42 MHz
50@5�42 MHz (min.)
-- 11@39�40.5 20@40.5�42
5�65 1.1 max.
-- 0.6@5�65 MHz 0.7@50�65 MHz
-- �22@5�65 MHz
50@5�65 MHz (min.)
-- 4@112.25�116.68 MHz (max.)
5�85 1.2 max.
-- 0.7@5�85 MHz 0.9@60�65 MHz
-- �22@5�85 MHz
50@5�85 MHz (min.)
-- 8@82�83.5 MHz (max.)
11@83.5�85 MHz
5�204 1.0 max.
-- 0.6@5�204 MHz 0.7@170�204 MHz
--
1513173 Rev C
HFC Product Accessories Reference Guide
57
Specification Return Loss, dB Floor Isolation, dB
Crossover Isolation, dB Group Delay, nSec
Table 81 1508883 Series Diplex Filters Specifications (cont'd)
Forward �22@258�600 MHz �19@600�1218 MHz 50@258�600 MHz (min.) 45@600�1002 MHz (min.) 40@1002�1218 MHz (min.) 37@204�258 MHz (min.) 5@259.25�263.68
Return �22@5�204 MHz 50@5�204 MHz (min.)
-- 7@198�204 MHz (max.)
Table 82 Diplex Filter Specifications
Model
D30/47 D42/54 D55/70 D65/85
P/N 725171 725483 772506 724120
Table 83 Diplex Filter for FM401 Specifications
Model
D30/47 D42/54 D55/70 D65/85 D85/105
P/N
761846 761845 761844 725932 791127
Active and Passive Return Channel Amplifier
The module RCA3-Z is a universal reverse path amplifier for Flex Max 400 and Flex Max 500 amplifiers. The functional adjustment possibilities enable a universal usage in HFC networks. All adjustments can be performed by Amini PADs. A switchable attenuator enables a reduction of the gain by 6 dB. The roll off caused by the diplex filters is compensated by special circuitry, where the gain at the higher frequency is increased by 1.5 dB. The whole range from 5 MHz to 30/42/65 MHz can be used for reverse path signals.
1513173 Rev C
HFC Product Accessories Reference Guide
58
Table 84 RCA3-Z Active Return Channel Amplifiers Specifications
Model
P/N
RCA3-Z 25/65
724110
RCA3-Z 25/55
772505
RCA3-Z 25/42
725656
RCA3-Z 25/30
725440
Bandwidth
Gain (module input to output)
Flatness
Combiner insertion loss
Return Loss
Noise Figure Attenuator
Input/Output Interstage Equalizer (5-65MHz) Power Consumption Power Supply Operating Temperature Dimensions L x H
5�30 MHz
�0.25 dB < 4.5 dB 20 dB < 6 dB
Amini plug-in modules 0,1,2,...20dB (switchable with a Jumper) 0,6dB Amini plug-in modules 0,1,2,...20dB < 1.5 W 24 VDC/60 mA �20�C to 75�C 75 x 42mm
Table 85 RCEQ-Z Passive Return Channel Equalizer Specifications
Model
P/N
RCEQ-Z-2/65 Bandwidth
725973
Return Loss
Insertion Loss: 1 input/2 input config.
Slope: delta insertion loss (5�65MHz)
flatness: Attenuator Power Consumption Input Splitter Dimensions L x H
5�65 MHz 20 dB 1.0dB @ 65MHz/5.0dB @ 65MHz Amini plug-in modules (1dB steps) 0�20dB (measured in station Max-Amplif. incl. D65/85MHz) 0.25 dB Amini plug-in modules (1dB steps) < 1.5 W on board 1 input/2 input config. via bridges 75 x 42mm
1513173 Rev C
HFC Product Accessories Reference Guide
59
AUTOMATIC GAIN CONTROL (AGC) MODULES SPECIFICATIONS
Table 86 AGC Modules Specifications
Model
P/N
AGC030/191.25 AGC030/189.25 AGC030/182.25 AGC030/175.25
758515 724714 725108 758642
FREQUENCY CORRECTION MODULES SPECIFICATIONS
Within a longer cascade of amplifiers and passive network components it can be necessary to correct irregularities of the frequency response. The CM862/xx is a plug-in module that equalizes the frequency response of longer cascades or non-optimal transmitter-node combinations with two bumpers and two debumpers, which can be shifted in frequency and amplitude. One of each is responsible for the high and low frequency ranges. An additional fixed bump in the CM862/85 MHz, CM862/54 MHz, and CM862/47 MHz modules compensates the roll off of 4 diplexers (i.e. one CM862 is enough for 2 amplifiers).
Model
CM862/00 CM862/85 CM862/54 CM862/47
P/N
772504 724571 772503 772502
Table 87 CM862 System Equalizer Specifications
P/N 1504415-001 1504416-001 1503691-001 1503691-002
Table 88 Fixed-Value EDB Response Equalizers Specifications
Attenuated Range 54 to 1002MHz 45 to 1002MHz 54 to 1002MHz 45 to 1002MHz
Max. Bump or Trap Size 3.5 dB 3.5 dB 3.5 dB 3.5 dB
Location of Bump or Trap 54 to 1002MHz 950 to 1002MHz 54 to 1002MHz 950 to 1002MHz
1513173 Rev C
HFC Product Accessories Reference Guide
60
HFC Product Accessories Reference Guide
Example Peak-to-Valley Response for Haystacks (727397/789316/761842)
Example Peak-to-Valley Response for Peaking Circuits (727398/761843)
Ordering Information
To configure a product that meets your specific needs, or for any questions, please contact your ARRIS Sales Professional. You may visit http://www.commscope.com/Support for additional support options. If you do not have a user ID and password or have forgotten your password, please click the Create/Update Membership button.
Revision A B C
Date 03/2019 11/2019 10/2020
Revision History
Reason for Change Initial Agile release. Revised to correct insertion Loss for CBSM-1G-07 at 900 MHz to 6.37 dB. Revised to support BLE120 and MB120 1.2 GHz amplifiers and accessories.
� 2020 CommScope, Inc. All rights reserved. ARRIS and the ARRIS logo are trademarks of CommScope, Inc. and/or its affiliates. All other trademarks are the property of their respective owners. No part of this content may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from CommScope, Inc and/or its affiliates ("CommScope"). CommScope reserves the right to revise or change this content from time to time without obligation on the part of CommScope to provide notification of such revision or change. 1513173 Revision C
www.arris.com
