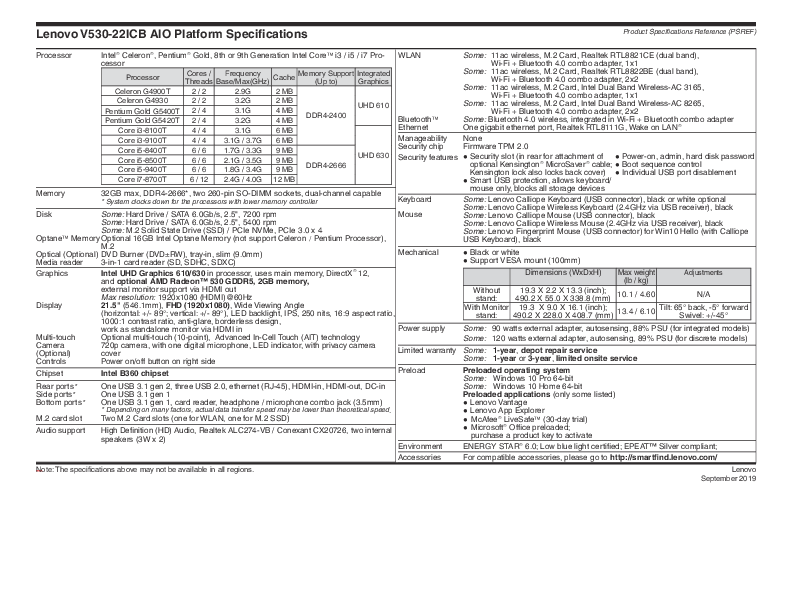

Lenovo s\Lenovo V530 22ICB AIO\Lenovo V530 22ICB AIO Spec Lenovo V530-22ICB AIO Platform Specifications
Product Specifications Reference (PSREF)
Processor
Intel Celeron, Pentium Gold, 8th or 9th Generation Intel CoreTM i3 / i5 / i7 Processor
Processor
Cores / Threads
Frequency Base/Max(GHz)
Cache
Memory Support (Up to)
Integrated Graphics
Celeron G4900T
2 / 2
2.9G
2 MB
Celeron G4930
2 / 2
Pentium Gold G5400T 2 / 4
Pentium Gold G5420T 2 / 4
3.2G 3.1G 3.2G
2 MB 4 MB 4 MB
DDR4-2400
UHD 610
Core i3-8100T
4 / 4
3.1G
6 MB
Core i3-9100T
4 / 4 3.1G / 3.7G 6 MB
Core i5-8400T Core i5-8500T Core i5-9400T
6 / 6 6 / 6 6 / 6
1.7G / 3.3G 2.1G / 3.5G 1.8G / 3.4G
9 MB 9 MB 9 MB
DDR4-2666
UHD 630
Core i7-8700T
6 / 12 2.4G / 4.0G 12 MB
Memory
32GB max, DDR4-2666*, two 260-pin SO-DIMM sockets, dual-channel capable * System clocks down for the processors with lower memory controller
Disk
Some: Hard Drive / SATA 6.0Gb/s, 2.5", 7200 rpm
Some: Hard Drive / SATA 6.0Gb/s, 2.5", 5400 rpm
Some: M.2 Solid State Drive (SSD) / PCIe NVMe, PCIe 3.0 x 4
OptaneTM Memory Optional 16GB Intel Optane Memory (not support Celeron / Pentium Processor),
M.2
Optical (Optional) DVD Burner (DVD±RW), tray-in, slim (9.0mm)
Media reader 3-in-1 card reader (SD, SDHC, SDXC)
WLAN Bluetooth Ethernet
Some: 11ac wireless, M.2 Card, Realtek RTL8821CE (dual band), Wi-Fi + Bluetooth 4.0 combo adapter, 1x1
Some: 11ac wireless, M.2 Card, Realtek RTL8822BE (dual band), Wi-Fi + Bluetooth 4.0 combo adapter, 2x2
Some: 11ac wireless, M.2 Card, Intel Dual Band Wireless-AC 3165, Wi-Fi + Bluetooth 4.0 combo adapter, 1x1
Some: 11ac wireless, M.2 Card, Intel Dual Band Wireless-AC 8265, Wi-Fi + Bluetooth 4.0 combo adapter, 2x2
Some: Bluetooth 4.0 wireless, integrated in Wi-Fi + Bluetooth combo adapter One gigabit ethernet port, Realtek RTL8111G, Wake on LAN
Manageability None Security chip Firmware TPM 2.0
Security features Security slot (in rear for attachment of Power-on, admin, hard disk password optional Kensington MicroSaver cable; Boot sequence control Kensington lock also locks back cover) Individual USB port disablement
Smart USB protection, allows keyboard/ mouse only, blocks all storage devices
Keyboard Mouse
Some: Lenovo Calliope Keyboard (USB connector), black or white optional Some: Lenovo Calliope Wireless Keyboard (2.4GHz via USB receiver), black Some: Lenovo Calliope Mouse (USB connector), black Some: Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), black Some: Lenovo Fingerprint Mouse (USB connector) for Win10 Hello (with Calliope USB Keyboard), black
Mechanical
Black or white Support VESA mount (100mm)
Graphics
Display
Multi-touch Camera (Optional) Controls Chipset Rear ports* Side ports* Bottom ports*
M.2 card slot Audio support
Intel UHD Graphics 610/630 in processor, uses main memory, DirectX 12,
Dimensions (WxDxH) Max weight
Adjustments
and optional AMD RadeonTM 530 GDDR5, 2GB memory,
(lb / kg)
external monitor support via HDMI out Max resolution: 1920x1080 (HDMI)@60Hz
Without stand:
19.3 X 2.2 X 13.3 (inch); 490.2 X 55.0 X 338.8 (mm)
10.1 / 4.60
N/A
21.5" (546.1mm), FHD (1920x1080), Wide Viewing Angle (horizontal: +/- 89°; vertical: +/- 89°), LED backlight, IPS, 250 nits, 16:9 aspect ratio, 1000:1 contrast ratio, anti-glare, borderless design,
With Monitor stand:
19.3 X 9.0 X 16.1 (inch); 490.2 X 228.0 X 408.7 (mm)
13.4 / 6.10
Tilt: 65° back, -5° forward Swivel: +/-45°
work as standalone monitor via HDMI in
Power supply Some: 90 watts external adapter, autosensing, 88% PSU (for integrated models)
Optional multi-touch (10-point), Advanced In-Cell Touch (AIT) technology 720p camera, with one digital microphone, LED indicator, with privacy camera cover Power on/off button on right side
Some: 120 watts external adapter, autosensing, 89% PSU (for discrete models)
Limited warranty Some: 1-year, depot repair service Some: 1-year or 3-year, limited onsite service
Intel B360 chipset
Preload
Preloaded operating system Some: Windows 10 Pro 64-bit
One USB 3.1 gen 2, three USB 2.0, ethernet (RJ-45), HDMI-in, HDMI-out, DC-in
Some: Windows 10 Home 64-bit
One USB 3.1 gen 1
Preloaded applications (only some listed)
One USB 3.1 gen 1, card reader, headphone / microphone combo jack (3.5mm)
Lenovo Vantage
* Depending on many factors, actual data transfer speed may be lower than theoretical speed.
Lenovo App Explorer
Two M.2 Card slots (one for WLAN, one for M.2 SSD)
McAfee LiveSafe (30-day trial)
High Definition (HD) Audio, Realtek ALC274-VB / Conexant CX20726, two internal
speakers (3W x 2)
Environment
Microsoft Office preloaded; purchase a product key to activate
ENERGY STAR 6.0; Low blue light certified; EPEATTM Silver compliant;
Accessories
For compatible accessories, please go to http://smartfind.lenovo.com/
-Note: The specifications above may not be available in all regions.
Lenovo September 2019
