LG CL88 Mini Hi-Fi System Owner's Manual
File info: application/pdf · 48 pages · 2.06MB
OWNER S MANUAL Mini Hi-Fi System - gscs-b2c.lge.com
Getting Started 3 Getting Started 1 CAUTION concerning the Power Cord The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily
English
LG CL88 Product Support :Manuals, Warranty & More | LG Philippine
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

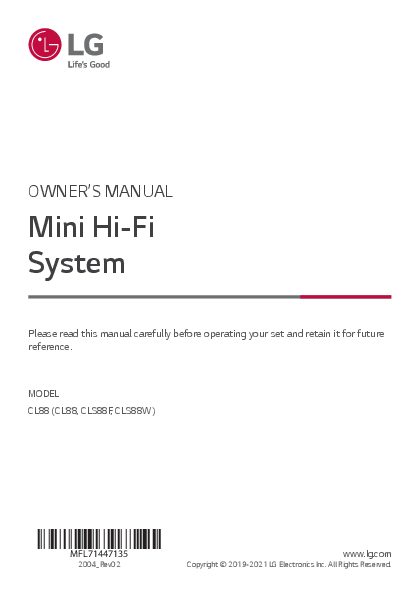

OWNER'S MANUAL Mini Hi-Fi System Please read this manual carefully before operating your set and retain it for future reference. MODEL CL88 (CL88, CLS88F, CLS88W) MFL71447135 2004_Rev02 www.lg.com Copyright � 2019-2021 LG Electronics Inc. All Rights Reserved. 2 Getting Started Safety Information Getting Started 1 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. WARNING: Do not install this equipment in a confined space such as a book case or similar unit. CAUTION: Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due to electrical shock. CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction has been adhered to. NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other surface of the product. Getting Started 3 Getting Started CAUTION concerning the Power Cord CAUTION: No naked flame sources, such as lighted The Power Plug is the disconnecting device. In case candles, should be placed on the apparatus. of an emergency, the Power Plug must remain readily accessible. Symbols Check the specification page of this owner's manual to be certain of the current requirements. ~ Refers to alternating current(AC). 1 Do not overload wall outlets. Overloaded wall outlets, 0 Refers to direct current(DC). loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire Refers to class II equipment. insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically 1 Refers to stand-by. examine the cord of your device, and if its appearance ! Refers to "ON" (power). indicates damage or deterioration, unplug it, discontinue use of the device, and have the cord Refers to dangerous voltage. replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device. CAUTION: Be careful to make sure children do not put their hands or any objects into the *speaker duct. * speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure) 4 Table of Contents Table of Contents 1 Getting Started 2 Safety Information 6 Unique Features 7 Playable file Requirement 7 � Music file requirement 7 � Compatible USB Devices 7 � USB device requirement 8 Remote control 10 Front panel 12 Rear panel 2 Connecting 14 How to affix the ferrite core 14 � About Ferrite Core 15 Connecting to speakers 15 � Attaching the speaker light cables to the unit 16 Optional Equipment Connection 16 � AUX IN 1 Connection 16 � AUX IN 2 Connection 17 � USB Connection 17 � Antenna Connection 3 Operating 18 Basic Operations 18 � CD/USB Operations 18 � Auto Play 19 � Selecting a folder and an MP3/WMA file 20 � Deleting a file/folder or format 21 Playback Effect 21 � DJ EFFECT 21 � DJ SCRATCHER 22 � AUTO DJ 22 � DJ PAD 23 � DJ LOOP 23 � PARTY ACCELERATOR 24 Using BLUETOOTH� wireless technology 24 � Listening to music stored on the Bluetooth devices 27 Using the LG XBOOM App 27 � About "LG XBOOM" App 27 � Install "LG XBOOM" App onto Your Bluetooth Device 28 � Activate Bluetooth with "LG XBOOM" App 29 Radio Operations 29 � Listening to the radio 29 � Improving poor FM reception 29 � Presetting the Radio Stations 29 � Deleting all the saved stations Table of Contents 5 30 Sound adjustment 30 � Setting the sound mode 30 � Setting the USER EQ 31 Advanced Operations 31 � Recording to USB 33 � JUKE BOX Playback 1 4 Troubleshooting 43 Troubleshooting 43 � General 44 � NOTES to release Demo mode 2 34 Other Operations 5 Appendix 34 � Turn off the sound temporarily 34 � CHILDSAFE Mode 45 General specifications 34 � DEMO 46 Speakers specifications 3 34 � Resume stop 46 Trademarks and Licenses 35 � Using Microphone 47 Maintenance 37 � LIGHTING 47 � Notes on Discs 38 � Sleep Timer Setting 47 � Handling the Unit 38 � Dimmer 4 39 � AUTO POWER On 39 � Auto function change 40 Setting the Clock 40 � Setting the Clock through "LG XBOOM" App 40 � Using your player as an alarm clock 5 41 LG Sound Sync 42 WIRELESS PARTY LINK Connection 6 Getting Started Unique Features Getting Started 1 BLUETOOTH� Listens to music stored on your Bluetooth device. Playback effects Listens to music with various sound and playback effects. USB Direct Recording Records music to your USB device. LG XBOOM LG XBOOM is an app designed to let you take control of some of LG's latest audio devices. (Page 27-28) LG Sound Sync Controls volume level of this unit by the remote control of your LG TV that is compatible with LG Sound Sync. Getting Started 7 Getting Started Playable file Requirement Music file requirement Compatible USB Devices y MP3 Player: Flash type MP3 player. y USB Flash Drive: Devices that support USB2.0 or USB1.1. 1 y The USB function of this unit does not support all USB devices. MP3/WMA file compatibility with this unit is limited as follows. y Sampling frequency: within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA) y Bit rate: within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA) y Maximum files: Data CD: 999 / USB: 2,000 y Maximum folders: Data CD: 99 / USB: 200 y File extensions: ".mp3"/ ".wma" y Certain MP3/WMA files may not be played depending on the type or format of the file. y CD-ROM file format: ISO 9660/ JOLIET y We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system. y A protected file by DRM (Digital rights management) cannot be played on the unit. y The DTS disc is not supported. You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players. (Mastered/Live File System: Disc format system for Windows Vista) USB device requirement y Devices which require additional program installation when you have connected it to a computer, are not supported. y Do not extract the USB device while in operation. y For a large capacity USB, it may take longer than a few minute to be searched. y To prevent data loss, back up all data. y If you use a USB extension cable or USB hub, the USB device is not recognized. y Using NTFS file system is not supported. (Only FAT(16/ 32) file system is supported.) y This unit recognizes up to 2,000 files. y External HDD, Card readers, Locked devices, or hard type USB devices are not supported. y USB port of the unit cannot be connected to PC. The unit cannot be used as a storage device. y Some USB may not work with this unit. Getting Started 8 Getting Started Remote control 1 Replacement of battery (R03) (R03) � � � � � � � � � � � � � �a � � � � � � � � � � � � � 1 (Standby): Turns the power on or off. B (Open/Close): Opens and closes the disc tray. VOL (Volume) +/-: Adjusts speaker volume. F (Function): Selects the function and input source. Input source / Function Disc USB AUX (3.5 mm) input AUX input Bluetooth LG Sound Sync (Wireless) Radio Display CD USB 1 / USB 2 AUX 1 AUX 2 BT LG TV FM [(Mute): Mutes the sound. PRESET�FOLDER W/S: - Chooses a preset number for a radio station. (Page 29) - Searches for a folder of MP3/WMA files. When a CD/USB containing MP3/WMA files in several folders is being played, press PRESET�FOLDER W/S to select the folder you want to play. JUKEBOX/MEMORY: - Stores radio stations. (Page 29) - Selects JUKE BOX mode. (Page 33) - Makes JUKE BOX list. AUTO DJ: Selects the AUTO DJ mode. (Page 22) DELETE: - Deletes MP3/WMA files. (USB only) (Page 20) - Deletes a song on the JUKE BOX list. - Deletes all the saved stations. Remove the battery cover on the rear of the remote control, and insert the battery with 4 and 5 matched correctly. Getting Started 9 Getting Started � � � � � � � � � � � � � �b � � � � � � � � � � � � � � � � � � � � � � � � � � �c � � � � � � � � � � � � � REPEAT: Listens to your tracks/files repeatedly or randomly. 0 to 9 numerical buttons: Selects numbered tracks, files, or preset number. TUNING-/+: Selects the radio stations. C/V (Skip/Search): - Skips backward or forward. CLOCK: Sets a clock and checks a time. ALARM: With the ALARM function you can turn on 1 CD, USB play and tuner reception at a desired time. - Searches for a section within a track/file. � � � � � � � � � � � � � �d � � � � � � � � � � � � � N (Play/Pause): - Starts or pauses playback. - Selects stereo/mono. Z (Stop): - Stops playback. - Cancels DELETE function. EQUALIZER: Chooses sound impressions. SPECIAL EQ: Chooses special equalizer. VOICE CANCELLER: You can reduce the vocal tones during music playback from various input sources. SLEEP: Sets the system to turn off automatically at a specified time. (Dimmer: The display window will be darkened by half.) SET: Confirms the setting. KEY CHANGER (L/l): Changes the key to suit your vocal range. J (Information): MIC (Microphone) ECHO: Selects ECHO mode. - Sees information about your music. An MP3 file often come with ID3 tag. The tag gives the Title, Artist, Album or Time information. - Sees Bluetooth device name of the unit in BT READY. - Sees the name of connected all Bluetooth device in Bluetooth mode. ?: This button is not available. VOCAL EFFECTS: Selects various vocal effects mode. USB REC: - Records to USB. - Stops Recording. - When these units are successfully connected each other in WIRELESS PARTY LINK mode, each of connected device names appears in the each unit. 10 Getting Started Front panel ab c 1 de n f Getting Started m l k ji h g a USB 1 Port You can play sound files by connecting the USB device. b 1 (Standby) Turns the power on or off. c Display window d F (Function) Selects the function and input source. Input source / Function Disc Display CD USB AUX (3.5 mm) input AUX input USB 1 / USB 2 AUX 1 AUX 2 Bluetooth LG Sound Sync (Wireless) Radio BT LG TV FM e USB 2 Port You can play sound files by connecting the USB device. f MASTER VOLUME - Adjusts speaker volume. - Selects the lighting effects. - Selects vocal effects. LIGHTING Selects the lighting mode. MIC VOL (Microphone volume) -/+ Adjusts microphone volume. MIC (Microphone) ECHO Selects ECHO mode. g (Remote sensor) MIC (Microphone) 1/2 jack AUX IN 1 jack h KEY CHANGER (L/l) Changes the key to suit your vocal range. VOICE CANCELLER You can reduce the vocal tones during music playback from various input sources. VOCAL EFFECTS Selects various vocal effects mode. Getting Started 11 Getting Started i 3 TWIN m CLUB, DRUM, USER (DJ PAD) Connects two speakers for TWIN mode in WIRELESS PARTY LINK. DJ LOOP Selects DJ LOOP mode. (DJ LOOP mode can use during CD/USB playback.) Selects CLUB, DRUM or USER sound effect to mix. (If you want to use USER, you have to register a source with "LG XBOOM" app.) 1 1, 2, 3, 4 (DJ PAD) Press a desired sound pad. N (Play/Pause) n DJ SCRATCHER / LEVEL CONTROL & SEARCH - Starts or pauses playback. - Selects stereo/mono. V (Skip/Search) - Skips forward. - Searches for a section within a track/file. - Selects the radio stations. PARTY ACCELERATOR MODE Selects PARTY ACCELERATOR MODE. j Disc tray k PARTY ACCELERATOR lever Slide the lever to create a party atmosphere. l USB REC / DEMO - Records to USB. - Stops Recording. - Turns clockwise or counterclockwise to make scratch sound. - Turns clockwise or counterclockwise to control the USER EQ level. - Searches a folder or a file. - Adjust DJ EFFECT level. DJ EFFECT Selects a desired DJ EFFECT. SEARCH Moves to folder or file in selection mode. OK Selects a folder when searching a file. USER EQ Selects the equalizer created by your own. - In power off status, if you press USB REC / DEMO, show DEMO mode. SPECIAL EQ / BASS BLAST (or BASS BLAST+) - Chooses special equalizer. - Press and hold to select BASS (or BASS+) effect directly. Z (Stop) Stops playback or cancels DELETE function. C (Skip/Search) - Skips backward. - Searches for a section within a track/file. - Selects the radio stations. B (Open/Close) Opens and closes the disc tray. 12 Getting Started Rear panel 1 a Getting Started bc MID R MID L 100 100 100 de a Power cord > Caution y Connect the power cord to wall outlet directly if possible. Or when you use an extension cable, it is highly recommended to use an extension cable of 110 V / 15 A or 230 V / 15 A, otherwise the unit may not operate properly because of the lack of power supply. y Do not overload the extension cord with excessive electrical load. b ANTENNA (FM) c AUX IN 2 (L/R) Connect an auxiliary device. d SPEAKER LIGHTING SYSTEM Connect the speaker lighting cables. e SPEAKERS connector Getting Started 13 Getting Started Useful functions for using the unit Function Description To do Do this BT Lock On/Off It allows you to connect a ON Press and hold N for 5 seconds in BT (Page 26) Bluetooth device only on BT (Bluetooth) and LG TV functions. (Bluetooth) function. 1 Initial setting of this function was OFF Press and hold N for 5 seconds in BT set to off. (Bluetooth) function. Auto Power On It allows the unit to turn on ON (Page 39) automatically by input signals: BT (Bluetooth) or LG TV OFF Turn off the unit by pressing 1 on the unit for 5 seconds. Turn off the unit by pressing 1 on the unit for 5 seconds. 14 Connecting How to affix the ferrite core Ferrite core may not be provided depending on each nation's regulations. About Ferrite Core 2 You must affix a ferrite core in order to reduce or eliminate electrical interference. 1. Pull the stopper [a] of the ferrite core to open. 2. Wind the power cord around the ferrite core twice. 3. Close the ferrite core until it clicks. Connecting MID R MID L 100 100 100 Connecting Connecting to speakers Connect the speaker cable plugs to the SPEAKERS connector. Make sure to connect the speaker's plug to the corresponding colored speaker connector when connecting the plug. Attaching the speaker light cables to the unit To connect the speaker light cable to the unit, insert the cable to SPEAKER LIGHTING SYSTEM connectors on the unit. MID R MID L 100 100 100 MID R MID L 100 100 100 Connecting 15 > Caution y Do not try to lift the speaker alone. It needs two persons to lift the speaker. Otherwise it may result in the speaker malfunction and cause personal injury and/or property damage. y When you connect the speakers to the unit, make sure to connect the speaker's cable and plug to the corresponding speaker connector. y Check the volume level before playing music 2 to prevent infirm, child, and pregnant women from being shocked by the sudden and loud sound from the unit. y Do not use the unit in a limited space. It may damage a person's hearing. It is recommended to use it in a wide space. y Use the speaker supplied with this unit only. Using any other speaker may cause malfunction. y The speakers contain magnet parts, so color irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor. y Avoid looking at the speaker lights for a long time. It may cause damage to eyesight. > Caution y Make sure that the jacks and the speakers are matched correctly. y Make sure to connect the cables to connectors tightly on the unit. 16 Connecting Optional Equipment Connection AUX IN 1 Connection AUX IN 2 Connection Connect an output of auxiliary device (Camcorder, TV, Player, etc) to the AUX IN 2 (L/R) connector. If your device has only one output for audio(mono), connect it to the left(white) audio jack on the unit. Connect an output (earphone or line out) of portable device (MP3 or PMP etc) to the AUX IN 1 (3.5 mm) 2 connector. MID R MID L 100 100 100 White Red Audio cable Connecting 3.5 mm stereo cable DVD, Blu-ray player etc. Listening to music from your portable player or external device The unit can be used to play the music from many types of portable player or external device. 1. Connect the portable player to the AUX IN 1 connector of the unit. Or Connect the external device to the AUX IN 2 connector of the unit. 2. Turn the power on by pressing 1. 3. Press F to select AUX 1 or AUX 2 function. 4. Turn on the portable player or external device and start it playing. , Note Automatically switches to the AUX 1 function when you connect the portable device to the AUX IN 1 connector. USB Connection Connect a USB device (or MP3 player, etc.) to the USB ports on the unit. USB device Connecting 17 Antenna Connection Connect the supplied FM antenna for listening to the radio. Connect the FM wire antenna to the FM antenna connector. USB 1 USB 2 MID R MID L 100 100 100 2 Connecting , Note Removing the USB device from the unit: 1. Choose a different function/mode or press Z twice in a row. 2. Remove the USB device from the unit. FM antenna , Note Be sure to fully extend the FM wire antenna. 18 Operating Operating Basic Operations , Note y Repeat/Shuffle playback operates as follows. On Display Description CD/USB Operations 1. Insert the disc by pressing B. Or connect the USB device to the USB port. Plays songs in order and stops OFF the playback. ONE Plays a same song repeatedly. 2. Select CD or USB function by pressing F. Plays songs in a folder FOLDER repeatedly. (Except AUDIO CD) To Stop Playback Press Z. Press N. Do this Pause Press N during playback. 3 Searching for a section within a track/ file Press and hold C/V during playback and release it at the point you want to listen to. Selecting a track/file directly Press 0 to 9 numerical buttons on the remote control to go to the desired file or track directly. - In stop status, ALL SHUFFLE Plays all the songs repeatedly. Plays all the songs once randomly, and stops the playback. y When you play JUKE BOX list, only ONE and ALL are available. y Even after restarting the unit or switching one function to another, you can listen to music from the point where it's last been played. y If you leave the disc tray open for 5 minutes, it will close automatically. Skipping to the next/ previous track/file Press C/V to go to the next/ previous track/file. - During playback, (1) By using C/V buttons: Press V to go to the next track/ file. Playing in less than 3 seconds, press C to go to the previous track/file. Auto Play - AUDIO/MP3/WMA CD is played automatically after disc tray is opened and then closed. - Automatically the unit switches to the CD function if disc tray is opened and then closed even when there is no disc in disc tray. Playing after 3 seconds, press C to go to the beginning of the track/ file. (2) By using SEARCH buttons: Rotate DJ SCRATCHER / LEVEL CONTROL & SEARCH or C/V and press N to play the track/file. Playing repeatedly or randomly Press REPEAT on the remote control repeatedly. Refer to the note for details about the display change. Selecting a folder and an MP3/ WMA file On the unit 1. Press SEARCH and rotate DJ SCRATCHER / LEVEL CONTROL & SEARCH or C/V until a desired file appears. You can also search a folder if you press SEARCH again. 2. Press OK or N to play the selected file. When you search a folder, press OK to select a file in the folder, then press OK or N again. The selected file is played. On the remote control 1. Press PRESET�FOLDER W/S repeatedly until a desired folder appears. 2. Select the file you want by using C/V. 3. Press N to play it. Operating 19 , Note y CD/USB Folders/Files are recognized as below. 3 Operating y If there is no file in a folder, the folder will not appear. y Folders will be presented as the following order; ROOT FOLDER 1 FOLDER 3 FOLDER 7 FOLDER 8 FOLDER 5 FOLDER 6 y File will be played from $ file No.1 to $ file No.14 one by one. y Files and folders will be presented in order recorded and may be presented differently according to the record circumstances. *ROOT: The first screen you can see when a computer recognize the CD/USB is "ROOT". 20 Operating Deleting a file/folder or format You can delete file, folder on your USB or format the USB. 1. Select USB function by pressing F. 2. Press DELETE on the remote control repeatedly, the display changes as followings. DEL FILE DEL DIR FORMAT On Display Description DEL FILE Select the file you want to delete. Select the folder you want to 3 DEL DIR delete. FORMAT Select to format the USB device. If you want to exit the current mode, press Z. 3. To delete file/folder or format, press and hold DELETE on the remote control. > Caution y Do not extract the USB device during operation. (play, delete, etc.) y Regular back up is recommended to prevent data loss. y The delete function may not be supported according to the USB status. (lock, etc.) Operating Operating 21 Playback Effect DJ SCRATCHER You can output and mix the sound effects of the DJ The unit supports various sound and playback effects : DJ EFFECT, DJ SCRATCHER, AUTO DJ, DJ PAD, DJ LOOP, PARTY ACCELERATOR SCRATCHER. Rotating DJ SCRATCHER / LEVEL CONTROL & SEARCH on the unit to mix the scratch sound. DJ EFFECT It allows you to enjoy DJ EFFECT such as FLANGER/ PHASER/WAH/DELAY sound effect. - You can hear effect of scratch sound depending on the direction in which you rotate DJ SCRATCHER / LEVEL CONTROL & SEARCH on the unit. 1. Press DJ EFFECT on the unit to select a desired DJ EFFECT (FLANGER, PHASER, WAH, DELAY, OFF). 2. Turn DJ SCRATCHER / LEVEL CONTROL & SEARCH on the unit clockwise or 3 counterclockwise to adjust the DJ EFFECT level between 0 to 15. , Note y The DJ EFFECT mode is displayed for 3 seconds when a DJ EFFECT key on the unit is inputted. y The current gage level is displayed when adjusting gage. y If the function changed or the unit is turned off and on, DJ EFFECT mode with DJ EFFECT is turned off. y According to effect level and application time, the DJ EFFECT may not effect when the DJ effect cover the original sound. Operating 22 Operating AUTO DJ DJ PAD AUTO DJ blends the end of one song into the beginning of another for seamless playback. It equalizes volume across tracks/files for uninterrupted playback. Press AUTO DJ on the remote control repeatedly, the display changes as followings. SHUFFLE SEQUENTIAL OFF It allows you to mix CLUB, DRUM or USER sound effect. Each mode has up to 4 sounds effect. 1. Press and hold DJ PAD (CLUB, DRUM or USER) on the unit to select a desired DJ PAD sound effect. 2. Press DJ PAD (1, 2, 3, 4) of desired sound on the unit. On Display Description OFF - The music is played randomly on SHUFFLE this mode. 3 The music is played repeatedly on SEQUENTIAL this mode. , Note y AUTO DJ mode does not support searching for a section within a track/file or to play repeatedly or randomly. y If you move to other functions or stop the music using Z on AUTO DJ mode, AUTO DJ will be disabled. y AUTO DJ is not supported in the music file whose length is less than 60 seconds. , Note y If you want to use USER, you have to register a source with "LG XBOOM" app. If the source is not register to USER, "EMPTY" or "NO SOUND" appears on the display window. y Initial DJ PAD mode is CLUB sound effect. y DJ PAD mode is displayed for 3 seconds when you press DJ PAD (CLUB, DRUM or USER) on the unit. y The DJ PAD sound is mixed when you press DJ PAD (1, 2, 3, 4) on the unit. y The currently playing DJ PAD sound is stopped and the selected DJ PAD sound outputs if you press a different DJ PAD (1, 2, 3, 4) on the unit while DJ PAD sound is playing. y Only SEQUENTIAL is selected when played JUKE BOX list. Operating DJ LOOP The certain section (about 1 sec) of sound is repeatedly played. (CD, USB Only) During playback, press and hold DJ LOOP on the unit at the point you want. And you can cancel DJ LOOP function by releasing it. , Note This function is released after operating 10 times or releasing DJ LOOP on the unit. PARTY ACCELERATOR It allows you to create a party atmosphere. 1. Select the mode by pressing PARTY ACCELERATOR MODE on the unit. The sound effect will react differently according to the mode. MODE 1 MODE 2 USER 2. After selecting the mode, slide up the lever of PARTY ACCELERATOR on the unit to create a party atmosphere. The sound effect will react according to moving the lever of PARTY ACCELERATOR on the unit. OFF ACCEL 1 ACCEL 2 CLIMAX , Note If you want to use USER, you have to register a source with "LG XBOOM" app. If the source is not register to USER, "EMPTY" or "NO SOUND" appears on the display window. Operating 23 3 Operating 24 Operating Operating Using BLUETOOTH� wireless technology Listening to music stored on the Bluetooth devices Pairing your unit and Bluetooth device About Bluetooth Before you start the pairing procedure, make Bluetooth is wireless communication technology for short range connection. sure the Bluetooth feature is activated on your Bluetooth device. Refer to your Bluetooth device's user guide. Once a pairing operation is performed, it The sound may be interrupted when the connection does not need to be performed again. interfered by the other electronic wave or you connect the Bluetooth in the other rooms. Connecting individual devices under Bluetooth 1. Turn on the unit. , Note wireless technology does not incur any charges. A When Bluetooth connection lock is activated, 3 mobile phone with Bluetooth wireless technology can be operated via the Cascade if the connection you can search Bluetooth device in BT (Bluetooth) function. was made via Bluetooth wireless technology. y Available Devices: Smart phone, MP3, Notebook, etc. y Version: 4.0 y Codec: SBC, AAC Bluetooth Profiles 2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device display depending on the type of Bluetooth device. Your unit appears as "LG CL88 (XX)". In order to use Bluetooth wireless technology, devices must be able to interpret certain profiles. This unit is compatible with following profile. A2DP (Advanced Audio Distribution Profile) , Note y XX means the last two digits of Bluetooth address. For example, if your unit has a Bluetooth address such as 9C:02:98:4A:F7:08, you will see "LG CL88 (08)" on your Bluetooth device. y Depending on the Bluetooth device type, some devices have a different pairing way. For details about Bluetooth pairing, refer to your Bluetooth device manual. y You can connect this unit with up to 3 Bluetooth devices simultaneously using the same method as described above, only in the BT (Bluetooth) function. y The multi phone pairing connection is only supported on Android devices. (Multi phone pairing connection may not be supported depending on the connected device specifications.) y Removable/detachable Bluetooth devices (Ex: Dongle etc.) will not support multi phone pairing. 3. When this unit is successfully connected with your Bluetooth device, "PAIRED" appears on the display window and change to Bluetooth device name soon. Then "BT" will appear on the display window. , Note y "PAIRED" will momentarily appear on the display when you connect other devices for multi phone pairing. y If the device name is unavailable, "_" will be displayed. 4. Listen to music. To play a music stored on your Bluetooth device, refer to your Bluetooth device's user guide. , Note y When using Bluetooth technology, you have to make a connection between the unit and the Bluetooth device as close as possible and keep the distance. However, it may not work well in certain situations as described below: - There is an obstacle between the unit and the Bluetooth device. - There is a device using same frequency with Bluetooth technology such as a medical equipment, a microwave or a wireless LAN device. y If Bluetooth connection does not work well, try pairing it again. y Even if this unit is connected up to 3 Bluetooth devices in the Bluetooth mode, you can play and control music by using only one of the connected devices. Operating 25 , Note y The sound may be interrupted when the connection has interference from other electronic devices. y Depending on the type of the device, you may not be able to use the BT (Bluetooth) function. y You can enjoy wireless system using phone, MP3, Notebook, etc. y The more distance between the unit and the Bluetooth device, the lower the sound quality becomes. y Bluetooth connection will be disconnected when the unit is turned off or the Bluetooth device gets too far from the unit. 3 y When Bluetooth connection is disconnected, connect the Bluetooth device to the unit again. y When a Bluetooth device is not connected, "BT READY" appears on the display window. y When you use the BT (Bluetooth) function, adjust the volume to a proper level on the Bluetooth device. y When you connect Bluetooth device (iOS device etc.) to this unit or operate the device, the volume level can be synchronized with each other. y Bluetooth connection will be disconnected when you change the BT (Bluetooth) function to some other function. In "LG XBOOM" app connection, only one device which you are playing keeps Bluetooth connection. You can control the Bluetooth device with this unit but you cannot use sound output. y When entering the BT (Bluetooth) function, this unit automatically connects to the last connected Bluetooth device or the device which played back last. (Auto connection may not be supported depending on the connected device specifications.) Operating 26 Operating Controls connected Bluetooth device You can control connected Bluetooth device by the unit; play, pause, stop, skip. , Note y Only Android OS and iOS is available to use this function. y This function may not be supported depending on the Bluetooth device, or operated differently. Operating Bluetooth connection lock (BT LOCK) You can limit Bluetooth connection to only 3 BT (Bluetooth) and LG TV function to prevent unintended Bluetooth connection. To turn on this function, press and hold N for about 5 seconds in BT (Bluetooth) function. "ON-BT LOCK" appears then you can limit Bluetooth connection. To turn off this function, press and hold N for about 5 seconds in BT (Bluetooth) function. "OFF-BT LOCK" appears. , Note Even if you set up Bluetooth connection lock to On, this unit turns on by Auto Power function. Turn off Auto Power function to prevent it. (Page 39) Operating 27 Using the LG XBOOM App , Note y Only Android OS is available to use "LG XBOOM" app with this unit. y It is recommended to use the latest version of app. Install "LG XBOOM" App onto Your Bluetooth Device There are two ways to install "LG XBOOM" app onto your Bluetooth device. Install "LG XBOOM" App through QR code 1. Install "LG XBOOM" app through QR code. Use the scanning software to scan the QR code. Operating About "LG XBOOM" App "LG XBOOM" app brings a suite of new features to this unit. 3 To enjoy more features, you are recommended to 2. Tap an icon for installation. download and install free "LG XBOOM" app. Below introduces you to a feature of "LG XBOOM" app. Multi Juke box: Your entertainment increases three fold when you connect up to 3 Bluetooth phones at the same time. Play music from three phones and create a customized playlist from all phones. Sampler Creator : Record effects on your smartphone and very simply sync them via Bluetooth to the system. Be as creative as you can , Note y Make sure that your Bluetooth device is connected to the Internet. y Make sure that your Bluetooth device has a scanning software application. If you don't have one, download one from "Google Android Market (Google Play Store)". y Depending on the area, QR code may not work. be. 28 Operating Operating Install "LG XBOOM" App through Activate Bluetooth with "LG "Google Android Market (Google Play XBOOM" App Store)" "LG XBOOM" app helps to connect your Bluetooth 1. Tap the "Google Android Market (Google Play device to this unit. Store)" icon. Tap "LG XBOOM" app icon on the home screen to 2. In the search bar, type in the "LG XBOOM" and open "LG XBOOM" app, and go to the main menu. search it. 3. In the search result list, find and tap "LG XBOOM" to start downloading Bluetooth app. 4. Tap an icon for installation. , Note y "LG XBOOM" app will be available in the software version as follow; - Android O/S: Ver 5.0 (or later) , Note y If you use "LG XBOOM" app for operation, y Make sure that your Bluetooth device is there would be some differences between 3 connected to the Internet. y Make sure that your Bluetooth device is "LG XBOOM" app and the supplied remote control. Use the supplied remote control as equipped with "Google Android Market necessary. (Google Play Store)". y Depending on the Bluetooth device, "LG XBOOM" app may not work. y After connection of "LG XBOOM" app, music may be output from your Bluetooth device. In this case, try connecting procedure again. y If you operate the other applications or change the settings on your Bluetooth device while using "LG XBOOM" app, "LG XBOOM" app may operate abnormally. y When "LG XBOOM" app operates abnormally, check your Bluetooth device and the connection of "LG XBOOM" app and then try to connect again. y Depending on the smart phone's operating system, you have some differences for "LG XBOOM" operation. y Check Bluetooth setting on your Bluetooth device if "LG XBOOM" app connection does not work well. Operating 29 Radio Operations Presetting the Radio Stations Be sure that FM antenna is connected. You can preset 50 stations for FM. Before tuning, make sure to turn down the volume. (Page 17) 1. Press F until FM appears in the display window. Listening to the radio 2. Select the desired frequency by pressing TUNING -/+ on the remote control or C/V 1. Press F until FM appears in the display window. on the unit. The last received station is tuned in. 3. Press JUKEBOX/MEMORY on the remote 2. Auto tuning: Press and hold TUNING-/+ on the remote control. A preset number will blink in the display window. control or C/V on the unit until the frequency 4. Press PRESET�FOLDER W/S on the remote indication starts to change, then release. control to select the preset number you want. Scanning stops when the unit tunes in a station. Or 5. Press JUKEBOX/MEMORY on the remote control. The station is stored. 3 Manual tuning: Press TUNING-/+ on the remote control or C/V on the unit repeatedly. 3. Adjust the volume by pressing VOL +/- on the remote control or rotating MASTER VOLUME knob on the unit repeatedly. 6. Repeat steps 2 to 5 to store other stations. 7. To listen a preset station, press PRESET�FOLDER W/S or 0 to 9 numerical buttons on the remote control. Deleting all the saved stations Improving poor FM reception Press N. This will change the tuner from stereo to mono and usually improve the reception. 1. Press DELETE on the remote control. "DEL ALL" will flash up on the unit display. 2. Press DELETE on the remote control to erase all the saved radio stations. "DELETED ALL" will scroll on the display window. Operating 30 Operating Operating Sound adjustment Setting the sound mode This system has a number of pre-set equalizers. The displayed items for the equalizer may be different depending on sound sources and effects. You can select a desired sound mode by using EQUALIZER on the remote control. On Display Description 3 BASS (BASS BLAST) or Reinforces the bass and powerful sound. BASS+ (BASS BLAST+) POP CLASSIC ROCK JAZZ This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock, pop, jazz or classic concert. FOOTBALL You can enjoy the equalizer FOOTBALL STADIUM. STANDARD You can enjoy optimized sound. You can select a desired sound mode by using SPECIAL EQ on the remote control or SPECIAL EQ / BASS BLAST (or BASS BLAST+) on the unit. On Display Region Description FUNK, REGUETON, SAMBA, MERENGUE, AXE, SALSA, SERTANEJ, FORRO ARABIC DANGDUT AFRO Latin America Middle East Indonesia Africa Optimized equalizer for the music genre preferred in each region. INDIA India , Note y On some speakers, sound may not be heard or heard in low sound depending on the sound mode. y By pressing and holding SPECIAL EQ / BASS BLAST (or BASS BLAST+) on the unit for 3 seconds, you can directly select BASS (BASS BLAST) or BASS+ (BASS BLAST+) effect. Setting the USER EQ You can adjust the sound level of Bass, Middle and Treble as your preference. 1. Press USER EQ on the unit. "USER EQ" is displayed. 2. Press USER EQ on the unit repeatedly until desired setting appears in the display window. 3. Rotate DJ SCRATCHER / LEVEL CONTROL & SEARCH on the unit to adjust the value. Operating 31 Operating Advanced Operations Recording to USB You can record a various sound source to USB. (CD, USB 1, AUX 1, AUX 2, FM) 1. Connect the USB device to the unit. 2. Press F to select a function you want to record. 3. Start the recording by pressing USB REC on the remote control or USB REC / DEMO on the unit. To stop recording To stop recording, press USB REC on the remote control or USB REC / DEMO on the unit. To select recording bit rate 1. Press and hold USB REC on the remote control or USB REC / DEMO on the unit for 3 seconds. 2. Press C/V to select a bit rate. 3. Press USB REC on the remote control or USB REC / DEMO on the unit to finish the setting. Function Status Result The making of unauthorized copies of Play/Pause Recorded until stop copy-protected material, including computer 3 programs, files, broadcasts and sound Resume stop Quick recorded the latest recordings, may be an infringement of (Page 34) song copyrights and constitute a criminal offense. This equipment should not be used for such Quick recorded All songs purposes. In case below, scope is limited. Be responsible Respect copyrights - After File search (Page 19), quick recorded an indexed song. CD, USB 1 Full stop - Only while the Folder name is displayed on the display window, quick recording All songs on Folder. (Folder Search Mode is released when there is no button input for a few seconds after entering the folder search mode.) (Page 19) - After JUKE BOX On (Page 33), quick recorded All songs of JUKE BOX. AUX 1, AUX 2, FM - Recorded until stop - If you connect both USB 1 and USB 2, press USB REC on the remote control or USB REC / DEMO on the unit when USB 1 or USB2 which you want to record blinks in the display window. 32 Operating Operating , Note y For stable recording, the output sound level goes down on its own when you record music from CD to USB. y You can only change volume level between MIN and 30 during recording. (Only CD function) y When you stop recording, the file that has been recorded at that time will be stored. (Except when recording MP3/WMA files that are in stop status.) y Do not remove the USB device or turn off the unit during USB recording. If does not, an incomplete file may be made and not deleted 3 on PC. y If USB recording does not work, the message like "NO USB", "ERROR", "USB FULL", "NOT SUPPORT" or "FILE MAX" is displayed on the display window. y Multi card reader device or external HDD can not be used for USB recording. y A file is recorded by about 512 Mbyte when you record for a long term. , Note y You can record various sound using DJ EFFECT, DJ SCRATCHER, DJ PAD or MIC. (Except when recording USB/CD that are in stop status.) y You can control recorded microphone sound according to microphone volume. y You may not store more than 2,000 files. y In case of the unsupported MP3/WMA file, the file recording may be stopped. y When you are recording during playback, the sound now playing is output. y VOICE CANCELLER or KEY CHANGER will be reset, if you use recording function during operating VOICE CANCELLER or KEY CHANGER. y VOICE CANCELLER or KEY CHANGER can not be operated during recording. y It'll be stored as follows. AUDIO CD Play or pause status $%@3&$ "6%*0@ "6%*0@ MP3/WMA Play or pause status '*-&@3&$ $%@3&$ "6%*0@53"$,@ "6%*0@53"$,@ '*-&@ " % $%@3&$ "6%*0@ "6%*0@ The other status '*-&@3&$ $%@3&$ "6%*0@ 53"$,@ "6%*0@ 53"$,@ The other status '*-&@3&$ "#$ 'JMFOBNF %&' 'JMFOBNF The other source* Tuner 5 05)&34@3&$ 56/&3@%3+&@$.*9@3&$ "6%*0@ "6%*0@.@*9@'. 1M "6%*0@ .*9@ *: AUX and the like. 5IFPUIFSTUBUV5TIFPUIFSTUBUVT 1MBZPSQBVTFT1UMBBUZVTPSQBVTFTUBUVT Tuner: The current recording frequency is shown Operating 33 Operating JUKE BOX Playback Editing JUKE BOX JUKE BOX function enables you to make a playlist of 1. Press and hold JUKEBOX/MEMORY on the your favorite tracks/files from a disc or USB device. remote control to enter the edit mode. A playlist of up to 100 tracks/files can be entered. (Playing will be stopped when you press JUKEBOX/MEMORY on the remote control.) Making JUKE BOX list 2. Press PRESET�FOLDER W/S on the remote 1. Press and hold JUKEBOX/MEMORY on the control to select a track/file to edit. remote control to enter the edit mode. 3. Press C/V on the remote control. (Playing will be stopped when you press JUKEBOX/MEMORY on the remote control.) 4. Press JUKEBOX/MEMORY on the remote control. 2. Select a track/file by pressing C/V on the 5. Repeat 2 to 4 to store the other tracks/files. remote control. 3. Press JUKEBOX/MEMORY on the remote 6. Press JUKEBOX/MEMORY on the remote control once again. control to save the track/file. To play the JUKE BOX list, press N on the remote 3 4. Repeat steps 2 - 3 to store other tracks/files. control after you edit the list. (You can modify the list by pressing PRESET�FOLDER W/S on the remote control to Deleting JUKE BOX list select the JUKE BOX program number.) 5. Press JUKEBOX/MEMORY on the remote control once again. To play the JUKE BOX list, press N on the remote Deleting function works in the edit mode. 1. Press and hold JUKEBOX/MEMORY on the remote control to enter the edit mode. control after you make the list. Or , Note Press DELETE on the remote control while JUKE BOX is played to enter the edit mode. When making or modifying the JUKE BOX list, REPEAT mode is off. 2. Select a song by pressing PRESET�FOLDER W/S on the remote control repeatedly. Enjoying JUKE BOX Press JUKEBOX/MEMORY on the remote control once. "ON - JUKE BOX" appears on the display window. To play JUKE BOX list, press N on the remote control. To cancel it, press JUKEBOX/MEMORY on the remote control once. "OFF - JUKE BOX" appears on the display window. 3. Press DELETE on the remote control while a song is selected. , Note y If there is no JUKE BOX list, "NO PROG" appears on the display window when you press JUKEBOX/MEMORY on the remote control. y JUKE BOX is switched off in the case below. - Changing to a different function. - Turning off and on the unit. - Operating the numerical buttons on the remote control. - Playing a file by using SEARCH and DJ SCRATCHER / LEVEL CONTROL & SEARCH on the unit. y JUKE BOX list is cleared in the case below. - Removing the disc or the USB device. - Deleting or recording music files in the USB device. 34 Operating Other Operations DEMO Turn off the sound temporarily Press [ on the remote control to mute your sound. You can mute your unit, for example, to answer the telephone, the "MUTE" will appear in the display window. To cancel it, press [ on the remote control again or change the volume level. In the power off state, press USB REC / DEMO on the unit once. The unit will power on and display the each of functions with demo sound in the display window. To cancel the DEMO function, press USB REC / DEMO on the unit once more. Resume stop The unit records the point where you pressed Z depending on the disc or USB. CHILDSAFE Mode If you press Z twice, the unit will clear the stopped point. 3 This function helps to prevent you from being surprised when you turn on the unit in case that the volume of the unit is set at a high level. To turn on CHILDSAFE mode, press and hold OK on the unit when the volume of the unit is "MIN". In CHILDSAFE mode, the volume increase gradually. To turn off CHILDSAFE mode, press and hold OK on the unit when the volume of the unit is "MIN" and this mode is turned on. , Note In case of CD, USB or BT (Bluetooth) function, CHILDSAFE mode does not work after about 2 minutes from power on the unit even if this mode is enabled. Operating Operating 35 Using Microphone VOICE CANCELLER 1. Connect your microphone to the MIC jack. 2. Play the music you want. 3. Sing along with the accompaniment. Adjust the microphone volume by pressing MIC VOL +/- on the unit. You can reduce the vocal tones during music playback from various input sources. Press VOICE CANCELLER and "ON - VOICE CANCELLER" will appear in display window. To cancel it, press VOICE CANCELLER again. , Note The quality of the VOICE CANCELLER may be different depending on the recording conditions of y When not using the microphone, set the MIC music files. volume to minimum or turn off the MIC and remove the microphone from the MIC jack. , Note y If the microphone is set too near the speaker, a howling sound may be produced. y This function is available in the CD, USB or BT (Bluetooth) function. In this case, move the microphone away from the speaker or decrease the sound level by y If the function is not available, "NOT SUPPORT" appears in the display window. 3 using the MIC VOL - on the unit. y This function is available to use only when a y If sound through the microphone is extremely microphone is connected. loud, it may be distorted. In this case, pressing MIC VOL - on the unit. y If a microphone is not connected, "INSERT MIC" appears in the display window. y You can give an echo effect to the sound from the microphones by pressing MIC ECHO. y It is not available on the mono source. y To initialize it, change the function or disconnect the microphone. y This function may not be initialized depending on the status of connected devices. Operating Operating 36 Operating KEY CHANGER You can adjust the key to 9 steps (4 steps higher, 4 steps lower and the original key). y To make key more sharp, one by one, press the KEY CHANGER(L) repeatedly during playback. y To make the key more flatten, one by one, press the KEY CHANGER(l) repeatedly during playback. , Note y This function is available in the CD, USB or BT (Bluetooth) function. 3 y To initialize it, change the function, disconnect the microphone or change the music. y This function may not be initialized depending on the status of connected devices. y If the function is not available, "NOT SUPPORT" appears in the display window. y If a microphone is not connected, "INSERT MIC" appears in the display window. VOCAL EFFECTS When you connect your microphone to the MIC jack, you can enjoy karaoke function by changing voice in the various source. To select various vocal effects mode, pressing VOCAL EFFECTS repeatedly or pressing VOCAL EFFECTS and then turning MASTER VOLUME on the unit when vocal effects mode appears in the display window. BASS SOPRANO HELIUM ROBOT DUET MAN DUET WOMAN BASS ECHO1 SOPRANO ECHO1 HELIUM ECHO1 ROBOT ECHO1 DUET MAN1 DUET WOMAN1 BASS ECHO2 SOPRANO ECHO2 HELIUM ECHO2 ROBOT ECHO2 DUET MAN2 DUET WOMAN2 OFF , Note y If a microphone is not connected, "INSERT MIC" appears in the display window. y If you press KEY CHANGER or MIC ECHO on VOCAL EFFECTS mode, after backing up current VOCAL EFFECTS, turn off VOCAL EFFECTS mode and operate KEY CHANGER or ECHO mode. y To turn off VOCAL EFFECTS mode, press and hold VOCAL EFFECTS. Operating 37 ECHO LIGHTING When you connect your microphone to the MIC jack, you can give an echo effect to the sound from the microphones by pressing MIC ECHO. ECHO 1 ECHO 2 OFF , Note y If a microphone is not connected, "INSERT MIC" appears in the display window. This function offers a party atmosphere by operating the lighting on the unit. Press LIGHTING on the unit repeatedly or press LIGHTING on the unit and then turn MASTER VOLUME on the unit. PARTY WATER FOREST (MY STYLE) OFF y If you press VOCAL EFFECTS on ECHO mode, after backing up current ECHO, turn off ECHO mode and operate VOCAL EFFECTS mode. To operate ECHO mode, press MIC ECHO again, after backing up current VOCAL EFFECTS. , Note y Lighting function is available in all functions. y Lighting mode retains in its previous mode when you first press LIGHTING on the unit, press again to change modes. y If you want to use MY STYLE, you have to 3 register a source with "LG XBOOM" app. y Do not look directly at the light emitting part when the LIGHTING is turned on. y If the illumination brightness is glaring, switch on the room lights or turn off the LIGHTING of the unit. y You can also turn off the light by pressing and holding LIGHTING on the unit. Operating Operating 38 Operating Sleep Timer Setting Press SLEEP on the remote control repeatedly to select delay time between 10 and 180 minutes. After the delay time, the unit will be turned off. To cancel the sleep function, press SLEEP on the remote control repeatedly until "OFF" appears. , Note y You can check the remaining time before the unit is turned off. Press SLEEP on the remote control to check or change the remaining time. y You can edit the remain time when the 3 remaining time or "DIMMER" is displayed. Dimmer Press SLEEP on the remote control once. The display window will be darkened by half. To cancel it, press SLEEP on the remote control repeatedly until "OFF" appears. , Note All the lighting turns off when dimmer is being operated. Operating 39 Operating AUTO POWER On Auto function change This unit automatically turns on by an input source: Bluetooth or LG TV. When you turn on your TV connected to this unit, this unit recognizes the input signal and selects the suitable function. You can hear the sound from the unit. This unit recognizes input signals such as BT (Bluetooth), LG TV and AUX 1 and then automatically changes to the suitable function. When you try to connect Bluetooth device If you try to connect your Bluetooth device, this unit turns on and connects your Bluetooth device. You can play your music. When you try to connect your Bluetooth device to this unit, BT(Bluetooth) function is selected. Play your music on the Bluetooth device. When you turn off this unit by pressing 1 on the unit for 5 seconds each time, you can turn on or off the AUTO POWER function. When AUX IN 1 (3.5 mm stereo cable) is connected On Display Description When you connect the portable device to the AUX IN 1 connector, AUX 1 function is selected. 3 ON - AUTO POWER AUTO POWER function is turned on. Play your music on the portable device. OFF - AUTO POWER AUTO POWER function is turned off. When LG TV is connected When you turn on your LG TV connected by LG Sound Sync, this unit changes the function to LG TV. , Note y Depending on the connected device, this function may not operate. You can hear the sound from your TV. , Note y This function is not available during recording y Depending on the connected device, the unit or deleting. turns on but BT(Bluetooth) function may not be connected. y This function only works with devices that were previously connected. y If you disconnect Bluetooth connection by this unit, some Bluetooth devices try to connect to the unit continually. Therefore it is recommended to disconnect the connection before turning off the unit. y If the Bluetooth connection lock function is set, Bluetooth and LG TV connection will be only available on BT(Bluetooth) and LG TV function. (Page 26) y If you try to connect to the "LG XBOOM" app, BT(Bluetooth) function of this unit is turned on. y If you turn on the unit using LG TV or BT(Bluetooth) function, proper function of this unit is turned on. y If you have already paired with this unit, this unit can automatically turn on by an input source when this unit is turned off. 40 Operating Setting the Clock Using your player as an alarm clock 1. Turn the unit on. 1. Turn the unit on. 2. Press and hold CLOCK on the remote control. 2. Press and hold ALARM on the remote control. 3. Select time mode by pressing C/V on the remote control. - AM 12:00 (for an AM and PM display) or 0:00 3. Press C/V on the remote control to change the hours and minutes and press SET on the remote control to save. (for a 24 hour display) 4. Press C/V on the remote control to select 4. Press SET on the remote control to confirm your function and press SET on the remote control to selection. save. 5. Select the hours by pressing C/V on the remote control. 3 6. Press SET on the remote control. -Press C/V on the remote control to select a preset number when you select tuner and then, press SET on the remote control. If there is no preset number, this step is skipped. 7. Select the minutes by pressing C/V on the remote control. 5. Press C/V on the remote control to change the volume and press SET on the remote control 8. Press SET on the remote control. to save. Setting the Clock through "LG XBOOM" App Install "LG XBOOM" app on your Android device. (Page 27-28) Your unit's clock will be automatically synchronized with your device by activating Bluetooth connection through "LG XBOOM" app. , Note y If you set the clock time, you can check the time by pressing CLOCK on the remote control even when the player is turned off. y You can set alarm after you set the clock time. y If you set the clock time and alarm, you can check the alarm setting information by pressing ALARM on the remote control even when the unit is turned off. y You can select ALARM ON/OFF mode by pressing ALARM on the remote control. Operating LG Sound Sync You can control some functions of this unit by your TV's remote control with LG Sound Sync. It is compatible with LG TV that supports LG Sound Sync. Make sure your TV has the LG Sound Sync logo. Controllable function by LG TV's remote control: Volume up/down, mute. Refer to the TV's instruction manual for the details of LG Sound Sync. 1. Turn on the unit by pressing 1. 2. Press F until LG TV function is selected. 3. Set up the sound output of TV to listen to the sound through this unit: TV setting menu [Sound] [TV Sound output] [LG Sound Sync (Wireless)] "PAIRED" appears on the display window for about 3 seconds and then you can see "LG TV" on the display window if the TV and this unit are connected normally. Operating 41 , Note y You can also use the remote control of this unit while using LG Sound Sync. If you use TV's remote control again, the unit synchronizes with the TV. (According to TV Specifications, the volume and mute of this unit synchronize with TV.) y If the connection fails, check the conditions of this unit and your TV: power, function. y Make sure of the condition of this unit and the connection in the cases below when using LG Sound Sync. - The unit is turned off. - Changing to a different function. - Disconnecting the wireless connection 3 caused by interference or a distance. y If you try to change the function on using the LG TV function, volume will be changed according to the LG TV volume level. y Details of TV setting menu vary depending on models of your TV. y If you turned off the unit directly by pressing 1, LG Sound Sync will be disconnected. To use this function again, you should reconnect the TV and the unit. y The volume may be increased when the TV and this unit is connected by LG Sound Sync. Decrease the TV volume and then connect with this unit. y When you turn on your LG TV connected by LG Sound Sync or enter LG TV function, this unit changes the function to LG TV automatically. y You should set the TV Sound output manually depending on the TV version. y If you control TV volume when this unit and TV are connected by LG Sound Sync, this unit may louder the volume due to synchronizing volume with TV's. Operating Operating 42 Operating WIRELESS PARTY LINK Connection You can enjoy the sound by using two speakers. For enjoying WIRELESS PARTY LINK, you need to purchase another speaker. It is compatible with unit that supports WIRELESS PARTY LINK. 3 1. Press 3 TWIN on the unit. ROLE SELECT appears in the display window. 2. Press 3 TWIN on the unit to select MAIN or OTHER. - unit: Selects MAIN. - unit: Selects OTHER. Two units try to connect with each other. 3. When these units are successfully connected to each other, each of connected device names appears in the each unit. , Note y If you are using the LG Sound Sync, this function is not available. If you connect the LG TV function, "NOT SUPPORT" appears in the display window. y You can use microphone in the OTHER unit only. In case of OTHER unit, some functions are supported only. y When WIRELESS PARTY LINK is disconnected, OTHER unit is changed to BT (Bluetooth) function. y If the connection is failed, "FAILED" appears in the display window. y Mute function is synchronized with each other. y WIRELESS PARTY LINK connection will be disconnected when you turn off the unit or press 3 TWIN on the unit. y Sound of MAIN unit and OTHER unit may be different depending on playback status or source. y Check the following information when connecting to Bluetooth. - You can connect only one Bluetooth device in the MAIN unit. You cannot connect Bluetooth device to the OTHER unit. - WIRELESS PARTY LINK connection is only supported on Android devices. (WIRELESS PARTY LINK connection may not be supported depending on the connected device specifications or OS.) - Removable/detachable Bluetooth devices (ex. Dongle etc.) will not support WIRELESS PARTY LINK connection. - When WIRELESS PARTY LINK is connected, Bluetooth connection is not available in status of recording or deleting. - If you connect WIRELESS PARTY LINK while you are playing connected Bluetooth device, it may be reconnected again, depending on phone specification. Troubleshooting Troubleshooting 43 General Problem Cause & Solution The unit does not work properly y Turn off the power of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and turn them on again. y Disconnect the power cord of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and then try connecting again. y Previous setting may not be saved when device power is shut off. No Power No sound y The power cord is not plugged in. Plug in the power cord. y Check whether electricity failed. Check the condition by operating other electronic devices using the same AC outlet. y Check whether you select right function. Press function button and check if you have selected the right function. 4 y Check to see if the speakers are connected correctly. Speaker cables connected correctly. The unit does not start playback y An unplayable disc is inserted. Check the playable disc. y No disc is inserted. Insert a disc. y The disc is dirty. Clean the disc. (Page 47) y The disc is inserted upside down. Place the disc with the label or printed side facing upwards. y The antenna is positioned or connected poorly. Connect the antenna securely. y The signal strength of the radio station is too weak. Radio stations cannot be Tune to the station manually. tuned in properly y No stations have been preset or preset stations have been cleared (when tuning by scanning preset channels). Preset some radio stations, see page 29 for details. Troubleshooting 44 Troubleshooting Problem Cause & Solution The remote control does not work properly y The remote control is too far from the unit. Operate the remote control within about 7 m. y There is an obstacle in the path of the remote control and the unit. Remove the obstacle. y The batteries in the remote control are exhausted. Replace the batteries with new ones. No speaker light LG Sound Sync does not work y Check whether the speaker light cables are connected to the unit correctly. Connect the speaker light cables to the unit correctly. y Check the speaker light effects by pressing LIGHTING on the unit. (Page 37) y Check whether your LG TV supports LG Sound Sync. y Check connection of LG Sound Sync. y Check sound setting of your TV and this unit. The AUTO POWER y Check connection of the external device such as TV or Bluetooth device. function does not work y Depending on the connected device, this function may not operate. 4 NOTES to release Demo mode Problem Cause & Solution Can not change input source with `F' key such as BT(Bluetooth), USB etc. and only DEMO mode is showing in the display. y Press `DEMO' Key on the unit for 15 seconds. Remote Control does not work properly. Troubleshooting General specifications General Power requirements Power consumption Dimensions (W x H x D) Operating temperature Operating humidity Refer to the main label on the unit. Refer to the main label on the unit. Approx. 450.0 mm x 167.0 mm x 332.0 mm 5 �C to 35 �C 5 % to 60 % RH Inputs Analog audio in (AUX IN 2) Portable in (AUX IN 1) Microphone (MIC 1/2) 3.5 Vrms, RCA jack (L, R) 1.8 Vrms (3.5 mm stereo jack) Sensitivity 20 mV, 6.3 mm jack x 2 Tuner FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz System Frequency Response Signal-to-noise ratio Dynamic range Bus Power Supply (USB) 80 to 20,000 Hz More than 75 dB More than 80 dB 5 V 0 500 mA Amplifier (RMS Output power) Total output HIGH MID LOW 2,900 W RMS 585 W RMS X 2 (6 at 5 kHz, 30 % THD) 590 W RMS X 2 (6 at 1 kHz, 30 % THD) 550 W RMS X 1 (6 at 70 Hz, 30 % THD) y Design and specifications are subject to change without notice. Appendix 45 5 Appendix 46 Appendix Speakers specifications Front speaker Type Impedance Rated Input Power Max. Input power Dimensions (W x H x D) HIGH : 1 Way 1 Speaker MID : 1 Way 1 Speaker HIGH : 6 MID : 6 HIGH : 585 W RMS MID : 590 W RMS HIGH : 1,170 W RMS MID : 1,180 W RMS Approx. 320.0 mm x 454.0 mm x 309.0 mm Subwoofer Type Impedance Rated Input Power Max. Input power Dimensions (W x H x D) 1 Way 1 Speaker 6 550 W RMS 1,100 W RMS Approx. 337.0 mm x 454.0 mm x 312.0 mm 5 y Design and specifications are subject to change without notice. Trademarks and Licenses Appendix The Bluetooth� word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. Appendix 47 Maintenance Handling the Unit When shipping the unit Notes on Discs Handling Discs Never stick paper or tape on the disc. Storing Discs After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight. Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean Do not use volatile liquids such as insecticide spray near the unit. Wiping with strong pressure may damage the surface. Do not leave rubber or plastic products in contact with the unit for a long period of time. Cleaning Discs Cleaning the unit Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out. Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for old vinyl records. To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit. Maintaining the Unit The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are 5 dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center. Appendix
