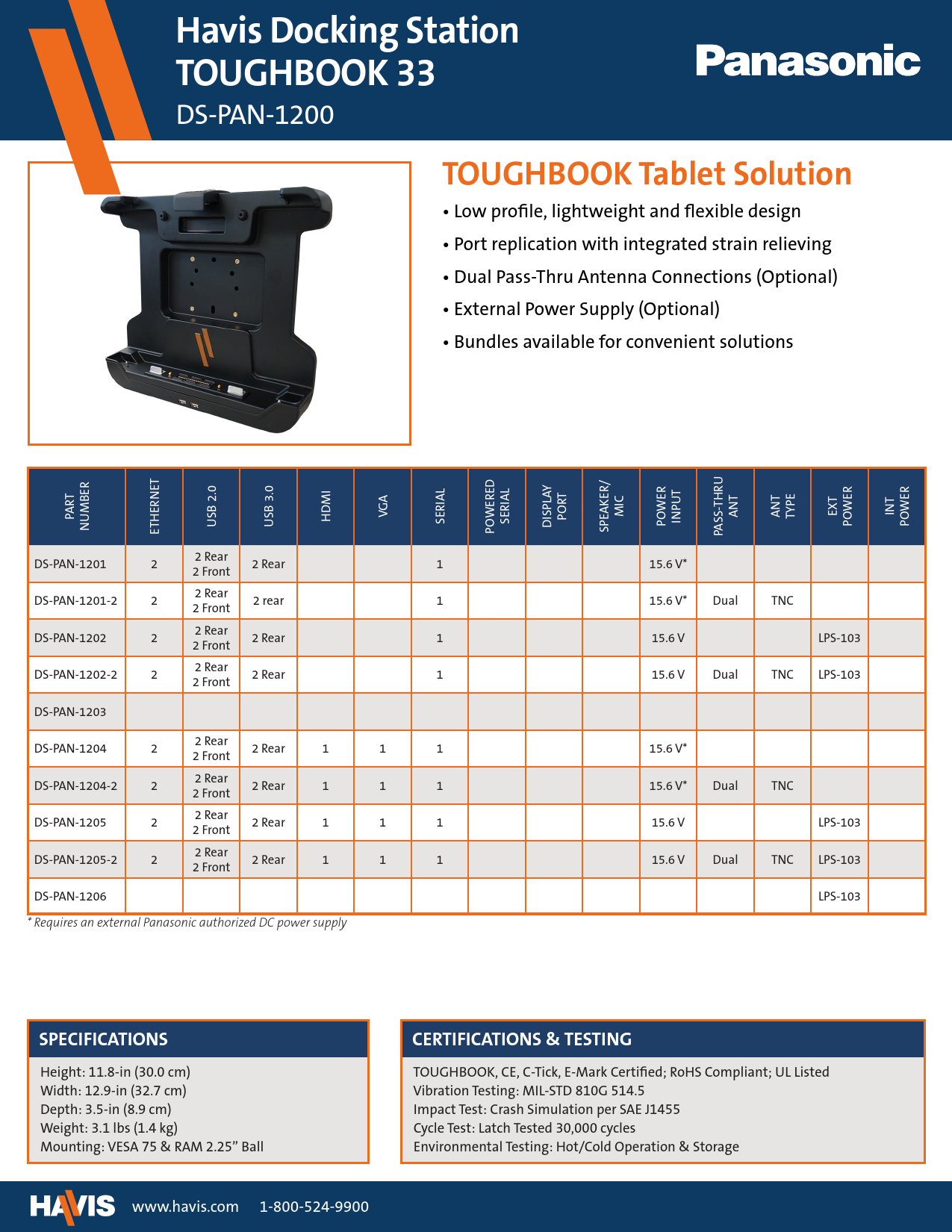

Havis Docking Station TOUGHBOOK 33
DS-PAN-1200
TOUGHBOOK Tablet Solution
· Low profile, lightweight and flexible design · Port replication with integrated strain relieving · Dual Pass-Thru Antenna Connections (Optional) · External Power Supply (Optional) · Bundles available for convenient solutions

PART NUMBER ETHERNET USB 2.0 USB 3.0
HDMI VGA SERIAL POWERED SERIAL DISPLAY PORT SPEAKER/ MIC POWER INPUT PASS-THRU ANT ANT TYPE EXT POWER INT POWER

DS-PAN-1201

2

2 Rear 2 Front

2 Rear

1

DS-PAN-1201-2

2

2 Rear 2 Front

2 rear

1

DS-PAN-1202

2

2 Rear 2 Front

2 Rear

1

DS-PAN-1202-2

2

2 Rear 2 Front

2 Rear

1

DS-PAN-1203

DS-PAN-1204

2

2 Rear 2 Front

2 Rear

1

1

1

DS-PAN-1204-2

2

2 Rear 2 Front

2 Rear

1

1

1

DS-PAN-1205

2

2 Rear 2 Front

2 Rear

1

1

1

DS-PAN-1205-2

2

2 Rear 2 Front

2 Rear

1

1

1

DS-PAN-1206 * Requires an external Panasonic authorized DC power supply

15.6 V* 15.6 V* Dual 15.6 V 15.6 V Dual

TNC LPS-103
TNC LPS-103

15.6 V* 15.6 V* Dual 15.6 V 15.6 V Dual

TNC LPS-103
TNC LPS-103 LPS-103

SPECIFICATIONS
Height: 11.8-in (30.0 cm) Width: 12.9-in (32.7 cm) Depth: 3.5-in (8.9 cm) Weight: 3.1 lbs (1.4 kg) Mounting: VESA 75 & RAM 2.25" Ball

CERTIFICATIONS & TESTING
TOUGHBOOK, CE, C-Tick, E-Mark Certified; RoHS Compliant; UL Listed Vibration Testing: MIL-STD 810G 514.5 Impact Test: Crash Simulation per SAE J1455 Cycle Test: Latch Tested 30,000 cycles Environmental Testing: Hot/Cold Operation & Storage

www.havis.com 1-800-524-9900
