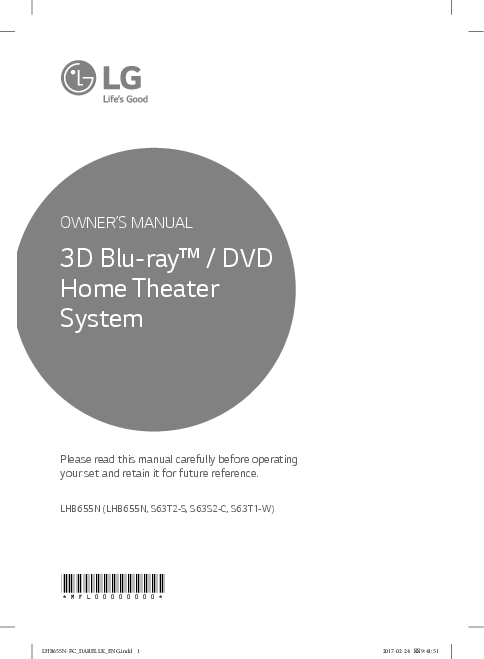

OWNER'S MANUAL
3D Blu-rayTM / DVD Home Theater System

Please read this manual carefully before operating your set and retain it for future reference.
LHB655N (LHB655N, S63T2-S, S63S2-C, S63T1-W)
*mfl00000000*
LHB655N-FC_DARELLK_ENG.indd 1

2017-02-24 9:41:51

LHB655N-FC_DARELLK_ENG.indd 2

2017-02-24 9:41:51

Getting Started

Getting Started 3

Safety Information

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

1
CAUTION: This product employs a Laser System.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous

procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure.

voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION concerning the Power Cord
Most appliances recommend they should be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or

WARNING: Do not install this equipment in a

mechanical abuse, such as being twisted, kinked,

confined space such as a book case or similar unit.

pinched, closed in a door, or walked upon. Pay

CAUTION: Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due to electrical shock.
CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's

particular attention to plugs, wall outlets, and the point where the cord exits the appliance. The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily accessible.

instructions.

Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the

product and to protect it from over heating. The

openings shall be never be blocked by placing

the product on a bed, sofa, rug or other similar

surface. This product shall not be placed in a built-

in installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer's

instruction has been adhered to.

LHB655N-FC_DARELLK_ENG.indd 3

2017-02-24 9:41:51

Getting Started

4 Getting Started

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the

battery from the equipment: Remove the

old battery or battery pack, follow the steps

in reverse order than the assembly. To prevent

contamination of the environment and bring on

possible threat to human and animal health, the

old battery or the battery put it in the appropriate

container at designated collection points. Do

not dispose of batteries or battery together with

other waste. It is recommended that you use

local, free reimbursement systems batteries and

accumulators. The battery should not be exposed

to excessive heat such as sunshine, fire or the like.

LHB655N-FC_DARELLK_ENG.indd 4

2017-02-24 9:41:51

Getting Started

Getting Started 5

Notes on copyrights

Important Notice for TV colour

y Because AACS (Advanced Access Content

system

System) is approved as content protection

The colour system of this player differs according to

system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc., of AACS protected content. The operation of this product and

currently playing discs.
For example, when the player plays the disc recorded in the NTSC colour system, the image is output as an NTSC signal.

restrictions on this product may vary depending Only the multi system colour TV can receive all

on your time of purchase as those restrictions

signals output from the player.

may be adopted and/or changed by AACS after

y If you have a PAL colour system TV, you will see

the production of this product.

just distorted images when using discs or video

y Furthermore, BD-ROM Mark and BD+ are

contents recorded in NTSC.

additionally used as content protection systems

y The multi system colour TV changes the colour

for Blu-ray Disc format, which imposes certain

system automatically according to input signals.

restrictions including playback restrictions for

In case that the colour system is not changed

BD-ROM Mark and/or BD+ protected content. To

automatically, turn it off and then on to see

obtain additional information on AACS, BD-ROM

normal images on screen.

Mark, BD+, or this product, please contact an authorized Customer Service Center.
y Many BD-ROM/DVD discs are encoded with

y Even if the disc recorded in NTSC colour system are well displayed on your TV, these may not be recorded correctly on your recorder.

copy protection. Because of this, you should only connect your player directly to your TV, not to a

> Caution

VCR. Connecting to a VCR results in a distorted

y Watching a 3D content for a long period

picture from copy-protected discs.

time may cause dizziness or tiredness.

y This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

y It is not recommended to watch a movie in 3D mode for infirm, child and pregnant woman.
y If you are experiencing headache, tiredness or dizziness while viewing content in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

y Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/ or criminal liability.

LHB655N-FC_DARELLK_ENG.indd 5

2017-02-24 9:41:51

6 Table of Contents

Table of Contents
1 Getting Started
3 Safety Information 8 Introduction 8 Playable discs and symbols used in
this manual 9 About the "7" symbol display 9 Regional code 9 System Select 9 Accessories 10 Remote Control 11 Front Panel 11 Rear Panel
2 Connecting
12 Positioning the System 13 Speaker Connection 13 Attaching the speakers to the player 14 Connecting to Your TV 15 What is SIMPLINK? 15 ARC (Audio Return Channel) function 16 Resolution setting 17 Antenna Connection 17 Connections with External Device 17 AUX connection 18 OPTICAL IN connection 19 Connecting to Your Home Network 19 Wired network connection 20 Wired network setup
3 System Setting
22 Initial Setup 23 Settings 23 Adjust the setup settings 24 [NETWORK] menu 25 [DISPLAY] menu 26 [LANGUAGE] menu 27 [AUDIO] menu 28 [LOCK] menu 29 [OTHERS] menu 31 Sound Effect

4 Operating
32 Home Menu Display 32 Using [HOME] menu 33 Playing the Linked Devices 33 Playing a disc 33 Playing Blu-ray 3D disc 34 Playing a file on disc/USB device 35 Playing a file on android device 36 Playing a file on a network server 36 Using Home Network Server for PC 36 About SmartShare PC Software 36 Downloading SmartShare PC
Software 36 Installing SmartShare PC Software 37 Sharing files and folders 37 System requirements 38 General Playback 38 Basic operations for video and audio
content 38 Basic operations for photo content 38 Using the disc menu 39 Resume playback 39 Last scene memory 40 On-Screen Display 40 To control video playback 41 To control photo view 42 Advanced Playback 42 Repeat playback 42 Repeating a specific portion 42 Playing from selected time 43 Selecting a subtitle language 43 Hearing a different audio 43 Watching from a different angle 43 Changing the TV Aspect Ratio 44 Changing Subtitle Code Page 44 Changing the Picture Mode 45 Viewing content information 45 Changing content list view 45 Selecting a subtitle file 46 Listening to music during slide show 46 Playing file encoded in 3D 47 Advanced Features 47 Enjoying BD-LiveTM 47 LG AV Remote 47 Private Sound Mode 48 Audio CD recording

LHB655N-FC_DARELLK_ENG.indd 6

2017-02-24 9:41:51

Table of Contents 7

48 Recording from FM radio or AUX source
49 Radio Operations 49 Listening to the radio 49 Presetting the radio stations 49 Deleting a saved station 49 Deleting all the saved stations 49 Improving poor FM reception 50 Using BLUETOOTH® technology 50 Listening to music stored on the
BLUETOOTH devices 52 LG Sound Sync 53 Using the Premium 54 Enjoying with LG Multi-room Audio
(LG Music Flow)

63 Compatibility notes

64 Audio Output Specifications

65 Area Code List

66 Language Code List

67 Trademarks and Licenses

69 Specifications

71 Maintenance

71 Handling the unit

71 Notes on discs 72 Important Information relating to Network

Services

5 Troubleshooting

55 Troubleshooting

55 General

56 Network

57 Picture

57 Sound

57 Customer Support

57 OPEN SOURCE SOFTWARE NOTICE

6 Appendix

58 Controlling a TV with the Supplied

Remote Control

58 Setting up the remote to control your

59 Network Software Update

59 Network update notification

59 Software update

61 Additional Information

61 File requirement

62 AVCHD (Advanced Video Codec High

Definition)

63 About DLNA

63 Certain system requirements

Some of the content in this manual may differ from your player depending on the software of the player or your service provider.

LHB655N-FC_DARELLK_ENG.indd 7

2017-02-24 9:41:51

Getting Started

8 Getting Started
Introduction

1 Playable discs and symbols used in this manual

Media/Term

Logo

Blu-ray

DVD-ROM DVD-R DVD-RW DVD+R
DVD+RW (8 cm, 12 cm)

DVD-RW (VR) (8 cm, 12 cm)
Audio CD (8 cm, 12 cm)
CD-R/RW (8 cm, 12 cm)

Note

Caution

Symbol
e
y u i
r
o y u i
r
t y u i
, >

Description y Discs such as movies that can be purchased or
rented. y "Blu-ray 3D" discs and "Blu-ray 3D ONLY" discs. y BD-R/RE discs that are recorded in BDAV format. y BD-R/RE discs that contain Video, Audio or
Photo files. y ISO 9660+JOLIET, UDF and UDF Bridge format
y Discs such as movies that can be purchased or rented.
y Video mode and finalized only y Supports the dual layer disc also Finalized AVCHD format
y DVD±R/RW discs that contain Video, Audio or Photo files.
y ISO 9660+JOLIET, UDF and UDF Bridge format
VR mode and finalized only
Audio CD
y CD-R/RW discs that contain Video, Audio or Photo files.
y ISO 9660+JOLIET, UDF and UDF Bridge format
Indicates special notes and operating features.
Indicates cautions for preventing possible damages from abuse.

LHB655N-FC_DARELLK_ENG.indd 8

2017-02-24 9:41:52

Getting Started

, Note
y Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.
y Depending on the recording software & the finalization, some recorded discs (CD-R/RW, DVD±R/RW, BD-R/RE) may not be playable.
y BD-R/RE, DVD±R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player's lens.
y If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)
y This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality.
y Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions to ensure compatible playback.
y Customers should note that permission is required in order to download MP3 / WMA files and audio from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.
y You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System : Disc format system for windows Vista)

Getting Started 9

About the "7" symbol display

"7" may appear on your TV display during

operation and indicates that the function explained

in this owner's manual is not available on that specific media.

Regional code
This unit has a regional code printed on the unit. This unit can play only BD-ROM or DVD discs labeled same as the unit or "ALL".

System Select
You must select the appropriate system mode for your TV system. Open the disc tray using the B (OPEN/CLOSE) button and then, press and hold M (PAUSE) for more than five seconds to be able to select a system (PAL, NTSC, AUTO)

LHB655N-FC_DARELLK_ENG.indd 9

2017-02-24 9:41:53

Getting Started

10 Getting Started
Remote Control

· · · · · · a· · · · · · · · · · · · c· · · · ·

FUNCTION INFO/MENU

FUNCTION: Changes input mode.
SUBTITLE: Selects a subtitle language.
1 (POWER): Switches the player ON or OFF.

SPEAKER LEVEL: Sets the sound level of desired speaker.
SOUND EFFECT: Selects a sound effect mode.
VOL +/-: Adjusts speaker volume.

B (OPEN/CLOSE): Ejects a disc.
SLEEP: Sets a certain period of time after which the unit will switch to off. INFO/MENU (m): Displays or exits On-Screen Display.
HOME ( ): Displays or exits the [Home Menu].
DISC MENU: Accesses menu on a disc.
· · · · · · b· · · · · Direction buttons (W/S/A/D): Selects an option in the menu.

OPTICAL/ TV SOUND : Changes input mode to optical directly.
MUTE: Mute the unit.
Colored (R, G, Y, B) buttons: - Use to navigate BD-ROM menus. They are also used as shortcut buttons for specific menus. - B button: Selects mono/ stereo in FM mode.
0-9 numerical buttons: Selects numbered options in a menu.
CLEAR: Removes a mark on the search menu or a number when setting the password.

PRESET +/-: Selects programme REPEAT (h): Repeats a desired

of Radio.

section or sequence.

TUNING +/-: Tunes in the desired AUDIO: Selects an audio language

radio station.

or audio channel.

Battery Installation
Remove the battery cover on the rear of the Remote Control, and insert R03 (size AAA) battery with 4 and 5 matched correctly.

ENTER (b): Acknowledges menu selection.
BACK ( ): Exits the menu or returns to the previous screen.
TITLE/POPUP: Displays the DVD title menu or BD-ROM's pop-up menu, if available.
Z (STOP): Stops playback.
z (PLAY): Starts playback.
M (PAUSE/STEP): Pauses playback.
C/V (SKIP): Goes to the next or previous chapter / track / file.
c/v (SCAN): Searches backward or forward.

X (REC): Records from an Audio CD, FM radio or AUX source to USB.
MIC/ECHO: Selects the microphone mode or microphone's echo mode. After selecting the desired mode, press VOL +/- to adjust microphone volume or microphone's echo volume.
? : Marked button is not available.
· · · · · · d· · · · ·
TV Control Buttons: See page 58.

LHB655N-FC_DARELLK_ENG.indd 10

2017-02-24 9:41:53

Getting Started

Front Panel
a

Getting Started 11

a Disc Tray
b Display Window
c Operation buttons R (Open / Close) T (Play / Pause) I (Stop) F (Function) Changes the input source or function. -/+ (Volume) 1/! (Power)

Rear Panel

d MIC 1/2 e USB Port
d e fg h

a AC power cord b Cooling Fan c Speakers connectors d LAN port e HDMI OUT TO TV

f AUX (L/R) INPUT g OPTICAL IN h Antenna Connector

LHB655N-FC_DARELLK_ENG.indd 11

2017-02-24 9:41:54

Connecting

12 Connecting

Positioning the System

The following illustration shows an example of

positioning the system. Note that the illustrations

in these instructions differ from the actual unit for

explanation purposes.

For the best possible surround sound, all the

speakers other than the subwoofer should be

placed at the same distance from the listening

position (A).

AA A

> Caution
y Be careful to make sure children not to put their hands or any objects into the *speaker duct. *Speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure).
y Place the Center at a safe distance from the child's reach. Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.
y The speakers contain magnetic parts, so colour irregularity may occur on the CRT TV screen or PC monitor screen. Please use the speakers away from the TV screen or PC monitor screen.
y Before using the subwoofer, remove the protective vinyl.
y Be careful not to make scratches on the surface of the Unit /Sub-Woofer when installing or moving them

A Front left speaker (L)/ B Front right speaker (R): Place the front speakers to the sides of the monitor or screen and as flush with the screen surface as possible.
C Center: Place the Center above or below the monitor or screen.
D Surround left speaker (L)/ E Surround right speaker (R): Place these speakers behind your listening position, facing slightly inwards.
F Subwoofer: The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reflections.
G Unit

LHB655N-FC_DARELLK_ENG.indd 12

2017-02-24 9:41:54

Connecting 13

Speaker Connection
Attaching the speakers to the player

2. In some cases, the wires need to be connected to the speakers. Connect the other end of each wire to the correct speaker according to the color coding or marking:

Color

Speaker Position

1. Connect the wires to the unit.

Grey (R.R/L) Rear

Rear right

Match each wire's colored band (or marking) to the same colored (or marked) connection

Blue (R.R/L) Rear

Rear left

terminal on the rear of the unit. To connect the

Green (C)

Center

cable to the unit, press each plastic finger pad to open the connection terminal. Insert the wire and release the finger pad.

Orange

Sub woofer

Any front position

Connecting

Red (F.R/L) Front

Front right

White (F.R/L) Front

Front left

Connect the black stripe of each wire to the terminals marked -(minus) and the other end to the terminals marked + (plus).
Connect a woofer cord to the player. When connecting a woofer cord to the player, insert the connector until it clicks.

To connect the cable to the speakers, press each plastic finger pad to open the connection terminals on the base of each speaker. Insert the wire and release the finger pad.
> Caution
y Be careful to make sure children do not put their hands or any objects into the *speaker duct. *Speaker duct : A hole for plentiful bass sound on speaker cabinet (enclosure).
y The speakers contain magnet parts, so color irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor.

LHB655N-FC_DARELLK_ENG.indd 13

2017-02-24 9:41:54

Connecting

14 Connecting
Connecting to Your TV
If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable (Type A, High speed HDMITM cable with Ethernet). Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor.
2
Rear of the unit
HDMI cable TV

, Note
y If a connected HDMI device does not accept the audio output of the player, the HDMI device's audio sound may be distorted or may not output.
y When you use HDMI connection, you can change the resolution for the HDMI output. (Refer to "Resolution setting" on page 16 )
y Select the type of video output from the HDMI OUT jack using [HDMI Color Setting] option on the [Settings] menu (see page 26).
y Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again.
y When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.
y If there are noises or lines on the screen, please check the HDMI cable (length is generally limited to 4.5 m(15 ft.)).

Set the TV's source to HDMI (refer to TV's Owner's manual).
Additional Information for HDMI
y When you connect a HDMI or DVI compatible device make sure of the following:
- Try switching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.
- The connected device's video input is set correctly for this unit.
- The connected device is compatible with 720 x 576p, 1280 x 720p, 1920 x 1080i or 1920 x 1080p video input.
y Not all HDCP-compatible HDMI or DVI devices will work with this player.
- The picture will not be displayed properly with non-HDCP device.

LHB655N-FC_DARELLK_ENG.indd 14

2017-02-24 9:41:55

Connecting 15

What is SIMPLINK?

ARC (Audio Return Channel) function

The ARC function enables an HDMI capable TV to

Some functions of this unit are controlled by the

send the audio stream to HDMI OUT of this player.

TV's remote control when this unit and LG TV's with SIMPLINK are connected through HDMI connection.

To use this function: - Your TV must support the HDMI-CEC and ARC

Controllable functions by LG TV's remote control;

function and the HDMI-CEC and ARC must be

Play, Pause, Scan, Skip, Stop, Power Off, etc.

set to On.

Refer to the TV owner's manual for the details of SIMPLINK function.
LG TV's with SIMPLINK function has the logo as shown above.
, Note
Depending on the disc type or playing status,

Connecting

- The setting method of HDMI-CEC and ARC may

differ depending on the TV. For details about

ARC function, refer to your TV manual.

- You must use the HDMI cable (Type A, High Speed HDMITM cable with Ethernet).

(X)
STANDARD HDMI CABLE WITH ETHERNET

some SIMPLINK operation may differ from your purpose or not work.

(X)
HIGH SPEED HDMI CABLE

(O)
HIGH SPEED HDMI CABLE WITH ETHERNET

- You must connect with the HDMI IN that supports the ARC function using the HDMI OUT on this player.
- You can connect only one Home Theater to TV compatible with ARC.
, Note
To activate [SIMPLINK / ARC] function, set this option to [On]. (page 30)

LHB655N-FC_DARELLK_ENG.indd 15

2017-02-24 9:41:55

16 Connecting

Resolution setting

The player provides several output resolutions for HDMI OUT jack. You can change the resolution using [Settings] menu.

1. Press HOME ( ).

2. Use A/D to select the [Settings] and press ENTER (b). The [Settings] menu appears.

3. Use W/S to select [DISPLAY] option then

press D to move to the second level.

4. Use W/S to select the [Resolution] option then press ENTER (b) to move to the third level.

5. Use W/S to select the desired resolution then press ENTER (b) to confirm your selection.

, Note
y If your TV does not accept the resolution you have set on the player, you can set resolution to 576p as follows:
1. Press B to open the disc tray.
2 Press Z (STOP) for more than 5 seconds.
y If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].
y If you select a resolution that your TV does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.
y The 1080p video output frame rate may be automatically set to either 24 Hz or 50 Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

Connecting

LHB655N-FC_DARELLK_ENG.indd 16

2017-02-24 9:41:55

Antenna Connection
Connect the supplied antenna for listening to the radio.
Rear of the unit

Connecting 17
Connections with External Device

AUX connection

You can enjoy the sound from an external

component through the speakers of this system.

Connect the analog audio output jacks of your

component into the AUX L/R (INPUT) on this unit.

And then select the [AUX] option by pressing

FUNCTION.

Connecting

You can also use the F (Function) button on the front panel to select the input mode.

, Note
Be sure to fully extend the FM wire antenna.

Rear of the unit

Red White
To the audio output jacks of your component (TV, VCR, etc.)

LHB655N-FC_DARELLK_ENG.indd 17

2017-02-24 9:41:56

18 Connecting

OPTICAL IN connection

You can enjoy the sound from your component with a digital optical connection through the speakers of this system.

Connect the optical output jack of your component into the OPTICAL IN jack on the unit. And then select the [OPTICAL] option by pressing FUNCTION. Or press OPTICAL / TV SOUND to select directly.

You can also use the F (Function) button on the front panel to select the input mode.

Rear of the unit

To the digital optical output jack of your component

Connecting

LHB655N-FC_DARELLK_ENG.indd 18

2017-02-24 9:41:56

Connecting to Your Home Network
This player can be connected to a local area network (LAN) via the LAN port on the rear panel. By connecting the unit to a broadband home network, you have access to services such as software updates, BD-Live interactivity and online content services.
Wired network connection
Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.
Please refer to the documentation for your network device for further instructions.
Connect the player's LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable.
, Note
y When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.
y Do not connect a modular phone cable to the LAN port.
y Since there are various connection configurations, please follow the specifications of your telecommunication carrier or internet service provider.
y If you want to access content from DLNAcompatible digital media servers, this player must be connected to the same local area network with them via a router.
y To set your PC as a DLNA-compatible digital media server, install the SmartShare PC Software on your PC. (page 36)

Connecting 19
Broadband service

Router

Connecting

DLNA certified servers

Rear of the unit

LHB655N-FC_DARELLK_ENG.indd 19

2017-02-24 9:41:56

Connecting

20 Connecting

Wired network setup
If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player's network setting to be adjusted. Adjust the [NETWORK] setting as follow.

Advanced Setting
If you want to set the network settings manually, use W/S to select [Advanced Setting] on the [Network Setting] menu and press ENTER (b).
1. Use W/S/A/D to select the IP mode between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

Preparation

Before setting the wired network, you need to connect the broadband internet to your home network.

1. Select [Connection Setting] option in the [Settings] menu then press ENTER (b).
2. Read the preparations for the network settings and then press ENTER (b) while [Start] is highlighted.

, Note
If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using W/S/ A/D and numerical buttons. If you make a mistake while entering a number, press CLEAR to clear the highlighted part.
2. Select [Next] and press ENTER (b) to apply network settings.

Network will automatically be connected to the unit.

Network connection status is displayed on the screen.
3. Press ENTER (b) while [OK] is highlighted to finish the wired network settings.

LHB655N-FC_DARELLK_ENG.indd 20

2017-02-24 9:41:57

Connecting 21

Notes on network connection

y A DSL modem is required to use DSL service and

y Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/ or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.
y Depending on the internet service provider (ISP), the number of devices that can receive internet

a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)
2

service may be limited by the applicable terms

of service. For details, contact your ISP.

Connecting

y Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

y The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.

y Some internet content may require a higher bandwidth connection.

y Even if the player is properly connected and configured, some internet content may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

y Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

y Any fees charged by an ISP including, without limitation, connection charges are your responsibility.

y A 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.

y You must use a Router to use xDSL service.

LHB655N-FC_DARELLK_ENG.indd 21

2017-02-24 9:41:57

System Setting

22 System Setting

Initial Setup
When you turn on the unit for the first time, the initial setup wizard appears on the screen. Set the display language and network settings on the initial setup wizard.

4. Select [Next] and press ENTER (b).
5. Press ENTER (b) to verify the test tone signals of the speakers.

1. Press 1 (POWER).

The initial setup wizard appears on the screen.

2. Use W/S/A/D to select a display language and press ENTER (b).

After verifying the test tone signals, press ENTER (b) while [Stop] is highlighted. Select [Next] and press ENTER (b).

6. You can listen to TV sound through HTS Speaker

automatically when TV is turned on.

3. After checking the Terms of Service, select [Agree] to use the Premium Service and SW Updates. Read and prepare the preparations for the network settings and then press ENTER (b) while [Start] is highlighted.

Press W to move and press A/D to select [On] or [Off ]. Select [Next] and press ENTER (b).
7. Check all the settings that you have set in the previous steps.

If wired network is connected, the network connection setting will automatically be finished.

Press ENTER (b) while [Finish] is highlighted to finish the initial setup settings. If there is any settings to be changed, use W/S/A/D to select 1 and press ENTER (b).
8. Displays private sound mode guide. Press ENTER (b).

LHB655N-FC_DARELLK_ENG.indd 22

2017-02-24 9:42:00

9. Displays the guide to enjoy online contents using LG AV Remote. Press ENTER (b).

Settings

System Setting 23

Adjust the setup settings
You can change the settings of the player in the [Settings] menu. 1. Press HOME ( ).

2. Use A/D to select the [Settings] and press

ENTER (b). The [Settings] menu appears.

System Setting

3. Use W/S to select the first setup option, and press D to move to the second level.

4. Use W/S to select a second setup option, and press ENTER (b) to move to the third level.

5. Use W/S to select a desired setting, and press ENTER (b) to confirm your selection.

LHB655N-FC_DARELLK_ENG.indd 23

2017-02-24 9:42:01

System Setting

24 System Setting

[NETWORK] menu

Smart Service Setting

The [NETWORK] settings are needed to use the software update, BD-Live and online content services.

[Country Setting]
Select your area for displaying proper online content service.

Connection Setting

[Initialize]

If your home network environment is ready to connect, the unit needs to be set up via wired connection for network communication. (See "Connecting to Your Home Network" on page 19.)

Depending on the region, [Initialize] function may not be available.
Device Name

Connection Status

If you want to check the network status on this

player, select the [Connection Status] options and

press ENTER (b) to check whether a connection

to the network and the internet have been

established.

BD-LIVE connection
You can restrict Internet access when BD-Live functions are used.

[Permitted]
Internet access is permitted for all BD-Live content.

You can make a network name using virtual keyboard. This player will be recognized by the name you are entering on your home network.
Network Play
This function allows you to control the playback of media streamed from DLNA media server by a DLNA certified smartphone. Most DLNA certified smartphone has a function to control the playback media on your home network. Set this option to [On] for allowing your smartphone to control this unit. Refer to instructions of your DLNA certified smartphone or the application for more detailed information.
, Note

[Partially permitted]
Internet access is permitted only for BD-Live content which have content owner certificates. Internet access and AACS Online functions are prohibited for all BD-Live content without a certificate.
[Prohibited]
Internet access is prohibited for all BD-Live content.

y This unit and the DLNA Certified Smartphone must be connected to the same network.
y To use the [Network Play] function using a DLNA certified smartphone, press HOME ( ) to display the home menu before connecting to this unit.
y While controlling the unit using the [Network Play] function, the remote control may not work.

y Available file formats described on page 61 are not always supported on [Network Play] function.

LHB655N-FC_DARELLK_ENG.indd 24

2017-02-24 9:42:01

System Setting 25

[DISPLAY] menu

Resolution

TV Aspect Ratio
Select a TV aspect ratio option according to your TV type.

Sets the output resolution of the HDMI video signal. Refer to page 16 for details about the resolution setting.
[Auto]

[4:3 Letter Box]
Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.

If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV.

[4:3 Pan Scan]

[576p]

Select when a standard 4:3 TV is connected.

Outputs 576 lines of progressive video.

Displays pictures cropped to fill your TV screen.

[720p]

Both sides of the picture are cut off.

Outputs 720 lines of progressive video.

[16:9 Original]
Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3

[1080i] Outputs 1080 lines of interlaced video.

aspect ratio, with black bars appearing at the left and right sides.

[1080p] Outputs 1080 lines of progressive video.

System Setting

[16:9 Full]
Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to fill the entire screen.
, Note
You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p.

1080p Display Mode
When the resolution is set to 1080p, select [24 Hz] for smooth presentation of film material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input.
, Note
y When you select [24 Hz], you may experience some picture disturbance when the video switches video and film material. In this case, select [50 Hz].

y Even when [1080p Display Mode] is set to [24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 50 Hz to match the video source format.

LHB655N-FC_DARELLK_ENG.indd 25

2017-02-24 9:42:01

26 System Setting

HDMI Color Setting

[LANGUAGE] menu

Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device.
[YCbCr]

Display Menu
Select a language for the [Settings] menu and onscreen display.

Select when connecting to a HDMI display device.
[RGB] Select when connecting to a DVI display device.

Disc Menu / Disc Audio / Disc Subtitle
Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.
[Original]

3D Mode

Select the type of output mode for Blu-ray 3D disc

playback. (This function is activated only when 3D

TV is connected.)

[On]
Blu-ray 3D disc playback will output as 3D mode.

Refers to the original language in which the disc was recorded.
[Other]
Press ENTER (b) to select another language. Use number buttons then press ENTER (b) to enter the corresponding 4-digit number according to the language code list on page 66.

[Off ] Blu-ray 3D disc playback will output as 2D mode like a normal BD-ROM disc playback.
Home Menu Guide
This function allows you to display or delete the guide bubble on the [HOME] menu. Set this option to [On] for displaying guide.

[Off] (Disc Subtitle only)
Turn off Subtitle.
, Note
Depending on the disc, your language setting may not work.

System Setting

LHB655N-FC_DARELLK_ENG.indd 26

2017-02-24 9:42:01

System Setting 27

[AUDIO] menu
Each disc has a variety of audio output options. Set the player's Audio options according to the type of audio system you use.
, Note
Since many factors affect the type of audio output, see "Audio Output Specifications" on page 64 for details.

DRC (Dynamic Range Control)
This function allows you to listen to a movie at a lower volume without losing clarity of sound.
[Auto]
The dynamic range of the Dolby TrueHD audio output is specified by itself. And the dynamic range of the Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode.

Digital Output

[On]

Compress the dynamic range of the Dolby

[Auto]

Digital, Dolby Digital Plus or Dolby TrueHD

Select if you connect this unit's HDMI OUT jack to a device with LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD

audio output. [Off ]

decoder or digital decoder.

Turns off this function.

System Setting

[PCM]
Select if you connect this unit's HDMI OUT jack to a device with digital decoder.
[DTS Re-Encode]
Select if you connect this unit's HDMI OUT jack to a device with DTS decoder.
, Note
y When [Digital Output] option is set to [Auto], the audio may output as bitstream. If the bitstream information is not detected from HDMI device with EDID, the audio may output as PCM.
y If the [Digital Output] option is set to [DTS Re-Encode], the DTS Re-Encode audio is outputted for BD-ROM discs with secondary audio and the original audio is outputted for the other discs (like [Auto]).
y This setting is not available on the input signal from an external device.

, Note
The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.
Semi Karaoke
When a chapter/ title is fully finished, this function shows the score on the screen with a fanfare sound.
[On] When you finished singing a score will appear on the screen.
[Off ] Fanfare and score do not appears on the screen.
, Note
y When you watch movies, "Off " the Semi Karaoke at the Setup menu or enjoy it without connecting the microphone if the fanfare or score appears during changing a chapter.
y The Semi Karaoke function is available only when a microphone is connected.

LHB655N-FC_DARELLK_ENG.indd 27

2017-02-24 9:42:01

System Setting

28 System Setting

Speaker Setup
To obtain the best possible sound, use the speaker setup display to specify the volume of the speakers you have connected and their distance from your listening position. Use the test to adjust the volume of the speakers to the same level.

[LOCK] menu
The [LOCK] settings affect only Blu-ray Disc and DVD playback.
To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created. If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (b) to create a new password.

Password
You can create or change the password.

3
[Speaker]

[None]
Enter a 4-digit password twice, and press ENTER (b) to create a new password.

Select a speaker that you want to adjust.

[Change]

[Volume] Adjust the output level of each speaker.
[Distance] Adjust the distance between each speaker and the listening position.
[Test/ Stop test tone] The speakers will emit a test tone.
[OK]

Enter the current password and press ENTER (b). Enter a 4-digit password twice, and press ENTER (b) to create a new password.
If you forget your password
If you forget your password, you can clear it using the following steps:
1. Remove any disc that might be in the player.
2. Highlight [Password] option in the [Settings] menu.

Confirms the setting.

3. Use Number buttons to enter "210499". The password is cleared.

HD AV Sync
Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it effectively `waits' for the picture to arrive: this is called HD AV Sync. Use A D to scroll up and down through the delay amount, which you can set at anything between 0 and 300 ms.

, Note
If you make a mistake before pressing ENTER (b), press CLEAR. Then input the correct
password.

LHB655N-FC_DARELLK_ENG.indd 28

2017-02-24 9:42:01

System Setting 29

DVD Rating

[OTHERS] menu

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

Quick Start

[Rating 1-8]
Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

This player can stay in standby mode with low power consumption, so that the player can instantly boot without delay when you turn on this unit. Set this option to [On] for activating [Quick

[Unlock]

Start] function.

If you select [Unlock], parental control is not

, Note

active and the disc plays in full.

y If [Quick Start] option is set to [On] and an

AC power is accidently re-connected to

Blu-ray Disc Rating

the player by power failure etc., the player

Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing.

automatically boots itself to be the standby

status. Before operating the player, wait for a while until the player is in standby status.

System Setting

[255] All BD-ROM can be played. [0-254]

y When [Quick Start] is set to [On], power consumption will be higher than when [Quick Start] is set to [Off ].

Prohibits play of BD-ROM with corresponding ratings recorded on them.

Auto Power Off

, Note
The [Blu-ray Disc Rating] will be applied
only for the Blu-ray disc that containing the
Advanced Rating Control.

The screen saver appears when you leave the player in Stop mode for about 5 minutes. If you set this option to [On], the unit automatically turns off within 15 minutes since the Screen Saver is displayed. Set this option to [Off ] to leave the screen saver until the unit is operated by the user.

Area Code
Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 65.

, Note
When you set [Auto Power Off ] function in setting menu on, this unit will be off itself to save electronic consumption in the case main unit is not connected to external device and is not used for 20 minutes.

So does this unit after six hours since Main unit has been connected to other device using analog input.

LHB655N-FC_DARELLK_ENG.indd 29

2017-02-24 9:42:01

System Setting

30 System Setting

TV Sound Connecting
You can listen to TV sound through this unit's speaker automatically when TV is turned on.

Software
[Information] Displays the current software version.

[OSS Notice] LGE Open Source Software Notice is displayed.

[Update]

You can update the software by connecting

the unit directly to the software update server

Press W to move and press A/D to select [On] or

(page 59).

[Off ]. Select [Next] and press ENTER (b).

, Note

When [TV Sound Connecting] and [Quick

Start] functions are on and this unit is turned

SIMPLINK/ARC
- The SIMPLINK function allows you to control this unit with LG TV's remote control.

off, if a previously paired Bluetooth device

- The ARC function enables an HDMI capable TV

tries to pair with this unit, this unit turns on

to send the audio stream to HDMI OUT of this

automatically.

player.

Initialize

Set this option to [On] for activating [SIMPLINK/ ARC] function. (page 15)

[Factory Set] You can reset the player to its original factory settings.
[Blu-ray Storage Clear]

Terms of Service
Privacy Policy for Blu-ray DiscTM Player is displayed. To use the Premium Service and SW Updates, select [Agree].

Initializes the BD-Live content from the connected USB storage.

, Note
If you reset the player to its original factory
settings using [Factory Set] option, you have to
set all the activation for the online services and
network settings again.

LHB655N-FC_DARELLK_ENG.indd 30

2017-02-24 9:42:02

Sound Effect
You can select a suitable sound mode. Press SOUND EFFECT repeatedly until the desired mode appears on the front panel display or the TV screen. The displayed items for the equalizer maybe different depending on sound sources and effects. [Standard]: You can enjoy optimized sound. [Music]: You can enjoy comfortable and natural sound. [Cinema]: You can enjoy more immersive and cinematic surround sound. [Flat]: Provides balanced sound. [Boost]: Boosts the mid-range for sound reinforcement. [Treble / Bass]: Reinforces the treble and bass. [Football]: You can enjoy a feeling of presence in the stadium when watching the football match broadcast. [Bass Blast]: Reinforce the bass sound effect from front left and right speaker and subwoofer. [Power Front] : You can enjoy the harmonious sound. This mode is suited for all the speakers were placed in a row.
Setting the [User EQ]
1. Use W/S to select the desired frequency. 2. Use A/D to select the desired level. Select [Cancel] option then press ENTER (b) to cancel the setting. Select [Reset] option then press ENTER (b) to reset the all adjustments.

System Setting 31
3

System Setting

LHB655N-FC_DARELLK_ENG.indd 31

2017-02-24 9:42:02

32 Operating
Home Menu Display
Using [HOME] menu
The home menu appears when you press HOME ( ). Use W/S/A/D to select a category and press ENTER (b).

a [Movie] - Plays video content.

b [Photo] - Plays photo content.

c [Music] - Plays audio content.

[Premium] - Displays the Premium home screen. (page 53)

e [Input] - Changes input mode.

f [Settings] - Adjusts the system settings.

Operating

LHB655N-FC_DARELLK_ENG.indd 32

2017-02-24 9:42:02

Operating 33

Playing the Linked Devices

Playing Blu-ray 3D disc e
This player can play the Blu-ray 3D disc which contains separate views for the left and right eyes.

Playing a disc

erot
1. Press B (OPEN/CLOSE), and place a disc on the disc tray.
2. Press B (OPEN/CLOSE) to close the disc tray.

Preparation
In order to playback Blu-ray 3D title in stereoscopic 3D mode, you need to: y Check your TV is 3D capable and has HDMI
input(s).

For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.

y Wear 3D glasses to enjoy the 3D experience if it is necessary.

3. Press HOME ( ).

y Check whether the BD-ROM title is the Blu-

4. Select [Movie] or [Music], and select disc icon.

ray 3D disc or not.

, Note
y Playback functions described in this manual

y Connect an HDMI cable (Type A, High Speed HDMITM Cable) between the player's HDMI output and TV's HDMI input.

are not always available in every files and media. Some functions can be restricted

Operating

depending on many factors.

1. Press HOME ( ), and set the [3D Mode] option

y Depending on the BD-ROM titles, an USB

on the [Settings] menu to [On] (page 26).

device connection may be needed for the proper playback.

2. Press B (OPEN/CLOSE), and place a disc on the disc tray.

y Unfinalized DVD-VR format discs may not be played in this player.
y Some DVD-VR discs are made with CPRM data by DVD RECORDER. This unit cannot support these kinds of discs.

3. Press B (OPEN/CLOSE) to close the disc tray. The playback starts automatically.
4. Refer to the owner's manual of your 3D-ready TV for the further instruction. You may need to adjust the display settings and

focus on your TV's setting for the improved 3D

effect.

> Caution
y Watching a 3D content for a long period time may cause dizziness or tiredness.

y It is not recommended to watch a video in 3D mode for infirm, child and pregnant woman.

y If you are experiencing headache, tiredness or dizziness while viewing content in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

LHB655N-FC_DARELLK_ENG.indd 33

2017-02-24 9:42:02

34 Operating

Playing a file on disc/USB device

5. Select a file using W/S/A/D, and press d(PLAY) or ENTER (b) to play the file.

yui
This player can play video, audio and photo files contained in the disc or USB device.
1. Insert a data disc on the tray or connect an USB device.

Notes on USB device
y This player supports USB flash drive/external HDD formatted in FAT32 and NTFS when accessing files (music, photo, movie). However, for BD-Live, use the USB flash drive / external HDD formatted in FAT32.

y This unit can support up to 4 partitions of the USB device.

y Do not extract the USB device during operation (play, etc.).

y An USB device which requires additional program installation when you have connected it to a computer, is not supported.

y USB device: USB device that supports USB1.1

When you connect the USB device on the HOME menu, the player plays an audio file contained in

and USB2.0. y Video, audio and photo files can be played. For

the USB storage device automatically. If the USB

details of playing each file type, refer to the

storage device is containing various types of files, a

relevant pages.

menu for the file type selection will appear.

y Regular back up is recommended to prevent

File loading may takes few minutes depending on

data loss.

the number of content stored in the USB storage device. Press ENTER (b) while [Cancel] is selected

y If you use an USB extension cable, USB HUB or USB Multi-reader, the USB device may not be

to stop loading.

recognized.

2. Press HOME ( ).

y Some USB device may not work with this unit.

3. Select [Movie], [Photo] or [Music] using A/D, and press S.

y Some digital cameras and mobile phones are not supported.

4. Select Disc or USB and press ENTER (b).

y USB Port of the unit cannot be connected to PC. The unit cannot be used as a storage device.

Operating

a Displays all linked device. b Displays video, photo or audio content. c Displays the file or folder on linked device.
LHB655N-FC_DARELLK_ENG.indd 34

2017-02-24 9:42:02

Playing a file on android device
yui
This player can play video, audio and photo files contained in the Android device.
1. Connect the android device to the unit with USB cable. Make sure that MTP is activated on Android device.

Operating 35

Notes on Connecting android device

y This unit can support only MTP (Media Transfer Protocol) Android (4.0 or later is recommended) devices.

y Do not extract the Android device during operation (play, etc.).

y Video, audio and photo files can be played. For details of playing each file type, refer to the relevant pages.

y Regular back up is recommended to prevent data loss.

y If you use an USB extension cable, USB HUB or USB Multi-reader, the Android device may not be recognized.

y Some Android devices may not work with this unit.

y When you use MTP, playing some music, photo,

movie, or subtitle files may not work depending

on the Android device.

Operating

2. Press HOME ( ).
3. Select [Movie], [Photo] or [Music] using A/D, and press S.
4. Select [MTP] using A/D and press ENTER (b).

File loading may take few minutes depending on the number of content stored in the Android device.
5. Select a file using W/S/A/D, and press d(PLAY) or ENTER (b) to play the file.

LHB655N-FC_DARELLK_ENG.indd 35

2017-02-24 9:42:03

Operating

36 Operating

Playing a file on a network server
yui
This player can play video, audio and photo files located in a DLNA-compatible digital media server through your home network.
1. Check the network connection and settings (page 19).
2. Press HOME ( ). 3. Select [Movie], [Photo] or [Music] using A/D,
and press S.

Using Home Network Server for PC
Before connecting to PC to play a file, SmartShare PC software should be installed on your PC.
About SmartShare PC Software
SmartShare PC Software is for sharing video, audio and photo files stored on your computer to this unit as a digital media server.

Downloading SmartShare PC Software

4. Select DLNA media server in the category using

A/D and press ENTER (b).

, Note
If the SmartShare PC Software disc is supplied, you can install SmartShare PC Software on your PC by the disc.

5. Select a file using W/S/A/D, and press d(PLAY) or ENTER (b) to play the file.
, Note
y The file requirements are described on page 61.
y Thumbnails of files with unsupported format will be displayed, but cannot be played on this unit.
y The subtitle file name and video file name have to be the same and located at the same folder.
y The playback and operating quality may be affected by your home network condition.
y You may experience connection problems depending on your server's environment.
y To set your PC as a DLNA-compatible digital media server, install the SmartShare PC Software on your PC. (page 36)

1. Start up your computer, visit http://www.lg.com. If necessary, select your region.
2. Click support tab. 3. Fill your model name on the cover of owner's
manual in search bar. 4. Find and download the "SmartShare PC
Software" file.
Installing SmartShare PC Software
1. Before installation, close all running programs including firewall and Anti-Virus programs.
2. Unzip and double-click "Setup.exe" to install SmartShare PC Software. The installation is prepared and the installation wizard appears.
3. Follow the directions of the installation wizard displayed on the screen.
4. Click the [Exit] button to complete the installation.

LHB655N-FC_DARELLK_ENG.indd 36

2017-02-24 9:42:03

Operating 37

, Note
y SmartShare PC software is not supported with Mac OS.
y The SmartShare PC software is a customized software edition only for sharing files and folders to this player.
y This manual explains operations with the English version of SmartShare PC software as examples. Follow the explanation referring to the actual operations of your language version.

System requirements
Minimum System
y CPU : Intel® 2.0 GHz or AMD SempronTM 2000+ processors
y Memory : 1 GB of free RAM y Graphics card : 64 MB video memory, minimum
resolution of 1024 x 768 pixels, and 16 bit color settings y Free Disk Space : 200 MB

Sharing files and folders

y Windows® XP (Service Pack 2 or higher), Windows Vista®, Windows® 7 or higher
y Windows® Media Player® 11.0 or higher

On your computer, you must share the folder containing video, audio and/or photo content to play them on this player.

y Network environment: 100 Mb Ethernet
Recommended System

This part explains the procedure for selecting the

y CPU : Intel® CoreTM Duo or AMD AthlonTM 64X2,

shared folders on your computer.

1.7 GHz or better

1. Double-click the "SmartShare" icon.

y Memory : 2 GB of free RAM

Operating

2. Click [Movie], [Photo] or [Music] icon on the center, and then click [Settings] on the top right corner of the SmartShare PC software. The [Settings] menu appears on the screen.
3. Click [My Shared Contents] tab, and then click icon. The [Add/Remove Shared Folders]
menu appears on the screen.
4. Click the folder containing the files you want to share and then click the [OK]. The checked folder is added to the [My Shared Contents] and then click the [OK] at the bottom of the [Settings] menu.

y Graphics card : 128 MB video memory, minimum resolution of 1024 x 768 pixels, and 16 bit color settings
y Free Disk Space : 200 MB
y Windows® XP (Service Pack 2 or higher), Windows Vista®, Windows® 7 or higher
y Windows® Media Player® 11.0 or higher
y Network environment: 100 Mb Ethernet

5. Make sure that the SmartShare service turns on at the [Service] tab.

, Note
y If the shared folders or files are not displayed on the player, click the [My Shared Contents] on the [Settings] menu, and then click icon.

y For more information, click [HELP] on the [Settings] menu.

LHB655N-FC_DARELLK_ENG.indd 37

2017-02-24 9:42:03

38 Operating

General Playback
Basic operations for video and audio content
To stop playback
Press Z (STOP) during playback.
To pause playback
Press M (PAUSE) during playback. Press d (PLAY) to resume playback.
To play frame-by-frame (Video)
Press M (PAUSE) during video playback. Press M (PAUSE) repeatedly to play Frame-by-Frame playback.
To scan forward or backward
Press c or v to play fast forward or fast reverse during playback. You can change the various playback speeds by pressing c or v repeatedly.
To slow down the playing speed (Video)
While the playback is paused, press v (!d) repeatedly to play various speeds of slow motion.
To skip to the next/previous chapter/track/file
During playback, press C or V to go to the next chapter/track/file or to return to the beginning of the current chapter/track/file. Press C twice briefly to step back to the previous chapter/track/file. In the file list menu of a server, there may have many types of content in a folder together. In this case, press C or V to go to the previous or next content with same type.

Basic operations for photo content
To play a slide show
Press d (PLAY) to start slide show.
To stop a slide show
Press Z (STOP) while slide show.
To pause a slide show
Press M (PAUSE) while slide show. Press d (PLAY) to re-start the slide show.
To skip to the next/previous photo
While viewing a photo in full screen, press A or D to go to the previous or next photo.
Using the disc menu ero
To display the disc menu
The menu screen may be displayed first after loading a disc which contains a menu. If you want to display the disc menu during playback, press DISC MENU. Use W/S/A/D buttons to navigate through menu items.
To display the Pop-up menu
Some BD-ROM discs contain Pop-up menu that appears during playback. Press TITLE/POPUP during playback, and use W/ S/A/D buttons to navigate through menu items.

LHB655N-FC_DARELLK_ENG.indd 38

2017-02-24 9:42:03

Operating 39

Resume playback

Last scene memory

eroyt

This unit memorizes the last scene from the last disc

The unit records the point where you pressed the Z (STOP) depending on the disc. If "MZ (Resume Stop)" appears on the screen briefly, press d (PLAY) to resume playback (from the scene point). If you press Z (STOP) twice or unload the disc, "Z(Complete Stop)" appears on the screen. The unit will clear the stopped point.
, Note

that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.
, Note
y Last Scene Memory function for a previous disc is erased once a different disc is played.
y This function may not work depending on the disc.

y The resume point may be cleared when a button is pressed (for example; 1 (POWER), B (OPEN/CLOSE), etc).
y On BD-ROM discs with BD-J, the resume playback function does not work.

y On BD-ROM discs with BD-J, the last scene memory function does not work.
y This unit does not memorize settings of a disc if you switch off the unit before commencing to play it.

y If you press Z (STOP) once during BD-ROM interactive title playback, the unit will be in

Complete Stop mode.

Operating

LHB655N-FC_DARELLK_ENG.indd 39

2017-02-24 9:42:03

40 Operating

On-Screen Display
You can display and adjust various information and settings about the content.
To control video playback eroy
You can control playback and set options while watching videos. During playback, press INFO/MENU (m).

Displaying content information onscreen
eroy
1. During playback, press INFO/MENU (m). 2. Select an [Option] using A/D, and press
ENTER (b).

4
a Progress bar - Displays the current position and total playing time.
b [Disc Menu] - Accesses menu on a disc. c [Title/Popup] - Displays the DVD title menu
or BD-ROM's pop-up menu, if available. d [Option] - Displays playback information. e [Repeat] - Repeats a desired section or
sequence. (page 42) f [3D] - Adjusts the 3D setting. (page 46)

a Title Current title number/total number of titles
b Chapter Current chapter number/total number of chapters
c Time Elapsed playing time/total playback time
d Audio Selected audio language or channel e Subtitle Selected subtitle. f Angle Selected angle/total number of
angles g TV Aspect Ratio Selected TV aspect ratio h Picture Mode Selected picture mode

Operating

LHB655N-FC_DARELLK_ENG.indd 40

2017-02-24 9:42:04

, Note
y If no button is pressed for a few seconds, the on-screen display disappears.
y A title number cannot be selected on some discs.
y Available items may differ depending on discs or titles.
y If an interactive Blu-ray Disc is playing back, some setting information is displayed on the screen but prohibited to be changed.

Operating 41
Setting the slide show option
You can use various options during viewing a photo in full screen. 1. While viewing pictures, press INFO/MENU (m). 2. Select an [Option] using A/D, and press
ENTER (b).

To control photo view

Controls playback and sets options while viewing pictures in full screen.

You can control playback and set options while viewing pictures in full screen.
While viewing pictures, press INFO/MENU (m).

a [Speed] - Use A/D to select a delaying speed between photos in a slide show.

b [Effect] - Use A/D to select a transition

effect between photos in a slide show.

c [Music Select] Select the background music for the slide show (page 46).

Operating

a [Slideshow] - Starts or pause slide show. b [Music] - Select the background music for the
slide show (page 46). c [Option] - Displays slide show options. d [Rotate] - Rotates the photo clockwise. e [Zoom] - Displays the [Zoom] menu.

LHB655N-FC_DARELLK_ENG.indd 41

2017-02-24 9:42:04

42 Operating

Advanced Playback

Repeating a specific portion eroy

Repeat playback
erotu y
Blu-ray Disc / DVD / Video files During playback, press REPEAT (h) to select a desired repeat mode.
A-B Selected portion will be repeated continually.
Chapter The current chapter will be played back repeatedly. (BD / DVD only)
Title The current title will be played back repeatedly.
All All the titles or files will be played back repeatedly. (Movie file only)

This player can repeat a portion you have selected. 1. During playback, press REPEAT (h). 2. Select [A-B] and press ENTER (b). 3. Press ENTER (b) at the beginning of the portion
you wish to repeat. 4. Press ENTER (b) at the end of the portion. Your
selected portion will be repeated continually.
5. To return to normal playback, press CLEAR.
, Note
y You cannot select a portion less than 3 seconds.
y This function may not work on some disc or title.

Off Returns to normal playback.

To return to normal playback, press CLEAR.

Audio CDs/Audio files

Playing from selected time eroy

During playback, press REPEAT (h) repeatedly to select a desired repeat mode.
Selected portion will be repeated continually. (Audio CD only)
Track The current track or file will be played back repeatedly.
All All the tracks or files will be played back repeatedly.
All All the tracks or files will be played back repeatedly in random order.
The tracks or files will be played back in random order.
To return to normal playback, press CLEAR.
, Note
This function may not work on some disc or title.

1. During playback, press INFO/MENU (m).
2. Select an [Option] using A/D, and press ENTER (b).
3. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.
For example, to find a scene at 2 hours, 10 minutes, and 20 seconds, enter "21020".
Press A/D to skip the playback 60 seconds forward or backward.
4. Press ENTER (b) to start playback from selected time.
, Note
y This function may not work on some disc or titles.
y This function may not work depending on the file type and ability of the DLNAcompatible digital media server.

Operating

LHB655N-FC_DARELLK_ENG.indd 42

2017-02-24 9:42:04

Operating 43

Selecting a subtitle language Watching from a different

eroy

angle

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press ENTER (b).
3. Use W/S to select the [Subtitle] option.

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.

4. Use A/D to select desired subtitle language.

1. During playback, press INFO/MENU (m).

By pressing ENTER (b), you can set various subtitle options.

2. Select an [Option] using A/D, and press ENTER (b).

5. Press BACK (1) to exit the On-Screen display.

3. Use W/S to select the [Angle] option.

, Note
y Some discs allow you to change subtitle selections only via the disc menu. If this is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate subtitle from the selections on the disc menu.

4. Use A/D to select desired angle. 5. Press BACK (1) to exit the On-Screen display.
Changing the TV Aspect Ratio eoy

y You can select the [Subtitle] option on the On-Screen display directly by pressing SUBTITLE button.

You can change the TV aspect ratio setting during

playback.

1. During playback, press INFO/MENU (m).

Operating

Hearing a different audio
eroy
1. During playback, press INFO/MENU (m). 2. Select an [Option] using A/D, and press
ENTER (b). 3. Use W/S to select the [Audio] option. 4. Use A/D to select desired audio language,
audio track or audio channel. 5. Press BACK (1) to exit the On-Screen display.

2. Select an [Option] using A/D, and press ENTER (b).
3. Use W/S to select the [TV Aspect Ratio] option.
4. Use A/D to select desired option.
5. Press BACK (1) to exit the On-Screen display.
, Note
Even if you change the value of the [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Settings] menu is not changed.

, Note
y Some discs allow you to change audio selections only via the disc menu. In this case, press TITLE/POPUP or DISC MENU button and choose the appropriate audio from the selections on the disc menu.

y Immediately after you have switched sound, there may be a temporary discrepancy between the display and actual sound.

y On BD-ROM disc, the multi audio format (5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display.

LHB655N-FC_DARELLK_ENG.indd 43

2017-02-24 9:42:04

44 Operating

Changing Subtitle Code Page
y
If the subtitle is displayed in broken letter, you can change the subtitle code page to view the subtitle file properly. 1. During playback, press INFO/MENU (m). 2. Select an [Option] using A/D, and press
ENTER (b). 3. Use W/S to select the [Code Page] option. 4. Use A/D to select desired code option.

Changing the Picture Mode
eroy
You can change the [Picture mode] option during playback. 1. During playback, press INFO/MENU (m). 2. Select an [Option] using A/D, and press
ENTER (b). 3. Use W/S to select the [Picture Mode] option. 4. Use A/D to select desired option. 5. Press BACK (1) to exit the On-Screen display.

Setting the [User setting] option

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press ENTER (b).

3. Use W/S to select the [Picture Mode] option.

4. Use A/D to select the [User setting] option, and press ENTER (b).

5. Press BACK (1) to exit the On-Screen display.

5. Use W/S/A/D to adjust the [Picture Mode] options.
Select [Default] option then press ENTER (b) to reset the all video adjustments.
6. Use W/S/A/D to select the [Close] option, and press ENTER (b) to finish setting.

Operating

LHB655N-FC_DARELLK_ENG.indd 44

2017-02-24 9:42:05

Viewing content information y
The player can display the content information. 1. Select a file using W/S/A/D. 2. Press INFO/MENU (m).
The file information appears on the screen. During video playback, you can display the file information by pressing TITLE/POPUP.
, Note
The information displayed on the screen may not correct comparing actual content information.
Changing content list view yui
In the [Movie], [Photo] or [Music] menu, you can change the content list view. Press red (R) colored button repeatedly.

Operating 45
Selecting a subtitle file y
If the subtitle file name is different from the video file name, you need to select the subtitle file on the [Movie] menu before playing the movie. 1. Use W/S/A/D to select the subtitle file you
wish to play in the [Movie] menu. 2. Press ENTER (b).

Press ENTER (b) again to deselect the subtitle

file. Selected subtitle file will be displayed when

you play the video file.

Operating

, Note
y If you press Z (STOP) during playback, the subtitle selection is cancelled.

y This function is not available for playing a file on a server via home network.

LHB655N-FC_DARELLK_ENG.indd 45

2017-02-24 9:42:05

46 Operating

Listening to music during slide Playing file encoded in 3D

show
i
You can display photo files while listening to audio files.
1. While viewing a photo in full screen, press INFO/ MENU (m) to display the option menu.
2. Select an [Option] using A/D, and press ENTER (b).
3. Use W/S to select [Music Select] option, and press ENTER (b) to display the [Music Select] menu.
4. Use W/S to select a device, and press ENTER (b).

y
This function allows you to play 3D content in case of file encoded in 3D.
1. During playback, press INFO/MENU (m).
2. Select [3D] using A/D, and press ENTER (b).
3. Select suitable mode (side by side, top and bottom) which is same way as file encoded in 3D by using W/S/A/D.
, Note
If the subtitle is displayed abnormally, set the TV's 3D option to off and the unit's 3D option to on.

Available device may differ depending on the location of the current photo file.

Photo location

Available Device

Disc, USB

MTP

Media server

5. Use W/S to select a file or a folder you wish to play.

Select g and press ENTER (b) to display the upper directory.
, Note
When selecting an audio file from a server, folder selection is not available. Only file selection is available.
6. Use D to select [OK], and press ENTER (b) to complete music selection.

Operating

LHB655N-FC_DARELLK_ENG.indd 46

2017-02-24 9:42:05

Operating 47

Advanced Features

LG AV Remote

Enjoying BD-LiveTM
e
BD-ROM supporting BD-Live that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

You can control this player with your iPhone or Android phone via your home network. This player and your phone must be connected to your wireless network device such as access point. Visit "Apple iTunes" or "Google Android Market (Google Play Store)" for detailed information of "LG AV Remote".
Private Sound Mode

1. Check the network connection and settings

By downloading "LG AV Remote" application on

(page 19).

your smart phone or tablet, you can connect your

2. Insert an USB storage device to the USB port on the front panel.

headsets, and enjoy the sound from your player on your smart devices.

An USB storage device is needed to download

This feature transmits video signal to TV through

bonus content.

HDMI and audio signal to smart phone or tablet

through Wi-Fi. For more detailed information,

3. Press HOME ( ), and set the [BD-LIVE

please refer to "LG AV Remote" application.

connection] option on the [Settings] menu (page 24).

, Note

Depending on a disc, the BD-Live function may

y When you use the unit with MUSIC flow,

not be operated if [BD-LIVE connection] option

private sound mode is unavailable.

is set to [Partially Permitted].

y Not all modes, support sound privacy and

4. Insert a BD-ROM with BD-Live.

pairing multiple devices is not available.

Operating

The operations may differ depending on the disc. Refer to the manual supplied with the disc.

> Caution
Do not extract the connected USB device while content is being downloaded or a Bluray disc is still in the disc tray. Doing so may damage the connected USB device and BDLive features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.

, Note
y Some BD-Live content may be restrictively accessed in some territories by content provider's own decision.
y It may take up to several minutes to load and start enjoying BD-Live content.
y For BD-Live, use the USB flash drive / external HDD formatted in FAT32 only.

LHB655N-FC_DARELLK_ENG.indd 47

2017-02-24 9:42:05

48 Operating

Audio CD recording
You can record one desired track or all of the tracks in Audio CD to an USB storage device.
1. Insert an USB storage device to the USB port on the front panel.
2. Insert an Audio CD into the player. The playback starts automatically.
3. Press (X) REC button to start [CD Recording].

Recording track
Recording time

Stop mode

During playback

All of the tracks Playing track

4X speed

1X speed

Recording from FM radio or
4 AUX source
You can record from FM radio or AUX source to an USB storage device.
1. Insert an USB storage device to the USB port on the front panel.
2. In FM radio mode, tune to the desired radio station (See "Radio Operations" on page 49) or in AUX mode, start playback from the external source.
3. Press (X) REC button on the remote control. - The recording is saved as a file "EXT_REC" folder.

, Note
y For recording, use the USB flash drive / external HDD formatted in FAT32 only.
y Audio track is recorded to an audio file with 192 kbps. FM radio and AUX source are recorded to an audio file with 128 kbps.
y Audio CD recording times in the table above are approximate.
y Actual recording time for USB storage device varies depending on the USB storage device's ability.
y Make sure that there is minimum of 50 MB free space is needed when recording into the USB storage device.
y The length of the recording source should be longer than 20 seconds for the proper recording.
y Do not turn off this player or extract the connected USB storage device during the recording.
> Caution
The recording or copying features on this player are provided for your personal and non-commercial use. The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes. LG expressly disclaims any responsibility for illegal distribution or use of unauthorized content in commercial purpose.
Be Responsible
Respect Copyrights

Operating

LHB655N-FC_DARELLK_ENG.indd 48

2017-02-24 9:42:05

Operating 49

Radio Operations
Be sure that the antennas are connected. (Refer to the page 17)
Listening to the radio
1. Press FUNCTION until TUNER (FM) appears in the display window. The last received station is tuned in.

Deleting a saved station
1. Press PRESET (- / +) to select a preset number you want to delete.
2. Press CLEAR, the preset number will blink in the display window.
3. Press CLEAR again, to delete the selected preset number.
Deleting all the saved stations

2. Press and hold TUNING (-/+) for about two seconds until the frequency indication starts to change. Scanning stops when the unit tunes in a station. Or Press TUNING (-/+) repeatedly.

Press and hold CLEAR for two seconds. "ERASE ALL" will flash up. Press CLEAR again. Then all the saved stations are deleted.

3. Adjust the volume by pressing VOL (+/-).

Improving poor FM reception

Presetting the radio stations
You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume.

Press B (blue) (MONO/STEREO) colored button on the remote control. This will change the tuner from stereo to mono and usually improve the reception.
4

Operating

1. Press FUNCTION until the TUNER (FM) appears in the display window.

2. Select the desired frequency by using TUNING (-/+).
3. Press ENTER (b) a preset number will flash in the display window.

4. Press PRESET (-/+) to select the preset number you want.
5. Press ENTER (b). The station is stored.

6. Repeat the steps 2 to 5 to store other stations.

LHB655N-FC_DARELLK_ENG.indd 49

2017-02-24 9:42:05

50 Operating

Using BLUETOOTH® technology

Listening to music stored on the BLUETOOTH devices

Pairing this unit and BLUETOOTH

About BLUETOOTH

device

Bluetooth is wireless communication technology for short range connection.

Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth

The sound may be interrupted when there

device's user guide. Once a pairing operation is

is interference by the other electronic waves

performed, it does not need to be performed again.

which run on same frequency or if you connect Bluetooth devices in the other rooms nearby.

1. Select the Bluetooth function by using the FUNCTION.

Connecting individual devices under Bluetooth

Appears "BT READY" in display window.

wireless technology does not incur any charges. A mobile phone with Bluetooth wireless technology can be operated via the Cascade if the connection was made via Bluetooth wireless technology.

2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device

Available Devices : Mobile phone, MP3, Laptop,

display depending on the type of Bluetooth

PDA etc.

device.Your unit appears as "LG HTS (XX:XX)".

4 BLUETOOTH profiles

3. When this unit successfully paired with your Bluetooth device, Bluetooth LED of this unit

In order to use Bluetooth wireless technology,

lights up and "PAIRED" appears in the display

devices must be able to interpret certain profiles.

window.

This unit is compatible with following profile. A2DP (Advanced Audio Distribution Profile)

, Note
y Depending on the Bluetooth device type,

some device have a different pairing way.

y XX:XX means the last four digits of Bluetooth address. For example, if your unit has a Bluetooth address such as 9C:02:98:4A:F7:08, you will see "LG HTS (F7:08)" on your Bluetooth device.

4. Listen to music. To play a music stored on your Bluetooth device, refer to your Bluetooth device's user guide.
, Note
If you change the function of the unit, the Bluetooth function is disconnected, operate pairing again.

Operating

LHB655N-FC_DARELLK_ENG.indd 50

2017-02-24 9:42:05

, Note
y When using Bluetooth technology, you have to make a connection between the unit and the Bluetooth device as close as possible and keep the distance. However it may not work well in the case below : - There is a obstacle between the unit and the Bluetooth device. - There is a device using same frequency with Bluetooth technology such as a medical equipment, a microwave or a wireless LAN device.
y You should connect your Bluetooth device to this unit again when you restart it.
y When you select Bluetooth function again after changing to other functions, Bluetooth connection may be disconnected. You should reconnect the Bluetooth device to use this function.
y The sound may be interrupted when the connection interfered by the other electronic wave.
y You cannot control the Bluetooth device with this unit.
y Pairing is limited one Bluetooth device per one unit and multi-pairing is not supported.
y Depending on the type of the device, you may not be able to use the Bluetooth function.
y You can enjoy wireless system using phone, MP3, Notebook, etc..
y The more distance between the unit and the Bluetooth device, the lower the sound quality becomes.
y Bluetooth connection will be disconnected when the unit is turned off or the Bluetooth device gets far from the unit.
y When Bluetooth connection is disconnected, connect the Bluetooth device to the unit again.
y When not connected the Bluetooth, "BT READY" appears on the display window.
LHB655N-FC_DARELLK_ENG.indd 51

Operating 51
4
2017-02-24 9:42:05

Operating

52 Operating

LG Sound Sync

1. Turn on the unit by pressing 1 (Power) on the remote control.

2. Select LG TV function by using FUNCTION on the remote control or F on the unit until the function is selected.

You can control some functions of this unit by your TV's remote control with LG Sound Sync. It is compatible with the LG TV that is supported LG Sound Sync. Make sure of the LG Sound Sync logo

3. Set up the sound output of TV to listen to the sound through this unit : TV setting menu [ [Sound] [ [TV Sound output] [ [LG Sound Sync (Wireless)]

on your TV.

"PAIRED" appears on the display window for

Controllable function by LG TV's remote control : Volume up/down, mute
Refer to the TV's instruction manual for the details of LG Sound Sync.

about 3 seconds and then you can see "LG TV" on the display window if connecting normally between this unit and your TV.
, Note

, Note

y You can also use the remote control of

this unit while using LG Sound Sync. If you

use TV's remote control again, the unit

synchronizes with the TV. y When the connection fails, make sure of the

condition of the TV and power.

y Make sure of the condition of this unit and the connection in the cases below when

y If you turned off the unit directly by pressing 1 (Power), LG Sound Sync (Wireless) will be disconnected. To use this function again, you should reconnect the TV and the unit.
y Details of TV setting menu vary depending on the models of your TV.
y The device with Bluetooth wireless technology will be disconnected, if Sound Sync function is selected.

using LG Sound Sync.

- Turn off the unit.

- Changing the function to the others.

- Disconnecting the wireless connection caused by interference or a distance.

y This unit cannot support LG Sound Sync (Optical) by the optical connection.

Operating

LHB655N-FC_DARELLK_ENG.indd 52

2017-02-24 9:42:05

Using the Premium
You can use various content services via Internet with the Premium feature. 1. Check the network connection and settings
(page 19). 2. Press HOME ( ). 3. Select the [Premium] using A/D, and press
ENTER (b).
4. Select an online service using W/S/A/D, and press ENTER (b).
, Note
y For detailed information of each service, contact to the content provider or visit support link of the service.
y The content of Premium services and service related information, including user interface, is subject to changes. Please refer to the web site of each service for most upto-date information.
y For the first time to access [Premium], current country setting appears.
y If you want to change the country setting, go to [Settings] > [NETWORK] > [Smart Service Setting] > [Country Setting]. Select [Manual] and press ENTER (b) on [Country Setting] menu.
y When changing the sound effect, the audio output may be delayed depending on your internet environment.

Operating 53
4

Operating

LHB655N-FC_DARELLK_ENG.indd 53

2017-02-24 9:42:06

54 Operating

Enjoying with LG

Multi-room Audio

(LG Music Flow)

t u

LG smart Hi-Fi audio system MUSIC flow allows you to enjoy music with the several speakers wirelessly.
Using MUSIC flow, you can enjoy audio contents being played by this unit with high quality.
1. Check the network connection and settings (page 19). The player and speakers must be connected to the same network.

2. During music playback, press green (G) colored

button. Select speakers using W/S and

ENTER (b). You can check multiple MUSIC

flows you listen with. To change MUSIC flow's

channel, press D during the checked speaker is

highlighted and select the output option using

W/S and ENTER (b).

, Note
y If you use this unit with MUSIC flow, at least one unit should be connected by LAN cable. For more detail for use with MUSIC flow, refer to the MUSIC flow's user manual.
y It is recommended to connect up to 4 speakers for smooth playback.
y Signal interference may cause the playback to stop.
y If playback doesn't work smoothly, the connection may be broken automatically.
y When you perform private sound mode, this function is unavailable.
y If your MUSIC flow is not displayed on the list, reset network setting on the setting menu.
y If you press BACK (1) to go back to file browser during playback with MUSIC flow, MUSIC flow stops playback.
y You cannot control the volume level of MUSIC flow speaker with this unit's volume control buttons or volume control knob.

If you select [Mute Blu-ray DiscTM Home Theater], you can listen using only MUSIC flow.
3. Select [OK], and press ENTER (b) to complete speaker selection.

Operating

LHB655N-FC_DARELLK_ENG.indd 54

2017-02-24 9:42:06

Troubleshooting

Troubleshooting 55

General

Symptom

Cause & Solution

The unit does not work properly.

y Turn off the power of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and turn it on again.
y Disconnect the power cord of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and then try connecting again.
y Previous setting may not be saved when device power is shut off.

The Power does not turned on. y Plug the power cord into the wall outlet securely.

The unit does not start playback.

y Insert a playable disc. (Check the disc type, color system, and regional code.)
y Place the disc with the playback side down. y Place the disc on the disc tray correctly inside the guide. y Clean the disc. y Cancel the Rating function or change the rating level.

Troubleshooting

The connected USB storage y Try using different USB cable, some USB cables may not support

device is not recognized.

enough current for normal USB operation.

y If you use an USB extension cable or USB HUB, the USB devices may

not be recognized.

y An USB device which requires additional program installation when you have connected it to a computer is not supported.

y This unit supports only USB Flash Drive and USB External HDD with FAT32 or NTFS format.

The angle cannot be changed. y Multi-angles are not recorded on the DVD Video being played.

Cannot play video, photo or audio files.

y The files are not recorded in a format that the unit can play. y The unit does not support the codec of the video file.

The remote control does not work properly.

y The remote control is not pointed at the remote sensor of the unit. y The remote control is too far from the unit. y There is an obstacle in the path of the remote control and the unit. y The batteries in the remote control are exhausted.

The unit is plugged in, but the power will not turn on or off.
The unit is not operating normally.

You can reset the unit as follows.
y Unplug the power cord, wait at least five seconds, and then plug it in again.

LHB655N-FC_DARELLK_ENG.indd 55

2017-02-24 9:42:06

56 Troubleshooting

Network

Symptom

Cause & Solution

BD-Live feature does not work.

y The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space.
y Ensure that the unit is correctly connected to the local area network and can access the internet (page 19).
y Your broadband speed may not fast enough to use the BD-Live features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.
y The [BD-LIVE connection] option in the [Settings] menu is set to [Prohibited]. Set the option to [Permitted].

Streaming video services (such as YouTubeTM, etc.) are often stopped or "buffer" during playback.

y Your broadband service speed may not be fast enough to stream video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

Media servers are not displayed on the device list.

y The firewall or anti-virus software on your media server is running. Turn off the firewall or anti-virus software running on your media server.
y The player is not connected to the local area network that your media server is connected.

Troubleshooting

LHB655N-FC_DARELLK_ENG.indd 56

2017-02-24 9:42:06

Troubleshooting 57


Symptom
There is no picture.
Picture noise appears Blu-ray 3D disc playback does not output 3D views.

Cause & Solution
y Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen.
y Connect the video connection securely. y Check the [HDMI Color Setting] in the [Settings] menu is set to the
appropriate item that conforms to your video connection. y Your TV may not support the resolution you have set on the player.
Change the resolution that your TV accepts. y The player's HDMI OUT jack is connected to a DVI device that does
not support copyright protection.
y You are playing a disc recorded in a colour system that is different from your TV.
y Set the resolution which your TV accepts.
y Connect the player to your TV with HDMI cable (Type A, High Speed HDMITM Cable).
y Your TV may not support "HDMI 3D mandatory format". y The [3D Mode] option in the [Settings] menu is set to [Off ].
Set the option to [On].

Sound

Troubleshooting

Symptom

Cause & Solution

There is no sound or the sound is distorted.

y The unit is in scan, slow motion, or pause mode. y The sound volume is low. y Check the speaker cable connection. (page 13)

Customer Support
You can update the Player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http://www.lg.com or contact LG Electronics customer care center.

OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.

LHB655N-FC_DARELLK_ENG.indd 57

2017-02-24 9:42:06

58 Appendix

Controlling a TV with the Supplied Remote Control
You can control your TV using the buttons below.

By pressing

You can

1 (TV POWER) Turn the TV on or off.

AV/INPUT

Switch the TV's input source between the TV and other input sources.

PR/CH W/S

Scan up or down through memorized channels.

VOL +/

Adjust the volume of the TV.

MUTE

Turn the TV's volume on or off.

, Note
Depending on the unit being connected, you

may not be able to control your TV using some

of the buttons.

Setting up the remote to control your TV
You can operate your TV with the supplied remote control. If your TV is listed in the table below, set the appropriate manufacturer code.
1. While holding down 1 (TV POWER) button, and press the manufacturer code for your TV with the numerical buttons (see the table below).

Manufacturer

Code number

1(Default), 2

Zenith

1, 3, 4

GoldStar

1, 2

Samsung

6, 7

Sony

8, 9

Hitachi

2. Release the 1 (TV POWER) button to complete setting.
Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.

Appendix

LHB655N-FC_DARELLK_ENG.indd 58

2017-02-24 9:42:06

Appendix 59

Network Software Update
Network update notification
From time to time, performance improvements and/or additional features or services may be made available to units that are connected to a broadband home network. If there is new software available and the unit is connected to a broadband home network, the player will inform you about the update as follows.
Option 1:
1. The update menu will appear on the screen when you turn on the player.
2. Use A/D to select a desired option and then press ENTER (b).

Software update
You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by connecting the unit directly to the software update server.
, Note
y Before updating the software in your player, remove any disc and USB Device from the player.
y Before updating the software in your player, turn the player off and then turn it back on.
y During the software update procedure, do not turn off the player or disconnect AC power, or do not press any button.
y If you cancel the update, turn off the power and turn it on for stable performance.
y This unit cannot be updated to previous software version.
1. Check the network connection and settings (page 19).
2. Select [Software] option in the [Settings] menu then press ENTER (b).
3. Select [Update] option, and press ENTER (b).

[OK]

Starts the software update.

[Cancel]

Exits the update menu and the home menu appears.

Appendix

Option 2:
If the software update is available from the update server, the "Update" icon appears in the Home menu. Press blue (B) colored button to start the update procedure.

The player will check for the newest update.
, Note
y Pressing ENTER (b) while checking for the update will end the process.
y If there is no update available, the Message, "No update is found." appears. Press ENTER (b) to return to the [Home Menu].

LHB655N-FC_DARELLK_ENG.indd 59

2017-02-24 9:42:07

60 Appendix

4. If newer version exists, the message "A new update was found. The update takes a few minutes. Do you want to update?" appears.
5. Select [OK] to start update. (Selecting [Cancel] will end the update.)
6. The player starts downloading the newest update from the server. (Downloading will takes several minutes depending on your home network condition)
7. To update software the next time, the software update procedure has to be started from the beginning again.
> Caution
Do not turn off the power during the software update.

, Note
If the software includes the driver update, disc
tray may open during the process.

8. When update is completed, the power will be turned off automatically in a few seconds.

9. Turn the power back on. The system now operates with the new version.

, Note

The Software Update function may not

work properly depending on your internet

environment. In this case, you can obtain the

latest software from the authorized LG Electronics

Service Center then update your player. Refer to

"Customer Support" on page 57.

Appendix

LHB655N-FC_DARELLK_ENG.indd 60

2017-02-24 9:42:07

Additional Information

Appendix 61

File requirement
Video files

File Location

File Extension

Disc, USB

".avi", ".mpg", ".mpeg", ".mkv", ".mp4", ".asf", ".wmv", ".m4v" (DRM free), ".vob", ".3gp", ".mov", ".trp", ".m2t", ".mpe", ".m1v", ".m2v", ".wm", ".flv", ".ts", ".dat"

DLNA

".avi", ".mpg", ".mpeg", ".mkv", ".mp4", ".asf", ".wmv", ".m4v" (DRM free), ".mov", ".mpe", ".m1v", ".m2v", ".flv", ".ts", ".dat"

Codec Format

Audio Format

Subtitle

XVID, MPEG1 SS, H.264/ MPEG-4 AVC, MPEG2 PS, MPEG2 TS, VC-1 SM (WMV3)

Dolby Digital, DTS, MP3, WMA, AAC, AC3

SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)

XVID, MPEG1 SS, H.264/ MPEG-4 AVC, MPEG2 PS, MPEG2 TS, VC-1 SM (WMV3)

Dolby Digital, DTS, MP3, WMA, AAC, AC3

SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/. txt), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)

Audio files

File Location

File Extension

Sampling Frequency

Bitrate

Note

"mp3", ".wma",

within 32 - 48 kHz within 32 - 192 kbps Some wav files are

Disc,

".wav", ".m4a"

(WMA), within 16 - (WMA), within 32 - 320 not supported on

USB

(DRM free), ".flac", 48 kHz (MP3)

kbps (MP3)

this player.

".ogg", ".aiff"

Appendix

DLNA

"mp3", ".wma", ".wav", ".m4a" (DRM free), ".flac", ".ogg"

within 32 - 48 kHz (WMA), within 16 48 kHz (MP3)

within 32 - 192 kbps Some wav files are

(WMA), within 32 - 320 not supported on

kbps (MP3)

this player.

Photo files

File Location
Disc, USB, DLNA

File Extension
".jpg", ".jpeg", ".png", ".gif", ".mpo", ".jps"

Recommended Size

Note

Less than 4,000 x 3,000 x 24 bit/pixel Progressive and lossless Less than 3,000 x 3,000 x 32 bit/pixel compression photo image files
are not supported.

LHB655N-FC_DARELLK_ENG.indd 61

2017-02-24 9:42:07

62 Appendix

, Note
y The file name is limited to 180 characters.

y Maximum files/Folder: Less than 2000 (total number of files and folders)

y Depending on the size and number of the files, it may take several minutes to read the content on the media.

y File compatibility may differ depending on the server.

y Because the compatibility on DLNA server are tested on the SmartShare environment, file requirements and playback functions may differ depending on media servers.

y The file requirements on page 61 are not always compatible. There may have some restrictions by file features and media server's ability.

y Playing video subtitle files are only available on a media server created by SmartShare PC software downloaded from website.

y The files from removable media such as USB drive, DVD-drive etc. on your media server may not be shared properly.

y The total playback time of audio file indicated on the screen may not correct for VBR files.

y HD video files contained on the CD/DVD or

USB 1.0/1.1 may not played properly.

Blu-ray Disc or USB 2.0 are recommended to

play back HD video files.

y This player supports H.264/MPEG-4 AVC

profile Main, High at Level 4.1. A file with

higher level may not be supported.

y This player does not support files that are recorded with GMC*1 or Qpel*2.

*1 GMC Global Motion Compensation

*2 Qpel Quarter pixel

, Note
y A "avi" file which is encoded "WMV 9 codec" is not supported.
y This player supports UTF-8 files even it contains Unicode subtitle content. This player can not support the pure Unicode subtitle files.
y Depending on the types of file or ways of recording, it may not play back.
y A disc which was recorded by multi-session on normal PC is not supported on this player.
y To be playback a video file, video file name and Subtitle file name must be the same.
y When you play a video file with a extension such as ".ts", ".m2ts", ".mts", ".tp", ".Trp" or ".m2t", your player may not support subtitle files.
y The total playback time of audio file indicated on the screen may not correct for VBR files.
y Video / Audio codec compatibility may differ depending on video file.
AVCHD (Advanced Video Codec High Definition)
y This player can playback AVCHD format discs. These discs are normally recorded and used in camcorders.
y The AVCHD format is a high definition digital video camera format.
y The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that of the conventional image compressing format.
y This player can playback AVCHD discs using "x.v.Color" format.
y Some AVCHD format discs may not play depending on the recording condition.
y AVCHD format discs need to be finalized. y "x.v.Color" offers a wider color range than normal
DVD camcorder discs.

Appendix

LHB655N-FC_DARELLK_ENG.indd 62

2017-02-24 9:42:07

Appendix 63

About DLNA
This Player is a DLNA Certified digital media player that can display and play video, photo and audio content from your DLNA-compatible digital media server (PC and Consumer Electronics).
The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network.
The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.
When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.
Certain system requirements
For high definition video playback: y High definition display that has HDMI input jack. y BD-ROM disc with high definition content. y HDMI or HDCP capable DVI input on your display
device is required for some content (as specified by disc authors).

Compatibility notes
y Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Center.
y This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-ROM supporting BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1). Secondary video and audio can be played from a disc compatible with the picture-inpicture function. For the playback method, refer to the instructions in the disc.
y Viewing high-definition content and upconverting standard DVD content may require a HDMI-capable input or HDCP-capable DVI input on your display device.
y Some BD-ROM and DVD discs may restrict the use of some operation commands or features.
y Dolby TrueHD, Dolby Digital Plus and DTS-HD are supported with maximum 5.1 channels if you use HDMI connection for the audio output of the unit.
y You can use an USB device to store some disc related information, including downloaded online content. The disc you are using will control how long this information is retained.

Appendix

LHB655N-FC_DARELLK_ENG.indd 63

2017-02-24 9:42:07

64 Appendix

Audio Output Specifications

Jack/Setting Source
Dolby Digital Dolby Digital Plus
Dolby TrueHD DTS
DTS-HD Linear PCM 2ch Linear PCM 5.1ch Linear PCM 7.1ch

PCM PCM 5.1ch PCM 5.1ch PCM 5.1ch PCM 5.1ch PCM 5.1ch PCM 2ch PCM 5.1ch PCM 7.1ch

HDMI OUT DTS Re-encode *3
DTS DTS DTS DTS DTS DTS DTS DTS

Auto *1 *2 Dolby Digital Dolby Digital Plus Dolby TrueHD
DTS DTS-HD Linear PCM 2ch Linear PCM 5.1ch Linear PCM 7.1ch

*1 The secondary and interactive audio may not

y The audio is outputted up to PCM 48 kHz/16 bit

be included in the output bitstream if [Digital

for MP3/WMA file and PCM 44.1kHz/16 bit for

Output] option is set to [Auto]. (Except LPCM

Audio CD while playback.

Codec : the output always include interactive and secondary audio.)

y With digital audio connection (HDMI OUT), Disc Menu button sounds of BD-ROM may not

*2 This player automatically selects the HDMI

be heard if the [Digital Output] option is set to

audio according to the decoding capability

[Auto].

of the connected HDMI device even though [Digital Output] option is set to [Auto].

y If the audio format of the digital output does not match the capabilities of your receiver, the

*3 If the [Digital Output] option is set to [DTS re-

receiver will produce a strong, distorted sound

encode], the audio output is limited to 48 kHz

or no sound at all.

and 5.1Ch. If the [Digital Output] option is set

y Multi-channel Digital Surround Sound via

to [DTS re-encode], the DTS Re-encode audio is outputted for BD-ROM discs, and the original

digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel

audio is outputted for the other discs (like

decoder.

[Auto]).

y This setting is not available on the input signal

from an external device.

Appendix

LHB655N-FC_DARELLK_ENG.indd 64

2017-02-24 9:42:07

Appendix 65

Area Code List

Choose an area code from this list.

Area

Code Area

Code

Afghanistan

AF Fiji

FJ Monaco

MC Singapore

Argentina

AR Finland

FI Mongolia

MN Slovak Republic

Australia

AU France

FR Morocco

MA Slovenia

Austria

AT Germany

DE Nepal

NP South Africa

Belgium

BE Great Britain

GB Netherlands

NL South Korea

Bhutan

BT Greece

GR Antilles

AN Spain

Bolivia

BO Greenland

GL New Zealand

NZ Sri Lanka

Brazil

BR Hong Kong

HK Nigeria

NG Sweden

Cambodia

KH Hungary

HU Norway

NO Switzerland

Canada

CA India

IN Oman

OM Taiwan

Chile

CL Indonesia

ID Pakistan

PK Thailand

China

CN Israel

IL Panama

PA Turkey

Colombia

CO Italy

IT Paraguay

PY Uganda

Congo

CG Jamaica

JM Philippines

PH Ukraine

Costa Rica

CR Japan

JP Poland

PL United States

Croatia

HR Kenya

KE Portugal

PT Uruguay

Czech Republic

CZ Kuwait

KW Romania

RO Uzbekistan

Denmark Ecuador Egypt El Salvador

DK Libya EC Luxembourg EG Malaysia SV Maldives

LY Russian LU Federation MY Saudi Arabia MV Senegal

Vietnam RU Zimbabwe SA
SN

VN ZW
6

Ethiopia

ET Mexico

Appendix

LHB655N-FC_DARELLK_ENG.indd 65

2017-02-24 9:42:07

66 Appendix

Language Code List

Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu].

Language

Code Language

Afar

6565 French

7082 Lithuanian

7684 Sindhi

Afrikaans

6570 Frisian

7089 Macedonian

7775 Singhalese

Albanian

8381 Galician

7176 Malagasy

7771 Slovak

Amharic

6577 Georgian

7565 Malay

7783 Slovenian

Arabic

6582 German

6869 Malayalam

7776 Spanish

Armenian

7289 Greek

6976 Maori

7773 Sudanese

Assamese

6583 Greenlandic

7576 Marathi

7782 Swahili

Aymara

6588 Guarani

7178 Moldavian

7779 Swedish

Azerbaijani

6590 Gujarati

7185 Mongolian

7778 Tagalog

Bashkir

6665 Hausa

7265 Nauru

7865 Tajik

Basque

6985 Hebrew

7387 Nepali

7869 Tamil

Bengali; Bangla 6678 Hindi

7273 Norwegian

7879 Telugu

Bhutani

6890 Hungarian

7285 Oriya

7982 Thai

Bihari

6672 Icelandic

7383 Panjabi

8065 Tonga

Breton

6682 Indonesian

7378 Pashto, Pushto 8083 Turkish

Bulgarian

6671 Interlingua

7365 Persian

7065 Turkmen

Burmese

7789 Irish

7165 Polish

8076 Twi

Byelorussian

6669 Italian

7384 Portuguese

8084 Ukrainian

Chinese

Croatian

9072 Japanese 7282 Kannada

7465 Quechua

8185 Urdu

7578 Rhaeto-Romance 8277 Uzbek

Czech

6783 Kashmiri

7583 Rumanian

8279 Vietnamese

Danish

6865 Kazakh

7575 Russian

8285 Volapük

Dutch

7876 Kirghiz

7589 Samoan

8377 Welsh

English

6978 Korean

7579 Sanskrit

8365 Wolof

Esperanto

6979 Kurdish

7585 Scots Gaelic

7168 Xhosa

Estonian

6984 Laotian

7679 Serbian

8382 Yiddish

Faroese

7079 Latin

7665 Serbo-Croatian 8372 Yoruba

Fiji

7074 Latvian, Lettish 7686 Shona

8378 Zulu

Finnish

7073 Lingala

7678

Code 8368 8373 8375 8376 6983 8385 8387 8386 8476 8471 8465 8469 8472 8479 8482 8475 8487 8575 8582 8590 8673 8679 6789 8779 8872 7473 8979 9085

Appendix

LHB655N-FC_DARELLK_ENG.indd 66

2017-02-24 9:42:07

Trademarks and Licenses
All other trademarks are trademarks of their respective owners.
Blu-ray DiscTM, Blu-rayTM, Blu-ray 3DTM, BD-LiveTM, BONUSVIEWTM and the logos are trademarks of the Blu-ray Disc Association.
"DVD Logo" is a trademark of DVD Format/Logo Licensing Corporation.

Appendix 67
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio | Essential is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

Java is a trademark of Oracle and/or its affiliates.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. "x.v.Color" is a trademark of Sony Corporation.

Bluetooth wireless technology is a system which allows radio contact between electronic devices.

Connecting individual devices under Bluetooth

wireless technology does not incur any charges. A mobile phone with Bluetooth wireless

technology can be operated via the Cascade

if the connection was made via Bluetooth

wireless technology.

Appendix

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license.

Other trademarks and trade names are those of their respective owners.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

LHB655N-FC_DARELLK_ENG.indd 67

2017-02-24 9:42:08

68 Appendix
Cinavia Notice
This product uses Cinavia technology to limit the use of unauthorized copies of some commerciallyproduced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA. This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2013 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.
6

Appendix

LHB655N-FC_DARELLK_ENG.indd 68

2017-02-24 9:42:08

Specifications

Appendix 69

General
Power requirements Power consumption Dimensions (W x H x D) Operating temperature Operating humidity

Refer to main label. Refer to main label. Approx. 360 mm x 60.5 mm x 299 mm 5 °C to 35 °C (41 °F to 95 °F) 5 % to 90 %

Inputs/Outputs HDMI OUT (video/audio) ANALOG AUDIO IN DIGITAL IN (OPTICAL)

19 pin (Type A, HDMITM Connector) x 1 2.0 Vrms (1 kHz, 0 dB), 600 , RCA jack (L, R) x 1 3 V (p-p), Optical jack x 1

Tuner FM Tuning Range

87.5 to 108.0 MHz or 87.50 to 108.00 MHz

Amplifier

Power output (3 ), (RMS), THD 10 %

Total

1000 W

Front Center

167 W x 2 167 W

Rear

167 W x 2

Sub-Woofer

167 W (Passive)

Appendix

LHB655N-FC_DARELLK_ENG.indd 69

2017-02-24 9:42:08

70 Appendix

System
Laser Wavelength Signal system Frequency response Harmonic distortion Dynamic range LAN port Bus Power Supply (USB)

Semiconductor laser 405 nm / 650 nm Standard NTSC/PAL color TV system 20 Hz to 18 kHz (48 kHz, 96 kHz, 192 kHz sampling) Less than 0.05 % More than 80 dB Ethernet jack x 1, 10BASE-T / 100BASE-TX 5 V 0 500 mA

Speakers Front Type

1 Way 1 speaker

Impedance

Rated Input Power Rear Type

167 W 1 Way 1 speaker

Impedance

Rated Input Power Center Type

167 W 1 Way 1 speaker

Impedance

Rated Input Power 167 W

Subwoofer

Type

1 Way 1 speaker

Impedance

Rated Input Power 167 W

Max. Input power
Net Dimensions (W x H x D)

334 W 250 mm x 1150 mm x 250 mm

Max. Input power
Net Dimensions (W x H x D)

334 W 250 mm x 1150 mm x 250 mm

Max. Input power
Net Dimensions (W x H x D)

334 W 260 mm x 92 mm x 73 mm

Max. Input power
Net Dimensions (W x H x D)

334 W 133 mm x 352 mm x 325 mm

y Design and specifications are subject to change without notice.

Appendix

LHB655N-FC_DARELLK_ENG.indd 70

2017-02-24 9:42:08

Appendix 71

Maintenance

Notes on discs

Handling the unit
When shipping the unit
Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.
Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide
spray near the unit. y Wiping with strong pressure may damage the
surface. y Do not leave rubber or plastic products in
contact with the unit for a long period of time.

Handling discs
Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.
Storing discs
After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.
Cleaning discs
Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out.
Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Maintaining the unit

The unit is a high-tech, precision device. If the

optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

For details, please contact your nearest authorized

service center.

Appendix

LHB655N-FC_DARELLK_ENG.indd 71

2017-02-24 9:42:08

72 Appendix

Important Information relating to Network Services

All information, data, documents, communications, downloads, files, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content ("Content") and all services and offerings ("Services") provided or made available by or through any third party (each a "Service Provider") is the sole responsibility of the Service Provider from whom it originated.

The availability of and access to Content and Services furnished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services.

Should you have any inquiry or problem related

to the Content or Services, you may refer to the

Service Provider's website for the most up-to-

date information. LGE is neither responsible nor

liable for customer service related to the Content

and Services. Any question or request for service

relating to the Content or Services should be made

directly to the respective Content and Service

Providers.

Please note that LGE is not responsible for any

Content or Services provided by the Service

Provider or any changes to, removal of, or cessation

of such Content or Services and does not warrant

or guaranty the availability of or access to such

Content or Services.

Appendix

LHB655N-FC_DARELLK_ENG.indd 72

2017-02-24 9:42:08

LHB655N-FC_DARELLK_ENG.indd 73

2017-02-24 9:42:08

References

GPL Ghostscript 9.26 Adobe InDesign CS5 (7.0.4)
