Double door - 28mm 1 of required F.2080 80 of required Roof Board F.2770 44 of required Floor Board (Inc. one spare) E9 Window 28mm 1 of required Component details for Rhine 40/30 (28mm)

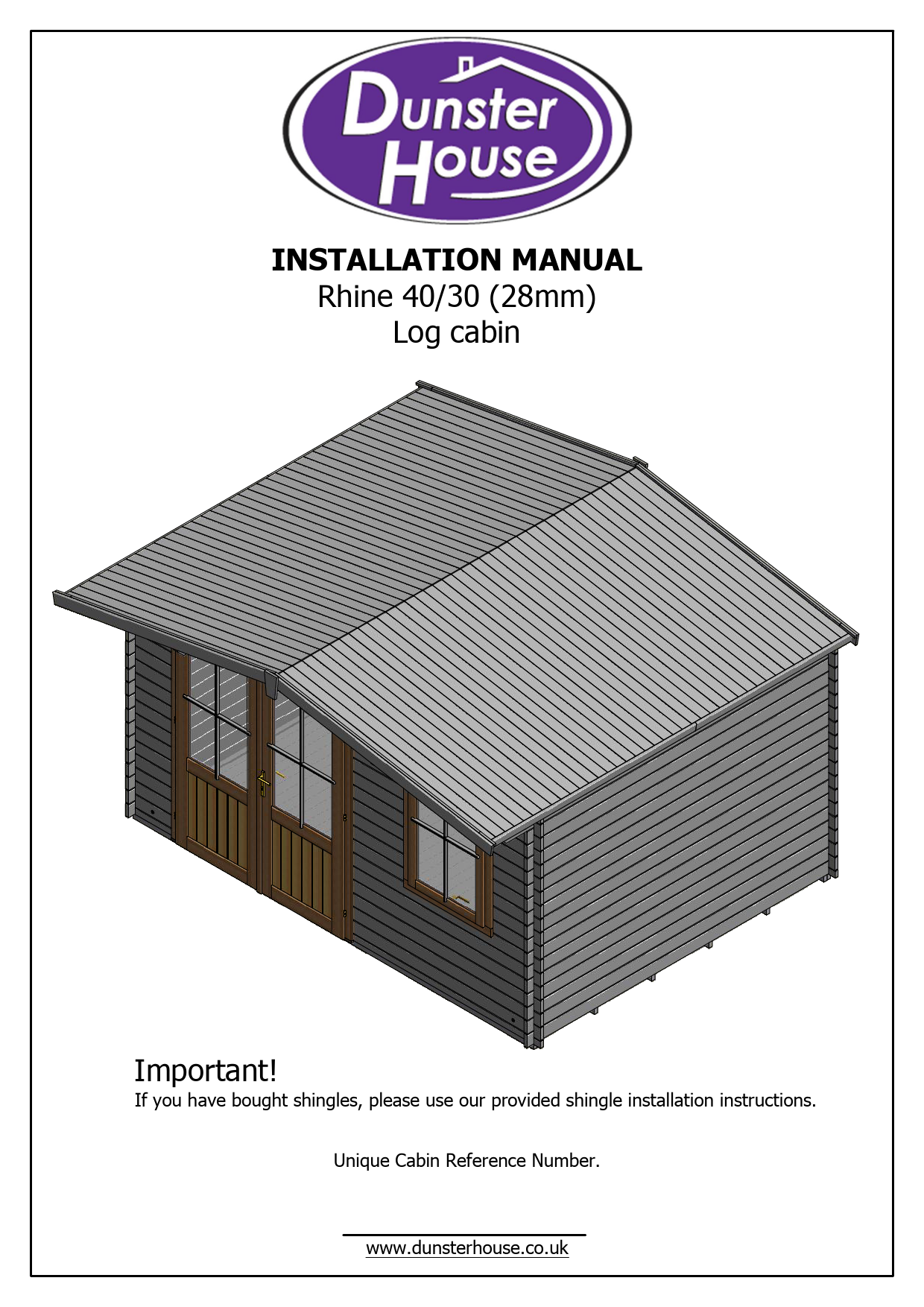

INSTALLATION MANUAL Rhine 40/30 (28mm) Log cabin Important! If you have bought shingles, please use our provided shingle installation instructions. Unique Cabin Reference Number. www.dunsterhouse.co.uk EN.3860 8 of required Bearers Pressure treated A28.510.70.0.0 28 of required Wall log 1 A28.5 0.0.0.0 11 of required Wall log Component details for Rhine 40/30 (28mm) 3860 510 1 50 A28.1810.70.0.0 1810 6 of required Wall log A28.3000.70.70.0 3000 32 of required Wall log A28.3250.70.320.0 3250 2 of required Wall log A28.4000.70.70.0 4000 18 of required Wall log (Inc. one spare) B28.510.70.0.0 510 1 of required Bottom wall log B28.1810.70.0.0 1810 1 of required Bottom wall log B28.4000.70.70.0 4000 1 of required Wall log 32 28 28 28 28 28 28 28 28 28 Page 1 64.5 47 121 64.5 64.5 121 121 121 121 121 Component details for Rhine 40/30 (28mm) XN28.8L.3500.70.570.0 3500 1 of required Top wall log 3500 XN28.8R.3500.70.570.0 1 of required Wall log 45 3500 P .3500.65.565.0 1 of required Purlin 45 3500 P .8L.3500.65.565.0 1 of required Purlin 45 3500 P .8R.3500.65.565.0 1 of required Wall log HN.2000 2000 4 of required Eaves edging (required to be cut to size on site) J.1960.B 1960 4 of required Storm brace 3000 J.3000 7 of required Floor trims and roof edge reinforcement (required to be cut to size on site) N.1960 1960 10 of required Apex trims and wind brace (required to be cut to size on site) Z.195.A 120 2 of required Trapezoid 140 118 19 195 38 38 70 140 118 140 28 28 45 45 45 19 19 19 19 19 Page 2 96 392 ZN.2150.C10 4 of required Fascia boards Component details for Rhine 40/30 (28mm) 2150 AP.28.4000.RHINE.DW. 2 of required Apex 4000 19 28 Page 3 97 Component details for Rhine 40/30 (28mm) F.2080 2080 19 80 of required Roof Board F.2770 44 of required Floor Board (Inc. one spare) Double door - 28mm 1 of required 19 2770 E9 Window 28mm 1 of required 97 FIXINGS & ACCESSORIES ITEM QTY 20 mm screws to vents 9 35 mm screws trapezoids, Eaves edging, roof (J) trim, fascia board to wind brace, SMB 120 brackets 50 mm screws for fascia boards to Purlins & bearers 28 55mm screws for floor trim (J) 28 70 mm screws for bottom logs & door frame & Purlins 44 60 mm M6 bolt 8 M6x25 mm Washers 16 M6 Nuts 8 40mm nails for floor and roof boards 700 SMB075 (28) Interlocking Window to Log Connecting bracket 8 SMB077 (28) Interlocking Door to Log Connecting bracket 16 Sets of vents 2 Door handles and accessories 1 Window handle set & accessories 1 Generic Assembly Instructions for Log Cabins 1 Page 4 Bearer Layout for Rhine 40/30 Log Cabin Bearer Layout Rhine 40/30 We suggest preparing minimum overall base dimension of 4060x3060mm Fix the bearers together using 50mm screws 2860 601 553 553 553 601 547 547 547 547 3860 Front Back 547 547 547 EN.3860 32 32 32 64 64 32 47 All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture Page 5 Wall Layout for Rhine 40/30 (28mm) Front Wall AP.28.4000.RHINE.DW. A28.510.70.0.0 B28.510.70.0.0 510 1 A28.5 0.0.0.0 A28.510.70.0.0 1680 1 50 4000 9 70 510 A28.1810.70.0.0 B28.1810.70.0.0 Rear Wall AP.28.4000.RHINE.DW. A28.4000.70.70.0 4000 B28.4000.70.70.0 All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture Page 6 Wall Layout for Rhine 40/30 (28mm) XN28.8R.3500.70.570.0 A28.3250.70.320.0 A28.3000.70.70.0 Side Wall 3000 Side Wall XN28.8L.3500.70.570.0 A28.3250.70.320.0 A28.3000.70.70.0 3000 All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture Page 7 Purlin and Roof Installation for Rhine 40/30 (28mm) 45 P .8L.3500.65.565.0 P45.3500.65.565.0 45 P .8R.3500.65.565.0 HN.2000 ZN.2150.C10 N.1960 Z.195.A ZN.2150.C10 N.1960 ZN.2150.C10 N.1960 Z.195.A ZN.2150.C10 N.1960 HN.2000 All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture Page 8 Roof Insulation Panel Layout for Premium Plus Rhine 40/30 1250 2080 415 Front Elevation 415 Rear Elevation 415 415 A Board K Board K Board K Board K Board A Board (req'd to be cut on site) K Board (req'd to be cut on site) K Board (off cut) K Board (off cut) K Board (req'd to be cut on site) A Board A Board (off cut) 2500 3500 1000 INSULATION BOARDS Description Qty Panel A (1250x2500mm) 3 Panel K (415x2500mm) 6 SCREWS AND METAL BRACKETS Description Qty Diameter 3x50mm Screws for roof insulation 150 Diameter 3x20mm Screws for metal brackets 50 Metal brackets 12 2080 1250PDFsharp 1.2.1269-g (www sharp.com)
