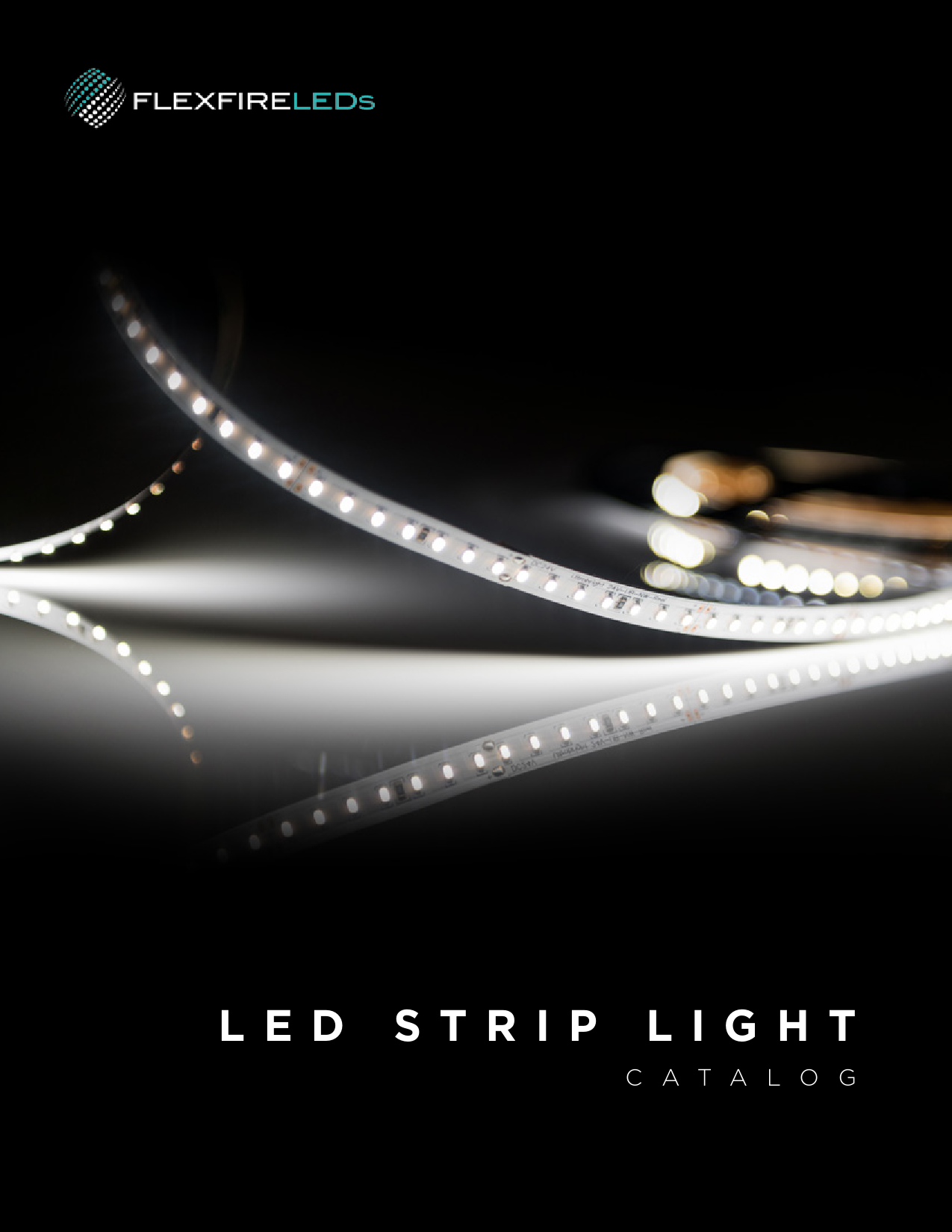

LED STRIP LIGHT
C ATA L O G

WHO WE ARE
WE ARE HERE TO HELP!
We're an inspired and insatiably curious group of lighting nerds from a variety of industries and walks of life who simply love giving great service. In addition to working side by side, we've all become great friends. Needless to say, we sell light! Since 2010, we have specialized in manufacturing and perfecting a niche product that is used to create beautiful interior and exterior lighting experiences. We offer some of the highest quality LED strip lights on the planet. We don't just sell a light strip though, we sell the full functional potential of lighting done right. We understand the primordial connection between humanity and lighting. Beautiful lighting affects emotion. We will help you create your project's desired emotion - whether it is comfort, security, inspiration, love, excitement, focus, calm, etc. Did I mention we love customer service? We promise to educate, not sell. We take in every client's project as if it was our own. We believe in doing things right from our product's first solder point to ensuring a smile on your face when your project is complete and finally `comes to light'. Thank you for your trust in Flexfire LEDs. We won't let you down. Brent Mauriello, CEO Flexfire LEDs

INTRODUCTION
Flexfire LEDs is the world leader in quality LED lighting solutions that are brilliantly bright and predictably durable, having pushed the boundaries of the available technology to create interior and exterior lighting experiences that are beautiful and unique. We are committed to promoting the diffusion of LED technology on the global market through education and personal customer service.
Verified quality and durability Flexfire products are consistently built to last. Our LEDs are tested to be among the brightest available and assembled reliably with quality top components. We set the highest standard for color consistency, longevity, and years of durable life.
Industry-leading educational resources and personnel You no longer have to be confused by the complexity of LED technology. We're dedicated to spreading the word about the impact, utility and flexibility of LED lighting. In addition to holding ourselves to high standards, we participate in several industry organizations which set and maintain standards of safety and quality.
End-to-end dedication to customers and their projects Whether you are a contractor or homeowner, architect or electrician: let us be your consultants. We have extensive experience and rally around the success of every project. Tell us about your LED lighting project and we'll tell you the most effective way to realize it.
INDEX
� What are LED strip lights?........................................................................................................................................................................ 04 � Inspire: What can LED strips do?............................................................................................................................................................ 05 � Create: How to design LED strip light projects?................................................................................................................................ 06 � A Little About Light.................................................................................................................................................................................... 07 � Single Color LED Strips.............................................................................................................................................................................. 08
� ColorBrightTM Vivid Color Series............................................................................................................................................. 11 � Outline SeriesTM........................................................................................................................................................................... 12 � Accent SeriesTM............................................................................................................................................................................ 13 � Slim SeriesTM................................................................................................................................................................................. 14 � Architectural SeriesTM ............................................................................................................................................................... 15 � Render SeriesTM............................................................................................................................................................................ 16 � Industrial SeriesTM CRI 80+....................................................................................................................................................... 17 � Industrial SeriesTM CRI 90+....................................................................................................................................................... 18 � Comparison Chart for Single Color LED Strips................................................................................................................... 19 � Color Changing LED Strips....................................................................................................................................................................... 22 � ColorBrightTM RGB 150 Series................................................................................................................................................. 24 � ColorBrightTM RGB 300 Series................................................................................................................................................. 25 � ColorBrightTM RGBW Series..................................................................................................................................................... 26 � Comparison Chart for Color Changing LED Strips............................................................................................................ 27 � Dynamic Tunable White LED Strips....................................................................................................................................................... 28 � ColorBrightTM Dynamic Tunable White Series..................................................................................................................... 30 � Architectural Dynamic Tunable White SeriesTM ................................................................................................................. 31 � Comparison Chart for Dynamic Tunable White LED Strips............................................................................................ 32

4
WHAT ARE LED STRIP LIGHTS?
An LED strip light is a flexible circuit board that is populated with LEDs. It has a strong adhesive backing and can easily be stuck to most surfaces. The strip can be utilized almost anywhere in order to add powerful lighting in a variety of colors and brightnesses.

Cut to Length

Flexible

Low Profile

Most strips can be cut every few inches, meaning you can easily customize the strip to fit your space.

You aren't limited to lighting flat spaces. LED strips are flexible and can be bent vertically up to 90 degrees.

Most strips have a thickness of 1/16'' (2mm) so they may be installed in tight spaces and can easily be hidden from view.

Color Options

Added Protection

Fully Dimmable

Select from a variety of single colors and color changing options.

IP65 or IP68 protection can be added to make the strips weather and water resistant.

Our LEDs are dimmable and compatible with a variety of home automation systems, wall and remote dimmers. You have complete control over your LEDs.

Peel & Stick

Customizable

The back of the strip is fitted with a strong 3M brand adhesive tape, allowing you to peel and stick lights to many different surfaces.

We are able to customize specialty strips for your project to include custom colors, lengths, CRI, width, voltage, brightness, and more. Contact us!

5
INSPIRE

OUTDOOR ACCENTS

HOTEL & HOSPITALITY

BATHROOM ACCENTS

STOREFRONT DISPLAY

HAND RAILS & WALKWAYS

BUILDING OUTLINES & SIGNAGE

ART DISPLAY

COVE LIGHTING RESTAURANT

BAR & RESTAURANT

CABINETS & SHELVING

EVENTS & STAGES

RETAIL PRODUCT DISPLAYS

6
CRE ATE

How to Select Your Lighting System?
LED strip lights are not "one size fits all" lighting solutions. Our strip lights are highly adaptable and customizable to fit the precise needs of your project. Follow the steps below to easily design your lighting system.

1. Choose Output Style

2. Choose Desired Brightness

Choose from monochromatic (single color), RGB Color Changing, or Tunable Dynamic White outputs. Which style best suits your project?
3. Color Options

Choose the level of brightness needed for your project. Our lights are extremely bright and fully dimmable.
4. Dimming & Control Options

Choose which color(s) or shade of white you will enjoy the most for your project.
5. Powering your Lights
After you have chosen your output type, length, and dimmer, you can choose your power supply. Not sure? We're here to help you with this.
7. Aluminum Mounting Extrusions

Complete control of your space. On and off aren't the only options. LED strips are fully dimmable and can be controlled remotely.
6. Added Protection
Will these be exposed to the elements? Protection can be added to protect lights from exposure to water, dust and debris.
8. Connecting your Lights

Choose an optional aluminum channel to house your strip lights. Dramatically increase design possibilities using extrusions.

While soldering is the best option for connecting strips, we have a variety of connectors available both to connect different strips to each other and to connect strips to power supplies.

7
A LITTLE ABOUT LIGHT
Correlated Color Temperature [CCT]
Not all white light appears the same. Correlated Color temperature (CCT) defines the color appearance of a white light. CCT is defined in degrees Kelvin. Most white lights fall in a spectrum between 1800K and 6500K. When falling below 3000K, the light looks noticeably warmer like a candle. On the other end of the spectrum, the lights have a blue-ish tint and cooler tone when passing above 6500K. Some color temperatures will better suit your design than others. Choose complementary highlighting tones and look at example photos to find which you feel will look the best.

White Examples

Lumen [Brightness]
Lumen is the measurement of brightness as perceived to the human eye. Because of incandescent lighting, we are all accustomed to using watts to measure the brightness of light. Today, we use lumen. Lumen is the most important variable when choosing your strip light. The higher the number, the brighter the light will be. Ensure that the strips you choose are bright enough for your application's intention.

CRI - Color Rendering Index
The Color Rendering Index (CRI), also known by some as color accuracy, is a term of measurement of how natural the light given off by a source looks in comparison to the sun. Have you ever purchased a red towel or dress in the store and when you try it on at home or wear it outside in the sun it looks different? This is because the CRI is different between the two light sources. High CRI LEDs will show an object`s true pure and vibrant color.
The highest CRI is 100 (like the sun). Great CRI is measured above 80 while excellent CRI measures over 90. Our High CRI strips have a minimum 94 CRI and have been measured up to 98 while all of our other white strip lights have a CRI of over 80

CCT 4076k CRI 94.9

p 454 nm

100

97.0 96.7 93.4 95.3 96.5 93.6 96.7 90.9 74.9 88.9 95.6 67.5 97.5 95.4 94.2

90

80

70

60

50

40

30

20

10

0

8
STATIC WHITE AND SINGLE COLOR LED STRIPS

9
SINGLE COLOR LED STRIPS

ColorBrightTM Vivid Color Series
Lumen Output: Up to 263 lm/ft (862/m) Power: 2.9 W/ft (9.6 W/m) Colors: Green, Red, Blue, Amber, Ultraviolet (UV)

ColorBrightTM Vivid Color strips are the perfect way to add a flood of accenting color to nearly any space.

Outline SeriesTM
Lumen Output: Up to 125 lm/ft (411/m) Power: 1.5 W/ft (4.8 W/m) Colors: 2700K, 3000K, 3500K, 4000K, 5000K

The Outline SeriesTM is specifically designed to create extremely long runs of elegant, energy-efficient lighting. Perfect for accent and ambient lighting with near-perfect color rendering.

Accent SeriesTM
Lumen Output: Up to 266 lm/ft (874/m) Power: 3.5 W/ft (11.5 W/m) Colors: 2700K, 3000K, 3500K, 4000K, 5000K

The Accent SeriesTM is a perfect blend of innovative design with practical functionality that guarantees sophisticated lighting made for beautiful accent and ambient lighting. Our new favorite strip!

Slim SeriesTM
Lumen Output: Up to 366 lm/ft (1200/m) Power: 4.4 W/ft (14.4 W/m) Colors: 2400K, 2700K, 3000K, 4200K, 6200K

Some spaces are too narrow to accommodate standard width strip lights. The Slim SeriesTM is ultra-thin (1/8" wide) allowing you to add blazingly bright light to even more spaces.

10

Architectural SeriesTM
Lumen Output: Up to 503 lm/ft (1636/m) Power: 4.4 W/ft (14.4 W/m) Colors: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K

The Architectural SeriesTM is boldly built with the market's leading components to create an incredibly bright strip with excellent color rendering and long run lengths. Meets the high standards of architectural design and complex lighting projects.

Render SeriesTM
Lumen Output: Up to 870 lm/ft (2852/m) Power: 6.6 W/ft (21.6 W/m) Colors: 3000K, 3500K, 4000K, 5200K
Industrial SeriesTM CRI 80+
Lumen Output: Up to 1156 lm/ft (3793/m) Power: 6.6 W/ft (21.6 W/m) Colors: 3000K, 3500K, 4000K, 5000K, 6200K

The Render SeriesTM is designed with a very high output up to 870 lm/ft and spectacularly high CRI, TLCI, R9 and R13 values. Perfect for professional-grade studio lighting and high-level accent lighting for film, photography, fashion, art, and more.
The Industrial SeriesTM CRI 80+ is one of the brightest strips on the market, emitting a staggering 1,156 lm/ ft while sustaining a high color rendering index. Best suited for industrial and architectural design applications, along with custom OEM solutions.

Industrial SeriesTM CRI 90+
Lumen Output: Up to 972 lm/ft (3187/m) Power: 6.6 W/ft (21.6 W/m) Colors: 3000K, 3500K, 4000K, 5000K, 6200K

The Industrial SeriesTM CRI 90+ is designed with an output up to 972 lm/ft, CRI up to 96, and can be used to comply with Title 24 JA8. Made to satisfy our high-end clients, This strip meets the gold standard of top-quality lighting.

11
ColorBrightTM Vivid Color Series

ColorBrightTM Vivid Color LED strip lights are the perfect way to add a flood of accenting color to any space. Colors available in this series are red, green, blue, amber, and ultraviolet (UV). This series is perfect for any application that requires a densely packed beam of colored light!

Features
� Available in Green, Red, Blue, Amber, Ultraviolet (UV) � Fully Dimmable � 120� Beam Angle � Efficiency up to 91 lm/W � Highest quality 3528 SMD LEDs � 3M VHB 4930 adhesive backing for a long lasting bond � Single BIN LED selection to ensure color consistency (3-Step MacAdam) � Maximum Length in Series 32ft 10in (10m) � 12V DC Input (24V special order) � Can be cut every 1" (25.4mm) � Thick double layer 2oz copper PCB for excellent thermal management � Short LED pitch of 5/16" (8mm)

Specifications

Product SKU CB-G CB-R CB-B CB-AM CB-UV

Color
(CCT)
Green

Wavelength
(nm)
515 - 525 nm

Red 615 - 630 nm

Blue Amber Purple

465 - 475 nm 575 nm
(1600 - 1800K) 399 nm

(Meter)

5/16" 8mm

1" 25mm 5/16" 8mm

Lumen / foot
(Meter)

Luminous efficacy
46 lm/W 31 lm/W 19 lm/W 91 lm/W 91 lm/W

12
Outline SeriesTM

Less is more with our Outline SeriesTM. Specifically designed for light designers, architects, and specifiers, the Outline Series is a low-output strip that creates extremely long runs of elegant, energy-efficient lighting. Perfect for accent and ambient lighting with near-perfect color rendering.
Features
� High CRI up to 98 � High TLCI up to 99 � Low energy consumption of 1.5 Watts/ft � Low output up to 125 lm/ft (411 lm/m) � Maximum run length 24V: 82ft (25m), 48V: 131ft (40m) � Available in 24V or 48V input � Fully dimmable � Can be used to comply with Title 24 JA8 (for CCTs up to 4000K) � Newly-designed solder pads for effortless soldering � Thermally resistant 3M VHB 4930 adhesive for long-lasting bond � Thick 4oz pure copper PCB for excellent thermal management � 50,000 hour lifespan (8 hours/day for 17 years) � 15-year warranty � UL Listed (cULus) E362522

3/8" 10mm

2" 50mm 5/16" 8mm

Specifications

Color Watts / foot

Product SKU

(CCT )

(Meter)

Lumen / foot
(Meter)

Luminous efficacy

Gamut Relative

CRI Score Rg Fidelity TLCI (Qa)

(Lumens / Watt)

(Color Sat.) Score (RF)

UB-OL-24K97C (special order only)

2400K

1.5 W/ft 4.8 W/m

98 lm/ft (320 lm/m)

65 lm/W

97

104

96

98

UB-OL-27K97C 2700K 1.5 W/ft

97 lm/ft (318 lm/m)

65 lm/W

97

102

96

99

4.8 W/m

UB-OL-30K97C 3000K

1.5 W/ft 4.8 W/m

100 lm/ft (328 lm/m)

67 lm/W

97

104

96

99

1.5 W/ft

UB-OL-35K97C 3500K

116 lm/ft (379 lm/m)

77 lm/W

98

103

96

99

4.8 W/m

UB-OL-40K95C 4000K 1.5 W/ft 111 lm/ft (363 lm/m)

74 lm/W

95

103

94

98

4.8 W/m

UB-OL-50K95C 5000K 1.5 W/ft 125 lm/ft (411 lm/m)

84 lm/W

95

101

94

99

4.8 W/m

CQS 97 97 98 98 97 98

13
Accent SeriesTM

Our Accent SeriesTM is the perfect choice for homeowners and contractors wanting to uplift and revitalize any room - small or big. Combining beautiful design with practical functionality, these sophisticated lights boast an exceptionally high CRI up to 98, very short LED pitch, and have the shortest cut lines. Whether you want to brighten corners, beautify ceilings, or fabricate depth and dimension, the Accent Series is made to truly reinvent your space.
Features
� High CRI up to 98 � High TLCI up to 99 � High efficiency of 3.5 Watts/ft � Medium output of 266 lm/ft (874 lm/m) � Maximum run length 12V: 32ft (10m), 24V: 39ft (12m), 48V: 65ft (20m) � Fully dimmable � Can be used to comply with Title 24 JA8 (for CCTs up to 4000K) � Newly-designed solder pads for effortless soldering � Thermally resistant 3M VHB 4930 adhesive for long-lasting bond � Thick 4 oz pure copper PCB for excellent thermal management � 50,000 hour lifespan (8 hours/day for 17 years) � 15-year warranty � UL Listed (cULus) E362522
Specifications

3/8" 10mm

1" 25 mm 3 /1 6" 4 mm

Color Watts / foot

Product SKU

(CCT )

(Meter)

Lumen / foot
(Meter)

Luminous efficacy

Gamut Relative

CRI Score Rg Fidelity TLCI (Qa)

(Lumens / Watt)

(Color Sat.) Score (RF)

UB-AT1-24K97C 2400K 3.5 W/ft

210 lm/ft (689 lm/m)

60 lm/W

98

104

96

98

(special order only)

11.5 W/m

UB-AT1-27K97C 2700K 3.5 W/ft

223 lm/ft (731 lm/m)

64 lm/W

97

101

96

99

11.5 W/m

UB-AT1-30K97C 3000K 3.5 W/ft

226 lm/ft (742 lm/m)

65 lm/W

97

101

96

99

11.5 W/m

UB-AT1-35K97C 3500K 3.5 W/ft

252 lm/ft (828 lm/m)

72 lm/W

98

103

93

99

11.5 W/m

UB-AT1-40K95C 4000K 3.5 W/ft

259 lm/ft (848 lm/m)

74 lm/W

95

101

96

98

11.5 W/m

UB-AT1-50K95C 5000K 3.5 W/ft 266 lm/ft (874 lm/m)

76 lm/W

95

103

96

99

11.5 W/m

CQS 97 97 98 98 97 98

14
Slim SeriesTM
Some spaces are too narrow to accommodate standard width strip lights. With a width of only 1/8", the Slim SeriesTM is ultra-thin allowing you to add light to even more spaces. It is one of the thinnest LED strip lights on the market. These strips can easily be hidden from view and are great for providing elegant, discreet lighting.
Features
� High CRI of 80+ � Fully Dimmable � 120� Beam Angle � Efficiency up to 83 lm/W � High quality 3014 SMD LEDs � 3M VHB 4930 adhesive backing for a long lasting bond � Single BIN LED selection to ensure color consistency (3-Step MacAdam) � Maximum Length in Series 9ft 10in (3m) � 12V DC Input (24V special order) � Can be cut every 1" (25.4mm) � Thick double layer 2oz copper PCB for excellent thermal management � Short LED pitch of 3/8" (9mm)

1/8" 3.5mm

1" 25mm 3/8" 9mm

Specifications

Product SKU

Color
(CCT)

UB-SS-24K

2400K

UB-SS-27K

2700K

UB-SS-30K

3000K

UB-SS-42K

4200K

UB-SS-62K

6200K

Watts / foot
(Meter)
4.4 W/ft 14.4 W/m 4.4 W/ft 14.4 W/m 4.4 W/ft 14.4 W/m 4.4 W/ft 14.4 W/m 4.4 W/ft 14.4 W/m

Lumen / foot
(Meter)
340 lm/ft (1,115 lm/m) 344 lm/ft (1,128 lm/m) 335 lm/ft (1,009 lm/m) 350 lm/ft (1,148 lm/m) 366 lm/ft (1,200 lm/m)

Luminous e cacy
(Lumens / Watt)
77 lm/W 78 lm/W 76 lm/W 80 lm/W 83 lm/W

CRI

Gamut Score Rg Relative Fidelity

(Color Sat.)

Score (RF)

84

92

83

85

93

82

82

95

82

82

97

82

81

96

80

15
Architectural SeriesTM

Our Architectural SeriesTM is built to last and to make lasting impressions. Born to meet the high standard of innovative architectural design and complex lighting projects, the Architectural Series is designed with the market's leading components to create an incredibly bright strip with excellent color rendering and long run lengths. Pair this strip with a dimmer to take full advantage of its versatile applications, from bright task lighting to lower, comfortable accents.
Features
� High CRI up to 97 � High TLCI up to 97 � 4.4 Watts/ft � High output up to 503 lm/ft (1636 lm/m) � Efficacy up to 113 lm/W � Maximum run length 12V: 16ft, 24V: 42ft, 48V: 65ft � Available in 2700K, 3000K, 3500K, 4000K and 5000K � Can be used to comply with Title 24 JA8 (for CCTs up to 4000K) � Newly-designed solder pads for effortless soldering � Thermally resistant 3M VHB 4930 adhesive for long-lasting bond � Thick 4 oz pure copper PCB for excellent thermal management � 50,000 hour lifespan (8 hours/day for 17 years) � 15-year warranty � UL Listed (cULus) E36252
Specifications

3/8" 10mm

1" 25 mm 1/4" 6.3 mm

Color Watts / foot

Product SKU

(CCT )

(Meter)

Lumen / foot
(Meter)

Luminous e ffic a c y

Gamut Relative CRI Score Rg Fidelity TLCI (Qa)

(Lumens / Watt)

(Color Sat.) Score (RF)

CQS

4.4 W/ft

UB-AS-24K90C 2400K 14.4 W/m 329 lm/ft (1,079 lm/m) 74 lm/W 97

99

93

97

96

4.4 W/ft

UB-AS-27K90C 2700K 14.4 W/m 456 lm/ft (1,496 lm/m) 106 lm/W 94

96

89

87

93

4.4 W/ft

UB-AS-30K90C 3000K 14.4 W/m 466 lm/ft (1,530 lm/m) 107 lm/W 95

100

90

89

94

UB-AS-35K90C 3500K 4.4 W/ft 503 lm/ft (1,636 lm/m) 110 lm/W 96

99

90

91

94

14.4 W/m

UB-AS-40K90C 4000K 4.4 W/ft 485 lm/ft (1,591 lm/m) 110 lm/W 95

98

89

92

93

14.4 W/m

UB-AS-50K90C 5000K 4.4 W/ft 496 lm/ft (1,630 lm/m) 113 lm/W 95

99

89

94

92

14.4 W/m

16
Render SeriesTM

Boldly built to mimic captures everything

tphueren,aukneaddeuylteermaitsesdesd.aTyhlieghRte, tnhdeerReSnedrieersTMSeirsiedseTMI-S80+

signed with a very high output up to 870 lm/ft and spectacularly high

CRI, TLCI, R9 and R13 values. Perfect for professional-grade studio

lighting and high-level accent lighting for film, photography, fashion,

art, and more.

Features
� High CRI up to 98 � High TLCI up to 99 � 6.6 Watts/ft � High output up to 870 lm/ft (2852 lm/m) � Efficacy up to 129 lm/W � Maximum run length 12V: 9ft, 24V: 19ft � Available in 3000K, 3500K, 4000K and 5200K � Can be used to comply with Title 24 JA8 (for CCTs up to 4000K) � Newly-designed solder pads for effortless soldering � Thermally resistant 3M VHB 4930 adhesive for long-lasting bond � Thick 4 oz pure copper PCB for excellent thermal management � 50,000 hour lifespan (8 hours/day for 17 years) � 7-year warranty � UL Listed (cULus) E36252

3/8" 10mm

2 1/2" 64mm 5/16" 8mm

Specifications

Color Watts / foot

Product SKU

(CCT )

(Meter)

Lumen / foot
(Meter)

Luminous e ffic a c y
(Lumens / Watt)

Gamut Relative CRI Score Rg Fidelity TLCI (Qa)
(Color Sat.) Score (RF)

UB-RS-30K97C 3000K

6.6 W/ft 21.6 W/m

735 lm/ft (2,411 lm/m)

110 lm/W

97

100

94

99

6.6 W/ft

UB-RS-35K97C 3500K

833 lm/ft (2,731 lm/m) 125 lm/W

98

100

93

99

21.6 W/m

UB-RS-40K95C 4000K 6.6 W/ft 811 lm/ft (2,659 lm/m)

128 lm/W

98

100

93

99

21.6 W/m

UB-RS-50K95C 5200K 6.6 W/ft 870 lm/ft (2,852 lm/m)

129 lm/W

98

100

21.6 W/m

94

99

CQS 97 96 96 98

17
Industrial SeriesTM CRI 80+

The Industrial SeriesTM CRI 80+ is one of the brightests strips on the market, emitting a staggering 1,156 lm/ft while sustaining a

IS80+

high color rendering index. Made with new, innovative technolo-

gy, this strip is best suited for industrial and architectural design

applications, along with custom OEM solutions.

Features
� High CRI up to 85 � High TLCI up to 76 � 6.6 Watts/ft � High output up to 1156 lm/ft (3793 lm/m) � Efficacy up to 173 lm/W � Maximum run length 12V: 9ft, 24V: 19ft � Available in 3000K, 3500K, 4000K, 5000K and 6200K � Newly-designed solder pads for effortless soldering � Thermally resistant 3M VHB 4930 adhesive for long-lasting bond � Thick 4 oz pure copper PCB for excellent thermal management � 50,000 hour lifespan (8 hours/day for 17 years) � 7-year warranty � UL Listed (cULus) E36252

3/8" 10mm

2 1/2" 64mm 5/16" 8mm

Specifications

Color Watts / foot

Product SKU

(CCT )

(Meter)

Lumen / foot
(Meter)

Luminous efficacy CRI
(Lumens / Watt)

6.6 W/ft

UB-IS-30K80C 3000K

1048 lm/ft (3439 lm/m)

160 lm/W

85

21.6 W/m

6.6 W/ft

UB-IS-35K80C 3500K

1156 lm/ft (3793 lm/m)

170 lm/W

85

21.6 W/m

UB-IS-40K80C 4000K

6.6 W/ft 1126 lm/ft (3694 lm/m)

168 lm/W

85

21.6 W/m

6.6 W/ft

UB-IS-50K80C 5000K

1026 lm/ft (3366 lm/m)

173 lm/W

85

21.6 W/m

UB-IS-62K80C 6200K

6.6 W/ft 1068 lm/ft (3503 lm/m)

166 lm/W

85

21.6 W/m

Gamut Relative Score Rg Fidelity (Color Sat.) Score (RF)

TLCI (Qa)

96

86

72

96

85

73

94

85

72

93

84

73

91

83

76

CQS 85 84 84 82 83

18
Industrial SeriesTM CRI 90+

IS80+
The Industrial SeriesTM CRI 90+ is designed with an output up to 972 lm/ft, CRI up to 96, and can be used to comply with Title 24 JA8. For CCTs up to 4000k, this strip meets the gold standard for light quality and energy-efficiency wherever you choose to install. The high CRI, TLCI and R9 values promises exceptional color accuracy and rendering for your visually aesthetic needs.
Features
� High CRI up to 98 � High TLCI up to 99 � 6.6 Watts/ft � High output up to 870 lm/ft (2852 lm/m) � Efficacy up to 129 lm/W � Maximum run length 12V: 9ft, 24V: 19ft � Available in 3000K, 3500K, 4000K and 5200K � Can be used to comply with Title 24 JA8 (for CCTs up to 4000K) � Newly-designed solder pads for effortless soldering � Thermally resistant 3M VHB 4930 adhesive for long-lasting bond � Thick 4 oz pure copper PCB for excellent thermal management � 50,000 hour lifespan (8 hours/day for 17 years) � 7-year warranty � UL Listed (cULus) E36252

3/8" 10mm

2 1/2" 64mm 5/16" 8mm

Specifications

Color Watts / foot

Product SKU

(CCT )

(Meter)

Lumen / foot
(Meter)

Luminous efficacy

Gamut Relative TLCI

(Lumens / Watt)

CRI Score Rg Fidelity (Qa)

(Color Sat.) Score (RF)

6.6 W/ft

UB-IS-30K90C 3000K

939 lm/ft (3079 lm/m)

146 lm/W

95

100

91

90

21.6 W/m

6.6 W/ft

UB-IS-35K90C 3500K

916 lm/ft (3004 lm/m)

144 lm/W

96

100

91

91

21.6 W/m

6.6 W/ft

UB-IS-40K90C 4000K

923 lm/ft (3029 lm/m)

147 lm/W

95

99

89

89

21.6 W/m

6.6 W/ft

UB-IS-50K80C 5000K

972 lm/ft (3187 lm/m)

153 lm/W

93

99

88

93

21.6 W/m

6.6 W/ft

UB-IS-62K80C 6200K

942 lm/ft (3089 lm/m)

140 lm/W

94

98

88

95

21.6 W/m

CQS 95 94 92 92 91

19
COMPARISON CHART

Single Color Output

LED Strip
Ultraviolet SeriesTM
ColorBrightTM Vivid Color Outline SeriesTM
Accent SeriesTM
Slim SeriesTM
Architectural SeriesTM Render SeriesTM
Industrial SeriesTM CRI 90+ Industrial SeriesTM CRI 80+

Color Temperatures Brightness Lumens Watts Lumens Ingress CRI Voltage Max Run

/ ft / ft / Watt Protection

(in series)

NA

NA 2.9 NA IP20

NA

2142VV*

12V-32' 24V-32'

Green, Red, Blue, Amber
24K *, 27K, 30K, 35K, 40K, 50K

G: 134

R: 91 B: 55

2.9

A: 263

~ 125 1.5

~ 91 IP20, IP65 NA ~ 84 IP20, IP65 ~ 98

2142VV*

12V-32' 24V-32'

24V 24V-82' 48V 48V-131'

24K *, 27K, 30K, 35K, 40K, 50K

12V 12V-32' ~ 266 3.5 ~ 76 IP20, IP65 ~ 98 24V 24V-39'
48V 48V-65

24K, 27K, 30K, 42K, 62K

~ 366 4.4 ~ 83 IP20

~ 82

12V 24V

12V-10' 24V-10'

24K, 27K, 30K,

35K, 50K,

4602KK,*

12V 12V-16' ~ 503 4.4 ~ 113 IP20, IP65 ~ 97 24V 24V-42'
48V 48V-65'

30K, 35K, 40K, 52K

~ 870 6.6 ~ 129 IP20

~ 98

12V 24V

12V-9' 24V-19'

30K, 35K, 40K, 50K, 62K

~ 972 6.6 ~ 153 IP20

~ 96 12V 12V-9' 24V 24V-19'

30K, 35K, 40K, 50K, 62K

~ 1156 6.6 ~ 173 IP20

~ 85

12V 24V

12V-9' 24V-19'

+ This option is only available through special order

20

21

22
COLOR CHANGING LED STRIPS

23
COLOR CHANGING LED STRIPS
ColorBrightTM RGB 150 Series
Lumen Output: Up to 45 lm/ft Power: 2.2 W/ft (7.2 W/m) Colors: Almost any deep and intense color of your choice.
This strip uses an advanced color mixing technology of 150 RGB color changing LEDs per reel that allows the color output to be changed internally with each LED, projecting a purely bright and beautiful glowing color of your choice.
ColorBrightTM RGB 300 Series
Lumen Output: Up to 90 lm/ft Power: 4.4 W/ft (14.4 W/m) Colors: Almost any deep and intense color of your choice.
The higher output RGB 300 series utilizes the same technology as the RGB 150 series, but it has double the LEDs and double brightness. The color output can be changed internally with each LED, projecting a purely bright and beautiful glowing color of your choice.
ColorBrightTM RGBW Series
Lumen Output: Variable RGB output and White output up to 213 lm/ft (698/m) Power: 4.4 W/ft (14.4 W/m) Colors: Full color spectrum (RGB + White [2400K, 2700K, 3000K, 4200K, or 6200K]
The ColorBrightTM Color Changing + White LED strip light has alternating RGB color changing LEDs and single color high brightness white LEDs, combining color changing and white strips into one.

24
ColorBrightTM RGB 150 Series
Paint with light. The ColorBrightTM RGB 150 LED strip uses an advanced color mixing technology of 150 RGB LEDs per 16'5" reel. The use of a DMX or RGB controller allows the color output of the LEDs to be changed internally, projecting a purely bright and beautiful glowing color of your choice. Create beautiful works of art and light shows at the touch of a button. The RGB 150 series uses half the energy of the 300 series and is also able to be installed in longer continuous runs.

3/8" 10mm

6 1/2" 165mm 1 1/4" 33mm

Features
� Color Changing � Fully dimmable and color controllable � 120� Beam Angle � Highest quality 5050 SMD LEDs � 3M VHB 4930 adhesive backing for a long lasting bond � Single BIN LED selection to ensure color consistency (3-Step MacAdam) � Maximum run length 12V: 32ft 10in (10m), 24V: 48ft 10 in (15m) � 24V and 12V DC Input Options Available � Can be cut every 4" (100mm) | 6 1/2" for 24V (165mm) � Thick double layer 2oz copper PCB for excellent thermal management � Short LED pitch of 1 1/4" (33mm)

Specifications

Product SKU CB-RGB-12V CB-RGB-24V

LED Chips per foot
(Meter)
9 LEDs/Foot (30/Meter) 9 LEDs/Foot (30/Meter)

Voltage Input 12V DC 24V DC

Watts / foot
(Meter)
2.2 W/ft (7.2 W/m)
2.2 W/ft (7.2 W/m)

Lumen / foot
(Meter)
Variable
Variable

Segment Lengths 4" (100 mm)
6 1/2" (165 mm)

Max. Run Length in Series
32' 10" (10 meters) 48' 10" (15 meters)

25
ColorBrightTM RGB 300 Series

An explosion of colors. The ColorBrightTM RGB 300 LED strip uses an advanced color mixing technology of 300 RGB LEDs per 16'5" reel. The use of a DMX or RGB controller allows the color output of the LEDs to be changed internally, projecting a purely bright and beautiful glowing color of your choice. Create beautiful works of art and light shows at the touch of a button. The RGB 300 series is twice as densely populated with LEDs and thus twice as bright compared to the RGB 150 series.

3/8" 10mm

4" 100mm 5/8" 16mm

Features
� Color Changing � Fully dimmable and color controllable � 120� Beam Angle � Highest quality 5050 SMD LEDs � 3M VHB 4930 adhesive backing for a long lasting bond � Single BIN LED selection to ensure color consistency (3-Step MacAdam) � Maximum run length 12V: 16ft 5in (5m), 24V: 32ft 10 in (10m) � 24V and 12V DC Input Options Available � Can be cut every 2" (50 mm) | 4" for 24V (100mm) � Thick double layer 2oz copper PCB for excellent thermal management � Short LED pitch of 3/4" (17mm)

Specifications

Product SKU CB-RGB2-12V CB-RGB2-24V

LED Chips per foot
(Meter)
18 LEDs/Foot (60/Meter)
18 LEDs/Foot (60/Meter)

Voltage Input

Watts / foot
(Meter)

Lumen / foot
(Meter)

12V DC 4.4 W/ft (14.4 W/m) Variable

24V DC 4.4 W/ft (14.4 W/m) Variable

Segment Lengths 2" (50 mm) 4" (100 mm)

Max. Run Length in Series
16' 5" (5 meters) 32' 10" (10 meters)

26
ColorBrightTM RGBW Series

The ColorBrightTM Color Changing + White LED strip light is an ingenious product that has combined two powerful strips into one. This product has alternating RGB color changing LEDs and single color high brightness white LEDs. With the touch of a remote, these lights can become any color you can imagine - including a crisp and beautiful white. No longer will you have to sacrifice one product for the other, we have combined them both into one strip.
Features
� White LEDs have a high CRI of 80+ � Fully dimmable and color controllable � 120� Beam Angle � Highest quality 5050 SMD LEDs � 3M VHB 4930 adhesive backing for a long lasting bond � Single BIN LED selection to ensure color consistency (3-Step MacAdam) � Maximum run length 12V: 16ft 5in (5m), 24V: 32ft 10 in (10m) � 24V and 12V DC Input Options Available � Can be cut every 4" for 12V (100mm) | 6 1/2" for 24V (167mm) � Thick double layer 2oz copper PCB for excellent thermal management � Short LED pitch of 3/4" (17mm)

1/2" 12mm

6 1/2" 167mm 3/4" 17mm

Specifications

Product SKU CB-RGB24K CB-RGB27K CB-RGB30K CB-RGB42K CB-RGB62K

Color
(CCT)
2400K 2700K 3000K 4200K 6200K

Watts / foot
(Meter)
4.4 W/ft 14.4 W/m 4.4 W/ft 14.4 W/m 4.4 W/ft 14.4 W/m 4.4 W/ft 14.4 W/m 4.4 W/ft 14.4 W/m

Lumen / foot (Meter)
[White chips only]
Coming Soon Coming Soon 198 lm/ft (423 lm/m) 207 lm/ft (679 lm/m) 213 lm/ft (698 lm/m)

Lumen Output
[RGB only]
Variable Variable Variable Variable Variable

CRI
[ White]
84

GamutScore Rg Relative Fidelity

(Color Sat.)

Score (RF)

[ White]

[ White]

98

83

84

94

83

83

91

83

82

97

81

83

94

80

27
COMPARISON CHART

RGB Color Changing Output

LED Strip
ColorBrightTM RGB 150 Color Changing
ColorBrightTM RGB 300 Color Changing
ColorBrightTM Color Changing [+White]

Color Temperatures Brightness Lumens Watts

Ingress

CRI

/ ft

/ ft Protection

NA

NA

2.2 IP20, IP65 NA

Voltage Max Run (in series)
12V 12V-32' 24V 24V-48'

NA

NA

4.4 IP20, IP65 NA

12V

12V-16'

24V 24V-32'

24K, 27K, 30K, 42K, 62K

~ 213 4.4 IP20, IP65 ~ 83

12V

12V-16'

24V 24V-32'

28
DYNAMIC TUNABLE WHITE LED STRIPS

29
DYNAMIC TUNABLE WHITE STRIPS
Tunable White Series LED strip lights can be adjusted to produce very specific shades of white. It is the ideal solution when an existing source of light must be matched perfectly or when the hue of light must change over time.
Control Output Color Anywhere in Between
Construction of a Dynamic Tunable White Strip
2700K
6200K
ColorBrightTM Dynamic Tunable White Series
CCT ranges: 2400K-3000K, 2700K-4200K, 3000K-6200K Brightness: Up to 266 lm/ft (871 lm/m) The Dynamic Tunable White LED strip light uses color blending technology so you can select the perfect shade of white anywhere within the CCT range. No longer settle for one shade of white. This strip has it all.
Architectural Dynamic Tunable White SeriesTM
CCT ranges: 2700K-6200K Brightness: Up to 494 lm/ft (1621 lm/m) The UltraBrightTM Architectural Dynamic Tunable White Series offers countless color temperatures so you can pick the perfect light in any room, at any time. Pair these lights with a remote control system to take full advantage of the tunable capabilities.

30
ColorBrightTM Dynamic Tunable White Series

ColorBrightTM Dynamic Tunable White Series LED strip light the perfect lighting solution for projects that require a very specific shade of white light or for projects where the color of white will need the ability to change from time to time. This LED strip light was produced with alternating colored LEDs on the circuit board (half 3000k and half 6200k), so you can dial in your perfect color of white using a remote control.
Features
� High CRI of 83+ � Strips can be controlled to produce any color of white between 3000K and 6200K � Fully Dimmable � 120� Beam Angle � Efficiency up to 92 lm/W � Highest quality 3528 SMD LEDs � 3M VHB 4930 adhesive backing for a long lasting bond � Single BIN LED selection to ensure color consistency (3-Step MacAdam) � Maximum run length: 32ft 10in (10m) � 12V DC Input (24V available by special order) � Can be cut every 2" (50mm) � Thick double layer 2oz copper PCB for excellent thermal management � Short LED pitch of 5/16" (8mm)

5/16" 8mm

2" 50mm 5/16" 8mm

Specifications

Product SKU

Color setting on
remote

Lumen / foot
(Meter)

CRI

CB-HYB3062

3000K

132 lm/ft (435 lm/m)

85

CB-HYB3062

4200K

266 lm/ft (871 lm/m)

83

CB-HYB3062

6200K

132 lm/ft (435 lm/m)

83

Gamut Score RG
(Color Sat.)
96.4
N/A
97.4

Relative Fidelity Score (RF) 82.8 N/A 80.3

31
Architectural Dynamic Tunable White SeriesTM

The Architectural Dynamic Tunable White SeriesTM is perfect for those looking for quality tunable lighting with countless color temperatures, excellent color rendering, while maintaining a high brightness output. Pick the perfect light for every room, mood or task by pairing tunable LED lights with a remote control system. Choose from warm glows to crisp lighting and everything in between 2700K - 6200K with full control or just choose a favorite and leave it. Explore all color temperatures to rediscover your favorite light in every space.
Features
� High CRI of 90+ � High output of 494 lm/ft � Maximum run length of 42ft 7in (13m) � CCT range 2700K - 6200K � Fully dimmable � Newly-designed solder pads for effortless soldering � Single-bin LED selection to ensure color consistency (3-Step MacAdam) � Thermally resistant 3M VHB 4930 adhesive for long-lasting bond � Thick 4oz pure copper PCB for excellent thermal management � 50,000 hour lifespan (8 hours/day for 17 years) � 15-year warranty � UL Listed (cULus) E362522

3/8" 10mm

1/4" 6.3mm

4" 101mm

Specifications

Product SKU

Color
(CCT )

Watts / foot Lumen / foot Luminous efficacy

Gamut Relative

CRI Score Rg Fidelity TLCI (Qa)

(Meter)

(Meter)

(Lumens / Watt)

(Color Sat.) Score (RF)

CQS

2700K- 4.4 W/ft

494 lm/ft

6200K (14.4 W/m) (1,621 lm/m)

108,1

93

96

88

87

90

UB-AS-DYN2762 90C-24V

2700K

2.2 W/ft

245 lm/ft

(7.2 W/m) (804 lm/m)

107.73

94

96

89

87

93

6200K

2.2 W/ft

273 lm/ft

(7.2 W/m) (895 lm/m)

120

93

100

88

93

90

32
COMPARISON CHART

Dynamic Tunable White Output

LED Strip
ColorBrightTM Dynamic Tunable White
Architectural Dynamic Tunable White SeriesTM

Color Temperatures Brightness Lumens Watts Lumens Ingress CRI Voltage Max Run

/ ft / ft / Watt Protection

(in series)

24K-62K

~ 285 2.9 ~ 98 IP20, IP65 ~ 83

12V 24V

12V-32' 24V-32'

27K-62K

~ 494 4.4 ~ 108 IP20, IP65 ~ 93 24V 24V-42'

COMPATIBLE ALUMINUM EXTRUSIONS

GIZA Anodized Extrusion
Covers - HS 22 Clear Cover (SKU: KL-17022-1m) - HS 22 Frosted Cover (SKU: KL-17011-1m) End Caps - GIZA End Cap without Wire Hole (SKU: KL-24007)

(SKU: KL-B5556ANODA-1m)
Mounting Accessories - GP Surface Spring (SKU: KL-00293)
� minimum surface thickness 10mm (3/8")
- Mounting Bracket (SKU: KL-24143)

45-ALU Anodized Extrusion
Covers - HS Clear Cover (SKU: KL-1370-1m)t - HS Frosted Cover (SKU: KL-1369-1m) - LIGER Frosted Cover (SKU: KL-17031-1m)
End Caps - 45-ALU End Cap without Wire Hole (SKU: KL-1383) - 45-ALU End Cap with Wire Hole (SKU: KL-1440)

(SKU: KL-B4023ANODA-1m)
Mounting Accessories - Zinc Mounting Bracket (SKU: KL-24144)
NOTE: All solderless connectors do not fit inside this aluminum extrusion.

KLUS MICRO-ALU Anodized Extrusion
Covers - HS Clear Cover (SKU: KL-1370-1m)t - HS Frosted Cover (SKU: KL-1369-1m) - LIGER Frosted Cover (SKU: KL-17031-1m)
End Caps - MICRO-ALU End Cap without Wire Hole (SKU: KL-1059) - MICRO-ALU End Cap with Wire Hole (SKU: KL-1060)

(KL-B1888ANODA-1m)
Mounting Accessories - Zinc Mounting Bracket (SKU: KL-24190)
NOTE: All solderless connectors do not fit inside this aluminum extrusion.

33

KLUS PDS4-ALU Anodized Extrusion
Covers - HS Clear Cover (SKU: KL-1370-1m)t - HS Frosted Cover (SKU: KL-1369-1m) - LIGER Frosted Cover (SKU: KL-17031-1m)
End Caps - PDS4-ALU End Cap without Wire Hole (SKU: KL-1055) - PDS4-ALU End Cap with Wire Hole (SKU: KL-1057)

(KL-B1718ANODA-1m)
Mounting Accessories - Zinc Mounting Bracket (SKU: KL-24190)
NOTE: All solderless connectors do not fit inside this aluminum extrusion.

KLUS TAMI Anodized Extrusion
Covers - Comes with Translucent Cover End Caps - Eco TAMI End Cap (SKU: KL-20051)

(KL-B5390ANODA-1m)
Mounting Accessories - Zinc Mounting Bracket (SKU: KL-24190)
NOTE: All solderless connectors do not fit inside this aluminum extrusion.

KLUS KOPRO Anodized Extrusion
Covers - KOPRO-L Cover (SKU: KL-17092-1) End Caps - KOPRO-L End Cap (SKU: KL-24116)

(KL-B6367ANODA-1m)
Mounting Accessories - GP Surface Spring (SKU: KL-00293)
� minimum surface thickness 10mm (3/8")
- Mounting Bracket (SKU: KL-24143)

KLUS LIPOD Anodized Extrusion
Covers - HS 22 Clear Cover (SKU: KL-17022-1m) - LIGER 22 Frosted Cover (SKU: KL-17032-1m) End Caps - LIPOD-MET End Cap (SKU: KL-24051)

(SKU: KL-B5554ANODA-1m)
Mounting Accessories - GP Surface Spring (SKU: KL-00293)
� minimum surface thickness 10mm (3/8")
- Mounting Bracket (SKU: KL-24143)

34

35

36
GLOSSARY

Lumens (lm) - Lumen is the measurement of brightness as perceived to the human eye. We are accustomed to using watts to measure the "brightness of light" because of incandescent lighting use. Today, we use lumen. Lumen is the most important variable when choosing your strip light. The higher the number, the brighter the light will be. Ensure that the strips you choose are bright enough for your application.

AC - Alternating Current. This is the electricity that is used in most homes and commercial spaces. It's often referred to as line voltage and number differs from country to country. US line voltage is typically 90V-220V, whereas it often averages higher in Europe.

DC - Direct Current. Most LED strips on the market use low-voltage DC. A transformer or low-voltage battery is often required to step-down the AC voltage to a suitable level for the LED strips, which is normally 12V or 24V DC.

CRI - Color Rendering Index is the measurement of how colors look under a light source when compared with sunlight. Having information on the CRI of an LED strip light is important because you want to make sure that colors are being accurately represented by the light source.

LED Pitch - The distance between the individual chips on a strip. It is absolutely crucial to understand the importance that pitch plays in your project. The shorter the pitch, the more uniform the light tends to be and the less spotting tends to happen.

Chip Size - LED chips are all not all equal. What is the difference between 3528, 3014, and 5050 LEDs? The four digits represent the size of the chips in millimeters. For example, the 3528 chip is 3.5 mm X 2.8mm. Some chips are brighter than others and some have special uses and restrictions.

CCT - Not all white light appears the same. Correlated Color temperature (CCT) defines the color appearance of a white light. CCT is defined in degrees Kelvin. Most white lights fall in a spectrum between 1800K and 6500K. When falling below 3000K, the light looks noticeably warmer like a candle. On the other end of the spectrum, the lights have a blue-ish tint and cooler tone when passing above 6500K. Some color temperatures will better suit your design than others. Choose complementary highlighting tones and look at example photos to find which you feel will look the best.

LED Binning - Simply put, binning is the process of grouping LEDs during production so that they match with LEDs of the same color sector. For consistent light and color output, we make sure that the LEDs are always ordered from the same bin.

LED - A Light Emitting Diode (LED) is a solid-state semiconductor device that converts electrical energy directly into light.

Lighting devices that do not contain moving parts or parts that can break, rupture, shatter, leak, or contaminate the environment. LEDs do not use electrical filaments or gasses to produce light.

ffi

This is calculated by measuring the lumen output and then dividing that number by watts. For example, a strip that has a lumen

output of 300lm/ft and a wattage draw of 3w/ft has an efficiency of 100lm/W.

TM-30 - The Fidelity Index measures how closely the observed light can render colors like the sun, using 99 color samples.

Gamut Index - How saturated or desaturated colors are (aka how intense the colors are).

Color Vector Graphic - Measures which colors are saturated/desaturated and whether there is a hue shift in any of the 16 color bins.

CQS - Color Quality Scale is an alternative to the unsaturated CRI measurement colors. There are 15 highly-saturated colors that are used to compare chromatic discrimination, human preference, and color rendering.

This is a rating system that defines the ability of a product to be able to work in different environments. IP is an acronym for "Ingress Protection". It is a measurement of the protection an item will have against solid objects (dust, sand, dirt, etc.) and liquids.

IP65 - Water resistant. "Protected against water jets from any angle" *Do NOT submerge IP65 LED lights. These are not waterproof.

IP67 - Water resistant plus. "Protected against the events of temporary submersion (10 minutes)" *Do NOT submerge IP67 LED lights for extended periods, these are not waterproof.

IP68 - Waterproof. "Protected against the events of permanent submersion up to 3 meters"

37
Flexfire LEDs, Inc. www.FlexfireLEDs.com 3554 Business Park Dr, Suite F. Costa Mesa,
CA 92626 1-844-FLEXFIRE
