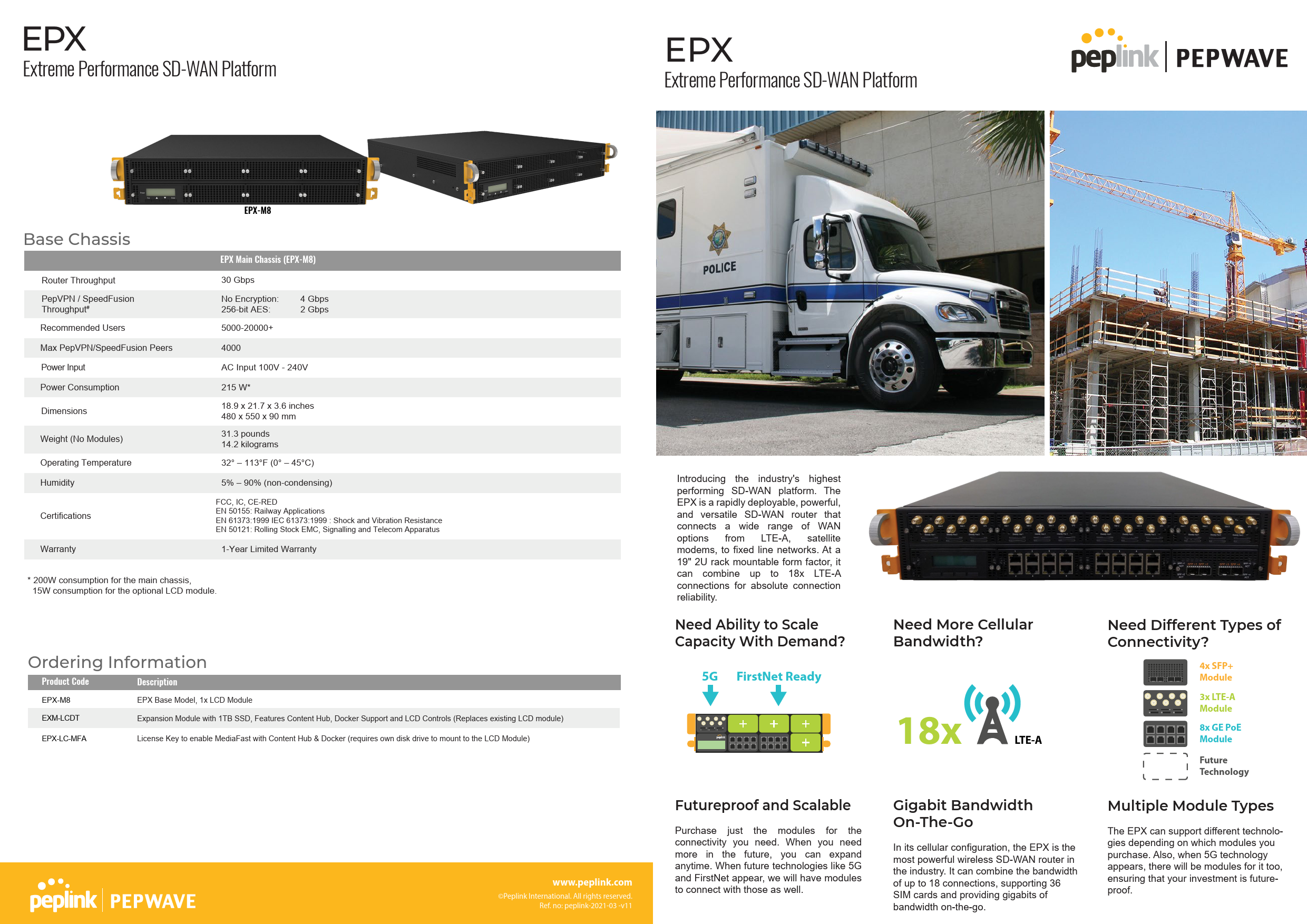

EPX
Extreme Performance SD-WAN Platform

EPX
Extreme Performance SD-WAN Platform

Base Chassis
Router Throughput PepVPN / SpeedFusion Throughput# Recommended Users Max PepVPN/SpeedFusion Peers Power Input Power Consumption Dimensions
Weight (No Modules) Operating Temperature Humidity
Certifications
Warranty

EPX-M8

EPX Main Chassis (EPX-M8)

30 Gbps
No Encryption: 256-bit AES:
5000-20000+

4 Gbps 2 Gbps

4000

AC Input 100V - 240V

215 W*
18.9 x 21.7 x 3.6 inches 480 x 550 x 90 mm
31.3 pounds 14.2 kilograms
32° ­ 113°F (0° ­ 45°C)

5% ­ 90% (non-condensing)

FCC, IC, CE-RED EN 50155: Railway Applications EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance EN 50121: Rolling Stock EMC, Signalling and Telecom Apparatus

1-Year Limited Warranty

* 200W consumption for the main chassis, 15W consumption for the optional LCD module.

Ordering Information

Product Code

Description

EPX-M8

EPX Base Model, 1x LCD Module

EXM-LCDT

Expansion Module with 1TB SSD, Features Content Hub, Docker Support and LCD Controls (Replaces existing LCD module)

EPX-LC-MFA

License Key to enable MediaFast with Content Hub & Docker (requires own disk drive to mount to the LCD Module)

www.peplink.com
©Peplink International. All rights reserved. Ref. no: peplink-2021-03 -v11

Introducing the industry's highest performing SD-WAN platform. The EPX is a rapidly deployable, powerful, and versatile SD-WAN router that connects a wide range of WAN options from LTE-A, satellite modems, to fixed line networks. At a 19" 2U rack mountable form factor, it can combine up to 18x LTE-A connections for absolute connection reliability.
Need Ability to Scale Capacity With Demand?
5G FirstNet Ready
Futureproof and Scalable
Purchase just the modules for the connectivity you need. When you need more in the future, you can expand anytime. When future technologies like 5G and FirstNet appear, we will have modules to connect with those as well.

Need More Cellular Bandwidth?

18x

LTE-A

Gigabit Bandwidth On-The-Go
In its cellular configuration, the EPX is the most powerful wireless SD-WAN router in the industry. It can combine the bandwidth of up to 18 connections, supporting 36 SIM cards and providing gigabits of bandwidth on-the-go.

Need Different Types of Connectivity?
4x SFP+ Module
3x LTE-A Module
8x GE PoE Module
Future Technology
Multiple Module Types
The EPX can support different technologies depending on which modules you purchase. Also, when 5G technology appears, there will be modules for it too, ensuring that your investment is futureproof.

Rapidly Deployable, Scalable, Unbreakable Connectivity for Mobile Command.

Access Points
IP Phones

8x GE PoE Module

Mobile HQ

SpeedFusion SD-WAN Unbreakable VPN

Patrol Vehicles

3x LTE-A Module

Combine Commercial and Public Safety LTE

Equipped with an EPX, mobile headquarters can combine private LTE, commercial LTE and satellite links to form a fast, unbreakable VPN connection to headquarters and to patrol vehicles. With this configuration, patrol vehicles benefit from increased

cellular converage. Even if they are outside the range of one cellular provider, they will still be in within the range of others. In addition, each cellular modem supports 2 SIM cards, effectively doubling the number of providers supported.

Futureproof, Scalable, Unbreakable Cellular Backup for Regional Offices.

Regional HQ

Global HQ

Any WAN

SpeedFusion SD-WAN Unbreakable VPN

3x LTE-A Module

8x GE PoE Module

4x SFP+ Module

Future Technology

With its modular construction, the EPX enables regional offices to add WAN connections of any type as they grow in size. With the ability to add cellular modules, the EPX also provides as much cellular connectivity as needed for

the company network to operate at full speed even if land lines lose connectivity. In the future when 5G gains popularity, there will be modules for it too. This makes the EPX futureproof for both bandwidth demand and for upcoming technology.

Add Flexible SD-WAN Backhaul to Any Network

Future Technology
4x SFP+ Module
8x GE PoE Module
3x LTE-A Module

Base Station
SpeedFusion SD-WAN

ISP Network

1Gbps / 4Gbps / 10Gbps Fiber

Whether providing Internet service with a SLA, or building a video surveillance streaming network, ensuring service continuity is crucial. The EPX enables service providers to build

a flexible SD-WAN backhaul to the main network, incorporating as many Ethernet, Fiber, and cellular links as needed to provide fast and solid connectivity. What's more, Peplink's cloud-based management software provides you with complete visibility and control of WAN usage.

Instant Connectivity and Application Hosting for Work Sites and Events

Smart Reader
Access Points
IP Phones

8x GE PoE Module

Work Site / Event

Headquarters

3x LTE-A Module

Up to
18x

SpeedFusion SD-WAN Unbreakable VPN

Host Custom Apps

Optional ContentHub with Docker Support

Cellular Connections

Getting a connection to a work site or to an event normally involves building a landline, potentially taking months. With the EPX, temporary sites could get connected in minutes. The EPX can combine up to 18

cellular connections for high-definition video streaming and high-volume data transfers. The EPX can also host docker containers, giving you the ability to host your own custom apps onsite to simplify management.


