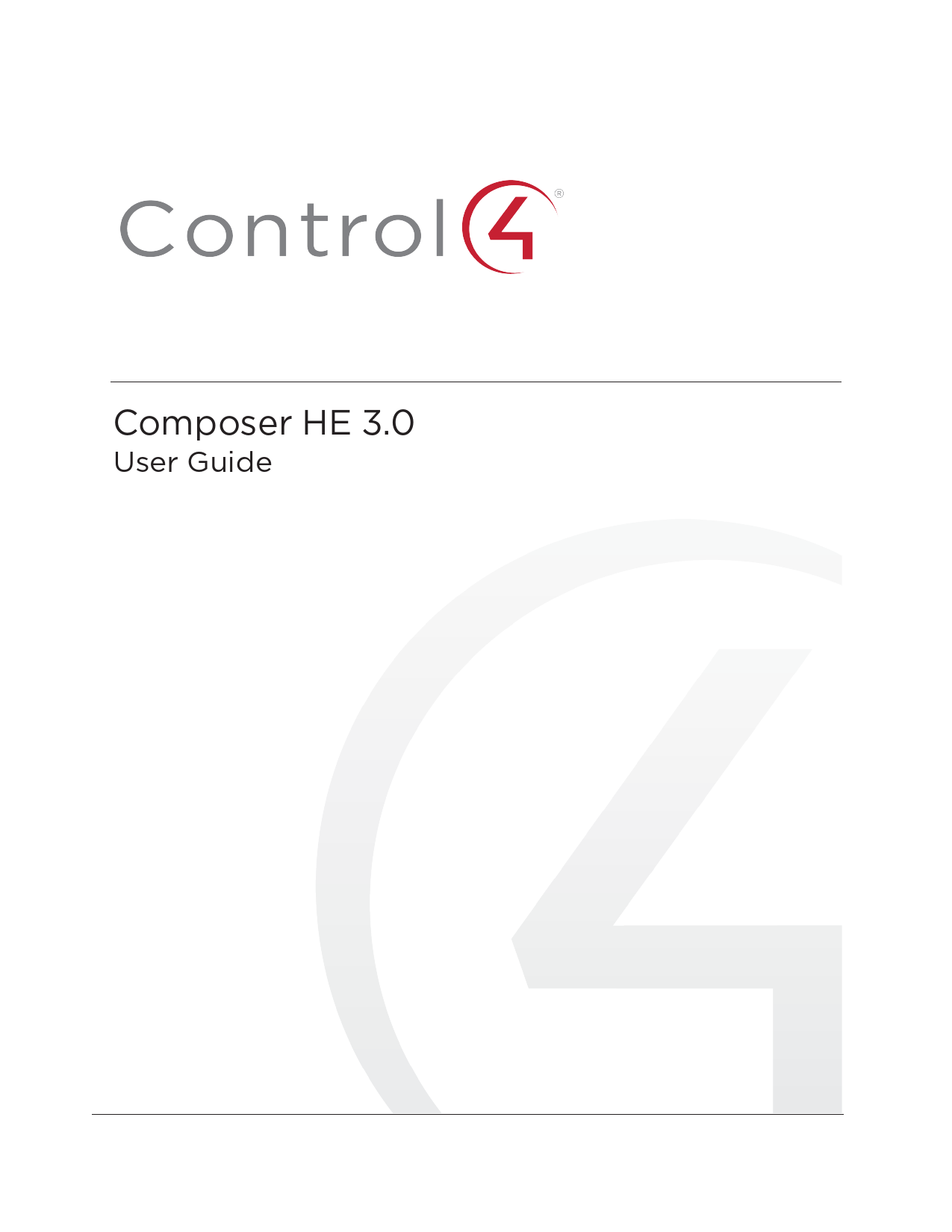

Composer HE 3.0
User Guide

Contents

Introduction

Scope

Category

Boxes or Buttons

Project Name--Lets you

enter/edit the name of the

N/A

project.

Location--Lets you look up a location's latitude and longitude based on city, state, country, etc.

Latitude/Longitude--Lets the system calculate from the entered ZIP Code, the local latitude and longitude coordinate information. Knowing location information lets the system calculate local sunrise and sunset times. This is useful for programming lights to turn on at dusk and off at dawn. Using a ZIP Code to find the coordinates only provides a close estimate of latitude and longitude. If you want to enter exact coordinates, the fields can be edited. Also used for outside temperature on the touch screens.
Country--Lets you select the country in which the project is located.
Lookup Button--Lets you enter/edit the ZIP Code which identifies to the system the local cable, satellite, and broadcast channel programming. It also automatically provides latitude and longitude coordinate location.

Date and Time--Lets you set a date, time, and time zone for the Control4 system. By changing the time here and refreshing Navigators (File > Refresh Navigators), you reset the time on the entire system. However, Control4 systems

Timezone--Lets you set the appropriate time zone by clicking Edit. Changing the time zone causes the controller to reboot.
Display time using a 24-hour clock--If checked, lets you use the 24-hour clock (0 to 2400 hours) rather than 12 am to 12 pm.

Composer HE User Guide

Properties Pane

with access to the Internet automatically synchronize the system clock using Network Time Protocol (NTP).

Project Settings Control--Lets you set a device in Composer that does not allow the setting to be overridden at the device.

Push Settings From Project--Check the box for devices to receive settings from the Composer project only. New settings in the Composer project override any settings at the device.

System Security--If set, all Navigators (Release 2.0 or later) must connect through a secure connection.

Properties Pane: Information tab

Localization--Lets you set the locale and character set for countries outside the United States.

Locale--Use the down arrow to change the locale.

Scale--Lets you select the temperature type.

Fahrenheit or Celsius.

Information tab

Category

Boxes or Buttons

System Owner

Name, Address, Phone, and Email-- Enter homeowner information into these fields.

Dealer Information

Name, Address, Phone, Email, Primary Contact, Lead Installer, Original Install Date, and Date of Last Update--Enter dealer information and project update dates into these fields.

Composer HE User Guide

Properties Pane Project Notes

Any notes the dealer wants to add can be stored here.

Composer HE User Guide

Lighting Defaults tab

Category

Boxes or Buttons

Lighting Defaults--Lets you set default LED colors for switches, dimmers, and keypads as well as certain default parameters for Centralized Lighting. You can still modify these settings for individual devices in the device properties. Also lets you set basic parameters for Centralized Lighting.

On Color/Off Color--Set the default On and Off color for each LED in the project.
Centralized Modules in Control4 Panel-- Select this box to indicate that the Centralized Lighting modules will be installed in Control4 2Slot or 5-Slot Panels. If the modules will be installed in off-the-shelf DIN Rail panels, leave this box unchecked.
Centralized Modules Use Arc Fault Breaker-- Select this box if the majority of Centralized Lighting modules will be connected to an arcfault breaker (AFCI).
Nominal Voltage--Select the default voltage that will be used by the Centralized lighting modules.

Lighting Defaults tab

Category

Boxes or Buttons

By default, it is not possible to identify a device that resides on a different network (e.g., subnet) because Director actively excludes identification broadcasts received from devices on a different network.

Subnets

You can expand the list of allowed networks by adding one, or more, CIDR network specifications to the following list.

For example: 192.168.2.0/24

For more examples see: https://en.wikipedia.org/wiki/Classless_InterDomain_Routing

Composer HE User Guide

Lighting Defaults tab

Zigbee Configuration tab

Category

Boxes or Buttons

Edit Zigbee Configuration

HE cannot be used to define, edit, and move Zigbee mesh configurations.

Refresh

Click on this link to refresh the Zigbee status view below.

Zigbee Network Status

Use this view to see the status of the Zigbee mesh(es) in your project.
Name--Name of the device configured in the Zigbee mesh.
Controller Status--The colored icon shows an at-a-glance status of the Zigbee network. Green for online, Yellow for offline, Red for error.
Zigbee Server--The controller defined as the Zigbee Server will say "Enabled".
Zigbee Status--Shows the status of the Zigbee Server. "Running" means the Zigbee Server is configured and running.
Channel--The current channel of the Zigbee mesh.
ZAP Status--A controller configured as a ZAP will show as "Coordinator" or "Enabled".

Z-Wave Configuration tab

Category

Boxes or Buttons

Advanced

HE cannot be used to Learn, Network Update, Reset Defaults, and Send Node Info. These buttons are disabled.

Room Properties
The room Properties (Monitoring > Room > Properties) appear when you select a room in the Monitoring project tree.

Composer HE User Guide
The room Properties pane lets you view room-specific device and media information (for example, the iPod located in the Office is an available audio source in the Family room), and helps you troubleshoot any incorrect room connections. The Audio/Video Devices tablets you view the devices configured for each end point device and the devices that are available in the room. Example: If you can't play movies from a Disc Changer in a particular room, you can view the room's Properties to see if the disc changer shows up in the List view. If it does not, you are probably missing AV bindings in the path to the device.
30

Composer HE User Guide

Properties Pane--Room Properties

Category

Box or Button

Audio Endpoint--The device that is configured to play audio in the room.
Tip: Which device needs to turn on and off to listen to any source of audio in the room?

Audio Video Devices tab-- Provides information that lets you view all audio and video devices and control connections in a selected room.

Audio Volume--The device that is configured to control the audio volume in the room.
Tip: Which device do you need to send volume commands to in order to control the audio volume in the room?

Video Endpoint--The device in the room that is configured to display the video in the room.
Tip: Which video display device is in the room, or where does the video end up?

Navigator tab--Lets you hide and re-order device visibility for all Navigators (in Watch, Listen, etc.).

Modify--Lets you move the order of devices up or down, and hide or show them. Select the device in the Menu list.

Miscellaneous view--Lets you set the default audio and video volume for the room, for example, what the room will revert to after a power cycle. This is also where you set the IR Mask for the room.

Enable Default Volume--Select and use the up or down arrows to change the audio and video volume.
Mute When Paused--Select this option to send a mute command when media is the room is paused.

Composer HE User Guide Device Properties The device Properties (Monitoring > device > Properties) are visible when you select a device in the project tree. This option lets you modify the available (if any) user options for the selected device.
Properties Pane: Device Properties Category Properties--Lets you modify options (if available) that are common to all devices of that type. Advanced Properties--Lets you modify advanced options (if available) on some devices. List View pane Use the Control4 He List View pane in Monitoring to view all of the devices in a room. When you select a room or any device in a room in the project tree, and then click List View, all of the devices installed in that room display; for example, notice all of the devices installed in the Family room (shown below). Note: The List View shows all the devices in a given area and the current state of contact inputs or other devices. When selecting the site, building, floor, or room, all
32

Composer HE User Guide of the devices associated in that area are visible. If a single device is selected in the project tree, List View shows all devices that are in the same room.
To access the List View pane: 1. Start Composer. 2. In the project tree, click any object. 3. In the Properties pane, click the List View tab. 4. You can double-click a device in the List View pane to display its Device Control window.
Information tab Use the Info pane in Monitoring to view information about the system owner and Control4 dealer.
33

Composer HE User Guide
To access the Info pane: 1. In Monitoring > Properties, click the Information tab. 2. View, add or change existing information about the system owner or dealer in each box. 3. Check and change the data periodically as needed.
The Information tab lists: l System Owner information l Name l Address l Phone l Email address l Dealer information l Name l Address l Phone l Email address l Primary Contact l Lead Installer l Original Install Date l Date of Last Update
34

Composer HE User Guide
l Project Notes--Use the Project Notes box to add any relevant details about a particular installation.
Media view Use the Media view to select the stored or broadcast media on touch screens, Control4 apps, and on-screen Navigators. The Media view lets you add media selections to the Control4 system: stored music and media collections from a network-attached storage device (NAS) or other devices, for example, a Dock for iPod, DVD player or disc changer, broadcasts, channels, and stations. To view and select the media from the Navigators, you first need to add and scan the media to the Control4 controller (for example, an EA-3 controller). With MP3, WMA, FLAC, or AAC files that you add and scan, you can create playlists saved to the controller (if it has a hard drive) in the media database. See the Composer HE User Guide for details. Other Media Managers: You can use other media managers, for example, iTunes, Windows Media Player, and Media Monkey to stream MP3s, WMAs, or MP4s. And your customers can use Composer Media Edition (Composer ME) or Composer Home Edition (Composer HE) to add media files to Control4.
To access the Media view: 1. Click Media at the bottom of the Monitoring pane. 2. In the Media pane, view the media devices. In the Media view, the left-side selections change the right-side views.
35

Composer HE User Guide
The system can access and use several types of media and supports various Media Scanning options:
l Stored media (e.g., DVDs) includes the possible media types that store media:
l Controller--Lets you store MP3s, WMAs, or MP4s in the digital audio database of the controller (if you have a controller with a hard drive).
l CD--Lets you store CD cover art, albums, artist ratings, and genre (Rock, Jazz, Country, etc.).
l DVD Player or Disc Changer--Lets you store DVD and CD (when DVD supports CD) selections by viewing cover art, title, info, results, media, and disc list.
l MP3s on Digital Audio Player--Lets you store MP3 -- HDD music cover art, album, artist rating, and genre (Rock, Jazz, Country, etc.).
l External or Network File Storage Devices--Lets you store MP3, WMA, MP4, FLAC, or AAC formats on an external hard drive, USB drive, or server.
l Screen Saver--Lets you store the custom images to be used as screen savers on the Navigators.
l Internet radio--Lets you assign a particular Internet radio station with cover art.
l Broadcast media (for example, Cable/Satellite) includes the possible media types:
l Direct TV--Lets you view DIRECTV channel options, including station ID, genre, rating and music channel.
l Dish Network--Lets you view Dish Network channel options, including station ID, genre, rating, and music channel.
l Cable TV--Lets you view Cable channel options, including station ID, genre, rating, and music channel.
l UHF/VHF--Lets you view the UHF channel options, including station ID, genre, rating, and HDTV.
l AM/FM/XM--Lets you scan AM, FM, and XM radio stations. l Playlists includes the possible media types: l MP3 on Digital Audio Player--Lets you play and view MP3 or MP4 --
HDD music cover art, album, artist rating, and genre (Rock, Jazz, Country, etc.). l CD--Lets you play and view CD cover art, albums, the artist ratings, and genre (Rock, Jazz, Country, etc.).
36

Composer HE User Guide
l Controller--Lets you play MP3, WMA, MP4, FLAC, or AAC formats from the controller (if supported).
l External or Network File Storage Devices--Lets you play MP3, WMA, MP4, FLAC, or AAC formats from an external hard drive, USB drive, or server.
l DVD Player or Disc Changer--Lets you play DVD and CD (when DVD supports CD) selections and view cover art, title, info, results, media, and disc list.
Possible buttons One or more of these buttons may appear in the center pane depending on which category you select:
l Edit--Lets you edit the information for an existing album or movie. l New--A dialog box opens. You can add information for a new album or movie,
etc. l Delete--Lets you remove an existing item from the list. l Add--Lets you add media to your system, for example, MP3, WMA, MP4, FLAC,
or AAC files. l Scan--Lets you scan the selected media type or storage location for music or
media information l Configure--Lets you select the storage device on which the media you're
configuring resides. Right-click options Right-click on a device in Stored media or Broadcast media to bring up various options:
l Clear Media List--Use Clear Media List with caution because it clears all media from the device--and for a controller, you will have to start over by adding each album again.
l Export Media List and Export Playlists--Lets you save an XML file of your lists; if you ever clear your project you won't have to rebuild the lists.
l Import Media List and Import Playlists--Lets you recover your media lists after you've cleared your project.
l Import DVD List from File--Lets you import an Excel list of DVD titles for a Disc Changer.
l New Playlist--Lets you create a playlist which appears in the Playlists type. l Delete Playlist--Lets you delete an existing playlist. l Rename Playlist--Lets you rename an existing playlist.
37

Composer HE User Guide Right-click on Playlists to display New Playlist. Right-click on a playlist name to display these options:
l Export Playlists l Import Playlists l New Playlist l Delete Playlist l Rename Playlist Right-click on the individual songs in the window below the albums to edit song information or delete individual songs. Agents view Use the Agents view to perform more complex programming by module. Note: See Programming with agents for help configuring and using these agents.
To access the Agents view: 1. Click Agents at the bottom of the Monitoring pane. 2. In the Agents pane, view the list of agents and their variables. Available agents include: l Access
38

Composer HE User Guide
l Advanced Lighting Scenes l Announcements l Backup l Communication l Custom Buttons l Email Notification l Guest Services l History l Identity l Light Properties l Lighting Scenes l Macros l Media Scenes l Media Sessions l Navigator l Push Notification l Scheduler l Screen Saver l Timer l Variables l UI Configuration l Wakeup/Goodnight
Example: The Scheduler agent lets you program using dates and times. See Using the Scheduler agent for examples. Common buttons available on some agents in the Agents view: l Add--Lets you add agents to your system. l Remove--Lets you remove agents from your system. l New--Lets you create a new instance for customizing the selected agent in the Agents pane. For each specific instance of the agent, you provide a unique name and customize it according to your needs. l Delete--Lets you remove an existing instance of the selected agent in the Agents pane.
39

Composer HE User Guide
l Save--Lets you save the agent-specific information. Not all agents require a manual save option. In most cases, the agent information saves automatically.
Programming view Use the Programming view to have the Control4 system control devices by identifying to the system any device behavior or configuration options that you want to occur automatically. The Programming view lets you create a program script using the drag-and-drop method. Note: Programming is an advanced feature in Composer HE. Detailed information about programming is explained later in the Composer HE User Guide. This section discusses some basics. All programming is based on events in the Control4 system. For example, a door that opens is an event. When an event occurs in the system, it can trigger other programmed actions to run. Example: When the Bathroom door opens (event occurs), program the Bathroom light to turn on (action taken). Another example is shown in the figure below. Note the text in the Script pane (center pane). The event is "When the Family > Left Dimmer top button is pushed," and the action is "Open the Garage > Garage Door (Sensor)." The event came from the Events pane, and the action came from the Actions pane.
To access the Programming view: 1. Click Programming at the bottom of the Monitoring pane.
40

Composer HE User Guide
2. In the Programming pane, view the list of Device Events (see below) and events for the object selected. The Programming view consists of several panes: l Programming: l Device Events (left pane)--Displays all devices that have associated events in the project tree. l <Device> or <Room> Events (left pane)--Displays the available events for the currently selected device or room in the Device Events project tree. If there are no events for that device or room, none are displayed. l Script (center pane)--Displays the script associated with the currentlyselected event from the Device Events pane. You drag-and-drop an action from the <Project Title> Actions pane to arrange the order of actions and nest them in the Script pane. l Actions: l Device Actions (right pane)--Displays all available device options with associated actions you can use to write your script. l <Project Title> Actions (right pane)--Displays the Command, Conditionals, and Loops tabs. You move commands, conditionals, and loops into the Script pane from this pane.
To add an action to the script: 1. Select the device in the Device Action project tree (right pane).
2. Select the type of action you want in the Actions pane.
3. Click the green arrow.
4. Drag and drop the action to the Script pane. l Commands tab--Use this tab to select commands (delete, add, etc.) to use for your script. l Conditionals tab--Use this tab to select conditionals ('if' statements) to use for your script. l Loops tab--Use this tab to select loops ('while' statements, etc.) to use for your script.
Composer HE menu options When you start Composer HE and connect to Director, the menu bar appears at the top of the Composer screen.
41

Composer HE User Guide
The menu bar provides the following menu items: l File--Lets you perform typical file management tasks, clear or load projects, connect or disconnect to the local Director, update both the Composer and Navigator software, and exit Composer. l Media--(only appears when the Media view is selected)--Lets you perform tasks regarding music and media lists. l Tools--Lets you view System Diagnostics and Account Services. l Help--Lets you view this document in help form plus version information.
File menu Access the File menu from the menu bar on any Composer screen.
From the File menu, you can perform project file management tasks: l Manage the project (load, back up, etc.). l Manage cloud backups. l Connect to Director. l Refresh Composer HE. l Refresh the Navigators: touch screens, Control4 apps, or on-screen Navigator.
The file management options apply to the files you back up on your computer called project files (project name plus a .c4p extension). Project files are saved by default to the My Documents directory under Control4/Projects. When you set up a Control4 system, you create project configuration information. This information is created live on the controller hardware, or backed up to a project file on a computer that lets you save specific information about each system, including devices, connections, configuration, programming information,
42

Composer HE User Guide
and media. The project configuration is automatically stored on the controller hardware to which you are connected from your computer. Backing up the project lets you save a copy of the project on your computer which is always recommended whenever you make changes in Composer HE or update the system. The following options are available:
l Load Project--Loads a selected project into the currently-connected controller. Composer HE prompts you for a backup before it clears the project configuration information, and replaces it with a selected project you can browse to and load.
l Cloud Management--Manage online backups saved from the registered system. You can load a cloud project to the controller, delete a cloud project, add a project to the cloud, show a history of cloud backups for this project, and save a cloud project to your local computer.
l Backup to Cloud--Creates a backup of the project and saves it to Control4 online services. Requires a valid 4Sight subscription.
l Connect to Director--Connects you to a Director residing on the controller. When you connect, project configuration information from the controller is presented to the screen in Composer HE.
l Disconnect from Director--Disconnects you from a Director. Composer prompts you to back up your project before disconnecting you from the currently-connected Director. This option is available when connected to a Director.
l Back up--Backs up the current project to your computer. The first time you back up your project, Composer prompts you for a filename. It also prompts you to back up any media information. If you select this option, the current project becomes an option in the File > Load Project list.
l Back up As--Backs up the current project, and prompts you to enter the name of the file. It also prompts you to back up any media information. If you select this option, the current project becomes an option in the File > Load Project list.
l Refresh--Refreshes the current Composer HE project. l Refresh Navigators--Refreshes the Navigators connected to the system. Note:
Control4 for PCs and tablets must be updated in that app. Control4 for iPhone, iPod touch, iPads, and Androids will update if online.
Media menu Access the Media menu from the menu bar in the Media view.
43

Composer HE User Guide
Note: The Media menu becomes available when the Media tab is selected (on the left menu).
From the Media menu, you can create, delete, and rename playlists. You can also clear, export, and import media lists. A Media List is the list of media information associated with the selected device, for example, all DVDs with associated cover art, title, notes, etc., for each DVD in a disc changer. The media has been scanned or manually added to the media database. After you add an item to the media database, the cover art and information about the media can be viewed and selected from any of the Navigators (touch screens, Control4 apps, and on-screen navigators, etc.). The following options are available:
l Clear Media List--Clears the media list of the selected device from the media database.
l Export Media List--Exports a media list for the selected device from the controller to a PC.
l Import Media List--Imports a media list from the PC to the controller. l Export Playlists--Exports a playlist from a controller to a PC. l Import Playlists--Imports a playlist from the PC to a controller. l Import DVD List from File--Imports an Excel list of DVD titles for a Disc
Changer. l New Playlist--Creates a new playlist from a controller to a PC. l Delete Playlist--Removes a playlist. l Rename Playlist--Renames a playlist.
44

Composer HE User Guide
l Tag media files--Used for OS 2.0 or later conversion of media files so all media players can see the same tags.
Other options l Sort--Lets you sort and find drivers by column and by Device Type, Name, Manufacturer, Model, Creator, Created Date, and Modified Date. Click the top of each column to sort accordingly. Click on the column head to sort the column.
Tools menu Access the Tools menu from the menu bar on any Composer HE screen.
From the Tools menu, you can access tools for checking the device connection status. The following options are available:
l System Diagnostics--Assists you in gathering system information to help you determine if any issues encountered are configuration problems, performance issues, or potential defects. The System Diagnostics tool is valuable also for logging information and sending email to Control4 Technical Support. See "System Diagnostics."
l Account Services--Facilitates system registration which is required for software updates and to use the media services throughout the Control4 system. It is also required in conjunction with a customer account to enable Remote Access, which allows secure access to your system via the Internet. See "Account Services."
System Diagnostics From the Tools menu, click System Diagnostics. Use these screens to help you diagnose system problems and activity.
l Controller Performance tab--Lets you view controller performance information, including CPU and memory usage. Process data is listed in the
45

bottom pane.

Composer HE User Guide

l History button--Lets you view the history of CPU and memory performance.

l Controller Networking tab--Lets you view controller networking information, including network type, connection status, MAC address, IP address, Subnet
46

Composer HE User Guide mask, Gateway, DHCP status, and DNS server information.
l Test Internet Connection button--Lets you test the current Internet connection. After viewing, click Close to exit the dialog box.
l System Info tab--Lets you view system information in a tree view. Click Save To File to save this information.
47

Composer HE User Guide
l Logging tab--Lets you log system problems.
This logging feature lets you: l Change the logging level of any of the program loggers on the operating system. Select from fatal, error, warning, info, debug, trace, and default. 48

Composer HE User Guide
l View the selected log in real time ("Tail"). To start the tail, select the log, then click Start Tail. To stop the tail, click Stop Tail.
l Open the current log file of the selected program logger. To open the log, select the logger, then click Open Log.
l View all the logs available on the device at that location. l Click Auto Scroll Output to scroll through the log entries, or click Clear
Output to clear all entries. Account Services From the Tools menu, select Account Services to set up a customer.control4.com account and register a controller, remove a controller from registration, or check in for a service connection. To register the controller, see Registering the Control4 system. You can also check the current account status and service level. Select the Status tab. You can view:
l Account Status l Customer Account l Customer Email l Service Level l VPN Status Help menu From the Help menu, you can: l Access this Composer HE User Guide. l Check the Composer HE and Director versions.
49

Composer HE User Guide The following options are available:
l Getting Started Guide--Displays this Getting Started Guide. l User Guide--Opens a link to the Composer HE User Guide. l Documentation Library--Opens a link to the documentation for
homeowners. l About Composer--Displays the Composer and Director versions. Basic Composer HE tasks You can perform simple but important tasks in Control4 Composer HE (see below), or you can take a deeper dive into intermediate or more advanced tasks (the Composer HE User Guide will show you how). Accessing the List view from the project tree Use the List View tab to view the devices in your project (by room). Ensure that the devices are added and identified to the project. To view the list:
1. Click Monitoring. 2. Select a room in the project tree. 3. Click the List View tab; the status of each device associated with that room
displays in the List View pane.
Removing items from the project tree Use the project tree in Monitoring to remove devices, rooms, buildings, etc.
50

Composer HE User Guide
To remove items from the project tree or other lists in a Composer project: 1. Right-click the item to remove in the project tree, and then select Delete. 2. Click Yes to confirm.
Clearing a project To erase all project configuration information, use the Clear Project menu option. Note: Control4 recommends that you create a backup file of your project first before you use this function. To back up the project, go to the File menu, and then select Back Up. Give the project a filename; the file saves to the My Documents folder by default. To clear out a project:
1. From the File menu, select Clear Project to erase the project configuration information.
Exiting Composer HE Use the Exit command to close Composer HE. To exit Composer:
1. From the File menu, select Exit. 2. Composer asks you if you want to back up your configuration information.
Note: Control4 recommends that you always save a backup copy of your configuration. Getting project configuration information from a controller Use the Connect to Director link to view configuration information. To get existing project configuration data from a controller: 1. Verify that your PC and the controller are connected to the same network. 2. From the Composer Startup screen, click Local System or from menu bar, click File > Connect to Director (see below). The project configuration appears unless it is a new project.
51

Composer HE User Guide
Loading a project's configuration from a computer to a controller Use Connect to Director to load configuration information. To load the project configuration from a computer to the controller hardware:
1. Verify that your PC and the controller are connected to the same network. 2. From the startup screen, click Local System, or from menu bar, click File >
Connect to Director (see below).
3. From the File menu, select Load Project. 4. Click Yes when prompted to back up the project. Browse and select the
project file. Example: SmithProject.c4p
52

Composer HE User Guide 5. When you see the new project displayed in the Monitoring view, the project
is loaded to the controller, and you are connected.
Backing up a Composer HE project Use the File menu to back up your project. Control4 recommends that you do this whenever you change anything in a project or if you update the software. The File menu in the Composer screens provides the following options for backups:
l Back Up--Backs up the current project to your PC. The first time you back up, it prompts you for a filename. It also prompts you to back up any media information. If you select this option, the current project becomes an option in the File > Load Project list.
l Back Up As--Backs up the current project, and prompts you to enter the name of the file. It also prompts you to back up any media information. If you select this option, the current project becomes an option in the File > Load Project list.
Any time you exit Composer by clicking File > Exit, Composer HE asks you if you want to back up your project. If you've made changes, it's a good idea to do so.
53

Composer HE User Guide Backing up and loading from a virtual to a local or remote Director Use the Connect to Director option to back up a Director. To back up and load configuration information from a virtual Director to a local Director:
1. From the Composer File menu, select Connect to Director. 2. When prompted, click Yes or No if you want to back up the media
information. 3. A Directors dialog box appears listing the available Director IP addresses.
Select the address of the controller to which you are connecting.
4. Click Connect. You are now connected to a local Director. Backing up a project's configuration and media Use Composer HE to back up project information. When connected to the controller, changes are immediate. To save a project configuration to your computer, and then use the Back Up and Back Up As options:
1. From the File menu, select Back Up. 2. Type a filename to back up the project, or use the same name, if you prefer. 3. When prompted, click to select the options to back up media information
and personal information, then click Save.
54

Composer HE User Guide
Composer HE Version Independence
With the release of Composer HE 3.1, Composer HE now connects to Director running on the primary controller through a set of versioned APIs. The change allows Composer HE to connect to any controller running OS 3 or newer. But most importantly, Composer HE can now be released independently from Control4 OS releases which clears the path to accelerated enhancements, features, and fixes to Composer software. Prior to this release, Composer HE, Control4 OS updates, and Drivers and Agents were all released at the same time. When a revision to one of these components was published, they were all updated together. This was necessary because these components communicated with each another through conventional Application Programming Interfaces, or APIs. When any API was added, changed, removed, or in some cases just used differently, all other components had to be revised to match. Here's a simplified view of the prior relationships among these components:
With the release of Composer HE 3.1, communication between Composer HE and Drivers and Agents were made part of a versioned API. Now, new features can be added to Composer software while still allowing Composer to communicate to Drivers and Agents through a versioned API. Here's what things look like now:
For systems running Control4 OS 3 or higher, versioned APIs between Composer HE and Drivers and Agents allow the two components to be version-mismatched. In other words, Composer HE is now version-independent of Drivers and Agents, which in turn makes it version-independent of Director. Note: While Composer HE and Drivers and Agents communicate through a versioned API, the OS's built-in Drivers and Agents communicate with Director through conventional APIs. This means that for the time being, Drivers and Agents must continue to be version-matched with Director. APIs for Control4 and 3rdparty drivers that are based on the Driver Wizard or the DriverWorks SDK are
55

Composer HE User Guide independent of the OS version. Developers of drivers which use the DriverWorks SDK APIs may designate a minimum-OS version.
56

Composer HE User Guide
Connecting Composer HE to a Virtual, Local, or Remote System
Composer HE gives users three connection options at startup. The same three options are presented after disconnecting:
Virtual System
Virtual System, also known as Virtual Director, is a software emulation of the software that runs on the primary Control4 controller (Director). Selecting Virtual System will connect Composer to a Virtual Director running on the same PC. There's no need to be connected to the local network (LAN) or to the internet to establish this connection.
Local System
Selecting Local System allows Composer to connect to a Control4 controller running Director on the same LAN as the host PC. Neither the PC running Composer or the controller have to be connected to the internet to establish this connection.
Remote System
Selecting Remote System allows Composer to connect to a Control4 controller running Director--that is also registered to Control4 account--located on a different LAN than the host PC. The PC running Composer and the controller both need to be connected to the internet.
57

Composer HE User Guide
Composer HE makes new decisions when connecting
When connecting Composer HE to a Virtual, Local, or Remote System, Composer HE now connects through a set of versioned APIs, if applicable, and allows you to manage those APIs when you connect.
Connecting to a Virtual System with versioned APIs
Each release of Composer HE comes with the latest set of Drivers and Agents and Virtual Director. Connecting to Virtual System is straightforward for any version of Composer HE, and as long as the user has not uninstalled its Drivers and Agents, the matched set of components will always be available.
Connecting to a Local or Remote System with versioned APIs
When connecting to a Local System or Remote System, the user must select the controller on the LAN or WAN to connect to. The Connect to Project (formerly, the Directors) screen presents a list of controllers to choose from, along with their IP addresses and OS version numbers. In prior releases, if the user selected a controller with an incompatible version, Composer would alert the user and then open the project in a read-only "compatibility mode." With Composer HE 3.1, the following changes have been made to the way the Connect To Project selection screen works:
1. If the major component of the OS version number (for example, the `3' in version number `3.1.0') of the controller matches that of Composer HE: l If the minor and revision components of the version number also match that of the Drivers and Agents installed on the PC, Composer HE will display "Ready to connect" in the Status column for the controller, and a single action button labeled "Connect":
58

Composer HE User Guide
l If the minor and revision components of the version number DO NOT match that of the Drivers and Agents installed on the PC, Composer HE displays "Requires OS management package [version#]" in the Status column, and a single action button labeled "Install and Connect". If the PC is connected to the internet, Composer HE will download and install the correct drivers before connecting to this instance of Director. If the PC is not connected to the internet, Composer HE will use the OS management package that matches itself and connect to the project in compatibility mode.
2. If the major component of the version number (for example, the `2' in the OS version number `2.10.0') of the controller DOES NOT MATCH that of Composer HE (for example, `3.1.0'), Composer HE displays "Ready to connect to view or update" in the Status column. Composer HE displays an
59

Composer HE User Guide action button labeled "Connect", which when clicked, connects to the project in compatibility mode. In addition,
l If version 2.10.0 of Composer HE is already installed on the PC, Composer HE displays an additional action button, "Launch and Connect Composer 2.10.0", which launches Composer 2.10.0 and connects to the project in full access mode.
l If version 2.10.0 of Composer HE is NOT installed on the PC, Composer HE displays an additional action button, "Install and Connect Composer 2.10.0", which downloads and installs Composer 2.10.0 before launching it and connecting to the project in full access mode.
60

Composer HE User Guide
Connecting to a Director
Each Control4 controller (for example, an EA-3) ships with pre-installed Director software. The Director communicates with Control4 and third-party products to enable home automation so devices can communicate with each other and Director.
61

Composer HE User Guide
Connecting Composer Pro to a Virtual, Local, or Remote System
Composer Pro gives users three connection options at startup. The same three options are presented after disconnecting:
Virtual System
Virtual System, also known as Virtual Director, is a software emulation of the software that runs on the primary Control4 controller (Director). Selecting Virtual System will connect Composer to a Virtual Director running on the same PC. There's no need to be connected to the local network (LAN) or to the internet to establish this connection.
Local System
Selecting Local System allows Composer to connect to a Control4 controller running Director on the same LAN as the host PC. Neither the PC running Composer or the controller have to be connected to the internet to establish this connection.
Remote System
Selecting Remote System allows Composer to connect to a Control4 controller running Director--that is also registered to Control4 account--located on a different LAN than the host PC. The PC running Composer and the controller both need to be connected to the internet.
Connecting to a Director on a local network
When you connect to a Local Director, you are making 'live' changes on the controller. Every time you connect to the Director on that controller, your project opens. Tip: You also have the option to make a backup of the project on your computer by using the Back Up As or Back Up option from the File menu to save the project
62

Composer HE User Guide file. When you back up a project file, it is backed up by default to the My Documents directory on your computer. To connect to a Director locally:
1. From the desktop, double-click the Composer 3.0 icon. 2. At the Composer startup screen, click Local System. Local Director
connects you to the home network while working in Composer Pro.
3. From the Director dialog box, select the Director's network address for the controller you are setting up, and then click Connect.
4. Make a note of the network's IP address. Composer Pro opens to the Composer Monitoring view.
Setting up Remote Access
Use a Control4 Navigator to enable or disable Remote Access. This feature lets you access your Control4 system for updates using the Internet from a remote location. Note: You can also set up Remote Access when you create an account at customer.control4.com. Prerequisites
l Register the system at customer.control4.com. This process can be completed by the installer or homeowner as long as the system a Navigator, touch screen or on-screen configured in the system.
To set up Remote Access for OS 2.6 or later:
63

Composer HE User Guide
1. At one of the touch screens or on-screen Navigators, select Settings > Service Connection.
2. Select Yes under Remote Service.
Notes: After you enable remote access, if the user has a 4Sight subscription for this system, then the user can enter their email address and password and securely log in to their Control4 home network from any Internet connection in the world. When the user logs in, the homeowner can use the Web Navigator to monitor and control their lights, change their temperature (warm or cool the home remotely), or check whether any doors or windows were left open. You or the user can refer to this Internet information in the Control4 System User Guide. If this system and controller are registered on customer.control4.com, the system is accessible for remote access (without a 4Sight subscription) after a request by the Control4 Installer or Control4 Technical Support representative has been made to access the system. After OS 2.4.0, this check-in is no longer required to initiate a remote service connection.
Connecting to a Director using Remote Access
If you connect to a Remote System, you are making "live" changes to a remote system controller, where changes are communicated over an Internet connection rather than a local network connection. This type of connection is not available, however, until the initial configuration and registration are completed. Note: The customer may revoke access rights through my.control.com at any time, but this is not recommended as it interferes with routine Control4 updates.
Requirements
l The customer must be registered at customer.control4.com and remote access must be enabled. (See "Registering the Control4 system" or " Register the controller from a Navigator.")
l A PC with Composer initially installed must be in the same local network as the controller when remote access is set up.
Before you can use the Remote System option, you must configure the system to support remote access (see "Registering the Control4 system").
Connecting using Remote Access
To connect to a Remote Director:
1. Using a PC with Composer HE installed, verify that the PC has an Internet connection.
2. From the desktop, start Composer.
64

Composer HE User Guide 3. At the Composer startup screen, click Remote System. Remote Director
connects you to the home network while working in Composer from a remote location.
4. Enter your Email Address and Password in the Account Name dialog box. This should be the login information from your account on your dealer my.control4.com account.
5. When the Select Remote Account dialog box appears, select the account you want to access, and click Connect.
If the account name doesn't appear under Name, click Add to add the account name, and Username (Email address) and Password if they are different from your dealer account login credentials, and click OK in the dialog box that appears. This is the Account Name you created during registration at customer.control4.com. After you do this, select the account from the Select remote account dialog box, and click Connect.
65

Composer HE User Guide
The next screen shows that your account, the User Email Address, and the Password are being verified. This may take several minutes to complete as it is accesses a remote connection. When authenticated and connected through the Remote Access service, a list of Directors available for connection appears. 6. Select the Director you want to connect to, and then click Connect. When connected, Composer opens and the main Composer view connects to the controller remotely. Composer functions normally as if you were connected to Local Director, allowing you to configure, program, and troubleshoot the Control4 system.
Ensuring that Director and Composer are compatible
Verify that the Control4 controller software (Director) and the Composer software are on the same version before beginning to design a project, or any time you use Composer to ensure the best communication between the two. To check compatibility:
1. In the Composer menu bar, click Help > About Composer. 2. From the dialog that appears, compare the Composer and Director version
numbers. For the Control4 system to run properly, these numbers must match. If they don't match, update Composer and/or Director to get to the same version. See the Composer HE User Guide for information about updating your system, or see "Update Manager." Example: Composer version: 3.0.0.562742 Director version: 3.0.0.562742
66

Composer HE User Guide Note that the two versions in the screen below are the same.
System Compatibility Check
When connecting to a system, Composer HE performs a capability check to ensure that the Composer version and OS version are compatible. Use the System Compatibility Check to review which version of Composer must be used to modify your system. System Compatibility Check
67

Composer HE User Guide
Registering the Control4 system
Every system must be registered at customer.control4.com to maintain the system software through online downloads, and to use all of the media features in the system (for example, the Control4 online media database for scanning music). System registration is also one of the essential first steps in enabling remote access to the system. After you complete the initial Control4 system setup (adding devices to a project, identifying them automatically for devices released with OS 2.3.0 or later, and making software connections for each device), you are ready to register the system and set up the media. "Setting Up the Media" is discussed in the Composer HE User Guide. You can register the system either from Composer or by using a Navigator. See the sections below.
Register the system at customer.control4.com
Control4 recommends that you register each Control4 system you install at customer.control4.com to maintain the system software easily through online downloads. Only registered systems can use all of the media services available. System registration, which includes setting up a customer.control4.com account, is required to use most of the media services that are available in the Control4 system, for example, scanning media into the system (so that you don't need to manually add individual music files). You can register the system now through Composer, or later through a Navigator if you customize the Navigator. You may have already registered the system in Composer to set up media. If not, you can register the system using any Internet connection and one of the Navigators that is connected and identified.
Register the controller from Composer HE
Composer HE lets you register the controller to a customer account without having to log in to the customer's account. You can now create a new account and register the controller in one step, register to an existing account found under your dealer of record, or manually register the controller using the 10-digit code from the customer's account page under Controller registration. To set up a new customer.control4.com account and register this Control4 system:
1. In Composer HE, go to Tools > Account Services.
2. Click the Add New Account tab to create a customer.control4.com account and start the registration process for the user.
68

Composer HE User Guide
3. Complete the Account Information form for the user, and then record the Account Name and Email Address for the user's future reference.
4. Click Add Account to create an account for this Control4 system and register the controller to the new account.
To register the system to an existing customer account: 1. In Composer HE, go to Tools > Account Services. 2. Click Select Account and select the existing account you wish to register to in the list of Customer Accounts.
69

Composer HE User Guide
Note: If the existing customer account does not show up in the Customer Accounts list, have the customer log in to their account and verify their dealer of record is pointing to your dealer account. To manually register the system to an existing customer account: 1. In Composer HE, go to Tools > Account Services.
70

Composer HE User Guide 2. Click Manual Registration.
3. From the customer.control4.com account page, copy the 10-digit registration code found under My Devices > Controller Registration > Register New Controller. This code is time sensitive and must be used within 10 minutes. It provides a temporary code used to exchange the security parameters and create a secure connection between customer.control4.com and the controller.
4. On the Account Services page, click the text box and paste the 10-digit registration code in the box.
5. Click the Register button on the Account Services page in Composer (now enabled) to complete the registration. The Current Status changes to 'Registered.'
Setting up a 4Sight subscription
Use the Internet to set up a 4Sight subscription. This feature enables a Control4 system user to log in to the Internet and manage their Control4 system on the web. Consumers will need 4Sight to use Anywhere Access also. Note: 4Sight subscriptions are sold separately. Prerequisites
1. Design and set up the project.
71

Composer HE User Guide 2. Register the Control4 controller and the system owner.
When a 4Sight subscription has been obtained for the Control4 system, this setup can be done by the homeowner or installer. The installer or a Control4 representative should be able to provide information about how the homeowner can set up a customer account. The Control4 System User Guide or Account Setup provides that information for the homeowner. To set up a 4Sight subscription at customer.control4.com: 1. Obtain a 4Sight subscription code for the system (sold separately). 2. Log in to customer.control4.com using the homeowner/user email address and password. 3. From the My Account tab, select the Subscriptions view. 4. Enter the 4Sight subscription code provided by your Control4 representative, and then click Activate. Tip: Scroll down and view Account Subscriptions to see which subscriptions you already have.
72

Composer HE User Guide
Where to go from here
This Control4 Composer HE Getting Started guide gave you: l An overview of Composer: how to install and start it, how to access a Director, and includes a preview of the Composer interface (views, menus, properties, panes, etc.). l An overview of how to start designing your project with suggested tools. l An overview about connections and how to test devices. l How to register the Control4 system. l How to set up a 4Sight subscription. l How to set up Remote Access.
More detailed and advanced sections (Composer Pro User Guide) are outside the scope of this document but you can find them on the Dealer Portal. The advanced sections give you specific details about:
l Setting Up Media l Creating Device Drivers l Making Connections l Verifying Connections l Configuring Devices l Configuring Properties l Basic Programming l Advanced Programming l Customizing Navigators l Installing Devices l Troubleshooting the System
Other resources
Also check out the Control4 Forums or Knowledgebase.
73

Composer HE User Guide
Basics
Composer HE basics Use this chapter to learn how to:
l Install and configure devices l Configure Composer HE properties
74

Composer HE User Guide
Monitoring the system
The Composer HE Monitoring view is designed to help you view your system, rooms, and devices. To access the Monitoring view, start Composer HE. When you choose the Monitoring view (highlighted in the lower left pane), you have two tabs to choose from: List View and Properties. Monitoring view:
Check the Device Status in List View
The default page in the Monitoring view is List View (first tab, top right) which lets you view all the devices in your Control4 system and their current state. List View groups devices under the rooms to which they're assigned. In the example above, all of the devices are located in the Living Room because the Living Room is selected in the project tree (Monitoring pane).
l Monitor Status--You can monitor the status of devices in the system. In List View, double-click on the device's icon to bring up the device's controls. Light levels are indicated with slider bars and buttons for on or off state. Each device has a different set of controls.
l
Device Controls--You can access the device's controls by double-clicking on any device icon in either the project tree or the List View tab.
75

Composer HE User Guide
Try this: Double-click on any device with an On/Off option to access the device's controls, for example, a switch. Turn the device on or off; some devices have a color change on the icon in the Device Control and in the List View. See also "Checking the Device Status."
Change Project Properties
The main Composer HE view shows the Properties pane. Click the Properties tab to view the properties of the project, room, or device.
76

Composer HE User Guide
The Properties pane displays the following elements: l Project Properties--This lets you change general information about the project according to the location of the Control4 system. In the project tree, click the project name (BN Office is the example above).
Use the project Properties pane to do the following: l Change the name of the project
l
Change/enter the ZIP Code of the location where the Control4 system resides
l
Change the date and time
l
Change the project settings
l
Enable SSL and password for security purposes
l
Change localization options
l
Room Properties--In the project tree, click a room to view its Properties. This lets you edit Room Properties in the following tabs:
l Audio Video Devices--Shows your available audio and video devices, where your audio and video end points are, and what is controlling the volume. If a device does not appear in this window and you think it should, check the connections. The connections may not be mapped properly.
l
77

Composer HE User Guide
Navigator--Lets you hide/re-order the device's visibility and display order in a room, including lighting scenes. l Miscellaneous--Lets you enable the default audio or video volume for a room, and assign an IP mask to the room for programming a third-party remote.
l
Device Properties--Click on a device from the project tree to see its editable properties. For example, you can set the one-click ramp up and ramp down rates on a Wireless Dimmer. You can also edit the LED colors for all of your switches, keypads, and dimmers.
Control4 recommends that you look over the properties of each device to see how you can change them. See also "Checking the Device Status" (next) or "Changing project properties" later in this document.
Configuring device properties
Use the Composer Properties pane to change device properties. The Properties pane lets you make configuration changes to a project, room, or device. In the Control4 system, you have a choice of configuration options using these property types:
l Project Properties--Lets you set project-specific configuration options. l Room Properties--Lets you set room-specific configuration options. l List View Properties--Lets you set device properties listed by location, for
example, room, floor, house, etc. l Device Properties--Lets you set device-specific configuration options.
To configure properties: 1. Start Composer and connect to a Director.
2. Click Monitoring. 3. Select one of the following property types:
l Project--Select the root node in the project tree, for example the project name (such as Franklin Smith Home) to access the project properties and modify the:
l Project name l ZIP Code l Latitude/longitude l Date l Time (12-hour and 24-hour clocks)
78

Composer HE User Guide
l Time zone l Lighting Defaults l Project Settings Control l System Security l Localization l Scale (Temperature)
For more information, see "Composer Pro properties". l Room--Select the room in the project tree, for example, Theater; the
Properties tab is visible (default). Room properties let you:
l View room-specific devices l View media information l Help you troubleshoot any incorrect room connections For more information, see "Room Properties". l List View--Select a room, and then select the List View tab. View and/or modify the devices in the room. For more information, see "Device Properties". l Device--Select the device to modify the available user options. For more information, see "Device Properties".
Help for device properties
Device properties vary by type of device. Changes made to the properties of most devices are immediately applied to the system. Changes made to Navigators may not be noticeable until you refresh the Navigators using Composer HE's File > Refresh Navigators command (Shift+F5). For the most up-to-date device properties information, click the Documentation tab in the Properties window (available only on select devices) or the Help button on the proxy.
79

Composer HE User Guide
Examples
Use this chapter to see examples of how to: l Set up a project using the Composer Views method l Manage apps with the 4Store agent l Use the Access agent l Use the Advanced Lighting agent
80

Composer HE User Guide
Example: Use the Access agent
Use the Control4 Composer Agents view to allow or deny access. The Access agent is ideal for commercial applications including hotels, bars, or board rooms where settings need to be locked or hidden to restrict their use by unauthorized personnel. By adding this agent to a project, an access code is required to gain access to selected functions of the Status Bar or the More and Settings modules. When enabled, the Access agent settings apply to all touch screens and on-screen Navigators in the system. Status Bar Buttons
The Access agent provides these key features: l Access Code--The programmer can establish a four-digit access code to restrict access to the Status Bar, More and Settings buttons globally. l Status Bar Lock--Lock the Control4 Home, Back, Favorites, Room Selector and Intercom buttons available on the Status Bar so that a user must first enter the Access Code to use these features. l Status Bar Hide--Hide the Favorites and Room Selector functions from users. l More and Settings Button Lock--Lock the More button on the Control4 Home Screen and Settings button in More. l Localization--For English-speaking locales, the Access agent keypad user interface includes Latin characters for users that use a mnemonic to remember their Access Code. Non-English speaking locales display only the numerals.
Prerequisites l Figure out which Status Bar or More button functionality you want to restrict or hide from unauthorized users. For example, do you want to lock the Room Selector? Keep others from getting into Settings? Hide the Favorites button? l Establish an access code.
To use the Access agent: 1. Start Composer HE and connect to a Director.
2. Click Agents. 3. (First time only) Click Add to add the Access agent to the project. 4. Select Access and click OK.
81

Composer HE User Guide
5. Enter a four-digit access code on the numeric keypad. 6. Click Set Access Code. The new access code appears in `Current Access
Code' window.
The following settings are available to the programmer as indicated by the names next to the drop-down selectors:
l Access Agent--To enable or disable the Access agent, use the arrow dropdown list, and then select Enabled or Disabled. Disabling the Access agent enables the programmer to keep all the current Access agent settings, but disable its use while testing Flash Navigator functionality.
l Hide Digits--To hide or display the access code digits when entered on the Flash Navigators, use the arrow drop-down list, and then select Enabled or Disabled. By enabling Hide Digits, an asterisk symbol (*) will appear in place of each digit as it is entered.
l Control4 Home--To lock or unlock the Control4 Home button on the Status Bar, use the arrow drop-down list, and then select Unlocked or Locked. If locked, enter the access code after pressing this button before returning to the Control4 Home screen. On the on-screen Navigator, the Control4 Home button is accessed using the Control4 SR-250 or SR-150 remote controls. By locking this feature, you must enter the access code after pressing the Control4 button on the remote control.
l Back Button--To lock or unlock the Back button on the Status Bar, use the arrow drop-down list, and then select Unlocked or Locked. If locked, you must enter the access code after pressing this button before returning to the previous screen.
l Favorites--To lock, unlock or hide the Favorites button on the Status Bar, use the arrow drop-down list, and then select Unlocked or Locked or Hide. If locked, you must enter the access code after pressing this button before accessing the Favorites functionality. If hidden, the Favorites button is not displayed.
l Room Selector--To lock, unlock or hide the Room Selector functionality on the Status Bar, use the arrow drop-down list, and then select Unlocked or Locked or Hide. If locked, you must enter the access code after pressing this button before accessing the Room Selector functionality. If hidden, the
82

Composer HE User Guide
current room is displayed and the user cannot change rooms from the Flash Navigators. l Intercom--To lock or unlock the Intercom button on the Status Bar, use the arrow drop-down list, and then select Unlocked or Locked. If locked, you must enter the access code after pressing this button before accessing the intercom functionality. l Settings--To lock or unlock the Settings button within the More screen, use the arrow drop-down list, and then select Unlocked or Locked. If locked, you must enter the access code after pressing this button before accessing the Settings functionality. l Edit Lighting Scenes--To lock, unlock or hide the Edit Lighting Scenes functionality from within the Lighting screens (available with OS 2.3.0 or later), use the arrow drop-down list, and then select Unlocked or Locked or Hide. If locked, you must enter the access code after pressing this button to access the Edit Lighting Scenes functionality. If hidden, the Edit Lighting Scenes functionality will not be accessible to users. As a reminder, the current implementation of Access agent enables the programmer to globally restrict certain features and settings from all users on touch screens and on-screen Navigators. Any changes to Access Codes or these settings can only be made using Composer. If the Access Code is lost or forgotten, it can be recovered only using Composer. Keypad user interface and localization When you enable the Access agent, the user will be presented with an Access agent keypad on their touch screens and on-screen Navigators based on the settings described above. A picture of this new user interface component is shown below. When entering the access code, the user can cancel the process or delete an incorrect digit from their current entry. Access agent keypad for English locales
83

Composer HE User Guide Access agent keypad for all other locales Note: Cancel, Delete, and Enter will be translated into locale language where available.
84

Composer HE User Guide
Example: Use the Advanced Lighting agent
Use the Control4 Composer HE Agents and Programming views to program this agent. (For OS 2.3.0 or later, this agent supports the Panelized Lighting product line with full functionality. Older lighting products are also supported, but with limited functionality.) This agent provides more advanced features than the Lighting Scenes agent. See also "Example: Program Using the Lighting Scenes Agent" in this document. The Advanced Lighting (Scenes) agent provides these features:
l LED tracking for Lighting Scenes l Toggle Lighting Scenes l Ramp and fade Lighting Scenes l Set delays within Lighting Scenes l Scene sequencing l Flash lights in Lighting Scenes
To use the Advanced Lighting agent:
1. Start Composer HE and connect to a Director.
2. Click Agents. 3. (First time only) Click Add to add the Advanced Lighting agent to the
project. Note: You must add the Advanced Lighting agent to the project before your customers can edit Lighting Scenes on a Navigator. 4. Select Advanced Lighting, and then click OK.
5. In the Agents pane, select Advanced Lighting and then click New. 6. Enter a name on the dialog that appears (for example, Party Lights). 7. Click Create. Notice that you have more options than if you were using the
Lighting Scenes agent. Note: You can click the Rename button to rename a scene. 8. Adjust the scene as desired.
l Show flash option--Select this option to add a Flash checkmark in the list of lighting devices below. When Flash is checked, lights can flash on and off at set intervals. Use this option with the Delay option. For example, this option works well in a situation where you want to alert someone so you can set a porch light to flash in case of an emergency or to get someone's attention. Note: For older lighting devices (earlier than OS 2.3.0), flashing is not supported.
l Activate Scene--Click this button to activate the scene immediately. Note: The Execute On and Execute Off buttons do not appear in the Advanced Lighting agent. Use the Activate Scene button.
85

Composer HE User Guide
l Sync This Scene--Click this button to synchronize this scene with other scenes. This option isn't really needed for Panelized Lighting unless there seems to be a problem.
l Sync All Scenes--Click this button to synchronize this scene with all scenes created. This option isn't really needed for Panelized Lighting unless there seems to be a problem.
l Colors--This is the keypad color. Click the Active or Inactive colored boxes to select another color.
l Tracking--Click All Loads to track a dimmer or switch by name, tracking status, delay, rate, level %; and all loads must match their tracking condition before the scene will be considered active. Click Any Load and only a single load needs to match their tracking condition before the scene will be considered active.
l Hold Rates (sec) --Use the up or down arrows to select the Up hold ramp rate or Down hold ramp rate. At the keypad, press and hold for a set period of time in seconds. This action behaves the same as hold rates for dimmers.
l Toggle Scene--This pull-down allows you to select which scene to activate when the current scene is prompted to deactivate. This applies to all scenes except for the current one selected. Here, you can toggle scenes on or off. Example: Create an Advanced Lighting Scene called "Dining." Notice the number of switches and dimmers in the Advanced Lighting pane and their values.
86

Composer HE User Guide 1. Create a Dining `Toggle' scene. Notice the difference in switches
and dimmers and their values from the previous screen.
2. Now click the Connections view to connect the keypad bindings on a 3-Button Keypad.
When you toggle the 3-Button Keypad in the Dining room, various lights go on or off at various levels. For more information about connections, see "." Now go back to the Agents view.
l Toggle Scene/Create Default--Click Create Default to create a toggle scene as a copy of the selected scene. From the copied scene, you can rename the new scene and adjust the values on some of the dimmers or switches in that scene.
87

Composer HE User Guide
l Current State--Shows `Active' when the conditions are met to consider the scene Active or Inactive if the conditions have not been met.
l Add/Remove Load--Click to add or remove specific dimmers or switches to the scene. Check the lighting loads that you want to add, and then click OK. This can be a single light, a single room, all lighting loads in an entire house, or any combination of these options.
9. Assign the settings for each load: l Dimmer and Switch Options: l Name--The top line is the room, and the bottom line is the name you assigned to the dimmer or switch. l Tracking--This lets you track the lights in the system. Use the down arrow to select one of these options. l Don't Track--Tracking is ignored. l Is Off--Track when the dimmer or switch is off. l Is On (Any Level)--The text displays only if the light is a dimmer. Switches just indicate `Is On.'. l On At Level (%)--Track when the dimmer is on at a specific level. l At Scene Final Level--Track at the final level of the last sequence. For example, if someone changes the level on a Navigator, this might be the final level. l Delay--Use the up or down arrows or type the delay value in seconds. Tip: If you have several dimmers in a long hall, and you want to set up sequencing, you can use this option with the green + buttons and increase the delay of each dimmer in a row by two seconds.
l Rate--Lets you set the ramp rate, which is the speed the load ramps to for the specified lighting level. Use the up or down arrows to set the milliseconds (ms), seconds (sec), or minutes (min) of the ramp rate. Then set the amount of time the device takes to change the level.
Example: Set the time to 1 second for both the Bedroom Dimmer and the Theater Dimmer.
l Level (%)--Lets you set a target lighting level as appropriate by using the pull-down menu, for example, 50 percent for the Bedroom Dimmer and 20 percent for the Theater Dimmer. The green + gives you the ability to add `paths' to a scene. Each row in the path uses single delay/rate/level
88

Composer HE User Guide
settings. Use the green + to add another step, click the red x to delete a step, or you don't need to have any steps. Note: Older lighting devices (prior to OS 2.3.0) only allow 0 or 1 steps. l Apply To--Click this option to allow other lights to use the same scene. l Ignore Scene Ramp/Fade--Check this option to have the light ignore commands to ramp or fade a scene. l Graph--Shows in graphical form (red lines) the settings for each dimmer or switch. Dimmers will show ramp rates, delays, and levels as angled, horizontal, or vertical lines. 10. Now click Programming. To program a scene, follow the basic steps in "Programming Basics for Control4 Systems." Note: In the Programming view, the Advanced Lighting Scene has variables, conditionals, and loops that do not exist in the Lighting Scenes agent. This agent also has `read-only' variables for the length of each scene. Example: Note the screens below. The Events and Actions panes use different options than the Lighting Scenes agent (Activate, Deactivate, etc.). Event: (Is Invoked, Becomes Active, Becomes Inactive) l Is invoked--This event fires when the scene has been explicitly told to activate. If the scene is already activated, and it is told to activate again, this event will still fire. l Becomes Active--This event fires when the scene transitions from the Inactive state to the Active state. l Becomes Inactive--This event fires when the scene transitions from the Active state to the Inactive state.
89

Composer HE User Guide l Actions-- (Activate, Deactivate)
A programming example for use with the Advanced Lighting agent might be where, if the front door opens and it's past 9 PM at night, all the lights turn on in the home at various levels.
90

Composer HE User Guide
Setting up media
Use this chapter to learn how to: l Scan your network for media files l Access media from disc changers l Play AV from television stations l Play audio from radio stations l Add a switch l Create a playlist l Test a media connection l Edit media information
91

Composer HE User Guide
Media types
To take full advantage of media lookup services by Gracenote, your customers must have an account at customer.control4.com and their system must be registered to the account. See Composer HE Getting Started for details. To add and scan songs and albums for playlists, they must be available in MP3, WMA, M4A/AAC, or FLAC format on an external USB drive, eSATA drive , or network share. To add Internet radio stations, the Internet radio driver must be bound to the controller. See " Setting up Internet radio stations" in this document. Tip: In OS 2.4 and later, you can use the TuneIn app to stream radio, news, sports and more from Internet stations worldwide. See the TuneIn Setup Guide or TuneIn User Guide for details. You can set up your customer's audio and video media in a Control4 system for:
l Controllers l Disc changers l Media players l Dock for iPod (iPods, iPhones, etc.) l Television broadcast channels l Radio broadcast stations l Internet radio l Satellite broadcast channels or music stations l Other external storage devices: USB flash drives and shared network drives
You can also: l Add CDs and DVDs l Add individual songs l Add cover art, titles, albums, etc. l Create playlists l Use the auto-scan feature to scan movies or music l Add and scan supported files from third-party media managers, for example, iTunes l Edit media information for DVDs, CDs, etc.
To view and select the media from the Navigators, including wireless touch screens, on-screen, Control4 apps, and System Remote Control devices, you first need to add and scan the media to the Control4 controller. For the MP3, WMA, M4A/AAC, or FLAC files stored on an external hard drive or network location that you add and scan, you can create playlists saved to the Control4 controller's hard drive in the media database.
92

Composer HE User Guide Note: Speaker Point does not support M4P/AAC. Play songs through Speaker Point using MP3. Note: Internet radio supports only MP3, WMA, and MP4 streaming radio stations. Tip: The Control4 system must be functioning correctly before performing any of the tasks mentioned in this section. For example, if a disc changer does not appear in the project tree and is not identified and connected to the system, media cannot be added to it.
93

Composer HE User Guide
Overview of media management
Media configuration and media management are controlled in the Composer (Pro, HE, and ME) software. The primary controller that runs Director always runs Media Manager and the media database (SQLite 3.1).
l Media Database--Migrating from pre-OS 2.0 to OS 2.0 and later requires a media database conversion and schema changes; consequently, the media databases in OS 2.0 are smaller.
l Media Manager--All scans are performed by the Media Manager running Director on the primary controller. Note: Composer HE configures scanning only, and does not scan the media.
l Media Lookup Service--This service now runs either in Composer HE or Media Manager.
l Composer New/Edit � Search--For media metadata lookup when media has not been scanned properly. The information retrieved can be edited and written to the media database, and/or the metadata can be written to the tags.
l Media Manager--Uses online media lookup. IMPORTANT! Controller registration is required on MyControl4 to use this service for versions later than Release 1.6.
Other Media Managers: You can use other media managers, for example, iTunes, Windows Media Player, and Media Monkey to create or manage MP3s and WMAs. You can still use Composer Pro, Composer ME and Composer HE to configure media files for a Control4 system.
Media Manager
New scans
l Scans Id3 tags that are embedded in the file. l The title, album and artist names are extracted from the file system folder and
filenames. l The metadata lookup based on title searches comes from Gracenote. l In OS 2.0 and later, scans are now much faster. l Press F5 to refresh after new scans. l Scans can be tied to events, button presses, etc.
Scans where content is in the media database
l Scans for any updated Id3 tags in the file, or you can synchronize the media database based on the configuration.
l If no metadata is in the media database, the metadata lookup is based on title searches from Gracenote.
94

Composer HE User Guide
Other Media Manager considerations
l Media Manager scans only one device at a time. If several devices are configured and are in the queue, they will be scanned sequentially.
l Composer HE does NOT need to be connected when Media Manager is performing a scan.
l Scans can be performed manually in Composer HE as an event or in an automated schedule.
l If the path becomes disconnected, the metadata will not be deleted. l If devices are modified, the tags will update. l If you are using a third-party Media Manager, synchronization will occur if set.
Media storage
Audio and video files can be stored on one or more of the following devices: l USB-attached storage--Both audio and video can be stored on these devices, although Control4 does not recommend doing so due to poor performance. l Network-attached storage (Samba-mounted)--Control4 recommends this solution for audio and video files due to better performance and backup/recovery capabilities.
As with previous releases, all media storage devices must be added and configured in the Composer Pro project. Composer HE does not automatically discover new media storage devices. The storage locations are not available in the Navigators until the device is scanned.
Media lookup service
l Control4 uses Gracenote for its lookup services. l Media lookup is optional. See the Media view in Composer HE Getting
Started to disable lookup (set to Never in scheduling). l Media lookup requires that the controller be registered at
customer.control4.com.
95

Composer HE User Guide
Setting up media auto-scan
Use the auto-scan feature in Composer HE to scan media automatically. This section applies to disc changers, media players, network-attached storage, and USB drives. Note: Composer HE does not need to be open to scan media. If you started a scan in Composer, you can close the program while the scan finishes. Also, scheduled scans can run automatically or be started through programming. Prerequisites
l Ensure that the video device is installed as directed in the Control4 Installation and Setup Guide for the device.
l Ensure that the Network File Storage driver is added to the room in the Composer HE project.
To schedule a regular scan of media:
1. From the Media view, select Media Scanning Options. To scan your media now (and not set up a scheduled scan), click Scan Now and skip the Scanning Schedule in Step 2.
2. In the Options pane, set the schedule as follows:
l Scanning Schedule--Select one: l Never--Select if you never want to schedule an automatic scan. l Every x Days or Weeks (up to 10)--Select the frequency to scan. l On the following days--Select Sunday through Saturday. l At <time>--Use the up and down arrows to select the time. Highlight AM or
PM and type the value: AM or PM. l Files To Scan--Select a device and extension. l Network File Storage--Select if you have a NAS (network attached storage)
device you want to scan. l USB Drive--The manufacturer's USB drive appears here. Select if you have a
USB drive you want to scan. l Extensions--Use the up and down arrows to choose which file types to add or
remove. To add a file extension (if it doesn't appear in the list), use the down arrow to select the extension, select Video or Audio, and then click Add. Click Remove to remove that file type from the list. l Use Online Media Lookup to improve scan results--Check if you want the scan to access the Internet to search for missing metadata information (title, cover art, genre, tracks, or other information).
Tip: To update existing media with high-resolution cover art after updating your system to OS 2.8+, check this box and scan the media files.
96

Composer HE User Guide
l Remove media from the database if the files no longer exist--Check to remove database information when a media file has been deleted.
Important: If you disconnect a USB drive with media on it and run a scan with this option selected, the media database entries will be deleted, and you may not want to delete them if you use the drive again.
l Update media database if file tags have changed--Check to have the database updated if the metadata changes.
l Enable MQA--Check to enable MQA Audio in the project. See ctrl4.co/mqa for more information.
3. Click Apply. 4. Click Scan Now to start the scan immediately or Stop Scan if you've
started the scan and want to stop it.
Disc changer
This section applies to a Sony CX777ES Disc Changer. The benefits of running a disc changer with bidirectional communications (RS-232), such as the Sony CX777ES, is that you can scan your DVDs/CDs stored in the disc changer to identify and index media, and automatically apply cover art and information about the media. You can configure your system in Composer Pro to scan media on the associated disc changer either automatically or manually when the Auto Scan option is selected in the Monitoring Properties pane for the disc changer. The default is to scan media manually (Auto Scan: Off). When the Auto Scan Enabled option is checked on the Disc Changer Properties page, the Auto Scan feature automatically detects when a disc is added to an empty slot or when a disc is removed. The Navigators are automatically updated with the change. The Auto-scan feature does not detect when a disc is replaced or swapped. Note: If a DVD/CD is scanned and the media is not recognized, it is titled 'unknown.' You can edit the information about the DVD/CD, and manually provide this information from either Composer Pro or the Navigators. If this DVD/CD is then moved to a different slot, the system applies this same information. To auto-scan added media to a disc changer:
1. Start Composer Pro and connect to a Director.
2. Click Monitoring. 3. In the project tree, select the device, for example, Disc Changer with a serial
connection (RS-232) to the controller, for example, the Sony CX 777ES Disc Changer.
97

Composer HE User Guide 4. In the device's Properties pane, ensure that the Auto Scan Enabled option
is checked.
5. Open the disc changer drive, and add or remove the DVD/CD. 6. Close the drive to begin the auto-scan. The information for the added
DVD/CD is automatically made available on the Navigators. See also "."
Scanning media in a disc changer
The following sections describe how to add media to the media database using the options listed above. To scan media loaded in a disc changer to add it to the media database:
1. Click Monitoring. 2. Ensure the disc changer shows in the list view. 3. Click Media. 4. Select Disc Changer. 5. In the Disc Changer pane, click Scan > OK to Scan all.
98

Composer HE User Guide
Note: If the following error message displays, "Your system has not been registered on MyControl4," you can click Yes to continue scanning music without registering, but the music scans based only on the current metadata stored in the music files. You will need to enter any missing information manually for each disc. Example: If no cover art is found in the file's metadata, then no cover art is associated with the music unless the system is registered in 4Sight, and you can go to the online media lookup (Media view > Edit > Name > Search > Select > Next) to obtain the cover art for the music.
Automatically scan media
The following steps use the Sony CX777ES Disc Changer as an example. To auto-scan added media:
1. From the project tree, click the Sony CX 777ES Disc Changer. The device Properties pane appears for this device.
2. Ensure that the Auto Scan Enabled box is checked. When you select the Auto Scan Enabled option from the device's Properties page in Composer HE, an automatic scan of the disc(s) is available if you add a new disc to an empty slot, or if a disc is removed. In those cases, the disc changer automatically recognizes the change, and the Navigators automatically update the changes. The disc changer recognizes the changes in its slot when its door closes to perform the auto-scan. The Auto-scan feature does not detect when a disc is replaced or swapped. Note: Control4 recommends that you check the Ignore Unexpected Play, Stop, or Pause option. This option should be checked if you are configuring a system with lighting, for example, when the movie starts playing, and the lights in the room dim. Normally, you can use the Play, Stop and Pause functions on the disc changer during the course of a movie being played. By checking the option, these functions are ignored by the system.
99

Composer HE User Guide 3. Open the disc changer drive's bay, and change the existing DVD or CD. 4. Close the bay. 5. The auto-scan begins automatically when the disc changer door closes, and
the information for the new DVD or CD is available in the Navigators.
Searching media in a disc changer
To search media loaded in the disc changer to add it to the media database: 1. Click Media. 2. Select the Controller in the project tree. 3. In the Disc Changer pane, click Search.
4. Type the DVD name in the blank box. The possible DVD titles from the Web database appear in the Search Results window. Use the scrollbar to find the appropriate DVD title Example: "A Beautiful Mind" Select the appropriate DVD title, drag it over the empty line item, and then select it again.
100

Composer HE User Guide
5. Repeat the previous steps for each of the DVDs/CDs in the disc changer you want to add to the media database.
6. Click Finished.
Edit CD or DVD information
To edit a scanned DVD or CD: 1. Select the CD or DVD to edit. 2. Click Edit. 3. Change the Title, Director or Artist, Album or Movie, Studio, Genre, etc. You can also change the location, locate the cover art (Find Art File), and so on.
101

4. Click OK.

Composer HE User Guide

Adding a DVD or CD
To add a DVD or CD: 1. Click Media. 2. Select Disc Changer in the Media pane. 3. Select the empty box for the New DVD and New CD buttons to appear.
102

Composer HE User Guide
4. Click either New DVD or New CD as appropriate. The New Movie or New Album dialog appears.
5. In the Title box, enter the DVD you want to play. Example: "A Beautiful Mind"
6. Click Search.
7. When the Search dialog appears, use the scrollbar to find the appropriate cover art, and select it.
8. Change the search criteria, and search again if needed. The possible matches from the web database appear in the Search Results window.
9. Click Next. 10. (Optional) Customize the DVD/CD information before adding it to the
103

Composer HE User Guide media database by editing the text in the box.
11. Click Finished. 12. Click OK.
104

Composer HE User Guide
Setting up videos for a media player
Use the Media view to identify the videos that you want the media player to play. Prerequisites
l Ensure that the media player is installed and added to the project. l Ensure that the network-attached storage contains the videos that will play on
the media player, and that the NAS is added to your project.
105

Composer HE User Guide
Setting up media for radio stations
Use the Media view to set up radio stations for a Control4 system. To set up media for radio broadcast stations:
1. Start Composer HE and connect to a Director. 2. Click Media. 3. Select the broadcast media type (AM Radio, Dish Network, etc.). 4. Click Search. 5. In the Zip box, type the ZIP Code of where the Control4 system is located. 6. Click Search, and use the pull-down menu to select the listings. The
available stations are populated in the Search Results window. 7. Check the individual boxes of stations that you want to make available in
the Navigators; or click Select All, and then click OK.
The selected stations populate the media source channel list (such as the FM
106

Composer HE User Guide Radio list shown next).
8. Repeat the previous steps for each additional media source, e.g., cable, satellite, or AM radio. (Each of these services must be set up separately.)
107

Composer HE User Guide
Setting up media for television stations
Use the Media view to set up television channels for the Control4 system. To set up media for television broadcast channels:
1. Start Composer HE and connect to a Director. 2. Click Media. 3. Select the broadcast media type (UHF/VHF, satellite, cable, etc.). 4. Click Search. When the dialog appears, type the ZIP Code for the Control4
system's location in the box. 5. Click Search, and use the pull-down menu to select Local Broadcast
Listings. The available channels are populated in the Search Results window. 6. Check the individual boxes of channels that you want to make available in the Navigators, or click Select All, and then click OK.
The selected channels populate the media source channel list (such as the
108

Composer HE User Guide UHF/VHF channel list shown next).
7. Repeat the previous steps for each additional media source, e.g., cable, satellite, AM radio, or FM radio. (Each of these services must be set up separately.)
109

Composer HE User Guide
Setting up Internet radio stations
Use the Media view to add Internet radio stations that you can play from touch screens, Control4 apps, or on-screen Navigators. Prerequisites
l Ensure that the controller is installed and identified as directed in the controller's installation guide.
l Ensure that the Internet radio stations you add are in MP3 or WMA format. You'll need to create a new form for each station you add.
To configure Internet radio: 1. Start Composer HE and connect to a Director. 2. Click the Media view. 3. From the media list, click Internet Radio. 4. In the Internet Radio pane, click New.
5. Fill out the form: 1. Name--Add the name of the station. 2. Description--Add a description that's meaningful. 3. Channel--Add the URL for the channel. Note: Locate the URL of the MP3/WMA stream that starts with http://... Note: Ensure that Audio Only is checked. 4. Genre--Add a genre if appropriate. 5. Check Audio Only for listening.
110

Composer HE User Guide 6. Cover Art--If you'd like, you can copy the radio station art to your list.
In a browser, go to the link and click Images. Click Find Art File to locate an image, copy it to your clipboard and then click Paste from Clipboard. 7. Click OK.
6. Go to the touch screen, Control4 app, or on-screen Navigator and select the Listen > Station. Note: If you have several sources, Internet Radio appears under Sources.
111

Composer HE User Guide
Importing a DVD list from a file
Use the Media view to populate DVD metadata stored on a disc changer. To import a DVD list:
1. Start Composer HE and connect to a Director. 2. Click Media view. 3. Right-click on the Disc Changer, and select Import DVD List from File.
Composer HE automatically populates the slots of the disc changer with the DVDs stored in each slot as listed in the file that is imported. The imported file must be a CSV (comma-separated value) file listing the slots and the titles of the DVDs, one per line. You can create this file using a simple text editor or spreadsheet program by exporting a spreadsheet file in a CSV formatted file. This new feature provides a simple and easy way to quickly configure all of the DVDs in any manufacturer's disc changer. Example formatting for CSV file:
l 1, Toy Story l 2, The Incredibles l 3, The Perfect Storm
112

Composer HE User Guide
Using external storage devices
You can access digital music from an external storage device in your Control4 system. External storage devices include USB flash drives, USB external hard drives, or a shared network storage area (for example, a computer's hard drive). The following applies when setting up an external storage device:
l USB flash drives or USB external hard drives must be formatted as FAT32 devices.
l Shared drives on a Windows system cannot contain a space in the directory/pathname.
Set up the external storage device or networked file storage as described in this section. Note: When you disconnect the external drive (USB, network, etc.) from the system, the music is no longer available. Reconnecting the external drive makes the media available again.
Attach and scan external storage devices
To attach and scan external storage devices using a USB connection: Note: External storage devices must have media stored in unprotected MP3/WMA format.
1. Power up the external storage device.
2. As appropriate, use the documentation provided with your Control4 controller to attach the external hard drive using the USB port.
3. Start Composer HE and connect to a Director. 4. Click Media. 5. In the project tree, select the external device. 6. Click Scan in the device's pane.
You can add media from the external storage device when it is connected to the controller. However, it is recommended that you connect your external drive directly to the PC where you want to copy the media. When scanning, the media appears on the device.
Access and scan network storage devices
To access and scan network storage devices: Note: The network location must be an open share location (no password required).
1. As appropriate, use the documentation provided with your operating system to create a shared network drive.
113

Composer HE User Guide
Example: Using Windows XP to make a local C:/ Drive directory available on the network, right-click the folder and select Sharing and Security. Click the Share this folder button. 2. Click System Design. 3. From the My Drivers tab, double-click Network File Storage to add it to the project tree. 4. Highlight Network File Storage in the project tree, and configure the username, password, and workgroup (or domain) for the network file share, and then browse to its network location.
This information varies between types. Contact your System Administrator or Control4 Technical Support if you need help with this information. 5. Click Media. 6. In Network File Storage, notice the options: Audio Media and Video Media.
7. To add or scan audio files, in the media list select Audio Media, and then click New or Scan. Notes: l When adding music to Network File Storage from the desktop, the music folder must reside in My Network Places so components can access the music files. A mapped network drive is not applicable in this situation. l Audio files must be in one of the following formats to be scanned and played by the Control4 system: MP3, WMA, or FLAC. If you connect an iPod or another audio device, the Control4 system can play back the files supported on that device; but only MP3 files can be decoded.
8. To scan video files, in the media list select Video Media, and then click Scan. Notes: l Video files must be in one of the following formats to be scanned by the Control4 system: .avi, DVD, .iso, .m4a, mpeg, .mpg, or .wmv. These video files can only be played using a media player. l Video playback is not supported from files stored on a USB drive, so the Video Media option is not displayed in the list under a USB drive.
114

Composer HE User Guide
Creating a playlist
Use Composer HE to create a playlist from digital media. You can create playlists from the touch screens, Control4 apps, or on-screen Navigators also. See the Control4 System User Guide for details. To create a playlist:
1. Start Composer HE and connect to a Director. 2. Click Media. 3. In the Media view, go to the Media menu, and select New Playlist. 4. Name the playlist.
Tip: You can rename it any time by right-clicking the playlist, selecting Rename Playlist, and then typing a new name. 5. Select the controller or other media on which the songs are stored, and ensure that you have scanned the media from the storage to make the media known to the controller. 6. Drag the list of songs to the playlist. 7. Drag every album or song you want to add to the playlist onto the playlist name.
8. After adding at least one album or song, select the playlist to view the contents.
9. (Optional) Remove songs: l To remove a song, right-click and select Delete. l To remove multiple songs, press and hold the Shift key. Select the songs, right-click anywhere in the selected list, and select Delete.
115

Composer HE User Guide l To remove selected songs, press and hold the Ctrl key. Select the songs
to delete, and select Delete. The playlist can now be played from or edited in the Navigators.
116

Composer HE User Guide
Testing the media connection
To test control of media through the Control4 Navigators (System Remote Control, on-screen Navigator, or any of the other Navigators or touch screens), use the steps outlined in the Control4 System User Guide. Suggested test items:
l Play an album l Add an album or track to the Now Playing queue l Play a playlist created in Composer HE l Create a playlist on a touch screen or on-screen Navigator l Play multiple streams of music (play different music in different rooms) l Play a movie on the television
117

Composer HE User Guide
Editing media information
Use the Media view to edit the media information for 'unknown' DVDs or CDs. You can edit the media information in the Navigators: on-screen, touch screen, or Control4 app.
Editing CD information
Use the Media view to edit CD album names, artists, genre, or cover art for a Control4 system. To edit information about a CD:
1. Start Composer Pro and connect to a Director. 2. Click Media. 3. In the project tree, double-click the CD storage device on which you want
to edit CD information; for example, CD, disc changer, or controller. 4. Select an album and click the Edit button, or double-click the album title. 5. In the Album tab, edit the Album Name, Artist, Label, Genre, or Art. Make
text changes as applicable.
118

Composer HE User Guide 6. Click OK, or use the additional features outlined below.
119

Composer HE User Guide 7. Search on a Name or Artist to search the database for similar entries.
120

Composer HE User Guide 8. Select a search result. Double-click to select an album title, and click Next.
9. View or edit the information about the album: Name, Artist/Composer, Label, Genre, Year, Art, and Notes.
10. Change the information as needed, and then click Finished to save your changes.
121

Composer HE User Guide 11. Select the Track tab, and edit or remove tracks as needed. 12. Select the Notes tab, and edit as needed for future reference.
Editing DVD information
Use the Media view to edit DVD title, director, studio, genre, runtime, release date or rating in a Control4 system. Tip: New in OS 2.0 and later, you can edit DVD and video titles on the touch screens and on-screen Navigators. To edit information about a DVD:
1. Start Composer HE and connect to a Director. 2. Click Media. 3. In the project tree, double-click the Disc Changer or DVD. 4. Select a movie and click the Edit button, or double-click under Discs. 5. In the Movie dialog under the Movie tab, edit the DVD title, director, studio,
genre, runtime, release date or rating information as needed. 6. Click OK, or use the additional features outlined below.
7. Click Search to present similar entries. 8. In the results list, double-click a DVD.
122

Composer HE User Guide 9. Edit the DVD information.
10. Replace the cover art using one of the options provided. 11. Click the Cast and Synopsis tab to edit text displays as needed. 12. Click Finished to save your changes.
123

Composer HE User Guide
Using and Programming with Agents
Use the Agents and Programming views to program agents. When you program with agents, you typically use these general steps:
1. In Agents, define an instance of a type of agent.
2. In Programming, use the instance of the agent to program event actions. Example: In the Agent view, you can create an instance of a Custom Button where you identify all the buttons you want to program. In Programming, you program the Custom Buttons. Note: Agents vary greatly in functionality and flexibility.
Agent types
l Access--Lets you hide elements of the user interface on a Navigator and use a pin code to change the settings for the Navigator.
l Advanced Lighting Scenes--Lets you change the lighting state, toggle lights, ramp/fade lights, delay on/off, use scene sequencing, flash lights, and so on.
l Announcements--Plays a pre-recorded .WAV file, or displays a text message whenever a given event occurs. You can play an audio announcement on any audio output device with a supporting text message that displays on selected Navigators.
l Backup--Configure settings for automatic project backups to Control4 online services. Requires a 4Sight subscription.
l Communication--Replaces the Intercom agent for systems running OS 2.7 and above. Provides the ability to set up Intercom device groups on the T3 series touch screens--audio and video, and Door Stations (DS2 and DS2 Mini-- audio and video) See " Using the Communication agent".
l Custom Buttons--Lets you make user interface buttons for specialized devices on the Navigators. See " Using the Custom Buttons agent."
l Email Notification--Lets you send an email message to your email address when specified events occur as defined in programming. See " Using the Email Notification agent." Notes: (1) 4Sight is required to use the Email Notification and Push Notification agents. (2) Avoid setting up email notifications for events that occur frequently (e.g., when a Motion Sensor detects motion). If the email notification trigger event occurs too often, it will cause the system to become sluggish.
l Guest Services--An agent used to interface a local Control4 system to a Guest Services system within a multi-dwelling or hospitality project.
124

Composer HE User Guide
l History--Enables a history tab in drivers built for the History agent, for example, new security drivers built for OS 2.8.+. You can configure settings and view history data from the agent.
l Identity--Provides the ability to change the password for When >> Then automation.
Light Properties--Manage light properties for Control4 Centralized Lighting modules and loads.
l Macros--Macros agents associate programming with events.
Example: You can create one macro to use in several different programming events or to use on a touch screen when creating Favorites. See " Using the Macros agent."
l Media Scenes--Creates a media scene that plays music in selected rooms on your system. See " Using the Media Scenes agent."
l Navigation--Add this agent to the system to enable navigation commands in the Programming view for T3 and EA On-Screen Navigators.
l Push Notification--Lets you define a push notification to be sent to your mobile devices as defined in programming.
l Scheduler--Defines conditionals of time to the system, and adds the ability to have scheduled events. See " Using the Scheduler agent."
l Screen Saver--Lets you set up a Screen Saver agent so you can create various Screen Savers. See " Using the Screen Saver agent."
l SNMP Configuration--Lets you set up and configure devices to monitor via SNMP. Requires knowledge of SNMP and network management. See Example: Program using the SNMP Configuration agent.
l Timer--Starts, stops, or repeats a timer based on a given event and action.
Example: If a Motion Sensor in the system turns on a light when it detects motion, you can use a timer to turn off the light after 15 minutes. Alternatively, you can set a timer to repeat an action whenever the timer expires. See " Using the Timer agent."
l UI Configuration--Upload custom wallpaper images and apply wallpapers from both the default set of images and custom images to multiple touch screens and on-screen navigators at once. Supported on T3 touch screens and EA controllers in OS 2.9.0. See "Using the UI Configuration agent".
l Variables--Create Boolean, string, and number variables. Review " Examples: programming with variables" for information about creating Variable agents.
l Wakeup--Initiates a pre-specified wakeup time in the Navigators. This agent lets you play music, turn on lights, and change temperatures. See " Using the Wake/Sleep agent."
125

Composer HE User Guide
l Wakeup/Goodnight--Updated version of the Wakeup agent adding the ability to control shades with a Wakeup scene.
The agent examples listed in the following sections will guide you through the programming steps for each agent type.
Using the Announcements agent
Use the Agents and Programming views to program this agent. You can create announcements that:
l Display a text-message or Web page on any of the Navigators (on-screen Navigator or touch screens)
l Play an audio announcement through any audio end point or T3 touch screen l Combine the two mentioned above
Note: The Control4 system allows up to 10 MB of files for the Announcement agent, and plays a maximum of 15 seconds per announcement. The Announcements agent supports the same audio playback file types as the EA and HC controllers support under My Music. Example: This example demonstrates how to create a 'Dinner is Ready' announcement that is activated when the family chef (or dad) presses a custom-programmed button. When the button is pressed, the text message, 'Come to Dinner!,' displays on all of the Navigators in the home, and an audio file of a dinner bell ringing plays.
Prerequisites The following devices are added and identified (with a network address) in the project:
l Controller l Audio output device (television or connected speakers) l Navigator with a screen (touch screen or television) l Any device involved in the triggering event (doorbell contact, keypad, etc.)
To set up an Announcements agent: 1. Start Composer HE and connect to a Director.
2. Click Agents. 3. (First time only) Click Add to add the Announcements agent to the project. 4. Select Announcements, and then click OK to add Announcements to the
agent types list in the project. The next time you want to create an announcement, just select the Announcements item in the Agents pane and click New. 5. With Announcements selected in the left pane, click New.
126

Composer HE User Guide
6. Name the new announcement, and click Create. Example: Come to Dinner!
7. Set up the Navigator text message you want to display.
1. Check the Display Navigator Text/Image Popup box. 2. Click Edit Text/Image. 3. Type a text message, a URL, or browse to an image (JPG, GIF, or PNG)
to display. The text box accepts any HTML code. While certain links and scripts won't be handled, when the announcement is triggered, for example, if you put this text in an announcement, it will show up just as if it were a web page. For example, the following HTML text will display the latest snapshot of a web page: <HTML><BODY><IMG SRC="http://tbn0.google.com/images?q=tbn:1uOhCnlc3zbQgM:http://w ww.inkycircus.com/jargon/images/mountain.jpg" ALT="pumpkin"><a href="http://www.w3schools.com/">Visit W3Schools!</a></BODY></HTML> Note: A static image file (JPG, GIF, or PNG) only has to be added to your project once because it is copied to the controller. When added, it is available in the Text Message drop-down menu for use in any additional announcements created. 4. Select the time you want the text message to display using the Close after drop-down menu (supported display times are from five seconds to 10 minutes). 5. Click Add/Remove and check the Navigators that will display the message. Click OK.
127

Composer HE User Guide
8. Audio file--Add an audio file, and set up the audio file to be played. 1. Check the Play Audio File box. 2. (One time per audio file) Click Add and browse to the audio file to add it to the drop-down menu. Note: An audio file only has to be added to your project one time because it is copied to the controller. When added, it is available in the Audio File drop-down menu for use in any additional announcements created. 3. Select the audio file from the drop-down menu. 4. Click Add/Remove... and check the rooms where the audio file will play. Click OK. 5. Click Add/Remove... and check the T3 touch screens where the audio file will play. Click OK. 6. Set the volume of the audio play for each room and touch screen. Note: The volume for an announcement only can be set on devices with discrete volume control.
9. Click Programming. 10. Verify that the new Announcements agent displays in the Actions list
(bottom of list). 1. Select Announcements. 2. Make sure the 'Come to Dinner!' message displays in the Announcement
Actions pane and that the command is there (green arrow).
128

Composer HE User Guide
11. Program the announcement to play or display with a triggering event.
Example: Program a button-press event (left pane) to trigger the Announcements agent to run 'Come to Dinner!' (right pane).
Using the Communication agent
The Communication agent lets you configure the 5" or 7" In-Wall Touch Screens (supports audio intercom only), the 7" Portable Touch Screen with Camera, the Door Station, the 7" In-Wall Touch Screen with Camera, or the 7" In-wall, 10" InWall, and 7" Tabletop T3 Touch Screens (supports audio and video intercom) so that the Control4 system acknowledges the Intercom system and can communicate with it. The Control4 Intercom app requires that the Communication agent is added into the system. Note: The Control4 Intercom app is currently in a beta testing state. Important: See Communication Agent Wizard and Migration Process on the Knowledgebase before using this agent to see if additional steps are required to add and use the Communication agent. Note: This agent also lets you configure the intercom to allow third-party devices (External Devices) for multi-dwelling units (MDUs). This functionality requires additional training and hardware not covered in this document. With the Communication agent, you can send calls to multiple touch screens, monitor a room, and other controls. Examples:
l If you have an elderly parent living in their own home, you can create a macro and assign it to a keypad button. If your family member is in stress, they simply press the keypad button to notify you that something is wrong.
l Create a "Good Night" setting where all touch screens in the house can be set to "Do Not Disturb" when it's time to go to sleep.
l Monitor your kids' rooms after they've gone to bed to ensure that they're going to sleep when they should.
l Receive calls from the door station to your Control4 Intercom app.
l Call from the Control4 Intercom app to the touch screen to speak to your kids at home.
Notes: (1) Broadcasting does not work in a room that's being monitored if that room is in Monitor Mode. When in Monitor Mode, you will not want the person in that room to be disturbed, for example, a sleeping child. (2) Before you use Intercom with touch screens connected over Wi-Fi, make sure your Wi-Fi router is set to allow multicasting. Some routers do not allow multicasting. Prerequisites
129

Composer HE User Guide l Controller l 7" In-Wall Touch Screens l Communication agent (see below) Note: Use of the Control4 Intercom app requires an active 4Sight license. To set up the Communication agent:
1. Click the Agents view. 2. In the Agents pane, select Communication. If the Communication has not
been added already, click Add, highlight Communication in the list, and click OK.
Add new Intercom group An Intercom group is a set of Intercom-supported touch screens identified by a specific group name. This saves time when you want to send a call to a group of people. To add an Intercom group:
1. Select Communication in the Agents pane. Then in the Intercom Groups pane, click New.
2. Name the Intercom group, and click Add. Example: "John's Group." 3. Add the devices to the new group (see "Local Devices Tab" below). Local Devices tab Group properties:
130

Composer HE User Guide
You can add devices to an existing group of 5" or 7" In-Wall Touch Screens, 7" InWall Touch Screen with Camera, 7" Portable Touch Screen with Camera, Door Station, or 7" In-Wall, 10" In-Wall, and 7" Tabletop T3 Touch Screens. This lets the caller from one touch screen send out a call to the group of devices. To add or remove devices in a group:
l Add: Select the device in the Local Devices tab, and then click Add. Click OK. - OR -
l Remove: Select the device in the right box of the Local Devices tab, and then click Remove. Click OK.
Device Properties: To change device properties for the touch screens in the Intercom Group:
1. Use the Local Devices tab to change the settings for all supported touch screens in the Intercom Group.
l Manual Answer Timeout (seconds)--Use the up or down arrow keys or enter how much time is allowed to answer an incoming call.
l You can set the intercom device order by selecting the device and clicking the Move Down or Move Up buttons.
2. Click Apply Changes when you're finished. External Devices tab The External Devices tab can be used to add external devices that can communicate with the intercom system, for example in an MDU solution. Mobile devices using the Control4 Intercom app also show up as an external device. The Control4 Intercom app is still in a beta state. This functionality requires additional training and hardware not covered in this document.
Using the Custom Buttons agent
Use the Control4 Composer Pro Custom Buttons agent to create up to four custom menus to display on the Navigators (including touch screens, Control4 apps, and on-screen). Custom Buttons Menus can be accessed from the Room Menu in Navigators or added as a favorite to the Room Screen. Example: If you have a heated driveway or some other specialty device, you can set up a screen with custom buttons to operate the heated driveway from the Navigators.
131

Composer HE User Guide
To set up the Custom Buttons agent: 1. Start Composer Pro and connect to a Director. 2. Click Agents.
3. (First time only) Click Add to add the Timer agent to the project. Custom button menus can be defined for a single room or for all the rooms in the project. To set up a Custom Buttons menu for a single room:
1. Select the room in the Rooms pane on the left side of Composer. 132

Composer HE User Guide
2. Click Add... and enter the Menu Name and Button 1-6 names as desired. 3. Click OK.
To set up a Custom Buttons menu for all rooms: 1. Select All Rooms in the Rooms pane on the left side of Composer.
2. Click Add... and enter the Menu Name and Button 1-6 names as desired. 3. Click OK.
Guidelines l You can access each screen on the Navigators from the Control4 main menu or for a room from four available tabs. Example: The heated driveway screen is accessed from a custom tab on the main menu. You can configure the tab to be viewed system-wide on all screens, or to view in one room only. l The Navigators allow up to four tabs per room to access custom screens with custom buttons. Each screen can provide up to six custom buttons for a total of 24 custom buttons. The four tabs in each room can be allocated as either room or as global tabs. l On the Navigators, you can set up a room or global tabs. The example shows the creation of custom tabs that appear in the Front Room and access a custom screen. Note: If you want to create a Custom tab to appear globally, check the Global box next to the Screen Name. Because only four screens are available for each room, if a Global button is added and another room already has four screens, the Global button replaces the first screen in that room.
Prerequisites The following devices are added and identified (with a network address) in the project:
l Controller l Electronic Gate (In the Control & Audio Video Connections tab, ensure that the
Electronic Gate is connected to controller relay Port 4.)
To set up a Custom Buttons agent: 1. Start Composer HE and connect to a Director.
2. Click Agents. 3. (First time only) Click Add to add the Custom Buttons agent to the project. 4. When the dialog appears, from the list, select Custom Buttons. 5. Click OK.
133

Composer HE User Guide 6. Select the Custom Buttons agent. 7. From the list that appears in the left pane, select the room for the custom
button; for example, select Family.
8. When the Custom Buttons interface appears, in the Screen 1 area, click Add. Note: In the Navigator, Screen 1 appears in the top left corner; Screen 2 appears in the lower left corner, Screen 3 appears in the top right corner, and Screen 4 appears in the lower right corner.
9. Enter the name of the buttons to appear on the Navigator screen. 10. Enter the relevant information for the device.
The Screen Name is the name that appears on the access tab to enter the custom screen. The buttons are the names that appear on the custom buttons. Example: For the Garage Door, enter the following:
l Screen Name: Garage Door l Button 1: Toggle
134

11. Click OK.

Composer HE User Guide

12. Click the Programming view to program your Custom Buttons.
13. In the Device Events pane, scroll down to the agents and select the Custom Buttons agent.
14. In the Custom Buttons Events pane, ensure that Family-Garage Door is selected under the Event Screen next to Toggle, and then select the Press radio button. When custom button `Toggle' on screen `Garage Door' in Family is pressed, it appears at the top of the Script pane.

15. In the Actions pane, select Garage Door. 16. From the Command tab, select the Toggle the Garage Door radio button.
The action command appears in the Actions pane.
135

Composer HE User Guide
17. Drag the green arrow to the Script pane. 18. Select File > Refresh Navigators.
Using the Email Notification agent
IMPORTANT! An active 4Sight Internet Service subscription is required for Email Notification to work. See Composer HE Getting Started or the Control4 System User Guide. Use the Control4 Composer HE Email Notification agent to have an email sent to an email address automatically when specific events occur as defined in programming. Example: If you want to know when the basement door opens, you can set up an Email Notification agent to send an email to your email application's Inbox when the Basement door opens.
l The Email Notification is a Control4 service. To use Email Notification agent, remote access is required to facilitate a secure connection between the controller and the Control4 service.
l The Email Notification agent uses templates to enhance usability. You can use a template to define a To, Subject, or Body for use when creating instances of the Email Notification agent. See "Connecting to a Director using Remote Access" in Composer HE Getting Started.
l Use the Programming view to define the individual instance that triggers an email and completes the definition.
Example: A security threat to the house notified you of broken windows, doors opening, and motion detected in Away mode. In the template, you define Subject: Security Alert and To: fsmith@myemail.com. In the Programming view, you might define the zone. Examples of other incidents to use E-mail Notification include: Basement Door Opened, Front Gate Opened, Water Sensor detection, Carbon Monoxide Sensor detection, Motion Sensor detection, Sprinklers On/Off, etc. Tip: When setting up an E-mail Notification agent, note the frequency that an event can happen; because if it is too frequent, it can slow down the system. For example, if an email is sent when a Motion Sensor detects motion, the frequent email messages could cause sluggishness. Prerequisites The following example devices are added and identified (with a network address) in the project:
l Controller l Door Contact Sensor
To set up an Email Notification:
1. Start Composer HE and connect to a Director.
136

Composer HE User Guide
2. Click Agents. 3. (First time only) In the Agents view, click Add to add the Email Notification
agent to the project. 4. When the dialog appears, select Email Notification. 5. Click OK. 6. Select Email Notification, and click Add in the pane that follows. The New
Template Name dialog appears. Tip: Control4 now includes Control4 system and user-defined variables in the templates created using this agent. To use this function, you can create or modify email templates using Composer HE > Agents > E-Mail Notification, and then use the Add Variable option. 7. Enter a name on the dialog that appears, for example, 'Security Alert.' 8. Click Create. 9. In Email Notification Template Name, select Security Alert for the Composer HE email screen to appear. 10. Fill out the information for the email you want sent to you when an event occurs. Example: To: fsmith@myemail.com Subject: Security Alert Body: The security of the Franklin Smith House may have been compromised.
11. Do the following as needed:
137

Composer HE User Guide
1. Click Send Email to test and see if you receive and email to your email address.
2. Click Add Variable if you've created a variable agent. Scroll down the list to locate the variable, and then click OK.
3. Click Save to exit and go to the Programming view to set up the programming.
4. Click Reset to clear the To, Subject, and Body of the email to start again.
12. With the Agent template created, you can create one instance of the Security Alert for each security zone (or object). When you've saved the template, click Programming.
13. In Programming under Theater, select Door Contact Sensor. 14. In Door Contact Sensor Events, select When Door Contact Sensor opens. 15. In the Actions pane, scroll down and select Email Notification. 16. Make any changes to the email as necessary. 17. Drag the green arrow to the Script pane. 18. In the File menu, click Refresh. 19. Test the Email Notification agent by going to the door and opening it. An
email is sent to your Inbox with the Security Alert as a subject.
Using the Light Properties agent
Use the Agents and Monitoring views to add and configure dimmable, nondimmable, and 0-10V lights for Panelized Lighting devices. Use this agent to make it easy to set up load and wattage information in the Panelized Lighting Properties pages for a project. To use the Light Properties agent:
1. Start Composer HE and connect to a Director.
2. Click Agents. 3. (First time only) Click Add to add the Light Properties agent to the project. 4. Select Light Properties, and then click OK.
In the Light Properties pane, change the columns for each light in the Panelized Lighting system. Note: Ensure that the Panelized Lighting module is added and identified to the system. After you do, the name of the device will display in this agent's Light Properties pane. See the Panelized Lighting Quick Start Guide for details. These options are editable.
138

Composer HE User Guide
l Name--The name of the module you identified in the system. l Load Number--Assign a load number for each module in the system. l Watts--Assign the wattage for each module in the system.
Using the Macros agent
Use the Agents and Programming views to program this agent. Macros agents are routines that associate programming with events. Examples: You can create and name a macro to use in several different programming events. The macro can be called from a particular program in the Programming Actions pane or you can create a custom button on your touch screens or on-screen Navigator to call a Macro . You can create Macros:
l To use in various programmed events l To use in Custom pages l To use from custom buttons in the Navigators
Prerequisites The following devices are added and identified (with a network address) in the project:
l Controller l Light Switch l Navigator with a screen (touch screen, Control4 app, TV screen, etc.) l Any device involved in the triggering event (doorbell contact, keypad, etc.)
To set up the Macros agent: 1. Start Composer HE and connect to a Director.
2. Click Agents. 3. (First time only) Click Add to add the Macros agent to the project. 4. Select Macros, and then click OK.
To create a new Macro: 1. Select Macros in the Agents pane, and click New.
2. Name the new macro, for example, Bob, and then click Create.
To add commands to the macro's programming script: In this example script, you will select the Family Room Switch which is on, and then turn off everything in the Living Room.
139

Composer HE User Guide
1. Click the Programming view. 2. In the Device Events pane, scroll down to Macros and select Bob. "When
Screen Saver On is executed" appears in the Script pane. 3. In the Device Actions pane, select Family Room and the Wall Lights. 4. Under Light, select On. 5. Drag the green arrow `Turn on the Family >Wall Lights' to the Script pane. 6. Under Light, select Off. 7. Drag the green arrow 'Turn off the Family > Wall Lights' to the Script pane.
8. You can add the Macros agent to many programs that you create if you want to perform similar tasks, or you can program the agent for a specific device. For example, you can assign this agent to a button on a keypad to run the program when executed. Note: A unique Macro cannot be edited or copied; only created or deleted. If you want to create a new Macro based on another one, you must create a new one.
Using the Media Scenes agent
Use the Media Scenes agent to allow simpler multi-zone audio control. Media Scenes link source, volume, and room-off commands. With Media Scenes, you can configure one or more rooms in a system to play the same music at the same volume. Example: A Media Scene for the entire house can include all the rooms in the Control4 system. Another Media Scene can include only the Master Bedroom and Bath. You can create any number of Media Scenes containing any number of rooms.
140

Composer HE User Guide
Guidelines l To successfully activate a Media Scene (with the rooms being controlled simultaneously), activate the Media Scenes agent before starting any music playback. l Media scenes are persistent; when activated, a Media Scene remains active until deactivated or until the controller is powered down. If a Media Scene is deactivated while music is playing, the music continues to play in the associated rooms, but the rooms are no longer controlled in unison. Therefore, music can be stopped in one room while it continues to play in another room. l You can set up a Media Scene one time, and activate it when desired. Then play the music.
To create a Media Scenes agent: 1. Start Composer HE and connect to a Director. 2. (First time only) In the Agents view, click Add to add the Media Scenes agent to the project. 3. On the dialog that appears, click Media Scenes, and then click OK. 4. In the Agents pane, select Media Scenes, and click Add. 5. Enter a name for your new Media Scene. Example: Party Music. 6. In the Agents pane, select Party Music, and then click Add Room in the Media Scenes pane.
7. In the dialog box is a list of rooms in your system. Check the rooms where you want to play your Party Music, and then click OK. Example: Theater and Family.
141

Composer HE User Guide Tips: To remove a room from a scene, click Remove Room. To create another Media Scene, return to Step 1.
Tip: You can add all rooms on a floor by clicking, for example, Main. This automatically selects all other rooms in that category. You can also include all rooms in your entire system in the Media Scene by clicking House. The rooms you selected appear in the new Media scene 'Party Music.'
8. To activate the scene, click Activate Scene at the top of the screen. 9. To deactivate, click the Deactivate Scene button. 10. You can program a button for your Media Scene. Do this by creating a new
Custom Button. 1. In the Agents view, click Custom Buttons, and then below, click a room. In the Custom Buttons pane, click Add. 2. In the Add Screen dialog that appears, enter the name of the Custom Button, and then click OK.
142

Composer HE User Guide
Example: Click Theater and call the Screen name Media Scene. Name Button 1: On/Off and click OK. The custom button name appears in the pane. 11. Click the Programming View. 12. In the Device Events pane, scroll down and click Custom Buttons. In the pane below, Custom Button Events, select the screen you want to program, and then select the Press radio button. Example: Select the screen Kitchen - Media Scene, and select the Press radio button. 13. In the Actions pane, select Kitchen. 14. In the Kitchen Actions pane under Conditionals, press the Media Scene Active button which also selects True. 15. Drag the blue question mark to the Script pane. 16. In the Actions pane, scroll down and select Media Scenes. 17. In the Media Scenes Actions pane under Commands, press the Deactivate button, and then select Party Music. 18. Drag the green arrow on top of the blue question mark in the Script pane. 19. In the Actions pane, scroll up and select Kitchen. In the Kitchen Actions pane and in Conditionals, press the Media Scene Active button, and then the False button. 20. Drag the blue question mark to the Script pane. 21. In the Actions pane, scroll down and select Media Scenes. In the Media Scenes Actions pane and in Commands, press the Activate button, and then select Party Music. 22. Drag the green arrow icon on top of the blue question mark in the Script pane.
143

Composer HE User Guide The Script pane now reads, 'When custom button `On/Off' on screen `Media Scene' in Kitchen is pressed...Activate scene `Party Music.'' 23. To execute the scene, click Execute.
Using the Media Sessions agent
Use the Media Sessions agent to view and have limited control over active audio sessions in the project. Media Sessions agent cannot be used to provide any programming assistance, but can be use to control volume and mute settings for active zones. Example: A media session was creating using the Control4 app. You can use the Media Session agent to control volume and mute in any of the rooms in the media session.
Configuring the Master Volume Slider
The Media Sessions agent can help avoid potentially damaging high volume levels when using the Master Volume Slider in the Sessions page of the user interfaces by configuring an upper threshold for the Master Volume Slider. Volume won't ramp above the upper threshold until all rooms are at the threshold to avoid a single room ramping above the level when the Master Volume Slider in a user interface. In the Properties tab of the Media Sessions agent, use the arrows or enter a volume for the Session Master Volume Slider upper threshold.
144

Composer HE User Guide
Using the Scheduler agent
Use the Agents and Programming views to program this agent. The Scheduler agent lets you schedule time on the Control4 system to trigger specific events to occur. You can program a specific one-time event or multiple events to re-occur daily, weekly, monthly, yearly, etc. Example: Schedule an event to play dad's favorite song at 7:30 AM on his birthday. Prerequisites The following devices are added and identified (with a network address) in the project:
l Controller l Keypad To set up the Scheduler agent:
1. Start Composer HE and connect to a Director. 2. Click Agents. 3. (First time only) In the Agents pane, click Add to add the Scheduler agent
to the project. 4. Select Scheduler in the Agents list, and click OK. 5. In the Agents pane, select Scheduler. The Scheduler panes appear.
145

Composer HE User Guide
6. In the Scheduler pane, click Add. 7. In the New Event dialog, enter the relevant information for this Scheduler
instance:
1. In Name: type Dads Birthday. 2. In Time, add the following:
l Select the Time radio button. l Highlight the hour: 07, minutes: 30, and AM. Use the drop-down menu to
select each time separately, or l Select Sunrise/Sunset, and select Sunrise from the drop-down menu.
3. In Randomize time by +/-, keep the default of 15 minutes. This executes the Scheduler either 15 minutes before or 15 minutes after the actual time you assigned. This is useful when you go on vacation and you want your lights to go on at different times so outsiders think someone is home.
4. In Start Date, select one of the following:
l Select the Start on radio button. Use the drop-down menu and select today's date.
l Select the Start on the radio button to select an exact day, month, and year. Use the drop-down menus to make your selections.
5. Select Repeats. l Select Yearly. Example: You want dad's favorite song to play at 7:30 AM. This dialog lets you schedule one-time events and recurring events. l Select Stop on, and use the drop-down menu to select a month and year to
stop this agent.
6. Click OK. The event is now added to the list of events. 7. To delete an event, select the event in the list, and click Delete. 8. Click Programming. 9. In the Device Events pane, select the Scheduler object at the bottom of
the list. 10. In Scheduler Events, click Dads Birthday event. The Script pane shows
Dads Birthday event.
146

Composer HE User Guide
11. Select the device actions to initiate in the Actions panes. 12. Drag the actions to the Script pane. These scripted actions execute when
the Dad's Birthday event executes. 13. You can use the Scheduler agent in programming also to add conditionals
or loops to your scripts. 14. In the project tree, select 3 Button Keypad.
1. In the Actions pane, scroll down and select the Scheduler agent. 2. Click the Conditionals tab, select Time, and Within 5 minute(s) Before
Sunset. 3. Drag the blue question mark to the Script pane. 4. In the project tree, select the light. 5. In the Commands tab, select turn the room on, and drag the green
arrow on top of the blue question mark in the Script pane. Results: When the top button on the 3-Button Keypad is pressed, if it is within five minutes before sunrise, the light comes on. The Scheduler agent lets you define one-time events and recurring events.
Using the Screen Saver agent
Use the Agents view to set up the Screen Saver agent. Prerequisites Ensure that the devices you will use to set up a screen saver and store your photos (for example, a network-attached storage device) are attached to the Control4 system are attached to the primary controller. If you use a USB device, ensure that it is formatted to FAT 32. To set up the Screen Saver agent:
1. Start Composer HE and connect to a Director. 2. Click Agents. 3. (First time only) Click Add to add the Screen Saver agent to the project. 4. Select Screen Saver, and then click OK. The next time you want to create a
Screen Saver, click the Screen Saver item in the Agents pane, and then click New.
147

Composer HE User Guide
5. From the drop-down menu, select the File Storage Location.
6. Click the Media view. 7. Click Screen Saver in the Media pane. 8. Click Add to scan and add new photos to the Screen Saver pane from the
device you selected in the Network Storage Location box. 9. To set up a custom screen saver on the Navigators, see also: l " Setting up the photo screen saver" l " Setting up a custom screen saver" l Control4 System User Guide
Using the Timer agent
Use the Agents and Programming views to program this agent. The Timer agent lets you start, stop, or repeat a timer based on a given event and action. Example: A Motion Sensor turns on a light when it detects motion; use a timer to turn off the light after 15 minutes. Alternatively, you can set a timer to repeat an action whenever the timer expires, such as a Bathroom fan that restarts each time the Bathroom light turns on. Prerequisites The following devices are added and identified (with a network address) in the project:
l Controller l Any device involved in the triggering event (for example, a Motion Sensor) To set up the Timer agent:
148

Composer HE User Guide 1. Start Composer HE and connect to a Director. 2. Click Agents.
3. (First time only) Click Add to add the Timer agent to the project. 4. Select Timer, and then click New. 5. Type the name of the new timer (for example, Bathroom Fan), and click
Create. 6. In Interval, use the drop-down menu to set the timer in seconds, minutes,
or hours (hh:mm:ss), and click OK. 7. Click Start to start the timer. 8. Click Programming. 9. Select the Timer Action in the Actions pane, and ensure the new timer
options display in the Commands tab (Start, Stop, Reset, and Change). 10. Start, Stop, Restart, Reset, Resume, or Change the timer as needed.
The following table outlines how the timer behaves depending on the state of the timer when a command is executed.
149

Composer HE User Guide

Command executed is... Start Stop
Restart
Reset
Pause Resume

Timer is... Running Stopped Paused Running Stopped Paused Running Stopped Paused Running Stopped

Then event(s) triggered Reset Start Start Stop none Stop Stop, Reset, Start Reset, Start Stop, Reset, Start Reset Reset, Start

Paused

Reset

Running Not running Paused Running Stopped

Puase none none none none

Effect on Timer
Restarts timer Starts timer Restarts timer Stops timer none Stops timer
Restarts timer
Restarts timer
Restarts timer
Restarts timer Restarts timer Reset timer value Pauses timer none none none none

150

Composer HE User Guide

Paused

Resume

Resumes timer

11. Program to connect the timer to an event and action, and choose to Start, Restart, or Stop the timer.
See the example programming screens that follow. Notice how the timer is first used as an action, and then as an event. Event screen:

Action screen: 151

Composer HE User Guide
Using the UI Configuration agent
Use the UI Configuration agent to manage wallpaper settings and upload wallpapers, to manage screen saver settings for T3 touch screens and EA On-Screen Navigators, to configure the return to home setting for T3 touch screens and EA On-Screen Navigators, and to add favorites for all navigators in the project. To configure wallpaper with the UI Configuration agent:
1. In the Agents view, select the UI Configuration agent, then click on the Wallpaper tab.
2. To configure the wallpaper in a single room, select the desired room in the
152

Location pane.

Composer HE User Guide

3. Select from the default images listed, or click Add Dealer Image to add a custom image. Wallpaper images should be JPG files in a 16:9 format with a resolution of 1920 pixels wide by 1080 pixels high for best results. Images with different resolutions may be scaled or trimmed to fit and may produce undesirable results. Up to 10 dealer images can be added and configured to any rom.
4. Click Apply to set the wallpaper to the room or click Apply To ... to select the rooms to be configured with the wallpaper.
The homeowner can also add a custom image (up to one for each room) using the Control4 app. For information on how to add images with the Control4 app, see the Control4 System User Guide (ctrl4.co/userguide). After a custom wallpaper image has been configured, you can use the UI Configuration agent to configure rooms to use the image.
1. To configure the custom wallpaper in a single room, select the desired room in the Location pane. Select the image from the images listed and click Apply to set the wallpaper to the room or click Apply To ... to select the rooms to be configured with the wallpaper.
2. To clear the custom wallpaper image, select the custom image and click Clear Customer Image.
You can also choose to include or not include the Control4 logo on any wallpaper images. Click the box next to Include Control4 Logo to include
153

Composer HE User Guide the Control4 logo, and then continue the process of configuring a wallpaper image. To configure screen saver settings with the UI Configuration agent: 1. In the Agents view, select the UI Configuration agent, then click on the Screen Saver tab.
2. Choose the screen saver mode. Available options include: l None l Blank l Date and Time l Current Media l Photos l Custom
3. Depending on your chosen screen saver mode, configure any additional options that appear.
4. Configure the Begin After option. The value selected is the period of time the touch screen will wait after detecting inactivity until it turns on the screen saver.
154

Composer HE User Guide 5. Check the box next to Brightness Control to add a brightness control icon
to the screen saver. 6. Check the box next to Animate Text to apply a small movement to the text
to avoid screen burn-in. 7. Click Apply To ... to select the navigators to be configured with the screen
saver settings. To configure return to home settings with the UI Configuration agent:
1. In the Agents view, select the UI Configuration agent, then click on the Screen Saver tab.
2. Configure when the Navigator will return to the home screen by choosing the time in the Return to Home After: menu.
To configure favorites with the UI Configuration agent: 1. In the Agents view, select the UI Configuration agent, then click on the Favorites tab.
155

Composer HE User Guide
2. To add favorites to all Room Screen, click the box next to the favorites you want to add in the Add Favorites pane.
3. Click Add, and then click OK to add the selected favorites to all applicable Room Screens. To clear all configured favorites and reset to the default favorites, click Clear Favorites.
Using the Variables agent
Use the Agents view to set up the Variables agent. Ensure that the devices you want to use for variables are added and identified to the system. These sections provide information about how to create the type of variable that you want to use in programming.
l " Example: Using room variables" l " Example: Using a custom number variable in an agent " l " Example: Using a custom string variable in an agent " l " Example: Using custom Boolean variables in an agent "
Using the Wake/Sleep agent
Use the Agents view to program this agent. The Wake/Sleep agent lets you set wake times, sleep timers, lighting, music, and so on. Note: Wake times set in Composer HE synchronize with the user interfaces. Likewise, wake times changed on the interfaces will synchronize with Composer.
156

Composer HE User Guide Example: At a user-specified time, start playing music in the Master, open the blinds, and ramp the light on over two minutes. Prerequisites The following devices are added and identified (with a network address) in the project:
l Controller l Digital Audio (ensure that you can play music in the project) l Bedroom Dimmer l Blinds To configure the Wake/Sleep agent:
1. Start Composer HE and connect to a Director. 2. Click Monitoring. 3. Make sure the rooms and devices show in the List view. 4. Click Agents. 5. (First time only) Click Add... to add the agent to the project. 6. Select Wake/Sleep, and then click OK. 7. In the Agents pane, select Wake/Sleep. The Wake/Sleep interface panes
appear.
157

Composer HE User Guide 8. In the Wake/Sleep Rooms pane, click Add....
9. Select the room to enable the Wake/Sleep scene in and click OK. 10. Configure the Wake/Sleep scene for the room:
158

Composer HE User Guide
l Time--Select the default Wake time by selecting the time in the Wake Time field. Select the default Sleep timer length by selecting it in the Sleep Timer field. These times can be adjusted by the user in the Wake and Sleep sections on a T3 touch screen or the Control4 app.
l Lights--Select if Lights are visible in the Wake and Sleep sections on a T3 touch screen or the Control4 app by selecting Visible. Select which lights to control with the Wake and Sleep scenes by clicking on Light Selection or click All. Configure how fast lights turn on with the Wake scene by entering the desired rate into the Ramp Rate field. Enable lights in the current Wake and Sleep scenes for the room by selecting Enabled.
l Media--Select if Media is visible in the Wake and Sleep sections on a T3 touch screen or the Control4 app by selecting Visible. Select the default Media Source by clicking on Source (example: Pandora) and select the Station or select Use TV as the only media source and click on Channel to select a TV channel. Enable media in the current Wake and Sleep scenes for the room by selecting Enabled.
l Curtains--Select if curtains are visible in the Wake and Sleep sections on a T3 touch screen or the Control4 app by selecting Visible. Select which curtains to control with the Wake and Sleep scenes by clicking on Curtain Selection or click All. Enable curtains in the current Wake and Sleep scenes for the room by selecting Enabled.
l Active Days--Select the default days for the Wake scene to be active.
11. Click Save Changes to sync the changes to the Wake and Sleep scenes for the room:
Note: Users can schedule the wake times for the Wake scenes, enable or disable items from the Wake scenes, and choose from the lights or curtains in the Wake scene from their T3 touch screens or Control4 app. See the product documentation or the Control4 System User Guide for more information about how to schedule the wake time. Note: Users can select the behavior of the Sleep scene (for example: decide whether to turn off media, turn off lights, and close blinds) in the Options menu in the Sleep scene from their T3 touch screens or Control4 app..
159

Composer HE User Guide
Programming
Use the Composer HE Programming view to program the Control4 system. This section assumes that you have a general understanding about how to use Composer HE to add and identify devices, and that you are now familiar with the Composer HE interface. If not, read "Basics" sections or refer to Composer HE Getting Started. Use this chapter to learn:
l Programming basics l Programming with commands l Programming with conditionals l Programming using rooms l Programming using variables l Programming with agents l And more
160

Composer HE User Guide
Programming basics
Use the Programming view to program events and other actions that affect Control4 system devices. Tip: A useful tool for helping you keep track of your programming scripts is called Programming Detective which is part of the Detective Suite, in Tools > Detective Suite. See the Composer HE Getting Started guide for details. To get to the Programming view:
1. Start Composer HE and connect to a Director. 2. Click Programming. In the Programming view, you can perform basic
programming tasks.
Event-driven programming
Programming is based on events. When an event is triggered, other actions can take place. Example: If you program to lower the projector screen in the Theater by pressing a keypad button. You can program the receiver, DVD player, and projector to power up and start playing a DVD also. Programming the system is where the true value of Composer HE becomes a reality. To program the system using Composer HE, you drag and drop Events and Actions that you create for corresponding devices to a programming Script pane. The sections below show these panes. Events (Programming pane) Select an event (left side of the window):
161

Composer HE User Guide
Actions (Actions pane) Select the action(s) (right side of the window):
162

Composer HE User Guide
Script (Script pane) 163

Composer HE User Guide After you select the Event, Drag the Actions commands to the Script pane (middle pane): The next table describes events, actions, and the script.
164

Composer HE User Guide

Programming Item Events
Actions

Description
All programming begins with events. An event is a "when" statement. An event is the trigger report that something happened that results in an automation. Events happen instantaneously. On a keypad, pushing a button is one event. Actions all occur under Events. Examples of events include:
l When the door opens l When it is 7:00 AM l When it is sunrise
After the event identifies to the system that something occurred, it sends actions. The following are the methods that are used by the system to define actions:
l Commands. The Commands tab displays all available commands for a selected item in the Action Device Tree. A command is a "do" statement. Commands are actions the Director tells the device to do. Examples of commands include:
Light: on, off Blu-ray player: play, stop, pause Security device: arm, disarm TV device: Power on/off, change channel
l Conditionals. The Conditionals tab displays all available conditionals for a selected item in the Action Device tree. A conditional is an "if" statement. An "if" statement asks a true/false question to the device. Examples of conditionals include:
If door is open If after 5 PM If light is greater than 50 percent

165

Composer HE User Guide

l Loops. The Loops tab displays all available loops for a selected item in the Action Device tree. A loop is another type of conditional. A conditional loop is a "while" statement. It is something that is ongoing. Examples of conditional loops:
While the sprinklers are on
While the motion detector detects movement
While a doorbell switch is being pressed
Warning: Using loops (WHILE statements) can potentially overwhelm the controller's CPU. Use loops sparingly.
l Delays. A delay stalls a program from running to ensure actions that occur at the right time.

Script

The linking of events and actions is defined in the script.

Tip: To configure or program devices, you can use properties, agents and variables also. These are considered advanced configuration and programming tasks. See " Using and Programming with Agents " or " Examples: programming with variables."
Programming elements
Basic programming consists of two parts:
1. Identify a device's events to trigger actions.
2. Define a device's actions to trigger when an event fires.
The following steps introduce the basic programming flow and script creation:
1. Select the device--Bathroom Fan--in the Device Events pane and select the event--When the Bathroom Fan is turned on. Notice that it appears

166

Composer HE User Guide in the Script pane.
2. Define the device's actions--Under Timer, select the Bathroom Fan timer and select the Start Timer action--in the Actions pane.
3. Drag the actions to the script (Script pane). 4. To test the programming command, in the Script pane, click Execute.
Note: Programming can make use of agents also, where you can include preprogrammed system functionality, such as scheduling, delays, or setting up Lighting Scenes. Example: To program around sunrise and sunset, use the Scheduler agent. See " Using and Programming with Agents " for more information about using agents in programming. See the next section or Composer HE Getting Started for example programs you can create.
167

Composer HE User Guide
Programming with commands
A Command for a Control4 system is a "do" statement. Commands are actions that tell a device what to do. Example: The example in this section shows you how to program a keypad button to turn on the sprinkler system. This example assumes the keypad and sprinkler system are already set up. To program a keypad button to toggle sprinklers on and off:
1. Start Composer HE and connect to a Director. 2. Click Programming. 3. In the Device Events pane project tree, select the keypad. 4. In the keypad Events pane, select the button that you want to program--
Zone 1. This automatically identifies the Press event for programming the button on the keypad. The event appears at the top of the Script pane.
5. In the Actions pane, select the device--Sprinkler Zone 1. 6. In the device's Actions tab, select Toggle the Sprinkler Zone 1. The
command you chose is displayed in the Sprinkler System Actions pane with a green arrow. Note: The title of this pane varies depending on the device you select.
168

Composer HE User Guide 7. Click the green arrow, and drag it to the Script pane (center pane).
8. To test, click Execute in the Script pane to turn on the sprinklers. 9. Click Execute again to turn off the sprinklers.
Results: The top button of the keypad now toggles the sprinklers on and off.
169

Composer HE User Guide
Programming with conditionals
A conditional is an 'If' statement in Composer HE that asks a true or false question to the device.
l A 'Break' command used in an 'If' statement should jump to the first statement after the 'If'. See "Programming with Delay, Stop and Break Commands" for details. Note: A 'Break' command in an 'If' statement won't behave as a 'Stop' command, but will move to the next level in the script.
l A break not in a 'While' or 'If' statement should behave like a 'Stop' command (jumps to the first statement after the function).
Example: The example in this section shows how to use conditionals in programming. If a light is off when the doorbell is pressed, the light is programmed to turn on. Conditionals also use When statements (events). When the doorbell is pressed, if the light is off, program the light to turn on. To program a conditional that turns on the light when the doorbell is pressed and the light is off:
1. Make sure that the doorbell and light switch are configured in the project. 2. Click Programming. 3. In the Device Events pane project tree, select the Doorbell. 4. Select the When the Doorbell is pressed event. The event appears at the
top of the Script pane.
5. In the Device Actions pane, select the Front Door Light. Notice that the light switch actions that can be programmed for this device appear in the Light Switch Actions pane below the Device Actions project tree.
170

Composer HE User Guide 6. Click the Conditionals tab, and select Is Off. Composer HE displays the
conditional you chose in the Front Door Light Actions pane: ? If <room>>Front Door Light is off. 7. Drag the blue question mark icon to the Script pane.
8. Click the Commands tab, and select On. 9. Drag the green arrow to the blue question mark in the Script pane to
make it a child under the "If" statement (nest the command under the "If" statement). Tip: If you drag the action to the text, or you drag the action under the text to the open space, it places the action as an equal above the conditional. If you drag the action to the question mark, it becomes a subset of the conditional. Notice the direction of the arrow to place the action as a peer or a subset under the statement.
171

Composer HE User Guide
10. Click Execute. With the Front Door Light off, press the doorbell; the light should come on.
Programming with Delay, Stop, Break, Or, And, and Else commands
When programming in Composer, you have the following Programming Controls available to create advanced programming:
l Delay--Lets you delay an action from taking place. l Stop--Lets you stop the programming script. l Break--Lets you break out of a `While' or loop or 'If' statement when a specified
condition is met and returns to the programming outside of the loop. l Or--Lets you group conditionals together with an 'or' logical grouping. If any of
the conditionals is true, the programming continues. l And--Lets you group conditionals together with an 'and' logical grouping. If all
of the conditionals are true, the programming continues. l Else--Lets you program an alternate set of programming for a conditional. If
the conditional succeeds, the programming continues under the 'if' statement. If the conditional fails, the programming continues under the 'else' statement.
Delay command
To use the Delay command during programming, see this example using a Motorized Screen and a Blu-ray player:
1. Start Composer HE and connect to a Director. 2. Click Programming. 3. Select the Motorized Screen in the project tree. 4. Select the event When the Motorized Screen is put down. Notice the
172

Composer HE User Guide string that appears in the Script pane.
5. To use the Delay command, in the Programming Controls section in the top of the Script pane, enter 5 next to Delay.
6. Drag the green arrow Delay command to the Script pane.
9. In the Device Actions pane, find and select the blu-ray player. 10. Click the Commands tab, and click Power > On. 11. Drag the green arrow `Turn on the <room's> <blu-ray player>' to the Script
173

pane.

Composer HE User Guide

Stop command
This example uses a Stop command to not close the garage door if the garage light is on. If the light is off, the garage door closes. To use the Stop command during programming, see this example using a keypad, a garage door, and a dimmer:
1. In the keypad Events pane, select the Garage Door button and select the Pressed event for the Garage keypad button. `When <room> -> <keypad name> Garage button is pushed' appears at the top of the Script pane.
2. In the Garage Light Actions pane, click the Conditionals tab, and then click Is On.
174

Composer HE User Guide 3. Click the blue question mark next to `If the <room>->Garage Light is on,'
and drag it to the Script pane. 4. In Programming Controls, and click the Stop command and drag it into
the Script pane. 5. Drag the green arrow `Stop' over the blue question mark in the Script
pane to nest it below "If <room>->Garage Light is on".
6. In the Device Actions pane, select the Garage Door. 7. Click the Commands tab, and select Close the <room>->Garage Door. 8. Drag the green arrow `Close the <room>->Garage Door' below the Stop
command.
Break command
Here are some rules about using the Break command (see example script below). 175

Composer HE User Guide
l A break in a 'While' loop jumps to the first statement after the While statement.
l A break in an 'If' statement (nested in a 'While' statement) jumps to the first statement after the 'If.'
l A break not in a 'While' or an 'If' statement should behave like a Stop command (jumps to the first statement after the function).
Note the 'Break' command in the statement below. If the 'While' statement above the 'Break' command (in an 'If' statement) is met (True), then the program continues to the next 'While' statement. Otherwise it skips to the next command (green arrow) statements at the bottom of the script.
See " Programming with a While statement" or " Programming with conditionals" for details.
Else command
You can use an Else command to create alternate programming to an If conditional. This example will program a button to open the blinds if it's day time and close the blinds if it's night time. To program the blinds with an Else command:
1. Start Composer HE and connect to a Director. 2. Click Programming. 3. In the Device Events pane project tree, select the keypad. 4. In the keypad Events pane, select the button that you want to program--
Blinds This automatically identifies the Press event for programming the
176

Composer HE User Guide button on the keypad. The event appears at the top of the Script pane.
5. In Device Actions, select Scheduler and click on Conditionals. 6. Click Time and click Day time. 7. Drag the blue question 'If time is day time' conditional to the Script pane. 8. Select the Master Blinds in Device Actions, click on Open, and drag the
'Set the blind target level on <room>->Master Blinds to Open' command to nest it below the conditional.
9. In Programming Controls, click on Else and drag the Else icon on top of the conditional in the Script pane. The mouse icon changes to indicate you can place the Else command below the If command (and link them logically).
10. Select the Master Blinds in Device Actions, click on Close, and drag the 'Set the blind target level on <room>->Master Blinds to Close' command to nest it below the Else conditional. 177

Composer HE User Guide
See " Programming with a While statement" or " Programming with conditionals" for details.
And command
You can use an And command to create additional conditionals to an If conditional. Both the If conditional and the other conditional(s) must be true or programming won't continue. Example: The example in this section shows how to use conditionals and an And command in programming. If a light is off when the doorbell is pressed and it's night time, the light is programmed to turn on. To program a conditional with an And command:
1. Follow the example in " Programming with conditionals". These next steps start after that example.
<continued from the steps in "Programming with conditionals"> 11. To add an And command, in Programming Controls, click And and drag it on top of the conditional in the Script window. The Expression Builder opens to help you build your complex conditional statement.
12. In the Device Actions pane project tree, select the Scheduler. 13. Click Time and Night time.
178

Composer HE User Guide 14. Drag the conditional 'If time is night time' to the Script pane below the
AND symbol.
15. Click Finish to close the Expression Builder. The complex condition now reads 'If <room>->Front Door Light is off AND If time is night time'.
When the doorbell is pressed, the Front Door Light will turn on if the light is off AND if it is night time.
Or command
You can use an Or command to allow multiple conditionals to activate programming. If any conditional grouped with an Or command is true, the programming continues. Example: The example in this section shows how to use conditionals and an Or command in programming. If a light is off when the doorbell is pressed and it's night time, the light is programmed to turn on.
179

Composer HE User Guide To program a conditional with an Or command:
1. Follow the example in " Programming with conditionals". These next steps start after that example.
<continued from the steps in "Programming with conditionals"> 11. To add an And command, in Programming Controls, click Or and drag it on top of the conditional in the Script window. The Expression Builder opens to help you build your complex conditional statement.
12. In the Device Actions pane project tree, select the Scheduler. 13. Click Time and Night time. 14. Drag the conditional 'If time is night time' to the Script pane below the
OR symbol.
15. Click Finish to close the Expression Builder. The complex condition now reads 'If <room>->Front Door Light is off OR If time is night time'.
180

Composer HE User Guide
When the doorbell is pressed, the Front Door Light will turn on if the light is off OR if it is night time.
Programming with a While statement
A `While' statement runs continuously in a loop until the evaluation is shown to be False (Boolean value). `While' statements can be repeating `if' statements also. Caution: When programming with WHILE statements, the script must incorporate delays, or the script will run so fast that it will consume all available CPU resources and decrease system performance. This example shows how to program a system to keep the air conditioning off while a window is open. To program a While statement, follow this example:
1. Make sure the thermostat and window contact sensor are configured in Composer.
2. Click Programming. 3. In the project tree, select Kitchen Window Contact Sensor to trigger an
event. 4. Select the When the Kitchen Window opens event. The event appears at
181

Composer HE User Guide the top of the Script pane.
5. In the Device Actions pane, select Kitchen Window Contact Sensor and click on Loops.
6. Select the the Kitchen Window is open loop. 7. Click the loop icon next to 'While the <room>->Kitchen Window is open'
and drag it into the Script pane. 8. In Programming Controls, enter 5 seconds next to Delay and drag the
Delay green arrow below the while loop in the Script pane to nest the delay below the while statement. 9. In Device Actions, select the thermostat and click on Commands. 10. Select Off in the Set HVAC Mode to selection. 11. Click on the green arrow next to 'Set the system mode on <room>>Control4 Thermostat to Off' and drag the green arrow below the while
182

Composer HE User Guide statement to nest it below the delay.
183

Composer HE User Guide
Programming using digital audio and rooms
You can program a Control4 system using the Digital Audio and Room objects in Composer HE. You can use digital audio events when a session starts or stops. A session is when a song or playlist begins and ends. A list of songs can be compiled into a playlist. You can compile the list by songwriter, album, song type, or any combination. Room events include turning the room off and on, when media sessions begin and end, etc.
Program a button to play media or a playlist
Use the Control4 Composer HE Programming view to program a button on a keypad to play an album or playlist. Example: The example in this section uses a 6-Button Keypad for the Theater room. When you press Button 1, music or a movie plays in the Theater room. Prerequisites
l Ensure that a 2, 3, or 6-Button Keypad is installed as directed in the Control4 2, 3, or 6 Button Keypad Installation Guide.
l Ensure that your project has an audio end point, such as Speaker Point, added and identified on the network.
To program a button on a 6-Button Keypad to play music: 1. Start Composer HE and connect to a Director. 2. Click Programming. 3. In Programming in the Device Events pane, select the 6-Button Keypad. 4. In the 6-Button Keypad Events pane, press Button 1, and select the Press radio button. 5. In the Device Actions pane, select the Theater room. 6. Click the Commands tab, and press the Select Media radio button. 7. In the new window, select the media type to play, such as Playlist. 8. Select the movie, playlist, etc. 9. Click OK.
10. In the Actions pane, drag the green arrow to the Script pane.
184

Composer HE User Guide
11. Click Execute in the Script pane.
Program a button to turn up the volume
Use the Programming view to let you use a keypad button to turn up the volume in a room. Example: The example in this section uses a 6-Button Keypad for the Theater room. When you press Button 2 the volume increases in the Theater room. Prerequisites
l Ensure that a 2, 3, or 6-Button Keypad is installed as directed in the Control4 2, 3, or 6 Button Keypad Installation Guide.
l Ensure that your project has an audio end point, such as a Speaker Point, added and identified on the network.
To program a button to turn up the volume: 1. Start Composer HE and connect to a Director. 2. Click Programming. 3. In Programming on the Device Events pane, select the 6-Button Keypad. 4. In the 6-Button Keypad Events pane, press Button 2, and then select the Press radio button. 5. In the Device Actions pane, select the Receiver. 6. Click the Commands tab. In Sound, select Volume > Start > Up. 7. Drag the green arrow in the Receiver Actions pane to the Script pane. 8. Click Execute.
185

Composer HE User Guide
Program a button to add a room to another room's music session
Use the Programming view to use a keypad button to play music in additional rooms. Example: The example in this section uses a 6-Button Keypad for the Theater room. When you press Button 3, music starts playing in the Bedroom as well as the Theater room. Prerequisites
l Ensure that a 2, 3, or 6-Button Keypad is installed as directed in the Control4 2, 3, or 6 Button Keypad Installation Guide.
l Ensure that your project has an audio end point, such as Speaker Point, added and identified on the network.
To program a button to add another room's music session:
1. Start Composer HE and connect to a Director.
2. Click Programming. 3. In Programming on the Device Events pane, select the 6-Button Keypad. 4. In the 6-Button Keypad Events pane, press Button 3, and then select the
Press radio button. 5. In the Device Actions pane, select Digital Media. 6. Click the Commands tab. 7. Use the pull-down menu to select the Theater room as the Selected Room.
Select the Add Rooms radio button. 8. Check the box next to Bedroom to indicate that this is the room that is
going to join the music session. 9. Drag the green arrow in the Digital Audio Actions pane to the Script pane. 10. Click Execute.
Set the default for a room's music volume
Use the Monitoring view to set the default music or media volume for a room. Example: The example in this section uses the Theater room. When you set the default, the volume stays at a certain level for the Theater room until you change it. You can change the volume for every room that uses music or media. Prerequisites
l Ensure that the controller is added and identified on the network.. l Ensure that your project has an audio end point, such as Speaker Point, added
and identified on the network.
To set the default volume for a room:
186

Composer HE User Guide 1. Start Composer HE and connect to a Director. 2. Click Monitoring. 3. In the project tree, click a room. 4. In the Properties pane, click the Miscellaneous tab. 5. In the Miscellaneous tab, check the Enable Default Volume box. Adjust
the Audio Volume and Video Volume as desired for the room. The default volumes are enabled immediately. Repeat these steps for each room in the Control4 system.
187

Composer HE User Guide
Examples: programming with variables
Use the Programming view to program the Control4 system using configuration, properties, variables, delays and agents. Variables provide other programming options not available using commands, conditionals or loops. There are three types of variables you can use:
l Room Variables--Provide you with additional programming options not available in the Room object programming. Use Room object programming as a preference to room variables whenever possible. See " Example: Using room variables."
l Custom Variables--Let you define additional programming options using:
l Boolean--Provides a True/False option. For example, the light is on or off. If the light is on, it is True; if the light is off, it is False.
l Device--Provides a list of device options.
l Number--Provides a value option. For example, the light level is 70 percent.
l String--Provides the option to enter a string.
To program using a custom variable, in the Agent view select Variable and click New to set up a new variable. Example: Use one keypad button to toggle between turning on the Theater Dimmer and the Theater Switch.
l Container Variables--Provides the ability to connect two or more devices together by using the device variables. A variable is a representation of information about the controlled devices, for example, a power state or current level of the device. It works much like a Media Scenes agent (see " Using and Programming with Agents " for details). Container variables are available in the Agent view by selecting Variables.
Note: Container variables are provided only for backward capability in Release 1.3 and later. Issues with various implementations have been found. The use of Container variables for future implementations is not recommended. Where possible, replace existing implementations with alternate programming. The sections below provide examples you can follow when you use variables.
Example: Using room variables
Control4 room variables provide greater flexibility in programming, letting you program using events and actions at the room level. Note: Most of the functions in Room Variables are available by selecting the Room object which is the recommended method for programming the room. Whenever possible, use the Room object rather than Room Variables. To use room variables:
188

Composer HE User Guide 1. Start Composer HE and connect to a Director. 2. Click Programming. In this view listed under every room in the project tree
is a Room Variables object. 3. Click to expand the Room Variables options. Room variables are available
as events and actions.
The room variables are described in the following table:
189

Composer HE User Guide

Events/Actions

Description

CURRENT_SELECTED_ DEVICE

Lets you do programming when any device changes in the room.

CURRENT_MEDIA

Lets you do programming when any media changes in the room.

POWER_STATE

Lets you do programming when any device's power state changes from True to False in the room (read only). A device in the room is required to detect the power state.

CURRENT_VOLUME

Lets you do programming when the volume of the currently selected audio path changes in the room (requires discrete volume). Use conditional programming.

HAS DISCRETE_VOLUME

Lets you do programming when any devices changes in the room (requires discrete volume). Use command programming.

HAS_DISCRETE_MUTE

Lets you do programming when Mute state is known (MUTE_ON or MUTE_OFF).

IS_MUTED

Lets you do programming when in Mute state (MUTE_ON).

IN_NAVIGATION

Lets you do programming when Onscreen is available.

USE_DEFAULT_VOLUMES

Lets you do programming any time a selection changes to reset the default volume. For example, when changing from viewing a DVD to listening to music, the volume is reset to the default discrete set volume.

190

Composer HE User Guide

Events/Actions

Description

DEFAULT_AUDIO_VOLUME

Lets you program the default Audio volume.

DEFAULT_VIDEO_VOLUME Lets you program the default Video Audio volume.

VOLUME_IS_LINKED

Lets you set programming not to affect already linked volume.

MUTE_IS_LINKED

Lets you set programming not to affect already linked mute state.

ROOMOFF_IS_LINKED

Lets you set programming not to affect already linked room off state.

SELECTIONS_LINKED

Lets you set programming not to affect already linked selections.

ROOM_HIDDEN

Lets you set programming to hide rooms from appearing on the navigation device.

MEDIA_SCENE_ACTIVE

Lets you set programming to set a media scene as active.

Variable handling
In programming, variables are easier to define than conditional loops.
Variable handling enhancements:
l Preserve user-defined variables--Preserves the user-defined variable values (for example, the current dimmer light level) across a normal system restart. It may not preserve them if the system shuts down abnormally.
l Program a system startup event --Initializes variables or performs other programming at system startup with a system startup event (in Programming, select the root of the project, and then select the event When the project is loaded).
l Define one variable to equal another--Defines one variable to equal another variable. This can be used to save and restore variable values.
Example: The level of a light or the volume of music in a room.

191

Composer HE User Guide
After this value is saved to the variable, you can restore the system variable to the value stored in the user variable. The system can then compare the two variables and determine if it needs to reset one of them.
l Create the event "When a System reboots"--Sends an email notification to the Control4 dealer that a customer's system rebooted, helping the dealer monitor the system's performance.
Example: Using custom Boolean variables in an agent
Use the Programming view to create custom variables in an agent using a Boolean value. In this example, when someone is at the door:
l Program to activate the Media Scene 'Someone is at the door,' and turn on the porch light.
l Program to play a song in the Bedroom and the Theater. l When the Motion Sensor stops sensing motion at the door, program to turn
the music and porch light off.
Prerequisites The following devices are added and identified in the project:
l Controller l Porch Light Switch l Bedroom music l Theater music l Motion Sensor
To program using a custom Boolean variable in an agent: 1. Start Composer HE and connect to a Director.
2. Click Monitoring. 3. Make sure the connections are correct.
Note: Ensure that the contact sensor shows in the list view. 4. Ensure that the controller and Porch Light have a network address.
Create a new variable 5. Click Agents. 6. Select Variable. The Variables view appears. 7. Click New. 8. On the dialog that appears, do the following:
192

Composer HE User Guide 1. Click New Variable. 2. In the drop-down menu, select Boolean. 3. Name the Variable Power State and click OK. The default value is false.
Create a media scene `Someone is at the door' 9. Select Media Scenes, and click New. 10. Name the Media Scene Someone is at the door. Click OK.
Add the bedroom and theater room 193

Composer HE User Guide 11. Click Add Room, and add the Theater and the Bedroom (see above).
12. Set the volume in the Bedroom to 50, and the volume in the Theater to 75.
13. Click Programming. 14. In the project tree and the Device Events pane, click to expand Variables,
and select Power State. 15. In the project tree and in the Device Actions pane, click to expand Variables,
and select Power State. Add the conditionals and commands
16. Follow the previous programming steps to create a script with Conditionals. 17. Click the Conditionals tab.
194

Composer HE User Guide 18. In the Conditionals tab, click Is False, and drag the blue question mark to
the Script pane.
19. Click the Commands tab. 20. In the Commands tab, click Set to True, and drag the green arrow on top
of the blue question mark in the Script pane to make it the first subset item of the first conditional. 21. In the Device Actions pane, select Light Switch. 22. Click the Commands tab. 23. In the Commands tab, click On, and drag the green arrow on top of the blue question mark in the Script pane to make it the second subset item of the first conditional.
195

Composer HE User Guide
24. In the project tree and in the Device Actions pane, select Media Scenes. 25. Click the Commands tab. 26. Click Activate in the Commands tab, and drag the green arrow on top of
the blue question mark in the Script pane to make it third subset item of the first conditional. 27. In the project tree and in the Device Actions pane under Variables, select Power State. 28. Click the Conditionals tab. 29. In the Conditionals tab, click Is True, and drag the blue question mark to the Script pane. 30. Click the Commands tab. 31. In the Commands tab, click Set to False, and drag the green arrow on top of the blue question mark in the Script pane to make it the first subset item of the second conditional. 32. In the project tree and in the Device Actions pane, select Light Switch. 33. Click the Commands tab. 34. In the Commands tab, click Off, and drag the green arrow on top of the blue question mark in the Script pane to make it the second subset item of the second conditional. 35. In the project tree and in the Device Actions pane, select Media Scenes. 36. In the Commands tab, click Deactivate, and drag the green arrow on top of the blue question mark in the Script pane to make it the third subset item of the second conditional.
196

Composer HE User Guide
37. In the project tree and in the Device Events pane, select Media Scenes and select the event Someone is at the Door.
38. In the project tree and in the Device Actions pane, select the Bedroom object. (Repeat the next four steps for the Theater.)
39. Click the Commands tab. 40. In the Commands tab, click Select Media.
41. In the dialogue that appears, select the album and song that you want to play when Someone is at the Door executes. In this example, Rhapsody's `50s Hits' is used. Click OK. 197

Composer HE User Guide
42. Drag the green arrow to the Script pane. 43. Repeat steps 37-41 for the Theater. 44. In the project tree and in the Device Events pane, select Motion Sensor
under Front, and select the event When the Motion Sensor senses motion.
Add the Boolean Values
45. In the project tree and in the Device Actions pane, click to expand Variables, and select Power State.
46. In the Conditionals tab, click Is False, and drag the blue question mark to the Script pane (this is the third conditional).
47. In the Commands tab, click Set to True, and drag the green arrow on top of the blue question mark to make it the first subset of the third conditional.
48. In the project tree and in the Device Events pane, select the event When the Motion Sensor stops sensing motion.
49. In the project tree and in the Device Actions pane, click to expand Variables, and select Power State.
50. In the Conditionals tab, click Is True, and drag the blue question mark to the Script pane.
51. In the Commands tab, click Set to False, and drag the green arrow on top of the blue question mark to make it the second subset of the third conditional.
52. Click Execute.
Results: The porch light turns on and plays a song in the bedroom and theater whenever the motion sensor senses motion at the front door.
Example: Using a custom number variable in an agent
Use the Programming view to create custom variables in an agent using a numeric value. In this example, program one keypad button to toggle between turning on the Theater Dimmer and the Theater Switch. Prerequisites The following devices are added and identified in the project:
l Controller l Dimmer (Theater) l Light Switch (Theater) l 6-Button Keypad
To program using a custom variable agent number:
198

Composer HE User Guide 1. Start Composer HE and connect to a Director. 2. Click Monitoring. Make sure the project has the correct devices and rooms. Add a new variable 3. Click Agents. 4. Select Variables. The Variable Agents view appears. 5. Click New. 6. On the dialog that appears, do the following: 1. Select New Variable. 2. Name the variable Keypad releases. 3. Use the Variable Type pull-down and select Number. 4. Click OK.
7. In the Variables pane, select the variable Keypad_releases. The available variables for your devices appear in the right pane.
8. Enter the value as 0 (zero). Create an event
9. Click Programming. 10. In the project tree and in the Device Events pane, select 6 Button Keypad. 11. Click Button 1 on the 6 Button Keypad. 12. Select Press for the event. The event appears at the top of the Script pane.
199

Composer HE User Guide
Create the actions 13. In the Actions pane, scroll down to view the agents. 14. Click to expand Variables. 15. Select Keypad_releases. 16. In the Commands tab, select the following to add 1 to the present value:
1. Select the radio button by the plus (+) sign. 2. Ensure the plus sign is selected.
3. Select 1 (one). The action appears in the Actions pane.
17. Drag the green arrow icon to the Script pane. Create the conditionals
18. Click the Conditionals tab. 1. Select the Is radio button option. 2. Select the equals (=) sign. 3. Select 1 (one).
19. Drag the blue question mark below the previous command in the Script pane. This places the conditional Action parallel to the previous Action command.
20. In the Actions pane, select Theater Dimmer. 21. In the Command tab, select On. The action command appears in the
Actions pane. 22. Drag the green arrow to the blue question mark in the Script pane to
make it a subset of this conditional item. 23. In the Actions pane, scroll down to Variables and select Keypad_presses. 24. Click the Conditional tab.
1. Select the Is radio button option. 2. Select equals (=) sign. 3. Select 2 (two). 25. Drag the blue question mark to the blank space under the previous Action
command. This places the conditional Action parallel to the previous Action conditional.
200

Composer HE User Guide
26. In the Actions pane, select Light Switch. 27. In the Command tab, select On. The action command appears in the
Actions pane. 28. Drag the green arrow to the blue question mark in the Script pane to
make it a subset of the conditional item.
29. In the Actions pane, scroll down to the agents. 30. In the Variable agent, select the Keypad_presses variable. 31. In the Commands tab, select the following:
1. Select the Set to Value radio button. 2. Set the value to 0 (zero). The Action command appears in the Actions pane. 33. Drag the green arrow icon to the blue question mark icon in the Script
pane to make it a second subset of the conditional. 34. Click Execute. Results: Press Button 1 on the 6-Button Keypad to toggle between turning on the Theater dimmer and the light switch.
Example: Using a custom string variable in an agent
Use the Programming view to create custom variables in an agent using a numeric value. The steps in this section are for more advanced users of Composer HE. In this example, program Button 4 on a Keypad to toggle through four playlists. Note: This procedure is relatively complicated to create. Review the steps first to understand how the conditionals work. Prerequisites
201

Composer HE User Guide The following items are added and identified in the project:
l Controller l 6-Button Keypad l 4 Playlists: Mom's Favorites, Dad's Favorites, Choral Music, and Kid's Music To program using a custom variable agent string:
1. Start Composer HE and connect to a Director. 2. Click Monitoring. Make sure the project has the correct devices and rooms. 3. Make sure the devices are online.
Note: In the Monitoring view, ensure that the controller and the 6-Button Keypad show online. Add a new variable 1. Click Agents. 2. Select Variables. The Variables agent list appears. 3. Click New. 4. On the dialog that appears, do the following: 3. Select New Variable, and name the variable My Playlists. 4. In Variable Type, use the pull-down menu to select String, and click OK.
Set up a `Mom's Favorites' playlist in the theater 1. Click Programming.
202

Composer HE User Guide 2. In Programming select the 6 Button Keypad in the Theater from the Device
Events pane. 3. In 6-Button Keypad Events, click Button 4 on the Keypad. 4. In the Device Actions pane, scroll down and click to expand Variables. 5. Select My Playlists. 6. In the My Playlists Actions pane, click the Conditionals tab, and enter the
name of a playlist; for example, Mom's Favorites. 7. Drag the first blue question mark to the Script pane.
8. In Device Actions, select the Theater room object. 9. In Theater Actions, select Select Media. 10. In the window that pops up, select Playlists, Mom's Favorites, and then click
OK. 11. Drag the green arrow icon on top of the first blue question mark in the
203

Composer HE User Guide Script pane to make it the first subset of the first conditional.
12. In Device Actions, select Variables > My Playlists. 13. In the Commands tab under My Playlists, enter the name of the next playlist
that you'd like to play; for example, Dad's Favorites. 14. Drag the green arrow on top of the first blue question mark to the Script
pane to make it a second subset of the first conditional. The next time the button on the keypad is pressed, the value of the variable will be Dad's Favorites, and will then cue that playlist in the Theater.
204

Composer HE User Guide 15. In Device Actions, scroll up and select the 6 Button Keypad in the Theater. 16. In 6 Button Keypad Actions, click Button 4. 17. Under Color Settings select LED On. 18. Click the square of color to select the color you want Button 4's LED to be
when Mom's Favorites plays. Select the color in the menu that pops up (in this example: green), and click OK.
19. Drag the green arrow on top of the first blue question mark in the Script pane to make it a third subset of the first conditional.
205

Composer HE User Guide 20. In Device Actions, scroll down and select Programming Control. 21. In the Programming Control Actions, select the Stop radio button. 22. Drag the green arrow on top of the first blue question mark in the Script
pane to make it a fourth subset of the first conditional. Note: It is important to add a Stop command here so that when the conditional is fulfilled, the programming will not continue. Because of the way this programming is set up when it's finished, without the stop, the button on the Keypad will always select the last playlist in the script.
Set up a `Dad's Favorites' playlist 1. In Device Actions, select My Playlists again. 2. In the Conditionals tab, next to `Is' enter Dad's Favorites in the text box. 3. Drag the second blue question mark to the Script pane. 4. In Device Actions, select the Theater. 5. In Theater Actions, select Select Media. 6. In the window that pops up, select Playlists, Dad's Favorites, and then click OK. 7. Drag the green arrow on top of the second blue question mark in the Script pane to make it the first subset of the second conditional.
Set up a `Kid's Room' playlist 1. In Device Actions, select My Playlists.
206

Composer HE User Guide
2. In the Commands tab under My Playlist Actions, enter the name of the next playlist that you'd like to play; for example, Kid's Music.
3. Drag the green arrow on top of the second blue question mark in the Script pane to make it a second subset of the second conditional.
4. In Device Actions, select the 6 Button Keypad in the Theater. 5. In 6 Button Keypad Actions, click on Button 4. Click the square of color to
select the color you want Button 4's LED to be when Kid's Music plays. Select the color in the menu that pops up (in this example: purple), and click OK. 6. Drag the green arrow on top of the second blue question mark in the Script pane to make it a third subset of the second conditional. 7. In Device Actions, select Programming Control. 8. In the Programming Control Actions pane, select Stop. 9. Drag the green arrow on top of the second blue question mark to make it a fourth subset of the second conditional. 10. In Device Actions, select My Playlists again. 11. In the Conditionals tab, enter Kid's Music. 12. Drag the blue question mark to the Script pane to make it the third conditional. 13. In Device Actions, select the Theater room object. 14. In Theater Actions, select Select Media. 15. In the window that pops up, select Playlists, Kid's Music, and then click OK. 16. Drag the green arrow on top of the third blue question mark in the Script pane to make it the first subset of the third conditional.
Set up a `Choral Music' playlist
1. In Device Actions, select My Playlists.
2. In the Commands tab under My Playlists, enter the name of the next playlist that you'd like to play; for example, Choral Music.
3. Drag the green arrow on top of the third blue question mark to make it a second subset item of the third conditional.
4. In Device Actions, select the 6 Button Keypad in the Theater. 5. In 6 Button Keypad Actions, click on Button 4. Click the square of color to
select the color you want button 4's LED to be when Kid's Music plays. Select the color in the menu that pops up (in this example: red), and click OK. 6. Drag the green arrow on top of the third blue question mark in the Script pane to make it the third subset of the third conditional. 7. In Device Actions, select Programming Control. 8. In the Programming Control Actions, select the Stop radio button.
207

Composer HE User Guide
9. Drag the green arrow on top of the third blue question mark in the Script pane to make it a fourth subset of the third conditional.
10. In Device Actions, select My Playlists again. 11. In the Conditionals tab, enter Choral Music. 12. Drag the fourth blue question mark to the Script pane. 13. In Device Actions, select the Theater room object. 14. In Theater Actions, select the Select Media radio button. 15. In the window that pops up, select Playlists, Choral Music, and then click OK. 16. Drag the green arrow on top of the fourth blue question mark in the Script
pane to make it the first subset of the fourth conditional. 17. In Device Actions, select My Playlists. 18. In the Commands tab under My Playlists, enter the name of the next playlist
that you'd like to play; for example, Mom's Favorites. 19. Drag the green arrow on top of the fourth blue question mark in the Script
pane to make it a second subset of the fourth conditional. 20. In Device Actions, select the 6 Button Keypad in the Theater. 21. In 6 Button Keypad Actions, click on Button 4. 22. Click the square of color to select the color you want Button 4's LED to be
when Choral Music plays. Select the color in the menu that pops up (in this example: yellow), and click OK. 23. Drag the green arrow on top of the fourth blue question mark to make it a third subset of the fourth conditional. 24. In Device Actions, select Programming Control. 25. In the Programming Control Actions, select the Stop radio button. 26. Drag the green arrow on top of the fourth blue question mark to make it a fourth subset of the fourth conditional. 27. In Device Actions, select the Theater room. 28. In Theater Actions, select Media. 29. In the window that pops up, select Playlists, Mom's Favorites, and then click OK.
Note: You do this is because the first time the button on the Keypad is pushed, the string variable does not have a value, and nothing happens. This last command is created when none of the conditionals are fulfilled, something will play; each time the button is pushed thereafter, a conditional is fulfilled.
30. Drag the green arrow below the previous Stop command in the Script pane. It is not a subset of the previous conditionals, but a command on its own.
31. In Device Actions, select My Playlists.
208

Composer HE User Guide 32. In the Commands tab under My Playlists, enter the name of the next playlist
that you'd like to play; for example, Dad's Favorites. 33. Drag the green arrow below the previous command in the Script pane. 34. In Device Actions, select the 6 Button Keypad in the Theater. 35. In 6 Button Keypad Actions, click on Button 4. Click the square of color to
select the color you want Button 4's LED to be when Mom's Favorites plays. Select the color in the menu that pops up (in this example: green), and click OK. 36. Drag the green arrow below the previous command in the Script pane. You do not need a stop at this point, because the programming automatically stops at the end of the script. Results: Press Button 4 on a 6-Button Keypad repeatedly to toggle through four playlists.
209

Composer HE User Guide
Other programming tasks
Other special programming functions can be accessed by right-clicking on an item in the Script pane.
l Move Up/Down--Lets you move a script item up or down in the script, changing the order that the commands execute..
l Disable/Enable Event--Lets you disable the event and the entire programming script without having to delete the script. If the event is disabled, the text is grayed out and the only menu item is Enable Event.
l Disable/Enable Item--Lets you disable a single item in the script. Other items execute normally. If the item is disabled, the line of text is grayed out and the line's icon has a red x on it.
l Insert Comment--Lets you insert a comment into the script. See also Using Programming Comments.
l Copy All--Lets you copy an entire script. l Copy Selected--Lets you copy selected items in a script. l Paste--Lets you paste copied items into the current script. l Find and Replace--Lets you find and replace elements within the script item
with similar items. See Using Find and Replace. l Delete--Lets you delete the selected script items. You can also delete items by
pressing the Delete key. l Delete All--Lets you delete the entire script. l Change to Customer--Lets you change programming items to be accessible
or locked out from When >> Then programming by the customer. By default, programming entered with Composer cannot be modified by the customer in
210

Composer HE User Guide
When >> Then. Select Change to Customer to allow the customer to modify the programming in When >> Then. l Change to Dealer--If the customer has entered programming in When >> Then and you want to lock out that programming from being modified in When >> Then, select Change to Dealer to lock the programming to Composer only. Note: Selecting Change to Dealer does not lock out programming from Composer HE
Using Programming Comments
The Comments programming feature lets you add comments inline with your programming to document your programming. This is useful when using advanced programming, using variables, and when multiple technicians may need to work on the project. Example: You have a variable that is changed by a button press. You can add a comment in the code to know where the variable is being changed from..
To add a comment in programming: 1. Click Programming and select the event in the Device Events pane. 2. In Programming Controls in the Script pane, enter the comment in the field next to Comment. 3. Click on Comment and drag the comment below into the Script pane. Place it anywhere in the programming script. A comment does not affect the programming.
211

Composer HE User Guide
Using Find and Replace
The Find and Replace programming feature lets you find one device already programmed and replace it with another. Example: You want a button on your Configurable Keypad to turn on all the outside dimmers in your Control4 system. Currently, the button is programmed to turn on all the lights in your garage. Use the Find and Replace programming option to replace the lights with outdoor lights in your programming.
To program using the Find and Replace feature: 1. Start Composer HE and connect to a Director. 2. Click Programming. 3. In the Script pane, right-click and select Find and Replace. A Find and
212

Composer HE User Guide Replace dialog appears.
4. Replace the programming device object with the one you want. Find: Family > Left Dimmer Replace with: Theater > Theater Dimmer
5. Click Replace. The statement in the Script pane changes to the replacement script.
6. Repeat for each line in the Script pane. Find: Family > Middle Dimmer 213

Composer HE User Guide
Replace with: Bedroom > Bedroom Dimmer Find: Family > Right Dimmer Replace with: Front > Front Dimmer When you complete this process, the script reflects that you have changed all the lights in your Control4 system to dimmers.
Using Copy and Paste
The copy and paste programming feature lets you copy the programming you configure from one device and paste it to another device. By creating the same command, loop, or conditional for a device, you can copy it for use in another programming script. Example: You want all of the lights in the Control4 system to turn on by pressing Button 1 on the 6-button keypad. When you press Button 4, you want to turn all the lights on in the system except in the Bedroom. In this example, you can copy the first set of actions into the second set and not include the Master Bedroom.
To program the 6-button keypad: 1. Start Composer HE and connect to a Director. 2. Click Monitoring. 3. Ensure that you have the following devices added and connected to the Control4 system:
l Controller l Bedroom Dimmer l 6-Button Keypad
4. Click Programming. 5. Select 6-Button Keypad in the project tree of the Device Events pane. 6. In 6-Button Keypad Events, push Button 1, and select the Press radio
button. 7. In the Device Actions pane, scroll down and select Dimmer.
214

Composer HE User Guide 8. In the Dimmer Actions pane, click the Commands tab, and click the On
radio button. 9. Drag the Dimmer Action green arrow to the Script pane. 10. Repeat Steps 1 through 9 for all the lights in your system. This includes the
Light Switch and Dimmer in the Theater and the Dimmer in the Bedroom. 11. Move to the Script pane, right-click, then select Copy from the options. This
automatically copies all arrow statements in the pane.
12. Click Button 4 in the 6-Button Keypad Events pane, and then select the Press radio button.
13. Right-click in the Script pane, and select Paste. The programming of the lights shows up in the Script pane for Button 4.
215

Composer HE User Guide
You have completed Copy and Paste Programming. Now you can edit the Button 4 Script as needed. Example: You can remove the Bedroom Dimmer from the Button 4 Script, so when you push Button 1 all the lights in the system come on; and when you push Button 4, all the lights come on except for the dimmer in the bedroom. Tip: This feature is very useful when programming complex loops and conditionals.
216

Composer HE User Guide
Customizing Navigators
Use this chapter to learn how to: l Set up screen savers l Hide and view device availability
217

Composer HE User Guide
Overview
Use the Control4� system Navigator interface on your Navigator to make adjustments to the Navigator you're using. Tip: You or your customer can customize pages in the touch screens, Control4 apps, or on-screen Navigators also. See the Control4 System User Guide for information.
Setting up screen savers
Setting up the photo screen saver
Use the Agent and Media views to set up a photo Screen Saver agent to view photos from the touch screens, Control4 apps, or on-screen Navigators. In OS 2.1 and later, you can use a single photo to display on all of your Navigators. If you change the interval on one Navigator, it will change all of them. Prerequisites Have one of the following storage types available before you copy the photos. You will need to set up one or more of them later when you add your photos. Note: In some cases, the Control4 system may take a few minutes to recognize the device.
l Controller--If the controller has no storage, add and connect a device that contains storage for your photos; for example a USB drive or Network File Share (see Step 6 in the next section).
l USB Drive--Ensure that the USB drive is attached to the controller. When you insert the USB drive, it will appear in the project tree in the same room as the controller.
l Network File Share--Ensure that the Network File Share object is added to the project tree and connected (see the steps to do this later in this procedure). Ensure that you have access to the Network File Share, that you have a valid Username, Password, and Workgroup, and that you can identify the network location (you will need to add the path).
To display photos as screen savers on the Navigators:
1. Start Composer Pro and connect to a Director.
2. Click Agents. 3. (First time only.) From the Agents view > Agents pane, click Add to add the
agent to the project. 4. From the Available Agents dialog, select the Screen Saver agent, and click
OK.
Note: If Screen Saver already appears in the Agents pane, it has already been added. Go to the next step. If not, see "Example: Program Using the Screen Saver Agent."
218

Composer HE User Guide
5. In the Agents pane, select Screen Saver. 6. From the storage location list, use the drop-down menu to select the
location where you will save your photos for use on the Navigators (controller, CBM Flash Disk: USB drive, or Network File Storage, etc.). Notes:
l If the storage option that you want does not appear in the list, disconnect from Director and reconnect.
l At any given time, only one storage location can be set as the photo Screen Saver source.
l CBM Flash Disk (USB drive)--If you inserted the USB drive in the controller earlier, the CBM Flash Disk option appears in the list.
l Network File Storage--If you select Network File Storage, specify where the Control4 system needs to go to copy the files. Click Monitoring and select the Network File Storage icon in the project tree (you will have to add it from the Items pane). In the Properties pane, type the Username, Password, and Workgroup, and then browse to the network location. Click Connect.
7. Click the Media view, and select Screen Saver. 8. Click Configure in the Screen Saver pane, set the location to copy the files
to (for display in the Navigators), and click OK. Note: If you didn't select a storage location in Step 6, an error message appears. Click OK, and then click Configure to set the location. 9. In the Screen Saver pane, click Add. In the My Pictures dialog, browse to the photos you want to copy to the storage location, select them, and click Open. The files will be copied to the storage location you specified in Step 8, and a folder may be created for you using the Control4 name (Example: Control4 pictures). Note: When media is added (copied) to the storage device, it is pre-scaled to the resolution for all of the Navigators. Control4 preserves the aspect ratio of the original image, and boxes the extra space with bars for any given screen
219

size.

Composer HE User Guide

10. In Composer Pro, click Tools > Refresh the Navigators to display the copied photos.
11. To activate the Screen Saver in each Navigator (on-screen, touch screen, or Control4 app), do the following:
1. Go to Info > Config > Screen Saver (on the system remote control) or More > Settings > Screen Saver.
2. Enable the Custom option, and then select the Photo Screen Saver option along with any other screen saver option you want to include. For photos only, check the Photo option. See " Setting up a custom screen saver" to display the photos on the Navigator or see the Control4 System User Guide.
Setting up a custom screen saver
Use the Control4 Navigator to create a custom screen saver to view on touch screens, Control4 apps, or on-screen Navigators. Note: This task must be completed on a Navigator. Either the Installer or homeowner can set this up. The Custom Screen Saver option lets users mix and match available screen saver options, including the option to use stored photos. Prerequisites Before setting up a custom screen saver, photos must be available for viewing from the Navigator. See " Setting up the photo screen saver." To set up a custom screen saver:
1. From the main menu on an on-screen Navigator, Control4 app, or touch screen press More > Settings > Screen Saver or Info > Config > Screen Saver on a system remote control.
220

Composer HE User Guide
2. In Screen Saver, press the drop-down arrow, and press Custom. 3. In Turn on, press the drop-down arrow, and press an option to enable the
screen saver. 4. Press Settings. 5. Press to select one or more of the following options:
l Media l Time l Date l Temp l Photo l Shuffle
6. Press Done. 7. (Optional) Press Preview to test the settings.
To set up a custom screen saver in the touch screens, Control4 apps, or on-screen Navigators for OS 2.0 and later, see the Control4 System User Guide for details.
Programming the screen saver sleep mode
Use the Programming view to schedule a Screen Saver mode change, for example, a `Go To Bed' mode during sleep hours.
1. In Programming, select Navigator actions.
2. Create a Scheduled Event (such as `Go To Bed'). See " Using and Programming with Agents " for details.
3. Add the following script:
"Set the screen saver mode on the [graphical navigator device] to Blank." "Turn the screen saver on after [time interval] on the [graphical navigator device]."
Changing the time on a Navigator screen saver
Use the Control4 Composer HE System Design view to change screen saver date, time or time zone. To change the time on a Navigator screen saver:
1. Start Composer HE and connect to a Director.
2. Click System Design. 3. In System Design, click the Properties tab. 4. Use the Date & Time drop-down boxes to modify the time and date.
221

Composer HE User Guide
Date--To change the Date (month, date, or year), click the drop-down arrow for a calendar to appear. Click the left or right arrows to select the month, and then select the day. Time--To change Time (hour, minute, second), click the up or down arrows to the appropriate time in hours, minutes, or seconds.
Tip: An easy way to change the hour, minute, or second is to highlight the hour, minute, or second number, and then type the new number over the old one. Time zone--To change the Time Zone, at the Timezone box, click Edit. Select the time zone from the drop-down menu, and click OK.
Hiding device availability
Use the Monitoring view to hide a device from view in a Navigator. In OS 2.3.0 or later, you may find the Access agent useful for device availability. See " Using and Programming with Agents " for details. Example: Set availability so that the touch screen in the Bedroom cannot control music in the Theater. Prerequisites Ensure that the following devices are added and identified to the network:
l Controller l Digital audio l Navigator
To hide a device so others cannot see it: 1. Start Composer HE and connect to a Director.
2. Click Monitoring. 3. In Monitoring and in the project tree, select Bedroom. 4. Go to the Navigator tab in the Properties tab. 5. Select Music in the Menu box, and then click Modify. 6. Select Digital Audio in the Theater, click Hide, and then click OK.
Viewing device availability in navigators
Use the Monitoring view to change the order of devices to view. This task is useful if you have a lot of media devices, and some are used more frequently than others. Example: Change the order of a Tuner to appear in a Navigator before the Receiver.
222

Composer HE User Guide Tips: (1) In OS 2.2 and later, you can use Shift+Click or Ctrl+Click to add or remove devices. (2) In OS 2.3.0 or later, you may find the Access agent useful for device availability. See " Using and Programming with Agents " for details. Prerequisites Ensure that the following devices are added and identified to the network:
l Controller l Digital audio l Navigator To enable a device to be viewed in a specific order in a Navigator:
1. Start Composer HE and connect to a Director. 2. Click Monitoring. 3. In Monitoring, select Theater. 4. Go to the Navigator tab in the Properties tab. 5. Select Radio under Menu, and then click Modify. 6. Click Tuner, and then click Move Up. 7. Click OK.
223

Composer HE User Guide
Troubleshooting
Use this chapter to learn how to: l Follow general guidelines for troubleshooting l Troubleshoot controllers l Troubleshoot a Director connection l Troubleshoot media l Troubleshoot devices l Troubleshoot the upgrade process
224

Composer HE User Guide
Guidelines for troubleshooting
This section outlines general troubleshooting guidelines to check first if you are having problems with a Control4� system. The following table lists the main areas typically found to resolve some issues on the Control4 system.
225

Composer HE User Guide

Guideline
Check room connections

Where to go
Composer Pro automatically sets room connections when you set up a system. These settings are default settings, and may not necessarily match your physical connection. Ensure that the room connections are set to match your specific system.

Check Control/AV connections

The Control and AV connections identify the physical connections to the system. When these are defined, the system is completely automated and programmable. However, if one of the connections is not correctly identified, it can cause the system not to run properly. Ensure that the control and AV connections match the physical configuration.

Check network connections

If a device is not using a control connection to communicate to the Control4 controller, it uses a network connection: a type of connection that uses a network address such as TCP/IP (Ethernet), Zigbee, Zigbee Pro and Wi-Fi.
1. Ensure that devices show online in the Monitoring view. 2. If devices are offline, contact your Control4 Dealer for assistance.

Ensure Navigators are connected to Director

From any of the Navigators, press Info > Director (for releases prior to 2.0) or More > Settings > Network (OS 2.0 or later) to ensure that you are connected to the Control4 controller's network address.
For more information, see "Customizing Navigators."

Ensure music is added and scanned

In Composer HE, ensure that your music is available (added to the controller) and is scanned into the system.
1. Make sure the stored or broadcast media is added or scanned.

226

Composer HE User Guide

Guideline

Where to go
2. Check the Room Properties page to see if the media was added. 3. Ensure that Navigators were refreshed after scanning media. 4. If the controller reboots, re-scan the media.

For more information, see:

" Setting up media for television stations" " Setting up media for radio stations" " Using external storage devices" "Configure an audio or AV switch" " Creating a playlist" " Editing media information"

Refresh Navigators

Whenever you update the system, scan music, or update devices or device information, from the File menu, select Refresh Navigators.

227

Composer HE User Guide

Troubleshooting controllers
The following table lists troubleshooting problems on Control4 system controllers.

Symptom

Possible problems and solutions

The controller has N/A for IP address

1. The controller has no network connection. Plug in your Ethernet cable. After a few moments, the addresses should appear.
2. The power cable is not plugged in. Plug in your power cable.
3. No DHCP on the network. Ensure that DHCP is operational.

The controller has a blank front display

1. Either your cables are unplugged, or they are not connected. If both are connected, unplug them and connect the Ethernet cable before connecting the power cord.
2. The controller is not connected to a cable/modem/switch/ using DHCP.
3. Ensure that the Reset button is not jammed behind the plastic cover (older controllers only).

The controller doesn't come back up after a power outage

To receive a notification of the controller going down and coming back up, set up an Email Notification agent to alert you when the project is loaded and the controller comes back up. When you create the alert, place the alert on the project (Device Events top level). See " Using the Email Notification agent."

Rebooting the Control4 system
At one time or another you may have configured the Control4 system incorrectly, or the connection to the network is not behaving the way it should. In this case, you can reboot or reset the system. You don't have to do anything in Composer HE other than check that the device you reboot is on the network. To reboot a controller:
1. Disconnect the power cord from the controller.
2. Plug the power cord back into the controller. 3. Verify that the controller comes back on the network in Composer HE.

228

Composer HE User Guide
Resetting the Control4 system
Refer to your controller's installation guide for reset and factory restore instructions.
229

Composer HE User Guide

Troubleshooting a Director connection
The following table lists troubleshooting problems connecting to a Director.

Symptom

Possible problems and solutions

Cannot see the Network Address of Director in the Director's dialog

1. Click Refresh several times to see if the network address appears.
2. If not, select Add and enter the name and network address.

230

Composer HE User Guide

Troubleshooting media
The following table lists troubleshooting problems with Control4 system media.

Symptom

Possible problems and solutions

DVDs not showing up in the disc changer

Ensure that you have a serial disc changer. Only bidirectionally-controlled serial disc changers can scan media.
If you have a serial disc changer, see the following:

1. Ensure that music is added and scanned

If music is not running, see the following:

Cannot play music or music channels not appearing in the Navigators

1. Ensure that a room is appearing on the Navigator. If not, click the room and change the room to one that can play music.
2. Ensure that music is added and scanned. See:
3. Refresh the Navigators.

231

Composer HE User Guide

Troubleshooting device control
The following table lists some control problems on Control4 system devices.

Symptom

Possible problems and solutions

The Device is not Controllable from a Navigator

If the device, such as a dimmer, is not controllable from the Device Control window (double-click the device from the project tree); no connection exists.
Contact your Control4 Dealer for assistance in connecting devices.

232

Composer HE User Guide

Troubleshooting dimmers, switches, and keypads
The following table lists troubleshooting problems with Control4 system dimmers, switches, and keypads.

Symptom
Dimmers, switches, or keypads are not behaving correctly

Possible problems and solutions
1. Reboot. Try rebooting the device by tapping the top button 15 times. On the 6-Button Keypad, this is the top left button. This action reboots the device, but does not clear programming associated with the device.
2. Reset. a. Tap the top button 5 times. b. Tap the bottom button 5 times. c. Tap the top button again 5 times. If you are using the 6-Button Keypad, this is the top left and bottom left button. This clears all your network connections.

Diagnosing trouble spots
Use the System Diagnostics tool in Composer HE to view, monitor, and troubleshoot a Control4 system.
System Diagnostics tool
The Control4 system includes many devices running embedded operating systems communicating over a wired or wireless network. During installation, configuration, and troubleshooting, the ability to look at the overall status of the components becomes very useful. The System Diagnostics tool lets you gather system information to help you determine if any issues encountered are configuration problems, performance issues, or potential defects. System Diagnostics uses Possible uses of the System Diagnostic tool include:
l Viewing controller performance information:
l CPU usage
l CPU usage history
l Memory usage
l Memory usage history

233

Composer HE User Guide
l Processes running l Viewing controller networking information: l Network type l Connection status l MAC address l IP address l Subnet mask l Gateway l DHCP status l DNS server information l View system information l Viewing system information: l Detailed lower-level information about the devices listed l Viewing logging information: l When troubleshooting a problem that is reproducible, use the System
Diagnostics tool to capture logged information while reproducing the problem to email to Control4 Technical Support. l When troubleshooting a problem that is not reproducible, connect the controller, enable logging, and allow the logging to continue running for a specified period of time to capture the problem. The logs are then captured and emailed to Control4 Technical Support.
Use the Control4 Composer HE System Diagnostics tool to view, monitor, and troubleshoot a Control4 system. The diagnostics information is organized into four tabs:
l Controller Performance l Controller Networking l System Info l Logging
To access the System Diagnostics tool: 1. Start Composer HE and connect to a Director.
2. On the menu bar, click Tools menu, then click System Diagnostics. The tool is available over a LAN connection using remote access.
234

Composer HE User Guide
3. Use the tool to diagnose problems on your own, or capture and send information to Control4 Technical Support.
Viewing controller performance information
Use the System Diagnostics tool (Tools menu > System Diagnostics) to view controller performance. The Controller Performance tab contains information regarding CPU and memory utilization for the Primary Controller of the project. Asynchronous messages from the Director regarding its current state are also displayed. To view controller performance information, including CPU and memory usage:
1. Start Composer HE and connect to a Director. 2. From the Tools menu, select System Diagnostics. The Controller
Performance tab is viewable by default. 3. View information displayed on the Controller Performance tab: l CPU Usage--Shows a graphical form of current CPU usage and CPU usage history for the primary controller, which is the Control4 controller used to control the system if multiple controllers exist on a system. l Memory Usage--Shows in graphical form the current memory usage and memory history for the primary controller. l CPU and Memory Usage by Component--Shows percentages of CPU and memory use per component.
4. Refresh the screen or update the speed. To do this, from the View menu you can:
235

Composer HE User Guide l Refresh Now--Restart the real-time display of CPU and Memory usage. l Update Speed--Change the speed to High, Normal, Low, or Paused.
5. View the Directory messages by clicking the History button.
Using the controller networking information
Use the System Diagnostics tool (Tools menu > System Diagnostics) to use controller networking information. View the information, including:
l Network type l Connection status l MAC address l IP address l Subnet mask l Gateway l DHCP status l DNS server information To use controller networking information:
1. Start Composer HE and connect to a Director. 2. From the Tools menu, select System Diagnostics, and then click the
Controller Networking tab. 3. Ensure that the network information shown is reflective of your network.
236

Composer HE User Guide 4. To test your Internet connection, click the Test Internet Connection
button. The screen displays the current status of networking services, including the CD & DVD Lookup Service, Media Web Service, and Updates Web Service. This screens shows that the example services failed.
5. Click Close to exit the dialog box.
Using system information
Use the System Diagnostics tool (Tools menu > System Diagnostics) to use system information. View System Info current configuration settings, state of the primary controller and any other Control4 device in the Control4 system's current project. The information displayed is a summary of several commands. To use system information:
1. Start Composer HE and connect to a Director. 2. From the Tools menu, select System Diagnostics, and then click the
System Info tab. 3. Select a device or sub-category (expanding the list as needed) in the left
pane to display the system configuration information in the right pane.
237

Composer HE User Guide
4. To save the displayed information to a file, click Save to File and specify the location and name for the file.
Logging diagnostics information
Use the System Diagnostics tool (Tools menu > System Diagnostics) to use the logging feature and log files. View Logging to configure, start, stop, and schedule diagnostic logging of the Control4 system.
l Capturing Information While Reproducing a Problem--When troubleshooting a problem that is reproducible, use the System Diagnostics tool to capture logged information while reproducing the problem to email to Control4 Technical Support.
l Enabling Logging for Debugging--When troubleshooting a problem that is not reproducible, connect to the controller, enable logging, and allow the logging to continue running for a specified period of time to capture the problem. The logs are then captured and emailed to Control4 Technical Support.
l Zigbee and I/O Communications--These items are available for logging in System Diagnostics.
l DirectorState.corrupt--If for any reason Director is unable to load a project file, it is saved to DirectorState.corrupt prior to loading a clean project file (Tools > System Diagnostics > Logging).
To use system logging: 1. Start Composer HE and connect to a Director.
238

Composer HE User Guide 2. From the Tools menu, select System Diagnostics, and then click the
Logging tab.
3. To enable logging, select the logging categories and click Start Tail 4. The results are displayed.
5. (Optional) To save the log, but continue logging the results, click Clear Output. The logging feature remains enabled, but a Save As dialog box lets you specify the location and name of the text version of the log. 239

Composer HE User Guide 6. (Optional) To save the log and disable the logging process, click Stop
Logging. The logging feature is disabled, but a Save As dialog box lets you specify the location and name of the text version of the log. 7. To view the controller Log, click Open Controller Log.
240

Composer HE User Guide
Glossary
4 4Sight: An Internet service that provides a connection to the home automation system any time and from any place worldwide. A AAC: Advanced Audio Coding. A successor to the MP3 format. A standard, lossy compression and encoding scheme for digital audio. Touts better sound quality. action: An activity that occurs when an event prompts it to do so. agent: In Control4 programming, agents provide the ability to perform complex programming by using functional modules. There are various types of agents; for example, Announcements, Email Notifications, Scheduler, Lighting Scenes, Wakeup, etc. Anywhere Access: Lets users access and control their Control4 systems remotely using a mobile device or tablet anywhere in the world. AV: Audio Video B Boolean: The computer logic used to determine if a statement is `True' or `False.' button-link binding: The LED colors used based on the device; the Installer can set these colors independently from the device to which the colors are bound. C CD: (Compact Disc) - An optical disc that stores digital data. This format is compatible with Control4 products. client: A software or hardware device that communicates to a server for feedback from the server via an application for the user. Command: A `do' statement; actions the Director communicates to a device. Composer: The Control4 software used to design and define a Control4 home automation system. Composer Pro: Composer is used to set up and configure Control4 devices to communicate with each other in a home automation system. conditional: An `if' statement that asks a true/false questions which are acted upon in Composer programming. configuration worksheet: Used in Composer software training to design and configure a project in Composer. connection: Binding or linking devices together in Composer so they can communicate with each other. contact: Contacts are generally used to monitor the status of something (door, window, water sensor, etc.) and can be hooked up through a security panel or directly using a Control4 controller or Contact/Relay Extender. Contacts connected
241

Composer HE User Guide
to a Control4 controller or contact/relay extender can be configured either as NC (normally closed) or NO (normally open). Control4 App: A Control4 graphical Navigator that runs on mobile devices or a PC or tablet. Control4 system: A home automation system designed and developed by Control4. controller: The main device that makes home automation possible. There may be multiple controllers within a Control4 system. The controller that runs Director is referred to as the primary controller. cover art: An illustration of the cover of a DVD or CD album that displays in the Graphical or on-screen Navigators when playing music or watching videos. CSV: comma-separated value. Can be used when adding media to a Control4 system.
D Detective Suite: A set of tools that perform diagnostics tests on the Control4 device: A component that requires a device driver; code that is used to allow the Control4 system to work with that device. device driver: Every device in the Control4 system needs a corresponding device driver to control the device. DHCP: DHCP (Dynamic Host Configuration Protocol) - A protocol used between a network client and a DHCP server (usually a router or access point) that dynamically assigns IP addresses from a pre-defined list to clients on a network. Director: Each Control4 controller (such as a Home Controller HC-500) ships with pre-installed Director software (Linux based) embedded in the device. The Director communicates with Control4 products and third-party products to enable home automation and interaction of individual devices. Director runs the Control4 devices. Composer Pro is the software used to connect to and program a system Director that resides on a controller. DriverWorks: The DriverWorks SDK is used to create two-way drivers for audio video (AV) and non-AV devices. DVD: (Digital Versatile Disc) � A media format for video and data storage. E end point: The end point is the final point (device) on the defined path over which audio and/or video content is routed to a room. An example of this would be a TV or Receiver. Ethernet: Uses Ethernet category 5 (CAT5 or CAT5e) wiring to transfer data. Ethernet uses a star network topology that allows multiple points to communicate to a single point. The Speaker Point� and Mini Touch Screens use Ethernet to communicate to the Control4 controller.
242

Composer HE User Guide
event: An action; used to trigger Composer programming when programming Control4 devices. F forward-phase dimming (also known as leading edge dimming): A type of phase-cut dimming in which the load is dimmed by cutting off the leading edge of each electrical cycle. This type of dimming must be used with magnetic transformers (magnetic low-voltage loads) and works well for many other load types including incandescent and cold cathode. It should not be used with electronic transformers (electronic low-voltage loads) unless the transformer specifications specifically state that Forward Phase dimming is allowed. file format: A format used by applications to store/read files. FLAC: Supported by Control4 for software release 1.8, this is a free, open source, lossless audio codec format that supports tagging, cover art and fast seeking. Audio is compressed with no loss in quality. full duplex: The simultaneous transfer of data in both directions. For example, on a 5" or 7" In-Wall Touch Screen the caller can send out a call and the receiver on the other end of the call can answer via his or her 5" or 7" In-Wall Touch Screen and then respond. G gateway: (router)- Provides a means of communicating between two separate networks. H home network: A network installed in the customer's home that provides an Ethernet or wireless connection so that Control4 devices can communicate with each other. home automation system: The Control4 system: a line of home automation products that communicate with each other over Ethernet, Wi-Fi, or Zigbee for a total home automation experience. I intercom: A two-way audio and/or video communication among supported Control4 touch screens. IR: A device controlled using a wireless remote control device. Commands are sent via pulses of infrared light to the device. K keypad managed: On a keypad, the LED state is controlled by the buttons on the keypad. keypad unmanaged: On a keypad, the LED state of the buttons is controlled through programming rather than from the keypad buttons. L LCD: (Liquid Crystal Display) - A display used with some Control4 interfaces.
243

Composer HE User Guide
LCD Navigator: An LCD device used to control lighting, music, videos, etc., on an LCD screen. List Navigator: A system remote control device uses a Navigator that lists the options. Live Connection: A term used in Composer Pro to indicate an actual connection to the network. loop: A type of conditional in programming; a `while' statement; for example, "while the sprinklers are on..." M Media Manager: Media information is stored in the Media Manager database, which will permit users to view the media information from the Navigators. MP3: A music format that makes streaming audio available. MP4: An audio and video format. Can also store images and subtitles.
N Navigator: A Control4 Navigator used with the Control4 system to control lights, music, videos, etc. Navigator is software that the customer interacts with using a universal remote control, on-screen Navigator, touch screen, or LCD Screen. O on-screen device: Allows you to select the controller (Media Controller or Home Theater Controller) in the room that controls the source for the on-screen display. P playlist: A list of songs compiled in a list. The list can be compiled by songwriter, album, song type, or any combination. Power Over Ethernet (POE): Network cabling that provides Ethernet connectivity and device power over a single cable for Control4 devices. programming: A machine-readable artificial language used to express computations that can be performed by a device. project tree: A tree view in Composer where the project is layered by the larger branches (Home, Office, etc.) and then the lower branches (floor, rooms, etc.), and finally to the leaf level (drivers). R ramp rate: The rate that a dimmer ramps up its voltage. relay: An electrical switch that opens and closes. A relay is controlled by another electrical circuit. remote access: The ability to access a device from a remote location. Remote Director: Connects you to the home network while working in Composer from a remote location.
244

Composer HE User Guide
retrofit: The ability to set up a home automation system in an existing structure or home. Compare this with new building construction. reverse-phase dimming (also known as trailing edge dimming): A type of phase-cut dimming in which the load is dimmed by cutting off the trailing edge of each electrical cycle. This type of dimming must be used with electronic transformers (electronic low-voltage loads), and works well for many other load types including incandescent; some types of dimmable fluorescent and compact fluorescent; and some LED power supplies. It should never be used with magnetic transformers (magnetic low-voltage loads). RJ-45 jack: An eight-pin jack used to connect CAT5e network cables to devices through Ethernet signals. router: See gateway. Functions similar to an AP but with additional functionality for controlling the network; for example, coordinating traffic between different networks. S SDDP (Simple Device Discovery Protocol): A protocol developed by Control4 to allow devices to be easily added to a control system. It has the ability to leverage other protocols and work on almost any physical layer. SDDP offers four primary functions:
l Enable devices to use Dynamic Host Configuration Protocol (DHCP) while still being able to identify them uniquely.
l Enable Director to discover devices residing within the Control4 system. l Enable Director to identify devices residing within the Control4 system. l Enable automatic installation of drivers for discovered devices.
serial-controlled device: Serial-controlled devices with an RS-232 interface and control protocol often have a higher level of controllability than IR-controlled devices. Examples of serial-controlled devices are projectors, multi-disc DVD changers, etc. switch: An extension of a router that adds more Ethernet ports to support additional devices or clients on the local network. system event: An action that causes another action; for example, if a projector turns on, it enables the other devices in the system that work with the projector. system remote: System remote control system remote control: A Control4 system remote control is a universal solution that replaces system remote control devices from other manufacturers, and includes programmable buttons. This system remote control can access on-screen (graphical) Navigators. T
245

Composer HE User Guide
touch screen: A touch screen is a home automation system Navigator that controls the home's lighting, music, videos, and other devices on the home automation system. U UI (user interface): The preferred term is Navigator. The Control4 interface used with Control4 devices to control home automation, such as touch screens, Control4 apps, or on-screen Navigators. universal remote: Universal remote control. A third-party remote control that can be programmed to replace other remotes in the home so that only one remote is needed, replacing all others. Control4 system remote control devices are a type of universal remote control. USB (Universal Serial Bus): A format used with USB sticks that plug in to a USB port on Control4 devices. V Virtual Connection: A term used in Composer Pro to indicate a connection outside the network. Virtual Director: A connection to a virtual controller only (a PC is the Director host rather than the controller). Projects created or edited here are benign until the saved project is loaded onto a controller. W WAP: Wireless Access Protocol. The protocol used to enable wireless access of Control4 devices. Wi-Fi: Uses bi-directional wireless technology to transfer data. Wi-Fi (wireless fidelity) devices "connect" to each other by transmitting and receiving signals on a specific frequency of the radio band using a wireless access point. This technology uses the star network topology. Wi-Fi uses high bandwidth 802.11. wired network: Uses Ethernet Category 5 (CAT5) wiring to send and receive data between devices connected to a network. wireless access point: A router extension with an antenna that communicates with Wi-Fi devices and clients in the home. A wireless hub that connects to the wired network, and distributes the wireless signal. wireless switch: Uses the Zigbee. UL listed dimmer. Single or multi-gang. Has an air gap to cut power. WLAN: Wireless local area network. WMA (Windows Media Audio): � Audio data compression technology developed at Microsoft; an audio file format that competes with MP3. Z Zigbee: A wireless network that uses bi-directional wireless mesh network technology to transfer messages from one device to another. Unlike a star network topology where devices can only send messages to each other by sending them
246

Composer HE User Guide first to a single central device (which then delivers the message to the recipient device), a mesh network topology allows the devices to forward messages from one device to another, thereby extending the effective range of the network. Uses low bandwidth 802.15.4. 250 devices are allowed per controller but Control4 recommends 125. Zigbee Pro: The 1.1 version of Zigbee that provides improvements in standardization by: allowing more interoperability with other Control4 devices, support for home automation profiles, and improves the scalability of multiple Zigbee access points. Zserver: A Zigbee server that contains software which runs on a Control4 HC-class controller.
247

Index

Composer HE User Guide

1
10-digit registration code 71
4
4Sight setup 71
A
AAC 36 Account Services, Tools menu 49 Action, programming, example 40 Actions pane
programming 162 Actual playlist options 38 Advanced Lighting agent 124 Agent
Access 81 Advanced Lighting 85 Announcements 126 Custom Buttons 131 E-Mail Notification 136 Light Properties 138 Macro 139 Media Scenes 140, 144 Scheduler 145 Screen Saver 147 Timer 148 Variables 156 Wakeup 156 Agents options 39 pane 39 program 124

248

Composer HE User Guide
view 18, 38 AM/FM/XM 36 And command 178 Announcement agent 124 Audio end point 31
devices 31 Audio Video, Room Properties 77 Audio volume 31
B Back up Composer 17 Back up, media information 54 Backup 43, 53
project 51 Backup As 43, 53 Backup to Cloud 43 Basic tasks 50 Boolean variable 188 Break command 172, 175 Broadcast media types 36
C Cable TV 36 CBM Flash Disk
and Photo Screen Saver 219 CD 36
add 102 edit 118 CD information edit 101 Change localization options 77 Change project date, time 77 Change project name 77 Change project settings 77 Change ZIP Code 77
249

Composer HE User Guide
Clear Media List 37, 44 Clear Project 51 Cloud Management 43 Command tab 41 Commands
programming 168 using Delay, Stop, Break 172 Communication agent External Devices 131 program with 129 Communication options, installation 12 Composer back up 17 exit program 17 same version as Director 66 startup screen 16 views 18 Composer HE 35 interface 15 Composer HE, main view 76 Composer ME 35 Composer Pro activation 11 basic tasks 74 defined 8 Conditional program 170 Conditionals tab 41 Configuration information load 52 Connect to Director 43, 61 Contact connection 8 Container variables 188 Control4 apps 242 Control4 System 8
250

Composer HE User Guide
controller 8 digital audio 36 playlists 37 registration 10
Controller troubleshoot 228
controller networking 236 Controller performance
view 235 CPU Usage 235 Create script
programming 166 Custom Buttons agent 124 Custom variables 188
D
Dealer information 34 Delay command 172 Delete playlist 44 Device Actions pane 41 Device connection status, Tools menu 45 Device Control window 23 Device controls 75 Device driver 8 Device Events pane 40 Device properties 78 Device Properties 32, 78
example 79 Devices
change order in Navigator 223 hide 222 install 74, 91 troubleshoot 232 view 222 DHCP 11
251

Composer HE User Guide
DHCP status 46 Digital audio 36 Dimmer
troubleshoot 233 Director 8
connect to 61 Director on local network 62 live connection 9 load configuration 52 on local network 16 remote connection 9 same version as Composer 66 troubleshoot 230 virtual connection 9 Directors dialog 16 DIRECTV 36 disc changer add media 98 auto-scan media 99 search media 100 Disc changer 36-37 Disconnect from Director option 43 Dish Network 36 DNS server information 46 Document scope 8 Driver Sort button 45 DVD 36 add 102 edit 122 DVD changer 36 DVD information edit 101 DVD player 37
252

Composer HE User Guide
E E-mail Notification agent 124 Else command 176 Endpoints 30 Ethernet connection 13 Event, programming, example 40 Events pane
programming 161 Exit Composer 51 Export media list 37, 44 Export playlist 37, 44 Expression Builder 178, 180 External storage device
using 113
F File management options 42 File menu 42, 53 filter 22 FLAC 36 FM 36
G Gateway 13, 46
H Hard disk space 10 Hardware, install 12 Help menu 42 Help options 50 Home network requirements 11
I Import DVD list from file 44
253

Composer HE User Guide
Import media list 37, 44 Import playlist 37, 44 Information tab 33 Install hardware 12 Installation
Composer Pro 14 guidelines 12 notes 34 software 13 Internet connection 11 Internet radio set up 110 IP address 11, 46 IP addresses, Directors dialog box 54 IR 8 iTunes 35
K Keypad
troubleshoot 233 Knowledgebase 11
L LEDs, controllers 13 License 11 List view 75 List View
pane 32 tab 50 List View properties 78 Load Project option 43, 52 Locale 26 Localization 26 Logging 238 Longitude/Latitude 25
254

Composer HE User Guide
Loop 175 Loops tab 41
M
MAC address 46 Macro agent 125 Media
Auto-scan 96 Disc Changer 97 edit 118 radio station 106 set up 92 storage 95 television station 108 test connection 117 troubleshoot 231 media database 94 Media database 35, 44 Media Lookup Service 94 media management 94 Media Manager 35 Media menu 42-43 Media Monkey 35 Media pane 35 media player set up videos 105 Media Scenes agent 125 Media types 36 Media view 18, 35 Media, select from Navigators 35 Memory usage 235 Menu options 41 Monitor system status 75 Monitoring pane 19, 35
255

Composer HE User Guide
view 18 Monitoring view 75 Movies, can't play 30 MP3 36 MP4 36 MQA 97 my.control4.com 11
N Navigator
set up Photo Screen Saver 218 Navigator tab 31 Navigator, Room Properties 77 Network address 13 Network connection 10 Network requirements 11 New playlist 44 New Playlist 37 New Project icon 20 NTP 25 Number variable 188
O Or command 179 Overview of 8
P Password 77 Photo Screen Saver
setup 218 Physical connection 10 Playlist
create 115 Playlist, types 36 Power sources, and installation 12
256

Composer HE User Guide
Programming add a room to play music 186 agents 124 basics 161 button to play music 184 button to turn up volume 185 commands 168 Conditionals 170 Copy and Paste 214 digital audio 184 elements of 166 Find and Replace 211-212 rooms 184 set default music volume 186
Programming and Communication agent 129 Programming view 18, 40 Programming, actions and events 40 Project configuration information 42 Project configuration, back up 54 Project properties 24, 77-78 Project settings 26 project tree
filter 22 search 22 sync 22 Project tree 10 Project, back up 53 Project, clear 51 Properties pane 19, 23, 75-76, 78 Push Settings from Project 26
R
Reboot Control4 system 228 Reboot controller 228 Refresh Navigators 43
257

Composer HE User Guide
Refresh option 43 Register Composer 14 Register system 10 Related documents 8 Relay connection 8 Remote Access 10
add account 65 requirements 64 setup 63 Remote connection to Director 64 Remote Director 16 connect to 64 Remove items from project tree 50 Rename playlist 44 RJ-45 jack 13 Room properties 78 Room Properties 77 Room Properties pane 29 Room variables 188 Router 11, 13
S
Same version, Composer and Director 66 Scan media
from network 113 new 94 Scan songs 92 Scheduler agent 125 Scheduler agent, example 39 Screen saver 36 Screen Saver change time 221 program 221 set up custom 220 Screen Saver agent 125
258

Composer HE User Guide
Script pane 41 programming 163
search 22 Serial 8 SNMP Configuration agent 125 Songs 38 Songs, options 37 SSL 77 Start Composer Pro 15 Stop command 172, 174 Storage devices, external 37 String variable 188 Switch 13
troubleshoot 233 sync 22 System Compatibility Check 67 System design 10 System Design
view, create project 10 system diagnostics 233 System Diagnostics
Controller Networking tab 46 Controller Performance History button 46 Controller Performance tab 45 Logging tab 48 System Info tab 47 Test Internet Connection button 47 System information 237 System Owner information 34 System registration 10 System security 26 System setup 9
T
Tag media files 44
259

Composer HE User Guide
TCP/IP 8, 11 Third-party devices, install 12 Timer agent 125 Timezone 25 Tools menu 42, 45 Troubleshooting
guidelines 225
U UHF/VHF 36 USB drive 36
and Photo Screen Saver 219 User interface 8
V Variable
handling 191 room example 188 room, variable options 189 using Boolean 192 using custom variable agent number 198 using custom variable agent string 201 Variables use in programming 188 Variables agent 125 Video end point 31 Video resolution 10
W Wakeup agent 125 WAP 11 While statement 175, 181 Windows 7 8 Windows Media Player 35 Windows Vista 8
260

Composer HE User Guide Windows XP 9 Wireless Access Protocol 11 WMA 36
261

11734 S Election Road Draper, UT 84020
www.control4.com
Copyright � 2020, Wirepath Home Systems, LLC. All rights reserved. Control4 and Snap AV and their respective logos are registered trademarks or trademarks of Wirepath Home Systems, LLC, dba "Control4" and/or dba "SnapAV" in the United States and/or other countries. 4Store, 4Sight, Control4 My Home, Snap AV, Araknis, Autonomic, BakPak, Binary, Dragonfly, Episode, Luma, Mockupancy, Nearus, NEEO, OvrC, Pakedge, Sense, Strong, SunbriteTV, Triad, Visualant, WattBox, and Wirepath are also registered trademarks or 200-00170-T
