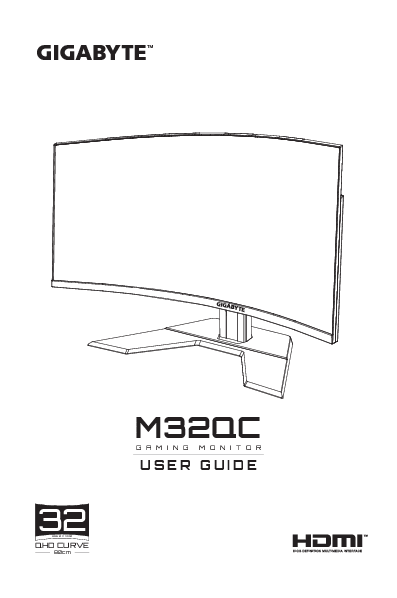

32 2560 X 1440
QHD CURVE
80cm

M32QC
GAMING MONITOR
USER GUIDE

Gaming Monitor User Guide
Copyright
� 2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission. � In order to assist in the use of this monitor, carefully read the User
Guide. � For more information, check on our website at:
https://www.gigabyte.com
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- 2 -

SAFETY INFORMATION

Gaming Monitor User Guide

Regulatory Notices
United States of America, Federal Communications Commission Statement

Supplier's Declaration of Conformity
47 CFR � 2.1077 Compliance Information
Product Name: LCD monitor Trade Name: GIGABYTE Model Number:
Responsible Party � U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com
FCC Compliance Statement: This device complies with Part 15 of the FCC Rules, Subpart B, Unintentional Radiators. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
� Reorient or relocate the receiving antenna. � Increase the separation between the equipment and receiver.
- 3 -

Gaming Monitor User Guide
� Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
� Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003.
Avis de conformit� � la r�glementation d'Industrie Canada Cet appareil num�rique de la classe B est conforme � la norme NMB-003 du Canada.
European Union (EU) CE Declaration of Conformity This device complies with the following directives: Electromagnetic Compatibility Directive 2014/30/EU, Low-voltage Directive 2014/35/ EU, ErP Directive 2009/125/EC, RoHS directive (recast) 2011/65/EU & the 2015/863 Statement. This product has been tested and found to comply with all essential requirements of the Directives.
European Union (EU) RoHS (recast) Directive 2011/65/EU & the European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
European Union (EU) Community Waste Electrical & Electronic Equipment (WEEE) Directive Statement GIGABYTE will fulfill the national laws as interpreted from the 2012/19/ EU WEEE (Waste Electrical and Electronic Equipment) (recast) directive. The WEEE Directive specifies the treatment, collection, recycling and disposal of electric and electronic devices and their components. Under the Directive, used equipment must be marked, collected separately, and disposed of properly.
- 4 -

Gaming Monitor User Guide
WEEE Symbol Statement The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure.
For more information about where you can drop off your waste equipment for recycling, please contact your local government office, your household waste disposal service or where you purchased the product for details of environmentally safe recycling.
End of Life Directives-Recycling The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure.
D�claration de Conformit� aux Directives de l'Union europ�enne (UE) Cet appareil portant la marque CE est conforme aux directives de l'UE suivantes: directive Compatibilit� Electromagn�tique 2014/30/UE, directive Basse Tension 2014/35/UE, directive 2009/125/CE en mati�re d'�coconception, la directive RoHS II 2011/65/UE & la d�claration 2015/863. La conformit� � ces directives est �valu�e sur la base des normes europ�ennes harmonis�es applicables.
European Union (EU) CE-Konformit�tserkl�rung Dieses Produkte mit CE-Kennzeichnung erf�llen folgenden EURichtlinien: EMV-Richtlinie 2014/30/EU, Niederspannungsrichtlinie 2014/30/EU, �kodesign-Richtlinie 2009/125/EC, RoHS-Richtlinie 2011/65/EU erf�llt und die 2015/863 Erkl�rung. Die Konformit�t mit diesen Richtlinien wird unter Verwendung der entsprechenden Standards zurEurop�ischen Normierung beurteilt.
- 5 -

Gaming Monitor User Guide
CE declara��o de conformidade Este produto com a marca��o CE est�o em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tens�o 2014/35/EU; Diretiva CEM 2014/30/EU; Diretiva Conce��o Ecol�gica 2009/125/CE; Diretiva RSP 2011/65/UE e a declara��o 2015/863. A conformidade com estas diretivas � verificada utilizando as normas europeias harmonizadas.
CE Declaraci�n de conformidad Este producto que llevan la marca CE cumplen con las siguientes Directivas de la Uni�n Europea: Directiva EMC (2014/30/EU), Directiva de bajo voltaje (2014/35/EU), Directiva de Ecodise�o (2009/125/EC), Directiva RoHS (recast) (2011/65/EU) y la Declaraci�n 2015/863. El cumplimiento de estas directivas se eval�a mediante las normas europeas armonizadas.
CE Dichiarazione di conformit� I prodotti con il marchio CE sono conformi con una o pi� delle seguenti Direttive UE, come applicabile: Direttiva EMC 2014/30/UE, Direttiva sulla bassa tensione 2014/35/UE, Direttiva Ecodesign EMC 2009/125/EC, Direttiva RoHS 2011/65/EU e Dichiarazione 2015/863. La conformit� con tali direttive viene valutata utilizzando gli Standard europei armonizzati applicabili.
Deklaracja zgodnoci UE Unii Europejskiej Urzdzenie jest zgodne z nastpujcymi dyrektywami: Dyrektywa kompatybilnoci elektromagnetycznej 2014/30/UE, Dyrektywa niskonapiciowej 2014/35/UE, Dyrektywa ErP 2009/125/WE, Dyrektywa RoHS 2011/65/UE i dyrektywa2015/863. Niniejsze urzdzenie zostalo poddane testom i stwierdzono jego zgodno z wymaganiami dyrektywy.
ES Prohl�sen� o shod Toto za�zen� spluje pozadavky Smrnice o Elektromagnetick� kompatibilit 2014/30/EU, Smrnice o N�zk�m napt� 2014/35/EU, Smrnice ErP 2009/125/ES, Smrnice RoHS 2011/65/EU a 2015/863. Tento produkt byl testov�n a bylo shled�no, ze spluje vsechny z�kladn� pozadavky smrnic.
- 6 -

Gaming Monitor User Guide
EK megfelels�gi nyilatkozata A term�k megfelelnek az al�bbi ir�nyelvek �s szabv�nyok k�vetelm�nyeinek, azok a ki�ll�t�sidpontj�ban �rv�nyes, aktu�lis v�ltozat�ban: EMC ir�nyelv 2014/30/EU, Kisfesz�lts�g villamos berendez�sekre vonatkoz� ir�nyelv2014/35/EU, K�rnyezetbar�t tervez�srl sz�l� ir�nyelv 2009/125/EK, RoHS ir�nyelv 2011/65/EU �s 2015/863.
: 2014/30/ , 2014/35/EU, 2009/125/ , RoHS 2011/65/ 2015/863. .
Japan Class 01 Equipment Statement

Japan VCCI Class B Statement B VCCI
B
VCCI-B
China RoHS Compliance Statement

- 7 -

Gaming Monitor User Guide
Environment-friendly Use Period

(Pb)

(Hg)

(Cd)

(Cr+6)

(PBB)

(PBDE)

SJ/T 11364 : GB/T 26572 X: GB/T 26572

- 8 -

Gaming Monitor User Guide

Declaration of the Presence Condition of the Restricted Substances Marking

: Equipment name:

(): Type designation (Type):

Unit

Restricted substances and its chemical symbols

Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated

(Pb) (Hg)

(Cd) chromium

biphenyls diphenyl ethers

(Cr+6)

(PBB)

(PBDE)

1.0.1 wt %0.01 wt %

Note 1: "Exceeding 0.1 wt %" and "exceeding 0.01 wt %" indicate that the percentage content of the restricted substance exceeds the reference percentage value of
presence condition.

2.
Note 2: "" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.

3. Note 3: "" indicates that the restricted substance corresponds to the exemption.

- 9 -

Gaming Monitor User Guide
Safety Precautions
Read through the following Safety Precautions before using the monitor. � Only use the accessories that are provided with the monitor or that
which are recommended by the manufacturer. � Keep the plastic packaging bag for the product in a place that
cannot be reached by children. � Before connecting the monitor to the power outlet, make sure that
the voltage rating of the power cable is compatible with the power specification in the country where you are located. � The power cord plug must be connected to a properly wired and grounded power outlet. � Do not touch the plug with wet hands, otherwise easily cause electric shock. � Place the monitor in a stable and well-ventilated place. � Do not place the monitor near any heat sources such as electric radiators or direct sunlight. � The holes or openings on the monitor are for ventilation. Do not cover or block the ventilation holes with any objects. � Do not use the monitor near water, drinks, or all types of liquids. Failure to do so may result in electric shock or damage to the monitor. � Make sure to unplug the monitor from the power outlet before cleaning. � As the screen surface is easy to be scratched, avoid touching the surface with any hard or sharp object. � Use a soft lint-free cloth instead of a tissue to wipe the screen. You may use a glass cleaner to clean the monitor if required. However, never spray the cleaner directly onto the screen. � Disconnect the power cable if the monitor is not being used for a long period of time. � Do not attempt to disassemble or repair the monitor yourself.
- 10 -

CONTENTS

Gaming Monitor User Guide

Safety Information .....................................................................................................................3 Regulatory Notices...........................................................................................................3 Safety Precautions......................................................................................................... 10
Introduction .............................................................................................................................. 12 Unpacking ........................................................................................................................ 12 Package Contents.......................................................................................................... 14 Product Overview.......................................................................................................... 15
Getting Started......................................................................................................................... 17 Installing the Monitor Base ........................................................................................ 17 Adjusting the Viewing Angle..................................................................................... 19 Installing a Wall-Mount Bracket (Optional) .......................................................... 20 Making Connections .................................................................................................... 21
Using the Device...................................................................................................................... 22 Turning the Power On/Off .......................................................................................... 22 User Comfort Recommendations ............................................................................ 23 Selecting the Input Source......................................................................................... 23
Operations ................................................................................................................................. 24 Quick Menu...................................................................................................................... 24 Configure the Device Settings .................................................................................. 32
Appendices................................................................................................................................ 42 Specifications .................................................................................................................. 42 Supported Timing List.................................................................................................. 43 Troubleshooting............................................................................................................. 44 Basic Care.......................................................................................................................... 45 Notes on USB Charging ............................................................................................... 45 GIGABYTE Service Information................................................................................. 45 Trademark Recognition ............................................................................................... 45

- 11 -

Gaming Monitor User Guide
INTRODUCTION
Unpacking
1. Open the upper cover of the packaging box. Then observe the unpacking label attached on the inner cover.
2. Making sure the box is in the correct orientation, carefully lay the box on the stable surface.
UP
3. Open the inner cover.
Openings 4. Grab the EPS foam assembly (through the openings) to pull it out of
the box.
- 12 -

5. Remove the items from the upper EPS foam.

Gaming Monitor User Guide

6. Remove the upper EPS foam. Then you can remove the monitor from the lower EPS foam.

- 13 -

Gaming Monitor User Guide
Package Contents
The following items come with your packaging box. If any of them is missing, please contact your local dealer.

Monitor

Monitor Base

Stand

Power Cable

Power Adapter

HDMI Cable

USB Cable

DP Cable

Multilingual Installation Guide
Quick Start Guide

Warranty Card

Warranty Card
Note: Please keep the packaging box and packing materials for future transportation of the monitor.

- 14 -

Product Overview
Front View

Gaming Monitor User Guide

1 1 Power LED
- 15 -

Gaming Monitor User Guide
Rear View

HDMI-1 HDMI-2 DP TYPE-C

USB 3.0

1 Control button 2 KVM button 3 Kensington lock 4 Headphone jack 5 HDMI ports (x2)

6 DisplayPort 7 USB Type-C port 8 USB upstream port 9 USB 3.0 ports (x2) 10 DC IN jack

Note: HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registrered trademakrs of HDMI Licensing LLC.

- 16 -

GETTING STARTED

Gaming Monitor User Guide

Installing the Monitor Base
1. Place the monitor on the lower EPS foam, with the screen facing down.
2. Align and slide the upper hooks on the stand into the mounting slots on the rear of the monitor. Push the locking latch forward and then release to secure the lower hooks on the stand into the mounting slots on the rear of the monitor.

Locking latch
3. Align the monitor base with the standoff underneath the stand. Then attach the base onto the stand.

- 17 -

Gaming Monitor User Guide
4. Lift the screw ring and turn it clockwise to secure the monitor base in place.
5. Lift the monitor to an upright position and place it on a table.
- 18 -

Gaming Monitor User Guide
Adjusting the Viewing Angle
Note: Hold the monitor base so that the screen does not topple when you make the adjustment.
Adjusting the Tilt Angle Tilt the screen forward or backward to the desired viewing angle (5� to 20�).
20� 5�
Adjusting the Screen Height Lower or raise the screen to the desired height (0 to 100mm).
100 mm
- 19 -

Gaming Monitor User Guide
Installing a Wall-Mount Bracket (Optional)
Use only a 100 x 100 mm VESA compatible wall mount kit. 1. Place the monitor on the lower EPS foam, with the screen facing
down. 2. While pushing the locking latch forward, slide the stand backward to
release the upper hooks from the mounting slots on the rear of the monitor. Then remove the stand.
Locking latch 3. Attach the mounting bracket to the mounting holes at the rear of
the monitor. Then use the screws to secure the bracket in place.
100 mm
100 mm
Note: To mount the monitor on the wall, refer to the installation guide that is included in the wall-mount bracket kit. VESA mounting screw size: M4 x 15mm minimum.
- 20 -

Making Connections

Gaming Monitor User Guide

HDMI-1 HDMI-2 DP TYPE-C

USB 3.0

3 45 6 7

1 Headphone cable 2 HDMI cable 3 DisplayPort cable 4 USB Type-C cable

5 USB (A-Male to B-Male) cable
6 USB cable
7 Power adapter and power cable

- 21 -

Gaming Monitor User Guide
USING THE DEVICE
Turning the Power On/Off
Power On 1. Connect the power cable to the power adapter. 2. Connect the power adapter to the DC IN jack at the rear of the
monitor. 3. Connect the power cable to a power outlet. 4. Press the Control button to turn on the monitor. The Power LED will
light in white, indicating the monitor is ready to use.
Note: If no signal, the monitor will show No Signal notification for a while. Then, the monitor will go to power saving mode and the Power LED lights white and starts blinking with a period of one second.
Power Off Press the Control button for 2 seconds to turn off the monitor.
Note: When the Main menu appears on the screen, you can also turn off the monitor by moving the Control button down ( ). Refer to page 26.
- 22 -

Gaming Monitor User Guide
User Comfort Recommendations
The following are some tips for comfortable viewing of your monitor: � Optimal viewing distances for monitors range from approximately
510 mm to 760 mm (20" to 30"). � A general guideline is to position the monitor such that the top
of the screen is at or slightly below your eye-height when you are comfortably seated. � Use adequate lighting for the type of work you are performing. � Take regular and frequent breaks (at least for 10 minutes) every halfhour. � Be sure to periodically look away from your monitor screen and focus on a far object for at least 20 seconds during the breaks. � Eye exercise can help reduce eye strain. Repeat these exercises frequently: (1) look up and down (2) slowly roll your eye (3) move your eyes diagonally.

Selecting the Input Source
1. Move the Control button right ( ) to enter the Input menu.
2. Move the Control button up/ down ( ) to select the desired input source. Then press the Control button to confirm.

Input
HDMI 1 HDMI2 DisplayPort Type-C

Select

Exit

- 23 -

Gaming Monitor User Guide
OPERATIONS

Quick Menu
Hot Key By default, the Control button has been assigned with the specific function.
Note: To change the preset hot key function, refer to the "Quick Switch" section on page 39.

To access the hot key function, do the following:

� Move the Control button up ( ) to enter the Black Equalizer menu.

Move the Control button up/down ( ) to adjust the setting and press the Control button to confirm.

Black Equalizer

Adjust

Exit

- 24 -

Gaming Monitor User Guide

� Move the Control button down ( ) to enter the Picture Mode menu.

Move the Control button up/down ( ) to select the desired option and press the Control button to confirm.

Picture Mode Standard

FPS

RTS/RPG

Movie

Reader

sRGB

Select

Exit

� Move the Control button left (
Move the Control button up/down ( ) to adjust the headphone volume level and press the Control button to confirm.

) to enter the Volume menu.
Volume

Adjust

Exit

� Move the Control button right ( ) to enter the the Input menu. Refer to the "Selecting the Input Source" section.
Note: To close the menu, move the Control button left ( ).
- 25 -

Gaming Monitor User Guide
Function Key Guide Press the Control button to display the Main menu.

SETTING

Settings

KVM (Multi Task)

MULTI TASK

EXIT

GAME ASSIST

Game Assist

Exit

POWER OFF

Power Off

Then use the Control button to select the desired function and configure the related settings.

KVM
When the Main menu appears on the screen, move the Control button left ( ) to enter the KVM menu.

KVM Switch KVM Wizard KVM ON KVM Reset

KVM

KVM Status
USB-B : HDMI 1 Type-C : Type-C

Select

Exit

� KVM Switch: Switch the input source that has been assigned to USB-B or Type-C connection in the KVM Wizard settings. When there are several input signals connected to the device, a message box will appear on the screen once the system detected USB Type-C input signal.
- 26 -

Gaming Monitor User Guide

Press

KVM to switch device.

To switch to USB Type-C input source, simply press the KVM button or the Control button. However, when there is no input signal from currently selected input source, the system will return to the previous connected input source.
Note: This option will be disabled if the KVM button function is disabled (KVM OFF).
� KVM Wizard: Configure the KVM related settings.
Set the input source to be bound with USB Type-B connection first, and then following with USB Type-C connection.

Select USB-B Display
HDMI 1 HDMI2 DisplayPort Type-C

Select Type-C Display
HDMI 1 HDMI2 DisplayPort Type-C

Select

Enter

Select

Enter

USB-B Display Selection

TYPE-C Display Selection

Note: If you set the USB-B Display setting to TYPE-C, the TYPE-C Display menu option will automatically be disabled. You will then see the KVM status in the KVM Wizard page as below.

KVM Status

USB-B : Type-C Type-C : N/A

- 27 -

Gaming Monitor User Guide

� KVM ON/OFF: Enable/Disable the KVM button function.
Select ON to enable the KVM button function. Once the system detected USB Type-C input signal, a message box will appear on the screen.
KVM

Press

to switch device.

Press the KVM button or the Control button to switch to USB Type-C input source. Note: When the KVM button function is enabled, the KVM ON will be displayed on the left panel.
Select OFF to disable the KVM button function. Note: When the KVM button function is disabled, the KVM OFF will be displayed on the left panel.
� KVM Reset: Restore the KVM default settings. HDMI 1 input source is bound with USB Type-B connection. USB Type-C input source is bound with USB Type-C connection. The KVM ON/OFF function is set to ON.

- 28 -

Gaming Monitor User Guide
Game Assist When the Main menu appears on the screen, move the Control button right ( ) to enter the Game Assist menu.

GAME INFO
Crosshair
Dashboard
Display Alignment

GameAssist

Gaming Timer

OFF

Gaming Counter

Count Up

Refresh Rate

Count Down

Info Location

Select

Exit

� GAME INFO: Configure the FPS (First Person Shooting) game related settings.
Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF.
Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time refresh rate setting.
Select Info Location to specify the location of the information to be shown on the screen.

- 29 -

Gaming Monitor User Guide

00 :00
0 60

� Crosshair: Select the desired crosshair type to suit your gaming environment. It makes aiming much easier.
� Dashboard: Configure the dashboard settings.

GAME INFO
Crosshair
Dashboard
Display Alignment

GameAssist

ON
OFF
Dashboard Location

CPU Temperature CPU Frequency CPU Fan Speed CPU Usage Rate GPU Temperature GPU Frequency GPU Fan Speed

Select

Exit

ON: Enable the function. Then select the desired option(s) to be shown on the screen.
OFF: Disable the function.

- 30 -

Gaming Monitor User Guide
Dashboard Location: Specify the location of the Dashboard information to be shown on the screen. Once the Dashboard configuration is complete, it will transfer the system data to the SOC through the USB port and display the value of the selected function(s) on the screen.
CPU Temperature CPU Frequency CPU Fan Speed CPU Usage Rate GPU Temperature GPU Frequency GPU Fan Speed GPU Usage Rate Game Mouse DPI
Note: Make sure the USB cable is properly connected to the USB upstream port of the monitor and the USB port of your computer. � Display Alignment: When the function is enabled, it displays the alignment lines on the four sides of the screen, providing handy tool for you to line up multiple monitors perfectly.
- 31 -

Gaming Monitor User Guide
Configure the Device Settings
When the Main menu appears on the screen, move the Control button up ( ) to enter the Settings menu. Note: Use the Control button to navigate through the menu and make adjustments.
Exit Move/Adjust Enter/Confirm

Button Guide

Gaming Configure the game related settings.

Resolution 2560X1440

Black Equalizer 10

Aim Stabilizer OFF

Overdrive Balance

Gaming Picture Display PIP/PBP System Language Save Settings Reset All

Aim Stabilizer Black Equalizer Super Resolution Display Mode Overdrive AMD FreeSync Premium Pro

Refresh Rate 60 HZ

AMD FreeSync Premium Pro
ON

Picture Mode

Standard

10
Exit Move/Adjust Enter/Confirm

Item

Description

Aim Stabilizer

When this function is enabled, it reduces the motion blur in a fast moving games.
Note: This function is not available under the following conditions:
- when the frequency setting is lower than 100Hz.
- when the current source is HDR.

Black Equalizer Adjust the brightness of the black areas.

- 32 -

Gaming Monitor User Guide

Item Super Resolution Display Mode
Overdrive AMD FreeSync Premium Pro

Description
Sharpen the low resolution images.
Select the aspect ratio of the screen. � Full: Scale the input image to fill the screen. Ideal
for 16:9 aspect images. � Aspect: Display the input image without
geometric distortion filling as much of the screen as possible. � 1:1: Display the input image in its native resolution without scaling. � 22"W(16:10): Display the input image as if on a 22"W monitor of 16:10 aspect ratio. � 23"W(16:9): Display the input image as if on a 23"W monitor of 16:9 aspect ratio. � 23.6"W(16:9): Display the input image as if on a 23.6"W monitor of 16:9 aspect ratio. � 24"W(16:9): Display the input image as if on a 24"W monitor of 16:9 aspect ratio. � 27"W(16:9): Display the input image as if on a 27"W monitor of 16:9 aspect ratio.
Note: 1:1, 22"W(16:10), 23"W(16:9), 23.6W"(16:9), and 24"W(16:9) options will be disabled when the FreeSync Premium function is activated.
Improve the response time of the LCD monitor.
When this function is enabled, it eliminates the screen lag and tearing while playing games.
Note: If you turn on the FreeSync function while playing a game, the screen may flicker depending on the type of graphics card, the game option settings, or the video being played.
Try the following actions: decrease the game setting values, change the current FreeSync mode to Off, or visit the AMD website to check your graphics driver's version and update it with the latest one.

- 33 -

Gaming Monitor User Guide
Picture Configure the image related settings.

SDR

Brightness 75

Contrast 50

Gaming Picture Display PIP/PBP System Language Save Settings Reset All

Standard FPS RTS/RPG Movie Reader sRGB Custom 1

Sharpness 6
Brightness Contrast 6 axis Color Color Vibrance Sharpness Gamma Color Temp.

Gamma OFF

Color Temp. Normal

Picture Mode

Standard

75
Exit Move/Adjust Enter/Confirm

Select the one of the preset picture mode.
� Standard: For editing documents or browsing websites. � FPS: For playing FPS (First Person Shooting) games. � RTS/RPG: For playing RTS (Real-Time Strategy) or RPG (Role-Playing
Game) games. � Movie: For watching movies. � Reader: For viewing documents. � sRGB: For viewing photos and graphics on the computer. � Custom 1: Customized picture mode settings. � Custom 2: Customized picture mode settings. � Custom 3: Customized picture mode settings.
Then you can configure the following image settings.

Item

Description

Brightness Adjust the brightness of the image.

Contrast

Adjust the contrast of the image.

6 axis Color Adjust the hue and saturation of red, green, and blue.

Color Vibrance Adjust the intensity of the more muted colors.

Sharpness

Adjust the sharpness of the image.

Gamma

Adjust the middle level of luminance.

- 34 -

Gaming Monitor User Guide

Item

Description

Color Temp.

Select the color temperature.
Note: Select User Define to customize the color temperature by adjusting the red (R), green (G), or blue (B) level according to your preference.

Low Blue Light Reduce the amount of blue light exposure from the screen.
� Level 0: No change. � Level 1~10: The higher the level, the more blue
light will be reduced.
Note: Level 10 is optimized setting. It is compliance with TUV Low Blue Light Certification.

Dynamic

Adjust the black level of the image to achieve the

Contrast Ratio optimum contrast.

(DCR)

Senseye Demo Split the screen in half (2 windows).
The image of the selected mode with its default settings will appear on the left window and the adjusted image with the new settings will appear on the right window.

Reset Picture Reset all Picture settings to the default settings.

- 35 -

Gaming Monitor User Guide
Display Configure the display screen related settings.

SDR

Brightness 75

Contrast 50

Gaming Picture Display PIP/PBP System Language Save Settings Reset All

Input Overclock HDMI RGB PC Range Overscan

Sharpness 6
HDMI 1 HDMI 2 DisplayPort Type-C

Gamma OFF

Color Temp. Normal

Picture Mode

Standard

Exit Move/Adjust Enter/Confirm

Item Input Overclock
RGB Range Overscan

Description
Select the input source.
Enable the monitor to apply higher refresh rate. Note: When Overclocking is enabled, the monitor may result in flicker or other adverse effects that may derive from the total configuration of the system and possibly the display's panel specifications. It is possible to reduce such effects by setting a lower refresh rate.
Select an appropriate RGB range setting or let the monitor to detect it automatically. Note: This option is only available for HDMI input.
When this function is enabled, it slightly enlarges the input image to hide the outermost edges of the image.

- 36 -

PIP/PBP Configure the multi-picture related settings.

Gaming Monitor User Guide

SDR

Brightness 75

Contrast 50

Gaming Picture Display PIP/PBP System Language Save Settings Reset All

OFF PIP PBP

Sharpness 6

Gamma OFF

Color Temp. Normal

Picture Mode

Standard

Exit Move/Adjust Enter/Confirm

Item

Description

OFF

Disable the PIP/PBP function.

PIP

Split the screen into 2 parts (main window and inset

window).

� Source: Change the input source for the inset

window.

� PIP Size: Adjust the inset window size.

� Location: Move the inset window position.

� Display Switch: Swap the two windows.

� Audio Switch: Select which audio source you want

to hear the sound from.

PBP

Display 1x1 split screen (left and right windows).

� Source: Change the input source for the right

window.

� PBP Size: Adjust the window size.

� Display Switch: Swap the two windows.

� Audio Switch: Select which audio source you want

to hear the sound from.

Note: PIP/PBP is not compatible with HDR and FreeSync Premium Pro functions.

- 37 -

Gaming Monitor User Guide
System Configure the system related settings.

SDR

Brightness 75

Contrast 50

Gaming Picture Display PIP/PBP System Language Save Settings Reset All

Audio OSD Setting Quick Switch Other Settings

Sharpness 6
Volume Mute

Gamma OFF

Color Temp. Normal

Picture Mode

Standard

30
Exit Move/Adjust Enter/Confirm

Item Audio
OSD Settings

Description
Configure the audio settings. � Volume: Adjust the volume level. � Mute: Enable/Disable the mute function.
Configure the on-screen display (OSD) menu related settings. � Display Time: Set the length of time the OSD
menu remains on the screen. � OSD Transparency: Adjust the OSD menu
transparency. � OSD Lock: When this function is enabled, no OSD
adjustment is allowed. Note: To disable the OSD lock function, press the Control key. When the message appears on the screen, select Yes to confirm.

The button is locked

confirm to unlock OSD

Yes

- 38 -

Gaming Monitor User Guide

Item Quick Switch

Description
Assign the function of the hot keys. Available options: Aim Stabilizer, Black Equalizer, Low Blue Light, Volume, Input, Contrast, Brightness, and Picture Mode. The default setting of the hot keys as below:
D Up ( ): Black Equalizer
D Down ( ): Picture Mode
D Right ( ): Input
D Left ( ): Volume

Other Settings � Resolution Notice: When this function is enabled, the recommended resolution message will appear on the screen when the monitor switches to another input source.
� Input Auto Switch: When this function is enabled, it automatically switches to an available input source.
� Auto Power OFF: When this function is enabled, the monitor will automatically turn off after a certain amount of time.
� LED Indicator: By default, the LED indicator is set to Always ON.
- LED Indicator Always OFF: Turn off the Power LED.
- LED Indicator Always ON: The Power LED lights white during operation and lights interval every 1 sec in standby mode.
- LED Indicator Standby ON: The Power LED turns off during operation and lights interval every 1 sec in standby mode.
- When the power supply is switched off, the Power LED will remain off.
� Type-C Compatibility: Turn this option on to improve mobile devices compatibility.

- 39 -

Gaming Monitor User Guide
Language Select an available language for the OSD menu.

SDR

Brightness 75

Contrast 50

Gaming Picture Display PIP/PBP System Language Save Settings Reset All

English Deutsch Fran�ais

Sharpness 6

Gamma OFF

Color Temp. Normal

Picture Mode

Standard

Exit Move/Adjust Enter/Confirm

Save Settings
Set the personalized OSD configurations for Setting1, Setting2, or Setting3.

SDR

Brightness 75

Contrast 50

Gaming Picture Display PIP/PBP System Language Save Settings Reset All

Setting1 Setting2 Setting3

Sharpness 6
Save Load

Item Save Load

Description Save the customized settings. Load the saved settings.

Gamma OFF

Color Temp. Normal

Picture Mode

Standard

Exit Move/Adjust Enter/Confirm

- 40 -

Gaming Monitor User Guide
Reset All Restore the monitor to its factory default settings.

SDR

Brightness 75

Gaming Picture Display PIP/PBP System Language Save Settings Reset All

Contrast 50

Sharpness 6

Gamma OFF

Color Temp. Normal

Picture Mode

Standard

Exit Move/Adjust Enter/Confirm

- 41 -

Gaming Monitor User Guide

APPENDICES

Specifications

Item

Specifications

Panel Size

31.5-inch

Aspect Ratio

16:9

Resolution

QHD (2560 � 1440)

LED Life

30,000 hours

Pixel Pitch

0.2724 (H) � 0.2724 (V)

Brightness

350nits (typ.)

Contrast Ratio

3000:1

Color Depth

16.7M

Active Display Area 697.344(H) � 392.256(V)

Viewing Angle

178�(H) / 178�(V)

Input/Output Terminals � � � �

2x HDMI 2.0 1x DP1.2 1x Headphone 1x USB upstream

� 2x USB3.0 (downstream 5V/1A)
� 1x USB Type-C (5V/3A , 9V/2A, 12V/1.5A, 15V/1A)

Power Supply

AC 100~240V at 50/60Hz

AC Adapter Model Power Consumptions

Asian Power Devices Inc. DA-90J19
Dongguan Yingju Power Co., Ltd. YJS090G-1904740D
� On: 90W (Max.) � Standby: 0.5W � Off: 0.3W

Dimensions (W x H x D) 710.5 x 552.18 x 234.81 mm (with stand)

Weight

� 7.8 �0.5 kgs (Net, with stand) � 5.5 �0.5 kgs (Net, without stand)

Temperature Range (operation)

0�C to 40�C

Note: Specifications subject to change without notice.

- 42 -

Supported Timing List

QHD Timing

HDMI 1

640x480 / 60Hz

640x480 / 75Hz

720x480 / 60Hz

800x600 / 60Hz

800x600 / 75Hz

1024x768 / 60Hz

1024x768 / 75Hz

1280x720 / 60Hz

1280x720 / 120Hz

1920x1080 / 60Hz

1920x1080 / 120Hz

1920x1080 / 144Hz

2560x1440 / 60Hz

2560x1440 / 120Hz

2560x1440 / 144Hz

2560x1440 / 165Hz

HDMI 2
V V V V V V V V V V V V V V V X

Gaming Monitor User Guide

Display Port V V V V V V V V V V V V V V V V

Type-C
V V V V V V V V V V V V V V V V

- 43 -

Gaming Monitor User Guide

Troubleshooting

Problem No power
No image appears on the screen
The image does not fill the entire screen The colors are distorted
No sound or volume is low

Possible Solution(s)
� Make sure the power cable is properly connected to the power source and the monitor.
� Check the cable and plug to make sure they are not broken.
� Make sure the monitor is turned on.
� Make sure the monitor and the computer are properly connected and both devices are turned on.
� Make sure you have selected the correct input source. Refer to page 23 or 36.
� Adjust the Brightness and Contrast settings. Refer to page 34.
� Try different Display Mode (aspect ratio) setting. Refer to page 33.
� Make sure the input signal cable is properly connected.
� Configure the image related settings. Refer to the "Picture" section.
� Make sure the headphone cable is properly connected.
� Adjust the volume level. Refer to page 25 or 38.
� Adjust your computer sound related settings.

Note: If the problem persists, please contact our customer service for further assistance.

- 44 -

Gaming Monitor User Guide
Basic Care
When the screen becomes dirty, do the following to clean the screen: � Wipe the screen with your soft, lint-free cloth to remove any residual
dust. � Spray or apply the cleaning fluid onto a soft cloth. Then wipe the
screen gently with the damp cloth.
Note: � Make sure that the cloth is damp, but not wet. � When wiping, avoid applying excessive pressure on the screen. � Acidic or abrasive cleaners can damage the screen.

Notes on USB Charging

The following devices are not compatible with BC 1.2 of CDP mode. When the Hub is connected to a PC, these devices cannot be charged using the USB cable.

Vendor Apple Samsung Samsung

Device IPad
Galaxy Tab2 10.1 GALAXY TabPro

PID/VID PID_129A/VID_05AC PID_6860/VID_04E8 PID_6860/VID_04E8

GIGABYTE Service Information
More service information, please visit GIGABYTE official website: https://www.gigabyte.com/

- 45 -
