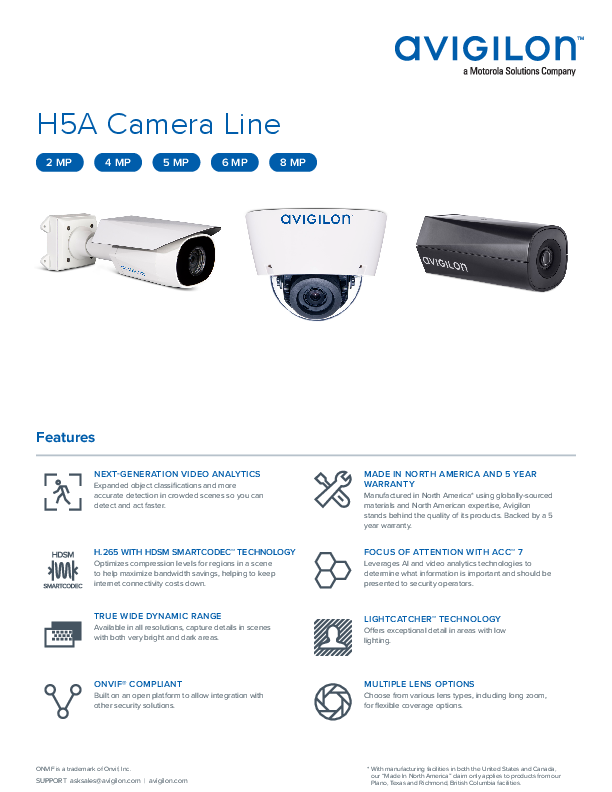

H5A Camera Line
2 MP
4 MP
5 MP
6 MP
8 MP
Features
NEXT-GENERATION VIDEO ANALYTICS Expanded object classifications and more accurate detection in crowded scenes so you can detect and act faster.
H.265 WITH HDSM SMARTCODECTM TECHNOLOGY Optimizes compression levels for regions in a scene to help maximize bandwidth savings, helping to keep internet connectivity costs down.
TRUE WIDE DYNAMIC RANGE Available in all resolutions, capture details in scenes with both very bright and dark areas.
ONVIF� COMPLIANT Built on an open platform to allow integration with other security solutions.
ONVIF is a trademark of Onvif, Inc. SUPPORT asksales@avigilon.com | avigilon.com
MADE IN NORTH AMERICA AND 5 YEAR WARRANTY Manufactured in North America* using globally-sourced materials and North American expertise, Avigilon stands behind the quality of its products. Backed by a 5 year warranty.
FOCUS OF ATTENTION WITH ACCTM 7 Leverages AI and video analytics technologies to determine what information is important and should be presented to security operators.
LIGHTCATCHERTM TECHNOLOGY Offers exceptional detail in areas with low lighting.
MULTIPLE LENS OPTIONS Choose from various lens types, including long zoom, for flexible coverage options.
* With manufacturing facilities in both the United States and Canada, our "Made In North America" claim only applies to products from our Plano, Texas and Richmond, British Columbia facilities.
Specifications
IMAGE PERFORMANCE
2.0 MP
4.0 MP
5.0 MP
Image Sensor
1/2.8" progressive scan CMOS
Max Resolution (H x V) and (16:9) 1920 x 1080 Aspect Ratio
(16:9) 2560 x 1440 (4:3) 2304 x 1728
(4:3) 2592 x 1944 (16:9) 2560 x 1440
Dynamic Range
WDR Off WDR On
83 dB
83 dB
126 dB (dual exposure, 30 fps) 126 dB 132 dB (triple exposure, 20 fps or less)
83 dB 126 dB
Max Image Rate
(50 Hz/60 Hz): 25 fps/30 fps
WDR off (50 Hz/60 Hz): 25 fps/30 fps WDR on (50 Hz/60 Hz): 20 fps/20 fps
Bandwidth Management HDSM SmartCodec technology; Idle scene mode
3D Noise Reduction Filter Yes
6.0 MP
8.0 MP (4K ULTRA HD)
1/1.8" progressive scan CMOS
(16:9) 3200 x 1800 (3:2) 3072 x 2048
(16:9) 3840 x 2160
85 dB
85 dB
120 dB
120 dB
LENS AND IR ILLUMINATION
IR Illumination Dome Max Distance1 (high power Bullet 850 nm LEDs)
2 MP
4 MP
Minimum Illumination
5 MP
3.3 � 9 mm
35 m (115 ft), full tele 15 m (49 ft), full wide
50 m (164 ft), full tele 30 m (98 ft), full wide
0.027 lux in color mode, 0.014 lux in monochrome mode, 0 lux with IR
0.03 lux in color mode, 0.015 lux in monochrome mode, 0 lux with IR
N/A
4.9 � 8 mm 30 m (98 ft), full tele 15 m (49 ft), full wide 50 m (164 ft), full tele 30 m (98 ft), full wide N/A
N/A
N/A
6 MP
N/A
0.055 lux in color mode, 0.028 lux in monochrome mode, 0 lux with IR
8 MP
N/A
0.055 lux in color mode, 0.028 lux in monochrome mode, 0 lux with IR
2 MP
(16:9) 34� � 99�
N/A
Horizontal
4 MP
Angle of View 5 MP
Based on Aspect Ratio
6 MP
(16:9)(4:3) 34� � 92� N/A N/A
N/A
N/A
(16:9) 52� � 92� (3:2) 41� � 73�
8 MP
N/A
(16:9) 52� � 92�
2 MP
(16:9) 18� � 53�
N/A
4 MP
Vertical Angle
of View
5 MP
Based on
Aspect Ratio 6 MP
(16:9) 18� � 50� (4:3) 25� � 68� N/A
N/A
N/A
N/A
(16:9) 29� � 51� (3:2) 27� � 48�
8 MP
N/A
(16:9) 29� � 51�
Max Aperture
F1.3
F1.8
Control
P-Iris, Remote Focus and Zoom
1 IR illumination power may be reduced at higher operating temperatures.
9 � 22 mm N/A
90 m (295 ft), full tele 60 m (197 ft), full wide 0.052 lux in color mode, 0.026 lux in monochrome mode, 0 lux with IR 0.058 lux in color mode, 0.029 lux in monochrome mode, 0 lux with IR 0.04 lux in color mode, 0.02 lux in monochrome mode, 0 lux with IR N/A
N/A
(16:9) 14� � 31� (16:9)(4:3) 14� � 31� (16:9)(4:3) 14� � 31� N/A
N/A (16:9) 7.8� � 16.7� (16:9) 8.2� � 17.4�
(16:9) 8.1� � 17.4� (4:3) 11� � 23� N/A
N/A F1.6
4.7 � 84.6 mm N/A N/A 0.039 lux in color mode, 0.02 lux in monochrome mode, N/A
N/A
N/A
N/A
(16:9) 4.1� � 60� N/A N/A N/A N/A (16:9) 2.3� � 34� N/A N/A N/A N/A F1.6
IMAGE CONTROL
Image Compression Method
Streaming
Motion Detection Camera Tamper Detection Electronic Shutter Control Iris Control Day/Night Control Flicker Control White Balance Backlight Compensation Privacy Zones
H.264 HDSM SmartCodec, H.265 HDSM SmartCodec, Motion JPEG
Multi-stream H.264, Multi-stream H.265, Motion JPEG; HDSM 2.0 on 4.0 MP, 5.0 MP, 6.0 MP, and 4K (8.0 MP) cameras Pixel motion: Selectable sensitivity and threshold. Classified object detection Yes Automatic, Manual (1/7 to 1/8196 sec) Automatic, Open, Closed Automatic, Manual 60 Hz, 50 Hz Automatic, Manual Adjustable Up to 64 zones
NETWORK
Network
100BASE-TX, RJ45 Connector, CAT5e Cabling
ONVIF
ONVIF compliance version 1.02, 2.00, Profile S, Profile T (www.onvif.org)
Security
Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based authentication
Protocols
IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP
Streaming Protocols
RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP
Device Management Protocols SNMP v2c, SNMP v3
PERIPHERALS
USB Port
Onboard Storage
USB 2.0
Dome
microSD/microSDHC/microSDXC slot � class 10/UHS-1 or better recommended
Bullet and Box SD/SDHC/SDXC slot � class 10/UHS-1 or better recommended
SUPPORT asksales@avigilon.com | avigilon.com
2
Specifications (Con't)
AUXILIARY I/O
Audio Compression Method G.711 PCM 8 kHz
Audio Input/Output
Line level input and output
External I/O Terminals
Alarm In, Alarm Out
RS-485 Terminal
Yes, Box camera only
MECHANICAL (DOME)
Dimensions (LxWxH)
Weight Dome Bubble Body Housing Finish Adjustment Range
INDOOR SURFACE MOUNT
INDOOR IN-CEILING MOUNT
163 mm x 163 mm x 118 mm; 6.4" x 6.4" x 4.7"
181 mm x 181 mm x 164 mm; 7.1" x 7.1" x 6.5"
0.99 kg (2.18 lbs)
1.64 kg (3.62 lbs)
Polycarbonate
Plastic, Aluminum
Surface mount, tamper resistant
Recessed mount, tamper resistant
Plastic, gray
Plastic, gray; Aluminum, powder coat, black
360� pan, �180� azimuth, 9� � 95� tilt (30� � 95� with -IR option)
OUTDOOR SURFACE MOUNT 163 mm x 163 mm x 121 mm; 6.4" x 6.4" x 4.8" 1.39 kg (3.06 lbs)
Aluminum Surface mount, vandal resistant Powder coat, RAL 9003
MECHANICAL (PENDANT DOME)
Dimensions (LxWxH)
Weight Dome Bubble Body Housing Finish Adjustment Range
PENDANT CAMERA ONLY
WITH WALL MOUNT (H4A-MT-WALL1)
172 mm x 172 mm x 124 mm; 6.8" x 6.8" x 4.9"
275 mm x 172 mm x 152.1 mm; 10.8" x 6.8" x 6.0"
1.59 kg (3.51 lbs)
3.04 kg (6.70 lbs)
Polycarbonate
Aluminum
Pendant mount, vandal resistant
Powder coat, RAL 9003
360� pan, �180� azimuth, 9� � 95� tilt (30� � 95� with -IR option)
WITH NPT MOUNT (H4A-MT-NPTA1)
172 mm x 172 mm x 172.3 mm; 6.8" x 6.8" x 6.8"
1.84 kg (4.06 lbs)
MECHANICAL (BULLET)
Dimensions (LxWxH)
280 mm x 126 mm x 91 mm; 11.04" x 4.97" x 3.58" (including mounting bracket)
Camera
1.71 kg (3.77 lbs)
Weight
Mounting Bracket 0.21 kg (0.46 lbs)
Body
Aluminum
Housing
Surface mount, tamper resistant
Finish
Powder coat, RAL 9003
Adjustment Range
�175� pan, �90� tilt, �175� azimuth
MECHANICAL (BOX)
Dimensions (LxWxH) Weight Body Camera Mount Finish
168 mm x 76 mm x 67 mm; 6.6" x 3.0" x 2.6" 0.62 kg (1.4 lbs) Aluminum 1/4"-20 UNC (top and bottom) Powder coat, black
ELECTRICAL
Bullet
Power Consumption
Dome
Box
Power Source
Bullet Dome Box
RTC Backup Battery
13 W max 13 W max (11 W with no IR or IR disabled) 7 W max VDC: 12 V � 10%, 13 W min VDC: 12 V � 10%, 12 W min VDC: 12 V � 10%, 7 W min 3V manganese lithium
VAC: 24 V � 10%, 15 VA min VAC: 24 V � 10%, 13 VA min VAC: 24 V � 10%, 9 VA min
PoE: IEEE802.3af Class 3 compliant PoE: IEEE802.3af Class 3 compliant PoE: IEEE802.3af Class 3 compliant
ENVIRONMENTAL
Bullet
Operating Temperature Dome
Box
-40 �C to +60 �C (-40 �F to 140 �F), in enclosed space -40 �C to +65 �C (-40 �F to 149 �F), with ambient convection
-40 �C to +65 �C (-40 �F to 149 �F)
-10 �C to +60 �C (-14 �F to 140 �F)
Bullet
IR illuminator will turn off if the temperature is 61 �C (141 �F) or higher. The illuminator will operate at 50% power if the temperature is between 55 �C (131 �F) and 61 �C (141 �F). Hysteresis: 5 �C (9 �F).
IR Illuminator Indoor Dome IR illuminator will turn off if the temperature is 55 �C (131 �F) or higher. The illuminator will operate at 50% power if the temperature is between
Behavior
44 �C (111 �F) and 55 �C (131 �F). Hysteresis: 2 �C (3.6 �F).
Outdoor Dome IR illuminator will turn off if the temperature is 57 �C (135 �F) or higher. The illuminator will operate at 50% power if the temperature is between 49 �C (120 �F) and 57 �C (135 �F). Hysteresis: 2 �C (3.6 �F).
Storage Temperature
-10 �C to +70 �C (14 �F to 158 �F)
Humidity
0 - 95% non-condensing
CERTIFICATIONS
Certifications/Directives UL, cUL, CE, ROHS, Reach (SVHC), RCM
Safety
UL 62368-1, CSA 62368-1, IEC/EN 62368-1, IEC 62471 (with -IR option)
Environmental
Bullet
UL/CSA/IEC 60950-22, IEC 60529 IP66 and IP67 Weather Rating, IEC 62262 IK10 Impact Rating
Outdoor Dome UL/CSA/IEC 60950-22, IEC 60529 IP66 and IP67 Weather Rating, IEC 62262 IK10 Impact Rating
Electromagnetic Emissions FCC Part 15 Subpart B Class B, IC ICES-003 Class B, EN 55032 Class B, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3
Electromagnetic Immunity EN 55024, EN 61000-6-1
SUPPORT asksales@avigilon.com | avigilon.com
3
Analytics Specifications
SUPPORTED ANALYTICS EVENTS
Objects in Area
The event is triggered when the selected object type moves into the region of interest.
Object Loitering
The event is triggered when the selected object type moves into the region of interest and then stays for an extended amount of time.
Objects Crossing Beam
Object Appears or Enters Area
The event is triggered when the specified number of objects have crossed the directional beam that is configured over the camera's field of view. The beam can be unidirectional or bidirectional.
The event is triggered by each object that enters the region of interest. This event can be used to count objects.
Object Not Present in Area The event is triggered when no objects are present in the region of interest.
Objects Enter Area
The event is triggered when the specified number of objects have entered the region of interest.
Objects Leave Area
The event is triggered when the specified number of objects have left the region of interest.
Object Stops in Area
The event is triggered when an object moves into a region of interest and then stops moving for the specified threshold time.
Direction Violated
The event is triggered when an object moves in the prohibited direction of travel.
Tamper Detection
The event is triggered when the scene unexpectedly changes.
SUPPORTED CLASSIFIED OBJECT TYPES
Object Types in Outdoor Mode
Object Types in Indoor Mode
Vehicle, sub-types: Car, Truck, Bicycle, Motorcycle, Bus Person
Person
TEACH BY EXAMPLE
Teach By Example
Yes, when used with Avigilon Control CenterTM
AVIGILON
ACC Version 6.14.12 or
CONTROL CENTER higher
(ACC) VERSIONS
SUPPORTED FEATURES
ACC Version 7.2 or higher
All supported analytic events with two types of classified objects: person or vehicle. Appearance search when paired with appropriate server hardware. H.265 supported.
All supported analytic events with people and vehicles and all vehicle sub-types as classified objects. Appearance search when paired with appropriate server hardware. H.265 supported.
Outline Dimensions
Surface Mount Indoor Dome Camera
(H5A-D)
6.43 163
4.66 118
3.37 86
2.46
0.19
63
5
16X
6.43 163
4.52 115
3.37 86
2.46 63
In-Ceiling Dome Camera
(H5A-DC)
7.12 181
6.47 164
2.68 68
2.36 60
3.27 83
4.52 115
3.03
1.68
77
43
4.50 0.1772
7.12 181
SUPPORT asksales@avigilon.com | avigilon.com
3.03
1.68
77
43
1.68
3.03
43
77
1.68
3.03
43
77
INCHES MM
4
Outline Dimensions (Con't)
Surface Mount Outdoor Dome Camera
(H5A-DO)
0.21 15X 5.3
6.4
163
4.8
121
3.5
89
6.4 163
Pendant Dome Camera
(H5A-DP) WITH NPT MOUNT (H4A-MT-NPTA1)
6.8 172.3
4.5 113 2.4 60
INCHES MM
2.5 63 3.4
85
2.5 63 3.4 85
6.8 172
WITH WALL MOUNT (H4A-MT-WALL1)
[6.8] �172
[10.8] 275
Box Camera
(H5A-B)
3.0 76
6.6
168
2.9
MO1U/4N"1T-/2I4N0-G2U0PNUOCNINCT
73
MO1U/4N"1T-2/IN04-GU20PNOCUINNCT
2.7 68
SUPPORT asksales@avigilon.com | avigilon.com
[6.0] 152.1
[0.6] 14
[0.6] 14
[1.3] 33
[0.8]
[0.8]
20
20
[2.1] 54
2.6 67
5
Outline Dimensions (Con't)
Bullet Camera
(H5A-BO-IR)
4x 4.5 0.1772 TTHROU UGH
3.80 97
2.37 60
4.50 114
4.97
10.09
126
256
4x 4.5 0.177211.0T4HRU 280
3.58 91
3.09 79
10.09 256 11.04 280
HD Bullet Camera Junction Box
(H4-BO-JBOX1)
3/4 NPT
4 x 5.0 THRU ALL 4.5 114 5.0 126
SUPPORT asksales@avigilon.com | avigilon.com
2.4
4.0
60
102
5.15 131
4.29 109
INCHES MM
10.09 256
11.04 280
Overhang Min: 27 [1.1] Max: 55 [2.2]
3.58 91
3.09 79
3/4 NPT
2.2 55
6
Ordering Information (Outdoor Dome and Bullet)
Surface Mount Outdoor Dome Camera
(H5A-DO)
MP
WDR
LightCatcher
Lens
IR
Technology
2.0C-H5A-DO1 2.0C-H5A-DO1-IR 2.0C-H5A-DO2 4.0C-H5A-DO1 4.0C-H5A-DO1-IR
2.0
2.0
2.0
4.0
4.0
3.3 - 9 mm
3.3 - 9 mm
9 - 22 mm
3.3 - 9 mm
3.3 - 9 mm
4.0C-H5A-DO2
4.0
9 - 22 mm
5.0C-H5A-DO2 6.0C-H5A-DO1 6.0C-H5A-DO1-IR 8.0C-H5A-DO1 8.0C-H5A-DO1-IR
5.0
6.0
6.0
8.0
8.0
9 - 22 mm
4.9 - 8 mm
4.9 - 8 mm
4.9 - 8 mm
4.9 - 8 mm
H4A-DO-SMOK1 H4A-DO-CLER1 H4A-AC-GROM1 CM-AC-GROM1 H4-AC-WIFI2-NA / H4-AC-WIFI2-EU CM-AC-AVIO1
Outdoor dome camera cover with smoked bubble Outdoor dome camera cover with clear bubble Camera sealing grommet, pack of 10 Pipe grommet, pack of 10 USB Wi-Fi adapter 3.5 mm jack with 1.8 m fly wire
Pendant Mount Outdoor Dome Camera
(H5A-DP)
MP
WDR
LightCatcher
Lens
IR
Technology
2.0C-H5A-DP1 2.0C-H5A-DP1-IR 2.0C-H5A-DP2
2.0
2.0
2.0
3.3 - 9 mm
3.3 - 9 mm
9 - 22 mm
4.0C-H5A-DP1
4.0
3.3 - 9 mm
4.0C-H5A-DP1-IR 4.0C-H5A-DP2 5.0C-H5A-DP2 6.0C-H5A-DP1 6.0C-H5A-DP1-IR 8.0C-H5A-DP1
4.0
4.0
5.0
6.0
6.0
8.0
3.3 - 9 mm
9 - 22 mm
9 - 22 mm
4.9 - 8 mm
4.9 - 8 mm
4.9 - 8 mm
8.0C-H5A-DP1-IR
8.0
4.9 - 8 mm
H4A-DP-SMOK1 H4A-DP-CLER1 H4A-MT-WALL1 H4A-MT-NPTA1 H4-MT-POLE1 H4-MT-CRNR1 CM-AC-GROM1 H4-AC-WIFI2-NA / H4-AC-WIFI2-EU CM-AC-AVIO1
Pendant dome camera cover with smoked bubble Pendant dome camera cover with clear bubble Indoor/outdoor pendant wall arm mount Indoor/outdoor pendant NPT mount Aluminum pole mounting bracket for pendant dome cameras Aluminum corner mounting bracket for pendant dome cameras Pipe grommet, pack of 10 USB Wi-Fi adapter 3.5 mm jack with 1.8 m fly wire
Outdoor Bullet Camera
(H5A-BO-IR)
MP
WDR
LightCatcher
Lens
IR
Technology
2.0C-H5A-BO1-IR 2.0C-H5A-BO2-IR 4.0C-H5A-BO1-IR
2.0
2.0
4.0
3.3 - 9 mm
9 - 22 mm
3.3 - 9 mm
4.0C-H5A-BO2-IR
4.0
9 - 22 mm
5.0C-H5A-BO2-IR 6.0C-H5A-BO1-IR 8.0C-H5A-BO1-IR
5.0
6.0
8.0
9 - 22 mm
4.9 - 8 mm
4.9 - 8 mm
H4-BO-JBOX1 H4-MT-POLE1 H4-MT-CRNR1 H4-AC-WIFI2-NA / H4-AC-WIFI2-EU
Junction box for bullet cameras Aluminum pole mounting bracket for bullet cameras Aluminum corner mounting bracket for bullet cameras USB Wi-Fi adapter
Analytics
Analytics
Analytics
HDSM SmartCodec
HDSM SmartCodec
HDSM SmartCodec
SUPPORT asksales@avigilon.com | avigilon.com
7
Ordering Information (Indoor Box and Dome)
Box Camera
(H5A-B)
2.0C-H5A-B1 2.0C-H5A-B2 2.0C-H5A-B3 4.0C-H5A-B2 4.0C-H5A-B3 6.0C-H5A-B2 8.0C-H5A-B2
MP
WDR
LightCatcher
Lens
IR
Technology
2.0
4.7 - 84.6 mm
2.0
3.3 - 9 mm
2.0
9 - 22 mm
4.0
3.3 - 9 mm
4.0
9 - 22 mm
6.0
4.9 - 8 mm
8.0
4.9 - 8 mm
H4-AC-WIFI2-NA / H4-AC-WIFI2-EU USB Wi-Fi adapter
CM-AC-AVIO1
3.5 mm jack with 1.8 m fly wire
Surface Mount Indoor Dome Camera
(H5A-D)
MP
WDR
LightCatcher
Lens
IR
Technology
2.0C-H5A-D1
2.0
3.3 - 9 mm
2.0C-H5A-D1-IR
2.0
3.3 - 9 mm
2.0C-H5A-D2
2.0
9 - 22 mm
4.0C-H5A-D1
4.0
3.3 - 9 mm
4.0C-H5A-D1-IR
4.0
3.3 - 9 mm
4.0C-H5A-D2
4.0
9 - 22 mm
6.0C-H5A-D1
6.0
4.9 - 8 mm
6.0C-H5A-D1-IR
6.0
4.9 - 8 mm
8.0C-H5A-D1
8.0
4.9 - 8 mm
8.0C-H5A-D1-IR
8.0
4.9 - 8 mm
H4A-DD-SMOK1 H4A-DD-CLER1 H4A-DD-SMOK1-BL H4A-DD-CLER1-BL H4A-DD-SDWL1 H4A-DD-SDWL1-BL H4-AC-WIFI2-NA / H4-AC-WIFI2-EU CM-AC-AVIO1
Indoor dome camera cover with smoked bubble Indoor dome camera cover with clear bubble Black indoor dome camera cover with smoked bubble Black indoor dome camera cover with clear bubble Indoor dome camera sidewall knockout plug, pack of 5 Black indoor dome camera sidewall knockout plug, pack of 5 USB Wi-Fi adapter 3.5 mm jack with 1.8 m fly wire
In-Ceiling Mount Indoor Dome Camera
(H5A-DC)
MP
WDR
LightCatcher
Lens
IR
Technology
2.0C-H5A-DC1 2.0C-H5A-DC1-IR 2.0C-H5A-DC2 4.0C-H5A-DC1 4.0C-H5A-DC1-IR 4.0C-H5A-DC2
2.0
2.0
2.0
4.0
4.0
4.0
3.3 - 9 mm
3.3 - 9 mm
9 - 22 mm
3.3 - 9 mm
3.3 - 9 mm
9 - 22 mm
6.0C-H5A-DC1
6.0
4.9 - 8 mm
6.0C-H5A-DC1-IR 8.0C-H5A-DC1 8.0C-H5A-DC1-IR
6.0
8.0
8.0
4.9 - 8 mm
4.9 - 8 mm
4.9 - 8 mm
H4A-DC-SMOK1 H4A-DC-CLER1 H4A-DC-SMOK1-BL H4A-DC-CLER1-BL H4-DC-CPNL1 H4A-AC-GROM1 H4-AC-WIFI2-NA / H4-AC-WIFI2-EU CM-AC-AVIO1
In-ceiling dome camera cover with smoked bubble In-ceiling dome camera cover with clear bubble Black in-ceiling dome camera cover with smoked bubble Black in-ceiling dome camera cover with clear bubble Metal ceiling panel Camera sealing grommet, pack of 10 USB Wi-Fi adapter 3.5 mm jack with 1.8 m fly wire
Analytics
HDSM SmartCodec
Analytics
HDSM SmartCodec
Analytics
HDSM SmartCodec
� 2019, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON CONTROL CENTER, ACC, HDSM SmartCodec and LIGHTCATCHER are trademarks of Avigilon Corporation. Other names mentioned herein may be the trademarks of their respective owners. Avigilon Corporation protects its innovations with patents issued in the United States of America and other jurisdictions worldwide: www.avigilon.com/patents. Unless stated explicitly and in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors.
Sep 2019 -- Rev 2
8
