Specification Camera Image Sensor 1/1.8″ Progressive Scan CMOS Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light Shutter Speed 1/3 s to 1/100,000 s
Hikvision DS-2CD2047G2-LU 4MP ColorVu Mini Bullet Network Camera With Built-In Microphone

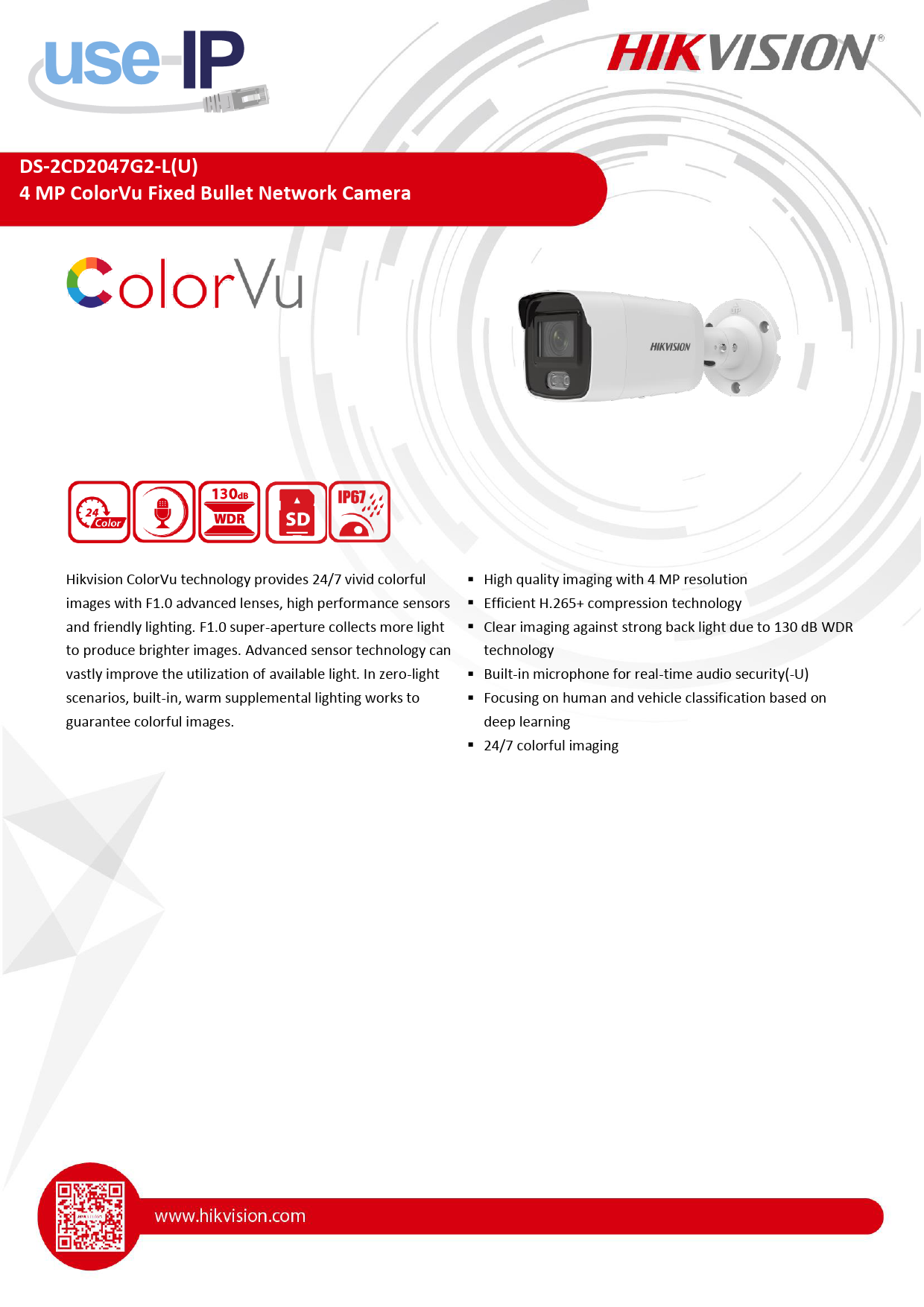

DS-2CD2047G2-L(U) 4 MP ColorVu Fixed Bullet Network Camera Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. In zero-light scenarios, built-in, warm supplemental lighting works to guarantee colorful images. High quality imaging with 4 MP resolution Efficient H.265+ compression technology Clear imaging against strong back light due to 130 dB WDR technology Built-in microphone for real-time audio security(-U) Focusing on human and vehicle classification based on deep learning 24/7 colorful imaging Specification Camera Image Sensor Min. Illumination Shutter Speed Slow Shutter P/N Wide Dynamic Range Angle Adjustment Lens Lens Type & FOV Depth of Focus Aperture Lens Mount DORI DORI Illuminator White Light Range Smart Supplement Light Video Max. Resolution Main Stream Sub Stream Third Stream Video Compression Video Bit Rate H.264 Type H.265 Type H.264+ H.265+ Bit Rate Control Scalable Video Coding (SVC) Region of Interest (ROI) 1/1.8 Progressive Scan CMOS 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light 1/3 s to 1/100,000 s Yes P/N 130 dB Pan: 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360° 2.8 mm, horizontal FOV 109°, vertical FOV 55°, diagonal FOV 138° 4 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 113° 6 mm, horizontal FOV 57°, vertical FOV 32°, diagonal FOV 66° 2.8 mm, 2.5 m to 4mm, 3.5 m to 6mm, 7.5 m to F1.0 M16 2.8 mm, D: 65 m, O: 21 m, R: 13 m, I: 6 m 4 mm, D: 72 m, O: 28 m, R: 14 m, I: 7 m 6 mm, D: 109 m, O: 43 m, R: 21 m, I: 10 m 40 m Yes 2688 × 1520 50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 32 Kbps to 8 Mbps Baseline Profile/Main Profile/High Profile Main Profile Main Stream supports Main Stream supports CBR/VBR Yes 1 fixed region for each stream Audio Environment Noise Filtering -U: Yes Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3 -U: Audio Bit Rate 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/ 8-320Kbps(MP3) Network Simultaneous Live View Up to 6 channels API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE User/Host Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, IP address filter, Security Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Image Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface Built-in Microphone -U: Yes On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB Hardware Reset Yes Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port Smart Feature-Set Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection Intelligent (Deep Learning Algorithm) Face Capture Yes Premier Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection General Linkage Method Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, Web Client Language French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Software Reset Storage Conditions Startup and Operating Conditions Power Supply Power Consumption and Current Power Interface Camera Dimension Package Dimension Camera Weight With Package Weight Approval Class EMC Safety Environment Protection Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter Yes -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) 12 VDC ± 25%, PoE (802.3af, 36 V to 57 V), class 3 12 VDC, 0.6 A, max. 7.2 W PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W Ø 5.5 mm coaxial power plug 215.2 × 78.8 × 78.6 mm (8.5" × 3.1" × 3.1") 315 × 137 × 141 mm (12.4" × 5.4" × 5.6") Approx. 715 g (1.6 lb.) Approx. 1045 g (2.3 lb.) Class B FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Ingress protection: IP67 (IEC 60529-2013) Available Model DS-2CD2047G2-LU (2.8 mm, 4 mm, 6 mm) DS-2CD2047G2-L (2.8 mm, 4 mm, 6 mm) Dimension Accessory Optional DS-1275ZJ-SUS Vertical Pole Mount DS-1280ZJ-S Junction Box DS-1276ZJ-SUS Corner Mount 050513420200430Microsoft Word 2016
