Datasheet
4MP WDR Vandal-resistant Network IR Fixed Dome Camera
Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on Day/Night IR-cut filter with auto switch (ICR) S/N >52dB IR Range Up to 40m (131ft) IR range wavelength 850nm IR…
Jan 12, 2021 · Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on Day/Night IR-cut filter with auto switch (ICR) S/N >52dB IR Range Up to 40m (131ft) IR range wavelen…
Extracted Text

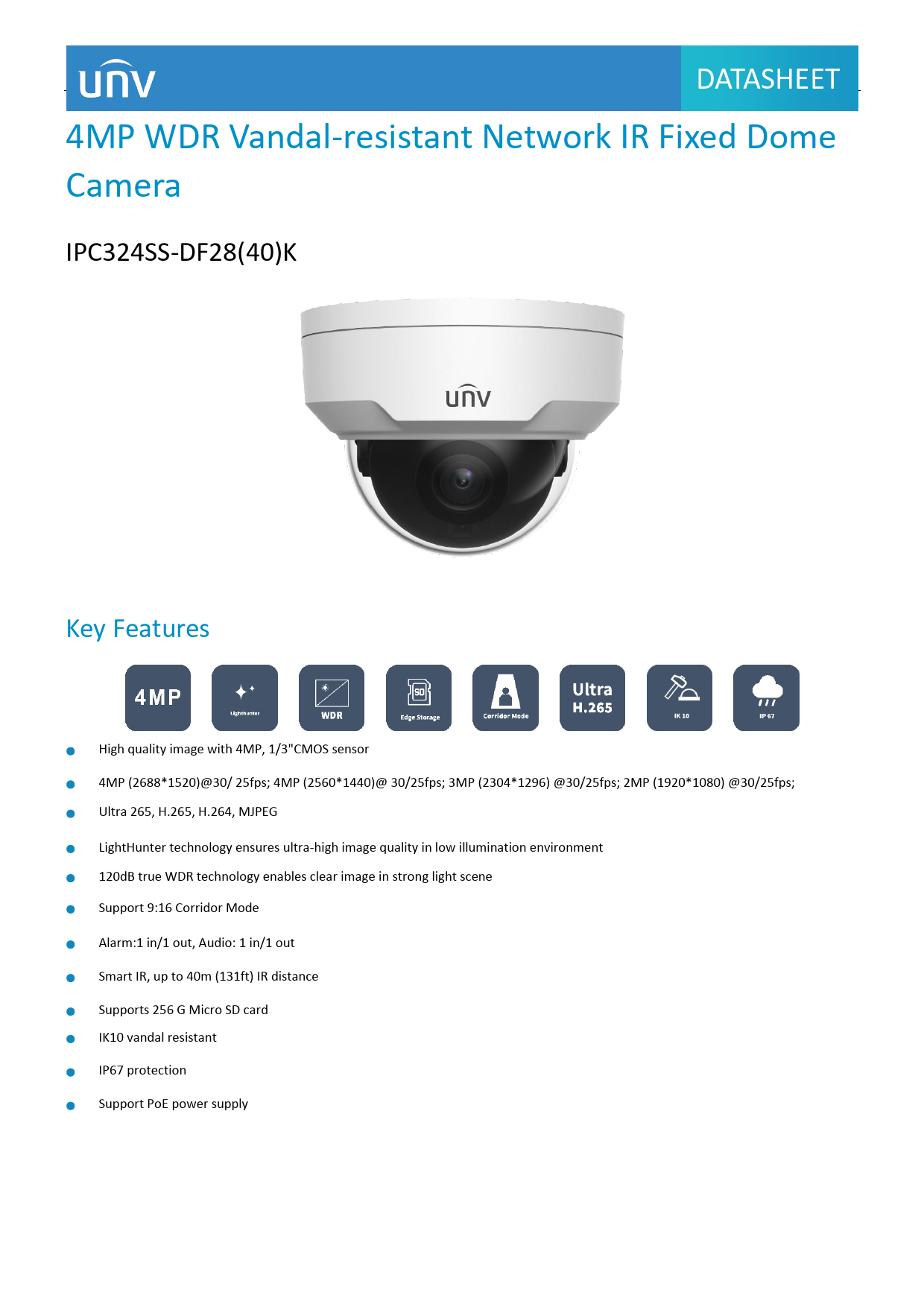

DATASHEET 4MP WDR Vandal-resistant Network IR Fixed Dome Camera IPC324SS-DF28(40)K Key Features High quality image with 4MP, 1/3"CMOS sensor 4MP (2688*1520)@30/ 25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; Ultra 265, H.265, H.264, MJPEG LightHunter technology ensures ultra-high image quality in low illumination environment 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor Mode Alarm:1 in/1 out, Audio: 1 in/1 out Smart IR, up to 40m (131ft) IR distance Supports 256 G Micro SD card IK10 vandal resistant IP67 protection Support PoE power supply DATASHEET Specifications Camera Sensor Lens DORI Distance Angle of View (H) Angle of View (V) Angle of View (O) Adjustment angle Shutter Minimum Illumination Day/Night S/N IR Range wavelength IR On/Off Control Defog WDR Video Video Compression H.264 code profile Frame Rate Video Bit Rate 9:16 Corridor Mode OSD Privacy Mask ROI Motion Detection Image White Balance Digital noise reduction Smart IR Flip Dewarping HLC BLC IPC324SS-DF28K IPC324SS-DF40K 1/3", 4.0 megapixel, progressive scan, CMOS 2.8mm@F1.6 Lens (mm) Detect (m) 4.0mm@F1.6 Observe (m) Recognize (m) Identify (m) 2.8 63 25.2 12.6 6.3 4.0 90 36 18 9 107.8� 57.0� 140.1� Pan: 3�~ 360� Auto/Manual, 1 ~ 1/100000s Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on IR-cut filter with auto switch (ICR) >52dB Up to 40m (131ft) IR range 850nm Auto/Manual Digital Defog 120dB Tilt: 0�~ 68� 82� 41.6� 100.9� Rotate:3�~ 360� Ultra 265, H.265, H.264, MJPEG Baseline profile, Main Profile, High Profile Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps 128 Kbps~16 Mbps Support Up to 8 OSDs Up to 8 areas Up to 8 areas Up to 4 areas Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 2D/3D DNR Support Normal/Vertical/Horizontal/180�/90�Clockwise/90�Anti-clockwise Support Support Support 2 DATASHEET Audio Audio Compression Suppression Sampling Rate Storage Edge Storage Network Storage Network Protocols Compatible Integration Client Web Browser Interface Audio I/O Alarm I/O G.711 Support 8KHZ Micro SD, up to 256GB ANR, NAS(NFS) IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, NAS ONVIF (Profile S, Profile G, Profile T), API EZStation EZView EZLive Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Input: impedance 35k; amplitude 2V [p-p] Output: impedance 600; amplitude 2V [p-p] 1/1 Network 1 RJ45 10M/100M Base-TX Ethernet Certifications Certifications General Power Dimensions (� x H) Net Weight Material Working Environment Strorage Environment surge protection Ingress Protection Vandal Resistant CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 DC 12V�25%, PoE (IEEE 802.3af) Power consumption: Max 4.5W 108.7 x 81.1mm (�4.3" x 3.2") 0.43kg (0.94lb) Metal + Plastic -35�C ~ 60�C (-31�F ~ 140�F), Humidity: 95% RH (non-condensing) -35�C ~ 60�C (-31�F ~ 140�F), Humidity: 95% RH (non-condensing) 2KV IP67 IK10 Dimensions DATASHEET Accessories TR-JB03-G-IN TR-JB07/WM03-G-IN TR-WM03-D-IN TR-UM06-E-IN TR-A01-IN TR-UP06-IN TR-SE24-IN TR-SE24-A-IN TR-CM24-IN 4 Junction box TR-JB03-G-IN+TR-A01-IN DATASHEET Wall mount(Junction box) TR-JB07/WM03-G-IN(TR-WM03-D-IN)+TR-A01-IN Pole mount TR-JB07/WM03-G-IN(TR-WM03-D-IN)+TR-A01-IN+ TR-UP06-IN Tilted mounting TR-UM06-E-IN Indoor pendent mount TR-JB04-D-IN+TR-A01-IN+ TR-SE24-IN(TR-SE24-A-IN)+ TR-CM24IN Zhejiang Uniview Technologies Co., Ltd. Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051) Email: overseasbusiness@uniview.com; globalsupport@uniview.com http://www.uniview.com � 2020 Zhejiang Uniview Technologies Co., Ltd. All rights reserved. *Product specifications and availability are subject to change without notice.
