XPS 8930 Setup and Specifications
File info: application/pdf · 19 pages · 1.33MB
XPS 8930 Setup and Specifications
Setup and Specifications
XPS 8930 Specifications, XPS 8930 Quick Start Guide, XPS 8930 Features, XPS 8930 Setup, Recovery drive Windows, Reinstall Windows, Setup VR headset, Intel Coffee Lake S i5 i7 i7k, Intel Z370, DDR4, USB 3.1 Gen 1, USB 3.1 Gen 2 Type-C, PCIe PCI-Express, Coffee Lake UHD, NVIDIA GT GTX, AMD Radeon, Realtek ALC3861
XPS 8930 Setup and Specifications - Dell

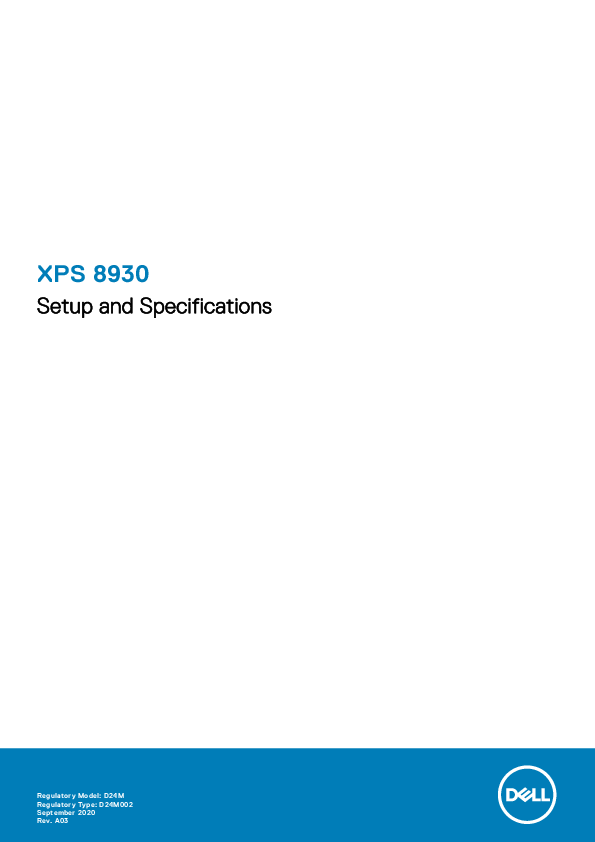

XPS 8930 Setup and Specifications Regulatory Model: D24M Regulatory Type: D24M002 September 2020 Rev. A03
Troubleshooting information, user manuals, set up instructions, product specifications, technical help blogs, drivers, software updates, and so on.
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
XPS 8930 Setup and Specifications Regulatory Model: D24M Regulatory Type: D24M002 September 2020 Rev. A03 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death. � 2017-2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners. Contents Chapter 1: Set up your computer................................................................................................... 4 Chapter 2: Create a USB recovery drive for Windows.................................................................... 7 Reinstall Windows using a USB recovery drive............................................................................................................ 7 Chapter 3: Setting up the Virtual Reality (VR) headset -- optional................................................8 Chapter 4: Views........................................................................................................................... 9 Front....................................................................................................................................................................................... 9 Back.......................................................................................................................................................................................10 Back panel............................................................................................................................................................................ 11 Chapter 5: Specifications............................................................................................................ 13 Computer model................................................................................................................................................................. 13 System information............................................................................................................................................................13 Operating system............................................................................................................................................................... 13 Dimensions and weight..................................................................................................................................................... 13 Memory.................................................................................................................................................................................14 Intel Optane memory.........................................................................................................................................................14 Ports and connectors........................................................................................................................................................15 Communications................................................................................................................................................................. 15 Wireless module............................................................................................................................................................16 Audio..................................................................................................................................................................................... 16 Storage................................................................................................................................................................................. 16 Video..................................................................................................................................................................................... 16 Power ratings...................................................................................................................................................................... 17 Computer Environment.....................................................................................................................................................17 Chapter 6: Intel Optane memory.................................................................................................. 18 Enabling Intel Optane memory........................................................................................................................................18 Disabling Intel Optane memory....................................................................................................................................... 18 Chapter 7: Getting help and contacting Dell.................................................................................19 Contents 3 1. Connect the keyboard and mouse. 1 Set up your computer 2. Connect to your network using a cable, or connect to a wireless network. 3. Connect the display. NOTE: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of your computer are covered. Connect the display to the discrete graphics card. 4. Connect the power cable. 4 Set up your computer 5. Press the power button. 6. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account. On the Support and Protection screen, enter your contact details. 7. Locate and use Dell apps from the Windows Start menu--Recommended Table 1. Locate Dell apps Resources Description My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available. SupportAssist Pro-actively checks the health of your computer's hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty. Dell Update Set up your computer 5 Table 1. Locate Dell apps (continued) Resources Description Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support. Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/support. 8. Create recovery drive for Windows. NOTE: It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows. For more information, see Create a USB recovery drive for Windows. 6 Set up your computer 2 Create a USB recovery drive for Windows Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to create the recovery drive. NOTE: This process may take up to an hour to complete. NOTE: The following steps may vary depending on the version of Windows installed. Refer to the Microsoft support site for latest instructions. 1. Connect the USB flash drive to your computer. 2. In Windows search, type Recovery. 3. In the search results, click Create a recovery drive. The User Account Control window is displayed. 4. Click Yes to continue. The Recovery Drive window is displayed. 5. Select Back up system files to the recovery drive and click Next. 6. Select the USB flash drive and click Next. A message appears, indicating that all data in the USB flash drive will be deleted. 7. Click Create. 8. Click Finish. For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your product's Service Manual at www.dell.com/support/manuals. Topics: � Reinstall Windows using a USB recovery drive Reinstall Windows using a USB recovery drive CAUTION: This process formats the hard drive and removes all data on your computer. Ensure that you back up data on your computer before beginning this task. NOTE: Before reinstalling Windows, ensure your computer has more than 2 GB of memory and more than 32 GB of storage space. NOTE: This process may take up to an hour to complete and your computer will restart during the recovery process. 1. Connect the USB recovery drive to your computer. 2. Restart your computer. 3. Press F12 after the Dell logo is displayed on the screen to access the boot menu. A Preparing one-time boot menu message appears. 4. After the boot menu loads, select the USB recovery device under UEFI BOOT. The system reboots and a screen to Choose the keyboard layout is displayed. 5. Choose your keyboard layout. 6. In the Choose an option screen, click Troubleshoot. 7. Click Recover from a drive. 8. Choose one of the following options: Just remove my files to do a quick format. Fully clean the drive to do a complete format. 9. Click Recover to start the recovery process. Create a USB recovery drive for Windows 7 3 Setting up the Virtual Reality (VR) headset -- optional 1. Download and run the setup tools for your VR headset at www.dell.com/VRsupport. 2. Connect the VR headset to the designated USB 3.1 Gen 1 ports on the back of your computer and HDMI port on the graphics card on your computer, when prompted. NOTE: If you connect the VR headset to the HDMI port on your computer, the performance will be optimum. 3. Follow the instructions on the screen to complete the setup. 8 Setting up the Virtual Reality (VR) headset -- optional Topics: � Front � Back � Back panel Front 4 Views 1. Power button Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. Press to put the computer in sleep state if it is turned on. Press and hold for 4 seconds to force shut-down the computer. NOTE: You can customize the power-button behavior in Power Options. For more information, see Me and My Dell at www.dell.com/support/manuals. 2. SD-card slot Reads from and writes to the SD card. 3. Headphone/speaker port Connect headphones or speakers. 4. Microphone port Views 9 Connect an external microphone to provide sound input. 5. USB 3.1 Gen 1 (Type-C) port Connect to external storage devices. Provides data transfer speeds up to 5 Gbps. NOTE: This port does not support video/audio streaming. 6. USB 3.1 Gen 1 ports (3) Connect peripheral such as storage devices and printers. provides data transfer speeds up to 5 Gbps. 7. Optical drive Reads from and writes to CDs and DVDs. 8. Optical-drive eject button Press to open the optical drive tray. Back 1. Back panel Connect USB, audio, video, and other devices. 2. PCI-Express X16 graphics slot Connect a PCI-Express card such as graphics, audio, or network card to enhance the capabilities of your computer. NOTE: The port on the graphics card may vary depending on the graphics card ordered. 3. PCI-Express X1 slots (2) Connect a PCI-Express card such as graphics, audio, or network card to enhance the capabilities of your computer. 4. PCI-Express X4 slot Connect a PCI-Express card such as graphics, audio, or network card to enhance the capabilities of your computer. 5. Service Tag label 10 Views The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 6. Bottom power-supply cage release-latch Release to rotate the power supply, once the side panel is released. 7. Top power-supply cage release-latch Release to rotate the power supply, once the side panel is released. 8. Power-supply diagnostics button Press to check the powersupply state. 9. Power-supply light Indicates the power-supply light. Press and hold the power-supply diagnostics button. The power-supply light changes to green if the power-supply unit is working fine. 10. Power port Connect a power cable to provide power to your computer. 11. Security-cable slot (for Kensington locks) Connect a security cable to prevent unauthorized movement of your computer. 12. Side panel release latch Pull to release and open the side panel. Back panel 1. Network port - 10/100/1000 Mbps (with lights) Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access. The two lights next to the connector indicate the connectivity status and network activity. 2. USB 2.0 ports (2) Views 11 Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps. 3. DisplayPort Connect an external display or a projector. NOTE: If you ordered your computer with a discrete graphics card, the DisplayPort on the back panel of your computer is covered. Connect the display to the discrete graphics card of your computer. 4. HDMI port Connect a TV or another HDMI-in enabled device. Provides video and audio output. NOTE: If you ordered your computer with a discrete graphics card, the HDMI port on the back panel of your computer is covered. Connect the display to the discrete graphics card of your computer. 5. USB 3.1 Gen 1 ports (3) Connect peripherals such as storage devices and printers. Provides data transfer speeds up to 5 Gbps. 6. USB 3.1 Gen 2 Type-C port Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 10 Gbps. 7. USB 3.1 Gen 2 port Connect peripherals, such as storage devices and printers. Provides data transfer speeds up to 10 Gbps. 8. Front L/R surround line-out port Connect audio-output devices such as speakers and amplifiers. In a 2.1 speaker channel setup, connect the left and right speakers. In a 5.1 or a 7.1 speaker channel setup, connect the front-left and front-right speakers. 9. Rear L/R surround port Connect audio-output devices such as speakers and amplifiers. In a 5.1 speaker channel setup, connect the rear-left and rear-right speakers. 10. Center/subwoofer LFE surround port Connect the subwoofer. NOTE: For more information about the speaker setup, refer to the documentation that shipped with the speakers. 12 Views 5 Specifications Topics: � Computer model � System information � Operating system � Dimensions and weight � Memory � Intel Optane memory � Ports and connectors � Communications � Audio � Storage � Video � Power ratings � Computer Environment Computer model Table 2. Computer model Computer model XPS 8930 System information Table 3. System information Processor Chipset 8th generation Intel Core i3/i5/i5k//i7/i7k Intel Z370 Operating system Table 4. Operating system Operating systems supported Windows 10 Pro 64-bit Windows 10 Home 64-bit Dimensions and weight Table 5. Dimensions and weight Height Width Depth 389 mm (15.32 in) 180 mm (7.09 in) 356 mm (14.02 in) Specifications 13 Table 5. Dimensions and weight (continued) Weight (maximum) 10 kg (22 lbs) NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability. Memory Table 6. Memory specifications Slots Type Speed Configurations supported: Per memory module slot Total memory Four UDIMM slots DDR4 Up to 2400 MHz: i3 processor Up to 2666 MHz: i5/i7/i7k processors 4 GB, 8 GB, and 16 GB 8 GB, 16 GB, 24 GB, 32 GB, and 64 GB The following table lists the available memory configuration matrix: Table 7. Memory configuration matrix Configuration 8 GB 8 GB 16 GB 16 GB 24 GB 32 GB 64 GB DIMM1 4 GB 8 GB 8 GB 16 GB 8 GB 8 GB 16 GB DIMM2 4 GB 8 GB 8 GB 8 GB 16 GB Slot DIMM3 4 GB 8 GB 16 GB DIMM4 4 GB 8 GB 16 GB Intel Optane memory Intel Optane memory functions as a storage accelerator. It accelerates the computer and any type of SATA-based storage media such as hard drives and solid-state drives (SSDs). NOTE: Intel Optane memory is supported on computers that meet the following requirements: 7th generation or higher Intel Core i3/i5/i7 processor Windows 10 64-bit version or higher(Anniversary Update) Intel Rapid Storage Technology driver version 15.5.xxxx or higher Table 8. Intel Optane memory Interface Connector Configurations supported PCIe NVMe 3.0 x2 M.2 16 GB 14 Specifications NOTE: For more information about enabling or disabling the Intel Optane memory, see Enabling Intel Optane memory or Disabling Intel Optane memory. Ports and connectors Table 9. Ports and connectors Back panel ports Network USB Video/Audio Table 10. Ports and connectors Front panel ports: Audio USB Card Reader Table 11. Ports and connectors Internal ports: PCIe Slots M.2 Card One RJ45 port Two USB 2.0 ports Three USB 3.1 Gen 1 ports One USB 3.1 Gen 2 Type-C port One USB 3.1 Gen 2 port One Surround Front Stereo port One Surround Rear Stereo port One Surround Center/Subwoofer port One HDMI 1.4 port for integrated graphics One DisplayPort for integrated graphics One Stereo Headphone jack One Microphone jack Three USB 3.1 Gen 1 ports One USB 3.1 Gen 1 Type-C port One 3-in-1 Card reader, supporting: Secure Digital (SD) Secure Digital Extended Capacity (SDXC) Secure Digital High Capacity (SDHC) Classes 2, 4, and 6 One PCIe x16 card slot Two PCIe x1 card slots One PCIe x4 card slot One M.2 card slot for SSD (SATA or PCIe/NVMe) One M.2 card slot for Wi-Fi and Bluetooth combo card Communications Table 12. Supported Communications Ethernet Wireless 10/100/1000 Mbps Killer Ethernet controller integrated on system board Wi-Fi 802.11a/b/g/n Wi-Fi 802.11ac Bluetooth 4.1 Specifications 15 Wireless module Table 13. Wireless module specifications Transfer rate Frequency bands supported Encryption Up to 867 Mbps (max) Dual band 2.4 GHz/5 GHz 64-bit and 128-bit WEP TKIP AES-CCMP Audio Table 14. Audio specifications Controller Integrated Realtek ALC3861 High Definition Audio with Waves MaxxAudio Pro Storage Table 15. Storage specifications Interface Hard drive Solid-state drive Optical drive (optional) Capacity: Hard drive SSD SATA 6 Gbps for optical drive SATA 6 Gbps for hard drive M.2 for SSD (SATA or PCIe/NVMe) Three 3.5-inch hard drives One M.2 slot One Slimline DVD+/-RW Up to 4 TB PCIe/NVMe: Up to 1 TB Video Table 16. Video specifications Controller Integrated Integrated Intel UHD Graphics Memory Shared system memory Discrete NVIDIA GT 1030 NVIDIA GTX 1050 Ti NVIDIA GTX 1060 NVIDIA GTX 1070 NVIDIA GTX 1080 AMD Radeon RX 560 AMD Radeon RX 570 AMD Radeon RX 580 Up to 8 GB 16 Specifications Power ratings Table 17. Power ratings Type 460 W APFC Input current 8 A Output current 3.3V/17A, 5V/25A, 12VA/18A, 12VB/16A, 12VC/8A, 5Vaux/3A Rated output voltage 3.3V, 5V, 12VA, 12VB, 12VC, 5Vaux Input voltage Input frequency Temperature range: Operating Temperature range: Storage 460 W Bronze 850 W Gold 8 A 10 A 3.3V/17A, 5V/25A, 12VA/18A, 12VB/16A, 12VC/8A, 5Vaux/3A 3.3V/20A, 5V/20A, 12VA/32A, 12VB/48A, 12VD/16A, -12V/0.5A, 5Vaux/4A 3.3V, 5V, 12VA, 12VB, 12VC, 5Vaux 3.3V, 5V, 12VA, 12VB, 12VD, -12V, 5Vaux 100 VAC�240 VAC 50 Hz�60 Hz 5�C to 50�C (41�F to 122�F) �40�C to 70�C (�40�F to 158�F) Computer Environment Airborne contaminant level: G2 or lower as defined by ISA-S71.04-1985 Table 18. Computer environment Temperature range Operating 5�C to 35�C (41�F to 95�F) Relative humidity (maximum) Vibration (maximum)* Shock (maximum) Altitude (maximum) 10% to 90% (non-condensing) 0.26 GRMS 40 G for 2 ms with a change in velocity of 20 in/s (51 cm/s) �15.20 m to 3048 m (�50 ft to 10,000 ft) Storage �40�C to 65�C (�40�F to 149�F) 0% to 95% (non-condensing) 1.37 GRMS 105 G for 2 ms with a change in velocity of 52.5 in/s (133 cm/s) �15.20 m to 10,668 m (�50 ft to 35,000 ft) * Measured using a random vibration spectrum that simulates user environment. Measured using a 2 ms half-sine pulse when the hard drive is in use. Specifications 17 6 Intel Optane memory Topics: � Enabling Intel Optane memory � Disabling Intel Optane memory Enabling Intel Optane memory 1. On the taskbar, click the search box, and then type Intel Rapid Storage Technology. 2. Click Intel Rapid Storage Technology. The Intel Rapid Storage Technology window is displayed. 3. On the Status tab, click Enable to enable the Intel Optane memory. 4. On the warning screen, select a compatible fast drive, and then click Yes to continue enabling Intel Optane memory. 5. Click Intel Optane memory > Reboot to complete enabling your Intel Optane memory. NOTE: Applications may take up to three subsequent launches after enablement to see the full performance benefits. Disabling Intel Optane memory CAUTION: After disabling Intel Optane memory, do not uninstall the driver for Intel Rapid Storage Technology as it will result in a blue screen error. The Intel Rapid Storage Technology user interface can be removed without uninstalling the driver. NOTE: Disabling Intel Optane memory is required before removing the SATA storage device accelerated by the Intel Optane memory module from the computer. 1. On the taskbar, click the search box, and then type Intel Rapid Storage Technology. 2. Click Intel Rapid Storage Technology. The Intel Rapid Storage Technology window is displayed. 3. On the Intel Optane memory tab, click Disable to disable the Intel Optane memory. NOTE: For computers in which Intel Optane memory acts as a primary storage, do not disable the Intel Optane memory. The Disable option will be grayed out. 4. Click Yes if you accept the warning. The disabling progress is displayed. 5. Click Reboot to complete disabling your Intel Optane memory and restart your computer. 18 Intel Optane memory 7 Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 19. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app Tips Contact Support Online help for operating system Troubleshooting information, user manuals, set up instructions, product specifications, technical help blogs, drivers, software updates, and so on. Dell knowledge base articles for a variety of computer concerns In Windows search, type Contact Support, and press Enter. www.dell.com/support/windows www.dell.com/support 1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles. Learn and know the following information about your product: Product specifications Operating system Setting up and using your product Data backup Troubleshooting and diagnostics Factory and system restore BIOS information See Me and My Dell at www.dell.com/support/manuals. To locate the Me and My Dell relevant to your product, identify your product through one of the following: Select Detect Product. Locate your product through the drop-down menu under View Products. Enter the Service Tag number or Product ID in the search bar. Contacting Dell To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell. NOTE: Availability varies by country/region and product, and some services may not be available in your country/region. NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog. Getting help and contacting Dell 19
