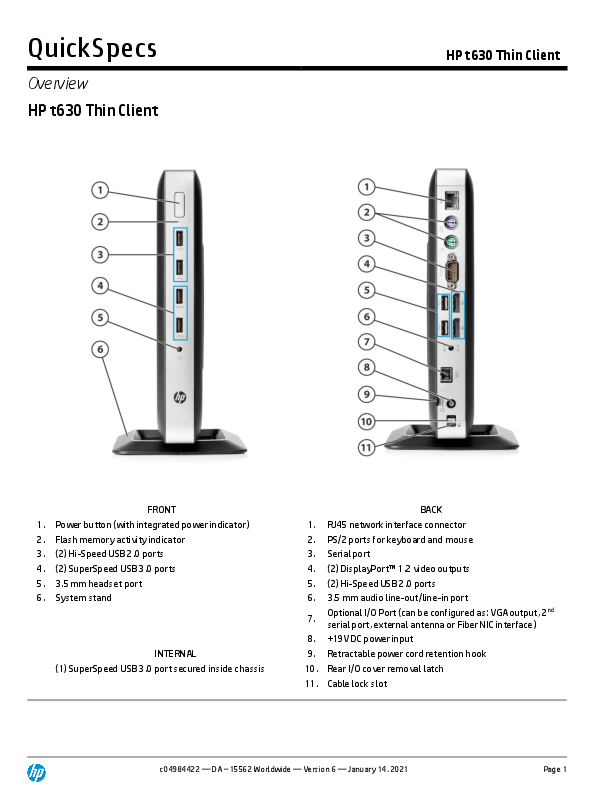

QuickSpecs
Overview HP t630 Thin Client
HP t630 Thin Client
FRONT 1. Power button (with integrated power indicator) 2. Flash memory activity indicator 3. (2) Hi-Speed USB 2.0 ports 4. (2) SuperSpeed USB 3.0 ports 5. 3.5 mm headset port 6. System stand
INTERNAL (1) SuperSpeed USB 3.0 port secured inside chassis
BACK
1. RJ45 network interface connector
2. PS/2 ports for keyboard and mouse
3. Serial port
4. (2) DisplayPortTM 1.2 video outputs
5. (2) Hi-Speed USB 2.0 ports
6. 3.5 mm audio line-out/line-in port
7.
Optional I/O Port (can be configured as: VGA output, 2nd serial port, external antenna or Fiber NIC interface)
8. +19V DC power input
9. Retractable power cord retention hook
10. Rear I/O cover removal latch
11. Cable lock slot
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 1
QuickSpecs
HP t630 Thin Client
Overview
AT A GLANCE
� AMD GX-420GI SOC; 2.0 - 2.2 GHz quad-core with a Radeon R7E based graphics core
� DDR4 dual-channel SDRAM system memory; up to 1,866 MT/s transfer rate; two SODIMM slots; up to 32 GB supported1
� (2) DisplayPortTM 1.2 video outputs supporting up to Ultra High Definition (UHD)/4K (3840 x 2160) resolutions
� Solid-state flash memory storage; M.2 form factor modules; support for up to 2 modules for maximum local storage capacity and data management
� Active thermal management technology monitors component operating temperatures, throttles SOC operation if appropriate, and prevents unit thermal shutdown
� Gigabit Ethernet (GbE) network connection supported via an integrated Realtek GbE NIC module
� Optional Allied Telesis Fiber Optic NICs; Fast Ethernet (100 Mb/s) or Gigabit (1,000 Mb/s)
� Optional Wi-Fi/Bluetooth� adapters including antennas integrated internally in the chassis NOTE: Fiber optic and Wi-Fi NIC options cannot be supported together2
� (2) SuperSpeed USB 3.0 and (2) Hi-Speed USB 2.0 on front, (2) Hi-Speed USB 2.0 on rear and (1) SuperSpeed USB 3.0 inside the chassis.
� Legacy ports include PS/2 keyboard and mouse, up to (2) serial ports and up to (1) VGA video output
� Integrated PC speaker for basic audio playback; 3.5 mm headset audio port on front and 3.5 mm audio port on rear that can be configured as line in or line out supporting headphones, external speaker systems, or microphone
� TCG certified Trusted Platform Module (TPM) chipset; version 1.2 with HP ThinPro/Smart Zero Core and Windows Embedded Standard 7E models, version 2.0 with Windows 10 IoT Enterprise models; other security features include a system BIOS designed to address NIST SP 800-147 guidelines, cable lock slot, and power cord retention clip to prevent accidental disconnects; (1) internal SuperSpeed USB 3.0 port for securing USB flash drives inside the chassis
� Post-consumer recycled plastics content greater than 25% total unit plastics (by weight)
� Low halogen3 material content
� All models TAA compliant (in North America & EMEA); TAA models available in APJ by request
1 If configured with a Windows Embedded 32-bit operating system, memory above 3.2 GB may not be available due to operating system limitations 2 Wireless access point and Internet access is required; availability of public wireless access points is limited 3 This product is low halogen except for power cords, cables and peripherals, as well as the optional Fiber Optic NIC module; service parts obtained aftermarket may not be low halogen
Warranty
HP Customer Support: limited three-year hardware limited warranty in most regions; HP Care Packs are extended service contracts that go beyond your standard limited warranties; for more details visit http://www.hp.com/go/cpc
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 2
QuickSpecs
Technical Specifications
OPERATING SYSTEMS
HP Smart Zero Core HP ThinPro Windows Embedded Standard 7E Windows 10 IoT Enterprise
HP t630 Thin Client
PROCESSOR
Model AMD GX-420GI
CPU Frequency Max/Base
2.2/2.0 GHz
Cores 4
GPU CUs 6
TDP 16.1 W
L2 Cache 2 MB
GPU 626 MHz
Memory DDR4
NOTE# 1: This HP version of AMD's 3rd Generation AMD Embedded G-Series SoC (GX-420GI) has enhanced features over the generic version (GX-417GI) documented on the AMD website (https://www.amd.com/Documents/I-Family-Product-Brief.pdf). NOTE# 2: CPU Frequency Max is based on AMD Turbo Core Technology.
GRAPHICS
Number of displays supported: Video outputs:
Maximum screen resolution:
2 (2) DisplayPortTM 1.2 (standard) (1) VGA (optional)
NOTE: adding the optional VGA output does not increase the number of displays supported.
Supports 2 displays at 3840 x 2160 @ 60 Hz via the standard DisplayPortTM outputs Supports 1 display at1920 x 1200 @ 60 Hz via the optional VGA output NOTES:
� The system should be configured with dual channel memory (two SODIMMs) for optimal display resolution performance
� Dual channel memory (two SODIMMs) is required to achieve maximum resolution on dual UHD displays
MEMORY
Type: Data Transfer Rate: Peak Transfer Rate: Number of Slots
Capacities:
Reserved for Graphics:
DDR4 dual channel SDRAM Up to 1,866 MT/s 14,933 MB/s 2 x SODIMM 4, 8, 16 and 32 GB
NOTE: WES 7E is a 32-bit operating system and only recognizes up to 3.2GB RAM 256 MB, 512 MB (default) or 1 GB
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 3
QuickSpecs
HP t630 Thin Client
Technical Specifications
NOTE: The system's Graphics Processing Unit (GPU) uses part of the total system memory. System memory dedicated to graphics performance is not available for use by other programs
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 4
QuickSpecs
Technical Specifications
HP t630 Thin Client
UEFI
UEFI Specification Revision
Trusted Platform Module (TPM)
2.3.1
Meets requirements for Common Criteria, an independent third-party certification of trustworthiness
Meets requirements for FIPS 140-2, a standard for cryptographic integrity
TPM 1.2
HP ThinPro/Smart Zero Core and Windows Embedded Standard 7E models
TPM 2.0
Windows 10 IoT Enterprise and No OS models
Security features Other UEFI details
System UEFI designed to address NIST SP 800-147 guidelines See t630 Thin Client Troubleshooting Guide
STORAGE
Type: Number of Sockets:
NAND flash memory; non-volatile
(2) M.2 designated as primary and secondary Primary storage options:
� No OS, Smart Zero & ThinPro = 8, 16, 32, 64 and 128 GB � WES 7E-32bit = 16, 32, 64 and 128 GB � Win 10 IoT-64 bit = 32, 64 and 128 GB
Capacities:
NOTE: The primary socket supports M.2 flash up to size 2280 modules; the secondary socket accommodates up to size 2242 modules. The highest capacity offered in the secondary slot is 64 GB. Secondary storage options:
� All configurations = 8, 16, 32 & 64 GB � WES 7E-32bit restrictions for factory = The secondary drive must be equal to or
greater than the capacity of the primary drive.
NOTE: Secondary SSD capacity restrictions are for factory only. Therefore, customer may change secondary storage to any capacity desired after received from factory.
Solid-state flash-based memory modules are the primary operating system storage media for thin clients supporting highly virtualized operating environments. Thin clients display a hosted session from a data center through standard IP networks which minimizes the required size of local flash-based storage. In a traditional thin client environment, data and application files are stored securely in the remote data center and not on the local storage device.
The HP t630 Thin Client uses three types of flash memory: MLC (2-bits per cell), Ultra MLC (2-bits per cell, but only 1 is utilized) and TLC (3-bits per cell). Because the classic thin client use cases seldom require writing to flash memory storage, a relatively low capacity MLC flash memory module is typically used to provide the best cost and performance. However, when the use case calls for writing to the local flash memory storage module careful consideration should be given to the selection of the proper storage module. A larger capacity and/or the use of Ultra MLC technology could be required to adequately support the usage being planned or expected from the thin client.
Flash Memory Specification
MLC (Multi-level Cell)
UMLC (Ultra MLC)
TLC (Triple-level Cell)
Bits per cell
2
2 (only 1 is used)
3
Terabytes Written (TBW) *
5 TBW* � 8GB 10 TBW* � 16GB 20 TBW* � 32GB
50 TBW* � 16GB 100 TBW* � 32GB
70 TBW* - 128GB
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 5
QuickSpecs
Technical Specifications
* Terabytes Written (TBW) calculated based on JESD-219 SSD Client workload
HP t630 Thin Client
Input/Output
USB Interfaces: Video Outputs: I/O Interfaces: Audio
(2) Hi-Speed USB 2.0 (front access) (2) Hi-Speed USB 2.0 (rear access) (2) SuperSpeed USB 3.0 (front access) (1) SuperSpeed USB 3.0 (inside chassis)
(2) DisplayPortTM 1.2 digital outputs (standard) (1) VGA analog output (optional) NOTE: the optional VGA output does not increase the number of displays supported.
(2) PS/2 keyboard/mouse ports (1) RJ45 network interface connector (1) Serial port (standard): can be configured to produce 5V of power (1) 2nd Serial port (optional)
(1) 3.5 mm headset port (front)
(1) 3.5 mm audio combo line-out/ line-in port (rear)
NOTE: A single position at the back of the system is utilized for one of four optional outputs. One of the following can be configured to any system:
� Optional VGA video output � Optional 2nd serial port
� Optional Fiber Optic NIC interface
� Optional external Wi-Fi antenna
AUDIO/VIDEO
Audio Subsystem Audio CODECs
Video CODECs
� Internal amplified speaker system for basic audio playback � 3.5 mm headset socket (front access) � 3.5 mm combo line-out/ line-in socket (rear access)
� MP3 � AAC Stereo � HE AAC � Includes hardware acceleration support
� MPEG-4 part 2 (DivX, Xvid) � MPEG-4 part 10 (H.264, AVC), Advanced Video Coding (AVC) (H.264 encode) � MPEG-H part 2, High Efficiency Video Coding (HEVC) (H.265 decode) � WMV 7/8/9 VC-1 & ASF Demuxer � Includes hardware acceleration support
NOTE 1: Playback of multiple 2160p videos on 4K displays nor stretching the playback of 2160p video across multiple 4K displays is not supported. NOTE 2: Playback of multiple 1080p videos and stretching 1080p videos is supported above room temperature (ambient temperature of 25 degrees Celsius) as long as the resolution in the operating system is set to 2560 x 1600 or lower.
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 6
QuickSpecs
HP t630 Thin Client
Technical Specifications
HARDWARE SECURITY
� Security lock slot (cable lock sold separately) � Power cord retention clip � Internal SuperSpeed USB 3.0 port � Trusted Platform Module (version 1.2 or 2.0 depending upon the model's configured operating system)
NETWORKING
Realtek RTL8111HSH-CG Gigabit Ethernet (GbE) Controller
� 10/100/1000M transceiver
� Supports ECMA-393 ProxZzzy Standard for
� Supports Giga Lite (500M) mode
sleeping hosts
� Auto-Negotiation with Next Page capability
� XTAL-Less Wake-On-LAN
� Supports PCI Express 1.1
� Supports Latency Tolerance Reporting
� Supports pair swap/polarity/skew correction
� Wake-On-LAN Technology support
� Crossover Detection and Auto-Correction
� Supports 32-set 128-byte Wake-up Frame pattern
� Supports 1-Lane 2.5Gbps PCI Express Bus
exact matching
� Embedded OTP memory
� Supports Microsoft Wake Packet Indication
� Supports hardware Error Correction Code function � Supports PCIe L1.Off and L1.Snooze
� Supports hardware Cyclic Redundancy Check
� Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE
function
802.3ab
� Transmit/Receive on-ship buffer support � Supports PCI MSI and MSI-X � Supports 25MHz or 48MHz Oscillator
� Supports IEEE 802.1P Layer 2 Priority Encoding � Supports IEEE 802.1Q VLAN tagging � Supports IEEE 802.3az-2010 (EEE)
� Built-in switching regulator
� Supports Full Duplex flow control (IEEE 802.3x)
� Supports power down/link down power
saving/PHY disable mode
Wi-Fi Networking*
� Intel� Dual Band Wireless-AC 3168 Wi-Fi/Bluetooth� combo adapter � Intel� Dual Band Wireless-AC 8260 Wi-Fi/Bluetooth� combo adapter
* Wireless access point and internet access required. Availability of public wireless access points limited.
NOTE: Wireless features, performance and support may vary depending on environmental variables such placement, settings and firmware of your access points. Please contact your wireless vendor for support of your wireless environment
FIBER OPTIC NETWORKING
Adapter Option:
Allied Telesis AT-27M2/SC Fiber Fast Ethernet Network Interface
Form Factor:
M.2
Connector: Features:
SC; compliant with IEC 61754-4
� IEEE 802.1p priority encoding/tagging (QoS, CoS) � IEEE 802.1q VLAN tagging � IEEE 802.3x flow control � Buffer/FIFO: 2K transmit and 2K receive � Loopback mode � Descriptor-Based Buffer Management � Wake-on-LAN from S3 (Sleep) and S4 (Hibernate) not supported � Link Detection and PHY interface power; the PHY interface, Link detection and Link LED
should be enabled by default at power-up
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 7
QuickSpecs
HP t630 Thin Client
Technical Specifications
Performance:
� >= 85 Mbit/s receive, <= 30% CPU utilization � >= 85 Mbit/s transmit, <= 30% CPU utilization � >= 170 Mbit/s total bi-directional, <= 30% C:U utilization
External Interface: Power:
Non-volatile Storage:
The minimum transfer size at 100 Mbit/s is 1 Gbps
Complies with IEEE 802.3 1000BASE-X operation
� Uses less than 1775 mW of power at full performance � Supports all PCI Express bus states L0, L0s, L1 and L2 The MAC address is unique for each system; assigned from the board assembly manufacturer's IEEE registered allocation.
The PCI subsystem ID is unique to HP and unique to each design to allow Windows Update to be finely controlled.
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 8
QuickSpecs
Technical Specifications
HP t630 Thin Client
Adapter Option: Form Factor: Connector: Features:
Performance:
External Interface: Power: Non-volatile Storage:
Allied Telesis AT-29M2/SC or AT-29M2/LC Fiber Gigabit Network Interface
M.2
SC; compliant with IEC 61754-4
� IEEE 802.1p priority encoding/tagging (QoS, CoS) � IEEE 802.1Q VLAN tagging � IEEE 802.3x flow control � Buffer/FIFO: 22K transmit and 40K receive � Loopback mode � Descriptor-Based Buffer Management � Wake-on-LAN from S3 (Sleep) and S4 (Hibernate) not supported � Link Detection and PHY interface power; the PHY interface, Link detection and Link LED
should be enabled by default at power-up � >= 800 Mbit/s receive, <= 30% CPU utilization � >= 800 Mbit/s transmit, <= 30% CPU utilization � >= 1500 Mbit/s total bi-directional, <= 30% C:U utilization
The minimum transfer size at 1000 Mbit/s is 1500 Gbps Complies with IEEE 802.3 1000BASE-X operation
� Uses less than 2100 mW of power at full performance � Supports all PCI Express bus states L0, L0s, L1 and L2 The MAC address is unique for each system; assigned from the board assembly manufacturer's IEEE registered allocation.
The PCI subsystem ID is unique to HP and unique to each design to allow Windows Update to be finely controlled.
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 9
QuickSpecs
Technical Specifications
SOFTWARE SUPPORT
Host Environment
Protocol
Microsoft Remote Desktop Services Citrix�
VMware� Horizon
Remote FX (RFX), RDP
ICA, HDX RDP, PCoIP , Blast Extreme
Protocol Clients
Citrix� Receiver Microsoft Remote Desktop Client VMwareTM Horizon ViewTM Client HP Remote Graphics Software (RGS) HP TeemTalk Terminal Emulator Free RDP
Browser Support
Mozilla Firefox Internet Explorer
Security
Smart Card Log-on Manager Read only Operating System 802.1x Operating System Write Filter Microsoft Firewall
HP ThinPro Smart Zero Core
HP ThinPro Smart Zero Core
N/A
via add-on
HP ThinPro Smart Zero Core
36 N/A HP ThinPro Smart Zero Core
N/A N/A
HP t630 Thin Client
Microsoft Windows Embedded
WES 7E
WIN 10 IoT
Microsoft Windows Embedded
WES 7E
WIN10 IoT
via add-on
N/A
N/A
N/A
Microsoft Windows Embedded
WES 7E
WIN10 IoT
N/A
N/A
11
11
Microsoft Windows Embedded
WES 7E
WIN10 IoT
EWF, FBWF
UWF
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 10
QuickSpecs
Technical Specifications
Management Tools
HP Device Manager HP ThinUpdate HP Easy Tools HP Smart Zero Client Services Microsoft SCCM/EDM agent
HP ThinPro Smart Zero Core
N/A
N/A
HP t630 Thin Client
Microsoft Windows Embedded
WES 7E
WIN10 IoT
via add-on
N/A
N/A
N/A
Additional Components
HP Velocity HP Easy Shell
HP ThinPro Smart Zero Core
N/A
Microsoft Windows Embedded
WES 7E
WIN10 IoT
HP Universal Print Driver
N/A
Windows Media Player
N/A
12
12
Microsoft Direct Access
N/A
N/A
Microsoft BranchCache
N/A
N/A
Microsoft AppLocker
N/A
N/A
Microsoft Sideloading
N/A
N/A
NOTE: Other add-on software available (see: http://www.hp.com/support for latest list of available add-ons). Software performance and support may vary depending on customer environment and backend.
Audio/Video CODECs
MP3 WMA stereo AAC stereo & HE AAC Microsoft AC3 encoder MPEG-1 MPEG-4 part 2 (DivX, Xvid, H.263) MPEG-4 part 10 (H.264, AVC) WMV 7/8/9/ VC-1 & ASF Demuxer
HP ThinPro Smart Zero Core
N/A
Microsoft Windows Embedded
WES 7E
WIN 10 IoT
N/A
N/A
N/A
N/A
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 11
QuickSpecs
Technical Specifications
HP t630 Thin Client
Recommended TC config for Microsoft Teams media optimization
TC CPU
VMware Teams Optimization
t430
1.10 GHz 2 Core
-
t530
1.50 GHz 2 Core
-
t540
1.50 GHz 2 Core
-
t630
2.00 GHz 4 Core
t628
1.99 GHz 4 Core
-
t638
2.00 GHz 4 Core
t640
2.40 GHz 2 Core
t730
2.70 GHz 4 Core
t740
3.25 GHz 4 Core
mt21
1.80 GHz 2 Core
-
mt22
1.90 GHz 2 Core
-
mt31
1.80 GHz 2 Core
-
mt32
2.70 GHz 4 Core
mt45
2.10 GHz 4 Core
mt46
2.50 GHz 4 Core
- Not recommended, recommended
Citrix Teams Optimization
TEXT AND GRAPHICS TERMINAL EMULATIONS
(provided by HP TeemTalk 7 in HP ThinPro)
Emulation
Terminal ID
HP 700-92/96
70092, 70094, 70096, 2392A, 2622A
IBM3151
Mod11, Mod31
3278-2 (24x80), 3278-3 (32x80), 3278-4 (43x80), 3278-5 (27x132), 3278-2-E (24x80), 3278-
IBM3270
3-E (32x80), 3278-4-E (43x80), 3278-5-E (27x132), 3279-2 (24x80), 3279-3 (32x80), 3279-4 (43x80), 3279-5 (27x132), 3287-1
IBM5250
5291-1, 5292-2, 5251-11, 3179-2, 3196-A1, 3180-2, 3477-FC (27x132), 3477-FG (24x80), 3486-BA, 3487-HA, 3487-HC, 3812-1
VT52, VT100, VT100+, VT500 (7- or VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240, VT320, VT340, VT420,
8-bit)
VT510, VT520, VT525
VT HP220, VT UTF8
VT100, VT101, VT102, VT125, VT220, VT240, VT320, VT340, VT420, VT131, VT132, M2200, VT510, VT520, VT525
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 12
QuickSpecs
Technical Specifications
WEIGHTS & DIMENSIONS
W x D x H: (vertical orientation)
With stand: 12 x 22 x 25.1 cm; 4.72 x 8.66 x 9.88 in Without stand: 4.2 x 22 x 24 cm; 1.65 x 8.66 x 9.45 in
Volume:
2.21liters; 74.73 fl oz
System Weight (unit with stand)
With stand =1.52kg; 3.35 lb Without stand = 1.45 kg; 3.20 lb
Shipping Weight
4.1kg; 9.04 lb
NOTE: All measurements are approximate; the addition of optional modules will increase the weight
HP t630 Thin Client
EXTERNAL POWER SUPPLY
65W external power adapter Worldwide auto-sensing 100-240 VAC, 50-60 Hz Energy-saving automatic power-down Surge-tolerant
External power adapters are sourced from a number of suppliers in order to ensure adequate supply and availability is maintained. The actual dimensions (cm) of the power brick will vary by supplier.
Chicony Delta LiteOn
12.6(L) x 5.0(W) x 3.0(H) cm 10.8(L) x 4.6(W) x 2.95(H) cm 11.35(L) x 5.5(W) x 3.0(H) cm
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 13
QuickSpecs
Technical Specifications
HP t630 Thin Client
COMPLIANCE/CERTIFICATIONS
Accessibility:
Section 508 Accessibility. VPAT Report available.
Environmental Stewardship:
Worldwide (EPEAT, ROHS, ERP, TCO, MEPS, CECP, HP GSE, etc.)
Product Safety:
Worldwide (UL, CB, GS, CCC, etc.)
Electromagnetic Compliance (EMC):
International Medical Safety Standard:
Worldwide (FCC/ CISPR/ EN/ VCCI/ ICES/ AS/ NZS/ CNS/ KCC) "Class B" EMI regulations
IEC60601-1-2 certification - defines the basic and essential performance for medical equipment in regard to emissions and immunity to electromagnetic disturbances.
ENVIRONMENTAL
Standard 50� to 104� F (10� to 40� C)
Using Quick Release with a flat panel monitor Operating Temperature Range: 50� to 95� F (10� to 35� C)
t630 with Fiber NIC:
50� to 95� F (10� to 35� C)
Non-operating Temperature Range:
-22� to 140� F (-30� to 60� C)
Humidity:
Condensing: 20% to 80% Non-condensing: 10% to 90%
NOTE: Specifications are at sea level with altitude derating of 1� C/300m (1.8� F/1000ft) to a maximum of 3 Km (10,000 ft), with no direct, sustained sunlight. Upper limit may be limited by the type and number of options installed.
Basic Configuration (does not include a fiber optic NIC):
Energy Consumption:
Normal Operation: (short idle) Normal Operation: (long idle)
Sleep
Off
Heat Dissipation
Normal Operation: (short idle) Normal Operation: (long idle)
Sleep
Off
115VAC, 60Hz 12.4 10.9 1.18 0.2
115VAC, 60Hz 42 BTU/hr 37 BTU/hr 4 BTU/hr 0.7 BTU/hr
230VAC, 50Hz 13.2 11.5 1.24 0.25
230VAC, 50Hz 45 BTU/hr 39 BTU/hr 4 BTU/hr 0.9 BTU/hr
100VAC, 60Hz 12.4 11.2 1.17 0.2
100VAC, 60Hz 42 BTU/hr 38 BTU/hr 4 BTU/hr 0.7 BTU/hr
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 14
QuickSpecs
HP t630 Thin Client
Technical Specifications
System configuration includes: Thin Pro - 64bit, 128 GB primary storage. 32 GB secondary storage, 32 GB of system memory, USB keyboard & USB mouse Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
Optional Configuration (includes a fiber optic NIC):
Energy Consumption:
Normal Operation: (short idle) Normal Operation: (long idle)
Sleep
115VAC, 60Hz 10.5 10.9 1.18
230VAC, 50Hz 13.2 11.5 1.24
100VAC, 60Hz 12.4 11.2 1.17
Off
0.2
0.25
0.2
Heat Dissipation
Normal Operation: (short idle) Normal Operation: (long idle)
Sleep
115VAC, 60Hz 36 BTU/hr 37 BTU/hr 4 BTU/hr
230VAC, 50Hz 45 BTU/hr 39 BTU/hr 4 BTU/hr
100VAC, 60Hz 42 BTU/hr 38 BTU/hr 4 BTU/hr
Off
0.7 BTU/hr
0.9 BTU/hr
0.7 BTU/hr
System configuration includes: WES 7E-32bit, 100 Mbps SC Fiber NIC, 128 GB primary storage. 32 GB secondary storage, 32 GB of system memory, USB keyboard & USB mouse
Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 15
QuickSpecs
Summary of Changes
HP t630 Thin Client
Date of change: September 9, 2016
April 24, 2017
August 20; 2018 October 14, 2020 January 14, 2021
Version History: Type of change Description of change:
From v1 to v2 Added
Processor notes in Technical Specifications, Advanced Video Coding (AVC) in Audio/Video
Change
Video CODECs, MPEG-H part 2 and notes in Audio and Video section, Regulatory Compliance to Agency Compliance section and content, HP Teem Talk support, Radeon R6E to R7E
Remove
Wireless note in Text and Graphics section, "& WES 7 operating systems" in text and Graphics section
From v2 to v3 Change
In BIOS section the name changed to UEFI for the entire section, The Hardware Networking subsection was changed for The Realtek RTL8111HSH-CG Gigabit Ethernet (GbE) Controller subsection and its supports, CVAA was changed for VPAT in the Accessibility subsection of the Agency Compliance.
From v3 to v4 Changed
Software support for VMware Horizon, changed COMPLIANCE/CERTIFICATIONS section
From v4 to v5 Removed
Energy Star certification
From v5 to v6 Changed
SOFTWARE SUPPORT section
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 16
QuickSpecs
HP t630 Thin Client
� 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express limited warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. DisplayPortTM and the DisplayPortTM logo are trademarks owned by the Video Electronics Standards Association (VESA�) in the United States and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Intel and the Intel Inside logo are trademarks of Intel Corporation in the U.S. and other countries. Linux� is the registered trademark of Linus Torvalds in the U.S. and other countries. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. Citrix and XenDesktop are trademarks of Citrix Systems, Inc. and/or one more of its subsidiaries, and may be registered in the United States Patent and Trademark Office and in other countries. VMware is a registered trademark or trademark of VMware, Inc. in the United States and/or other jurisdictions.
c04984422 -- DA � 15562 Worldwide -- Version 6 -- January 14, 2021
Page 17
