Webinar "KNX DALI Gateway Premium DG/S x.64.5.1"
File info: application/pdf · 58 pages · 4.05MB
Webinar “KNX DALI Gateway Premium DG/S x.64.5.1”
Extracted Text

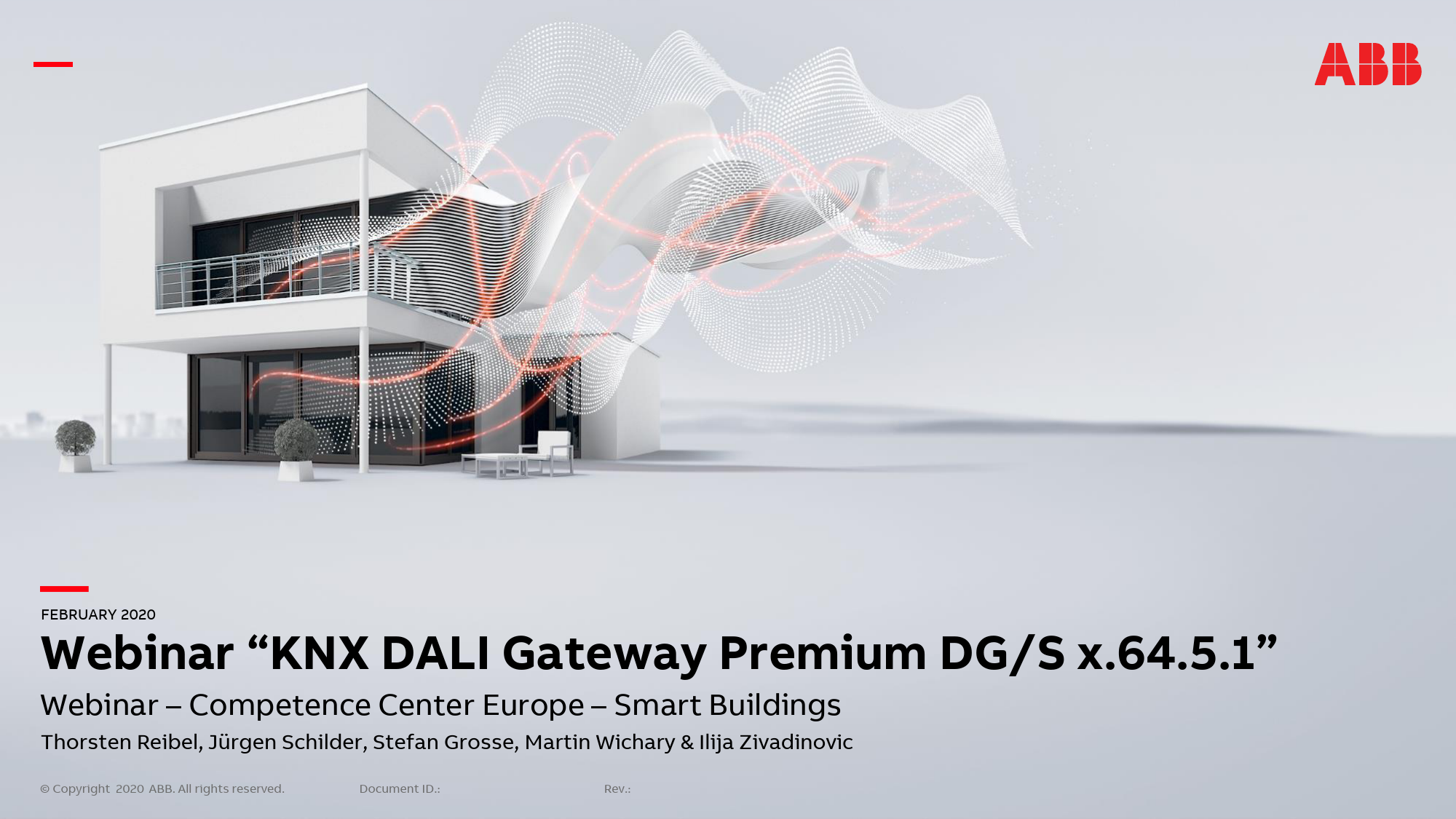

-- -- FEBRUARY 2020 Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Webinar � Competence Center Europe � Smart Buildings Thorsten Reibel, J�rgen Schilder, Stefan Grosse, Martin Wichary & Ilija Zivadinovic � Copyright 2020 ABB. All rights reserved. Document ID.: Rev.: -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" February 28, 2020 Slide 2 -- Agenda Why new KNX DALI Gateways? Overview of all KNX DALI Gateways from ABB Definitions Tunable White Human Centric Lighting (HCL) Dim2Warm KNX DALI Gateway Premium DG/S x.64.5.1 Overview and Functions ETS Application and ABB i-bus� tool (Practical Demonstration) Commercial and Marketing Aspects February 28, 2020 Slide 3 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Why new KNX DALI Gateways? -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Why new KNX DALI Gateways? Situation � KNX products from ABB are well known, have a great performance and a good reputation, with innovative features and local support � Since the beginning of KNX DALI Gateways ABB has offered various devices, developed and launched continuously further components with great success � Lighting control, especially with DALI, both in commercial and more and more in residential projects has a significant value for the building market and for ABB � Increased demands in Lighting Control of buildings, visible in specification texts � Keywords: Tunable White, Human Centric Lighting (HCL) February 28, 2020 Slide 5 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Overview of all KNX DALI Gateways from ABB -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Status February 2020 Controlled DALI outputs Gateway DG/S 8.1 Broadcast 8 (A...H) Gateway DG/S 1.64.1.1 Group and individual 1 DALI ballast 128 (max. 16 per output) 64 February 28, 2020 DALI addressing Lighting groups established via Lighting groups per Gateway Constant light control Slide 7 not necessary cable installation 8 (installation) - 64 DALI and KNX 16 (DALI) + via KNX - Gateway DG/S 2.64.1.1 Group and individual 2 Light Controller Light Controller DLR/S 8.16.1M DLR/A 4.8.1.1 Group Group 1 1 2 x 64 64 64 2 x 64 DALI and KNX 2 x 16 (DALI) + via KNX - 64 DALI 16 (DALI) 8 groups 64 DALI 8 (DALI) 4 groups -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Status March 2020 Controlled DALI outputs Gateway DG/S 8.1 Broadcast 8 (A...H) Gateway DG/S x.64.1.1 new Gateway DG/S x.64.5.1 Light Controller Light Controller DLR/S 8.16.1M DLR/A 4.8.1.1 Group Group 1 1 February 28, 2020 DALI ballast 128 (max. 16 per output) DALI addressing Lighting groups established via Lighting groups per Gateway Constant light control Slide 8 not necessary cable installation 8 (installation) - - Group or individual control - DALI Outputs 230V secure - ABB i-bus tool support - DALI Emergency Lighting -... All Functions of DG/S x.64.1.1 + Tunable White, Human Centric Lighting, Dim2Warm and more 64 64 DALI 16 (DALI) 8 groups 64 64 DALI 8 (DALI) 4 groups -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Definition: Tunable White -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Tunable white Principle Change of colour temperature TC (Cold warm white) with dimming of colour temperature � Typical range between 2,000K (Kelvin) and 6,000K depending on ballast and lamp � 2,000K (warm white) ... 6,000K (cold white) � Quality feature of light is not only brightness level, distribution in the room, no glare effects but also colour temperature TC � Optimization of biological and emotional effects (performance and well-being) of light for human beings both in private environment and working activities � Cold white activity, warm white relaxation � Demand from the market and in projects, driven also by LED technology February 28, 2020 Slide 10 Source: Internet -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Definition: Human Centric Lighting (HCL) -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Human Centric Lighting (HCL) Principle With Human Centric Lighting (HCL), the daylight is simulated in the building, means the colour temperature of the outside light is reproduced by colour temperature controllable lights in the room Actually it is the function tunable white, automized for a dynamic and suitable light situation with change of colour temperature over the day and with all positive aspects mentioned before In complex HCL lighting systems, brightness, light distribution, direction of light and colour temperature are varied. The dynamic of the daylight, the seasons and the location of the building are considered. Furthermore special light situation can be created, e.g. scene with cold light for focused working at a machine. February 28, 2020 Slide 12 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Definition: Dim2Warm -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Dim2Warm Principle Change of colour temperature proportionally to brightness, resulting in an effect like a light bulb � Dimming up: Increasing of colour temperature cold white � Dimming down: Decreasing of colour temperature warm white Basically it copies the colour temperature behavior of a light bulb or halogen lamp in case of dimming Especially in residential lighting solutions this feature is preferred, as it is known and accepted from traditional light bulbs or halogen lamps Thus LED lighting with tunable white functionality can be used for the same effect February 28, 2020 Slide 14 20% dimming 2000K colour temperature 100% 6000K -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" KNX DALI Gateway Premium DG/S x.64.5.1 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Features Overview � Two devices � DG/S 1.64.5.1 (one channel, 64 ballasts) � DG/S 2.64.5.1 (two independent channels, 2 x 64 ballasts) � All functions of DG/S x.64.1.1 included � Flexible combination of DALI groups, single control or KNX groups � DALI Outputs 230V secure � ABB i-bus� tool support � Emergency Lighting � Templates � Manual operation �... February 28, 2020 Slide 16 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Features Training material of DG/S x.64.1.1 Training & Qualification Database: https://go.abb/ba-training � Webinar videos and slides KNX ABB DALI Gateway DG/S x.64.1.1 Part 1 and 2 � Video Tutorials ABB i-bus� tool with DG/S x.64.1.1 Part 1 � 5 � eLearning ABB i-bus� KNX Lighting: DALI and DALI Gateways �... February 28, 2020 Slide 17 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Features What is new? � Main Features Tunable White � Change of colour temperature TC (Cold to warm white) with setting and dimming of colour temperature and brightness for lamps according to device type 8 (tunable white, no colour lighting functions like RGB) Human Centric Lighting (HCL) � Colour temperature curve following daylight Dim2Warm � Colour temperature changes proportionally to brightness with the effect like a light bulb February 28, 2020 Slide 18 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Features What is new? � Various Features Standby Shutdown � Ballast voltage shutdown via additional switching actuator � In case of all connected lights are turned off all ballasts are only in standby mode � Ballasts can be switched off to save energy, e.g. during the night Operating Hours � Counting of operating hours by means of ABB i-bus� tool � Monitoring of circuits/lamps concerning life span for maintenance or replacement February 28, 2020 Slide 19 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Features What is new? � Various Features Scenes � Beside brightness level also the colour temperature can be adjusted in a scene � For each of the 16 DALI scenes a 1 bit object to recall the scene can be established. � Standard is 1 byte with coded content (recall, store and scene number) � Advantage 1 bit recall: Easy to use by any sensor or operating element February 28, 2020 Slide 20 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Features What is new? � Various Features � Fully functional and individual DALI outputs for 64 DALI devices each in accordance with IEC 62 386 Part 201, 202 and 209 � Normal DALI luminaires (device type 0) � DALI single battery emergency light (device type 1) � Colour-controlled DALI luminaires (device type 8) Note: DG/S x.64.5.1 supports tunable white, right now no other DT8 colour lighting functions like XY coordinate, RGBWAF, ... � Long-frames + extended memory service support (shorter download times, e.g. with USB/S 1.2, IPS/S 3.1.1 and IPR/S 3.x.1) � ABB i-bus� tool for diagnostics and commissioning with more functions � DALI protocol controller can be updated via application download � Application for ETS5 only � Set colour temperature (Object 1 byte in % or 2 byte colour temp.) � Relative dimming (4 bit) of colour temperature � Additional template page for colour temperature February 28, 2020 Slide 21 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" System overview The DALI Gateways DG/S x.64.5.1 are used to control DALI equipment (only slaves) to EN 62386 with � Device type 0: DALI interfaces (Part 201) � Ballasts, transformers, LED drivers, ... � Device type 1: DALI self-contained emergency converter with individual batteries (Part 202), e.g. � ABB Kaufel route escape signs "Ovano" � ABB Kaufel LED downlights "Serenga" � Device type 8: DALI Color-controlled luminaires (Part 209) � LED drivers for tunable white (Colour temperature TC) Note: The DALI Gateway is a DALI single master with integrated DALI power supply and up to 64 DALI devices (slaves) can be connected per output. Other DALI masters, DALI power supplies or functional devices must not be connected to the DALI output. February 28, 2020 Slide 22 Device type 0 Device type 1 DG/S x.64.5.1 Device type 8 (tunable white) -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Certified DALI-2 Products ABB DALI Gateways DG/S x.64.1.1 have successfully completed the DALI-2 certification process and are certified https://www.digitalilluminationinterface.org/ Products Product Database Brand Name ABB ABB ABB ABB Product Name DALI Parts DG/S 1.64.5.1 DALI Gateway, Premium 1-fold DG/S 2.64.5.1 DALI Gateway, Premium 2-fold DG/S 1.64.1.1 DALI Gateway, Basic 1-fold DG/S 2.64.1.1 DALI Gateway, Basic 2-fold 101, 103 101, 103 101, 103 101, 103 Initial registration Feb 20, 2020 Feb 20, 2020 Sep 4, 2019 Sep 4, 2019 DALI 2 Certified Yes Yes Yes Yes February 28, 2020 Slide 23 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Certified DALI-2 Products ABB DALI Gateways DG/S x.64.1.1 have successfully completed the DALI-2 certification process and are certified https://www.digitalilluminationinterface.org/ Products Product Database Brand Name ABB ABB ABB ABB Product Name DALI Parts DG/S 1.64.5.1 DALI Gateway, Premium 1-fold DG/S 2.64.5.1 DALI Gateway, Premium 2-fold DG/S 1.64.1.1 DALI Gateway, Basic 1-fold DG/S 2.64.1.1 DALI Gateway, Basic 2-fold 101, 103 101, 103 101, 103 101, 103 Initial registration Feb 20, 2020 Feb 20, 2020 Sep 4, 2019 Sep 4, 2019 DALI 2 Certified Yes Yes Yes Yes February 28, 2020 Slide 24 Product properties of DG/S 1.64.5.1 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Connection Diagram 1. Label Carriers 2. Programming LED 3. Programming Button 4. Bus Connection Terminal 5. Cover Cap 6. Operating voltage (100-240V AC 50/60Hz, 110-240V DC) 7. DALI Output 8. Operation LED (green) 9. Manual operation channel A/B 10. Manual Operation LED (yellow) 11. DALI ballasts February 28, 2020 Slide 25 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" DALI - DALI-2 Changes from DALI to DALI-2? � Extension for control devices � New commands/features � Higher quality standards, increased testing procedures and thus higher compatibility � Backwards compatibility � More detailed specification, less risk for misinterpretations � Restructuring of specification, dedicated system description Please note: DALI-2 certification does not mean that all DALI-2 features are supported with DG/S x.64.5.1, e.g. no Multi Master The new KNX DALI Gateways are the only ones on the market with DALI-2 certification Fix errors & gaps New features Controls (standardized) Mandatory certification February 28, 2020 Slide 26 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Application -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS General Application like DG/S x.64.1.1 with mainly additional parameters for the new (colour) functions � Output A or B Colour functions � Dim2Warm � HCL � Group Colour temperature TC � Ballast Colour Temperature TC February 28, 2020 Slide 28 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Dim2Warm Parameter block Output A or B Colour functions � Colour function Dim2Warm � Limit proportional range in % � Limit Colour temperature range in K February 28, 2020 Slide 29 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Dim2Warm The proportional range describes the range in which is a linear relationship between the colour temperature and the brightness The brightness range can be reduced with a lower and upper brightness limit The colour temperature range can be adjusted by setting a minimum and maximum colour temperature for Dim2Warm The proportional range is always within the parameterized limits If a group or ballast is activated with active Dim2Warm function and brightness value outside the limits, the colour temperature remains at the value of the exceeded limits, either min. colour temperature or maximum colour temperature with Dim2Warm Thus it is possible not to undershoot or overshoot certain colour temperature levels February 28, 2020 Slide 30 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Human Centric Lighting (HCL): Example: classroom A classroom is equipped with tunable white lights, which are partly controlled by an automatic sequence and partly via a control element/panel The automatic sequence is parameterized in the DALI gateway (rising and falling ramp plus transition times) The teacher can set a focus light with a short-term alertnesspromoting effect for concentration tasks and a relaxation light during relaxation phases � Energy light in the morning or focus light for class examinations: High illuminance, 6500 K � Automatic light for normal activities: Normal illuminance and HCL active � Relaxation light for relaxation phases and for storytelling: Normal illuminance, 2700 K Source: Internet February 28, 2020 Slide 31 Source: Internet -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Human Centric Lighting (HCL) Parameter block Output A or B Colour functions Colour function Human Centric Lighting (HCL) � Colour temperature source 16 bit or 1 bit � 16 bit (e.g. from visualization or logic), which calculates and provides cyclically colour temperature values � Individual and different curves are possible � 1 bit, dynamic start of a simplified curve with rising and falling ramp plus transition times � Start of rising and falling ramp depending on time (sunrise and sunset time plus offset), e.g. with time switch FW/S 8.2.1, TR/A 1.1 and DCF- or GPS time � Transition times, initial and final colour temperature adjustable e.g. BMS, visualisation, ... HCL controller R1: on/off/dim brightness R2: Dim colour temperature R3: Set colour temperature R4: Activate automatic HCL 16 bit group object "Colour temperature" February 28, 2020 Slide 32 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Human Centric Lighting (HCL) Parameter block Output A or B Colour functions TC Final colour temperature Colour function Human Centric Lighting (HCL) � Colour temperature source 16 bit or 1 bit � 16 bit (e.g. from visualization or logic), which calculates and Initial colour temperature Transition time provides cyclically colour temperature values � Individual and different curves are possible Starting time (rising ramp) Starting time t (falling ramp) 1 bit group object Ramp curve � 1 bit, dynamic start of a simplified curve with rising and falling ramp plus transition times � Start of rising and falling ramp depending on time (sunrise and sunset time plus offset), e.g. with time switch FW/S 8.2.1, TR/A 1.1 and DCF- or GPS time � Transition times, initial and final colour temperature adjustable February 28, 2020 Slide 33 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Tunable White Parameters Further parameter per ballast or DALI group for the colour functions � Minimum/Maximum colour temperature � Note: Possible range depending on ballast and lamp � Group object format to set colour temperature (8 bit in % or 16 bit as absolute colour temperature value) � 1 bit preset for two individual colour temperatures � Type of colour function (Dim2Warm or Human Centric Lighting HCL) February 28, 2020 Slide 34 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Example: Assignment of Group Addresses DALI Gateway Premium DG/S x.64.5.16 Output A ... Set Colour Temperature (2 bytes) ... HCL Colour Temperature (2 bytes) ... KNX Scenes 1...64 (1 byte) ... KNX Scene 1 (1 bit) ... KNX Scene 2 (1 bit) ... KNX Scene x (1 bit) Output A � group/ballast X ... Switch (1 bit) ... Relative dimming (4 bit) ... Status Switch (1 bit) ... Brightness value (1 byte) ... Status Brightness value (1 byte) ... Set Colour temperature (2 byte) ... Dim Colour temperature (4 bit) ... Status Colour temperature (2 bytes) Data type of group object "Set Colour temperature" and "Status Colour temperature": 2 byte unsigned value "7.600 absolute colour temperature" ... ... S1.1 Switching (1 bit) ... S1.1 Relative dimming (4 bit) ... LED 1.1 Status (1 bit) ... LED 1.2 Status (1 bit) ... S2.1 Value Switching (1 byte) ... S3.1 Value Switching (2 byte) ... S4.1 Switching (1 bit) ... S4.1 Relative dimming (4 bit) 6127/01-500 Control element solo� stand. February 28, 2020 Slide 35 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Standby Shutdown Standby shutdown means, when every ballast is in standby mode, the ballast voltage can be switched off with a group object. This group object must be connected to an output of a switch actuator 1. Enable DALI standby shutdown in the ETS 2. Set time of delay till shutdown (e.g. 5 min to avoid standby shutdown in case of short term standby situation) 3. Optional: Enable group object `Enable DALI standby shutdown` 4. Set time (1 ...10s) of delay after restart (needed for restart of ballasts, ballast restart time less than 1s according to DALI standard) 5. Connect the `DALI Standby shutdown' group object to a switching actuator output February 28, 2020 Slide 36 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Standby Shutdown � Some lights are turned on, all ballasts with main supply � All lights are off, after an adjustable delay time switch off telegram from DG/S is sent � Linked switch actuator(s) deenergize all connected ballasts � Local push button pressed to turn on one light � After adjustable delay time (needed for restart of ballasts) all ballasts are ready to work and command is carried out � Further actions to turn on lights are without delay Note: � Ballasts should support individual DALI power-on level (last value before failure), to be adjusted in the ETS Application under "Fault" � In case of power off via Standby Shutdown message `Ballast Fault' is suppressed � DALI emergency converter are not be integrated in Standby Shutdown February 28, 2020 Slide 37 Emergency converter DALI Switch on/off 100 ... 240 V Ballast -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Scenes � 16 scenes, can be assigned to 64 possible scene numbers used in KNX for 8 bit scenes � For each member of the scene (DALI group or ballast) brightness level can be adjusted � For tunable white ballasts also colour temperature parametrizable � Now scenes are possible both with brightness and colour temperature � Recall of each scene with 1 bit object available � Better overview for selecting scene members, only enabled groups or ballasts are visible and can be chosen February 28, 2020 Slide 38 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ETS Template Colour Temperature � Further template to adjust colour temperature parameter, to be assigned to DALI groups or individual ballasts � Templates available per channel � For each group or ballast individual parameters instead of templates also available February 28, 2020 Slide 39 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Example: Hardware for Tunable White with DALI and KNX 24 V DC V+ WW 230 V CW DALI DALI KNX Gateways: - DG/S x.64.5.1 Device Type 8, one DALI address February 28, 2020 Slide 40 Source: Internet -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Example: Hardware for RGBW with DALI and KNX (group or individual controlled) 230 V 24 V DC DALI DALI KNX Gateways: - DG/S x.64.1.1 - DG/S x.64.5.1 - DLR/S - LR/A V+ CH1 (red) CH2 (green) CH3 (blue) CH4 (white) Device Type 0, four DALI addresses February 28, 2020 Slide 41 W LED RGB LED Source: Internet -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ABB i-bus� tool ABB i-bus� tool � menu "DALI" � Integration of colour functions new � Shows a detected and in ETS enabled colour ballast new � Broadcast on/off new � Indicates whether there are unaddressed DALI devices new � Acknowledgment of fault notifications new � Conflict in device type new � Standby Shutdown active yes/no new � Search ballasts new February 28, 2020 Slide 42 Displayed if colour ballast detected in runtime Displayed if colour ballast enabled in ETS -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ABB i-bus� tool ABB i-bus� tool � Search Menu � Search menu for a ballast with unknown address new � Current situation: to identify address of a ballast worst case up to 64 address buttons in i-bus tool have to be pushed � Search Menu reduces it to a few clicks February 28, 2020 Slide 43 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" ABB i-bus� tool ABB i-bus� tool � menu "Detail" � Read/write operating hours new � Status actual colour temperature Tc new � Adjustment of colour temperature Tc new � Status information new � Selected colour function (Dim2 Warm, HCL) new � Colour function active/inactive new � Supported colour type of selected ballast/group new (right now colour temperature Tc) � Colour temperature range of connected ballast new February 28, 2020 Slide 44 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Commercial and Marketing Aspects -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Range Order Code and List Price (ABB Version) KNX DALI Gateway Premium Order Code DG/S 1.64.5.1 DG/S 2.64.5.1 2CDG110273R0011 2CDG110274R0011 List Price (excl. VAT) 515 585 Order Code and List Price (Busch-Jaeger Version) KNX DALI Gateway Premium DG/S 1.64.5.11 Order Code 2CDG110273R0021 List Price (excl. VAT) 515 DG/S 2.64.5.11 2CDG110274R0021 585 Availability March (week 11/2020) February 28, 2020 Slide 46 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Homepage www.abb.com/KNX Products and Downloads Lighting Control Search Options DG/S � Product Manual � CAD Drawing � Installation and Operating Instructions � Specification Text � ETS Application � Selection Table � CE & RoHS Declaration of Conformity � ��� February 28, 2020 Slide 47 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Range Overview Smarter Solutions for Home and Building Automation ABB i-bus KNX Product Range Overview 2019/2020 � Including KNX DALI Gateway Premium DG/S x.64.5.1 LINK February 28, 2020 Slide 48 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Summary of the Features and Advantages � Components based on the successful and well known DALI Gateways DG/S x.64.1.1 proven devices with powerful and now more features � Choice between one channel (64 ballasts) and two channels (2 x 64 ballasts) the right device situation depending, very cost efficient � ABB i-bus� tool for DALI adjustments, testing and monitoring unique solution, makes life easier for integrator and user � Solutions like � Flexible combination of DALI groups, single control or KNX groups � 230V secured DALI Outputs � Integration of Emergency Lighting � Templates real benefits for customers in projects February 28, 2020 Slide 49 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Summary of the Features and Advantages Main new features: � Tunable white � Human Centric Lighting � Dim2Warm � Standby Shutdown � Operating hours (via ABB i-bus� tool) � Light scenes with individual brightness and colour temperature level Valuable functions, required in projects, allowing to implement more sophisticated lighting solutions February 28, 2020 Slide 50 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" 3,000 Kelvin (warm white) February 28, 2020 Slide 51 6,500 Kelvin (cold white) -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Training & Qualification Database this database you can find the complete online training portfolio for ABB Home and Building Automation The database includes the following types of training content: � Application Manuals � E-Learnings � Presentations � Video tutorials � Webinar slides and videos www.abb.com/knx or https://go.abb/ba-training Training and Qualification Training Database February 28, 2020 Slide 52 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Training & Qualification Calendar In addition to the online modules and the traditional training programs offered by your local ABB sales team, we offer a variety of on-site trainings conducted by our specialists at different ABB training facilities In this Training & Qualification Calendar you can find the educational events that are taking place during 2020 If you are interested in a training please click the training und you will be forwarded to register in "ABB MyLearning" www.abb.com/knx or https://go.abb/ba-training Training and Qualification Training Calendar February 28, 2020 Slide 53 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" KNX Certified Trainings 2020 Certified KNX Courses in Heidelberg � Advanced Course: 13th to 17th Jul. � Tutor Course: 19th to 23rd Oct. � Basic Course : 16th to 20th Nov. � Followed by two day application training And many more training courses in the calendar "International Training Dates 2020" www.abb.com/knx or https://go.abb/ba-training Certified KNX Basic Course February 2020 in Heidelberg February 28, 2020 Slide 54 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Postponed: Light + Building will take place in Sept. 2020 The world's leading trade fair for lighting and building services technology � Due to the increased spread of the corona virus in Europe, Messe Frankfurt decided to postpone Light + Building after intensive consultations � The world's leading trade fair for lighting and building technology will take place in Frankfurt am Main between mid and end of September 2020 February 28, 2020 Slide 55 -- Webinar "KNX DALI Gateway Premium DG/S x.64.5.1" Next Webinar The topic will be announced ... Wednesday 25th March 2020 � Morning 09:00 am Europe Time (Berlin, UTC + 1h) � Afternoon 03:00 pm Europe Time (Berlin, UTC + 1h) February 28, 2020 Slide 56 -- Disclaimer The information in this document is subject to change without notice and should not be construed as a commitment by ABB. ABB assumes no responsibility for any errors that may appear in this document. In no event shall ABB be liable for direct, indirect, special, incidental or consequential damages of any nature or kind arising from the use of this document, nor shall ABB be liable for incidental or consequential damages arising from use of any software or hardware described in this document. � Copyright [2020] ABB. All rights reserved. February 28, 2020 Slide 57
