Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) SMS Configuration, Events, Debug

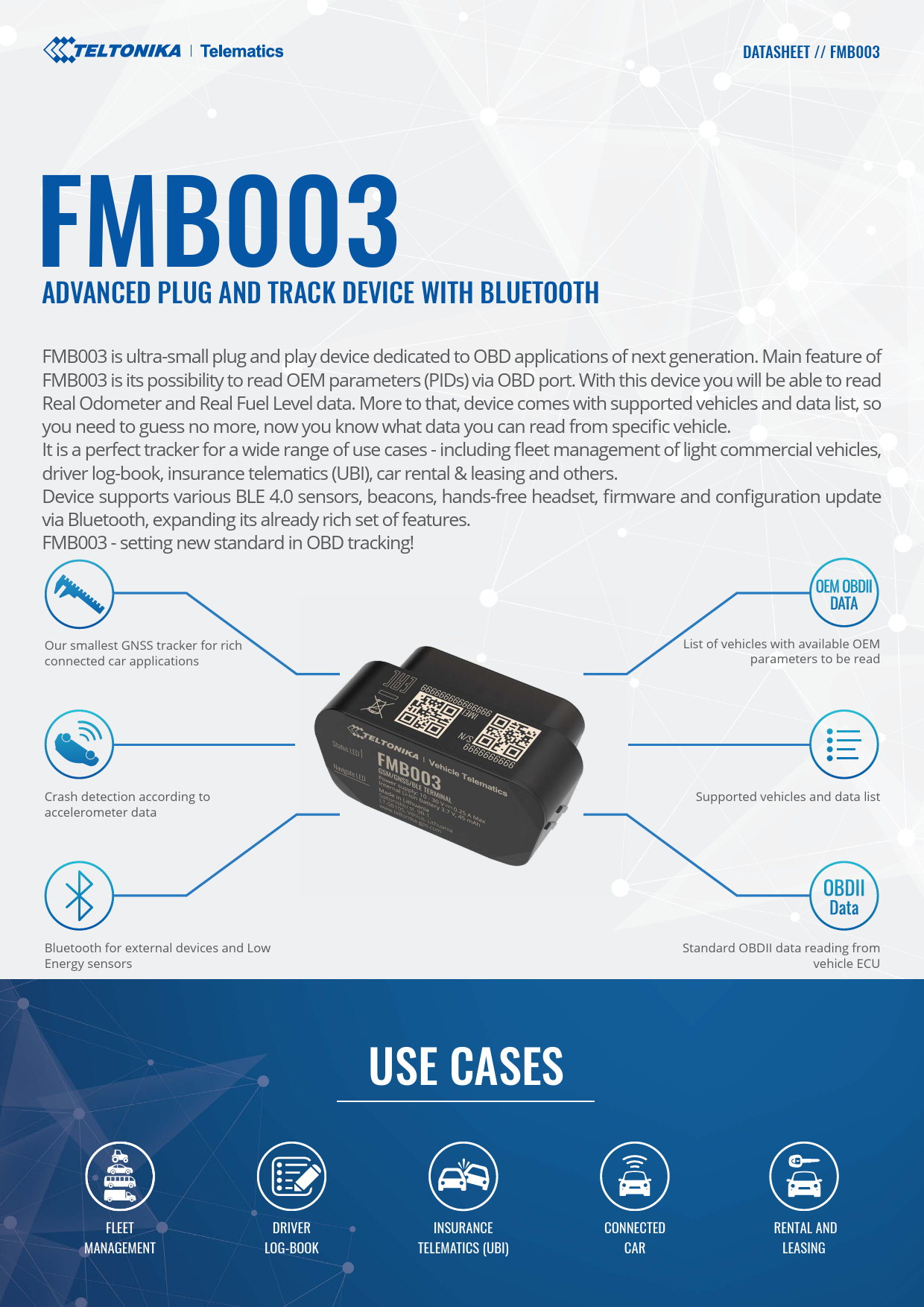

DATASHEET // FMB003 FMB003 ADVANCED PLUG AND TRACK DEVICE WITH BLUETOOTH FMB003 is ultra-small plug and play device dedicated to OBD applications of next generation. Main feature of FMB003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that, device comes with supported vehicles and data list, so you need to guess no more, now you know what data you can read from specific vehicle. It is a perfect tracker for a wide range of use cases - including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others. Device supports various BLE 4.0 sensors, beacons, hands-free headset, firmware and configuration update via Bluetooth, expanding its already rich set of features. FMB003 - setting new standard in OBD tracking! Our smallest GNSS tracker for rich connected car applications List of vehicles with available OEM parameters to be read Crash detection according to accelerometer data Supported vehicles and data list Bluetooth for external devices and Low Energy sensors USE CASES Standard OBDII data reading from vehicle ECU FLEET MANAGEMENT DRIVER LOG-BOOK INSURANCE TELEMATICS (UBI) CONNECTED CAR RENTAL AND LEASING DATASHEET // FMB003 Module Name Technology GNSS GNSS Receiver Tracking sensitivity Position accuracy Velocity accuracy Hot start Warm start Cold start Cellular Technology 2G bands Data transfer Data support Power Input voltage range Back-up battery Bluetooth Specification Supported peripherals Physical specification Dimensions Interface Connection GNSS antenna GSM antenna USB LED indication SIM Teltonika TM2500 GSM/GPRS/GNSS/BLUETOOTH GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS 33 channel -165 dBM < 2.5 CEP < 0.1m/s (within +/- 15% error) < 1 s < 25 s < 35 s GSM Quad-band 850/900/1800/1900 MHz GPRS Multi-Slot Class 12(up to 240 kbps) SMS (text/data) 12 30 V DC with overvoltage protection 3.7 V 45 mAh 4.0 + LE Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support 52.6 x 29.1 x 26 mm (L x W x H) OBDII Socket Internal High Gain Internal High Gain 2.0 Micro-USB 2 status LED lights Nano-SIM DATASHEET // FMB003 OBD Interface Data Data reading HS CAN, MS CAN, SW CAN, K-line OEM Fuel level, odometer and up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 14229 (UDS) J2819 (VW TP2.0) Operating environment Operating temperature (without battery) Storage temperature (without battery) Operating humidity Ingress Protection Rating Battery charge temperature Battery discharge temperature Battery storage temperature -40 °C to +85 °C -40 °C to +85 °C 5% to 95% non-condensing IP41 +10 °C to +45 °C -20 °C to +60 °C -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months Features Sensors Scenarios Sleep modes Configuration and firmware update SMS GPRS commands Time Synchronization Fuel monitoring Ignition detection Accelerometer Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) Configuration, Events, Debug Configuration, Debug GPS, NITZ, NTP OBDII, OEM fuel level Accelerometer, External Power Voltage, Engine RPM Copyright © 2020, Teltonika Telematics. Specifications and information given in this document are subject to change by Teltonika Telematics without prior notice.Adobe PDF Library 15.0 Adobe InDesign 15.1 (Windows)
