Advantages of TOSIBOX�
Simple Build and manage secure OT infrastructure in minutes
Secure Tested & audited security
Modular Unlimited expandability and flexibility
Timeless Deals with legacy and future systems
Unique Globally patented point-to-point connection

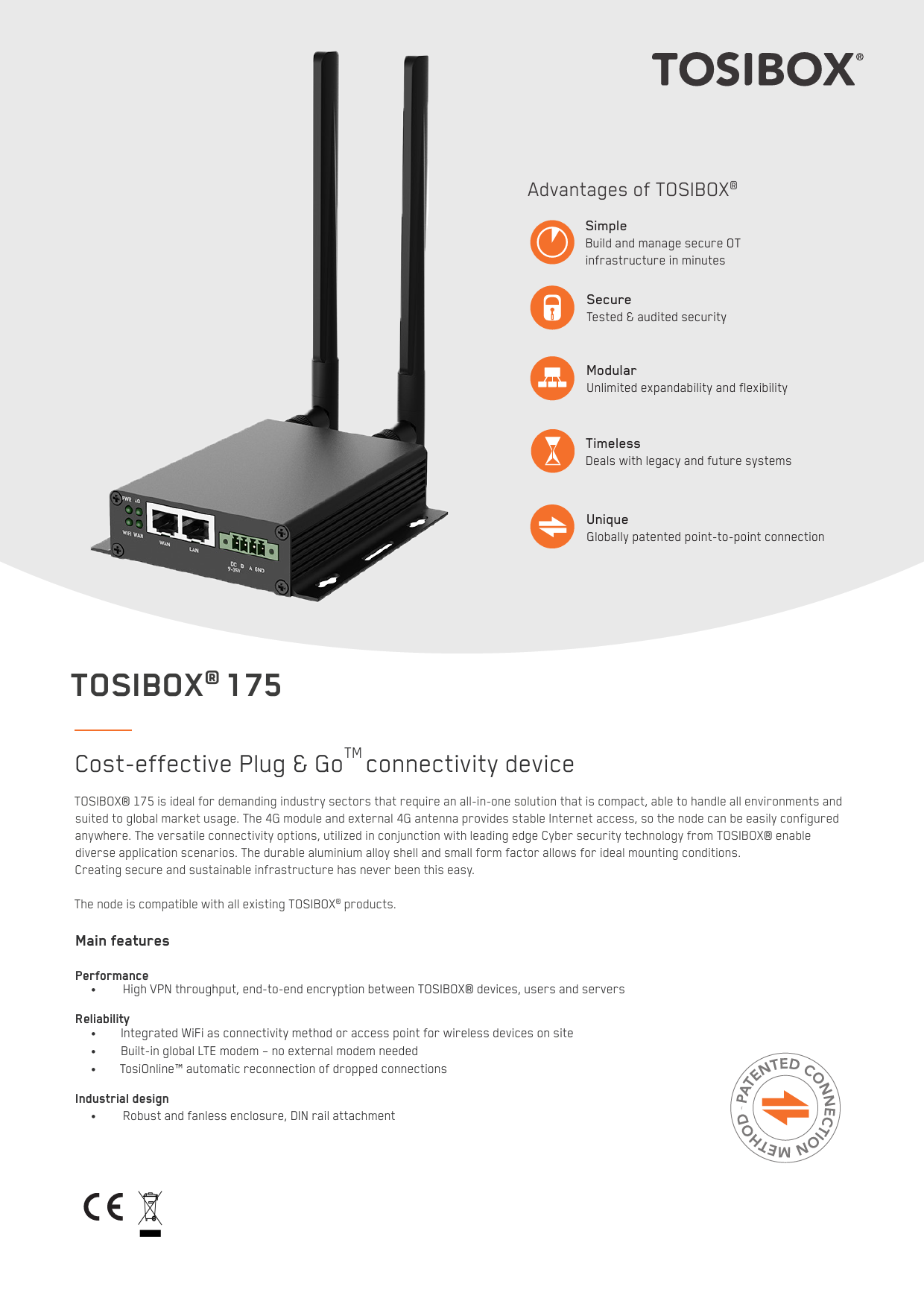

TOSIBOX� 175
Cost-effective Plug & GoTM connectivity device
TOSIBOX� 175 is ideal for demanding industry sectors that require an all-in-one solution that is compact, able to handle all environments and suited to global market usage. The 4G module and external 4G antenna provides stable Internet access, so the node can be easily configured anywhere. The versatile connectivity options, utilized in conjunction with leading edge Cyber security technology from TOSIBOX� enable diverse application scenarios. The durable aluminium alloy shell and small form factor allows for ideal mounting conditions. Creating secure and sustainable infrastructure has never been this easy. The node is compatible with all existing TOSIBOX� products.
Main features
Performance � High VPN throughput, end-to-end encryption between TOSIBOX� devices, users and servers
Reliability � Integrated WiFi as connectivity method or access point for wireless devices on site � Built-in global LTE modem � no external modem needed � TosiOnlineTM automatic reconnection of dropped connections
Industrial design � Robust and fanless enclosure, DIN rail attachment

TOSIBOX� 175 Technical Data

Product code TBL175 Ports � 1 x RJ-45 WAN connection, 10/100 Mb/s, auto-negotiation
(MDI / MDI-X) � 1 x RJ-45 LAN connection, 10/100 Mb/s, auto-negotiation
(MDI / MDI-X) � LAN can be assigned as Service connection, 10/100 Mb/s,
auto-negotiation (MDI / MDI-X)
Connections � 9-35V DC � 1 x WiFi antenna connector, RP-SMA Male � 1 x LTE antenna connector, SMA Female � DIN rail attachment (back) � Maximum power consumption 10W
Connection features � Independent of operating systems � Works in all Internet connections (operator independent) � Firewall friendly � Works with dynamic, static and private IP addresses � Built-in firewall, NAT � Up to 10 concurrent VPN connections � VPN throughput up to 10 Mbit/s � TosiOnlineTM Automatic network recovery that recovers from most mobile operator and modem problems

Included accessories � RJ-45 Cat5e Ethernet cable � 1 x LTE antenna � 1 x WiFi antenna � DIN rail mount � Power connector plug
� AC adapter - Input 100 � 240 V AC, frequency 50/60Hz 0,3A, Output 12.0 V, 1.0 A, max 12.0 W. EU, UK, AU and US power socket
Physical properties � 104 mm x 28 mm x 110 mm / 4.09" x 1.10" x 4.33" (L x W x H) � Storage temperature -30 �C ... +70 �C / -22 �F ... +158 �F � Protection class IP30 � Weight 305 g / 0.67 lbs (net weight article) � Operating temperature -20 �C ... +55 �C / -4 �F ... +131 �F

4G Module � Region: GLOBAL � LTE Cat-4 � Up to 150 Mbps DL, 50 Mbps UL

Frequency Bands � LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/
B28 � LTE TDD: B38/B39/B40/B41 � WCDMA: B1/B2/B4/B5/B6/B8/B19

LTE module is technically capable and certified for following standards and operators: � CE, FCC � PTCRB, RCM, GCF, ICASA, TELEC, JATE, KC, IFETEL, ANATEL, VERIZON
(America), AT&T (America), TELUS (Canada)
WLAN � IEEE 802.11 b/g/n, max. 150 Mbps � WEP, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK Mixed, TKIP/AES encryption � Output power 20 dBm max

TosibFsoailxneslOa@nytodsibox.com
sales@tosibox.com support@tosibox.com
support@tosibox.com Sales, inStaelrensa,tFioinnalal,ntdel.T+e3l.5+8345487404970029000100
www.toSsiabloexs.c, oInmternational Tel. +358 447090200
www.tosibox.com

Plug & GoTM Connectivity
Purpose built OT
10/2015
Copyright � 2021 Tosibox. All rights reserved. EN/v1.0
