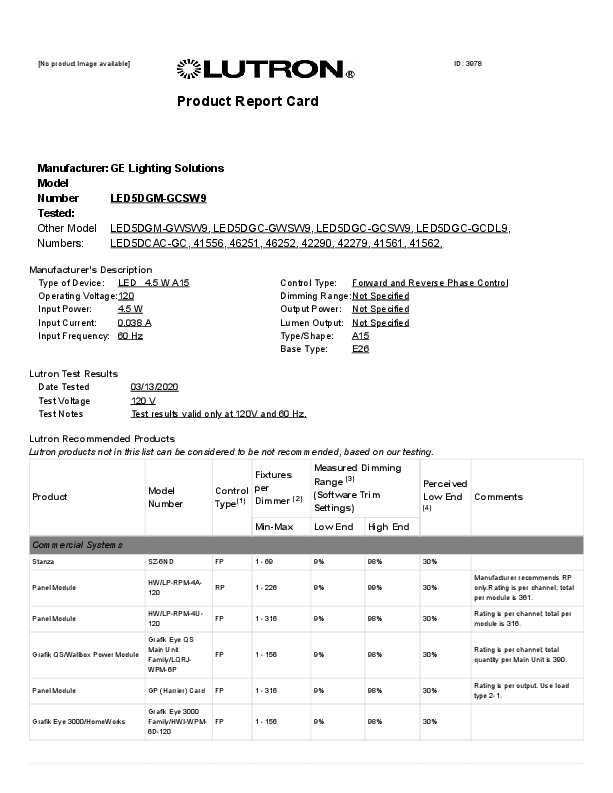

Product Report Card
ID: 3978
Manufacturer Information
Manufacturer: GE Lighting Solutions
Model Number: LED5DGM-GCSW9
Other Model Numbers: LED5DGM-GWSW9, LED5DGC-GWSW9, LED5DGC-GCSW9, LED5DGC-GCDL9, LED5DCAC-GC, 41556, 46251, 46252, 42290, 42279, 41561, 41562
Manufacturer's Description
Type of Device: LED 4.5 W A15
Operating Voltage: 120 V
Input Power: 4.5 W
Input Current: 0.038 A
Input Frequency: 60 Hz
Control Type: Forward and Reverse Phase Control
Dimming Range: Not Specified
Output Power: Not Specified
Lumen Output: Not Specified
Type/Shape: A15
Base Type: E26
Lutron Test Results
Date Tested: 03/13/2020
Test Voltage: 120 V
Test Notes: Test results valid only at 120V and 60 Hz.
Lutron Recommended Products
Lutron products not in this list can be considered to be not recommended, based on our testing.
| Product | Model Number | Control Type(1) | Fixtures per Dimmer(2) (Min-Max) | Measured Dimming Range(3) (Software Trim Settings) | Perceived Low End(4) | Comments | |
|---|---|---|---|---|---|---|---|
| Low End | High End | ||||||
| Stanza | SZ-6ND | FP | 1 - 69 | 9% | 98% | 30% | |
| Panel Module | HW/LP-RPM-4A-120 | RP | 1 - 226 | 9% | 99% | 30% | Manufacturer recommends RP only. Rating is per channel; total per module is 361. |
| Panel Module | HW/LP-RPM-4U-120 | FP | 1 - 316 | 9% | 98% | 30% | Rating is per channel; total per module is 316. |
| Grafik QS/Wallbox Power Module | Grafik Eye QS Main Unit Family/LQRJ-WPM-6P | FP | 1 - 156 | 9% | 98% | 30% | Rating is per channel; total quantity per Main Unit is 390. |
| Panel Module | GP (Harrier) Card | FP | 1 - 316 | 9% | 98% | 30% | Rating is per output. Use load type 2-1. |
| Grafik Eye 3000/HomeWorks | Grafik Eye 3000 Family/HWI-WPM-6D-120 | FP | 1 - 156 | 9% | 98% | 30% | |
| HomeWorksQS/myRoom | LQSE-4A1-D/MQSE-4A1-D/MQSE-3A1/MQSE-2A1-D, 120V, RP | RP | 1 - 23 | 9% | 99% | 30% | Rating is per output; total quantity per Main Unit is 92. |
| Grafik T | Phase Selectable GT-5NEM/GTJ-5NEM | RP | 1 - 55 | 9% | 99% | 30% | |
| Vive | MRF2S-6ND | FP | 1 - 33 | 9% | 98% | 30% | |
| Vive | MRF2S-6ELV | RP | 1 - 33 | 9% | 99% | 30% | |
| Vive | MRF2S-6CL | FP | 1 - 33 | 9% | 97% | 30% | |
| Energi Savr Node (LED+ Phase Adaptive) | QSN-4A5-S-FP (Zone 1) | FP | 1 - 88 | 9% | 98% | 30% | |
| Energi Savr Node (LED+ Phase Adaptive) | QSN-4A5-S-RP (Zone 1) | RP | 1 - 149 | 9% | 99% | 30% | |
| Energi Savr Node (LED+ Phase Adaptive) | QSN-4A5-S-FP (Zones 2-4) | FP | 1 - 44 | 9% | 98% | 30% | |
| Energi Savr Node (LED+ Phase Adaptive) | QSN-4A5-S-RP (Zones 2-4) | RP | 1 - 111 | 9% | 99% | 30% | |
| Power Modules | PHPM-PAwith Grafik Eye QS Main Unit | RP | 1 - 362 | 9% | 99% | 30% | Manufacturer recommends RP only. |
| Power Modules | PHPM-WBXwith 3-wire fluorescent control | RP | 1 - 362 | 9% | 99% | 30% | |
| RadioRA 2 | RRD-10ND | FP | 1 - 33 | 9% | 98% | 30% | |
| HomeWorks QS | HQRD-6ND | FP | 1 - 33 | 9% | 98% | 30% | |
| HomeWorks QS | HQRD-10ND | FP | 1 - 33 | 9% | 98% | 30% | |
| RadioRA 2 | RRD-6NA | RP | 1 - 33 | 9% | 99% | 30% | Manufacturer recommends RP only. |
| HomeWorks QS | HQRD-6NA | RP | 1 - 33 | 9% | 99% | 30% | |
| HomeWorks | HxD-6ND | FP | 1 - 69 | 9% | 98% | 30% | Performance verified with up to 5 fixtures. |
| RadioRA 2 | RRD-3LD | FP | 1 - 22 | 10% | 94% | 31% | Performance verified with up to 5 fixtures. |
| HomeWorks QS | HQR-3LD | FP | 1 - 22 | 10% | 94% | 31% | Performance verified with up to 5 fixtures. |
| RadioRA 2 | RRD-3PD | FP | 1 - 22 | 10% | 94% | 31% | Performance verified with up to 5 fixtures. |
| HomeWorks QS | HQR-3PD | FP | 1 - 22 | 10% | 94% | 31% | Performance verified with up to 5 fixtures. |
| Panel Module | HW/LP-RPM-4A-120 | RP | 1 - 226 | 9% | 99% | 30% | Manufacturer recommends RP only. Rating is per channel; total per module is 361. |
| Panel Module | HW/LP-RPM-4U-120 | FP | 1 - 316 | 9% | 98% | 30% | Rating is per channel; total per module is 316. |
| Grafik Eye QS/Wallbox Power Module | Grafik Eye QS Main Unit Family/LQRJ-WPM-6P | FP | 1 - 156 | 9% | 98% | 30% | Rating is per channel; total quantity per Main Unit is 390. |
| Panel Module | GP (Harrier) Card | FP | 1 - 316 | 9% | 98% | 30% | Rating is per output. Use load type 2-1. |
| Grafik Eye 3000/HomeWorks | Grafik Eye 3000 Family/HWI-WPM-6D-120 | FP | 1 - 156 | 9% | 98% | 30% | |
| RadioRA 2 | RRD-6CL (R3) | FP | 1 - 33 | 9% | 97% | 30% | |
| HomeWorks QS | HQRD-6CL (H2)/HQRA-6CL (H2) | FP | 1 - 33 | 9% | 97% | 30% | |
| RadioRA 2 | Hybrid Keypad C.L RRD-HN6BRL | FP | 1 - 22 | 9% | 98% | 30% | Installation with a neutral wire is required. |
| HomeWorks QS | Hybrid Keypad C.L HQRD-HN6BRL | FP | 1 - 22 | 9% | 98% | 30% | Installation with a neutral wire is required. |
| RadioRA 2 | RRT-G25LW (R3) without neutral | FP | 1 - 55 | 9% | 98% | 30% | 2 lamp minimum required without neutral. |
| HomeWorks QS | HQRT-G25LW (H2) without neutral | FP | 1 - 55 | 9% | 98% | 30% | 2 lamp minimum required without neutral. |
| HomeWorksQS/myRoom | LQSE-4A1-D/MQSE-4A1-D/MQSE-3A1/MQSE-2A1-D, 120V, RP | RP | 1 - 23 | 9% | 99% | 30% | Rating is per output; total quantity per Main Unit is 92. |
| Grafik T | Phase Selectable GT-5NEM/GTJ-5NEM | RP | 1 - 55 | 9% | 99% | 30% | |
| Homeworks QS | LQSE-4A-120-D, RP | RP | 1 - 36 | 9% | 99% | 30% | |
| HomeWorks | LQSE-4A5-120-D- FP (Zone 1) | FP | 1 - 88 | 9% | 98% | 30% | |
| HomeWorks | LQSE-4A5-120-D- RP (Zone 1) | RP | 1 - 149 | 9% | 99% | 30% | |
| HomeWorks | LQSE-4A5-120-D- FP (Zones 2-4) | FP | 1 - 44 | 9% | 98% | 30% | |
| HomeWorks | LQSE-4A5-120-D- RP (Zones 2-4) | RP | 1 - 111 | 9% | 99% | 30% | |
| Diva/Skylark/Skylark Contour/Ariadni/Toggler/ Lumea Maestro | CL wall-mount dimmers (T8, T9) | FP | 1 - 33 | 10% | 96% | 32% | |
| Maestro | MACL-153M (TX) | FP | 1 - 33 | 9% | 96% | 30% | |
| Credenza | TTCL-100 | FP | 1 - 22 | 10% | 94% | 32% | Performance verified with up to 5 fixtures. |
| Maestro Wireless | MRF2-3LD | FP | 1 - 22 | 10% | 94% | 31% | Performance verified with up to 5 fixtures. |
| Maestro Wireless | MRF2-3PD | FP | 1 - 22 | 10% | 94% | 31% | Performance verified with up to 5 fixtures. |
| Maestro Sensor | MSCL-OP153M (T2)/MSCL-VP153M (T2) | FP | 1 - 33 | 9% | 96% | 30% | Performance verified with up to 4 fixtures. |
| Caseta Wireless | PD-3PCL (SD12) | FP | 1 - 22 | 9% | 92% | 30% | |
| Diva/Ariadni C250W | 250W CL dimmers (T5,T8) | FP | 1 - 55 | 10% | 96% | 32% | Gen 2 |
| Nova T* 250W | NTCL-250 (T8) | FP | 1 - 55 | 10% | 96% | 32% | |
| Grafik T | GT-150 (T6) without neutral | FP | 1 - 33 | 9% | 98% | 30% | 2 lamp minimum required without neutral. |
| Grafik T | GTJ-150 (M6) without neutral | FP | 1 - 33 | 9% | 98% | 30% | 2 lamp minimum required without neutral. |
| Grafik T | GTJ-250M (M6)/GT-250M (T7) without neutral | FP | 1 - 55 | 9% | 98% | 30% | 2 lamp minimum required without neutral. |
| Grafik T | Phase Selectable GT-5NEM/GTJ-5NEM | RP | 1 - 55 | 9% | 99% | 30% | |
| Diva/Skylark ContourReverse Phase LED Preset Dimmers | DVRP-253PCTRP-253P | RP | 1 - 55 | 9% | 91% | 29% | |
| Nova T*Reverse Phase LEDSlide to-off Dimmer | NTRP-250 | RP | 1 - 55 | 9% | 91% | 29% | |
| Skylark Contour Slide to-off | CTCL-150 | FP | 1 - 33 | 10% | 96% | 32% | |
| Caseta WirelessPhase Selectable | PD-5NE | RP | 1 - 55 | 9% | 99% | 30% | |
| Maestro | MACL-LFQ | FP | 1 - 16 | 10% | 96% | 32% | |
| Lumea Slide-to-Off | LECL-150H | FP | 1 - 33 | 10% | 96% | 32% | |
| Caseta Wireless | PD-6WCL (SD12) | FP | 1 - 33 | 9% | 98% | 30% | |
| Caseta Wireless | PD-10NXD (SD12) without neutral | FP | 1 - 55 | 9% | 97% | 30% | |
| Maestro C•L Pro | MA-PRO without neutral | FP | 1 - 55 | 9% | 98% | 30% | Maestro LED+ RF Dimmer |
| Maestro C•L Pro | MA-PRO without neutral (default) | RP | 1 - 55 | 9% | 99% | 30% | Maestro LED+ RF Dimmer |
| Maestro C•L Pro | MA-PRO with neutral | FP | 1 - 55 | 9% | 98% | 30% | Maestro LED+ RF Dimmer |
| Maestro C•L Pro | MA-PRO with neutral | RP | 1 - 55 | 9% | 99% | 30% | Maestro LED+ RF Dimmer |
| RadioRA 2 | RRD-PRO without neutral | FP | 1 - 55 | 9% | 98% | 30% | Maestro LED+ RF Dimmer |
| RadioRA 2 | RRD-PRO without neutral (default) | RP | 1 - 55 | 9% | 99% | 30% | Maestro LED+ RF Dimmer |
| RadioRA 2 | RRD-PRO with neutral | FP | 1 - 55 | 9% | 98% | 30% | Maestro LED+ RF Dimmer |
| RadioRA 2 | RRD-PRO with neutral | RP | 1 - 55 | 9% | 99% | 30% | Maestro LED+ RF Dimmer |
| HomeWorks QS | HQRD-PRO without neutral | FP | 1 - 55 | 9% | 98% | 30% | Maestro LED+ RF Dimmer | Designer |
| HomeWorks QS | HQRD-PRO without neutral (default) | RP | 1 - 55 | 9% | 99% | 30% | Maestro LED+ RF Dimmer | Designer |
| HomeWorks QS | HQRD-PRO without neutral (default) | RP | 1 - 55 | 9% | 99% | 30% | Maestro LED+ RF Dimmer | Designer |
| HomeWorks QS | HQRD-PRO with neutral | RP | 1 - 55 | 9% | 99% | 30% | Maestro LED+ RF Dimmer | Designer |
| HomeWorks QS | HQRA-PRO without neutral | FP | 1 - 55 | 9% | 98% | 30% | Maestro LED+ RF Dimmer | Architectural |
| HomeWorks QS | HQRA-PRO with neutral | FP | 1 - 55 | 9% | 98% | 30% | Maestro LED+ RF Dimmer | Architectural |
| HomeWorks QS | HQRA-PRO with neutral | RP | 1 - 55 | 9% | 99% | 30% | Maestro LED+ RF Dimmer | Architectural |
| Sunnata | STCL-153P | FP | 1 - 33 | 9% | 98% | 30% | |
Notes
- Identical model numbers with different compatibility codes may have different performance; (_) means there is no compatibility code assigned; contact technical support for additional information.
- (1) Control types of FP and RP represent Forward Phase and Reverse Phase, respectively. See product literature for details.
- (2) Maximum Fixtures per Dimmer value represents the maximum safe loading of the control.
- (3) Values are based on light output using the specified dimming control, and may not be an indication of the fixture's full rated capability. Values are set to optimize performance, such as reducing dead travel, ensuring that fixtures turn on at low end, reducing turn-on time at low end, and trimming out instability. Software trim values are indicated in parentheses when applicable.
- (4) Perceived light level percentage is the square root of the measured light level percentage, per IESNA Lighting Handbook.
- (5) Interfaces have been tested with the listed control; any compatible dimmer may be used instead, but high end/low end light levels may vary slightly.
Contact & More Information
For any questions on this report, please contact the Lutron LED Center of Excellence at 877-DIM-LED8 or leds@lutron.com.
This information was posted with the consent and cooperation of the device manufacturer. Please be aware that device manufacturers may modify their product at any time, without notice to Lutron, and therefore Lutron cannot ensure future compatibility. For more detailed and up to date fixture specifications, performance and/or any related recall information, visit the manufacturer's website. The latest Lutron test results can always be found at www.lutron.com/LEDtool.
